To ensure the best performance from your camera, please read
the Operating Manual before using the camera.
Model:R07020
PENTAX WG
-
90
Digital Camera
Operating Manual
RICOH IMAGING COMPANY, LTD.
1-3-6, Nakamagome, Ohta-ku, Tokyo 143-8555, JAPAN
(https://www.ricoh-imaging.co.jp)
RICOH IMAGING EUROPE
S.A.S.
Parc Tertiaire SILIC 7-9, avenue Robert Schuman -
B.P. 70102, 94513 Rungis Cedex, FRANCE
(https://www.ricoh-imaging.eu)
RICOH IMAGING
AMERICAS CORPORATION
2 Gatehall Drive Suite 204, Parsippany, New Jersey
07054, U.S.A.
(https://www.us.ricoh-imaging.com)
RICOH IMAGING CANADA
INC.
5560 Explorer Drive Suite 100, Mississauga, Ontario,
L4W 5M3, CANADA
(https://www.ricoh-imaging.ca)
RICOH IMAGING CHINA
CO., LTD.
Room A 23F Lansheng Building, 2-8 Huaihaizhong
Road, Huangpu District, Shanghai, 200021, CHINA
(http://www.ricoh-imaging.com.cn)
https://www.ricoh-imaging.co.jp/english/
This contact information may change without notice.
Please check the latest information on our websites.
• Specifications and external dimensions are subject to change without notice.
Copyright © RICOH IMAGING COMPANY, LTD. 2023
R01BAJ23
e_kb635_EN.book Page 1 Thursday, November 9, 2023 9:17 AM
Memo
Thank you for purchasing this PENTAX WG-90 Digital Camera.
Please read this manual before using the camera in order to get the most out of
all the features and functions. Keep this manual safe, as it can be a valuable tool
in helping you to understand all the camera’s capabilities.
Regarding copyrights
Images taken with this digital camera that are for anything other than personal
enjoyment cannot be used without permission according to the rights as specified in
the Copyright Act. Please take care, as there are cases where limitations are placed on
taking pictures even for personal enjoyment during demonstrations, performances or
of items on display. Images taken with the purpose of obtaining copyrights also cannot
be used outside the scope of use of the copyright as laid out in the Copyright Act, and
care should be taken here also.
Regarding trademarks
• SDXC logo is a trademark of SD-3C, LLC.
• Microsoft and Windows are registered trademarks of Microsoft Corporation in
the United States of America and other countries.
• Mac, macOS and OS X are trademarks of Apple Inc., registered in the U.S. and
other countries.
• HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks
or registered trademarks of HDMI Licensing, LLC in the United States and/or
other countries.
• This product supports PRINT Image Matching III. PRINT Image Matching
enabled digital still cameras, printers and software help photographers to
produce images more faithful to their intentions. Some functions are not
available on printers that are not PRINT Image Matching III compliant.
Copyright 2001 Seiko Epson Corporation. All Rights Reserved.
PRINT Image Matching is a trademark of Seiko Epson Corporation. The PRINT
Image Matching logo is a trademark of Seiko Epson Corporation.
• This product is licensed under the AVC Patent Portfolio License for the personal
use of a consumer or other uses in which it does not receive remuneration to (i)
encode video in compliance with the AVC standard (“AVC video”) and/or (ii)
decode AVC video that was encoded by a consumer engaged in a personal
activity and/or was obtained from a video provider licensed to provide AVC
video. No license is granted or shall be implied for any other use.
Additional information may be obtained from MPEG LA, LLC.
See http://www.mpegla.com.
e_kb635_EN.book Page 2 Thursday, November 9, 2023 9:17 AM
1
• All other trademarks are the property of their respective owners.
To users of this camera
• Do not use or store this camera in the vicinity of equipment that generates strong
electromagnetic radiation or magnetic fields.
Strong static charges or the magnetic fields produced by equipment such as radio
transmitters could interfere with the display, damage the stored data, or affect the
camera’s internal circuitry and cause camera misoperation.
• The liquid crystal panel used for the display is manufactured using extremely high
precision technology. Although the level of functioning pixels is 99.99% or better, you
should be aware that 0.01% or fewer of the pixels may not illuminate or may
illuminate when they should not. However, this has no effect on the recorded image.
• There is a possibility that the illustrations and the screen display in this manual are
different from the actual ones.
• In this manual, SD Memory Cards, SDHC Memory Cards and SDXC Memory Cards
are referred to as SD Memory Cards.
• In this manual, the generic term “computer(s)” refers to either a Windows PC or a
Macintosh.
• In this manual, the term “battery(ies)” refers to any type of batteries used for this
camera and its accessories.
We have paid close attention to the safety of this camera. When using
this camera, we request your special attention regarding items marked
with the following symbols.
Using Your Camera Safely
Warning
This symbol indicates that ignoring this item could
cause serious personal injuries.
Caution
This symbol indicates that ignoring this item could
cause minor or medium personal injuries, or loss of
property.
e_kb635_EN.book Page 1 Thursday, November 9, 2023 9:17 AM
2
Warning
• Do not attempt to take the camera apart or modify the camera. High voltages
are present within the camera, and there is a danger of electric shock if the
camera is taken apart.
• If the inside of the camera should become exposed as a result of, for example,
the camera being dropped, please do not under any circumstances touch such
exposed portions, as there is a danger of receiving an electric shock.
• Wrapping the strap around a neck is dangerous. Take care that small children
do not hang the strap around their necks.
• If any irregularities occur during use, such as smoke or a strange odor, stop use
immediately, remove the battery, and contact your nearest service center.
Continued use can cause a fire or electric shock.
Caution
• Do not place your finger on the flash when it is discharging as there is a risk of
burns.
• Do not discharge the flash while it is touching your clothing as there is a risk of
discoloring.
• Some portions of the camera heat up during use, so please take care, as there
is a risk of low temperature burns if such portions are held for long periods of
time.
• Should the display be damaged, be careful of glass fragments. Also, be careful
not to allow the liquid crystal to get on your skin, in your eyes, or in your mouth.
• Depending on your individual factors or physical condition, the use of the
camera may cause itching, rashes or blisters. In case of any abnormality, stop
using the camera and get medical attention immediately.
Warning
• Always use the USB power adapter exclusively developed for this camera, with
the specified power and voltage. Using a USB power adapter not exclusive to
this camera, or using the exclusive USB power adapter with an unspecified
power or voltage can cause a fire, electric shock, or camera breakdown. The
specified voltage is 100-240V AC.
• Do not disassemble or modify the product. This can cause a fire or electric
shock.
About the Camera
About the USB Power Adapter
e_kb635_EN.book Page 2 Thursday, November 9, 2023 9:17 AM
3
• If the generation of smoke or strange odor from the product or other abnormality
occurs, immediately discontinue its use and consult your nearest service
center. Continued use can cause a fire or electric shock.
• If water should happen to get inside the product, consult your nearest service
center. Continued use can cause a fire or electric shock.
• If you see a lightning flash or hear thunder during use of the USB power
adapter, unplug the AC plug and discontinue use. Continued use can cause
damage to the product, fire, or electric shock.
• Wipe off the AC plug if it becomes covered with dust. Accumulated dust may
cause a fire.
Caution
• Do not place or drop heavy objects on or forcefully bend the USB cable. Doing
so may damage the cable. Should the cable be damaged, consult your nearest
service center.
• Do not touch or short-circuit the terminal area of the USB cable while the cable
is plugged in.
• Do not handle the AC plug with wet hands. This can cause an electric shock.
• Do not subject the product to strong impacts or allow it to drop onto a hard
surface. This can cause a malfunction.
• Do not use the USB power adapter to charge a battery other than a
rechargeable lithium-ion battery D-LI92. This can cause overheating,
explosion, or connected device failure.
•
To reduce the risk of hazards, use only a CSA/UL certified power supply cord set,
cord is Type SPT-2 or heavier, minimum NO.18 AWG copper, one end with a
molded-on male attachment plug cap (with a specified NEMA configuration), and
the other is provided with a molded-on female connector body (with a specified IEC
nonindustrial type configuration) or the equivalent.
Warning
• Be sure to store the battery out of the reach of small children. Placing it in their
mouths may cause an electric shock.
• If any leakage from the battery should come in contact with your eyes, it may
cause a loss of sight. Flush your eyes with clean water and get medical
attention immediately. Do not rub them.
About the Battery
e_kb635_EN.book Page 3 Thursday, November 9, 2023 9:17 AM
4
Caution
• Only use the specified battery with this camera. Use of other batteries may
cause an explosion or fire.
• Do not disassemble the battery. Disassembling the battery may cause an
explosion or leakage.
• Remove the battery from the camera immediately if it becomes hot or begins to
smoke. Be careful not to burn yourself during removal.
• Keep wires, hairpins, and other metal objects away from the + and - contacts of
the battery.
• Do not short the battery or dispose of the battery in fire. This can cause an
explosion or fire.
•
If any leakage from the battery should come in contact with skin or clothes, it may
cause irritation to the skin. Wash the affected areas thoroughly with water.
- Replacement of the battery with an incorrect type that can defeat a safeguard
(for example, in the case of some lithium battery type)
- Disposal of the battery into fire or a hot oven, or mechanically crushing or
cutting of the battery, that can result in an explosion
- Leaving the battery in an extremely high temperature surrounding
environment that can result in an explosion or leakage of flammable liquid or
gas
- Subjecting the battery to extremely low air pressure that may result in an
explosion or leakage of flammable liquid or gas
• Precautions for D-LI92 Battery Usage:
BATTERY MAY EXPLODE OR FIRE IF MISTREATED.
- DO NOT DISASSEMBLE OR DISPOSE OF IN FIRE.
- DO NOT CHARGE EXCEPT SPECIFIED CHARGING CONDITION.
- DO NOT HEAT ABOVE 140°F / 60°C, OR SHORT CIRCUIT.
- DO NOT CRUSH OR MODIFY.
Warning
• Be sure to keep the camera and its accessories out of the reach of small
children.
1. Injuries may result from the product falling or from unexpected movement.
2. Suffocation may result from wrapping the strap around the neck.
3. Small accessories such as battery or an SD Memory Card may be
swallowed. Seek medical attention immediately if an accessory is
accidentally swallowed.
Keep the Camera and its Accessories out of the Reach of Small
Children
e_kb635_EN.book Page 4 Thursday, November 9, 2023 9:17 AM
5
• When the camera has not been used for a long time, confirm that it is still
working properly, particularly prior to taking important pictures (such as at a
wedding or when traveling). Contents of the recording cannot be guaranteed if
recording, playback or transferring your data to a computer, etc. is not possible
due to a malfunction of your camera or recording media (SD Memory Card), etc.
• The lens on this camera is not interchangeable. The lens is not removable.
• To keep the battery in optimum condition, avoid storing it in a fully charged state
or in high temperatures.
• If the battery is left inserted and the camera is not used for a long time, the
battery will over-discharge and shorten the battery’s life.
•
Charging the battery a day before use or on the day of use is recommended.
• Class II equipment: The provided USB power adapter is a Class II (double-
insulated) product.
•
Hot and humid places should be avoided. Particular care should be taken
regarding vehicles, which can become very hot inside.
• Ensure that the camera is not subjected to substantial vibrations, shocks, or
pressure as this may cause damage, malfunction, or a loss in waterproof
performance. Place the camera on a cushion for protection when the camera is
subjected to the vibrations of a motorbike, car, ship, etc. If the camera is
subjected to substantial vibrations, shocks, or pressure, take your camera to
your nearest service center and have it checked.
• The temperature range in which the camera can be used is -10°C to 40°C (14°F
to 104°F).
• The display will become black at high temperatures but will return to normal at
normal temperatures.
• The response speed of the display becomes slow at low temperatures. This is
due to the properties of the liquid crystal and is not a malfunction.
• If the camera is subjected to rapid temperature changes, condensation may
form on the inside and outside of the camera. Therefore put the camera in a bag
or plastic bag and take it out when the difference in temperature has subsided.
Care to be Taken During Handling
Before Using Your Camera
About the Battery and USB Power Adapter
Precautions on Carrying and Using Your Camera
e_kb635_EN.book Page 5 Thursday, November 9, 2023 9:17 AM
6
• Avoid contact with garbage, mud, sand, dust, water, toxic gases, or salt. These
could cause the camera to breakdown. Wipe the camera to dry off any rain or
water drops.
• Do not press the display with excessive force. This could cause it to break or
malfunction.
• Be careful not to sit down with the camera in your back pocket as this may
damage the exterior of the camera or the display.
• When using a tripod with the camera, be careful not to overtighten the screw in
the tripod socket on the camera.
• Do not clean the camera with organic solvents such as thinner, alcohol or
benzine.
• Use a lens brush to remove dust accumulated on the lens. Never use a spray
blower for cleaning as it may damage the lens.
• Avoid storing the camera where pesticides and chemicals are handled. Remove
the camera from its case and store it in a well-ventilated place to prevent the
camera from becoming moldy during storage.
• Avoid using or storing the camera where it may be exposed to static electricity
or electrical interference.
• Avoid using or storing the camera in direct sunlight or in locations where it may
be exposed to rapid changes in temperature or to condensation.
• Periodic inspections are recommended every one to two years to maintain high
performance.
Cleaning Your Camera
Storing Your Camera
e_kb635_EN.book Page 6 Thursday, November 9, 2023 9:17 AM
7
• The SD Memory Card is equipped with a
write-protect switch. Setting the switch to
LOCK prevents new data from being
recorded on the card, the stored data from
being deleted, and the card from being
formatted by the camera or computer.
r appears on the display when the card is
write-protected.
• Care should be taken when removing the SD Memory Card immediately
after using the camera, as the card may be hot.
• Keep the battery/card cover closed and do not remove the SD Memory
Card or turn the camera off while the data is being played back or saved to
the card, or the camera is connected to a computer with the USB cable, as
this may cause the data to be lost or the card to be damaged.
• Do not bend the SD Memory Card or subject it to violent impact. Keep it
away from water and store away from high temperature.
• Do not remove the SD Memory Card during formatting as this may damage
the card and render it unusable.
• The data on the SD Memory Card may be lost in the following
circumstances. We do not accept any liability for data that is deleted
(1) when the SD Memory Card is mishandled by the user.
(2) when the SD Memory Card is exposed to static electricity or electrical
interference.
(3) when the SD Memory Card has not been used for a long time.
(4) when the SD Memory Card is ejected or the batteries are removed
while the card is being accessed.
• If it is not used for a long time, the data on the card may become
unreadable. Be sure to regularly make a backup of important data on a
computer.
• Be sure to format SD Memory Cards that are unused or have been used
on another camera. Refer to “Formatting the Memory” (p.148).
• When using an SD Memory Card with a slow recording speed, recording
may stop while recording a movie even if there is adequate space in the
memory, or image capture or playback may take a long time.
• Please note that deleting data, or formatting the SD Memory Cards or the
built-in memory does not completely erase the original data. Deleted files
can sometimes be recovered using commercially available software. It is
user’s responsibility to ensure the privacy of such data.
Other Precautions
Write-protect
switch
e_kb635_EN.book Page 7 Thursday, November 9, 2023 9:17 AM
8
Regarding Waterproof, Dustproof, and
Shockproof Design
• This camera is provided with a waterproof/dustproof design complying with JIS
waterproof grade 8 and JIS dustproof grade 6 (equivalent to IP68).
• The camera satisfies our drop test (1.6 m height onto a 5 cm thick plywood
surface) complying with MIL-Standard 810F Method 516.5-Shock testing.
• The camera satisfies our test for the waterproof, dustproof, and shockproof
performance, but this does not guarantee it will remain free of trouble or
damages.
• Waterproof performance is not guaranteed if the camera is exposed to impact
such as being dropped or hit.
• Make sure that there are no cracks or scratches on the rubber seal of the
battery/card and terminal covers.
• Make sure that there are no foreign objects (dust, sand, hair, lint or liquid) on the
rubber seals or the surface they contact before closing the battery/card and
terminal covers. Wipe off any foreign objects with a clean lint-free cloth.
• Close the battery/card and terminal covers properly until they click. Otherwise
water may get in and damage the camera.

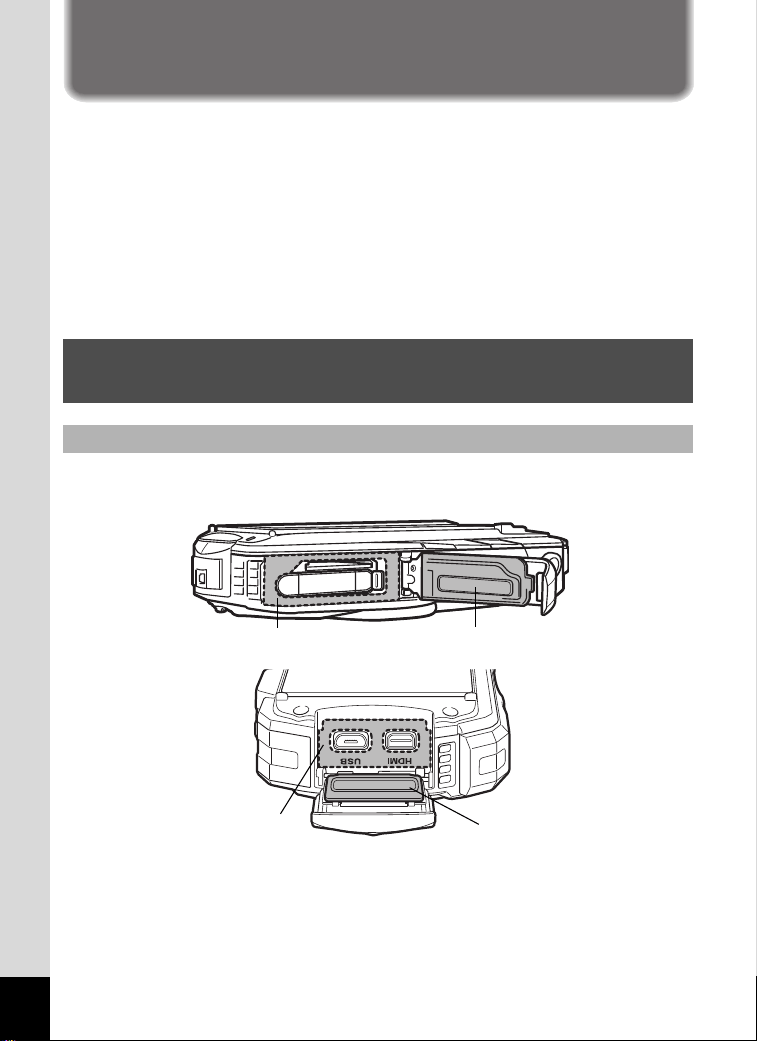

Precautions Before Using the Camera in the
Water
Check the Following Before Going Near the Water
Packing contact surface
Waterproof packing
Packing contact surface
Waterproof packing
e_kb635_EN.book Page 8 Thursday, November 9, 2023 9:17 AM
9
• Avoid opening the battery/card and terminal covers when near the waterside or
with wet hands. When changing the battery or the SD Memory Card, avoid
places where the camera is likely to get wet or dirty, and make sure that the
camera and your hands are completely dry.
• The camera will sink if dropped in water, so be sure to attach the strap to the
camera and wrap it around your wrist when using the camera in or near water.
• To enhance the waterproof performance of the camera, the front of the lens is
protected by glass. The glass should be kept clean at all times, as any dirt or
water on the glass will affect the quality of pictures taken.
• Do not use the camera deeper than 14 meters underwater. Do not use the
camera underwater for more than 120 minutes consecutively.
• Do not open the battery/card and terminal covers underwater.
• Do not use the camera in hot water or in a hot spring.
• Do not apply excessive force to the camera, for example diving into water with
it. Doing so may compromise the waterproof performance of the camera or
cause the cover to open.
• Do not leave the camera on the sand at the beach, as this may cause the
camera to exceed the upper limit of its operational temperature range, or cause
the speaker or microphone to become blocked with sand.
• Avoid subjecting the camera to substantial vibrations, shocks, or pressure as
this may cause a loss in waterproof performance. If the camera is subjected to
substantial vibrations, shocks or pressure, take your camera to your nearest
service center and have it checked.
• Avoid getting sunscreen or sun oil on the camera as it may cause discoloration
of the surface. If any oil gets on the camera, wash it off immediately with warm
water.
• Sudden and extreme changes in temperature may cause condensation to form
in and on the camera. Keep the camera in a bag or case to reduce the
difference in temperature.
Be Careful Near the Water
Precautions When Using the Camera in the Water
e_kb635_EN.book Page 9 Thursday, November 9, 2023 9:17 AM
10
• Do not open the battery/card and terminal covers if the camera is wet. Wipe off
any water with a clean lint-free cloth.
• The inside surface of the covers may get wet when they are opened. Wipe off
any water that is on the cover.
• Wiping off the camera while there is sand or dust on it may scratch the surface
of the camera. Make sure that the battery/card and terminal covers are firmly
closed before washing the camera in tap water. After washing the camera, dry
it with a soft cloth.
• Wipe off any dirt or sand on the waterproof seal or the contact surface. The
camera’s waterproof performance may be compromised by a loose seal, or
cracks or dents on the seal or the contact surface. If there is any such damage,
contact your nearest service center.

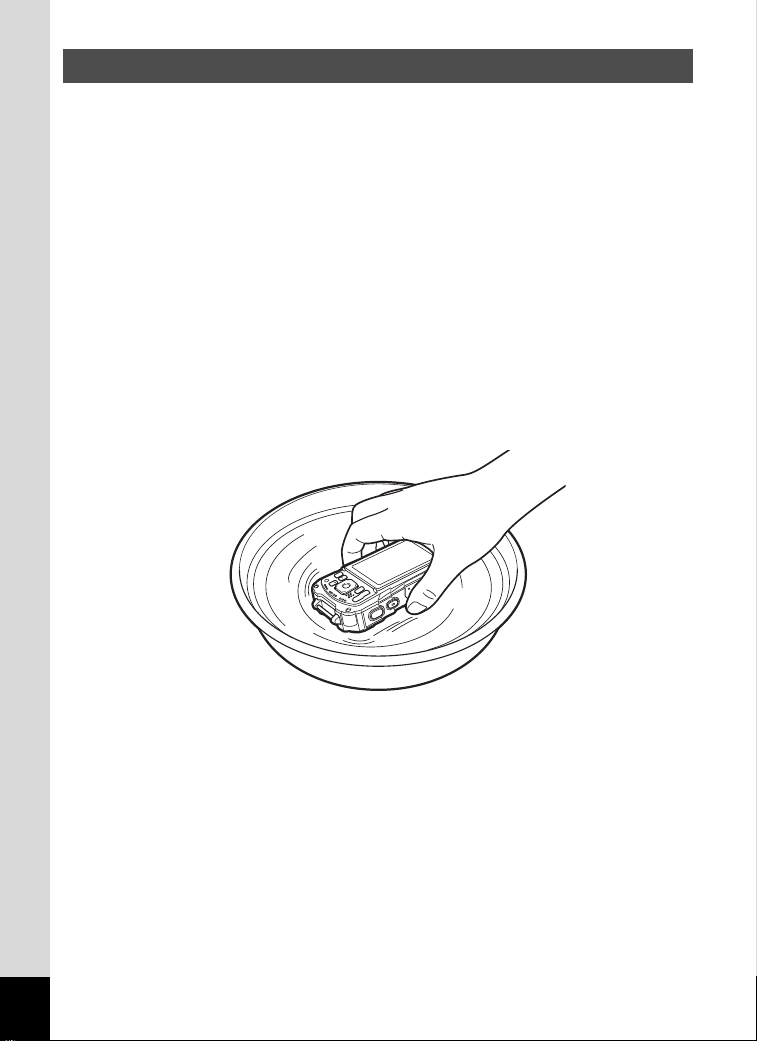

• If the camera becomes very dirty or after it has been used in the sea, make sure
that it is turned off and the battery/card and terminal covers are firmly closed
before rinsing it under running tap water or leaving it in a bowl of clean water for
a short time (2 or 3 minutes).
• Avoid cleaning with agents such as soapy water, mild detergents, or alcohol as
this may compromise the waterproof performance of the camera.
• To maintain the waterproof performance of the camera, you are recommended
to change the waterproof seal once a year. Contact your nearest service center
regarding changing the seal. (A charge will be made.)
• The camera’s accessories are not waterproof.
Precautions After Using the Camera in the Water
e_kb635_EN.book Page 10 Thursday, November 9, 2023 9:17 AM
11
Using Your Camera Safely...................................................................... 1
Care to be Taken During Handling.......................................................... 5
Regarding Waterproof, Dustproof, and Shockproof Design.................... 8
Precautions Before Using the Camera in the Water................................ 8
Precautions When Using the Camera in the Water................................. 9
Precautions After Using the Camera in the Water................................. 10
Contents ................................................................................................ 11
Composition of the Operating Manual................................................... 17
Getting Started 18

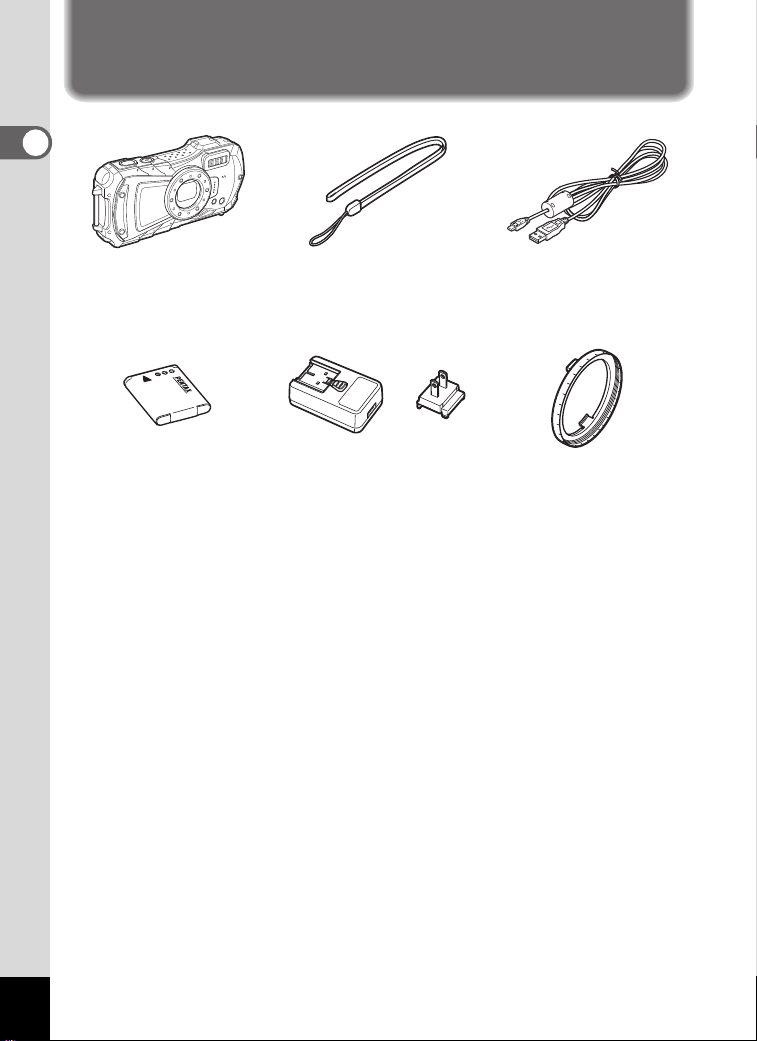

Checking the Contents of the Package.................................................... 18

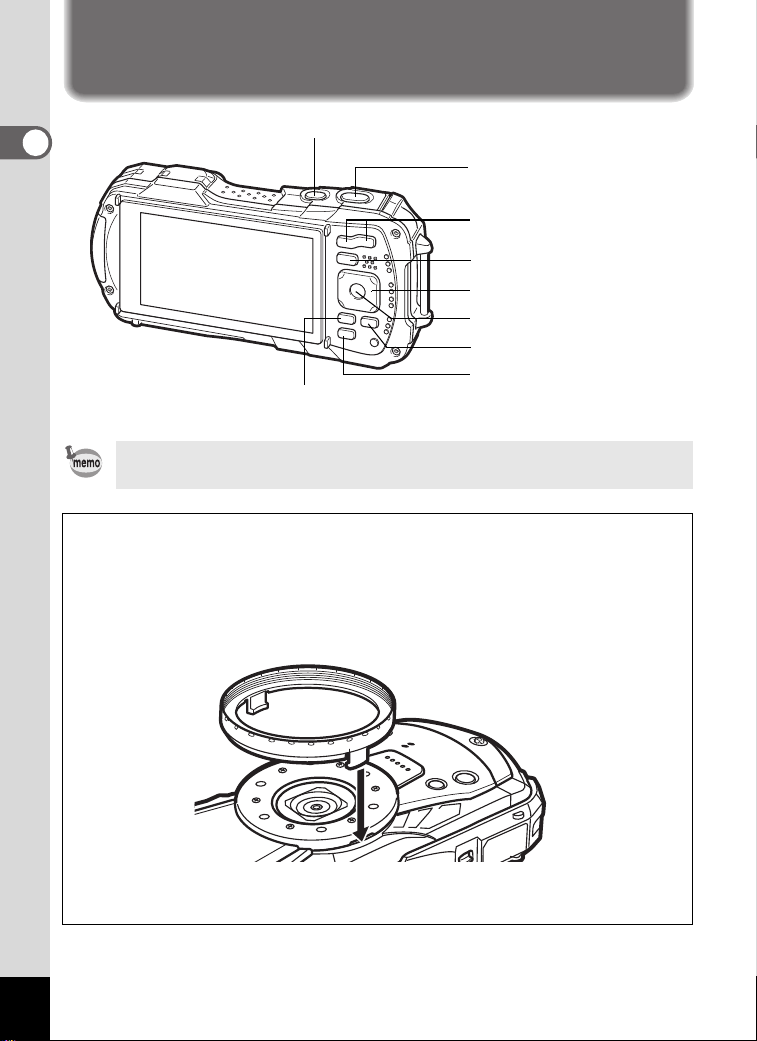

Names of Parts ........................................................................................... 19

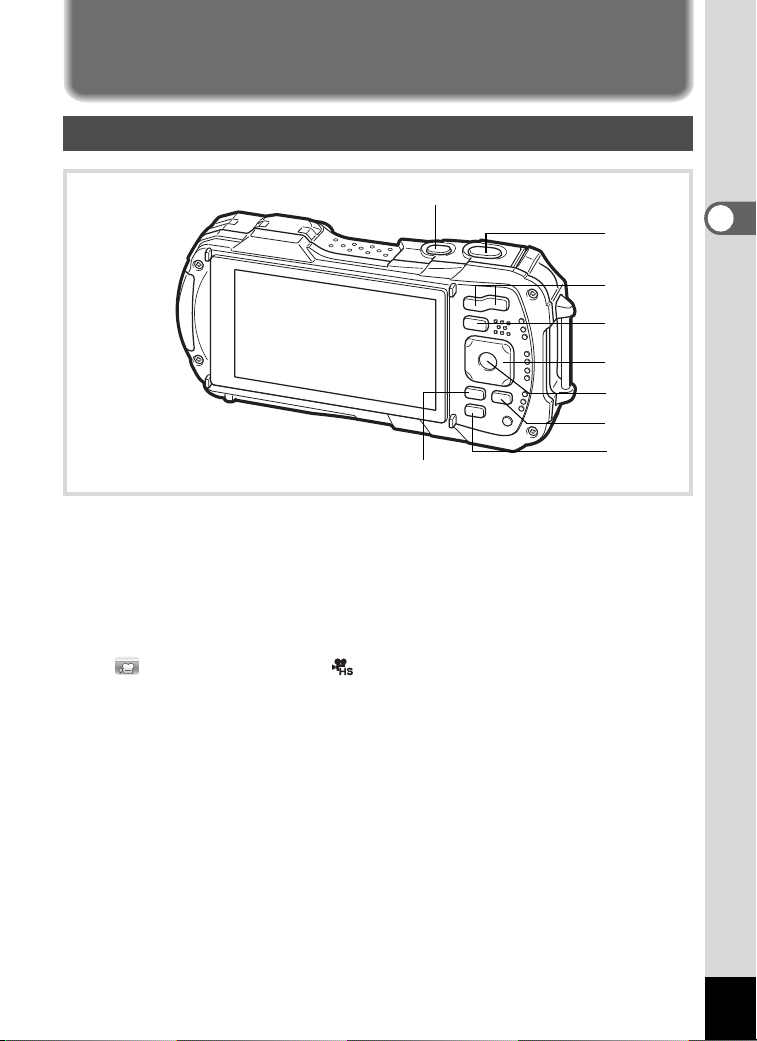

Names of Operating Parts ......................................................................... 20
Display Indications .................................................................................... 21
Display in A Mode................................................................................ 21
Display in Q Mode............................................................................... 24
Guide Display ........................................................................................ 26
Histogram .............................................................................................. 27
Attaching the Strap .................................................................................... 28
Attaching the Strap................................................................................ 28
Powering the Camera ................................................................................ 29

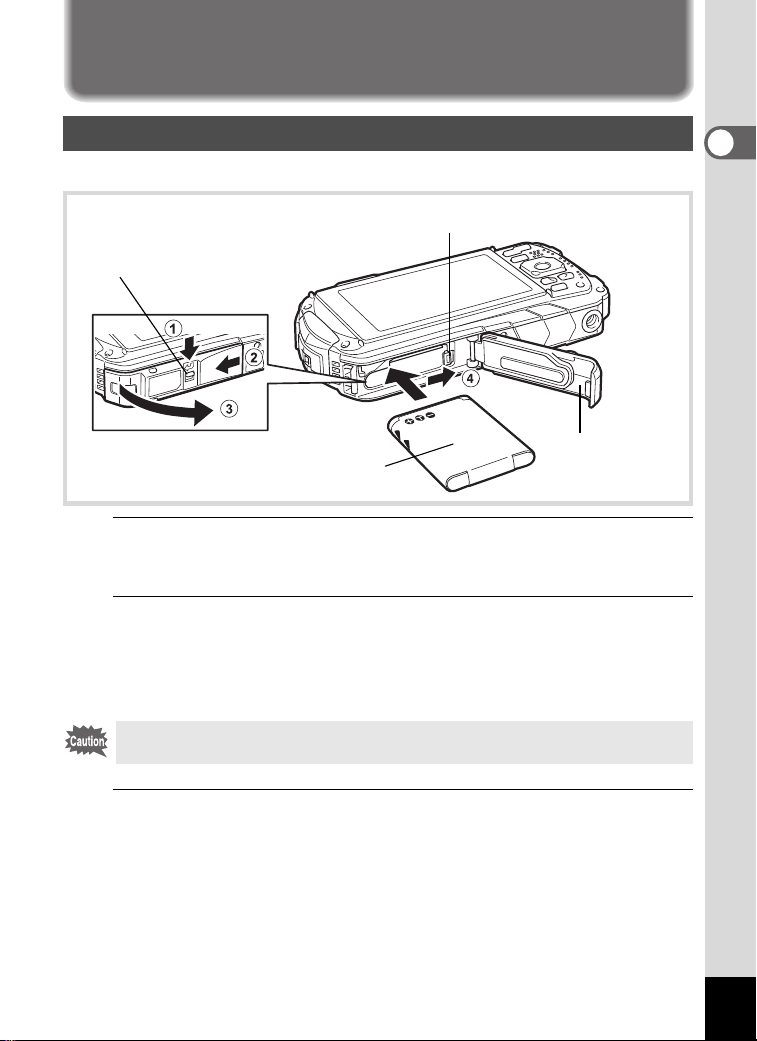

Installing the Battery.............................................................................. 29
Charging the Battery ............................................................................. 31
Installing an SD Memory Card .................................................................. 34
Turning the Camera On and Off................................................................ 36
Starting-up in Playback Mode ............................................................... 37
Initial Settings............................................................................................. 38
Setting the Display Language ............................................................... 38
Setting the Date and Time..................................................................... 41
Common Operations 43
Understanding the Button Functions....................................................... 43
A Mode ................................................................................................ 43
Q Mode ............................................................................................... 45
Switching Between A Mode and Q Mode.......................................... 47
Setting the Camera Functions .................................................................. 48
Operating the Menus............................................................................. 48
Menu List............................................................................................... 50
Contents
e_kb635_EN.book Page 11 Thursday, November 9, 2023 9:17 AM
12
Taking Pictures 54
Taking Still Pictures ................................................................................... 54
Taking Pictures...................................................................................... 54
Using the Zoom ..................................................................................... 57
Setting the Shooting Mode .................................................................... 60
Using the Face Detection Function ....................................................... 63
Taking Pictures in Basic Mode (Green Mode)....................................... 64
Taking Pictures of Your Pet (Pet Mode)................................................ 65
Taking Pictures in Digital Microscope Mode.......................................... 65
Taking Pictures at a Set Interval (Interval Shot).................................... 66
Using the Self-timer............................................................................... 67
Taking a Series of Pictures (Continuous Shooting/Burst Shooting) ...... 69
Taking Pictures Using a Remote Control Unit (Optional) ...................... 70
Taking Pictures with Automatic Exposure Adjustment
(Auto Bracketing)............................................................................ 71
Setting the Shooting Functions................................................................ 72
Using the Rec. Mode Menu Items ......................................................... 72
Selecting the Flash Mode...................................................................... 73
Selecting the Focus Mode..................................................................... 75
Setting the Image Tone ......................................................................... 78
Selecting the Number of Recorded Pixels............................................. 79
Selecting the Quality Level of Still Pictures ........................................... 80
Adjusting the White Balance ................................................................. 82
Setting the AE Metering ........................................................................ 84
Setting the Sensitivity ............................................................................ 85
Setting AUTO ISO Range ..................................................................... 86
Setting the Exposure (EV Compensation)............................................. 86
Correcting the Brightness (D-Range Setting)........................................ 87
Setting Pixel Track SR .......................................................................... 88
Switching the Face Detection Function ................................................. 89
Setting the Blink Detection Function ..................................................... 91
Setting the Instant Review..................................................................... 91
Setting the Green Button Function ........................................................ 92
Setting the Image Sharpness (Sharpness) ........................................... 95
Setting the Saturation/Tone Adjustment................................................ 95
Setting the Image Contrast (Contrast)................................................... 95
Setting the Date Imprint Function.......................................................... 96
Setting the IQ Enhancer Processing ..................................................... 96
Setting the Macro Light ......................................................................... 97
Underwater Shooting ................................................................................. 98
Underwater Shooting (Underwater Mode/Underwater Movie Mode)..... 98
e_kb635_EN.book Page 12 Thursday, November 9, 2023 9:17 AM
13
Recording Movies .................................................................................... 100
Recording Movies................................................................................ 100
Recording a Movie Quickly Using the Movie Button............................ 101
Selecting the Number of Recorded Pixels and Frame Rate
for Movies ..................................................................................... 102
Setting the Movie SR (Movie Shake Reduction) Function................... 103
Suppressing Wind Noises during Movie Recording
(Wind Suppression) ...................................................................... 104
Combining Pictures Taken at a Set Interval into a Movie
(Interval Movie)............................................................................. 104
Using the High Speed Movie Function ................................................ 107
Saving the Settings (Memory)................................................................. 108
Playing Back and Deleting Images 110
Playing Back Images ............................................................................... 110
Playing Back Still Pictures................................................................... 110
Playing Back a Movie .......................................................................... 111
Multi-Image Display............................................................................. 112
Using the Playback Functions ............................................................. 114
Slideshow ............................................................................................ 117
Rotating the Image .............................................................................. 119
Zoom Playback.................................................................................... 120
Deleting Images........................................................................................ 121
Deleting a Single Image ...................................................................... 121
Deleting Selected Images ................................................................... 122
Deleting All Images ............................................................................. 123
Protecting Images from Deletion (Protect) .......................................... 124
Connecting the Camera to an AV Device............................................... 126
Connecting the Camera to an HDMI Terminal .................................... 126
e_kb635_EN.book Page 13 Thursday, November 9, 2023 9:17 AM
14
Editing and Printing 128
Editing Images.......................................................................................... 128
Changing the Image Size (Resize)...................................................... 128
Cropping Images ................................................................................. 129
Processing Images to Make Faces Look Smaller ............................... 130
Using the Digital Filters ....................................................................... 131
Using the HDR Filter ........................................................................... 133
Using the Ink Rubbing Filter ................................................................ 133
Creating a Collage Image.................................................................... 134
Red-eye Edit........................................................................................ 137
Overlaying Your Original Frame on Still Pictures ................................ 138
Editing Movies ..................................................................................... 142
Copying Images .................................................................................. 145
Settings 147
Camera Settings....................................................................................... 147
Using the Setting Menu Items ............................................................. 147
Formatting the Memory ....................................................................... 148
Changing the Sound Settings.............................................................. 149
Changing the Date and Time .............................................................. 150
Setting the Alarm................................................................................. 151
Setting the World Time........................................................................ 153
Setting the Text Size on the Menu ...................................................... 155
Changing the Display Language ......................................................... 155
Changing the Naming System of the Folder........................................ 156
Changing the Naming System of the File............................................ 158
Selecting the HDMI Output Format ..................................................... 160
Adjusting the Brightness of the Display ............................................... 160
Adjusting the Brightness of the Display for Outdoor Shooting............. 160
Using the Power Saving Function ....................................................... 161
Using the Auto Power Off Function ..................................................... 162
Setting the Quick Zoom Function ........................................................ 162
Setting the Guide Display.................................................................... 163
Perform Pixel Mapping ........................................................................ 163
Changing the Start-up Screen............................................................. 164
Resetting to Default Settings (Reset) .................................................. 165
Setting the Startup Shortcut ................................................................ 165
Displaying the Clock Display ............................................................... 166
Light up the LED Macro Lights ............................................................ 167
e_kb635_EN.book Page 14 Thursday, November 9, 2023 9:17 AM
15
Connecting to a Computer 168
Connecting to a Computer ...................................................................... 168
Setting the USB Connection Mode...................................................... 168
Connecting the Camera and a Computer............................................ 169
Disconnecting the Camera from the Computer ................................... 170
System Requirements ......................................................................... 170
Appendix 172
Functions Available for Each Shooting Mode....................................... 172
Messages .................................................................................................. 176
Troubleshooting ....................................................................................... 178
Default Settings........................................................................................ 180
List of World Time Cities ......................................................................... 185
Main Specifications.................................................................................. 186
Warranty Policy ........................................................................................ 191
Index.......................................................................................................... 196
e_kb635_EN.book Page 15 Thursday, November 9, 2023 9:17 AM
16
In this manual, the method for operating the four-way controller is shown in
illustrations, such as in the ones below.
The meanings of the symbols used in this Operating Manual are explained below.
1
Indicates the reference page number for an explanation of the
related operation.
Indicates information that is useful to know.
Indicates precautions to be taken when operating the camera.
5
or
2 or
3
or
or
4
3
5
2
4
4
2
5
3
e_kb635_EN.book Page 16 Thursday, November 9, 2023 9:17 AM
17
This Operating Manual contains the following chapters.
Composition of the Operating Manual
1 Getting Started ––––––––––––––––––––––––––––––––––––––––––––––––
This chapter explains what you need to do after purchasing the camera before
you start taking pictures. Be sure to read it and follow the instructions.
2 Common Operations –––––––––––––––––––––––––––––––––––––––––––
This chapter explains common operations such as the functions of the buttons and
how to use the menus. For more details, refer to the respective chapters below.
3 Taking Pictures –––––––––––––––––––––––––––––––––––––––––––––––
This chapter explains the various ways of capturing images and how to set the
relevant functions.
4 Playing Back and Deleting Images ––––––––––––––––––––––––––––––––
This chapter explains how to view still pictures and movies on the camera or on
a TV and how to delete them from the camera.
5 Editing and Printing ––––––––––––––––––––––––––––––––––––––––––––
This chapter explains the various ways of printing still pictures and how to edit
them with the camera.
6 Settings ––––––––––––––––––––––––––––––––––––––––––––––––––––––
This chapter explains how to set camera-related functions.
7 Connecting to a Computer ––––––––––––––––––––––––––––––––––––––
This chapter explains how to connect the camera to a computer.
8 Appendix –––––––––––––––––––––––––––––––––––––––––––––––––––––
This chapter provides some basic troubleshooting tips and other useful
information.
1
3
2
4
5
6
7
8
e_kb635_EN.book Page 17 Thursday, November 9, 2023 9:17 AM
18
Getting Started
1
Checking the Contents of the Package
* Available as optional accessories.
Camera
PENTAX WG-90
Strap
O-ST104 (*)
USB cable
I-USB157 (*)
or I-USB170(*)
Rechargeable lithium-ion
battery D-LI92 (*)
USB power
adapter
Power
plug
Macro stand
O-MS1
Start Guide
Regarding Waterproof
Design
1Getting Started
e_kb635_EN.book Page 18 Thursday, November 9, 2023 9:17 AM
19
1
Getting Started

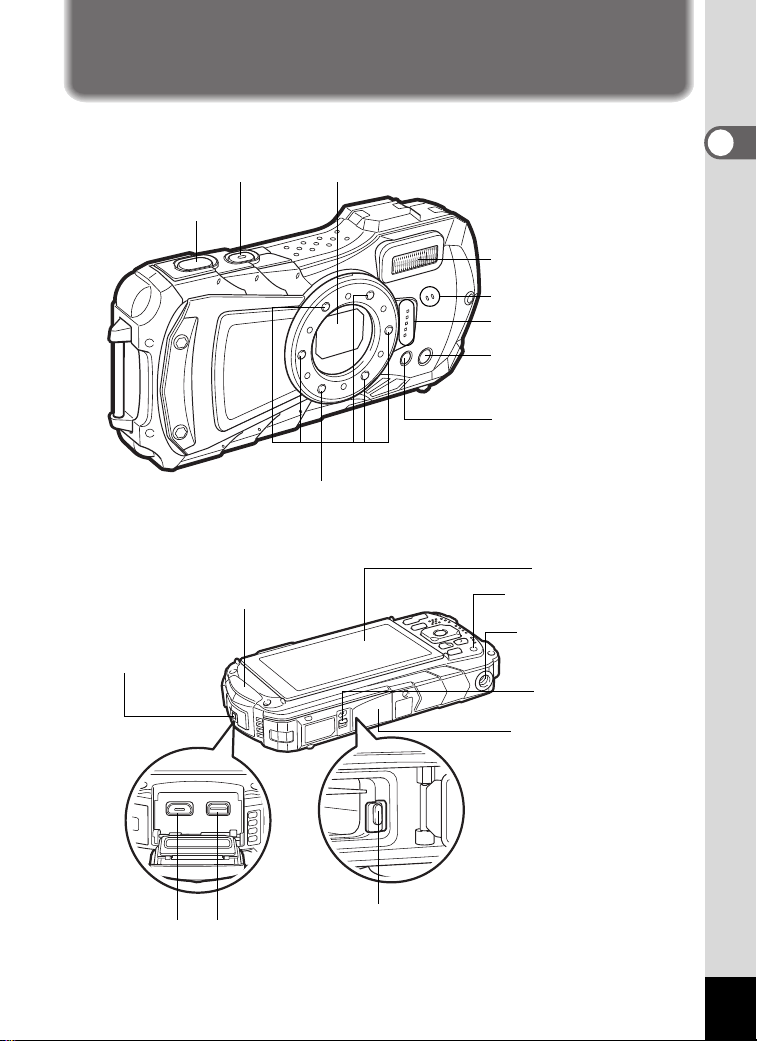

Names of Parts
Front
Back
Shutter
release button
Lens
Power button/
Power lamp (green)
Flash
Microphone
Self-timer lamp/
Focus assist light
Remote control receiver
LED Macro Lights
Speaker
Display
Tripod socket
Battery/card cover
USB terminal
Battery lock lever
Terminal cover
lock lever
HDMI terminal
Terminal cover
Battery/card cover
lock lever
Remote control
receiver
e_kb635_EN.book Page 19 Thursday, November 9, 2023 9:17 AM
20
Getting Started
1
Names of Operating Parts
Refer to “Understanding the Button Functions” (p.43 - 46) for an explanation
of the function of each button.
Macro stand
Attaching the supplied macro stand (O-MS1) reduces camera shake during shooting
by using 1cm Macro. Insert two clips into the slits in upper and lower sides of the LED
Macro Lights part. When attaching and detaching the macro stand, do not hold the clip
part.
* When using the macro stand, the camera may not be able to focus if the objects
have uneven surfaces.
4/W button
3 button
Four-way controller
Green/i button
Power button
Movie button
Q button
W/T/f/y button
Shutter release button
e_kb635_EN.book Page 20 Thursday, November 9, 2023 9:17 AM
21
1
Getting Started

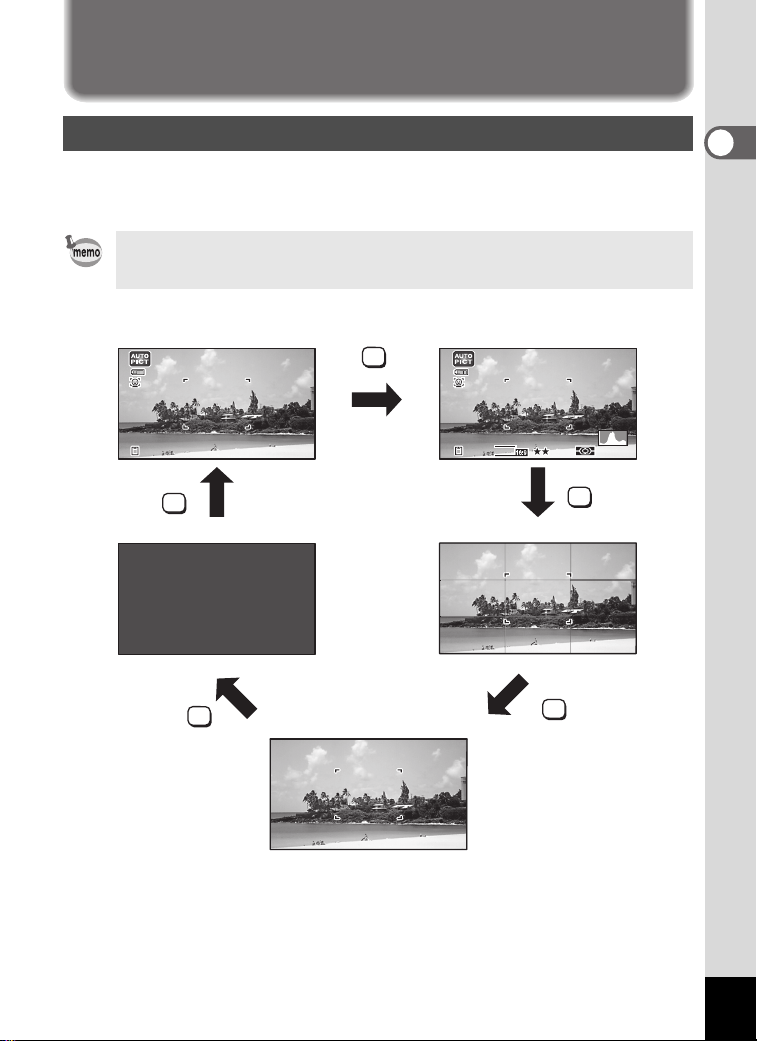

Display Indications
The display changes in the following sequence each time you press the 4
button: “Normal Display”, “Histogram + Info”, “Grid Display”, “No Info”, “LCD Off”.
Display in A Mode
• All the camera buttons function as normal even when the LCD is off. Press
the shutter release button to take pictures as normal.
• The display cannot be changed in some shooting modes.
AWBWB
1212
M
383838
ISISO
20200
ISO
200
AWB
383838
12
M
OK
OK
OK
OK
OK
LCD Off
Normal Display Histogram + Info
No Info
Grid Display
e_kb635_EN.book Page 21 Thursday, November 9, 2023 9:17 AM
22
1
Getting Started

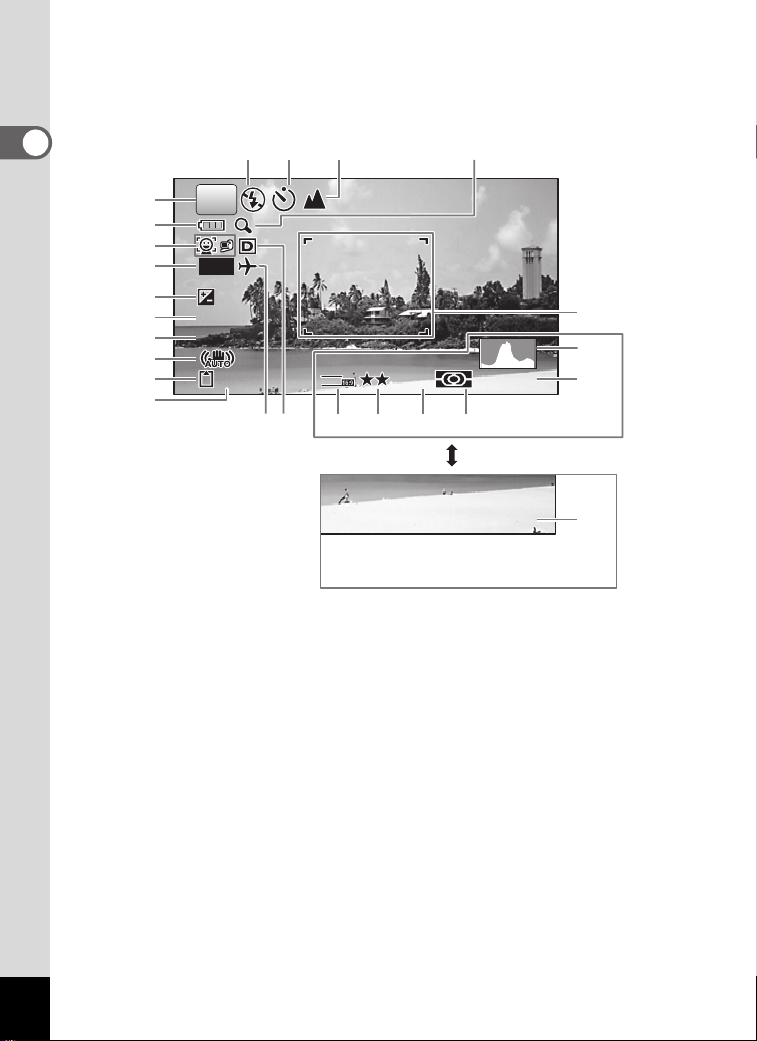

Normal Display/ Histogram + Info/ Grid Display in Still Picture Capture Mode
1 to 17 and A1 appear when “Normal Display” is selected. B1 to B6 appear at the
position of 15 when “Histogram + Info” is selected. Only A1 appears when “Grid
Display” or “No Info” is selected.
1
Shooting mode (p.60)
14
Digital zoom/Intelligent Zoom
icon (p.57)
2
Battery level indicator (p.33)
3
Face Detection icon (p.89)
15
Date and time (p.41)
4
Date Imprint setting (p.96)
16
World Time setting (p.153)
5
EV Compensation (p.86)
17
D-Range Setting (p.87)
6
Shutter speed
A1
Focus frame (p.54)
7
Aperture
B1
Recorded Pixels (p.79)
8
Pixel Track SR icon (p.88)
B2
Quality Level (p.80)
9
Memory status (p.36)
B3
White Balance (p.82)
10
Remaining image storage capacity
B4
AE Metering (p.84)
11
Flash Mode (p.73)
B5
Histogram (p.27)
12
Drive Mode (p.67 - p.71)
B6
Sensitivity (p.85)
13
Focus Mode (p.75)
P
14:2
1 4 : 2 5
14:25
IS
ISO
20
200
AWB
ISO
200
AWB
12
12
M
3 8
38
+1.
+ 1 . 0
+1.0
1/25
1 / 2 5 0
1/250
F3.
F 3 . 5
F3.5
DATE
12
M
11/11/2023
11 / 11 / 2 0 2 3
11/11/2023
1411 12 13
10
1
2
3
4
5
6
7
8
9
16 17 B1 B2 B3 B4
A1
B6
B5
15
e_kb635_EN.book Page 22 Thursday, November 9, 2023 9:17 AM
23
1
Getting Started
* 6 and 7 are only displayed when the shutter release button is pressed halfway.
* For 8, M is displayed when Pixel Track SR is set to O (On) on the [A Rec.
Mode] menu. f is displayed when the shutter release button is pressed
halfway if Pixel Track SR is set to P (Off) and there is a danger of camera
shake.
* For 13, when the focus mode is set to = and the Auto Macro function is
activated, q appears on the display (p.75).
* 15 appears for two seconds after the camera is turned on.
* 17 changes depending on [D-Range Setting] settings in the [A Rec. Mode]
menu. No icon is displayed on the screen when [Highlight Correction] and
[Shadow Correction] are both set to [Off].
* When the shooting mode is b (Auto Picture) and if you press the shutter
release button halfway, the automatically selected shooting mode appears in
A1 even when “No Info” is selected.
* If there are overexposed highlight areas in the image, they will blink red on the
display, and if there are underexposed shadow areas, they will blink yellow.
* Some indications may not appear depending on the shooting mode.
e_kb635_EN.book Page 23 Thursday, November 9, 2023 9:17 AM
24
1
Getting Started

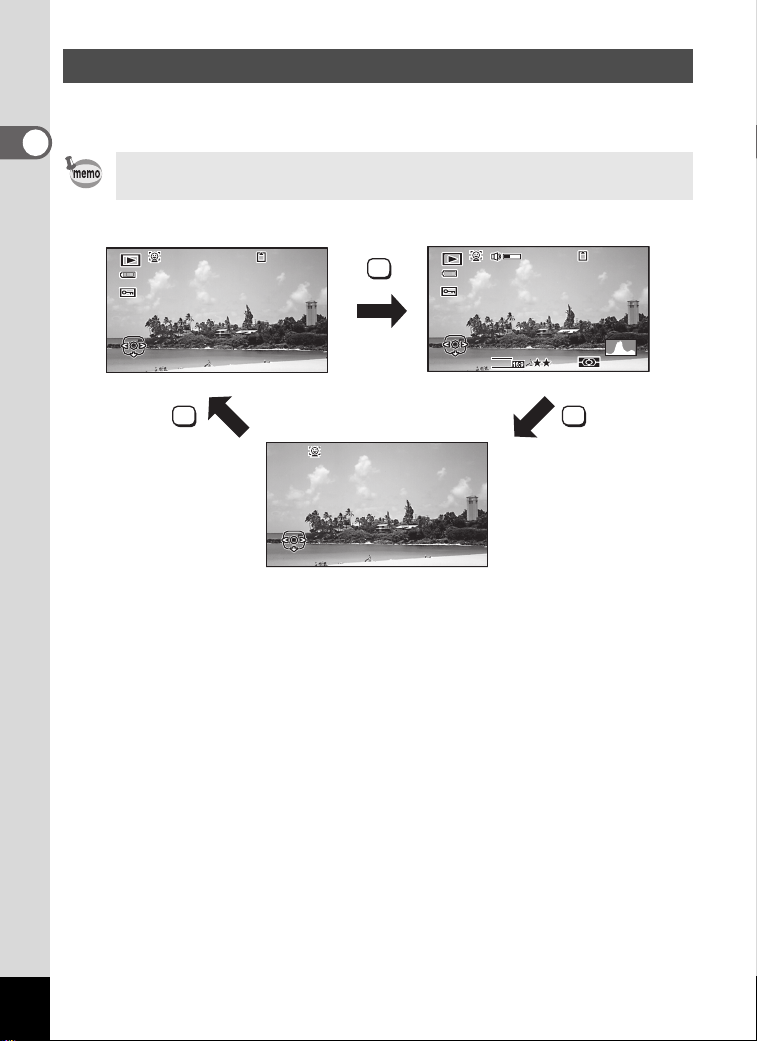

The display shows the shooting information of the image in playback mode. The
display changes in the following sequence each time you press the 4 button:
Display in Q Mode
The display cannot be changed by pressing the 4 button while playing back
or pausing a movie.
10100
-
0030038100
-
0038
F3.F 3 . 5
1/251 / 2 5 0
F3.5
1/250
ISISO
20200
AWBWB
ISO
200
AWB
12
M
12
M
EditEditEdit
EditEditEdit
10100
-
0030038100
-
0038
EditEditEdit 11/11/202311 /11/20 2 3 14:2514:2 514:2511/11/2023
OK
OK
OK
Normal Display Histogram + Info
No Info
e_kb635_EN.book Page 24 Thursday, November 9, 2023 9:17 AM
25
1
Getting Started

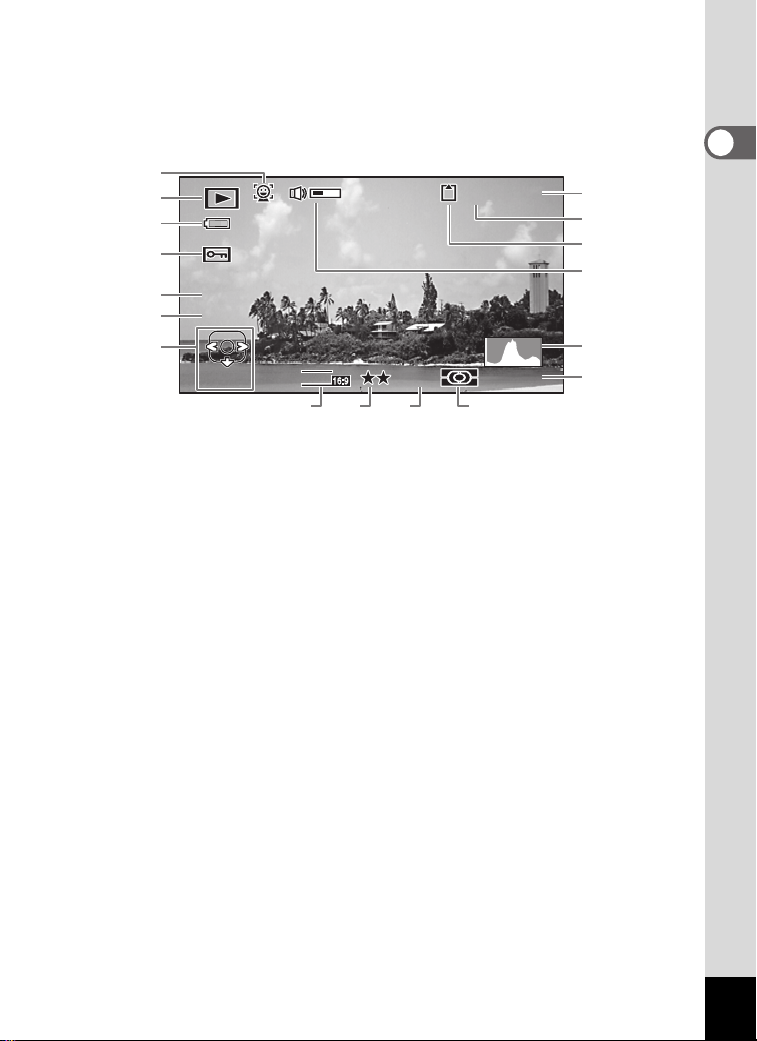

Normal Display/ Histogram + Info in Playback Mode
(All of the display items are displayed here for explanatory purposes.)
The display shows information such as the shooting conditions. In "Normal
Display", A1 to A9 are displayed. In "Histogram + Info", B1 to B8 are displayed as
well.
* A1 appears only if the Face Detection function worked when the image was shot.
* In “Normal Display”, A3 disappears if no operation is performed for two seconds.
* A5 appears even when “No Info” is selected, but disappears if no operation is
performed for two seconds. When no operation is performed for two seconds in
“Normal Display” or “Histogram + Info”, only “Edit” disappears.
* A9 appears only when the volume is being adjusted during playback of movies
(p.111).
* When “Normal Display” is selected, the shooting date and time appears for two
seconds in the B4 to B8 positions.
* If there are overexposed highlight areas in the image, they will blink red on the
display, and if there are underexposed shadow areas, they will blink yellow.
A1
Face Detection icon (p.89)
A9
Volume icon
A2
Playback mode
B1
Shutter speed
Q : Still picture (p.110)
B2
Aperture
K : Movie (p.111)
B3
Histogram (p.27)
A3
Battery level indicator (p.33)
B4
Sensitivity (p.85)
A4
Protect icon (p.124)
B5
Recorded Pixels (p.79)
A5
Four-way controller guide
B6
Quality Level (p.80)
A6
File number
B7
White Balance (p.82)
A7
Folder number (p.156)
B8
AE Metering (p.84)
A8
Memory status (p.36)
1010 0
-
00300 3 8100
-
0038
F3.F3 . 5F3.5
1/251 / 2 5 01/250
ISISO
20200
AWBWB
ISO
200
AWB
12
M
M
12
EditEditEdit
A1
A2
A3
A4
B1
B2
A5
B5
B6 B7 B8
A6
A8
A7
A9
B3
B4
e_kb635_EN.book Page 25 Thursday, November 9, 2023 9:17 AM
26
1
Getting Started
A guide indicator for each available button or key operation appears as follows on
the display during operation.
Guide Display
2 Four-way controller (2) Zoom button
3 Four-way controller (3) 4 button
4 Four-way controller (4) Shutter release button
5 Four-way controller (5) X (green), i Green/i button
3 button (red) Movie button
OK
SHUTTER
MENU
e_kb635_EN.book Page 26 Thursday, November 9, 2023 9:17 AM
27
1
Getting Started
A histogram shows the brightness
distribution of an image. The
horizontal axis represents
brightness (dark at the left and
bright at the right) and the vertical
axis represents the number of
pixels.
The shape of the histogram
before and after shooting tells you
whether the brightness and
contrast are correct or not, and
lets you decide if you need to use EV compensation and take the picture again.
Understanding Brightness
If the brightness is correct, the graph peaks in the middle. If the image is
underexposed, the peak is on the left side, and if it is overexposed, the peak is on
the right side.
When the image is underexposed, the part to the left is cut off (dark portions) and
when the image is overexposed, the part to the right is cut off (bright portions).
This camera has a function where overexposed areas are indicated as blinking
red and underexposed areas as blinking yellow.
Understanding Contrast
The graph peaks gradually for images in which contrast is balanced. The graph
peaks on both sides but sinks in the middle for images with a large difference in
contrast and low amounts of mid-level brightness.
Histogram
Setting the Exposure (EV Compensation) 1p.86
Number of pixels→
←Brightness→(Dark) (Bright)
Dark portions Bright portions
Dark image Correct image Bright image
e_kb635_EN.book Page 27 Thursday, November 9, 2023 9:17 AM
28
Getting Started
1

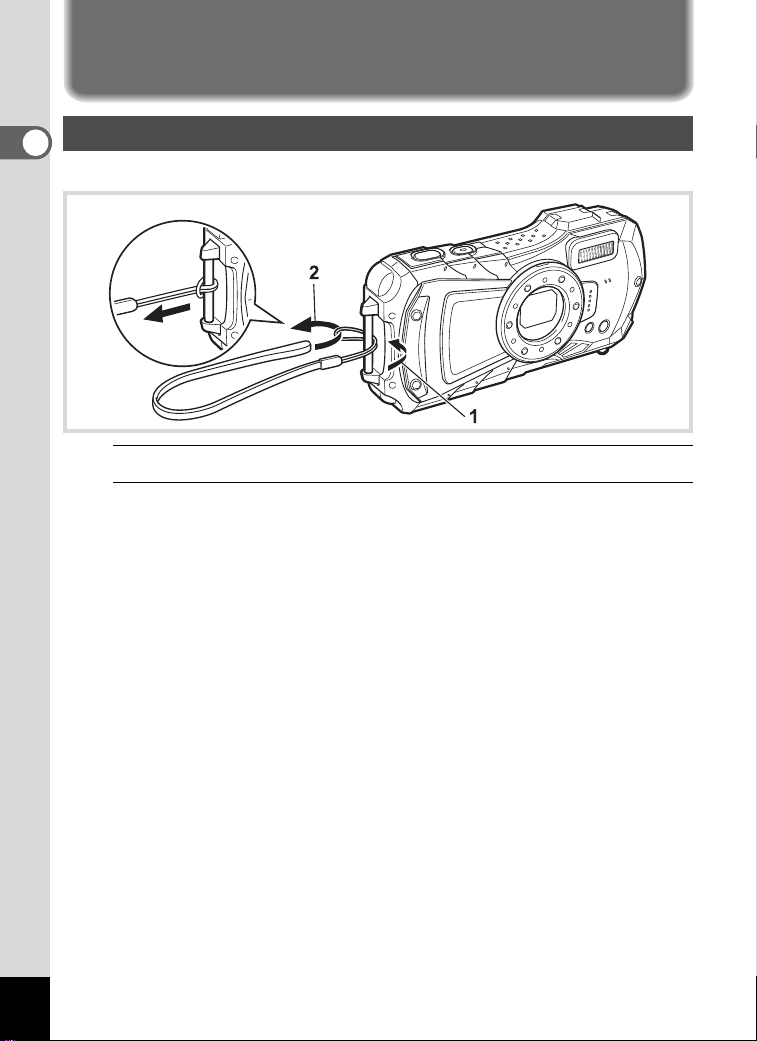

Attaching the Strap
Attach the strap (O-ST104) supplied with the camera.
1
Pass the narrow end of the strap through the strap lug.
2
Pass the other end of the strap through the loop and pull tight.
Attaching the Strap
e_kb635_EN.book Page 28 Thursday, November 9, 2023 9:17 AM
29
1
Getting Started
Powering the Camera
Use the rechargeable lithium-ion battery D-LI92 that is provided with the camera.
1
Open the battery/card cover.
Press the battery/card cover lock lever in the direction shown 1, slide the cover
towards 2 and open it towards 3.
2
Using the side of the battery to press the battery lock lever in
the direction of 4, insert the battery with the PENTAX logo
pointing toward the lens.
Push the battery in until it is locked in place.
3
Close the battery/card cover.
Push down and slide the battery/card cover with steady but gentle force in the
opposite direction indicated by 2.
The battery/card cover may be difficult to close because the waterproof packing
is very thick to prevent water from entering the camera. To close the battery/card
cover, push down on it toward the camera with your thumb where it says
[PUSH]. Then slide it until the battery/card cover lock lever slides into place
covering the yellow mark on the lock lever.
Installing the Battery
If the battery is incorrectly oriented, malfunction may result.
Battery/card cover
lock lever
Battery lock lever
Battery/card
cover
Battery
e_kb635_EN.book Page 29 Thursday, November 9, 2023 9:17 AM
30
1
Getting Started

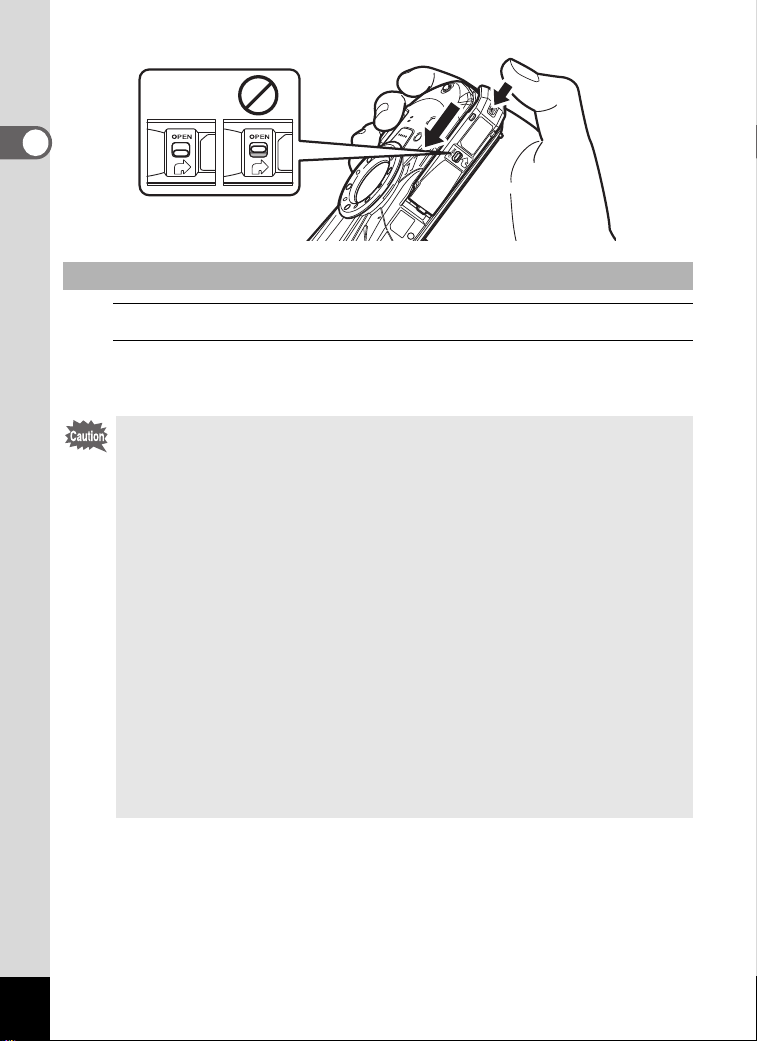

1
Open the battery/card cover.
2
Push the battery lock lever towards 4.
The battery will be ejected. Take care not to drop the battery when removing it.
For Customers in USA and Canada
Lithium-Ion batteries are recyclable.
You can help preserve our environment by returning your used rechargeable
batteries to the collection and recycling location nearest you.
For more information regarding recycling of rechargeable batteries, call toll free
1-800-822-8837, or visit http://www.call2recycle.org/
Removing the Battery
• Do not use excessive force when opening and closing the battery/card
cover because the waterproof seal may peel off. If the seal is not in the
correct position, the camera will not be waterproof.
• If the battery/card cover is not locked securely, water, sand, or dirt may get
into the camera.
• This camera uses a rechargeable lithium-ion battery D-LI92. Use of any
other type of battery may damage the camera and cause malfunction.
• Insert the battery correctly. If the battery is incorrectly oriented, malfunction
may result.
• Do not remove the battery while the camera is turned on.
• When storing the battery for more than 6 months, charge the battery for 30
minutes using the USB power adapter and store the battery separately.
Be sure to recharge the battery every 6 to 12 months. Storing the battery
below room temperature is ideal. Avoid storing it in high temperatures.
• The date and time may be returned to the default settings if the camera is
left without the battery for a long time.
• Be careful as the camera or the battery may become hot when the camera
is used continuously for a long period of time.
• Allow the camera to dry completely before changing the battery. Avoid
changing the battery where the camera is likely to get wet or dirty, and
make sure that your hands are dry.
e_kb635_EN.book Page 30 Thursday, November 9, 2023 9:17 AM
31
1
Getting Started

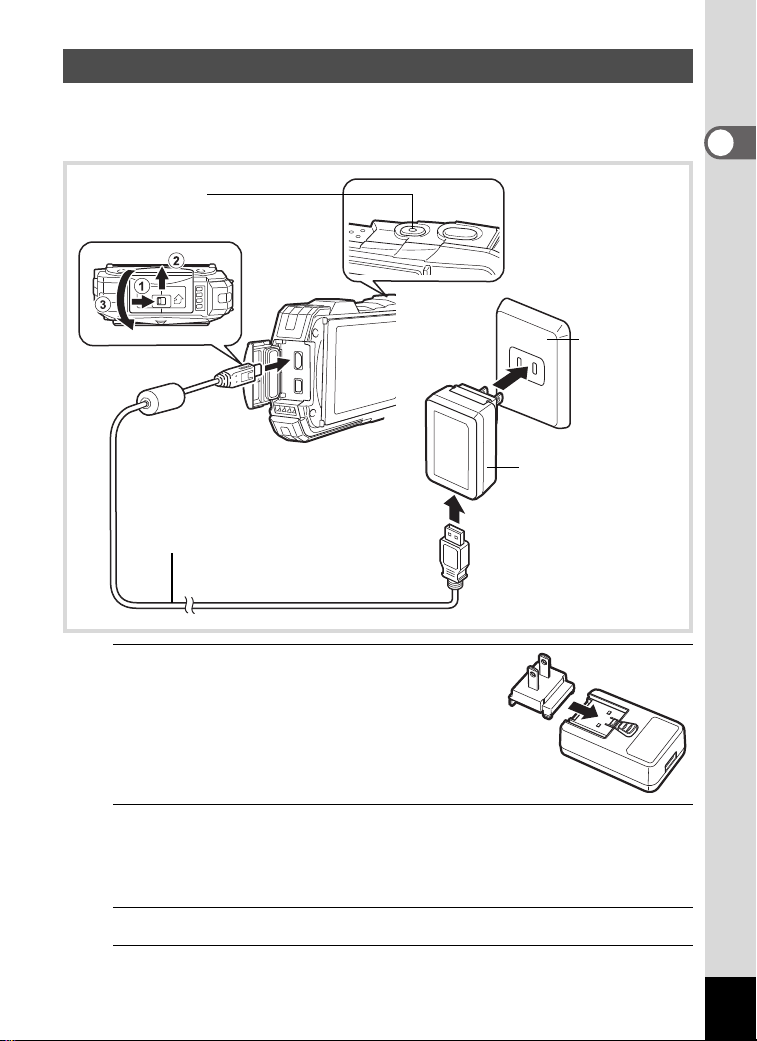

Connect the supplied USB power adapter to the camera and charge the battery
before using it for the first time or after a long period of non-use, or when the
[Battery depleted] message appears.
1
Insert the power plug to the USB power
adapter.
Insert it until it clicks into place.
2
Make sure that the camera is turned off and open the terminal
cover.
Move the terminal cover lock lever in the direction shown by 1, slide the cover
in the direction shown by 2 and open the cover in the direction shown by 3.
3
Connect the USB cable to the USB power adapter.
4
Connect the USB cable to the camera.
Charging the Battery
4
USB cable
USB power adapter
To power
outlet
Power lamp
While charging: Blinks
Charging finished: Turns off
2
5
3
e_kb635_EN.book Page 31 Thursday, November 9, 2023 9:17 AM
32
1
Getting Started
5
Plug the USB power adapter into the power outlet.
The power lamp blinks while charging.
When charging is finished, the power lamp turns off.
The terminal cover will not close while charging. Leave the cover open when
charging and do not attempt to close it.
6
Unplug the USB power adapter from the power outlet when
charging is finished.
7
Remove the USB cable from the camera.
8
Close the terminal cover.
Close the terminal cover in the opposite direction indicated by 3. While lightly
pressing on the cover, slide it away from 2 until it clicks.
• Do not use the supplied USB power adapter for any other purpose than that
of connecting to this camera and charging the designated battery. Doing
otherwise may cause a connected device to be damaged or overheated.
• The battery has reached the end of its service life when it starts to run down
soon after being charged. Replace it with a new battery.
• If the camera is connected to the power outlet but the charging indicator
fails to light, the battery may be faulty. Replace it with a new battery.
• The time required to fully charge the battery is about 120 minutes (max.).
(The charging time may vary depending on the ambient temperature and
charging conditions.) The appropriate ambient temperature for charging
the battery is 0°C to 40°C (32°F to 104°F).
•
You cannot turn on the camera while it is charging.
e_kb635_EN.book Page 32 Thursday, November 9, 2023 9:17 AM
33
1
Getting Started
• Image Storage Capacity, Movie Recording Time, and Playback Time
(at 23°C (73.4°F) with the display on and the battery fully charged)
*1 The image storage capacity shows the approximate number of shots recorded
during CIPA-compliant testing (at 23°C (73.4°F) with display on and flash used
for 50% of the shots). Actual performance may vary according to operating
conditions.
*2 According to the results of in-house testing.
• Battery Level Indicator
You can check the battery level by the indicator on the display.
Image Storage Capacity
*1
(flash used for 50% of shots)
Movie Recording Time
*2
Playback Time
*2
Approx. 300 pictures Approx. 90 min. Approx. 260 min.
• Battery performance may deteriorate as temperature decreases. When
using the camera in cold regions, we recommend carrying a spare battery
in your pocket to keep it warm. Battery performance will recover when the
temperature returns to normal.
• Be sure to take a spare battery with you when traveling abroad or to a cold
region, or if you intend to take a lot of pictures.
Screen Display Battery Status
(green) Adequate power remains.
(green) Battery is running low.
(yellow) Battery is running very low.
(red) Battery is exhausted.
[Battery depleted] The camera will turn off after this message appears.
e_kb635_EN.book Page 33 Thursday, November 9, 2023 9:17 AM
34
Getting Started
1
Installing an SD Memory Card
This camera uses SD Memory Cards, SDHC Memory Cards or SDXC Memory
Cards. Captured images are saved on the SD Memory Card if a card is inserted
in the camera. They are saved in the built-in memory if a card is not inserted
(p.36).
• Be sure to use this camera to format (initialize) an SD Memory Card that is
unused or has been previously used on other cameras or digital devices.
Refer to “Formatting the Memory” (p.148) for instructions on formatting
cards.
• Make sure that the camera is turned off before inserting or removing the SD
Memory Card.
• Allow the camera to dry completely before changing the SD Memory Card.
Avoid changing the card where the camera is likely to get wet or dirty, and
make sure that your hands are dry.
• Do not use excessive force when sliding the battery/card cover open and
closed because the waterproof seal may peel off. If the seal is not in the
correct position, the camera will not be waterproof.
• The number of still pictures that can be stored varies depending on the
capacity of the SD Memory Card and the selected number of recorded
pixels and quality level (p.187).
•
The power lamp blinks while the SD Memory Card is being accessed (data
is being recorded or read).
Backing Up Data
The camera may not be able to access data in the built-in memory in the case of a
malfunction. Use a computer or other device to back up important data in another
location.
Displaying data stored in the built-in memory
When an SD Memory Card is inserted in the camera, still pictures and movies on the
SD Memory Card are displayed. If you want to display still pictures and movies stored
in the built-in memory, turn the camera off and remove the SD Memory Card.
Make sure that the camera is turned off before inserting or removing the
SD Memory Card.
e_kb635_EN.book Page 34 Thursday, November 9, 2023 9:17 AM
35

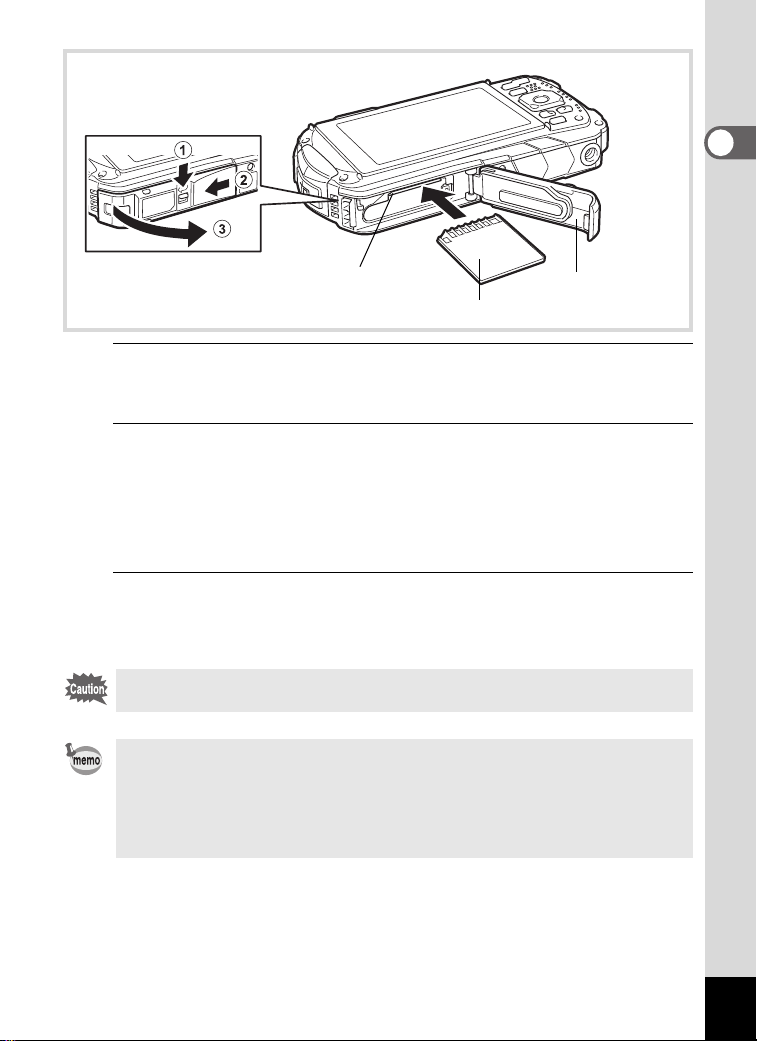

1
Getting Started
1
Open the battery/card cover.
Press the battery/card cover lock lever in the direction shown 1, slide the cover
towards 2 and open it towards 3.
2
Insert the SD Memory Card into the SD Memory Card socket
so that the label is facing toward the front of the camera (the
side with the lens).
Push the card in all the way. Images may not be recorded correctly if the card is
not inserted all the way.
To remove the SD Memory Card, push it in once and then pull it out.
3
Close the battery/card cover.
Push down and slide the battery/card cover with steady but gentle force in the
opposite direction indicated by 2.
If the battery/card cover is not locked securely when you close it, water, sand,
or dirt may get into the camera.
• The image file size varies depending on the number of recorded pixels and
the number of images that can be saved on an SD Memory Card also varies.
•
Set the number of recorded pixels for still pictures from the [
A
Rec. Mode]
menu and for movies from the [
C
Movie] menu.
•
For an approximate number of still pictures and amount of time of movies that
can be saved on an SD Memory Card, see “Main Specifications” (p.186).
SD Memory Card
Battery/card cover
SD Memory Card
socket
e_kb635_EN.book Page 35 Thursday, November 9, 2023 9:17 AM
36
Getting Started
1

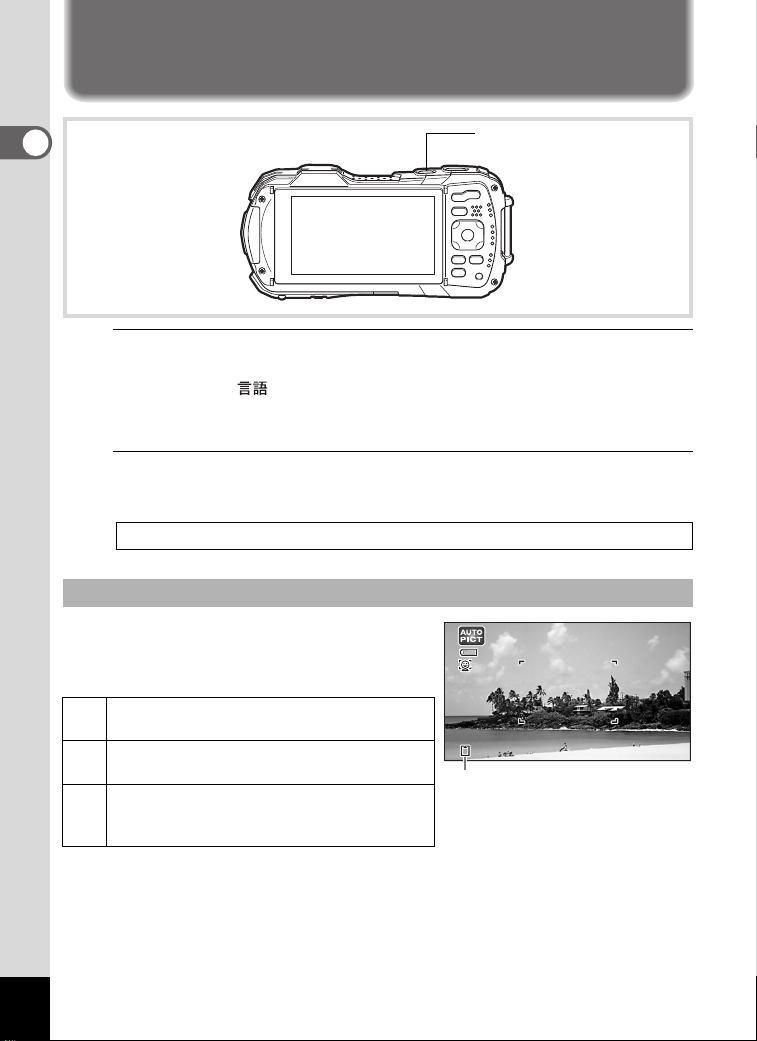

Turning the Camera On and Off
1
Press the power button.
The camera turns on and both the power lamp and display turn on.
If the [Language/ ] screen or [Date Adjustment] screen appears when you
turn the camera on, follow the procedure on p.38 to set the display language and/
or current date and time.
2
Press the power button again.
The camera turns off and both the power lamp and display turn off.
The SD Memory Card is checked when the
camera turns on and the memory status is
displayed.
Taking Still Pictures 1p.54
Checking the SD Memory Card
a
The SD Memory Card is inserted. Images
will be saved on the SD Memory Card.
+
The SD Memory Card is not inserted.
Images will be saved in the built-in memory.
r
The write-protect switch on the SD Memory
Card is in the LOCK position (p.7). Images
cannot be recorded.
Power button/Power lamp
38
3 8
38
Memory status
e_kb635_EN.book Page 36 Thursday, November 9, 2023 9:17 AM
37
1
Getting Started
Use this function when you want to play back images straightaway without taking
any picture.
1
Press and hold down the Q button.
The display turns on and the camera starts up in playback mode.
Starting-up in Playback Mode
• To switch from playback mode to capture mode, press the Q button or
press the shutter release button halfway.
• In order to set the camera not to start up in playback mode, set [Playback
Mode] to P (Off) from [Startup Shortcut] in the [W Setting] menu. (p.165)
Playing Back Still Pictures 1p.110
Q
button
Power button
e_kb635_EN.book Page 37 Thursday, November 9, 2023 9:17 AM
38
Getting Started
1
Initial Settings
The [Language/ ] screen appears when the camera is turned on for the first
time. Perform the operations in “Setting the Display Language” below to set the
language, and in “Setting the Date and Time” (p.41) to set the current date and
time.
1
Use the four-way controller (2345) to choose the display
language.
2
Press the 4 button.
The [Initial Setting] screen appears in the
selected language. If the desired settings
for [W Hometown] and [DST] (Daylight
Saving Time) appear, proceed to step 9.
The language, date, and time can be changed later. Refer to the pages below for
instructions.
• To change the language, follow the steps in “Changing the Display Language”
(1p.155).
• To change the date and time, follow the steps in “Changing the Date and Time”
(1p.150).
Setting the Display Language
3 button
Four-way controller
4 button
MENU
Cancel
Initial Setting
Hometown
New York
Settings complete
English
DST
OFFOFFOFF
Daylight saving time
e_kb635_EN.book Page 38 Thursday, November 9, 2023 9:17 AM
39
1
Getting Started
3
Press the four-way controller (3).
The frame moves to [W Hometown].
4
Press the four-way controller (5).
The [W Hometown] screen appears.
5
Use the four-way controller (45)
to choose a city.
6
Press the four-way controller (3).
The frame moves to [DST] (Daylight Saving Time).
7
Use the four-way controller (45) to select O(On) or P (Off).
8
Press the 4 button.
The [Initial Setting] screen reappears.
9
Press the four-way controller (3) to select [Settings
complete].
10
Press the 4 button.
The [Date Adjustment] screen appears. Next, set the date and time.
MENU
Cancel
Initial Setting
Hometown
New York
Settings complete
English
DST
OFF
OFF
OFF
MENU
Cancel
City
DST
New York
Hometown
OK
OK
e_kb635_EN.book Page 39 Thursday, November 9, 2023 9:17 AM
40
1
Getting Started
If you accidentally select the wrong language and go to the next procedure, perform
the following operation to set the language back.
When the Wrong Language Has Been Inadvertently Selected
1
Press the four-way controller (5).
2
Use the four-way controller (2345) to select the desired
language and press the 4 button.
The [Initial Setting] screen appears in the selected language.
When the Screen After Step 2 Appears in the Wrong Language
1
Press the 3 button.
This exits the setting screen and returns the camera to capture mode.
2
Press the 3 button.
The [A Rec. Mode] menu appears.
3
Press the four-way controller (5) twice.
4
Use the four-way controller (32) to select [Language/ ].
5
Press the four-way controller (5).
The [Language/ ] screen appears.
6
Use the four-way controller (2345) to select the desired
language.
7
Press the 4 button.
The [W Setting] menu appears in the selected language.
The language is now switched to your desired language. To reset [Hometown], [Date]
and [Time], refer to the pages below for instructions.
• To change the Hometown city, follow the steps in “Setting the World Time”
(1p.153).
• To change the date and time, follow the steps in “Changing the Date and Time”
(1p.150).
e_kb635_EN.book Page 40 Thursday, November 9, 2023 9:17 AM
41
1
Getting Started
Set the current date and time and the display format.
1
Press the four-way controller (5).
The frame moves to [mm/dd/yy].
2
Use the four-way controller (23)
to choose the date and time
display format.
Choose from [mm/dd/yy], [dd/mm/yy] or [yy/
mm/dd].
3
Press the four-way controller (5).
The frame moves to [24h].
4
Use the four-way controller (23) to select [24h] (24-hour
display) or [12h] (12-hour display).
5
Press the four-way controller (5).
The frame returns to [Date Format].
6
Press the four-way controller (3).
The frame moves to [Date].
7
Press the four-way controller (5).
The frame moves to the month.
8
Use the four-way controller (23) to change the month.
Change the day and year in the same manner.
Next, change the time.
If you selected [12h] in step 4, the camera switches between am and pm
corresponding to the time.
9
Press the four-way controller (3) to select [Settings
complete].
10
Press the 4 button.
This confirms the date and time.
Setting the Date and Time
If you press the 4 button in step 10, the camera clock is reset to 0 seconds.
To set the exact time, press the 4 button when the time signal (on the TV,
radio, etc.) reaches 0 seconds.
MENU
mm/dd/yy
24
h
00:00
Cancel
Settings complete
Date Adjustment
Date Format
Date
Time
01/01/2023
e_kb635_EN.book Page 41 Thursday, November 9, 2023 9:17 AM
42
1
Getting Started
When the [Initial Setting] or [Date Adjustment] screen is displayed, you can
cancel the setting operation and switch to capture mode by pressing the
3 button. In this case, the [Initial Setting] screen will appear next time
you turn the camera on.
[Language/ ], [Date], [Time], [Hometown] and [DST] can be changed. Refer to
the pages below for instructions.
• To change the language, follow the steps in “Changing the Display Language”
(1p.155).
• To change the date and time, follow the steps in “Changing the Date and Time”
(1p.150).
• To change the Hometown city or turn the DST setting on and off, follow the steps
in “Setting the World Time” (1p.153).
e_kb635_EN.book Page 42 Thursday, November 9, 2023 9:17 AM
43
2
Common Operations
Understanding the Button Functions
1 Power button
Turns the camera on and off (p.36).
2 Shutter release button
Focuses the camera on the subject when pressed halfway in Still Picture
Capture Mode (except when the focus mode is set to 3, s, and \) (p.55).
Takes a still picture when pressed down fully (p.55).
Pressing down fully starts and stops movie recording in C (Movie),
(Underwater Movie), and (High Speed Movie) modes (p.98, p.100, and
p.107).
3 W/T button
Changes the captured area (p.57).
4 Q button
Switches to Q mode (p.47).
5 Four-way controller
(2) : Changes the drive mode (p.67 - p.71).
(3) : Displays the Capture Mode Palette (p.61).
(4) : Changes the flash mode (p.73).
(5) : Changes the focus mode (p.75).
(23) : Adjusts the focus when the focus mode is set to \ (p.76).
A Mode
2Common Operat ions
2
4
8
6
9
5
3
1
7
e_kb635_EN.book Page 43 Thursday, November 9, 2023 9:17 AM
44
2
Common Operations
6 4 button
Changes the information on the display (p.21).
7 3 button
In Still Picture Capture Mode, [A Rec. Mode] menu appears. In Movie Mode,
[C Movie] menu appears (p.48).
8 Movie button
Starts movie recording in Still Picture Capture Mode (p.101).
9 Green button
Calls up the assigned function (p.92).
Switches to 9 (Green) mode (p.64).
e_kb635_EN.book Page 44 Thursday, November 9, 2023 9:17 AM
45
2
Common Operations

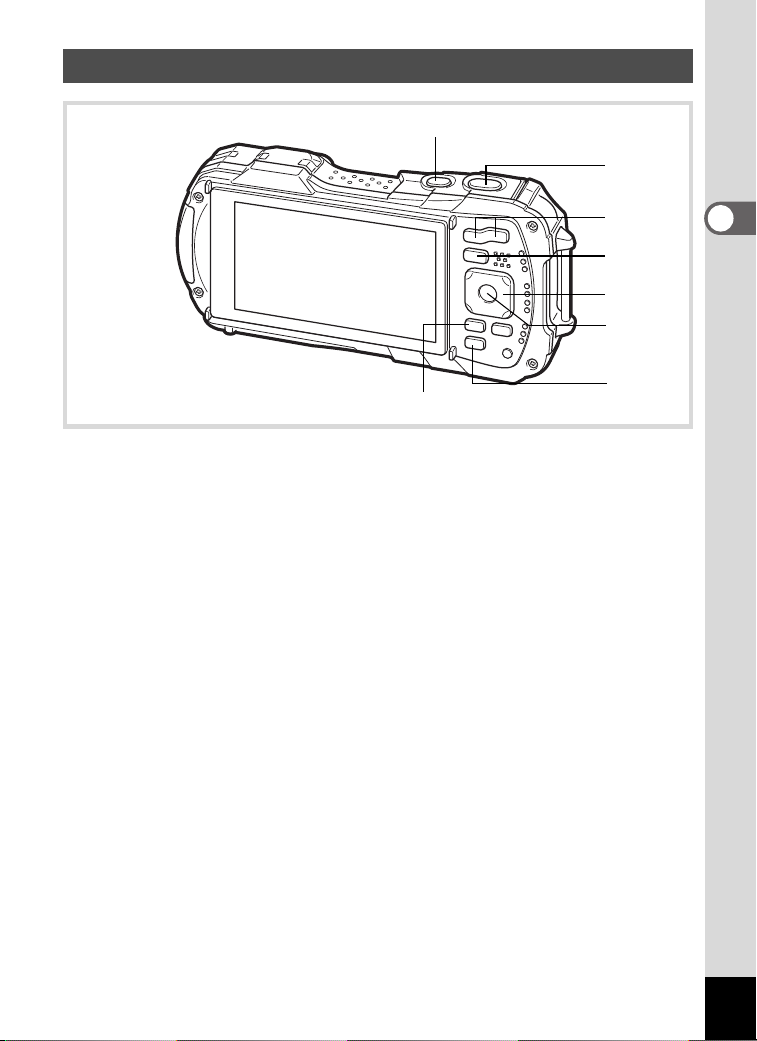

1 Power button
Turns the camera on and off (p.36).
2 Shutter release button
Switches to A mode (p.47).
3 f/y button
In single-image display, pressing f switches to 6-image display. Pressing f
again switches to 12-image display (p.112). Press y to return to the previous
display.
In single-image display, pressing y magnifies the image. Press f to return to
the previous display (p.120).
In 12-image display, press f to change to folder or calendar display (p.113).
In folder/calendar display, press y to change to 12-image display (p.113).
Adjusts the volume during playback of movies (p.111).
4 Q button
Switches to A mode (p.47).
Q Mode
2
4
6
8
5
3
1
7
e_kb635_EN.book Page 45 Thursday, November 9, 2023 9:17 AM
46
2
Common Operations
5 Four-way controller
(2) : Plays back and pauses a movie (p.111).
(3) : Displays the Playback Mode Palette (p.116).
Stops a movie during playback (p.111).
(45) : Displays the previous or next image during single-image display
(p.110).
Fast-forwards, fast-reverses, frame forwards, and frame
reverses during movie playback (p.111).
(2345) : Changes the position of the area to be magnified during zoom
display (p.120).
Selects an image in 6- or 12-image display, a folder in folder display,
and a date in calendar display (p.112, p.113).
Adjusts the position of a frame or an image when you are using
the Original Frame function (p.140).
6 4 button
Changes the information on the display (p.24).
Returns zoom, 6- or 12-image display to single-image display (p.113, p.120).
Changes to 12-image display of the selected folder during folder display (p.113).
Changes to single-image display of the selected date during calendar display
(p.114).
7 3 button
Displays the [W Setting] menu during single-image display (p.48).
Returns to single-image display during Playback Mode Palette display (p.114).
Returns zoom, 6- or 12-image display to single-image display.
Switches from folder/calendar display to 12-image display with the cursor
placed on the most recent image (p.113).
8 Green/i button
Switches from single-image display to the Delete screen (p.121).
Switches from 6- or 12-image display to the Select & Delete screen (p.122).
Switches from folder display to the calendar display screen (p.113).
Switches from calendar display to the folder display screen (p.113).
e_kb635_EN.book Page 46 Thursday, November 9, 2023 9:17 AM
47
2
Common Operations
In this manual, the capture mode, such as for taking still pictures and recording
movies, is referred to as “A mode” (capture mode) (“Still Picture Capture Mode”
refers to the mode for taking still pictures and “Movie Mode” refers to the mode
for recording movies). The playback mode, such as for viewing captured images
on the display, is referred to as “Q mode” (playback mode). In Q mode, you
can perform simple editing operations on the images that are played back.
Follow the procedure below to switch between A mode and Q mode.
1
Press the Q button.
The camera switches to Q mode.
1
Press the
Q
button or the shutter release button halfway.
The camera switches to A mode.
Switching Between A Mode and Q Mode
To Switch from A Mode to Q Mode
To Switch from Q Mode to A Mode
Displaying data stored in the built-in memory
When an SD Memory Card is inserted in the camera, still pictures and movies on the
SD Memory Card are displayed. If you want to display still pictures and movies stored
in the built-in memory, turn the camera off and remove the SD Memory Card.
Make sure that the camera is turned off before inserting or removing the
SD Memory Card.
e_kb635_EN.book Page 47 Thursday, November 9, 2023 9:17 AM
48
2
Common Operations

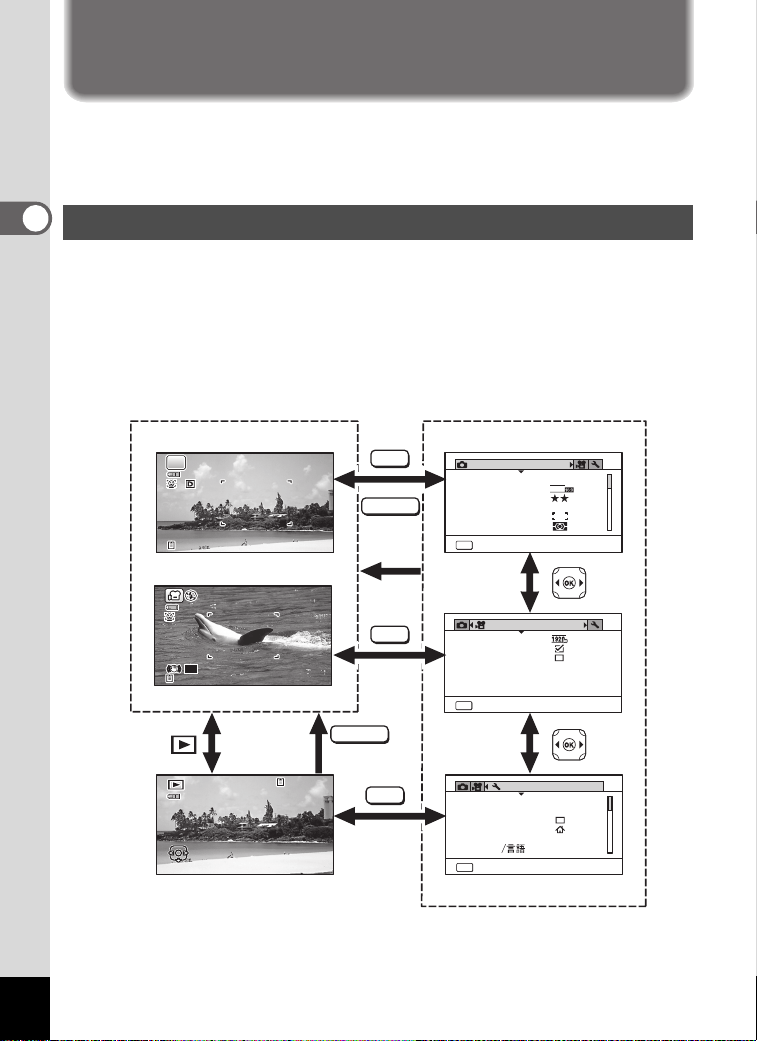

Setting the Camera Functions
To change the camera settings, press the 3 button to display the [A Rec.
Mode] menu or [W Setting] menu. Functions for playing back and editing images
can be accessed from the Playback Mode Palette.
There are three types of menus: [A Rec. Mode], [C Movie] and [W Setting].
Press the 3 button in Still Picture Capture Mode to display the [A Rec.
Mode] menu. Press the 3 button in Movie Mode to display the [C Movie]
menu. Press the 3 button in Q mode to display the [W Setting] menu.
Use the four-way controller (45) to move between menus.
Operating the Menus
SHUTTER
SHUTTER
MENU
MENU
MENU
3 8
38
P
07:34
0 7: 3 4
07:34
REC
Edit
Edit
Edit
10
10 0
-
003
00 3 8
100
-
0038
11/11/2023
11/11/2023
14:25
14:25
14:2511/11/2023
Movie
MENU
Recorded Pixels
Mov
iSRe
Exit
Wind Suppression
AWB
MENU
1/4
12
M
Exit
Rec. Mode
Image Tone
Recorded Pixels
Bright
AE Metering
AF Setting
White Balance
Quality Level
MENU
Exit
Setting
1/4
Sound
Date Adjustment
01/01/2023
World Time
Alarm
Standard
Text Size
Language
English
In capture mode
In playback mode
Pressed
halfway
Pressed
halfway
e_kb635_EN.book Page 48 Thursday, November 9, 2023 9:17 AM
49
2
Common Operations
• Available button and key operations appear on the display during menu
operation.
•The 3 button function varies depending on the screen. Refer to the
guide indications.
Exit Exits the menu and returns to the original screen.
Returns to the previous screen with the current settings.
Cancel Cancels the current selection, exits the menu and
returns to the previous screen.
MENU
MENU
MENU
e_kb635_EN.book Page 49 Thursday, November 9, 2023 9:17 AM
50
2
Common Operations
The following list shows the items that can be set with the menus and provides
descriptions of each item. See the list of default settings in the Appendix “Default
Settings” (p.180) to check whether the settings are saved when the camera is
turned off, and whether the settings return to the default values when the camera
is reset.
[A Rec. Mode] Menu
This menu provides the functions related to taking still pictures and recording
movies.
Menu List
Item Description Page
Image Tone For setting the tone of images p.78
Recorded Pixels
For choosing the number of recorded pixels of still
pictures
p.79
Quality Level For setting the quality level of still pictures p.80
White Balance
For adjusting the color balance according to the
lighting conditions
p.82
AF
Setting
Focusing
Area
When
=
(Standard),
q
(Macro), or (1cm
Macro) is selected as the focus mode, you can
change the autofocus area (Focusing Area)
p.76
Auto Macro
For choosing whether or not to use the auto macro
function
p.77
Focus
Assist
For setting whether or not to use the focus assist
light
p.78
AE Metering
For choosing the area of the screen that is metered
to determine the exposure
p.84
Sensitivity For setting the sensitivity p.85
AUTO ISO Range
For setting the adjustment range when the sensitivity
is set to AUTO
p.86
EV Compensation For adjusting the overall brightness of an image p.86
D-Range
Setting
Highlight
Correction
For setting the bright portion correction function p.87
Shadow
Correction
For setting the dark portion correction function p.87
Pixel Track SR
For choosing whether to compensate for camera
shake while taking still pictures
p.88
Face Detection
For automatically setting the focus and exposure
according to faces that are detected and for setting
the Self-portrait Assist function
p.89
Blink Detection
For choosing whether to use the Blink Detection
function with the Face Detection function
p.91
Digital Zoom For choosing whether or not to use the digital zoom p.59
Instant Review For choosing whether to display Instant Review p.91
e_kb635_EN.book Page 50 Thursday, November 9, 2023 9:17 AM
51
2
Common Operations
* IQ Enhancer = Image Quality Enhancer
Memory
For choosing whether to save the set values of the
shooting functions or return to the defaults when the
camera is turned off
p.108
Green Button
For assigning a function to the Green button in A
mode
p.92
Sharpness For choosing sharp or soft outlines p.95
Saturation
(Tone Adjustment)
For setting the color saturation. When [Monochrome]
is selected, the item changes to [Tone Adjustment]
p.95
Contrast For setting the image contrast level p.95
Date Imprint
For choosing whether to imprint the date and/or time
when taking still pictures
p.96
IQ Enhancer*
For setting whether to apply the IQ Enhancer
process to an image
p.96
Macro Light
Set On, Off, or Brightness adjustment for the LED for
macro photography.
p.97
•Use the 9 (Green) mode to enjoy easy picture-taking with standard
settings, regardless of the settings made from the [A Rec. Mode] menu
(p.64).
• Assigning a frequently used function to the Green button enables you to go
straight to the desired function (p.92).
Item Description Page
AWB
MENU
1/4
12
M
Exit
Rec. Mode
Image Tone
Recorded Pixels
Bright
AE Metering
AF Setting
White Balance
Quality Level
[A Rec. Mode] Menu 1 [A Rec. Mode] Menu 2
[A Rec. Mode] Menu 3 [A Rec. Mode] Menu 4
MENU
Exit
Pixel Track SR
Sensitivity
Face Detection
D-Range Setting
EV Compensation
Auto ISO Range
AUTO
ISO
125-1600
0.0
Rec. Mode
2/4
MENU
Exit
Blink Detection
Green Button
Sharpness
Instant Review
Memory
Digital Zoom
Rec. Mode
3/4
MENU
Exit
Saturation
Date Imprint
Macro Light
Off
Contrast
IQ Enhancer
Rec. Mode
4/4
e_kb635_EN.book Page 51 Thursday, November 9, 2023 9:17 AM
52
2
Common Operations
[C Movie] Menu
[W Setting] Menu
Item Description Page
Recorded Pixels
For choosing the number of recorded pixels and the
frame rate for movies
p.102
Movie SR
For choosing whether or not to use the Movie Shake
Reduction function
p.103
Wind Suppression For suppressing wind noises while recording movies p.104
Item Description Page
Sound
For adjusting the operation volume and playback
volume, and setting the start-up sound, shutter
sound, key operation sound, and self-timer sound
p.149
Date Adjustment For adjusting the date and time p.150
Alarm For setting the alarm p.151
World Time For setting the Hometown and Destination cities p.153
Text Size For setting the text size of the menu p.155
Language/
For setting the language in which menus and
messages appear
p.155
Folder Name
For choosing how names are assigned to folders for
storing images
p.156
File Name For choosing how names are assigned to images p.158
USB Connection
For setting the method for connecting the camera to
a PC by the USB cable (MSC or PTP)
p.168
HDMI Out
For setting the HDMI output format when connecting
to an AV device with an HDMI terminal
p.160
Brightness Level For adjusting the brightness of the display p.160
Outdoor View Stg.
For adjusting the brightness of the display for outdoor
shooting
p.160
Power Saving
For setting the time until the camera enters power-
saving mode
p.161
[C Movie] Menu
Movie
MENU
Recorded Pixels
Mov
iSRe
Exit
Wind Suppression
e_kb635_EN.book Page 52 Thursday, November 9, 2023 9:17 AM
53
2
Common Operations
Auto Power Off
For setting the time until the camera turns off
automatically
p.162
Quick Zoom
For choosing whether to use the Quick Zoom function
(p.120) when playing back images
p.162
Guide Display
For setting whether to display explanations for
selected items in Capture Mode Palette and Playback
Mode Palette
p.163
Reset
For returning settings other than the date and time,
language and world time to their defaults
p.165
Delete All For deleting all the images at once p.123
Pixel Mapping For correcting defective pixels on the image sensor p.163
Startup
Shortcut
Playback
Mode
For setting whether to start-up the camera in
playback mode
p.165
LED
Lighting
For setting whether to turn the LED Macro Lights on
with the camera turned off
p.165
Clock
Display
For setting whether to display the clock with the
camera turned off
p.165
Format For formatting the SD Memory Card/built-in memory p.148
Item Description Page
MENU
Exit
Setting
1/4
Sound
Date Adjustment
01/01/2023
World Time
Alarm
Standard
Text Size
Language
English
[W Setting] Menu 1 [W Setting] Menu 2
[W Setting] Menu 3
MENU
Exit
Setting
2/4
Folder Name
File Name
Date
USB
Connection
MSC
IMGP
HDMI Out
Auto
Brightness Level
Outdoor View Stg.
MENU
Exit
Quick Zoom
Guide Display
5
sec.
Auto Power Off
3
min.
Power Saving
Setting
3/4
Reset
Delete All
[W Setting] Menu 4
MENU
Exit
Setting
4/4
Pixel Mapping
Format
Startup Shortcut
e_kb635_EN.book Page 53 Thursday, November 9, 2023 9:17 AM
54
3
Taking Pictures

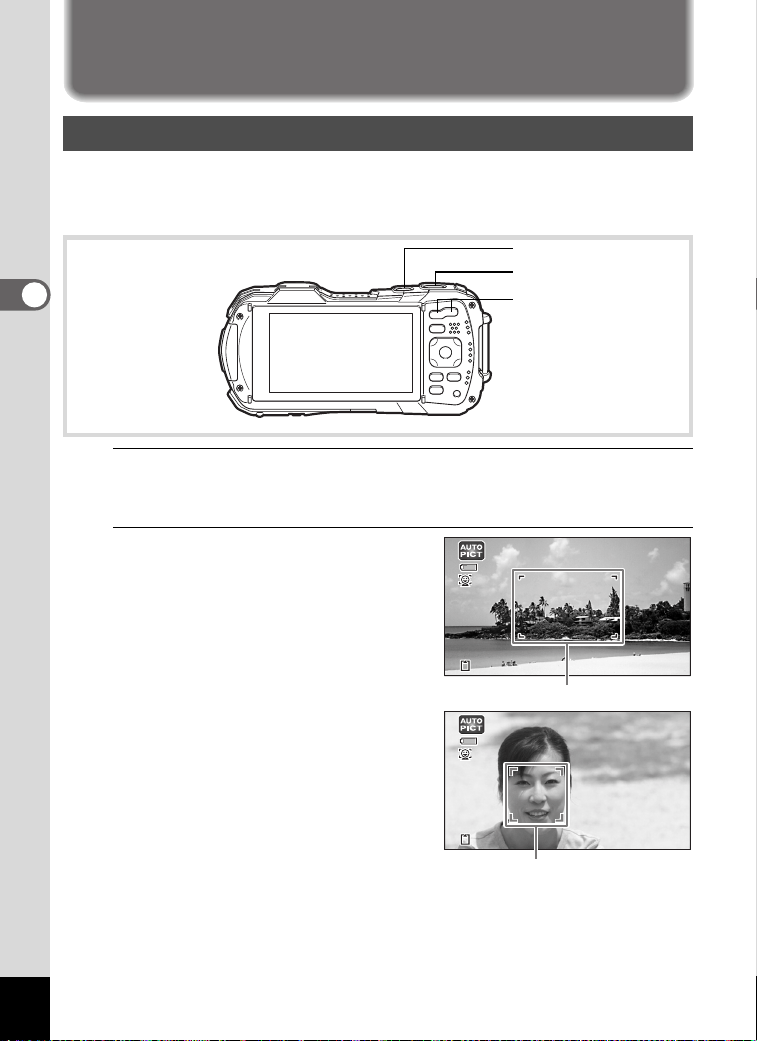

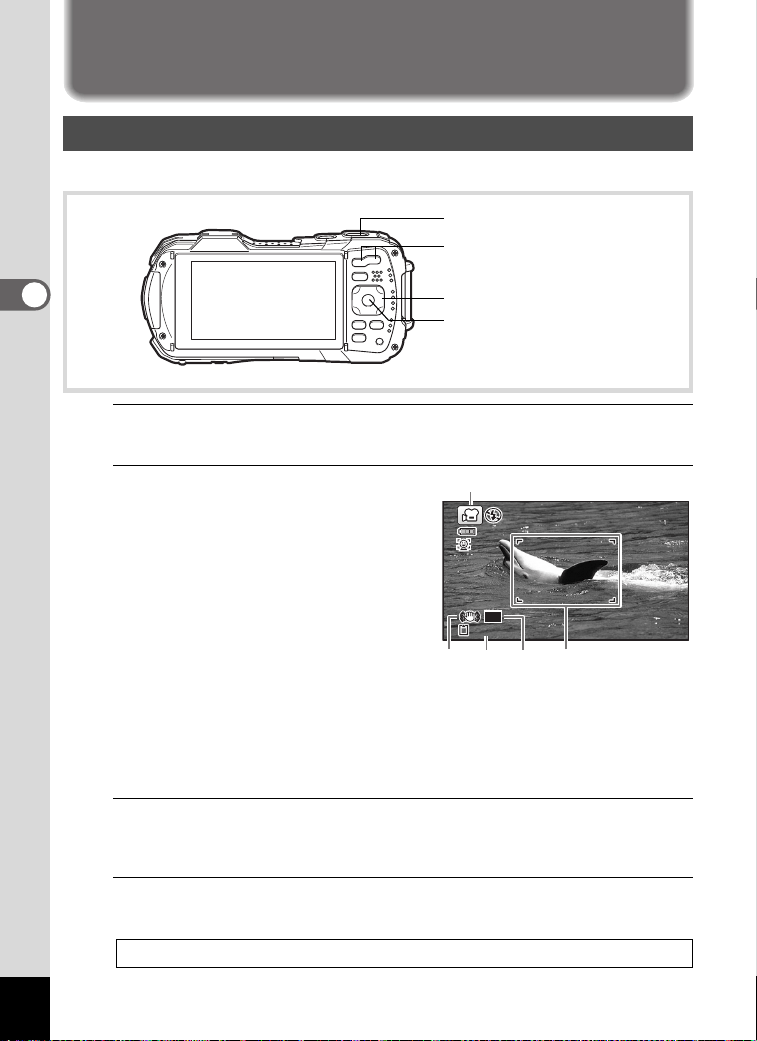

Taking Still Pictures
This camera has various functions and shooting modes that support a wide array
of scenes and subjects. This section explains shooting with the default settings
when shipped.
1
Press the power button.
The camera turns on and is ready to take still pictures. In this manual, this is
called Still Picture Capture Mode.
2
Check the subject and shooting
information on the display.
The focus frame in the middle of the display
indicates the automatic focusing area.
When the camera detects a person’s face,
the Face Detection function is activated and
the face detection frame appears (p.63).
Taking Pictures
3Taking Pictures
W/T button
Power button
Shutter release button
38
3 8
38
Focus frame
383 838
Face detection frame
e_kb635_EN.book Page 54 Thursday, November 9, 2023 9:17 AM
55
3
Taking Pictures
You can change the captured area by pressing the zoom button (p.57).
Right (T) Enlarges the subject.
Left (W) Widens the area that is captured by the camera.

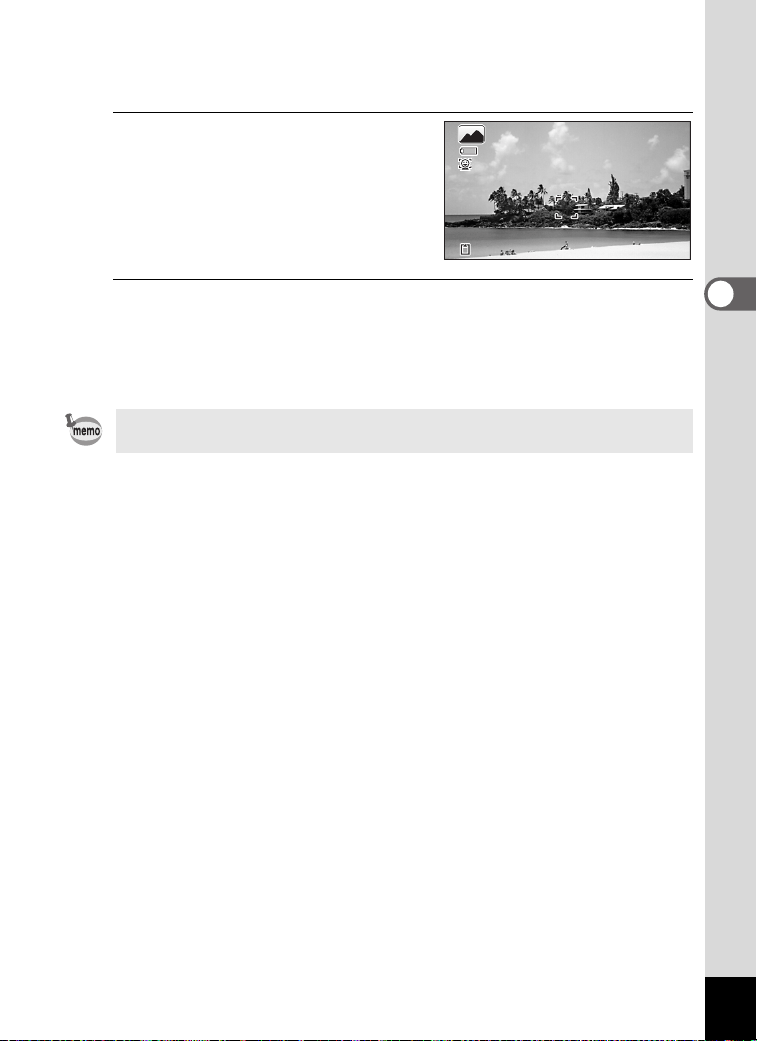

3
Press the shutter release button
halfway.
The camera emits focus assist light in dark
shooting situations.
The focus frame (or face detection frame)
on the display turns green when the camera
focuses on the subject.
4
Press the shutter release button fully.
The picture is taken.
The flash discharges automatically depending on the light conditions.
The image appears on the display temporarily (Instant Review: p.57) and is
saved to the SD Memory Card or the built-in memory.
f is displayed when the shutter release button is pressed halfway if there
is a risk of camera shake.
F4.6
F 4 . 6
F4.6
1/250
1 / 2 5 0
1/250
38
3 8
38
e_kb635_EN.book Page 55 Thursday, November 9, 2023 9:17 AM
56
3
Taking Pictures
The shutter release button works in a two-step action as follows.
Press halfway
This refers to pressing the shutter release button gently to the first position. This
locks the focus setting and exposure. The green focus frame lights on the display
when the shutter release button is pressed halfway and the subject is in focus. If
the subject is out of focus, the frame turns white.
Press fully
This refers to pressing the shutter release button all the way down to the fully
depressed position. This takes a picture.
Using the Shutter Release Button
Poor focusing conditions
The camera may not be able to focus under the following conditions. In these cases,
lock the focus on an object the same distance away as the subject (by pressing and
holding the shutter release button halfway), then aim the camera at your subject and
press the shutter release button fully.
• Objects that lack contrast such as a blue sky or white wall
• Dark places or objects, or conditions that prevent light being reflected back
• Intricate patterns
• Fast moving objects
• When both an object in the foreground and an object in the background exist in the
captured area
• Strongly reflected light or strong backlighting (bright background)
Not pressed Pressed halfway
(first position)
Pressed fully
(second position)
e_kb635_EN.book Page 56 Thursday, November 9, 2023 9:17 AM
57
3
Taking Pictures
The image appears on the display temporarily (Instant Review) immediately after
it is captured. If the camera detects that the subject’s eyes are closed while Face
Detection (p.89) is activated, the message [Closed eyes have been detected]
appears for 3 seconds (Blink Detection).

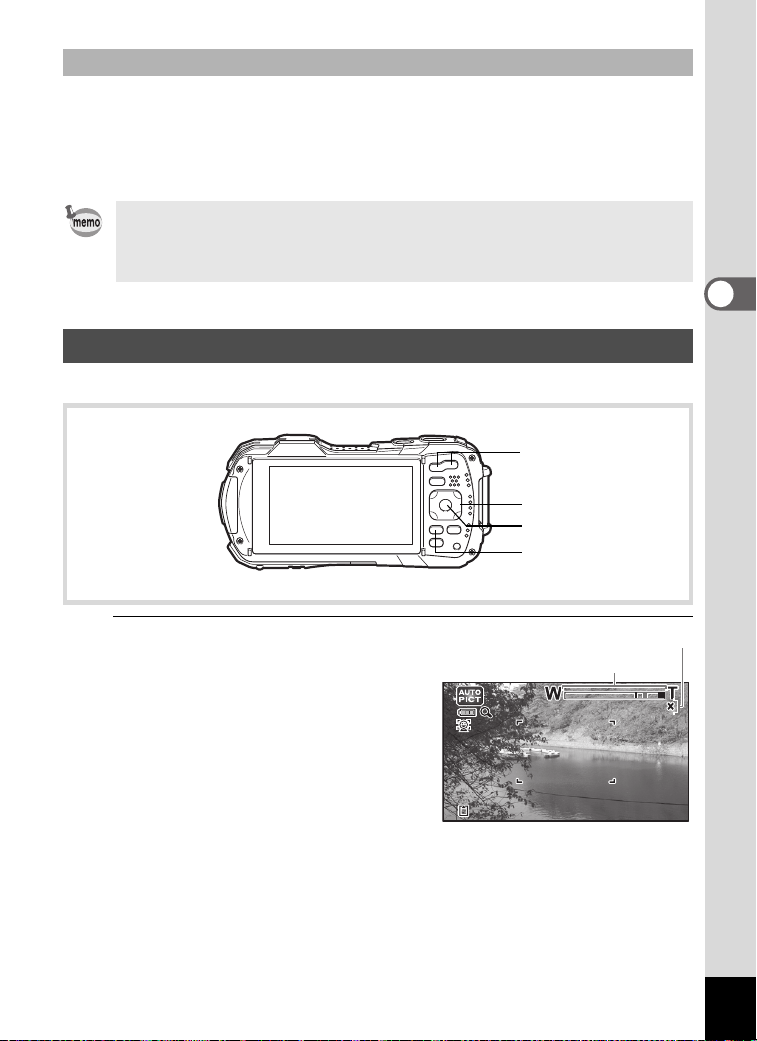

You can use the zoom to change the captured area.
1
Press the W/T button in A mode.
W Wide (left)
Widens the area that is captured by the
camera.
T Tele (right)
Enlarges the subject.
If you continue to press T, the camera
automatically switches from optical zoom to
Intelligent Zoom and stops at the point where
the zoom switches to digital zoom.
Once the button is released and pressed again, the camera switches to digital
zoom.
If the digital zoom is set to off in the menu, the optical zoom and the Intelligent
Zoom ranges are available for use. The zoom ratio of the Intelligent Zoom varies
depending on the number of recorded pixels.
Instant Review and Blink Detection
• When the Face Detection function does not work, Blink Detection also does
not function. Even if the subjects’ faces are recognized, Blink Detection
may not function depending on the condition of the recognized faces.
• You can also disable the Blink Detection function (p.91).
Using the Zoom
3 button
W/T button
Four-way controller
4 button
3 838
36.036.036.0
Zoom bar
Zoom ratio
e_kb635_EN.book Page 57 Thursday, November 9, 2023 9:17 AM
58
3
Taking Pictures
The zoom bar is displayed as follows.
*1 You can zoom in to a maximum of 5x optically.
*2 The Intelligent Zoom range varies depending on the number of recorded
pixels. See the following table.
Recorded pixels and the maximum zoom ratio
(*1) Intelligent Zoom and digital zoom are not available when (Report) mode is set.
(Only 5x optical zoom is available.)
(*2) indicates values that can only be set when (Report) mode is set.
Recorded Pixels
Intelligent Zoom
(The zoom ratio includes the 5x optical zoom.)
Digital zoom
//
Not Available (5x optical zoom only)
Equivalent to
approx. 36x
6/
Approx. 7.5x
f/
Approx. 8.9x
h (*1)
Approx. 11.3x
h
Approx. 12x
i
(*2) Not Available (5x optical zoom only)
V
(*2) Not Available (5x optical zoom only)
l
Approx. 22.5x
Equivalent to
approx. 36x
m
Approx. 36x (same as digital zoom)
• We recommend you use a tripod to prevent camera shake when taking
pictures at high zoom ratios.
• Pictures taken in the digital zoom range appear grainier than pictures taken
in the optical zoom range.
• For details on the available functions, refer to “Functions Available for Each
Shooting Mode” (p.172).
• The image magnified using Intelligent Zoom may appear rough on the
display. This does not affect the quality of the recorded image.
• Intelligent Zoom is available regardless of whether the digital zoom is
turned on or off.
Zoom in with high image quality.
Zoom in with some degree of image
deterioration.
Optical zoom range
*1
Intelligent
Zoom range
*2
Digital zoom
range
e_kb635_EN.book Page 58 Thursday, November 9, 2023 9:17 AM
59
3
Taking Pictures
The digital zoom is set to O (On) in the default settings. To take pictures using
only the optical zoom and Intelligent Zoom, set the digital zoom to P (Off).
1
Press the 3 button in A mode.
The [A Rec. Mode] menu appears.
2
Use the four-way controller (
23
) to select [Digital Zoom].
3
Use the four-way controller (45)
to switch between O (On) or P
(Off).
O(On) Uses the digital zoom
P (Off) Uses only the optical zoom
and Intelligent Zoom
The setting is saved.
4
Press the 3 button.
The camera returns to capture mode.
To Set the Digital Zoom
Saving the Digital Zoom setting 1p.108
MENU
Exit
Blink Detection
Green Button
Sharpness
Instant Review
Memory
Digital Zoom
Rec. Mode
3/4
e_kb635_EN.book Page 59 Thursday, November 9, 2023 9:17 AM
60
3
Taking Pictures

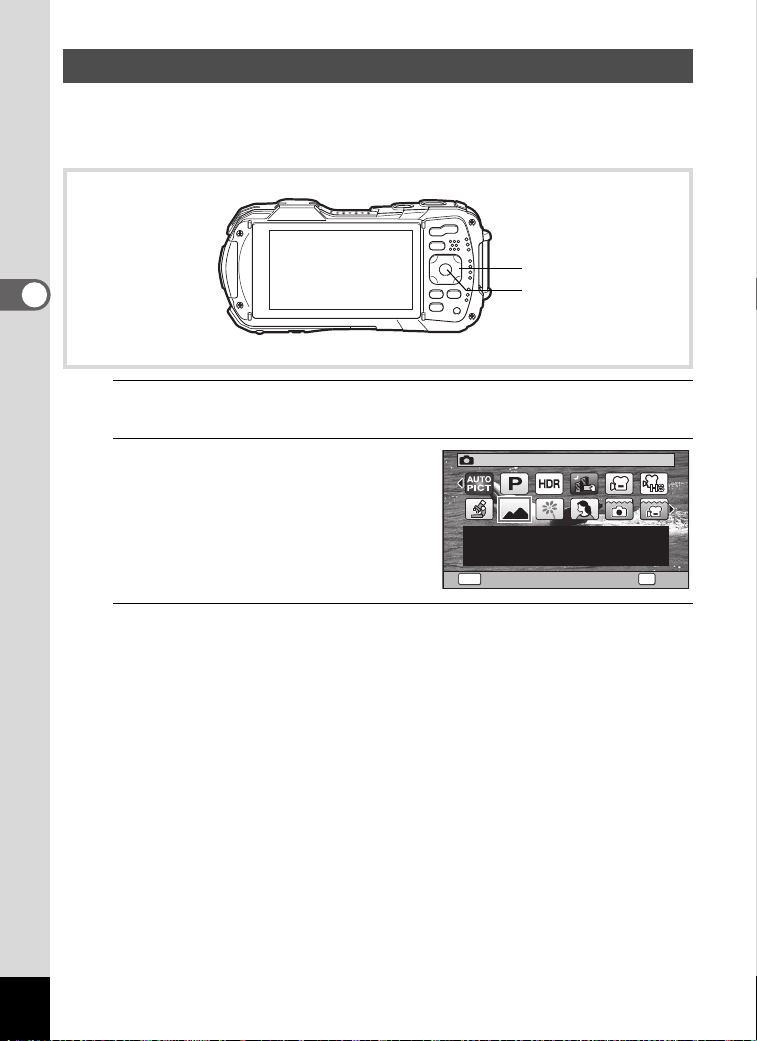

This camera has a variety of shooting modes that let you take pictures or record
movies in different situations simply by choosing the right mode for the particular
situation from the Capture Mode Palette.
1
Press the four-way controller (3) in A mode.
The Capture Mode Palette appears.
2
Use the four-way controller
(2345) to choose a shooting
mode.
The guide of the selected shooting mode is
displayed in the lower part of the display.
3
Press the 4 button.
The shooting mode is selected and the camera returns to capture mode.
Setting the Shooting Mode
Four-way controller
4 button
Landscape
For capturing landscape
views. Enhances colors
of sky and foliage
OK
OK
MENU
Cancel
1/2
e_kb635_EN.book Page 60 Thursday, November 9, 2023 9:17 AM
61
3
Taking Pictures
The following modes can be selected from the Capture Mode Palette.
Item Description Page
b
Auto Picture
The camera automatically selects the
appropriate shooting mode from the following
fifteen modes
* When the camera detects the pet’s face, the
shutter is automatically released.
⎯
R
Program
Used for basic shooting. The shutter speed and
aperture are set automatically by the camera
during shooting. However, you can select and set
other functions as desired, such as the flash
mode and the number of recorded pixels
⎯
HDR
Combines 3 images into a single image
delivering a wider dynamic range image
⎯
Handheld Night
Snap
Minimizes camera shake for shooting at night or
other low light settings
⎯
C
Movie
For recording movies. Sound is recorded at the
same time
p.100
High Speed Movie Captures frames for slow motion playback p.107
Digital Microscope Captures the bigger images of the closer objects p.65
a
Landscape
For capturing landscape views. Enhances colors
of sky and foliage
⎯
b Flower
For images of flowers. The outline of the flower is
softened
⎯
c
Portrait
For capturing portraits. Reproduces a healthy
and bright skin tone
⎯
Standard Night Scene
Night Scene
Portrait
Landscape Flower Portrait
Sport Candlelight Blue Sky
Portrait×
Blue Sky
Portrait×
Backlight
Sunset
Portrait×
Sunset
Group
Photograph
Text
e_kb635_EN.book Page 61 Thursday, November 9, 2023 9:17 AM
62
3
Taking Pictures
* 9 (Green) (p.64) mode is available in addition to the ones noted above.
Underwater For capturing images underwater p.98
Underwater Movie Use this mode for taking underwater movies p.98
Interval Shot
Shoots a series of images at a specified interval
of time
p.66
Interval Movie
Shoots a series of images at a specified interval,
and saves them as a movie
p.104
Q
Surf & Snow
For bright images such as sand or snow.
Accurately meters for bright scenes
⎯
R
Kids
For capturing moving kids. Reproduces a healthy
and bright skin tone
⎯
e
Pet For capturing images of moving pets p.65
\
Sport
For a fast moving subject. Tracks the subject until
the picture is taken
⎯
A
Night Scene
For night time images. Use of a tripod or other
support is suggested
⎯
B
Night Scene
Portrait
For images of people at night. Use of a tripod or
other support is advised
⎯
S
Fireworks
For capturing fireworks. Use of a tripod or other
support is suggested
⎯
K
Food
For images of food and prepared dishes.
Enhances saturation and contrast
⎯
c
Digital SR Higher sensitivity reduces blur ⎯
Report
For capturing images with an image size suitable
for reports
⎯
Item Description Page
e_kb635_EN.book Page 62 Thursday, November 9, 2023 9:17 AM
63
3
Taking Pictures

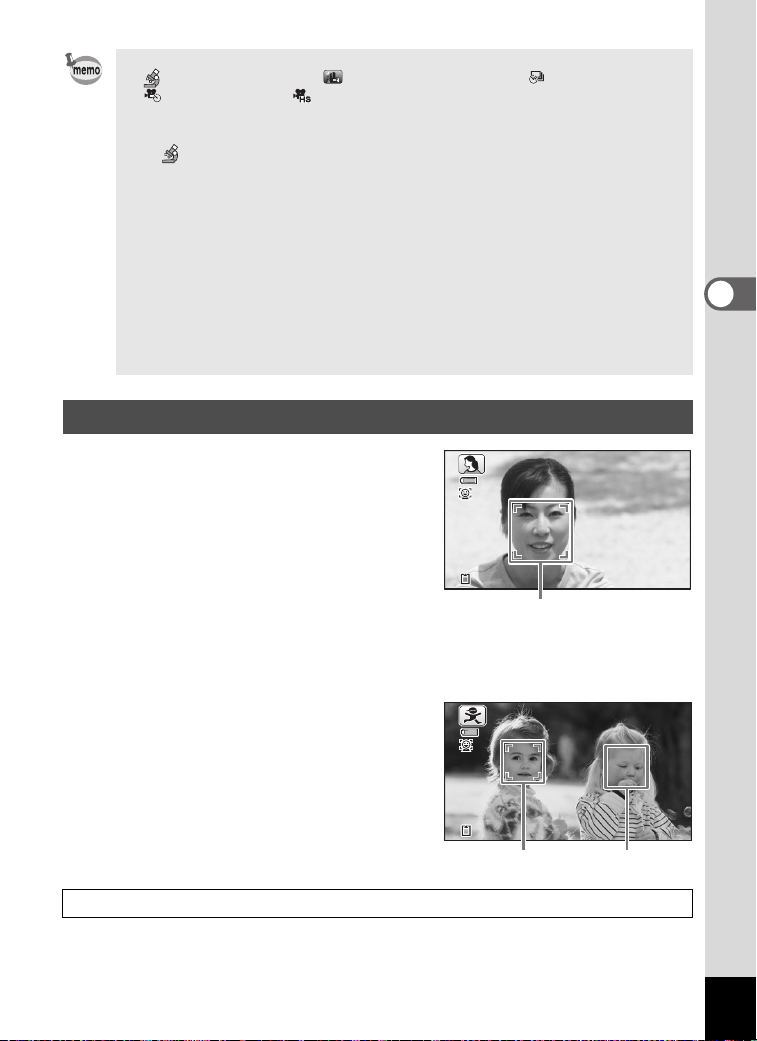

When the camera detects a person’s face in the
image, the Face Detection function displays a
yellow face detection frame around the face on the
display screen, sets the focus (Face Detection AF)
and compensates the exposure (Face Detection
AE).
If the subject in the face detection frame moves,
the frame also moves and changes its size as it
tracks the face.
The Face Detection function can recognize up
to 32 people’s faces. If it recognizes multiple
faces, the camera displays a yellow frame over
the main face and white frames over the other
faces. Up to a total of 31 frames, including both
the main and white frames can be displayed on
the screen.
• In shooting modes other than R (Program), A (Night Scene), C (Movie),
(Digital Microscope), (Handheld Night Snap), (Interval Shot),
(Interval Movie), (High Speed Movie), and c (Digital SR),
Saturation, Contrast, Sharpness, White Balance, etc. are automatically set
to the optimal settings for the selected mode.
• In (Digital Microscope) mode, Recorded Pixels can be selected from
12M(16:9), 5M(16:9), 4M(16:9) or 2M(16:9). The maximum magnification
varies depending on the Recorded Pixels.
• Some functions may not be available or may not function fully depending
on the selected shooting mode. For details, refer to “Functions Available for
Each Shooting Mode” (p.172).
• You can turn off the shooting mode guide to be displayed on the Capture
Mode Palette (p.163).
• The shutter speed tends to be slower when taking pictures of dark scenes.
To prevent camera shake, set the Pixel Track SR to O (On) (p.88), or put
the camera on a tripod and use the self-timer (p.67) or a remote control unit
(p.70).
Using the Face Detection Function
Switching the Face Detection Function 1p.89
38
3 8
38
Face detection frame
38
3 8
38
When the multiple faces are
detected
Main frame
White frame
e_kb635_EN.book Page 63 Thursday, November 9, 2023 9:17 AM

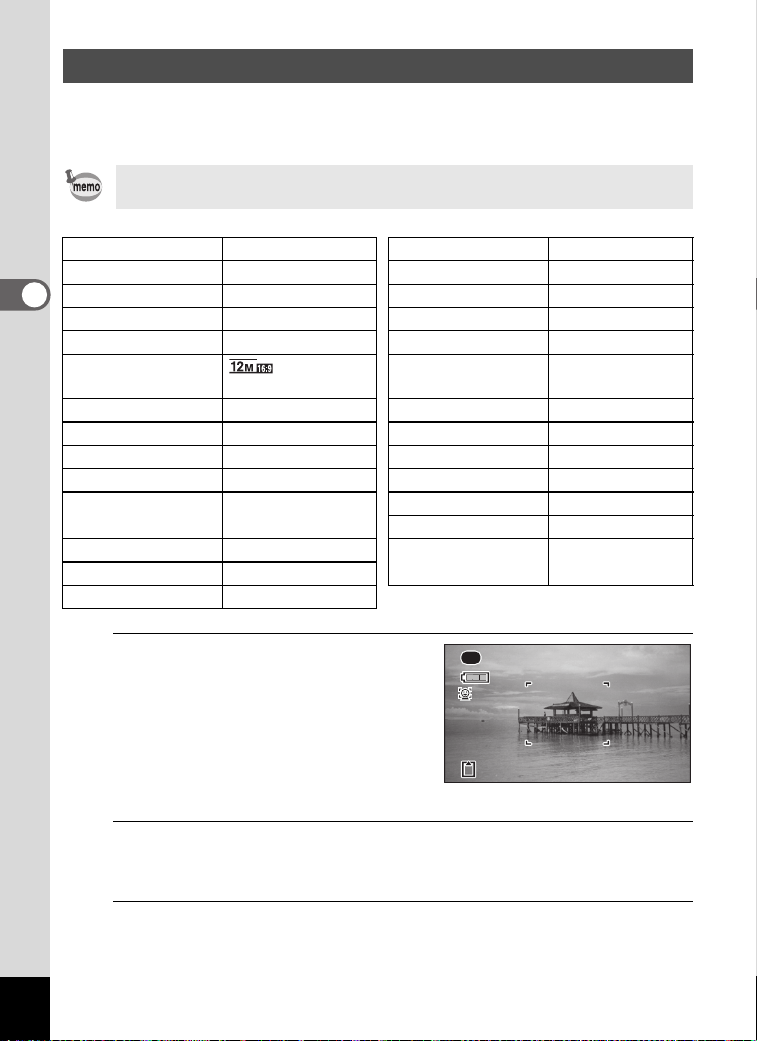

64
3
Taking Pictures
In 9 (Green) mode, you can enjoy easy picture-taking with standard settings,
regardless of the settings made from the [A Rec. Mode] menu.
The 9 mode settings are as shown below.
1
Press the Green button in A
mode.
The camera switches to 9 mode.
Press the Green button again to return to
the mode before 9 mode was selected.
When the camera detects a person’s face,
the Face Detection function is activated and
the face detection frame appears (p.63).
2
Press the shutter release button halfway.
The focus frame on the display turns green when the camera focuses on the
subject.
3
Press the shutter release button fully.
The picture is taken.
Taking Pictures in Basic Mode (Green Mode)
Assign the 9 mode to the [Green Button] in the [A Rec. Mode] menu to use
the 9 mode (p.92).
Flash Mode
, (Auto)
Shadow Correction Auto
Drive Mode 9 (Standard) Sensitivity AUTO (125-1600)
Focus Mode = (Standard) EV Compensation ±0.0
Information Display Normal display Blink Detection O (On)
Pixel Track SR P (Off) Digital Zoom O (On)
Recorded Pixels
(4608 x 2592)
Instant Review O (On)
White Balance
F (Auto)
Sharpness G (Normal)
Focusing Area
J (Multiple)
Saturation G (Normal)
Auto Macro O (On) Contrast G (Normal)
Focus Assist O (On) Date Imprint Off
AE Metering
L (Multi-segment
metering)
IQ Enhancer O (On)
Macro Light Off
Image Tone Bright
Face Detection
I (Face
Detection On)
Quality Level D (Better)
Highlight Correction Auto
38
38
e_kb635_EN.book Page 64 Thursday, November 9, 2023 9:17 AM
65
3
Taking Pictures
In
e
(Pet) mode, the camera automatically releases the shutter when the pet is detected.
1
Use the four-way controller (2345) to select e (Pet) from
the Capture Mode Palette.
2
Press the 4 button.
The e mode is selected and the camera returns to capture mode.
When the camera detects the pet’s face, the shutter is automatically released.
In (Digital Microscope) mode, you can take pictures of objects as close as 1 cm,
also because the LED Macro Lights around the lens are always lighted, you can
take minute pictures of text, the veins of leaves, or specimens of tiny insects etc.
1
Use the four-way controller (2345) to select (Digital
Microscope) from the Capture Mode Palette.
2
Press the 4 button.
The mode is selected and the camera returns to capture mode.
3
Press the W/T button.
If you press T, the camera enlarges the subject.
You can enlarge the subject up to 6.6 times(*).
(*)Intelligent Zoom is included. Up to 1.8 times for optical zoom.
W Wide (left)
Widens the area that is captured by the camera.
T Tele (right)
Enlarges the subject.
• When the 3 button is pressed in 9 mode, the [W Setting] menu
appears. The [A Rec. Mode] menu cannot be displayed.
• When the camera is turned off in 9 mode, it turns on in 9 mode next time
the power button is pressed.
Taking Pictures of Your Pet (Pet Mode)
Taking Pictures in Digital Microscope Mode
The illumination of the LED Macro Lights may be uneven or insufficient
depending on the shooting conditions.
• Attaching the supplied macro stand (O-MS1) reduces camera shake during
macro photography (p.20).
• The maximum magnification that can be set vary depending on the
Recorded Pixels.
e_kb635_EN.book Page 65 Thursday, November 9, 2023 9:17 AM
66
3
Taking Pictures
In this mode, a set number of pictures can be taken automatically at a set interval
from a set time.
1
Use the four-way controller (2345) to select (Interval
Shot) from the Capture Mode Palette.
2
Press the 4 button.
The current interval shot settings appear for approximately 1 minute. To take
pictures with the current settings, go to step 10.
3
Press the 4 button while the current settings are displayed.
The [Interval Shot] setting screen appears. [Interval] is marked with the frame.
4
Set the interval.
1
Press the four-way controller
(5).
2 Use the four-way controller (23)
to set the minutes, then press the
four-way controller (5).
3 Use the four-way controller (23)
to set the seconds, then press the
four-way controller (5).
The frame returns to [Interval].
5
Press the four-way controller (3).
The frame moves to [Number of Shots].
6
Set the number of shots.
1 Press the four-way controller (5).
2 Use the four-way controller (23) to set [Number of Shots],
then press the four-way controller (5).
The frame returns to [Number of Shots].
Taking Pictures at a Set Interval (Interval Shot)
Interval 10 sec. – 99 min.
You can set the shooting interval in increments of one
second from ten seconds to 4 minutes, and in 1 minute
increments from 4 to 99 minutes. You cannot set the
camera to take interval shots at less than ten seconds.
Number
of Shots
2 shots – number of
recordable images
You can set this up to 1000 shots. However, it
cannot exceed the number of recordable images.
Start Delay 0 min. – 24 hours
You can set this in 1-minute increments. If the start
time is set to 0 minutes, the first picture is taken as
soon as the shutter release button is pressed.
MENU
Interval
Number of Shots
Start Delay
min.
0
hr.
0
min.
0
2
sec.
10
Interval Shot
e_kb635_EN.book Page 66 Thursday, November 9, 2023 9:17 AM
67
3
Taking Pictures
7
Press the four-way controller (3).
The frame moves to [Start Delay].
8
Set the start delay.
1 Press the four-way controller (5).
2 Use the four-way controller (23) to set the hours, then press
the four-way controller (5).
3 Use the four-way controller (23) to set the minutes, then press
the four-way controller (5).
The frame returns to [Start Delay].
9
Press the 3 button.
The [Interval Shot] settings are saved and the camera returns to capture mode.
10
Press the shutter release button halfway.
The focus frame on the display turns green if the subject is in focus.
11
Press the shutter release button fully.
Interval shooting starts.
The LCD turns off between shots (during standby). Press the power button during
standby to display the remaining number of shots and shooting interval on the screen.
The [Stop interval shooting?] message is displayed when the power button and
then the 3 button are pressed during standby. Pressing the 4 button
cancels interval shooting.
In Self-timer mode, a picture is taken ten seconds or two seconds after the shutter
release button is pressed.
Stabilize the camera with a tripod or other support when taking a picture with the
self-timer.
1
Press the four-way controller (2) in A mode.
The [Drive Mode] screen appears.
• Even if an alarm is set, it will not ring during interval shooting.
• Interval shooting stops if the SD Memory Card is removed or inserted
during standby.
Using the Self-timer
g
Use this mode when you want to be included in a group picture. The picture
is taken approximately ten seconds after the shutter release button is pressed.
Z
Use this mode to avoid camera shake. The picture is taken approximately two
seconds after the shutter release button is pressed.
e_kb635_EN.book Page 67 Thursday, November 9, 2023 9:17 AM

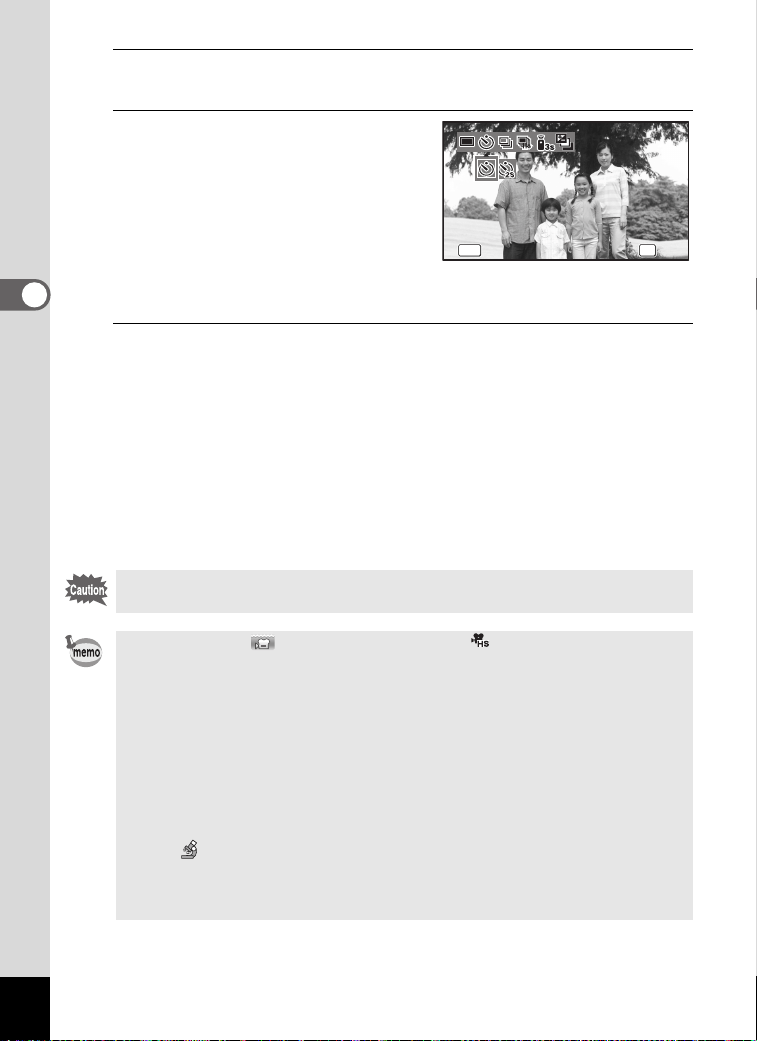

68
3
Taking Pictures
2
Use the four-way controller (45) to select g and press the
four-way controller (3).
3
Use the four-way controller (45)
to select g or Z and press the
4 button.
The camera is ready to take a picture using
the self-timer.
When the camera detects a person’s face,
the Face Detection function is activated
and the face detection frame appears
(p.63).
4
Press the shutter release button to take a picture.
The countdown starts and the remaining seconds are displayed on the screen.
If you select g
The self-timer lamp and all of the LED Macro Lights turn on.
From 5 seconds before shooting, the LED Macro Lights turn off in order from
the top right.
From 3 seconds before shooting, the self-timer lamp blinks.
If you select Z
The self-timer lamp and the LED Macro Lights blink.
The picture is taken after a countdown of either ten seconds or two seconds.
Focusing may be compromised if you move the camera while the self-timer
lamp is blinking when taking still pictures.
•In C (Movie), (Underwater Movie), and (High Speed Movie)
modes, recording will start after ten seconds or two seconds.
• Press the shutter release button halfway while the self-timer is engaged to
stop the countdown and press fully to restart the countdown.
• Z cannot be selected while the 9 (Green) mode settings remain at
default. Select Z in another shooting mode and then switch the shooting
mode to 9.
• The self-timer lamp and LED Macro Lights do not turn on or blink in e (Pet)
mode.
• In the following situations, the LED Macro Lights remain turned on
regardless of the countdown.
-In
(Digital Microscope) mode
- When [Macro Light] in the [A Rec. Mode] menu is set to O (On)
• g/Z cannot be selected in some shooting modes. Refer to “Functions
Available for Each Shooting Mode” (p.172) for details.
MENUMENU OKOKMENU OK
Drive ModeDrive Mode
Self-timerSelf-timer
Drive Mode
Self-timer
CancelCancelCancel OKOKOK
e_kb635_EN.book Page 68 Thursday, November 9, 2023 9:17 AM
69
3
Taking Pictures
Pictures are taken continuously as long as the shutter release button is pressed.
* The number of images that can be shot continuously and the interval between shots
depend on shooting situations.
1
Press the four-way controller (2) in A mode.
The [Drive Mode] screen appears.
2
Use the four-way controller (45) to select j or c and press
the 4 button.
The camera is ready for taking pictures continuously.
3
Press the shutter release button to take a picture.
Pictures are taken continuously as long as you keep the shutter release button
pressed.
Taking a Series of Pictures (Continuous
Shooting/Burst Shooting)
j
Continuous
Shooting
Each time a picture is taken, the image is saved in the memory
before the next image is taken. The higher the image quality,
the longer the interval between shots.
c
Burst
Shooting
Takes a series of pictures with intervals between shots shorter
than “Continuous Shooting”.
j/c cannot be selected in some shooting modes. Refer to “Functions
Available for Each Shooting Mode” (p.172) for details.
•With j, you can continue shooting until the capacity of the SD Memory
Card or built-in memory becomes full.
• The shooting interval of j varies according to the [Recorded Pixels] and
[Quality Level] settings.
• The focus, exposure and white balance are locked with the first shot.
• When the Face Detection function is activated (p.89), it works only when
taking the first shot.
• The Blink Detection function works only for the last shot.
• The number of recorded pixels is fixed to f or in c mode. When
the shooting mode is set to (Report), the number of recorded pixels is
fixed to V.
e_kb635_EN.book Page 69 Thursday, November 9, 2023 9:17 AM
70
3
Taking Pictures
You can use a remote control unit (optional) to take pictures while you are away
from the camera.
1
Press the four-way controller (2) in A mode.
The [Drive Mode] screen appears.
2
Use the four-way controller (45) to select i and press the
four-way controller (3).
3
Use the four-way controller (45)
to select i or h and press the
4 button.
The self-timer lamp begins to blink slowly
and the camera is ready to take a picture by
remote control.
When the camera detects a person’s face,
the Face Detection function is activated
and the face detection frame appears (p.63).
4
Point a remote control unit at the remote control receiver and
press the shutter release button on the remote control unit.
The focus frame turns green when the subject is in focus and the camera takes
a picture at the following timing.
When i is selected:
The self-timer lamp and the LED Macro Lights blink quickly and the
camera takes a picture after about three seconds.
When h is selected:
The camera takes a picture immediately.
Taking Pictures Using a Remote Control Unit
(Optional)
i
The shutter will be released after about three seconds when the shutter release

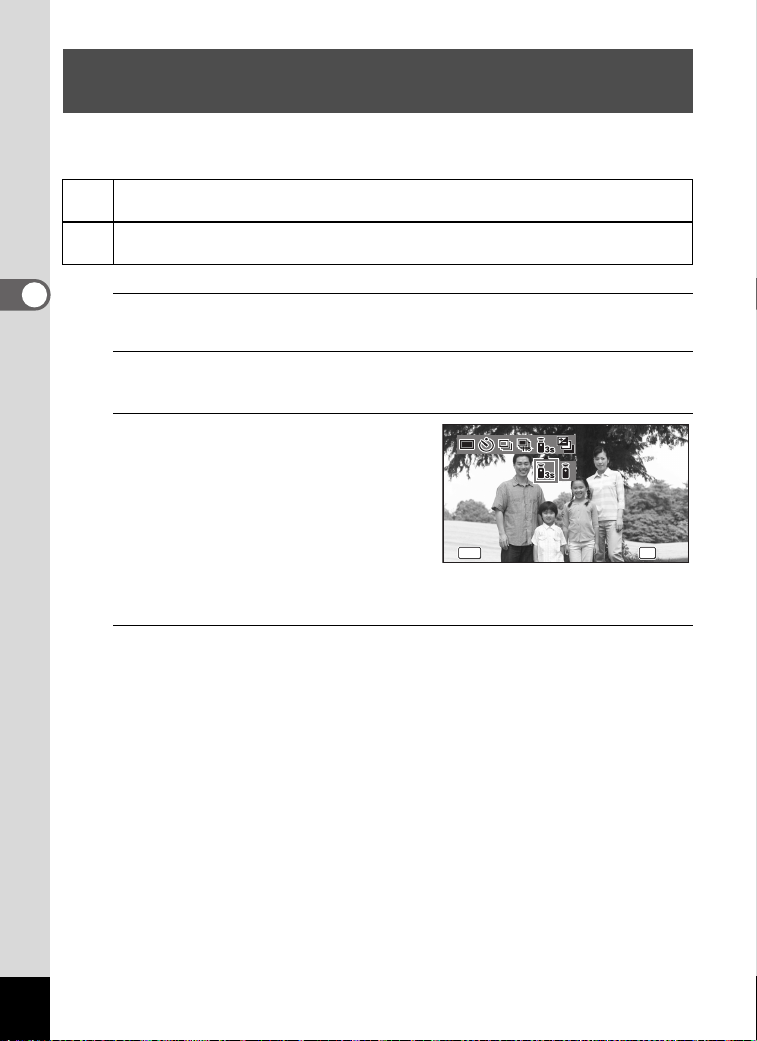

button on the remote control unit is pressed.
h
The shutter will be released immediately when the shutter release button on
the remote control unit is pressed.
MENUMENU OKOKMENU OK
Drive ModeDrive Mode
Remote ControlRemote Control
Drive Mode
Remote Control
CancelCancel OKOKCancel OK
e_kb635_EN.book Page 70 Thursday, November 9, 2023 9:17 AM
71
3
Taking Pictures
Press the shutter release button once to automatically adjust the exposure and
take three pictures in succession. After taking the pictures, you can select the best
shot from them.
The shooting order is as follows: the proper exposure
→
–1.0 EV
→
+1.0 EV.
1
Press the four-way controller (2) in A mode.
The [Drive Mode] screen appears.
2
Use the four-way controller (45) to select a (Auto
Bracketing) and press the 4 button.
The camera is now ready to take pictures with Auto Bracketing.
• A remote control signal can be received from either receivers on the front
and the back of the camera.
• The operating range is approx. 4 m from the front of the camera and
approx. 2 m from the back of it.
•In C (Movie), (Underwater Movie), and (High Speed Movie)
modes, pressing the shutter release button again stops the recording.
• The camera takes a picture even if the focus is not achieved.
• If the shutter release button on the camera is pressed halfway during the
countdown, the countdown stops. If the shutter release button on the
remote control unit is pressed again, the camera starts the countdown
again.
• i/h cannot be selected in some shooting modes. Refer to “Functions
Available for Each Shooting Mode” (p.172) for details.
• The self-timer lamp and LED Macro Lights do not turn on or blink in e (Pet)
mode.
Taking Pictures with Automatic Exposure
Adjustment (Auto Bracketing)
• When the Instant Review is set to O (On) (p.91), the pictures taken are
shown in Instant Review after shooting (p.57).
• a cannot be selected in some shooting modes. Refer to “Functions
Available for Each Shooting Mode” (p.172) for details.
e_kb635_EN.book Page 71 Thursday, November 9, 2023 9:17 AM
72
3
Taking Pictures
Setting the Shooting Functions
Settings for shooting are mostly set from the [A Rec. Mode] menu. Refer to
explanations for each function on how to make these settings.
1
Press the 3 button in Still Picture Capture Mode.
The [A Rec. Mode] menu appears.
Pressing the 3 button in Movie Mode displays the [C Movie] menu.
2
Use the four-way controller (2345) to select an item and
set it up.
3
After setting, press the 3 button.
The camera returns to capture mode.
The setting is saved and the camera returns to the previous screen.
3
Press the Q button.
When the [A Rec. Mode], [C Movie] or [W Setting] menu is displayed from
A mode, the setting is saved and the camera returns to playback mode.
3
Press the 3 button.
The changes are canceled and you can select a menu.
Using the Rec. Mode Menu Items
To Save the Setting and Start Taking Pictures
When the [W Setting] menu is displayed from Q mode, you can switch to
A mode by pressing the Q button.
To Save the Setting and Start Playback of Images
To Cancel the Changes and Continue with Menu Operations
e_kb635_EN.book Page 72 Thursday, November 9, 2023 9:17 AM
73
3
Taking Pictures
• Some functions may not be available or may not function fully depending
on the selected shooting mode. For details, refer to “Functions Available for
Each Shooting Mode” (p.172).
•The 3 button function varies depending on the screen. Refer to the
guide indications.
Exit Exits the menu and returns to the original screen.
Returns to the previous screen with the current settings.
Cancel Cancels the current selection, exits the menu and returns
to the previous screen.
Selecting the Flash Mode
,
Auto
The flash discharges automatically depending on the light
conditions.
a
Flash Off
The flash does not discharge, regardless of the brightness.
Use this mode to take pictures where flash photography is
prohibited.
b
Flash On
The flash discharges for each shot regardless of the
brightness.
c
Auto + Red-eye
This mode reduces the red-eye phenomenon caused by the
light from the flash being reflected in the subject’s eyes. The
flash discharges automatically.
d
Flash On +
Red-eye
This mode reduces the red-eye phenomenon caused by the
light from the flash being reflected in the subject’s eyes. The
flash discharges regardless of the light conditions.
Macro Light Light is emitted from the LED surrounding the lens.
• The available modes differ depending on the selected shooting mode,
focus mode or drive mode. Refer to “Functions Available for Each Shooting
Mode” (p.172) for details.
• If you use the Face Detection function when , is selected, the flash mode
is automatically set to d.
• A pre-flash discharges when using the red-eye reduction function.
Using the flash when capturing images at a close distance may cause
irregularities in the image due to the light distribution.
MENU
MENU
MENU
e_kb635_EN.book Page 73 Thursday, November 9, 2023 9:17 AM
74
3
Taking Pictures

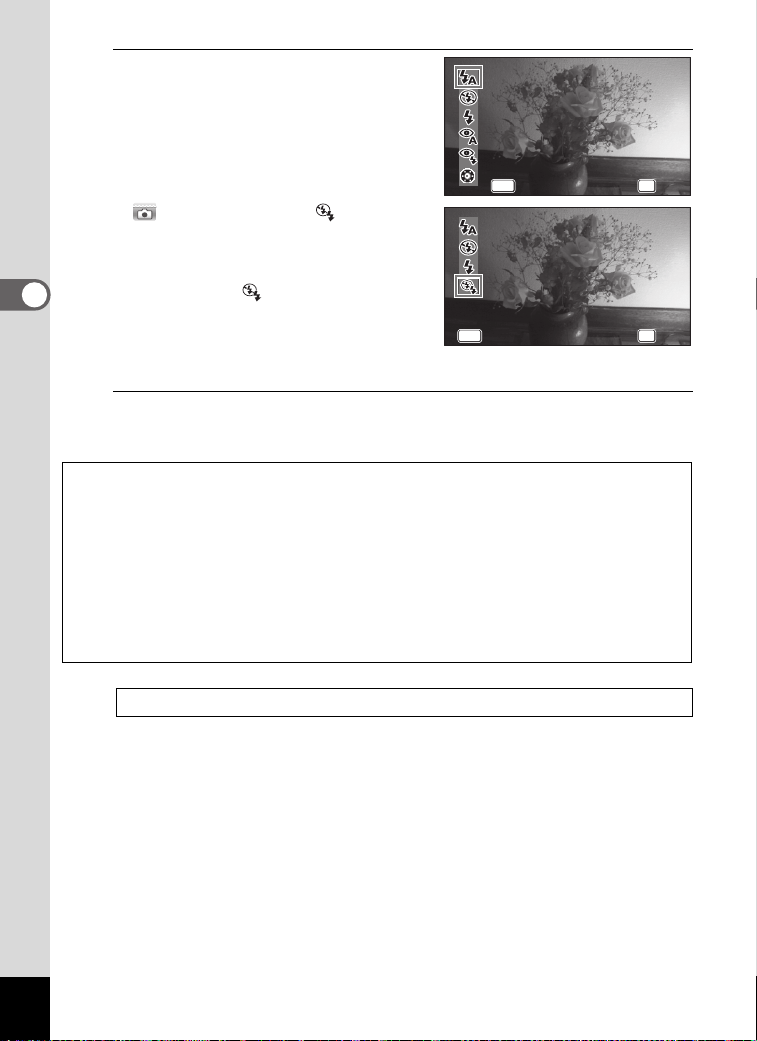

1
Press the four-way controller (4)
in A mode.
The [Flash Mode] screen appears.
The flash mode changes each time the
button is pressed. You can also change the
setting using the four-way controller (23).
In (Underwater) mode, (Flash Off +
Flash On (2 shots)) appears instead of c
(Auto + Red-eye) and d (Flash On + Red-
eye) as shown on the right.
When you select (Flash Off + Flash On
(2 shots)), two images are taken in
succession in a (Flash Off) and b (Flash
On). After taking the pictures, you can
select the best shot from them.
2
Press the 4 button.
The setting is saved and the camera returns to capture mode.
About the red-eye phenomenon
Taking pictures using the flash may cause the subject’s eyes to appear red in the
resulting picture. This phenomenon occurs when the light from the flash is reflected
in the subject’s eyes. It can be reduced by increasing the illumination in the area
around the subject and/or decreasing the subject distance and adjusting the lens to
wider angle setting. Setting the flash mode to c (Auto + Red-eye) or d (Flash On +
Red-eye) is also an effective way of reducing red eyes.
If the subject’s eyes appear red despite such precautions, they can be corrected by
the Red-eye Edit function (p.137).
Saving the Flash Mode setting 1p.108
MEN
MENU O K
MENU OK
OK
OK
OKCancel
Cancel
Cancel
Flash Mode
Flash Mode
Auto
Auto
Flash Mode
Auto
MEN
MENU OK
MENU OK
OK
OK
OKCancel
Cancel
Cancel
Flash Mode
Flash Off+Flash On
(2 shots)
Flash Mode
Flash Off+Flash On
(2 shots)
e_kb635_EN.book Page 74 Thursday, November 9, 2023 9:17 AM
75
3
Taking Pictures
1
Press the four-way controller (5)
in A mode.
The [Focus Mode] screen appears.
The focus mode changes each time the
button is pressed. You can also change the
setting using the four-way controller (23).
2
Press the 4 button.
The setting is saved and the camera returns to capture mode.

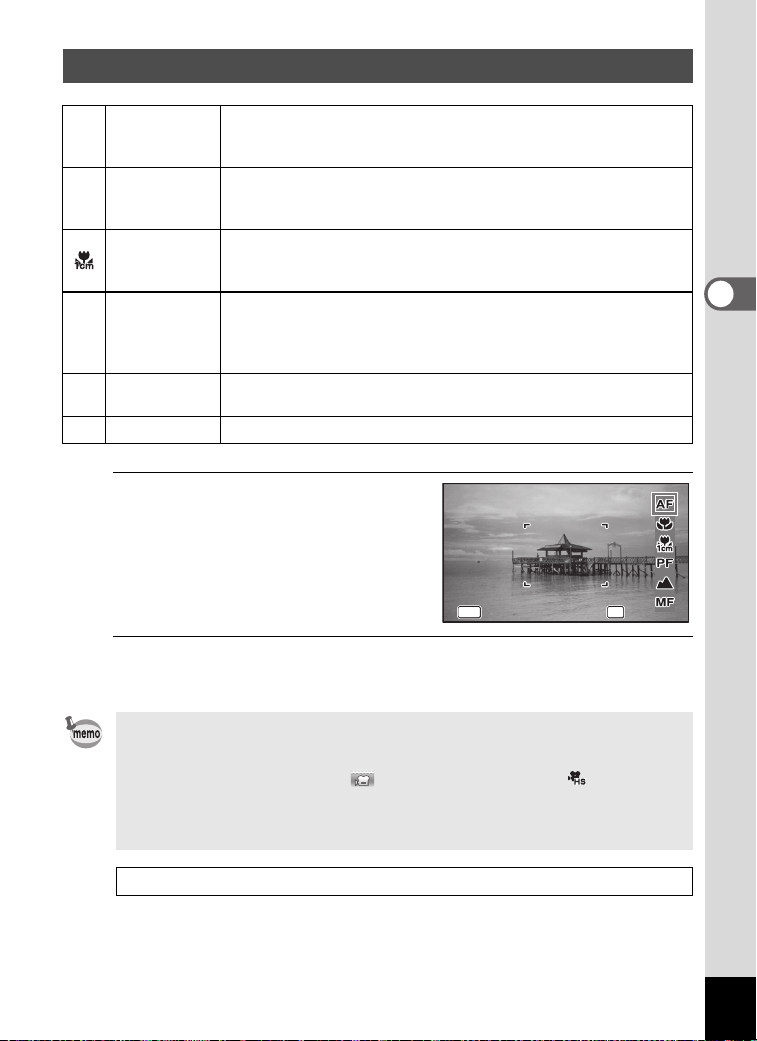

Selecting the Focus Mode
=
Standard
This mode is used when the distance to the subject is from 50 cm
to ∞. The camera is focused on the subject in the autofocus area
when the shutter release button is pressed halfway.
q
Macro
This mode is used when the distance to the subject is from 10 cm
to 60 cm. The camera is focused on the subject in the autofocus
area when the shutter release button is pressed halfway.
1cm Macro
This mode is used when the distance to the subject is from 1 cm
to 30 cm. The camera is focused on the subject in the autofocus
area when the shutter release button is pressed halfway.
3
Pan Focus
This mode is used when you ask someone to take pictures for
you, or when taking pictures of the scenery through the window
of a car or train. The entire picture, from the front to the back, is
focused.
s
Infinity
This mode is used for taking distant objects. The flash is set to
a (Flash Off).
\
Manual Focus This mode lets you adjust the focus manually.
• The available modes differ depending on the selected shooting mode.
Refer to “Functions Available for Each Shooting Mode” (p.172) for details.
• The noise from focusing is recorded when a focus mode other than 3 or
s is selected in C (Movie), (Underwater Movie), and (High Speed
Movie) modes.
• When [Auto Macro] is on and shooting with q selected, if the subject is
further than 60 cm away, the camera automatically focuses to ∞ (Infinity).
Saving the Focus Mode setting 1p.108
MENMENU OKMENU OK
CancelCancelCancel OKOKOK
Focus ModeFocus Mode
StandardStandard
Focus Mode
Standard
e_kb635_EN.book Page 75 Thursday, November 9, 2023 9:17 AM
76
3
Taking Pictures

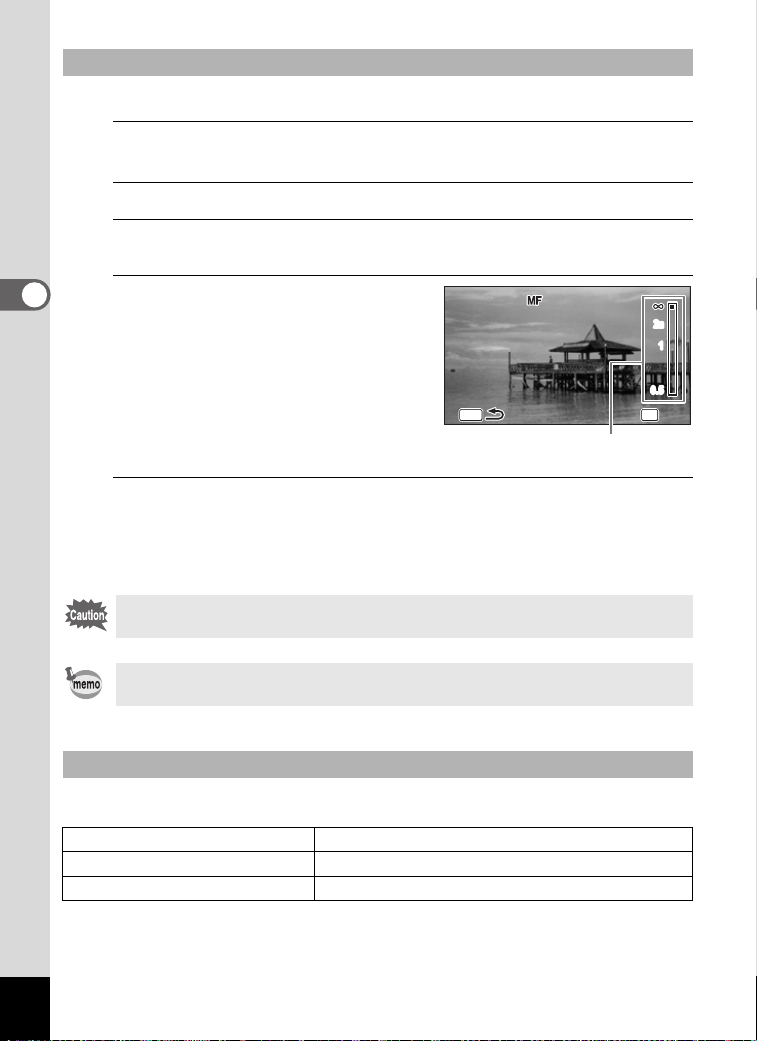

The procedure for setting the focus manually (\) is described here.
1
Press the four-way controller (5) in A mode.
The [Focus Mode] screen appears.
2
Use the four-way controller (5) to select \.
3
Press the 4 button.
The central portion of the image is magnified to full screen on the display.
4
Press the four-way controller
(23).
The \ indicator appears on the display to
indicate the approximate distance to the
subject. Use the four-way controller (23)
to adjust the focus using the indicator as a
guide.
2 for distant focus
3 for closer focus
5
Press the 4 button.
The focus is locked and the camera returns to capture mode.
After the focus is locked, you can press the four-way controller (5) again to
display the \ indicator and readjust the focus.
You can change the autofocus area (Focusing Area).
To Set the Manual Focus
The shooting mode and drive mode cannot be changed while the \
indicator is displayed.
To switch from \ to another focus mode, press the four-way controller (5)
while the \ indicator is displayed.
Changing the Autofocus Area
J Multiple Uses the normal autofocus area.
K Spot Makes the focusing area smaller.
W Automatic Tracking Tracks a moving subject and keeps it in focus.
MENU
MENU
MENU
0.5
1
2
m
OK
OK
OK
OK
OK
OK
\ indicator
e_kb635_EN.book Page 76 Thursday, November 9, 2023 9:17 AM
77
3
Taking Pictures
1
Use the four-way controller (23) to select [AF Setting] in the
[A Rec. Mode] menu.
2
Press the four-way controller (5).
The [AF Setting] screen appears.
3
Use the four-way controller (23) to select [Focusing Area].
4
Press the four-way controller (5).
A pull-down menu appears.
5
Use the four-way controller (23) to change the autofocus
area.
6
Press the 4 button.
The setting is saved.
When [Auto Macro] is set to O(On), the focus is adjusted to the macro range
(distance to the subject is 10 cm to 60 cm) as necessary, even if the focus mode
is set to = (Standard).
When it is off and the focus mode is set to = (Standard), the AF operates only in
the standard range, and focusing is not done in the macro range.
When the focus mode is set to q (Macro) or (1cm Macro), the focus is only
adjusted in the respective macro ranges and is not done in the standard range.
1
Use the four-way controller (23) to select [AF Setting] in the
[A Rec. Mode] menu.
2
Press the four-way controller (5).
The [AF Setting] screen appears.
3
Use the four-way controller (23) to select [Auto Macro].
4
Use the four-way controller (45) to select O (On)/P (Off).
The setting is saved.
The available modes differ depending on the selected shooting mode. Refer
to “Functions Available for Each Shooting Mode” (p.172) for details.
Setting the Auto Macro
e_kb635_EN.book Page 77 Thursday, November 9, 2023 9:17 AM
78
3
Taking Pictures
The camera automatically emits the focus assist light in dark shooting situations.
You can set the light to on or off.
1
Use the four-way controller (23) to select [AF Setting] in the
[A Rec. Mode] menu.
2
Press the four-way controller (5).
The [AF Setting] screen appears.
3
Use the four-way controller (23) to select [Focus Assist].
4
Use the four-way controller (45) to select O (On)/P (Off).
The setting is saved.
For setting the tone of images.
You can select from [Bright], [Natural], [Vibrant], [Slide Film], [Monochrome], or
[Cross Processing].
The default setting is [Bright].
1
Use the four-way controller (23) to select [Image Tone] in the
[A Rec. Mode] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select a finishing tone.
4
Press the 4 button.
The setting is saved.
Setting the = Assist Light (Focus Assist)
Looking at the light directly will not create a safety hazard. However, do not
look into the emitter from a very short distance since you may feel dazzled.
The camera does not emit the focus assist light depending on the selected
shooting mode or focus mode. Refer to “Functions Available for Each
Shooting Mode” (p.172) for details.
Setting the Image Tone
e_kb635_EN.book Page 78 Thursday, November 9, 2023 9:17 AM
79
3
Taking Pictures
You can choose the number of recorded pixels for still pictures.
The larger the number of recorded pixels, the clearer the details will appear when
you print your picture. As the quality of the printed picture also depends on the image
quality, exposure control, resolution of the printer, and other factors, you do not need
to select more than the required number of recorded pixels. h is adequate for
making postcard-size prints. The more pixels there are, the larger the picture and the
bigger the file size.
Refer to the following table for the appropriate setting according to expected
usage.
• The default setting is .
• i and V can be set only when (Report) mode is set. These icons do not
appear in the [Recorded Pixels] options.
• When [Monochrome] is selected, [Tone Adjustment] appears in the
[A Rec. Mode] menu for setting the tone of monochrome images instead
of [Saturation].
• The finishing tone may not be changed depending on the shooting mode.
Refer to “Functions Available for Each Shooting Mode” (p.172) for details.
Selecting the Number of Recorded Pixels
Recorded Pixels Expected Usage
4608 x 3456
For printing high quality photos or A4-size pictures or
larger, or editing images on a computer.
3456 x 3456
4608 x 2592
6 3072 x 2304
3072 x 1728
f 2592 x 1944
2592 x 1464
h 2048 x 1536
For making postcard-size prints.
i 1600 x 1200
h 1920 x 1080
V 1280 x 960
l 1024 x 768
m 640 x 480
For posting on a website or attaching to e-mails.
Clearer
e_kb635_EN.book Page 79 Thursday, November 9, 2023 9:17 AM

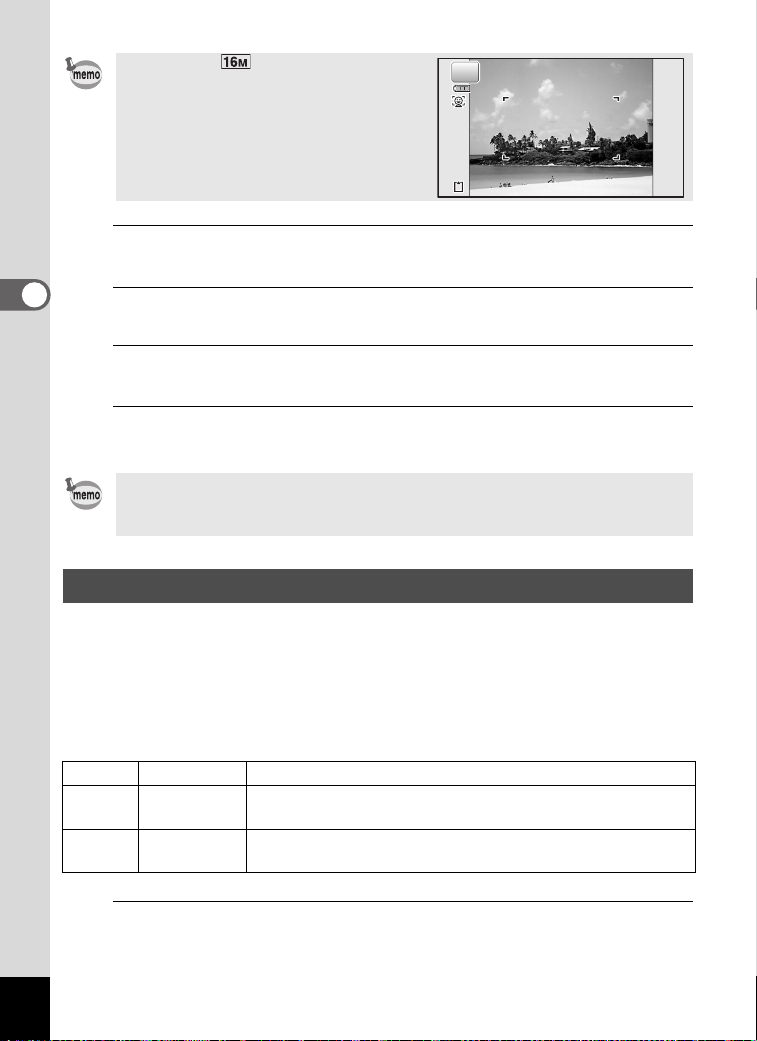

80
3
Taking Pictures
1
Use the four-way controller (23) to select [Recorded Pixels]
in the [A Rec. Mode] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to change the number of
recorded pixels.
4
Press the 4 button.
The setting is saved.
Select the quality level (data compression ratio) for still images according to how
the images will be used.
The more stars (E), the higher the quality of the image, but the file size increases.
The selected number of recorded pixels also affects the size of the image file
(1p.79).
Quality Level
1
Use the four-way controller (23) to select [Quality Level] in
the [A Rec. Mode] menu.
If you select /6/f/h/i/l/
m, the aspect ratio of the screen is 4:3.
The monitor display for image capture
and playback is as shown on the right.
The selectable number of recorded pixels differs depending on the shooting
mode. Refer to “Functions Available for Each Shooting Mode” (p.172) for
details.
Selecting the Quality Level of Still Pictures
C
Best Lowest compression ratio. Suitable for photo prints.
D
Better
Standard compression ratio. Suitable for viewing the image
on a computer screen. (default setting)
E
Good
Highest compression ratio. Suitable for attaching to e-mails
or creating websites.
383 838
P
e_kb635_EN.book Page 80 Thursday, November 9, 2023 9:17 AM
81
3
Taking Pictures
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to change the quality level.
The number of recordable still pictures is displayed at the top of the screen when
you select a quality level.
4
Press the 4 button.
The setting is saved.
e_kb635_EN.book Page 81 Thursday, November 9, 2023 9:17 AM
82
3
Taking Pictures

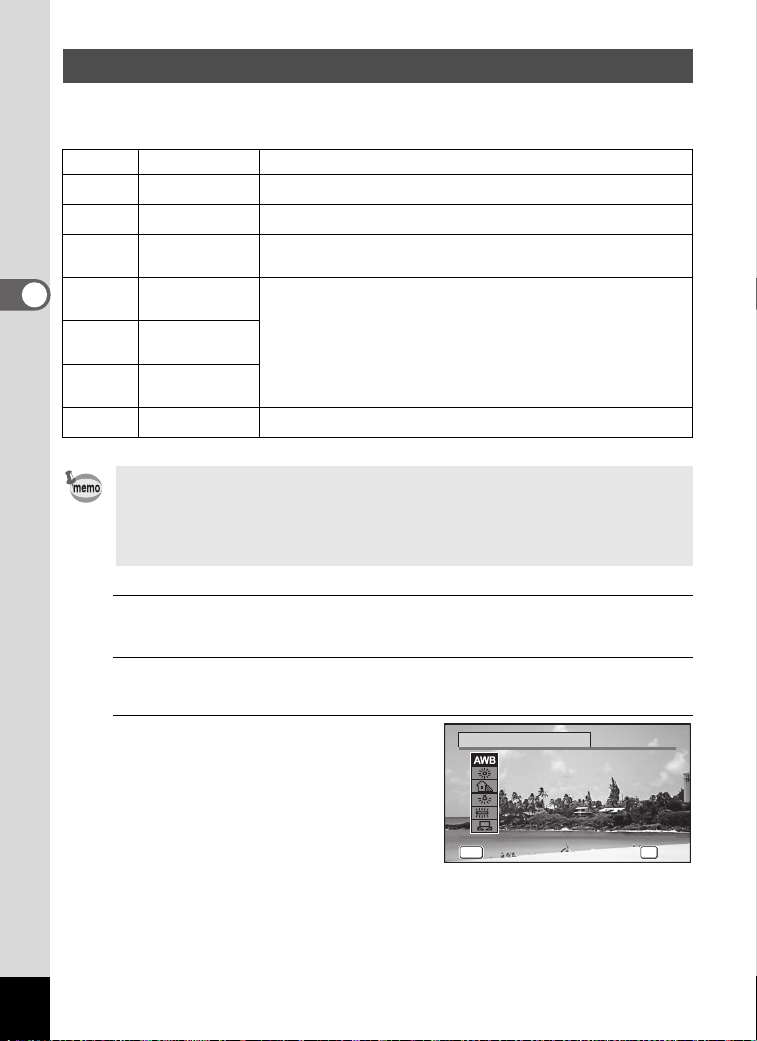

You can take pictures in natural colors by adjusting the white balance according
to the light conditions at the time of shooting.
1
Use the four-way controller (23) to select [White Balance] in
the [A Rec. Mode] menu.
2
Press the four-way controller (5).
The [White Balance] screen appears.
3
Use the four-way controller (23)
to change the setting.
You can check the results of available white
balance settings on the preview image each
time you press the four-way controller.
Adjusting the White Balance
F
Auto The camera adjusts the white balance automatically.
G
Daylight Use this mode when taking pictures outside in sunlight.
l
Shade Use this mode when taking pictures outside in the shade.
I
Tungsten Light
Use this mode when taking pictures under tungsten lamps
or electric lights other than fluorescent.
J
D
Daylight Colors
Fluorescent
Use this mode when taking pictures under fluorescent
light.
J
N
Daylight White
Fluorescent
J
W
White Light
Fluorescent
K
Manual Use this mode when adjusting the white balance manually.
• Set another white balance if you are not satisfied with the color balance of
pictures taken with the white balance set to F.
• The white balance setting may not be changed depending on the selected
shooting mode. Refer to “Functions Available for Each Shooting Mode”
(p.172) for details.
OKMENMENU OKMENU
White Balance
AutoAutoAuto
D
OKOKCancelCancel OKCancel
e_kb635_EN.book Page 82 Thursday, November 9, 2023 9:17 AM
83
3
Taking Pictures
4
Press the 4 button.
The setting is saved.
Refer to the following instructions if you want to set the white balance by
selecting the fluorescent light type, or adjust it manually.
Select the proper fluorescent light type from JD (Daylight Colors Fluorescent),
JN (Daylight White Fluorescent), or JW (White Light Fluorescent).
1
In the [White Balance] screen, use the four-way controller
(23) to select [JD (Daylight Colors Fluorescent)].
2
Press the four-way controller (5).
3
Press the four-way controller (23) to select the fluorescent
light type.
4
Press the 4 button.
The setting is saved.
Have a blank sheet of white paper or similar material ready.
1
In the [White Balance] screen, use the four-way controller
(23) to select K (Manual).
2
Point the camera at the blank sheet of paper or other material
so that it fills the frame displayed in the center of the screen.
3
Press the shutter release button fully.
The white balance is automatically adjusted.
If you change the [White Balance] setting frequently, you can save time by
assigning the Fn Setting to the Green button (p.92).
Saving the White Balance setting 1p.108
Selecting the Fluorescent Light Type
The icon displayed on the [White Balance] screen changes when the
fluorescent light type is changed.
Manual Setting
e_kb635_EN.book Page 83 Thursday, November 9, 2023 9:17 AM
84
3
Taking Pictures
4
Press the 4 button.
The setting is saved and the screen returns to the [A Rec. Mode] menu.
You can set the area of the screen where the brightness is metered to determine
the exposure.
1
Use the four-way controller (23) to select [AE Metering] in
the [A Rec. Mode] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select a metering
method.
4
Press the 4 button.
The setting is saved.
Setting the AE Metering
L
Multi-segment
metering
The camera divides the screen into 256 areas, meters the
brightness and determines the exposure.
M
Center-
weighted
metering
The camera takes a reading of the overall brightness of the
screen with the center of the screen having more influence
on the exposure.
N
Spot AE
metering
The camera determines the exposure by metering the
brightness only at the center of the screen.
• When the shutter release button is pressed halfway, the brightness is
metered and the exposure is determined.
• When the subject is not at the center of the screen and you want to use the
Spot AE metering, center the subject on the screen and press and hold the
shutter release button halfway to lock the exposure, then compose your
picture again and press the shutter release button fully.
• The AE Metering setting may not be changed depending on the selected
shooting mode. Refer to “Functions Available for Each Shooting Mode”
(p.172) for details.
Saving the AE Metering setting 1p.108
e_kb635_EN.book Page 84 Thursday, November 9, 2023 9:17 AM
85
3
Taking Pictures
You can select the sensitivity to suit the brightness of the surroundings.
1
Use the four-way controller (23) to select [Sensitivity] in the
[A Rec. Mode] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to change the sensitivity.
4
Press the 4 button.
The setting is saved.
Setting the Sensitivity
AUTO
The sensitivity is automatically set by the camera.
(Default value: sensitivity 125-1600)
125
The lower the sensitivity, the less noise that affects the image. The
shutter speed will be slower in low light conditions.
200
400
800
1600
Higher sensitivity settings use faster shutter speeds in low light
conditions to reduce camera shake, but the image may be affected
by noise.
3200
6400
• The sensitivity cannot be changed in some shooting modes. Refer to
“Functions Available for Each Shooting Mode” (p.172) for details.
• When the shooting mode is set to (Report), the AUTO sensitivity range
is fixed at 125-6400.
• When [Pixel Track SR] is set to O (On), 3200 and 6400 cannot be selected.
Saving the Sensitivity setting 1p.108
e_kb635_EN.book Page 85 Thursday, November 9, 2023 9:17 AM
86
3
Taking Pictures
Set the sensitivity range when the sensitivity is set to AUTO.
The sensitivity can be set to 125-200, 125-400, 125-800, 125-1600, 125-3200, 125-
6400.
1
Use the four-way controller (23) to select [AUTO ISO Range]
in the [A Rec. Mode] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select the sensitivity
adjustment range.
4
Press the 4 button.
The setting is saved.
You can adjust the overall brightness of the picture.
Use this function to take pictures that are intentionally overexposed or underexposed.
1
Use the four-way controller (23) to select [EV
Compensation] in the [A Rec. Mode] menu.
2
Use the four-way controller (45) to select the exposure
compensation value.
To brighten, select a positive (+) value. To darken, select a negative (–) value.
You can choose the compensation value in the range of –2.0 EV to +2.0 EV in
1/3 EV steps.
Setting AUTO ISO Range
• The selectable sensitivity range differs depending on the selected shooting
mode. Refer to “Functions Available for Each Shooting Mode” (p.172) for
details.
• When [Pixel Track SR] is set to O (On), 125-3200 and 125-6400 cannot be
selected.
Setting the Exposure (EV Compensation)
• When a histogram is displayed in Still Picture Capture Mode or playback
mode, you can check whether the exposure is correct (p.27).
• EV Compensation cannot be used in some shooting modes. Refer to
“Functions Available for Each Shooting Mode” (p.172) for details.
Saving the EV Compensation setting 1p.108
e_kb635_EN.book Page 86 Thursday, November 9, 2023 9:17 AM

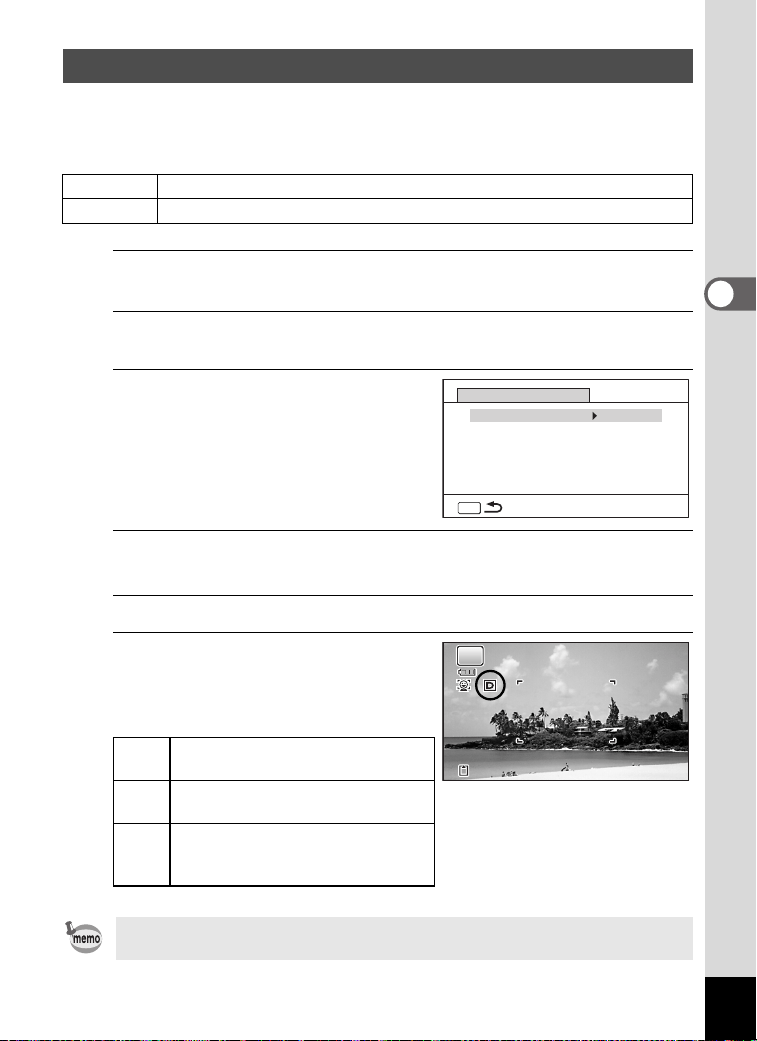

87
3
Taking Pictures
Expands the dynamic range and prevents bright and dark areas from occurring.
[Highlight Correction] adjusts the bright areas when the image is too bright and
[Shadow Correction] adjusts the dark areas when the image is too dark.
1
Use the four-way controller (23) to select [D-Range Setting]
in the [A Rec. Mode] menu.
2
Press the four-way controller (5).
The [D-Range Setting] screen appears.
3
Use the four-way controller (23)
to select [Highlight Correction] or
[Shadow Correction].
4
Press the four-way controller (5).
A pull-down menu appears.
5
Use the four-way controller (23) to change the setting.
6
Press the 4 button.
The setting is saved.
The D-Range Setting icon appears on the
display.
Correcting the Brightness (D-Range Setting)
Auto The camera corrects the bright/dark areas automatically as necessary.
Off The camera does not correct the bright/dark areas.
P
When [Highlight Correction] is set
to [Auto]
Q
When [Shadow Correction] is set to
[Auto]
O
When both [Highlight Correction]
and [Shadow Correction] are set to
[Auto]
If you change the [Highlight Correction] or [Shadow Correction] setting
frequently, you can save time by assigning it to the Green button (p.92).
MENU
D-Range Setting
Highlight Correction
Shadow Correction
AWVQ
AWVQ
383 838
P
e_kb635_EN.book Page 87 Thursday, November 9, 2023 9:17 AM
88
3
Taking Pictures
You can set this function to correct for camera shake when taking still shots. If
Pixel Track SR is set to O (On), the camera automatically corrects for camera
shake in the images you shot. The default setting is P (Off).
1
Use the four-way controller (23) to select [Pixel Track SR] in
the [A Rec. Mode] menu.
2
Use the four-way controller (45)
to switch between O (On) or P
(Off).
O(On) Automatically corrects for
camera shake.
P (Off) No correction for camera
shake.
The setting is saved.
3
Press the 3 button.
The camera returns to capture mode.
The D-Range setting cannot be set in some shooting modes. Refer to
“Functions Available for Each Shooting Mode” (p.172) for details.
Setting Pixel Track SR
Shake reduction settings in C (Movie) and (Underwater Movie) mode
are configured under Movie SR (p.103).
•In 9 (Green), C (Movie), (Underwater Movie), and S (Fireworks)
modes, the Pixel Track SR is fixed at P (Off).
• Pixel Track SR does not function when the flash discharges even if [Pixel
Track SR] is set to O (On).
The Pixel Track SR may not be effective when the shutter speed is slow. We
recommend you turn off the [Pixel Track SR] setting P (Off) and use a tripod
for slow shutter speeds.
Rec. Mode
2/4
MENU
Exit
ISO125-800
AUTO
0.0
Pixel Track SR
Sensitivity
AUTO ISO Range
EV Compensation
D-Range Setting
Face Detection
e_kb635_EN.book Page 88 Thursday, November 9, 2023 9:17 AM
89
3
Taking Pictures
The Face Detection function locates faces in the frame and automatically adjusts
the focus and exposure for those faces. You can change the setting of the
function so that the camera will automatically release the shutter when one or
more of the subjects smile. The default setting is I (Face Detection On).
1
Use the four-way controller (23) to select [Face Detection] in
the [A Rec. Mode] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to change the setting.
4
Press the 4 button.
The setting is saved.
The Face Detection icon appears on the display.
Switching the Face Detection Function
I (Face Detection On) The camera detects a person's face.
J (Smile Capture)
The camera automatically release the shutter when your
subject smiles.
(Self-portrait Assist)
The LED Macro Lights flash when the camera detects a
person's face. The position of the blinking LED Macro
Light indicates where the detected face is on the screen.
J (Self-portrait Assist +
Smile Capture)
The LED Macro Lights flash when the camera detects a
person's face. The camera automatically release the
shutter when your subject smiles.
(Face Detection Off) The camera does not detect a person's face.
• Face Detection AF and AE may not work if the subject is wearing
sunglasses, has part of their face covered or is not looking toward the
camera.
• If the camera cannot detect the subject’s face, the camera focuses with the
setting currently selected in [Focusing Area].
• Even when Smile Capture is selected, it may not work and an image may
not be captured, depending on the condition of the recognized faces, such
as the faces are too small. If this happens, press the shutter release button
to take a picture.
•In e (Pet) mode, the Face Detection function serves as the pet detection
function (for one pet only).
• The Face Detection function cannot be selected in some shooting modes.
Refer to “Functions Available for Each Shooting Mode” (p.172) for details.
e_kb635_EN.book Page 89 Thursday, November 9, 2023 9:17 AM
90
3
Taking Pictures

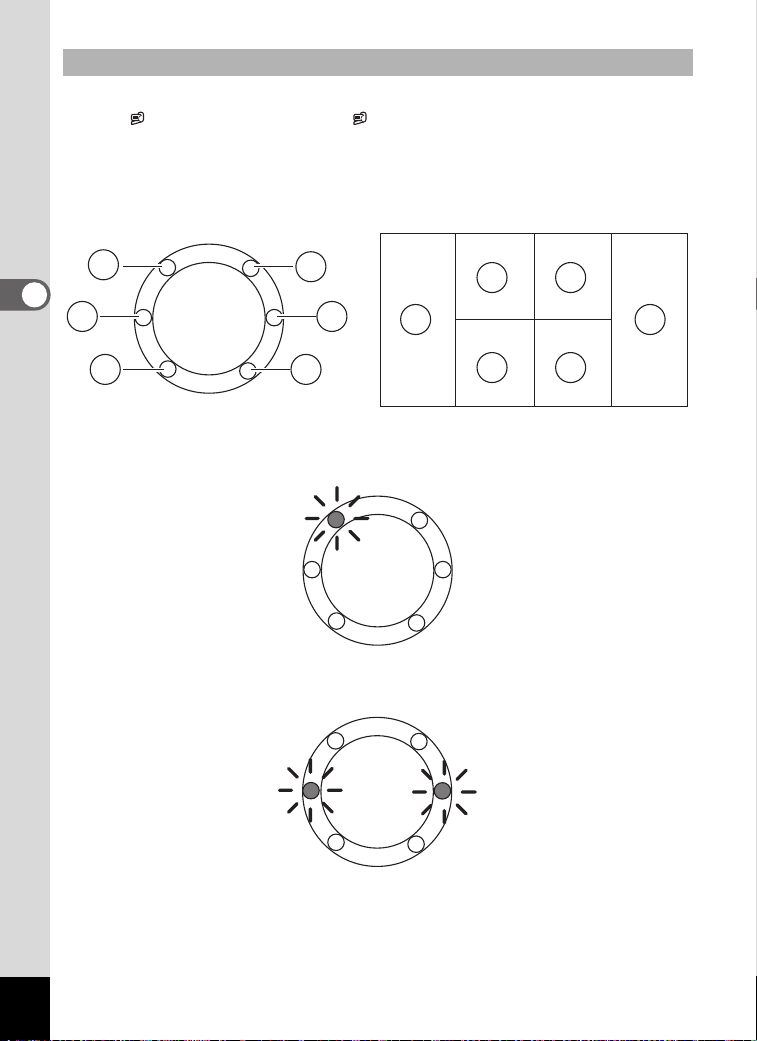

The LED Macro Lights around the lens blink when the camera detects people’s
faces in (Self-portrait Assist) or J (Self-portrait Assist + Smile Capture)
mode. The position of the blinking LED Macro Light indicates where the detected
face is on the screen.
The position (area) of the detected face corresponds to the blinking LED Macro
Light as follows.
Example 1. When the camera detects a person in area 1 on the display.
Example 2. When the camera detects two people in areas 2 and 5 on the
display.
To Use the Self-portrait Assist Function
1
2
3 4
5
6
1
2
3 4
5
6
e_kb635_EN.book Page 90 Thursday, November 9, 2023 9:17 AM
91
3
Taking Pictures
This specifies whether Blink Detection works when you use the Face Detection
function. The default setting is O (On).
1
Use the four-way controller (23) to select [Blink Detection] in
the [A Rec. Mode] menu.
2
Use the four-way controller (
45
) to switch between
O
(On) or
P
(Off).
O
(On) The Blink Detection function works.
P (Off)
The
Blink Detection function does not work.
The setting is saved.
Use this setting to specify whether or not an Instant Review is displayed immediately
after images are shot. The default setting is O (On: displays the image).
1
Use the four-way controller (23) to select [Instant Review] in
the [A Rec. Mode] menu.
• When the camera detects two faces in the same area, the closest LED
Macro Light to the blinking light also blinks.
• The camera can tell the positions of up to three detected faces by blinking
the LED Macro Lights.
• When the camera detects three faces in area 2, LED 1 to 3 blink.
• When the camera detects three faces in area 5, LED 4 to 6 blink.
• When the camera detects four or five faces, four or five LED Macro Lights
blink depending on the number of detected faces. When the camera
detects six or more faces, all the six lights blink (the lights do not tell the
positions of detected faces).
•In b (Auto Picture) mode, the LED Macro Lights turn off if the camera
selects a mode in which the Face Detection function does not work after
pressing the shutter release button halfway.
• When the Self-portrait Assist function is on, the LED Macro Lights do not
turn off after the set period of Power Saving.
• The LED Macro Lights do not blink when the detected faces are too small.
Setting the Blink Detection Function
Blink Detection 1p.57
If the Blink Detection function detected closed eyes when shooting, [Closed
eyes have been detected] is displayed for 3 seconds during Instant Review.
Setting the Instant Review
e_kb635_EN.book Page 91 Thursday, November 9, 2023 9:17 AM
92
3
Taking Pictures
2
Use the four-way controller (45) to switch between O (On)
or P (Off).
O(On) Instant Review is displayed.
P (Off) Instant Review is not displayed.
The setting is saved.
You can assign one of the following functions to the Green button: [Green Mode]
(p.64) or [Fn Setting] (p.93). You can activate the assigned function by just
pressing the Green button.
1
Use the four-way controller (23) to select [Green Button] in
the [A Rec. Mode] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23)
to select a function you want to
assign.
4
Press the 4 button.
The setting is saved.
Instant Review 1p.57
Setting the Green Button Function
When the shooting mode is set to 9 (Green) mode, the Green Button setting
from the [A Rec. Mode] menu is disabled. Switch to a mode other than 9
to access [Green Button] in the [A Rec. Mode] menu.
Assigning a Function to the Green Button
[Green Mode] is assigned to the Green button as the default setting.
Recorded Pixels
Quality Level
MENU
Cancel
OK
OK
Green Button
Outdoor View Stg.
+
+
+
+
EV Compensation
Fn Setting
Green Mode
e_kb635_EN.book Page 92 Thursday, November 9, 2023 9:17 AM
93
3
Taking Pictures
You can assign frequently used functions on the four-way controller. Using this
function, you can directly set the functions by pressing the four-way controller
without displaying the menu in capture mode.
In [Fn Setting], Still Picture Capture Mode and Movie Mode have different settings. To
execute [Fn Setting] in Movie Mode, press the
3
button in Movie Mode and use the
four-way controller (
45
) to display the [
A
Rec. Mode] menu before step 1 on p.92.
3
Use the four-way controller (23)
to select [Fn Setting].
4
Press the 4 button.
The [Fn Setting] screen appears.
5
Use the four-way controller (23)
to select a key you want to assign
a function to.
6
Press the four-way controller (5).
A pull-down menu appears.
7
Use the four-way controller (23)
to select an item you want to
assign.
8
Press the 4 button.
The setting is saved.
Assigning Frequently Used Functions to the Four-way Controller
(Fn Setting)
The functions assigned to the keys of the four-way controller can be used only
when [Fn Setting] is assigned to the Green button.
Recorded Pixels
Quality Level
MENU
Cancel
OK
OK
Green Button
Outdoor View Stg.
+
+
+
+
EV Compensation
Fn Setting
Green Mode
Recorded Pixels
EV Compensation
Quality Level
Outdoor View Stg.
MENU
Green Button
+
+
+
+
Fn Setting
Recorded Pixels
EV Compensation
Quality Level
White Balance
MENU
OK
OKCancel
Green Button
WB
+
+
+
+
ISO
AF
Focusing Area
Sensitivity
e_kb635_EN.book Page 93 Thursday, November 9, 2023 9:17 AM
94
3
Taking Pictures
The default settings for each mode
Items that can be assigned to each key
* The menu item to be displayed changes depending on the [Image Tone]
selected in the [A Rec. Mode] menu. When you have selected any one of
[Bright], [Natural], [Vibrant], or [Slide Film], [Saturation] is displayed, and when
[Monochrome] is selected, [Tone Adjustment] is displayed.
Press the Green button in capture mode to display the Fn Setting screen. Select
an item with the four-way controller (2345), and press either the (23) or
(45) four-way controller to change the settings.
You can assign only one function to each key.
Still Picture Capture Mode Movie mode
Default settings (2) EV Compensation (2) Movie SR
(3) Recorded Pixels (3) EV Compensation
(4) Quality Level (4) Recorded Pixels
(5) Outdoor View Stg. (5) Outdoor View Stg.
Still Picture Capture Mode Movie mode
Selectable
items
EV Compensation Recorded Pixels
Recorded Pixels Movie SR
Quality Level White Balance
White Balance Focusing Area
Sensitivity Face Detection
Focusing Area EV Compensation
Face Detection Sharpness
Auto Macro Saturation (Tone Adjustment) *
AE Metering Contrast
Highlight Correction Outdoor View Stg.
Shadow Correction
Sharpness
Saturation (Tone Adjustment) *
Contrast
Outdoor View Stg.
Changing Assigned Items
e_kb635_EN.book Page 94 Thursday, November 9, 2023 9:17 AM
95
3
Taking Pictures
You can give an image sharp or soft outlines.
1
Use the four-way controller (23) to select [Sharpness] in the
[A Rec. Mode] menu.
2
Use the four-way controller (45) to change the sharpness level.
F Soft
G Normal
H Sharp
You can set either color brightness (Saturation) or the tone of monochrome
images (Tone Adjustment).
The menu item to be displayed changes depending on the [Image Tone] selected
in the [A Rec. Mode] menu.
1
Use the four-way controller (23) to select [Saturation (or
Tone Adjustment)] in the [A Rec. Mode] menu.
2
Use the four-way controller (45) to select the level of
saturation (or color tone for Tone Adjustment).
F Low (Blue for Tone Adjustment)
G Normal (B&W for Tone Adjustment)
H High (Sepia for Tone Adjustment)
For setting the image contrast level.
1
Use the four-way controller (23) to select [Contrast] in the
[A Rec. Mode] menu.
2
Use the four-way controller (45) to change the contrast level.
F Low
G Normal
H High
Setting the Image Sharpness (Sharpness)
Setting the Saturation/Tone Adjustment
Selected Image Tone Displayed item
Bright, Natural, Vibrant, Slide Film
*
Saturation
Monochrome Tone Adjustment
* cannot select the level (fixed to Normal)
Setting the Image Contrast (Contrast)
e_kb635_EN.book Page 95 Thursday, November 9, 2023 9:17 AM
96
3
Taking Pictures
You can choose whether to imprint the date and/or time when taking still pictures.
1
Use the four-way controller (23) to select [Date Imprint] on
the [A Rec. Mode] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select the Date Imprint
details.
Choose from [Date], [Date & Time], [Time] or [Off].
4
Press the 4 button.
The setting is saved.
You can take pictures with clearer details by using image processing with the IQ
Enhancer technique.
1
Use the four-way controller (23) to select [IQ Enhancer] in
the [A Rec. Mode] menu.
2
Use the four-way controller (45) to select O (On)/P (Off).
O (On) The IQ Enhancer function works
P (Off) The IQ Enhancer function does not work
The setting is saved.
Setting the Date Imprint Function
• The date and/or time imprinted with the Date Imprint function cannot be
deleted.
• Note that if a printer or image editing software is set to print the date and
the images to be printed already have the date and/or time imprinted, the
imprinted dates and/or times may overlap.
• O
appears on the display in
A
mode when [Date Imprint] is set to any
setting other than [Off].
• The date and/or time are imprinted on the picture with the display format
set in the [Date Adjustment] screen (p.41).
Setting the IQ Enhancer Processing
IQ Enhancer does not function in the following situations:
• When the drive mode is set to c (Burst Shooting)
• When the shooting mode is set to c (Digital SR)
e_kb635_EN.book Page 96 Thursday, November 9, 2023 9:17 AM
97
3
Taking Pictures
Set whether or not to turn on the LED Macro Lights around the lens.
The LED Macro Lights turn on when the [Macro Light] is set to O (On), and then
you can use [Brightness] to adjust the brightness.
The default setting is O (On), and Brightness is 1.
1
Use the four-way controller (23) to select [Macro Light] in
the [A Rec. Mode] menu.
The Macro Lights menu appears.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (45) to select O (On)/P (Off).
O (On) Turns on the LED Macro Lights
P (Off) Turns off the LED Macro Lights
4
Use the four-way controller (3) to select Brightness, and then
adjust brightness by four-way controller (45).
The setting is saved.
Setting the Macro Light
• The LED does not light even if the LED Macro Light is turned on unless the
Macro Light is set in Flash Mode.
• The shooting modes that is able to select the Macro Light in Flash Mode
are Program, Movie, Report and Digital Microscope. (The macro light
setting is fixed for Digital Microscope.)
• The LED Macro Lights turn off during playback and when using the USB
connector.
• (Self-portrait Assist) and J (Self-portrait Assist + Smile Capture)
cannot be selected when [Macro Light] is set to O (On).
If you take a picture using the self-timer (g, Z) or a remote control unit (h,
i) while [Macro Light] is set to O (On), the LED Macro Lights remain on
regardless of the countdown.
e_kb635_EN.book Page 97 Thursday, November 9, 2023 9:17 AM
98
3
Taking Pictures
Underwater Shooting
This camera complies with JIS waterproof grade 8 and can be used to take
pictures at a depth of 14 meters continuously for 2 hours. In addition, this camera
complies with JIS dustproof grade 6 (IP68).
1
Use the four-way controller (2345) to select
(Underwater)/ (Underwater Movie) from the Capture Mode
Palette.
2
Press the 4 button.
The shooting mode is selected and the camera returns to capture mode.
3
Press the shutter release button fully.
If you selected , a still picture is taken.
If you selected , movie recording starts. You can continue recording until the
recorded movie time reaches 25 minutes. To stop recording, press the shutter
release button fully again. An underwater movie can be recorded in the same
way as C (Movie) mode.
Underwater Shooting (Underwater Mode/
Underwater Movie Mode)
Use the Underwater mode to take underwater still pictures that capture the
blueness of the sea.
Use the Underwater Movie mode to record movies underwater.
Recording Movies 1p.100
• Before shooting underwater, make sure that there is no dirt or sand on the
waterproof seal of the battery/card and terminal covers and check that the
covers are securely locked.
• Before opening the battery/card and terminal covers after using the camera
underwater, make sure that there is no water, dirt, or sand on the covers or
anywhere else on the camera. Wipe the camera before opening the covers.
• When shooting in (Underwater Movie) mode, use SD Speed Class 4
or higher cards.
Regarding Waterproof, Dustproof, and Shockproof Design 1p.8
• If the focus mode is set to \ in mode, you can adjust the focus before
recording starts and during recording.
• The optical zoom and digital zoom can be used in mode before
recording starts. The digital zoom can also be used during recording.
• Movies recorded in mode capture a different area than still pictures.
e_kb635_EN.book Page 98 Thursday, November 9, 2023 9:17 AM
99
3
Taking Pictures
Although the camera is designed to be waterproof and dustproof, avoid using
the camera under the following conditions. It may momentarily be subjected
to water pressure beyond that covered in the guarantee and water may enter
the interior of the camera.
• Jumping into the water while holding the camera
• Swimming while holding the camera in your hand
• Using the camera in environments where water is applied forcefully, such
as strong river currents and waterfalls
e_kb635_EN.book Page 99 Thursday, November 9, 2023 9:17 AM
100
3
Taking Pictures
Recording Movies
This mode enables you to record movies. Sound is recorded at the same time.
1
Use the four-way controller (2345) to select C (Movie)
from the Capture Mode Palette.
2
Press the 4 button.
The C (Movie) mode is selected and the
camera returns to capture mode.
The following information appears on the
display.
1 Movie mode icon
2 Movie Shake Reduction icon
3 Remaining recordable time
4 REC indicator (blinks during
recording)
5 Focus frame (does not appear during recording)
You can change the captured area by pressing the W/T button.
T Enlarges the subject.
W Widens the area that is captured by the camera.
3
Press the shutter release button fully.
Recording starts. You can continue recording until the recorded movie time
reaches 25 minutes.
4
Press the shutter release button fully.
Recording stops.
Recording Movies
Playing Back a Movie 1p.111
Four-way controller
4 button
Shutter release button
W/T button
07:340 7 : 3 407:34
REC
1
3
25
4
e_kb635_EN.book Page 100 Thursday, November 9, 2023 9:17 AM
101
3
Taking Pictures
If you keep the shutter release button pressed for more than one second,
recording will continue as long as you keep the button pressed. Shooting stops
when you take your finger off the shutter release button.
This camera starts/stops movie recording simply by pressing the Movie button,
without selecting C (Movie) from the Capture Mode Palette. This is useful when
you want to start recording quickly.
1
Press the Movie button.
Recording starts. You can continue recording until the recorded movie time
reaches 25 minutes.
• The focus mode can be changed before recording starts.
• When the focus mode is set to \(Manual Focus), you can adjust the
focus before recording starts and during recording.
• When the shooting mode is set to C (Movie), Face Detection is
automatically set to on. You can select Smile Capture or Face Detection Off
before starting recording a movie (p.89). When the Smile Capture function
is activated, movie recording starts automatically when the camera
recognizes the subject’s smile. However, the Smile Capture function may
not work depending on the condition of the recognized faces, and movie
recording may not start automatically. If this happens, press the shutter
release button to start movie recording.
•
You can record a movie using a remote control unit (optional) (p.70)
.
• When you use the SD Memory Card, use SD Speed Class 4 or higher
cards.
• Movies recorded in C mode capture a different area than still pictures.
Keeping the Shutter Release Button Pressed
Recording a Movie Quickly Using the Movie
Button
Movie button
e_kb635_EN.book Page 101 Thursday, November 9, 2023 9:17 AM
102
3
Taking Pictures
2
Press the Movie button again.
Recording stops.
You can choose the number of recorded pixels and frame rate settings for movies.
The more pixels there are, the clearer the details and the bigger the file size. The
more frames per second, the better the quality of the movie, but the file size
becomes larger.
* The frame rate (fps) indicates the number of frames per second.
1
Use the four-way controller (23) to select [Recorded Pixels]
in the [C Movie] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
• You cannot stop recording by pressing the shutter release button. To stop
recording, press the Movie button.
• You cannot start recording a movie by pressing the Movie button when the
shooting mode is set to C (Movie), (Underwater Movie), (Digital
Microscope), k (Interval Shot), (High Speed Movie), (Interval
Movie), or e (Pet), or the camera is in Q mode.
• Movies are recorded with the default settings for the [C Movie] menu when
recording movies with the Movie button (p.181).
Selecting the Number of Recorded Pixels and
Frame Rate for Movies
Setting
Recorded
Pixels
Frame
Rate
Use
1920 x 1080 30 fps
Records images in full HDTV format (16:9).
Movement is recorded smoothly. (default setting)
1280 x 720 60 fps
Records images in HDTV format (16:9). Quick
movement is recorded smoothly.
M 1280 x 720 30 fps
Records images in HDTV format (16:9). Movement
is recorded smoothly.
e_kb635_EN.book Page 102 Thursday, November 9, 2023 9:17 AM
103
3
Taking Pictures
3
Use the four-way controller (23)
to change the number of
recorded pixels and frame rate.
4
Press the 4 button.
The setting is saved.
In C (Movie) and (Underwater Movie) modes, you can correct camera shake
while you are recording a movie with the Movie SR (Movie Shake Reduction)
function.
The default setting is O (On).
1
Use the four-way controller (23) to select [Movie SR] in the
[C Movie] menu.
2
Use the four-way controller (45)
to select O (On) or P (Off).
O(On) Automatically corrects
camera shake.
P (Off) Does not correct camera
shake.
The setting is saved.
Due to the following restriction, the actual recordable time may differ from the
recordable time (Rec. Time) that appears in the top-right corner of the screen.
• The maximum recordable time of a file is 25 minutes.
Setting the Movie SR (Movie Shake Reduction)
Function
MENU OK
Recorded Pixels
Mov
iSRe
Wind Suppression
OKCancel
Rec. Time
02:26
MENU
Recorded Pixels
Mov
iSRe
Wind Suppression
Exit
Movie
e_kb635_EN.book Page 103 Thursday, November 9, 2023 9:17 AM
104
3
Taking Pictures
You can reduce wind noises during movie recording.
The default setting is P (Off).
1
Use the four-way controller (23) to select [Wind
Suppression] in the [C Movie] menu.
2
Use the four-way controller (45)
to select O (On)/P (Off).
O(On) Suppresses wind noises.
P (Off) Does not suppress wind
noises.
The setting is saved.
In this mode, you can record multiple still pictures taken automatically at a set
interval from a set time, as a movie file.
1
Use the four-way controller (2345) to select (Interval
Movie) from the Capture Mode Palette.
2
Press the 4 button.
The current Interval Movie settings appear for approximately one minute. To
take pictures with the current settings, go to step 10.
3
Press the 4 button while the current settings are displayed.
The Interval Movie setting screen appears. [Interval] is marked with the frame.
Suppressing Wind Noises during Movie
Recording (Wind Suppression)
Combining Pictures Taken at a Set Interval into a
Movie (Interval Movie)
Interval
Set the shooting interval to 1 minute, 5 minutes, 10 minutes, 30 minutes,
or 1 hour.
Total Time
Set the total time, from 10 minutes to 359 hours. The total time and the time
unit change depending on the interval set. The total time can be set in
increments of 1 minute, 5 minutes, 10 minutes, 30 minutes, or 1 hour.
Start Delay
Set the start delay, from 0 minutes to 24 hours. You can set this in 1-
minute increments. If the start time is set to 0 minutes, the first picture is
taken as soon as the shutter release button is pressed.
Movie
MENU
Recorded Pixels
Mov
iSRe
Exit
Wind Suppression
e_kb635_EN.book Page 104 Thursday, November 9, 2023 9:17 AM
105
3
Taking Pictures
4
Set the interval.
1 Press the four-way controller (5).
A pull-down menu appears.
2 Use the four-way controller (23)
to set the interval, then press the
4 button.
The frame returns to [Interval].
5
Press the four-way controller (3).
The frame moves to [Total Time].
6
Set the total time.
1 Press the four-way controller (5).
2 Use the four-way controller (23) to set the hours, then press
the four-way controller (5).
3 Use the four-way controller (23) to set the minutes, then press
the four-way controller (5).
The frame returns to [Total Time].
7
Press the four-way controller (3).
The frame moves to [Start Delay].
8
Set the start delay.
1 Press the four-way controller (5).
2 Use the four-way controller (23) to set the hours, then press
the four-way controller (5).
3 Use the four-way controller (23) to set the minutes, then press
the four-way controller (5).
The frame returns to [Start Delay].
9
Press the 3 button.
The Interval Movie settings are saved and the camera returns to capture mode.
10
Press the shutter release button to take a picture.
Interval movie recording starts.
The LCD turns off between shots (during standby). Press the power button during
standby to display the remaining time and shooting interval on the screen.
The [Stop interval shooting?] message is displayed when the power button and
then the 3 button are pressed during standby. Pressing the 4 button
cancels interval movie recording.
MENU
Total Time
1
00
hr.
0
min.
10
Interval Shot
Interval
Start Delay
min.
hr.
0
min.
0
e_kb635_EN.book Page 105 Thursday, November 9, 2023 9:17 AM
106
3
Taking Pictures
• Confirm that the battery is sufficiently charged before starting interval
movie recording. If the battery is not sufficiently charged, it may become
depleted during interval movie recording and cause recording of the movie
to stop.
• For interval movie recording, the following settings are fixed. Recorded
Pixels: , Frame Rate: 30 fps, Quality Level: C, Movie SR: P (Off),
and Flash Mode: a.
• Interval movie recording stops if the SD Memory Card is removed or
inserted during standby.
• Sound cannot be recorded during interval movie recording.
• When you use the SD Memory Card, use SD Speed Class 4 or higher
cards.
• If you set a start delay, a start time corresponding to the current time and
the start delay you set is displayed in real time.
• The total time you can set differs according to the shooting interval you set,
as indicated in the table below.
• The Date Imprint function (p.96) is available for Interval Movie mode.
Interval
Total time that can be set
30 fps
1 min.
10 minutes to 5 hours and 59 minutes
(in increments of 1 minute)
5 min.
30 minutes to 29 hours and 55 minutes
(in increments of 5 minutes)
10 min.
1 hour to 59 hours and 50 minutes
(in increments of 10 minutes)
30 min.
3 hours to 179 hours and 30 minutes
(in increments of 30 minutes)
1 hr.
6 hours to 359 hours
(in increments of 1 hour)
e_kb635_EN.book Page 106 Thursday, November 9, 2023 9:17 AM
107
3
Taking Pictures

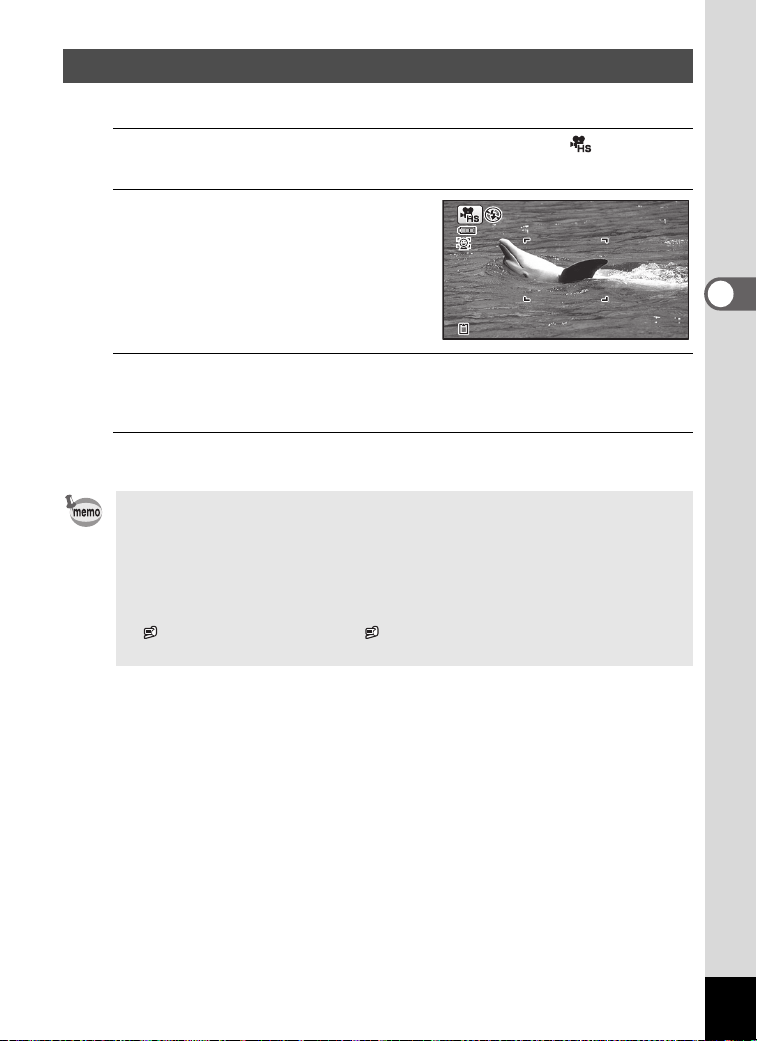

The camera records a high speed movie for slow motion playback.
1
Use the four-way controller (2345) to select (High
Speed Movie) from the Capture Mode Palette.
2
Press the 4 button.
The camera returns to capture mode.
3
Press the shutter release button fully.
Recording starts. You can continue recording until the recorded movie time
reaches 15 seconds per file.
4
Press the shutter release button fully again.
Recording stops.
Using the High Speed Movie Function
• In this mode, a movie is recorded at 120 fps and played back at 30 fps.
• The recorded pixels is fixed to 1280 x 720.
• The flash does not discharge in this mode.
• The Movie SR is fixed to P (Off).
• When you use the SD Memory Card, use SD Speed Class 4 or higher
cards.
• Zoom is not available during recording.
• (Self-portrait Assist) and J (Self-portrait Assist + Smile Capture) are
not available.
0 0 : 1 500:15
e_kb635_EN.book Page 107 Thursday, November 9, 2023 9:17 AM
108
3
Taking Pictures
Saving the Settings (Memory)
The Memory function is for saving the current camera settings when the camera
is turned off.
For some camera settings, the Memory function is always set to
O
(On) (the settings
are saved when the camera is turned off), while for others you can choose
O
or
P
(Off) (to choose whether the settings are saved or not when the camera is turned off).
The items which can be set to
O
or
P
in the Memory function are shown in the table
below. (Items not listed here are always saved in the selected settings when the
camera is turned off.)
If you select
O
, the settings will be saved in the status they were in immediately before the
camera was turned off. If you select
P
, the settings will be reset to the defaults when the
camera is turned off. The table below also shows whether the Memory default setting for
each item is
O
or
P
.
Item Description
Default
setting
Page
Face Detection
The [Face Detection] setting in the [A Rec.
Mode] menu
P p.89
Flash Mode
The flash mode set with the four-way
controller (4)
O p.73
Drive Mode
The drive mode set with the four-way
controller (2)
P
p.67 -
p.71
Focus Mode
The focus mode set with the four-way
controller (5)
P p.75
Zoom Position The zoom position set with the W/T button. P p.57
MF Position
The manual focus position set with the four-
way controller (23)
P p.76
White Balance
The [White Balance] setting in the
[A Rec. Mode] menu
P p.82
Sensitivity
The [Sensitivity] setting in the
[A Rec. Mode] menu
P p.85
EV Compensation
The [EV Compensation] setting in the
[A Rec. Mode] menu
P p.86
AE Metering
The [AE Metering] setting in the
[A Rec. Mode] menu
P p.84
Digital Zoom
The [Digital Zoom] setting in the
[A Rec. Mode] menu
O p.59
DISPLAY
The information display mode set with the
4 button
P p.21
File No.
If a new SD Memory Card is inserted when
set to O (On), file numbers are assigned
sequentially.
O ⎯
e_kb635_EN.book Page 108 Thursday, November 9, 2023 9:17 AM
109
3
Taking Pictures
1
Use the four-way controller (23) to select [Memory] in the
[A Rec. Mode] menu.
2
Press the four-way controller (5).
The [Memory] screen appears.
3
Use the four-way controller (23)
to choose an item.
4
Use the four-way controller (
45
) to select
O
(On) or
P
(Off).
MENU
Memory
Face Detection
Flash Mode
Drive Mode
Focus Mode
Zoom Position
MF Position
1/3
e_kb635_EN.book Page 109 Thursday, November 9, 2023 9:17 AM
110
4
Playing Back and Deleting Images

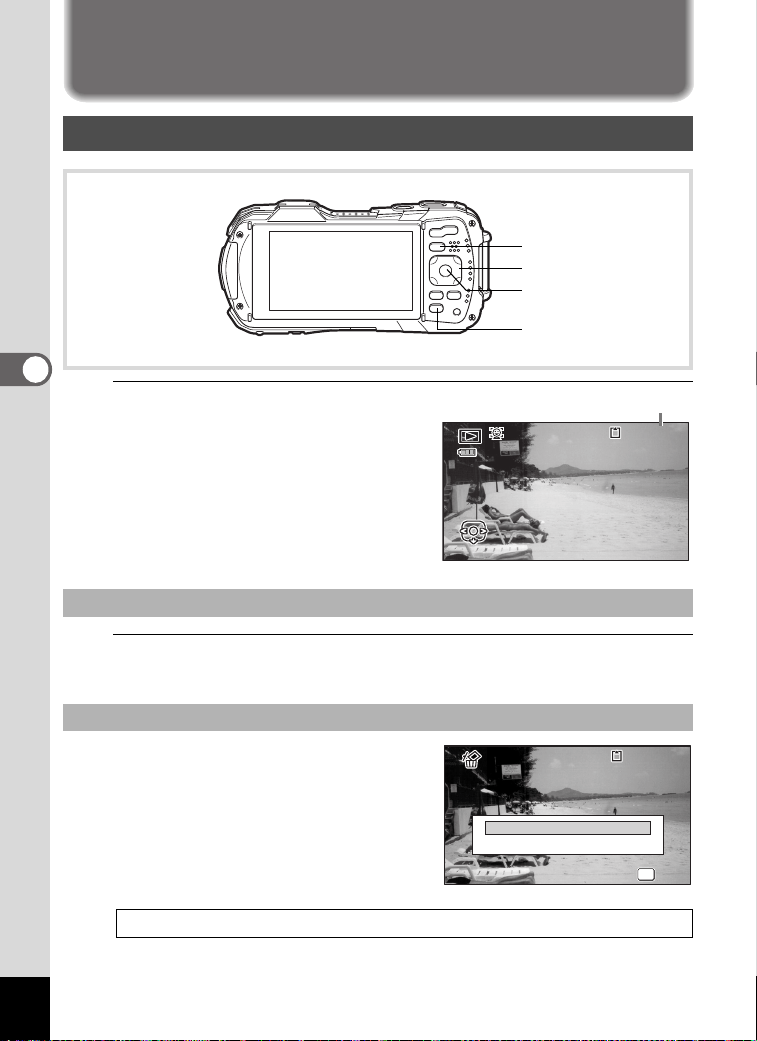

Playing Back Images
1
Press the Q button after taking a
picture.
The camera enters Q mode and the image
appears on the display. Displaying one
image in full in Q mode (default setting) is
called single-image display.
2
Press the four-way controller (45).
The previous or next image appears.
Press the i button while the image is
displayed to display the Delete screen. Press
the four-way controller (2) to select [Delete]
and press the 4 button.
Playing Back Still Pictures
To Play Back the Previous or Next Image
To Delete the Displayed Image
For information on other deletion procedures 1p.121
4Playing Ba ck and
Deleting Images
i button
Q button
Four-way controller
4 button
101 00
-
0030038100
-
0038
EditEditEdit
14:2514:2511/11/202311/11/202311/11/2023 14:25
File number
100
1 0 0
-
0017
0 0 1 7
100
-
0017
OK
OK
OK
Delete
Cancel
OK
OK
OK
e_kb635_EN.book Page 110 Thursday, November 9, 2023 9:17 AM

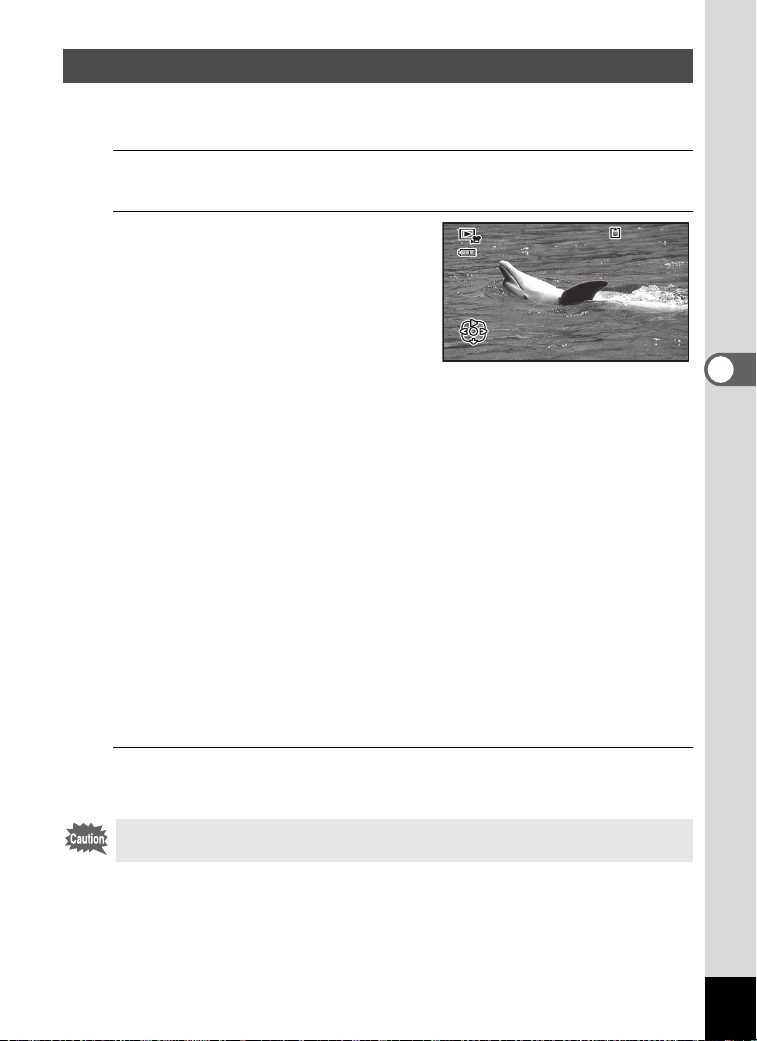

111
4
Playing Back and Deleting Images
You can play back the movies you have taken. The sound is played back at the
same time.
1
Enter Q mode and use the four-way controller (45) to
choose the movie you want to play back.
2
Press the four-way controller
(2).
Playback starts.
The following operations can be performed during playback.
Four-way controller (2) Pauses playback
Zoom button right (y) Increases the volume
Zoom button left (f) Reduces the volume
Press and hold the four-way controller (
5
)
Fast-forwards playback
Press and hold the four-way controller (
4
)
Fast-reverses playback
The following operations can be performed while playback is
paused.
Four-way controller (4) Reverses frames(*)
Four-way controller (5) Forwards frames
Four-way controller (2) Resumes playback
(*)In frame-reverse mode, the first frame of every 30 frames appears on the
display with each press of the four-way controller(
4
). For example, when you
reverse frames from the second frame to the 31st frame, the first frame
appears on the display, and when you reverse frames from the 32nd to 61st,
the 31st frame appears.
3
Press the four-way controller (3).
Playback stops.
Playing Back a Movie
Only movies taken with this camera can be played back. Movies taken with
other cameras cannot be played back.
EditEditEdit
00 : 3 0
101 00
-
0010017
00:3
0
100
-
0017
14:2514:2511/11/202311/11/202311/11/2023 14:25
e_kb635_EN.book Page 111 Thursday, November 9, 2023 9:17 AM
112
4
Playing Back and Deleting Images

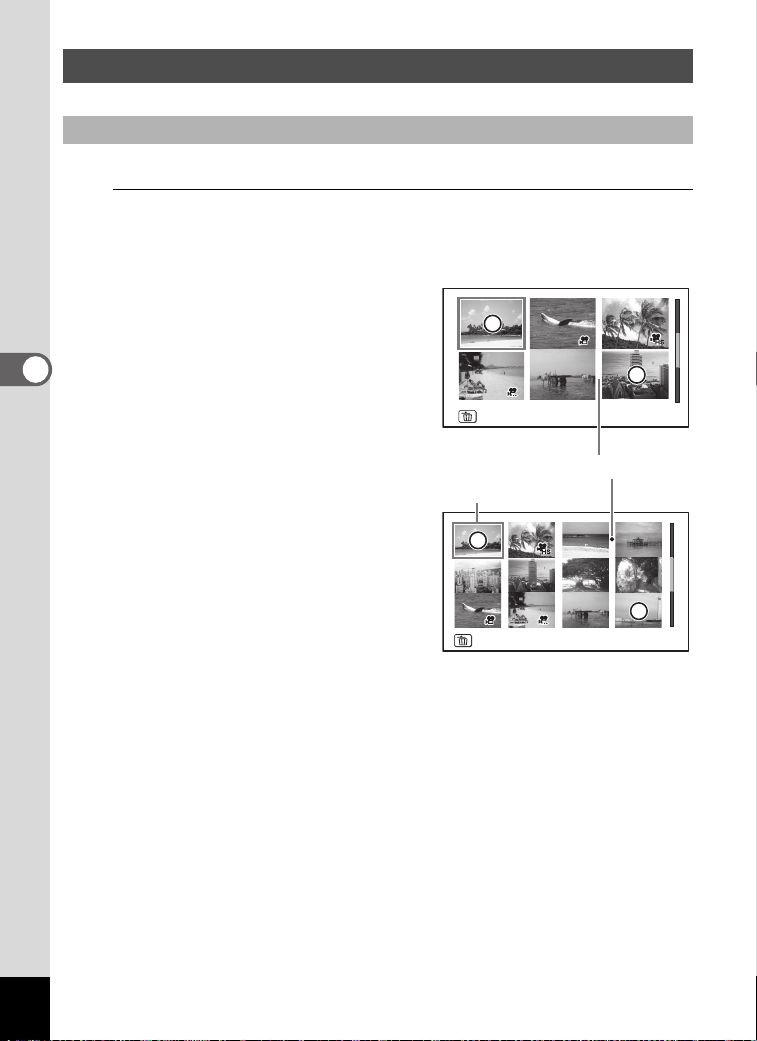

You can display 6 or 12 thumbnails of captured images at a time.
1
Press the f button in Q mode.
The 6-image display appears showing a page consisting of 6 thumbnail images.
Pressing the f button again changes it to a 12-image display.
A page consisting of 6 or 12 thumbnail
images appears. The displayed images
change 6 or 12 images at a time page by
page.
Use the four-way controller (
2345
) to
move the frame. If there are too many
images to display on one page, pressing the
four-way controller (
24
) while the image
1
is selected will display the previous page.
Similarly, if you choose the image
2
and
press the four-way controller (
35
), the
next page appears.
♦ indicates that the previous or next screen
is stored in a separate folder.
Multi-Image Display
6-Image Display/12-Image Display
2
ɟ
100-0010
1
Select & Delete
12-Image Display
Select & Delete 100-0010
1
2
Frame
Folder divider icon
6-Image Display
e_kb635_EN.book Page 112 Thursday, November 9, 2023 9:17 AM
113
4
Playing Back and Deleting Images
The icons that appear on the images indicate the following:
Press the 4 button to switch to single-image display of the selected image.
Press the Q button to switch to A mode.
Press the f button in 12-image display to switch to folder or calendar display.
Press the Green button to switch between folder display and calendar display.
1
Press the f button twice in Q mode.
The screen changes to 12-image display.
2
Press the f button.
The screen changes to folder display or calendar display.
Folder display
The list of folders with recorded images
appears.
Use the four-way controller (2345) to
move the frame.
If you select a folder and press the y
button or the 4 button, the images in the
selected folder are displayed in 12-image
display.
(No icon) Still picture
C Movie (the first frame appears)
High Speed Movie (the first frame appears)
Folder Display/Calendar Display
101_0707
102 103 104101
106105
Frame
e_kb635_EN.book Page 113 Thursday, November 9, 2023 9:17 AM
114
4
Playing Back and Deleting Images

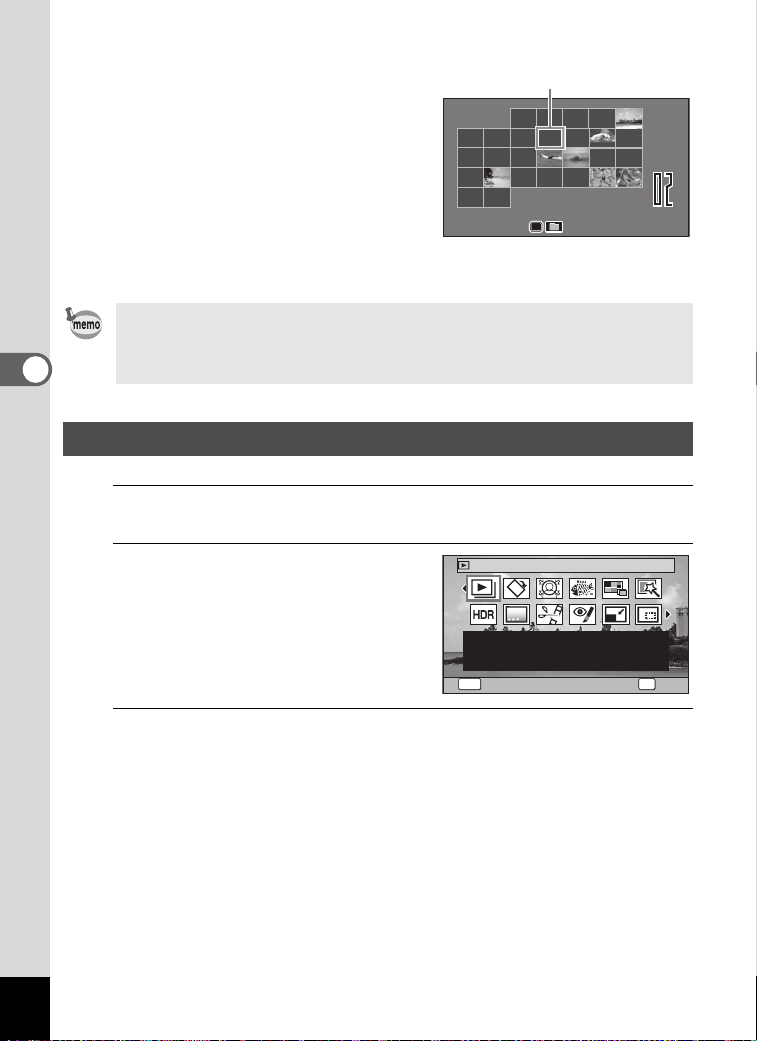

Calendar display
Stored images are displayed by date in
calendar format.
The first image captured on a date is
displayed for that date on the calendar.
Use the four-way controller (2345) to
move the frame.
If you select a date and press the y button,
the images captured on that date are
displayed in 12-image display.
Select a date and press the 4 button to switch to single-image display of the
first image captured on that date.
1
In Q mode, press the four-way controller (3).
The Playback Mode Palette appears.
2
Use the four-way controller
(2345) to choose an icon.
The guide for the selected function appears
below.
3
Press the 4 button.
The playback function is recalled.
•Press the 3 button in folder display or calendar display to switch to
12-image display.
•Press the Q button or press the shutter release button halfway in folder
display or calendar display to switch to A mode.
Using the Playback Functions
SUN
SUN
TUE
TUE
WED
WED
THU
THU
FRI
FRI
SAT
SAT
66 77 88
99
1010
1111
1313 1414 1515
16
1717
2323
16
2424
1818
2020 2121 2222
MON
MON
2022
2022
2525
2727 2828
55
1212
1919
2626
34422311
Frame
OKMENU
1/2
For continuously playing
back images. Screen or
sound effects can be set
OKCancel
Slideshow
e_kb635_EN.book Page 114 Thursday, November 9, 2023 9:17 AM

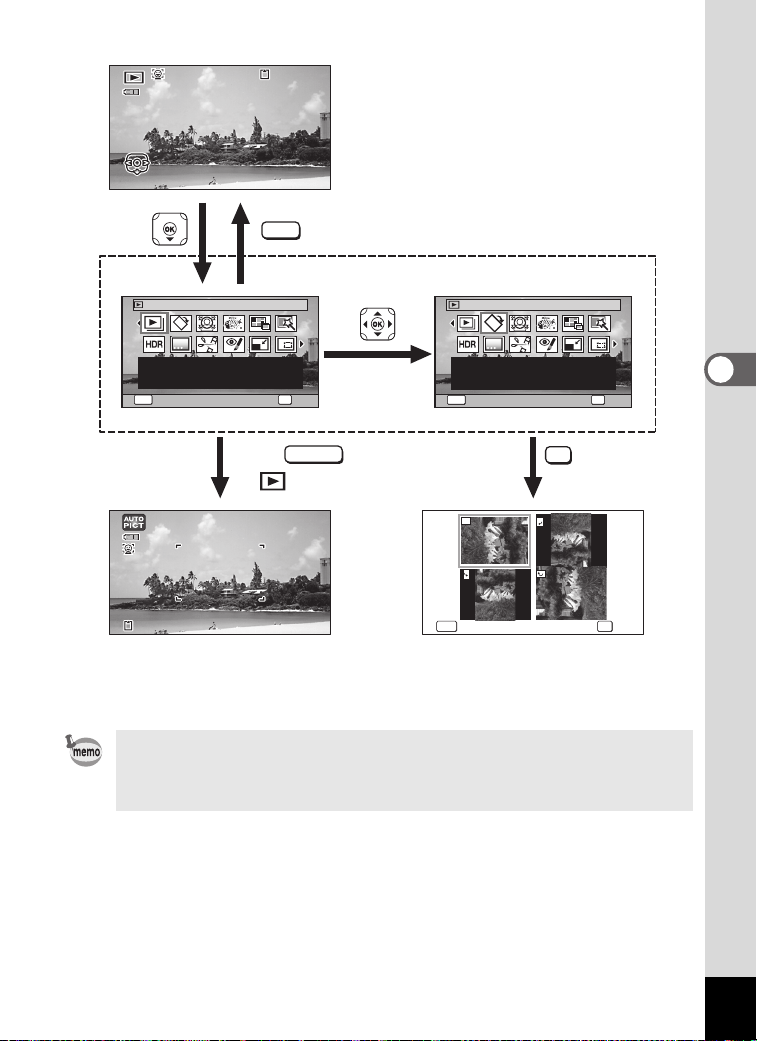

115
4
Playing Back and Deleting Images
• When the frame is placed over an icon on the Playback Mode Palette, the
guide of that function appears.
• You can set the guide of the function not to display on the Playback Mode
Palette (p.163).
OKMENU
1/2
OKMENU
Image Rotation
1/2
Slideshow
10100
-
0030038100
-
0038
EditEditEdit
OK
Cancel
Rotates captured images.
Useful when viewing
vertical images on a TV
OK
Cancel
14:2514:2511/11/202311/11/2023 14:25
OKMENU
For continuously playing
back images. Screen or
sound effects can be set
OKCancel
11/11/2023
OK
MENU
SHUTTER
'10/02/02 14:25
3 838
Goes to the screen for
selected playback function
Closes the Playback Mode
Palette and goes to A mode
halfway
or
Press
' 1 0 / 0 2 / 0 2 1 4 : 2 5
' 1 0 / 0 2 / 0 2 1 4 : 2 5
1 00
-
0 038
3 8
Edit
14:2502/02/'12
' 1 0 / 0 2 / 0 2 1 4 : 2 5
' 1 0 / 0 2 / 0 2 1 4 : 2 5
1 00
-
0 038
3 8
Edit
14:2502/02/'12
SHUTTER
e_kb635_EN.book Page 115 Thursday, November 9, 2023 9:17 AM
116
4
Playing Back and Deleting Images
Playback Mode Palette
Playback Mode Description Page
u
Slideshow
For continuously playing back images. Screen or
sound effects can be set
p.117
s
Image Rotation
Rotates captured images. Useful when viewing
vertical images on a TV
p.119
k
Small Face Filter
Reduces the size of faces in the image, for well-
proportioned portraits
p.130
Ink Rubbing Filter
Creates an image similar to ink rubbing from
original pictures
p.133
Collage Creates a collage print page from saved image files p.134
P
Digital Filter For modifying images with a Color filter or Soft filter p.131
HDR Filter Processes single image to simulate HDR effect p.133
E
Original Frame
Available to make from the kind and color of a
frame. Available to enter text
p.138
[
Movie
Edit
Save as
Still Image
For saving one frame from a movie as a still picture
p.142
Divide
Movies
For dividing a movie into two
Adding
title picture
For adding a title picture to your movie
Z
Red-eye Edit
Attempts to edit out the red-eye effect in image.
Success may vary
p.137
n
Resize
Changes Recorded Pixels and Quality Level to
make the file size smaller
p.128
o
Cropping
For cropping images to the size you like. Saved as
a new image
p.129
p
Image Copy
To copy images between the built-in memory and
an SD Memory Card
p.145
Z
Protect
Protects images from delete function. Format
function still erases all
p.124
Start-up Screen
For setting a captured image as the Start-up
Screen
p.164
e_kb635_EN.book Page 116 Thursday, November 9, 2023 9:17 AM
117
4
Playing Back and Deleting Images
You can play back recorded still pictures and movies one after another.
1
Enter Q mode and use the four-way controller (45) to

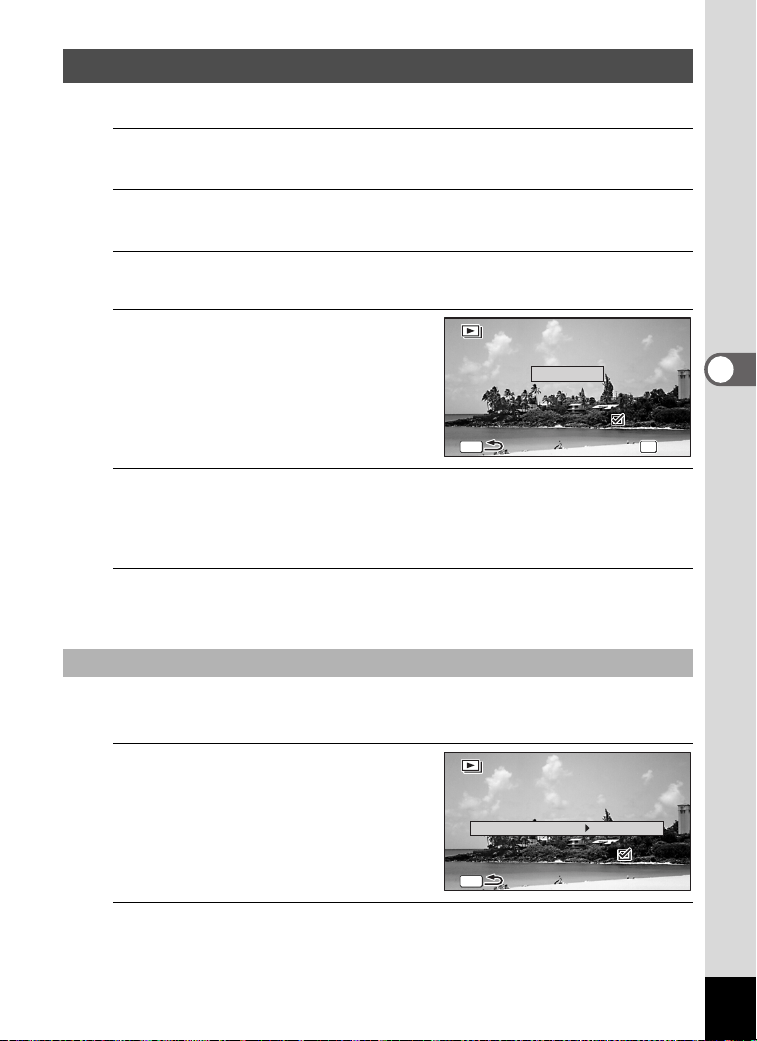

choose the image to start the slideshow with.
2
Use the four-way controller (2345) to select
u (Slideshow) from the Playback Mode Palette.
3
Press the 4 button.
The slideshow setting screen appears.
4
Use the four-way controller (23)
to select [Start].
5
Press the 4 button.
The slideshow starts.
Pressing the 4 button during the slideshow pauses the slideshow. To resume
the slideshow, press the 4 button again.
6
Press any button other than the 4 button.
The slideshow stops.
You can set the playback interval, a screen effect and sound effect for when one
image changes to the next.
1
Use the four-way controller (23)
to select [Interval] in step 4 on
p.117.
2
Press the four-way controller (5).
A pull-down menu appears.
Slideshow
To Set the Slideshow Conditions
OK
OK
OKMENU
OK
OK
OK
Slideshow starts
Slideshow starts
Slideshow starts
Interval
Interval
Screen Effect
Screen Effect
Sound Effect
Sound Effect
Interval
Screen Effect
Sound Effect
3sec.
3sec.
3sec.
Wipe
Wipe
Wipe
Start
MENU
Start
Interval
Interval
Sound Effect
Sound Effect
Interval
Screen Effect
Screen Effect
Screen Effect
Sound Effect
Wipe
Wipe
Wipe
3sec.
3sec.
3sec.
e_kb635_EN.book Page 117 Thursday, November 9, 2023 9:17 AM
118
4
Playing Back and Deleting Images
3
Use the four-way controller (23) to change [Interval] and
press the 4 button.
Choose from [3sec.], [5sec.], [10sec.], [20sec.] or [30sec.].
4
Use the four-way controller (23) to select [Screen Effect].
After selecting [Screen Effect], press the four-way controller (5). A pull-down
menu appears with the following items. Use the four-way controller (23) to
select an item and press the 4 button.
5
Use the four-way controller (23) to select [Sound Effect].
6
Use the four-way controller (45) to select O (On) or P (Off).
Except when the [Screen Effect] is set to [Off], you can choose O (On) or P (Off)
for the sound that is played when one image changes to the next.
7
Use the four-way controller (23) to select [Start].
8
Press the 4 button.
The slideshow starts with the selected interval and effects.
Wipe The next image slides over the previous one from left to right
Checker The next image appears in small square mosaic blocks
Fade
The current image gradually fades out and the next image
fades in
Random Various effects are used randomly
Off No effect
• The slideshow will continue until you press any button other than the 4
button.
• Movies will be played back through to the end before the next picture is
displayed, regardless of the Interval setting. However, pressing the four-
way controller (5) while playing back a movie skips to the next image.
• When [Random] is selected for the screen effect, the interval is fixed to the
setting selected in step 3 and the sound effect is set to off.
Connecting the Camera to an AV Device 1p.126
e_kb635_EN.book Page 118 Thursday, November 9, 2023 9:17 AM
119
4
Playing Back and Deleting Images

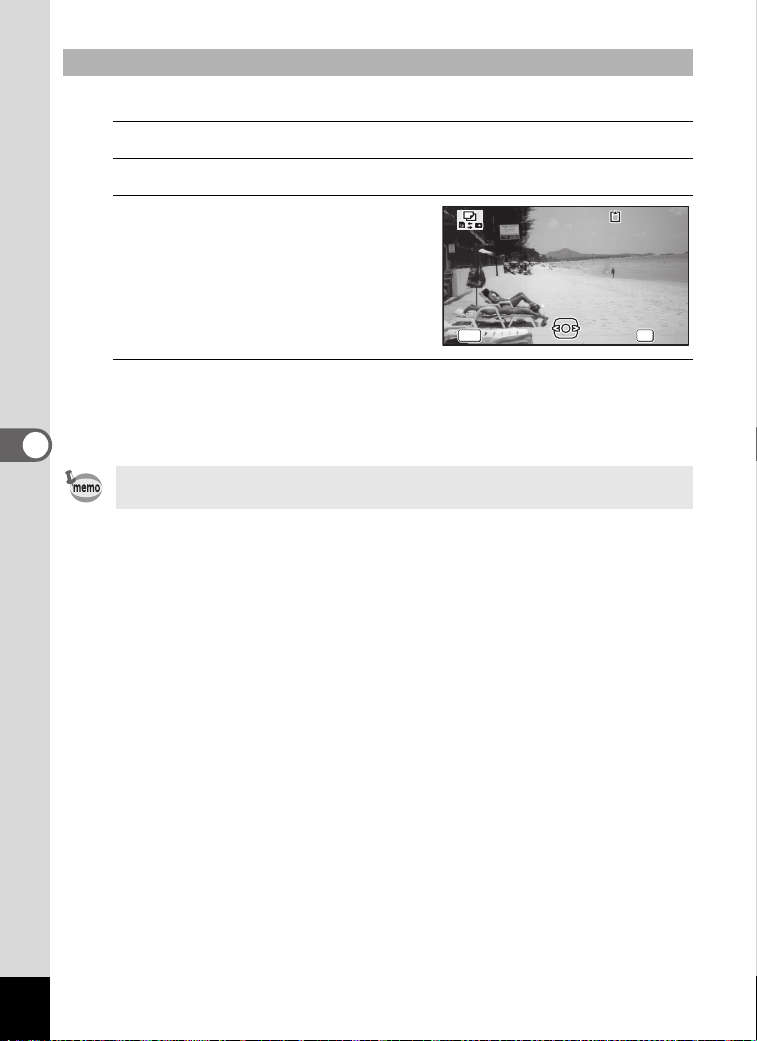

1
Press the Q button after taking a picture.
The image appears on the display.
2
Use the four-way controller (2345) to select s (Image
Rotation) from the Playback Mode Palette.
3
Press the 4 button.
The rotation selection screen (0°, Right 90°, Left 90°, or 180°) appears.
4
Use the four-way controller
(2345) to choose the rotation
direction and press the 4
button.
The rotated image is saved.

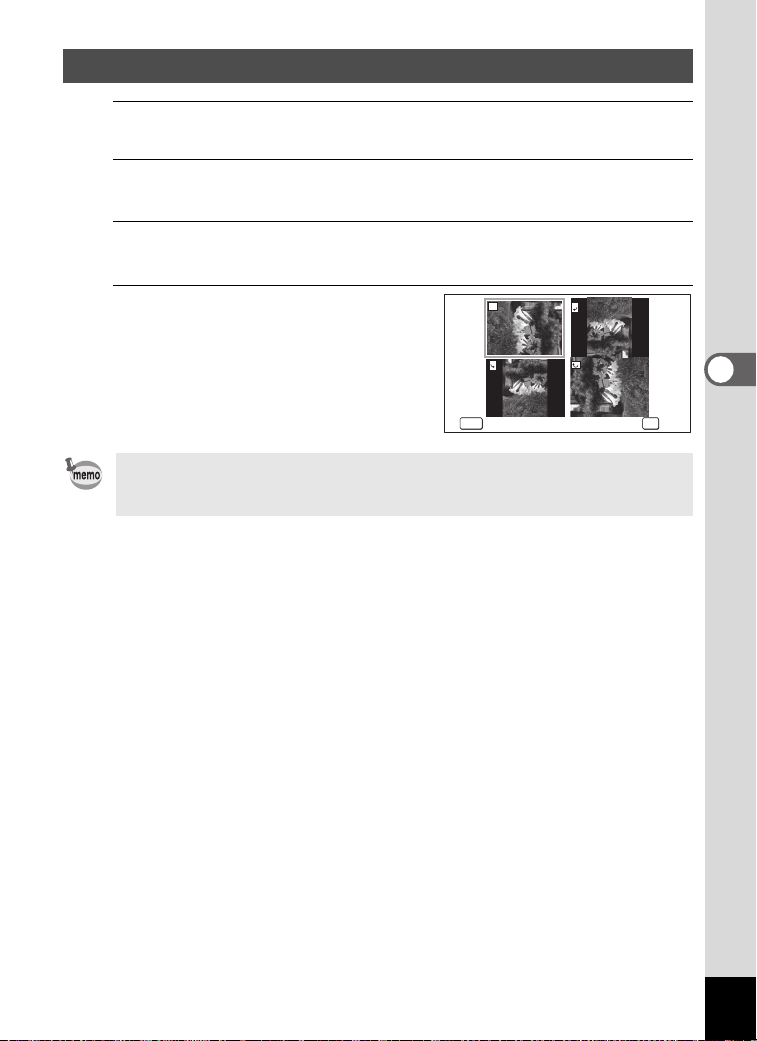

Rotating the Image
• Movies cannot be rotated.
• Protected images can be rotated, but they cannot be saved in a rotated
state.
OKMENU
OKCancel
e_kb635_EN.book Page 119 Thursday, November 9, 2023 9:17 AM

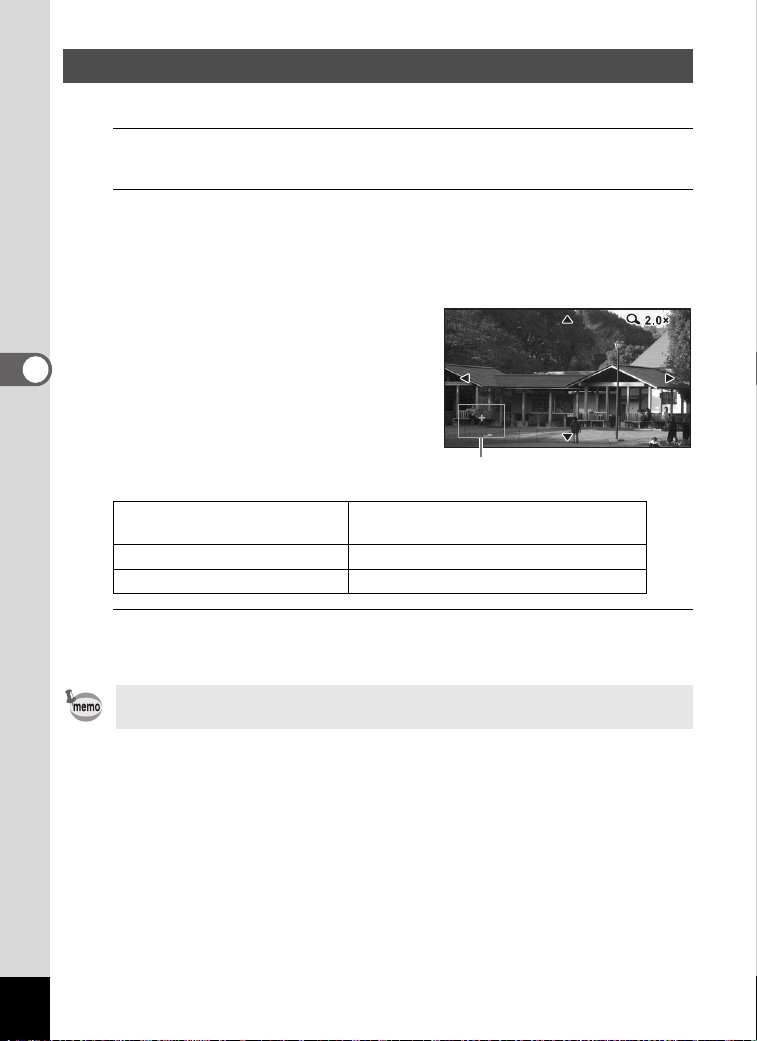

120
4
Playing Back and Deleting Images
You can magnify an image up to ten times.
1
Enter Q mode and use the four-way controller (45) to
choose the image you want to magnify.
2
Press the y button.
The image is magnified (x1.1 to x10). Holding down the y button continuously
magnifies the image.
With [Quick Zoom] (p.162) set to O (On), pressing y button once magnifies
the image to 10x.
You can use the + mark of the guide at the
bottom left of the screen to check which
portion of the image is magnified.
The following operations can be
performed while an image is
magnified.
3
Press the 4 button.
The image returns to single-image display.
Zoom Playback
Four-way controller (2345)
Changes the position of the area to be
magnified
Zoom button right (y) Makes the image bigger (max. of 10x)
Zoom button left (f) Makes the image smaller (min. of 1.1x)
Movies cannot be magnified.
Guide
e_kb635_EN.book Page 120 Thursday, November 9, 2023 9:17 AM
121
4
Playing Back and Deleting Images

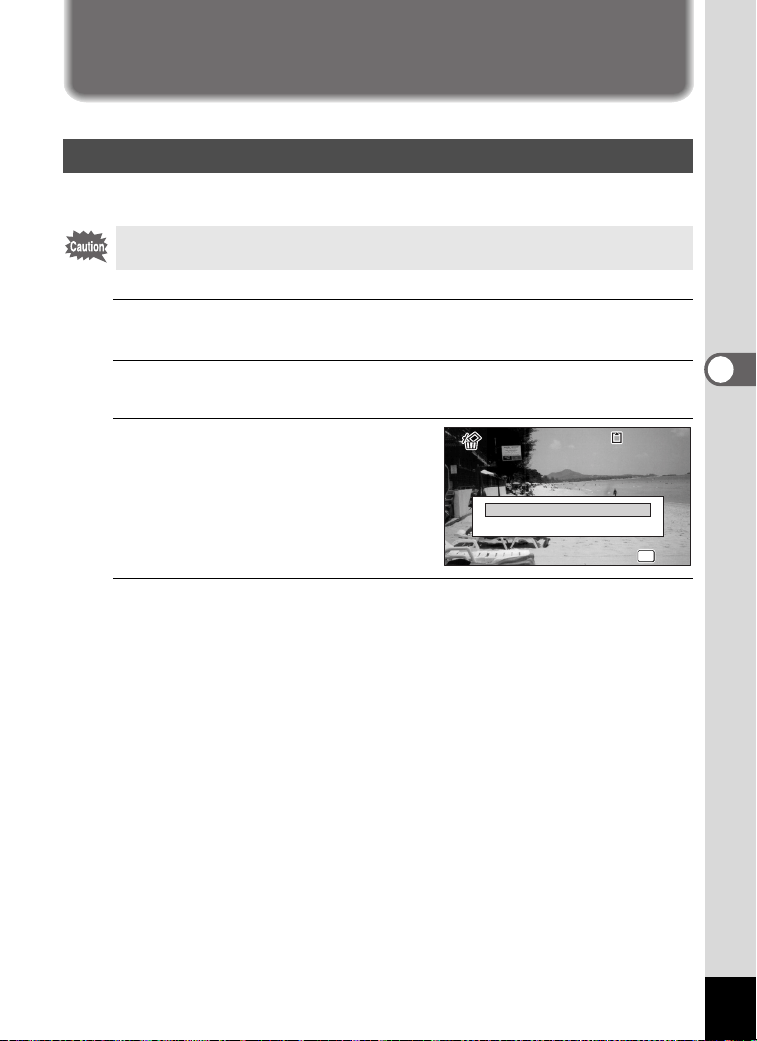

Deleting Images
Delete images that you do not want to keep.
You can delete a single image.
1
Enter Q mode and use the four-way controller (45) to
choose the image you want to delete.
2
Press the i button.
A confirmation screen appears.
3
Use the four-way controller (2) to
select [Delete].
4
Press the 4 button.
The image is deleted.
Deleting a Single Image
Protected images cannot be deleted (p.124).
100
1 0 0
-
0017
0 0 1 7
100
-
0017
OK
OK
OK
Delete
Cancel
OK
OK
OK
e_kb635_EN.book Page 121 Thursday, November 9, 2023 9:17 AM
122
4
Playing Back and Deleting Images
You can delete multiple images selected from the 6- or 12-image display at once.
1
Press the f button once or twice in Q mode.
6-image display or 12-image display appears.
2
Press the i button.
P appears on the images.
3
Use the four-way controller
(2345) to choose the images
that you want to delete and press
the 4 button.
O appears on the selected images.
Pressing and holding the y button displays
the selected image in single-image display
and you can check whether to delete the image. Releasing the button returns to
6- or 12-image display. However, protected images cannot be displayed in
single-image display.
4
Press the i button.
A confirmation screen appears.
5
Use the four-way controller (2) to select [Select & Delete].
6
Press the 4 button.
The selected images are deleted.

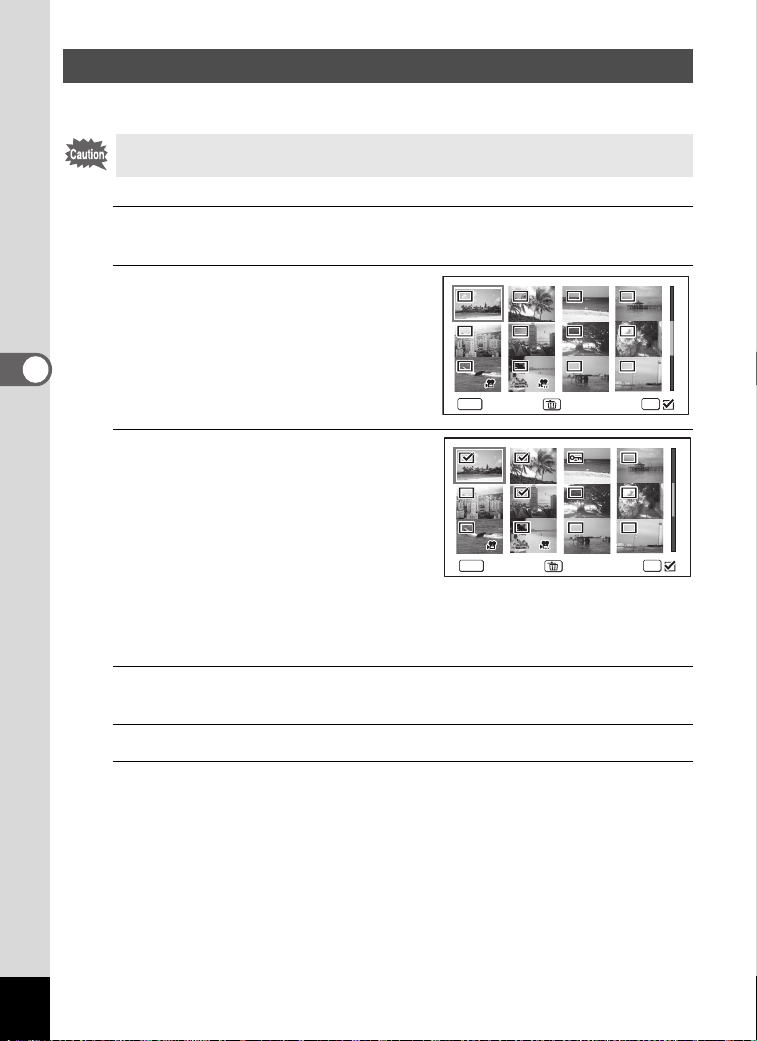

Deleting Selected Images
Protected images cannot be deleted (p.124).
OKMENU
Cancel Delete
OKMENU
Cancel Delete
e_kb635_EN.book Page 122 Thursday, November 9, 2023 9:17 AM
123
4
Playing Back and Deleting Images
Deletes all the images at once.
1
Press the 3 button in Q mode.
The [W Setting] menu appears.
When you press the 3 button in A mode, press the four-way controller
(5) once or twice.
2
Use the four-way controller (23)
to select [Delete All].
3
Press the four-way controller (5).
A confirmation dialog appears.
4
Use the four-way controller (2) to select [Delete All].
5
Press the 4 button.
All the images are deleted.
Deleting All Images
Protected images cannot be deleted (p.124).
MENU
Exit
Setting
4/4
Delete All
Pixel Mapping
Format
Startup Shortcut
e_kb635_EN.book Page 123 Thursday, November 9, 2023 9:17 AM
124
4
Playing Back and Deleting Images

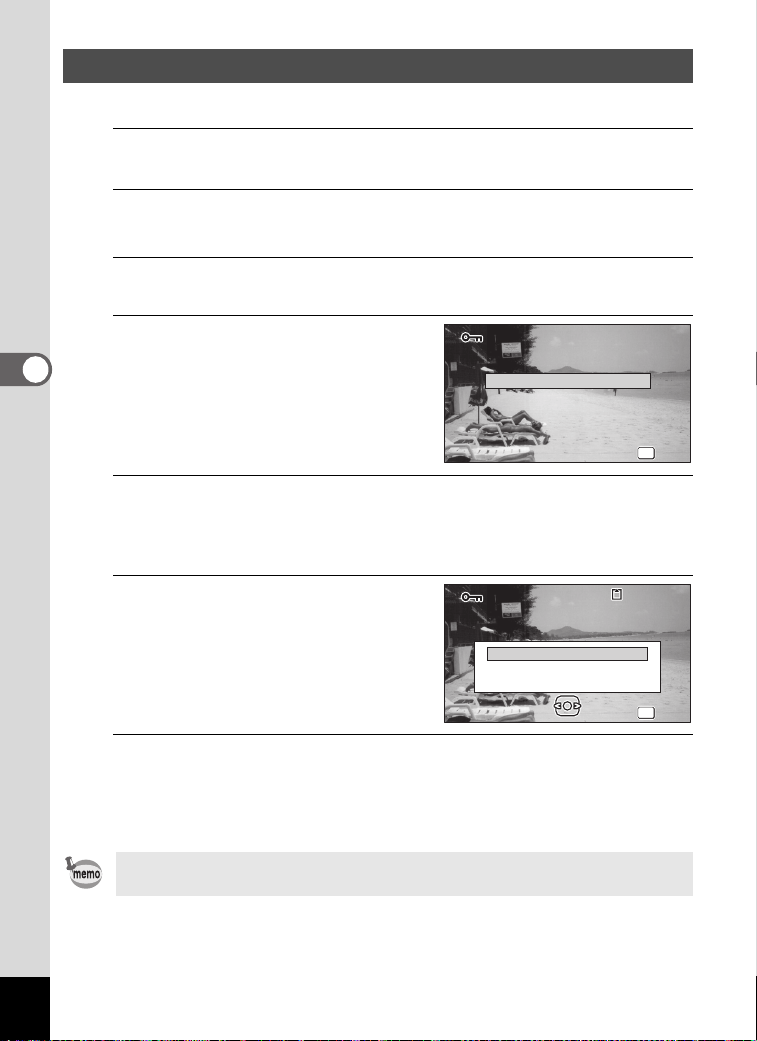

You can protect stored images from being accidentally deleted.
1
Enter Q mode and use the four-way controller (45) to
choose the image you want to protect.
2
Use the four-way controller (2345) to select Z (Protect)
from the Playback Mode Palette.
3
Press the 4 button.
The screen for selecting [Single Image] or [All Images] appears.
4
Use the four-way controller (2) to
select [Single Image].
5
Press the 4 button.
The message [Protects this image] appears.
To protect another image, use the four-way controller (45) to select another
image.
6
Use the four-way controller (2) to
select [Protect].
7
Press the 4 button.
The selected image is protected.
To protect other images, repeat steps 4 to 7.
Select [Cancel] to exit the Protect setting.
Protecting Images from Deletion (Protect)
• To cancel the protection of the image, select [Unprotect] in step 6.
• Y appears on the protected images during playback.
OK
OK
Cancel
Cancel
All Images
All Images
Cancel
Single Image
All Images
OK
OK
OK
OK
OK
10
100
-
003
0038
100
-
0038
Protects this image
Protects this image
Protects this image
OK
OK
OK
Unprotect
Protect
OK
OK
Cancel
e_kb635_EN.book Page 124 Thursday, November 9, 2023 9:17 AM

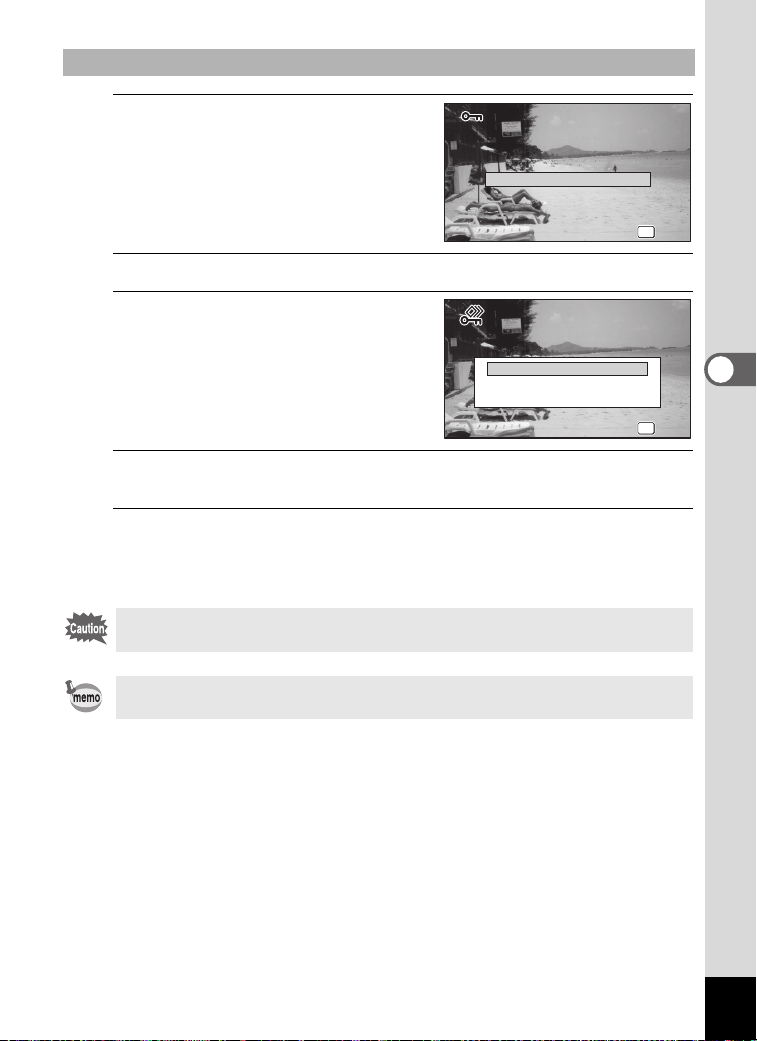

125
4
Playing Back and Deleting Images
1
Select [All Images] in step 4 on
p.124.
2
Press the 4 button.
3
Use the four-way controller (2) to
select [Protect].
4
Press the 4 button.
All the images are protected and the screen shown in step 1 reappears.
5
Use the four-way controller (23) to select [Cancel] and press
the 4 button.
The Playback Mode Palette reappears.
To Protect All Images
Protected images are deleted when the SD Memory Card or the built-in
memory is formatted (p.148).
To cancel the protection of all your images, select [Unprotect] in step 3.
OK
OK
Cancel
Cancel
Cancel
OK
OK
OK
Single Image
Single Image
Single Image
All Images
OK
OK
OK
OK
OK
Unprotect
Protect
OK
OK
Cancel
Protects all images
Protects all images
Protects all images
e_kb635_EN.book Page 125 Thursday, November 9, 2023 9:17 AM

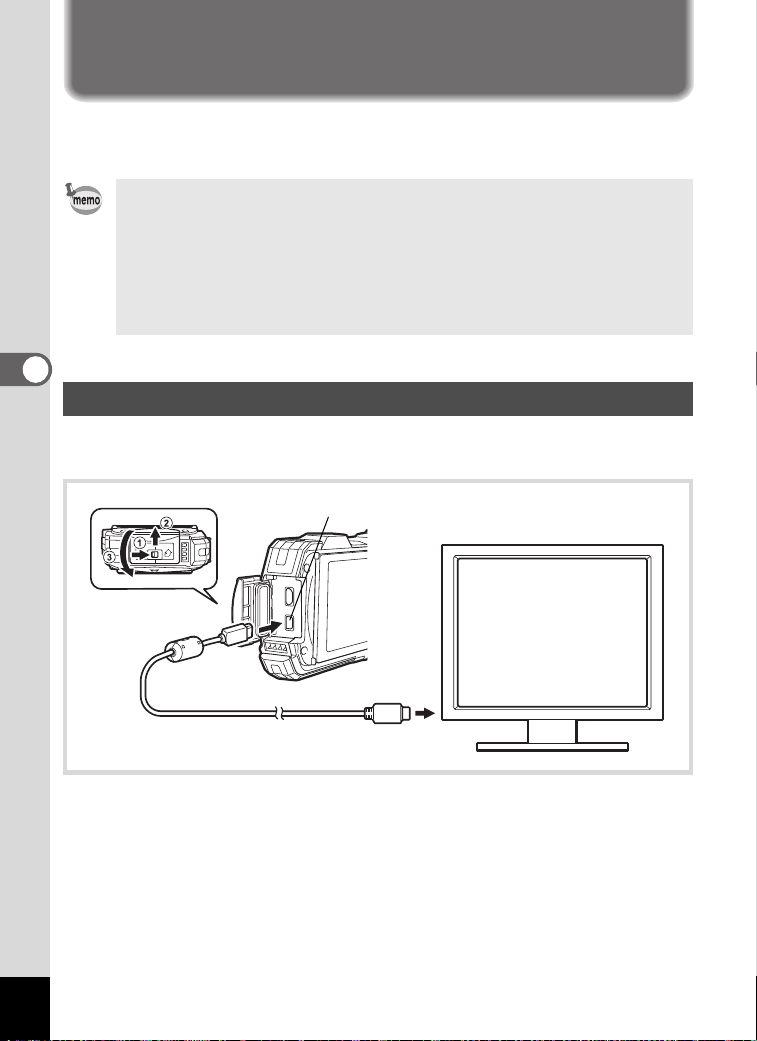

126
4
Playing Back and Deleting Images
Connecting the Camera to an AV Device
You can connect the camera to a TV or other device with an HDMl terminal and
playback images.
Use a commercially available HDMI cable to connect the camera to a device with
an HDMI terminal.
• The power lamp on the camera lights up during a connection.
• The camera display turns off while the camera is connected to an AV
device.
• You cannot adjust the volume on the camera when connected to an AV
device. Adjust the volume on the AV device.
• When the camera is connected to an AV device, you can change the
images displayed on the screen of the connected AV device with the
remote control (optional).
Connecting the Camera to an HDMI Terminal
HDMI terminal
e_kb635_EN.book Page 126 Thursday, November 9, 2023 9:17 AM
127
4
Playing Back and Deleting Images
1
Turn the AV device and camera off.
2
Open the terminal cover.
Move the terminal cover lock lever in the direction shown by 1, slide the cover
in the direction shown by 2 and open the cover in the direction shown by 3.
3
Connect the HDMI cable to the HDMI terminal.
4
Connect the other end of the HDMI cable to the HDMI terminal
on the AV device.
5
Turn the AV device and camera on.
The camera information is displayed on the screen of the connected AV device.
• The camera has a Type D (Micro) HDMI terminal. Use a commercially
available HDMI cable that matches your AV device.
• If you play back movies by connecting the camera to an AV device with a
commercially available HDMI cable, set the output format to “Selecting the
HDMI Output Format” (p.160).
Close the terminal cover securely when not using the terminal.
<How to close the terminal cover>
Close the cover in the opposite direction indicated by 3. While lightly
pressing on the terminal cover, slide it away from 2 until it clicks.
e_kb635_EN.book Page 127 Thursday, November 9, 2023 9:17 AM
128
5
Editing and Printing
Editing Images
By changing the recorded pixels and quality level of a selected image, you can
make the file size smaller than the original. You can use this function to continue
taking pictures when the SD Memory Card or the built-in memory is full, by making
the images smaller and overwriting the original images to make more space
available.
1
Enter Q mode and use the four-way controller (45) to
choose the image you want to resize.
2
Use the four-way controller (2345) to select n (Resize)
from the Playback Mode Palette.
3
Press the 4 button.
The screen for choosing the recorded pixels and quality level appears.
4
Select [Recorded Pixels] and
[Quality Level].
Use the four-way controller (45) to choose
the desired recorded pixels and quality level.
Use the four-way controller (23) to switch
between [Recorded Pixels] and [Quality
Level].
5
Press the 4 button.
A confirmation dialog for overwriting the image appears.
If the selected image is protected, the processed image is saved as a new image
and the confirmation dialog does not appear.
6
Use the four-way controller (23) to select [Overwrite] or
[Save as].
7
Press the 4 button.
The resized image is saved.

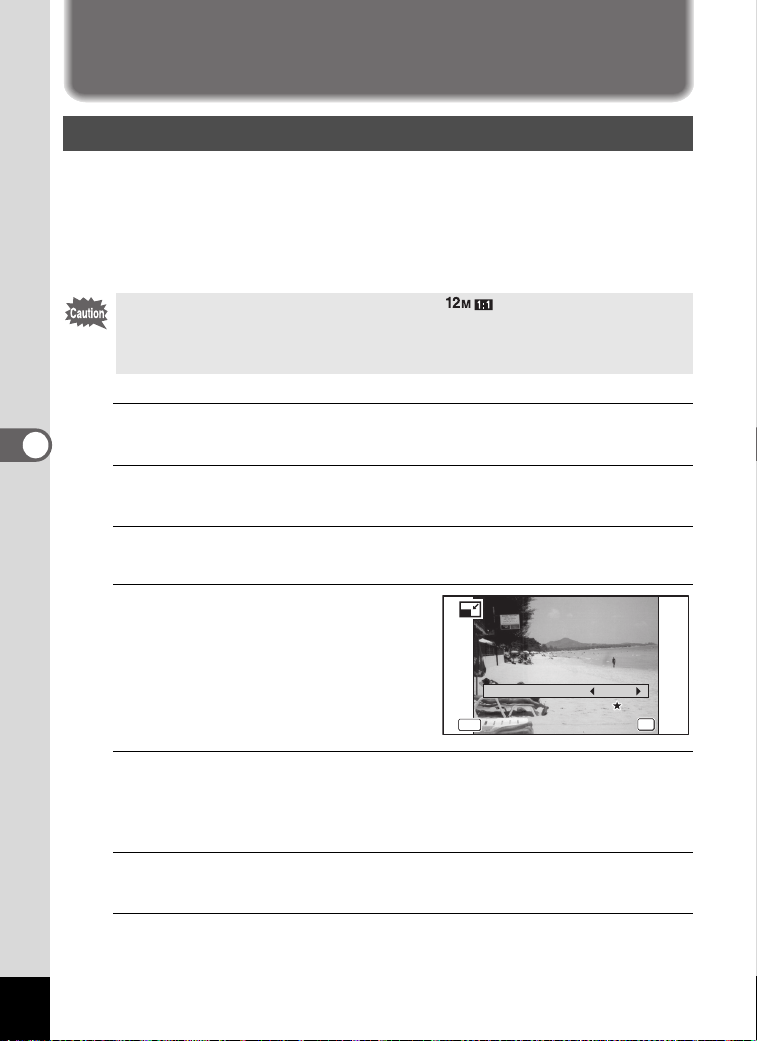

Changing the Image Size (Resize)
• Images taken with the recorded pixels of or movies cannot be
resized.
• You cannot select a larger resolution and higher quality level than that of
the original image.
5Editing and Printing
OKOK
MENMENUMENU
16M
Recorded Pixels
Quality LevelQuality LevelQuality Level
CancelCancelCancel
OKOKOK
e_kb635_EN.book Page 128 Thursday, November 9, 2023 9:17 AM

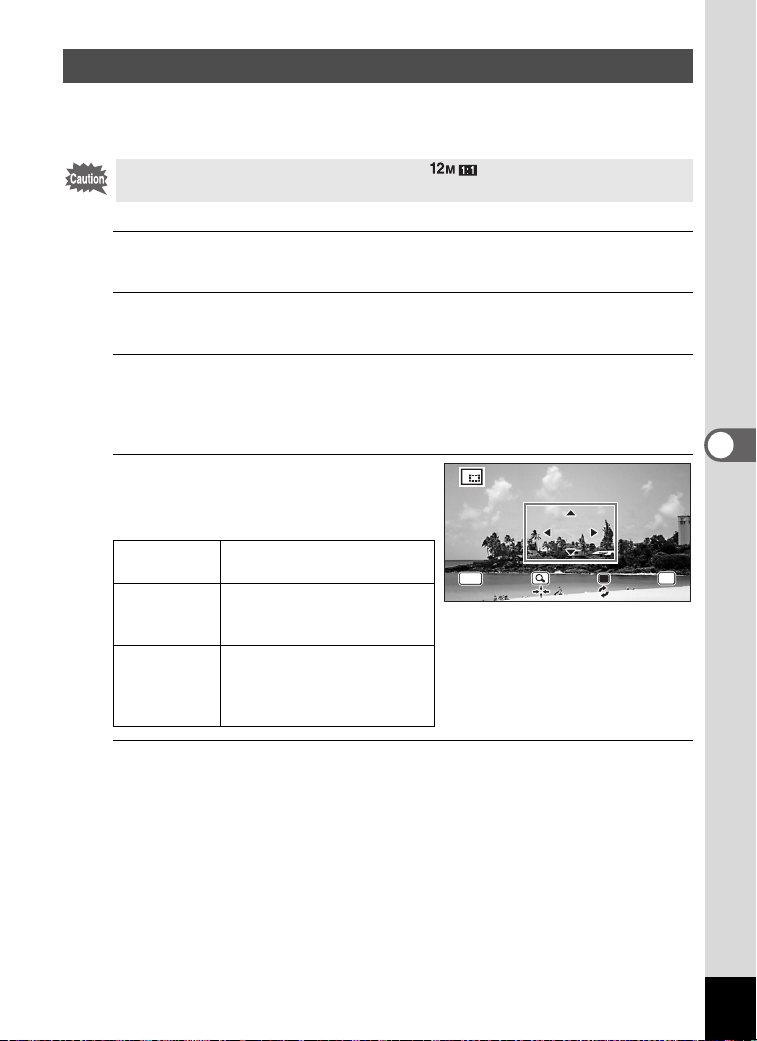

129
5
Editing and Printing
You can delete the unwanted part of a picture and save the cropped image as a
separate image.
1
Enter Q mode and use the four-way controller (45) to
choose the image you want to crop.
2
Use the four-way controller (2345) to select o (Cropping)
from the Playback Mode Palette.
3
Press the 4 button.
The cropping screen appears.
The largest size of the cropped image is shown with a green frame on the
screen. The cropped image cannot be larger than this cropping frame size.
4
Choose the cropping area.
The following operations specify the size
and position of the cropping frame.
5
Press the 4 button.
The cropped image is saved with a new file name.
The number of recorded pixels is selected automatically according to the size of
the cropped image. The image is saved at the same quality level as the original.
Cropping Images
Images taken with the recorded pixels of or movies cannot be
cropped.
Zoom button
(f/y)
Changes the size of the
cropping frame
Four-way
controller
(2345)
Moves the cropping frame
up, down, left and right
Green button Rotates the cropping frame
• The button is displayed only
when the cropping frame
can be rotated.
OK
OK
OK
MENU
MENU
MENU
Cancel
Cancel
Cancel
OK
OK
OK
e_kb635_EN.book Page 129 Thursday, November 9, 2023 9:17 AM
130
5
Editing and Printing
Images are processed to reduce the size of people’s faces detected with the Face
Detection function (p.89) when taking pictures so that they look smaller.
1
Enter Q mode and use the four-way controller (45) to
choose the image you want to edit.
2
Use the four-way controller (2345) to select k (Small Face
Filter) from the Playback Mode Palette.
3
Press the 4 button.
The face detection frames are displayed on the faces that can be processed.
Proceed to step 6 when there is only one detection frame.
4
Use the four-way controller
(2345) to select a face to be
processed.
A green frame indicates the face that is to
be processed.
5
Press the 4 button.
6
Use the four-way controller (45)
to change the reduction ratio.
F Approx. 5%
G Approx. 7%
H Approx. 10%
7
Press the 4 button.
A confirmation dialog for overwriting the image appears.
If the selected image is protected, the processed image is saved as a new image
and the confirmation dialog does not appear.
8
Use the four-way controller (23) to select [Overwrite] or
[Save as].
9
Press the 4 button.
The camera returns to
Q
mode and the processed image is displayed.

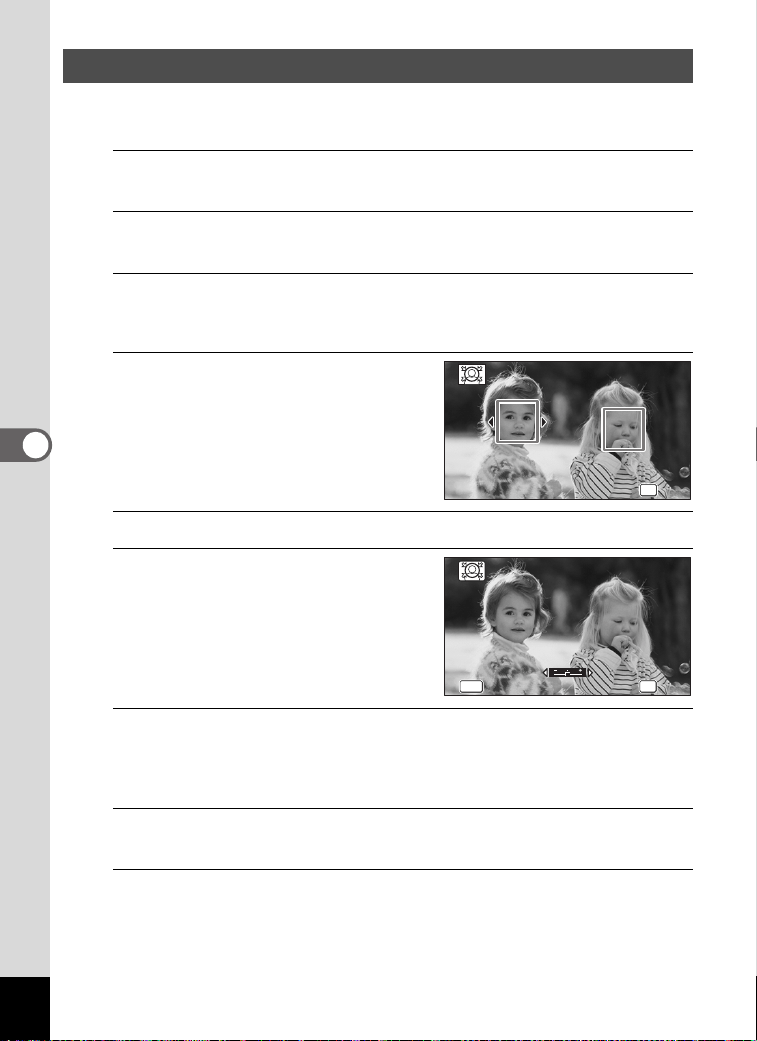

Processing Images to Make Faces Look Smaller
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OKMENU
MENU
MENU
Cancel
Cancel
Cancel
e_kb635_EN.book Page 130 Thursday, November 9, 2023 9:17 AM
131
5
Editing and Printing
This mode lets you change the color tones and perform special processing on a
selected image.
1
Enter Q mode and use the four-way controller (45) to
choose the image you want to edit.
2
Use the four-way controller (2345) to select P (Digital
Filter) from the Playback Mode Palette.
You may not be able to process images in the following situations:
• When the size of face taken is too large or too small, in relation to the image
• When faces are located in the edges of the image
In such cases, the face detection frame in step 3 will not appear.
Using the Digital Filters
B&W/Sepia Changes color images to black and white or processes using the
sepia filter.
Toy Camera Images seem to have been taken with a toy camera.
Retro Images have the feel of old photos with a white border. You can
choose from three filters: Original image, amber, and blue.
Color Processes the image using the selected color filter. You can choose
from six filters: red, pink, purple, blue, green, and yellow.
Extract Color Processes the image using the selected color extraction filter. You
can choose from three filters: red, green, and blue.
Color Emphasis There are 4 filters: Sky Blue/Fresh Green/Delicate Pink/Autumn
Leaves.
High Contrast Adjusts the contrast of the captured images.
Starburst Processes the image with a special sparkling look achieved by
adding cross-like effects to a highlighted area, such as town lights
at night, light reflected from water, or other light sources. You can
choose from three filters: Cross, Heart, and Star.
Soft Processes the image into a soft image that appears soft overall.
Fish-eye Applies a fish-eye lens effect to images.
Brightness Adjusts the brightness of the image.
Miniature Blurs a part of the image to create a fake miniature scene.
Movies or images taken with another camera cannot be edited using the
Digital Filter function. An error message appears if you choose this function
from the Playback Mode Palette and press the 4 button.
e_kb635_EN.book Page 131 Thursday, November 9, 2023 9:17 AM

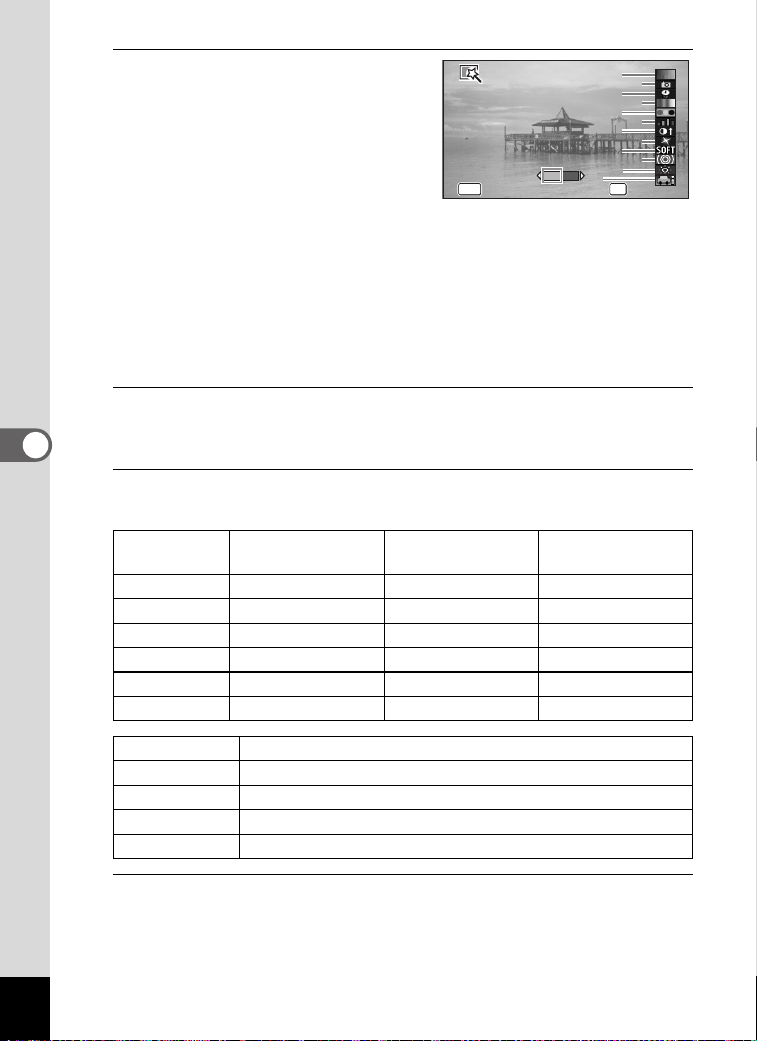

132
5
Editing and Printing
3
Press the 4 button.
The digital filter selection screen appears.
1 B&W/Sepia
2 Toy Camera
3 Retro
4 Color
5 Extract Color
6 Color Emphasis
7 High Contrast
8 Starburst
9 Soft
10 Fish-eye
11 Brightness
12 Miniature
4
Use the four-way controller (23) to choose the digital filter
you want to use.
The preview image of the result of the filter effect appears.
5
Use the four-way controller (45) to adjust the effect as
necessary.
6
Press the 4 button.
A confirmation dialog for overwriting the image appears.
If the selected image is protected, the processed image is saved as a new image
and the confirmation dialog does not appear.
Four-way controller
(4)
Default Setting
Four-way controller
(5)
Retro Blue Original image Amber
Toy Camera Weak Standard Strong
High Contrast Weak Standard Strong
Fish-eye Weak Standard Strong
Brightness Dark Standard Bright
Miniature Upper Upper and lower Lower
B&W/Sepia B&W ↔ Sepia
Color Red ↔ Pink ↔ Purple ↔ Blue ↔ Green ↔ Yellow
Extract Color Red ↔ Green ↔ Blue
Color Emphasis Sky Blue ↔ Fresh Green ↔ Delicate Pink ↔ Autumn Leaves
Starburst Cross ↔ Heart ↔ Star
OKOKMENUMENU OKMENU
1
2
3
4
5
6
7
8
9
1010
1
2
3
4
5
6
7
8
9
10
1111
1212
B&W/SepiaB&W/SepiaB&W/Sepia
CancelCancelCancel OKOKOK
e_kb635_EN.book Page 132 Thursday, November 9, 2023 9:17 AM
133
5
Editing and Printing
7
Use the four-way controller (23) to select [Overwrite] or
[Save as].
8
Press the 4 button.
The image processed with the filter is saved.
Adjusts parts of the image that are too bright or too dark and processes images
to simulate an HDR effect.
1
Enter Q mode and use the four-way controller (45) to
choose the image you want to edit.
2
Use the four-way controller (2345) to select (HDR
Filter) from the Playback Mode Palette.
3
Press the 4 button.
The preview image of the results of the filter effect appears.
4
Press the 4 button.
A confirmation dialog for overwriting the image appears.
If the selected image is protected, the processed image is saved as a new image
and the confirmation dialog does not appear.
5
Use the four-way controller (23) to select [Overwrite] or
[Save as].
6
Press the 4 button.
The image processed with the filter is saved.
You can edit the image to look like an ink rubbing.
1
Enter Q mode and use the four-way controller (45) to
choose the image you want to edit.
Using the HDR Filter
Using the Ink Rubbing Filter
The Ink Rubbing Filter cannot be used on the following images.
• Movies or images taken in (Report) mode
• Images taken with the recorded pixels of , h, h, l, or m
• Images taken with other cameras
An error message appears in step 3.
e_kb635_EN.book Page 133 Thursday, November 9, 2023 9:17 AM
134
5
Editing and Printing

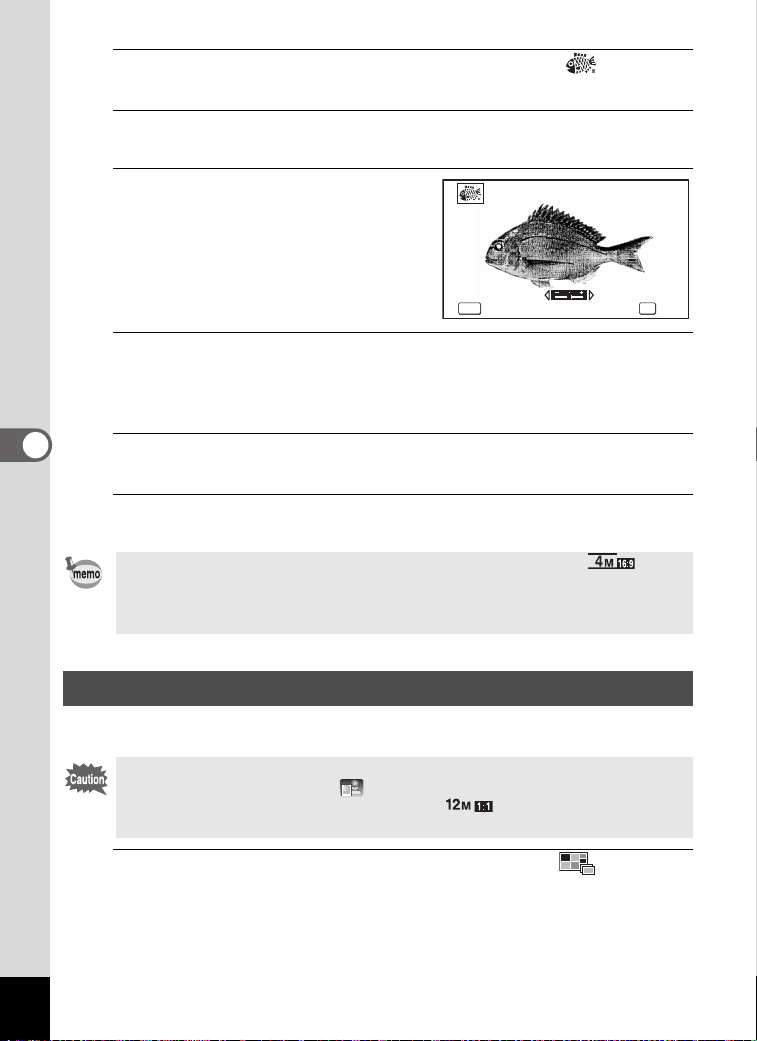

2
Use the four-way controller (2345) to select (Ink
Rubbing Filter) from the Playback Mode Palette.
3
Press the 4 button.
The preview image of the result of the filter effect appears.
4
Use the four-way controller (45)
to choose the effect.
You can adjust the effect in five levels.
F Weak
G Standard
H Strong
5
Press the 4 button.
A confirmation dialog for overwriting the image appears.
If the selected image is protected, the processed image is saved as a new image
and the confirmation dialog does not appear.
6
Use the four-way controller (23) to select [Overwrite] or
[Save as].
7
Press the 4 button.
The image processed with the filter is saved.
Make a collage image by placing captured images on a selected pattern.
1
Use the four-way controller (2345) to select (Collage)
from the Playback Mode Palette.
• The processed image is saved with the recorded pixels of f/.
• When there is little contrast between the object and the background, the
shape of the object may not be sharp depending on the conditions of the
original image.
Creating a Collage Image
The Collage function cannot be used on the following images.
• Movies or images taken in (Report) mode
• Images taken with the recorded pixels of , l, or m
• Images taken with other cameras
㝼ᜏࡈࠖ࡞࠲㝼ᜏࡈࠖ࡞࠲
MENUMENU OKOKMENU OK
Cancel OK
Ink Rubbing Filter
e_kb635_EN.book Page 134 Thursday, November 9, 2023 9:17 AM
135
5
Editing and Printing
2
Press the 4 button.
The item selection screen appears.
3
Use the four-way controller (23) to choose the [Recorded
Pixels].
4
Press the four-way controller (5).
A pull-down menu appears.
5
Use the four-way controller (23)
to choose the recorded pixels.
You can choose from h or h.
6
Press the 4 button.
Returns to the item selection screen.
7
Use the four-way controller (23) to choose the [Layout].
8
Press the four-way controller
(5).
A pull-down menu appears.
9
Use the four-way controller (
23
) to choose the pattern of layout.
You can choose from 3 patterns of layout ( / / ).
10
Press the 4 button.
Returns to the item selection screen.
Selecting the Number of Recorded Pixels
Selecting the Layout Pattern
MENU
3
M
Recorded Pixels
Create an image
Layout
Select image(s)
Backgnd.
MENU
3
M
Recorded Pixels
Create an image
Layout
Select image(s)
Backgnd.
OK
OKCancel
MENU
Recorded Pixels
Create an image
Layout
Select image(s)
Backgnd.
3
M
Cancel
OK
OK
e_kb635_EN.book Page 135 Thursday, November 9, 2023 9:17 AM
136
5
Editing and Printing
11
Use the four-way controller (23) to choose [Backgnd.].
12
Press the four-way controller (5).
A pull-down menu appears.
13
Use the four-way controller (23)
to choose the background.
You can choose the white background or
the black background.
14
Press the 4 button.
Returns to the item selection screen.
15
Use the four-way controller (23) to choose [Select image(s)].
16
Press the four-way controller (5).
The available images appear.
17
Use the four-way controller (45)
to choose the image to be placed
and press the 4 button.
The selected image is placed in the
highlighted area in the guide. The guide
appears on the top left of the display.
18
Repeat step 17 to lay out the rest images.
Selecting the Background
Laying Out the Images
• The following images cannot be used in a collage image, and they do not
appear as available images.
-Movies or images taken in (Report) mode
-Images taken with the recorded pixels of , l, or m
-Images taken with other cameras
• If you select an image with a 16:9 aspect ratio, the black areas appear
above and below the image.
MENU
Recorded Pixels
Create an image
Layout
Select image(s)
Backgnd.
3
M
Cancel
OK
OK
1001 0 0
-
00010 0 0 1100
-
00010/40/40/4
MENUMENUMENU
OK
ExitExitExit
CancelCancelCancel
e_kb635_EN.book Page 136 Thursday, November 9, 2023 9:17 AM
137
5
Editing and Printing
19
Press the 9 button.
Returns to the item selection screen.
20
Use the four-way controller (23)
to select [Create an image].
21
Press the 4 button.
A confirmation dialog for saving the image appears.
22
Use the four-way controller (2) to select [Save].
23
Press the 4 button.
The edited image is saved.
You can correct images where the flash has caused the subject to appear with
red eyes.
1
Enter Q mode and use the four-way controller (45) to
choose the image you want to edit.
2
Use the four-way controller (2345) to select Z (Red-eye
Edit) from the Playback Mode Palette.
3
Press the 4 button.
Saving the Edited Image
The quality level of the image is fixed at C (Best).
Red-eye Edit
• The Red-eye Edit function cannot be used on movies or on images where
red eyes cannot be detected on the camera. An error message appears in
step 3.
• The Red-eye Edit function can only be used with still pictures taken with this
camera.
MENU
Recorded Pixels
3
M
Create an image
Layout
Select image(s)
Backgnd.
OK
OK
e_kb635_EN.book Page 137 Thursday, November 9, 2023 9:17 AM
138
5
Editing and Printing
A confirmation dialog for overwriting the image appears.
If the selected image is protected, the processed image is saved as a new image
and the confirmation dialog does not appear.
4
Use the four-way controller (23) to select [Overwrite] or
[Save as].
5
Press the 4 button.
The edited image is saved.
You can overlay your original frame (decorative frame) on still pictures. You can
select the type and color of an original frame and its position. Text can also be
entered.
Frame
Text Stamp
Overlaying Your Original Frame on Still Pictures
Type of original
frame
Blur/Edge Composite
Frame Type
F (All sides)/G (Upper and lower sides)/H (Right and left sides)/
I (Upper side)/J (Lower side)/K (Left side)/L (Right side)
Color White/Gray/Black/Pink/Pumpkin/Dark red/Dark green
Available
characters
A – Z, a – z, 0 – 9, Symbols, Space
Display Position
M (Upper-left)/N (Upper-center)/O (Upper-right)/P (Lower-left)/
Q (Lower-center)/R (Lower-right)
Color White/Gray/Black/Pink/Pumpkin/Dark red/Dark green
The Original Frame function cannot be used on images taken in (Report)
mode, images taken with the recorded pixels of /h/h/l/m
or movies. An error message appears in step 3.
e_kb635_EN.book Page 138 Thursday, November 9, 2023 9:17 AM

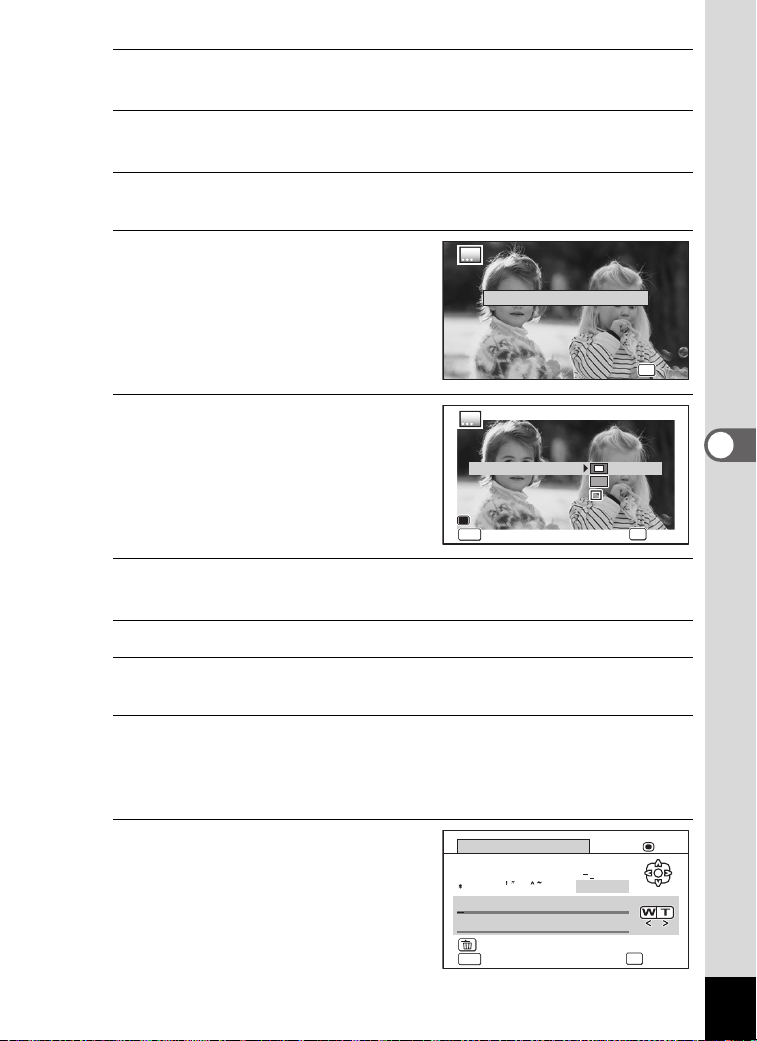

139
5
Editing and Printing
1
Enter Q mode and use the four-way controller (45) to
choose the image to which you want to add a frame.
2
Use the four-way controller (2345) to select E (Original
Frame) from the Playback Mode Palette.
3
Press the 4 button.
The original frame type selecting screen appears.
4
Use the four-way controller (23)
to select an original frame type,
and press the 4 button.
The frame setting screen appears.
5
Use the four-way controller (23)
to select [Frame Type], and press
the four-way controller (5).
6
Use the four-way controller (23) to select a frame type, and
press the four-way controller (4).
7
Set [Color] in the same way as in steps 5 and 6.
8
Adjust the position of the frame and image.
For details, refer to “To Adjust the Position of the Frame and Image” (p.140).
9
Use the four-way controller (23) to select [Text Stamp], and
press the four-way controller (5).
The [Text Stamp] screen appears.
When you do not want to enter characters, proceed to step 11.
10
Set up the text stamp.
For details, refer to “To Set Up Text Stamp”
(p.141).
OKOKOK
OKOKOK
Blur
Edge CompositeEdge Composite
CancelCancel
Edge Composite
Cancel
SaveSave
CancelCancel
Position AdjustmentPosition Adjustment
ColorColor
Text StampText Stamp
Save
Cancel
Position Adjustment
Frame Type
Color
Text Stamp
OKOKOK
MENUMENUMENU
A/a
A
0
B
1
#
C
2
D
3
+
E
4
=
F
5
$
G
6
%
H
7
I
8
J
9
{
K
.
}
L
,
M
(
N
)
O
[
P
]
Q
<
R
>
S
@
TUV
/
W
:
X
;
Y
!
Z
?
MENU
OK
Enter
Text Stamp
Cancel
Finish
Delete One Character
e_kb635_EN.book Page 139 Thursday, November 9, 2023 9:17 AM
140
5
Editing and Printing
11
Press the 4 button.
A confirmation dialog for overwriting the image appears.
If the selected image is protected, the processed image is saved as a new image
and the confirmation dialog does not appear.
12
Use the four-way controller (23) to select [Overwrite] or
[Save as].
13
Press the 4 button.
The edited image is saved with the recorded pixels of f/.
1
Press the Green button.
The frame position adjustment screen
appears.
2
Press the Green button.
The image position adjustment screen
appears.
3
Press the 4 button.
The screen returns to the original screen.

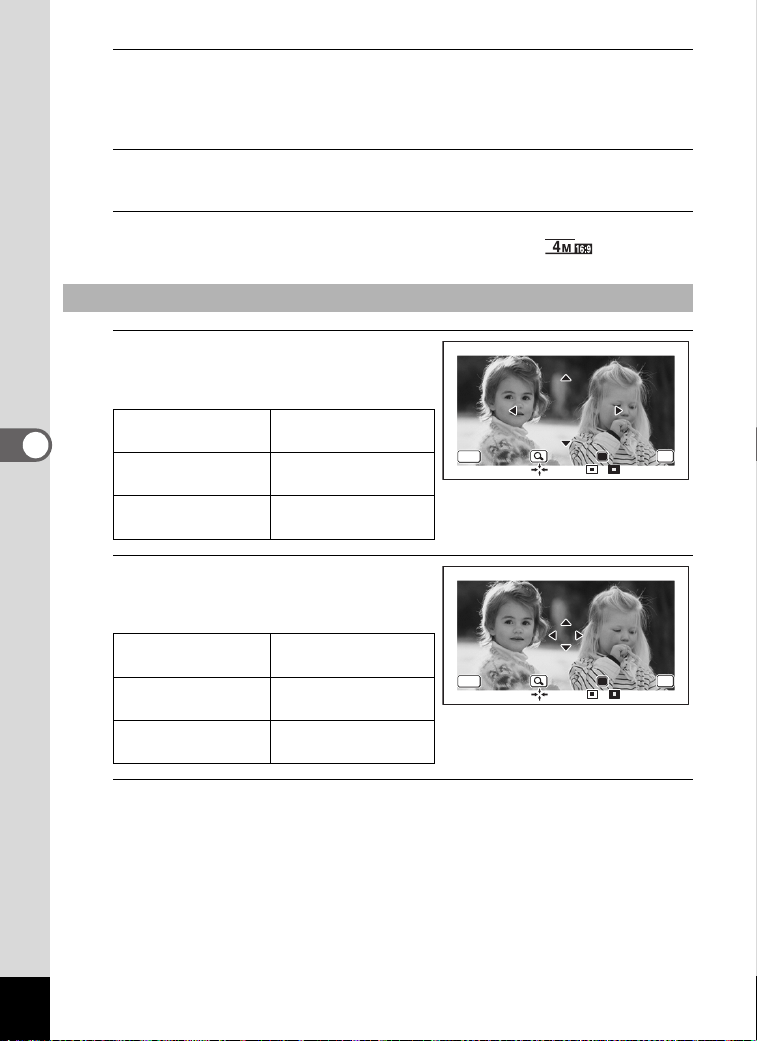

To Adjust the Position of the Frame and Image
Four-way controller
(2345)
Press to adjust the
position of the frame
Zoom button right
(y)
Press to make the
frame larger
Zoom button left
(f)
Press to make the
frame smaller
Four-way controller
(2345)
Press to adjust the
position of the image
Zoom button right
(y)
Press to make the
image larger
Zoom button left
(f)
Press to make the
image smaller
OKOKOKOKOK
OKOKOK
MENUMENUMENU
//
CancelCancelCancel
OKOKOKOKOKCancelCancelCancel
OKOKOK
MENUMENUMENU
//
e_kb635_EN.book Page 140 Thursday, November 9, 2023 9:17 AM
141
5
Editing and Printing
1
Use the four-way controller
(2345) to select a character
and press the 4 button.
The selected character is input.
Up to 52 characters can be input.
2
Use the four-way controller (2345) to select [Finish] and
press the 4 button.
3
Use the four-way controller (23)
to select [Display Position] and
press the four-way controller (5).
4
Use the four-way controller (23) to select the display
position and press the four-way controller (4).
5
Use the four-way controller (23) to select [Color] and press
the four-way controller (5).
6
Use the four-way controller (23) to select the color and
press the four-way controller (4).
To Set Up Text Stamp
Movie button Press to switch
between upper and
lower cases
Zoom button right
(y)
Press to move the
cursor to the right
Zoom button left
(f)
Press to move the
cursor to the left
i button Press to delete a
character
A/a
A
0
B
1
#
C
2
D
3
+
E
4
=
F
5
$
G
6
%
H
7
I
8
J
9
{
K
.
}
L
,
M
(
N
)
O
[
P
]
Q
<
R
>
S
@
TUV
/
W
:
X
;
Y
!
Z
?
FR I ENDS
MENU
Finish
Text Stamp
Cancel
Delete One Character
OK
OK
OKOKOK
Cancel
OKOKOK
MENUMENUMENU
F R I E N D SFR I ENDS
Enter on this condition
Display Position
ColorColor
PreviewPreview
Color
Preview
e_kb635_EN.book Page 141 Thursday, November 9, 2023 9:17 AM

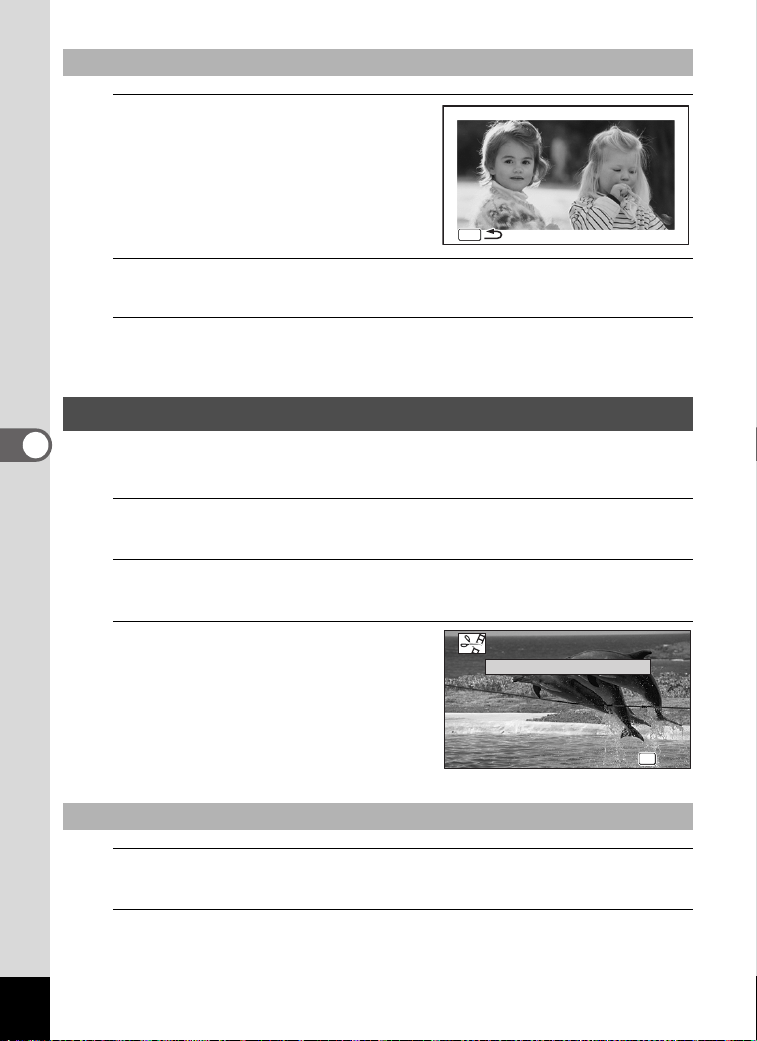

142
5
Editing and Printing
1
Press the Green button.
The preview screen appears.
2
Press the 3 button.
The screen returns to the original screen.
3
Press the 4 button.
Proceed to step 11 on p.140.
You can extract a frame from a movie to save as a still picture, divide a movie into
two, or add a title picture to a movie.
1
Enter Q mode and use the four-way controller (45) to
choose the movie you want to edit.
2
Use the four-way controller (2345) to select [ (Movie
Edit) from the Playback Mode Palette.
3
Press the 4 button.
The edit option selection screen appears.
4
Select [Save as Still Image] on the edit option selection
screen.
5
Press the 4 button.
The screen for selecting a frame to be saved as a still picture appears.
To View the Preview Screen
Editing Movies
To Save a Frame from a Movie as a Still Picture
MENUMENUMENU
F R I E N D SFR I ENDS
OK
OK
OK
OK
OK
OK
Cancel
Cancel
Cancel
Save as Still Image
Divide Movies
Divide Movies
Divide Movies
Adding title picture
Adding title picture
Adding title picture
e_kb635_EN.book Page 142 Thursday, November 9, 2023 9:17 AM
143
5
Editing and Printing
6
Use the four-way controller
(2345) to choose the frame
you want to save.
2 Plays back or pauses the movie
3 Stops the movie and returns to
the first frame
4 Reverses the movie frame by
frame
5 Advances the movie frame by frame
7
Press the 4 button.
The selected frame is saved as a still picture.
4
Select [Divide Movies] on the edit option selection screen.
5
Press the 4 button.
The screen for choosing a dividing position appears.
6
Use the four-way controller
(2345) to specify the dividing
position.
2 Plays back or pauses the movie
3 Stops the movie and returns to
the first frame
4 Reverses the movie frame by
frame
5 Advances the movie frame by frame
7
Press the 4 button.
A confirmation dialog appears.
8
Use the four-way controller (2) to
select [Divide].
To Divide a Movie
100
1 0 0
-
0042
0 0 4 2
100
-
0042
00:06
0 0 : 0 6
00:06
1
1
OK
OK
OKMENU
MENU
MENU
Cancel
Cancel
Cancel
OK
OK
OK
Select the image
Select the image
to save
to save
Select the image
to save
Select image for
Select image for
dividing position
dividing position
Select image for
dividing position
Cancel
Cancel
Cancel
100
1 0 0
-
0042
0 0 4 2
00:09
0 0 : 0 9
100
-
0042
00:09
OK
OK
OKMENU
MENU
MENU
31
3 1
31
OK
OK
OK
OKOKOK
OKOKOK
Cancel
Divide at this position?Divide at this position?Divide at this position?
Divide
e_kb635_EN.book Page 143 Thursday, November 9, 2023 9:17 AM
144
5
Editing and Printing
9
Press the 4 button.
The movie is divided at the specified position, each segment is saved as a new
file, and the original movie is deleted.
4
Select [Adding title picture] on the edit option selection
screen.
5
Press the 4 button.
The screen for selecting a title picture appears.
6
Use the four-way controller (45) to choose the desired title
picture.
Only images available for the title picture are displayed.
7
Press the 4 button.
The screen for confirming the position of the title picture appears.
8
Use the four-way controller (23)
to select the position.
A Adds the title picture to the
beginning of the movie
B Adds the title picture to the end of
the movie
9
Press the 4 button.
The selected picture is saved as the title picture.
The protected movies cannot be divided.
• Only a movie for more than 2 seconds (31 frames) can be divided.
• For dividing, every 30 frames (31st, 61st, 91st.. frames) can be selected.
To Add a Title Picture to a Movie
• A title picture cannot be added to protected movies.
• If a movie is more than 26 minutes long after adding title pictures, you
cannot add any more title pictures to it.
OK
OK
OK
OK
OK
OK
Cancel
Specify the position of
Specify the position of
title picture to add
title picture to add
Specify the position of
title picture to add
e_kb635_EN.book Page 144 Thursday, November 9, 2023 9:17 AM
145
5
Editing and Printing
You can copy images from the built-in memory to the SD Memory Card and vice
versa. This function can only be selected when an SD Memory Card is inserted
in the camera.
1
Use the four-way controller (2345) to select p (Image
Copy) from the Playback Mode Palette.
2
Press the 4 button.
The copying method selection screen appears.
All the images in the built-in memory are copied to the SD Memory Card at once.
Before copying the images, make sure that there is enough space on the SD
Memory Card.
3
Use the four-way controller (2) to
select [2}{].
4
Press the 4 button.
All the images are copied to the SD Memory Card.
• When a title picture is added to the beginning of a movie: When the movie
is played back, the added still picture is played back for three seconds, and
then the movie is played back. The added still picture is used as the
thumbnail of the movie.
When a title picture is added to the end of a movie: When the movie is
played back, the movie is played back, and then the added still picture is
played back for three seconds. The thumbnail of the movie is not changed
by adding a title picture to the end of the movie.
• Only a still picture with the same aspect ratio as the movie can be set as a
title picture.
Copying Images
Make sure that the camera is turned off before inserting or removing the SD
Memory Card.
To Copy Files from the Built-in Memory to the SD Memory Card
OK
OK
OK
Cancel
Cancel
Cancel
SD
SD
OK
OK
OK
SD
SD
e_kb635_EN.book Page 145 Thursday, November 9, 2023 9:17 AM
146
5
Editing and Printing
The image selected from the SD Memory Card is copied to the built-in memory.
3
Use the four-way controller (23) to select [{}2].
4
Press the 4 button.
5
Use the four-way controller (45)
to select the image you want to
copy.
6
Press the 4 button.
The selected image is copied to the built-in memory.
To copy other images, repeat steps 3 to 6. Select [Cancel] to exit the copy
operation.
To Copy Files from the SD Memory Card to the Built-in Memory
When an image is copied from the SD Memory Card to the built-in memory,
a new file name is assigned to the copied image.
Copies this image toCopies this image toCopies this image to
alternate memoryalternate memoryalternate memory
101 00
-
0010017100
-
0017
OKOKMENMENUMENU
OKOKOK
CancelCancelCancel
e_kb635_EN.book Page 146 Thursday, November 9, 2023 9:17 AM
147
6
Settings
Camera Settings
Settings for the camera are set from the [W Setting] menu. Refer to explanations
for each function on how to make these settings.
1
Press the 3 button in Q mode.
The [W Setting] menu appears.
When you press the 3 button in A mode, press the four-way controller
(5) once or twice.
2
Use the four-way controller (2345) to select an item and
set it up.
3
After finishing the settings, press the 3 button.
The setting is saved and the camera returns to the previous screen.
3
Press the shutter release button halfway.
The setting is saved and the camera returns to capture mode.
3
Press the 3 button before you finish the settings.
The changes are canceled and you can select a menu.
Using the Setting Menu Items
To Save the Setting and Start Taking Pictures
When the [W Setting] menu is displayed from Q mode, you can switch to A
mode by pressing the Q button.
To Cancel the Changes and Continue with Menu Operations
The 3 button function varies depending on the screen. Refer to the
guide indications.
Exit Exits the menu and returns to the original screen.
Returns to the previous screen with the current settings.
Cancel Cancels the current selection, exits the menu and returns
to the previous screen.
6Settings
MENU
MENU
MENU
e_kb635_EN.book Page 147 Thursday, November 9, 2023 9:17 AM
148
6
Settings
Formatting deletes all the data on the SD Memory Card or in the built-in memory.
Be sure to use this camera to format (initialize) an SD Memory Card that is
unused or has been previously used on other cameras or digital devices.
1
Use the four-way controller (23) to select [Format] in the
[W Setting] menu.
2
Press the four-way controller (5).
The [Format] screen appears.
3
Use the four-way controller (2) to
select [Format].
4
Press the 4 button.
Formatting starts.
When formatting is completed, the camera returns to A mode or Q mode.
Formatting the Memory
• Do not remove the SD Memory Card while it is being formatted. This may
damage the card and make it unusable.
• Formatting deletes protected images and any data recorded on the card
with a computer or any camera.
• SD Memory Cards formatted on a computer or device other than this
camera cannot be used. Be sure to format the card with the camera.
• To format the built-in memory, be sure to eject the SD Memory Card
beforehand. Otherwise, the SD Memory Card will be formatted.
OK
OK
Format
All data will be deleted
Format
Cancel
e_kb635_EN.book Page 148 Thursday, November 9, 2023 9:17 AM
149
6
Settings
You can adjust the volume of operation sounds and change the type of sound.
1
Use the four-way controller (23) to select [Sound] in the
[W Setting] menu.
2
Press the four-way controller
(5).
The [Sound] screen appears.
3
Use the four-way controller (23) to select [Operation
Volume].
4
Use the four-way controller (45) to adjust the volume.
Set the volume to f to mute the start-up sound, shutter sound, operation sound,
and self-timer sound.
5
Change [Playback Volume] in the same way as in steps 3 and
4.
3
Use the four-way controller (23) to select [Startup Sound].
4
Press the four-way controller (5).
A pull-down menu appears.
5
Use the four-way controller (23) to select the sound type.
Choose from [1], [2], [3], [4], or [Off].
6
Press the 4 button.
7
Set [Shutter Sound], [Operation Sound] and [Self-timer
Sound] in the same way as in steps 3 to 6.
Changing the Sound Settings
To Change the Operation Volume/Playback Volume
To Change the Sound Type
MENU
Sound
Operation Volume
1
1
1
Startup Sound
Shutter Sound
Operation Sound
Self-timer Sound
Off
Playback Volume
e_kb635_EN.book Page 149 Thursday, November 9, 2023 9:17 AM
150
6
Settings
You can change the initial date and time settings (p.41), and the style in which the
date appears on the display.
1
Use the four-way controller (23) to select [Date Adjustment]
in the [W Setting] menu.
2
Press the four-way controller (5).
The [Date Adjustment] screen appears.
3
Press the four-way controller (5).
The frame moves to [mm/dd/yy].
Depending on the initial setting or previous setting, [dd/mm/yy] or [yy/mm/dd]
may be displayed.
4
Use the four-way controller (23) to choose the date and time
display style.
Choose from [mm/dd/yy], [dd/mm/yy] or [yy/mm/dd].
5
Press the four-way controller (5).
The frame moves to [24h].
6
Use the four-way controller (23) to select [24h] (24-hour
display) or [12h] (12-hour display).
7
Press the four-way controller (5).
The frame returns to [Date Format].
8
Press the four-way controller (3).
The frame moves to [Date].
9
Press the four-way controller (5).
The frame moves to one of the following items depending on the date style set
in step 4.
Month for [mm/dd/yy]
Day for [dd/mm/yy]
Year for [yy/mm/dd]
The following operations use [mm/dd/yy] as an example. The operations are the
same even if another date style has been selected.
Changing the Date and Time
Cancel
MENU
mm/dd/yy
24
h
00:00
Settings complete
Date Adjustment
Date Format
Date
Time
01/01/2023
e_kb635_EN.book Page 150 Thursday, November 9, 2023 9:17 AM
151
6
Settings
10
Use the four-way controller (23) to change the month.
11
Press the four-way controller (5).
The frame moves to the day field. Use the four-way controller (23) to change
the day. After changing the day, change the year in the same manner.
12
Change the time in the same way as in steps 7 to 11.
If you selected [12h] in step 6, the camera switches between am and pm
corresponding to the time.
13
Press the four-way controller (3) to select [Settings
complete].
14
Press the 4 button.
The date and time settings are saved and the screen returns to the [W Setting]
menu.
You can set the alarm to ring at a specified time.
You can choose whether the alarm will ring at the same time every day or only
once at the set time.
1
Use the four-way controller (23) to select [Alarm] in the
[W Setting] menu.
2
Press the four-way controller
(5).
The [Alarm] screen appears.
3
Press the four-way controller (5).
A pull-down menu appears.
When you press the 4 button in step 14, the camera clock is reset to 0
seconds. To set the exact time, press the 4 button when the time signal (on
the TV, radio, etc.) reaches 0 seconds.
Setting the Alarm
Setting the Alarm
MENU
Time
00:00
Settings complete
14:14
Alarm
Alarm
Off
Cancel
e_kb635_EN.book Page 151 Thursday, November 9, 2023 9:17 AM
152
6
Settings
4
Use the four-way controller (23) to select the alarm.
Choose from [Off], [Once], or [Everyday].
5
Press the 4 button.
6
Press the four-way controller (3).
The frame moves to the [Time] field.
7
Press the four-way controller (5).
The frame moves to the hour field.
8
Use the four-way controller (23) to change the hours, then
press (5).
The frame moves to the minute field.
Change the minutes in the same manner.
9
Press the 4 button.
10
Press the four-way controller (3).
The frame moves to [Settings complete].
11
Press the 4 button.
When the alarm is set to [Off], the settings
are saved and the screen returns to the [W
Setting] menu.
When the alarm is set to [Once] or
[Everyday], [Alarm is set] is displayed and
the power turns off.
1
Use the four-way controller (23) to select [Alarm] in the
[W Setting] menu.
Check that [Alarm] is set to O (On).
2
Press the four-way controller
(5).
The [Alarm] screen appears.
Check the alarm frequency and time.
Checking the Alarm
MENU
Exit
Setting
1/4
Sound
Date Adjustment
01/01/2023
World Time
Alarm
Standard
Text Size
Language
English
MENU
14:25
Once
14:14
Time
Settings complete
Alarm
Alarm
Cancel
e_kb635_EN.book Page 152 Thursday, November 9, 2023 9:17 AM
153
6
Settings
The Clock Display appears and the alarm rings
for one minute when the set time is reached
while the camera is turned off.
You can stop the alarm by pressing any button
on the camera while the alarm is ringing.
The date and time selected in “Setting the Date and Time” (p.41) and “Changing
the Date and Time” (p.150) serve as the W (Hometown) date and time. By using
the world time function, you can display the time in the city that you select as X
(Destination). This is useful when taking pictures in a different time zone.
1
Use the four-way controller (23) to select [World Time] in the
[W Setting] menu.
2
Press the four-way controller
(5).
The [World Time] screen appears.
3
Use the four-way controller (23) to select X (Destination).
4
Press the four-way controller (5).
The [Destination] screen appears. The city that is currently selected blinks on
the map.
Turning the Alarm Off
• The alarm will not ring if the camera is on when the set time is reached.
• Even if an alarm is set, it will not ring when Interval Shot or Interval Movie
is set.
Setting the World Time
To Set the Destination
MENU
World Time
Hometown
New York
Destination
New York
14:25
14:25
Select Time
DST
OFFOFFOFF
DST
OFFOFFOFF
e_kb635_EN.book Page 153 Thursday, November 9, 2023 9:17 AM
154
6
Settings
5
Use the four-way controller (45)
to change the Destination city.
The current time, location and time
difference of the selected city appear.
6
Use the four-way controller (23) to select [DST].
7
Use the four-way controller (45) to select O (On) or P (Off).
Select O if the Destination city uses daylight saving time.
8
Press the 4 button.
The [World Time] setting is saved.
1
Use the four-way controller (23) to select [World Time] in the
[W Setting] menu.
2
Press the four-way controller (5).
The [World Time] screen appears.
3
Use the four-way controller (23) to select [Select Time].
4
Press the four-way controller (5).
A pull-down menu appears.
5
Use the four-way controller (23) to select X (Destination) or
W (Hometown).
X Displays the time of the Destination city
W Displays the time of the Hometown city
6
Press the 4 button.
The setting is saved.
When X (Destination) is selected the X
icon appears on the display to indicate that
the date and time of the Destination city are
displayed in A mode.
Select W (Hometown) in step 3 to set the city and DST setting for the
Hometown city.
To Display the Time of the Destination (Select Time)
Cancel
City
DST
New York
Destination
OK
OK
TimeDif.
MENU
14:25
+
0:00
383 838
P
e_kb635_EN.book Page 154 Thursday, November 9, 2023 9:17 AM
155
6
Settings
You can set the text size of the item with the selection frame on the menu to
[Standard] (normal display) or [Large] (magnified display).
1
Use the four-way controller (23) to select [Text Size] in the
[W Setting] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23)
to select the text size.
Select from [Standard] or [Large].
4
Press the 4 button.
The setting is saved.
You can change the language in which the menus, error messages, etc. are
displayed.
1
Use the four-way controller (23) to select [Language/ ] in
the [W Setting] menu.
2
Press the four-way controller (5).
The [Language/ ] screen appears.
3
Use the four-way controller (2345) to select the desired
language.
4
Press the 4 button.
The menus and messages are displayed in the selected language.
Setting the Text Size on the Menu
Changing the Display Language
MENU
Setting
1/4
Sound
Date Adjustment
01/01/2023
World Time
Alarm
Language
Text Size
Standard
Large
OK
OK
Cancel
e_kb635_EN.book Page 155 Thursday, November 9, 2023 9:17 AM
156
6
Settings
You can change the naming system of the folder for storing images. When the
naming system is set to the [Date], images are saved in separate folders by the
date they were taken.
Changing the Naming System of the Folder
Choice The name of the folder
Date
(Default)
xxx_mmdd (3-digit folder number_month day)
* xxx_ddmm (3-digit folder number_day month) when the date format is
set to [dd/mm/yy]
A folder is made by day, and the images of the day are saved in the
folder.
PENTX
xxxPENTX (xxx is the 3-digit folder number)
Up to 9999 images are saved in the same folder.
_USER
xxxAAAAA (xxx is the automatically given 3-digit folder number, and
AAAAA is the 5-digit characters that you entered)
Up to 9999 images are saved in the same folder.
DCIM
100_1201
101_1208
102PENTX
DCIM
100_1201
101_1208
DCIM
100_1201
100 100
101
100
101
102
DCIM
100_1201
101_1208
102PENTX
100
101
102
Image taken on
December 1 with the
folder name setting set
to [Date] created.
A folder with the name
“100_1201” is created.
The images are saved in
the “100_1201” folder.
Image taken on
December 8 with the
folder name setting set
to [Date] created.
A folder with the name
“101_1208” is created.
The images are saved in
the “101_1208” folder.
Image taken on
December 10 with the
folder name setting set
to [PENTX] created.
A folder with the name
“102PENTX” is created.
The images are saved in
the “102PENTX” folder.
Image taken on
December 15 with the
folder name setting set
to [PENTX] created.
A new folder is not
created.
The images are saved in
the “102PENTX” folder.
• Up to 900 folders can be created.
• Up to 9999 images can be saved in a folder.
e_kb635_EN.book Page 156 Thursday, November 9, 2023 9:17 AM
157
6
Settings
1
Use the four-way controller (23) to select [Folder Name] in
the [W Setting] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select the rule for naming
folders.
4
Press the 4 button.
The setting is saved.
You can name the folder in which to save images.
You can enter up to five single-byte alphanumeric characters.
The 5-digit name is displayed after the 3-digit folder number.
1
Select [_USER] in step 3 in “Selecting the Rule for Naming
Folders”.
2
Press the four-way controller
(5).
The [Folder Name] screen appears.
“_USER” has already been entered.
3
Use the four-way controller (2345) to select a character to
enter, and press the 4 button.
The first character is fixed and the cursor moves to the second character.
4
Repeat step 3 and enter the remaining characters.
Selecting a Rule for Naming Folders
Naming the Folder Yourself
A
0
B
1
C
2
D
3
E
4
F
5
G
6
H
7
I
8
J
9
KL
M
NOPQR S T U V
W
XYZ
USER
MENU
OK
Enter
Folder Name
Settings complete
Cancel
e_kb635_EN.book Page 157 Thursday, November 9, 2023 9:17 AM
158
6
Settings
5
Press the four-way controller (4)
while “A” is selected, or press
(35) while “_” is selected.
The frame moves to [Settings complete].
6
Press the 4 button twice.
The folder name is fixed, and returns to the [W Setting] menu.
You can change the naming system of the file.
1
Use the four-way controller (23) to select [File Name] in the
[W Setting] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select the rule for naming
files.
4
Press the 4 button.
The setting is saved.
• You can move the cursor by pressing the zoom button.
• The folder name you have set is displayed in the [R Setting] menu.
Changing the Naming System of the File
Choice The name of the file
IMGP
(Default)
IMGPxxxx (xxxx is the automatically assigned 4-digit file number)
The file number follows the setting character which is specified to the
camera.
USER
AAAAxxxx (xxxx is the automatically assigned 4-digit file number)
The file number follows the name you have entered.
Selecting a Rule for Naming Files
A
0
B
1
C
2
D
3
E
4
F
5
G
6
H
7
I
8
J
9
KL
M
NOPQR S T U V
W
XYZ
APRTY
MENU
Folder Name
Cancel
OK
OK
Settings complete
e_kb635_EN.book Page 158 Thursday, November 9, 2023 9:17 AM
159
6
Settings
You can name the file of images that are captured.
You can enter up to four single-byte alphanumeric characters. The 4-digit name
is displayed before the 4-digit file number.
1
Select [USER] in step 3 in “Selecting a Rule for Naming Files”.
2
Press the four-way controller (5).
The [File Name] screen appears.
“USER” has already been entered.
3
Use the four-way controller (2345) to select a character to
enter, and press the 4 button.
The first character is fixed and the cursor moves to the second character.
4
Repeat step 3 and enter the remaining characters.
5
Press the four-way controller (4)
while “A” is selected, or press
(35) while “_” is selected.
The frame moves to [Settings complete].
6
Press the 4 button twice.
The file name is fixed, and returns to the [W Setting] menu.
Naming the File Yourself
• You can move the cursor by pressing the zoom button.
• The file name you have set is not changed even if you reset the camera.
File Name
Settings complete
OKOKOK
MENU
A
0
B
1
C
2
D
3
E
4
F
5
G
6
H
7
I
8
J
9
KL
M
NOPQR S T U V
W
XYZ
U SER
Cancel
Enter
File Name
Settings complete
Cancel
OK
OKOK
OK
MENU
A
0
B
1
C
2
D
3
E
4
F
5
G
6
H
7
I
8
J
9
KL
M
NOPQR S T U V
W
XYZ
BACD
e_kb635_EN.book Page 159 Thursday, November 9, 2023 9:17 AM
160
6
Settings
When you connect the camera to an AV device with an HDMI cable, select an
output resolution for playing back images. The default setting is [Auto].
1
Use the four-way controller (23) to select [HDMI Out] in the
[W Setting] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select an output format.
Select an HDMI output format to match the output format of an AV device.
4
Press the 4 button.
The setting is saved.
You can adjust the brightness of the display to 7 levels.
1
Use the four-way controller (23) to select [Brightness Level]
in the [W Setting] menu.
2
Use the four-way controller (45) to adjust the brightness.
F Dark
G Normal
H Bright
If the monitor display is difficult to see when you take pictures outdoors or in other
situations, adjust the brightness of the display in [Outdoor View Stg.].
1
Use the four-way controller (23) to select [Outdoor View
Stg.] in the [W Setting] menu.
2
Press the four-way controller (5).
Selecting the HDMI Output Format
Adjusting the Brightness of the Display
When [Outdoor View Stg.] is set to the brightness other than (Off),
[Brightness Level] is disabled.
Adjusting the Brightness of the Display for
Outdoor Shooting
e_kb635_EN.book Page 160 Thursday, November 9, 2023 9:17 AM
161
6
Settings
A pull-down menu appears.
3
Use the four-way controller (23) to adjust the brightness.
Choose from , , , or .
4
Press the 4 button.
The setting is saved.
You can save the battery power by setting the display to dim automatically when
no operation is performed for a fixed time. After the Power Saving function has
been activated, the display returns to the ordinary brightness if any button is
pressed.
1
Use the four-way controller (23) to select [Power Saving] in
the [W Setting] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select the time until the
camera enters Power Saving mode.
Choose from [2min.], [1min.], [30sec.], [15sec.], [5sec.] or [Off].
4
Press the 4 button.
The setting is saved.
Using the Power Saving Function
• Power Saving does not function in the following situations:
- While taking pictures in j (Continuous Shooting) and c (Burst
Shooting) modes
- In playback mode
- During movie recording
- While the camera is connected to a computer
- While a menu is being displayed
- In (Digital Microscope) mode
- When [Outdoor View Stg.] is set to the brightness other than (Off).
• When no operation is performed after the camera is turned on, Power
Saving is activated only after 15 seconds elapse even if [5sec.] is set.
e_kb635_EN.book Page 161 Thursday, November 9, 2023 9:17 AM
162
6
Settings
You can set the camera to turn off automatically when no operation is performed
for a fixed time.
1
Use the four-way controller (23) to select [Auto Power Off]
in the [W Setting] menu.
2
Press the four-way controller (5).
A pull-down menu appears.
3
Use the four-way controller (23) to select the time until the
camera turns off automatically.
Choose from [5min.], [3min.] or [Off].
4
Press the 4 button.
The setting is saved.
While playing back images in Q mode, you can set whether to use [Quick Zoom]
to magnify the playback image up to 10x when pressing the y button once.
1
Use the four-way controller (23) to select [Quick Zoom] in
the [W Setting] menu.
2
Use the four-way controller (
45
) to switch between
O
(On) or
P
(Off).
O (On) The Quick Zoom is available.
P (Off) The Quick Zoom is not available.
Using the Auto Power Off Function
Auto Power Off does not function in the following situations:
• While taking pictures in j (Continuous Shooting) and c (Burst Shooting)
modes
• While recording a movie
• During a slideshow or movie playback
• While the camera is connected to a computer
Setting the Quick Zoom Function
e_kb635_EN.book Page 162 Thursday, November 9, 2023 9:17 AM
163
6
Settings
Set whether to display mode guides for the Capture Mode Palette and Playback
Mode Palette.
1
Use the four-way controller (23) to select [Guide Display] in
the [W Setting] menu.
2
Use the four-way controller (
45
) to switch between
O
(On) or
P
(Off).
O (On) The mode guides are displayed.
P (Off) The mode guides are not displayed.
Pixel Mapping is the function for mapping out and correcting defective pixels in
the image sensor. Run the Pixel Mapping function if image dots always seem to
be defective in the same place.
1
Use the four-way controller (23) to select [Pixel Mapping] in
the [W Setting] menu.
2
Press the four-way controller (5).
The [Pixel Mapping] screen appears.
3
Use the four-way controller (2) to
select [Pixel Mapping].
4
Press the 4 button.
Defective pixels are mapped out and corrected.
Setting the Guide Display
Perform Pixel Mapping
• Pixel Mapping is only accessible from A mode. Pixel Mapping cannot be
selected even if the [W Setting] menu is displayed by pressing the 3
button in Q mode.
• When executing Pixel Mapping from Q mode, press the Q button once
to enter A mode. Then press the 3 button and the four-way controller
(5) to display the [W Setting] menu and select Pixel Mapping.
OK
OK
Pixel Mapping
Checks the image sensor
and corrects defective
pixels
Pixel Mapping
Cancel
e_kb635_EN.book Page 163 Thursday, November 9, 2023 9:17 AM
164
6
Settings
You can choose the start-up screen displayed when the camera is turned on.
You can choose any of the following images as the start-up screen:
• Guide display start-up screen showing a guide for the shooting modes and
buttons
• Pre-installed screen
• One of the captured images (compatible images only)
1
Use the four-way controller (2345) to select (Start-up
Screen) from the Playback Mode Palette.
2
Press the 4 button.
The image selection screen appears.
3
Use the four-way controller (45)
to choose the image for the start-
up screen.
Only images available for the start-up
screen are displayed. You can also choose
the pre-installed screen or guide display
start-up screen already stored in the
camera.
4
Press the 4 button.
The setting is saved.
When the battery level is low, [Not enough battery power remaining to
activate Pixel Mapping] appears on the display. Use a battery with ample
capacity remaining.
Changing the Start-up Screen
• Once the start-up screen has been set, it will not be deleted even if the
original image is deleted or the SD Memory Card or built-in memory is
formatted. However the image is deleted if you change the start-up screen
after deleting the recorded image or formatting the memory.
• The start-up screen is not displayed when set to [Off].
• The start-up screen is not displayed when you turn the camera on in
playback mode.
• Movies cannot be used for the start-up screen.
CancelCancelCancel
OKOKOK
101 00
-
0010017100
-
0017
OKOKMENMENUMENU
e_kb635_EN.book Page 164 Thursday, November 9, 2023 9:17 AM
165
6
Settings
You can reset the camera settings to their defaults. Refer to “Default Settings”
(p.180) for the reset settings.
1
Use the four-way controller (23) to select [Reset] in the
[W Setting] menu.
2
Press the four-way controller (5).
The [Reset] screen appears.
3
Use the four-way controller (2) to
select [Reset].
4
Press the 4 button.
The settings return to the defaults.
You can start-up a function by pressing a button other than the power button even
when the camera is off.
1
Use the four-way controller (23) to select [Startup Shortcut]
in the [W Setting] menu.
2
Press the four-way controller (5).
The [Startup Shortcut] screen appears.
Resetting to Default Settings (Reset)
Setting the Startup Shortcut
Playback Mode
When [Playback Mode] is on, you can turn on the camera in
playback mode by pressing and holding down the Q button.
LED Lighting
When [LED Lighting] is on, you can turn on the LED Macro
Lights by pressing and holding down the Green button.
Clock Display
When [Clock Display] is on, you can display the clock on the
display by pressing and holding down the 4 button.
OK
OK
Reset
Returns to default
settings
Reset
Cancel
e_kb635_EN.book Page 165 Thursday, November 9, 2023 9:17 AM
166
6
Settings
3
Use the four-way controller (23)
to select an item.
4
Use the four-way controller (45) to switch between O (On)/
P (Off).
O (On) The startup shortcut is available.
P (Off) The startup shortcut is not available.
You can use the camera as a clock. With the camera turned off, press and hold
down the 4 button to display the clock on the display.
1
Press and hold down the 4
button.
The camera turns on and the clock appears
on the screen.
The camera turns off automatically after
approximately 10 seconds.
Pressing the power button turns the
camera off immediately.
The default settings are all O (On).
Displaying the Clock Display
Not to function the Clock Display by pressing 4 button, set [Clock Display]
to P (Off) in [Startup Shortcut] from the [W Setting] menu. (p.165)
MENU
Startup Shortcut
Playback Mode
LED Lighting
Clock Display
e_kb635_EN.book Page 166 Thursday, November 9, 2023 9:17 AM
167
6
Settings
You can use the camera as a light. Pressing and holding down the Green button
lights up the LED Macro Lights when the camera is turned off.
1
Press and hold down the Green button.
The LED Macro Lights turn on. The lights turn off automatically after the lapse
of the time set in [Auto Power Off].
Pressing the power button turns the camera off immediately.
Light up the LED Macro Lights
• Not to light up the LED Macro Lights by pressing and holding the Green
button, set [LED Lighting] to P (Off) in [Startup Shortcut] of the [W Setting]
menu (p.165).
• When [Auto Power Off] is set to [Off], the LED Macro Lights do not turn off
automatically.
• Press the power button to turn off the LED Macro Lights.
e_kb635_EN.book Page 167 Thursday, November 9, 2023 9:17 AM
168
7
Connecting to a Computer
Conne
c
t
i
n
g
t
o
a
C
o
m
p
u
t
e
r
Connecting to a Computer
Set the device to which the camera is connected with the USB cable.
1
Turn your camera on.
2
Use the four-way controller (23) to select [USB Connection]
in the [W Setting] menu.
3
Press the four-way controller (5).
A pull-down menu appears.
4
Use the four-way controller (23) to select [MSC].
5
Press the 4 button.
The setting is saved.
MSC (Mass Storage Class)
A general-purpose driver program that handles devices connected to the
computer via USB as a memory device. Also indicates a standard for controlling
USB devices with this driver.
By simply connecting a device that supports USB Mass Storage Class, you can
copy, read, and write files from a computer without installing a dedicated driver.
PTP (Picture Transfer Protocol)
A protocol that allows transfer of digital images and control of digital cameras via
USB, standardized as ISO 15740.
You can transfer image data between devices that support PTP without installing
a device driver.
Unless otherwise specified, select MSC when connecting the camera to a
computer.
Setting the USB Connection Mode
Always set the USB Connection mode before connecting the camera to a
computer. You cannot perform the following setting after the camera is
connected to a computer with the USB cable.
MSC and PTP
e_kb635_EN.book Page 168 Thursday, November 9, 2023 9:17 AM
169
7
Connecting to a Computer
Connect the camera to a computer using the provided USB cable.
1
Turn the computer on.
2
Turn the camera off.
3
Connect the camera to the computer using the USB cable.
The power lamp blinks when the camera is connected to the computer correctly.
4
Turn your camera on.
The power lamp stops blinking and remains lit when the camera is recognized
as a removable disk by the computer.
If the “WG-90” dialog appears when the camera is turned on, select [Open folder
to view files] and click the 4 button.
5
Save the captured images to the computer.
Connecting the Camera and a Computer
For information on system requirements, refer to p.170.
e_kb635_EN.book Page 169 Thursday, November 9, 2023 9:17 AM
170
7
Connecting to a Computer
When the camera is being used by an application, it cannot be disconnected until
the application is closed.
1
Click the (Safely Remove Hardware) icon in the task bar
located at the bottom-right corner of the desktop.
2
Click [Eject (the device connected)].
The message appears.
3
Disconnect the USB cable from the Windows PC and your
camera.
1
Drag [NO NAME] on the desktop to the trash.
If the SD Memory Card has a volume label, drag the icon of that name to the
trash.
2
Disconnect the USB cable from the Mac and your camera.
The following system requirements must be met for you to fully enjoy the images
captured with the camera on a computer.
Disconnecting the Camera from the Computer
Windows
Mac
The camera will automatically switch to playback mode when the USB cable
is disconnected from the camera or the computer.
System Requirements
• Supported OS should be pre-installed in a computer and updated to the
latest version.
• The computer should meet the system requirements for the supported OS
and be equipped with a USB port.
• Working status is not guaranteed for all computers.
e_kb635_EN.book Page 170 Thursday, November 9, 2023 9:17 AM
171
7
Connecting to a Computer
Supported OS
Windows
®
Windows
®
10, Windows
®
11
Mac macOS 10.15, macOS 11, macOS 12, macOS 13
e_kb635_EN.book Page 171 Thursday, November 9, 2023 9:17 AM
172
8
Appendix
Functions Available for Each Shooting
Mode
√: Can be set. ×: Cannot be set. ⎯: Settings and changes are not applied.
Function
Shooting Mode
b A A C
Zoom button Zoom operation
√*2 √√√√√*3 √√*3
Flash Mode
,
Auto
√ √ × × × × √ ×
a
Flash Off
√√√√√√√√
b
Flash On
√ √ × √ × × √ ×
c Auto + Red-eye
√√××××√ ×
d Flash On + Red-eye
√ √ × √ × × √ ×
Flash Off + Flash On
(2 shots)
××××××√ ×
Macro Lights
× √ × × × √ × ×
Drive Mode
9
Standard
√√√√× √√*38 √
gZ
Self-timer
√ √ √ √ × √ √*38 √
jc
Continuous Shooting/
Burst Shooting
× √ ××××√*38 ×
hi
Remote Control
√ √ √ √ × √ √*38 √
l Auto Bracketing
× √ × √ ××√*38 ×
Focus Mode
=
Standard
√ √ √ √ √ √ √ √
q
Macro
√√√√√√√√
1cm Macro
√ √ √ √ √ √ √ √
3
Pan Focus
√√√√√√√√
s
Infinity
√ √ √ √ √ √ √ √
z
Manual Focus
√√√√√√√√
(To be continued to p.174)
8Appendix
e_kb635_EN.book Page 172 Thursday, November 9, 2023 9:17 AM
173
8
Appendix
a b
\ K
c R
B
c Q e S 9
√√√√*36 √*36 √*4 √√√√√*5 √*6
√ √ √ × × × √ √ √ × √ √
√ √ √√√√√√√√√√
√ √ √ × × × √ √ √ × √ ×
√√√×××√√√× √ ×
√ √ √ × × × √ √ √ × √ ×
× × ××××××××××
× × × × × ×*21 × × × × √ ×*7
√√××√√√√√√√√
√ √ × × √ √ √ √ √ √ √ √
√√××××√√√× √ ×
√ √ × × √ √ √ √ √ √ √ ×
√√××××√√√× √ ×
√ √ √ √ √ × √ √ √ × √ √
√√√√√× √√√× √√
√ √ √ √ √ √ √ √ √ × √ ×
√√√√√× √√√× √√
√ √ √ √ √ × √ √ √ √ √ ×
√√√× √ × √√√× √ ×
e_kb635_EN.book Page 173 Thursday, November 9, 2023 9:17 AM
174
8
Appendix
√: Can be set. ×: Cannot be set. ⎯: Settings and changes are not applied.
Function
Shooting Mode
b A A C
[A Rec.
Mode] menu
Image Tone
×*8 √ ×*8 √√√×*8 ×*8
Recorded Pixels
√ √ √ √ √ √*10 √ √*10
Quality Level
√√√√√×*16 √ ×*16
White Balance
×*18 √ √ √ √ √ ×*18 ×*18
AF
Setting
Focusing Area
×*19 √√√√√*20 √√*20
Auto Macro
√ √ √ √ √ √ √ √
Focus Assist
√√√√√×*7 √ ×*7
AE Metering
×*22 √ √ √ √ ×*22 ×*22 ×*22
Sensitivity
√√×*23 √√*13 ×*23 √ ×*23
AUTO ISO Range
√ √ √*13 √ √*13 ×*25 √ ×*25
EV Compensation
×*27 √√√√√√√
D-Range Setting
×*7 √ ×*7 √ √*9 √ √ √
Pixel Track SR*1
√√√*32 √ ×*33 √√√
Face
Detection
Face Detection On
√ √ √ √ √ √ √ √
Smile Capture
√√√√√√√√
Self-portrait Assist /
Self-portrait Assist +
Smile Capture
√*29 √*29 √*29 √*29 √*29 × √*29 ×
Face Detection Off
× √√√√√√√
Blink Detection
√ √ ×*7 √ √ ×*7 √ ×*7
Digital Zoom
√*35 √*35 √√*35 √*35 √√*35 √
Instant Review
√ √ √ √ √ − √ −
Memory
√√√√√√√√
Green Button
√ √ √ √ √ √ √ √
Sharpness/Saturation (Tone
Adjustment)/Contrast
×*28 √√√√√×*28 ×*28
Date Imprint
√ √ √ √ √ ×*12 √ ×*12
IQ Enhancer
√√√√×*7 √√√
Macro Light
× √ × × × √ × ×
*1 Movie SR is used for movies, while Pixel
Track SR is used for still pictures.
*2 (Flower) cannot be detected when
using digital zoom or Intelligent Zoom.
*3 Digital zoom is available. Optical zoom
is available before shooting. Intelligent
Zoom is not available.
*4 Only optical zoom and Intelligent Zoom
are available, digital zoom is not available.
*5 Only optical zoom is available, digital zoom
and Intelligent Zoom are not available.
*6 Only optical zoom and digital zoom are
available, Intelligent Zoom is not available.
*7 Fixed to P (Off)
*8 Fixed at [Bright]
*9 Only Shadow Correction is available.
*10 Set in [C Movie] menu
*11 Select from 12M(16:9)/5M(16:9)/
4M(16:9)/2M(16:9).
*12 Fixed to [Off]
*13 The maximum sensitivity is 1600.
*14 Select from h/i/V
*15 Fixed to
e_kb635_EN.book Page 174 Thursday, November 9, 2023 9:17 AM
175
8
Appendix
a b
\ K
c R
B
c Q e S 9
×*8 ×*8 √√√√√×*8 ×*8 ×*8 ×*8 ×*8
√ √ √ × ×*31 √*11 √ √ √ √ √*14 ×*15
√√√×*16 ×*16 √√√√√√×*17
×*18 ×*18 √ √ √ √ √ ×*18 ×*18 ×*18 ×*18 ×*18
√√√√*20 √*20 √√√√×*19 √ ×*19
√ √ √ √ √ × √ √ √ × √ ×*21
√√√×*7 ×*7 √√√√× √ ×*21
×*22 ×*22 √ ×*22 ×*22 √ √ ×*22 ×*22 ×*22 ×*22 ×*22
√√√×*23 ×*23 √*13 ×*23 √√×*24 √ ×*23
√ √ √ ×*25 ×*25 √*13 ×*26 √ √ − ×*26 ×*25
√ √ √√√√√√√√√×*27
√ √ √ √ √ √ √ √ √ √ √ ×*37
√√×*7 ×*7 ×*7 √√*32 √√√*32 √*32 ×*34
√ √ √ √ √ × √ √ √ √ √ √
√√××√ × √√× √√×
√*29 √*29 √*30 √*30 × × √*29 √*29 × √*29 × ×
√ × √√√√√√× √√×
√ √ √ ×*7 ×*7 ×*7 √ √ √ √ √ ×*21
√*35 √*35 √*35 √√×*39 √√*35 √*35 √*35 ×*7 ×*21
√ √ √ − − √ √ √ √ √ √ ×*21
√ √ √√√√√√√√√−
√ √ √ √ √ √ √ √ √ √ √ ×
×*28 ×*28 √√√√√×*28 ×*28 ×*28 ×*28 ×*28
√ √ √ ×*12 ×*12 √ √ √ √ √ √ ×*7
√ √ √√√√√√√√√×*21
× × × × × ×*21 × × × × √ ×*7
*16 Fixed to C (Best) equivalent
*17 Fixed to D (Better)
*18 Fixed to F
*19 Fixed to J (Multiple)
*20 W (Automatic Tracking) is not available
*21 Fixed to O (On)
*22 Fixed to L (Multi-segment metering)
*23 Fixed to [AUTO]
*24 The sensitivity is fixed at its minimum value
*25 Fixed at 125-1600
*26 Fixed at 125-6400
*27 Fixed at ±0.0
*28 Fixed at normal level
*29
Not available when [Macro Light] is
O
(On)
*30 Only (Self-portrait Assist) is available.
*31 Fixed to 1280 x 720
*32 [Dual] cannot be selected.
*33 Fixed to [Dual]
*34 Fixed to [Sensor Shift]
*35 Fixed to P (Off) when the sensitivity is
fixed to 3200 or 6400
*36 Optical zoom and digital zoom are
available before shooting. Intelligent Zoom
is not available.
*37 Fixed to [Auto]
*38 Cannot be selected when the flash mode
is
(Flash Off + Flash On (2 shots)).
*39 When the Recorded Pixels other than
2M(16:9) is selected, only the optical zoom
is available.
e_kb635_EN.book Page 175 Thursday, November 9, 2023 9:17 AM
176
8
Appendix
Messages
Messages such as the following may appear on the display during camera
operation.
Message
Description
Battery depleted
The battery is exhausted. Charge the battery using the
battery charger (p.31).
Memory card full The SD Memory Card is full and no more images can be
saved.
Insert a new SD Memory Card or delete unwanted images.
(p.34, p.121)
Change the recorded pixels or quality level of recorded
images and try again (p.128).
Available memory on
card is insufficient to
copy the images
Memory card error
Shooting and playback are impossible due to a problem
with the SD Memory Card. You may be able to display or
copy the images on the card using a computer.
The built-in memory is
not formatted
The data in the built-in memory are damaged. Format the
built-in memory.
Card is not formatted
The SD Memory Card you have inserted is unformatted or
has been formatted on a computer or other device and is
not compatible with this camera. Format the SD Memory
Card in the camera (p.148).
Card is locked The SD Memory Card is write-protected (p.7).
Compression error
This message occurs when the camera fails to compress an
image. Change the quality level or recorded pixels of the
image and try shooting or saving it again.
No image
There are no images on the SD Memory Card or in the built-
in memory.
Movie recording stopped
This message appears when the internal temperature of the
camera has exceeded normal operating limits while
recording a movie.
Deleting This message appears when deleting an image.
Unable to play back this
You are trying to play back an image in a format not
supported by this camera. You may be able to play it back
on another brand of camera or on your computer.
Image folder cannot be
created
The largest file number (9999) has been assigned to an
image in the largest folder number (999) and no more
images can be saved. Insert a new SD Memory Card or
format the card/built-in memory (p.148).
Protected The image you are trying to delete is protected.
e_kb635_EN.book Page 176 Thursday, November 9, 2023 9:17 AM
177
8
Appendix
Data being recorded
Displayed when you try to switch to Q mode while an
image is still being recorded, or when the protect setting is
being changed. It disappears after the image is recorded or
the setting is changed.
Data being processed
Displayed when the camera takes more than five seconds
to display an image due to image processing, or when the
SD Memory Card or the built-in memory is being formatted.
Built-in memory full Displayed if the built-in memory is full when saving a file.
No image to be
processed
Displayed when there are no images.
This image cannot be
processed
Displayed for files that cannot be processed.
No card in the camera
Displayed if no SD Memory Card is inserted when “Image
Copy” is selected from the Playback Mode Palette and the
4 button is pressed.
Available built-in
memory is insufficient to
copy the images
Displayed when there is insufficient built-in memory to
perform copying.
Cannot process
correctly
Displayed when red-eye compensation processing fails.
Not enough battery
power remaining to
activate Pixel Mapping
Displayed when the battery is too low during Pixel Mapping.
Change the battery (p.29).
No more images can be
selected
Displayed when you select more than the maximum
number of images.
The camera will turn off
to prevent damage from
overheating
Appears when the temperature inside the camera exceeds
the highest limit.
Message
Description
e_kb635_EN.book Page 177 Thursday, November 9, 2023 9:17 AM
178
8
Appendix
Troubleshooting
Problem Cause Remedy
The camera will
not turn on
The battery is not installed
Check if a battery is installed. If not,
install a battery.
The battery is installed
incorrectly
Check orientation of the battery.
Reinsert the battery according to the
+- symbols in the battery
compartment (p.29).
The battery is exhausted Charge the battery.
No image appears
on the display
The camera is connected to
a computer
The display is off when the camera
is connected to a computer.
The camera is connected to
a TV
The display is off when the camera
is connected to a TV.
The display is set to off
Press the 4 button to turn the
display on.
The display is
hard to see
The brightness level of the
display is set too dark
Adjust the brightness level in
[Brightness Level] in the [W Setting]
menu. (p.160)
Power Saving function is on
When the Power Saving function is
on, the display automatically
darkens after a certain amount of
time. Press a button to return to the
normal brightness level.
Select [Off] in [Power Saving] in the
[W Setting] menu to turn the Power
Saving function off (p.161).
The shutter will
not release
The flash is charging
Pictures cannot be taken while the
flash is charging. Wait until charging
is finished.
There is no available space
on the SD Memory Card or
in the built-in memory
Insert an SD Memory Card with
available space or delete unwanted
images (p.34, 121).
Recording Wait until recording is finished.
The picture is dark
when using the
flash
The subject is too far away
in a dark environment, such
as a night scene
The picture becomes dark if the
subject is too far away. Take
pictures within the specified flash
range.
e_kb635_EN.book Page 178 Thursday, November 9, 2023 9:17 AM
179
8
Appendix
The subject is not
in focus
The subject is difficult to
focus on with autofocus
Lock the focus on an object the
same distance away as the subject
(by pressing and holding the shutter
release button halfway), then aim
the camera at your subject and
press the shutter release button fully
(p.56). Or set the focus manually
(p.76).
The subject is not in the
focusing area
Locate the desired subject in the
focus frame (focusing area) in the
center of the display. If it is difficult to
do so, first lock the focus on the
desired subject (by pressing and
holding the shutter release button
halfway), and then move the camera
to recompose.
The flash does not
discharge
The flash mode is set to
a (Flash Off)
Set to , (Auto) or b (Flash On)
(p.73).
The drive mode is set to
j (Continuous Shooting),
c (Burst Shooting), or
l (Auto Bracketing);
the focus mode is set to
s (Infinity); or the shooting
mode is set to d (Movie),
(Underwater Movie),
S (Fireworks),
(Digital Microscope),
(Handheld Night
Snap), (Interval
Movie), or (High
Speed Movie).
The flash does not discharge in
these modes.
Very occasionally, static electricity may cause camera to malfunction. In this
case, remove the battery and install it again. If the camera is then working
properly, you can continue using the camera.
Problem Cause Remedy
e_kb635_EN.book Page 179 Thursday, November 9, 2023 9:17 AM
180
8
Appendix
Default Settings
The table below lists the factory default settings.
The meaning of the indications for menu items with a default setting is explained
below.
Last Memory Setting
Yes : The current setting (last memory) is saved when the camera is
turned off.
No : The setting returns to the default setting when the camera is turned
off.
* : The last memory setting depends on the [Memory] setting (p.108).
—:N/A
Reset Setting
Yes : The setting returns to the default setting with the Reset function
(p.165).
No : The setting is saved even after reset.
—:N/A
[A Rec. Mode] Menu Items
Item
Default Setting
(Shooting mode:A)
Last
Memory
Setting
Reset
Setting
Page
Image Tone Bright Yes Yes p.78
Recorded Pixels
(4608 x 2592)
Yes Yes p.79
Quality Level D (Better) Yes Yes p.80
White Balance F (Auto) * Yes p.82
AF
Setting
Focusing Area J (Multiple) Yes Yes p.76
Auto Macro O (On) Yes Yes p.77
Focus Assist O (On) Yes Yes p.78
AE Metering L (Multi-segment) * Yes p.84
Sensitivity AUTO (125-1600) * Yes p.85
AUTO ISO Range 125-1600 * Yes p.86
EV Compensation ±0.0 * Yes p.86
D-Range
Setting
Highlight Correction Auto Yes Yes p.87
Shadow Correction Auto Yes Yes p.87
Pixel Track SR P (Off) Yes Yes p.88
Face Detection
I
(Face Detection On)
* Yes p.89
e_kb635_EN.book Page 180 Thursday, November 9, 2023 9:17 AM
181
8
Appendix
[C Movie] Menu Items
Blink Detection O (On) Yes Yes p.91
Digital Zoom O (On) * Yes p.59
Instant Review O (On) Yes Yes p.91
Memory
Face Detection P (Off) Yes Yes
p.108
Flash Mode O (On) Yes Yes
Drive Mode P (Off) Yes Yes
Focus Mode P (Off) Yes Yes
Zoom Position P (Off) Yes Yes
MF Position P (Off) Yes Yes
White Balance P (Off) Yes Yes
Sensitivity P (Off) Yes Yes
EV Compensation P (Off) Yes Yes
AE Metering P (Off) Yes Yes
Digital Zoom O (On) Yes Yes
DISPLAY P (Off) Yes Yes
File No. O (On) Yes Yes
Green Button Green mode Yes Yes p.92
Sharpness G (Normal) Yes Yes p.95
Saturation G (Normal) Yes Yes p.95
Tone Adjustment G (B&W) Yes Yes p.95
Contrast G (Normal) Yes Yes p.95
Date Imprint Off Yes Yes p.96
IQ Enhancer O (On) Yes Yes p.96
Macro
Light
Macro Light O (On) Yes Yes
p.97
Brightness F (1) Yes Yes
Item Default Setting
Last
Memory
Setting
Reset
Setting
Page
Recorded Pixels
(1920 x 1080/30fps)
Yes Yes p.102
Movie SR O (On) Yes Yes p.103
Wind Suppression P (Off) Yes Yes p.104
Item
Default Setting
(Shooting mode:A)
Last
Memory
Setting
Reset
Setting
Page
e_kb635_EN.book Page 181 Thursday, November 9, 2023 9:17 AM
182
8
Appendix
[W Setting] Menu Items
Item Default Setting
Last
Memory
Setting
Reset
Setting
Page
Sound
Operation Volume 3 Yes Yes
p.149
Playback Volume 3 Yes Yes
Startup Sound
Off
Yes Yes
Shutter Sound
1
Yes Yes
Operation Sound
1
Yes Yes
Self-timer Sound 1 Yes Yes
Date
Adjustment
Date Format (date)
According to
initial setting
Yes No
p.41
p.150
Date Format (time) 24h Yes No
Date 01/01/2023 Yes No
Time
According to
initial setting
Yes No
Alarm
Alarm Off Yes Yes
p.151
Time 00:00 Yes Yes
World
Time
Select Time
W
(Hometown)
Yes Yes
p.153
Destination (City)
According to
initial setting
Yes No
Destination (DST) P (Off) Yes No
Hometown (City)
According to
initial setting
Yes No
Hometown (DST) P (Off) Yes No
Text Size Standard Yes No p.155
Language/
According to
initial setting
Yes No
p.38
p.155
Folder Name Date Yes
Yes
*1
p.156
File Name
IMGP
Yes Yes p.158
USB Connection
MSC
Yes Yes p.168
HDMI Out Auto Yes Yes p.160
Brightness Level
G
(Normal)
Yes Yes p.160
Outdoor View Stg. (Off) Yes Yes p.160
Power Saving 5 sec. Yes Yes p.161
Auto Power Off 3 min. Yes Yes p.162
Quick Zoom P (Off) Yes Yes p.162
Guide Display O (On) Yes Yes p.163
Reset Cancel ⎯⎯ p.165
Delete All Cancel ⎯⎯ p.123
Pixel Mapping Cancel ⎯⎯ p.163
e_kb635_EN.book Page 182 Thursday, November 9, 2023 9:17 AM
183
8
Appendix
*1 Except the folder name that you created
Playback Mode Palette Items
Startup
Shortcut
Playback Mode O (On) Yes Yes p.165
LED Lighting O (On) Yes Yes p.165
Clock Display O (On) Yes Yes p.165
Format Cancel ⎯⎯ p.148
Item Default Setting
Last Memory
Setting
Reset
Setting
Page
Slideshow
Interval 3 sec. Yes Yes
p.117Screen Effect Wipe Yes Yes
Sound Effect O (On) Yes Yes
Image Rotation Normal ⎯⎯p.119
Small Face Filter Approx. 7% No No p.130
Ink Rubbing Filter G (Standard) No No p.133
Collage
Recorded Pixels
h
Yes Yes
p.134
Layout Yes Yes
Background White Yes Yes
Select image(s) ⎯⎯⎯
Digital Filter B&W/Sepia No ⎯ p.131
HDR Filter ⎯⎯⎯p.133
Original
Frame
Blur All sides/White No ⎯
p.138
Edge Composite All sides/White No ⎯
Movie Edit
Save as Still Image
⎯⎯⎯
p.142Divide Movies ⎯⎯⎯
Adding title picture ⎯⎯⎯
Red-eye Edit ⎯⎯⎯p.137
Resize
Recorded Pixels
Depending on the
picture taken
⎯⎯p.128
Quality Level
Depending on the
picture taken
⎯⎯p.128
Cropping
Depending on the
picture taken
⎯⎯p.129
Image Copy
Built-in memory
→
SD Memory Card
⎯⎯p.145
Item Default Setting
Last
Memory
Setting
Reset
Setting
Page
e_kb635_EN.book Page 183 Thursday, November 9, 2023 9:17 AM
184
8
Appendix
Button/Key Operation
Protect
Single Image
Depending on the
picture taken
⎯⎯
p.124
All Images
Depending on the
picture taken
⎯⎯
Start-up Screen Default Yes Yes p.164
Item Function Default Setting
Last
Memory
Setting
Reset
Setting
Page
Q button
Operation Mode
Q Mode
⎯⎯⎯
W/T button Zoom Position Full wide-angle * No p.57
Four-way
controller
2 Drive Mode 9 (Standard) * Yes
p.67 -
p.71
3 Shooting Mode
b (Auto Picture)
Yes Yes p.60
4 Flash Mode
, (Auto)
* Yes p.73
5 Focus Mode
= (Standard)
* Yes p.75
3 button Menu Display
Still Picture
Capture Mode:
[A Rec. Mode]
menu
Movie Mode:
[C Movie] menu
Playback Mode:
[W
Setting
] menu
⎯⎯p.48
4 button
Information
Display
Normal Display * Yes p.21
Green Button
Function Recall Green mode Yes Yes p.93
Movie button
Operation Mode Recording starts ⎯⎯p.101
Item Default Setting
Last Memory
Setting
Reset
Setting
Page
e_kb635_EN.book Page 184 Thursday, November 9, 2023 9:17 AM
185
8
Appendix
List of World Time Cities
City: indicates cities that can be set as either the Initial Setting (p.38) or the World
Time (p.153).
Region City name Region City name
North
America
Honolulu Africa/West
Asia
Istanbul
Anchorage Cairo
Vancouver Jerusalem
San Francisco Nairobi
Los Angeles Jeddah
Calgary Tehran
Denver Dubai
Chicago Karachi
Miami Kabul
Toronto Male
New York Delhi
Halifax Colombo
Central and
South
America
Mexico City Kathmandu
Lima Dacca
Santiago East Asia Yangon
Caracas Bangkok
Buenos Aires Kuala Lumpur
Sao Paulo Vientiane
Rio de Janeiro Singapore
Europe Lisbon Phnom Penh
Madrid Ho Chi Minh
London Jakarta
Paris Hong Kong
Amsterdam Beijing
Milan Shanghai
Rome Manila
Copenhagen Taipei
Berlin Seoul
Prague Tokyo
Stockholm Guam
Budapest Oceania Perth
Warsaw Adelaide
Athens Sydney
Helsinki Noumea
Moscow Wellington
Africa/West
Asia
Dakar Auckland
Algiers Pago Pago
Johannesburg
e_kb635_EN.book Page 185 Thursday, November 9, 2023 9:17 AM
186
8
Appendix
Main Specifications
Type Fully automatic compact digital camera with built-in zoom lens
Number of Effective
Pixels
Approx. 16 megapixels
Image Sensor 1/2.3 inch CMOS
Number of Recorded
Pixels
Still (4608 x 3456), (3456 x 3456),
(4608 x 2592), 6 (3072 x 2304),
(3072 x 1728), f (2592 x 1944),
(2592 x 1464), h (2048 x 1536),
h (1920 x 1080), l (1024 x 768), m (640 x 480)
*/
//h in Digital Microscope mode.
(When the Recorded Pixels other than
h is selected, only the
optical zoom is available.)
*
f/ in Burst Shooting mode.
* h/i/V in Report mode.
* f/ in Original Frame mode.
Movie (1920 x 1080/30 fps), (1280 x 720/60 fps)
M (1280 x 720/30 fps)
Sensitivity AUTO, Manual (ISO 125, 200, 400, 800, 1600, 3200, 6400)
* The sensitivity is fixed at AUTO (125-6400) in Digital SR mode.
File Formats Still JPEG (Exif 2.3), DCF 2.0,
PRINT Image Matching III
Movie MPEG-4 AVC/H.264, approx. 60 fps/30 fps, PCM system,
monaural sound, Movie SR (Movie Shake Reduction)
Image Tone Still Bright, Natural, Vibrant, Slide Film, Monochrome, Cross
Processing
*
The values that can be set vary depending on the shooting
mode.
Quality Level Still C (Best), D (Better), E (Good)
Movie Fixed at C (Best) *Unchangeable
Storage Media Built-in memory (approx. 68 MB), SD Memory Card, SDHC Memory
Card, SDXC Memory Card (up to 512 GB)
e_kb635_EN.book Page 186 Thursday, November 9, 2023 9:17 AM
187
8
Appendix
Approximate Image Storage Capacity and Recording Time
Still
• The image storage capacity is for reference only. The actual image storage capacity
may vary depending on the SD Memory Card and the subject.
• i (1600 x 1200) and V (1280 x 960) can be set only when (Report) mode is
set.
Movie
• The above figures are based on our standard shooting conditions and may vary
depending on the subject, shooting conditions and type of the SD Memory Card
used.
• The maximum length of continuous recording time for a movie is 25 minutes.
Built-in Memory
8GB
SD Memory Card
CD E CD E
(4608 x 3456)
13 23 38 1479 2613 4309
(3456 x 3456)
15 30 46 1742 3411 5226
(4608 x 2592)
15 30 46 1742 3411 5226
6 (3072 x 2304)
23 43 69 2613 4816 7675
(3072 x 1728)
27 53 76 3109 5990 8470
f (2592 x 1944)
27 53 76 3109 5990 8470
(2592 x 1464)
36 69 99 4093 7675 11165
h (2048 x 1536)
43 85 124 4816 9447 13646
i (1600 x 1200)
69 124 167 7675 13646 18894
h (1920 x 1080)
63 114 167 7018 12927 18894
V (1280 x 960)
99 181 256 11165 20469 27292
l (1024 x 768)
150 256 335 16375 27292 35090
m (640 x 480)
311 484 545 35090 49126 61407
Built-in Memory
8 GB
SD Memory Card
(1920 x 1080/30 fps) 34 sec. 1 hr. 18 min. 11 sec.
(1280 x 720/60 fps) 34 sec. 1 hr. 18 min. 11 sec.
M (1280 x 720/30 fps) 55 sec. 1 hr. 50 min. 35 sec.
e_kb635_EN.book Page 187 Thursday, November 9, 2023 9:17 AM
188
8
Appendix
White Balance Auto, Daylight, Shade, Tungsten Light, Fluorescent Light (Daylight
Colors/Daylight White/White Light), Manual
Lens Focal Length 5.0 - 25.0 mm
(approx. 28 - 140 mm in 35 mm format equivalent)
Maximum
Aperture
F3.5 (W) - F5.5 (T)
Lens Construction 11 elements in 9 groups (5 aspherical elements)
Zoom Type Electrically driven
Optical Zoom 5x
Intelligent Zoom
6/ : approx. 7.5x, f/ :approx. 8.9x,
h: approx. 11.3x, h: approx. 12x, l: approx. 22.5x,
m: approx. 36x (when combined with optical zoom)
Digital Zoom Max. approx. 7.2x (combines with 5x optical zoom to give zoom
magnification equivalent to 36x)
Motion Blur Reduction Still Electronic Shake Reduction (Pixel Track SR),
Hi-sensitivity Shake Reduction (Digital SR)
Movie Electronic Movie Shake Reduction (Movie SR)
Display 2.7 inch wide-LCD, approx. 230,000 dots (AR coating (cover only))
Playback Modes Single-frame, 6-frame, 12-frame, Magnified view (max. 10x,
scrollable), Folder Display, Calendar Display, Histogram Display,
Highlight/Shadow Area Alert, Select & Delete, Slideshow, Resize,
Cropping, Image Copy, Image Rotation, Digital Filter, HDR Filter,
Original Frame, Ink Rubbing Filter, Collage, Small Face Filter, Movie
Playback/Edit (Save as Still image, Divide, Adding title picture), Red-
eye Edit, Protect, Start-up Screen
Focus Mode Autofocus, Macro, 1cm Macro, Pan Focus, Infinity, Manual Focus
Focus Type TTL contrast detection system by sensor
Multiple (9-point autofocus)/spot/automatic
tracking changeable
Focus Range
(From lens face)
Standard : 0.5 m - ∞ (Entire zoom range)
Macro : 0.1 m - 0.6 m (Entire zoom range)
1cm Macro : 0.01 m - 0.3 m (Mid-zoom to
telephoto)
* It is possible to switch to Infinity, Pan Focus and
Manual Focus.
* Face Detection AF is available only when the
camera recognizes the subject’s face.
Focus Lock By half-pressing the shutter release button
Exposure Control AE Metering Multi-segment metering, Center-weighted
metering, Spot AE metering
EV Compensation ±2 EV (can be set in 1/3 EV steps)
Face Detection Detection of up to 32 people’s faces (up to 31 face detection frames
on the display), Smile Capture, Blink Detection, Self-portrait Assist,
Self-portrait Assist + Smile Capture
* Face Detection AE is available only when the camera detects the
subject’s face.
e_kb635_EN.book Page 188 Thursday, November 9, 2023 9:17 AM
189
8
Appendix
Pet Detection Detectable number of pets: 1
Shooting Mode Auto Picture, Program, HDR, Handheld Night Snap, Movie,
Underwater, Underwater Movie, Digital Microscope, Landscape,
Flower, Portrait, Interval Shot, Interval Movie, High Speed Movie,
Digital SR, Surf & Snow, Kids, Pet, Sport, Night Scene, Night Scene
Portrait, Fireworks, Food, Report, Green
Digital Filter B&W/Sepia, Toy Camera, Retro, Color (red, pink, purple, blue, green,
yellow), Extract Color (red, green, blue), Color Emphasis (Sky Blue,
Fresh Green, Delicate Pink, Autumn Leaves), High Contrast,
Starburst (Cross, Heart, Star), Soft, Fish-eye, Brightness, Miniature
Movie Continuous
Recording Time
Approx. 1 second - 25 minutes (however, only until the
built-in memory or SD Memory Card is full)
Shutter Speed 1/4000 sec. - 1/4 sec. (mechanical and electronic shutters),
max. 4 sec. (Night Scene mode)
Built-in Flash Modes Auto, Flash Off, Flash On, Auto + Red-eye, Flash
On + Red-eye, Macro Light
Flash Range
(Except Macro
Light)
Wide-angle: approx. 0.2 - 5.5 m
(approx. 0.66 - 18 ft.) (Sensitivity: AUTO)
Telephoto: approx. 0.2 - 3.5 m
(approx. 0.66 - 11 ft.) (Sensitivity: AUTO)
Drive Mode Single-frame, Self-timer (10 sec., 2 sec.), Continuous Shooting, Burst
Shooting, Remote Control (0 sec., 3 sec.), Auto Bracketing
Self-timer Electronic control type, control time: Approx. 10 sec., 2 sec.
Time Function World Time 75 cities (28 time zones)
Clock Display Clock Display by holding down 4 button while
camera is turned off (for approx. 10 sec.)
Alarm Alarm with simultaneous display of the Clock
Display at specified time
Power Source Rechargeable lithium-ion battery D-LI92
Battery Life Image Storage
Capacity
Approx. 300
pictures
* Recording capacity shows the approximate
number of shots recorded during CIPA-compliant
testing (at 23°C (73.4°F) with display on and flash
used for 50% of the shots). Actual performance
may vary according to operating conditions.
Playback Time
Approx. 260 min.
* According to the results of in-house testing.
Movie Recording
Time
Approx. 90 min.
* According to the results of in-house testing.
Interfaces USB 2.0 (Micro-B) /HDMI output terminal (Type D)
Waterproof and
Dustproof Rating
JIS waterproof grade 8 and JIS dustproof grade 6 (IP68) Continuous
underwater shooting possible for 2 hours at depth of 14 m.
e_kb635_EN.book Page 189 Thursday, November 9, 2023 9:17 AM
190
8
Appendix
USB Power Adapter AC-U2
Rechargeable Battery D-LI92
Impact Resistance
Rating
Our drop test (1.6 m height onto a 5 cm thick plywood surface)
complying with MIL-Standard 810F Method 516.5-Shock testing.
* Waterproof performance is not guaranteed if the camera is exposed
to impact such as being dropped or hit.
* The camera is not guaranteed to be free of trouble or damages
under every condition.
Dimensions Approx. 122.5 (W) x 61.5 (H) x 29.5 (D) mm (approx. 4.8 (W) x 2.4 (H)
x 1.2 (D) inches) (excluding operating or protruding parts)
Weight Approx. 173 g (approx. 6.1 oz.) (excluding battery and SD Memory
Card)
Approx. 194 g (approx. 6.8 oz.) (including battery and SD Memory
Card)
Accessories Rechargeable lithium-ion battery, USB power adapter, USB cable,
Strap, Macro stand, Start Guide, Regarding Waterproof, Dustproof,
and Shockproof Design
Power Supply 100 to 240 VAC (50/60 Hz), 0.2 A
Output 5.0 VDC, 1000 mA, 5.0 W
Average Active
Efficiency
76 %
No-Load Power
Consumption
70 mW
Temperature 10 to 40°C (50 to 104°F)
Dimensions Approx. 42.5 mm (W) x 22 mm (H) x 66.5 mm (D)
(approx. 1.7 in. (W) x 0.9 in. (H) x 2.6 in. (D))
(excluding the power plug)
Weight
Approx. 40 g (approx. 1.4 oz) (excluding the power plug)
Nominnal Voltage 3.7 V
Rated Capacity 925 mAh, 3.5 Wh
Operating
Temperature
0 to 45°C (32 to 113°F)
Storage Temperature -20 to 50°C (-4 to 122°F)
Dimensions Approx. 39.8 mm (W) x 34.2 mm (H) x 6.8 mm (D)
(approx. 1.57 in. (W) x 1.35 in. (H) x 0.27 in. (D))
Weight Approx. 20 g (approx. 0.7 oz)
e_kb635_EN.book Page 190 Thursday, November 9, 2023 9:17 AM
191
8
Appendix
Warranty Policy
All our cameras purchased through authorized bona fide photographic distribution
channels are guaranteed against defects of material or workmanship for a period of
twelve months from the date of your purchase. Service will be rendered, and defective
parts will be replaced without cost to you within that period, provided the camera does
not show evidence of impact, sand or liquid damage, mishandling, tampering, battery
or chemical corrosion, operation contrary to operating instructions, or modification by
an unauthorized repair shop. The manufacturer or its authorized representatives shall
not be liable for any repair or alterations except those made with its written consent and
shall not be liable for damages from delay or loss of use or from other indirect or
consequential damages of any kind, whether caused by defective material or
workmanship or otherwise; and it is expressly agreed that the liability of the
manufacturer or its representatives under all guarantees or warranties, whether
expressed or implied, is strictly limited to the replacement of parts as herein before
provided. No refunds will be made on repairs by non-authorized service facilities.
Procedure During 12-month Warranty Period
Any camera which proves defective during the 12-month warranty period should be
returned to the dealer from whom you purchased the camera or to the manufacturer. If
there are no representatives of the manufacturer in your country, send the camera to
the manufacturer, with postage prepaid. In this case, it will take a considerable length
of time before the camera can be returned to you owing to the complicated customs
procedures required. If the camera is covered by warranty, repairs will be made and
parts replaced free of charge, and the camera will be returned to you upon completion
of servicing. If the camera is not covered by warranty, regular charges of the
manufacturer or of its representatives will apply. Shipping charges are to be borne by
the owner. If your camera was purchased outside of the country where you wish to
have it serviced during the warranty period, regular handling and servicing fees may be
charged by the manufacturer’s representatives in that country. Notwithstanding this,
your camera returned to the manufacturer will be serviced free of charge according to
this procedure and warranty policy. In any case, however, shipping charges and
customs clearance fees to be borne by the sender. To prove the date of your purchase
when required, please keep the receipt or bills covering the purchase of your camera
for at least a year. Before sending your camera for servicing, please make sure that
you are sending it to the manufacturer’s authorized representatives or their approved
repair shops, unless you are sending it directly to the manufacturer. Always obtain a
quotation for the service charge, and only after you accept the quoted service charge,
instruct the service station to proceed with the servicing.
e_kb635_EN.book Page 191 Thursday, November 9, 2023 9:17 AM
192
8
Appendix
• This warranty policy does not affect the customer’s statutory rights.
• The local warranty policies available from our distributors in some countries
can supersede this warranty policy. Therefore, we recommend that you review
the warranty card supplied with your product at the time of purchase, or
contact our distributor in your country for more information and to receive a
copy of the warranty policy.
Regarding User Registration
In order to better serve you, we request that you complete the user registration,
which can be found on our website. Thank you for your cooperation.
http://www.ricoh-imaging.com/registration/
Notice to Users in Countries that Require the CE Marking
This product complies with the essential requirements and provisions of EMC
Directive 2014/30/EU.
Importer(CE marking) : RICOH IMAGING EUROPE S.A.S.
Parc Tertiaire SILIC 7-9, avenue Robert Schuman - B.P. 70102, 94513 Rungis
Cedex, FRANCE
Manufacturer : RICOH IMAGING COMPANY,LTD.
1-3-6, Nakamagome, Ohta-ku, Tokyo 143-8555, JAPAN
Notice to Users in Countries that Require the UKCA Marking
This product complies with the essential requirements and provisions of
Electromagnetic Compatibility Regulations 2016.
Manufacturer : RICOH IMAGING COMPANY,LTD.
1-3-6, Nakamagome, Ohta-ku, Tokyo 143-8555, JAPAN
The CE Mark is a Directive conformity mark of the European Union.
The UKCA Mark is a Regulation conformity mark of the United
Kingdom.
e_kb635_EN.book Page 192 Thursday, November 9, 2023 9:17 AM
193
8
Appendix
For customers in USA
STATEMENT OF FCC COMPLIANCE
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Changes or modifications not approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
For customers in Canada
Innovation, Science and Economic Development Canada (ISED) Regulatory
Compliance Notice.
This Class B digital apparatus complies with Canadian ICES-003 (B).
Pour les utilisateurs au Canada
Avis de conformité à la réglementation d’Innovation, Sciences et Développement
économique Canada (ISDE).
Cet appareil numérique de la classe B est conforme à la norme NMB-003 (B) du
Canada.
e_kb635_EN.book Page 193 Thursday, November 9, 2023 9:17 AM
194
8
Appendix
Declaration of Conformity
According to 47CFR, Parts 2 and 15 for
Class B Personal Computers and Peripherals
We: RICOH IMAGING AMERICAS
CORPORATION
Located at: 2 Gatehall Drive Suite 204, Parsippany,
New Jersey 07054, U.S.A.
Phone: 800-877-0155
Declare under sole responsibility that the product identified herein complies with
47CFR Parts 2 and 15 of the FCC rules as a Class B digital device. Each product
marketed is identical to the representative unit tested and found to be compliant
with the standards. Records maintained continue to reflect the equipment being
produced can be expected to be within the variation accepted, due to quantity
production and testing on the statistical basis as required by 47CFR §2.909.
Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation. The above named
party is responsible for ensuring that the equipment complies with the standards
of 47CFR §15.101 to §15.109.
Product Name: Digital Camera
Model Number: R07020
e_kb635_EN.book Page 194 Thursday, November 9, 2023 9:17 AM
195
8
Appendix
For Customers in Europe
Information for Users on Collection and Disposal of Old Equipment
and Used Batteries
1. In the European Union
These symbols on the products, packaging and/or
accompanying documents mean that used electrical
and electronic equipment and batteries should not be
mixed with general household waste.
Used electrical/electronic equipment and batteries must
be treated separately and in accordance with legislation
that requires proper treatment, recovery and recycling
of these products.
By disposing of these products correctly you will help
ensure that the waste undergoes the necessary
treatment, recovery and recycling and thus prevent
potential negative effects on the environment and
human health which could otherwise arise due to
inappropriate waste handling.
If a chemical symbol is added beneath the symbol shown above, in
accordance with the Battery Directive, this indicates that a heavy metal
(Hg = Mercury, Cd = Cadmium, Pb = Lead) is present in the battery at a
concentration above an applicable threshold specified in the Battery
Directive.
For more information about collection and recycling of used products,
please contact your local authorities, your waste disposal service or the
point of sale where you purchased the products.
2. In other countries outside the EU
These symbols are only valid in the European Union. If you wish to
discard used products, please contact your local authorities or dealer
and ask for the correct method of disposal.
For Switzerland: Used electrical/electronic equipment can be returned
free of charge to the dealer, even when you don’t purchase a new
product. Further collection facilities are listed on the home page of
www.swico.ch
or www.sens.ch.
e_kb635_EN.book Page 195 Thursday, November 9, 2023 9:17 AM
196
8
Appendix
Index
Symbols
A Mode ........................................47
Q Mode .......................................47
Q button
............................... 43, 45
[A Rec. Mode] Menu ........... 50, 180
[C Movie] Menu ................... 52, 181
[W Setting] Menu
.................. 52, 182
9 Green Mode ............................. 64
i Delete ............................. 110, 121
f/y button
..................................45
y Magnify ...................................120
T Tele ............................................ 57
W Wide
..........................................57
W/T button .....................................43
b Auto Picture .............................61
R Program
................................... 61
HDR ........................................61
Handheld Night Snap ...............61
C Movie
......................................100
Underwater ..............................98
Underwater Movie ....................98
Digital Microscope
.....................65
a Landscape ................................61
b Flower .......................................61
c Portrait
...................................... 61
Interval Shot ............................. 66
Interval Movie ........................104
High Speed Movie
.................107
c Digital SR ...............................62
Q Surf & Snow .............................62
R Kids
........................................... 62
e Pet ............................................65
\ Sport .........................................62
A Night Scene
.............................. 62
B Night Scene Portrait
.................62
S Fireworks ..................................62
K Food
..........................................62
Report
......................................62
u Slideshow .............................. 117
s Image Rotation
.......................119
k Small Face Filter
....................130
Ink Rubbing Filter ...................133
Collage
..................................134
P Digital Filter ...........................131
HDR Filter .............................133
E Original Frame
.......................138
[ Movie Edit ..............................142
Z Red-eye Edit
..........................137
n Resize ....................................128
o Cropping ................................129
p Image Copy
............................145
Z Protect .................................124
Start-up Screen ......................164
Numerics
1cm Macro ................................75
6-Image Display/
12-Image Display
.........................112
A
AE Metering ...................................84
Alarm ...........................................151
Auto + Red-eye c (Flash)
.............73
Auto Bracketing a .......................71
AUTO ISO Range ..........................86
Auto Macro
....................................77
Auto Power Off ............................162
Auto F (White Balance) ..........82
Auto , (Flash)
...............................73
Autofocus area ..............................76
Automatic Tracking ........................76
B
B&W/Sepia filter ..........................131
Basic mode
....................................64
Battery level indicator ....................33
Blink Detection ........................ 57, 91
Brightness filter
............................131
Brightness Level ..........................160
Built-in memory ............................145
Burst Shooting
...............................69
C
Calendar display ..........................114
Camera shake
...............................58
Capture Mode Palette ....................61
Changing volume
.........................149
Charging a battery
.........................31
Checking the memory card ............36
Clock Display
...............................166
Collage ........................................134
Color emphasis filter
....................131
Color filter ....................................131
e_kb635_EN.book Page 196 Thursday, November 9, 2023 9:17 AM
197
8
Appendix
Connecting the camera to
an AV device
...............................126
Continuous Shooting .....................69
Contrast .........................................95
Copy
............................................ 145
Cropping ......................................129
D
Date Adjustment ................... 41, 150
Date Imprint ...................................96
Default settings
............................ 180
Delete all ......................................123
Delete i ............................. 110, 121
Digital Filter
..................................131
Digital Microscope Mode ...............65
Digital zoom ...................................59
Display brightness
....................... 160
Display language ......................... 155
Dividing movies ...........................143
D-Range Setting
............................ 87
Drive Mode ....................... 67, 69, 71
Dustproof .........................................8
E
EV Compensation ..........................86
Extract color filter
......................... 131
F
Face Detection ....................... 63, 89
File Name ....................................158
Filters ...........................................131
Fish-eye filter
...............................131
Flash Mode ....................................73
Flash Off a (Flash) ....................... 73
Flash On b (Flash)
....................... 73
Flash On + Red-eye d (Flash) ...... 73
Flower
............................................61
Fluorescent light
............................ 83
Fn Setting
...................................... 93
Focus Assist
.................................. 78
Focus Mode
...................................75
Focusing
........................................75
Folder display
.............................. 113
Folder Name
................................156
Food
..............................................62
Format
......................................... 148
Four-way controller
................. 43, 46
Frame rate
...................................102
G
Green button X ...................... 44, 46
Green button setting ......................92
Green Mode ...................................64
Guide Display
....................... 26, 163
H
HDMI ...........................................160
HDR Filter ....................................133
High Contrast filter .......................131
Highlight Correction
.......................87
Histogram ......................................27
Hometown ...................................153
I
Image Copy .................................145
Image Rotation
............................119
Image storage capacity ...............187
Image Tone ...................................78
Infinity s
.......................................75
Initial setting ...................................38
Ink Rubbing Filter ........................133
Installing a battery
.........................29
Instant Review ........................ 57, 91
Interval Movie ..............................104
Interval Shot
..................................66
IQ Enhancer ..................................96
L
Landscape .....................................61
Language setting .................. 38, 155
LED Lighting
....................... 165, 167
M
Mac ..............................................171
Macro q
........................................75
Macro Light
....................................97
Magnify y
...................................120
Manual Focus \
.................. 75, 76
Manual K (White Balance)
...........83
Memory
........................................108
3 button
......................... 44, 46
Miniature filter
..............................131
Movie button
......................... 44, 101
Movie Edit
....................................142
Movie Menu
.......................... 52, 181
Movie SR (Movie Shake Reduction)
Function .......................................103
MSC
.............................................168
Multi-segment metering L ...........84
e_kb635_EN.book Page 197 Thursday, November 9, 2023 9:17 AM
198
8
Appendix
N
Number of pixels ............................ 79
O
4 button .............................. 44, 46
Operating the menus .....................48
Original Frame .............................138
Outdoor View Stg.
.......................160
P
Pan Focus 3 ...............................75
Pet Mode ....................................... 65
Pixel Mapping .............................. 163
Pixel Track SR
............................... 88
Playback ............................. 110, 111
Playback Mode Palette ....... 116, 183
Playing back movies
.................... 111
Power button ....................36, 43, 45
Power Saving ..............................161
Press fully
(shutter release button)
.................56
Press halfway
(shutter release button)
.................56
Protect Z ..................................124
PTP ..............................................168
Q
Quality Level ..................................80
Quick Zoom
................................. 162
R
Rec. Mode Menu .................. 50, 180
Recorded Pixels ................... 79, 102
Recording movies ........................100
Red-eye Edit
................................137
Red-eye reduction cd (Flash)
.....73
Regarding waterproof, dustproof, and
shockproof design
...........................8
Remote control unit
.......................70
Report
............................................ 62
Reset
........................................... 165
Resetting settings
........................ 165
Resize
..........................................128
Retro filter
....................................131
Rotating
....................................... 119
S
Saturation ...................................... 95
Saving as still picture (movie)
...... 142
Saving pictures by date ...............156
Saving settings
............................108
SD Memory Card
...........................34
Select Time ..................................154
Self-portrait Assist .........................90
Self-timer g
...................................67
Sensitivity ......................................85
Setting Menu ........................ 52, 182
Shadow Correction
........................87
Sharpness .....................................95
Shooting information ......................21
Shooting mode
..............................60
Shutter release button ......43, 45, 56
Slideshow ....................................117
Small Face Filter
..........................130
Soft filter ......................................131
Sound settings .............................149
Sound types
.................................149
Specifications ..............................186
Standard = .................................75
Starburst filter
..............................131
Starting-up in playback mode ........37
Start-up screen ............................164
Startup Shortcut
...........................165
Strap ..............................................28
System requirements ...................170
T
Text Size ......................................155
Text Stamp
..................................141
Title picture of movie ...................144
Tone Adjustment ...........................95
Toy Camera filter
.........................131
U
Underwater Mode ..........................98
Underwater Movie Mode ...............98
Underwater shooting
.....................98
USB Connection
..........................168
W
Waterproof .....................................98
White Balance
...............................82
Wind Suppression
.......................104
Windows
......................................171
World Time
..................................153
Z
Zoom W/T ......................................57
e_kb635_EN.book Page 198 Thursday, November 9, 2023 9:17 AM
Memo
Thank you for purchasing this PENTAX WG-90 Digital Camera.
Please read this manual before using the camera in order to get the most out of
all the features and functions. Keep this manual safe, as it can be a valuable tool
in helping you to understand all the camera’s capabilities.
Regarding copyrights
Images taken with this digital camera that are for anything other than personal
enjoyment cannot be used without permission according to the rights as specified in
the Copyright Act. Please take care, as there are cases where limitations are placed on
taking pictures even for personal enjoyment during demonstrations, performances or
of items on display. Images taken with the purpose of obtaining copyrights also cannot
be used outside the scope of use of the copyright as laid out in the Copyright Act, and
care should be taken here also.
Regarding trademarks
• SDXC logo is a trademark of SD-3C, LLC.
• Microsoft and Windows are registered trademarks of Microsoft Corporation in
the United States of America and other countries.
• Mac, macOS and OS X are trademarks of Apple Inc., registered in the U.S. and
other countries.
• HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks
or registered trademarks of HDMI Licensing, LLC in the United States and/or
other countries.
• This product supports PRINT Image Matching III. PRINT Image Matching
enabled digital still cameras, printers and software help photographers to
produce images more faithful to their intentions. Some functions are not
available on printers that are not PRINT Image Matching III compliant.
Copyright 2001 Seiko Epson Corporation. All Rights Reserved.
PRINT Image Matching is a trademark of Seiko Epson Corporation. The PRINT
Image Matching logo is a trademark of Seiko Epson Corporation.
• This product is licensed under the AVC Patent Portfolio License for the personal
use of a consumer or other uses in which it does not receive remuneration to (i)
encode video in compliance with the AVC standard (“AVC video”) and/or (ii)
decode AVC video that was encoded by a consumer engaged in a personal
activity and/or was obtained from a video provider licensed to provide AVC
video. No license is granted or shall be implied for any other use.
Additional information may be obtained from MPEG LA, LLC.
See http://www.mpegla.com.
e_kb635_EN.book Page 2 Thursday, November 9, 2023 9:17 AM
To ensure the best performance from your camera, please read
the Operating Manual before using the camera.
Model:R07020
PENTAX WG
-
90
Digital Camera
Operating Manual
RICOH IMAGING COMPANY, LTD.
1-3-6, Nakamagome, Ohta-ku, Tokyo 143-8555, JAPAN
(https://www.ricoh-imaging.co.jp)
RICOH IMAGING EUROPE
S.A.S.
Parc Tertiaire SILIC 7-9, avenue Robert Schuman -
B.P. 70102, 94513 Rungis Cedex, FRANCE
(https://www.ricoh-imaging.eu)
RICOH IMAGING
AMERICAS CORPORATION
2 Gatehall Drive Suite 204, Parsippany, New Jersey
07054, U.S.A.
(https://www.us.ricoh-imaging.com)
RICOH IMAGING CANADA
INC.
5560 Explorer Drive Suite 100, Mississauga, Ontario,
L4W 5M3, CANADA
(https://www.ricoh-imaging.ca)
RICOH IMAGING CHINA
CO., LTD.
Room A 23F Lansheng Building, 2-8 Huaihaizhong
Road, Huangpu District, Shanghai, 200021, CHINA
(http://www.ricoh-imaging.com.cn)
https://www.ricoh-imaging.co.jp/english/
This contact information may change without notice.
Please check the latest information on our websites.
• Specifications and external dimensions are subject to change without notice.
Copyright © RICOH IMAGING COMPANY, LTD. 2023
R01BAK23
