INTEGRATED DISHWASHER
PLANNING GUIDE
24" Series 7 Integrated Dishwasher | DW24U2I3
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 290004894B PLANNING GUIDE SERIES 7 INTEGRATED DISHwASHER VERSION B - JULY 2025
CONCEPT DESIGN PAGE
DEVELOPED AND DETAILED DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
SPECIFICATION GUIDE
Product Features 4
Product Specifications 5
SUPPORT
For additional design planning and installation support please
contact the Fisher & Paykel design support team.
designsupport@fisherpaykel.com
CONTENTS | SERIES 7 INTEGRATED DISHWASHER
CONTENTS
INTRODUCTION
This comprehensive planning guide provides you with the
framework and tools to achieve your desired design outcome
with Fisher & Paykel appliances. In this guide, you will find a
range of conceptual, detailed, and dimensional product
information to bring your ideas to life and create spaces that
truly reflect your vision.
NOTES
The models shown in this Planning Guide may not be available
in all markets and are subject to change at any time. Refer to to
our website fisherpaykel.com for the latest document version.
Product specifications may vary from those shown.
This Planning Guide should not be used as installation guidance
for any product. Specific installation guidance will be available
with the product on delivery and on our website.
DW24U2I3
<< CONTENTS
PAGE 3© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE SERIES 7 INTEGRATED DISHwASHER VERSION B - JULY 202590004894B
SPECIFICATION GUIDE
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 490004894B PLANNING GUIDE SERIES 7 INTEGRATED DISHwASHER VERSION B - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
DW24U2I3
OVERVIEW
ADA-compliant for lower height installations, this integrated
model oers quiet performance and flexible loading for up to 16
place settings. At the end of the cycle, the door automatically
opens to release steam, while AirCurtain technology creates a
protective barrier to help shield surrounding cabinetry. With
simple installation, SmartHQ™ connectivity, and panel-ready
styling, it’s ideal for modern kitchens.
FEATURES
1 ADA-compliant design suited to lower bench heights and
accessible installations
2 Quiet operation supports open-plan and minimal kitchen
environments
3 Panel-ready design enables seamless integration with
surrounding cabinetry
4 Fits up to 16 place settings with flexible racks and third rack
configuration
5 Straightforward installation, with simple panel alignment and
specifications
6 Recognized as Energy Star Most Efficient
7 Adjustable middle rack and foldable, pitch-adjustable tines
for versatile loading
8 Auto door open at cycle end for steam release and efficient
drying
9 AirCurtain technology protects cabinetry by directing steam
away from the bench
"0 Wi-Fi enabled for remote monitoring and control via
SmartHQ™ app
PRODUCT FEATURES | SERIES 7 INTEGRATED DISHWASHER
PRODUCT OVERVIEW
Dw24U2I3
Series 7, Integrated Dishwasher
ACCESSORIES
ADDW24PX
Door panel for Integrated Dishwasher
AHD5-OBDD-60S
Contemporary Square Fine Handle, 24"
AHS-OBDD-60S
Contemporary Round Handle, 24"
AHP3-DWDD-SX
Professional Round Flush Handle Stainless Steel, 24"
AHP3DDDW24DC
Professional Round Flush Dark Copper Handle, 24"
AHP3DDDW24BA
Professional Round Flush P3 Brass Handle, 24"
AHCL-DDDW-24X
Classic Round Handle Kit, 24"
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 590004894B PLANNING GUIDE SERIES 7 INTEGRATED DISHwASHER VERSION B - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

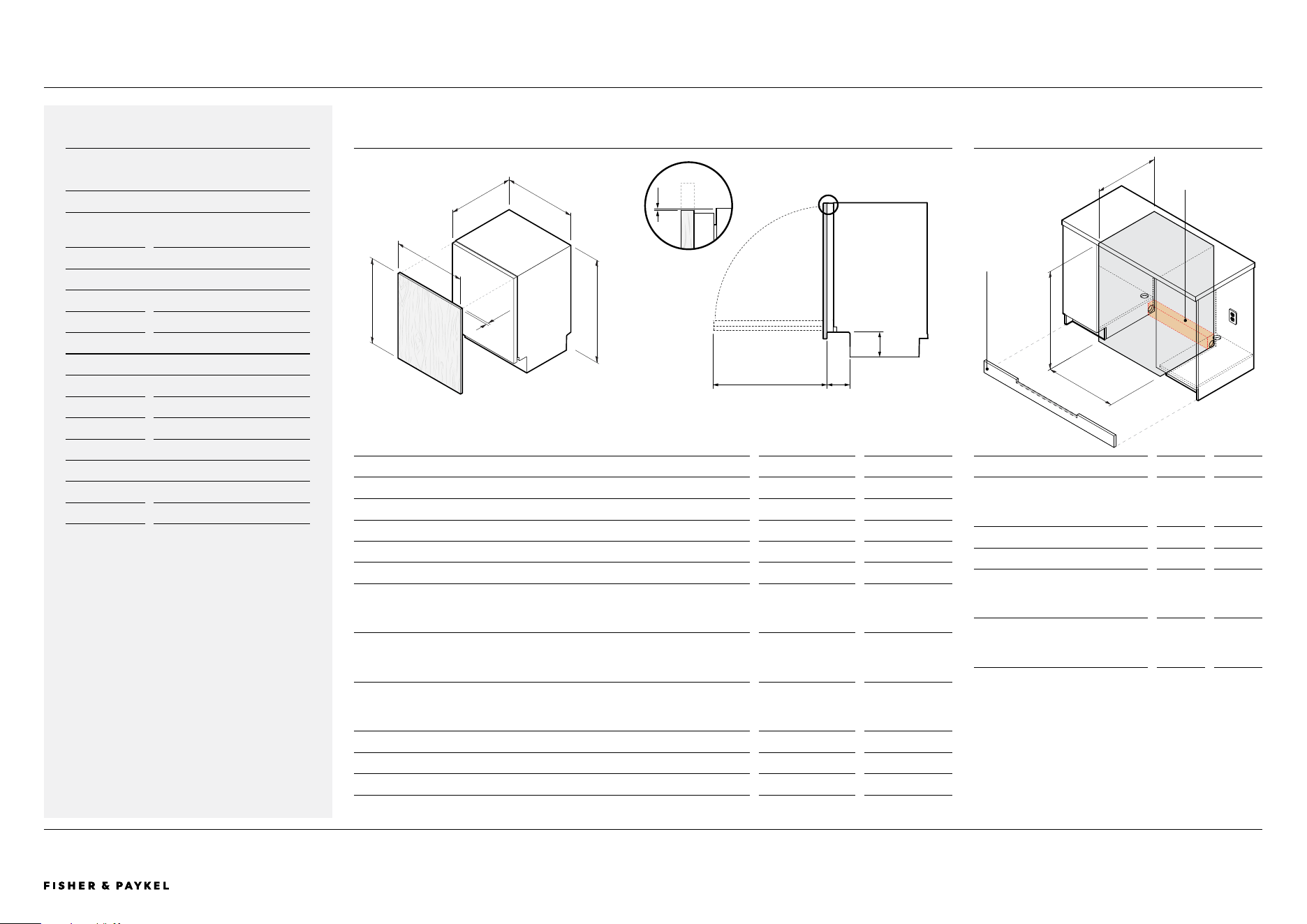

CABINETRY DIMENSIONS
Cabinetry Dimensions inch mm
A Height of cavity
- minimum
- maximum
32 3/8
34 5/8
822
879
B Minimum width of cavity 23 5/8 600
C Minimum depth of cavity* 22 1/16 560
Minimum clearance between
dishwasher front panel and
adjacent cabinetry
1/16 2
Supply area
- height
- depth
4
2
102
51
* excludes front panel
PRODUCT DIMENSIONS
Product Dimensions inch mm
A Height of dishwasher 32 3/8 - 34 5/8 822 - 879
B Width of dishwasher 23 1/2 597
C Depth of dishwasher* 22 13/16 554
D Depth of door opening* 25 3/16 639
E Height from top of chassis to top of custom panel or accessory panel** 1/8 3
F Height of door panel
- custom panel**
- accessory door panel (ADDW24PX)
26 11/16
28 1/4
680 - 754
717
G Width of door panel
- custom door panel minimum
- accessory door panel (ADDW24PX)
23 7/16
23 7/16
595
595
H Thickness of door panel
- custom panel
- accessory door panel (ADDW24PX)
5/8 - 1
3/4
16 - 25
19
I Depth of toe kick recess 4 9/16 116
J Height of toe kick recess 5 1/8 - 7 3/8 130 - 187
Maximum weight of custom door panel including handle 9 - 20 lb 4 - 9 kg
* excludes front panel and handle
** custom panel can be extended upwards in addition to stated dimension. Cabinetry clearances must be met.
DW24U2I3PRODUCT SPECIFICATIONS | SERIES 7 INTEGRATED DISHWASHER
ISOMETRIC VIEW
SPECIFICATIONS
Model Number
DW24U2I3 Series 7, Integrated
Dishwasher
Weight
Packaged 124 lb (56 kg)
Unpackaged 108 lb (49 kg)
Electrical
Supply 120 V, 60 Hz
Service 10 A
Connection No power cord supplied
Plumbing
Pressure 30 kPA - 1000 kPA
Connection 3/4" BSP inlet valve
Note: Electircal and Plumbing connections to
be made in adjacent cabinets either side of
dishwasher.
b
a
c
f
g
d
e
DETAIL 1
SIDE VIEW
1
h
I
j
ISOMETRIC VIEW
a
b
c
Supply area
Continuous toe
kick panel.
Cutout may be
required to
accomodate
door swing.
