CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
Illustrated Parts Manual
Form No. 769-07278
(August 31, 2011)
Front Tine & Rear Tine Tillers
Model FT24, RT 45 & RT 65
Thank you for purchasing a Cub Cadet Tiller. It was carefully
engineered to provide excellent performance when properly
operated and maintained.
All information in this manual is relative to the most recent
product information available at the time of printing. Please be
aware that this Illustrated Part’s Manual may cover a range of
product specifications for various models.
Components listed and/or illustrated in this manual may not be
applicable to all models. We reserve the right to change product
specifications, designs and equipment without notice and
without incurring obligation.
Throughout this manual, all references to right (RH) and left (LH)
are observed from the operating position.
Thank You
0637 Black
4021 Yellow (Cub Cadet)
0499 Beige (Cub Cadet)
0685 Blue (Cub Cadet)
0691 Black Jack (Cub Cadet Commercial)
To The Owner
2
Briggs Engine 12T102-0937-F8 ............................. 62
Engine Honda GC190LA ....................................... 22
Engine Model-170-T0B .......................................... 36
Engine Model-170-TU ............................................ 72
Engine Model-170-V0B .......................................... 44
Engine Model-170-VU ........................................... 82
Engine Model-270-V0 ............................................ 52
Engine Model-270-VU ........................................... 92
Model Series 300 ..................................................... 4
Model Series 400 ....................................................10
Model Series 450 ....................................................16
Table of Contents
Record Product Information
To ease in ordering replacement parts, please locate the model
plate on the equipment and record the information in the
provided area to the right. You can locate the model plate by
looking beneath the seat.
Model NuMber
Serial NuMber
Painted Parts
When ordering painted service parts, a four digit color suffix must be added to the part number (e.g. 783-XXXXX-0637).
Please refer to the table below for current color codes:
33
Page Left Blank Intentionally
44

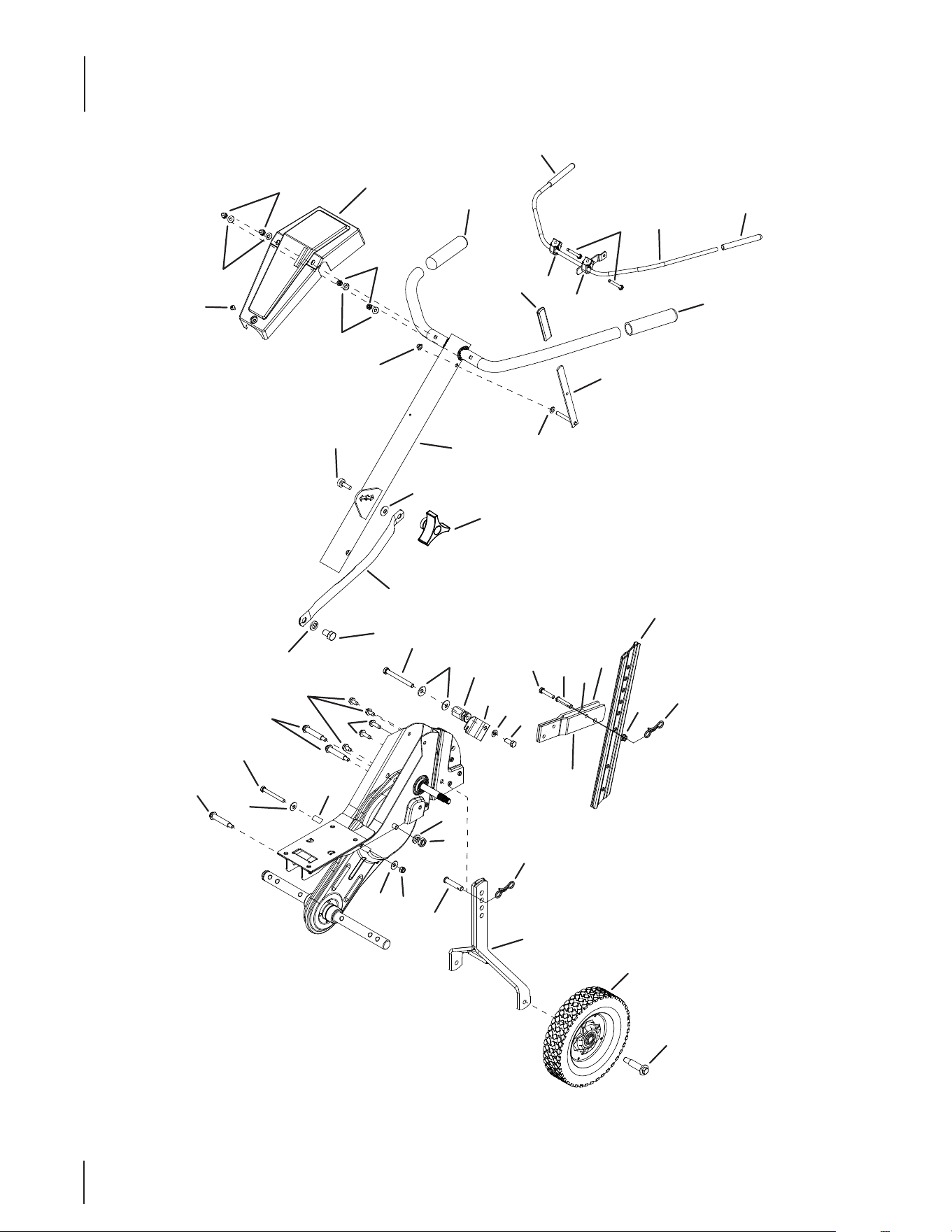

Model Series 300
1
2
4
5
7
2
8
6
3
10
11
9
10
6
14
15
16
36
47
17
19
18
27
28
29
32
30
31
26
25
45
24
23
20
22
21
34
33
35
37
40
28
35
38
39
28
41
21
25
42
43
44
13
12
46
55
Model Series 300
Ref. Part Number Description
1. 912-0442 Acorn Lock Nut, 1⁄4-20
2. 936-3020 Flat Washer, .271” x.630”
3. 720-0270A† Reverse Handle Grip
4. 731-1600 Handle Cover w/o throttle (390)
— 731-06253A Handle Cover (340)
5. 710-0779A Truss Machine Screw, #10 x 1⁄2”
6. 720-0274 Handle Grip
7. 712-3006 Hex Nut, 1⁄4-20 (390)
— 912-0298 Jam Nut, 1/4-20 (340)
8. 726-0135† Cap Speed Nut
9. 686-0083 Clutch Handle Assembly
10. 720-0269 Clutch Grip
11. 710-0641 Hex Bolt, 1⁄4-20 x 2.25”
12. 931-1645B Clutch Handle Holder
13. 936-0140 Flat Washer, .385” x .62”
14. 686-0014C† Reverse Handle Assembly
15. 936-0264† Flat Washer, .344” x .62”
16. 649-04040 Handle Assembly Complete
17. 749-1401A Handle Brace
18. 936-0921 Lock Washer, 1⁄2
19. 710 -3194 Hex Bolt, 1⁄2-20
20. 786-0005 Depth Bar
21. 714-04043 Cotter Pin, Bow Tie
22. 712-04063 Hex Flange L-Nut, 5⁄16-18
23. 786-0003 Tail Piece Bracket, Left
Ref. Part Number Description
24. 786-0004 Tail Piece Bracket, Right
25. 911- 0415 Clevis Pin
26. 710-0805 Hex Bolt, 5⁄16-18 x 1.5”
27. 710-0189 Hex Bolt, 5⁄16-18 x 3”
28. 736-0242 Bell Washer, .340” x .872”
29. 711-1036A Hex Nut
30. 936 - 0119 L-Washer, 5⁄16”
31. 710-3008 Hex Bolt, 5⁄16-18
32. 786 -0129 Cable Guide Bracket
33. 710-0604A Hex Washer Screw, 5⁄16-18 x .62”
34. 710-0602 Hex Washer TT-Tap Screw
35. 738-0934 Shoulder Bolt, 5⁄16-18
36. 720-0195 Hand Knob
37. 750-0470 Spacer
38. 936 - 0171 Lock Washer, 7⁄16
39. 912-0240 Jam Nut, 7⁄16-20
40. 710- 0176 Hex Bolt, 5⁄16-18 x 2.75”
41. 912-0429 Nylon Hex Nut, 5⁄16-18
42. 686-0081A Wheel Hanger Bracket Assembly
43. 734-04623 Wheel, 8 x 1.75
44. 738-0929 Shoulder Screw, .496 x 1.445
45. 750-0890 Spacer
46. 710 -1236 Carriage Bolt, 5⁄16-18 x 1
47. 736-0242 Bell Washer, .34”
† If Equipped
66

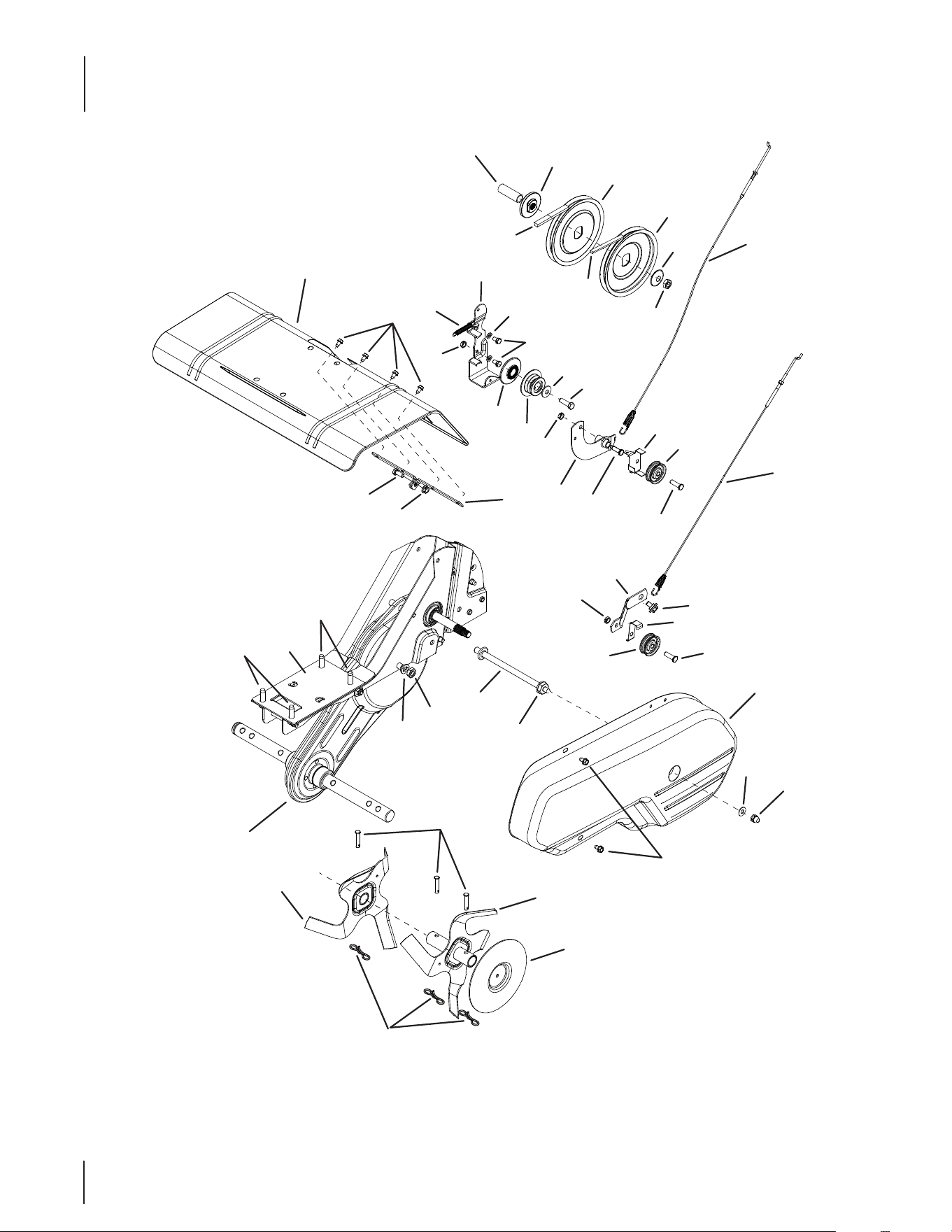

Model Series 390
23
24
22
42
43
25
26
21
20
36
7
6
44
35
10
34
33
32
31
30
29
28
27
10
3
12
13
5
39
37
37
38
14
40
41
4
46
9
10
45
8
6
7
11
2
1
3
17
18
15
16
19
22
77

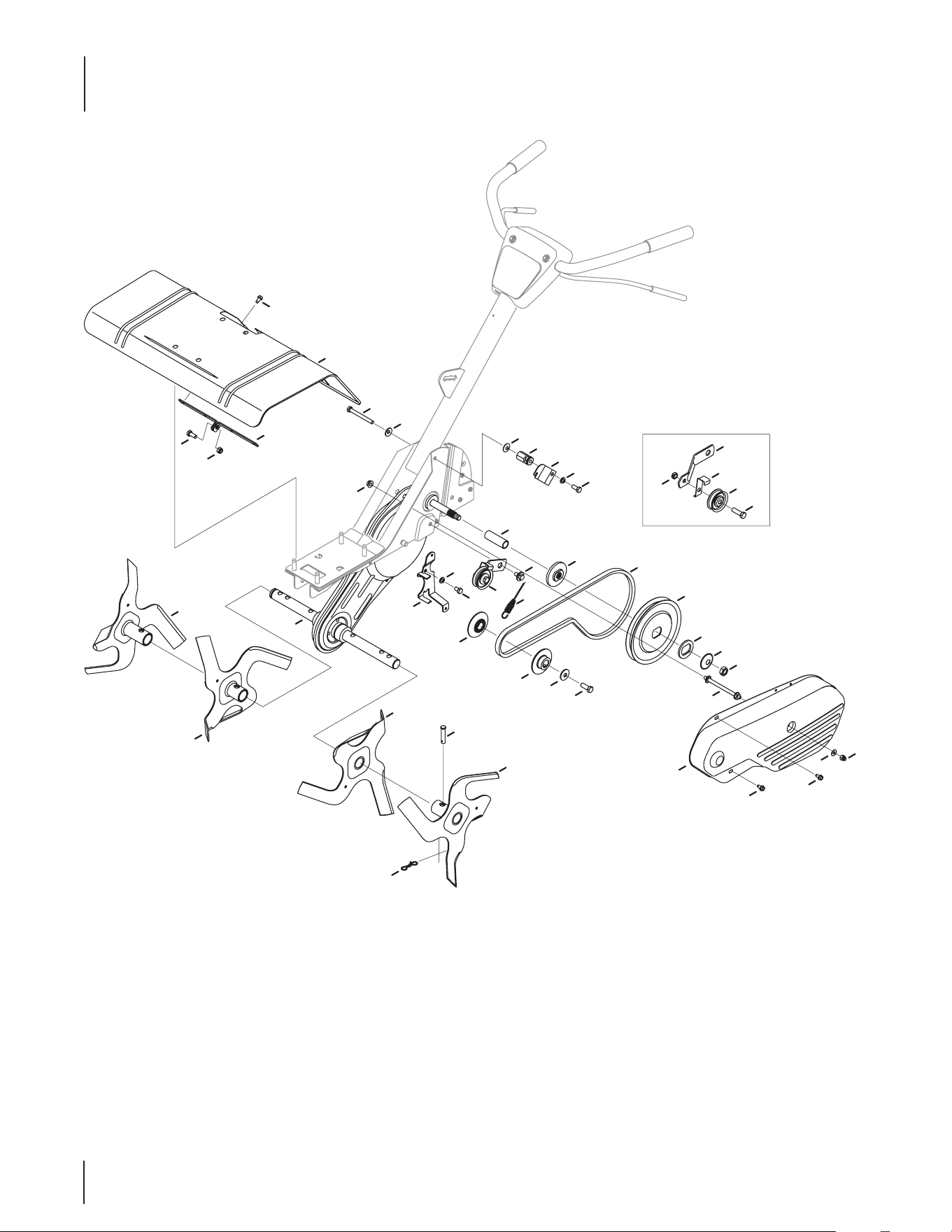

Ref. Part Number Description
1. 712-0392 Hex L-Stop Nut, 1⁄4-28
2. 936-3020 Flat Washer, 266” x .625”
3. 710-0599 Hex Washer TT-Tap Screw, 1⁄4-20 x .5”
4. 711- 0 920 Belt Cover Bolt
5. 712-04063 Hex Flange Top L-Nut, 5⁄16-18
6. 710-3005 Hex Head Screw, 3⁄8-16 x 1.25”
7. 756-0313 Flat Idler Pulley, 2.12”
8. 786-0149 Idler Belt Keeper
9. 786-0144 Idler Bracket
10. 712-0266A Hex Center Jam Nut, 3⁄8-16
11. 786-0057 Belt Cover w/ rev.
12. 786-0043A Tine Shield
13. 710-3008 Hex Head Cap Screw, 5⁄16-18 x .75”
14. 986-0091 Chain Case Assembly Complete
15. 686-0106 Outer Disc Plate Assembly
16. 714-04043 Cotter Pin, Bow Tie
17. 911- 0415 Clevis Pin
18. 642-0023 Outer Tine Assembly, LH,
— 642-0024 Outer Tine Assembly, RH
19. 642-0003 Inner Tine Assembly, Left
— 642-0002 Inner Tine Assembly, Right
20. 946-0918 Forward Clutch Cable
21. 946-0953 Reverse Clutch Cable
22. 756-0585 Flat Pulley, 6”
Ref. Part Number Description
23. 950-0892 Spacer, .64” x 2.4”
24. 948-0350 Pulley Mounting Adapter
25. 73 6 - 0112 Bell Washer, 525” x 1.5”
26. 712-3029 Hex Jam Nut, 1⁄2-20
27. 732-0697 Return Spring
28. 786-0040B Reverse Bracket
29. 936 - 0119 Lock Washer, 5⁄16
30. 710-0237 Hex Bolt, 5⁄16-24 x .625”
31. 756-0971 Engine Inner Pulley
32. 756-0600 Reverse Engine Pulley
33. 936-0452 Bell Washer, .396” x 1⁄14”
34. 710-1039 Hex Bolt, 3⁄8-24 x 1.00”
35. 686- 0013 Reverse Arm Assembly
36. 786- 0041 Reverse Belt Keeper
37. 710-0502A Hex L-Washer TT-Tap, 3⁄8-16 x 1.25”
38. 786-0145A Engine Plate
39. 786-0053 Tine Shield Bracket
40. 936- 0171 L-Washer, 7⁄16”
41. 912-0240 Hex Nut, 7⁄16-20
42. 954-0428 Forward Drive Belt, 1⁄2 x 41.9”
43. 954-0429 Reverse Drive Belt, 3⁄8 x 45.68”
44. 938-0102 Shoulder Screw, .498 x 1.445
45. 738-0930 Shoulder Screw, .560 x.165
46. 712-3004A Flangelock Nut, 5/16 - 18
Model Series 390
88
Model Series 340
17
20
29
29
24
41
28
15
34
28
13
35
33
43
42
25
36
23
19
32
19
21
38
7
39
31
22
9
14
8
8
40
37
6
5
3
2
4
30
27
26
12
10
18
8
1
16
15
11
99
Model Series 340
Ref. Part Number Description
1. 986-0091 Chain Case Assembly
2. 642-0002 Inner Tine Assembly, RH
3. 642-0003 Inner Tine Assembly, LH
4. 642-0004 Outer Tine Assembly, RH
5. 642-0005 Outer Tine Assembly, LH
6. 911- 0415 Clevis Pin, .375 x 1.75
7. 714-04043 Bow Tie Cotter Pin
8. 710-0599 Screw, 1⁄4-20 x 0.500
9. 711- 0919 Bolt, Belt Cover
10. 712-0392 Nut, 1/4-28, Lock
11. 712-3004A Nut, 5/16-18, Flange Lock
12. 936-3020 Flat Washer, .271 x .630 x .065
13. 738-0930 Shoulder Screw, .560 x .165 5/16-18
14. 786-0056 Belt Cover
15. 710-3008 Hex Head Screw, 5/16-18 x .75
16. 712- 04063 Nut, 5/16-18, Flange Lock
17. 786-0043A Tine Shield
18. 786-0053 Bracket, Tine Shield
19. 686-0088 Idler Bracket Assembly
20. 710-0189 Hex Head Screw, 5/16-18 x 3.00
21. 710-0237 Hex Head Screw, 5/16-24 x .625
22. 710-1039 Hex Head Screw, 3/8-24 x 1.00
Ref. Part Number Description
23. 710-3005 Hex Head Screw, 3/8-16 x 1.25
24. 711-1036A Hex Nut, 5/16-18
25. 712-0266A Jamlock Nut, 3/8-16
26. 712-3029 Nut, 1/2-20, Jam
27. 736 - 0112 Washer, .531 x 1.62 x .045
28. 936 - 0119 Lock Washer, 5/16
29. 736-0242 Bell Washer, .340 x .872 x .060
30. 736- 0312 Flat Washer, 1.26 x 1.87 x .150
31. 936-0452 Bell Washer, .396 x 1.140 x .095
32. 946-0918 Forward Clutch Cable
33. 948-0350 Pulley Adaptor
34. 950-0892 Spacer, .64 ID x 2.4
35. 954-0428 Belt, 4L x 41.9 LG
36. 756- 0313 Pulley 1.88 OD
37. 756-0585 Pulley 6.00 OD
38. 756-0971 Inner Engine Pulley
39. 756-0972 Outer Engine Pulley
40. 786-0039B Belt Keeper Bracket
41. 786- 0129 Cable Guide Bracket
42. 786-0144 Idler Bracket
43. 786-0149 Belt Keeper
1010

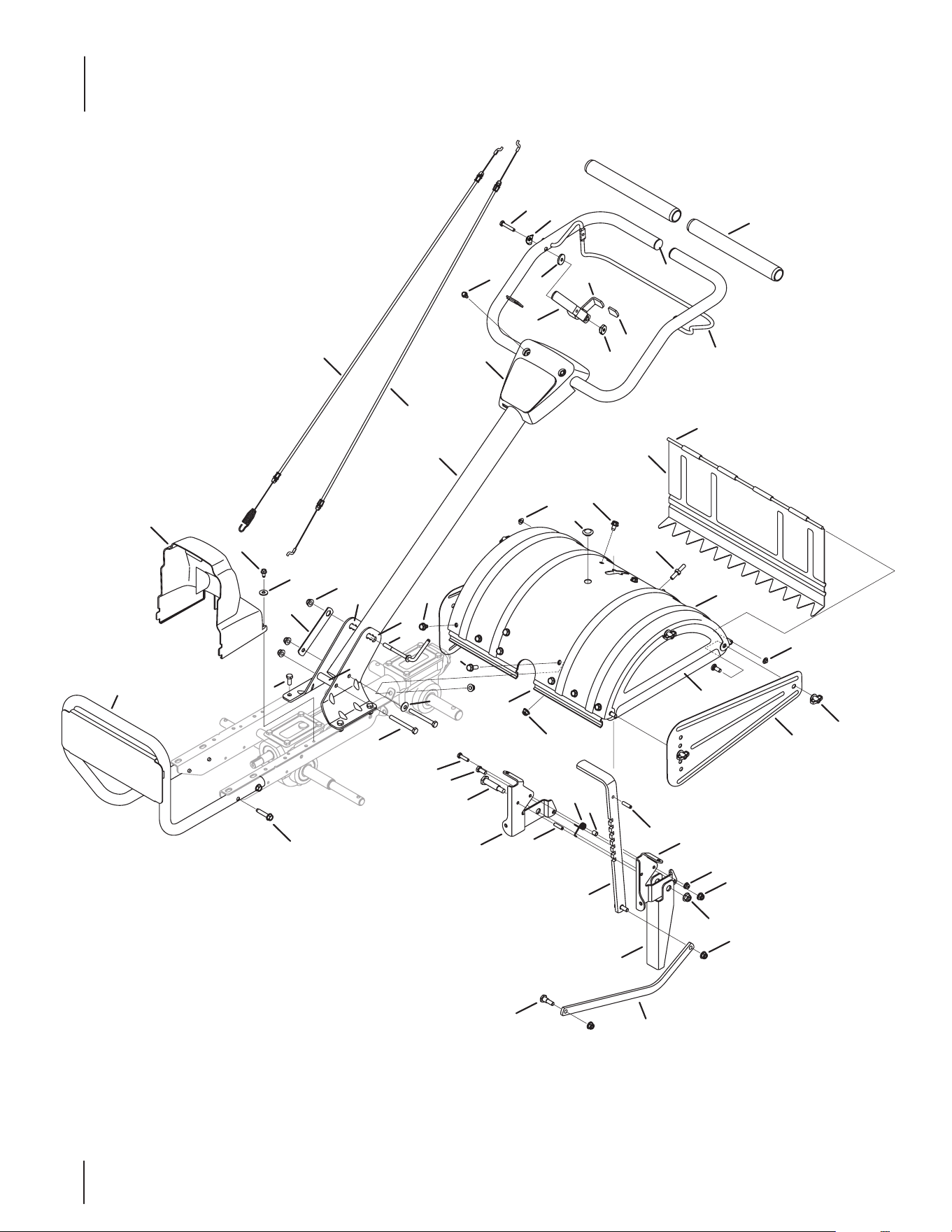

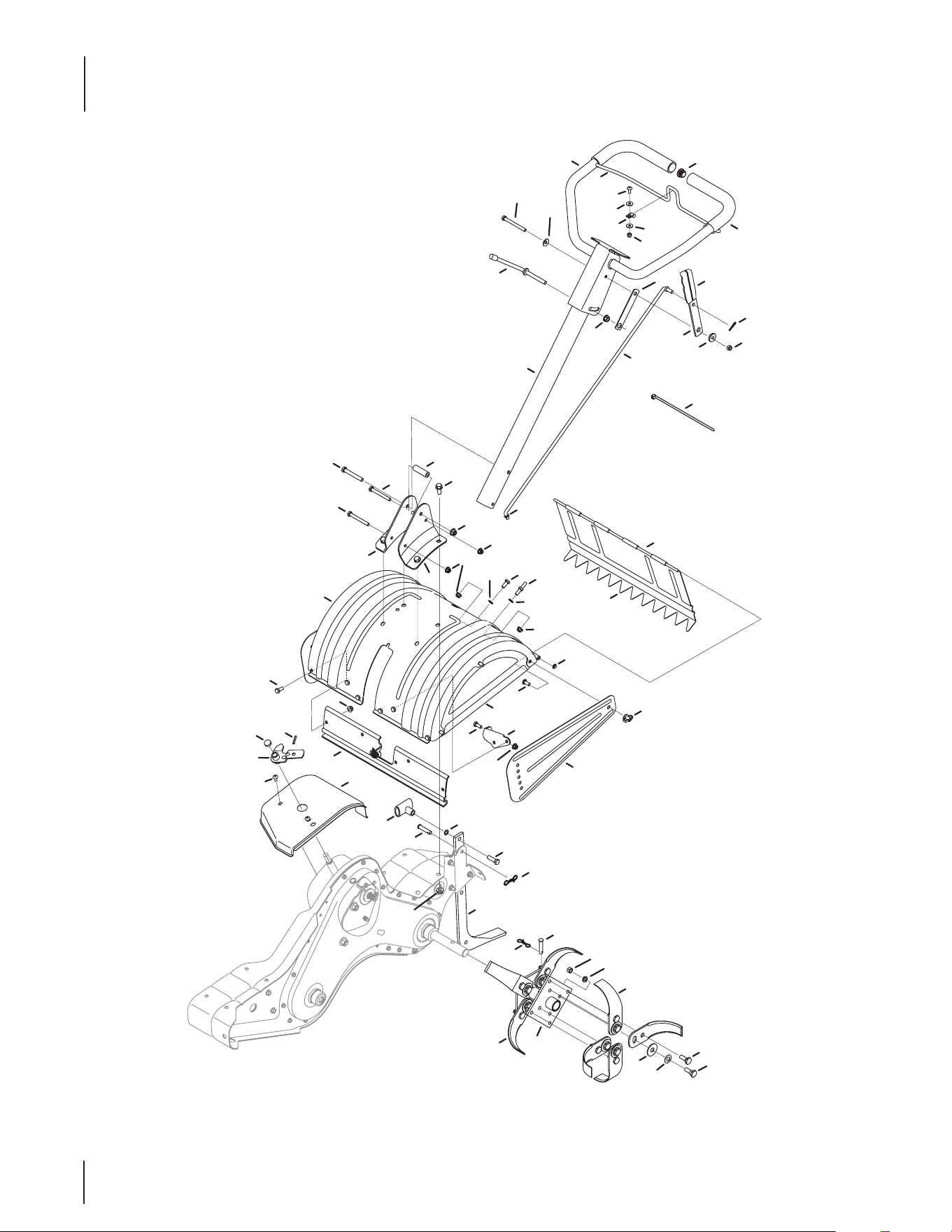

Model Series 400
50
11
6
3
20
28
38
39
35
31
29
16
12
24
11
17
33
32
34
7
6
8
10
13
36
40
22
18
10
14
21
25
26
27
15
30
41
42
44
43
45
48
37
4
23
9
47
31
19
6
6
1
2
5
4
3
53
52
49
51
46
1111

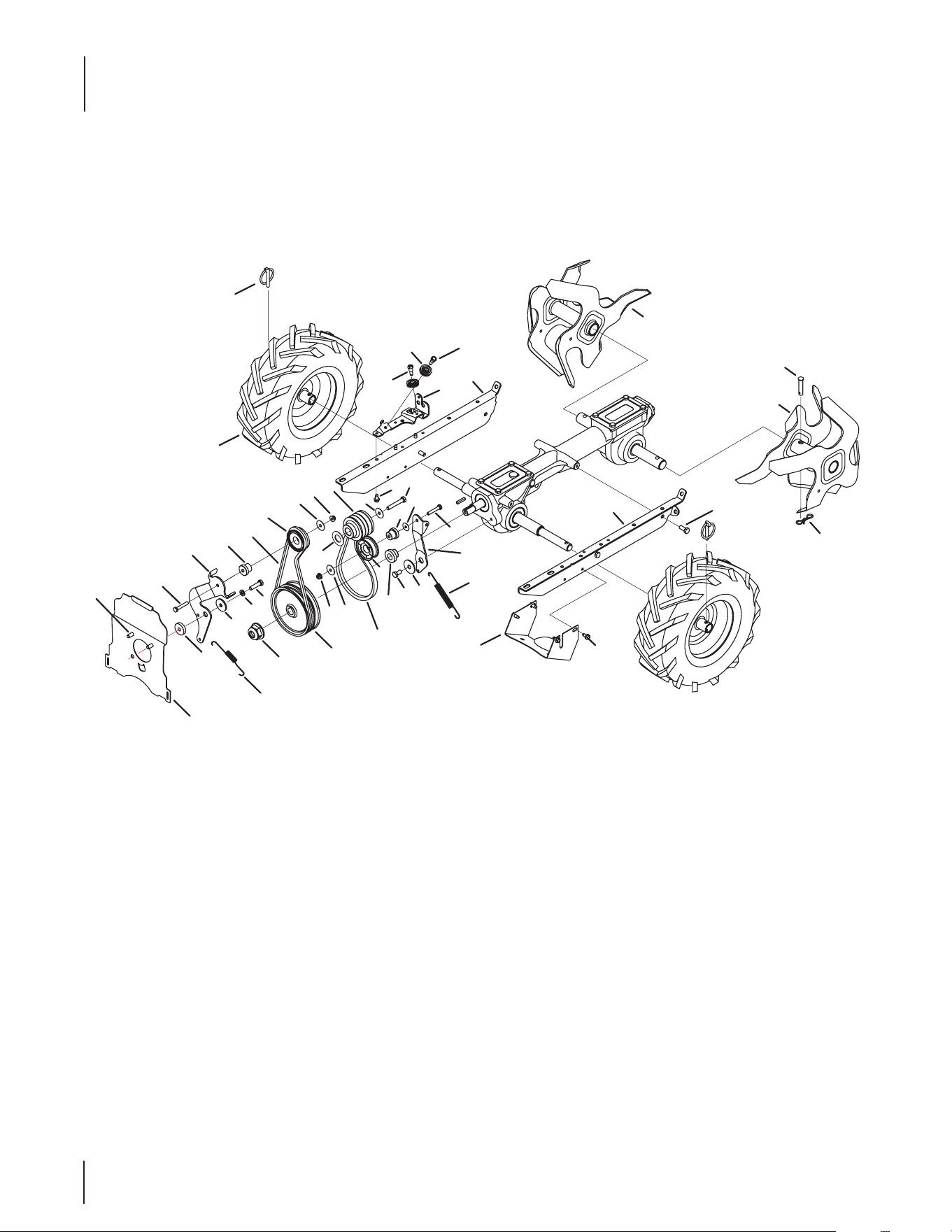

Model Series 400
Ref. Part Number Description
1. 686-0044B End Cover Assembly
2. 710-0597 Hex Head Screw, 1⁄4-20 x 1
3. 710-0604A Hex Head Screw, 5⁄16-18 x .625
4. 710 -1238 Hex Head Screw, 5⁄16-18 x .875
5. 710-3008 Hex Head Screw, 5⁄16-18 x .75
6. 712-04063 Nylon Hex Lock Nut, 5⁄16-18
7. 712-04064 Nylon Hex Lock Nut, 1⁄4-20
8. 712-04065 Flange Lock Nut, 3⁄8-16
9. 712-0421 Wing Nut, 5⁄16-18
10. 715-0108 Spirol Pin
11. 926-0106 Cap Nut, 1⁄4 Rod
12. 731- 05512 Hole Plug
13. 732-04320 Torsion Spring
14. 738-04320 Shoulder Screw, .405 x .435 5⁄16-18
15. 938-0533 Shoulder Screw, .498 x 1.635
16. 938-0849 Stop Screw
17. 747-0432 Tiller Flap Rod
18. 750-05349 Spacer
19.. 786-0090A Side Shield
20. 78 6 - 0113A Rear Tine Shield
21. 786-04092 Reverse Stop Arm
22. 786-04104 Drag Bar
23. 786-04352A Tine Shield Mounting Bracket
24. 786-04355A Tine Shield
25. 786-04356 Adjustable Depth Bar
26. 786-04363 Tail Bracket, LH
27. 786-04364 Tail Bracket, RH
Ref. Part Number Description
28. 649-04098 Upper Handle Assembly
29. 686-04135 Reverse Handle Assembly
30. 710-0189 Hex Head Screw, 5⁄16-18 x 3.00
31. 710-0599 Self-Tapping Screw, 1⁄4-20 x 1⁄2
32. 731-04735 Handle Select
33. 720-0278A Foam Handle Grip
34. 710-3288 Hex Head Screw, 1⁄4-20 x 1.62
35. 731-06253A Handle Cover
36. 735-04105 Plug End
37. 736-0242 Bell Washer, .340 x .872 x .060
38. 946-04504 Reverse Cable
39. 946-04506 Forward Cable
40. 747-04789 Clutch Bail
41. 750-0885A Spacer, .322 x .625 x 2.00
42. 786-0340B Handle Crank
43. 786-04344 Handle Bracket, RH
44. 786-04345 Handle Bracket, LH
45. 786-04358 Retainer Nut Bracket
46. 686- 04144 Front Bumper
47. 731-06529 Belt Cover
48. 736-0173 Flat Washer, .28 x .74 x .063
49. 738-0440 Spacer, .375 x .165
50. 710-04605 Hex Head Screw, 5⁄16-18 x 1.50
51. 720-04173 Reverse Handle Grip
52. 936- 0176 Flat Washer, .265 x .938 x .120
53. 936-0451 Saddle Washer, .320 x .930 x .060
1212
Model Series 400
39
37
12
15
25
24
3
7
2
1
4
5
3
6
6
7
8
9
11
11
13
9
14
16
17
19
20
21
21
22
22
23
24
26
27
28
29
30
31
3
2
33
34
35
36
18
38
40
10
1313
Model Series 400
Ref. Part Number Description
1. 634-04736 Complete Whl. Ass., 13 x 5 x 6
634-04735 Rim, 6.0 X 3.25
734-04163A Tire, 13 x 5 x 6
2. 714-0143A Klik Pin
3. 684-04168 Idler Pulley Assembly
4. 710-0331 Hex Head Screw, 3⁄8-24 x 2.25
5. 710 - 0170 Hex Head Screw, 5⁄16-24 x .625
6. 710-0599 Self Tapping Screw, 1⁄4-20 x .500
7. 710-0606 Hex Head Screw, 1⁄4-20 x 1.50
8. 710-0672 Hex Head Screw, 5⁄16-18 x 1.25
9. 710-1880 Hex Head Screw, 5⁄16-18 x .75, Patch
10. 736- 0315 Washer, Flat, .760 x 1.50 x .120
11. 712-04064 Nylon Hex Lock Nut, 1⁄4-20
12. 712- 0700 Nut, 9/16-18, Flange Lock
13. 718-04407 Hub, 5⁄8 Spline
14. 732-04085 Extension Spring, .480 OD X 5.00 LG
15. 732-04276A Extension Spring, LT5 PTO
16. 936 - 0119 Lock Washer, 5⁄16
17. 736-0173 Washer, .28 x .74 x .063
18. 714-04043 Cotter Pin, Bow Tie
19. 736-0343 Flat Washer, .330 X 1.25 X .120
Ref. Part Number Description
20. 936-0452 Bell Washer, .396 x 1.140 x .095
21. 736-3092 Flat Washer, .265 x 1.0 x .030
22. 738-04425 Shoulder Screw, .342 x .335 1⁄4-28
23. 748-04087A Pivot Idler Spacer
24. 750-04571 Shoulder Spacer, .260 x .785 x .538
25. 750-04907 Pivot Idler Spacer
26. 1916657 V-Belt, 4L x 25.375 Long
27. 1916658 V-Belt, 3L x 29.125 Long
28. 756-04198A Engine Pulley
29. 756-04355 Transmission Pulley
30. 756-0625 Cable Roller
31. 786-04312 Idler Bracket, Forward
32. 786-04343 Cover Plate
33. 786-04346 Idler Bracket, Reverse
34. 786-04416A Mounting Frame, RH
35. 786-04415B Mounting Frame, LH
36. 786-04357 Pulley Bracket
37. 786-04371 Pulley Shield
38. 642-04071 Tine Assembly, LH
39. 642-04072 Tine Assembly, RH
40. 911- 0 415 Clevis Pin, .375 x 1.75
1414
Model Series 400
1
2
2
2
2
2
3
4
5
6
6
7
7
7
7
8
9
10
11
12
13
13
14
14
14
14
15
16
17
18
18
18
18
19
19
20
20
21
21
21
21
22
23
1515
Model Series 400

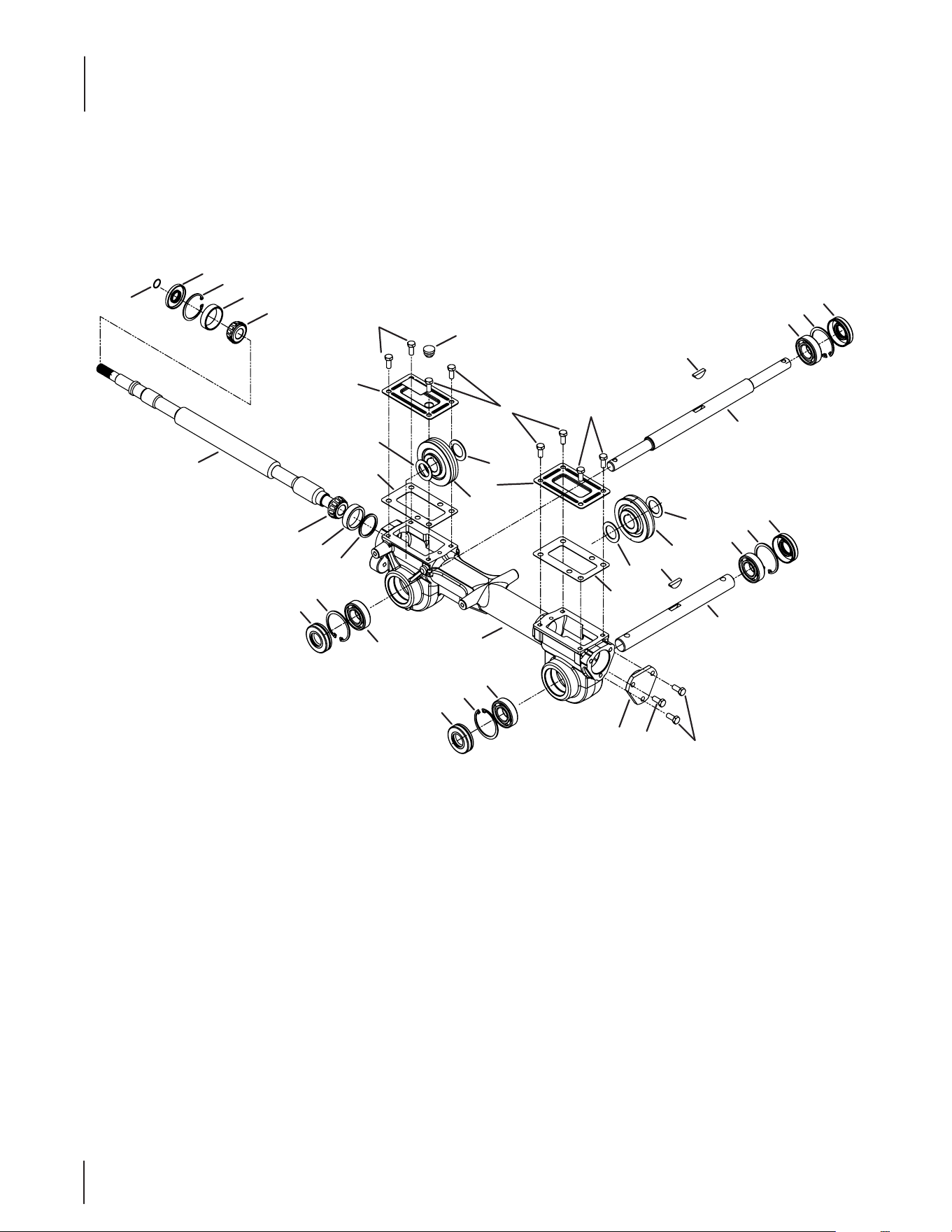

Ref. Part Number Description
918-04815A Transmission Assembly
1. 919-04184A Housing, Transmission
2. 710-3008 Hex Screw, 5/16-18, .75, Gr5
3. 911- 0 4 8 4 4 Shaft, Tiller
4. 911- 0 4854 Shaft, Wheel
5. 911-05028 Shaft, Worm
6. 714-04059 Key, Hi Pro .25 x 1.062
7. 716-0204 Retaining Ring
8. 716-04102 Retaining Ring, Int
9. 917-04380 Worm Gear, 61t, RH
10. 917-04381 Worm Gear, 30t, LH
11. 918-04435 Bearing Cover
12. 921-04030 Seal, Oil, .750 Shaft x 1.783 Bore
13. 921-04229 Gasket, Gear Housing
14. 721-04232 Seal, Oil, 1.00 Shaft x 2.00 Bore
15. 721-04271 Rubber Plug, Oil
16. 732- 0614 Wire Ring
17. 736-04305 Washer, Flat, 1.50 x 1.75 x .062
— 736-04306 Washer, Flat, 1.50 x 1.75 x .005
— 736-04307 Washer, Flat, 1.50 x 1.75 x .03
— 736-04308 Washer, Flat, 1.50 x 1.75 x .010
18. 736-0745 Washer, Flat, 1.010 x 1.56 x .060
19. 941-04298 Cone Bearing
20. 941-04299 Bearing Cup
21. 741-3114 Ball Bearing
22. 786-04366 Cover, Transmission
23. 786-04392 Cover, Transmission
* — The at washers listed are used as required to obtain .005 to
.015 in allowable end play on the drive shaft.
1616
Model Series 450
13
1
38
2
3
32
46
34
31
30
42
29
45
20
8
17
28
16
14
30
41
33
35
34
40
37
31
47
18
5
60
25
34
36
31
38
39
34
34
10
6
19
22
4
20
15
23
9
21
43
44
12
7
35
48
11
26
52
49
51
50
55
56
64
59
57
58
61
54
62
60
53
24
27
63
1717
Model Series 450
Ref.
Part Number Description
1. 747-1152 Shaft Rod
2. 649-0034 Lower Handle Tube Assembly
3. 649 - 0041 Upper Handle Assembly
4. 710-0946 Screw, 1/4-20 x 0.625
5. 710-3005 Hex Head Screw, 3/8-16:1.25
6. 710-3056 Hex Head Screw, 5/16-18 x 3.25
7. 911- 0 415 Clevis Pin, .375 X 1.75
8. 712-0324 Hexlock Nut, 1/4-20
9. 712- 0379 Flangelock Nut, 3/8-24
10. 912- 0429 Hexlock Nut, 5/16-18
11. 710 -1307 Stud, 5/16-18 x .75
12. 720-0210A Small Tee Knob
13. 720-0278A Foam Grip, .970 x 11.0
14. 720-0313 Grip, .1875 x 1.00
15. 726-0273 Battery Clamp, 5/16
16. 726- 0317 Cable Tie, 8.5 LG
17. 735-0246A End Plug
18. 936 - 0117 Washer, Flat, .385 x .620 x .033
19. 736-0242 Washer, Bell, .340 x .872 x .060
20. 736-3090 Washer, Flat, .260 x .720 x .060
21. 938-0958 Spacer, Shoulder, .50 x .190 x .360
22. 747-1219 Clutch Bail
23. 784-0190 Handle Adjustment Crank
24. 784-0191 Hex Nut Retainer Bracket
25. 786- 0120 Tiller Depth Control
26. 786-0181 Shaft Rod Lever
27. 735-0127 Washer, Rubber, .33 ID x .125
28. 914-0104 Cotter Pin, .072 x 1.12 LG
29. 686-0044B End Cover Assembly
30. 710 -0176 Hex Head Screw, 5/16-18 x 2.75
31. 710-3008 Hex Head Screw, 5/16-18 x .75
32. 710-3022 Hex Head Screw, 3/8-16 x 2.75
Ref.
Part Number Description
33. 710-04482 Hex Head Flange, 3/8-16 x .875
34. 712- 04063 Flangelock Nut, 5/16-18
35. 712- 04065 Flangelock Nut, 3/8-16
36. 712-0421 Wing Nut, 5/16-18 W/ Bell Washer
37. 926-0106 Speed Nut Cap, 1/4 ROD
38. 736-0204 Washer, Flat, .344 x .62 x .033
39. 938-0849 Screw, Hex, 5/16-18 x .75
40. 747- 0432 Tiller Flap Rod
41. 750-0885A Spacer, .322 x .625 x 2.00
42. 786-0090A Side Shield
43. 78 6 - 0113A Rear Tine Shield
44. 786 - 0176 RH Handle Mount Bracket
45. 786- 0177 LH Handle Mount Bracket
46. 786-0178A Tine Shield
47. 786-0179 FRT Tine Shield Bracket
48. 786-0180 FRT Tine Shield Spacer Bracket
49. 686-0109A Shift Crank Assembly
50. 710-1652 Screw, 1⁄4-20 x .625
51. 715- 0120 Spiral Pin, 3⁄16 x 1.0
52. 784-0208D Shift Cover
53. 911- 0 415 Clevis Pin
54. 712-3054 Hex Nut, 3⁄8-24
55. 742- 0305A 13” Articulating Tine
56. 938-0689 Shoulder Bolt
57. 936-0253 Bell Washer, .515” ID x 1.14” OD
58. 938-0688 Shoulder Bolt
59. 784-0160 Tine Adapter Assembly, 18”
60. 714-04043 Internal Cotter Pin
61. 936-0169 Lock Washer
62. 784-0161 Tine Adapter Plate
63. 731-07556 Cap
64. 936-0208 Washer, Flat, .51 x 1.5 x .07
1818
Model Series 450
27
9
26
4
35
36
37
34
32
33
33
29
32
3
30
41
6
39
31
24
13
7
21
20
5
16
22
23
2
14
8
25
28
10
17
1
18
Wheel shaft shown
for reference only.
40
38
42
12
11
15
6
19

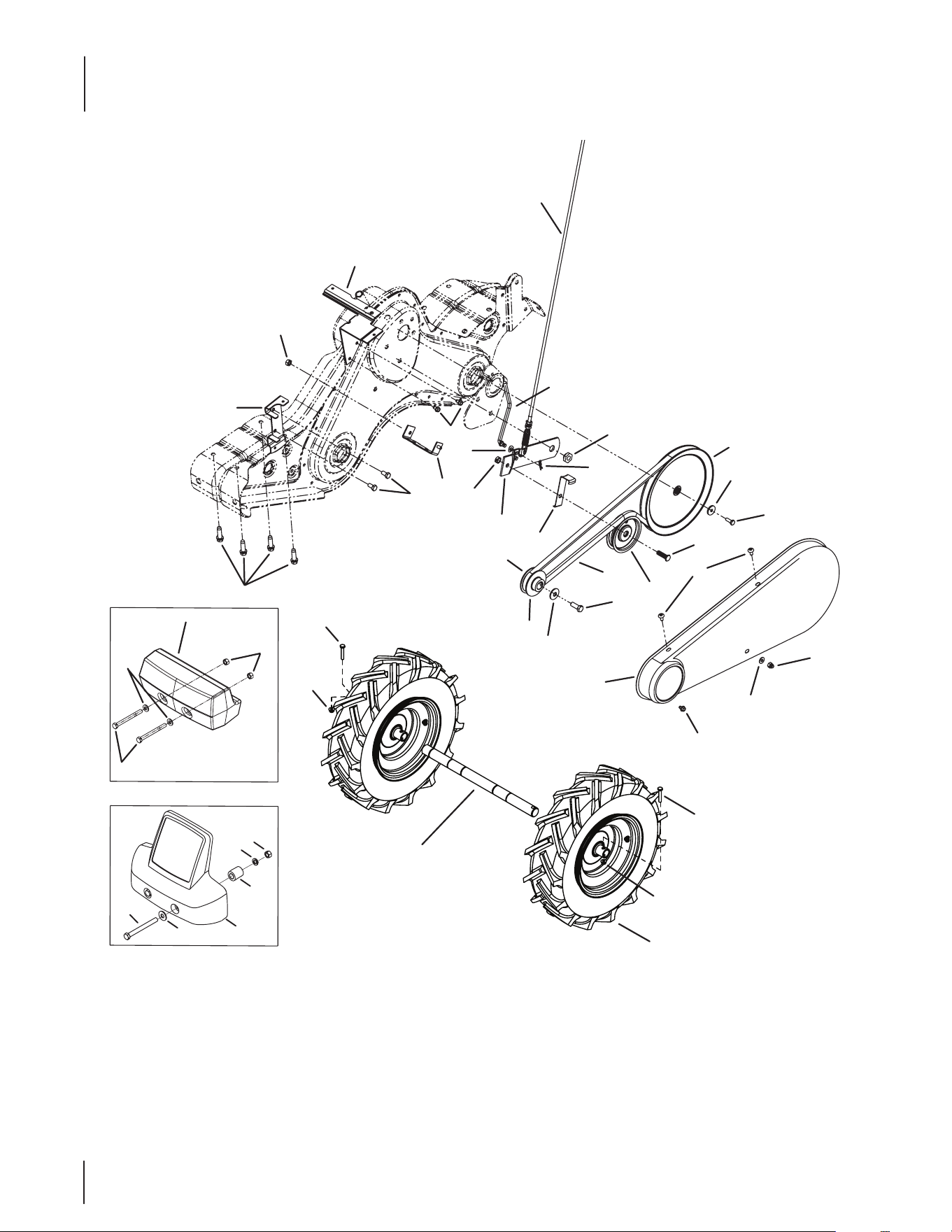

1919
Model Series 450
Ref.
Part Number Description
1. 6 8 6 - 0111 Belt Cover Bracket Assembly
2. 710 - 0170 Hex Bolt, 5⁄16-24 x .625
3. 710-0513 Hex Bolt, 1⁄4-28 x .75”
4. 710-0520 Hex Washer Screw, 3⁄8-16 x 1.50”
5. 710-1039 Hex Bolt, 3⁄8-24 x 1.0
6. 710-1652 Hex Washer Screw
7. 710-3005 Hex Cap Screw, 3⁄8-16 x 1.25
8. 712-0266A Lock Jam Nut, 3⁄8-16
9. 712- 04063 Flangelock Nut, 5/16-18
10. 914-0104 Internal Cotter Pin
11. 912-3066 Hex Nut, 1/2-20
12. 936-0921 Washer, Lock, 1/2
13. 936 - 0176 Flat Washer, .25 ID x .93 OD
14. 936-0271 Spring Washer, .317 ID x .625 OD
15. 750-0194 Hub, .636 ID x 1.00 OD x .94
16. 936-0452 Bell Washer, .396 ID x 1.14 OD
17. 738-0876A Shoulder Nut, 7⁄16-20
18. 94 6 -1117 Clutch Cable
19. 747-1159 Idler Pulley Rod
20. 954-0434 V-Belt
21. 756-0405 Flat Idler w/ Flange, 3.75 OD
Ref.
Part Number Description
22. 756-0971 Outer Engine Pulley Half
23. 756-0972 Inner Engine Pulley Half
24. 756 -1162 Input Pulley
25. 786-0064A Idler Bracket
26. 786-0185A Belt Keeper Bracket
27. 786-0187 Shift Cover Bracket
28. 786-0193 Idler Belt Keeper
29. 934-04365A Wheel Assembly, 16.0 x 4.6 x 8
30. 936-3020 Flat Washer, .271 ID x .630 OD
31. 784-0158A Belt Cover
32. 710-0606 Hex Head Screw, 1⁄4-20
33. 712- 04064 Flange Lock Nut, 1⁄4-20
34. 710-0382 Hex Bolt, 1⁄2-13 x 5.0
35. 712- 04150 Flange Lock Nut, 1⁄2-13
36. 723-0381† Counterweight, 40 lbs.
37. 936-0326 Flat Washer
38. 936 - 0179 Washer, Flat, 1/2 x 1.25 x .100
39. 710-0653 Hex Screw, 1⁄4-20 x .375
40. 731-1595† Counterweight
41. 712-0392 Lock Nut
42. 710-0506 Hex Head Screw, 1/2-13 x 5.50
† If Equipped
2020
Model Series 450
20
3
28
19
46
16
34
35
16
37
16
37
29
10
11
11
50
38
24
38
2
33
51
45
27
15
48
42
12
28
31
41
47
18
38
5
38
21
36
36
4
43
8
26
9
25
39
22
7
23
44
37
40
30
37
16
16
38
46
33
1
38
6
14
47
49
32
17
13
29
12

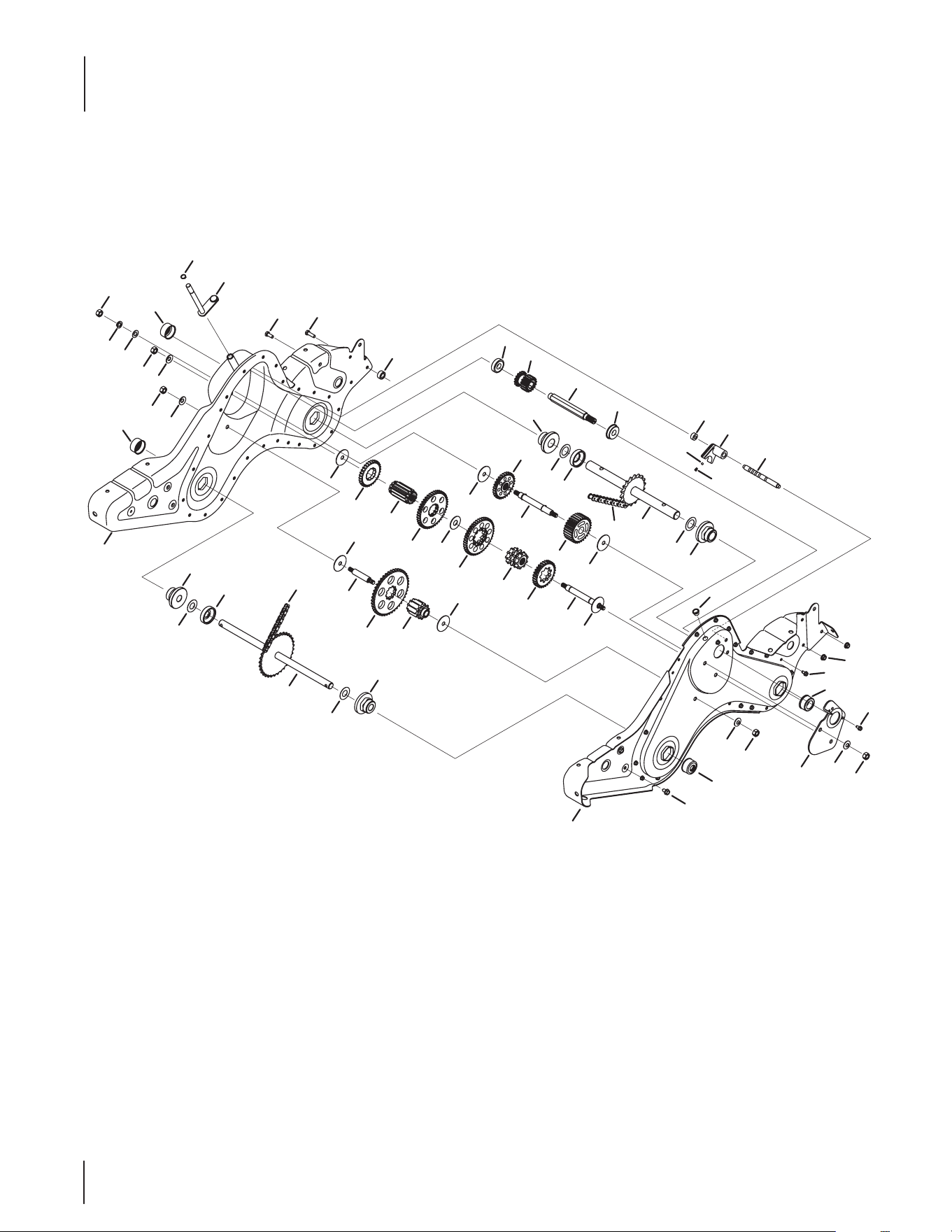

2121
Model Series 450
Ref.
Part Number Description
1. 611- 0021 Shaft Assembly, Tine, 18T
2. 611- 0128 Shaft Assembly, Jack
3. 611- 0129 Shaft Assembly, Shift Input
4. 611- 04 074A Shaft Assembly, Wheel, 33T
5. 617-0058 Gear Assembly, 30T Reverse Idler
6. 617-0059 Gear Assembly, 30T Tine Idler
7. 617-0060 Sprocket Assembly, 9T Tine Input
8. 617-0061 Sprocket Assembly, 10T Whl Input
9. 617- 0062 Gear Assembly, 11T
10. 686-0108A RH Chain Case Housing Assembly
11. 710-0376 Hex Head Screw, 5/16-18 x 1.00
12. 710-1652 Screw, 1/4-20 x 0.625
13. 710-04484 Screw, :5/16-18 x 0.75
14. 750-0664 Spacer, .505 ID x .88 OD x .440
15. 711-13 49A Input Shaft, .75
16. 712-0378 Nut, Hex, 7/16-20
17. 712-04063 Nut, Flangelock, 5/16-18
18. 913-0367 Endless Chain, #420 x 50 Links
19. 913- 0484 Endless Chain, #50 x 54 Links
20. 716-0865 Snap Ring, .500
21. 717- 0853A Clutch Collar
22. 717-1582A Gear Spur, 44T
23. 717-1583 Gear Spur, 30T
24. 717-1584 Gear Spur, 30T
25. 717-1585 Gear Spur, 44T
26. 717-1587 Gear Spur, 44T
Ref.
Part Number Description
27. 717-1594 Gear Spur, 16T
28. 921-0378 Shaft Seal, 1.0
29. 721-0379 Shaft Seal, .75
30. 786-0238 Positioner Gear Bracket
31. 726-0277 Tapered Cap Plug
32. 732-04778 Compression Spring, .230 OD
33. 936-0163 Washer, Flat, 1.03 x 1.62 x .03
34. 936 - 0171 Washer, Lock, 7/16
35. 936-0226 Washer, Flat,.474 x .879 x .064
36. 936-0351 Washer, Flat, .760 ID x 1.50 OD
37. 736-0407 Washer, Bell,.45 x 1.00 x .062
38. 736-0518 Washer, Thrust, .445 x 1.92 x .060
39. 736-3088 Washer, Flat,1.595 x .635 x .062
40. 686 - 04129 LH Chain Case Housing
41. 950-0671 Spacer, .75 x 2.0 x .50
42. 738-0645 Shaft Detent, .5 DIA
43. 738-0648 Shaft, Jack, .625 x 2.385
44. 738-04424A Shaft, Jack, .6250 x 5.0050
45. 941-0600 Ball Bearing, 17 x 40 x 12:6203
46. 941-0420 Flange Bearing, 1.0 x 2.5 x 1.38
47. 741-0421 Flange Bearing, .75 x 2.5 x 1.38
48. 941- 0563 Ball Bearing, 17 x 40 x 12:6203
49. 741-0862 Ball, Detent, .250
50. 750-0258 Spacer, .315 x .750 x .375 LG
51. 950-0570 Spacer, 1.0 ID x 2.0 OD x.5 LG
— 986 - 04074B Gear Case Assembly Complete
22

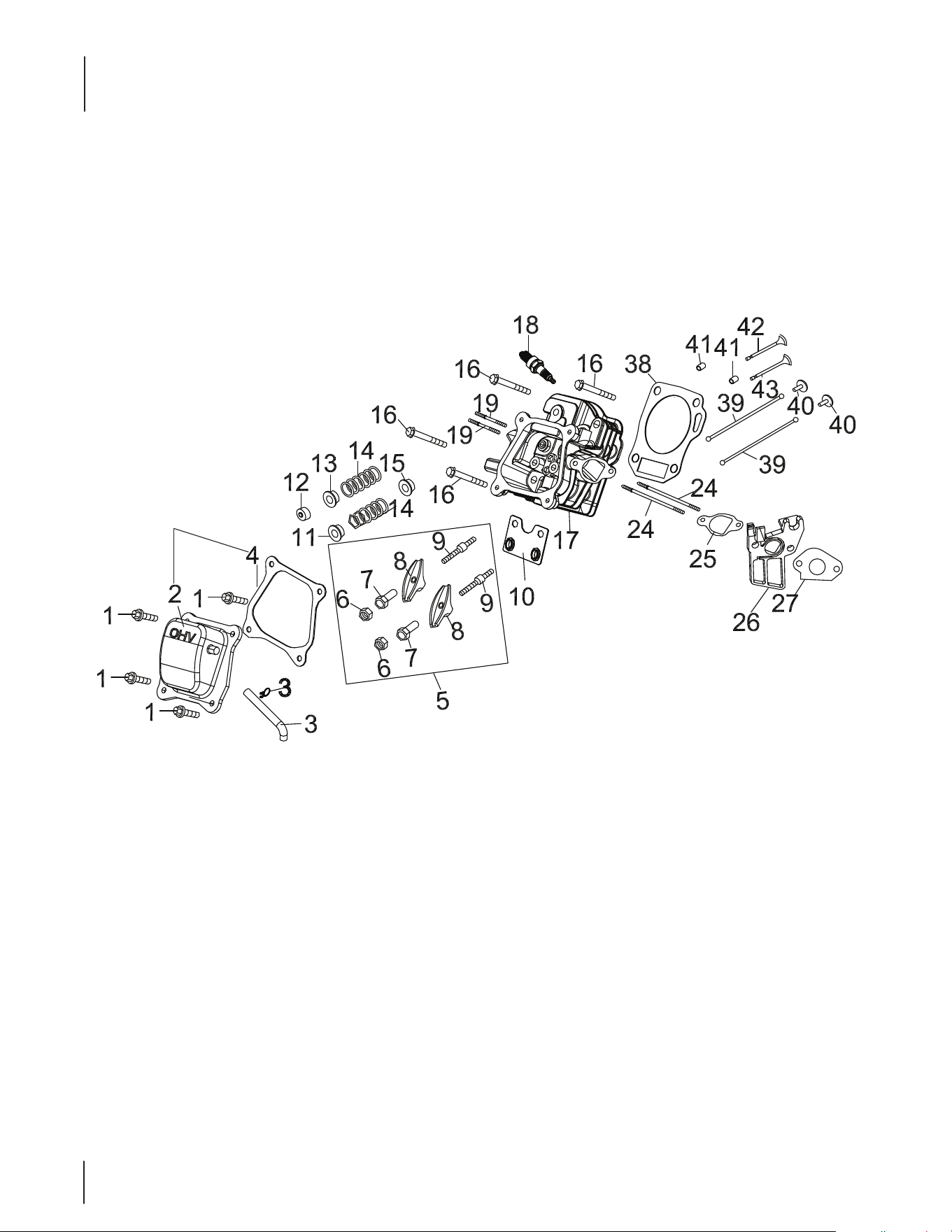

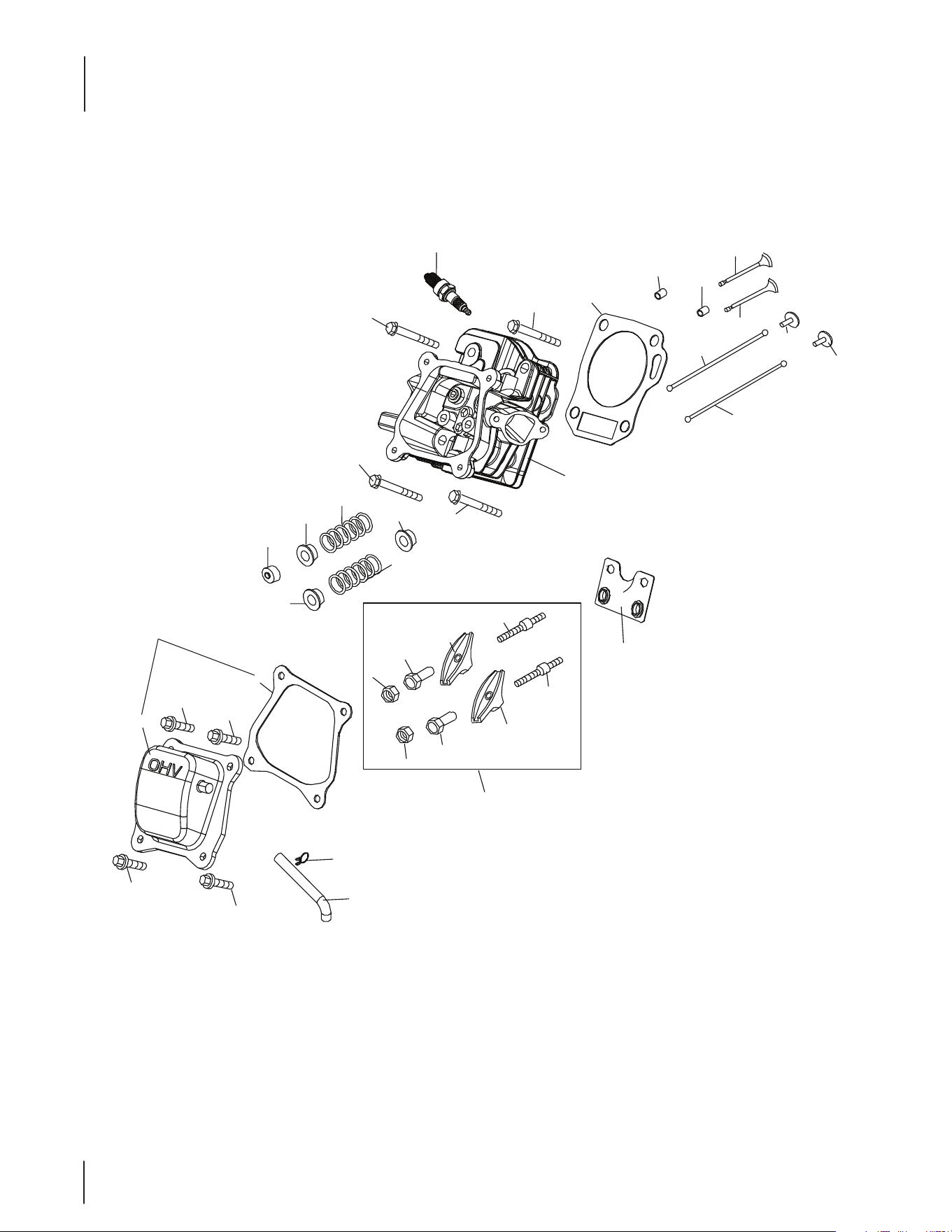

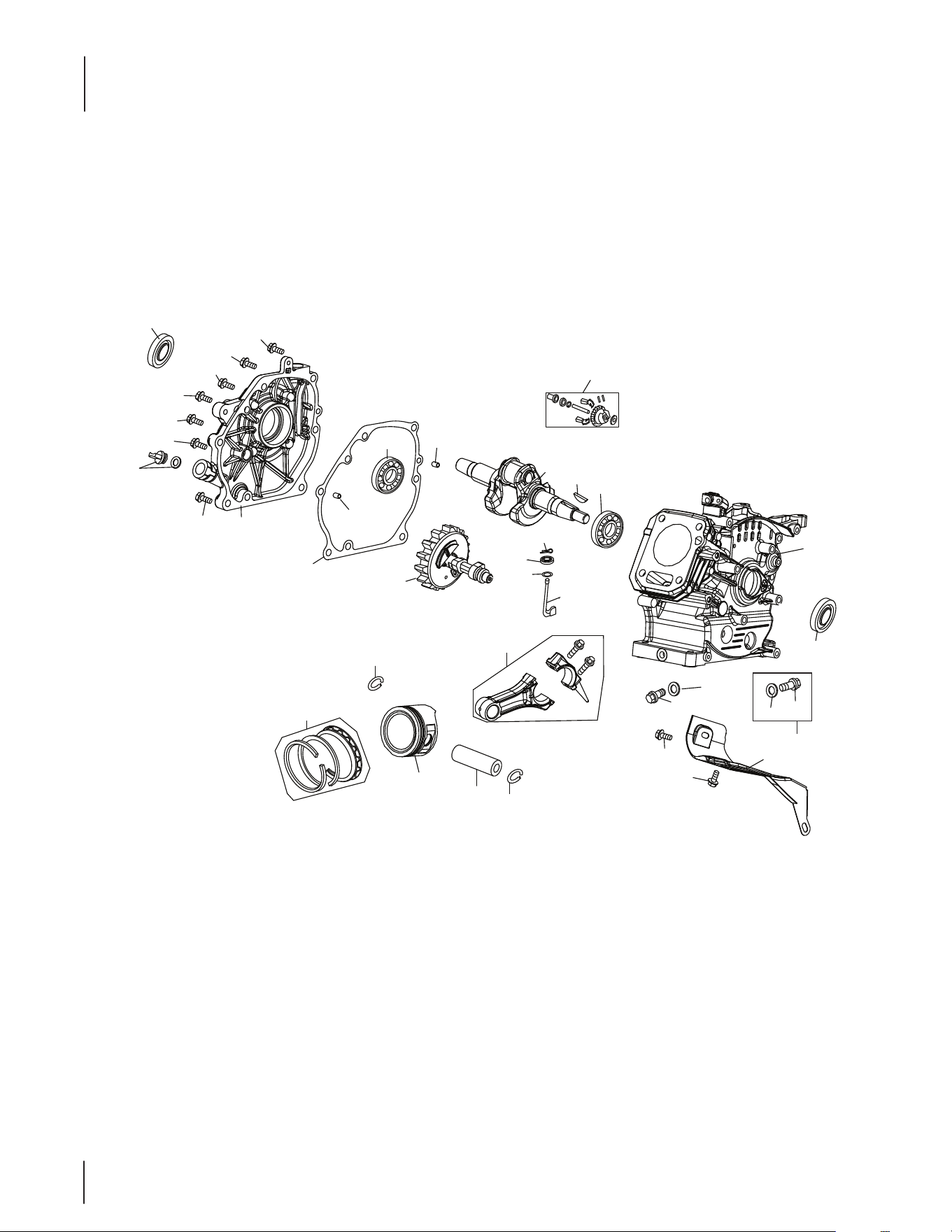

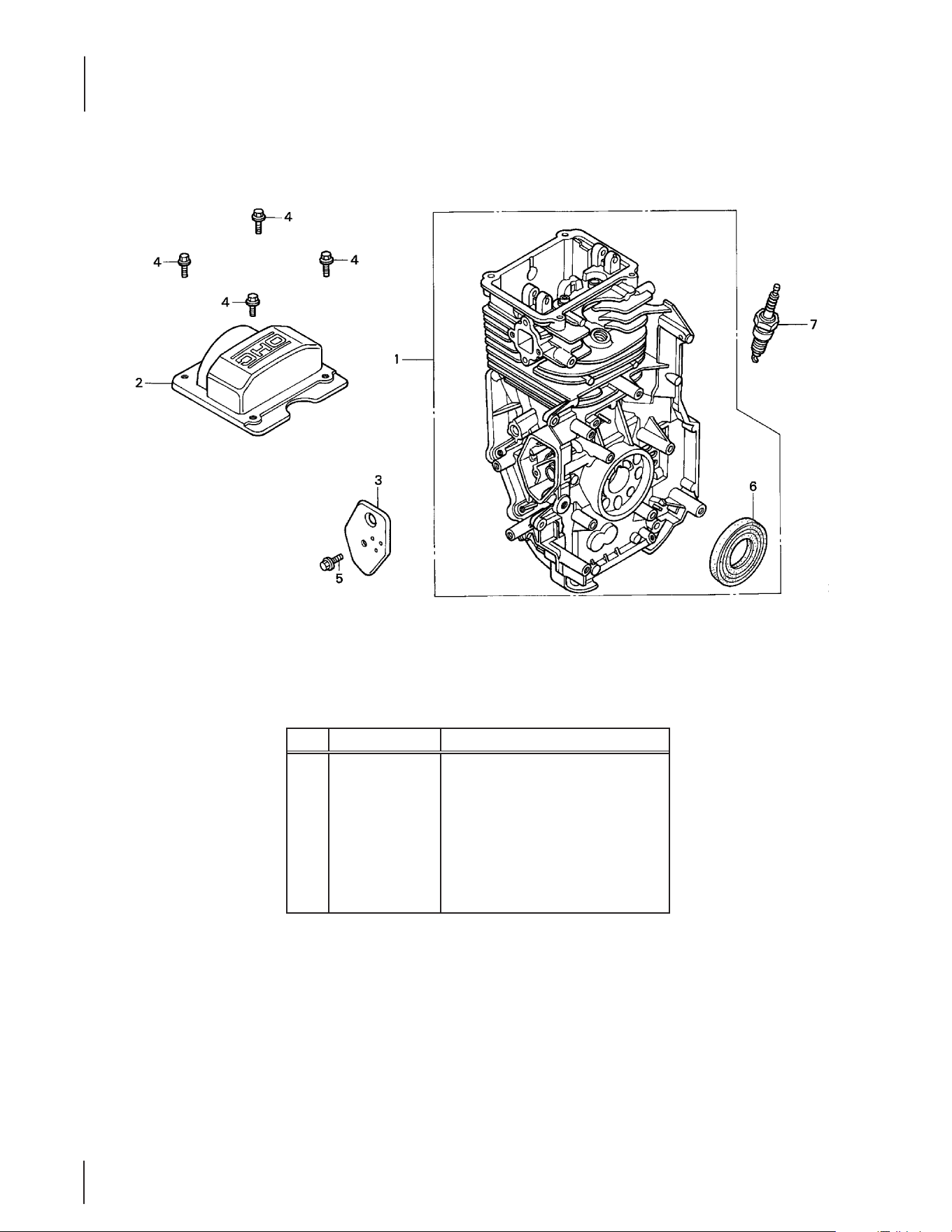

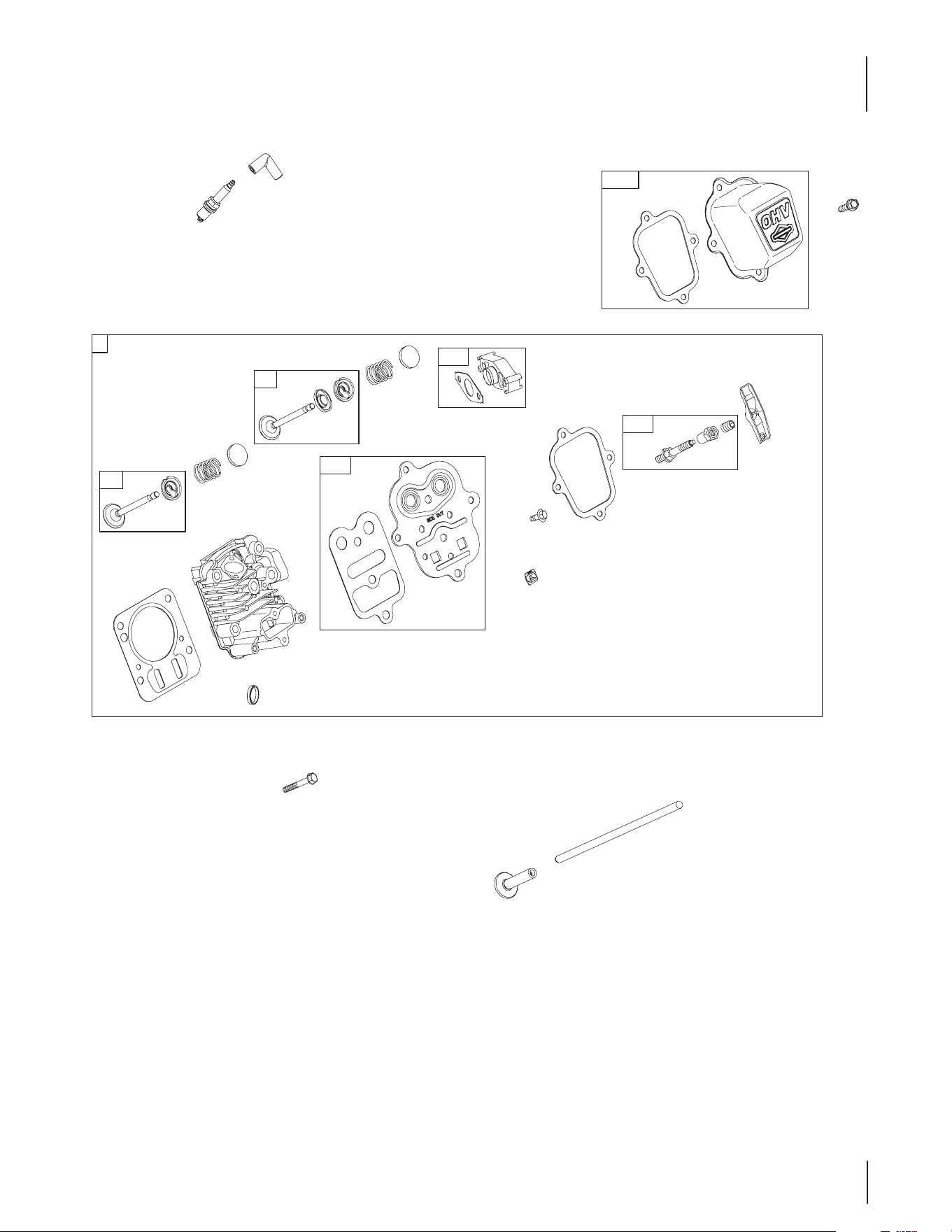

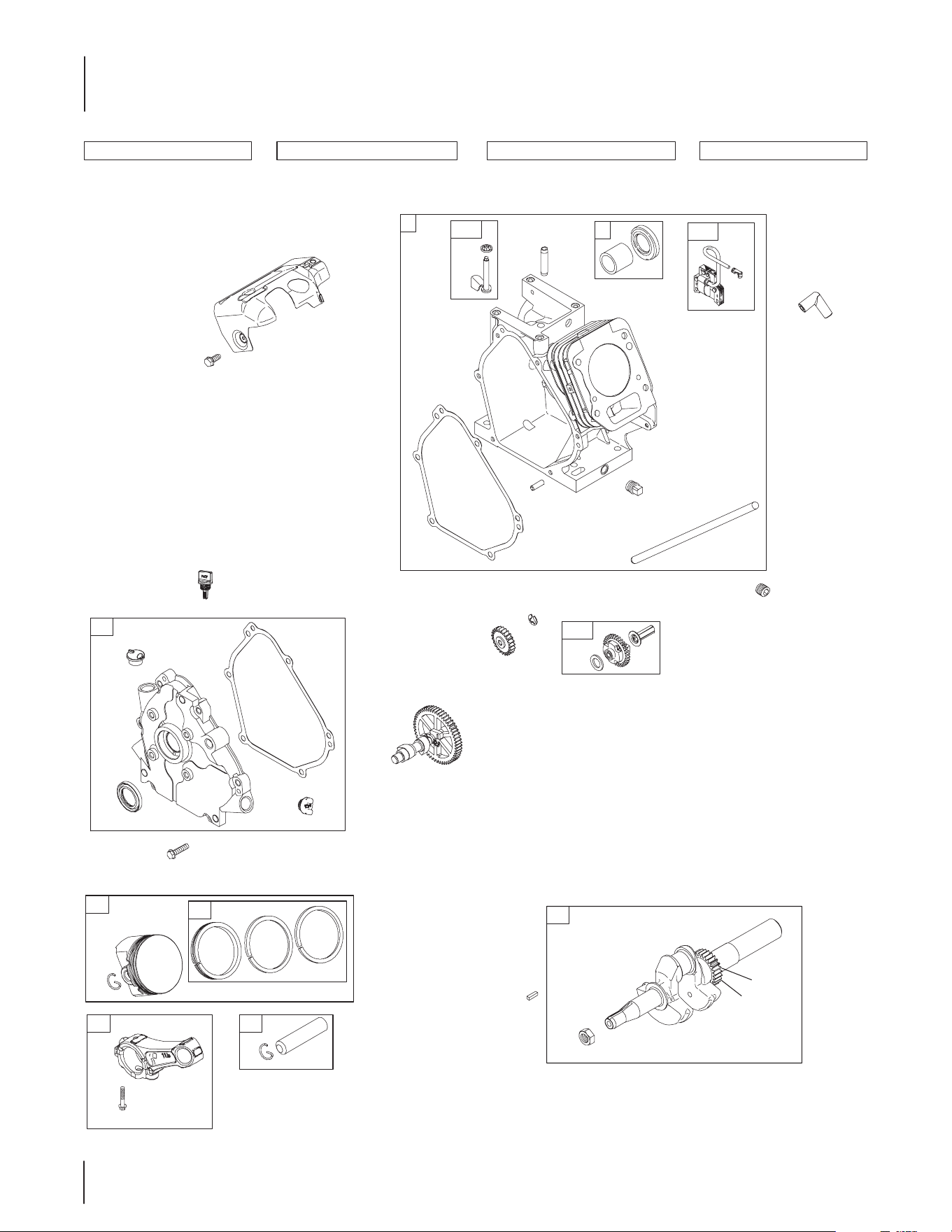

Honda GC190LA Cylinder
Ref. Part Number Description
1.
12000-Z1A-0000
Cylinder Assembly
2. 12310-Z0J-000 Head Cover
3. 12355-ZL8-000 Breather Cover
4. 90013-883-000 Flange Bolt, 6 X 12
5. 90014-952-000 Flange Bolt, 6 X 14
6. 91201-ZL8- 003 Oil Seal, 25.4 X 62 X 6
7. 98079-56846 Spark Plug (BPR6ES NGK)

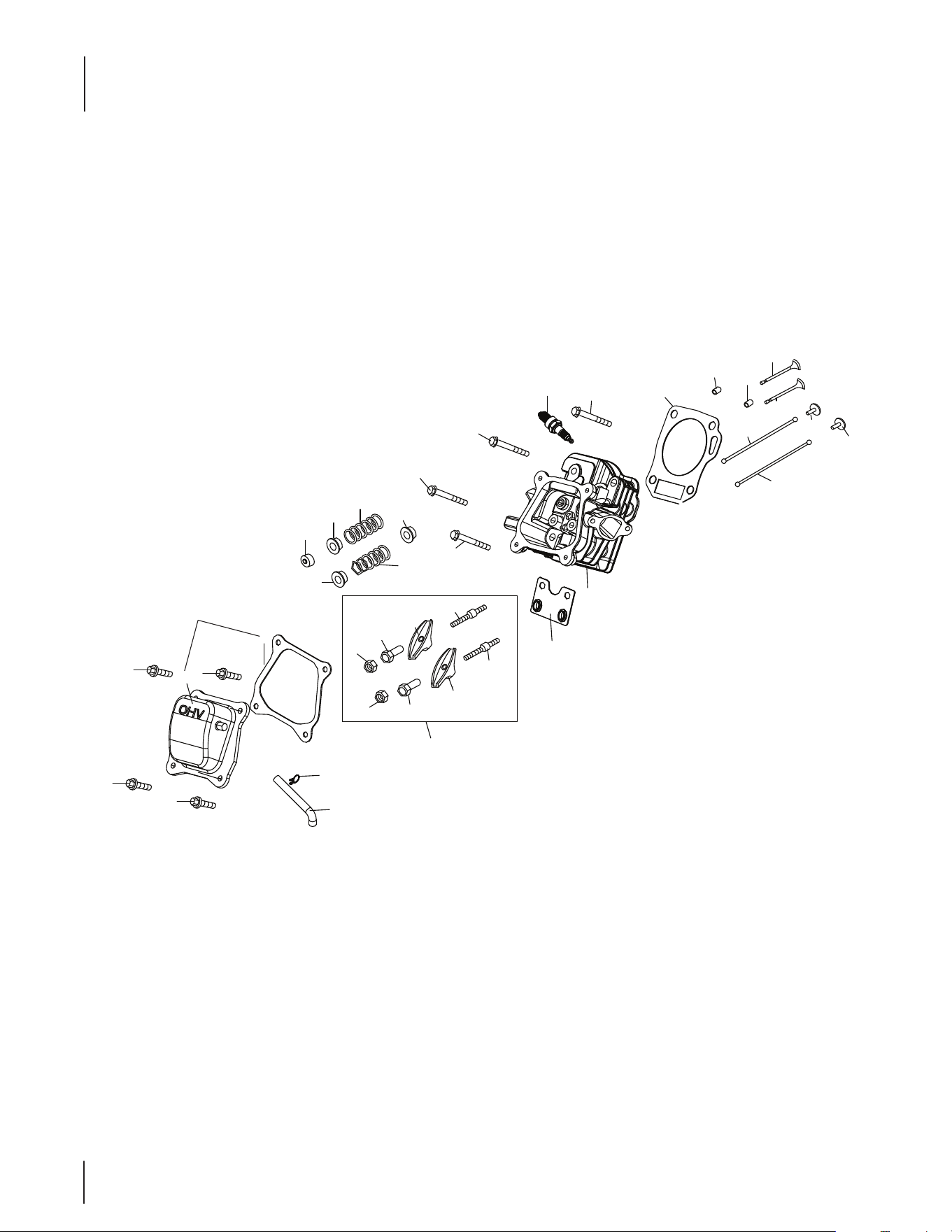

CYLINDER
1-2 2006 American Honda Motor Co., Inc. MAY, 2006 1-C1
Z1A0E0300
MODEL TYPE
A =GC190A a =MHA2
E-3
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1 CYLINDER ASSY. ...................................... -------- -------- 1 12000-Z1A-0000 7907462
2 COVER, HEAD............................................ -------- -------- 1 12311-ZL8-D00 6325211
3 COVER, BREATHER
(BREATHER VALVE ASSY.) .................. -------- -------- 1 12355-ZL8-000 5580006
4 BOLT, FLANGE (6X12) (CT200) ................ -------- -------- 4 90013-883-000 0636845
5 BOLT, FLANGE (6X14) .............................. -------- -------- 1 90014-952-000 0803619
6 OIL SEAL (25.4X62X6)................................ -------- -------- 1 91201-ZL8-003 5581038
7 SPARK PLUG (BPR6ES) (NGK) ................ -------- -------- 1 98079-56846 1441112
22
23

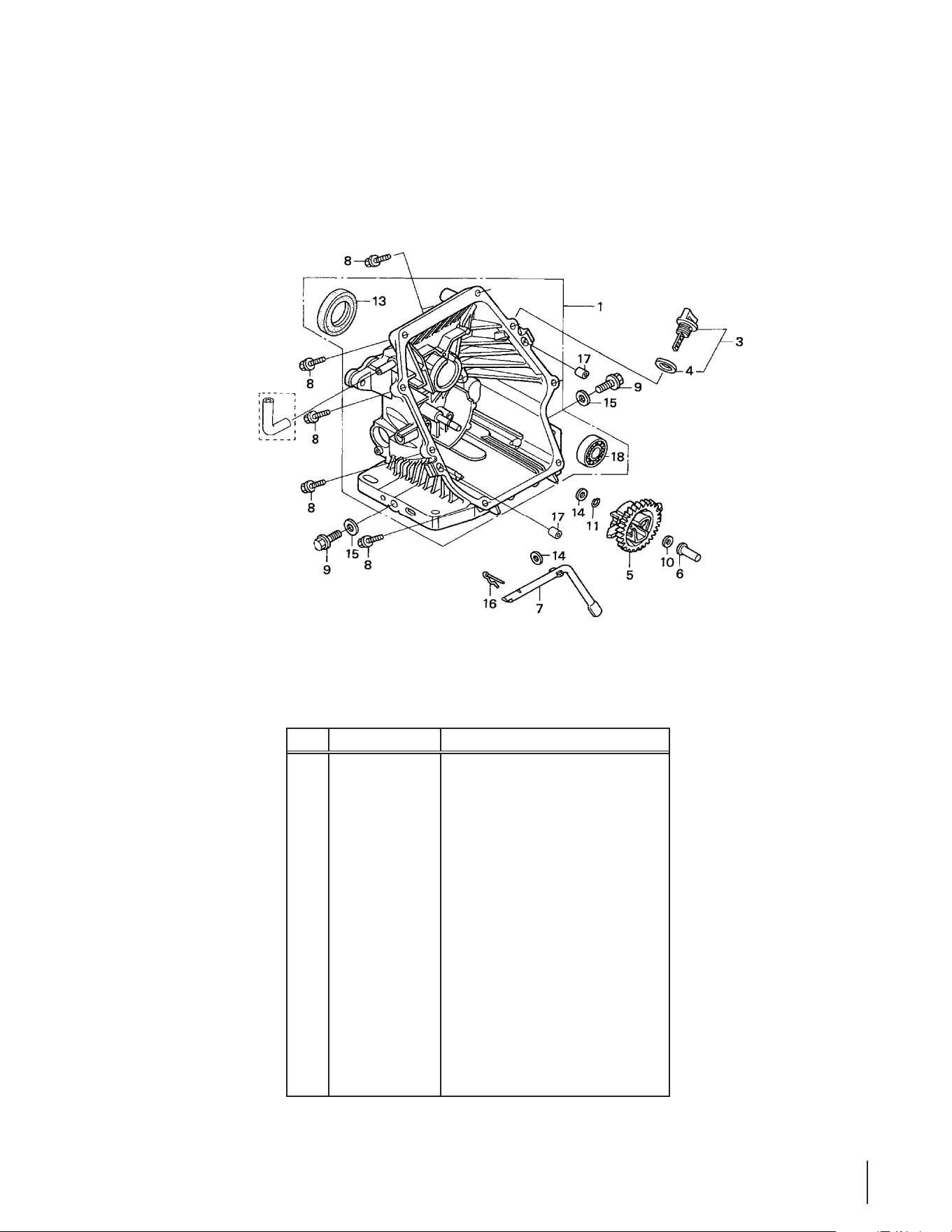

Honda GC190LA Crankcase Cover
Ref. Part Number Description
1. 11300-Z1A-600 Crankcase Cover Assembly
3. 15600-ZF0-003 Oil Filler Cap Assembly
4. 15625-ZE1- 003 Oil Filler Cap Gasket
5. 16510-ZL8-000 Governor Assembly
6. 16531-ZE1-000 Governor Slider
7. 16541-ZL8-000 Governor Arm Shaft
8. 90121-952-000 Flange Bolt, 6 x 25
9. 90131-896-650 Drain Plug Bolt
10. 90451-ZE1-000 Thrust Washer, 6mm
11. 90602-ZE1-000 Governor Holder Clip
13. 91202-ZL8- 003 Oil Seal, 28 x 41.25 x 6
14. 94101-06800 Plain Washer, 6mm
15. 94109-12000 Drain Plug Washer, 12mm
16. 94251-08000 Lock Pin, 8mm
17. 94301-08200 Dowel Pin, 8 x 20
OIL PAN
MAY, 2006 2006 American Honda Motor Co., Inc. 1-3
Z1A0E0600B
MODEL TYPE
A =GC190A a =MHA2
E-6
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1 COVER ASSY., CRANKCASE (Q-TYPE) .. -------- -------- 1 11300-Z1A-600 7356249
3 CAP ASSY., OIL FILLER ............................ -------- -------- 1 15600-ZF0-003 6435895
4 GASKET, OIL FILLER CAP ........................ -------- -------- 1 15625-ZE1-003 4497947
5 GOVERNOR ASSY. .................................... -------- -------- 1 16510-ZL8-000 5611108
6 SLIDER, GOVERNOR ................................ -------- -------- 1 16531-ZE1-000 1427251
7 SHAFT, GOVERNOR ARM ........................ -------- -------- 1 16541-ZL8-000 5611124
8 BOLT, FLANGE (6X25) .............................. -------- -------- 8 90121-952-000 0748111
9 BOLT, DRAIN PLUG .................................. -------- -------- 2 90131-896-650 1986231
10 WASHER, THRUST (6MM) ........................ -------- -------- 1 90451-ZE1-000 2413862
11 CLIP, GOVERNOR HOLDER...................... -------- -------- 1 90602-ZE1-000 2456697
13 OIL SEAL (28X41.25X6).............................. -------- -------- 1 91202-ZL8-003 5581046
14 WASHER, PLAIN (6MM) ............................ -------- -------- 2 94101-06800 0345900
15 WASHER, DRAIN PLUG (12MM)................ -------- -------- 2 94109-12000 0171868
16 PIN, LOCK (8MM)........................................ -------- -------- 1 94251-08000 0115527
17 PIN, DOWEL (8X20).................................... -------- -------- 2 94301-08200 1417369
23
24
CRANKSHAFT
1-4 2006 American Honda Motor Co., Inc. MAY, 2006 1-C2
Z1A0E0700C
MODEL TYPE
A =GC190A a =MHA2
E-7
Engine
Serial Number
Ref Description From To QTY Part Number H/C
4 CRANKSHAFT (M-TYPE) .......................... -------- -------- 1 13310-Z1A-660 7399470
6 WASHER, THRUST .................................... -------- -------- 1 90402-ZL8-000 5581012
1
2

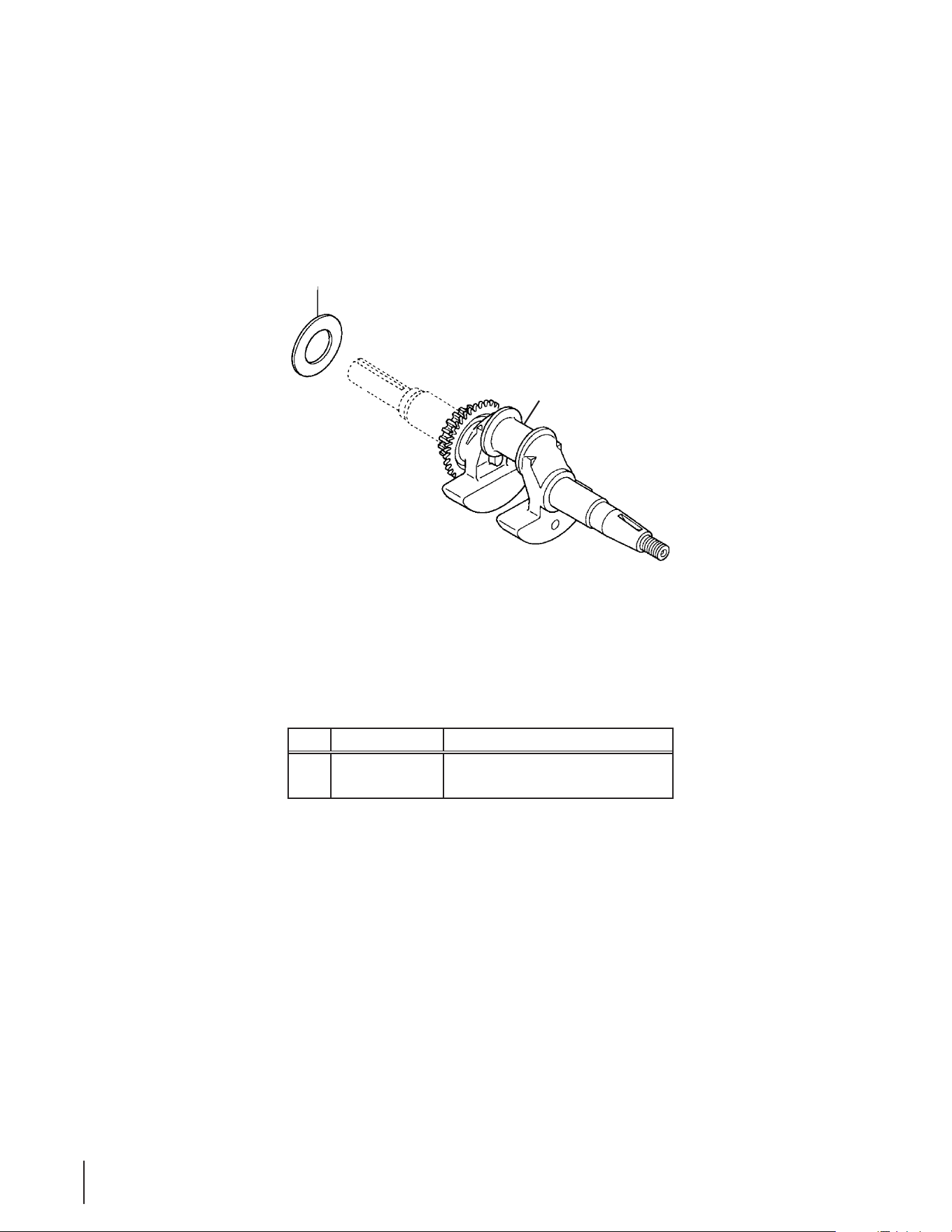

Honda GC190LA Crankshaft
Ref. Part Number Description
1. 13310 -Z1A- 660 Crankshaft
2. 90402-ZL8-000 Thrust Washer
24
25

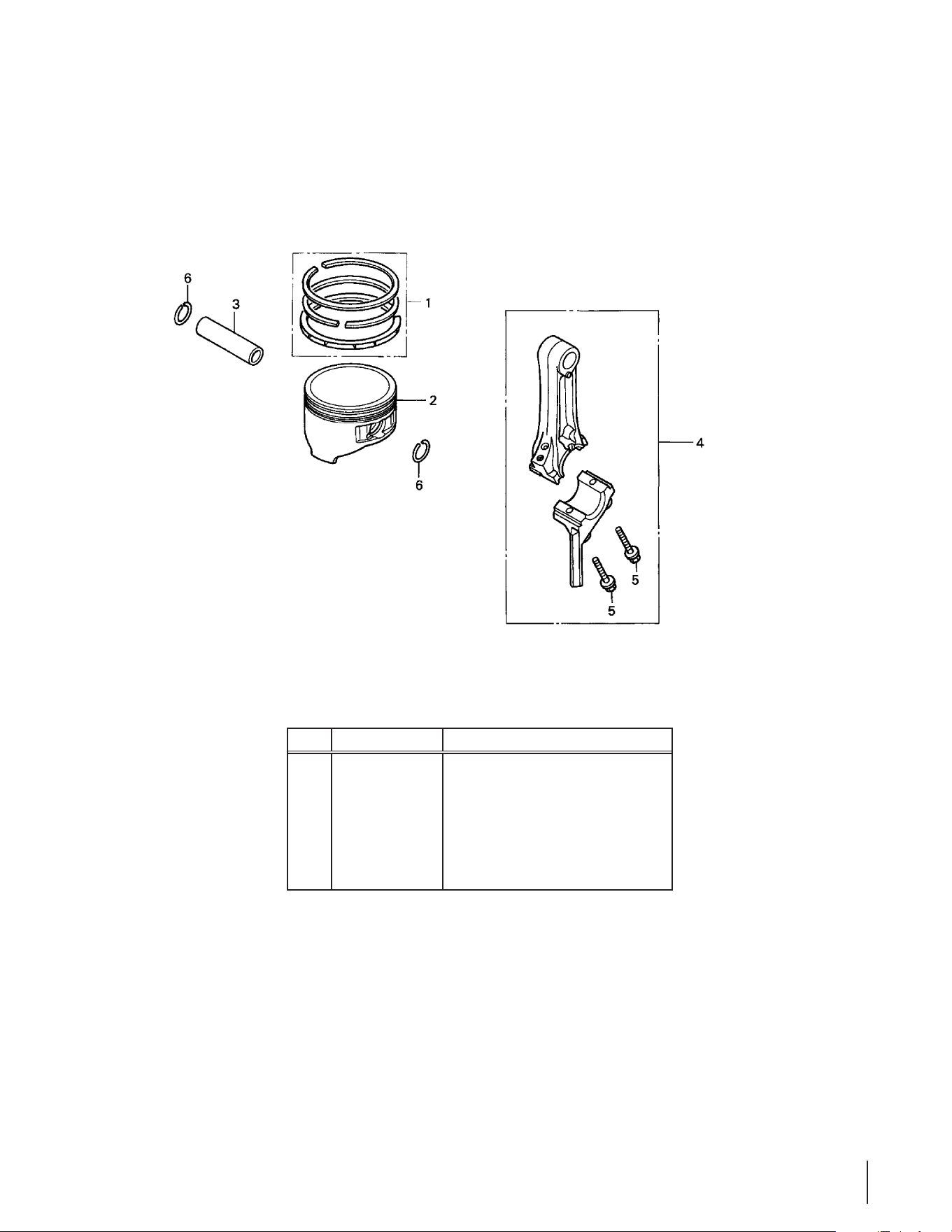

Honda GC190LA Piston
PISTON • CONNECTING ROD
MAY, 2006 2006 American Honda Motor Co., Inc. 1-5
Z1A0E0800
MODEL TYPE
A =GC190A a =MHA2
E-8
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1 RING SET, PISTON (TEIKOKU) ................ -------- -------- 1 13010-Z0Y-004 7357288
2 PISTON ...................................................... -------- -------- 1 13101-Z0Y-000 7379696
3 PIN, PISTON .............................................. -------- -------- 1 13111-Z0Y-000 7370133
4 ROD ASSY., CONNECTING ...................... -------- -------- 1 13200-Z0Y-000 7370141
5 BOLT, CONNECTING ROD ........................ -------- -------- 2 90001-ZE1-000 1431055
6 CLIP, PISTON PIN (13MM) ........................ -------- -------- 2 90551-ZE0-000 2605517
Ref. Part Number Description
1. 13010-Z0Y-014 Piston Ring Set (Teikoku)
2. 13101-Z0Y-010 Piston
3. 13111-Z0Y- 0 0 0 Piston Pin
4. 13200-Z0Y-010 Connecting Rod Assembly
5. 90001-ZE1-000 Connecting Rod Bolt
6. 90551-ZE0-000 Piston Pin Clip, 13mm
25
26

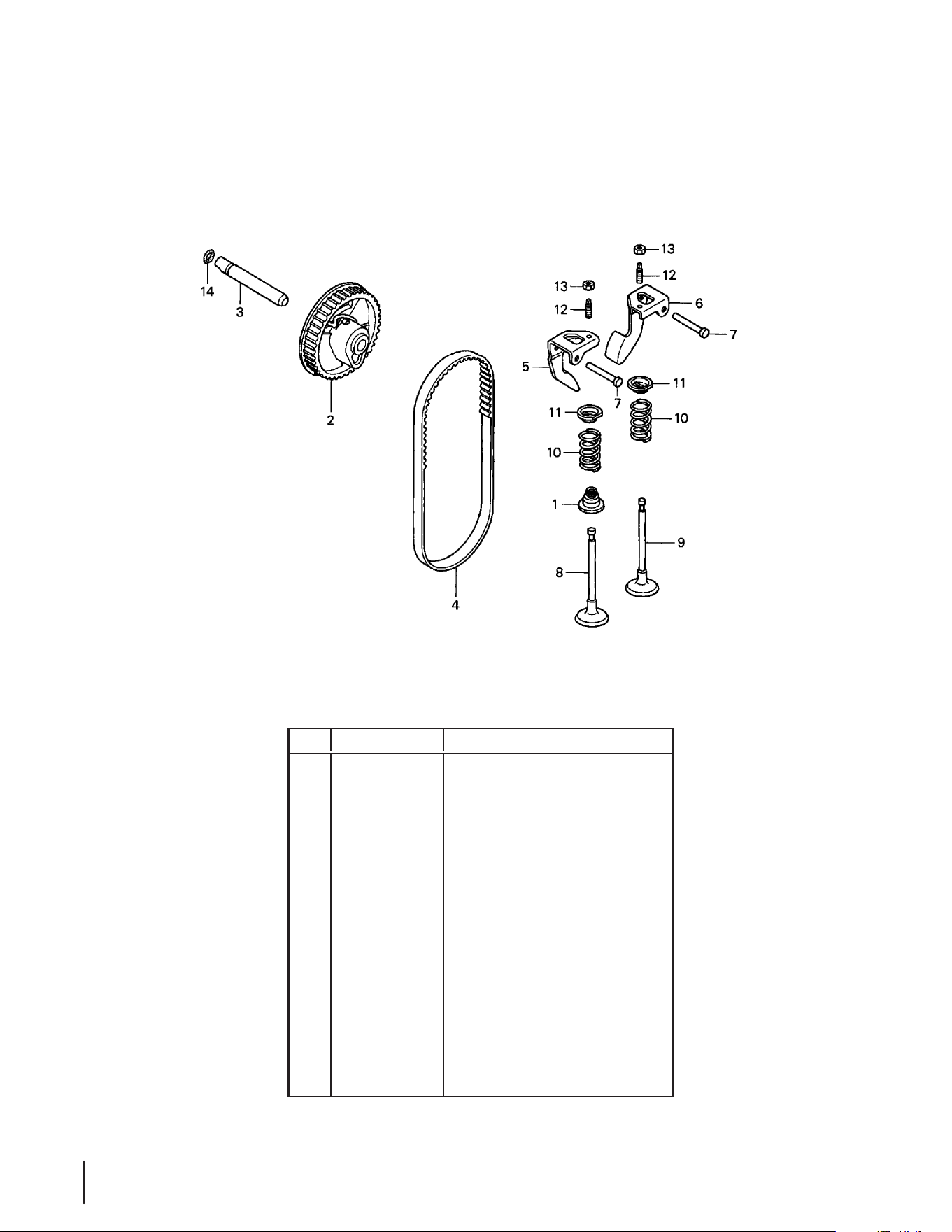

Honda GC190LA Camshaft
CAMSHAFT
1-6 2006 American Honda Motor Co., Inc. MAY, 2006 1-C3
Z1A0E0900
MODEL TYPE
A =GC190A a =MHA2
E-9
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1 SEAL, VALVE STEM .................................. -------- -------- 1 12209-ZM0-003 6839831
2 PULLEY, CAM ............................................ -------- -------- 1 14320-Z0Y-000 7357346
3 SHAFT, CAM PULLEY ................................ -------- -------- 1 14324-ZL8-000 5580063
4 BELT, TIMING (84HU7 G-200).................... -------- -------- 1 14400-Z0J-014 7058985
5 ARM, IN. VALVE ROCKER ........................ -------- -------- 1 14431-Z0J-000 7526122
6 ARM, EX. VALVE ROCKER ........................ -------- -------- 1 14441-Z0J-000 7526130
7 SHAFT, ROCKER ARM .............................. -------- -------- 2 14461-ZL8-000 5580105
8 VALVE, IN. .................................................. -------- -------- 1 14711-ZL8-000 5580113
VALVE, IN. .................................................. -------- -------- 1 14711-Z0J-000 7647118
9 VALVE, EX. ................................................ -------- -------- 1 14721-ZL8-000 5580121
10 SPRING, VALVE ........................................ -------- -------- 2 14751-ZL8-000 5580139
11 RETAINER, IN. VALVE SPRING ................ -------- -------- 2 14771-ZE1-000 1426980
12 SCREW, TAPPET ADJ. .............................. -------- -------- 2 90012-333-000 0294819
13 NUT, TAPPET ADJ. .................................... -------- -------- 2 90206-001-000 0004598
14 O-RING (6.8X1.9) ........................................ -------- -------- 1 91301-ZM0-V31 6315873
Ref. Part Number Description
1. 12209-ZM0- 003 Valve Stem Seal
2. 14320-Z0Y-000 Cam Pulley
3. 14324-ZL8-000 Cam Pulley Shaft
4. 14400-Z0J-014 Timing Belt, 84HU& G-200
5. 14431-Z0J-000 Internal Valve Rocker Arm
6. 14441-Z0J-000 External Valve Rocker Arm
7. 14461-ZL8-000 Rocker Arm Shaft
8. 14711-Z0J-000 Internal Valve
— 14711-Z0J-000 Internal Valve
9. 14721-ZL8-000 External Valve
10. 14751-ZL8-000 Valve Spring
11. 14771-Z0J-000 Internal Valve Spring Retainer
12. 90012-333-000 Tappet Adjustable Screw
13. 90206-001-000 Tappett Adjustble Nut
14. 91301-ZM0-V31 O-Ring, 6.8 x 1.9
26
27

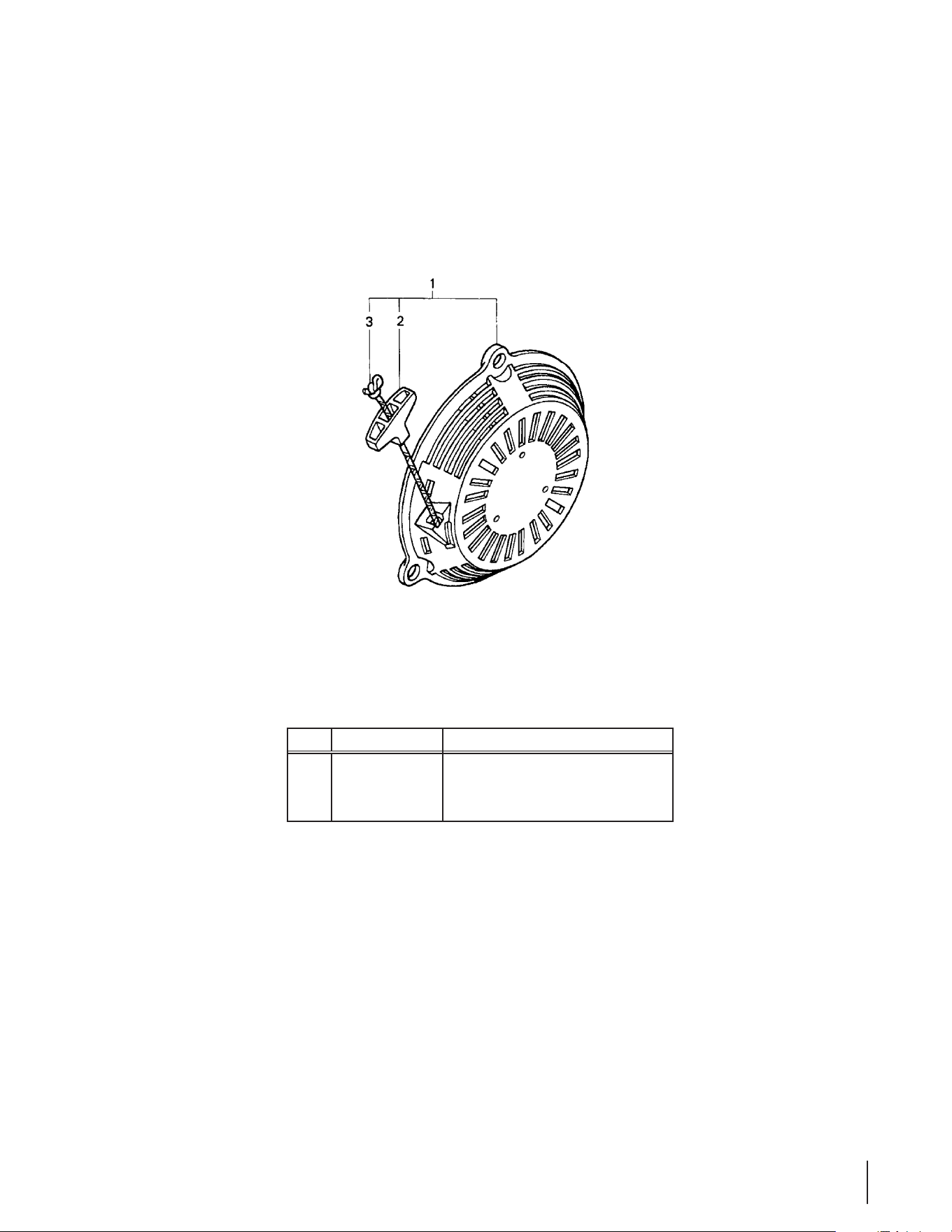

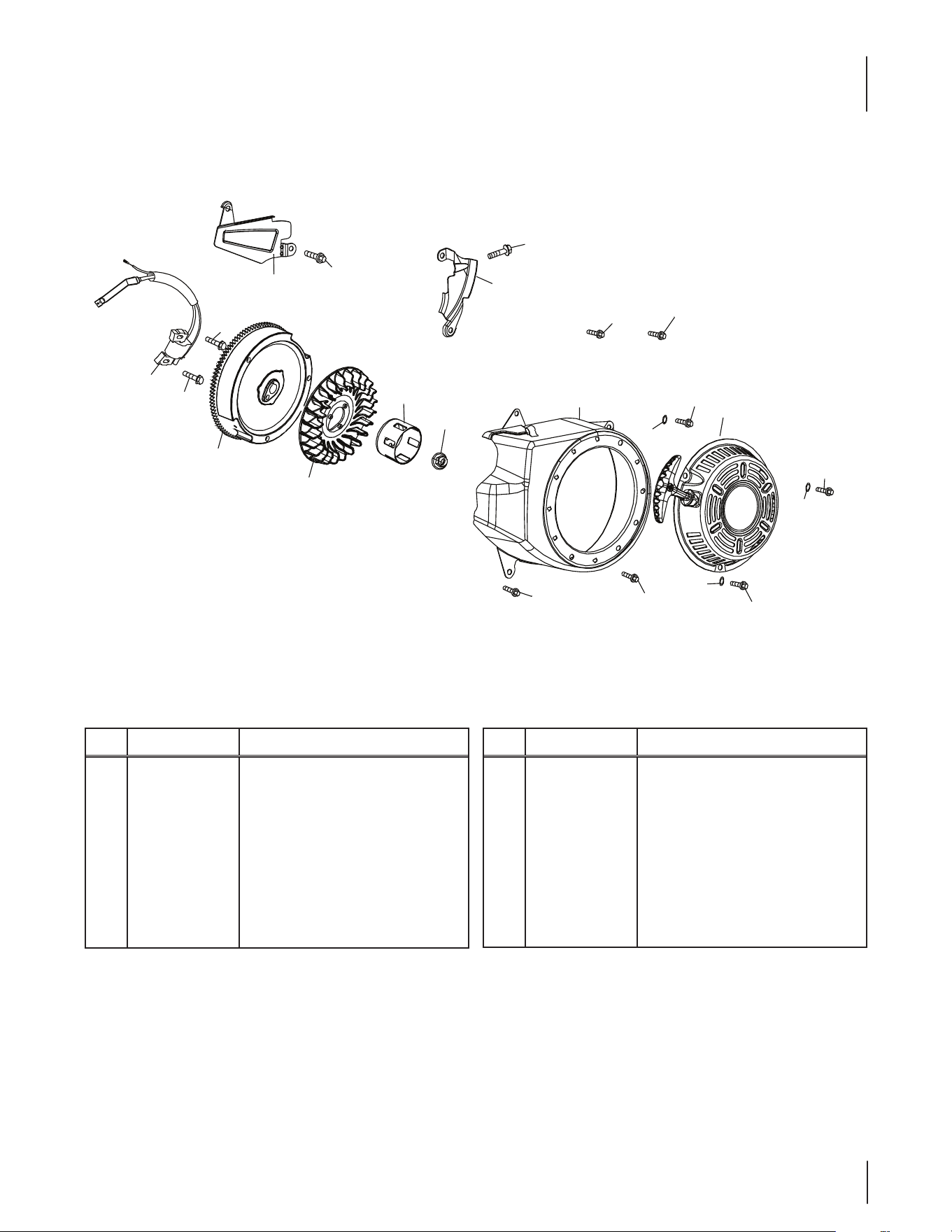

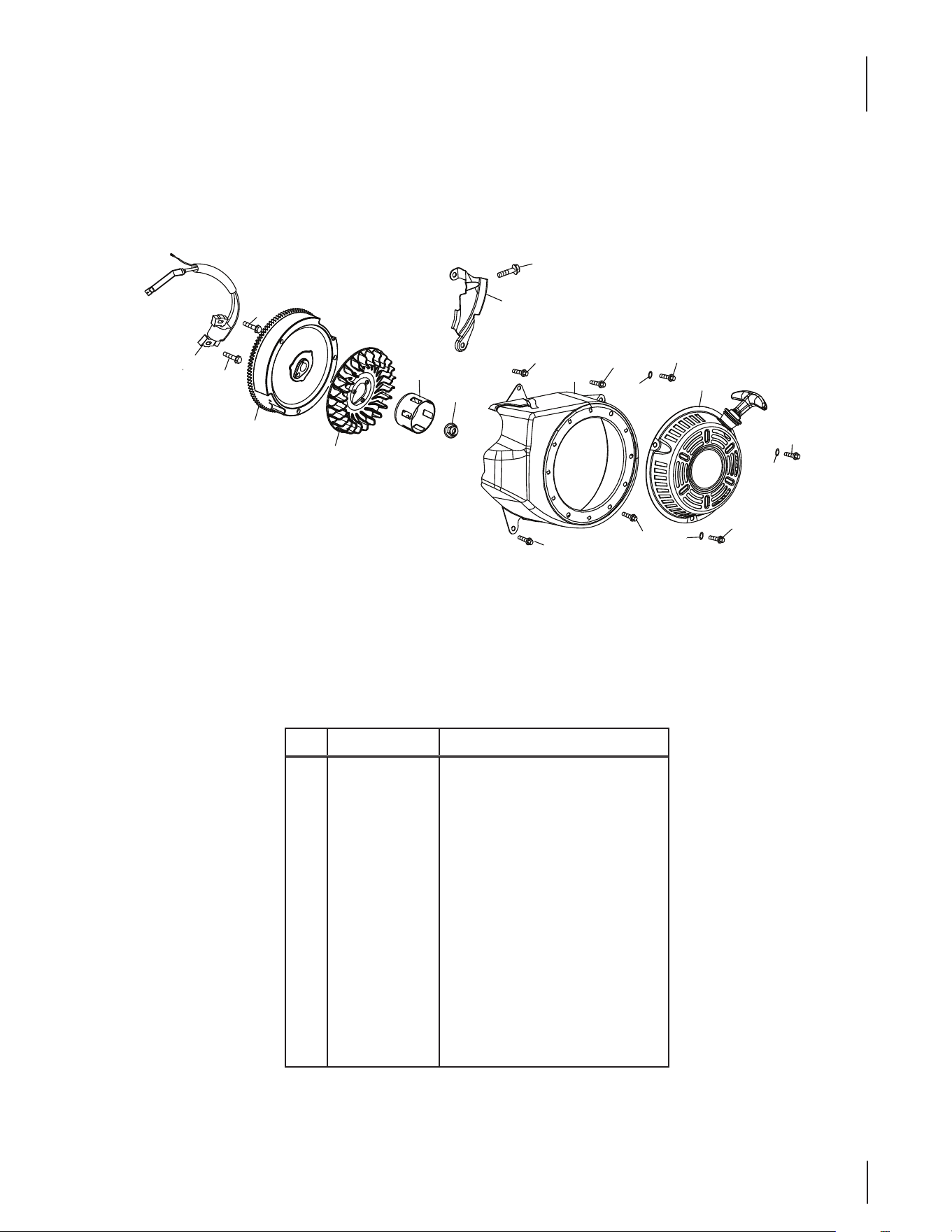

Honda GC190LA Recoil Starter
RECOIL STARTER
MAY, 2006 2006 American Honda Motor Co., Inc. 1-7
Z1A0E1100
MODEL TYPE
A =GC190A a =MHA2
E-11
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1 STARTER ASSY., RECOIL *NH1* (BLACK) -------- -------- 1 28400-Z1A-013ZA 7855729
STARTER ASSY., RECOIL *R280*
(POWER RED) ........................................ -------- -------- 1 28400-Z1A-013ZB 7855737
2 KNOB, RECOIL STARTER ........................ -------- -------- 1 28461-ZL8-003 5580634
3 ROPE, RECOIL STARTER (#3.5X52") ...... -------- -------- 1 28462-ZL8-003 5611454
Ref. Part Number Description
1.
28400-Z1A-013ZA
Recoil Starter Assembly
2. 28461-ZL8-003 Recoil Starter Knob
3. 28462-ZL8-003 Recoil Starter Rope, #3.5 x 52”
27
28

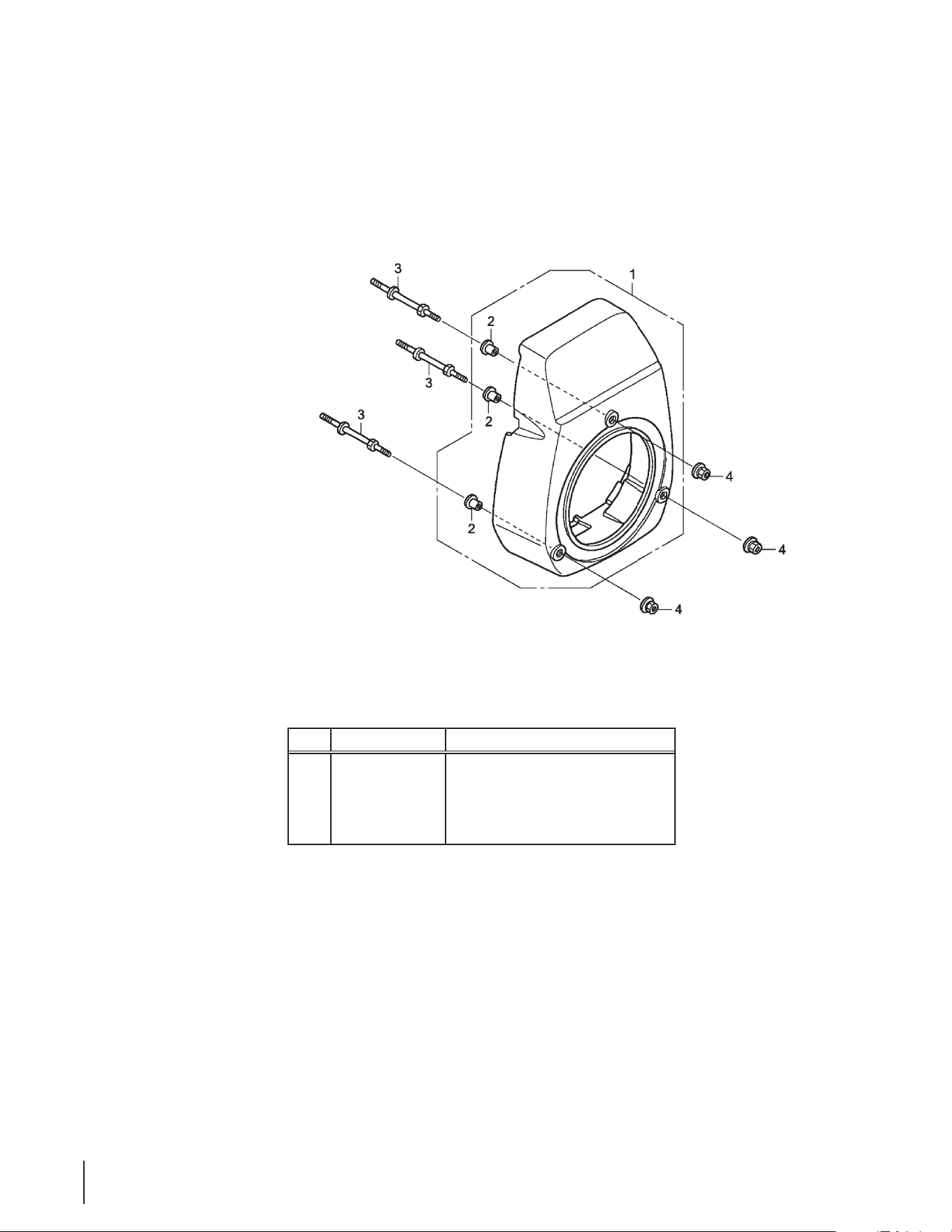

Honda GC190LA Fan Cover
Ref. Part Number Description
1.
19611-Z1A-000ZA
Fan Cover
2.
19619-ZL8-300
Fan Cover Collar
3. 90043-ZL8-000 Stud Bolt
4. 90201-ZM0-000 Flange Nut, 6mm
28
29

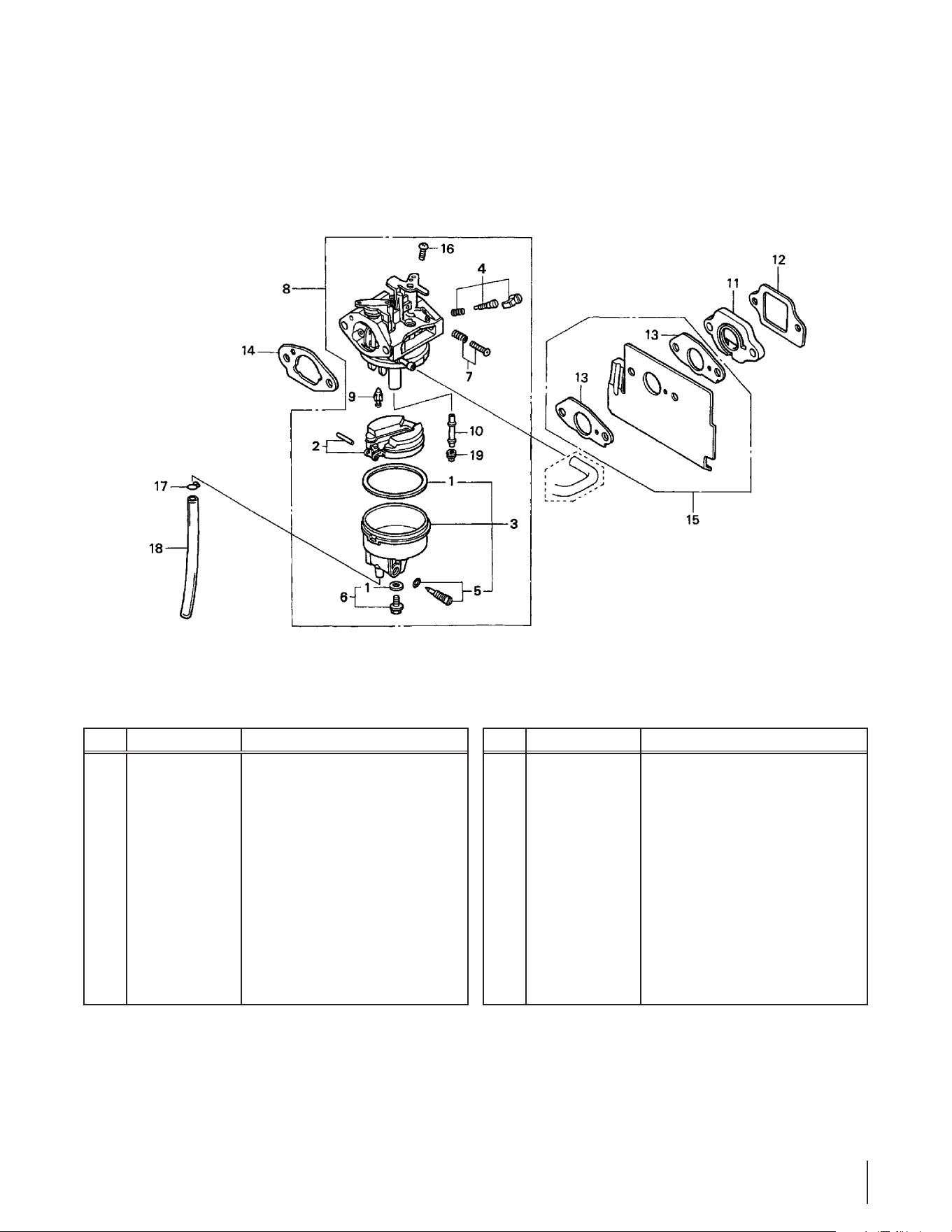

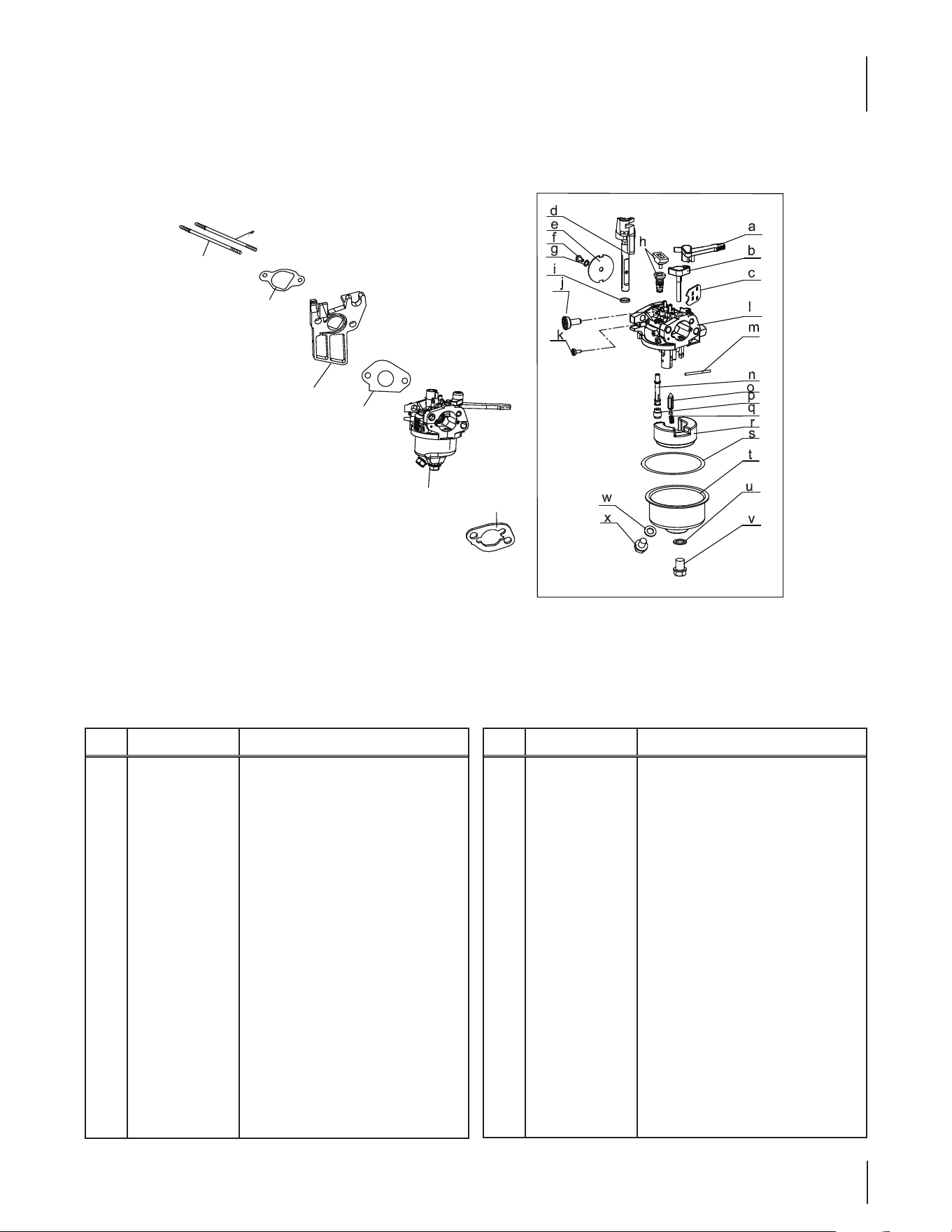

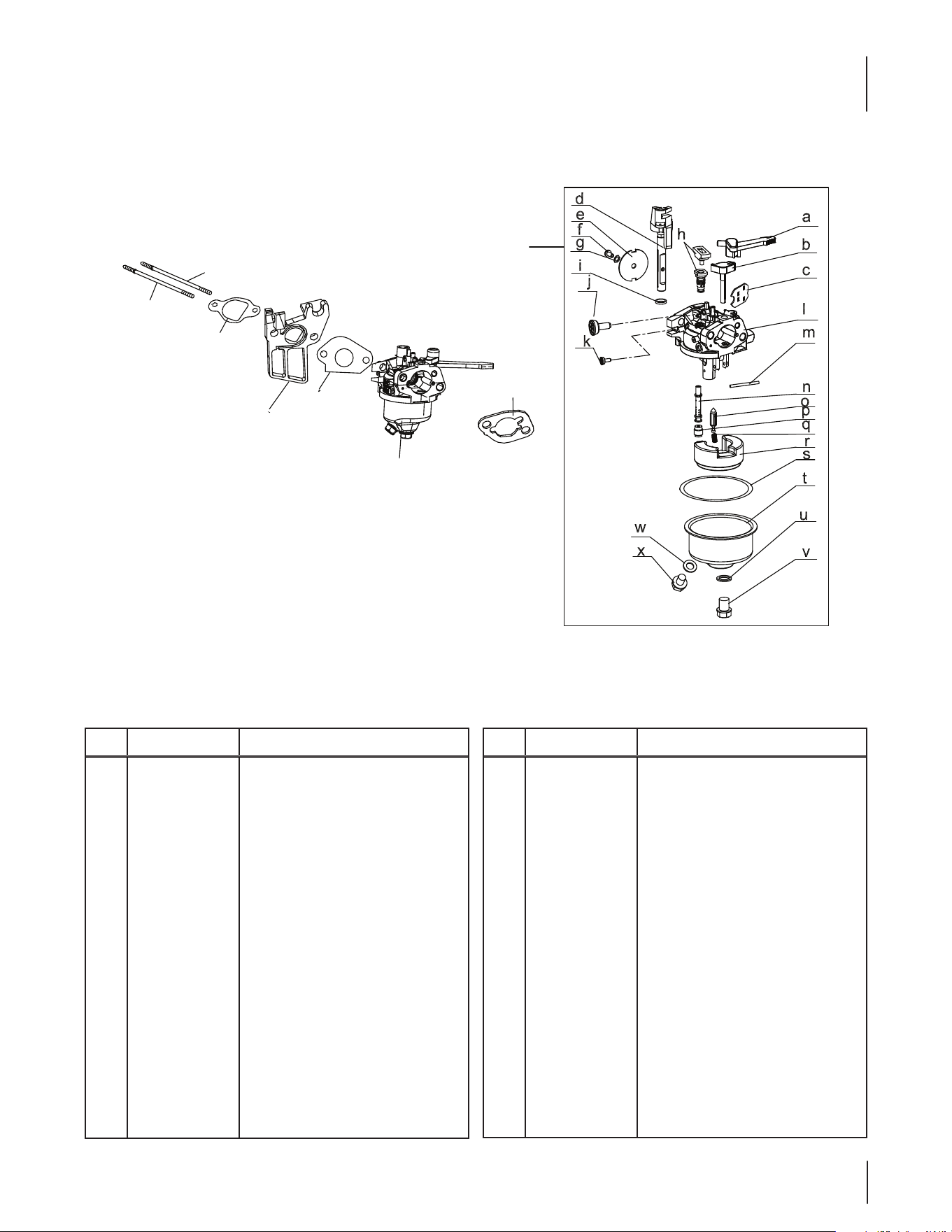

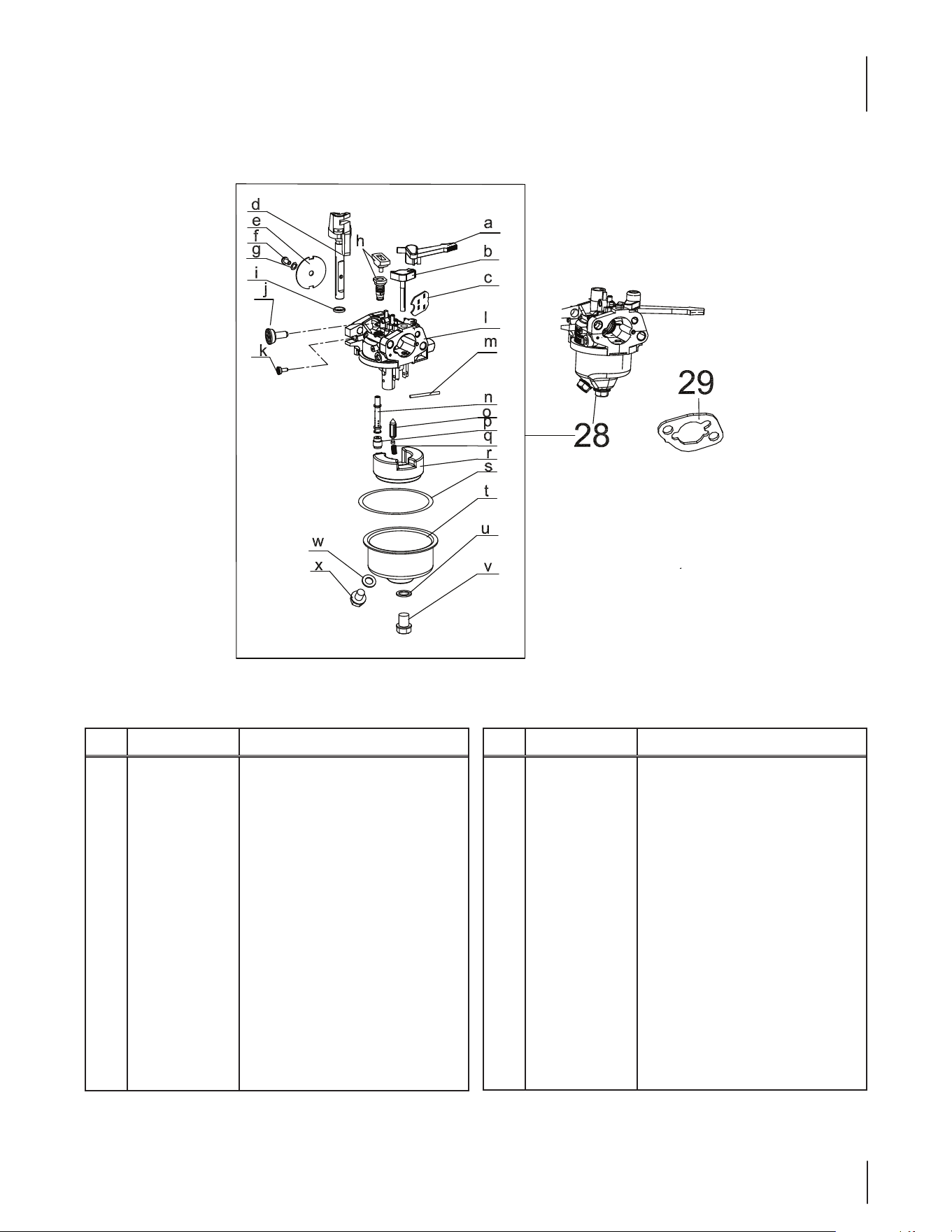

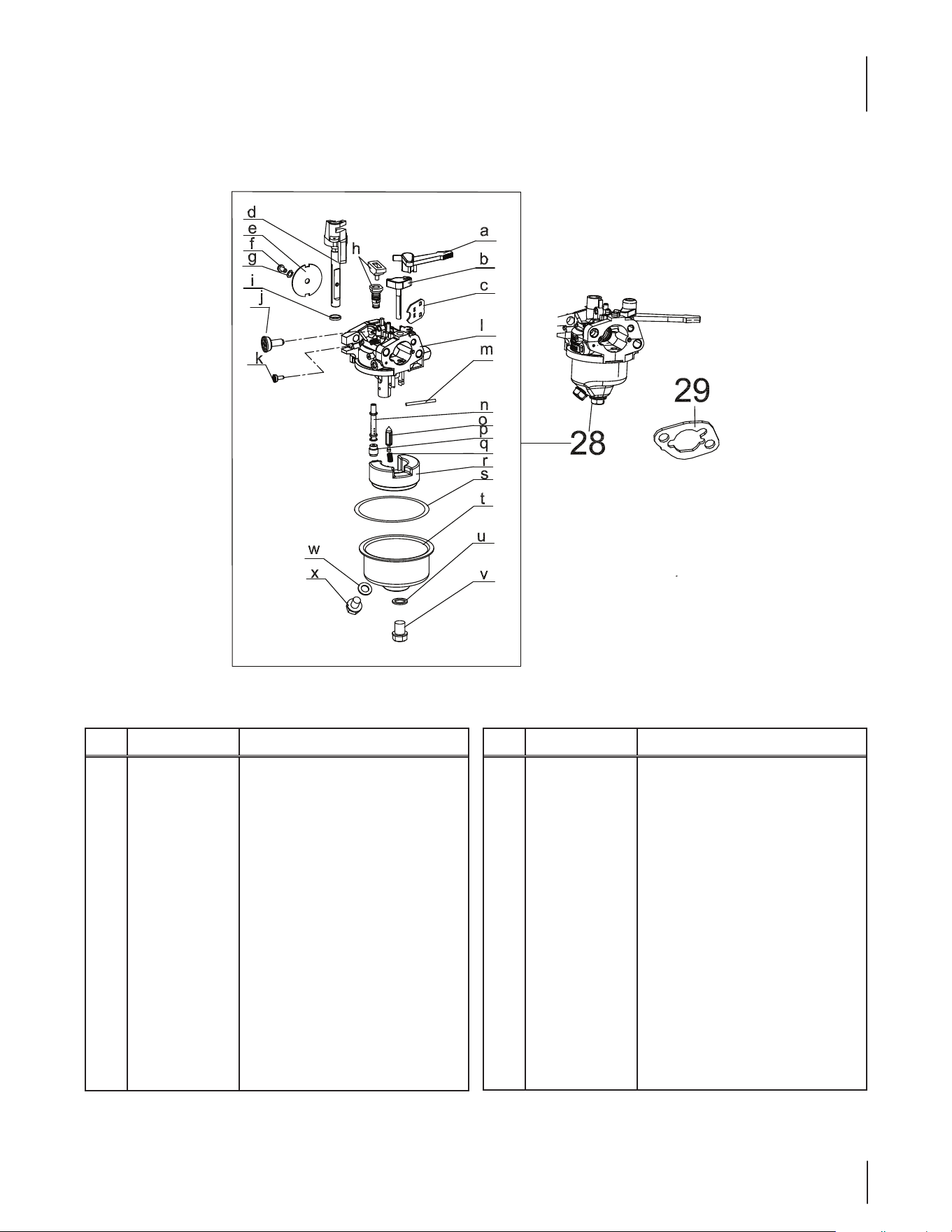

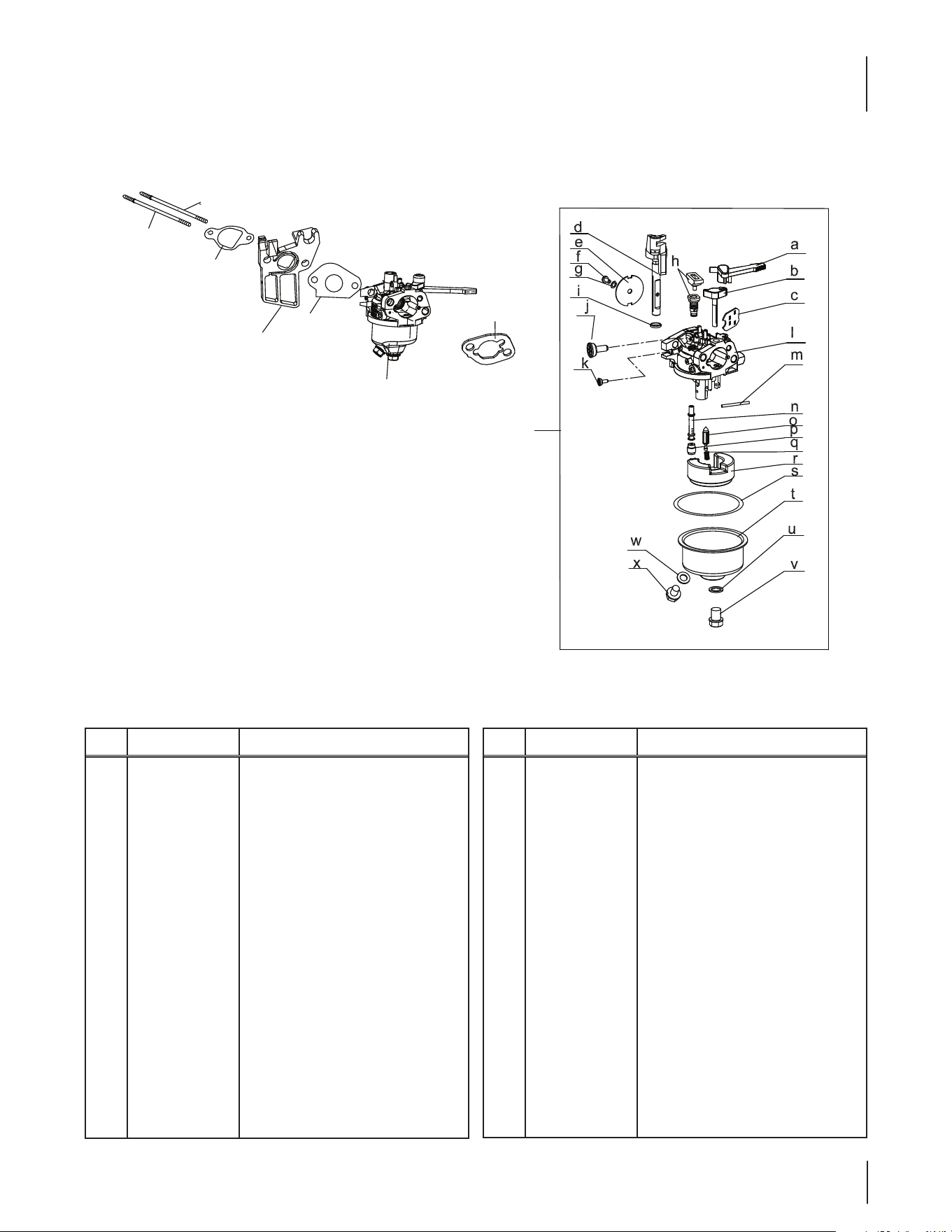

Honda GC190LA Carburetor
CARBURETOR
MAY, 2006 2006 American Honda Motor Co., Inc. 1-9
Z1A0E1400A
MODEL TYPE
A =GC190A a =MHA2
E-14
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1 GASKET SET .............................................. -------- -------- 1 16010-883-015 3088416
2 FLOAT SET ................................................ -------- -------- 1 16013-ZL1-003 5580162
3 CHAMBER SET, FLOAT ............................ -------- -------- 1 16015-ZL8-003 5611033
4 SCREW SET .............................................. -------- -------- 1 16016-Z1A-013 7443823
5 SCREW SET, DRAIN .................................. -------- -------- 1 16024-124-760 0640052
6 SCREW SET B............................................ -------- -------- 1 16028-ZE0-005 1441518
7 SCREW SET .............................................. -------- -------- 1 16029-ZG0-901 5580170
8 CARBURETOR ASSY. (BB61E B) .............. -------- -------- 1 16100-Z1A-013 7866106
9 VALVE, FLOAT
(CARBURETOR NO.).............................. -------- BB61E A 1 16155-ZL8-003 5611058
VALVE, FLOAT
(CARBURETOR NO.).............................. BB61E B -------- 1 16155-ZL8-013 7983315
10 NOZZLE, MAIN............................................ -------- -------- 1 16166-Z1A-003 7541238
11 INSULATOR, CARBURETOR .................... -------- -------- 1 16211-ZL8-000 5580238
12 GASKET, INSULATOR................................ -------- -------- 1 16212-ZL8-000 5580246
13 GASKET, CARBURETOR .......................... -------- -------- 2 16221-883-800 4581120
14 GASKET, CARBURETOR (CHOKE SIDE) -------- -------- 1 16228-ZL8-000 5580253
15 GUIDE, AIR ................................................ -------- -------- 1 19650-ZL8-000 5611421
Ref. Part Number Description
1. 16010-883-015 Gasket Set
2. 16013-ZL1- 003 Float Set
3. 16015-ZL8-003 Float Chamber Set
4. 16016-Z1A-003 Screw Set
5. 16024-124-760 Drain Screw Set
6. 16028-ZK7-591 Screw Set
7. 16029-ZG0-901 Screw Set
8. 16100-Z1A-801 Carburetor Assembly, BB61K A
9. 16155-ZL8-013 Float Valve
10. 16166-Z1A-003 Main Nozzle
11. 16211-ZL8-000 Carburetor Insulator
Ref. Part Number Description
12. 16212-ZL8-000 Insulator Gasket
13. 16221-887-800 Carburetor Gasket
14. 16228-ZL8-000 Carburetor Gasket (Choke Side)
15. 19650-ZL8-000 Air Guide
16.
93500-05006-1H
Pan Screw, 5 x 6
17. 95002-02650 Tube Clip, B6.5
18.
95003-07008-60M
Vinyl Bulk Hose (4X7X8000, 4X7X150)
19. 99101-124-0620 Main Jet, #62
— 99101-124 - 0650 Main Jet, #65
— 99101-124 - 0680 Main Jet, #68
29
30

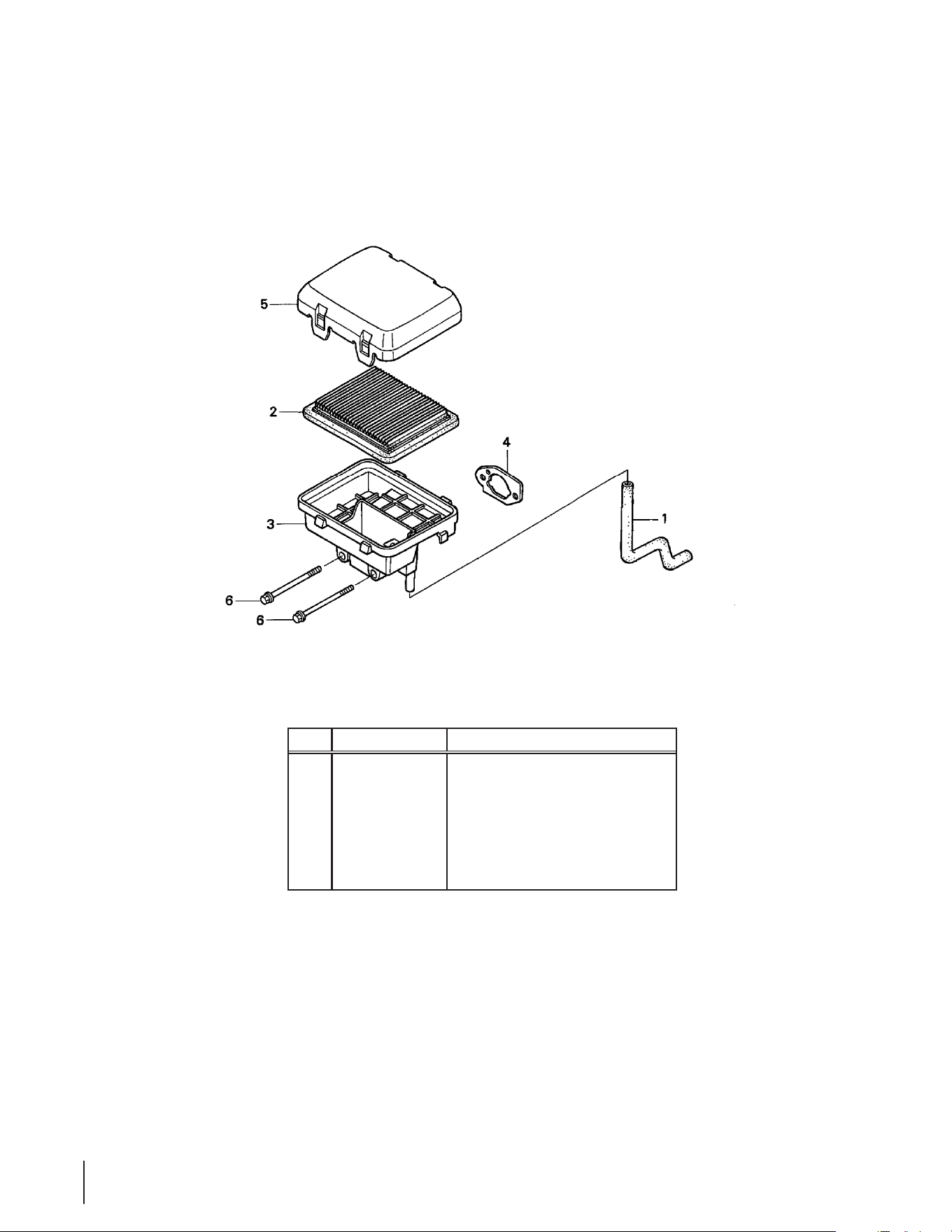

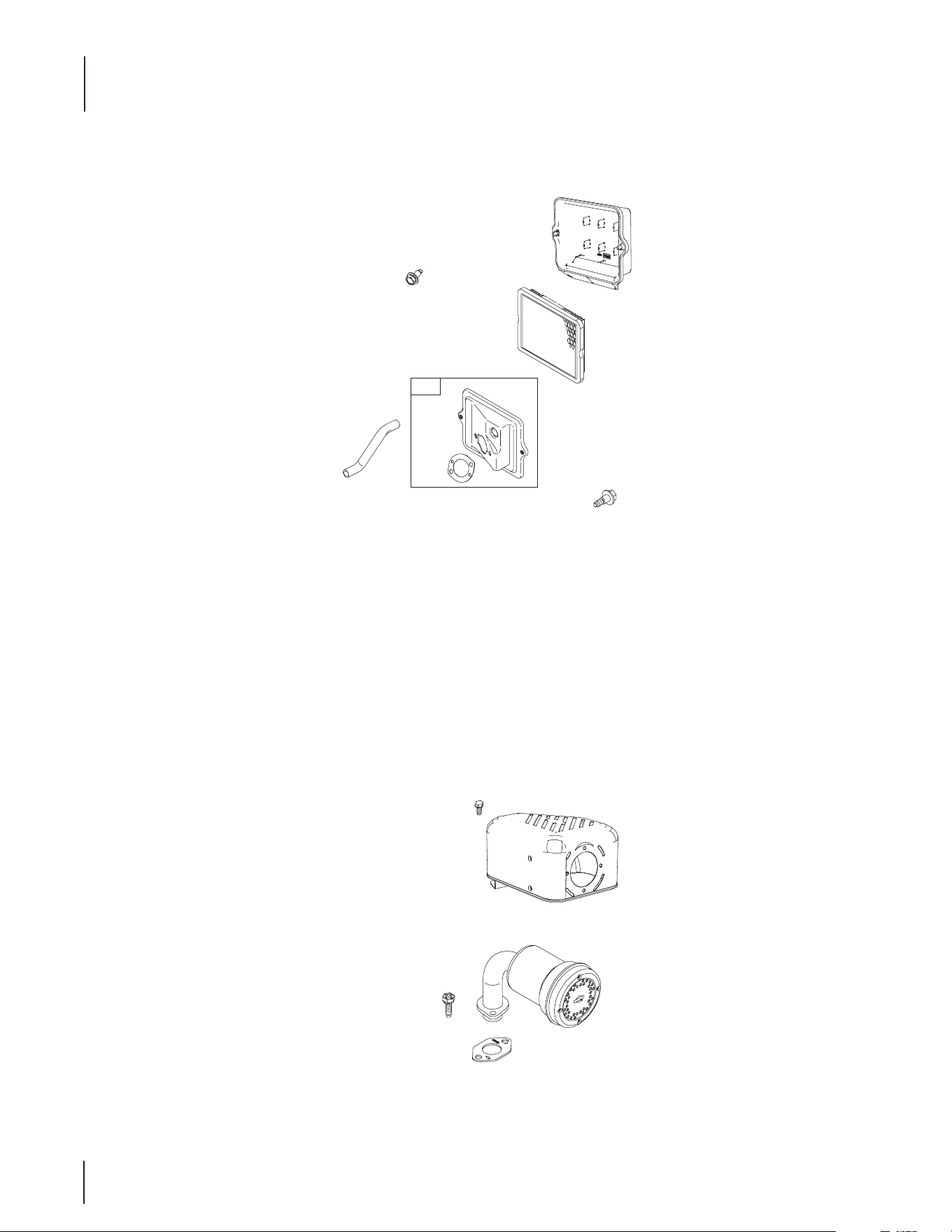

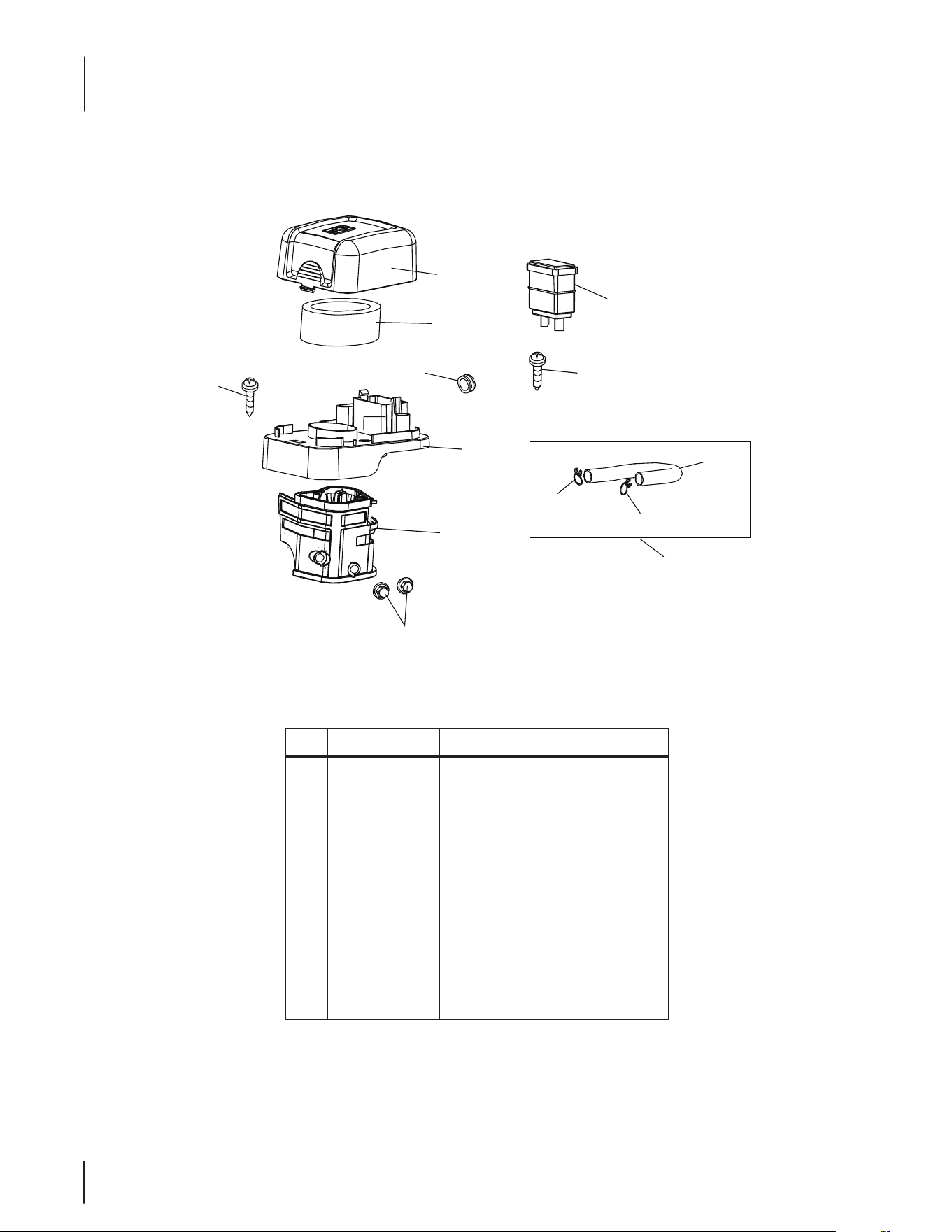

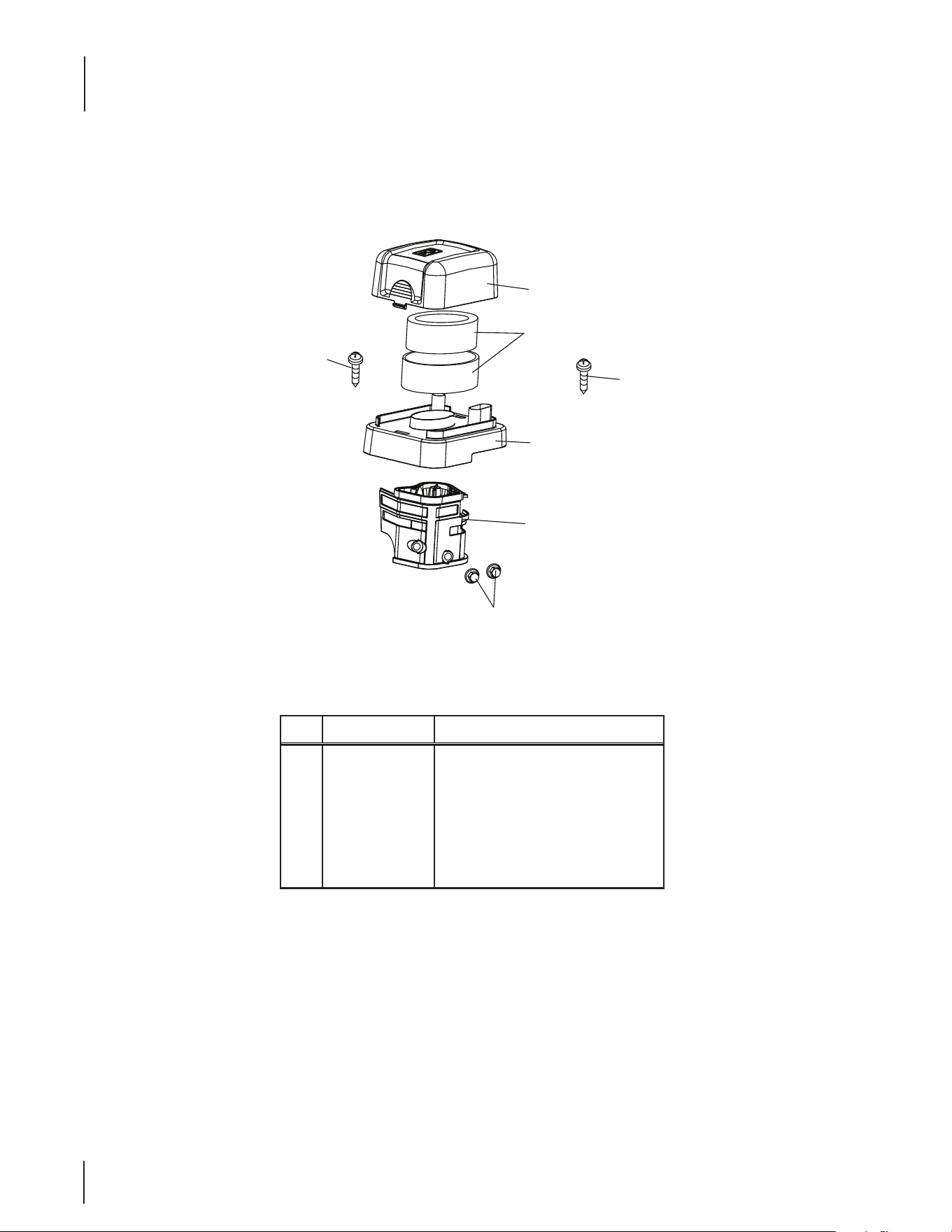

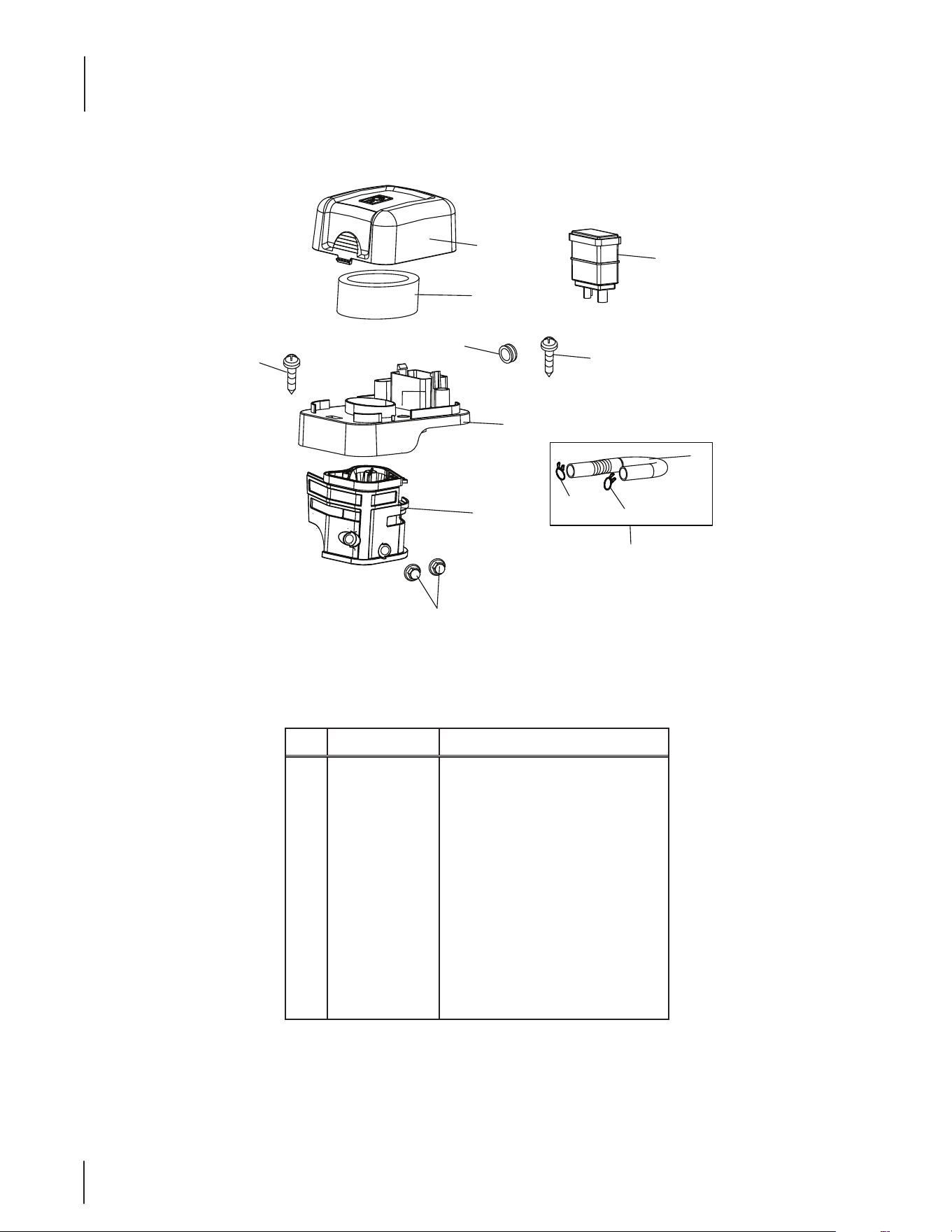

Honda GC190LA Air Filter
AIR CLEANER
MAY, 2006 2006 American Honda Motor Co., Inc. 1-11
Z1A0E1500
MODEL TYPE
A =GC190A a =MHA2
E-15
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1 TUBE, BREATHER...................................... -------- -------- 1 15721-ZL8-000 5611025
2 ELEMENT, AIR CLEANER.......................... -------- -------- 1 17211-ZL8-003 6718159
3 HOUSING, AIR CLEANER .......................... -------- -------- 1 17220-ZL8-000 5611314
4 GASKET, AIR CLEANER ............................ -------- -------- 1 17228-ZL8-000 5580436
5 COVER, AIR CLEANER .............................. -------- -------- 1 17231-Z0J-020 7423122
6 BOLT, FLANGE (6X112) (CT200) .............. -------- -------- 2 90003-ZL8-000 5611660
Ref. Part Number Description
1. 15721-ZL8-000 Breather Tube
2. 17211-ZL 8 - 023 Air Cleaner Element
3. 17220-ZL8-000 Air Cleaner Housing
4. 17228-ZL8-000 Air Cleaner Gasket
5. 17231-Z0J-020 Air Cleaner Cover
6. 90003-ZL8-000 Flange Bolt, 6 x 112
30
31

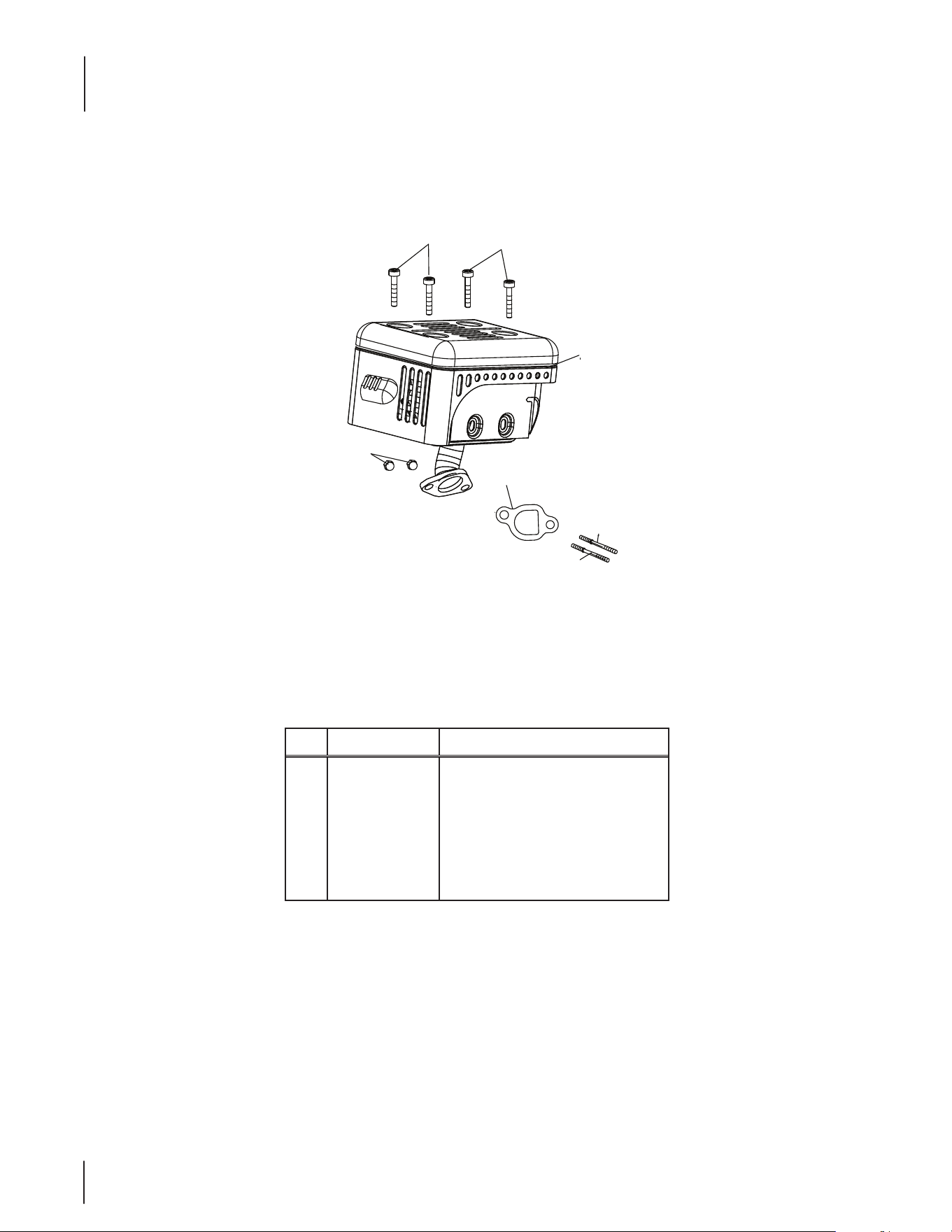

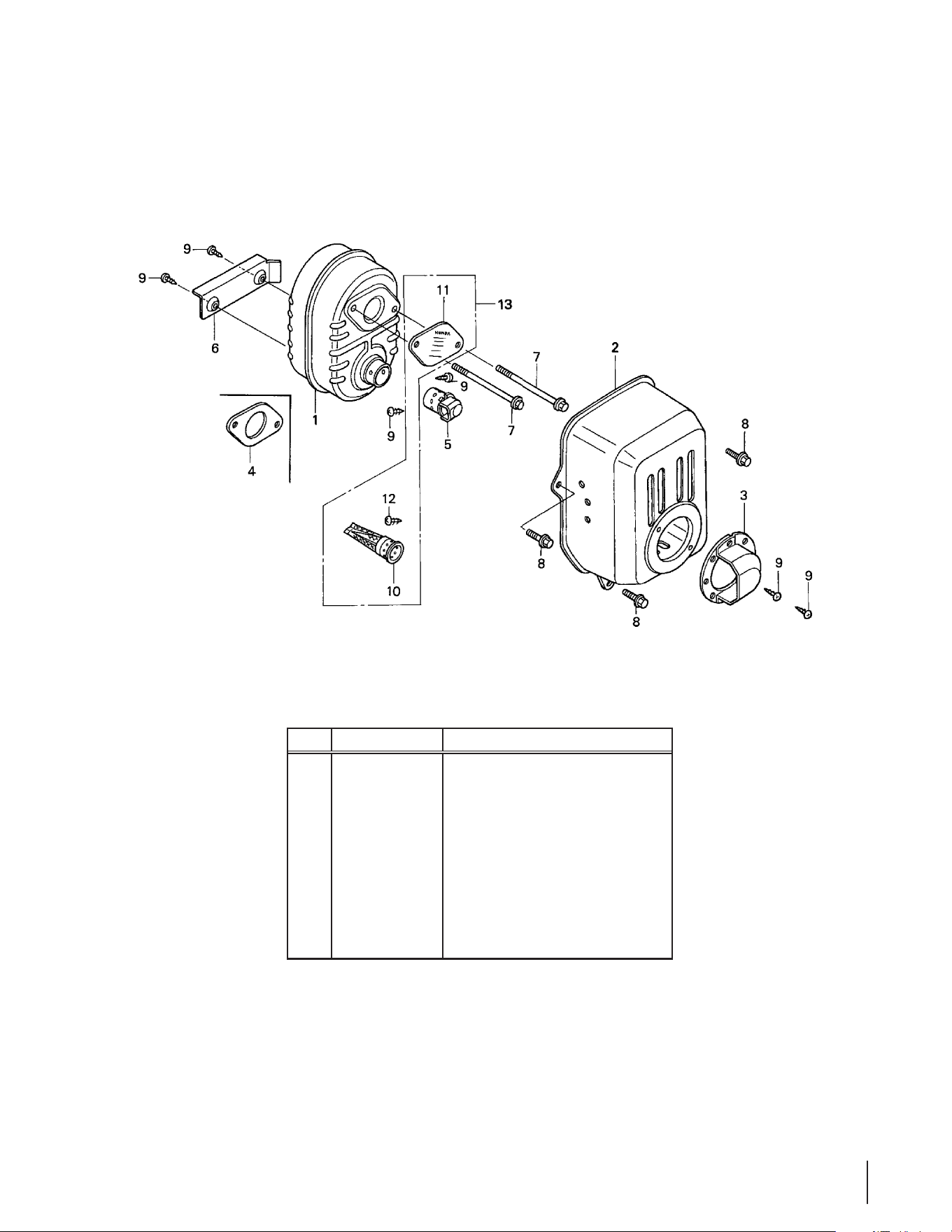

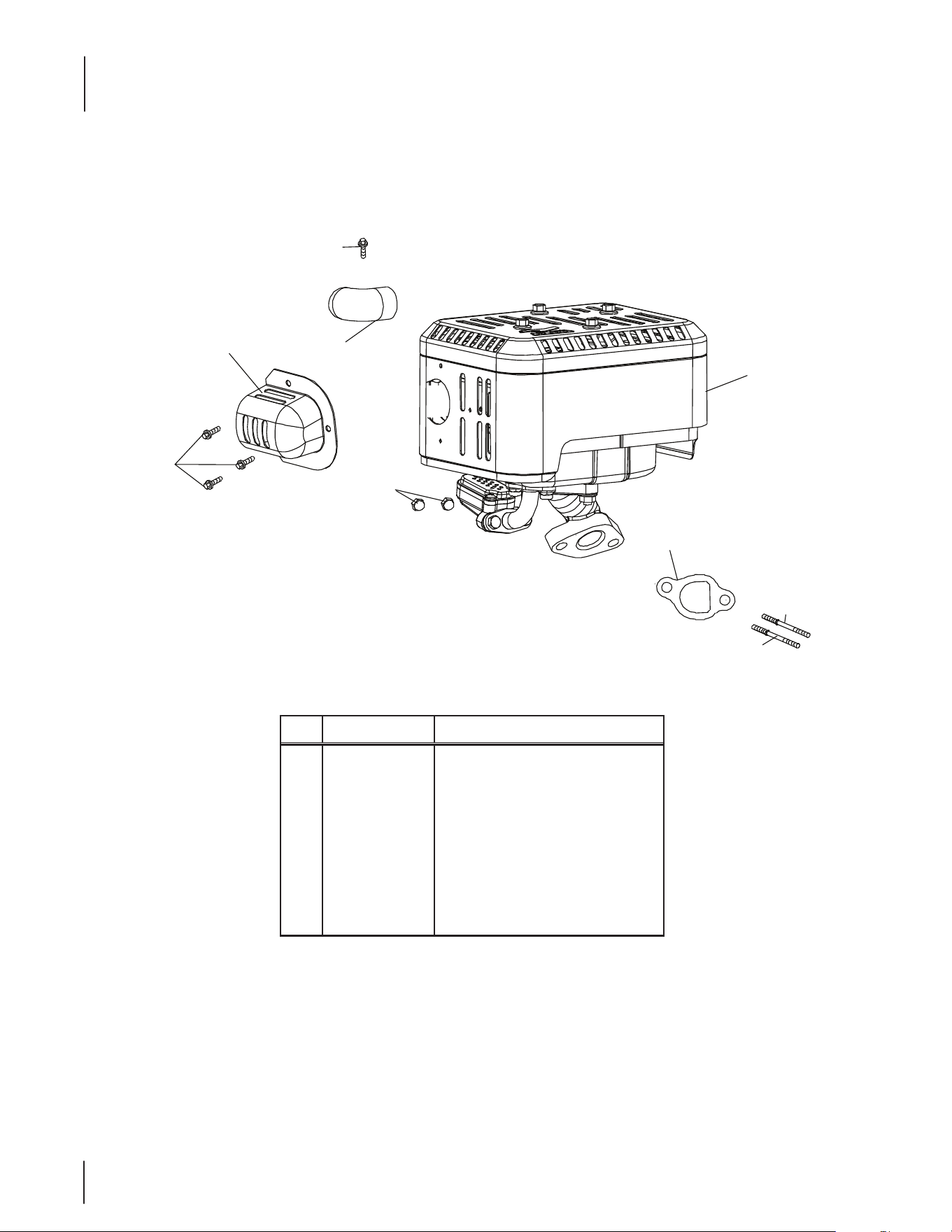

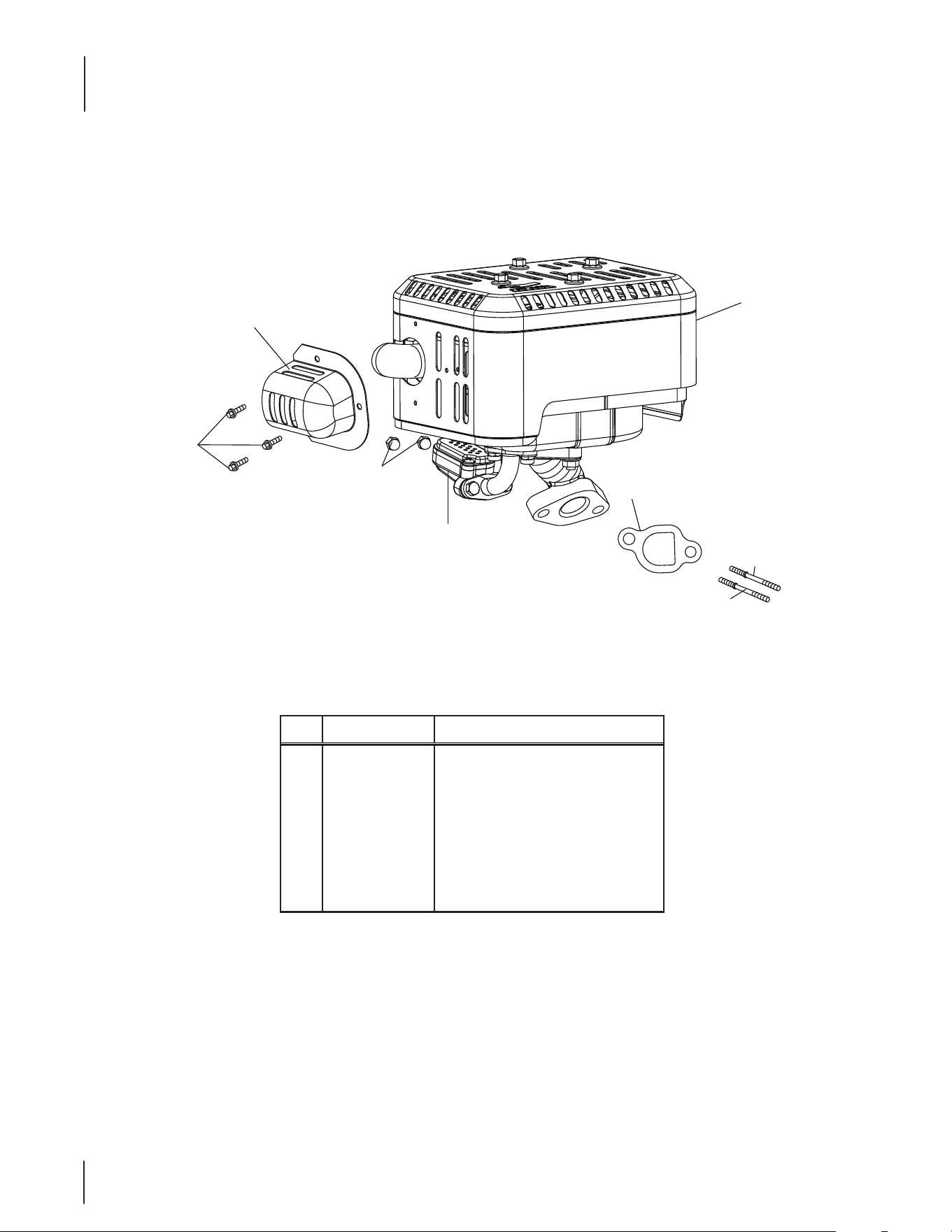

Honda GC190LA Muffler
MUFFLER
1-12 2006 American Honda Motor Co., Inc. MAY, 2006 1-C6
Z1A0E1600B
MODEL TYPE
A =GC190A a =MHA2
E-16
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1 MUFFLER.................................................... -------- -------- 1 18310-ZL8-010 5611389
2 PROTECTOR, MUFFLER .......................... -------- -------- 1 18321-Z0L-000 7388655
4 GASKET, MUFFLER .................................. -------- -------- (1) 18381-ZL8-305 5737457
6 SHROUD, MUFFLER .................................. -------- -------- 1 19664-ZL8-000 5611439
7 BOLT, FLANGE (6X79) (CT200) ................ -------- -------- 2 90004-ZL8-000 5580972
8 BOLT, FLANGE (6X12) (CT200) ................ -------- -------- 3 90013-883-000 0636845
9 SCREW, TAPPING (4X6)............................ -------- -------- 2 90055-ZE1-000 1431121
10 ARRESTER, SPARK .................................. -------- -------- (1) 18350-ZL8-000 5656012
11 PLATE, ARRESTER NUMBER .................. -------- -------- (1) 18356-ZL8-000 5611397
12 SCREW, TAPPING (4X6)............................ -------- -------- (1) 90055-ZE1-000 1431121
13 ARRESTER KIT, SPARK ............................ -------- -------- (1) 06180-Z0J-000 8213597
Ref. Part Number Description
1. 18310-Z0Y-000 Muer
2. 18321-Z0L-000 Muer Protector
4. 18381-ZL8-305 Muer Gasket
7. 90004-ZL8-000 Flange Bolt, 6 x 79
8. 90013-883-000 Flange Bolt, 6 x 12
10. 18350-ZL8-000 Spark Arrester
11. 18356-ZL8-000 Arrester Number Plate
12. 90055-ZE1-000 Tapping Screw, 4 x 6
13. 06180-Z0J-000 Spark Arrester Kit
31
32

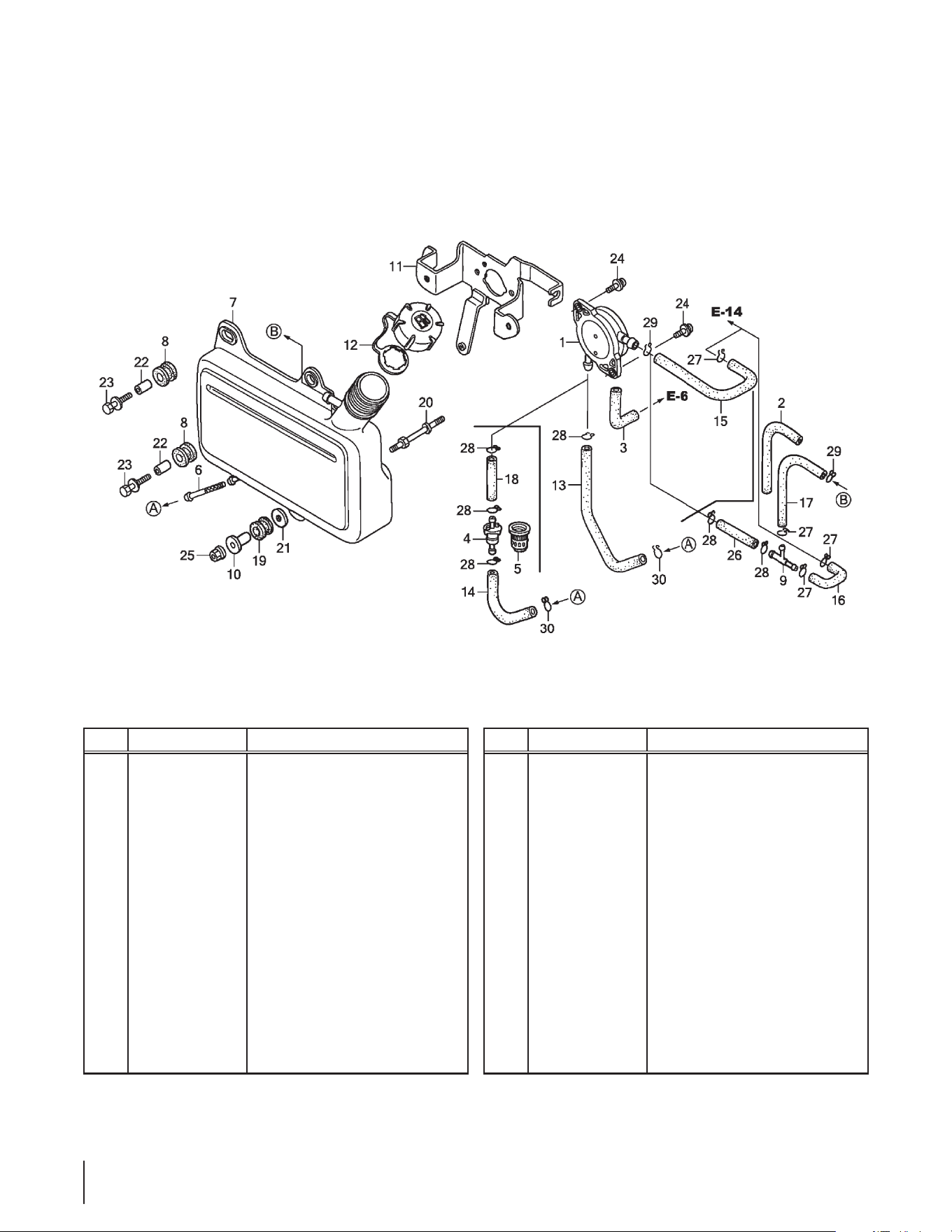

Honda GC190LA Fuel System
Ref. Part Number Description
1. 16700-Z0J-003 Fuel Pump Assembly
2. 16854-ZH8-000 Supporter Rubber, 107mm
3. 16882-ZL8-000 Tube, Diaphragm
4. 16910 -ZV4-015 Fuel Strainer
5. 16915-ZV4-000 Strainer, Suspension
6. 17511-Z0 J - 80 0 Fuel Tank
7. 17516-ZV0-000 Tank Mounting Rubber, B
8. 17519-ZL8-800 Fuel Tube
9. 17535-KE7-000 Collar
10. 17561-Z0J-000 Stay A, Fuel Tank
11. 17620 -Z0J-800 Fuel Cap Assembly
12. 17701-ZL8-80 0 Fuel Tank Tube
13. 17702-ZL8-800 Fuel Tube
14. 17703-ZL8-80 0 Fuel Return Tube
Ref. Part Number Description
15. 17704-ZL8-800 Fuel Pump Tube
16. 80103-MG2-000 Rear Fender Cushion
17.
90041-ZL8-000
Fuel Tank Stud Bolt, 30mm
18. 90473-896-000 Washer, 6Mm
19. 90501-KA2-640 Collar, 14 X 6.1
20. 93404-06025-00 Bolt-Washer, 6 X 25
21. 93894-05014-00 Screw-Washer, 5 X 14
22. 94050-06000 Nut, Flange, 6mm
23. 95001-55033-40 Fuel Tube, 5.3 X 33
24. 95002-02080 Tube Clip, B8
25. 95002-02100 Tube Clip, B10
26. 95002-50000 Tube Clip, C9
27. 95002-70000 Tube Clip, C11
32
33

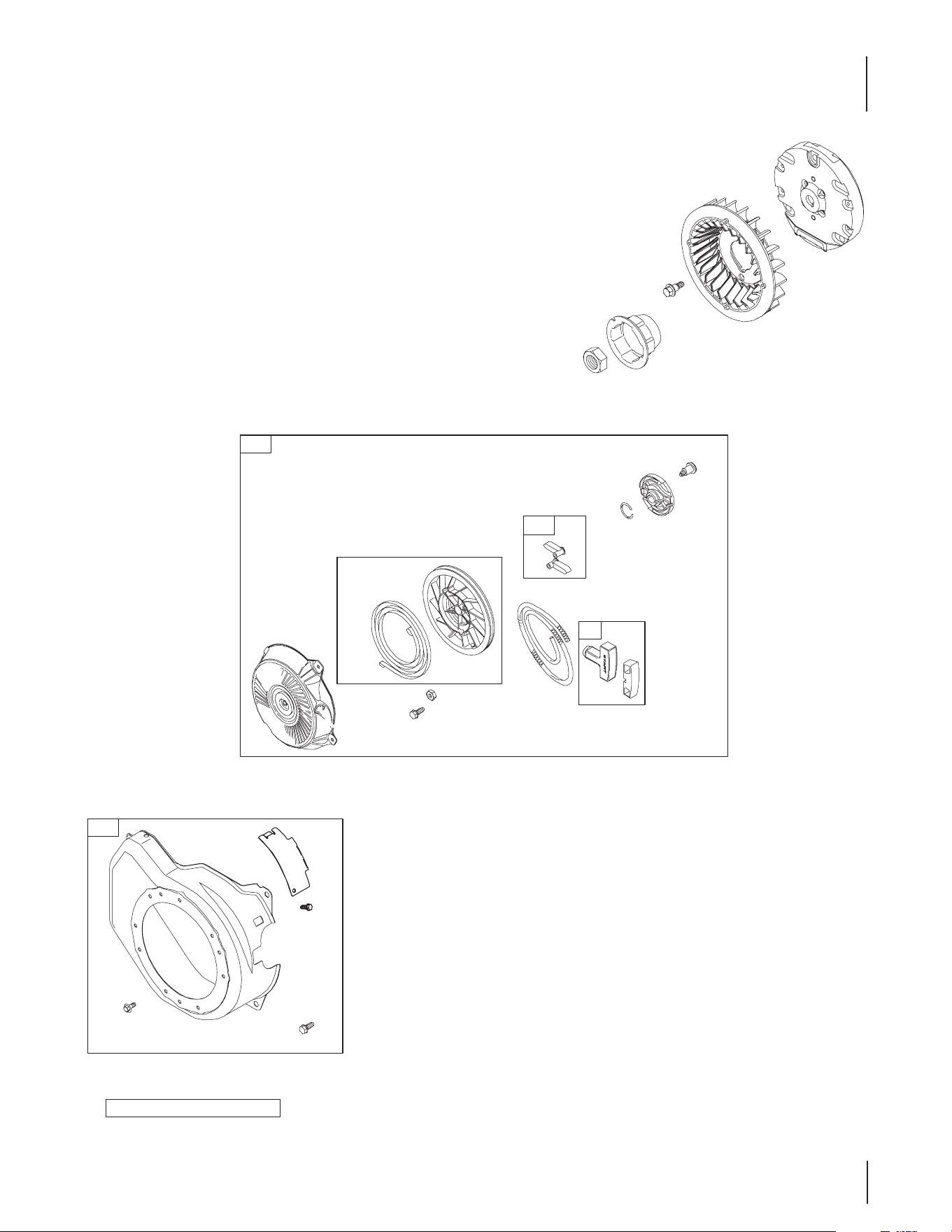

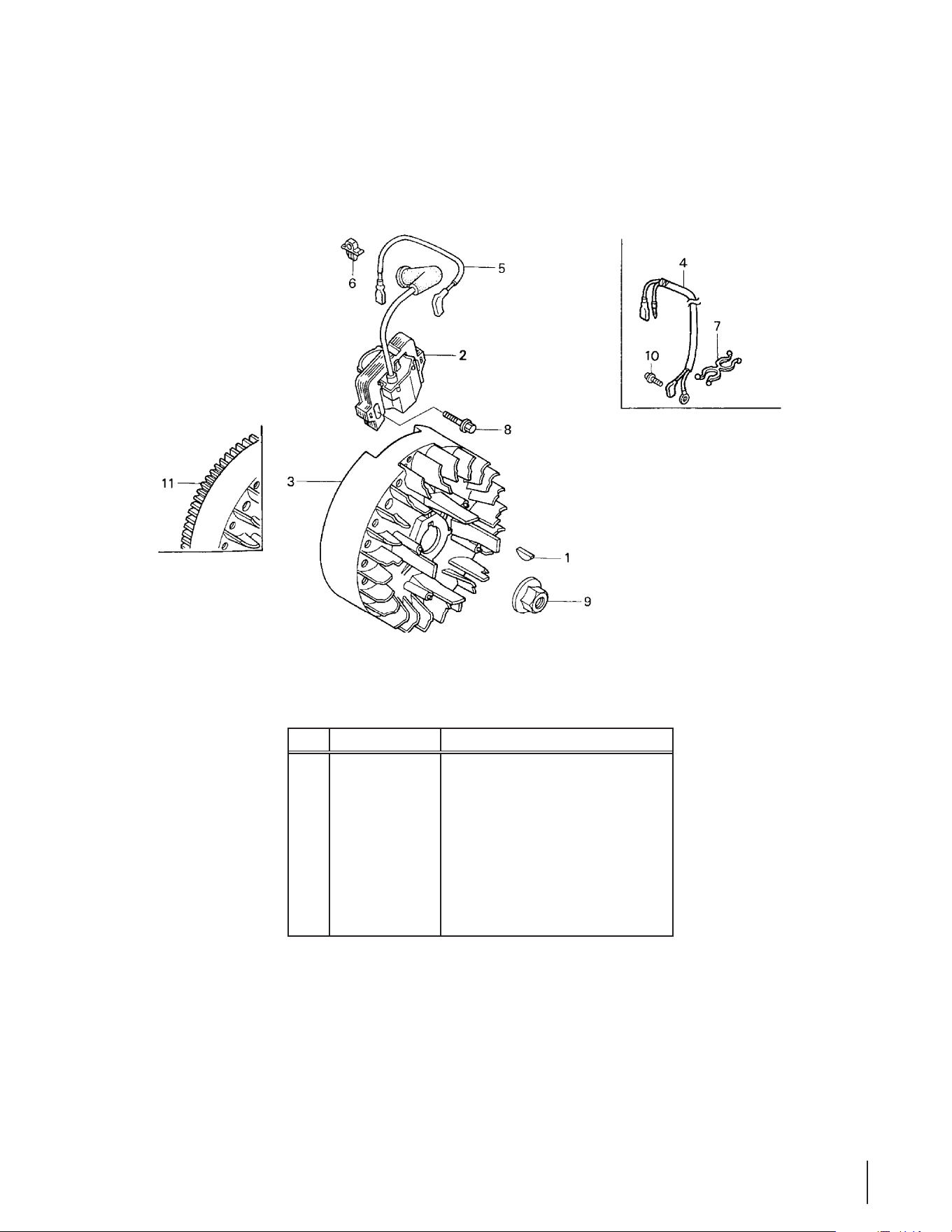

Honda GC190LA Flywheel
FLYWHEEL
MAY, 2006 2006 American Honda Motor Co., Inc. 1-15
Z1A0E1900C
MODEL TYPE
A =GC190A a =MHA2
E-19
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1 KEY, SPECIAL WOODRUFF (25X18) ........ -------- -------- 1 13331-357-000 0348433
2 COIL ASSY., IGNITION .............................. -------- -------- 1 30500-Z0J-003 6859722
3 FLYWHEEL ................................................ -------- -------- 1 31110-Z0J-013 7399538
5 WIRE, STOP SWITCH ................................ -------- -------- 1 32195-Z0J-000 6859730
6 HOLDER, STOP SWITCH WIRE ................ -------- -------- 1 36103-ZE1-000 1429141
8 BOLT, FLANGE (6X20) (CT200) ................ -------- -------- 1 90022-888-010 0671552
9 NUT, FLANGE (14MM)................................ -------- -------- 1 90213-S3Y-000 6352561
Ref. Part Number Description
1. 13331-357-000 Special Woodru Key, 25 x 18
2. 30500-Z0J-003 Ignition Coil Assembly
3. 31110 -Z0J - 013 Flywheel
5. 32195-Z0J-000 Stop Switch Wire
6. 36103-ZE1-000 Stop Switch Wire Holder
5112 5 -Z0L- 0 03 Stop Switch Wire Holder
8. 90022-888-010 Flange Bolt, 6 x 20
9. 90213-S3Y-000 Flange Nut, 14mm
33
34

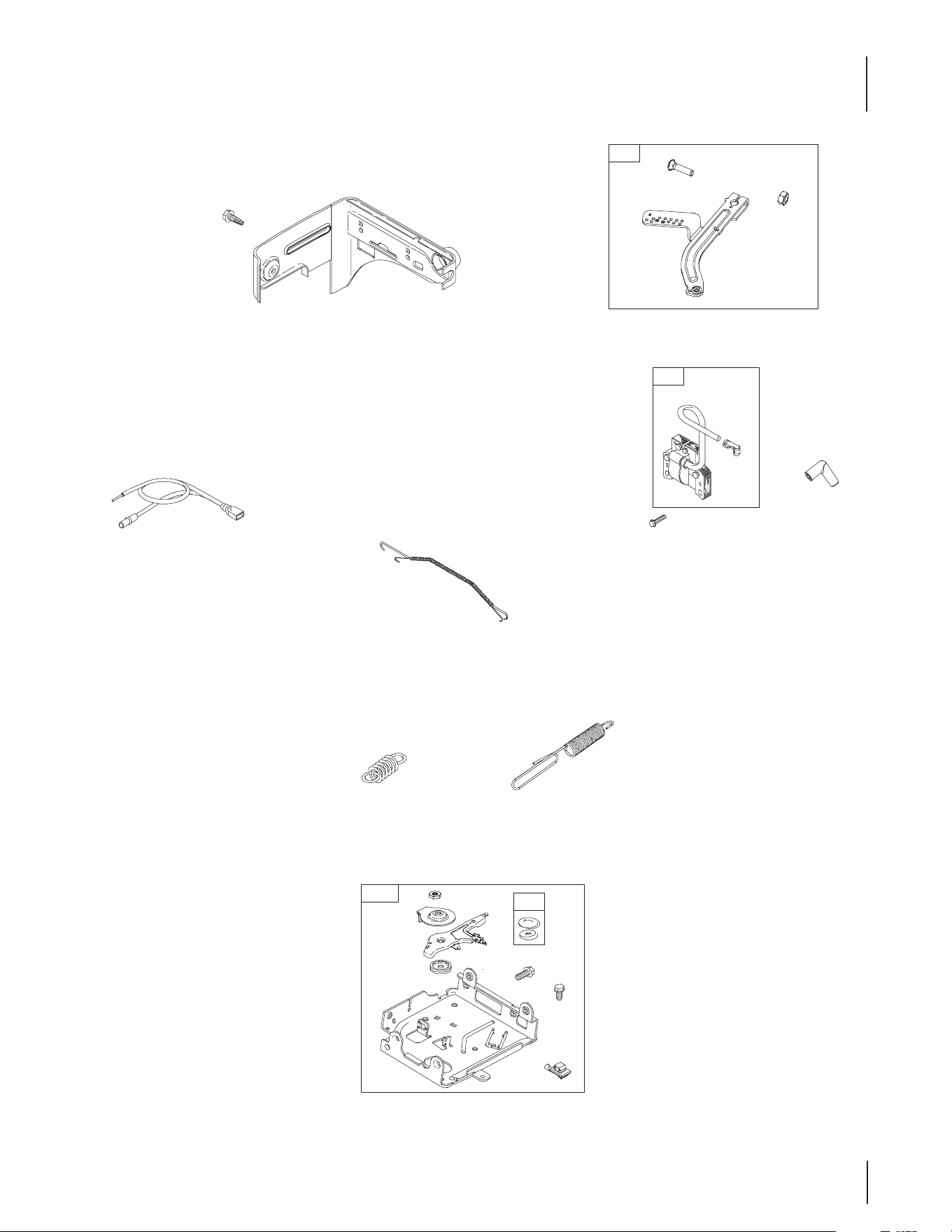

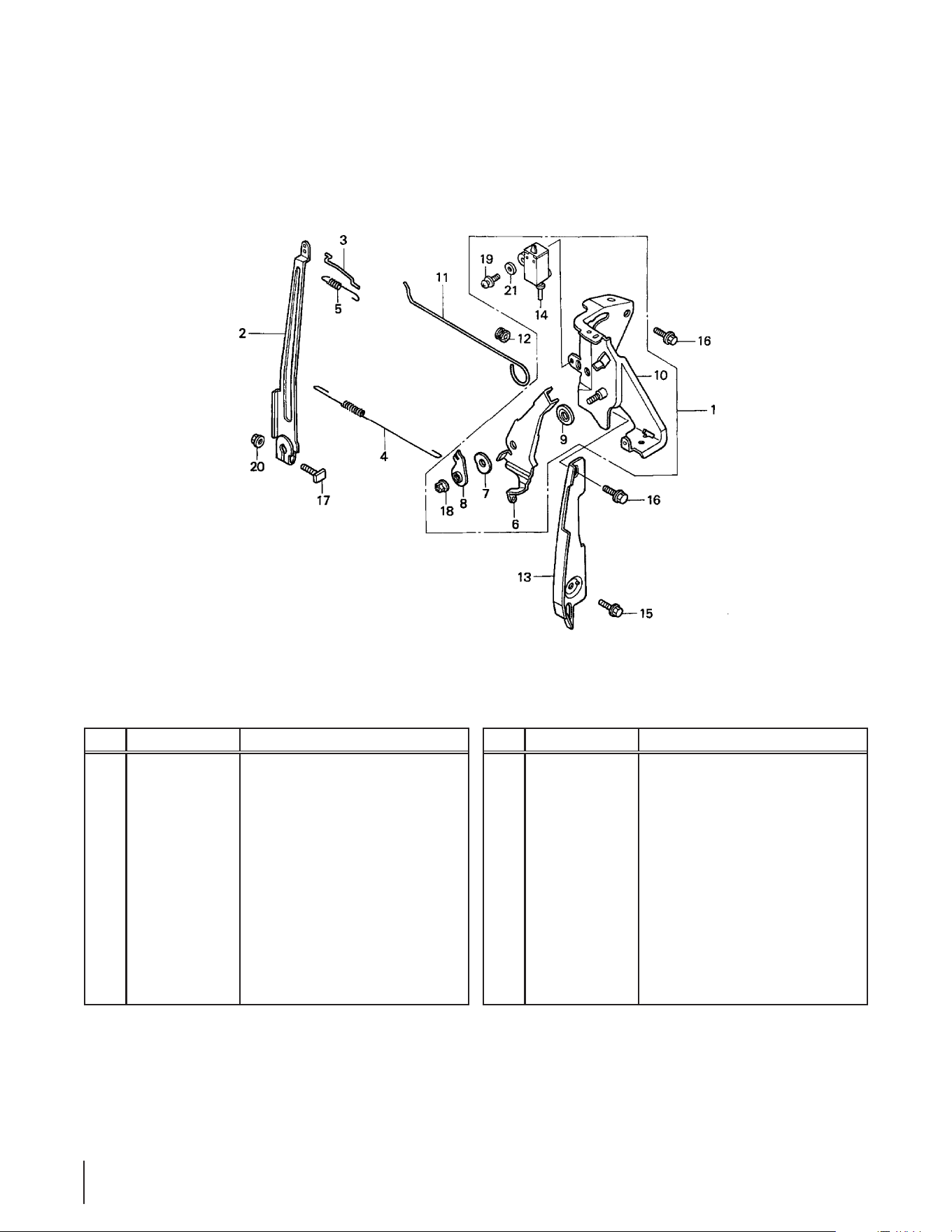

Honda GC190LA Controls
CONTROL (1)
1-16 2006 American Honda Motor Co., Inc. MAY, 2006 1-C8
Z1A0E2200
MODEL TYPE
A =GC190A a =MHA2
E-22
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1 CONTROL ASSY......................................... -------- -------- 1 16500-ZL8-000 5611074
2 ARM, GOVERNOR...................................... -------- -------- 1 16551-ZL8-000 5611132
3 ROD, GOVERNOR...................................... -------- -------- 1 16555-ZL8-000 5611140
4 SPRING, GOVERNOR ................................ -------- -------- 1 16561-Z0J-000 7557010
5 SPRING, THROTTLE RETURN .................. -------- -------- 1 16562-ZL8-800 5927033
6 LEVER, CONTROL .................................... -------- -------- 1 16571-ZL8-000 5611181
7 SPRING, LEVER ........................................ -------- -------- 1 16574-ZE1-000 1427384
8 WASHER, CONTROL LEVER .................... -------- -------- 1 16575-ZL8-000 5611215
9 SPACER, CONTROL LEVER...................... -------- -------- 1 16578-ZE1-000 1427400
10 BASE, CONTROL........................................ -------- -------- 1 16580-ZL8-000 5611256
11 ROD, CHOKE CONTROL .......................... -------- -------- 1 16611-ZL8-000 5611272
12 GROMMET, CHOKE ROD .......................... -------- -------- 1 16613-893-000 0788596
13 PLATE, SIDE .............................................. -------- -------- 1 19612-ZL8-000 5656020
14 SWITCH ASSY., ENGINE STOP (N.O) ...... -------- -------- 1 35120-ZL8-003 5611520
15 BOLT, FLANGE (6X12) (CT200) ................ -------- -------- 1 90013-883-000 0636845
16 BOLT, FLANGE (6X14) .............................. -------- -------- 2 90014-952-000 0803619
17 BOLT, GOVERNOR ARM .......................... -------- -------- 1 90015-ZE5-010 2418671
18 NUT, SELF-LOCK (6MM) ............................ -------- -------- 1 90114-SA0-000 1410182
Ref. Part Number Description
1. 16500-ZL8-000 Control Assembly
2. 16551-ZL8-010 Governor Arm
3. 16555-ZL8-000 Governor Rod
4. 16561-Z0J-000 Governor Spring
5. 16562-ZL8-800 Throttle Return Spring
6. 16571-ZL8-000 Control Lever
7. 16574-ZE1-000 Lever Spring
8. 16575-ZL8-000 Control Lever Washer
9. 16578-ZE1-000 Control Lever Spacer
10. 16500-ZL8-000 Control Base
11. 16611-ZL8-000 Choke Control Rod
Ref. Part Number Description
12. 16613-893-000 Choke Rod Grommet
13. 19612-Z0L-000 Side Plate
14. 35120 -ZL8-003 Engine Stop Switch Assembly
15. 90013-883-000 Flange Bolt, 6 x 12
16. 90014-952-000 Flange Bolt, 6 x 14
17. 90015-ZE5-010 Governor Arm Bolt
18. 90114-SA0-000 Self-lock Nut, 6mm
19. 93892-04012-00 Screw-Washer, 4 x 12
20. 94050-06000 Flange Nut, 6mm
21. 94103-04000 Plain Washer, 4mm
34
35Notes
36

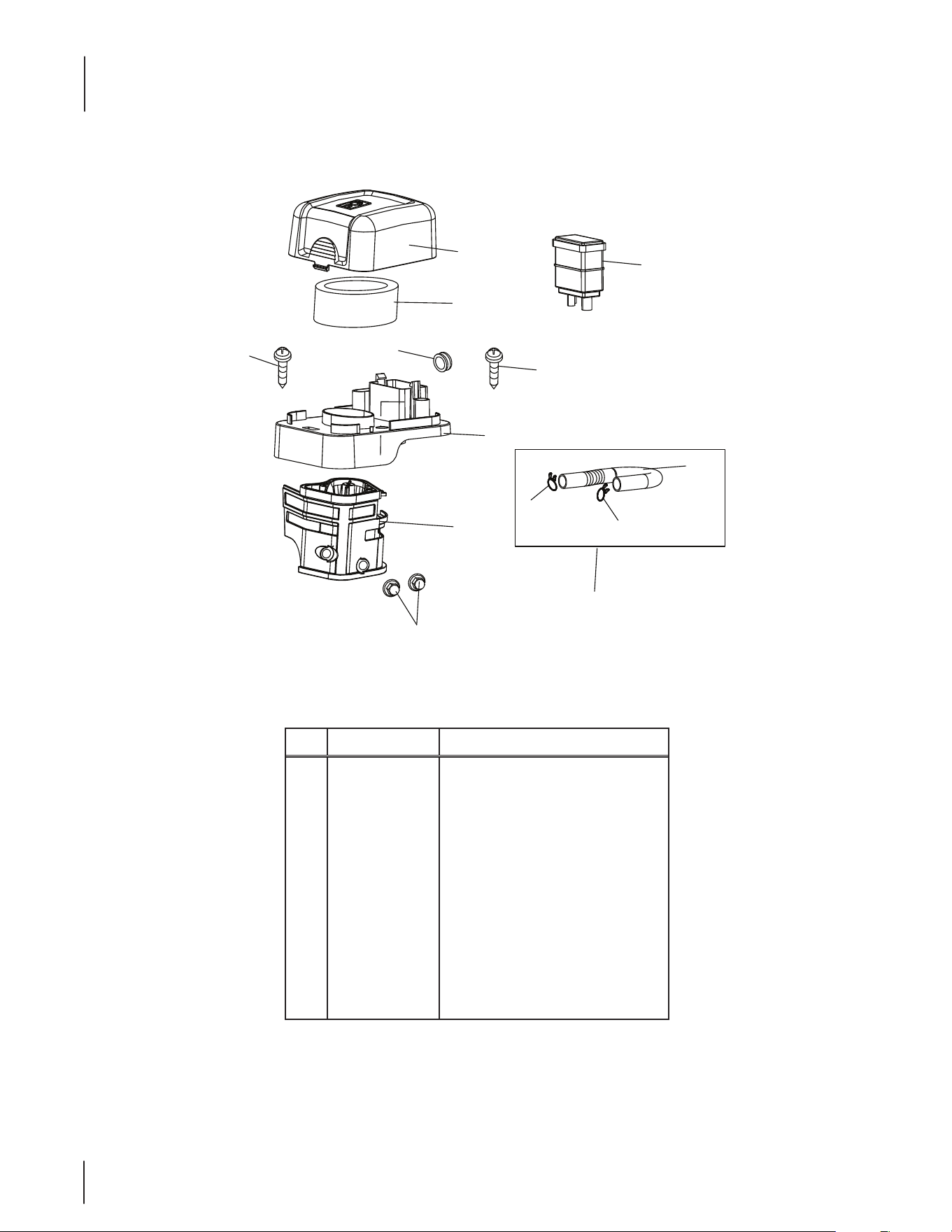

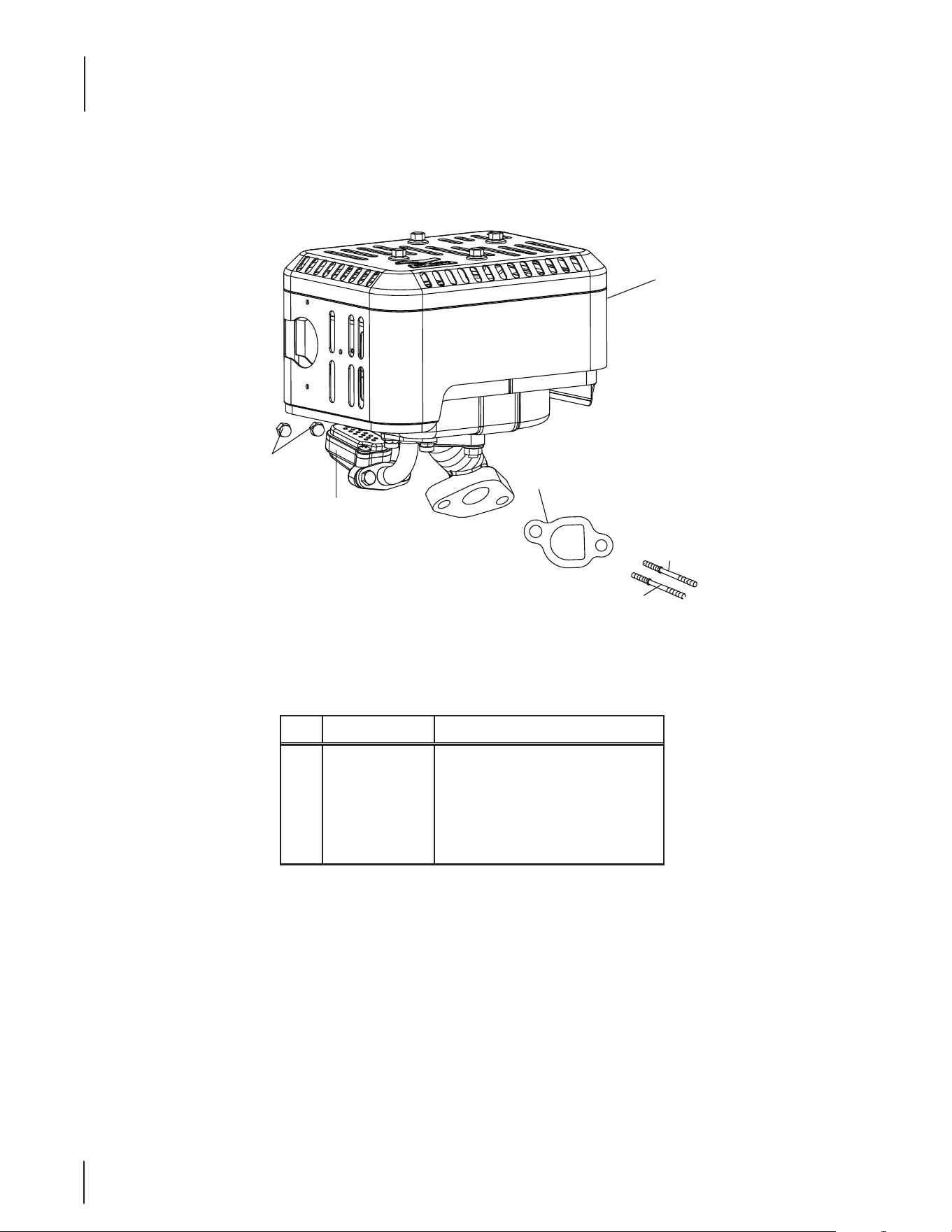

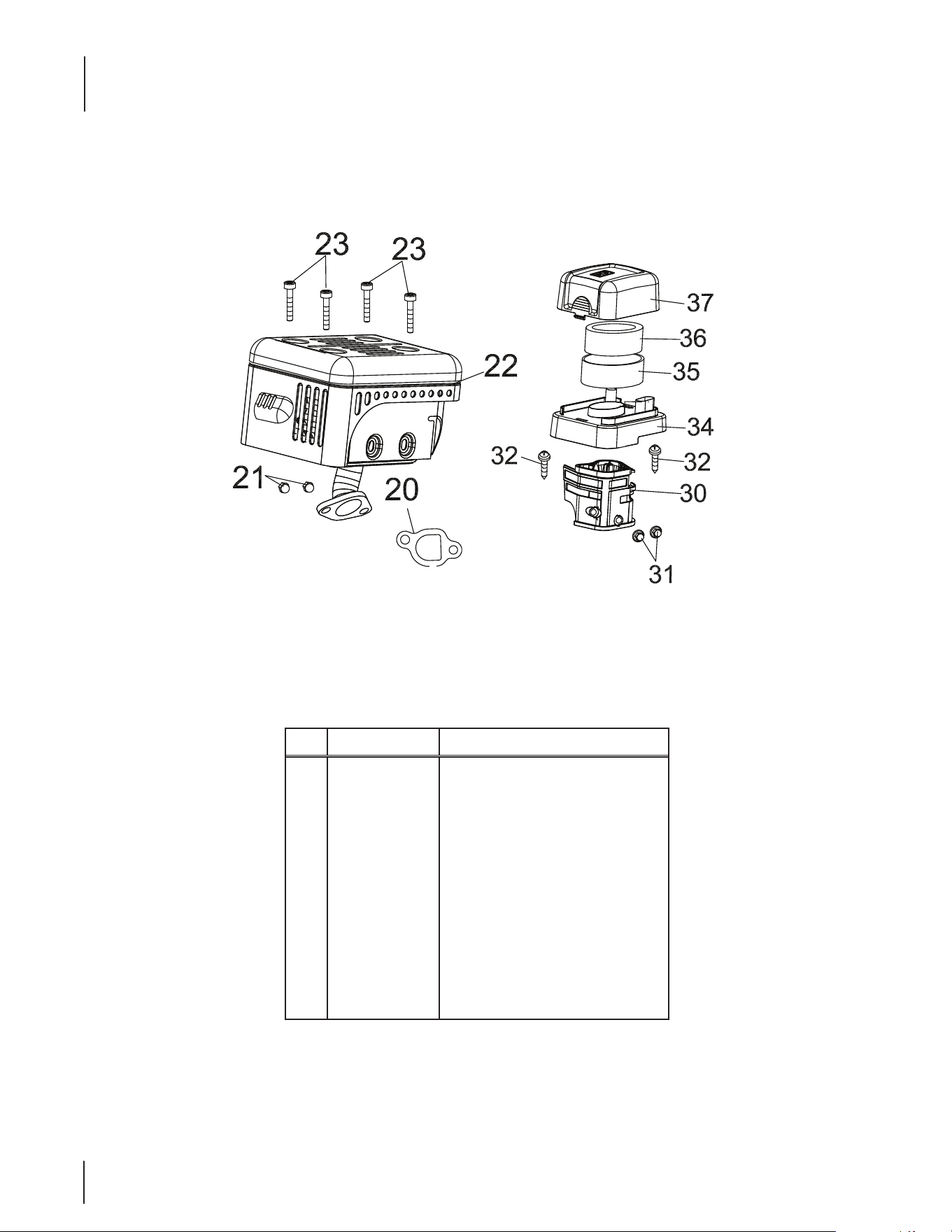

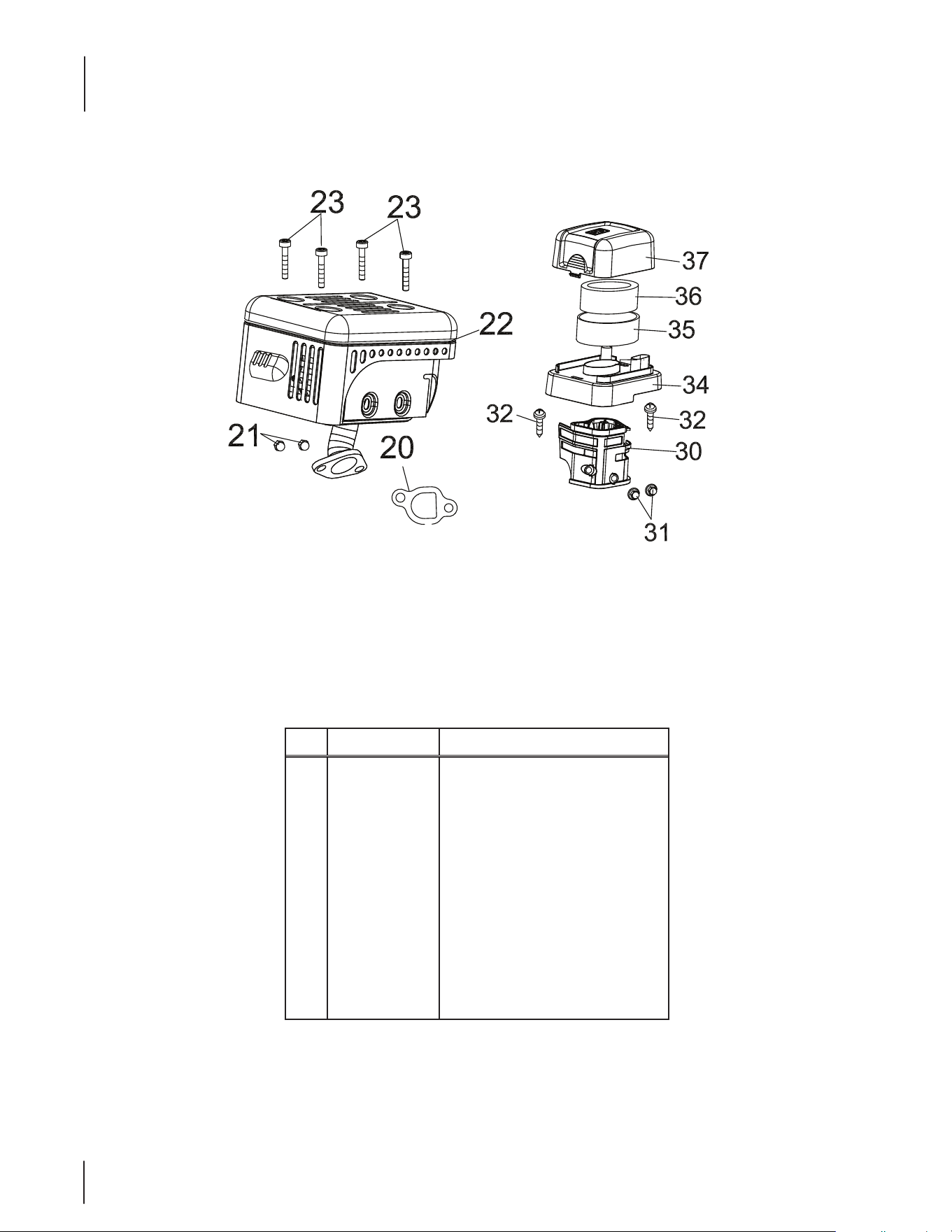

170-T0B Air Cleaner & Muffler
Ref. Part Number Description
20 951-11285 Exhaust Pipe Gasket
21 712-04214 Nut, M8
22 951-12156 Muer Assembly
23 710-05002 Bolt
30 951-10806 Air Cleaner Housing
31 712- 04213 Nut
32 710-05102 Self-Tapping Bolt M4.2×16
34 951-12135 Silencer Plate
35 951-10794 Air Cleaner Assembly
36 951-10794 Air Cleaner Assembly
37 951-12136 Air Cleaner Cover
37

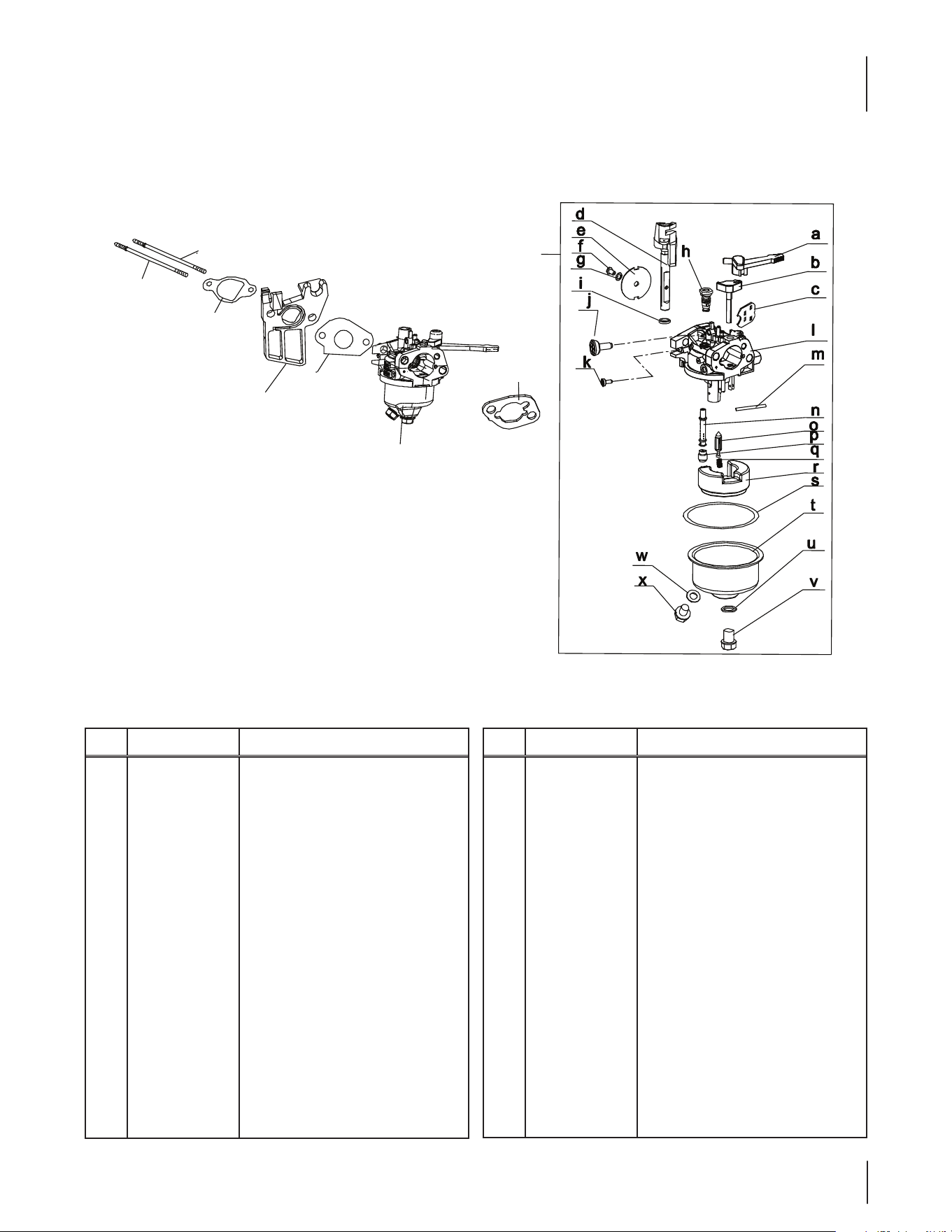

170-T0B Carburetor
Ref.
Part Number Description
28 951-12124 Carburetor Assembly
29 951-11571 Carburetor Gasket Plate
a 951-11177 Control Lever,Choke
b N/A Choke Shaft
c N/A Choke Plate
d N/A Throttle Shaft
e N/A Throttle Plate
f N/A Screw M3×5
g N/A Lock Washer
h N/A Idle Jet Assembly
i N/A Gasket, Throttle Plate
j N/A Idle Speed Adjusting Screw
k N/A Mixture Screw
l N/A Carburetor Body
Ref.
Part Number Description
m N/A Float Pin
n N/A Emulsion Tube
o N/A Needle Valve
p N/A Main Jet
q N/A Needle Valve Spring
r N/A Float
s 951-11589 Fuel Bowl Gasket
t N/A Fuel Bowl
u 951-113 48 Fuel Bowl Gasket
v 710-04945 Fuel Bowl Mounting Bolt
w 951-113 49 Fuel Drain Plug Gasket
x 710-04938 Fuel Drain Plug
951-12119 Carburetor Kit - Major
(Incl Ref. l,m,n,o,p,q,r,s,u & w)
38

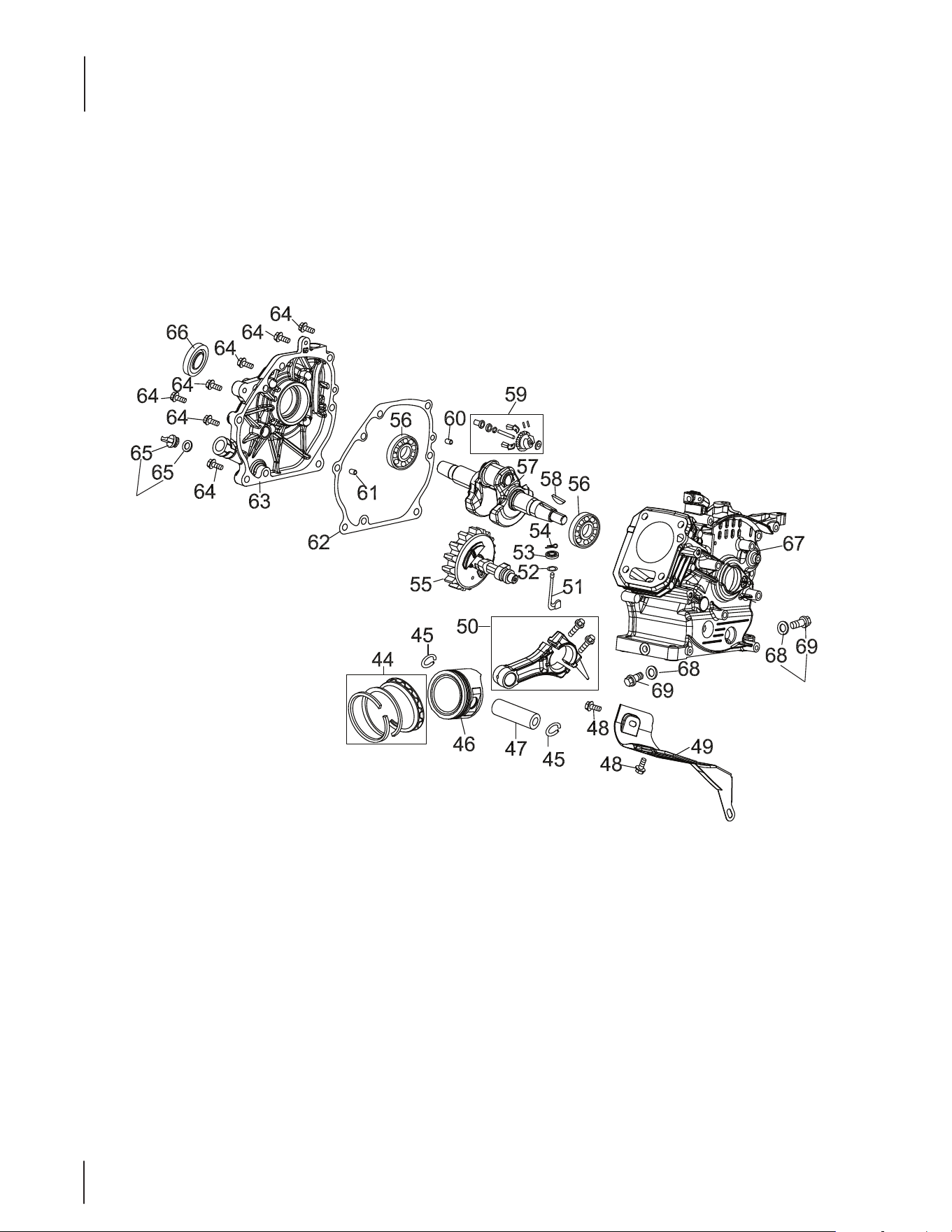

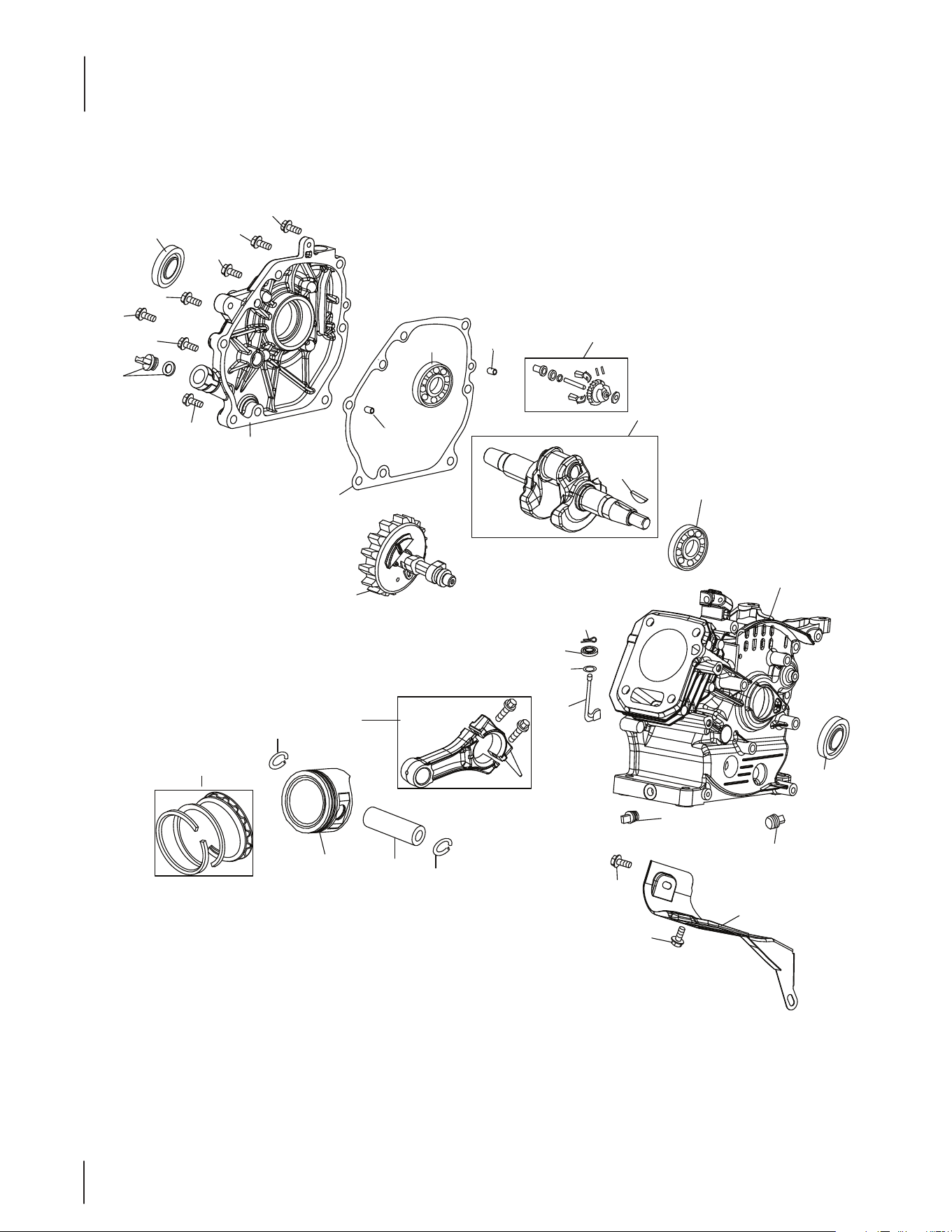

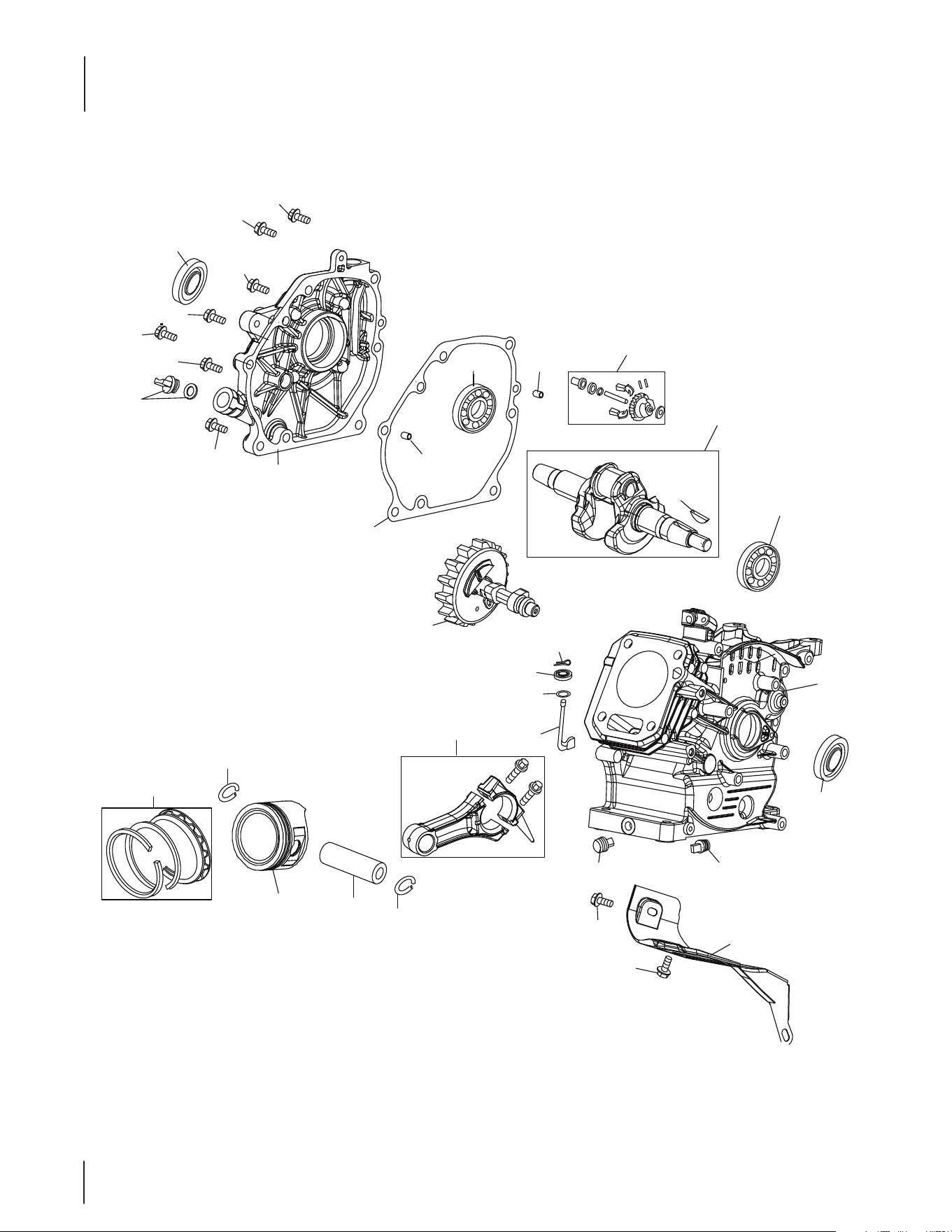

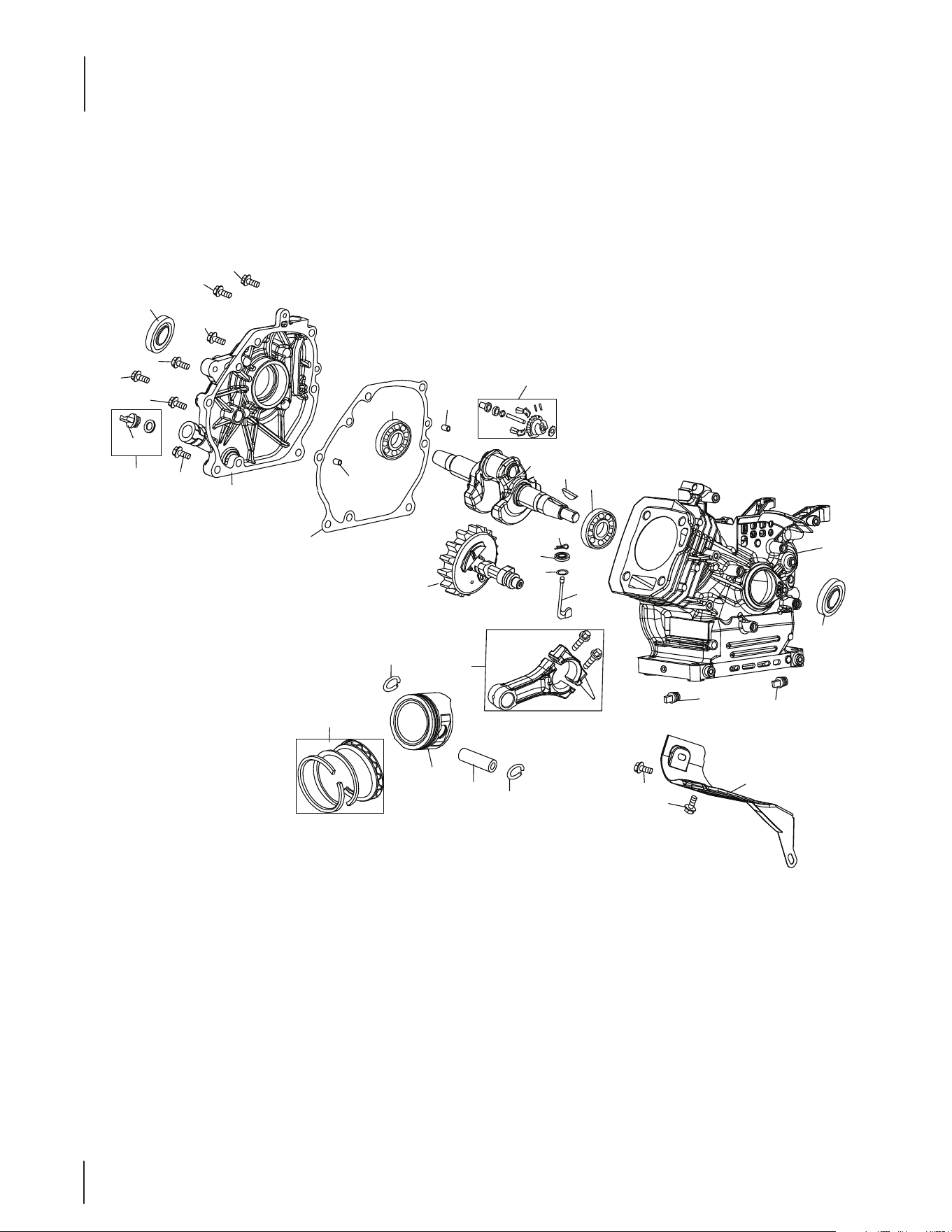

170-T0B Crankcase
Ref.
Part Number Description
44 951-112 53 Piston Ring Set
45 951-11632 Piston Pin Snap Ring
46 951-12007 Piston
47 951-11633 Piston Pin
48 710-04915 Bolt M6×12
49 951-11113 Air Shield
50 951-11573 Connecting Rod Assembly
51 951-11356 Governor Arm Shaft
52 736-04461 Washer 5.2×1.9
53 951-11574 Governor Seal
54 714 - 04074 Cotter Pin
55 951-11575 Camshaft Assy.
56 951-11369 Radial Ball Bearing, 6205
57 951-12160 Crankshaft Assembly
58 951-10307 Woodru Key
59 951-11576 Governor Gear/Shaft Assembly
a
113
112
39

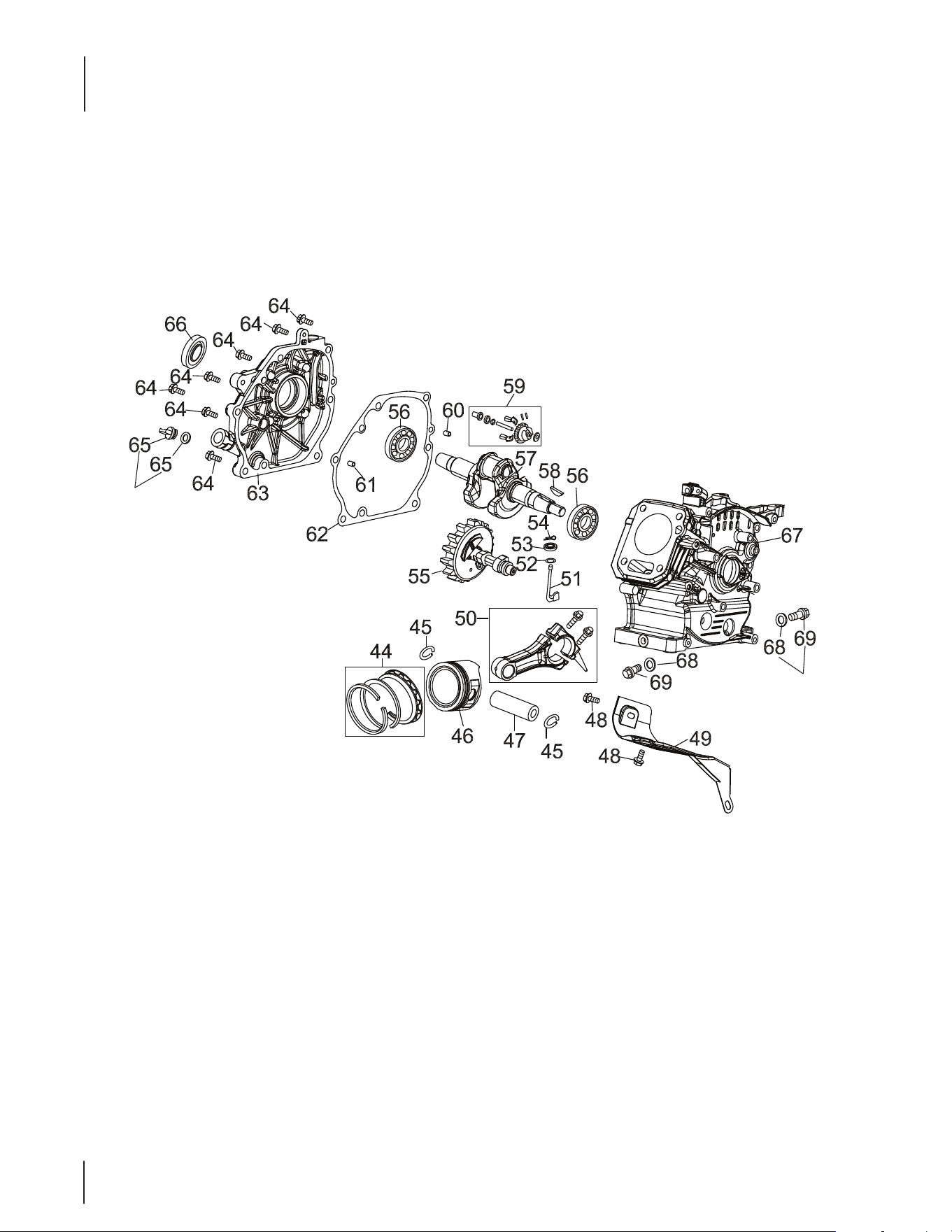

170-T0B Crankcase
Ref.
Part Number Description
44 951-112 53 Piston Ring Set
45 951-11632 Piston Pin Snap Ring
46 951-12007 Piston
47 951-11633 Piston Pin
48 710-04915 Bolt M6×12
49 951-11113 Air Shield
50 951-11573 Connecting Rod Assembly
51 951-11356 Governor Arm Shaft
52 736-04461 Washer 5.2×1.9
53 951-11574 Governor Seal
54 714 - 04074 Cotter Pin
55 951-11575 Camshaft Assy.
56 951-11369 Radial Ball Bearing, 6205
57 951-12160 Crankshaft Assembly
58 951-10307 Woodru Key
59 951-11576 Governor Gear/Shaft Assembly
Ref.
Part Number Description
60 715-04092 Dowel Pin 7×14
61 715-04089 Dowel Pin 9×14
62 951-11371 Crankcase Cover Gasket
63 951-12125 Cover Comp, Left Crankcase
64 710-04932 Bolt M8×32
65 951-11377 Oil Filler Plug Ass'y
65a 951-11577 O-Ring
66 951-11578 Oil Seal, 25×41.25×6
67 951-12155 Short Block
(Incl Ref. 4,20,25,26,38,
40,41,44-47,50-70
68 736-04440 Washer 10×16×1.5
69 710-04906 Oil Drain Plug
112 951-10370 Oil Drain Plug & Washer Assembly
113 951-11283 Oil Fill Plug Assembly
40

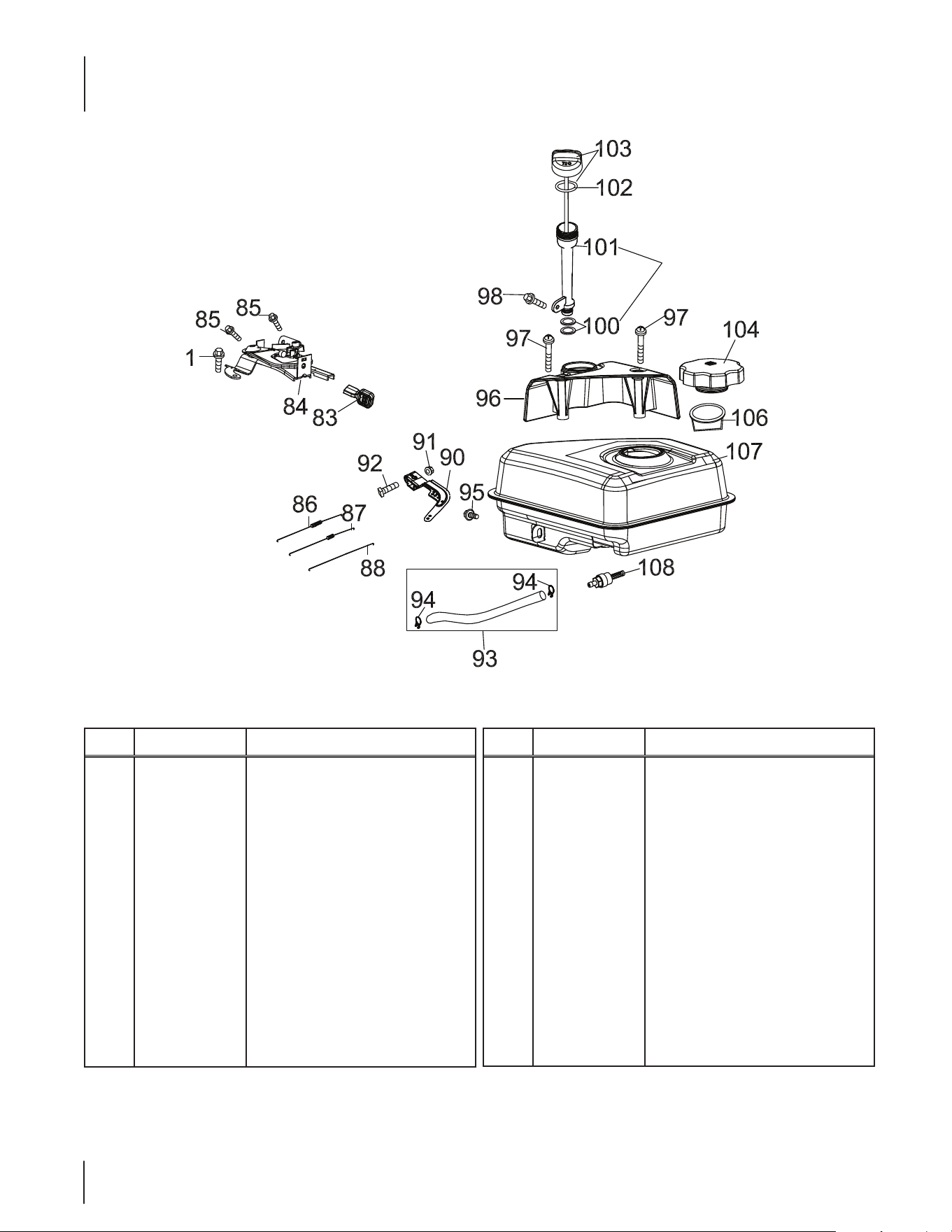

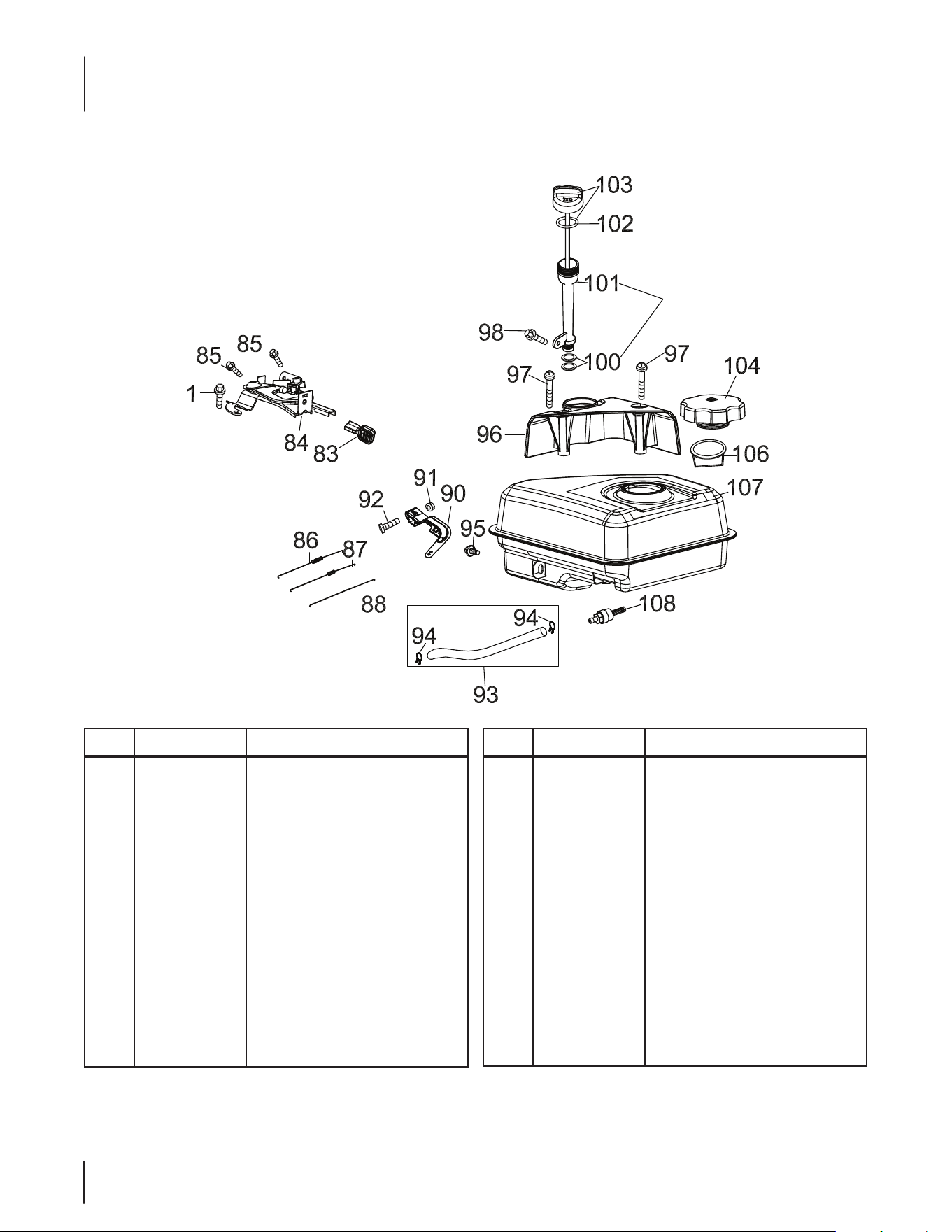

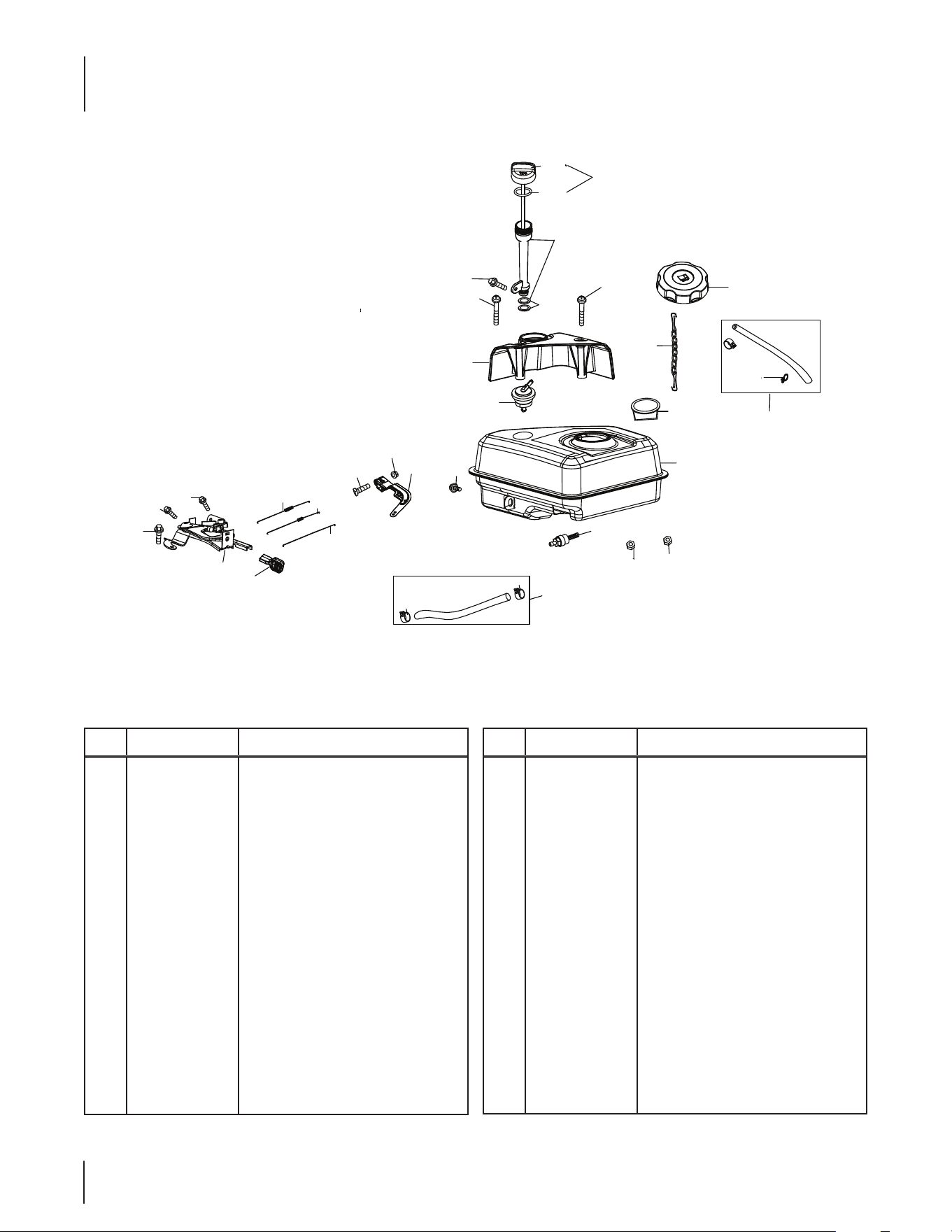

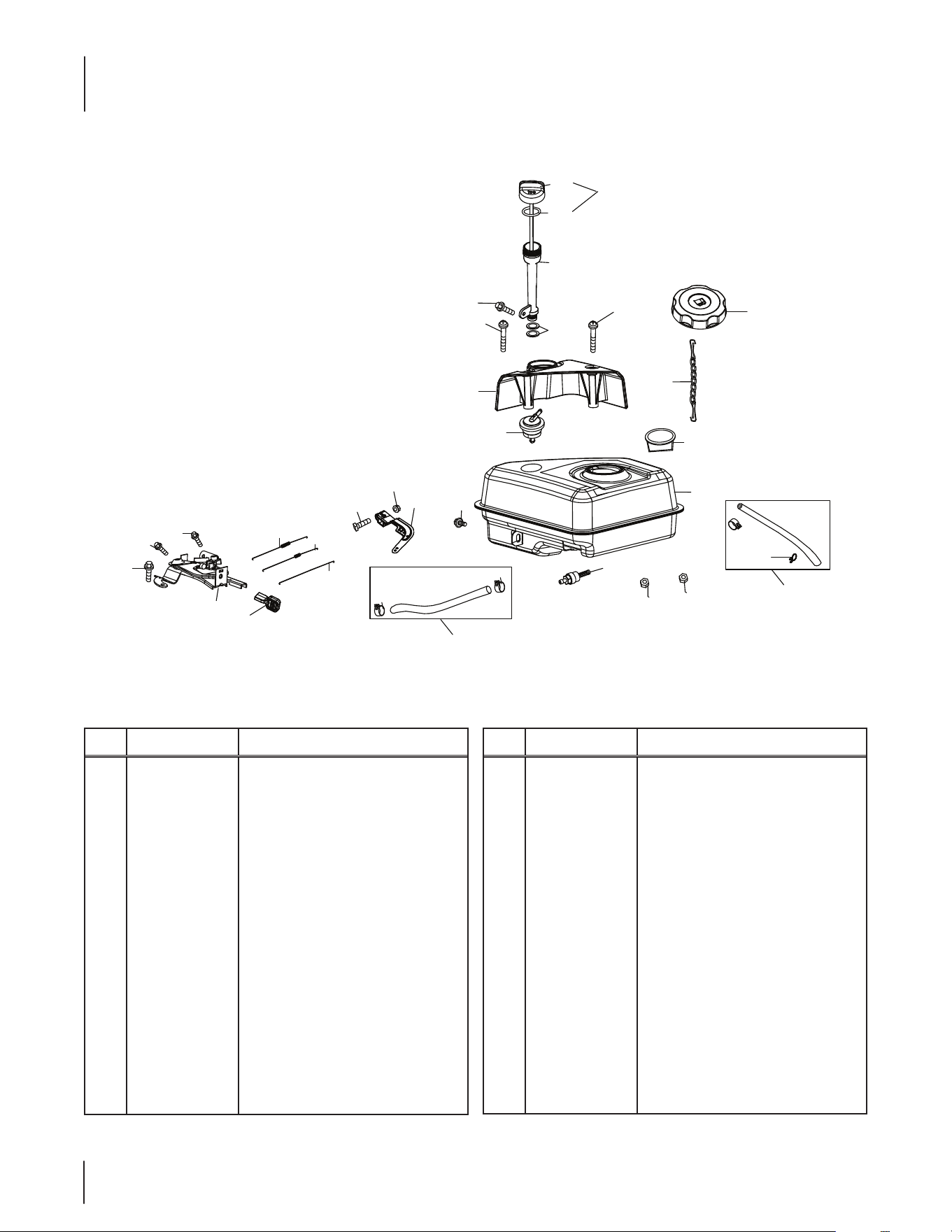

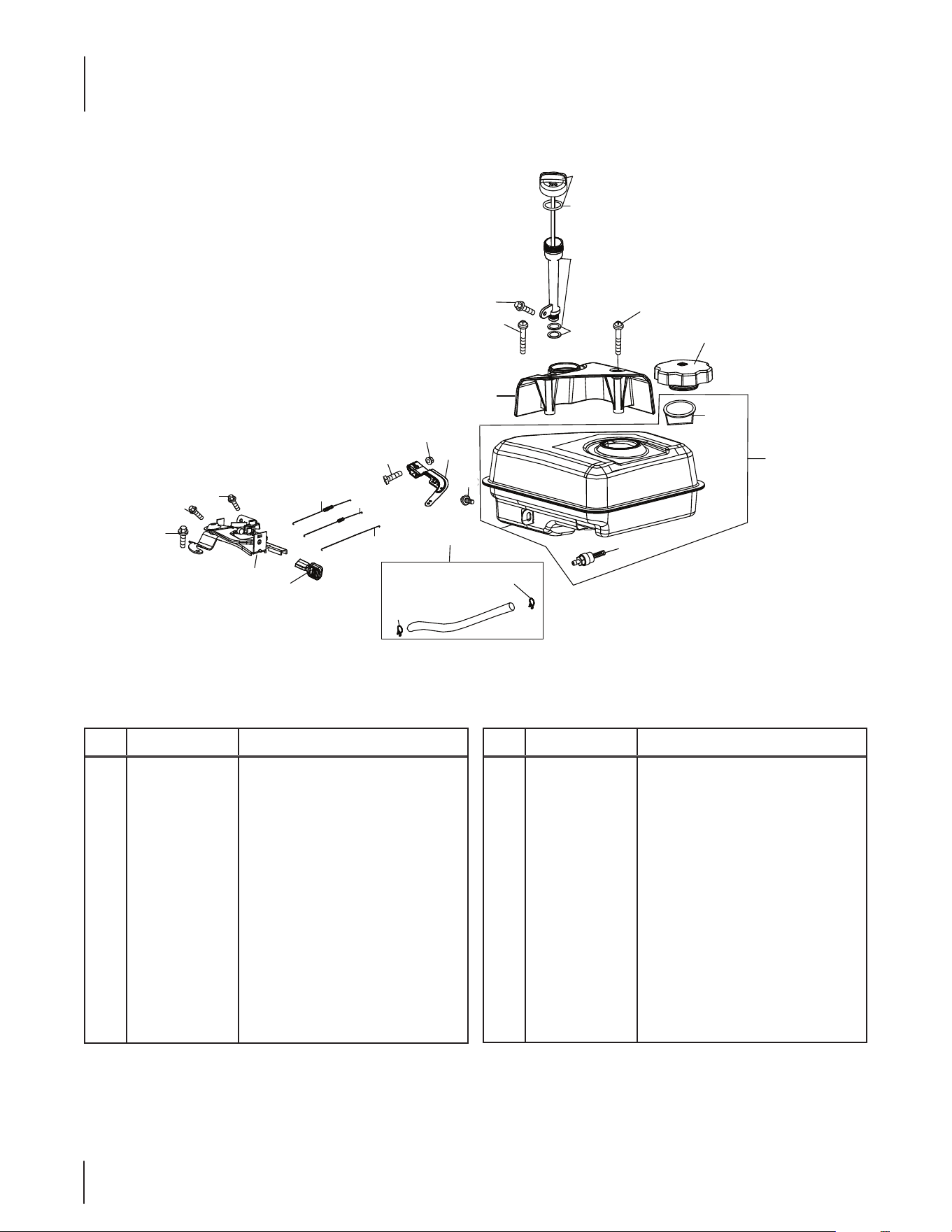

170-T0B Fuel Tank
Ref. Part Number Description
1 710-04968 Bolt M6×16
83 951-11067 Throttle Control Knob
84 951-12131 Primer Bracket
85 710-04928 Bolt M6×12
86 951-11585 Governor Spring
87 951-10664 Throttle Linkage Spring
88 951-10665 Throttle Linkage
90 951-11106 Governor Arm
91 712- 04212 Nut M6
92 710-04908 Governor Arm Bolt
93 951-10650 Fuel Line Kit
94 951-1170 0 Fuel Hose Clamp
95 710 - 04915 Bolt M6×12
Ref. Part Number Description
96 951-10662 Dipstick Decoration Cover
97 710-04905 Bolt
98 710-04915 Bolt M6×12
100 951-11903 Oil Fill Tube O-Ring
101 951-10656 Oil Fill Tube
101a 951-11913 Oil Fill Tube Assembly
102 951-11904 Oil Fill Tube O-Ring
103 951-11912 Dipstick Assembly
104 951-10917 Fuel Cap Assembly
106 951-11933 Fuel Filter
107 951-12159 Fuel Tank
108 951-10651 Fuel Tank Nipple
101a
41

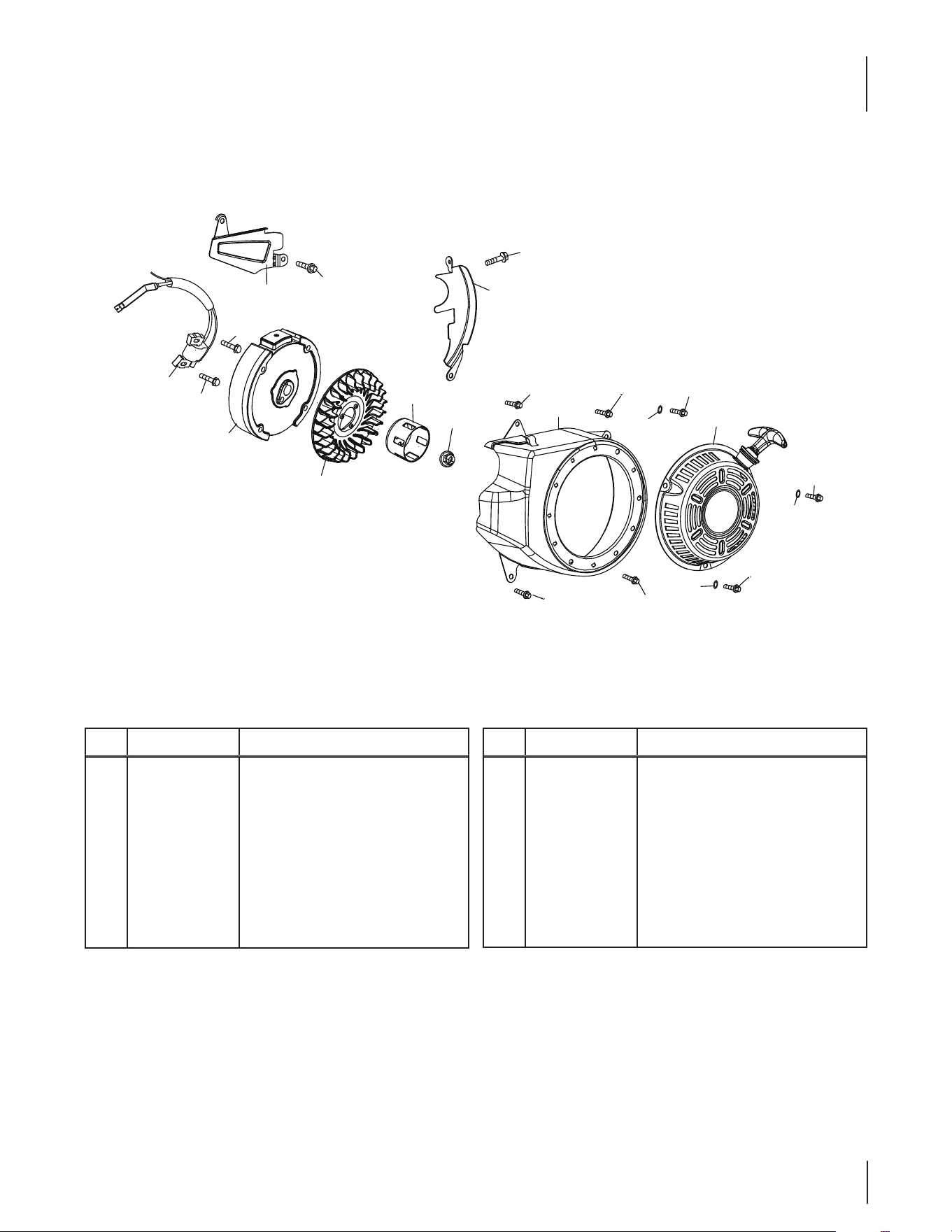

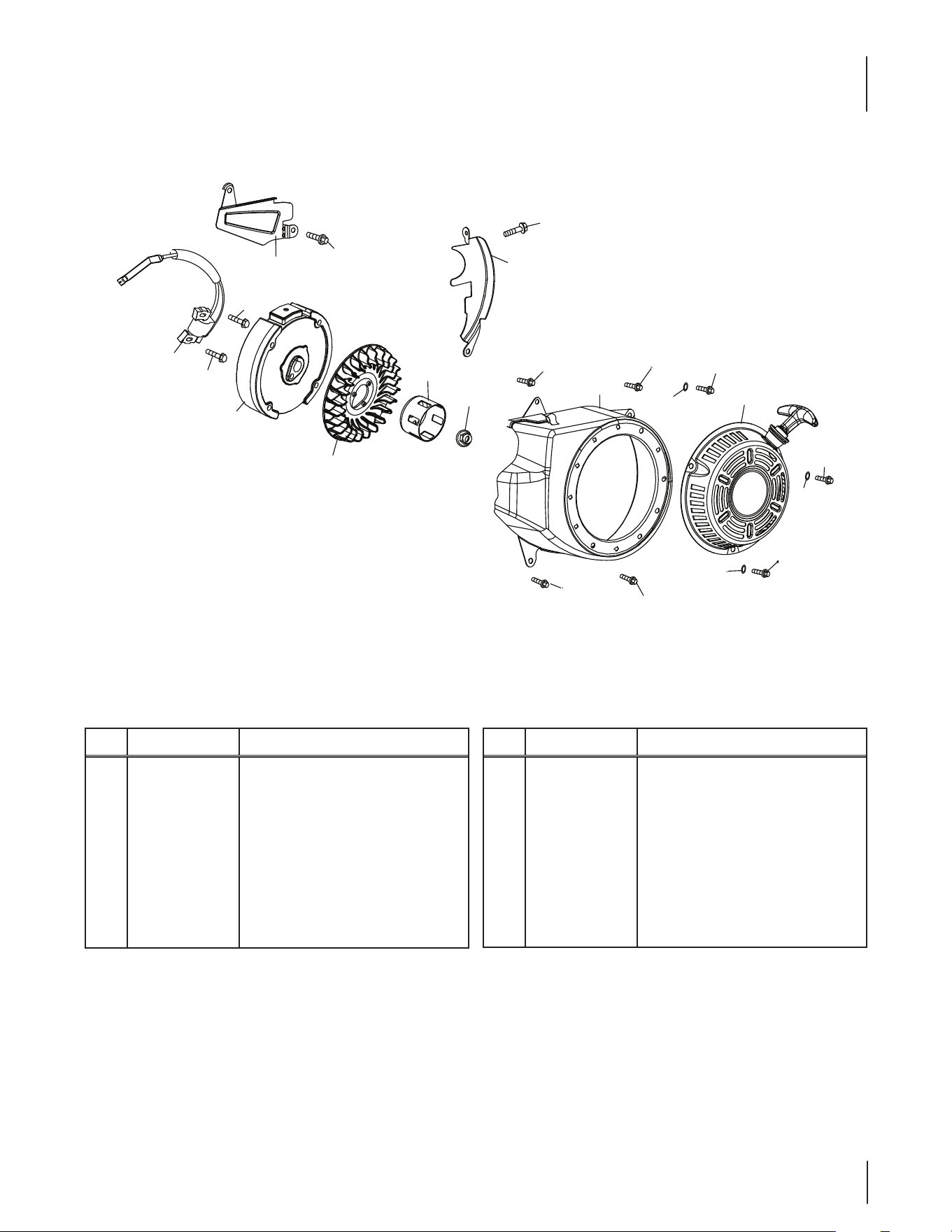

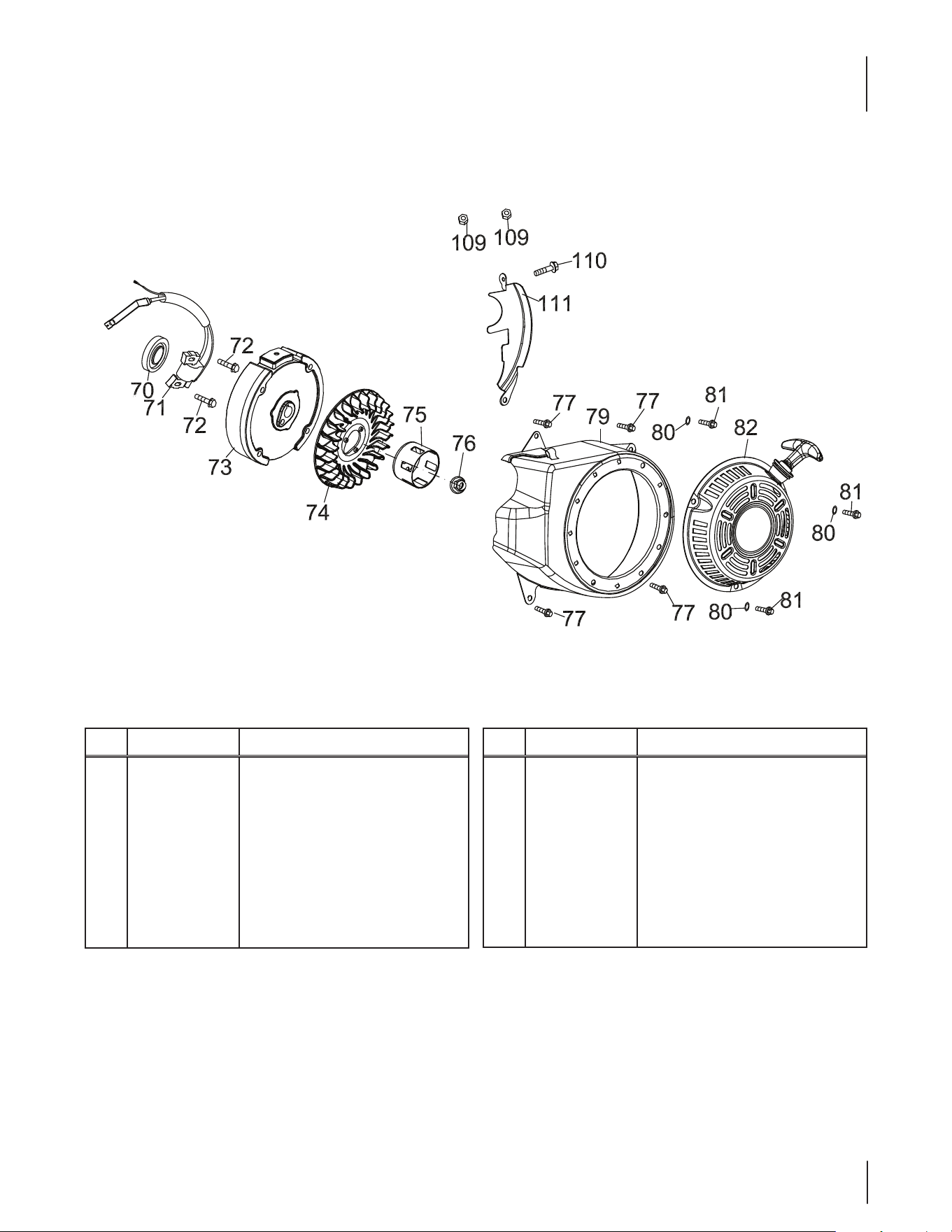

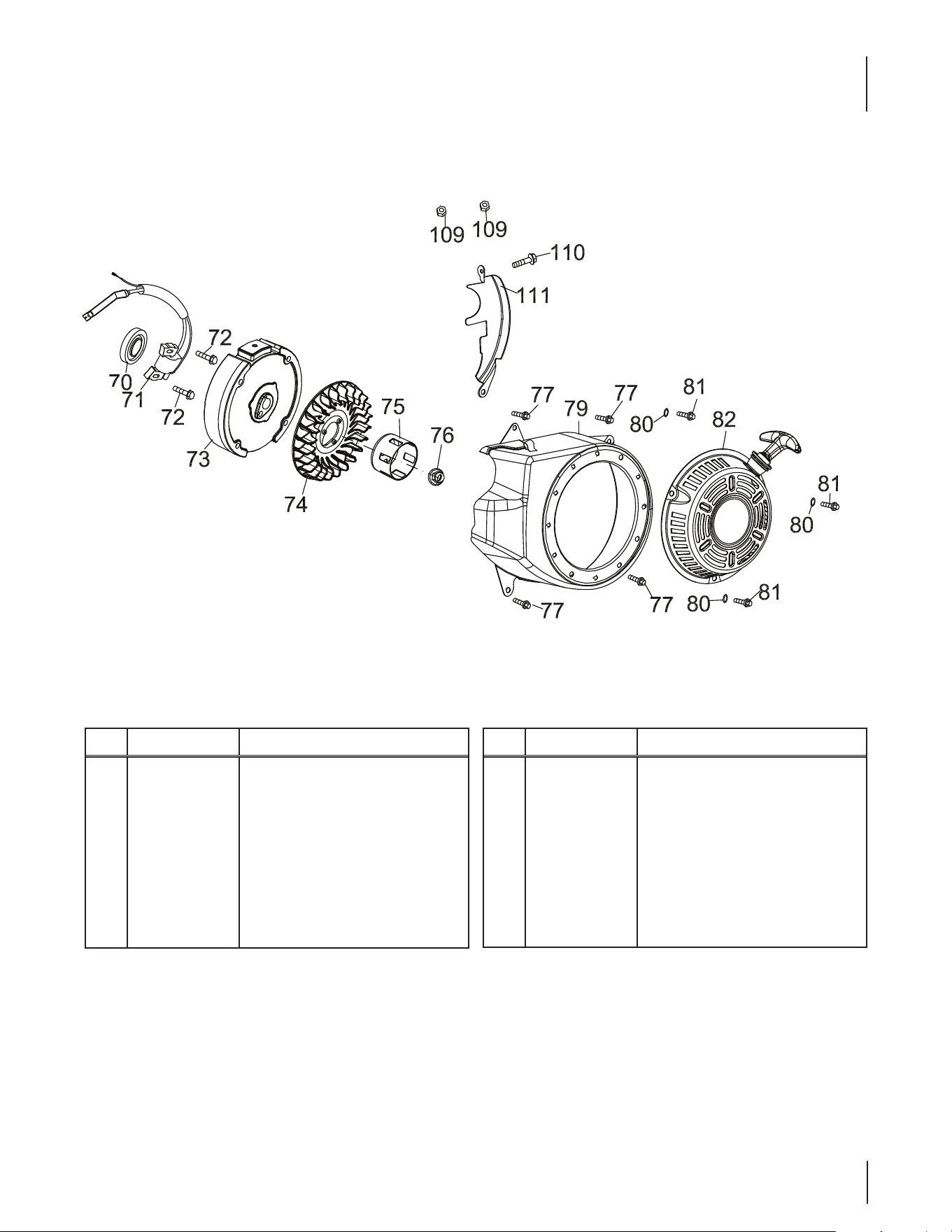

170-T0B Flywheel & Shroud
Ref.
Part Number Description
70 951-12126 Oil Seal 25×41.25×6
71 951-10792 Ignition Coil Assembly
72 710 - 04919 Bolt M6×25
73 951-10805 Flywheel
74 951-10909 Fan, Cooling
75 951-10911 Pulley, Starter
76 712-04209 Nut, Special, M14×1.5
77 710-04915 Bolt M6×12
Ref.
Part Number Description
79 951-11583 Blower Housing
80 736-04455 Flat Washer
81 710 -04974 Bolt M6×10
82 951-12127 Recoil Starter
109 712- 04212 Nut, M6
110 710-04918 Bolt M6×20
111 951-11109 Blower Housing Shield
42

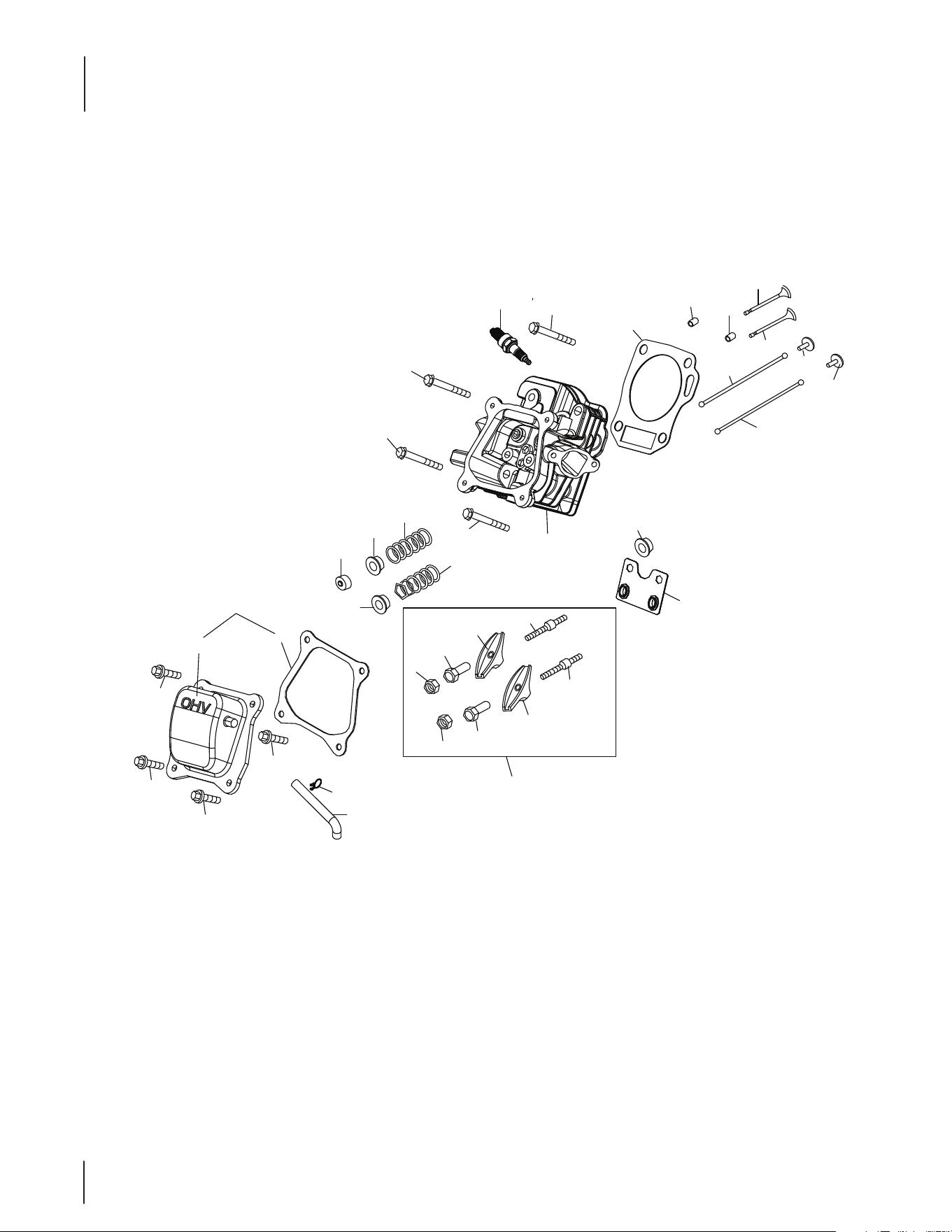

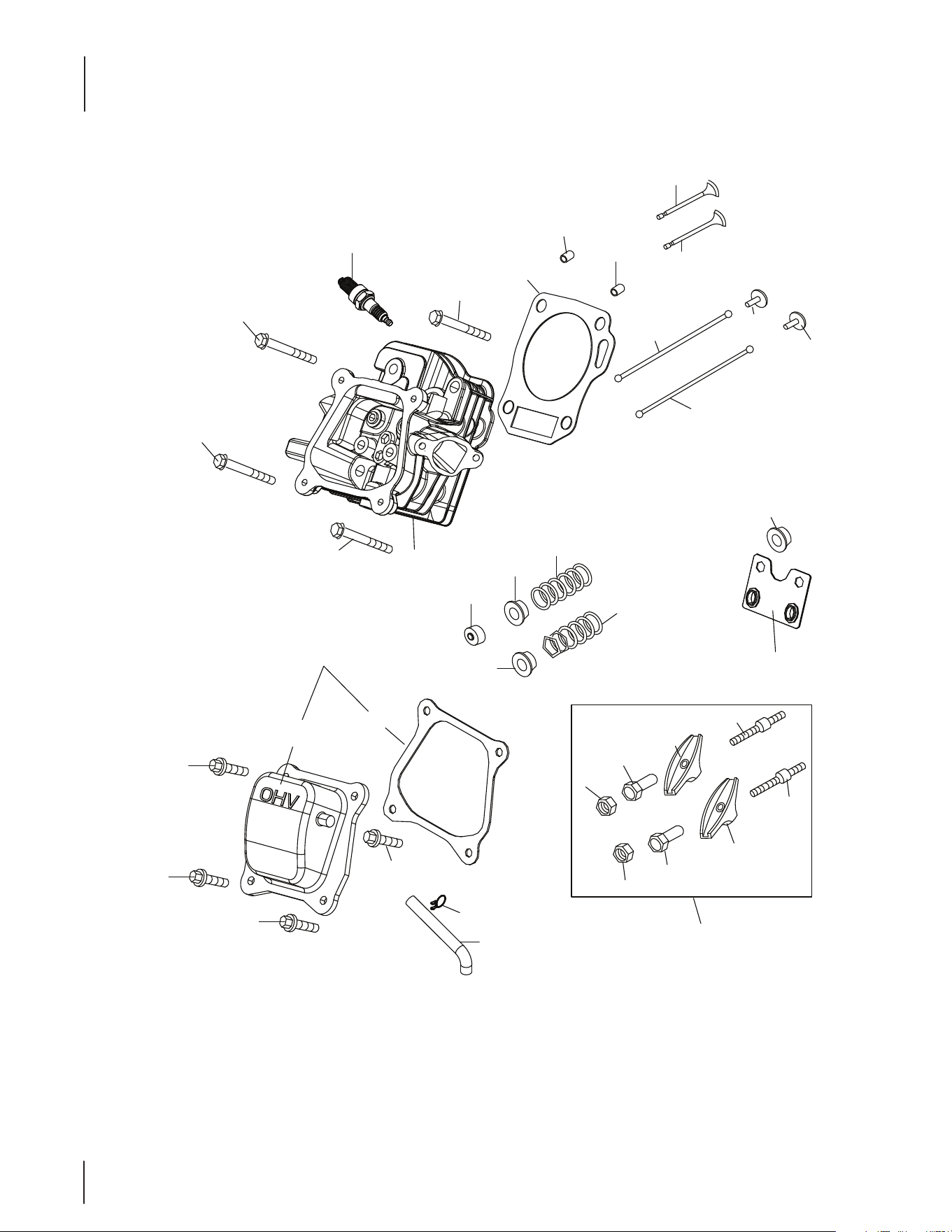

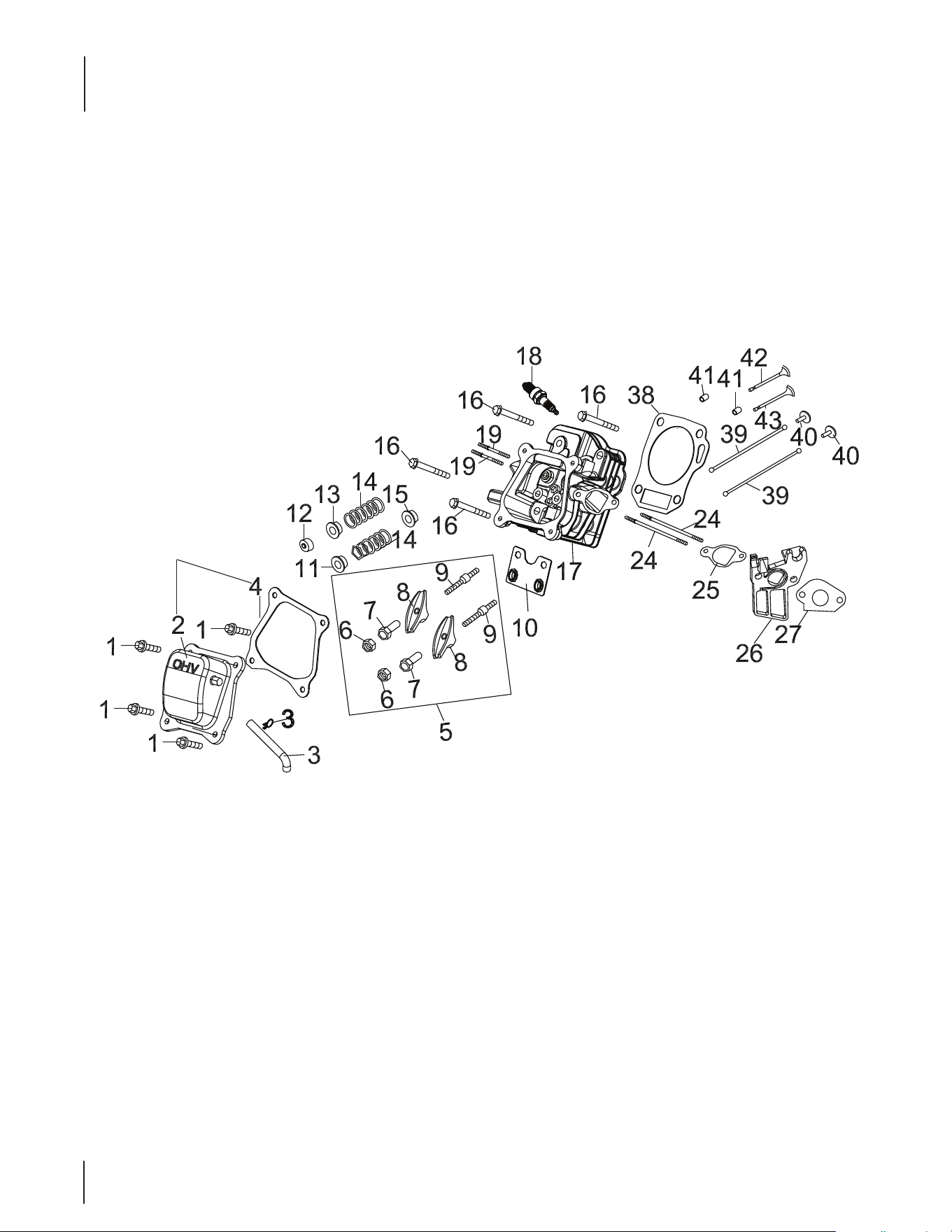

170-T0B Cylinder Head
Ref.
Part Number Description
1 710-04968 Bolt M6×16
2 951-11054 Valve Cover
3 731-07059 Breather Hose
3a 726-04101 Hose Clamp
4 951-11565 Valve Cover Gasket
5 951-11892 Rocker Arm Assembly
6 751-11124 Nut, Pivot Locking
7 751-11123 Adjusting Nut ,Valve
8 951-11893 Rocker Arm
9 710-04902 Bolt, Pivot
10 951-11895 Push Rod Guide
11 951-12000 Retainer, In.Valve Spring
12 951-12002 Adjuster, Exh Valve
13 951-12003 Retainer, Ex.Valve Spring
14 951-12004 Valve Spring
15 951-1189 4 Intake Valve Seal
16 710-04933 Bolt M8×55
17 951-10668A Cylinder Head Assembly
(Incl Ref. 4,6-15,17,20,
25,26,38,42 & 43)
18 951-10292 Spark Plug/F6Rtc
a
114
43
170-T0B Cylinder Head
Ref.
Part Number Description
1 710-04968 Bolt M6×16
2 951-11054 Valve Cover
3 731-07059 Breather Hose
3a 726-04101 Hose Clamp
4 951-11565 Valve Cover Gasket
5 951-11892 Rocker Arm Assembly
6 751-11124 Nut, Pivot Locking
7 751-11123 Adjusting Nut ,Valve
8 951-11893 Rocker Arm
9 710-04902 Bolt, Pivot
10 951-11895 Push Rod Guide
11 951-12000 Retainer, In.Valve Spring
12 951-12002 Adjuster, Exh Valve
13 951-12003 Retainer, Ex.Valve Spring
14 951-12004 Valve Spring
15 951-1189 4 Intake Valve Seal
16 710-04933 Bolt M8×55
17 951-10668A Cylinder Head Assembly
(Incl Ref. 4,6-15,17,20,
25,26,38,42 & 43)
18 951-10292 Spark Plug/F6Rtc
Ref.
Part Number Description
19 710-05276 Muer Stud M8×36
19 951-10657 Muer Stud Assembly
24 710-05101 Stud M 6×110
25 951-11567 Carburetor Insulator Gasket
26 951-11568 Carburetor Insulator
27 951-11569 Carburetor Gasket
38 951-11572 Gasket, Cylinder Head
39 951-10648 Push Rod
40 951-1189 9 Tappet
41 715- 04090 Dowel Pin 10×16
42 951-10647A Valve Kit
43 951-10647A Valve Kit
114 951-11063A Valve Cover Kit
951-10819 Cylinder Head Service Kit
(Incl Ref. 4,15,16 & 38)
951-12120 Gasket Kit, External
(Incl Ref. 4,20,25,26,27,29 & 68)
951-12121 Gasket Kit, Complete
(Incl Ref. 4,20,25,26,27,29,38,52,
53,62,66,68 & 70)
44
170-V0B Air Cleaner & Muffler
Ref. Part Number Description
20 951-11285 Exhaust Pipe Gasket
21 712-04214 Nut, M8
22 751-12294 Muer Assembly
23 710-05002 Bolt
30 951-10806 Air Cleaner Housing
31 712- 04213 Nut
32 710-05102 Self-Tapping Bolt M4.2×16
34 951-12135 Silencer Plate
35 951-10794 Air Cleaner Assembly
36 951-10794 Air Cleaner Assembly
37 951-12136 Air Cleaner Cover
45
170-V0B Carburetor
Ref.
Part Number Description
28 951-10797 Carburetor Assembly
29 951-11571 Carburetor Gasket Plate
a 951-11177 Control Lever,Choke
b N/A Choke Shaft
c N/A Choke Plate
d N/A Throttle Shaft
e N/A Throttle Plate
f N/A Screw M3×5
g N/A Lock Washer
h N/A Idle Jet Assembly
i N/A Gasket, Throttle Plate
j N/A Idle Speed Adjusting Screw
k N/A Mixture Screw
l N/A Carburetor Body
Ref.
Part Number Description
m N/A Float Pin
n N/A Emulsion Tube
o N/A Needle Valve
p N/A Main Jet
q N/A Needle Valve Spring
r N/A Float
s 951-11589 Fuel Bowl Gasket
t N/A Fuel Bowl
u 951-113 48 Fuel Bowl Gasket
v 710-04945 Fuel Bowl Mounting Bolt
w 951-113 49 Fuel Drain Plug Gasket
x 710-04938 Fuel Drain Plug
951-12119 Carburetor Kit - Major
(Incl Ref. l,m,n,o,p,q,r,s,u & w)
46
170-V0B Crankcase
Ref.
Part Number Description
44 951-112 53 Piston Ring Set
45 951-11632 Piston Pin Snap Ring
46 951-12007 Piston
47 951-11633 Piston Pin
48 710-04915 Bolt M6×12
49 951-11113 Air Shield
50 951-11573 Connecting Rod Assembly
51 951-11356 Governor Arm Shaft
52 736-04461 Washer 5.2×1.9
53 951-11574 Governor Seal
54 714 - 04074 Cotter Pin
55 951-11575 Camshaft Assy.
56 951-11369 Radial Ball Bearing, 6205
57 951-12160 Crankshaft Assembly
58 951-10307 Woodru Key
59 951-11576 Governor Gear/Shaft Assembly
a
113
112
47
170-V0B Crankcase
Ref.
Part Number Description
44 951-112 53 Piston Ring Set
45 951-11632 Piston Pin Snap Ring
46 951-12007 Piston
47 951-11633 Piston Pin
48 710-04915 Bolt M6×12
49 951-11113 Air Shield
50 951-11573 Connecting Rod Assembly
51 951-11356 Governor Arm Shaft
52 736-04461 Washer 5.2×1.9
53 951-11574 Governor Seal
54 714 - 04074 Cotter Pin
55 951-11575 Camshaft Assy.
56 951-11369 Radial Ball Bearing, 6205
57 951-12160 Crankshaft Assembly
58 951-10307 Woodru Key
59 951-11576 Governor Gear/Shaft Assembly
Ref.
Part Number Description
60 715-04092 Dowel Pin 7×14
61 715-04089 Dowel Pin 9×14
62 951-11371 Crankcase Cover Gasket
63 951-12125 Cover Comp, Left Crankcase
64 710-04932 Bolt M8×32
65 951-11377 Oil Filler Plug Ass'y
65a 951-11577 O-Ring
66 951-11578 Oil Seal, 25×41.25×6
67 951-12155 Short Block
(Incl Ref. 4,20,25,26,38,
40,41,44-47,50-70
68 736-04440 Washer 10×16×1.5
69 710-04906 Oil Drain Plug
112 951-10370 Oil Drain Plug & Washer Assembly
113 951-11283 Oil Fill Plug Assembly
48
170-V0B Fuel Tank
Ref. Part Number Description
1 710-04968 Bolt M6×16
83 951-11067 Throttle Control Knob
84 951-12131 Primer Bracket
85 710-04928 Bolt M6×12
86 951-11585 Governor Spring
87 951-10664 Throttle Linkage Spring
88 951-10665 Throttle Linkage
90 951-11106 Governor Arm
91 712- 04212 Nut M6
92 710-04908 Governor Arm Bolt
93 951-10650 Fuel Line Kit
94 951-1170 0 Fuel Hose Clamp
95 710 - 04915 Bolt M6×12
Ref. Part Number Description
96 951-11914 Dipstick Decoration Cover
97 710-04905 Bolt
98 710-04915 Bolt M6×12
100 951-11903 Oil Fill Tube O-Ring
101 951-10656 Oil Fill Tube
101a 951-11913 Oil Fill Tube Assembly
102 951-11904 Oil Fill Tube O-Ring
103 951-11912 Dipstick Assembly
104 951-10917 Fuel Cap Assembly
106 951-11933 Fuel Filter
107 951-12159 Fuel Tank
108 951-10651 Fuel Tank Nipple
101a
49
170-V0B Flywheel & Shroud
Ref.
Part Number Description
70 951-12126 Oil Seal 25×41.25×6
71 951-10792 Ignition Coil Assembly
72 710 - 04919 Bolt M6×25
73 951-10805 Flywheel
74 951-10909 Fan, Cooling
75 951-10911 Pulley, Starter
76 712-04209 Nut, Special, M14×1.5
77 710-04915 Bolt M6×12
Ref.
Part Number Description
79 951-11583 Blower Housing
80 736-04455 Flat Washer
81 710 -04974 Bolt M6×10
82 951-12127 Recoil Starter
109 712- 04212 Nut, M6
110 710-04918 Bolt M6×20
111 951-11109 Blower Housing Shield
50
170-V0B Cylinder Head
Ref.
Part Number Description
1 710-04968 Bolt M6×16
2 951-11054 Valve Cover
3 731-07059 Breather Hose
3a 726-04101 Hose Clamp
4 951-11565 Valve Cover Gasket
5 951-11892 Rocker Arm Assembly
6 751-11124 Nut, Pivot Locking
7 751-11123 Adjusting Nut ,Valve
8 951-11893 Rocker Arm
9 710-04902 Bolt, Pivot
10 951-11895 Push Rod Guide
11 951-12000 Retainer, In.Valve Spring
12 951-12002 Adjuster, Exh Valve
13 951-12003 Retainer, Ex.Valve Spring
14 951-12004 Valve Spring
15 951-1189 4 Intake Valve Seal
16 710-04933 Bolt M8×55
17 951-10668A Cylinder Head Assembly
(Incl Ref. 4,6-15,17,20,
25,26,38,42 & 43)
18 951-10292 Spark Plug/F6Rtc
a
114
51
170-V0B Cylinder Head
Ref.
Part Number Description
1 710-04968 Bolt M6×16
2 951-11054 Valve Cover
3 731-07059 Breather Hose
3a 726-04101 Hose Clamp
4 951-11565 Valve Cover Gasket
5 951-11892 Rocker Arm Assembly
6 751-11124 Nut, Pivot Locking
7 751-11123 Adjusting Nut ,Valve
8 951-11893 Rocker Arm
9 710-04902 Bolt, Pivot
10 951-11895 Push Rod Guide
11 951-12000 Retainer, In.Valve Spring
12 951-12002 Adjuster, Exh Valve
13 951-12003 Retainer, Ex.Valve Spring
14 951-12004 Valve Spring
15 951-1189 4 Intake Valve Seal
16 710-04933 Bolt M8×55
17 951-10668A Cylinder Head Assembly
(Incl Ref. 4,6-15,17,20,
25,26,38,42 & 43)
18 951-10292 Spark Plug/F6Rtc
Ref.
Part Number Description
19 710-05276 Muer Stud M8×36
19 951-10657 Muer Stud Assembly
24 710-05101 Stud M 6×110
25 951-11567 Carburetor Insulator Gasket
26 951-11568 Carburetor Insulator
27 951-11569 Carburetor Gasket
38 951-11572 Gasket, Cylinder Head
39 951-10648 Push Rod
40 951-1189 9 Tappet
41 715- 04090 Dowel Pin 10×16
42 951-10647A Valve Kit
43 951-10647A Valve Kit
114 951-11063A Valve Cover Kit
951-10819 Cylinder Head Service Kit
(Incl Ref. 4,15,16 & 38)
951-12120 Gasket Kit, External
(Incl Ref. 4,20,25,26,27,29 & 68)
951-12121 Gasket Kit, Complete
(Incl Ref. 4,20,25,26,27,29,38,52,
53,62,66,68 & 70)
52
270-V0 Muffler
Ref. Part Number Description
19 710 - 04911 Muer Stud M8×36
19 951-12027 Muer Stud Assembly
20 951-11285 Muer Gasket
21 712-04214 Nut,M8
22 951-12294 Muer Assembly
23 710-05002 Bolt
23
23
22
19
20
19
21
53
270-V0 Carburetor Assembly
Ref.
Part Number Description
24 710-05101 Carburetor Stud M6×110
25 951-11567 Carburetor Insulator Gskt
26 951-11568 Carburetor Insulator Plate
27 951-11569 Carburetor Gasket
28 951-10797 Carburetor Assembly
29 951-11571 Carburetor Gasket Plate
a N/A Control Lever,Choke
b N/A Choke Shaft
c N/A Choke Plate
d N/A Throttle Shaft
e N/A Throttle Plate
f N/A Screw M3×5
g N/A Lock Washer
h N/A Idle Jet Assembly
i N/A Gasket, Throttle Plate
j N/A Idle Speed Adjusting Screw
Ref.
Part Number Description
k N/A Mixture Screw
l N/A Carburetor Body
m N/A Float Pin
n N/A Emulsion Tube
o N/A Needle Valve
p N/A Main Jet
q N/A Needle Valve Spring
r N/A Float
s 951-11589 Fuel Bowl Gasket
t N/A Fuel Bowl
u 951-113 48 Fuel Bowl Gasket
v 710-04945 Fuel Bowl Mounting Bolt
w 951-113 49 Fuel Drain Plug Gasket
x 710-04938 Fuel Drain Plug
951-10800A Carburetor Kit - Major
(Incl. A,H-J,M-S.U,W)
24
24
25
26
27
28
29
54
270-V0 Crankcase
66
64
64
64
64
64
64
64
65
63
62
61
56
60
59
57
58
56
67
55
54
53
52
51
50
45
44
46
47
45
48
48
49
68
68
69
69
70
119
55
270-V0 Crankcase
Ref.
Part Number Description
44 951-112 53 Piston Ring Set
45 951-11632 Piston Pin Snap Ring
46 951-12007 Piston
47 951-11633 Piston Pin
48 710-04915 Bolt M6×12
49 951-11113 Air Shield
50 951-11573 Connecting Rod Assembly
51 951-11356 Governor Arm Shaft
52 736-04461 Washer 5.2×1.9
53 951-11574 Governor Seal
54 714 - 04074 Cotter Pin
55 951-11575 Camshaft Assy.
56 951-11369 Radial Ball Bearing,6205
57 951-12160 Crankshaft Assembly
58 951-10307 Woodru Key
59 951-11576 Governor Gear/Shaft Asm
60 715-04092 Dowel Pin 7×14
61 715-04089 Dowel Pin 9×14
62 951-11371 Crankcase Cover Gasket
63 951-12125 Cover Comp,Left Crankcase
64 710-04932 Bolt M8×32
65 951-11377 Dipstick Assembly
66 951-11578 Oil Seal,25×41.25×6
67 951-10798A Short Block
(Incl. 4,20,25,26,29,38,40,44-47,50-70)
68 736-04440 Washer 10×16×1.5
69 710-04906 Oil Drain Plug
70 951-12126 Oil Seal 25×41.25×6
119 951-10370 Oil Drain Plug & Washer Assembly
951-12121 Gasket Kit Complete
(Incl. 4,20,25-27,29,38,52,53,62,66,68,70)
951-12120 Gasket Kit - External
(Incl. 2,4,25-27,29,68)
56
270-V0 Fuel Tank
Ref. Part Number Description
1 710-04968 Bolt M6×16
83 951-11067 Throttle Control Knob
84 951-12131 Primer Bracket
85 710-04928 Bolt M6×12
86 951-11585 Governor Spring
87 951-10664 Throttle Linkage Spring
88 951-10665 Throttle Linkage
90 951-1110 6 Governor Arm Bracket
91 712-04212 Nut M6
92 710-04908 Governor Arm Bolt
93 951-10650 Fuel Line Kit
94 951-10650 Fuel Hose Clamp
Ref. Part Number Description
95 710- 04915 Bolt M6×12
96 951-11914 Dipstick Decoration Cover
97 710-04905 Bolt
98 710-04915 Bolt M6×12
100 951-11381 Oil Fill Tube O-Ring
101 951-11913 Oil Fill Tube Assembly (Incl. 100)
102 951-11904 Dipstick O-Ring
103 951-11912 Dipstick Assembly (Incl. 102)
104 951-10917A Fuel Cap Assembly
105 951-10653B Fuel Tank Assembly
106 951-11933 Fuel Filter
107 951-10651 Fuel Tank Nipple
103
102
101
100
97
104
106
105
107
93
94
94
95
90
91
92
86
87
88
83
84
1
85
85
96
97
98
57
270-V0 Flywheel
Ref.
Part Number Description
71 951-10792 Ignition Coil Assembly
72 710 - 04919 Bolt M6×25
73 951-12416 Flywheel
74 951-10909 Fan,Cooling
75 951-10911 Pulley,Starter
76 712-04209 Nut,Special,M14×1.5
77 710-04915 Bolt M6×12
79 951-12417 Blower Housing
80 736-04455 Flat Washer
81 710 -04974 Bolt M6×10
82 951-12418 Recoil Starter Assembly
116 710-04979 Bolt M6×18
117 951-11109 Blower Housing Shield
71
72
72
73
74
75
76
77
79
77
80
81
82
81
80
81
80
77
77
117
116
58
270-V0 Cylinder Head
42
43
40
40
39
39
41
41
38
16
18
16
16
16
17
10
9
8
7
5
6
6
7
8
9
15
14
14
13
12
11
4
3
3a
1
1
2
1
1
118
59
270-V0 Cylinder Head
Ref.
Part Number Description
1 710-04968 Bolt M6×16
2 951-11054 Valve Cover
3 731-07059 Breather Hose
3a 726-04101 Hose Clamp
4 951-11565 Valve Cover Gasket
5 951-11892 Rocker Arm Assembly
6 751-11124 Nut,Pivot Locking
7 751-11123 Adjusting Nut ,Valve
8 951-11893 Rocker Arm
9 710-04902 Bolt,Pivot
10 951-11895 Push Rod Guide
11 951-12000 Retainer,In.Valve Spring
12 951-12002 Adjuster,Exh Valve
13 951-12003 Retainer,Ex.Valve Spring
14 951-12004 Valve Spring
15 951-1189 4 Intake Valve Seal
16 710-04933 Bolt M8×55
17 951-10799 Cylinder Head Assembly
(Incl. 4,6-10,12-17,20,25,26,38,41- 43)
18 951-10292 Spark Plug
38 951-11572 Gasket,Cylinder Head
39 951-10648 Push Rod Kit
40 951-1189 9 Tappet
41 715- 04090 Dowel Pin 10×16
42 951-10647A Valve Kit
43 951-10647A Valve Kit
118 951-11063 Valve Cover Kit
951-10819 Cylinder Head Service Kit
(Incl. 4,15,16,38)
951-12120 Gasket Kit - - External
(Incl. 2,4,25-27,29,68)
951-12121 Gasket Kit Complete
(Incl. 4,20,25-27,29,38,52,53,
62,66,68,70)
60
270-V0 Air Cleaner
Ref. Part Number Description
30 951-10806 Air Cleaner Housing
31 712- 04213 Nut
32 710-05102 Self-Tapping Bolt M4.2×16
34 951-12135 Silencer Plate
36 951-10794 Air Cleaner Filter Assembly
37 951-12136 Air Cleaner Cover
37
36
32
34
30
31
32
61

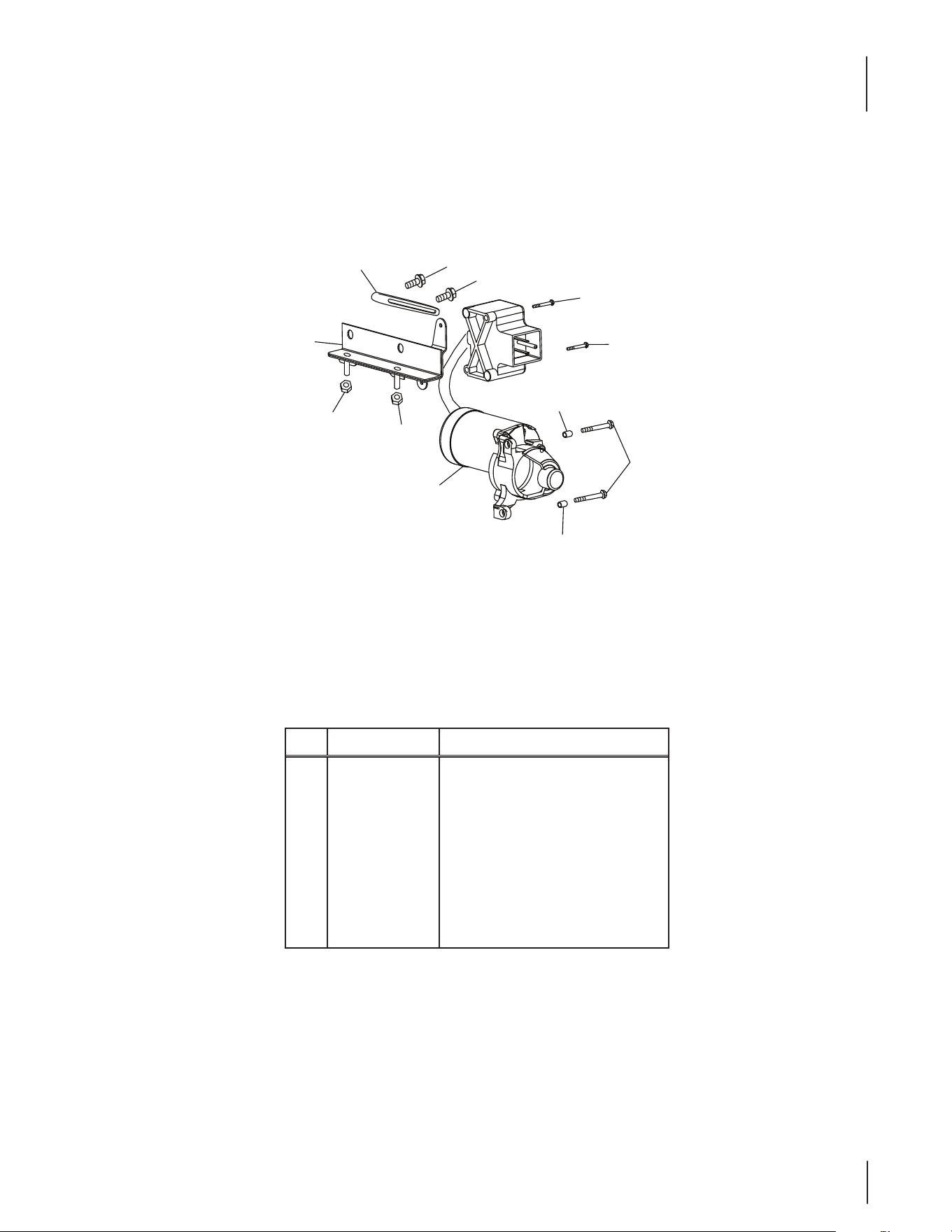

270-V0 Starter Assembly
Ref.
Part Number Description
108 710 -04914 Bolt M6×10
109 951-116 80 Flexible Clamp
110 951-11114 Switch Housing Mounting Brkt
111 712-04212 Nut,M6
112 710-04965 Bolt M4×55
113 710-05182 Bolt M6×32
114 715-04088 Dowel Pin 8×8
115 951-10645A Startup Electromotor
109
108
108
112
112
114
113
114
115
111
111
110
62
Briggs & Stratton Engine Model 12T102
1330R EPAIRM ANUAL48 SHORTB LOCK 1329 REPLACEMENTE NGINE1058 OPERATOR’S MANUAL
552
718
15
615
3
306
307
12
20
1
616
2
18
21
15A
746
742
220
219
27
27
32
25
26
2829
46
24
146
741
16
332
22
12
1026
851
333
415
522
635
63
Briggs & Stratton Engine Model 12T102
337
635
36
238
40
35
238
40
868
51
7
993
1022
619
830
1029
13
1026
45
1022
155
34
192
1023
33
122
5
1034
914
869
64

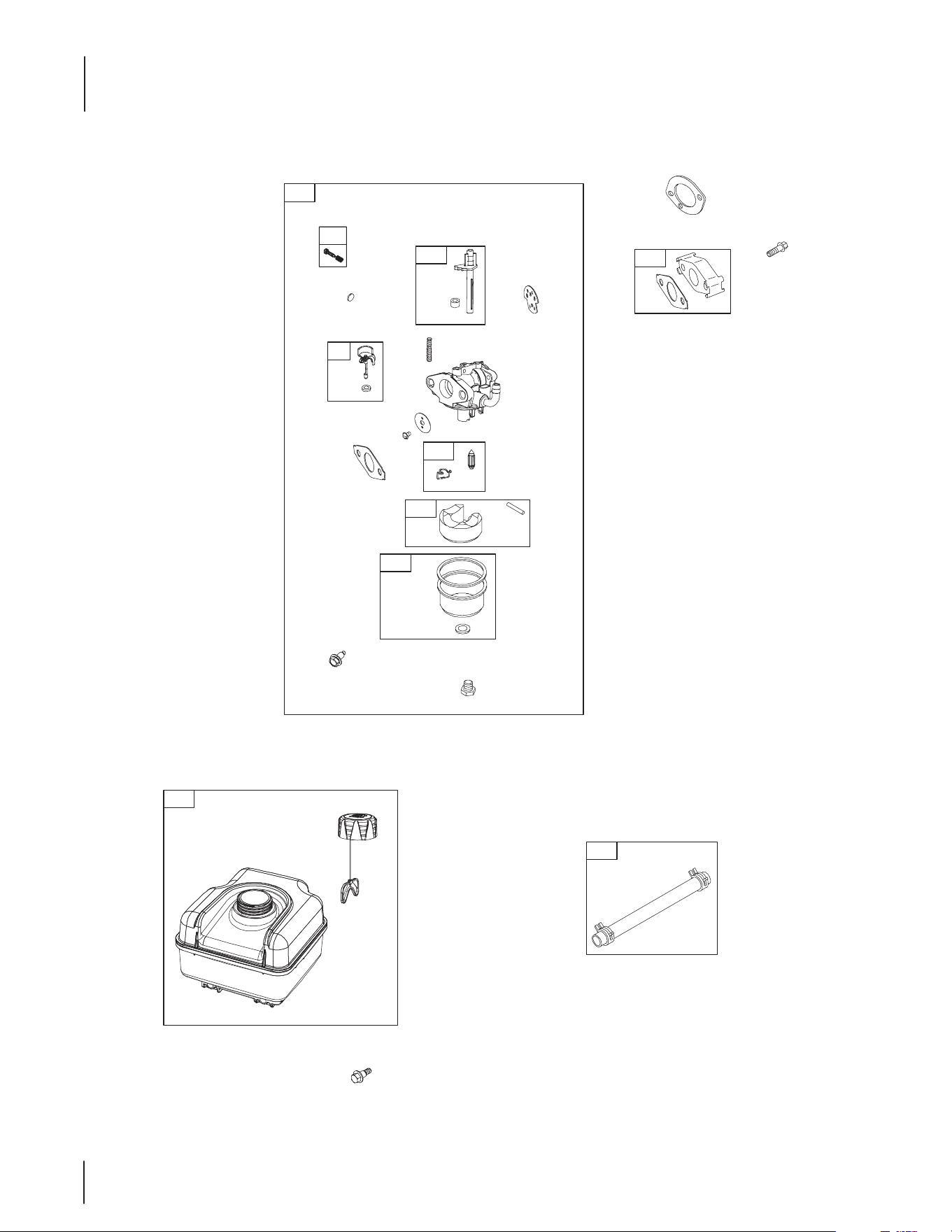

Briggs & Stratton Engine Model 12T102
365
51
95
692
104
137
276
633
987
130
108
127
163
51
122
975
133
105
125
97
109
98
190
601
187
972
957
117
971
65
Briggs & Stratton Engine Model 12T102
334
851
209
632
663
281
333
356
209A
635
188
427
773
271
668
621
504
222
190
505
562
227
66
Briggs & Stratton Engine Model 12T102
11
163
161
445
968
1395
836
832
883
613
300
971
67
Briggs & Stratton Engine Model 12T102
23
1070
1005
455
332
597
456
689
459
1210
851121
55
608
60
1036E MISSIONS LABEL
304
305
37
78
65
65
68

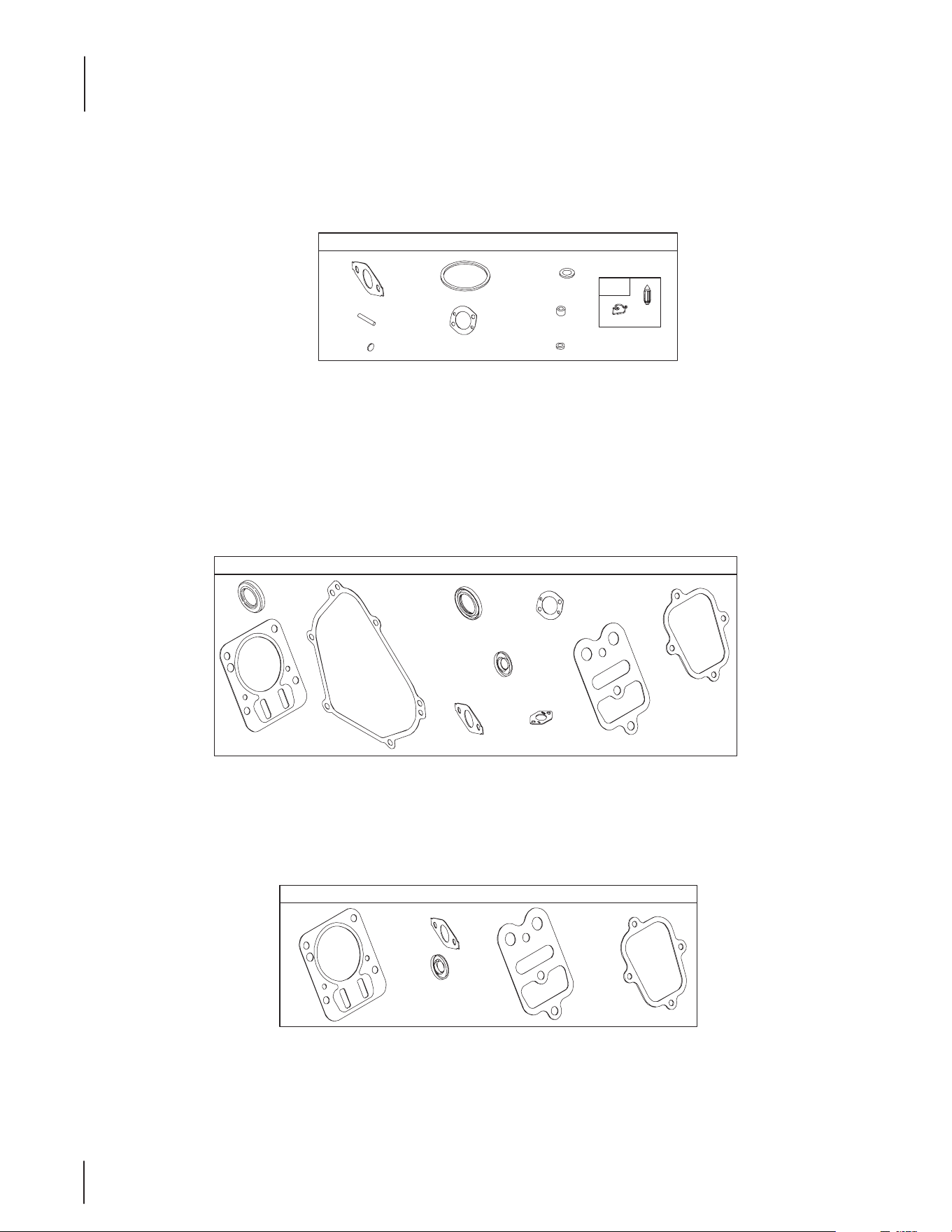

Briggs & Stratton Engine Model 12T102
12
20
51
7
993
1022
883
3
868
358 ENGINE GASKET SET
163
51
7
993
1022
868
1095V ALVE GASKET SET
51
104
137
276
121 CARBURETOR OVERHAUL KIT
633
127
163
987
105
69
Briggs & Stratton Engine Model 12T102
Ref. Part No. Description
1 BS-699510 Cylinder Assembly
2 BS-796961 Kit-Bushing/Seal (Magneto Side)
3 BS-299819s Seal-Oil (Magneto Side)
5 BS-797439 Head-Cylinder
7 BS-698210 Gasket-Cylinder Head
11 BS-790632 Tube-Breather
12 BS-699485 Gasket-Crankcase
13 BS-699482 Screw (Cylinder Head)
15 BS-691686 Plug-Oil Drain
15A BS-691682 Plug-Oil Drain
16 BS-797074 Crankshaft
18 BS-699696 Cover-Crankcase
20 BS-692550 Seal-Oil (PTO Side)
21 BS-281658s Cap-Oil Fill
22 BS-699478 Screw (Crankcase Cover/Sump)
23 BS-699488 Flywheel
24 BS-796335 Key-Flywheel (Steel)
— BS-222698s Key-Flywheel (Aluminum)
25 BS-795429 Piston Assembly (Standard)
— BS-795430 Piston Assembly (.020” Oversize)
26 BS-791969 Ring Set (Standard)
— BS-793001 Ring Set (.020” Oversize)
27 BS-691866 Lock-Piston Pin
28 BS-499423 Pin-Piston
29 BS-798813 Rod-Connecting
32 BS-797437 Screw (Connecting Rod)
33 BS-499642 Valve-Exhaust
34 BS-795443 Valve-Intake
35 BS- 691304 Spring-Valve (Intake)
36 BS- 691304 Spring-Valve (Exhaust)
37 BS-699661 Guard-Flywheel
40 BS-692194 Retainer-Valve
45 BS-690977 Tappet-Valve
46 BS-693404 Camshaft
48 N/A Short Block
51 BS-692555 Gasket-Intake
55 BS-791848 Housing-Rewind Starter
58 BS-693389 Rope-Starter
60 BS-490652 Grip-Starter Rope
65 BS-699228 Screw (Rewind Starter)
78 BS-793480 Screw (Flywheel Guard) (M5x14mm)
95 BS-691636 Screw (Throttle Valve)
Ref. Part No. Description
97 BS-797628 Shaft-Throttle
98 BS-797156 Kit-Idle Speed
104 BS-797622 Pin-Float Hinge
105 BS-797139 Valve-Float Needle
108 BS-692567 Valve-Choke
109 BS-790624 Shaft-Choke
117 BS-798661 Jet-Main (Standard)
118 N/A Jet-Main (High Altitude)
121 BS-797634 Kit-Carburetor Overhaul
122 BS-795208 Spacer-Carburetor
125 BS-798653 Carburetor
127 BS-797633 Plug-Welch
130 BS-797630 Valve-Throttle
133 BS-797136 Float-Carburetor
137 BS-797625 Gasket-Float Bowl
146 BS-690979 Key-Timing
155 BS-797442 Plate-Cylinder Head
161 BS-790631 Base-Air Cleaner
163 BS-696024 Gasket-Air Cleaner
187 BS-791874 Line-Fuel (Formed)
188 BS-699479 Screw (Control Bracket)
190 BS-699220 Screw (Fuel Tank)
192 BS-797440 Adjuster-Rocker Arm
209 BS- 691278 Spring-Governor (Platinum)
— BS-692571 Spring-Governor (# 6 Hole)
219 BS-693578 Gear-Governor
220 BS-691724 Washer (Governor Gear)
222 BS-793107 Bracket-Control
227 BS-794367 Lever-Governor Control
238 BS- 691300 Cap-Valve
271 BS-694256 Lever-Control
276 BS-797632 Washer-Sealing
281 BS-793122 Panel-Control
300 BS-693593 Muer
304 BS-699598 Housing-Blower
305 BS-699481 Screw (Blower Housing)
306 BS-795334 Shield-Cylinder
307 BS-699483 Screw (Cylinder Shield)
332 BS-792723 Nut (Flywheel)
333 BS-796964 Armature-Magneto
334 BS-699477 Screw (Magneto Armature)
337 BS-491055s Plug-Spark
70
Briggs & Stratton Engine Model 12T102
Ref. Part No. Description
356 BS-695814 Wire-Stop
358 BS-791797 Gasket Set-Engine
365 BS-699484 Screw (Carburetor)
415 BS-693463 Plug (Crankcase Cover)
445 BS-491588s Filter-Air Cleaner Cartridge
455 BS-692591 Cup-Flywheel
456 BS-692299 Plate-Pawl Friction
459 BS-281505s Pawl-Ratchet
504 BS-695383 Washer Set-Friction (Control Bracket)
505 BS- 691251 Nut (Governor Control Lever)
522 BS-798503 Plug-Dipstick/Fill
535 BS-493537s Filter-Air Cleaner Foam
552 BS-692346 Bushing-Governor Crank
562 BS - 691119 Bolt (Governor Control Lever)
597 BS-691696 Screw (Pawl Friction Plate)
601 BS-791850 Clamp-Hose (Green)
608 BS-795930 Starter-Rewind
613 BS-699209 Screw (Muer)
615 BS-692576 Retainer-Governor Shaft
616 BS-692547 Crank-Governor
619 BS-699230 Screw (Cylinder Head Plate)
621 BS-692310 Switch-Stop (Brake)
632 BS-693408 Spring/Link-Mechanical Governor
633 BS-693867 Seal-Choke/Throttle Shaft (Choke Shaft)
635 BS-692076 Boot-Spark Plug
663 BS-699206 Screw (Control Panel)
741 BS-695087 Gear-Timing
668 BS-694257 Spacer (Control Bracket)
689 BS-691855 Spring-Friction
692 BS-797624 Spring-Detent
718 BS-690959 Pin-Locating
742 BS-692564 Retainer-E Ring
746 BS-790278 Gear-Idler
819 BS-699233 Screw (Muer Bracket)
830 BS-797441 Stud-Rocker Arm
832 BS-693583 Guard-Muer
836 BS-699632 Screw (Muer Guard)
851 BS-493880s Terminal-Spark Plug
868 BS-795440 Seal-Valve
883 BS-691893 Gasket-Exhaust
914 BS-699480 Screw (Rocker Cover) (M6x15.8mm)
— BS-797444 Screw (Rocker Cover) (M6x9.5mm)
Ref. Part No. Description
951 BS-790630 Lever-Choke
957 BS-799719 Cap-Fuel Tank
968 BS-791082 Cover-Air Cleaner
971 BS-798649 Screw (Air Cleaner Base to Carburetor)
972 BS-799863 Tank-Fuel
975 BS-797631 Bowl-Fuel
987 BS-797629 Seal-Throttle Shaft
993 BS-694088 Gasket-Cylinder Head Plate
1005 BS-692592 Fan-Flywheel
1022 BS-691890 Gasket-Rocker Cover
1023 BS-499924 Cover-Rocker
1026 BS-790287 Rod-Push
1029 BS-797443 Arm-Rocker
1034 BS-691343 Guide-Push Rod
1036
Label-Emissions (Available from a Briggs
& Stratton Authorized Dealer)
1070 BS-699201 Screw (Flywheel Fan)
1095 BS-791798 Gasket Set-Valve
1137 BS-694258
Screw (Control Bracket) (High Speed
Control)
1147 BS-798458 Nut (Control Bracket) (Friction)
1210 BS-791849 Pulley/Spring Assembly (Pulley)
1211 BS-791849 Pulley/Spring Assembly (Spring)
1329 N/A Replacement Engine
1395 BS-690370 Screw (Air Cleaner Base)
71Notes
72
170-TU Air Cleaner
Ref. Part Number Description
32 951-10806 Air Cleaner Housing
33 712- 04213 Nut
34 951-14068 Self-Tapping Bolt M4.2×16
35 951-14069 Carbon Canister
37 951-14070 Silencer Plate
38 750-05314 Rubber Shock Pad
39 951-10794 Air Filter Assembly
40 951-14071 Air Filter Cover
41 951-14072 Primer Hose
42 951-14073 Clamp
43 951-14074 Exhaust Piping
34
40
39
38
37
32
33
34
35
42
42
43
41
73
170-TU Carburetor
Ref.
Part Number Description
26 710-05101 St u d M 6×110
27 951-11567 Carburetor Insulator Gasket
28 951-115 6 8 Carburetor Insulator
29 951-115 69A Carburetor Gasket
30 951-12124 Carburetor Assembly
31 951-11571 Carburetor Gasket Plate
127 951-12119A Carburetor Kit - Major
a 951-11177 Control Lever,Choke
b n/a Choke Shaft
c n/a Choke Plate
d n/a Throttle Shaft
e n/a Throttle Plate
f n/a Screw M3×5
g 736-04638 Lock Washer
h n/a Idle Jet Assembly
i n/a Gasket, Throttle Plate
Ref.
Part Number Description
j n/a Idle Speed Adjusting Screw
k n/a Mixture Screw
l n/a Carburetor Body
m n/a Float Pin
n n/a Emulsion Tube
o n/a Needle Valve
p n/a Main Jet
q n/a Needle Valve Spring
r n/a Float
s 951-11589 Fuel Bowl Gasket
t n/a Fuel Bowl
u 951-113 48 Fuel Bowl Gasket
v 710-04945 Fuel Bowl Mounting Bolt
w 951-113 49 Fuel Drain Plug Gasket
x 710-04938 Fuel Drain Plug
26
26
27
28
29
30
31
30
127 - Carburetor Kit - Major
74
170-TU Crankshaft & Crankcase
Ref.
Part Number Description
50 951-12111 Piston Ring Set
51 951-11632 Piston Pin Snap Ring
52 951-12007 Piston
53 951-11633 Piston Pin
54 710-04915 Bolt M6×12
55 951-11113 Air Shield
56 951-11573 Connecting Rod Assembly
57 951-11356 Governor Arm Shaft
58 736-04461 Washer 5.2×1.9
59 951-11574 Governor Seal
60 714-04074 Cotter Pin
61 951-11575 Camshaft Assy.
62 951-11369 Radial Ball Bearing, 6205
63 951-12160 Crankshaft Assembly
64 951-10307 Woodru Key
65 951-11576 Governor Gear/Shaft Assembly
66 715-04092 Dowel Pin 7×14
125 - Gasket Kit - External
126 - Gasket Kit - Complete
130 - Complete Engine
70
70
70
70
70
70
70
72
71
69
67
62
68
66
65
63
64
62
61
60
59
58
57
73
77
74
74
54
54
55
56
51
53
52
51
50
75
170-TU Crankshaft & Crankcase
Ref.
Part Number Description
50 951-12111 Piston Ring Set
51 951-11632 Piston Pin Snap Ring
52 951-12007 Piston
53 951-11633 Piston Pin
54 710-04915 Bolt M6×12
55 951-11113 Air Shield
56 951-11573 Connecting Rod Assembly
57 951-11356 Governor Arm Shaft
58 736-04461 Washer 5.2×1.9
59 951-11574 Governor Seal
60 714-04074 Cotter Pin
61 951-11575 Camshaft Assy.
62 951-11369 Radial Ball Bearing, 6205
63 951-12160 Crankshaft Assembly
64 951-10307 Woodru Key
65 951-11576 Governor Gear/Shaft Assembly
66 715-04092 Dowel Pin 7×14
Ref.
Part Number Description
67 715-04089 Dowel Pin 9×14
68 951-11371 Crankcase Cover Gasket
69 951-12125 Cover Comp, Left Crankcase
70 710-04932 Bolt M8×32
71 951-11283 Oil Plug
72 951-11578 Oil Seal, 25×41.25×6
73 951-12551 Short Block
(Incl.6,22,27,28,44,46,47,
50-53,56-70,72-75)
74 951-12514 Oil Drain Plug
77 951-12126 Oil Seal 25×41.25×6
125 951-12573 Gasket Kit - External
(Incl.6,22,27-29,31)
126 951-12572 Gasket Kit - Complete
(Incl.6,22,27-29,31,44,
58,59,68,72,75)
130 952Z170-TU Complete Engine
76
170-TU Fuel Tank & Mounting
Ref. Part Number Description
1 710-04968 Bolt M6×16
3 726-04101 Breather Hose Clamp
90 951-11067 Throttle Control Knob
91 951-12131 Primer Bracket
92 710-05103 Bolt M6×12
93 951-11585 Governor Spring
94 951-10664 Throttle Linkage Spring
95 951-10665 Throttle Linkage
97 951-11106 Governor Arm
98 712-04212 Nut M6
99 710-04908 Governor Arm Bolt
100 951-10650 Fuel Line Kit
101 951-11700 Fuel Hose Clamp
102 710- 04915 Bolt M6×12
103 951-14075 Rollover Valve
Ref. Part Number Description
104 951-11914 Dipstick Decoration Cover
105 710-04905 Bolt
106 710-04915 Bolt M6×12
107 951-12482 Dipstick Assembly
108 951-11381 O-Ring
109 951-11913 Oil Fill Tube Assembly
110 951-11904 O-Ring
111 951-11912 Dipstick Guage
112 951-12535 Cap Comp,Fuel
113 951-14076 Tether
114 751-14139 Primer Hose
118 951-14077 Fuel Tank Assembly
119 951-11933 Fuel Level Indicator
120 951-10651 Fuel Tank Nipple
121 712-04212 Nut, M6
1
92
92
91
90
93
94
95
100
101
101
99
98
97
102
120
121
121
118
119
3
114
113
112
105
103
104
105
106
111
110
109
108
107
77
170-TU Flywheel & Blower Housing
Ref.
Part Number Description
75 951-11110 Air Flow Shield
76 710-04940 Bolt M6×10
78 951-10792 Ignition Coil Assembly
79 710-04919 Bolt M6×25
80 951-10805 Flywheel
81 951-10934 Fan, Cooling
82 951-10911 Pulley, Starter
83 712-04209 Nut, Special, M14×1.5
Ref.
Part Number Description
84 710 -04915 Bolt M6×12
86 951-11583 Blower Housing
87 736-04455 Washer
88 710 - 04974 Bolt M6×10
89 951-12418 Recoil Starter
122 710-04918 Bolt M6×20
123 951-11109 Blower Housing Shield
78
79
80
81
84
84
87
88
87
88
89
88
87
84
86
84
83
82
123
122
76
75
79
78
170-TU Cylinder Head
Ref.
Part Number Description
1 710-04968 Bolt M6×16
2 951-11054 Valve Cover
3 726-04101 Breather Hose Clamp
4 731-07059 Exhaust Piping
6 951-11565 Valve Cover Gasket
7 951-11892 Rocker Arm Assembly
8 751-11124 Nut, Pivot Locking
9 751-11123 Adjusting Nut ,Valve
10 951-11893 Rocker Arm
11 710-04902 Bolt, Pivot
12 951-11895 Push Rod Guide
13 951-12000 Retainer, In.Valve Spring
14 951-12002 Adjuster, Exh Valve
15 951-12003 Retainer, Ex.Valve Spring
16 951-12004 Valve Spring
17 951-1189 4 Intake Valve Seal
18 710-04933 Bolt M8×55
19 951-10819 Cylinder Head Service Kit
18
18
18
18
20
44
47
47
48
49
45
45
46
46
19
17
12
16
16
15
14
13
11
11
10
10
9
9
8
8
6
2
124
1
1
1
4
3
1
7
125 - Gasket Kit - External
126 - Gasket Kit - Complete
130 - Complete Engine
79
170-TU Cylinder Head
Ref.
Part Number Description
1 710-04968 Bolt M6×16
2 951-11054 Valve Cover
3 726-04101 Breather Hose Clamp
4 731-07059 Exhaust Piping
6 951-11565 Valve Cover Gasket
7 951-11892 Rocker Arm Assembly
8 751-11124 Nut, Pivot Locking
9 751-11123 Adjusting Nut ,Valve
10 951-11893 Rocker Arm
11 710-04902 Bolt, Pivot
12 951-11895 Push Rod Guide
13 951-12000 Retainer, In.Valve Spring
14 951-12002 Adjuster, Exh Valve
15 951-12003 Retainer, Ex.Valve Spring
16 951-12004 Valve Spring
17 951-1189 4 Intake Valve Seal
18 710-04933 Bolt M8×55
19 951-10819 Cylinder Head Service Kit
Ref.
Part Number Description
Incl.4,15,16,38)
951-10722A Cylinder Head Assembly
(Incl.6,8-17,19,22,28,
29,44,48,49)
20 951-10292 Spark Plug/F6Rtc
44 951-11572 Gasket, Cylinder Head
45 951-10648 Push Rod Kit
46 951-1189 9 Tappet
47 715- 04108 Dowel Pin 10×16
48 951-10647A Valve Kit
49 951-10647A Valve Kit
124 951-11063A Valve Cover Kit
125 951-12573 Gasket Kit - External
(Incl.6,22,27-29,31)
126 951-12572 Gasket Kit - Complete
(Incl.6,22,27-29,31,44,
58,59,68,72,75)
130 952Z170-TU Complete Engine
80
170-TU Muffler
Ref. Part Number Description
21 951-14063 Stud M8×38
22 951-11289 Exhaust Pipe Gasket
23 712- 04214 Nut, M8
24 951-14067 Muer Assembly
25 951-12865 Secondary Air Valve
23
25
24
22
21
21
81N otes
82
170-VU Air Cleaner
Ref. Part Number Description
34 951-10806 Air Cleaner Housing
35 712-04213 Nut
36 951-14068 Self-Tapping Bolt M4.2×16
37 951-14069 Carbon Canister
39 951-14070 Silencer Plate
40 750-05314 Rubber Shock Pad
41 951-10794 Air Filter Assembly
42 951-14071 Air Filter Cover
43 951-14072 Primer Hose
44 951-14073 Clamp
45 951-14074 Exhaust Piping
36
42
41
40
37
36
39
34
35
43
44
44
45
83
170-VU Carburetor
Ref.
Part Number Description
28 710-05101 St u d M6×110
29 951-115 67 Carburetor Insulator Gasket
30 951-1156 8 Carburetor Insulator
31 951-11569A Carburetor Gasket
32 951-12124 Carburetor Assembly
33 951-11571 Carburetor Gasket Plate
127 951-12119A Carburetor Kit - Major
(Incl.h,I,j,m,n,o,p,q,r,s,u,w)
a 951-11177 Control Lever,Choke
b n/a Choke Shaft
c n/a Choke Plate
d n/a Throttle Shaft
e n/a Throttle Plate
f n/a Screw M3×5
g 736-04638 Lock Washer
h n/a Idle Jet Assembly
Ref.
Part Number Description
i n/a Gasket, Throttle Plate
j n/a Idle Speed Adjusting Screw
k n/a Mixture Screw
l n/a Carburetor Body
m n/a Float Pin
n n/a Emulsion Tube
o n/a Needle Valve
p n/a Main Jet
q n/a Needle Valve Spring
r n/a Float
s 951-11589 Fuel Bowl Gasket
t n/a Fuel Bowl
u 951-113 48 Fuel Bowl Gasket
v 710-04945 Fuel Bowl Mounting Bolt
w 951-113 49 Fuel Drain Plug Gasket
x 710-04938 Fuel Drain Plug
28
28
29
30
31
32
33
32
127 - Carburetor Kit - Major
84
170-VU Crankshaft & Crankcase
Ref.
Part Number Description
52 951-12111 Piston Ring Set
53 951-11632 Piston Pin Snap Ring
54 951-12007 Piston
55 951-11633 Piston Pin
56 710-04915 Bolt M6×12
57 951-11113 Air Shield
58 951-11573 Connecting Rod Assembly
59 951-11356 Governor Arm Shaft
60 736-04461 Washer 5.2×1.9
61 951-11574 Governor Seal
62 714- 04074 Cotter Pin
63 951-11575 Camshaft Assy.
64 951-11369 Radial Ball Bearing, 6205
65 951-12160 Crankshaft Assembly
66 951-10307 Woodru Key
67 951-11576 Governor Gear/Shaft Assembly
68 715-04092 Dowel Pin 7×14
73
72
71
72
72
72
72
72
72
74
70
69
64
68
63
67
66
65
64
62
61
60
59
58
52
53
54
55
53
76
76
77
56
56
57
129 - Gasket Kit - External
130 - Gasket Kit - Complete
131 - Complete Engine
75
85
170-VU Crankshaft & Crankcase
Ref.
Part Number Description
52 951-12111 Piston Ring Set
53 951-11632 Piston Pin Snap Ring
54 951-12007 Piston
55 951-11633 Piston Pin
56 710-04915 Bolt M6×12
57 951-11113 Air Shield
58 951-11573 Connecting Rod Assembly
59 951-11356 Governor Arm Shaft
60 736-04461 Washer 5.2×1.9
61 951-11574 Governor Seal
62 714- 04074 Cotter Pin
63 951-11575 Camshaft Assy.
64 951-11369 Radial Ball Bearing, 6205
65 951-12160 Crankshaft Assembly
66 951-10307 Woodru Key
67 951-11576 Governor Gear/Shaft Assembly
68 715-04092 Dowel Pin 7×14
Ref.
Part Number Description
69 715-04089 Dowel Pin 9×14
70 951-11371 Crankcase Cover Gasket
71 951-12125 Cover Comp, Left Crankcase
72 710-04932 Bolt M8×32
73 951-11283 Oil Plug
74 951-11578 Oil Seal, 25×41.25×6
75 951-12551 Short Block
(Incl.6,22,29,30,46,48,49,
52,53,55,58-72,74-77)
76 951-12514 Oil Drain Plug
77 951-12126 Oil Seal 25×41.25×6
129 951-12573 Gasket Kit - External
(Incl.6,22,29-31,33)
130 951-12572 Gasket Kit - Complete
(Incl.6,22,29-31,33,46,
60,61,70,74,77)
131 952Z170-VU Complete Engine
86
170-VU Fuel Tank & Mounting
Ref. Part Number Description
1 710-04968 Bolt M6×16
3 726-04101 Breather Hose Clamp
92 951-11067 Throttle Control Knob
93 951-12131 Primer Bracket
94 710-05103 Bolt M6×12
95 951-11585 Governor Spring
96 951-10664 Throttle Linkage Spring
97 951-10665 Throttle Linkage
99 951-11106 Governor Arm
100 712- 04212 Nut M6
101 710-04908 Governor Arm Bolt
102 951-10650 Fuel Line Kit
103 951-11700 Fuel Hose Clamp
104 710-04915 Bolt M6×12
105 951-14075 Rollover Valve
Ref. Part Number Description
106 951-11914 Dipstick Decoration Cover
107 710-04905 Bolt
108 710- 04915 Bolt M6×12
109 951-12482 Dipstick Assembly
110 951-113 81 Oil Fill Tube O-Ring
111 951-11913 Oil Fill Tube Assembly
112 951-11904 Oil Fill Tube O-Ring
113 951-11912 Dipstick Guage
114 951-12535 Cap Comp,Fuel
115 951-14076 Tether
116 751-14139 Primer Line Kit
120 951-14077 Fuel Tank Assembly
121 951-11933 Fuel Level Indicator
122 951-10651 Fuel Tank Nipple
123 712-04212 Nut, M6
109
113
112
111
110
107
108
107
106
115
114
105
121
120
123
123
122
102
103
103
104
99
100
101
95
96
97
92
93
1
94
94
116
3
87
170-VU Flywheel & Blower Housing
Ref.
Part Number Description
78 951-11110 Air Flow Shield
79 710-04940 Bolt M6×10
80 951-10792 Ignition Coil Assembly
81 710-04919 Bolt M6×25
82 951-10805 Flywheel
83 951-10934 Fan, Cooling
84 951-10911 Pulley, Starter
85 712-04209 Nut, Special, M14×1.5
Ref.
Part Number Description
86 710 - 04915 Bolt M6×12
88 951-11583 Blower Housing
89 736-04455 Washer
90 710-04974 Bolt M6×10
91 951-12418 Recoil Starter
124 710-04918 Bolt M6×20
125 951-11109 Blower Housing Shield
80
81
81
82
83
84
85
78
79
125
124
86
88
86
86
86
89
90
89
90
91
90
89
88
170-VU Cylinder Head
Ref.
Part Number Description
1 710-04968 Bolt M6×16
2 951-11054 Valve Cover
3 726-04101 Breather Hose Clamp
4 731-07059 Exhaust Piping
6 951-11565 Valve Cover Gasket
7 951-11892 Rocker Arm Assembly
8 751-11124 Nut, Pivot Locking
9 751-11123 Adjusting Nut ,Valve
10 951-11893 Rocker Arm
11 710-04902 Bolt, Pivot
12 951-11895 Push Rod Guide
13 951-12000 Retainer, In.Valve Spring
14 951-12002 Adjuster, Exh Valve
15 951-12003 Retainer, Ex.Valve Spring
16 951-12004 Valve Spring
17 951-1189 4 Intake Valve Seal
18 710-04933 Bolt M8×55
19 951-10722A Cylinder Head Assembly
1
1
1
2
6
126
1
3
4
7
8
9
10
11
8
9
10
11
12
17
19
18
18
18
18
20
46
49
49
50
51
47
47
48
48
16
16
15
14
13
128 - Cylinder Head Service Kit
129 - Gasket Kit - External
130 - Gasket Kit - Complete
131 - Complete Engine
89
170-VU Cylinder Head
Ref.
Part Number Description
1 710-04968 Bolt M6×16
2 951-11054 Valve Cover
3 726-04101 Breather Hose Clamp
4 731-07059 Exhaust Piping
6 951-11565 Valve Cover Gasket
7 951-11892 Rocker Arm Assembly
8 751-11124 Nut, Pivot Locking
9 751-11123 Adjusting Nut ,Valve
10 951-11893 Rocker Arm
11 710-04902 Bolt, Pivot
12 951-11895 Push Rod Guide
13 951-12000 Retainer, In.Valve Spring
14 951-12002 Adjuster, Exh Valve
15 951-12003 Retainer, Ex.Valve Spring
16 951-12004 Valve Spring
17 951-1189 4 Intake Valve Seal
18 710-04933 Bolt M8×55
19 951-10722A Cylinder Head Assembly
Ref.
Part Number Description
(Incl6,8-17,19,22,29,
30,46,50,51)
20 951-10292 Spark Plug/F6Rtc
46 951-11572 Gasket, Cylinder Head
47 951-10648 Push Rod Kit
48 951-1189 9 Tappet
49 715-04108 Dowel Pin 10×16
50 951-10647A Valve Kit
51 951-10647A Valve Kit
126 951-11063A Valve Cover Kit
128 951-10819 Cylinder Head Service Kit
(Incl.6,17,18,46)
129 951-12573 Gasket Kit - External
(Incl.6,22,29-31,33)
130 951-12572 Gasket Kit - Complete
(Incl.6,22,29-31,33,46,
60,61,70,74,77)
131 952Z170-VU Complete Engine
90
170-VU Muffler
Ref. Part Number Description
21 951-14063 Stud M8×38
22 951-11289 Exhaust Pipe Gasket
23 712- 04214 Nut, M8
24 951-14067 Muer Assembly
25 951-14078 Exhaust Pipe Shield
26 951-14079 Duct Bolt
27 951-12865 Secondary Air Valve
26
25
23
27
22
21
21
24
91Not es
92
270-VU Air Cleaner
Ref. Part Number Description
33 951-10806 Air Cleaner Housing
34 712-04213 Nut
35 951-14068 Self-Tapping Bolt M4.2×16
37 951-14070 Silencer Plate
38 750-05314 Rubber Shock Pad
39 951-10794 Air Filter
40 951-14071 Air Filter Cover
41 951-14069 Carbon Canister
42 951-14072 Primer Hose
43 951-14073 Clamp
44 951-14074 Breather Hose
40
39
38
35
37
33
34
35
41
43
43
44
42
93
270-VU Carburetor
Ref.
Part Number Description
27 710-05101 Stud M6×110
28 951-115 67 Carburetor Insulator Gasket
29 951-115 6 8 Carburetor Insulator
30 951-11569A Carburetor Gasket
31 951-12785 Carburetor Assembly
32 951-11571 Carburetor Gasket Plate
134 951-12784 Carburetor Rebuild Kit
(Incl.j,n,o,p,q,r,t,s,u,w)
a 951-11177 Control Lever,Choke
b n/a Choke Shaft
c n/a Choke Plate
d n/a Throttle Shaft
e n/a Throttle Plate
f 710-05469 Screw M3×6
g 736-04638 Lock Washer
h n/a Idle Jet Assembly
Ref.
Part Number Description
i n/a Gasket, Throttle Plate
j n/a Idle Speed Adjusting Screw
l n/a Carburetor Body
m n/a Float Pin
n n/a Emulsion Tube
o n/a Needle Valve
p n/a Main Jet
q n/a Needle Valve Spring
r n/a Float
s 951-11589 Fuel Bowl Gasket
t n/a Fuel Bowl
u 951-113 48 Fuel Bowl Gasket
v 710-04945 Fuel Bowl Mounting Bolt
w 951-113 49 Fuel Drain Plug Gasket
x 710-04938 Fuel Drain Plug
27
27
28
29
30
31
32
31
134 - Carburetor Kit
94
270-VU Crankcase
Ref.
Part Number Description
51 951-12111 Piston Ring Set
52 951-11632 Piston Pin Snap Ring
53 951-12007 Piston
54 951-11633 Piston Pin
55 710-04915 Bolt M6×12
56 951-11113 Air Shield
57 951-11573 Connecting Rod Assembly
58 951-14053 Governor Arm Shaft
59 736-04461 Washer 5.2×1.9
60 951-11902 Governor Seal
61 714-04078 Cotter Pin
62 951-11575 Camshaft Assembly
63 951-11369 Radial Ball Bearing,6205
64 951-12160 Crankshaft Assembly
951-14143 Crankshaft Service Kit
(Incl.63-65,73,76)
65 951-10307 Woodru Key
66 951-11576 Governor Gear/Shaft Assembly
67 715-04092 Dowel Pin 7×14
68 715-04096 Dowel Pin 9×14
71
71
71
73
71
71
71
72a
72
71
70
69
68
63
67
66
64
65
63
61
60
59
58
62
74
76
75
75
56
55
55
52
54
53
52
51
57
131 - Gasket Kit-Complete
132 - Gasket Kit-External
133 - Complete Engine
95
270-VU Crankcase
Ref.
Part Number Description
51 951-12111 Piston Ring Set
52 951-11632 Piston Pin Snap Ring
53 951-12007 Piston
54 951-11633 Piston Pin
55 710-04915 Bolt M6×12
56 951-11113 Air Shield
57 951-11573 Connecting Rod Assembly
58 951-14053 Governor Arm Shaft
59 736-04461 Washer 5.2×1.9
60 951-11902 Governor Seal
61 714-04078 Cotter Pin
62 951-11575 Camshaft Assembly
63 951-11369 Radial Ball Bearing,6205
64 951-12160 Crankshaft Assembly
951-14143 Crankshaft Service Kit
(Incl.63-65,73,76)
65 951-10307 Woodru Key
66 951-11576 Governor Gear/Shaft Assembly
67 715-04092 Dowel Pin 7×14
68 715-04096 Dowel Pin 9×14
Ref.
Part Number Description
69 951-11371 Crankcase Cover Gasket
70 951-12125 Crankcase Cover
951-14142 Crankcase Cover Kit
(Incl.63,69-73)
71 710-04932 Bolt M8×32
72 951-11283 Oil Fill Plug Assembly
72a 951-1157 7 O-Ring
73 951-11578 Oil Seal,25×41.25×6
74 951-14144 Crankcase Service Kit
(Incl.60,63,73-76)
951-12551 Short Block Assemb
(Incl.4,20,28-30,45,47,48,51-54,57-76)
75 951-12514 Oil Drain Plug
76 951-12126 Oil Seal 25 X 41.25 X 6
131 951-12572 Gasket Kit-Complete
(Incl.4,20,28-30,32,45,59,
60,69,73,76)
132 951-12026A Gasket Kit-External
(Incl.4,20,28-30,32)
133 952Z270-VU Complete Engine
96

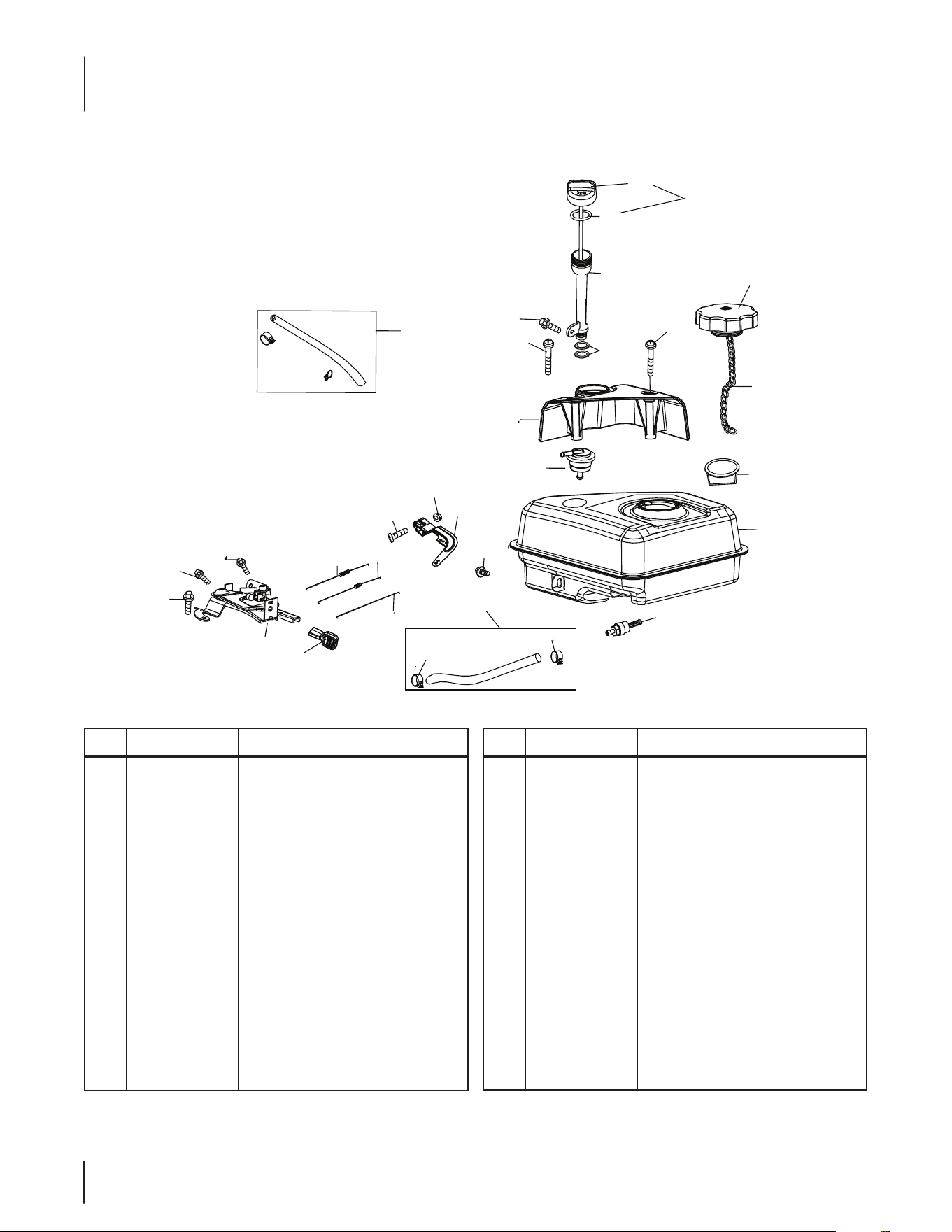

270-VU Fuel Tank & Mounting
Ref. Part Number Description
1 710-04968 Bolt M6×16
91 951-11067 Throttle Control Knob
92 951-12131 Primer Bracket
93 710-05103 Bolt M6×12
94 951-11585 Governor Spring
95 951-10664 Throttle Linkage Spring
96 951-10665 Throttle Linkage
98 951-11106 Governor Arm
99 712- 04212 Nut M6
100 710-04908 Governor Arm Bolt
101 951-10650 Fuel Line Kit
102 951-11700 Fuel Hose Clamp
103 710- 04915 Bolt M6×12
104 951-11914 Dipstick Decoration Cover
Ref. Part Number Description
105 710-04905 Bolt
106 951-11913 Oil Fill Tube Assembly
107 951-11381 Fill Tube O-Ring
108 951-10656 Dipstick Tube
109 951-11904 Dipstick O-Ring
110 951-12482 Dipstick Assy
111 951-12535 Cap Comp,Fuel Feller
112 951-14076 Fuel Cap Tether
113 951-14075 Roll Over Valve
114 951-10653B Fuel Tank
115 951-11933 Fuel Level Indicator
116 951-10651 Fuel Tank Nipple
117 951-14133 Evap Hose Assembly
110
109
108
107
106
85
105
117
105
111
112
115
114
116
113
104
103
98
99
100
101
102
102
94
95
96
91
92
1
93
93
97
270-VU Flywheel & Shroud
Ref.
Part Number Description
77 951-10792 Ignition Coil Assembly
78 710-04919 Bolt M6×25
79 951-11110 Air Flow Shield
80 710-04940 Bolt M6×10
81 951-12416 Flywheel
82 951-10934 Cooling Fan
83 951-10911 Pulley,Starter
84 712-04209 Flywheel Nut,M14×1.5
Ref.
Part Number Description
85 710-04915 Bolt M6×12
87 951-12417 Blower Housing
88 736-04455 Washer Ф6
89 710-04974 Bolt M6×10
90 951-12418 Recoil Starter Assembly
103 710- 04915 Bolt M6×12
129 951-11109 Blower Housing Shield
77
78
81
82
83
84
85
85
88
89
88
89
90
89
88
87
85
85
129
103
80
79
98
270-VU Cylinder Head
18
16
16
16
16
14
15
14
13
12
11
17
10
9
9
8
8
7
7
6
6
5
4
3
3a
1
1
1
1
2
130
45
48
48
49
50
46
46
47
47
131 - Gasket Kit-Complete
132 - Gasket Kit-External
133 - Complete Engine
99
270-VU Cylinder Head
Ref.
Part Number Description
1 710-04968 Bolt M6×16
2 951-11054A Valve Cover
3 731-07059 Breather Hose
3a 726-04101 Breather Hose Clamp
4 951-11565 Valve Cover Gasket
5 951-11892 Rocker Arm Assembly
6 751-11124 Nut,Pivot Locking
7 751-11123 Adjusting Nut ,Valve
8 951-11893 Rocker Arm
9 710-04902 Bolt,Pivot
10 951-11895 Push Rod Guide
11 951-12000 Valve Spring Retainer (Intake)
12 951-12002 Adjuster,Exh Valve
13 951-12003 Valve Spring Retainer (Exhaust)
14 951-12004 Valve Spring
15 951-1189 4 Valve Seal (Intake)
16 710-04933 Bolt M8×55
Ref.
Part Number Description
17 951-10722B Cylinder Head Asm
(Incl.4-15,17,20,28-30,45,49,50)
18 951-10292 Spark Plug/F6Rtc
45 951-11572 Gasket,Cylinder Head
46 951-10648 Push Rod Kit
47 951-1189 9 Tappet
48 715- 04108 Dowel Pin 10×16
49 951-10647A Valve Kit
50 951-10647A Valve Kit
130 951-12626 Valve Cover Kit
131 951-12572 Gasket Kit-Complete
(Incl.4,20,28-30,32,45,59,
60,69,73,76)
132 951-12026A Gasket Kit-External
(Incl.4,20,28-30,32)
133 952Z270-VU Complete Engine
100
270-VU Muffler
Ref. Part Number Description
19 951-14063 Stud M8×38
19 951-14141 Muer Stud Kit
20 951-11289 Exhaust Pipe Gasket
21 951-14067 Muer Assembly
22 712- 04214 Nut,M8
23 951-14078 Exhaust Pipe Shield
24 951-14079 Duct Bolt
25 751-14182 Muer Deector
24
25
23
24
22
20
19
19
21
101

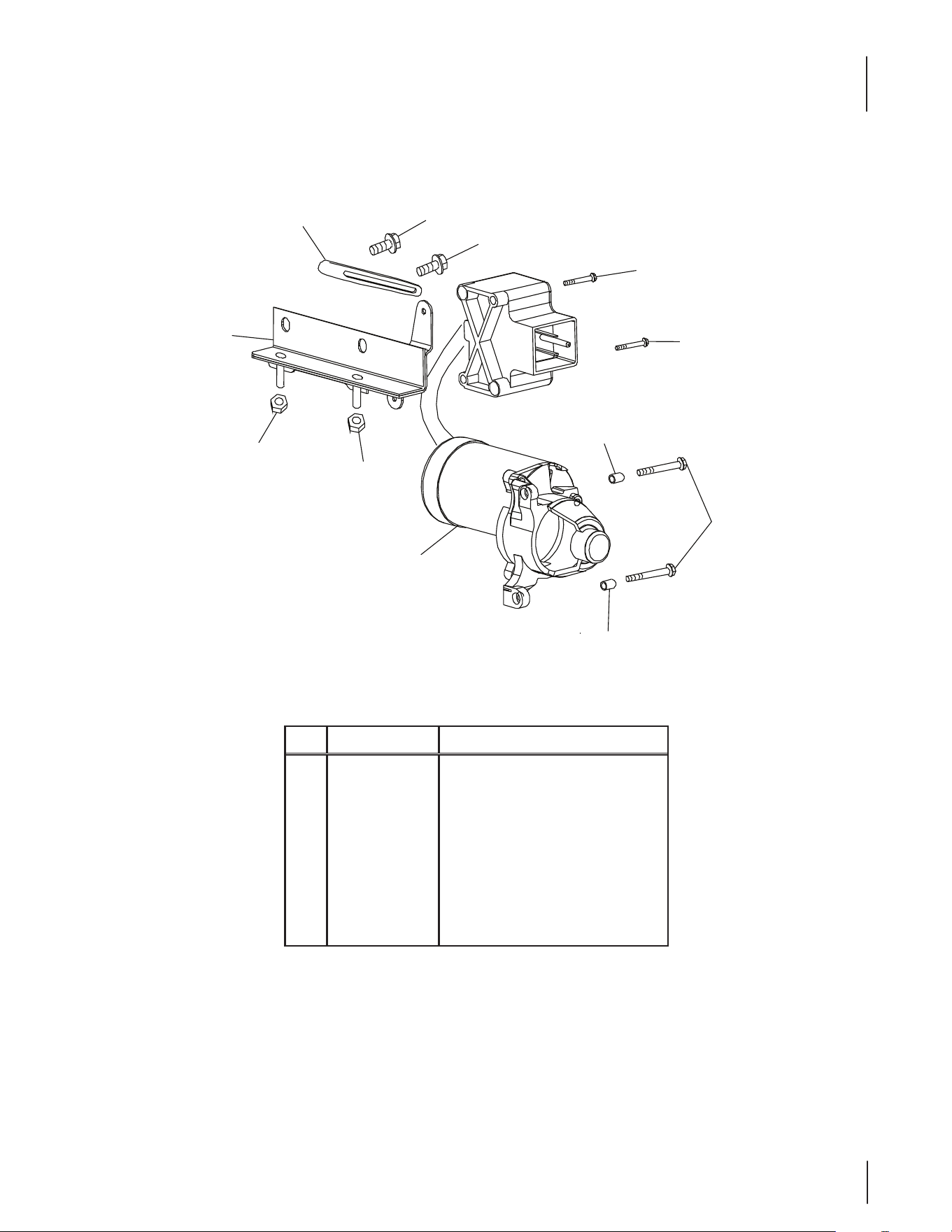

270-VU Starter
Ref.
Part Number Description
121 710-04914 Bolt M6×10
122 951-11680 Flexible Clamp
123 951-11114 Switch Housing Mounting Bracket
124 712-05015 Nut,M6
125 710-04965 Bolt M4×55
126 710-05182 Bolt M6×32
127 715- 04088 Dowel Pin 8×8
128 951-10645A Electric Starter
122
123
124
124
121
121
125
125
127
128
127
126
Notes
102
103Notes
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
G
E
N
U
I
N
E
F
A
C
T
O
R
Y
P
A
R
T
S
To order replacement parts, call a Customer Support Representative at (800) 965-4CUB.
Locate your nearest Cub Cadet dealer at (877) 282-8684
or visit www.cubcadet.com to find the nearest Cub Cadet dealer in your area.
