Matco Tools HG300A ULTRA HEAT GUN KIT

Product's Documents

Below are documents related to this product, you can read online or download:
User Manual Other Documents
  • HG300A_PartsBreakdown_01.pdf - (English) Download
Main documentSpecificationQuestions and answersRelateds Products
HG300A photo

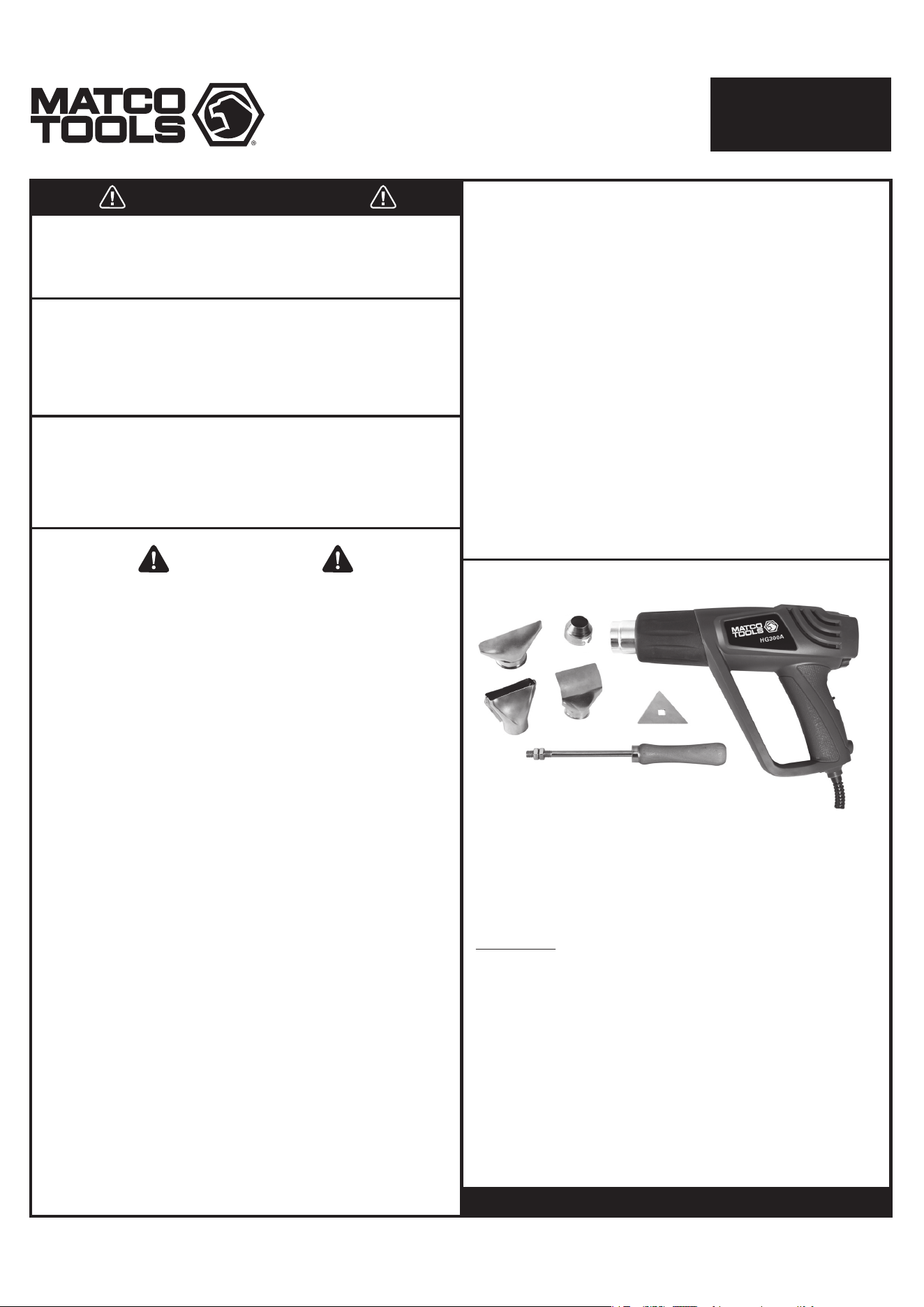

HG300A_InstructionManual_01.pdf

This is the main product document for model HG300A.

The file format is pdf, 5 pages, you can download this manual here .

background
Specification:
Voltage & Frequency: 120V~60Hz
Rate Power: 1,500W(MAX)
Adjustable Temperature: 100-1,000°F
Adjustable Air Flow: 10 or 20 CFM
WARNING
BEFORE USE
Study, understand and follow all instructions provided with this
product. Read these instructions carefully before installing, operating,
servicing, or repairing this tool. Keep these instructions in a safe,
accessible place.
INTENDED USE OF THE TOOL
This heat gun was designed to be used for stripping paint, removing
decals and pin striping, soften adhesives, drying, thawing, forming
and welding plastics and more. Do not use this tool outside of the
designed intent. Never modify the tools for any other purpose or use.
The manufacturer warrants this product to the original user against
defective material or workmanship for a period of 1 year from the
date of purchase.
The manufacturer reserves the right to determine whether the part
or parts failed because of defective material, workmanship or other
causes. Failures caused by accident, alteration or misuse are not
covered by this warranty.
The manufacturer, at its discretion, will repair or replace product
covered under this warranty free of charge. Repairs or replacements
of products covered under this warranty are warrantied for the
remainder of the original warranty period.
The manufacturer or its authorized service representatives must
perform all warranty repairs. Any repair to the product by
unauthorized service representatives voids this warranty. The rights
under this warranty are limited to the original user and may not be
transferred to subsequent owners.
The warranty is in lieu of all other warranties, expressed or implied,
including warranties of merchantability and fitness for a particular
purpose. Some states do not allow the exclusion or limitations of
incidental or consequential damages, so the above limitations may
not apply to you.
1 YEAR LIMITED WARRANTY
Page 1

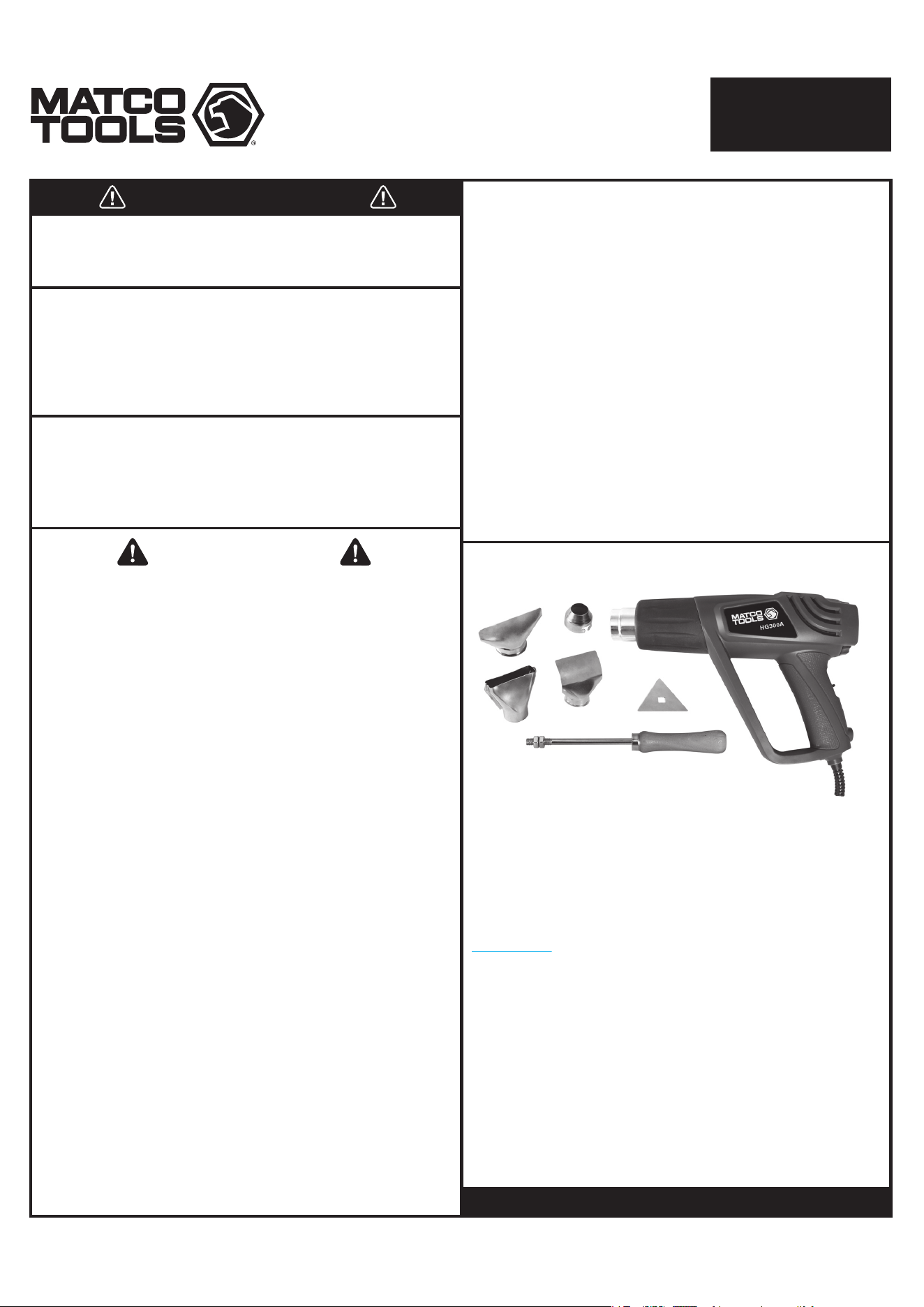

HG300A
ULTRA HEAT GUN
1706217-14
PRODUCT INFORMATION
Made in China
to Matco specifications
Before use, READ AND UNDERSTAND THE WARNINGS ON PAGE 1

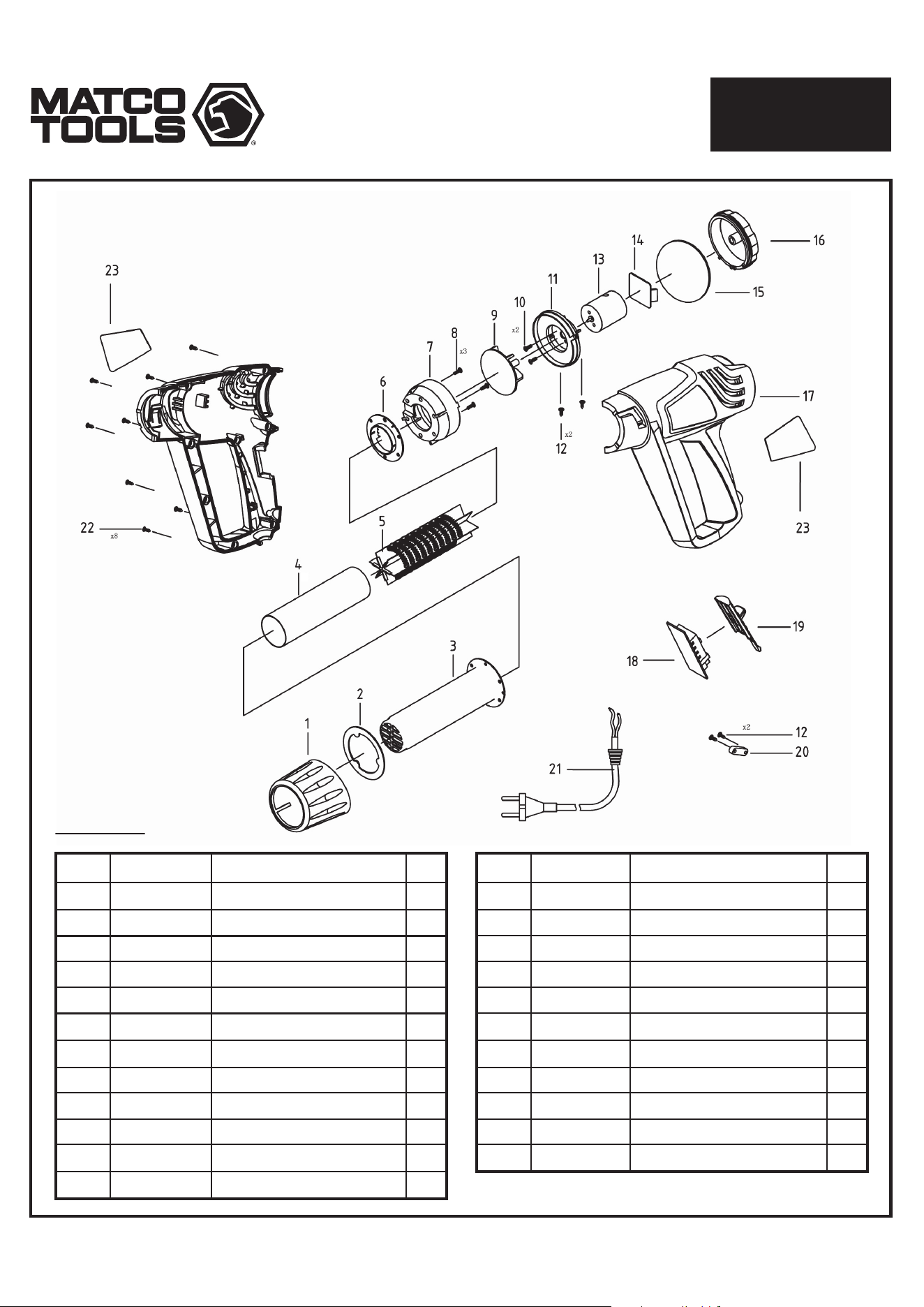

and check the parts diagram and part number listing on page 4-5 to
make sure all parts are included. If any parts are missing or damaged,
please call your distributor.
WARNING
Caution: To help prevent personal injury
tNormal use of this product is likely to expose the user to dust and/or
microscopic particles containing chemicals known to the State of
California to cause cancer, birth defects or other reproductive harm.
Always wear appropriate safety equipment and clothing when
using this product. Study, understand and follow all instructions
provided with this product. Failure to read and follow all warnings
and operating instructions may result in damages and serious
injury or death.
t"MXBZTXFBS"/4*BQQSPWFEHPHHMFTXIFOVTJOHUIJTQSPEVDU
(Users and bystanders).
t/FWFSVTFUIJTUPPMGPSBOZBQQMJDBUJPOPUIFSUIBOGPSXIJDI
it was designed.
t0OMZVTFBDDFTTPSJFTEFTJHOFEGPSUIJTUPPM
t/FWFSBMUFSPSNPEJGZUIJTUPPMJOBOZXBZ
t*NQSPQFSPQFSBUJPOBOEPSNBJOUFOBODFPGUIFUPPMNPEJmDBUJPOPG
the tool, or use of the tool with accessories not designed for it could
result in serious injury or death.
t"MXBZTTFMFDUUIFDPSSFDUBDDFTTPSJFTPGUIFDPSSFDUTJ[FBOE design
for the job that you are attempting to perform.
t"MXBZTXPSLJOBDMFBOTBGFXFMMMJUPSHBOJ[FEBOEBEFRVBUFMZ
equipped area.
t/FWFSVTFUIFFRVJQNFOUBTBIBJSESZFS
t/FWFSCMPDLUIFBJSJOMFUPSPVUMFU
t*GUIFQPXFSDPSEJTEBNBHFEUVSOPGGUIFIPUBJSHVO
immediately and don’t use it again.
t%POPUVTFUIFFRVJQNFOUJOBOFYQMPTJWFBUNPTQIFSF
(danger of explosion).
t*NQSPQFSVTFDBOMFBEUPmSF
t%POPUBJNUIFBJSnPXEJSFDUMZBUQFPQMFPSBOJNBMT
t8IFOOPUJOVTFBMXBZTTUPSFUIFFRVJQNFOUJOBESZQMBDFMPDLFE
away and inaccessible to children.
t"GUFSVTJOHUIFFRVJQNFOUQMBDFJUEPXOXJUIUIFOP[[MFVQXBSE
and before storing let it cool down completely.
t/FWFSMFBWFUIFHVOVOBUUFOEFE,FFQBOFZFPODIJMESFO
DO NOT DISCARD – GIVE TO USER
OPERATION
"EKVTUBJSnPXMFWFMBUUIFPOPGGTXJUDI
for low (10 CFM) or high (20 CFM).
2. Adjust temperature with rear mounted dial. Note that the
12 o'clock position is the setting (see arrow on gun body).
Thus, turn clockwise to increase temperature.
Ergonomic design. Temperature is adjusted with rear dial
XIJMFBJSnPXJTTFUBUUIFPOPGGTXJUDI

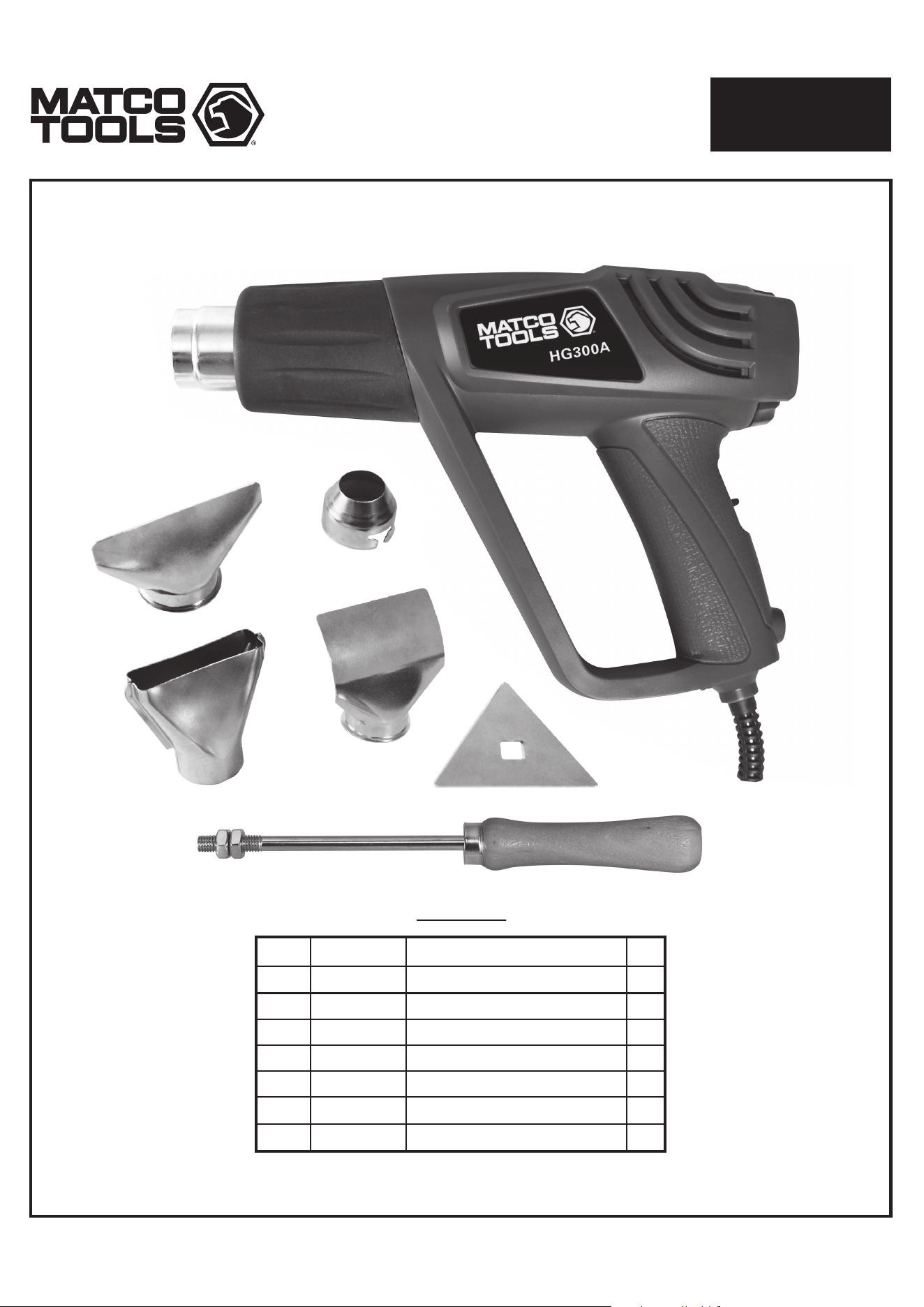

Everything you need. Kit includes 5 accessories for scraping,
paint and adhesive removal, wiring and more.
Powerful performance. Up to 1,500W of power for an adjustable
¡'UFNQFSBUVSFBOEPS$'.PGBJSnPX
www.matcotools.com
background
ADVERTENCIA
Estudie, entienda y siga todas las instrucciones que se proveen con este
producto. Lea las instrucciones detenidamente antes de instalar, operar,
dar servicio o reparar esta herramienta. Guarde estas instrucciones en un
lugar seguro y accesible.
USO PREVISTO DE LA HERRAMIENTA
El fabricante garantiza este producto al usuario original contra defectos
de materiales o de mano de obra durante un periodo de un año a partir
de la fecha de compra.
El fabricante se reserva el derecho a determinar si una pieza o piezas
fallaron debido a material defectuoso, mano de obra, o por otras causas.
Esta garantía no cubre fallas causadas por accidentes, alteraciones o uso
indebido.
El fabricante, a su entera discreción, reparará o reemplazará los productos
cubiertos por esta garantía sin costo alguno. Las reparaciones o
reemplazos de productos cubiertos por esta garantía quedan garantizados
durante el resto del periodo original de garantía.
El fabricante o sus representantes autorizados de servicio deben llevar a
cabo todas las reparaciones de garantía. Toda reparación hecha al
producto por representantes de servicio no autorizados invalida la
presente garantía. Los derechos que ampara esta garantía están limitados
al usuario original y no se pueden transferir a dueños posteriores.
Esta garantía reemplaza a todas las demás garantías expresas o implícitas,
incluyendo garantías de comercialización e idoneidad para un propósito
particular. Algunos estados no permiten la exclusión o limitaciones de
daños incidentales o imprevistos, de manera que las limitaciones
mencionadas anteriormente pueden no ser aplicables en su caso.
GARANTÍA LIMITADA DE UN AÑO
INFORMACIÓN DEL PRODUCTO
Hecho en China
Para Matco especificaciones
ADVERTENCIA
Precaución: Para ayudar a evitar lesiones a las personas
t&MVTPOPSNBMEFFTUBIFSSBNJFOUBQVFEFFYQPOFSBMVTVBSJPBMQPMWPP
a partículas microscópicas que contienen sustancias químicas que se
conocen en el estado de California por causar cáncer, defectos del
nacimiento u otros daños reproductivos.
Siempre use equipo y ropa de seguridad adecuados para trabajar con esta
herramienta. Lea, comprenda y siga todas las instrucciones incluidas con
FTUBIFSSBNJFOUB0NJUJSMBMFDUVSBZFMOPTFHVJSUPEBTMBTBEWFSUFODJBTF
instrucciones de operación puede traer como consecuencia daños y
lesiones graves o hasta la muerte.
t4JFNQSFVTFHVBOUFTEFMUJQPBQSPCBEPQPSMB"/4*QBSBUSBCBKBSDPOFTUB
herramienta. (tanto usuarios como espectadores).
t/VODBVUJMJDFFTUBIFSSBNJFOUBQBSBDVBMRVJFSPUSBDPTBRVFOPTFBOMBT
aplicaciones para lo que fue diseñada.
t4ØMPVUJMJDFMPTBDDFTPSJPTEJTF×BEPTQBSBFTUBIFSSBNJFOUB
t/PNPEJmRVFPBMUFSFFTUBIFSSBNJFOUBEFOJOHVOBNBOFSB
t&MGVODJPOBNJFOUPZPNBOUFOJNJFOUPJOBEFDVBEPEFMBIFSSBNJFOUB
la modificación, o la utilización de la herramienta con accesorios
inadecuados podrían causar lesiones graves o la muerte.
t4JFNQSFVTBSMPTDPSSFDUPTBDDFTPSJPTQBSBFMUSBCBKPRVF6EFTUÈ
realizando.
t5SBCBKFTJFNQSFFOVOÈSFBMJNQJBTFHVSBCJFOJMVNJOBEBPSHBOJ[BEBZ
equipada adecuadamente.
t/FWFSVTFUIFFRVJQNFOUBTBIBJSESZFS
t/FWFSCMPDLUIFBJSJOMFUPSPVUMFU
t*GUIFQPXFSDPSEJTEBNBHFEUVSOPGGUIFIPUBJSHVOJNNFEJBUFMZ
and don’t use it again.
t%o not use the equipment in an explosive atmosphere (danger of explosion).
t*NQSPQFSVTFDBOMFBEUPmSF
t%POPUBJNUIFBJSnPXEJSFDUMZBUQFPQMFPSBOJNBMT
t8IFOOPUJOVTFBMXBZTTUPSFUIFFRVJQNFOUJOBESZQMBDFMPDLFE
away and inaccessible to children.
t"GUFSVTJOHUIFFRVJQNFOUQMBDFJUEPXOXJUIUIFOP[[MFVQXBSE
and before storing let it cool down completely.
t/FWFSMFBWFUIFHVOVOBUUFOEFE,FFQBOFZFPODIJMESFO
DESEMPACADO
This heat gun was designed to be used for stripping paint, removing
decals and pin striping, soften adhesives, drying, thawing, forming
and welding plastics and more. No utilice esta herramienta fuera de
la intención de su diseño. Nunca modifique las herramientas para
ningún otro propósito o uso.
Page 2
HG300A
ULTRA HEAT GUN
1706217-14
Antes de usar, LEA Y COMPRENDA LAS ADVERTENCIAS EN LA
PÁGINA 2 y verifique el diagrama de piezas y partes en la página 4-5
para asegurarse de que todas estén incluidas. En caso de que falten
piezas o que estén dañadas, comuníquese con su distribuidor.
NO LO DESCARTE O DESECHE, ENTREGESELO AL USUARIO
OPERATION
"EKVTUBJSnPXMFWFMBUUIFPOPGGTXJUDI
for low (10 CFM) or high (20 CFM).
2. Adjust temperature with rear mounted dial. Note that the
12 o'clock position is the setting (see arrow on gun body).
Thus, turn clockwise to increase temperature.
Specification:
Voltage & Frequency: 120V~60Hz
Rate Power: 1,500W(MAX)
Adjustable Temperature: 100-1,000°F
Adjustable Air Flow: 10 or 20 CFM
Ergonomic design. Temperature is adjusted with rear dial
XIJMFBJSnPXJTTFUBUUIFPOPGGTXJUDI
Everything you need. Kit includes 5 accessories for scraping,
paint and adhesive removal, wiring and more.
Powerful performance. Up to 1,500W of power for an adjustable
¡'UFNQFSBUVSFBOEPS$'.PGBJSnPX
www.matcotools.com
(SPANISH)
background
HG300A
ULTRA HEAT GUN
AVERTISSEMENT
DÉBALLAGE
Etudier, comprendre et suivre toutes les instructions fournies avec ce
produit. Lire ces instructions attentivement avant d’installer, d’utiliser,
d’entretenir et de réparer cet outil. Conserver ces instructions dans un
endroit sécuritaire et accessible.
UTILISATION PRÉVUE DE L’OUTIL
Le manufacturier garantit à l’acheteur initial que ce produit est exempt de
tout vice de matériau et de fabrication pendant une période de une année
suivant la date de l’achat.
Le manufacturier se réserve le droit de déterminer si la pièce ou les pièces
défectueuses sont imputables à un matériau défectueux, à un défaut de
fabrication ou à d’autres causes. Les défaillances causées par un accident,
une modification ou une utilisation incorrecte ne sont pas couvertes par
la présente garantie.
Le manufacturier, à sa seule discrétion, réparera ou remplacera sans
frais les produits couverts par cette garantie. Les réparations ou les
remplacements de produits couverts par cette garantie sont garantis pour
le reste de la période de garantie initiale.
Le manufacturier ou ses représentants de service autorisés doivent
exécuter les réparations sous garantie. Toute réparation du produit
effectuée par un représentant de service non-autorisé annulera cette
garantie. Les droits couverts par cette garantie sont limités à l'acheteur
initial et ne peuvent être transférés aux propriétaires subséquents.
Cette garantie remplace toutes autres garanties, expresses ou implicites,
incluant les garanties de valeur marchande ou d’adaptation à un usage
particulier. Certains États ou provinces ne permettent pas d’exclure ou de
limiter les dommages consécutifs ou indirects, donc les limitations
ci-dessus pourraient ne pas s’appliquer.
1 ANNÉE DE GARANTIE LIMITÉE
Page 3
1706217-14
INFORMATIONS PRODUIT
Before use, READ AND UNDERSTAND THE WARNINGS ON PAGE 3 and
check the parts diagram and part number listing on page
4-5 to make sure
all parts are included. Si une pièce est manquante ou abîmée, veuillez
appeler immédiatement votre distributeur.
AVERTISSEMENT
Mise en garde: Pour aider à prévenir les blessures
NE PAS JETER-DONNER À L'UTILISATEUR
t-VUJMJTBUJPOOPSNBMFEFDFQSPEVJUQPVSSBJUFYQPTFSMVUJMJTBUFVSËEFMB
poussière et/ou des particules microscopiques contenant des produits
chimiques que l’État de la Californie a reconnu comme étant une cause
de cancer, de déficience congénitale et d’autres effets nocifs sur le
système reproductif.
Toujours porter un équipement et des vêtements sécuritaires appropriés
en utilisant ce produit. Étudier, comprendre et suivre toutes les
instructions fournies avec ce produit. Echec de lire et suivre des
avertissements et le mode d’emploi devrait causer des endommages et
des blessures sévères ou la mort.
t5PVKPVSTQPSUFSEFTMVOFUUFTËDPRVFTBQQSPVWÏFTQBSM"/4*MPSTRVFWPVT
utilisez ce produit. (Utilisateurs et Spectateurs).
t/FKBNBJTVUJMJTFSDFUPVUJMQPVSBVDVOFBQQMJDBUJPORVJOFTUQBTDPOÎVF
t4FVMFNFOUVUJMJTFSMFTBDDFTTPJSFTDPOÎVTQPVSDFUPVUJM
t/FKBNBJTNPEJmFSDFUPVUJM
t-FGPODUJPOOFNFOUFUPVMFOUSFUJFOJODPSSFDUEFDFUPVUJMMBNPEJmDBUJPO
EFDFUPVUJMPVMVUJMJTBUJPOEFDFUPVUJMBWFDMFTBDDFTTPJSFTOPODPOÎVT
pour lui devrait causer des blessures graves ou la mort.
t5PVKPVSTVUJMJTFSMFTBDDFTTPJSFTBEÏRVBUTQPVSMFUSBWBJMRVFWPVT
effectuez.
t5PVKPVSTUSBWBJMMFSEBOTVOFOWJSPOOFNFOUQSPQSFTÏDVSJUBJSFCJFO
éclairé, organisé et suffisamment équipé.
t/FWFSVTFUIFFRVJQNFOUBTBIBJSESZFS
t/FWFSCMPDLUIFBJSJOMFUPSPVUMFU
t*GUIFQPXFSDPSEJTEBNBHFEUVSOPGGUIFIPUBJSHVOJNNFEJBUFMZ
and don’t use it again.
t%o not use the equipment in an explosive atmosphere (danger of explosion).
t*NQSPQFSVTFDBOMFBEUPmSF
t%POPUBJNUIFBJSnPXEJSFDUMZBUQFPQMFPSBOJNBMT
t8IFOOPUJOVTFBMXBZTTUPSFUIFFRVJQNFOUJOBESZQMBDFMPDLFE
away and inaccessible to children.
t"GUFSVTJOHUIFFRVJQNFOUQMBDFJUEPXOXJUIUIFOP[[MFVQXBSE
and before storing let it cool down completely.
t/FWFSMFBWFUIFHVOVOBUUFOEFE,FFQBOFZFPODIJMESFO
This heat gun was designed to be used for stripping paint, removing
decals and pin striping, soften adhesives, drying, thawing, forming
and welding plastics and more. N'utilisez pas cet outil en dehors de
l'intention prévue. Ne modifiez jamais l'outil à d'autres fins ou
utilisation.
OPERATION
"EKVTUBJSnPXMFWFMBUUIFPOPGGTXJUDI
for low (10 CFM) or high (20 CFM).
2. Adjust temperature with rear mounted dial. Note that the
12 o'clock position is the setting (see arrow on gun body).
Thus, turn clockwise to increase temperature.
FABRIQUÉ EN CHINE
les spécifications de Matco
Specification:
Voltage & Frequency: 120V~60Hz
Rate Power: 1,500W(MAX)
Adjustable Temperature: 100-1,000°F
Adjustable Air Flow: 10 or 20 CFM
Ergonomic design. Temperature is adjusted with rear dial
XIJMFBJSnPXJTTFUBUUIFPOPGGTXJUDI
Everything you need. Kit includes 5 accessories for scraping,
paint and adhesive removal, wiring and more.
Powerful performance. Up to 1,500W of power for an adjustable
¡'UFNQFSBUVSFBOEPS$'.PGBJSnPX
www.matcotools.com
(FRENCH)
background
HG300A
ULTRA HEAT GUN
Page 4
1706217-14
Parts List
PARTS BREAKDOWN
Part #Index #
HG300A-01
HG300A-02
HG300A-03
HG300A-04
HG300A-05
HG300A-06
HG300A-07
1
2
3
4
5
6
7
Ultra Heat Gun
Fishtail Nozzle
4QPPO3FnFDUPS
Concentrated Scoop
Concentrated Nozzle
Triangular Scraper
Wooden Handle
Description
1
1
1
1
1
1
1
Q’ty
706
2
4
5
3
6
7
1
www.matcotools.com
background
HG300A
ULTRA HEAT GUN
Page 5
1706217-14
Parts List
PARTS BREAKDOWN
FOR THE ULTRA HEAT GUN
Index #
1
2
3
4
5
6
7
8
9
10
11
12
Plastic Tube
Steel Ring
Steel Tube
Mica Paper
Heating Element
Ring
Plastic Fan
M3*9 Screw
Fan Blade
M2.5*5 Screw
Motor Stand
M3x12 Screw
Description
1
1
1
1
1
1
1
3
1
2
1
4
Q’ty
706
Index #
13
14
15
16
17
18
19
20
21
22
23
D.C.Motor
Motor Board
Temperature Dial
Tail Hood
Housing
Switch
Switch Plate
Cord Grip
Power Cord
M3x14 Screw
Lable
Description
1
1
1
1
1set
1
1
1
1
8
1set
Q’ty
Part #
HG300A-08
HG300A-09
HG300A-10
HG300A-11
HG300A-12
HG300A-13
HG300A-14
HG300A-15
HG300A-16
HG300A-17
HG300A-18
HG300A-19
Part #
HG300A-20
HG300A-21
HG300A-22
HG300A-23
HG300A-24
HG300A-25
HG300A-26
HG300A-27
HG300A-28
HG300A-29
HG300A-30
www.matcotools.com

Specifications

Indexed Terms: Heat Gun

Matco Tools HG300A Questions and Answers

Find answers or ask new question.
See other models: MJS660 MCL1614HPIDK MPT0027 PBDP MCL2012BIWB
Questions and Answers
