Service for Milwaukee Electric Tool ONE KEY Products
can only be performed at this
Milwaukee factory Central Repair Center:
MILWAUKEE ELECTRIC TOOL Central Repair
1401 Sycamore Avenue
l
Greenwood, MS 38930-7277
Please send your tool directly to this location for service.
Or
Via e-Service at: www.milwaukeetool.com/e-service
questions, please call 1.800.SAWDUST (1.800.729.3878)
Or
Return it to a MILWAUKEE factory Service Center location, freight prepaid and insured.
A copy of the proof of purchase should be included with the return product.
If you have questions please contact Milwaukee Product Service at:
Product Technical Support via phone at: 262.783.8642
Or
Via email at: [email protected]
Disassembly is not recommended and could void the warranty.
2857-20

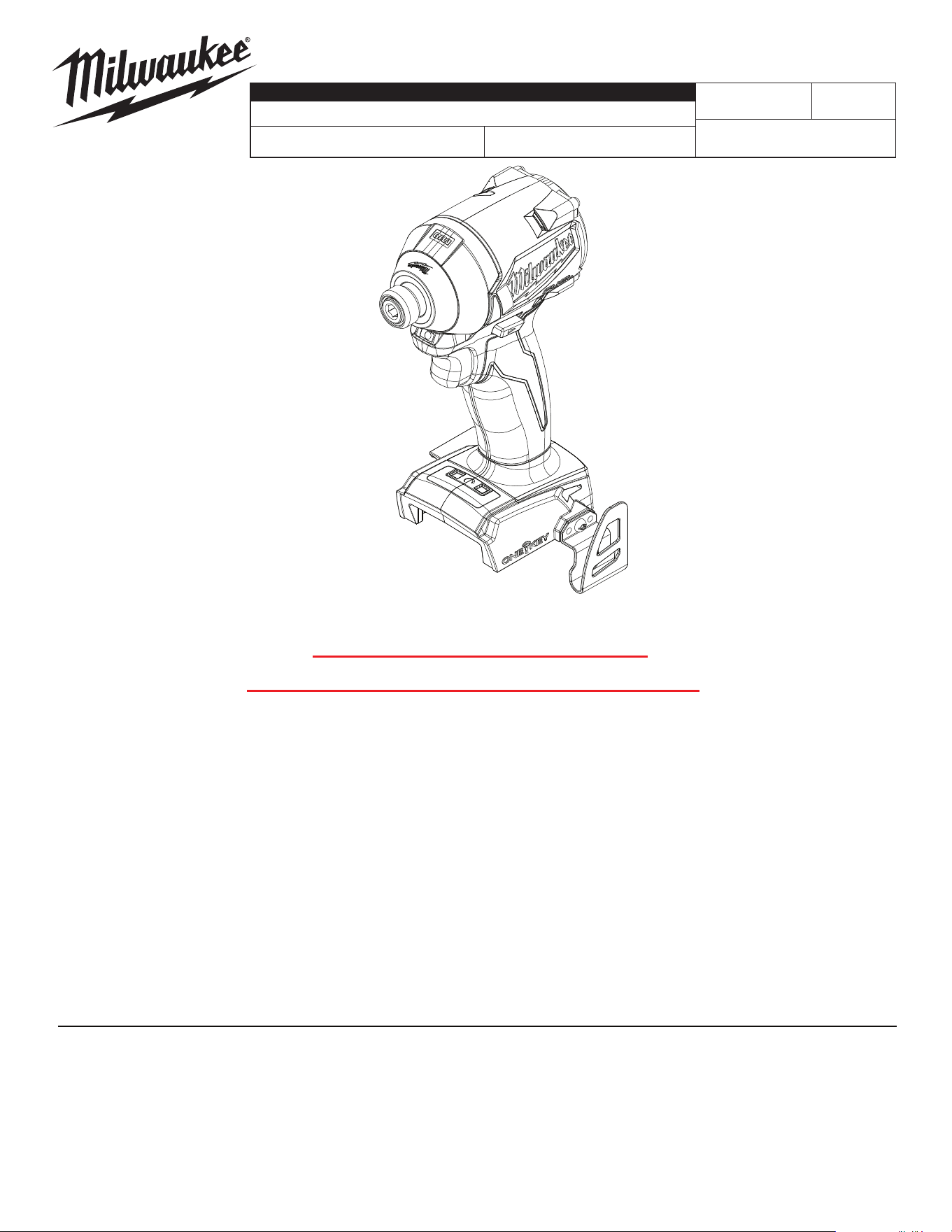

M18™ FUEL™ ONE KEY 1/4" Hex Impact Driver
May 2019
54-00-2857
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
STARTING
SERIAL NO.

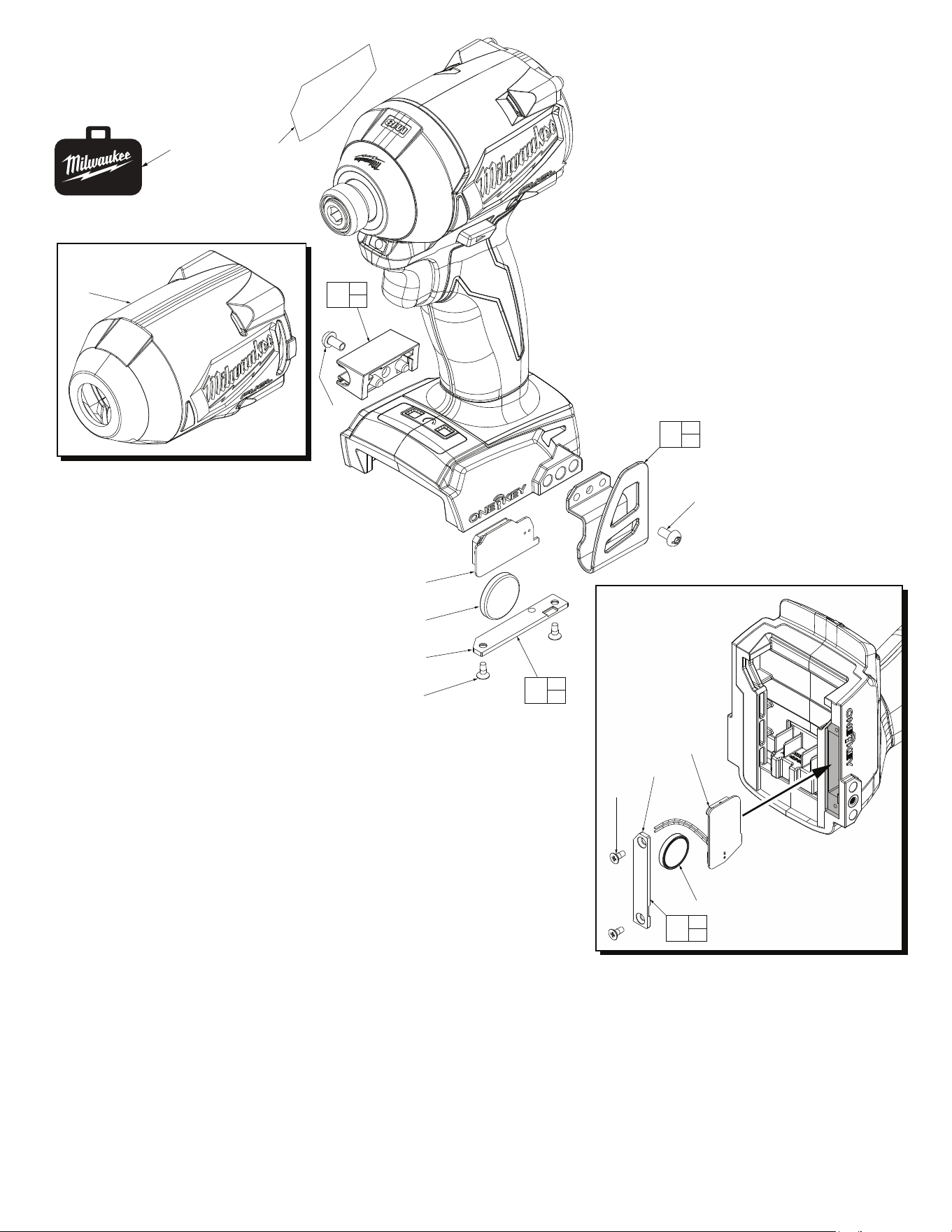

Drwg. 2
J64A
61
71
70
68
69
NOTE:
Coin Cell #69 is an
individual service
part and can be also
be purchased at a
local hardware store
(CR 2032H).
39
72
68
69
70
71
(2x)
39
39
57
39
58
60
70
71
77
70
71
77
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
39 06-82-2500 6-32 Pan Hd. Slotted T-15 Mach. Scr. (2)
57 42-70-0950 Belt Clip Kit (1)
58 43-72-0950 Bit Holder Kit (1)
60 42-55-0036 Blow Molded Carrying Case (1)
61 49-16-2853 Rubber Boot, Accessory (1)
68 14-20-0068 Coin Cell PCBA (1)
69 --------------- 3V Coin Cell Battery (CR2032H) (1)
70 --------------- Coin Cell Cover (1)
71 05-81-1100 M2.6 x 6mm ST Phillips Screw (2)
72 12-20-1217 Service Nameplate (1)
77 31-44-0111 Coin Cell Cover Kit (1)
