USER MANUAL
DISPLAY CASE
For any service-related Issues, please contact
us: Phone Number: 718-576-6342
Email address: [email protected]
31" Countertop Ice Cream
Display Case With 4 Pans
Model:
KM-CGD-8HP
1
Contents
General

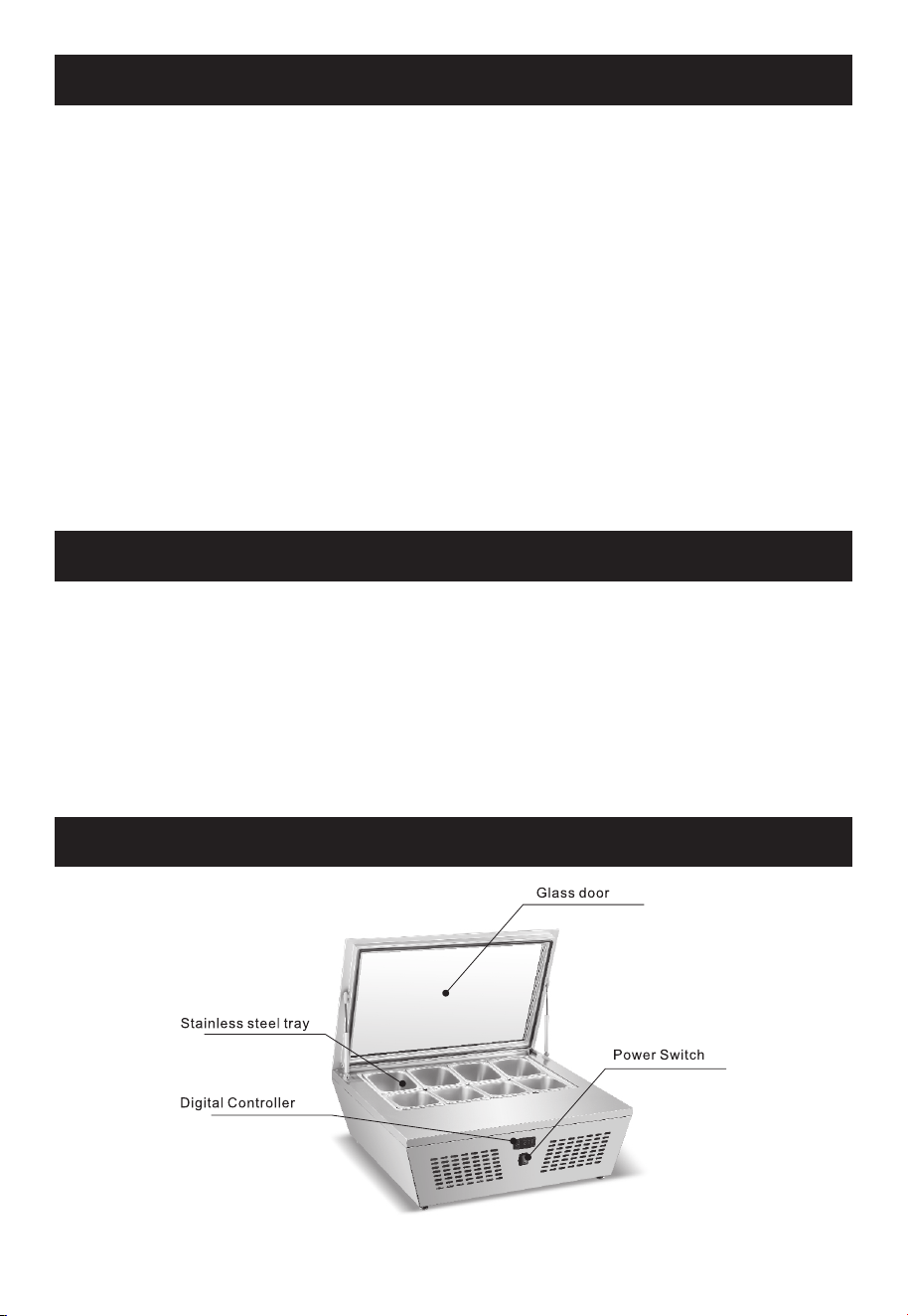

Structure and Parts
1. This ice-cream freezer utilizes a top brand fully enclosed compressor, featuring environmentally
friendly refrigerants R290/R134a. The rational configuration of the refrigeration system along
with forced-air cooling provides even temperature distribution inside the freezer.
2. The door of the freezer is designed with double hollow transparent glass, ensuring an artistic
and elegant appearance, excellent visibility, and easy access.
3. This freezer finds extensive applications in various environments, including department
stores, households, meeting rooms, and sitting rooms. Its versatility makes it suitable for
both commercial and residential settings, catering to a wide range of needs.
General .....................................................................................................................
Structure and Parts ................................................................................................
Assembly and Care Instructions ...........................................................................
Preparation and Power Supply ..............................................................................
Usage and Precautions ..........................................................................................
Maintenance ...........................................................................................................
Troubleshooting .....................................................................................................
Principle of Refrigeration System and Electric Circuit Diagram ..........................
Circuit Diagram.. .....................................................................................................
Major Parameters ...................................................................................................
Warranty...................................................................................................................
1.
1.
2.
3.
4.
6.
6.
7.
7.
8.
9.

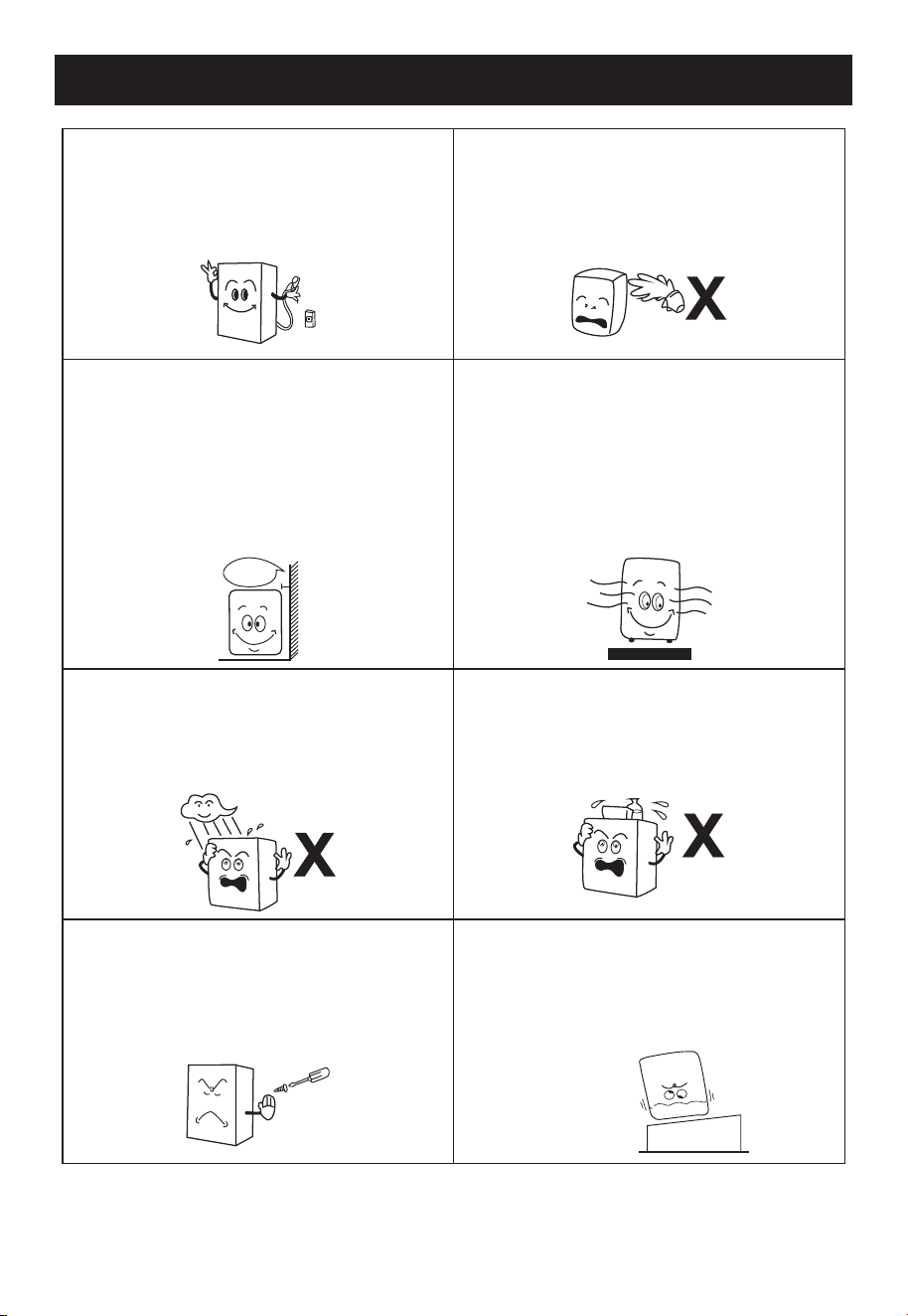

Handle with Care
Ensure to unplug the freezer from the wall
socket prior to moving.
Never tilt the freezer beyond a 45-degree
angle while handling.
Dry Location
Always position the freezer in a dry location.
Ensure Sufficient Space
Maintain at least a 4-inch distance between
the freezer's sides and back, and any walls or
objects. This distance is crucial for proper air
circulation. Insufficient space can impair the
freezer's cooling ability.
Proper Ventilation
Place the freezer in a well-ventilated
location. After relocating the freezer, allow it
to stand unplugged for 2 hours before
plugging it back into the wall socket for
initial startup.
4-Inch
Avoid Heat Sources
Position the freezer away from direct
sunlight and other heat sources like heaters.
Exposure to such conditions can negatively
impact the freezer's cooling efficiency.
Avoid Heavy Loads
Do not place heavy objects atop the freezer.
No Modifications
Refrain from making any alterations, such as
drilling holes or installing additional items, to
the freezer.
Stable Placement
Carefully unpack the freezer and position it
on a flat, stable surface. This precautionary
measure will help prevent unwanted noise
and vibrations.
Assembly and Care Instructions
2

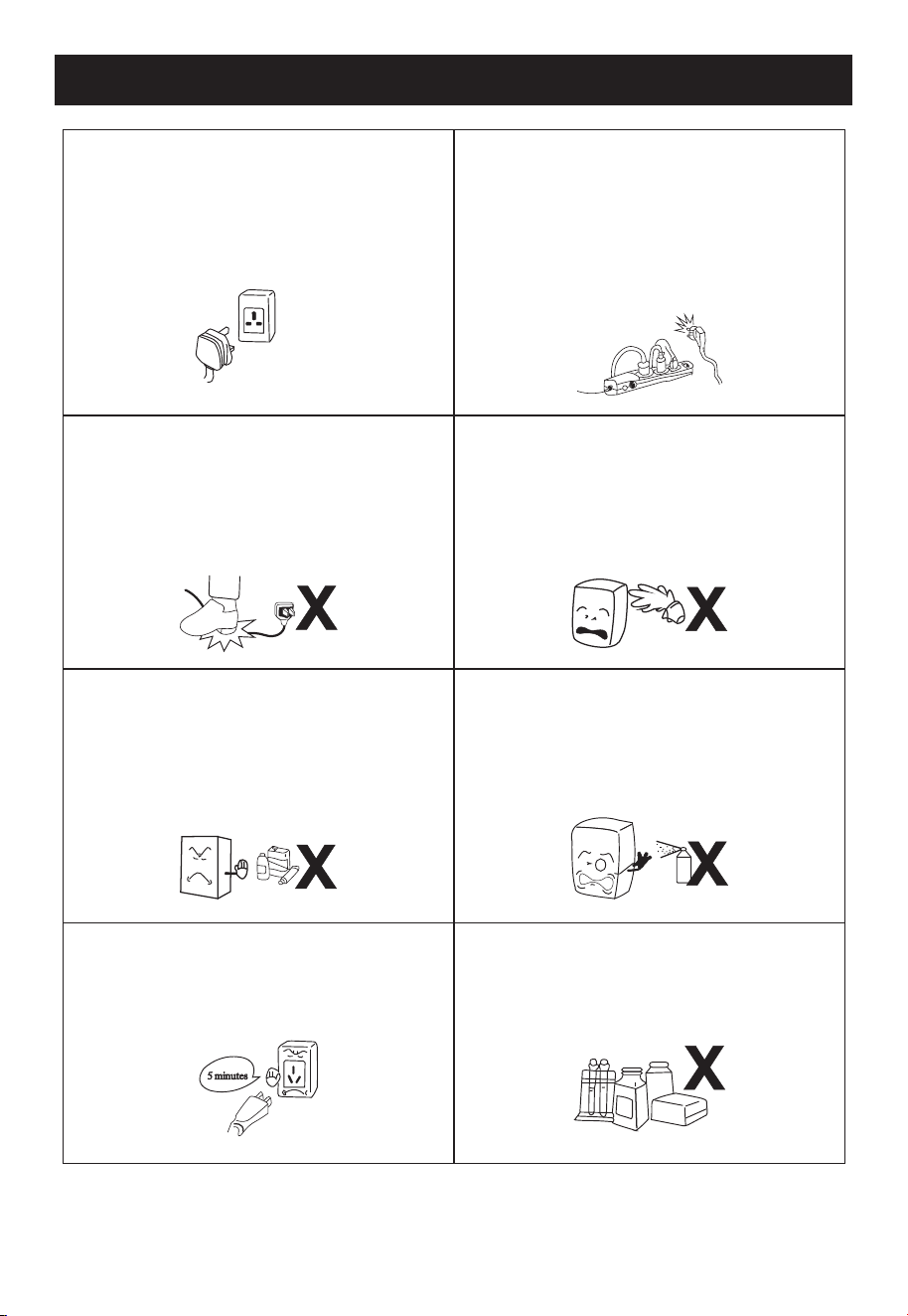

No Spraying
Spraying of flammable substances such as
paint or coatings near the freezer is
prohibited, as it could lead to a fire
Dedicated Power Socket
The freezer should be powered by a
110-120V, 60Hz single-phase AC supply
through a dedicated single-phase three-pin
receptacle.
Avoid Socket Sharing
The freezer should never share a common
socket with other appliances to prevent
overheating of the power cable, which could
lead to a fire.
Protect Cables
Ensure the power cables are not damaged or
compromised to prevent electrical leakage
and potential fire hazards.
Avoid Water Exposure
Do not expose the freezer surface to water to
avoid electrical leakage.
Avoid Flammables and Explosives
Never store any flammable or explosive
substances such as ether, gasoline, alcohol,
adhesive, and explosives in the refrigerator.
Avoid placing these dangerous substances
near the freezer.
After Power Interruption
Following a power interruption or after
unplugging the refrigerator, wait at least 5
minutes before plugging in and restarting the
freezer.
Avoid Storing Medication
Do not store medication inside the freezer.
Preparation and Power Supply
3
Usage and Precautions
1. Initial Use
• Plug the freezer into an exclusive 110-120V~ socket.
• After the freezer is running, check the air suction for sufficient coldness. If it's sufficiently
cold, you may put food inside the cold box.
• This appliance is not intended for use by individuals (including children) with reduced
physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Ensure children do not play with the appliance unsupervised.

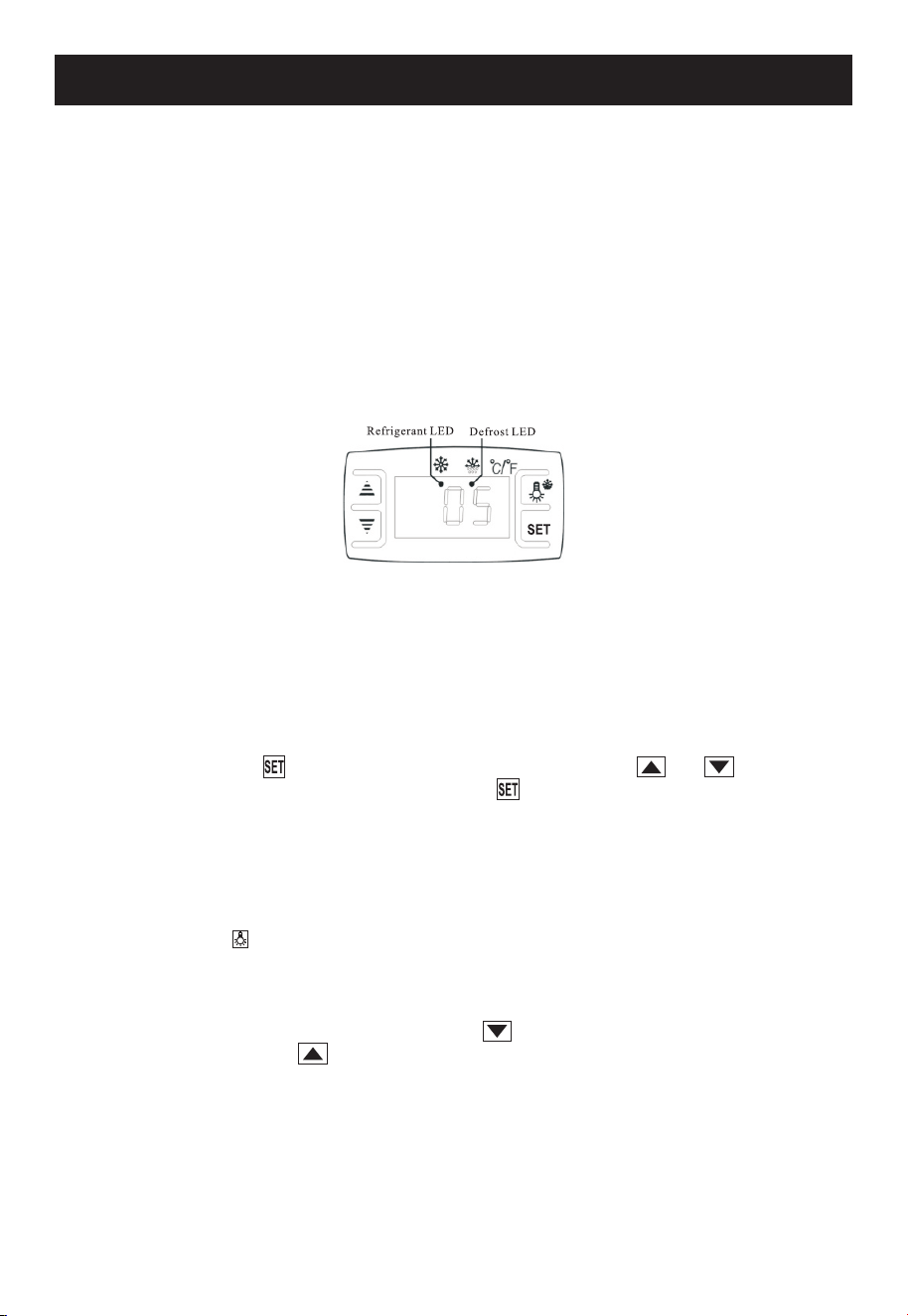

1. Digital Temperature Controller
A. Features:
The controller is mini-sized and intelligent, suitable for one Hp compressors. Its functions
include: Temperature Display/Control, Manual and Automatic Defrost, Illumination Control,
Value Storing, Self-Testing, and Parameter Locking.
B. Front Panel Operations:
01. Temperature Setting:
Press the “ ” button to display the set temperature. Use “ ” or “ ” buttons to
adjust and store the temperature. Press “ ” again to exit and display the cold-room
temperature.
02. Display Default:
If no button is pressed within 10 seconds, the cold-room temperature will be
automatically displayed.
03. Lighting and Defrost Control:
Press “ ” button to control the light; hold it for 6 seconds to start or stop the defrost
cycle.
4. Digital Controller Reset:
If the display shows "Disorder", press “ ” for 2 seconds until the buzzer rings.
Quickly press “ ” for 6 seconds until the buzzer rings again. The display will flash
for 3 seconds and the controller will reset to factory settings.
4
Usage and Precautions
3. Safety Precautions
▪ Minimize the frequency and duration of door openings to maintain cold temperatures inside the
freezer.
▪ Ensure the air suction and outlet are not obstructed for effective air circulation and refrigeration.
▪ Do not overload the freezer, as this may impact its cooling efficiency.
▪ Adjust the rack height according to the size of the food items stored.
▪ Allow hot food to cool to room temperature before storing it in the freezer.
▪ Limit the opening of the freezer to maintain its internal temperature in case of power failure.
▪ Only trained professionals should repair the power cable using appropriate tools.
▪ Avoid touching the compressor to prevent burns.
▪ If the supply cord is damaged, it must be replaced by qualified personnel to prevent hazards.
▪ Persons with physical, sensory, or mental impairments, as well as those lacking experience or
knowledge, should only use this appliance under supervision.
▪ Children should not be allowed to play with the appliance.
▪ The user manual may not be suitable for those with physical, sensory, or mental impairments, or
a lack of experience or knowledge.
▪ Do not store explosive substances such as aerosol cans with a flammable propellant in the
freezer.
▪ The noise level during normal operation does not exceed 70dB(A).
▪ Do not exceed the maximum load limit of 1.32 gallons per pan.
▪ The appliance operates best at ambient temperatures of 16°C-32°C (60.8°F-89.6°F).
▪ Avoid storing corrosive food to prevent damage.
▪ Ensure ventilation openings remain unobstructed.
▪ Avoid using mechanical devices or any other means to accelerate defrosting, unless recom-
mended by the manufacturer.
▪ Avoid damaging the refrigerant circuit.
▪ Avoid using electrical appliances inside the food storage compartments unless recommended
by the manufacturer.
Additional Warning:
Risk of fire. The height of the triangle in this symbol must be at least 0.59 inches.
5
Maintenance
1. General Notice
Maintain the freezer's cleanliness with regular upkeep. Always unplug before maintenance.
Avoid using a damaged plug or loose socket to prevent electric shocks or short circuits.
Do not clean the freezer with water, alkali detergent, soap, gasoline, acetone, or a brush.
2. Cleaning the Exterior
Use a soft cloth dipped in neutral detergent (like dish soap) to clean the freezer's exterior.
Follow up by wiping with a dry, soft cloth.
3. Cleaning the Interior
Remove the rack for water cleaning. Use a soft cloth to clean the interior of the freezer.
4. Extended Shutdown
If the freezer will be unused for a prolonged period, remove all food and unplug it from the wall
socket. Thoroughly clean the interior and exterior, leaving the door open to fully dry.
As the glass can break easily, ensure it is kept out of reach from children.
5. Replacing the Lamp
If the LED lamp is damaged, it must be replaced by the manufacturer or its service agent.
Troubleshooting
Note
Certain phenomena are normal and should not be considered as faults with your freezer:
▪ A murmuring or gurgling sound may be heard when the freezer is running.
This is normal as it's simply the coolant circulating within the system.
▪ In humid weather, condensation may form on the exterior of the freezer. This is also normal and
not a cause for concern. It occurs due to high humidity levels. Simply wipe it off with a cloth.
No Refrigeration
Describes a freezer that completely fails to cool or
maintain the desired temperature inside.
Unsatisfactory Refrigeration
Describes a freezer that is working but not cooling
to the expected or set temperature.
▪ Check if the plug is properly inserted into the socket.
▪ Verify if the fuse is intact.
▪ Ensure there is power supply.
▪ Check if the freezer is placed under direct sunlight or near any
heat source.
▪ Ensure good ventilation in the surrounding area.
▪ Verify if the door is properly closed or has been left open for a
long period.
▪ Inspect the door seal strip for any deformity or damage.
▪ Check if the freezer is overloaded or congested with food.
▪ Ensure food items do not block the air suction or outlet.
▪ Adjust the temperature controller as needed.
▪ Check if the freezer is level.
▪ Verify if the freezer is in contact with a wall or another object.
▪ Check for any loose parts in the freezer.
Excessive Noise
6

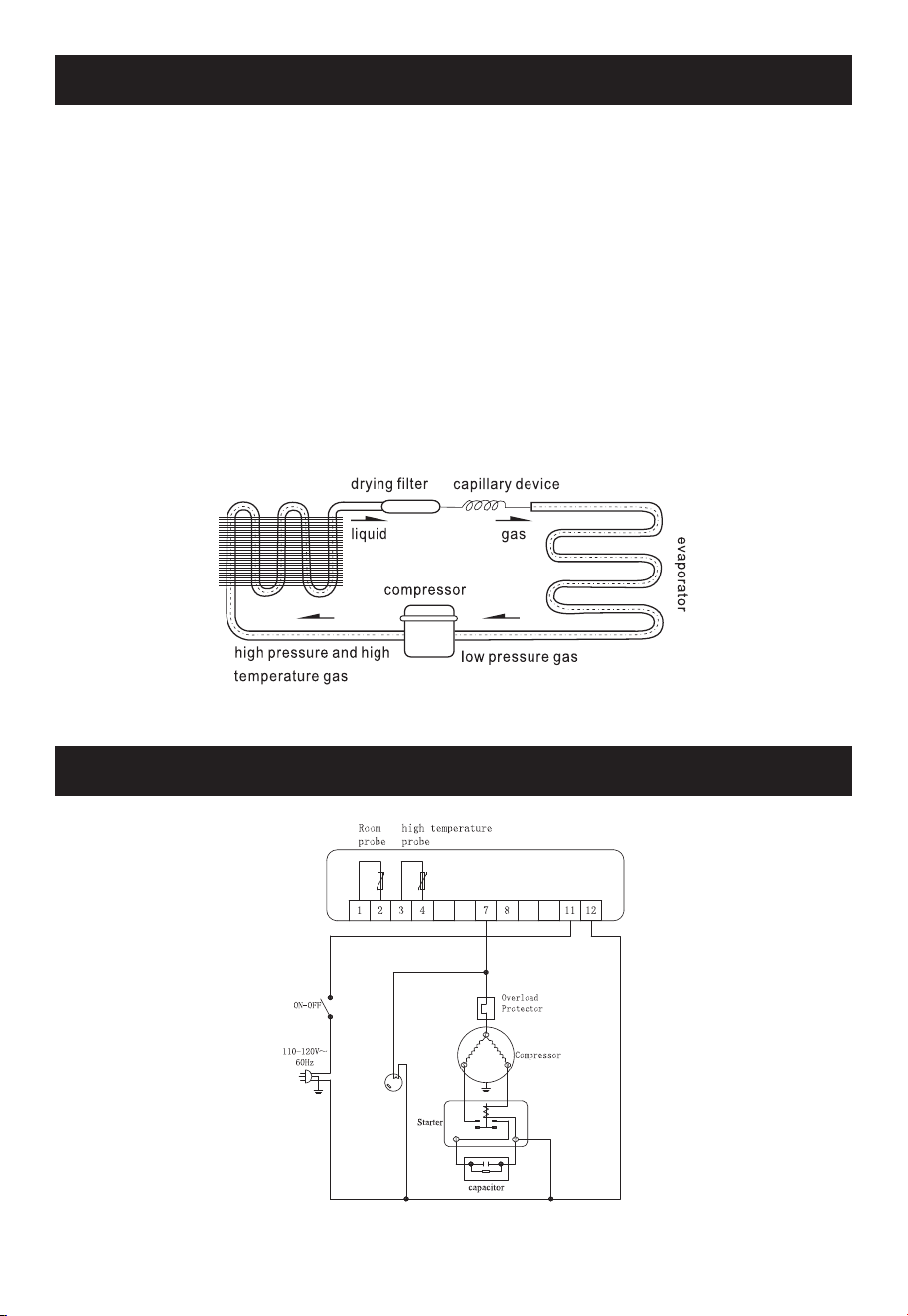

Principle of Refrigeration System and Electric Circuit Diagram
Circuit Diagram
The principle of the compression refrigeration system revolves around four main steps:
"compression," "condensation," "throttling," and "vaporization."
The process operates as follows:
▪ Compression: The compressor takes in the coolant, which has absorbed heat in the evaporator,
turning it into a high-pressure, high-temperature gas.
▪ Condensation: In the condenser, the coolant dissipates heat into the air. As a result, the coolant
re-liquefies.
▪ Throttling: This phase is executed by the capillary, which throttles the re-liquefied coolant into
the evaporator at a low pressure.
▪ Vaporization: Upon entering the evaporator, the liquefied coolant quickly boils and vaporizes into
a gas due to the sudden drop in pressure. In this phase, it absorbs heat from inside the refrigerator.
Finally, the compressor again takes in the low-pressure, low-temperature gaseous coolant.
The process repeats itself in a cycle, enabling the refrigerator to maintain its cool temperature.
7
Major Parameters
Note
▪ In the event of any changes, the final electric circuit diagram and parameters will be those
specified on the product nameplate.
▪ Our design may be improved without prior notice to continuously enhance product performance
and user experience.
▪ If the supply cord is damaged, it must be replaced immediately by the manufacturer, its service
agent, or a similarly qualified professional to avoid potential hazards.
WARNING
The freezer uses R290, a flammable refrigerant.
Please take precautions against fire.
Disposal Instructions
The crossed-out wheeled dustbin symbol indicates that electrical appliances should not
be disposed of as unsorted municipal waste. Instead, utilize separate collection facilities.
For information regarding the available collection systems, contact your local govern-
ment. If electrical appliances are improperly disposed of in landfills or dumps, hazard-
ous substances can leak into the groundwater and enter the food chain, posing risks to
health and well-being.
When replacing old appliances with new ones, check with your retailer about any haul-away or
recycling programs they may offer for your old appliance. Remember to also check local regulations
and available recycling programs in your area to ensure proper disposal.
Model
Coolant and Injection Quantity (g)
General Rated Input Power (W)
Type of Climate
Refrigeration Temperature (°F)
Total Effective Volume (Cu.Ft.)
Net weight (LB)
Rated voltage (V)
Rated Current (A)
Rated Frequency (Hz)
Electric Shock Protaction Class
Overall dimension (IN) (LxWxH)
KM-CGD-8HP
R290 (60)
190
4
-0.4° to -13°
2.3
76
110-120~
2.1
60
I
31.7" x 25.6" x 11.4"
8
LIMITED WARRANTY
1.Failure of product to perform during power failures and interruptions or inadequate electrical service
2.Damage caused by transportation or handling.
3.Damage caused to the product by accident, vermin, lightnin winds, fire, floods, or acts of God.
4.Damage resulting from accident, alteration, misuse, abuse, or improper installation, repair, or
maintenance. Improper use includes using an external device that alters or converts the voltage or
frequency of electricity
5.Any unauthorized product modification, repair by unauthorized repair center, or use of non-approved
replacement parts.
6.Abnormal cleaning and maintenance as described in the user's manual.
7.Use of accessories or components that are not compatible with this product.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
LIMITED WARRANTY KOOLMORE SUPPLY, INC. warrants to the original consumer or purchaser this
KOOLMORE product is free from defects in material or workmanship for a period of One (1) year from
the date of purchase. If any such defect is discovered within the warranty period,
KOOLMORE SUPPLY, INC., at its discretion, will repair or replace the product at no cost or pay for
replacement parts and repair labor to correct defects in materials or workmanship that existed when this
major appliance was purchased or that are the result of normal usage when this major appliance is
installed, operated and maintained according to instructions attached to or furnished with the product, At
its sole discretion. Koolmore Supply Inc may determine to replace the product. In the event of product
replacement, your appliance will be warranted for the remaining term of the original unit's warranty
period.
This limited warranty is good only to the original purchaser of the product and effective only when used
in the United States.
This limited warranty is effective from the date of original consumer purchase. Proof of original purchase
date is required to obtain service under this limited warranty.
YOU’RE SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
PRODUCT REPAIR AS PROVIDED HEREIN.
Service must be provided by a Koolmore designated service company.
For warranty or repair service: Email us at [email protected] include your name, address, phone
number, warranty repair request, and a copy of your proof of purchase receipt.
You can also visit us at koolmore.com and use the contact us page.
KOOLMORE customer service will contact you and arrange prompt service for your appliance.
Thank you for choosing KOOLMORE.
THIS LIMITED WARRANTY DOES NOT APPLY TO
WARRANTY
9
