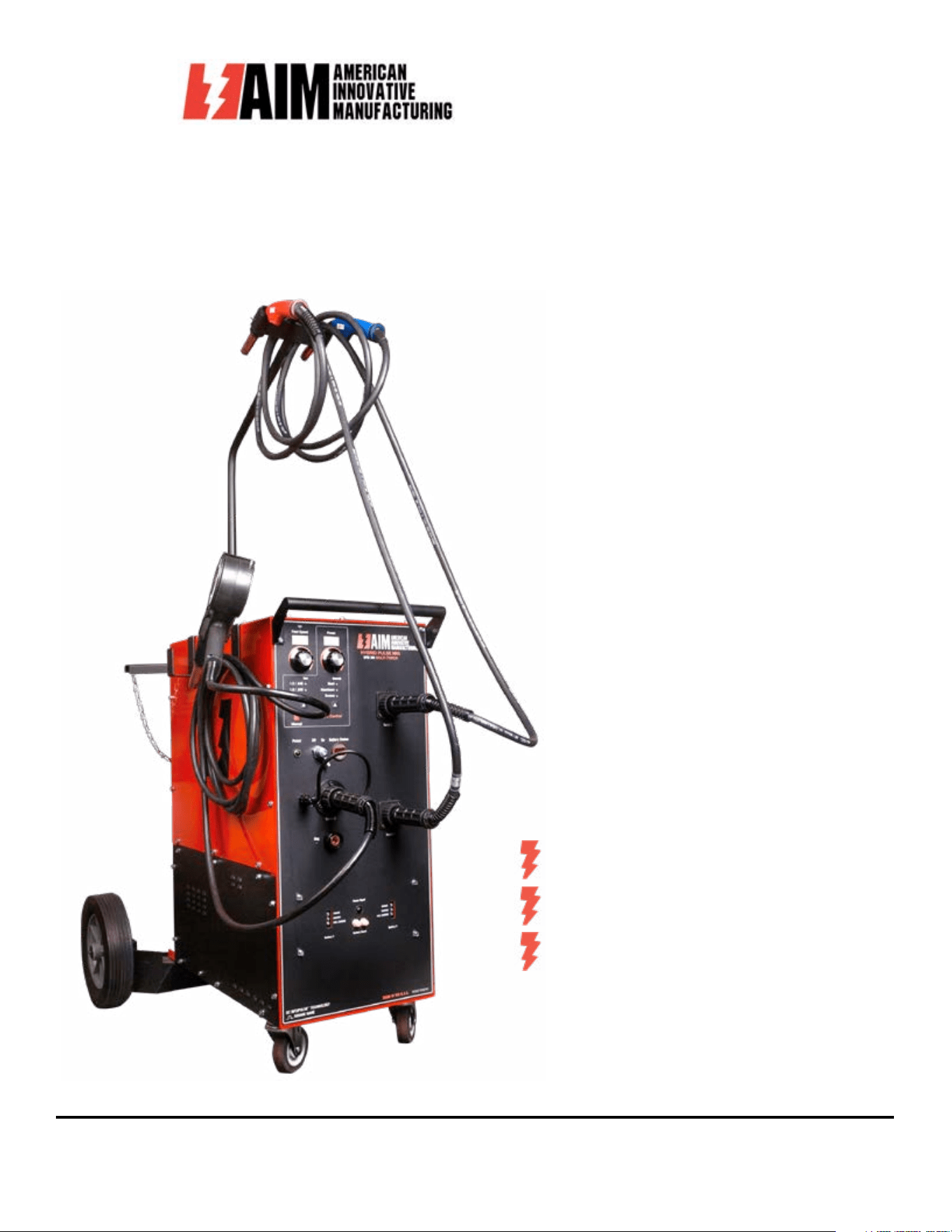

Hybrid Pulse MIG Welder
Multi-Torch
Operating Instructions
Warranty
Parts List
BATTERY POWERED
MIG WELDER
Intupulse
TM
350-MT
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 2
CONTENTS
Service & Assistance
Safety Instructions
Standard Equipment
First Time Use
Charging the Unit
Battery Installation
Welder Front Panel
Indicator Light Notifications
Weld Gas Connections
Weld Preparation
Welder Settings - Manual
Welder Settings - Synergic
Operations & Care Instructions
Changing Weld Wire Sizes
General Instructions
Battery Care & Maintenance
Periodic Maintenance
Useful Operating Information
Troubleshooting
Limited Warranty
Parts & Accessories
Shipping & Handling Procedures
Warranty Registration

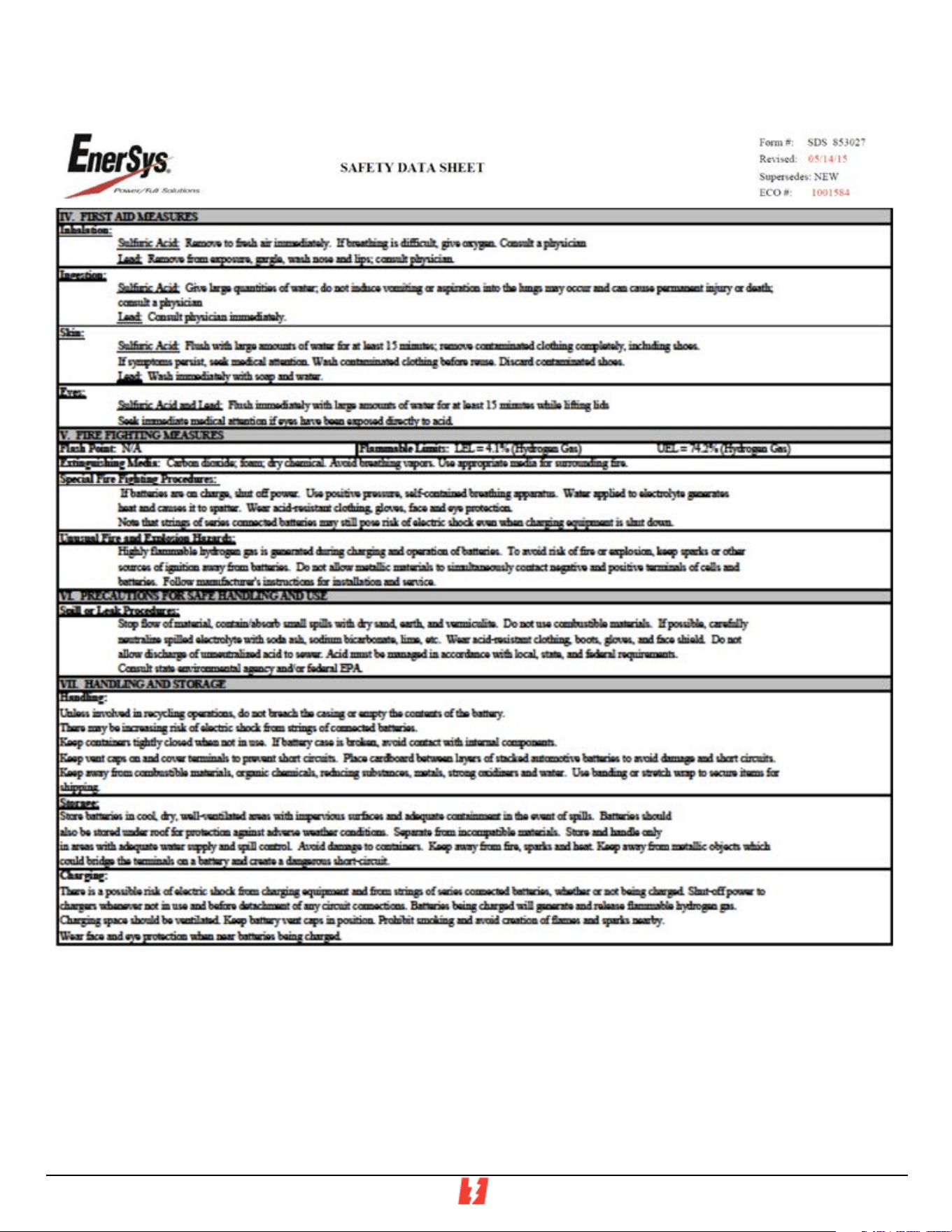

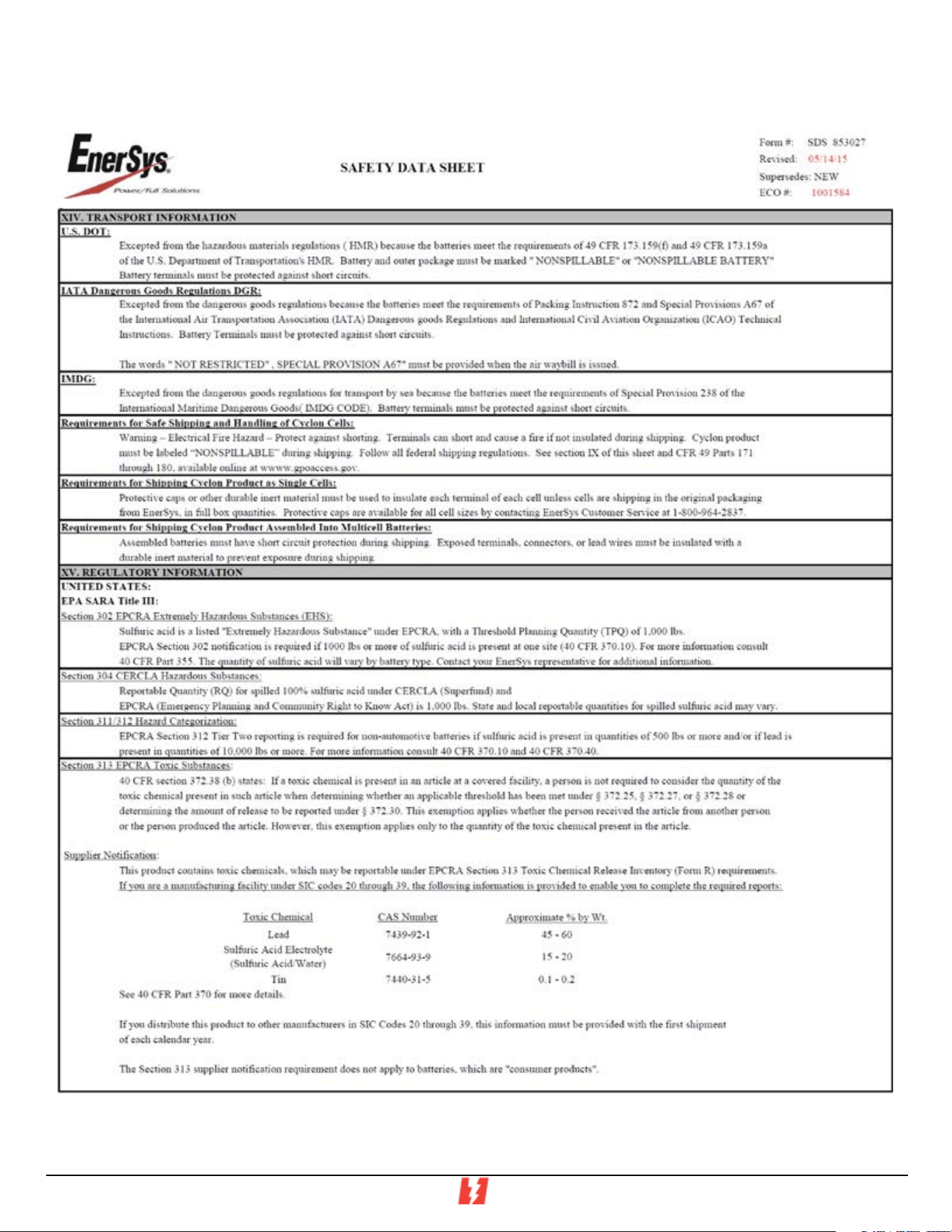

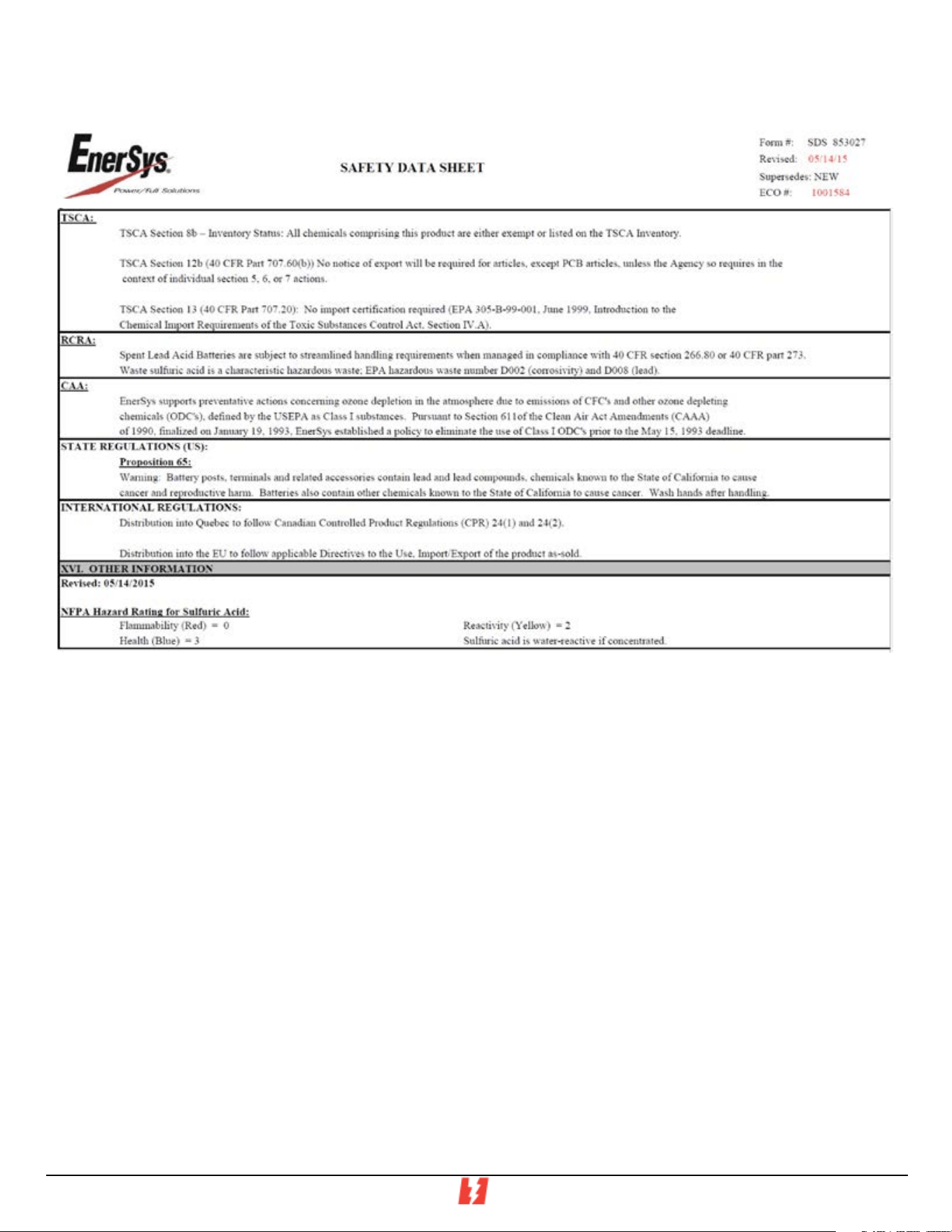

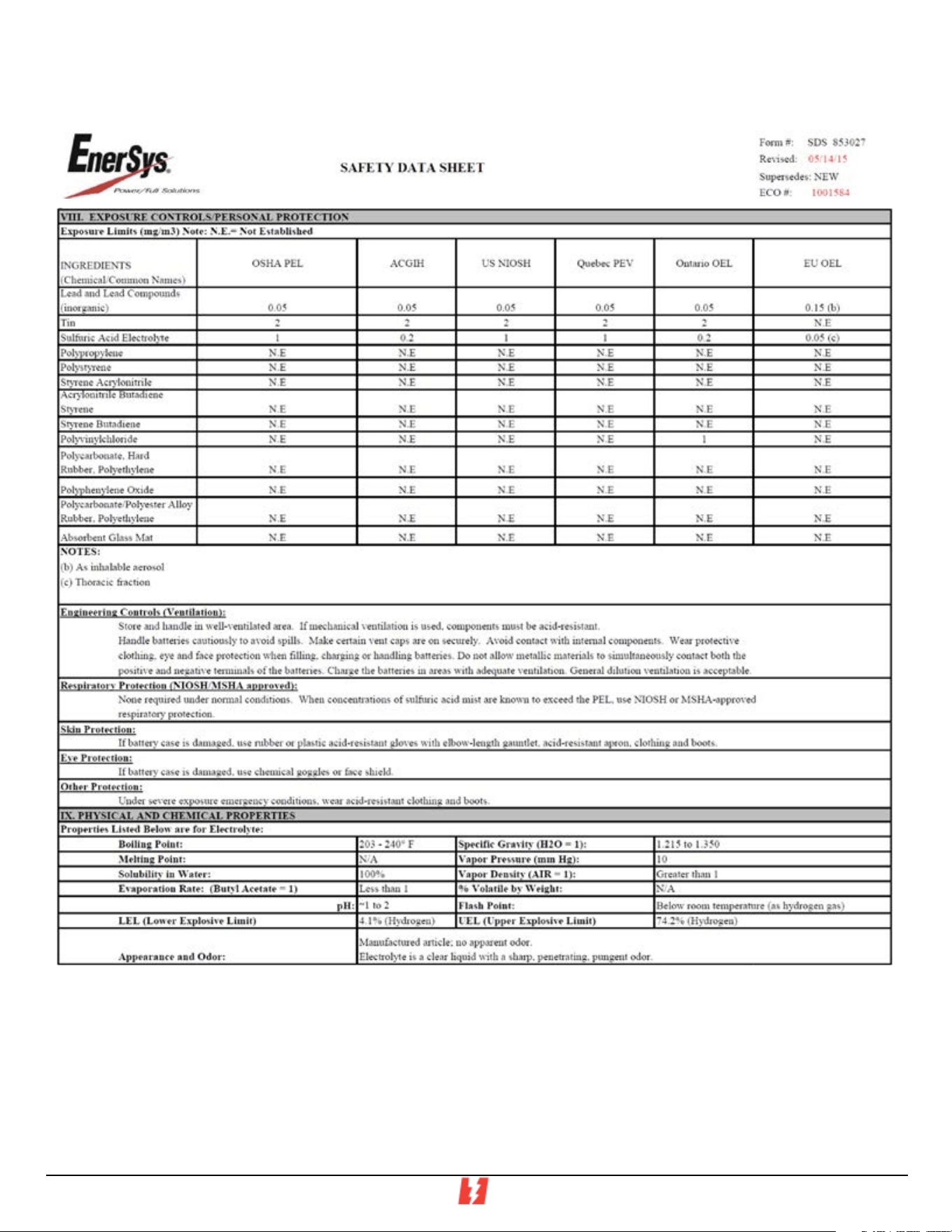

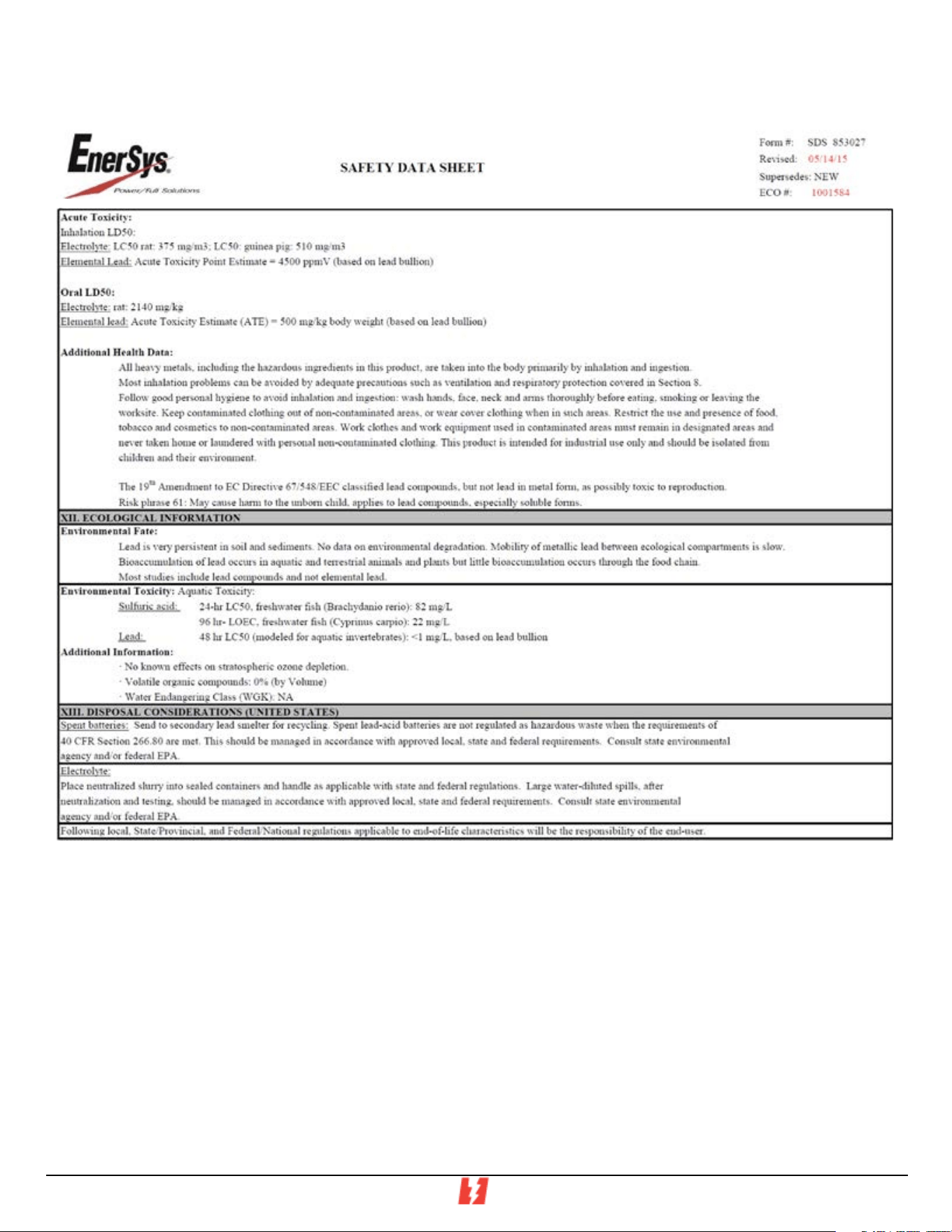

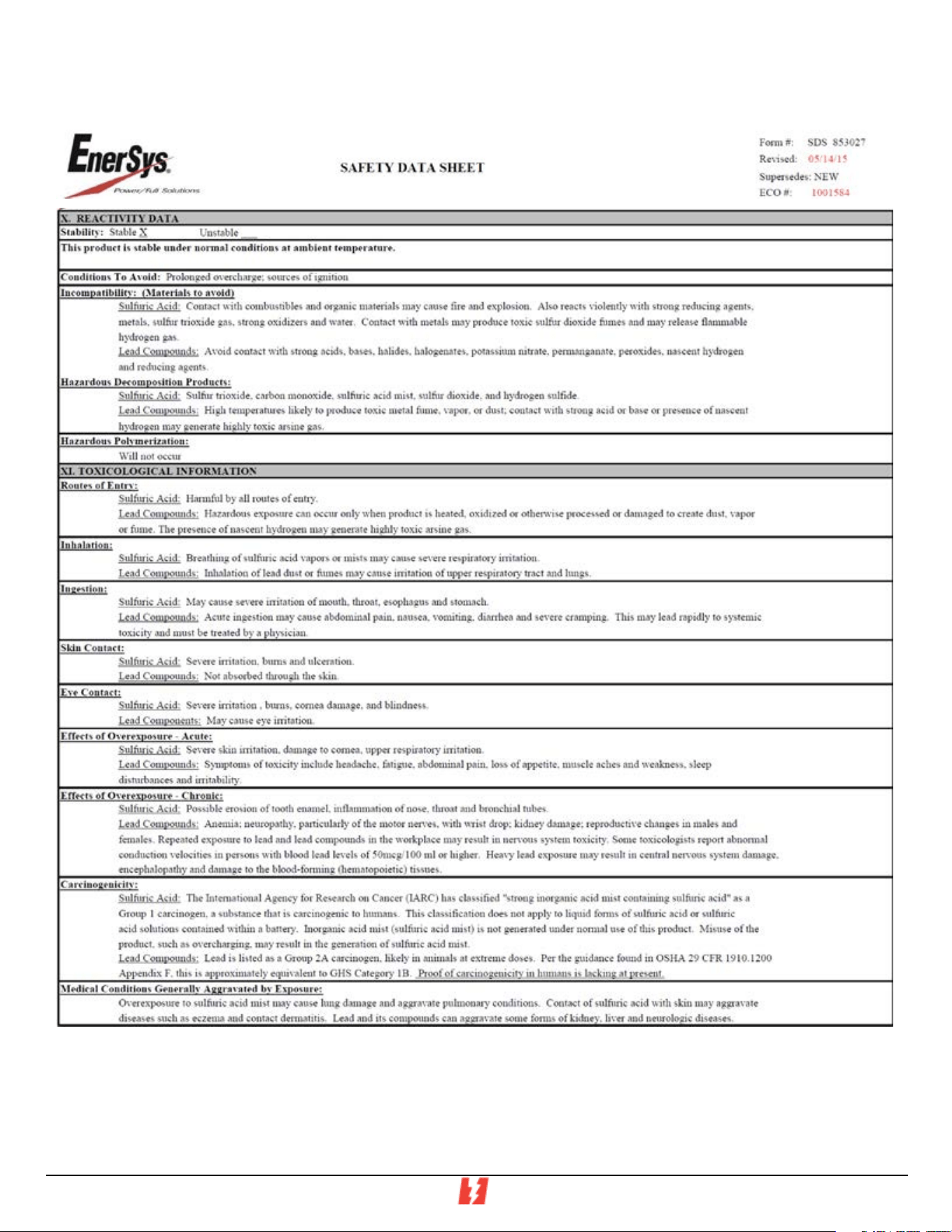

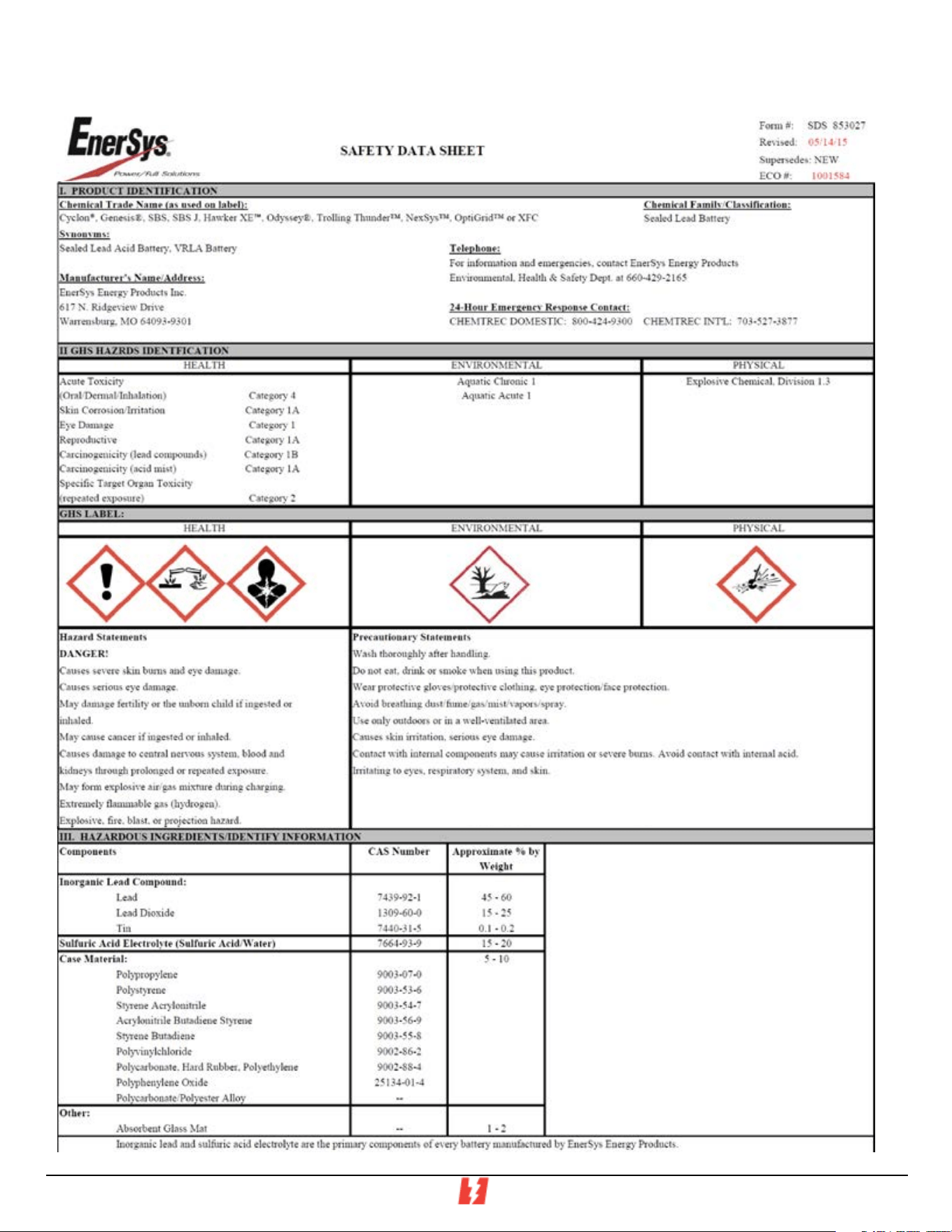

Safety Data Sheet
3
4
6
7
7
7
8
9
10
11
12
13
14
15
16
17
19
20
21
22
23
24
25
26
THANK YOU for purchasing an A.I.M. product. This Manual has been prepared to ensure that you experience years of
trouble-free use of your new welder. Please read this manual and share it with any personnel that will be involved with the
use and care of this equipment. Your Local Dealer will be able to provide product orientation and operating instructions. We
at American Innovative Manufacturing believe this equipment and our other products will help you to be successful. It is our
goal to help you make that happen.
This manual contains valuable information concerning how to operate and maintain your new equipment properly and
safely. Please read it carefully.
Also, please complete and mail the enclosed warranty registration card. You must send in your warranty registration card
within 30 days or your warranty may be void.
THANK YOU
HYBRID PULSE MIG WELDER
Intupulse 350-MT
PRODUCT MANUAL
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 3
Prior to opening and removing your Intupulse 350-MT™ it is important that you inspect the packaging
for any signs of damage.
If damage is observed, contact the delivery company and AIM before proceeding.
INSPECT PACKAGING:
For assistance or service call toll free
800-644-2730
(US and Canada)
SERVICE:
If you need assistance or service, first see the “Troubleshooting” section of this book. When calling – you will need your model and serial
number (found on the back of the main unit).
Model: Intupulse 350-MT
Serial Number:
Purchase Date:
Local Representative:
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 4
When operating this equipment, follow basic precautions,
including the following:
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this machine and its attachments. Use this equipment only
for its intended use.
All electrical connections must be made by a qualied electrician. Risk of electrical
shock.
IMPORTANT! The welder may only be used by qualied personnel.
Do not touch the work piece or welding tips during or immediately after use. Electrodes
become hot and may cause severe burns.
Make sure to use appropriate eye protection and any recommended PPE when spot weld-
ing. The sparks and bright arc can injure eyes and unprotected skin.
Do not weld near ammable materials. Sparks from welding could start a re.
Do not operate equipment unless all enclosure panels are properly installed, and electrical
cords are in good condition. Risk of electrical shock.
Always wear protective face shield and other PPE when working with batteries and other
equipment. Risk of chemical burns.
Before using any welder, consult your physician if you have a pacemaker or any other med-
ical conditions. Risk of death or personal injury.
Failure to take proper safety precautions can result in serious injury or death and/or prop-
erty damage
Provide covers or other protection for items near the work area to prevent damage from
sparks, welding arc or accidental contact.
Batteries must be properly maintained; improperly maintained batteries may short out or
explode.
Contact Factory Service or your local dealer for all repairs or service to unit.
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 5
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
WARNING: MACHINE MUST ALWAYS REMAIN IN UP-
RIGHT POSITION!
• Shut down unit, and disconnect input power before inspecting, maintaining or servicing the welder.
• Unplug the welder from the wall outlet before servicing, cleaning, or maintenance. Risk of electrical
shock.
• Cigarettes, sparks or other ignition sources could cause battery to explode. Always shield eyes and face
from battery. Do not charge, use booster cables or adjust post connections without proper instructions and
training. Keep vent caps tight and batteries level.
• Do not place the welder on unstable or uneven ground. The welder might tip causing personal injury or seri-
ous damage to the welder and other property.
• Do not operate this equipment unless the user is fully trained in the safe use of welders and related accesso-
ries.
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 6

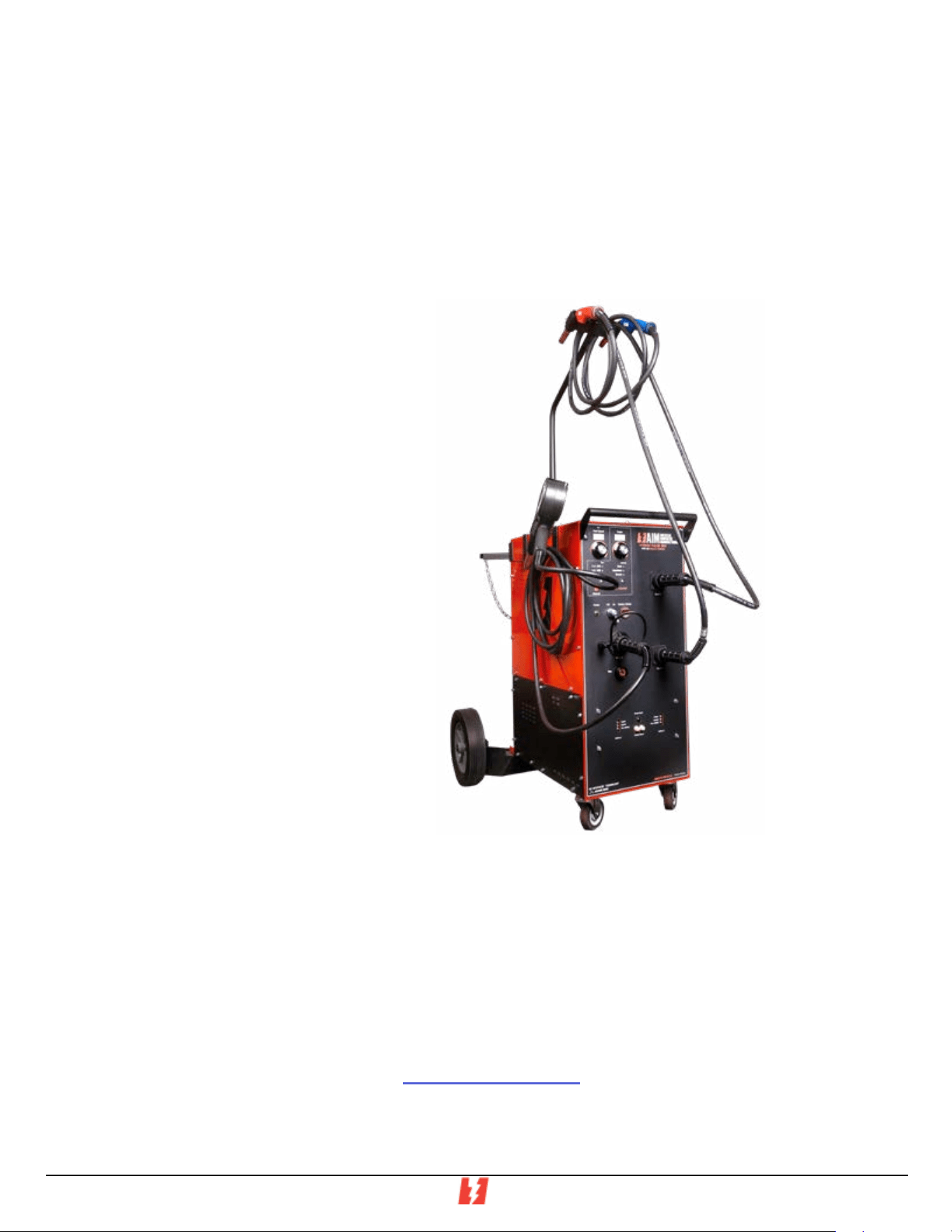

MODEL INTUPULSE 350-MT STANDARD EQUIPMENT AND GENERAL ASSEMBLY
• Welder, complete with Batteries
• MIG Torch-Steel
• MIG Torch-Steel/Silicon Bronze
• Spool Gun-Aluminum
• Torch/Cable Rack
• Ground Cable with Clamp
Hybrid Pulse MIG
Welder
Multi-Torch
ITEMS TO BE PROVIDED BY OTHERS (Not included with basic welder):
• Compressed Gas Cylinder(s)
• Compressed gas meters and gauges (contained in an optional starter package)
• Compressed gas hoses and connection to the female fitting on back of welder
• Welding wire
• Consumable welding contact tips and other normal wear parts.
Consult your local dealer or visit www.ai-mfg.com for a complete listing of parts
and accessories available.
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 7
IMPORTANT! BEFORE YOU USE THE UNIT...CHARGE IT!
The Battery Charge Status reading must be between 25.0 and 28.5 Volts
CHARGE THE UNIT
Upon receiving you’re A.I.M. equipment, you must fully charge the unit before operating.
BATTERY INSTALLATION
1. If batteries have not been provided from the factory, proper batteries must be installed (see battery
specification). See Figure #1 for proper battery position
2. Carefully connect battery terminals as show.
3. Connect the Battery Charger-Battery twist
lock plugs
4. Check/Connect the Charger Power plug
5. Connect the Welder/Charger System to a
110V-20Amp AC power supply
The Intupulse-350-MT is a battery-operated unit that comes with a specially designed charger to en-
sure the power needed to operate the machine.
The A.I.M. charger is designed to automatically regulate the battery voltage level and should be charging
when the machine is not in use. However, you may unplug the charger unit for any period if you plug
the unit in at least one hour before operation. Periodic maintenance charging is required to maintain the
batteries and extend battery life. Batteries need to be brought to full charge at least once per week. Refer
to battery manufacturer recommendations if storing the machine for extended periods.
Battery Specication:
Replacement batteries must meet the following requirements.
• ODYSSEY 65-PC1750 or Equal
• Two (2) Batteries are required, when batteries need replacing, both batteries should be replaced at the
same time with matching batteries.
Extended Storage:
• Consult battery manufacturer recommendation for extended storage of the batteries.
• For extended storage disconnect the batteries and/or remove them from the welder
FIRST TIME
USE
FIGURE 1: BATTERY LOCATIONS & ORIENTATION
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 8
FIRST TIME
USE

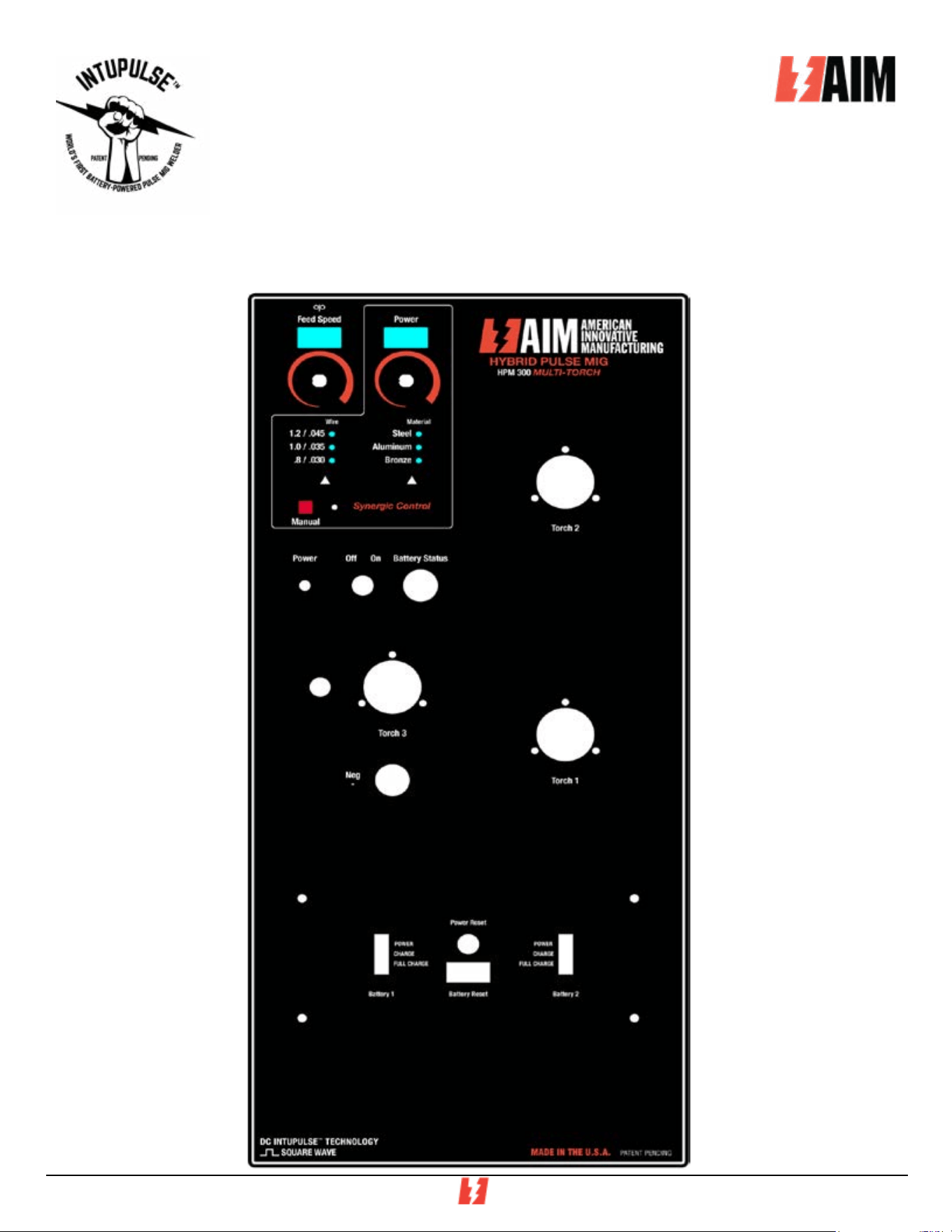

FIGURE 2: WELDER FRONT PANEL
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 9
FIRST TIME
USE
INDICATOR LIGHTS
There are two sets of three indicator lights displayed on the front panel of the machine; a set for each of
the two batteries.
The RED light indicates there is power to the charger.
The YELLOW light indicates the charger is connected to the battery and charging when plugged
into the 110V 15-amp power source.
The GREEN light indicates correct voltage level of the battery – full charge.
When the GREEN light ashes with the YELLOW charge light – this signals that the battery is approach-
ing a full charge.
When the GREEN light is on almost continuously – this indicates maximum charge.
• GREEN light should always alternate with YELLOW light.
• The alternating GREEN/YELLOW mode is signaling that the charger is in maintenance mode and
maintaining the battery(s) at peak voltage
• It is recommended that units in daily use be kept plugged in to the power source to maintain the bat-
teries
• If storing the unit for long periods, please refer to the battery manufacturer’s guidelines for battery
storage
The voltage required for your charger’s power source is indicated on the back label of the charger.
VOLTAGES AVAILABLE:
110 / 120 Volt 60 HZ
Other voltages are available on special order contact A.I.M. for information.
FIGURE 3: BATTERY CHARGER FACE
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 10
FIRST TIME
USE
GAS CONNECTIONS
The Intupulse 350-MT is equipped for the connection of two (2) gas supplies. The selection of the welding
gas(s) to be used are at the discretion of the user; based on materials to be welded, user preference and
weld requirements.
Gas connections are labeled “Gas #1 and Gas #2”
• Gas #1 is connected only to Torch #1
• Gas #2 is connected to Torch #2 and Torch #3
When a torch is selected for use only the gas to that torch will be activated for the weld
Gas Connection Fitting is an AW-15A
FIGURE 4: GAS CONNECTIONS
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 11
WELD
PREPARATION
Carefully examine the surface, looking for defects; cracks, contamination and rust.
Properly prepare the work piece for welding.
When the work pieces are treated with transport coatings applied, initially clean all sides
The work pieces need to be free of all coatings as required for proper weld technique
Special Note: Preparation is very important. It could be the difference in a successful weld and an
unsuccessful weld. Take the extra time necessary to prepare the panel properly. Consult Welding and
Preparation Specifications
Special Note: Test welds with sample coupons made from the same material and thickness to be weld-
ed should be welded and tested.
SAFETY HAZARD: When welding test coupons use a bench mounted vice to securely hold the test ma-
terial during welding. There is a risk of personal injury and damage to the equipment if the material is not
properly secured.
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 12
WELDER
SETTING
GUIDELINES
MANUAL/SYNERGIC
Note: The tables below our general guidelines for setting the welder prior to welding; Actual setting may
vary based on many factors, such as; ambient temperature position, operator preference and technique
etc..

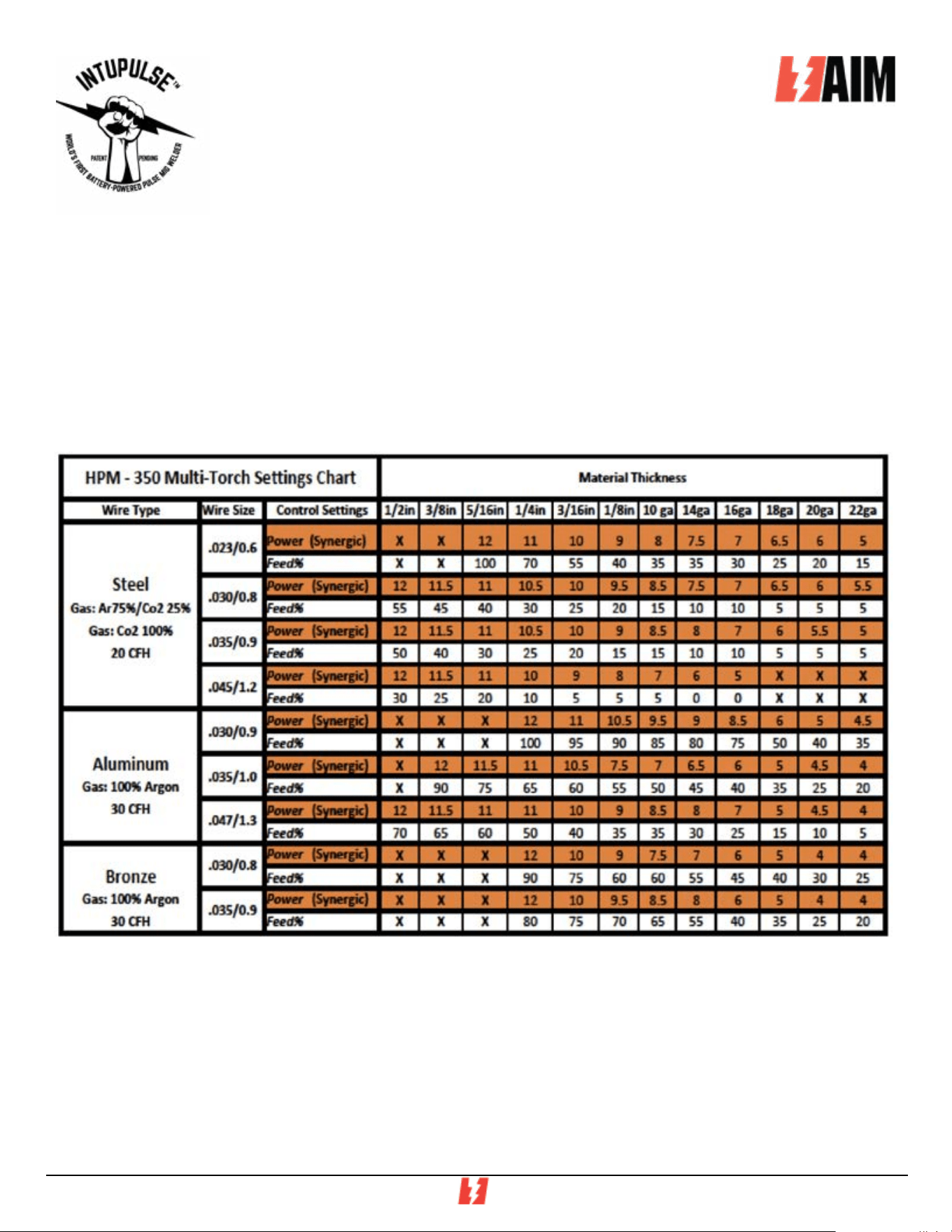

FIGURE 5: WELDER SETTING TABLES-STEEL/ALUMINUM/SILICON BRONZE
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 13
SYNERGIC
The Intupulse 350-MT is a Synergic system, this allows the technician to use one control input to adjust the weld-
er outputs for power and wire feed speed and maintain the preset coordination of those outputs.
To enter Synergic Mode, begin by selecting the weld wire diameter using the up-arrow button. When the correct
wire size is selected select the material to be welded using the up-arrow for material
Use the power adjustment knob to set the desired power setting, based on the welder setting chart or technician
preference; the wire feed speed will adjust automatically as the power setting is changed.
Select the torch that has the desired wire size and material installed and begin welding.
To return to manual mode press the “manual” button.
WELDER
SETTING
GUIDELINES
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 14
QUICK REFERENCE
OPERATIONS &
CARE INSTRUCTIONS
CHARGING:
It is recommended that the machine be plugged into a 110V circuit when not in use, to keep the batteries
charged, for optimum power. The charging system will not over charge and life of your batteries will be extend-
ed. It is preferred that this machine be plugged into an 110V circuit during any welding procedure.
BATTERY ONLY OPERATION:
An important feature of the AIM MIG Welding Station is the ability to produce high quality welds on battery pow-
er alone. The duty cycle for battery welding will vary over a large range based on work piece thickness, metal
alloy, battery condition. For the best result, start with the battery at or near full charge.
BATTERY CONDITION:
The batteries, when provided from the factory are high quality commercial grade automotive style batteries. See
charging instructions above for maintaining the battery charge state. The batteries should also be inspected pe-
riodically (monthly) for tightness of connections, swelling of the case and leakage. Batteries that show any signs
of distress should be replaced or serviced by a qualified technician. Eye protection, rubber gloves and other
personal protective equipment must be used when servicing the batteries. The battery MSDS is included with this
manual and should be reviewed with all personnel to be using the welder.
CLEANING:
The welder should be kept clean by wiping with a dust cloth. Internal components can be blown off with low
pressure (inert) compressed air. Do Not Pressure Wash the AIM Intupulse 350-MT! Damage to the machine will
occur and there is a potential for electrical shock injury to nearby personnel. (See instructions on cleaning weld-
ing torches and hardware.)
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 15
QUICK REFERENCE
OPERATIONS &
CARE INSTRUCTIONS
CHANGING WELDING WIRE SPOOL:
CAUTION:
• The gear drive can injure or crush fingers in open rolls, Keep Guards in Place
• Eye protection must be worn, weld wire can spring off reels when unrestrained;
causing personal injury.
1. Open Hinged door (on right side of welder when facing the front)
2. Choose the correct wire size and alloy for the item to be welded
3. To remove a previously used wire spool that is still connected to the drive motor.
• Use wire cutters to cut the wire where it enters the feed drive
• Secure the wire to the feed spool
• Open the torch nozzle and remove the contact tip.
• Pull old wire through the torch cable and liner
• Properly dispose of old wire scraps.
4. Remove spool holder nut and remove the old wire spool, and properly store
5. Install the new wire spool on the spool holder.
• Wire must feed off the bottom of the spool
6. Check wire feed rollers to ensure that the proper rolls with the correct groove size and style (U or V)
are installed for the wire size and alloy you have selected.
• The wire is fed by the inboard roll groove. The wire diameter that the groove is made for is
marked on the corresponding side of the feed roll.
• Flip drive rollers or install the correct ones to get the right grove aligned with the wire axis.
7. Feed the wire from the new spool into the feed rolls
• For ease of installation the first few inches of the new wire need to be strait and any burrs or
sharp protrusion removed.
8. Keep the torch cable as straight as possible when feeding a new wire through the cable.
9. When the wire is through the torch cable the proper size contact tip is installed and the diffuser cov-
er reinstalled
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 16
Do not try to weld with low batteries. This will cause a substandard weld and rapid heat build-up in cables. The
charge indicator lights and/or digital meter provide an indication of the battery charge condition. Monitor those
indicators regularly to ensure proper weld performance.
Do not overheat the machine. Periodic cooling is suggested.
Use “00” Steel Wool to clean the copper surfaces. Oils or contamination could interfere with the welding
process.
GENERAL
INSTRUCTIONS
WARNING
Always turn the welder off and disconnect the power before conducting maintenance
or changing wire spools.
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 17
BATTERY CARE
& MAINTENANCE
HYBRID PULSE
MIG WELDER
Intupulse 350-MT
Note: This machine is equipped with maintenance free batteries.
EQUIPMENT NEEDED:
• Gloves and Goggles
• Insulated wrench
• Baking soda
• Terminal protector spray
• Voltmeter
• Battery Load Tester
SAFETY
• Always wear protective clothing, goggles and gloves when handling batteries
• Do not smoke or allow open flames near batteries
• Avoid skin contact with battery electrolyte
• Use insulated wrenches and tool to avoid shorting batteries
• In case of contact with electrolyte flush with water immediately, seek medical treatment
• Charge batteries in ventilated area
• Keep your machine and battery upright always.
• Do not allow a battery to freeze, do not attempt to charge a frozen battery
• Avoid charging when ambient temperatures are over 120 degrees F.
BATTERY CONNECTIONS
Faulty connections can lead to poor performance and property damage, meltdown or fire. Do not
change the cable size that your machine was equipped with at the factory. Tighten battery connections
properly using an insulated wrench. Use terminal protection to prevent corrosion.
BATTERY VENTILATION
Do not block or cover ventilation panels. Always charge your machines battery in a properly vented
area away from open flame or another ignition source.
INSPECTION
Periodically inspect your battery. The battery case must not be swollen or damage, replace the battery if
physical damage is evident. Clean battery top and terminal connections if needed. Check batter con-
nections and cables; tighten connections if necessary and replace any worn or damaged cables.
CLEANING
Clean the top of your battery with a cloth or brush and a solution of baking soda and water. Do not
allow cleaning solution to get inside the battery. Keep the battery cabinet clean and dry.
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 18
CHARGING
Use the charger attached to the machine, this charger is designed to not over-charge the
batteries. If other charging equipment is used, please refer to the charger and battery manufactures’
recommendations to ensure compatibility. Fully charge your battery after each use.
STORAGE
• Fully charge battery before storing
• Store in a cool dry location, indoors or under cover
• If storing for long periods (greater than one month) disconnect battery from machine
• Batteries will self-discharge and should be fully charged every 4-6 weeks
• Fully charge battery when removed from storage before using
• Avoid direct exposure to heat sources, batteries self-discharge faster in hot weather.
• Do not allow battery to freeze. Batteries that are not fully charged can freeze during cold weather.
BATTERY RECYCLING
97% of a lead acid battery can be recycled. When it is time to replace your battery properly dispose
of the old one at a licensed battery recycler and help keep the environment clean.
MATERIAL SAFETY DATA SHEET
The MSDS sheet for the batteries currently installed at the factory is attached to this manual.
BATTERY CARE
& MAINTENANCE
HYBRID PULSE
MIG WELDER
Intupulse 350-MT
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 19
RECOMMENDED MAINTENANCE
NOTE: FOLLOW SAFETY INSTRUCTIONS BEFORE PERFORMING MAINTENANCE
PERIODIC
MAINTENANCE
HYBRID PULSE
MIG WELDER
Intupulse 350-MT
INSPECT FOR DAMAGE TO THE MACHINE, TORCHES AND GAS SYSTEM.
MAKE ANY REPAIRS OR ADJUSTMENTS.
CHECK FOR LEAKAGE OR UNUSUAL ODORS FROM THE BATTERY COMPARTMENT
INSPECT CABLES FOR CUTS OR DAMAGE.
USE FINE STEEL WOOL ON COPPER CONNECTIONS.
CHECK AND INSPECT BATTERIES
CHECK AND TIGHTEN ALL ELECTRICAL CONNECTIONS
REMOVE DUST FROM CHARGING UNIT.
USE LOW PRESSURE DRY COMPRESSED AIR TO BLOW OUT DUST
DAILY:
MONTHLY:
EVERY 6 MONTHS:
ANNUALLY:
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 20
USEFUL OPERATING INFORMATION
• Keeping your battery fully charged after use will increase the life of your battery.
• Keep welding tips cool.
• A low battery will cause excessive cable heat.
• Gases from battery vent out of the machine.
• Baking soda should be used to neutralize battery acid in the event of a spill. Refer to MSDS from battery
manufacturer for additional information
USEFUL OPERATING
INFORMATION
HYBRID PULSE
MIG WELDER
Intupulse 350-MT
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 21
TROUBLESHOOTING
PROBLEM
Unit does not charge
Yellow light does not come on.
Green light does not come on.
Green light flashes rapidly and does not
slow (flutter).
CHECK THE FOLLOWING
Make sure power cord is plugged in. Check power supply.
Is the charger output cord disconnected or damaged?
Check charger output cord for damages; and a solid
connection.
Check Battery
Call for service.
Possible defective battery (call Factory Service)
HYBRID PULSE
MIG WELDER
Intupulse 350-MT
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 22
LIMITED WARRANTY
American Innovative Manufacturing LLC (AIM) of Spokane, WA, subject to the terms and conditions described below, warrants to
its original retail purchaser that new AIM equipment sold aer the eective date of this limited warranty is free of defects in material
and workmanship at the time it is shipped by AIM. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
AIM PRODUCTS ARE INTENDED FOR PURCHASE AND USE BY COMMERCIAL/INDUSTRIAL USERS AND PERSONS
TRAINED AND EXPERIENCED IN THE USE AND MAINTENANCE OF THE EQUIPMENT.
AIM shall honor valid warranty claims on warranted equipment for a period of ONE YEAR in the event of such a failure within the
warranty period. All warranty time periods start on the delivery date of the equipment to the original end-user purchaser, and not to
exceed one year aer the equipment is shipped to a distributor or retail customer.
Within the applicable warranty period AIM will repair or replace any warranted parts or components that fail due to such defects in
material or workmanship. AIM must be notied in writing within thirty (30) days of such defect or failure, at which time AIM will
provide instructions on the warranty claim procedures to be followed.
AIM’s Limited Warranty shall NOT apply to:
1. Consumable components or parts that fail due to normal wear.
2. Items furnished by AIM, but manufactured by others. ese items are covered by the manufacturer’s warranty, if any.
3. Equipment that has been modied by any party other than AIM, or equipment that has been improperly installed, improperly
operated or misused based upon industry standards, or equipment which has not had reasonable and necessary maintenance, or equip-
ment which has been used for operation outside of the specications for the equipment.
In the event of a warranty claim covered by this warranty, the exclusive remedies shall be, at AIM’s option:
1. Repair,
2. Replacement,
3. e reasonable cost of repair or replacement by an authorized AIM service representative (where authorized in writing by
AIM in appropriate cases), or
4. Payment of or credit for the purchase price (less reasonable depreciation based upon actual use) upon return of the goods at
customer’s risk and expense. AIM’s option of repair or replacement will be F.O.B., Factory at Spokane, WA, or F.O.B. at an AIM autho-
rized service representative as determined by AIM. erefore, no compensation or reimbursement for transportation costs of any kind
will be allowed.
Some states in the U.S.A. do not allow limitations of how long an implied warranty lasts, or the exclusion of incidental, indirect, special
or consequential damages, so the above limitation or exclusion may not apply to you. is warranty provides specic legal rights, and
other rights may be available, but may vary from state to state.
In Canada, legislation in some provinces provides for certain additional warranties or remedies other than as stated herein, and to the
extent that they may not be waived, the limitations and exclusions set out above may not apply. is Limited Warranty provides specic
legal rights, and other rights may be available, but may vary from province to province.
TO THE EXTENT PERMITTED BY LAW, THE REMEDIES PROVIDED HEREIN ARE THE SOLE AND EXCLUSIVE REMEDIES.
IN NO EVENT, SHALL AIM BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
(INCLUDING LOSS OF PROFIT), WHETHER BASED ON CONTRACT, TORT OR ANY OTHER LEGAL THEORY.
ANY EXPRESS WARRANTY NOT PROVIDED HEREIN AND ANY IMPLIED WARRANTY, GUARANTY OR REPRESENTA-
TION AS TO PERFORMANCE, AND ANY REMEDY FOR BREACH OF CONTRACT TORT OR ANY OTHER LEGAL THEORY
WHICH, BUT FOR THIS PROVISION, MIGHT ARISE BY IMPLICATION, OPERATION OF LAW, CUSTOM OF TRADE OR
COURSE OF DEALING, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, WITH RESPECT TO ANY AND ALL EQUIPMENT FURNISHED BY AIM IS EXCLUDED AND DISCLAIMED BY
AIM.
WARRANTY QUESTIONS?
Call Customer Service 1-800-644-2730
HYBRID PULSE
MIG WELDER
Intupulse 350-MT
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 23
Available through your dealer or at www.ai-mfg.com
MW-109 MIG Torch-Steel, 12’ Cable, Euro Connect
MW-110 MIG Torch-Aluminum, 10’ Cable, Euro Connect
MW-111 Torch Nozzle- Standard
MW-112 Torch Nozzle-Small
MW-113 Gas Diffuser
MW-114 Tip Holder
MW-115 Contact Tips Steel .030 (Pack of 5)
MW-116 Contact Tips Steel .035 (Pack of 5)
MW-117 Contact Tips Steel .045 (Pack of 5)
MW-118 Steel Torch Cable Ins. Liner (Red 16.5 FT) .035-.045
MW-119 Drive Rolls V-Grove .023-.030 (Set of 2)
MW-120 Drive Rolls V-Grove .035-.045 (Set of 2)
MW-121 Contact Tips Aluminum .045 (Pack of 5)
MW-122 Drive Rolls U-Grove .035-.045 (Set of 2)
MW-123 Teflon Torch Cable Liner (Blue, 11.5 FT) .040-.052
MW-125 10# Spool of .035 Steel Wire
MW-126 10# Spool of .045 Aluminum Wire
MW-128 Light Duty torch
MW-129 Spool Gun
MW-130 MIG Panel Adjustment Knob
MW-132 Ground Cable with Clamp and Adapter
MW-133 MIG Torch Cable Rack
To view other parts and accessories available please visit our website: www.ai-mfg.com
REPLACEMENT PARTS
& ACCESSORIES
HYBRID PULSE
MIG WELDER
Intupulse 350-MT
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 24
This machine contains lead-acid storage batteries. Each battery is liquid tight when kept in the
upright position. However, in the event the battery is tipped over and some acid spillage does
occur, neutralize the acid with baking soda. Refer to the battery manufacturer MSDS sheet for
additional information
Should acid get on your skin, immediately flush the area with a large quantity of water.
This machine is designed for indoor environments protected from weather, dust and high tem-
peratures.
The machine should be properly packaged and protected from damage during shipping.
Hazardous material notifications may be required when shipping this machine.
Follow all A.I.M. guidelines and use proper safety procedures when handling this machine.
SHIPPING &
HANDLING PROCEDURES
HYBRID PULSE
MIG WELDER
Intupulse 350-MT
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 25
Please Record the Following Information:
WARRANTY
REGISTRATION
HYBRID PULSE
MIG WELDER
Intupulse 350-MT
OWNER:
LOCATION:
OWNER ADDRESS:
OWNER TELEPHONE:
OWNER FAX:
OWNER EMAIL:
DEALER:
DEALER TELEPHONE:
DEALER EMAIL:
SERIAL NUMBER:
DATE OF MANUFACTURE:
DATE PLACED IN SERVICE:
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 26
SAFETY DATA SHEET
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 27
SAFETY DATA SHEET
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 28
SAFETY DATA SHEET
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 29
SAFETY DATA SHEET
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 30
SAFETY DATA SHEET
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 31
SAFETY DATA SHEET
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 32
SAFETY DATA SHEET
Intupulse 350-MT
TM
Hybrid Pulse Mig PAGE 33
E-mail: [email protected]
Website: www.ai-mfg.com
1419 N. Thierman Road
Spokane Valley, WA 99212
Tel: 800-644-2730 • 509-244-2730
Fax: 509-244-2721
