USER’S MANUAL
proform.com
Model No. PFTL59724.0
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
To register your product and
activate your warranty today,
go to my.proform.com.
REGISTER YOUR
PRODUCT
MEMBER CARE
For service at any time, go to
my.iFIT.com or scan the QR code.
Please do not contact the store.
Serial Number
Decal
2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO PLUG IN THE POWER CORD ........................................................14
HOW TO USE THE TREADMILL ..............................................................15
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
HOW TO FOLD AND MOVE THE TREADMILL ...................................................23
MAINTENANCE AND TROUBLESHOOTING .....................................................24
EXERCISE GUIDELINES ....................................................................26
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING DECAL PLACEMENT
TABLE OF CONTENTS
PROFORM and IFIT are registered trademarks of iFIT Inc. App store is a trademark of Apple Inc., registered in
the U.S. and other countries. Android and Google Play are trademarks of Google LLC. The Bluetooth
®
word mark
and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. IOS is a trademark or
registered trademark of Cisco in the U.S. and other countries and is used under license.

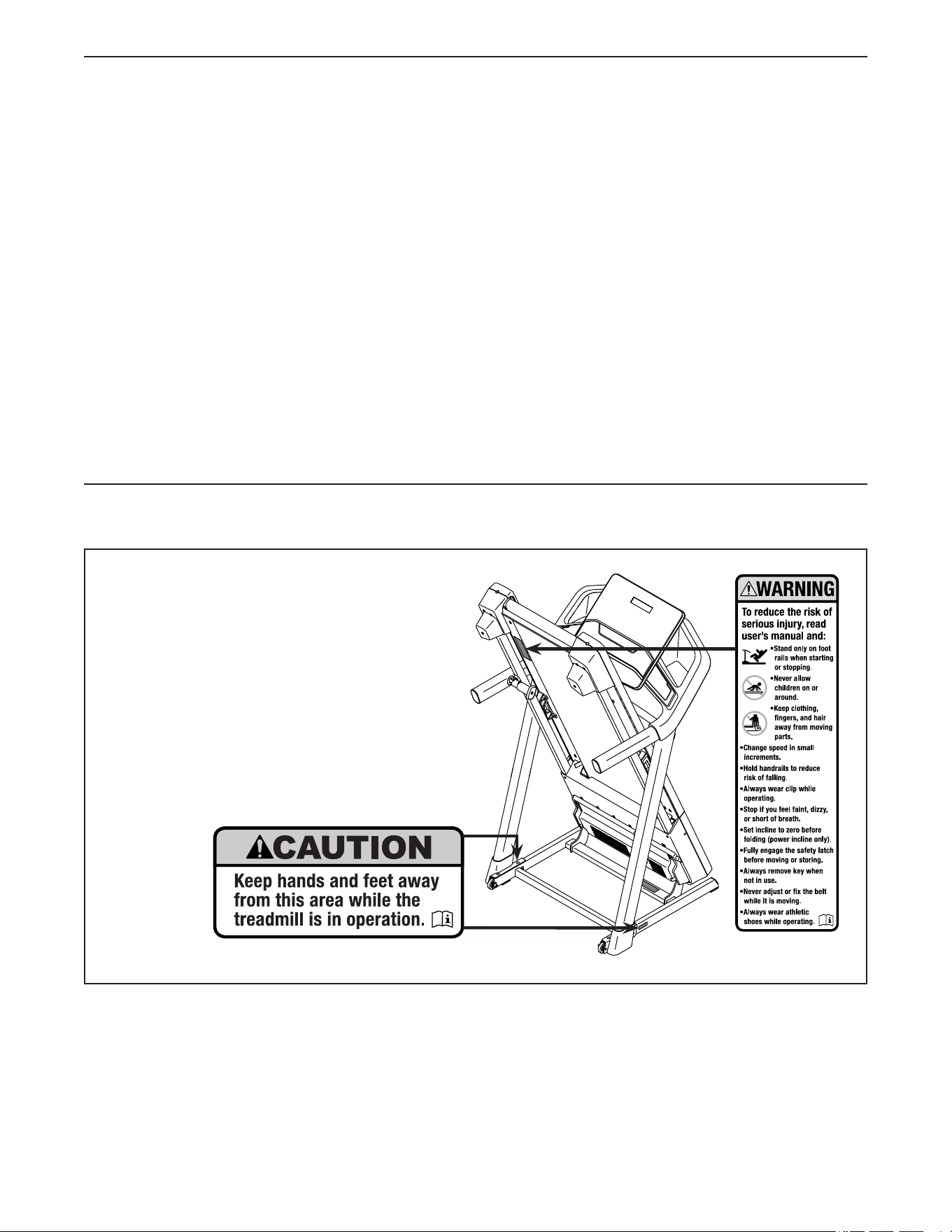

This drawing shows the locations of the warning
decals. If a decal is missing or illegible, see
the front cover of this manual and request
a free replacement decal. Apply the decal in
the location shown. Note: The decals may not
be shown at actual size.
3
1. It is the responsibility of the owner to ensure
that all users of the treadmill are adequately
informed of all warnings and precautions.
2. Keep children under age 16 and pets away
from the treadmill at all times.
3. Consult your health care provider before
beginning any exercise program. This is
especially important for persons over age
35 or persons with pre-existing health
problems.
4. Consult your health care provider before
beginning or continuing any exercise pro-
gram during pregnancy. Use the treadmill
only as authorized by your health care
provider.
5. The treadmill is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning the
use of the treadmill by someone responsible
for their safety.
6. Use the treadmill only as described in this
manual.
7. The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
8. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
9. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
10. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
11. The treadmill should be used only by
persons weighing 300 lbs. (135 kg) or less.
12. Never allow more than one person on the
treadmill at a time.
13. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
14. Plug the power cord into a surge suppressor
(not included), and plug the surge suppres-
sor into an appropriate outlet (see page 14).
To avoid overloading the circuit, do not plug
other electrical devices, except for low-
power devices such as cell phone chargers,
into the surge suppressor or into an outlet
on the same circuit.
15. Use only a surge suppressor that meets all
of the specifications described on page 14.
To purchase a surge suppressor, see your
local PROFORM dealer, see the front cover
of this manual, or see your local electronics
store.
16. Failure to use a properly functioning surge
suppressor could result in damage to the
control system of the treadmill. If the control
system is damaged, the walking belt may
slow, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.
17. Keep the power cord and the surge suppres-
sor away from heated surfaces.
18. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
MAINTENANCE AND TROUBLESHOOTING
on page 24 if the treadmill is not working
properly.)
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. iFIT assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
IMPORTANT PRECAUTIONS
4
19. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE CONSOLE on
page 16). Always wear the clip while using
the treadmill.
20. Be careful when mounting and dismounting
the treadmill. Always stand on the foot rails
when starting or stopping the walking belt.
Always hold the handrails while using the
treadmill.
21. When a person is walking on the treadmill,
the noise level of the treadmill will increase.
22. Keep fingers, hair, and clothing away from
the moving walking belt.
23. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
24. Never leave the treadmill unattended while
it is running. Always remove the key, press
the power switch into the off position (see
the drawing on page 6 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
25. Do not attempt to move the treadmill until
it is properly assembled. (See ASSEMBLY
on page 8 and HOW TO FOLD AND MOVE
THE TREADMILL on page 23.) You must be
able to safely lift 45 lbs. (20 kg) to move the
treadmill.
26. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position. Do
not operate the treadmill while it is folded.
27. Do not change the incline of the treadmill by
placing objects under the treadmill.
28. Never insert any object into any opening on
the treadmill.
29. Inspect and properly tighten all parts each
time the treadmill is used. Replace any worn
parts immediately. Use only manufacturer-
supplied parts.
30. DANGER: Always unplug the power
cord immediately after use, before clean-
ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
31. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
SAVE THESE INSTRUCTIONS
5
all

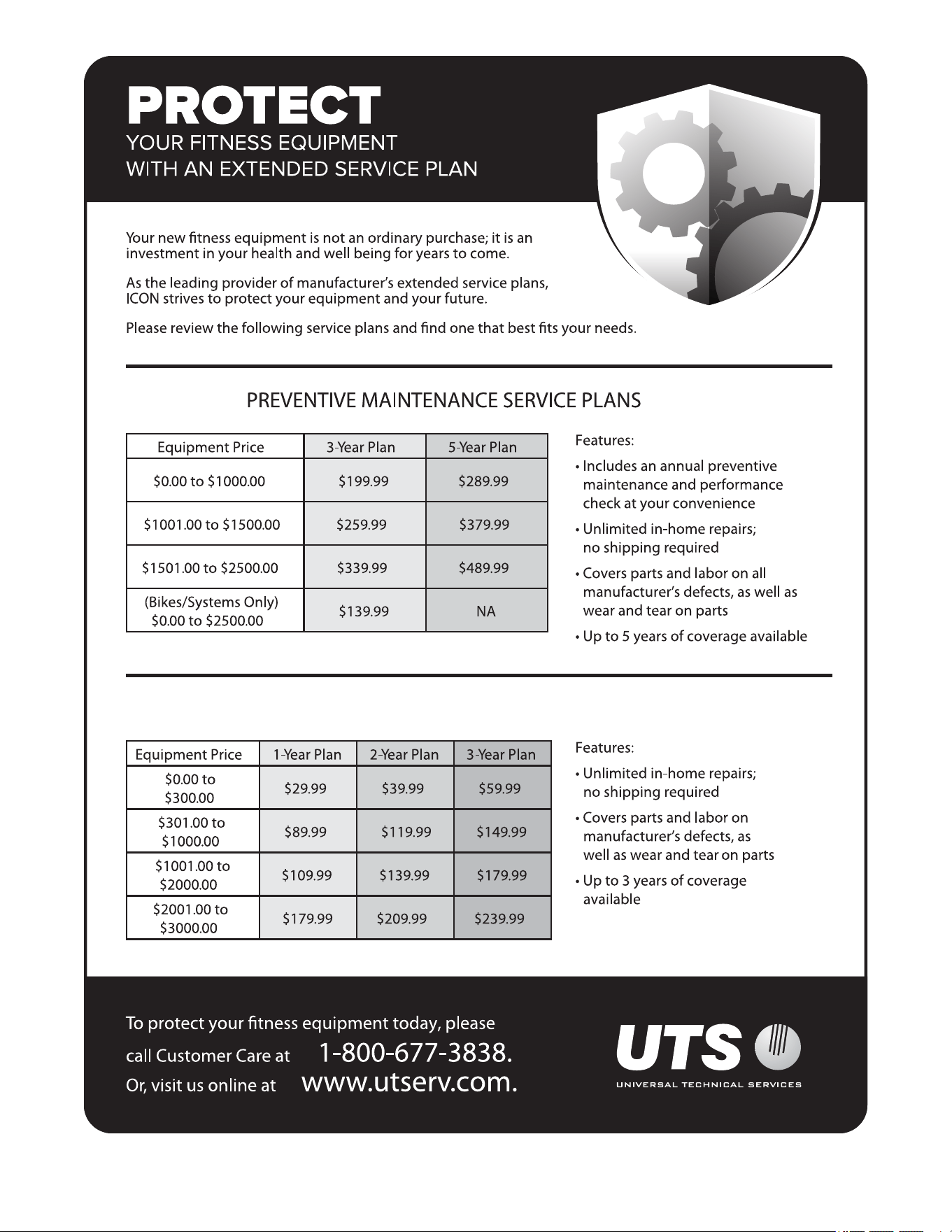

STANDARD SERVICE PLANS
6
Thank you for selecting the new PROFORM
®
CARBON TL treadmill. The CARBON TL treadmill
provides an impressive selection of features designed
to make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the treadmill. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

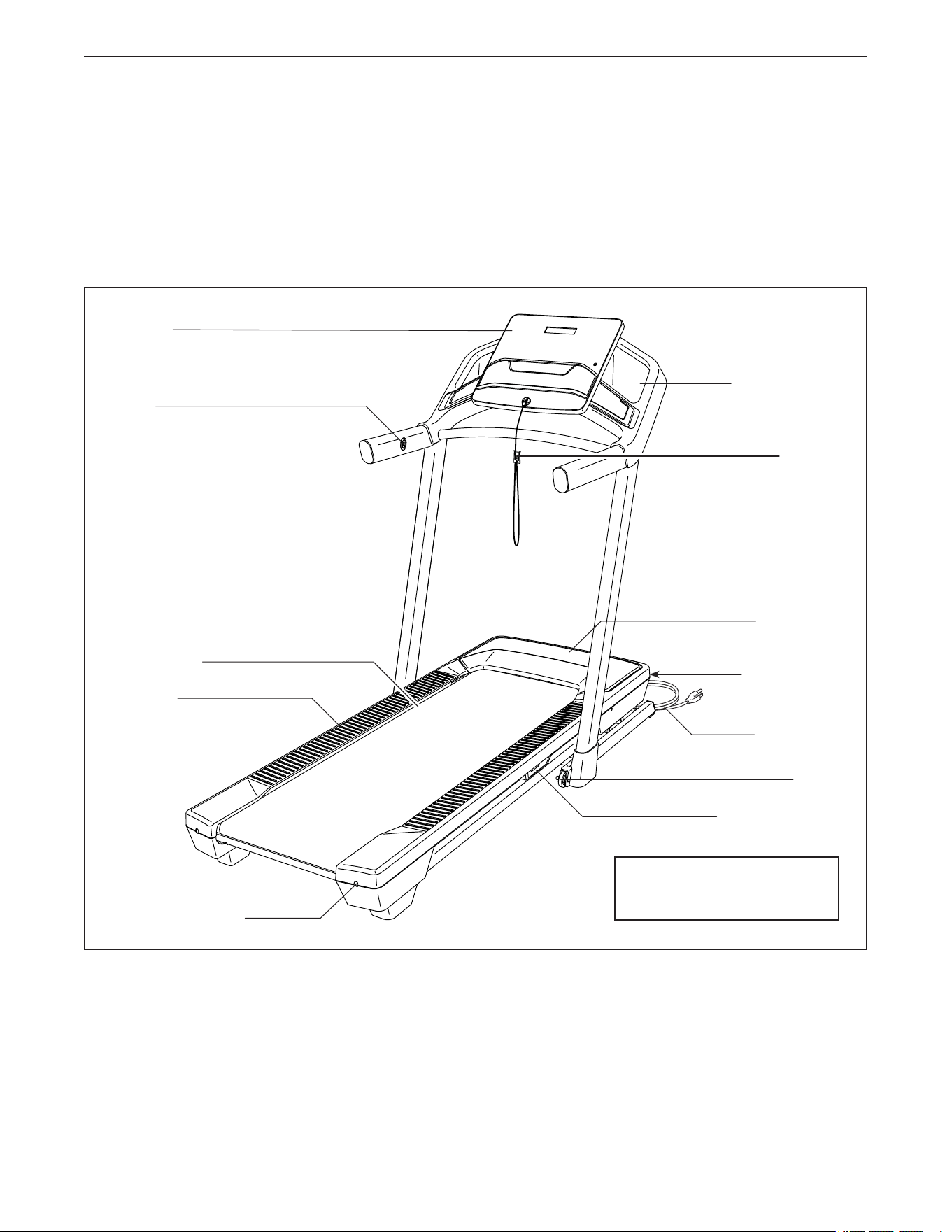

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
Catch
Console
Key/Clip
Accessory Tray
Power Switch
Walking Belt
Motor Hood
Wheel
Foot Rail
Idler Roller Screws
Platform Cushion
Length: 5 ft. 9 in. (174 cm)
Width: 2 ft. 8 in. (82 cm)
Power Cord
7
PART IDENTIFICATION CHART

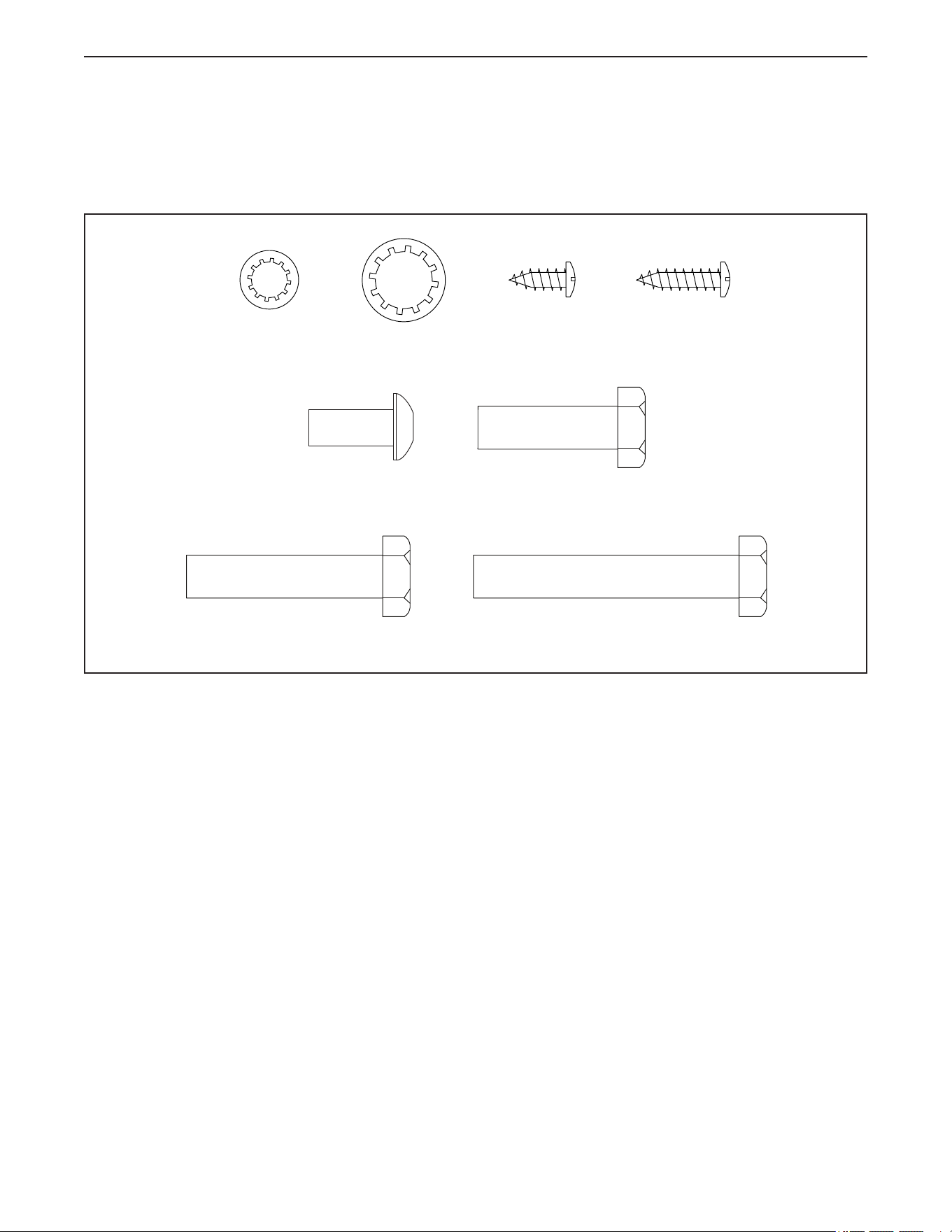

Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
preattached. Extra parts may be included.
3/8" Star
Washer (5)–8
5/16" Star
Washer (6)–8
3/8" x 1 3/4" Screw (33)–2
3/8" x 2 3/8" Screw (4)–4
#8 x 3/4"
Screw (7)–6
3/8" x 1 1/4"
Screw (3)–2
5/16" x 3/4"
Screw (2)–4
#8 x 1/2"
Screw (14)–6
8
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• To identify small parts, see page 7.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• Assembly can be completed using the included
tools. Note: One or more of the included tools
may be needed to make adjustments in the
future. To avoid damaging parts, do not use
power tools for assembly or adjustment.
ASSEMBLY
1
1. Go to my.proform.com and register your
product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed

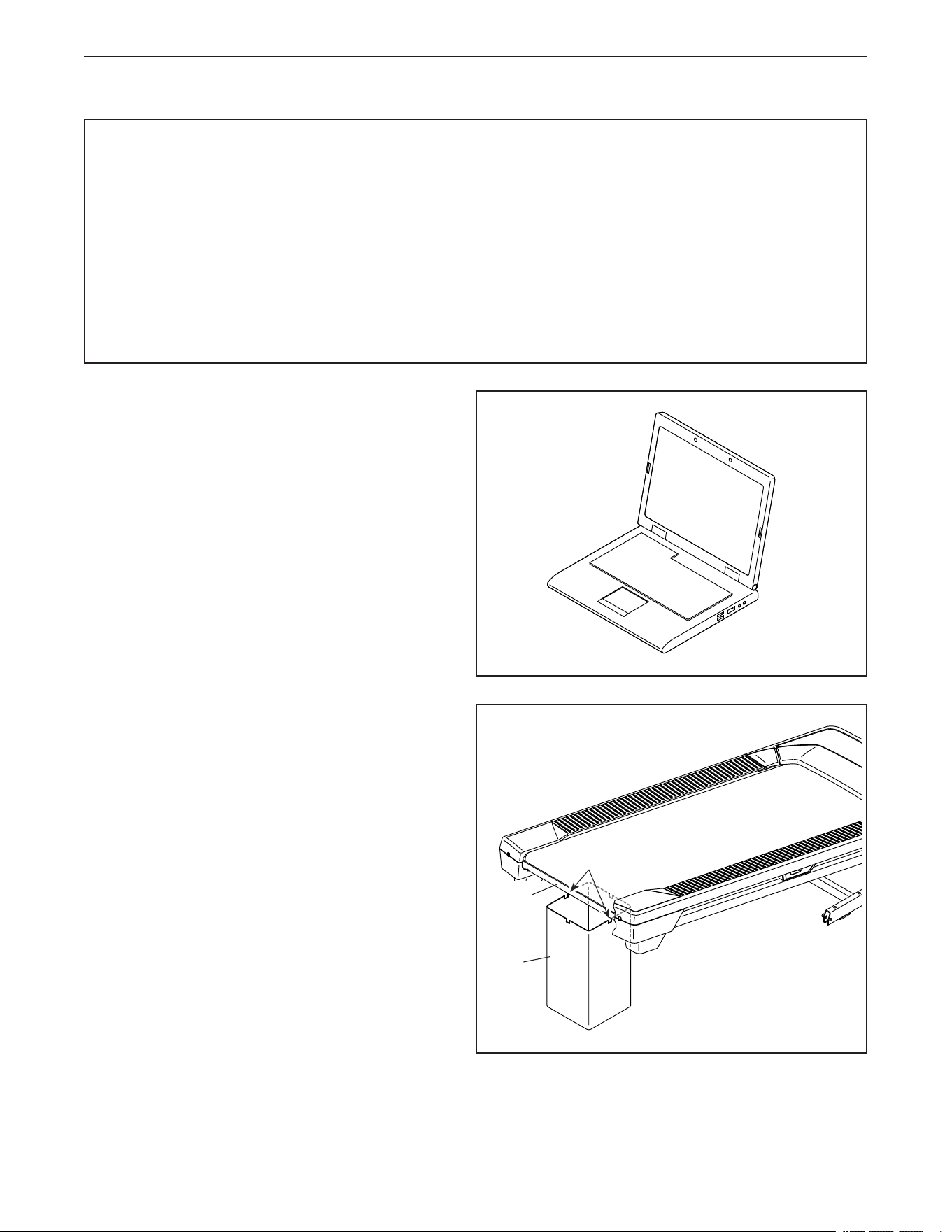

2. Locate the included cardboard support (A) and
unfold it to the position shown, with the four
cutouts (B) at the top.
Then, lift the back end of the Frame (48), and
insert it into two of the cutouts (B). The card-
board support (A) will make it easier for you to
do steps 3 and 4.
2
A
B
48
9
73

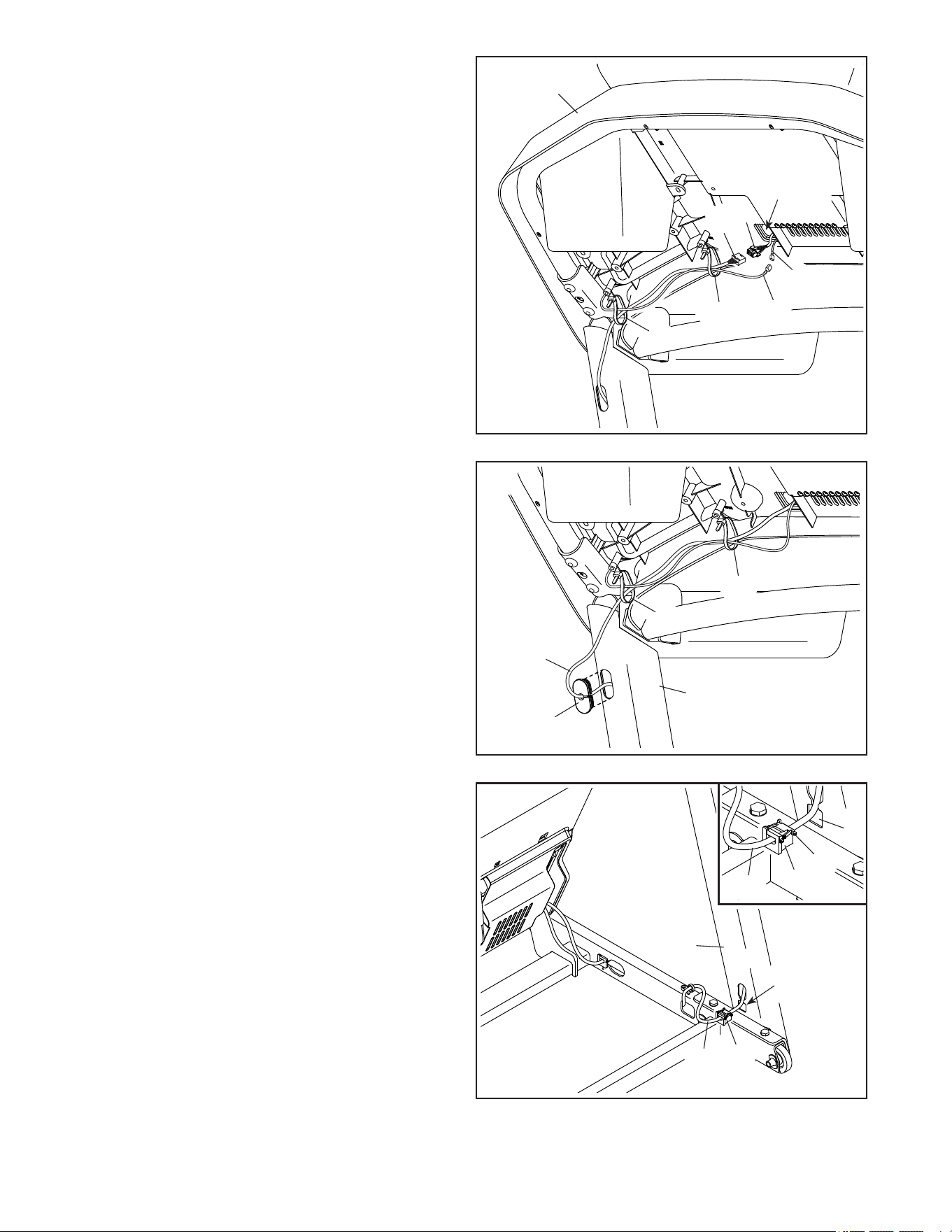

3. Locate the Upright Wire (74) on the right side of
the Upright Base (81). Remove the wire tie (not
shown) securing the Upright Wire to the Upright
Base as shown.
Next, identify the Right Upright (73), and
have a second person hold it near the Upright
Base (81).
See the inset drawing. Locate the wire tie (C)
in the Right Upright (73). Tie the wire tie through
the wire pull (D) on the Upright Wire (74). Next,
feed the Upright Wire into the Right Upright, and
pull the upper end of the wire tie until the Upright
Wire is routed through the Right Upright. Do not
remove the wire tie yet.
3
5
5
5
3
4
4
4
74
C
73
C
81
73
72
81
4. Do not pinch the Upright Wire (not shown)
during this step.

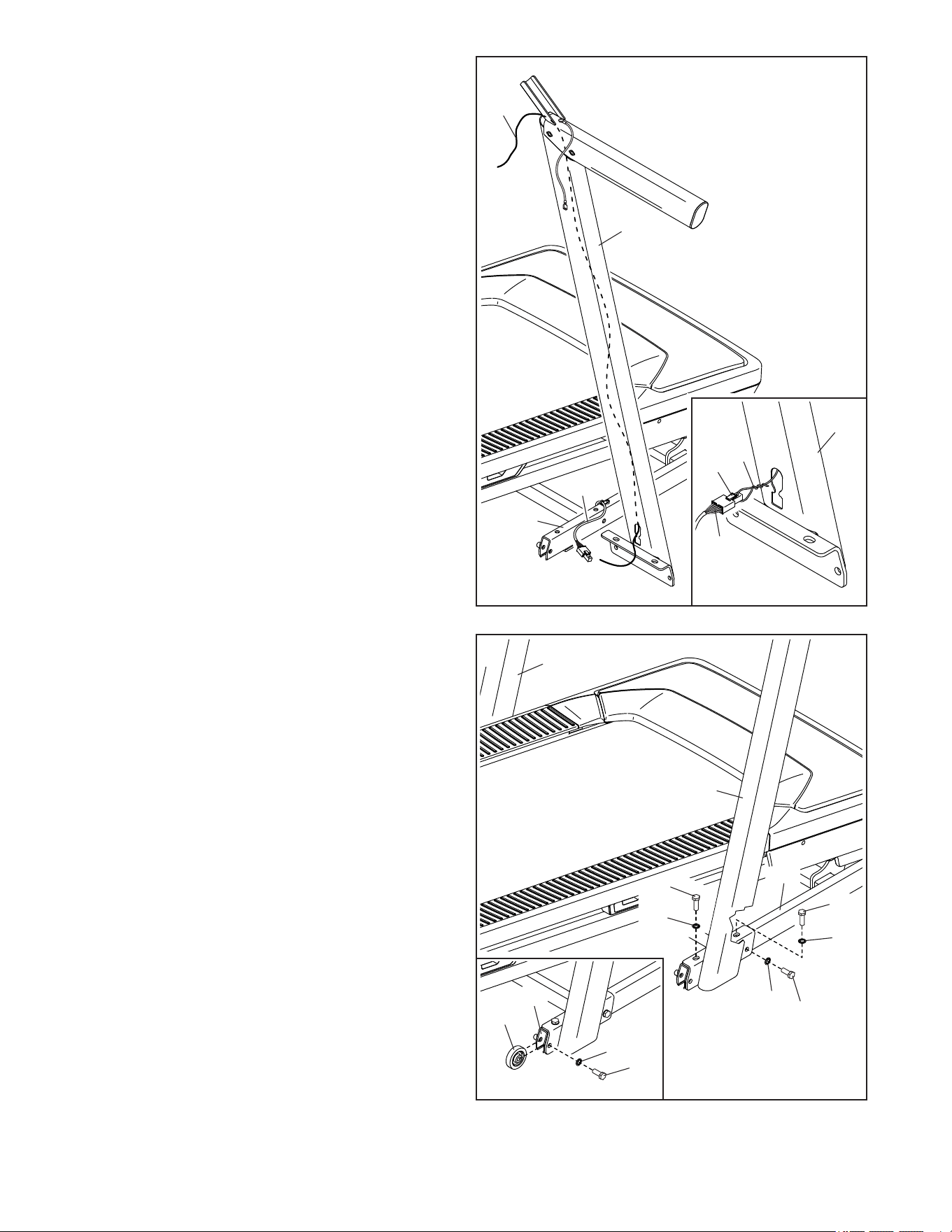

Attach the Right Upright (73) to the Upright
Base (81) with two 3/8" x 2 3/8" Screws (4),
a 3/8" x 1 1/4" Screw (3), and three 3/8" Star
Washers (5) as shown; do not fully tighten the
Screws yet.
See the inset drawing. Attach a Wheel (13) to
the Upright Base (81) with a 3/8" x 1 3/4" Screw
(33) and a 3/8" Star Washer (5); do not fully
tighten the Screw yet.
Attach the Left Upright (72) and the other
Wheel (not shown) in the same way.
See step 2. Remove the cardboard support (A)
and lower the Frame (48) to the floor.
5
33
13
81
D
74
10
5
5. Do not pinch the ground wire (31) during this
step.

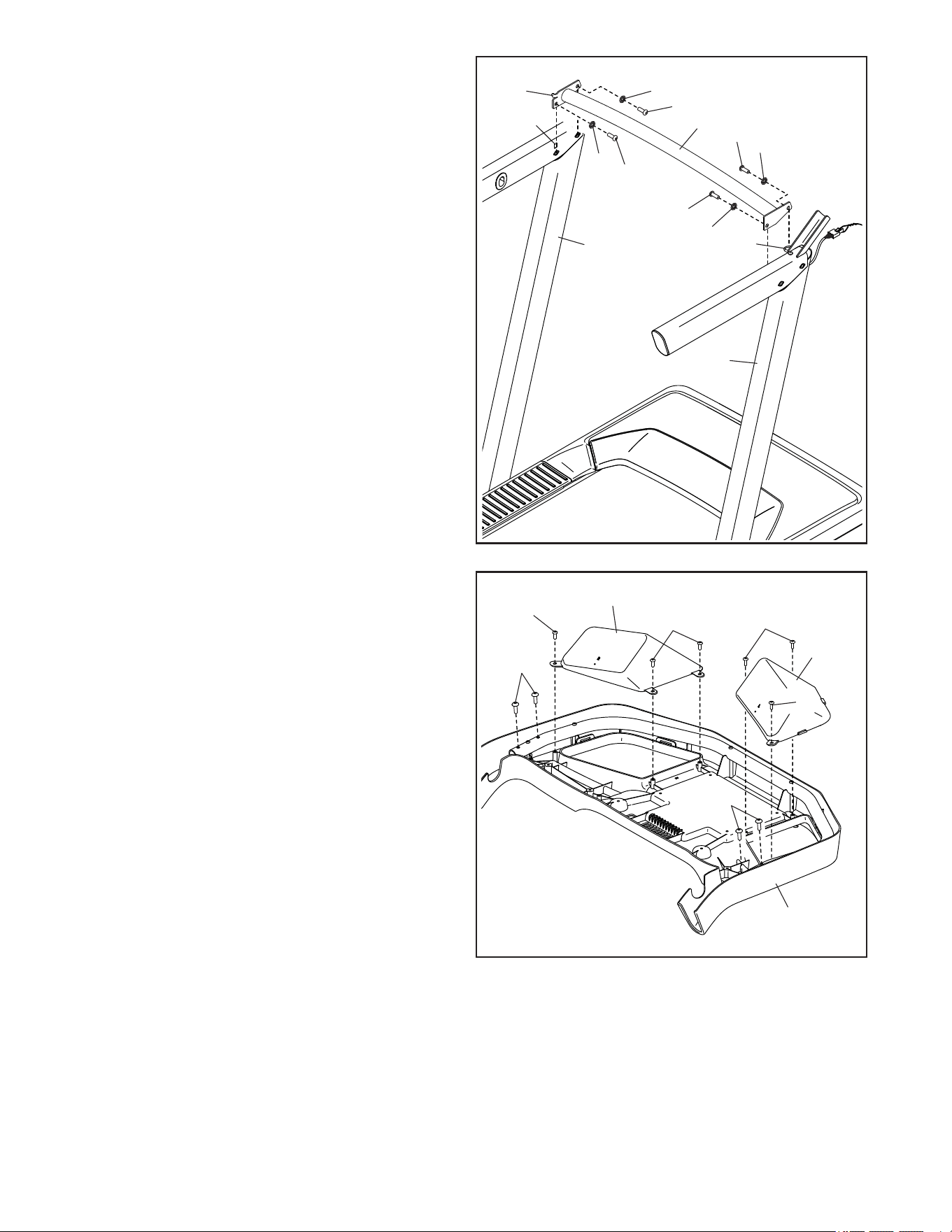

Locate the small tab (E) on the Crossbar (69).
Hold the Crossbar between the Uprights
(72, 73), with the tab in the slot (F) in the Left
Upright.
Attach the Crossbar (69) with four 5/16" x 3/4"
Screws (2) and four 5/16" Star Washers (6);
start all four Screws, and then tighten them.
6
2
14
2
84
14
14
6. Set the Console Base (84) facedown on a soft
surface to avoid scratching the Console Base.
Attach the Left and Right Trays (86, 46) to the
Console Base (84) with six #8 x 1/2" Screws
(14); start all of the Screws, and then tighten
them. Do not overtighten the Screws.
Then, remove and save the four indicated
5/16" x 3/4" Screws (2).
72
69
6
2
2
2
2
6
E
F
6
6
31
73
14
46
86
11
7
8

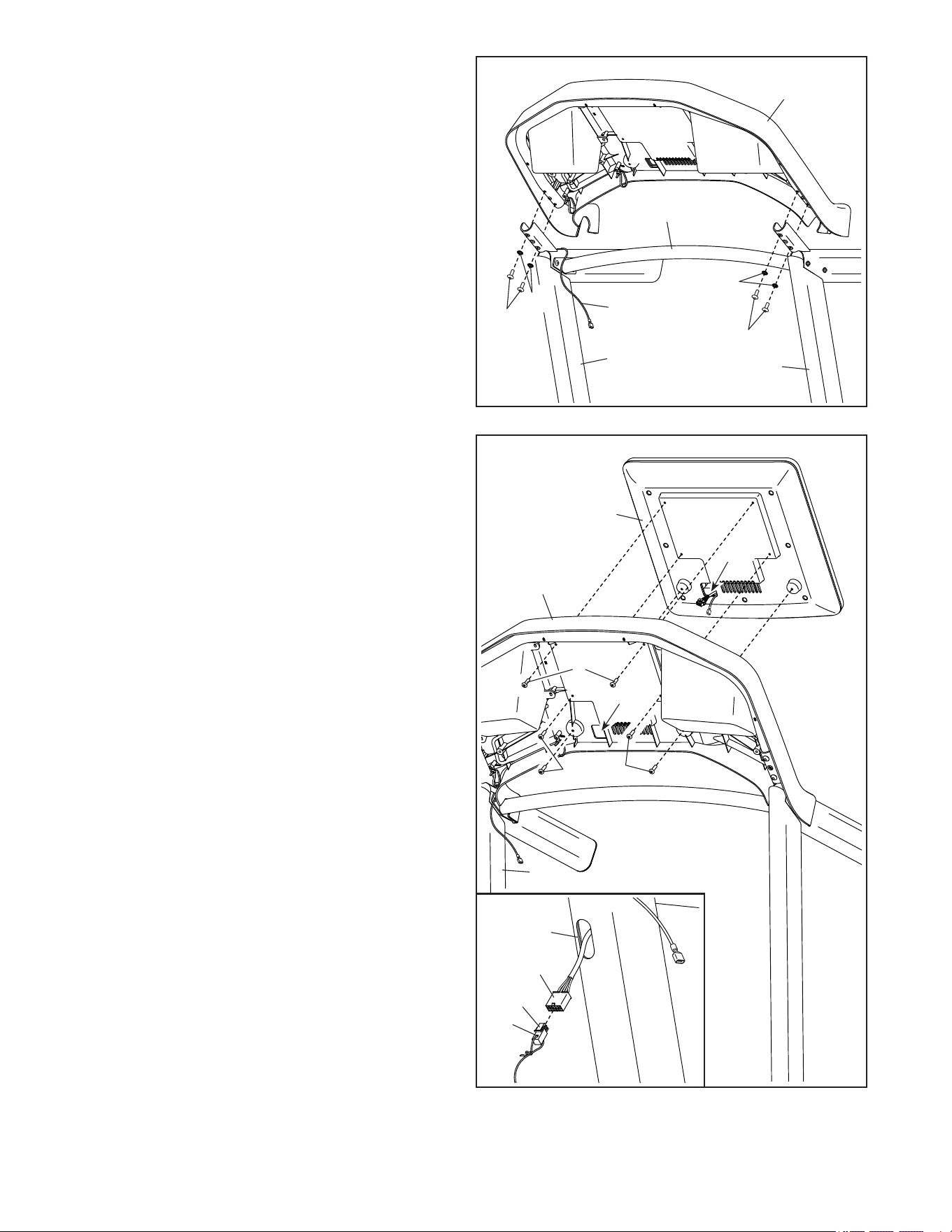

7. Make sure that the Ground Wire (31) is in front
of the Crossbar (69) as shown. Do not pinch
the Ground Wire during this step.
Set the Console Base (84) on the Uprights
(72, 73).
Attach the Console Base (84) with the four
5/16" x 3/4" Screws (2) that you removed in
step 6 and four 5/16" Star Washers (6); start all
four Screws, and then tighten them.
73
6
2
84
31
72
2
7
7
7
84
83

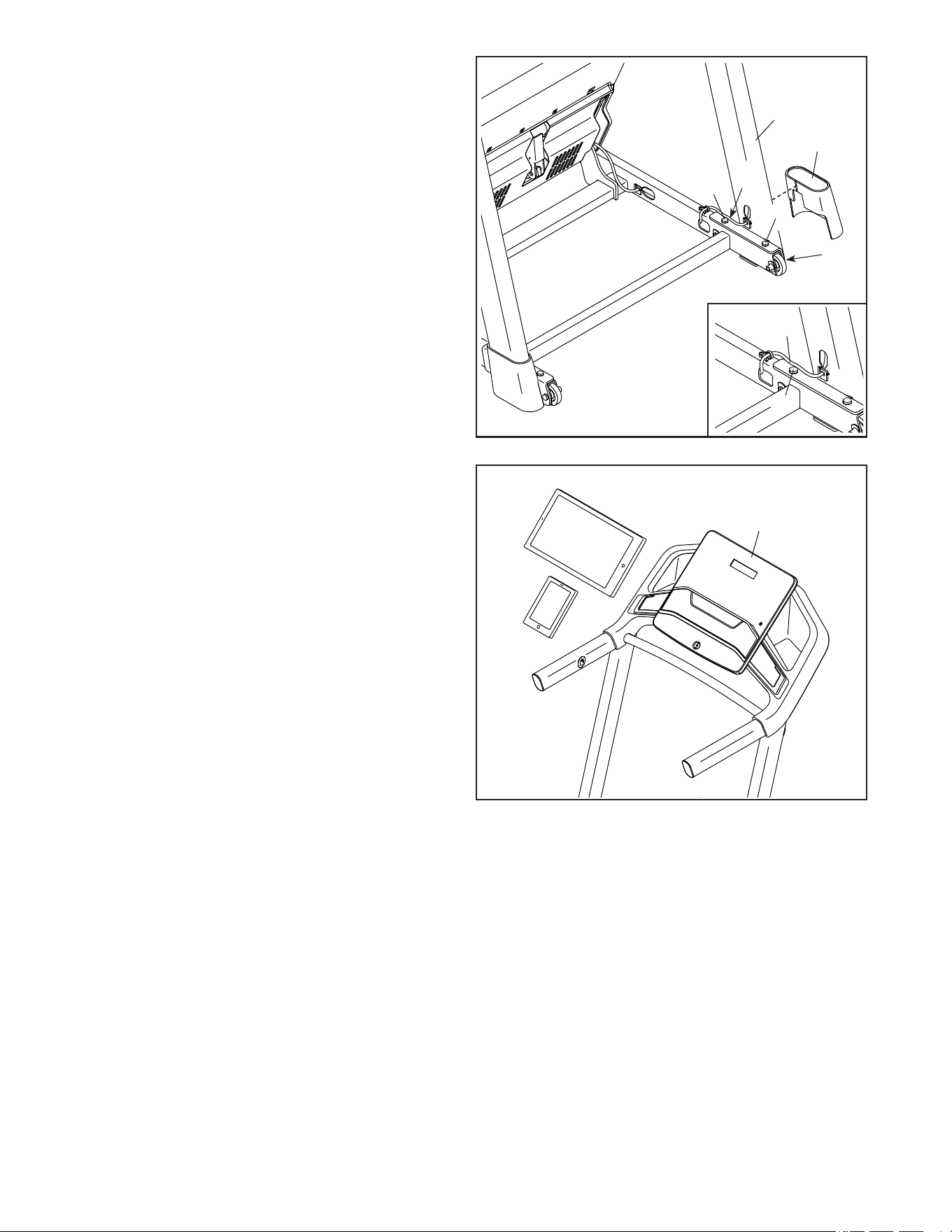

8. Do not pinch any wires (G) during this step.
Hold the Console (83) near the Console Base
(84). Insert the console wires (G) into the
opening (H) in the Console Base, and then set
the Console on the Console Base.
Attach the Console (83) with six #8 x 3/4"
Screws (7); start all six Screws, and then
tighten them. Do not overtighten the Screws.
See the inset drawing. Grip the connector on
the end of the Upright Wire (74) extending from
the Right Upright (73). Then, press the small
latch (I) on the wire pull (D), and remove and
discard the wire pull.
G
H
6
69
74
I
73
D
73
12

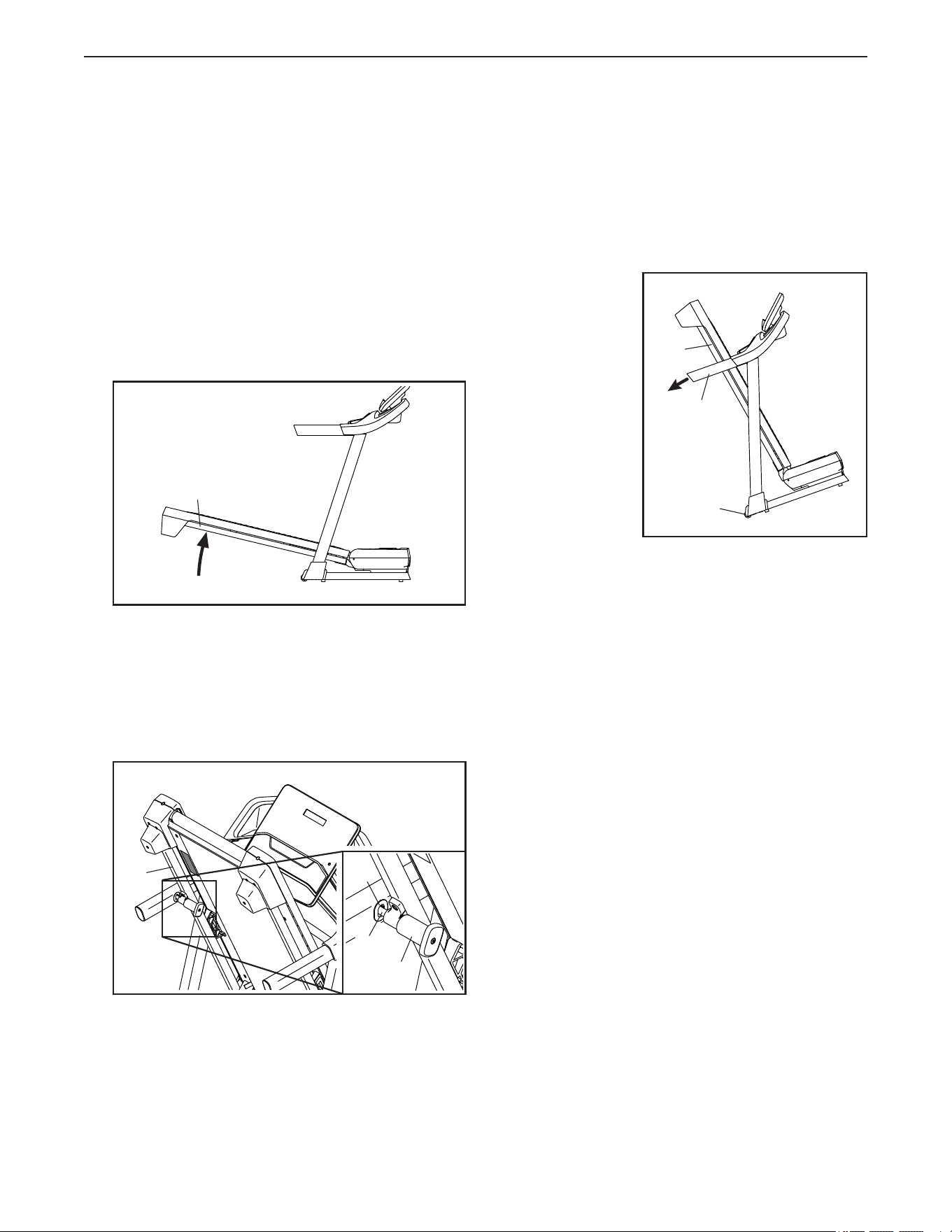

11. Raise the treadmill to the storage position (see
HOW TO FOLD THE TREADMILL on page 23).
Next, orient the Square Grommet (68) as shown
in the inset drawing, and close it around the
Upright Wire (74). Then, insert the small ear (K)
on the Square Grommet into the square hole
(L) in the Right Upright (73), and then press the
Square Grommet into the square hole.
10. Do not pinch the Upright Wire (74) during this
step.
Slide the Oval Grommet (75) onto the Upright
Wire (74), and then press the Oval Grommet into
the Right Upright (73).
Then, pull the two Plastic Ties (88) tight, and
carefully cut off the ends.
9
9. Route the Upright Wire (74) and the ground wire
(31) through the two Plastic Ties (88).
Next, connect the Upright Wire (74) to the
console wire (G). IMPORTANT: The wire con-
nectors should slide together easily and
snap into place with an audible click. If they
do not, turn one connector and try again.
You must connect the wires properly for your
treadmill to function properly.
Next, connect the Ground Wire (31) to the
console ground wire (J).
Then, insert the wire connectors (74, G, 31, J)
into the opening (H) in the Console Base (84).
10
74
84
H
J
G
31
88
88
74
75
73
73
74
68
L
11
68
74
88
88
K
L
13
14. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included tools in a secure
place; one or more of the tools may be needed to make adjustments to the treadmill in the future. Note: Extra
hardware may be included.
13. IMPORTANT: You must activate your Console
(83) to begin using its exclusive features.
First, plug in the power cord (see page 14) and
turn on the console (see page 16).
Then, using your smartphone or tablet, go to
iFIT.com/activate and follow the instructions to
activate the Console (83).
Note: If you do not have a smartphone or tablet,
use your computer to go to iFIT.com/activate for
an alternate way to activate the Console (83).
If you do not have a computer, please see the
Member Care contact information on page 24.
13
12
77
73
83
33
4
3
4
74
4
4
12. Firmly tighten the four indicated Screws
(3, 4, 33).
See the inset drawing. Make sure that the
Upright Wire (74) is on the indicated side of the
3/8" x 2 3/8" Screw (4).
Next, pull the Right Upright Cover (77) open
slightly, slide it around the Right Upright (73),
and then slide it down to the floor.
Repeat this step on the left side of the tread-
mill. Note: There is not a wire on the left side.
Then, lower the treadmill (see HOW TO LOWER
THE TREADMILL FOR USE on page 23).
14
HOW TO PLUG IN THE POWER CORD
USE A SURGE SUPPRESSOR
Your treadmill, like other electronic equipment, can be
damaged by sudden voltage changes in your home’s
power. Voltage surges, spikes, and noise interference
can result from weather conditions or from other appli-
ances being turned on or off. To decrease the risk of
damaging the treadmill, always use a surge sup-
pressor (A) with the treadmill. To purchase a surge
suppressor, see precaution 15 on page 3.
Use only a surge suppressor (A) that is UL 1449 listed
as a transient voltage surge suppressor (TVSS). The
surge suppressor must have a UL suppressed volt-
age rating of 400 volts or less and a minimum surge
dissipation of 450 joules. The surge suppressor must
also be electrically rated for 120 volts AC and 15
amps. There must be a monitoring light on the surge
suppressor to indicate whether it is functioning prop-
erly. Failure to use a properly functioning surge
suppressor could result in damage to the control
system of the treadmill and serious injury to users.

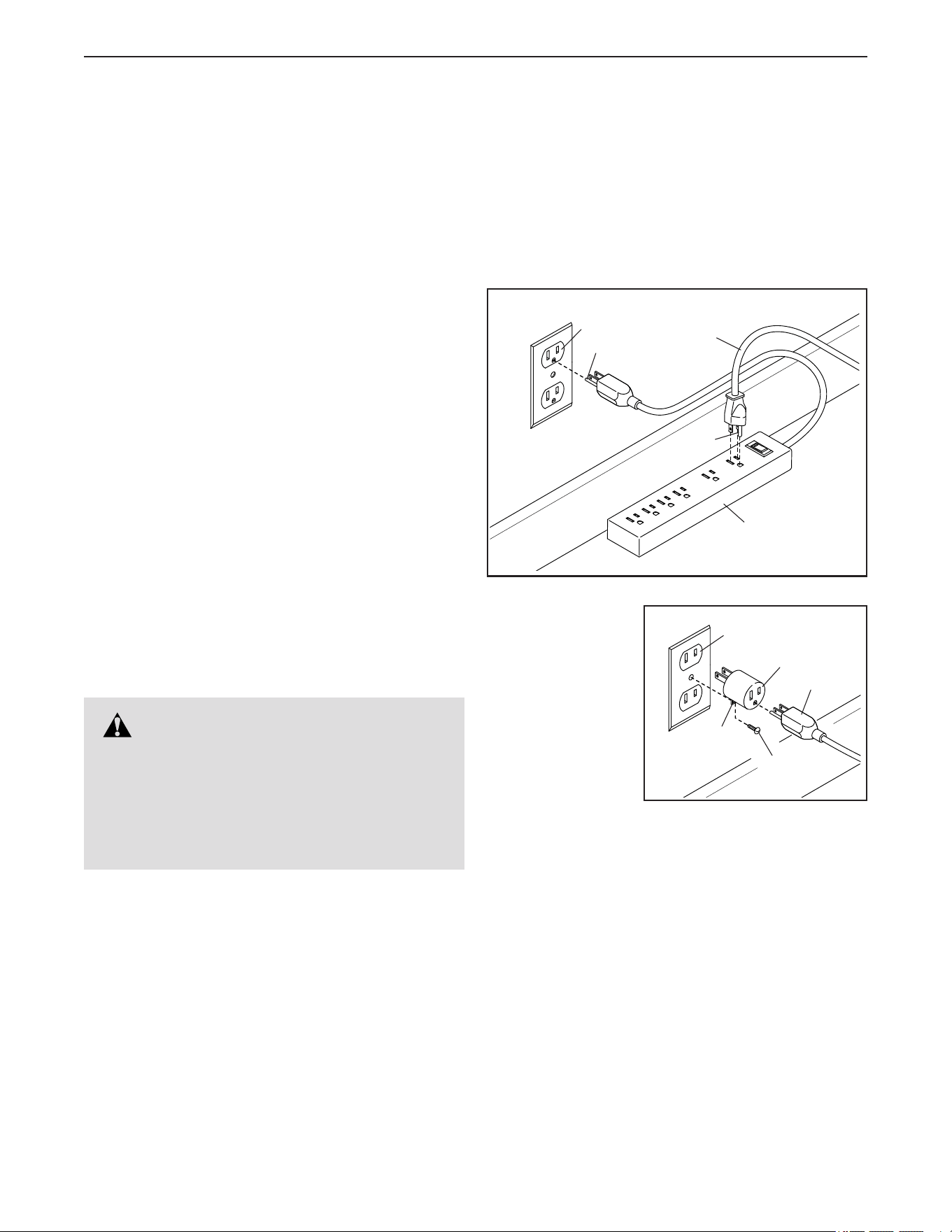

PLUG IN THE POWER CORD
The treadmill must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. The treadmill power cord (B) has a plug with
a grounding pin (C) (see drawing 1 on this page).
Plug the power cord (B) into a surge suppressor
(A), and plug the surge suppressor into an appropri-
ate outlet (D) that is properly installed and grounded
in accordance with all local codes and ordinances.
The outlet must be on a nominal 120-volt circuit
capable of carrying 15 or more amps. To avoid
overloading the circuit, do not plug other electrical
devices, except for low-power devices such as cell
phone chargers, into the surge suppressor or into
an outlet on the same circuit. IMPORTANT: If the
treadmill is connected to an AFCI-equipped outlet
and your circuit breaker trips repeatedly when the
treadmill is used, see the front cover of this manual
to purchase an arc filter.
A temporary
adapter (E) may
be used to con-
nect the surge
suppressor (A) to
a 2-pole recep-
tacle (F) if a
properly grounded
outlet is not
available.
The lug (G) or wire extending from the adapter must
be connected with a metal screw (H) to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a quali-
fied electrician to determine whether the outlet box
cover is grounded. The temporary adapter should
be used only until a properly grounded outlet can
be installed by a qualified electrician.
DANGER: Improper connection of
the power cord increases the risk of electric
shock. Do not modify the plug—if it will not fit
an outlet, have a proper outlet installed by a
qualified electrician. If you are unsure whether
the treadmill is properly grounded, contact a
qualified electrician.
1
A
C
D
C
B
2
E
F
G
A
H
15
ETPF59724

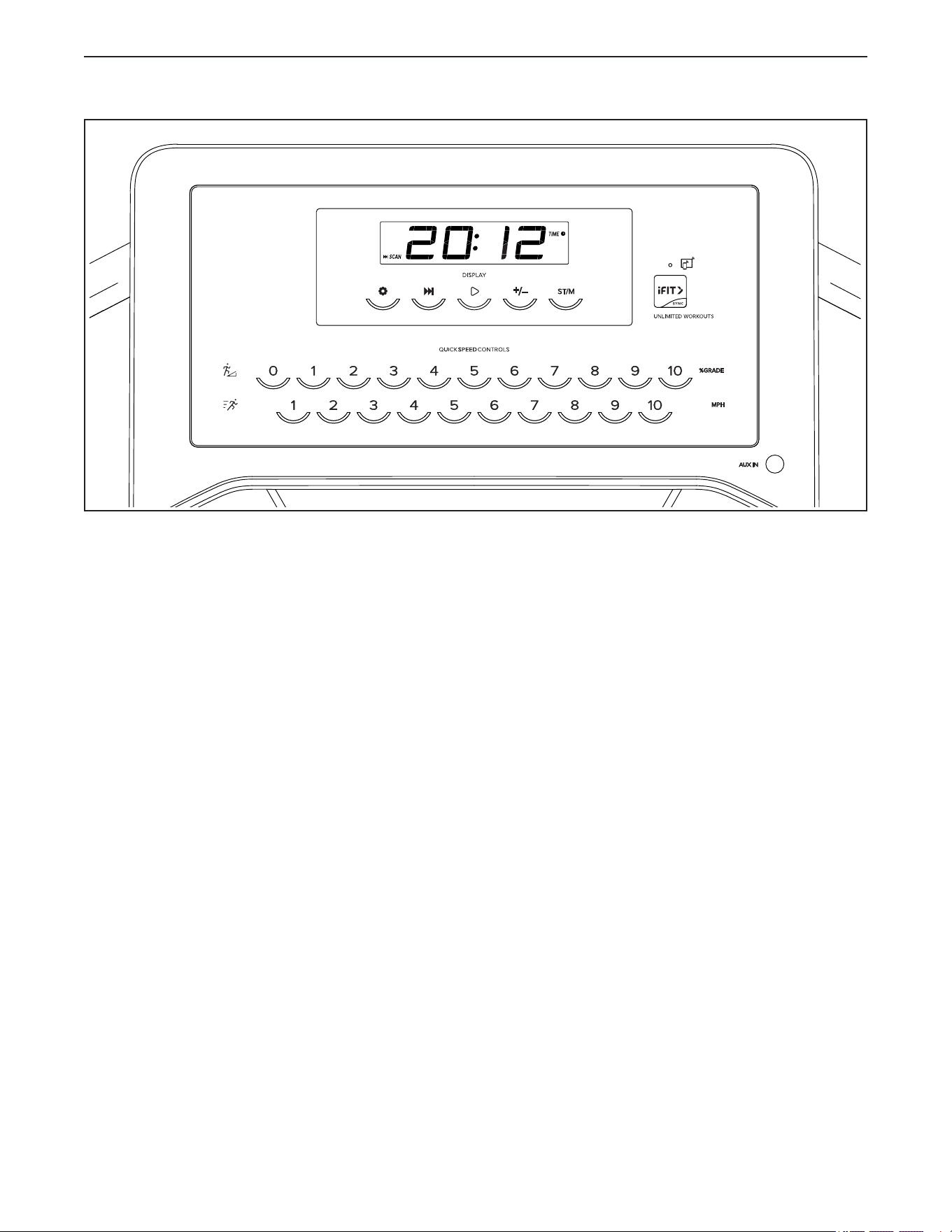

FEATURES OF THE CONSOLE
IMPORTANT: To activate your console and begin
using its exclusive features, see assembly step 13
on page 13.
The treadmill console offers a selection of features
designed to make your workouts more effective and
enjoyable. When you use the manual mode of the
console, you can change the speed and incline of the
treadmill with a touch of a button. As you exercise, the
console will display continuous exercise feedback.
You can even monitor your heart rate when you use a
compatible heart rate monitor. To purchase a compat-
ible heart rate monitor, see page 22.
The console also features wireless technology that
enables the console to connect to iFIT
®
. With the iFIT
app, you can choose from a rotating selection of fea-
tured workouts that automatically control the speed of
the treadmill as iFIT trainers guide you through immer-
sive exercise sessions.
With an iFIT subscription, you can access a large and
varied library of thousands of destination and studio
workouts, create your own workouts, track your work-
out results, and access many other features.
To turn on and turn off the console, see page 16. To
use the manual mode, see page 17. To use an iFIT
workout, see page 19. To change console settings,
see page 20.
Note: If there is a sheet of plastic on the display,
remove the plastic.
HOW TO USE THE TREADMILL
16
HOW TO TURN ON THE CONSOLE
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you turn on the console. If you do
not do this, you may damage the console display
or other electrical components.
Plug in the power cord (see
page 14). Next, locate the power
switch on the treadmill frame
near the power cord. Make sure
that the power switch is in the
reset position (A).
Next, stand on the
foot rails of the
treadmill. Find the
clip (B) attached to the
key (C), and slide the
clip onto the waist-
band of your clothes.
Then, insert the key
into the console. After
a moment, the display will light. IMPORTANT: In an
emergency, the key can be pulled from the console,
causing the walking belt to slow to a stop. Test the
clip by carefully taking a few steps backward; if the
key is not pulled from the console, adjust the posi-
tion of the clip.
IMPORTANT: The console may feature a demo
mode, designed to be used if the treadmill is dis-
played in a store. If the display lights as soon as
you plug in the power cord and press the power
switch into the reset position, the demo mode is
turned on. To turn off the demo mode, hold down
the Stop button for a few seconds. If the display
remains lit, see HOW TO CHANGE CONSOLE
SETTINGS on pages 20 and 21 to turn off the demo
mode.
IMPORTANT: The first time you use the tread-
mill, you must calibrate the incline system. To
calibrate the incline system, see HOW TO CHANGE
CONSOLE SETTINGS on pages 20 and 21.
IMPORTANT: To prevent damage to the walking
platform, wear clean athletic shoes while using
the treadmill. The first time you use the treadmill,
observe the alignment of the walking belt, and
center the walking belt if necessary (see page 25).
HOW TO TURN OFF THE CONSOLE
When you are finished using the treadmill, first remove
the key from the console and put it in a secure place.
Then, press the power switch into the off position and
unplug the power cord. IMPORTANT: If you do not do
this, the electrical components of the treadmill may
wear prematurely.
IMPORTANT: Before you fold the treadmill, make
sure that the incline is adjusted to the appropri-
ate level (see HOW TO FOLD AND MOVE THE
TREADMILL on page 23).
A
ETPF59724
C
B
17
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE CONSOLE on
page 16.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected automatically.
3. Get ready for the workout.
To use a heart rate monitor, see HOW TO USE
AN OPTIONAL HEART RATE MONITOR on
page 22.
To use the sound system, see HOW TO USE
THE SOUND SYSTEM on page 22.
4. Change the speed as desired.
To start the workout, press the Start button. The
walking belt will start to move at a low speed.
You can change the speed of the walking belt in
the following ways:
Speed increase and decrease buttons—Each
time you press a button, the speed setting will
change in small increments; if you hold down the
button, the speed setting will change more quickly.
Numbered speed buttons—Each time you press
a button, the walking belt will gradually change
speed until it reaches the selected speed setting.
To select a speed setting that includes a decimal—
such as 3.5 mph—press two numbered buttons in
succession. For example, to select a speed setting
of 3.5 mph, press the 3 button and then immedi-
ately press the 5 button. Note: This feature may not
function when the console is set to metric units.
5. Change the incline as desired.
You can change the incline of the treadmill in the
following ways:
Incline increase and decrease buttons—Each
time you press a button, the incline will gradually
change until it reaches the selected incline setting.
Numbered incline buttons—Each time you press
a button, the incline will gradually change until it
reaches the selected incline setting.
6. Follow your progress.
The display can show the following workout
information:
Calories (CALS)—The approximate number of
calories you have burned.
Calories per Hour (CALS/HR)—The approximate
number of calories you are burning per hour.
Time—The elapsed time.
Pace—The speed in minutes per mile or minutes
per kilometer. To change the unit of measurement,
press the St/M button.
Vertical Distance (VRT FT or VRT M)—The
distance you have walked or run in vertical
feet or vertical meters. To change the unit of
measurement, press the St/M button.
Incline (%Grade)—The incline level.
Distance (MI or KM)—The distance that you have
walked or run in miles or kilometers. To change the
unit of measurement, press the St/M button.
Speed (MPH or KPH)—The speed in miles per
hour or kilometers per hour. To change the unit of
measurement, press the St/M button.
Pulse (BPM and heart symbol)—Your heart rate
when you use a compatible heart rate monitor
(see HOW TO USE AN OPTIONAL HEART RATE
MONITOR on page 22).
18
Press the Display
button (D) repeat-
edly to view the
desired workout
information in the
display.
Scan mode—The console also has a scan mode
that will display workout information in a repeating
cycle. To turn on the scan mode, press the Scan
button (E); the scan indicator (F) and the word
SCAN will turn on in the display.
To manually advance the scan cycle, press the
Scan button repeatedly.
To turn off the scan mode, press the Display
button; the scan indicator and the word SCAN will
turn off.
You can also customize the scan mode to display
only the desired workout information in the
repeating cycle.
To customize the scan mode, first press the
Display button repeatedly until the workout
information that you want to add to or remove from
the scan cycle appears in the display.
Next, press the +/- button (G) to add or remove that
workout information from the scan cycle. When
workout information is added, its indicator will
turn on in the display. When workout information
is removed, its indicator will turn off.
Then, press the Scan button to turn on the scan
mode.
7. Pause or end the workout.
To pause the workout, first step onto the foot
rails. Next, press the Stop button. The walking belt
will stop and the time will flash in the display.
To continue the workout, press the Start button or
one of the speed buttons.
To end the workout and reset the display to zero,
first step onto the foot rails. Next, press the
Stop button twice. The word DONE will appear in
the display, and then your workout results will be
shown. Press the Stop button a third time to reset
the display to zero.
8. When you are finished using the treadmill, turn
off the console.
See HOW TO TURN OFF THE CONSOLE on
page 16.
F
DE G
19
HOW TO USE AN IFIT WORKOUT
The console offers access to a large and varied library
of iFIT workouts when you download the iFIT app to
your smart device and connect it to the console.
Note: The console supports Bluetooth
®
connections to
smart devices via the iFIT app and to compatible heart
rate monitors. Other Bluetooth connections are not
supported.
1. Download and install the iFIT app on your
smart device.
On your iOS
®
or Android™ smart device, open the
App Store℠ or the Google Play™ store, search for
the free iFIT app, and then install the app on your
smart device. Make sure that the Bluetooth option
is enabled on your smart device.
Then, open the iFIT app and follow the instructions
to set up an iFIT account and customize settings.
Take time to explore the iFIT app and learn
about its features and settings.
2. Get ready for the workout.
To use a heart rate monitor, see HOW TO USE
AN OPTIONAL HEART RATE MONITOR on
page 22.
Note: If you are connecting both your heart rate
monitor and your smart device to the console, you
must connect your heart rate monitor before
you connect your smart device.
To use the sound system, see HOW TO USE
THE SOUND SYSTEM on page 22.
3. Connect your smart device to the console.
Press the iFIT Sync button on the console; the
console pairing number will appear in the display.
Then, follow the instructions in the iFIT app to con-
nect your smart device to the console.
When a connection is established, the LED on the
console will turn solid blue.
4. Select an iFIT workout.
In the iFIT app, touch the buttons at the bottom of
the screen to select either the home screen (Home
button) or the workout library (Browse button).
To select a workout from the home screen or the
workout library, simply touch the desired workout
button on the screen. Slide or flick the screen to
scroll as necessary.
When you select a workout, the screen will show
an overview of the workout that includes details
such as the duration and distance of the workout
and the approximate number of calories you will
burn during the workout.
5. Start the workout.
Touch Start Workout to start the workout.
During some workouts, an iFIT trainer will guide
you through an immersive video workout. Touch
the screen in any open space to view and select
music, trainer voice, and volume options for the
workout.
During some workouts, the screen will show a map
of the route and a marker indicating your prog-
ress. Touch the buttons on the screen to select the
desired map options.
If the speed or incline setting for the current seg-
ment of the workout is too high or too low, you
can manually override the setting by pressing the
speed and incline buttons on the console.
To return to the programmed speed and incline set-
tings of the workout, touch Follow Trainer.
Note: The calorie goal shown in the workout
description is an estimate of the number of
calories that you will burn during the workout.
The actual number of calories that you burn
will depend on various factors, such as your
weight. In addition, if you manually change the
speed or incline during the workout, the num-
ber of calories you burn will be affected.
20
6. Pause or end the workout.
To pause the workout, simply touch the screen or
press the Stop button on the console. To continue
the workout, touch the play symbol on the screen,
or press the Start button on the console.
To end the workout, touch the screen to pause the
workout, and then follow the prompts on the screen
to end the workout and return to the home screen.
When the workout ends, a workout summary will
appear on the screen. If desired, you can select
options such as adding the workout to your sched-
ule or adding the workout to your favorites list.
Then, touch Finish to return to the home screen.
7. Disconnect your smart device from the
console.
To disconnect your smart device from the console,
select the disconnect option in the iFIT app.
Note: All Bluetooth connections between the
console and other devices (including any smart
devices, heart rate monitors, and so forth) will be
disconnected.
8. When you are finished using the treadmill, turn
off the console.
See HOW TO TURN OFF THE CONSOLE on
page 16.
HOW TO CHANGE CONSOLE SETTINGS
1. Select the settings mode.
To select the settings mode,
press the settings button (H).
The first settings screen will
appear in the display. Note:
If you have selected a work-
out, you may need to press
the Stop button repeatedly to
return to the main menu before
selecting the settings mode.
2. Navigate the settings mode.
While the settings mode is selected, you can
navigate through several settings screens. Press
the Stop button repeatedly to select the desired
settings screen.
3. Change settings as desired.
Unit of Measurement—The currently selected unit
of measurement may appear in the display. The
console can show speed and distance in standard
or metric units of measurement. To change the unit
of measurement, press the Speed increase button
repeatedly. To view workout information in standard
units, select STD. To view workout information in
metric units, select MET.
Software Version Number—The software version
number will appear in the display.
H
21
Incline System Calibration—The letters CAL will
appear in the display. If the incline system is not
functioning properly, it may need to be calibrated.
To calibrate the incline system, press the Incline
increase or decrease button. The frame will auto-
matically rise to the maximum incline level, lower to
the minimum level, and then return to the starting
position. When the treadmill stops moving, the
incline system is calibrated.
IMPORTANT: Keep pets, feet, and other objects
away from the treadmill while the incline sys-
tem is calibrating. In an emergency, remove the
key from the console to stop the calibration
operation.
Note: The incline system may occasionally
calibrate automatically when you turn on the
treadmill. Wait for the frame to stop moving
before you attempt to use the treadmill.
Display Test—This screen is intended to be used
by service technicians to identify whether the
display is working correctly.
Button Test—This screen is intended to be used
by service technicians to identify whether a certain
button is working correctly.
Demo Mode—The currently selected demo mode
option will appear in the display. The console
features a demo mode, designed to be used if the
treadmill is displayed in a store. If the demo mode
is turned on, the console will not turn off and the
display will not be reset when you finish exercis-
ing. Press the Speed increase button repeatedly to
select a demo mode option. To turn on the demo
mode, select DON. To turn off the demo mode,
select DOFF.
Total Time—The word TIME will appear in the
display. The display will show the total number of
hours that the treadmill has been used.
Total Distance—The letters MI or KM will appear
in the display. The display will show the total
distance (in miles or kilometers) that the walking
belt has moved.
Contrast Level—The currently selected contrast
level will appear in the display. Press the Incline
increase and decrease buttons to adjust the
contrast level.
4. Exit the settings mode.
Press the settings button (H) to
exit the settings mode.
H
22
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate this equipment.
IMPORTANT: To satisfy exposure compliance requirements, the antenna and transmitter in the console
must be at least 8 in. (20 cm) from all persons and must not be near or connected to any other antenna or
transmitter.
Note: The console contains FCC ID: OMCBMD1.
HOW TO USE AN OPTIONAL HEART RATE
MONITOR
Whether your goal
is to burn fat or to
strengthen your
cardiovascular
system, the key
to achieving the
best results is
to maintain the
proper heart rate
during your work-
outs. The optional
heart rate monitor will enable you to continuously
monitor your heart rate while you exercise, helping you
to reach your personal fitness goals. To purchase an
optional heart rate monitor, please see the front
cover of this manual.
The console is compatible with all Bluetooth
®
Smart
heart rate monitors.
To connect your Bluetooth Smart heart rate moni-
tor to the console, press the iFIT Sync button on the
console; the console pairing number will appear in the
display. When your heart rate monitor is connected, the
LED on the console will flash red twice. Note: If there
is more than one compatible heart rate monitor near
the console, the console will connect to the heart rate
monitor with the strongest signal.
To disconnect your heart rate monitor from the
console, press and hold the iFIT Sync button on the
console until the LED on the console turns solid green.
Note: All Bluetooth connections between the console
and other devices (including any smart devices, heart
rate monitors, and so forth) will be disconnected.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the
jack on the console and into a jack on your personal
audio player; make sure that the audio cable is fully
plugged in. Note: To purchase an audio cable, see
your local electronics store.
Next, press the play but-
ton on your personal audio
player. Adjust the volume
level using the Vol increase
and decrease buttons on the
console or the volume control
on your personal audio player.
23
HOW TO FOLD THE TREADMILL
Before folding the treadmill, adjust the incline of
the treadmill to 0% to avoid damaging the treadmill.
Then, remove the key and unplug the power cord.
CAUTION: You must be able to safely lift 45 lbs.
(20 kg) to raise, lower, or move the treadmill.
1. Hold the metal frame (A) firmly in the location
shown by the arrow below. CAUTION: Do not
hold the frame by the plastic foot rails. Bend
your legs and keep your back straight. Raise the
frame about halfway to the vertical position.
2. Hold the frame (A) firmly with your left hand. Next,
pull the latch knob (B) to the right and hold it. Then,
raise the frame until the latch pin (D) is aligned with
the catch (C), and slowly release the latch knob;
make sure that the latch pin is inside of the
catch.
To protect the floor or carpet, place a mat under the
treadmill. Keep the treadmill out of direct sunlight.
Do not leave the treadmill in the storage position in
temperatures above 85°F (30°C).
HOW TO MOVE THE TREADMILL
Before moving the treadmill, fold it as described at the
left. CAUTION: Make sure that the latch pin (D) is
inside of the catch (C). Moving the treadmill may
require two people. Take any necessary measures
to avoid damaging your floor.
1. Hold the
frame (A) and
one of the
handrails (E),
and place one
foot against a
wheel (F).
2. Pull back on the handrail (E) until the treadmill
will roll on the wheels (F), and carefully move the
treadmill to the desired location. CAUTION: Do not
move the treadmill without tipping it back, do
not pull on the frame (A), and do not move the
treadmill over an uneven surface.
3. Place one foot against a wheel (F), and carefully
lower the treadmill.
HOW TO LOWER THE TREADMILL FOR USE
1. See drawing 2 at the left. Hold the upper end of
the treadmill with your left hand. Next, pull the latch
knob (B) to the right and hold it. Then, lower the
frame until it is past the latch pin (D), and slowly
elease the latch knob.
2. See drawing 1 at the left. Hold the metal frame
(A) firmly with both hands, and lower it to the floor.
CAUTION: Do not hold the frame by the plastic
foot rails, and do not drop the frame. Bend your
legs and keep your back straight.
A
1
A
2
B
C
D
1
E
A
F
HOW TO FOLD AND MOVE THE TREADMILL
24
MAINTENANCE
Regular maintenance is important for optimal
performance and to reduce wear. Inspect and properly
tighten all parts each time the treadmill is used.
Replace any worn parts immediately. Use only
manufacturer-supplied parts.
Regularly clean the treadmill and keep the walking belt
clean and dry. First, press the power switch into the
off position and unplug the power cord. Wipe exte-
rior parts of the treadmill with a damp cloth and a small
amount of mild soap. IMPORTANT: Do not spray
liquids directly onto the treadmill. To avoid damage
to the console, keep liquids away from the console.
Then, thoroughly dry the treadmill with a soft towel.
TROUBLESHOOTING
Many problems can be
solved with the simple
steps in this section.
Find the symptom that
applies, and follow the
steps listed. If further
assistance is needed,
go to my.iFIT.com, scan
the QR code at the right,
or call 1-833-680-IFIT
(1-833-680-4348).
SYMPTOM: The power does not turn on
a. Make sure that the power cord is plugged into a
surge suppressor and that the surge suppressor
is plugged into a properly grounded outlet (see
page 14). Use only a surge suppressor that meets
all of the specifications described on page 14.
IMPORTANT: If the incline trainer is connected
to an AFCI-equipped outlet and your circuit
breaker trips repeatedly when the incline trainer
is used, please see the Member Care contact
information above to purchase an arc lter.
b. After the power cord has been plugged in, make
sure that the key is inserted into the console.
c. Check the power switch located on the treadmill
frame near the power cord. If the switch protrudes
as shown (A), the switch has tripped. To reset the
power switch, wait for five minutes and then press
the switch back in (B).
d. The console requires activation. To activate your
console and begin using its exclusive features, see
assembly step 13 on page 13.
SYMPTOM: The power turns off during use
a. Check the power switch (see drawing c above). If
the switch has tripped, wait for five minutes and
then press the switch back in.
b. Make sure that the power cord is plugged in. If the
power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
c. Remove the key from the console, and then
reinsert it.
d. If the incline trainer still will not run, please see the
Member Care contact information at the left.
SYMPTOM: The console displays remain lit when
you remove the key from the console
a. The console features a display demo mode,
designed to be used if the treadmill is displayed
in a store. See HOW TO CHANGE CONSOLE
SETTINGS on page 20 to check your console
settings and turn off the demo mode if needed.
SYMPTOM: The treadmill makes a squeaking noise
during use
a. See assembly step 4 on page 9 and retighten the
screws securing the uprights.
B
A
c
MAINTENANCE AND TROUBLESHOOTING
25
SYMPTOM: The incline of the treadmill does not
change correctly
a. See HOW TO CHANGE CONSOLE SETTINGS on
page 20 to calibrate the incline system.

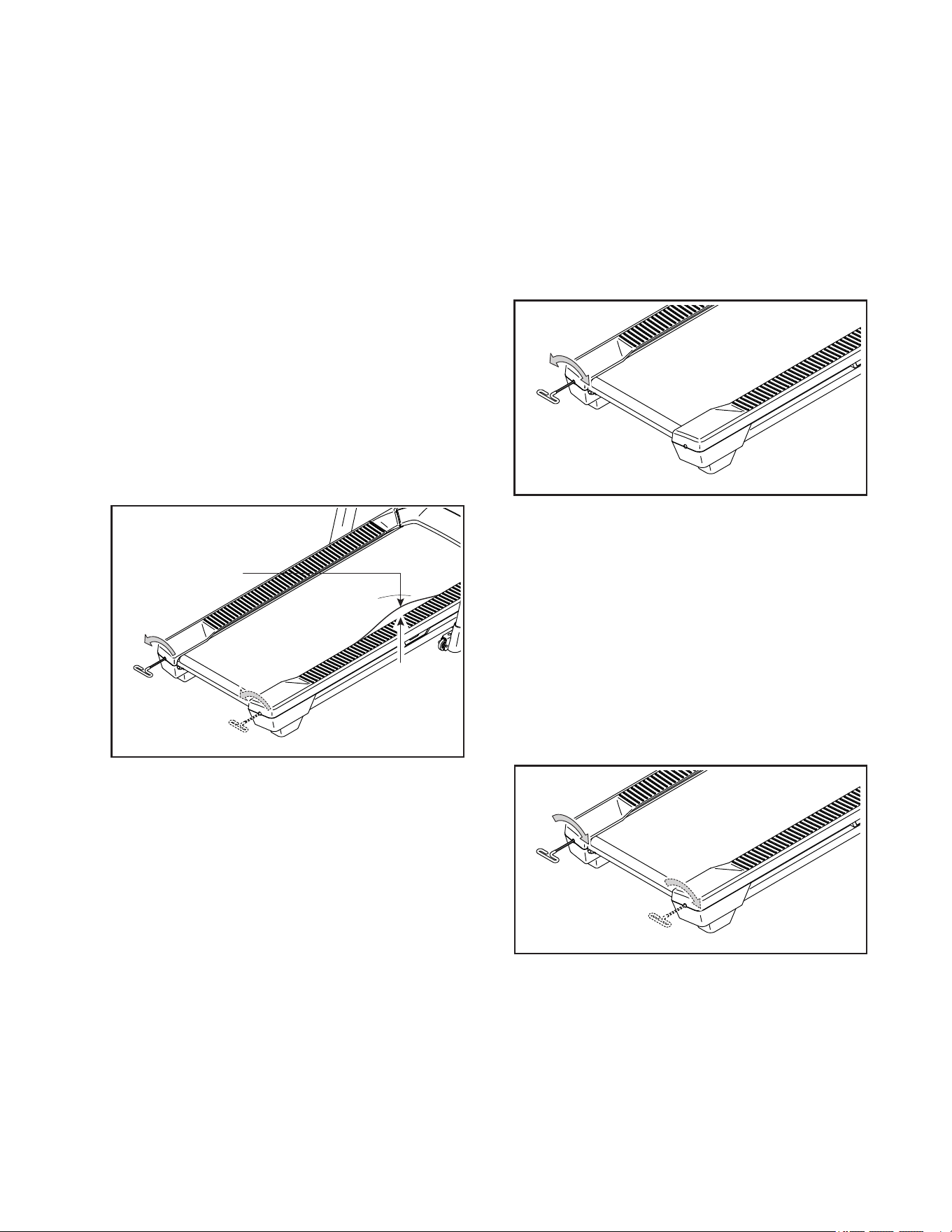

SYMPTOM: The walking belt slows when walked on
a. Use only a surge suppressor that meets all of the
specifications described on page 14.
b. If the walking belt is overtightened, treadmill per-
formance may decrease and the walking belt may
become damaged. Remove the key and UNPLUG
THE POWER CORD. Using the hex key, turn both
idler roller screws counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you
should be able to lift each edge of the walking belt
2 to 3 in. (5 to 7 cm) off the walking platform. Be
careful to keep the walking belt centered. Then,
plug in the power cord, insert the key, and walk on
the treadmill for a few minutes. Repeat until the
walking belt is properly tightened.
c. Your treadmill features a walking belt coated with
high-performance lubricant. IMPORTANT: Never
apply silicone spray or other substances to
the walking belt or the walking platform unless
instructed to do so by an authorized service
representative. Such substances may deterio-
rate the walking belt and cause excessive wear.
If you suspect that the walking belt needs more
lubricant, please see the Member Care contact
information on page 24.
d. If the walking belt still slows when walked on,
please see the Member Care contact information
on page 24.
SYMPTOM: The walking belt is off-center
a. First, remove the key and UNPLUG THE POWER
CORD. If the walking belt has shifted to the left,
use the hex key to turn the left idler roller screw
clockwise 1/2 of a turn; if the walking belt has
shifted to the right, turn the left idler roller screw
counterclockwise 1/2 of a turn. Be careful not to
overtighten the walking belt. Then, plug in the
power cord, insert the key, and walk on the tread-
mill for a few minutes. Repeat until the walking belt
is centered.
SYMPTOM: The walking belt slips when walked on
a. First, remove the key and UNPLUG THE POWER
CORD. Using the hex key, turn both idler roller
screws clockwise, 1/4 of a turn. When the walking
belt is correctly tightened, you should be able to lift
each edge of the walking belt 2 to 3 in. (5 to 7 cm)
off the walking platform. Be careful to keep the
walking belt centered. Then, plug in the power
cord, insert the key, and walk on the treadmill for a
few minutes. Repeat until the walking belt is prop-
erly tightened.
2–3 in.
b
a
a
26
EXERCISE GUIDELINES
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.

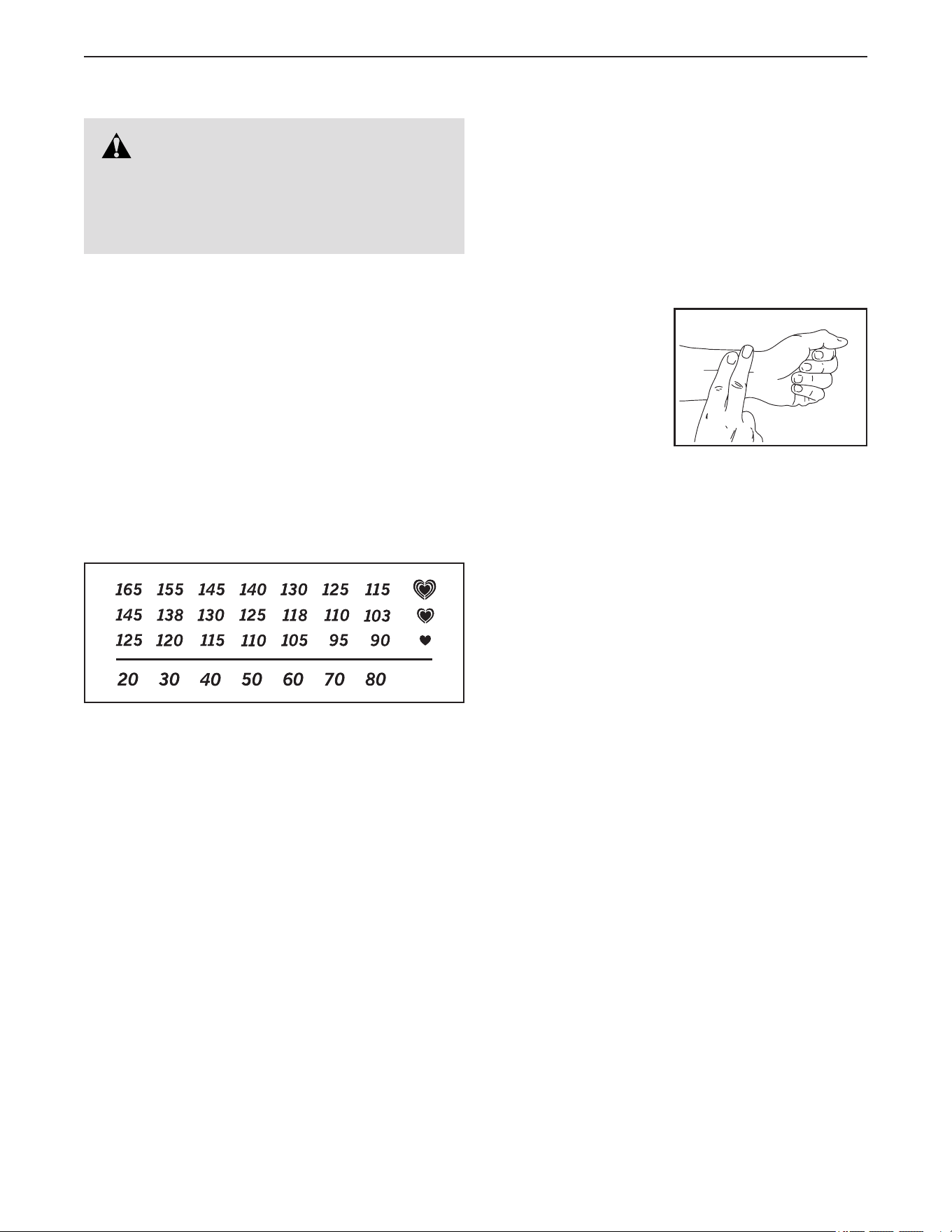

The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only
after the first few minutes of exercise does your body
begin to use stored fat calories for energy. If your
goal is to burn fat, adjust the intensity of your exer-
cise until your heart rate is near the lowest number in
your training zone. For maximum fat burning, exercise
with your heart rate near the middle number in your
training zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
HOW TO MEASURE YOUR HEART RATE
To measure your heart
rate, exercise for at
least four minutes.
Then, stop exercis-
ing and place two
fingers on your wrist
as shown. Take a
six-second heartbeat
count, and multiply the
result by 10 to find your heart rate. For example, if your
six-second heartbeat count is 14, your heart rate is 140
beats per minute.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete
three workouts each week, with at least one day of
rest between workouts. After a few months of regular
exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
27

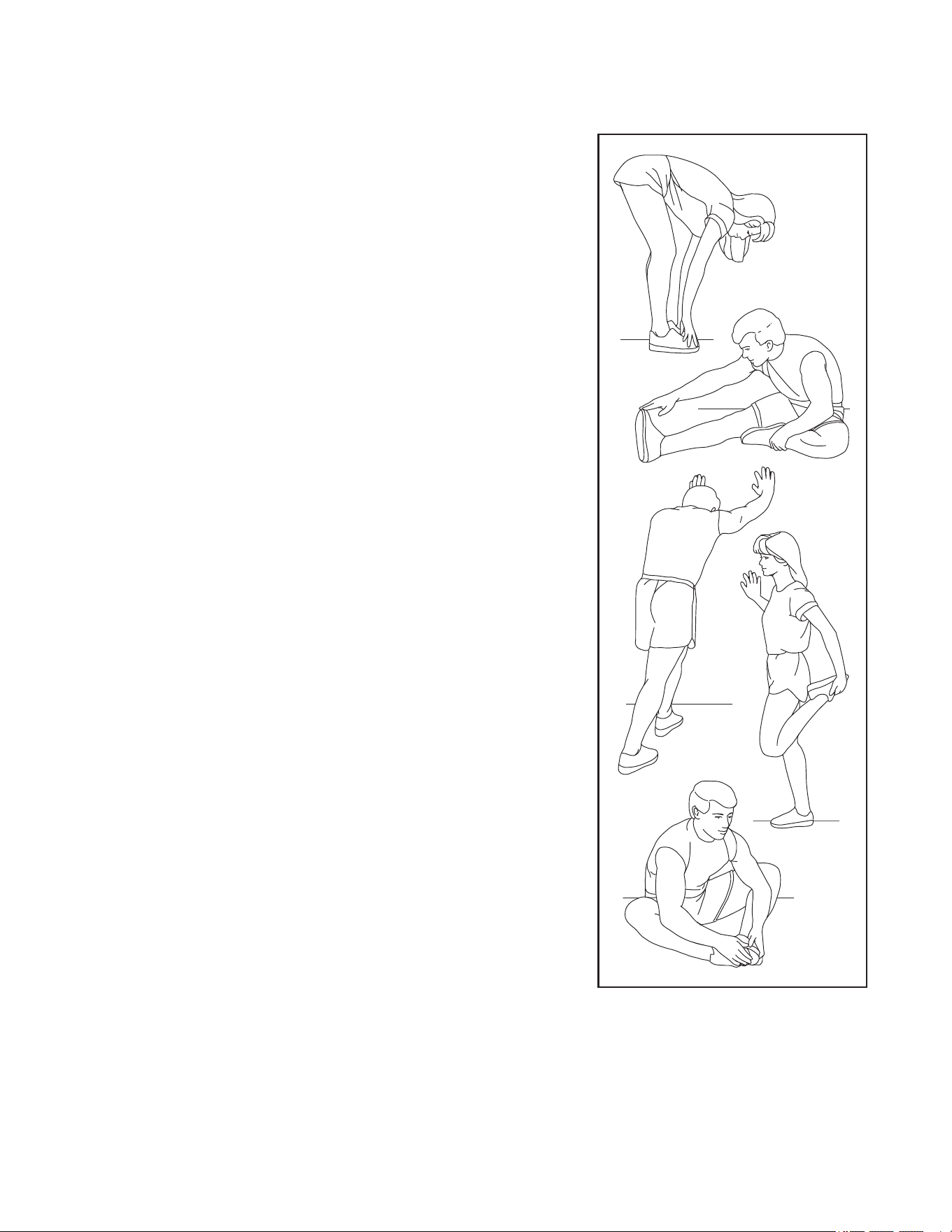

SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch —never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach down
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands
against a wall. Keep your back leg straight and your back foot flat on
the floor. Bend your front leg, lean forward and move your hips toward
the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg.
To cause further stretching of the achilles tendons, bend your back leg
as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one
foot with your other hand. Bring your heel as close to your buttocks as
possible. Hold for 15 counts, then relax. Repeat 3 times for each leg.
Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull
your feet toward your groin area as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.
1
2
3
4
5
28
Key No. Qty. Description Key No. Qty. Description
PART LIST
1 1 Key/Clip
2 8 5/16" x 3/4" Screw
3 2 3/8" x 1 1/4" Screw
4 4 3/8" x 2 3/8" Screw
5 8 3/8" Star Washer
6 8 5/16" Star Washer
7 42 #8 x 3/4" Screw
8 8 #8 x 3/4" Truss Head Screw
9 2 3/8" x 1 1/8" Bolt
10 4 M5 Washer
11 18 #8 Washer
12 4 Base Pad
13 2 Wheel
14 11 #8 x 1/2" Screw
15 6 #8 x 1" Screw
16 2 3/8" Thrust Washer
17 2 #8 Star Washer
18 3 Roller Screw
19 4 3/8" x 1 1/2" Bolt
20 1 3/8" x 1 3/4" Bright Bolt
21 2 Plastic Washer
22 1 M6 Locknut
23 6 3/8" Locknut
24 2 3/8" Bright Locknut
25 1 3/8" x 1 3/4" Bolt
26 14 #8 x 5/8" Screw
27 2 1/4" Screw
28 4 #8 x 7/16" Screw
29 2 #10 x 1" Screw
30 2 Pin Screw
31 1 Ground Wire
32 – (Not Used)
33 2 3/8" x 1 3/4" Screw
34 8 #8 x 1/2" Truss Head Screw
35 2 Cushion
36 4 Small Incline Frame Bushing
37 2 Belt Guide
38 1 Left Foot Rail
39 1 Catch
40 1 Warning Decal
41 1 Motor Belt
42 1 Walking Platform
43 1 Walking Belt
44 1 Right Foot Rail
45 3 Plastic Tie
46 1 Right Tray
47 1 Drive Roller/Pulley
48 1 Frame
49 1 Right Rear Foot
50 1 Left Rear Foot
51 1 Idler Roller
52 1 Motor Hood
53 1 Motor Hood Cover
54 1 Controller
55 1 Controller Bracket
56 1 Incline Frame
57 2 Large Incline Frame Bushing
58 2 Frame Bushing
59 1 Drive Motor
60 1 Incline Motor
61 2 Incline Motor Spacer
62 1 Power Cord
63 1 Power Cord Grommet
64 2 Incline Frame Pin
65 1 Power Switch
66 1 Belly Pan
67 5 Hood Clip
68 2 Square Grommet
69 1 Crossbar
70 2 Handrail Cap
71 1 Storage Latch
72 1 Left Upright
73 1 Right Upright
74 1 Upright Wire
75 1 Oval Grommet
76 1 Left Upright Cover
77 1 Right Upright Cover
78 1 Left Console Cover
79 1 Right Console Cover
80 1 Console Frame
81 1 Upright Base
82 2 Caution Decal
83 1 Console
84 1 Console Base
85 2 Base Cap
86 1 Left Tray
* – User’s Manual
* – Assembly/Adjustment Tool Kit
Model No. PFTL59724.0 R0723A
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
29

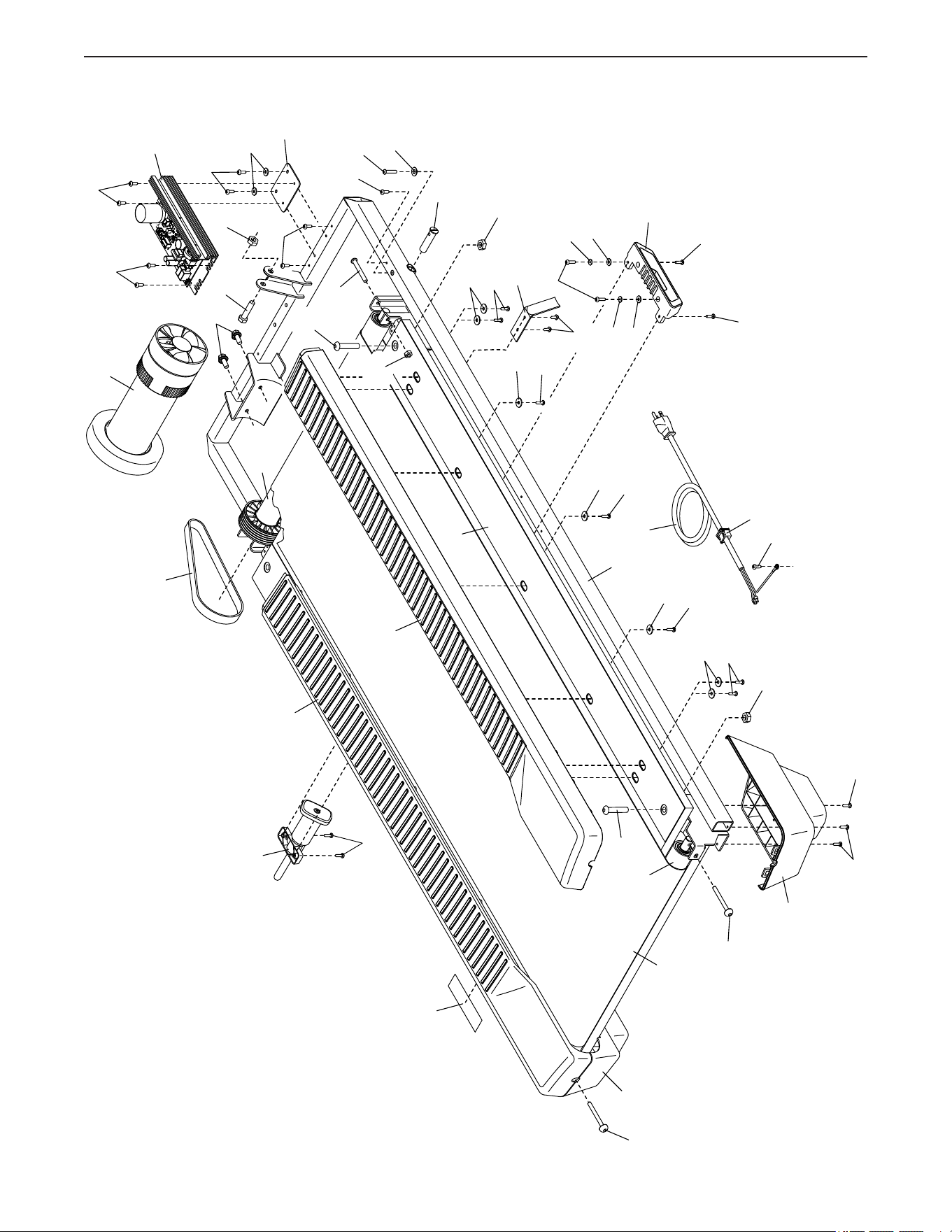

50
23
49
7
7
58
30
34
64
27
18
51
71
40
42
43
54
55
23
20
34
34
17
7
7
59
47
41
48
18
37
28
7
63
34
7
7
35
44
38
29
19
23
10
10
11
11
62
11
26
26
26
26
26
11
11
11
11
18
22
19
EXPLODED DRAWING A
Model No. PFTL59724.0 R0723A
30

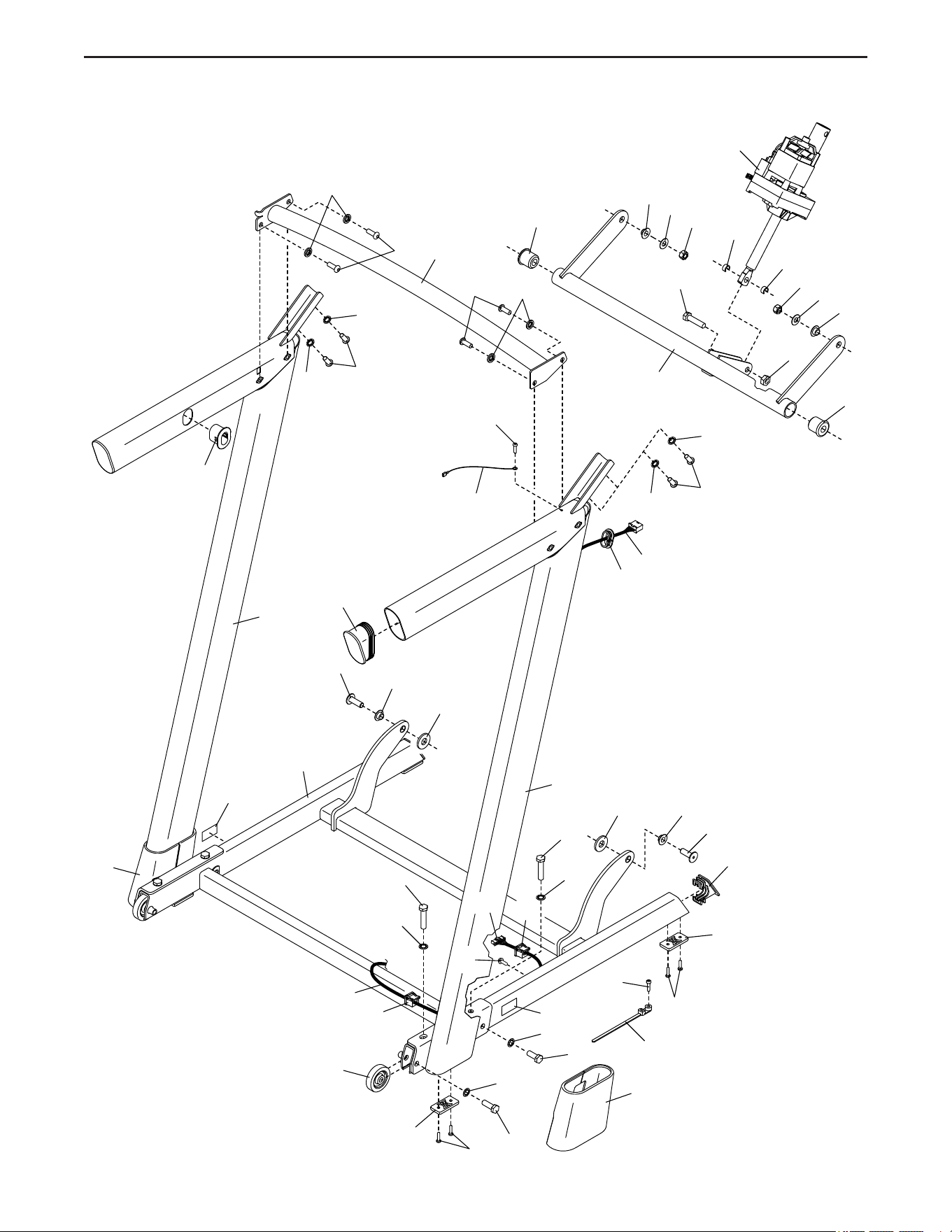

75
70
72
39
6
6
2
74
36
16
16
24
24
36
57
57
36
85
36
21
9
9
21
73
12
12
77
33
13
76
81
82
8
8
3
5
5
5
4
4
6
6
6
2
2
6
2
68
74
74
68
60
23
25
56
61
61
34
69
31
34
82
5
45
7
EXPLODED DRAWING B
Model No. PFTL59724.0 R0723A
31

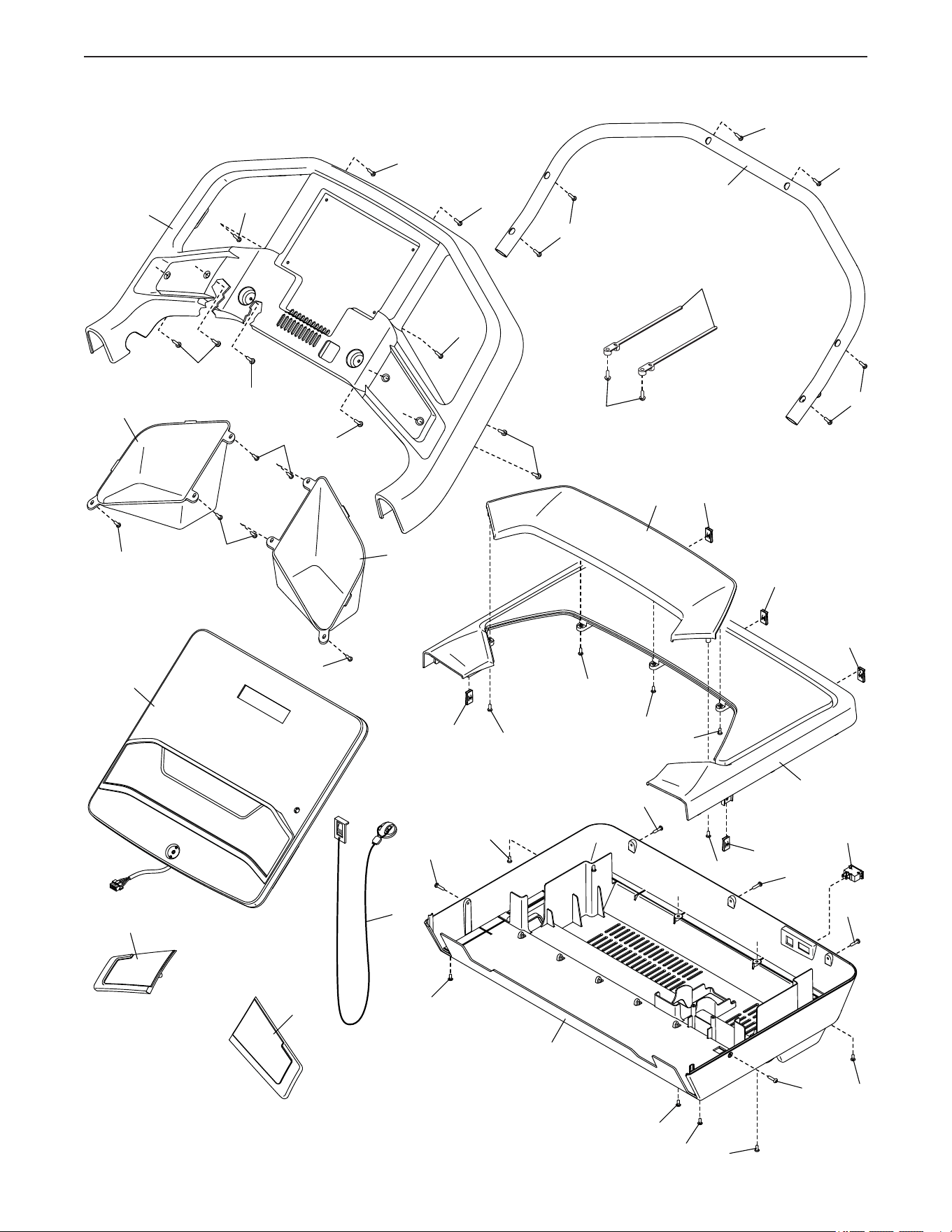

7
7
7
7
7
7
7
7
14
52
53
14
14
14
14
7
7
7
66
67
67
14
14
14
7
7
7
7
7
7
7
14
86
83
84
46
45
67
67
67
7
80
15
15
15
7
1
79
78
65
15
EXPLODED DRAWING C
Model No. PFTL59724.0 R0723A
Part No. 450139 R0723A Printed in Vietnam © 2023 iFIT Inc.
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING
near the end of this manual)
ORDERING REPLACEMENT PARTS
iFIT Health & Fitness Inc. (iFIT) warrants this product to be free from defects in workmanship and mate-
rial, under normal use and service conditions. The frame is warranted for ten (10) years from the date that
you receive this product. Parts and labor are warranted for one (1) year from the date that you receive this
product.
This warranty extends only to the original purchaser (customer) and is not transferrable. iFIT’s obligation
under this warranty is limited to repairing or replacing, at iFIT’s discretion, the product through one of its
authorized service providers. All repairs for which warranty claims are made must be preauthorized by
iFIT. If replacement parts are shipped while the product is under warranty, the customer will be responsible
for a minimal handling charge. For in-home service, the customer may be responsible for a minimal trip
charge. This warranty does not extend to freight damage to the product. This warranty will automatically
be voided by the following conditions: (1) if the product is used as a store display model, (2) if the product
is purchased or transported outside of Canada, (3) if any instruction or warning in this manual is not fol-
lowed, (4) if the product is abused or improperly or abnormally used, (5) if the product is modied to alter
functionality or capability without the written permission of iFIT, or (6) if the product is used for commercial
or rental purposes. No other warranty beyond that specically set forth above is authorized by iFIT.
iFIT is not responsible or liable for the following damages: (1) indirect, special, or consequential damages
arising out of or in connection with the use or performance of the product; (2) damages with respect to any
economic loss, loss of property, loss of revenues or prots, loss of enjoyment or use, or costs of removal
or installation; or (3) other consequential damages of any kind. Some provinces do not allow the exclusion
or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to the
customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or tness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some provinces do not allow limitations on how long an implied warranty lasts. Accordingly,
the above limitation may not apply to the customer. This warranty provides specic legal rights; the cus-
tomer may have other rights that vary from province to province.
For warranty service, please call the telephone number on the front cover of this manual. Please be pre-
pared to provide the model number and serial number of the product (see the front cover of this manual).
iFIT Health & Fitness Inc., 950 de l’Industrie, St. Jérôme, QC J7Y 4B8
LIMITED WARRANTY
IMPORTANT: To protect your tness equipment with an extended service plan, see page 5.
