K12 8000mAh Jump Starter
User Manual
EN
Thank you for choosing Suaoki.
Suaoki K12 is a 3-in-1 device, functioning as a jump starter to boost flat car battery, as a
portable power bank to charge your electronic devices and as a LED flashlight.
Please read the user manual carefully before use and keep it for future reference. Failure
to follow the instructions may result in injury.
Cautions
1. ONLY use it to start a 12V vehicle (up to 2.5L gas engine).
2. DO NOT use the jump starter to start a car when the remaining capacity is less than
50% or when it is still hot.
3. Disconnect the battery clamp from the jump starter and the vehicle immediately after
every starting attempt.
4. DO NOT use the jump starter to start the car in high frequency. Allow at least 30s of
resting time before jump starting a car again.
5. DO NOT charge the product immediately after use or while it is still hot.
6. Please charge the jump starter at least once a month to extend battery life.
7. DO NOT allow the metal teeth of the red clamp to touch the metal teeth of the black
clamp.
8. Please keep this product away from children.
9. Please DO NOT disassemble this product.
10. Please store and charge the jump starter at a dry and well-ventilated place. Keep it
away from corrosive, flammable and explosive materials.
11. DO NOT expose this product to extreme environment where the temperature and
humidity is high.
12. Never burn or incinerate this product because it may explode and generate toxic
fumes and other potentially harmful chemicals.
13. Never insert foreign objects into any input or output ports, because it may cause short
circuit which will damage the battery and even cause fire and personal injury.
14. If you find the jump starter inflates, please stop using it at once.
· 1 ·
EN
· 2 ·
● Jump starting a car
Remember to check the remaining power capacity of the jump starter. When less than
three indicator lights are on, do not use it to jump start a car.
● Charging the jump starter
1. Charge it as a power bank via the USB cable. Insert the USB cable into the adapter.
The adapter is not included in our package.
※ Attention: Charging voltage and current of the adapter can not be over 5V/2A.
2. Insert the adapter into the household socket then insert the other side into the input
port of the jump starter. It is being charged when indicator light flickers.
※ Attention: Don’t charge it immediately after using it to jump start a car or while it is
still hot.
Instructions
● Reading the power indicator
1. Check the remaining power level
Press the power button to activate the lights.
Suaoki K12 has 4 indicator lights in total to display the amount of battery power left.
See the chart below to understand how the No. of lights and battery level corresponds:
2. Check the current charging status
The indicator light will flash one by one when the jump starter is being charged. A solid
light means a fully charged battery level. For example, when 2 lights are illuminated
and a third is blinking, that means the unit is between 50%-75% charged. Once the
third light stops blinking the unit is 75% charged.
※ Note:
It takes around 3.5~8 hours to fully charge the jump starter. This is an
estimated time only. It takes less time to charge with the original adapter (5V/2A) than a
5V 1A rated adapter. Over-charging is best to be avoided as it may raise safety concerns
and shorten battery life.
Please note that the voltage and current of the adapter should never be higher than 5V 2A.
No. of lights
Battery level
1 light
25%
2 lights 4 lights3 lights
50% 75% 100%
· 3 ·
EN
· 3 ·

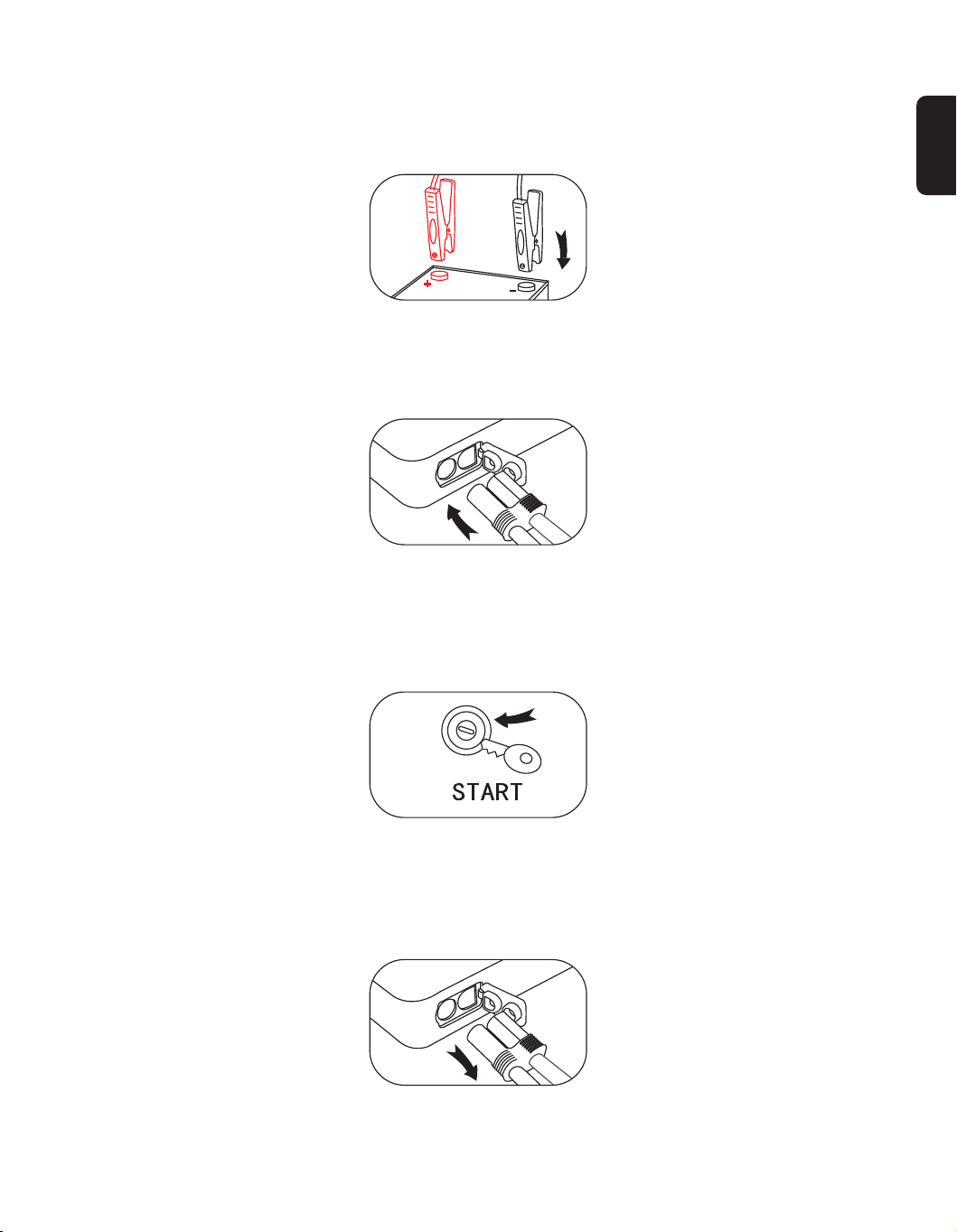

2. Connect the battery clamp with the jump starter.
3. Start the car. If the auto cannot be started, you need to disconnect the battery clamp
from the jump starter and the vehicle. Wait for at least 30 seconds, then repeat the
steps above.
4. Remove the battery clamp from the jump starter and then remove the red and black
clamps from car battery immediately.
1. Connect the red clamp to the positive terminal(+) of the vehicle’s battery and the black
clamp to negative one(-).
EN
Product Parameter
Package Content
· 4 ·
● Charging electronic devices
Choose a suitable charging cable and insert the cable into the USB port of the jump
starter. Then insert the other end of the cable into the input port of the cell phone/tablet,
click the power button then your device is being charged.
● Using the LED flashlight
Press the power button for 3 secs to turn on the flashlight.
There are 3 LED light modes that appear in the following order:
1st click: Strong lighting mode
2nd click: SOS mode
3rd click: Strobe mode
4th click: Off
Battery Capacity: 8000mAh/29.6Wh
Starting Outlet Voltage: 12V
One USB Output: 5V/2.1A
Charging Mode: 5V/2A
Start Current: 150A
Peak Current: 300A
Operating Temperature Range: -20℃ to 60℃ / -4℉ to 140℉
●
1 x Suaoki K12 Jump Starter
●
1 x Pair of Battery Clamps
●
1 x Micro USB Cable
●
1 x User Manual
●
1 x Carry Storage Pouch
※ Note:
1. Step 1 comes before step 2. For safety concern, please do not reverse the order.
2. DO NOT use the jump starter to start the car in high frequency, the time interval
between two starting attempts must be longer than 30s.
3. The jump starter cannot be used as a charger for the car battery.
· 5 ·
Our company provides customers with warranty of 12 months from the date of purchase.
Warranty
For any inquiries or comments concerning our products, please send an email to
[email protected], and we will respond to you as soon as possible.
Contact us
EN
MADE IN CHINA
Web: www.suaoki.com
E-mail: support@suaoki.com
