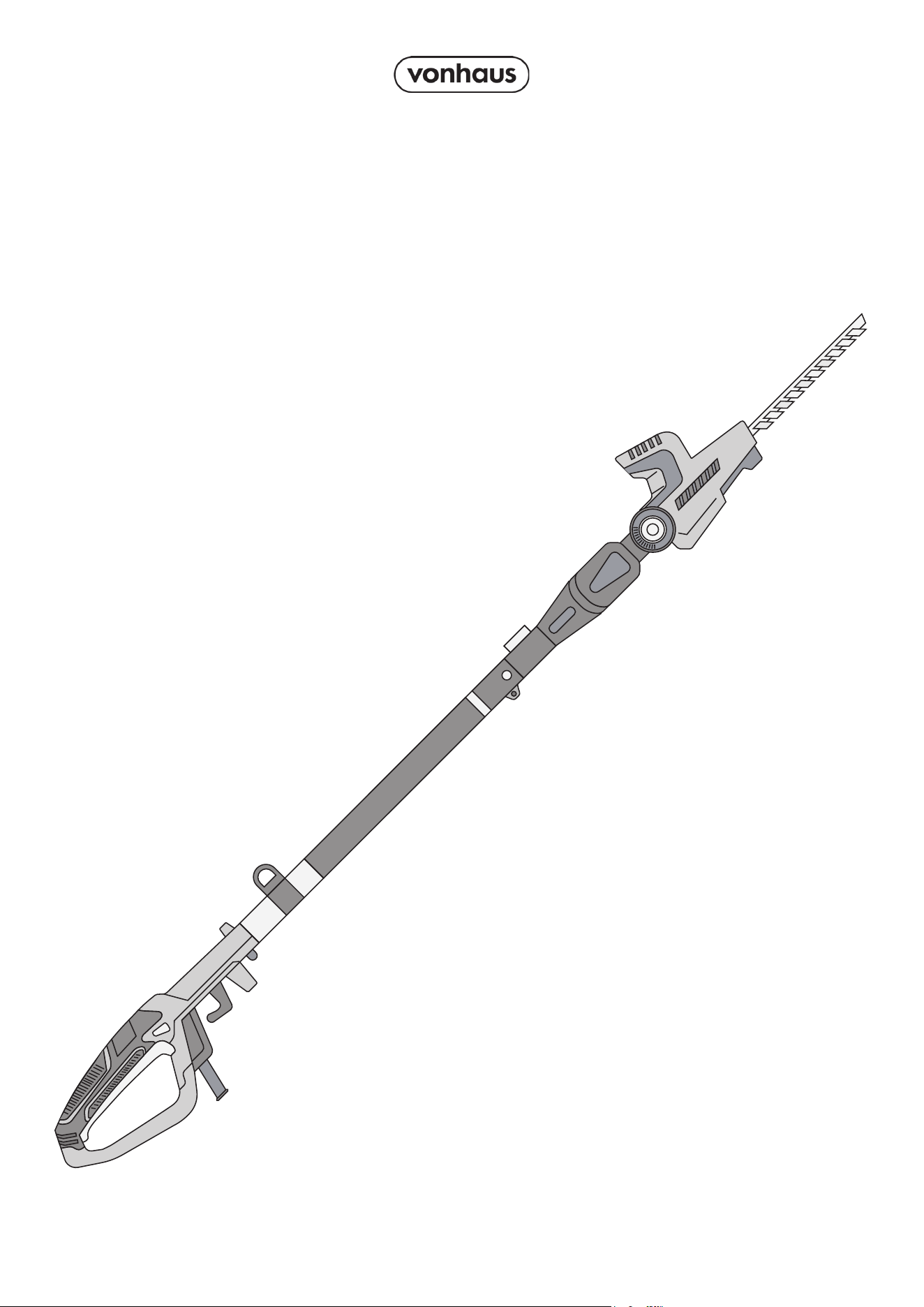

Setup Instructions
Product No. 3519006
POLE HEDGE
TRIMMER
2
Need further help?
suppor[email protected]
See our full range at
www.vonhaus.com
Besoin d’aide supplémentaire ?
suppor[email protected]
Découvrez notre gamme complète sur
www.vonhaus.com
Benötigen Sie weitere Hilfe?
suppor[email protected]
Entdecken Sie unser gesamtes
Sortiment auf
www.vonhaus.com
Necesita más ayuda?
suppor[email protected]
Descubra toda nuestra gama en
www.vonhaus.com
Hai bisogno di ulteriore assistenza?
suppor[email protected]
Scopri tutta la nostra gamma su
www.vonhaus.com
3
Parts & Components
A
B
C
H
L
E
A. Cord Retainer
B. Back Handle
C. Lock-off Button
D. Trigger
E. Handle Grip
F. Telescopic Pole
G. Connecting head for telescopic pole
H. Connecting head for hedge trimmer
I. Angle Adjustment Button
J. Blade
K. Blade Cover
L. Shoulder Strap
F
H
J
K
I
G
D
4
Assembly
1
2
H
5
Operation
Plug the garden tool into a power supply.
1
2
To turn the hedge trimmer ON, push and hold the safety lock
switch (C) located on the handle forward with your thumb, then
squeeze the trigger switch (D) with your fingers. Once the tool is
running, you can release the safety lock switch.
To turn the tool OFF, release the trigger switch (D)
3
C
D
6
Adjusting the Telescoping Pole
1
2
Pull the switch upwards to unlock the Telescopic Pole (F)
Extend only as needed to reach the hedge. Lock the pull by pulling
the switch back down once adjusted.
WARNING: Failure to lock the telescoping lock prop-
erly after adjusting could result in personal injury.
7
Adjusting the Multi-Angle Head
1. Disconnect Power: Unplug the tool.
2. Position the Tool: Place the hedge
trimmer on a flat surface.
3. Adjust Head: Push the pivot button to
set the trimmer head into one of the 10
positions.
WARNING: Keep hands away from the
pivoting head and base to avoid pinch
injuries.
I
I
8
How to Use the Harness
1
Place the large upper loop of the shoulder
strap over your head and let it rest on your
shoulder.
9
How to Use the Harness
2
Take the lower strap portion and wrap it
around your waist, then secure the buckle at
the back until it clicks.
10
How to Use Harness
3
Locate the attachment clip hanging
from the harness and connect it to the
designated mounting point on your
pole hedge trimmer.
WARNING: Ensure all buckles are securely
fastened and the harness fits snugly before
operating the equipment.
11
General Safety
• Read all instructions before use
• Keep work area clean and well-lit
• Wear proper protective equipment: eye
protection, dust mask, non-skid shoes, hard
hat and hearing protection
• Do not use under influence of drugs or
alcohol
• Keep children and bystanders away during
operation
• Store tools safely away from children when
not in use
Electrical Safety
• Use only unmodified plugs that match outlets
• Avoid body contact with grounded surfaces
• Keep tools dry and away from rain/moisture
• Don’t abuse power cords - never carry tool
by cord or yank to disconnect
• Use proper outdoor extension cords when
working outside
• Use RCD (residual current device) protection
in damp conditions
Safe Operation
• Ensure tool is switched off before connecting
power
• Remove adjustment keys/wrenches before
starting
• Maintain stable footing and balance
• Avoid loose clothing and jewelry; tie back
long hair
• Don’t force tools - use correct tool for the job
• Keep tools sharp and well-maintained
• Disconnect power before adjusting or
changing accessories
• Have repairs done by qualified technicians
using identical parts
Warnings
• Keep body parts away from moving blades
• Use blade cover during transport/storage
• Hold only by insulated gripping surfaces
• Keep power cord away from cutting area
• Wear dust mask and hearing protection
• Be aware of electromagnetic field effects on
medical implants
WARNING: Failure to follow safety guidelines
may result in serious injury, electric shock or fire.
Information
12
Application Range
The pole hedge trimmer is designed exclusively
for cutting and trimming hedges, bushes, and
shrubs around your home. Any other usage not
specified in this manual may damage the device
and pose serious risks to users.
This electric hedge trimmer is intended for
adult use only. Adolescents over 16 years may
operate it only under adult supervision. The
trimmer should not be used in rain or humid
conditions.
Users are responsible for any accidents or
damage to themselves, others, or property. The
manufacturer is not liable for damages resulting
from misuse or improper operation.
Operation
WARNING: Do not let familiarity with this
product lead to carelessness. A moment of
inattention can cause serious injury.
WARNING: Always wear safety goggles or
glasses with side shields when operating power
tools. Failure to do so may result in serious eye
injuries from flying objects.
WARNING: Only use attachments or
accessories recommended by the manufacturer.
Unapproved accessories can cause personal
injury.
Cutting Tips
WARNING:
• Always use both hands on the hedge
trimmer. Never hold shrubs with one hand
while operating the trimmer.
• Clear the cutting area of objects that could
entangle the blade.
When using the hedge trimmer, keep the
extension cord behind it—never drape it over
the hedge.
Do not force the trimmer through thick shrubbery;
if blades slow down, reduce your pace. Avoid
cutting stems thicker than 3/4 inch—use a hand
saw for larger stems.
If blades jam, stop the motor, let the blades
stop, and disconnect the plug before removing
the obstruction.
For a level hedge, stretch a string at your desired
height and trim just above it. Shape the hedge
so it’s slightly narrower at the top for a uniform
look.
Wear gloves when handling thorny growth.
Use a sweeping motion for new growth, and a
sawing motion for thicker, older stems.
Information
13
Read the safety information for safe operation
when using the blade. Extreme care is essential
to ensure safe operation. Refer to the Important
Safety Instructions and Specific Safety Rules.
• Hold the Unit Firmly: Always use both
hands—keep your left hand on the telescopic
pole and your right hand on the rear handle.
The unit is designed for cutting in either
direction with a slow, sweeping motion from
side to side.
• Maintain Stability: Stand with your feet
firmly planted for balance. Inspect the area
for hidden objects before starting.
• Electrocution Prevention: Do not operate
within 50 feet of overhead electrical lines.
• Avoid Hazards: Never use the hedge
trimmer near power lines, fencing, posts,
buildings, or other immovable objects.
• Inspect After Impact: If the blade strikes
a hard object, inspect it for damage before
further use. Do not operate if any damage is
detected.
Preparation for Cutting
• Wear Protective Gear: Use non-slip gloves
for a secure grip and protection.
• Maintain a Proper Grip: Ensure your right
hand is firmly gripping the rear handle while
your left hand secures the pole shaft. Your
body should be to the left of the chain line;
never cross your body or arm over the chain
line.
• Avoid Direct Positioning: Never stand
directly under the limb being cut.
• Check Collars: Ensure collars are fully
tightened before operating the equipment
and check their tightness periodically during
use to avoid serious injury.
Limbing and Pruning
This unit is designed for trimming small branches
and limbs up to 16 mm in diameter. For optimal
results, observe the following precautions:
• Plan the Cut: Be aware of the branch’s
fall direction, as it may not always fall as
expected. Never stand directly under the
branch being cut.
• Proper Cutting Angle: Position the unit at
an angle of 60 degrees or less. A higher
angle increases the difficulty of making the
initial cut from the underside of the limb.
• Remove Long Branches Gradually: Cut
lower branches first to give upper branches
more room to fall.
• Work Slowly and Steadily: Keep both
hands on the saw for a firm grip, and
maintain secure footing and balance.
• Safety Distance: Keep the tree between
you and the chain while cutting. Always cut
from the side of the tree opposite the branch
being cut. Do not cut from a ladder—this is
extremely dangerous and should be left to
professionals.
• Flush Cuts: Avoid making flush cuts next
to the main limb or trunk until you have
removed the limb further out to reduce
weight. Following proper cutting procedures
helps prevent stripping the bark from the
main limb.
• Limit Use: Do not use the pole chain saw for
felling or bucking. To prevent electrocution,
maintain at least 15 meters away from
overhead electrical lines, and keep
bystanders at least 15 meters away.
Information
14
Maintenance and Servicing
WARNING: When servicing, use only identical
replacement parts. Using any other parts may
create hazards or cause product damage.
WARNING: Always wear safety goggles
or glasses with side shields during operation
or when blowing dust. If working in dusty
conditions, also wear a dust mask.
WARNING: Before inspecting, cleaning, or
servicing the unit, stop the motor, wait for all
moving parts to cease, and disconnect from the
power supply. Failure to follow these instructions
can result in serious personal injury or property
damage.
General Maintenance
Cleaning Precautions: Avoid using solvents
on plastic parts, as they can cause damage.
Use clean cloths to remove dirt, dust, oil, and
grease.
WARNING:
• Never allow brake fluids, gasoline, or other
petroleum-based products to contact plastic
parts. Chemicals can weaken or destroy
plastic, leading to serious personal injury.
• All other maintenance tasks, beyond the
maintenance instructions in the manual,
should be performed by qualified personnel.
Storing the Product
• Clean the Unit: Remove all foreign materials
from the product. Store the unit indoors in a
dry, well-ventilated area that is out of reach
of children. Keep it away from corrosive
agents like garden chemicals and de-icing
salts.
• Use the blade cover: Always attach the
scabbard to the saw bar when transporting
or storing the pole hedge trimmer. Carefully
slide the cover over the blade, holding it at
one end and in the center, to avoid the sharp
blade.
NOTE: The blade is very sharp. Always wear
protective gloves when handling the blade.
Trouble Shooting
Why is my pole trimmer vibrating
excessively?
Inspect the blades for damage or debris and
ensure they are properly attached.
Why is my pole trimmer not cutting
properly?
Check if the blades are dull or if there is an
obstruction.
Why is my pole trimmer making strange
noises?
Check for loose parts or debris caught in the
blades.
Information
Grass Sweeper No. 350036115
Usage & Safety
Maintain a safe distance
from bystanders
Do not use in
wet conditions
Protect your ears
Protect your eyes
Wear suitable footwear
Protect your hands
Protective clothing
must be worn
Beware of
kickback
Sharp edges
Potential finger
trap points
16
Legal
DISPOSAL INFORMATION
Please recycle where facilities exist. Check with
your local authority for recycling advice.
CUSTOMER SERVICE
If you are having difficulty using this product
and require support, please contact support@
vonhaus.com
WARRANTY
To register your product and find out if you
qualify for a free extended warranty please go
to www.vonhaus.com/warranty.
Please retain a proof of purchase receipt or
statement as proof of the purchase date.
The warranty only applies if the product is used
solely in the manner indicated in the warnings
page of this manual, and all other instructions
have been followed accurately.
Any abuse of the product or the manner in which
it is used will invalidate the warranty.
RETURNS
Returned goods will not be accepted unless
re-packaged in its original packaging and
accompanied by a relevant and completed
returns form. This does not affect your statutory
rights.
No rights are given under this warranty to a
person acquiring the appliance second-hand
or for commercial or communal use.
COPYRIGHT
All material in this instruction manual are
copyrighted by DOMU Brands.
Any unauthorised use may violate worldwide
copyright, trademark, and other laws.
THANK YOU
Thank you for purchasing your product/
appliance.
Should you require assistance with your
purchase, please contact us at
suppor[email protected]
VonHaus is a registered trademark of DOMU
Brands Ltd.
Made in China for DOMU Brands.
Unit 30, Stakehill Industrial Estate,
Middleton, Manchester, M24 2RW
AUTHORISED REPRESENTATIVE
Authorised Representative Service
77 Camden Street Lower
Dublin, D02 XE80, Ireland
Product No. 3519006
