Parts ManualParts ManualParts ManualParts Manual
Mfg. No: 38E347-0001-B1
Copyright © Briggs & Stratton. All Rights reserved
04-Sep-2025
Table Of ContentsTable Of ContentsTable Of ContentsTable Of Contents
Model ComponentsModel ComponentsModel ComponentsModel Components PagePagePagePage
Air Guides, Back Plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Alternator, Regulator, Electric Starter, Armature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Crankcase Cover, Camshaft, Oil Filter Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cylinder Heads, Valve Covers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cylinder, Crankshaft, Piston/Rings/Connecting Rods. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Engine/Valve Gasket Sets, Power Source Harness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Flywheel, Blower Housing, Rewind Starter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fuel Pump, Fuel Module, Fuel Hoses, Fuel Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Intake Manifold, Harnesses, Throttle Body. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Replacement Engine - US & Canada. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Model 29, 30, 35 & 38 Engine Accessories Catalog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Maintenance Kits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Lubrication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Starter Motor Side Outlet Mufflers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Oil Filter Side Outlet Mufflers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Oil Filter Side Outlet Manifolds. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Starter Motor Side Outlet Manifolds. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Mufflers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Center Outlet Mufflers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Muffler Guards and Shields. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Spark Arrestors and Deflectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Muffler Mounting Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Flywheel and Air Intake Guards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
PTO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Electrical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Speed Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
3 04-Sep-2025
Air Guides, Back PlateAir Guides, Back PlateAir Guides, Back PlateAir Guides, Back Plate
Mfg. No: 38E347-0001-B1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
4 04-Sep-2025
Air Guides, Back PlateAir Guides, Back PlateAir Guides, Back PlateAir Guides, Back Plate

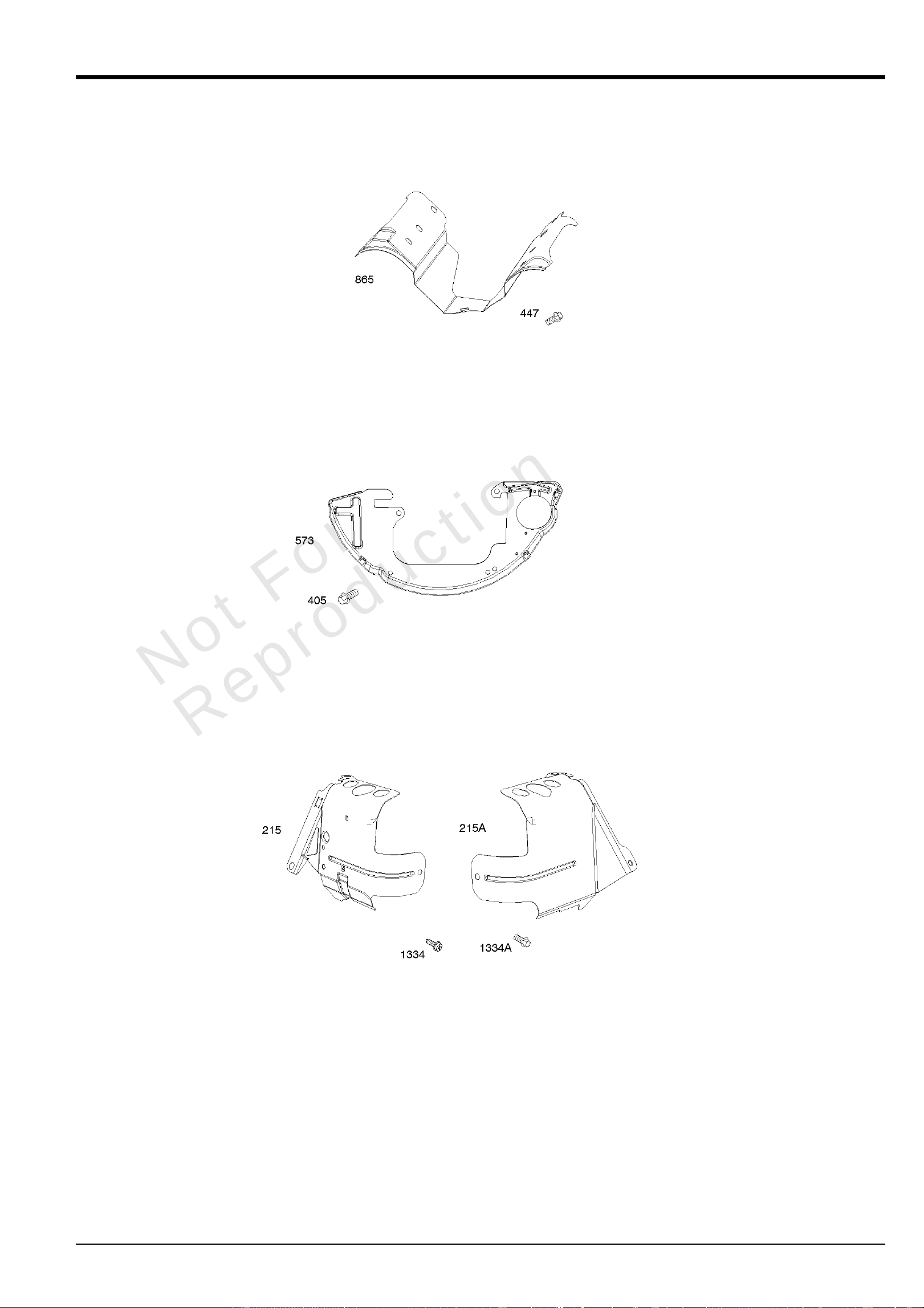

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
215 841183 GUIDE, Air
-(Cylinder 1)
215A 841182 GUIDE, Air
-(Cylinder 2)
405 807163 SCREW
-(Back Plate)
447 841233 SCREW
-(Air Guide Cover) (M6x10mm)
573 841314 PLATE, Back
865 843768 COVER, Air Guide
-(Valley)
1334 841233 SCREW
-(Air Guide) (M6x10mm)
1334A 692067 SCREW
-(Air Guide) (M6x14mm)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
5 04-Sep-2025

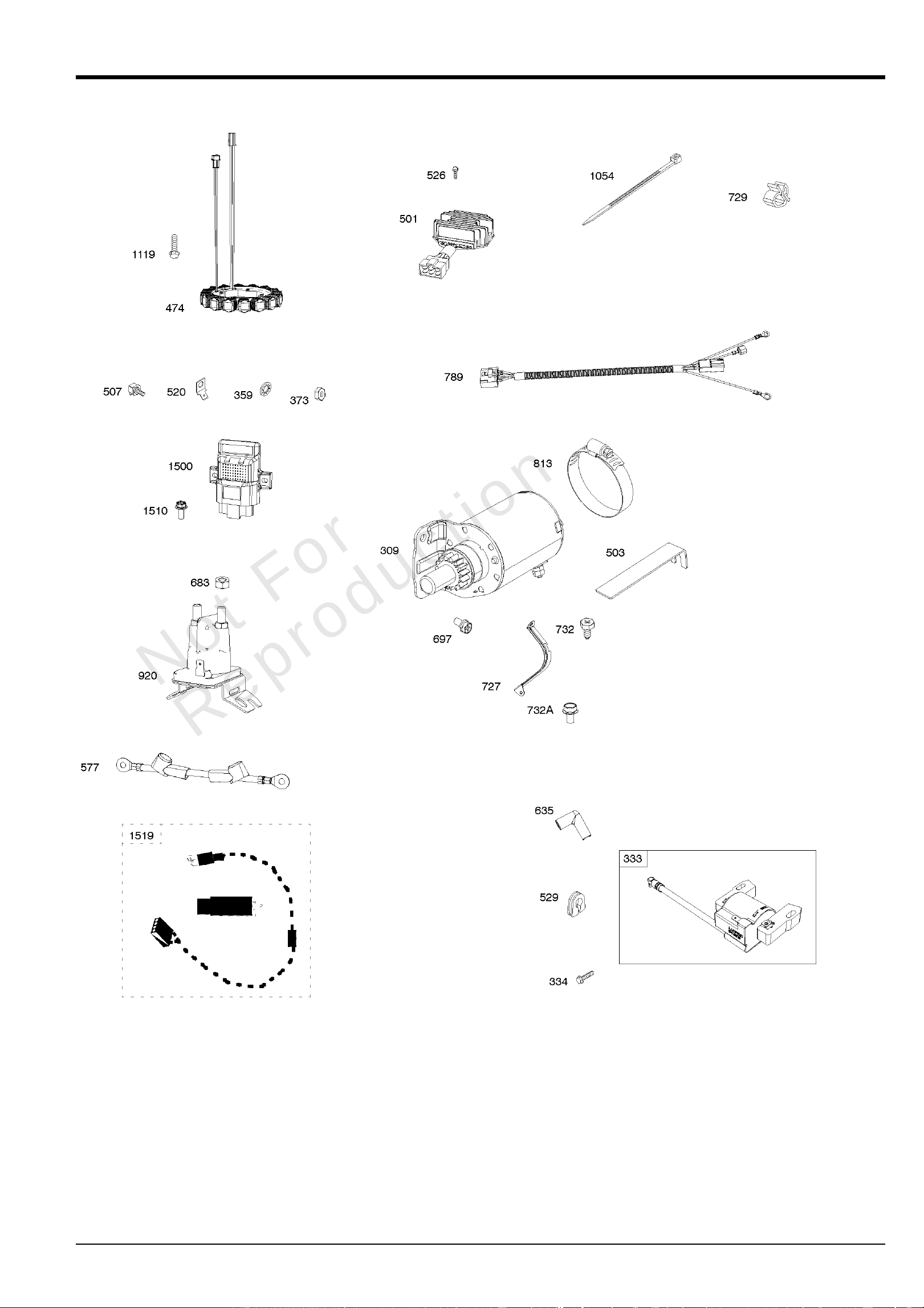

Alternator, Regulator, Electric Starter, ArmatureAlternator, Regulator, Electric Starter, ArmatureAlternator, Regulator, Electric Starter, ArmatureAlternator, Regulator, Electric Starter, Armature
Mfg. No: 38E347-0001-B1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
6 04-Sep-2025
Alternator, Regulator, Electric Starter, ArmatureAlternator, Regulator, Electric Starter, ArmatureAlternator, Regulator, Electric Starter, ArmatureAlternator, Regulator, Electric Starter, Armature
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
309 844717 MOTOR, Starter
333 845606 ARMATURE, Magneto
-(Cylinders #1 and #2)
334 692066 SCREW
-(Magneto Armature)
359 691077 WASHER
-(Ground Terminal)
373 845823 NUT
-(Ground Terminal)
474 847135 ALTERNATOR
-(7/16 AMP)
501 846929 REGULATOR
-(16 Amp)
503 845016 STRAP, Starter
507 691972 INSULATOR
520 691084 TERMINAL, Ground
526 691547 SCREW
-(Regulator)
529 690744 GROMMET
-(Magneto Armature Wires)
577 690795 CABLE, Starter
635 692076 BOOT, Spark Plug
683 691029 NUT
-(Starter Solenoid)
697 691902 SCREW
-(Starter Motor) (Drive Cap)
727 841313 COVER, Starter Drive
729 690586 CLIP, Wire
732 690688 SCREW
-(Starter Drive Cover) (Self-Tap) (8mm)
732A 841233 SCREW
-(Starter Drive Cover) (M6x10mm)
789 847023 HARNESS, Wiring
813 690635 CLAMP
920 846820 SOLENOID, Starter
1054 280275 TIE, Cable
1119 691552 SCREW
-(Alternator)
1500 847532 MODULE, Electronic Control
-(Not Programmed) (Not Programmed)
1510 807084 SCREW
-(Electronic Control Module)
1519 ----- Cable/Software-Diagnostic
-(Not Available At This Printing)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
7 04-Sep-2025
Crankcase Cover, Camshaft, Oil Filter AdapterCrankcase Cover, Camshaft, Oil Filter AdapterCrankcase Cover, Camshaft, Oil Filter AdapterCrankcase Cover, Camshaft, Oil Filter Adapter
Mfg. No: 38E347-0001-B1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
8 04-Sep-2025
Crankcase Cover, Camshaft, Oil Filter AdapterCrankcase Cover, Camshaft, Oil Filter AdapterCrankcase Cover, Camshaft, Oil Filter AdapterCrankcase Cover, Camshaft, Oil Filter Adapter

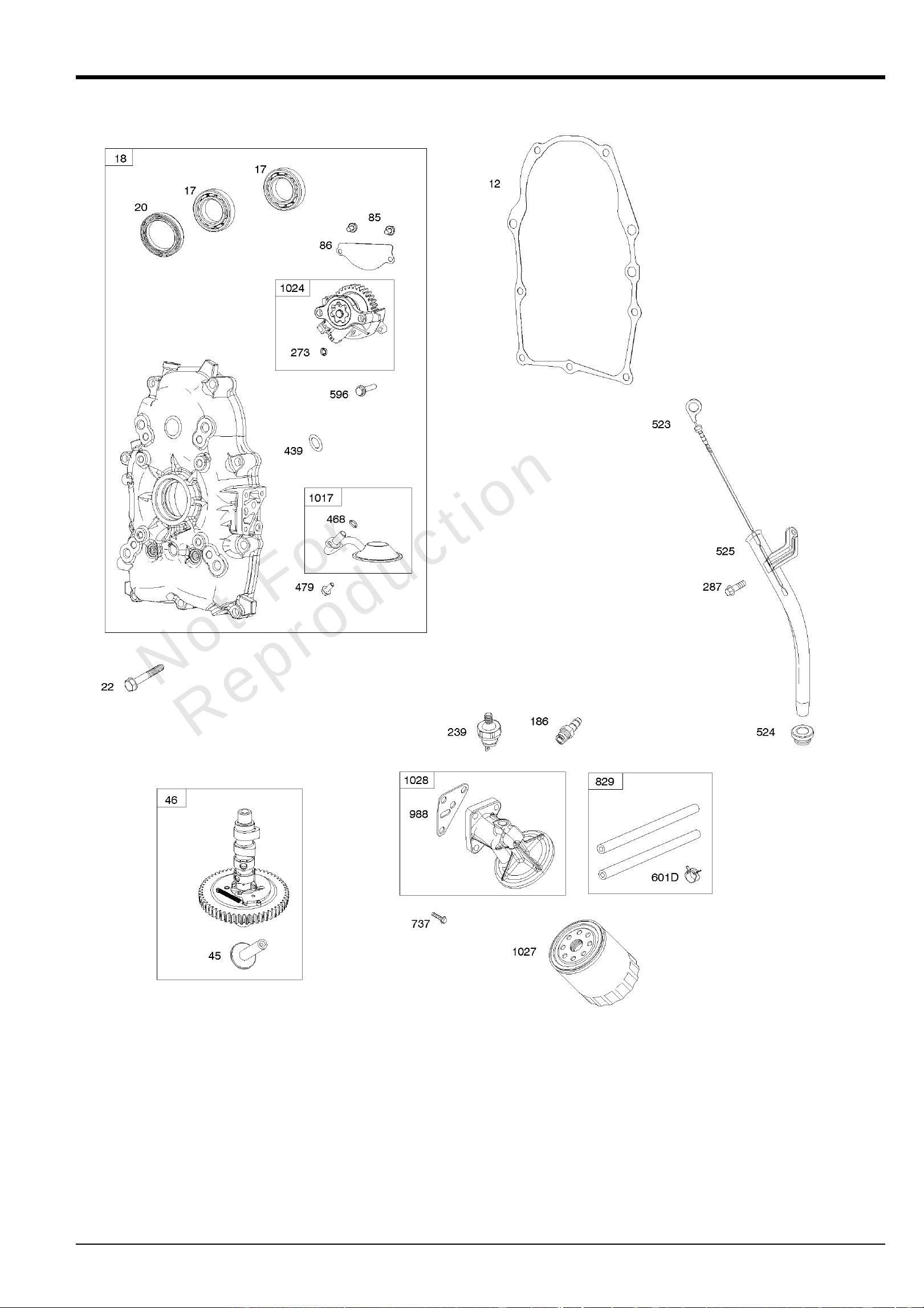

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
12 846487 GASKET, Crankcase
17 843827 BEARING, Ball
-(2 Required)
18 844734 COVER, Crankcase
20 805049S SEAL, Oil
-(PTO Side)
22 807362 SCREW
-(Crankcase Cover/Sump)
45 843379 TAPPET, Valve
46 845650 CAMSHAFT
85 841233 SCREW
-(Gear Cover)
86 690745 COVER, Gear
186 693184 CONNECTOR, Hose
-(Oil Filter Adapter)
239 690233 SWITCH, Oil Pressure
273 690681 SEAL, O-Ring
-(Oil Pump)
287 806660 SCREW
-(Dipstick Tube)
439 692154 O-RING, Oil Gallery
-(Crankcase Cover/Sump or Cylinder Assembly)
468 690690 SEAL, O-Ring
-(Oil Pump Screen)
479 807084 SCREW
-(Oil Pump Screen)
523 693175 DIPSTICK
524 693172 SEAL, O-Ring
-(Dipstick Tube)
525 693174 TUBE, Dipstick
596 691492 SCREW
-(Oil Pump)
601D 841597 CLAMP, Hose
-(Oil Cooler Hose)
737 690679 SCREW
-(Oil Filter Adapter) (M6x21mm)
829 841999 HOSE/CLAMP ASSEMBLY
-(Cut To Required Length)
988 692063 GASKET, Oil Adapter
1017 690900 SCREEN, Oil Pump
1024 843825 PUMP, Oil
1027 842921 FILTER, Oil
1028 843898 ADAPTER, Oil Filter
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
9 04-Sep-2025

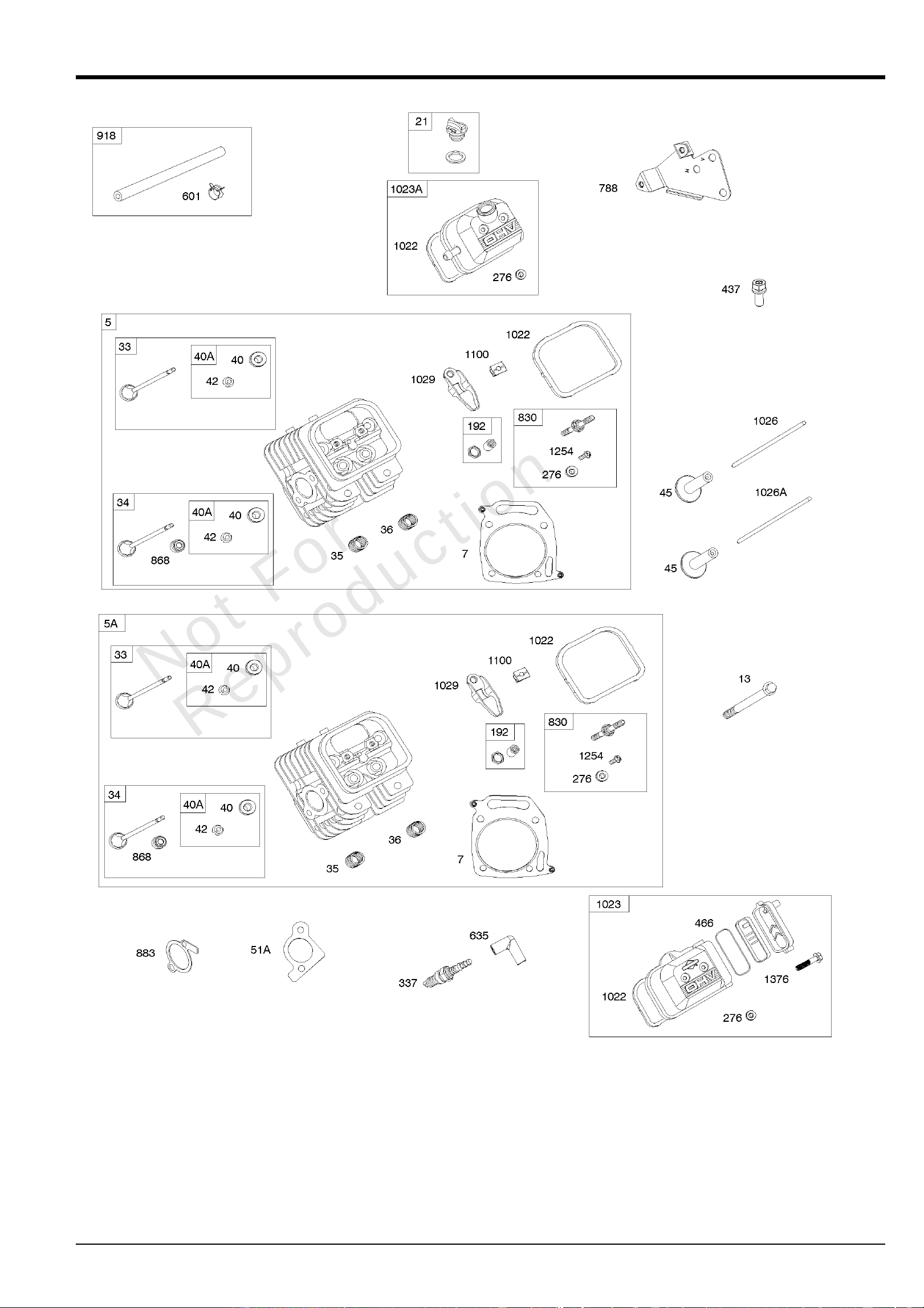

Cylinder Heads, Valve CoversCylinder Heads, Valve CoversCylinder Heads, Valve CoversCylinder Heads, Valve Covers
Mfg. No: 38E347-0001-B1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
10 04-Sep-2025
Cylinder Heads, Valve CoversCylinder Heads, Valve CoversCylinder Heads, Valve CoversCylinder Heads, Valve Covers
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
5 845713 HEAD, Cylinder
-(Cylinder 1)
5A 845714 HEAD, Cylinder
-(Cylinder 2)
7 842622 GASKET, Cylinder Head
13 842618 SCREW
-(Cylinder Head)
21 809500 CAP, Oil Fill
33 806419 VALVE, Exhaust
34 845712 VALVE, Intake
35 692084 SPRING, Valve
-(Intake)
36 692084 SPRING, Valve
-(Exhaust)
40 692058 RETAINER, Valve
40A 844895 RETAINER, Valve
42 807683 KEEPER, Valve
45 843379 TAPPET, Valve
51A 806418 GASKET, Intake
-(Intake Manifold to Cylinder Head)
192 807623 ADJUSTER. Rocker Arm
276 807085 WASHER, Sealing
-(Rocker Cover)
337 792015 PLUG, Spark
437 691902 SCREW
-(Exhaust Manifold) (M8x20mm)
466 806466 SEAL, O-Ring
-(Breather Assembly)
601 791850 CLAMP, Hose
-(Green)
635 692076 BOOT, Spark Plug
788 691559 BRACKET, Fuel Pump
830 809157 STUD, Rocker Arm
-(Rocker Arm)
868 691963 SEAL, Valve
-(Intake Valve)
883 806425 GASKET, Exhaust
918 791880 HOSE, Vacuum
-(Cut To Required Length)
1022 806039S GASKET, Rocker Cover
1023 843750 COVER, Rocker
-(Cylinder 2)
1023A 690910 COVER, Rocker
1026 691836 ROD, Push
-(Intake)(Steel)
1026A 691758 ROD, Push
-(Exhaust)(Aluminum)
1029 807323 ARM, Rocker
1100 791959 PIVOT, Rocker Arm
1254 807084 SCREW
-(Rocker Arm Stud) (M6x14mm)
1376 806421 SCREW
-(Breather Reed Cover) (M5x25mm)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
11 04-Sep-2025

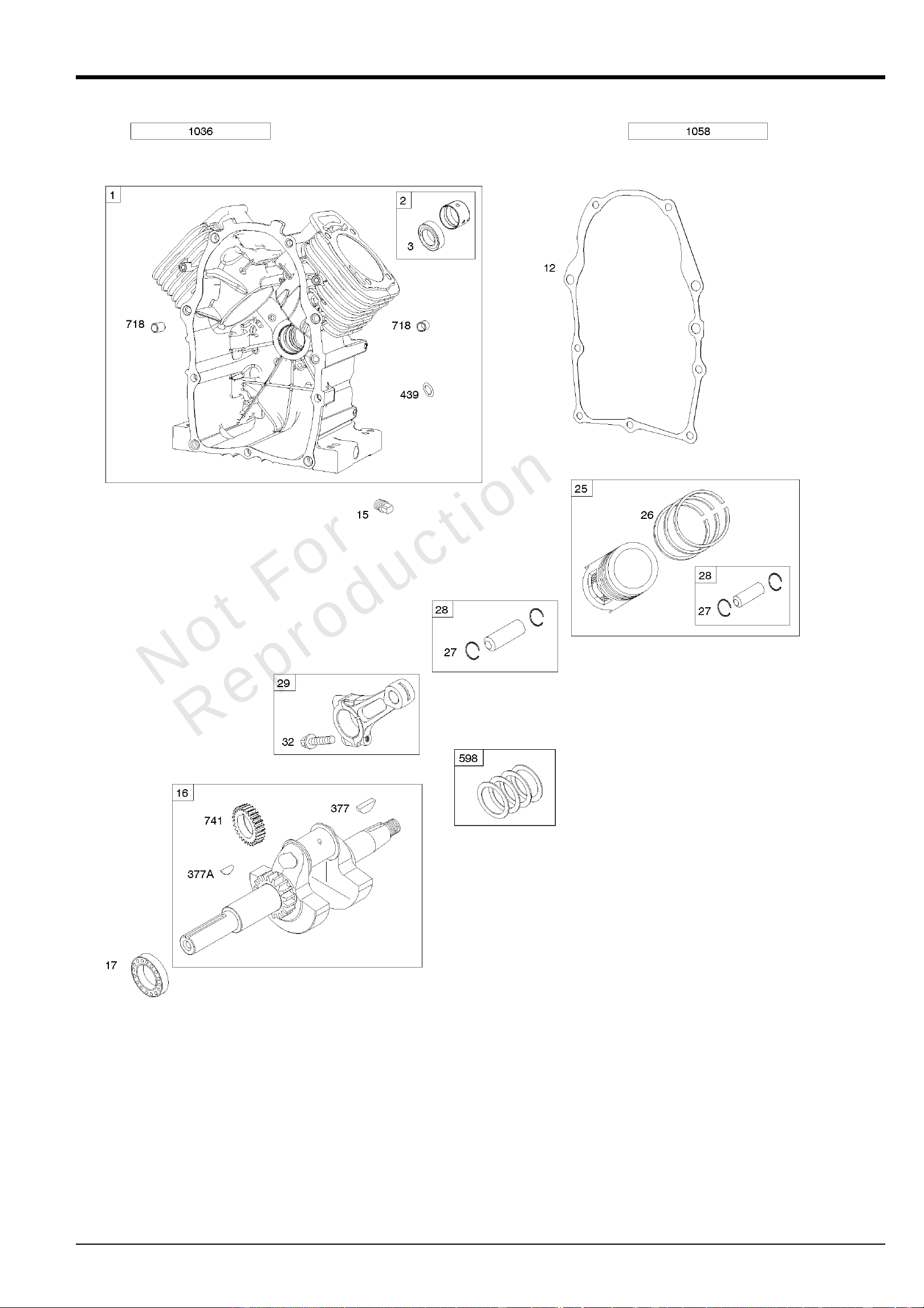

Cylinder, Crankshaft, Piston/Rings/Connecting RodsCylinder, Crankshaft, Piston/Rings/Connecting RodsCylinder, Crankshaft, Piston/Rings/Connecting RodsCylinder, Crankshaft, Piston/Rings/Connecting Rods
Mfg. No: 38E347-0001-B1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
12 04-Sep-2025
Cylinder, Crankshaft, Piston/Rings/Connecting RodsCylinder, Crankshaft, Piston/Rings/Connecting RodsCylinder, Crankshaft, Piston/Rings/Connecting RodsCylinder, Crankshaft, Piston/Rings/Connecting Rods
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
1 842603 CYLINDER ASSEMBLY
2 808534 KIT, Bushing/Seal
-(Magneto Side)
3 805101S SEAL, Oil
-(Magneto Side)
12 846487 GASKET, Crankcase
15 690946 PLUG, Oil Drain
16 843810 CRANKSHAFT
17 843827 BEARING, Ball
-(2 Required)
25 844877 PISTON ASSEMBLY
-(.020 Oversize)
25 843805 PISTON ASSEMBLY
-(Standard)
26 843824 SET, Ring
-(.020 Oversize)
26 843806 SET, Ring
-(Standard)
27 690683 LOCK, Piston Pin
28 844023 PIN, Piston
29 807900S ROD, Connecting
32 690698 SCREW
-(Connecting Rod)
377 808095 KEY, Flywheel
377A 691639 KEY, Woodruff
439 692154 O-RING, Oil Gallery
-(Crankcase Cover/Sump or Cylinder Assembly)
598 807625 SHIM, End Play
-(Crankshaft or Camshaft Bearing)
718 806469 PIN, Locating
-(Cylinder)
741 846085 GEAR, Timing
1036 ----- Label-Emissions
-(Available From A Briggs & Stratton Authorized Dealer)
1058 80006758WST MANUAL, Operator's
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
13 04-Sep-2025
Engine/Valve Gasket Sets, Power Source HarnessEngine/Valve Gasket Sets, Power Source HarnessEngine/Valve Gasket Sets, Power Source HarnessEngine/Valve Gasket Sets, Power Source Harness
Mfg. No: 38E347-0001-B1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
14 04-Sep-2025
Engine/Valve Gasket Sets, Power Source HarnessEngine/Valve Gasket Sets, Power Source HarnessEngine/Valve Gasket Sets, Power Source HarnessEngine/Valve Gasket Sets, Power Source Harness
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
3 805101S SEAL, Oil
-(Magneto Side)
7 842622 GASKET, Cylinder Head
12 846487 GASKET, Crankcase
20 805049S SEAL, Oil
-(PTO Side)
51A 806418 GASKET, Intake
-(Intake Manifold to Cylinder Head)
163 692081 GASKET, Air Cleaner
-(Air Cleaner)
273 690681 SEAL, O-Ring
-(Oil Pump)
276 807085 WASHER, Sealing
-(Rocker Cover)

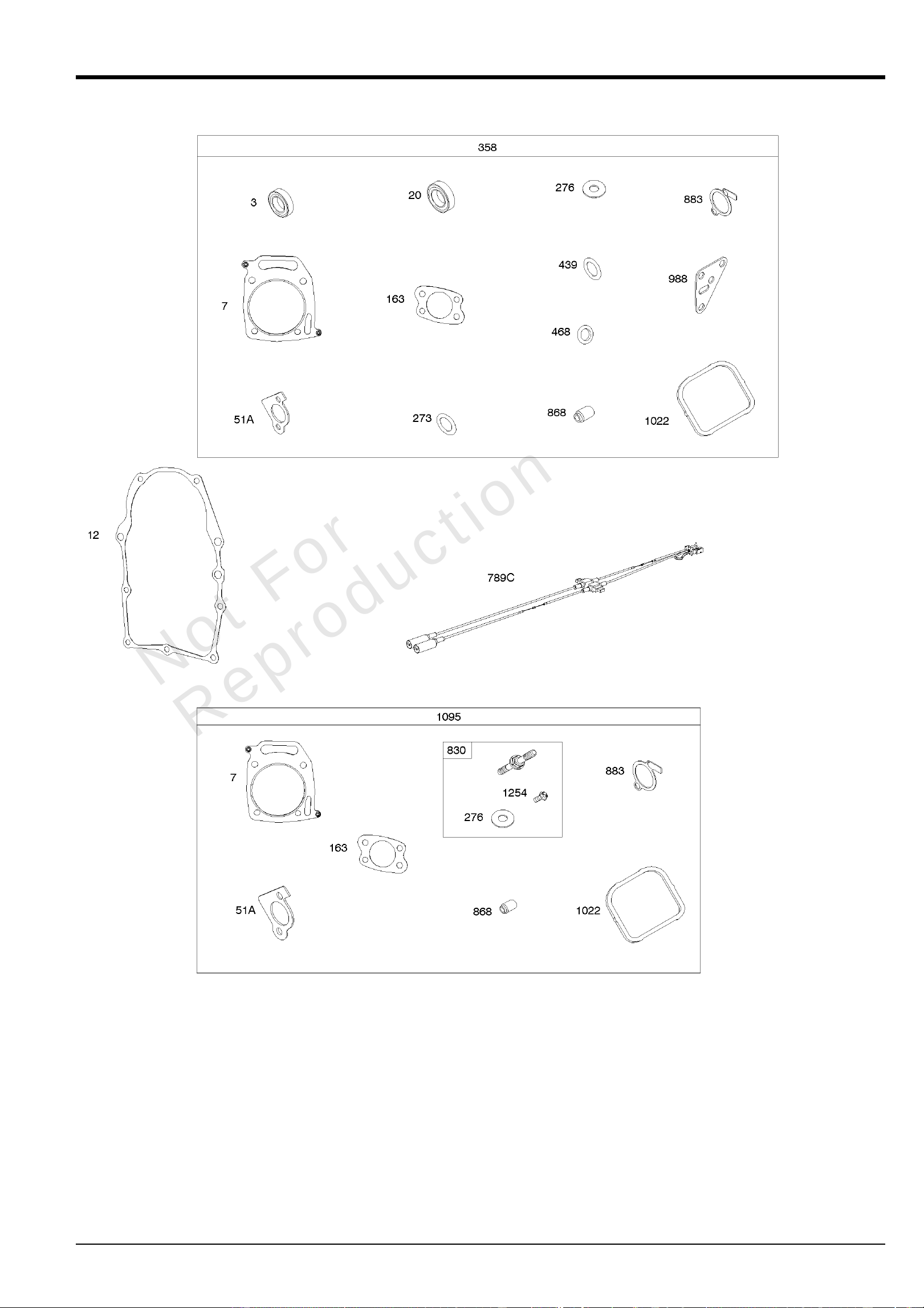

358 842658 GASKET SET, Engine
-(Some Components Used Within This Service Kit Are Not Used On
ThisEngine)
439 692154 O-RING, Oil Gallery
-(Crankcase Cover/Sump or Cylinder Assembly)
468 690690 SEAL, O-Ring
-(Oil Pump Screen)
789C 847252 HARNESS, Wiring
-(Power Source Cord)
830 809157 STUD, Rocker Arm
-(Rocker Arm)
868 691963 SEAL, Valve
-(Intake Valve)
883 806425 GASKET, Exhaust
988 692063 GASKET, Oil Adapter
1022 806039S GASKET, Rocker Cover
1095 842662 GASKET SET, Valve
-(Some Components Used Within This Service Kit Are Not Used On
ThisEngine)
1254 807084 SCREW
-(Rocker Arm Stud) (M6x14mm)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
15 04-Sep-2025

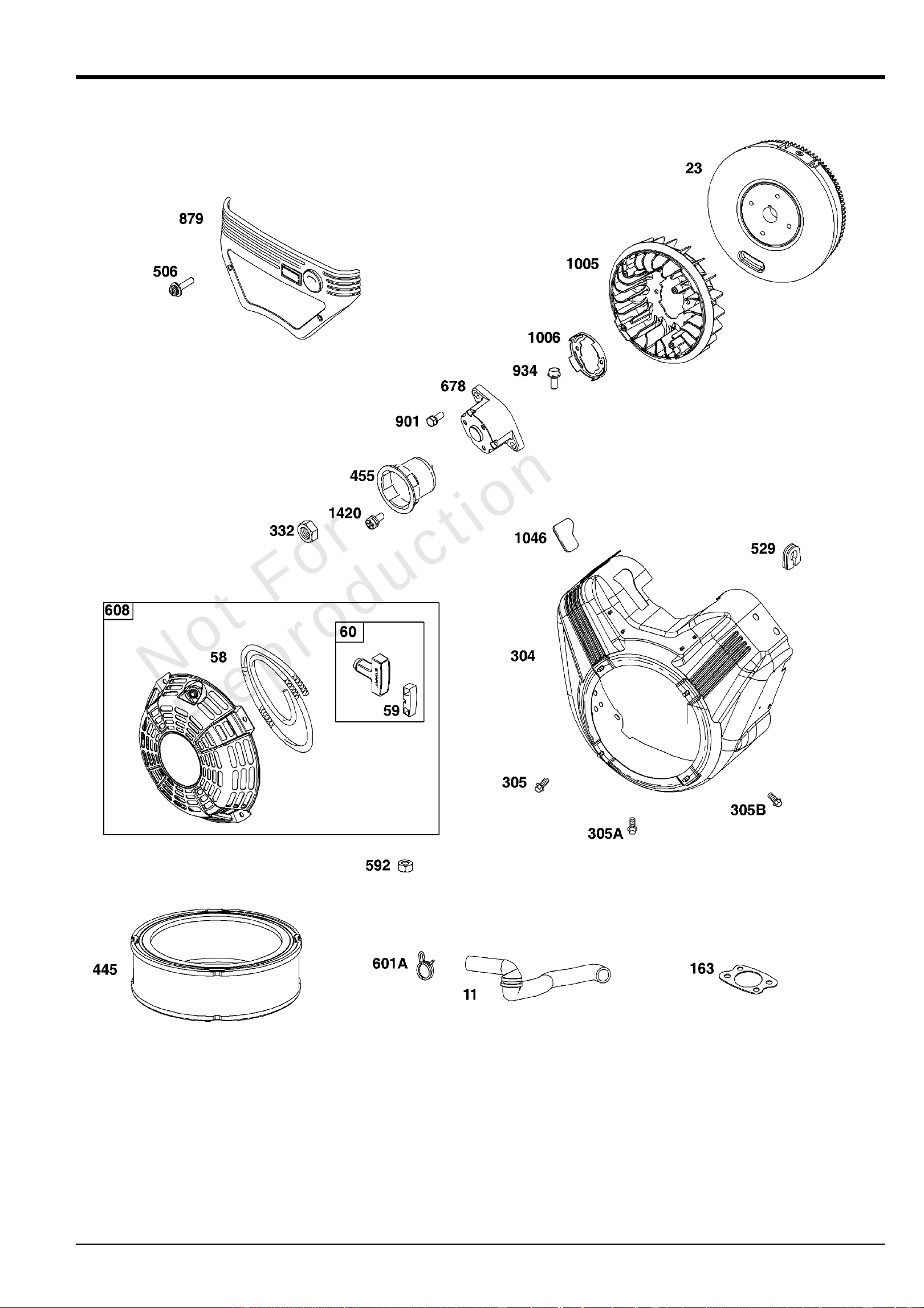

Flywheel, Blower Housing, Rewind StarterFlywheel, Blower Housing, Rewind StarterFlywheel, Blower Housing, Rewind StarterFlywheel, Blower Housing, Rewind Starter
Mfg. No: 38E347-0001-B1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
16 04-Sep-2025
Flywheel, Blower Housing, Rewind StarterFlywheel, Blower Housing, Rewind StarterFlywheel, Blower Housing, Rewind StarterFlywheel, Blower Housing, Rewind Starter
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
11 844976 TUBE, Breather
23 845489 FLYWHEEL
58 66574 ROPE, Starter
-(Cut To Required Length)
59 805957 INSERT, Grip
60 808167 GRIP, Starter Rope
163 692081 GASKET, Air Cleaner
-(Air Cleaner)
304 84003968 HOUSING, Blower
305 692056 SCREW
-(Blower Housing) (M8x14mm)
305A 692062 SCREW
-(Blower Housing) (M8x18mm)
305B 841233 SCREW
-(Blower Housing) (M6x10mm)
332 690887 NUT
-(Flywheel)
445 394018S FILTER, A/C Cartridge
455 841794 CUP, Flywheel
506 807120 SCREW
-(Carburetor/EFI Cover) (Cover, Carburetor)
529 690744 GROMMET
-(Magneto Armature Wires)
592 690939 NUT
-(Rewind Starter)
601A 691145 CLAMP, Hose
-(Breather Hose)
608 841729 STARTER, Rewind
678 841730 SPACER
-(Rewind)
879 841607 COVER, Carburetor/EFI
901 846234 SCREW
-(Rewind Spacer)
934 692062 SCREW
-(Fan Retainer) (M8x18mm)
1005 841439 FAN, Flywheel
1006 690452 RETAINER, Fan
1046 692082 PLUG, Blower Housing
1420 841735 SCREW
-(Flywheel Cup to Rewind Spacer)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
17 04-Sep-2025
Fuel Pump, Fuel Module, Fuel Hoses, Fuel FilterFuel Pump, Fuel Module, Fuel Hoses, Fuel FilterFuel Pump, Fuel Module, Fuel Hoses, Fuel FilterFuel Pump, Fuel Module, Fuel Hoses, Fuel Filter
Mfg. No: 38E347-0001-B1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
18 04-Sep-2025
Fuel Pump, Fuel Module, Fuel Hoses, Fuel FilterFuel Pump, Fuel Module, Fuel Hoses, Fuel FilterFuel Pump, Fuel Module, Fuel Hoses, Fuel FilterFuel Pump, Fuel Module, Fuel Hoses, Fuel Filter
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION

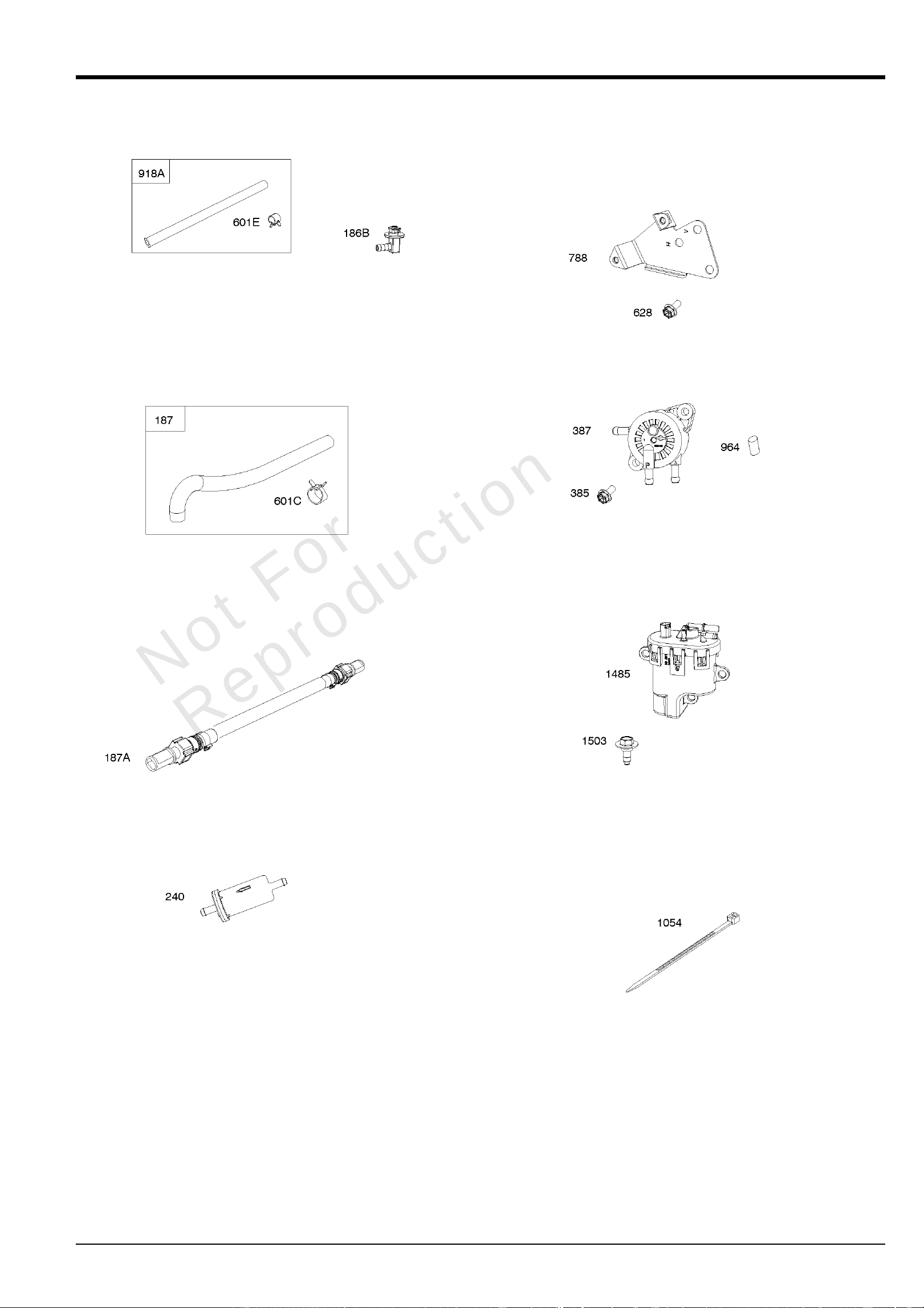

186B 845141 CONNECTOR, Hose
187 791744 LINE, Fuel
-(Formed)(Cut To Required Length)
187A 847136 LINE, Fuel
240 845125 FILTER, Fuel
385 807084 SCREW
-(Fuel Pump)
387 808656 PUMP, Fuel
601C 691038 CLAMP, Hose
-(Black)
601E 593879 CLAMP, Hose
628 806660 SCREW
-(Fuel Pump Bracket)
788 691559 BRACKET, Fuel Pump
918A 847141 HOSE, Vacuum
-(Vapor Separator Tank)
964 590799 CAP, Connector
1054 280275 TIE, Cable
1485 593890 MODULE, Fuel
1503 594618 SCREW
-(Fuel Module) (1/4-20x.5)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
19 04-Sep-2025
Intake Manifold, Harnesses, Throttle BodyIntake Manifold, Harnesses, Throttle BodyIntake Manifold, Harnesses, Throttle BodyIntake Manifold, Harnesses, Throttle Body
Mfg. No: 38E347-0001-B1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
20 04-Sep-2025

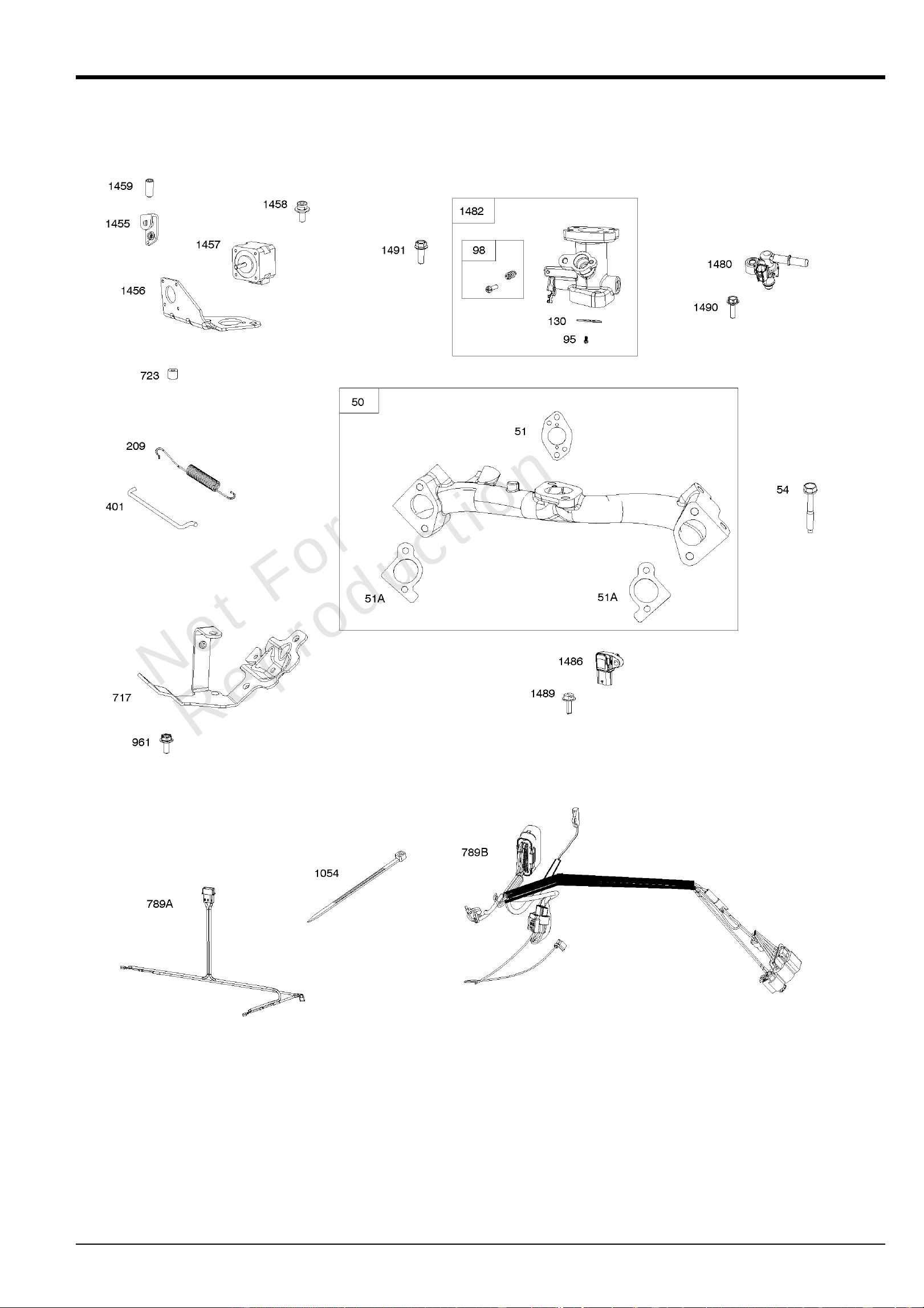

Intake Manifold, Harnesses, Throttle BodyIntake Manifold, Harnesses, Throttle BodyIntake Manifold, Harnesses, Throttle BodyIntake Manifold, Harnesses, Throttle Body
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
50 847137 MANIFOLD, Intake
51 691694 GASKET, Intake
-(Intake Manifold To Carburetor)
51A 806418 GASKET, Intake
-(Intake Manifold to Cylinder Head)
54 806444 SCREW
-(Intake Manifold) (M6x68mm)
95 846644 SCREW
-(Throttle Valve)
98 847139 KIT, Idle Speed
130 847262 VALVE, Throttle
209 847470 SPRING, Governor
401 845814 LINK, Actuator
717 847140 BRACKET, Air Cleaner
723 845818 SEAL, Foam

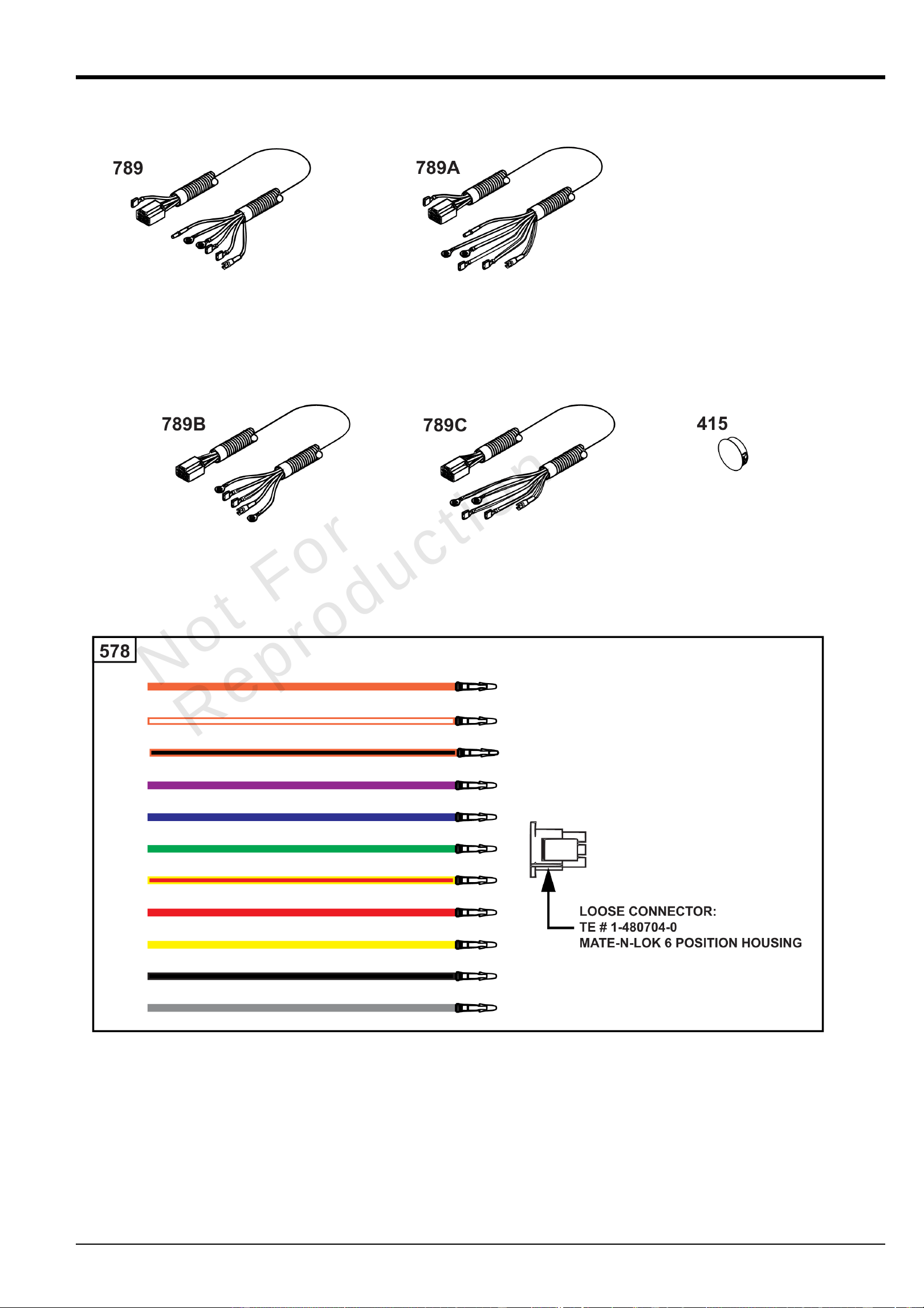

789A 847176 HARNESS, Wiring
789B 847175 HARNESS, Wiring
961 807084 SCREW
-(Air Cleaner Bracket) (M6x14mm)
1054 280275 TIE, Cable
1455 845813 LEVER, Actuator
1456 845815 BRACKET, Mounting
1457 847142 MOTOR, Stepper
1458 845812 SCREW
-(Stepper Motor) (M3x8mm)
1459 845820 SCREW
-(Actuator Lever)
1480 846618 INJECTOR, Fuel
1482 847138 BODY, Throttle
1486 593905 SENSOR, Temperature/Manifold Absolute Pressure (MAP)
1489 193626GS SCREW
-(TEMP/MAP Sensor) (#6-32x.6)
1490 690679 SCREW
-(Fuel Injector) (M6x21mm)
1491 807382 SCREW
-(Throttle Body) (M8x25mm)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
21 04-Sep-2025
Replacement Engine - US & CanadaReplacement Engine - US & CanadaReplacement Engine - US & CanadaReplacement Engine - US & Canada
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
22 04-Sep-2025
Model 29, 30, 35 & 38Model 29, 30, 35 & 38Model 29, 30, 35 & 38Model 29, 30, 35 & 38
Engine AccessoriesEngine AccessoriesEngine AccessoriesEngine Accessories
CatalogCatalogCatalogCatalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
04-Sep-2025
Maintenance KitsMaintenance KitsMaintenance KitsMaintenance Kits
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
24 04-Sep-2025
Maintenance KitsMaintenance KitsMaintenance KitsMaintenance Kits
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION

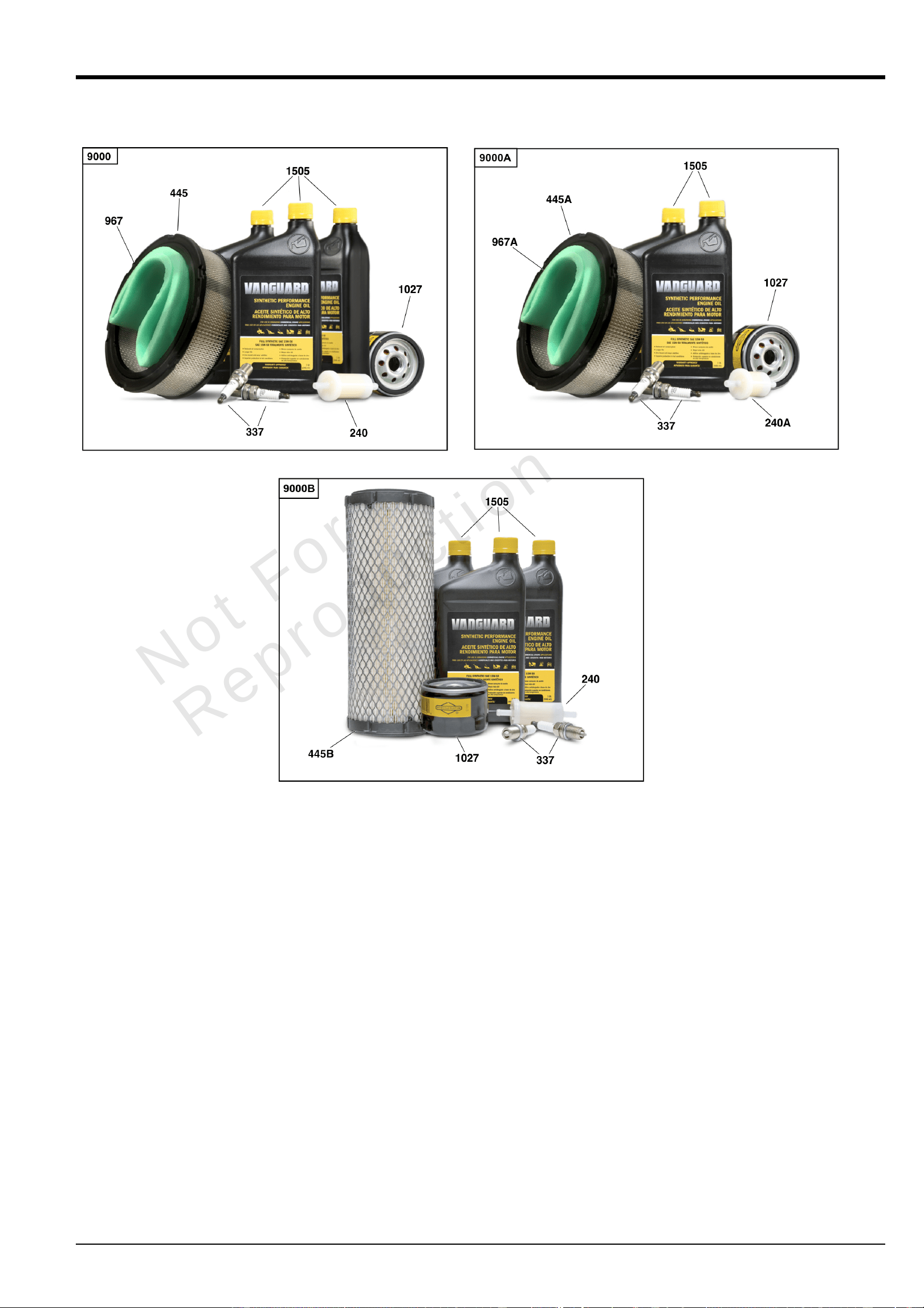

9000 84004936 KIT, Maintenance
-(Non-Oil Guard™ Engines) (20 - 23 HP)
9000A 84004937 KIT, Maintenance
-(Non-Oil Guard™ Engines) (12.5 - 18 HP)
9000B 84002315 KIT, Maintenance
-(Non-Oil Guard™ Engines)
240 845125 1 FILTER, Fuel
240A 84001895 1 FILTER, Fuel
337 491055S 2 PLUG, Spark
337 84007216 2 PLUG, SPARK
-(China Only)
445 692519 1 FILTER, A/C Cartridge
-"Professional / PXi" & "Commercial / CXi".
445A 394018S 1 FILTER, A/C Cartridge
-"Professional / PXi" & "Commercial / CXi".
445B 841497 1 FILTER, A/C Cartridge
-"Professional / PXi" & "Commercial / CXi".
967 692520 1 FILTER, Pre Cleaner
967A 272490S 1 FILTER, Pre Cleaner
1027 842921 1 FILTER, Oil
-(Vanguard®)
1505 100169 OIL-1QT VANGUARD (CASE)
-(1 qt. Bottle)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
25 04-Sep-2025
LubricationLubricationLubricationLubrication
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
26 04-Sep-2025

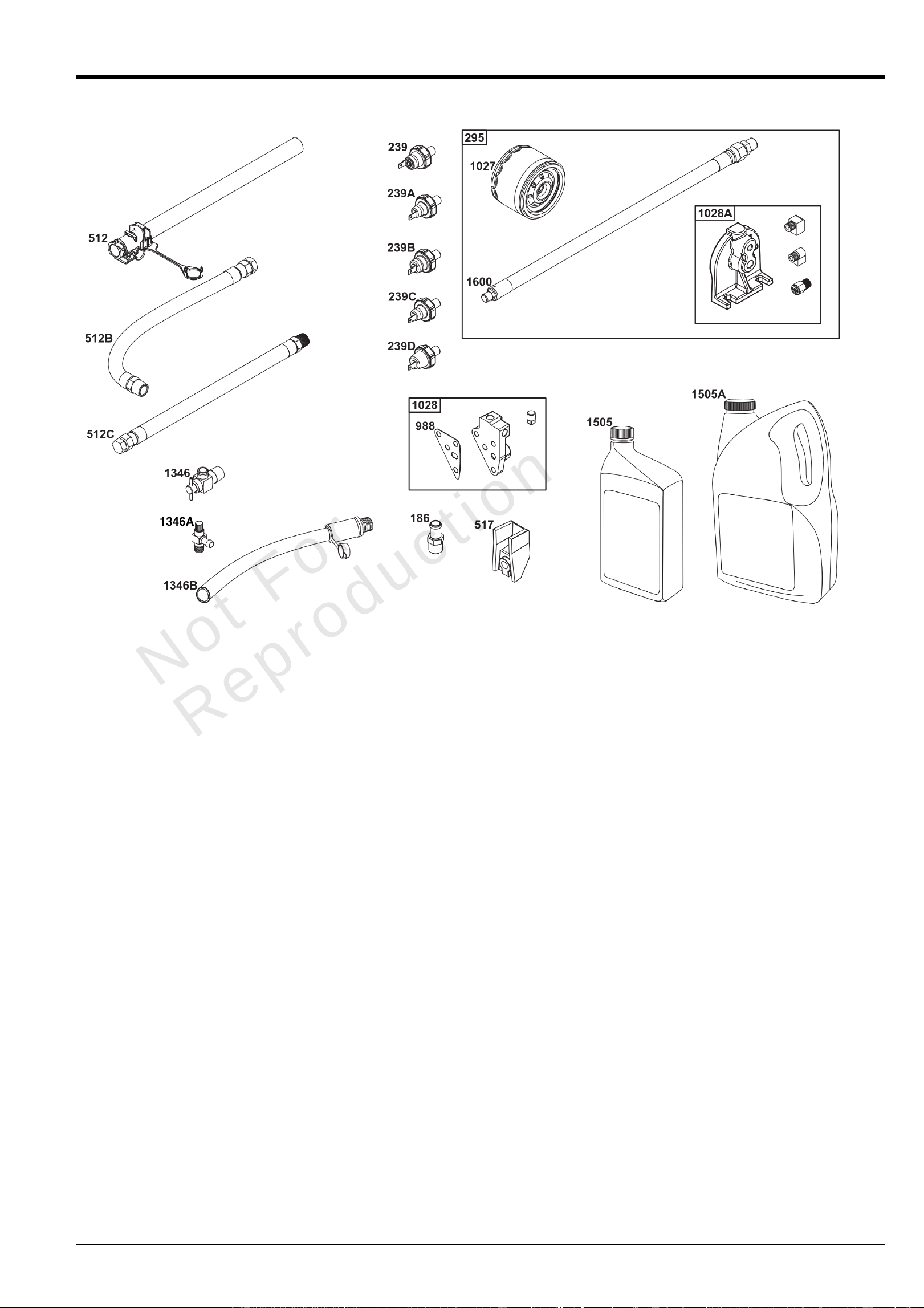

LubricationLubricationLubricationLubrication
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
186 796532 1 CONNECTOR, Hose
-(Threaded Engine Block Connector for EZ-Oil Drain Hose)(Order hose
separate)
239 690233 1 SWITCH, Oil Pressure
-(2-4 PSI Normally-Closed Switch)
239A 491657S 1 SWITCH, Oil Pressure
-(3-5 PSI Normally-Closed Switch)
239B 841281 1 SWITCH, Oil Pressure
-(7-10 PSI Normally-Closed Switch)
239C 694115 1 SWITCH, Oil Pressure
-(9-13 PSI Normally-Closed Switch)
239D 697049 1 SWITCH, Oil Pressure
-(3-6 PSI Normally-Open Switch)
295 492061 1 ADAPTER, Remote Oil Filter
-(Remote oil filter head with 18" (48 cm) hoses)
295 492062 1 ADAPTER, Remote Oil Filter
-(Remote oil filter head with 30" (76 cm) hoses)
512 594200 1 HOSE, Oil Drain
-(EZ-Oil Drain Hose, 10.5")(Order threaded engine block connector separate)
512 593635 1 HOSE, Oil Drain
-(EZ-Oil Drain Hose, 13.75")(Order threaded engine block connector separate)
512B 1723165SM 1 HOSE, Oil Drain, 10-1/2" Long, 3/8-18 Fittings
-(10.5")
512C 5048681SM 1 HOSE, OIL DRAIN
-(12.5")
517 593633 1 RETAINER, Oil Drain
988 692063 1 GASKET, Oil Adapter
1027 492932S 1 FILTER, Oil
1028 492687 1 ADAPTER, Oil Filter
-(Adapter Kit for mounting remote oil filter)
1028A 495244 1 ADAPTER-OIL FILTER
-(Remote oil filter mounting head with fittings)
1346 844802 1 VALVE, Oil Drain Shut Off
1346A 492031 1 VALVE, Oil Drain Shut Off
1346B 5401WEB 1 VALVE, Oil Drain Shut Off
-(1/4 Turn Oil Drain Valve with Hose)
1505 100169 OIL-1QT VANGUARD (CASE)
-(1 qt. Bottle)
1505A 100170 OIL-5QT VANGUARD (CASE)
-(5 qt. Bottle)
1600 494724 2 HOSE, Remote Oil Filter
-(Hoses only (2) 18" (48 cm))
1600 494725 2 HOSE, Remote Oil Filter
-(Hoses only (2) 30" (76 cm))
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
27 04-Sep-2025
Starter Motor Side Outlet MufflersStarter Motor Side Outlet MufflersStarter Motor Side Outlet MufflersStarter Motor Side Outlet Mufflers
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
28 04-Sep-2025
Starter Motor Side Outlet MufflersStarter Motor Side Outlet MufflersStarter Motor Side Outlet MufflersStarter Motor Side Outlet Mufflers
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION

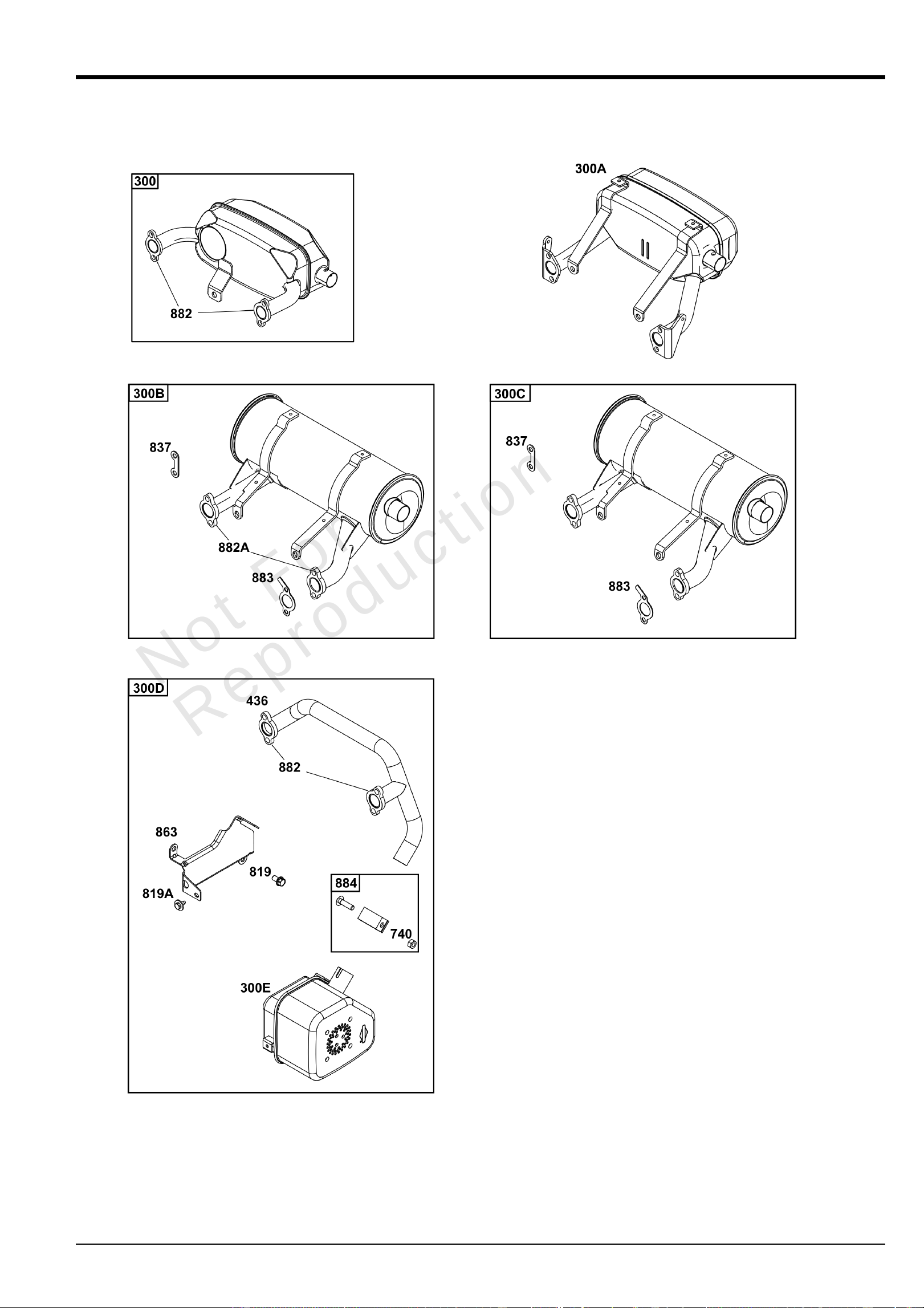

300 690931 1 MUFFLER
-(Super Lo-Tone) (Horizontal: 3054, 3564)
300A 690906 1 MUFFLER
-(Super Lo-Tone) (Horizontal: 3054, 3564)
300B 808705 1 MUFFLER
-(5" Round) (Horizontal: 3854, 3864)
300C 845873 1 MUFFLER
-(5" Round, Stainless Steel) (Horizontal: 3854, 3864)
300D 995005 1 MUFFLER ASSY
-(Lo-Tone) (Horizontal: 3054, 3564)
300E 692099 1 MUFFLER
-(Lo Mount)
436 691499 1 MANIFOLD, Exhaust
-(Cylinder 1) (Side Outlet)
740 793859 1 NUT
819 692056 2 SCREW
-(Muffler Bracket) (M8x1.25)
819A 691514 2 SCREW
-(Muffler Bracket) (M6 X 1.0)
837 808085 2 SPACER, Muffler
-(Includes 2)
863 690756 1 BRACKET, Muffler
-(Cylinder 1) (Side Outlet)
882 692074 2 FLANGE, Exhaust
882A 806965 2 FLANGE, Exhaust
883 806425 2 GASKET, Exhaust
884 690898 1 CLAMP, Muffler
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
29 04-Sep-2025
Oil Filter Side Outlet MufflersOil Filter Side Outlet MufflersOil Filter Side Outlet MufflersOil Filter Side Outlet Mufflers
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
30 04-Sep-2025

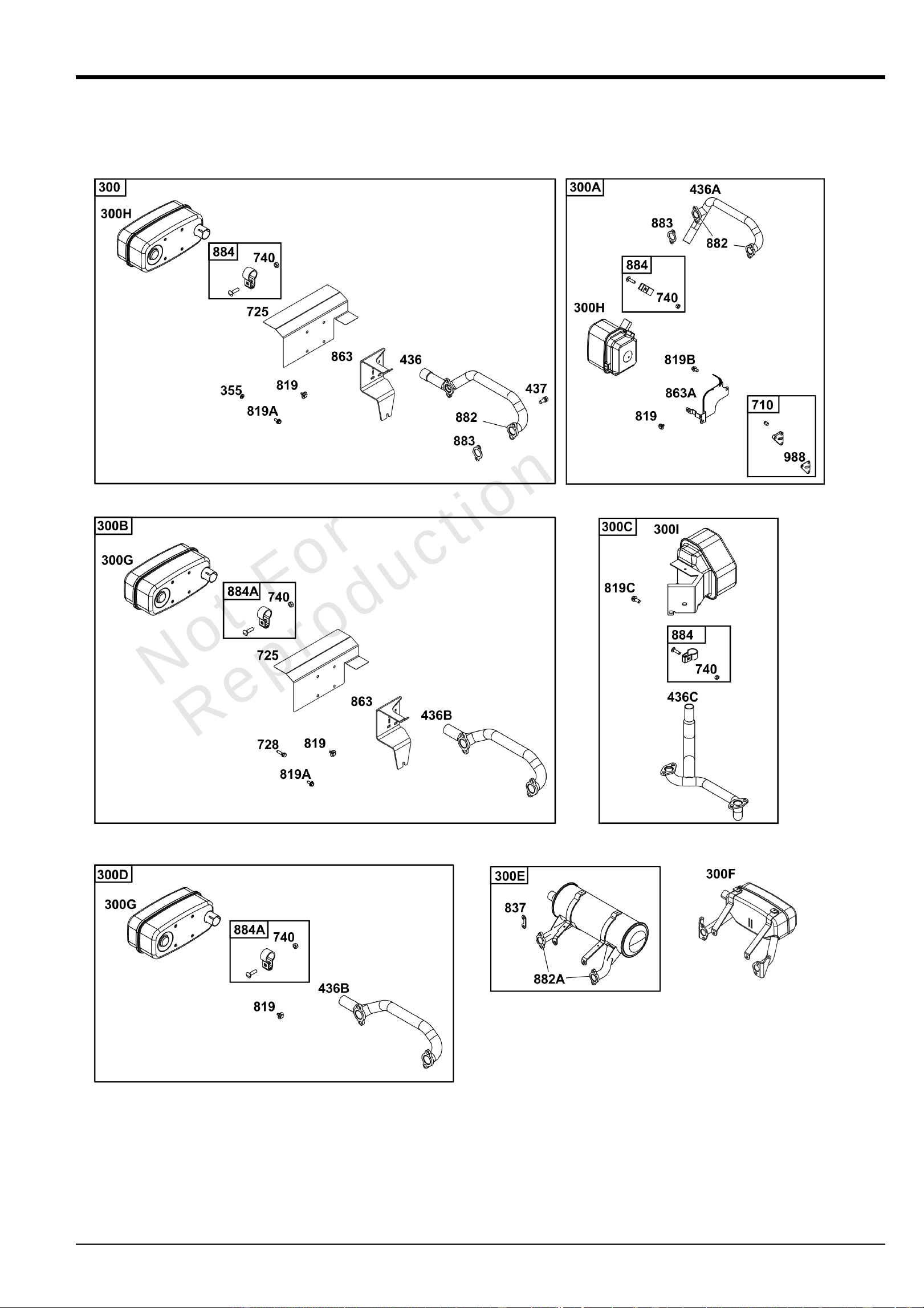

Oil Filter Side Outlet MufflersOil Filter Side Outlet MufflersOil Filter Side Outlet MufflersOil Filter Side Outlet Mufflers
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
300 995002 1 HIGH MNT SPR LO-TONE OIL FLTR SIDE
-(Super Lo-Tone) (Horizontal: 3054, 3564) (Vertical: 3567)
300A 995000 1 OIL FILTER SIDE LO-MT
-(Lo-Tone) (Horizontal: 3054, 3564) (Requires 808033 Oil Filter Adaptor)
300B 995004 1 HI MNT SPR LO-TONE OIL FLT SIDE
-(Super Lo-Tone) (Horizontal: 3854, 3864) (Vertical: 3867)
300C 995009 1 COMMERCIAL MOWERS KIT
-(For Wide Area Walker) (Vertical: 3567)
300D 995010 1 COMMERCIAL MOWERS KIT
-(Vertical: 3867)
300E 808896 1 MUFFLER
300F 691562 1 MUFFLER
-(Super Lo-Tone) (Horizontal: 3054, 3564)
300G 498984S 1 MUFFLER
-(Super Lo Tone)
300H 692099 1 MUFFLER
-(Lo Mount)
300I 807953 1 MUFFLER
355 842122 2 WASHER
-(Muffler Bracket)
436 805609 1 MANIFOLD, Exhaust
-(Cylinder 2) (Side Outlet)
436A 692061 1 MANIFOLD, Exhaust
-(Cylinder 2) (Side Outlet)
436B 808916 1 MANIFOLD, Exhaust
-(Cylinder 2) (Side Outlet)
436C 805778 1 MANIFOLD, Exhaust
-(Wide Area Walker)
437 691902 4 SCREW
-(Exhaust Manifold)
710 807689 1 COVER, Oil Filter
725 806102 1 SHIELD, Heat
728 690297 2 SCREW
740 793859 1 NUT
819 691514 2 SCREW
-(Muffler Bracket) (M6 X 1.0)
819A 807084 2 SCREW
-(Muffler Bracket)
819B 692056 2 SCREW
-(Muffler Bracket) (M8x1.25)
819C 692062 2 SCREW
-(Muffler Bracket)
837 808085 2 SPACER, Muffler
-(Includes 2)
863 806759 1 BRACKET, Muffler
863A 691513 1 BRACKET, Muffler
882 692074 2 FLANGE, Exhaust
-(3054 & 3564)
882A 806965 2 FLANGE, Exhaust
883 691613 2 GASKET, Exhaust
884 690898 1 CLAMP, Muffler
884A 691956 1 CLAMP, Muffler
988 690687 1 GASKET, Oil Adapter
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
31 04-Sep-2025
Oil Filter Side Outlet ManifoldsOil Filter Side Outlet ManifoldsOil Filter Side Outlet ManifoldsOil Filter Side Outlet Manifolds
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
32 04-Sep-2025
Oil Filter Side Outlet ManifoldsOil Filter Side Outlet ManifoldsOil Filter Side Outlet ManifoldsOil Filter Side Outlet Manifolds
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
436 805609 1 MANIFOLD, Exhaust
-(Vertical: 3567)
436A 692061 1 MANIFOLD, Exhaust
-(Horizontal: 3054, 3564)
436B 691501 1 MANIFOLD, Exhaust
-(Horizontal: 3054, 3564)
436C 808908 1 MANIFOLD, Exhaust
-(Horizontal: 3854, 3864)
436D 808916 1 MANIFOLD, Exhaust
-(Horizontal: 3854, 3864) (Vertical: 3867)
437 691902 4 SCREW
-(Exhaust Manifold)
882 692074 2 FLANGE, Exhaust
883 691613 2 GASKET, Exhaust
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
33 04-Sep-2025

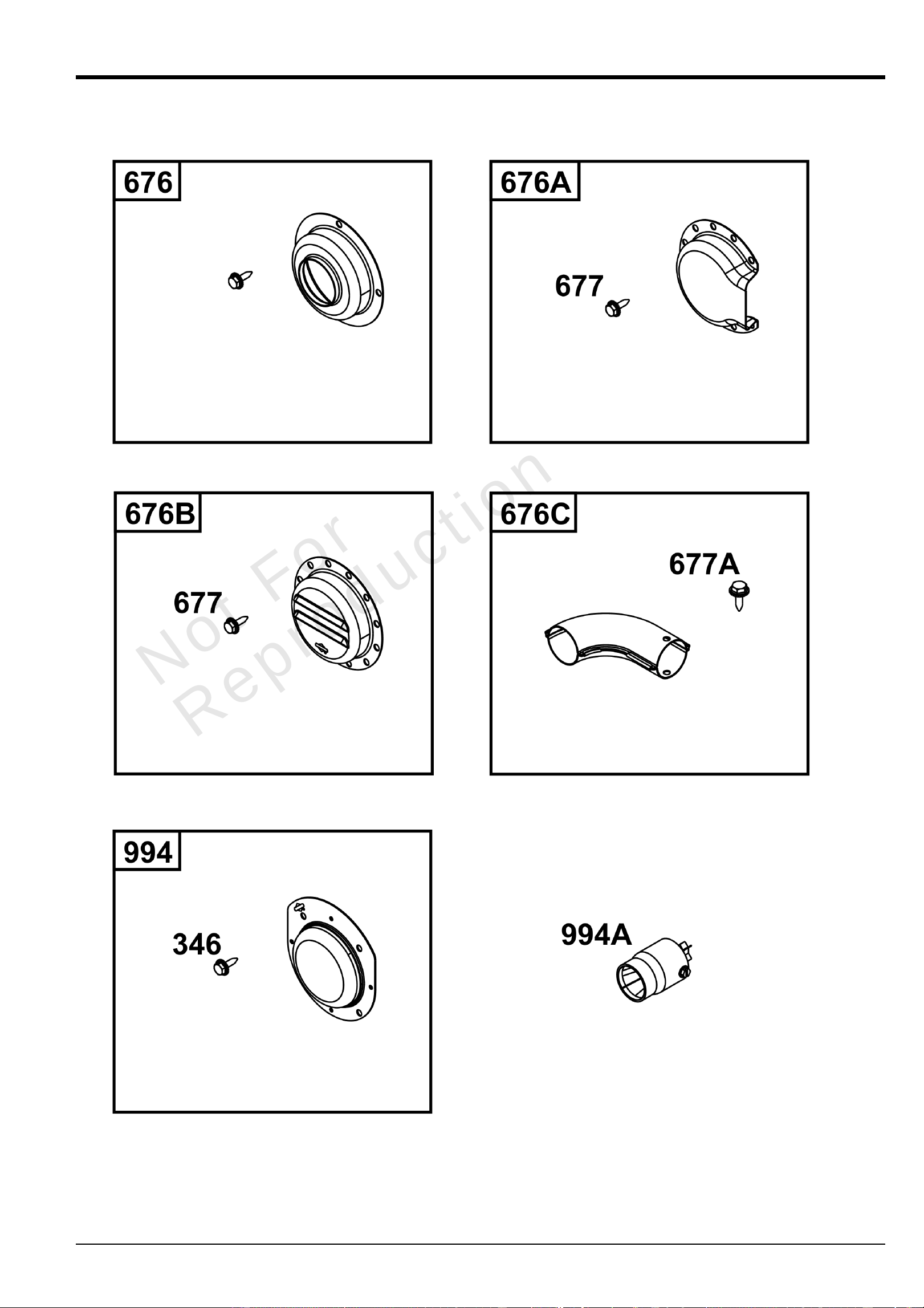

Starter Motor Side Outlet ManifoldsStarter Motor Side Outlet ManifoldsStarter Motor Side Outlet ManifoldsStarter Motor Side Outlet Manifolds
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
34 04-Sep-2025
Starter Motor Side Outlet ManifoldsStarter Motor Side Outlet ManifoldsStarter Motor Side Outlet ManifoldsStarter Motor Side Outlet Manifolds
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION

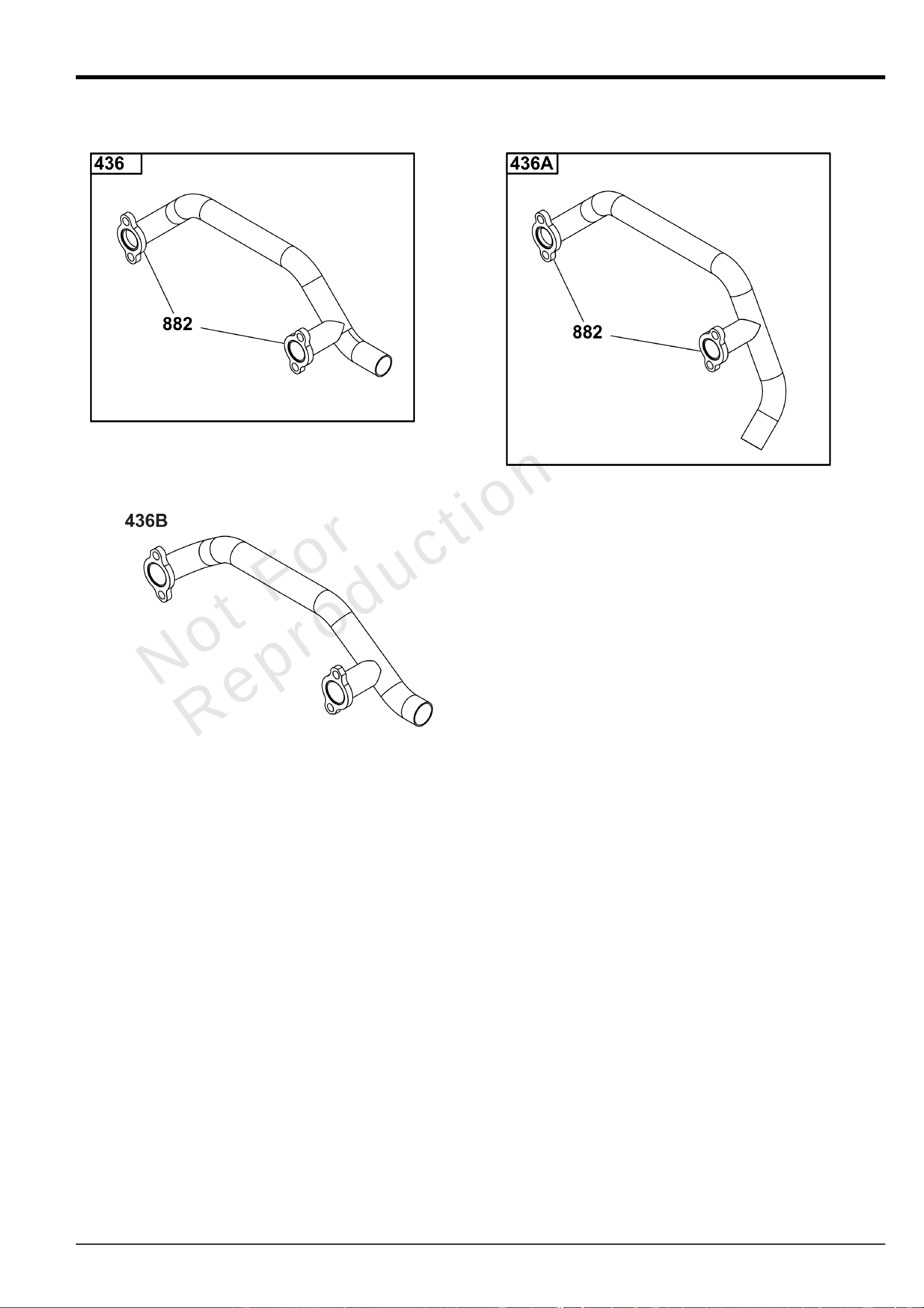

436 691502 1 MANIFOLD, Exhaust
-(Horizontal: 3054, 3564)
436A 691499 1 MANIFOLD, Exhaust
-(Horizontal: 3054, 3564)
436B 808909 1 MANIFOLD, Exhaust
-(Horizontal: 3854, 3864) (Vertical: 3867)
882 692074 2 FLANGE, Exhaust
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
35 04-Sep-2025
MufflersMufflersMufflersMufflers
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
36 04-Sep-2025
MufflersMufflersMufflersMufflers

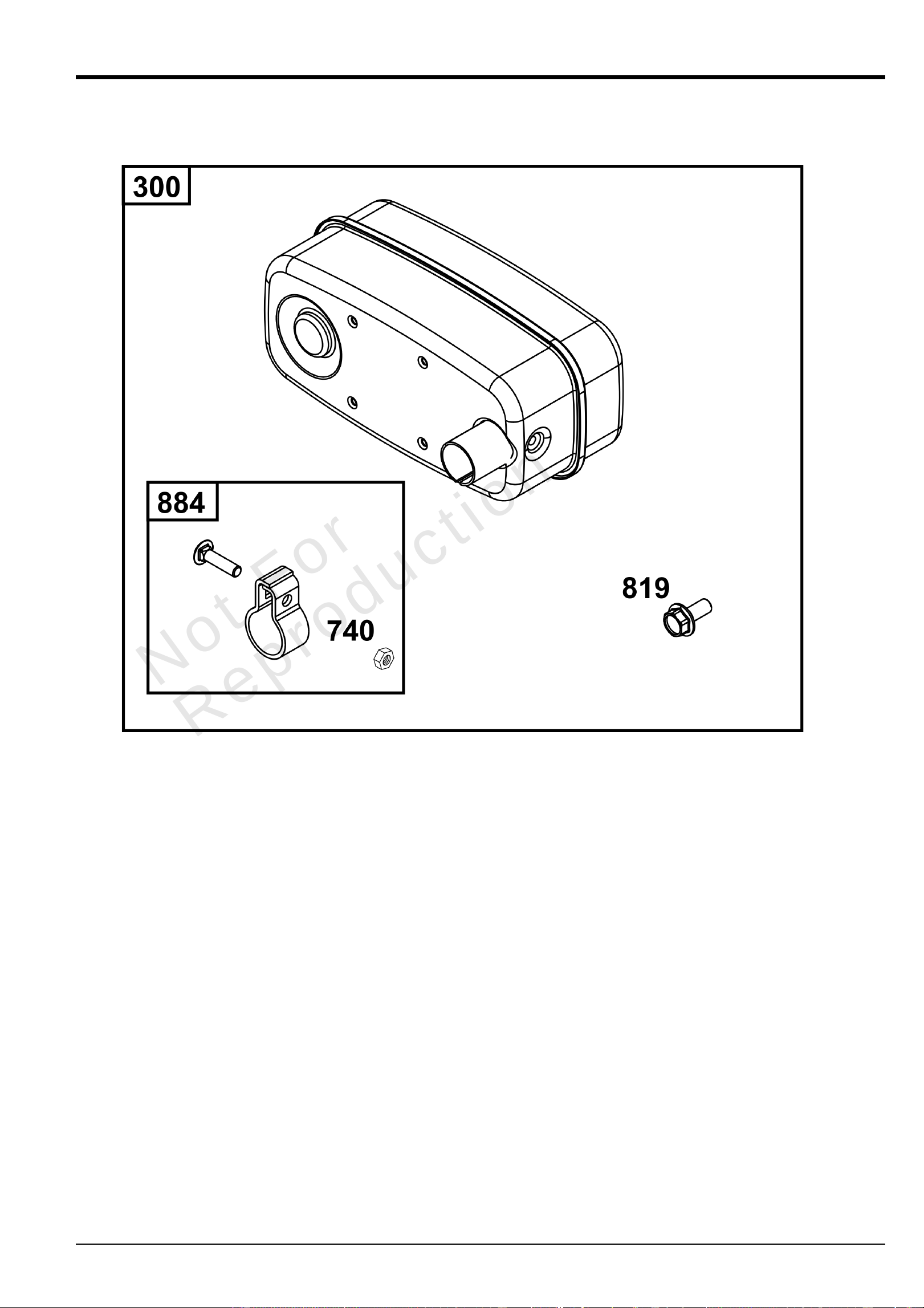

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
300 995018 1 MUFFLER
-(Inlet I.D. 1.14" (28.9mm))
740 793859 1 NUT
819 807084 4 SCREW
884 691956 1 CLAMP, Muffler
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
37 04-Sep-2025
Center Outlet MufflersCenter Outlet MufflersCenter Outlet MufflersCenter Outlet Mufflers
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
38 04-Sep-2025
Center Outlet MufflersCenter Outlet MufflersCenter Outlet MufflersCenter Outlet Mufflers

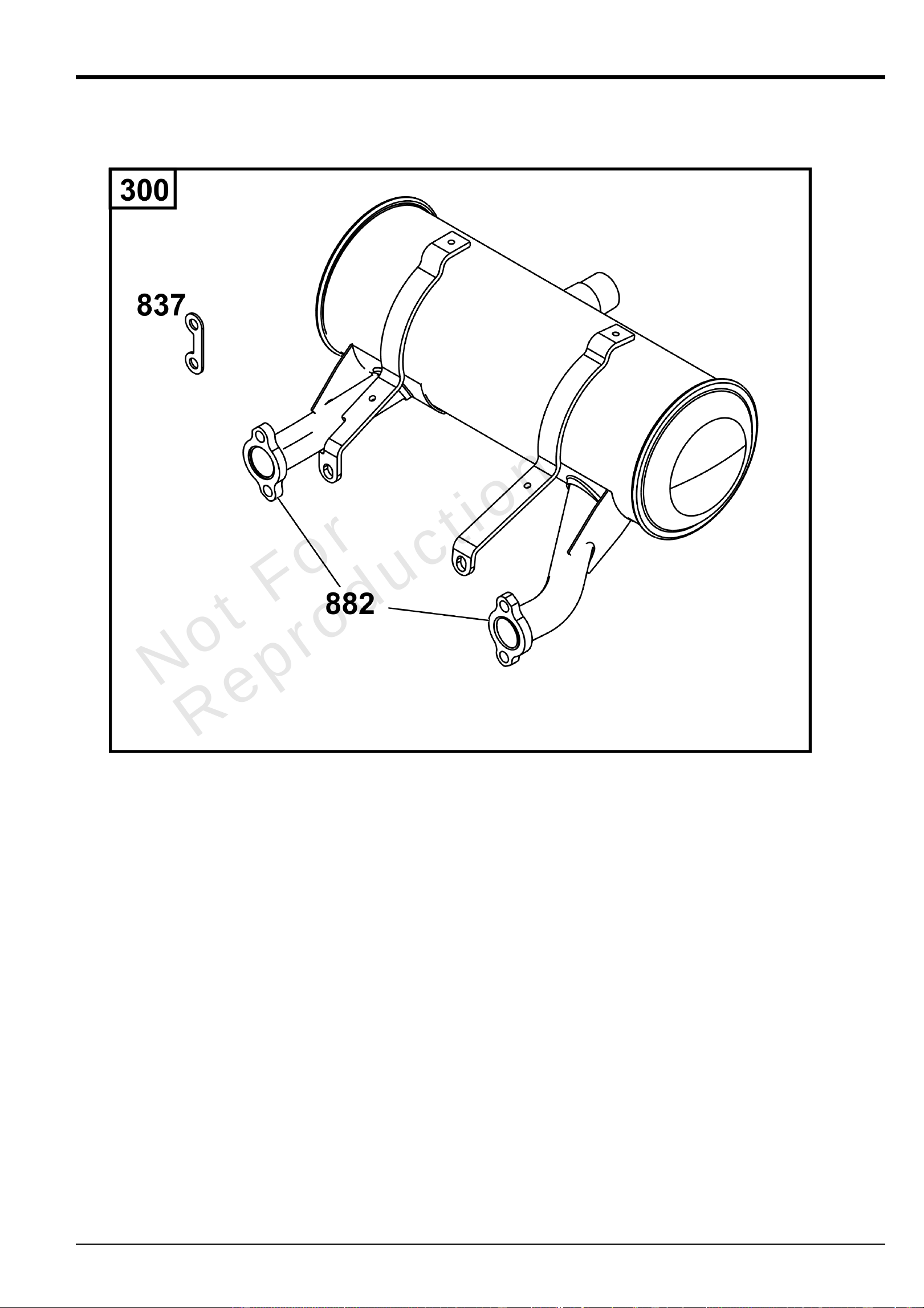

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
300 808911 1 MUFFLER
-(5" Round) (Horizontal: 3854, 3864)
837 808085 2 SPACER, Muffler
882 806965 2 FLANGE, Exhaust
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
39 04-Sep-2025
Muffler Guards and ShieldsMuffler Guards and ShieldsMuffler Guards and ShieldsMuffler Guards and Shields
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
40 04-Sep-2025
Muffler Guards and ShieldsMuffler Guards and ShieldsMuffler Guards and ShieldsMuffler Guards and Shields

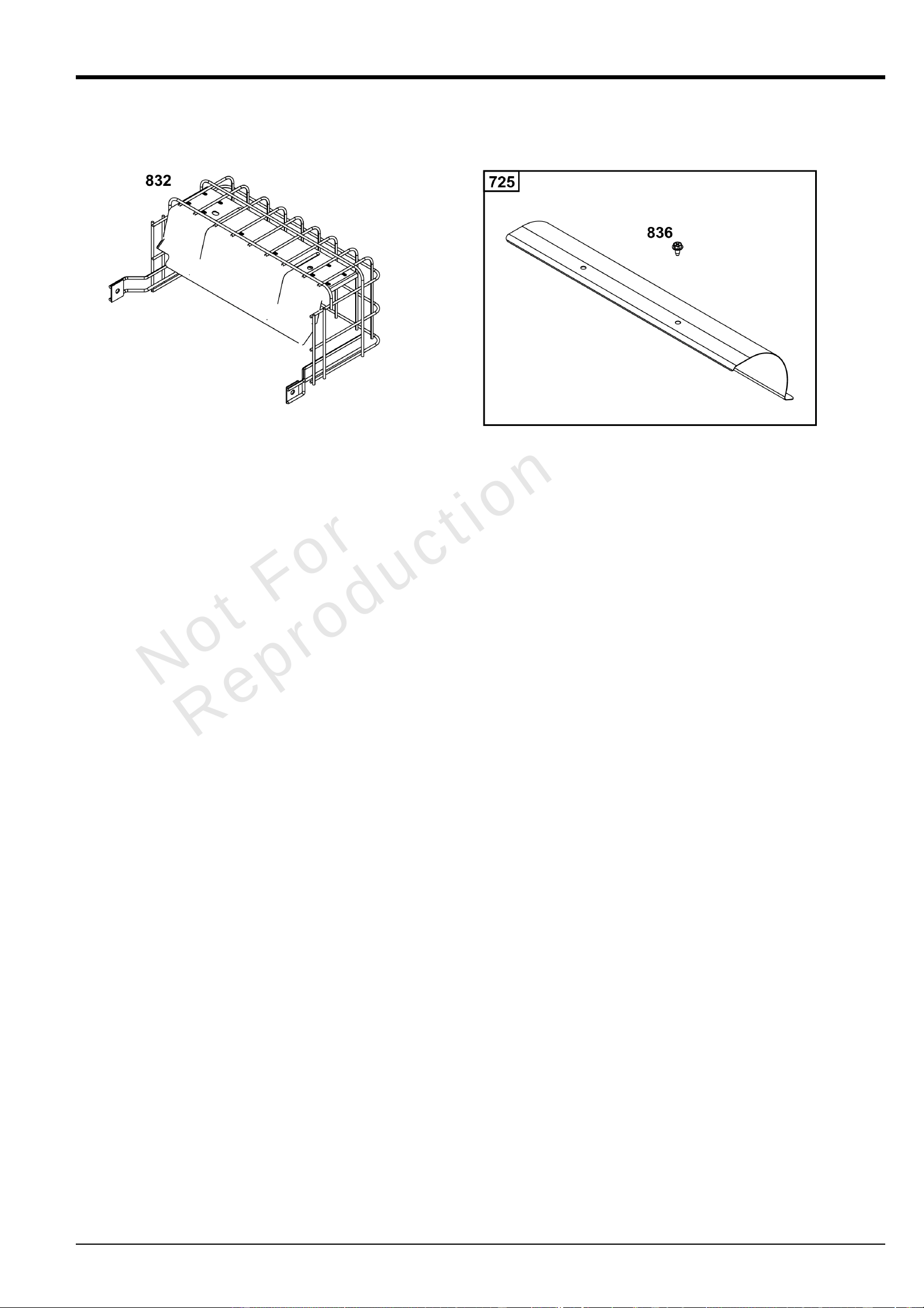

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
725 846568 1 SHIELD, Heat
-(For 5" Round Mufflers) (Horizontal: 3854, 3864)
832 691571 1 GUARD, Muffler
-(Assembly for 690906 & 691562) (Horizontal: 3054, 3564)
836 692067 4 SCREW
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
41 04-Sep-2025
Spark Arrestors and DeflectorsSpark Arrestors and DeflectorsSpark Arrestors and DeflectorsSpark Arrestors and Deflectors
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
42 04-Sep-2025
Spark Arrestors and DeflectorsSpark Arrestors and DeflectorsSpark Arrestors and DeflectorsSpark Arrestors and Deflectors
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
346 794845 4 SCREW
-(Spark Arrestor)
676 396903 1 DEFLECTOR, Muffler
-(Direct Outlet) (Face Mounting with 4 Screws)
676A 795036 1 DEFLECTOR, Muffler
-(Deflector 90 Degree) (Face Mounting with 4 Screws)
676B 795038 1 DEFLECTOR, Muffler
-(Deflector Louvered) (Face Mounting with 4 Screws)
676C 495518 1 DEFLECTOR, Muffler
-(Elbow for Muffler Assembly) (For Exit Pipe O.D. of 1.10" (28mm))
677 794845 4 SCREW
-(Muffler Deflector)
677A 810079 1 SCREW
-(Muffler Deflector)
994 794945 1 ARRESTOR, Spark
-(Spark Arrestor) (Face Mounting with 4 Screws)
994A 594562 1 ARRESTOR, Spark
-(Spark Arrester) (For Exit Pipe O.D. of 1.10" (28mm))
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
43 04-Sep-2025
Muffler Mounting HardwareMuffler Mounting HardwareMuffler Mounting HardwareMuffler Mounting Hardware
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
44 04-Sep-2025
Muffler Mounting HardwareMuffler Mounting HardwareMuffler Mounting HardwareMuffler Mounting Hardware

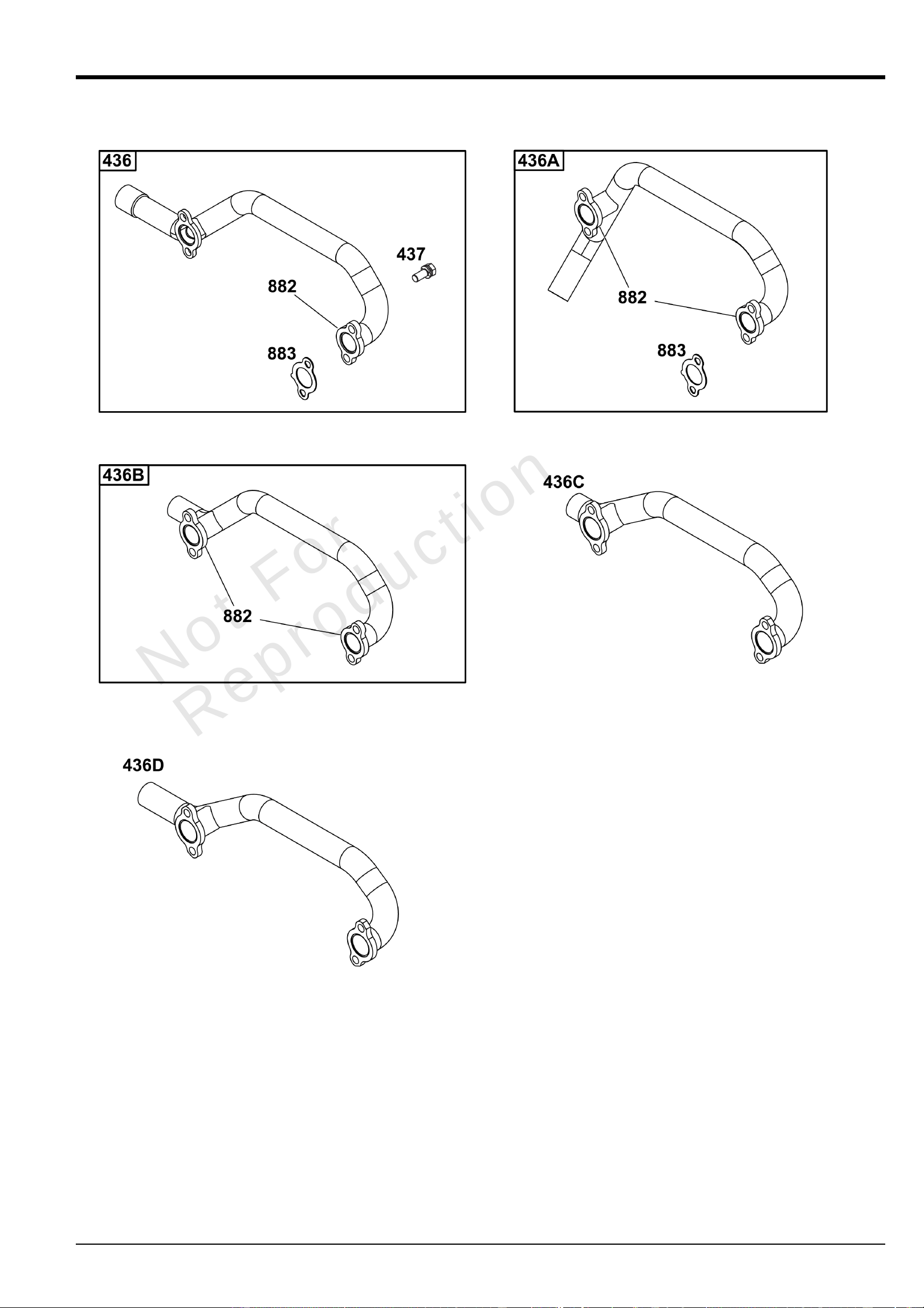

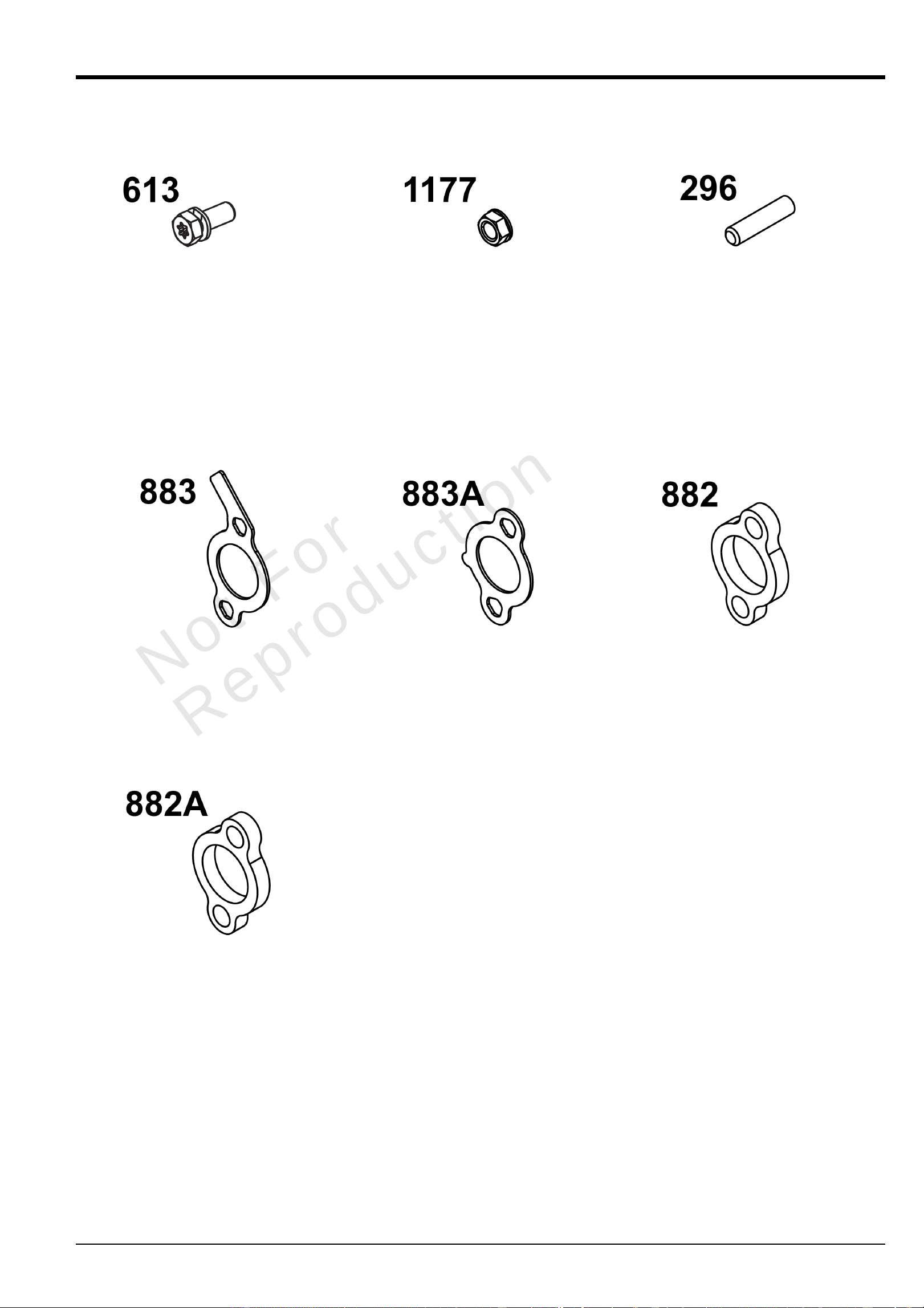

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
296 841185 4 STUD
-(Mounting Mufflers)
613 691902 4 SCREW
-(Mounting Mufflers)
882 692074 2 FLANGE, Exhaust
-(3054 & 3564)
882A 806965 2 FLANGE, Exhaust
-(3854 & 3864)
883 806425 2 GASKET, Exhaust
-(Horizontal: 3854, 3864) (Vertical: 3567)
883A 691613 2 GASKET, Exhaust
-(Horizontal: 3054, 3564) (Vertical: 3567)
1177 842067 4 NUT
-(Required if Using 841185)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
45 04-Sep-2025
Flywheel and Air Intake GuardsFlywheel and Air Intake GuardsFlywheel and Air Intake GuardsFlywheel and Air Intake Guards
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
46 04-Sep-2025
Flywheel and Air Intake GuardsFlywheel and Air Intake GuardsFlywheel and Air Intake GuardsFlywheel and Air Intake Guards

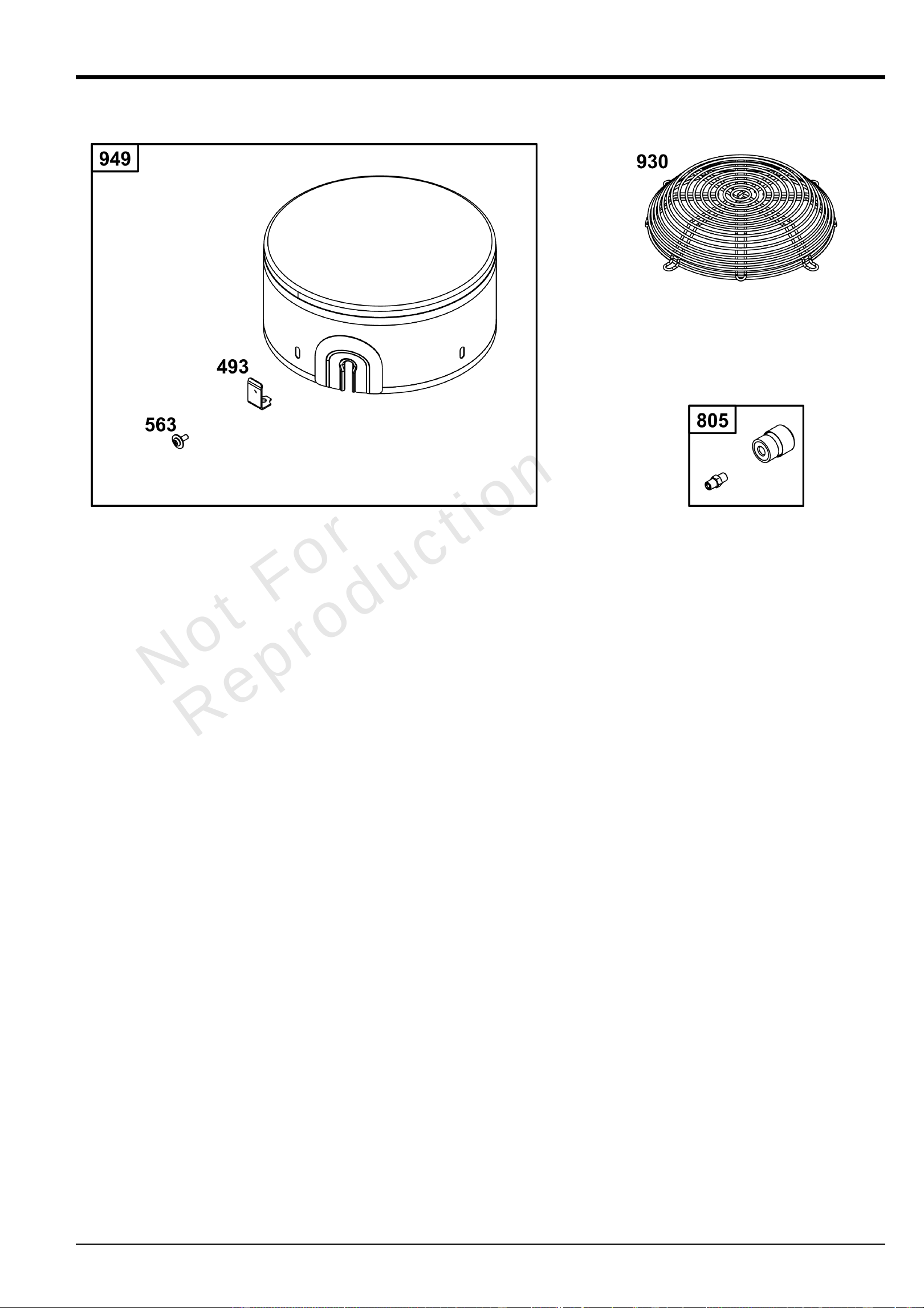

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
493 845729 4 BRACKET, Mounting
563 841441 4 SCREW
805 843024 1 MINDER, Filter
-(For Engines with Cyclonic Air Filter)
930 846284 1 GUARD, Flywheel Fan
949 845728 1 GUARD, Debris Screen
-(Vertical: 3867)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
47 04-Sep-2025
PTOPTOPTOPTO
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
48 04-Sep-2025
PTOPTOPTOPTO

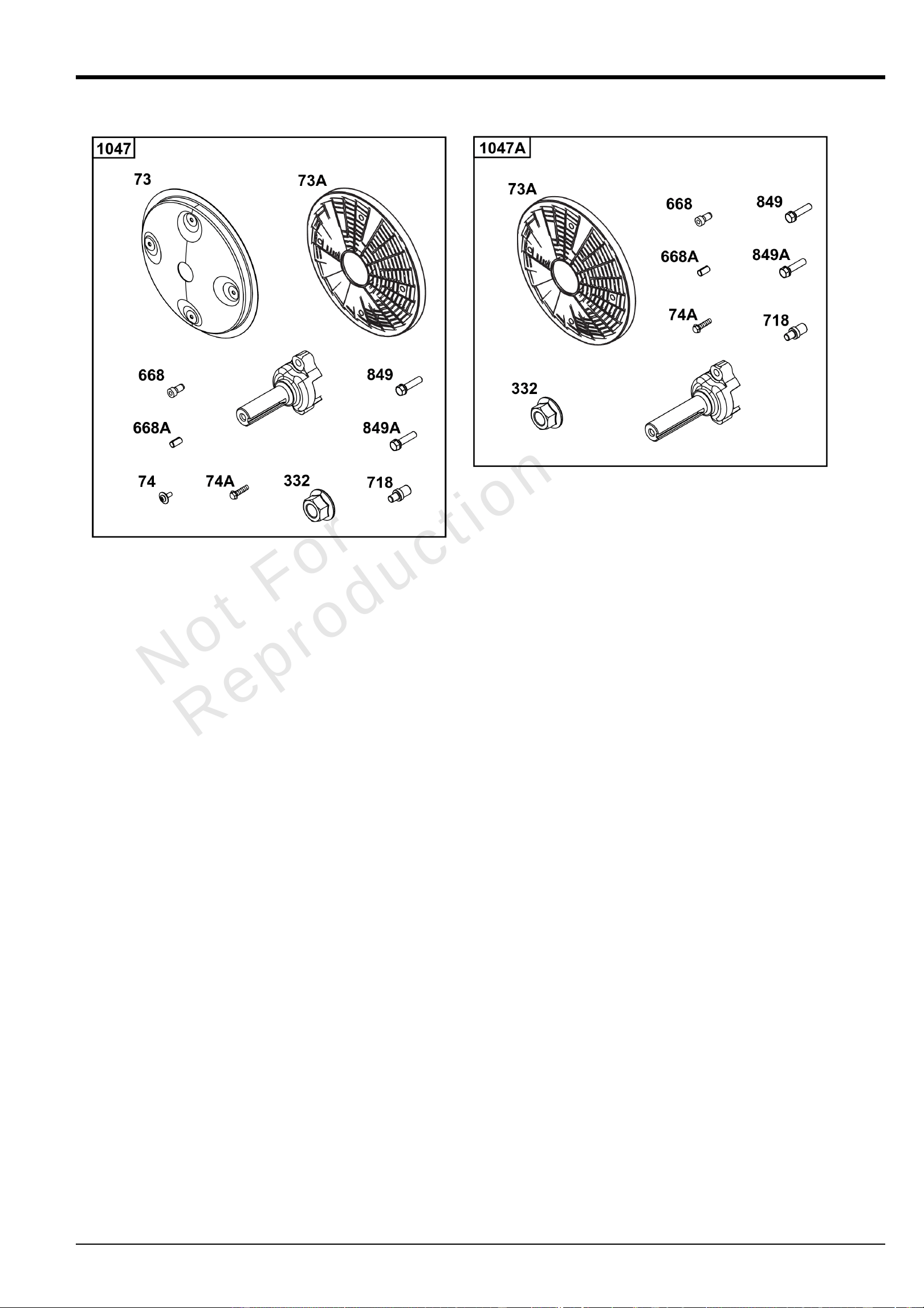

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
73 841582 1 SCREEN, Rotating
73A 494439 1 SCREEN, Rotating
74 841441 4 SCREW
-(Rotating Screen)
74A 691647 4 SCREW
-(Rotating Screen)
332 690887 1 NUT
-(Flywheel)
668 691500 4 SPACER
-(Rotating Screen)
668A 691215 4 SPACER
-(Rotating Screen)
718 841581 1 PIN, Locating
-(32MM)
849 691088 2 SCREW
-(Stub Shaft)
849A 846236 2 SCREW
-(Stub Shaft)
1047 841580 1 SHAFT, Stub
-(1" Diameter) (4.75" Length)
1047A 842655 1 SHAFT, Stub
-(1" Diameter) (5.43" Length)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
49 04-Sep-2025
ElectricalElectricalElectricalElectrical
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
50 04-Sep-2025
ElectricalElectricalElectricalElectrical
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
415 1714480SM 1 PLUG
-(Plug for Ignition Switch Removal)
578 84007350 1 WIRE ASSEMBLY
-(Aids in Repowering Engine Application with 6-Pin Connector and Wires with
Terminals to Create Custom Adapter Configurations)
789 691996 1 HARNESS, Wiring
-(For 16 Amp Alternators)
789A 841318 1 HARNESS, Wiring
-(For 16 Amp Alternators with Solenoid Shift Starter)
789B 847601 1 HARNESS, Wiring
-(For 20 Amp Alternators)
789C 847602 1 HARNESS, Wiring
-(For 20 Amp Alternators with Solenoid Shift Starter)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
51 04-Sep-2025
Speed ControlSpeed ControlSpeed ControlSpeed Control
Model 29, 30, 35 & 38 Engine Accessories Catalog
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
52 04-Sep-2025
Speed ControlSpeed ControlSpeed ControlSpeed Control

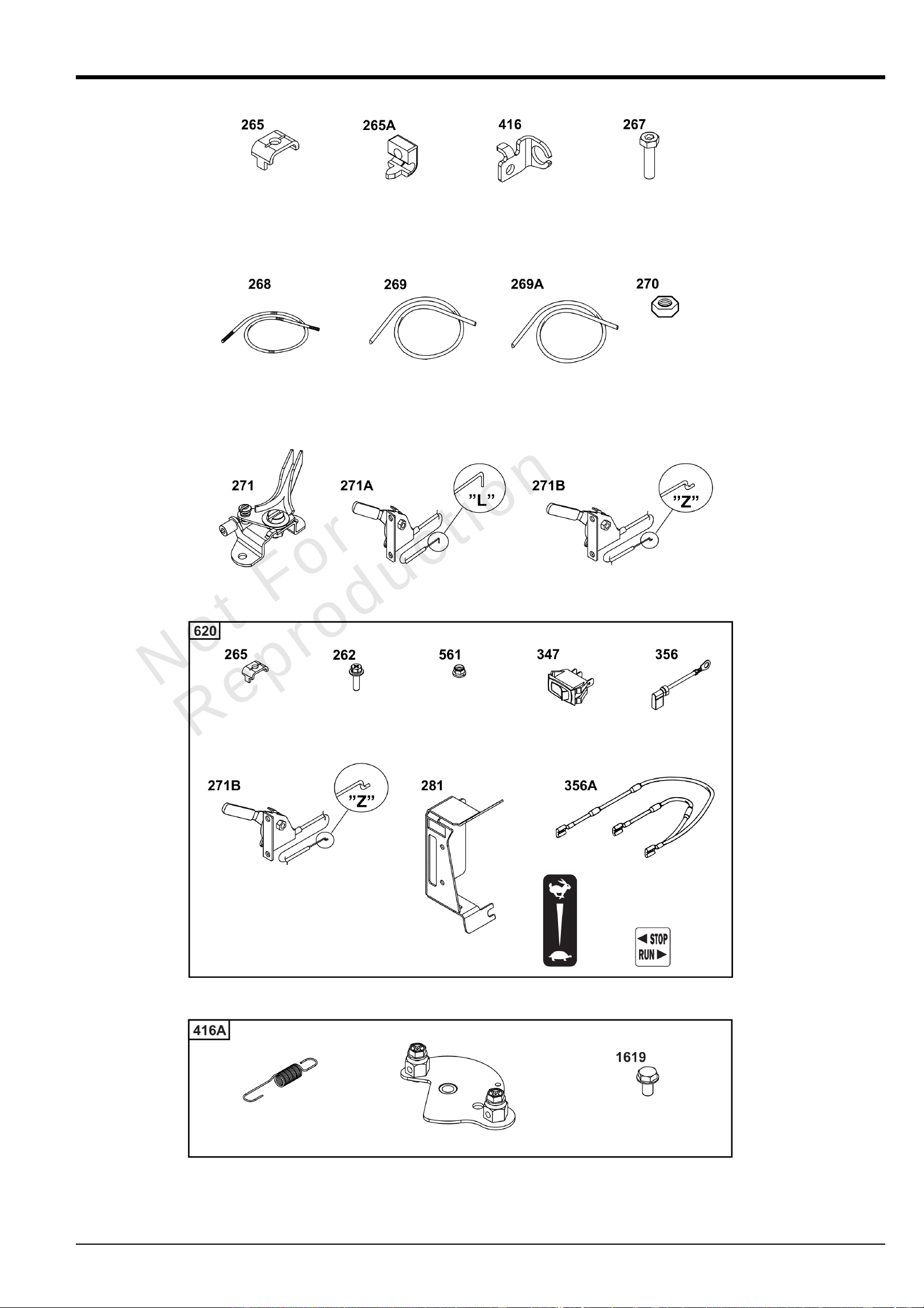

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
262 841552 1 SCREW
265 691024 1 CLAMP, Casing
-(Casing Clamp for Hard Casing)
265A 690798 1 CLAMP, Casing
-(Casing Clamp for Soft Casing)
267 792629 1 SCREW
-(Screw for Casing Clamp)
268 691025 1 CASING, Control Wire
-(Wire Casing 72")
269 26634 1 WIRE, Control
-(Control Wire 78")
269A 93907 1 WIRE, Control
-(Control Wire 100")
270 691027 1 NUT
-(Nut for Wire Casing)
271 691028 1 LEVER, Control
-(Speed Control Lever Assembly)
271A 692105 1 LEVER, Control
-(Speed Control Lever Assembly) ('L' Shaped End)
271B 692541 1 LEVER, Control
-(Speed Control Lever Assembly) ('Z' Shaped End)
281 690742 1 PANEL, Control
347 691995 1 SWITCH-ROCKER
356 690796 1 WIRE, Stop
356A 691999 1 WIRE ASSEMBLY
416 595196 1 BRACKET, Throttle Cable
-(Casing Clamp for Snap-In Casing)
416A 84006945 1 BRACKET, Throttle Cable
561 806447 1 NUT
620 494052 1 BRACKET, Control
-(Throttle Control for Vanguard V-Twin Horizontal Small Block)
1619 691693 1 SCREW
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
53 04-Sep-2025
Copyright © Briggs & Stratton. All Rights reserved
04-Sep-2025
