FAIRBANKS
CEILING FAN
Español p. 17
HARBOR BREEZE and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
Thank you for purchasing this HARBOR BREEZE product.
Questions, problems, or missing parts?
Before returning, contact us at:
888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday or at [email protected].
RATED FOR
DAMP
LOCATIONS
2
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Wiring ..........................................................................9
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating Instructions .............................................................12
Care and Maintenance ............................................................13
Troubleshooting ..................................................................13
Limited Lifetime Warranty ..........................................................15
Replacement Parts List ............................................................16
33

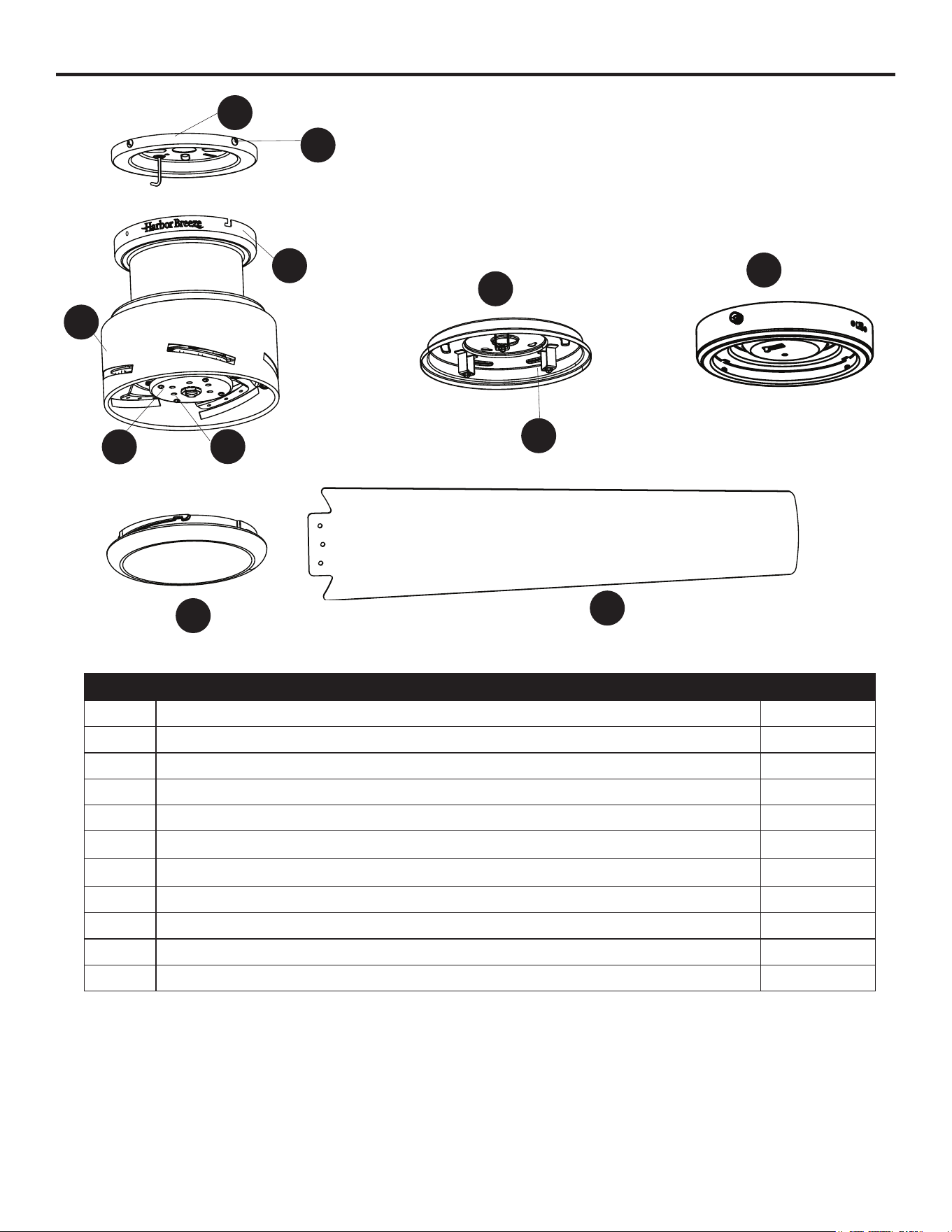

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Mounting Bracket 1
B Canopy (preassembled to Motor Assembly [C]) 1
C Motor Assembly 1
D Fitter Plate (preassembled to Motor Assembly [C]) 1
E Fitter Plate Screw (preassembled to Fitter Plate [D]) 4
F Light Pan 1
G Light Pan Screw (preassembled to Light Pan [F]) 3
H Light Kit 1
I Bowl 1
J Blade 5
K Mounting Bracket Scew (preassembled to Mounting Bracket [A]) 4
A
B
C
D
E
G
F
H
I
J
K
4

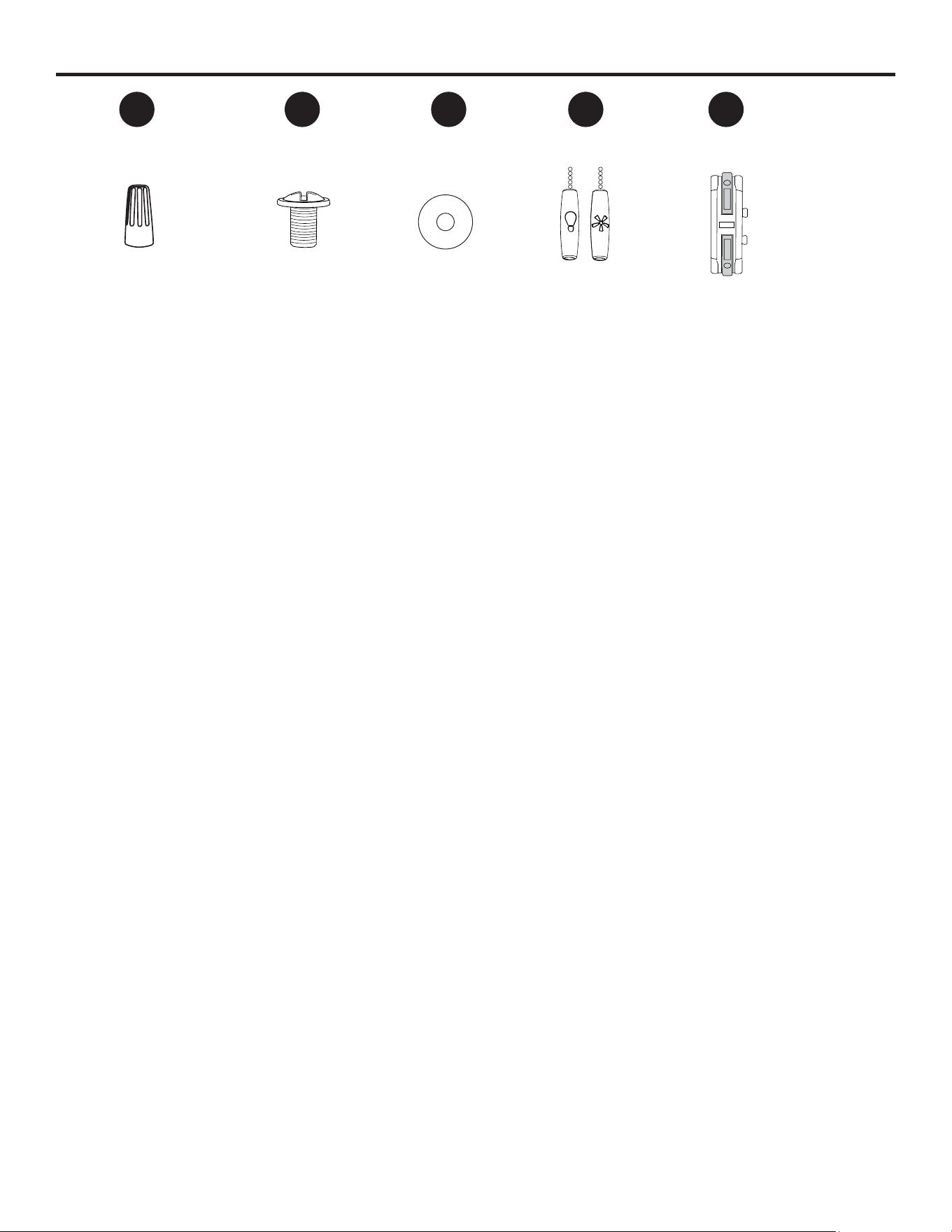

HARDWARE CONTENTS (shown actual size)
Wire Connector
Qty. 1
+ 1 extra
Blade Screw
Qty. 15
+ 1 extra
Blade Washer
Qty. 15
+ 1 extra
Pull Chain
Extension
Qty. 2
Push-In
Connector
1 extra
AA BB CC DD FF
5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning o the circuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the oor and at least 30 in. from the end of the blades to any obstruction.
• The net weight of this fan is: XXX lb (XXX kg).
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan parts
with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noise from the fan. To reduce the risk of re or electric shock, do NOT use a full-range dimmer switch
to control the fan speed.
WARNING: To reduce the risk of re, electric shock or personal injury, mount the fan to an outlet
box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with the
outlet box. Most outlet boxes commonly used for the support of lighting xtures are not acceptable
for fan support and may need to be replaced. Consult a qualied electrician if in doubt. Secure the
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.).
WARNING: To reduce the risk of re, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge and there is more than one house wire to connect to the two
fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: To reduce the risk of re, electric shock or personal injury, do not bend the blade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of
parts OTHER than those provided with this fan will void the warranty.
6
SAFETY INFORMATION
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAUTION: This device complies with part 15 of FCC Rules. Operation is subject to the following
two conditions: 1) This device may cause harmful interference, and 2) this device must accept any
interference received, including interference that may cause undesired operation.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
HKC-US
3350 Players Club Parkway, Suite 225
Memphis, TN 38125
1-888-251-1003
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, Wire Cutters and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure and Wiring Handbook
7

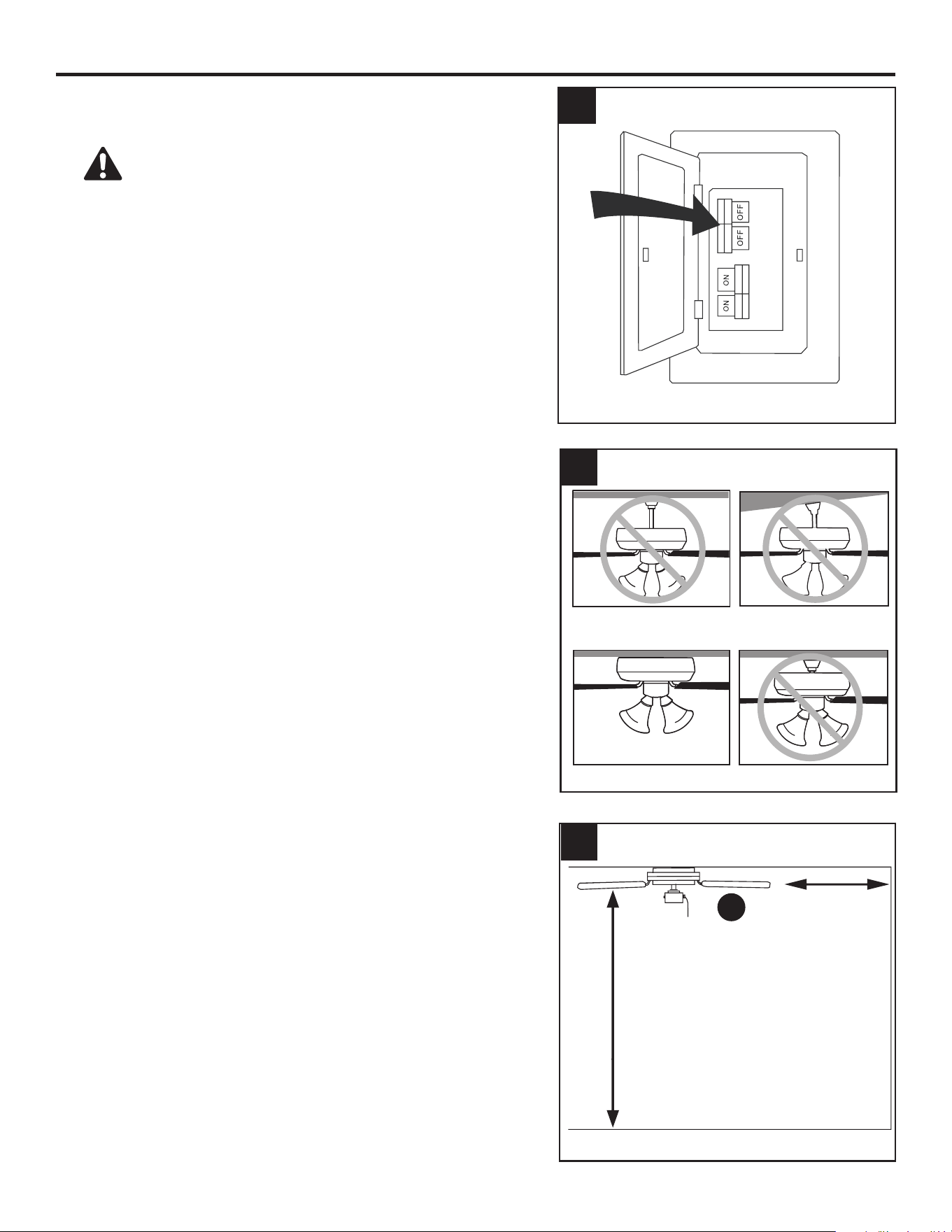

INITIAL INSTALLATION
1. Turn o the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power supply
prior to installation may result in serious injury or death.
2. This fan is intended for Flushmount Installation.
Standard Mounting, Angle Mounting, and Closemount
installations are not available.
3. Ensure the blades (J) will be at least 30 in. from any
obstructions and will be at least 7 ft. above the oor.
3
Standard Mounting
Flushmount Closemount
Angle Mounting
1
7 ft. Min
30 in. Min
J
2
8
INITIAL INSTALLATION

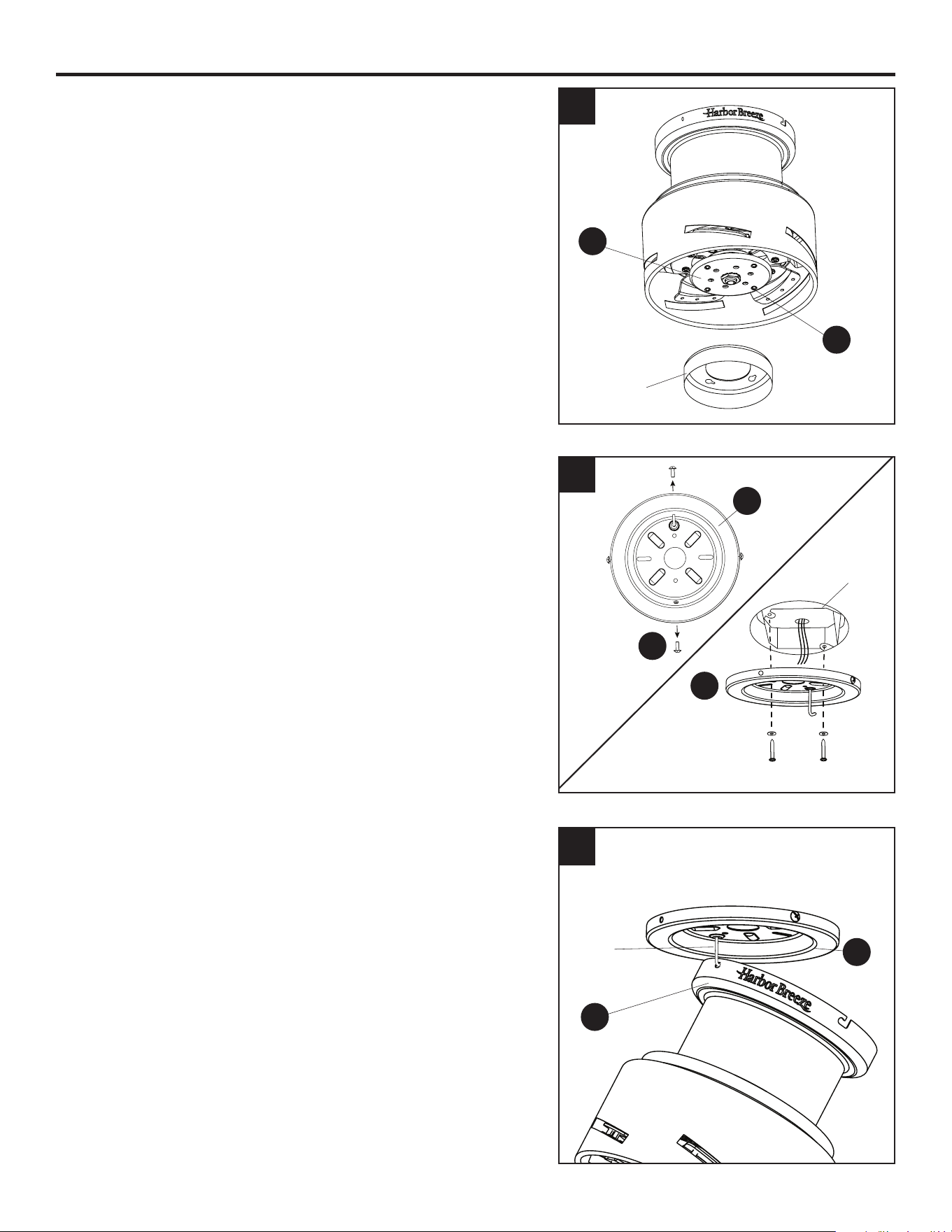

4. Loosen the four tter plate screws (E) preassembled to
the tter plate (D). Then, turn the orange shipping block
counterclockwise and remove. Discard the shipping
block.
5. Loosen all four mounting bracket screws (K), then
completely remove two mounting bracket screws (K)
from opposite sides of the mounting bracket (A).
Feed the supply wires from the outlet box through the
center hole in the mounting bracket (A). Then, secure
the mounting bracket (A) to the outlet box (not included)
using screws and washers provided with the outlet box.
CAUTION: It is very important you use the proper
hardware when installing the mounting bracket (A) as it
will support the fan.
6. Raise the fan and place canopy (B) on the hook on the
mounting bracket (A), temporarily leaving hands free for
the wiring process.
5
5
4
D
E
Outlet Box
A
A
K
Shipping
Block
Hook
6
B
A
9
WIRING
WARNING: To reduce the risk of re, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires
from the fan. If your house wire is larger than 12-gauge and/or there is more than one house wire to
connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.

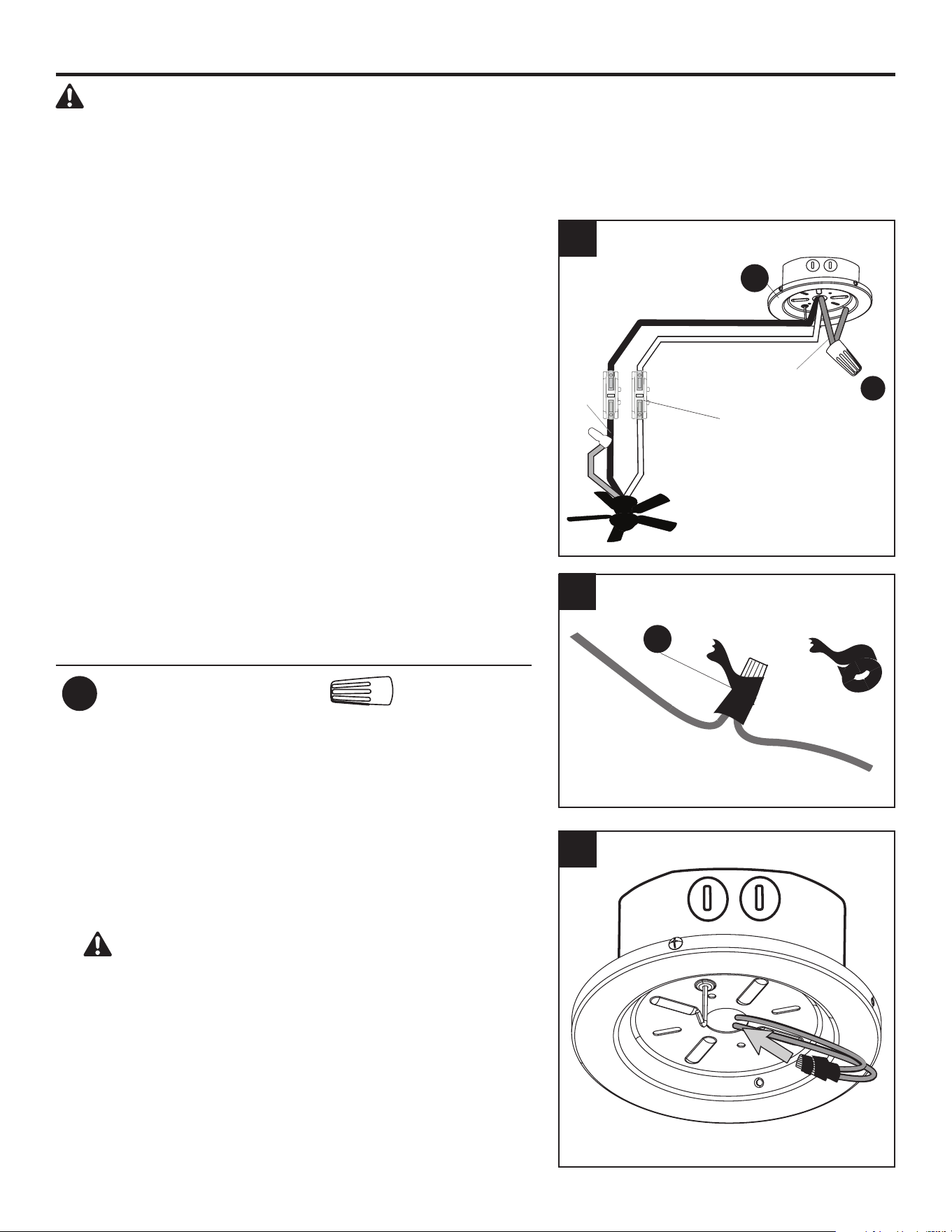

1. Connect supply and fan wires according to the
diagram and these steps:
• Use wire connector (AA) to connect the Green wire
from the mounting bracket (A) to the Bare/Green
(ground) supply wire.
• Lift the lever and then push the White (neutral)
supply wire into the empty hole of the push-in
connector preassembled to the white fan wire and
then lower the lever to secure wire.
• Lift the lever and then push the Black (hot) supply
wire into the empty hole of the push-in connector
preassembled to the black fan wire and then lower
the lever to secure wire.
Note: The Black wire is hot power for the fan. The
White wire is neutral for the fan and light kit. The
Green wire is the ground wire. If supply wires are
dierent colors than referred to above, a professional
electrician should determine the proper wiring.
Hardware Used
AA
Wire Connector x 1
2. Wrap electrical tape (not included) around the wire
connector (AA) down to the wire.
3. Turn the spliced/taped wires upward and gently push
the wires and wire connector (AA) into the outlet box.
WARNING: Ensure no wire strands are visible
after making connections. Place the Green and White
wire connections on the opposite side of the outlet
box from the Black.
1
3
AA
A
2
AA
Bare/Green
(ground)
Green
Black (hot)
White (neutral)
Black
White
Blue
Push-in
Connector
10
BB
CC

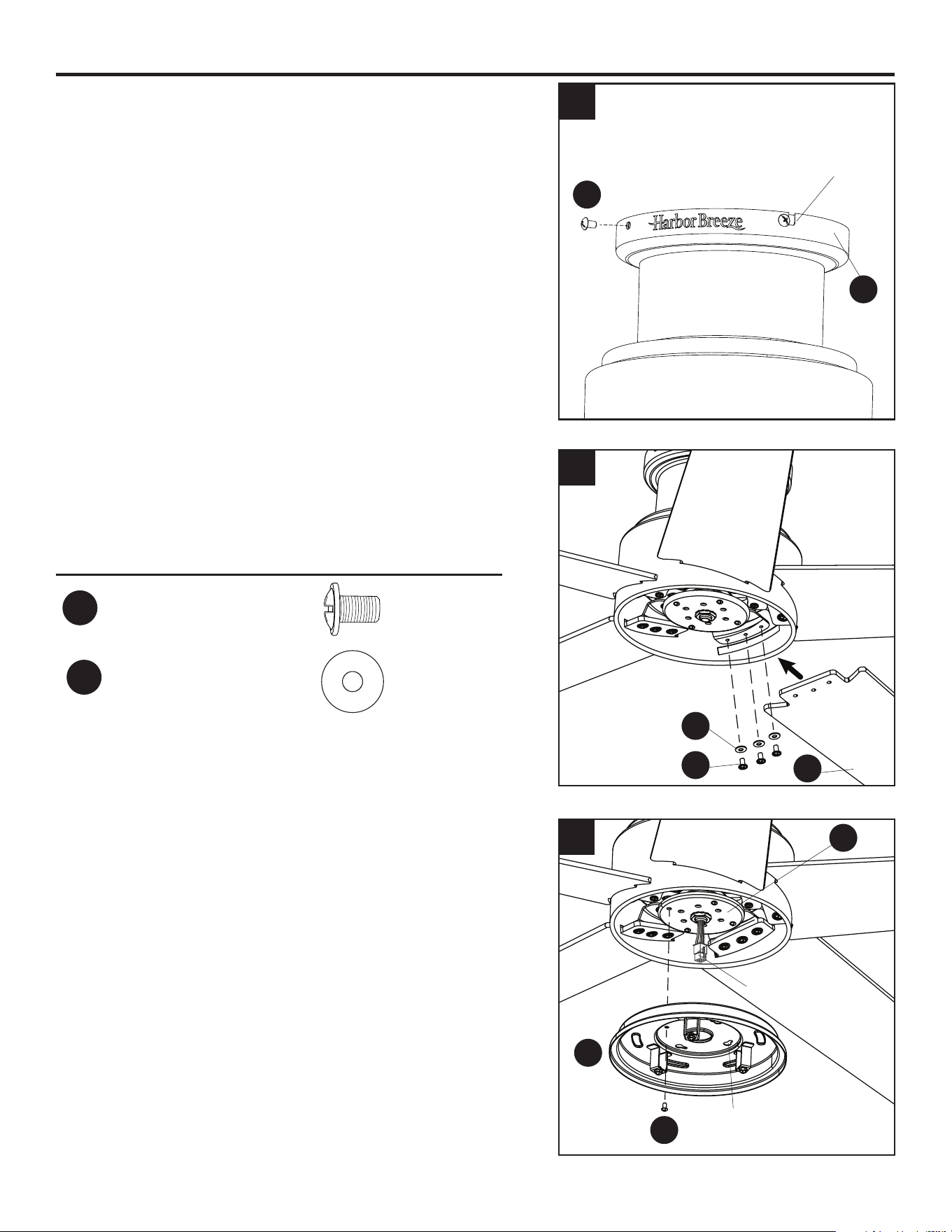

FINAL INSTALLATION
1. Slide the canopy (B) over the mounting bracket (A),
aligning the slotted holes in the canopy (B) with the
previously loosened mounting bracket screws (K) in the
mounting bracket (A). Twist the canopy (B) clockwise
to lock. Then re-insert the mounting bracket screws (K)
(Step 5, page 8) and securely tighten all screws.
2. Align the holes of one blade (J) with three blade screw
(BB) holes in underside of the motor assembly. Secure
with the three blade screws (BB) and blade washers
(CC). Repeat this step for the remaining blades (J).
Hardware Used
BB
Blade Screw x 15
Blade Washer x 15
3. Remove one and loosen the other three tter plate
screws (E) but do not remove from tter plate (D).
Feed the 9-pin connector through center hole in light
pan (F). Align the two key slots in the light pan (F) with
the loosened tter plate screws (E). Place the light
pan (F) over the two screws and turn the light pan (F)
clockwise. Then tighten the two tter plate screws (E).
Re-install the previously removed tter plate screw (E)
and tighten rmly.
2
3
D
CC
1
F
E
9-pin connector
Key Slot
Slotted Hole
J
B
K
11
FINAL INSTALLATION

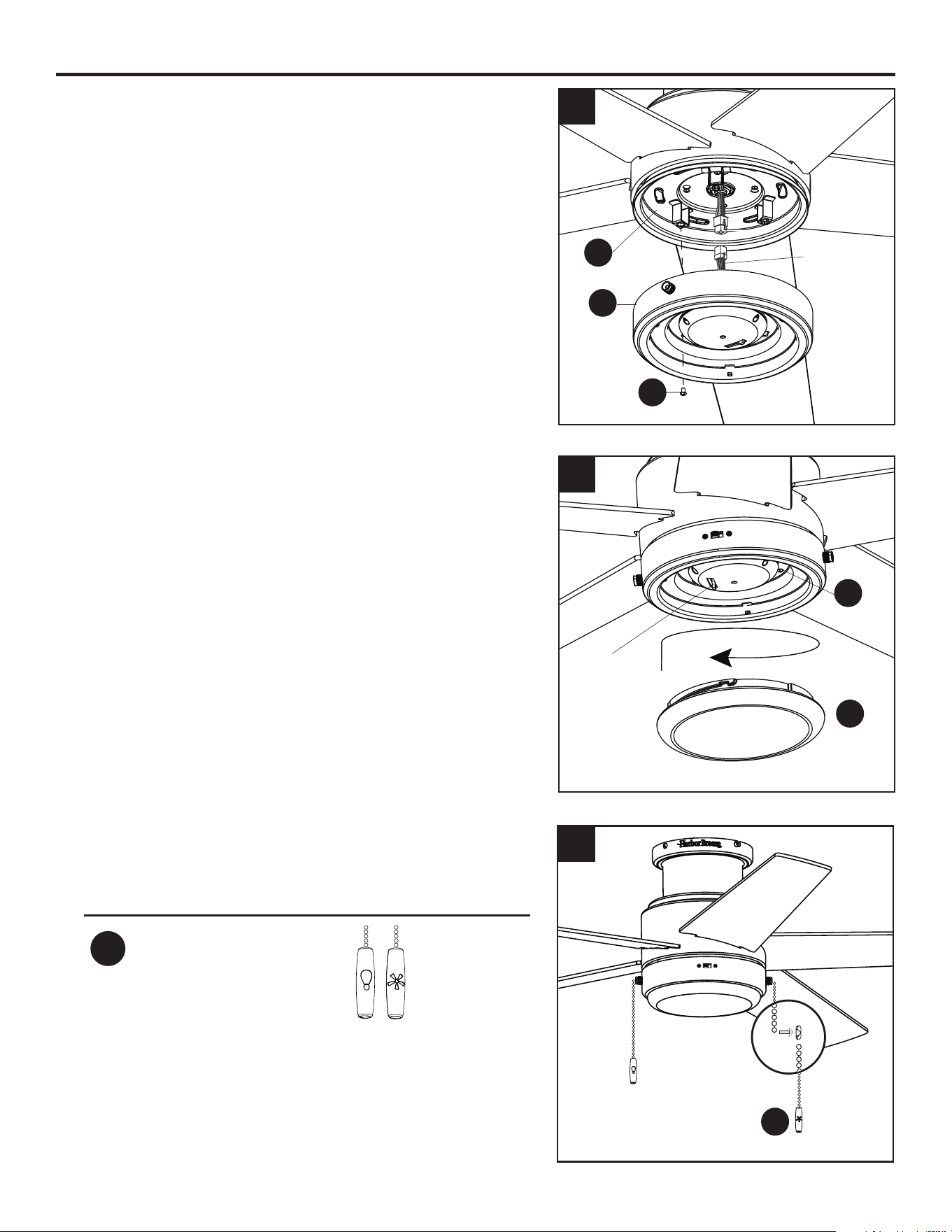

4. Remove the three light pan screws (G) preassembled
to the side of the light pan (F). Connect the 9-pin
connector from the fan to the 9-pin connector from the
light kit (H). Secure the light kit (H) with the previously
removed light pan screws (G). Tighten all three screws.

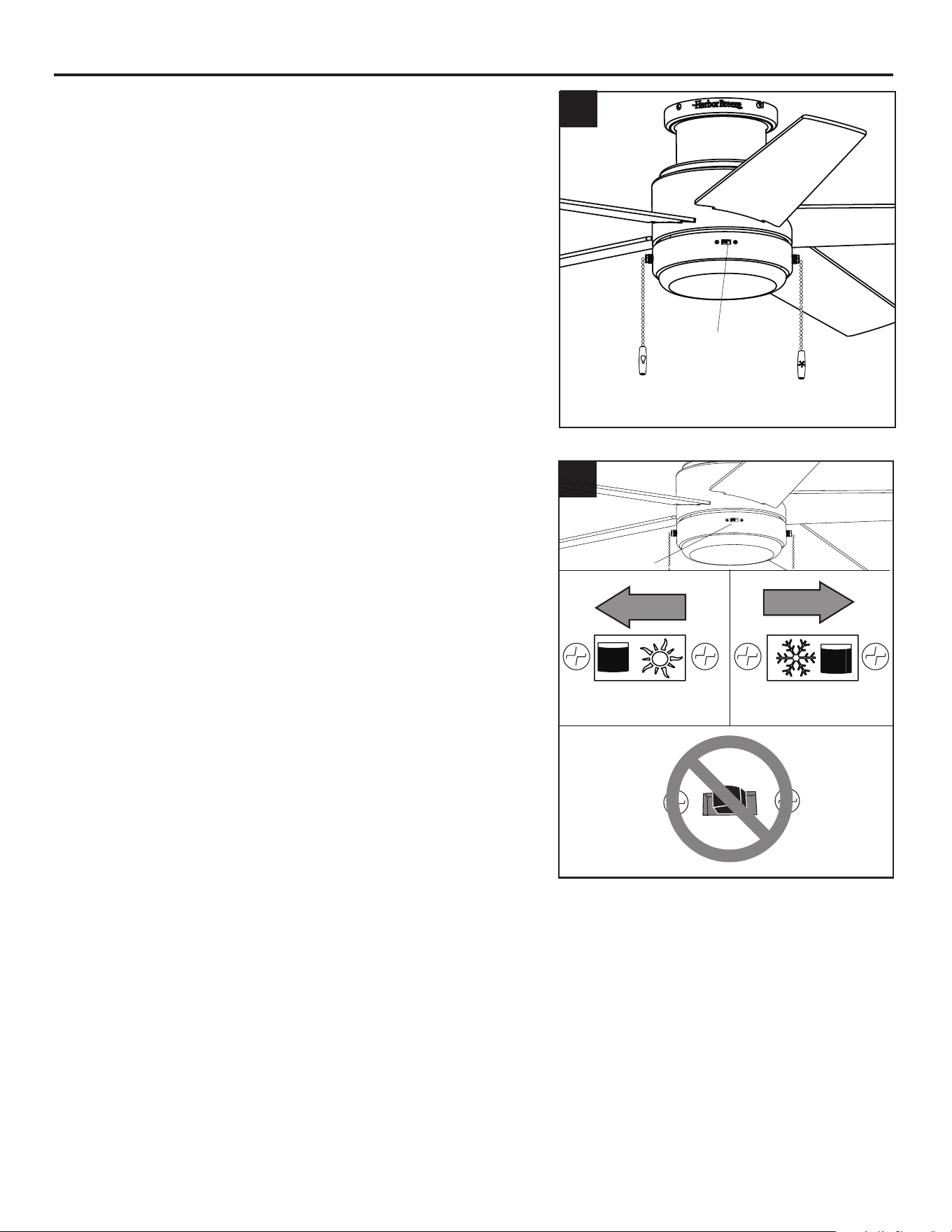

5. The LED has ve color settings that range from 2700K
(soft white) to 6500K (cool white). The factory setting
for the LED is 2700K. If desired, adjust the LED color
switch to change the color temperature.
Lift the bowl (I) into the light kit (H) and turn in a
clockwise direction until it is secure. CAUTION: Avoid
cross-threading the bowl during installation. Improper
installation could cause the bowl (I) to be dicult to
remove or fall, which could cause serious injury.
6. Attach pull chain extensions to the pull chains. Note:
When facing the reverse switch, the fan pull chain is on
the right and the light pull chain is on the left.
Hardware Used
DD
Pull Chain
Extension
x 2
Turn on power supply to the fan.
Assembly is complete.
5
6
4
H
I
DD
F
G
H
9-pin
Connector
LED Color
Switch
12
OPERATING INSTRUCTIONS
1. The fan pull chain has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is LOW
and four turns the fan OFF. The light pull chain has two
positions -- OFF and ON.
2. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your thermostat
setting in winter without feeling a dierence in your
comfort.
In warmer weather, push the reverse switch left to
display a sun icon, which will result in downward airow
creating a wind chill eect (Fig. 2A).
In cooler weather, push the reverse switch right to
display a snowake icon, which will result in upward
airow that can help move hot air o the ceiling area
(Fig. 2B).
Important: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate (Fig. 2C).
2
2
1
Fig. 2A Fig. 2B
Fig. 2C
Reverse
Switch
Reverse
Switch
Light Pull
Chain
Fan Pull
Chain
13
CARE AND MAINTENANCE
At least twice each year, tighten all screws on the fan. Clean the motor housing with only a soft brush
or lint-free cloth to avoid scratching the nish. Clean the blades with a lint-free cloth.
Total xture wattage is 16 watts; do not attempt to replace LED.
Important: Shut o the main power supply before you begin any maintenance tasks. Do not use
water or a damp cloth to clean the ceiling fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The power is o or the fuse is
blown.
2. There is a faulty wire connection.
3. The plugs are not connected
properly.
4. The reverse switch is not
completely engaged.
1. Turn the power on or check the
fuse.
2. Turn the power o. Loosen the
canopy and check all connections.
3. Check that the connectors from
the light kit and fan are connected
properly.
4. Push the reverse switch completely
to the left or right.
There is excessive
wobbling.
1. The blades and/or blade arms are
loose.
2. The blades are unbalanced.
3. The fan mounting is not secure.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the blade arms to the
motor.
2. Switch one blade with a blade from
the opposite side. Or balance the
fan using a blade balancing kit (sold
separately).
3. Turn o the power. Loosen the
motor housing and verify the upper
mounting bracket is secure to the
electrical outlet box. The bracket
must be ush without movement
against the outlet box.
14
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan
operates
correctly, but the
lights are not
working.
1. The light kit wire plugs are not
connected properly.
2. There is a faulty wire
connection.
1. Ensure that the male and female plugs in the
light kit tter are connected properly.
2. Turn the power o and check all connections
at the ceiling outlet box.
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. A wall control is not
compatible with the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that hold the
fan blades to the blade arms and the motor.
2. Replace the cracked blade.
3. Do not connect fan to wall control.
4. Ensure the ceiling outlet box is secured to
the building structure.
5. Ensure the mounting bracket is secured to
the outlet box and that the screws are tight.
15
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects
in workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one
year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser from an authorized dealer, whether such purchaser
purchased the product through a store or contractor. Ceiling fan part defects must be reported within
the rst year from the date of purchase. Parts made in whole or in part with glass and the nishes of
metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by
this warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within
the terms stated above. The manufacturer shall not be liable for any loss or damage of any kind,
including any incidental or consequential damages resulting directly or indirectly, from any breach
of warranty, express or implied, or any other failure of this product. Some states do not allow the
exclusion or limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or
materials within the warranty period associated with the defective part, the manufacturer agrees to
replace the defective part without charge, or at its option, to replace the ceiling fan with a comparable
or superior model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of tness for a particular purpose and the implied warranty of merchantability is disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to
you.
16
Printed in China

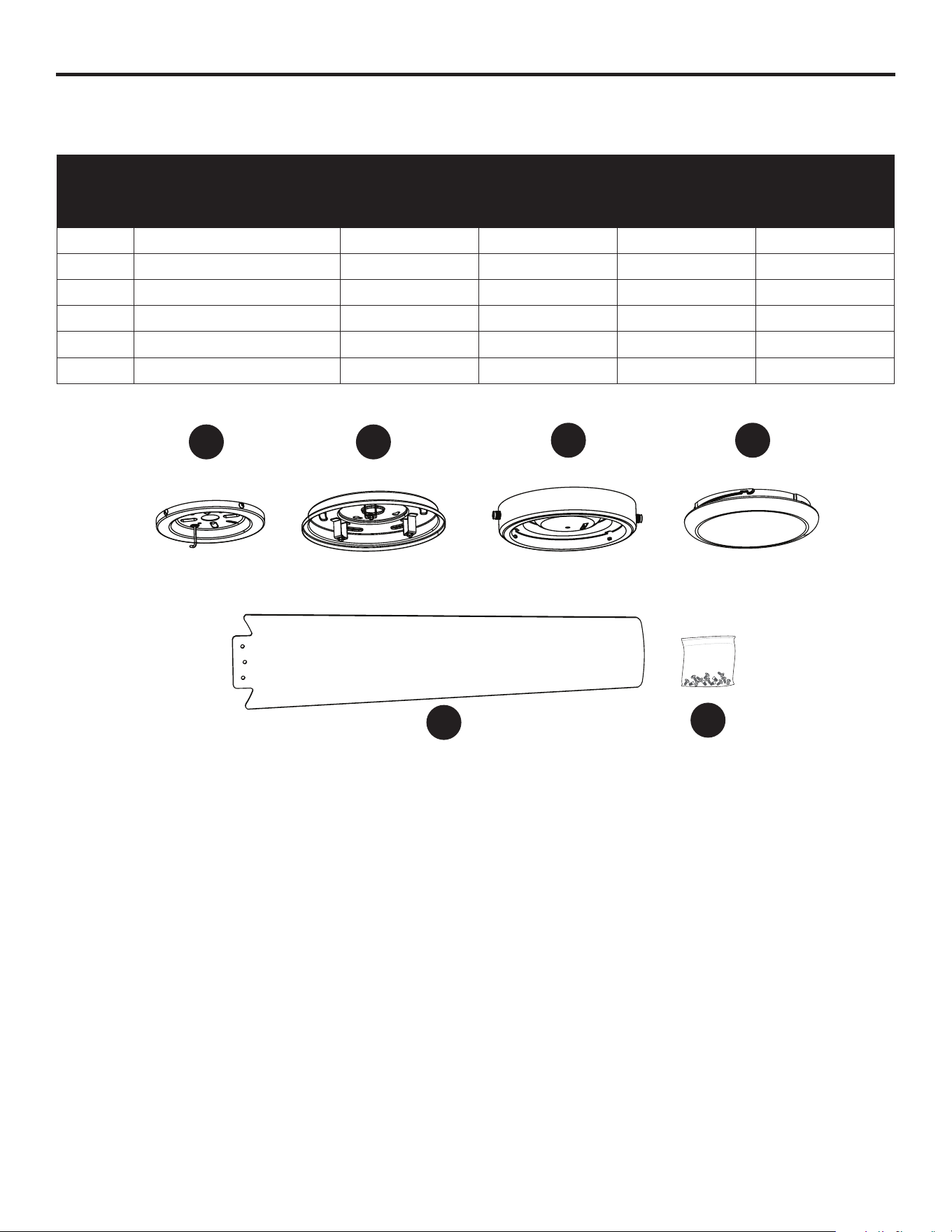

REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected].
PART DESCRIPTION 6009625
Part #
#6011465
Part #
#6011466
Part #
COVERED
UNDER
WARRANTY
A Mounting Bracket 4L000015480 4L000019710 4L000019720 YES - 1 year
F Light Pan 4L000019740 4L000019730 4L000019750 YES - 1 year
H Light Kit 4L000019760 4L000019770 4L000019780 YES - 1 year
I Bowl 4L168090001 4L168090001 4L168090001 NO
J Blade 4L086830001 4L086830002 4L086830003 YES - 1 year
HW Hardware Kit 4L000019790 4L000019800 4L000019810 NO
10173 PB · 080524
FA
J
H
I
HW
