Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
241106
SKU Number: 351-8834 351-8835
351-8836 351-8837
2-Light Indoor Flush Mount
Model Number: MC061 MC058
MC067 MC064

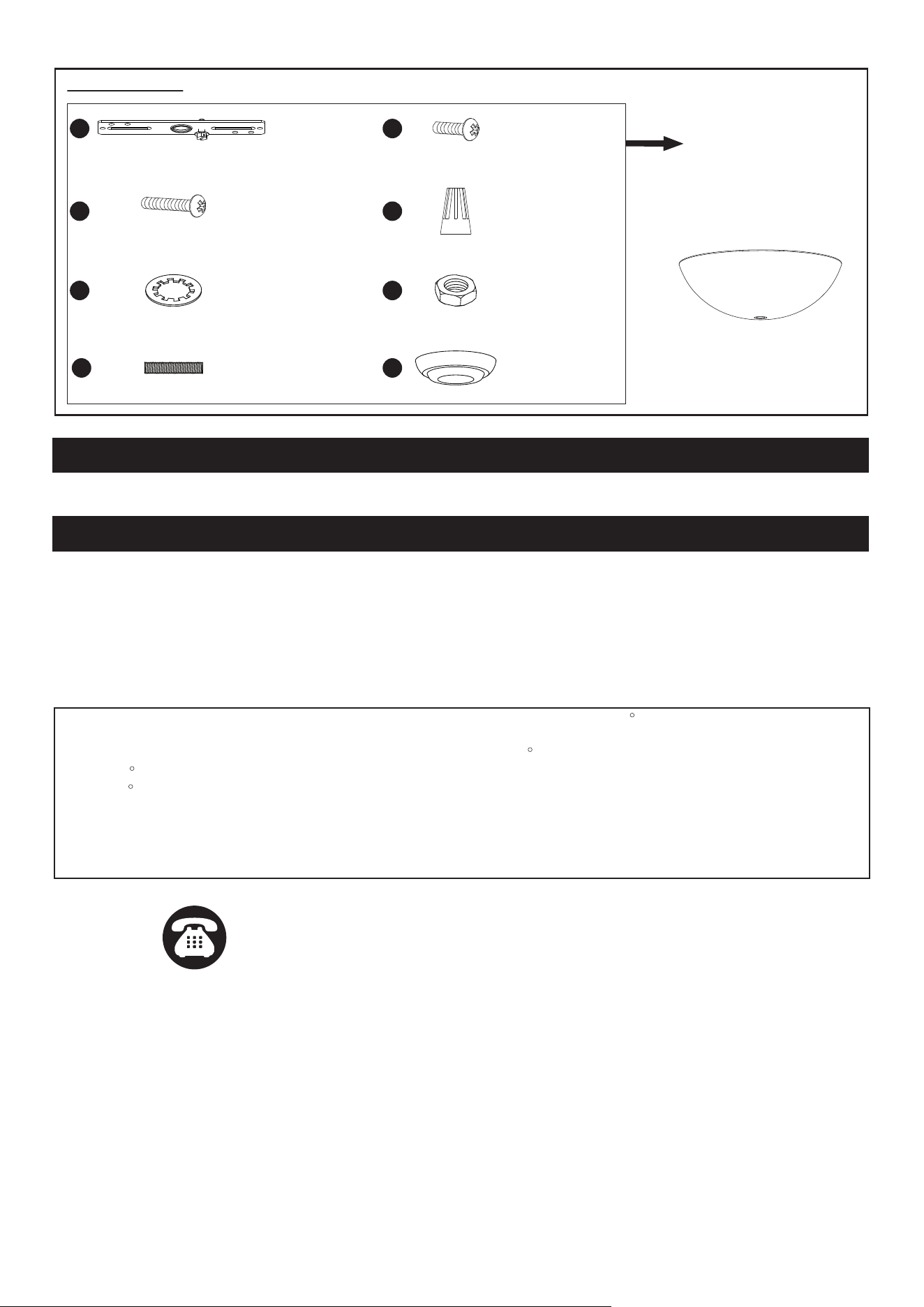

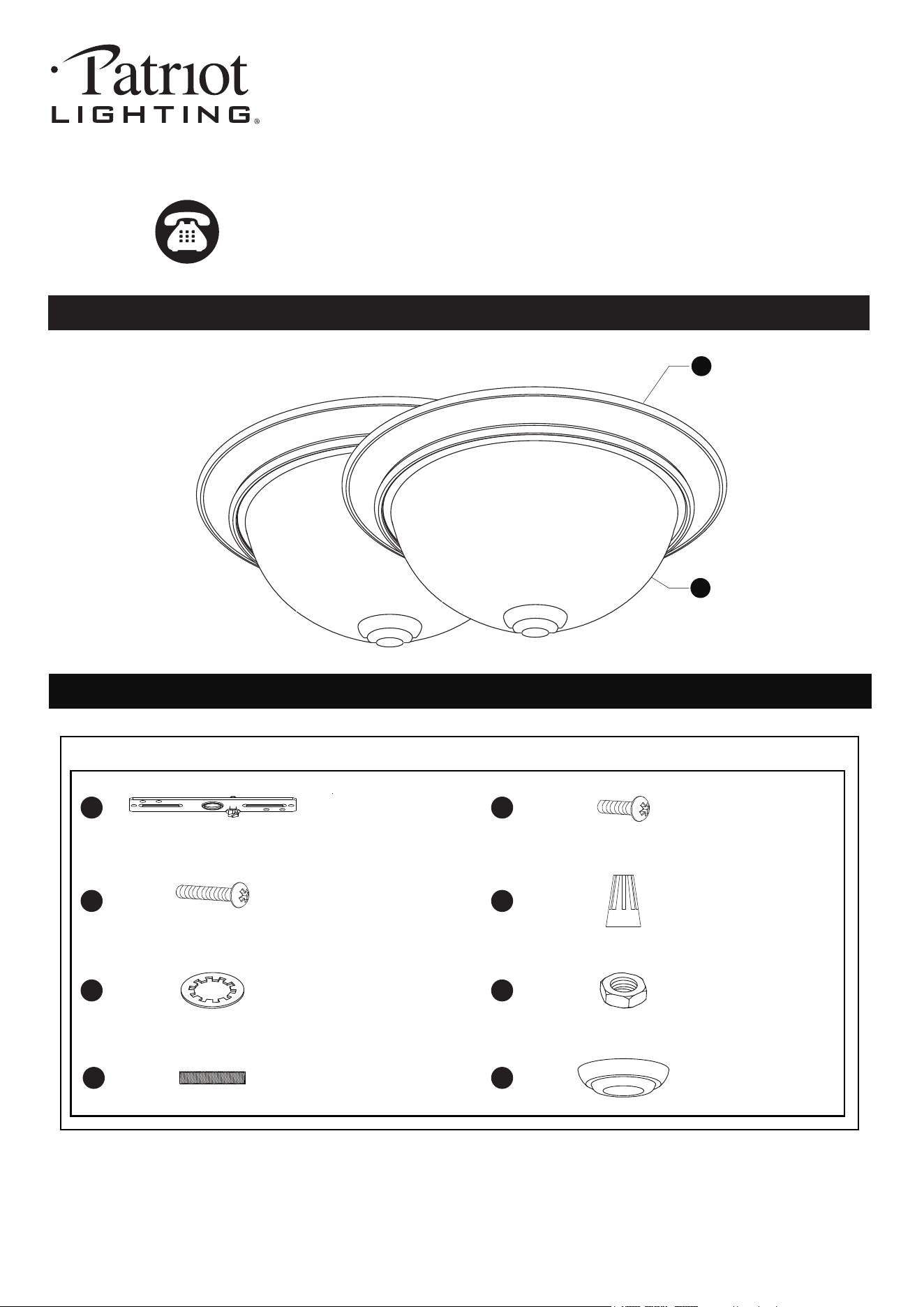

HARDWARE CONTENTS Note: Hardware not shown actual size.
Washer
X1
Hex Nut
X2
Threaded Pipe
X1
Cap
X1
Mounting Strap
X1
Wire Connector
X3
AA
EE
FF
GG
HH
BB
CC
DD
Mounting Screw
X2
Long Screw
X2
Assembly Kit (2 SETS)
PACKAGE CONTENTS
A
B
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Slotted Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire
Cutters, Safety Glasses, Ladder.
Page 2 of 3
SAFETY INFORMATION
PREPARATION
3. Attach the pan (A) to the mounting
strap (AA) by inserting two long
screw (CC) heads into the keyhole
slots and rotate the pan (A) until the
long screw heads locked in proper
place, then secure the long
screws (CC) tightly.
4. Attach the threaded pipe (GG)
into the coupling of the pan (A)
and secure the washer (EE)
and hex nut (FF).
NOTE: Depth of threaded
pipe may need to be
adjusted to properly fit
glass shade, hex nut and
cap.
5. Install 2 X 60W Max. medium base
bulbs (not included).
See relamping label at socket
area or packaging for maximum
wattage allowed.
6. Attach the glass shade (B) to
the pan (A) by inserting the
threaded pipe (GG) through the
glass shade (B), then secure it
with a hex nut (FF) and
cap (HH).
Turn on the power at the main
fuse or circuit breaker box.

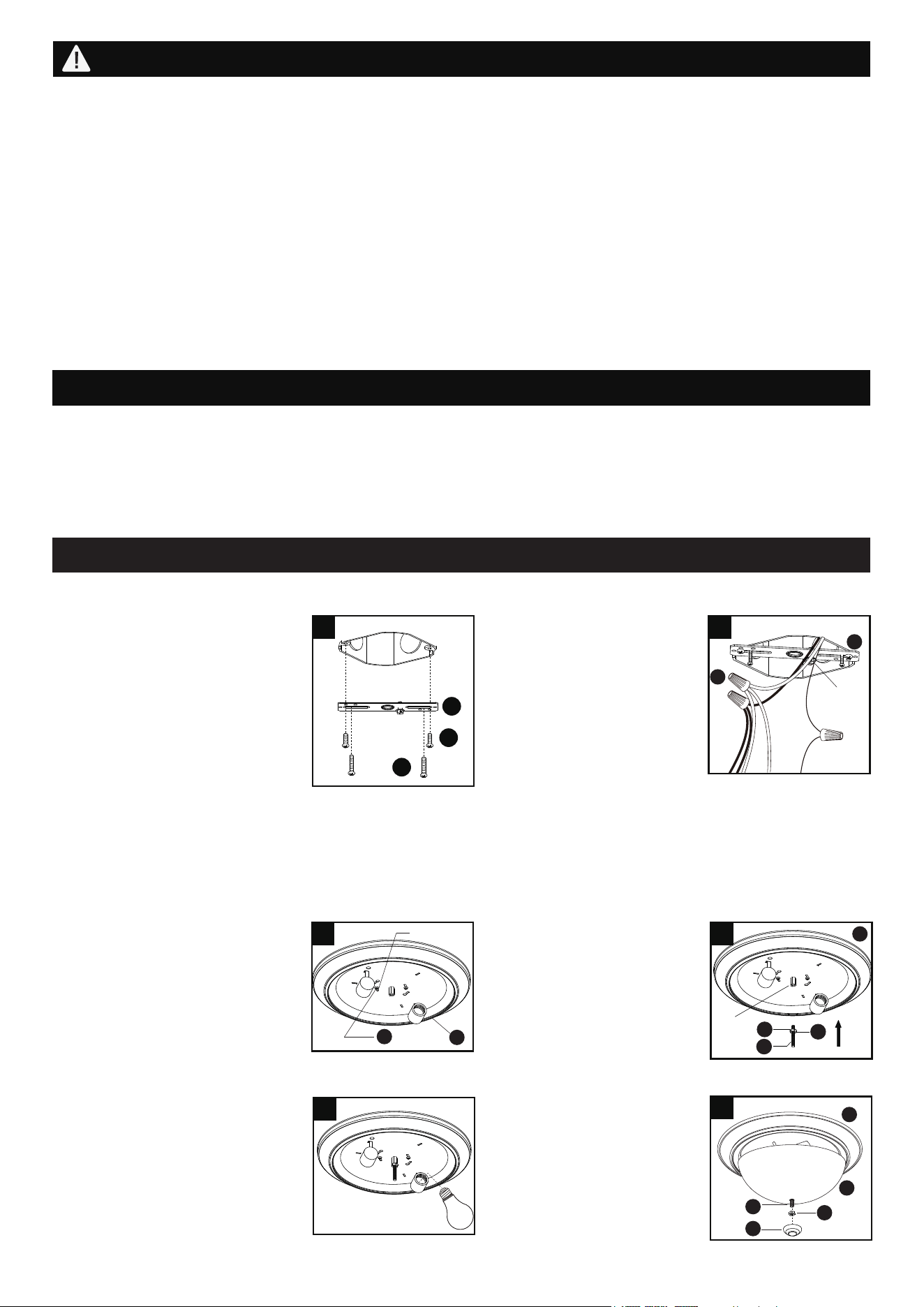

1. Attach the two long screws (CC)
to the holes on the mounting strap
(AA). Thread them in part way:
2 to 3 turns only.
Attach the mounting strap (AA) to
the outlet box by using two
mounting screws (BB).
2. Pull out the source wires
from the outlet box. Make
wire connections using wire
connectors (DD) as follows:
• Connect the hot wires
(black insulation) from the
fixture to the black wire from
the power source.
• Connect the neutral wires
(white insulation) from the fixture to the white wire
from the power source.
• Attach the fixture ground wire (bare wire) to the
mounting strap (AA) with the green ground screw,
then connect it to the house ground wire with the
wire connector (DD).
Carefully put all of the wires back into the outlet box.
6
A
B
FF
GG
HH
241106
AA
BB
CC
1
Outlet Box
2
AA
DD
Outlet Box
3
Keyhole Slot
CC
A
GG
FF
EE
4
A
5
Max. 60W Type A Bulb
(not included)
Green
Ground
Screw
Coupling
ASSEMBLY INSTRUCTIONS
• All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
• Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation.
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
•
Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or switching
off circuit breaker).
• Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury
or death from electric shock.
CAUTION
Turn off the power at fuse or circuit box.
Page 3 of 3
241106
Spare Parts List:
Glass Shade
10310FR
Washer
X1
Hex Nut
X2
Threaded Pipe
X1
Cap
X1
Mounting Strap
X1
Wire Connector
X3
AA
EE
FF
GG HH
BB
CC
DD
Mounting Screw
X2
Long Screw
X2
The following parts are available for reorder if damaged or missing. Call our toll-free at 1-800-887-6326.
Assembly Kit
4006MM for 351-8834
6540MM for 351-8835
4008MM for 351-8836
4007MM for 351-8837
FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails due
to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this lighting
fixture with the original sales receipt back to your nearest MENARDS retail store. At its discretion, PATRIOT
LIGHTING agrees to have the product or any defective part(s) repaired or replaced with the same or similar PATRIOT
LIGHTING product or part free of charge, within the stated warranty period, when returned by the original purchaser
with original sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs; (2) does
not cover damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to
persons/property or costs. This warranty does give you specific legal rights and you may have other rights, which vary
from state to state.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
TROUBLESHOOTING
R
R
R
CARE AND MAINTENANCE
R
● To clean, turn off and wipe with a damp, non-abrasive cloth.
1) The light does not work:
a) Make sure the wall switch and circuit breaker are on.
b) Make sure the wiring is correct.
2) Fuse blows or circuit trips when light is turned on.
Check for crossed wires, ensure wiring is correct.
If unable to fix any of the above issues, please consult a certified electrician.
