Welcome and thank you to buy refrigerator of our company! In order to make sure
you can use our product correctly, please read this manual carefully before you use the
refrigerator.
USER MANUAL
２
1.Products Specifications························ 2
2. Safety Instructions·························· 3
3. Environment For Installation······················ 3
4. Product Brief·····························4
5. Preparation Before Usage······················· 5
6. Clean································ 5
7. Notice during usage ··························5
8. Maintenance ·····························6
Model
Rated
Voltage(V)
Freq
(Hz)
Refrigerant
Dimension
（L×D×H）
Net
Volume(Cbf)
Temperature
Working
power
（W）
Net
weight
(lbs)
KR-23B 115 60 R290
683×815×2080mm
26.9×32×81.9inches
20 33~41℉ 220 333
KR-49B 115 60 R290
1375×815×2080mm
54.1×32×81.9inches
43 33~41℉ 300 489
KF-23B 115 60 R290
683×815×2080mm
26.9×32×81.9inches
20 0~ -8℉ 334 340
KF-49B 115 60 R290
1375×815×2080mm
54.1×32×81.9inches
43
0~ -8℉
551 500
KR-23BG 115 60 R290
683×860×2080mm
26.9×33.9×81.9inches
20
33~41℉
226 355
KR-49BG 115 60 R290
1375×815×2080mm
54.1×33.9×81.9inches
43
33~41℉
226 535
KPR-23BG 115 60 R290
683×815×2080mm
26.9×33.9×81.9inches
20 33~41℉ 348 355
KPR-49BG 115 60 R290
1375×815×2080mm
54.1×33.9×81.9inches
43
33~41℉
348 535
Above specifications are tested under ambient temperature 90℉.
３
1. Electric safety
- Must use independent special socket and socket should be grounding.
- Power plug should be connected to socket tightly.
- When power wire or plug is broken or worn, do not use and must go to the
appointed maintenance pot to get fixed or replaced.
- Please do not insert or pull out plug when there is leakage of natural gas or other
flammable gas.
- Please install leakage protector to avoid electric shock.
- Please do not turn on and off the power button, this will cause to electric shock or
short circuit.
2．Others
- Do not put flammable and explosive dangerous item and strongly corrosive item in
the refrigerator.
- To keep safe, please do not put items on the top of refrigerator, in case of
unwanted loss.
- Do not spray at refrigerator using water; also do not put it in wet place where it can
be splashed in case of effecting electric isolation.
- Please do not touch outside pipe in case of scalding.
- Out of power or clean, please pull out the plug, there should be at least 5 minutes
before connect power again in case of damage of compressor.
1．Put on stable ground
- Refrigerator should be placed on flat and stable ground, if need block up, also need to
choose flat, hard inflammable block. You also can rotate the stainless steel leg
clockwise or counter clockwise to increase or decrease the height of the refrigerator.
2．Keep far away from hot source
- Refrigerator should be kept away from hot source and not under direct
sunshine in case of effecting refrigeration ability.
3．Ventilation Condition
- should be put on the aeration place, there should be at least 3 cm space behind and
around refrigerator.
4．Outside condition
- do not put refrigerator in a place where the temperature is too low(below 5 degree) also
do not place it outdoor or in the rain.
４

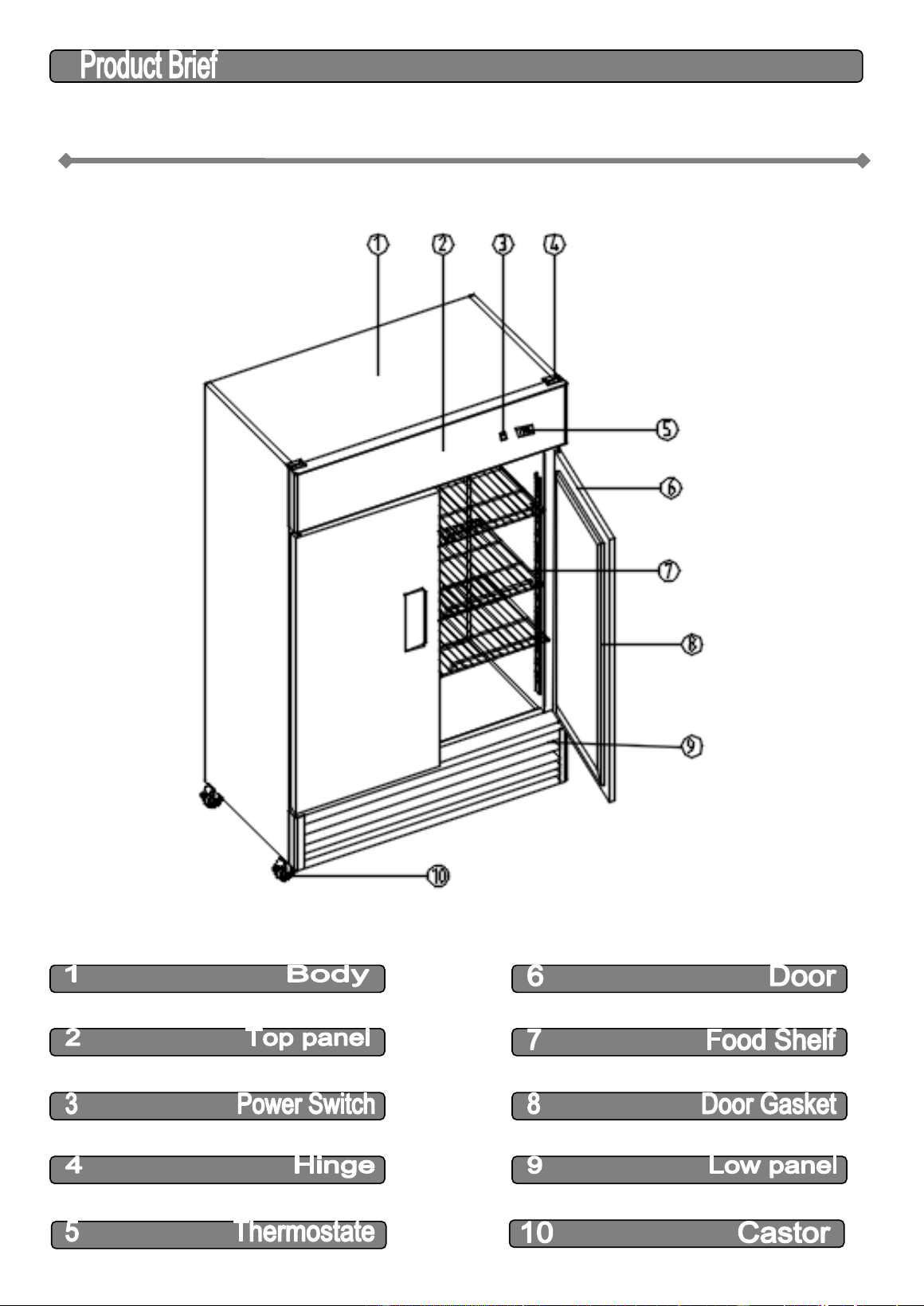

Parts Name
５
1. Remove all the package
- Remove the package and bag before usage.
2．Check the parts and document
- Please check item in the refrigerator, any problem ask distributor.
3．Put refrigerator at suitable place.
4．Clean the refrigerator before usage and open the door.
5．Put aside
- Put aside the refrigerator more than 30 minutes to ensure the correctly use.
1．Clean inside and outside
- Please use cloth with neutral cleaning agent, then use clean cloth.
- Please do not use corrosive cleaning agent.
2．Clean condenser fins.
- Please clean fin of the condenser every month, if the fin is blocked up, it will affect
the refrigeration ability.
- The power should be off when clean, using brush to clean the dust. Please not
brush horizontally in case damage the fin and affect refrigeration.
3．Clean door gasket
- Door gasket need to be washed frequently to keep tightness
4．Check after clean
- Check again the refrigerator to make sure every part installed correctly and is safe.
1．Storage
- Please do not put more than 100kg food on the rail.
- Please store food suit the above temperature range, and there should be enough
space, item should not block air outlet(70% is the upper limit）to make sure normal
circuit of cold air.
- The hot food should be cooled first and then put into the refrigerator, otherwise will
affect other stored food around.
- Please put in packed food only.
６
Notice：
All the thermostat parameters have been set before delivery ，
please don't change，to ensure correct working.
If you think there is a problem, please check follow the below table, if there is still a
problem, please contact service center to solve the problem. People who is not
professional service man does not conduct the maintenance.
Problem analysis：
problem reason solution
No
refrigeration
Power plug is loosen
Use multi-socket
Power switch button is off
Is defrosting
Insert plug well
Use special socket
Turn on the button
Wait for end of defrost
Slow
cooling
Too much food, no channel for cold air
Direct sunlight, near hot source
Too much dust on condenser
Door open an d close too frequently
Temperature controller is not set suitable
Hot food in the cabinet
Reset the position of food
Choose another place to place
Clean condenser(must turn off power)
Decrease times of open and close door
Rotate the controller to much more cold
position clock wise
Put the food into refrigerator after cooling.
Big noise
The ground is not stable and flat
The leg is not set well, one of them is not stable
Make ground stable and flat
Adjust the leg
