46CC 2 STROKE CHAINSAW
OWNERS OPERATING MANUAL
04301 09/21
FMXOP24602
For service, spare parts or product information,
please contact Smart Marketing Group Pty. Ltd.
AUST. 1300 660 457 N.Z. 0800 474 876
www.stanleyproducts.com.au
40:1
2 Stroke
2
3
Please take note of serial number and write here for ease of
reference:
Serial Number:
Date of Purchase:
Place of Purchase:
Receipt Number:
CONTENTS
Section Page
Technical Information 2
Introduction 3
Warranty Statement 4
General Safety Instructions 5 - 7
Specific Safety Instructions 8 - 11

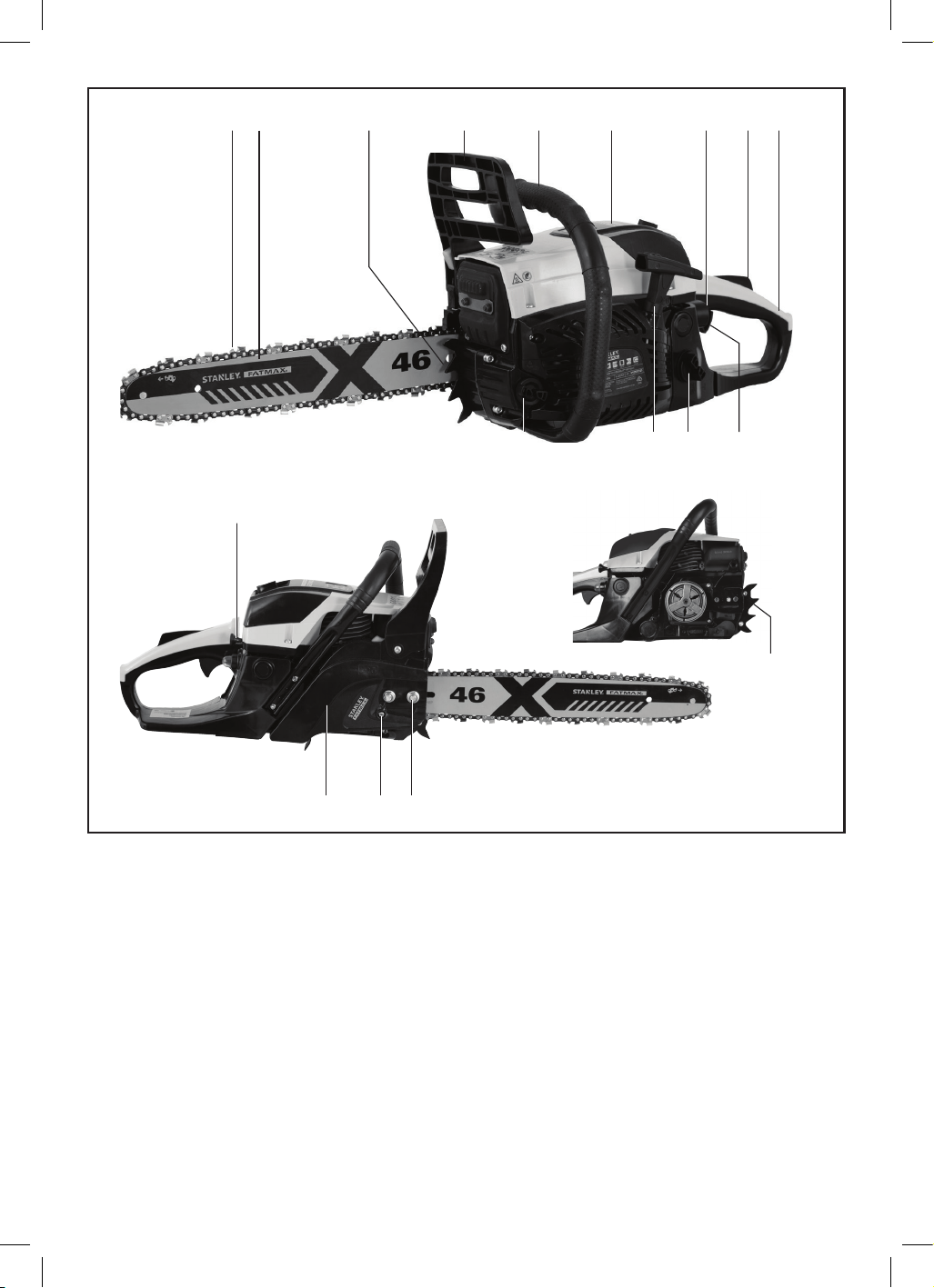

Components and Controls 12 - 13
Unpacking and Assembly 14 - 18
Operating Instructions 19 - 27
Maintenance and Storage 28 - 30
Trouble Shooting 30
Service Log 31
Contact Information 32
TECHNICAL INFORMATION
Specifications
Air-cooled 2-stroke engine FMXOP24602
Nominal Displacement 46cc
Actual Displacement 45.1cc
Max. engine power 1.8 kW
Fuel 2 Stroke Ratio 40:1
Fuel tank capacity 500 cc
Oil tank capacity 240 cc
Cutting length 360 mm
Spark plug Torch BM6A or L8RTC, or Bosch L8RTF
Weight
5.6 kg
Bar Length max. 406mm (16’’)
Chain pitch 9,525 mm
Template chain 1.27 mm
Sprocket 6 Teeth X 9.525 mm
Max. Speed 11,000 RPM
Engine idle speed 2700 - 3400 RPM
Chain Replacement Type 91PX55X or 3/8, 050x55
Guide Bar Replacement Type 160SDEA095 or SPS-16A-55P
Noise May exceed 113db (A)
SUGGESTED APPLICATIONS
These are some suggested articles which could be used by this
chain saw:
• Trees
• Branches
• Fire wood
• Clearing fallen branches
• Sculpturing
2
3
INTRODUCTION
Dear Customer,
Thank you for purchasing this chainsaw which has passed through
our extensive quality assurance processes. Every care has been
taken to ensure that it reaches you in perfect condition. However, in
the unlikely event that you should experience a problem, or if you
require any assistance please do not hesitate to contact us;
If you have a problem, call customer service do not
return this chainsaw to the place of purchase.
CUSTOMER SERVICE
Australia: 1300 660 457
New Zealand: 0800 474 876
Operating times: Monday – Friday
8.00am - 5.00 pm
Australian Eastern Standard Time (AEST)
EXPRESS WARRANTY STATEMENT CHAINSAW
You are not required to do anything to register your chainsaw
purchase. Please attach the purchase receipt to this manual and
ensure both are kept safe. We hope you enjoy your new chainsaw,
and if you have any problems call customer service on the above
phone numbers. Do not return to place of purchase.
Smart Marketing Group Pty Ltd (SMG) warrants that this chainsaw
will be free from manufacturing faults or defects for 12 months
from the date of purchase, providing original purchase receipt
is kept and shown when needed and is subject to the terms and
conditions below.
If a warranty fault appears within the warranty period, SMG
reserves the right to replace or repair the product. In the event
that SMG chooses to replace the product, this original warranty
will expire at the original date. If the product includes various
accessories or components, only the defective accessory or
component will be replaced or repaired.
SMG reserves the right to replace defective parts of the product with
parts and components of similar quality, grade and composition where
an identical part or component is not available.
Products presented for repair may be replaced by refurbished
products of the same type rather than being repaired. Refurbished
parts may be used to repair the products.
What is covered.
• Manufacturing fault or defect.
How to claim under this warranty.
• Call customer service, phone number below.
• Ensure you have the following: Original purchase receipt, Model
of chainsaw, Serial number of chainsaw.
• Discuss the issue.
• Customer service will advise which authorised service agent to
take the chainsaw to provided the issue is a warranty one.
• Take chainsaw to authorised service agent for repair.
What is not covered.
• Chainsaw used for hire.
• Damage caused by incorrect fuel or incorrectly mixed 2 stroke
fuel.
• Damage or deterioration due to transport.
• Damage caused by negligence, misuse, abuse or accident or
incorrect voltage and wattage.
• Any corrosion or rusting.
• Damage caused by incorrect set up and start up.
• Replacement parts due to general wear and tear.
• Chainsaw with serial number defacement, modification or
removal.
• Chainsaw which has been serviced by other than an authorised
SMG service agent.
• Chainsaw with no original purchase receipt.
• Chainsaw which have been on sold, not original purchaser.
• Damage due to non-servicing of chainsaw as is required by this
manual.
• Blockages / damage caused by dust, dirt, spiders webs
or insects.
• Damage caused by the incorrect fitting of accessories.
• Damage caused by overloading or overworking
the chainsaw.
• Damage to attached equipment or third party accessories.
• Damage caused by attached equipment or
third party accessories.
CONTACT DETAILS
Smart Marketing Group Pty Ltd
33-35 Lionel Road, Mt. Waverley
Victoria 3149, Australia.
Tel (+613) 9543 7266
Fax (+613) 9543 9839
service[email protected]
Specifications
Air-cooled 2-stroke engine FMXOP24602
Nominal Displacement 46cc
Actual Displacement 45.1cc
Max. engine power 1.8 kW
Fuel 2 Stroke Ratio 40:1
Fuel tank capacity 500 cc
Oil tank capacity 240 cc
Cutting length 360 mm
Spark plug Torch BM6A or L8RTC, or Bosch L8RTF
Weight
5.6 kg
Bar Length max. 406mm (16’’)
Chain pitch 9,525 mm
Template chain 1.27 mm
Sprocket 6 Teeth X 9.525 mm
Max. Speed 11,000 RPM
Engine idle speed 2700 - 3400 RPM
Chain Replacement Type 91PX55X or 3/8, 050x55
Guide Bar Replacement Type 160SDEA095 or SPS-16A-55P
Noise May exceed 113db (A)
4
5
As soon as you have purchased the chainsaw, we recommend that
you check to make sure it is intact and that you read the operating
instructions carefully before using it. The purchase receipt for this
product is to be retained and must be presented if making a claim
under the terms of the Smart Marketing Group (SMG) warranty.
Bank account statements are not acceptable for proof of purchase.
This warranty does not cover chainsaw intended for hire. The
warranty will under no circumstances extend to reimbursement
or payment of damages, whether direct, indirect or consequential.
The warranty is void if there is evidence the chainsaw has been
modified or tampered with in any way or used with unauthorised
accessories without our consent.
SMG declines any responsibility or liability whatsoever arising
from misuse or abuse, negligent handling of the chainsaw or if
the product has not been installed or failure to comply with the
relevant safety, operating, setting and maintenance instructions
(see further in this manual).
The warranty does not extend to installation or disconnection costs.
Any item sent freight forward/collect for repair will be refused.
Warranty repairs are free of charge, provided the product is
delivered to our service department or authorised service agent.
The chainsaw will need to be returned, adequately protected in a
box. SMG will not be responsible for any in-transit loss or damage.
Assistance under the warranty will only be made available if the
request is made to our customer service team on the contact
numbers listed below and proof of purchase is provided.
This is a repair only warranty you will need to take the chainsaw to
the authorised service agent after contacting our customer service
centre.
If the product includes various accessories or components, only the
defective accessory or component will be replaced or repaired.
SMG reserves the right to replace defective parts of the product
with parts and components of similar quality, grade and
composition where an identical part or component is not available.
Products presented for repair may be replaced by refurbished
products of the same type rather than being repaired. Refurbished
parts may be used to repair the products.
Damage caused by third party accessories is not covered under this
warranty.
Damage caused to attached equipment or third party accessories
will not be covered under this warranty.
Rust and corrosion are not covered under this warranty.
If a warranty fault is found the freight cost will be credited to the
owner. If no fault is found the product will be returned and any
costs associated with the service will be charged to the owner.
Blockages caused by spider webs, insects, dirt, accumulated dust,
incorrect fuel or incorrectly mixed 2-Stroke fuel are not covered by
warranty. SMG reserves the right to replace or repair the product
within the warranty period. Parts found to be defective due to a
manufacturing fault will be replaced free of charge.
In the event of SMG choosing to replace the product, the warranty
will expire at the original date of purchase. If no warranty fault is
found the owner will be advised and the product will be returned
and any costs associated with the service will be charged to the
owner.
Our goods come with guarantees that cannot be excluded under
the Australian Consumer Law. You are entitled to a replacement
or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled
to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major
failure. The benefits of this warranty are in addition to any rights
and remedies imposed by Australian State and Federal legislation
that cannot be excluded.
In New Zealand, this SMG warranty is in addition to the conditions
and guarantees which are mandatory as implied by the New
Zealand Consumer Guarantee Act 1993. For service, spare parts or
product information please contact customer service:
Australia: 1300 660 457
New Zealand: 0800 474 876
CONTACT DETAILS
Smart Marketing Group Pty Ltd
33-35 Lionel Road, Mt. Waverley
Victoria 3149, Australia.
Tel (+613) 9543 7266
Fax (+613) 9543 9839
service[email protected]
COMPLETE WARRANTY STATEMENT – CHAINSAW
4
5
OPERATING ENVIRONMENT
ALWAYS use your chainsaw in an open well ventilated area. Do
not expose your chainsaw to rain. Do not expose your chainsaw
to direct sunlight. Keep the work area well lit. Do not use your
chainsaw in areas where there is a risk of explosion or fire
from combustible materials, flammable liquids, paint, varnish,
petrol, flammable gases and dust of an explosive nature. As a
precaution it is recommended that you consult an expert on
selecting and using a suitable fire extinguisher and have it
available for use in an emergency when operating the chainsaw.
BEWARE OF CHILDREN & PETS
Children and pets should be kept out of the operating area.
Children should not be allowed to touch or operate the chainsaw.
Chainsaw should be kept out of reach of children. When NOT in
use keep the chainsaw preferably stored or locked in a secure well
ventilated cabinet or room with the fuel tank empty.
PERSONAL PLANNING
1. Restrict the use of your chainsaw to adult users who
understand and can follow safety rules, precautions and
operating instructions found in this manual.
2. Keep all parts of your body away from the chain when the
engine is running.
3. Keep children, bystanders, and animals a minimum of 15
metres away from the work area. Do not allow other people or
animals to be near the chainsaw when starting or operating
the chainsaw. If necessary use warning signs to keep on lookers
at a distance.
4. Carefully plan your sawing operation in advance. Do not start
cutting until you have a clear work area, secure footing and
if you are felling trees, a planned retreat path. Do not operate
the chainsaw near a naked flame or spilled fuel. After refuelling
always wipe off any spilled fuel, move the chainsaw away from
the fuelling point before starting the engine.
5. Do not operate a chainsaw with one hand. Serious injury to
the operator, helpers, bystanders or any combination of these
persons may result from one-handed operation. A chainsaw is
intended for two-handed use. Always maintain a firm foothold.
Ensure you are able to STOP the engine quickly if necessary.
6. Do not operate chainsaw from a ladder or in a tree.
7. Make sure the chain will not make contact with any object
while starting the engine. Never try to start the chainsaw when
the guide bar is in a cut.
8. Do not put pressure on the chainsaw at the end of the cut.
Applying pressure can cause you to lose control when the cut is
completed.
9. With the engine stopped, hand carry the chainsaw with the
muffler away from your body and the guide bar and chain to
the rear, preferably with the cover on.
SAFETY
Before attempting to operate this chainsaw the following basic
safety precautions should be taken to reduce the risk of fire, electric
shock and personal injury. It is important to read the instruction
manual and to understand applications, limitations and potential
hazards associated with this chainsaw. It is important that you
read, understand and follow these instructions very carefully. They
are designed for the safety of yourself and others ensuring a long
and trouble free service life from your chainsaw. This chainsaw is
not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning the use of the product by a person responsible for their
safety.
SELECT A CHAINSAW WITH A
SUFFICIENT RATING
Select the right chainsaw for the job. Do not use a chainsaw to do
a job for which it was not designed. Do not force a small chainsaw
to do the job of a heavy duty chainsaw. Any damage caused
by overloading will void the warranty. Do not use chainsaw for
purposes not intended.
PROPER USAGE
This chainsaw is designed exclusively for sawing wood, for example
tree trunks, branches, planks, etc.
If it is used for any other purpose or if modifications are made to it,
the manufacturer cannot accept any liability.
Also refer to the safety instructions, the assembly and operating
instructions and also the general accident prevention regulations.

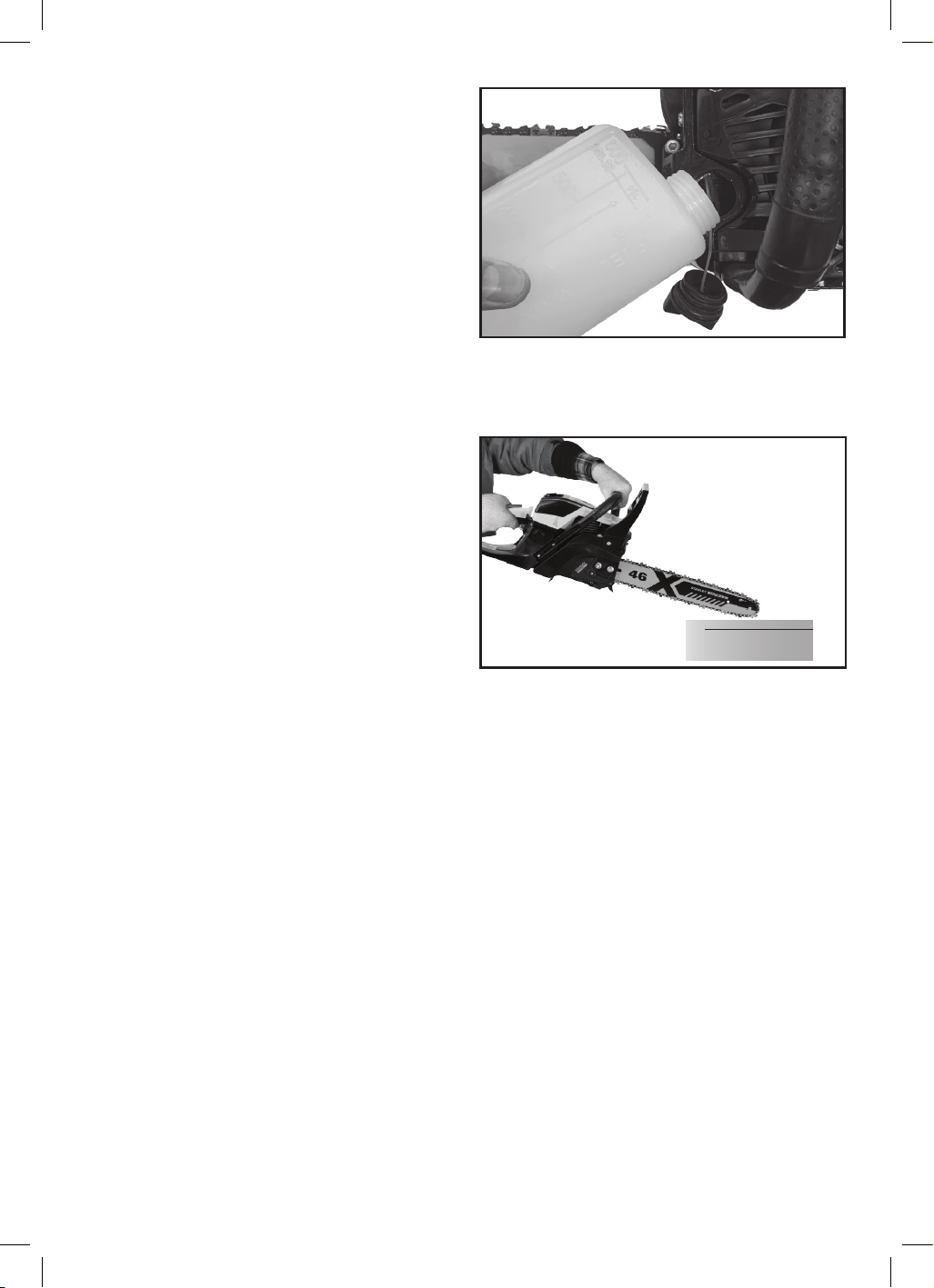

CHAIN BAR OIL
Your chain requires lubrication, always ensure oil reservoir is full.
FUEL
Note: Do not use ethanol blended fuels.
This chainsaw requires pre-mixed 2 Stroke fuel. Ensure unleaded fuel is
mixed with 2 Stroke oil before being decanted into the fuel tank.
Fuel used in this chainsaw is poisonous. Always wear approved
breathing protection when decanting fuel. If you get any fuel on
your skin or clothes wash the affected area immediately with soap
and water and change your clothes. If you get fuel in your eyes
wash immediately with clean water and seek medical attention.
If any fuel is swallowed DO NOT induce vomiting, seek immediate
medical attention.
6
7
WARNING
Do not attempt to modify the chainsaw in any way; this will VOID your warranty.
The use of any attachment or accessory other than those recommended in this instruction manual could result in damage to the
chainsaw and could cause injuries to the operator.
This petrol chainsaw complies with Australian / New Zealand and International standards and safety requirements. Repairs should only
be carried out by qualified persons using original spare parts. Failure to do so may result in considerable danger to the operator.
MAINTAIN YOUR CHAINSAW WITH CARE
Follow the instructions for lubricating and changing accessories.
Keep handles clean, dry and free from oil and grease. Ensure that
ventilation slots are kept clean and free from dust at all times.
Blocked ventilation slots can cause overheating and damage to the
motor. Ensure that the air and fuel filters are kept clean at all times.
MAINTAIN THE CHAINSAW IN GOOD
WORKING ORDER
Have all chainsaw service performed by an authorised service agent
with the exception of the items listed in the maintenance section of
this manual. For example: if improper tools are used to remove or
hold the flywheel when servicing the clutch, structural damage to
the flywheel can occur and cause the flywheel to burst.
Make certain the chain stops moving when the throttle trigger is
released. If it does not, do not use until serviced by an authorised
service agent .
1. Never modify your chainsaw in any way.
2. Keep the handles dry, clean and free of oil or fuel mixture.
3. Keep fuel and oil caps, screws and fasteners securely tightened.
4. Use only qualified accessories and replacement parts as
recommended
REMOVE ADJUSTING KEYS & WRENCHES
Form the habit of always checking to see that any adjusting keys or
wrenches have been removed from the chainsaw before operating.
FIRE PRECAUTIONS
Always contact your fire authority before using the chainsaw on fire
restricted days. It is not recommended to use your chainsaw when
a total fire ban is in force. Never refuel your chainsaw while it is
still running. As a precaution it is recommended that an expert is
consulted on obtaining and using a suitable fire extinguisher.
CLEANING YOUR CHAINSAW
Always stop your chainsaw before you commence cleaning.
Always ensure that your chainsaw has cooled, about one
(1) hour, before cleaning and storing. When cleaning your
chainsaw use only a damp soft cloth. NEVER use liquid or
solvents of any type.
CHECK DAMAGED PARTS
Before using the chainsaw it should be carefully checked to
determine that it will operate properly and perform its intended
function.
Check for broken or missing parts and have them replaced or
repaired at an authorised service facility. Check any other condition
that may affect the operation of the chainsaw. A guard or any other
part of the chainsaw that is damaged should be properly repaired
or replaced by an authorised service agent unless otherwise
indicated in this instruction manual.
Any switch that does not operate correctly must be replaced by an
authorised service agent.
DO NOT use the chainsaw if the ‘ON / OFF’ motor switch does
not turn the chainsaw ‘ON’ and ‘OFF’.
DO NOT use the chainsaw if the chain brake does not operate
correctly.
Do not operate a chainsaw that is damaged, improperly
adjusted, or not completely and securely assembled. Always
replace bar, chain, hand guard or chain brake immediately if it
becomes damaged, broken or is otherwise removed.
HOT COMPONENTS
Beware many of the components will get hot during use. Never
touch the exhaust or motor as these may burn.
6
7
PERSONAL SAFETY
Wear Protective Gear
Wear protective gear. Always use steel capped safety footwear with
non-slip soles, snug-fitting clothing, heavy-duty non-slip gloves, eye
protection such as non-fogging, vented goggles or face screen, an
approved safety hard hat and sound barriers (ear plugs or mufflers)
to protect your hearing. Regular users should have hearing checked
regularly as chainsaw noise can damage hearing. Secure hair above
shoulder length.

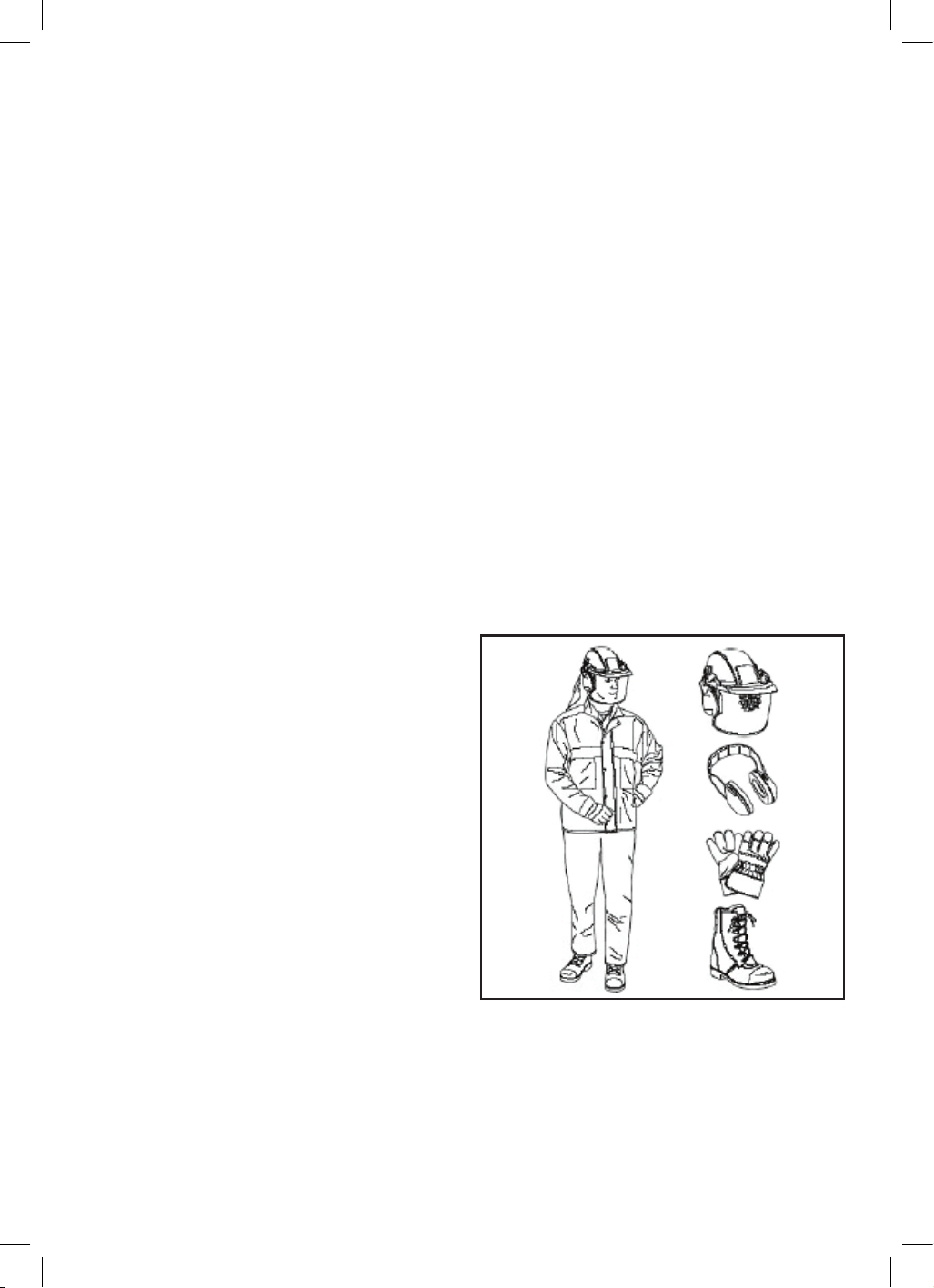

Proper Clothing (Pic. 1)
Do not wear loose clothing, jewellery or anything that could get
caught in moving machinery.
Clothing must be sturdy and snug-fitting, but allow complete
freedom of movement. Avoid loose-fitting jackets, scarfs, neckties,
jewellery, flared or cuffed pants or anything that could become
entangled with the chainsaw or timber. Wear overalls or jeans with
a reinforced cutting resistant insert.
Protect your hands with gloves when handling chainsaw and chain.
Heavy-duty non-slip gloves improve your grip and protect your
hands.
Good footing is most important in chainsaw work. Wear
sturdy boots with non-slip soles. Steel-toed safety boots are
recommended.
Proper eye protection is a must. Non-fogging, vented goggles and
a face screen is recommended. Their use reduces the risk of eye and
facial injury.
Wear an approved safety hard hat to protect your head.
Chainsaw noise may damage your hearing. Always wear noise
protection equipment (ear plugs or ear muffs) to protect your
hearing.
Continual and regular users should have their hearing checked
regularly.
Hair
Long hair should be tied back or contained in a protective covering.
Eye Protection
The use of safety goggles is highly recommended (normal glasses
are not sufficient for eye protection) when using or refuelling
chainsaw. Prescription glasses do not have safety lenses.
Footwear
Where there is the risk of heavy objects or if there is a risk of
slipping on wet or slippery floors, suitable non–slip steel capped
safety footwear should be worn. Protect your feet from dropping
accidents.
Ear Protection
The use of ear protection is highly recommended when using a
chainsaw. The continual noise may damage your ears.
Respiratory Protection
Always wear approved breathing protection when decanting fuel.
ALWAYS use this chainsaw in a well ventilated area. Never use
indoors.
WARNING: Do not breathe in exhaust fumes. Exhaust fumes are
poisonous and may cause drowsiness, unconsciousness and even
death.
Do Not Over Reach
Do not over reach. Keep a proper footing and maintain your
balance at all times. Avoid using abnormal stances and awkward
body positions.
Stay Alert
Watch what you are doing, use common sense, and never operate
a chainsaw when you are tired, drinking alcohol, taking drugs or if
taking medication that causes drowsiness.
Do not handle or operate a chainsaw when you are fatigued, ill or
upset or if you have taken alcohol, drugs or medication. You must
be in good physical condition and mentally alert. Chainsaw work
is strenuous. If you have any condition that might be aggravated
by strenuous work, check with your doctor before operating a
chainsaw.
PIC. 1
8
9
KICKBACK SAFETY PRECAUTIONS
WARNING: Kickback may occur when the moving chain
(near the upper quadrant of the bar nose) makes contact
with a solid object or the chain is pinched.
The reaction of the cutting force of the chain causes a rotational
force on the chainsaw in the direction opposite to the chain
movement. This may fling the bar up and back in an uncontrolled
arc mainly in the plane of the bar. Under some cutting
circumstances the bar moves towards the operator, who may suffer
severe or fatal injury.

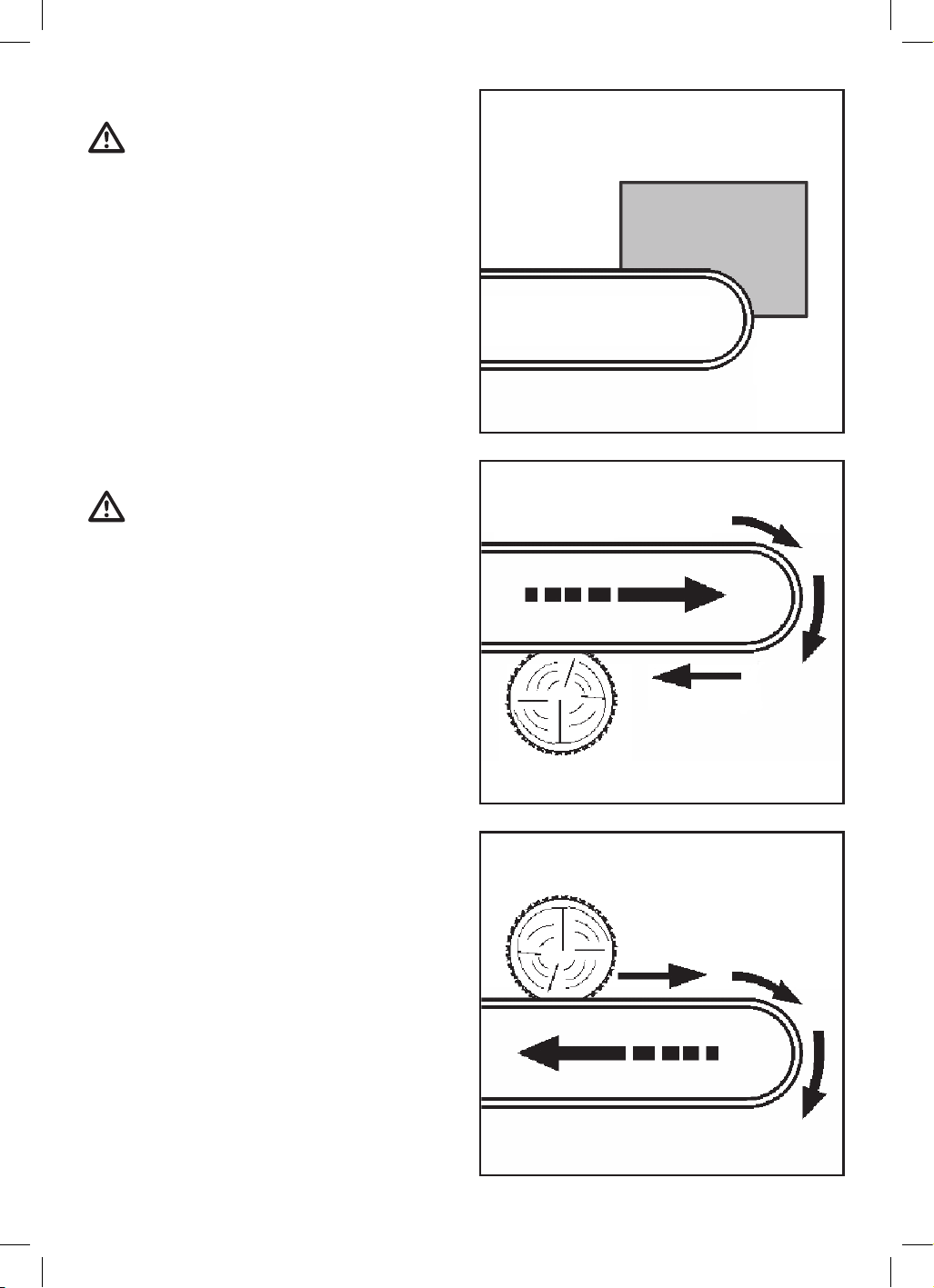

Kickback (Pic. 2) may occur when the nose of the guide bar is
pinched unexpectedly or unintentionally makes contact with a solid
material in the wood or is incorrectly used to begin a plunge or
boring cut.
It may also occur during limbing. The greater the force of the
kickback reaction, the more difficult it becomes for the operator to
control the chainsaw. Many factors influence the occurrence and
force of the kickback reaction. These include chain speed, the speed
at which the bar and chain contact the object, the angle of contact,
the condition of the chain and other factors.
WARNING: Use extreme caution when cutting small size
brush and saplings which may easily catch the chain and
pull you off balance.
PULL-IN
Pull-in occurs when the chain on the bottom of the bar is suddenly
stopped when pinched, caught or encounters a foreign object in
the wood. The reaction of the chain pulls the chainsaw forward and
may cause the operator to lose control of the chainsaw.
Pull-in frequently occurs when the bumper spike of the chainsaw is
not held securely against the tree or limb and when the chain is not
rotating at full speed before it contacts the wood.
To Avoid Pull-In (Pic. 3)
1. Always start a cut with the chain rotating at full speed and the
bumper spike in contact with the wood.
2. Pull-in may also be prevented by using wedges to open the kerf
or cut.
PUSHBACK
Pushback occurs when the chain on the top of the bar is suddenly
stopped when pinched, caught or encounters a foreign object in the
wood. The reaction of the chain drives the chainsaw straight back
toward the operator and may cause the operator to lose control of
the chainsaw. Pushback frequently occurs when the top of the bar
is used for cutting.
To Avoid Pushback (Pic. 4)
1. Be alert to forces or situations that may cause material to pinch
the top of the chain, e.g, knots in the tree log.
2. Do not cut more than one log at a time.
3. Do not twist the chainsaw when withdrawing the bar from a
plunge cut or underbuck cut because the chain could pinch.
PIC. 4
PIC. 3
PIC. 2
KICKBACK
ZONE
8
9

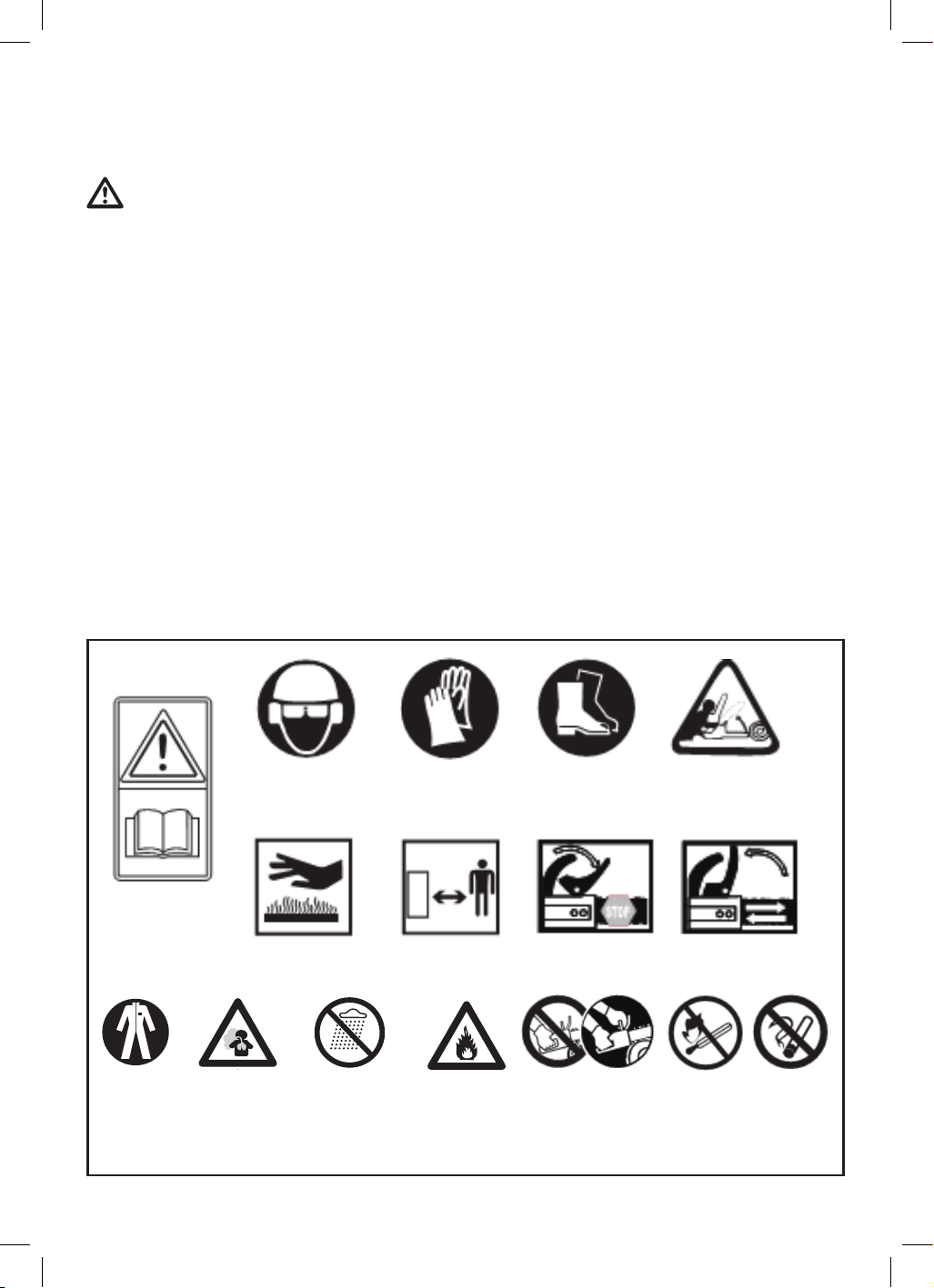

SYMBOLS
DEVICES FOR REDUCING THE RISK OF
KICKBACK INJURY
Quickstop Chain Brake
WARNING: To reduce the risk of injury, stop using the
chainsaw immediately if the chain brake does not function
properly. Take the chainsaw to an authorised service agent!
Do not use the chainsaw until the problem has been
rectified.
Chain brake is designed to stop the chain in the event of kickback.
When the chain brake/hand guard is pushed towards the bar, the
chain should stop immediately. A chain brake does not prevent kick-
back. The chain brake should be cleaned and tested daily.
Low Kickback Chain
“Low-Kickback Chain” is a chain which has met the kickback
performance requirements. Low-Kickback Chain, is designed with
a contoured depth gauge and guard link which deflects kickback
forces and allows wood to gradually ride into the cutter. This
chainsaw is fitted with a Low-Kickback Chain.
Reduced Kickback Guide Bar
Reduced-Kickback Guide Bar, is designed with a small radius tip
which reduces the size of the kickback danger zone on the bar
tip. A Reduced-Kickback Guide Bar has been demonstrated to
significantly reduce the number and seriousness of kickbacks. This
chainsaw is fitted with a low kickback guide bar.
Warning. See
instruction
handbook.
Appropriate ear, eye
and head protection
must be worn.
Hot surfaces will burn
fingers or palms.
Gloves with chainsaw
protection.
Keep safety
distance between
other persons and
machinery
Boots with chainsaw
protection, steel toe-
cap and non-slip sole.
No open fire. No smoking.
Kickback: Never cut with
the tip of the chainsaw.
Always grip the
chainsaw with two
hands
Wear good
quality, hard-
wearing
work wear.
The emissions are
toxic and may
cause asphyxia.
WARNING: Do not
use the chainsaw
in the rain or damp
conditions. Protect
it from moisture.
IMPORTANT. Fire
risk. Petrol and
petrol fumes are
highly inflammable.
To Avoid Kickback
The best protection from personal injury that may result from
kickback is to avoid kickback situations.
1. Hold the chainsaw firmly with both hands and maintain a
secure grip. Wear gloves for a firmer grip.
2. Be aware of the location of the guide bar nose at all times.
3. Never let the nose of the guide bar contact any object. Do not
cut limbs with the nose of the guide bar. Be especially careful
when cutting small, tough limbs, small size brush and saplings
which may easily catch the chain.
4. Don’t overreach.
5. Don’t cut above shoulder height.
6. Begin cutting at full throttle and continue cutting at full
throttle.
7. Cut only one item, e.g, log, at a time.
8. Use extreme caution when re-entering a previous cut.
9. Do not attempt to plunge cut if you are not experienced with
these cutting techniques.
10. Be alert for shifting of the log or other forces that may cause
the cut to pinch the chain.
11. Maintain chainsaw chain properly. Cut with a correctly
sharpened and properly tensioned chain at all times.
12. Stand to the side of the cutting path of the chainsaw.

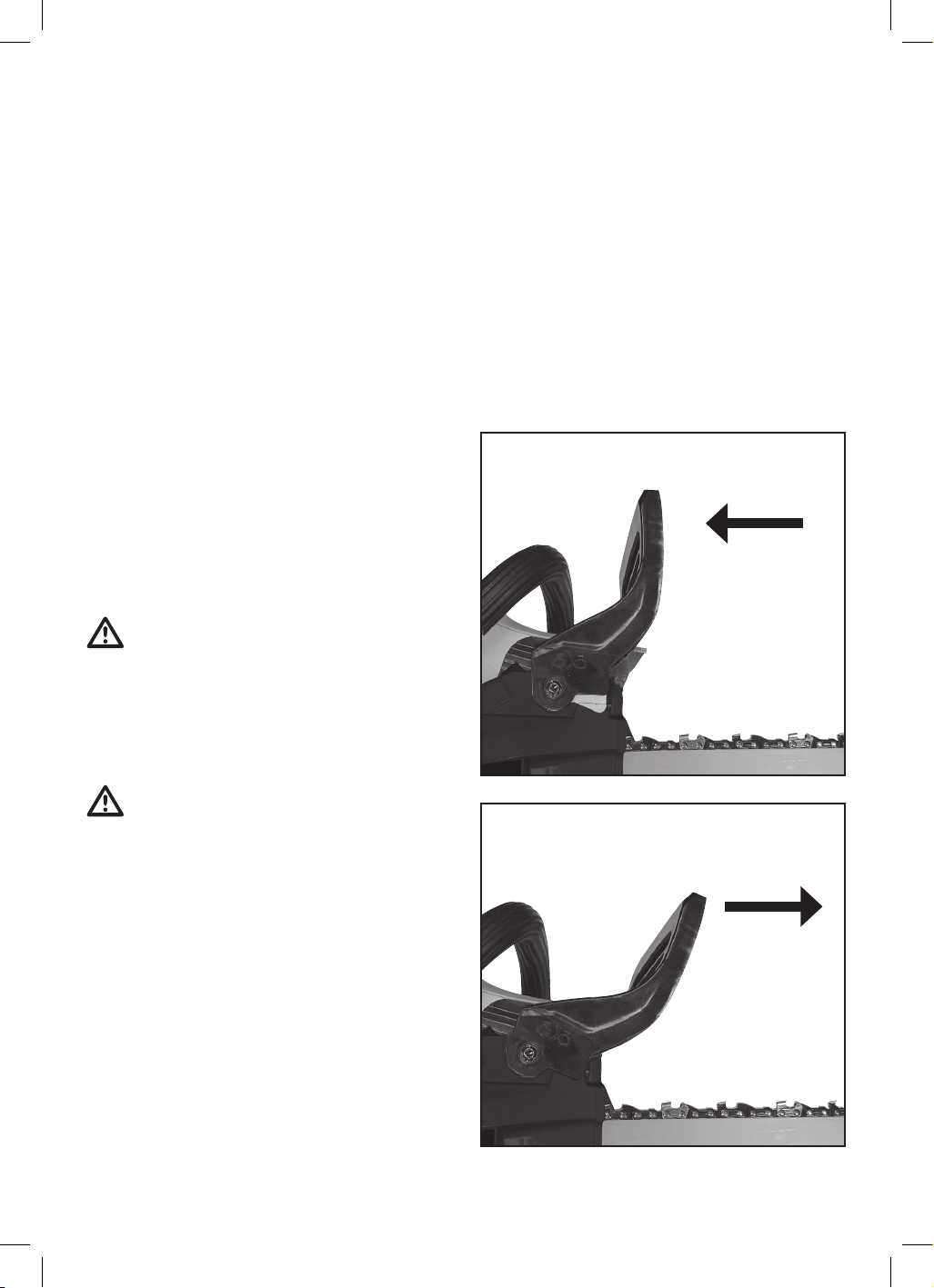

Engage: push to
forward position
Disengage: pull back
to locking position
15M
10
11
SPECIFIC SAFETY INSTRUCTIONS
WARNING: Do not use the chainsaw in areas where there
is a risk of explosion or fire from combustible materials.
The sparks possibly caused when using this chainsaw
may ignite combustible materials as well as flammable
liquids, paint, varnish, petrol, flammable gases and dust
of an explosive nature. As a precaution it is recommended
that you consult an expert on a suitable fire extinguisher
and its use. Ensure that the work area is kept clear of
combustible materials.
WARNING: Do not use the chainsaw indoors or in
confined spaces where exhaust gases, smoke or fumes
could reach dangerous concentrations.
• Always use the chainsaw in an open well
ventilated area.
• Ensure chainsaw is fully assembled before use.
• Unit will become hot during use. Please keep chainsaw at least
fifteen metre’s (15m) away from buildings, other equipment,
pedestrian areas or flammable materials.
• Never pull the re-coil starter once the chainsaw engine has
started. Any damage caused will not be covered by warranty.
• Ensure the chainsaw has stopped before servicing, or
lubricating etc.
• Do not attempt to modify the chainsaw, guards or the supplied
accessories in any way.
• Do not touch the exhaust. This can become very hot during
operation and can cause serious burns.
• Always check the chainsaw for damaged parts or fuel leaks,
ensure these are fixed before using it.
• Never refuel while smoking or in the vicinity of
an open flame.
• Always wear safety eye wear, ear and breathing protection
when operating or refuelling the chainsaw.
• To avoid a fire if you spill fuel while refuelling, clean up before
starting the chainsaw.
• Your chainsaw is factory set, NEVER attempt to speed it up as
this could endanger the user and damage the chainsaw.
• If the chainsaw makes an unfamiliar sound or vibrates
excessively, switch the chainsaw ‘OFF’ immediately. Investigate
the possible cause or consult your authorised service agent.
• If chain brake does not operate do not use the chainsaw and
have it serviced by your authorised service agent.
• Never use coolant in the chainsaw as damage may occur.
• Never transport the chainsaw with fuel in the tank. ALWAYS
empty the fuel tank.
• Do not tamper or alter any parts as this may cause personal
injury or damage the chainsaw.
• Never point chainsaw at people or animals.
• Never spray the chainsaw.
• Never operate the chainsaw without chain bar oil, any damage
caused will not be covered by warranty.
• Bystanders or people watching must be at least 15 metres away
from an operating chainsaw.
• Do not start or use the chainsaw near other people or animals.
• Do not use the chainsaw if you are tired or distracted or your
reactions are impaired due to the consumption of alcohol or
medication. Inattention can result in serious injuries.
• Do not wear loose-fitting clothing or jewellery. Wear long
trousers to protect your legs.
• Wear suitable, close-fitting work clothing.
• Keep your body parts and clothing away from the chainsaw
when you start the engine and whilst it is running.
• Ensure that you are standing on a firm, safe surface whilst
working. Do not walk backwards carrying the chainsaw. Do not
adopt unnatural postures.
• If you use the chainsaw for lengthy periods of time, you may
suffer circulation problems caused by vibrations (white finger
disease). It is not possible to provide precise details on the
duration of use in each case since it may differ from person
to person. The following factors may affect this phenomenon:
Circulation problems in the hands of the user, low outdoor
temperatures and lengthy periods of use. We therefore
recommend that you wear warm work gloves and take regular
breaks.
• The emissions from engines are toxic and may cause asphyxia.
Do not start the chainsaw in enclosed or poorly ventilated
areas.
• Ensure that the handles are clean, dry and free of the petrol
mixture.
• Do not use the chainsaw without the exhaust. You may suffer
burns as a result.
• Switch off the chainsaw before you put it down. Only work in
daylight or in good artificial light. Conduct a visual inspection of
the chainsaw before use.
• Check the chainsaw and its components and safety equipment
every time before use for signs of damage and wear and
have any repair work carried out without delay. Never render
protective and safety equipment non-functional. Do not use the
chainsaw if you discover signs of damage or wear.
• Keep the chainsaw out of the reach of children. Check the
chainsaw for signs of damage after any collisions or other types
of damage.
• Use only the accessories recommended by the manufacturer.
• Only have the chainsaw repaired by an authorised service agent
and using only genuine spare parts.
• Do not use the chainsaw near flammable liquids or gases or in
a wet or damp environment. If you ignore this, there is a risk of
fire or explosion.
• Never leave the chainsaw running unattended.
• Only work in suitable light conditions.
• Always wear Personal Protective Equipment (PPE) including
good quality non-slip shoes with safety toe tips.
• Never use chainsaw in thongs or barefoot.
• Do not use any ethanol fuel in this chainsaw.
10
11
IMPORTANT: 2-STROKE FUEL
FUEL - ONLY USE UNLEADED PETROL (ULP)
Fuel tank capacity – 500ml
Use of incorrect fuel and/or oil may damage the chainsaw and will not be covered under warranty.
Do not use E10 or any type of ethanol fuel as this will damage the chainsaw and will not be covered under warranty.
Do not use high octane fuels (greater than 91%) as this will damage the chainsaw and will not be covered under warranty.
• Ensure you use clean fresh unleaded petrol (ULP).
• Use a clean approved container to store and mix your unleaded petrol (ULP) 2 Stroke fuel mix in before decanting into the fuel
tank.
• If contaminated (dirty) or old (stale) fuel is used any damage caused will not be covered under warranty.
OIL
To operate, this chainsaw requires 2 Stroke oil to be mixed with the unleaded fuel, not supplied. If the chainsaw does not have the
correct amount of oil mixed into the fuel the motor will be damaged and will not be covered under warranty.
Oil type: 2 Stroke motor oil
Oil to fuel mix: 40:1
25ml 2 Stroke oil : 1000ml (1 Litre) Unleaded Fuel
• Always use fresh clean 2 Stroke oil.
• If contaminated (dirty) or old (stale) 2 Stroke oil is used any damage caused will not be covered under warranty.

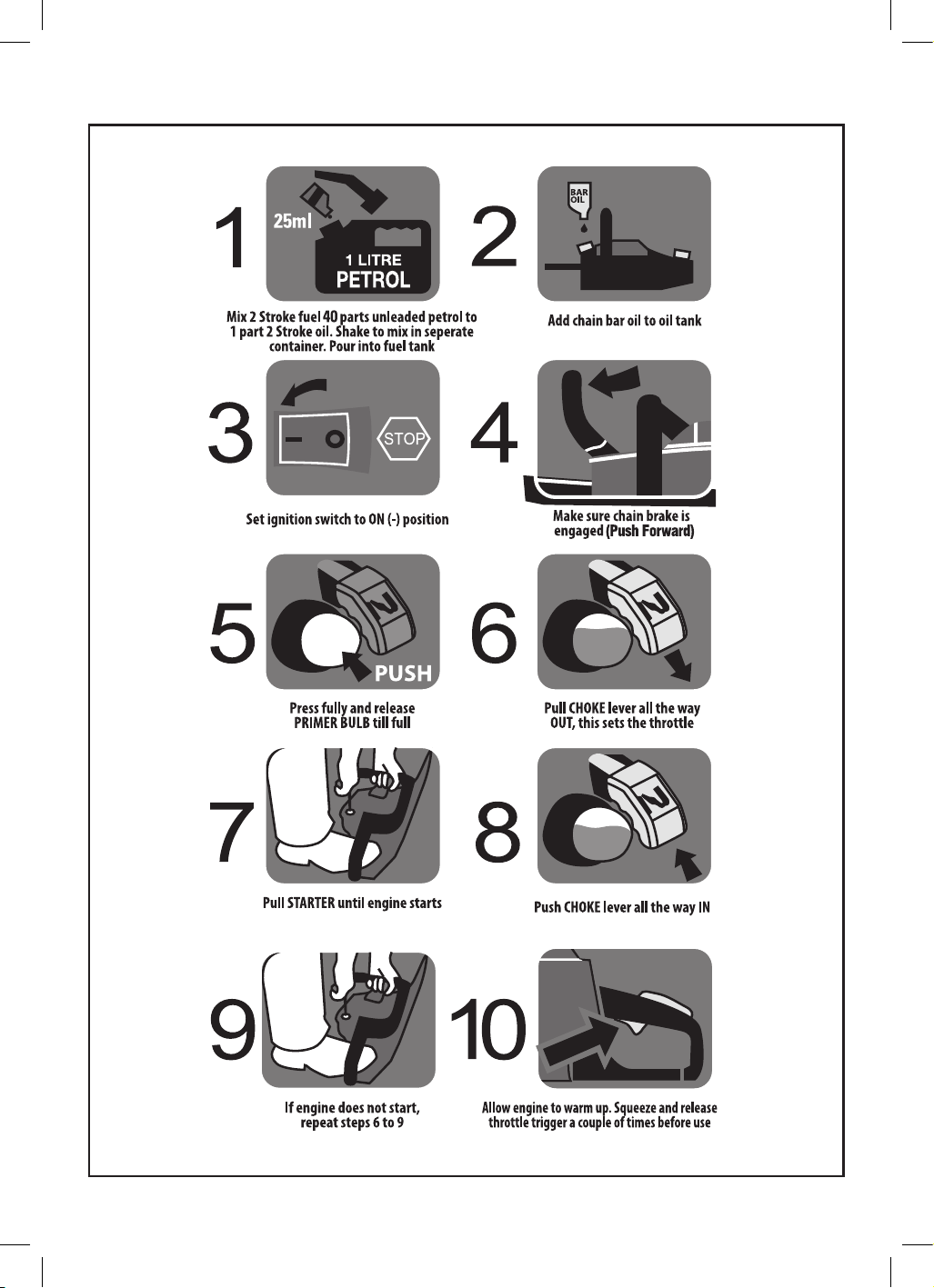

MIXING 2-STROKE FUEL
1. Use only unleaded petrol (ULP) and 2 Stroke oil.
Ratio 40:1. 25ml 2 Stroke oil to 1 litre unleaded fuel.
2. Ensure you use clean fresh unleaded petrol (ULP) + 2 Stroke
oil.
3. Always wear approved breathing protection when mixing fuel.
Always mix fuel in a well ventilated area, never indoors.
4. Use a clean approved container to mix and store your 2 Stroke
petrol before decanting into the fuel tank.
5. Ensure fuel / oil is mixed well.
Important
Experience indicates that alcohol-blended fuels (called gasohol or
using ethanol or methanol) can attract moisture which leads to
separation and formation of acids during storage.
Acidic gas can damage the fuel system of an engine while in
storage. To avoid engine problems, the fuel system should be
emptied before storage for 30 days or longer. Drain the gas tank,
start the engine and let it run until the fuel lines and carburettor
are empty. Use fresh fuel next season. See STORAGE section for
additional information. Always use fresh clean new unleaded petrol
and new clean 2 Stroke oil. To prevent possible restarting problems
avoid running the fuel tank dry. This will help to extend engine life.
12
13
2 1
6 8 7
1113 1912
5 4 9 16 18 14 10
PIC. 5
17
5
12
13
COMPONENTS AND CONTROLS (PIC. 5)
1. Guide bar
2. Chain
3. Chain guard cover (Not shown)
4. Chain brake / Hand guard
5. Claw stop
6. Sprocket wheel cover
7. Guide bar bolts/screws
8. Chain adjustment screw
9. Front handle
10. Rear handle
11. Recoil starter
12. Petrol tank screw cover
13. Chain bar oil tank screw cover
14. Safety trip lever (Throttle lock)
15. Spark plug wrench (Not shown)
16. Air filter cover
17. Choke lever
18. Control switch
19. Throttle lever
20. Fuel mixing canister (Not shown)
21. Screwdriver (Not shown)
14
15
ASSEMBLY
Unpacking
Note: Carefully unpack your chainsaw. Dispose of all packing
material in an environmentally responsible manner.
Remove from plastic bag.
Note: Plastic bags can be a danger to young children, dispose of
immediately.
Your chainsaw requires the blade to be fitted, once fitted you will
need to understand these parts. It is suggested to wear gloves
during assembly:
ON/OFF Switch
The ON/OFF SWITCH is used to stop the engine.
Throttle Trigger
The THROTTLE TRIGGER controls engine speed.
Safety Trip Lever
The SAFETY TRIP LEVER must be pressed before you can squeeze
the throttle trigger. This feature prevents you from accidentally
squeezing the trigger.
Choke Lever
The choke and fast idle are set by pulling the CHOKE LEVER out
to the full extent for cold starting or after refuelling. The choke
provides additional fuel to the engine during cold starting.
Primer Bulb
The PRIMER BULB circulates fuel to the carburettor to provide
quicker starting.
Chain Brake
The chain brake is a device designed to stop the chain if kickback
occurs. The chain brake activates automatically in the event of
kickback. The chain brake activates manually if the front hand
guard is pushed forward. The chain brake is disengaged by pulling
the front hand guard back toward the front handle as far as
possible.
Chain Tension
It is normal for a new chain to stretch during the first 5 minutes of
operation.
Ensure the engine is always SWITCHED OFF before fitting or
adjusting the chain. You should check your chain tension frequently.
See CHAIN TENSION on page 16.

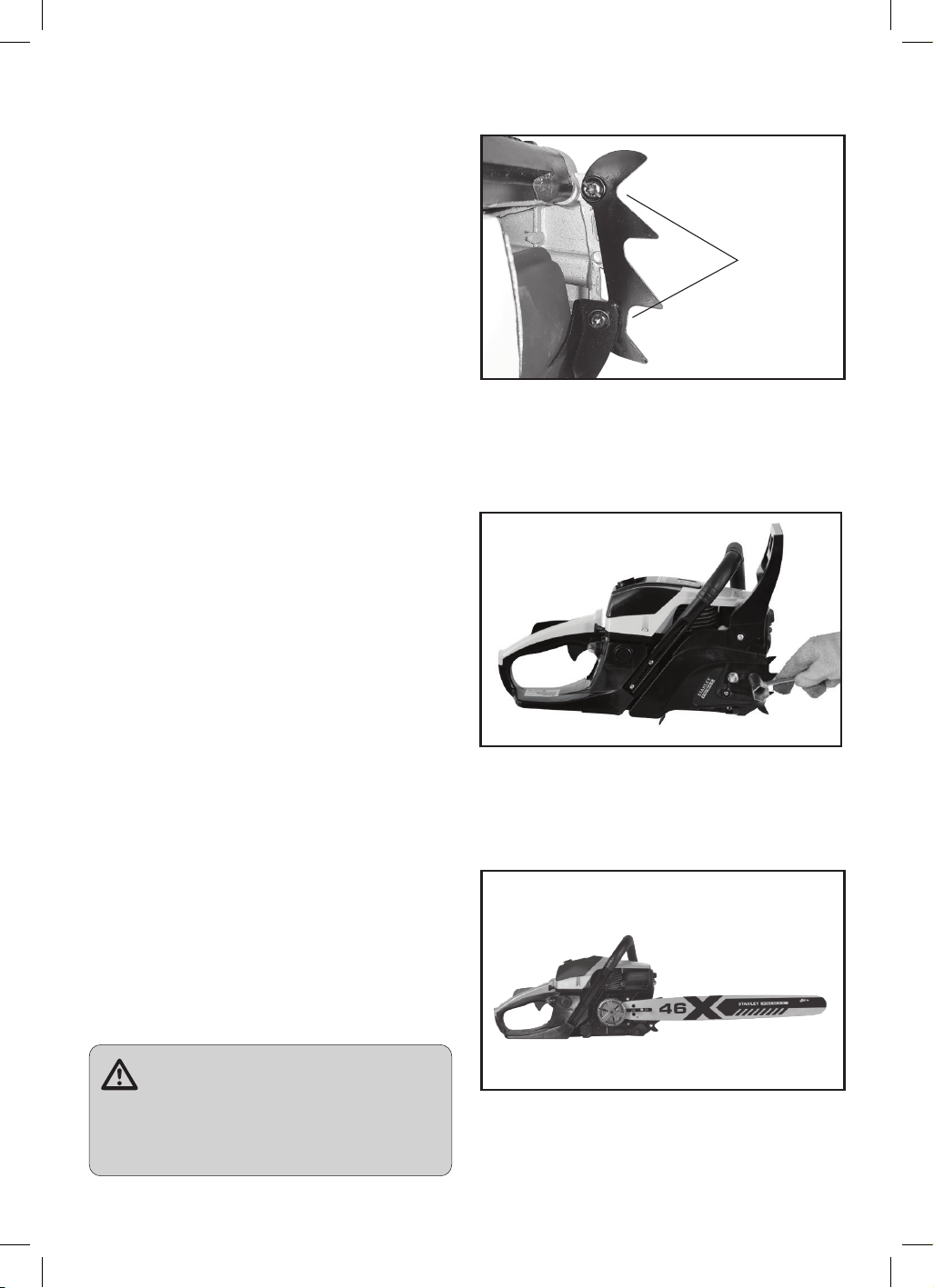

Claw Stop Assembly (PIC. 6)
Bar and Chain Assembly (PIC. 7 to 11)
Assemble the claw stop using the 2 supplied screws.
Screws
Remove the sprocket wheel cover by undoing the two guide bar nuts .
Place the guide bar with the notched end on the two guide bar bolts
WARNING
Muffler is very hot during and after use. Do not touch the
muffler or allow combustible material such as dry grass or
fuel to do so.
PIC. 6
PIC. 7
PIC. 8
14
15
IMPORTANT! The chain must not slip off the guide bar. The
chain links must be positioned precisely between the teeth of the
sprocket wheel. The chain adjustment tang on the sprocket wheel
must insert into the hole on the guide bar.
• Now fit the two guide bar nuts again. Only tighten them by
hand at this stage. Follow the details in chain tensioning to
finish the assembly.
• Now fit the sprocket wheel cover again. Ensure that the chain
adjustment tang engages in the hole on the guide bar. Only
then will it be possible to fit the sprocket wheel cover correctly.
Pic 11

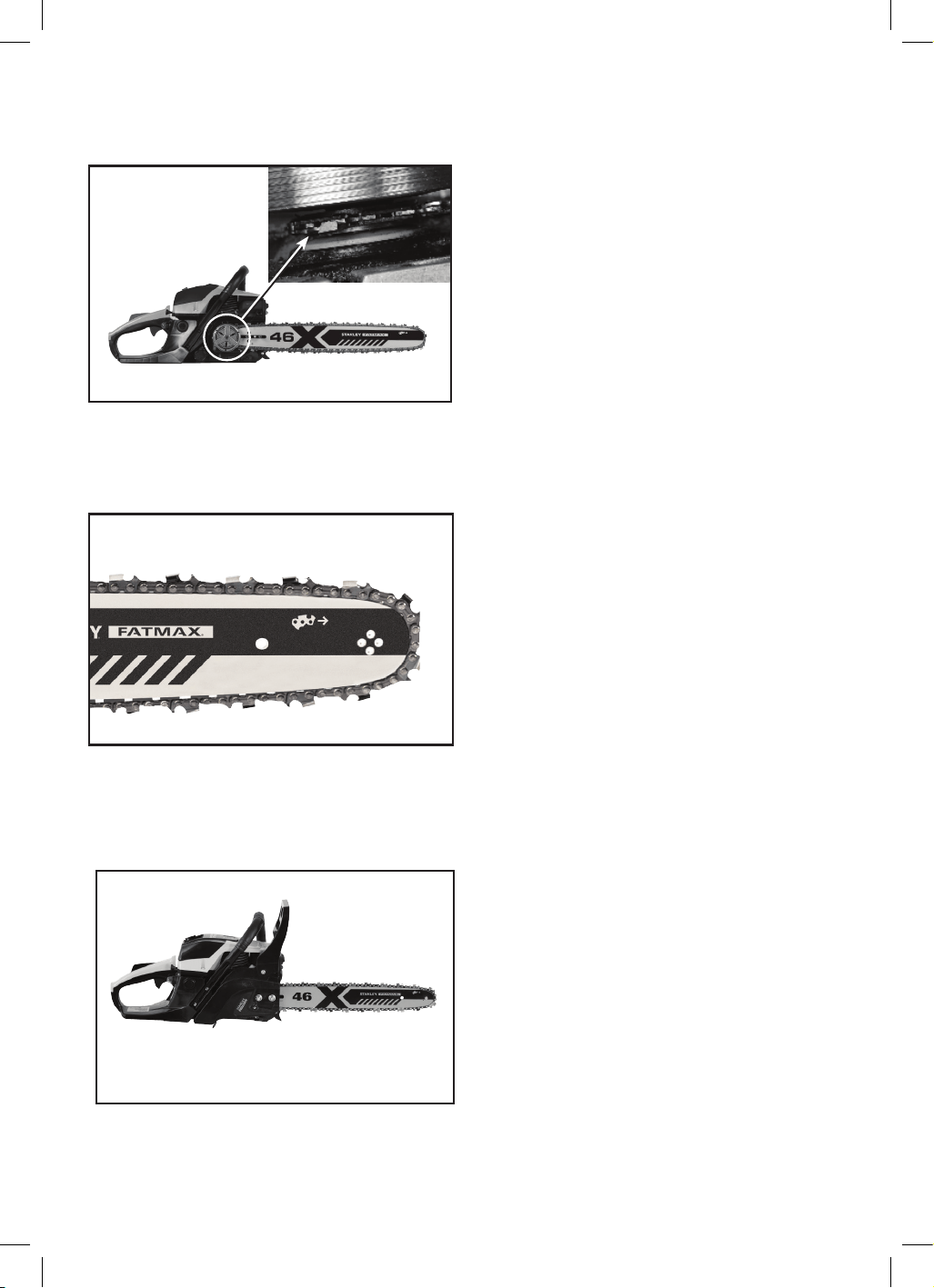

• Now place the chain over the tip of the bar. Ensure that the
chain links are positioned in the guide bar groove. The chain will
sag downwards on the bottom of the guide bar. Pic 10
Fit the saw chain
• Lay out the chain in a loop. Ensure that the cutting claws
point in a clockwise direction.
• Push the chain over the coupling on to the sprocket wheel
on the chainsaw. Ensure that the chain links are positioned
precisely between the teeth of the sprocket wheel. Pic 9
PIC. 9
PIC. 11
PIC. 10
16
17
CHAIN TENSION
WARNING: Wear protective gloves when handling the
chain. The chain is sharp and can cut you even when it is
not moving.
Note: When adjusting chain tension, make sure the chain bar nuts
are finger tight only. Attempting to tension the chain when the
chain bar nuts are tight can cause damage.

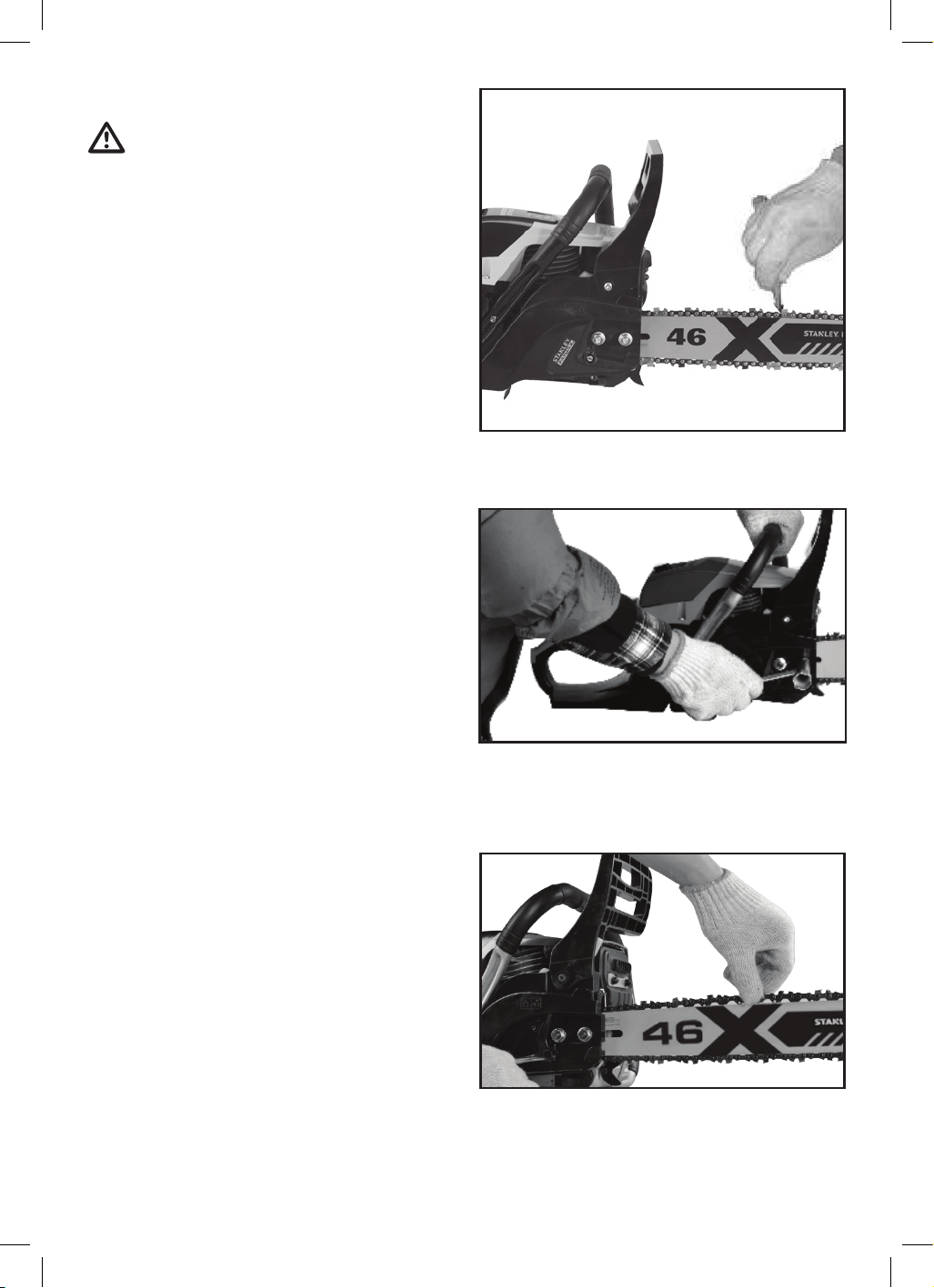

Checking the Tension Pic 12 to Pic 14
Use the screwdriver end of the chain adjustment tool (bar tool) to
move chain around guide bar. If the chain does not rotate, it is too
tight. If the chain is too loose, it will sag below the bar.
Ensure that the guide bar screws for adjusting the chain are only
hand tight. Undo them if necessary.
• To increase the tension of the chain, turn the chain adjustment
screw clockwise using a suitable screwdriver.
• To reduce the tension of the chain, turn the chain adjustment
screw anti-clockwise using a suitable screwdriver.
• The chain tension is correct if it can be raised a maximum of 2 -
3mm in the centre of the guide bar.
• Tighten the guide bar screws properly after you have adjusted the
chain tension.
NOTES
• Allow a new chain to run for approx. 5 minutes before actually
sawing with it. Check the chain tension again after this time and
adjust it if necessary.
• When it is warm, the chain will expand and may sag. This gives rise
to the risk that the chain will jump off the guide bar. Therefore you
must adjust the tension of the chain after it has carried out its first
sawing work.
• A chain that has been tensioned when warm will contract as it
cools and this would result in excessive chain tension, the chain
tension must be reduced after you have finished the sawing work.
IMPORTANT – the tension of the chain must be checked several
times over the course of a working day. Always wear gloves for
this work.
• Since the guide bar is subject to particularly high stress at the
return point and at the interface, we recommend that the guide
bar be turned each time you sharpen the chain so as to avoid it
wearing on one side.
PIC. 12
PIC. 13
PIC. 14
MAX
2-3MM
16
17
CHAIN BAR OIL & LUBRICATION
Oil tank capacity - 240ml
Either use a quality proprietary chain bar oil or 10-30W motor oil.
NOTE: Only use clean fresh oil, dirty oil will damage the chain and
bar.
The service life of the chain bar depends on good lubrication. We
recommend using a good quality chain bar oil, otherwise it will
result in damage to the bar, the chain and oil pump. The bar and
chain require continuous lubrication. Lubrication is provided by
the automatic oilier system when the oil tank is kept filled. Lack
of oil will quickly ruin the chain bar and chain. Too little oil will
cause overheating shown by smoke coming from the chain and/or
discolouration of the chain bar. Chain bar oil must be free flowing
for the oil system to pump enough oil for adequate lubrication.
Never use waste oil for chain bar lubrication. Always stop the
engine before removing the oil cap. Refill the chain bar oil tank
each time the chainsaw is refuelled. To prevent possible restarting
problems avoid running the fuel tank dry. This will help to extend
engine life.
The chainsaw is supplied without oil.
Unscrew the oil tank cover. Fill the oil tank with biologically
degradable chain bar oil. Pic 15
Never use recycled, used or waste oil.
Ensure that no dirt gets into the oil tank.
The chainsaw must never be operated without chain bar oil.
If the chainsaw is operated without chain bar oil, the entire
chainsaw will suffer damage within a very short period of time.
Always check the oil level and the chain lubrication system before
starting work. Check the automatic function of the chain lubrication
system by holding the chainsaw with the tip of the bar against a
sheet of paper on the ground and running the chain a few times.
Pic 16. Keep a safe distance! If an increasing oil mark can be seen
on the paper, the automatic lubrication system is working correctly
when the chainsaw is running. Always ensure that the oil discharge
duct is free of dirt at all times. If necessary clean it with a thin
object (such as a toothpick or matchstick with the chainsaw turned
off).
Caution: Do not try to adjust the oil flow of the oil pump as it
has already been adjusted in the optimal position before it left the
factory.
Note: Due to the chain and bar being lubricated by a pressured
spray, it’s very common for this oil to drip and leak from the bottom
of the chainsaw. This is normal and not a fault. Always check oil
level before using chainsaw.
PIC. 15
PIC. 16
MAX
2-3MM
18
19
PIC. 19
PIC. 18
PIC. 17
Chain Bar Nuts
Adjusting Screw

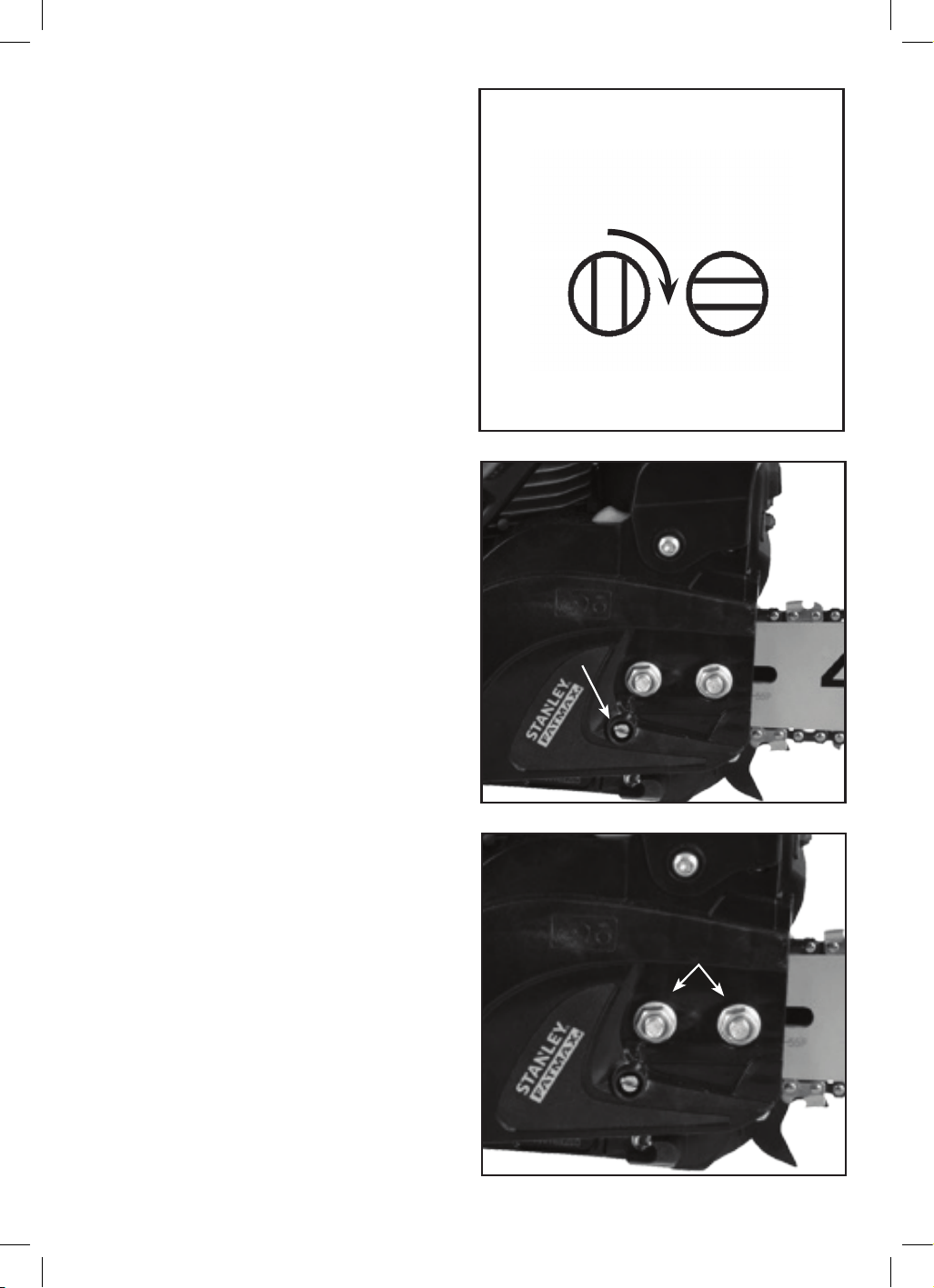

Adjusting the Tension (Pic. 17, 18 and 19 )
Chain tension is very important. The chain will stretch during
use. This is especially true during the first few times you use your
chainsaw. Always check chain tension each time you use and refuel
your chainsaw.
1. Loosen chain bar nuts until they are finger tight against the
clutch cover.
2. Turn adjusting screw clockwise until chain solidly contacts
bottom of guide bar rail.
3. Using chain bar tool, roll chain around guide bar to ensure all
links are in bar groove.
4. Lift up tip of guide bar to check for sag. Release tip of guide
bar, then turn adjusting screw 1/4 turn clockwise. Repeat until
sag does not exist.
5. While lifting tip of guide bar, tighten chain bar nuts securely
with the chain bar tool.
6. Use the screwdriver end of the chain bar tool to move chain
around guide bar.
7. If chain does not rotate, it is too tight. Slightly loosen chain bar
nuts and loosen chain by turning the adjusting screw 1/4 turn
counterclockwise. Retighten clutch cover locking nuts.
8. If chain is too loose, it will sag below the guide bar. DO NOT
operate the chainsaw if the chain is loose.
Adjusting Screw - 1/4 Turn
18
19
Quick Start Guide
PIC. 20
20
21
OPERATING INSTRUCTIONS
Pre - Operation Preparation
Note: If unit has previously been used, the motor, muffler and
exhaust may still be hot enough to burn. Always exercise caution
when checking the chainsaw.
1. Check that the engine switch is OFF.
2. Check that the spark plug lead is firmly attached to the top of
the spark plug.
3. Holding on to the handles gently rock the chainsaw and listen
for any noise which may indicate loose items. If anything
appears to be loose either tighten or consult an authorised
service agent.
Filling
Always use clean fresh fuel as specified on page 11. Stale fuel can
cause the chainsaw to run rough and damage the motor; this will
not be covered by warranty.
1. Ensure the engine is OFF.
2. Use fresh 2 stroke fuel as detailed on page 11.
3. Lay chainsaw on its side and remove fuel tank cap.
4. Fill fuel tank with about 1/2 litre of pre-mixed 2 Stroke fuel.
5. Fit and tighten fuel tank cap.
6. Reposition chainsaw to an upright position.
Check the following before starting the engine
• Is the chain tension correct ?
• Is the oil tank full?
• Is the chain brake engaged?
• Start the chainsaw.
TO START THE ENGINE
Make sure the chain brake is engaged and place the chainsaw on
firm level ground or other solid surface in an open area. Maintain
good balance and secure footing.
Grip the front handlebar of the chainsaw firmly with your left hand
and press down. Put the toe of your right foot into the rear handle
and press down. With your right hand pull out the starter pull cord
slowly until you feel a definite resistance and then give it a brisk
pull until the engine starts. See Picture 20 for starting process
guide.
To prevent possible restarting problems avoid running the fuel tank
dry. This will help to extend engine life.
GENERAL POSITIONING AND OPERATION
You are responsible for safety in the area in which you are working.
• Wear suitable work clothing such as gloves, safety helmet, goggles
or safety visors and long trousers made of strong material.
• Ensure that you are standing on a firm, safe surface and wear
good quality non-slip work shoes. Never use the chainsaw when
wearing sandals or barefoot.
• Ensure that you are standing on a firm, safe surface whilst
working. Do not walk backwards carrying the chainsaw. Do not
adopt unnatural postures.
• Whilst working always keep the chainsaw an adequate distance
from your body.
• Always switch off the chainsaw during breaks and when changing
location. Wait until the chainsaw stops and switch off the engine.
• Never leave the chainsaw unattended at the workplace. Store the
chainsaw in a safe place during breaks.
• Always switch off the chainsaw when changing location.
• Personnel using the chainsaw must not be distracted. This may
cause them to lose control of the chainsaw.
• Never use the chainsaw in rain, in wet or damp environments and
do not store it outdoors.
ª If the chainsaw becomes wet, wait until it is fully dry before using
it again.
• Protect the chainsaw from rain and moisture. Always hold the
chainsaw with two hands when the engine is running.
• Use the claw to position the chainsaw for every cut and always
start every cut with the chain moving.
• Complete the cut in such a way that the chainsaw does not
become trapped or pinched in the wood.
• Pay special attention to branches that are under tension.
• Only pull the chainsaw out of the wood whilst the chain is still
moving.
• Never saw using one hand over shoulder height. Always stand
perpendicular to the slope when using the chainsaw on a gradient.
• Always stand to the side of falling trees. Watch the falling direction
of the sawn parts.
• Never start a cut using the tip of the bar and never saw using the
tip of the bar – danger of kickback!
• There is always a risk of kickback if the tip of the bar touches wood
or other objects. This makes the chainsaw impossible to control
and may lead to it being catapulted with great force towards the
operator.
• Always saw through one branch at a time. Watch neighbouring
branches when lopping branches off a tree.
• Never use the chainsaw as a lever for moving objects.
• Always use the chain guard for transporting the chainsaw.
The carburettor has been set at the factory to provide the best
possible performance. If you wish to improve the setting, contact an
authorised service agent.
20
21
RESIDUAL RISKS
Even when used properly there is always some residual risk that
can not be excluded. From the nature and design of the tool, the
following potential hazards can be derived :
• Contact with the unprotected chain (cuts);
• Reaching into the running chainsaw (cut injury);
• Unexpected, sudden movement of the guide rail (cuts);
• Ejection of parts of the chain;
• Ejection of parts of the material to be cut;
• Impairment of hearing, if no prescribed hearing protection is worn;
• Inhalation of material to be cut;
• Risk of kickback
• This device produces an electromagnetic field during use
IMPORTANT POINTS TO REMEMBER
When pulling the starter rope, do not use the full extent of the rope
as this can cause the rope to break. Do not let starter rope snap
back. Hold the handle and let the rope rewind slowly.
For cold weather starting, start the unit at FULL CHOKE, allow the
engine to warm up before squeezing the throttle trigger.
Note: Do not attempt to cut material with the choke/fast idle lever
in the FULL CHOKE position.
To Stop The Engine (Pic. 21)
Move the ON/OFF switch to the OFF position.
Warning: DO NOT put the chainsaw on the ground when the chain
is still moving.
Always engage the chain brake when not in use.
Starting a Cold Engine (Or Warm Engine After
Running Out Of Fuel)
Note: In the following steps, when the choke lever is pulled out
to the full extent, the correct throttle setting for starting is set
automatically.
1. Move the ON/OFF switch (Pic. 21).
ON - I depressed
OFF - 0 depressed
2. Pull choke lever out to the full extent (to the FULL CHOKE
position) (Pic. 22)
3. Slowly press primer bulb 7 times. If bulb is already full, you may
only need to press once. (Pic. 22)
4. Pull the starter rope sharply 5 times with your right hand. Then
proceed to the next step.
Note: If the engine sounds as if it is trying to start before the 5th
pull, stop pulling and immediately proceed to the next step.
5. Push the choke lever in to the HALF CHOKE position.
6. Pull the starter rope sharply with your right hand until the
engine starts.
7. Allow the engine to run for approximately 5 seconds. Push
choke lever back to off position.

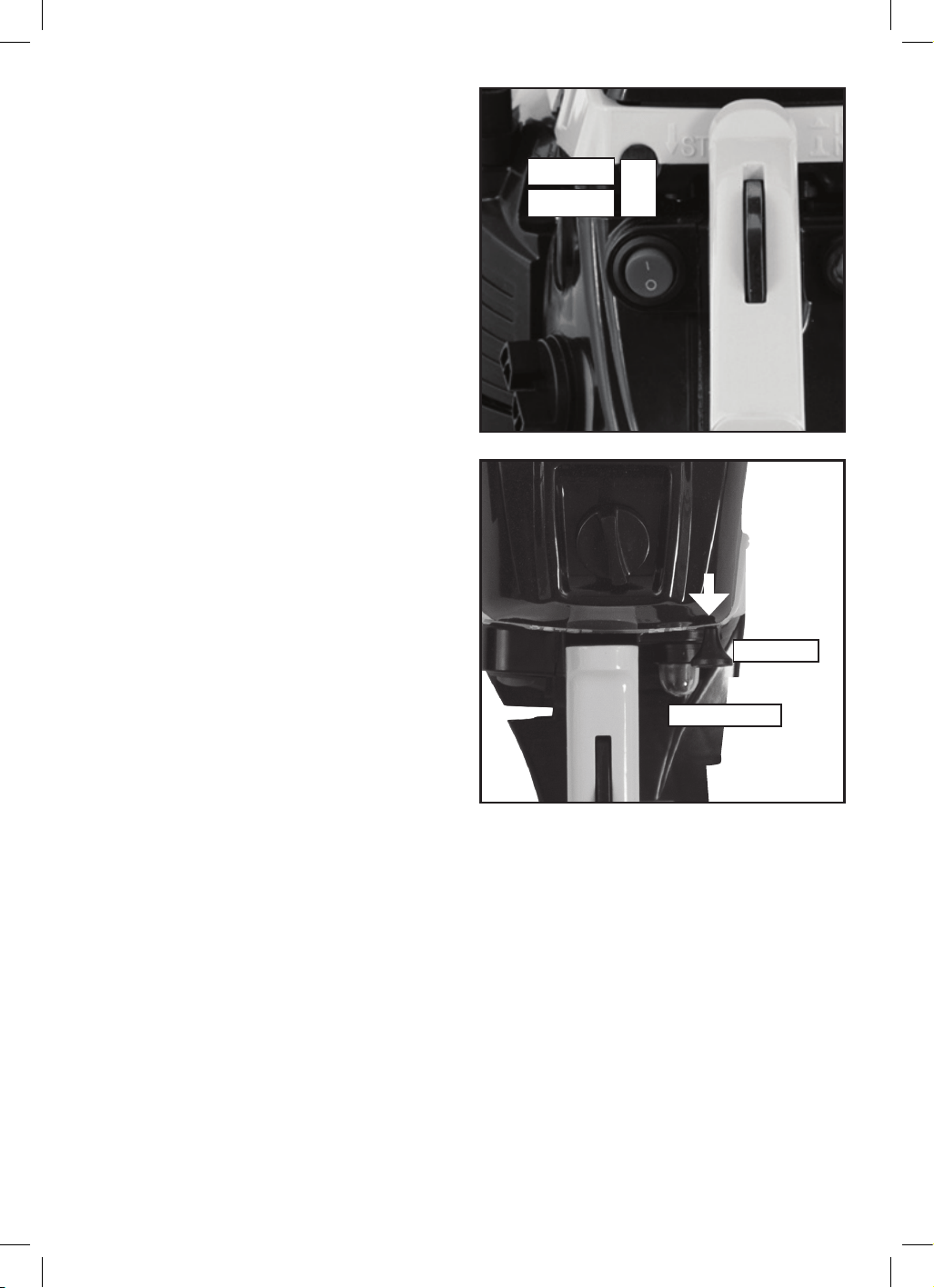

PIC. 21
PIC. 22
ON
OFF
I
0
Priming Bulb
Choke Lever
Pull fully out
for full choke
22
23
PIC. 23
PIC. 24
Disengage
by pulling
Engage by sudden
movement or
pushing
The chain brake should be replaced by an authorized service agent
if any part is worn to less than 0.5mm (0.020”) thick.
Caution: The chain brake must be checked several times daily. The
engine must be running when performing this procedure. This is the
only instance when the chainsaw should be placed on the ground
with the engine running.
Starting a Warm Engine
1. Move ON/OFF switch to the ON position.
2. Then push the lever in to the HALF CHOKE position.
3. Pull the starter rope sharply with your right hand until the
engine starts.
4. Push the choke lever back to off position.
Difficult Starting (Or Starting a Flooded Engine)
The engine may be flooded with too much fuel if it has not started
after 10 pulls. Flooded engines can be cleared of excess fuel by
pushing the choke lever in completely (to the OFF CHOKE position)
and then following the warm engine starting procedure listed
above. Ensure the ON/OFF switch is in the ON position. Starting
could require pulling the starter rope handle many times depending
on how badly the unit is flooded. If engine fails to start, refer to the
TROUBLESHOOTING TABLE or seek help from an authorised service
agent.
CHAIN BRAKE (PIC. 23 & 24)
Place the chainsaw on firm ground. Grip the rear handle with your
right hand and the front handle with your left hand. Apply full
throttle by fully depressing the throttle trigger. Activate the chain
brake by turning your left wrist against the hand guard without
releasing your grip around the front handle. The chain should stop
immediately.
WARNING: If the brake band is worn too thin, it may
break when the chain brake is triggered. DO NOT USE IT.
It must be replaced by the manufacturer or an authorised
service agent to avoid a hazard.
Chain Brake
Ensure chain brake is disengaged by pulling the front hand guard
back toward the front handle as far as possible. The chain brake
must be disengaged before cutting with the chainsaw.
WARNING: The chain must not move when the engine
runs at idle speed. If the chain moves at idle speed refer to
CARBURETTOR ADJUSTMENT on page 29. Avoid
contact with the muffler. A hot muffler can cause
serious burns.
• This chainsaw is equipped with a chain brake. The brake is
designed to stop the chain if kickback occurs.
• The inertia-activated chain brake is activated if the front
hand guard is pushed forward, either manually (by hand) or
automatically (by sudden movement) (Pic. 24).
• If the brake is already activated, it is disengaged by pulling
the front hand guard back toward the front handle as far as
possible (Pic. 23 ).
• When cutting with the chainsaw, the chain brake must be
disengaged.
22
23
SUGGESTED TREE FELLING TECHNIQUES
(PIC. 25)
Note: If unsure about chainsaw operation we suggest doing a
chainsaw course.
• Carefully plan your sawing operation in advance.
• Clear the work area. You need a clear area all around the tree
so you can have secure footing.
• The chainsaw operator should keep on the uphill side of the
terrain as the tree is likely to roll or slide downhill after it is
felled.
• Study the natural conditions that can cause the tree to fall in a
particular direction. Natural conditions that can cause a tree to
fall in a particular direction include.
A The wind direction and speed.
B The lean of the tree. The lean of a tree might not be
apparent due to uneven or sloping terrain. Use a
plumb or level to determine the direction of tree lean.
C Weight and branches on one side.
D Surrounding trees and obstacles.
Look for decay and rot. If the trunk is rotted, it can snap and fall
toward the operator. Check for broken or dead branches which
can fall on you while cutting. Make sure there is enough room
for the tree to fall. Maintain a distance of 2-1/2 tree lengths from
the nearest person or other objects. Engine noise can drown out a
warning call. Remove dirt, stones, loose bark, nails, staples and wire
from the tree where cuts are to be made. Plan a clear retreat path
to the rear and diagonal to the line of fall.
WARNING
Check for broken or dead branches which can fall while cutting causing serious injury. Do not cut near buildings or electrical wires if
you do not know the direction of tree fall, nor cut at night since you will not be able to see well, nor during bad weather such as rain,
snow, or strong winds, etc. If the tree makes contact with any utility line, the utility company should be notified immediately.
OPERATING TIPS
You are responsible for safety in the area in which you are working.
Wear suitable work clothing such as gloves, safety helmet, goggles
or safety visors and long trousers made of strong material.
Ensure that you are standing on a firm, safe surface and wear good
quality non-slip work shoes. Never use the chainsaw when wearing
sandals or barefoot.
• Check chain tension before first use and after 1 minute of
operation. See CHAIN TENSION on page 16 - 18.
• Cut wood only. Do not cut metal, plastics, masonry, non-wood
building materials, etc.
• Stop the chainsaw if the chain strikes a foreign object. Inspect
the chainsaw and repair or replace parts as necessary.
• Keep the chainsaw out of dirt and sand prior to use. Even a
small amount of dirt will quickly dull a chain and thus increase
the possibility of kickback.
• Practice cutting a few small logs using the following techniques
to get the “feel” of using your chainsaw before you begin a
major sawing operation.
• Squeeze the throttle trigger and allow the engine to reach full
speed before cutting.
• Begin cutting with the chainsaw frame against the log.
• Keep the engine at full speed the entire time you are cutting.
• Allow the chain to cut for you. Exert only light downward
pressure. If you force the cut, damage to the bar, chain or
engine can result.
• Release the throttle trigger as soon as the cut is completed,
allowing the engine to idle. If you run the chainsaw at full
throttle without a cutting load, unnecessary wear can occur to
the chain, bar and engine. It is recommended that the engine
not be operated for longer than 30 seconds at full throttle.
• To avoid losing control when cut is complete, do not put
pressure on chainsaw at end of cut.
• Stop the engine before setting the chainsaw down after cutting.
Check Chainsaw Lubrication
1. Start the chainsaw.
2. Hold the running chainsaw approximately 15cm above a trunk
or the ground (use appropriate base).
3. If the lubrication is sufficient, you will see a light oil trace
because oil will be flung off the chain.
4. If no oil trace is seen, check chain bar oil reservoir and clean
the chainsaw from debris/dirt.
24
25
Felling Large Trees (15cm / 6 inches) in diameter or
larger)
The notch method is used to fell large trees. A notch is cut on the
side of the tree in the desired direction of fall. After a felling cut
is made on the opposite side of tree, the tree will tend to fall into
the notch.
Note: If the tree has large buttress roots, remove them before
making the notch. If using chainsaw to remove buttress roots, keep
chainsaw from contacting ground to prevent dulling of the chain.
Notch Cut & Felling the Tree (PIC. 26 & 27)
• Make notch cut by cutting the top of the notch first. Cut
through 1/3 of the diameter of the tree. Next complete the
notch by cutting the bottom of the notch. See illustration. Once
the notch is cut remove the notch of wood from the tree.
• After removing the wood from the notch, make the felling cut
on the opposite side of the notch. This is done by making a cut
about two inches (5cm) higher than the centre of the notch. This
will leave enough uncut wood between the felling cut and the
notch to form a hinge. This hinge will help prevent the tree from
falling in the wrong direction.
Note: Before felling cut is complete, use wedges to open the
cut if necessary to control the direction of fall. To avoid kickback
and chain damage, use wood or plastic wedges, but never steel
or iron wedges.
• Be alert to signs that the tree is ready to fall, cracking sounds,
widening of the felling cut or movement in the upper branches.
• As tree starts to fall, stop chainsaw, put it down and get away
quickly on your planned retreat path.
• DO NOT cut down a partially fallen tree with your chainsaw.
Be extremely cautious with partially fallen trees that may be
poorly supported. When a tree doesn’t fall completely, set the
chainsaw aside and pull down the tree with a cable winch,
block and tackle, or tractor.

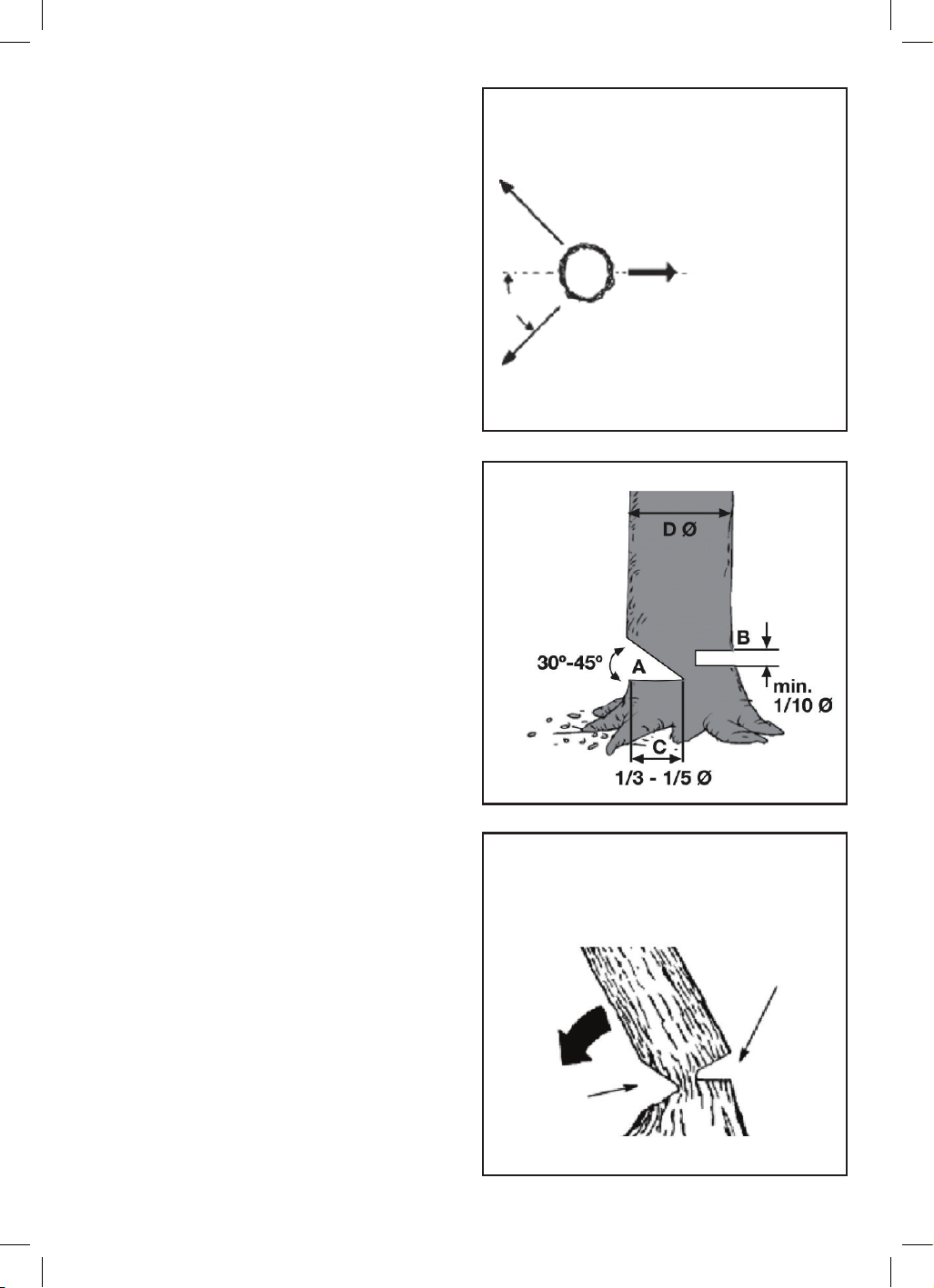

PIC. 25
PIC. 26
PIC. 27
Plan a clear retreat path
Retreat
Retreat
45˚
Direction of Fall
Hinge holds tree on stump and helps
control fall
Opening of
felling Cut
Closing of
Notch
24
25
CUTTING A FALLEN TREE (BUCKING) PIC. 28
Bucking is the term used for cutting a fallen tree to the desired log
size.
Important Points
• Cut only one log at a time.
• Cut shattered wood very carefully, sharp pieces of wood could
be flung toward operator.
• Use a sawhorse to cut small logs. Never allow another person
to hold the log while cutting and never hold the log with your
leg or foot.
• Do not cut in an area where logs, limbs and roots are tangled
such as in a blown down area. Drag the logs into a clear area
before cutting by pulling out exposed and cleared logs first.
• If your chainsaw gets stuck “pinched” by the timber turn your
chainsaw off and use a plastic or wooden wedge to “open” the
cut up enough to remove the chainsaw. Never keep sawing as
you may damage the chainsaw or injury yourself.
TYPES OF CUTTING USED FOR BUCKING
Overcutting (Pic. 29 and 30)
Overcutting begins on the top side of the log with the bottom
of the chainsaw against the log. When overcutting use light
downward pressure.
Undercutting (Pic. 29 and 30)
Undercutting involves cutting on the underside of the log with top
of chainsaw against the log. When undercutting use light upward

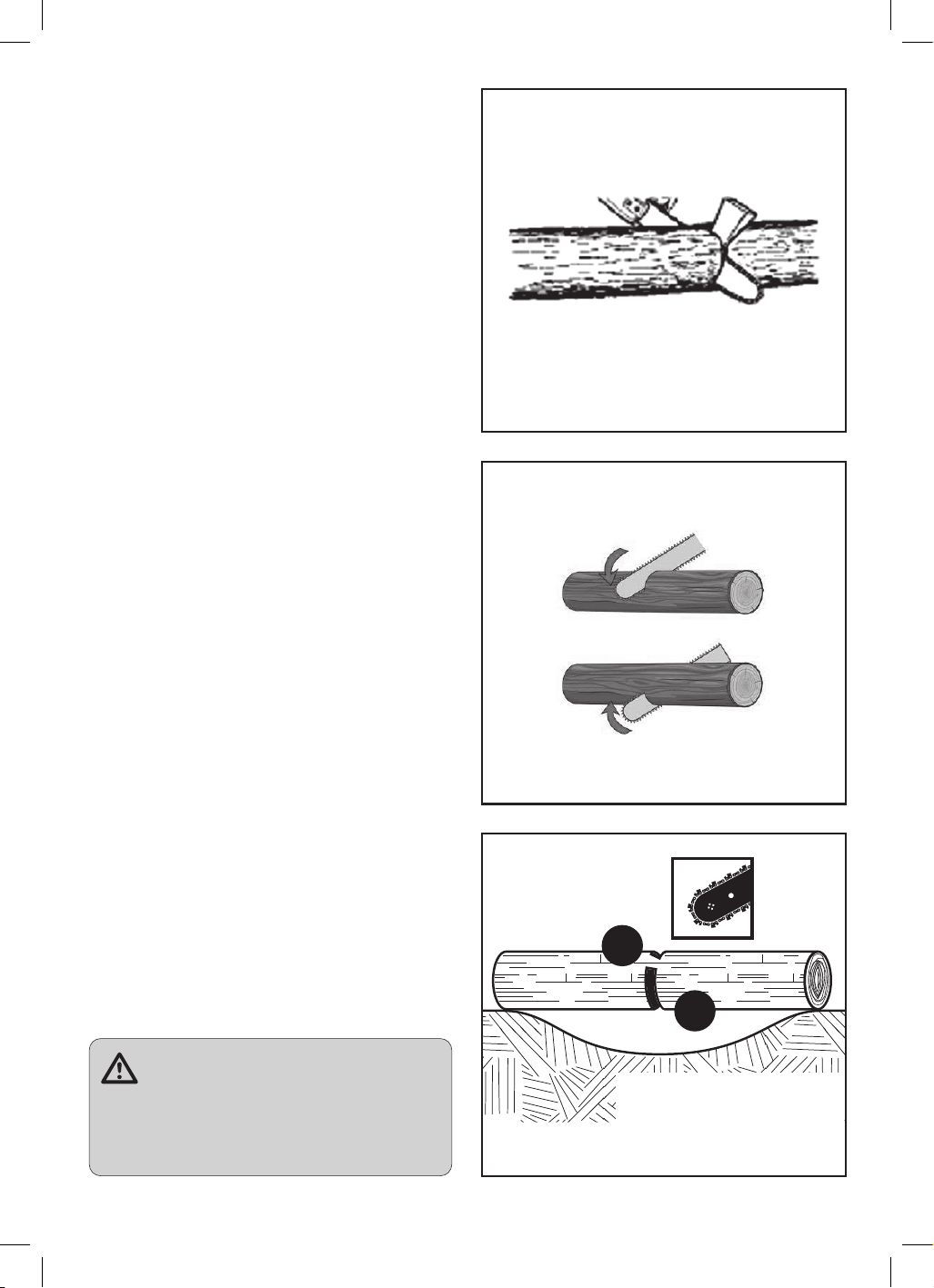

PIC. 28
PIC. 29
PIC. 30
WARNING
Do not stand on the log being cut. Any portion can roll
causing loss of footing and control. Do not stand downhill of
the log being cut.
1ST OVERCUTTING
First over cut (1/3 diameter)
to avoid splintering
2ND UNDERCUTTING
Second under cut (2/3 diameter)
to meet first cut to
avoid pinching
2ND
1ST
Direction of Fall
Use a wedge to remove pinched
chainsaw chain
Turn chainsaw OFF and use a plastic
or wooden wedge to force the cut
open
OVERCUTTING
UNDERCUTTING
26
27
pressure. Hold chainsaw firmly and maintain control. The chainsaw
will tend to push back toward you.
Bucking Without a Support (Pic. 31)
• Overcut through 1/3 of the diameter of the log.
• Roll the log over and finish with a second overcut.
• Watch for logs with a compression side to prevent the
chainsaw from pinching. See illustrations for cutting logs with a
compression side.
Bucking Using a Log or Support Stand (Pic. 31, 32 & 33)
• Remember your first cut is always on the compression side of
the log (See illustrations for your first and second cut).
• Your first cut should extend 1/3 of the diameter of the log.
• Finish with your second cut.

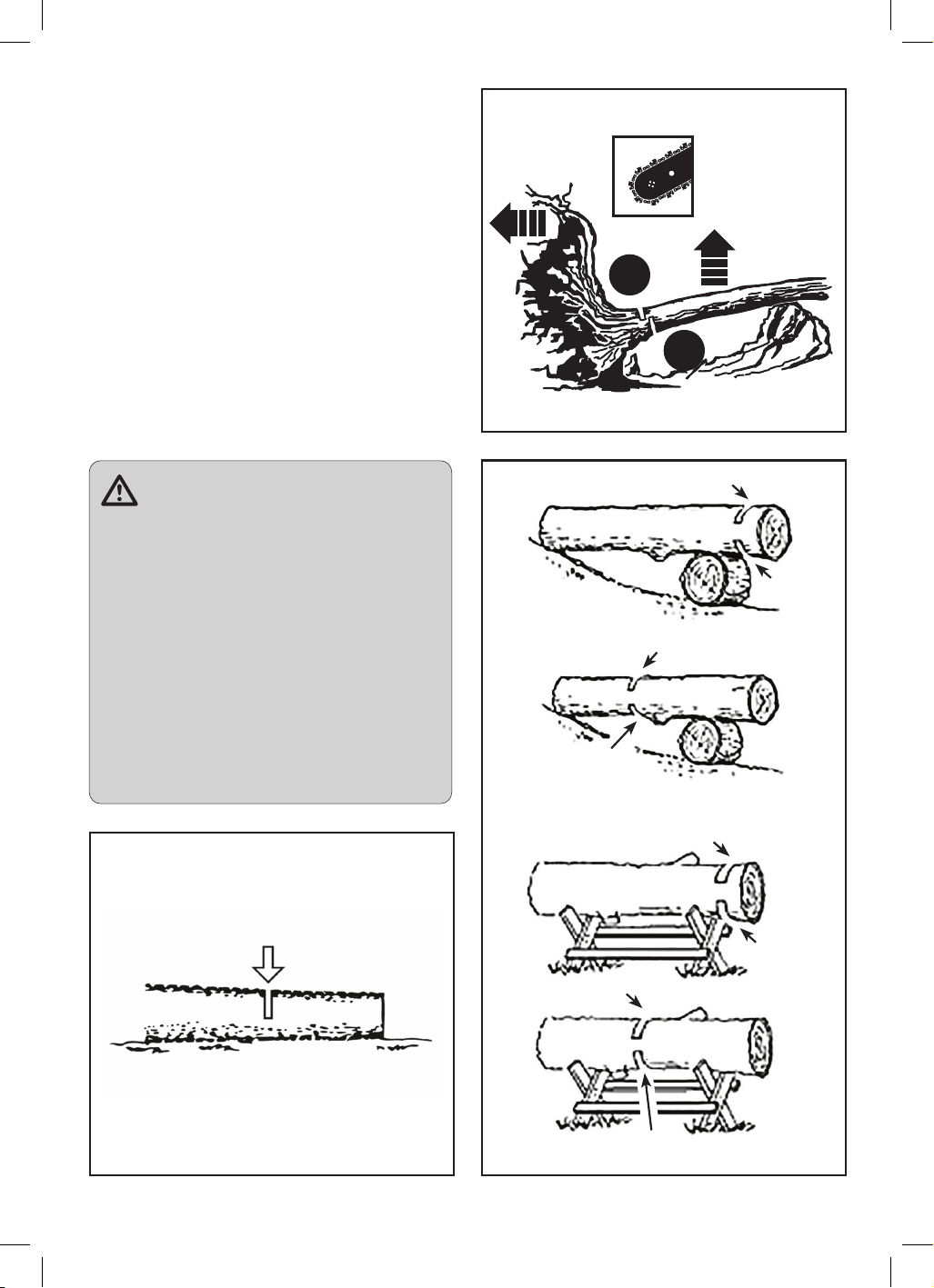

PIC. 33
PIC. 32
WARNING
lf chainsaw becomes pinched or hung in a log, don’t try to
force it out. You can lose control of the chainsaw resulting
in injury and/or damage to the chainsaw. Stop the chainsaw,
drive a wedge of plastic or wood into the cut until the
chainsaw can be removed easily. Restart the chainsaw
and carefully reenter the cut. To avoid kickback and chain
damage, do not use a metal wedge. Do not attempt to restart
your chainsaw when it is pinched or hung in a log.
Never turn chainsaw upside down to undercut. The chainsaw
cannot be controlled in this position.
Always make your first cut on the compression side of the
log. The compression side of the log is where the pressure of
the log’s weight is concentrated.
2ND
1ST
PIC. 31
2nd Cut
2nd Cut
2nd Cut
1st Cut, then roll log for 2nd Cut
2nd Cut
1st Cut
1st Cut
1st Cut
1st Cut
26
27
LIMBING AND PRUNING
Important Points
• Work slowly, keeping both hands firmly gripped on the
chainsaw. Maintain secure footing and balance.
• Watch out for spring poles. Spring poles are small size limbs
which can catch the chainsaw chain and whip toward you or
pull you off balance. Use extreme caution when cutting small
size limbs or slender material.
• Be alert for spring back. Watch out for branches that are bent
or under pressure. Avoid being struck by the branch or the
chainsaw when the tension in the wood fibres is released.
• Keep a clear work area. Frequently clear branches out of the
way to avoid tripping over them.
Limbing
• Always limb a tree after it is cut down. Only then can limbing
be done safely and properly.
• Leave the larger limbs underneath the felled tree to support the
tree as you work.
• Start at the base of the felled tree and work toward the top,
cutting branches and limbs. Remove small limbs with one cut.
• Keep the tree between you and the chainsaw. Cut from the side
of the tree opposite the branch you are cutting.
• Remove larger, supporting branches with the cutting techniques
described in BUCKING WITHOUT A SUPPORT.
• Always use an overcut to cut small and freely hanging limbs.
Undercutting could cause limbs to fall and pinch the chainsaw.
Pruning (Pic. 34)
Make your first cut 1/3 of the way through the bottom of the limb.
Next make a 2nd cut all the way through the limb. Then cut a third
overcut leaving a 1 to 2 inch (2.5 to 5cm) collar from the trunk of
the tree.

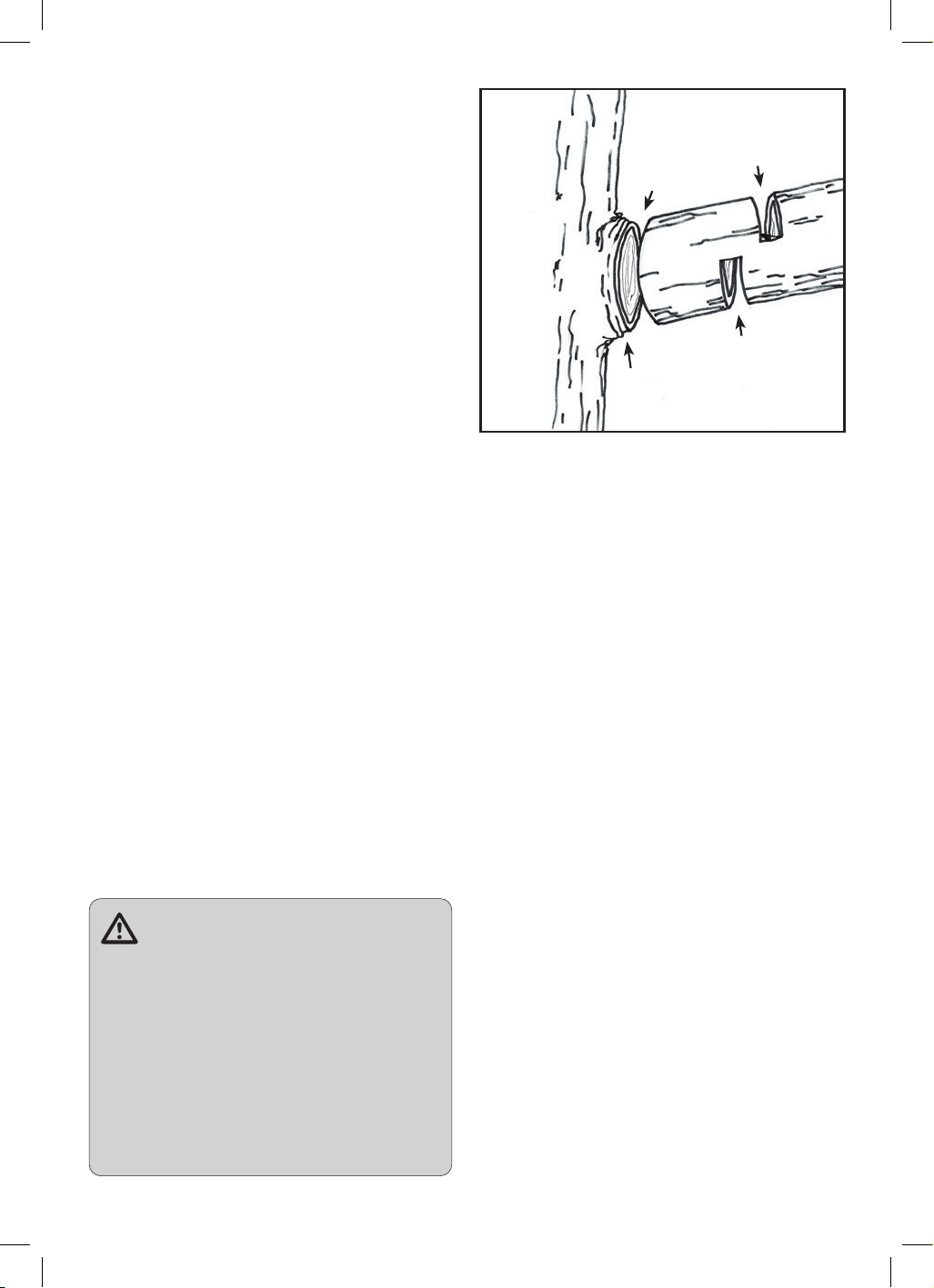

PIC. 34
WARNING
Be alert for and guard against kickback. Do not allow the
moving chain to contact any other branches or objects at
the nose of the guide bar when limbing or pruning. Allowing
such contact can result in serious injury.
Never climb into a tree to limb or prune. Do not stand on
ladders, platforms, a log, or in any position which can cause
you to lose your balance or control of the chainsaw.
Limit pruning to limbs shoulder height or below. Do not cut
if branches are higher than your shoulder. Get a professional
to do the job.
1st Cut
Collar
Pruning Technique
2nd Cut
3rd Cut
MAINTENANCE
Warning: Disconnect the spark plug before performing maintenance
except for carburettor adjustments.
We recommend all service and adjustments not listed in this
manual be performed by an authorised service agent.
1. Check For Damaged or Worn Parts
Contact an authorised service agent for replacement of damaged
or worn parts.
Note: It is normal for a small amount of oil to appear under the
chainsaw after the engine stops. Do not confuse this with a leaking
oil tank.
• ON/OFF Switch - Ensure ON/OFF switch functions properly by
moving the switch to the OFF position. Make sure engine stops,
then restart engine and continue.
• Fuel Tank - Do not use chainsaw if fuel tank shows signs of
damage or leaks.
• Oil Tank - Do not use chainsaw if oil tank shows signs of
damage or leaks.
2. Check For Loose Fasteners & Parts
• Chain Bar Nuts
• Chain
• Muffler
• Cylinder Shield
• Air Filter
• Handle Screws
• Vibration Mounts
• Starter Housing
• Front Hand Guard
28
29
3. Check Chain Sharpness
A sharp chain makes wood chips. A dull chain makes a sawdust
powder and cuts slowly.
Chain sharpening is a complicated task and requires special tools.
We recommend that you refer chain sharpening to a professional
chain sharpener.

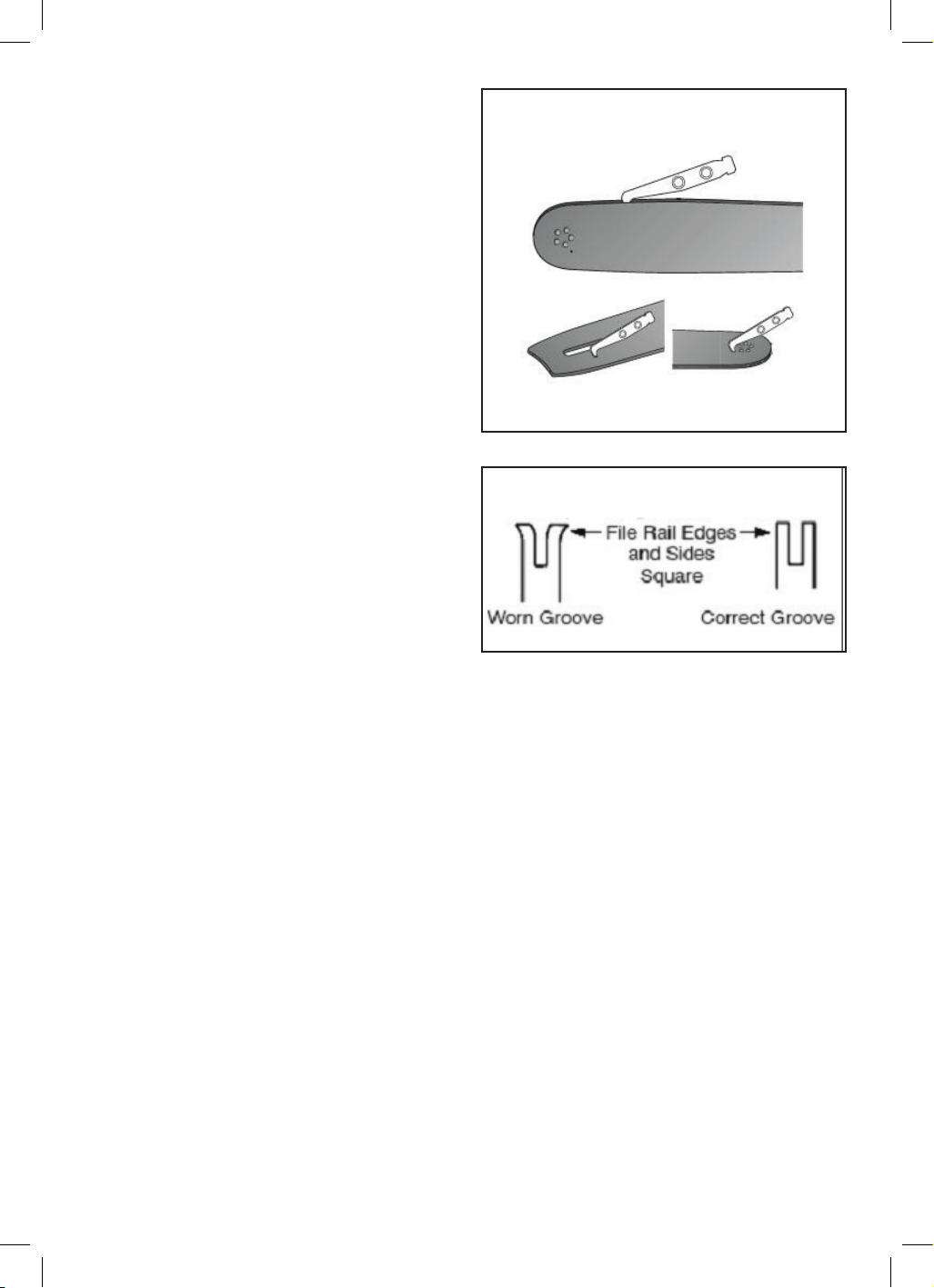

4. Check Guide Bar (Pic. 35 & 36)
Conditions which require guide bar maintenance:
• Chainsaw cuts to one side or at an angle.
• Chainsaw has to be forced through the cut.
• Inadequate supply of oil to bar and chain.
Check the condition of guide bar each time chain is sharpened. A
worn guide bar will damage the chain and make cutting difficult.
After each use , ensure ON/OFF switch is in the OFF position, then
clean all sawdust from the guide bar and sprocket hole.
To maintain guide bar:
• ON/OFF switch to OFF.
• Loosen and remove chain bar nuts and clutch cover. Remove
bar and chain from chainsaw.
• Clean the oil holes and bar groove after every 2 hours of
operation.
Replace guide bar when the groove is worn, the guide bar is bent
or cracked, or when excess heating or burring of the rails occurs. If
replacement is necessary, use only the guide bar specified for your
chainsaw.
5. Clean Unit
• After each use, allow chainsaw to cool about 1 hour. Clean the
unit and decals using a damp cloth with a mild detergent.
• Wipe off unit with a clean dry cloth.
• NEVER allow water or a mild dish washing solution to enter or
drip onto the chainsaw.
• NEVER use solvents, e.g. Petrol, Toluene, Methylated Spirits etc,
to clean the chainsaw, as these will damage the surface finish
and may cause a fire when chainsaw is next used.
6. Check Chain Brake
See CHAIN BRAKE on page 22.
PIC. 36
PIC. 35
Remove Sawdust from Guide Bar Groove
Remove Sawdust from Guide Bar Holes
7. Clean Air Filter
Caution: Do not clean filter in gasoline or other flammable solvent
to avoid creating a fire hazard or producing harmful evaporative
emissions.
Cleaning the air filter:
A dirty air filter decreases the life and performance of the engine
and increases fuel consumption and harmful emissions. Always
clean your air filter after 10 tanks of fuel or 2 hours of operation,
whichever comes first. Clean more frequently in dusty conditions.
A used air filter can never be completely cleaned. It is advisable
to replace your air filter with a new one after every 12 hours of
operation, or annually, whichever comes first
Clean air filter in mild soap and warm water.
Do not use petrol or solvents.
Dry thoroughly before using.
28
29
8. Replace Spark Plug
This engine uses a Torch L7RTC or NGR BPMR7A with 0.6-0.7mm
electrode gaps.
The spark plug should be replaced each year to ensure the engine
starts easier and runs better.
1. Loosen black thumb screw on cylinder cover. (Pic. 37)
2. Remove the cylinder cover.
3. Pull off the spark plug boot (Pic. 37).
4. Remove spark plug from cylinder and discard.
5. Replace with a new spark plug and tighten securely with a 3/4
inch socket wrench. Spark plug gap should be 0.025 inch
(0.6mm).
6. Reinstall the spark plug boot.
7. Reinstall the cylinder cover and secure with black thumb screw.
9. Replace Fuel Filter
To replace fuel filter, drain your unit by running it dry of fuel.
Remove fuel cap and its connected retainer from tank. Pull filter
from tank and remove from line. Replace and reassemble.
10. Chain Adjustment
See CHAIN TENSION on page 16.
11. Carburettor Adjustment (Pic. 38)
WARNING: The chain will be moving during most of this
procedure. Wear your protective equipment and observe
all safety precautions. The chain must not move
at idle speed.
The carburettor is factory set and should not require adjusting. The
carburettor will permit only limited adjustment of the needle. Any
adjustment should be done by an authorised service agent.

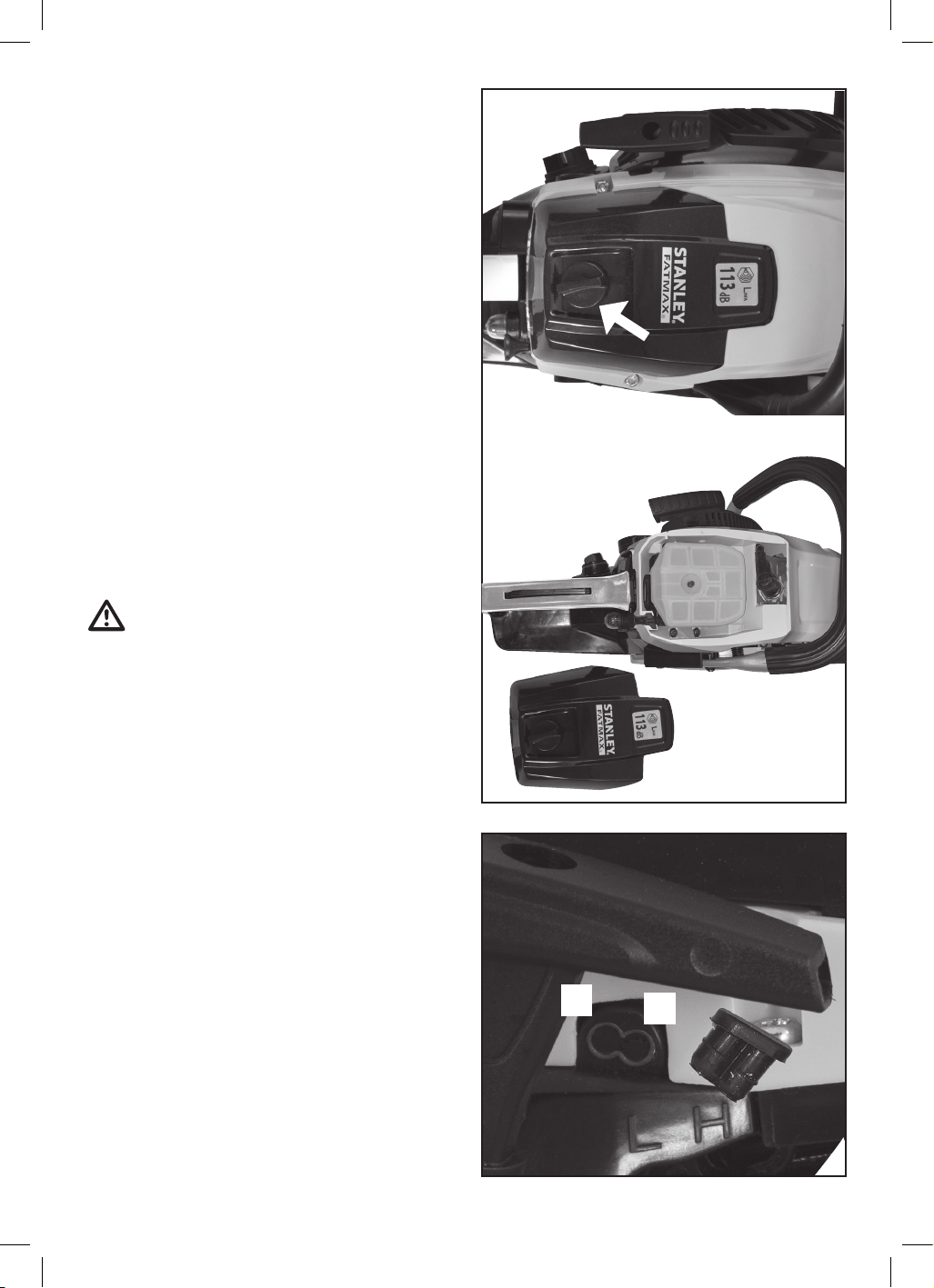

PIC. 37
PIC. 38
L
H
THUMB SCREW
30
31
Trouble Cause Remedy
Engine will not start
or will run only a few
seconds after starting.
1. Ignition switch off. 1. Move ignition switch to ON.
2. Engine flooded. 2. See “Difficult Starting” on page 22
3. Fuel tank empty. 3. Fill tank with correct fuel mixture.
4. Spark plug not firing. 4. Install new spark plug.
5. Fuel not reaching carburettor. 5. Check for dirty fuel filter; replace. Check for kinked
or split fuel line; repair or replace.
Engine will not idle
properly
1. Idle speed requires adjustment. 1. See “Carburettor Adjustment” on page 29.
2. Carburettor requires adjustment. 2. Contact an authorized service agent.
Engine will not
accelerate, lacks power,
or dies under a load.
1. Air filter dirty. 1. Clean or replace air filter.
2. Spark plug fouled. 2. Clean or replace plug and re-gap.
3. Chain brake engaged. 3. Disengage chain brake.
4. Carburettor requires adjustment. 4. Contact an authorized service agent.
Engine smokes
excessively.
1. Too much oil mixed with gasoline. 1. Empty fuel tank and refill with correct fuel
mixture.
TROUBLE SHOOTING TABLE
Warning: Always stop unit and disconnect spark plug before performing all of the recommended remedies
below except remedies that require operation of the unit.
STORAGE
Warning: Perform the following steps after each use:
• Allow the engine to cool and secure the unit before storing or transporting.
• Store chainsaw and fuel in a well ventilated area where fuel vapours cannot reach sparks or open flames from water heaters, electric
motors or switches, furnaces, etc.
• Store chainsaw with all guards in place and position chainsaw so that any sharp object cannot accidentally cause injury.
• Store chainsaw well out of the reach of children .
Seasonal Storage
Prepare your unit for storage at the end of the season or if it will not be used for 30 days or more.
Perform the following seasonal storage after the above storage steps if your chainsaw is to be stored for a period of time:
• Clean chainsaw thoroughly before storage.
• Store in a clean dry area.
• Lightly oil external metal surfaces and guide bar,
• Oil the chain and wrap it in heavy paper or cloth.
• Drain all fuel from the tank and seal
30
31
SERVICE LOG
Purchase Date Place of Purchase
This Service is to be complete within 12 hours or
3 months of purchase, which ever comes first.
Replace Check & Adjust
Air filter Spark plug
Chain bar oil Chain tension
Authorised Service Agent
(Name or Company Stamp)
Technician
Date
This Service is to be complete within 24 hours or
6 months of purchase, which ever comes first.
Replace Check and adjust
Fuel Tank filter Chain tension
Air Filter
Spark Plug
Chain bar oil
Authorised Service Agent
(Name or Company Stamp)
Technician
Date
This Service is to be complete within 36 hours or
9 months of purchase, which ever comes first.
Replace Check & Adjust
Air filter Spark plug
Chain bar oil Chain tension
Authorised Service Agent
(Name or Company Stamp)
Technician
Date
This Service is to be complete within 48 hours or
12 months of purchase, which ever comes first.
Replace Check and adjust
Fuel Tank filter Chain tension
Air Filter
Spark Plug
Chain bar oil
Authorised Service Agent
(Name or Company Stamp)
Technician
Date
04301 09/21
FMXOP24602
For any queries or assistance call
Customer Service
AUST. 1300 660 457
NZ 0800 474 876
www.stanleyproducts.com.au
Hours of operation:
Monday to Friday 8.00am - 5.00pm AEST
Do not return to place of purchase.
Keep your purchase receipt, this will be required to
make any claims under the 1 year warranty.
Register online for your extended warranty
(terms and conditions apply)
at www.stanleytools.com.au/warranty
