1
FA300UK Series
OWNER’S GUIDE
FlexBreeze Pro Mist Fan
2
IMPORTANT SAFETY INSTRUCTIONS
FAN IS SUITABLE FOR OUTDOOR & HOUSEHOLD USE ONLY. THE MISTING FEATURE IS SUITABLE FOR OUTDOOR USE ONLY.
READ AND SAVE THESE INSTRUCTIONS
NOTE: Before every use, empty and rinse the hose and
water tank to prevent stagnant water from being misted.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY: READ ALL THESE INSTRUCTIONS BEFORE USE.
MISTING FUNCTION IS FOR OUTDOOR USE ONLY.
WARNING: SLIPPERY SURFACE. IMPROPER USE AND/OR LEAKS CAN RESULT IN A SLIPPERY SURFACE AND
A FALL HAZARD.
1. This appliance is operated by a rechargeable battery. ONLY
recharge the battery with the charger supplied with the unit,
battery charger for use only with model GQ36-120300-ABO power
supply from Dongguan Gangqi Electronics Co., Ltd. or with model
AJJ3-1 from Anlian. A charger that may be suitable for one type of
battery may create a risk of fire when used with another battery.
2. Do not attempt to destroy, remove, or disassemble the battery pack
from the machine. Do not incinerate battery cells. Consult your local
waste authority for information regarding available recycling and/or
disposal options.
3. To reduce the risk of an electric shock, connect only to an outlet
provided with a Residual Current Device (RCD).
4. The fan should be used on a stable and level surface.
5. Never use this fan near pools, bathtubs, showers, basins, or other
vessels containing water.
6. Do not operate any unit with a damaged power supply wire or
battery charger. Discard the unit or return to an authorised service
facility for examination and/or repair.
7. Do not run cord under carpeting. Do not cover charge cord with
throw rugs, runners, or similar coverings. Do not route charger cord
under furniture or appliances. Keep charger cord away from high-
trac areas. Place charger in an area where the cord will not be
tripped over.
8. If the charger cord is damaged, it should be replaced.
9. This appliance is not intended for use by anyone (including
children) with reduced physical, sensory, or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
10. Children should be supervised to ensure that they do not play with
the appliance.
11. Cleaning and user maintenance shall not be made by children
without supervision.
12. Prior to cleaning or other maintenance, the appliance must be
unplugged from the electrical outlet.
13. Only use Shark branded accessories.
14. Do not use if appliance is not working as it should, or has been
dropped, damaged, left outdoors for extended periods of time in
poor weather without the protective cover applied or dropped into
water.
15. Turn o all controls before plugging in or unplugging the appliance.
16. Unplug from electrical outlet when not in use and before any
maintenance or cleaning.
17. Hand wash exterior/hard plastic/non-electronic parts with water
only. Do not immerse. Cleaning with chemicals could damage the
unit.
18. Do not attempt to repair or adjust any electrical or mechanical
functions of this appliance, as this may cause danger and void the
warranty.
19. Remove and immediately recycle or dispose of used batteries
according to local regulations and keep away from children. Do not
dispose of batteries in household waste or incinerate.
20. Even used batteries may cause severe injury or death.
21. Call a local poison control center for treatment information.
22. Non-rechargeable batteries are not to be recharged.
23. Do not force discharge, recharge, disassemble, heat above 60°C
(140°F), or incinerate. Doing so may result in injury due to venting,
leakage, or explosion resulting in chemical burns.
24. Ensure the batteries are installed correctly according to polarity (+
and -).
25. Do not mix old and new batteries, dierent brands or types of
batteries, such as alkaline, carbon-zinc, or rechargeable batteries.
26. Remove and immediately recycle or dispose of batteries from
equipment not used for an extended period of time according to
local regulations.
27. Always completely secure the battery compartment. If the battery
compartment does not close securely, stop using the product,
remove the batteries, and keep them away from children.
28. The misting function is suitable for OUTDOOR USE ONLY.
29. Do not use warm or hot water. Only use cold or room temperature
water. Never attempt to mist substances other than filtered or clean
tap water.
30. Do not handle live electrical products while in range of the misting
stream.
31. Keep non-waterproof electronic equipment and appliances out of
the misting stream.
32. WARNING: CHOKING HAZARD. Always keep nozzles and any other
small parts out of the reach of children.
33. Do not apply any fragrance or scented products onto any part of
the fan during use or maintenance.
34. Always follow the warning information on the batteries and in the
manuals of devices.
35. Only use the recommended battery types.
36. Keep batteries away from children.
37. Unpacked batteries shall not lie about in bulk.
38. In case of battery change always replace all batteries with new ones
of identical type and brand.
39. Do not swallow batteries.
40. Do not throw batteries into water.
41. Do not throw batteries into fire.
42. Avoid deep discharge.
43. Do not short-circuit batteries.
44. Use recommended charging time and current.
45. Do not open or disassemble batteries.
46. Do not expose the remote to long periods of rain or moisture.
47. Do not direct mist toward electrical wiring or devices.
COIN CELL BATTERY REMOTE MODELS
1. This appliance comes with a remote control which is uitable for a coin
cell battery. Dispose of batteries properly. Always keep batteries away
from children (choke hazard). Even used batteries can cause injury.
2. Compatible battery type is CR2025.
3. The nominal battery voltage is 3V.
AAA BATTERY REMOTE MODELS
1. This appliance comes with a remote control which is uitable for a coin
cell battery. Dispose of batteries properly. Always keep batteries away
from children (choke hazard). Even used batteries can cause injury.
2. Compatible battery type is CR2025.
3. The nominal battery voltage is 3V.
WARNING: Not suitable for use with solid-state speed controls.
LITHIUM BATTERY SAFETY WARNINGS
LITHIUM BATTERIES STORE A LARGE AMOUNT OF ENERGY
AND WILL VENT FIRE OR EXPLODE IF MISTREATED.
1. DO NOT DO ANY OF THE FOLLOWING TO THE BATTERY PACK:
a. Open d. Puncture
b. Drop e. Incinerate
c. Short-circuit f. Expose to temperatures below
0°C and above 60°C
2. Keep battery pack dry.
3. Charge battery pack only according to its charger’s instructions.
4. Inspect battery pack before every use: do not use or charge
if damaged.
BATTERY REMOVAL AND DISPOSAL
This product contains an integral lithium battery (not replaceable), and
the remote control uses a lithium coin battery (replaceable) or 2x AAA
battery (replaceable). When the remote batteries no longer have charge,
it should be removed from the remote and recycled. DO NOT incinerate
or compost the product with its integral battery or the remote batteries.
When your remote battery needs to be replaced, dispose of it or recycle
it in accordance with local ordinances or regulations. In some areas, it
is illegal to place spent lithium batteries in the rubbish or in a municipal
solid waste stream. Return spent batteries to an authorised recycling
center or to retailer for recycling. Contact your local recycling center for
information on where to drop o the spent battery.
POWER SUPPLY SAFETY
1. Read and follow all instructions that are on the product
or provided with the product.
2. Do not use an extension cord.
3. Do not use within 3 meters of a pool or other bodies of water and
do not use in a bathroom.
4. WARNING: Risk of Electric Shock. When used outdoors, install
only to a covered Class A GFCI protected receptacle that is
weatherproof with the power unit connected to the receptacle.
If one is not provided, contact a qualified electrician for proper
installation. Ensure that the power unit and cord do not interfere
with closing the receptacle cover.
IPX5 RAIN RESISTANT (EXCLUDING REMOTE).
IPX5
3
Shark FA300UK Series Product Information
According to:
Commission Regulation (EU) 206/2012 implementing Directive 2009/125/EC of the European Parliament and of the
Council with regard to eco-design requirements for air conditioners and comfort fans.
NOTE DESCRIPTION SYMBOL VALUE UNIT
Maximum Fan Flow Rate F 26.02 m
3
/min
Fan Power Input P 22.28 W
Service Value SV 1.17 (m3/min)/W
Standby Power Consumption
P
SB
0.38 W
Table Fan Sound Power Level
L
WA
58.8 dB(A)
Floor Fan Sound Power Level
L
WA
57.3 dB(A)
Maximum Air Velocity c 3.0 m/s
Measurement standard for service value IEC 60879
Table Fan Sound Power Level (Misting)
L
WA
59.4 dB(A)
Floor Fan Sound Power Level (Misting)
L
WA
57.4 dB(A)
No obvious symptoms
Unfortunately, it is not obvious when a button or coin battery is stuck in a child’s oesophagus (food pipe). There are no specific symptoms
associated with this. The child might:
• Cough, gag or drool a lot;
• Appear to have a stomach upset or a virus;
• Be sick;
• Point to their throat or stomach;
• Have a pain in their abdomen, chest or throat;
• Be tired or lethargic;
• Be quieter or more clingy than usual or otherwise
“not themselves”;
• Lose their appetite or have a reduced appetite; and
• Not want to eat solid food / be unable to eat solid food.
These sorts of symptoms vary or fluctuate, with the pain increasing
and then subsiding. A specific symptom to button and coin battery
ingestion is vomiting fresh (bright red) blood. If the child does this
seek immediate medical help. The lack of clear symptoms is why
it is important to be vigilant with “flat” or spare button or coin
batteries in the home and the products that contain them.
BATTERY WARNING
KEEP OUT OF REACH OF CHILDREN
Swallowing can lead to chemical burns,
perforation of soft tissue, and death. Severe
burns can occur within 2 hours of ingestion.
Seek medical attention immediately.
SYMPTOMS FROM BATTERY INGESTION
COIN CELL BATTERY REMOTE MODELS
4
CAR CHARGER - SOLD SEPARATELY
FAN COVER
INSTRUCTIONS FOR USE:
1. Firmly insert the car charger plug into a 12-volt outlet in
your vehicle.
2. Connect the small end of the car charger to the charging
port on the underside of the fan head, between the 4
support legs.
INSTRUCTIONS FOR USE:
1. Position the cover over fan head, then slide it on until the fan is
completely covered.
2. Cinch the drawstring on the bottom of the cover to secure it in
place.
3. The cover will protect the fan from dust and damage from light.
The fan cover does not guarantee that the product can be left
outdoors for an extended time.
1.
2.
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
1. SAVE THESE INSTRUCTIONS. This manual contains important
safety and operating instructions for battery charger model
FA20XCARUKEU from Dongguan City Gangqi Electronics Co., Ltd.
2. Before using this battery charger, read all instructions and cautionary
markings on the battery charger, battery, and product using battery.
3. CAUTION: To reduce risk of injury, charge only the provided
rechargeable battery.
Other types of batteries may burst, causing injury to persons and damage.
4. Do not expose charger to rain, moisture, or snow.
5. Use of an attachment not recommended or sold by the battery
charger manufacturer may result in a risk of fire, electric shock, or
injury to persons.
6. To reduce risk of damage to cigarette lighter connector and cord,
pull by cigarette lighter connector rather than cord when
disconnecting charger.
7. To reduce risk of electric shock, unplug charger before attempting any
maintenance or cleaning. Turning off controls will not reduce this risk.
8. Do not operate charger with damaged cord or cigarette lighter
connector. Replace it immediately.
9. The car charger may be wiped clean with water once removed from
the power socket. Allow car charger to fully dry prior to use.
10. The car charger contains a 5-amp replaceable fuse. Only replace the
fuse with a 5-amp fuse, no higher. To do this, unscrew the chrome tip
at the top end of the car charger connector to gain access.
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
1. WARNING: CHOKING HAZARD. The fan cover is not
a toy. Always keep small parts out of reach of children.
2. Children should be supervised to ensure that they
DO NOT play with the fan cover as it may become
unsanitary during outdoor use.
1.
2.
5
Fan Head
(already assembled)
WHAT’S INCLUDED
Remote Charger
(reference image only)
Misting Hose
Pole
Base Water Tank
ACCESSORIES AVAILABLE FOR PURCHASE
Bolt
Hex Key
Note: Images enlarged for clarity.
Dierent fan models come with dierent accessories. To purchase an accessory that was not included, go to sharkclean.co.uk.
Fan Cover
Garden Hose
Adapter
Travel Tank
Bucket Filter
Adapter
Car Charger Fan Cover Travel Bag Base Cover
6
ASSEMBLING YOUR FANSETTING UP YOUR REMOTE
1. Align and insert
the Upper Pole
into the Lower
Pole until it clicks
into place.
COIN CELL BATTERY REMOTE MODELS
1. Remove the battery saver paper from the remote.
AAA BATTERY REMOTE MODELS
1. Slide the battery cover o the rear side of the remote.
2. Place the 2x AAA batteries in the remote - ensure that
the batteries are placed in the remote with the correct
polarity ( + and - ).
3. Replace the battery cover by sliding it
into the remote.
2.
Align the yellow
dot on the
assembled pole
with the yellow
arrow on the
Base, then slide
the pole down
onto the base.
Ensure that the
pole is fully against
the base before
proceeding.
3. Turn the base on its
side, then insert the
Bolt in the bottom
of the Base. Use
the Hex Key to turn
the Bolt clockwise
to fasten it to the
assembled pole.
4. CAUTION: finger
pinch risk. Holding
the Fan Head
by the handle,
insert the legs
into the top of the
assembled pole
until they
click into place.
7. Connect the
Misting Hose to
the back of the
Water Tank and
rotate clockwise to
lock it in place.
8. Connect the
other end of the
Misting Hose to
the back of the Fan
Head and rotate
counterclockwise
to lock it in place.
9. Tuck the rest of
the hose into the
channel and clamp
on the back of
the pole.
4
1 A
B
Upper pole
The upper pole
has wider end.
Align yellow arrow on
bottom of pole with
yellow dot on base
2
3
Rotate clockwise to
tighten the bolt.
Note: Images enlarged
for clarity.
5. Holding the
Water Tank by
the handle, align
the rear of the tank
against the pole
and slide down to
latch into place.
6. Charge fan to 100%
battery power before
use without the cord.
First use: before
using remote
control, press Power
Button on fan. Fan
is operable while
charging.
Charging port
labeled with
.
5 8 97
CHARGING THE FAN
PEDESTAL MODE: To charge the fan in
pedestal mode, insert the CHARGER PLUG
into the charging port near the bottom of
the POLE.
TABLETOP MODE: To charge the fan in tabletop mode, insert the charger into
the charging port under the center shaft of the fan, between the 4 support
legs. DO NOT CHARGE OR USE IN THE RAIN.
6
7
BATTERY LIFE
Fan
Speeds
Press
on the fan head or < > arrows on the remote to switch between fan speeds. LED lights
will indicate selected fan speed.
NaturalBreeze
Modes
To activate STRONG breeze mode, press
once on the REMOTE, or press on
the fan head an additional time.
To activate GENTLE breeze mode, press
a second time on the REMOTE, or press
on the fan an additional time.
Oscillation
Settings
Press
on the fan head or icon on the remote to toggle between oscillation settings.
LED lights will indicate which setting is selected.
Timer
(REMOTE ONLY) Press to switch between timer
settings 1-5 hours. LED lights will appear to indicate
how many hours the timer is set for.
LEDs will switch o after 20 seconds. To check how
long is left on your timer, press
and the LED lights
will appear.
Horizontal
Angle Adjust
Press the <
> arrows on the remote to change the horizontal angle of the fan in 18° increments.
Outdoor
Misting
Settings
1-3
Press
once to turn on high-pressure consistent mist. Press a second time to
switch to the low-pressure consistent mist mode. Press
a third time to switch to the
interval mist mode.
Runtime
Fan ONLY
No Oscillation
MAXIMUM CORDLESS RUNTIME: 24 hours (approximate) on fan speed 1.
MAXIMUM CORDLESS RUNTIME: 6 hours (approximate) on fan speed 3.
MAXIMUM CORDLESS PERFORMANCE: 2 hours (approximate) on fan speed 5.
PLUGGED IN: Indefinite runtime; fan will charge while operating.
Fan + Outdoor
Misting
MAXIMUM MISTING PERFORMANCE: 1 hour (approximate) per tank with consistent
misting on fan speed 5
Charge
Time
FROM 0% TO FULLY CHARGED BATTERY: 5 to 6 hours
Battery
Indicator
HOW TO USE YOUR FAN
To preserve battery life, the
fan will enter IDLE mode if left
unplugged and powered o for
24 hours. In IDLE mode, the
remote cannot be used to turn
on the fan. To turn o IDLE
mode, press the power button
on top of the fan head.
Setting 1 : 1 Hour
Setting 2 : 2 Hours
Setting 3 : 3 Hours
Setting 4 : 4 Hours
Setting 5 : 5 Hours
70%-100%: green light
30%-69%: amber light
6%-29%: red light steady
5% and below: red light blinking
Before every use, fully flush the hose out for at least one minute before connecting and rinse out the tank, to prevent stagnant water being misted.
DO NOT CHARGE OR USE
IN THE RAIN
BATTERY LIFE – FAN ONLY
Settings
Approx.
Runtime (hrs)
Settings
Approx.
Runtime (hrs)
Fan Speed 1 24 hours Fan Speed 5 2 hours
Fan Speed 1
+ Oscillation
10 hours
Fan Speed 5
+ Oscillation
1.5 hours
Fan Speed 2 14 hours Strong Breeze 3 hours
Fan Speed 2
+ Oscillation
8.5 hours
Strong Breeze
+ Oscillation
2.5 hours
Fan Speed 3 6 hours Gentle Breeze 12 hours
Fan Speed 3
+ Oscillation
4.5 hours
Gentle Breeze
+ Oscillation
8 hours
Fan Speed 4 3 hours
Fan Speed 4
+ Oscillation
2.5 hours
BATTERY LIFE – FAN + MIST
Settings
Approx.
Runtime (hrs)
Settings
Approx.
Runtime (hrs)
Fan Speed 1 12 hours Fan Speed 5 1.5 hours
Fan Speed 1 +
Oscillation
8.5 hours
Fan Speed 5 +
Oscillation
1.5 hours
Fan Speed 2 8.5 hours Strong Breeze 2.5 hours
Fan Speed 2
+ Oscillation
6 hours
Strong Breeze
+ Oscillation
2.5 hours
Fan Speed 3 4.5 hours Gentle Breeze 8 hours
Fan Speed 3
+ Oscillation
4 hours
Gentle Breeze
+ Oscillation
6.5 hours
Fan Speed 4 2.5 hours
Fan Speed 4
+ Oscillation
2.5 hours
FEATURES
OSCILLATION & TILT REMOTE STORAGE
Direct the airflow by choosing
between 3 electronic oscillation
angles and manually adjusting the
vertical tilt up to 55 degrees.
CORDLESS
OUTDOORS
This is a 2-in-1 fan that can be used
with or without the cord.
This fan can be enjoyed indoors or
outdoors. DO NOT CHARGE OR USE
IN THE RAIN.
NATURALBREEZE
OUTDOOR MISTING
Activate one of the NaturalBreeze
modes to simulate wind conditions.
Integrated misting enabled through
a portable water tank and 2 misting
nozzles and 3 misting modes.
TIMER
Set the timer to turn o the fan
automatically.
You can store the remote on the
convenient magnetic mount on back
of the fan head.
The misting feature is suitable for
OUTDOOR USE ONLY.
8

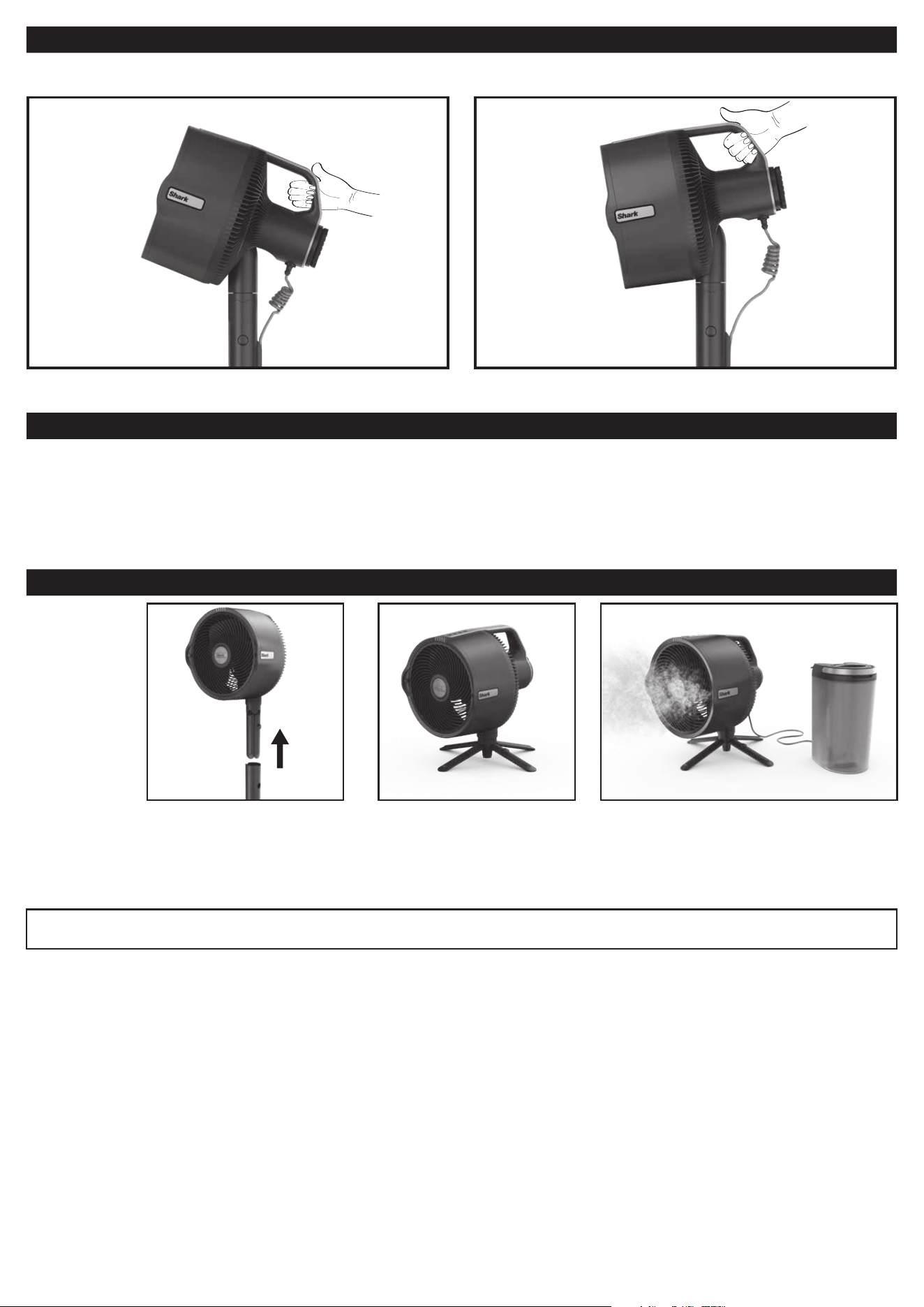

HOW TO CARRY YOUR FAN
• For short distances, carry the entire fan by placing one hand on the handle and the other on the pole. Note: If the water
tank is full, remove it before carrying the fan to avoid potential injury or accidental damage.
• For longer distances, disassemble the fan. Carry the fan head in tabletop mode separately from the base, pole, and
empty water tank. Note: Ensure you remove the misting hose from the back of the fan head before converting the fan to
tabletop mode to prevent accidental damage.
VERTICAL TILT
TABLETOP MODE
To detach the fan from the
pole, press the Lift-Away
button, then slide the fan
head off the pole.
Note: To avoid accidental damage to your fan, ensure the misting hose is disconnected from the back of the fan head before
converting to tabletop mode.
Spread out the four support
legs until they are fully
extended, then place the
fan head on a flat, level
surface to use.
Connect the hose to the tank and fan
head while in tabletop mode for misting
on the go.
To convert the
fan to portable,
tabletop mode:
To adjust the vertical height of the fan head, use the handle to manually tilt the head up or down. The fan has a vertical range of 55° degrees.
Fan head tilted UP Fan head tilted DOWN
9
STORAGE
STORAGE TYPE INSTRUCTIONS
Short-term storage indoors
(less than 24 hours)
Remove, empty, and dry the misting hose and water tank. With the misting
hose and tank disconnected from the fan, run the misting system for one
minute to clear out any stagnant water remaining in the internal hose. Rinse
the tank and dry before storing.
Carefully place the fan in the desired storage location. Ensure it is out of reach
of children and pets. Bring the fan indoors if inclement weather is predicted.
Long-term storage indoors
(more than 24 hours)
Remove, empty, and dry the misting hose and water tank. With the misting
hose and tank disconnected from the fan, run the misting system for one
minute to clear out any stagnant water remaining in the internal hose. Rinse
the tank and dry before storing.
Carefully place the fan in the desired storage location. Store the fan indoors
when not in use for long periods. Always make sure to keep the fan out of
reach of children and pets.
DISASSEMBLY
If grille screw, bolt, or hex key have been lost, see Hardware Specs section for information on how to replace any hardware.
9
9. Press the small button on
the Lower Pole to detach
the poles. Carefully fold as
needed for storage.
DO NOT strain the cord.
5
5. With the misting
hose fully removed,
press the Lift-Away
button on the side
of the pole, then lift
the Fan Head o
the pole.
6
6. Using the handle
located on the lid,
carefully lift the
Water Tank to
remove it from the
base.
1
Charging port
labeled with
.
1.
Ensure your fan is
unplugged before
disassembly. To
avoid accidental
damage, DO NOT
remove the charger
at an angle.
7. Turn the pedestal
Base on its side to
access the Bolt on
the bottom. Use
the included Allen
Wrench to rotate the
bolt counterclockwise,
then remove the bolt.
8
8. Carefully lift the
pole to remove it
from the base.
3
3. To detach the
misting hose
from the Fan
Head, rotate
the connector
clockwise.
2
2. Gently remove
the Misting Hose
from the channel
located on the
back of the Pole.
4
4. To detach the
other end of the
misting hose
from the Water
Tank, rotate
the connector
counterclockwise.
7
Rotate
counterclockwise
to loosen the bolt.
Note: Images enlarged
for clarity.
10
SETTINGS
REMOTE PAIRING INSTRUCTIONS
• To preserve battery life, the fan will enter IDLE mode if left unplugged and powered o for 24 hours. In IDLE mode, the
remote cannot be used to turn on the fan. To turn o IDLE mode and turn on the power, press the power button on top
of the fan head.
• The LED lights on the fan head display will only remain illuminated for 20 seconds after a setting adjustment is made
before turning o to save battery.
• For information on how to activate or deactivate LOCK MODE for fan maintenance, please see the Maintenance section.
• Remote may be less eective when used outdoors.
Turn the unit on by pressing the power button on top of the fan head and check if
the remote functions properly.
If the remote is not functioning, try the following:
1. Check to ensure the battery saver paper is removed from the remote (coin cell
battery remote models). Check to ensure the 2x AAA batteries are placed in the
remote in the correct orientation (AAA battery remote models).
2. Try connecting the remote to the fan by pressing and holding the power button
on the fan head for 5 seconds. While the LEDs are flashing, press the fan speed up
button on the remote.
3. If the remote still doesn’t work, then try replacing the batteries in the remote and
repeat the connection process above.
POWER ON/OFF
To turn the fan on or o, press the POWER button on the remote or the POWER button on the fan head.
POWER DISPLAY
ON
LED animations will play once
(LEDs will turn on from left to right, then turn o from right to left)
OFF
LED animation will play once
(LEDs will turn o from right to left)
11
FAN SPEEDS
Changing the FAN SPEED will increase or decrease the airflow of the fan.
To change the speed, press
on the fan head to cycle through the dierent speeds. With the REMOTE, press the left
and right arrows to change speeds. The LEFT ARROW will DECREASE the speed of the fan and the RIGHT ARROW will
INCREASE the speed of the fan.
SETTING DISPLAY BEST FOR
1 Quiet operation
2
Moderate cooling
3
Balance of noise level
and fan power
4
Air circulation
5
High power cooling
12
TIMERTIMER
If you don’t want to leave your fan constantly on, but don’t want to think about it, use the timer setting (remote only). You
can choose between timer settings 1-5 hours.
To activate timer, press
on your remote. LED lights will appear and blink to indicate how many hours the timer is set for.
LEDs will switch o after 20 seconds. To check how long is left on your timer, press
and the LED lights will appear.
SETTING DISPLAY BEST FOR
1 1 Hours
2
2 Hours
3
3 Hours
4
4 Hours
5
5 Hours
13
NATURALBREEZE MODES
Turn on either of the NaturalBreeze modes to simulate natural wind conditions.
To activate STRONG NaturalBreeze, press the
icon on the REMOTE or press the icon on the fan head until the
corresponding LEDs are displayed on the unit (see table below for LED patterns).
To transition from STRONG NaturalBreeze to GENTLE NaturalBreeze press the
icon on the REMOTE again,
or press the
icon on the fan head again.
To deactivate NaturalBreeze, press the
icon on the REMOTE to return to your previously selected fan speed or press
the
icon on the fan head until you reach your desired fan speed setting.
NATURALBREEZE WIND PATTERNS
STRONG NaturalBreeze Mode GENTLE NaturalBreeze Mode
• 6 seconds in Speed 3
• 5 seconds in Speed 4
• 4 seconds in Speed 5
• 5 seconds in Speed 4
• The sequence will repeat
• 6 seconds in Speed 1
• 5 seconds in Speed 2
• 4 seconds in Speed 3
• 5 seconds in Speed 2
• The sequence will repeat
DISPLAY SETTING BEST FOR
STRONG
NaturalBreeze
Simulating
strong wind
conditions
GENTLE
NaturalBreeze
Simulating
gentle wind
conditions
14
OSCILLATION
HORIZONTAL ANGLE ADJUST
Choose one of the 3 oscillation angles.
To change the oscillation settings, press the Oscillation
icon on the REMOTE or the fan head.
To turn o oscillation, press the same Oscillation
icon on the REMOTE or the fan head until no LEDs are illuminated.
You can use the remote control to change the horizontal angle of the fan from a distance.
Press the left or right arrows on the remote to adjust the horizontal angle.
This feature is only accessible using the REMOTE.
NOTE: The LEDs on the fan head will not illuminate when you use this feature.
DISPLAY ANGLE BEST FOR
45°
Circulating air in small area,
1-2 people
90°
Circulating air in moderate
area, 3-4 people
180°
Circulating air in large area,
5+ people
15
OUTDOOR MISTING
This misting feature is suitable for OUTDOOR USE ONLY.
Choose between 3 misting settings to best suit your needs. To change the misting settings, press the Misting
icon on
the remote or the fan head to cycle through the settings.
To turn o misting, press the Misting
icon on the remote or the fan head until no LEDs are illuminated.
DISPLAY SETTING BEST FOR
High-Pressure
Consistent
Maximum
cooling power
Low-Pressure
Consistent
Balance of
cooling power
and misting
duration
Interval
Longest
misting duration
16
TROUBLESHOOTING AND FREQUENTLY ASKED QUESTIONS
Why is the mist too wet?
The misting feature is suitable for OUTDOOR USE ONLY. Do not attempt
to mist indoors as this could cause slippery conditions or water damage.
The fan is equipped with 3 mist settings designed to provide varying
amounts of mist density. Press the misting
icon on either the remote
or the fan head until you reach your desired setting.
Adjusting the speed of the fan can aect the intensity
of the mist.
Try lowering the speed if the mist feels too wet.
Sometimes, standing too close to the fan can make the mist feel wetter
than it should. Try moving a few feet back and check if it improves the
mist experience.
GENERAL USE
Why is the remote not working?
When using the remote control, make sure it is pointed
directly at the LEDs on the front of the fan.
The fan may have entered IDLE mode. To preserve battery life, the fan
will enter IDLE mode if left unplugged and powered o for 24 hours.
In IDLE mode, the remote cannot be used to turn on the fan. To turn o
IDLE mode and turn on the power, press the power button on top of the
fan head.
If your remote has lost its connection to the fan, you can easily reconnect
it. Press and hold the power button on the fan head for 5 seconds, then
press the right-hand side fan speed button on the remote while the LEDs
on the fan head are flashing.
If the remote still doesn’t work, then try replacing the
batteries in the remote.
Why are the remote and UI
buttons not working?
Make sure the fan has battery power by pressing the Power button.
If the Battery LED indicator blinks red, then the fan needs to be charged.
When the fan is charging, the battery LED will blink green.
See the Battery Life and How To Use Your Fan sections for more
detailed information on runtimes and battery indicators.
If all the LEDs are flashing, the fan may be in Lock mode, which
deactivates the fan to allow you to safely maintain it. To turn o Lock
mode, press the Oscillation
icon on the fan and hold it down for
8 seconds. When Lock mode is successfully deactivated, the LEDs will
display the Power On pattern. See the Maintenance section for more
information.
Can I leave the fan outdoors?
This fan is rain-resistant and will not be damaged by
light rain. However, it is not suitable to withstand heavy
rain or water submersion. Do not charge or use your fan
in the rain.
Why is the fan rattling?
Ensure that the fan blade cap is fully installed before
operating the fan. Please see the Maintenance section
for more details.
The second LED indicator and
the Battery LED (in amber)
are flashing. What is wrong?
This error state indicates an issue with the voltage of
the charger. Please be sure to only use the provided Shark® charging
cable and power supply.
MAINTENANCE
Why do I have to activate Lock mode
before maintenance?
The fan must be in Lock mode when any maintenance is performed.
Lock mode prevents the fan from accidentally powering on.
How often should I clean the fan?
We recommend cleaning the fan every 6 months
or as needed.
How do I maintain
the misting hose?
Every 12 months, use a damp cloth to clean the rubber seals on both
ends of the misting hose to prevent buildup.
How often should I clean
the misting nozzles?
Clean the misting nozzles every 12 months or as needed. Using harder
water will require more frequent cleaning. See Maintenance section for
more information on cleaning misting nozzles.
Why isn’t my fan
misting eectively?
Ensure the misting hose is securely connected to the water tank and
fan head. See the Assembling Your Fan section for more information.
The misting hose & nozzles may clog if not maintained properly.
See the Maintenance section for details on cleaning instructions.
If the issue persists, the water tank filter may be clogged. Visit
sharkclean.co.uk to order a replacement water tank filter.
17
We recommend cleaning your water tank and misting hose with unscented soap and water every 3 months or as needed. Ensure you empty and
dry the water tank and misting hose after every use.
We recommend cleaning the misting nozzles every 12 months or as needed. Using harder water will require more frequent cleaning. To clean
the misting nozzles:
We recommend cleaning the fan every 6 months or as needed.
If grille screw, bolt, or Hex Key have been lost, see the Hardware Specs section for information on how to replace any hardware.
MAINTENANCE
• LOCK MODE must be activated prior to performing maintenance. This will temporarily block all fan functions until
deactivated. Lock mode prevents the fan from accidentally powering on.
1. Turn on Lock mode before
performing maintenance
for safety. To activate, hold
down the Oscillation icon on
the Fan Head for
8 seconds.
2. Place the fan upright on a flat,
level surface in tabletop mode.
Use the Phillips-head end of
the Hex Key to remove the
screw at the bottom of the
Fan Grille. Set screw aside.
3. Rotate the Fan Grille
counterclockwise to remove
it from the fan head. Set
grille aside.
4. Remove the Fan Blade Cap.
Hold the Fan Blades in place
while rotating the fan blade
cap clockwise to remove it
from the shaft.
5. Remove the Fan Blades by
gently pulling them out.
With a slightly damp cloth,
wipe down the interior parts
of the fan.
8. Rotate the Fan Grille
clockwise to secure it
to the fan head.
6. Carefully replace
the Blades onto
the center shaft.
9. Place the fan upright on a
flat, level surface. Use the
Phillips-head end of your
Hex Key to replace and
tighten the screw at the
bottom of the Fan Grille.
7. Reinstall the fan blade cap.
Hold the fan blades in place
while rotating the fan blade
cap counterclockwise to
reinstall it to the shaft.
10. Turn o Lock Mode
by holding down the
oscillation icon
on the fan head for
8 seconds.
1. Carefully remove
each brass nozzle.
CAUTION: Residual
pressure may remain in
the misting system.
2. To remove a
nozzle, twist it
counterclockwise. DO
NOT use a wrench
or any other tool.
WARNING: CHOKING
HAZARD. Keep
nozzles out of the
reach of children.
3. Soak the nozzles in a
solution of undiluted
distilled white vinegar
(5% acetic acid by
volume) to loosen
debris that may be
clogging or restricting
water flow. DO NOT
soak the nozzles for
more than 2 hours.
4. After soaking the
nozzles in the solution,
rinse them thoroughly
with water.
5. Carefully reinstall each
nozzle by twisting
clockwise until you
feel resistance.
5 6 7
1 2 3 4
Hold for 8 seconds
Lights will blink
three times when
Lock mode has
been activated
9
10
Hold for 8 seconds
Lights will display
the Power On
pattern when
Lock mode has
been deactivated.
8
18
HARDWARE SPECS
Grille Screw
For securing the grille to the fan
Drive Type Phillips
Thread Size / Pitch M3 x 0.5mm
Length 16mm
Bolt
For securing base to pole
Drive Type Hex
Thread Size / Pitch M6 x 1mm
Length 85mm
Screwdriver
For driving the screw
Drive Type Phillips
Size No. 1
Hex Key
For driving the bolt
Drive Type Hex
Size 5mm
6mm
5mm
146 x 1mm
85mm
24mm
6mm
2.52mm
16mm
M3x0.5mmNo.1
6mm
19
MANUFACTURER’S GUARANTEE
When a consumer buys a product in the United Kingdom, they get the benefit of legal rights relating to the quality of the product (your “legal rights”).
You can enforce your legal rights against your retailer, including Shark if you bought your Shark appliance from sharkclean.co.uk. However, at Shark we are
so confident about the quality of our products that we give the owner an additional, free parts and labour manufacturer’s guarantee of up to 2 years.
A household appliance like a Shark Fan appliance constitutes a sizeable investment. Your new machine needs to work properly for as long as possible. The
guarantee it comes with is an important consideration - and reflects how much confidence the manufacturer has in its product and manufacturing quality.
The manufacturer’s guarantee does not aect your legal rights.
How long are new Shark machines guaranteed for?
Our manufacturer’s guarantee lasts for one year from the date of purchase as standard, or for two years if you register your purchase with us within 28 days.
There is information on how to register below.
How do I register my Shark guarantee?
If you have purchased your Shark Fan appliance directly from sharkclean.co.uk your guarantee is registered automatically. If you bought it from anywhere else,
you can register your guarantee online within 28 days of purchase.
• To register online, please visit sharkclean.co.uk/register-guarantee or scan the QR code in your instruction manual.
• Keep a note of the date you purchased the machine.
IMPORTANT:
• Keep your receipt if you bought your Shark Fan appliance from anywhere except sharkclean.co.uk. You will need it to claim under your guarantee.
• The free Shark guarantee only applies in the UK.
What are the benefits of registering my free Shark guarantee?
When you register your guarantee, you will get an extra year of cover. We’ll also have your details to hand if we ever need to get in touch. If you further agree
to receive communications from us, you can also receive tips and advice on how to get the best out of your Shark Fan appliance and hear the latest news about
new Shark technology and launches.
What is covered by the free Shark guarantee?
Repair or replacement (at Shark’s option) of your Shark machine, including all parts and labour.
What is not covered by the free Shark guarantee?
• Normal wear and tear.
• Accidental damage or faults caused by negligent use or care, misuse, neglect, careless operation or handling of the Shark appliance which is not in
accordance with the Shark Operating Manual supplied with your machine.
• Damage caused by use of the Shark appliance for anything other than normal domestic household purposes.
• Damage caused by use of parts not assembled or installed in accordance with the operating instructions.
• Damage caused by use of parts and accessories which are not Shark Genuine Components
• Faulty installation (except where installed by Shark).
• Repairs or alterations carried out by parties other than Shark or its agents.
How can I claim under the free Shark guarantee?
Contact our customer service helpline on 0800 862 0453. For service hours please visit our website. It’s free to call, and you’ll be put through to a Shark
representative. You’ll also find online support at support.sharkclean.co.uk/.
The Shark representative will go through some troubleshooting with you, and if we conclude that the item has failed, we will send you a replacement part
or a returns label to send the defective item back to us free of charge. When you have delivered the defective product to us, we will send you a replacement.
Please remember that the item will need to be boxed when you return it to us, which can be any suitable box; it does not have to be the original packaging.
Where can I buy genuine Shark spares and accessories?
Shark spares and accessories are developed by the same engineers who developed your Shark Fan appliance.
You’ll find a full range of Shark spares, replacement parts and accessories for all Shark machines at sharkclean.co.uk. Please remember that damage caused
by the use of non-Shark spares may not be covered under your guarantee.
20
IMPORTANT INFORMATION
REGISTER YOUR PURCHASE
registeryourshark.com
RECORD THIS INFORMATION
Model Number:
�������������������������������������������������������������������������������������������������������������������������������������������������������������������������������
Serial Number:
���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������
Date of Purchase:
�����������������������������������������������������������������������������������������������������������������������������������������������������������������������
(Keep receipt)
Store of Purchase:
���������������������������������������������������������������������������������������������������������������������������������������������������������������������
TECHNICAL SPECIFICATIONS
Voltage: 12V DC / 3A
Watts: 36W
Benefits of registering your product and creating an account:
• Get easier, faster product support and access to
warranty information
• Access troubleshooting and product care instructions
• Be among the first to know about exclusive product promotions
TIP: You can find the model and serial numbers on the QR code label
on the underside of the fan head.
BATTERY REMOVAL AND DISPOSAL
This product contains an integral lithium battery (not replaceable), and the
remote control uses a lithium coin battery (replaceable) or 2x AAA battery
(replaceable). When the remote batteries no longer have charge, it should be
removed from the remote and recycled. DO NOT incinerate or compost the
product with its integral battery or the remote batteries. When your remote
battery needs to be replaced, dispose of it or recycle it in accordance with
local ordinances or regulations. In some areas, it is illegal to place spent lithium
batteries in the rubbish or in a municipal solid waste stream. Return spent
batteries to an authorised recycling center or to retailer for recycling. Contact
your local recycling center for information on where to drop o the spent
battery.
PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
This Owner’s Guide is designed to help you get a complete understanding of your new Shark® fan.
Illustrations may dier from actual product. We are constantly striving to improve our products; therefore the specifications contained herein
are subject to change without notice.
This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material sources. To return your used device, please use the
return and collection systems or contact the retailer where this product was purchased. They can take this product for environmentally safe recycling.
FA300UK�Series�IB�A4-Online�250304�Mv3
SharkNinja Europe Ltd,
1st/2nd Floor Building 3150,
Thorpe Park, Century Way,
Leeds, England, LS15 8ZB
sharkclean.co.uk
SharkNinja Germany GmbH,
Rotfeder-Ring 9,
60327 Frankfurt am Main,
Germany
sharkclean.eu
@sharkhomeUK
© 2025 SharkNinja Operating LLC. SHARK and FLEXBREEZE are registered trademarks in the United Kingdom of SharkNinja Operating LLC.
PHILLIPS is a registered trademark of Phillips Screw Company
