Arctic DG 5612 DTL Gas Stove Range User Manual

Oven

Cuptor

DG 5612 DTL

DG 5612 GTL

arctic

OPERATING INSTRUCTIONS

INSTRUCTIUNI DE UTILIZARE

Atentie!

'inainte de utilizare,

Tndepärtati eticheta de pe cuptor."

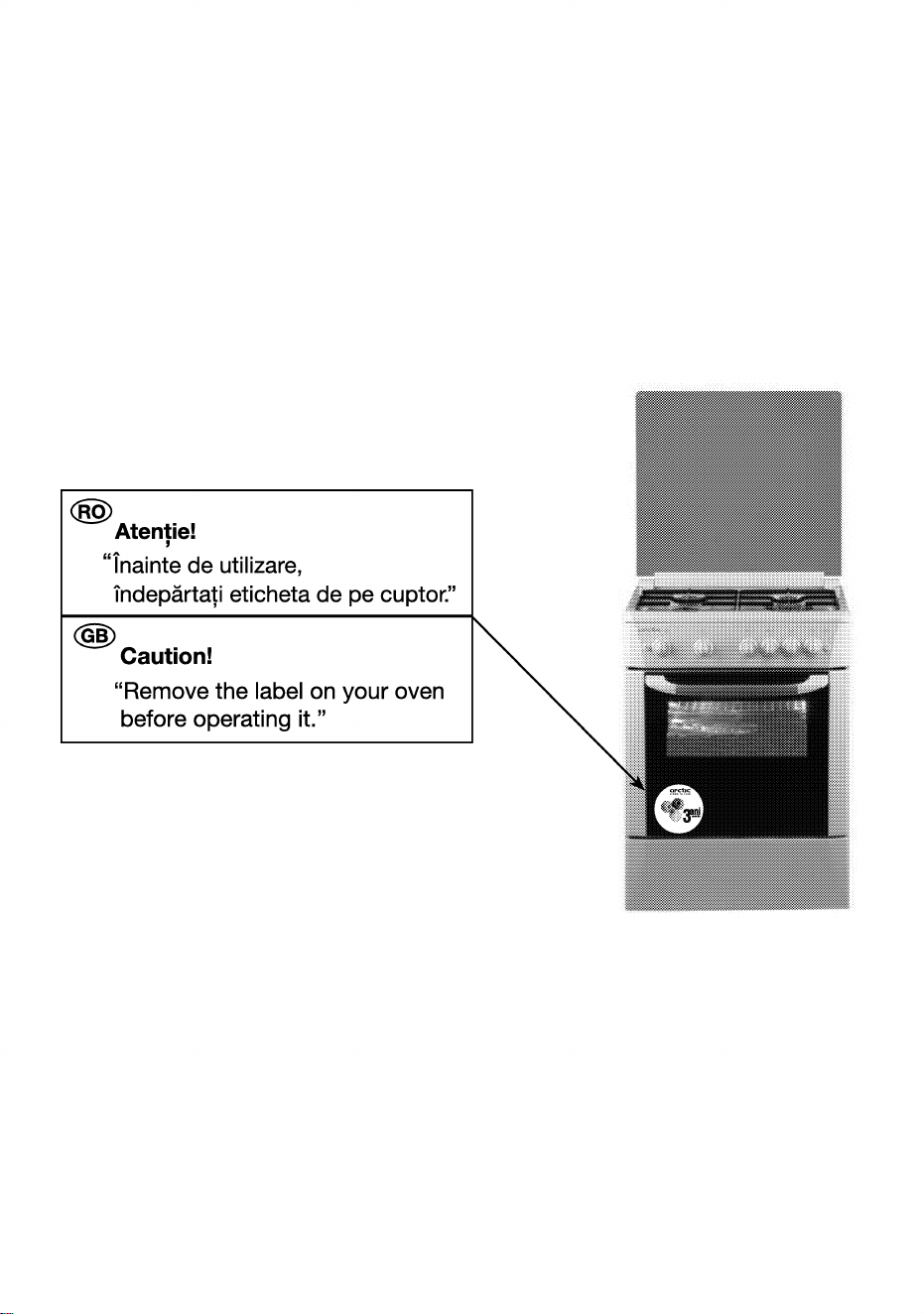

Caution!

"Remove the label on your oven

before operating it."

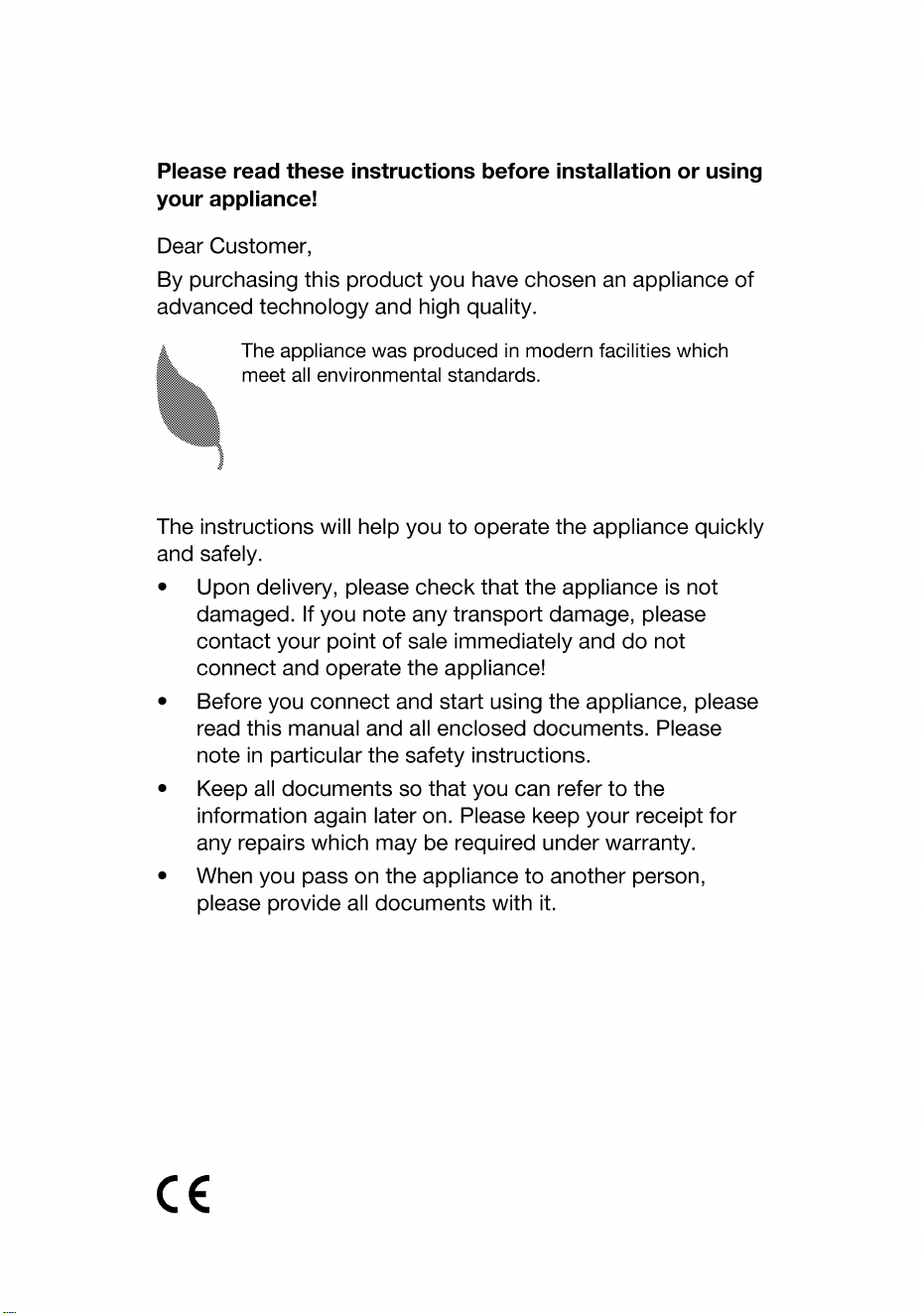

Please read these instructions before installation or using

your appliance!

Dear Customer,

By purchasing this product you have chosen an appliance of

advanced technology and high quality.

The appliance was produced in modern facilities which

meet all environmental standards.

The instructions will help you to operate the appliance quickly

and safely.

•

Upon delivery, please check that the appliance is not

damaged. If you note any transport damage, please

contact your point of sale immediately and do not

connect and operate the appliance!

Before you connect and start using the appliance, please

read this manual and all enclosed documents. Please

note in particular the safety instructions.

Keep all documents so that you can refer to the

information again later on. Please keep your receipt for

any repairs which may be required under warranty.

When you pass on the appliance to another person,

please provide all documents with it.

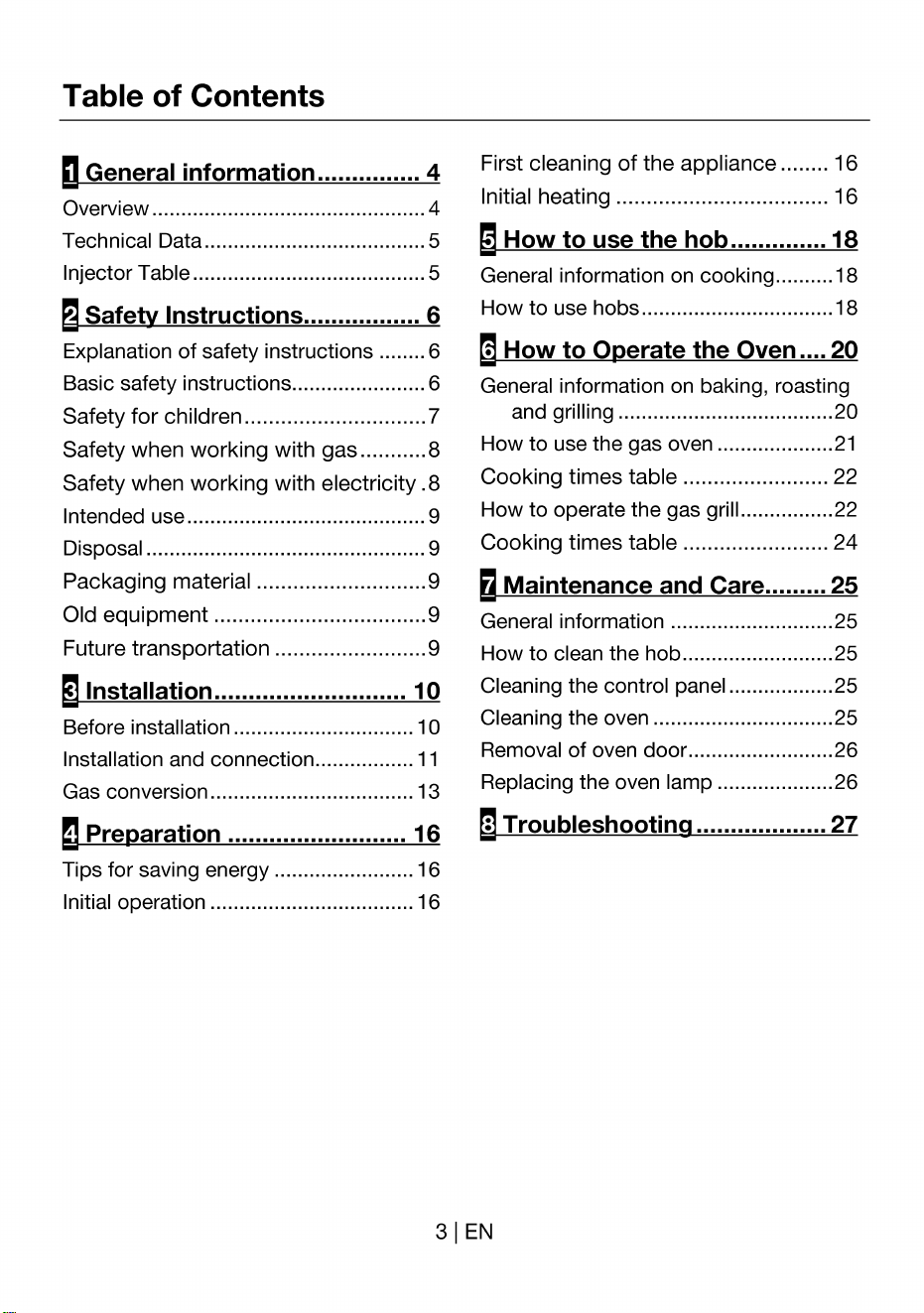

Table of Contents

General information.

Overview 4

Technical Data .................

Injector

Safety Instructions.................

Explanation of safety instructions ..... ... 6

Basic safety instructions.......................

Safety for children ..... ..

Safety when working with gas ...........8

Safety when working with electricity

.......25

.. .. 10

.......26

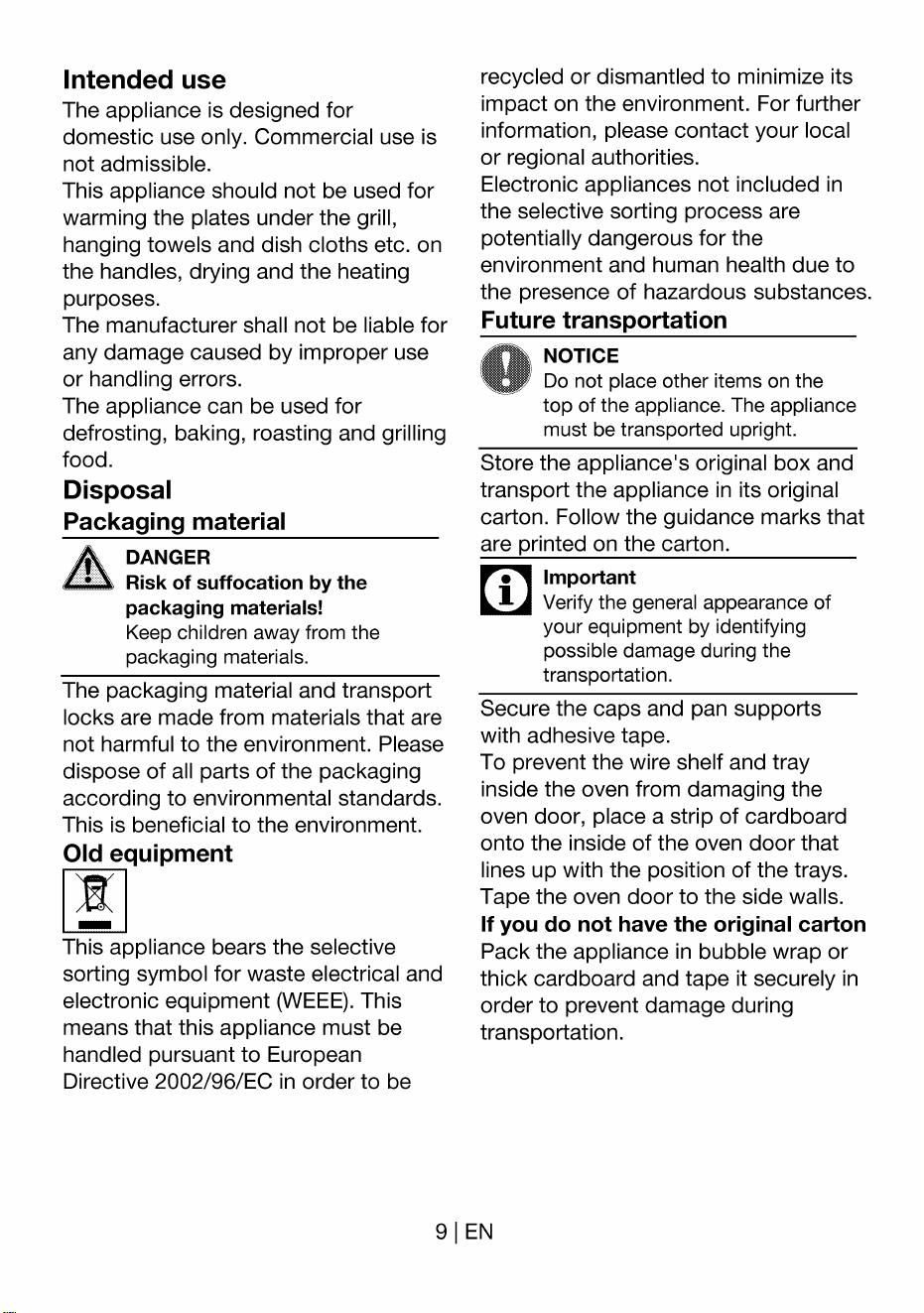

Intended use 9

Disposal .

Packaging material ..... .........

Old equipment ..

Future transportation

Installation ..

Before installation .......................... .

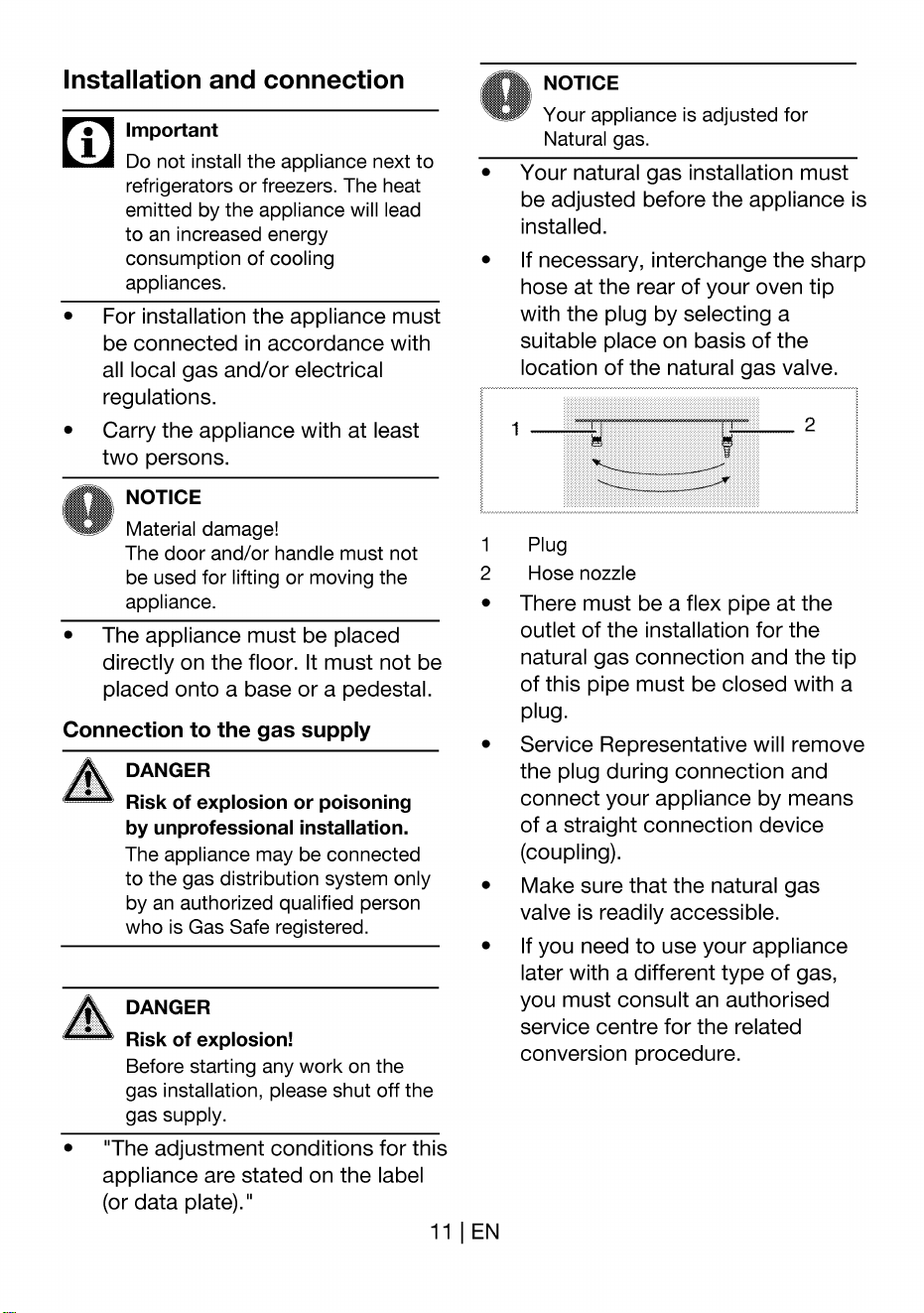

Installation and connection................. 11

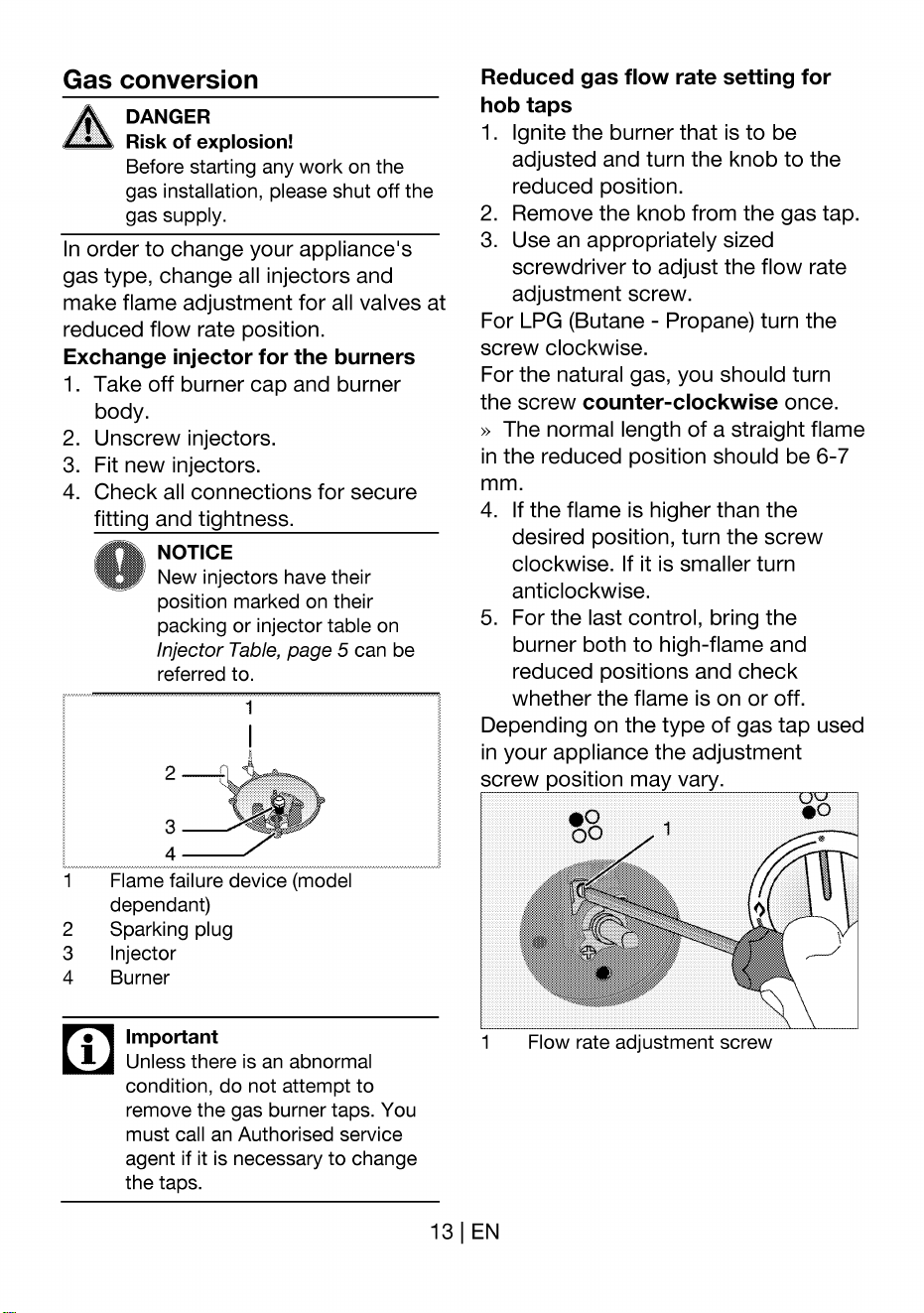

Gas conversion

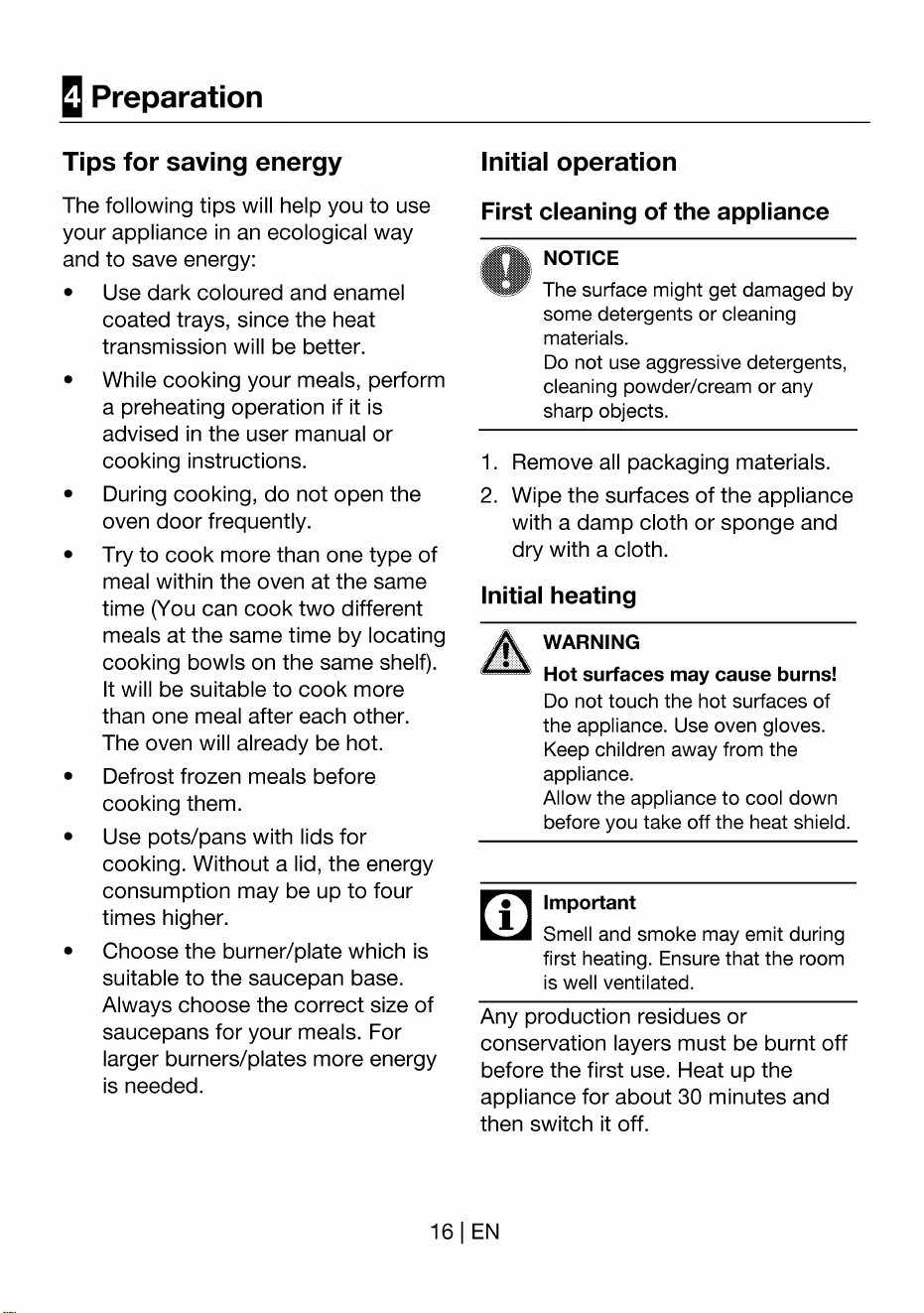

Preparation ..... ..................... 16

Tips for saving energy ........................ 16

Initial operation ...............

.16

First cleaning of the appliance ..... ... 16

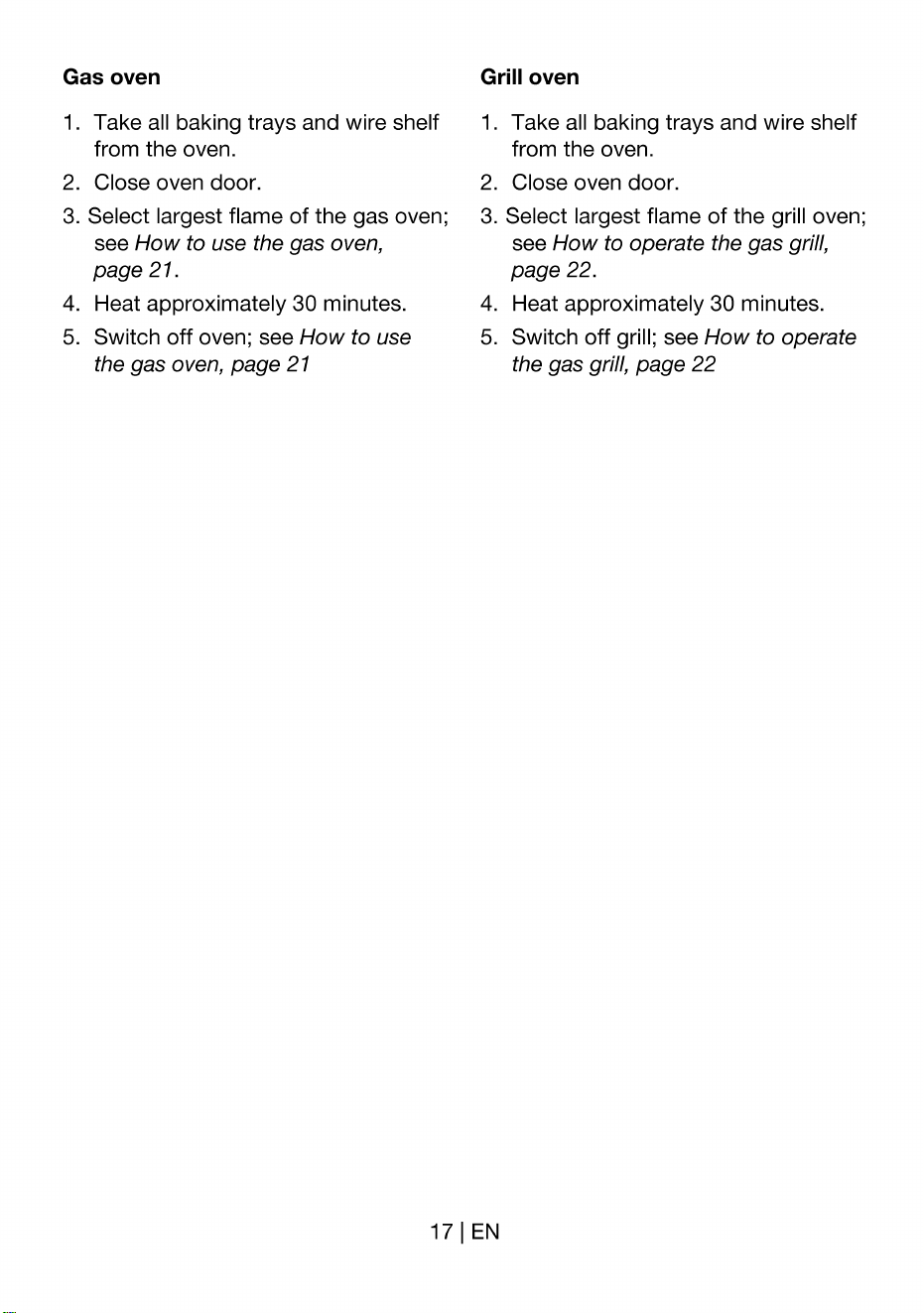

Initial heating .

.16

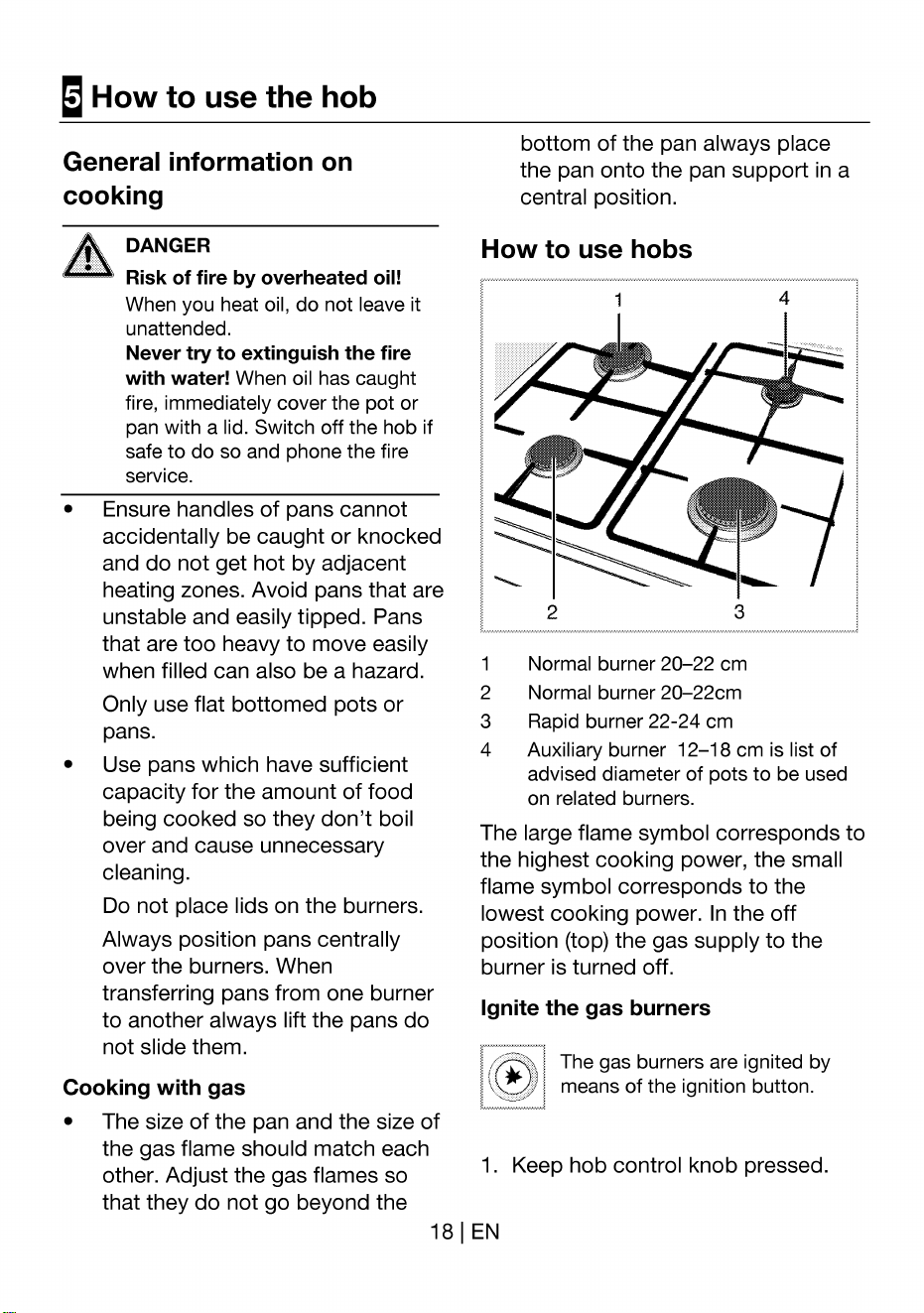

How to use the hob 18

General information on cooking.......... 18

How to use hobs................................. 18

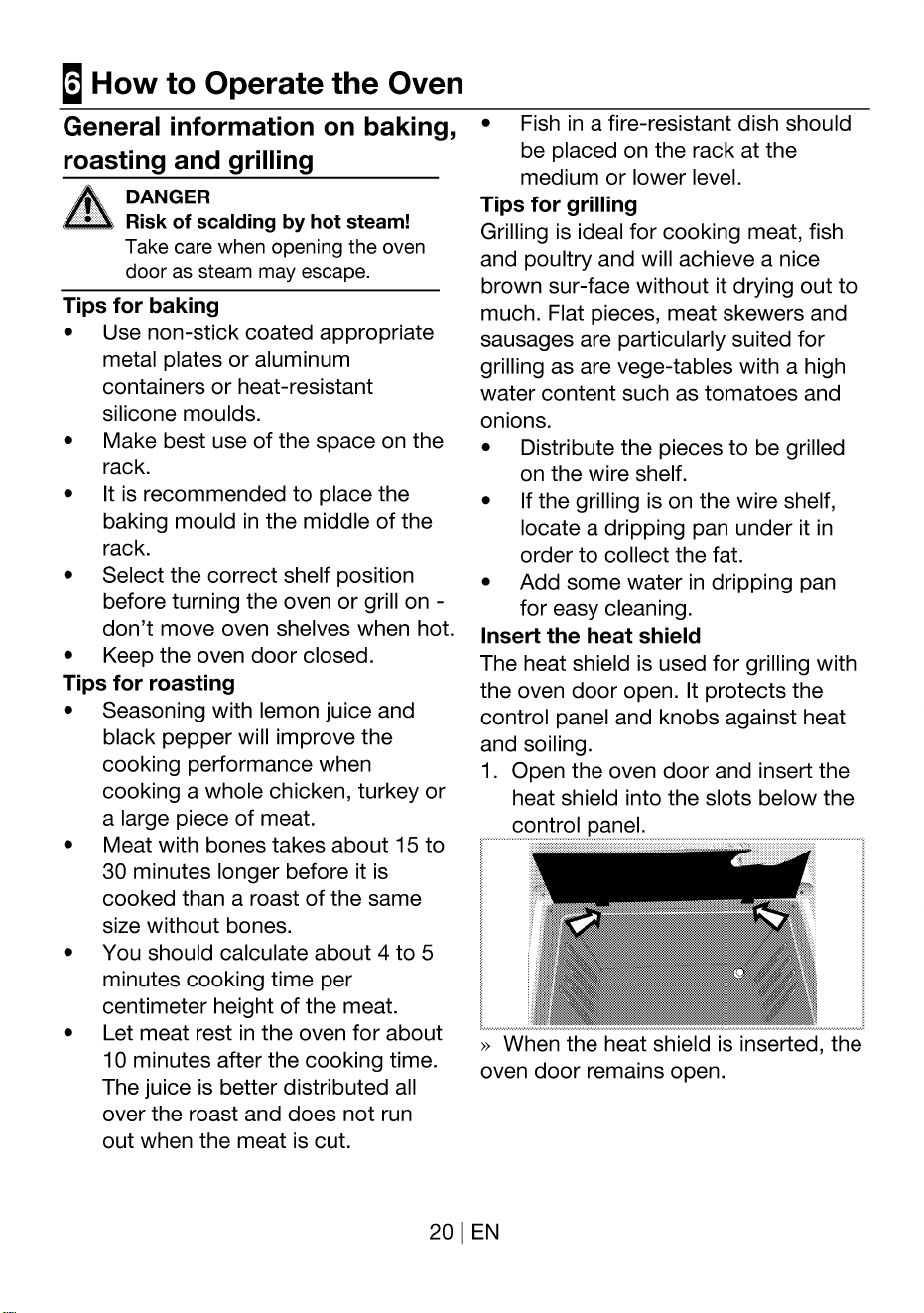

How to Operate the Oven .... 20

General information on baking, roasting

and grilling ......................

.. ...........20

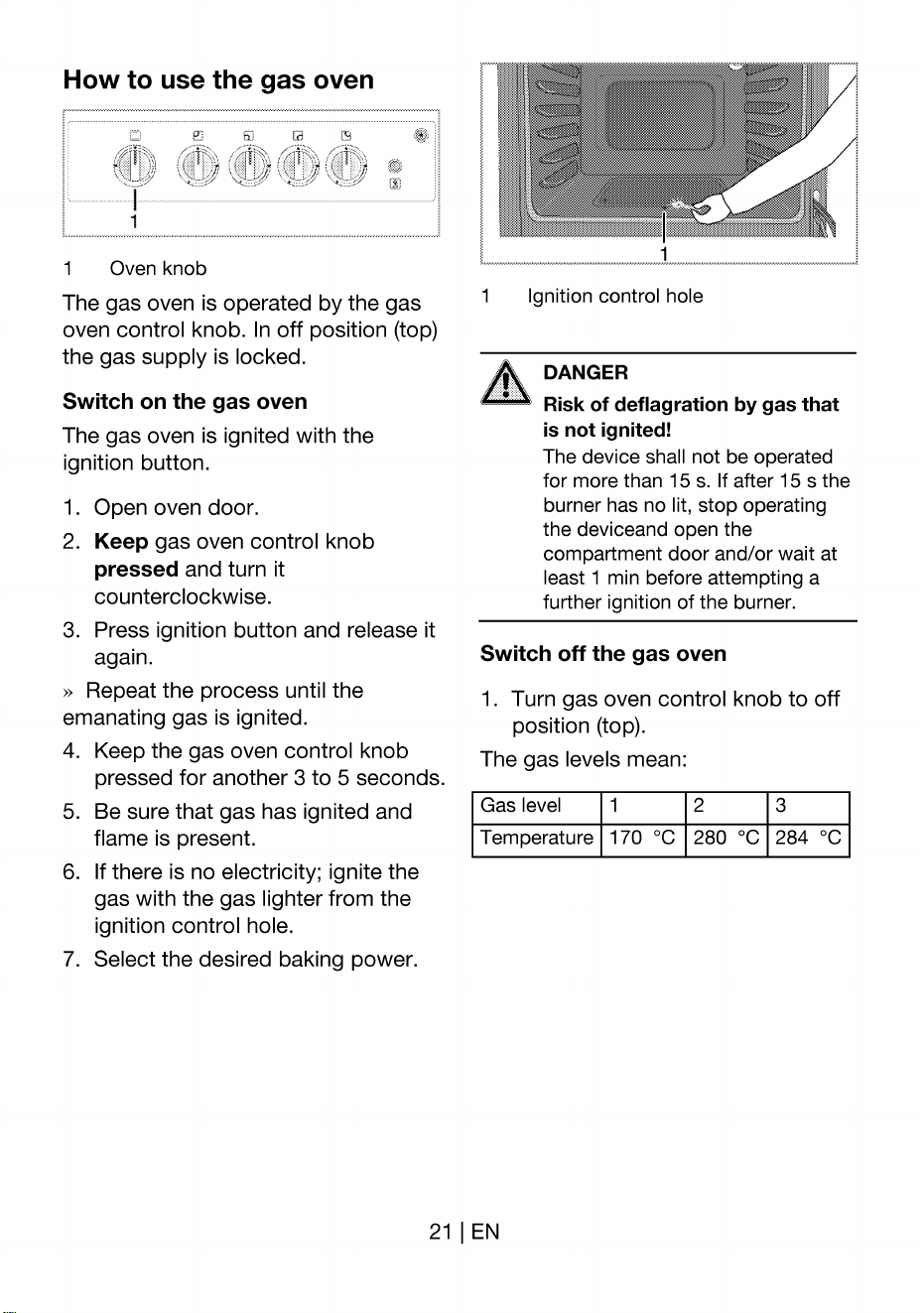

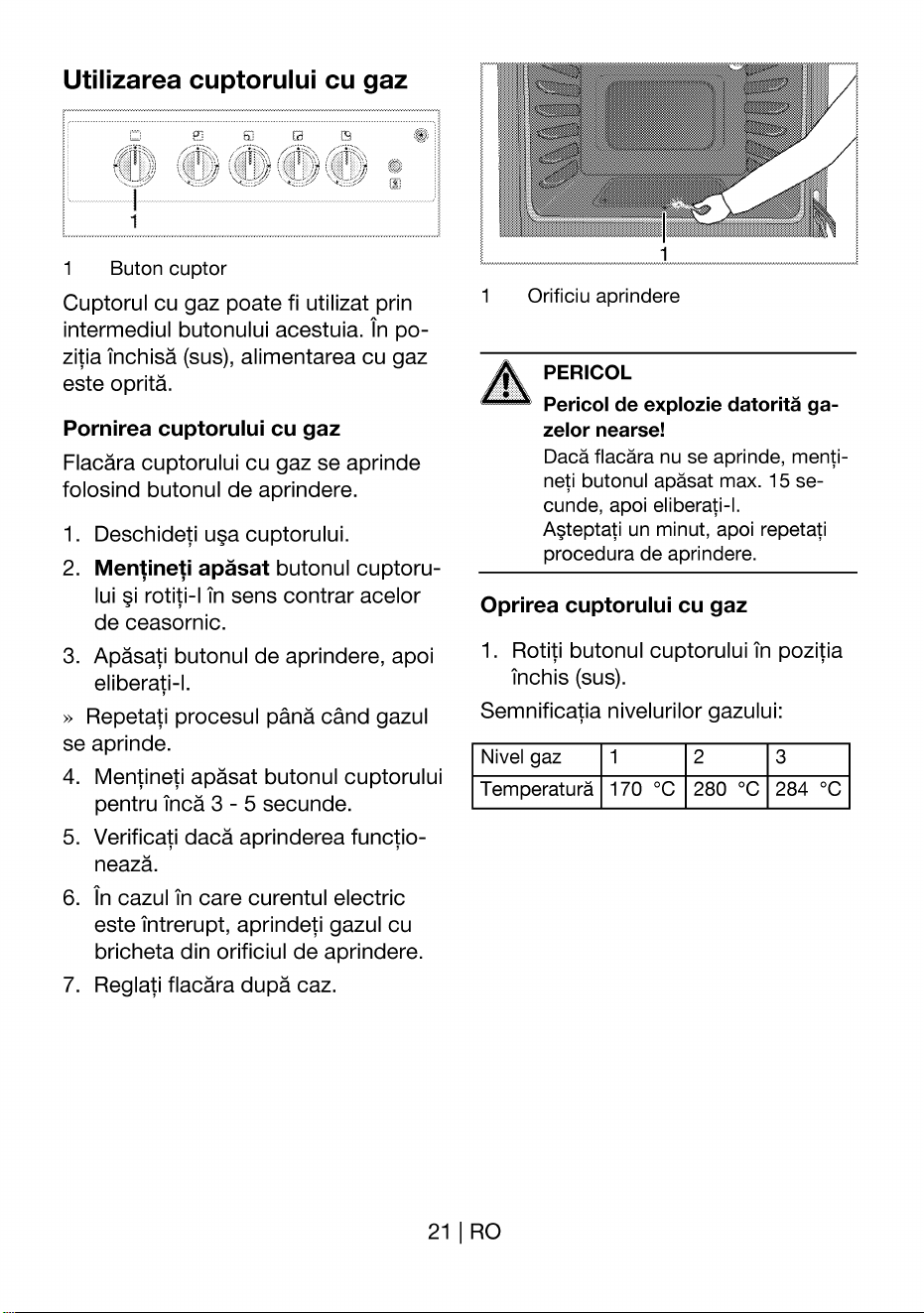

How to use the gas oven ....................21

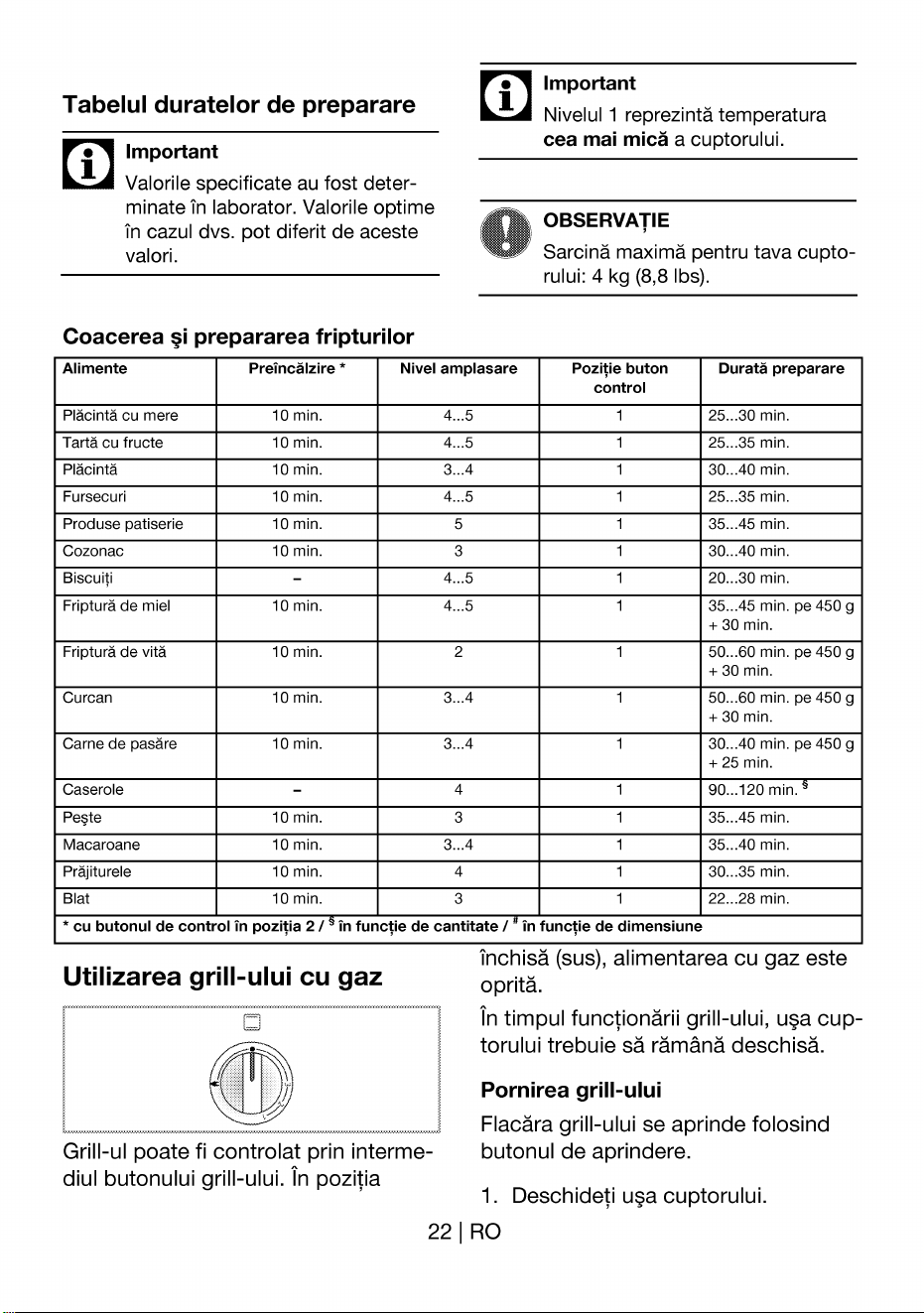

Cooking times table .

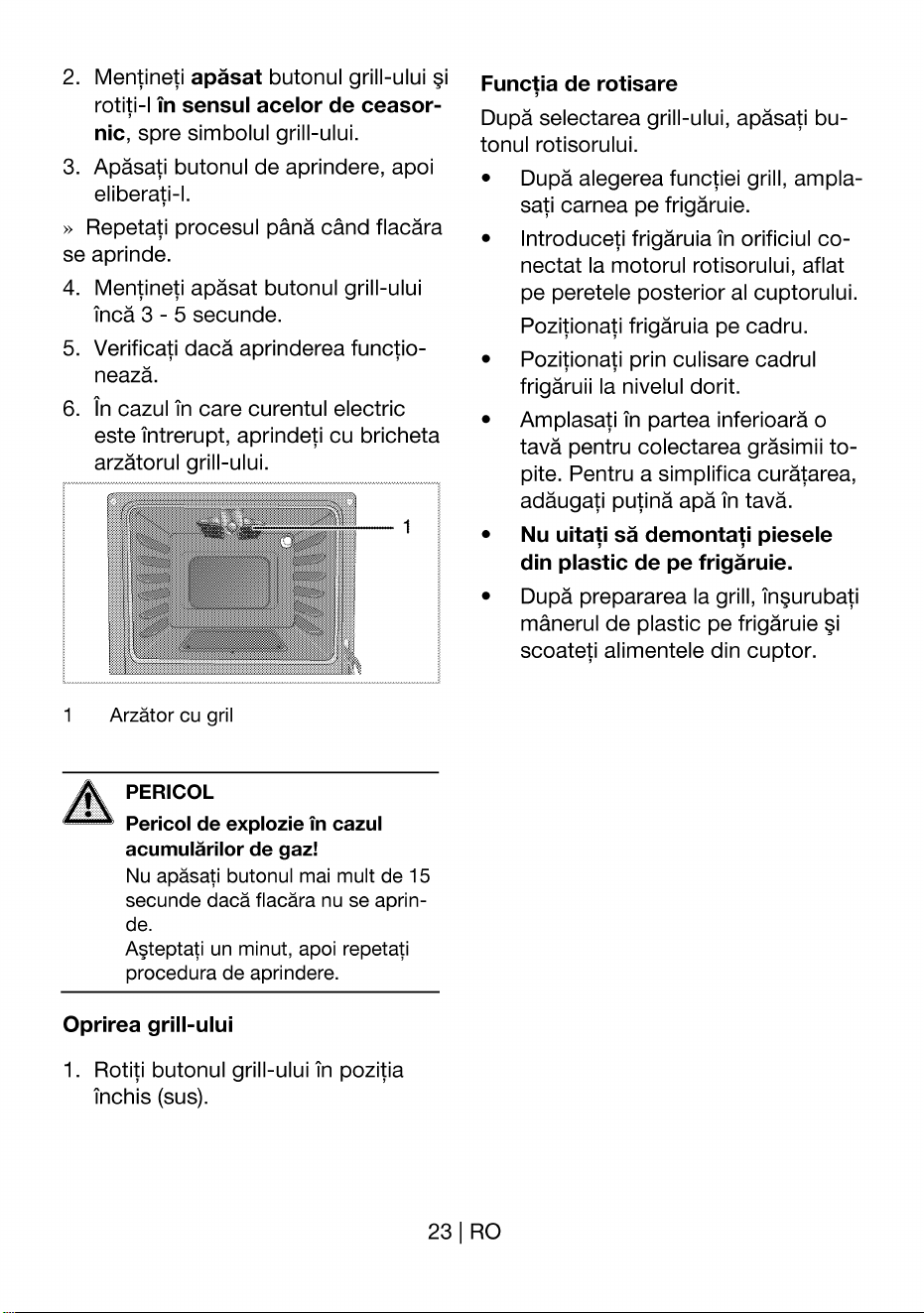

How to operate the gas grill .. .

. .. ..........22

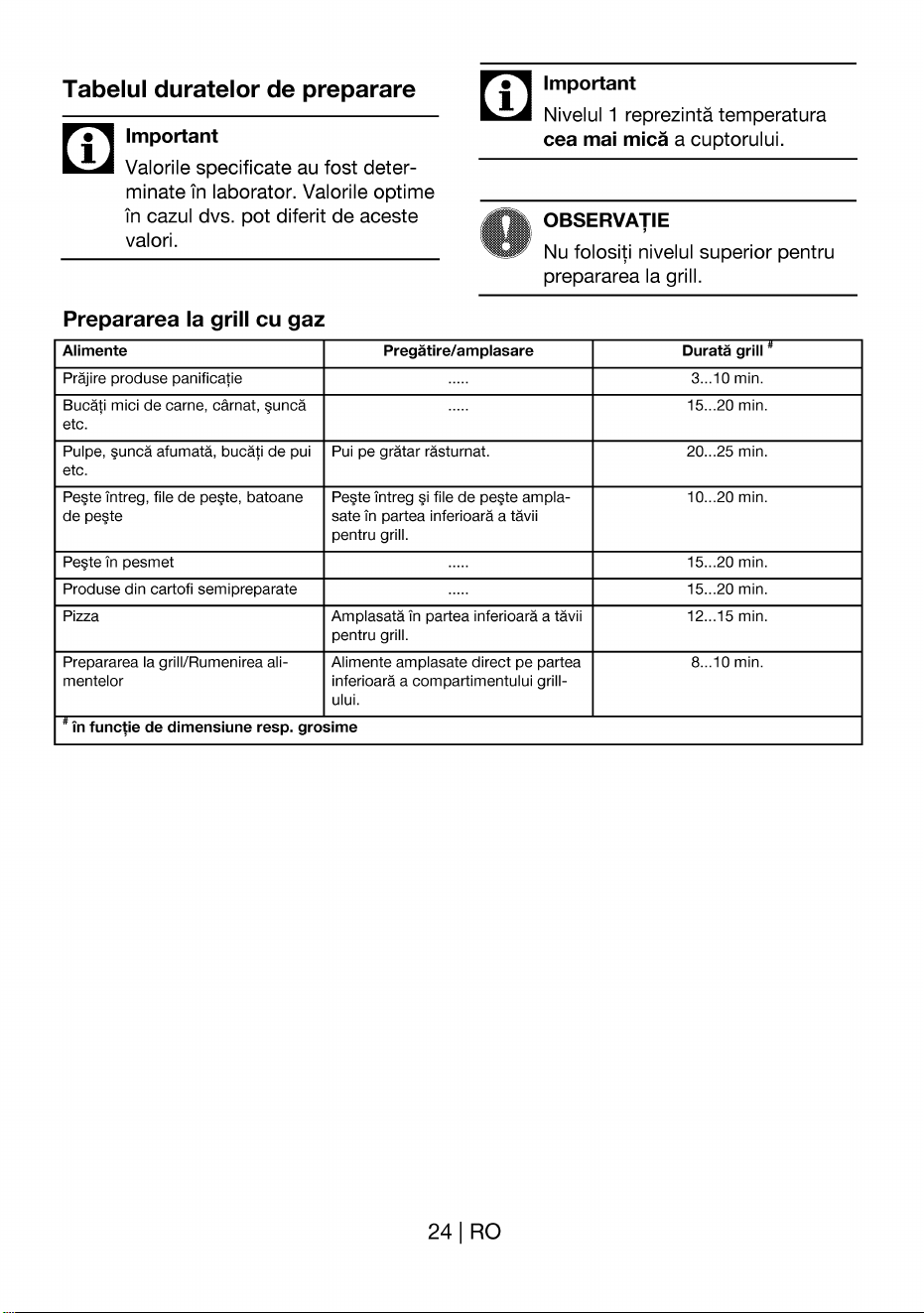

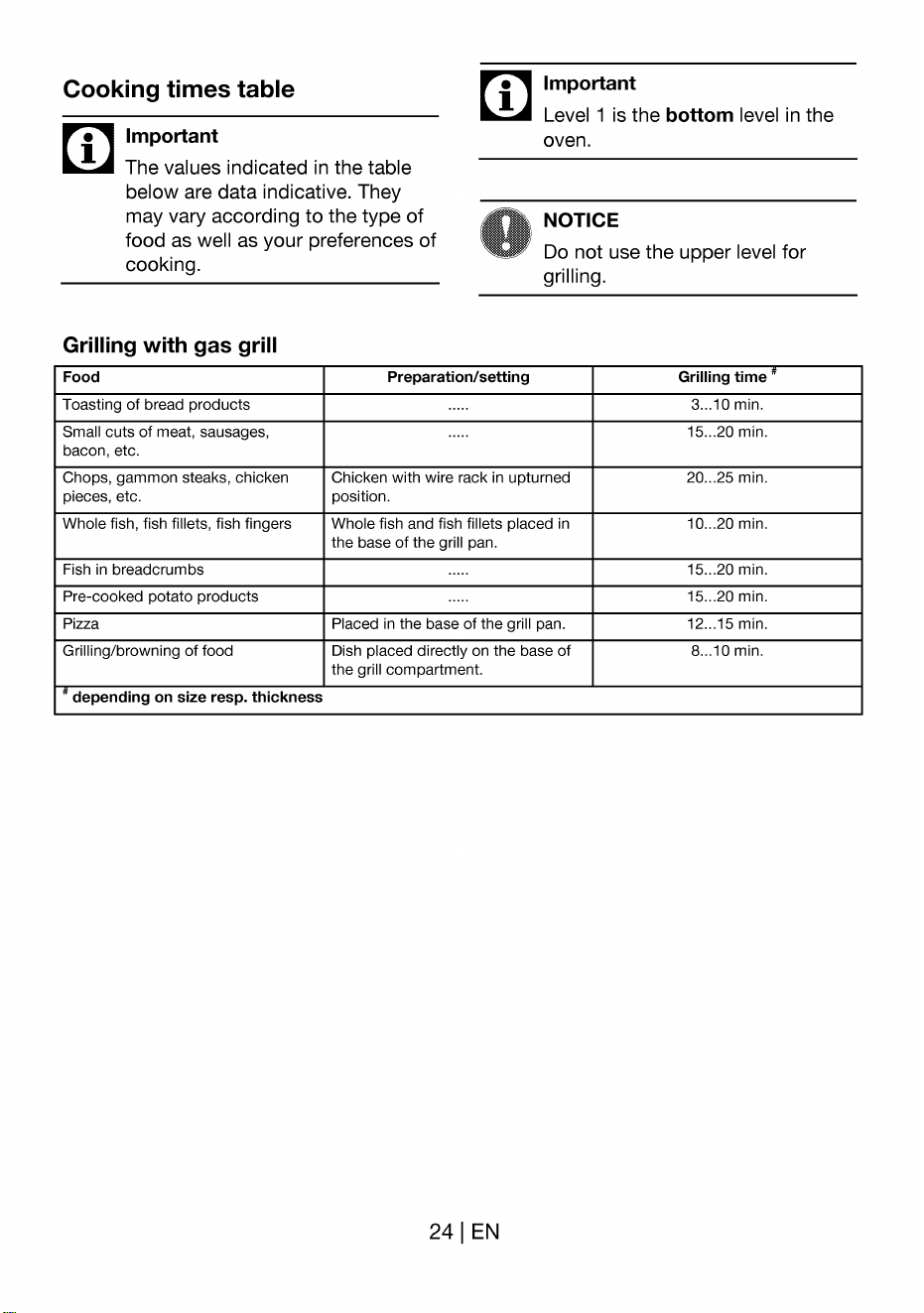

Cooking times table 24

Maintenance and Care. .25

General information .

. .......25

How to clean the hob. ... .. ..... .. ... ......25

Cleaning the control panel ..................25

Cleaning the oven ..... ..... ...

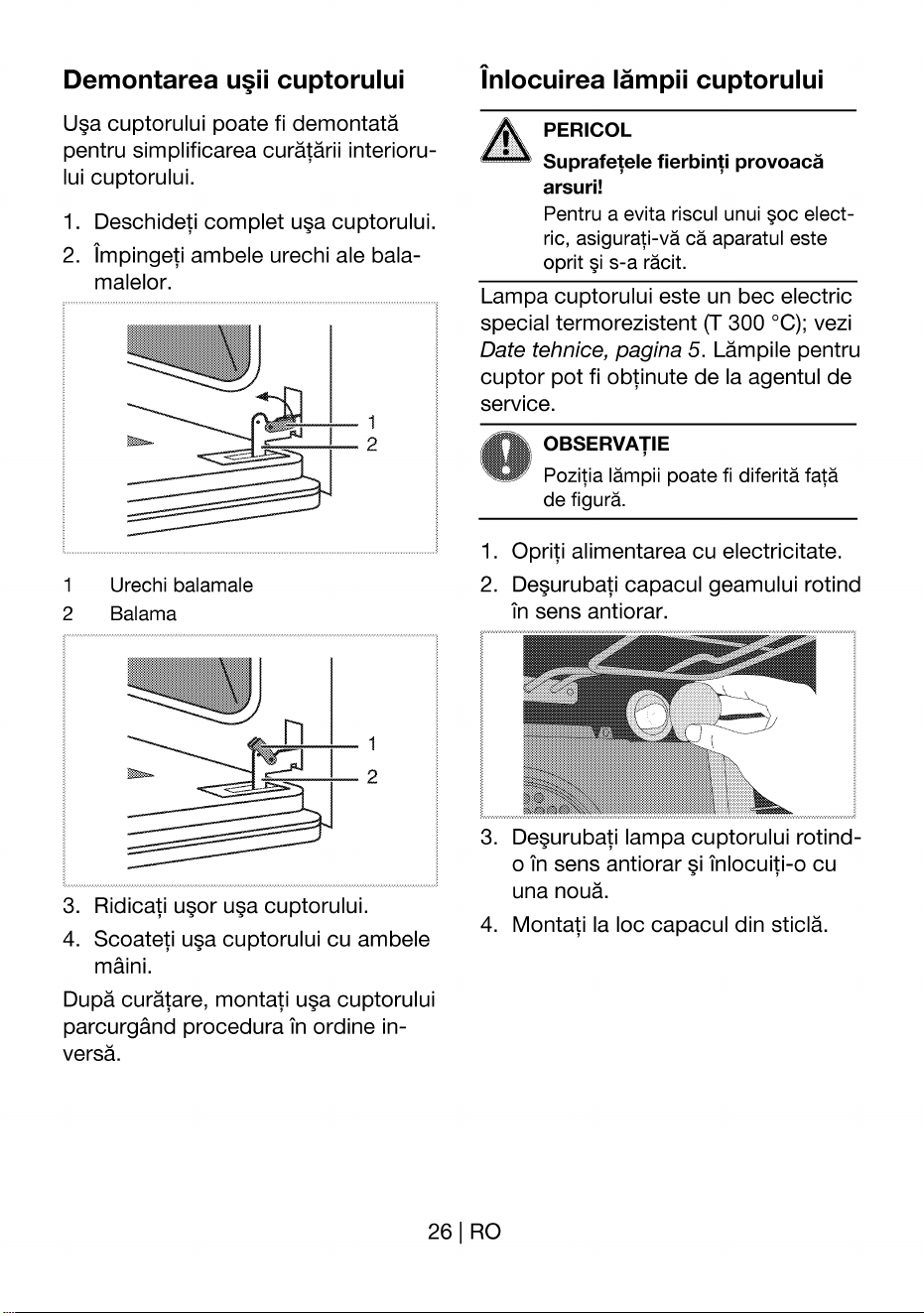

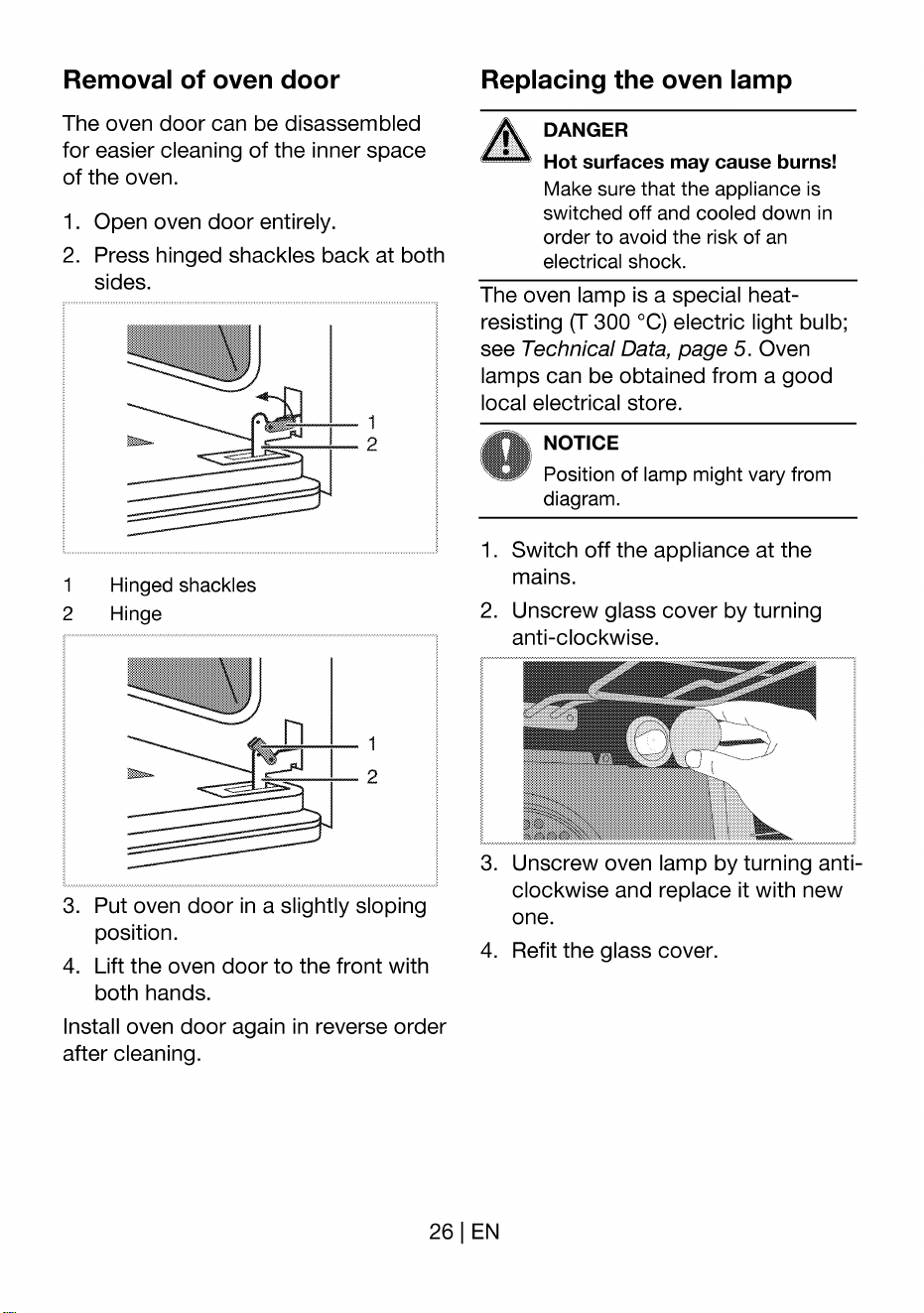

Removal of oven door.........

Replacing the oven lamp

... ...........26

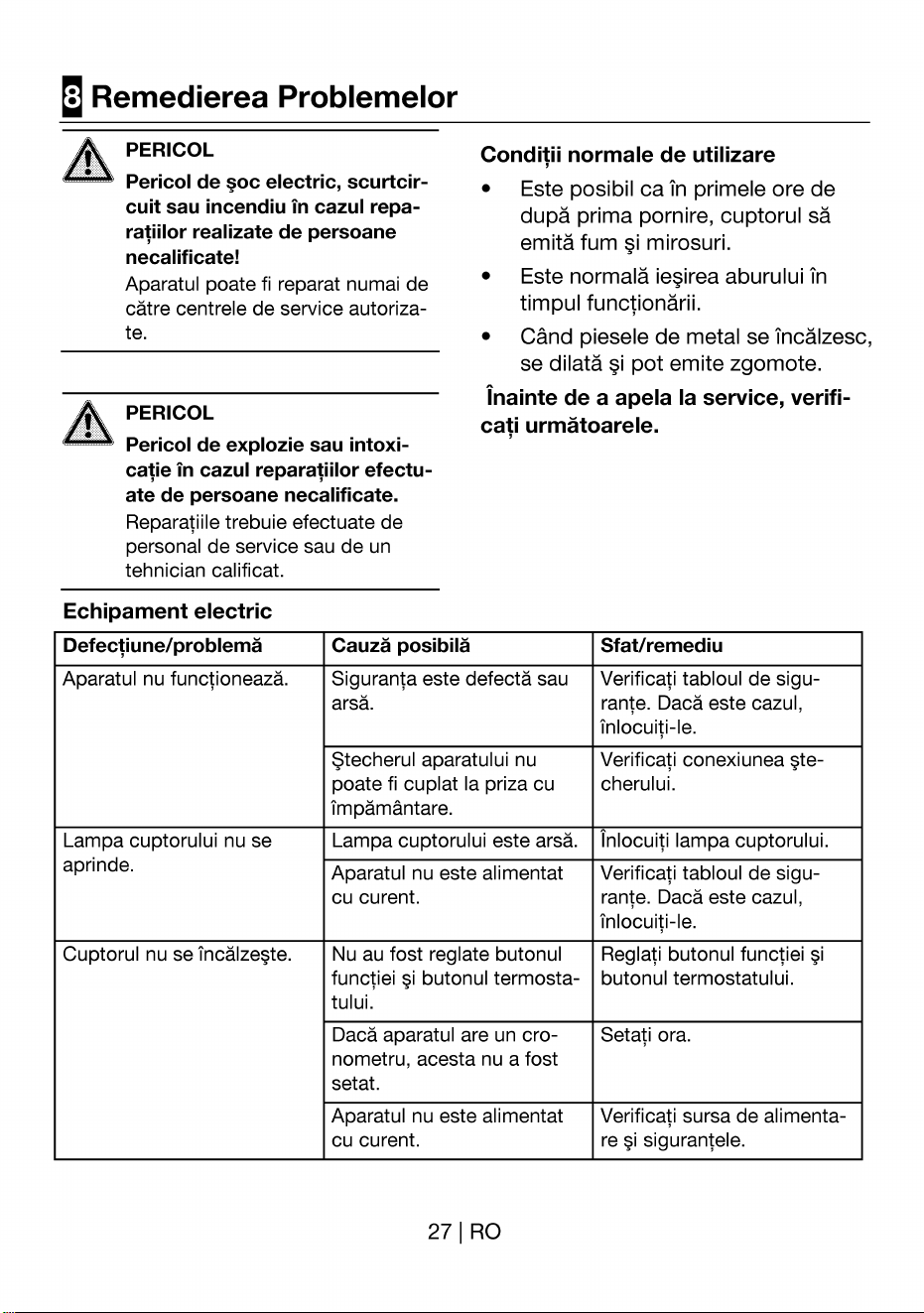

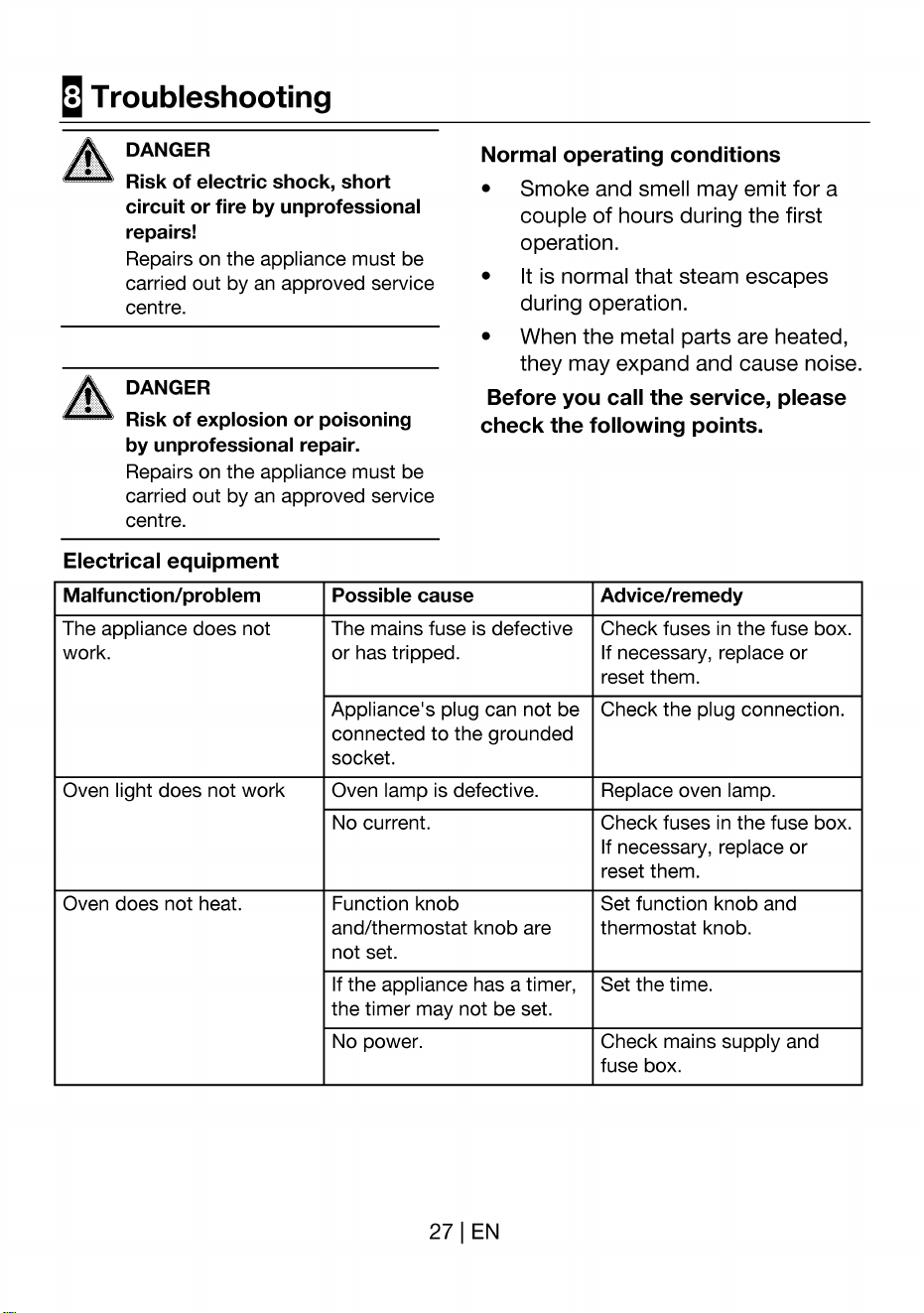

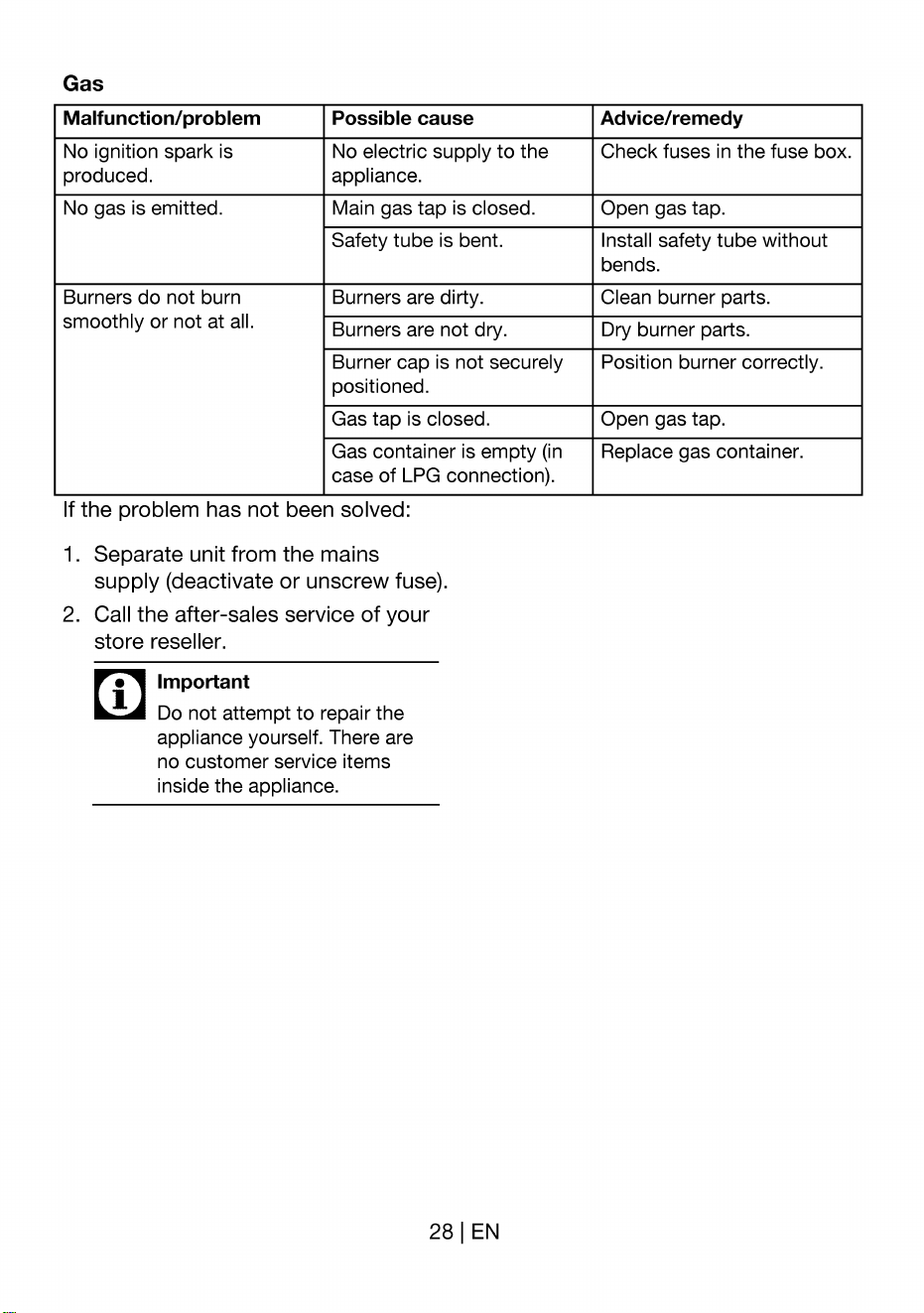

@Troubleshooting

31 EN

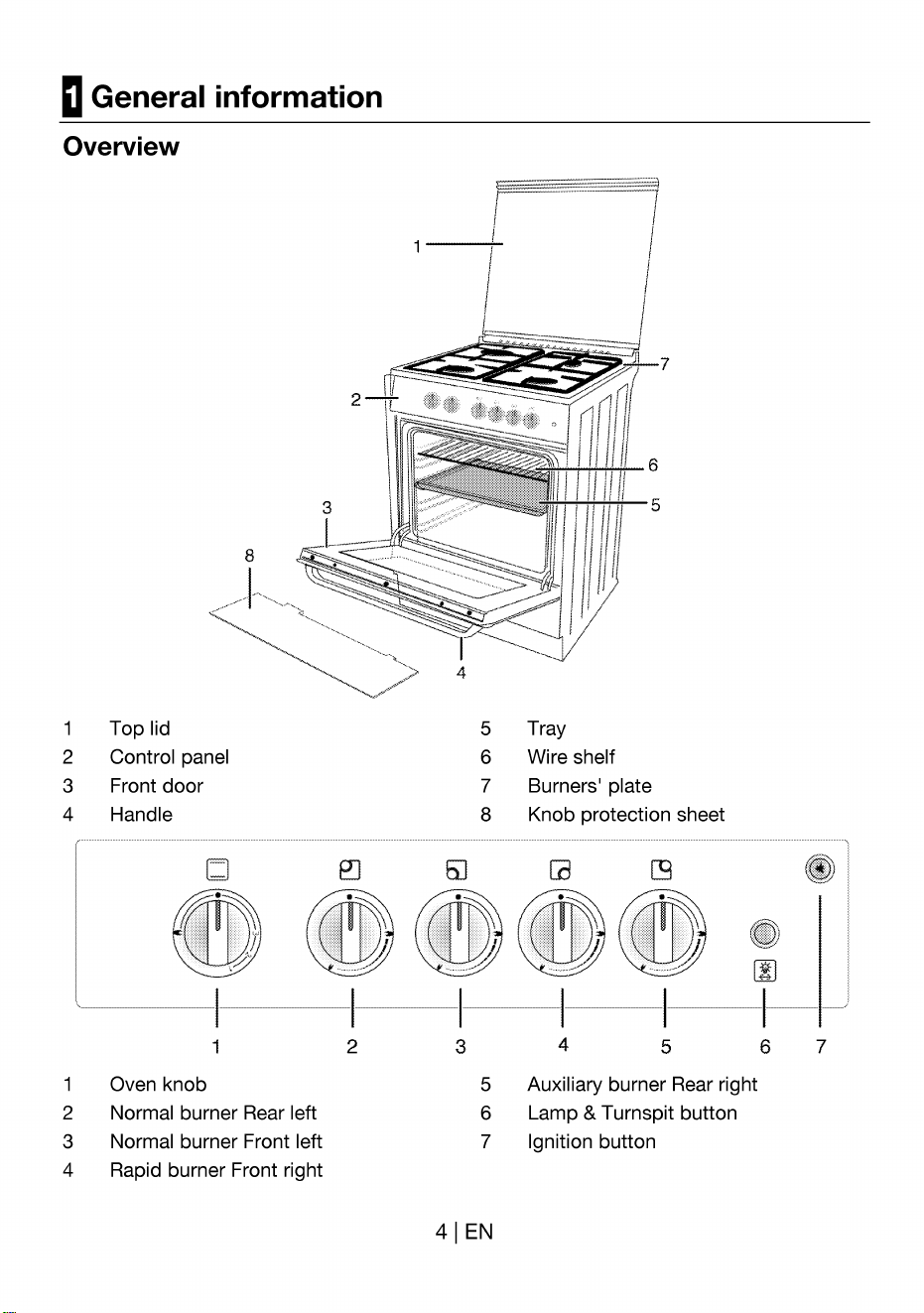

General information

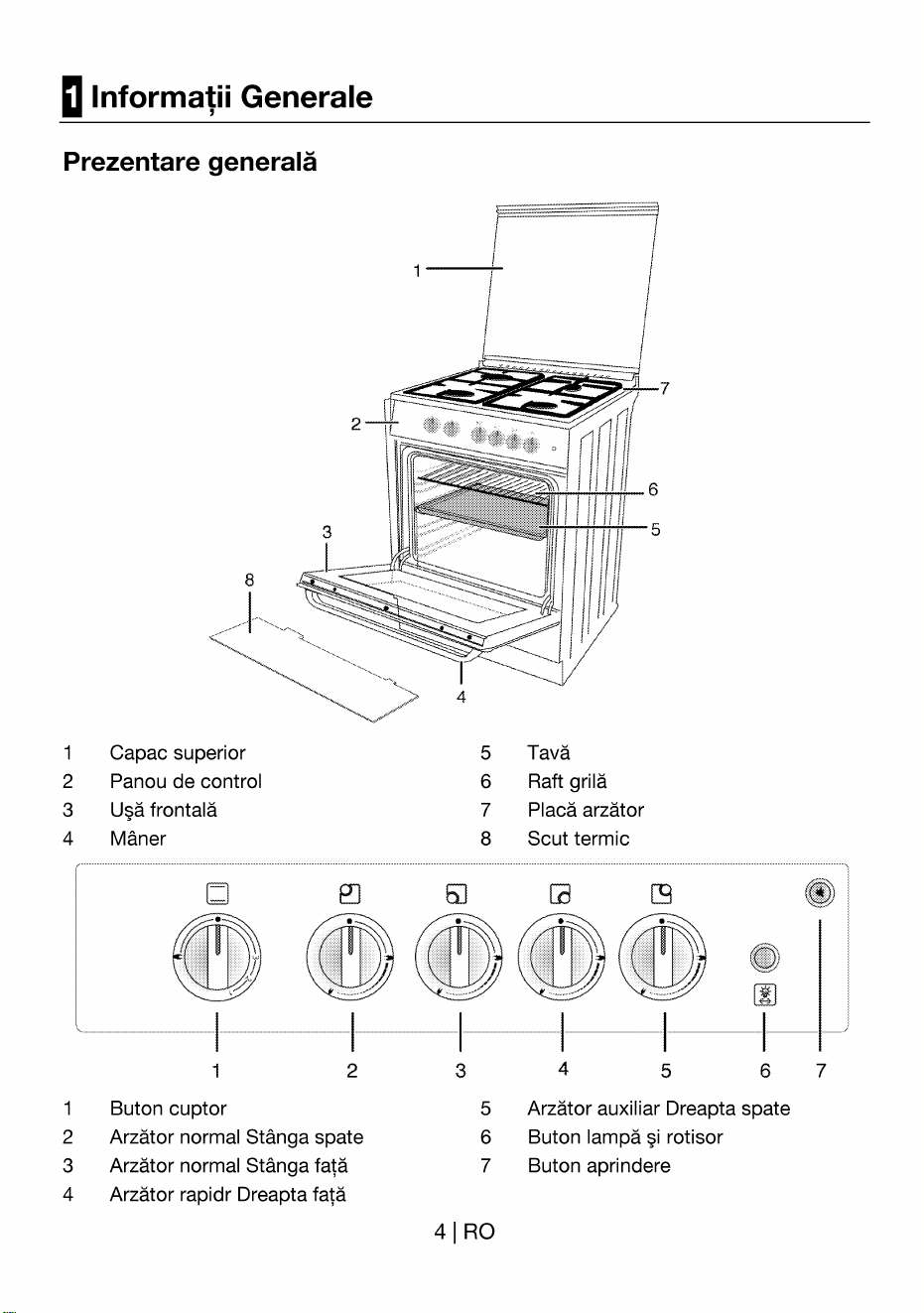

Overview

Top lid

Control panel

Front door

Handle

Oven knob

Normal burner Rear left

Normal burner Front left

Rapid burner Front right

41 EN

Tray

Wire shelf

Burners' plate

Knob protection sheet

Auxiliary burner Rear right

Lamp & Turnspit button

Ignition button

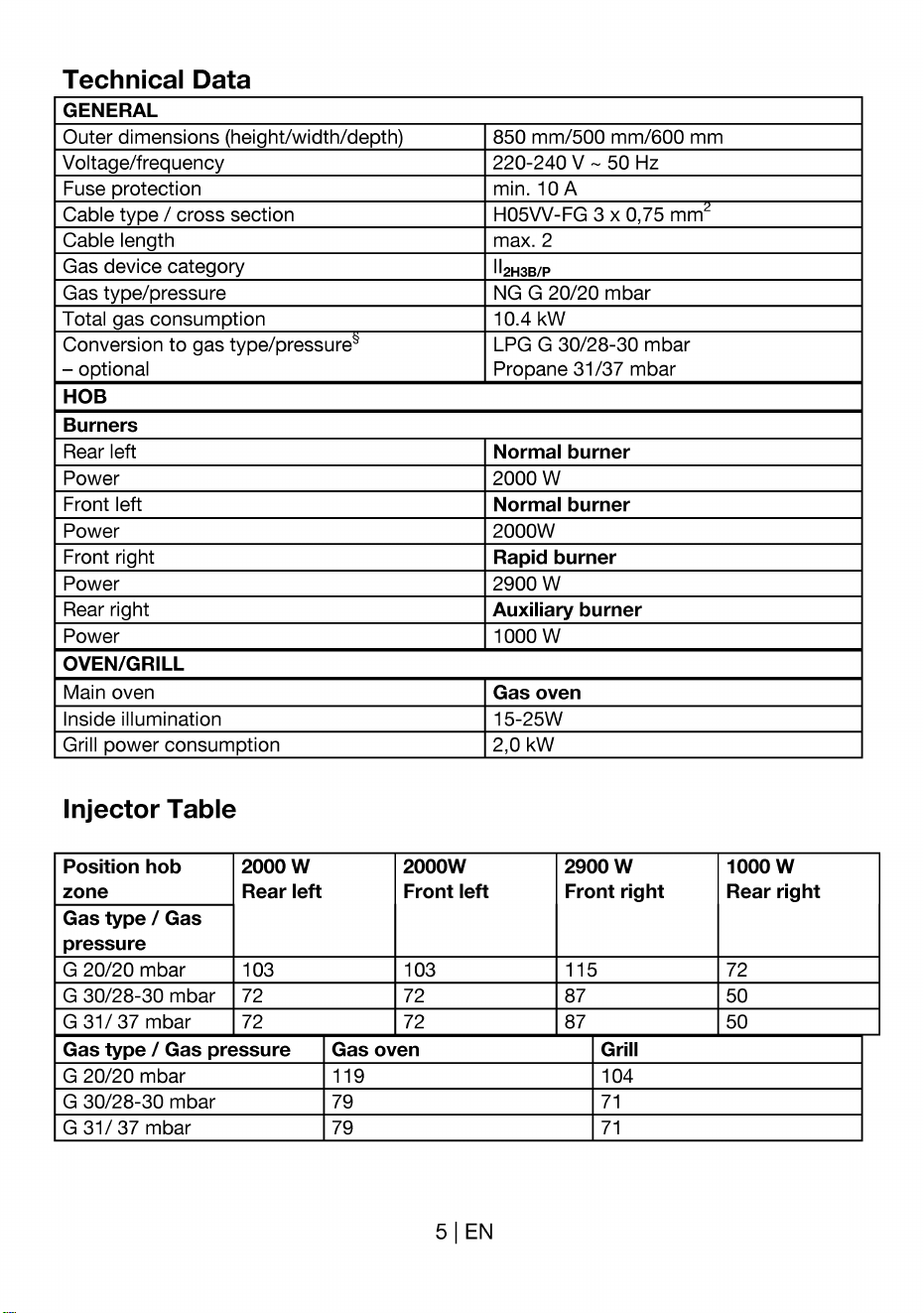

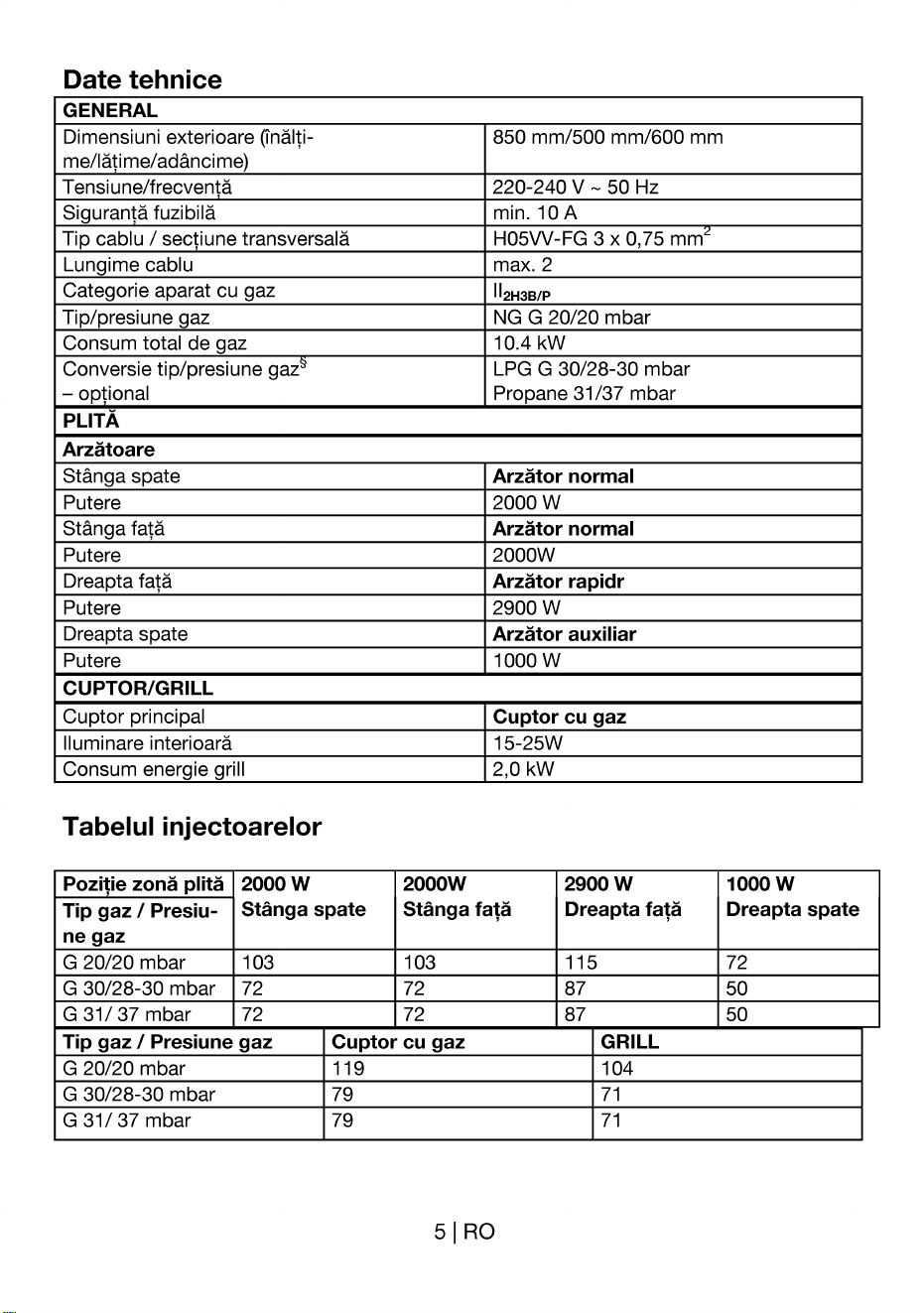

Technical Data

GENERAL

Outer dimensions (hei ht/width/depth)

Voltage/frequenc

Fuse protection

Cable type / cross section

Cable len th

Gas device category

Gas type/pressure

Total as consumption

Conversion to gas type/pressure

—optional

HOB

Burners

Rear left

Power

Front left

Power

Front right

Rear right

Power

OVEN/GRILL

Main oven

Inside illumination

Grill power consumption

Injector Table

Position hob

zone

Gas type / Gas

pressure

G 20/20 mbar

2000 w

Rear left

103

2000W

Front left

103

Gas oven

119

51 EN

850 mm/500 mm/600 mm

220-240 V 50 Hz

min. IOA

H05W-FG 3 x 0,75 mm

max. 2

112H3B/P

NG G 20/20 mbar

10.4 kW

LPG G 30/28-30 mbar

Propane 31/37 mbar

Normal burner

2000 w

Normal burner

2000W

Rapid burner

2900 w

Auxiliary burner

1 ooo w

Gas oven

15-25W

2,OkW

2900 w

Front right

115

Grill

104

1000 w

Rear right

G 30/28-30 mbar 72

G 31/ 37 mbar 72

Gas type / Gas pressure

G 20/20 mbar

G 30/28-30 mbar

G 31/ 37 mbar

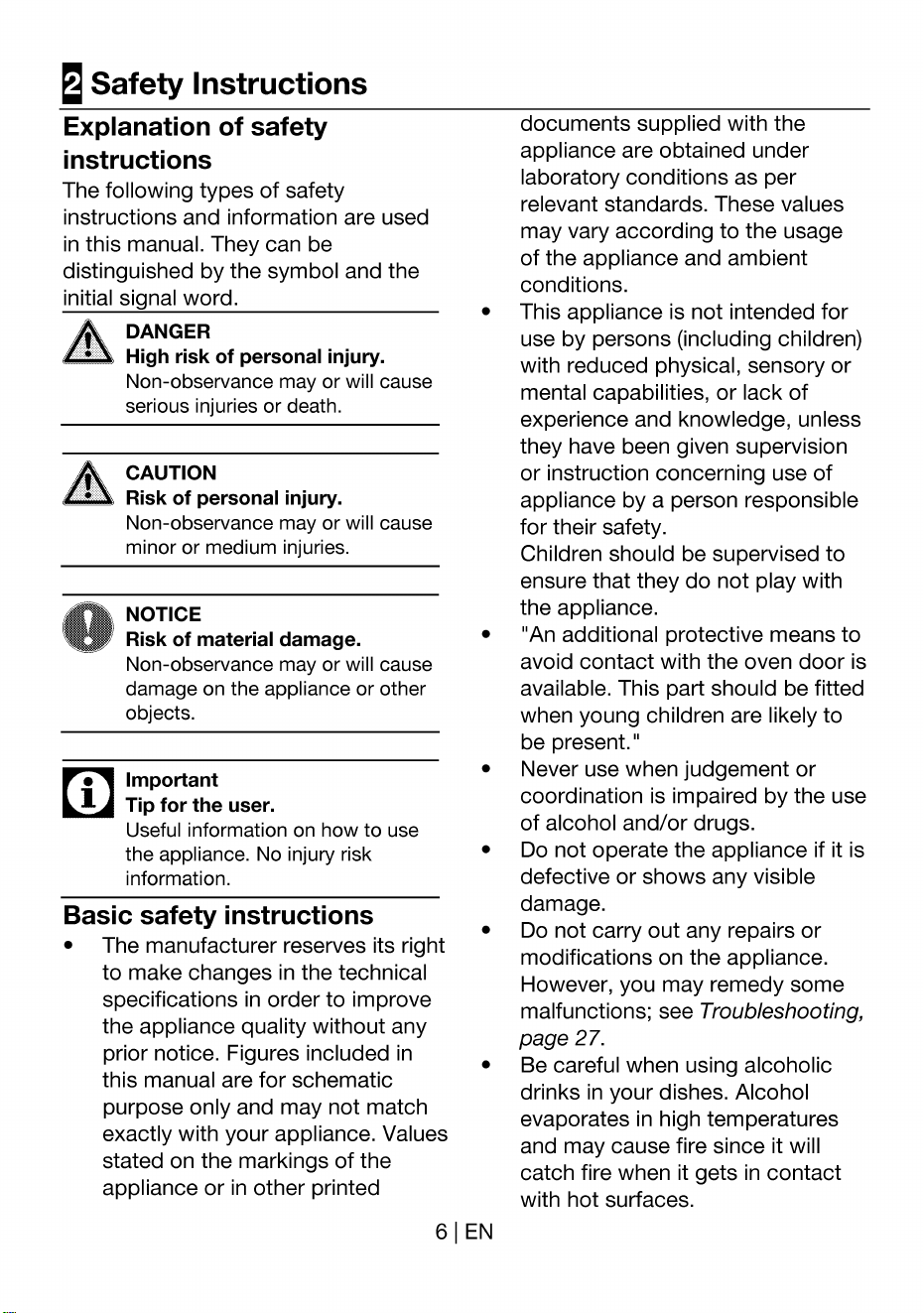

Safety Instructions

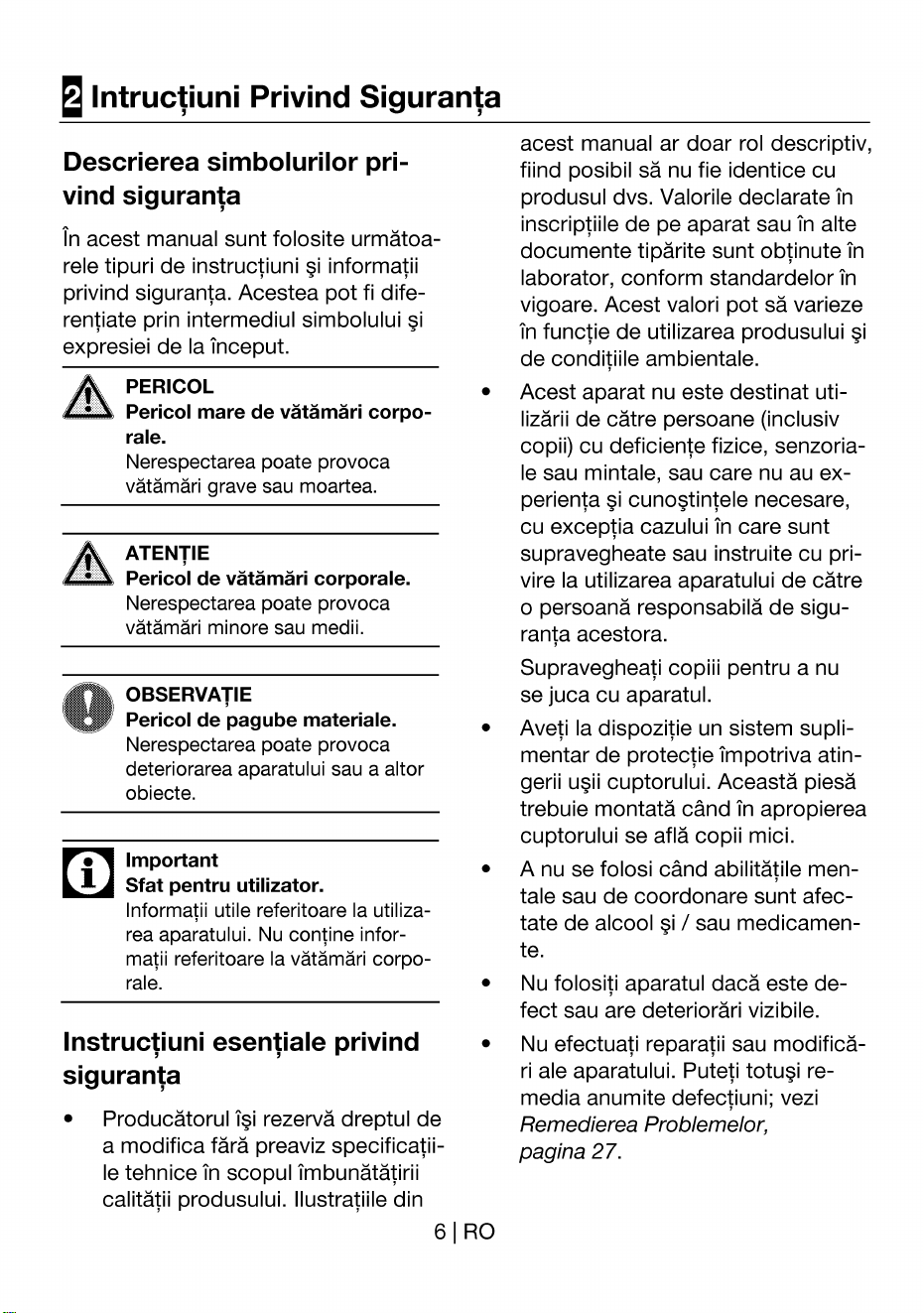

Explanation of safety

instructions

The following types of safety

instructions and information are used

in this manual. They can be

distinguished by the symbol and the

initial signal word.

DANGER

Lé„x High risk of personal injury.

Non-observance may or will cause

serious injuries or death.

CAUTION

Risk of personal injury.

Non-observance may or will cause

minor or medium injuries.

NOTICE

Risk of material damage.

Non-observance may or will cause

damage on the appliance or other

objects.

Important

Tip for the user.

Useful information on how to use

the appliance. No injury risk

information.

Basic safety instructions

•

• The manufacturer reserves its right

to make changes in the technical

specifications in order to improve

the appliance quality without any

prior notice. Figures included in

this manual are for schematic

purpose only and may not match

exactly with your appliance. Values

stated on the markings of the

appliance or in other printed

61 EN

documents supplied with the

appliance are obtained under

laboratory conditions as per

relevant standards. These values

may vary according to the usage

of the appliance and ambient

conditions.

This appliance is not intended for

use by persons (including children)

with reduced physical, sensory or

mental capabilities, or lack of

experience and knowledge, unless

they have been given supervision

or instruction concerning use of

appliance by a person responsible

for their safety.

Children should be supervised to

ensure that they do not play with

the appliance.

"An additional protective means to

avoid contact with the oven door is

available. This part should be fitted

when young children are likely to

be present. "

Never use when judgement or

coordination is impaired by the use

of alcohol and/or drugs.

Do not operate the appliance if it is

defective or shows any visible

damage.

Do not carry out any repairs or

modifications on the appliance.

However, you may remedy some

malfunctions; see Troubleshooting,

page 27.

Be careful when using alcoholic

drinks in your dishes. Alcohol

evaporates in high temperatures

and may cause fire since it will

catch fire when it gets in contact

with hot surfaces.

•

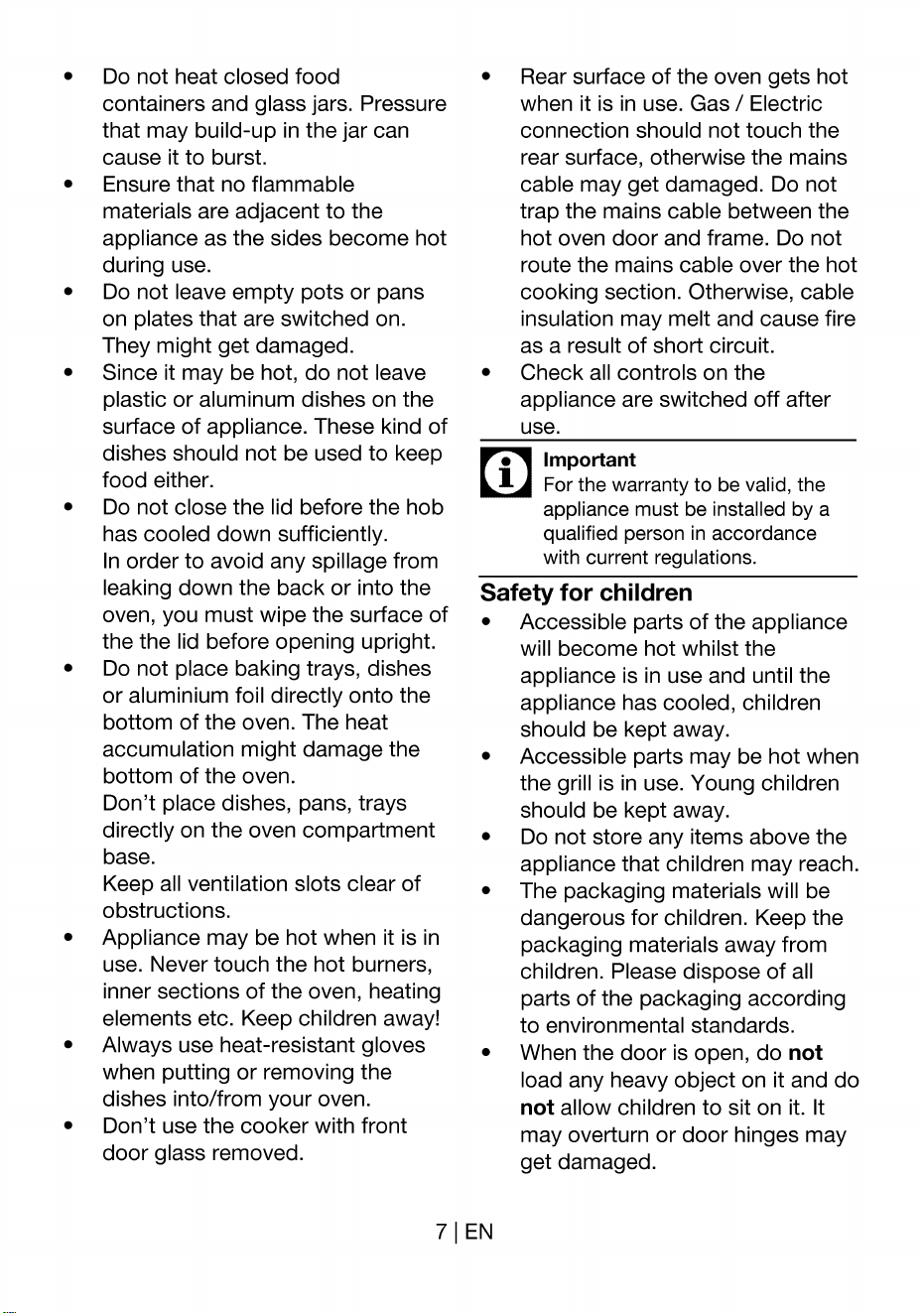

Do not heat closed food

containers and glass jars. Pressure

that may build-up in the jar can

cause it to burst.

Ensure that no flammable

materials are adjacent to the

appliance as the sides become hot

during use.

Do not leave empty pots or pans

on plates that are switched on.

They might get damaged.

Since it may be hot, do not leave

plastic or aluminum dishes on the

surface of appliance. These kind of

dishes should not be used to keep

food either.

Do not close the lid before the hob

has cooled down sufficiently.

In order to avoid any spillage from

leaking down the back or into the

oven, you must wipe the surface of

the the lid before opening upright.

Do not place baking trays, dishes

or aluminium foil directly onto the

bottom of the oven. The heat

accumulation might damage the

bottom of the oven.

Don't place dishes, pans, trays

directly on the oven compartment

base.

Keep all ventilation slots clear of

obstructions.

Appliance may be hot when it is in

use. Never touch the hot burners,

inner sections of the oven, heating

elements etc. Keep children away!

Always use heat-resistant gloves

when putting or removing the

dishes into/from your oven.

Don't use the cooker with front

door glass removed.

Rear surface of the oven gets hot

when it is in use. Gas / Electric

connection should not touch the

rear surface, otherwise the mains

cable may get damaged. Do not

trap the mains cable between the

hot oven door and frame. Do not

route the mains cable over the hot

cooking section. Otherwise, cable

insulation may melt and cause fire

as a result of short circuit.

Check all controls on the

appliance are switched off after

use.

• Important

For the warranty to be valid, the

appliance must be installed by a

qualified person in accordance

with current regulations.

Safety for children

•

Accessible parts of the appliance

will become hot whilst the

appliance is in use and until the

appliance has cooled, children

should be kept away.

Accessible parts may be hot when

the grill is in use. Young children

should be kept away.

Do not store any items above the

appliance that children may reach.

The packaging materials will be

dangerous for children. Keep the

packaging materials away from

children. Please dispose of all

parts of the packaging according

to environmental standards.

When the door is open, do not

load any heavy object on it and do

not allow children to sit on it. It

may overturn or door hinges may

get damaged.

71 EN

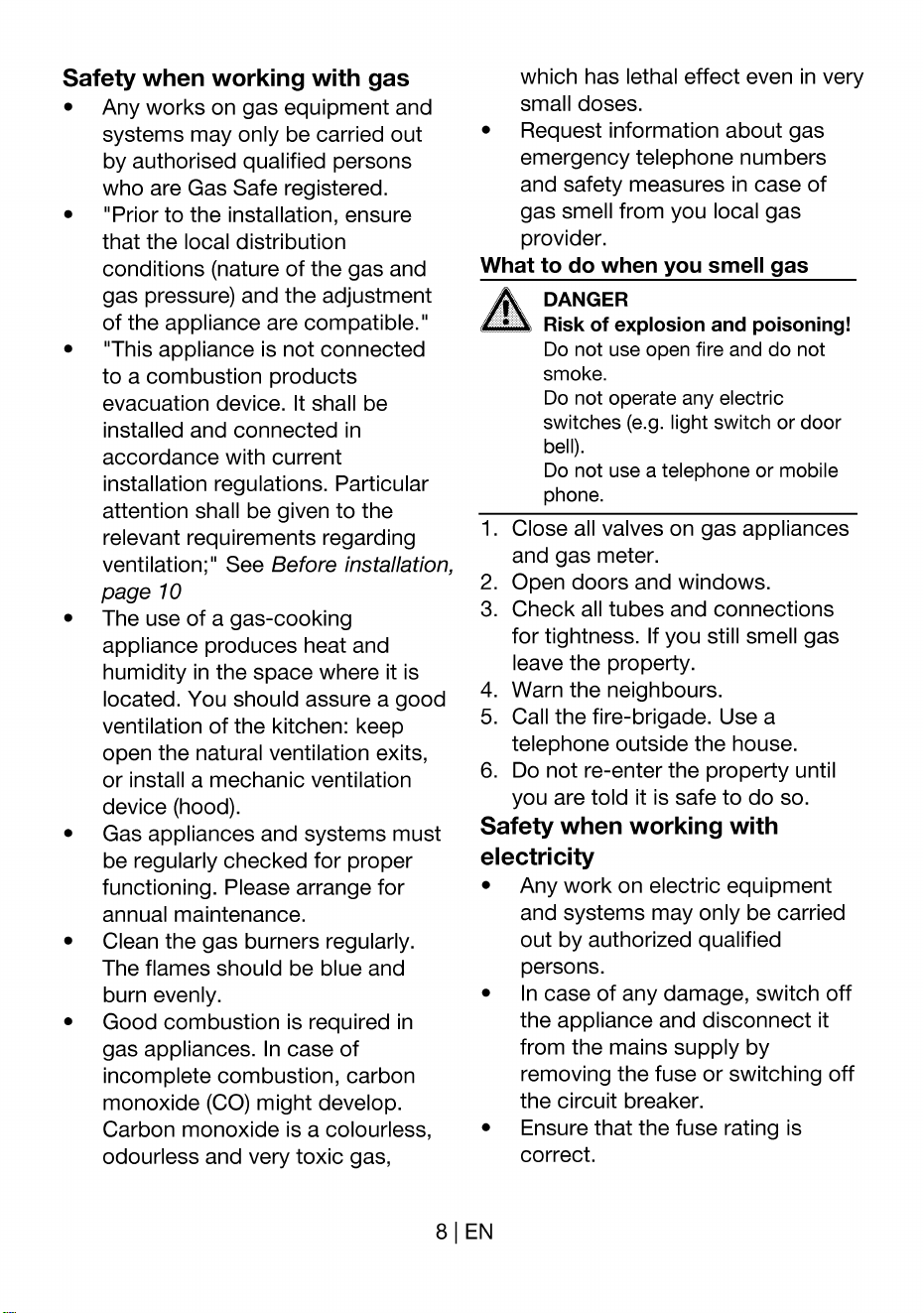

Safety when working with gas

which has lethal effect even in very

small doses.

Request information about gas

emergency telephone numbers

and safety measures in case of

gas smell from you local gas

provider.

What to do when you smell gas

DANGER

Risk of explosion and poisoning!

•

Any works on gas equipment and

systems may only be carried out

by authorised qualified persons

who are Gas Safe registered.

"Prior to the installation, ensure

that the local distribution

conditions (nature of the gas and

gas pressure) and the adjustment

of the appliance are compatible. "

"This appliance is not connected

to a combustion products

evacuation device. It shall be

installed and connected in

accordance with current

installation regulations. Particular

attention shall be given to the

relevant requirements regarding

ventilation;" See Before installation,

page 10

The use of a gas-cooking

appliance produces heat and

humidity in the space where it is

located. You should assure a good

ventilation of the kitchen: keep

open the natural ventilation exits,

or install a mechanic ventilation

device (hood).

Gas appliances and systems must

be regularly checked for proper

functioning. Please arrange for

annual maintenance.

Clean the gas burners regularly.

The flames should be blue and

burn evenly.

Good combustion is required in

gas appliances. In case of

incomplete combustion, carbon

monoxide (CO) might develop.

Carbon monoxide is a colourless,

odourless and very toxic gas,

Do not use open fire and do not

smoke.

Do not operate any electric

switches (e.g. light switch or door

bell).

Do not use a telephone or mobile

phone.

Close all valves on gas appliances

and gas meter.

Open doors and windows.

Check all tubes and connections

for tightness. If you still smell gas

leave the property.

Warn the neighbours.

Call the fire-brigade. Use a

telephone outside the house.

Do not re-enter the property until

you are told it is safe to do so.

Safety when working with

electricity

•

Any work on electric equipment

and systems may only be carried

out by authorized qualified

persons.

In case of any damage, switch off

the appliance and disconnect it

from the mains supply by

removing the fuse or switching off

the circuit breaker.

Ensure that the fuse rating is

correct.

81 EN

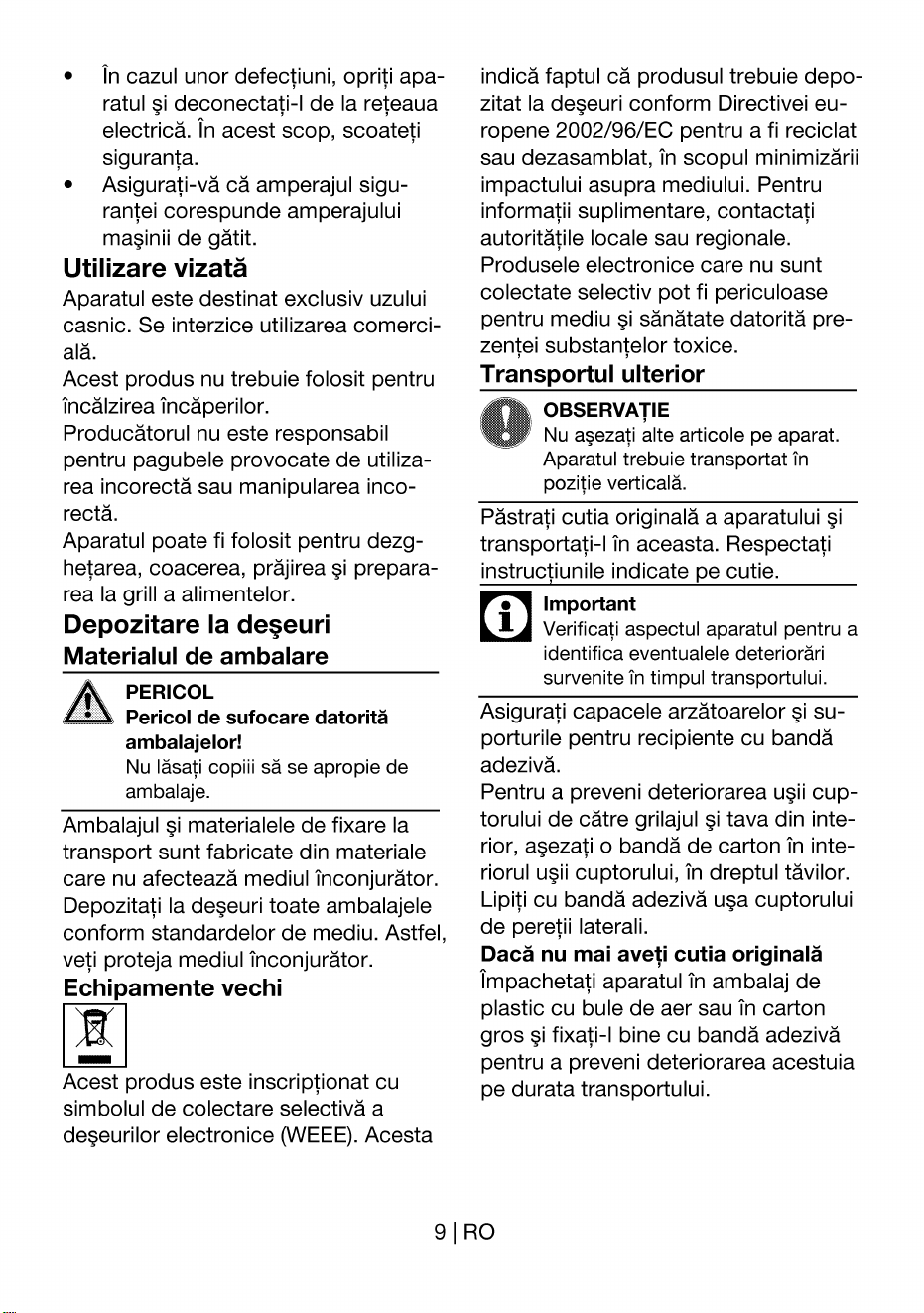

Intended use

The appliance is designed for

domestic use only. Commercial use is

not admissible.

This appliance should not be used for

warming the plates under the grill,

hanging towels and dish cloths etc. on

the handles, drying and the heating

purposes.

The manufacturer shall not be liable for

any damage caused by improper use

or handling errors.

The appliance can be used for

defrosting, baking, roasting and grilling

food.

Disposal

Packaging material

DANGER

Risk of suffocation by the

packaging materials!

Keep children away from the

packaging materials.

The packaging material and transport

locks are made from materials that are

not harmful to the environment. Please

dispose of all parts of the packaging

according to environmental standards.

This is beneficial to the environment.

Old equipment

This appliance bears the selective

sorting symbol for waste electrical and

electronic equipment (WEEE). This

means that this appliance must be

handled pursuant to European

Directive 2002/96/EC in order to be

recycled or dismantled to minimize its

impact on the environment. For further

information, please contact your local

or regional authorities.

Electronic appliances not included in

the selective sorting process are

potentially dangerous for the

environment and human health due to

the presence of hazardous substances.

Future transportation

NOTICE

Do not place other items on the

top of the appliance. The appliance

must be transported upright.

Store the appliance's original box and

transport the appliance in its original

carton. Follow the guidance marks that

are printed on the carton.

• Important

Verify the general appearance of

your equipment by identifying

possible damage during the

transportation.

Secure the caps and pan supports

with adhesive tape.

To prevent the wire shelf and tray

inside the oven from damaging the

oven door, place a strip of cardboard

onto the inside of the oven door that

lines up with the position of the trays.

Tape the oven door to the side walls.

If you do not have the original carton

Pack the appliance in bubble wrap or

thick cardboard and tape it securely in

order to prevent damage during

transportation.

91 EN

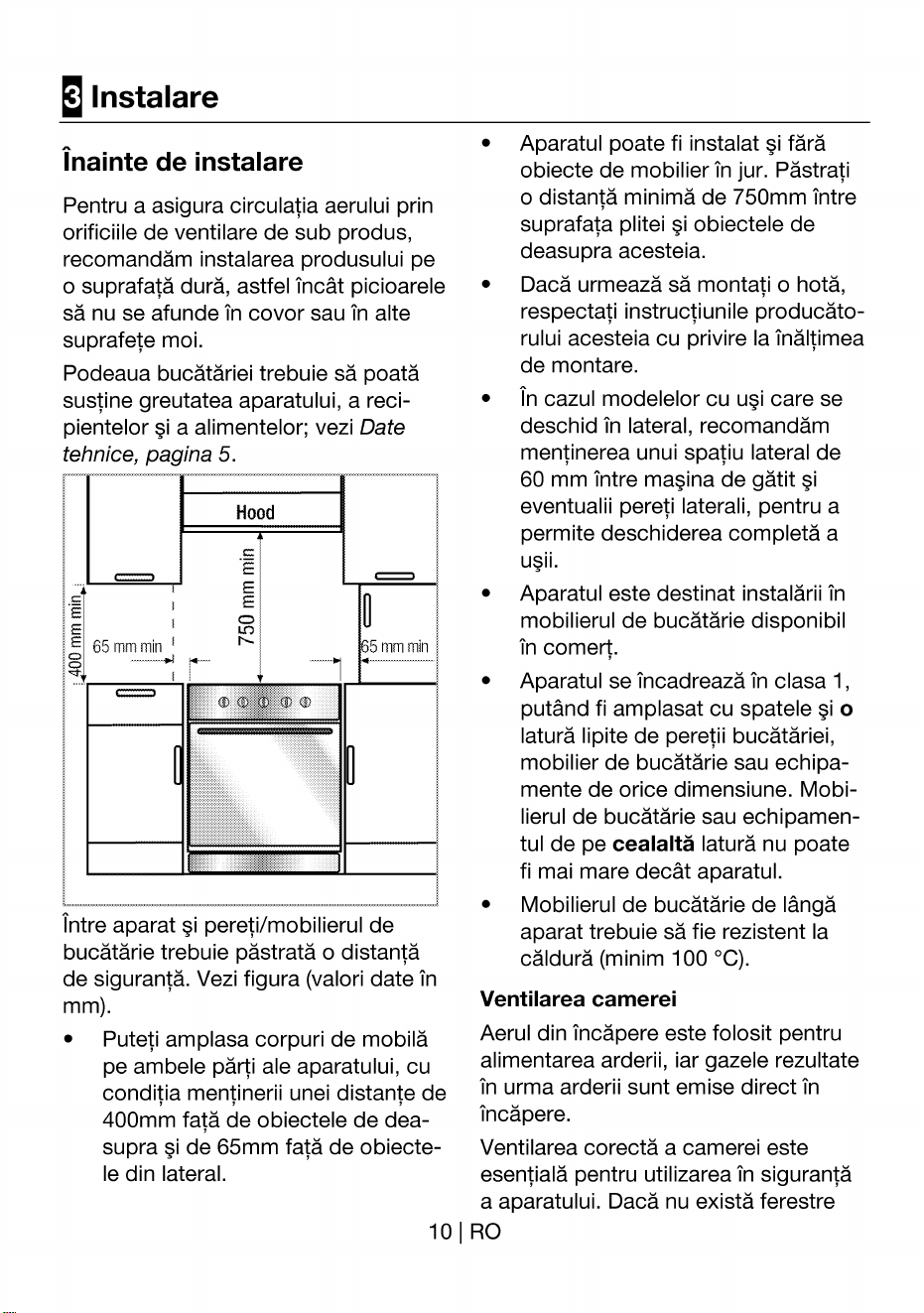

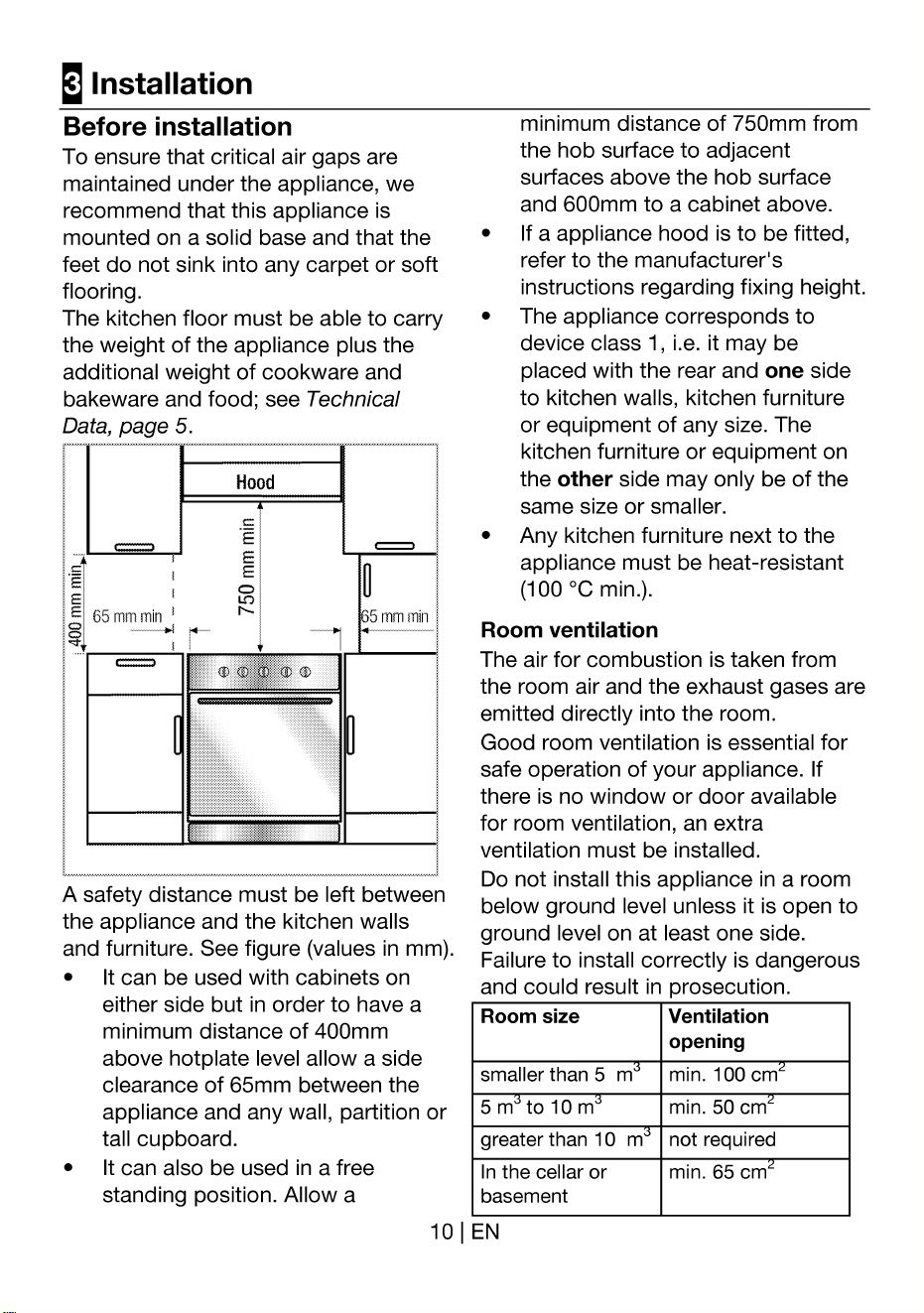

Installation

Before installation

To ensure that critical air gaps are

maintained under the appliance, we

recommend that this appliance is

mounted on a solid base and that the

feet do not sink into any carpet or soft

flooring.

The kitchen floor must be able to carry

the weight of the appliance plus the

additional weight of cookware and

bakeware and food; see Technical

Data, page 5.

Hood

•

minimum distance of 750mm from

the hob surface to adjacent

surfaces above the hob surface

and 600mm to a cabinet above.

If a appliance hood is to be fitted,

refer to the manufacturer's

instructions regarding fixing height.

The appliance corresponds to

device class 1, i.e. it may be

placed with the rear and one side

to kitchen walls, kitchen furniture

or equipment of any size. The

kitchen furniture or equipment on

the other side may only be of the

same size or smaller.

Any kitchen furniture next to the

appliance must be heat-resistant

(100 oc min.).

E 65 mmmin

5 mm min

Room ventilation

The air for combustion is taken from

the room air and the exhaust gases are

emitted directly into the room.

Good room ventilation is essential for

safe operation of your appliance. If

there is no window or door available

for room ventilation, an extra

ventilation must be installed.

Do not install this appliance in a room

below ground level unless it is open to

ground level on at least one side.

Failure to install correctly is dangerous

and could result in prosecution.

A safety distance must be left between

the appliance and the kitchen walls

and furniture. See figure (values in mm).

It can be used with cabinets on

either side but in order to have a

minimum distance of 400mm

above hotplate level allow a side

clearance of 65mm between the

appliance and any wall, partition or

tall cupboard.

It can also be used in a free

standing position. Allow a

Room size

smaller than 5 m

5m to 10m

greater than 10 m

In the cellar or

basement

Ventilation

opening

min. 100 cm

min. 50 cm

not required

min. 65 cm

101 EN

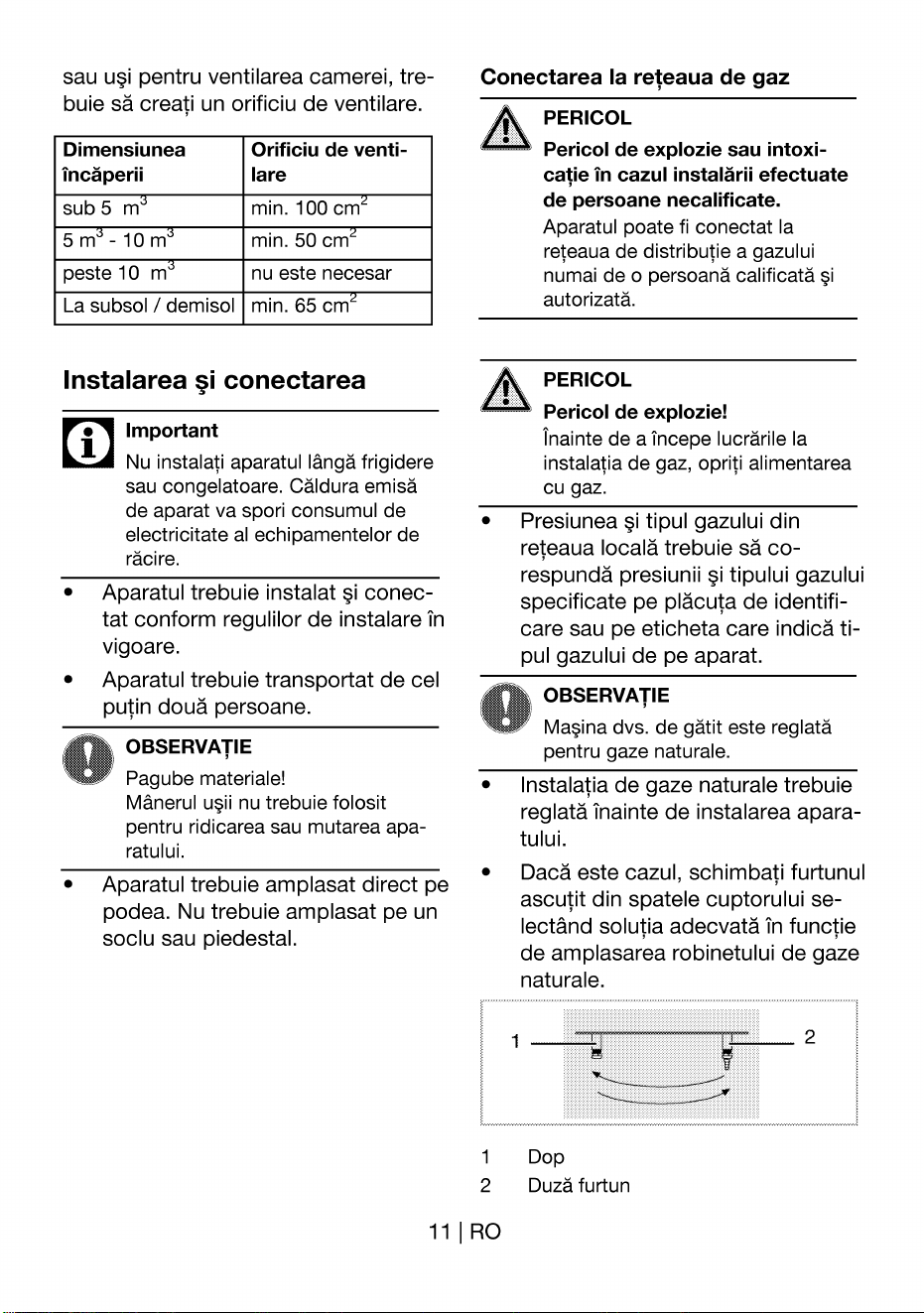

Installation and connection

Important

Do not install the appliance next to

refrigerators or freezers. The heat

emitted by the appliance will lead

to an increased energy

consumption of cooling

appliances.

For installation the appliance must

be connected in accordance with

all local gas and/or electrical

regulations.

Carry the appliance with at least

two persons.

NOTICE

Material damage!

The door and/or handle must not

be used for lifting or moving the

appliance.

The appliance must be placed

directly on the floor. It must not be

placed onto a base or a pedestal.

Connection to the gas supply

DANGER

Risk of explosion or poisoning

by unprofessional installation.

The appliance may be connected

to the gas distribution system only

by an authorized qualified person

who is Gas Safe registered.

DANGER

Risk of explosion!

Before starting any work on the

gas installation, please shut off the

gas supply.

"The adjustment conditions for this

appliance are stated on the label

(or data plate).

NOTICE

Your appliance is adjusted for

Natural gas.

Your natural gas installation must

be adjusted before the appliance is

installed.

If necessary, interchange the sharp

hose at the rear of your oven tip

with the plug by selecting a

suitable place on basis of the

location of the natural gas valve.

Plug

Hose nozzle

•

There must be a flex pipe at the

outlet of the installation for the

natural gas connection and the tip

of this pipe must be closed with a

plug.

Service Representative will remove

the plug during connection and

connect your appliance by means

of a straight connection device

(coupling).

Make sure that the natural gas

valve is readily accessible.

If you need to use your appliance

later with a different type of gas,

you must consult an authorised

service centre for the related

conversion procedure.

11 | EN

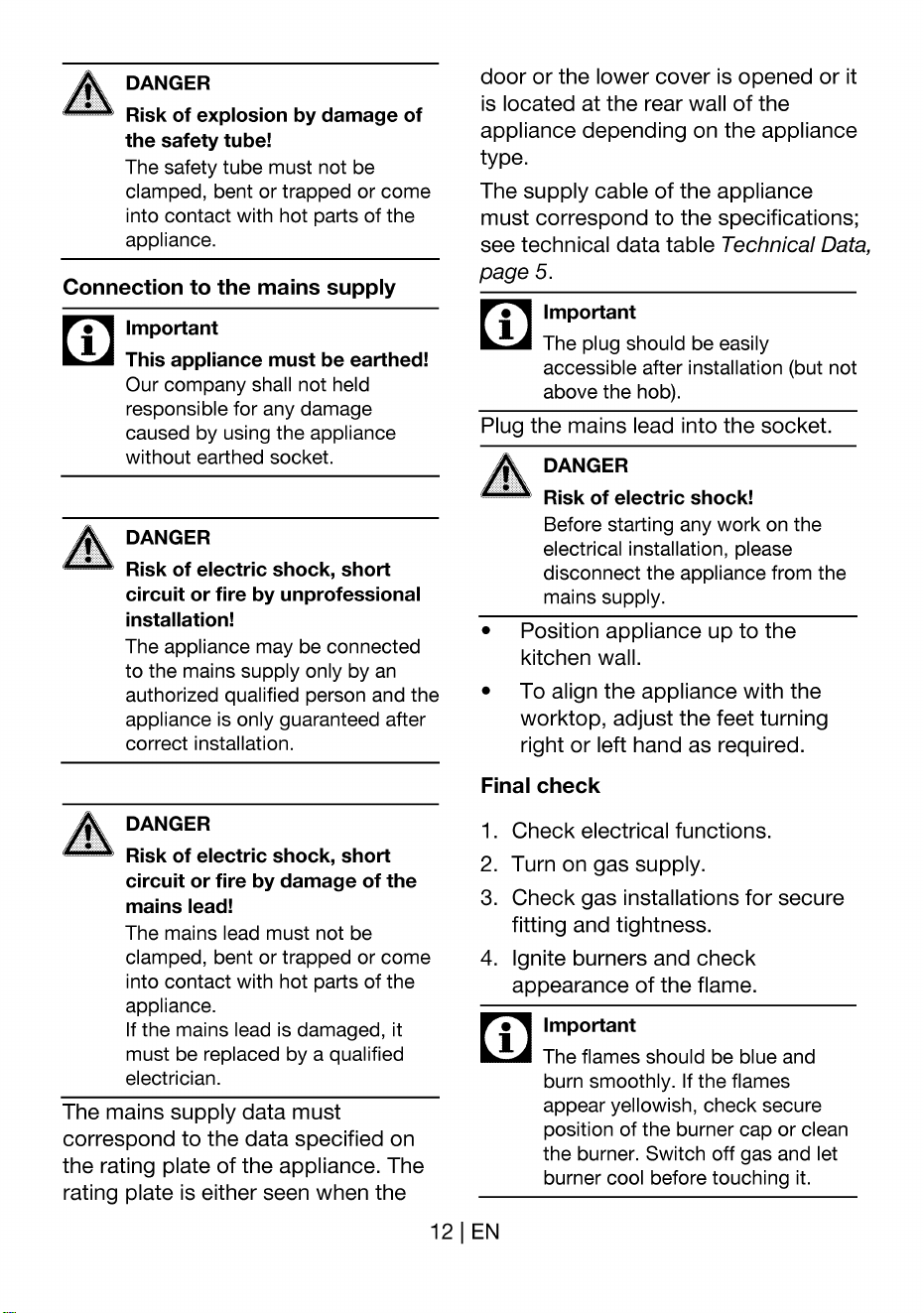

DANGER

Risk of explosion by damage of

the safety tube!

The safety tube must not be

clamped, bent or trapped or come

into contact with hot parts of the

appliance.

Connection to the mains supply

door or the lower cover is opened or it

is located at the rear wall of the

appliance depending on the appliance

type.

The supply cable of the appliance

must correspond to the specifications;

see technical data table Technical Data,

page 5.

Important

The plug should be easily

accessible after installation (but not

above the hob).

Plug the mains lead into the socket.

DANGER

Important

This appliance must be earthed!

Our company shall not held

responsible for any damage

caused by using the appliance

without earthed socket.

DANGER

Risk of electric shock, short

circuit or fire by unprofessional

installation!

The appliance may be connected

to the mains supply only by an

authorized qualified person and the

appliance is only guaranteed after

correct installation.

DANGER

Risk of electric shock, short

circuit or fire by damage of the

mains lead!

The mains lead must not be

clamped, bent or trapped or come

into contact with hot parts of the

appliance.

If the mains lead is damaged, it

must be replaced by a qualified

electrician.

•

Risk of electric shock!

Before starting any work on the

electrical installation, please

disconnect the appliance from the

mains supply.

Position appliance up to the

kitchen wall.

To align the appliance with the

worktop, adjust the feet turning

right or left hand as required.

Final check

The mains supply data must

correspond to the data specified on

the rating plate of the appliance. The

rating plate is either seen when the

Check electrical functions.

Turn on gas supply.

Check gas installations for secure

fitting and tightness.

Ignite burners and check

appearance of the flame.

Important

The flames should be blue and

burn smoothly. If the flames

appear yellowish, check secure

position of the burner cap or clean

the burner. Switch off gas and let

burner cool before touching it.

12 | EN

Gas conversion

DANGER

Risk of explosion!

Before starting any work on the

gas installation, please shut off the

gas supply.

In order to change your appliance's

gas type, change all injectors and

make flame adjustment for all valves at

reduced flow rate position.

Exchange injector for the burners

Take off burner cap and burner

body.

Unscrew injectors.

Fit new injectors.

Check all connections for secure

fitting and tightness.

NOTICE

Reduced gas flow rate setting for

hob taps

1. Ignite the burner that is to be

adjusted and turn the knob to the

reduced position.

2. Remove the knob from the gas tap.

3. Use an appropriately sized

screwdriver to adjust the flow rate

adjustment screw.

For LPG (Butane - Propane) turn the

screw clockwise.

For the natural gas, you should turn

the screw counter-clockwise once.

» The normal length of a straight flame

in the reduced position should be 6-7

mm.

4. If the flame is higher than the

desired position, turn the screw

clockwise. If it is smaller turn

anticlockwise.

5. For the last control, bring the

burner both to high-flame and

reduced positions and check

whether the flame is on or off.

Depending on the type of gas tap used

in your appliance the adjustment

screw position may vary.

New injectors have their

position marked on their

packing or injector table on

Injector Table, page 5 can be

referred to.

Flame failure device (model

dependant)

Sparking plug

Injector

Burner

Important

Unless there is an abnormal

condition, do not attempt to

remove the gas burner taps. You

must call an Authorised service

agent if it is necessary to change

the taps.

•o

131 EN

Flow rate adjustment screw

•o

Flow rate adjustment screw

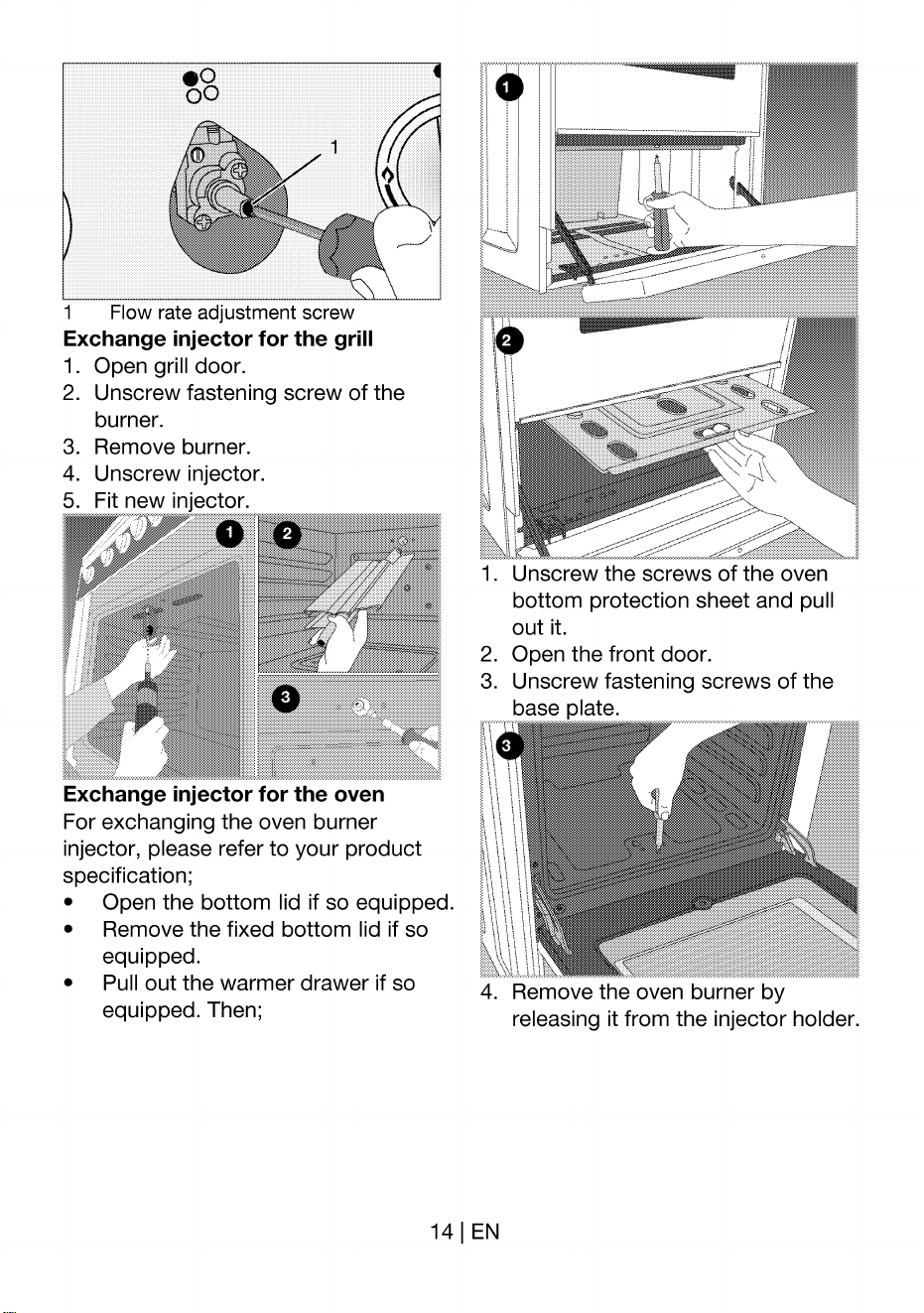

Exchange injector for the grill

Open grill door.

Unscrew fastening screw of the

burner.

Remove burner.

Unscrew injector.

Fit new injector.

Unscrew the screws of the oven

bottom protection sheet and pull

out it.

Open the front door.

Unscrew fastening screws of the

base plate.

Exchange injector for the oven

For exchanging the oven burner

injector, please refer to your product

specification;

Open the bottom lid if so equipped.

Remove the fixed bottom lid if so

equipped.

Pull out the warmer drawer if so

equipped. Then;

4. Remove the oven burner by

releasing it from the injector holder.

14 EN

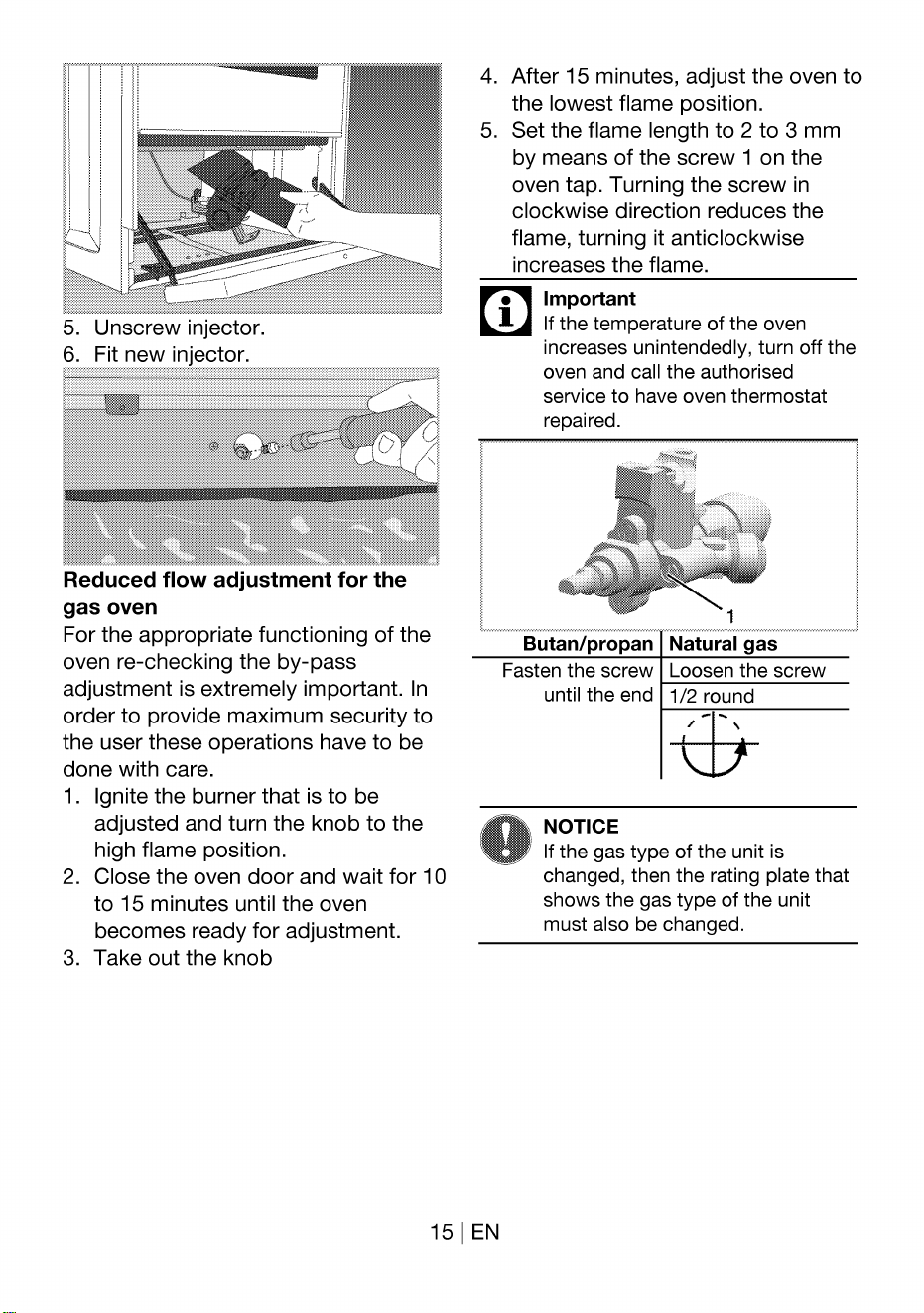

After 15 minutes, adjust the oven to

the lowest flame position.

Set the flame length to 2 to 3 mm

by means of the screw 1 on the

oven tap. Turning the screw in

clockwise direction reduces the

flame, turning it anticlockwise

increases the flame.

Important

I Ifthetemperatureoftheoven

increases unintendedly, turn off the

oven and call the authorised

service to have oven thermostat

5. Unscrew injector.

6. Fit new injector.

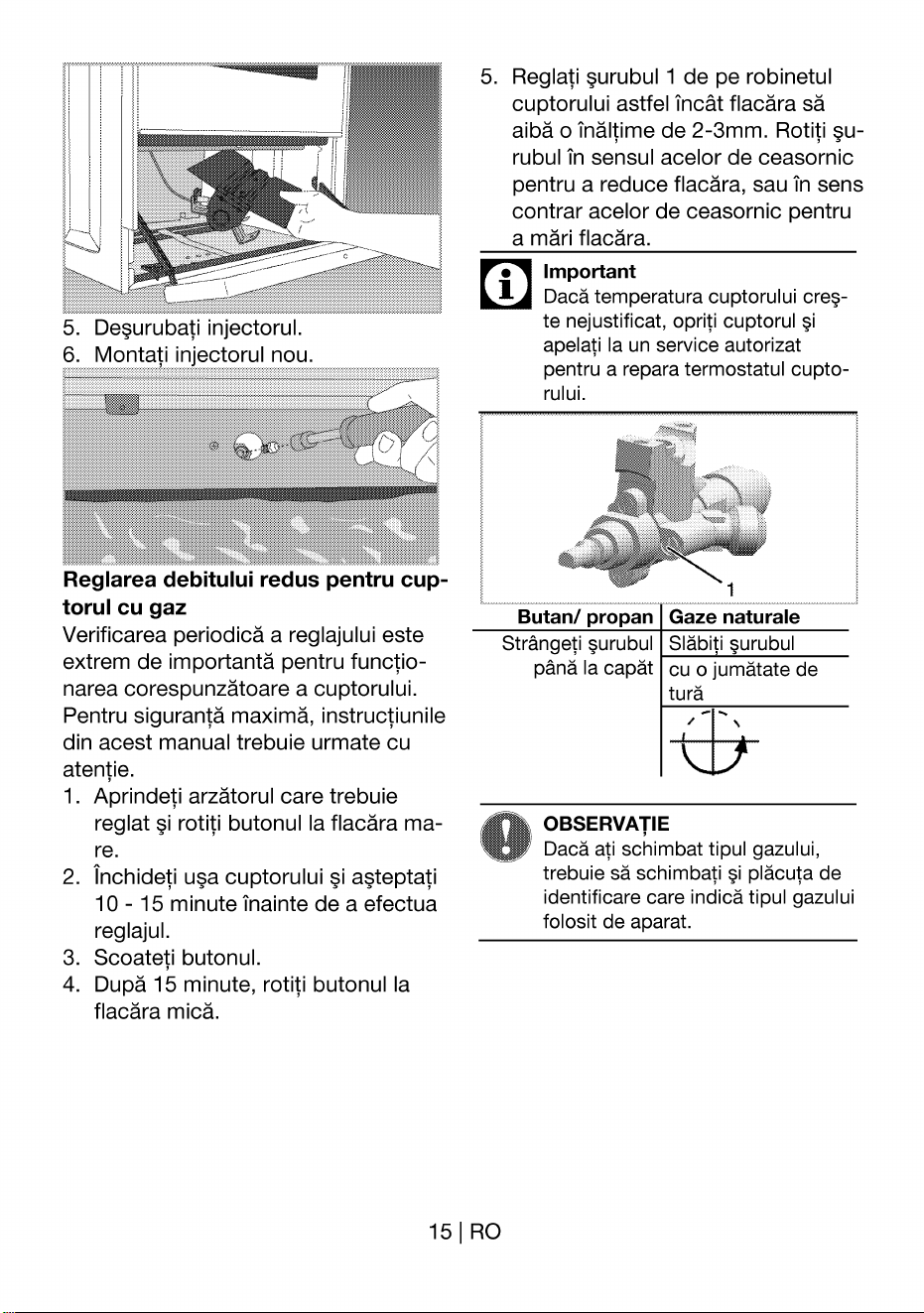

Reduced flow adjustment for the

gas oven

For the appropriate functioning of the

oven re-checking the by-pass

adjustment is extremely important. In

order to provide maximum security to

the user these operations have to be

done with care.

repaired.

Butan/propan

Fasten the screw

until the end

NOTICE

Natural gas

Loosen the screw

1/2 round

Ignite the burner that is to be

adjusted and turn the knob to the

high flame position.

Close the oven door and wait for 10

to 15 minutes until the oven

becomes ready for adjustment.

Take out the knob

151 EN

If the gas type of the unit is

changed, then the rating plate that

shows the gas type of the unit

must also be changed.

Preparation

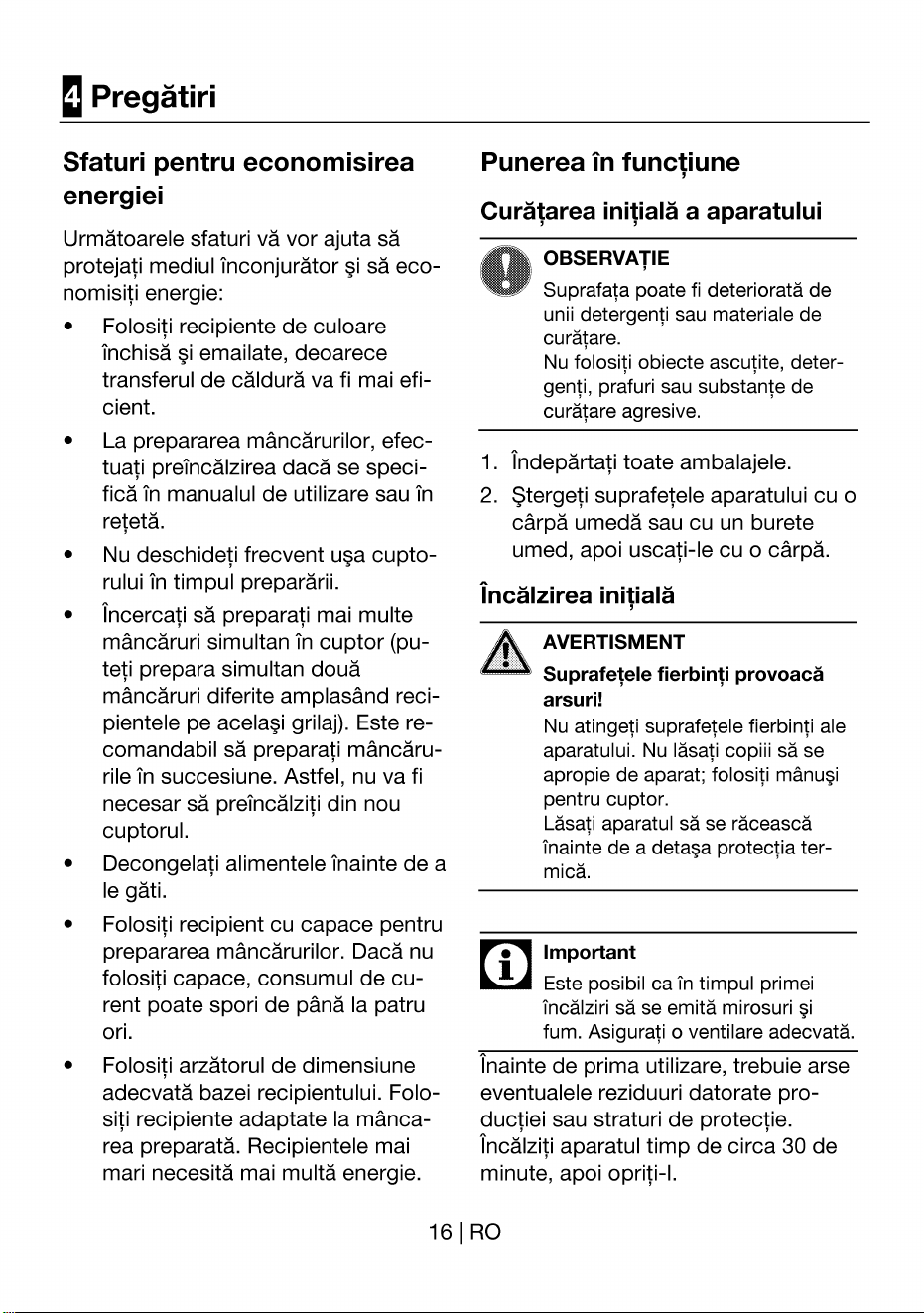

Tips for saving energy

The following tips will help you to use

your appliance in an ecological way

and to save energy:

Initial operation

First cleaning of the appliance

•

Use dark coloured and enamel

coated trays, since the heat

transmission will be better.

While cooking your meals, perform

a preheating operation if it is

advised in the user manual or

cooking instructions.

During cooking, do not open the

oven door frequently.

Try to cook more than one type of

meal within the oven at the same

time (You can cook two different

meals at the same time by locating

cooking bowls on the same shelf).

It will be suitable to cook more

than one meal after each other.

The oven will already be hot.

Defrost frozen meals before

cooking them.

Use pots/pans with lids for

cooking. Without a lid, the energy

consumption may be up to four

times higher.

Choose the burner/plate which is

suitable to the saucepan base.

Always choose the correct size of

saucepans for your meals. For

larger burners/plates more energy

is needed.

NOTICE

The surface might get damaged by

some detergents or cleaning

materials.

Do not use aggressive detergents,

cleaning powder/cream or any

sharp objects.

Remove all packaging materials.

Wipe the surfaces of the appliance

with a damp cloth or sponge and

dry with a cloth.

Initial heating

A WARNING

Hot surfaces may cause burns!

Do not touch the hot surfaces of

the appliance. Use oven gloves.

Keep children away from the

appliance.

Allow the appliance to cool down

before you take off the heat shield.

Important

Smell and smoke may emit during

first heating. Ensure that the room

is well ventilated.

Any production residues or

conservation layers must be burnt off

before the first use. Heat up the

appliance for about 30 minutes and

then switch it off.

161 EN

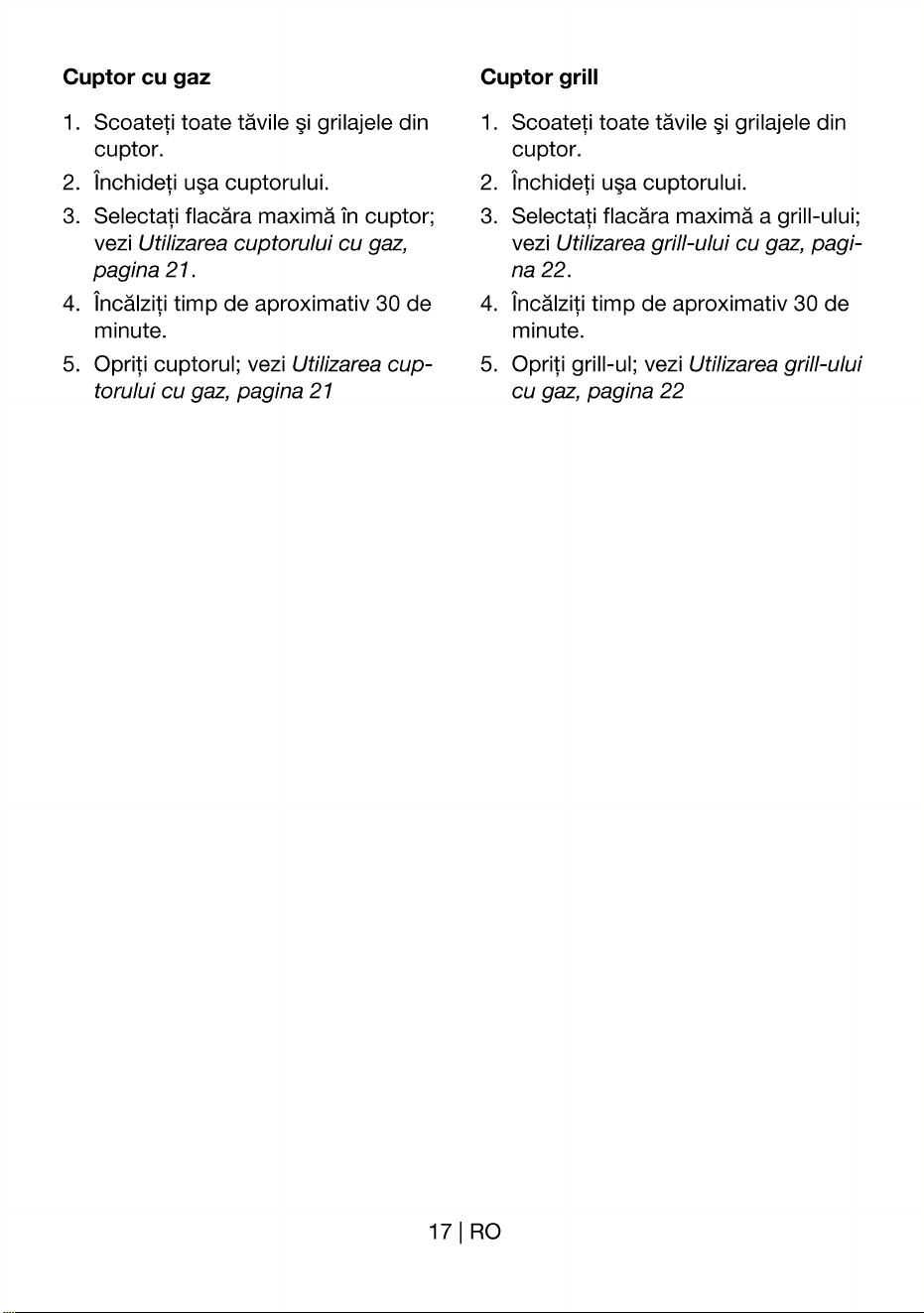

Gas oven

1. Take all baking trays and wire shelf

from the oven.

2. Close oven door.

3. Select largest flame of the gas oven;

see How to use the gas oven,

page 21.

4. Heat approximately 30 minutes.

5. Switch off oven; see How to use

the gas oven, page 21

Grill oven

Take all baking trays and wire shelf

from the oven.

Close oven door.

3. Select largest flame of the grill oven;

see How to operate the gas grill,

page 22.

Heat approximately 30 minutes.

Switch off grill; see How to operate

the gas grill, page 22

171 EN

How to use the hob

General information on

cooking

DANGER

Risk of fire by overheated oil!

When you heat oil, do not leave it

unattended.

Never try to extinguish the fire

with water! When oil has caught

fire, immediately cover the pot or

pan with a lid. Switch off the hob if

safe to do so and phone the fire

service.

Ensure handles of pans cannot

accidentally be caught or knocked

and do not get hot by adjacent

heating zones. Avoid pans that are

unstable and easily tipped. Pans

that are too heavy to move easily

when filled can also be a hazard.

Only use flat bottomed pots or

pans.

Use pans which have sufficient

capacity for the amount of food

being cooked so they don't boil

over and cause unnecessary

cleaning.

Do not place lids on the burners.

Always position pans centrally

over the burners. When

transferring pans from one burner

to another always lift the pans do

not slide them.

Cooking with gas

• The size of the pan and the size of

the gas flame should match each

other. Adjust the gas flames so

that they do not go beyond the

bottom of the pan always place

the pan onto the pan support in a

central position.

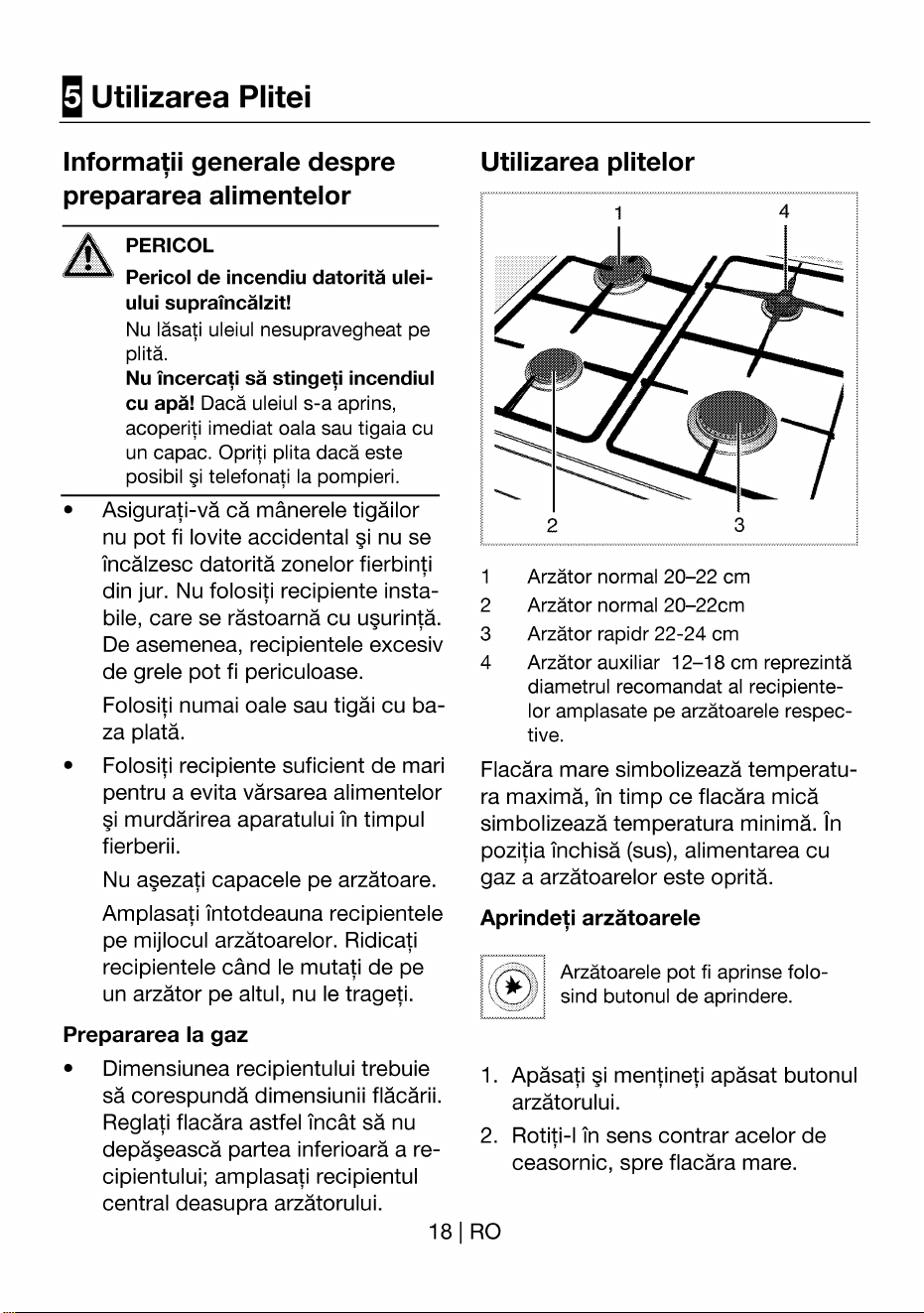

How to use hobs

Normal burner 20—22 cm

Normal burner 20—22cm

Rapid burner 22-24 cm

Auxiliary burner 12—18cm is list of

advised diameter of pots to be used

on related burners.

The large flame symbol corresponds to

the highest cooking power, the small

flame symbol corresponds to the

lowest cooking power. In the off

position (top) the gas supply to the

burner is turned off.

Ignite the gas burners

The gas burners are ignited by

means of the ignition button.

1. Keep hob control knob pressed.

181 EN

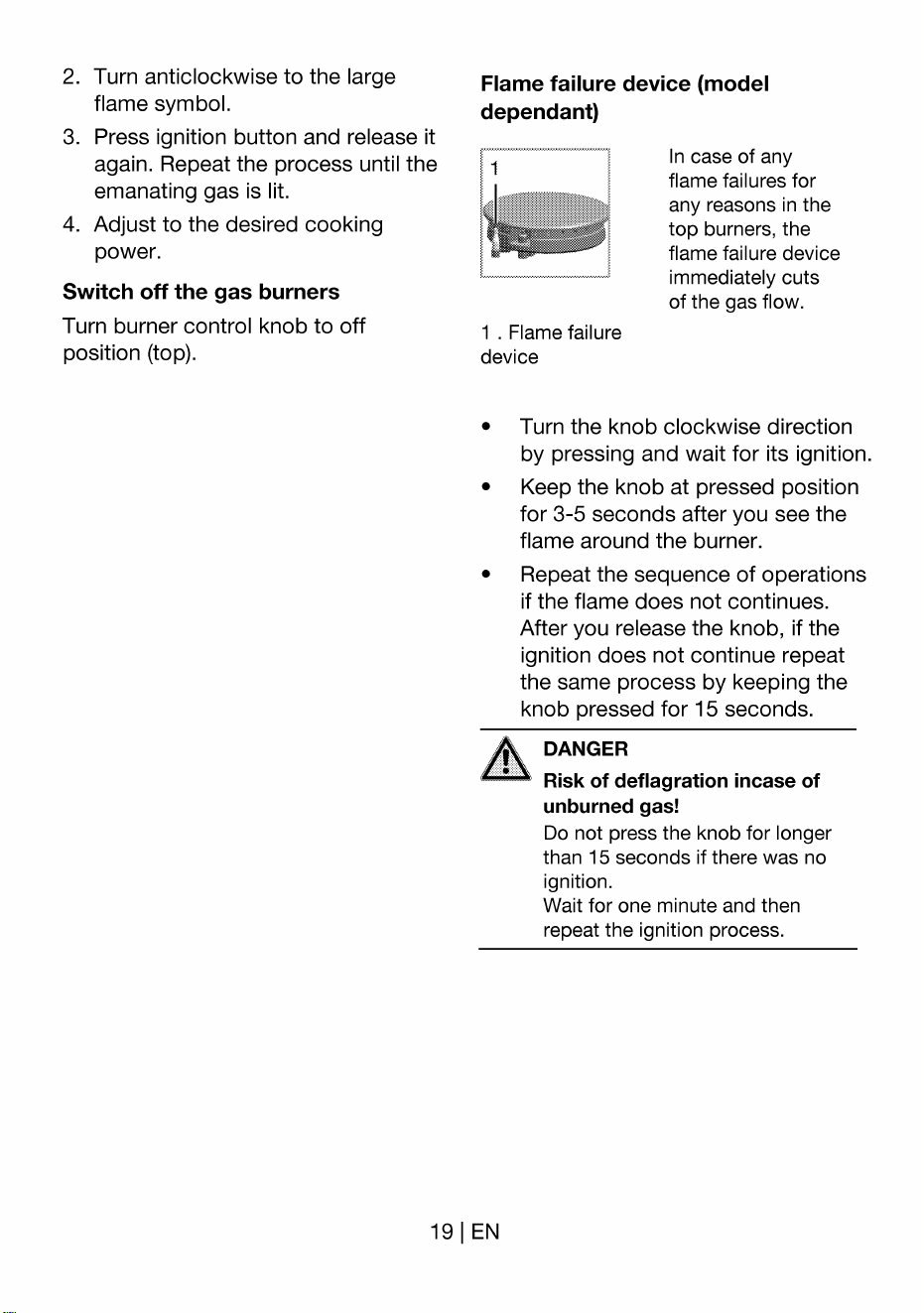

Turn anticlockwise to the large

flame symbol.

Press ignition button and release it

again. Repeat the process until the

emanating gas is lit.

Adjust to the desired cooking

power.

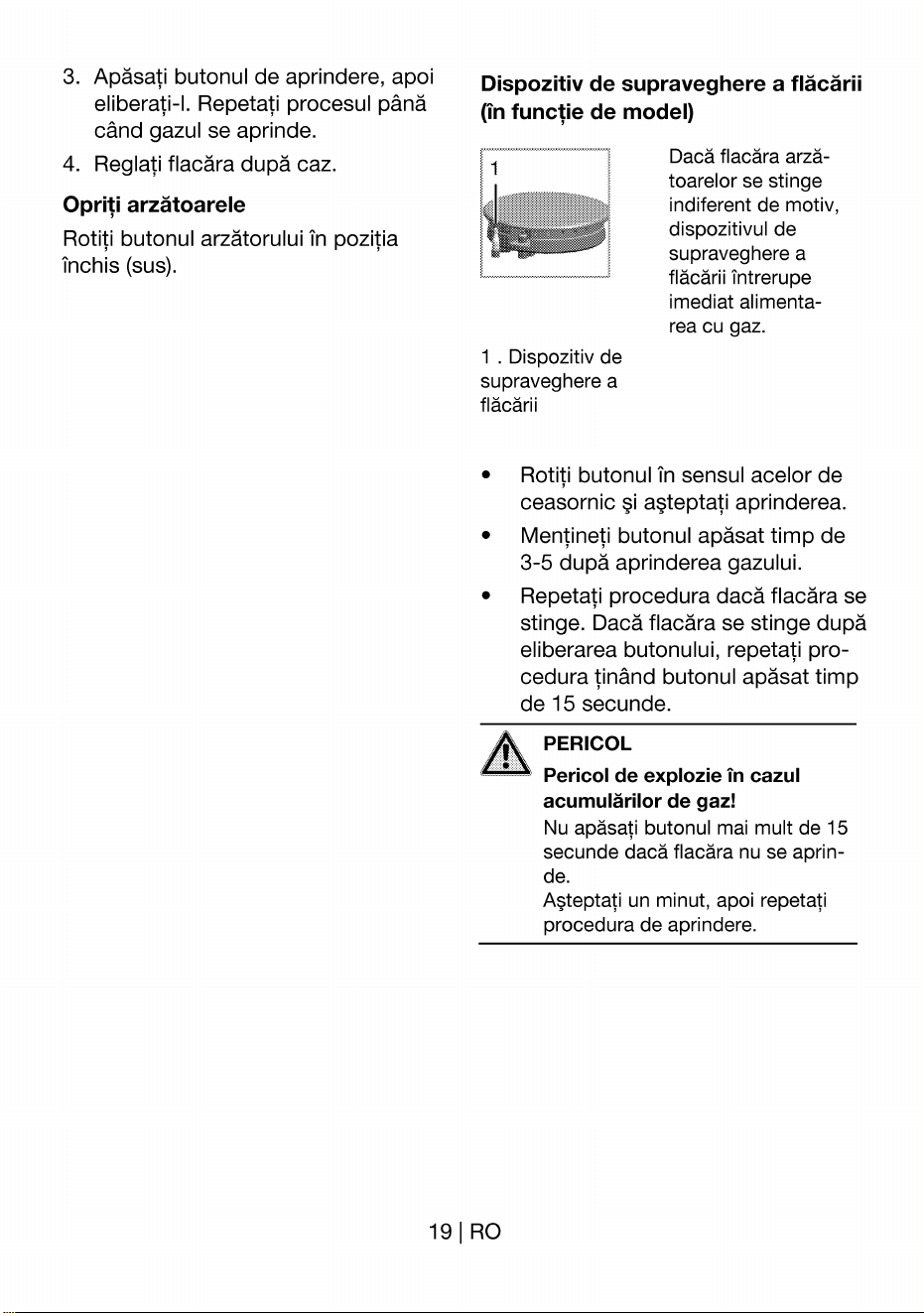

Flame failure device (model

dependant)

1 . Flame failure

device

In case of any

flame failures for

any reasons in the

top burners, the

flame failure device

immediately cuts

of the gas flow.

Switch off the gas burners

Turn burner control knob to off

position (top).

•

191 EN

Turn the knob clockwise direction

by pressing and wait for its ignition.

Keep the knob at pressed position

for 3-5 seconds after you see the

flame around the burner.

Repeat the sequence of operations

if the flame does not continues.

After you release the knob, if the

ignition does not continue repeat

the same process by keeping the

knob pressed for 15 seconds.

DANGER

Risk of deflagration incase of

unburned gas!

Do not press the knob for longer

than 15 seconds if there was no

ignition.

Wait for one minute and then

repeat the ignition process.

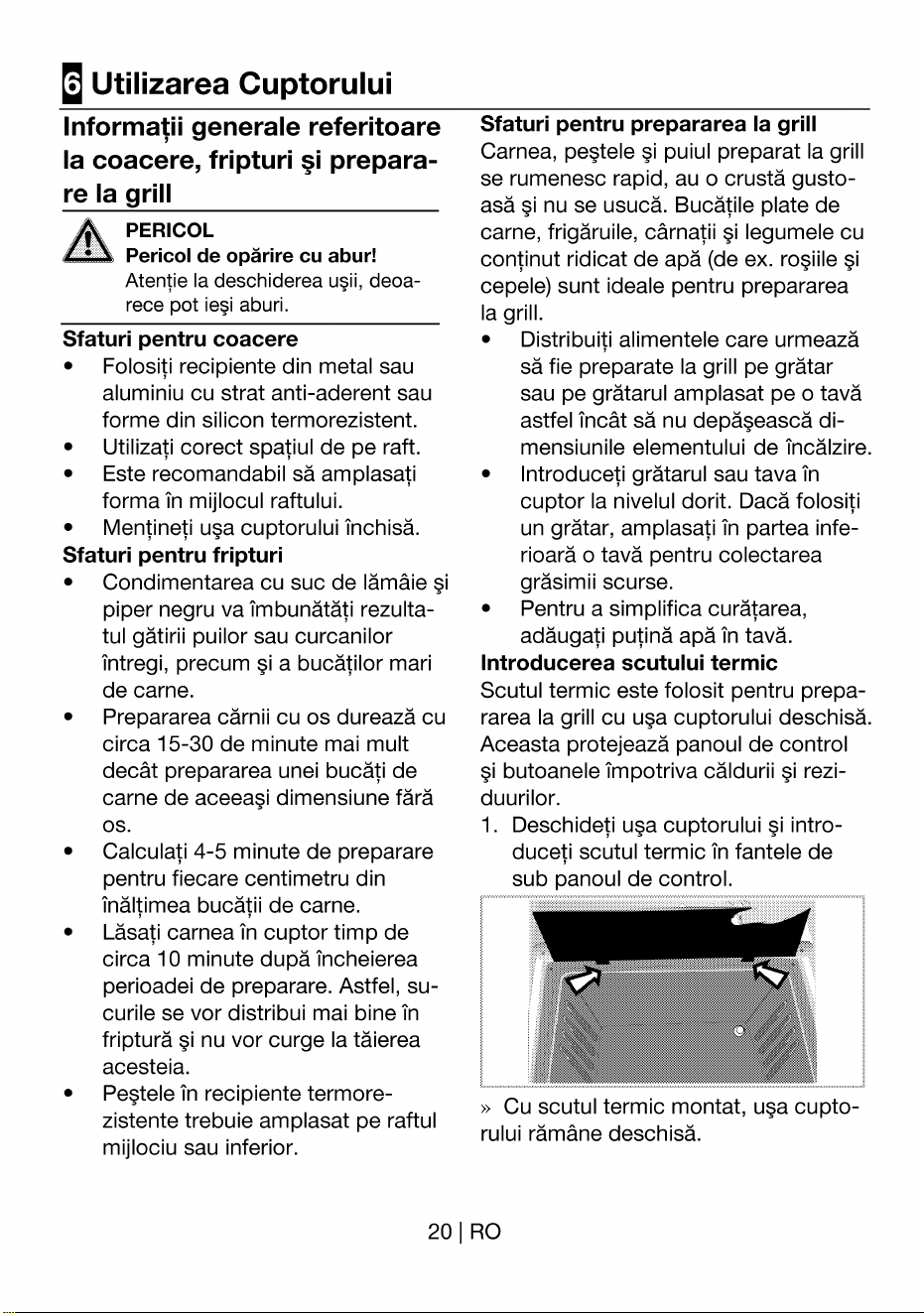

How to Operate the Oven

General information on baking,

roasting and grilling

A DANGER

Risk of scalding by hot steam!

Take care when opening the oven

door as steam may escape.

Tips for baking

Use non-stick coated appropriate

metal plates or aluminum

containers or heat-resistant

silicone moulds.

Make best use of the space on the

rack.

It is recommended to place the

baking mould in the middle of the

rack.

Select the correct shelf position

before turning the oven or grill on -

don't move oven shelves when hot.

Keep the oven door closed.

Tips for roasting

• Fish in a fire-resistant dish should

be placed on the rack at the

medium or lower level.

Tips for grilling

Grilling is ideal for cooking meat, fish

and poultry and will achieve a nice

brown sur-face without it drying out to

much. Flat pieces, meat skewers and

sausages are particularly suited for

grilling as are vege-tables with a high

water content such as tomatoes and

onions.

•

Distribute the pieces to be grilled

on the wire shelf.

If the grilling is on the wire shelf,

locate a dripping pan under it in

order to collect the fat.

Add some water in dripping pan

for easy cleaning.

•

Seasoning with lemon juice and

black pepper will improve the

cooking performance when

cooking a whole chicken, turkey or

a large piece of meat.

Meat with bones takes about 15 to

30 minutes longer before it is

cooked than a roast of the same

size without bones.

You should calculate about 4 to 5

minutes cooking time per

centimeter height of the meat.

Let meat rest in the oven for about

10 minutes after the cooking time.

The juice is better distributed all

over the roast and does not run

out when the meat is cut.

Insert the heat shield

The heat shield is used for grilling with

the oven door open. It protects the

control panel and knobs against heat

and soiling.

1. Open the oven door and insert the

heat shield into the slots below the

control panel.

» When the heat shield is inserted, the

oven door remains open.

20 | EN

How to use the gas oven

1 Oven knob

The gas oven is operated by the gas

oven control knob. In off position (top)

the gas supply is locked.

Switch on the gas oven

The gas oven is ignited with the

ignition button.

1. Open oven door.

2. Keep gas oven control knob

pressed and turn it

counterclockwise.

3. Press ignition button and release it

again.

» Repeat the process until the

emanating gas is ignited.

4. Keep the gas oven control knob

pressed for another 3 to 5 seconds.

5. Be sure that gas has ignited and

flame is present.

6. If there is no electricity; ignite the

gas with the gas lighter from the

ignition control hole.

7. Select the desired baking power.

Ignition control hole

DANGER

Risk of deflagration by gas that

is not ignited!

The device shall not be operated

for more than 15 s. If after 15 s the

burner has no lit, stop operating

the deviceand open the

compartment door and/or wait at

least 1 min before attempting a

further ignition of the burner.

Switch off the gas oven

1. Turn gas oven control knob to off

position (top).

The gas levels mean:

Gas level 1 2 3

Temperature 170 oc 280 oc 284 oc

21 | EN

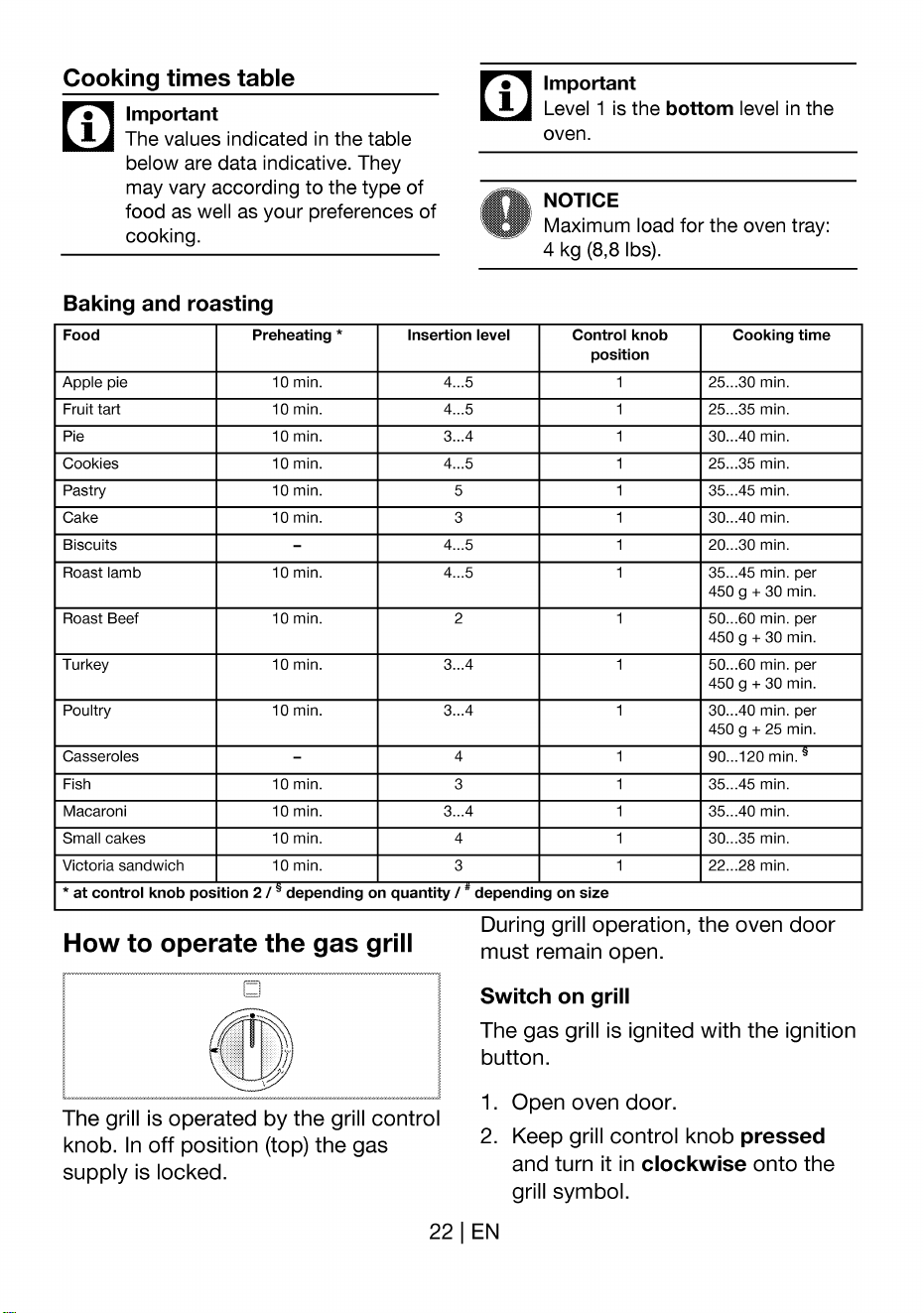

Cooking times table

• Important

The values indicated in the table

below are data indicative. They

may vary according to the type of

food as well as your preferences of

cooking.

Baking and roasting

4...5

Important

Level 1 is the bottom level in the

oven.

NOTICE

Maximum load for the oven tray:

4 kg (8,8 lbs).

Control knob

position

Food

Apple pie

Fruit tart

Pie

Pastry

Biscuits

Roast lamb

Roast Beef

Turkey

Poultry

Casseroles

Fish

Macaroni

Small cakes

Victoria sandwich

Preheating *

10 min.

Insertion level

Cooking time

25...30 min.

25...35 min.

30...40 min.

25...35 min.

35...45 min.

30...40 min.

20...30 min.

35...45 min. per

450 g + 30 min.

50...60 min. per

450 g + 30 min.

50...60 min. per

450 g + 30 min.

30...40 min. per

450 g + 25 min.

90...120 min.

35...45 min.

35...40 min.

30...35 min.

22...28 min.

* at control knob position 2/ depending on quantity /

How to operate the gas grill

The grill is operated by the grill control

knob. In off position (top) the gas

supply is locked.

depending on size

During grill operation, the oven door

must remain open.

Switch on grill

The gas grill is ignited with the ignition

button.

1. Open oven door.

2. Keep grill control knob pressed

and turn it in clockwise onto the

grill symbol.

22 | EN

3. Press ignition button and release it

again.

» Repeat the process until the gas is

ignited.

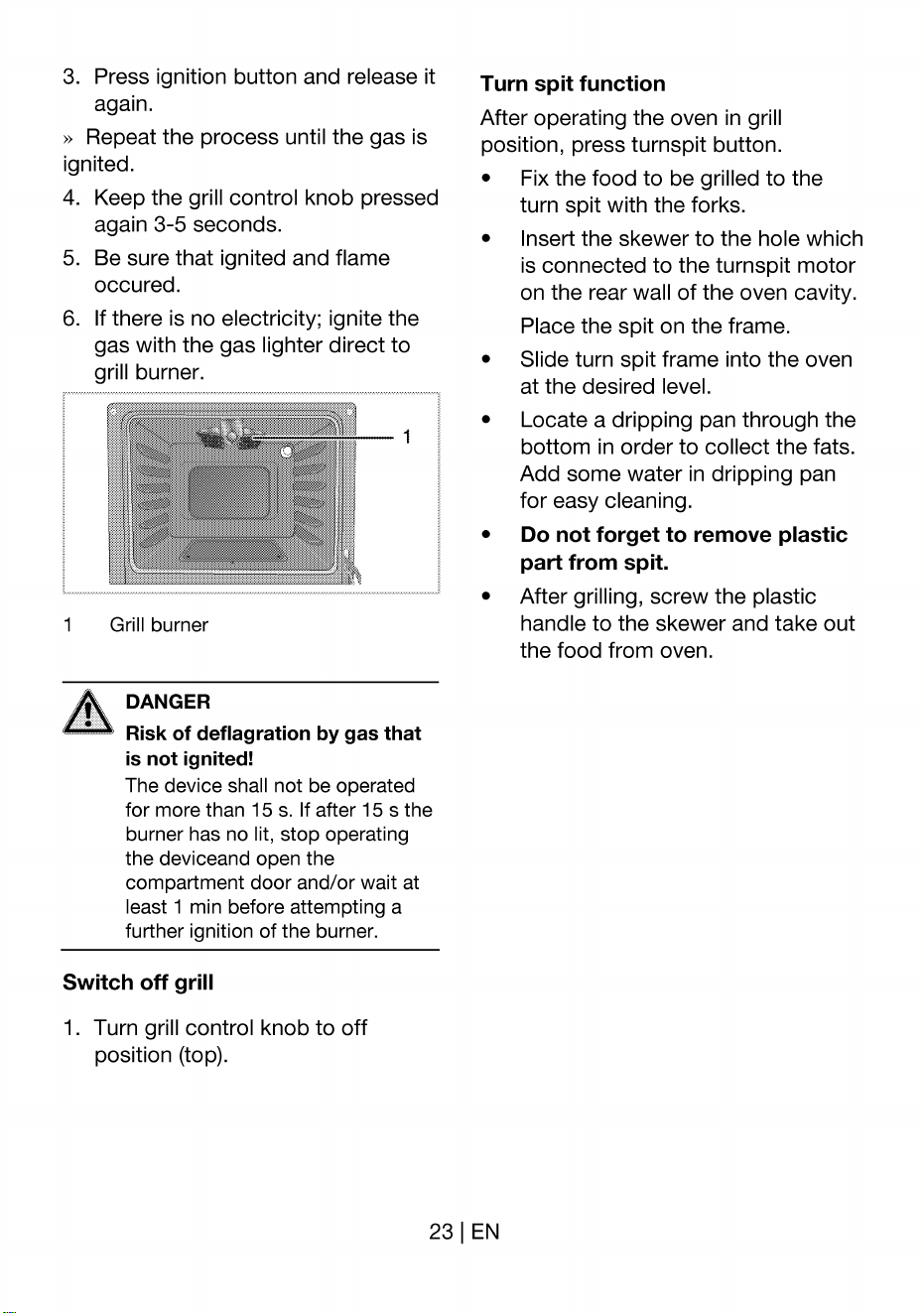

Turn spit function

After operating the oven in grill

position, press turnspit button.

Keep the grill control knob pressed

again 3-5 seconds.

Be sure that ignited and flame

occured.

If there is no electricity; ignite the

gas with the gas lighter direct to

grill burner.

Grill burner

DANGER

•

Fix the food to be grilled to the

turn spit with the forks.

Insert the skewer to the hole which

is connected to the turnspit motor

on the rear wall of the oven cavity.

Place the spit on the frame.

Slide turn spit frame into the oven

at the desired level.

Locate a dripping pan through the

bottom in order to collect the fats.

Add some water in dripping pan

for easy cleaning.

Do not forget to remove plastic

part from spit.

After grilling, screw the plastic

handle to the skewer and take out

the food from oven.

Risk of deflagration by gas that

is not ignited!

The device shall not be operated

for more than 15 s. If after 15 s the

burner has no lit, stop operating

the deviceand open the

compartment door and/or wait at

least 1 min before attempting a

further ignition of the burner.

Switch off grill

1. Turn grill control knob to off

position (top).

23 | EN

Cooking times table

Important

The values indicated in the table

below are data indicative. They

may vary according to the type of

food as well as your preferences of

cooking.

Grilling with gas grill

Important

Level 1 is the bottom level in the

oven.

NOTICE

Do not use the upper level for

grilling.

Food

Toasting of bread products

Small cuts of meat, sausages,

bacon, etc.

Chops, gammon steaks, chicken

pieces, etc.

Whole fish, fish fillets, fish fingers

Fish in breadcrumbs

Pre-cooked potato products

Pizza

Grilling/browning of food

Preparation/setting

Chicken with wire rack in upturned

position.

Whole fish and fish fillets placed in

the base of the grill pan.

Placed in the base of the grill pan.

Dish placed directly on the base of

the grill compartment.

Grilling time

3...10 min.

15...20 min.

20...25 min.

10...20 min.

15...20 min.

12...15 min.

8...10 min.

depending on size resp. thickness

24 | EN

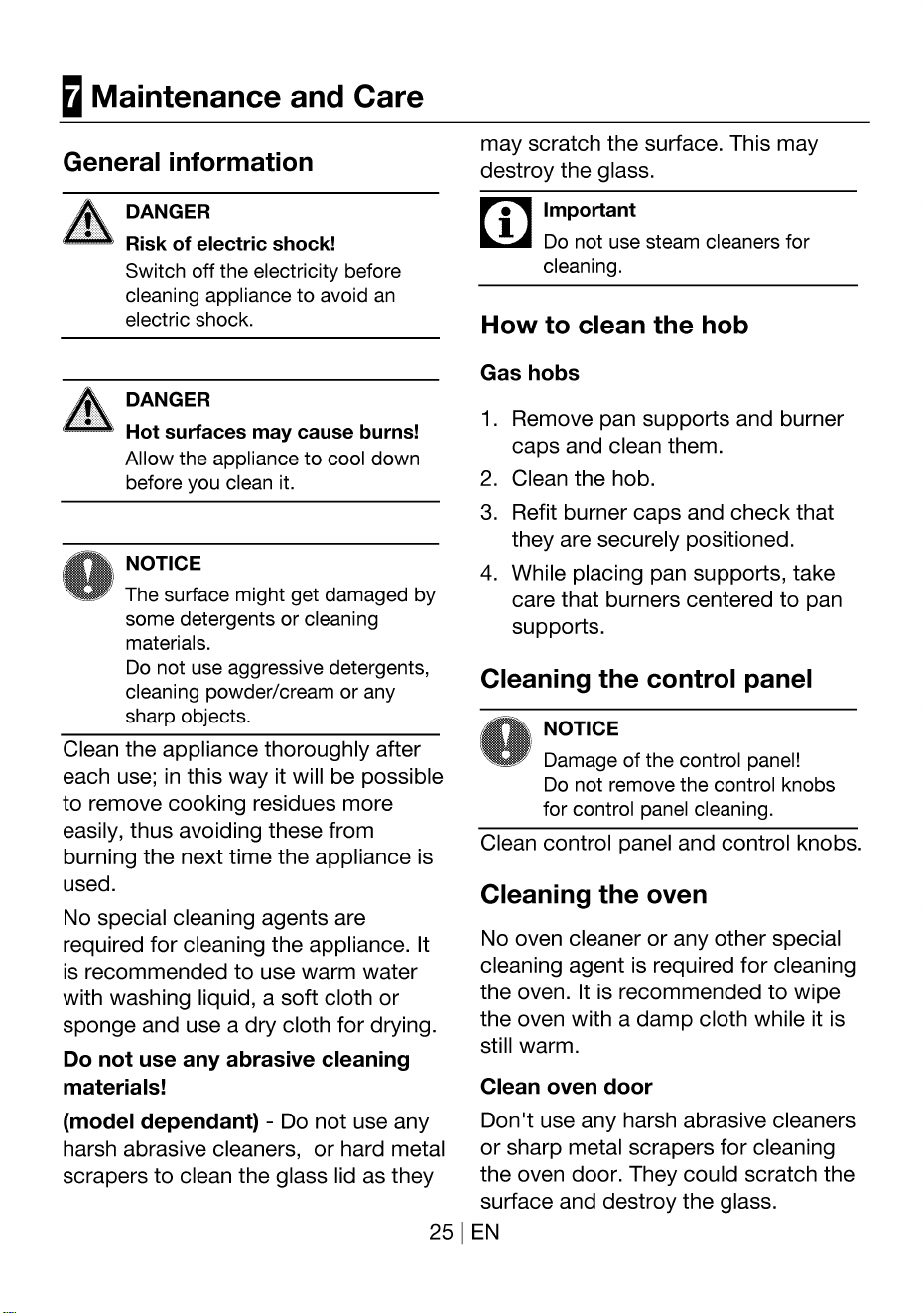

Maintenance and Care

General information

DANGER

Risk of electric shock!

Switch off the electricity before

cleaning appliance to avoid an

electric shock.

DANGER

Hot surfaces may cause burns!

Allow the appliance to cool down

before you clean it.

NOTICE

The surface might get damaged by

some detergents or cleaning

materials.

Do not use aggressive detergents,

cleaning powder/cream or any

sharp objects.

Clean the appliance thoroughly after

each use; in this way it will be possible

to remove cooking residues more

easily, thus avoiding these from

burning the next time the appliance is

used.

No special cleaning agents are

required for cleaning the appliance. It

is recommended to use warm water

with washing liquid, a soft cloth or

sponge and use a dry cloth for drying.

Do not use any abrasive cleaning

materials!

(model dependant) - Do not use any

harsh abrasive cleaners, or hard metal

scrapers to clean the glass lid as they

may scratch the surface. This may

destroy the glass.

Important

Do not use steam cleaners for

cleaning.

How to clean the hob

Gas hobs

Remove pan supports and burner

caps and clean them.

Clean the hob.

Refit burner caps and check that

they are securely positioned.

While placing pan supports, take

care that burners centered to pan

supports.

Cleaning the control panel

NOTICE

Damage of the control panel!

Do not remove the control knobs

for control panel cleaning.

Clean control panel and control knobs.

Cleaning the oven

No oven cleaner or any other special

cleaning agent is required for cleaning

the oven. It is recommended to wipe

the oven with a damp cloth while it is

still warm.

Clean oven door

Don't use any harsh abrasive cleaners

or sharp metal scrapers for cleaning

the oven door. They could scratch the

surface and destroy the glass.

25 | EN

Removal of oven door

The oven door can be disassembled

for easier cleaning of the inner space

of the oven.

Open oven door entirely.

Press hinged shackles back at both

sides.

Replacing the oven lamp

DANGER

Hot surfaces may cause burns!

Make sure that the appliance is

switched off and cooled down in

order to avoid the risk of an

electrical shock.

The oven lamp is a special heat-

resisting (T 300 0C) electric light bulb;

see Technical Data, page 5. Oven

lamps can be obtained from a good

local electrical store.

NOTICE

Position of lamp might vary from

Hinged shackles

Hinge

Put oven door in a slightly sloping

position.

Lift the oven door to the front with

both hands.

diagram.

Switch off the appliance at the

mains.

Unscrew glass cover by turning

anti-clockwise.

Unscrew oven lamp by turning anti-

clockwise and replace it with new

one.

Refit the glass cover.

Install oven door again in reverse order

after cleaning.

26 | EN

@Troubleshooting

DANGER

Risk of electric shock, short

circuit or fire by unprofessional

repairs!

Repairs on the appliance must be

carried out by an approved service

centre.

DANGER

Risk of explosion or poisoning

by unprofessional repair.

Repairs on the appliance must be

carried out by an approved service

centre.

Normal operating conditions

•

Smoke and smell may emit for a

couple of hours during the first

operation.

It is normal that steam escapes

during operation.

When the metal parts are heated,

they may expand and cause noise.

Before you call the service, please

check the following points.

Electrical equipment

Malfunction/problem

The appliance does not

work.

Oven light does not work

Oven does not heat.

Possible cause

The mains fuse is defective

or has tripped.

Appliance's plug can not be

connected to the grounded

socket.

Oven lamp is defective.

No current.

Function knob

and/thermostat knob are

not set.

If the appliance has a timer,

the timer may not be set.

No power.

27 | EN

Advice/remedy

Check fuses in the fuse box.

If necessary, replace or

reset them.

Check the plug connection.

Replace oven lamp.

Check fuses in the fuse box.

If necessary, replace or

reset them.

Set function knob and

thermostat knob.

Set the time.

Check mains supply and

fuse box.

Gas

Malfunction/problem

No ignition spark is

produced.

No gas is emitted.

Burners do not burn

smoothly or not at all.

Possible cause

No electric supply to the

appliance.

Main gas tap is closed.

Safety tube is bent.

Burners are dirty.

Burners are not dry.

Burner cap is not securely

positioned.

Gas tap is closed.

Gas container is empty (in

case of LPG connection).

Advice/remedy

Check fuses in the fuse box.

Open gas tap.

Install safety tube without

bends.

Clean burner parts.

Dry burner parts.

Position burner correctly.

Open gas tap.

Replace gas container.

If the problem has not been solved:

1. Separate unit from the mains

supply (deactivate or unscrew fuse).

2. Call the after-sales service of your

store reseller.

Important

Do not attempt to repair the

appliance yourself. There are

no customer service items

inside the appliance.

28 | EN

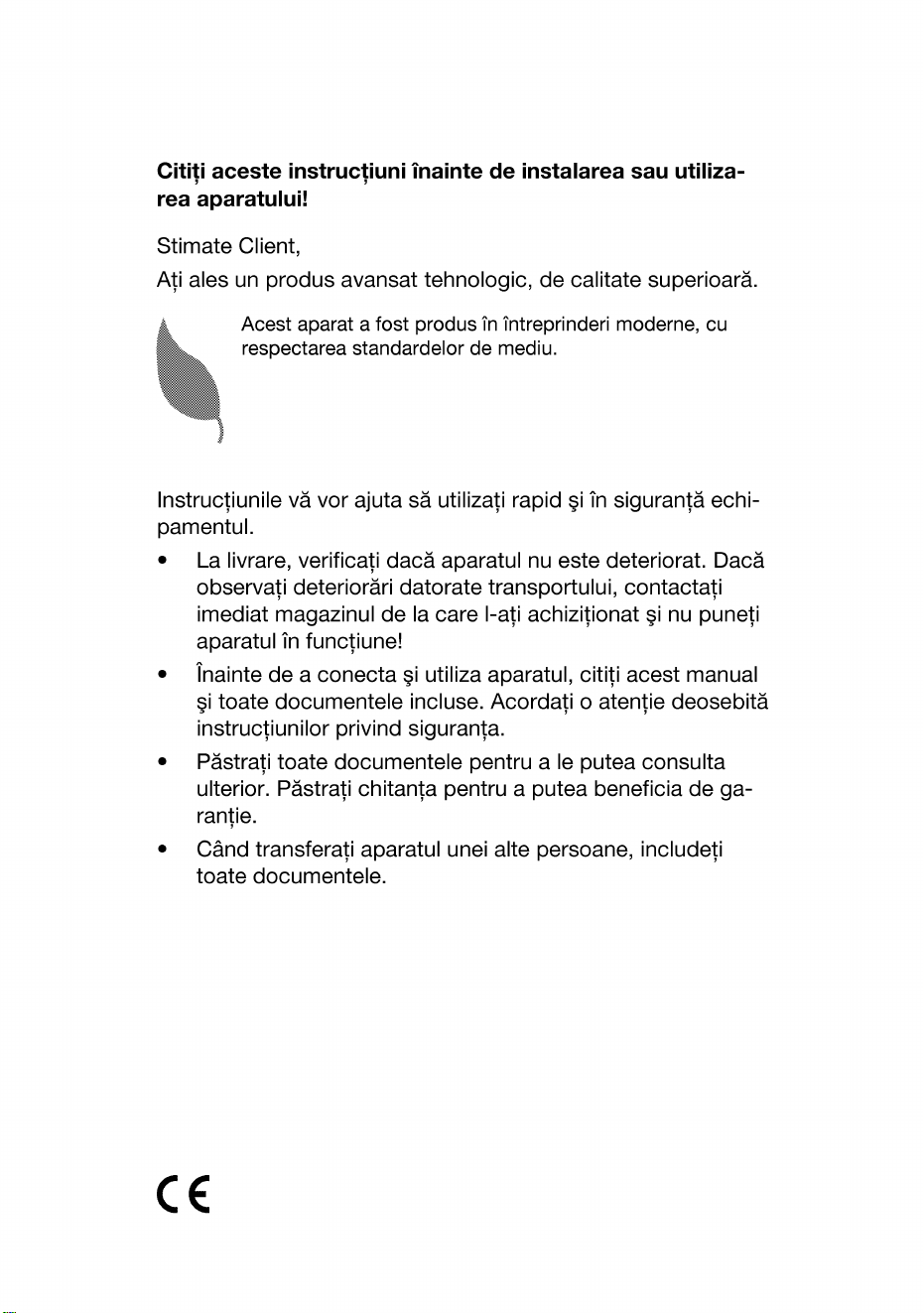

Citi!i aceste instructiuni mainte de instalarea sau utiliza-

rea aparatului!

Stimate Client,

Ati ales un produs avansat tehnologic, de calitate superioarä.

Acest aparat a fost produs in intreprinderi moderne, cu

respectarea standardelor de mediu.

Instructiunile Vä vor ajuta sä utilizati rapid in sigurantä echi-

pamentul.

•

La livrare, verificati dacä aparatul nu este deteriorat. Dacä

observati deterioräri datorate transportului, contactati

imediat magazinul de la care I-ati achizitionat nu puneti

aparatul in functiune!

inaintede a conecta utilizaaparatul,cititi acestmanual

toate documentele incluse. Acordati o atentie deosebitä

instructiunilor privind siguranta.

Pästrati toate documentele pentru a le putea consulta

ulterior. Pästrati chitanta pentru a putea beneficia de ga-

rantie.

Cånd transfera!i aparatul unei alte persoane, includeti

toate documentele.

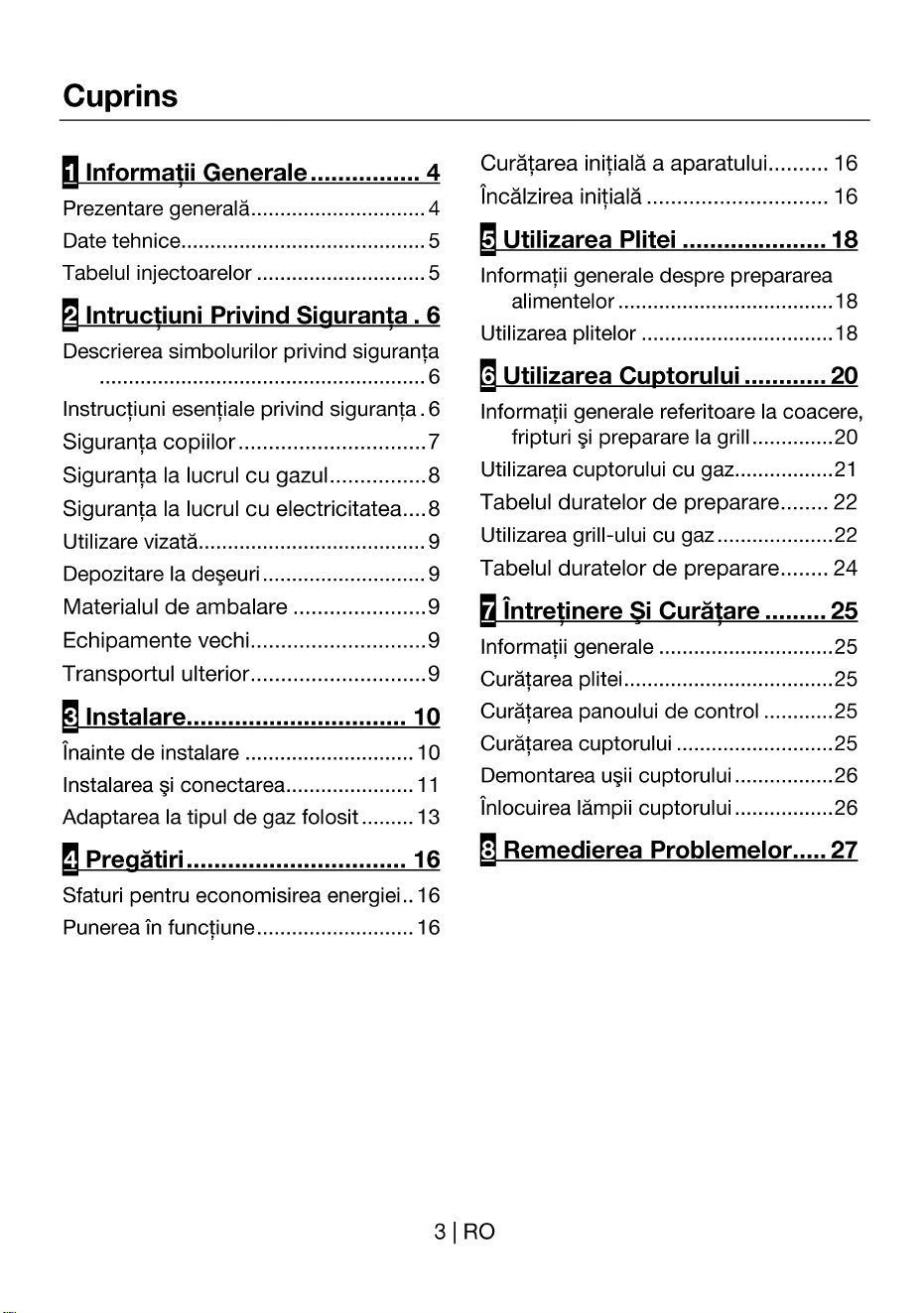

Cuprins

Informatii Generale.

Prezentare generalä..............................4

Date tehnice...................... .

Tabelul injectoarelor 5

Intruc!iuni Privind Siguranta . 6

......18

........25

...........25

... .......26

Descrierea simbolurilor privind siguranta

Instructiuni esen!iale privind siguranta. 6

Siguranta copiilor...............................7

Siguranta la lucrul cu gazul................8

Siguranta la lucrul cu electricitatea...

Utilizare vizatä.......................................9

Depozitare la de9eurl. ...... .....

Materialul de ambalare — .....9

Echipamente vechi.............................9

Transportul ulterior............................

Instalare........ .. 10

inainte de instalare —

Instalarea conectarea...................... 1 1

Adaptarea la tipul de gaz folosit......... 13

Pregätiri................................ 16

Sfaturi pentru economisirea energiei

.16

Punerea in functiune........................... 16

Curätarea initialä a aparatului.......... 16

incälzireainitialä.........................

.16

Utilizarea Plitei 18

Informatii generale despre prepararea

alimentelor ..... ............................ . ...18

Utilizarea plitelor .

Utilizarea Cuptorului ..... ....... 20

Informatii generale referitoare la coacere,

fripturi preparare la grill ..............20

Utilizarea cuptorului cu gaz.................21

Tabelul duratelor de preparare........ 22

Utilizarea grill-ului cu gaz ....................22

Tabelul duratelor de preparare........ 24

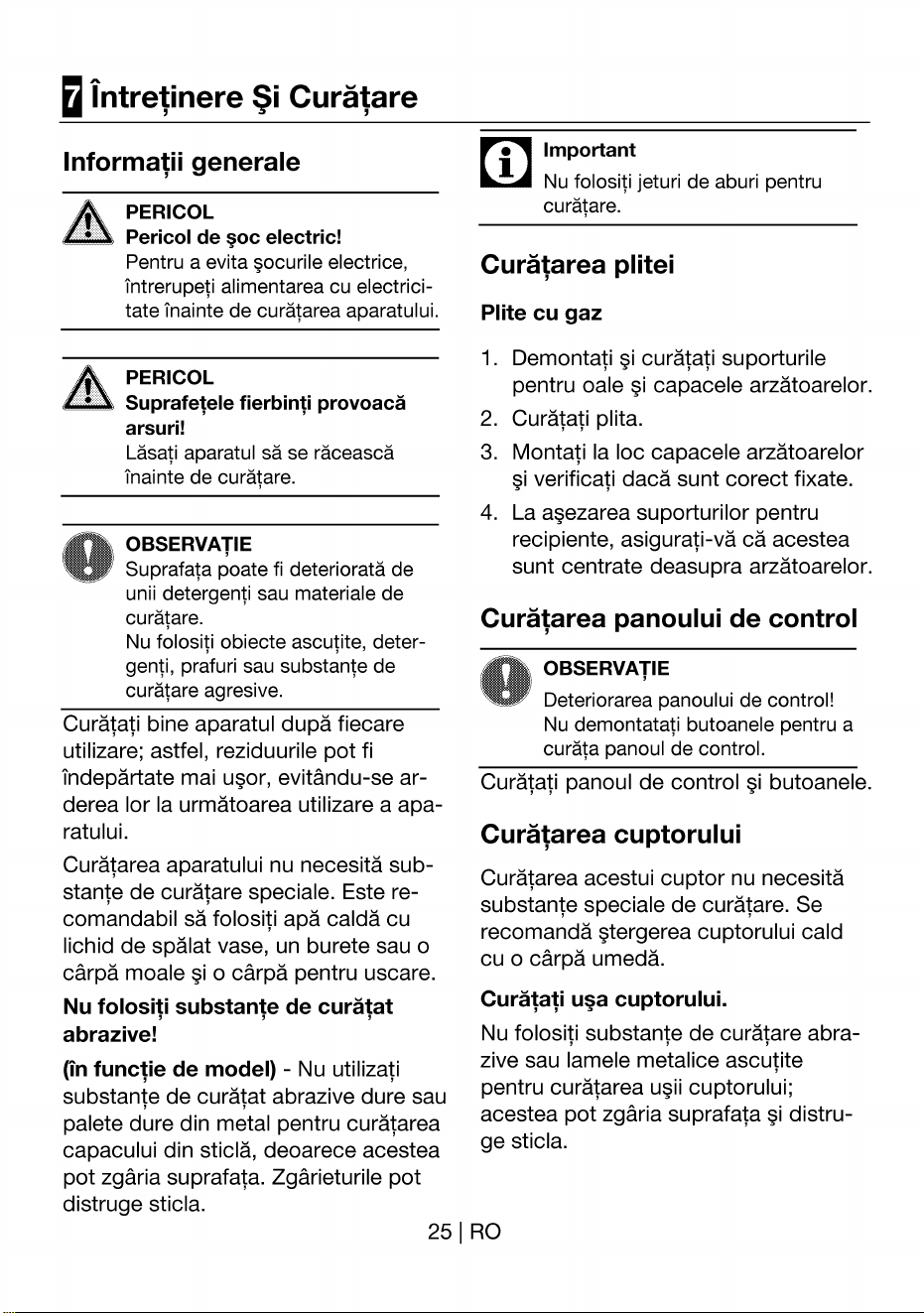

intre!inere$i Curä!are.........25

Informa!ii generale

Curä!area plitei

Curätarea panoului de control ............25

Curätarea cuptorului ...........................25

Demontarea u$i cuptorului .................26

inlocuirealämpiicuptorului..... ..

@RemediereaProblemelor.....27

31 RO

Informatii Generale

Prezentare generalä

Capac superior

Panou de control

I-J#äfrontalä

Mäner

Buton cuptor

41 RO

Tavä

Raft grilä

Placä arzätor

Scut termic

5 6 7

Arzätor normal Stänga spate

Arzätor normal Stänga fatä

Arzätor rapidr Dreapta fatä

Arzätor auxiliar Dreapta spate

Buton lampä rotisor

Buton aprindere

Date tehnice

GENERAL

Dimensiuni exterioare (inälti-

me/lätime/adäncime)

Tensiune/frecventä

Sigurantä fuzibilä

Tip cablu / sectiune transversalä

Lungime cablu

Categorie aparat cu gaz

Tip/presiune az

Consum total de gaz

Conversie tip/presiune gaz

—optional

PLITA

Arzätoare

Stänga spate

t ere

Stänga fatä

Putere

Dreapta fatä

t ere

Dreapta spate

Putere

CUPTOR/GRILL

Cuptor principal

Iluminare interioarä

Consum energie grill

Tabelul injectoarelor

850 mm/500 mm/600 mm

220-240 V 50 Hz

min. IOA

H05VV-FG 3 x 0,75 mm

max. 2

112H3B/P

NG G 20/20 mbar

10.4 kW

LPG G 30/28-30 mbar

Propane 31/37 mbar

Arzätor normal

2000 w

Arzätor normal

2000W

Arzätor rapidr

2900 w

Arzätor auxiliar

Cuptor cu gaz

15-25W

2,OkW

Pozi ie zonä plitä

Tip gaz / Presiu-

ne gaz

G 20/20 mbar

G 30/28-30 mbar

G 31/ 37 mbar

2000 w

Stånga spate

103

2000W

Stånga fatä

103

2900 w

Dreapta falä

115

GRILL

104

1000 w

Dreapta spate

Tip gaz / Presiune gaz

G 20/20 mbar

G 30/28-30 mbar

G 31/ 37 mbar

Cuptor cu gaz

119

51 RO

Intruc!iuni Privind Siguran!a

Descrierea simbolurilor pri-

vind siguran!a

in acest manual sunt folosite urmätoa-

rele tipuri de instructiuni informatii

privind siguranta. Acestea pot fi dife-

rentiate prin intermediul simbolului

expresiei de la inceput.

PERICOL

Pericol mare de vätämäri corpo-

rale.

Nerespectarea poate provoca

vätämäri grave sau moartea.

ATENTIE

Pericol de vätämäri corporale.

Nerespectarea poate provoca

vätämäri minore sau medii.

OBSERVATIE

Pericol de pagube materiale.

Nerespectarea poate provoca

deteriorarea aparatului sau a altor

obiecte.

Important

Sfat pentru utilizator.

Informatii utile referitoare la utiliza-

rea aparatului. Nu contine infor-

matii referitoare la vätämäri corpo-

rale.

Instructiuni esen!iale privind

siguranta

• Producätorul isi rezervä dreptul de

a modifica färä preaviz specificatii-

le tehnice tn scopul imbunätätirii

calitätii produsului. Ilustratiile din

•

acest manual ar doar rol descriptiv,

fiind posibil sä nu fie identice cu

produsul dvs. Valorile declarate in

inscriptiile de pe aparat sau in alte

documente tipärite sunt obtinute in

laborator, conform standardelor in

vigoare. Acest valori pot sä varieze

Tnfunctie de utilizarea produsului

de conditiile ambientale.

Acest aparat nu este destinat uti-

lizärii de cätre persoane (inclusiv

copii) cu deficiente fizice, senzoria-

le sau mintale, sau care nu au ex-

perienta cuno#tintele necesare,

cu exceptia cazului in care sunt

supravegheate sau instruite cu pri-

vire la utilizarea aparatului de cätre

o persoanä responsabilä de sigu-

ranta acestora.

Supravegheati copiii pentru a nu

se juca cu aparatul.

Aveti la dispozitie un sistem supli-

mentar de protectie impotriva atin-

gerii u*ii cuptorului. Aceastä piesä

trebuie montatä cand in apropierea

cuptorului se aflä copii mici.

A nu se folosi cand abilitätile men-

tale sau de coordonare sunt afec-

tate de alcool / sau medicamen-

te.

Nu folositi aparatul dacä este de-

fect sau are deterioräri vizibile.

Nu efectuati reparatii sau modificä-

ri ale aparatului. Puteti totu9i re-

media anumite defectiuni; vezi

Remedierea Problemelor,

pagina 27.

61 RO

•

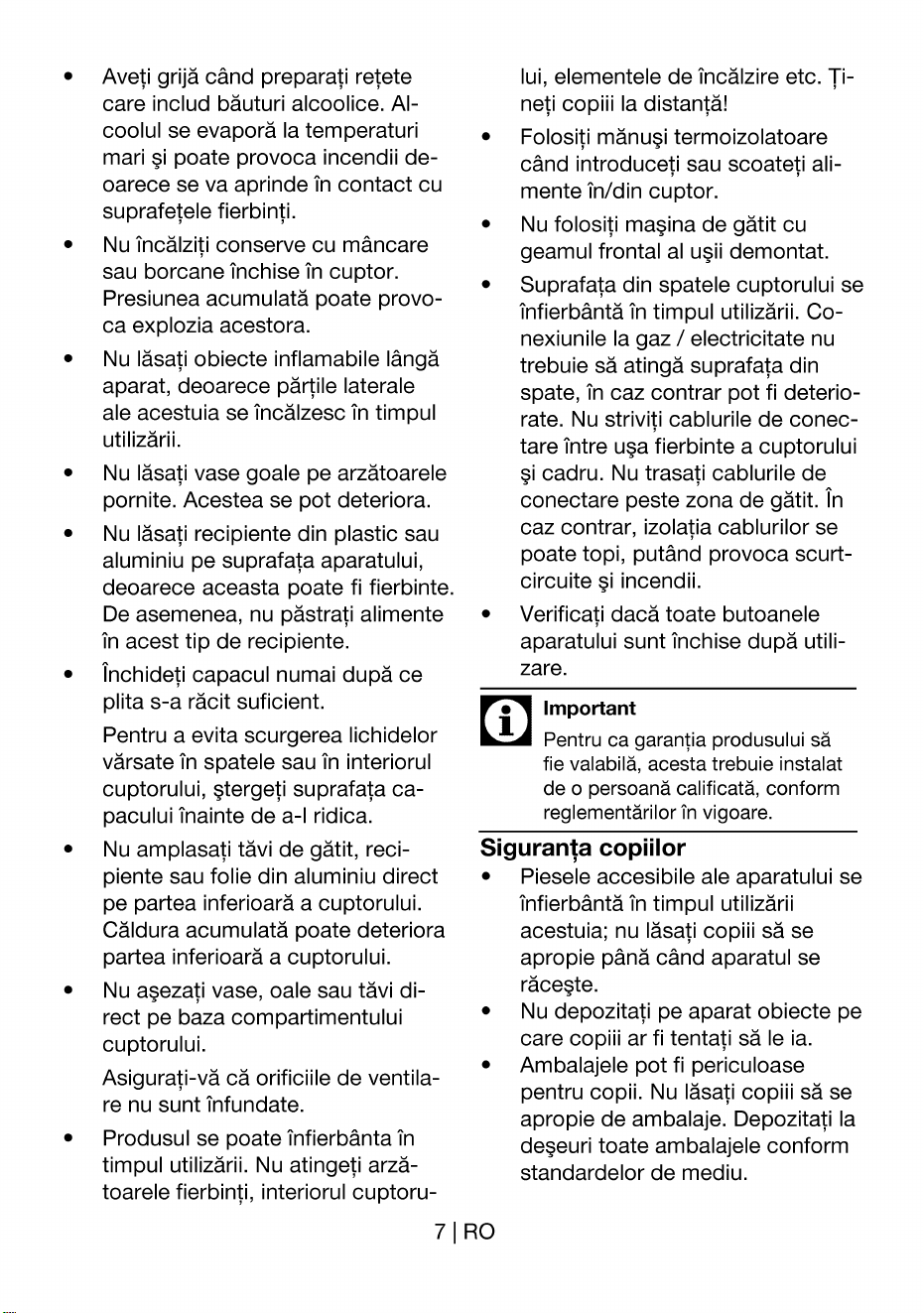

Aveti grijä cand preparati retete

care includ bäuturi alcoolice. Al-

coolul se evaporä la temperaturi

mari poate provoca incendii de-

oarece se va aprinde in contact cu

suprafetele fierbinti.

Nu incälziti conserve cu måncare

sau borcane inchise tn cuptor.

Presiunea acumulatä poate provo-

ca explozia acestora.

Nu läsati obiecte inflamabile långä

aparat, deoarece pärtile laterale

ale acestuia se incälzesc Tntimpul

utilizärii.

Nu läsati vase goale pe arzätoarele

pornite. Acestea se pot deteriora.

Nu läsati recipiente din plastic sau

aluminiu pe suprafata aparatului,

deoarece aceasta poate fi fierbinte.

De asemenea, nu pästrati alimente

in acest tip de recipiente.

inchideticapaculnumaidupäce

plita s-a räcit suficient.

Pentru a evita scurgerea lichidelor

värsate in spatele sau in interiorul

cuptorului, *tergeti suprafata ca-

pacului inainte de a-I ridica.

Nu amplasati tävi de gätit, reci-

piente sau folie din aluminiu direct

pe partea inferioarä a cuptorului.

Cäldura acumulatä poate deteriora

partea inferioarä a cuptorului.

Nu asezati vase, oale sau tävi di-

rect pe baza compartimentului

cuptorului.

Asigurati-vä cä orificiile de ventila-

re nu sunt infundate.

Produsul se poate tnfierbånta tn

timpul utilizärii. Nu atingeti arzä-

toarele fierbinti, interiorul cuptoru-

lui, elementele de incälzire etc. Ti-

neti copiii la distantä!

Folositi mänu$ termoizolatoare

cand introduceti sau scoateti ali-

mente tn/din cuptor.

Nu folositi masina de gätit cu

geamul frontal al L19iidemontat.

Suprafata din spatele cuptorului se

infierbäntä Tntimpul utilizärii. Co-

nexiunile la gaz / electricitate nu

trebuie sä atingä suprafata din

spate, in caz contrar pot fi deterio-

rate. Nu striviti cablurile de conec-

tare intre uea fierbinte a cuptorului

cadru. Nu trasati cablurile de

conectarepestezonade gätit.tn

caz contrar, izolatia cablurilor se

poate topi, putänd provoca scurt-

circuite incendii.

Verificati dacä toate butoanele

aparatului sunt inchise dupä utili-

zare.

Important

Pentru ca garantia produsului sä

fie valabilä, acesta trebuie instalat

de o persoanä calificatä, conform

reglementärilor in vigoare.

Siguran!a copiilor

•

Piesele accesibile ale aparatului se

infierbäntä in timpul utilizärii

acestuia; nu läsati copiii sä se

apropie pänä cand aparatul se

räce9te.

Nu depozitati pe aparat obiecte pe

care copiii ar fi tentati sä le ia.

Ambalajele pot fi periculoase

pentru copii. Nu läsati copiii sä se

apropie de ambalaje. Depozitati la

depuri toate ambalajele conform

standardelor de mediu.

71 RO

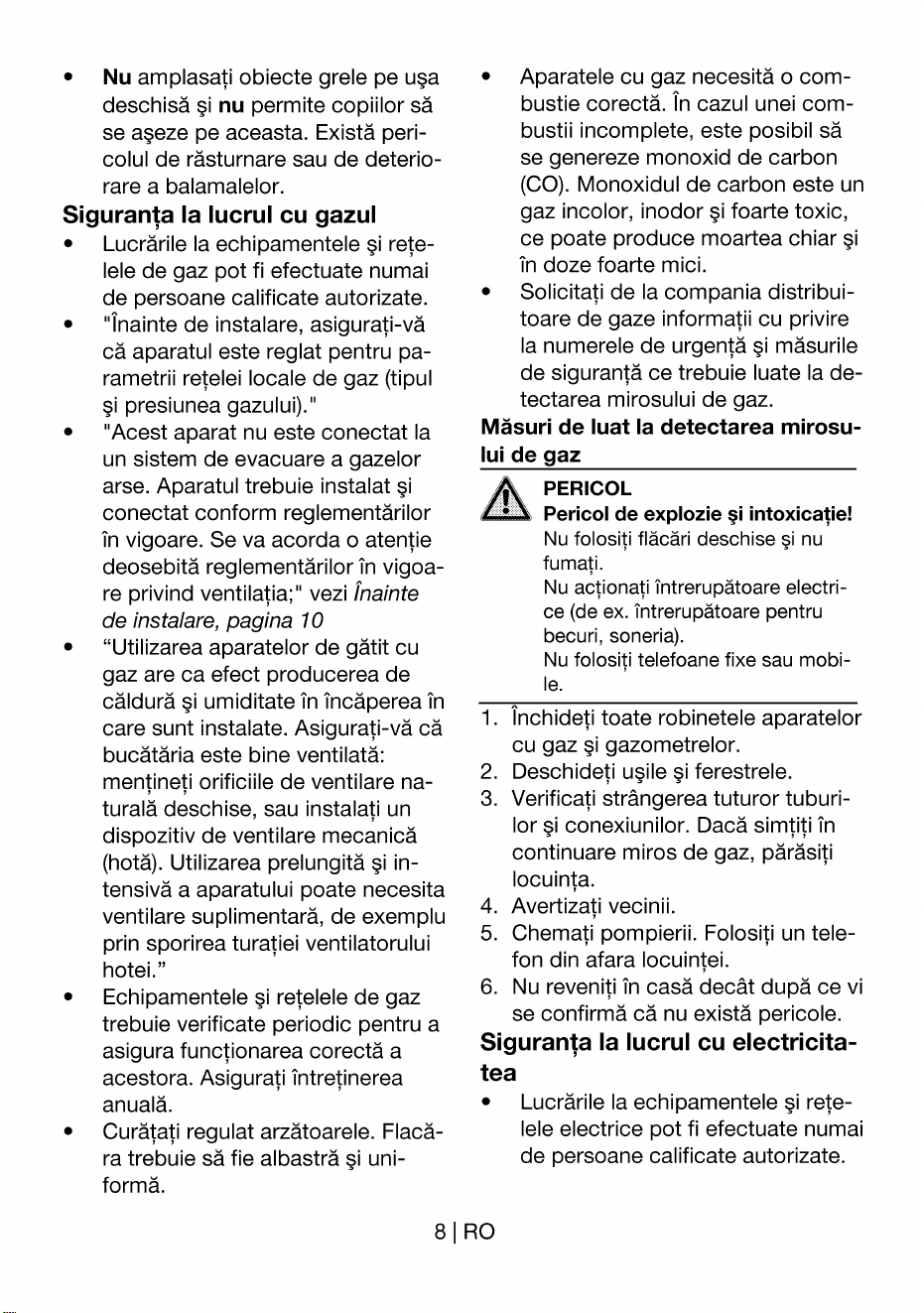

Nu amplasati obiecte grele pe usa

deschisä nu permite copiilor sä

se aseze pe aceasta. Existä peri-

colul de rästurnare sau de deterio-

rare a balamalelor.

Siguran!a la lucrul cu gazul

Aparatele cu gaz necesitä o com-

bustie corectä. in cazul unei com-

bustii incomplete, este posibil sä

se genereze monoxid de carbon

(CO). Monoxidul de carbon este un

gaz incolor, inodor foarte toxic,

ce poate produce moartea chiar

in doze foarte mici.

Solicitati de la compania distribui-

toare de gaze informatii cu privire

la numerele de urgentä mäsurile

de sigurantä ce trebuie luate la de-

tectarea mirosului de gaz.

Mäsuri de luat Ia detectarea mirosu-

lui de gaz

PERICOL

• Pericol de explozie intoxicatie!

•

Lucrärile la echipamentele rete-

lele de gaz pot fi efectuate numai

de persoane calificate autorizate.

"fnaintede instalare,asigurati-vä

cä aparatul este reglat pentru pa-

rametrii retelei locale de gaz (tipul

presiunea gazului)."

"Acest aparat nu este conectat la

un sistem de evacuare a gazelor

arse. Aparatul trebuie instalat

conectat conform reglementärilor

in vigoare. Se va acorda o atentie

deosebitä reglementärilor Tnvigoa-

re privindventilatia;"veziinainte

de instalare, pagina 10

"Utilizarea aparatelor de gätit cu

gaz are ca efect producerea de

cäldurä umiditate in incäperea in

care sunt instalate. Asigurati-vä cä

bucätäria este bine ventilatä:

mentineti orificiile de ventilare na-

turalä deschise, sau instalati un

dispozitiv de ventilare mecanicä

(hotä). Utilizarea prelungitä in-

tensivä a aparatului poate necesita

ventilare suplimentarä, de exemplu

prin sporirea turatiei ventilatorului

hotei. "

Echipamentele retelele de gaz

trebuie verificate periodic pentru a

asigura functionarea corectä a

acestora. Asigurati intretinerea

anualä.

Curätati regulat arzätoarele. Flacä-

ra trebuie sä fie albasträ uni-

formä.

Nu folositi fläcäri deschise nu

fumati.

Nu actionati intrerupätoare electri-

ce (de ex. intrerupätoare pentru

becuri, soneria).

Nu folositi telefoane fixe sau mobi-

inchidetitoate robineteleaparatelor

cu gaz gazometrelor.

Deschideti u*ile ferestrele.

Verificati strängerea tuturor tuburi-

lor conexiunilor. Dacä simtiti in

continuare miros de gaz, päräsiti

locuinta.

Avertizati vecinii.

Chemati pompierii. Folositi un tele-

fon din afara locuintei.

Nu reveniti in casä decåt dupä ce vi

se confirmä cä nu existä pericole.

Siguran!a Ia lucrul cu electricita-

tea

• Lucrärile la echipamentele rete-

lele electrice pot fi efectuate numai

de persoane calificate autorizate.

81 RO

In cazul unor defectiuni, opri!i apa-

ratul deconectati-l de la reteaua

electricä.in acest scop,scoateti

siguranta.

Asigurati-vä cä amperajul sigu-

rantei corespunde amperajului

ma#inii de gätit.

Utilizare vizatä

Aparatul este destinat exclusiv uzului

casnic. Se interzice utilizarea comerci-

alä.

Acest produs nu trebuie folosit pentru

incälzirea incäperilor.

Producätorul nu este responsabil

pentru pagubele provocate de utiliza-

rea incorectä sau manipularea inco-

rectä.

Aparatul poate fi folosit pentru dezg-

hetarea, coacerea, präjirea prepara-

rea la grill a alimentelor.

Depozitare la depuri

Materialul de ambalare

A PERICOL

Pericol de sufocare datoritä

ambalajelor!

Nu läsati copiii sä se apropie de

ambalaje.

Ambalajul materialele de fixare la

transport sunt fabricate din materiale

care nu afecteazä mediul inconjurätor.

Depozitati la depuri toate ambalajele

conform standardelor de mediu. Astfel,

veti proteja mediul inconjurätor.

Echipamente vechi

Acest produs este inscriptionat cu

simbolul de colectare selectivä a

deseurilor electronice (WEEE). Acesta

indicä faptul cä produsul trebuie depo-

zitat la deseuri conform Directivei eu-

ropene 2002/96/EC pentru a fi reciclat

sau dezasamblat, in scopul minimizärii

impactului asupra mediului. Pentru

informatii suplimentare, contactati

autoritätile locale sau regionale.

Produsele electronice care nu sunt

colectate selectiv pot fi periculoase

pentru mediu sänätate datoritä pre-

zentei substantelor toxice.

Transportul ulterior

OBSERVATIE

Nu a*ezati alte articole pe aparat.

Aparatul trebuie transportat in

pozitie verticalä.

Pästrati cutia originalä a aparatului

transportati-l in aceasta. Respectati

instructiunile indicate pe cutie.

• Important

Verificati aspectul aparatul pentru a

identifica eventualele deterioräri

survenite tn timpul transportului.

Asigurati capacele arzätoarelor su-

porturile pentru recipiente cu bandä

adezivä.

Pentru a preveni deteriorarea usii cup-

torului de cätre grilajul tava din inte-

rior, asezati o bandä de carton in inte-

riorul usii cuptorului, in dreptul tävilor.

Lipiti cu bandä adezivä Ll#acuptorului

de peretii laterali.

Dacä nu mai aveti cutia originalä

impachetatiaparatulin ambalajde

plastic cu bule de aer sau in carton

gros fixati-l bine cu bandä adezivä

pentru a preveni deteriorarea acestuia

pe durata transportului.

91 RO

Instalare

inainte de instalare

Pentru a asigura circulatia aerului prin

orificiile de ventilare de sub produs,

recomandäm instalarea produsului pe

o suprafatä durä, astfel incåt picioarele

sä nu se afunde in covor sau in alte

suprafete moi.

Podeaua bucätäriei trebuie sä poatä

sustine greutatea aparatului, a reci-

pientelor a alimentelor; vezi Date

tehnice, pagina 5.

Hood

E 65 mmmin

5 mm min

•

Aparatul poate fi instalat färä

obiecte de mobilier in jur. Pästrati

o distantä minimä de 750mm intre

suprafata plitei obiectele de

deasupra acesteia.

Dacä urmeazä sä montati o hotä,

respectati instructiunile producäto-

rului acesteia cu privire la tnältimea

de montare.

in cazul modelelor cu care se

deschid in lateral, recomandäm

mentinerea unui spatiu lateral de

60 mm intre masina de gätit

eventualii pereti laterali, pentru a

permite deschiderea completä a

usii.

Aparatul este destinat instalärii in

mobilierul de bucätärie disponibil

in comert.

Aparatul se tncadreazä in clasa 1,

putänd fi amplasat cu spatele o

laturä lipite de peretii bucätäriei,

mobilier de bucätärie sau echipa-

mente de orice dimensiune. Mobi-

lierul de bucätärie sau echipamen-

tul de pe cealaltä laturä nu poate

fi mai mare decåt aparatul.

Mobilierul de bucätärie de längä

aparat trebuie sä fie rezistent la

cäldurä (minim 100 oc).

intre aparat pereti/mobilierulde

bucätärie trebuie pästratä o distantä

de sigurantä. Vezi figura (valori date Tn

mm).

• Puteti amplasa corpuri de mobilä

pe ambele pärti ale aparatului, cu

conditia mentinerii unei distante de

400mm fatä de obiectele de dea-

supra de 65mm fatä de obiecte-

le din lateral.

Ventilarea camerei

Aerul din tncäpere este folosit pentru

alimentarea arderii, iar gazele rezultate

in urma arderii sunt emise direct in

incäpere.

Ventilarea corectä a camerei este

esen!ialä pentru utilizarea in sigurantä

a aparatului. Dacä nu existä ferestre

10 | RO

sau pentru ventilarea camerei, tre-

buie sä creati un orificiu de ventilare.

Dimensiunea

incäperii

sub 5 m

5m -10m

peste 10 m

Orificiu de venti-

lare

min. 100 cm

min. 50 cm

nu este necesar

La subsol / demisol min. 65 cm

Instalarea conectarea

Important

Nu instalati aparatul längä frigidere

sau congelatoare. Cäldura emisä

de aparat va spori consumul de

electricitate al echipamentelor de

räcire.

Aparatul trebuie instalat conec-

tat conform regulilor de instalare in

vigoare.

Aparatul trebuie transportat de cel

putin douä persoane.

OBSERVATIE

Pagube materiale!

Mänerul u*ii nu trebuie folosit

pentru ridicarea sau mutarea apa-

ratului.

Conectarea la re!eaua de gaz

PERICOL

Pericol de explozie sau intoxi-

calie in cazul instalärii efectuate

de persoane necalificate.

Aparatul poate fi conectat la

reteaua de distributie a gazului

numai de o persoanä calificatä

autorizatä.

PERICOL

Pericol de explozie!

tnainte de a tncepe lucrärilela

instalatia de gaz, opriti alimentarea

cu gaz.

•

Presiunea tipul gazului din

reteaua localä trebuie sä co-

respundä presiunii tipului gazului

specificate pe pläcuta de identifi-

care sau pe eticheta care indicä ti-

pul gazului de pe aparat.

OBSERVATIE

Ma#ina dvs. de gätit este reglatä

pentru gaze naturale.

Instalatia de gaze naturale trebuie

reglatä mainte de instalarea apara-

tului.

Dacä este cazul, schimbati furtunul

ascutit din spatele cuptorului se-

lectånd solutia adecvatä in functie

de amplasarea robinetului de gaze

Aparatul trebuie amplasat direct pe

podea. Nu trebuie amplasat pe un

soclu sau piedestal.

11 IRO

naturale.

Dop

Duzä furtun

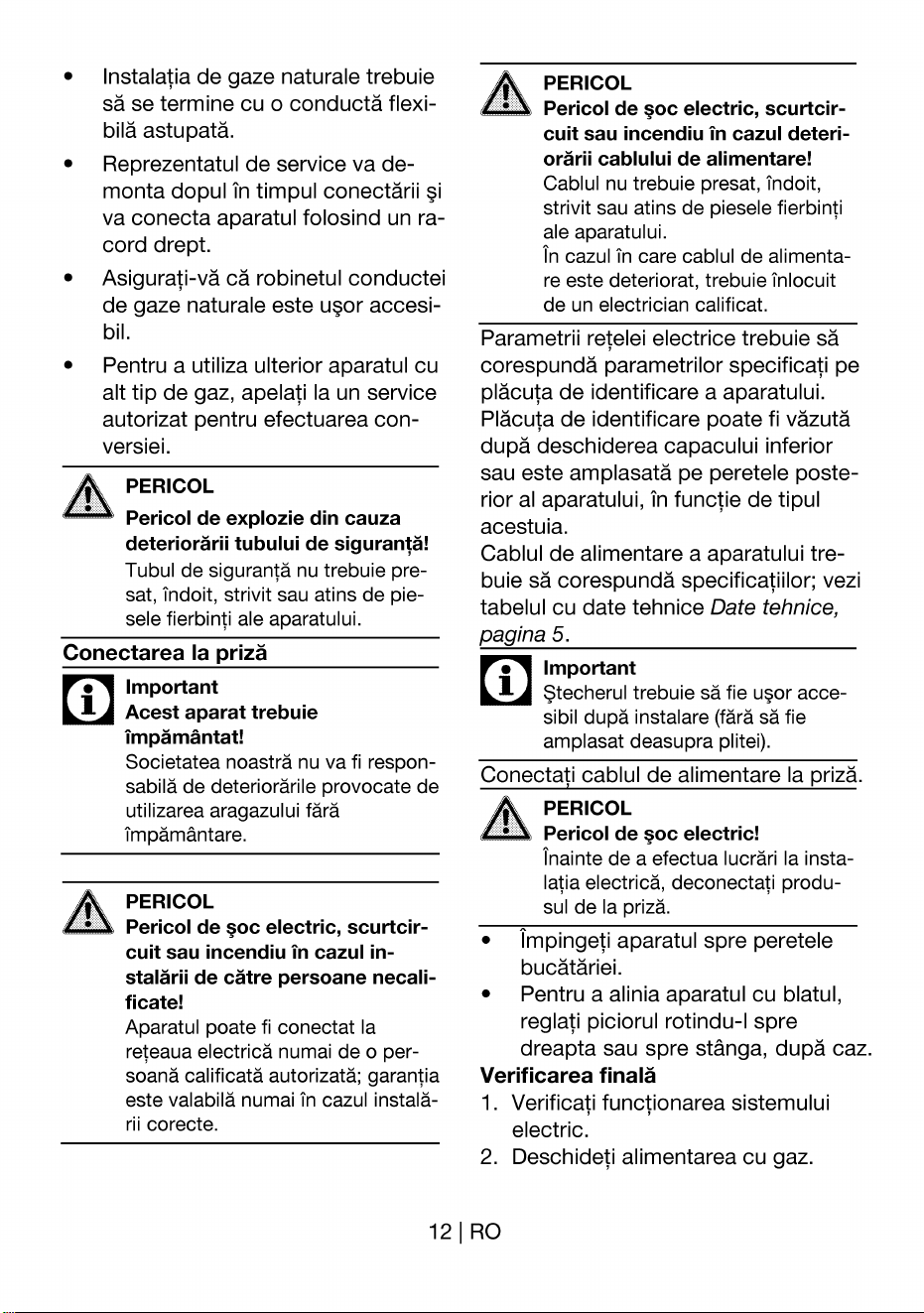

Instalatia de gaze naturale trebuie

sä se termine cu o conductä flexi-

bilä astupatä.

Reprezentatul de service va de-

monta dopul in timpul conectärii

va conecta aparatul folosind un ra-

cord drept.

Asigurati-vä cä robinetul conductei

de gaze naturale este usor accesi-

bil.

Pentru a utiliza ulterior aparatul cu

alt tip de gaz, apelati la un service

autorizat pentru efectuarea con-

versiei.

PERICOL

Pericol de explozie din cauza

deteriorärii tubului de siguran!ä!

Tubul de sigurantä nu trebuie pre-

sat, indoit, strivit sau atins de pie-

sele fierbinti ale aparatului.

Conectarea la prizä

Important

Acest aparat trebuie

impämåntat!

Societatea noasträ nu va fi respon-

sabilä de deteriorärile provocate de

utilizarea aragazului färä

impämäntare.

PERICOL

Pericol de eoc electric, scurtcir-

cuit sau incendiu tn cazul in-

stalärii de cätre persoane necali-

ficate!

Aparatul poate fi conectat Ia

reteaua electricä numai de o per-

soanä calificatä autorizatä; garantia

este valabilä numai Tn cazul instalä-

rii corecte.

PERICOL

Pericol de electric, scurtcir-

cuit sau incendiu in cazul deteri-

orärii cablului de alimentare!

Cablul nu trebuie presat, indoit,

strivit sau atins de piesele fierbinti

ale aparatului.

Tncazul in care cablul de alimenta-

re este deteriorat, trebuie inlocuit

de un electrician calificat.

Parametrii retelei electrice trebuie sä

corespundä parametrilor specificati pe

pläcuta de identificare a aparatului.

Pläcuta de identificare poate fi väzutä

dupä deschiderea capacului inferior

sau este amplasatä pe peretele poste-

rior al aparatului, tn functie de tipul

acestuia.

Cablul de alimentare a aparatului tre-

buie sä corespundä specificatiilor; vezi

tabelul cu date tehnice Date tehnice,

pagina 5.

Important

$techerul trebuie sä fie acce-

sibil dupä instalare (färä sä fie

amplasat deasupra plitei).

Conectati cablul de alimentare la prizä.

PERICOL

L.ÅS Pericol de electric!

inainte de a efectua lucräri Ia insta-

latia electricä, deconectati produ-

sul de la prizä.

impinge!iaparatulspre peretele

bucätäriei.

Pentru a alinia aparatul cu blatul,

reglati piciorul rotindu-l spre

dreapta sau spre stänga, dupä caz.

Verificarea finalä

1. Verificati functionarea sistemului

electric.

2. Deschideti alimentarea cu gaz.

12 | RO

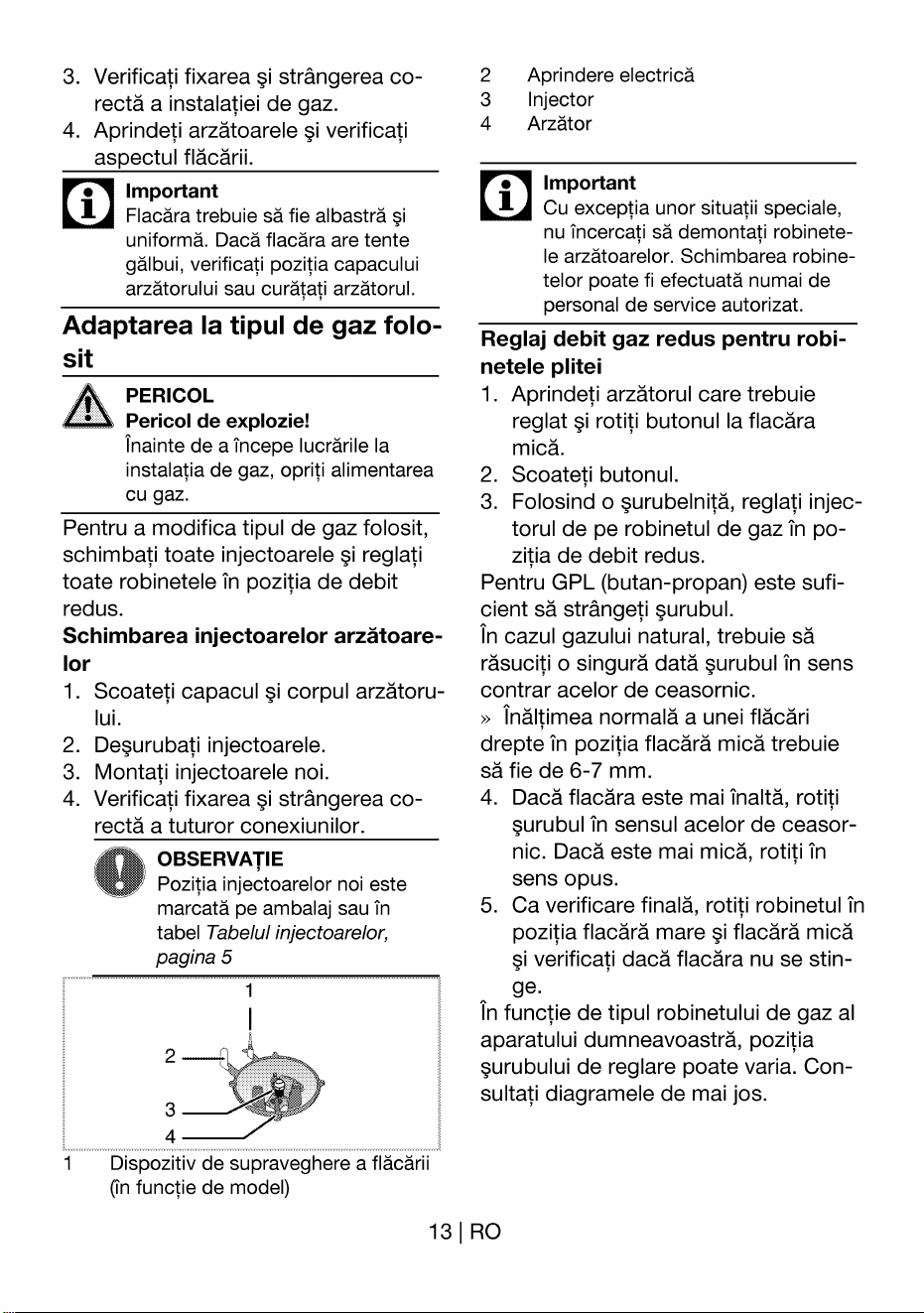

Verificati fixarea strångerea co-

rectä a instalatiei de gaz.

Aprindeti arzätoarele verificati

aspectul fläcärii.

Important

Flacära trebuie sä fie albasträ

uniformä. Dacä flacära are tente

gälbui, verificati pozi!ia capacului

arzätorului sau curätati arzätorul.

Adaptarea la tipul de gaz folo-

sit

PERICOL

Pericol de explozie!

tnaintede a incepe lucrärile Ia

instalatia de gaz, opriti alimentarea

cu gaz.

Pentru a modifica tipul de gaz folosit,

schimbati toate injectoarele reglati

toate robinetele Tnpozitia de debit

redus.

Schimbarea injectoarelor arzätoare-

lor

Aprindere electricä

Injector

Arzätor

Important

Cu exceptia unor situatii speciale,

nu tncerca!i sä demontati robinete-

Ie arzätoarelor. Schimbarea robine-

telor poate fi efectuatä numai de

personal de service autorizat.

Reglaj debit gaz redus pentru robi-

netele plitei

Aprindeti arzätorul care trebuie

reglat roti!i butonul la flacära

micä.

Scoateti butonul.

Folosind o *urubelnitä, reglati injec-

torul de pe robinetul de gaz Tn po-

zitia de debit redus.

Scoateti capacul corpul arzätoru-

lui.

D#urubati injectoarele.

Montati injectoarele noi.

Verificati fixarea strångerea co-

rectä a tuturor conexiunilor.

OBSERVATIE

Pozitia injectoarelor noi este

marcatä pe ambalaj sau Tn

tabel Tabelul injectoarelor,

pagina 5

Dispozitiv de supraveghere a fläcärii

(tn functie de model)

Pentru GPL (butan-propan) este sufi-

cient sä strångeti *urubul.

in cazul gazului natural, trebuie sä

räsuciti o singurä datä *urubul in sens

contrar acelor de ceasornic.

» lnältimea normalä a unei fläcäri

drepte in pozitia flacärä micä trebuie

sä fie de 6-7 mm.

Dacä flacära este mai inaltä, rotiti

*urubul in sensul acelor de ceasor-

nic. Dacä este mai micä, rotiti in

sens opus.

Ca verificare finalä, rotiti robinetul Tn

pozitia flacärä mare flacärä micä

verificati dacä flacära nu se stin-

ge.

in functiede tipul robinetuluide gazal

aparatului dumneavoasträ, pozitia

surubului de reglare poate varia. Con-

sulta!i diagramele de mai jos.

13 | RO

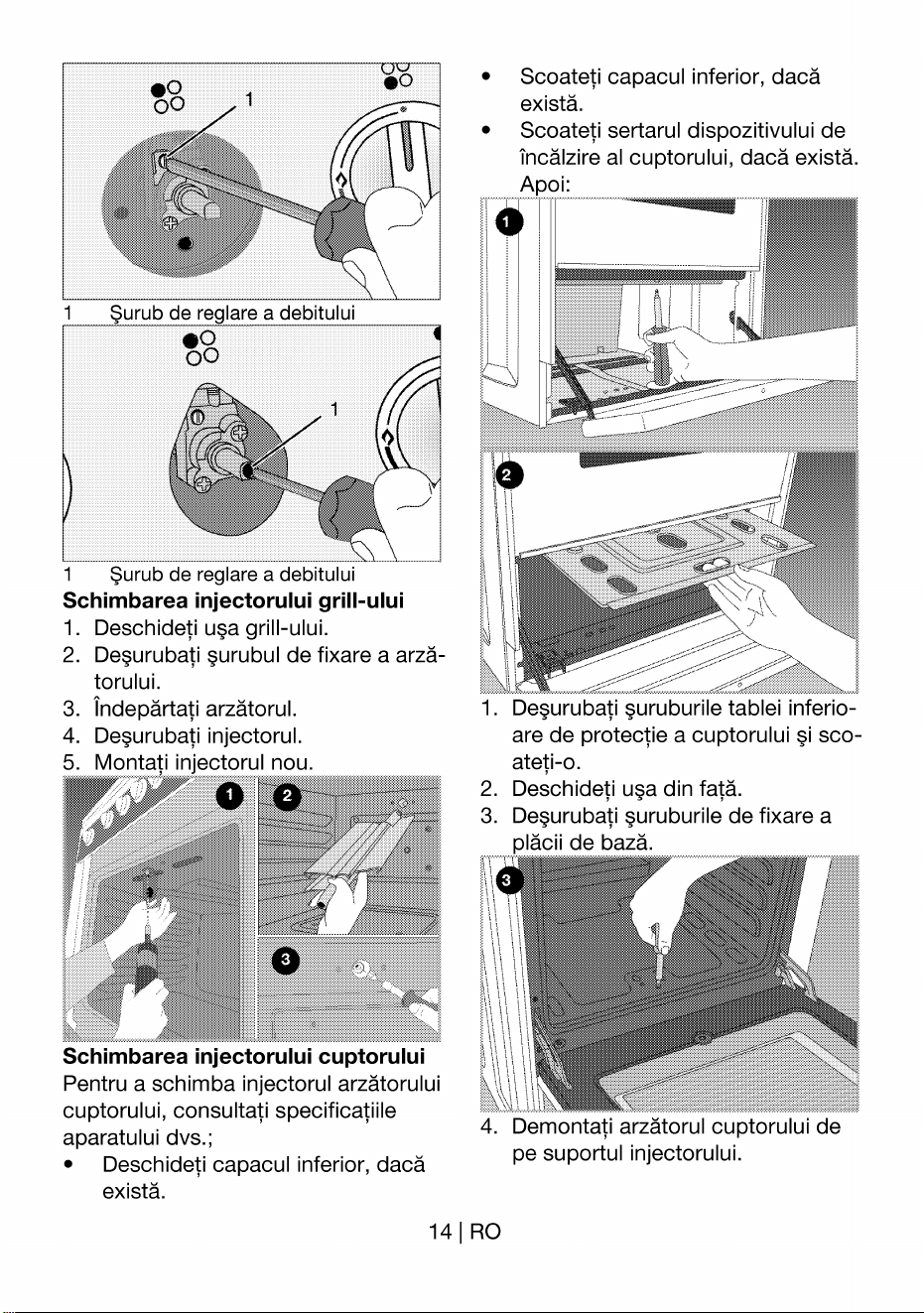

•o

$urub de reglare a debitului

•o

$urub de reglare a debitului

Schimbarea injectorului grill-ului

Deschideti L19agrill-ului.

Desurubati surubul de fixare a arzä-

torului.

indepärtatiarzätorul.

Desurubati injectorul.

Montati injectorul nou.

Scoateti capacul inferior, dacä

existä.

Scoateti sertarul dispozitivului de

tncälzire al cuptorului, dacä existä.

Apoi:

Desurubati *uruburile tablei inferio-

are de protectie a cuptorului sco-

ateti-o.

Deschideti up din fatä.

Desurubati *uruburile de fixare a

pläcii de bazä.

Schimbarea injectorului cuptorului

Pentru a schimba injectorul arzätorului

cuptorului, consultati specifica!iile

aparatului dvs.;

• Deschideti capacul inferior, dacä

existä.

4. Demontati arzätorul cuptorului de

pe suportul injectorului.

14 | RO

Reglati *urubul 1 de pe robinetul

cuptorului astfel tncät flacära sä

aibä o tnältime de 2-3mm. Rotiti

rubul in sensul acelor de ceasornic

pentru a reduce flacära, sau Tnsens

contrar acelor de ceasornic pentru

a märi flacära.

Important

Dacä temperatura cuptorului cres-

te nejustificat, opriti cuptorul

apelati la un service autorizat

pentru a repara termostatul cupto-

5. Desurubati injectorul.

6. Montati injectorul nou.

Reglarea debitului redus pentru cup-

torul cu gaz

Verificarea periodicä a reglajului este

extrem de importantä pentru functio-

narea corespunzätoare a cuptorului.

Pentru sigurantä maximä, instructiunile

din acest manual trebuie urmate cu

atentie.

rului.

Butan/ propan

Strängeti *urubul

pänä la capät

Gaze naturale

Släbi i *urubul

cu o jumätate de

turä

Aprindeti arzätorul care trebuie

reglat rotiti butonul la flacära ma-

re.

inchideti cuptorului a*eptati

10 - 15 minute inainte de a efectua

reglajul.

Scoateti butonul.

Dupä 15 minute, rotiti butonul la

flacära micä.

15 | RO

OBSERVATIE

Dacä ati schimbat tipul gazului,

trebuie sä schimbati pläcuta de

identificare care indicä tipul gazului

folosit de aparat.

Pregätiri

Sfaturi pentru economisirea

energiei

Urmätoarele sfaturi Vä vor ajuta sä

protejati mediul inconjurätor sä eco-

nomisiti energie:

Punerea in functiune

Curä!area initialä a aparatului

•

Folositi recipiente de culoare

inchisä emailate, deoarece

transferul de cäldurä va fi mai efi-

cient.

La prepararea mäncärurilor, efec-

tuati preincälzirea dacä se speci-

ficä in manualul de utilizare sau in

retetä.

Nu deschide!i frecvent Ll#acupto-

rului Tntimpul preparärii.

Incercati sä preparati mai multe

mäncäruri simultan in cuptor (pu-

teti prepara simultan douä

mäncäruri diferite amplasänd reci-

pientele pe acela9i grilaj). Este re-

comandabil sä preparati mäncäru-

rile in succesiune. Astfel, nu va fi

necesar sä preincälziti din nou

cuptorul.

Decongelati alimentele mainte de a

le gäti.

Folositi recipient cu capace pentru

prepararea måncärurilor. Dacä nu

folositi capace, consumul de cu-

rent poate spori de pånä la patru

ori.

Folositi arzätorul de dimensiune

adecvatä bazei recipientului. Folo-

siti recipiente adaptate la manca-

rea preparatä. Recipientele mai

mari necesitä mai multä energie.

OBSERVATIE

Suprafata poate fi deterioratä de

unii detergenti sau materiale de

curätare.

Nu folositi obiecte ascutite, deter-

genti, prafuri sau substante de

curätare agresive.

indepärtatitoate ambalajele.

$tergeti suprafetele aparatului cu o

cårpä umedä sau cu un burete

umed, apoi uscati-le cu o cärpä.

incälzirea initialä

AVERTISMENT

Suprafe!ele fierbin!i provoacä

arsuri!

Nu atingeti suprafetele fierbinti ale

aparatului. Nu läsati copiii sä se

apropie de aparat; folosi!i mänu$

pentru cuptor.

Läsati aparatul sä se räceascä

mainte de a deta#a protectia ter-

micä.

Important

Este posibil ca Tntimpul primei

tncälziri sä se emitä mirosuri

fum. Asigurati o ventilare adecvatä.

eventualele reziduuri datorate pro-

ductiei sau straturi de protectie.

incälzitiaparatultimp de circa 30 de

minute, apoi opriti-l.

16 | RO

Cuptor cu gaz

1. Scoateti toate tävile grilajele din

cuptor.

2. tnchidetiL19acuptorului.

3. Selectati flacära maximä tn cuptor;

vezi Utilizarea cuptorului cu gaz,

pagina 21.

4. tncälzititimp de aproximativ30 de

minute.

5. Opri!i cuptorul; vezi Utilizarea cup-

torului cu gaz, pagina 21

Cuptor grill

Scoateti toate tävile grilajele din

cuptor.

inchideti L19acuptorului.

Selectati flacära maximä a grill-ului;

vezi Utilizarea grill-ului cu gaz, pagi-

na 22.

fncälzititimp de aproximativ30 de

minute.

Opriti grill-ul; vezi Utilizarea grill-ului

cu gaz, pagina 22

17 IRO

Utilizarea Plitei

Informatii generale despre

prepararea alimentelor

PERICOL

Pericol de incendiu datoritä ulei-

ului supraincälzit!

Nu läsa!i uleiul nesupravegheat pe

plitä.

Nu incerca!i sä stinge!i incendiul

cu apä! Dacä uleiul s-a aprins,

acoperiti imediat oala sau tigaia cu

un capac. Opriti plita dacä este

posibil telefonati la pompieri.

Asigurati-vä cä månerele tigäilor

nu pot fi lovite accidental nu se

incälzesc datoritä zonelor fierbinti

din jur. Nu folositi recipiente insta-

bile, care se rästoarnä cu usurintä.

De asemenea, recipientele excesiv

de grele pot fi periculoase.

Folositi numai oale sau tigäi cu ba-

za platä.

Folositi recipiente suficient de mari

pentru a evita värsarea alimentelor

murdärirea aparatului in timpul

fierberii.

Nu apzati capacele pe arzätoare.

Amplasati tntotdeauna recipientele

pe mijlocul arzätoarelor. Ridicati

recipientele cand le mutati de pe

un arzätor pe altul, nu le trageti.

Prepararea la gaz

• Dimensiunea recipientului trebuie

sä corespundä dimensiunii fläcärii.

Reglati flacära astfel tncät sä nu

depäeeascä partea inferioarä a re-

cipientului; amplasati recipientul

central deasupra arzätorului.

Utilizarea plitelor

Arzätor normal 20—22 cm

Arzätor normal 20—22cm

Arzätor rapidr 22-24 cm

Arzätor auxiliar 12—18cm reprezintä

diametrul recomandat al recipiente-

lor amplasate pe arzätoarele respec-

tive.

Flacära mare simbolizeazä temperatu-

ra maximä, in timp ce flacära micä

simbolizeazä temperatura minimä.in

pozitia inchisä (sus), alimentarea cu

gaz a arzätoarelor este opritä.

Aprinde!i arzätoarele

Arzätoarele pot fi aprinse folo-

sind butonul de aprindere.

Apäsa!i mentineti apäsat butonul

arzätorului.

Rotiti-l in sens contrar acelor de

ceasornic, spre flacära mare.

18 | RO

Apäsati butonul de aprindere, apoi

eliberati-l. Repetati procesul pänä

cand gazul se aprinde.

Reglati flacära dupä caz.

Dispozitiv de supraveghere a fläcärii

(in functie de model)

Opri!i arzätoarele

Rotiti butonul arzätorului in pozitia

inchis (sus).

1 . Dispozitiv de

supraveghere a

fläcärii

Dacä flacära arzä-

toarelor se stinge

indiferent de motiv,

dispozitivul de

supraveghere a

fläcärii intrerupe

imediat alimenta-

rea cu gaz.

•

19 | RO

Roti!i butonul in sensul acelor de

ceasornic asteptati aprinderea.

Mentineti butonul apäsat timp de

3-5 dupä aprinderea gazului.

Repetati procedura dacä flacära se

stinge. Dacä flacära se stinge dupä

eliberarea butonului, repetati pro-

cedura tinänd butonul apäsat timp

de 15 secunde.

PERICOL

Pericol de explozie in cazul

acumulärilor de gaz!

Nu apäsati butonul mai mult de 15

secunde dacä flacära nu se aprin-

de.

A*teptati un minut, apoi repetati

procedura de aprindere.

Utilizarea Cuptorului

Informatii generale referitoare

Ia coacere, fripturi prepara-

re la grill

A PERICOL

Pericol de opärire cu abur!

Atentie la deschiderea u*ii, deoa-

rece pot ie#i aburi.

Sfaturi pentru coacere

Folositi recipiente din metal sau

aluminiu cu strat anti-aderent sau

forme din silicon termorezistent.

Utilizati corect spatiul de pe raft.

Este recomandabil sä amplasati

forma in mijlocul raftului.

Mentineti L19acuptorului inchisä.

Sfaturi pentru fripturi

Sfaturi pentru prepararea la grill

Carnea, pestele puiul preparat la grill

se rumenesc rapid, au o crustä gusto-

asä nu se usucä. Bucätile plate de

carne, frigäruile, cärnatii legumele cu

continut ridicat de apä (de ex. rosiile

cepele) sunt ideale pentru prepararea

la grill.

•

Distribuiti alimentele care urmeazä

sä fie preparate la grill pe grätar

sau pe grätarul amplasat pe o tavä

astfel incät sä nu depäseascä di-

mensiunile elementului de incälzire.

Introduceti grätarul sau tava in

cuptor la nivelul dorit. Dacä folositi

un grätar, amplasati in partea infe-

rioarä o tavä pentru colectarea

gräsimii scurse.

Pentru a simplifica curätarea,

adäugati putinä apä Tntavä.

•

Condimentarea cu suc de lämäie

piper negru va imbunätäti rezulta-

tul gätirii puilor sau curcanilor

intregi, precum a bucätilor mari

de carne.

Prepararea cärnii cu os dureazä cu

circa 15-30 de minute mai mult

decät prepararea unei bucäti de

carne de aceea9i dimensiune färä

os.

Calculati 4-5 minute de preparare

pentru fiecare centimetru din

inältimea bucätii de carne.

Läsati carnea Tncuptor timp de

circa 10 minute dupä incheierea

perioadei de preparare. Astfel, su-

curile se vor distribui mai bine in

fripturä nu vor curge la täierea

acesteia.

Pestele tn recipiente termore-

zistente trebuie amplasat pe raftul

mijlociu sau inferior.

Introducerea scutului termic

Scutul termic este folosit pentru prepa-

rarea la grill cu L19acuptorului deschisä.

Aceasta protejeazä panoul de control

butoanele impotriva cäldurii rezi-

duurilor.

1. Deschideti usa cuptorului intro-

duceti scutul termic in fantele de

sub panoul de control.

» Cu scutul termic montat, cupto-

rului rämäne deschisä.

20 | RO

Utilizarea cuptorului cu gaz

1 Buton cuptor

Cuptorul cu gaz poate fi utilizat prin

intermediul butonului acestuia. in po-

zitia inchisä (sus), alimentarea cu gaz

este opritä.

Pornirea cuptorului cu gaz

Flacära cuptorului cu gaz se aprinde

folosind butonul de aprindere.

1. Deschideti L19acuptorului.

2. Mentine!i apäsat butonul cuptoru-

lui rotiti-l Tn sens contrar acelor

de ceasornic.

3. Apäsati butonul de aprindere, apoi

eliberati-l.

» Repetati procesul pånä cånd gazul

se aprinde.

4. Mentineti apäsat butonul cuptorului

pentru incä 3 - 5 secunde.

5. Verificati dacä aprinderea functio-

neazä.

6. tn cazul in care curentul electric

este tntrerupt, aprindeti gazul cu

bricheta din orificiul de aprindere.

7. Reglati flacära dupä caz.

I Orificiu aprindere

PERICOL

Pericol de explozie datoritä ga-

zelor nearse!

Dacä flacära nu se aprinde, menti-

neti butonul apäsat max. 15 se-

cunde, apoi eliberati-l.

A*teptati un minut, apoi repetati

procedura de aprindere.

Oprirea cuptorului cu gaz

1. Rotiti butonul cuptorului in pozitia

tnchis (sus).

Semnificatia nivelurilor gazului:

Nivel gaz

1 2 3

Temperaturä 170 oc 280 oc 284 oc

21 IRO

Tabelul duratelor de preparare

Important

Valorile specificate au fost deter-

minate in laborator. Valorile optime

in cazul dvs. pot diferit de aceste

valori.

Coacerea prepararea fripturilor

Important

Nivelul 1 reprezintä temperatura

cea mai micä a cuptorului.

OBSERVATIE

Sarcinä maximä pentru tava cupto-

rului: 4 kg (8,8 lbs).

Alimente

Pläcintä cu mere

Tartä cu fructe

Pläcintä

Fursecuri

Produse patiserie

Cozonac

Biscuiti

Fripturä de miel

Fripturä de vitä

Curcan

Carne de pasäre

Caserole

Pe$e

Macaroane

Präjiturele

Blat

Preincälzire *

10 min.

Nivel amplasare

Pozitie buton

control

Duratä preparare

25...30 min.

25...35 min.

30...40 min.

25...35 min.

35...45 min.

30...40 min.

20...30 min.

35...45 min. pe 450 g

+ 30 min.

50...60 min. pe 450 g

+ 30 min.

50...60 min. pe 450 g

+ 30 min.

30...40 min. pe 450 g

+25 min.

90...120 min.

35...45 min.

35...40 min.

30...35 min.

22...28 min.

* cu butonul de control in pozitia 2 / in functie de cantitate/ in functie de dimensiune

Utilizarea grill-ului cu gaz

Grill-ul poate fi controlat prin interme-

diul butonuluigrill-ului.fn pozitia

inchisä (sus), alimentarea cu gaz este

opritä.

in timpulfunctionäriigrill-ului,up cup-

torului trebuie sä rämänä deschisä.

Pornirea grill-ului

Flacära grill-ului se aprinde folosind

butonul de aprindere.

1. Deschideti L19acuptorului.

22 | RO

2. Mentineti apäsat butonul grill-ului

rotiti-l in sensul acelor de ceasor-

nic, spre simbolul grill-ului.

3. Apäsati butonul de aprindere, apoi

eliberati-l.

» Repetati procesul pånä cånd flacära

se aprinde.

4. Mentineti apäsat butonul grill-ului

incä 3 - 5 secunde.

5. Verificati dacä aprinderea functio-

neazä.

6. in cazul Tn care curentul electric

este intrerupt, aprindeti cu bricheta

arzätorul grill-ului.

1 Arzätor cu gril

PERICOL

Pericol de explozie in cazul

acumulärilor de gaz!

Nu apäsati butonul mai mult de 15

secunde dacä flacära nu se aprin-

de.

A*teptati un minut, apoi repetati

procedura de aprindere.

Oprirea grill-ului

1. Rotiti butonul grill-ului in pozitia

inchis (sus).

Functia de rotisare

Dupä selectarea grill-ului, apäsati bu-

tonul rotisorului.

•

Dupä alegerea functiei grill, ampla-

sati carnea pe frigäruie.

Introduceti frigäruia in orificiul co-

nectat la motorul rotisorului, aflat

pe peretele posterior al cuptorului.

Pozitionati frigäruia pe cadru.

Pozitionati prin culisare cadrul

frigäruii la nivelul dorit.

Amplasati in partea inferioarä o

tavä pentru colectarea gräsimii to-

pite. Pentru a simplifica curätarea,

adäugati putinä apä Tntavä.

Nu uita!i sä demonta!i piesele

din plastic de pe frigäruie.

Dupä prepararea la grill, insurubati

månerul de plastic pe frigäruie

scoateti alimentele din cuptor.

23 | RO

Tabelul duratelor de preparare

Important

Valorile specificate au fost deter-

minate Tn laborator. Valorile optime

tn cazul dvs. pot diferit de aceste

valori.

Prepararea la grill cu gaz

Alimente

Präjire produse panificatie

Bucäti mici de carne, cärnat, suncä

Pulpe, suncä afumatä, bucäti de pui

etc.

Pe$e intreg, file de pe*te, batoane

de peste

Peste in pesmet

Produse din cartofi semipreparate

Pizza

Prepararea la grill/Rumenirea ali-

mentelor

Pregätire/amplasare

Important

Nivelul 1 reprezintä temperatura

cea mai micä a cuptorului.

OBSERVATIE

Nu folositi nivelul superior pentru

prepararea Ia grill.

Duratä grill

Pui pe grätar rästurnat.

Pe$e intreg ii file de pe$e ampla-

sate in partea inferioarä a tävii

pentru grill.

Amplasatä in partea inferioarä a tävii

pentru grill.

Alimente amplasate direct pe partea

inferioarä a compartimentului grill-

ului.

3...10 min.

15...20 min.

20...25 min.

10...20 min.

15...20 min.

12...15 min.

8...10 min.

in functie de dimensiune resp. grosime

24 | RO

intre!inere Curä!are

Informatii generale

PERICOL

Pericol de electric!

Pentru a evita pcurile electrice,

tntrerupeti alimentarea cu electrici-

tate tnainte de curätarea aparatului.

PERICOL

Suprafe!ele fierbin!i provoacä

arsuri!

Läsati aparatul sä se räceascä

inainte de curätare.

OBSERVATIE

Suprafata poate fi deterioratä de

unii detergenti sau materiale de

curätare.

Nu folositi obiecte ascutite, deter-

genti, prafuri sau substante de

curä!are agresive.

Curä!ati bine aparatul dupä fiecare

utilizare; astfel, reziduurile pot fi

indepärtate mai usor, evitåndu-se ar-

derea lor la urmätoarea utilizare a apa-

ratului.

Curä!area aparatului nu necesitä sub-

Stante de curätare speciale. Este re-

comandabil sä folositi apä caldä cu

lichid de spälat vase, un burete sau o

cårpä moale o cårpä pentru uscare.

Nu folosi!i substante de curä!at

abrazive!

(in functie de model) - Nu utilizati

substante de curätat abrazive dure sau

palete dure din metal pentru curätarea

capacului din sticlä, deoarece acestea

pot zgåria suprafata. Zgårieturile pot

distruge sticla.

Important

Nu folositi jeturi de aburi pentru

curätare.

Curä!area plitei

Plite cu gaz

Demontati curätati suporturile

pentru oale capacele arzätoarelor.

Curätati plita.

Montati la loc capacele arzätoarelor

verificati dacä sunt corect fixate.

La a*ezarea suporturilor pentru

recipiente, asigurati-vä cä acestea

sunt centrate deasupra arzätoarelor.

Curä!area panoului de control

OBSERVATIE

Deteriorarea panoului de control!

Nu demontatati butoanele pentru a

curäta panoul de control.

Curätati panoul de control butoanele.

Curä!area cuptorului

Curätarea acestui cuptor nu necesitä

substante speciale de curä!are. Se

recomandä *tergerea cuptorului cald

cu o cårpä umedä.

Curäta!i 1.19acuptorului.

Nu folositi substante de curätare abra-

zive sau lamele metalice ascutite

pentru curätarea usii cuptorului;

acestea pot zgäria suprafata distru-

ge sticla.

25 | RO

Demontarea Ll#ii cuptorului

Usa cuptorului poate fi demontatä

pentru simplificarea curätärii interioru-

lui cuptorului.

1. Deschideti complet usa cuptorului.

2. impingetiambeleurechiale bala-

malelor.

inlocuirea lämpii cuptorului

PERICOL

Suprafetele fierbin!i provoacä

arsuri!

Pentru a evita riscul unui pc elect-

ric, asigurati-vä cä aparatul este

oprit s-a räcit.

Lampa cuptorului este un bec electric

special termorezistent (T 300 0C); vezi

Date tehnice, pagina 5. Lämpile pentru

cuptor pot fi obtinute de la agentul de

service.

Urechi balamale

Balama

OBSERVATIE

Pozitia lämpii poate fi diferitä fatä

de figurä.

Opriti alimentarea cu electricitate.

Desurubati capacul geamului rotind

Tn sens antiorar.

Desurubati lampa cuptorului rotind-

o in sens antiorar inlocuiti-o cu

una nouä.

Montati la loc capacul din sticlä.

3. Ridicati upr cuptorului.

4. Scoateti usa cuptorului cu ambele

mäini.

Dupä curätare, montati usa cuptorului

parcurgånd procedura in ordine in-

versä.

26 | RO

Remedierea Problemelor

PERICOL

Pericol de electric, scurtcir-

cuit sau incendiu tn cazul repa-

raliilor realizate de persoane

necalificate!

Aparatul poate fi reparat numai de

cätre centrele de service autoriza-

te.

PERICOL

Pericol de explozie sau intoxi-

calie tn cazul reparatiilor efectu-

ate de persoane necalificate.

Reparatiile trebuie efectuate de

personal de service sau de un

tehnician calificat.

Conditii normale de utilizare

•

Este posibil ca Tn primele ore de

dupä prima pornire, cuptorul sä

emitä fum mirosuri.

Este normalä i+irea aburului in

timpul functionärii.

Cånd piesele de metal se incälzesc,

se dilatä pot emite zgomote.

inainte de a apela la service, verifi-

cati urmätoarele.

Echipament electric

Defectiune/problemä

Aparatul nu functioneazä.

Lampa cuptorului nu se

aprinde.

Cuptorul nu se tncälz#te.

Cauzä posibilä

Siguran!a este defectä sau

arsä.

$techerul aparatului nu

poate fi cuplat la priza cu

impämäntare.

Lampa cuptorului este arsä.

Aparatul nu este alimentat

cu curent.

Nu au fost reglate butonul

functiei butonul termosta-

tului.

Dacä aparatul are un cro-

nometru, acesta nu a fost

setat.

Aparatul nu este alimentat

cu curent.

27 | RO

Sfat/remediu

Verificati tabloul de sigu-

rante. Dacä este cazul,

inlocuiti-le.

Verificati conexiunea

cherului.

Inlocuiti lampa cuptorului.

Verificati tabloul de sigu-

rante. Dacä este cazul,

inlocuiti-le.

Reglati butonul functiei

butonul termostatului.

Setati ora.

Verificati sursa de alimenta-

re sigurantele.

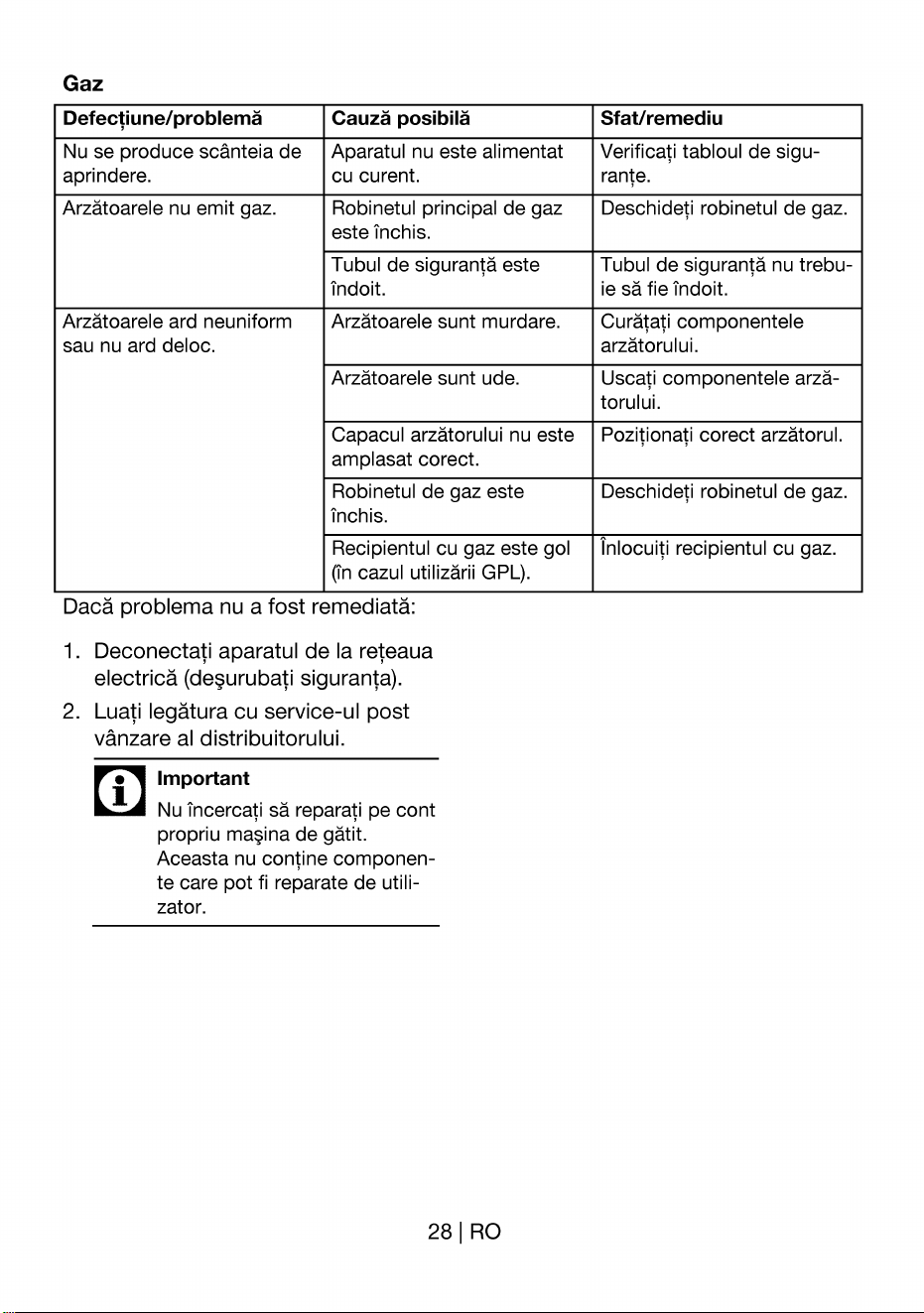

Gaz

Defectiune/problemä

Nu se produce scänteia de

aprindere.

Arzätoarele nu emit gaz.

Arzätoarele ard neuniform

sau nu ard deloc.

Cauzä posibilä

Aparatul nu este alimentat

cu curent.

Robinetul principal de gaz

este inchis.

Tubul de sigurantä este

tndoit.

Arzätoarele sunt murdare.

Arzätoarele sunt ude.

Capacul arzätorului nu este

amplasat corect.

Robinetul de gaz este

inchis.

Recipientul cu gaz este gol

(in cazul utilizärii GPL).

Sfat/remediu

Verificati tabloul de sigu-

rante.

Deschideti robinetul de gaz.

Tubul de sigurantä nu trebu-

ie sä fie indoit.

Curätati componentele

arzätorului.

Uscati componentele arzä-

torului.

Pozitiona!i corect arzätorul.

Deschideti robinetul de gaz.

Inlocuiti recipientul cu gaz.

Dacä problema nu a fost remediatä:

Deconectati aparatul de la reteaua

electricä (d#urubati siguranta).

Luati legätura cu service-ul post

vänzare al distribuitorului.

Important

Nu tncercati sä reparati pe cont

propriu ma#ina de gätit.

Aceasta nu contine componen-

te care pot fi reparate de utili-

zator.

28 | RO

arctic

service

ReteauadeserviceARCTIC

SediulCentralServiceGäe$i

Str.13 Decembrienr.210,Gäe$i,Jud.Dämbovi!a

Centrul de apeluri

0245 605111, numärapelabiltn re!eauaRomtelecom

0372 - 015 111, numärapelabilTnreteauaVodafone

Programulde functionareal CentruluideApeluri

Luni Vineri: 08:00 20:00

Såmbätä: 09:00 - 17:00

E-mail: [email protected]

Nr. crt, JUDE

10.

ALBA

ÄÄGE

BAC U

BIHOR

BISTRI A

BÄÅILA

B OV

BUCURE Tl

BUZÅU

REPREZENTAN

ALBA IULIA

ARAD

PITE Tl

BAC U

ORADEA

BISTRI A

BRÅILA

B OV

DECEBAL

BUZÅU

ADRESA

Bd. Transilvaniei, bl. 3FG rter

Piata Arenei, bloc E Sc. %parter

Str.F Goi mQi,bloc s-9C, arter

Str. Ene iei nr. 39 Bl.39 arter

Bd. Dacia nr. 54 bl. U4, rter

Str. Constantin Roman Vivu, bl.l, Sc.A, arter

Str. Scolilor nr. 37, bloc C, parter

Str. Je ilor nr. 2, cartier Räcädäu

Bd. Decebal, nr. 18 - 20, bloc S4,

Str. Ion Bäi u, bloc C2, rter

Nr. Crt,

II,

12.

14.

15.

16.

18.

19.

20.

21.

22.

24.

25.

26.

28.

29.

30.

31.

32.

33.

34.

35.

36,

38.

JUD

CRA SEVERIN

CLUJ

CONSTAN

COVASNA

DÅMBOVI A

D MBOVI A

OOLJ

GALA I

GORJ

HARGHITA

HUNEDOARA

IALOMITA

MARAMURE

MEHEDIN

MURE

OLT

PRAHOVA

SÅLÄJ

SATU MARE

SIBIU

SUCEAVA

TELEORMAN

TIMI

TULCEA

V LCEA

VASLUI

REPREZENTA

RE ltA

CLUJ

CONSTAN A

SF NTIJ GHEORGHE

GÅE Tl

T RGOVI TE

CRÄIOVA

GALA

T RGU JIU

MIERCUREA Cluc

DEVA

SLOBOZIA

BAIA MARE

TURNU SEVERIN

T RGU MURE

PIATRA NEAM

SLATINA

PLOIE Tl

ZALÄU

SATU MARE

SIBIU

SUCEAVA

ALEXANDRIA

TIM!SPARA

TULCEA

MNICUV CEA

VASLUI

ADRESA

Str. BA Petculescu bloc I

arter

Str. C, Bråncu9i nr. 2, bloc 3B,parter

Man aliei nr. 93, bloc S, rter

Bd. Nicolae lorga nr.

Str. I Decembrie, bloc 64

Str. I. C. Bratianu, bl. Dl, sc. C, parter

Decebål, nr.79-81,bl.38, rter

Bd.

Str. Constructorilor nr. 7

Str. 1 Decembrie 1918 bl. 06

Str. Piete!, nr.% sc.

Bd. 22 Decembrie, bloc 10, sc.l

rter

Str. Dobroge?nu

Str. Sf. Lazär hr. 6, rter

Str.

Str, Ind endentei, nr. 39, bl. KA 2 aner

Str. Libertä ii nr. 97

Str. I. Antonescu, nr. 6 bl.T sc. B, arter

Str. Nicolae Titulescu, bl.21A, parter

Str. Gheorghe

Str. Gheo he Do-a, nr.91, bl. Dll sc

arter

Bd. Lucian Blaga, bloc U18, parter

Str. Parcul Tineretului, bl .9, rter

Str. Märä e ti nr- 39a

Str. Dunärii, bloc BM2, sc. F, rter

Bd. Stefan cel Mare, bl. U15,

Str. Babada , bl. 3 sc.

arter

Str. Tudor Vladimirescu,nr. 5, sc C,

Bd. Re ublicii nr. 12, bloc G45

rter

Arctic DG 5612 DTL Gas Stove Range

Product's Documents

User Manual

Specifications

Arctic DG 5612 DTL Questions and Answers
