HELIUS LITE SMART BRUSHLESS
MOTOR TREADPAD TREADMILL
SF-T722051
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [email protected] or 1-877-90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INSTRUCTION
When using an electrical appliance, basic precautions should always be followed, including the
following:
Read all instructions before using (this appliance).
DANGER –To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet immediately after using and before
cleaning.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons:
1. An appliance should never be left unattended when plugged in. Unplug from outlet when not in use,
and before putting on or taking off parts.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Keep children
under the age of 13 away from this machine.
3. Use this appliance only for its intended use as described in this manual. Do not use attachments
not recommended by the manufacturer.
4. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Return the appliance to a service center for
examination and repair.
5. Do not carry this appliance by supply cord or use cord as a handle.
6. Keep the cord away from heated surfaces.
7. Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair,
and the like.
8. Never drop or insert any object into any opening.
9. Do not use outdoors. Household use only.
10. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
11. To disconnect, turn all controls to the off position, then remove plug from outlet.
12. CAUTION: Risk of Injury to Persons – To Avoid Injury, use extreme caution when stepping onto or
off of a moving belt. Read Instruction Manual Before Using.

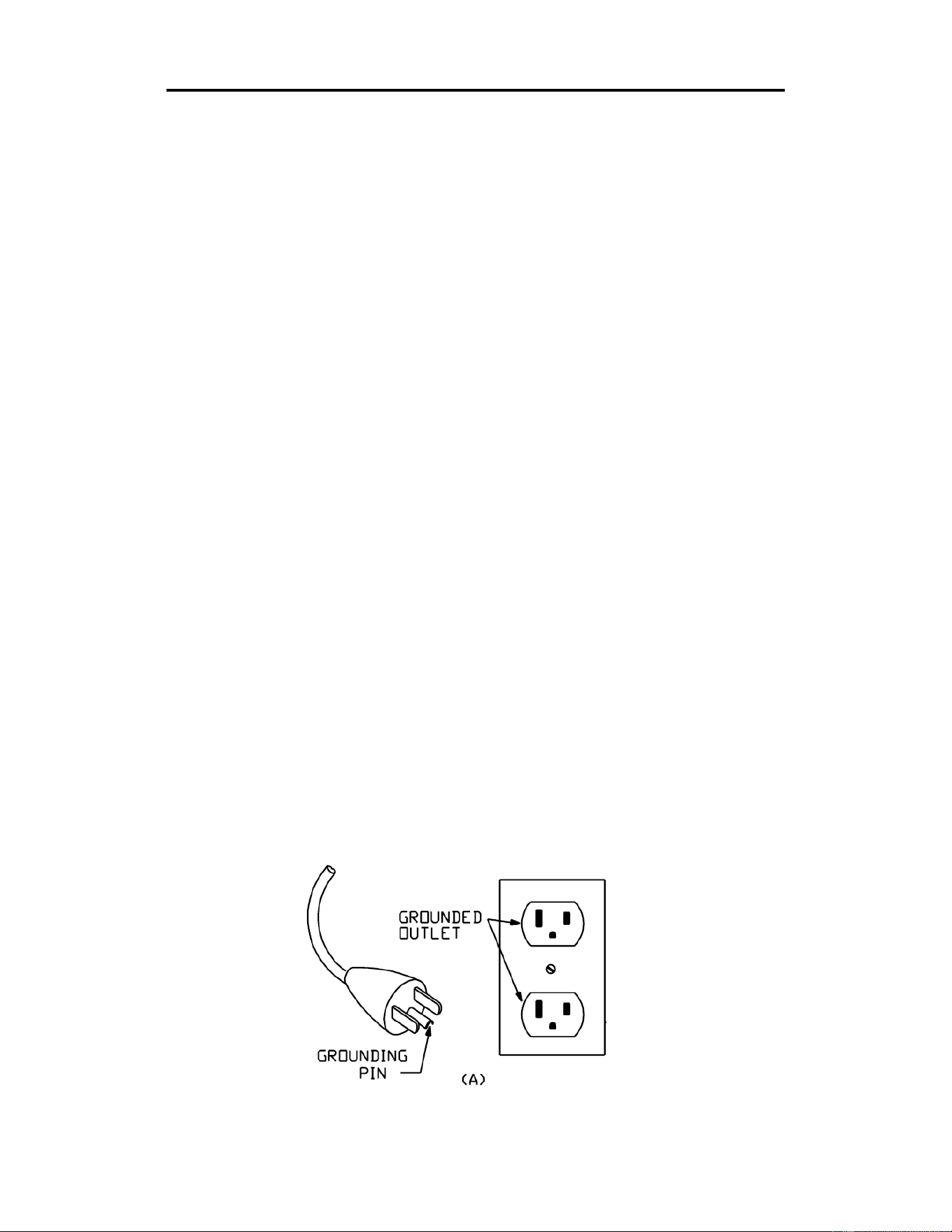

13. Connect this appliance to a properly grounded outlet only. See Grounding Instructions.
14. REMOVE CONTROL BOX (OR KEY, OR SAFETY PIN, AS APPLICABLE) WHEN NOT IN USE,
AND STORE OUT OF REACH OF CHILDREN.
SAVE THESE INSTRUCTIONS
CAUTION: The user is cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada’s license-exempt RSS(s) and Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1) This device may not cause interference.
2
2) This device must accept any interference, including interference that may cause undesired
operation of the device.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC & IC Radiation Exposure Statement:
This equipment complies with FCC and Canada radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained, and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you from
using the equipment properly. Your physician’s advice is essential if you are taking medication that
affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do
experience any of these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 8 feet (240CM) of free space behind it and 2 feet
(60CM) on each side. Do not place the treadmill on any surface that blocks air openings. To protect
the floor or carpet from damage, place a mat under the treadmill.
3
6
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has been
rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 265 lbs (120 kgs).
10. This equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in extreme
cold, hot, or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial use!
IMPORTANT OPERATING INSTRUCTIONS
1. Insert the power plug directly into the socket.
2. Read the manual before operating the equipment.
3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on
the main console. The speed will increase gradually.
4. While on the treadmill, move with caution as distractions may cause you to lose balance and stray
from walking in the center of the belt. This may result in serious injury.
5. This unit starts at a very low speed. To begin use, hold onto the handrails, and stand on the side
rails while it starts up, then step onto the belt once it is in motion.
6. Always hold the handrail when making changes in the settings.
7. A safety key is provided for emergency use. The machine will function only if the safety key is
inserted into the computer console. In case of emergency, remove the safety key to immediately
stop the belt and shut off the treadmill. The display screen will reset once the safety key is reinserted.

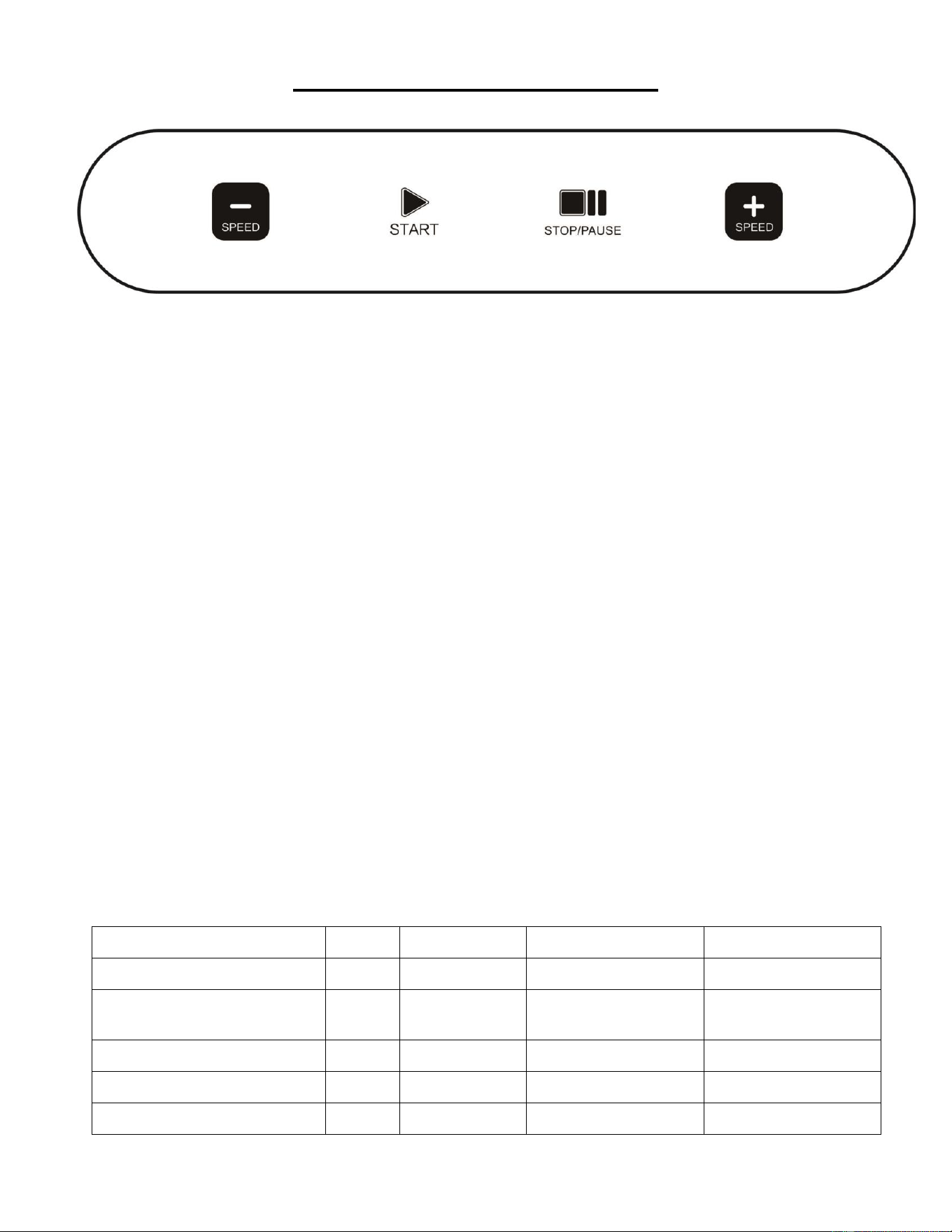

8. The console control keys are precisely set and require very little finger pressure to use. To avoid
damaging these keys, do not use excessive pressure when operating these controls.
9. This equipment is designed for adult use only! Children should not be allowed to use or play near
this equipment. When present, children should always be supervised by an adult.
10. Women who are pregnant or nursing should consult a physician before attempting to begin any
exercise program.
11. Always stay hydrated during and after exercise.
IMPORTANT NOTE:
The running belt must be lubricated before the first use! Please see Page 9 for instructions on how to
properly apply lubricant.
4

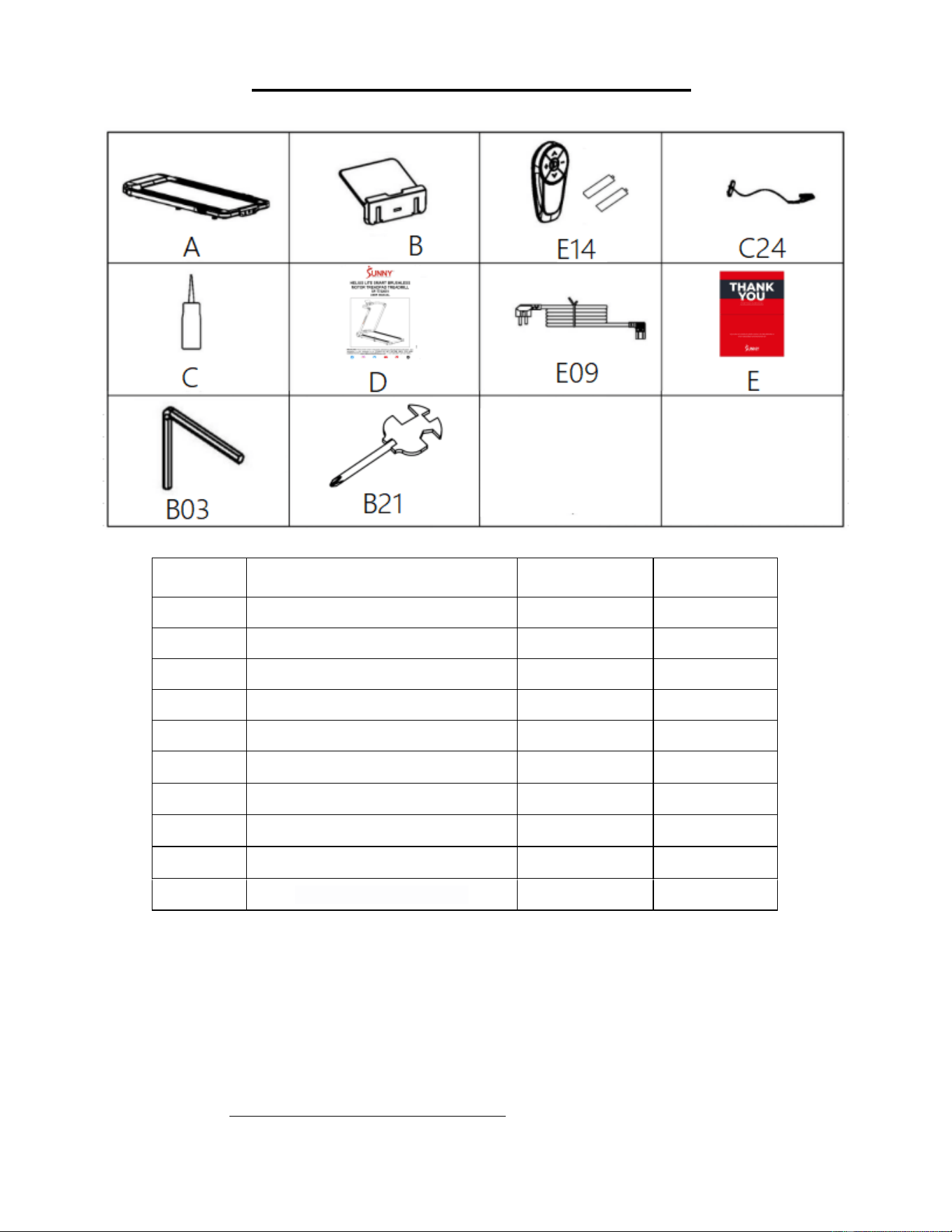

PRE-ASSEMBLY CHECK LIST
Before you start to assemble, please make sure all parts are included.
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
✓ The model number (found on cover of manual)
✓ The product name (found on cover of manual)

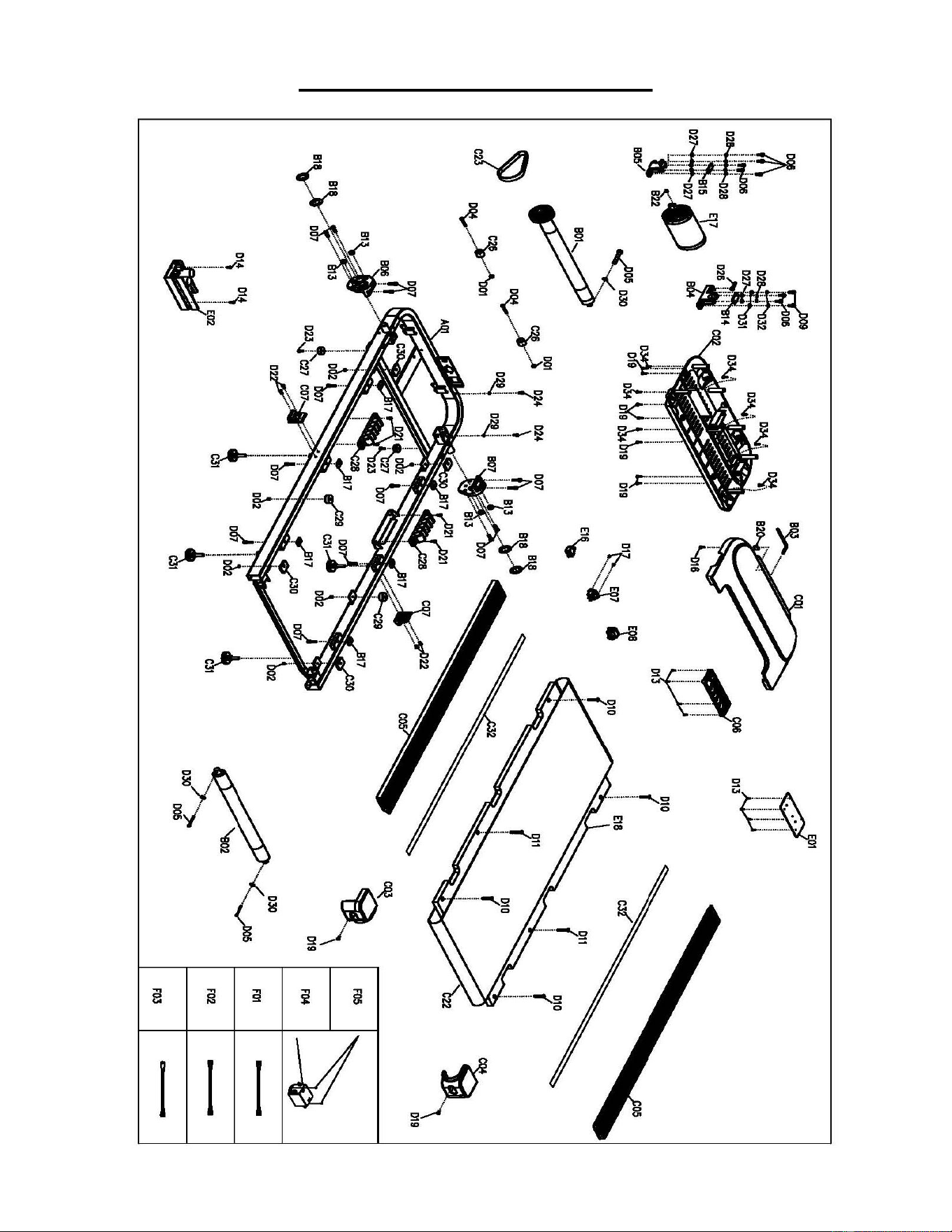

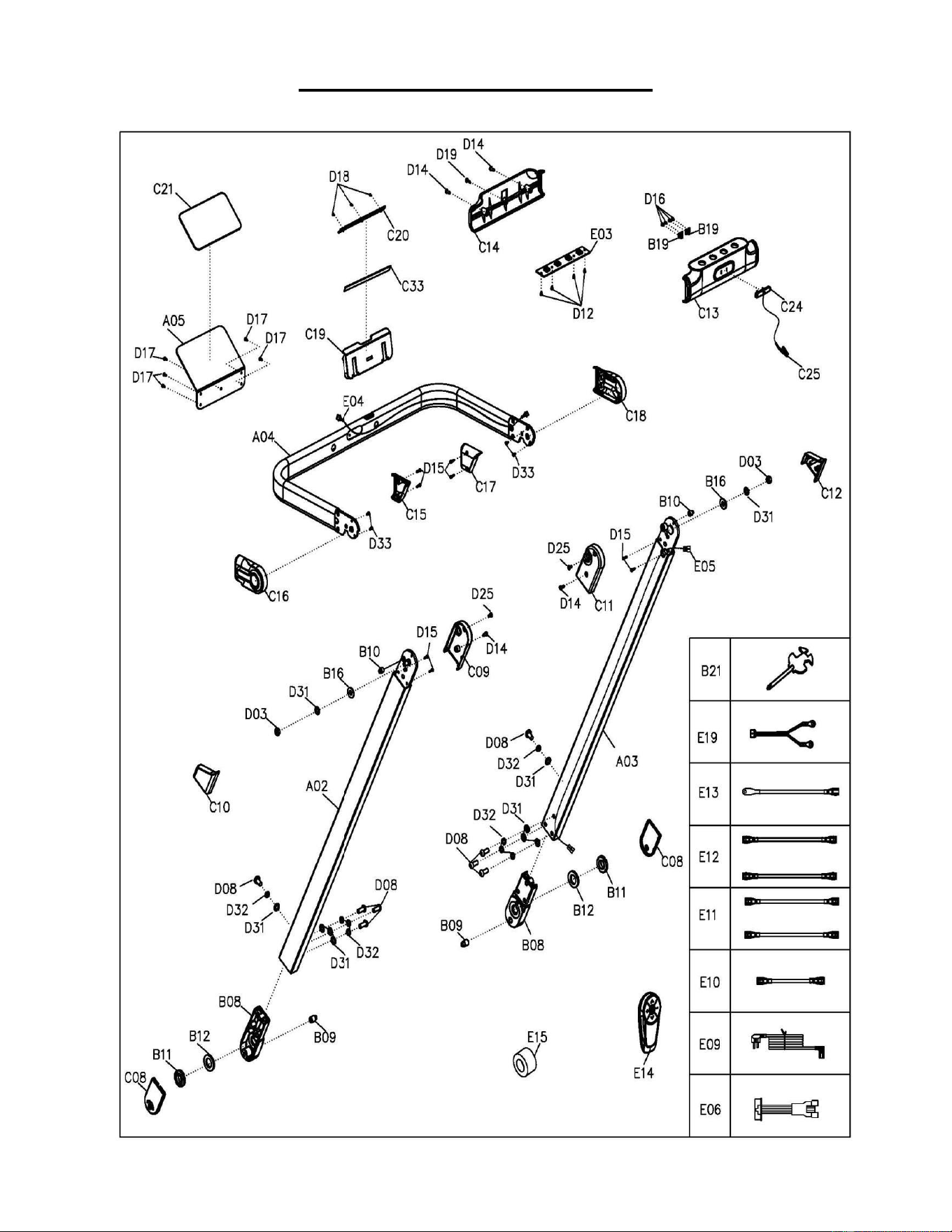

✓ The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the end of
the manual)
Please contact us at [email protected] or 1-877-90SUNNY (877-907-8669).
No.
Description
Spec.
Qty.
A
Main Frame
1
B
Tablet Holder
1
E14
Remote Control & Batteries
2 (AAA)
1
C24
Safety Key
1
C
Lubricant Oil
1
D
Manual
1
E09
Power Wire
1
E
Thank You Card
1
B03
Allen Wrench
5mm
1
B21
Spanner w/ Screwdriver
S=13、14、15
1
5
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY (877-907-
8669).

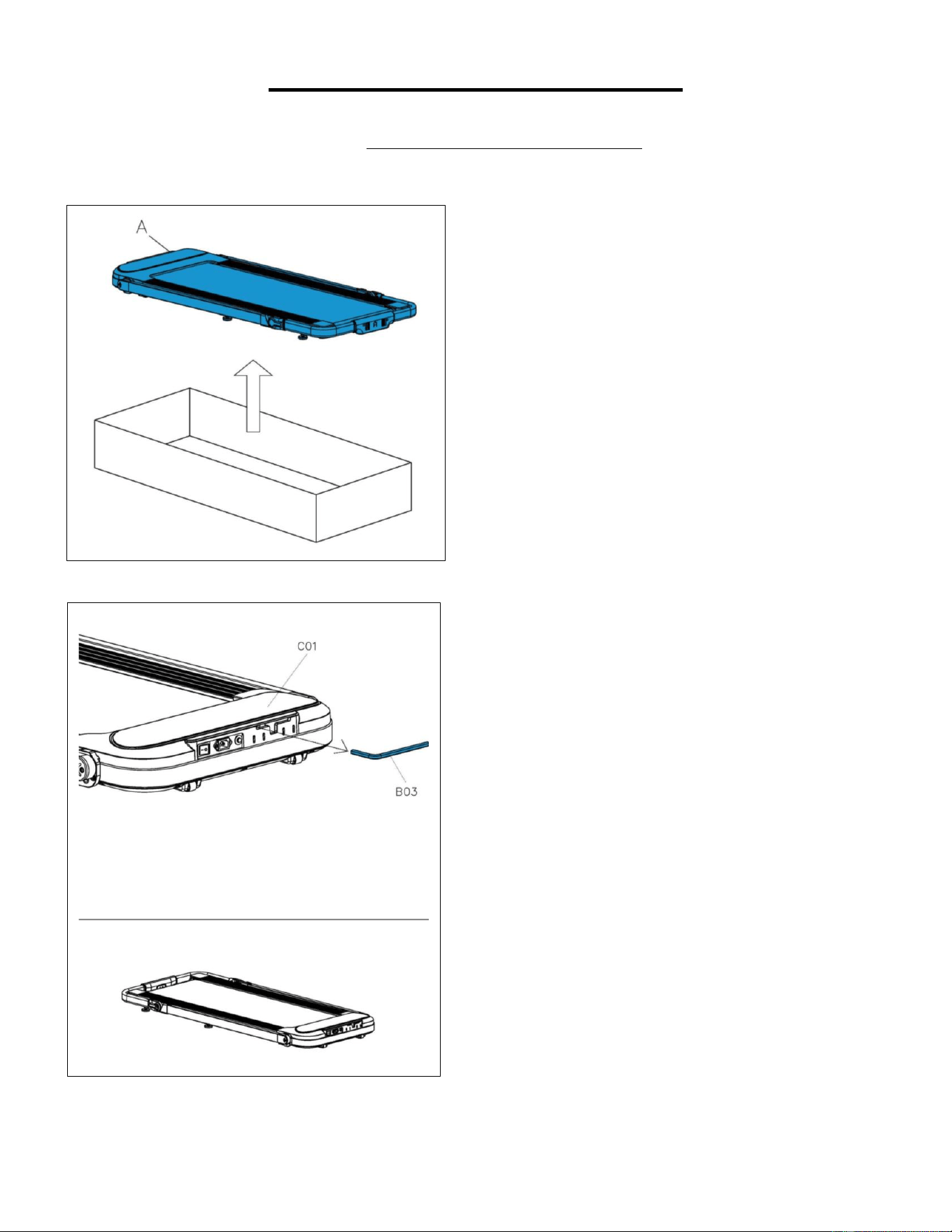

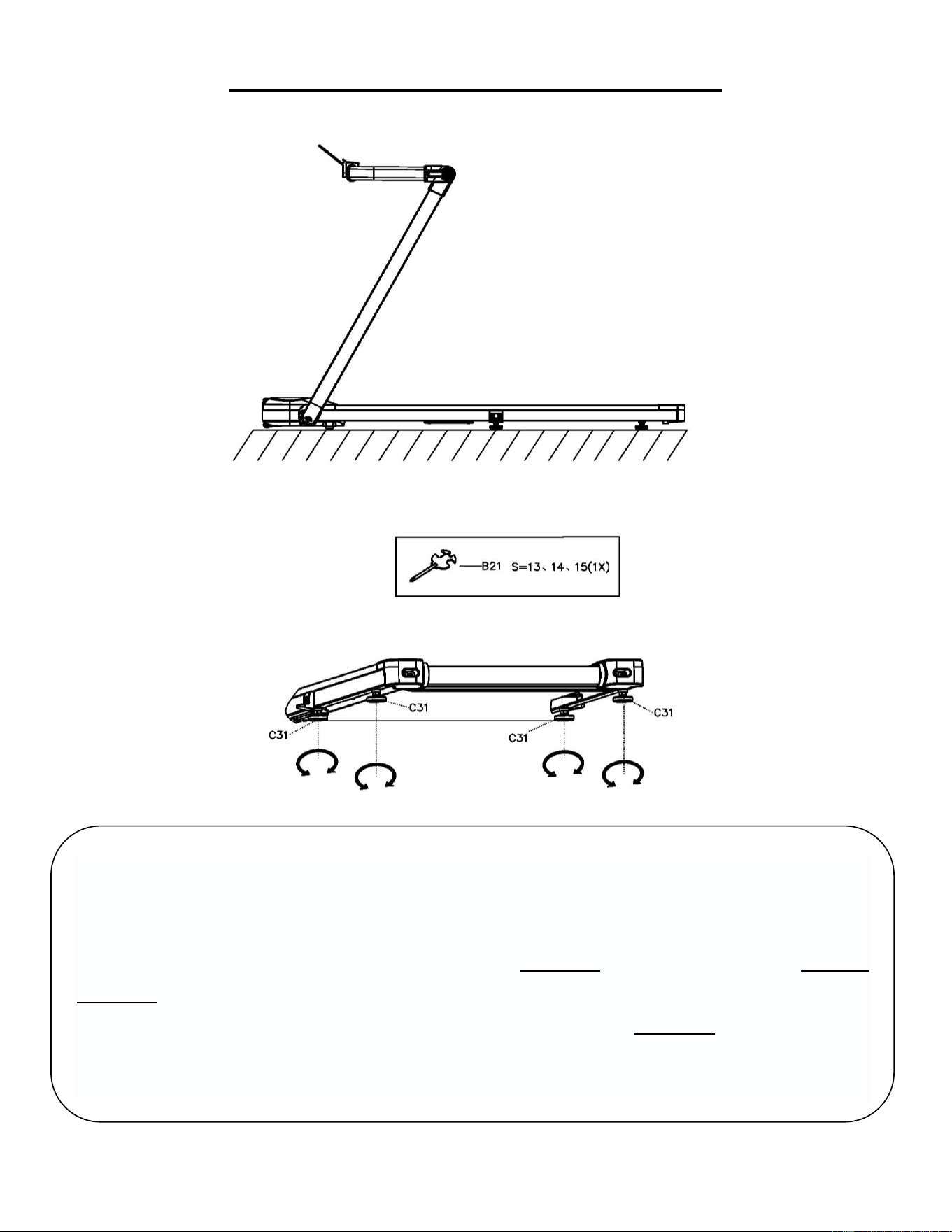

STEP 1:
Open the carton and remove contents. Place
the Main Frame (No. A) on level ground,
ensure that you have a work area that is
clean and has adequate space.
STEP 2:
Take the Allen Wrench (No. B03) out from the
Motor Top Cover (No. C01).
•
6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY (877-907-
8669).

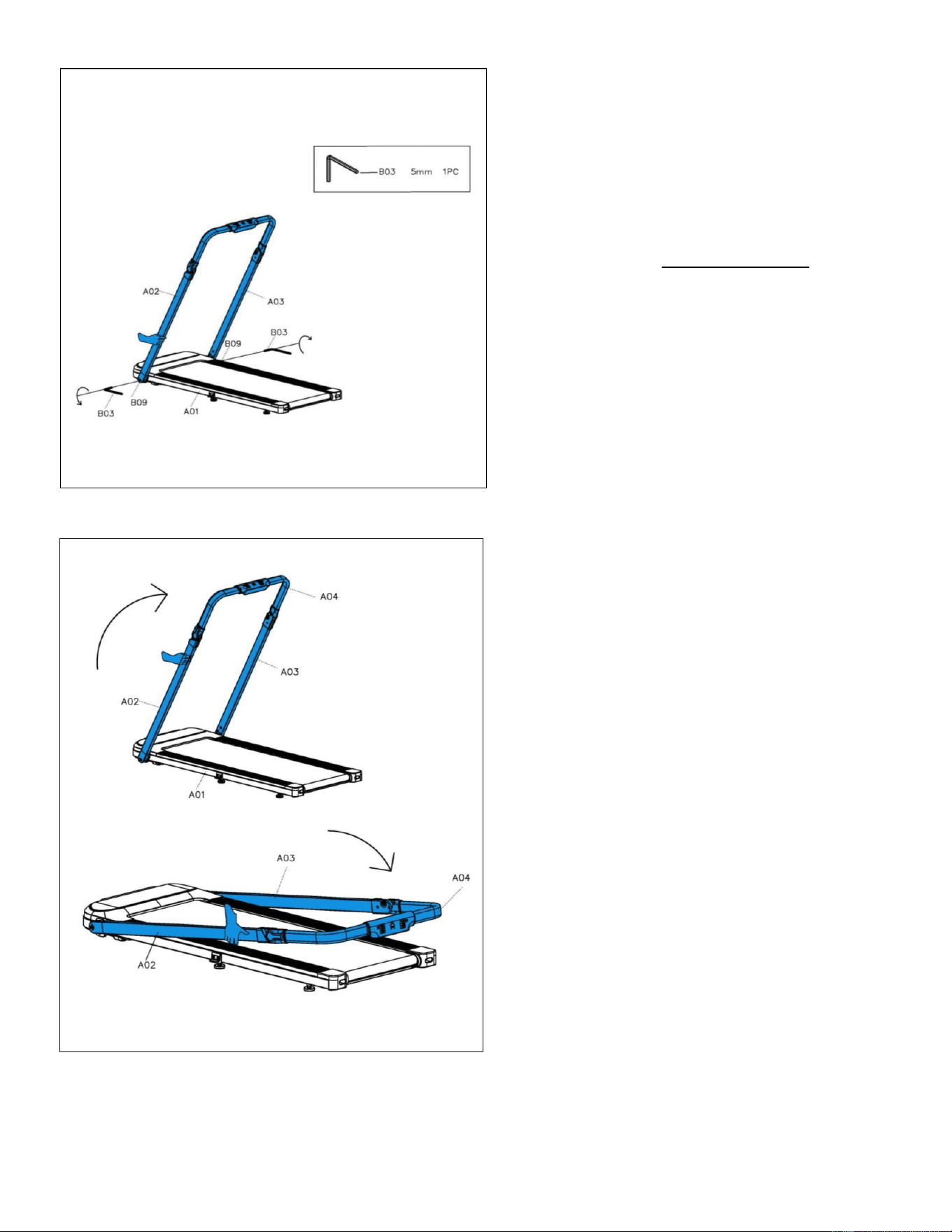

STEP 4:
Support the Left & Right Upright Tubes (No.
A02 & No. A03) with your hands to prevent
them from falling.
Fix the 2 Puller Bolts A (No. B09) inside Left
& Right Upright Tubes (No. A02 & No. A03)
to the Main Frame (No. A01) by turning
clockwise using the Allen Wrench (No. B03).

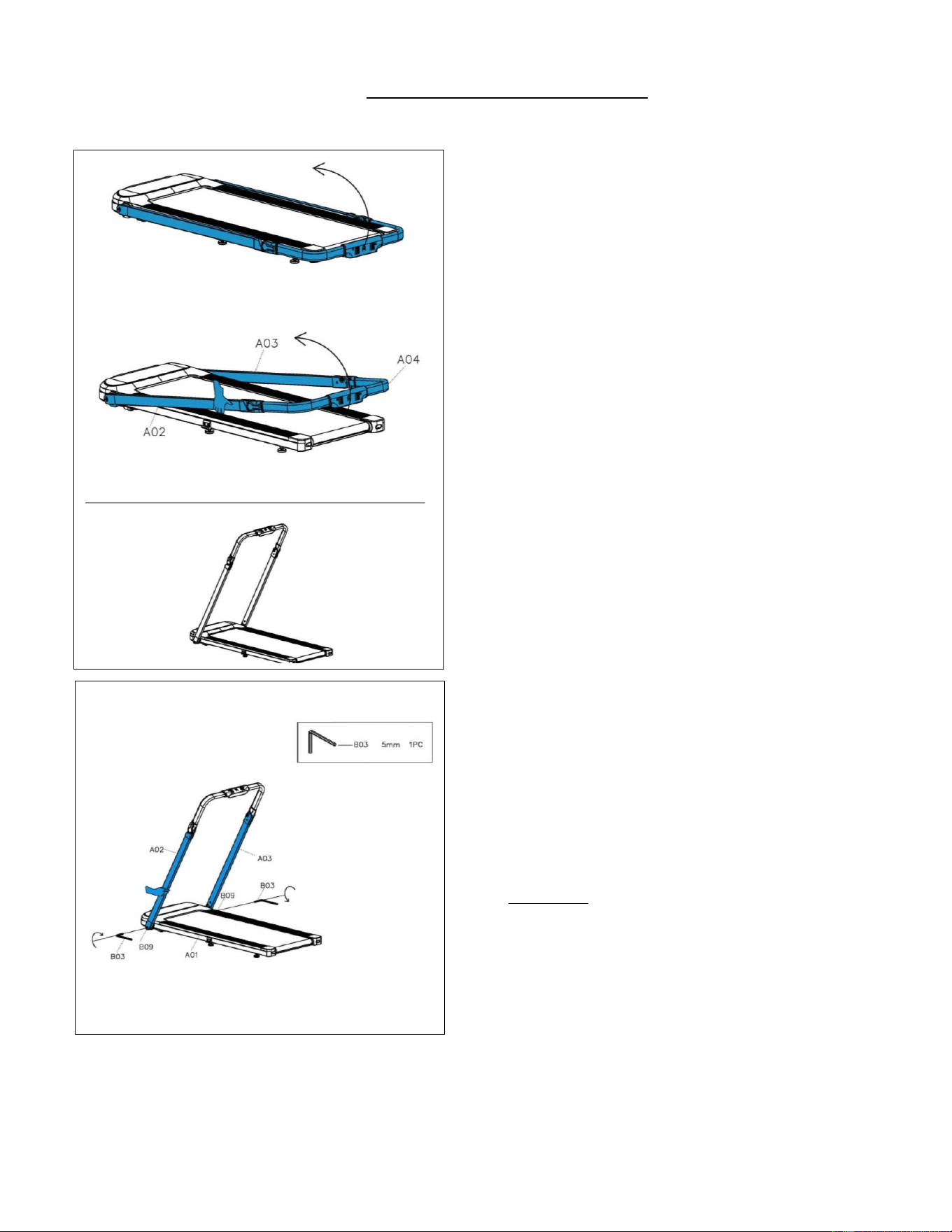

STEP 3:
Lift the Console Base Bracket (No. A04)
along with Left & Right Upright Tubes (No.
A02 & No. A03) upward (in the direction
specified by the arrows on the diagram to the
left).
7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY (877-907-
8669).

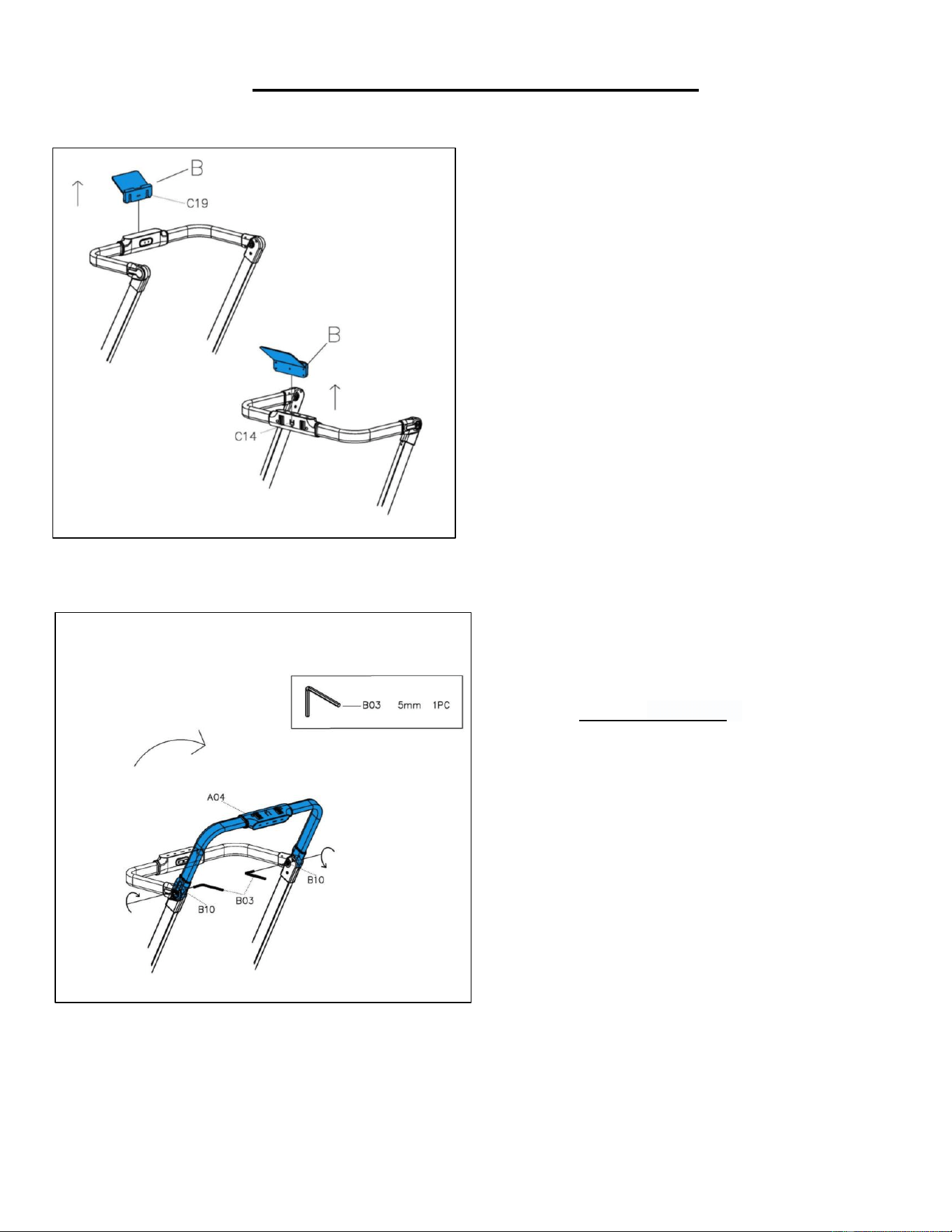

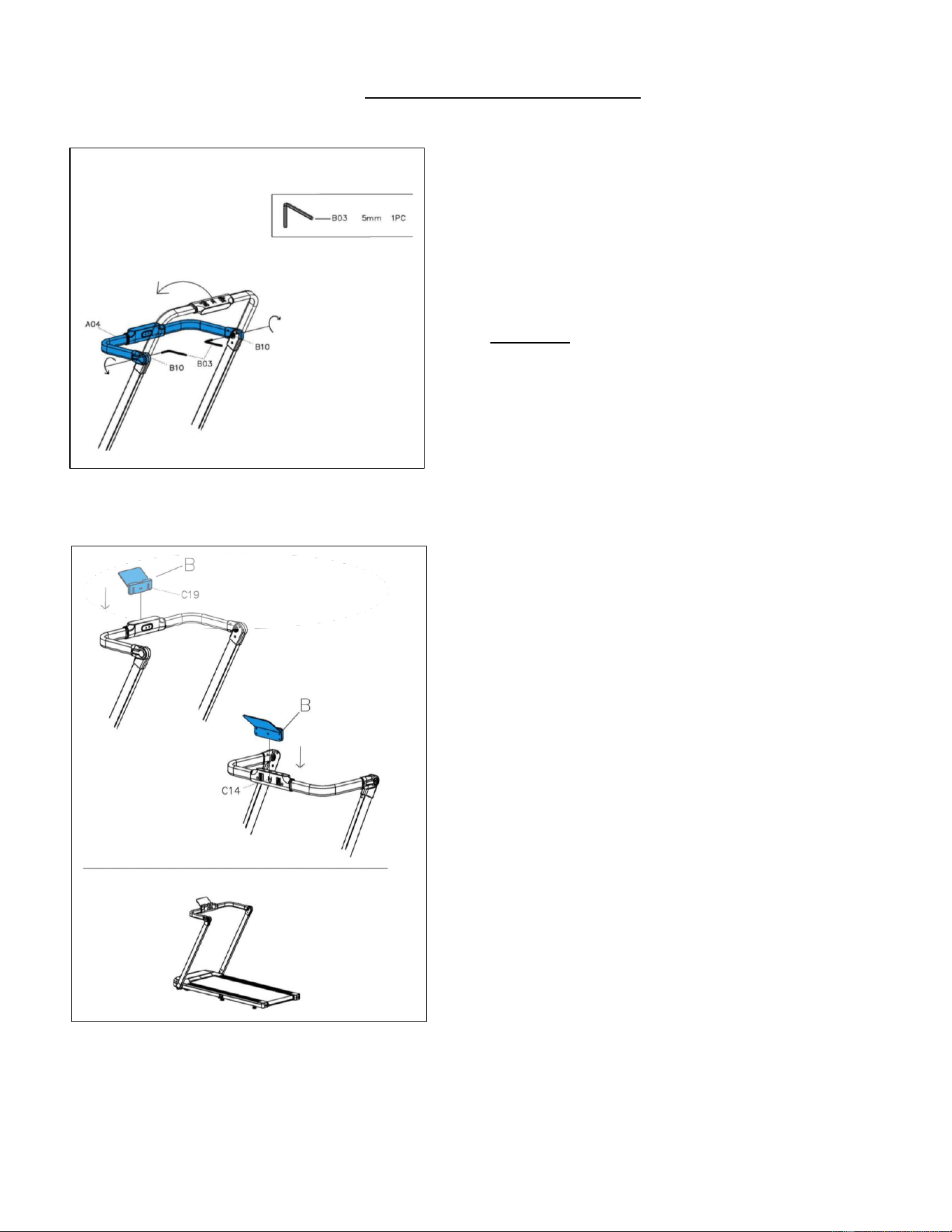

STEP 5:
Adjust the Console Base Bracket (No. A04)
downward (in the direction specified by the
arrows on the diagram to the left).
Fix the 2 Puller Bolts B (No. B10) inside the
Console Base Bracket (No. A04) by turning
clockwise using the Allen Wrench (No. B03).
STEP 6:
Insert the Tablet Holder Fixed Base (No. C19)
to Console Rear Cover (No. C14).
8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY (877-907-
8669).

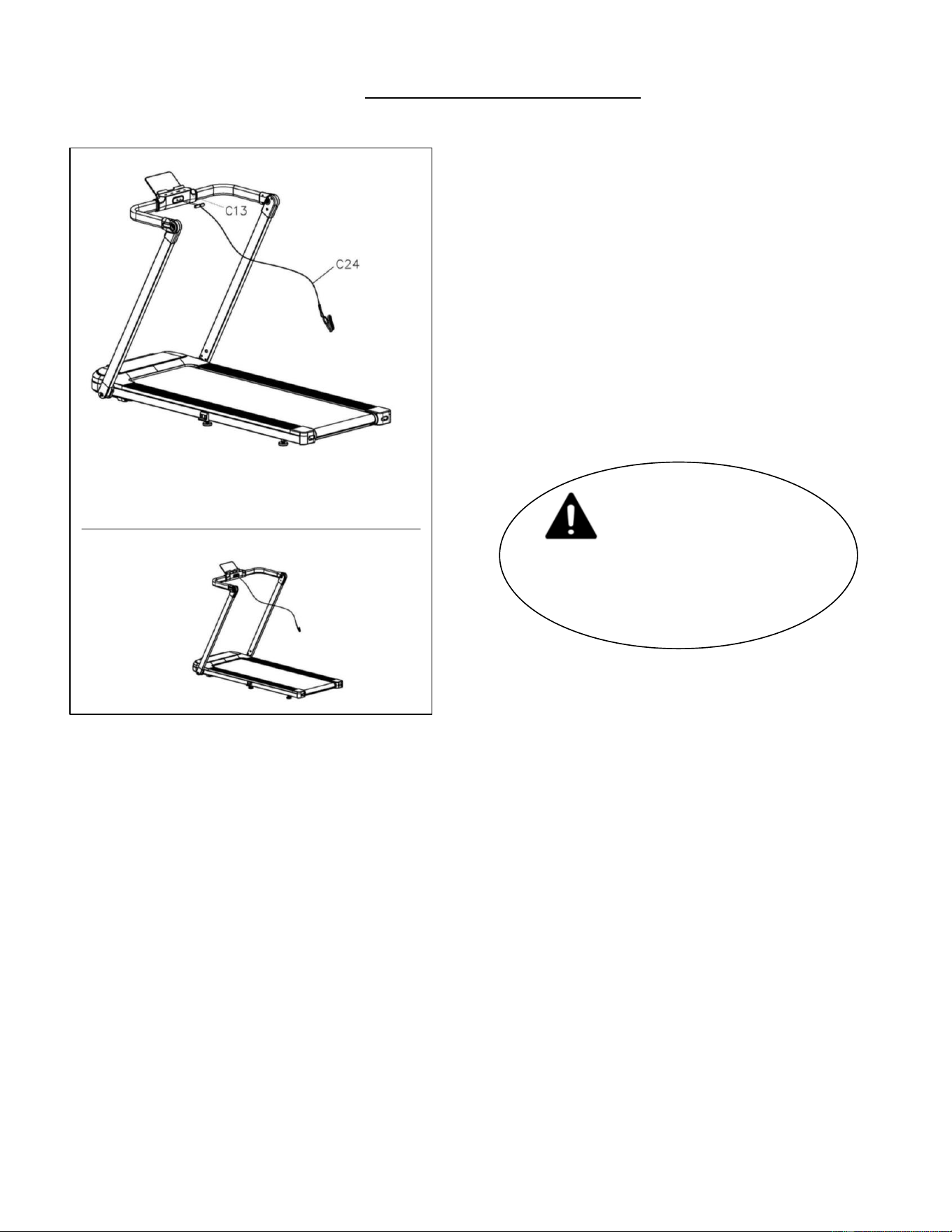

STEP 7:
Insert the pin end of Safety Key (No. C24)
into the Console Front Cover (No. C13).
The assembly is complete!
IMPORTANT NOTE!
You will need to lubricate your
treadmill before the first use. See
Page 9.
9

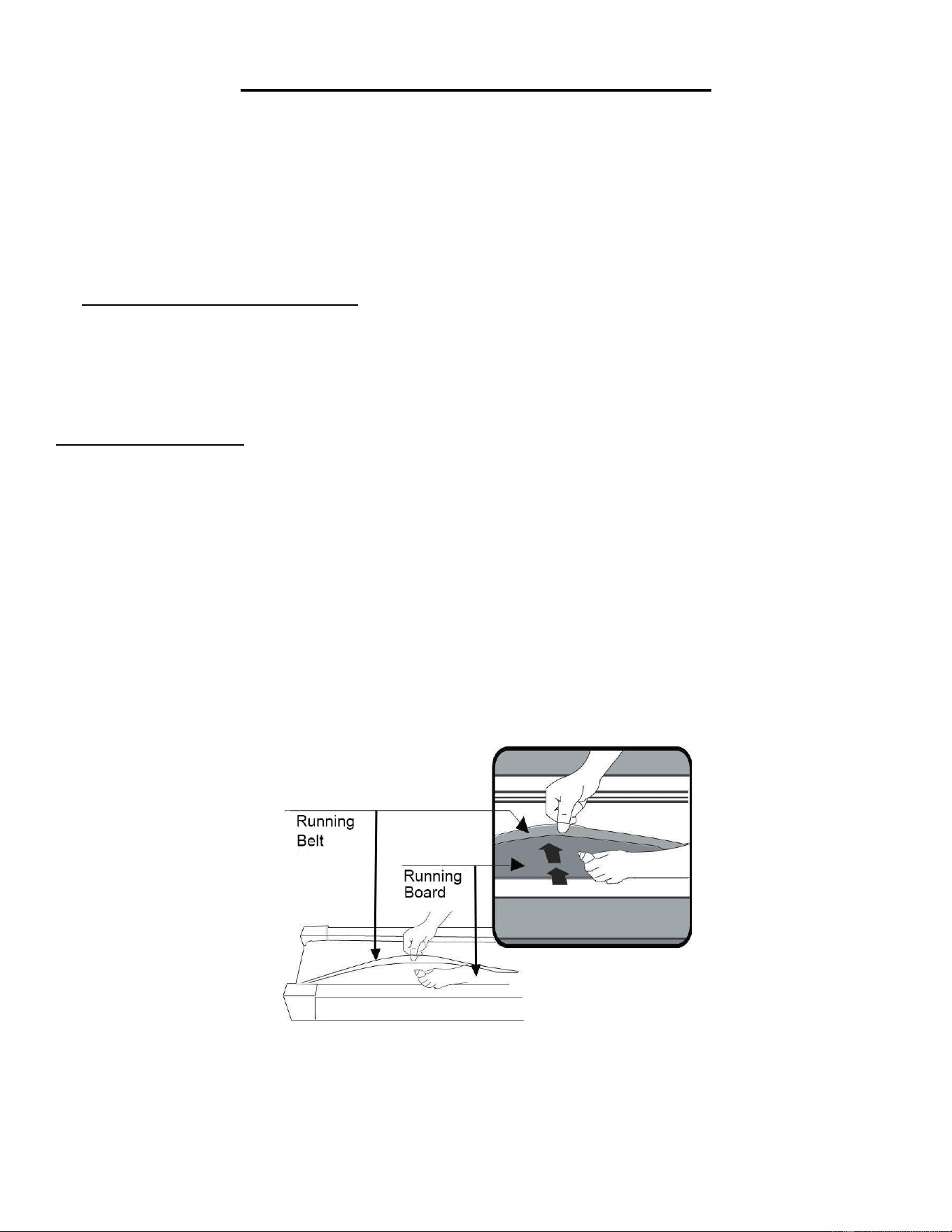

LUBRICATING THE TREADMILL
IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use.
RUNNING BELT & TREADMILL LUBRICANT:
Lubricating the Running Board (No. E18) and Running Belt (No. C22) is essential as the friction
affects the life span and operations of the treadmill. Inspect the Running Belt (No. C22) and Running
Board (No. E18) regularly. If you find any wear on the Running Board (No. E18), please contact us
at: [email protected].
WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating, or
repairing the unit.
HOW TO LUBRICATE:
1. To apply lubricant, lift one side of the Running Belt (No. C22) and apply oil to the middle of the
Running Board (No. E18). Next, start the treadmill and place it at the lowest speed setting and allow
the oil to spread over the Running Board (No. E18). Repeat this process for the other side.
2. The moving parts should turn freely and quietly. Abnormal moving parts will affect the safety of the
equipment. Inspect and tighten bolts regularly.
3. To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be done
on a regular basis.
4. DO NOT LOOSEN OR MAKE ANY ADJUSTMENTS TO THE RUNNING BELT WHILE APPLYING
LUBRICANT. A loose Running Belt (No. C22) will result in the runner sliding off during use, while
too tight of a Running Belt (No. C22) will negatively affect the motor’s performance and create more
friction between the roller and Running Belt (No. C22). The most suitable tightness for the Running
Belt (No. C22) is when it is pulled out 50-75mm from the Running Board (No. E18).
The following timetable is recommended:
Light user (less than 3 hours/ week) every six months
Medium user (3-5 hours/ week) every three months
Heavy user (more than 5 hours/ week) every two months
10
HOW TO FOLD THE MACHINE
STEP 1:
Pull out the Tablet Holder Fixed Base (No.
C19) from Console Rear Cover (No. C14).
STEP 2:
Loosen the 2 Puller Bolts B (No. B10) inside
the Console Base Bracket (No. A04) by
turning counter-clockwise using the Allen
Wrench (No. B03).
Lift the Console Base Bracket (No. A04)
upward (in the direction specified by the arrows
on the diagram to the left).
11
STEP 3:
Support the Left & Right Upright Tubes (No.
A02 & No. A03) with your hands to prevent
them from falling.
Loosen the 2 Puller Bolts A (No. B09) inside
Left & Right Upright Tubes (No. A02 & No.
A03) by turning counter-clockwise using the
Allen Wrench (No. B03).
STEP 4:
Pull the Console Base Bracket (No. A04)
along with Left & Right Upright Tubes (No.
A02 & No. A03) downward (in the direction
specified by the arrows on the diagram to the
left).
12

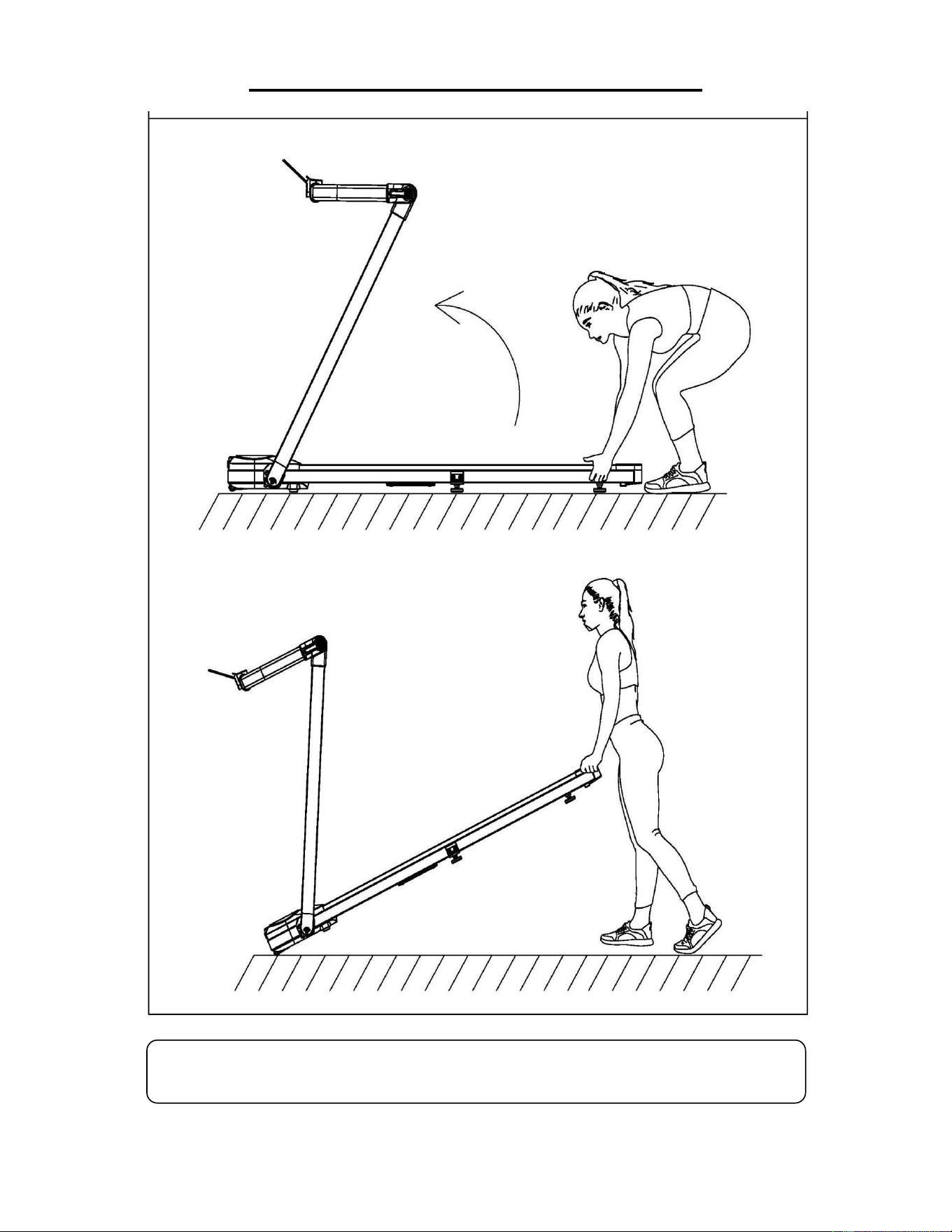

HOW TO MOVE THE MACHINE
Hold the treadmill at position as above with your hand. Lift the treadmill and
then you can move the treadmill to any place.
13
HOW TO ADJUST THE BALANCE
When the height of each pad or because of individual machine placed on the ground is not even,
you need to adjust the Adjustable Pads (No. C31) to level the machine on the ground.
Adjustment method: First, place the machine as shown above, use Spanner w/ Screwdriver
(No. B21), and adjust the Adjustable Pads (No. C31) clockwise to raise the footpad and counter-
clockwise to lower the footpad. When you have finished adjusting the base leveler, re-tighten the
first Nut (look down from the top) of Adjustable Pads (No. C31) clockwise by using Spanner
w/ Screwdriver (No. B21). If needed, repeat this process to adjust the remaining base levelers.
14
MAINTENANCE & CARE
General cleaning will help prolong the life and improve the performance of your treadmill. Keep the unit
clean and maintained by dusting the components on a regular basis. Cleaning two exposed sides of
the Running Belt (No. C22) will prevent dust from accumulating underneath. Keep your running shoes
clean so that dirt from your shoes does not wear out the Running Board (No. E18) and Running Belt
(No. C22). Clean the surface of the Running Belt (No. C22) with a clean damp cloth.
To better maintain the treadmill and prolong its life, it is suggested that the treadmill be powered off for
10 minutes every 2 hours and fully powered off whenever not in use.

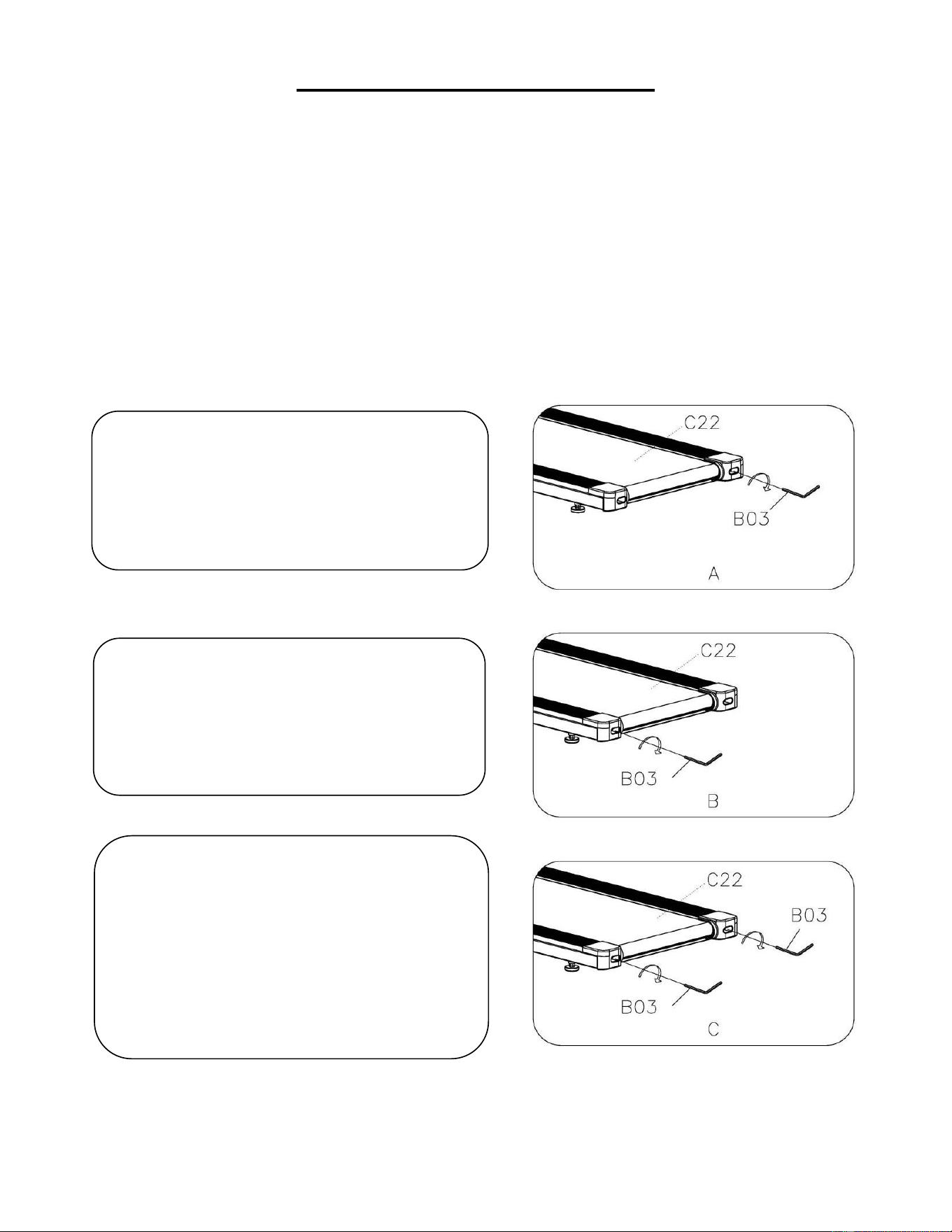

CENTERING THE RUNNING BELT:
Place the treadmill on level ground and set it at 3-5MPH to check if the Running Belt (No. C22) drifts
from the center.
If the Running Belt (No. C22) moves to the
right, turn the right adjusting bolt ¼ turn
clockwise, then turn the left adjusting bolt ¼
turn counter-clockwise. If the Running Belt
(No. C22) does not move, repeat this step
until it centers. Refer to Figure A.
If the Running Belt (No. C22) moves to the
left, turn the left adjusting bolt ¼ turn
clockwise, then turn the right adjusting bolt ¼
turn counter-clockwise. If the Running Belt
(No. C22) does not move, repeat this step
until it centers. Refer to Figure B.
Over time, the Running Belt (No. C22) will
loosen. To tighten the Running Belt (No.
C22), turn the left & right adjusting bolts one
full turn clockwise, check the tension of the
Running Belt (No. C22). Continue this
process until Running Belt (No. C22) is at
the correct tension. Make sure to adjust both
sides equally to ensure correct belt
alignment. Refer to Figure C.
15
IMPORTANT ELECTRICAL INFORMATION
WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly
operate. For your safety, as well as the safety of others, please verify that the power source is correct
before plugging in the equipment. Any power source above or below this level could cause significant
damage to the equipment and/or user.
GROUNDING METHODS:
This product must be grounded. Grounding provides a path of the least resistance for electrical current
to reduce the risk of electric shock. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances. Ensure that the product is
connected to an outlet which contains the same configuration as the plug. Do not use an adapter for
this product.
This product is for use on a nominal 100-120V circuit and has a grounding plug that looks like the plug
illustrated in sketch A.
DANGER:
Improper connection of the equipment can result in risk of electric shock. Check with a qualified
electrician or serviceman if you are unsure whether the product has been properly grounded. Do not
modify the plug provided with this product. If it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power
cord away from all moving parts of the treadmill, including the elevation mechanism and
transportation wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover on the treadmill without first disconnecting power cord.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for outdoor use or
use in any high humidity environment.
GROUNDING METHOD
16
THE DISPLAY CONSOLE
QUICK START:
1. Insert the pin end of the Safety Key (No. C24) into the Console Front Cover (No. C13).
2. Press the START button, and the system will automatically display a 3 second countdown. Once the
countdown reaches zero, the Running Belt (No. C22) will start at the initial default speed of 0.5
MPH.
3. To adjust the speed, you can use the SPEED +/- BUTTONS.
*NOTE: The maximum speed on this treadmill is 7.5MPH.
WINDOW DISPLAY:
Displays calories, time, steps, distance, and speed value in turn every 5 seconds.
CALORIES (CAL): Displays the number of calories burned from 0 to 99999 KCAL. When the count
reaches 99999 KCAL, it will reset and start back from 0.
TIME: Displays the time elapsed (0:00-99:59 MINS). If the time reaches 99:59, the treadmill will stop
smoothly and display “End” then automatically reset to 0:00 after 5 seconds.
STEP: Displays the number of steps from 0 to 99999. When the count reaches 99999, it will reset and
start back from 0.
DISTANCE (DIS): Displays the distance traveled (0.00-99.99). When the distance reaches 99.99 MILE,
it will reset to 0.00 and begin counting again from 0.00.
SPEED (SPD): 0.5 MPH is the default running speed.
When the handrails lie down, the treadmill is in walking mode. In walking mode, the speed range is
0.5-3.7 MPH.
When the handrails stand up, the treadmill is in running mode. In running mode, the speed range is
0.5-7.5 MPH.
Note: When no person walks or runs on the machine, distance and calories will not count.
PROGRAMS
Initial
Default Value
Set Range
Display Range
TIME (MIN:SECOND)
0:00
N/A
N/A
0:00－99:59
SPEED (MPH)
0.0
0.5
0.5-3.7(WALKING)
0.5-7.5(RUNNING)
0.5-3.7(WALKING)
0.5-7.5(RUNNING)
DISTANCE (MILE)
0.00
N/A
N/A
0.00-99.99
STEP
0
N/A
N/A
0-99999
CALORIE (KCAL)
0
N/A
N/A
0-99999
17
FUNCTION KEYS:
START: To start the treadmill, insert the pin end of the Safety Key (No. C24) into the Console Front
Cover (No. C13) and then press the START button. This treadmill requires the Safety Key (No. C24)
in order to start. 0.5 MPH is the default start speed.
STOP/PAUSE: This button has the functions of PAUSE and STOP. When in use, press this button once
to PAUSE your workout and the current workout data will still be shown. Press STOP again to terminate
your workout session completely and all data will be deleted and reset to the initial setting.
SPEED +/– BUTTONS: Press the +/- buttons to increase or decrease the speed in increments of 0.1
MPH. Pressing and holding either of these buttons for a duration of over ½ of a second will increase or
decrease the speed continually.

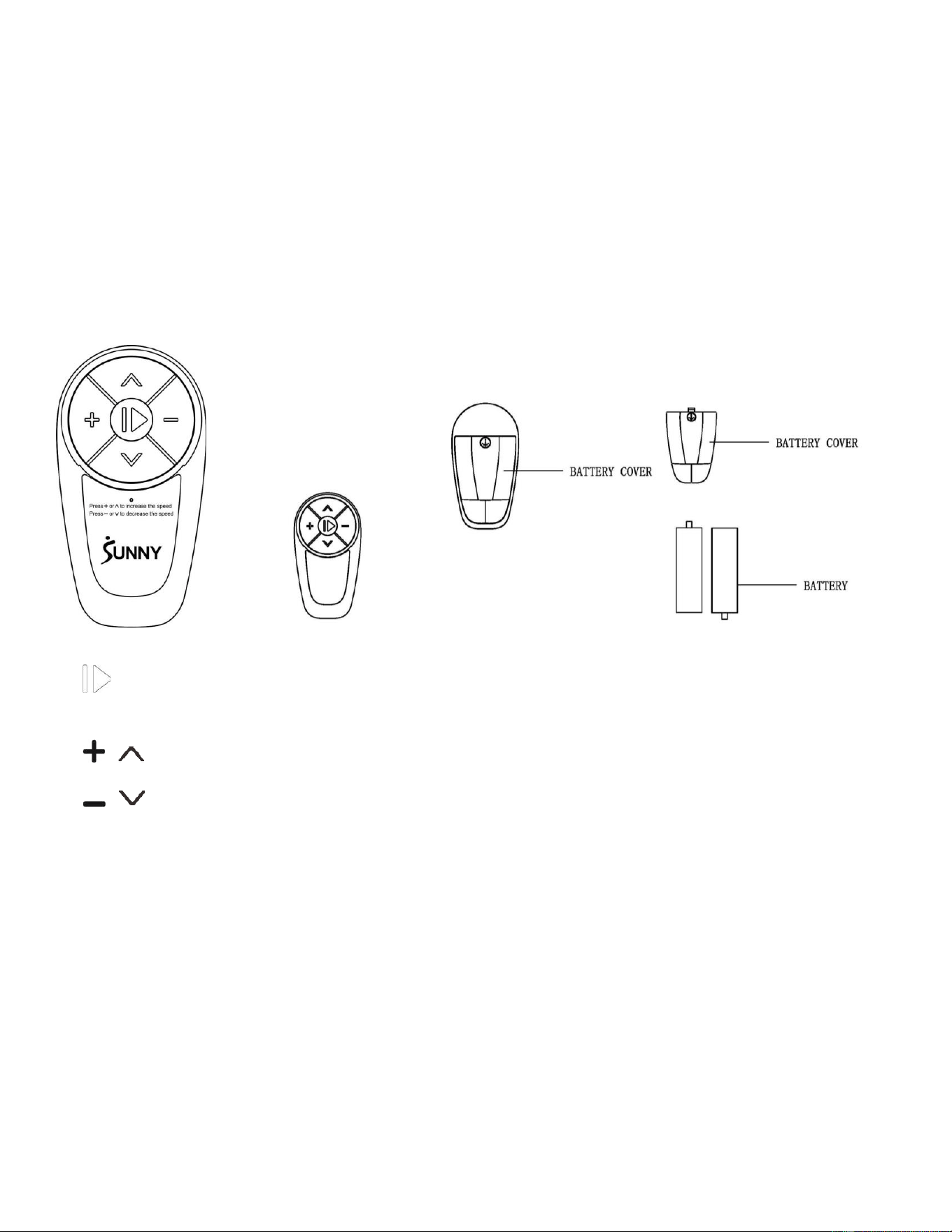

REMOTE CONTROL FUNCTIONS:
1. “ ” is START/PAUSE BUTTON: When the power is turned on and the safety key is put on standby,
press this button and the system will enter a 3-second countdown. The treadmill will start to run at a
speed of 0.5MPH. Press this button to stop the treadmill during operation.
2. “ ”“ ” is SPEED + BUTTONS: Pressing the speed button will increase the running speed of the
treadmill.
3. “ ”“ ” is SPEED - BUTTONS: Pressing the speed button will decrease the running speed of the
treadmill.
Note: If the treadmill does not respond to the remote control, you will need to resync the treadmill and
remote control. To sync the remote control with the treadmill, hold the start/pause button on the remote
control and turn on the treadmill. Now keep pressing the start/pause button for five seconds, until you
will hear a “beep” sound, which means the remote control has resynced with the treadmill.
BATTERY INSTALLATION:
1. Take out the 2 AAA batteries that are included inside the Remote Control (No. E14) bag.
2. Press the buckle of battery cover on the Remote Control (No. E14), then remove battery cover.
3. Install the 2 AAA batteries into the Remote Control (No. E14).
4. Pay attention to the battery + and - ends before installing.
5. Press the buckle of battery cover. Then, put the battery cover back on the Remote Control (No.
E14).
The installation is complete!
18
BATTERY REPLACEMENT:
1. Press the buckle of battery cover on the Remote Control (No. E14), then remove battery cover.
2. Remove the 2 old batteries in the battery case and install 2 new AAA batteries into the battery case
on the back of the Remote Control (No. E14).
3. Pay attention to the battery + and – ends before installing.
4. Press the buckle of battery cover. Then, put the battery cover back on the Remote Control (No. E14).
Dispose of the old batteries according to your regional guidelines.
LUBRICATION REMINDER:
Your treadmill needs lubrication maintenance every 188 Miles. The system will release a beeping sound
every 10 seconds and display an “OIL” icon on your display to remind you when it is time. Please read
the LUBRICATING THE TREADMILL on Page 9 to learn the proper steps to lubricate your treadmill.
Apply the lubricant to the middle of the running board on both sides. After application, press and hold
the STOP button for 3 seconds to clear the “OIL” reminder.
SAFETY KEY FUNCTION:
Removing the Safety Key (No.C24) from the Console Front Cover (No. C13) while the treadmill is
running will cause it to stop immediately. Once the treadmill reaches a full stop, the window display of
the console will show “- - -” and the speaker will beep 3 times. To start the treadmill again, insert the
pin end of the Safety Key (No. C24) into the Console Front Cover (No. C13) and press the START
button.
POWER SAVE FUNCTION:
In running mode, when the treadmill has been inactive for 10 minutes, it will enter Power Saving Mode.
While the treadmill is in this mode, the window display of the Console Front Cover (No. C13) will be
turned off. To turn it back on, press any button.
In walking mode, the machine will stop automatically if no one walks on it for more than 15 seconds.
POWER ON:
Flick the power switch to this symbol to turn on the treadmill.
POWER OFF:
Flick the power switch to this symbol to turn the treadmill off at anytime. This includes during exercise.
SAFETY NOTE:
We recommend that you maintain a slow speed at the beginning of a session and hold the Console
Front Cover (No. C13) handrails until you have become familiar with the treadmill.
Insert the pin end of the Safety Key (No. C24) into the Console Front Cover (No. C13) and attach the
opposite end (containing the safety clip on it) to your clothing before starting your workout. To end your
workout, press the STOP button or remove the Safety Key (No. C24) and the treadmill will stop
immediately.
19
EXERCISE INSTRUCTIONS
GETTING STARTED:
Before starting any exercise program, you should consult your physician to determine if you have any
medical or physical conditions that could put your health and safety at risk or prevent you from using
the equipment properly.
Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising immediately if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea.
Get to know your treadmill. Before attempting to use the treadmill take some time to stand alongside
and familiarize yourself with the controls.
1. Once you get on, you can stand with your feet on the Side Rails (No. C05) and stabilize yourself by
holding onto the handrails.
2. Next, attach the end of the Safety Key (No. C24) to your clothes and insert the pin end of the Safety
Key (No. C24) into the Console Front Cover (No. C13).
3. Press the START button to start the treadmill.
4. The treadmill will start at the system default setting speed of 0.5MPH. When you feel comfortable,
you may slowly increase this speed.
5. When you are finished with your exercise, press the STOP button to stop the treadmill or you can
remove the pin end of the Safety Key (No. C24) to stop the treadmill.
APP CONNECTION:
1. Scan the QR code below to download the SunnyFit app onto your mobile device.
2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your
free SunnyFit account and log in.
3. Ensure that the Bluetooth function is turned on from your mobile device.
4. To connect the equipment to the SunnyFit app:
a. From the “Workout” tab, press on the “Search” button to search for your equipment.
b. Once your equipment appears on the list, tap the “Select” button to confirm.
c. Note: If your equipment does not appear on the "Searching for Equipment" list, check the
CONSOLE on your equipment to ensure that it is not in sleep mode and your phone's
Bluetooth function is on, then tap "Retry" to search again.
d. Once your equipment shows up on the “Workout” tab as “Currently Selected,” your equipment
is now ready to display, track, and record your equipment’s workout stats on the app!
5. If you are unable to replicate these steps, or have any other issues with the SunnyFit app, please
contact SunnyFit support at [email protected], or use the in-app “Contact Us” form to request
support (“Me” tab -> “Contact Us”).
20
TROUBLESHOOTING
PROBLEM
POSSIBLE CAUSE
SUGGESTED ACTION
Treadmill will not start
Not plugged in.
Plug cord into outlet.
Safety Key is not inserted.
Insert Safety Key.
Running belt not centered
Running belt tension is not
correct on the left or right sides
of the running board.
Tighten the left and right
adjusting bolts of the rear roller.
Computer not working
Wires from the console and
bottom control board are not
properly connected.
Check wire from the console to
the control board.
Transformer is damaged.
If the transformer is damaged,
contact customer service.
E01:
Software over current
•
Heavy load
Restart the treadmill.
E02:
Hardware over current
Heavy load
Restart the treadmill.
E03:
IPM module overheating
Heavy load
Wait for about 30 minutes and
restart the treadmill.
E04:
Under-voltage protection
The power input voltage is too
high, or the control board is
damaged.
Replace a new control board.
E05:
Over-voltage protection
The power input voltage is too
high, or the control board is
damaged.
Replace a new control board.
•
E06: Motor out of phase
protection
The motor or control board is
damaged.
Replace a new control board or a
new motor.
E07:
Motor blocking protection
•
Heavy load
Restart the treadmill.
21
NOTE: If you are unable to resolve an issue using the troubleshooting guide above, please
contact Customer Service at [email protected].
E08:
Motor can not work
the motor or control board is
damaged
Replace a new control board or a
new motor.
E09: Motor over current
protection
•
Long time using make
resistance too high.
Add the lubricant oil, replace a
new motor if damaged.
E10: Current overload
protection (Self Protecting
System)
The incoming voltage is too
low or too high. The control
board is damaged.
Restart the treadmill. Check the
incoming voltage to ensure it is
correct. Check the control board,
replace if damaged.
A moving part of the treadmill
is stuck and therefore, the
motor is unable to rotate
properly.
Inspect moving parts of the
treadmill to ensure that they are
operating correctly. Check the
motor, listen for strange noises
and check for a burning smell.
Replace the motor if necessary.
E11: No hall signal
Hall signal cannot be received
by the motor.
Check if the motor hall sensor
plug is inserted properly, or the
sensor wire of control board is
broken or damaged; If the sensor
signal circuit on the control board
is abnormal, replace the control
board; Replace the motor if the
Hall signal inside the motor fails
or is damaged.
E12: Message failure
Wires from the console and
bottom control board are not
properly connected.
Check wire connections from the
console to the control board. If
the wire has been punctured or
damaged, you will need to
replace it. If the problem is not
rectified, you may need to
replace the control board.
22
EXPLODED DIAGRAM 1
23
EXPLODED DIAGRAM 2
24
PARTS LIST
No.
Description
Specification
Qty.
No.
Description
Specification
Qty.
A01
Main Frame
1
C17
Handle Inner Cover R
1
A02
Left Upright Tube
1
C18
Handle Outer Cover R
1
A03
Right Upright Tube
1
C19
Tablet Holder Fixed Base
1
A04
Console Base Bracket
1
C20
Tablet Holder
1
A05
Tablet Holder Base
1
C21
Anti-slip Sticker
1
B01
Front Roller
1
C22
Running Belt
1
B02
Rear Roller
1
C23
Motor Belt
1
B03
Allen Wrench
5mm
1
C24
Safety Key
1
B04
Motor Fixed Base R
1
C25
Safety Key Clamp
1
B05
Motor Fixed Base L
1
C26
Transportation Wheel
2
B06
Upright Tube Fixed Base L
1
C27
Rubber Foot Pad
2
B07
Upright Tube Fixed Base R
1
C28
Middle Cushion
2
B08
Upright Tube Lower Fixed Base
2
C29
Blue Cushion
2
B09
Puller Bolt A
2
C30
Rubber Cushion
4
B10
Puller Bolt B
2
C31
Adjustable Pad
4
B11
Round Nut
2
C32
EVA Pad
2
B12
Bearing
2
C33
EVA Pad
1
B13
Puller Bolt Base
4
D01
Nut
M5
2
B14
Motor Pressing Board A
1
D02
Nut
M6
6
B15
Motor Pressing Board B
1
D03
Nut
M8
2
B16
Type D board
2
D04
Bolt
M5*35 L15
2
B17
Side Rail Fixed Board
6
D05
Bolt
M6*45
3
B18
Turning Washer
4
D06
Bolt
M6*15
7
B19
Safety Key Plate
2
D07
Bolt
M6*20
14
B20
Magnet
1
D08
Bolt
M8*15
8
B21
Spanner w/ Screwdriver
S=13、14、15
1
D09
Bolt
M8*20
2
B22
Ground Plate
1
D10
Bolt
M6*30
4
C01
Motor Top Cover
1
D11
Bolt
M6*35
2
C02
Motor Bottom Cover
1
D12
Screw
ST2.9*6
4
C03
Left Rear Cover
1
D13
Pan Head Tapping Screw
ST2.9*8
8
C04
Right Rear Cover
1
D14
Pan Head Tapping Screw
ST4.2*12
6
C05
Side Rail
2
D15
Screw
ST2.9*12
8
C06
Grating Plate
1
D16
Pan Head Tapping Screw
ST2.5*6
5
C07
Upright Tube Limited Base
2
D17
Countersunk Head Screw
ST2.9*8
7
C08
Upright Tube Decorative Lower
Cover
2
D18
Countersunk Head Screw
ST2.5*6
3
C09
Upright Tube Inner Cover L
1
D19
Countersunk Head Screw
ST4.2*12
10
C10
Upright Tube Outer Cover L
1
D21
Bolt
M5*10
4
C11
Upright Tube Inner Cover R
1
D22
Bolt
M5*20
4
C12
Upright Tube Outer Cover R
1
D23
Pan Head Tapping Bolt w/ Washer
M5*12
2
C13
Console Front Cover
1
D24
Pan Head Tapping Bolt
M5*12
2
C14
Console Rear Cover
1
D25
Bolt
M4*8
2
C15
Handle inner Cover L
1
D26
Bolt
M6*20
1
C16
Handle Outer Cover L
1
D27
Flat Washer
Φ6
7
25
Version 1.1
No.
Description
Specification
Qty.
No.
Description
Specification
Qty.
D28
Spring Washer
Φ6
7
E10
AC Single Line
Brown 200
1
D29
Spring Washer
Φ5
2
E11
AC Single Line
Brown 350
2
D30
Locked Washer
Φ6
3
E12
AC Single Line
Blue 350
2
D31
Flat Washer
Φ8
12
E13
Grounding Wire
1
D32
Spring Washer
Φ8
10
E14
Remote Control
1
D33
Countersunk Head Screw
ST2.9*10
4
E15
Magnet Ring
1
D34
Pan Head Tapping Screw
ST4.2*16
7
E16
Overload Protector
1
E01
Console
1
E17
Motor
1
E02
Control Board
1
E18
Running Board
1
E03
Button Board
1
E19
Safety Key Connecting Wire
1
E04
Button Board Top Signal Wire
1
F01
AC Single Line
Brown
1
E05
Button Board Bottom Signal
Wire
1
F02
AC Single Line
Blue
1
E06
Console Connecting Wire
1
F03
Grounding Wire
1
E07
Power Socket
1
F04
Filter
1
E08
Square Switch
1
F05
Pan Head Tapping Screw
ST4.2*12
2
E09
Power Wire
1
