ACTIVE 300 SMART INCLINE
TREADMILL
SF-T724011
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: [email protected] or 1-877-90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
3. Keep children and pets away from the equipment.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 8 feet (240 cm) of free space behind it
and 2 feet (60 cm) on each side. Do not place the treadmill on any surface that blocks air
openings. To protect the floor or carpet from damage, place a mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment
during exercise, discontinue use of the equipment immediately and do not use until the
problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 300 lbs (135 kgs).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial
use.
IMPORTANT NOTE:
The running belt must be lubricated before the first use! Please see Page 11 for instructions on
how to properly apply lubricant.
2
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the
following:
Read all instructions before using (this appliance).
DANGER – To reduce the risk of electric shock and the injury from moving parts:
Always unplug this appliance from the electrical outlet immediately after using and before cleaning
or servicing.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons:
1. An appliance should never be left unattended when plugged in. Unplug from outlet when not in
use, and before putting on or taking off parts.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Keep
children under the age of 13 away from this machine.
3. Use this appliance only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer.
4. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it
has been dropped or damaged, or dropped into water. Please contact Customer Service at
5. Do not carry this appliance by supply cord or use cord as a handle.
6. Keep the cord away from heated surfaces.
7. Never operate the appliance with the air openings blocked. Keep the air openings free of lint,
hair, and the like.
8. Never drop or insert any object into any opening.
9. Do not use outdoors. Household use only.
10. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
11. To disconnect, turn all controls to the off position, then remove plug from outlet.
12. CAUTION: Risk of Injury to Persons – To Avoid Injury, use extreme caution when stepping onto
or off of a moving belt. Read Instruction Manual Before Using.
13. Connect this appliance to a properly grounded outlet only. See Grounding Instructions.
14. Remove control box (or key, or safety pin, as applicable) when not in use, and store out of
reach of children.
SAVE THESE INSTRUCTIONS
3

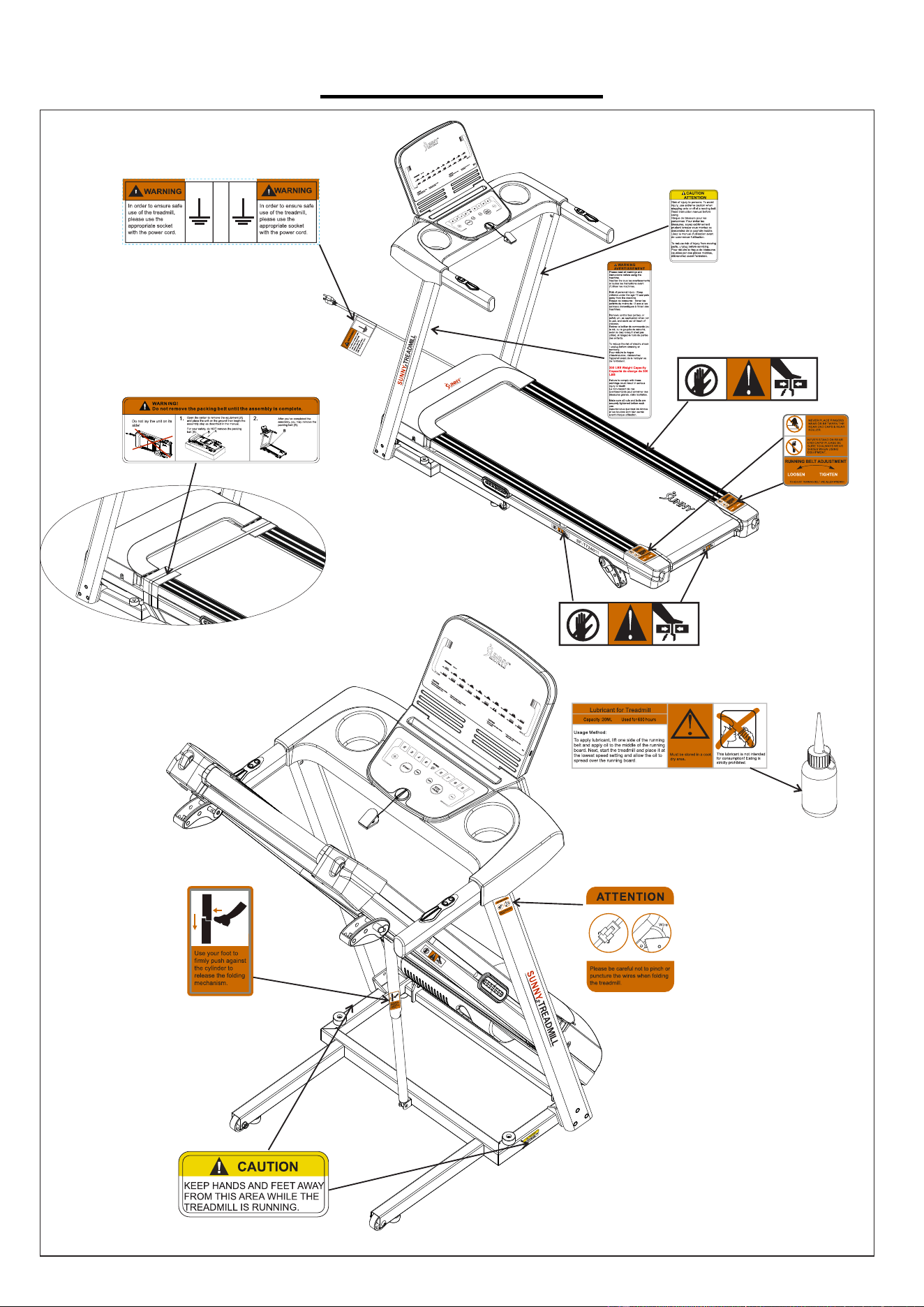

WARNING LABELS
4
PRE-ASSEMBLY CHECK LIST

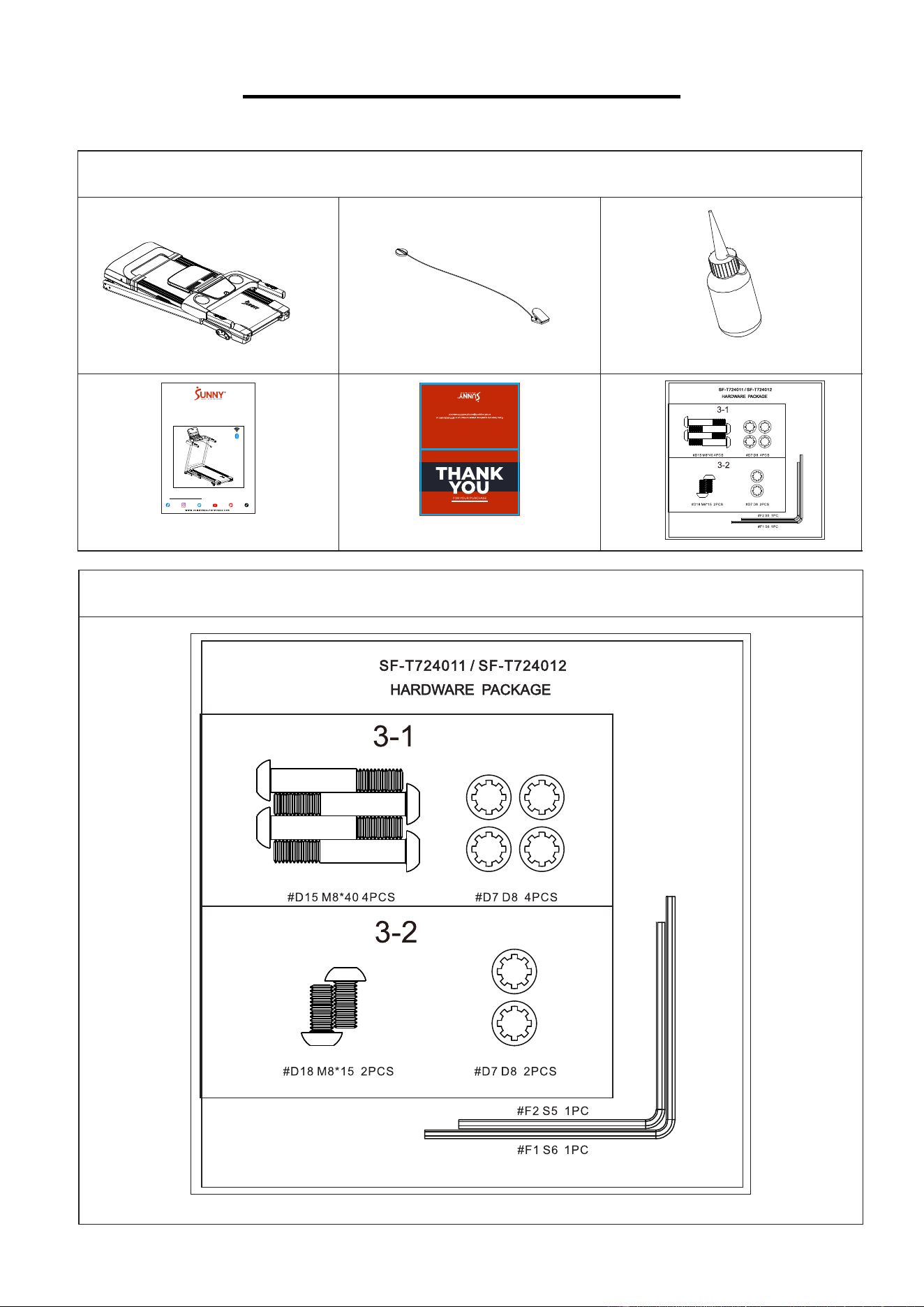

WHEN YOU OPEN THE CARTON, YOU WILL FIND THE FOLLOWING PARTS:
1
A C19 F3
ACTIVE 300 SMART INCLINE
TREADMILL
SF-T724011
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: [email protected] or 1
-
877
-
90SUNNY (877
-
907
-
8669).
2
5
#D15 M8*40 4PCS
#D7 D8 4PCS#F2 S5 1PC
A2
A3
G3
A

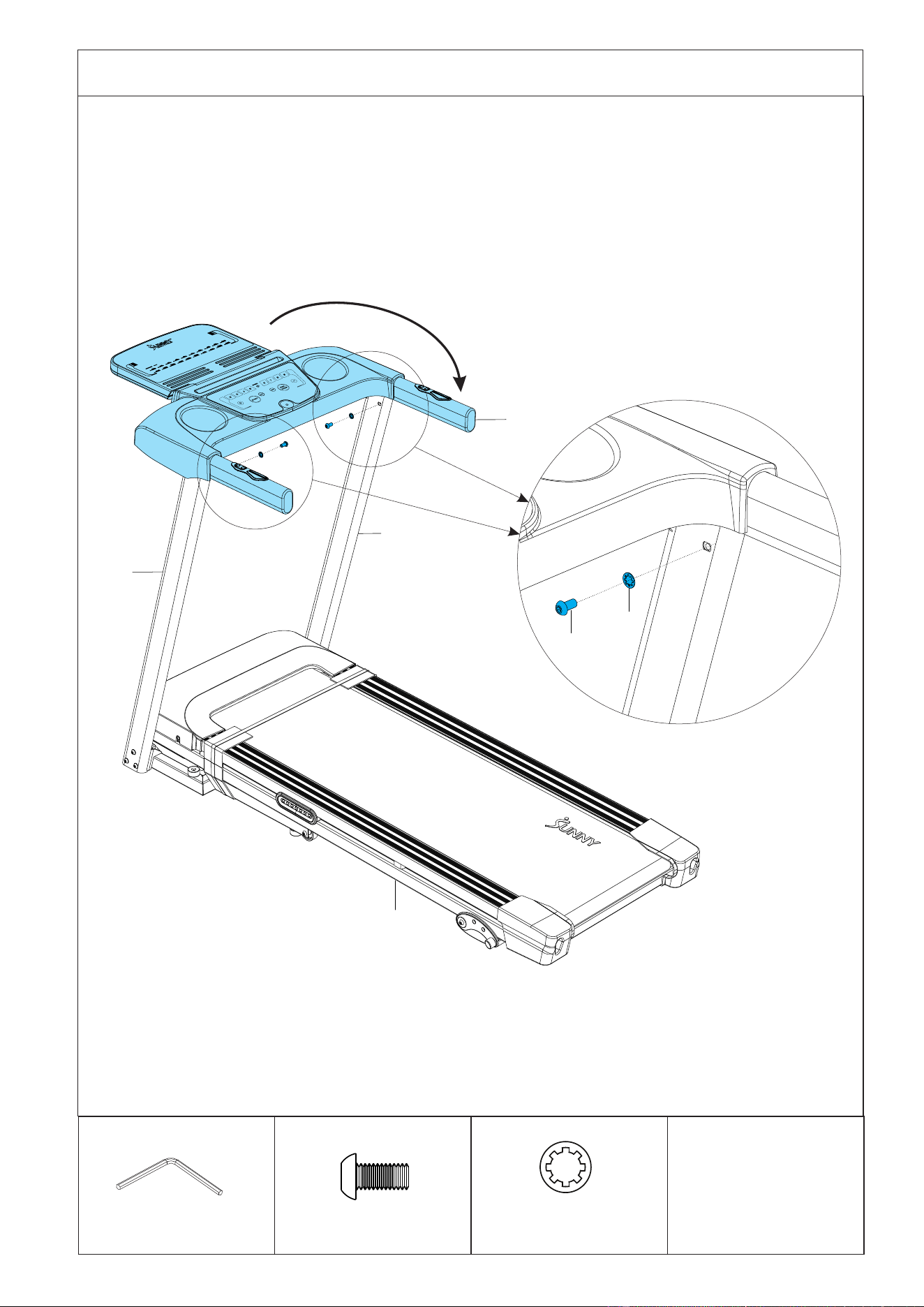

3-1
D7
D7
D15
D15
D15
D15
D7
D7
6
#D7 D8 4PCS#F2 S5 1PC #D18 M8*15 2PCS

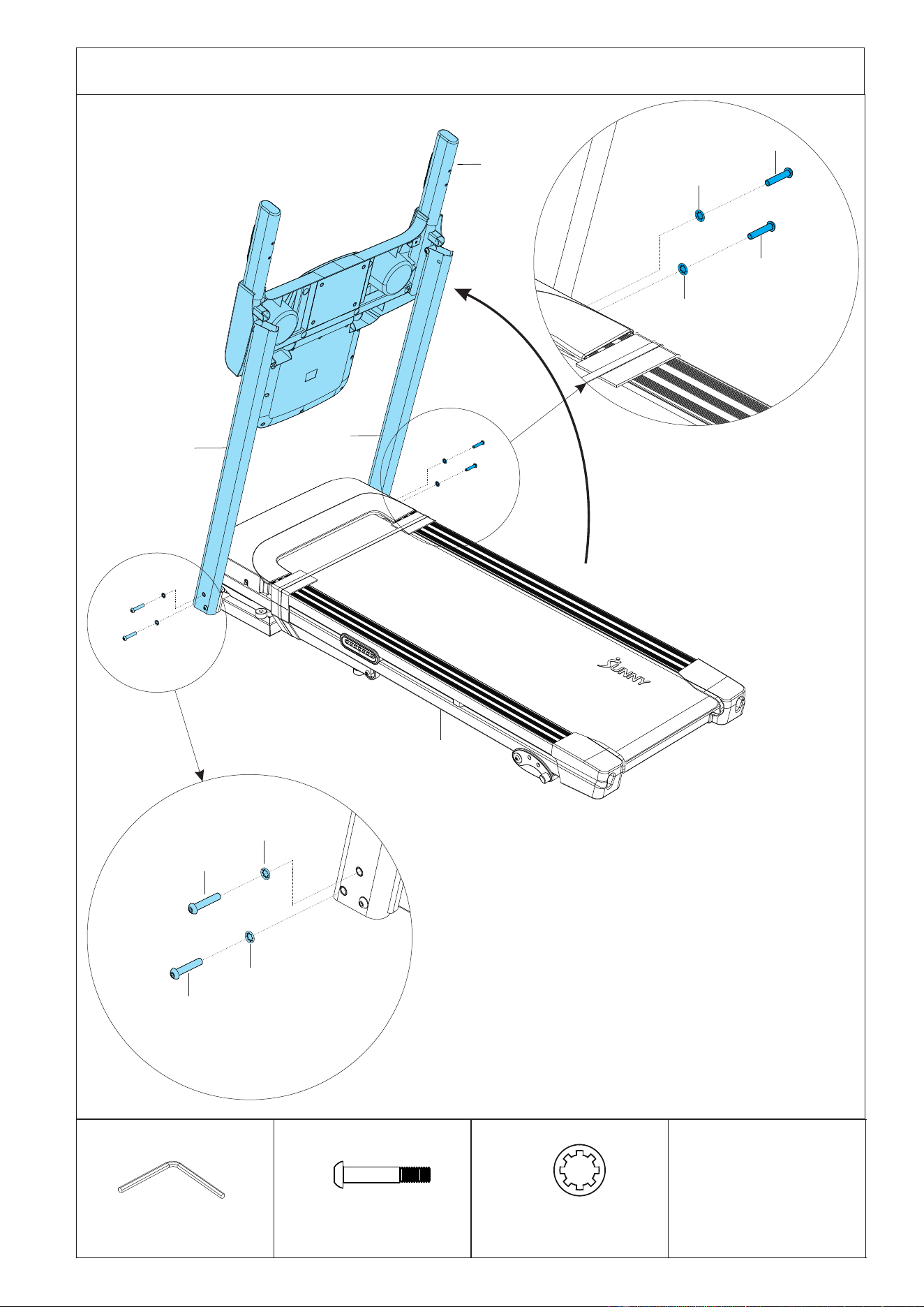

3-2
D7
D18
A2
G3
A
A3
7
A
C19
G1
F
3-3

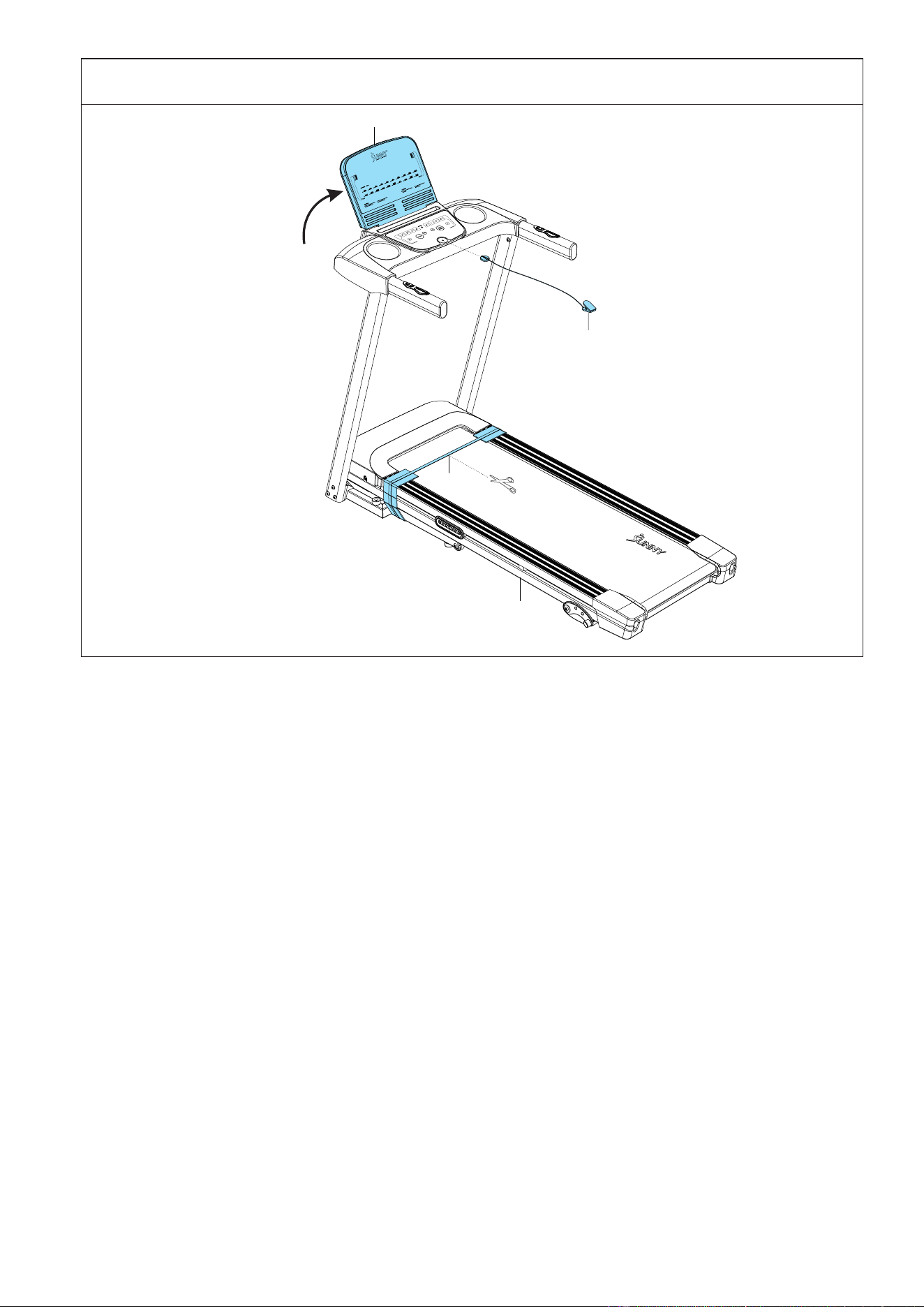

8
4-1

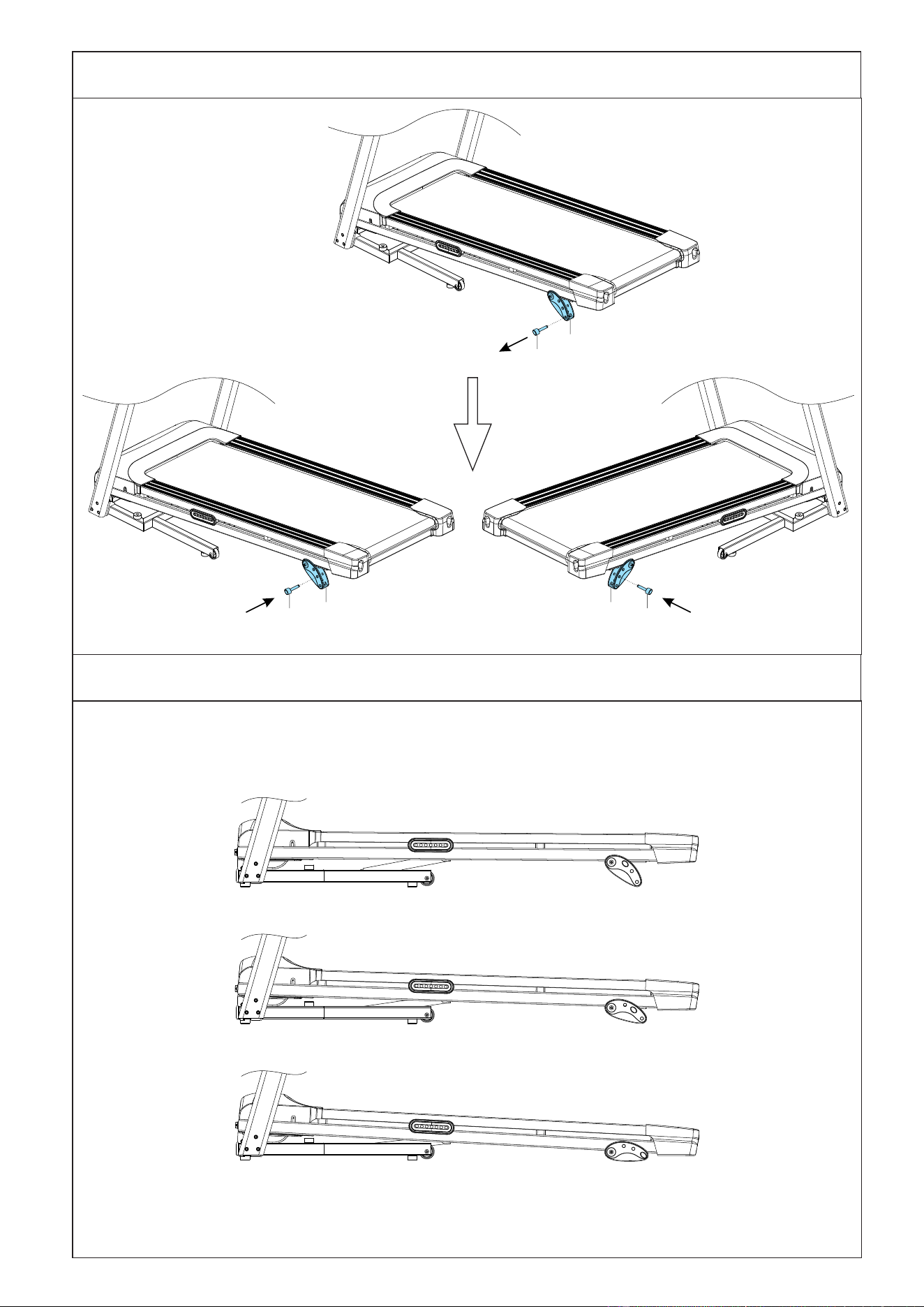

G
G
4-2

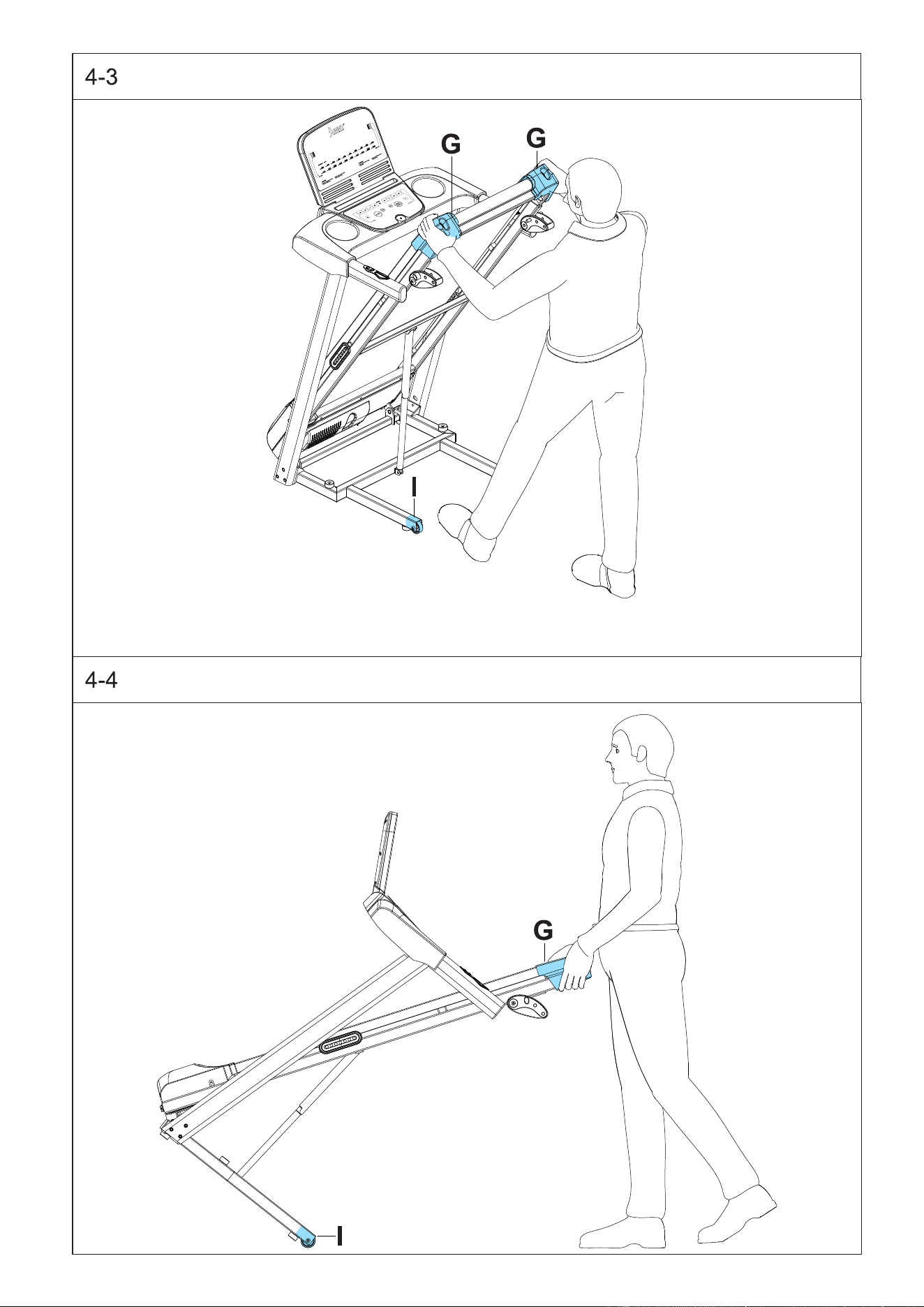

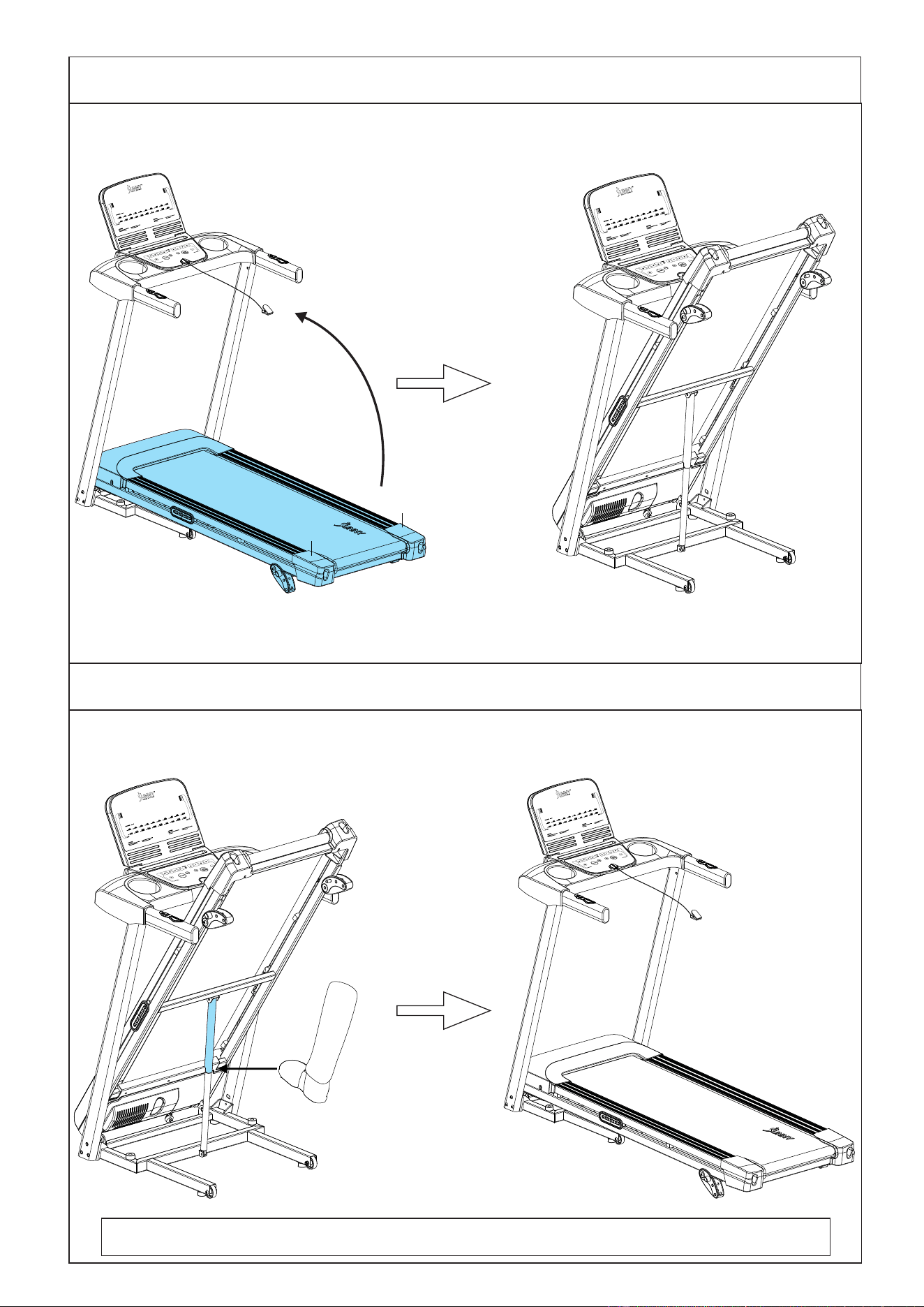

NOTE: LIGHTLY press in the center of the Cylinder and help down the running deck!
9
10
5-1
5-2
B9
C20
B9
C20
B9
C20
11
LUBRICATING THE TREADMILL
You will need to lubricate your treadmill before the first use! Lubricating the Running Belt (No. B6)
and Running Board (No. B5) is essential as the friction affects the life span and operations of the
treadmill. Inspect the Running Belt (No. B6) regularly. If you find any wear on the Running Board
(No. B5), please contact us at [email protected].
WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating,
or repairing the unit.
HOW TO LUBRICATE:

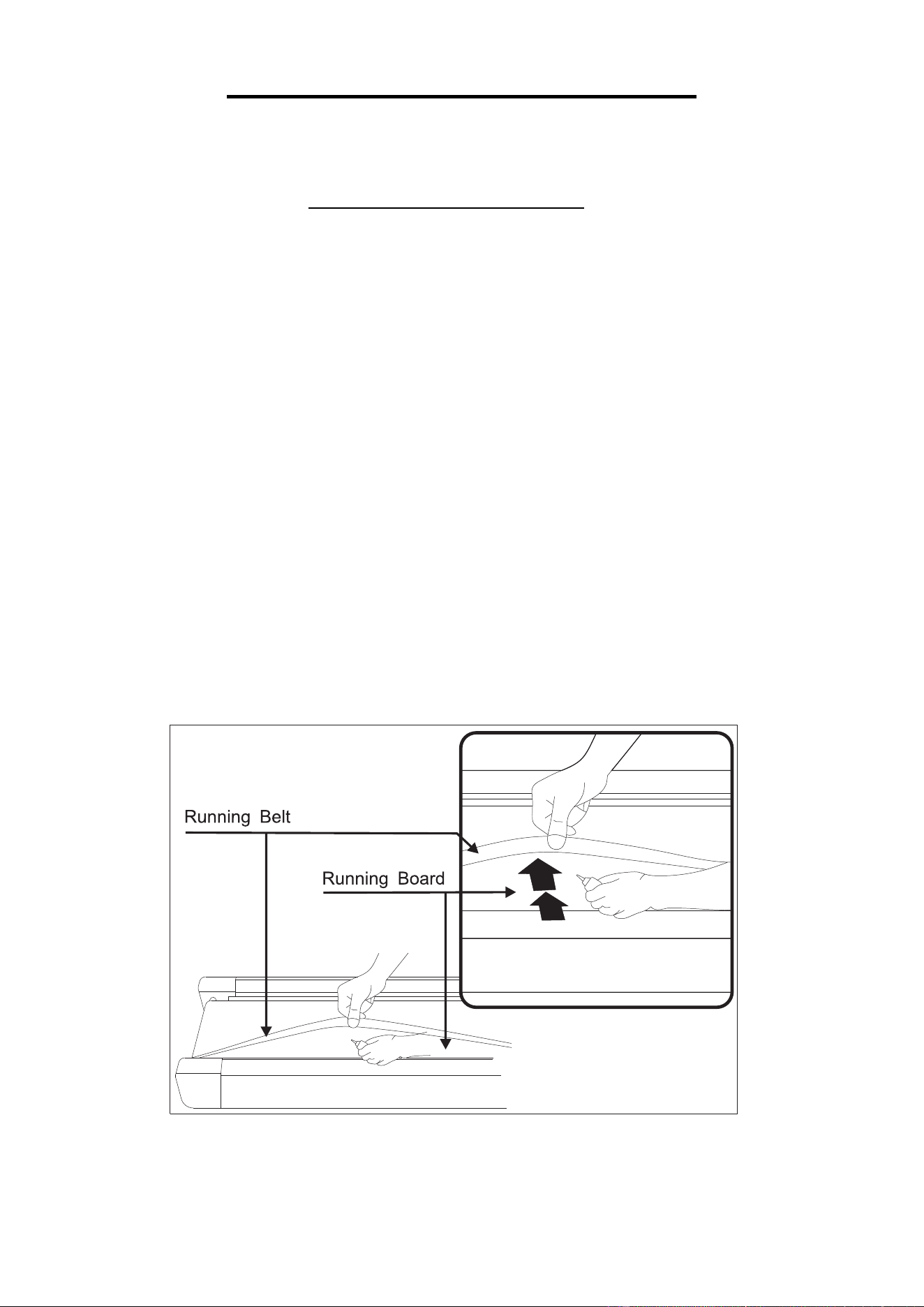

1. Raise the Running Belt (No. B6) up on one side and apply lubricant to the Running Board
(No. B5). Repeat this process for the other side.
2. It is suggested that the treadmill be powered off for 10 minutes every 1 hour and fully powered
off whenever not in use to better maintain the treadmill and prolong its life.
3. A loose Running Belt (No. B6) will result in the runner sliding off when in use, while too tight of
a Running Belt (No. B6) will negatively affect the motor’s performance and create more
friction between the roller and Running Belt (No. B6). The most suitable tightness for the
Running Belt (No. B6) is when it is pulled out 50-75 mm from the Running Board (No. B5).
NOTE: Do not make any adjustments to the Running Belt (No. B6) while applying lubricant.
The following timetable is recommended:
Light user (less than 3 hours/ week) every 2 months
Medium user (3-5 hours/ week) every 45 days
Heavy user (more than 5 hours/ week) every month
12
MAINTENANCE INSTRUCTION
General cleaning will help to prolong the life and improve the performance of your treadmill. Keep
the unit clean and maintained by dusting the components on a regular basis. Cleaning the two
exposed sides of the Running Belt (No. B6) will prevent dust from accumulating underneath.
Keep your running shoes clean so no dirt will stay on the Running Board (No. B5) and Running
Belt (No. B6). Clean the surface of the Running Belt (No. B6) by using a clean damp cloth. Keep
liquids away from electrical parts and Running Belt (No. B6). Cleaning the Running Belt (No.
B6) and Running Board (No. B5) before relubricating.
ADJUSTING THE RUNNING BELT
Place the treadmill on level ground and set it at 3-5 MPH (5-8 KM/H) to check and see if the
Running Belt (No. B6) drifts from the center. Adjust the Running Belt (No. B6) according to
instructions below with Allen Wrench (No. F1).

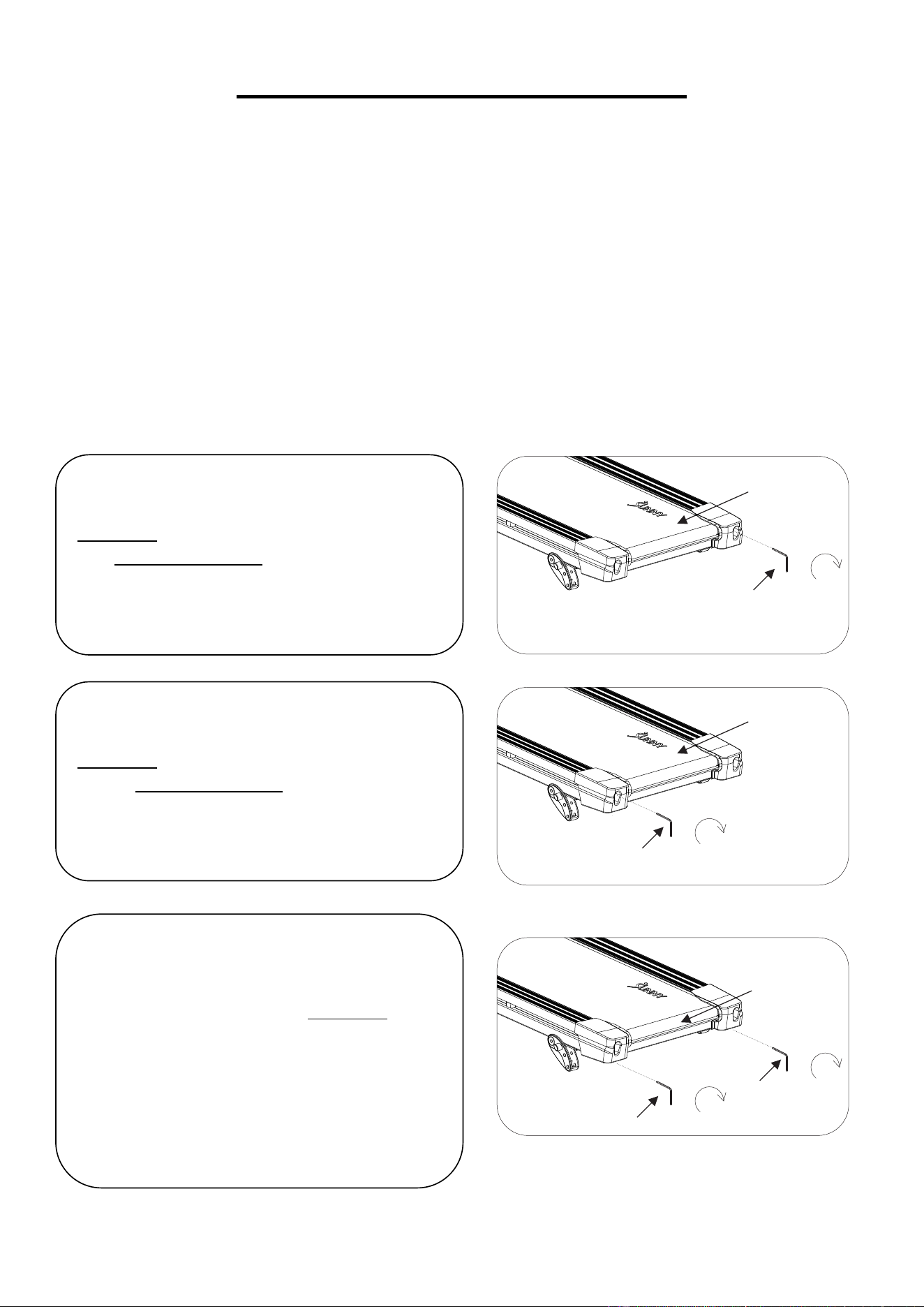

If the Running Belt (No. B6) drifts to the
right, turn the right adjusting bolt ¼ turn
clockwise, then turn the left adjusting bolt ¼
turn counter-clockwise. If the Running Belt
(No. B6) does not move, repeat this step
until it centers. Refer to image A.
If the Running Belt (No. B6) drifts to the
left, turn the left adjusting bolt ¼ turn
clockwise, then turn the right adjusting bolt
¼ turn counter-clockwise. If the Running
Belt (No. B6) does not move, repeat this
step until it centers. Refer to image B.
Over time, the Running Belt (No. B6) will
loosen. To tighten the Running Belt (No.
B6), turn both the left & right sides
adjusting bolts one full turn clockwise.
Check the tension of the Running Belt
(No. B6). Continue this process until
Running Belt (No. B6) is at the correct
tension. Make sure to adjust both sides
equally to ensure even alignment. Refer to
image C.
A
B
C
B6
B6
B6
F1
F1
F1
F1
13
IMPORTANT ELECTRICAL INFORMATION
IMPORTANT NOTE:
This treadmill requires a power source of 120 Volts in order to properly operate. For your safety,
as well as the safety of others, please verify that the power source is correct before powering the
equipment. Any power supply source above or below this level could cause significant damage to
the equipment and/or user.

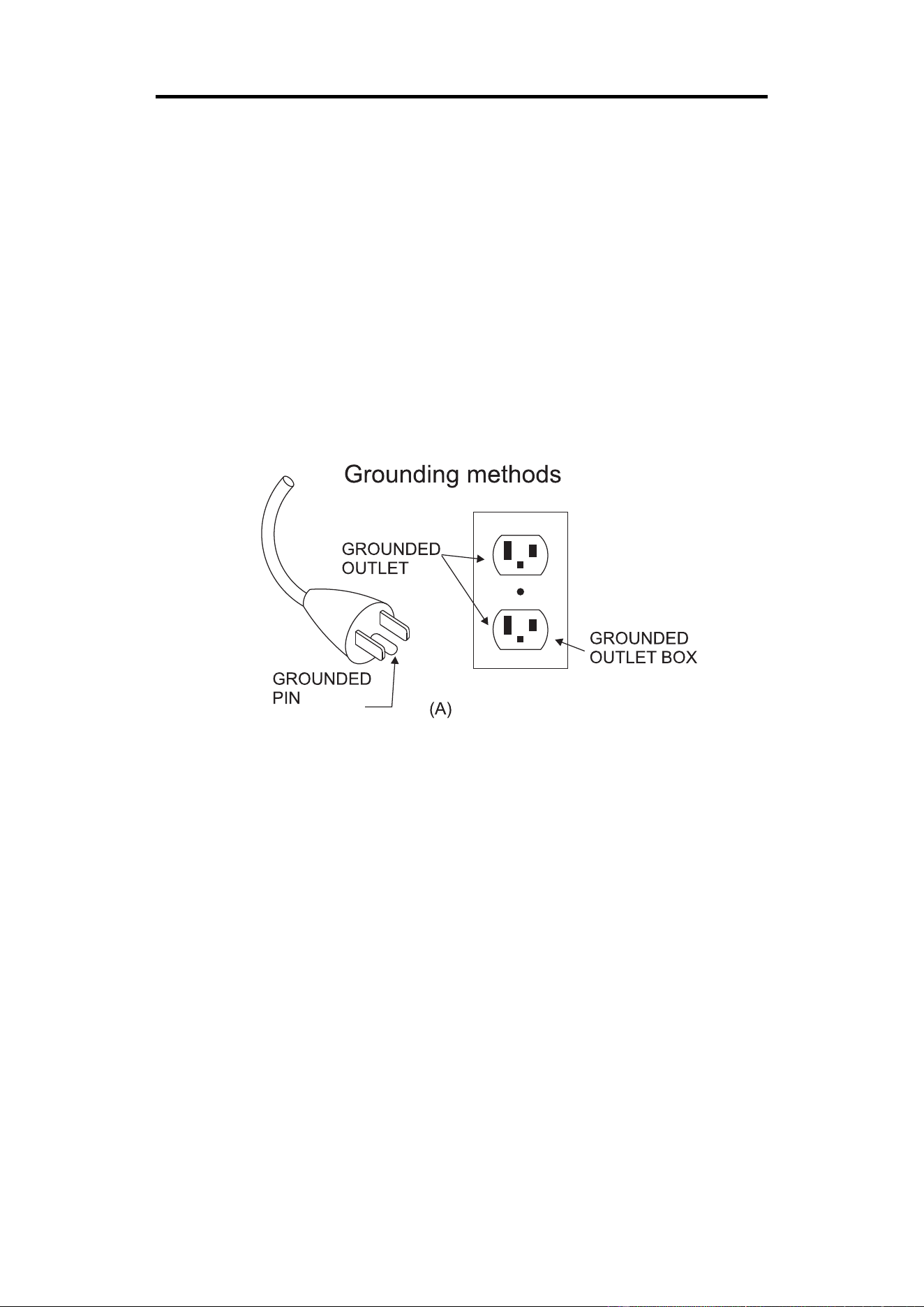

GROUNDING METHODS:
This product must be grounded. Should the treadmill malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk of electric shock. This
product is equipped with a plug that has an equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
CAUTION:
Improper connection of the equipment can result in risk of electric shock. Check with a qualified
electrician if you are unsure whether the product has been properly grounded. Do not modify the
plug provided with this product. If it will not fit the outlet, have a proper outlet installed by a
qualified electrician. Ensure that the product is connected to an outlet with the same configuration
as the plug. Do not use an adaptor for this product.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) outlet with this treadmill. Route the power
cord away from all moving parts of the treadmill, including the Air Pressure Cylinder and
transportation wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover on this treadmill without first disconnecting the power cord.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for outdoor use
or use in any high humidity environment.
14

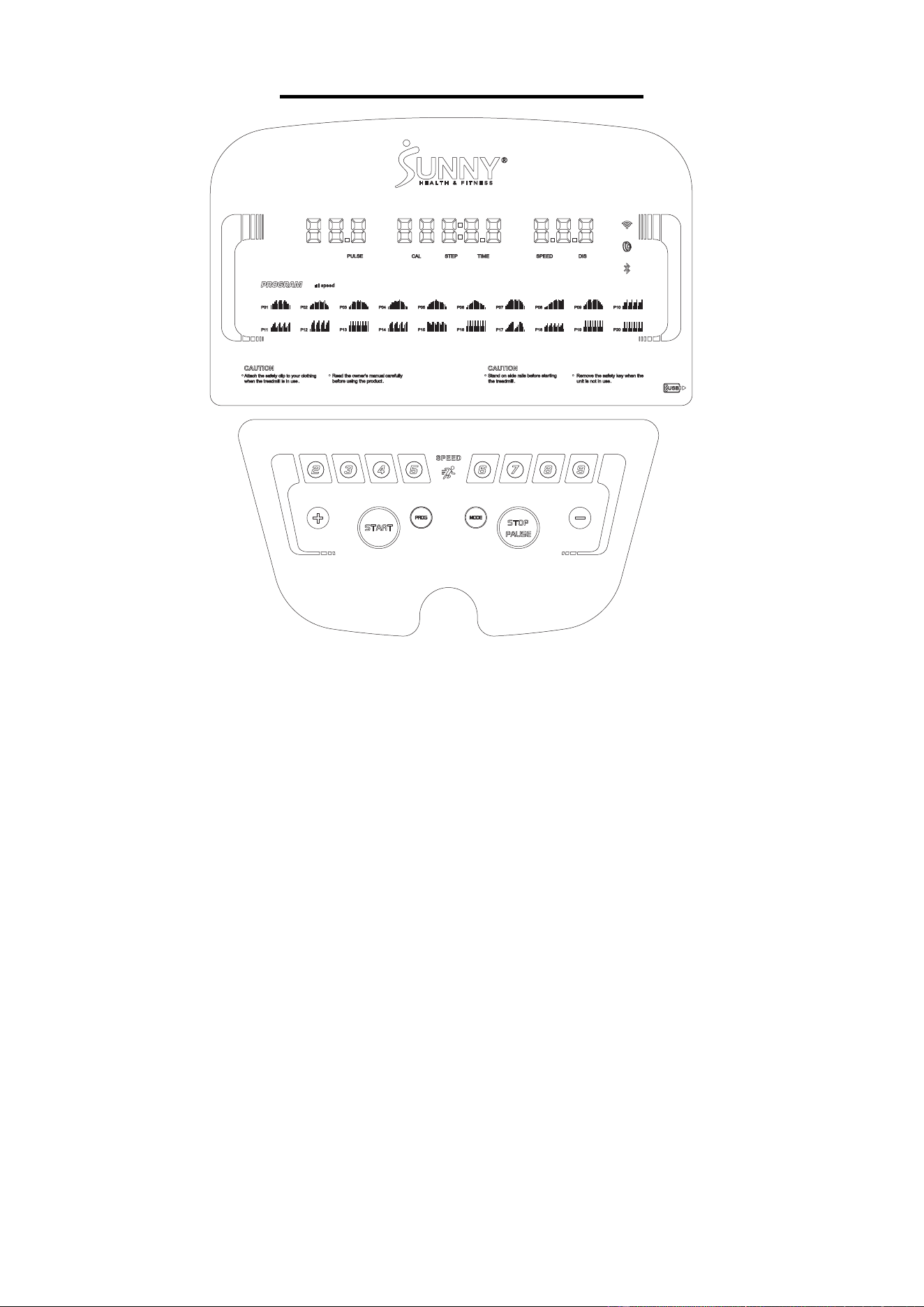

THE DISPLAY CONSOLE
DISPLAY
1. PROGRAM: In addition to manual mode, there are 20 preset programs (P1-P20), 3
personalized user programs (U1-U3) and FAT program.
2. SPEED: The speed range is 1- 9 MPH (1-14 KM/H). The initial default speed is 1 MPH (1
KM/H).
3. TIME: Displays the time elapsed (0:00-99:59 MINS). If the time reaches 99:59, the treadmill
will stop smoothly and display “End” then automatically reset to 0:00 after 5 seconds. When in
Countdown Mode, it will count from the set time to 0:00. When the clock reaches 0:00, the
treadmill will stop smoothly and display “End” then automatically reset itself after 5 seconds.
4. DIS (DISTANCE): Displays the total distance traveled or distance countdown (0.00- 99.9
MILES) / (0.00-99.9 KM). Displayed every 5 seconds.
5. CAL (CALORIES): Displays total calories burned or calories countdown (0.0-999 KCAL).
Displayed every 5 seconds.
6. PULSE: Displays your pulse data when hands are placed on the sensors or connected to heart
rate monitor (50-200 BPM). The console can be connected to the heart rate monitor at any time
except in power saving mode.
NOTE: The heart rate monitor is not included. Wireless heart rate function works with SunnyFit
Heart Rate Monitor HR200.
7. SAFETY KEY: The safety key lock acts as an emergency stop function. In case of emergency,
simply remove the Safety Key (No. C19) from the top console and the top console will beep
twice and bring the running belt to a complete stop.
8. STEP: Displays the total steps (1-99999 steps). Displayed every 5 seconds.
15
UNIT CONVERTIONS FROM IMPERIAL TO METRIC SYSTEM
First, remove the Safety Key (No. C19) from Console Assembly (No. G3) then press “PROG”
and “MODE” buttons together for 5 seconds. The display will show “9” or “14”. It’s in Imperial
System when “9” is displayed. It’s in Metric System when “14” is displayed.
NOTE: If treadmill is converted to Metric System, speed and distance will be measured in
Kilometers and Kilometers/Hour.
FUNCTION BUTTONS/MANUAL MODE
1. START: Insert the Safety Key (No. C19) into the top console and press “START” button to
start the treadmill. The treadmill will initiate at the default running speed of 1 MPH (1 KM/H).
2. STOP/PAUSE: When in use, press this button once to PAUSE your workout and the current
workout data will still be shown. Press “STOP/PAUSE” button again to terminate your workout
session completely and all data will be deleted and reset to the initial setting. In the STOP
state, press and hold the “STOP/PAUSE” button for 6 seconds to disconnect the heart rate
monitor. To reconnect the heart rate monitor, press and hold the “STOP/PAUSE” button for 6
seconds again.
3. SPEED +/- BUTTONS: During use, press these +/- buttons to increase or decrease your
speed. The speed will adjust 0.1 MPH (0.1 KM/H) at a time.
4. MODE: Press this button to choose which Countdown Mode to preset before starting the
treadmill.
a. Press the “MODE” button to set the desired H-1 (TIME), H-2 [DIS (DISTANCE)], or H-3
([CAL (CALORIES)] setting to countdown from.
i. H-1 (TIME): Countdown is set at the initial time setting of 15:00 MINS. You may
increase or decrease the set time by pressing the “SPEED +/-” buttons. The time
setting range is from 5:00-99:00 MINS.
ii. H-2 [DIS (DISTANCE)]: Countdown is set at the initial distance setting of 1.00 MILE
(1.00 KM). You may increase or decrease the set distance by pressing the “SPEED
+/-” buttons. The distance setting range is from 0.5-99.9 MILES (0.5-99.9 KM).
iii. H-3 [CAL (CALORIES)]: Countdown is set at the initial calories setting of 50.0 KCAL.
You may increase or decrease the set calories by pressing the “SPEED +/-” buttons.
The calories setting range is from 10.0-990 KCAL.
b. Press “START” button to begin this exercise.
NOTE: Once the Countdown Mode program is complete, the treadmill will stop, then return to
Manual Mode.
5. 2, 3, 4, 5, 6, 7, 8, 9 (QUICK SPEED BUTTONS): Use these quick speed buttons to instantly
bring the running belt to the desired speed of 2 MPH, 3 MPH, 4 MPH, 5 MPH, 6 MPH, 7 MPH,
8 MPH, or 9 MPH. If the treadmill is converted to Metric System, the quick speed buttons will
display 2 KM/H, 3 KM/H, 4 KM/H, 5 KM/H, 6 KM/H, 7 KM/H, 8 KM/H, 9 KM/H.
16
PROGRAMS
Press the “PROG” button to select P1, P2, ……P19, P20. Press the “SPEED +/-” buttons to set
the exercise time, then press “START” button to start your exercise. When the exercise is finished,
the treadmill will display “End” and stop automatically.
Each program is divided into 16 exercise segments in an equal time division. Please use the chart
below for Imperial or Metric system.
Program in Imperial System (Miles/ Hour)
TIME
PROGRAM
SET TIME/16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
P1
SPEED
1.2
1.9
1.9
2.5
3.1
1.9
2.5
3.1
3.1
1.9
2.5
3.1
2.5
1.9
1.9
1.2
P2
SPEED
1.2
1.9
2.5
2.5
3.7
3.1
3.1
3.7
4.3
3.7
3.1
3.7
4.3
2.5
1.9
1.2
P3
SPEED
1.2
1.9
2.5
3.7
3.7
3.1
3.7
4.3
3.7
4.3
3.7
3.1
3.1
2.5
1.9
1.2
P4
SPEED
1.2
1.9
2.5
3.7
3.7
5
5
4.3
5
5.6
5
4.3
3.7
2.5
1.9
1.2
P5
SPEED
1.2
2.5
3.1
3.7
4.3
5
5
5.6
5
4.3
4.3
3.7
3.7
3.1
2.5
1.2
P6
SPEED
1.2
2.5
2.5
3.7
4.3
5
6.2
6.2
5.6
5
4.3
4.3
3.7
2.5
2.5
1.2
P7
SPEED
2.5
3.7
5
6.2
7.5
7.5
6.2
7.5
7.5
6.2
7.5
7.5
6.2
5
3.7
2.5
P8
SPEED
1.2
1.9
2.5
3.7
4.3
5
5
6.2
6.8
7.5
6.2
7.5
6.8
6.2
7.5
7.5
P9
SPEED
2.5
3.7
5
6.2
7.5
7.5
5
6.2
7.5
7.5
7.5
7.5
6.2
5
3.7
2.5
P10
SPEED
1.2
2.5
2.5
3.7
1.2
2.5
2.5
3.7
1.2
2.5
2.5
3.7
1.2
2.5
2.5
3.7
P11
SPEED
2.5
3.7
5
6.2
2.5
3.7
5
6.2
2.5
3.7
5
6.2
2.5
3.7
5
6.2
P12
SPEED
1.5
4
5.2
6.5
1.5
4
5.2
6.5
1.5
4
5.2
6.5
1.5
4
5.2
6.5
P13
SPEED
2.5
4.5
2.5
4.5
2.5
4.5
2.5
4.5
2.5
4.5
2.5
4.5
2.5
4.5
2.5
4.5
P14
SPEED
2.5
5
6.2
7.5
2.5
5
6.2
7.5
2.5
5
6.2
7.5
2.5
5
6.2
7.5
P15
SPEED
7.5
7.5
6.2
5
7.5
7.5
6.2
5
7.5
7.5
6.2
5
7.5
7.5
6.2
5
P16
SPEED
2.5
5.5
2.5
5.5
2.5
5.5
2.5
5.5
2.5
5.5
2.5
5.5
2.5
5.5
2.5
5.5
P17
SPEED
1.2
2.5
3.7
5
6.2
7.5
7.5
1.2
2.5
3.7
5
7.5
7.5
6.2
3.7
1.2
P18
SPEED
2.5
3.7
5
2.5
3.7
5
2.5
3.7
5
2.5
3.7
5
2.5
3.7
5
1.2
P19
SPEED
2.5
6.5
2.5
6.5
2.5
6.5
2.5
6.5
2.5
6.5
2.5
6.5
2.5
6.5
2.5
6.5
P20
SPEED
2.5
7.5
2.5
7.5
2.5
7.5
2.5
7.5
2.5
7.5
2.5
7.5
2.5
7.5
2.5
7.5
17
Program in Metric System (Kilometers/ Hour)
TIME
PROGRAM
SET TIME/16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
P1
SPEED
2
5
5
5
10
10
5
5
5
3
3
2
5
5
3
2
P2
SPEED
2
2
7
2
2
7
7
12
4
4
12
4
4
12
4
2
P3
SPEED
2
4
9
9
4
4
8
8
10
10
12
4
4
8
4
2
P4
SPEED
2
6
6
6
12
12
12
12
6
6
3
3
3
5
5
2
P5
SPEED
2
4
6
12
12
12
3
3
3
3
12
12
12
6
4
2
P6
SPEED
2
4
5
5
6
6
8
8
6
6
8
8
6
9
6
2
P7
SPEED
2
7
7
9
9
4
4
12
12
4
4
8
8
4
4
2
P8
SPEED
2
2
6
6
6
8
9
10
11
12
9
5
5
5
3
2
P9
SPEED
2
4
8
10
2
4
8
10
2
4
10
2
4
10
4
2
P10
SPEED
2
5
6
7
8
9
10
11
10
9
8
6
7
5
4
2
P11
SPEED
2
5
6
7
9
9
6
9
6
9
6
10
6
10
7
2
P12
SPEED
2
6
8
10
2
6
8
10
2
6
8
10
2
6
8
10
P13
SPEED
4
7
4
7
4
7
4
7
4
7
4
7
4
7
4
7
P14
SPEED
2
8
10
12
4
8
10
12
4
8
10
12
4
8
10
2
P15
SPEED
2
12
10
8
12
12
10
8
12
12
10
8
12
12
10
2
P16
SPEED
4
9
4
9
4
9
4
9
4
9
4
9
4
9
4
9
P17
SPEED
2
4
6
8
10
12
12
2
4
6
8
12
12
10
6
2
P18
SPEED
2
6
8
4
6
8
4
6
8
4
6
8
4
6
8
2
P19
SPEED
4
10
4
10
4
10
4
10
4
10
4
10
4
10
4
10
P20
SPEED
2
12
4
12
4
12
4
12
4
12
4
12
4
12
4
2
18
USER PROGRAMS (U1-U3):
User program is made up of 16 segments. You are allowed to personalize each segment of your
exercise by programming each individual segment’s time duration, desired speed, and incline.
1. Press the “PROG” button to select U1, U2, or U3. Press the “SPEED +/-” buttons to set the
exercise time.
2. Press “MODE” button to enter the setting mode and set the desired speed of the 1
st
segment
by pressing the “SPEED +/-” buttons.
3. Press “MODE” button and your 1
st
segment is set.
4. Repeat the instructions above (2 to 3) until you’ve completed programming all 16 segments.
5. Press “START” button to save and start your exercise.
BODY FAT CALCULATION:
1. Press the “PROG” button until the window displays FAT.
2. Press “MODE” button to enter below by pressing the “SPEED +/-” buttons to set the data
accordingly:
a. F1 – Gender
b. F2 – Age
c. F3 – Height
d. F4 – Weight
3. Hold the hand pulse sensors, it will start calculating and provide you with your BODY FAT.
NOTE: Average Body Fat score is 20-25.
F1
Sex
01 MALE
02 FEMALE
F2
Age
10 to 99 YEARS OLD
F3
Height
40----80 INCHES (100-200 CM)
F4
Weight
44----330 lbs (20-150 kgs)
F5
Body Fat
≤19
Underweight
Body Fat
=(20---25)
Average Weight
Body Fat
=(26---29)
Overweight
Body Fat
≥30
Obesity
BLUETOOTH :
1. The Bluetooth indicator light will flash when the console is on or wakes from power saving
mode. If no Bluetooth connection is established within 3 minutes, the Bluetooth indicator light
will turn off.
2. The Bluetooth indicator light will stay on when it is connected.
WIRELESS HEART RATE :
1. The wireless heart rate indicator light will stay on when the heart rate monitor is connected.
2. The console can be connected to the heart rate monitor at any time except in power saving
mode.
3. The wireless heart rate indicator light will flash when the console is on. If the heart rate monitor
is not connected within 3 minutes, the wireless heart rate indicator light will turn off.
19
WIFI
1. If the access point is not configured or fails to be configured, the WIFI indicator light will turn off.
2. After configuring the access point, the WIFI indicator light will flash during the connection to the
server.
3. The WIFI indicator light will stay on when the server is successfully connected.
NOTE:
1. WIFI function only supports 2.4G frequency, not 5G frequency.
2. Please use SunnyFit APP to configure WIFI and configure it according to the wizard on
SunnyFit APP.
APP CONNECTION
CONNECT SMART EQUIPMENT TO SUNNYFIT APP:
1. Scan to download SunnyFit from the app store
.
2.
Ensure that the Bluetooth
function is turned on from your mobile device.
3.
If this is your first time using the SunnyFit
app, follow the in
-
app instructions to register for your
free SunnyFit account and log in.
4.
Begin any workout activity that matches your smart equipment, then follow the onscreen
prompts to search for and connect to your smart equipment.
5.
When connected, your stats and records will be displayed at the end of your course/session,
and recorded in your account profile!
TROUBLESHOOTING:
•
If you are having trouble connecting your smart equipment, visit
ww
w.sunnyfit.com/guide
or
scan the QR code below:
•
If you require additional support, please contact
TECHNICAL DATA
Connectivity: Bluetooth LE & WIFI
Frequency Range: 2400~2483.5 Mhz
Transmitting Power: 0 dBm
20
EXERCISE INSTRUCTIONS
GETTING STARTED:
Before starting any exercise programs, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you from
using the equipment properly. Be aware of your body’s signals. Incorrect or excessive exercise
can damage your health. Stop exercising immediately if you experience any of the following
symptoms: pain, tightness in your chest, irregular heartbeat, extreme shortness of breath,
lightheadedness, dizziness, or feelings of nausea.
Turn on the power switch located next to the power cord. Get to know your treadmill. Before
attempting to use the treadmill take some time to stand alongside it and familiarize yourself with
the controls. Once you feel comfortable get on, you can stand with your feet on the foot rails and
balance yourself by putting your hands on the handrails.
Next, attach the clip end of the Safety Key (No. C19) to your clothing and insert the magnetic end
of the key into the top console. Press the “START” button to start the treadmill. The treadmill will
start at the default speed of 1 MPH (1 KM/H). Once you feel comfortable, you may slowly increase
the speed. When you are finished with your exercise, press the “STOP/PAUSE” button or remove
the magnetic end of Safety Key (No. C19) to stop the treadmill.
EMERGENCY STOP:
Remove the Safety Key (No. C19) from the top console to stop the treadmill immediately. Once
the treadmill reaches a full stop, the window display on the top console will show “---” and the
treadmill will beep. To start the treadmill again, insert the magnetic end of Safety Key (No. C19)
into the top console and press “START” button.
POWER SAVE FUNCTION:
Once the treadmill has been inactive for 10 minutes, it will adjust to Power Saving Mode. When
the treadmill is in Power Saving Mode, the window display on the top console will shut off. To
reactivate, press any button.
POWER OFF:
Power to the treadmill can be turned off at any time without risk during or after an exercise.
CAUTION!
1. We recommend that you maintain a slow speed at the beginning of a session and hold the
handrails until you become comfortable and familiar with the treadmill.
2. Insert the magnetic end of the Safety Key (No. C19) into the top console and attach the
opposite end with the safety clip to your clothing before beginning your workout. To end your
workout, press the “STOP/PAUSE” button or remove the Safety Key (No. C19). The treadmill
will stop immediately.
21
TROUBLESHOOTING
Code
Description
Possible Reasons
How to Troubleshoot
-----
Safety key
fault.
The safety key is not inserted
correctly.
Safety key sensor or safety
key is damaged.
Insert the safety key properly.
Replace the safety key sensor or safety key.
If there’s still a problem, replace the top
console.
E01
Software
overflow.
Overload.
Check wire connections from the console to
the control board. If the wire has been
punctured or damaged, you will need to
replace it. If the problem is not rectified, you
may need to replace the control board.
E02
Hardware
overflow.
Overload.
Check if the incoming power supply is wth
correct voltage.
E04
Undervoltage
protection.
The incoming voltage is too
low.
The control board is damaged.
Restart the treadmill. Check the incoming
voltage to ensure it is correct. Check the
control board, replace if damaged.
E05
Overvoltage
protection.
The incoming voltage is too
high.
The control board is damaged.
Restart the treadmill. Check the incoming
voltage to ensure it is correct. Check the
control board, replace if damaged.
E06
Motor phase
loss protection.
The motor wire is not
connected, or the motor is
damaged.
Check motor wires to see if the motor is
connected. If the wire has been punctured or
damaged, you will need to replace it. If the
problem is not rectified, you may need to
replace the motor.
E07
Motor lock
protection.
The motor wire is not
connected, or the motor is
damaged.
Check motor wires to see if the motor is
connected. If the wire has been punctured or
damaged, you will need to replace it. If the
problem is not rectified, you may need to
replace the motor.
E08
The motor
won’t start.
The motor is damaged, or a
moving part of the treadmill is
stuck and therefore the motor
is unable to rotate properly.
Inspect moving parts of the treadmill to
ensure that they are operating correctly.
Replace the motor if necessary.
E09
Motor
overcurrent
protection.
Running for a long time with
high resistance.
Lubricate the treadmill. (see Page 11).
The motor may be damaged.
Replace the motor.
E10
Current
overload
protection.
Running for a long time with
high resistance.
Lubricate the treadmill. (see Page 11).
The motor may be damaged.
Replace the motor.
The control board may be
damaged.
Replace the control board.
E12
Communicatio
n abnormality.
No communication from the
top console to the control
board.
Check to make sure the wires are connected
properly, and the wires are without any
punctures or damage.
If this does not resolve the issue, check the
control board and PCB IC to see if there’s
any damage, replace if necessary.
22
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
A1
Main Frame
1
D10
Bolt
M8*50
2
A2
Left Support Tube
1
D11
Bolt
M10*25
2
A3
Right Support Tube
1
D12
Bolt
M8*15
5
A4
Base Frame
1
D13
Bolt
M8*55
3
A5
Console Bracket
1
D14
Bolt
M8*45
1
A6
Motor Fixed Board (A)
1
D15
Bolt
M8*40
8
A7
Motor Fixed Board (B)
1
D16
Bolt
M8*35
2
B1
Motor
1.0HP
1
D17
Bolt
M8*25
1
B2
Motor Belt
360EPJ
1
D18
Half Round Head Bolt
M8*15
2
B3
Front Roller
42*496
1
D19
Bolt
M6*40
4
B4
Rear Roller
42*472
1
D20
Bolt
M6*30
2
B5
Running Board
1195*570*15
1
D21
Bolt with Washer
M5*15
12
B6
Running Belt
2670*407*1.4
1
D22
Bolt
M5*15
14
B7
Cylinder
1
D23
Bolt
M5*12
2
B8
Incline Bushing
Φ15*Φ10*9.5
2
D24
Screw
M4*12
5
B9
Latch Pin
2
D25
Screw
ST4.0*45
4
C1
Motor Cover
1
D26
Self Tapping Self
Drilling Screw
ST4.2*16
10
C2
Motor Bottom Cover
1
D27
Self Tapping Screw
ST4.2*16
24
C3
Side Rail
2
D28
Screw
ST3*6
28
C4
End Cap (L)
1
D29
Self Tapping Screw
ST4.2*25
2
C5
End Cap (R)
1
E1
Controller
1
C6
Console Top Cover
1
E2
Console
1
C7
Consle Bottom Cover
1
E3
Safety Key Sensor
1
C8
Panel Bottom Cover
1
E4
USB
1
C9
Panel Top Cover
1
E5
Computer Chip
1
C10
Panel Fixed Board
2
E6
Lower Metal Dome
Array
1
C11
Overlay
1
E7
Contact Wire
1
C12
Key Panel Sticker
1
E8
Incline Hand Pulse
1
C13
Cable Protector
Φ24*Φ18*12*9
1
E9
Speed Hand Pulse
1
C14
Flat Foot Pad
Φ31*Φ6*16
6
E10
Upper Console Wire
800mm
1
C15
Transportation Wheel
Φ49*Φ8.2*25
2
E11
Lower Console Wire
100mm
1
C16
Cushion
Φ30*20*16
4
E12
Power Line
2100mm
1
C17
Middle Cushion
150*45*30
2
E13
Power Line Plug
6N-3
1
C18
Rubber Cushion
Φ30*7*2.0
2
E14
Single Red Wire
100mm
3
C19
Safety Key
1
E15
Single White Wire
100mm
2
C20
Adjustable Foot Pad
2
E16
Grounded Line
3
C21
Rubber Cushion
2
E17
Power Switch
1
D1
Locking Nut
M10
2
E18
Overload Protector
10A
1
D2
Locking Nut
M8
6
E19
Magnetic Ring
1
D3
Locking Nut
M6
2
E20
Filter
10A
1
D4
Flat Washer
D10
2
F1
Allen Wrench
S6
1
D5
Flat Washer
D8
13
F2
Allen Wrench
S5
1
D6
Spring Washer
D8
4
F3
Silicone Oil
20ml
1
D7
Serrated Washer
D8
6
G1
Pannel Assembly
1
D8
Spring Washer
D5
2
G2
Console Top Cover
Assembly
1
D9
Serrated Washer
D5
2
G3
Console Assembly
1
23

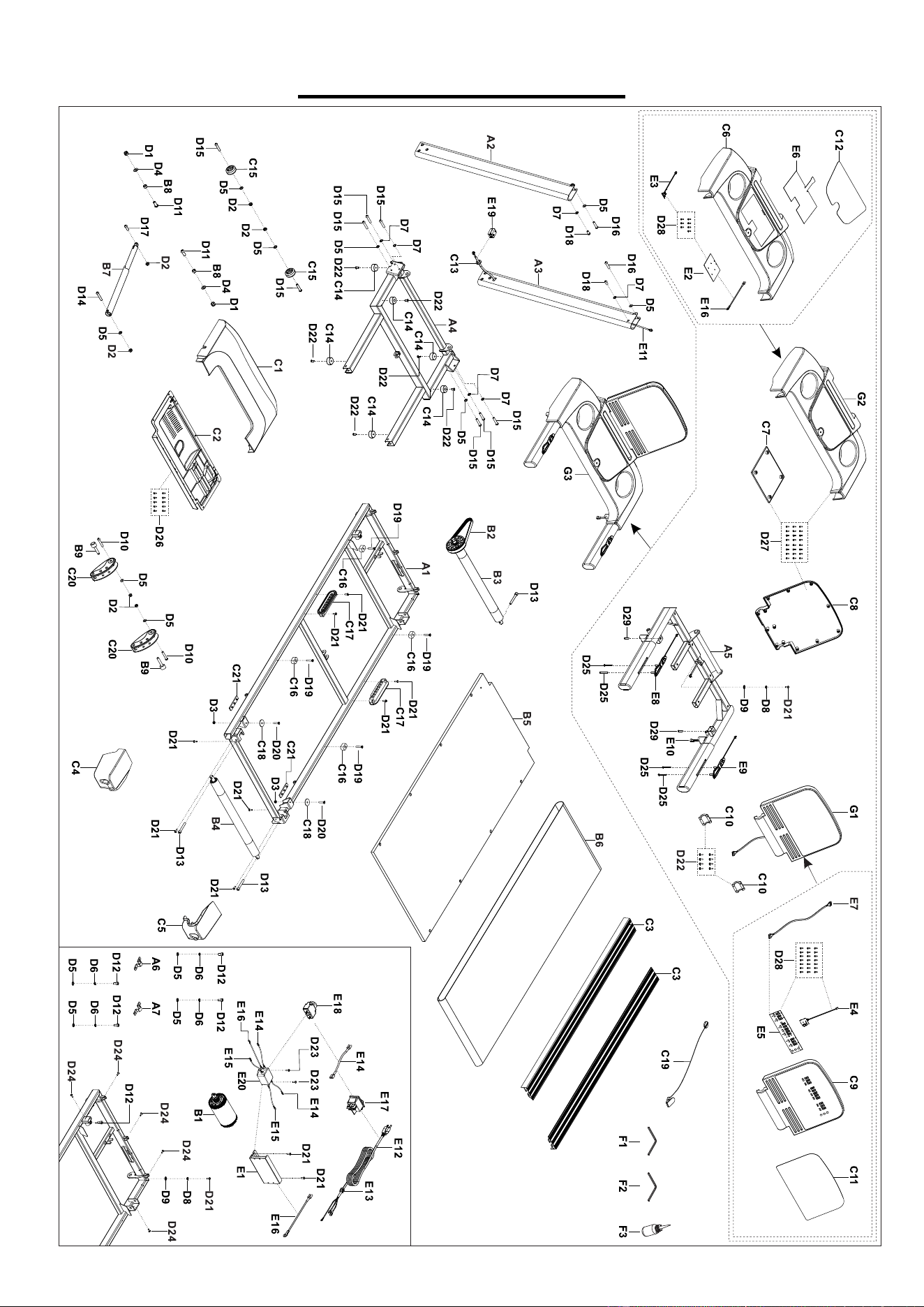

EXPLODED DIAGRAM
Version:
1
.0
24
