OPERATORS MANUAL
PORTABLE INVERTER GENERATOR
Record product information to reference when ordering parts or
obtaining warranty coverage.
MODEL NUMBER
W05381
Rev Level:00
background
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1a. This device may not cause harmful interference.
1b. This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance
could void the users authority to operate the equipment.
NOTE: The FIRMAN W05381 inverter generator has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Suppliers Declaration of Conformity
47 CFR § 2.1077 Compliance Information
FIRMAN W05381 INVERTER GENERATOR
Firman Power Equipment
8644 W. Ludlow Dr.
Peoria, AZ 85381
Telephone: 1-844-347-6261
www.firmanpowerequipment.com
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to equipment not expressly approved by FIRMAN could void the users
authority to operate the equipment.
FCC/IC Compliance Statement
background
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Features, Controls And On -product Hazard Labels . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance - Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting- Specifications . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . .
Parts Diagrams - Parts Lists - Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service - Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REGISTER YOUR PRODUCT
INTRODUCTION
Thank you for purchasing a FIRMAN generator. You have selected a high-quality, precision engineered
generator set designed and tested to give you years of satisfactory service. This generator is designed
to run only on unleaded gasoline. This generator is not intended to be run unattended or to supply
power to life safety support.
This manual contains safety information to make you aware of the hazards and risks associated
with generator products and how to avoid them. This generator is designed and intended only
for supplying electrical power for operating compatible electrical lighting, appliances, tools and
motor loads, and is not intended for any other purpose. It is important that you read and
understand these instructions thoroughly before attempting to start or operate this inverter
generator. Save these original instructions for future reference.
All information in this publication is based on the latest production information available at the
time of approval for printing. The manufacturer reserves the right to change, alter or otherwise
improve the generator and this documentation at any time without prior notice.
INTRODUCTION
01
English Customer Service: 1-844-FIRMAN1
Register your product using the QR code provided or at
www.firmanpowerequipment.com .
01
05
12
25
32
34
40
background
02
SIGNAL WORDS
DANGERWARNINGCAUTION
Indicates a hazard
which, if not avoided,
will result in death or
serious injury.
Indicates a hazard
which, if not avoided,
could result in death
or serious injury.
Indicates a hazard
which, if not avoided,
could result in minor or
moderate injury.
Toxic Fumes- Engine exhaust contains carbon monoxide, a
poisonous gas that will kill you in minutes. You cannot smell
it or see it.
Fire- Fuel and its vapors are extremely flammable which could
cause burns or fire resulting in death or serious injury.Engine
exhaust could cause fire resulting in death or serious injury.
Hot Surface- Muffler could cause burns resulting in serious injury.
Generator could cause electrical shock resulting in death or serious
injury.
Safety Alert Symbol- Indicates a potential personal injury hazard.
Operator's Manual- Failure to follow warnings, instructions and
operator's manual could result in death or serious injury.
English Customer Service: 1-844-FIRMAN1
NOTICE
Indicates information
considered Important,
but not hazard-related.
INTRODUCTION
background
English Customer Service: 1-844-FIRMAN1
WARNING! This product can expose you to chemicals including gasoline engine
exhaust, which is known to the State of California to cause cancer, and carbon
monoxide, which is known to the State of California to cause birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov.
This outdoor generator can be used to power outdoor items using extension cords .
NOTICE If you have questions about intended use, contact FIRMAN customer service. This inverter
generator is designed to be used only with FIRMAN authorized parts.
There may be Federal or State regulations, local codes, or ordinances that apply to the intended
use of the generator. Consult a qualified electrician, electrical inspector, or the local agency
having jurisdiction. This generator is not intended to be used at a construction site or similar
activity as defined by NFPA 70-2020 (NEC) section 590.6.
Compliance Requirements
To Restore Power Using Extension Cords
03
INTRODUCTION
The generator neutral is floating, which means that the AC stator winding is isolated from the
grounding fastener and the AC receptacle ground pins. On a floating neutral generator the AC
receptacle ground pins are not functional. Electrical devices, such as a ground fault circuit
interrupter (GFCI), requiring a functioning AC receptacle ground pin will not operate.
System Ground
120/240V
OUTLET
This outdoor generator can be used to power outdoor items using extension cords or to restore
home power using a transfer switch. A transfer switch is a separate device installed by a licensed
electrician that allows the portable generator to be cord connected, using either of the 120/240V
receptacles, directly into your homes electrical system. Install a listed transfer switch as soon as
possible if this generator will be used to restore power to your home.
NOTICE If you have questions about intended use, contact FIRMAN customer service. This portable
generator is designed to be used only with FIRMAN authorized parts.
The generator has a system ground that connects the generator frame components to the ground
terminals on the AC output receptacles. The system ground is connected to the AC neutral wire.
The neutral is bonded to the generator frame.
System Ground
Connections to your homes electrical system must use a listed* transfer switch installed by a
licensed electrician. The connection must isolate the generator power from the utility power and
comply with all applicable laws and electrical codes.
ToRestoreHomePowerUsingaListedTransferSwitch
Typical
120/240V
Outlet
Transfer
Switch
Typical Indoor Items
To Restore Power Using Extension Cords
background
English Customer Service: 1-844-FIRMAN1
04
INTRODUCTION
1. Only use grounded cords marked for outdoor use rated for your loads.
16
14
To provide power using
extension cords
Total
Amperage
Minimum Gauge, Outdoor Rated
Up to 50 FT (15m)
Up to 13A
Up to 15A
Up to 20A
Up to 30A
*Certified by a Nationally Recognized Testing Laboratory that the product complies to appropriate
product safety test standards.
2. Follow cord safety instructions.

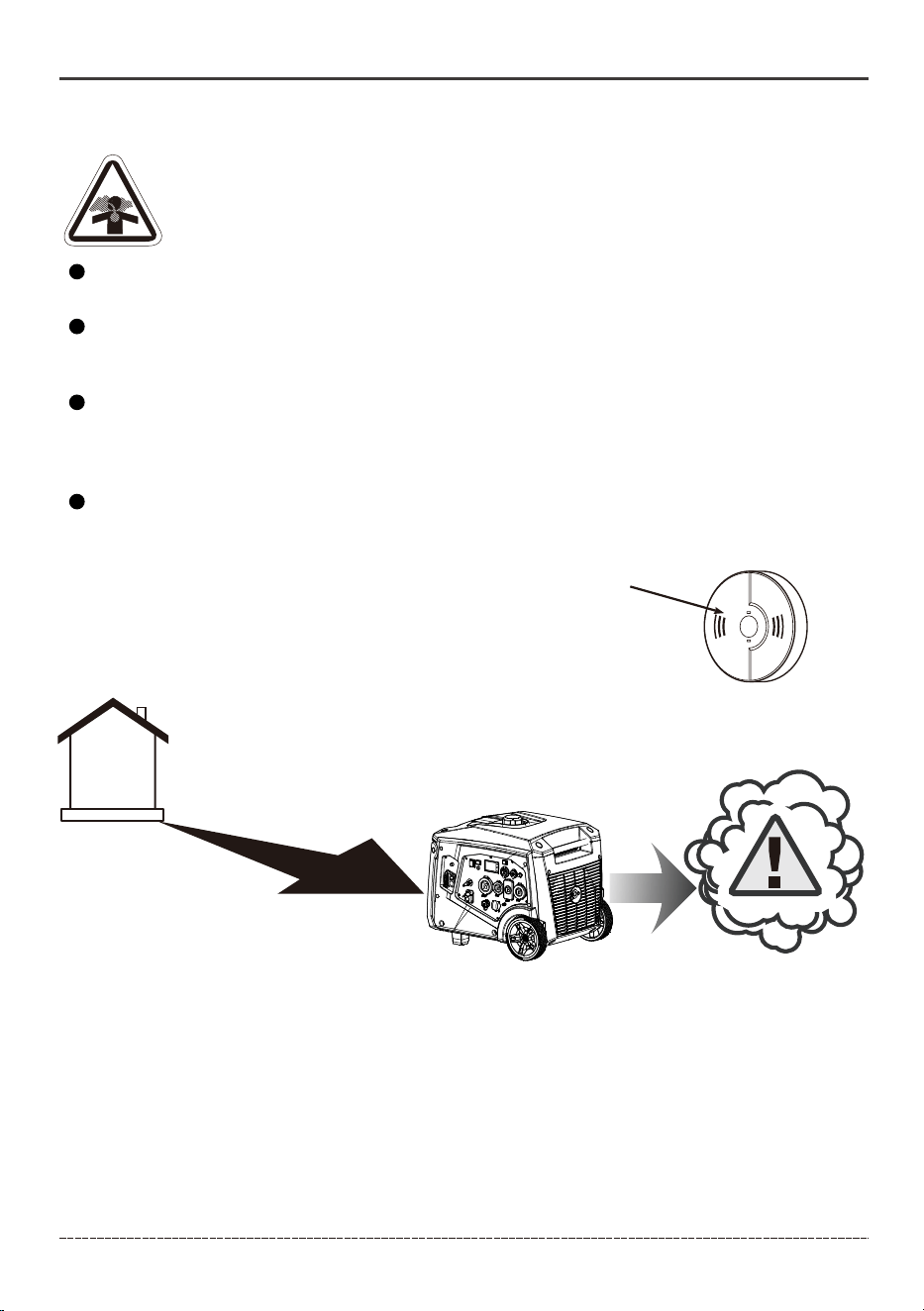

3. Install carbon monoxide alarm(s).
4. When operating portable generator with extension cords, make sure portable generator is located
downwind in an open, outdoor area, at least 20 ft. (6 m.) from occupied spaces with exhaust pointed
away.
5. Extension cords running directly into your home, powering indoor items IS NOT RECOMMENDED.
Extension cords running directly into the home increase your risk of carbon monoxide
poisoning through any openings.
If an extension cord running directly into your home is used to power indoor items, the
operator recognizes that this increases the risk of CO poisoning to people inside the home
and assumes that risk.
6. Install a listed *transfer switch as soon as possible if this or any generator will be used to restore
power to your home.
DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that will kill
you in minutes. You cannot smell it, see it, or taste it. Even if you do not smell exhaust
fumes, you could still be exposed to carbon monoxide gas.
background
English Customer Service: 1-844-FIRMAN1
*We are always working to improve our products. Therefore, the enclosed product
may differ slightly from the image on this page.
05

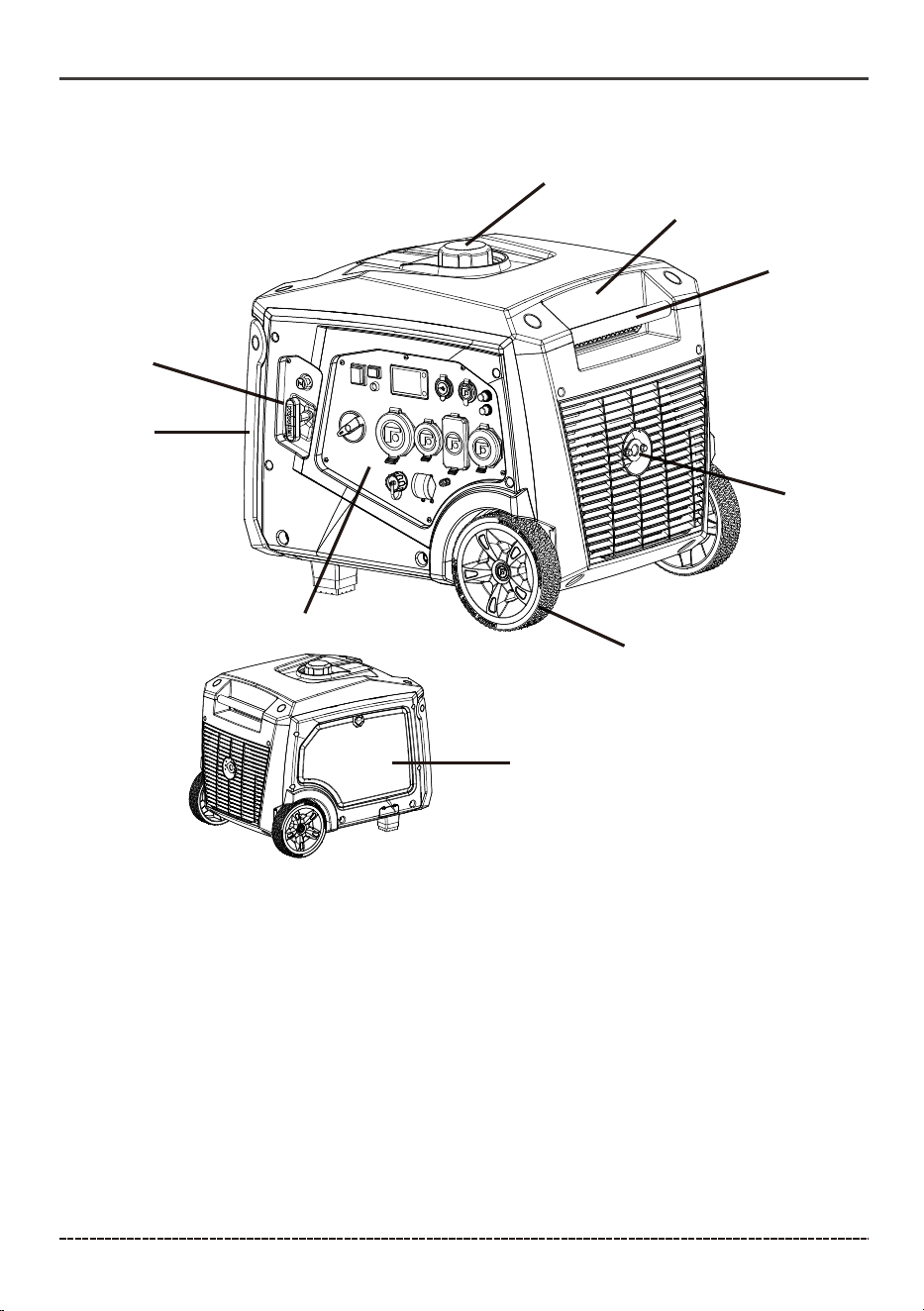

1- Fixed Carrying Handle
2- Fuel Cap
3- Recoil Starter
4- Never Flat Wheel
5- Control Panel
6- Muffler/Spark Arrester
7- Folding Handle
8- Maintenance Cover
9- Data Decal / Serial Number
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
background
English Customer Service: 1-844-FIRMAN1
06

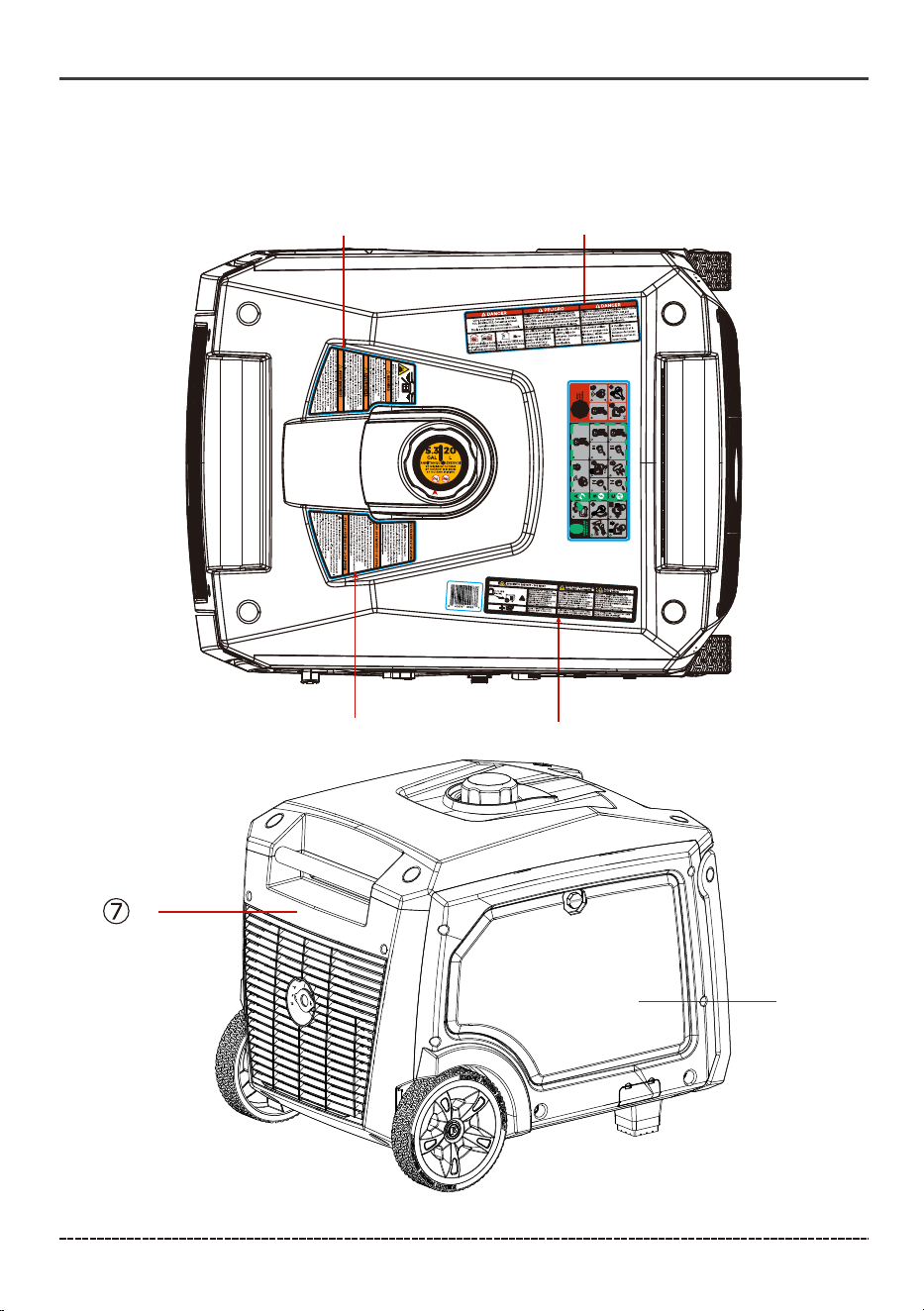

LOCATION AND CONTENT OF ON-PRODUCT HAZARD LABELS
FREE WARNING LABEL REPLACEMENT
If hazard labels become illegible or are missing, contact FIRMAN customer service for a free
replacement.
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
background
English Customer Service: 1-844-FIRMAN1
07
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
background
English Customer Service: 1-844-FIRMAN1
08
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
background
English Customer Service: 1-844-FIRMAN1
09

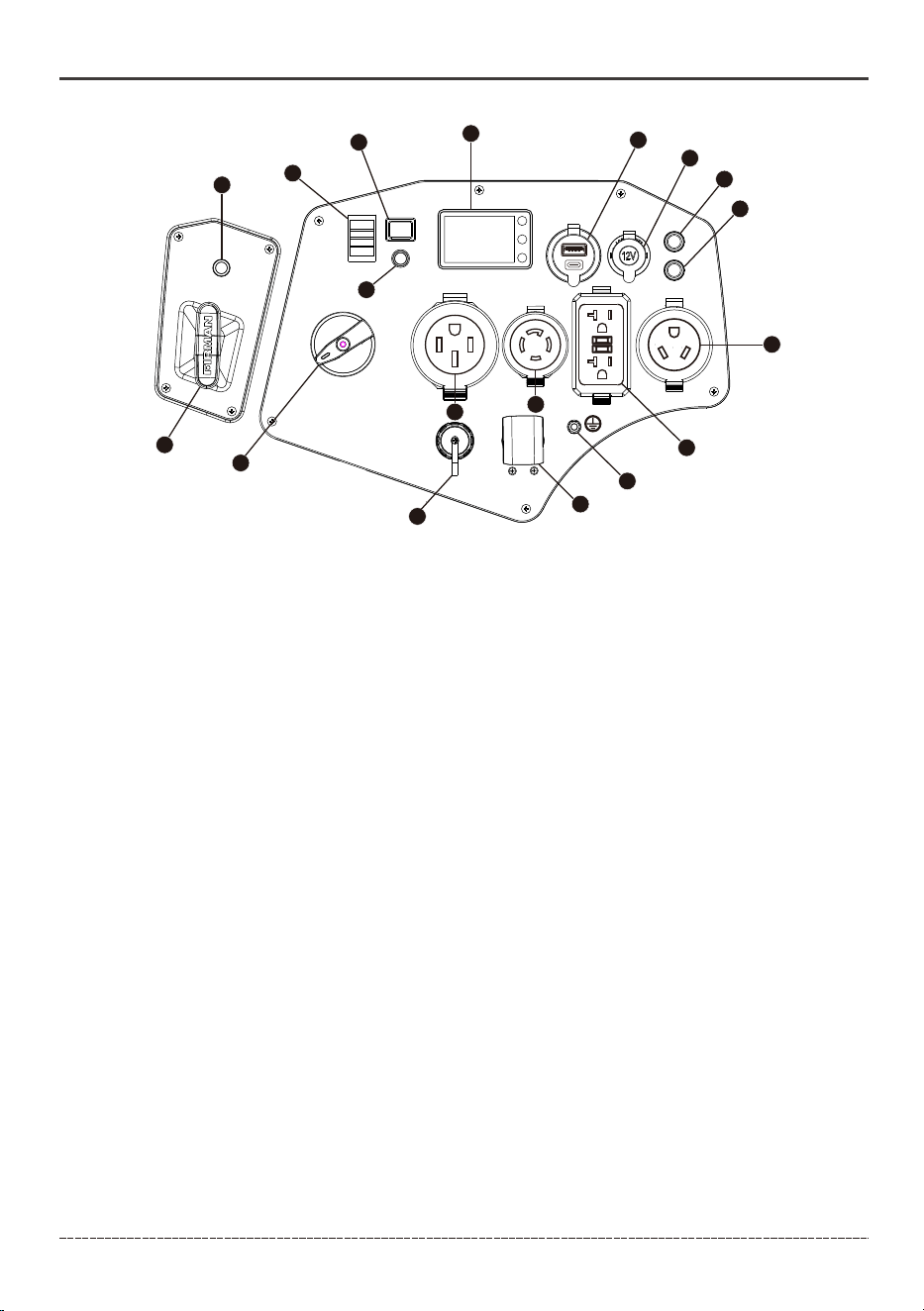

Control Panel
NOTICETotal power drawn from all receptacles must not exceed the data decal rating.
1. Engine Switch – Flip the switch to the “ON”(l) position and pull the recoil starter to start the generator.
Turn to the “OFF”(O) position to turn off the generator.
2. Economy Control Switch - The Economy Control switch can be activated in order to minimize
fuel consumption and noise while operating the unit during times of reduced electrical output,
allowing the engine speed to idle during periods of non-use. The engine speed returns to normal
when an electrical load is connected. When the economy switch is off, the engine runs at normal
speed continuously.
6
7
9. 120V, 30A RV – NEMA TT-30R ( Not GFCI protected )
A maximum of 22.1 Amps current may be drawn from this receptacle.
1
3
2
5
4
8
9
10
11
12
13
14
15
16
17
18
3. CO Alert™ Carbon Monoxide (CO) Shutdown Indicator LightIndicates the engine shutdown due
to carbon monoxide accumulation around the generator or a CO Alert system fault occurred.

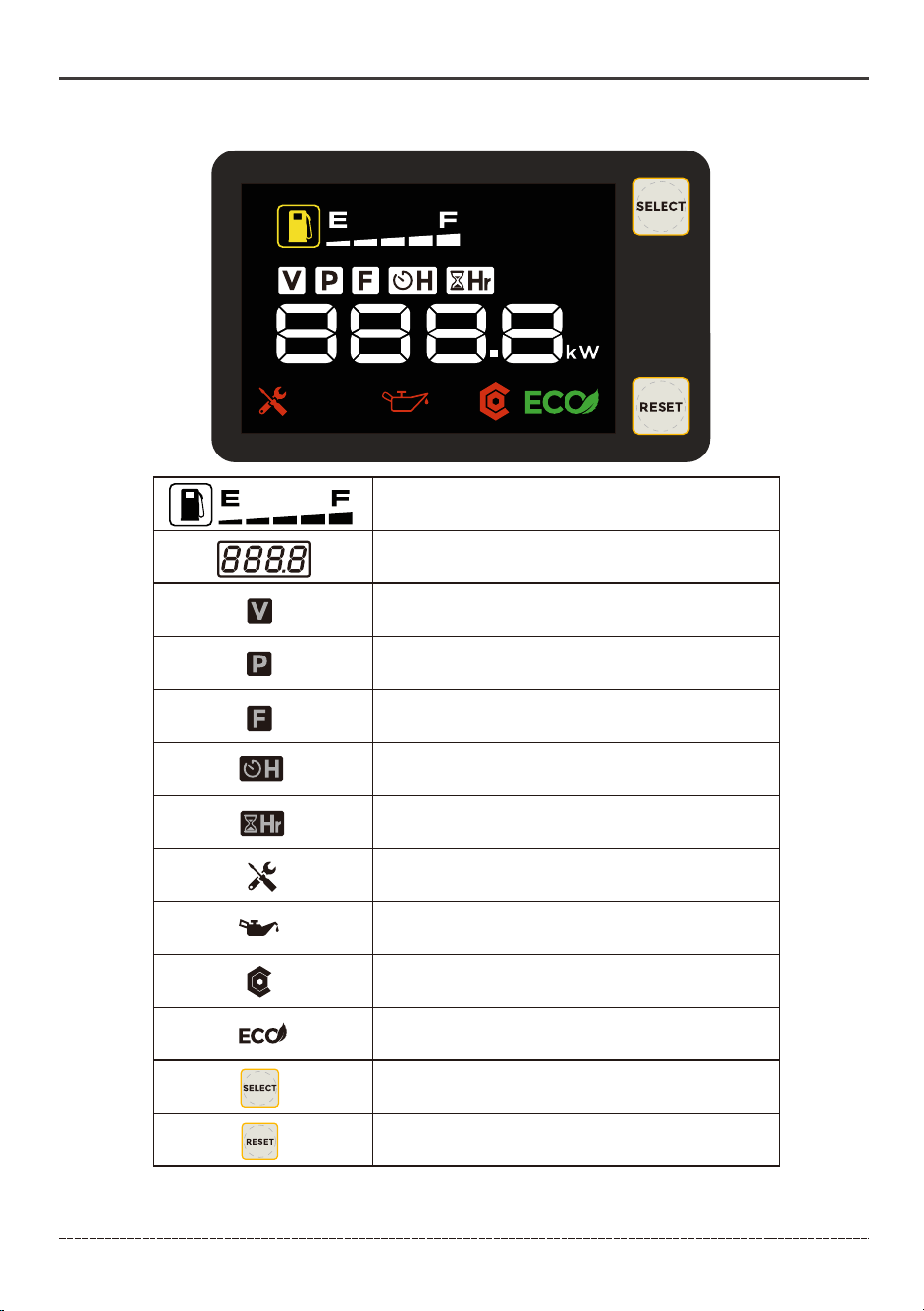

4. Intelligauge with LED ScreenThe screen can show the Voltage, Hertz, Power , running hours, Fault
alarm, regular maintenance, low oil alarm and remaining running time .
5. Port de sortie USB Type-A*1 et Type-C*1
Devices that charge through a USB and USB-C port, such as a phone, or other devices can be
charged by the USB or USB-C port(5V, 9V, 12V, output 25W maximum).
6. DC 12V Output - 8.3 Amps of DC current may be drawn from this receptacle. Use this outlet to charge
12V automotive type batteries ONLY. See 12V DC outlet (Battery Charger) section.
8. 20A Circuit Breaker – The receptacles are protected by AC circuit protectors.
11. Ground Terminal – Consult an electrician or authority having jurisdiction for local grounding
requirements.
10. 120V, 20A Duplex GFCI (Ground Fault Circuit Interrupter)- NEMA 5-20R
A maximum of 20 Amps current may be drawn from this duplex receptacle.
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
19
7. DC Circuit Breaker – The DC receptacles are protected by an DC circuit protector. If the DC
output is overloaded or an external short circuit occurs the circuit protector will trip.
A maximum of 30 Amps current may be drawn from this receptacle (Parallel Operation).
background
English Customer Service: 1-844-FIRMAN1
10
18. Choke Knob
15. Parallel Operation Outlets - These outlets are used for connecting two FIRMAN inverter
generators for parallel operation. A FIRMAN parallel kit(optional equipment) is required for
parallel operation. For more information see PARALLEL OPERATION section.
17. Recoil Starter
16. Fuel Valve Knob
12. 30A Circuit Breaker – The receptacles are protected by AC circuit protectors. If the generator is
overloaded or an external short circuit occurs, a circuit protector may trip. If tripping occurs,
disconnect all electrical loads and determine the cause before attempting to continue using the
generator. Reset any tripped circuit protectors.
If multiple receptacles are used at the same time, the total current must be kept with-in the
portable generator data decal rating.
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
13. 120/240V, 30A – NEMA L14-30R (not GFCI protected)
A maximum of 22.1 Amps current for 240 Volts or two independent 120 Volt loads at 22.1 Amps
current each can be drawn from this receptacle.
14. 120/240V, 50A – NEMA 14-50R (not GFCI protected)
A maximum of 39.6 Amps current may be drawn from this receptacle (Parallel Operation).
A maximum of 30 Amps current may be drawn from this receptacle (Parallel Operation).
background
English Customer Service: 1-844-FIRMAN1
11
Intelligauge Display Screen
Low oil level
Generator maintenance required
A
B
ECO mode (no load, low idle speed)
Voltage
Frequency
Power
Total run time
Remaining run time
CO Alert alarm
Display value
Remaining fuel
Restore output after generator overloaded and clear
maintenance icon flashing after the maintenance
Change to show the Voltage, Hertz, Power ,
Running hours and remaining running time.
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
background
English Customer Service: 1-844-FIRMAN1
12
1. Location
DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that could kill
you in minutes. You CANNOT smell it, see it, or taste it. Even if you do not smell exhaust
fumes, you could still be exposed to carbon monoxide gas.
Carbon Monoxide Alarm(s)
Install carbon monoxide alarms inside your home. Without working
carbon monoxide alarms, you will not realize you are getting sick and
dying from carbon monoxide poisoning.
20 ft. (6 m) min.
To better educate yourself about all carbon monoxide risks,
go to www.takeyourgeneratoroutside.com.
OPERATION
Install battery-operated carbon monoxide alarms or plug-in carbon monoxide alarms with
battery back-up according to the manufacturer's instructions. Smoke alarms cannot detect
carbon monoxide gas.
Do not run this portable generator inside homes, garages, basements, crawlspaces, sheds, or
other partially-enclosed spaces even if using fans or opening doors and windows for ventilation.
Carbon monoxide can quickly build up in these spaces and can linger for hours, even after this
product has shut off.
If you start to feel sick, dizzy, weak or your home’s carbon monoxide alarm sounds, get to fresh air
right away. Call emergency services. You may have carbon monoxide poisoning.
Operate portable generator only outdoors and downwind at least 20 ft.(6 m) from occupied
spaces with exhaust pointed away to reduce the risk of carbon monoxide accumulating.
Prevent Carbon Monoxide (CO) Poisoning
Use outdoors and downwind at least 20 ft. (6 m) from any home.
Point exhaust away from all homes and occupied spaces.
Install CO alarms inside your home.
background
English Customer Service: 1-844-FIRMAN1

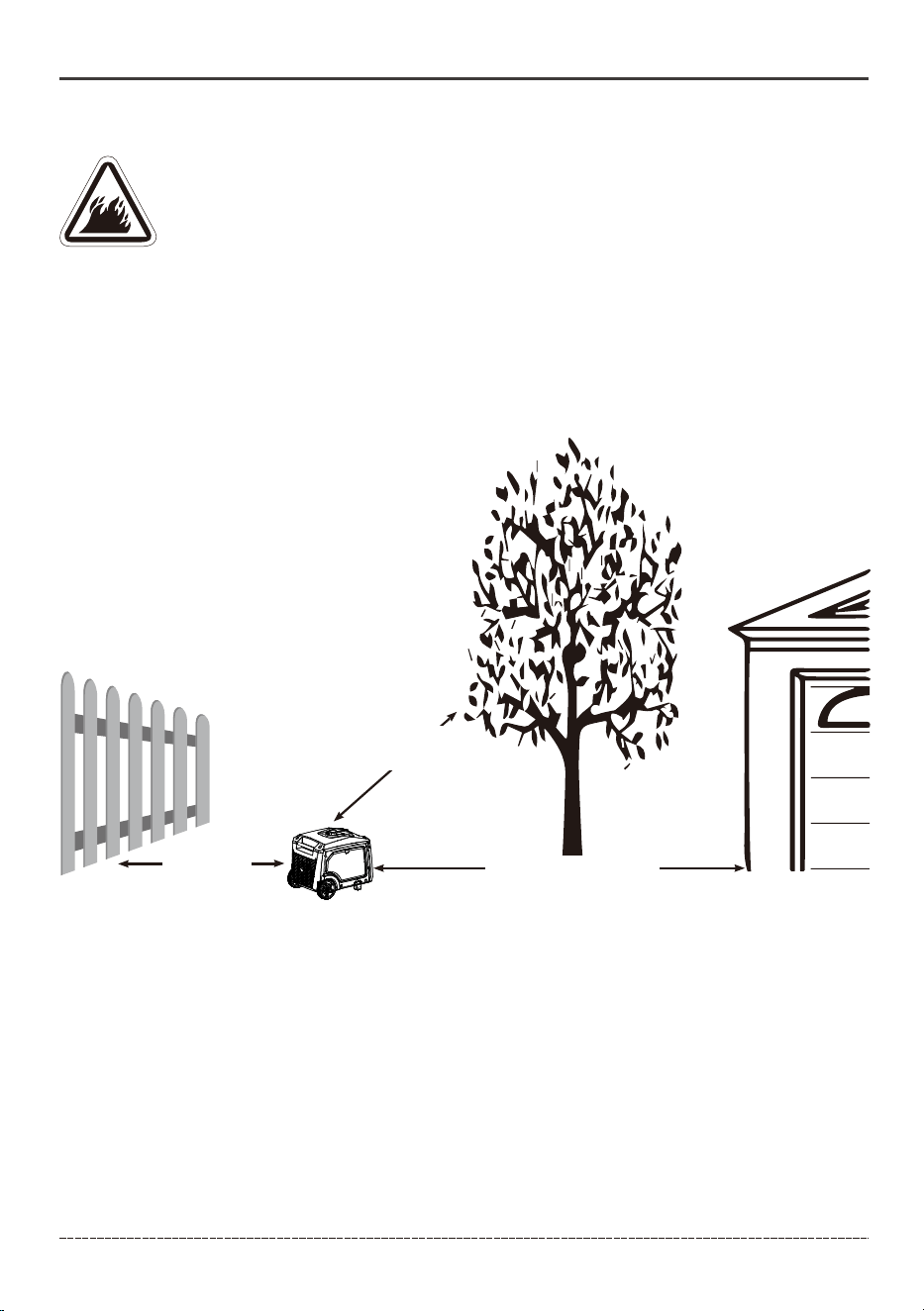

Reduce Risk of Fire
WARNING! Exhaust heat/gases could ignite combustibles, structures or damage fuel
tank causing a fire, resulting in death or serious injury.
Keep portable generator at least 5 ft. (1.5 m) from any structure, trees or vegetation over 12
in. (30 cm) in height.
Select an outdoor site that is dry and protected from the weather. Do not move portable
generator indoors to protect it from the weather.
Do not locate the portable generator under a deck or other similar structure that may
confine heat and airflow.
13
OPERATION
5 ft.(1.5 m)
min.
5 ft.(1.5 m)
min.
20 ft.(6 m) min.
background
English Customer Service: 1-844-FIRMAN1
2. Oil and Gasoline
Add Engine Oil
NOTICE Do not attempt to crank or start the engine before it has been properly filled with the
recommended type and amount of oil. Damage due to operation with no oil will void your warranty.

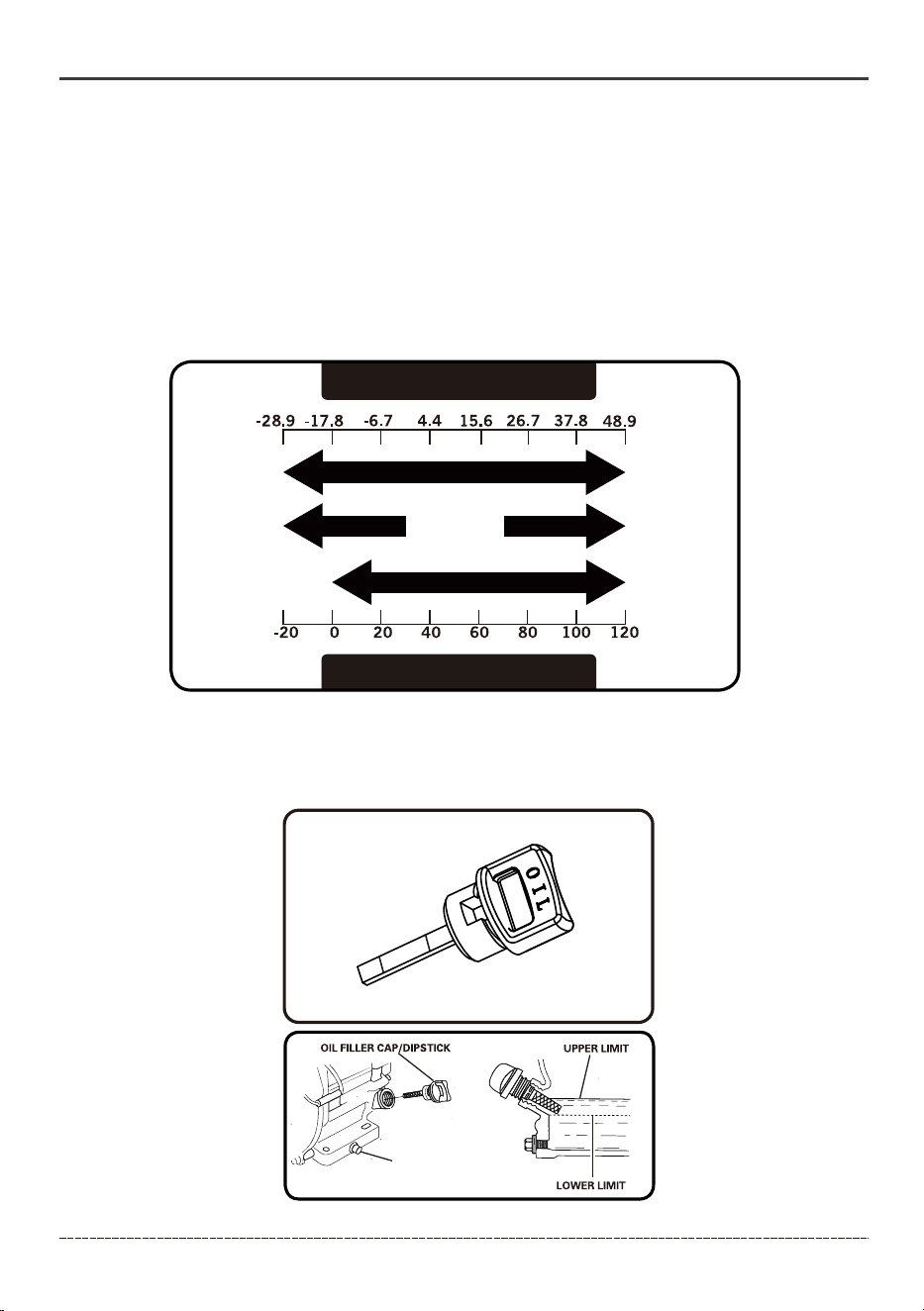

Degrees Celsiusº(Outside)
Full Synthetic 5W-30
Degrees Fahrenheitº(Outside)
5W-3010W-40
10W-30

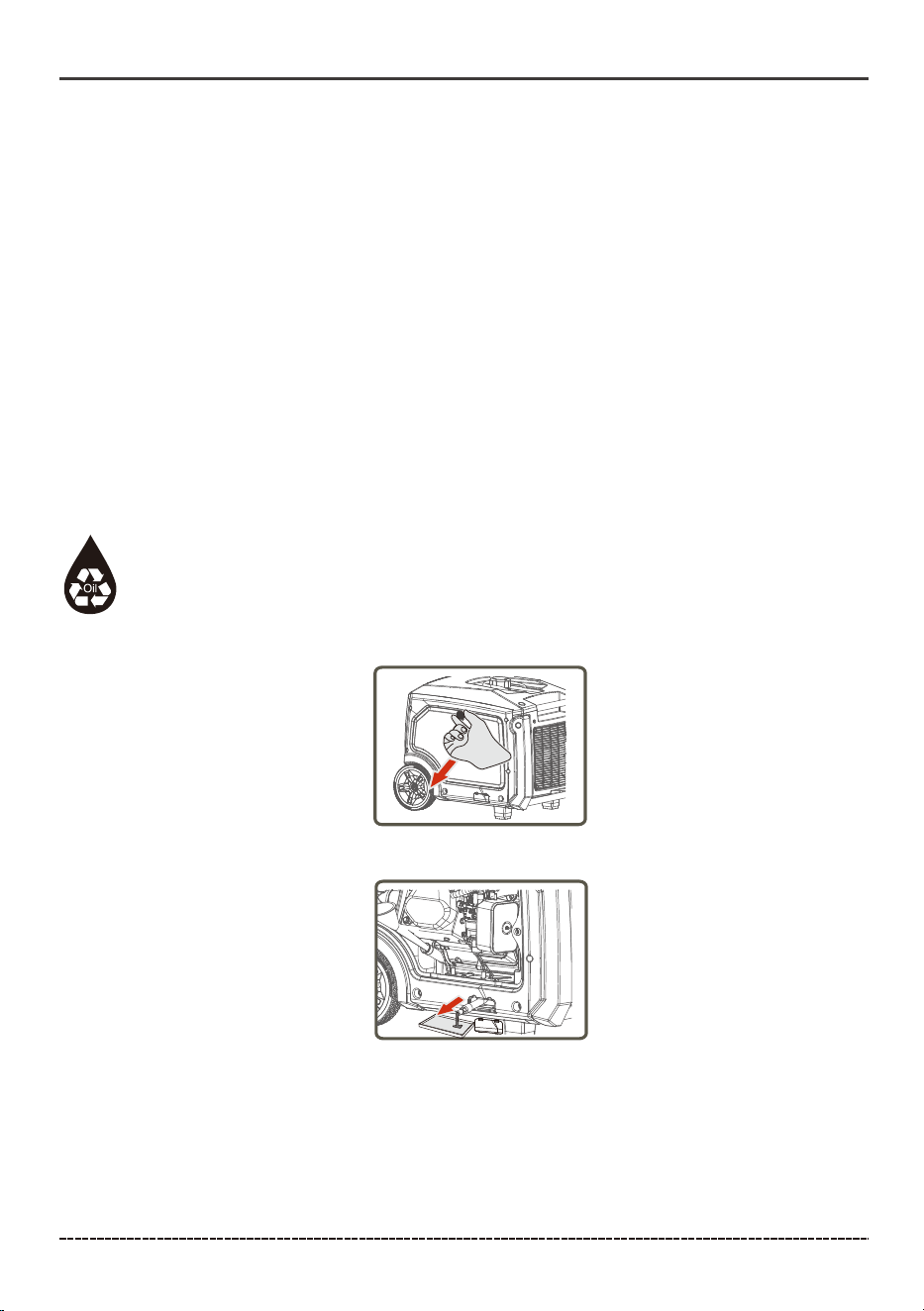

1.Place generator on a flat, level surface.
2.Loosen the cover screw and remove the maintenance cover.
3.Clean area around oil fill and remove yellow oil fill cap/dipstick.
4.Wipe dipstick clean.
14
OPERATION
(H)
DRAIN PLUG
(L)
H
L
We recommend using SAE 10W-30 API SJ or higher oil for best performance. Do not use special
additives. Ambient temperature determines the proper oil viscosity for the engine. Use the chart
to select the proper oil for the outdoor temperature range expected.
background
English Customer Service: 1-844-FIRMAN1
5. Using oil funnel, slowly pour contents of provided oil bottle into oil fill opening until oil reaches
upper limit "H" mark on the dipstick. Be careful not to overfill. Overfilling could cause engine
starting problems or engine damage.
6.Replace oil fill cap/dipstick and fully tighten.
7.Reinstall maintenance cover and tighten screws.
8.Oil level should be checked prior to each use or at least every 8 hours of operation. Keep oil
level maintained.
The portable generator is equipped with a low oil shutdown. If the oil level drops below the
minimum required level, a sensor will activate an internal switch stopping the engine. If the
engine shuts off and the oil level is within specifications, check to see if generator is sitting at an
angle. Place portable generator on an even surface to correct this. If engine fails to start, the oil
level may not be high enough to deactivate the internal low oil level switch. Make sure the sump is
completely full of oil to the upper limit (H). Do not operate engine until oil level issue is corrected.
Contact Firman customer service.
Low Oil Shutdown
Add Gasoline
WARNING! Fuel and its vapors are extremely flammable which could cause burns or fire
resulting in death or serious injury.
Turn generator engine OFF and let it cool at least 2 minutes before removing fuel cap.
Do Not refuel or move generator when engine is running.
Move generator outdoors prior to adding or draining fuel
Keep fuel away from any ignition sources.
Do not overfill tank, allow space for fuel expansion.
If any fuel spills, wait until it evaporates before starting engine
Check and replace fuel lines, tank, cap, and fittings prior to each use if any damage or leaks
are found.
Fuel must meet these requirements:
Clean, fresh, unleaded gasoline with a minimum of 87 octane.
For high altitude use, see Operation at High Altitude.
Gasoline with no more than 10% ethanol is acceptable.
E10
E15
15
OPERATION
background
English Customer Service: 1-844-FIRMAN1
NOTICE Do not mix oil in gasoline or modify engine to run on alternate fuels not described in this
manual. Use of unapproved fuels could damage engine and will not be covered under warranty.
1. Clean area around fuel fill cap, remove cap.
2. Slowly add unleaded fuel to fuel tank. Be careful not to fill above the RED fuel level indicator.
This allows adequate space for fuel expansion.
Red Line Indicator
3. Install fuel cap and let any spilled fuel evaporate before starting engine.
Operation at High Altitude
At altitudes over 5,000 feet (1524 meters), a minimum 85 octane gasoline is acceptable.
Engine power and generator output will be reduced approximately 3.5% for every 1000 feet (305 m)
of elevation above sea level. High altitude may cause hard starting, increased fuel consumption
and sparkplug fouling. To operate at high altitudes FIRMAN can provide a high altitude carburetor
main jet. The alternative main jet and installation instructions can be obtained by contacting
Customer Support.
NOTICE Operation using an alternative main jet at elevations lower than the recommended
minimum altitude can damage the engine. For operation at lower elevations, the standard main
jet supplied must be used. Operating the engine with the wrong main jet may increase exhaust
emissions, fuel consumption and reduce performance.
Altitude main jet 1
Altitude main jet 2
322cc
355717002
355717003
Altitude
3000-6000Feet
6000-8000Feet
Operation at High Ambient conditions
16
OPERATION
Your FIRMAN Power Equipment product is designed and rated for continuous operation at ambient
temperatures up to 104°F (40°C). The generator may be operated at temperatures ranging from
5°F(-1C) to 122°F (50°C) for short periods. If the generator is exposed to temperatures outside
this range during storage, the generator should be brought back within this range before
operation. When operated above 77°F (25°C) there may be a decrease in power.
Maximum wattage and current are subject to and limited by such factors as ambient temperature,
altitude, engine conditions etc.
background
English Customer Service: 1-844-FIRMAN1
17
OPERATION
3. Starting the Generator
1. Before starting the generator, check for loose or missing parts and for any damage which may
have occurred during shipment. Ensure spark plug, muffler, fuel cap, and air cleaner are all in place.
2. Move portable generator outdoors to safe operating location downwind and at least 20 feet from
any occupied spaces.
3. Disconnect all electrical loads from the generator. Never start or stop the generator with
electrical devices plugged in.
5. Flip the engine switch to the “RUN"(l) position.
4. Turn the fuel valve to the “ON(l) position.
6. Pull the choke knob to the “CHOKEposition. You do not need to choke a warm engine.
background
English Customer Service: 1-844-FIRMAN1
18
OPERATION
7. Pull the starter cord slowly until resistance is felt and then pull rapidly to start engine.
9. Allow portable inverter generator to run at no load for a few minutes to stabilize before
plugging in any electrical devices.
NOTICE If engine starts but fails to run, or if portable generator shuts down during operation,
check oil level. See Low Oil Shutdown section for more information.
8. Do not over-choke. As soon as engine starts and warms up, press the choke knob to return
to the run position.
background
English Customer Service: 1-844-FIRMAN1
19
OPERATION
This portable generator has been pretested and adjusted to handle its full capacity.
4. Connecting Electrical Loads
The duplex receptacle is equipped with GFCI protection. The GFCI protects against electric shock
that may be caused if you become a path which electricity travels to reach earth. Even with a GFCI
you may feel a shock, but the GFCI cuts power quickly so an average person should not suffer any
injury. Manual test GFCI while generator is running to verify internal contacts will function
Push the test button. The reset button will pop out, which should cut power to outlet.
Press the reset button until it locks in the depressed position. If the GFCI does not reset as
described do not use the receptacles. Call FIRMAN customer service.
If GFCI trips while in use, reset and test the outlet. Electric cords laying on the ground with
worn insulation may trip the GFCI, only use cords in good condition.
RESET
TEST
TEST MONTHLY
FOLLOW DIRECTIONS
RESET BUTTON
Receptacle
Outlet
LED Indicator Light
TEST BUTTON
Outlet
In addition to the manual test / reset feature the GFCI receptacle tests itself periodically to
confirm the GFCI electronics are functional. The indicator light will be solid green when the
GFCI is powered from the generator and working correctly.
Self-test indications: If the indicator light is solid orange or flashing red a problem may exist.
Press the TEST button to trip the GFCI. If unable to reset, replace the GFCI.
SELF-TEST OPERATION
Damaged or overloaded extension cords could overheat, arc, and burn resulting death or
serious injury.
Use a ground fault circuit interrupter (GFCI) in any damp or highly conductive area, such as
metal decking.
Do not touch bare wires or receptacles.
WARNING! Generator voltage could cause electrical shock or burn
resulting in death or serious injury.
background
English Customer Service: 1-844-FIRMAN1
Do not use generator with electrical cords which are worn, frayed, bare or otherwise damaged.
Do not operate generator in the rain or wet weather.
Do not run indoors to avoid wet conditions.
Do not handle generator or electrical cords while standing in water, while barefoot, or while
hands or feet are wet.
Use listed transfer switch to prevent backfeed by isolating generator from electric utility
workers.
1.Ensure circuit breaker on control panel is in the closed (on) position.
2. Start the generator with no electrical load attached.
3. Allow the engine to run for several minutes to stabilize.
4. Plug in and turn on the first item. It is best to attach the item with the largest load first.
5. Allow the engine to stabilize.
6. Plug in and turn on the next item.
7. Allow the engine to stabilize.
8. Repeat steps 5-6 for each additional item.
Surge Protection
There is a remote chance that voltage fluctuations may impair the proper functioning of some
sensitive electronic equipment. Electronic devices, including computers and many programmable
appliances may use components that are designed to operate within a narrow voltage range and
may be affected by the portable generators momentary voltage fluctuations. While there is no
way to prevent all voltage fluctuations, you can take steps to protect your sensitive electronic
equipment. Install a plug-in surge suppressor on the receptacles feeding your sensitive equipment.
Surge suppressors come in single or multi-outlet styles. They are designed to protect against short
duration voltage fluctuations.
20
OPERATION
background
English Customer Service: 1-844-FIRMAN1
21
OPERATION
CO Alert
Carbon Monoxide (CO) Shutdown System
CO Alert automatically shuts down the engine when harmful levels of carbon monoxide
accumulate around the generator or a CO Alert fault occurs. After shutdown, the CO Alert
indicator light will blink for at least five minutes per the chart below.
CO Alert DOES NOT replace carbon monoxide alarms.
Install battery-powered carbon monoxide alarm(s) in your home. Dont run generator in enclosed
areas.
Color
Description
Red
Yellow
CO Alert fault occured*.
See FIRMAN authorized service dealer.
*Yellow light will blink for five seconds at the startup of generator to show CO ALERT is functioning
properly.
TM
Carbon monoxide accumulated around generator. Prior
to restart move generator to an open, outdoor area
downwind and at least 20 ft. (6 m) from occupied spaces
with exhaust pointed away. Air out premises (open
windows and doors) before reoccupying property.
Automatic shutoff is an indication generator was
improperly located.
If you start to feel sick, dizzy, weak, or your homes carbon
monoxide alarm sounds while using this product, get to
fresh air right away. Call emergency services. You may
have carbon monoxide poisoning.
background
English Customer Service: 1-844-FIRMAN1
22
OPERATION
Economy Control Switch
The Economy Control switch can be activated in order to minimize fuel consumption and noise
while operating the unit during times of reduced electrical output, allowing the engine speed to
idle during periods of non-use. The engine speed returns to normal when an electrical load is
connected. When the economy switch is off, the engine runs at normal speed continuously.
NOTICE:
For periods of high electrical load or momentary fluctuations, the Economy Control Switch should
be turned OFF.
12V DC Outlet (Battery Charger)
The 12V DC outlet is ONLY to be used with the supplied 12V battery charging cable. The DC output
is unregulated and will damage other 12V DC products.
The amount of current flowing will depend on the charging voltage and battery's state of charge. As the
battery becomes more fully charged, the output current to the battery decreases and nearly becomes
constant. Taper chargers are intended to be used with the provision that they will be disconnected
from the battery after a maximum time on charge. Normally a period of 30 to 120 minutes is sufficient
to recharge a weak battery. The charge level of the battery should be checked periodically.
NOTICE
Storage batteries give off EXPLOSIVE hydrogen gas while charging. Do not allow smoking,
open flames, sparks, or spark producing equipment in the area while charging.
WARNING!
Battery electrolyte fluid is comprised of sulfuric acid that can be very dangerous and cause severe
burns. Do not allow this fluid to contact eyes, skin, clothing, etc. If contact or spillage does occur,
flush the area with water immediately.
Do not continue to charge a battery that becomes hot or is fully charged.
1. Before connecting the battery charging cable to a battery that is installed in a vehicle, disconnect
the vehicle battery ground cable from the negative (–) battery terminal.
2. Plug the battery charging cable into the DC receptacle of the generator.
3. Connect the red (+) battery charger lead to the red (+) battery terminal.
4. Connect the black (–) battery charger lead to the black (–) battery terminal.
5. Start the generator.
Do not start the vehicle while the battery charging Cable is connected and the generator is running.
It will not give the battery a boost of power. The Vehicle or the generator may be damaged. Charge
only vented wet lead acid batteries. Other types of batteries may burst, causing personal injury
or damage.
For use with 12V direct current outlet, always keep the ECO mode deactivated (OFF Position).
You can use the 12V direct current outlet and the 240V current at the same time, but keep the ECO
mode deactivated (OFF Position) at all times.
background
English Customer Service: 1-844-FIRMAN1

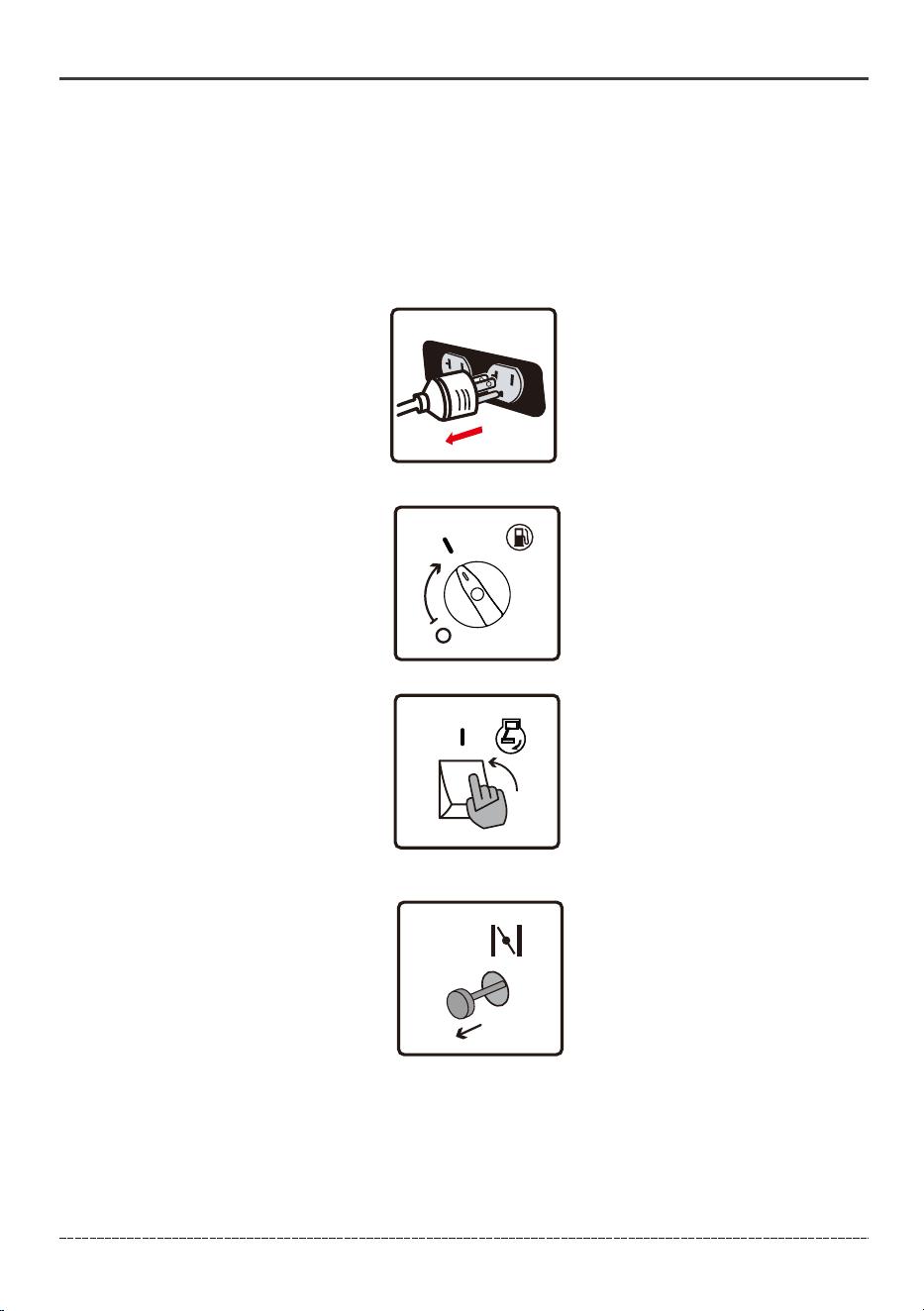

5. Stopping the generator
1. Turn off and remove all electrical loads.
Never stop the generator with electrical devices plugged in and turned on.
Never stop the engine by moving the choke to the start position.
Let the generator run at no-load for one minute to stabilize internal temperatures of the engine
and generator.
23
OPERATION
If a cover is used, do not install until unit has cooled.
2. Flip the engine switch to“OFF”(O) position.
3. Turn the fuel valve to the “OFF(O) position.
background
English Customer Service: 1-844-FIRMAN1
24
OPERATION
Low Oil Shutdown
If the engine oil drops below a preset level, an oil switch will stop the engine. Check oil level with
dipstick.
If oil level is between the LOW and HIGH mark on dipstick:
1.Add oil to bring level to HIGH mark.
2.Restart engine and if the engine stops again a low oil condition may still exist. DO NOT try to restart
the engine.
3.Contact an Authorized FIRMAN Service Dealer.
4.DO NOT operate engine until oil level is corrected.
1.DO NOT try to restart the engine.
2.Contact an Authorized FIRMAN Service Dealer.
3.DO NOT operate engine until oil level is corrected.
If oil level is below the LOW mark on dipstick:
Overloading a generator in excess of its rated wattage capacity can result in damage to the
generator and to connected electrical devices. To prolong the life of your generator and attached
devices, follow these steps to add electrical load:
1. Start the generator with no electrical load attached.
2. Allow the engine to run for several minutes to stabilize.
3. Plug in and turn on the first item. It is best to attach the item with the largest load first.
4. Allow the engine to stabilize.
5. Plug in and turn on the next item.
6. Allow the engine to stabilize.
7. Repeat steps 5-6 for each additional item.
Do Not Overload Generator
Overload Operation
The “P” light will blink when the load exceeds 5520W(approximately) . If the load exceeds 5800W
(approximately), the light will turn on and cut power to the receptacles in 10 seconds. If the load
exceeds 5900W(approximately), the light will turn on and cut power to the receptacles in 3 seconds.
1. Disconnect any electrical devices, and then stop the engine.
3. Inspect the Air Inlet and Control Panel for any blockage. Remove blockage if found.
4. Restart Engine.
How to Correct
2. Reduce the total wattage of connected electrical devices until it is within the generator’s rated output.
Parallel Operation
Any two FIRMAN 240V inverter generators with parallel ports, including two FIRMAN inverters model
W05381 can be paralleled to increase the total available electrical power to 9500 Watts.
background
English Customer Service: 1-844-FIRMAN1
Maintenance - Storage
General Recommendations
Regular maintenance will improve the performance and extend the life of the generator. See any
authorized dealer for service.
The generator's warranty does not cover items that have been subjected to operator abuse or
negligence. To receive full value from the warranty, the operator must maintain the generator as
instructed in this manual.
Some adjustments will need to be made periodically to properly maintain your generator.
All service and adjustments should be made at least once each season. Follow the requirements
in the maintenanc shedule chart above.
NOTICE Once a year you should clean or replace the spark plug and replace the air filter. New
spark plug and clean air filter assure proper fuel-air mixture and help your engine run at peak
performance and last longer.
To be performed by knowledgable/experienced owner or by authorized service center.
*
25
MAINTENANCE SCHEDULE
ITEMNOTES
Daily(Before
operation)
Initial
25 hours
Every
50 hours
Every
100 hours
(or annual)
Fittings/
Fasteners
Spark Plug
Engine Oil
Air Filter
Fuel Line
Exhaust
System
Engine
Check condition. Adjust gap
and clean. Replace if necessary.
Check oil level.
Clean, replace if necessary.
Check for leakage. Retighten or
replace gasket if necessary.
Check adjust valve clearance.
Clean combustion chamber.
Check. Replace if necessary.
Check fuel hose for cracks or other
damage. Replace if necessary.
Replace.
Check spark arrester screen.
Clean/Replace if necessary.
Every
250 hours
*
*
Fuel
Clean fuel tank strainer.
Replace if necessary.
background
English Customer Service: 1-844-FIRMAN1
When Transporting Generator
Transport with fuel tank EMPTY or with fuel switch in OFF position.
Do not tip generator at an angle which causes fuel to spill.
ENGINE MAINTENANCE
To prevent accidental starting, remove and ground spark plug wire before performing any service.
Change Engine Oil
Change engine oil every 100 hours. (for a new engine, change oil after 25 hours.)
If you are using your generator under extremely dirty or dusty conditions, or in extremely hot
weather change the oil more often.
CAUTION! Avoid prolonged or repeated skin contact with used motor oil. Used motor oil has been
shown to cause skin cancer in certain laboratory animals. Thoroughly wash exposed areas with
soap and water.
KEEP OUT OF REACH OF CHILDREN. DON’T POLLUTE. CONSERVE RESOURCES. RETURN USED OIL
TO COLLECTION CENTERS.
26
Maintenance - Storage
(a) Loosen the cover screws and remove the maintenance cover.
(b) Pop up the plug from below yellow draining bolt.
(c) Remove yellow drain bolt.
(d) Tilt the generator on its side and allow the oil to drain completely.
(e) Replace yellow drain bolt.
(f) . DO NOT OVERFILL.

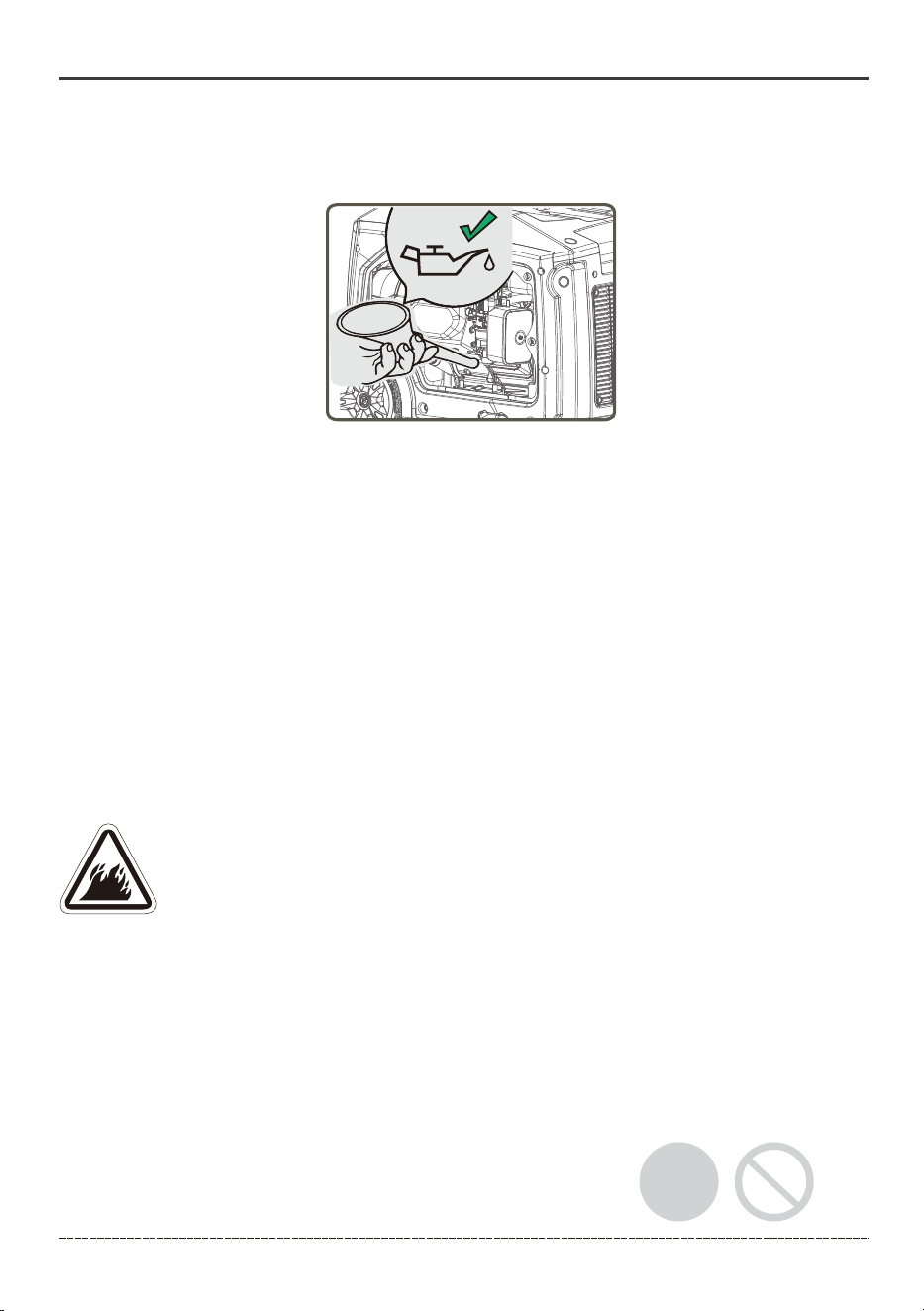

Fill the engine with oil until it reaches the HIGH(H) level on the oil filler cap
NOTICE We recommend using SAE 10W-30 API SJ or higher oil for best performance. Do not use
special additives. See Oil and Gasoline
background
English Customer Service: 1-844-FIRMAN1
Air Filter Maintenance
(b) Carefully remove foam air filter element and wash it with liquid detergent and water only.
Squeeze dry in a clean cloth.
( c) Saturate foam air filter element with clean engine oil and squeeze in a clean cloth to remove
excess oil.
Spark Plug Maintenance
Changing the spark plug will help your engine start easier and run at peak performance.
(a) Remove the maintenance cover.
(b) Remove the spark plug boot.
(c) Remove spark plug using provided wrench.
27
(d) Reinstall clean or new air filter element.
Maintenance - Storage

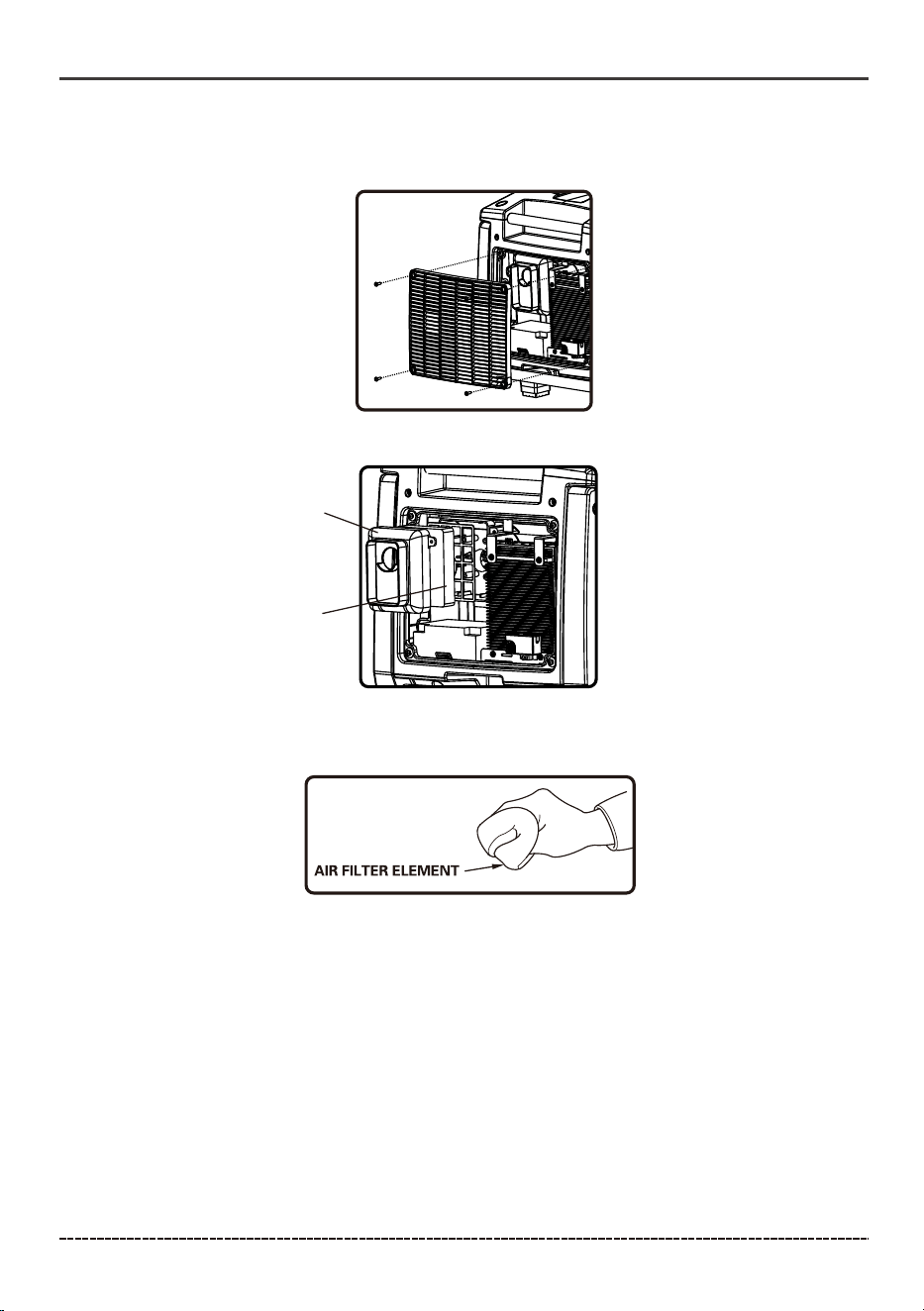

(a) Remove the air cleaner cover and locate the air filter plastic cover.
Foam Element
Air Cleaner
(e) Reattach the air filter cover.
(f) Reinstall the air cleaner cover and tighten the cover screw securely.
background
English Customer Service: 1-844-FIRMAN1
Maintenance Valve Clearance
Intake: 0.004 – 0.006 in. (0.10 – 0.15 mm)
Exhaust: 0.004 – 0.006 in. (0.10 – 0.15 mm)
Muffler and Spark Arrester
WARNING! Contact with muffler area could cause burns resulting in serious injury.
Do not touch hot parts.
It is a violation of California Public Resource Code, Section 4442, to use or operate the engine
on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is
equipped with a spark arrester, as defined in Section 4442, maintained in effective working
order. Other states or federal jurisdictions may have similar laws, reference Federal
Regulation 36 CFR Part 261.52.
28
Maintenance - Storage

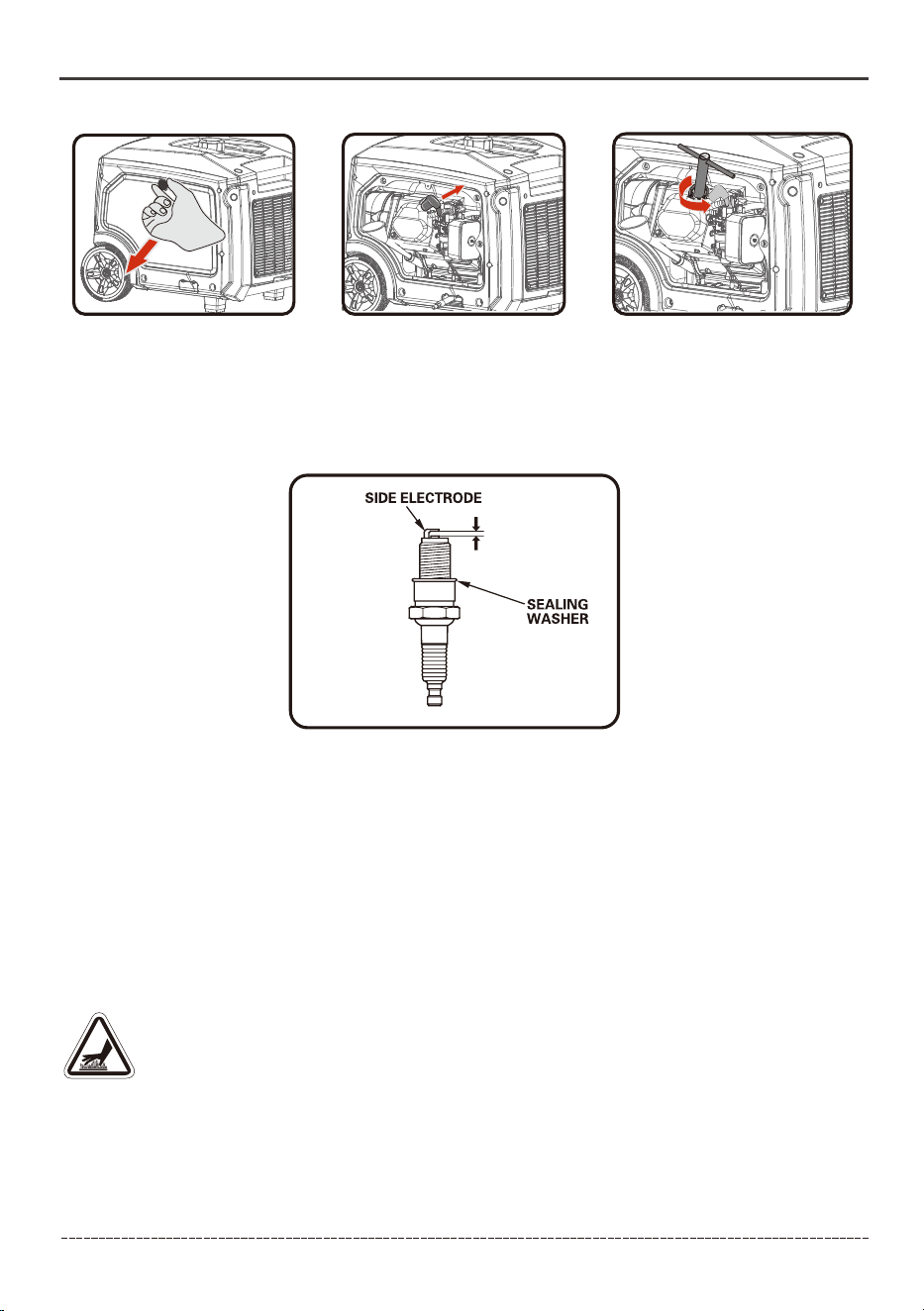

(d) Inspect spark plug for damage and clean with a wire brush before reinstalling. Replace if
damaged.
(e) Adjust the electrode gap to 0.028 - 0.031 in. ( 0.7 - 0.8 mm).
(f) Seat spark plug in position and thread by hand to prevent cross threading.
SPARK PLUG: TORCH F6RTC, NGK BPR6ES, CHAMPION RN9YC or equivalent.
0.028-0.031in
(0.7-0.8mm)
(g) Tighten plug with provided wrench and put the spark plug boot back on spark plug. Do not overtighten.
background
English Customer Service: 1-844-FIRMAN1

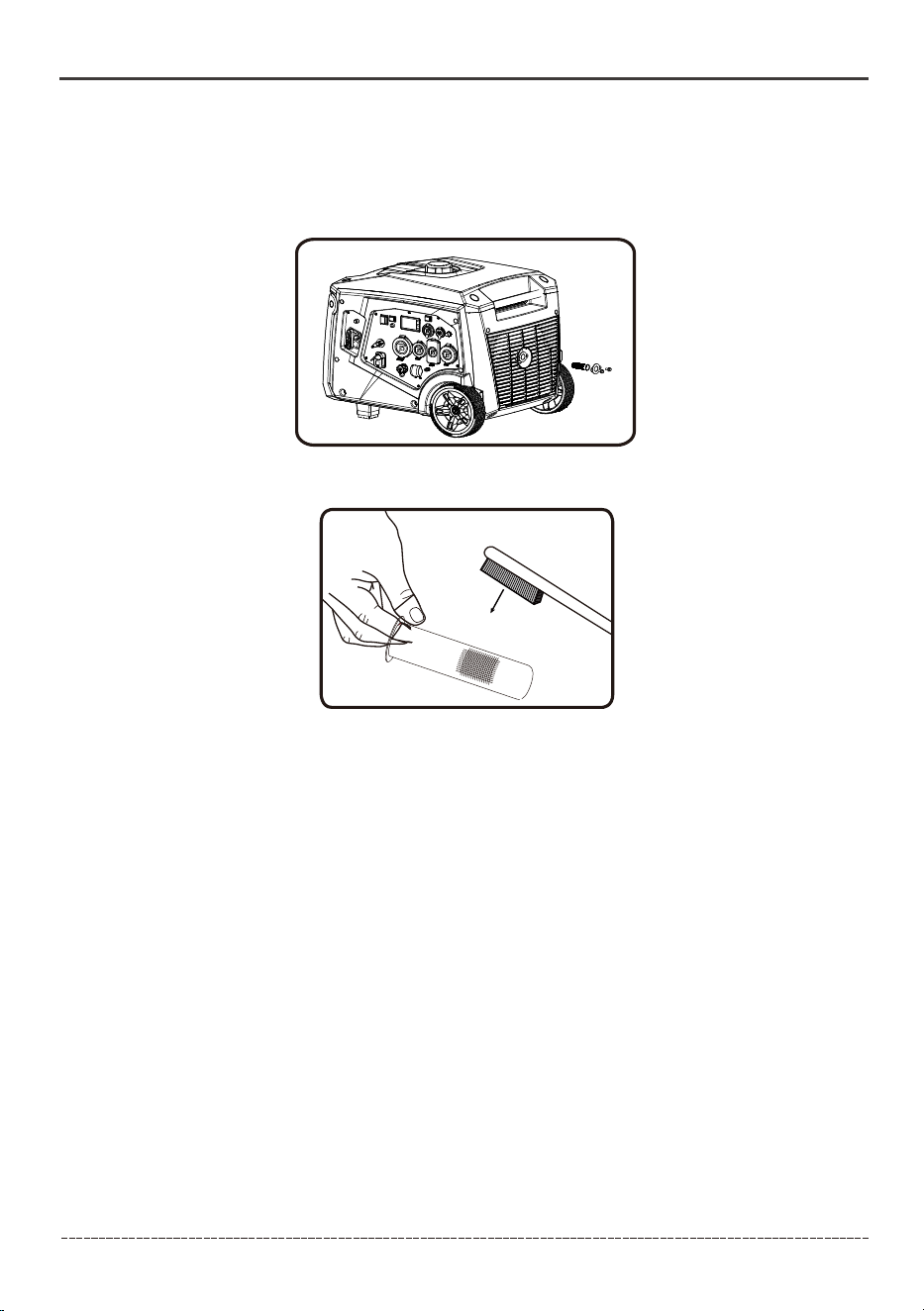

Inspect Muffler and Spark Arrester
1. Inspect the muffler for cracks, corrosion, or other damage.
2. Loosen the spark arrester clamp, remove the spark arrester cover, and remove the spark arrester
with a thin blade screwdriver .
3. Carefully remove the carbon deposits from the spark arrester screen with a wire brush.
4. Replace the spark arrester if it is damaged. If replacement parts are required, make sure to use
only FIRMAN original equipment replacement parts.
5. Position the spark arrester in the muffler and attach spark arrester cover with the screws.
NOTICE Failure to clean or replace spark arrester may result in decreased engine performance.
GENERATOR MAINTENANCE
Make certain that the portable generator is kept clean and dry.
Do not expose the unit to excessive dust, dirt, moisture or corrosive vapors.
Do not insert any objects through cooling slots.
Before each use inspect underneath the generator for signs of oil or fuel. Clean any accumulated
debris. Keep area around muffler free from any debris. Use a soft bristle brush to remove dirt or
caked on oil. Use a damp cloth to clean all exterior surfaces.
29
Run the generator at least 30 minutes every month.
Maintenance - Storage
Battery Charging (USB-C )
The battery powers the starter motor and control module. This portable generator is equipped with
an automatic battery charging circuit. The battery will receive charging voltage only when the engine
is running. The battery will maintain a proper charge if the portable generator is used on a regular
basis (about once every two weeks). If it is used less frequently, the battery should be connected
to a trickle charger (not included) or battery maintainer (not included) to keep the battery properly
charged. If the battery is not able to start the engine, the battery must be connected to a type-C
style battery charger for re-charging before it can be used.
USB-C charging input supports 5V3A input 15W maximum.
background
English Customer Service: 1-844-FIRMAN1
It is important to prevent gum deposits from forming in essential fuel system components such
as the carburetor, fuel hoses or tank during storage. Ethanol-blended fuels (called gasohol, ethanol
or methanol) attract moisture, which leads to separation and formation of acids during storage.
Acidic gas can damage the fuel system of an engine while in storage.
Long Term Storage
When the generator set is being stored for more than one month, follow these instructions to avoid
engine problems:
Do not store fuel near any ignition sources.

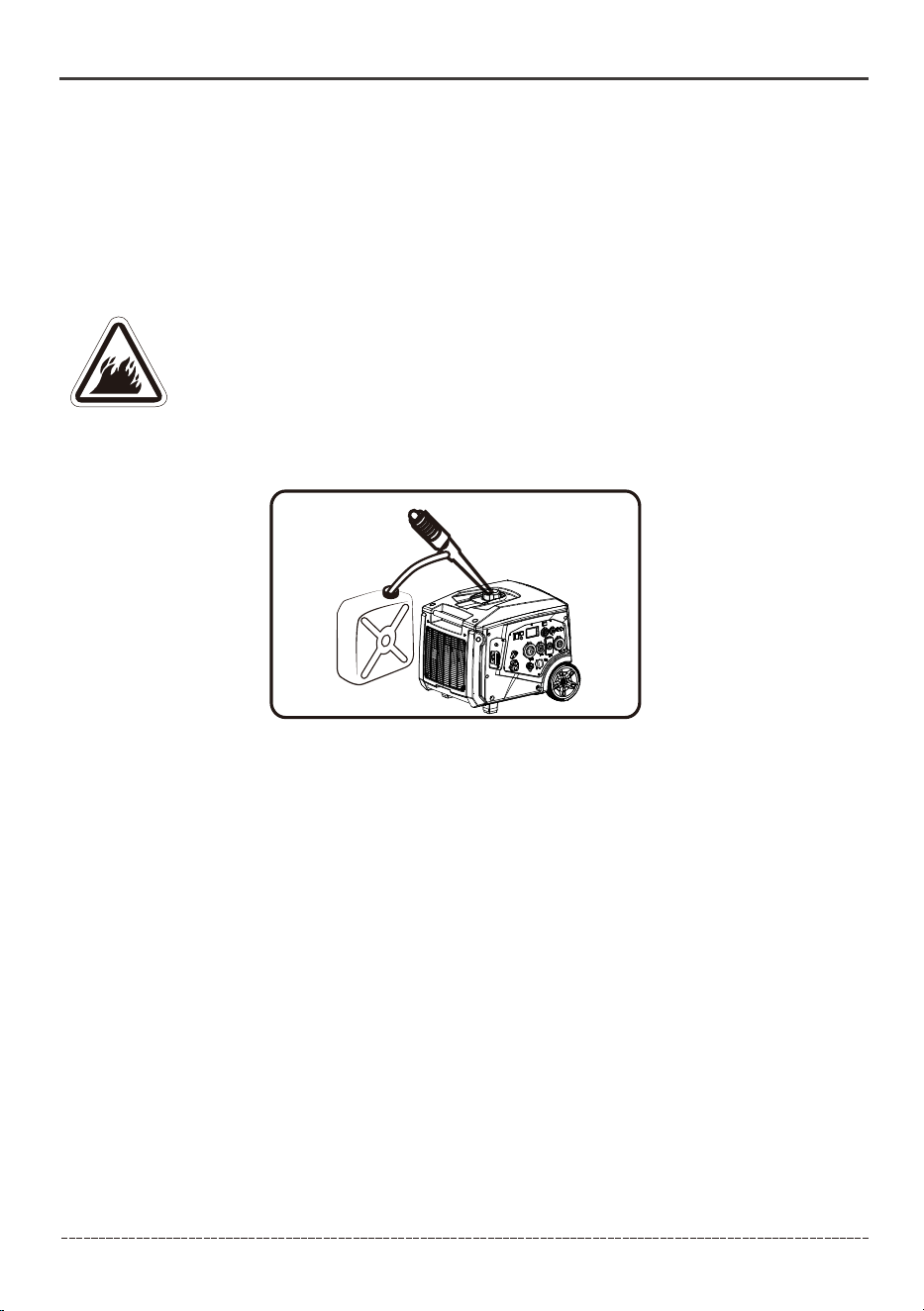

When draining fuel move generator outdoors and use a commercially available non-conductive
vacuum siphon. Fuel must be drained into an approved container.
WARNING! Fuel and its vapors are extremely flammable which could cause burns
or fire resulting in death or serious injury.
1-Treat any stored fuel with fuel stabilizer.
2-When storing generator with gasoline in fuel tank, operate the engine for 5-10 minutes to
circulate treated fuel into fuel lines and carburetor before shutdown.
3- There is no need to drain gasoline from the generator fuel tank if fuel stabilizer is added.
4-FUEL STARVATION: If you elect to drain fuel tank move generator outdoors. Once fuel tank is
drained turn fuel valve to on position. Start and run the portable generator outdoors until engine
stops from lack of gasoline. This will drain remaining gasoline from tank, fuel lines, and carburetor.
5-Always turn fuel valve to OFF position prior to storage.
6-Allow the portable generator to cool before cleaning and storage.
7-Change oil .
8-Remove spark plug boot and spark plug. Pour about one teaspoon of engine oil through the
spark plug hole, then slowly pull the recoil starter several times to distribute the oil in the cylinder
Pull recoil slowly until resistance is felt. This will close the valves so no moisture enters the engine
cylinder. Reinstall the spark plug and attach the spark plug boot.
9-Cover the portable generator and store in a clean, dry place out of direct sunlight and away from
any ignition sources.
Any damage or hazards caused by using improper fuel, improperly stored fuel, and/or improperly
formulated stabilizers, are not covered by manufacturer's warranty.
Do not store gasoline from one season to another season.
31
Maintenance - Storage
background
Troubleshooting – Specifications
English Customer Service: 1-844-FIRMAN1
32
For all other issues, contact authorized dealer or Firman customer service.
Engine shuts down and
yellow CO fault light blinking.
1. CO system fault
1. Contact authorized FIRMAN
service facility.
ProblemCauseCorrection
Engine is running, but no
AC output is available.
1. Circuit breaker is open.
2. Fault in generator.
3. Poor connection or defective cord
set.
4. Connected device is bad.
1. Reset circuit breaker.
2. Contact authorized service facility.
3. Check and repair.
4. Connect another device that is in
good condition.
Engine runs good at
no-load but “bogs down”
when loads are connected.
1. Short circuit in a connected load.
2. Engine speed is too slow.
3. Generator is overloaded.
4. Shorted generator circuit.
1. Disconnect shorted electrical load.
2. Contact authorized service facility.
3. See Don't Overload Generator
4. Contact authorized service facility.
Engine will not start; starts
and runs rough or shuts
down when running.
1. Engine switch set to OFF (O)
position.
2. Fuel shutoff lever is in OFF (O)
position.
3. Low oil level.
4. Dirty air cleaner.
5. Out of fuel.
6. Stale fuel.
7. Spark plug wire not connected to
spark plug.
8. Bad spark plug.
9. Water in fuel.
10. Flooded.
11. Excessively rich fuel mixture.
12. Intake valve stuck open or closed.
13. Engine has lost compression.
1. Set engine switch to ON (l)
position.
2. Move fuel shutoff lever to ON (l)
position.
3. Fill crankcase to proper level or
place generator on level surface.
4. Clean or replace air cleaner.
5. Fill fuel tank.
6. Drain fuel tank and carburetor; fill
with fresh fuel.
7. Connect wire to spark plug.
8. Replace spark plug.
9. Drain gas tank and carburetor; fill
with fresh fuel.
10. Wait 5 minutes and re-crank engine.
11. Contact authorized service facility.
12. Contact authorized service facility.
13. Contact authorized service facility.
Engine lacks power.
1. Load is too high.
2. Dirty air filter.
1. Don't Overload Generator
2. Replace air filter.
Engine“huntsor falters.
1. Carburetor is running too rich or too lean.
1. Contact authorized service facility.
14. Clogged or dirty fuel filter.
5. Clean or replace fuel filter.
14. Clean or replace fuel filter.
3. Clogged or dirty fuel filter.
4. Clogged spark arrester.
3. Clean or replace fuel filter.
4. Clean or replace spark arrester.
2. Clogged or dirty fuel filter.2. Clean or replace fuel filter.
Engine shuts down when
running.
1. Out of fuel.
2. Dirty air cleaner.
3. Low oil level.
1. Fill fuel tank.
2. Clean or replace air cleaner.
3. Fill crankcase to proper level or place.
generator on level surface.
5. Clogged or dirty fuel filter.
Troubleshooting
background
SPECIFICATIONS
Model
Rated AC Voltage
Phase
Power Factor
Voltage Regulator
Alternator Type
Running Watts*
Starting Watts
Engine
Engine Type
Displacement
Low Oil Shutdown
Ignition System
Starting System
Fuel
Capacity Fuel Tank
Lubricating Oil Capacity
Carburetor Type
Air Cleaner
P.T.O. Shaft Rotation
120/240V
W05381
Digital
Single
1
Single Cylinder, 4-Stroke OHV Air Cooled
322cc
Breakless Ignition Type, Flywheel Magneto
Unleaded Automotive Gasoline
5.3 U.S. Gallons (20L)
35.5 oz (1.05L)
Counter Clockwise (Facing P.T.O.)
Float
Magneto
Polyurethane Type
Yes
FIRMAN
Rated Fequency
60Hz
Oil Type
See “Add Engine Oil” Section
Recoil
English Customer Service: 1-844-FIRMAN1
AC Grounding System
Neutral Bonded to Frame
33
Troubleshooting – Specifications
Total Harmonic Distortion(THD)
<3%
Inductor
5300
6650
*Generator certified in accordance with CSA (Canadian Standards Association) standard C22.2No. 100-14,
Motors and Generators and complies with PGMA (Portable Generator Manufacturers’ Association) standard
ANSI/PGMA G300-2018, Safety and Performance of Portable Generators.
background
PARTS DIAGRAM AND PART LIST

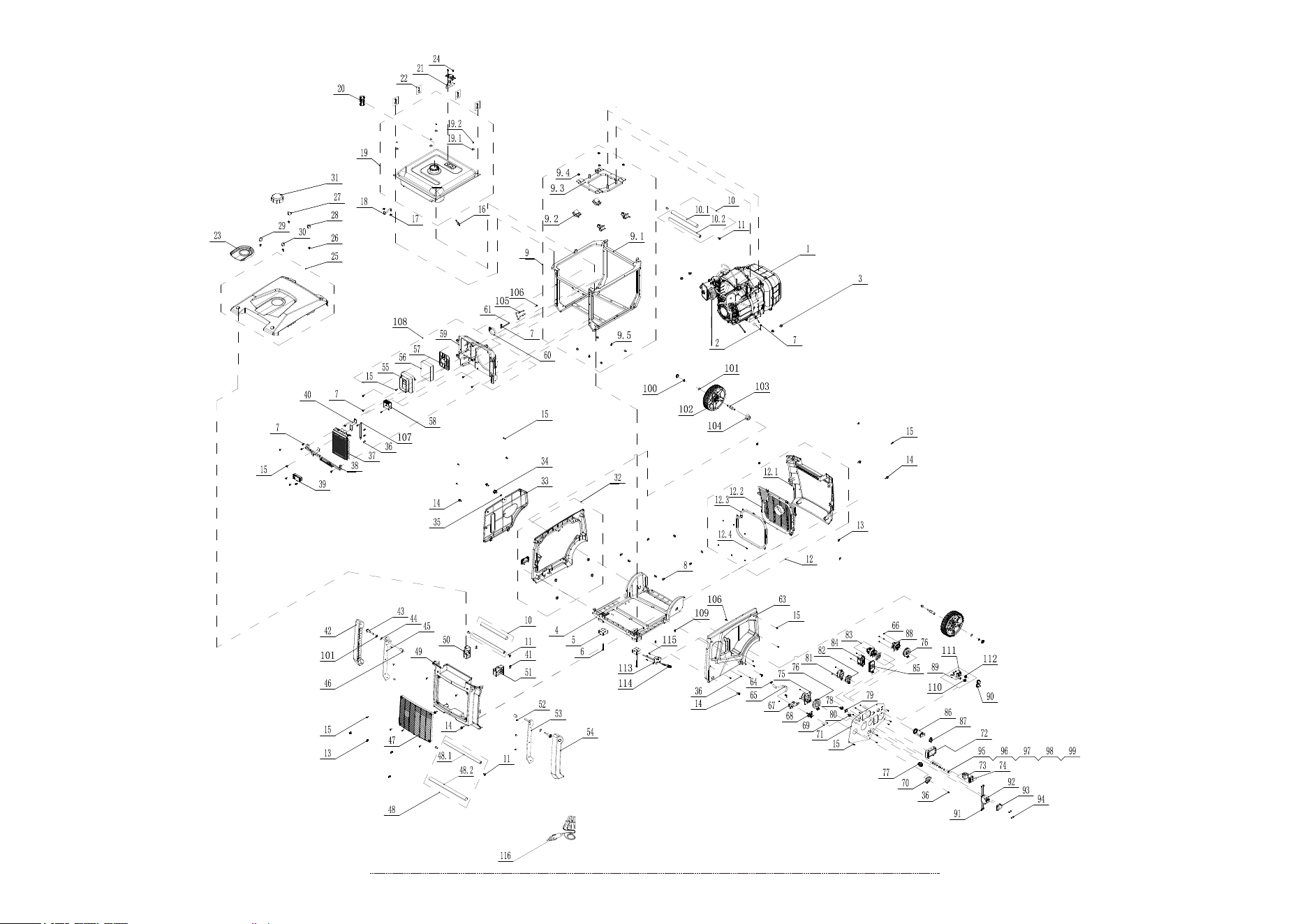

W05381 PARTS DIAGRAM
English Customer Service: 1-844-FIRMAN1
34
background

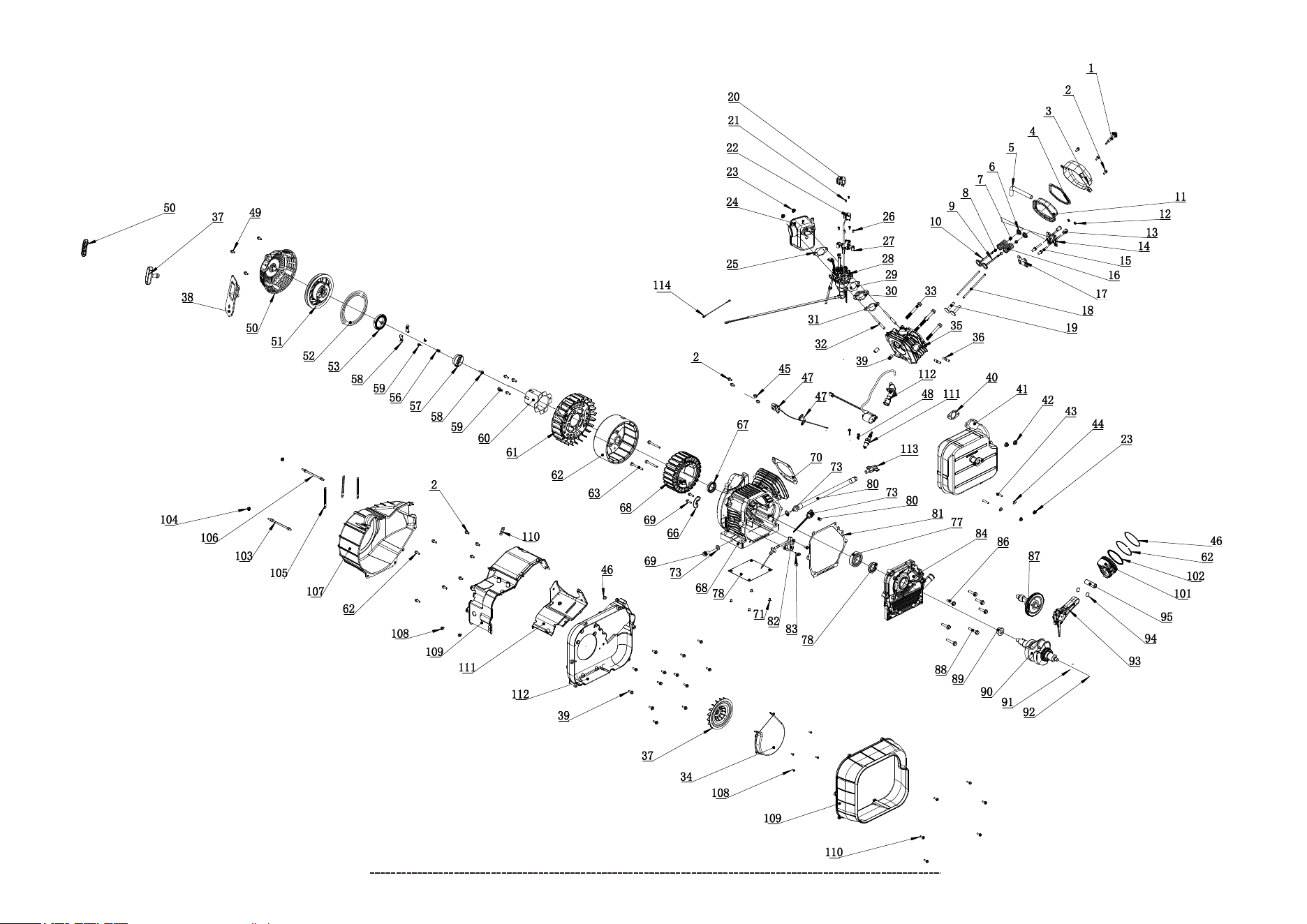

322cc ENGINE PARTS DIAGRAM
English Customer Service: 1-844-FIRMAN1
35
background
W05381 Portable Generator
English Customer Service: 1-844-FIRMAN1
36

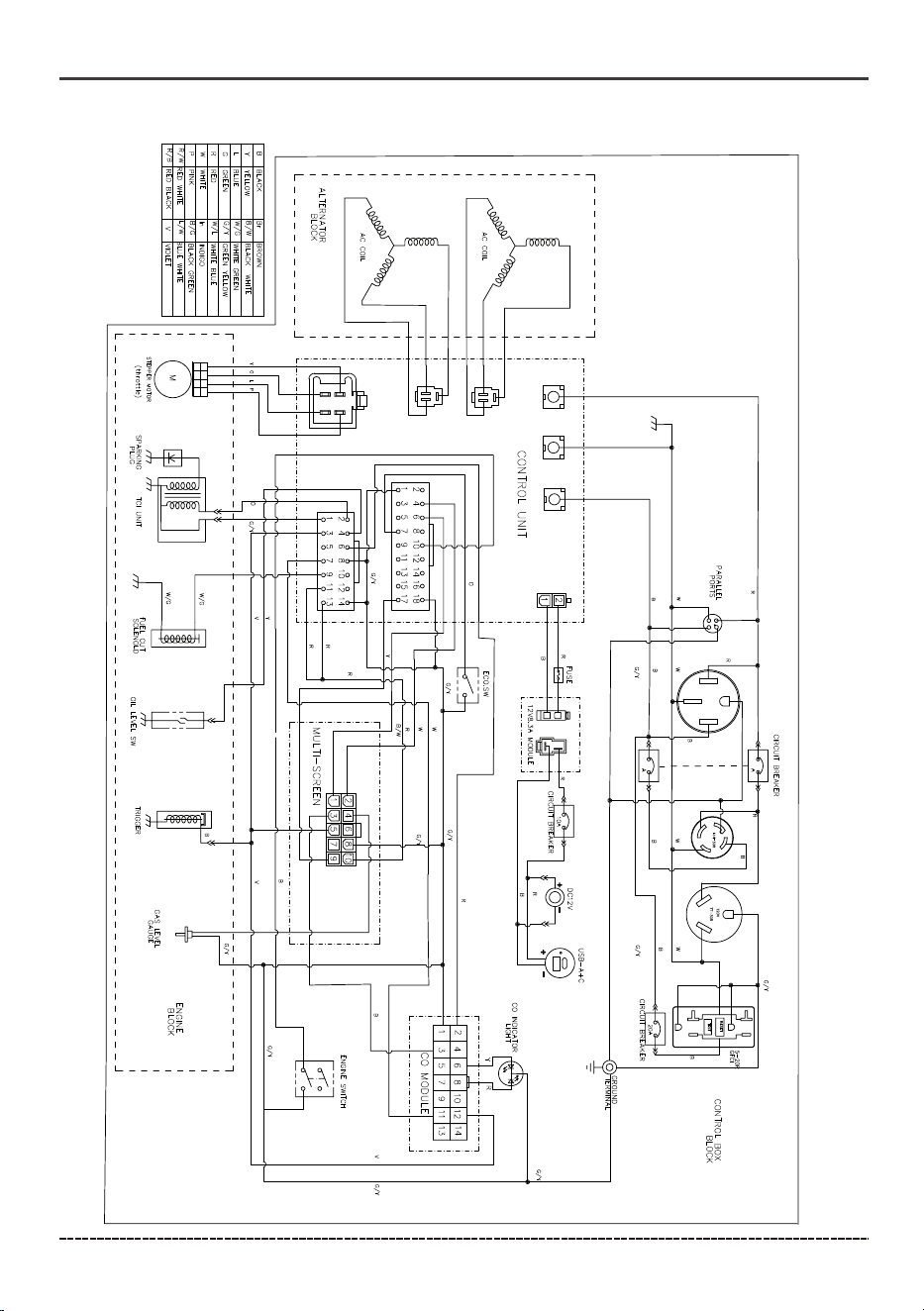

Parts Diagrams - Parts Lists - Wiring Diagram
NO.
Part Number
Description
Qty.
1
2
3
4
5
6
7
8
9
9.1
9.2
9.3
9.4
9.5
10
10.1
10.2
11
12
12.1
12.2
12.3
12.4
13
14
15
16
17
18
19
19.1
19.2
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
353468300
355718300
357713531
355728300
355728301
355718301
355718388
333717014
355418300
355418301
355428300
355418302
336718315
355718306
355418303
355718303
355728302
355718409
355428301
355428305
355728328
355728329
355718335
330713525
330713527
355718304
336713807
330713512
355728303
355418304
355728330
357713600
333427007
355428302
310715064
355728304
355718305
355728305
355718306
355728306
355728307
355728308
355728309
330713500
355728310
355728311
355718307
355718308
336718383
353458305
Engine Subassembly
Ground Wire
Nut M10
Base Assy
Base Mounting
Flange Bolt M6×55
Flange Bolt M6×12
Nut M6
Frame Assy
Frame
Isolator
Base Bracket
Nut M8
Bolt M5
Upper Handle Assy
Upper Handle
Cover, Upper Handle
Flange Bolt M8×20
Right Cover Assy
Cover, Right Side
Cover, Right Muffler
Rubber Seal Sleeve
Spring Leaf
Cage Nut M5
Bolt M6×16
Tank Fitting With Filter
Clip φ8×6
Pipe
Fuel Tank Assy
Grommet, Fuel Tank
Bushing
Fuel Filter, Wire Mesh
Fuel Gauge Assy
Bolt M6x20
Fuel Guide Plate
Screw M5×14
Cover, Top
Bolt M5
Plug
Plug
Plug
Plug
Fuel Tank Cap
Rear Cover
Protector ,rear Cover
Rear Cover Knob
Limit Nut
Bolt M4×14
Inverter
1
1
4
1
2
2
9
8
1
1
4
1
8
2
2
2
2
6
1
1
1
1
7
8
8
28
1
2
1
1
4
4
1
1
4
1
2
1
4
1
1
1
1
1
1
1
1
1
8
1
NO.
Part Number
Description
Qty.
38
39
40
41
42
43
44
45
46
47
48
48.1
48.2
49
50
51
52
53
54
55
56
57
58
59
60
61
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
355718309
355428303
355718310
355718390
355728313
355718311
355718312
355718313
355728314
355728315
355418305
355718315
355728316
355728317
355718316
355718317
355718318
355718319
355728318
355728319
355728320
355728321
355458303
355728322
355718320
330723528
355728323
330713508
355728324
330713596
355718321
330713577
336718364
355728325
353718300
353428300
336713572
353758300
380713518
336713574
355718324
317718305
336727009
336755002
336713601
336713573
320755502
357713547
357713541
317713565
Stents, Inverter
Co Module
Clip Of Control Unit
Bolt M6×12
Left Handle Cover Plate
Handle Bolt
Washer(φ23.4xφ13.1x1)
Left Handle Support
Bushing
Maintenance Window
Lower Handle Assy
Lower Handle
Cover, Lower Handle
Left Cover Assy
Left Bracket, Handle
Right Bracket, Handle
Screw M5×14
Right Handle Support
Right Handle Cover Plate
Case,air Cleaner
Element, Air Cleaner
Dc Module
Left Cover
Clamp
Wire Clip
Front Cover
Clip(φ10.5×8)
Nut M4
Stents,fuel Valve
Fuel Valve
Screw M5×20
Fuel Valve Knob
Control Panel
Multifunction Table
Engine Switch
Switch Cover
Receptacle 14-50R
Outlet Cover TT-30R
Parallel Port
Economic Switch
Switch Cover
Indicator Light
Receptacle L14-30R
Outlet Cover L5-30R
USB
Receptacle GFCI
Outlet Cover 5-20R GFCI
Cigar Lighter
1
1
1
4
1
2
2
1
2
1
1
1
1
1
1
1
6
1
1
1
1
1
1
1
1
1
1
2
1
16
1
1
2
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
Screw&washer Assembly M5×14
Air Cleaner Element Supporter
Fuel Pipe, Fuel Tank To Fuel Valve
background
English Customer Service: 1-844-FIRMAN1
37
Parts Diagrams - Parts Lists - Wiring Diagram
NO.
Part Number
Description
Qty.
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
NO.
Part Number
Description
Qty.
336713674
336713584
330713594
336755005
355718386
355718326
392758302
355718332
355718327
357713543
355718333
355718334
333715501
330713584
330713585
355728326
355718328
355718414
355718329
355718330
355718384
355728352
355718402
355718389
330713614
355718398
355718407
355418318
355718408
320755504
Outlet Cover
Receptacle TT-30R
Circuit Breaker Cover
Screw&washer Assy M4×8
Circuit Breaker Amp 30a
Cover
Screw&washer Assy M3×6
Bolt M6×22
Nut M6
Lock Washer Ø6
Flat Washer Ø6
External Star Washer Ø6
Retaing Ring Φ12
Washer Φ12
Wheel
Axle Comp
Nut M10x1.25
Pipe Clamp
Screw M6×12
Ground Wire
Air Filter Assembly
Flange Bolt M6×12
Circuit Breaker Nut
Circuit Breaker Nut
Choke Valve Rope Assy
Screw ST4.2x13
12V DC Charge Cable
1
1
1
2
4
1
1
4
1
2
2
2
1
2
4
2
2
2
1
2
1
1
4
1
1
1
1
1
3
1
A.C 20A Breaker,Push Button
D.C 10A Breaker, Push Button
Bracket,Choke Valve Rope
background
English Customer Service: 1-844-FIRMAN1
38
Parts Diagrams - Parts Lists - Wiring Diagram
FIRMAN 322cc Engine
357723527
355718390
355728331
357723525
355728332
355718337
355728333
355718338
355718339
355718340
355728348
330723565
330723564
355718411
355718395
357723535
355728334
355718341
355718342
355728353
355718396
355458306
355718391
355428306
355728349
355718397
355728354
353418300
355718343
355728337
355718344
355718345
355718346
357723544
355418307
336723539
355458307
355718347
330723001
355728338
355418308
355718378
355718412
355718413
355718349
355458308
355718350
330723526
355428307
355718351
355728370
355418315
355718352
393723006
357723580
330723520
330723521
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
46
47
48
50
51
52
53
54
55
56
57
58
59
NO.
Part NumberDescription
Qty.
1
9
1
1
1
2
2
2
1
1
1
2
2
2
2
2
1
2
2
1
4
1
1
4
1
1
3
1
1
1
1
1
2
4
1
2
2
1
2
1
5
2
1
1
1
1
1
2
2
2
3
1
1
1
1
1
1
Bolt
Bolt M6x12
Guard, Cyl. Head Cover
Cylinder Cover Gasket
Breather Pipe
Ret.,valve Spring
Oil Seal, Valve
Lock Clip, Valve
Valve,Exhaust
Valve, Intake
Cover Subassembly
Nut, Valve Lock
Adjusting Nut, Valve
Arm, Valve Rocker
Bolt, Rocker Arm
Spring, Valve
Guide Plate,push Rod
Push Rod
Valve Lifter
Cover,stepper Motor
Screw M4×8
Stepper Motor ,choke
Nut M6
Case,air Cleaner Comp.
Gskt,air Cleaner
Screw M4x10
Stepper Motor Bracket
Carburetor, Assy.
Gasket, Carburetor
Insulator, Carburetor.
Gasket, Insulator
Stud Bolt(M6×M8×110)
Bolt
Dawl Pin
Cylinder Head Comp.
Stud Bolt(m8×35)
Ignition Assy.
Bolt M5×20
Spark Plug
Muffler Gasket
Muffler Assembly
Nut M8
Stud Bolt(m6×32)
Muffler Bracket Gasket
Bolt M6×8
Trigger Assy
Bracket, Trigger
Rope Button
Grip ,starter
Bolt M6×10
Guide, Rope
Case Comp.,recoil Starter
Recoil Starter Reel
Rope (5×1500)
Recoil Starter Spring
Ratchet, Starter
Spring, Ratchet
330723519
330723518
355718353
355718354
355718355
355728339
353458301
355718382
355458311
355718356
355728341
355728340
357723501
357723502
353718301
355718359
336713546
355728351
336723526
355718357
355428308
355428309
355718361
355718362
355718363
355718360
357713584
355418310
336713593
357723571
355418311
355718364
355718379
355418312
355718366
355718367
355718368
355718369
355718370
355718371
355718365
355718372
330723528
355728342
355718373
355728343
355728344
355728345
355728346
355718374
355718393
355728347
355718375
355728357
355718394
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
NO.
Part NumberDescription
Qty.
1
9
1
1
1
2
2
2
1
1
1
2
2
2
2
2
1
2
2
1
4
1
1
4
1
1
3
1
1
1
1
1
2
4
1
2
2
1
2
1
5
2
1
1
1
1
1
2
2
2
3
1
1
1
1
1
1
Spring, Ratchet Guide
Pawl Guide
Screw, Pawl Guide
Bolt M6×16
Pulley, Starter
Cooling Fan
Rotor Assy
Bolt M6×60
Stator Assy
Bolt M6×20
Oil Seal
Guard, Harness
Bolt, Drain Plug
Washer, Drain Bolt
Crankcase Comp
Screw M5x10
Oil Level Switch
Bolt M6×15
Gasket, Cylinder
Quick Oil Drain
Oil Dipstick Assembly
Dawl Pin
Crankcase Gasket
Radial Ball Bearing
Crankcase Cover
Bolt M8×35
Camshaft Comp.
Bolt M8×45
Nut M16
Crank Comp
Dawl Pin
Nut M12
Connecting Rod Assy.
Piston Pin Clip
Piston Pin
Piston
Ring Coil
Ring ,second Piston
Ring ,first Piston
Stud Bolt
Stud Bolt
Wire Clip
Fan Cover
Lifting Lugs
Guard, Upper
Guard, Lower
Guard, Muff., Back
Exhaust Fan
Cover, Exhaust Fan
Screw, M4×14
Guard, Muff., Front
Bolt M5×16
Bolt, Drain
Ground Wire
Guard, Crank case,Bottom
background
English Customer Service: 1-844-FIRMAN1
39
Parts Diagrams - Parts Lists - Wiring Diagram
Wiring Diagram
30
30
background
English Customer Service: 1-844-FIRMAN1
40
Service – Warranty
FIRMAN Three (3) Year Limited Warranty
Do Not Return the Unit to the Place of Purchase
Contact the FIRMAN Service Center and FIRMAN will troubleshoot any issue via phone or e-mail.
If the problem is not corrected by this method, FIRMAN will, at its option, authorize evaluation,
repair or replacement of the defective part or component at a FIRMAN Service Center. FIRMAN
will provide you with a case number for warranty service. Please keep it for future reference.
Repairs or replacements without prior authorization, or at an unauthorized repair facility, will
not be covered by this warranty.
Normal Wear
Your product needs periodic parts and service to perform well. This warranty does not cover
repair when normal use has exhausted the life of a part or the equipment as a whole.
FIRMAN warrants to the original purchaser that the mechanical and electrical components will be free of
defects in material and workmanship for a period of one(1) year(parts and labor) and three(3) years (parts
and technical support) from the original date of purchase 90 days [parts and labor] and 180 days [parts]
for commercial & industrial use. Transportation charges on product submitted for repair or replacement
under this warranty are the sole responsibility of the purchaser . This warranty only applies to the original
purchaser and is not transferable.
Repair/Replacement Warranty
Warranty Exclusions
This warranty does not cover the following repairs and equipment.
FOR SERVICE INFORMATION CONTACT FIRMAN PRODUCT SERVICE DEPARTMENT AT 1-844-347-6261
or at www.firmanpowerequipment.com to obtain warranty service information or to order
replacementparts or accessories.
HOW TO ORDER REPLACEMENT PARTS
Even quality-built equipment such as this electric generator may need occasional
replacement parts to maintain it in good condition over the years. To order replacement parts,
please give the following information:
Model No. Rev. Level and Serial No. found on the Data Decal.
Parts number or numbers as shown in the Parts List section.
A brief description of the trouble with the generator.
Warranty Qualifications
Register your product using the QR code provided or at www.firmanpowerequipment.com.
FIRMAN will also register the warranty upon receipt of your Warranty Registration Card and a
copy of your sales receipt from one of FIRMANs retail locations as proof of purchase. Please
submit your warranty registration and your proof of purchase within ten(10) days of the date of
purchase.
background
English Customer Service: 1-844-FIRMAN1
41
Service – Warranty
Limits of Implied Warranty and Consequential Damage
FIRMAN disclaims any obligation to cover any loss of time, use of this product, freight, or any
incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN
LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANT
ABLILITY OR FITNESS FOR A PARTICULAR PURPOSE.
A unit provided as an exchange will be subject to the warranty of the original unit. The length of
the warranty governing the exchanged unit will remain calculated by reference to the purchase
date of the original unit.
This warranty gives you certain legal rights which may change from state to state. Your state may
also have other rights you may be entitled to that are not listed within this warranty.
Contact Information
You may contact FIRMAN at:
Address
Firman Power Equipment Inc.
Attn: Customer Service
8644 W. Ludlow Dr.
Peoria, AZ 85381
www.firmanpowerequipment.com
We are FIRMAN POWER - And we are here for you.
Installation, Use and Maintenance
This warranty will not apply to parts and/or labor if your product is deemed to have been misused,
neglected, involved in an accident, abused, loaded beyond the generator's limits, modified,
installed improperly or connected incorrectly to any electrical component. Normal maintenance is
not covered by this warranty.
Other Exclusions
This warranty excludes:
– cosmetic defects such as paint, decals, etc.
– wear items
– accessory parts
– failures due to acts of God and other force majeure events beyond the manufacturers control
– problems caused by parts that are not original FIRMAN parts
– units used for prime power in place of existing utility power where utility is present or in place
of utility power where utility power service does not normally exist.
background
English Customer Service: 1-844-FIRMAN1
CALIFORNIA AND FEDERAL EXHAUST AND EVAPORATIVE EMISSIONS CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
FIRMAN POWER EQUIPMENT INC.
Emission Control System Warranty
The warranty period begins on the date the engine/equipment is delivered to an ultimate purchaser. FIRMAN warrants to the ultimate
purchaser and each subsequent purchaser that the engine is:
Designed, built, and equipped so as to conform with all applicable regulations adopted by the Air Resources Board and US EPA;
and Free from defects in materials and workmanship that cause the failure of a warranted part to be identical in all material
respects to the part as described in the engine manufacturers application for certification.
The warranty on emissions-related parts is as follows:
(1) Any warranted part that is not scheduled for replacement as required maintenance in the owner's manual supplied, is
warranted for the warranty period stated above. If any such part fails during the period of warranty coverage, the part will be
repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced under the warranty will be
warranted for the remaining warranty period.
(2) Any warranted part that is scheduled only for regular inspection in the owner's manual supplied, is warranted for the warranty
period stated above. Any such part repaired or replaced under warranty will be warranted for the remaining warranty period.
(3) Any warranted part that is scheduled for replacement as required maintenance in the owner's manual supplied, is warranted
for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled
replacement, the part will be repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced
under warranty will be warranted for the remainder of the period prior to the first scheduled replacement point for the part.
(4) Repair or replacement of any warranted part under the warranty must be performed at no charge to the owner at a warranty
station.
(5) Notwithstanding the provisions of Subsection (4) above, warranty services or repairs must be provided by FIRMAN that
are franchised to service the subject engines.
(6) The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective,
provided that such diagnostic work is performed at a warranty station.
(7) FIRMAN is liable for damages to other engine components proximately caused by a failure under warranty of any
warranted part.
MANUFACTURER'S WARRANTY COVERAGE:
The exhaust and evaporative emissions control system on your small off-road engine and engine powered equipment is warranted
for two years. If any emissions-related part on your small off-road engine and engine powered equipment is defective, the part will
be repaired or replaced by FIRMAN.
The California Air Resources Board, US Environmental Protection Agency (US EPA”) and FIRMAN POWER EQUIPMENT
INC.(FIRMAN) are pleased to explain the emissions control systems warranty on your 2023-2024 or later Small Off-Road
Engine (“SORE) and engine powered equipment. In California, new equipment that use small off-road engines must be
designed, built and equipped to meet the State’s stringent anti-smog standards. FIRMAN must warrant the emissions control
systems on your SORE and engine powered equipment for the periods of time listed below provided there has been no abuse,
neglect or improper maintenance of your small off-road engine or equipment leading to the failure of the emissions control system.
Your emissions control system may include parts such as the carburetor or fuel-injection system, the ignition system, catalytic
converter, fuel tanks, fuel lines (for liquid fuel and fuel vapors), fuel caps, valves, canisters, filters, clamps and other associated
components. Also included may be hoses, belts, connectors, and other emission-related assemblies.
Where a warrantable condition exists, FIRMAN will repair your SORE and engine powered equipment at no cost to you
including diagnosis, parts and labor.
OWNER'S WARRANTY RESPONSIBILITIES:
As the SORE and engine powered equipment owner, you are responsible for the performance of the required maintenance
listed in your operator's manual. FIRMAN recommends that you retain all receipts covering maintenance on your SORE and
engine powered equipment, but FIRMAN cannot deny warranty coverage solely for the lack of receipts or for your failure to
ensure the performance of all scheduled maintenance.
As the SORE and engine powered equipment owner, you should however be aware that FIRMAN may deny you warranty
coverage if your small off-road engine or engine powered equipment or a part has failed due to abuse, neglect, or improper
maintenance or unapproved modifications.
You are responsible for presenting your small off-road engine and engine powered equipment to a FIRMAN distribution center
or service center as soon as the problem exists. The warranty repairs shall be completed in a reasonable amount of time,
not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact FIRMAN at 1-844-347-6261.
FIRMAN Emission Control Defects Warranty Provisions
42
Service – Warranty
background
English Customer Service: 1-844-FIRMAN1
PARTS COVERED BY WARRANTY
Limitations
Listed below are the parts (if equipped) covered by the Federal and California Emission Control System Warranty.
This Emission Control System Warranty shall not cover any of the following:
(a) Consequential damages such as loss of time, inconvenience, loss of use of the engine or equipment, etc.
(b) Diagnosis and inspection fees that do not result in eligible warranty service being performed.
1. Ignition system including:
- Spark plug
- Ignition coil
2. Fuel metering system:
- Fuel tank
- Fuel cap
- Fuel lines(for liquid fuel and fuel vapors) and
related fittings/clamps
- Fuel regulator, carburetor and internal parts.
3. Catalytic muffler assembly including:
- Exhaust manifold
- Catalytic converter
- Muffler gasket
-pulse valve
4. Air induction system including:
- Intake pipe/manifold
- Air cleaner
5. Crankcase breather assembly including:
- Breather connection tube
6. Fuel tank evaporative emission control system including:
- Purge valves
- Carbon canister
- Vapor hoses and fitting/clamps
FIRMAN POWER EQUIPMENT INC.
www.firmanpowerequipment.com
(8) Throughout the emissions warranty period defined in Subsection (b)(2), FIRMAN will maintain a supply of warranted
parts sufficient to meet the expected demand for such parts.
(9) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without
charge to the owner. Such use will not reduce the warranty obligations of the manufacturer.
(10) Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non-exempted
add-on or modified parts by the ultimate purchaser will be grounds for disallowing a warranty claim.
The manufacturer will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified
part.
43
Service – Warranty
background
P/N:353745450 Rev:00
All rights reserved. Any reprinting or unauthorized use
without the written permission is expressly prohibited.
TM
FIRMAN POWER EQUIPMENT INC.
8644 W. LUDLOW DR.
PEORIA, AZ 85381
1-844-347-6261
WWW.FIRMANPOWEREQUIPMENT.COM

Specifications

Firman W05381 Questions and Answers

See other models: W05583 P12002 P03632 T07571F T07573F
