Rec
ord product information to reference when ordering parts
or obtaining warranty coverage.
MODEL NUMBER
W03385
REV Le
vel 01
P
/N:333747010 REV:01
OPERA
TOR’S MANUAL
GASOLINE PORTABLE GENERATOR
S
TOP
DO NOT RETURN
TO STORE!
FOR QUES
TIONS
OR SERVICE INFORMATION
CALL US FIRST
1-844-
347-6261
SERIAL NUMBER:
PURCHA
SE DATE:
Supplier’s Declar
ation of Conformity
47 CFR § 2.1077 Compliance Information
FIRMAN W03385 INVERTER GENERATOR
FIRMAN POWER EQUIPMENT INC.
8644 W. Ludlow Dr.
Peoria, AZ 85381
1-844-3476261
www.firmanpowerequipment.com
FCC/IC C
ompliance Statement
1.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1a. This device may not cause harmful interference.
1b. This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
NOTE: The FIRMAN W03385 inverter generator has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
●
Reorien
t or relocate the receiving antenna.
●
I
ncrease the separation between the equipment and receiver.
●
C
onnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●
Consult the dealer or an experienced radio/TV technician for help.
Changes or modications to equipment not expressly approved by FIRMAN could void the user’s
authority to operate the equipment.
English C
ustomer Service: 1-844-FIRMAN101
INTR
ODUCTION
Table of Contents
REGIS
TER YOUR PRODUCT
T
hank you for purchasing a FIRMAN generator. You have selected a high-quality, precision engineered
generator set designed and tested to give you years of satisfactory service. This generator is
designed to run only on unleaded gasoline. This generator is not intended to be run unattended or to
supply power to life safety support.
T
his manual contains safety information to make you aware of the hazards and risks associated
with generator products and how to avoid them. This generator is designed and intended only for
supplying electrical power for operating compatible electrical lighting, appliances, tools and motor
loads, and is not intended for any other purpose. It is important that you read and understand these
instructions thoroughly before attempting to start or operate this inverter generator. Save these
original instructions for future reference.
All information in this publication is based on the latest production information available at the time
of approval for printing. The manufacturer reserves the right to change, alter or otherwise improve
the generator and this documentation at any time without prior notice.
INTRODUCTION
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features, Controls and On -Product Hazard Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 1
Maintenance - Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 3
Troubleshooting- Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

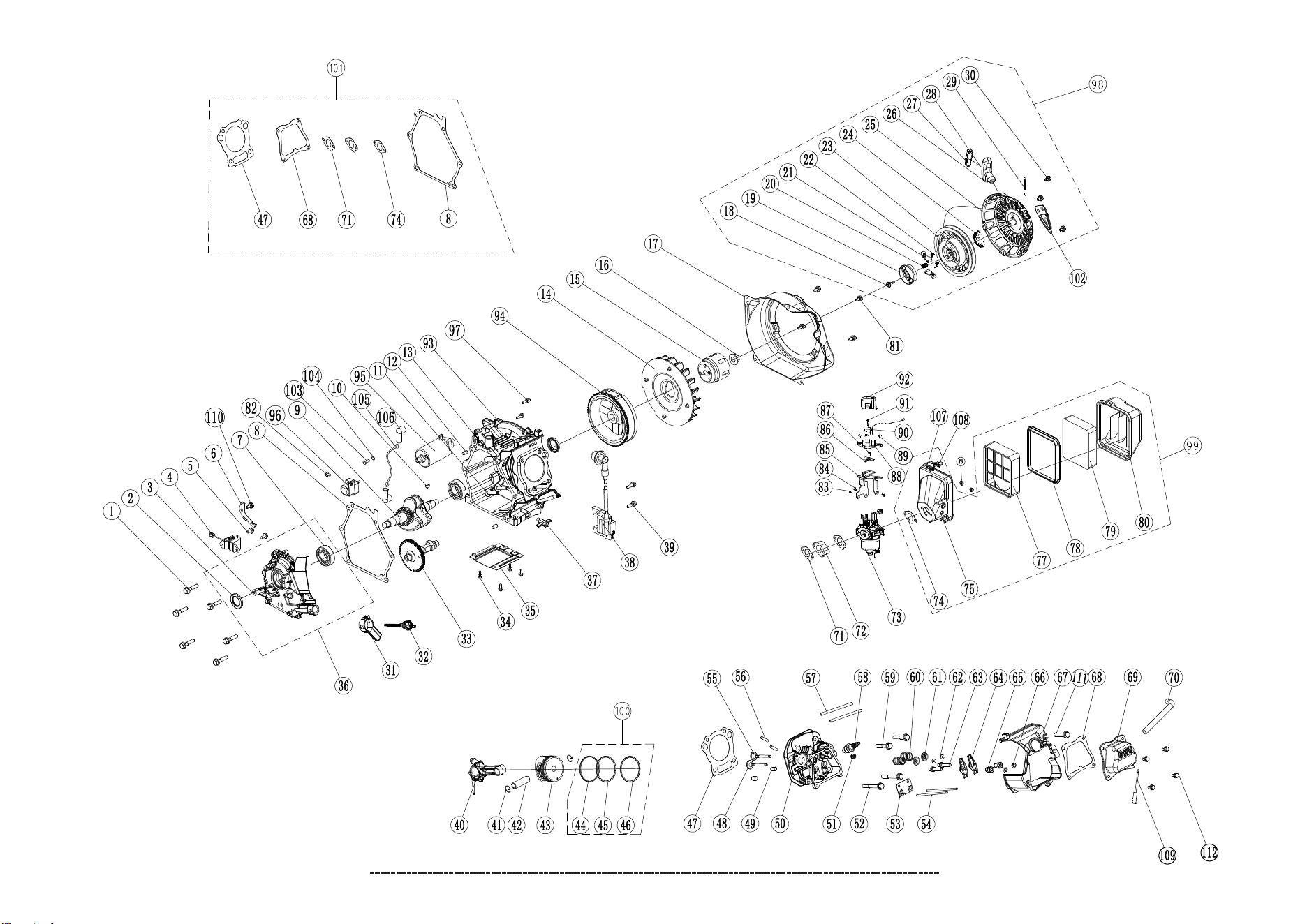

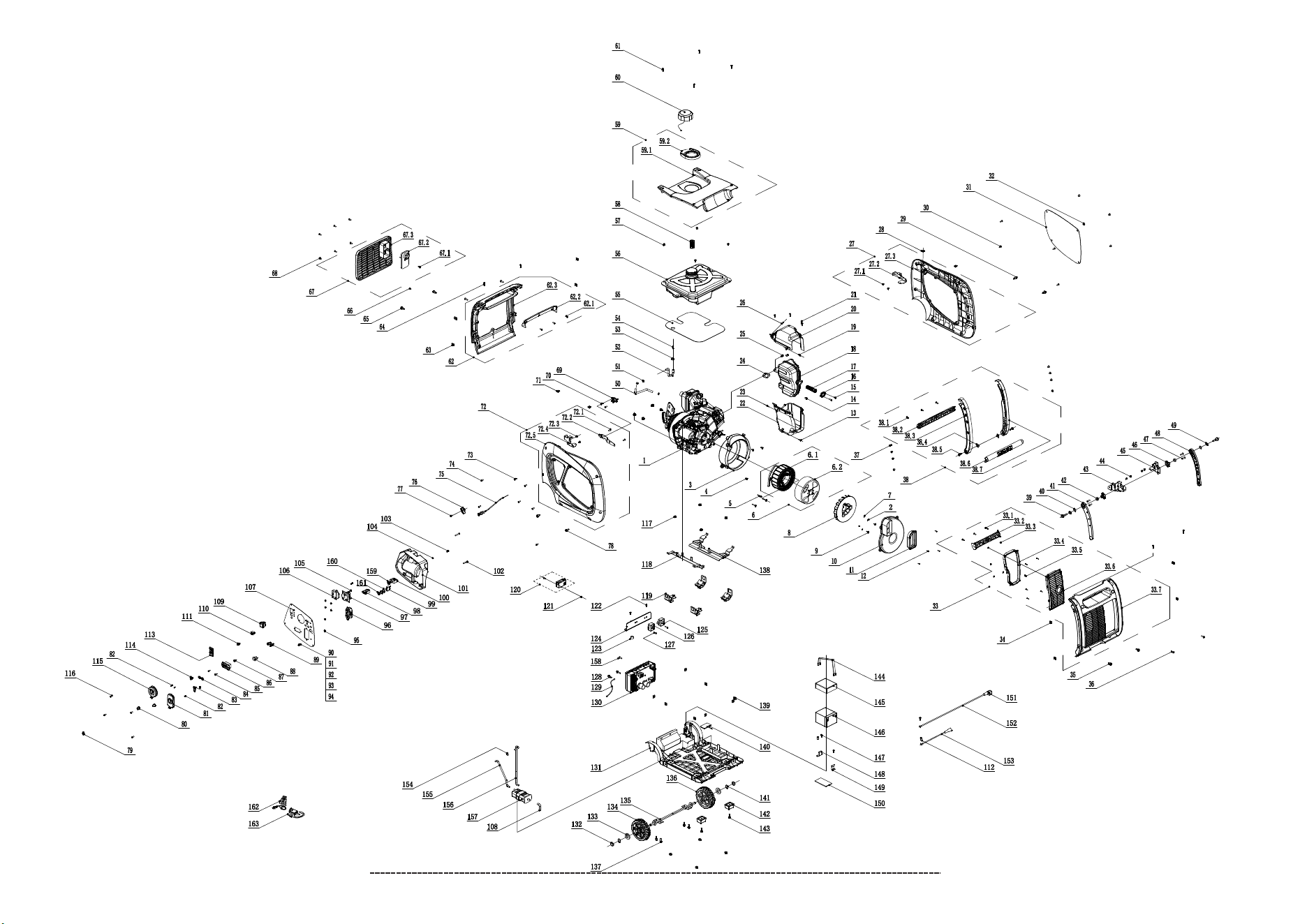

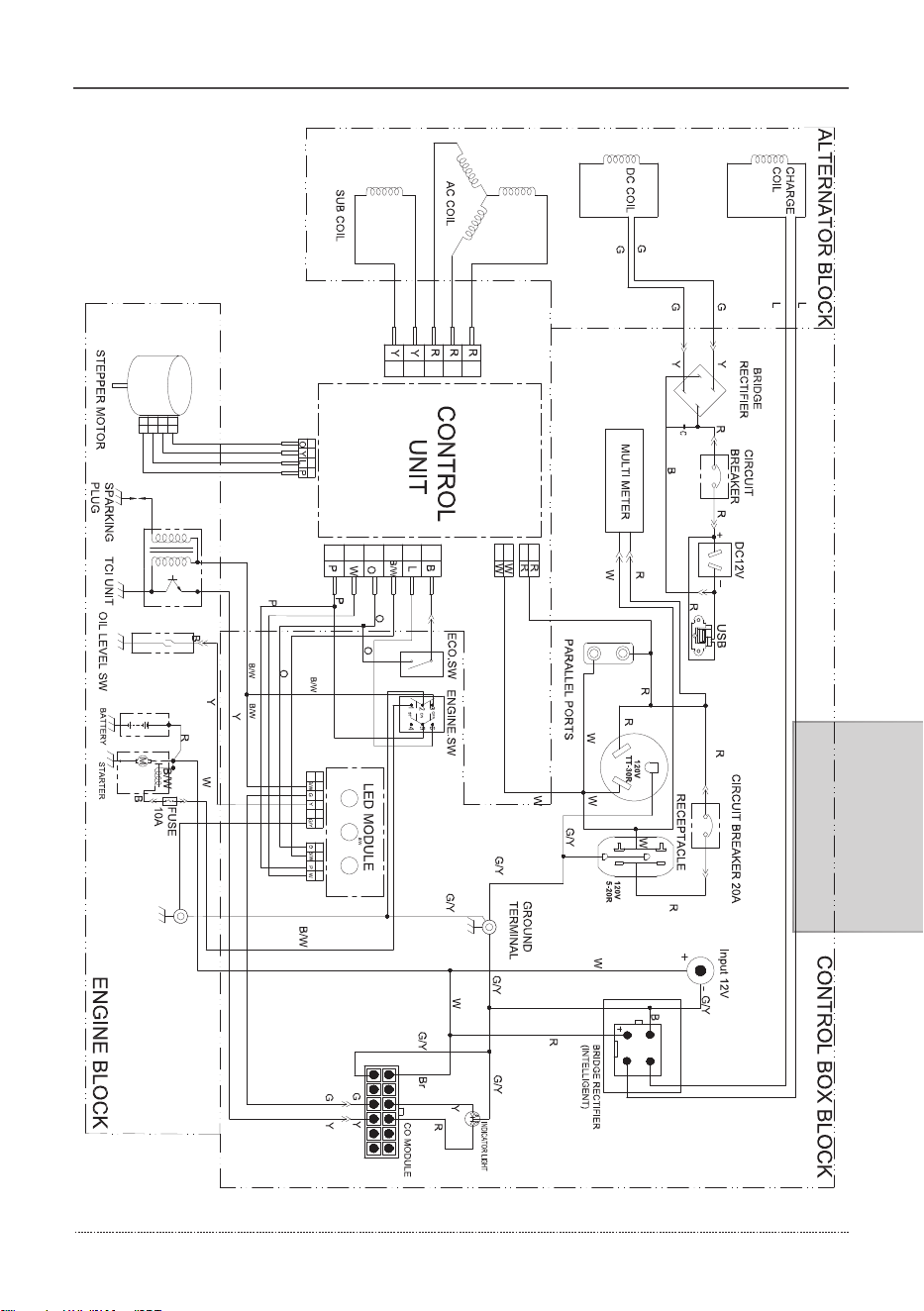

Parts Diagrams - Parts Lists - Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Service - Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Register your product using the QR code provided or at
www.firmanpowerequipment.com .
English C
ustomer Service: 1-844-FIRMAN102
INTR
ODUCTION

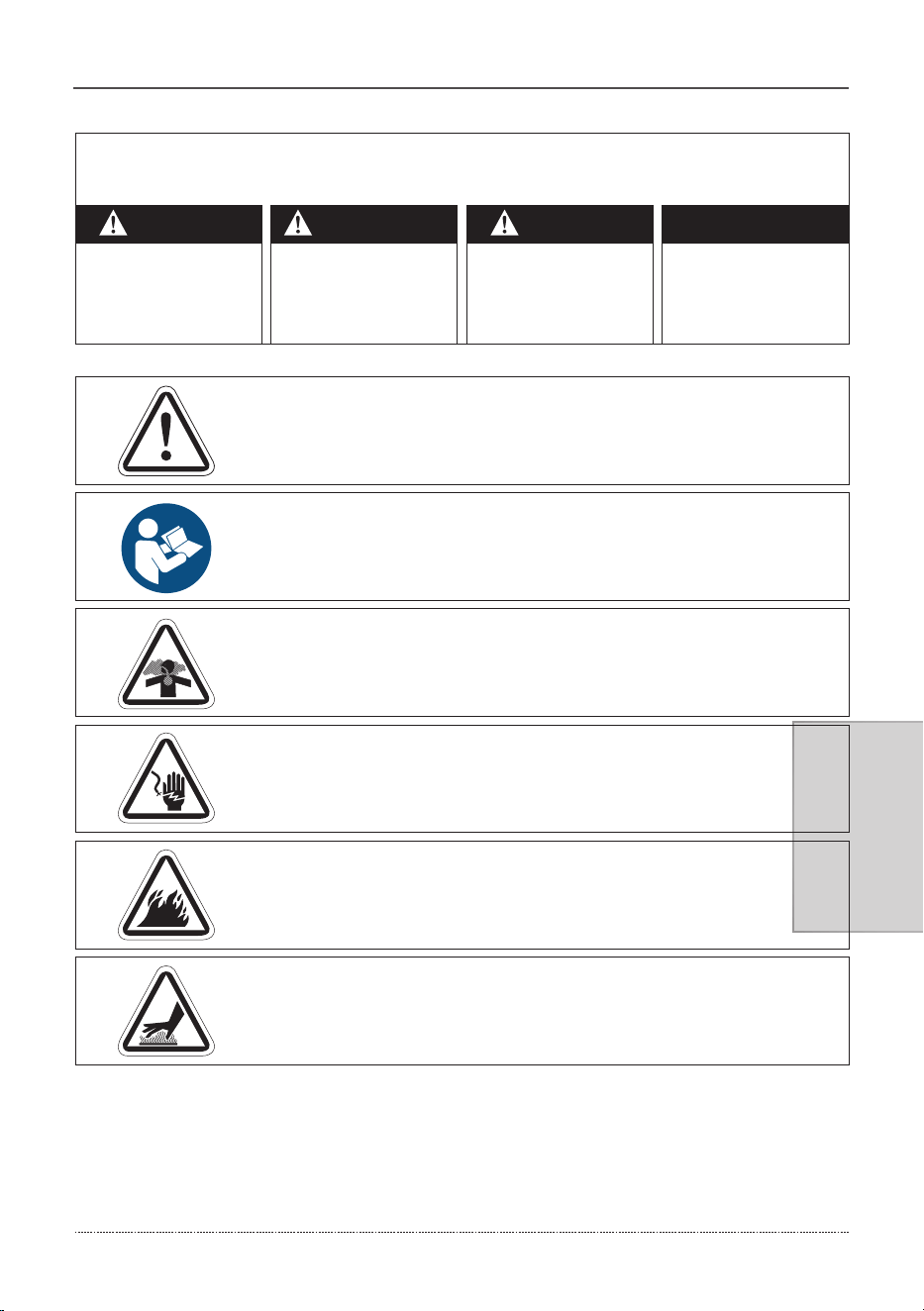

SIGNAL W
ORDS
W
ARNING
I
ndicates a hazard
which, if not avoided,
could result in death
or serious injury.
D
ANGER
I
ndicates a hazard
which, if not avoided,
will result in death or
serious injury.
Safety Alert Symbol- Indicates a potential personal injury hazard.
Operator's Manual- Failure to follow warnings, instructions and
operator's manual could result in death or serious injury.
Toxic Fumes- Engine exhaust contains carbon monoxide, a
poisonous gas that will kill you in minutes. You cannot smell
it or see it.
Generator could cause electrical shock resulting in death or serious
injury.
Fire- Fuel and its vapors are extremely ammable which could
cause burns or re resulting in death or serious injury.Engine
exhaust could cause re resulting in death or serious injury.
Hot Surface- Mufer could cause burns resulting in serious injury.
C
AUTION
I
ndicates a hazard
which, if not avoided,
could result in minor or
moderate injury.
NO
TICE
I
ndicates information
considered Important,
but not hazard-related.
English C
ustomer Service: 1-844-FIRMAN103
INTR
ODUCTION
WARNING! This product can expose you to chemicals including gasoline engine
exhaust, which is known to the State of California to cause cancer, and carbon
monoxide, which is known to the State of California to cause birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov.
This outdoor generator can be used to power outdoor items using extension cords .
NO
TICE
I
f you have questions about intended use, contact FIRMAN customer service. This portable
generator is designed to be used only with FIRMAN authorized parts.
S
ystem Ground
T
he generator neutral is oating, which means that the AC stator winding is isolated from the
grounding fastener and the AC receptacle ground pins. On a oating neutral generator the AC
receptacle ground pins are not functional. Electrical devices, such as a ground fault circuit
interrupter (GFCI), requiring a functioning AC receptacle ground pin will not operate.
C
ompliance Requirements
T
here may be Federal or State regulations, local codes, or ordinances that apply to the intended
use of the generator. Consult a qualied electrician, electrical inspector, or the local agency
having jurisdiction. This generator is not intended to be used at a construction site or similar
activity as dened by NFPA 70-2020 (NEC) section 590.6.
T
o Restore Power Using Extension Cords
English C
ustomer Service: 1-844-FIRMAN104
INTR
ODUCTION
1. Only use grounded cords marked for outdoor use rated for your loads.
2. Follow cord safety instructions.
3. Install carbon monoxide alarm(s).

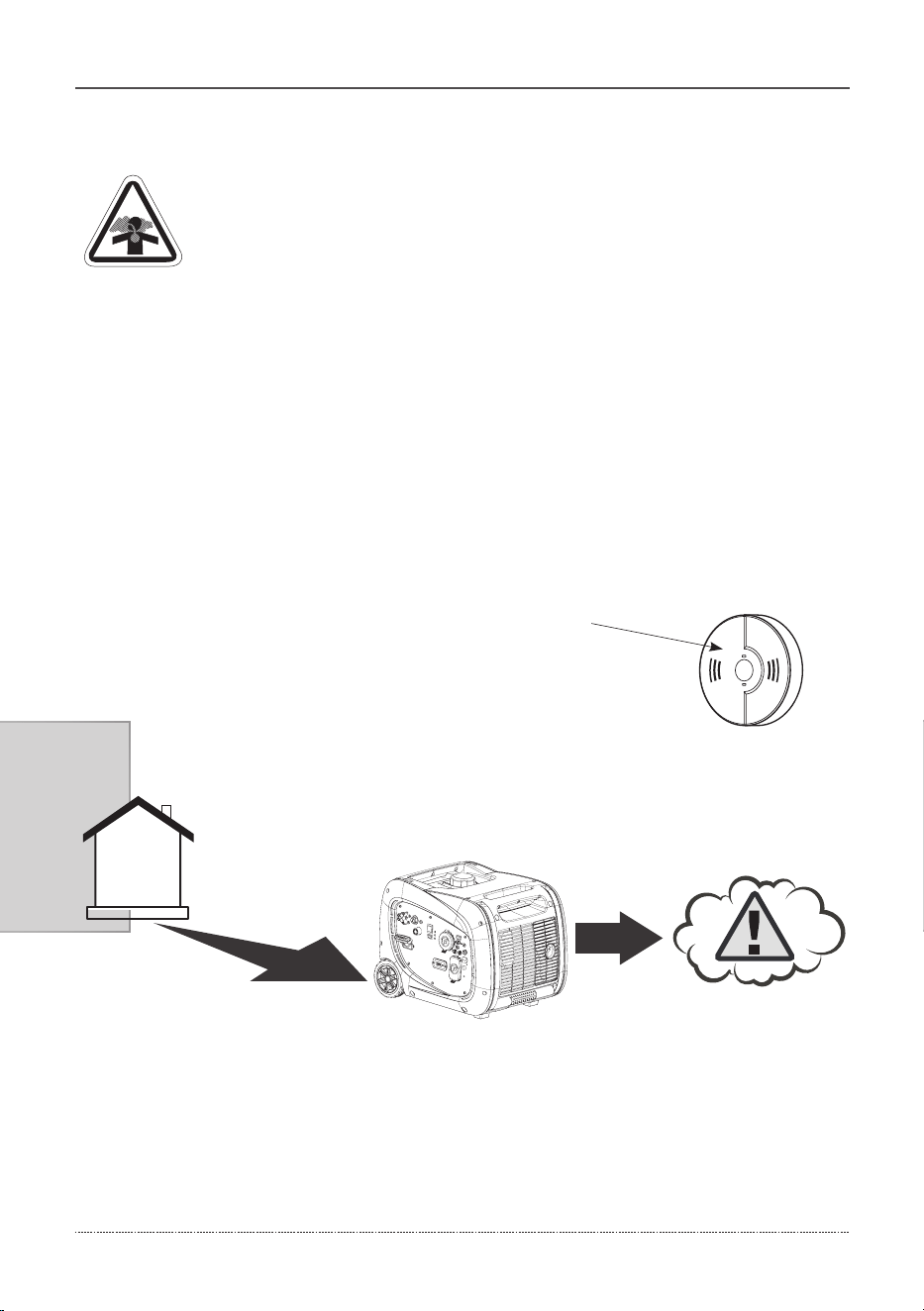

DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that will kill
you in minutes. You cannot smell it, see it, or taste it. Even if you do not smell exhaust
fumes, you could still be exposed to carbon monoxide gas.
●
Extension
cords running directly into the home increase your risk of carbon monoxide poisoning
through any openings.
●
I
f an extension cord running directly into your home is used to power indoor items, the operator
recognizes that this increases the risk of CO poisoning to people inside the home and assumes that
risk.
Total
Amperage
Up to 13A
Up to 15A
Up to 20A
Up to 30A
Minimum Gauge, Outdoor Rated
Up to 50 FT (15m)
To provide power using
extension cords
16
14
12
10

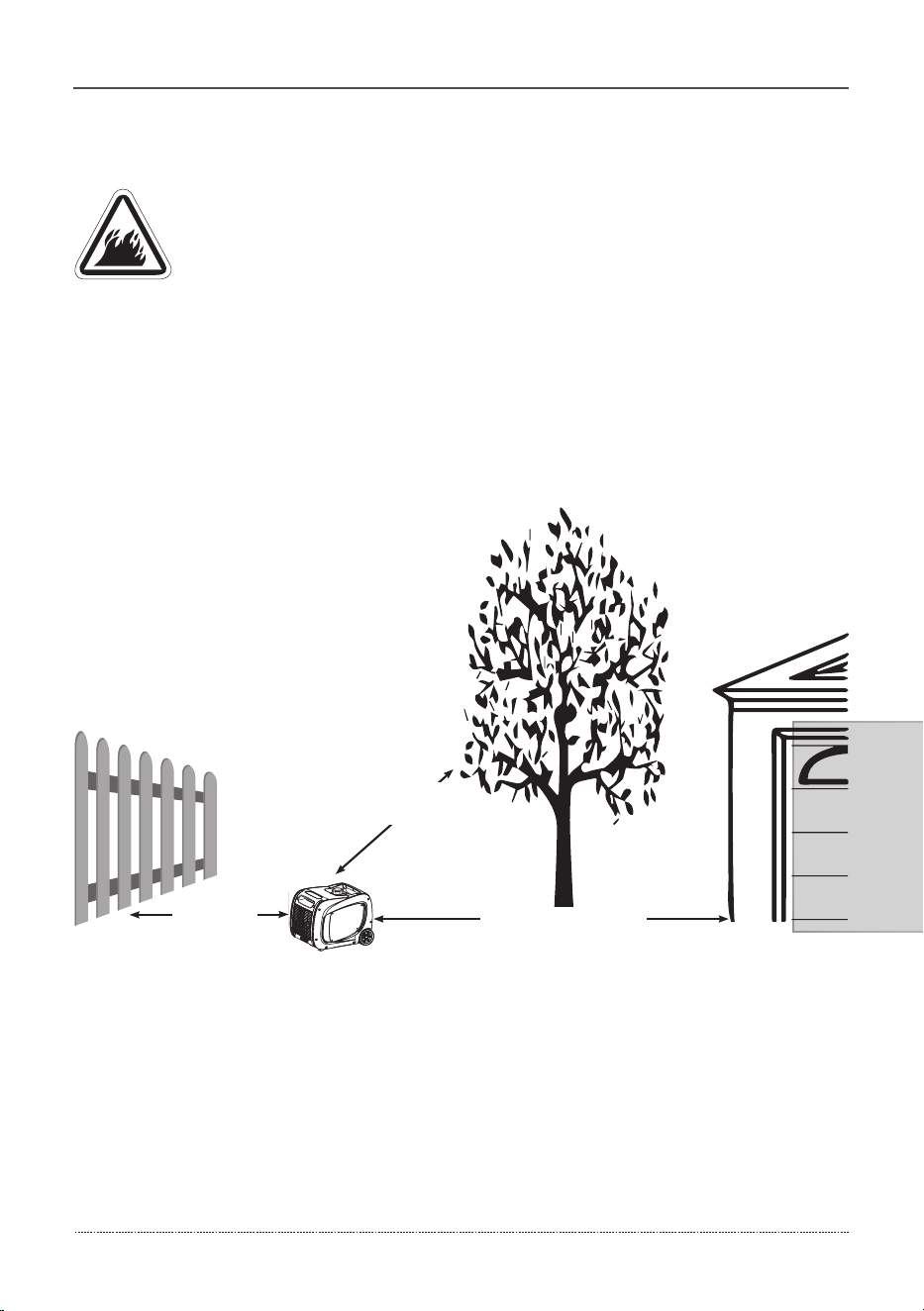

4. When operating portable generator with extension cords, make sure portable generator is located
downwind in an open, outdoor area, at least 20 ft. (6 m) from occupied spaces with exhaust pointed
away.
5. Extension cords running directly into your home, powering indoor items IS NOT RECOMMENDED.
05English C
ustomer Service: 1-844-FIRMAN1

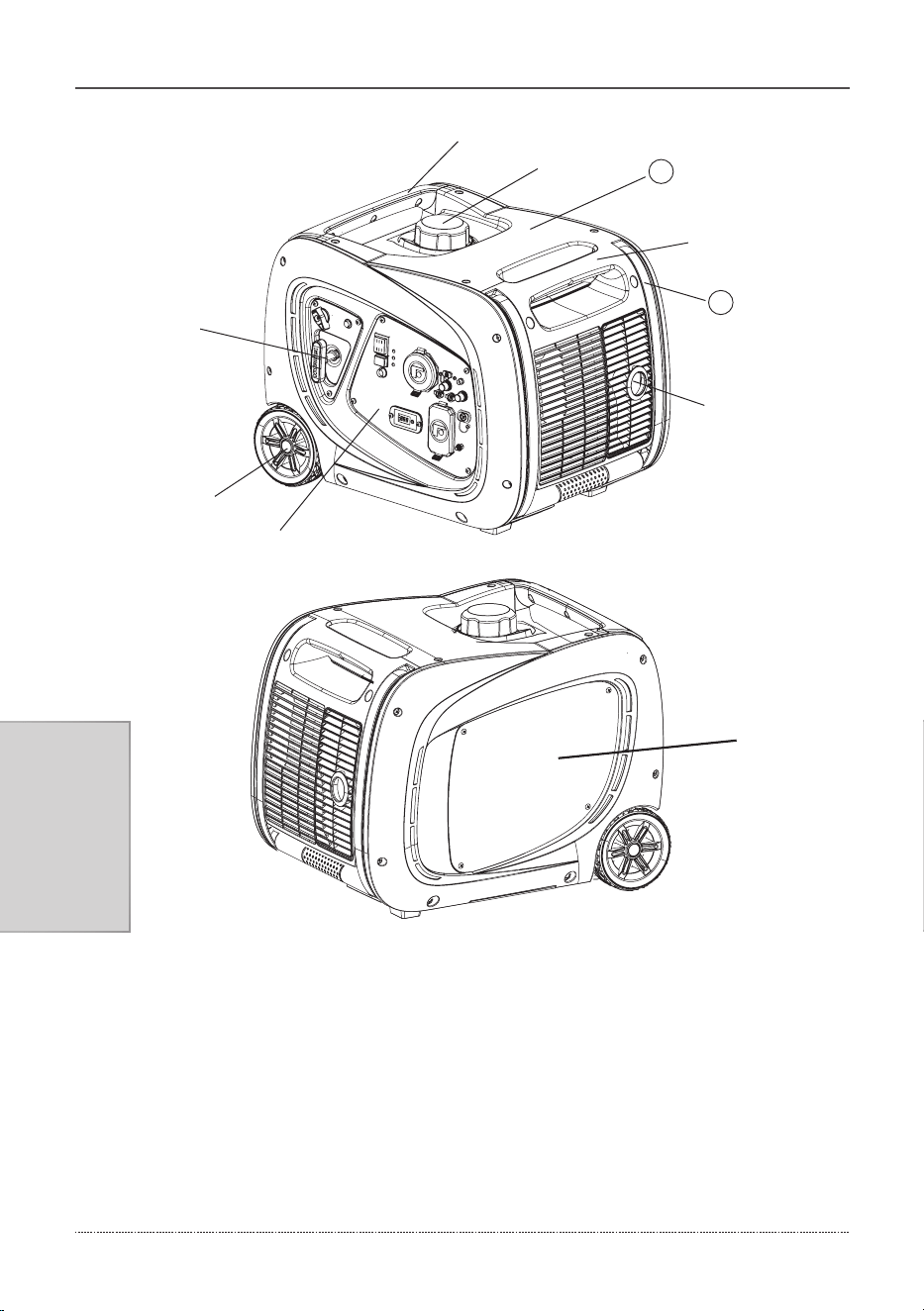

1- Fixed Carrying Handle
2- Fuel Cap
3- Recoil Starter
4- Never Flat Wheel
5- Control Panel
6- Mufer/Spark Arrester
7- Folding Handle
8- Maintenance Cover – Oil ller and air lter access.
9- Data Decal / Serial Number
*We are alw
ays working to improve our products. Therefore, the enclosed product
may differ slightly from the image on this page.
⑧
①
②
③
④
⑤
⑥
①
7
9
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
06English C
ustomer Service: 1-844-FIRMAN1
⑦
1
2
3
4
5
6
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS

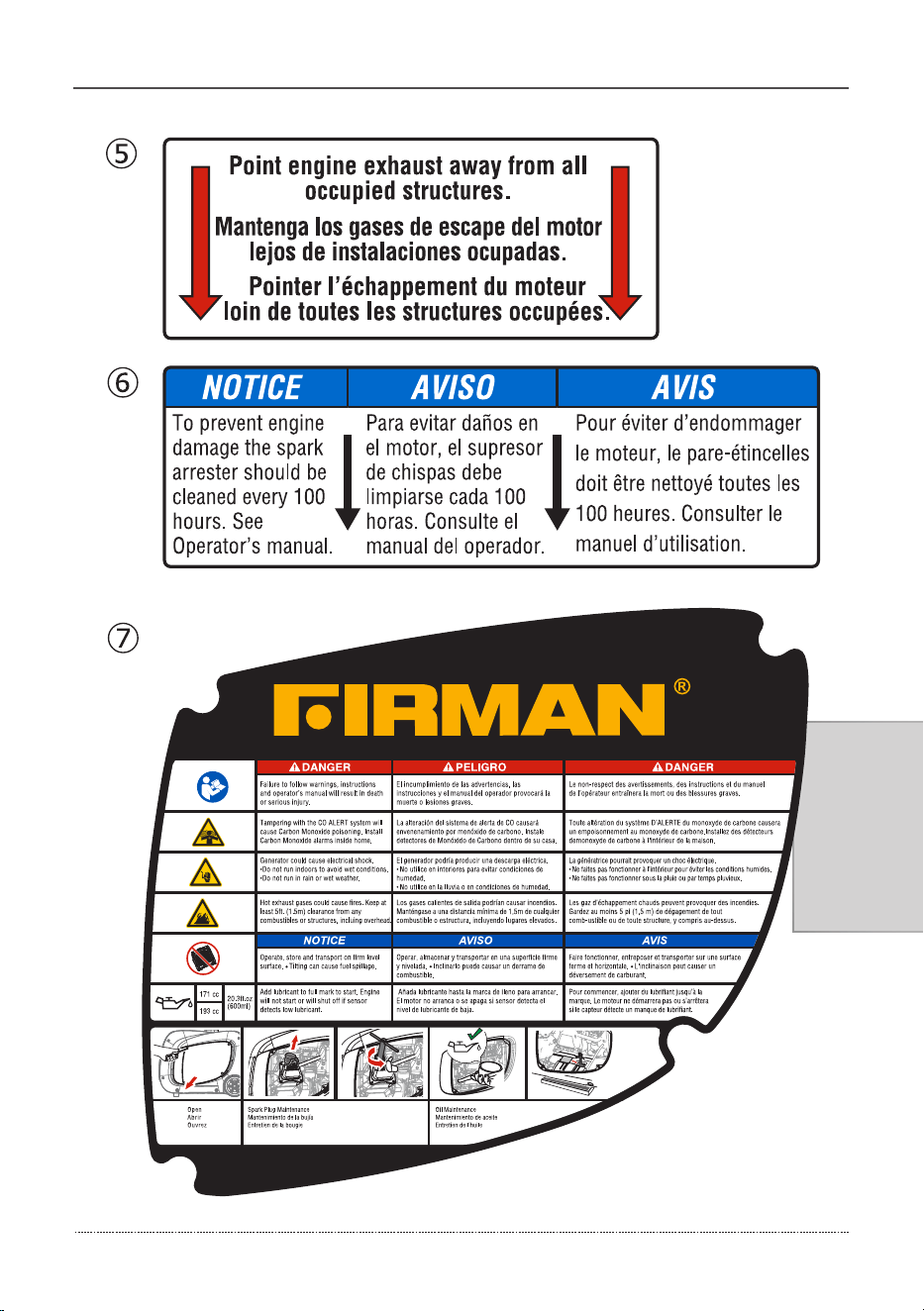

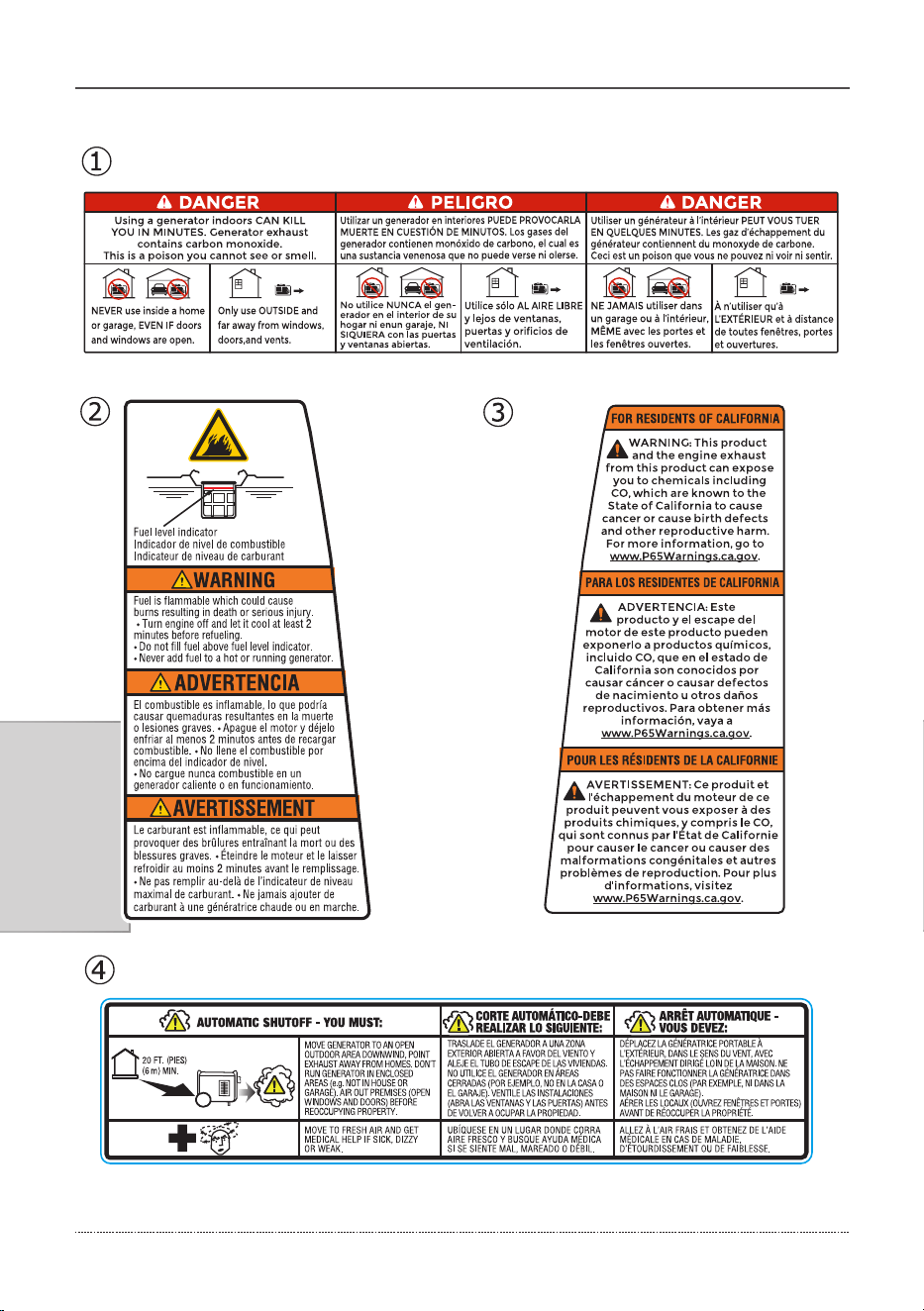

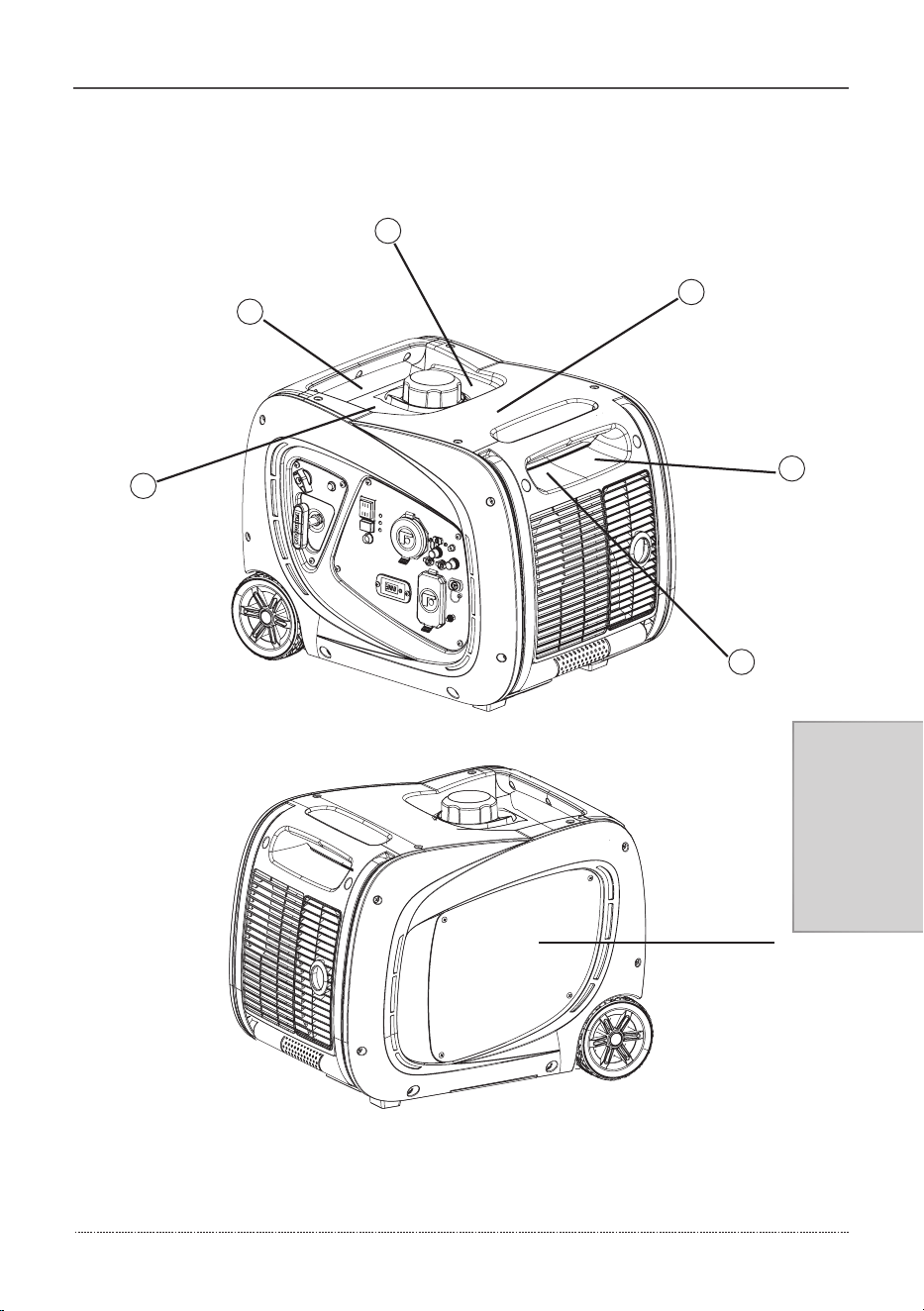

LOCATION AND CONTENT OF NO-PRODUCT HAZARD LABELS
FREE WARNING LABEL REPLACEMENT
If hazard labels become illegible or are missing, contact FIRMAN customer service for a free
replacement.
07English C
ustomer Service: 1-844-FIRMAN1
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
08English C
ustomer Service: 1-844-FIRMAN1
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
09English C
ustomer Service: 1-844-FIRMAN1
NO
TICE
Total power drawn from all receptacles must not exceed the data decal rating.

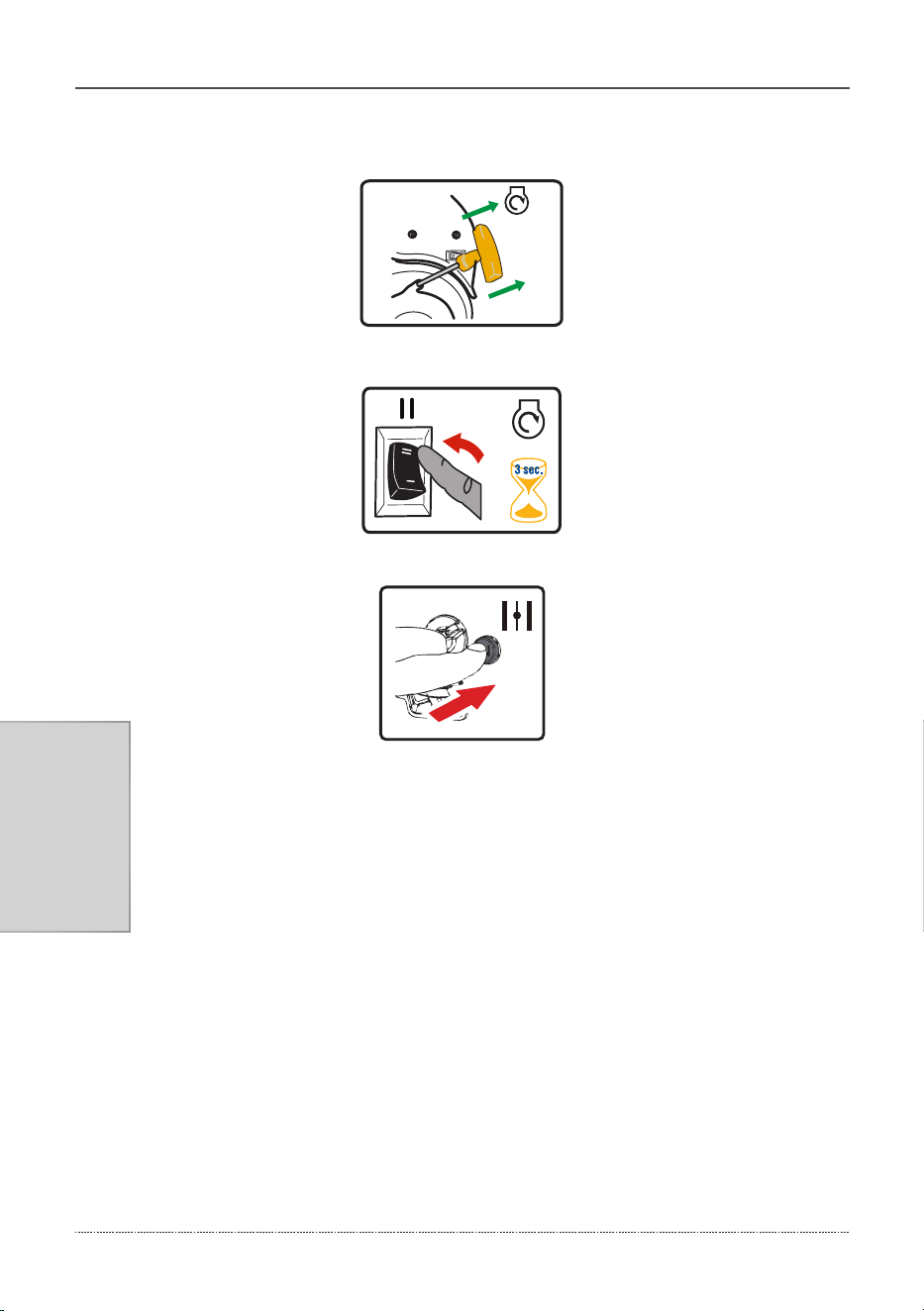

1. Engine Start Switch – To start engine, press and hold the switch in the START (ll) position, the
engine will crank and attempt to start. When the engine starts, release the switch to the RUN (l)
position.
2. Economy Control Switch - The Economy Control switch can be activated in order to minimize fuel
consumption and noise while operating the unit during times of reduced electrical output, allowing
the engine speed to idle during periods of non-use. The engine speed returns to normal when an
electrical load is connected. When the economy switch is off, the engine runs at normal speed
continuously.
3. 3-1 Data-Minder (Multi-Meter) – Push the SELECT button to show the Voltage, Hertz and running
hours.
4. 120V, 20A Duplex - NEMA 5-20R (Not GFCI protected) A maximum of 20 Amps current may be
drawn from this duplex receptacle.
5. 120V, 30A RV – NEMA TT-30R A maximum of 27.5 Amps current may be drawn from this receptacle.
6. Output Ready Indicator Light – Remains “ON” during normal operating conditions. Shuts “OFF”
when generator is overloaded. The green AC Power Indicator Light comes on when the engine starts
and generates power.
7. Overload Indicator Light – This light turns “ON” when the generator is overloaded and will cut
power to the receptacles. If the engine overload indicator light comes on, the generator’s wattage /
amperage capacity has been exceeded by connected electrical devices or by a power surge. When
this occurs, the green AC Power Indicator Light will go off. The engine will continue to run, but the
red Engine Overload Indicator Light will stay on and power will no longer be supplied to connected
electronic devices.

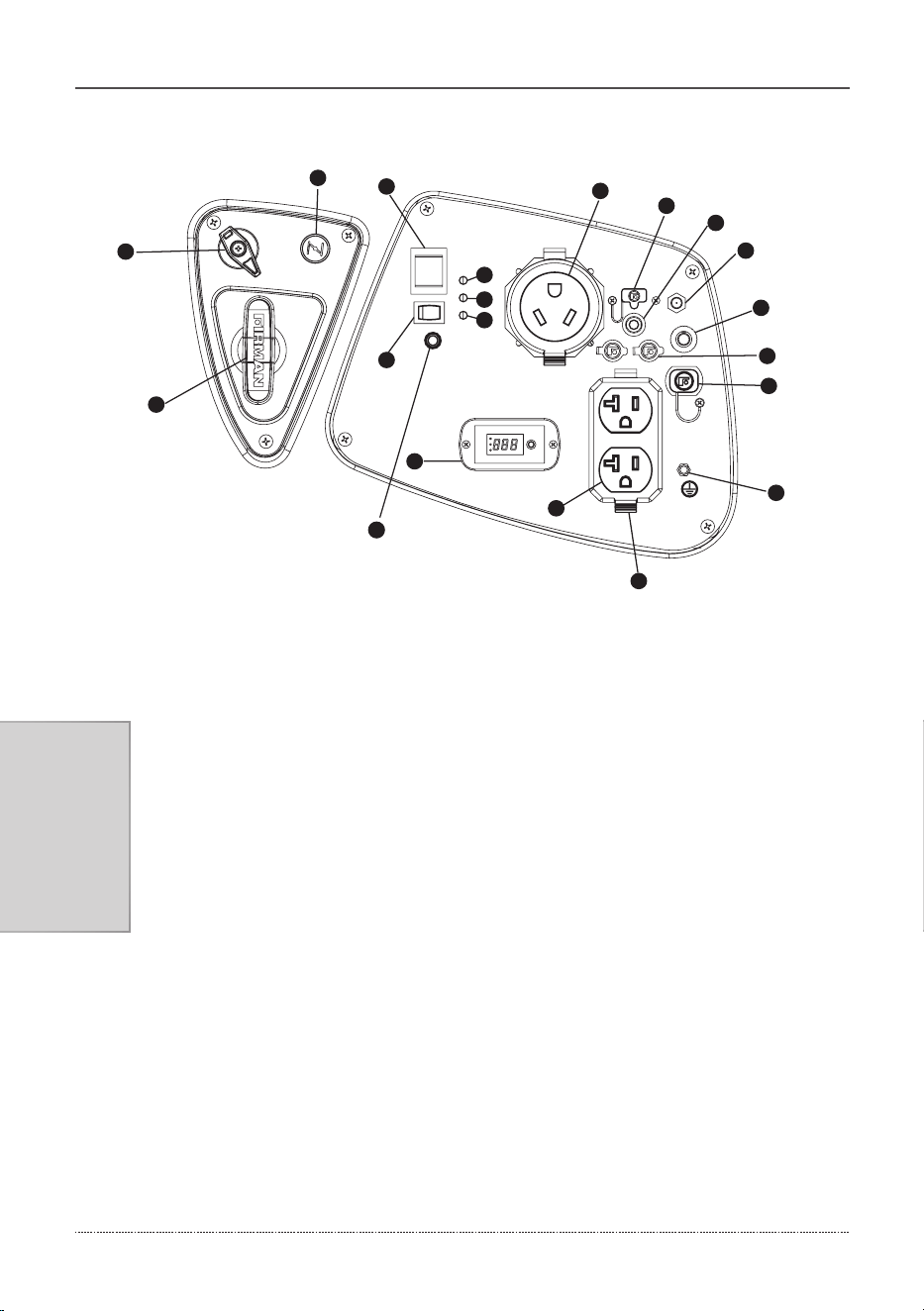

Control Panel
20
13
12
14
15
16
17
18
19
11
10
9
5
6
7
8
1
2
3
4
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
10English C
ustomer Service: 1-844-FIRMAN1
8. O
il Warning Indicator Light – Check oil level when this light turns “ON”. Engine will not run when
indicator is lit. When the oil falls below the minimum level, the oil warning indicator light comes on
and the engine stops automatically. The engine will not start until the proper amount of oil is in the
crank case.
9. DC 5V 2.1A USB Outlet
10. Circuit Breakers – The receptacles are protected by AC circuit protectors. If the generator
is overloaded or an external short circuit occurs, a circuit protector may trip. If tripping occurs,
disconnect all electrical loads and determine the cause before attempting to continue using the
generator. Reset any tripped circuit protectors.If multiple receptacles are used at the same time, the
total current must be kept with-in the portable generator data decal rating.

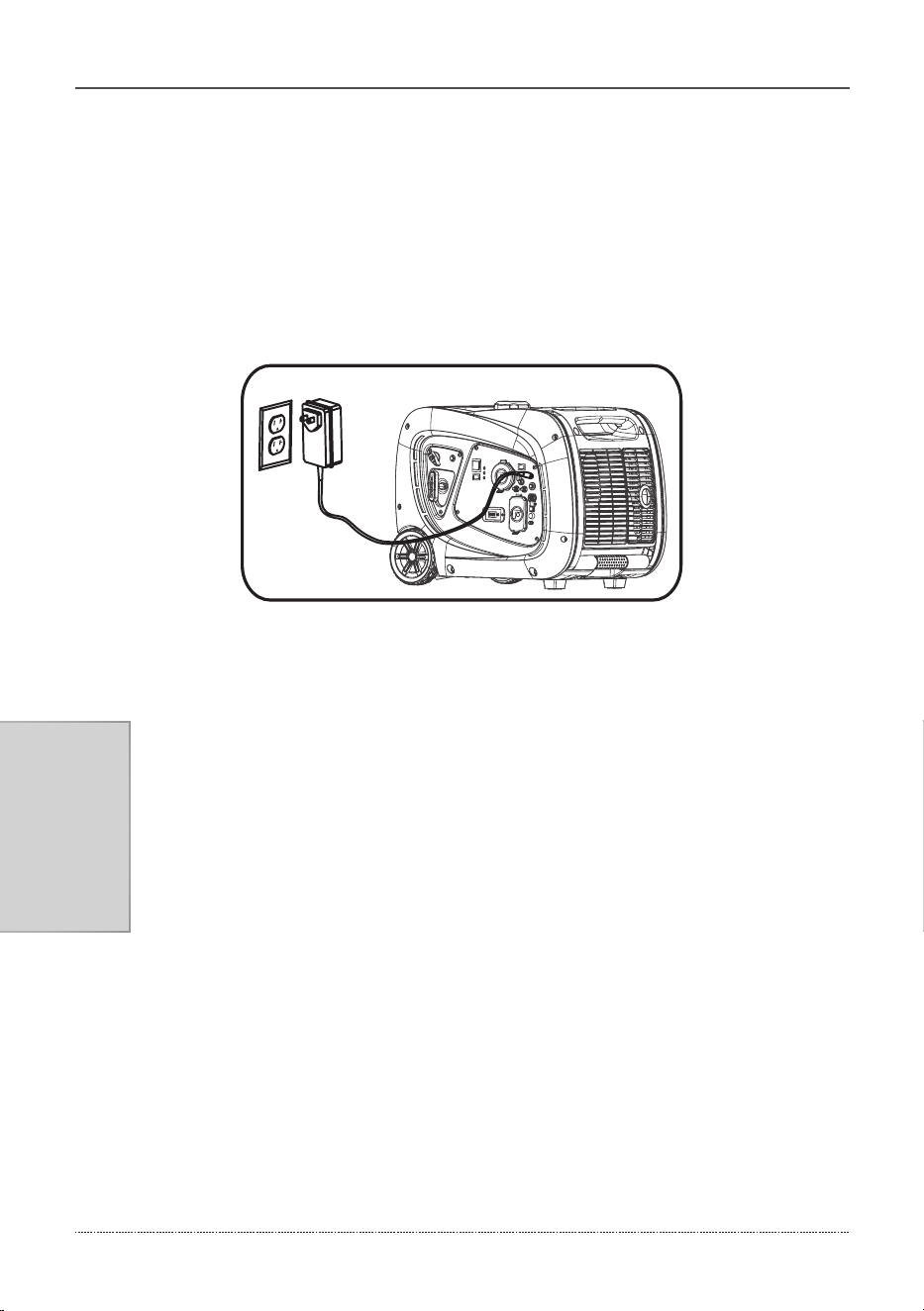

11. 12V DC Battery Charger Port - Plug the 120 Volt AC charger into this port to charge the generator
battery.
12. DC Circuit Breaker – The DC receptacles are protected by an DC circuit protector. If the DC output
is overloaded or an external short circuit occurs the circuit protector will trip.
13. Parallel Operation Outlets - These outlets are used for connecting two FIRMAN inverter
generators for parallel operation. A FIRMAN parallel kit(optional equipment) is required for
parallel operation.
14. DC 12V Output - 8.3 Amps of DC current may be drawn from this receptacle. Use this outlet to
charge 12V automotive type batteries ONLY. See 12V DC outlet (Battery Charger) section.
15.Ground Terminal – Consult an electrician or authority having jurisdiction for local grounding
requirements.
16. Outlet Cover - Protect the receptacles from dust and debris.
17. Fuel Valve Knob
18. Choke Knob
19. Recoil Starter
20. CO Alert™ Carbon Monoxide (CO) Shutdown Indicator Light — Indicates the engine shutdown
due to carbon monoxide accumulation around the generator or a CO Alert system fault occurred.
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
11
OPERA
TION
English C
ustomer Service: 1-844-FIRMAN1
1. L
ocation
DANGER!
Engine exhaust contains carbon monoxide, a poisonous gas that could
kill you in minutes. You CANNOT smell it, see it, or taste it. Even if you do not smell
exhaust fumes, you could still be exposed to carbon monoxide gas.
●
●
I
nstall battery-operated carbon monoxide alarms or plug-in carbon monoxide alarms with
battery back-up according to the manufacturer's instructions. Smoke alarms cannot detect
carbon monoxide gas.
●
Do no
t run this portable generator inside homes, garages, basements, crawlspaces, sheds, or
other partially-enclosed spaces even if using fans or opening doors and windows for ventilation.
Carbon monoxide can quickly build up in these spaces and can linger for hours, even after this
product has shut off.
●
I
f you start to feel sick, dizzy, weak or your home’s carbon monoxide alarm sounds, get to fresh air
right away. Call emergency services. You may have carbon monoxide poisoning.
Carbon Monoxide Alarm(s)
Install carbon monoxide alarms inside your home. Without working
carbon monoxide alarms, you will not realize you are getting sick and
dying from carbon monoxide poisoning.
Prevent Carbon Monoxide (CO) Poisoning
20 ft. (6 m) min.
T
o better educate yourself about all carbon monoxide risks, go to www.
takeyourgeneratoroutside.com.
Operate portable generator only outdoors and downwind at least 20 ft.(6 m) from occupied
spaces with exhaust pointed away to reduce the risk of carbon monoxide accumulating.
Use outdoors and downwind at least 20 ft. (6 m) from any home.
Point exhaust away from all homes and occupied spaces.
Install CO alarms inside your home.
12
OPERA
TION
English C
ustomer Service: 1-844-FIRMAN1
Reduce R
isk of Fire
W
ARNING! Exhaust heat/gases could ignite combustibles, structures or damage
fuel tank causing a re, resulting in death or serious injury.
●
Keep portable gener
ator at least 5 ft. (1.5 m) from any structure, trees or vegetation over 12 in. (30
cm) in height.
●
Select an outdoor site tha
t is dry and protected from the weather. Do not move portable generator
indoors to protect it from the weather.
●
Do
not locate the portable generator under a deck or other similar structure that may conne heat
and airow.
5 ft.(1.5 m)
min.
5 ft.(1.5 m)
min.
20 ft.(6 m) min.
13
OPERA
TION
English C
ustomer Service: 1-844-FIRMAN1
A
dd Engine Oil
2. O
il and Gasoline
N
OTICE
Do
not attempt to crank or start the engine before it has been properly filled with the
recommended type and amount of oil. Damage due to operation with no oil will void your warranty.

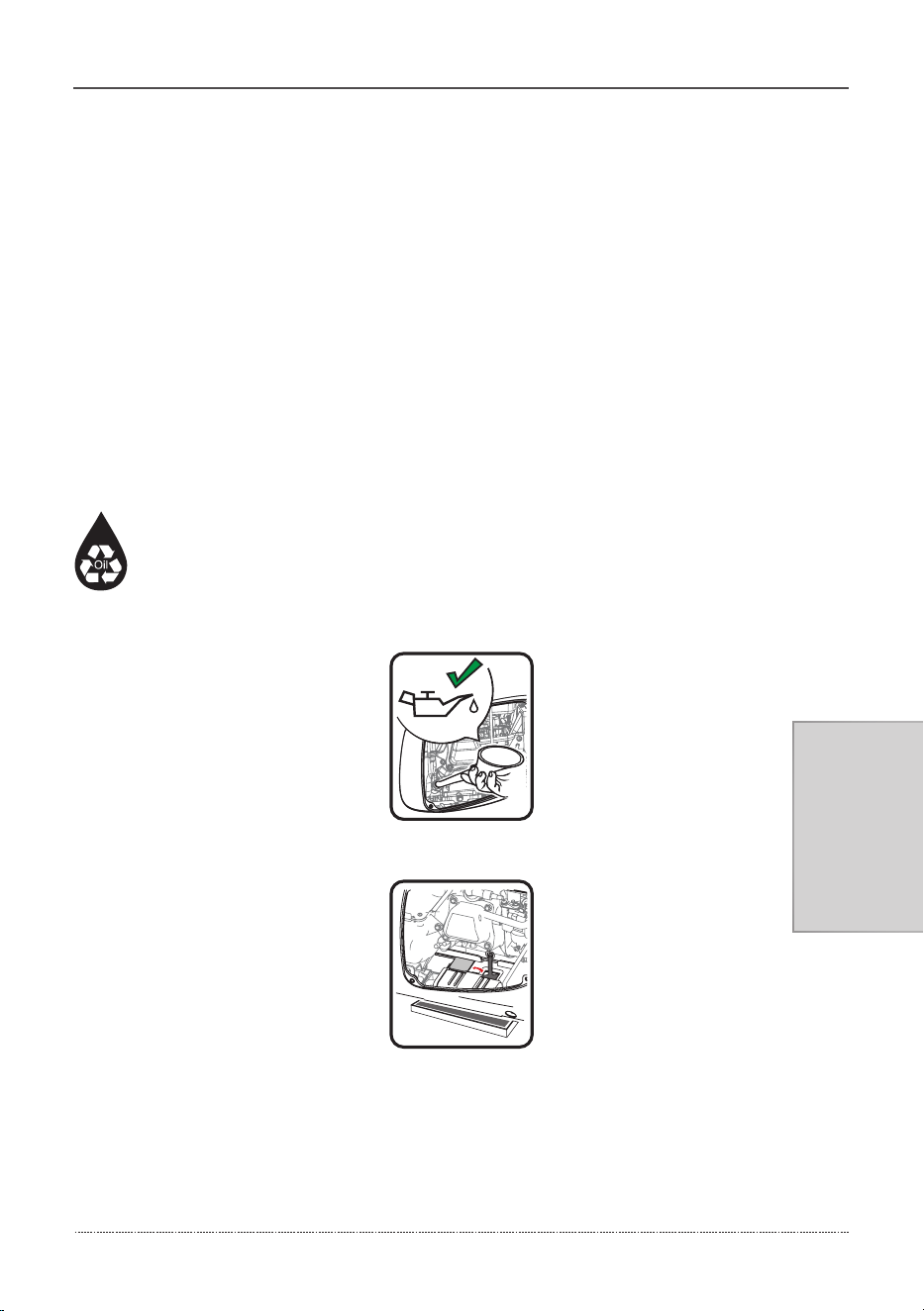

1.Place generator on a at, level surface.
2.Clean area around oil ll and remove yellow oil ll cap/dipstick.
3.Wipe dipstick clean.

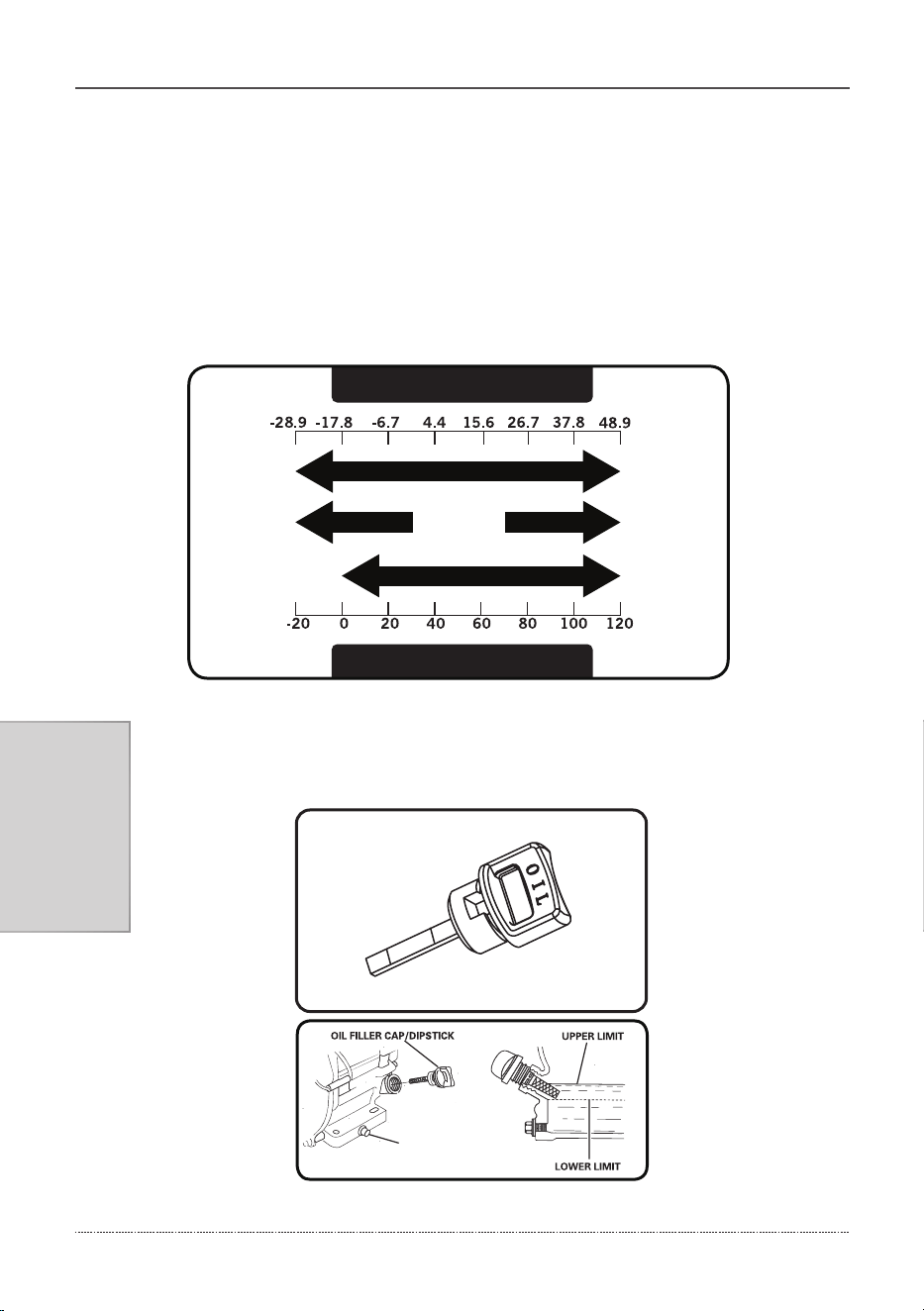

Degrees Celsiusº(Outside)
Full Synthetic 5W-30
Degrees Fahrenheitº(Outside)
5W-30 10W-40
10W-30
(H)
DRAINPLUG
(L)
H
L
We recommend using SAE 10W-30 API SJ or higher oil for best performance. Do not use special
additives. Ambient temperature determines the proper oil viscosity for the engine. Use the chart
to select the proper oil for the outdoor temperature range expected.
14
OPERA
TION
English C
ustomer Service: 1-844-FIRMAN1

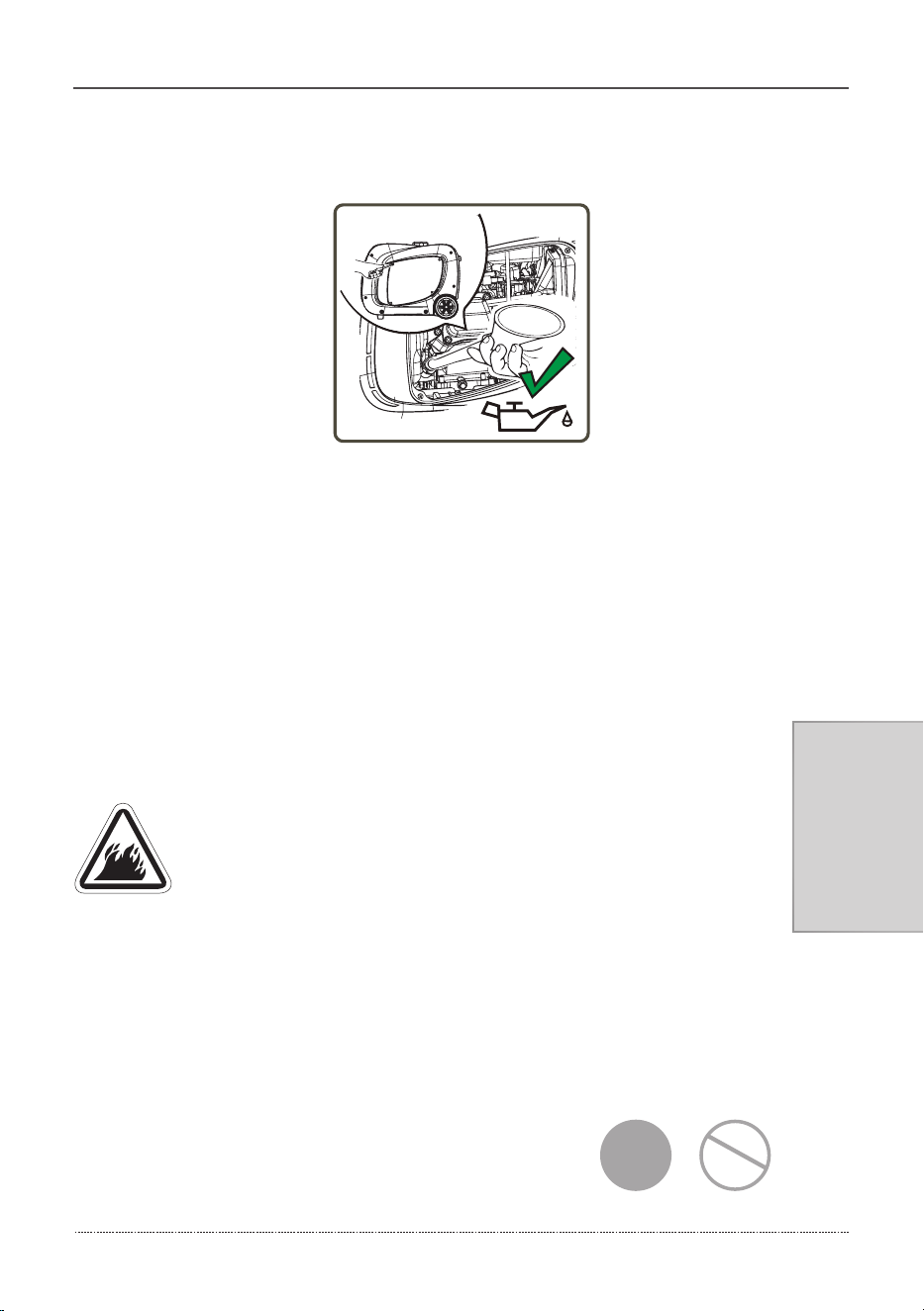

5. U
sing oil funnel, slowly pour contents of provided oil bottle into oil ll opening until oil reaches
upper limit "H" mark on the dipstick. Be careful not to overll. Overlling could cause engine
starting problems or engine damage.
6.Replace oil ll cap/dipstick and fully tighten.
7.Reinstall maintenance cover and tighten screws.
8.Oil level should be checked prior to each use or at least every 8 hours of operation. Keep oil
level maintained.
Low Oil Shutdown
T
he portable generator is equipped with a low oil shutdown. If the oil level drops below the
minimum required level, a sensor will activate an internal switch stopping the engine. If the
engine shuts off and the oil level is within specications, check to see if generator is sitting at an
angle. Place portable generator on an even surface to correct this. If engine fails to start, the oil
level may not be high enough to deactivate the internal low oil level switch. Make sure the sump is
completely full of oil to the upper limit (H). Do not operate engine until oil level issue is corrected.
Contact Firman customer service.
●
T
urn generator engine OFF and let it cool at least 2 minutes before removing fuel cap.
●
Do No
t refuel or move generator when engine is running.
●
Mo
ve generator outdoors prior to adding or draining fuel
●
Keep fuel a
way from any ignition sources.
●
Do no
t overll tank, allow space for fuel expansion.
●
I
f any fuel spills, wait until it evaporates before starting engine
●
Check
and replace fuel lines, tank, cap, and ttings prior to each use if any damage or leaks are
found.
Fuel must meet these requirements:
●
C
lean, fresh, unleaded gasoline with a minimum of 87 octane.
●
F
or high altitude use, see Operation at High Altitude.
●
Gasoline with no more than 10% e
thanol is acceptable.
W
ARNING!
F
uel and its vapors are extremely ammable which could cause burns or
re resulting in death or serious injury.
A
dd Gasoline
E10
E15
15
OPERA
TION
English C
ustomer Service: 1-844-FIRMAN1
NO
TICE
Do no
t mix oil in gasoline or modify engine to run on alternate fuels not described in this
manual. Use of unapproved fuels could damage engine and will not be covered under warranty.

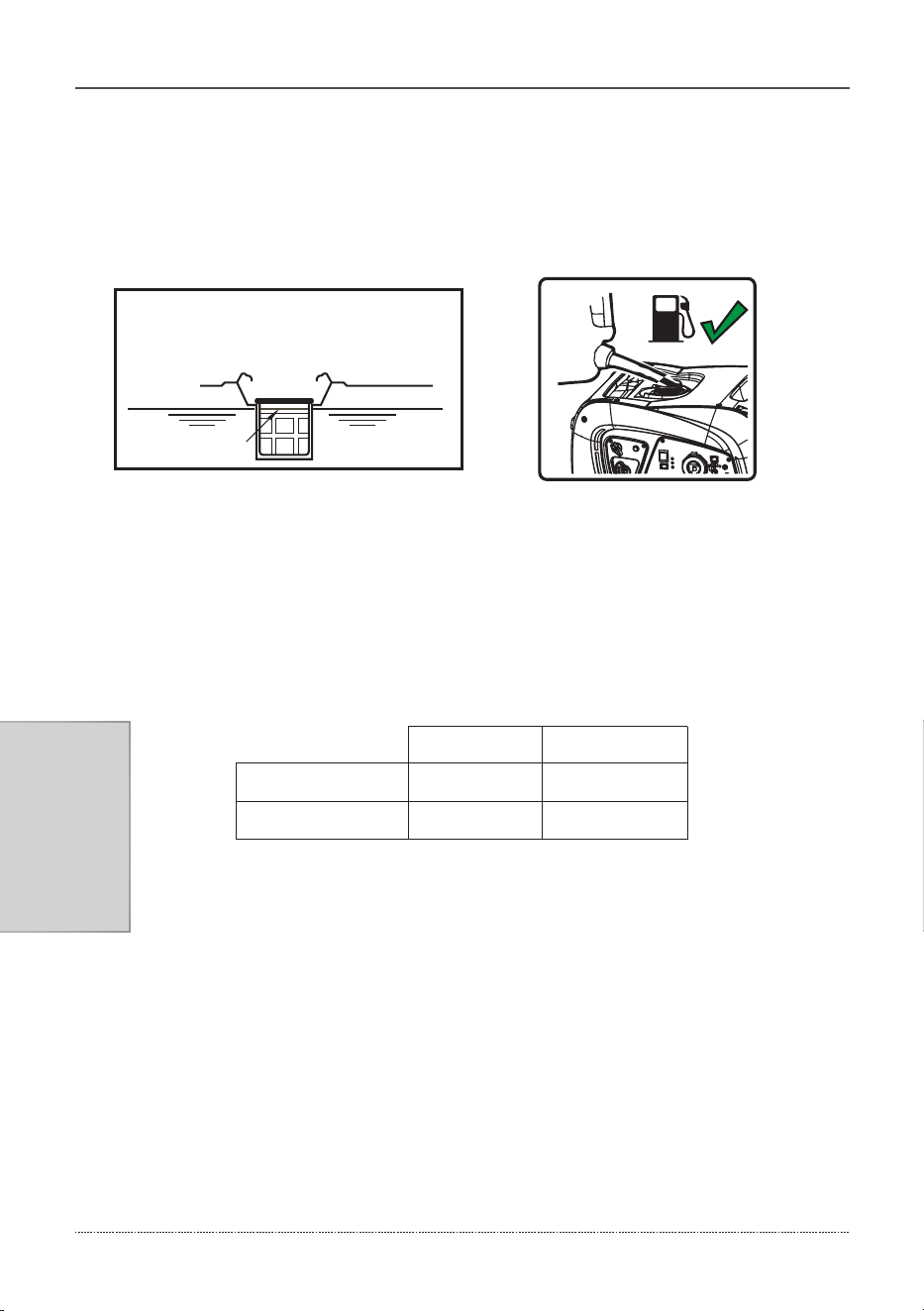

1. Clean area around fuel ll cap, remove cap.
2. Slowly add unleaded fuel to fuel tank. Be careful not to ll above the RED fuel level indicator.
This allows adequate space for fuel expansion.
3.Install fuel cap and let any spilled fuel evaporate before starting engine.
Oper
ation at High Altitude
A
t altitudes over 5,000 feet(1524 meters), a minimum 85 octane gasoline is acceptable.Engine power
and generator output will be reduced approximately 3.5% for every 1000 feet (305 m) of elevation
above sea level. High altitude may cause hard starting, increased fuel consumption and sparkplug
fouling. To operate at high altitudes FIRMAN can provide a high altitude carburetor main jet. The
alternative main jet and installation instructions can be obtained by contacting Customer Support.
NO
TICE
Oper
ation using an alternative main jet at elevations lower than the recommended
minimum altitude can damage the engine. For operation at lower elevations, the standard main
jet supplied must be used. Operating the engine with the wrong main jet may increase exhaust
emissions, fuel consumption and reduce performance.
Oper
ation at High Ambient conditions
Y
our Firman Power Equipment product is designed and rated for continuous operation at ambient
temperatures up to 104°F (40°C). The generator may be operated at temperatures ranging from
5°F(-15°C) to 122°F(50°C) for short periods. If the generator is exposed to temperatures outside
this range during storage, the generator should be brought back within this range before
operation. When operated above 77°F(25°C) there may be a decrease in power.
Maximum wattage and current are subject to and limited by such factors as ambient temperature,
altitude, engine conditions etc.
RedLineIndicator
Altitude main je
t 1
Altitude main jet 2
193cc
333717002
333717003
Altitude
3000-6000Feet
6000-8000Feet
16
OPERA
TION
English C
ustomer Service: 1-844-FIRMAN1

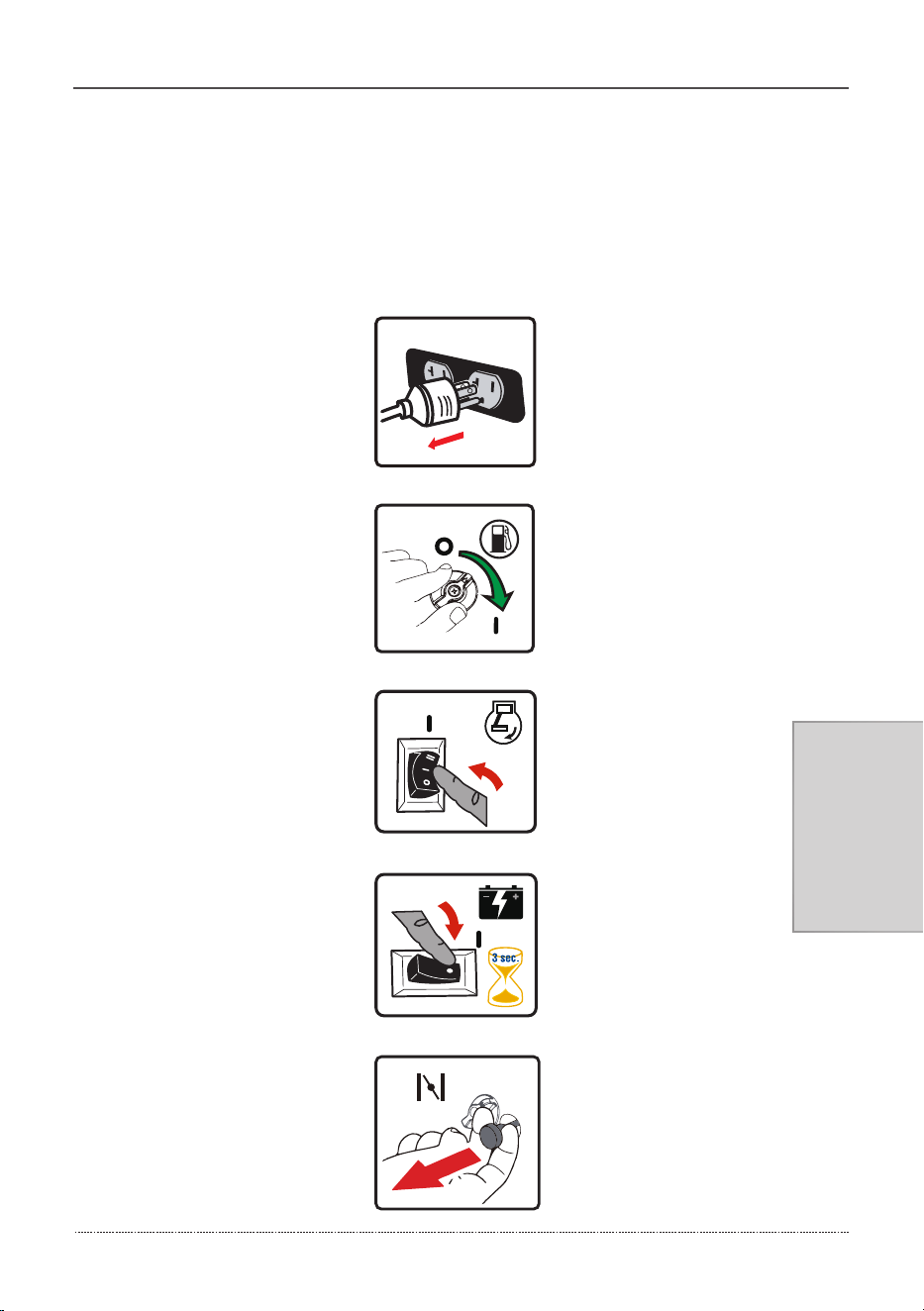

1. Be
fore starting the generator, check for loose or missing parts and for any damage which may have
occurred during shipment. Ensure spark plug, mufer, fuel cap, and air cleaner are all in place.

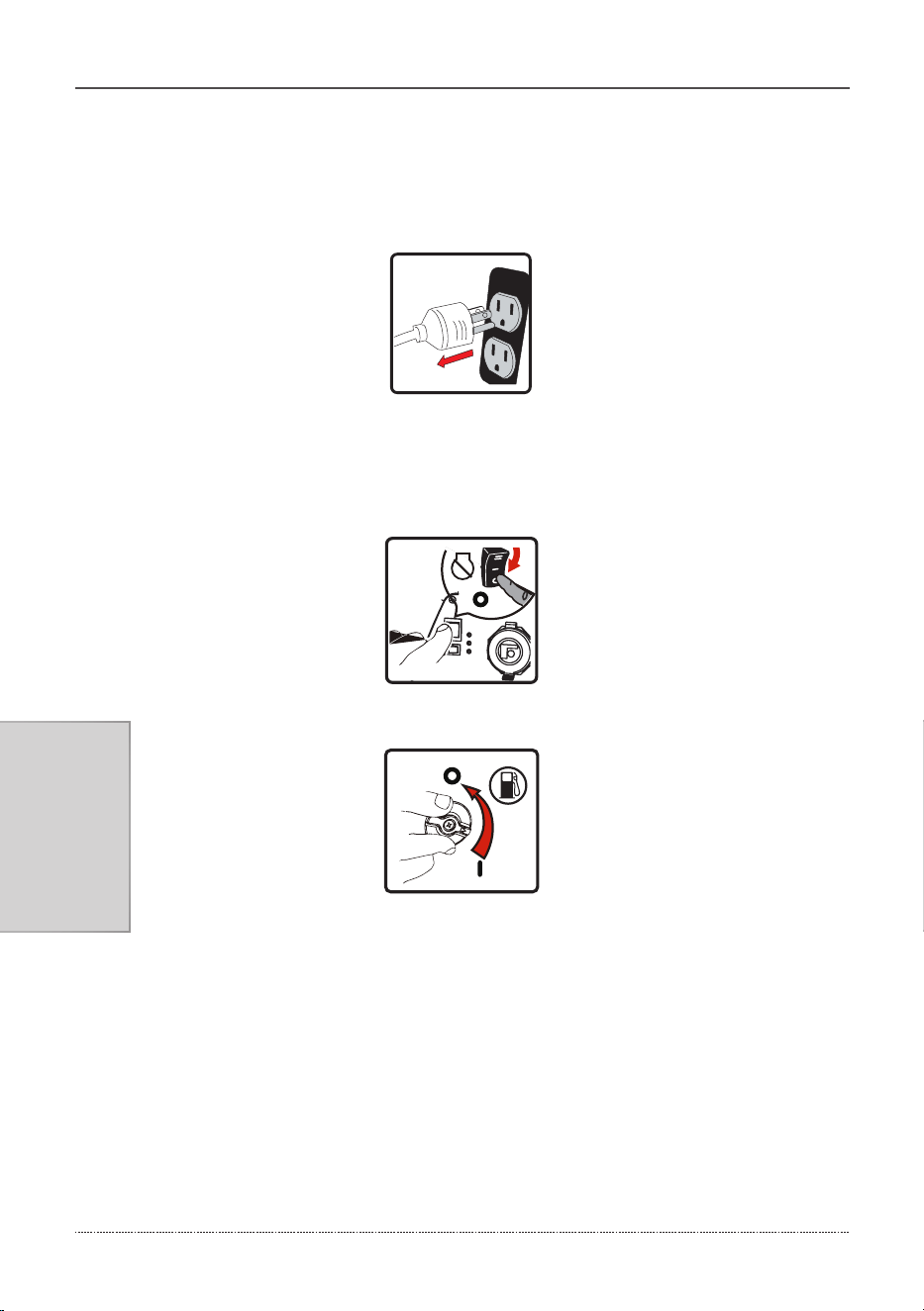

3. Disconnect all electrical loads from the generator. Never start or stop the generator with
electrical devices plugged in.
4. Turn the fuel valve to the “ON” (l)position.
5. Flip the engine switch to the "RUN"(l) position.
6. Flip the battery switch to the "ON"(l) position.
7. Pull the choke knob out to the “CHOKE” position.
3.S
tarting the Generator
2. Operate portable generator only outdoors and downwind at least 20 ft. (6 m) from occupied
spaces with exhaust pointed away to reduce the risk of carbon monoxide accumulating.
17
OPERA
TION
English C
ustomer Service: 1-844-FIRMAN1
8. F
or recoil start only-Pull the starter cord slowly until resistance is felt and then pull rapidly.
9. For electric start only-Flip the engine switch to the START (ll) position for a few seconds and then
release.
10. Push the choke knob to the “RUN” position.
11. Allow portable generator to run at no load for a few minutes to stabilize before plugging in
any electrical devices.
NO
TICE
I
f engine starts but fails to run, or if portable generator shuts down during operation,
check oil level. See Low Oil Shutdown section for more information.
18
OPERA
TION
English C
ustomer Service: 1-844-FIRMAN1
T
his portable generator has been pretested and adjusted to handle its full capacity. The voltage is
regulated using an automatic voltage regulator (AVR) . Readjusting the AVR will void warranty.
●
Damaged
or overloaded extension cords could overheat, arc, and burn resulting death or serious
injury.
●
U
se a ground fault circuit interrupter (GFCI) in any damp or highly conductive area, such as metal
decking.
●
Do no
t touch bare wires or receptacles.
●
Do no
t use generator with electrical cords which are worn, frayed, bare or otherwise damaged.
●
Do no
t operate generator in the rain or wet weather.
●
Do no
t run indoors to avoid wet conditions.
●
Do no
t handle generator or electrical cords while standing in water, while barefoot, or while
hands or feet are wet.
1.Ensure circuit breaker on control panel is in the closed (on) position.
2. Start the generator with no electrical load attached.
3. Allow the engine to run for several minutes to stabilize.
4. Plug in and turn on the rst item. It is best to attach the item with the largest load rst.
5. Allow the engine to stabilize.
6. Plug in and turn on the next item.
7. Allow the engine to stabilize.
8. Repeat steps 5-6 for each additional item.
WARNING! Generator voltage could cause electrical shock or burn
resulting in death or serious injury.
4. C
onnecting Electrical Loads
Surge Protection
T
here is a remote chance that voltage fluctuations may impair the proper functioning of some
sensitive electronic equipment. Electronic devices, including computers and many programmable
appliances may use components that are designed to operate within a narrow voltage range and
may be affected by the portable generator’s momentary voltage uctuations. While there is no way
to prevent all voltage uctuations, you can take steps to protect your sensitive electronic equipment.
Install a plug-in surge suppressor on the receptacles feeding your sensitive equipment. Surge
suppressors come in single or multi-outlet styles. They are designed to protect against short duration
voltage uctuations.
19
OPERA
TION
English C
ustomer Service: 1-844-FIRMAN1
Description
C
O Alert
Carbon Mono
xide (CO) Shutdown System
CO Alert automatically shuts down the engine when harmful levels of carbon monoxide
accumulate around the generator or a CO Alert fault occurs. After shutdown, the CO Alert
indicator light will blink for at least ve minutes per the chart below.
CO Alert DOES NOT replace carbon monoxide alarms.
Install battery-powered carbon monoxide alarm(s) in your home. Don’t run generator in enclosed
areas.
*Yellow light will blink for ve seconds at the startup of generator to show CO ALERT is functioning
properly.
C
olor
RED
Yellow
CO Alert fault occured*.
See FIRMAN authorized service dealer.
TM
Carbon monoxide accumulated around generator. Prior
to restart move generator to an open, outdoor area
downwind and at least 20 ft. (6 m) from occupied spaces
with exhaust pointed away. Air out premises (open
windows and doors) before reoccupying property.
Automatic shutoff is an indication generator was
improperly located.
If you start to feel sick, dizzy, weak, or your homes carbon
monoxide alarm sounds while using this product, get to
fresh air right away. Call emergency services. You may
have carbon monoxide poisoning.
20
OPERA
TION
English C
ustomer Service: 1-844-FIRMAN1
Ec
onomy Control Switch
T
he Economy Control switch can be activated in order to minimize fuel consumption and noise while
operating the unit during times of reduced electrical output, allowing the engine speed to idle during
periods of non-use. The engine speed returns to normal when an electrical load is connected. When
the economy switch is off, the engine runs at normal speed continuously.
NO
TICE:
F
or periods of high electrical load or momentary uctuations, the Economy Control Switch should
be turned OFF.
12V DC Outle
t (Battery Charger)
T
he 12V DC outlet is ONLY to be used with the supplied 12V battery charging cable. The DC output
is unregulated and will damage other 12V DC products.
The amount of current owing will depend on the charging voltage and battery's state of charge.
As the battery becomes more fully charged, the output current to the battery decreases and nearly
becomes constant. Taper chargers are intended to be used with the provision that they will be
disconnected from the battery after a maximum time on charge. Normally a period of 30 to 120
minutes is sufcient to recharge a weak battery. The charge level of the battery should be checked
periodically.
NO
TICE
●
F
or use with 12V direct current outlet, always keep the ECO mode deactivated (OFF Position).
●
Y
ou can use the 12V direct current outlet and the 120V current at the same time, but keep the ECO
mode deactivated (OFF Position) at all times.
Do not start the vehicle while the battery charging Cable is connected and the generator is running.
It will not give the battery a boost of power. The Vehicle or the generator may be damaged. Charge
only vented wet lead acid batteries. Other types of batteries may burst, causing personal injury
or damage.
W
ARNING!
●
S
torage batteries give off EXPLOSIVE hydrogen gas while charging. Do not allow smoking, open
ames, sparks, or spark producing equipment in the area while charging.
●
Ba
ttery electrolyte uid is comprised of sulfuric acid that can be very dangerous and cause severe
burns. Do not allow this uid to contact eyes, skin, clothing, etc. If contact or spillage does occur,
ush the area with water immediately.
●
Do no
t continue to charge a battery that becomes hot or is fully charged.
1. Before connecting the battery charging cable to a battery that is installed in a vehicle, disconnect
the vehicle battery ground cable from the negative (–) battery terminal.
2. Plug the battery charging cable into the DC receptacle of the generator.
3. Connect the red (+) battery charger lead to the red (+) battery terminal.
4. Connect the black (–) battery charger lead to the black (–) battery terminal.
5. Start the generator.
21
OPERA
TION
English C
ustomer Service: 1-844-FIRMAN1
5. S
topping the generator
1. T
urn off and remove all electrical loads.
Never stop the generator with electrical devices plugged in and turned on.
Never stop the engine by moving the choke to the start position.
Let the generator run at no-load for one minute to stabilize internal temperatures of the engine
and generator.
2. Flip the engine switch to“OFF”(O) position.
3. Turn the fuel valve to the “OFF”(O) position.
I
f a cover is used, do not install until unit has cooled.
STOP
STOP
22
OPERA
TION
English C
ustomer Service: 1-844-FIRMAN1
I
f the engine oil drops below a preset level, an oil switch will stop the engine. Check oil level with
dipstick.
If oil level is between the LOW and HIGH mark on dipstick:
1.DO NOT try to restart the engine.
2.Contact an Authorized FIRMAN Service Dealer.
3.DO NOT operate engine until oil level is corrected.
If oil level is below the LOW mark on dipstick:
1.Add oil to bring level to HIGH mark.
2.Restart engine and if the engine stops again a low oil condition may still exist. DO NOT try to restart
the engine.
3.Contact an Authorized FIRMAN Service Dealer.
4.DO NOT operate engine until oil level is corrected.
Do No
t Overload Generator
Overloading a gener
ator in excess of its rated wattage capacity can result in damage to the
generator and to connected electrical devices. To prolong the life of your generator and attached
devices, follow these steps to add electrical load:
1. Start the generator with no electrical load attached.
2. Allow the engine to run for several minutes to stabilize.
3. Plug in and turn on the rst item. It is best to attach the item with the largest load rst.
4. Allow the engine to stabilize.
5. Plug in and turn on the next item.
6. Allow the engine to stabilize.
7. Repeat steps 5-6 for each additional item.
Overload Oper
ation
T
he overload indicator light will blink when the load exceeds 3550W(approximately) and cut power
to the receptacles in 30 seconds. If the load exceeds 3680W(approximately), the light will turn on and
cut power to the receptacles in 2 seconds.
How to Correct
1. Disc
onnect any electrical devices, and then stop the engine.
2. Reduce the total wattage of connected electrical devices until it is within the generator’s rated
output.
3. Inspect the Air Inlet and Control Panel for any blockage. Remove blockage if found.
4. Restart Engine.
P
arallel Operation
A
ny two FIRMAN inverter generators with parallel ports, including two FIRMAN inverters model
W03385 can be paralleled to increase the total available electrical power to 6000 Watts. A FIRMAN
Parallel kit (not included) is required for parallel operation. For Kit availability, call customer Service at
1-844-347-6261 or visit: www.rmanpowerequipment.com.
L
ow Oil Shutdown
23
MAINTENANCE - S
TORAGE
English C
ustomer Service: 1-844-FIRMAN1
T
o be performed by knowledgable/experienced owner or by authorized service center.
Gener
al Recommendations
Regular main
tenance will improve the performance and extend the life of the generator. See any
authorized dealer for service.
The generator's warranty does not cover items that have been subjected to operator abuse or
negligence. To receive full value from the warranty, the operator must maintain the generator as
instructed in this manual.
Some adjustments will need to be made periodically to properly maintain your generator.
All service and adjustments should be made at least once each season. Follow the requirements
in the maintenanc shedule chart above.
NO
TICE
O
nce a year you should clean or replace the spark plug and replace the air lter. New
spark plug and clean air lter assure proper fuel-air mixture and help your engine run at peak
performance and last longer.
MAINTENANCE SCHEDULE
ITEM
Spark Plug
Engine O
il
Air Filter
Fuel
Fuel Line
Exhaust
System
Engine
Fittings/
Fasteners
NO
TES
Check c
ondition. Adjust gap
and clean. Replace if necessary.
Clean fuel tank strainer.
Replace if necessary.
Check fuel hose for cracks or other
damage. Replace if necessary.
Check for leakage. Retighten or
replace gasket if necessary.
Check spark arrester screen.
Clean/Replace if necessary.
Check adjust valve clearance.
Clean combustion chamber.
Check. Replace if necessary.
Check oil level.
Replace.
Clean, replace if necessary.
√
√
D
aily(Before
operation)
Initial
25 hours
Every
50 hours
Every
250 hours
Every
100 hours
(or annual)
√
√
√
√
√
√
√
√
√
√
24
MAINTENANCE - S
TORAGE
English C
ustomer Service: 1-844-FIRMAN1

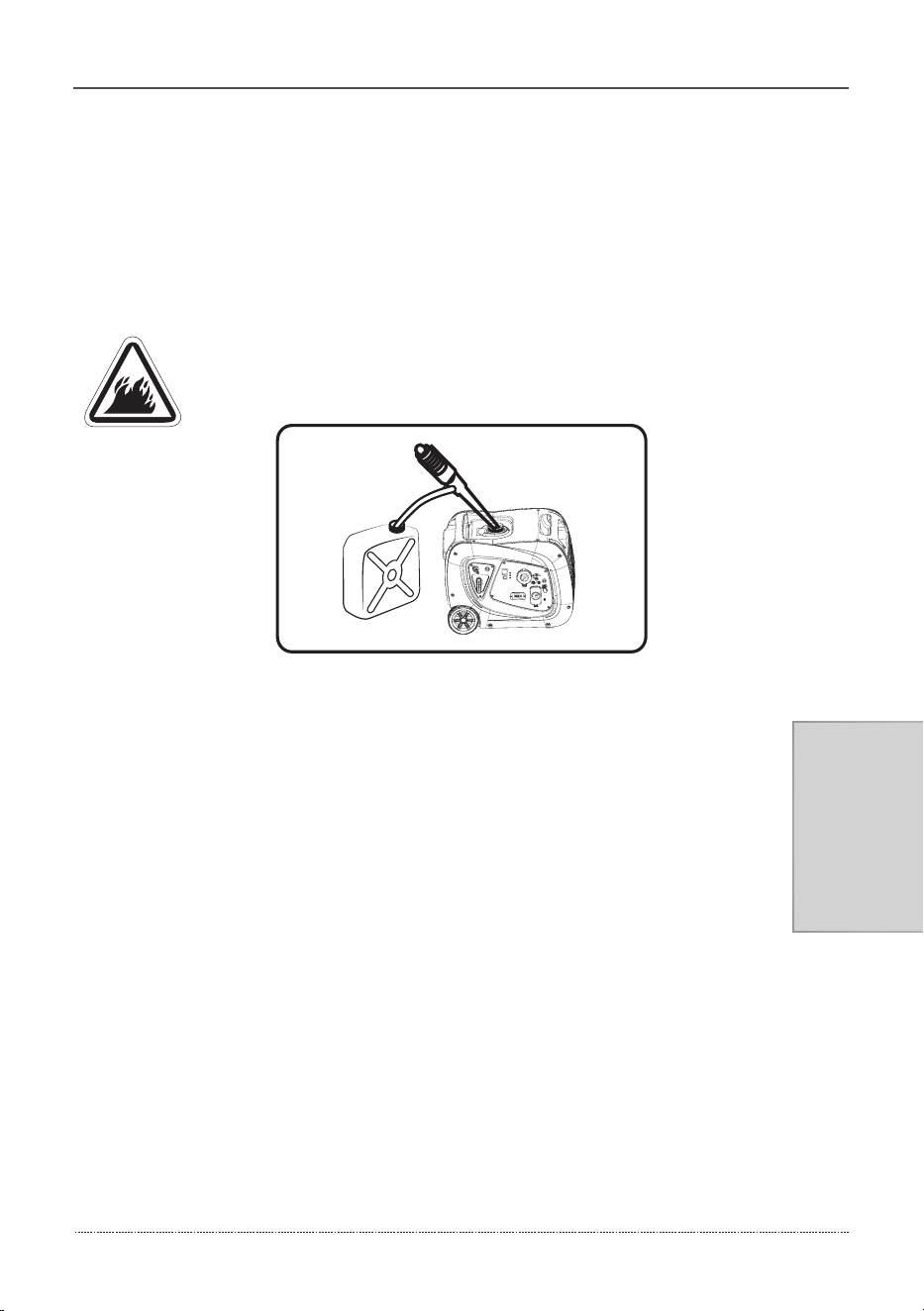

When Tr
ansporting Generator
Tr
ansport with fuel tank EMPTY or with fuel valve in OFF position.
Do not tip generator at an angle which causes fuel to spill.
ENGINE MAINTENANCE
T
o prevent accidental starting, remove and ground spark plug wire before performing any service.
Change Engine Oil
Change engine oil e
very 100 hours. (for a new engine, change oil after 25 hours.)If you are using your
generator under extremely dirty or dusty conditions, or in extremely hot weather change the oil more
often.
CAUTION! Avoid prolonged or repeated skin contact with used motor oil. Used motor oil has been
shown to cause skin cancer in certain laboratory animals. Thoroughly wash exposed areas with soap
and water.
(a) Loosen the cover screws and remove the maintenance cover.
(b) Pop up the rubber plug from below yellow draining bolt.
(c) Remove yellow drain bolt.
(d) Tilt the generator on its side and allow the oil to drain completely.
(e) Replace yellow drain bolt.
(f) Fill the engine with oil until it reaches the HIGH(H) level on the oil ller cap. DO NOT OVERFILL.
KEEP OUT OF REACH OF CHILDREN. DON’T POLLUTE. CONSERVE RESOURCES. RETURN
USED OIL TO COLLECTION CENTERS.
NOTICE We recommend using SAE 10W-30 API SJ or higher oil for best performance. Do not use
special additives. See Oil and Gasoline .
25
MAINTENANCE - STORAGE
English Customer Service: 1-844-FIRMAN1

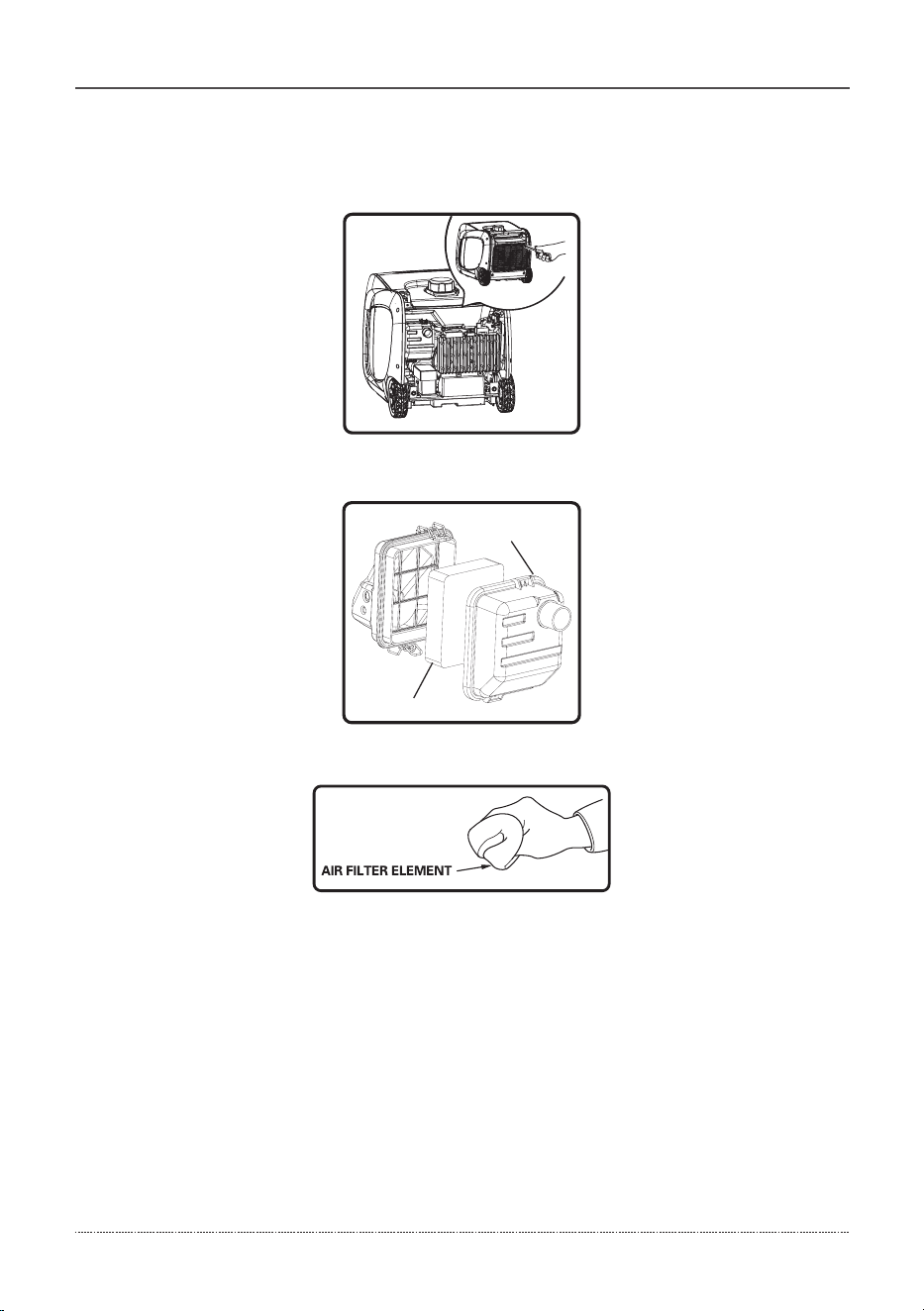

Air Filter Maintenance
Spark Plug Maintenance
(a) Remove the air cleaner cover and locate the air lter plastic cover.
(b) Carefully remove foam air lter element and wash it with liquid detergent and water only.
Squeeze dry in a clean cloth.
( c) Saturate foam air lter element with clean engine oil and squeeze in a clean cloth to remove
excess oil.
(d) Reinstall clean or new air lter element.
(e) Reattach the air lter cover.
(f) Reinstall the air cleaner cover and tighten the cover screw securely.

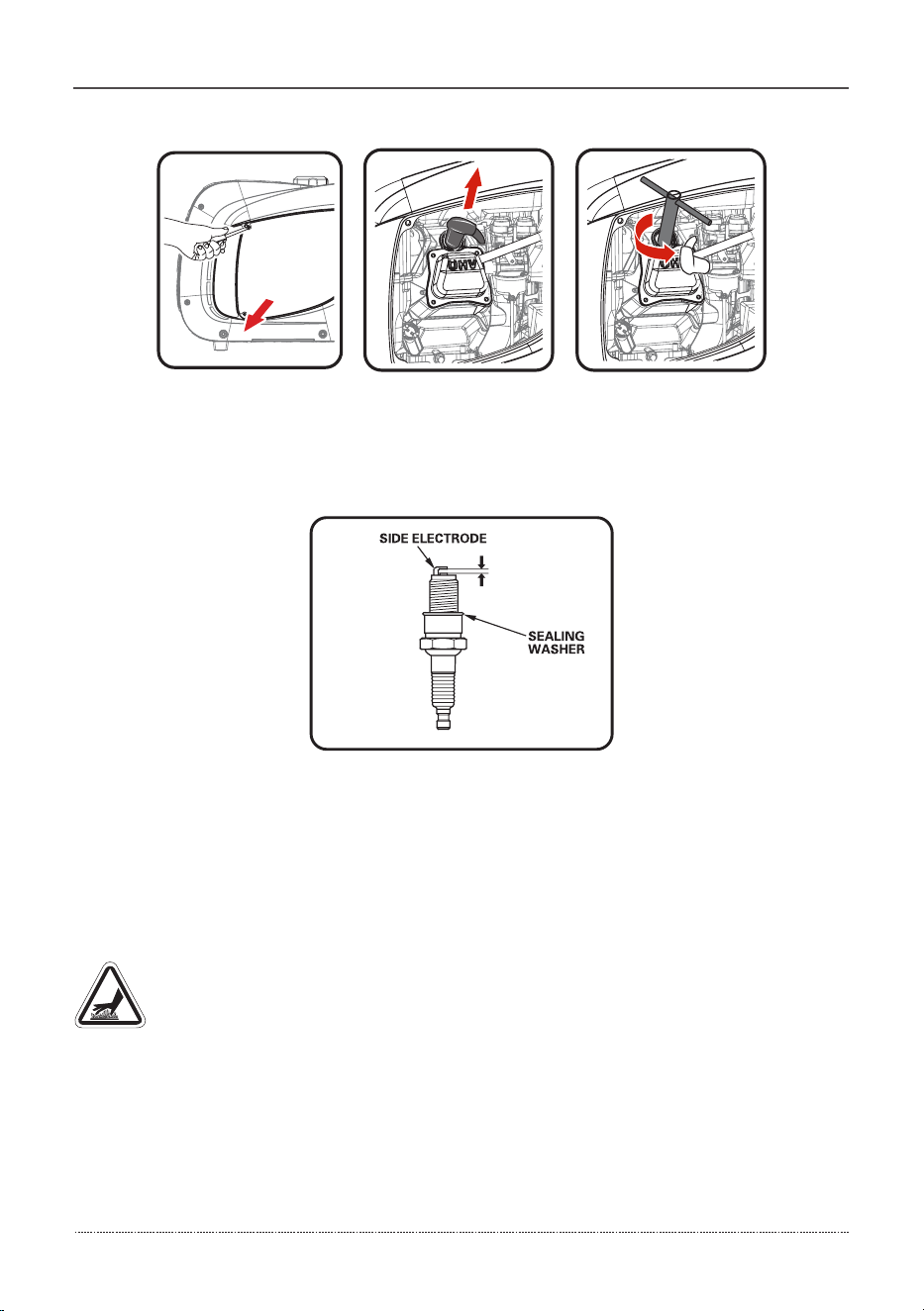

Changing the spark plug will help your engine start easier and run at peak performance.
(a) Remove the maintenance cover.
(b) Remove the spark plug boot.
(c) Remove spark plug using provided wrench.
Foam Element
Air Cleaner
26
MAINTENANCE - STORAGE
English Customer Service: 1-844-FIRMAN1
(d) Inspect spark plug for damage and clean with a wire brush before reinstalling. Replace if
damaged.
(e) Adjust the electrode gap to 0.028 - 0.031 in. ( 0.7 - 0.8 mm).
(f) Seat spark plug in position and thread by hand to prevent cross threading.
(g) Tighten plug with provided wrench and put the spark plug boot back on spark plug.
SPARK PLUG: TORCH F6RTC, NGK BPR6ES, CHAMPION RN9YC or equivalent.
Maintenance Valve Clearance
Intake: 0.004 – 0.006 in. (0.10 – 0.15 mm)
Exhaust: 0.004 – 0.006 in. (0.10 – 0.15 mm)
●
Do not touch hot parts.
●
It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on
any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped
with a spark arrester, as dened in Section 4442, maintained in effective working order. Other states
or federal jurisdictions may have similar laws, reference Federal Regulation 36 CFR Part 261.52.
Muffler and Spark Arrester
WARNING! Contact with mufer area could cause burns resulting in serious injury.
0.028-0.031i n
(0.7-0.8mm)
27
MAINTENANCE - S
TORAGE
English C
ustomer Service: 1-844-FIRMAN1

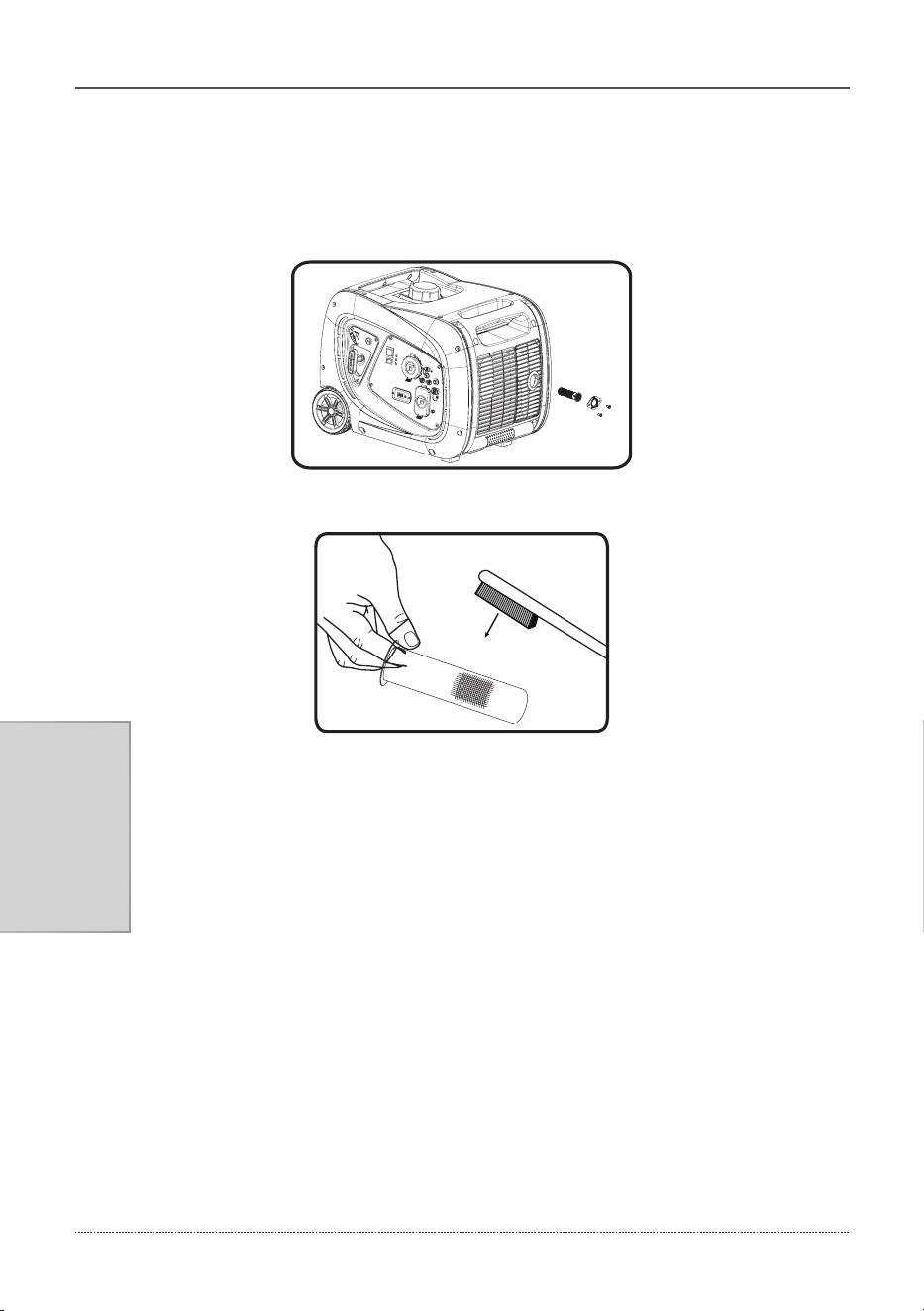

1. I
nspect the mufer for cracks, corrosion, or other damage.
2. Loosen the spark arrester clamp, remove the spark arrester cover, and remove the spark arrester
with a thin blade screwdriver .
3. Carefully remove the carbon deposits from the spark arrester screen with a wire brush.
4. Replace the spark arrester if it is damaged. If replacement parts are required, make sure to use
only FIRMAN original equipment replacement parts.
5. Position the spark arrester in the mufer and attach spark arrester cover with the screws.
NO
TICE
F
ailure to clean or replace spark arrester may result in decreased engine performance.
Run the generator at least 30 minutes every month.
Make certain that the portable generator is kept clean and dry.
Do not expose the unit to excessive dust, dirt, moisture or corrosive vapors.
Do not insert any objects through cooling slots.
Before each use inspect underneath the generator for signs of oil or fuel. Clean any accumulated
debris. Keep area around mufer free from any debris. Use a soft bristle brush to remove dirt or
caked on oil. Use a damp cloth to clean all exterior surfaces.
I
nspect Muffler and Spark Arrester
GENERATOR MAINTENANCE
28
MAINTENANCE - S
TORAGE
English C
ustomer Service: 1-844-FIRMAN1
2. Remo
ve the nut and bolt from the negative(-) and positive(+) posts.
3. Loosen and remove the screw A on the battery holding bracket.
4. Remove the battery and recycle and dispose of properly.
5. Remove the battery and recycle and dispose of properly.
6. Install the new battery with following specication:
12V sealed lead acid 5.5AH
LXWXH:3.54X2.76X3.84 in. (90X70X100mm)
7. Connect the red(+)battery cable to the positive terminal of battery first and then connect the
black(-)battery cable to the negative terminal of battery.
8. Reattach the air cleaner cover.

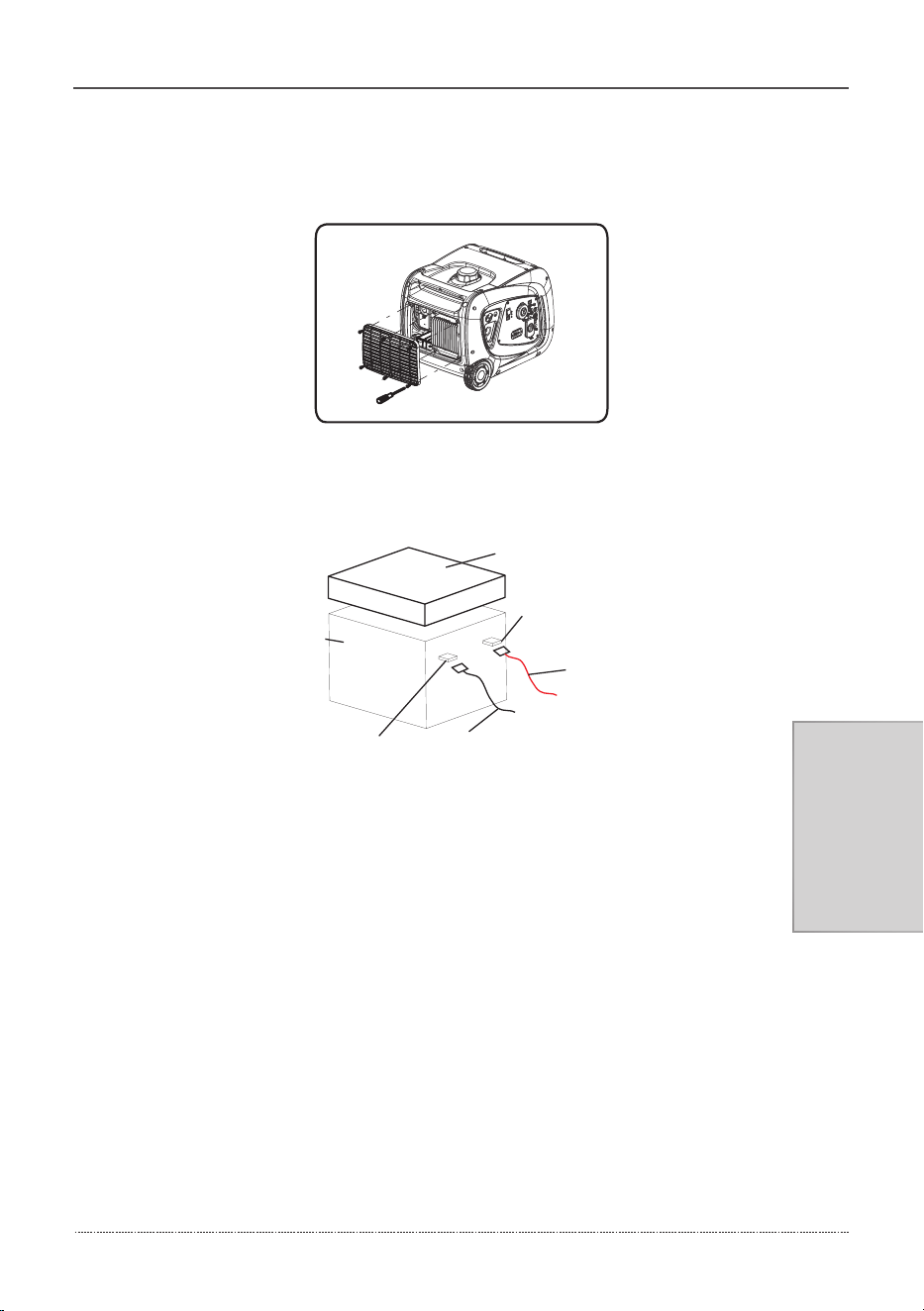

Ba
ttery Replacement
1.
Unscrew the air cleaner cover by provided screwdriver.
Rubber Sheath
Battery
Positive(+)
Terminal
Negative(-)
Terminal
Red Cable
Black C able
29
MAINTENANCE - S
TORAGE
English C
ustomer Service: 1-844-FIRMAN1
Ba
ttery Charging
T
he battery powers the starter motor and control module. This portable generator is equipped with
an automatic battery charging circuit. The battery will receive charging voltage only when the engine
is running. The battery will maintain a proper charge if the portable generator is used on a regular
basis (about once every two weeks). If it is used less frequently, the battery should be connected
to a trickle charger (not included) or battery maintainer (not included) to keep the battery properly
charged. If the battery is not able to start the engine, the battery must be connected to a standard
automotive style battery charger for re-charging before it can be used.
30
MAINTENANCE - S
TORAGE
English C
ustomer Service: 1-844-FIRMAN1
I
t is important to prevent gum deposits from forming in essential fuel system components such
as the carburetor, fuel hoses or tank during storage. Ethanol-blended fuels (called gasohol, ethanol
or methanol) attract moisture, which leads to separation and formation of acids during storage.
Acidic gas can damage the fuel system of an engine while in storage.
When the generator set is being stored for more than one month, follow these instructions to avoid
engine problems:
1-Treat any stored fuel with fuel stabilizer.
2-When storing generator with gasoline in fuel tank, operate the engine for 5-10 minutes to
circulate treated fuel into fuel lines and carburetor before shutdown.
3- There is no need to drain gasoline from the generator fuel tank if fuel stabilizer is added.
4-FUEL STARVATION: If you elect to drain fuel tank move generator outdoors. Once fuel tank is
drained turn fuel valve to on position. Start and run the portable generator outdoors until engine
stops from lack of gasoline. This will drain remaining gasoline from tank, fuel lines, and carburetor.
5-Always turn fuel valve to OFF position prior to storage.
6-Allow the portable generator to cool before cleaning and storage.
7-Change oil .
8-Remove spark plug boot and spark plug. Pour about one teaspoon of engine oil through the
spark plug hole, then slowly pull the recoil starter several times to distribute the oil in the cylinder
Pull recoil slowly until resistance is felt. This will close the valves so no moisture enters the engine
cylinder. Reinstall the spark plug and attach the spark plug boot.
9-Cover the portable generator and store in a clean, dry place out of direct sunlight and away from
any ignition sources.
Any damage or hazards caused by using improper fuel, improperly stored fuel, and/or improperly
formulated stabilizers, are not covered by manufacturer's warranty.
Do not store gasoline from one season to another season.
Do not store fuel near any ignition sources.
When draining fuel move generator outdoors and use a commercially available non-conductive
vacuum siphon. Fuel must be drained into an approved container.
L
ong Term Storage
W
ARNING! Fuel and its vapors are extremely ammable which could cause burns
or re resulting in death or serious injury.
31
MAINTENANCE - S
TORAGE
English C
ustomer Service: 1-844-FIRMAN1
Problem Cause Correction
E
ngine is running, but no
AC output is available.
Engine runs good at
no-load but “bogs down”
when loads are connected.
Engine will not start; starts
and runs rough or shuts
down when running.
Engine lacks power.
Engine“hunts”or falters.
Engine shuts down when
running.
Engine shuts down and
yellow CO fault light
blinking.
1. Circuit breaker is open.
2. F
ault in generator.
3. Poor connection
or defective cord set.
4. Connected device is bad.
1. Short circuit in a c
onnected load.
2. Engine speed is too slow.
3. Generator is overloaded.
4. Shorted generator circuit.
5. Clogged or dirty fuel lter.
1. L
oad is too high.
2. Dirty air lter.
3. Clogged or dirty fuel lter.
4. Clogged spark arrester.
1. Don't Overload Gener
ator
2. Replace air lter.
3. Clean or replace fuel lter.
4. Clean or replace spark arrester.
1. Contact authorized service facility.
2. Clean or replace fuel lter.
1. Fill fuel tank.
2. Clean or replace air cleaner
.
3. Fill crankcase to proper level or
place. generator on level surface.
1. Contact authorized FIRMAN
service facility
1. Carbure
tor is running too rich
or too lean.
2. Clogged or dirty fuel lter.
1. Out o
f fuel.
2. Dirty air cleaner.
3. Low oil level.
1. CO system fault
1. Engine switch se
t to OFF (O)
position.
2. Fuel shutoff lever is in OFF (O)
position.
3. Low oil level.
4. Dirty air cleaner.
5. Out of fuel.to spark plug.
6. Stale fuel.
7. Spark plug wire not connected
to spark plug.
8. Bad spark plug.
9. Water in fuel.
10. Flooded.
11. Excessively rich fuel mixture.
12. Intake valve stuck open or
closed.
13. Engine has lost compression.
14. Clogged or dirty fuel lter.
1. Set engine switch to ON (l) position.
2. Move fuel shutoff lever to ON (l)
position.
3. Fill crankcase to proper level or
place generator on level surface.
4. Clean or replace air cleaner.
5. Fill fuel tank.
6. Drain fuel tank and carburetor; ll
with fresh fuel.
7. Connect wire to spark plug.
8. Replace spark plug.
9. Drain gas tank and carburetor; fill
with fresh fuel.
10. Wait 5 minutes and re-crank
engine.
11. Contact authorized service facility.
12. Contact authorized service facility.
13. Contact authorized service facility.
14. Clean or replace fuel lter.
1. Rese
t circuit breaker.
2. Contact authorized service facility.
3. Check and repair.
4. Connect another device that is in
good condition.
1. Disc
onnect shorted electrical load.
2. Contact authorized service facility.
3. See "Don't Overload Generator".
4. Contact authorized service facility.
5. Clean or replace fuel lter.
F
or all other issues, contact authorized dealer or Firman customer service.
Tr
oubleshooting
TROUBLESHOOTING – SPECIFICATIONS
32
MAINTENANCE - S
TORAGE
English C
ustomer Service: 1-844-FIRMAN1
Model
S
tarting Watts
Running Watts*
Rated AC Voltage
Rated Fequency
Phase
Voltage Regulator
Power Factor
Total Harmonic Distortion(THD)
Alternator Type
Engine
Engine Type
Displacement
Low Oil Shutdown
Ignition System
Starting System
Fuel
Capacity Fuel Tank
Lubricating Oil Capacity
Carburetor Type
Air Cleaner
P.T.O. Shaft Rotation
Oil Type
AC Grounding System
W03385
3650
3300
120V
60Hz
Single
AVR
1
<3%
Magneto Inductor
FIRMAN
Single Cylinder, 4-Stroke OHV Air Cooled
193cc
Yes
Breakless Ignition Type, Flywheel Magneto
Recoil/Electric
Unleaded Automotive Gasoline
1.8 U.S. Gallons (6.8L)
20.3 oz (0.6L)
Float
Polyurethane Type
Counter Clockwise (Facing P.T.O.)
See “Add Engine Oil” Section
Neutral Floating
*Gener
ator certified in accordance with CSA (Canadian Standards Association) standard C22.2No.
100-14, Motors and Generators and complies with PGMA (Portable Generator Manufacturers’
Association) standard ANSI/PGMA G300-2018, Safety and Performance of Portable Generators.
SPECIFIC
ATIONS
TROUBLESHOOTING – SPECIFICATIONS
PARTS DIAGRAM AND PARTS LIST
W03085 Parts Diagram
English Customer Service: 1-844-FIRMAN1
33
193cc Engine Parts Diagram
English Customer Service: 1-844-FIRMAN1
34
W03385 Parts List
English Customer Service: 1-844-FIRMAN1
333467027
336723615
330713560
317718304
330713557
333457029
333457030
332457006
380713513
332727006
336723526
330713552
330713550
317713521
310715044
336718301
336713538
330713519
330713520
330713516
336718359
330713522
330713523
330713515
330713523
330713514
330713521
330713523
333427001
336718360
330713567
330713524
330713525
330713527
336718362
330713526
336718361
333427002
336718362
330713546
333717002
330713549
336718359
330713547
330713545
330713525
330713527
336718363
336718361
333427003
336718362
330713541
1
2
3
4
5
6
6.1
6.2
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27.1
27.2
27.3
28
29
30
31
32
33
33.1
33.2
33.3
33.4
33.5
33.6
33.7
34
35
36
37
38
38.1
38.2
NO.
Engine
Lock Washer
Generator End Cover
Bolt M6×20
Flange Bolt M6×45
Alternator Assembly
Stator Assembly
Rotor Assembly
Flat Washers
Generator Fan
Bolt M6×15
Generator End Cover
Rubber Sleeve, End Cover
Screw St4.8×17
Screw St4.2×16
Bolt M6x12
Screw&washer Assy M5×14
Plate, Spark Arrester
Spark Arrester Assembly
Muffler Assembly
Screw St4.2×9.5
Screw St4.2×16
Screw St4.2×16
Gasket, Exhaust
Nut M6
Screw St4.2×16
Rear Cover
Screw M6×12
Supporter, Handle Left
Supporter, Rear Cover
Cage Nut M5
Bolt M6×16
Screw M5×14
Protector ,rear Cover
Screw M6×12
Right Cover
Screw M5×14
Handle, Right
Spring Leaf
Rubber Seal Sleeve
Screw St 4.2×9.5
Cover, Right Muffler
Cover, Right Side
Cage Nut M5
Bolt M6×16
Screw M6×20
Screw M6×12
Handle
Screw M5×14
Handle, Lower
1
2
1
3
3
1
1
1
2
1
2
1
1
4
1
1
2
1
1
1
1
1
4
1
1
1
2
1
1
2
1
1
2
2
4
1
4
1
3
1
5
1
6
1
1
4
2
4
8
1
3
1
330713539
333717003
336713561
330713540
330713528
330713529
333717004
330713538
333717005
330713537
336718360
330713536
330713535
333717006
330713532
333717007
333727003
330713508
333727004
333717020
333717008
333717009
330713506
336718361
333427007
333427004
330713503
330713501
330713500
336718364
333427005
336718362
330713566
330713569
330713525
336718362
330713527
330723533
333427006
330713570
330713571
330713572
336718362
330713577
336718364
330713525
330427003
336718362
330713576
336718360
330713568
330713634
38.3
38.4
38.5
38.6
38.7
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
59.1
59.2
60
61
62
62.1
62.2
62.3
63
64
65
66
67
67.1
67.2
67.3
68
69
70
71
72
72.1
72.2
72.3
72.4
72.5
Handle,left
Nut M6
Bolt M6×25
Handle,upper
Handle,right
Bolt M8×16
Washer
Bracket,left
Washer
Supporter,left
Screw M6×12
Supporter, Right
Pivot Bracket
Bolt M6×12
Bracket, Right
Washer
Clip
(φ10.5×b8)
Clip(φ12×b8)
Strainer
Insulation Hot
Fuel Tank
Screw M6×12
Fuel Filter Assembly
Top Cover
Cover, Top
Spillway,fuel Tank
Fuel Tank Cap
Screw M5×20
Cover, Left
Screw M5×14
Handle,left
Cover
，left Side
Cage Nut M5
Screw M5×14
Bolt M6×16
Screw M5×10
Maintenance Window
Screw St4.8×13
Cover Plate,left
Maintenance Window
Screw M5×14
Fuel Valve
Screw M5×20
Cage Nut M5
Front Cover
Screw M5×14
Stents,fuel Valve
Screw M6×12
Supporter,handle Right
Front Cover
1
2
2
1
1
2
2
1
2
1
4
1
2
4
1
2
1
3
1
1
1
1
1
4
1
1
1
1
1
4
1
3
1
1
4
4
2
1
1
1
1
1
6
1
2
2
1
2
1
2
1
1
Part Number Description
Qty.
NO.
Part Number Description
Qty.
Muffler Protector Assembly,upper
Muffler Protector Assembly,lower
Fuel Pipe, Fuel Valve To Carburetor
Fuel Pipe, Fuel Tank To Fuel Valve
35
P
ARTS DIAGRAMS - PARTS LISTS - WIRING DIAGRAM
English Customer Service: 1-844-FIRMAN1
333717022
336718362
330713580
330713581
330713582
330713527
333727005
336755005
336713575
333717010
330713613
330713602
336718383
333457007
330713618
330713608
330713603
336718345
336713577
333717011
336713579
336713580
330713596
336713588
336713584
330713593
330713614
330713594
330713592
336713589
336713565
329713608
336713565
330713595
330417001
330713638
333718300
330713599
336755002
332717004
336727009
330713606
330713601
333717022
336713558
330713564
330713565
333457019
333717023
332717006
332717007
332717003
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
NO.
Part Number
Description
Qty.
Screw M5×14
Screw M5×14
Pull Chock Assembly
Fuel Valve Knob
Screw&washer Assy M4×14
Bolt M6×16
Cover
Circuit Breaker Cover
Screw M3×10
Receptacle Cover, USB
Receptacle Cover
Screw M4×14
Table
Receptacle Dc 12v
Parallel Ports
Bolt M5×16
Nut M5
Nut M5
Washer
Φ5
Washer Φ5
Nut M4
Receptacle 5-20R Duplex
Receptacle TT-30R
Receptacle USB
D.C 10A Breaker,push Button
A.C 20A Breaker,push Button
Control Box
Screw M5×38
Screw M5×14
Washer
Φ5
Screw M5×14
Speed Limiter
Control Panel Assembly
Vapor Hose3
Ignition Switch
Switch, Economy
Indicator Light
Screw M4×5
Switch Cover
Outlet Cover, DC 12V
Outlet Cover, TT-30R
Screw M5×14
Nut M8
Supporter,right
Motor Mount
Co Module
Washer
Screw M5×14
Bushing
Stents,inverter
3
4
1
1
1
2
1
2
1
3
1
2
2
1
1
1
2
1
1
1
2
1
6
1
1
1
1
1
1
2
1
1
2
1
1
1
1
1
1
2
1
1
1
4
12
1
4
1
1
2
2
1
330713574
336713620
330713582
336713561
332457008
332457007
330713588
330713583
330713585
333727001
330713587
333727002
336718302
330713563
333717014
330713589
330713584
333717015
336718330
330713623
330713622
332457009
333717016
330713620
330713624
333427008
357713571
332457010
332457011
336713540
330713636
330713635
330713637
330723533
333718304
333718301
333728300
330713633
332458300
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
NO.
Part Number
Description
Qty.
Rectifier
Charger
Screw&washer Assy M4×14
Bolt M6×25
Ground Wire
Inverter
Base Setting Component
Plug,wheel
Washer
φ12
Wheel, Right
Axle
Wheel, Left
Bolt M6×12
Supporter,left
Nut
Plug
Retaing Ring
φ12
Rubber Mat
Bolt M6×20
Pinch,rubbre
Sheath,battery
Battery(5.5ah)
Screw M5×14
Stents I,battery
Stents Ii,battery
Cushion
Sheath,connecter Black
Battery Wire(red)
Battery Wire(black)
Clip
φ8×6）
Vapor Hose2
Vapor Hose1
Carbon Canister
Screw M5×10
Metal Nut
Tooth Washer
Plastic Nut
Battery Charge Cable
1
1
2
2
1
1
1
2
2
1
1
1
4
1
8
1
2
2
2
1
1
1
3
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
Receptacle Cover, 5-20R Duplex
Receptacle(battery Charger)
Battery Float Charger(12V DC)
36
P
ARTS DIAGRAMS - PARTS LISTS - WIRING DIAGRAM
SPE195E 193cc Engine Parts List
English Customer Service: 1-844-FIRMAN1
330723500
330723501
332467002
330723503
330723504
330723505
330723506
330723507
330723508
330723509
330723510
330723511
330723512
330723513
330723514
330723515
330723516
330723517
330723518
330723519
330723520
330723521
330723522
330723523
330723524
330723525
330723526
393723006
330723528
330723529
330723530
330723531
330723532
330723533
330723534
330467001
330723604
330723537
330723538
330723539
330723540
330723606
330723607
330723608
330723609
330723610
330723611
330723547
330723548
330723612
330723550
330723551
330723552
330723553
330723554
330723555
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
NO.
Part Number
Description
Qty.
Flange Bolt M8×35
Oil Seal
Cover, Crankcase
Oil Level Sensor
Flange Bolt M6×12
Plate, Coil
Bearing 6205
Gasket, Crankcase Cover
Crankshaft
Woodruff Key(4×6.5×16)
Lifter, Valve
Locating Pins
Seal Strip,Crankcase Cover
Cooling Fan
Pulley, Starter
Nut M14
Fan Cover
Screw,pawl Guide
Pawl Guide
Spring,ratchet Guide
Patchet, Starter
Spring, Ratchet
Reciol Starter Reel
Reciol Starter Spring
Reciol Starter Cover
Grip ,starter
Rope Button
Recoil Starter Rope
Wire Clip
Flange Bolt M6×8
Oil Nipple
Oil Dipstick Assembly
Camshafe Comp
Air Guide Board
Lid Assembly
Bolt&seal Ring, Drain
Ignition Coil
Flange Bolt M6×20
Connecting Rod
Circlip
Piston Pin
Piston
Ring Coil
Ring , Second Piston
Ring , First Piston
Gasket, Cylinder Head
Valve, Exhaust
Locating Pins
Cylinder Head
Oil Seal, Valve
Flange Bolt M8×65
Guide Plate, Push Rod
Push Rod
Valve,intake
Stud Bolt (M6×32)
6
2
1
1
2
1
2
1
1
1
2
2
2
1
1
2
1
1
1
1
2
2
1
1
1
1
1
1
1
3
1
1
1
4
1
1
1
1
2
1
2
1
1
1
1
1
1
1
2
1
1
2
1
2
1
2
330723556
330723557
330723558
330723559
330723560
330723561
330723562
330723563
330723564
330723565
330723566
333467006
330723568
330723569
330723570
330723571
333467026
330723573
330723574
330723575
330723576
330723577
330723578
330723579
336718301
336723526
330723582
330723583
330723584
330723585
330723583
330723587
330723588
330723589
380713542
330723591
330723615
330723616
330723596
330723597
317718304
333467016
333467009
333467014
333467012
333727007
357713569
330713611
333467005
336713611
333467010
333467011
330457022
336718301
317718304
336718302
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
NO.
Part Number
Description
Qty.
Stud Bolt (M6×97)
Spark Plug
Flange Bolt M8×45
Spring, Valve
Retainer, Valve Spring
Valve Collet
Bolt, Rocker Arm
Rocker Arm ,valve
Adjusting Nut, Valve
Lock Nut
Air Shroud, Cylinder
Breather Tube
Gasket, Insulator
Insulator, Carburetor
Carburetor, Assembly
Gasket, Air Cleaner
Base, Air Cleaner
Nut M6
Clapboard
Sealing Ring
Element, Air Cleaner
Cover, Air Cleaner
Bolt M6×12
Bolt M6×15
Screw M5×10
Support, Stepper Motor
Stepper Motor Base
Screw M3×6
Cover,stepper Motor
Crankcase
Flywheel
Starter Motor
Relay,starter
Bolt M6×20
Starting Cover
Air Cleaner
Piston Ring Assembly
Gasket Set
Guide, Rope
Flat Washer
φ5
Connect Wire
Sheath
Lock 2
Lock 1
Battery Cable(-)
Flange Bolt M6×12
Bolt M6×20
Flange Bolt M6×12
2
1
2
2
2
2
2
2
2
2
1
1
1
1
2
1
1
1
1
2
1
1
1
1
4
1
1
2
1
1
1
1
2
1
2
1
1
1
1
1
2
1
1
1
1
1
1
1
1
2
2
2
1
1
1
4
Screw/washer Assembly M5×10
Clamp Board, Choke Control Line
Screw/washer Assembly M5×10
Screw/washer Assembly M4×8
Stepper Motor ,throttle Valve
Screw&washer Assy M5×10
Screw/washer Assembly M5×10
Cylinder Head Cover Assembly
Cylinder Head Cover Gasket
37
P
ARTS DIAGRAMS - PARTS LISTS - WIRING DIAGRAM
P
ARTS DIAGRAMS - PARTS LISTS - WIRING DIAGRAM
38English C
ustomer Service: 1-844-FIRMAN1
39
Service – W
arranty
English C
ustomer Service: 1-844-FIRMAN1
SER
VICE INFORMATION CONTACT FIRMAN PRODUCT SERVICE DEPARTMENT AT 1-844-347-6261
or at www.rmanpowerequipment.com to obtain warranty service information or to order
replacement parts or accessories.
HO
W TO ORDER REPLACEMENT PARTS
Even quality-built equipmen
t such as this electric generator may need occasional
replacement parts to maintain it in good condition over the years. To order replacement parts,
please give the following information:
●
Model No. Re
v. Level and Serial No. found on the Data Decal.
●
P
arts number or numbers as shown in the Parts List section.
●
A brie
f description of the trouble with the generator.
FIRMAN 3 Year
s Limited Warranty
W
arranty Qualifications
FIRMAN GENERA
TOR will register the warranty upon receipt of your Warranty Registration Card
and a copy of your sales receipt from one of FIRMAN’s retail locations as proof of purchase. Please
submit your warranty registration and your proof of purchase within ten(10) days of the date of
purchase.
Repair
/Replacement Warranty
FIRMAN w
arrants to the original purchaser that the mechanical and electrical components will
be free of defects in material and workmanship for a period of one(1) year(parts and labor) and 40
months (parts and technical support) from the original date of purchase 90 days [parts and labor] and
180 days [parts] for commercial & industrial use. Transportation charges on product submitted for
repair or replacement under this warranty are the sole responsibility of the purchaser . This warranty
only applies to the original purchaser and is not transferable.
Do No
t Return the Unit to the Place of Purchase
C
ontact the FIRMAN Service Center and FIRMAN will troubleshoot any issue via phone or e-mail.
If the problem is not corrected by this method, FIRMAN will, at its option, authorize evaluation,
repair or replacement of the defective part or component at a FIRMAN Service Center. FIRMAN will
provide you with a case number for warranty service. Please keep it for future reference. Repairs or
replacements without prior authorization, or at an unauthorized repair facility, will not be covered by
this warranty.
W
arranty Exclusions
T
his warranty does not cover the following repairs and equipment.
Normal Wear
Y
our product needs periodic parts and service to perform well. This warranty does not cover
repair when normal use has exhausted the life of a part or the equipment as a whole.
40
Service – W
arranty
English C
ustomer Service: 1-844-FIRMAN1
I
nstallation, Use and Maintenance
T
his warranty will not apply to parts and/or labor if your product is deemed to have been misused,
neglected, involved in an accident, abused, loaded beyond the generator's limits, modied,
installed improperly or connected incorrectly to any electrical component. Normal maintenance is
not covered by this warranty.
O
ther Exclusions
T
his warranty excludes:
– cosmetic defects such as paint, decals, etc.
– wear items
– accessory parts
– failures due to acts of God and other force majeure events beyond the manufacturer’s control
– problems caused by parts that are not original FIRMAN parts
– units used for prime power in place of existing utility power where utility is present or in place
of utility power where utility power service does not normally exist.
Limits o
f Implied Warranty and Consequential Damage
FIRMAN disclaims an
y obligation to cover any loss of time, use of this product, freight, or any
incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN
LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANT
ABLILITY OR FITNESS FOR A PARTICULAR PURPOSE.
A unit provided as an exchange will be subject to the warranty of the original unit. The length of
the warranty governing the exchanged unit will remain calculated by reference to the purchase
date of the original unit.
This warranty gives you certain legal rights which may change from state to state. Your state may
also have other rights you may be entitled to that are not listed within this warranty.
C
ontact Information
Y
ou may contact FIRMAN at:
A
ddress
FIRMAN PO
WER EQUIPMENT INC.
8644 W. Ludlow Dr.
Peoria, AZ 85381
1-844-3476261
www.rmanpowerequipment.com
We are FIRMAN POWER - And we are here for you.
41
Service – W
arranty
English C
ustomer Service: 1-844-FIRMAN1
Y
OUR WARRANTY RIGHTS AND OBLIGATIONS
T
he California Air Resources Board, US Environmental Protection Agency (“US EPA”) and FIRMAN POWER EQUIPMENT INC.(FIRMAN)
are pleased to explain the emissions control systems warranty on your 2023-2024 or later Small Off-Road Engine (“SORE”) and
engine powered equipment. In California, new equipment that use small off-road engines must be designed, built and equipped
to meet the State’s stringent anti-smog standards. FIRMAN must warrant the emissions control systems on your SORE and engine
powered equipment for the periods of time listed below provided there has been no abuse, neglect or improper maintenance of
your small off-road engine or equipment leading to the failure of the emissions control system.Your emissions control system may
include parts such as the carburetor or fuel-injection system, the ignition system, catalytic converter, fuel tanks, fuel lines (for liquid
fuel and fuel vapors), fuel caps, valves, canisters, lters, clamps and other associated components. Also included may be hoses,
belts, connectors, and other emission-related assemblies.
Where a warrantable condition exists, FIRMAN will repair your SORE and engine powered equipment at no cost to you including
diagnosis, parts and labor.
MANUF
ACTURER'S WARRANTY COVERAGE:
T
he exhaust and evaporative emissions control system on your small off-road engine and engine powered equipment is warranted
for two years. If any emissions-related part on your small off-road engine and engine powered equipment is defective, the part will
be repaired or replaced by FIRMAN.
O
WNER'S WARRANTY RESPONSIBILITIES:
As
the SORE and engine powered equipment owner, you are responsible for the performance of the required maintenance listed in
your operator's manual. FIRMAN recommends that you retain all receipts covering maintenance on your SORE and engine powered
equipment, but FIRMAN cannot deny warranty coverage solely for the lack of receipts or for your failure to ensure the performance
of all scheduled maintenance.As the SORE and engine powered equipment owner, you should however be aware that FIRMAN may
deny you warranty coverage if your small off-road engine or engine powered equipment or a part has failed due to abuse, neglect,
or improper maintenance or unapproved modications.You are responsible for presenting your small off-road engine and engine
powered equipment to a FIRMAN distribution center or service center as soon as the problem exists. The warranty repairs shall be
completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact FIRMAN at 1-844-347-6261.
FIRMAN Emission C
ontrol Defects Warranty Provisions
The warranty period begins on the date the engine/equipment is delivered to an ultimate purchaser. FIRMAN warrants to the
ultimate purchaser and each subsequent purchaser that the engine is:
Designed, built, and equipped so as to conform with all applicable regulations adopted by the Air Resources Board and US EPA; and
Free from defects in materials and workmanship that cause the failure of a warranted part to be identical in all material respects to
the part as described in the engine manufacturers application for certication.
The warranty on emissions-related parts is as follows:
(1) Any warranted part that is not scheduled for replacement as required maintenance in the owner's manual supplied, is warranted
for the warranty period stated above. If any such part fails during the period of warranty coverage, the part will be repaired or
replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced under the warranty will be warranted for the
remaining warranty period.
(2) Any warranted part that is scheduled only for regular inspection in the owner's manual supplied, is warranted for the warranty
period stated above. Any such part repaired or replaced under warranty will be warranted for the remaining warranty period.
(3) Any warranted part that is scheduled for replacement as required maintenance in the owner's manual supplied, is warranted
for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled
replacement, the part will be repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced under
warranty will be warranted for the remainder of the period prior to the rst scheduled replacement point for the part.
(4) Repair or replacement of any warranted part under the warranty must be performed at no charge to the owner at a warranty
station.
(5) Notwithstanding the provisions of Subsection (4) above, warranty services or repairs must be provided by FIRMAN that are
franchised to service the subject engines.
(6) The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective,
provided that such diagnostic work is performed at a warranty station.
(7) FIRMAN is liable for damages to other engine components proximately caused by a failure under warranty of any warranted part.
FIRMAN PO
WER EQUIPMENT INC.
Emission Control System Warranty
CALIFORNIA AND FEDERAL EXHA
UST AND EVAPORATIVE EMISSIONS CONTROL WARRANTY STATEMENT
42
Service – Warranty
English Customer Service: 1-844-FIRMAN1
(8) Throughout the emissions warranty period dened in Subsection (b)(2), FIRMAN will maintain a supply of warranted
parts sufcient to meet the expected demand for such parts.
(9) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided
without charge to the owner. Such use will not reduce the warranty obligations of the manufacturer.
(10) Add-on or modied parts that are not exempted by the Air Resources Board may not be used. The use of any non-
exempted add-on or modied parts by the ultimate purchaser will be grounds for disallowing a warranty claim.
The manufacturer will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or
modied part.
PARTS COVERED BY WARRANTY
Listed below are the parts (if equipped) covered by the Federal and California Emission Control System Warranty.
Limitations
This Emission Control System Warranty shall not cover any of the following:
(a) Consequential damages such as loss of time, inconvenience, loss of use of the engine or equipment, etc.
(b) Diagnosis and inspection fees that do not result in eligible warranty service being performed.
FIRMAN POWER EQUIPMENT INC.
www.rmanpowerequipment.com
1. Ignition system including:
- Spark plug
- Ignition coil
2. Fuel metering system:
- Fuel tank
- Fuel cap
- Fuel lines(for liquid fuel and fuel vapors) and
related ttings/clamps
- Fuel regulator, carburetor and internal parts.
3. Catalytic mufer assembly including:
- Exhaust manifold
- Catalytic converter
- Mufer gasket
-pulse valve
4. Air induction system including:
- Intake pipe/manifold
- Air cleaner
5. Crankcase breather assembly including:
- Breather connection tube
6. Fuel tank evaporative emission control system
including:
- Purge valves
- Carbon canister
- Vapor hoses and tting/clamps
FOLLO
W US ON SOCIAL MEDIA
U
SA
#EVER
YGENERATORTELLSASTORY
FOR Y
OUR CHANCE TO WIN FIRMAN SWAG
FIRMAN POWER EQUIPMENT INC.
8644 W. Ludlow Dr.
Peoria, AZ 85381
1-844-3476261
www.firmanpowerequipment.com
All rights reserved. An
y reprinting or unauthorized use
without the written permission is expressly prohibited.
P
/N:333747010 REV:01
TM
