P/N:317745452 Rev:04
OWNER’S MANUAL
Read all safety precautions and instructions carefully
before operating equipment.
Ensure engine is stopped and level before performing
any maintenance or service.
IMPORTANT:
Record product information to reference when ordering parts or
obtaining warranty coverage.
Serial Number:
PORTABLE INVERTER GENERATOR
MODEL NUMBER
W01783
Rev Level:01
DO NOT RETURN TO
STORE!
CALL US FIRST!
CUSTOMER HOTLINE
1-844-347-6261
FOR QUESTIONS OR SERVICE
INFORMATION
Purchase Date:
Table of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Safety Precautions . . . . . . . . . . . . . . . . . . . . .2
Unpacking The Generator. . . . . . . . . . . . . . .6

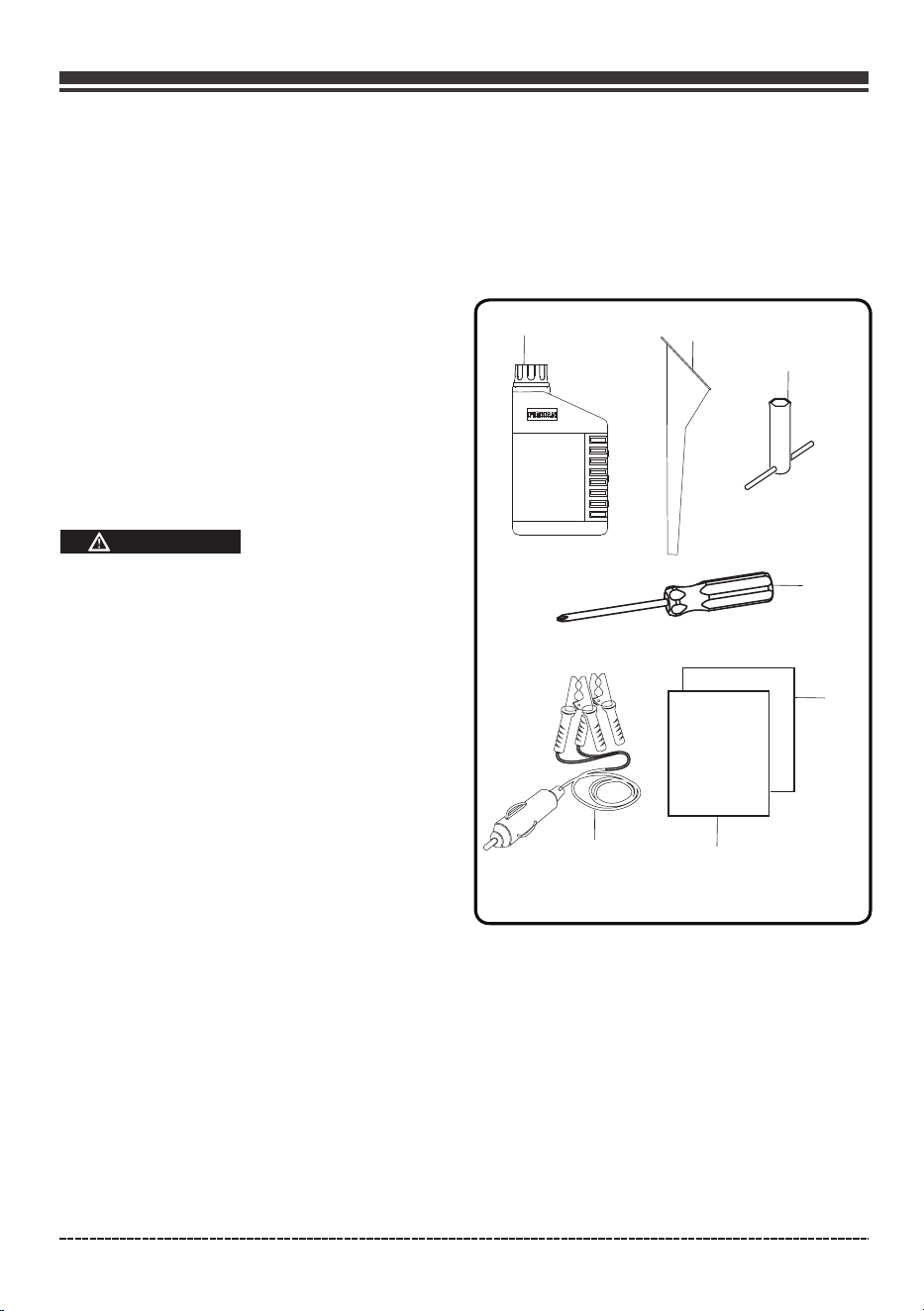

Parts Included. . . . . . . . . . . . . . . . . . . . . .6
Controls and Features. . . . . . . . . . . . . . . . . 7
Generator. . . . . . . . . . . . .. . . . . . . . . . . . . .7
Control Panel. . . . . . . . . . . . . . . . . . . . . . . 8
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . 9
Add Engine Oil . . . . . . .. . . . . . . . . . . . . . . .10
Low Oil Shutdown . . . . . . . . . . . . . . . . . . . .10

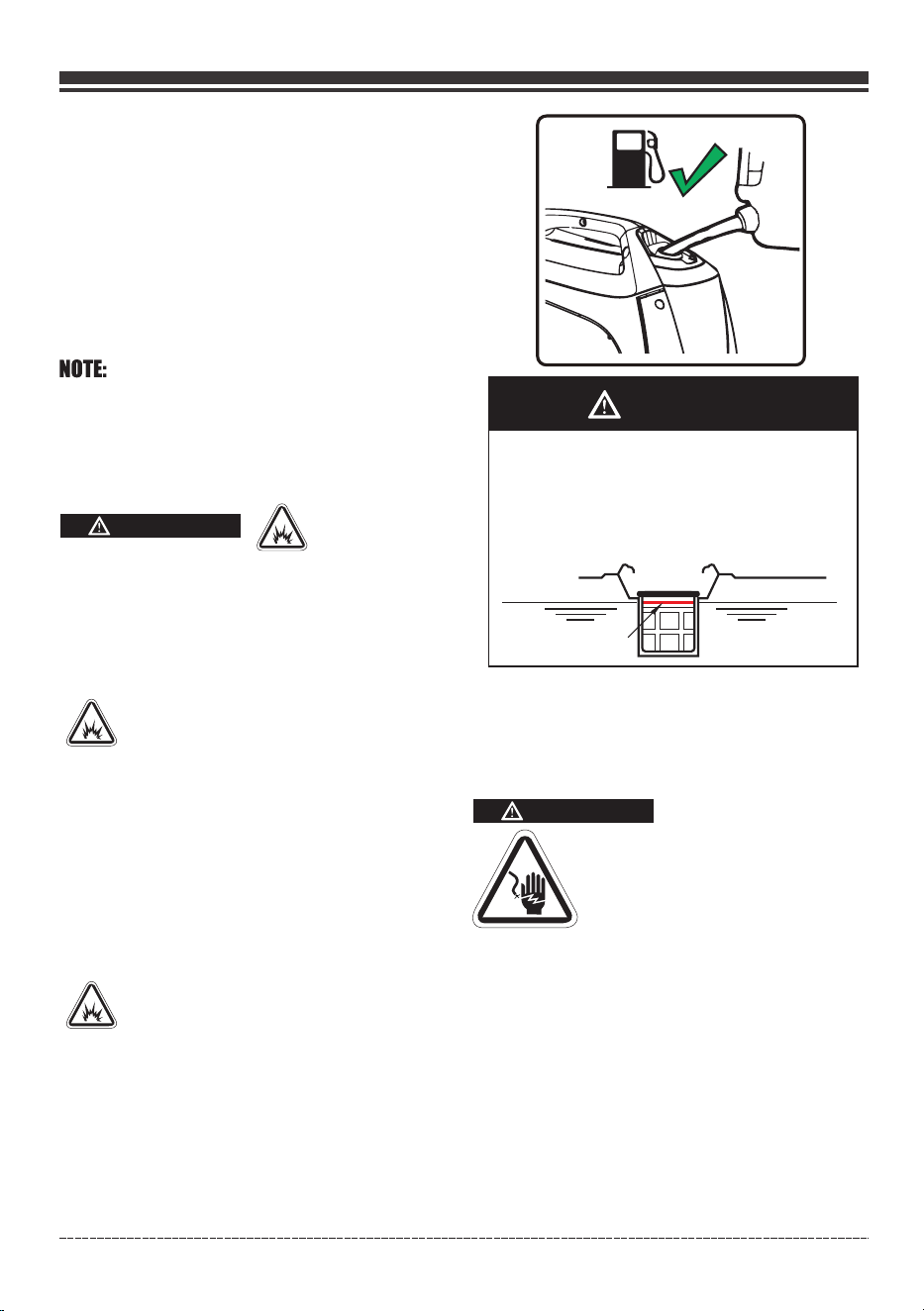

Add Fuel . . . . . . .. . . . . . . . . . . . . . . . . . . . .10
Grounding. . . . .. . . . . . . . . . . . . . . .. . . . . .11
System.. . . . . . . . . . . . . . . . . . . . . . .. . . . . .12
Operation . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 12
Generator Location . . . . . . . . . . . . . . . . . . 12
Surge Protection . . . . . . . . . . . . .. . . . . . . .13

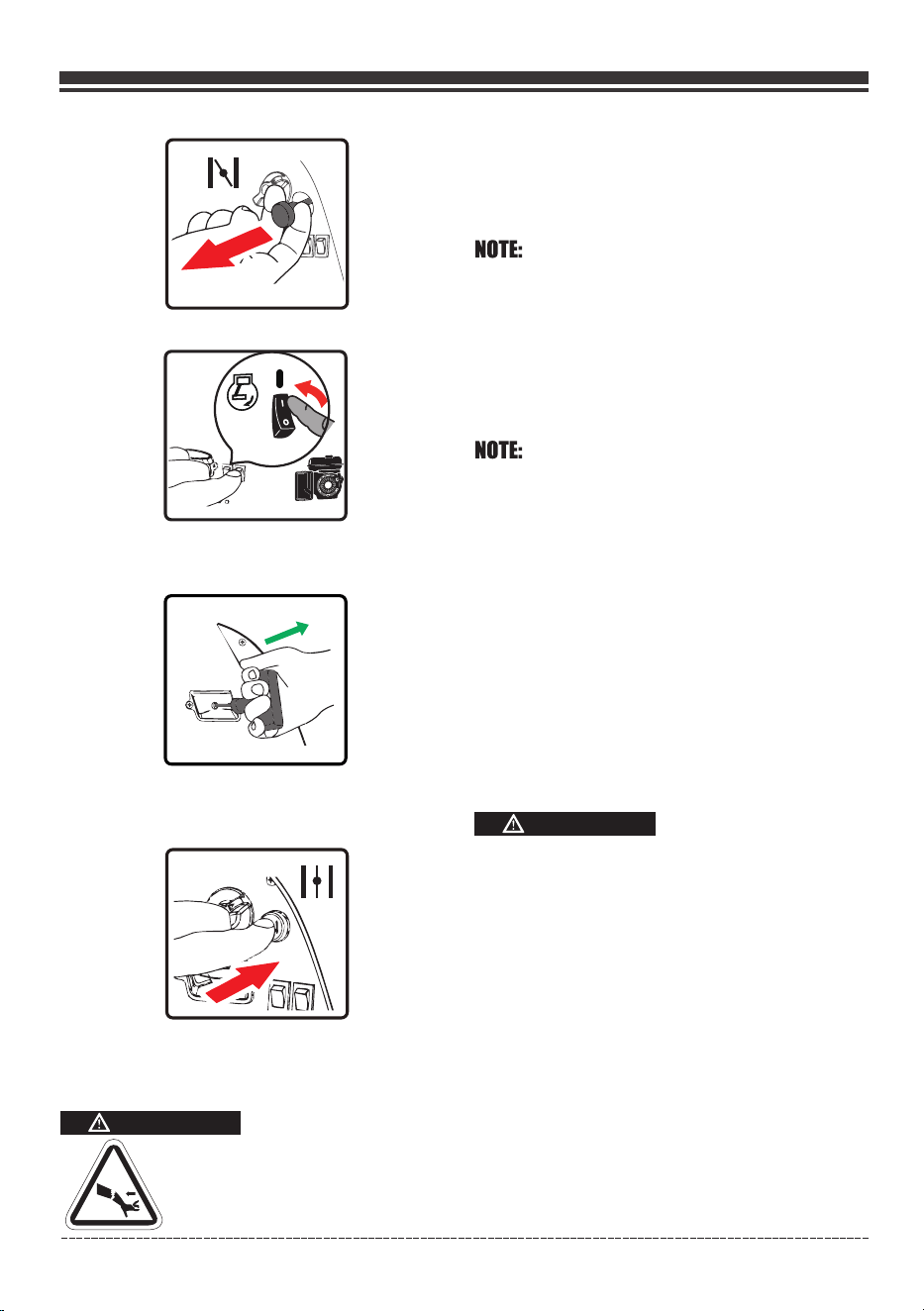

Starting the Generator. . . . . . . . . .. . . . . . 13
Connecting Electrical Loads . . . . . . . .. . . 14
Economy Control Switch. . . . . . . .. . . . . . 15
12V DC Outlet (Battery Charger).. . . . . . 15
Stopping the Engine . . . . . . . . . . . . . . . . . 16
Low Oil Shutdown . . . . . . . . . . . . . . . . . . 17
Do Not Overload Generator . . . . . . . . . . . 17
Maintenance And Storage. . . . . . . . . . . . . . 18
Maintenance Schedule . . . . . . . . . . . . . 18
Engine Maintenance .. . . . . . . . . . . .. . . . 19
Change Engine Oil . . .. . . . . . . . . . . . . . 19
Air Filter Maintenance. . . . . . . . . . . . . .19
Spark Plug Maintenance. . . . . . . . . . . . 20
Cleaning Fuel Strainer . . . . . . . . . . . . 20
. . . 20
Generator Maintenance . . . . . . . . . . . . . . 21
Service and Storage . . . . . . . . . . . . . . . .. 22
Introduction
Inspect Muffler and Spark Arrester
. . . . . . . . . . . . . . . . . . . . .23
Parts Diagram and Parts List . . . . . . . . . . 24
Generator Parts Diagram . . . . . . . . . . . . 24

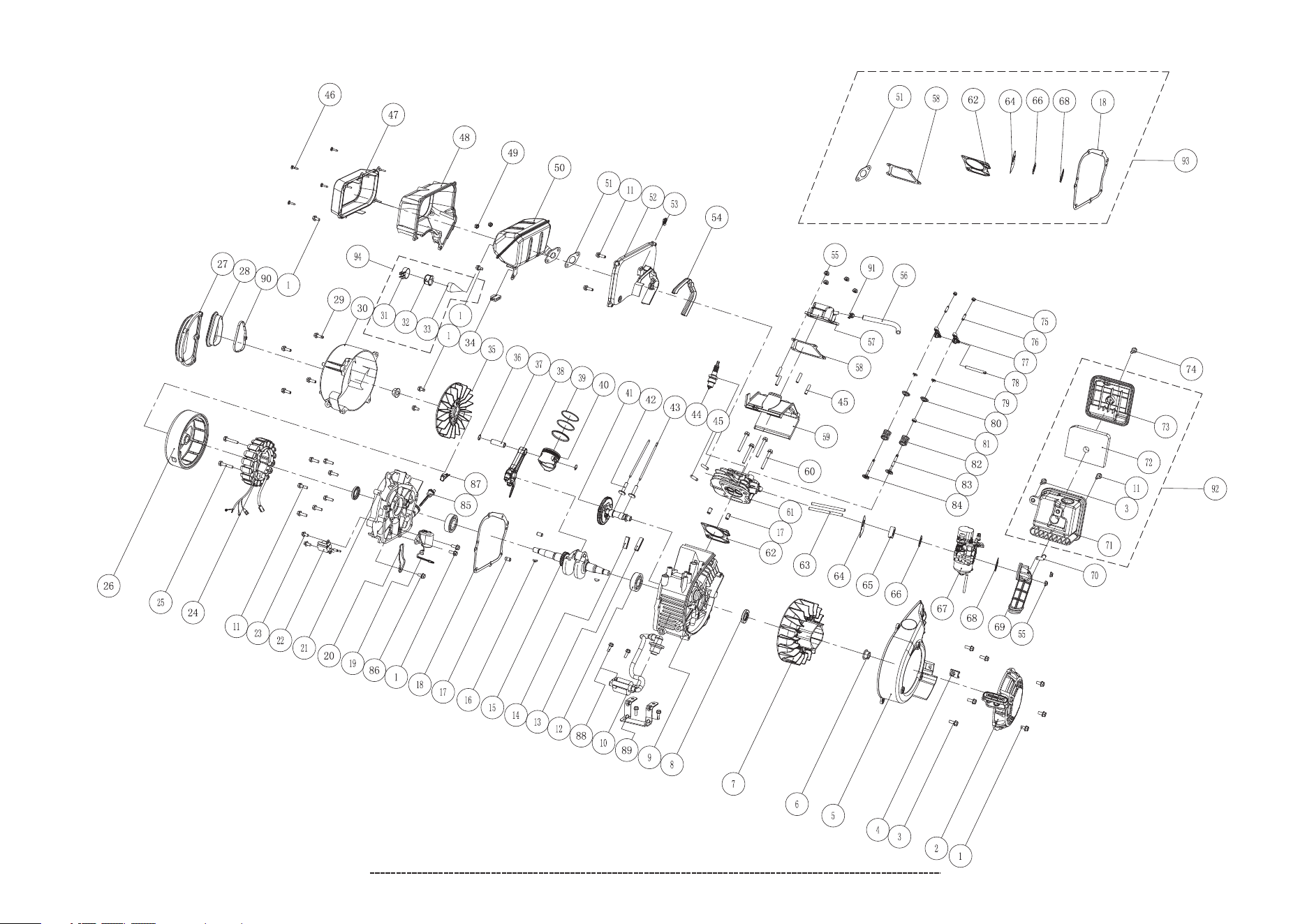

Engine Parts Diagram . . . . . . . . . .. . . . . 25
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . 26
Service Information . . . . . . . . . . . . . .. . . . . 28
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Trouble Shooting
Connecting to a Building’s Electrical
English Customer Service: 1-844-FIRMAN1
Thank you for purchasing a FIRMAN generator.
This manual covers operation and maintenance of the FIRMAN generators. All information in this
publication is based on the latest production information available at the time of approval for printing.
The manufacturer reserves the right to change, alter or other wise improve the generator and this
documentation at any time without prior change.
Page 01
This manual contains safety information to make you aware of the hazards and risks associated
with generator products and how to avoid them. This generator is designed and intended only
for supplying electrical power for operating compatible electrical lighting, appliances, tools and
motor loads, and is not intended for any other purpose. It is important that you read and
understand these instructions thoroughly before attempting to start or operate this equipment.
Save these original instructions for future reference.
Important Safety Information
The manufacturer cannot possibly anticipate every possible circumstance that might involve a
hazard. The warnings in this manual and the tags and decals affixed to the unit are therefore not
all-inclusive. If you use a procedure, work method or operating technique that the manufacturer
does not specifically recommend you must satisfy yourself that it is safe for you and others. You
must also make sure that the procedure work method or operating technique that you choose
does not render the generator unsafe.

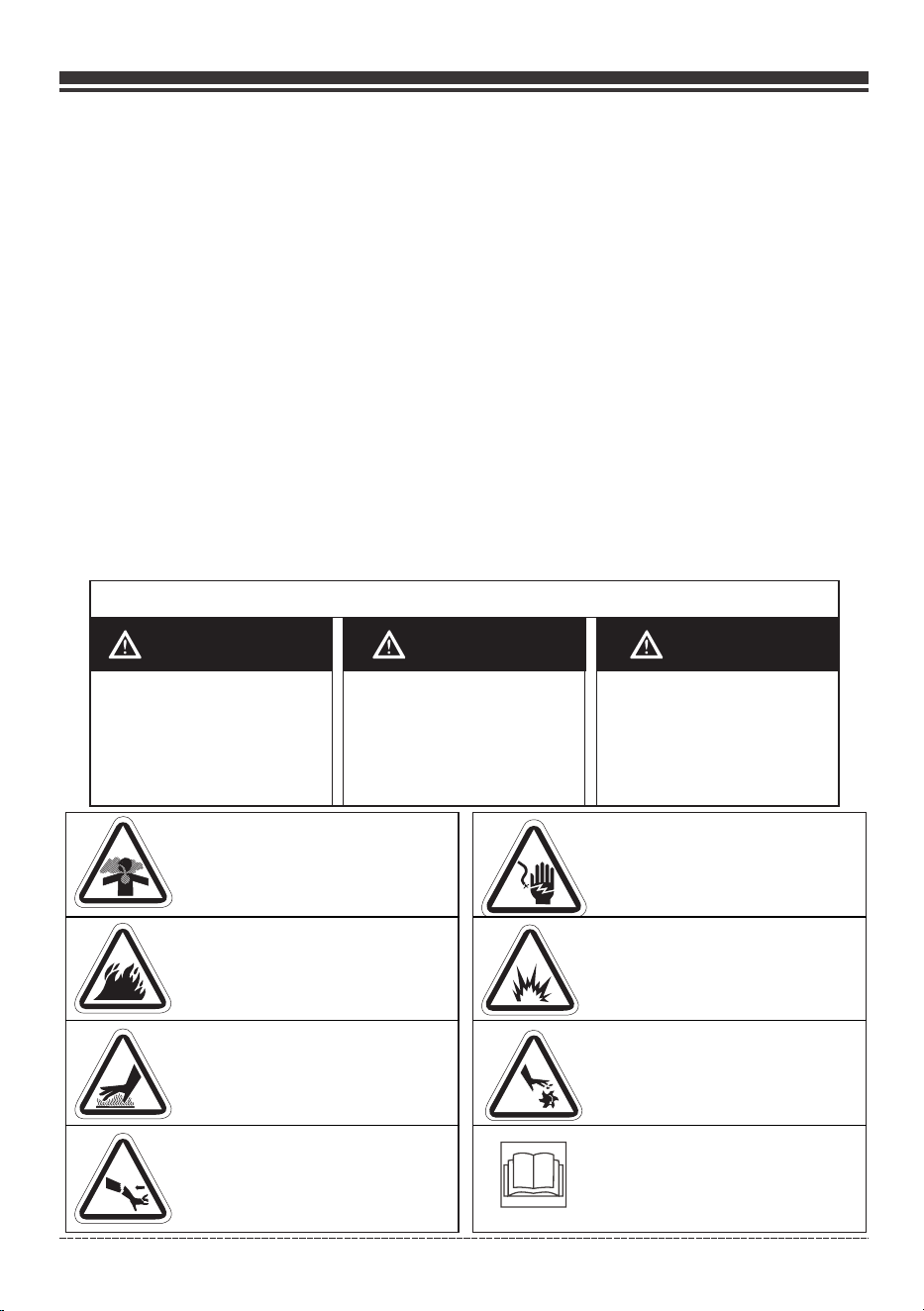

SAFETY INFORMATION
DANGER WARNING CAUTION
DANGER indicates a
potentially hazardous
situation which, if not
avoided. WILL result in
death or serious injury.
WARNING indicates a
potentially hazardous
situation which, if not
avoided, could result in
death or serious injury.
CAUTION indicates a
potentially hazardous
situation which, if not
avoided, may result in minor
or moderate personal injury,
or property damage.
Toxic Fumes
Fire Hazard
Hot Surface.
Do Not Touch the Surface.
Kickback
Risk of Electric Shock
Explosion Hazard
Rotating Parts Entanglement
Hazard
Operator’s Manual
INTRODUCTION
English Customer Service: 1-844-FIRMAN1
SAFETY PRECAUTIONS
Page 02

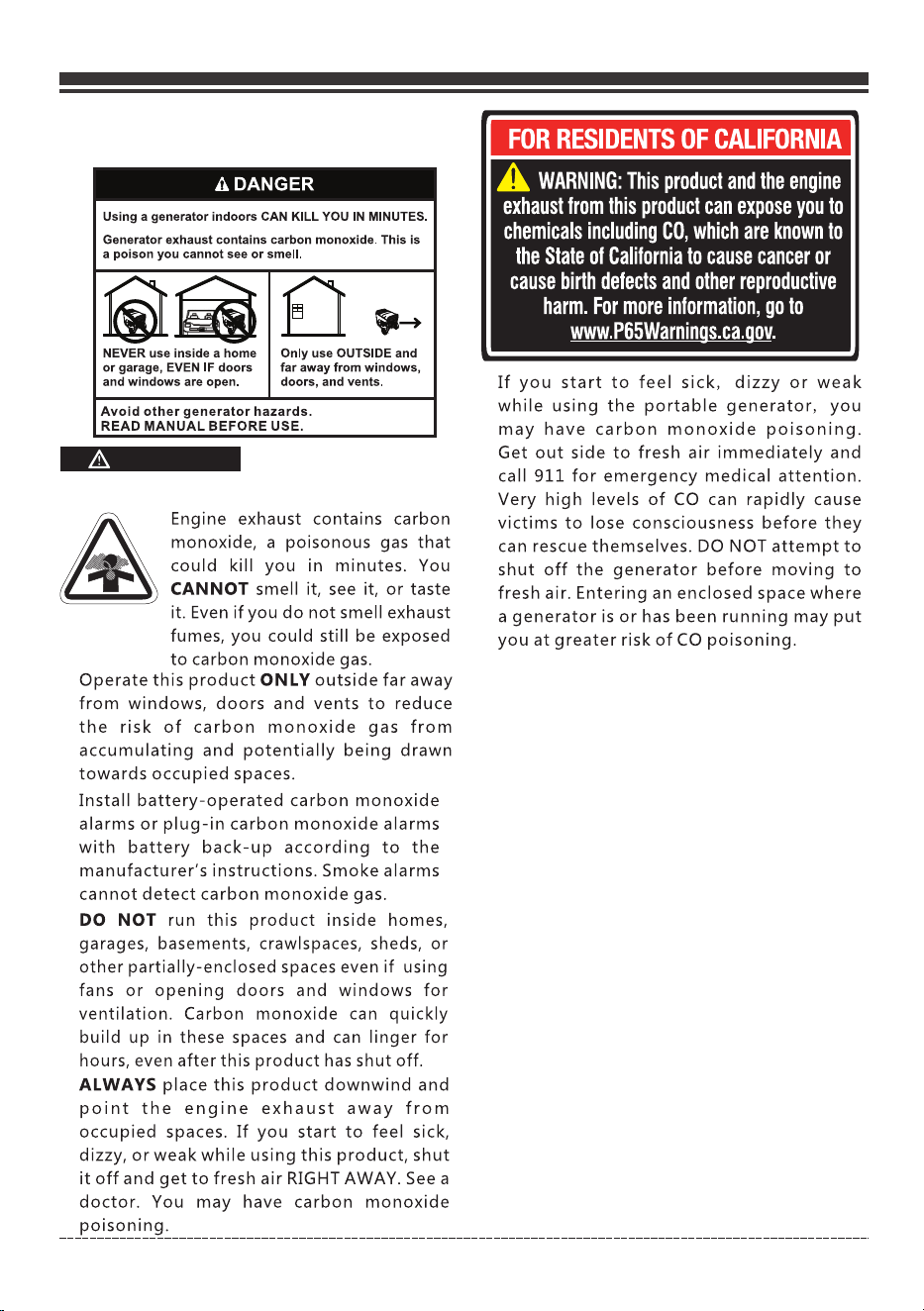

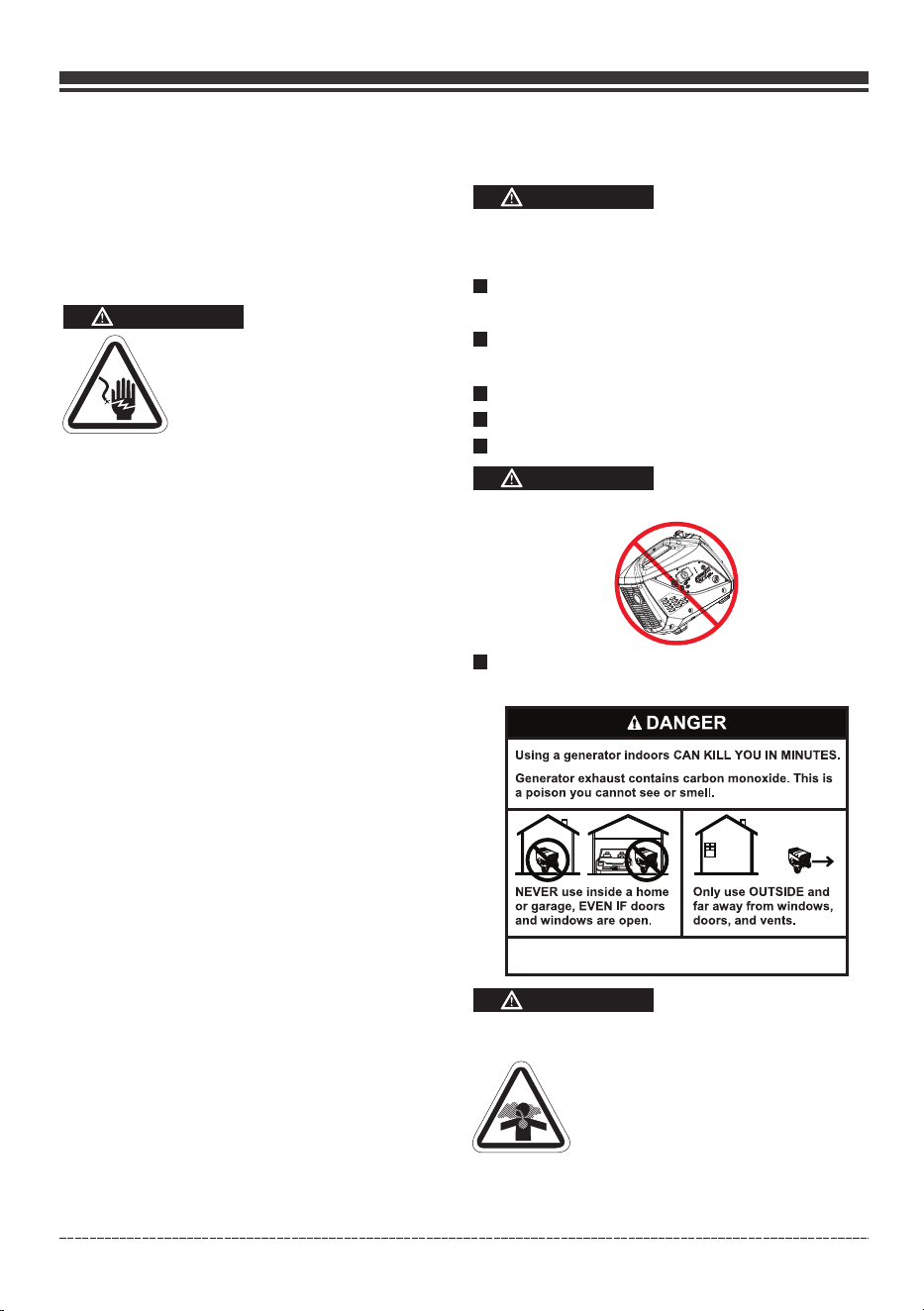

WARNING
POISONOUS GAS HAZARD.
•
•
•
•
•
English Customer Service: 1-844-FIRMAN1
Page 03

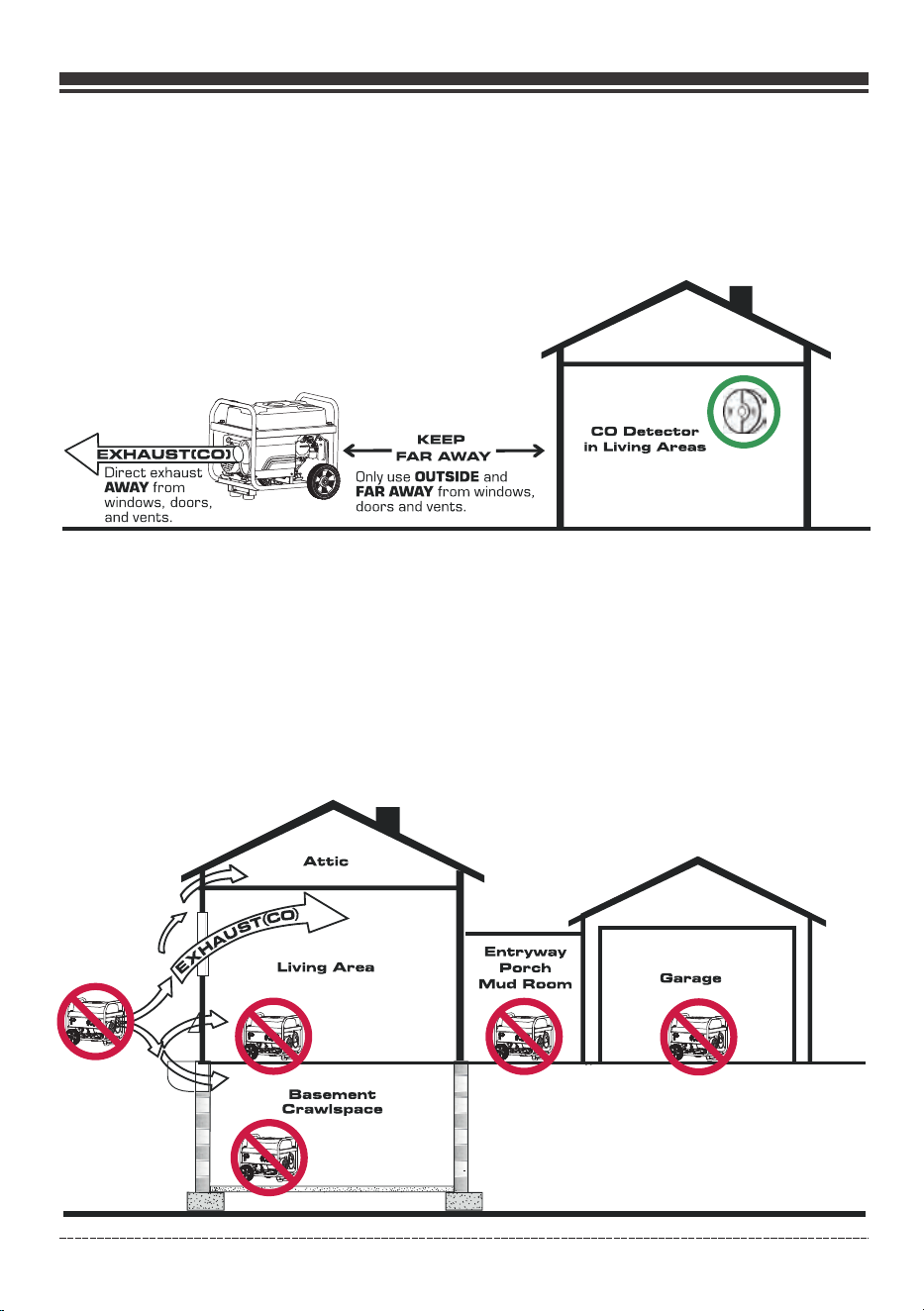

CORRECT USAGE
Example location to reduce risk of carbon monoxide poisoning
•
ONLY use outside and downwind, far away from windows, doors and vents.
•
Direct exhaust away from occupied spaces.
INCORRECT USAGE
Do not operate in any of the following locations:
Near any door, window or vent
Garage
Basement
Crawl Space
Living Area
Attic
Entry Way
Porch
Mudroom
English Customer Service: 1-844-FIRMAN1
Page 04
WHEN OPERATING EQUIPMENT
DO NOT operate this product inside any
building, carport, porch, mobile equipment,
marine applications, or enclosure.
•
DO NOT tip engine or equipment at angle
which causes fuel to spill.
DO NOT stop engine by moving choke
control to “Start” position.
•
•
WHEN TRANSPORTING, MOVING
OR REPAIRING EQUIPMENT
Transport/move/repair with fuel tank
EMPTY or with fuel shutoff valve OFF.
•
•
DO NOT tip engine or equipment at angle
which causes fuel to spill.
Disconnect spark plug wire.
•
WHEN STORING FUEL OR EQUIPMENT
WITH FUEL IN TANK
•
Store away from furnaces, stoves, water
heaters, clothes dryers, or other appliances
that have pilot light or other ignition source
because they could ignite fuel vapors.
WARNING
This generator does not meet U. S. Coast
Guard Regulation 33CFR-183 and should not
be used on marine applications.
•
•
Failure to use the appropriate U. S. Coast
Guard approved generator could result in
death or serious injury and/or property
damage.
WARNING
Generator voltage could cause
electrical shock or burn resulting
in death or serious injury.
•
WARNING
Starter cord kickback (rapid
retraction) will pull hand and arm
toward engine faster than you can
let go which could cause broken
bones, fractures, bruises, or
sprains resulting in serious injury.
When starting engine, pull cord slowly until
resistance is felt and then pull rapidly to
avoid kickback.
•
•
NEVER start or stop engine with electrical
devices plugged in and turned on.
WARNING
Fuel and its vapors are extremely flammable
and explosive which could cause burns, fire,
or explosion resulting in death or serious
injury and/or property damage.
WHEN ADDING OR DRAINING FUEL
Turn generator engine OFF and let it cool at
least 2 minutes before removing fuel cap.
Loosen cap slowly to relieve pressure in tank.
Fill or drain fuel tank outdoors.
•
•
DO NOT overfill tank. Allow space for fuel
expansion.
If fuel spills, wait until it evaporates before
starting engine.
•
Keep fuel away from sparks, open flames,
pilot lights, heat, and other ignition sources.
Check fuel lines, tank, cap, and fittings
frequently for cracks or leaks. Replace if
necessary.
DO NOT light a cigarette or smoke.
•
•
•
•
WHEN STARTING EQUIPMENT
Ensure spark plug, muffler, fuel cap, and air
cleaner are in place.
•
DO NOT crank engine with spark plug
removed.
•
Use approved transfer equipment, suitable
for the intended use, to prevent backfeed by
isolating generator from electric utility
workers.
English Customer Service: 1-844-FIRMAN1
Page 05
WARNING
Unintentional sparking
could cause fire or
electric shock resulting
in death or serious
injury.
WHEN ADJUSTING OR MAKING REPAIRS TO
YOUR GENERATOR
Disconnect the spark plug wire from the
spark plug and place the wire where it cannot
contact spark plug.
•
WHEN TESTING FOR ENGINE SPARK
Use approved spark plug tester.
•
DO NOT check for spark with spark plug
removed.
•
WARNING
Starter and other rotating parts
could entangle hands, hair,
c l ot hi ng , o r a c ce ss ori e s
resulting in serious injury.
NEVER operate generator without protective
housing or covers.
DO NOT wear loose clothing, jewelry or
anything that could be caught in the starter
or other rotating parts.
Tie up long hair and remove jewelry.
•
•
•
Excessively high operating speeds could result
in minor injury. Excessively low operating speeds
impose a heavy load.
DO NOT tamper with governor spring, links or
other parts to increase engine speed.
Generator supplies correct rated frequency
and voltage when running at governed speed.
DO NOT modify generator in any way.
•
•
DO NOT exceed the generator’s wattage
amperage capacity.
Start generator and let engine stabilize
before connecting electrical loads.
NOTE:
•
•
•
•
CAUTION
Exceeding generators wattage/amperage capacity
could damage generator and/or electrical devices
connected to it.
Connect electrical loads in OFF position,
then turn ON for operation.
Turn electrical loads OFF and disconnect
from generator before stopping generator.
•
•
•
DO NOT use generator with electrical cords
which are worn, frayed, bare or otherwise
damaged.
DO NOT operate generator in the rain or
wet weather.
DO NOT handle generator or electrical
cords while standing in water, while
barefoot, or while hands or feet are wet.
DO NOT allow unqualified persons or
children to operate or service generator.
•
WARNING
Exhaust heat/gases could ignite combustibles,
structures or damage fuel tank causing a fire,
resulting in death or serious injury and/or
property damage.
Contact with muffler area could cause burns
resulting in serious injury.
DO NOT touch hot parts and AVOID hot
exhaust gases.
Allow equipment to cool before touching.
It is a violation of California Public Resource
Code, Section 4442, to use or operate the
engine on any forest-covered, brush-covered,
or grass-covered land unless the exhaust
system is equipped with a spark arrester, as
defined in Section 4442, maintained in
effective working order. Other states or
federal jurisdictions may have similar laws.
Contact the original equipment manufacturer,
retailer, or dealer to obtain a spark arrester
designed for the exhaust system installed on
this engine.
Replacement parts must be the same and
installed in the same position as the original
parts.
•
•
•
•
When using generator for backup power,
notify utility company.
Use a ground fault circuit interrupter (GFCI)
in any damp or highly conductive area,
such as metal decking or steel work.
DO NOT touch bare wires or receptacles.
•
•
•
English Customer Service: 1-844-FIRMAN1
Page 06
•
•
•
•
•
Use generator only for intended uses.
If you have questions about intended use,
ask dealer or contact local service center.
Operate generator only on level surfaces.
DO NOT expose generator to excessive
moisture, dust, dirt, or corrosive vapors.
DO NOT insert any objects through cooling
slots.
If connected devices overheat, turn them off
and disconnect them from generator.
Shut off generator if:
-Electrical output is lost.
-Equipment sparks, smokes, or emits flames.
-Unit vibrates excessively.
•
•
WARNING
Medical and Life Support Uses.
In case of emergency, call 911 immediately.
NEVER use this product to power life support
devices or life support appliances.
NEVER use this product to power medical
devices or medical appliances.
Inform your electricity provider immediately
if you or anyone in your household depends
on electrical equipment to live.
Inform your electrical provider immediately
if a loss of power would cause you or anyone
in your household to experience a medical
emergency.
•
•
•
•
•
NOTE:
Improper treatment of generator could damage
it and shorten its life.
UNPACKING THE GENERATOR
Open carton and Remove packaging materials.
Remove generator, accessories boxes, and
literature from carton. If any items are missing
or damaged, contact our product service
department at 1-844-347-6261.
•
•
Parts Included
Your gasoline powered inverter generator ships
with the following parts:
English Customer Service: 1-844-FIRMAN1
1. Engine Oil(Bottle) . . . . . . . . . . . . . . . . . . . . . . . 1
2. Oil Funnel . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . 1
3. Wrench for Spark Plug . . . . . . . . . . . . . . . . . . . . 1
4. Screw Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
5. Battery Charge Cable . . . . . . . . . . . . . . . . . . . . .1
6. Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
7. Quick Reference Guide . . . . . . . . . . . . . . . . . . . 1
2
1
Quick
Reference
Guide
3
Manual
7
6
4
5
Page 07

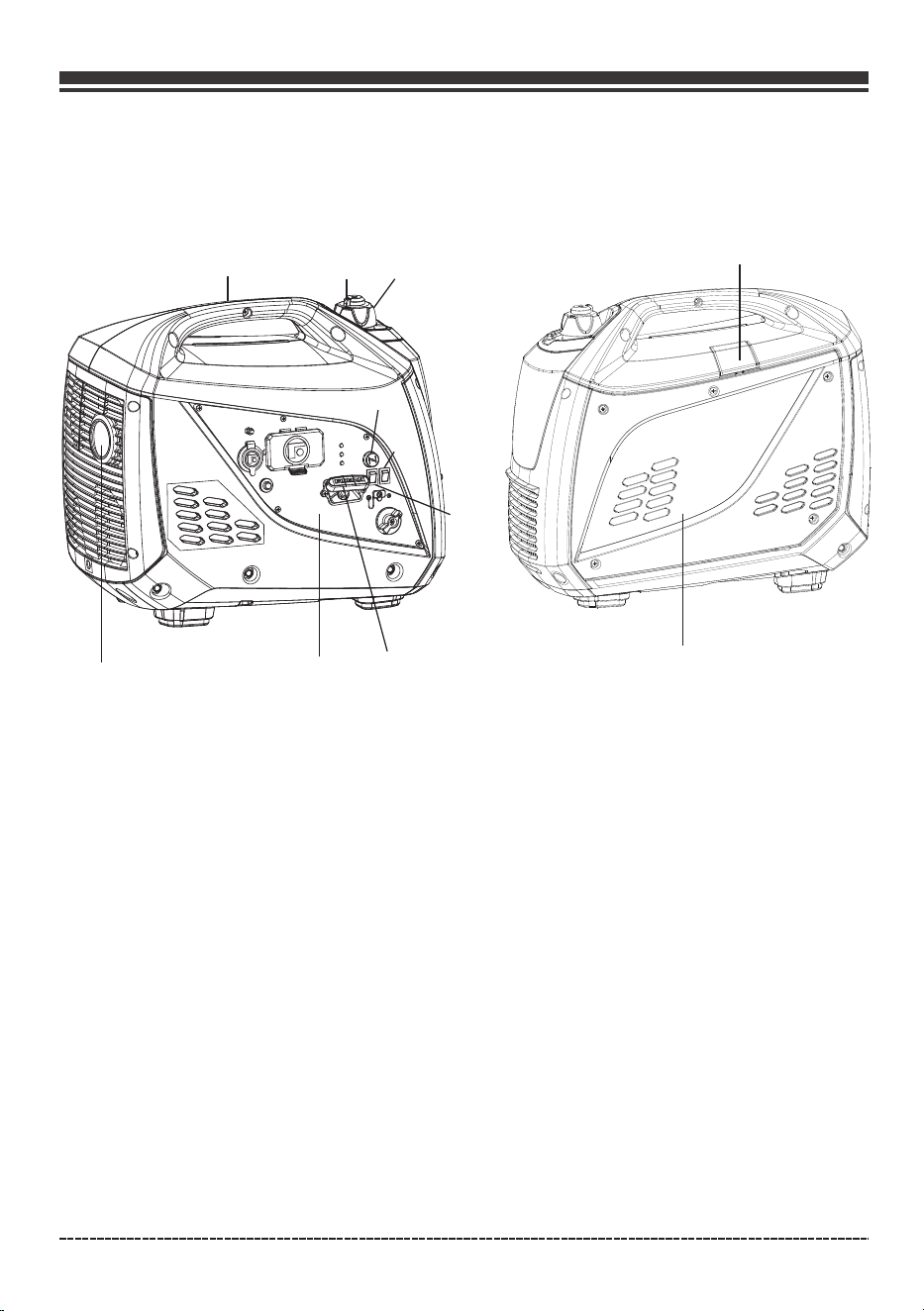

CONTROLS AND FEATURES
Generator
*We are always working to improve our products. Therefore, the enclosed product may differ
slightly from the image on this page.
1
1-
2- Fuel Lever Vent – Turn this valve to the “On” position to supply air to the tank.
3- Fuel Cap
4- Control Panel
5- Recoil Starter
6- Muffler/Spark Arrester
7- Spark Plug Access Cover
8- Maintenance Cover – Oil filler and air filter access.
9- Choke Knob
10- Engine ON/OFF Switch
11- Economy Control Switch
Carrying Handle
English Customer Service: 1-844-FIRMAN1
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
Page 08

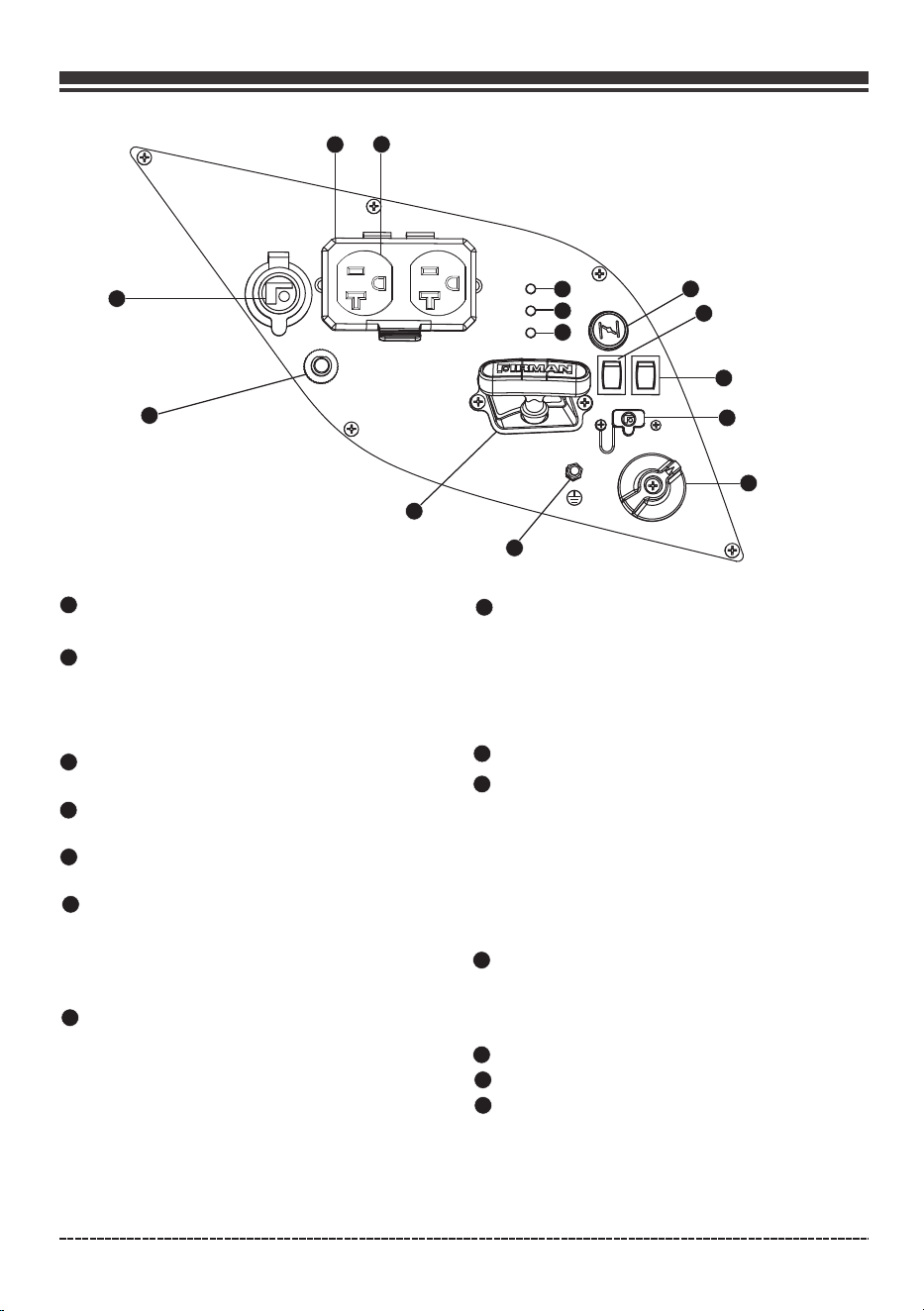

Control Panel
Engine Switch – Flip the switch to the “ON”
position and pull the recoil starter to start
the generator. Turn to the “OFF” position to
turn off the generator.
1
2
3
4
6
Ground Terminal – Consult an electrician for local
grounding regulations.
120V, 20A Duplex – (NEMA 5-20R) 20 Amp of current
may be drawn from this 120 Volt receptacle.
Total power drawn from all receptacles must not exceed the name plate rating.
NOTE:
Outlet Cover - Protect the receptacles from dust
and debris.
English Customer Service: 1-844-FIRMAN1
1
3
2
4
5
6
7
8
9
10
11
12
13
14
12V DC outlet – 5 Amp of DC current may be drawn
from this receptacle.
Use this outlet to charge 12V automotive type
batteries ONLY. See 12V DC outlet (Battery
Charger) section.
DC Circuit Breaker - The circuit protector may be reset
by pushing the button of the protector.
5
7
Oil Warning Indicator Light – Check oil level when
this light turns “ON”. Engine will not run when
indicator is lit.
8
Overload Indicator Light – This light turns “ON”
when the generator is overloaded and will cut
power to the receptacles.
9
Output Ready Indicator Light – Remains “ON”
during normal operating conditions. Shuts “OFF”
when generator is overloaded.
10
11
Choke Knob
Economy Control Switch
12
The Economy Control switch can be activated in order to
minimize fuel consumption and noise while operating the
unit during times of reduced electrical output, allowing
the engine speed to idle during periods of non-use. The
engine speed returns to normal when an electrical load is
connected. When the economy switch is off, the engine
runs at normal speed continuously.
13
14
Fuel Valve Knob
5V USB Outlet
Recoil Stater
When the oil falls below the minimum level, the oil
warning indicator light comes on and the engine
stops automatically. The engine will not start until
the proper amount of oil is in the crank case.
The green AC Power Indicator Light comes on
when the engine starts and generates power.
If the engine overload indicator light comes on, the
generator’s wattage / amperage capacity has been
exceeded by connected electrical devices or by a
power surge. When this occurs, the green AC Power
Indicator Light(Item 7) will go off. The engine will
continue to run, but the red Engine Overload Indicator
Light will stay on and power will no longer be supplied
to connected electronic devices.
Page 09
SPECIFICATIONS
AN IMPORTANT MESSAGE ABOUT TEMPERATURE:
Your Firman Power Equipment product is designed and rated for continuous operation at
ambient temperatures up to 40°C (104°F). When your product is needed, your product may be
operated at temperatures ranging from -15°C (5°F) to 50°C (122°F) for short periods. If the
product is exposed to temperatures outside this range during storage, it should be brought back
within this range before operation. In any event, the product must always be operated outdoors,
in a well-ventilated area and away from doors, windows and other vents.
When operated above 77°F(25°C) there may be a decrease in power.
Maximum wattage and current are subject to and limited by such factors as fuel BTU content
ambient temperature, altitude, engine condition and etc. Maximum power decreases about
3.5% for each 1,000 feet above sea level; and will also decrease about 1% for each 10°F(6°C)
above 60°F(16°C) ambient temperature.
•
•
Model
Rated AC Voltage
Phase
Power Factor
Voltage regulator
Alternator Type
Running Watts
Starting Watts
Engine
Engine Type
Displacement
Low Oil Shutdown
Ignition System
Starting System
Fuel
Capacity Fuel Tank
Lubricating Oil Capacity
Carburetor Type
Air Cleaner
P.T.O. shaft rotation
120V
W01783
1700
Digital
Single Phase
1
Single Cylinder, 4-Stroke OHV Air Cooled
80 cc
Breakless Ignition Type, Flywheel Magneto
Unleaded Automotive Gasoline
Recoil
0.9 Gallon
12.9 oz(0.38L)
Counter Clockwise (Facing P.T.O.)
Float
Polyurethane Type
YES
2100
FIRMAN
Rated Fequency
60Hz
Oil Type
See “Add Engine Oil” Section
English Customer Service: 1-844-FIRMAN1
Magneto Inductor
AC Grounding System
Neutral Bonded To Frame
THD
<3%

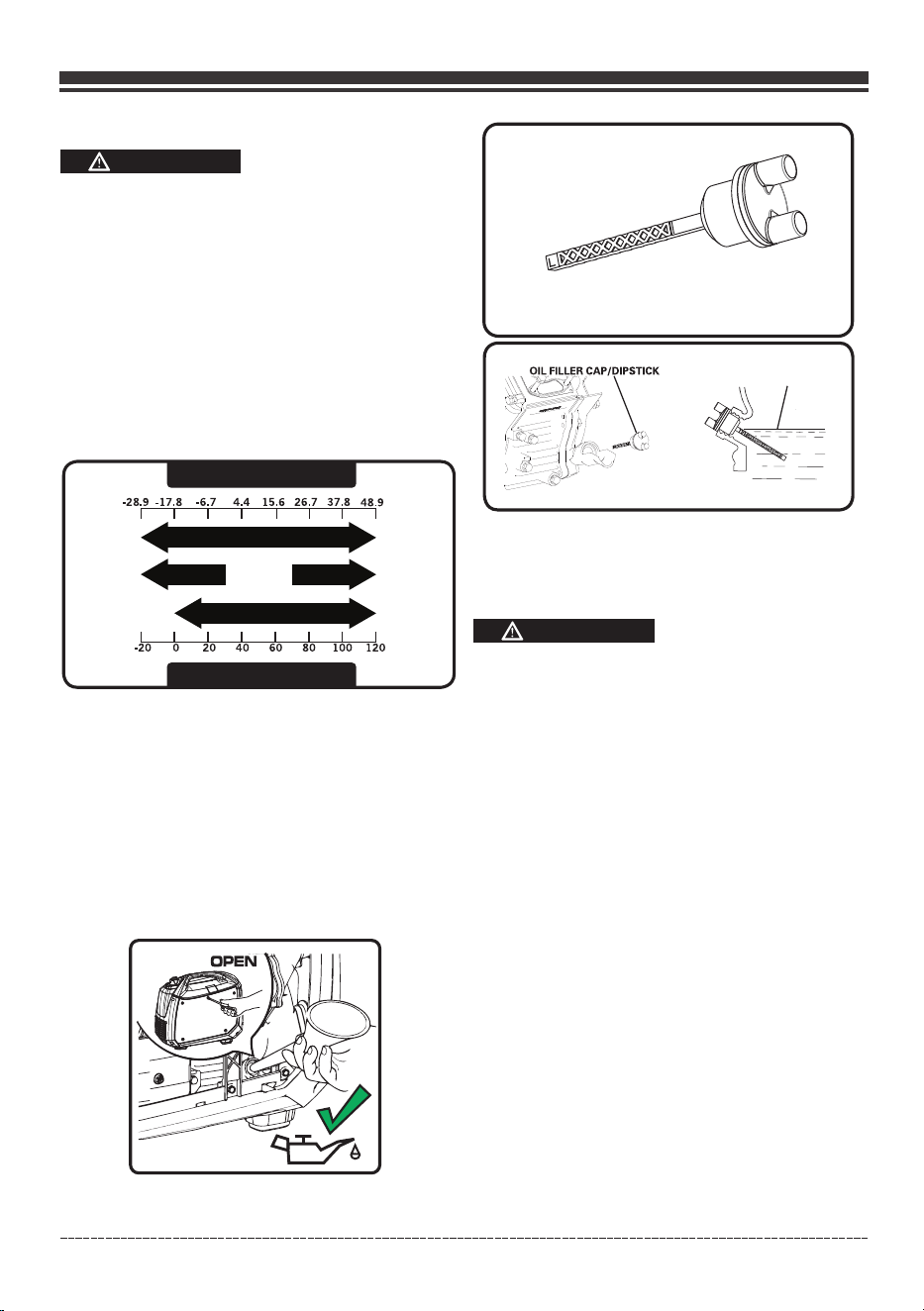

Add Engine Oil
Page 10
DO NOT attempt to crank or start the engine
before it has been properly filled with the
recommended type and amount of oil. Damage
to the generator as a result of failure to follow
these instructions will void your warranty.
1.Place generator on a flat and level surface.
2.Loosen the cover screw and remove the
maintenance cover.
NOTE:
The recommended oil type is 10W-30 automotive
oil. However outdoor temperatures will determine
the space proper oil viscosity for the engine. Use the
chart to select the best for the outdoor temperature
range expected.
The engine is equipped with a low oil shut-off and
will stop when the oil level in the crankcase falls
below the threshold level.
NOTE:
We consider the first 5 hours of run time to be
the break-in period for the unit. During the break
in period stay at or below 50% of the running
watt rating and vary the load occasionally to allow
stator windings to heat and cool. Adjusting the
load will also cause engine speed to vary and help
seat piston rings.
CAUTION
The unit is equipped with a low oil shutdown.If
the oil level becomes lower than required,the
sensor will activate a warning device or stop the
engine.
If generator shuts off and the oil level is within
specifications, check to see if generator is sitting
at an angle that forces oil to shift. Place on an
even surface to correct this. If engine fails to
start, the oil level may not be sufficient to
deactivate low oil level switch. Make sure the
sump is completely full of oil.
5.Replace oil fill cap/dipstick and fully tighten.
6.Reinstall maintenance cover and tighten screws.
4.Using oil funnel, slowly pour contents of
provided oil bottle into oil fill opening to the
"H" mark on dipstick. Be careful do not
overfill. Overfilling with oil could cause the
engine to not start or hard starting.
Low oil shutdown
Degrees Celsiusº(Outside)
Full Synthetic 5W-30
Degrees Fahrenheitº(Outside)
5W-30 10W-40
10W-30
CAUTION
English Customer Service: 1-844-FIRMAN1
3.Remove oil fill cap/dipstick .
7.Oil Level should be checked prior to each use or
at least 8 hours or operation. Keep oil level maintained.
HIGH
H
H
L

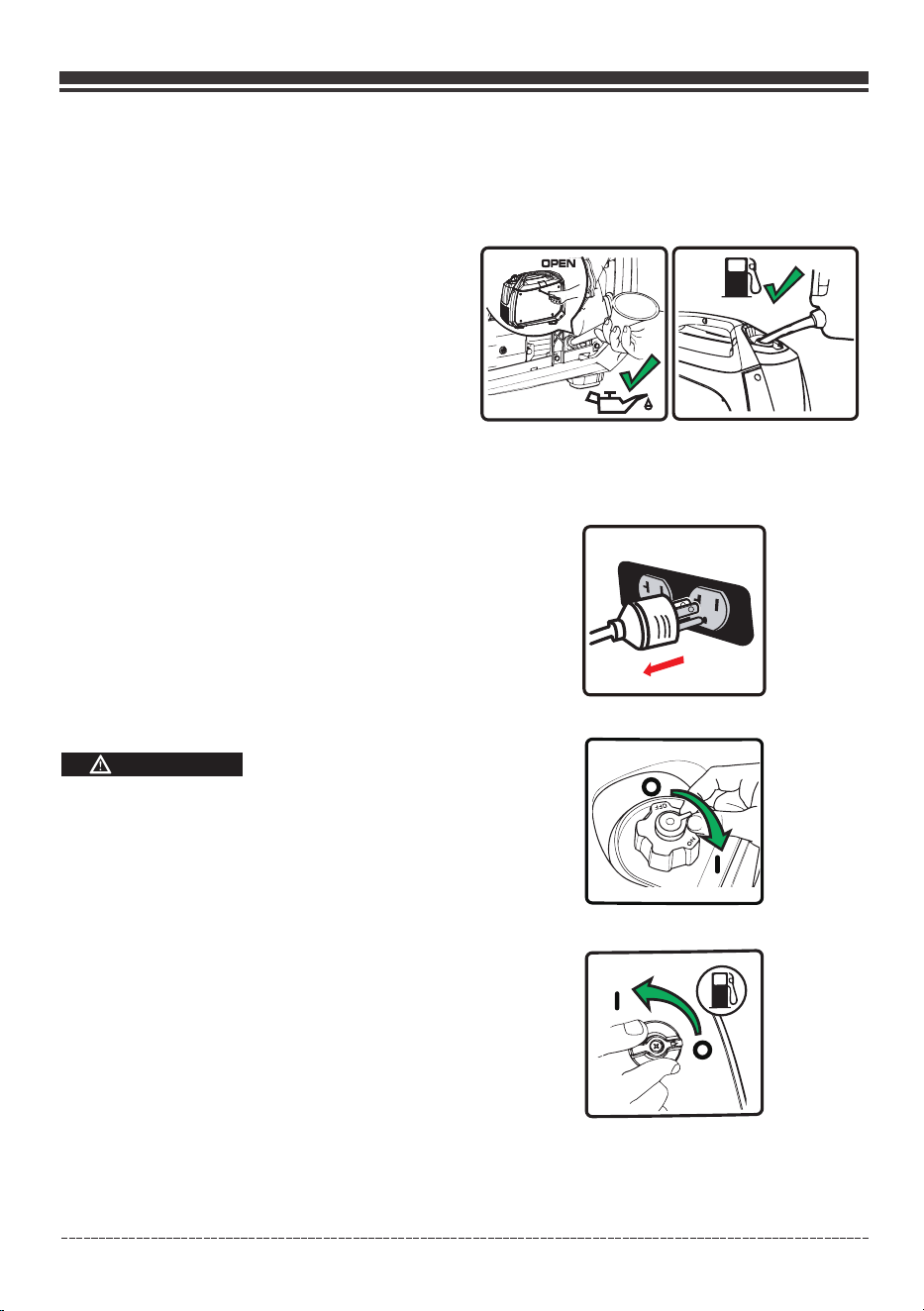

Add Fuel
Page 11
Fuel must meet these requirements:
•
Clean, fresh, unleaded gasoline.
Use regular UNLEADED gasoline with the
generator engine with a minimum 87 octane
/ 87 AKI (91 RON).
For high altitude use, see "Operation at High
Altitude".
Do not use gasoline with more than 10%
alcohol such as E85 or ethanol.
•
•
Failure to follow Operator's Manual for fuel
recommendations voids warranty.
Avoid generator damage.
DO NOT use unapproved gasoline such as E85.
DO NOT mix oil in gasoline.
DO NOT modify engine to run on alternate fuels.
•
•
•
WARNING
Fuel and its vapors are extremely flammable
and explosive which could cause burns, fire or
explosion resulting in death, serious injury
and/or property damage.
WHEN ADDING FUEL
Fill fuel tank outdoors.
DO NOT overfill tank. Allow space for fuel
expansion. If the tank is overfilled, fuel
can overflow onto a hot engine and cause fire
or explosion. Wipe up any spilled fuel
immediately.
If fuel spills, wait until it evaporates before
starting engine.
Keep fuel away from sparks, open flames,
pilot lights, heat, and other ignition sources.
Check fuel lines, tank, cap and fittings
frequently for cracks or leaks. Replace if
necessary.
DO NOT light a cigarette or smoke when
filling the fuel tank.
•
•
•
•
1.Clean area around fuel fill cap, remove cap.
2.Slowly add unleaded fuel to fuel tank. Be
careful not to fill above the red fuel level
indicator . This allows adequate space for
fuel expansion.
3.Install fuel cap and let any spilled fuel
evaporate before starting engine or wipe up
any spilled gasoline.
English Customer Service: 1-844-FIRMAN1
Grounding
The National Electric Code requires your generator
must be properly connected to an appropriate
ground to help prevent electric shock.
Failure to properly ground the
generator can result in electric
shock.
WARNING
A ground terminal connected to the frame of
the generator has been provided on the control
panel. For remote grounding, connect of a
length of heavy gauge (12 AWG minimum)
copper wire between the generator ground
terminal and a copper rod driven into the
ground. We strongly recommend that you
consult with a qualified electrician to ensure
compliance with local electrical codes.
THERE IS A PERMANENT CONDUCTOR BETWEEN
THE GENERATOR (STATOR WINDING) AND THE
FRAME.
CAUTION
Slowly add unleaded gasoline to fuel tank.
Do not overfill tank.
Do not fill above the red line indicator.
This will allow expansion in hot weather
and prevent overflow.
•
•
•
Red Line Indicator
Page 12
Use approved transfer equipment to prevent
backfeed by isolating generator from electric
utility workers.
When using generator for backup power, notify
utility company.
Use a ground fault circuit interrupter (GFCI) in
any damp or highly conductive area, such as
metal decking or steel work.
DO NOT touch bare wires or receptacles.
DO NOT use generator with electrical cords
which are worn,frayed, bare or otherwise
damaged.
DO NOT operate generator in the rain or wet
weather.
DO NOT handle generator or electrical cords
while standing in water, while barefoot, or
while hands or feet are wet.
DO NOT allow unqualified persons or children
to operate or service generator.
Connecting to a Building's Electrical System
Connections for standby power to a building's
electrical system must be made by a qualified
electrician. The connection must isolate the
generator power from utility power or other
alternative power sources and must comply
with all applicable laws and electrical codes.
WARNING
Generator voltage could cause
electrical shock or burn resulting
in death or serious injury.
•
•
•
•
•
•
•
•
English Customer Service: 1-844-FIRMAN1
OPERATION
Generator Location
Make sure you review each warning in order to
prevent fire hazard.
Keep area clear of inflammables or other
hazardous materials.
Select a site that is dry, well ventilated and
protected from the weather.
Keep exhaust pipe clear of foreign objects.
Keep generator away from open flame.
Keep generator on a stable and level surface.
WARNING
WARNING
POISONOUS GAS HAZARD.
Engine exhaust contains carbon
monoxide, a poisonous gas that
could kill you in minutes. You
CANNOT smell it, see it, or taste
it. Even if you do not smell exhaust
fumes, you could still be exposed
to carbon monoxide gas.
Avoid other generator hazards.
READ MANUAL BEFORE USE.
Do not block generator air vents with paper or
other material.
CAUTION
Tilting can cause fuel spillage.
Page 13
Surge Protection
Voltage fluctuation may impair the proper
functioning of sensitive electronic equipment.
Electronic devices, including computers and
many programmable appliances use components
that are designed to operate within a narrow
voltage range and may be affected by momentary
voltage fluctuations. While there is no way to
prevent voltage fluctuations, you can take steps
to protect sensitive electronic equipment.
Install UL1449, CSA-listed, plug-in surge
suppressors on the outlets feeding your
sensitive equipment. Surge suppressors come
in single- or multi-outlet styles. They’re
de s ig n ed t o p r ot ec t a g a in st v i rt u al ly
all short-duration voltage fluctuations.
Operate this product ONLY outside far away
from windows, doors and vents to reduce
the risk of carbon monoxide gas from
accumulating and potentially being drawn
towards occupied spaces.
•
•
Install battery-operated carbon monoxide
alarms or plug-in carbon monoxide alarms
with battery back-up according to the
manufacturer’s instructions. Smoke alarms
cannot detect carbon monoxide gas.
•
DO NOT run this product inside homes,
garages, basements, crawlspaces, sheds, or
other partially-enclosed spaces even if using
fans or opening doors and windows for
ventilation. Carbon monoxide can quickly
build up in these spaces and can linger for
hours, even after this product has shut off.
•
ALWAYS place this product downwind and
point the engine exhaust away from
occupied spaces. If you start to feel sick,
dizzy, or weak while using this product, shut
it off and get to fresh air RIGHT AWAY. See a
doctor. You may have carbon monoxide
poisoning.
CAUTION
English Customer Service: 1-844-FIRMAN1

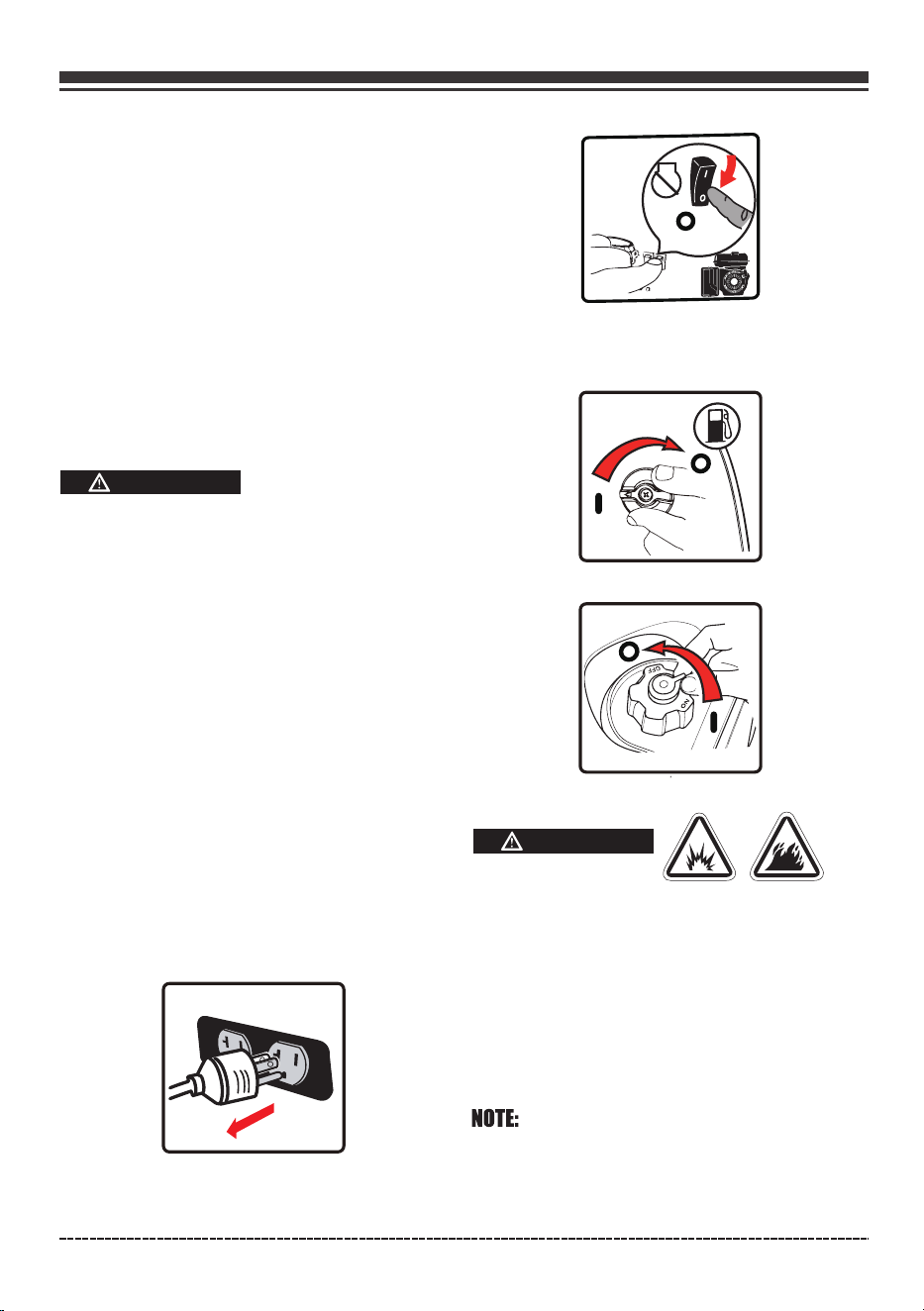

Starting the Generator
1. Before starting the generator, check for loose
or missing parts and for any damage which
may have occurred during shipment.
2. Check oil level and fuel.
3. Disconnect all electrical loads from the
generator. Never start or stop the generator
with electrical devices plugged in or turned
on.
4. Turn the fuel cap vent lever to the “O ”(l) position.N
5. Turn the fuel valve to the “ON”(l) position.
Page 14
If engine starts after 3 pulls but fails to run, or if
unit shuts down during operation, make sure
unit is on a level surface and check for proper
oil level in crankcase. This unit may be equipped
with a low oil protection device. If so, oil must
be at proper level for engine to start.
Keep choke lever in “START” position for only 1
pull of the recoil starter. After first pull, move
choke lever to the “RUN” position for up to the
next 3 pulls of the recoil starter. Too much
choke leads to sparkplug fouling/engine
flooding due to the lack of incoming air. This
will cause the engine not to start.
9. Do not over-choke. As soon as engine starts
and warm up, push the choke lever in to the
“RUN” position.
10. Allow generator to run at no load for few
minutes upon each initial start-up to permit
engine and generator to stablize.
Starter cord kickback(rapid
retraction) will pull hand and arm
toward engine faster than you can
let go which could cause broken
WARNING
When starting engine, pull cord slowly until
resistance is felt and then pull rapidly to avoid
kickback.
8. Pull the starter cord slowly until resistance is
felt and then pull rapidly.
English Customer Service: 1-844-FIRMAN1
6. Pull the choke lever out to the “START” position.
7. Flip the engine switch to the “ON”(l) position.
bones, fractures, bruises, or sprains resulting in
serious injury.
Connecting Electrical Loads
1.Let engine stabilize and warm up for a few
minutes after starting.
2.Ensure circuit breaker on control panel is in
on position.
This unit has been pretested and adjusted to
handle its full capacity. Before starting the
generator, disconnect all load. Apply load only
after generator is running. Voltage is regulated
via the engine speed adjusted at the factory for
correct output. Readjusting will void warranty.
CAUTION
When applying a load, do not exceed the maximum
wattage rating of the generator when using one or
more receptacles. Also, do not exceed the amperage
rating of any one receptacle.
Do not apply heavy electrical load during break-in
period (the first five hours of operations).
3.Plug in and turn on the desired 120 Volt AC,
single phase, 60Hz electrical loads. It is
better to attach the item with largest load first.
Page 15
electrical system, consult your local utility
company or a qualified electrician. Connections
must isolate generator power from utility
power and must comply with all applicable laws
and codes.
English Customer Service: 1-844-FIRMAN1
Connecting a generator to your electric utility
company’s power lines or to another power
source may be against the law. In addition this
action, if done incorrectly, could damage your
generator and appliances and could cause
serious injury or even death to you or a utility
worker who may be working on nearby power
lines. If you plan to run a portable electric
generator during an outage, please notify your
electric utility company immediately and
remember to plug your appliances directly into
the generator. Do not plug the generator into
any electric outlet in your home. Doing so could
create a connection to the utility company
power lines. You are responsible for ensuring
that your generator’s electricity does not feed
back into the electric utility power lines.
If the generator will be connected to a building
Economy Control Switch
The Economy Control switch can be activated in
order to minimize fuel consumption and noise
while operating the unit during times of reduced
electrical output, allowing the engine speed to
idle during periods of non-use. The engine speed
returns to normal when an electrical load is
connected. When the economy switch is off, the
engine runs at normal speed continuously.
WARNING
For periods of high electrical load or momentary
fluctuations, the Economy Control Switch should
be turned OFF.
12V DC Outlet (Battery Charger)
The 12V DC outlet is ONLY to be used with the
supplied 12V battery charging cable. The DC
output is unregulated and can damage some
12V DC products. This means that the charging
output dose not decrease as the battery reaches
full charge.
CAUTION
Storage batteries give off EXPLOSIVE hydrogen
gas while charging. Do not allow smoking, open
flames, sparks, or spark producing equipment
in the area while charging.
WARNING
The amount of current flowing will depend on the
charging voltage and battery's state of charge. As
the battery becomes more fully charged, the output
current to the battery decreases and nearly becomes
constant. Taper chargers are intended to be used
with the provision that they will be disconnected
from the battery after a maximum time on charge.
Normally a period of 30 to 120 minutes is sufficient
to recharge a weak battery. The charge level of the
battery should be checked periodically.
Do not start the vehicle while the battery charging
Cable is connected and the generator is running.
It will not give the battery a boost of power. The
Vehicle or the generator may be damaged.
Your generator has the capability of charging 12V
DC automotive or utility style storage battery
(NOT OTHER TYPE).
For use with 12V direct current outlet, always
keep the ECO mode deactivated (OFF Position).
You can use the 12V direct current outlet and
the 120V current at the same time, but keep the
ECO mode deactivated(OFF Position) at all times.
•
•
Battery electrolyte fluid is comprised of sulfuric
acid that can be very dangerous and cause severe
burns. Do not allow this fluid to contact eyes, skin,
clothing, etc. If contact or spillage does occur,
flush the area with water immediately.
WARNING
Do not continue to charge a battery that becomes
hot or is fully charged.
Page 16
English Customer Service: 1-844-FIRMAN1
A DC circuit protector has been provided to
protect the circuit from overloads. If an overload
occurs, the circuit protector will trip. The circuit
protector may be reset by pushing the button of
the protector.
DC CIRCUIT PROTECTOR
Charging a large capacity battery or a totally
discharged battery may cause the DC breaker to
turn off. In these cases, a separate battery charger
unit connected to an AC power source is
recommended instead of the DC receptacle on
the generator. The DC circuit protector dose not
prevent overcharging.
2. Plug the battery charging cable into the DC
receptacle of the generator.
3. Connect the red (+) battery charger lead to the
red (+) battery terminal.
4. Connect the black (–) battery charger lead to
the black (–) battery terminal.
5. Start the generator.
NOTE:
When the battery circuit is in use the AC capacity
is reduced by 60 watts. Make sure the combined
load is within the rated limits.
WARNING
Do not continue to charge a battery that becomes
hot or is fully charged.
Stopping the Engine
1. Turn off and remove entire electrical loads.
Never start or stop the generator with
electrical devices plugged in or turned on.
Let the generator run at no-load for two
minutes to stabilize internal temperatures
of the engine and generator.
2. Press the engine switch to the “OFF”(O) position.
WARNING
If a cover is used, do not install until unit has cooled.
Fuel and its vapors are extremely flammable and
explosive which could cause burns, fire or
explosion resulting in death, serious injury
and/or property damage.
3. Turn the fuel valve to the “OFF”(O) position.
Do not leave the generator until it has
completely stopped.
4. Turn the fuel cap vent lever to the “O ”(O) position.FF
DO NOT stop engine by moving choke control
to “START” position.
Important: Always ensure that the Fuel Valve
and the Engine Switch are in the “OFF” position
when the engine is not in use.
If the engine will not be used for a period of two
weeks or longer, please see the Storage section
for proper engine and fuel storage.
1. Before connecting the battery charging cable
to a battery that is installed in a vehicle, disconnect
the vehicle battery ground cable from the
negative (–) battery terminal.
Page 17
English Customer Service: 1-844-FIRMAN1
Low Oil Shutdown
If the engine oil drops below a preset level, an
oil switch will stop the engine. Check oil level
with dipstick.
If oil level is between the LOW and HIGH mark on
dipstick:
1.Add oil to bring level to HIGH mark.
2.Restart engine and if the engine stops again
a low oil condition may still exist. DO NOT try
to restart the engine.
3.Contact an Authorized FIRMAN Service Dealer.
4.DO NOT operate engine until oil level is
corrected.
Do Not Overload Generator
Overloading a generator in excess of its rated
wattage capacity can result in damage to the
generator and to connected electrical devices.
To prolong the life of your generator and
attached devices, follow these steps to add
electrical load:
1. Start the generator with no electrical load
attached.
2. Allow the engine to run for several minutes
to stabilize.
3. Plug in and turn on the first item. It is best to
attach the item with the largest load first.
4. Allow the engine to stabilize.
5. Plug in and turn on the next item.
6. Allow the engine to stabilize.
7. Repeat steps 5-6 for each additional item.
Overload Operation
The overload indicator light will turn on when
the load exceeds 1764W(approximately). If the
load exceeds 1860W(approximately), the light
will blink and cut power to the receptacles in 30
seconds.
1.DO NOT try to restart the engine.
2.Contact an Authorized FIRMAN Service Dealer.
3.DO NOT operate engine until oil level is corrected.
If oil level is below the LOW mark on dipstick:
1. Disconnect any electronic devices, and then
stop the engine.
2. Reduce the total wattage of connected
electronic devices until it is within the generator’s
rated output.
3. Inspect the Air Inlet and Control Panel for any
blockage. Remove blockage if found.
4. Restart Engine.
How to Correct
Page 18
English Customer Service: 1-844-FIRMAN1
MAINTENANCE AND STORAGE
MAINTENANCE SCHEDULE
General Recommendations
Regular maintenance will improve the performance and extend the life of the generator. See any
authorized dealer for service.
The generator's warranty does not cover items that have been subjected to operator abuse or
negligence. To receive full value from the warranty, the operator must maintain the generator as
instructed in this manual.
Some adjustments will need to be made periodically to properly maintain your generator.
All service and adjustments should be made at least once each season. Follow the requirements
in the Maintenanc Shedule chart above.
Notice Once a year you should clean or replace the spark plug and replace the air filter. New
spark plugs and clean air filter assure proper fuel-air mixture and help your engine run better
and last longer.
ITEM NOTES
Daily(Before
operation)
Initial
25 hours
Every
50 hours
Every
100 hours
(or annual)
Fittings/
Fasteners
Spark Plug
Engine Oil
Air Filter
Fuel Line
Exhaust
System
Engine
Check condition. Adjust gap
and clean. Replace if necessary.
Check oil level.
Clean, replace if necessary.
Check for leakage. Retighten or
replace gasket if necessary.
Check adjust valve clearance.
Clean combustion chamber.
Check. Replace if necessary.
Check fuel hose for cracks or other
damage. Replace if necessary.
√
√
√
√
√
√
√
√
√
√
Replace.
Check spark arrester screen.
Clean/Replace if necessary.
Every
250 hours
√
To be performed by knowledgable/experienced owner or by authorized service center.
*
*
*
Fuel Filter
Clean fuel filter and fuel tank
strainer. Replace if necessary.
√
Page 19
English Customer Service: 1-844-FIRMAN1

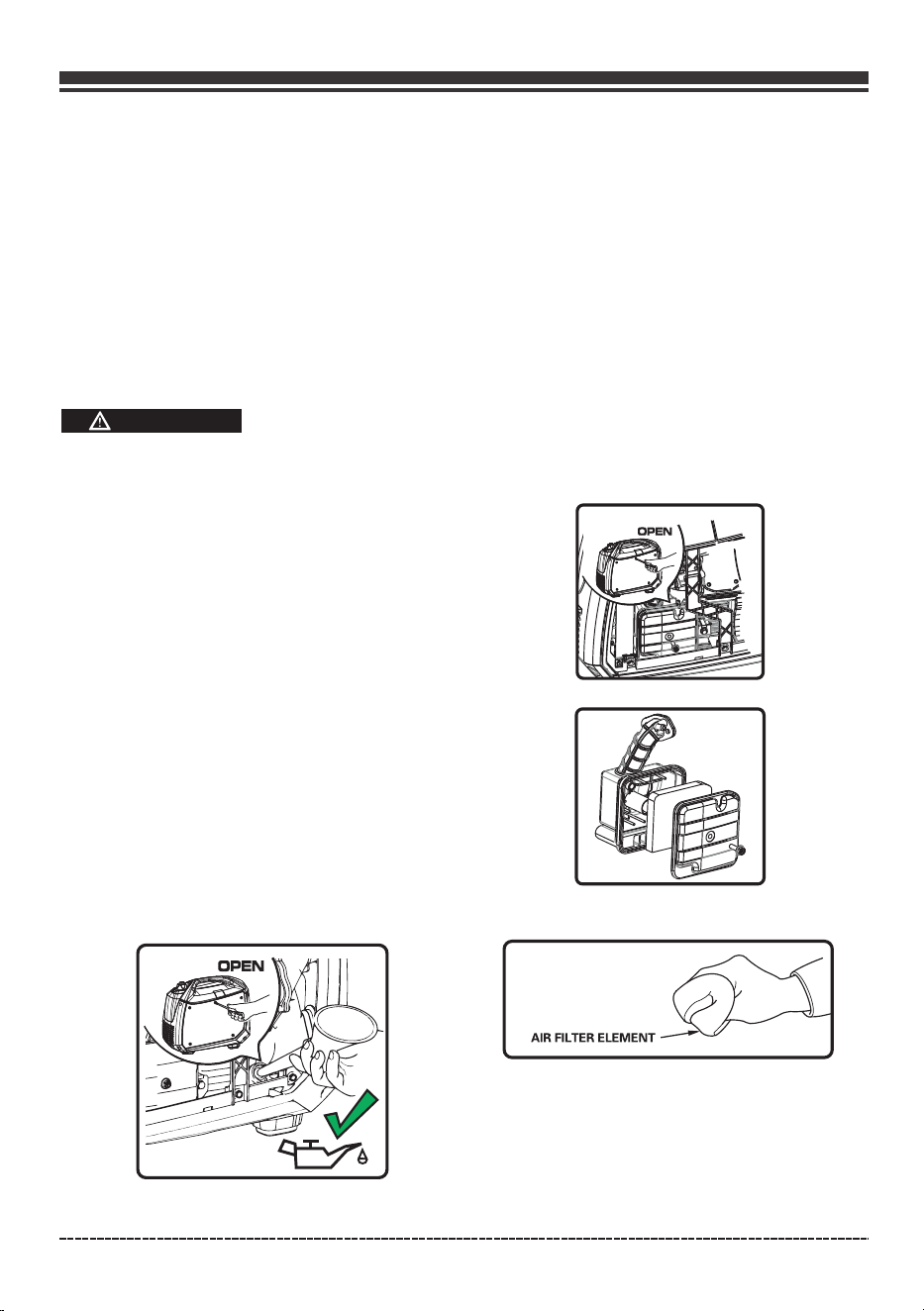

ENGINE MAINTENANCE
Air Filter Maintenance
Use fresh and high quality lubricating oil to the
specified quantity.
If contaminated or deteriorated oil is used or
the quantity of the engine oil is not sufficient,
the engine damage will result and its life will be
greatly shortened.
NOTE:
Change Engine Oil
To prevent accidental starting, remove and
ground spark plug wire before performing any
service.
If you are using your generator under extremely
dirty or dusty conditions, or in extremely hot
weather, change the oil more often.
Avoid prolonged or repeated skin contact with
used motor oil.
CAUTION
Used motor oil has been shown to cause skin
cancer in certain laboratory animals.
Thoroughly wash exposed areas with soap
and water.
•
•
•
Change engine oil every 100 hours.
(for a new engine, change oil after 25 hours.)
Please use a container to dump the
used oil for protecting the environment.
Maintaining an air filter in proper condition is
very important. Dirt induced through improperly
installed, improperly serviced, or inadequate
elements damages and wears out engines.
Always keep the element clean.
(
(d) Put the element in the case and install it
securely.
(a) Loosen the cover screws and remove the
maintenance cover.
(b) Remove the oil filler cap/dipstick.
(c) Tilt the generator on its side and allow the oil to
drain completely.
(d)
. DO NOT OVERFILL.
(e) Reinstall the maintenance cover and tighten the
cover screws.
(f) Dispose of used oil at an approved waste
management facility.
Fill the engine with oil until it reaches the HIGH
(H) level on the oil filler cap
(a) Remove the maintenance cover and locate the
air filter plastic cover.
(e) Reattach the air filter cover.
(f) Reinstall the maintenance cover and tighten the
cover screw securely.
c) After wetting the element by clean engine
oil squeeze it tight by hand.
(b) Remove the foam element.
Page 20

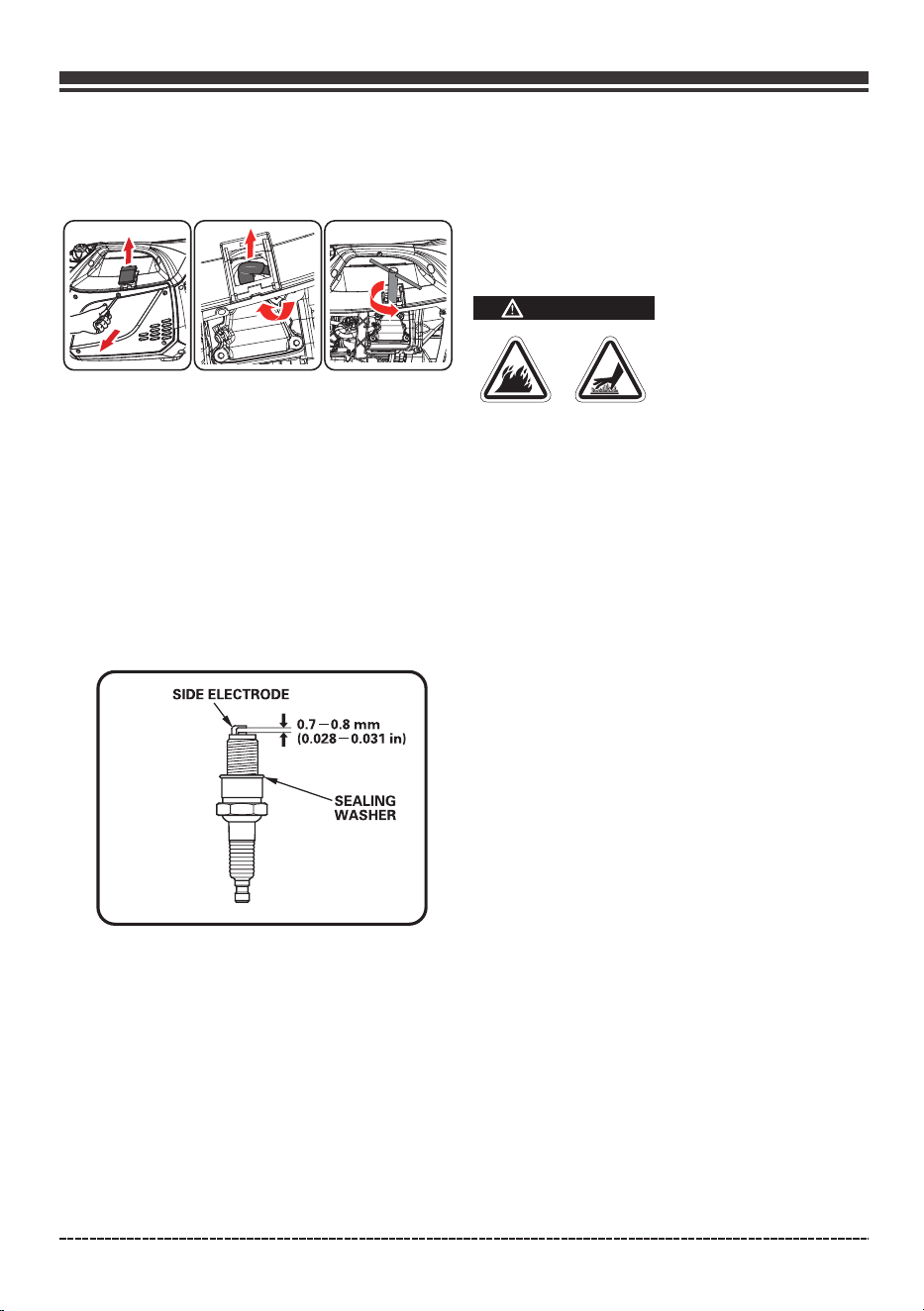

Spark Plug Maintenance
Changing the spark plug will help your engine
to start easier and run better.
(e) Adjust the electrode gap to 0.7 to 0.8 mm
(0.028” to 0.031”).
(f) Seat spark plug in position and thread by
hand to prevent cross threading.
(g) Tighten plug with provided wrench and put
the cap back on spark plug.
SPARK PLUG:
(c)
(d) Inspect spark plug for damage and clean
with a wire brush before reinstalling
Remove spark plug using provided wrench.
Inspect Muffler and Spark Arrester
Inspect the muffler for cracks, corrosion, or
other damage. Remove the spark arrester, if
equipped, and inspect for damage or carbon
blockage. If replacement parts are required,
make sure to use only original equipment
replacement parts.
Exhaust heat/gases could ignite combustibles,
structures or damage fuel tank causing a fire,
resulting in death or serious injury and/or
property. Contact with muffler area could cause
burns resulting in serious injury.
WARNING
English Customer Service: 1-844-FIRMAN1
(a) Remove the spark plug cover.
(b) Remove the spark plug cable from the spark
plug.
NGK BPR6HS
Champion RL87YC
Torch E6RTC or equivalent
DO NOT touch hot parts and AVOID hot exhaust
gases.
Allow equipment to cool before touching.
Keep at least 5 feet (1.5 m) of clearance on all
sides of generator including overhead.
Replacement parts must be the same and
installed in the same position as the original
parts.
•
•
•
•

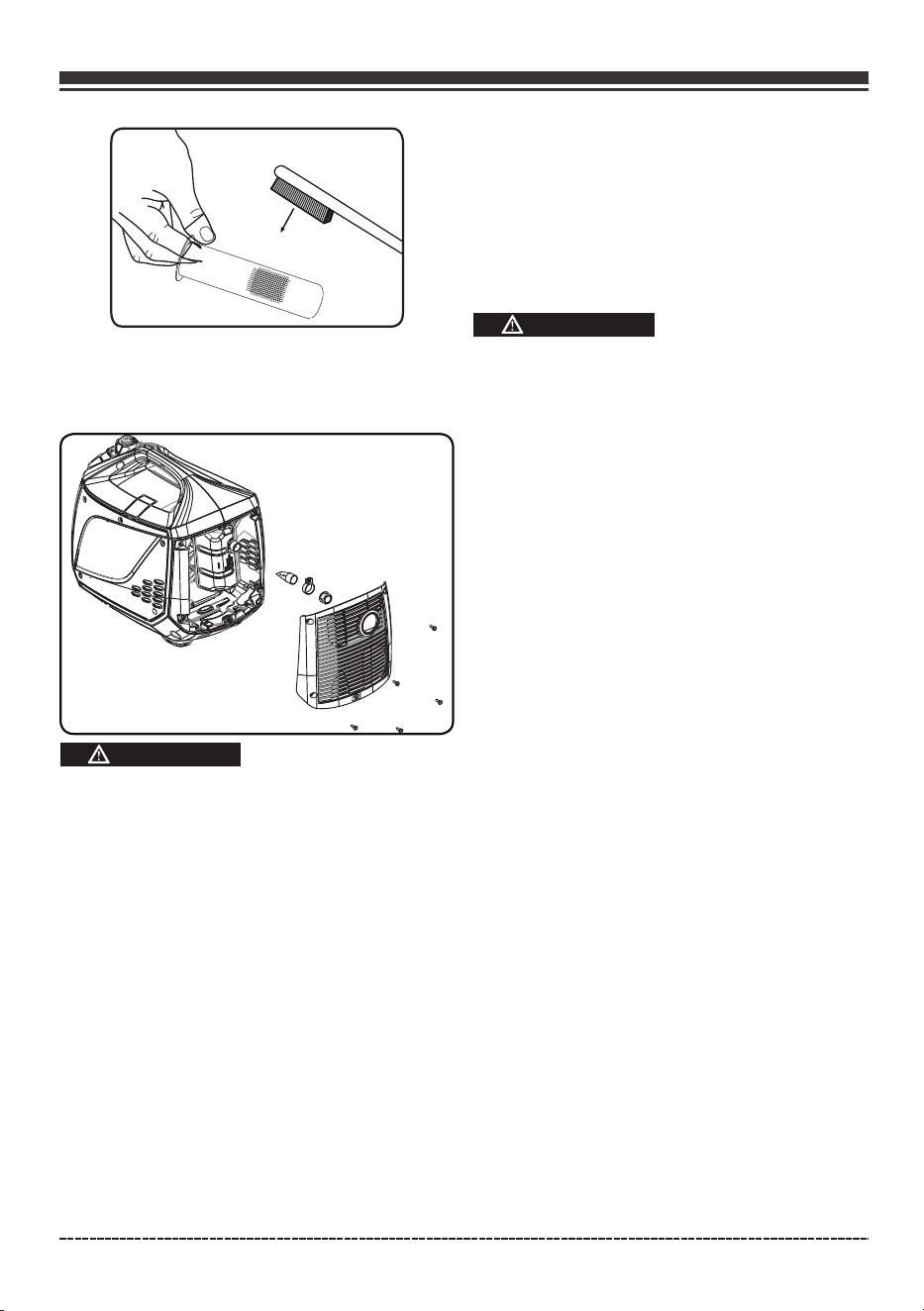

Clean or replace spark arrester as follows:
Depending on the type fuel used ,the type and
amount of lubricant used, and/or your operating
conditions, the exhaust part and muffler may
become blocked with carbon deposits. If you
notice power loss, you may need to remove these
deposits to restore performance.
1. Allow the engine to cool completely before
servicing the spark arrester.
2. Remove 5 screws to remove the muffler cover
assembly.
3. Loosen the spark arrester clamp, remove the
spark arrester cover, and with a thin blade
screwdriver remove the spark arrester.
4. Carefully remove the carbon deposits from the
spark arrester screen with a wire brush.
Maintenance Valve Clearance
- Intake: 0.08 0.12 mm (0.003 - 0.005 in.)
- Exhaust: 0.08 - 0.12 mm (0.003 - 0.005 in.)
-
To be performed by knowledgable/experienced
owner or by authorized service center.
Page 21
Failure to clean the spark arrester will result in
degraded engine performance.
GENERATOR MAINTENANCE
Make certain that the generator is kept clean
and stored properly. Only operate the unit on
a flat, level surface in a clean, dry operating
environment. DO NOT expose the unit to
extreme conditions, excessive dust, dirt,
moisture or corrosive vapours.
DO NOT use a garden hose to clean the generator.
Water can enter the generator through the cooling
slots and damage the generator windings.
Use a damp cloth to clean exterior surfaces of
the generator.
Use a soft bristle brush to remove dirt and oil.
Use an air compressor (25 PSI) to clear dirt and
debris from the generator.
Inspect all air vents and cooling slots to ensure
that they are clean and unobstructed.
CAUTION
CAUTION
5. Replace the spark arrester if it is damaged.
6. Position the spark arrester in the muffler and
attach with the screws.
English Customer Service: 1-844-FIRMAN1

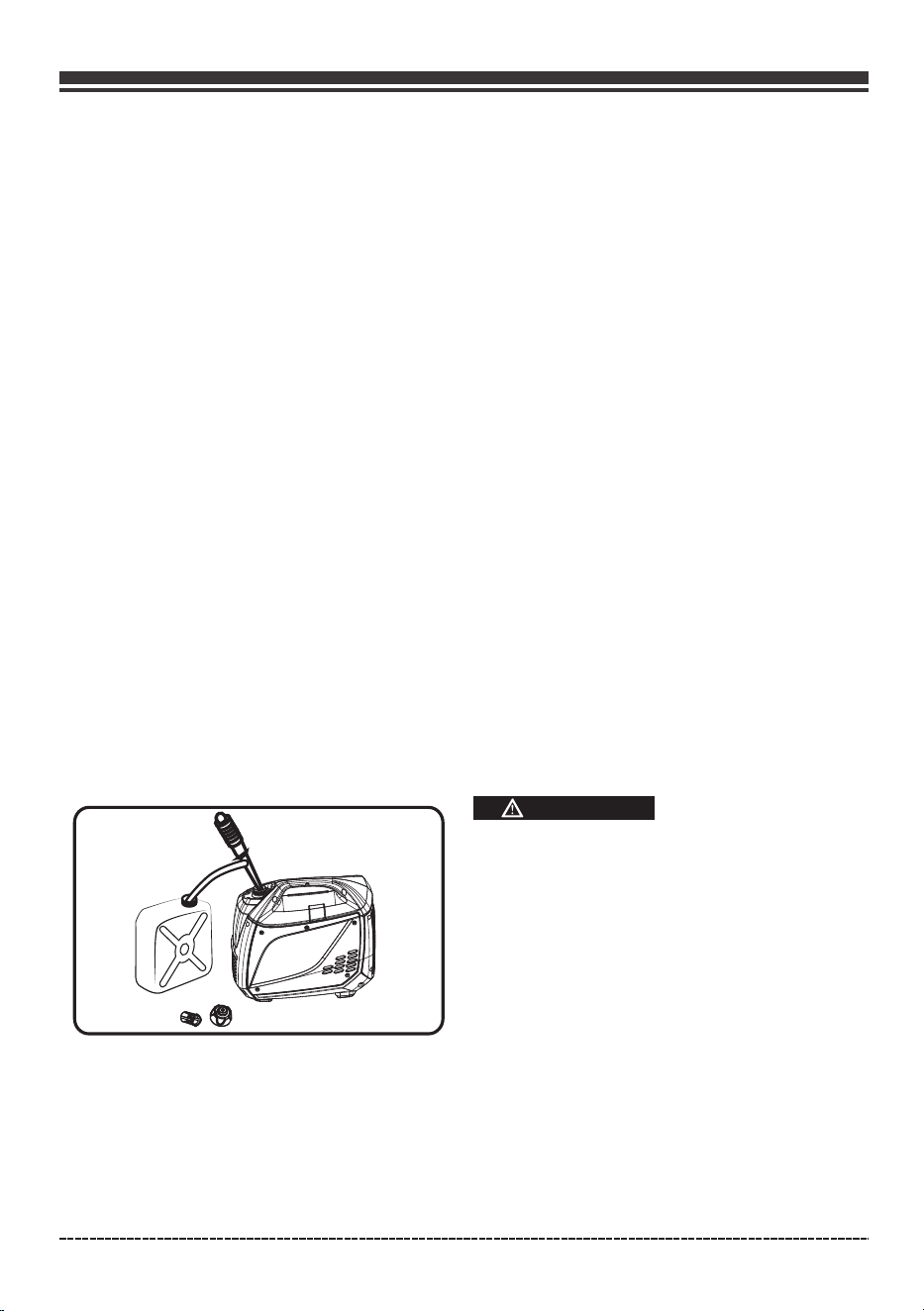

NEVER USE WATER TO CLEAN GENERATOR.
Pull starter handle until resistance is felt, leaving
handle in that position.
Store generator in a well ventilated, low humidity
area.
Page 22
SERVICE AND STORAGE
WARNING
Generator exhaust contains odourless and
colourless carbon monoxide gas.
To avoid accidental or unintended ignition of
your generator during periods of storage, the
following precautions should be followed:
When storing the generator for short or
extended periods of time make sure that the
Engine Switch and the Fuel Valve are set in the
OFF position.
Infrequent Service
If the unit is used infrequently, difficult starting
may result. To eliminate hard starting, follow
these instructions:
1. Run the generator at least 30 minutes every
month.
2. Run the generator, then close the fuel shut-off
valve and allow the unit to run until the engine
stops.
3. Move the engine switch to the "OFF" position.
Long Term Storage
When the generator set is not being operated
or is being stored more than one month, follow
these instructions:
1. Replenish engine oil to upper level.
2. Run the generator, then close the fuel shut-off
valve and allow the unit to run until the engine
stops.
3. Move the engine switch to the "OFF" position.
•
•
NOTE: We recommend always using a fuel
stabilizer. A fuel stabilizer will minimize the
formulation of fuel gum deposits during
storage. The fuel stabilizer can be added to
the gasoline in the fuel tank, or into the
gasoline in a storage container.
English Customer Service: 1-844-FIRMAN1
4. After the unit has cooled, drain gasoline from
fuel tank, fuel line and carburetor.
•
Turn the fuel valve to the “OFF”(O) position.
•
Remove fuel cap and fuel tank filter.
Use a siphon to transfer gasoline from generator
into a gasoline approved container. Wipe up any
spilled fuel with a clean rag.
•
•
Start generator engine and let it run until it
stops and all remaining fuel is consumed. Do
not connect electronic devices to generator
during this process.
•
Remove maintains cover screws, then remove
maintains cover.
•
Drain fuel from carburetor by loosening the
drain screw on the carburetor float chamber.
Turn the fuel valve to the “OFF”(O) position.
•
Tighten the drain screw. Install the maintains
cover and tighten screws.
When the engine has completely cooled down,
turn the Fuel Cap Air Vent to the “OFF” position.
•
•
5. Pour about one teaspoon of engine oil through
the spark plug hole, pull the recoil starter
several times and replace the plug. Then pull
the starter until you feel the piston is on its
compression stroke and leave it in that
position. This closes both the intake and
exhaust valves to prevent the inside of the
cylinder from rusting.
6. Cover the unit and store in a clean, dry place
that is well ventilated away from open flame
or sparks.
TROUBLE SHOOTING
Page 23
English Customer Service: 1-844-FIRMAN1
Problem Cause Correction
Engine is running, but no
AC output is available.
1. Circuit breaker is open.
2. Fault in generator.
3. Poor connection or defective cord
set.
4. Connected device is bad.
1. Reset circuit breaker.
2. Contact authorized service facility.
3. Check and repair.
4. Connect another device that is in
good condition.
Engine runs good at
no-load but “bogs down”
when loads are connected.
1. Short circuit in a connected load.
2. Engine speed is too slow.
3. Generator is overloaded.
4. Shorted generator circuit.
1. Disconnect shorted electrical load.
2. Contact authorized service facility.
3. See Don't Overload Generator
4. Contact authorized service facility.
Engine will not start; starts
and runs rough or shuts
down when running.
1. Engine switch set to OFF (O)
position.
2. Fuel shutoff lever is in OFF (O)
position.
3. Low oil level.
4. Dirty air cleaner.
5. Out of fuel.
6. Stale fuel.
7. Spark plug wire not connected to
spark plug.
8. Bad spark plug.
9. Water in fuel.
10. Flooded.
11. Excessively rich fuel mixture.
12. Intake valve stuck open or closed.
13. Engine has lost compression.
1. Set engine switch to ON (l)
position.
2. Move fuel shutoff lever to ON (l)
position.
3. Fill crankcase to proper level or
place generator on level surface.
4. Clean or replace air cleaner.
5. Fill fuel tank.
6. Drain fuel tank and carburetor; fill
with fresh fuel.
7. Connect wire to spark plug.
8. Replace spark plug.
9. Drain gas tank and carburetor; fill
with fresh fuel.
10. Wait 5 minutes and re-crank engine.
11. Contact authorized service facility.
12. Contact authorized service facility.
13. Contact authorized service facility.
Engine lacks power.
1. Load is too high.
2. Dirty air filter.
1. Don't Overload Generator
2. Replace air filter.
Engine“hunts”or falters.
1. Carburetor is running too rich or too lean.
1. Contact authorized service facility.
14. Clogged or dirty fuel filter.
5. Clean or replace fuel filter.
14. Clean or replace fuel filter.
3. Clogged or dirty fuel filter.
4. Clogged spark arrester.
3. Clean or replace fuel filter.
4. Clean or replace spark arrester.
2. Clogged or dirty fuel filter. 2. Clean or replace fuel filter.
Engine shuts down when
running.
1. Out of fuel.
2. Dirty air cleaner.
3. Low oil level.
1. Fill fuel tank.
2. Clean or replace air cleaner.
3. Fill crankcase to proper level or place.
generator on level surface.
5. Clogged or dirty fuel filter.
Page 24
PARTS DIAGRAM AND PARTS LIST

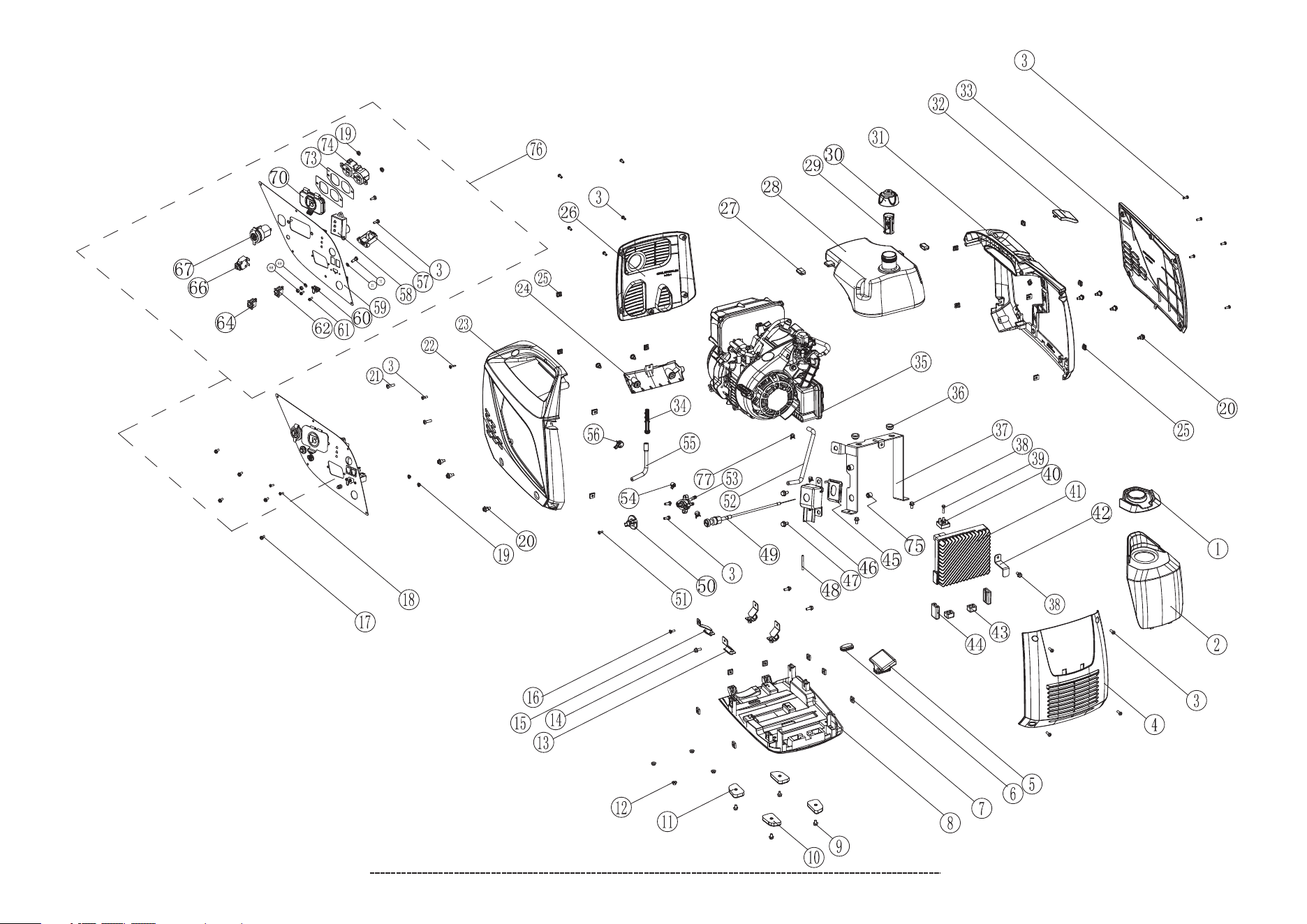

W01783 Parts Diagram
English Customer Service: 1-844-FIRMAN1
Page 25
80cc Engine Parts Diagram
English Customer Service: 1-844-FIRMAN1
Page 26
W01783 Parts List
English Customer Service: 1-844-FIRMAN1
Qty.
51
52
53
54
55
56
57
58
59
60
61
62
64
66
67
68
69
70
71
72
73
74
75
76
77
NO.
Part Number
Description
Qty.
Description
317713500
317713501
317713502
317713503
317713504
317713505
317713506
317713507
317713508
317713509
317713510
317713511
317713512
317713513
317713514
317713515
317713516
317713517
317713518
317713519
317713520
317713521
317713522
317713523
317713524
317713525
317713526
317713527
317713528
317713529
317713530
317713531
317713532
317713579
317713534
317713535
317713536
317713537
317713538
317713539
317713540
317713541
317713542
317713543
317713544
317713545
317718304
317713547
317713548
317718300
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
NO.
Part Number
Fuel Guide
Cover, Top
Screw M5×14
Right Side Cover Assy
Passage way,Air Cleaner
Nut M6
Base Assy
Bolt M6×12
Base Mounting A
Base Mounting B
Nut M6
Isolator A
Bolt M6×15
Isolator B
Screw M6×15
Screw M4×14
Screw M4×10
Nut M4
Bolt M6
Screw M6×20
Screw St4.8×17
Front Cover Assy
Left Side Bridge
Nut M5
Left Side Cover Assy
Mounting, Fuel Tank
Fuel Tank Assy
Fuel Filter
Fuel Tank Cap Comp
Maintenance Cover Holder
Spark Plug Access Cover
Maintenance Cover
Filter tube
Engine
Buffer
Bracket, Fuel Tank
Bolt M6×12
Bolt M5×20
Diode Bridge
Control Module
Clip Control Module
Mounting Control Module
Rubber Control Module
Fuel Valve Cap
Fuel Valve Box
Flange Bolt M6×20
Fuel Hose 3
Chock Cable Assy.
Fuel Valve Knob
Passageway,Electric Machinery
1
1
17
1
1
1
9
1
4
2
2
4
3
3
1
1
7
2
4
9
2
1
1
1
13
1
2
1
1
1
1
1
1
1
1
2
1
3
1
1
1
1
2
2
1
1
2
1
1
1
317713550
317713551
317713552
317713553
317713554
317713555
317713556
317713557
317713578
317713559
317713560
317718303
317718305
317713564
317713565
317713566
317713567
317713568
317713569
317713570
317713571
317713572
317718302
317413501
317413576
Screw M4×10
Fuel Hose 2
Fuel Valve
Clamp 1
Fuel Hose 4
Clamp 2
USB 5V 2.1A
LED Indicator Assy.
Control Panel
Outlet Cover(USB)
Screw M3×10
Engine Switch
Economic Switch
DC Circuit Breaker 5A
DC Outlet
Nut M5
Flat Washer Φ5
Outlet Cover 5-20R
Bolt M5×14
Insulating Paper
Spacer
Control Panel Assy
Clip
Receptacle 5-20R Duplex
Serrated Lock Washers Interal Teeth 5
1
1
1
1
1
1
2
1
1
1
2
1
1
1
1
2
1
1
1
1
2
1
1
1
2
Page 27
SPE80 80cc Engine Parts List
English Customer Service: 1-844-FIRMAN1
317723500
317723501
317723502
317723503
317723504
317723505
317723506
317723507
317723508
317723509
317723510
317723511
317723512
317723513
317723514
317723515
317723516
317723517
317723518
317723519
317723520
317723521
317723522
317723523
317723524
317723525
317723526
317723527
317723528
317723529
317723530
317723531
317723532
317723533
317723534
317723535
317723536
317723537
317723538
317723539
317723540
317723541
317723542
317723543
317723544
317723545
317723546
317723547
317723548
317723549
317723550
317723551
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
NO.
Part Number Description
Qty.
Bolt M6×12
Starter Assy.
Bolt M6×15
Nut
Air Shroud Comp.
Nut M12
Fan Case
Oil Seal 20×35×5
Crankcase Comp
Ignition Assy.
Bolt M6×20
Bearing 6204
Protector Cover Seal 2
Protector Cover Seal 1
Crank Comp
Key
Dawl Pin
Crankcase Gasket
Oil Level Switch
Oil Level Switch Plate
Crankcase Cover
Trigger Assy
Bolt M6×12
Stator Comp.
Bolt M6×35
Rotor Comp.
Rubber.end Cover 2
Rubber.end Cover 1
Bolt M6×22
End Cover
Spark Arrester Clamp
Spark Arrester Base
Spark Arrester
Rubber Seal
Generator Fan
Piston Pin Clip
Piston Pin
Conn. Rod Assy.
Piston Ring Set
Piston
Camshaft Comp.
Valve Lifter
Push Rod
Spark Plug
Stud Bolt M6×27
Muff. Protector Assy. Rh
Nut
Muff Comp
Auspuffdichtung
Protector Muff. Side
9
1
5
1
1
2
1
2
1
1
10
2
1
1
1
2
4
1
1
1
1
1
2
1
2
1
1
1
4
1
1
1
1
1
1
2
1
1
1
1
1
2
2
1
6
4
1
1
2
1
1
1
317723552
317723553
317723554
317723555
317723556
317723557
317723558
317723559
317723560
317723561
317723562
317723563
317723564
317723565
317723566
317723567
317723568
317723569
317723570
317723571
317723572
317723573
317723574
317723575
317723576
317723577
317723578
317723579
317723580
317723581
317723582
317723583
317723584
317723585
317723586
317723587
317723588
317723589
317723590
317423500
317423501
317423502
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
NO.
Part Number Description
Qty.
Setting Flash Board
Muff. Protector Seal
Nut
Breather Pipe
Cyl. Head Cover Assy
Cylinder Cover Gasket
Air Shroud,cylinder Comp.
Bolt M6×50
Cylinder Head Comp.
Gasket,cylinder
Carburetor Bolt
Gskt,insulator
Insulator.carb.
Gskt,carb
Carb. Assy.
Gskt,air Cleaner
Pipe,air Cleaner
Jt.,breather Pipe
Case,air Cleaner Comp.
Element
Case,air Cleaner
Bolt M6×20
Nut,valve Adjusting
Screw,valve Adjusting
Arm,valve Rocker
Shaft,screw Rocker
Lock Clip. Valve
Ret.,valve Spring
Oil Seal,valve
Spring,valve
Valve,intake
Valve,e×haust
Oil Filler Cap Assy
Bolt M6×8
Oil Nozzle
Bolt M6×20
Bracket,ignition Assy.
Nylon Cord
Tube Clip
Air Cleaner Set
Gasket Set
Spark Arrestor Kit
1
1
6
1
1
1
1
4
1
1
2
1
1
1
1
1
1
1
1
1
1
1
2
2
2
1
2
2
1
2
1
1
1
1
1
4
1
1
1
1
1
1
Self-tapping Screw St4.8×17
Muff. Protector Assy.middle
Page 28
SERVICE INFORMATION
CONTACT THE
FIRMAN
PRODUCT SERVICE
DEPARTMENT AT
1-844-347-6261
or at
www.firmanpowerequipment.com
to obtain warranty service
information or to order
replacement parts or
accessories.
HOW TO ORDER REPLACEMENT PARTS
Even quality built equipment such as the electric
generator you have purchased might need
occasional replacement parts to maintain it in
good condition over the years. To order
replacement parts, please give the following
information:
1. Model No. ,Rev. Level and Serial No. and all
specifications shown on the Model No./Serial
No. plate.
2. Parts number or numbers as shown in the
Parts List section.
3. A brief description of the trouble with the
generator.
REGISTER YOUR PRODUCT
Register your Firman generator online
at www.firmanpowerequipment.com.
Warranty Qualifications
FIRMAN GENERATOR will register the warranty upon
receipt of your Warranty Registration Card and a
copy of your sales receipt from one of FIRMAN's
retail locations as proof of purchase. Please submit
your warranty registration and your proof of purchase
within ten (10) days of the date of purchase.
WARRANTY
FIRMAN Three (3) Year Limited Warranty
Do Not Return the Unit to the Place
of Purchase
Contact the FIRMAN Service Center and FIRMAN
will troubleshoot any issue via phone or e-mail.
If the problem is not corrected by this method,
FIRMAN will, at its option, authorize evaluation,
repair or replacement of the defective part or
component at a FIRMAN Service Center. FIRMAN
will provide you with a case number for warranty
service. Please keep it for future reference.
Repairs or replacements without prior authoriz
-ation, or at an unauthorized repair facility, will
not be covered by this warranty.
Repair/Replacement Warranty
FIRMAN warrants to the original purchaser that
the mechanical and electrical components will
be free of defects in material and workmanship
for a period of one (1) year (parts and labor) and
three (3) years (parts) from the original date of
purchase 90 days [parts and labor] and 180 days
[parts] for commercial & industrial use.
Transportation charges on product submitted
for repair or replacement under this warranty
are the sole responsibility of the purchaser.
This warranty only applies to the original
purchaser and is not transferable.
Warranty Exclusions
This warranty does not cover the following
repairs and equipment:
Normal Wear
Your product needs periodic parts and service
to perform well. This warranty does not cover
repair when normal use has exhausted the life
of a part or the equipment as a whole.
English Customer Service: 1-844-FIRMAN1
Page 29
Contact Information
You may contact FIRMAN at:
Address
Firman Power Equipment
Attn: Customer Service
Peoria, AZ 85381
www.firmanpowerequipment.com
8716 West Ludlow Dr. Suite #6
We are FIRMAN POWER - And we are here for you.
Customer Service Desk - 1-844-347-6261(844-FIRMAN1)
6am PST(9am EST) until 8pm EST(5pm PST)
Technical Service Desk - 1-844-347-6261(844-FIRMAN1)
6am PST(9am EST) until 8pm EST(5pm PST)
24/7 Tech Support - 1-844-347-6261(844-FIRMAN1)
English Customer Service: 1-844-FIRMAN1
Installation, Use and Maintenance
This warranty will not apply to parts and/or labor
if your product is deemed to have been misused,
neglected, involved in an accident, abused,
loaded beyond the generator's limits, modified,
installed improperly or connected incorrectly to
any electrical component.
Normal maintenance is not covered by this
warranty.
Other Exclusions
This warranty excludes:
– cosmetic defects such as paint, decals, etc.
– wear items
– accessory parts
– failures due to acts of God and other force
majeure events beyond the manufacturer’s
control
– problems caused by parts that are not original
FIRMAN parts
– units used for prime power in place of existing
utility power where utility is present or in place
of utility power where utility power service does
not normally exist.
Page 30
English Customer Service: 1-844-FIRMAN1
CALIFORNIA AND FEDERAL EXHAUST AND EVAPORATIVE EMISSIONS CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
FIRMAN POWER EQUIPMENT INC.
Emission Control System Warranty
The warranty period begins on the date the engine/equipment is delivered to an ultimate purchaser. FIRMAN warrants to the ultimate
purchaser and each subsequent purchaser that the engine is:
Designed, built, and equipped so as to conform with all applicable regulations adopted by the Air Resources Board and US EPA;
and Free from defects in materials and workmanship that cause the failure of a warranted part to be identical in all material
respects to the part as described in the engine manufacturers application for certification.
The warranty on emissions-related parts is as follows:
(1) Any warranted part that is not scheduled for replacement as required maintenance in the owner's manual supplied, is
warranted for the warranty period stated above. If any such part fails during the period of warranty coverage, the part will be
repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced under the warranty will be
warranted for the remaining warranty period.
(2) Any warranted part that is scheduled only for regular inspection in the owner's manual supplied, is warranted for the warranty
period stated above. Any such part repaired or replaced under warranty will be warranted for the remaining warranty period.
(3) Any warranted part that is scheduled for replacement as required maintenance in the owner's manual supplied, is warranted
for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled
replacement, the part will be repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced
under warranty will be warranted for the remainder of the period prior to the first scheduled replacement point for the part.
(4) Repair or replacement of any warranted part under the warranty must be performed at no charge to the owner at a warranty
station.
(5) Notwithstanding the provisions of Subsection (4) above, warranty services or repairs must be provided by FIRMAN that
are franchised to service the subject engines.
(6) The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective,
provided that such diagnostic work is performed at a warranty station.
(7) FIRMAN is liable for damages to other engine components proximately caused by a failure under warranty of any
warranted part.
MANUFACTURER'S WARRANTY COVERAGE:
The exhaust and evaporative emissions control system on your is warranted
for two years. If any emissions-related part on your small off-road engine and engine powered equipment is defective, the part will
be repaired or replaced by FIRMAN.
small off-road engine and engine powered equipment
The California Air Resources Board, US Environmental Protection Agency (“US EPA”) and FIRMAN POWER EQUIPMENT
INC.(FIRMAN) are pleased to explain the emissions control systems warranty on your 2019-2020 or later Small Off-Road
Engine (“SORE”) and engine powered equipment. In California, new equipment that use small off-road engines must be
designed, built and equipped to meet the State’s stringent anti-smog standards. FIRMAN must warrant the emissions control
systems on your SORE and engine powered equipment for the periods of time listed below provided there has been no abuse,
neglect or improper maintenance of your small off-road engine or equipment leading to the failure of the emissions control system.
Your emissions control system may include parts such as the carburetor or fuel-injection system, the ignition system, catalytic
converter, fuel tanks, fuel lines (for liquid fuel and fuel vapors), fuel caps, valves, canisters, filters, clamps and other associated
components. Also included may be hoses, belts, connectors, and other emission-related assemblies.
Where a warrantable condition exists, FIRMAN will repair your SORE and engine powered equipment at no cost to you
including diagnosis, parts and labor.
OWNER'S WARRANTY RESPONSIBILITIES:
As the owner, you are responsible for the performance of the required maintenance
listed in your owner's manual. FIRMAN recommends that you retain all receipts covering maintenance on your SORE and
engine powered equipment, but FIRMAN cannot deny warranty coverage solely for the lack of receipts or for your failure to
ensure the performance of all scheduled maintenance.
SORE and engine powered equipment
As the owner, you should however be aware that FIRMAN may deny you warranty
coverage if your small off-road engine or engine powered equipment or a part has failed due to abuse, neglect, or improper
maintenance or unapproved modifications.
SORE and engine powered equipment
You are responsible for presenting your to a FIRMAN distribution center
or service center as soon as the problem exists. The warranty repairs shall be completed in a reasonable amount of time,
not to exceed 30 days.
small off-road engine and engine powered equipment
If you have any questions regarding your warranty rights and responsibilities, you should contact
or
FIRMAN at 1-844-347-6261
support@firmanpowerequipment.com.
FIRMAN Emission Control Defects Warranty Provisions
Page 31
English Customer Service: 1-844-FIRMAN1
PARTS COVERED BY WARRANTY
Limitations
Listed below are the parts (if equipped) covered by the Federal and California Emission Control System Warranty.
This Emission Control System Warranty shall not cover any of the following:
(a) Consequential damages such as loss of time, inconvenience, loss of use of the engine or equipment, etc.
(b) Diagnosis and inspection fees that do not result in eligible warranty service being performed.
1. Ignition system including:
- Spark plug
- Ignition coil
2. Fuel metering system:
- Fuel tank
- Fuel cap
- Fuel lines(for liquid fuel and fuel vapors) and
related fittings/clamps
- Fuel regulator, carburetor and internal parts.
3. Catalytic muffler assembly including:
- Exhaust manifold
- Catalytic converter
- Muffler gasket
-pulse valve
4. Air induction system including:
- Intake pipe/manifold
- Air cleaner
5. Crankcase breather assembly including:
- Breather connection tube
6. Fuel tank evaporative emission control system including:
- Purge valves
- Carbon canister
- Vapor hoses and fitting/clamps
FIRMAN POWER EQUIPMENT INC.
Email: support@firmanpowerequipment.com
www.firmanpowerequipment.com
(8) Throughout the emissions warranty period defined in Subsection (b)(2), FIRMAN will maintain a supply of warranted
parts sufficient to meet the expected demand for such parts.
(9) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without
charge to the owner. Such use will not reduce the warranty obligations of the manufacturer.
(10) Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non-exempted
add-on or modified parts by the ultimate purchaser will be grounds for disallowing a warranty claim.
The manufacturer will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified
part.
P/N:317745452 Rev 0 4
Firman Power Equipment Inc.
Peoria, AZ 85381
www.firmanpowerequipment.com
8716 West Ludlow Dr. Suite #6
