OPERATOR’S MANUAL
GASOLINE INVERTER GENERATOR
Record product information to reference when ordering parts or
obtaining warranty coverage.
MODEL
NUMBER
W03661OF
Rev Level:01
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1a. This device may not cause harmful interference.
1b. This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
NOTE: The FIRMAN W03661OF inverter generator has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Supplier’s Declaration of Conformity
47 CFR § 2.1077 Compliance Information
FIRMAN W03661OF INVERTER GENERATOR
Firman Power Equipment
8644 W. Ludlow Dr.
Peoria, AZ 85381
Telephone: 1-844-347-6261
www.firmanpowerequipment.com
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to equipment not expressly approved by FIRMAN could void the user’s
authority to operate the equipment.
FCC/IC Compliance Statement
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .01
Features and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 1
Maintenance - Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 2
Troubleshooting- Specifications . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . 28
Parts Diagrams - Parts Lists - Wiring Diagram . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Service - Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
REGISTER YOUR PRODUCT
INTRODUCTION
Thank you for purchasing a FIRMAN generator. You have selected a high-quality, precision engineered
generator set designed and tested to give you years of satisfactory service. This generator is designed
to run only on unleaded gasoline. This generator is not intended to be run unattended or to supply
power to life safety support.
This manual contains safety information to make you aware of the hazards and risks associated
with generator products and how to avoid them. This generator is designed and intended only
for supplying electrical power for operating compatible electrical lighting, appliances, tools and
motor loads, and is not intended for any other purpose. It is important that you read and
understand these instructions thoroughly before attempting to start or operate this inverter
generator. Save these original instructions for future reference.
All information in this publication is based on the latest production information available at the
time of approval for printing. The manufacturer reserves the right to change, alter or otherwise
improve the generator and this documentation at any time without prior notice.
INTRODUCTION
01
English Customer Service: 1-844-FIRMAN1
REGISTER YOUR PRODUCT
Register your product using the QR code provided or at
www.firmanpowerequipment.com .
02
SIGNAL WORDS
DANGER WARNING CAUTION
Indicates a hazard
which, if not avoided,
will result in death or
serious injury.
Indicates a hazard
which, if not avoided,
could result in death
or serious injury.
Indicates a hazard
which, if not avoided,
could result in minor or
moderate injury.
Toxic Fumes- Engine exhaust contains carbon monoxide, a
poisonous gas that will kill you in minutes. You cannot smell
it or see it.
Fire- Fuel and its vapors are extremely flammable which could
cause burns or fire resulting in death or serious injury.Engine
exhaust could cause fire resulting in death or serious injury.
Hot Surface- Muffler could cause burns resulting in serious injury.
Generator could cause electrical shock resulting in death or serious
injury.
Safety Alert Symbol- Indicates a potential personal injury hazard.
Operator's Manual- Failure to follow warnings, instructions and
operator's manual could result in death or serious injury.
English Customer Service: 1-844-FIRMAN1
NOTICE
Indicates information
considered Important,
but not hazard-related.
INTRODUCTION
English Customer Service: 1-844-FIRMAN1
WARNING! This product can expose you to chemicals including gasoline engine
exhaust, which is known to the State of California to cause cancer, and carbon
monoxide, which is known to the State of California to cause birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov.
This outdoor generator can be used to power outdoor items using extension cords .
NOTICE If you have questions about intended use, contact FIRMAN customer service. This inverter
generator is designed to be used only with FIRMAN authorized parts.
There may be Federal or State regulations, local codes, or ordinances that apply to the intended
use of the generator. Consult a qualified electrician, electrical inspector, or the local agency
having jurisdiction. This generator is not intended to be used at a construction site or similar
activity as defined by NFPA 70-2020 (NEC) section 590.6.
Compliance Requirements
To Restore Power Using Extension Cords
03
INTRODUCTION
The generator neutral is floating, which means that the AC stator winding is isolated from the
grounding fastener and the AC receptacle ground pins. On a floating neutral generator the AC
receptacle ground pins are not functional. Electrical devices, such as a ground fault circuit
interrupter (GFCI), requiring a functioning AC receptacle ground pin will not operate.
System Ground
English Customer Service: 1-844-FIRMAN1
2. Follow cord safety instructions.
3. Install carbon monoxide alarm(s).
4. When operating portable generator with extension cords, make sure portable generator is located
in an open, outdoor area, at least 20 ft. (6 m) from occupied spaces with exhaust pointed away.
5. Extension cords running directly into your home, powering indoor items IS NOT RECOMMENDED.
Extension cords running directly into the home increase your risk of carbon monoxide
poisoning through any openings.
If an extension cord running directly into your home is used to power indoor items, the
operator recognizes that this increases the risk of CO poisoning to people inside the home
and assumes that risk.
DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that will kill
you in minutes. You cannot smell it, see it, or taste it. Even if you do not smell exhaust
fumes, you could still be exposed to carbon monoxide gas.
04
INTRODUCTION
1. Only use grounded cords marked for outdoor use rated for your loads.
16
14
To provide power using
extension cords
Total
Amperage
Minimum Gauge, Outdoor Rated
Up to 50 FT (15
m)
Up to 13A
Up to 15A
Up to 20A
Up to 30A
English Customer Service: 1-844-FIRMAN1
*We are always working to improve our products. Therefore, the enclosed product
may differ slightly from the image on this page.
05
FEATURES AND CONTROLS

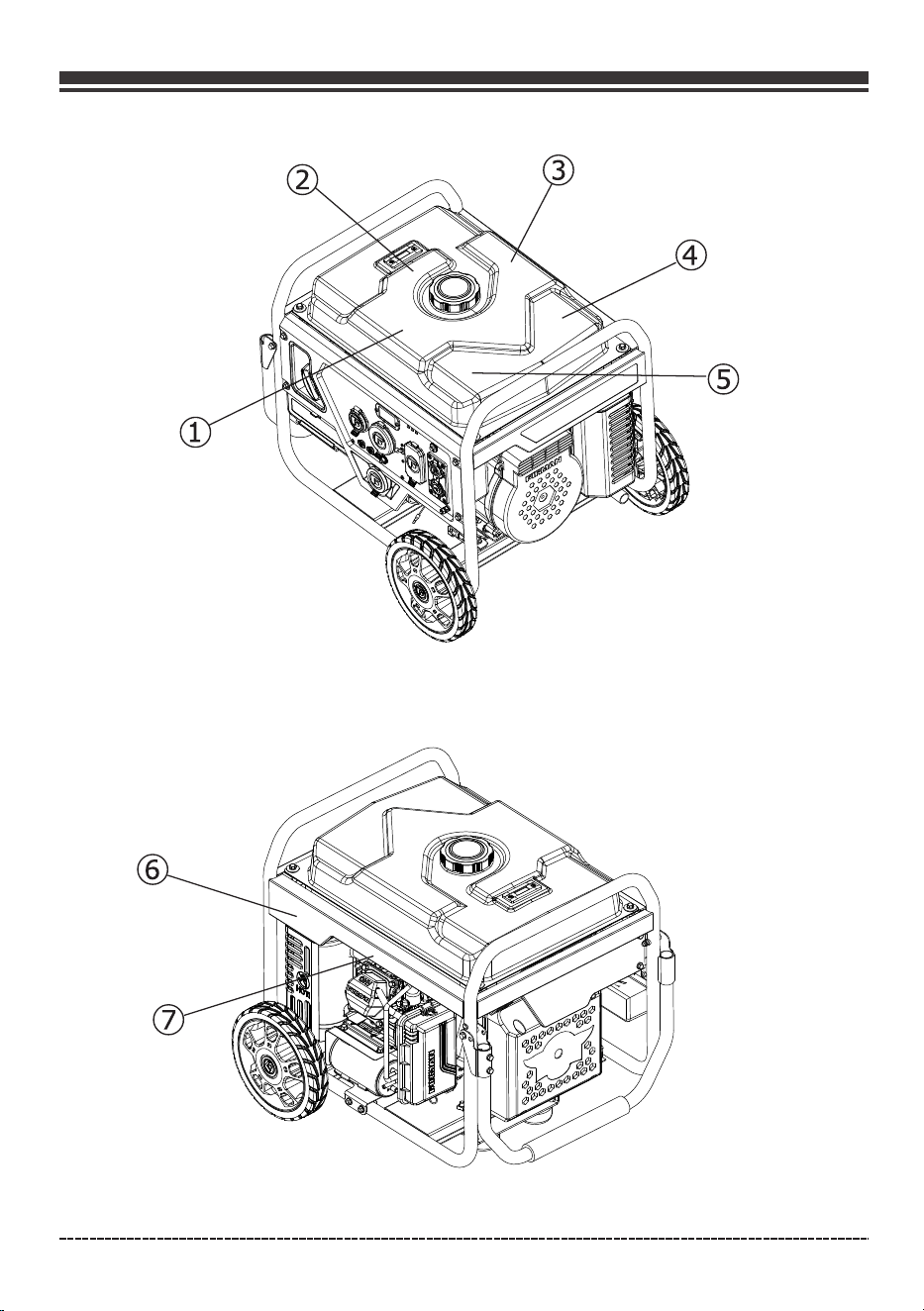

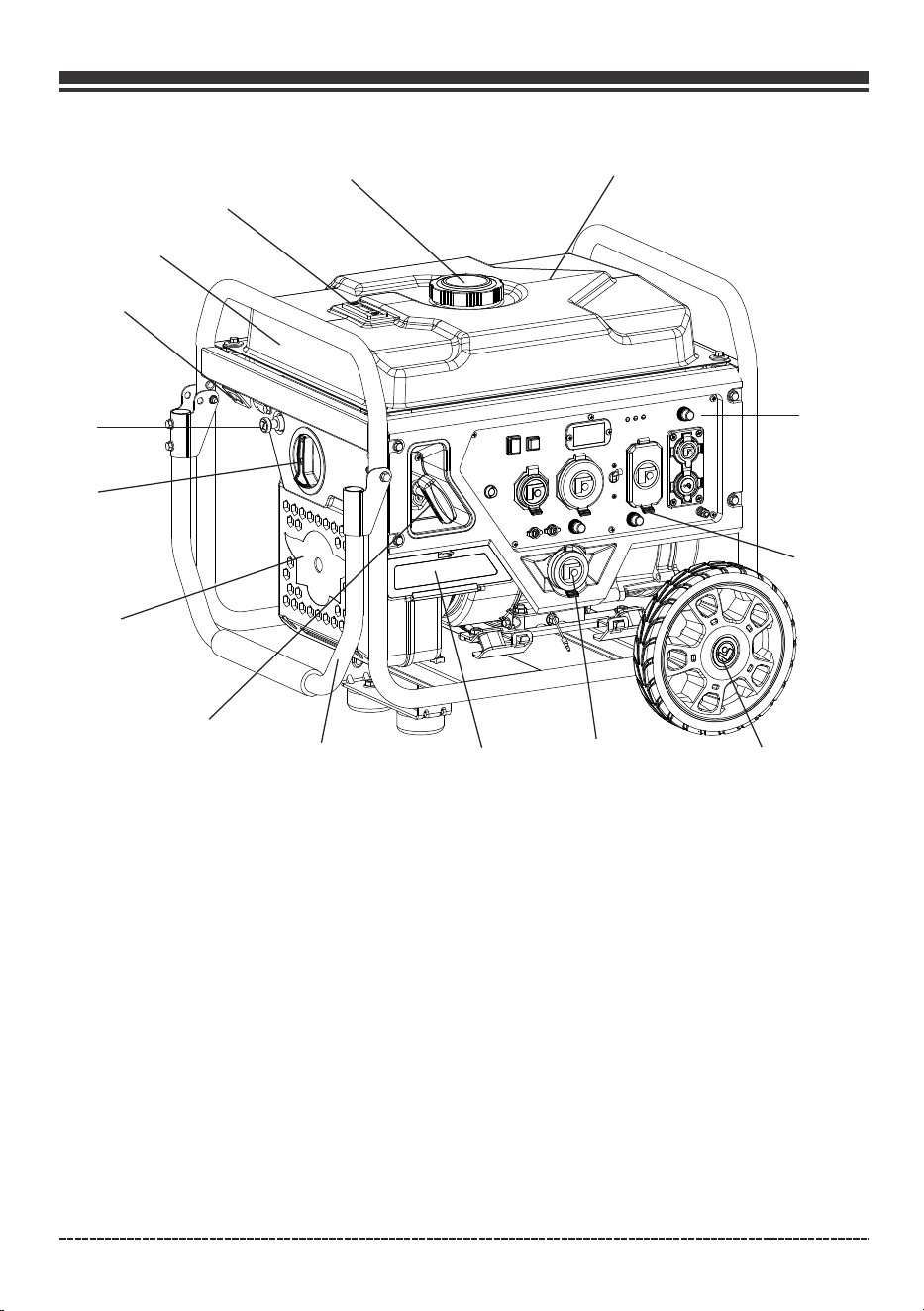

1- 6.0 Gallon(23L) Capacity
Fuel Tank
2- Fuel Cap
3- Fuel Gauge
4- Bottle Opener
5- Choke Knob
6- Fuel Switch
7- Inverter
8- Recoil Starter
9- Handle
10- Accessory Box
11- Adapter L5-30 to TT-30
12- 9.0"(23cm) Flat Free Wheel
13- Outlet Cover
14- Control Panel
15- Data Decal / Serial Number
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
⑬
⑭
⑮
Parallel Cable
English Customer Service: 1-844-FIRMAN1
06
FEATURES AND CONTROLS
⑧
English Customer Service: 1-844-FIRMAN1
07
FEATURES AND CONTROLS
English Customer Service: 1-844-FIRMAN1
08
FEATURES AND CONTROLS
⑧
English Customer Service: 1-844-FIRMAN1
09
FEATURES AND CONTROLS

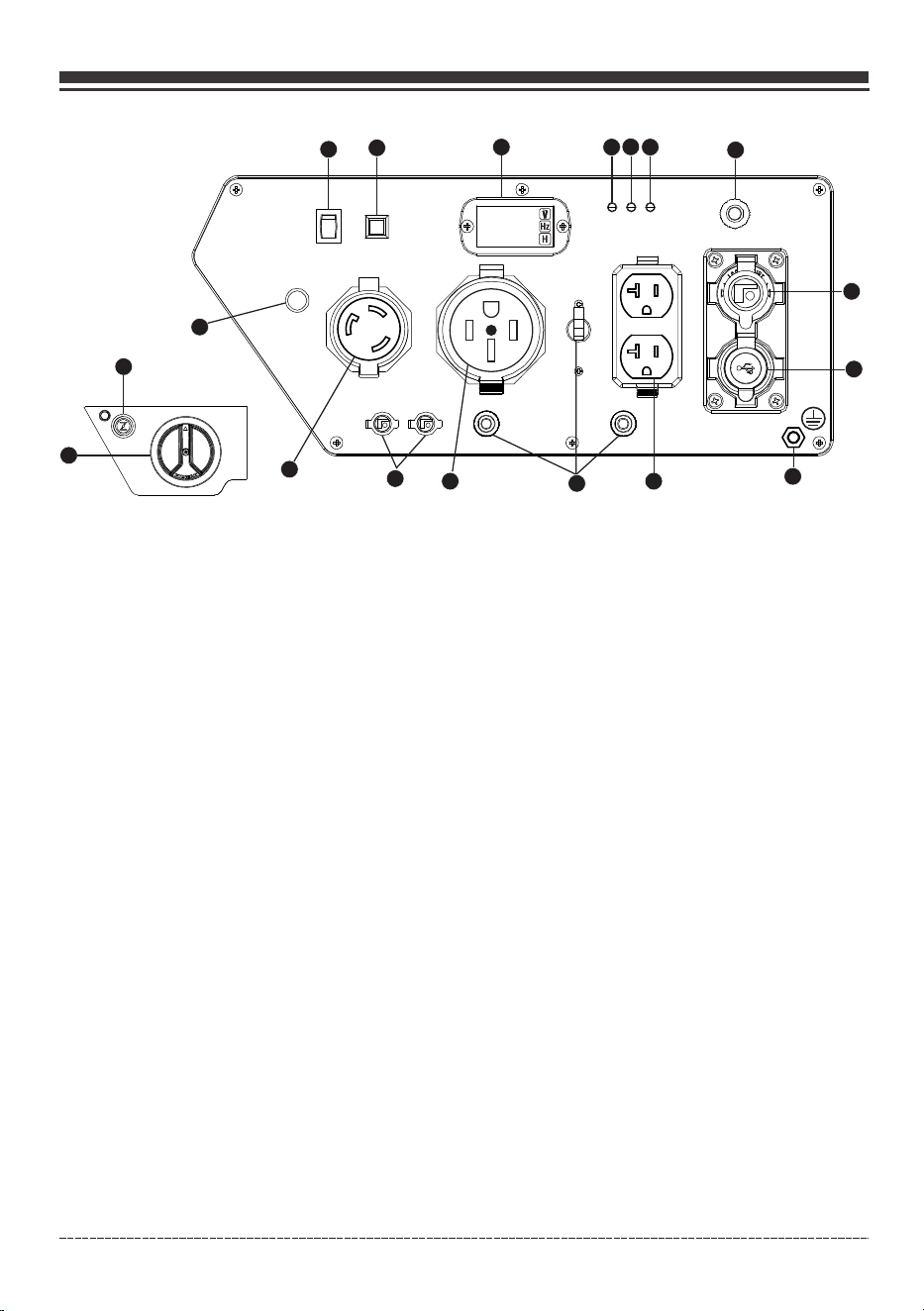

Control Panel
NOTICETotal power drawn from all receptacles must not exceed the data decal rating.
3. 3-1 Data-Minder (Multi-Meter) – Push the SELECT button to show the Voltage, Hertz and running hours.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1. Economy Control Switch - The Economy Control switch can be activated in order to minimize
fuel consumption and noise while operating the unit during times of reduced electrical output,
allowing the engine speed to idle during periods of non-use. The engine speed returns to normal
when an electrical load is connected. When the economy switch is off, the engine runs at normal
speed continuously.
2. AC Reset Button – When the inverter is protected, the output can be restored by this button.
6. Output Ready Indicator Light – Remains “ON” during normal operating conditions. Shuts “OFF”
when generator is overloaded. The green AC Power Indicator Light comes on when the engine
starts and generates power.
5.Overload Indicator Light – This light turns “ON” when the generator is overloaded and will cut
power to the receptacles. If the engine overload indicator light comes on, the generator’s wattage /
amperage capacity has been exceeded by connected electrical devices . When this occurs, the
green AC Power Indicator Light will go off. The engine will continue to run, but the red
Engine Overload Indicator Light will stay on and power will no longer be supplied to connected
electronic devices.
4. Oil Warning Indicator Light – Check oil level when this light turns “ON”. Engine will not run when
indicator is on. When the oil falls below the minimum level, the oil warning indicator light comes
on and the engine stops automatically. The engine will not start until the proper amount of oil is
in the crank case.
7. DC Circuit Breaker – If the DC output is overloaded or an external short circuit occurs the circuit
protector will trip.
8. DC 12V Output - 8.3 Amps of DC current may be drawn from this receptacle. Use this outlet to charge
12V automotive type batteries ONLY. See 12V DC outlet (Battery Charger) section.
18
English Customer Service: 1-844-FIRMAN1
10
FEATURES AND CONTROLS
9. DC 5V 2.1/1.0A USB Outlet
10. Ground Terminal – Consult an electrician or authority having jurisdiction for local grounding
requirements.
11. 120V, 20A Duplex - NEMA 5-20R (Not GFCI protected)
A maximum of 20 Amps current may be drawn from this duplex receptacle.
12. Circuit Breakers – The receptacles are protected by AC circuit protectors. If the generator is
overloaded or an external short circuit occurs, a circuit protector may trip. If tripping occurs,
disconnect all electrical loads and determine the cause before attempting to continue using the
generator. Reset any tripped circuit protectors.
If multiple receptacles are used at the same time, the total current must be kept with-in the
portable generator data decal rating.
13. 120V, 50A RV – NEMA 14-50R (Not for 240V use)
A maximum of 30.4 Amps current may be drawn from this receptacle.
15. 120V, 30A Twist Lock – NEMA L5-30R
A maximum of 30 Amps current may be drawn from this receptacle.
14. Parallel Operation Outlets - These outlets are used
for connecting two FIRMAN inverter
generators for parallel operation. A FIRMAN parallel kit(optional equipment) is required for
parallel operation.
16. Fuel Switch - Fuel valve is open when the switch is in the “I” position. When the switch is in the
“O” position, the fuel valve is closed.
17. Choke Knob – Used to start a cold engine.
18. CO Alert™ Carbon Monoxide (CO) Shutdown Indicator Light — Indicates the engine shutdown
due to carbon monoxide accumulation around the generator or a CO Alert system fault occurred.
English Customer Service: 1-844-FIRMAN1
11
1. Location
DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that could kill
you in minutes. You CANNOT smell it, see it, or taste it. Even if you do not smell exhaust
fumes, you could still be exposed to carbon monoxide gas.

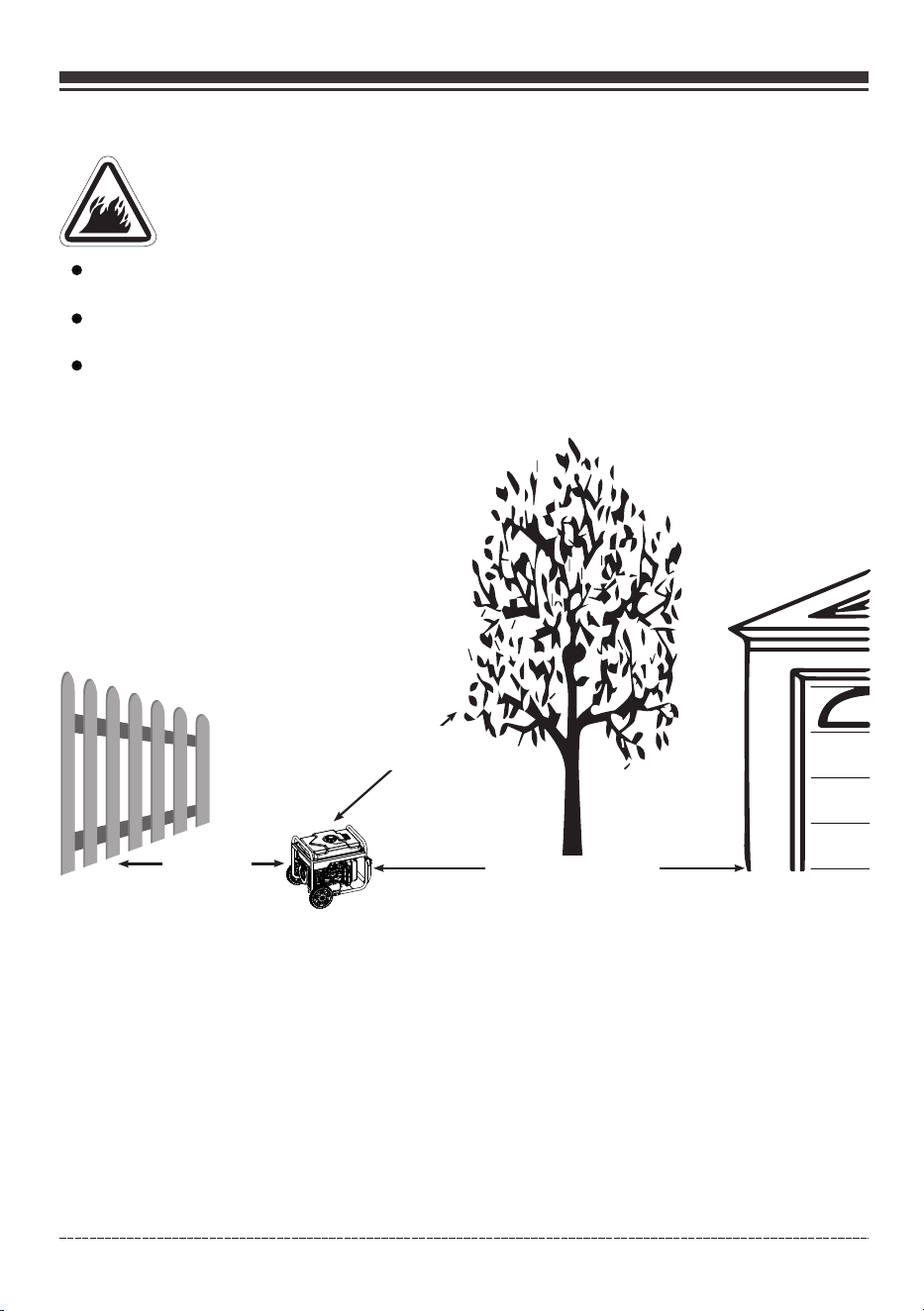

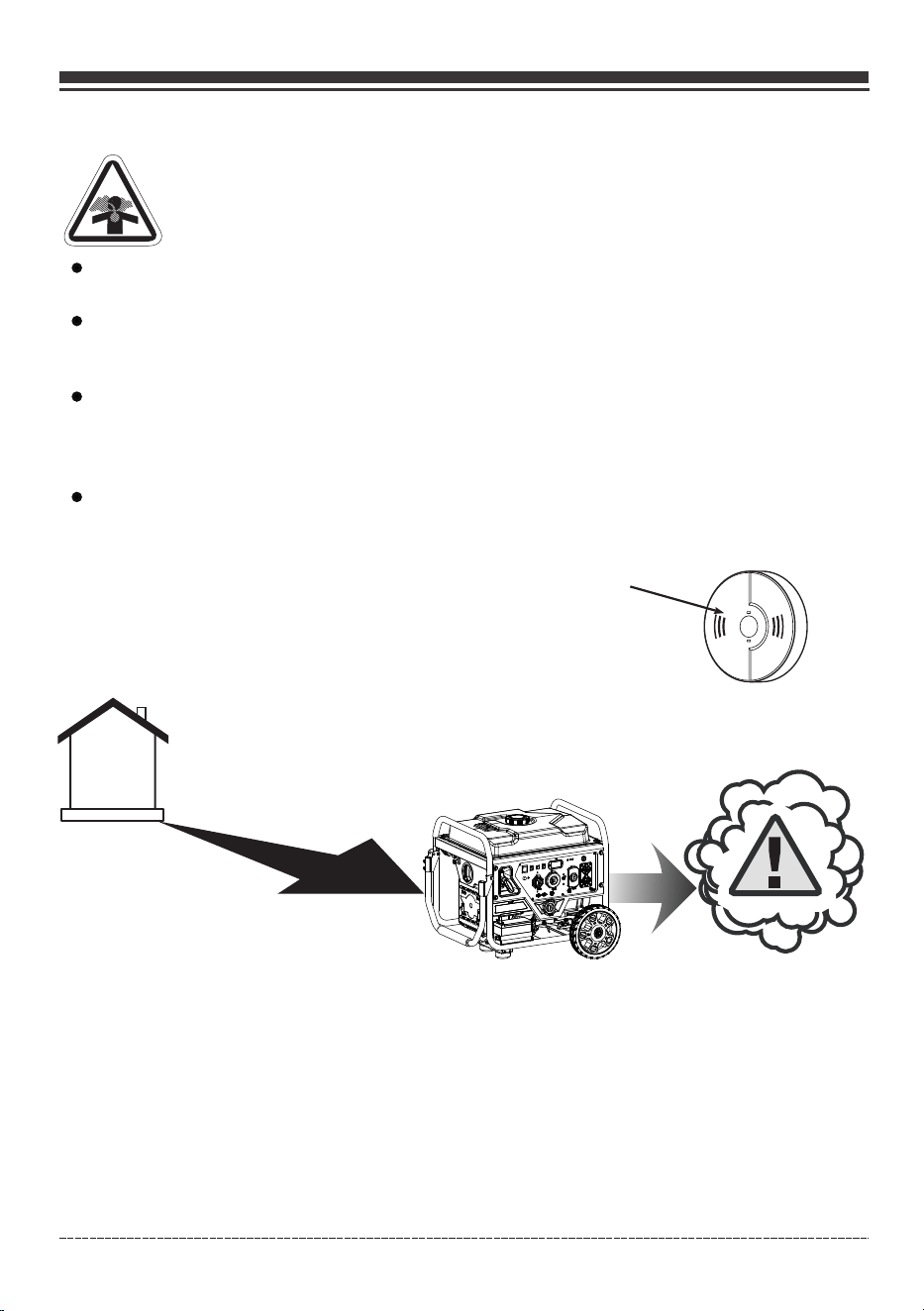

Operate portable generator only outdoors, at least 20 ft.(6 m) from occupied spaces with exhaust
pointed away to reduce the risk of carbon monoxide accumulating.
Install battery-operated carbon monoxide alarms or plug-in carbon monoxide alarms with
battery back-up according to the manufacturer's instructions. Smoke alarms cannot detect
carbon monoxide gas.
Do not run this portable generator inside homes, garages, basements, crawlspaces, sheds, or
other partially-enclosed spaces even if using fans or opening doors and windows for ventilation.
Carbon monoxide can quickly build up in these spaces and can linger for hours, even after this
product has shut off.
If you start to feel sick, dizzy, weak or your home’s carbon monoxide alarm sounds, get to fresh air
right away. Call emergency services. You may have carbon monoxide poisoning.
Carbon Monoxide Alarm(s)
Install carbon monoxide alarms inside your home. Without working
carbon monoxide alarms, you will not realize you are getting sick and
dying from carbon monoxide poisoning.
Prevent Carbon Monoxide (CO) Poisoning
Use outdoors at least 20 ft. (6 m) from any home.
Point exhaust away from all homes and occupied spaces.
Install CO alarms inside your home.
20 ft. (6 m) min.
To better educate yourself about all carbon monoxide risks,
go to www.takeyourgeneratoroutside.com.
OPERATION
English Customer Service: 1-844-FIRMAN1
Reduce Risk of Fire
WARNING! Exhaust heat/gases could ignite combustibles, structures or damage fuel
tank causing a fire, resulting in death or serious injury.
Keep portable generator at least 5 ft. (1.5 m) from any structure, trees or vegetation over 12
in. (30 cm) in height.
Select an outdoor site that is dry and protected from the weather. Do not move portable
generator indoors to protect it from the weather.
Do not locate the portable generator under a deck or other similar structure that may
confine heat and airflow.
12
OPERATION
5 ft.(1.5 m)
min.
5 ft.(1.5 m)
min.
20 ft.(6 m) min.
English Customer Service: 1-844-FIRMAN1
2. Oil and Gasoline
Add Engine Oil

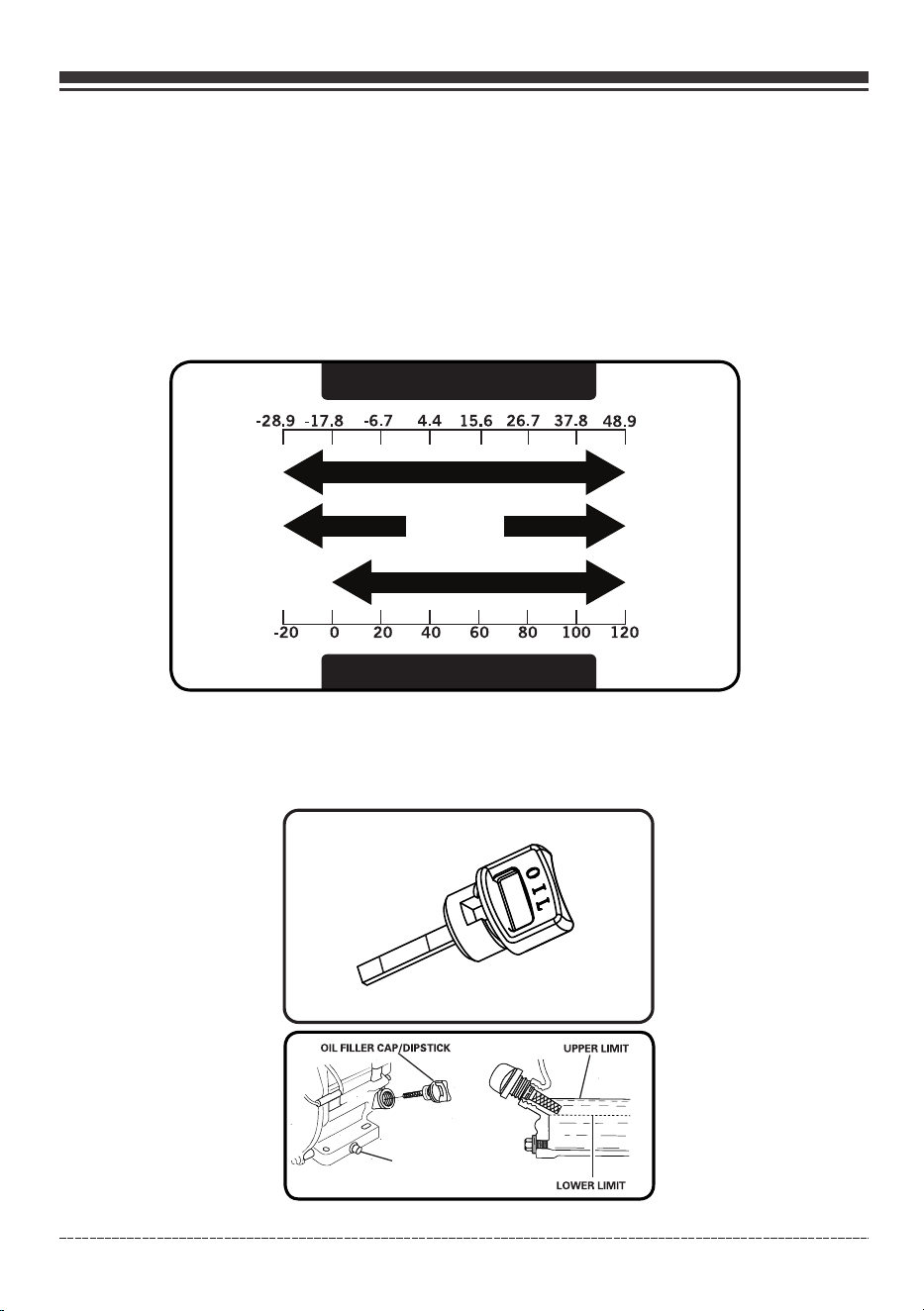

We recommend using FIRMAN SAE 10W-30 API SJ oil for best performance. Other high-quality
detergent oils (API SJ or higher) are acceptable. Do not use special additives. Ambient temperature
determines the proper oil viscosity for the engine. Use the chart to select the proper oil for the
outdoor temperature range expected.
NOTICE Do not attempt to crank or start the engine before it has been properly filled with the
recommended type and amount of oil. Damage due to operation with no oil will void your warranty.
Degrees Celsiusº(Outside)
Full Synthetic 5W-30
Degrees Fahrenheitº(Outside)
5W-30 10W-40
10W-30

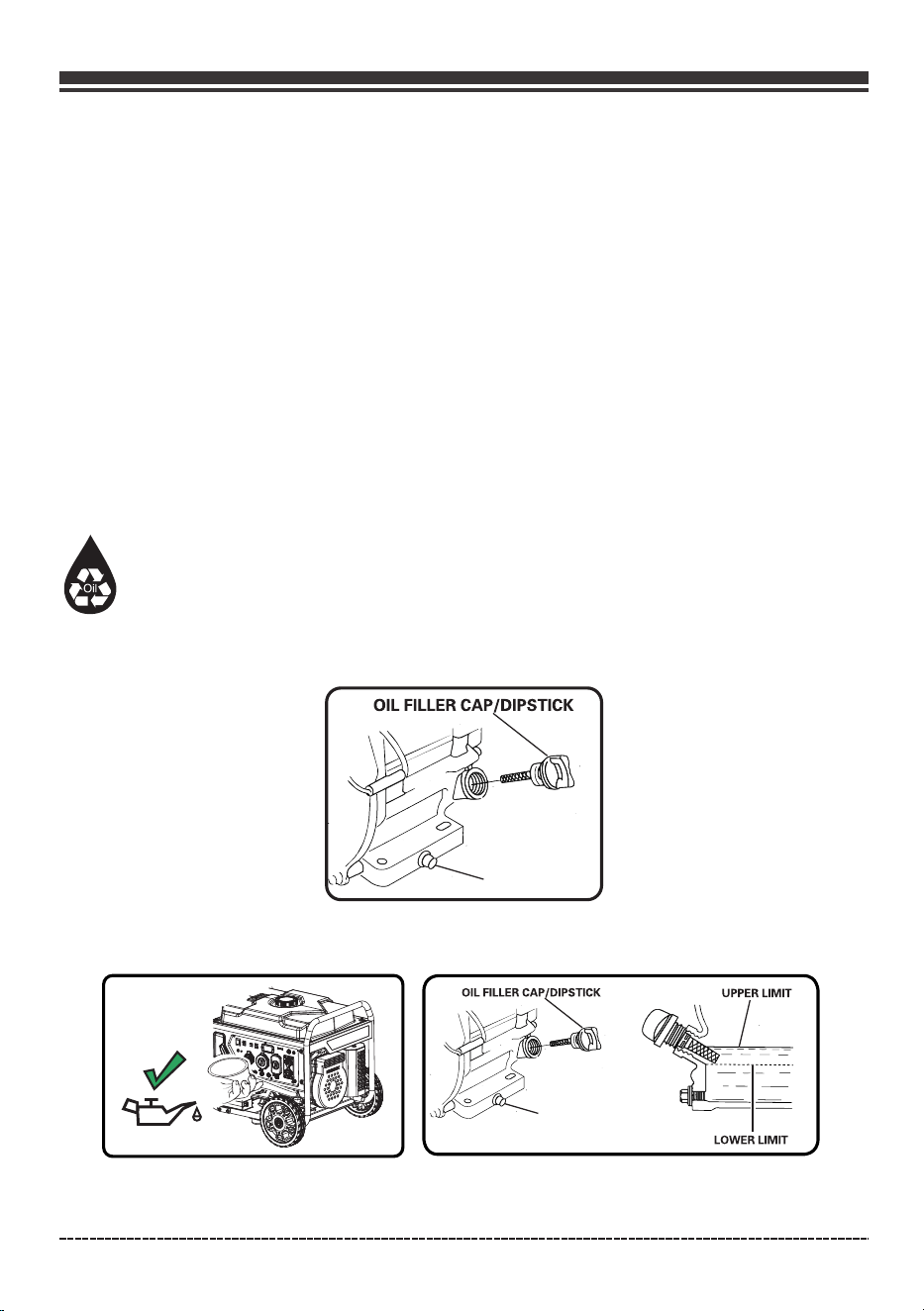

1.Place generator on a flat, level surface.
2.Clean area around oil fill and remove yellow oil fill cap/dipstick.
3.Wipe dipstick clean.
13
OPERATION
(H)
DRAIN PLUG
(L)
H
L
English Customer Service: 1-844-FIRMAN1
4. Using oil funnel, slowly pour contents of provided oil bottle into oil fill opening until oil reaches
upper limit "H" mark on the dipstick. Be careful not to overfill. Overfilling could cause engine
starting problems or engine damage.
5.Replace oil fill cap/dipstick and fully tighten.
6.Oil level should be checked prior to each use or at least every 8 hours of operation. Keep oil
level maintained.
The portable generator is equipped with a low oil shutdown. If the oil level drops below the
minimum required level, a sensor will activate an internal switch stopping the engine. If the
engine shuts off and the oil level is within specifications, check to see if generator is sitting at an
angle. Place portable generator on an even surface to correct this. If engine fails to start, the oil
level may not be high enough to deactivate the internal low oil level switch. Make sure the sump is
completely full of oil to the upper limit (H). Do not operate engine until oil level issue is corrected.
Contact Firman customer service.
Low Oil Shutdown
Add Gasoline

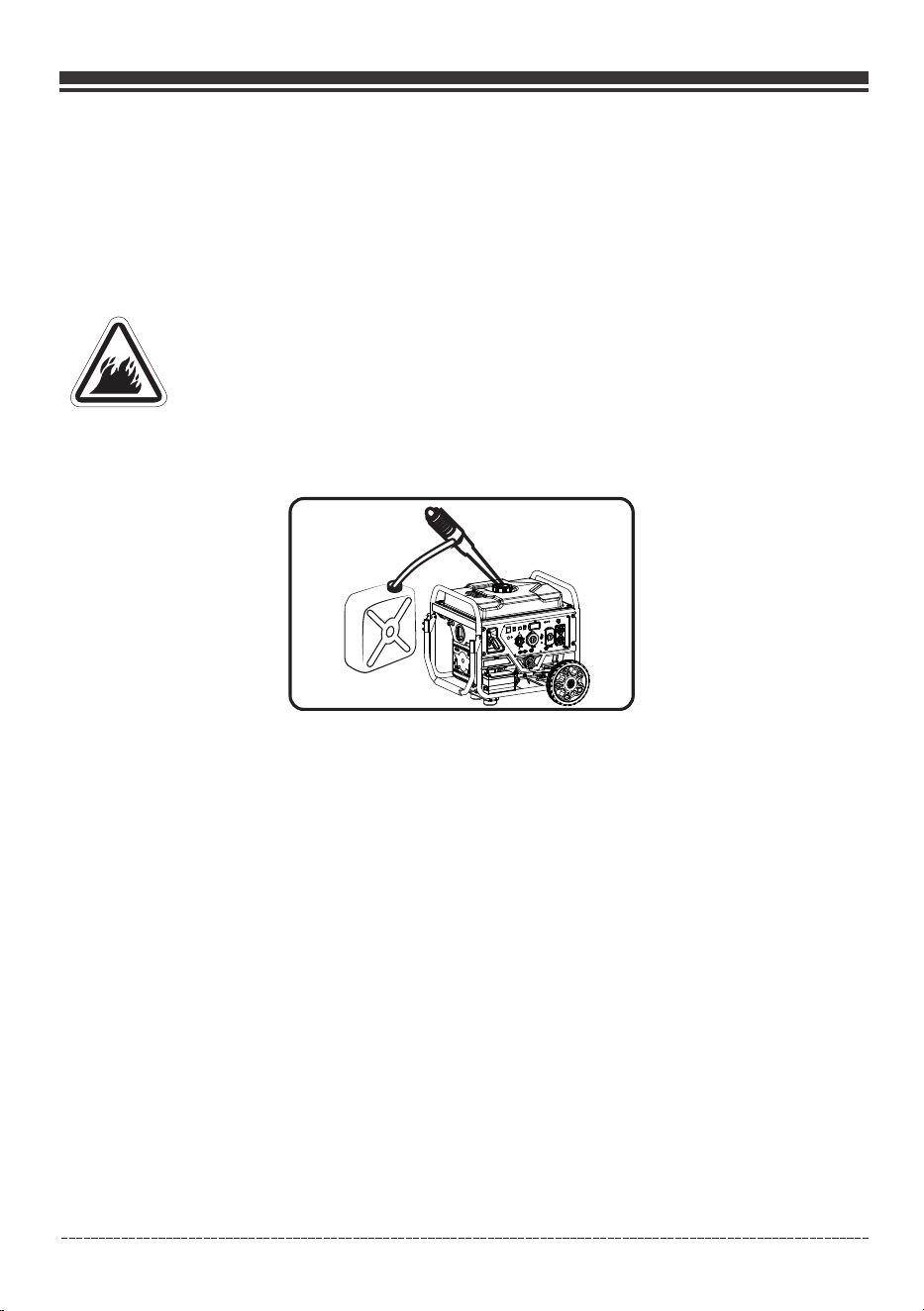

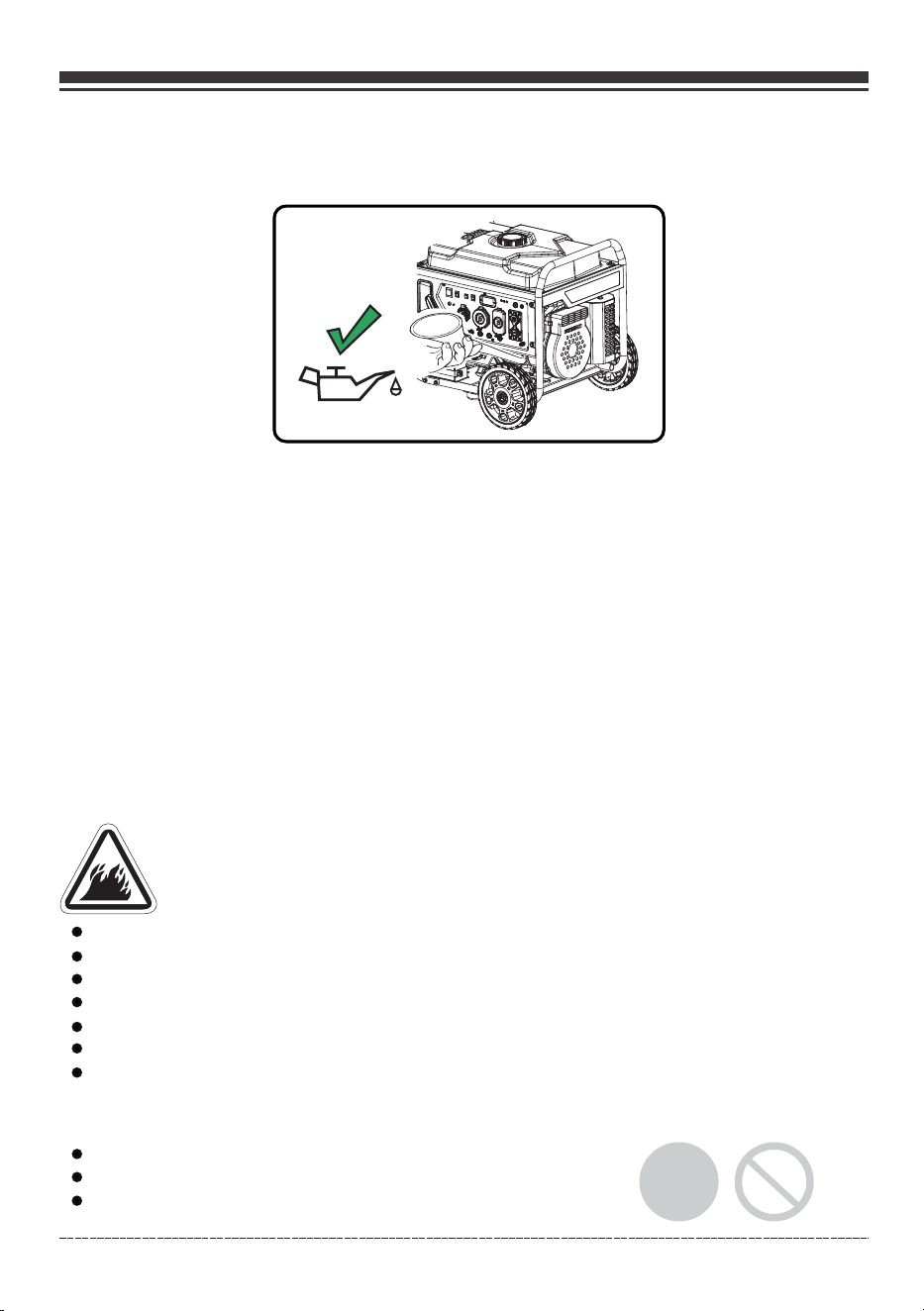

WARNING! Fuel and its vapors are extremely flammable which could cause burns or fire
resulting in death or serious injury.
Turn generator engine OFF and let it cool at least 2 minutes before removing fuel cap.
Do Not refuel or move generator when engine is running.
Move generator outdoors prior to adding or draining fuel
Keep fuel away from any ignition sources.
Do not overfill tank, allow space for fuel expansion.
If any fuel spills, wait until it evaporates before starting engine
Check and replace fuel lines, tank, cap, and fittings prior to each use if any damage or leaks
are found.
Fuel must meet these requirements:
Clean, fresh, unleaded gasoline with a minimum of 87 octane.
For high altitude use, see Operation at High Altitude.
Gasoline with no more than 10% ethanol is acceptable.
E10
E15
14
OPERATION
English Customer Service: 1-844-FIRMAN1
NOTICE Do not mix oil in gasoline or modify engine to run on alternate fuels not described in this
manual. Use of unapproved fuels could damage engine and will not be covered under warranty.

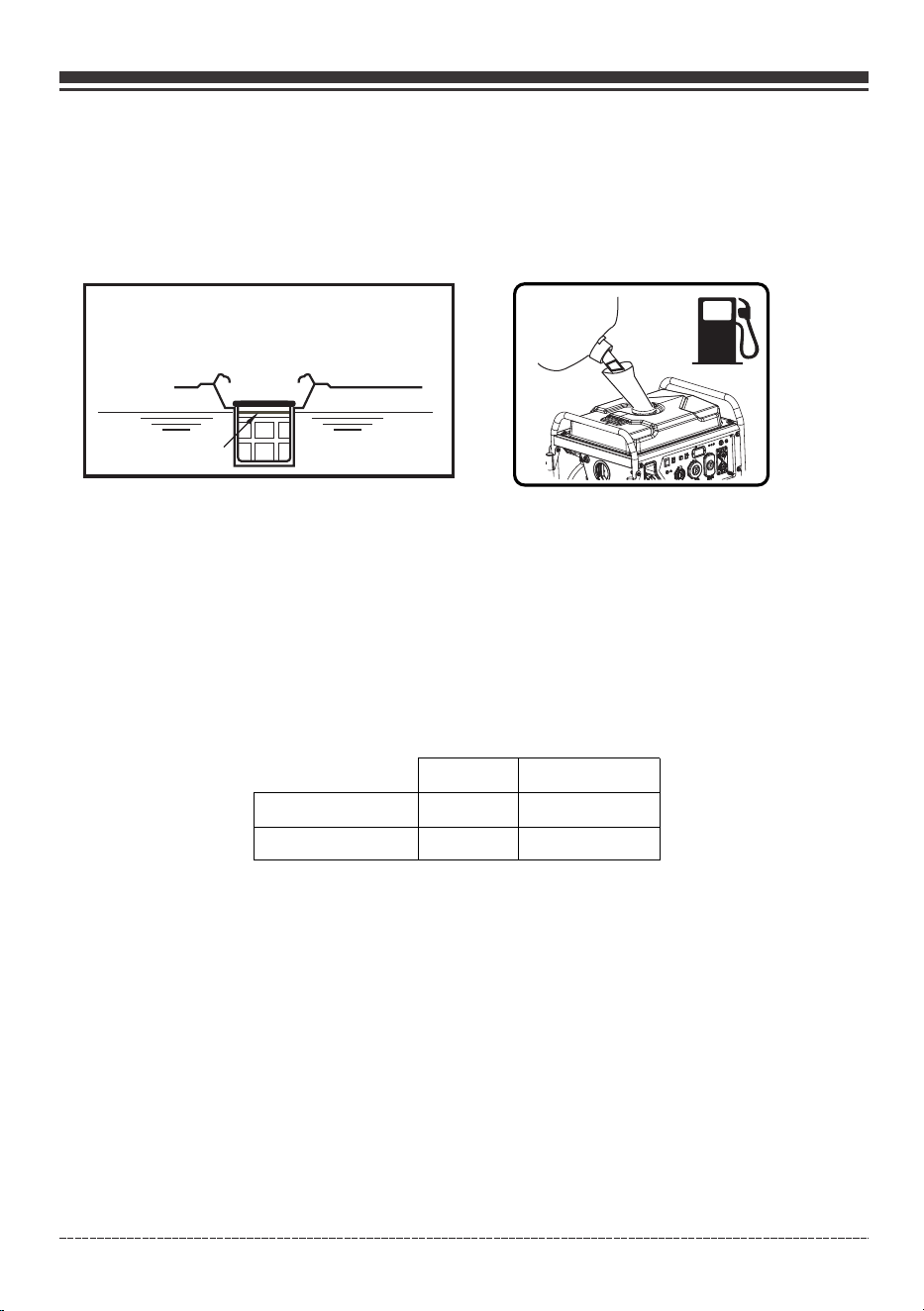

1. Clean area around fuel fill cap, remove cap.
2. Slowly add unleaded fuel to fuel tank. Be careful not to fill above the RED fuel level indicator.
This allows adequate space for fuel expansion.
Red Line Indicator
3. Install fuel cap and let any spilled fuel evaporate before starting engine.
Operation at High Altitude
At altitudes over 5,000 feet(1524 meters), a minimum 85 octane gasoline is acceptable.
Engine power and generator output will be reduced approximately 3.5% for every 1000 feet (305 m)
of elevation above sea level. High altitude may cause hard starting, increased fuel consumption
and sparkplug fouling. To operate at high altitudes FIRMAN can provide a high altitude carburetor
main jet. The alternative main jet and installation instructions can be obtained by contacting
Customer Support.
NOTICE Operation using an alternative main jet at elevations lower than the recommended
minimum altitude can damage the engine. For operation at lower elevations, the standard main
jet supplied must be used. Operating the engine with the wrong main jet may increase exhaust
emissions, fuel consumption and reduce performance.
Altitude main jet 1
Altitude main jet 2
208cc
336717007
336717008
Altitude
3000-6000Feet
6000-8000Feet
Operation at High Ambient conditions
15
OPERATION
Your Firman Power Equipment product is designed and rated for continuous operation at ambient
temperatures up to 104°F (40°C). The generator may be operated at temperatures ranging from
5°F(-15°C) to 122°F(50°C) for short periods. If the generator is exposed to temperatures outside
this range during storage, the generator should be brought back within this range before
operation. When o pera ted a bove 77°F (25°C) t here may b e a d ecre ase in power.
Maximum wattage and current are subject to and limited by such factors as ambient temperature,
altitude, engine conditions etc.
English Customer Service: 1-844-FIRMAN1
3. Starting the Generator
1. Before starting the generator, check for loose or missing parts and for any damage which may
have occurred during shipment. Ensure spark plug, muffler, fuel cap, and air cleaner are all in place.
2. Move portable generator outdoors to safe operating location at least 20 feet from any occupied
spaces.
16
OPERATION

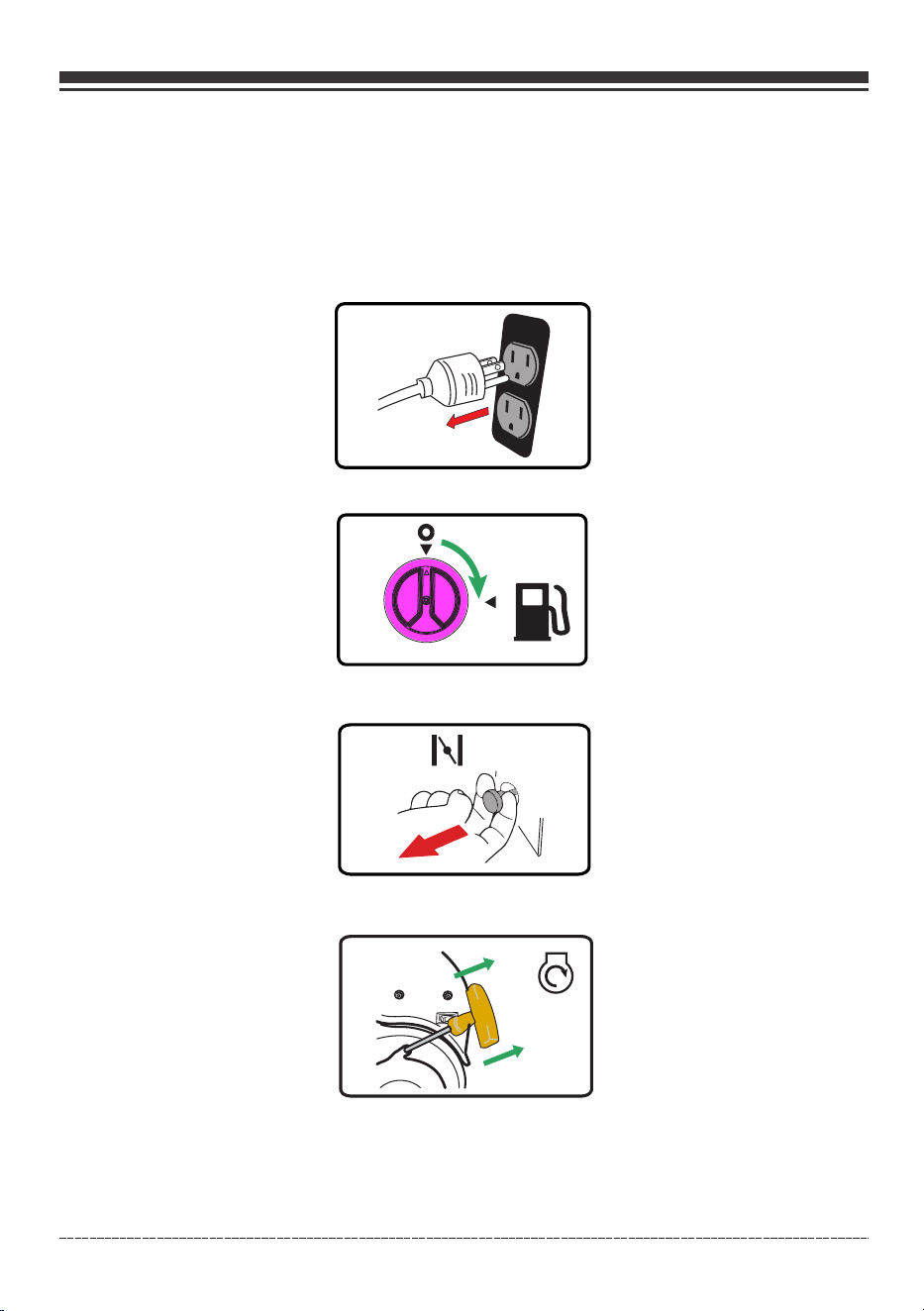

3. Disconnect all electrical loads from the generator. Never start or stop the generator with
electrical devices plugged in.
4. Turn the fuel switch to the “ON
” (l)position.
5. Pull the choke knob to the “CHOKE” position. You do not need to choke a warm engine.
6. Pull the starter cord slowly until resistance is felt and then pull rapidly to start engine.
English Customer Service: 1-844-FIRMAN1
17
OPERATION
8. Allow portable generator to run at no load for a few minutes to stabilize before plugging in
any electrical devices.
NOTICE If engine starts but fails to run, or if portable generator shuts down during operation,
check oil level. See Low Oil Shutdown section for more information.
7. Do not over-choke. As soon as engine starts and warms up, move the choke knob to the “RUN”
position.
This inverter generator has been pretested and adjusted to handle its full capacity.

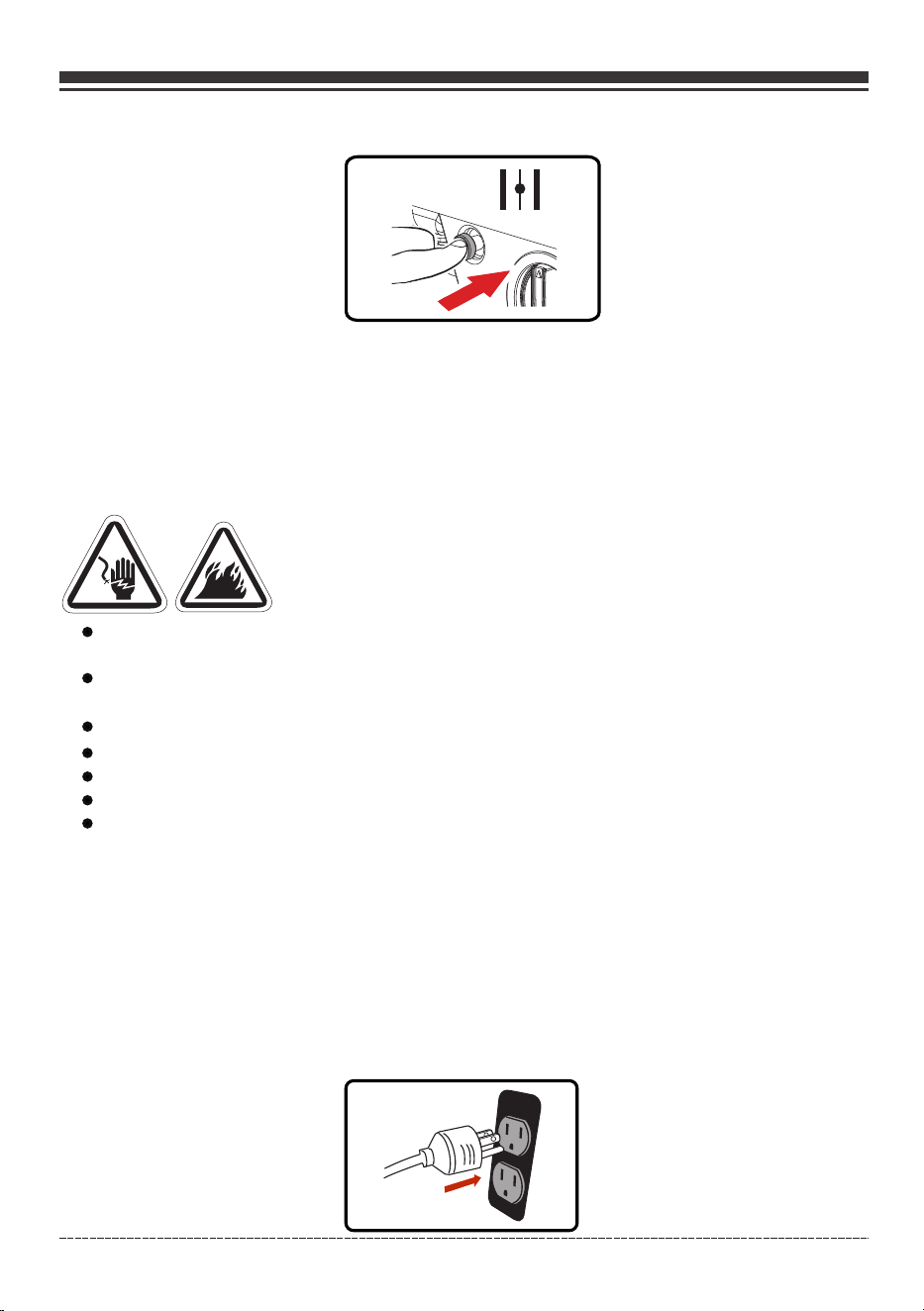

4. Connecting Electrical Loads
Damaged or overloaded extension cords could overheat, arc, and burn resulting death or
serious injury.
Use a ground fault circuit interrupter (GFCI) in any damp or highly conductive area, such as
metal decking.
Do not touch bare wires or receptacles.
WARNING! Generator voltage could cause electrical shock or burn
resulting in death or serious injury.
Do not use generator with electrical cords which are worn, frayed, bare or otherwise damaged.
Do not operate generator in the rain or wet weather.
Do not run indoors to avoid wet conditions.
Do not handle generator or electrical cords while standing in water, while barefoot, or while
hands or feet are wet.
1.Ensure circuit breaker on control panel is in the closed (on) position.
2. Start the generator with no electrical load attached.
3. Allow the engine to run for several minutes to stabilize.
4. Plug in and turn on the first item. It is best to attach the item with the largest load first.
5. Allow the engine to stabilize.
6. Plug in and turn on the next item.
7. Allow the engine to stabilize.
8. Repeat steps 5-6 for each additional item.
English Customer Service: 1-844-FIRMAN1
18
OPERATION
Surge Protection
There is a remote chance that voltage fluctuations may impair the proper functioning of some
sensitive electronic equipment. Electronic devices, including computers and many programmable
appliances may use components that are designed to operate within a narrow voltage range and
may be affected by the portable generator’s momentary voltage fluctuations. While there is no
way to prevent all voltage fluctuations, you can take steps to protect your sensitive electronic
equipment. Install a plug-in surge suppressor on the receptacles feeding your sensitive equipment.
Surge suppressors come in single or multi-outlet styles. They are designed to protect against short
duration voltage fluctuations.
Economy Control Switch
The Economy Control switch can be activated in order to minimize fuel consumption and noise
while operating the unit during times of reduced electrical output, allowing the engine speed to
idle during periods of non-use. The engine speed returns to normal when an electrical load is
connected. When the economy switch is off, the engine runs at normal speed continuously.
For periods of high electrical load or momentary fluctuations, the Economy Control Switch should
be turned OFF.
12V DC Outlet (Battery Charger)
The 12V DC outlet is ONLY to be used with the supplied 12V battery charging cable. The DC output
is unregulated and will damage other 12V DC products.
The amount of current flowing will depend on the charging voltage and battery's state of charge. As the
battery becomes more fully charged, the output current to the battery decreases and nearly becomes
constant. Taper chargers are intended to be used with the provision that they will be disconnected
from the battery after a maximum time on charge. Normally a period of 30 to 120 minutes is sufficient
to recharge a weak battery. The charge level of the battery should be checked periodically.
NOTICE
Do not start the vehicle while the battery charging Cable is connected and the generator is running.
It will not give the battery a boost of power. The Vehicle or the generator may be damaged. Charge
only vented wet lead acid batteries. Other types of batteries may burst, causing personal injury
or damage.
For
usewith12Vdirectcurrentoutlet,always keeptheECOmodedeactivated(OFFPosition).
Youcanusethe12Vdirectcurrentoutletandthe 230Vcurrentatthesametime,butkeeptheECO
modedeactivated(OFFPosition)atalltimes.
NOTICE
English Customer Service: 1-844-FIRMAN1
19
OPERATION
Storage batteries give off EXPLOSIVE hydrogen gas while charging. Do not allow smoking,
open flames, sparks, or spark producing equipment in the area while charging.
WARNING!
Battery electrolyte fluid is comprised of sulfuric acid that can be very dangerous and cause severe
burns. Do not allow this fluid to contact eyes, skin, clothing, etc. If contact or spillage does occur,
flush the area with water immediately.
Do not continue to charge a battery that becomes hot or is fully charged.
1. Before connecting the battery charging cable to a battery that is installed in a vehicle, disconnect
the vehicle battery ground cable from the negative (–) battery terminal.
2. Plug the battery charging cable into the DC receptacle of the generator.
3. Connect the red (+) battery charger lead to the red (+) battery terminal.
4. Connect the black (–) battery charger lead to the black (–) battery terminal.
5. Start the generator.
CO Alert
Carbon Monoxide (CO) Shutdown System
CO Alert automatically shuts down the engine when harmful levels of carbon monoxide
accumulate around the generator or a CO Alert fault occurs. After shutdown, the CO Alert
indicator light will blink for at least five minutes per the chart below.
CO Alert DOES NOT replace carbon monoxide alarms.
Install battery-powered carbon monoxide alarm(s) in your home. Don’t run generator in enclosed
areas.
Color
Description
Red
Yellow
CO Alert fault occured*.
See FIRMAN authorized service dealer.
*Yellow light will blink for five seconds at the startup of generator to show CO ALERT is functioning
properly.
TM
Carbon monoxide accumulated around generator. Prior
to restart move generator to an open, outdoor area
20 ft. (6 m) from occupied spaces with exhaust pointed
away. Air out premises (open windows and doors) before
reoccupying property. Automatic shutoff is an indication
generator was improperly located.
If you start to feel sick, dizzy, weak, or your homes carbon
monoxide alarm sounds while using this product, get to
fresh air right away. Call emergency services. You may
have carbon monoxide poisoning.
English Customer Service: 1-844-FIRMAN1
5. Stopping the generator
1. Turn off and remove all electrical loads.
Never stop the generator with electrical devices plugged in and turned on.
Never stop the engine by moving the choke to the start position.
Let the generator run at no-load for one minute to stabilize internal temperatures of the engine
and generator.
20
OPERATION
2. Flip the fuel switch to“OFF”(O) position.
NOTICE If a cover is used, do not install until unit has cooled.
English Customer Service: 1-844-FIRMAN1
21
OPERATION
Low Oil Shutdown
If the engine oil drops below a preset level, an oil switch will stop the engine. Check oil level with
dipstick.
If oil level is between the LOW and HIGH mark on dipstick:
1.Add oil to bring level to HIGH mark.
2.Restart engine and if the engine stops again a low oil condition may still exist. DO NOT try to restart
the engine.
3.Contact an Authorized FIRMAN Service Dealer.
4.DO NOT operate engine until oil level is corrected.
1.DO NOT try to restart the engine.
2.Contact an Authorized FIRMAN Service Dealer.
3.DO NOT operate engine until oil level is corrected.
If oil level is below the LOW mark on dipstick:
Overloading a generator in excess of its rated wattage capacity can result in damage to the
generator and to connected electrical devices. To prolong the life of your generator and attached
devices, follow these steps to add electrical load:
1. Start the generator with no electrical load attached.
2. Allow the engine to run for several minutes to stabilize.
3. Plug in and turn on the first item. It is best to attach the item with the largest load first.
4. Allow the engine to stabilize.
5. Plug in and turn on the next item.
6. Allow the engine to stabilize.
7. Repeat steps 5-6 for each additional item.
Do Not Overload Generator
Overload Operation
1. Disconnect any electrical devices, and then stop the engine.
3. Inspect the Air Inlet and Control Panel for any blockage. Remove blockage if found.
4. Restart Engine.
How to Correct
2. Reduce the total wattage of connected electrical devices until it is within the generator’s rated output.
Parallel Operation
Any two FIRMAN inverter generators with parallel ports, including two FIRMAN inverters model W03661OF
can be paralleled to increase the total available electrical power to 6000 Watts. A FIRMAN Parallel
kit (not included) is required for parallel operation. For Kit availability, call customer Service at 1-844-
347-6261 or visit: www.firmanpowerequipment.com.
The overload indicator light will blink when the load exceeds 3750W(approximately) and cut power
to the receptacles in 30 seconds . If the load exceeds 3850W(approximately), the light will turn on and
cut power to the receptacles in 2 seconds.
English Customer Service: 1-844-FIRMAN1
Maintenance - Storage
General Recommendations
Regular maintenance will improve the performance and extend the life of the generator. See any
authorized dealer for service.
The generator's warranty does not cover items that have been subjected to operator abuse or
negligence. To receive full value from the warranty, the operator must maintain the generator as
instructed in this manual.
Some adjustments will need to be made periodically to properly maintain your generator.
All service and adjustments should be made at least once each season. Follow the requirements
in the maintenanc shedule chart above.
NOTICE
Once a year you should clean or replace the spark plug and replace the air filter. New
spark plug and clean air filter assure proper fuel-air mixture and help your engine run at peak
performance and last longer.
Tobeperformedbyknowledgable/experiencedowner or by authorized service center.
*
MAINTENANCE SCHEDULE
ITEM NOTES
Daily(Before
operation)
Initial
25 hours
Every
50 hours
Every
100 hours
(or annual)
Fittings/
Fasteners
Spark Plug
Engine Oil
Air Filter
Fuel Line
Exhaust
System
Engine
Check condition. Adjust gap
and clean. Replace if necessary.
Check oil level.
Clean, replace if necessary.
Check for leakage. Retighten or
replace gasket if necessary.
Check adjust valve clearance.
Clean combustion chamber.
Check. Replace if necessary.
Check fuel hose for cracks or other
damage. Replace if necessary.
Replace.
Check spark arrester screen.
Clean/Replace if necessary.
Every
250 hours
*
*
Fuel
Clean fuel tank strainer.
Replace if necessary.
22
√
√
√ √
√
√
√
√
√
√
√
√
English Customer Service: 1-844-FIRMAN1
When Transporting Generator
Transport with fuel tank EMPTY or with fuel switch in OFF position.
Do not tip generator at an angle which causes fuel to spill.
ENGINE MAINTENANCE
To prevent accidental starting, remove and ground spark plug wire before performing any service.
Change Engine Oil
Change engine oil every 100 hours. (for a new engine, change oil after 25 hours.)
If you are using your generator under extremely dirty or dusty conditions, or in extremely hot
weather change the oil more often.
CAUTION! Avoid prolonged or repeated skin contact with used motor oil. Used motor oil has been
shown to cause skin cancer in certain laboratory animals. Thoroughly wash exposed areas with
soap and water.
KEEP OUT OF REACH OF CHILDREN. DON’T POLLUTE. CONSERVE RESOURCES. RETURN USED OIL
TO COLLECTION CENTERS.
NOTICE We recommend using FIRMAN SAE 10W-30 API SJ oil for best performance. Other high-
quality detergent oils (API SJ or higher) are acceptable. See Oil and Gasoline
23
Maintenance - Storage
DRAIN PLUG
(a) On a level surface drain oil into a suitable container by removing the drain plug and the oil
filler cap while the engine is warm.
(b) Reinstall the drain plug and fill the engine with oil until it reaches the HIGH(H) level on the
oil filler dipstick.
(H)
DRAIN PLUG
(L)
English Customer Service: 1-844-FIRMAN1

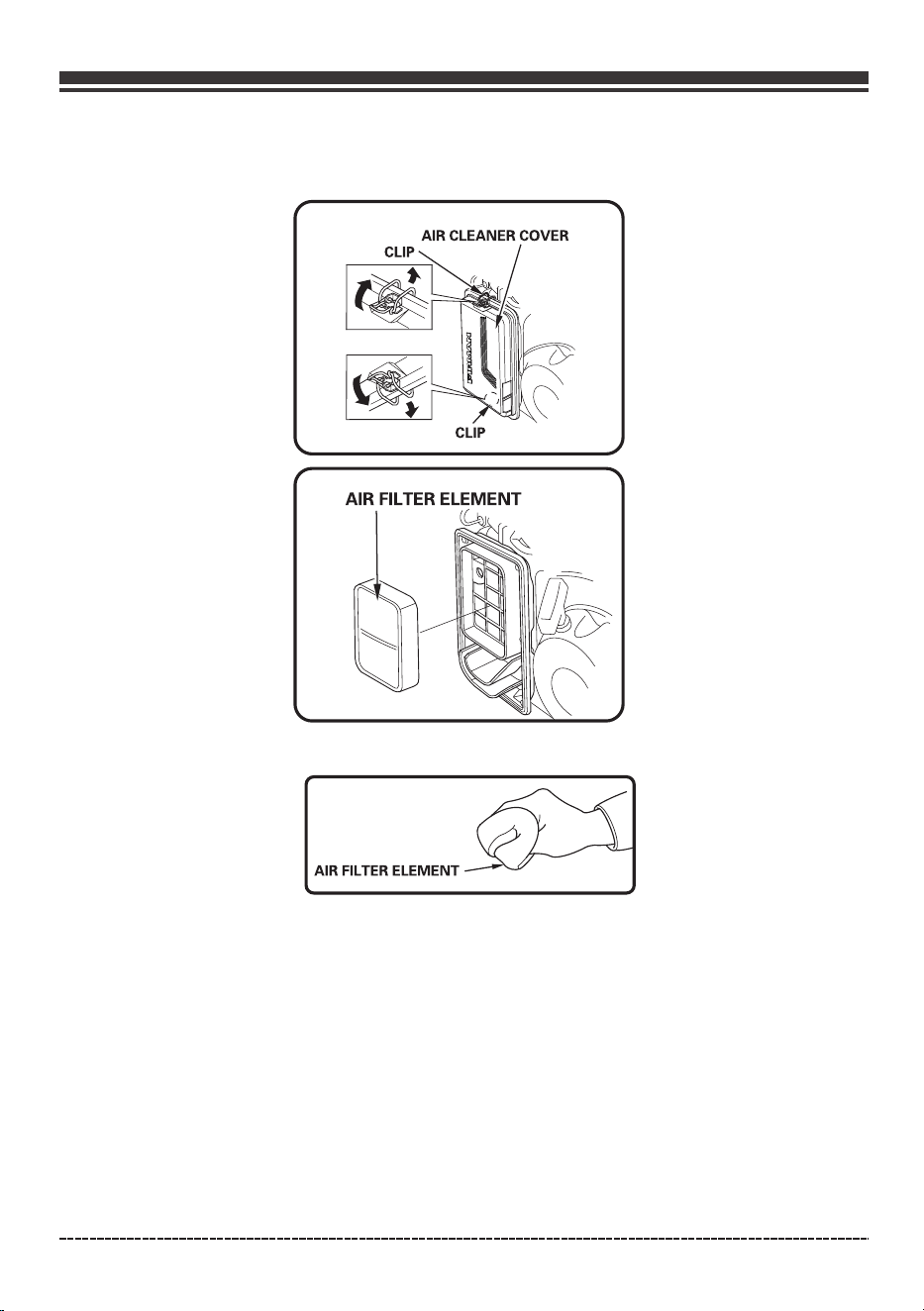

Air Filter Maintenance
(a) Carefully remove foam air filter element and wash it with liquid detergent and water only.
Squeeze dry in a clean cloth.
(b) Saturate foam air filter element with clean engine oil and squeeze in a clean cloth to remove
excess oil.
Spark Plug Maintenance
Changing the spark plug will help your engine start easier and run at peak performance.
(a) Remove the spark plug boot.
(b) Remove spark plug using provided wrench.
24
( c) Reinstall clean or new air filter element.
Maintenance - Storage
English Customer Service: 1-844-FIRMAN1
( c) Inspect spark plug for damage and clean with a wire brush before reinstalling. Replace if
damaged.
(d) Adjust the electrode gap to 0.028 - 0.031 in. (0.7 - 0.8 mm).
(e) Seat spark plug in position and thread by hand to prevent cross threading.
(f) Tighten plug with provided wrench and put the spark plug boot back on spark plug.
SPARK PLUG: TORCH F6RTC, NGK BPR6ES, CHAMPION RN9YC or equivalent.
Maintenance Valve Clearance
Intake: 0.004 – 0.006 in. (0.10 – 0.15 mm)
Exhaust: 0.004 – 0.006 in. (0.10 – 0.15 mm)
Muffler and Spark Arrester
WARNING! Contact with muffler area could cause burns resulting in serious injury.
Do not touch hot parts.
It is a violation of California Public Resource Code, Section 4442, to use or operate the engine
on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is
equipped with a spark arrester, as defined in Section 4442, maintained in effective working
order. Other states or federal jurisdictions may have similar laws, reference Federal
Regulation 36 CFR Part 261.52.
25
Maintenance - Storage

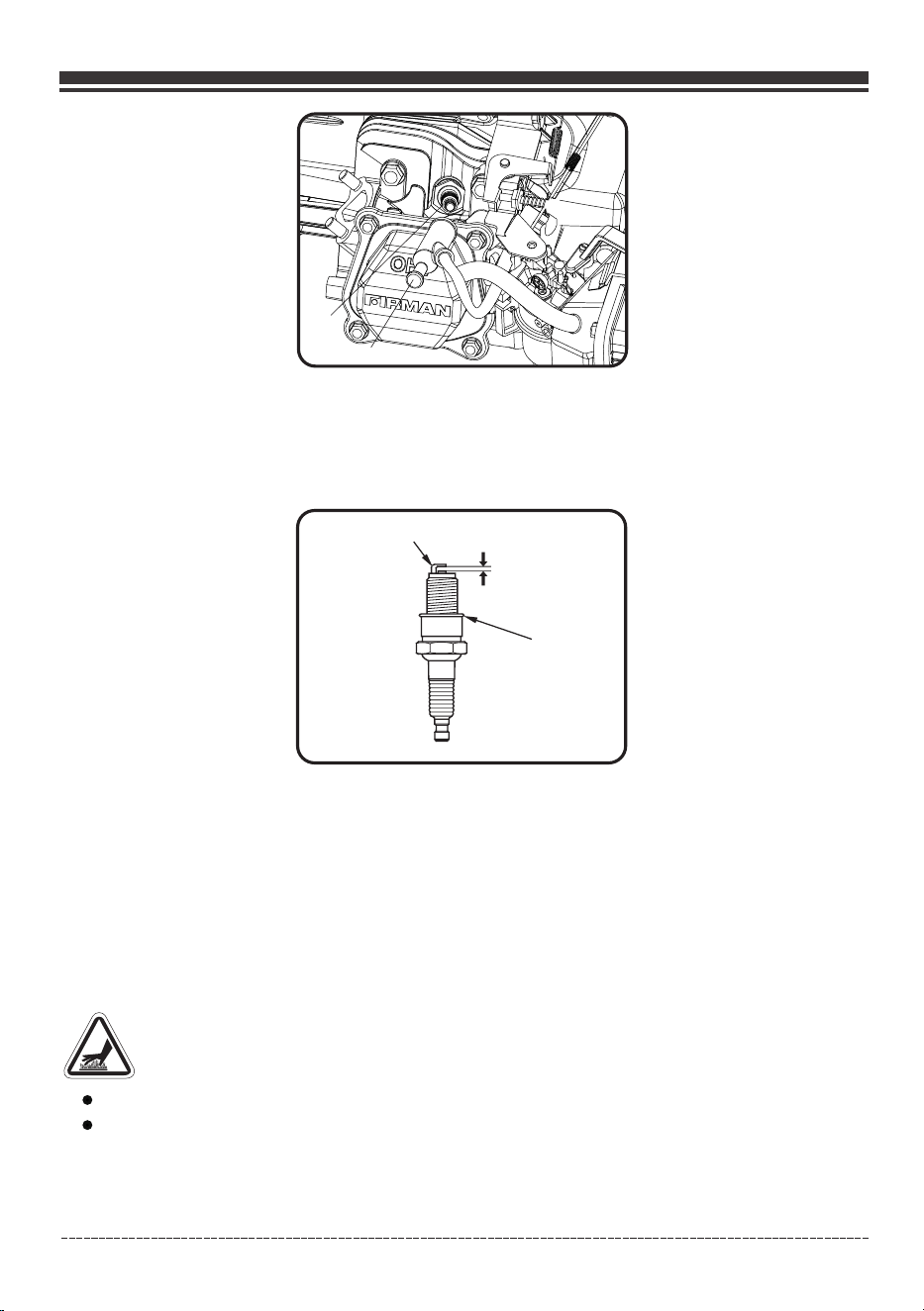

A- Spark plug
B- Spark plug boot
A
B
0.028 - 0.031 in.
(0.7 - 0.8 mm)
SIDE ELECTRODE
SEALING
WASHER
English Customer Service: 1-844-FIRMAN1

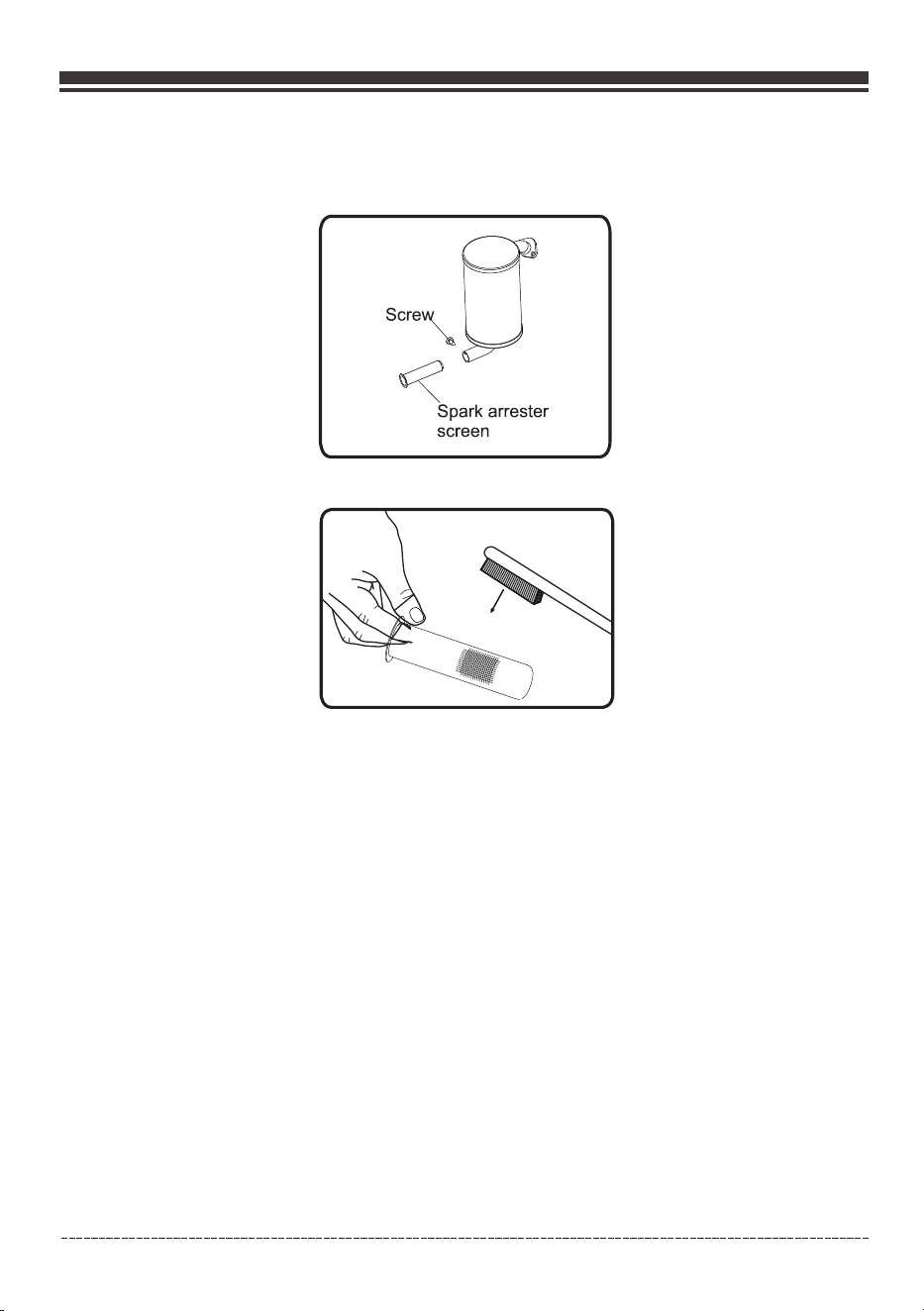

Inspect Muffler and Spark Arrester
1. Inspect the muffler for cracks, corrosion, or other damage.
2. Remove the screw securing the spark arrester in place and then remove it from muffler.
3. Carefully remove the carbon deposits from the spark arrester screen with a wire brush.
4. Replace the spark arrester if it is damaged. If replacement parts are required, make sure to use
only FIRMAN original equipment replacement parts.
5. Position the spark arrester in the muffler and attach with the screw.
NOTICE Failure to clean or replace spark arrester may result in decreased engine performance.
GENERATOR MAINTENANCE
Make certain that the portable generator is kept clean and dry.
Do not expose the unit to excessive dust, dirt, moisture or corrosive vapors.
Do not insert any objects through cooling slots.
Before each use inspect underneath the generator for signs of oil or fuel. Clean any accumulated
debris. Keep area around muffler free from any debris. Use a soft bristle brush to remove dirt or
caked on oil. Use a damp cloth to clean all exterior surfaces.
26
Run the generator at least 30 minutes every month.
Maintenance - Storage
English Customer Service: 1-844-FIRMAN1
It is important to prevent gum deposits from forming in essential fuel system components such
as the carburetor, fuel hoses or tank during storage. Ethanol-blended fuels (called gasohol, ethanol
or methanol) attract moisture, which leads to separation and formation of acids during storage.
Acidic gas can damage the fuel system of an engine while in storage.
Long Term Storage
When the generator set is being stored for more than one month, follow these instructions to avoid
engine problems:
Do not store fuel near any ignition sources.
When draining fuel move generator outdoors and use a commercially available non-conductive
vacuum siphon. Fuel must be drained into an approved container.
WARNING! Fuel and its vapors are extremely flammable which could cause burns
or fire resulting in death or serious injury.
1-Treat any stored fuel with fuel stabilizer.
2-When storing generator with gasoline in fuel tank, operate the engine for 5-10 minutes to
circulate treated fuel into fuel lines and carburetor before shutdown.
3- There is no need to drain gasoline from the generator fuel tank if fuel stabilizer is added.
4-FUEL STARVATION: If you elect to drain fuel tank move generator outdoors. Once fuel tank is
drained turn fuel valve to on position. Start and run the portable generator outdoors until engine
stops from lack of gasoline. This will drain remaining gasoline from tank, fuel lines, and carburetor.
5-Always turn fuel valve to OFF position prior to storage.
6-Allow the portable generator to cool before cleaning and storage.
7-Change oil .
8-Remove spark plug boot and spark plug. Pour about one teaspoon of engine oil through the
spark plug hole, then slowly pull the recoil starter several times to distribute the oil in the cylinder
Pull recoil slowly until resistance is felt. This will close the valves so no moisture enters the engine
cylinder. Reinstall the spark plug and attach the spark plug boot.
9-Cover the portable generator and store in a clean, dry place out of direct sunlight and away from
any ignition sources.
Any damage or hazards caused by using improper fuel, improperly stored fuel, and/or improperly
formulated stabilizers, are not covered by manufacturer's warranty.
Do not store gasoline from one season to another season.
27
Maintenance - Storage
Troubleshooting – Specifications
English Customer Service: 1-844-FIRMAN1
28
Problem Cause Correction
Engine is running, but no
AC output is available.
1. Circuit breaker is open.
2. Fault in generator.
3. Poor connection or defective cord set.
4. Connected device is bad.
1. Reset circuit breaker.
2. Contact authorized service facility.
3. Check and repair.
4. Connect another device that is in
good condition.
Engine runs good at
no-load but “bogs down”
when loads are connected.
1. Short circuit in a connected load.
2. Engine speed is too slow.
3. Shorted generator circuit.
1. Disconnect shorted electrical load.
2. Contact authorized service facility.
3. Contact authorized service facility.
Engine will not start; starts
and runs rough or shuts
down when running.
1. Low oil level.
2. Dirty
air cleaner.
3. Out
of gasoline.
4. Stale gasoline.
5. Spark plug wire not connected to
spark plug.
6. Bad spark plug.
7. Water in gasoline.
8. Flooded.
9. Excessively rich fuel mixture.
1. Fill crankcase to proper level or
place generator on level surface.
2. Clean or replace air cleaner.
3. Fill fuel tank with gasoline.
4. Drain fuel tank and carburetor; fill
with fresh gasoline.
5. Connect wire to spark plug.
6. Replace spark plug.
7. Drain gas tank and carburetor; fill
with fresh gasoline.
8. Wait 5 minutes and re-crank engine.
9. Contact authorized service facility.
Engine lacks power.
1. Load is too high.
2. Dirty air filter.
1. Don't Overload Generator
2. Replace air filter.
Engine“hunts”or falters.
1. Carburetor is running too rich or too lean.
1. Contact authorized service facility.
10. Clogged or dirty fuel filter.
4. Clean or replace fuel filter.
10. Clean or replace fuel filter.
3. Clogged or dirty fuel filter.
4. Clogged spark arrester.
3. Clean or replace fuel filter.
4. Clean or replace spark arrester.
2. Clogged or dirty fuel filter.
2. Clean or replace fuel filter.
Engine shuts down when
running.
1. Out of gasoline.
2. Dirty air cleaner.
3. Low oil level.
1. Fill fuel tank with gasoline.
2. Clean or replace air cleaner.
3. Fill crankcase to proper level or place.
generator on level surface.
4. Clogged or dirty fuel filter.
For all other issues, contact authorized dealer or Firman customer service.
good condition.
5. Overload.
5. Shut off engine, reduce electrical
load, and restart.
Engine shuts down and
yellow CO fault light
blinking.
1. CO system fault
1. Contact authorized FIRMAN
service facility.
SPECIFICATIONS
Model
Rated AC Voltage
Phase
Power Factor
Voltage Regulator
Alternator
Type
Running Watts*
Starting Watts
Engine
Engine Type
Displacement
Low Oil Shutdown
Ignition System
Starting System
Fuel
Capacity Fuel Tank
Lubricating Oil Capacity
Carburetor Type
Air Cleaner
P.T.O. Shaft Rotation
120V
W03661OF
3650
Digital
Single
1
Single Cylinder, 4-Stroke OHV Air Cooled
208cc
Breakless Ignition Type, Flywheel Magneto
Unleaded Automotive Gasoline
6 U.S. Gallons (23L)
20.3 oz (0.6L)
Counter Clockwise (Facing P.T.O.)
Float
Magneto
Polyurethane Type
Yes
4500
FIRMAN
Rated Fequency
60Hz
Oil Type
See “Add Engine Oil” Section
Recoil
English Customer Service: 1-844-FIRMAN1
AC Grounding System
Neutral Floating
29
Troubleshooting – Specifications
Total Harmonic Distortion(THD)
<3%
Inductor
*Generator certified in accordance with CSA (Canadian Standards Association) standard
C22.2No. 100-14, Motors and Generators and complies with PGMA (Portable Generator
Manufacturers’ Association) standard ANSI/PGMA G300-2018, Safety and Performance of
Portable Generators.
PARTS DIAGRAM AND PART LIST

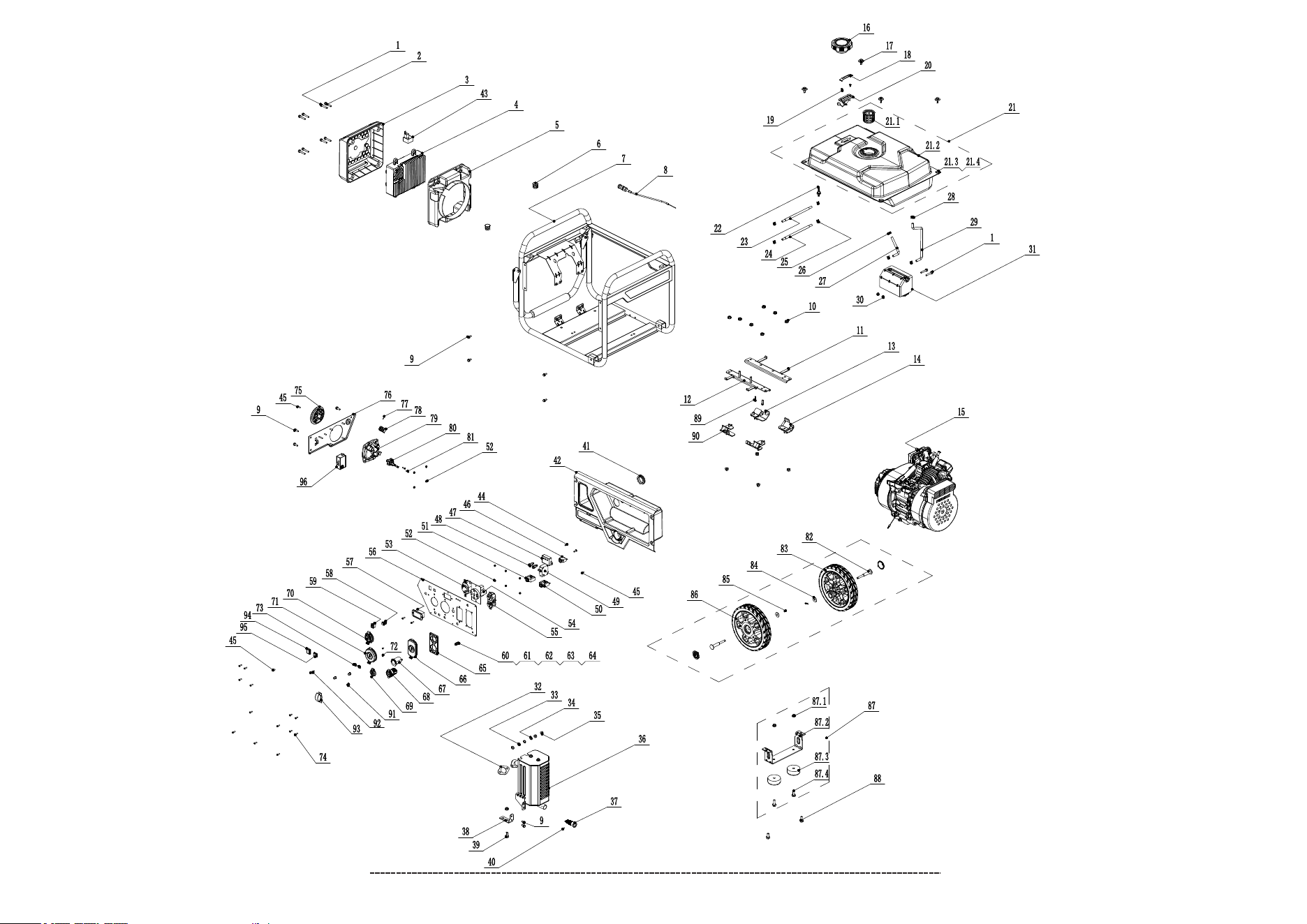

W03661OF PARTS DIAGRAM
English Customer Service: 1-844-FIRMAN1
30

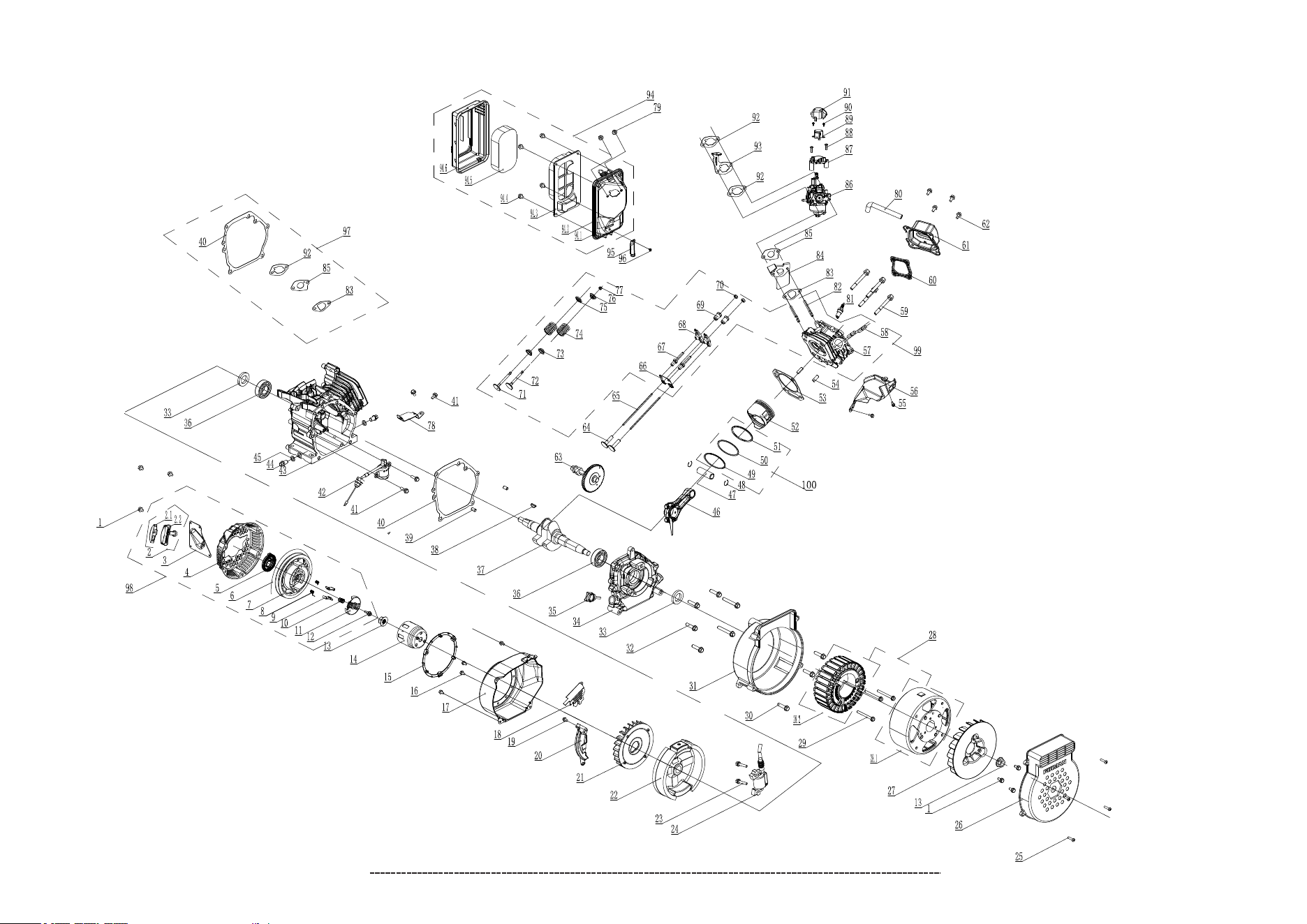

208cc ENGINE PARTS DIAGRAM
English Customer Service: 1-844-FIRMAN1
31
W03661OF Portable Generator
English Customer Service: 1-844-FIRMAN1
32

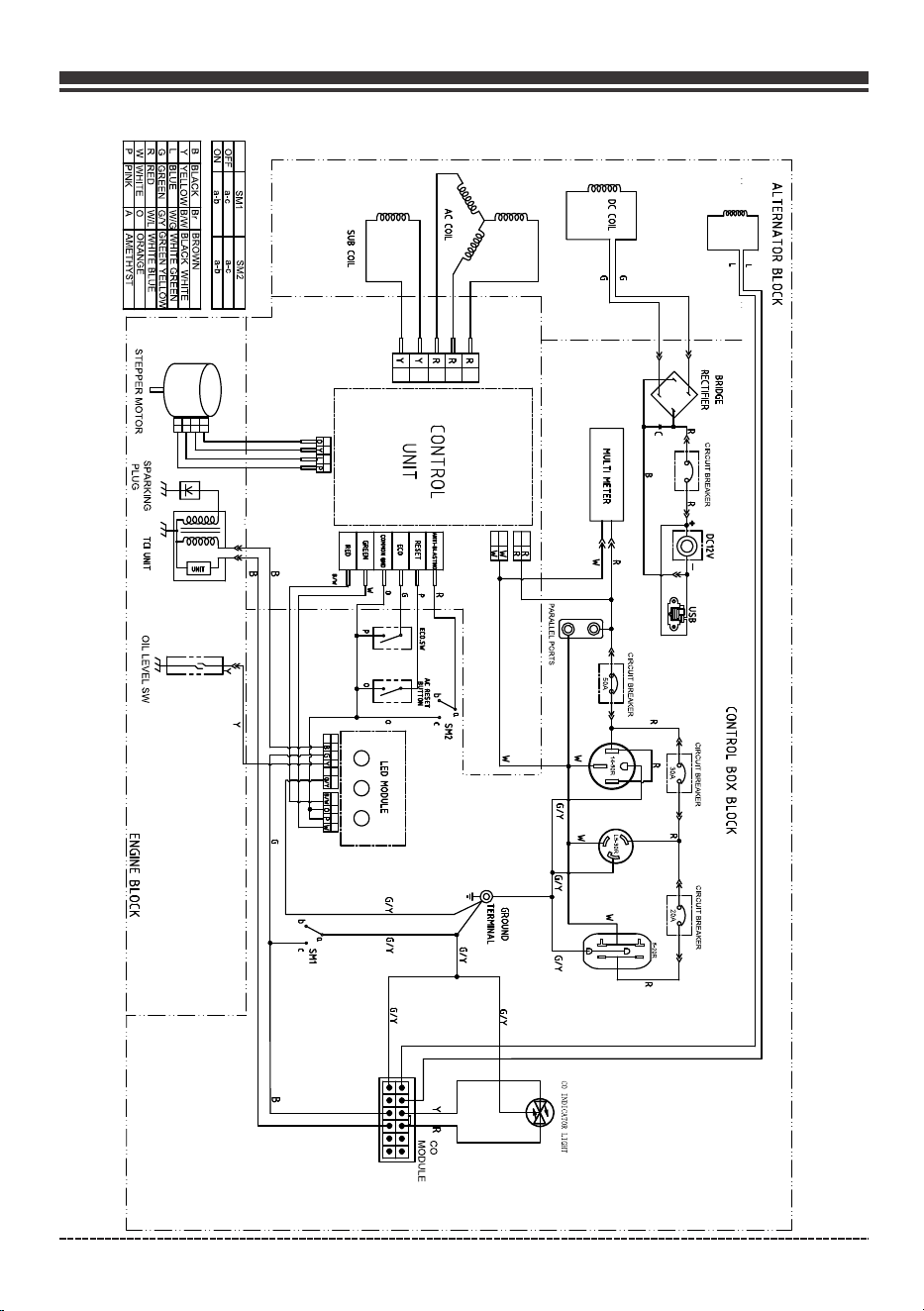

Parts Diagrams - Parts Lists - Wiring Diagram
NO.
Part Number
Description
Qty.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21.1
21.2
21.3
21.4
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
87.1
87.2
87.3
87.4
88
89
90
91
92
93
94
95
96
NO.
Part Number
Description
Qty.
336718366
336713561
336728304
336728305
336728306
336728307
336418326
336417023
336718302
336718315
336718373
336718374
336427006
336427007
336418325
340413002
393713018
336713547
336713546
336718382
336418305
336713548
336413002
357713600
336713542
336713807
336728308
336728309
330713508
330713509
336713680
336713540
336713635
336718314
336428302
336717014
336713533
336713509
336717015
336418307
336718393
336718377
393713046
336718359
336728309
336728310
330713574
330713542
330713582
330713614
336457013
330713603
336718378
336713585
336713586
330713596
336713832
380713518
336713588
336418324
357713586
330713630
330713599
336718345
336713577
336718325
336713579
336718367
336718379
336713575
336713673
336718380
336713674
336713573
336713574
336718368
330713602
336718369
336713815
336418309
336713820
336713821
336718381
336418310
336718370
336717016
340728302
336717017
336717018
340728303
336717019
336718313
336717020
336717021
336718330
336713559
336718305
336427008
336755005
336755002
336727008
336727009
336727010
336755000
Flange Bolt M6×35
Flange Bolt M6×25
Inverter Cover I
Inverter
Inverter Cover II
Plug
Frame Assy
Choke Knob Assy
Flange Bolt M6×12
Nut M8
Bracket II
Bracket I
Isolator 2
Isolator 3
Engine Subassembly
Fuel Cap
Bolt M6×20
Fuel Gauge Display
Screw M5×10
Fuel Gauge Assy.
Fuel Tank Assy.
Fuel Filter, Wire Mesh
Fuel Tank
Bushing
Grommet, Fuel Tank
Hose,Fuel, Connector
Hose,Fuel
Hose,Fuel
Clamp Ø10.5×8
Clamp Ø8.7×8
Pipe
Clamp Ø8×6
Pipe
Nut M6
Carbon Canister(450cc)
Auspuffdichtung
Flat Washer Ø8
Lock Washer Ø8
Nut M8
Muffler Assembly
Spark Arrester
Muffler Bracket
Flange Bolt M8×20
Bolt ST4.2×9.5
Grommet
Control Panel Base
Rectifier
Flange Bolt M5×14
Screw&washer Assy M4×14
D.C 10A Breaker
Speed Limiter
Parallel Ports
Circuit Breaker Amp 50A
Circuit Breaker Amp 20A
Circuit Breaker Amp 30A
Nut M4
Receptacle L5-30R
Receptacle 14-50R
Receptacle 5-20R
Control Panel
Multi Meter
AC Reset Button
Switch, Economy
Nut M5(ground)
Nut M5
Flat Washer Ø5
Star Washer Ø5
Receptacle Fix Board
Outlet Cover 5-20R
Receptacle & Usb
Dc Outlet Cover
Outlet Cover L14-30R
Outlet Cover TT-30R
Screw&washer Assy M3×6
Outlet Cover
Flange Bolt M4×14
Fuel Selector Switch
Operate Panel Assy
Bolt St2.9×32
Micro Switch 1
Fuel Valve
Screw&washer Assy M4×20
Axle Comp
Wheel
Flat Washer Ø10
Pin, Shaft
Wheel
Support Leg Assy
Nut M6
Support Leg
Rubber, Support
Flange Bolt M6×25
Flange Bolt M8×16
Flange Bolt M8×35
Isolator 1
Circuit Breaker Cover
Indicator Light
Circuit Breaker Cover
Switch Cover
Switch Cover
CO Module
6
4
1
1
1
2
1
1
14
13
1
1
2
1
1
1
4
1
2
1
1
1
1
4
4
1
1
1
4
2
1
2
1
2
1
1
2
2
2
1
1
1
1
1
1
1
1
2
14
1
1
2
1
1
1
10
1
1
2
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
2
2
4
1
1
1
1
1
1
2
2
1
2
2
1
1
2
1
2
2
2
4
1
3
1
1
1
1
1
Flange Bolt M5×16(ground)
Receptacle DC Lighter Style
Multi-function Switch Seat
English Customer Service: 1-844-FIRMAN1
33
Parts Diagrams - Parts Lists - Wiring Diagram
FIRMAN 208cc Engine
NO.
Part Number
Description
Qty.
1
2
2.1
2.2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28.1
28.2
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
94.1
94.2
NO.
Part Number
Description
Qty.
336718329
357723577
336728300
336728301
336428303
336467003
336723586
336467004
336723588
336723589
336723590
336723592
336723591
336723593
330713555
336723581
336723575
336718302
336723608
336718387
317718304
336723578
336723582
336723583
357723569
336467006
336718364
336718389
330713554
336457014
336418313
336418314
336718384
336718330
336728312
336723514
336723513
336718390
336723511
336723505
336718391
336723507
336723501
336723510
336718301
340718300
336718395
336723546
336723545
336723515
Flange Bolt M6×15
Grip,starter
Handle Core
Recoil Starter Knob
Handle Guide Plate
Case Comp.,recoil Starter
Spring,starter Return
Cord
Pulley,recoil Starter
Spring,patchet
Patchet,starter
Clip Sprg.,pawl Guide
Pawl Guide
Screw,pawl Guide
Nut M14
Pulley,starter
Protect Circle
Flange Bolt M6×12
Fan Cover Comp
Windshield I
Flange Bolt M6×20
Air Guide, Right Side
Cooling Fan
Flywheel Comp
Bolt
Ignition Coil
Bolt M5×20
Cover Alternator
Generator Fan
Alternator Assy
Rotor
Stator
Flange Bolt M6×60
Flange Bolt M6×20
Alternator Rear Cover
Flange Bolt M8×32
Seal, Oil
Cover,crankcase
Oil Dipstick Assy
Bearing
Crankcase Assy
Woodruff Key
Locating Pins
Gasket, Crankcase
Flange Bolt M6×12
Sensor, Engine Oil
Crankcase Subassembly.
Bolt, Drain Plug
Washer,drain Bolt
Rod, Connecting
336723517
336723516
336723519
336723520
336723521
336723518
336723548
330723548
336713528
336723523
336723540
336467007
336723527
336723524
336723525
336723526
336723504
340718301
340718302
336723538
336723537
336723531
336723529
336723528
336723541
336723542
336723536
336723535
336723533
340718303
336723532
336718388
336713517
336723530
336723556
336723549
336723550
336728314
336723552
336418327
336418321
317713516
330723589
380713542
336723605
336723554
336418316
336418316
336723557
336728302
Pin, Piston
Clip, Piston Pin
Ring Set, Oil
Ring, The Second
Ring, The First
Piston
Gasket, Cylinder Head
Locating Pins
Flange Bolt M6×8
Air Guide Lower
Exhaust Valves Stud Bolt
Flange Bolt M8×55
Flange Bolt M6×15
Gear Assy, Governor
Tappet, Valve
Push Rod
Bolt, Valve Adjusting
Rocker, Valve
Nut Valve Adjusting
Nut, Valve Lock
Valve,in.take
Valve, Exhaust
Oil Seal,valve
Spring,valve
Retainer, Intake Valve
Retainer, Exhaust Valve
Rotator, Valve
Windshield Ii
Nut M6
Breather Tube
Spark Plug
Stud, Intake
Gasket, Inlet
Plate, Carburetor Insulator
Gasket, Carburetor
Carburetor
Step Moter Assy
Bolt M4×14
Step Moter Assy
Bolt M3×6
Step Moter Cover
Gasket, Air Cleaner
Choke Lever Bracket Assy
Air Cleaner Set
Elbow, Air Cleaner
Sealing Ring
6
1
1
1
1
1
1
1
1
2
2
1
1
1
2
1
1
4
1
1
1
1
1
1
2
1
4
1
1
1
1
1
3
3
1
6
2
1
1
2
1
1
2
1
4
1
1
2
2
1
1
2
1
1
1
1
1
2
2
1
1
2
4
1
1
4
1
2
2
1
2
2
2
2
1
1
2
2
1
1
1
1
2
1
1
2
1
1
1
1
1
2
1
2
1
1
1
1
1
1
Head Subassembly, Cylinder
Gasket, Cylinder Head Cover
Cover Subassembly, Cylinder Head
Plate Subassembly, Lifter Stopper
English Customer Service: 1-844-FIRMAN1
34
Parts Diagrams - Parts Lists - Wiring Diagram
NO.
Part Number
Description
Qty.
94.3
94.4
94.5
94.6
95
96
97
98
99
100
336723558
336723559
336723560
336723561
336713527
336718308
336418315
336428304
335425590
340418306
Clapboard
Element, Air Cleaner
Cover, Air Cleaner
Air Cleaner Bracket
Flange Bolt M6×8
Gasket Assy
Starter Assy
Cylinder Head Assy
Ring Assy
1
4
1
1
1
1
1
1
1
1
Mounting Bolt, Air Cleaner
English Customer Service: 1-844-FIRMAN1
35
Parts Diagrams - Parts Lists - Wiring Diagram
Wiring Diagram
English Customer Service: 1-844-FIRMAN1
36
Service – Warranty
FOR SERVICE INFORMATION CONTACT FIRMAN PRODUCT SERVICE DEPARTMENT AT 1-844-347-6261
or at www.firmanpowerequipment.com to obtain warranty service information or to order replacement
parts or accessories.
HOW TO ORDER REPLACEMENT PARTS
Even quality-built equipment such as this electric generator may need occasional
replacement parts to maintain it in good condition over the years. To order replacement parts,
please give the following information:
Model No. Rev. Level and Serial No. found on the data decal.
Parts number or numbers as shown in the Parts List section.
A brief description of the trouble with the generator.
FIRMAN Three (3) Year Limited Warranty
Do Not Return the Unit to the Place of Purchase
Contact the FIRMAN Service Center and FIRMAN will troubleshoot any issue via phone or e-mail.
If the problem is not corrected by this method, FIRMAN will, at its option, authorize evaluation,
repair or replacement of the defective part or component at a FIRMAN Service Center. FIRMAN
will provide you with a case number for warranty service. Please keep it for future reference.
Repairs or replacements without prior authorization, or at an unauthorized repair facility, will
not be covered by this warranty.
Normal Wear
Your product needs periodic parts and service to perform well. This warranty does not cover
repair when normal use has exhausted the life of a part or the equipment as a whole.
FIRMAN warrants to the original purchaser that the mechanical and electrical components will be free of
defects in material and workmanship for a period of one(1) year (parts and labor) and three(3) years (parts
and technical support) from the original date of purchase 90 days [parts and labor] and 180 days [parts]
for commercial & industrial use. Transportation charges on product submitted for repair or replacement
under this warranty are the sole responsibility of the purchaser . This warranty only applies to the original
purchaser and is not transferable.
Repair/Replacement Warranty
Warranty Exclusions
This warranty does not cover the following repairs and equipment.
Warranty Qualifications
Register your product using the QR code provided or at www.firmanpowerequipment.com.
FIRMAN will also register the warranty upon receipt of your Warranty Registration Card and a
copy of your sales receipt from one of FIRMAN’s retail locations as proof of purchase. Please
submit your warranty registration and your proof of purchase within ten(10) days of the date of
purchase.
English Customer Service: 1-844-FIRMAN1
Limits of Implied Warranty and Consequential Damage
FIRMAN disclaims any obligation to cover any loss of time, use of this product, freight, or any
incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN
LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANT
ABLILITY OR FITNESS FOR A PARTICULAR PURPOSE.
A unit provided as an exchange will be subject to the warranty of the original unit. The length of
the warranty governing the exchanged unit will remain calculated by reference to the purchase
date of the original unit.
This warranty gives you certain legal rights which may change from state to state. Your state may
also have other rights you may be entitled to that are not listed within this warranty.
Contact Information
You may contact FIRMAN at:
Address
Firman Power Equipment Inc.
Attn: Customer Service
8644 W. Ludlow Dr.
Peoria, AZ 85381
www.firmanpowerequipment.com
We are FIRMAN POWER - And we are here for you.
37
Installation, Use and Maintenance
This warranty will not apply to parts and/or labor if your product is deemed to have been misused,
neglected, involved in an accident, abused, loaded beyond the generator's limits, modified,
installed improperly or connected incorrectly to any electrical component. Normal maintenance is
not covered by this warranty.
Other Exclusions
This warranty excludes:
– cosmetic defects such as paint, decals, etc.
– wear items
– accessory parts
– failures due to acts of God and other force majeure events beyond the manufacturer’s control
– problems caused by parts that are not original FIRMAN parts
– units used for prime power in place of existing utility power where utility is present or in place
of utility power where utility power service does not normally exist.
Service – Warranty
English Customer Service: 1-844-FIRMAN1
CALIFORNIA AND FEDERAL EXHAUST AND EVAPORATIVE EMISSIONS CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
FIRMAN POWER EQUIPMENT INC.
Emission Control System Warranty
The warranty period begins on the date the engine/equipment is delivered to an ultimate purchaser. FIRMAN warrants to the ultimate
purchaser and each subsequent purchaser that the engine is:
Designed, built, and equipped so as to conform with all applicable regulations adopted by the Air Resources Board and US EPA;
and Free from defects in materials and workmanship that cause the failure of a warranted part to be identical in all material
respects to the part as described in the engine manufacturers application for certification.
The warranty on emissions-related parts is as follows:
(1) Any warranted part that is not scheduled for replacement as required maintenance in the owner's manual supplied, is
warranted for the warranty period stated above. If any such part fails during the period of warranty coverage, the part will be
repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced under the warranty will be
warranted for the remaining warranty period.
(2) Any warranted part that is scheduled only for regular inspection in the owner's manual supplied, is warranted for the warranty
period stated above. Any such part repaired or replaced under warranty will be warranted for the remaining warranty period.
(3) Any warranted part that is scheduled for replacement as required maintenance in the owner's manual supplied, is warranted
for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled
replacement, the part will be repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced
under warranty will be warranted for the remainder of the period prior to the first scheduled replacement point for the part.
(4) Repair or replacement of any warranted part under the warranty must be performed at no charge to the owner at a warranty
station.
(5) Notwithstanding the provisions of Subsection (4) above, warranty services or repairs must be provided by FIRMAN that
are franchised to service the subject engines.
(6) The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective,
provided that such diagnostic work is performed at a warranty station.
(7) FIRMAN is liable for damages to other engine components proximately caused by a failure under warranty of any
warranted part.
MANUFACTURER'S WARRANTY COVERAGE:
The exhaust and evaporative emissions control system on your small off-road engine and engine powered equipment is warranted
for two years. If any emissions-related part on your small off-road engine and engine powered equipment is defective, the part will
be repaired or replaced by FIRMAN.
The California Air Resources Board, US Environmental Protection Agency (“US EPA”) and FIRMAN POWER EQUIPMENT
INC.(FIRMAN) are pleased to explain the emissions control systems warranty on your 2022-2023 or later Small Off-Road
Engine (“SORE”) and engine powered equipment. In California, new equipment that use small off-road engines must be
designed, built and equipped to meet the State’s stringent anti-smog standards. FIRMAN must warrant the emissions control
systems on your SORE and engine powered equipment for the periods of time listed below provided there has been no abuse,
neglect or improper maintenance of your small off-road engine or equipment leading to the failure of the emissions control system.
Your emissions control system may include parts such as the carburetor or fuel-injection system, the ignition system, catalytic
converter, fuel tanks, fuel lines (for liquid fuel and fuel vapors), fuel caps, valves, canisters, filters, clamps and other associated
components. Also included may be hoses, belts, connectors, and other emission-related assemblies.
Where a warrantable condition exists, FIRMAN will repair your SORE and engine powered equipment at no cost to you
including diagnosis, parts and labor.
OWNER'S WARRANTY RESPONSIBILITIES:
As the SORE and engine powered equipment owner, you are responsible for the performance of the required maintenance
listed in your operator's manual. FIRMAN recommends that you retain all receipts covering maintenance on your SORE and
engine powered equipment, but FIRMAN cannot deny warranty coverage solely for the lack of receipts or for your failure to
ensure the performance of all scheduled maintenance.
As the SORE and engine powered equipment owner, you should however be aware that FIRMAN may deny you warranty
coverage if your small off-road engine or engine powered equipment or a part has failed due to abuse, neglect, or improper
maintenance or unapproved modifications.
You are responsible for presenting your small off-road engine and engine powered equipment to a FIRMAN distribution center
or service center as soon as the problem exists. The warranty repairs shall be completed in a reasonable amount of time,
not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact FIRMAN at 1-844-347-6261.
FIRMAN Emission Control Defects Warranty Provisions
38
Service – Warranty
English Customer Service: 1-844-FIRMAN1
PARTS COVERED BY WARRANTY
Limitations
Listed below are the parts (if equipped) covered by the Federal and California Emission Control System Warranty.
This Emission Control System Warranty shall not cover any of the following:
(a) Consequential damages such as loss of time, inconvenience, loss of use of the engine or equipment, etc.
(b) Diagnosis and inspection fees that do not result in eligible warranty service being performed.
1. Ignition system including:
- Spark plug
- Ignition coil
2. Fuel metering system:
- Fuel tank
- Fuel cap
- Fuel lines
(for liquid fuel and fuel vapors) and
related fittings/clamps
- Fuel regulator, carburetor and internal parts.
3. Catalytic muffler assembly including:
- Exhaust manifold
- Catalytic converter
- Muffler gasket
-pulse valve
4. Air induction system including:
- Intake pipe/manifold
- Air cleaner
5. Crankcase breather assembly including:
- Breather connection tube
6. Fuel tank evaporative emission control system including:
- Purge valves
- Carbon canister
- Vapor hoses and fitting/clamps
FIRMAN POWER EQUIPMENT INC.
www.firmanpowerequipment.com
(8) Throughout the emissions warranty period defined in Subsection (b)(2), FIRMAN will maintain a supply of warranted
parts sufficient to meet the expected demand for such parts.
(9) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without
charge to the owner. Such use will not reduce the warranty obligations of the manufacturer.
(10) Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non-exempted
add-on or modified parts by the ultimate purchaser will be grounds for disallowing a warranty claim.
The manufacturer will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified
part.
39
Service – Warranty
P/N:336747079 Rev:01
All rights reserved. Any reprinting or unauthorized use
without the written permission is expressly prohibited.
TM
FIRMAN POWER EQUIPMENT INC.
8644 W. LUDLOW DR.
PEORIA, AZ 85381
1-844-347-6261
WWW.FIRMANPOWEREQUIPMENT.COM
