be ridden.

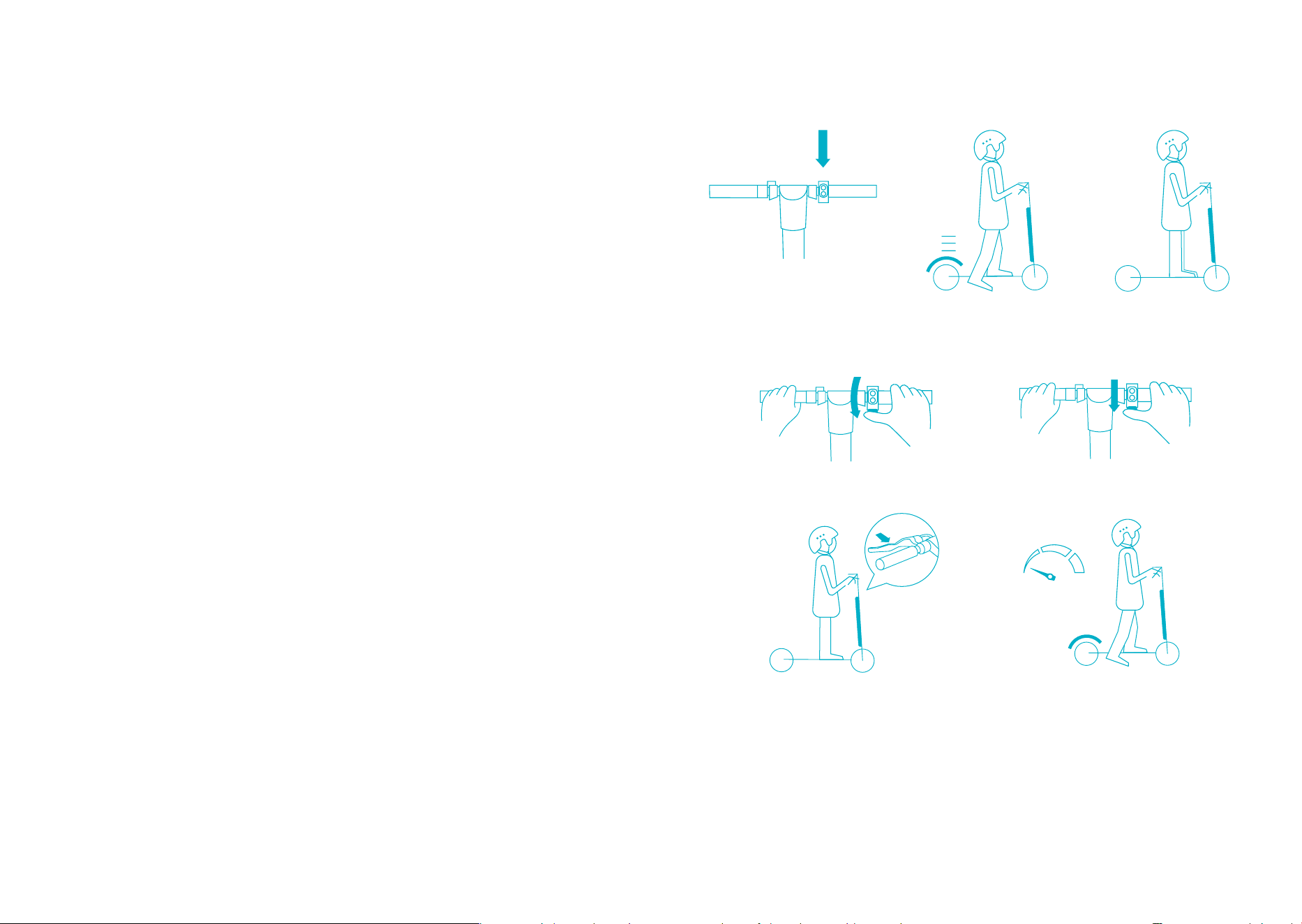

Fig. 11
Do not place heavy objects on the handlebar. Any load attached to the handlebars will aect
the stability of the vehicle.
Fig. 12
Avoid climbing up and down the stairs with the electric scooter.
Fig. 13
Always ride with both hands on the handlebar.
Fig. 14
Do not ride the electric scooter with just one foot.
Fig. 15
Do not press the accelerator when walking along with the electric scooter.
Fig. 16
Note that the braking distance will be longer in puddles, wet surfaces, and/or in wet weather
conditions. The electric scooter is intended for use on at, level, and dry surfaces.
Fig. 17
Be careful with your head when riding under roofed areas, like a door.
Fig. 18
When riding at high speed, do not turn the handlebar abruptly.
Fig. 19

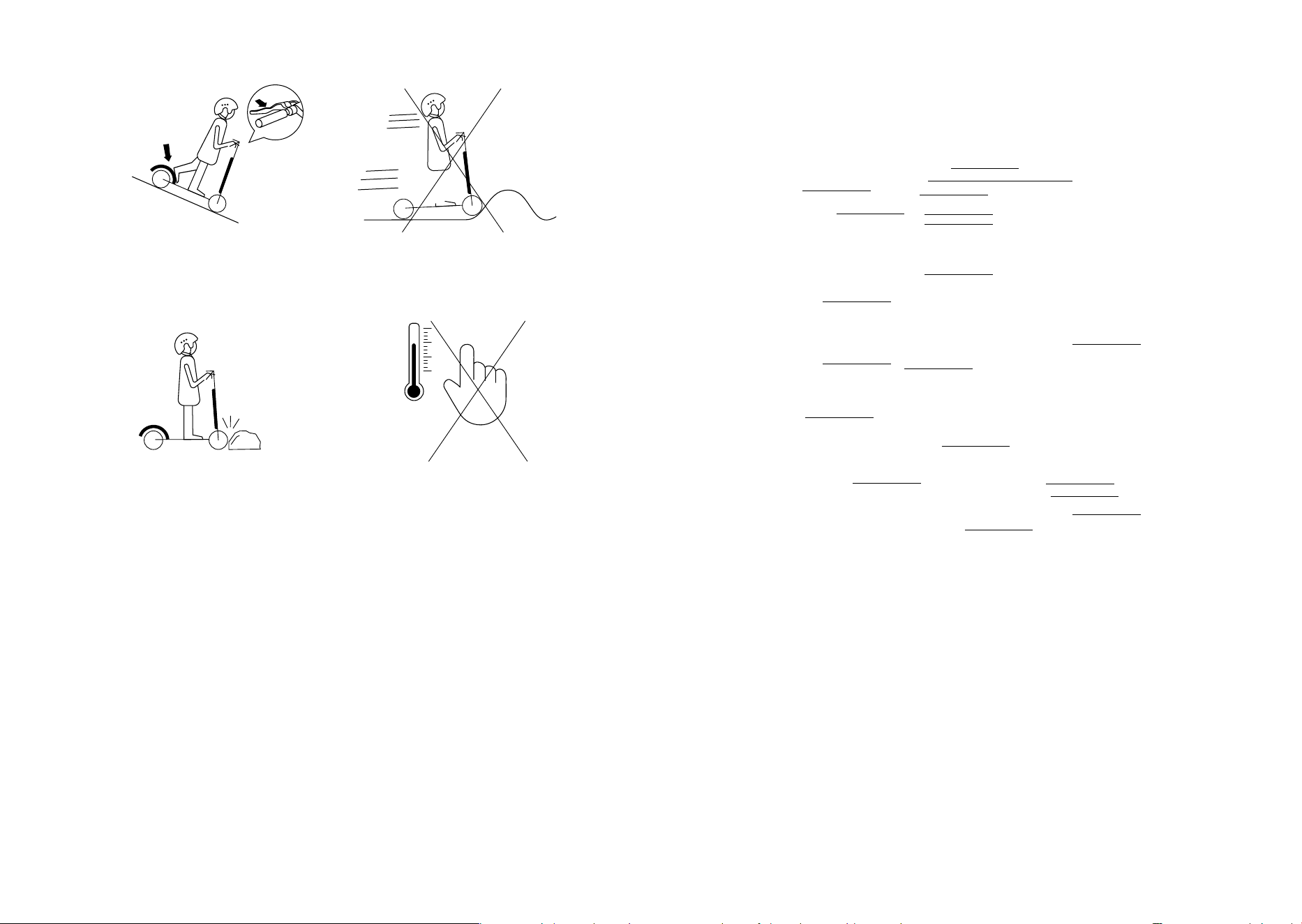

Reduce speed when descending slopes and use both brakes.
Fig. 20
Do not ride at high speed over obstacles like steps, kerbs, or speed bumps.
Fig. 21
Do not hit obstacles with the wheels.
Fig. 22
Do not touch the hub assembly motor immediately after riding,as it may be hot.
Make regular visual checks of components or parts subject to wear such as the chassis, forks,
tyres, brakes, etc. This will allow you to detect cracks or damage in high-stress areas that
may indicate that the component exceeded its service life and needs to be replaced. Regular
maintenance of the electric scooter and its components will extend its service life. Periodically
1. WARNINGS

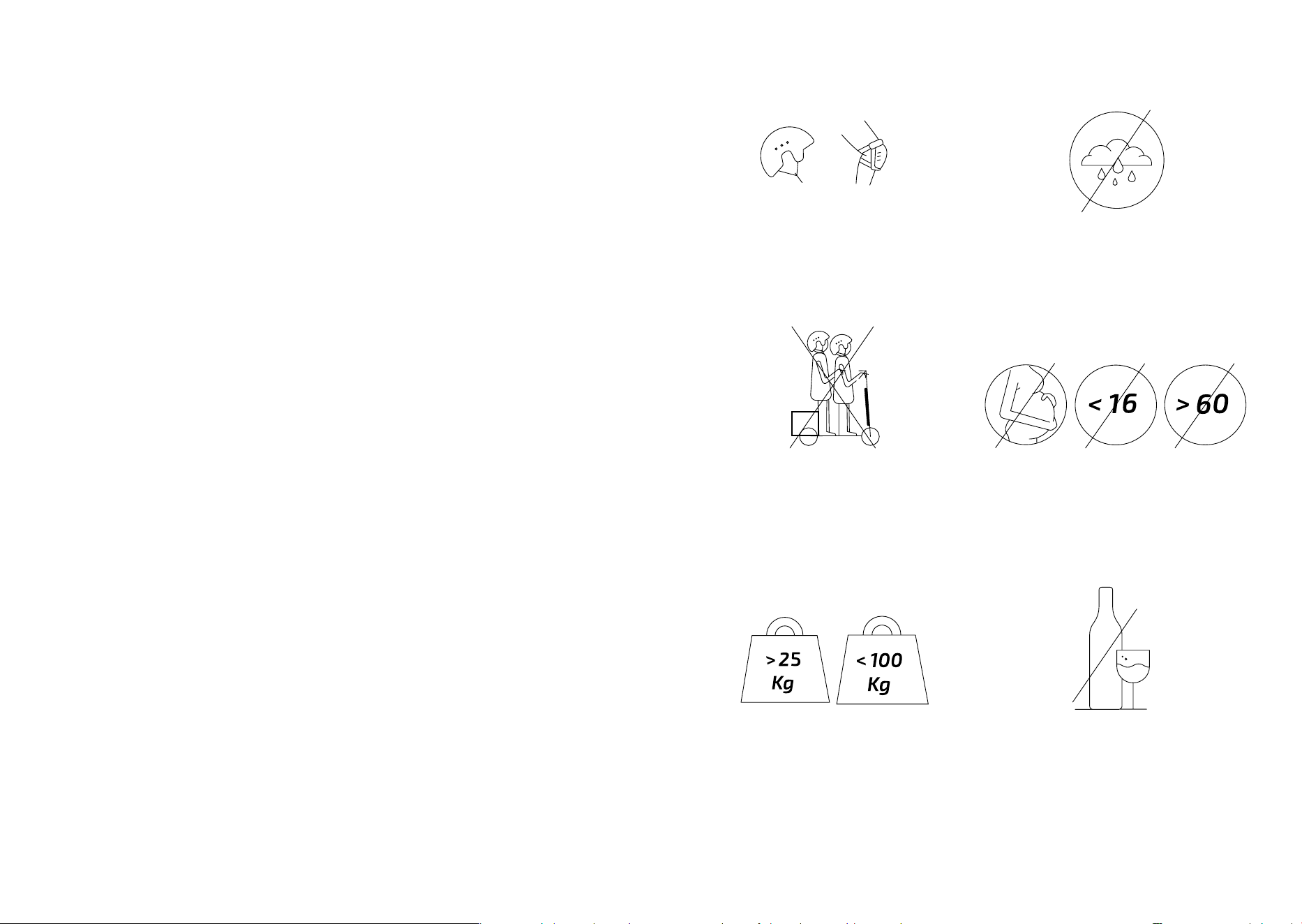

Fig. 1
You must read and follow the safety instructions in this manual before riding the electric
scooter. Use approved safety equipment such as helmets or knee pads. This product is
intended for use as a personal mobility vehicle for the purpose of transporting a single person
in a public or private place.
Fig. 2
Do not use the vehicle with rainy weather.
Fig. 3
The electric scooter cannot be used by more than a person at a time.
Fig. 4
This product cannot be used by children under 16 years old, people over 60 years old and
pregnant women. (*Check the current local regulations).
Fig. 5
Minimum weight allowed: 25 kg. Maximum weight allowed: 100 kg.
Recommended maximum user height: up to 2 metres.
Fig. 6
Do not ride the electric scooter under the inuence of alcoholic drinks, drugs, or medicine
whose intake is not advisable while driving.

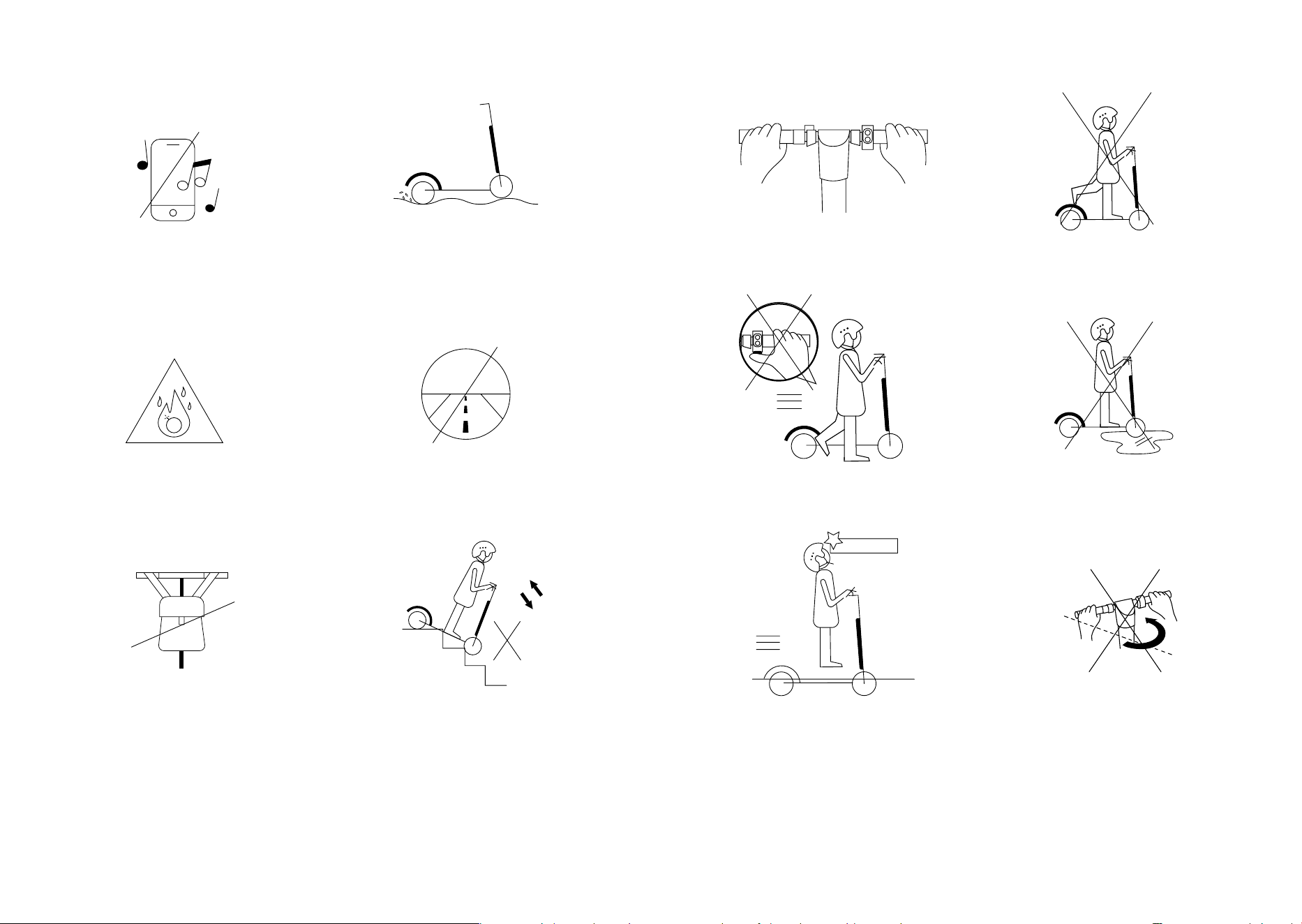

Fig. 7
Do not use the phone or listen to music while riding the electric scooter.
Fig. 8
Pay special attention while riding when there is sand, puddles, mud, ice, snow, or stairs and
when it is dark or the oor is wet. Do not touch the brake disc in poor light conditions or after
use, as it may be hot.
Fig. 9
Do not use the electric scooter in hazardous areas where there could be ammable or explosive
substances, liquids, or dirt.
Fig. 10
This electric scooter is not designed to be driven on motorways, highways, or intercity roads.
Check the current legislation of your local authority on where electric scooters are allowed to
5756
BONGO SERIE A+ MAX 45 CONNECTED
ENGLISH ENGLISH
ORIGINAL MANUAL TRANSLATION
2. LED display
3. Function button
4. Power button
5. Accelerator
6. Error indicator
7. Battery
8. Speed
9. Overheating indicator
10. Mode indicator
11. Speed units
12. Bluetooth indicator
3. BEFORE USE
- Take the product out of the box and remove all packaging materials.
- Make sure all parts and accessories are present and in good conditions. If there is any
piece missing or not in good condition, immediately contact the Technical Support Service
of Cecotec.
Box contents:
Fig. 23
1. Bongo Serie A+ Max 45 Connected electric scooter
Fig. 25
1. Charger
2. 1 Allen key
3. 1 adapter for inatingt he wheels
4. Instruction manual
4. PRODUCT ASSEMBLY
Unfolding
Fig. 26
1. Pull the stem upwards while you press the rear mudguard downwards.
2. Raise the stem and move the folding lever to the closed position to lock the stem in position.
3. Adjust the brake with the Allen key.
4. Tighten and adjust the grips paying attention to the direction of rotation.
check the tightness of the bolted parts, especially the wheel axles, the folding system, the
steering system, and the braking system.
Ask your dealer to refer you to an appropriate training organisation.
Avoid high trac or overcrowded areas and anticipate your path and speed by respecting the
trac code of the road and its vulnerable users.
Indicate your presence when approaching a pedestrian or cyclist and when you are not seen
and/or heard. Remember to cross protected areas on foot and in all situations take care of
yourself and others. Remove any sharp edges that may have been formed by usingthe vehicle.
Do not modify the vehicle This vehicle is not designed for stunt use.
2. PARTS AND COMPONENTS
Fig. 23
1. Accelerator
2. Brake
3. Headlight
4. Stem
5. Folding system latch
6. Motor
7. Kickstand
8. Brake disc
9. Handlebar grips
10. LED display
11. Handlebar
12. Folding system lever
13. Charging port
14. Folding hook xing
15. Anti-slip footrest
16. Rear mudguard
17. Rear light
18. Battery
19. Battery charger
Fig. 24
1. Handlebar brake
5958
BONGO SERIE A+ MAX 45 CONNECTED
ENGLISH ENGLISH
ORIGINAL MANUAL TRANSLATION
7. Get o the electric scooter only when you ride at a very low speed or when you are still.
8. Fold down the stand (item no. 7 - Fig. 23) to park your electric scooter when it is not in use.
Warning
The Bongo Bongo Serie A+ Max 45 Connected model has an APP for Smartphone. Thanks
to Bluetooth connectivity, the scooter can be paired with the mobile phone and display
information and settings.
5.2 driving modes
Control panel
- Power button: hold down this button to turn the electric scooter on and o.
- Function button: press this button to select one of the following modes:
1. Pedestrian mode: the mode indicator on the display will be o. In this mode the scooter
can reach 6 km/h.
2. Comfort mode: the mode indicator on the display will show a white "D". In this mode the
scooter can reach 15 km/h.
3. Sport mode: the mode indicator on the display will show a red "D". In this mode the scooter
can reach 25 km/h.
NOTE:
- Measured with a weight of 80 kg, fully charged battery, at surface, no inclination, no
wind, and an ambient temperature of approx. 25°C.
- Function button: Press this push button twice to switch on the headlight and tail light. If the
light is o, when the brake is applied, the tail light will come on. If the light is on, when the
brake is applied, the tail lamp will illuminate more brightly.
Conguration menu
If you press and hold the function button and the power button simultaneously, you will
enter the conguration menu. Press the function button to navigate between the dierent
conguration functions (P0 and P1). Access the desired function by pressing the power button
and toggle between 0 and 1 by pressing the function button. Select the desired setting by
pressing the power button. To return to the initial screen, hold down both buttons. The dierent
conguration functions are:
1. P0 - Units of measurement: selection of km/h (0) or mph (1). Speed can be measured in
kilometres per hour (0) or miles per hour (1).
2. P1 - Cruise mode: activation (1) and deactivation (0) of cruise speed. Hold the same speed
for 6 seconds to keep the scooter moving at that speed steadily, without the need of
operating the accelerator. To deactivate the cruise mode, operate the accelerator or brake.
Folding
Fig. 27
1. Move the latch vertically upwards to release the folding lever.
2. Move the folding lever.
3. Turn the folding lever downwards and then the stem.
4. Match the folding hook xing with the rear mudguard and press it downwards to make
sure it is xed.
Handlebar grips assembly
- The handlebar grips are attached to the handlebars, but they are not mounted.
- Screw each cu into the corresponding hole until they are securely fastened.
Battery release
Fig. 28
- Unlock the lock on the upper part of the battery.
- Pull the battery upwards.
- Keep the battery up and remove it horizontally.
Battery assembly
- Follow the inverse process described in the previous section.
- Insert the battery in horizontal position by xing the terminals.
- Push the battery downwards until the lock on the housing is locked into position.
5. OPERATION
5.1. Power and operation
Fig. 29
1. Hold down the power button for 2 seconds.
2. Step on the footrest with one foot and use the other foot to propel yourself to start sliding.
3. Place both feet on the footrest.
4. Press the accelerator with your right hand. The electric motor will deliver power when the
speed of the scooter is 3 km/h or more.
5. Press the accelerator to increase the speed.
Warning
Do not ride too fast.
6. Use the brake to stop or to ride slower. Step on the rear mudguard softly for an easier
braking process.
6160
BONGO SERIE A+ MAX 45 CONNECTED
ENGLISH ENGLISH
ORIGINAL MANUAL TRANSLATION
Storage
- Make sure the electric scooter is charged before storing it for long periods of time. Charge
it at least once a month.
- Charge it only if the room temperature is between 0ºC and 35ºC and store it at a temperature
between -10ºC and 35ºC.
- Do not store the electric scooter outdoors. Store it in a safe and dry place. Cover it to
protect it from dust if necessary.
7. TROUBLESHOOTING
FAULT TROUBLESHOOTING
Overheating Stop the electric scooter until temperature
decreases
Error A: Electric brake failure
Error B: Throttle error
Error C: Motor error
Contact the Cecotec Technical Support Service
Blocked driving wheel Contact the Cecotec Technical Support Service
It does not turn on Check the battery is charged.
Contact the Cecotec Technical Support Service
5.3. How to charge the electric scooter
- You can charge the device in two manners:
1. Without removing the battery: connect the charger to the electric scooter as shown in
gure 30.
2. Removing the battery: remove the battery and connect the charger to the battery as
indicated in gure 31.
- The charger indicator light will change from red (charging) to green when 100% charge is
reached.
- Warning: stop charging the battery when the indicator colour changes. Do not exceed the
battery charging time so as not to aect its shelf life.
- Warning: cover the charging port with the anti-dirt tap to prevent any metallic object from
coming into contact with it and causing short circuits.
5.4 Tyre use
- For proper operation of the electric scooter, be sure to always check and maintain the
correct tyre pressure before each use.
- The optimum tyre pressure is 36 PSI / 2.5 bar / 250 kPa.
- We recommend you carry out periodic tests to ensure the pressure is between the
recommended values to achieve ecient operation.
- To maximise the tyres’ shelf life we recommend using heat-sealing gels to prevent
punctures and maintain maximum eectiveness and performance.
6. CLEANING AND MAINTENANCE
- Make sure the product is not plugged in the power supply or turned on before cleaning or
maintenance.
- Use a soft cloth to clean the outer housing of the electric scooter.
- Never use alcohol, petrol, paran, corrosive, or abrasive products to clean the electric
scooter.
- Never immerse the electric scooter in water or any other liquid to clean it, as this could
damage the electronic parts permanently.
- Never use pressurised water to clean the electric scooter.
- Do not try to repair the electric scooter on your own. In case it does not operate correctly
or it is damaged, please, contact Cecotec Technical Support Service.
- Self-tapping nuts and other fasteners may lose their eciency and may need to be
retightened.
Brake discs
You must check that the brake disc is in perfect condition, aligned with the brake caliper. To
facilitate this adjustment we include an Allen key. The brake pads are consumable and must
be replaced when their useful life comes to an end.
6362
BONGO SERIE A+ MAX 45 CONNECTED
ENGLISH ENGLISH
ORIGINAL MANUAL TRANSLATION
Battery Type Lithium-Ion - 10INR19/66-
4
Model 60088
Charge time 5-6 hrs
Capacity 12800 mAh
Nominal voltage 36 V
Max. charge voltage 42 V
Max. charging current 3A
Rated capacity 460,8 Wh
Tyres Wheel 10”
Charger Model XHK-985-42020 9
Input 100-240 V 50/60 Hz 2.5 A
Outlet 42V DC, 2A, 84W
Protection IP 20; Ta= 40ºC; Class II
Riding modes and
autonomy (4)
CONFORT 45 km
SPORT 25 km
- (1) Height from the oor to the upper part of the handlebar.
- (2) Check the current local regulations.
- (3) The range measured with a weight of 80 kg, fully charged battery, in Comfort mode on
a at surface, without wind, and with an ambient temperature of approx. 25ºC.
- (4) Measured with a weight of 80 kg, fully charged battery, at surface, no inclination, no
wind, and an ambient temperature of approx. 25°C.
- The total value of the exposed vibration in the hand-arm system does not exceed 2,5 m/s2.
- The weighted acceleration to which the whole body is subjected does not exceed 0.5 m/s2.
- The A-weighted emission sound pressure level at workstations is less than or equal to 70
dB.
8. TECHNICAL SPECIFICATIONS
Product reference: 07303
Model: Bongo Serie A+ Max 45 Connected electric scooter
Features Measuring units Specications
Dimensions Folded 105 x 42 x 45 cm
Unfolded 105 x 42 x 116 cm (1)
Weight Electric scooter weight 14,40 kg
Use requirements Min-max weight 25-100 kg
Min-max height 100-200 cm
Age bracket 16-60 year (2)
Technical
specications
Battery life Up to 45 km (3)
Max. speed 25 km/h
Max. inclination 10º
Operating temperature -10º/40ºC
Storage temperature -15º/45ºC
IP protection rating IPX4
Motor Max. Power 700 W
Rated power 350 W
6564
BONGO SERIE A+ MAX 45 CONNECTED
ENGLISH ENGLISH
ORIGINAL MANUAL TRANSLATION
- Directive 2011/65/EU and delegated directive (EU) 2015/863 on the restriction of the use of
certain hazardous substances in electrical and electronic equipment.
- Directive 2014/53/EU on the harmonisation of the laws of the Member States relating to
the placing on the market of radio equipment.
APPLICABLE HARMONISED NORMS:
- EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019
- EN ISO 12100:2010
- EN 17128:2020
- EN IEC 61000-6-3:2021
- EN IEC 61000-6-1:2019
- EN 300 328 V 2.2.2
- EN 301 489-1 V 2.2.3
- EN 301 489-17 V 2.2.4
- EN 62479:2010
12. COPYRIGHT
The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES,
S.L. All rights reserved. The contents of this publication may not, in whole or in part, be
reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic,
mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC
INNOVACIONES, S.L.
- Technical specications may change without prior notication to improve product quality.
- Made in China | Designed in Spain
9. DISPOSAL OF OLD ELECTRICAL APPLIANCES
This symbol indicates that, according to the applicable regulations, the
product and/or battery must be disposed of separately from household
waste. When this product reaches the end of its shelf life, you should
dispose of the batteries/accumulators and take them to a collection point
designated by the local authorities.
Consumers must contact their local authorities or retailer for information
concerning the correct disposal of old appliances and/or their batteries.
Compliance with the above guidelines will help protecting the environment.
10. TECHNICAL SUPPORT AND WARRANTY
Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the
time of delivery of the product under the terms, conditions, and deadlines established by the
applicable regulations.
It is recommended that repairs be carried out by qualied personnel.
If at any moment you detect any problem with your product or have any doubt, do not hesitate
to contact Cecotec ocial Technical Support Service at +34 96 321 07 28.
11. STATEMENT OF COMPLIANCE
MANUFACTURER: CECOTEC INNOVACIONES S.L
ADDRESS: C/ Pinadeta, S/N, 46930, Quart de Poblet, Valencia (Spain)
DESCRIPTION: Electric scooter
MACHINE IDENTIFICATION: Bongo Serie A+ Max 45 Connected
FUNCTION: Electric vehicle with motor.
MODEL: 07303
It certies the product described has been designed, manufactured and tested and complies
with all applicable provisions.
EU DIRECTIVES IMPLEMENTED:
- Directive 2006/42/CE on machinery.
Fig./Img./Abb./Afb./ Rys./Obr. 1
Fig./Img./Abb./Afb./ Rys./Obr. 3
Fig./Img./Abb./Afb./ Rys./Obr. 5 Fig./Img./Abb./Afb./ Rys./Obr. 6
Fig./Img./Abb./Afb./ Rys./Obr. 4
Fig./Img./Abb./Afb./ Rys./Obr. 2
Fig./Img./Abb./Afb./ Rys./Obr. 7
Fig./Img./Abb./Afb./ Rys./Obr. 9
Fig./Img./Abb./Afb./ Rys./Obr. 11
Fig./Img./Abb./Afb./ Rys./Obr. 8
Fig./Img./Abb./Afb./ Rys./Obr. 10
Fig./Img./Abb./Afb./ Rys./Obr. 12
Fig./Img./Abb./Afb./ Rys./Obr. 13
Fig./Img./Abb./Afb./ Rys./Obr. 15
Fig./Img./Abb./Afb./ Rys./Obr. 17
Fig./Img./Abb./Afb./ Rys./Obr. 14
Fig./Img./Abb./Afb./ Rys./Obr. 16
Fig./Img./Abb./Afb./ Rys./Obr. 18
Fig./Img./Abb./Afb./ Rys./Obr. 19
Fig./Img./Abb./Afb./ Rys./Obr. 21
Fig./Img./Abb./Afb./ Rys./Obr. 20
Fig./Img./Abb./Afb./ Rys./Obr. 22
Fig./Img./Abb./Afb./ Rys./Obr. 23
17
16
14
15
7
8
12
6
5
4
3
2
9
1
10
11
13
18
19
Fig./Img./Abb./Afb./ Rys./Obr. 24
Fig./Img./Abb./Afb./ Rys./Obr. 25
1
2
3
4
5
Fig./Img./Abb./Afb./ Rys./Obr. 26
6
7
8
9
10
11
12
Fig./Img./Abb./Afb./ Rys./Obr. 27
Fig./Img./Abb./Afb./ Rys./Obr. 28
Fig./Img./Abb./Afb./ Rys./Obr. 29
Fig./Img./Abb./Afb./ Rys./Obr. 30
Fig./Img./Abb./Afb./ Rys./Obr. 31
Charge port
Battery interface
www.cecotec.es
Cecotec Innovaciones S.L.
C/ de la Pinadeta s/n, 46930
Quart de Poblet, Valencia (Spain)
EA01220512
