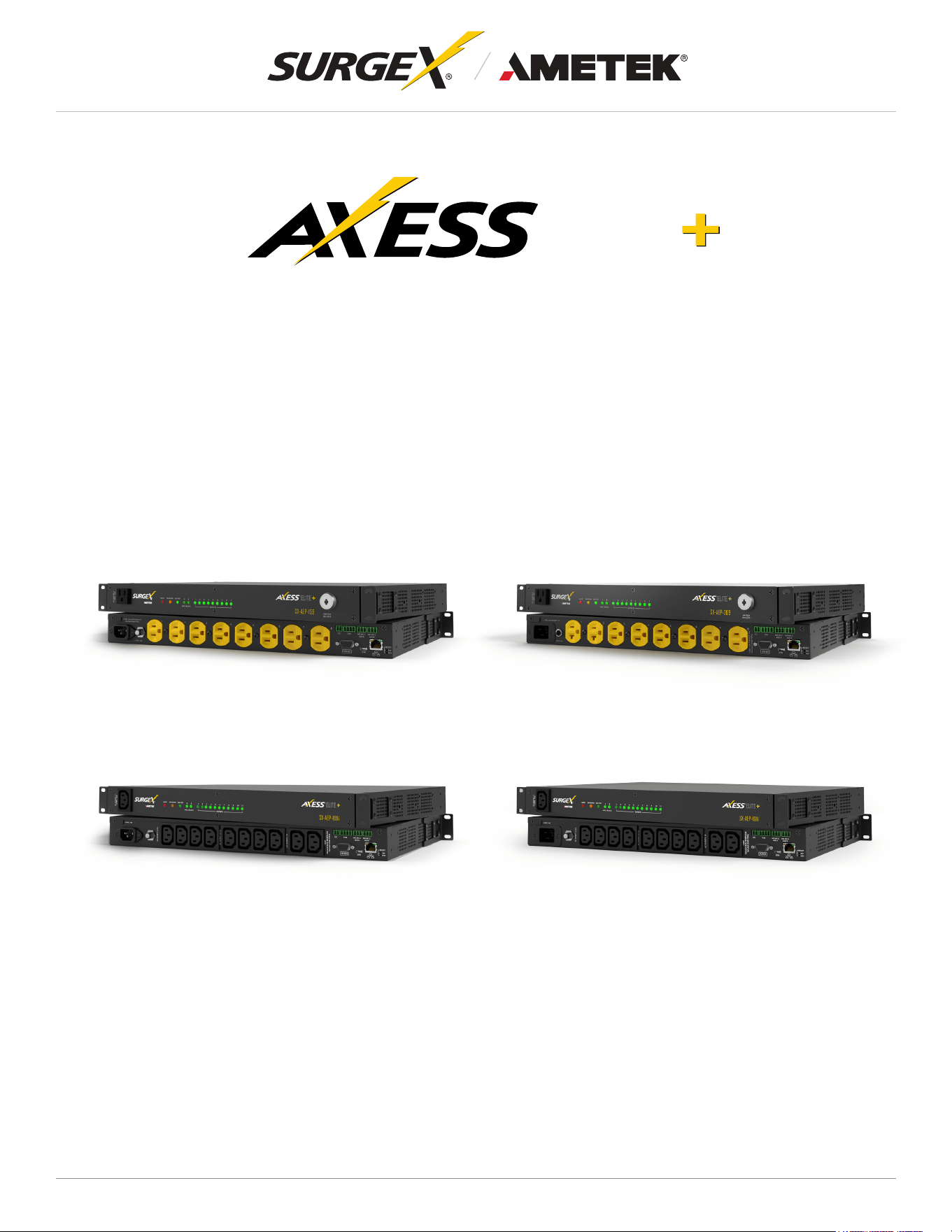

USER MANUAL

ELITE

SX-AEP-1011i

SX-AEP-159 SX-AEP-209

SX-AEP-1611i

Switched IP-Controllable Surge Protected PDU

ELITE

User Manual

ELITE

User Manual

Table of Contents

1. Introduction ...................................................................................................................... 1

1.1 Metering is performed at the system level, and includes: ................................................................1

1.2 Physical Interfaces ...........................................................................................................................2

1.3 Rating...............................................................................................................................................2

2. Installation and Components ......................................................................................... 3

2.1 AC Power: Output ...........................................................................................................................3

2.2 AC Power: Input ..............................................................................................................................3

2.3 Ethernet and Account Admin Password ...........................................................................................3

2.4 USB-Micro AB ..................................................................................................................................4

2.5 Connect Serial Port (Optional) .........................................................................................................4

2.6 Connect Contact Closure Input (Optional) .......................................................................................4

2.7 Connect Temperature / Humidity Sensor (Optional) ........................................................................4

2.8 Connect Auxiliary Relay Outputs (Optional):....................................................................................4

2.9 Wiring details: ..................................................................................................................................5

2.10 LED Indicators: ................................................................................................................................5

2.11 Buttons ............................................................................................................................................5

2.11.1 Resettable Fuse ................................................................................................................5

2.11.2 Hardware Reset ................................................................................................................5

2.11.3 Software Reset ..................................................................................................................5

2.11.4 Front Key Switch ...............................................................................................................6

3. Rack Installation .............................................................................................................. 6

3.1 Rack Mounting Options....................................................................................................................7

3.2 Unit Installation into the Rack ..........................................................................................................7

4. Web Server ....................................................................................................................... 8

4.1 Login ................................................................................................................................................8

4.2 Power Management .........................................................................................................................8

4.3 Reports ............................................................................................................................................9

4.4 Power Monitoring ...........................................................................................................................10

4.5 Chart ..............................................................................................................................................10

4.6 Setup..............................................................................................................................................11

ELITE

User Manual

4.6.1 Device Setup ...................................................................................................................12

4.6.1.1 DeviceConguration .....................................................................................12

4.6.1.2 OutletConguration .......................................................................................13

4.6.1.3 OutletGroupConguration ............................................................................14

4.6.1.4 Date/Time Settings ........................................................................................14

4.6.2 Network Setup .................................................................................................................15

4.6.3 Network Advanced Setup ................................................................................................16

4.6.3.1 SNMP.............................................................................................................16

4.6.3.2 802.1X Settings .............................................................................................17

4.6.3.3 LDAP Client Settings .....................................................................................18

4.6.3.4 Syslog Settings .............................................................................................19

4.6.4 Cloud Setting ...................................................................................................................20

4.6.5 Users ...............................................................................................................................20

4.6.6 Triggers Setup .................................................................................................................21

4.6.6.1 Threshold with Samples ................................................................................23

4.6.6.2 Autoping .........................................................................................................23

4.6.6.3 Schedule ........................................................................................................23

4.6.6.4 Contact Closure .............................................................................................24

4.6.7 Sequences Setup ............................................................................................................24

4.7 Utilities ...........................................................................................................................................24

4.7.2 Backup/Restore ...............................................................................................................25

4.7.3 Factory Reset ..................................................................................................................25

4.7.4 Soft Reboot .....................................................................................................................25

4.8 UserProle ....................................................................................................................................26

4.9 System info ....................................................................................................................................26

5. Command Line Interface (CLI) ...................................................................................... 27

5.1 SSH................................................................................................................................................27

5.2 RS 232 PORT ................................................................................................................................27

5.3 Commands.....................................................................................................................................28

ELITE

User Manual

6. Security ........................................................................................................................... 31

6.1 Authentication ................................................................................................................................31

6.1.1 802.1X .............................................................................................................................31

6.1.2 SSO (Single Sign-On) .....................................................................................................31

6.2 Interfaces .......................................................................................................................................32

6.2.1 Network Interface ...........................................................................................................32

7. Application Programming Interfaces (APIs) ............................................................... 32

7.1 HTTP/HTTPS REST ......................................................................................................................32

7.2 Interfaces .......................................................................................................................................32

8. Part Numbers ................................................................................................................. 32

8.1 Part Number Scheme ....................................................................................................................32

9. Troubleshooting ............................................................................................................. 33

10. Specications ................................................................................................................ 34

ELITE

User Manual

1. Introduction

The SurgeX Axess ELITE+ is an AC power distribution unit with power conditioning, control, and monitoring

with independently IP switchable AC receptacles and current monitoring for individual outlet. Designed for

mounting on the rack with supplied mounting brackets or sitting on a counter with supplied rubber feet. The

internalwebserverprovidesconguration,outputcontrol,monitoring,Individualoutputcurrentmonitoring

and retrieval of data logs. Multiple security and communication interface options are supported.

Axess ELITE+ incorporates SurgeX’s patented technology, Advanced Series Mode

surge suppression

andEMI/RFIlteringtechnology.ThisprotectionsafeguardstheACoutlets.ItalsoprovidesInrushCurrent

Elimination circuitry (on receptacles 1 and 2).

Two Auxiliary Relay outputs are provided for simple control of other equipment. Connection terminals are

provided for each relay’s Common, Normally Open, and Normally Closed connections.

The extensive programming capabilities of the Axess ELITE+ provides advanced sequencing and scheduling

operations. Triggers can be programmed to activate on an “if X then do Y, then do Z when no longer X”

basis. Trigger sources include various AC power measurements, scheduling, and AutoPing. Actions include

turningreceptaclesonandoff,cyclingareceptacle,executingpreviouslydenedsequences,andputting

a unit into shutdown. For example, an action can be created to power cycle a network appliance if it fails to

respond to a series of pings.

1.1 Metering is performed at the system level, and includes:

• Line Voltage

• Neutral-Ground Voltage

• Each Outlet Current

• Each Outlet Power

• Line Frequency

• Each outlet Power Factor

• Crest Factor

• Each Outlet Energy

ELITE

User Manual

1.2 Physical Interfaces

MODEL OUTPUT INPUT COMMUNICATION RESETTABLE FUSE

SX-AEP-159 (9) NEMA 5-15R (1) NEMA 5-15P

(1) RJ-45

(1) USB-Micro AB

(1) Serial Port

(1) Contact Closure

(1) Push Button

SX- AEP -209

(7) NEMA 5-15R,

(2) NEMA 5-20R

(1) NEMA 5-20P

(1) RJ-45

(1) USB-Micro AB

(1) Serial Port

(1) Contact Closure

(1) Push Button

SX- AEP -1011i (11) IEC 13 (1) IEC C14

(1) RJ-45

(1) USB-Micro AB

(1) Serial Port

(1) Contact Closure

(1) Push Button

SX- AEP -1611i (11) IEC 13 (1) IEC C20

(1) RJ-45

(1) USB-Micro AB

(1) Serial Port

(1) Contact Closure

(1) Push Button

1.3 Rating

MODEL OUTLET DETAILS

RATED INPUT

VOLTAGE

RATED INPUT

CURRENT

FREQUENCY

SX-AEP-159 9 Outlets / 5-15R 120V AC 12 A 50/60 Hz

SX-AEP-209

2 Outlets / 5-20R

7 Outlets / 5-15R

120V AC 16 A 50/60 Hz

SX-AEP-1011i 11 Outlets / IEC C13 240V AC 10 A 50/60 Hz

SX-AEP-1611i 11 Outlets / IEC C13 240V AC 16 A 50/60 Hz

ELITE

User Manual

2. Installation and Components

1 2 3 4 5 6 7 8 9

SELF -TEST

A B

SHUTDOW N

OUTLETSAUX, RELAYS

MAINS

SX-AEP-209

AC OUTLET 9

~120V, 12A

ELITE

1 2 3 4 5 6 7 8

~120V, 16A FOR RCPT 1-2

~120V, 16A

CC T/H

NO NC C

AUX A

NO NC C

AUX B

IO I OI

US B

RE SE T

~120V, 12A FOR RCPT 3-8

16A MAX LOAD TOTAL

D I/JV H K E

FCLG

MA A

AxessELITE+isdesignedtobeinstalledhorizontallyontheequipmentrackorplacedonaatsurface.The

supplied nuts, bolts and washers must be used to mount the Axess ELITE+ to the rack through the mounting

holes (A) following the appropriate local regulations and requirements. If the Axess ELITE+ is used outside

of a rack, attach the supplied rubber feet.

2.1 AC Power: Output

Plug the equipment cord (B) into the suitable receptacles as needed. Please review Introduction,

Physical Interfaces, column Outputs, for the suitable plugs for each model’s receptacles.

2.2 AC Power: Input

Connect power to the Axess ELITE+ using an appropriately rated 3 wire grounding type power cord

provided with the equipment in inlet (V). Do not plug the unit into a relocatable power tap. Check the

outlet for correct polarity and presence of a ground conductor before plugging the unit in.

2.3 Ethernet and Account Admin Password

The RJ-45 connector for Ethernet (D) is situated on the back panel. The default IP Address is DHCP

assigned.To ndIPaddress ofthedevice, pleaseuse the discoverytool atametekesp.com. The

mDNS protocol is supported for dynamic device discovery.

The default login credentials are:

Username: admin

Default password: Adm1nXXXXXX

Where XXXXXX are the last six characters of the MAC address.

ELITE

User Manual

2.4 USB-Micro AB

The USB-Micro AB connector (E) is for diagnostics and troubleshooting IP connectivity issues.

To use, please use the discovery tool at ametekesp.com or manually enter the static IP address

http://169.254.10.100 into a supported browser. The web server will always be accessible at

http://169.254.10.100 through this USB port. The web server on this interface cannot be changed and

will always be unsecured HTTP at port 80.

2.5 Connect Serial Port (Optional)

The Axess ELITE+ has a 9 pin D subminiature connector (K) for RS- 232 serial control. The connector is

conguredasDCEfordirectconnectiontoalaptoporotherterminaldevice.Defaultserialparameters

are 115200 bps, 8 data, no parity, 1 stop bit (115200,8, n,1).

2.6 Connect Contact Closure Input (Optional)

Connectcontactclosurecontrolinputtothe2pinsoftherstterminalblockasshowninsection2.9.

Relays, switches, and push buttons are all suitable input types. The wire size can range from 18 AWG

to 22 AWG.

2.7 Connect Temperature / Humidity Sensor (Optional)

The Axess ELITE+ comes with external Temperature and Humidity sensor (Part No. SEN0385) for

monitoring external environmental conditions. This sensor can be connected via the green Phoenix

Connectors on the device. Connect red wire to pin 1, SDA (Green/Blue) to pin 2, SCL (Yellow/White)

to pin 3 and black wire to pin 4 of the second terminal block as shown in the below wire connection

section 2.9. Real-time external temperature and humidity values are displayed in the system info

(section 4.9). The temperature data can be utilized to set triggers and actions (section 4.6.6). However,

humidity values cannot be used as input for triggers. Additionally, these values are not stored or

displayed as historical data; only real-time values are made visible in the system info page.

2.8 Connect Auxiliary Relay Outputs (Optional):

Two auxiliary relay outputs are provided at the third (Aux Relay A) and fourth (Aux Relay B) terminal

blocks as shown in section 2.9. Access to the Common, Normally Open, and Normally Closed positions

is provided for each relay. The wire size can range from 18 AWG to 22 AWG.

ELITE

User Manual

2.9 Wiring details:

Contact Closure

CC1 CC2 +5V SDA SCK GND NO NC COM NO NC COM

Temperature/Humidity Auxiliary Relay A Auxiliary Relay B

2.10 LED Indicators:

The receptacles have individual power indicator LEDs (F). This are paralleled in the control interface.

In addition, the unit has an LED indicating power (G), Shut down is indicated by (L) and Self -Test is

indicated by (C).

Mains Shutdown Self-Test

A B 1 2 3 4 5 6 7 8 9 10 11

LED INDICATORS

Indicator Colour Description

Mains Red Whenilluminated,theAxessEliteisconnectedtoalivewallorooroutlet.

Shutdown Amber

When illuminated, the Axess Elite is in shutdown mode due to out of range line voltage,

current, or temperature.

Self-Test Green When illuminated, the surge suppression circuitry is functioning correctly.

Aux Relays Green When illuminated, the corresponding auxiliary relay is latched.

Outlets Green When illuminated, the corresponding AC outlet is on.

2.11 Buttons

2.11.1 Resettable Fuse

The resettable fuse (H) is used to reset the Axess ELITE+ in case the fuse tripped. This is a

single push button to the bottom left of the Ethernet RJ-45 jack. Also, there is a reset switch

for hardware and another for software.

2.11.2 Hardware Reset

Hardware Reset (I): The Hardware Reset button performs a hard reboot of the processor.

This hard reboot will immediately switch controlled outlets off, removing power to connected

equipment on all outputs.

2.11.3 Software Reset

Software Reset (J): The Software Reset button is a multi-functional control depending on

length of press. If the button is held for longer than 10 seconds, the unit resets itself to factory

defaults, and all custom congurations are erased. If the button is held for less than 10

seconds, the unit will perform a software reset that will not reset any data, or power cycle the

connected equipment.

ELITE

User Manual

2.11.4 Front Key Switch

Front key Switch (M): The front key switch is used to turn the unit on and off. Use the provided

key, which comes in the box, to turn the switch to the right (clockwise) to switch the unit on,

and to the left (anticlockwise) to switch it off. The key can be removed from the unit in both

the on and off positions. Make sure to store the key safely in a secure place when not in use

to prevent loss or damage. The front key switch shall be only for the SX-AEP-159 and SX-

AEP-209 models.

3. Rack Installation

Axess ELITE+ is designed to be installed horizontally in the equipment rack. The supplied nuts, bolts and

washers must be used to mount the Axess ELITE+ to the rack through the mounting holes (A) following the

appropriate local regulations and requirements.

Inventory

SI. No Items Qty

1 Axess ELITE+ Unit 1

2 Ear Mount Bracket 2

3 Flat Head Screws 8

4 Cage Nut 4

5 Pan Head Screws 4

DANGER

HAZARD OF ELECTICAL SHOCK, EXPLOSION, OR ARC FLASH

• This Unit is intended to use indoor only.

• Do not install this Unit where excessive moisture or heat is present.

• Never install any wiring, equipment, or Units during a lightning storm.

• Plug this Unit into a three-wire, grounded power outlet only. The power

outlet must be connected to appropriate branch circuit/mains protection

(fuse or circuit breaker). Connection to other type of power outlet may result

in a shock hazard.

• Install the unit in such a way that the Wall socket-outlet should be readily

accessible.

• Use only the supplied brackets for mounting and use only the supplied

hardware to attach the mounting brackets

• Do not use extension cords or adapters with this Unit

• If a socket-outlet is not accessible to the equipment, a socket-outlet shall be

installed.

• Do not work alone under hazardous conditions.

• Check that the power cord, plug, and socket are in good condition.

• Disconnect the Unit from the power outlet before you install or connect

equipment to reduce the risk of electric shock when you cannot verify

grounding. Reconnect the Surge Unit to the power outlet only after you

make all connections

• UnitinstallationinstructionsthatrequirevericationoftheProtective

earthing connection of the socket-outlet by a Skilled person.

• This equipment is not suitable for use in locations where children are likely

to be present.

• Use a protective earth connector with equipment. This type of connector

carries the leakage current from the load devices (computer equipment).

• Do not exceed a total leakage current of 3.5 mA

• Do not handle any kind of metallic connector before the power has been

removed

• Use one hand, whenever possible, to connect or disconnect signal cables to

avoid a possible shock from touching two surfaces with different grounds.

• This unit does not have any user-serviceable parts. Repairs are to be

performed only by factory-trained service personnel.

• The Unit is intended to be installed and operated by a skilled person in as

controlled location with restricted access.

• The ambient operating temperature of a closed or multi-unit rack

environment may be greater than the ambient temperature of the room.

Ensure the ambient operating temperature of your rack environment does

not exceed the rated ambient operating temperature for the device.

• Ensure the Unit is mounted securely and evenly.

• To avoid possible electrical shock and equipment damage, Use only the

supplied hardware.

Failure to follow these instructions will result in death or serious injury

ELITE

User Manual

3.1 Rack Mounting Options

Option 1: Mounting Ear Mount Bracket at Front

Secure Ear Mount Brackets to the Unit using eight Flat head screws

Option 2: Mounting Ear Mount Bracket at Rear

Secure Ear Mount Brackets to the Unit using eight Flat head screws

Option 3: Mounting Ear Mount Bracket at the Center

Secure Ear Mount Brackets to the Unit using eight Flat head screws

Option 4: Mounting Ear Mount Bracket at the Center

Secure Ear Mount Brackets to the Unit using eight Flat head screws

3.2 Unit Installation into the Rack

Horizontal Mounting: Mount Unit on 19” rack holes provided in the channel and secure the Unit using

four Pan head screws.

ELITE

User Manual

4. Web Server

Axess ELITE+’s internal web server provides a comprehensive portal for conguration, monitoring and

control.

4.1 Login

The Login page is the rst page

displayed when a web browser makes a

connection to the Axess ELITE+. Enter

a valid username and password in the

“Username”and“Password”elds,and

press “Login” to log in.

4.2 Power Management

The Power Management page provides

information and status for the Axess

ELITE+ and individual outlets, as well

as basic control of each outlet and

auxiliary relay outputs. The top right

section of the page provides system

status. Contact Closure input status is

displayed.

ELITE

User Manual

4.3 Reports

The Reports page displays data

collected by the Axess ELITE+ and

stored to its internal memory. The

data is presented in two groups: Time

Stamped Events and Historical Data.

Time Stamped Events are recorded,

with a date and time of occurrence when

a condition meets established criteria.

Axess ELITE+ uses a Real Time Clock

(RTC) synced to an Internet time server

and backed up by an internal battery.

For the most accurate time stamps

and to eliminate clock drift, we suggest

verifying the NTP connection.

The types of events which may be

recorded are:

• Triggers

• Power Outage

• Network Events

• Outlet Changes

• Shutdown Events

• Firmware Upgrades

Historical Data is a record of measured electrical parameters and may be adjusted to sample certain

itemsatspecicintervals.Theavailableparametersare:

HISTORICAL PARAMETERS DESCRIPTION

Voltage

Line -Neutral

The measured voltagebetween the conductors during the

measurement period.

Neutral-Ground

Voltage Neutral

ground peak

Neutral-Ground Peak

The measured peak voltage between the conductors during

the measurement period.

Total Current of all outlets Total current

The measured total current of all the outlets during the

measurement period.

Frequency Frequency

The measured input frequency during the measurement

period.

Power Factor of all Outlets Power Factor The measured power factor during the measurement period.

ELITE

User Manual

HISTORICAL PARAMETERS DESCRIPTION

Total Energy of all Outlets Total Energy

The measured energy of all outlets during the measurement

period.

Internal Temperature

The measured Internal temperature during the measurement

period.

Each Outlet Current Each Outlet The measured RMS current during the measurement period.

Each Outlet Active Power Each Outlet The measured active power during the measurement period.

Each Outlet Peak Current Each Outlet The measured peak current during the measurement period.

Each Outlet Power Factor Each Outlet The measured power factor during the measurement period.

Each Outlet Crest Factor Each Outlet

The maximum crest factor calculated during the

measurement period.

4.4 Power Monitoring

Power Monitoring page provides real-

time data collected by the Axess ELITE+.

It presents details regarding the total

outlet power and the power distributed

through each outlet. Key metrics

displayed include Line-Neutral Voltage,

Neutral-Ground Voltage, Current,

Frequency, Power Consumption, Crest

Factor, and Power Factor.

4.5 Chart

The Chart page provides a

comprehensive log of all user-dened

triggers activated by the Axess ELITE+.

It includes detailed information such as

the trigger name, type, last activation

timestamp, activation count, and

current status. Additionally, a pie chart

offers a visual representation of the

relative frequency of trigger activations,

providing a clear comparison of trigger

activity.

ELITE

User Manual

4.6 Setup

CompletesetupandcongurationofAxessELITE+isprovidedvia6Setupwebpages.Eachsetup

page is described in the following sections. Each setup page has a save button at the bottom of

thepagewhichmustbepressedtokeepthecongurationchanges.Agreensuccessmessagewill

temporarily appear in the top right of the page when the settings are saved properly.

SETUP

Setup Page Description

DEVICE Congurebasicdeviceparameters

DeviceConguration Conguresettingsforvisualfeedbackandpowerupprocedure

OutletConguration Congurecontrollableoutletsettings

OutletGroupConguration Create, Edit, or delete outlet groups

Date/ Time Settings CongureNTPserverorsetmanualtime

NETWORK Congurenetworksettings,includingthenetworkadapterandtimekeeping

NETWORK ADVANCED Congureadvancedmonitoringandsecuritysettings

SNMP CongureSNMPconnectionandcommunicationsettings

802.IX Settings Congureauthenticationsettingsand/orviewconnectionlogs.

LDAP Client Settings CongureLDAPauthenticator,options,andtestconnection

Syslog Settings CongureSyslogserversettings

USERS Congureandmodifyuseraccounts.

TRIGGERS Create and modify Triggers

Threshold with Samples Conguretriggersbasedonmeasurements

Auto Ping ConguretriggersbasedonpingingIPaddresses

Schedule Conguretriggersbasedontime

Contact Closure (CC) Conguretriggersbasedoncontactclosurestatus

SEQUENCES Create and modify custom Sequences

ELITE

User Manual

4.6.1 Device Setup

TheDeviceSetuppageallowsforthespecicationofbasicdeviceparameters.

4.6.1.1 DeviceConguration

The Device Conguration tab allows for the specication of visual feedback and

device initialization.

DEVICE CONFIGURATION

Item Description

Device Name SpeciesthenamelabeltobeassociatedwiththisAxessELITE+device.

Nominal Voltage

Speciestheexpectedvoltageontheinputreceptacle.Thisselection

does NOT change any settings for over/under voltage shutoff. This is only

for visual coloring on gauges.

Nominal

Frequency

Speciestheexpectedfrequencyontheinputreceptacle.Thisselection

does NOT change any settings for triggers. This is only for visual coloring

on gauges.

Over Voltage Limit

Based on the type of device, the range of the over voltage limit can be

adjusted.

Power-Up Delay

Time

Speciestheamountoftimeinsecondsbywhichtostaggerthemanual

turning on of multiple outlets when applying the initial state.

On Power Up

Specieswhethertosetoutletstoinitialstatesrunapredenedsequence

when Axess ELITE+ device powers up, or the hard reset button is pushed.

On Shutdown

Clear

Specieswhethertosetoutletstoinitialstatesrunapredenedsequence

when Shutdown state clear.

Temperature

Display

SpecieswhethertodisplaytemperatureindegreeFahrenheitorCelsius.

Auto Logout Speciesthewebsecuritytimeoutinminutes.

Auto Ping

Frequency

SpecieshowfrequenttheAxessELITE+devicewillsendpingstoanIP

Address or Hostname in an auto ping trigger.

Auto Ping Timeout

SpeciestheamountoftimetheAxessELITE+devicewillwaitforaping

response before calling the attempt a failure.

Device Control

Speciesiftheuserhaspermissiontocontroldevicefromcloudifitis

enabled and vice versa if disabled.

ELITE

User Manual

4.6.1.2 OutletConguration

TheOutletCongurationtaballowsforthespecicationofuniquenamesandreboot

timesperoutlet.Thecongurationforinitialstateperoutletisalsohere.

OUTLET CONFIGURATION

Item Description

Outlet Description Axedshortphrasethatreferencesaphysicalfeature.

Outlet Name SpeciesthenamelabeltobeassociatedwiththisOutlet

Reboot Time

Number of seconds that the device will wait in between turning an

outlet off and turning the outlet back on during a reboot command.

Initial State

The state that an outlet will assume during start up or after a shutdown

clears,iftheinitialstatesettingisselectedintheDeviceConguration

tab. Options are as follows:

Always On

Regardless of other settings, this outlet will always

be on. Ignores Shutdown state and deselecting

InitialStateintheDeviceCongurationtab.Outlet

ignores user commands to reboot or power off. The

only thing that will kill power with this selected is a

hard reboot, or of power outage.

Always Off

The opposite of Always On, this setting will never

allow an outlet to pass power

On The outlet will start in an On state.

Off The outlet will start in an Off state.

Last

The outlet will assume the last state it was in.

(Factory Default

Reboot Only

The outlet will act like the On state but will ignore

user commands to power off. This outlet will only

respond to reboot commands. Useful for network

appliances that may need to be rebooted, but

otherwise want to be on all the time. Using this

setting, the outlet will still turn off during Shutdown

state.

ELITE

User Manual

4.6.1.3 OutletGroupConguration

The outlets can be grouped under unique names as per the user requirements. User

can modify/add/delete groups.

OUTLET GROUP CONFIGURATION

Item Description

Group Name Speciesthenamelabeltobeassociatedwiththeoutletgroup.

Member Name Speciestheoutletmembersofthisoutletgroup.

4.6.1.4 Date/Time Settings

The Date/Time Settings tab allows for the specication of visual feedback, and

device initialization.

DATE/TIME CONFIGURATION

Item Description

Server Time Returns the device's internal time based on the local time zone.

Set Time

SpeciesthemethodforsettingthetimeintheAxessELITE+device.

Options for this setting are NTP or manual. NTP will use the NTP

Server option to automatically sync the device time every day.

Time Zone

SpeciesthedesiredtimezoneadjustmentfortheAxessELITE+

device.

NTP Server

SpeciesthehostnameorIPaddressoftheNTPservertousefortime

synchronization.

ELITE

User Manual

4.6.2 Network Setup

TheNetworkSetuppageallowsforthespecicationofnetworksettings,includingthenetwork

interface.

NETWORK CONFIGURATION

Item Description

IP Setup

SpeciesifthedevicewillhaveastaticIPAddressorwilldynamicallybeassigned

network settings through DHCP.

IP Address Current IP Address of the network interface on the RJ-45 Ethernet port

Subnet Mask Current Subnet Mask of the network interface on the RJ-45 Ethernet port.

Gateway Current Gateway of the network interface on the RJ-45 Ethernet port

DNS 1 Current DNS1 of the network interface on the RJ-45 Ethernet port.

DNS 2 Current DNS2 of the network interface on the RJ-45 Ethernet port.

Host Name

AcongurableuniquenametobeusedtoaccessthedeviceinsteadofanIP

Address.

SSL

SpecieswhetherthewebserverwillbeSSLencrypted(HTTPS)ornot(HTTP).

Thedefaultcerticateisself-signedandwillrequiretheusercontinuethrougha

safetynoticationifacustomsignedcerticateisnotuploadedtothedevice.

HTTP Enabled

Speciesifthewebserverisenabledordisabled.

NOTE: If disabling the web server, the web interface end REST API will be

disabled, only limited functionality over SNMP will remain it enabled.

HTTP Port Port number to use for the web server.

ELITE

User Manual

4.6.3 Network Advanced Setup

TheNetworkAdvancedSetuppageallowsforthespecication ofmoreadvancednetwork

security and monitoring options.

4.6.3.1 SNMP

The SNMP tab allows for the specication of parameters for the SNMP agent,

supporting V1 through V3.

SNMP SETUP

Item Description

Enable SNMP SpecieswhethertoenabletheSNMPagent.

Port

SpeciestheportnumberfortheSNMPagent.161isthestandardSNMPport.

SNMP V1

Communities

Is a table of all SNMP communities, supporting SNMP V1 at a minimum.

Name SpeciestheCommunitynameforreadand/orwriteaccess.

Source

Speciesanunrequiredwhitelist.Ifrequestsarenottobelteredby

hostnameorIPAddress,thiseldcanbeleftblank.

Access Speciesthetypeofaccessallowedbythecommunity.

SNMP V3

users

IsatableofUsersspecicallyforSNMPV3authorization.Usersherewillnot

apply to the REST API, and REST API users will not be able to authenticate

viaSNMPV3withoutredeningtheircredentialshere.SNMPcredentials

cannot be authenticated using the LDAP Client.

Name The name or username for authorization.

Authorization Type of encryption used per user. Options are DES or MD5.

Access Type of access per user. Options are Read Only or Read/Write.

Passphrase Passphrase or password for the user.

Trap Receivers Is a table of all the destinations for SNMP traps.

Name The name of the community for traps.

Host Name

The hostname or IP address of the SNMP Manager that is going to receive

traps.

Port The port number that the SNMP Manager is listening for traps on.

Traps Sent

Specieswhichspecictrapsaretobesent.Triggerssendtrapsfor

Triggering and Clearing. Manual Control sends traps for outlet state changes,

and Authentication sends traps for failed authentication attempts.

ELITE

User Manual

4.6.3.2 802.1X Settings

The802.1XSettings taballows forthespecication of802.1Xauthenticationand

debugging of errors as they may arise.

802.1X SETTINGS SETUP

Item Description

802.1x Enabled

Enables the 802.1x authentication client. This does not require the

user to have a unique password for Axess Elite+ device. Network login

credentials can be used.

Show Log Messages

Opens and hides a table with date/time coded 802.1x related

messages for debugging an authentication failure.

Authentication Type

Specify the authentication method used during the 802.1x negotiation.

Different authentication options and settings will be displayed based on

the selected Authentication Type.

ELITE

User Manual

4.6.3.3 LDAP Client Settings

TheLDAPClientSettingstaballowsforthespecicationoftheLDAPAuthentication

server and authentication method, and a test interface to test the server setup.

LDAP CLIENT SETTINGS SETUP

Item Description

Host The hostname or IP address of the LDAP server

Use SSL

A switch that will enable or disable SSL when attempting to connect

to the LDAP server. This is a separate option than the port number, in

the case that a site is using a nonstandard port for authentication, but

still wants the ability to specify encryption. We always suggest using

encryption when using LDAP.

Base DN

The base point in the directory tree where the user distinguished name

search will begin.

User DN

The distinguished name of a user that will be used to authenticate.

Multiple users are supported by using macros. For example, in the

above image, the username test User attempts to log in, and the User

DNpullsthename"TestUser"fromtheuser'sdenitionforuseinthe

authentication to replace the string %Full Name%.

TLS Require Cert

ThisspecieshowtohandleservercerticatesduringTLS

negotiations.Never:theclientneveraskstheserverforacerticate.

Allow:theclientwillaskforacerticate,ifnoneisprovidedthesession

proceedsnormally.Ifacerticateisprovidedbuttheclientisunableto

verifyit,thecerticateisignoredandthesessionproceedsnormally,

asifnocerticatehadbeenprovided.Try:thecerticateisrequested,

andifnoneisprovided,thesessionproceedsnormally.Ifacerticate

isprovidedanditcannotbeveried,thesessionisimmediately

terminated.Demand:thecerticateisrequested,andavalidcerticate

must be provided, otherwise the session is immediately terminated.

CerticateFile

ThisisthecerticatethatwillbesenttotheLDAPServerwhen/if

requested.

User Name

TheinformationforauserthatisdenedintheUserspage.The

rstpart(name),isaccessiblebythe%FullName%macro,andthe

second part (username) is accessible with the %User Name% macro.

Password ThepasswordforthegivenusertotesttheLDAPserverconguration.

Test User

A button to send an authentication request using the given settings for

the user and password above. NOTE: Settings should be saved using

the "Save Settings" button at the bottom of the page before testing a

congurationchange.

ELITE

User Manual

4.6.3.4 Syslog Settings

The Syslog Settings tab allows for the specication of the SyslogAuthentication

server and authentication method, and a test interface to test the server setup.

SYSLOG SETTINGS SETUP

Item Description

Host The IP address or name of the Syslog server

Port Listening port used by syslog server

Protocol Supported protocol by syslog server

Syslog Tag Required syslog tag can be given

ELITE

User Manual

4.6.4 Cloud Setting

To start the device registration process, click on the Cloud

Settings menu. Follow these steps carefully: First, ensure

the device has the latest rmware. Next, conrm you

have created an account on www.surgexconnect.com.

Finally, log in using your registered credentials. Next,

click on the “Register Device” button to initiate the device

registration. Note that the Device Registration Page will

not be visible if the device is already registered. Upon

successful registration, you will be redirected to a page

where you can view basic device information on the

cloud. If you ever need to de-register your device, click

on the “De-Register” button. Only use this option if you

want to remove your device from the cloud.

4.6.5 Users

To add a new user, click the Add New User button. You can edit/add or delete user accounts

on this screen. Each user will have a unique name, username, authentication mode, and may

be assigned access to specic features. For each user, you can select theAuthentication

Mode as either LDAP or internal. You can also set up Privileges for each user, which include:

• TriggerCong:Allowstheusertoconguretriggers.

• Device Control: Grants the user control over device outlets.

• Network Settings: Permits the user to modify network settings.

• Software Update: Enables the user to update software.

• UserAdmin: Provides administrative privileges over user accounts.

ELITE

User Manual

4.6.6 Triggers Setup

TheTriggersSetuppageallowsforthemodicationofTriggers.Triggersdeneeventlogging

parametersandallowcongurationtoautomaticallycontrolandprotectconnectedequipment.

Triggers are categorized into four types, autoping, Threshold with Samples, Schedule, and

Contact Closure but all have the same possible actions. Actions can either be on the onset

(Trigger/Alarm Actions) or offset (Clear Actions) of a trigger. All Triggers are logged, along with

the associated actions.

TRIGGER TYPES

Item Description

Threshold with Samples

Uses measurements over an allotted time to take an action. This trigger type

iscongurabletoactveryquicklyorveryslowlydependingonenvironmental/

system needs.

Thresholds include:

• Line Voltage

• N-G Voltage

• Current

• Temperature (Axess Elite+ Internal temperature)

• External Temperature (I2C sensor temperature)

• Frequency

• Average Power

• Crest Factor

• Power Factor

Auto Ping

Issues a ping function on a periodic basis to determine if an IP asset is

accessible.

Schedule

Uses the device time to issue a one time or periodic command. We suggest

ensuring the NTP server is updating correctly to use the schedule trigger.

Contact Closure

The actions to be executed upon closing or opening of the contact closure

inputmaybedenedasvariousUserTriggersontheTriggersSetupweb

page.

ELITE

User Manual

ACTION TYPES

Item Description

None

Do not take any action, only log the event. This is useful as a Clear Action

when an action should persist, or for both Alarm and Clear actions when just

logging the event is desired.

Power On Poweronaspecicoutletiftheoutletcongurationallowsit.

Power Off Poweroffaspecicoutletiftheoutletcongurationallowsit.

Reboot

Rebootaspecicoutletiftheoutletcongurationallowsit.Ifanoutletis

already off when this command is issued, the outlet will simply turn on after the

outletspecicrebootdelaytime.

Run Sequence Runaspecicsequence.

Enter Shutdown State

Put the device into a shutdown state. This state turns off all outlets (unless

theyareconguredforalwayson).Theonlywaytoclearashutdownstate,is

another trigger, a button on the web interface, or a REST API command.

Clear Shutdown State

Clear the device's shutdown state. Clearing the device's shutdown state will

causetheoutletstofollowthelogicdenedbytheOnShutdownClearsetting.

ELITE

User Manual

4.6.6.1 Threshold with Samples

The Threshold with Samples trigger uses

several measurements to decide when

toact.Thetriggercanbeconguredto

act quickly, or slowly, depending on the

number of measurement samples used.

A new sample is available every 50ms,

with the minimum samples being used

for a trigger being 1 sample, and the

maximum being 20 samples. Threshold

with Samples triggers are evaluated

every time a new sample is available.

Based on the below “New Trigger”

example below, the trigger will alarm

or turn on after 5 of any consecutive 10

samples are above 140V.

4.6.6.2 Autoping

The Autoping trigger uses a ping

commandonaperiodicbasisdenedin

thedevicesettingstotestifaspecicIP

address will respond. This trigger type is

useful if there is a problematic piece of

equipment that becomes unresponsive,

or if internet connectivity is inconsistent.

4.6.6.3 Schedule

The Schedule trigger uses the internal

time of the Axess ELITE+ to easily

congure single and recurring events

based on time. Only Alarm Actions are

used for this trigger.

ELITE

User Manual

4.6.6.4 Contact Closure

Connect a contact closure control input

(if any) to the 2 pins of the second

terminal block. Relays, switches, and

push buttons are all suitable input types.

The actions to be executed upon closing

or opening of the contact closure input

maybedenedasvariousUserTriggers

on the Triggers Setup web page.

4.6.7 Sequences Setup

TheSequencesSetuppageallowsforthecreationandmodicationofsequences.Asequence

isasetofactionstobetakeninaspecicorder,andwithaspecieddelaytimebetweeneach

step. Using sequences avoids manually performing each action, or turning each outlet on or

off, individually.

4.7 Utilities

Axess ELITE+ contains several utilities to ease the conguration and deployment that may be

performed on a per unit basis through several web pages.

ELITE

User Manual

FILE UPLOAD

Item Description

Firmware Update Select this option to upload Firmware File.

CongurationFile SelectthisoptiontouploadanewCongurationFile.

SNMPConguration SelectthisoptiontouploadanewSNMPcongurationFile.

Power Board Firmware Update Select this option to upload the Power Board Firmware File.

LDAPCerticate SelectthisoptiontouploadthecerticaterequiredtoconnecttoLDAPserver.

HTTPSCerticates SelectthisoptiontouploadnewHTTPScerticates.

SSH Public Key SelectthisoptiontouploadnewSSHPublicKey,thislemustbeinpubformat.

4.7.2 Backup/Restore

Thecurrentcongurationmaybesavedtoale

and downloaded for archival. Previously stored

congurations may be applied to other units

to easily mass congure a larger deployment.

IP Settings will not be saved in the Backup

Conguration.

Axess ELITE+ also has a provision for downloading

theSSHprivatekeyleforremoteloggingonthe

device

4.7.3 Factory Reset

Factory default settings may be applied through

the web interface.

• Option to keep or reset network IP settings.

• Web Server settings will be reset. A custom

port number will be reset to 80, and SSL will

be disabled by default.

4.7.4 Soft Reboot

Adds the ability to reboot the Axess ELITE+

processor. A soft reboot will not change the

outlet state or disconnect power from connected

equipment. This request will add a message in

the event log “Rebooting Adapter Due to User

Request”.

ELITE

User Manual

4.8 UserProle

The User Prole screen provides the current user’s information and allows them to change their

password. On this page, users can also edit their username, password, and view their privileges and

authenticationmode.Thisscreenhelpsuserstomanagetheirownprolesandmaintaintheiraccount

security.

4.9 System info

The System Info screen provides hardware and software information about the device and the number

of users connected to the device.

ELITE

User Manual

5. Command Line Interface (CLI)

ManycongurationparametersmaybesetusingtheCommandLineInterface(CLI).TheCLIisaccessed

through the network using a SSH telnet client, or through the serial port (RS 232).

5.1 SSH

1. To log in to the SSH console, follow these steps:

2. Run the application.

3. Open the UI and navigate to Utilities.

4. Go to BACKUP/RESTORE and download the SSH Private Key.

5. Open the terminal and navigate to the folder containing the SSH Private Key.

6. Use the following command to log in to the SSH console:

ssh -T -i sshrsaPrivate <IP_ADDRESS>

5.2 RS 232 PORT

To access the RS-232 console, follow these steps:

1. Open Tera Term.

2. Connect to the RS-232 port.

3. Go to Setup and select Serial Port.

4. Set the speed to 115200.

5. Click on New Settings to connect.

6. Provide the login credentials:

• Login: admin

• Password: admin

ELITE

User Manual

5.3 Commands

Once connected to either the SSH or RS232 consoles, users can execute the following commands to

retrieve and set device parameters:

• get all: Retrieves all available data from the device.

• get outlet 1: Retrieves the data of outlet 1.

• get nominalvoltage: Retrieves the nominal voltage setting of the device.

• get nominalfrequency: Retrieves the nominal frequency setting of the device.

• get temperatureunit: Retrieves the temperature unit setting of the device.

ELITE

User Manual

• get devicename: Retrieves the name of the device.

• getfwversion:Retrievesthermwareversionofthedevice.

• set outlet 1 off: Turns off outlet 1.

• set outlet 1 on: Turns on outlet 1.

• set outlet 1 reboot: Reboots outlet 1.

• set auxelay 1 off: Turns off Aux relay 1.

• set auxelay 1 on: Turns on Aux relay 1.

• set auxelay 1 reboot: Reboots Aux relay 1.

• set nominalvoltage: Sets the nominal voltage for the device.

ELITE

User Manual

• set nominalfrequency: Sets the nominal frequency for the device.

• set voltagelimit: Sets the voltage limit for the device.

• set temperatureunit: Sets the temperature unit for the device.

• set devicename: Sets the name of the device.

• get outletname: Retrieves the name of all the outlets.

ELITE

User Manual

• get outletstatus: Retrieves the status of all the outlets.

• get voltagelimit: Retrieves the voltage limit of the device.

6. Security

Axess ELITE+ has been designed with security as a priority. All ports and features may be changed or

disabled.

6.1 Authentication

Axess ELITE+ supports basic and secure authentication for users and network connections.

6.1.1 802.1X

802.1X network authentication may be enabled for networks requiring supplicant authentication.

6.1.2 SSO (Single Sign-On)

Axess ELITE+ users may be congured to use either Internal or SSO (Single Sign-On)

authentication. Internal authentication uses basic usernames and passwords assigned by

the administrator on a per-unit basis. SSO authentication uses LDAP (Lightweight Directory

Access Protocol) to authorize users, and determine their level of privileges, using Microsoft®

Active Directory. While it is possible to use LDAP to authorize users without SSL encryption,

wesuggestonlyconguringtheconnectiontotheauthenticationserverusingSSLencryption

toplaintextnetworktrafc.

ELITE

User Manual

6.2 Interfaces

6.2.1 Network Interface

Web Server: It is possible to enable and disable the internal web server, change the security

from none (HTTP) to TLS 1.2 (HTTPS), as well as change its port. These settings also apply

to the REST API.

SNMP: Axess ELITE+ supports SNMP V3 for secure communications, with the ability to

enable and disable.

7. Application Programming Interfaces (APIs)

AxessELITE+isdesignedforexiblecommunicationandintegrationwithdiversecontrolandmonitoring

platforms.

7.1 HTTP/HTTPS REST

Axess ELITE+ includes an extensive HTTP API (HTTPS when security is enabled) in JSON format.

Full protocol details are available at https://www.ametekesp.com.

7.2 Interfaces

SNMP V3 communications are intended to provide essential items for management. Read, Write,

Table, and Trap objects will be included. Full protocol details, and the SNMP MIB, are available at

https://www.ametekesp.com.

8. Part Numbers

8.1 Part Number Scheme

SX-AEP-1011i

Product Line

SX-AEP SurgeX Axess ELITE+

Rated Current

10 10A Rated Current

15 12A Rated Current

16 16A Rated Current

20 16A Rated Current

Number of Receptacles

9 9 Receptacles (NEMA ONLY)

11 11 Receptacles (IEC ONLY)

NEMA / IEC Model

i IEC Model (240V)

blank NEMA Model (120V)

ELITE

User Manual

9. Troubleshooting

1. Checking for power input issues -

a. Verify if the power source is functioning correctly and ensure that all connections are secure.

b. Verify the circuit breaker.

c. Verify the incoming line cord to the device is accidentally disconnected or if the mains plug is pulled

out from the wall receptacle.

2. Diagnosing overloading issues - Check if the device is being overloaded by too many connected

devices or if there is a problem with the power distribution unit. Please refer to the Overload current

specicationtable.

RATED CURRENT MAXIMUM CURRENT

10A 15A

12A 15A

16A 20A

3. Inspecting for physical damage - Check for any signs of physical damage, such as bent pins, frayed

cords, or broken components.

4. Testingvoltagelevels-Verifythatthevoltagelevelsarewithintheappropriaterangeforthespecic

deviceandcheckforanyvoltageuctuationsorspikes.Impropermainsvoltagetothedevicemay

resultinre.

5. Checkingforrmwareorsoftwareissues-Ensurethatthermwareorsoftwareofthedeviceisup-to-

date and functioning correctly.

6. Investigating environmental factors - Check for any environmental factors that may be affecting the

device, such as extreme temperature or humidity.

7. Replacing a component or subsystem in the device without a trained technician may lead to device

malfunctionn.

8. Contacting customer support - If the above troubleshooting methods do not resolve the issue, the user

may be advised to contact customer support for further assistance.

ELITE

User Manual

10.Specications

PARAMETER SX-AEP-159 SX-AEP-209 SX-AEP-1011i SX-AEP-1611i

AC Load Rating 12A @ 120V 16A @ 120V 10A @ 240V 16A @ 240V

No of Outlets - back 8 8 10 10

No of Outlets - front 1 1 1 1

Measurement

Accuracy

Voltage ± 2%

Current ± 5%

Power ± 7%

Energy ± 7%

Timestamp Accuracy ± 1%

Auxiliary Relay Control (2) 3 x screw terminal

Contact Closure (1) 2 x screw terminal

Temperature Sensor Input (1) 4 x screw terminal

Serial Port RS232 port

Network Port

10/100 Ethernet connection on Female RJ-45, Auto Negotiating with 10/100

network connections with Link and Activity LEDs

Micro USB

Weight 12.4 Lbs/5.6Kg 12.4 Lbs/5.6Kg 11.9 Lbs/5.4Kg 11.9 Lbs/5.4Kg

Dimensions

(Enclosure)

Height: 1.73”/44mm 1.73”/44mm 1.73”/44mm 1.73”/44mm

Width: 17.4”/442mm 17.4”/442mm 17.4”/442mm 17.4”/442mm

Depth: 11.8”/300mm 11.8”/300mm 11.8”/300mm 11.8”/300mm

Temperature Range: 100% Load 0 to 45 °C (32 - 113 °F)

Humidity Range 5% to 95% R.H. Non-condensing

Altitude 0 - 10000ft (0 - 3048meters)

Agency

Listings

Safety

CertiedtoUL62368-1 CertiedtoUL62368-1

CAN/CSA C22.2 No 62368-1:19,

3rd Ed

CE Mark

RoHS: Compliant WEEE

Prop 65

RoHS: Compliant

REACH: Compliant

Surge / EMI

FCC 47 CFR PART 15 SUBPART B

(Using ANSI C63.4-2014)

EN 55035:2017+A11:2020

EMC ICES-003 ISSUE 7

EN 55032:2015 + A1:2020

EN IEC 61000-3-2:2019 + A1:2021

EN 61000-3-3:2013 + A2:2021

Surge Protection Advanced Series Mode

IP protection class IPX0

AC Power System Type TN

Pollution Rating Pollution degree (PD) PD 2

SurgeX SX-AEP-1011I 240V

Product's Documents

Axess ELITE+ Manual

Specifications

SurgeX SX-AEP-1011I Questions and Answers
