BRM3635/BRM3810
DUAL TRAINER
OWNER’S MANUAL
This product is intended for indoor, home use only and is not to be used in a commercial setting.
This page is left blank intentionally
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE USE & REFERENCE.
DO NOT DISCARD.
WARNING: SERIOUS INJURIES AND EVEN DEATH CAN OCCUR IF THE PROPER SAFETY PRECAUTIONS
ARE NOT FOLLOWED.

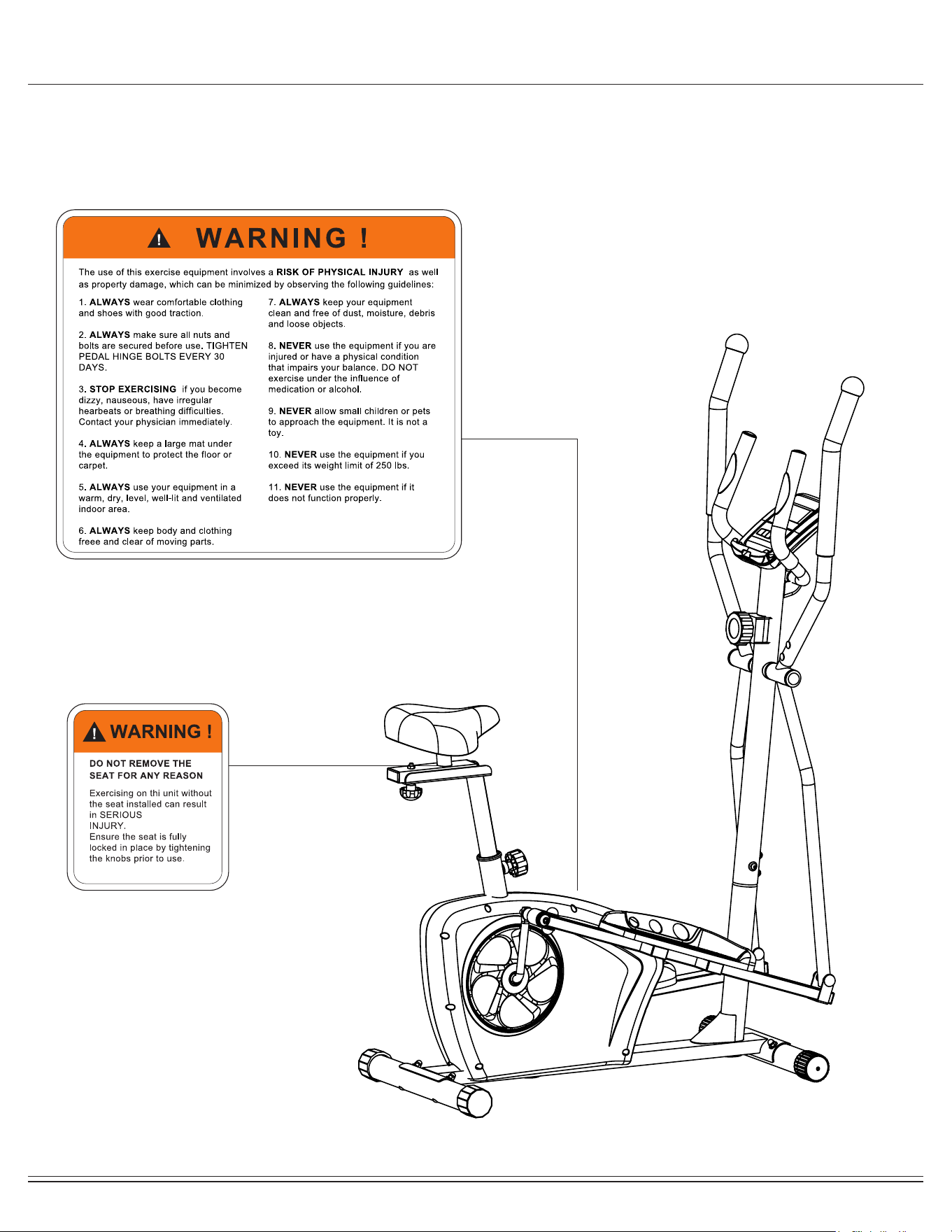

The diagram below highlights and reviews many of the important Safety and Warning labels also found on the unit.
Please ensure any user of the unit familiarizes themselves with this Safety and Warning guidelines before use.
BRM3635/BRM3810 Page 1
Before you undertake any exercise program, please be sure to
consult with your doctor.
Frequent strenuous exercise should be approved by your
doctor and proper use of your product is essential.
Excessive or incorrect training may result in health injuries.
Please read this manual carefully before commencing the
assembly of your product or starting to exercise.
• Please keep all children away from this item when in use.
Do not allow children to climb or play on this item when it
is not in use.
• Supervise teenagers while they use this unit.
• For your own safety, always ensure that there are at least
3 feet of free space in all directions around your product
while you are exercising.
• Regularly check to see that all nuts, bolts and ttings are
securely tightened. Periodically check all moving parts for
obvious signs of wear or damage.
• Any adjustment devices that could interfere with the user’s
movement of this unit should not be left projecting.
• Clean only with a damp cloth, do not use solvent
cleaners. Lubricate the moving parts of your unit every 30
days with a silicone-based grease or product.
If you are in any doubt, do not use your product; contact
CUSTOMER SUPPORT.
• Before use, always ensure that your product is positioned
on a solid, hard-at surface.
• Do not place on carpet. If necessary, use a rubber mat
underneath to reduce the possibility of slipping.
• Always wear appropriate clothing and footwear such as
training shoes when exercising. Do not wear loose clothing
that could become caught in moving parts during exercise.
• Do not use this unit if it is not functioning properly or if it is
not fully assembled.
• Do not use this unit for commercial purposes. This unit is
for home use only.
• Before use, you must read and understand all instructions
& warnings stated in this Owner’s Manual as well as
posted on the equipment.
• It is the facility owner’s responsibility to properly instruct
users on the proper operation of the equipment and to
warn them of the potential hazards.
• If at any time during exercise you feel faint, dizzy or
experience pain, stop and consult your physician.
Your product is intended for use in clean dry conditions. You
should avoid storage in excessively cold or damp places as
this may lead to corrosion and other related problems.
If you have any questions concerning the assembly of your
item or if any parts are missing, please DO NOT RETURN
THE ITEM TO THE STORE OR CONTACT THE
RETAILER.
Our dedicated customer service sta can help you with
any questions you may have regarding the assembly of this
unit and can also mail you replacement parts.
Customer Support is open 9:00 a.m. to 5:00 p.m. (Pacic
Time) Monday through Friday.
Please contact us by any of the following means :
Hupa International, Inc.
21717 Ferrero Parkway, Walnut, CA 91789
Telephone: 1 (888) 266 - 6789
Fax: 1 (909) 598 - 6707
Email: [email protected]
Hupa International warrants your product is free of any defects
in workmanship and materials for a period of 1 year for the
frame and 90 days on all parts if the item is used for the
intended purpose, properly maintained and not used
commercially.
Any alterations or incorrect assembly of the product will void
this warranty.
Proof of purchase must be presented for any warranty
validation (no exceptions). This warranty applies to the original
purchaser only and is not transferable.
This warranty covers parts damaged due to defect in
workmanship and materials; it does not cover abuse or
damages caused during use, storage or assembly. During the
warranty period, Hupa International reserves the right to:
1. provide replacement parts to the purchaser in an eort to
repair the item.
2. repair the product returned to our warehouse
(at purchaser’s cost).
3. replace the product if neither of the two previously
- Ruler with both Metric and English measurements
- 2 x Adjustable Wrenches
- 1 x Philips (”Crosshead”) Screw Driver
Your product is suitable for users weighing:
250 pounds or less
General Information
Safety Storage and Use
Questions
Customer Support
Warranty
Assembling Tools
Weight Limit
BRM3635/BRM3810 Page 2
Before Assembly
1. Take a few minutes to familiarize yourself with the parts and hardware included with your product.
2. The assembly may require two people.
3. Check the frame for any damage and check any wiring (if present) for rips or tears. If you detect damage, rips, or
tears, please contact our Customer Support Team before beginning any assembly.
4. Make sure all the hardware needed is included.
5. It is very important to follow the assembly instructions correctly and to make sure all parts are attached correctly and
rmly tightened when the assembly process is complete.
6. Parts that are not tightened correctly will seem loose and can cause irritating noises and will cause damage to the
equipment.
1. It is only necessary to tighten the bolts and nuts to “nger tight” during the assembly process. This will make it
easier to complete certain steps by allowing more tolerance for all the parts to t properly.
2. Do not tighten all the nuts onto the bolts securely until after you have completed assembly of your product.
3. Use wrenches, pliers, or ratchet and sockets to tighten the bolts and nuts.
4. The Nylon Nut should thread onto the Hex Bolt until the end of the Hex Bolt has passed through the Nylon insert in-
side the Nut. Please follow this guideline every time you see this Nylon Nut icon throughout the assembly steps.
Nylon Lock Safety Nuts
WARNING
PLEASE NOTE : Many of the parts and hardwares listed on the parts list are already pre-assembled or
installed on the unit.
BRM3635/BRM3810 Page 3

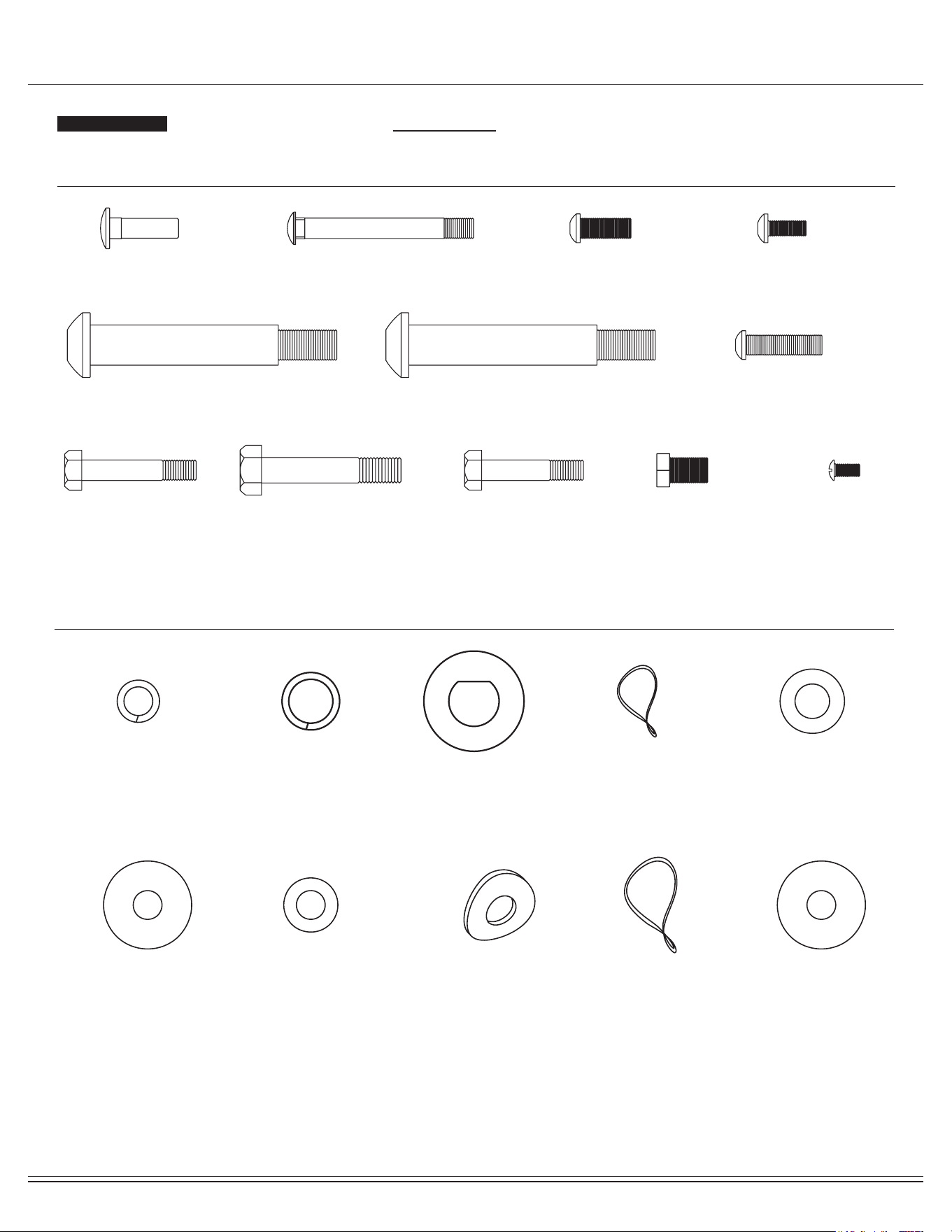

#21
Hex Bolt (M10x55 mm)
[2 pieces]
#15
Carriage Bolt (M8x70 mm)
[4 pieces]
#14
Carriage Bolt (M8x27 mm)
[4 pieces]
#17
Bolt (M6x15 mm)
[4 pieces]
#18L
Left Pedal Hinge Bolt
[1 piece]
#25
Screw (M5x10 mm)
[4 pieces]
Pre-assembled
#16
Bolt (M8x20 mm)
[4 pieces]
Pre-assembled
#18R
Right Pedal Hinge Bolt
[1 piece]
#23
Hex Bolt (M8x15 mm)
[ 2 pieces]
Pre-assembled
#19
Bolt (M8x30 mm)
[ 2 pieces]
#22
Hex Bolt (M8x40 mm)
[4 pieces]
#20
Hex Bolt (M8x45 mm)
[2 pieces]
#35
Washer (M8xφ16 mm)
[7 pieces]
#29
Spring Washer (M8)
[6 pieces]
Pre-assembled
[4 pieces]
#33
Washer (M10)
[2 pieces]
#30
Spring Washer (1/2")
[2 pieces]
#34
Washer (M8xφ26 mm)
[2 pieces]
Pre-assembled
#51
Washer (M8)
[3 pieces]
Pre-assembled
#32
Wavy Washer (1/2")
[2 pieces]
#37
Wavy Washer (φ19 mm)
[2 pieces]
Pre-assembled
#36
Arc Washer (M8)
[8 pieces]
Pre-assembled
[4 pieces]
#31
Big Washer
[2 pieces]
Pre-assembled
Hardware and Tool List
Bolts
Washers
The following hardware is used to assemble your unit. Please take a moment to familiarize yourself with these items.
PLEASE NOTE: Most of these parts are already pre-assembled on your unit. Do not be alarmed if you see parts on this
page that are not included in your hardware packet.
L R
BRM3635/BRM3810 Page 4

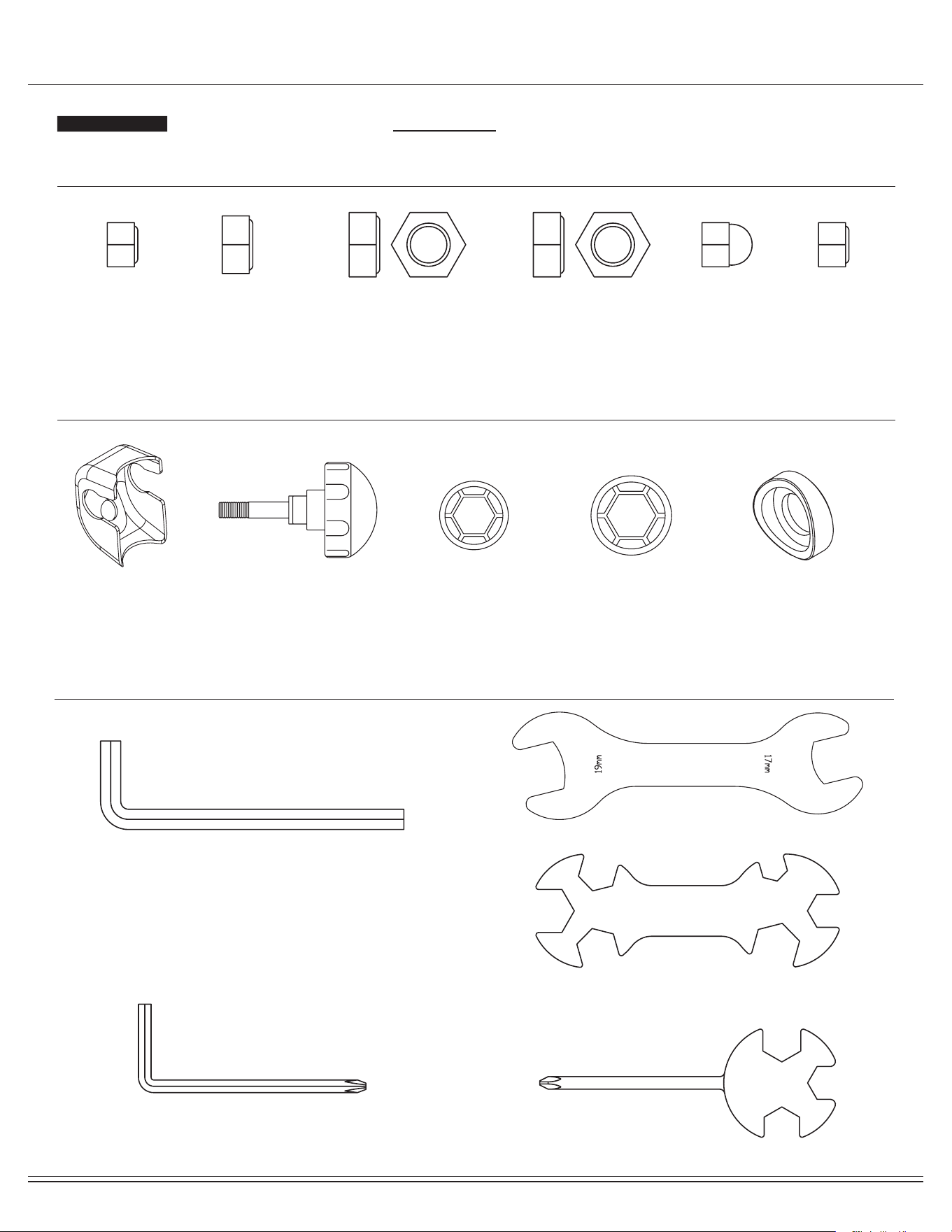

#38
Nylon Nut (M8)
[6 pieces]
#52
Nylon Nut (M8)
[3 pieces]
Pres-assembled
#24
Pulse Handle Bar Cover
[1 piece]
#75
Tool (S8)
[1 piece]
#77
Tool (S17,19)
[1 piece]
#79
Tool (S-10,13,14,15,17,19)
[1 piece]
#80
Tool (S5)
[1 piece]
#78
Tool (S13,14,15)
[1 piece]
#26
Knob Bolt (M8x36 mm)
[1 piece]
#27
Bolt Cap (S14)
[6 pieces]
#28
Bolt Cap (S17)
[4 pieces]
#43
Bolt Cap (S17)
[2 pieces]
Pre-assembled
#39
Nylon Nut (M10)
[2 pieces]
#42
Nut (M8)
[4 pieces]
#40
Left Nylon Nut
(with black inner nylon ring) (1/2")
[1 piece]
#41
Right Nylon Nut
(with white inner nylon ring) (1/2")
[1 piece]
Hardware and Tool List
Others
Nuts
Tools (Included)
The following hardware is used to assemble your unit. Please take a moment to familiarize yourself with these items.
PLEASE NOTE: Most of these parts are already pre-assembled on your unit. Do not be alarmed if you see parts on this
page that are not included in your hardware packet.
BRM3635/BRM3810 Page 5

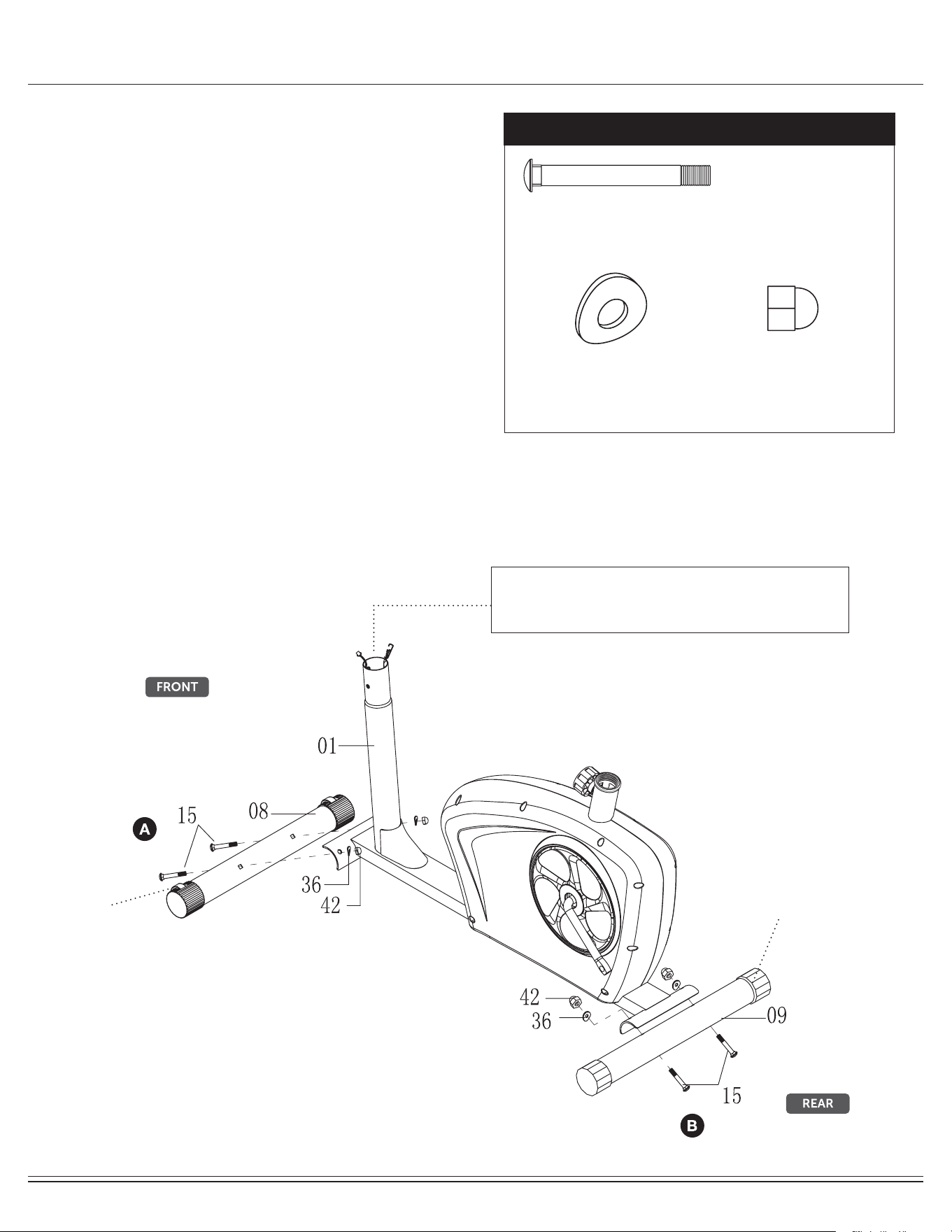

Assembly STEP 1
With the help of an assistant, attach the Front Stabilizer
(#08) to the front of the Main Frame (#01). Insert two
Carriage Bolts (#15) through the Front Stabilizer (#08)
followed by the front of the Main Frame (#01), then
secure them together using two Arc Washers (#36) and
two Nuts (#42).
B. REAR STABILIZER ASSEMBLY
Now attach the Rear Stabilizer (#09) to the rear of
the Main Frame (#01). Insert two Carriage Bolts (#15)
through the Rear Stabilizer (#09) followed by the rear of
the Main Frame (#01), then secure them together using
two Arc Washers (#36) and two Nuts (#42).
Note:
Front Stabilizer (#08) has end caps that spin for ease
of relocating the unit and the Rear Stabilizer (#09) has
height adjustable end caps for leveling of the unit.
A. FRONT STABILIZER ASSEMBLY
Hardware Required
Front Roller
Height Adjustable
End Caps
Make sure these two wires are accessible and exposed (as
shown) before proceeding to the next step. If they have
fallen inside the tube, use a bent wire to “sh” them out.
#15
Carriage Bolt (M8x70 mm)
[4 pieces]
#36
Arc Washer (M8)
[4 pieces]
#42
Nut (M8)
[4 pieces]
BRM3635/BRM3810 Page 6

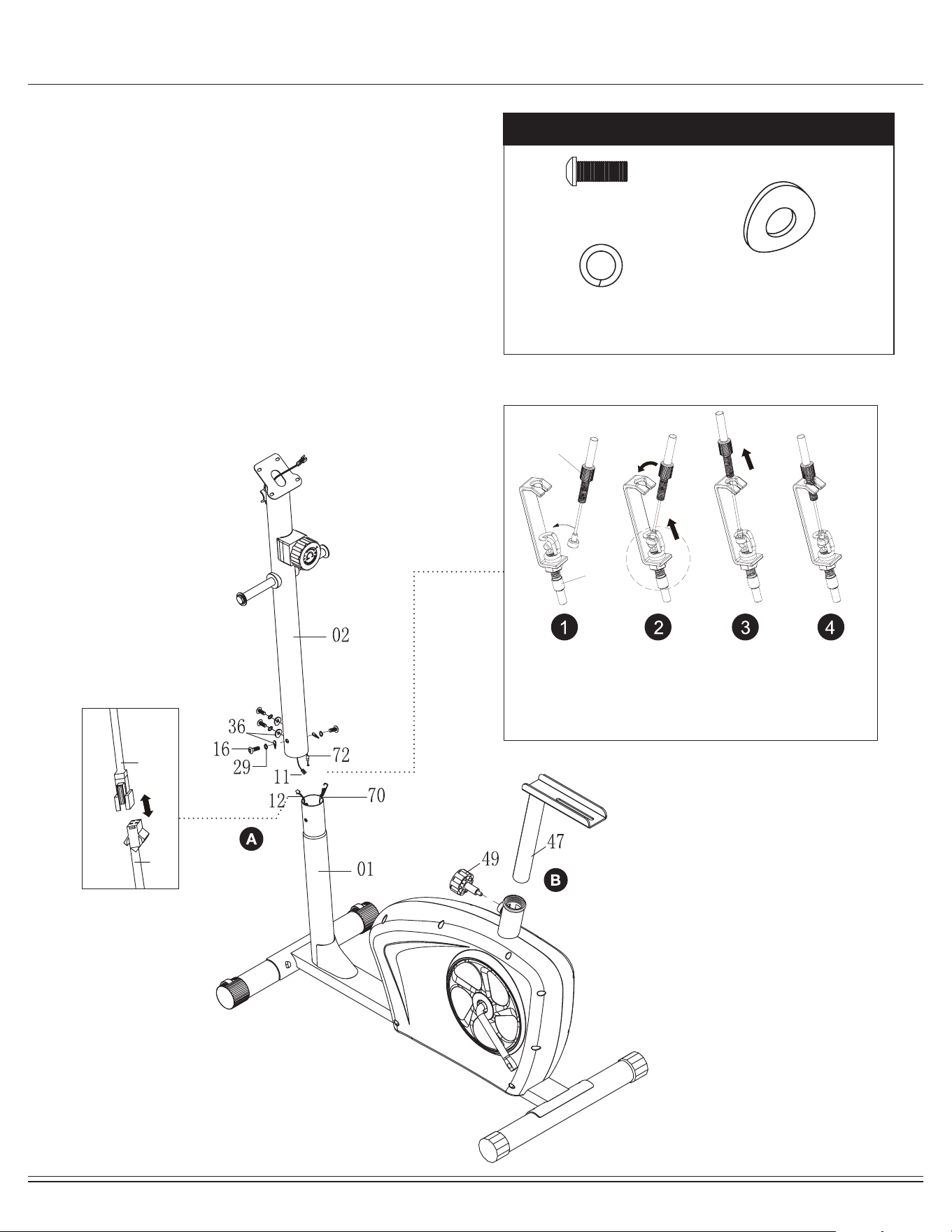

Assembly STEP 2
A. MONITOR WIRE & TENSION WIRE ASSEMBLY
Connect the Monitor Wire (Upper) (#11) to the Monitor Wire (Lower)
(#12) and then follow the instructions in the diagram below to connect
the Tension Wire (#70).
Remove four Bolts (#16), four Spring Washers (#29), and four Arc
Washers (#36) that are pre-assembled on the Main Frame (#01) and
set them aside as they will be used later in this step.
After connecting the Tension Wire (#70) to the Tension Controller
(#72) slide the Center Post (#02) onto the Main Frame (#01) and
secure it using the four Bolts (#16), four Spring Washers (#29), and
four Arc Washers (#36).
B. SEAT POST ASSEMBLY
Insert the Seat Post (#47) into the mouth of the post that is protruding
from the Main Frame (#01) down a minimum of 4 inches to engage
the lowest hole. Make sure the holes on the Seat Post (#47) are
facing the front before inserting. Secure the Seat Post (#47) using the
Spring Loaded Knob (#49).
Hardware Required
11
12
72
70
Tension Wire Assembly
Insert the tip of the Tension Controller (#72) wire into the
Tension Wire (#70) head at an angle.
Tilt the Tension Controller (#72) wire into the crevice and
then pull upward.
#16
Bolt (M8x20 mm)
[4 pieces]
#29
Spring Washer (M8)
[4 pieces]
#36
Arc Washer (M8)
[4 pieces]
BRM3635/BRM3810 Page 7

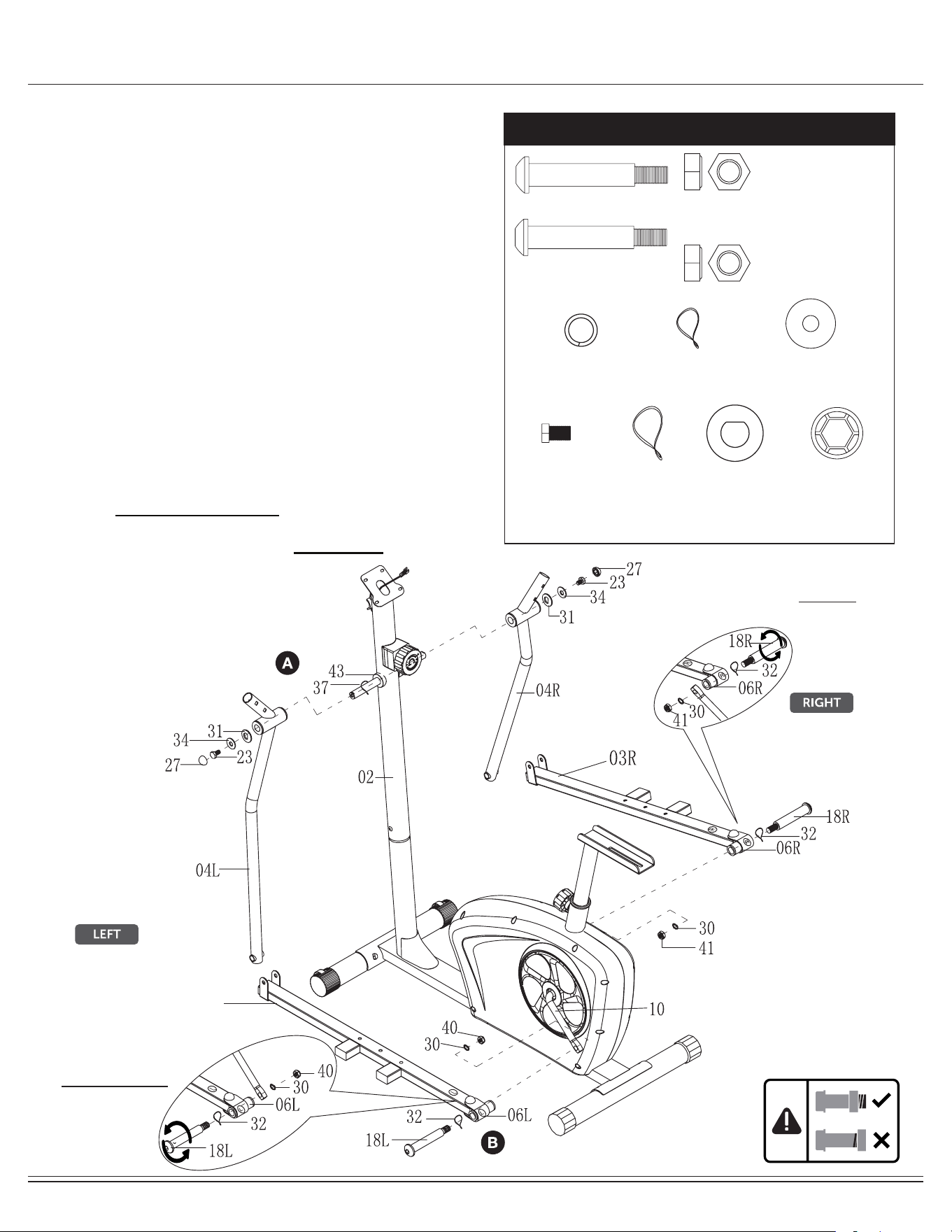

Assembly STEP 3
Hardware Required

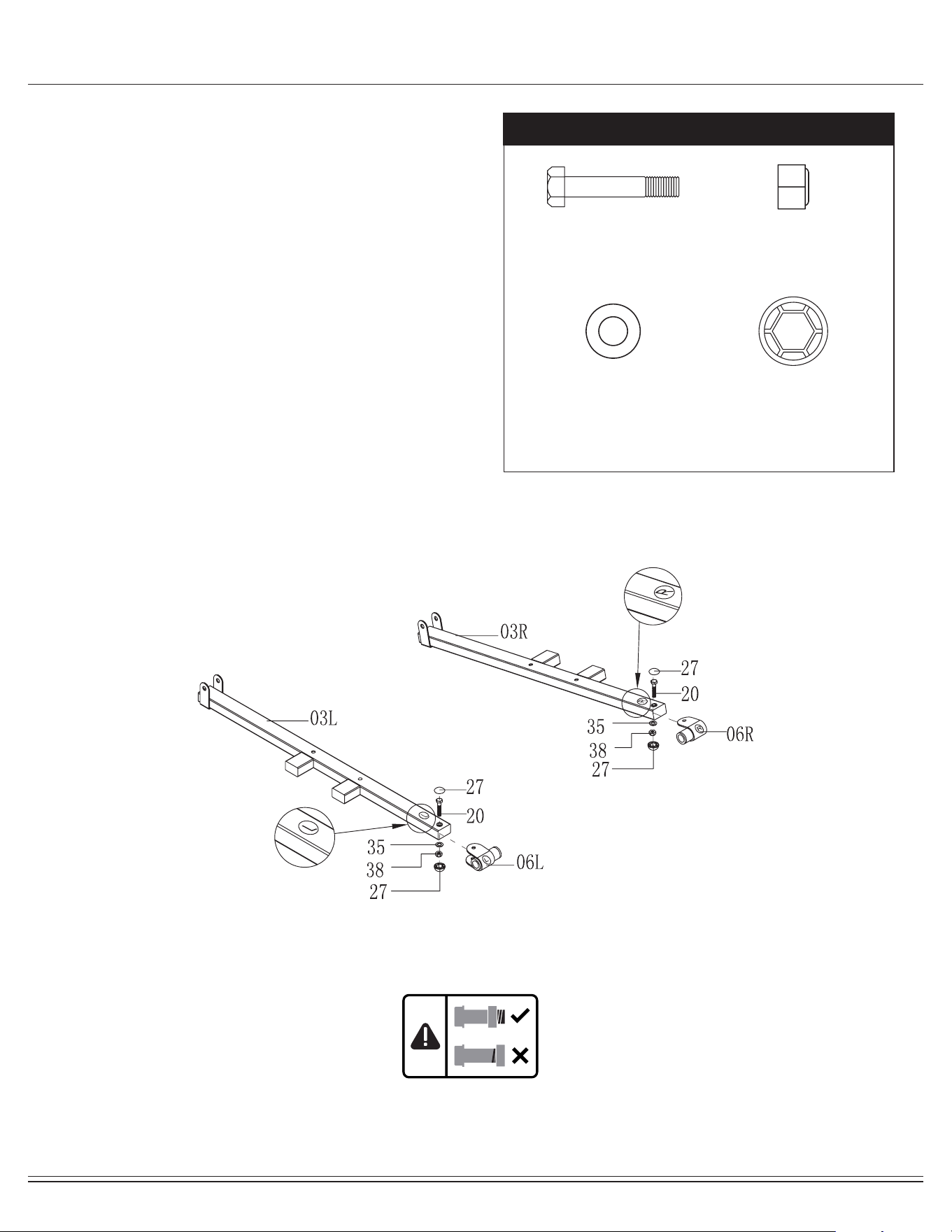

Attach the Pedal Connection Joint (#06R) to the Right Pedal Tube
(#03R). Insert a Hex Bolt (#20) through the upper bracket of the Pedal
Connection Joint (#06R), followed by Right Pedal Tube (#03R) then
the lower bracket of the Pedal Connection Joint (#06R). Secure them
with a Washer (#35) and a Nylon Nut (#38).
Repeat this process on the other side using the Left Pedal Connection
Joint (#06L).
Attach four Bolt Caps (#27) on two Hex Bolts (#27) as illustrated in the
drawing.
#20
Hex Bolt (M8x45 mm)
[2 pieces]
#35
Washer (M8xφ16 mm)
[2 pieces]
#38
Nylon Nut (M8)
[2 pieces]
#27
Bolt Cap (S14)
[4 pieces]
BRM3635/BRM3810 Page 8
Assembly STEP 4
Hardware Required
A. COUPLER BAR ASSEMBLY
Remove Hex Bolt (#23), Washer (#34), Big Washer (#31), Wavy
Washer (#37), Plastic Washer (#43) that are pre-assembled on Center
Post welded axle (#02). Referring to the diagram below, on the left
side of the Center Post (#02), in the following order, slide on one
Plastic Washer (#43), one Wavy Washer (#37), followed by the Left
Coupler Bar (#04L), one Big Washer (#31), one Washer (#34) and
secure using one Hex Bolt (#23).
On the opposite side, assemble, in the following order, one Plastic
Washer (#43), one Wavy Washer (#37), followed by the Right Coupler
Bar (#04R), one Big Washer (#31), one Washer (#34) and secure
using one Hex Bolt (#23). Attach two Bolt Caps (#27) on two Hex Bolt
(#23) as illustrated in the drawing.
B. PEDAL TUBE ASSEMBLY
Attach the Left Pedal Tube (#03L) onto the Crank (#10) as illustrated
and secure by inserting from the outer edge of the Left Pedal Tube
(#03L): one Pedal Hinge Bolt (#18L) and one Wavy Washer (#32).
Secure from the inner side (behind the Crank (#10) with one Spring
Washer (#30) and one Left Nylon Nut (#40). Secure the #18L by
turning it COUNTER-CLOCKWISE.
Repeat this process on the other side using the Right Pedal Tube
(#03R). Secure the #18R by turning it CLOCKWISE.
03L
#18L
Left Pedal Hinge Bolt
[1 piece]
#18R
Right Pedal Hinge Bolt
[1 piece]
L
R
#40
Left Nylon Nut
(with black inner nylon ring) (1/2")
[1 piece]
#41
Right Nylon Nut (with white inner
nylon ring) (1/2")
[1 piece]
#30
Spring Washer (1/2")
[2 pieces]
#32
Wavy Washer (1/2")
[2 pieces]
#23
Hex Bolt (M
8x15 mm)
[ 2 pieces]
#34
Washer (M8xφ26 mm)
[2 pieces]
#37
Wavy Washer
(φ19 mm)
[2 pieces]
#31
Big Washer
[2 pieces]
#27
Bolt Cap (S14)
[2 pieces]
Turn COUNTER-CLOCKWISE
Standing from Left side
of the bike
Turn CLOCKWISE
Standing from Right side
of the bike
BRM3635/BRM3810 Page 9

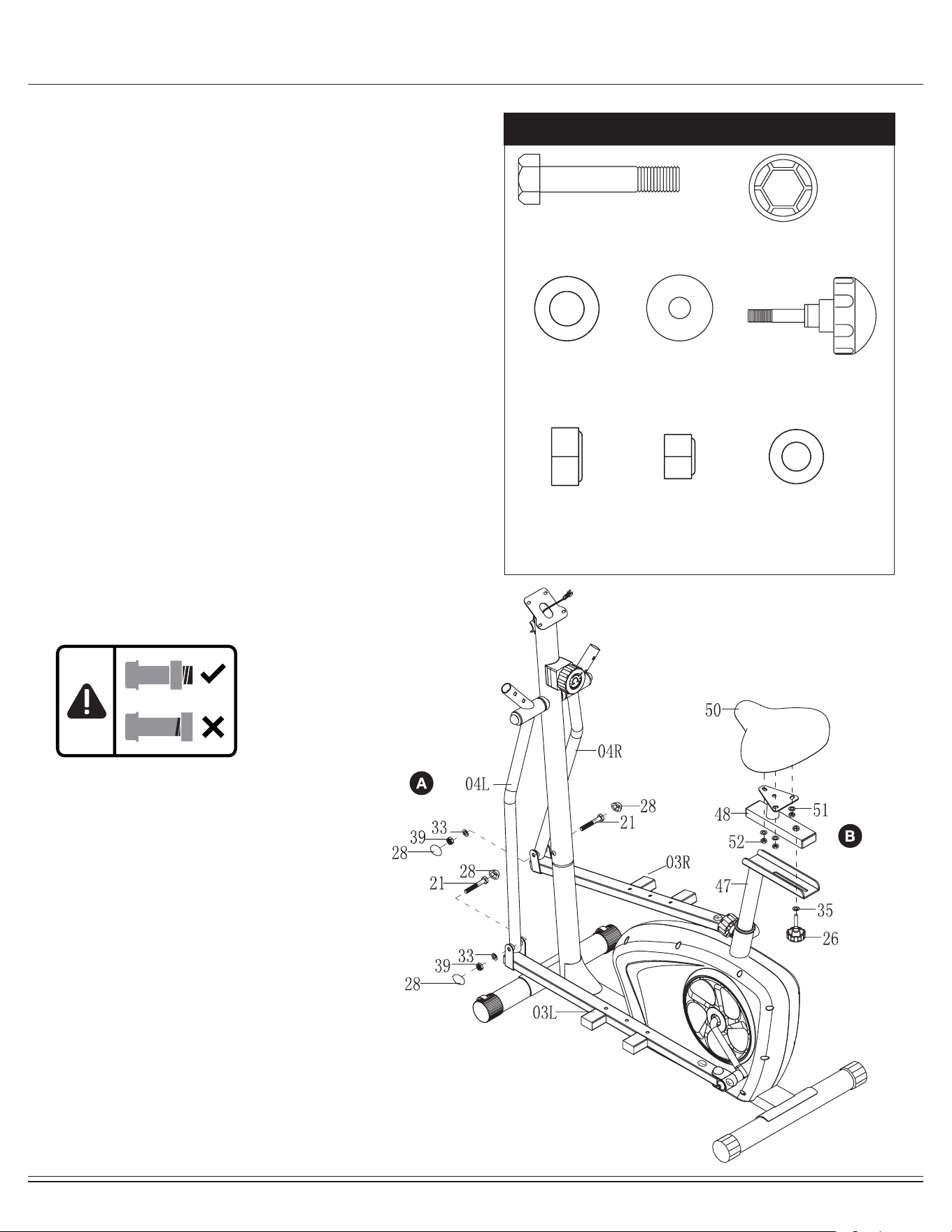

Assembly STEP 5
A. COUPLE BAR TO PEDAL TUBE ASSEMBLY
Attach the free end of the bottom of the Left Coupler Bar (#04L) to
the front of the Left Pedal Tube (#03L) by aligning the holes. After the
holes are aligned, insert one Hex Bolt (#21) through the Left
Pedal Tube (#03L), the Left Coupler Bar (#04L) and secure using one
Washer (#33) followed by one Nylon Nut (#39).
Repeat this process on the other side using Right Coupler Bar (#04R)
and Right Pedal Tube (#03R).
Attach four Bolt Caps (#28) on two Hex Bolts (#21) as illustrated in the
drawing.
B. SEAT ASSEMBLY
Remove Washers (#51) and Nylon Nuts (#52) that are pre-assembled
on the back of the Seat (#50) and set them aside as they will be used
later in this step.
Attach the Seat (#50) to the Horizontal Seat Bar (#48) using a total of
three Washers (#51) and three Nylon Nuts (#52).
Insert the Horizontal Seat Bar (#48) into the Seat Post (#47).
Insert a Knob Bolt (#26) through a Washer (#35),followed by the Seat
Post (#47) and Horizontal Seat Bar (#48), secure them together by
tightening the Knob Bolt (#26) up through the bottom of the Horizontal
Seat Bar (#48).
Hardware Required
#21
Hex Bolt (M10x55 mm)
[2 pieces]
#33
Washer (M10)
[2 pieces]
#28
Bolt Cap (S17)
[4 pieces]
#39
Nylon Nut (M10)
[2 pieces]
#26
Knob Bolt (M8x36 mm)
[1 piece]
#35
Washer (M8xφ16 mm)
[1 pieces]
#52
Nylon Nut (M8)
[3 pieces]
#51
Washer (M8)
[3 pieces]
BRM3635/BRM3810 Page 10

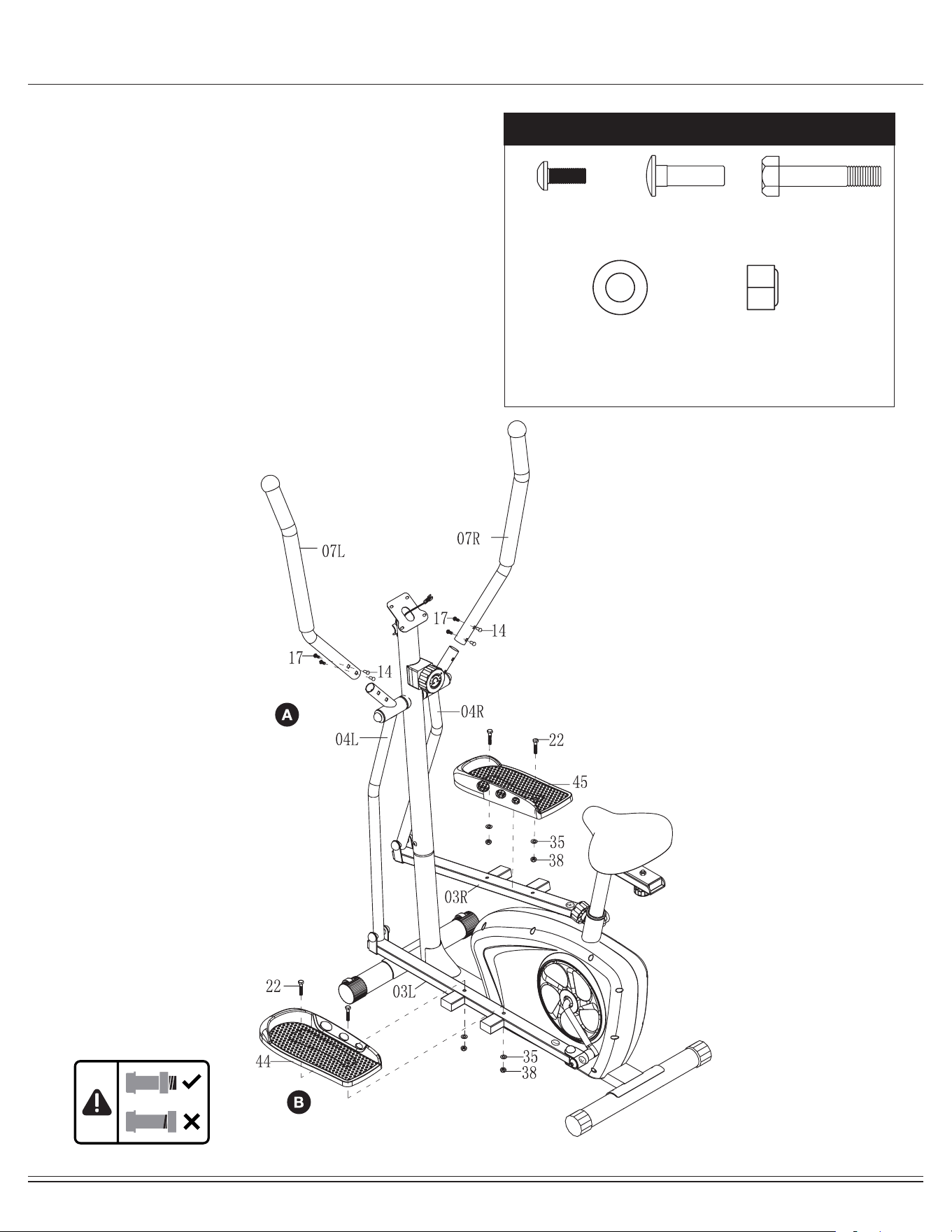

Assembly STEP 6
Hardware Required
A. HANLDE BAR ASSEMBLY
On the left side, insert Left Handle Bar (#07L) into the opening
at the tip of Left Coupler Bar (#04L). Align the holes of the Left
Handle Bar (#07L) and Left Coupler Bar (#04L), secure using
two Bolt (#17) and two Carriage Bolt (#14).
Repeat this process on the other side using Right Handle Bar
(#07R) and Right Coupler Bar (#04R).
B. PEDAL ASSEMBLY
Attach one Left Pedal (#44) as oriented below in diagram to the
Left Pedal Tube (#03L) and secure them together using two
Hex Bolts (#22), Two Washers (#35) and two Nylon Nuts (#38).
Repeat this process on the other side using Right Pedal (#45)
onto the Right Pedal Tube (#03R).
#14
Carriage Bolt (M8x27 mm)
[4 pieces]
#17
Bolt (M6x15 mm)
[4 pieces]
#35
Washer (M8xφ16 mm)
[4 pieces]
#22
Hex Bolt (M8x40 mm)
[4 pieces]
#38
Nylon Nut (M8)
[4 pieces]
BRM3635/BRM3810 Page 11

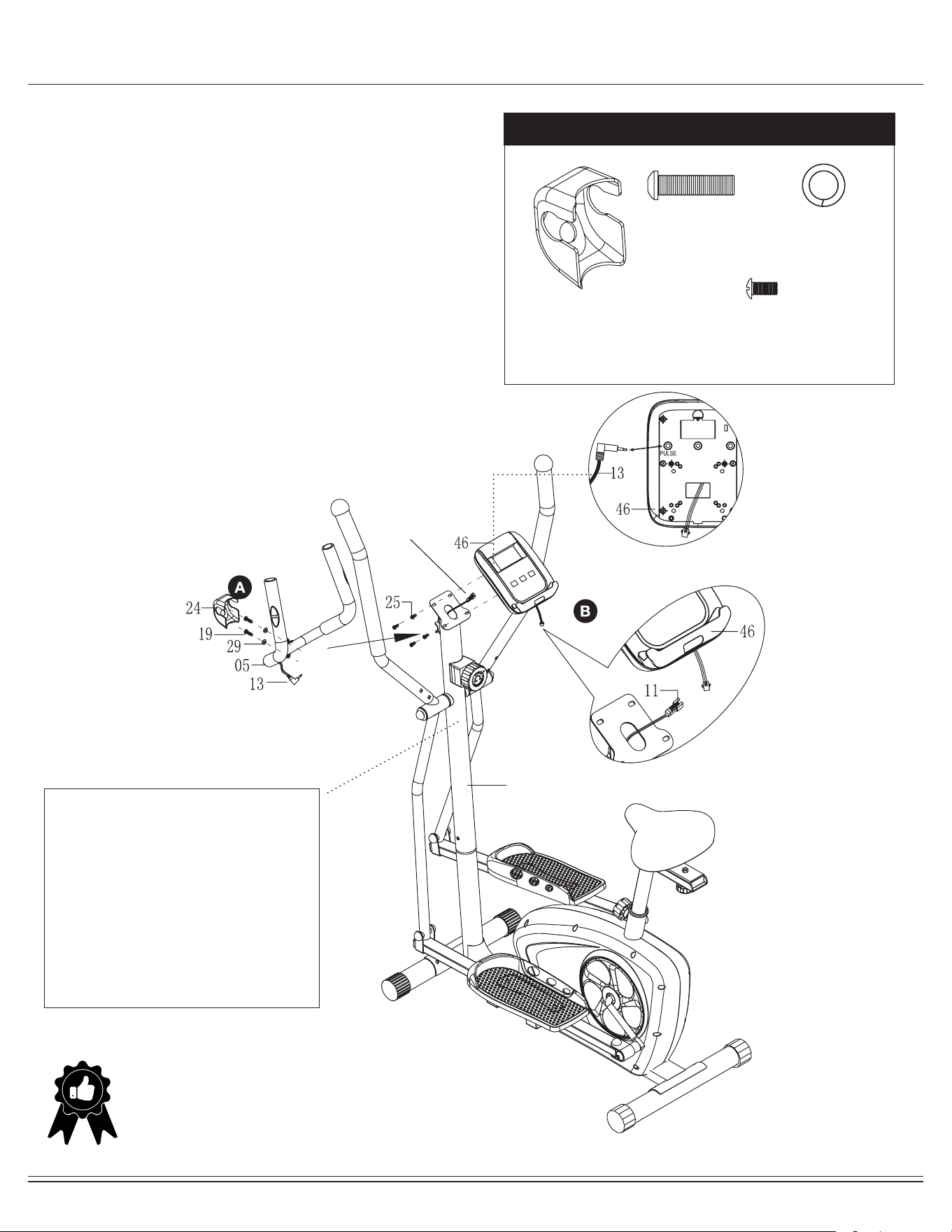

Assembly STEP 7
Hardware Required
02
11
A. PULSE HANLDE BAR
Install the Pulse Handle Bar (#05) onto the bracket of the
Center Post (#02) as shown in the illustration below using two
Bolts (#19) and two Spring Washers (#29).
Attach the Pulse Handle Bar Cover (#24) to the center of the
Pulse Handle Bar (#05).
Please ensure the Pulse Sensor Wire (#13) is free and clear,
avoiding pinching it during this assembly step. You will need
to connect this wire to the Monitor (#46) later.
B. MONITOR ASSEMBLY
Remove Screws (#25) from the back of Monitor (#46) and set
them aside as they will be used later for this step.
Connect the Monitor Wire (Upper) (#11) to the Monitor (#46)
and connect the Pulse Sensor Wire (#13) to the Monitor
(#46). Secure the Monitor (#46) to the bracket of the Center
Post (#02) using four Screws (#25).
Tension Adjustment
To increase the tension (+ higher level of
intensity), turn the Tension Controller (#16)
in a clockwise direction.
To decrease the tension (- lower level of
intensity), turn the Tension Controller (#16)
in a counter-clockwise direction.
"1" is the lowest level of tension (easiest
level for workout);
"8" is the highest level of tension (most
dicult level for workout).
THE ASSEMBLY PROCESS IS NOW COMPLETE.
However, for your own safety, please make sure to read this entire Owner’s
Manual which includes safety instructions and warnings, as well as any safety/
warning labels axed to the product before use.
For your safety , please visually and functionally inspect and test the unit
after assembly is complete.
#24
Pulse Handle Bar Cover
[1 piece]
#19
Bolt (M8x30 mm)
[ 2 pieces]
#29
Spring Washer (M8)
[2 pieces]
#25
Screw (M5x10 mm)
[4 pieces]
BRM3635/BRM3810 Page 12
Computer Operation
*IMPORTANT NOTE :
Please remember that the functions in this computer are only meant to be tools to
monitor your workout progress; they are not meant to provide medical information
or be used for medical purposes. Please consult a physician before beginning any
workout program.
TIME : Displays the total amount of time using the machine.
SPEED : Displays current speed.
DISTANCE : Displays the distance traveled.
CALORIES : Displays the amount of calories burned.
ODOMETER : Displays total accumulated distance. ODO will reset when MODE is pressed for 3 seconds or
when batteries are changed.
SCAN : The monitor will then rotate displaying through the following functions: time,speed,distance,
calories and odometer. Each function will display for 4 seconds.
PULSE : Press MODE button until “PULSE” appears. Before measuring your pulse rate, please place
your palms of your hands on Both of your contact pads and the monitor will show your
current heart beat rate in beats per minute(BPM) on the LCD after 6~7 seconds. Remark:
During the process of pulse measurement, because of the contact jamming, the measurement
value may be higher than the virtual pulse rate during the rst 2~3 seconds, then will return
to normal level. The measurement value can not be regarded as the basis of medical
treatment.
Press “MODE” button until “PULSE” appears. Press “SET” button to set exercise pulse. The setting
values of 40-240 RPM , the consumer computer alarm when heart rate is below the SET value.
1. If the display is faint or shows no gures ,please replace the batteries.
2. The monitor will automatically shut o if there is no signal received after 4 minutes .
3. The monitor will auto-power on when exercise and/or motion input is detected.
4. The monitor will automatically start calculating when you start to exercise and will stop calculating when you stop
exercising for 4 seconds .
FUNCTION
NOTE
Operation Procedures
Specications
AUTO SCAN Every 4 seconds
TIME 00:00-99:59 min
ODOMETER 0-9999 mi.
CALORIES 0.0-999.9 KCal
DISTANCE 0.0-999.9 mi.
BATTERY TYPE
2 pcs of AA
OPERATING TEMP 32°F - 104°F
STORAGE TEMP 32°F - 160°F
FUNCTIONS
MODE :
Press to select the display function of your choice.
SET :
Press to set the display function
RESET :
Press to reset all values
Key Function
BRM3635/BRM3810 Page 13
Computer Operation

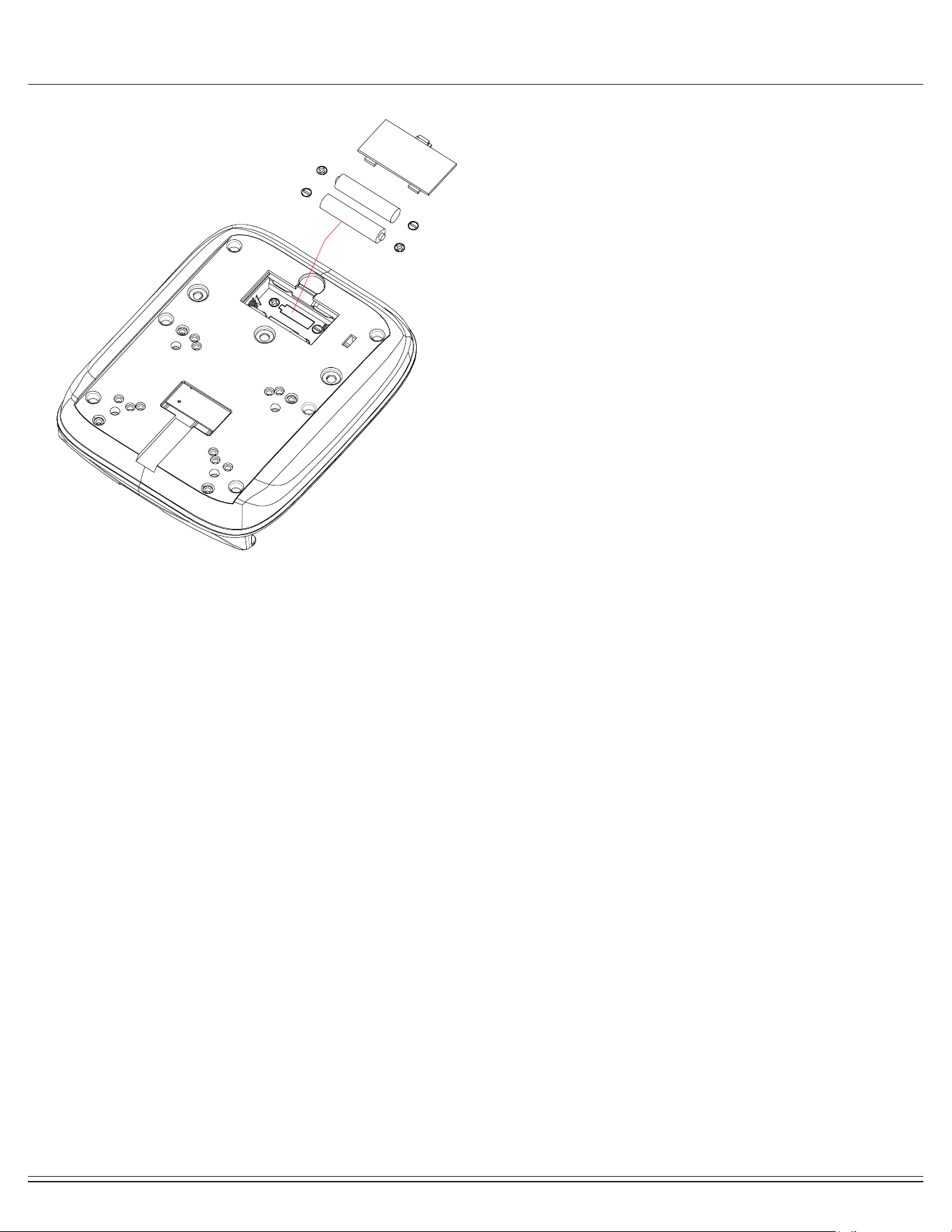

How To Install and Replace Batteries
1. Open the battery door on the back of the computer.
2. The computer operates on two AA batteries (included).
Refer to the illustration to install or replace the batteries.
NOTE :
1. Do not mix a new battery with an old battery.
2. Use the same type of battery. Do not mix an alkaline
battery with another type of battery.
3. Rechargeable batteries are not recommended.
4. Battery disposal should be handled according to all state
and federal laws and regulations.
5. Do not dispose of batteries in re.
BRM3635/BRM3810 Page 14

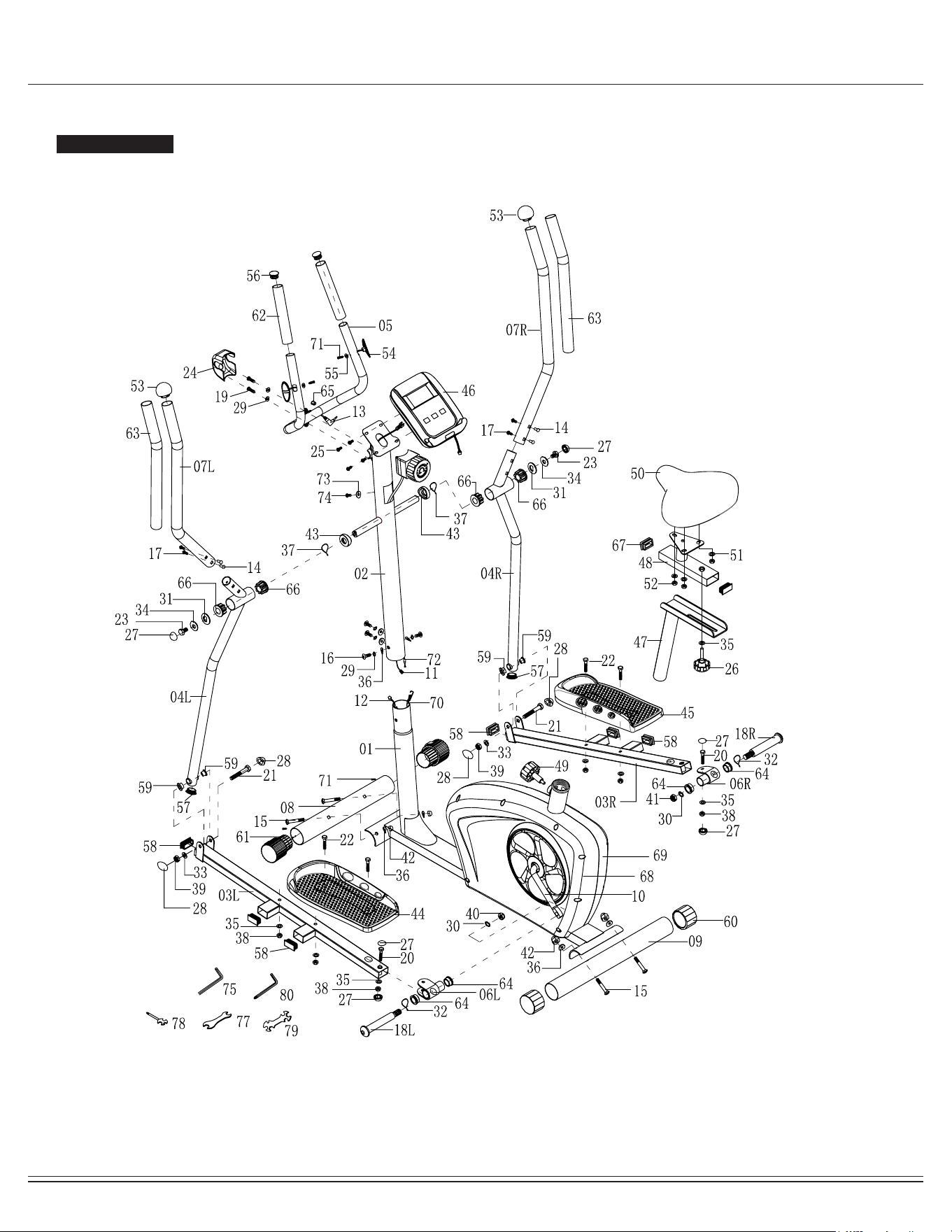

Part Listing
The following parts list describes all of the parts illustrated in the exploded diagram on the following page.
PLEASE NOTE: most of these parts are already pre-assembled on your unit.
# Description
01 Main Frame
02 Center Post
03L Left Pedal Tube
03R Right Pedal Tube
04L Left Coupler Bar
04R Right Coupler Bar
05 Pulse Handle Bar
06L Left Pedal Connection Joint
06R Right Pedal Connection Joint
07L Left Handle Bar
07R Right Handle Bar
08 Front Stabilizer
09 Rear Stabilizer
10 Crank
11 Monitor Wire (Uppler)
12 Monitor Wire (Lower)
13 Hand Pulse Wire
14 Carriage Bolt (M8x27 mm)
15 Carriage Bolt (M8x70 mm)
16 Bolt (M8x20 mm)
17 Bolt (M6x15 mm)
18L Left Pedal Hinge Bolt
18R Right Pedal Hinge Bolt
19 Bolt (M8x30 mm)
20 Hex Bolt (M8x45 mm)
21 Hex Bolt (M10x55 mm)
22 Hex Bolt (M8x40 mm)
23 Hex Bolt (M8x15 mm)
24 Pulse Handle Bar Cover
25 Screw (M5x10 mm)
26 Knob Bolt (M8x36 mm)
27 Bolt Cap (S14)
28 Bolt Cap (S17)
29 Spring Washer (M8)
30 Spring Washer (1/2")
31 Big Washer
32 Wavy Washer (1/2")
33 Washer (M10)
34 Washer (M8xφ26 mm)
35 Washer (M8xφ16 mm)
36 Arc Washer (M8)
37 Wavy Washer (φ19 mm)
38 Nylon Nut (M8)
# Description
39 Nylon Nut (M10)
40 Left Nylon Nut (with black inner nylon ring) (1/2")
41 Right Nylon Nut (with white inner nylon ring) (1/2")
42 Nut (M8)
43 Plastic Washer
44 Left Pedal
45 Right Pedal
46 Monitor
47 Seat Post
48 Horizontal Seat Bar
49 Spring Loaded Knob
50 Seat
51 Washer (M8)
52 Nylon Nut (M8)
53 End Cap (φ31.8 mm)
54 Hand Pulse Sensor
55 Washer (M4)
56 Round End Cap (25 mm)
57 Round End Cap (28.6 mm)
58 Rectangular End Cap (口25x40 mm)
59 Bushing
60 End Cap for Rear Stabilizer
61 End Cap for Front Stabilizer
62 Foam (φ23xφ31x320 mm)
63 Foam (φ30xφ40x380 mm)
64 Bushing
65 Wire Plug
66 Plastic Bushing
67 Rectangular End Cap (口25x50 mm)
68 Left Shroud
69 Right Shroud
70 Tension Wire
71 Screw (ST4.2x20 mm)
72 Tension Controller
73 Arc Washer (M5)
74 Screw (M5x20 mm)
75 Tool (S8)
77 Tool (S17,19)
78 Tool (S13-14-15)
79
Tool (S-10,13,14,15,17,19)
80 Tool (S5)
BRM3635/BRM3810 Page 15
Exploded View
The following diagram is provided to help you familiarize yourself with the parts and hardware that will be used during the
assembly process.
: : Not all of the parts and hardware you see here will be used while you are assembling the machine
because some of these items are already pre-installed. Please use this page only as a reference guide for parts and
hardware.
PLEASE NOTE
BRM3635/BRM3810 Page 16
Safety and Maintenance
• Make sure all nuts, bolts, and screws are tightened prior to use.
• Be sure that all adjustment locking devices and safety devices are properly engaged prior to use!
• Never over-tighten the above-mentioned devices and parts to avoid damage to the unit.
• Check for loose parts and components and make proper adjustments prior to use.
• Check to see if there are any tears or bends in the welding or metal prior to use. If tears or bends are found,
DO NOT use the unit and contact our CUSTOMER SUPPORT.
• Extreme care must be taken to not allow your feet, ngers, hair, clothing, and/or any loose items to be snagged into
any portion of the bike when the unit is in motion. Failure to follow these instructions could result in serious injury,
including the loss of ngers.
• Always wait for the pedals and other moving parts (which can gain great momentum during riding) to come to a
complete stop before dismounting the unit to avoid serious injury.
NOTE: Always wait for the pedals and/or any other moving parts (which can gain great momentum during riding)
to come to a complete stop before dismounting the unit to avoid serious injury.
• To reduce speed on the bike, you may use the combinations of your feet on the Left/Right Pedals (#44/45) and your
hands on the Left/Right Handlebars (#04L/#04R) to gently and safely apply counter-momentum.
• Wait for the pedals to come to a complete stop.
• Now you may safely dismount the unit
NOTE:
To safely move, transport, and/or store the unit, please seek the help of capable assistants (minimum of 2 people).
The unit has integrated Front Rollers purposely intended to help ease this process.
• Position one person on each side at the front of the bike toward the handle Bar
(one person on the left, and one on the right).
• Have each person use both hands to grip the corresponding Pulse Handle Bar (#05).
(These are the safest areas to avoid injury during this process.)
• Have both people simultaneously lift the rear end of the unit, leaving the weight and pressure into the front of the unit
and onto the Front Rollers to move/transport the unit to the desired area.
• Please review all safety instructions and warnings in this entire Owner’s Manual, as well as any safety/warning labels
axed to the product before use.
• Do not use solvent cleaners. If you are in any doubt, do not use your cleansing product; contact
CUSTOMER SUPPORT.
• The specic parts on your unit which may see possible signs of wear after prolonged use are listed as follows
(please check these parts before each use):
Left/Right Pedals (#44/45); Left/Right Handlebars (#04L/#04R).
• For any replacement warning labels, please contact our CUSTOMER SUPPORT at
1 (888) 266-6789 or 1 (909) 598-9876, or mail in a written request to:
Hupa International, Inc.
21717 Ferrero Parkway
Walnut, CA 91789
More detailed information about how to reach our CUSTOMER SUPPORT may be found on Page 2 of the
Owner’s Manual under the “CUSTOMER SUPPORT” section.
Safety & Warning
How To (Emergency) Stop
How To Move/Transport The Bike For
Maintenance & Care
BRM3635/BRM3810 Page 17
Troubleshooting
If the computer is not displaying the CALORIES/DISTANCE/TIME/(ETC.)
functions (or you are getting inaccurate readings), please adjust
the following:
1. Check to ensure all computer sensor wires are properly
connected and are not damaged.
2. You may need to refer to installation/assembly directions for the sensor
wires in this manual.
If the computer display is blank & not displaying any data (or does not
appear to power on), please adjust the following:
1. Check to ensure all sensor wires are all properly connected and are not
damaged.
2. Check to ensure the AC Adapter* or Batteries* are properly plugged in or
fully charged.
3. Check your product manual to determine if your model uses either AC
Adapter or batteries to power your unit.
If the computer is not picking up your hand pulse signal (or you are getting
inaccurate readings), please adjust the following:
1. Slightly moisten/dampen the palms with water so the sensors can detect
a pulse signal.
2. Do not grip the sensors too tightly. Only moderate pressure need be
applied.
3. Gripping the sensors too tightly restricts and seizes detection of your
pulse.
4. Remove any rings or jewelry to prevent interference.
5. Check to ensure all pulse sensor wires are properly connected and are
not dam-aged.
6. You may need to refer to installation/assembly directions for the pulse
sensor wires in this manual.
(AFTER COMPLETE ASSEMBLY)
Troubleshoot Area
Calories/Distance/
Time (Etc.)
Computer Display
Hand Pulse Signal
Solution
BRM3635/BRM3810 Page 18
Warm-Up Instructions
1. Sit with your knees exed and
soles of feet together.
2. Hold your ankles and bend
at your hips (keep your back
straight) as you press your
knees toward the oor with your
elbows.
1. Lie on your back and raise
your right leg as you clasp both
hands under the back of the
knee. Keep your left leg straight.
2. Gently pull your right leg toward
your trunk without
raising your upper body. Switch
leg positions and repeat.
1. Sit with your left leg extended
and bend your right leg at the
knee as you place the sole of
your right foot against the inner
thigh of your extended leg.
2. Flex the foot of your extended
leg (toes pointed toward
ceiling) and gently bend forward
from your hips; keep your back
straight.
3. Reach your hands on your
extended leg as far as possible
and then switch legs and repeat.
1. Assume the depicted position on your hands and knees. Stretch your
hands out in front of you and then slowly start to pull them back in toward
your body as you tuck your chin and arch your back upward.
2. Return to the starting position slowly.
1. Sit with your leg extended and
bend your right knee as you
cross your right leg over your
left leg. Your right foot of your
extended leg foot should be at
on the oor alongside your left
knee.
2. Place your left arm on the
outside of your right leg and pull
against that leg while twisting
your trunk as far as possible to
the right. Place your right hand
on the oor behind your but-
tocks. Reverse leg positions and
repeat.
Before use, you must read and understand all instructions & warnings stated in this Owner’s Manual as well as posted
on the equipment. Before beginning any exercise program including the following exibility exercises, please consult with
your physician.
The following exibility exercises are provided to you as a means to prevent injury while you are exercising. A proper
warm-up routine decreases the chance of injuring your muscles while you are exercising. Please take the time to do these
exibility exercises before and after each time you exercise.
Groin Stretch
Groin Stretch
Hamstring Stretch
Trunk Flexion, Prone
Trunk Twister
BRM3635/BRM3810 Page 19
Warm-Up Instructions
1. Bring your right hand over your
right shoulder to the
upper back and bring your left
hand under your left shoulder to
the upper back.
2. Try to reach your ngertips. If
you are not able to reach your
ngertips, use a towel as an
extension of your hands and
gently pull one hand toward the
other.
Reverse arm positions and
1. Stand on your left leg and hold
onto a support with your left
hand.
2. Flex your right leg behind you,
grasp your ankle or foot with
your right hand and pull your
foot toward your buttocks. Keep
your back straight and right
knee pointed down.
Repeat on the other leg.
1. Place both hands against a wall
to aid your balance. Press the
ball of your left foot against the
wall and keep the heel of the
same foot rested on the oor
(make sure your left knee is
bent).
2. Slowly start to straighten your
left knee and you will feel the
muscles in your left calf stretch.
Switch leg positions and repeat.
Shoulder Stretch Quadriceps Stretch Calf Twister
BRM3635/BRM3810 Page 20
This page is left blank intentionally
along with your sales receipt as proof of purchase.
Serial Number :
Date of Purchase :
Retailer :
Hupa International, Inc.
21717 Ferrero Parkway
Walnut, CA 91789
Phone: 1 (888) 266-6789
Fax : 1 (909) 598-6707
Email : [email protected]
Ver. 09/19/2019 Printed in China
THANK YOU FOR YOUR PURCHASE
MODEL NO.: BRM3635/BRM3810
