User Guide
P2jr Pico Projector
Caution!
WARNING: Please use this product as instructed. Misuse may cause
injury or death.
DO NOT use while driving
DO NOT expose to water or wet
surfaces. Electric shock may occur
DO NOT expose the LED to your
eyes or the eyes of others
DO NOT block or restrict airow
from ventilation holes as this may
cause the projector to overheat
Keep the projector, battery, or
charger away from any heat sources
Caution for Battery Use
• Do not pierce or puncture the battery
with sharp objects
• Do not heat the product or expose it to
high temperature.
• Do not wet it or place it in any liquid
Table of Contents
Chapter 1: P2jr at a glance
Main Unit
Keypad
Accessories
Chapter 2: Getting Started
Powering On / OFF
Focus Adjustment / Throw
Distance
External Inputs /Output Sources
Connecting to a Computer
Connecting to Composite Video
Connecting to HDMI Video
Connecting a MicroSD Card
2
2
3
4
5
5
6
7
8
12
14
16
18
20
20
21
22
24
26
28
29
32
32
34
Connecting to a USB drive
Chapter 3: Menu Screens
Main menu
File Menu System
Video Player Menu
Photo Viewer Menu
Music Player Menu
Text Viewer Menu

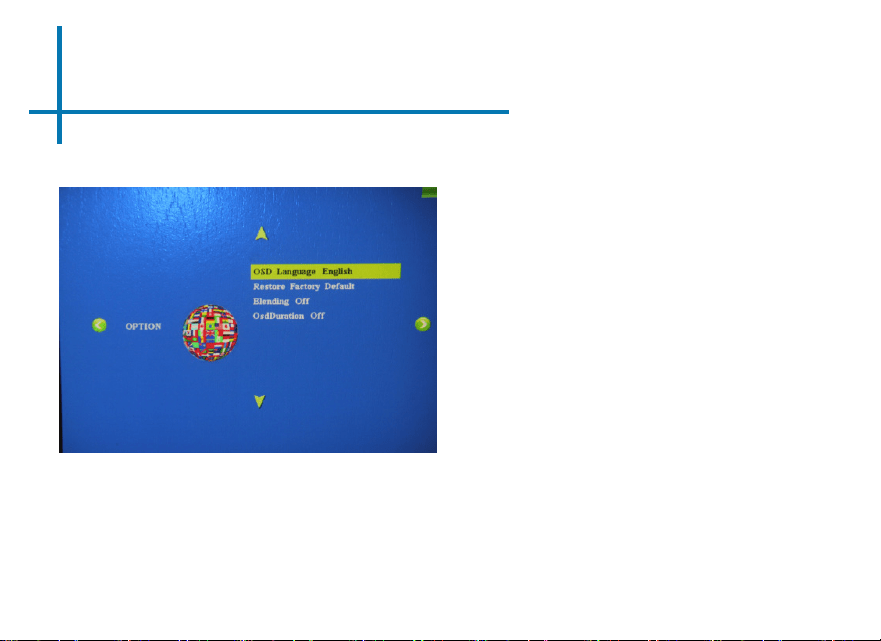

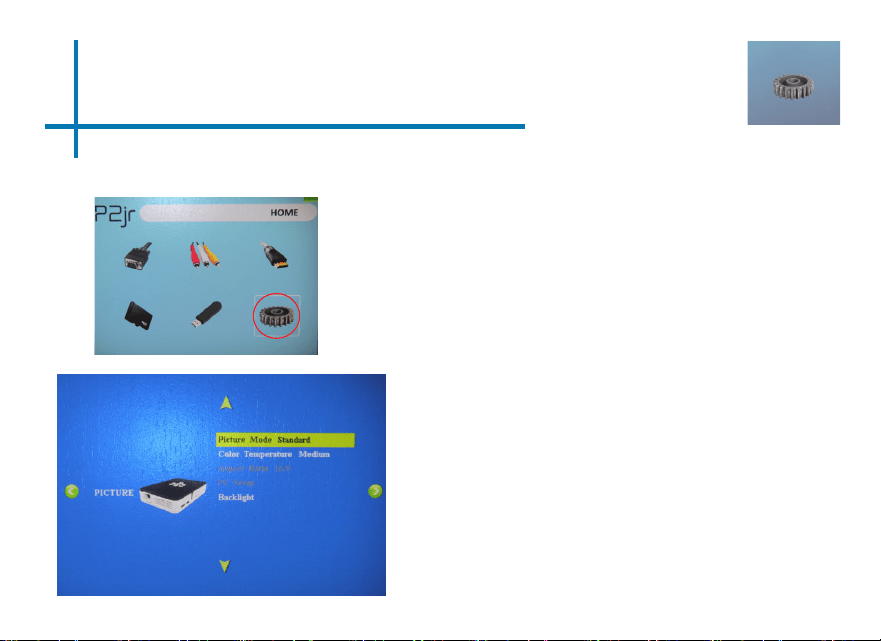

Setup Menu
Chapter 4: Technical Details
Troubleshooting
Specications
1

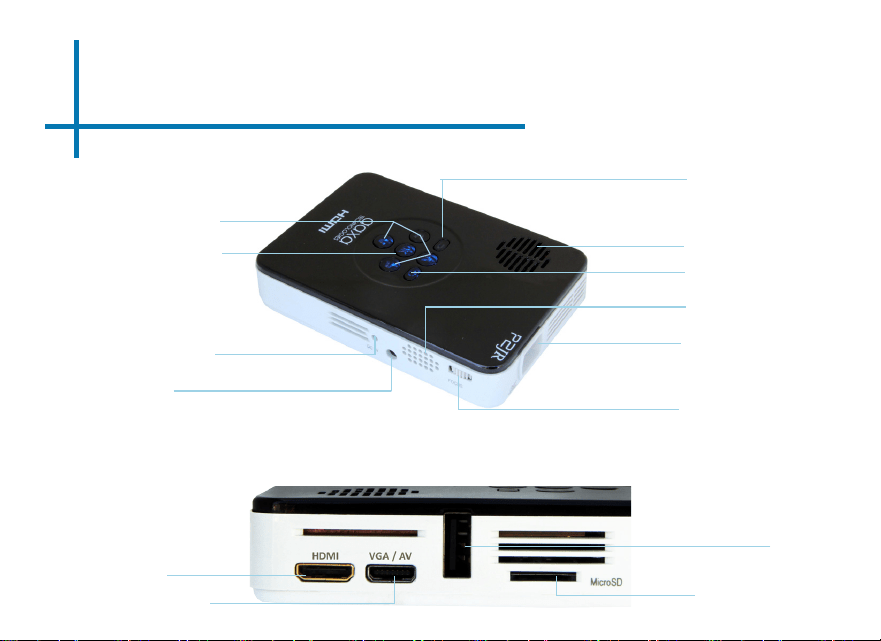

P2jr at a Glance
Power Button
Mini A/V / VGA Input
Power Input
Projection Lens
Cooling Fan
Directional Pad
USB Port
Mini HDMI
Chapter 1
Main Unit
Charge Indicator
MicroSD Card Slot
Back Button
Focus Adjustment
Speaker
Conrm Selection
2

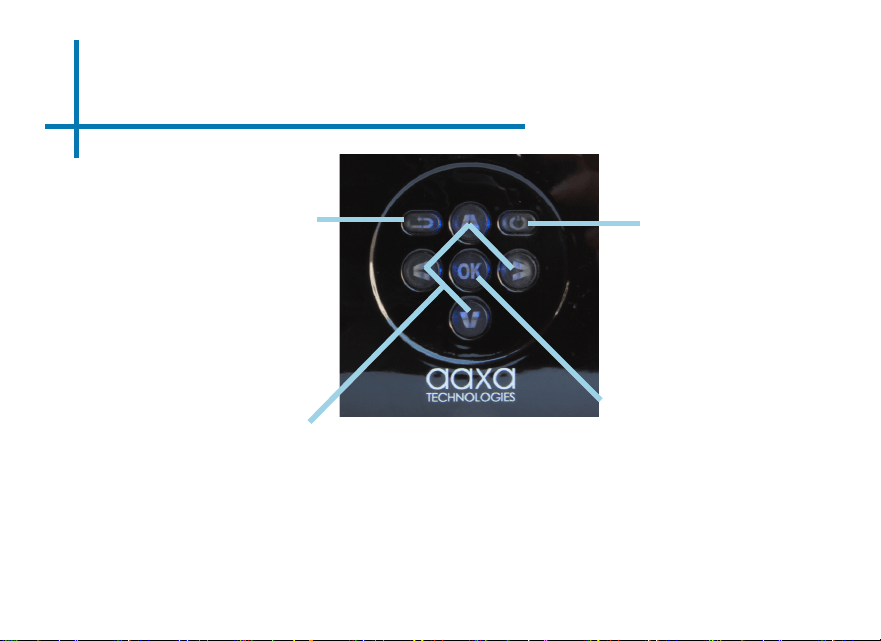

Keypad
3
Power ON / OFF
Exit/Back
Conrm Selection
Directional Keypad
This key allows you to return to
the previous menu or exit from
the media player option.
Use these keys in highlight the
selection you which to choose.
Use this key to select the
current highlighted option.
*More detailed direction of the keypad will be discussed in individual subsections.
Holding down the power
button for 3 seconds will
either turn the P2Jr
ON or OFF.

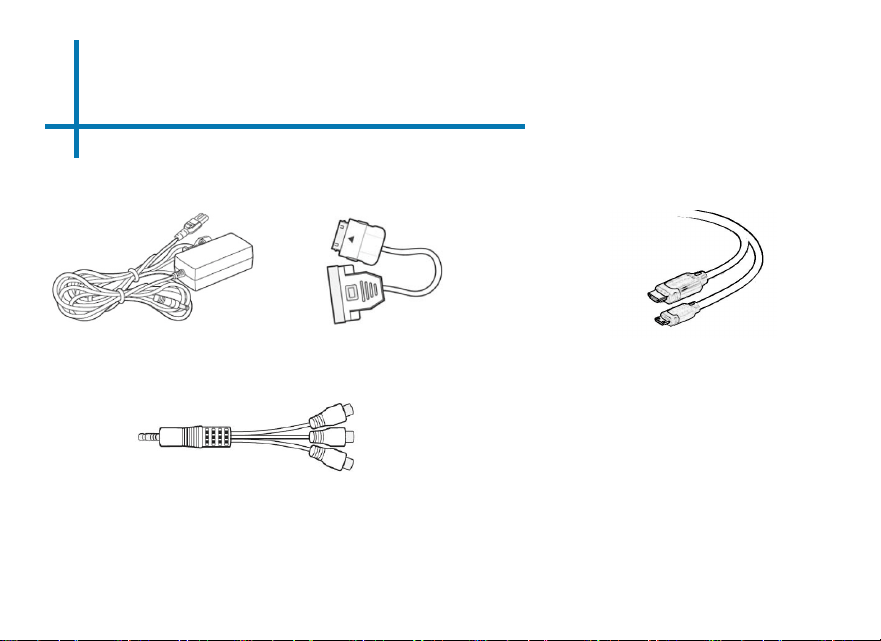

Accessories
4
*Under various circumstances, the actual accessories may be different from
those shown in the pictures above.
Power Adapter
VGA Cable
Composite A/V Cable
Sold Separately
Mini-Full HDMI
Standard Accessories
Getting Started
1. Connect the power cord to the P2jr.
2. Connect the wall plug into the wall power source.
3. Press the POWER button and hold for 2-3 seconds to switch on or switch
off the power
• The LED turns red while charging.
• The LED turns green when charging is nished.
• 4 hours of charge time is required to reach a full charge.
5
Powering ON the projector
Chapter 2
Powering OFF the projector
1. Press and hold the power button for 3 seconds.
2. The optical engine should power off and the fan should stop spinning.
Note: The P2jr Projector battery does not charge when it is in operation.
Focus Adjusment / Throw Distance
Focus Adjustment
1. Spin the focus wheel up or down until the image becomes
clear.
2. The recommended focus distance for this projector is 12” to
innity.
6
DIAGONAL SCREEN SIZE
4:3 Aspect Ratio
Throw Distance Chart
Distance inch (“) Diagonal Inch (“)
Throw Ratio 1.25:1
*minimum throw distance: 10 inches
8
12
16
24
31
39
47
55
10
15
20
30
40
50
60
70

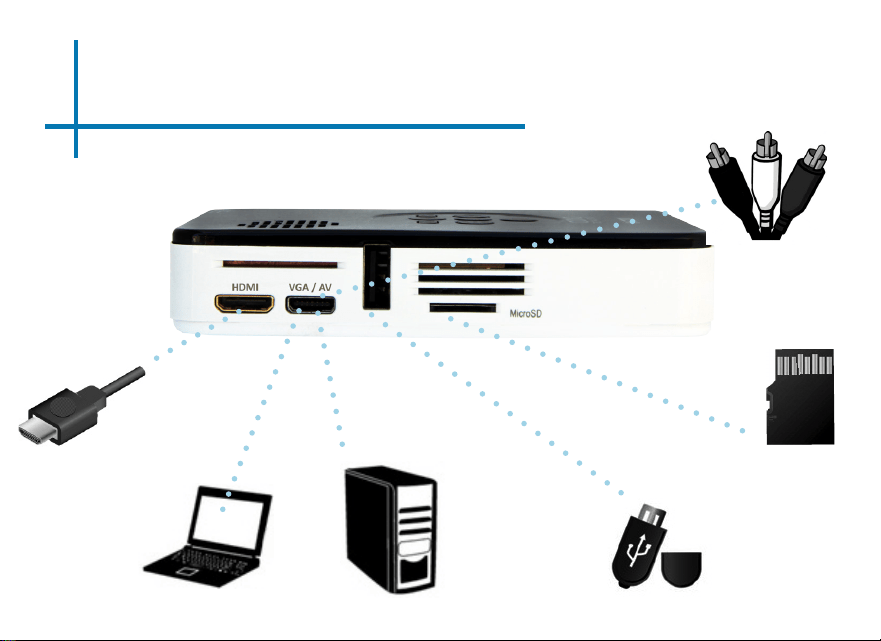

External Inputs/Outputs
7
Laptop
Desktop
USB Stick
Micro SD Card
HDMI Cable
Composite Cable

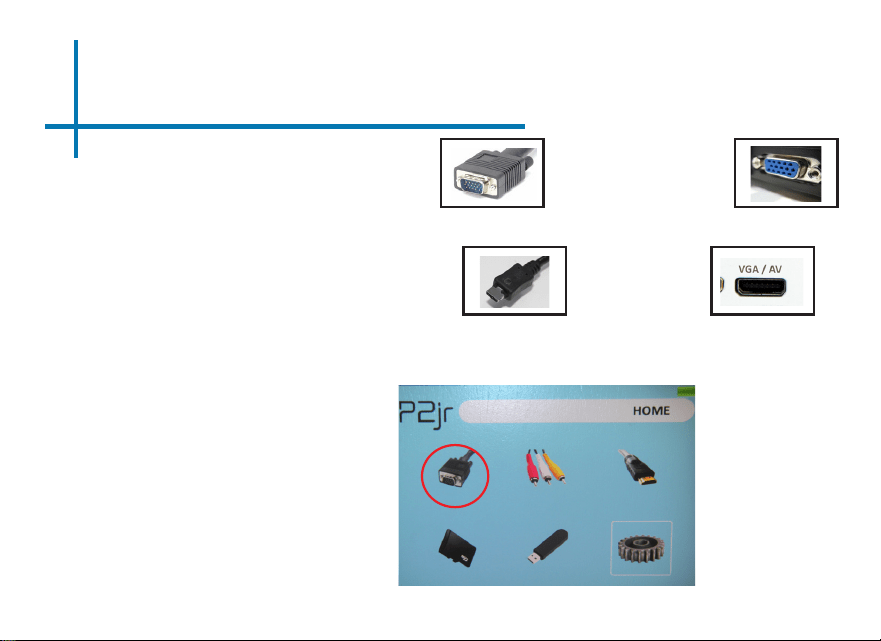

Connecting to a Computer via VGA
Connect the large end of the
8
VGA Cord
to your computer’s
VGA Adapter
Connect the small end of the
VGA Cord
to your P2jr’s
VGA Adapter
Step 1:
Step 2:
Step 3:
In the Main Menu
Select “VGA” icon
Connecting to a Computer Cont.
Step 4:

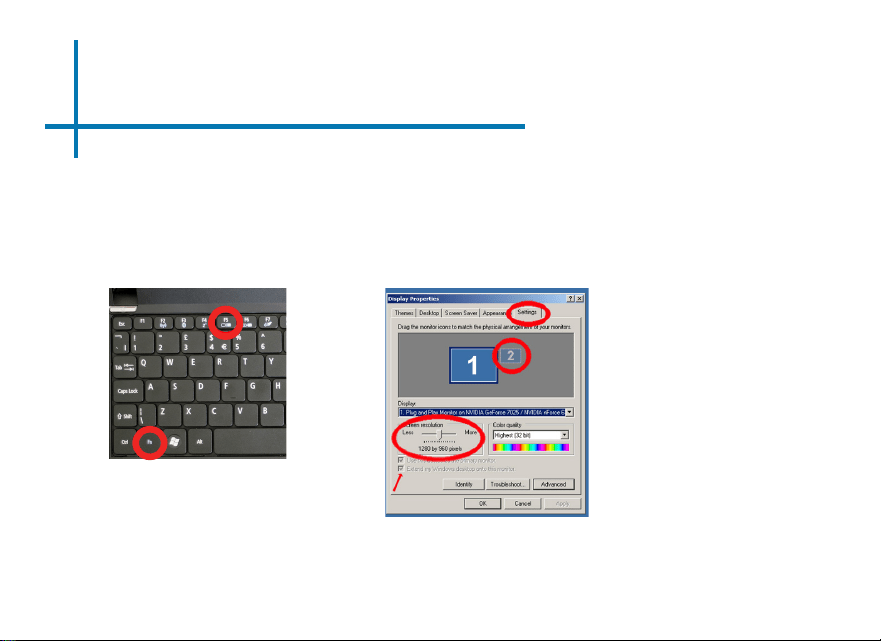

Enabling VGA or HDMI output on your Computer – To enable VGA or HDMI output on your computer
most computers require “turning on” the video output feature. Each computer is different. Please
consult your owner’s manual for instructions to enable VGA or HDMI output. Below are standard
instructions for a Windows XP computer – not all systems are the same.
Press function & “F5” to instruct
the computer to enable multiple
displays.
You can also press Windows+P to
toggle through display settings.
*NOTE: different operating sys-
tems may differ
Step 5:
1. Right click on computer desktop
and select “Properties”
2. Display Properties window will
pop up
3. Click on the “Settings” Tab
4. If a secondary monitor is grayed
out, click on it and check “Extend
my Windows Desktop onto this
monitor”
5. If the image is blurry or the text
is not legible, adjust the screen
resolution. We recommend
800x600 or 1024x768.
Step 6:
9

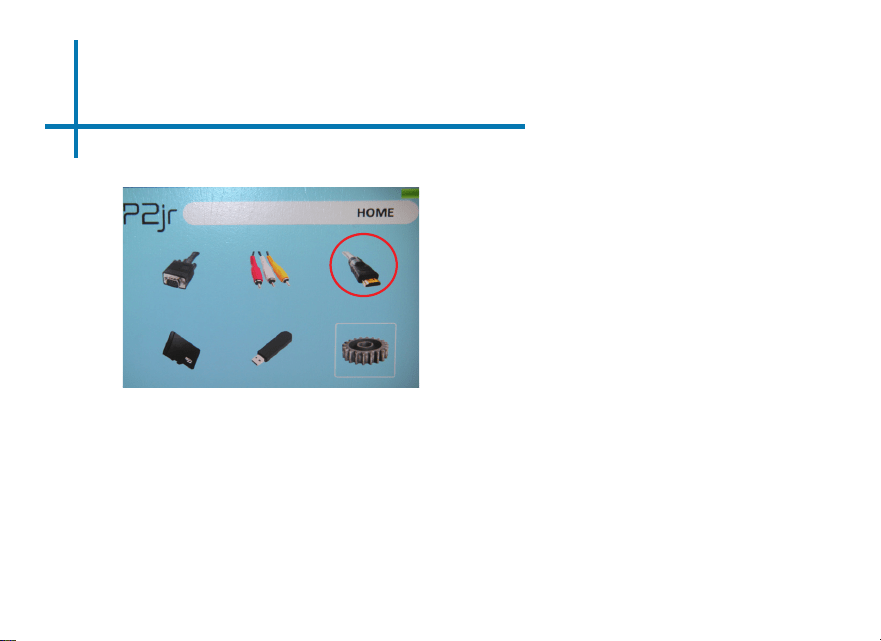

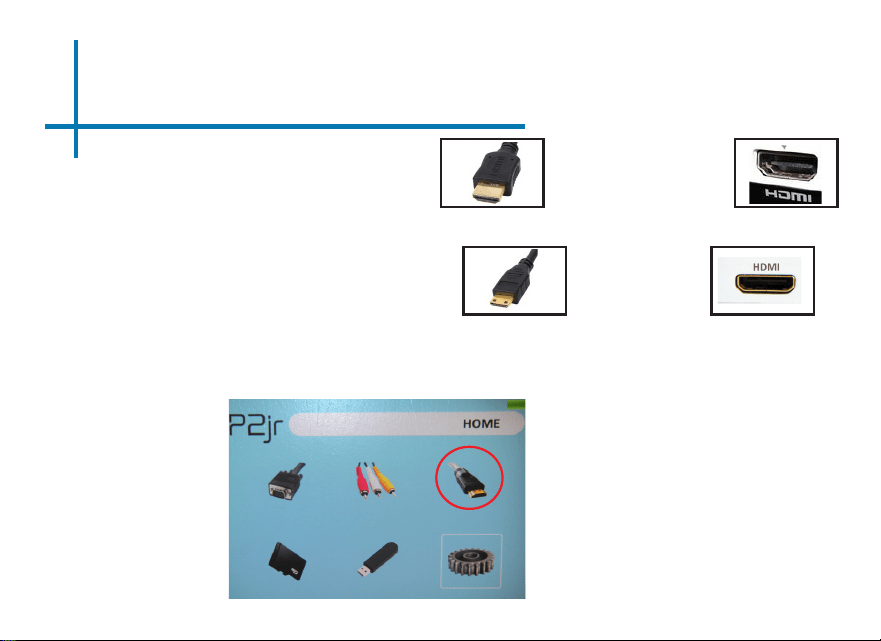

Connecting to a Computer via HDMI
Connect the large end of the
10
HDMI Cord
to your computer’s
HDMI Adapter
Connect the small end of the
HDMI Cord
to your P2jr’s
HDMI Adapter
Step 1:
Step 2:
Step 3:
Select “HDMI” icon
In the Main Menu
The P2jr requries a mini
to full HDMI cable
Connecting to a Computer Cont.
Step 4:
Enabling VGA or HDMI output on your Computer – To enable VGA or HDMI output on your computer
most computers require “turning on” the video output feature. Each computer is different. Please
consult your owner’s manual for instructions to enable VGA or HDMI output. Below are standard
instructions for a Windows XP computer – not all systems are the same.
Press function & “F5” to instruct
the computer to enable multiple
displays.
You can also press Windows+P to
toggle through display settings.
*NOTE: different operating sys-
tems may differ
Step 5:
1. Right click on computer desktop
and select “Properties”
2. Display Properties window will
pop up
3. Click on the “Settings” Tab
4. If a secondary monitor is grayed
out, click on it and check “Extend
my Windows Desktop onto this
monitor”
5. If the image is blurry or the text
is not legible, adjust the screen
resolution. We recommend
800x600 or 1024x768.
Step 6:
11

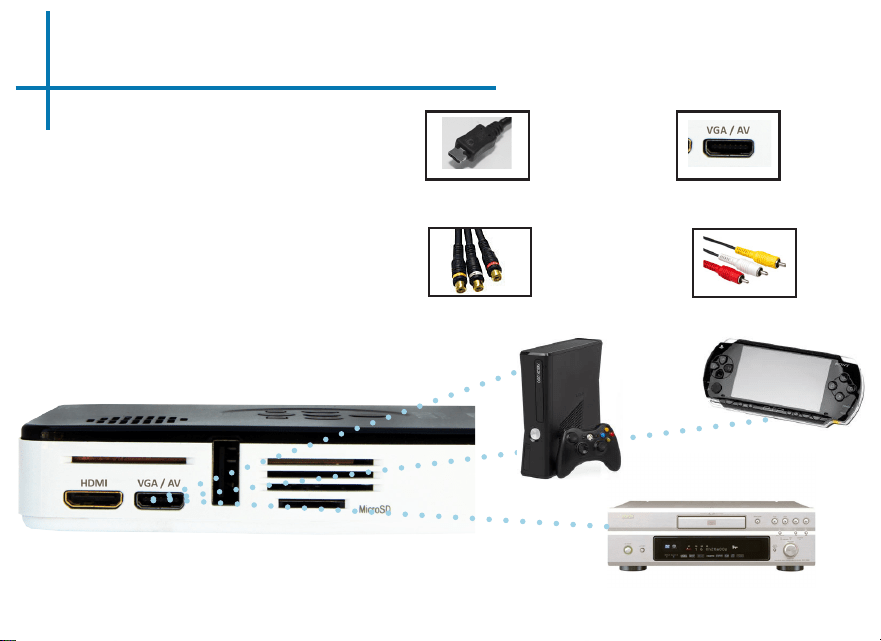

Connecting to Composite Video
Connect one end of the
Composite A/V Cord
to your P2jr’s
A/V Adapter
Connect opposite end of
to your devices
Step 1:
Step 2:
Composite A/V Cord
Composite A/V Cord
12
Connecting to Composite Video Cont.
Connectivity with multimedia devices
The P2jr can connect to many media devices including: iPod, iPhone, iPad, VHS
players, DVD players, smart phones, cameras, video game consoles and other
peripherals with ease.
*Apps on smart phones require video out capabilities to be displayed with the P2jr.

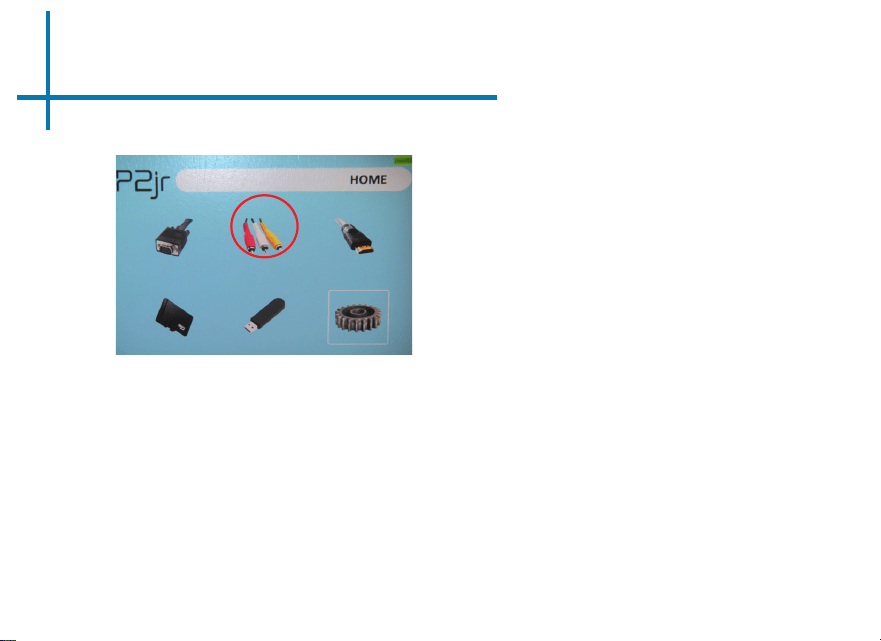

Step 3:
Select “A/V” icon
In the Main Menu
Turn on your multimedia device.
Step 4:
13

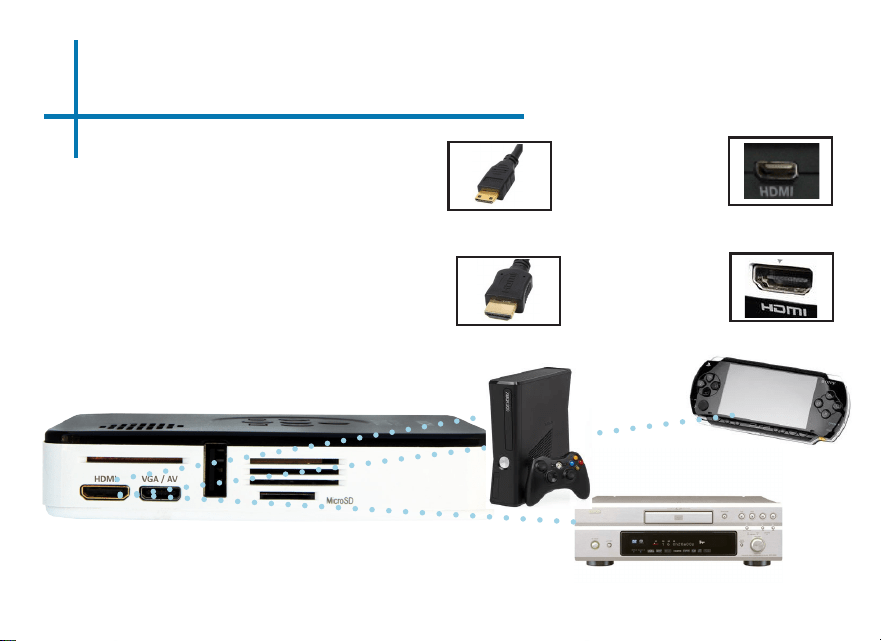

Connecting to HDMI Video
Connect one end of the
Mini-HDMI
to your P2jr’s
HDMI Adapter
Connect opposite end of
to your devices
Step 1:
Step 2:
HDMI Adapter
14
HDMI
Connecting to HDMI Video Cont.
Connectivity with multimedia devices
The P2jr can connect to many media devices including: iPod, iPhone, iPad, VHS
players, DVD players, smart phones, cameras, video game consoles and other
peripherals with ease.
*Apps on smart phones require video out capabilities to be displayed with the P2jr.
15
Step 3:
Select “HDMI” icon
In the Main Menu
Turn on your multimedia device.
Step 4:
HDMI Adapter

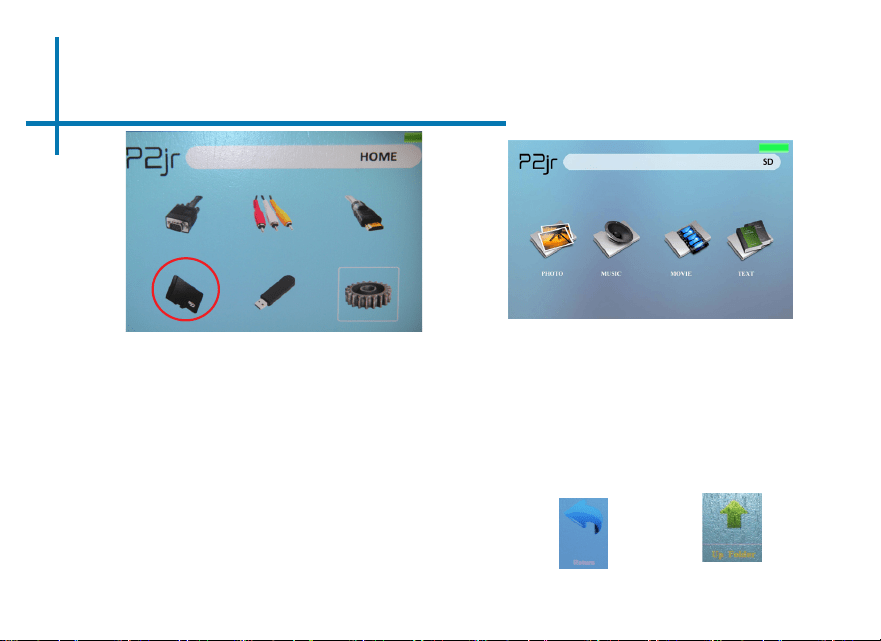

MicroSD Card

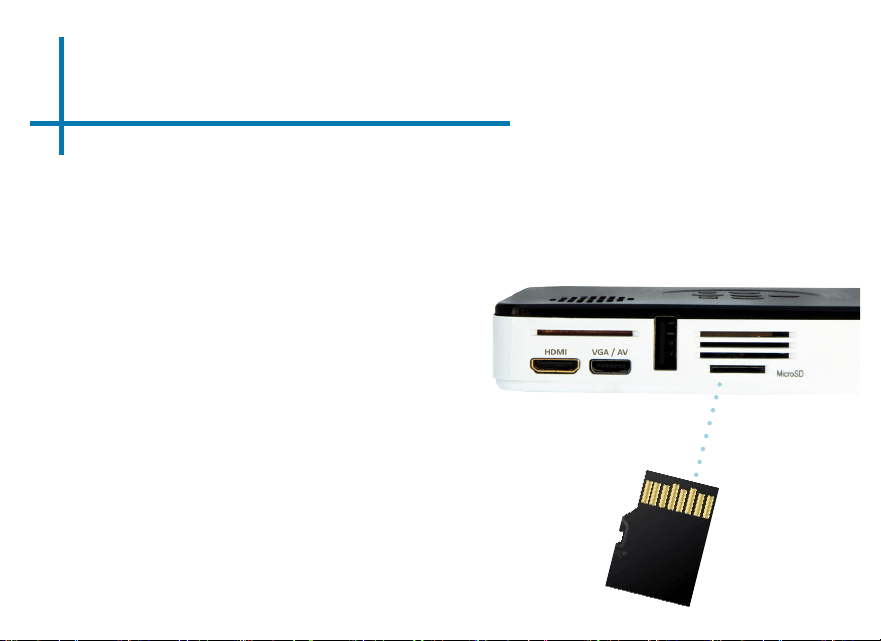

How to insert your MicroSD Card
• Slide in your SD card into the SD card slot on the side of the P2jr. (as shown in
picture)
• Gently slide the SD card until it *clicks* into place.
*Review the Specication
section of this manual to read
about the supported le
formats.
How to access your MicroSD Card
• Once your SD card has been inserted,
you can view the les located in SD
card icon in the main menu.
• After selecting SD card mode, you
should now be able to access the data
on the SD device through the onboard
media player.
16
17
MicroSD Card Cont.
Media Player menu
• In the Media Player selection you can
choose from the options:
Photo, Music, Video, Text
• Select the appropriate menu for the type
of le you wish to view.
Return: Brings you
back to the main
menu
Up Folder: Brings
you back to the
previous folder

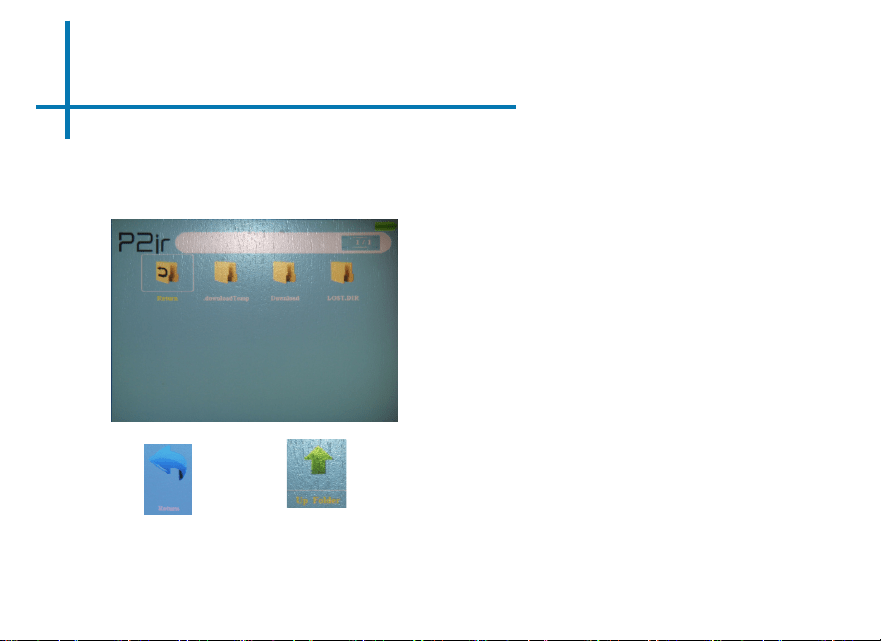

File Menu System
• The P2jr will show all folders and les
you have on your SD Card.
• Use the directional buttons to navigate
to different folders or les.
Select the “MicroSD” icon
1) 2)

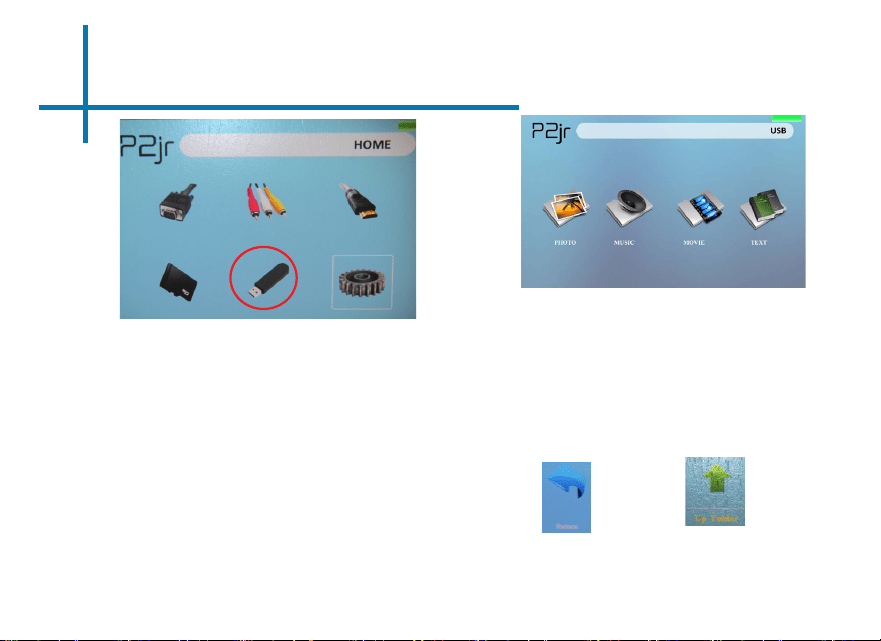

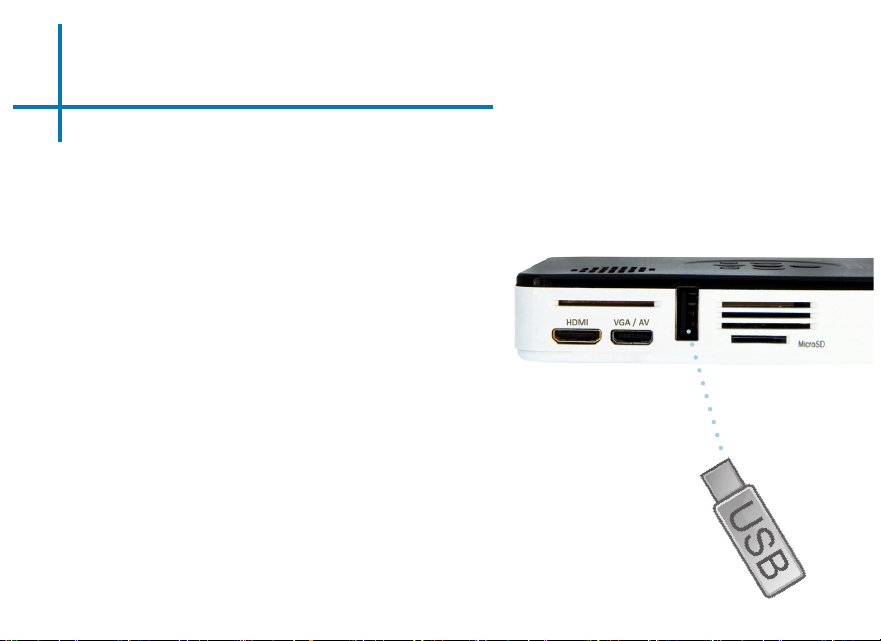

USB Reader
How to insert your USB Drive
• Slide your USB Drive into P2jr. (as shown in picture)
• Gently slide the drive until it cannot go in any further
*Review the Specication
section of this manual to read
about the supported le
formats.
How to access your USB Drive
• Once your USB Drive has been
inserted, you can navigate to the USB
icon in the main menu.
• After selecting USB Drive Mode, you
should now be able to access the data
on the USB drive through the onboard
media player.
18
19
USB Reader Cont.
Media Player menu
• In the Media Player selection you can
choose from the options:
Photo, Music, Video, Text
• Select the appropriate menu for the type
of le you wish to view.
Return: Brings you
back to the main
menu
Up Folder: Brings
you back to the
previous folder
File Menu System
• The P2jr will show all folders and les
you have on your USB Drive.
• Use the directional buttons to navigate
to different folders or les.
1) 2)
Select the “USB” icon
20

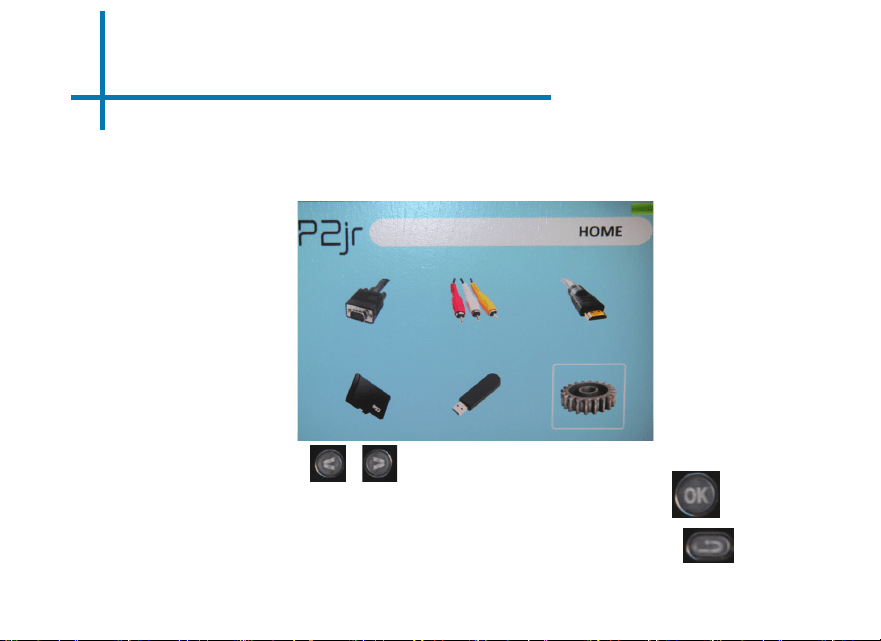

Menu Screens
Main Menu
Chapter 3
To access the main menu simply turn on the projector by pressing and holding the Power
button for 3 seconds.
• Scroll Left/Right by pressing buttons on the keypad.
• To select a submenu, highlight the desired submenu and press the button
located in the middle of the keypad.
• To go back to the previous page while in a submenu, press the back button.
21
File Menu System
Previewing Files:
• Press the directional keys to highlight the
item of interest
• Wait 2-3 seconds and a preview of the
video will show on the screen
The P2jr will show all folders and les you have on your USB or MicroSD Drives.
Use the directional buttons to navigate to different folders or les.
Return: Brings you
back to the main
menu
Up Folder: Brings
you back to the
previous folder
Opening a le:
• Choose Movie, Music, Photo or Text
• Select device le is stored on
• Select le from within folders, or current list

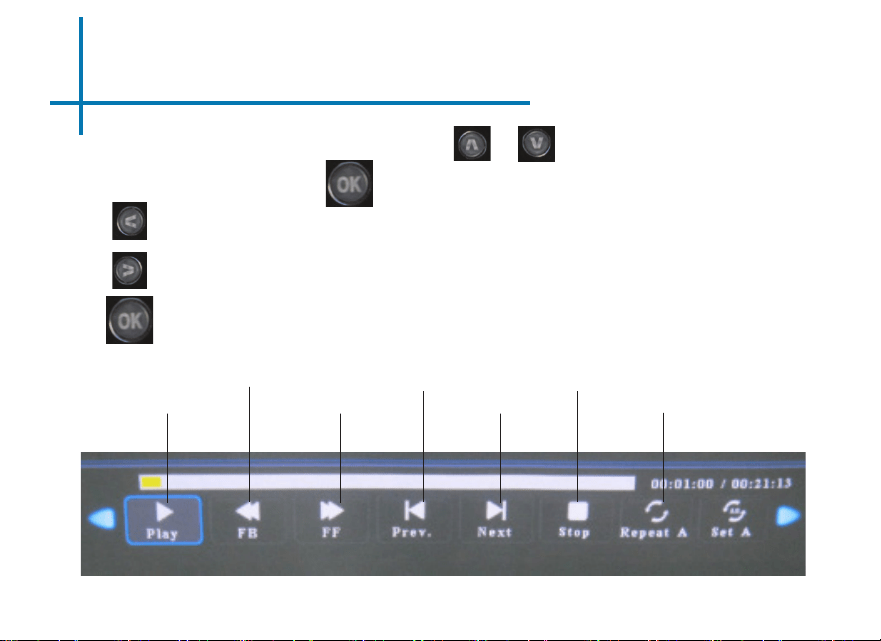

Video Player Menu
Move selection left
Move selection right
Conrm selection
Play
Video
Rewind
Video
Fastforward
Video
Previous
video
Next
Video
Stop
Video
Repeat
Video
• To open the video player menu,
press “OK” on projector.
• To close the video player menu,
hit “back” on projector.
22

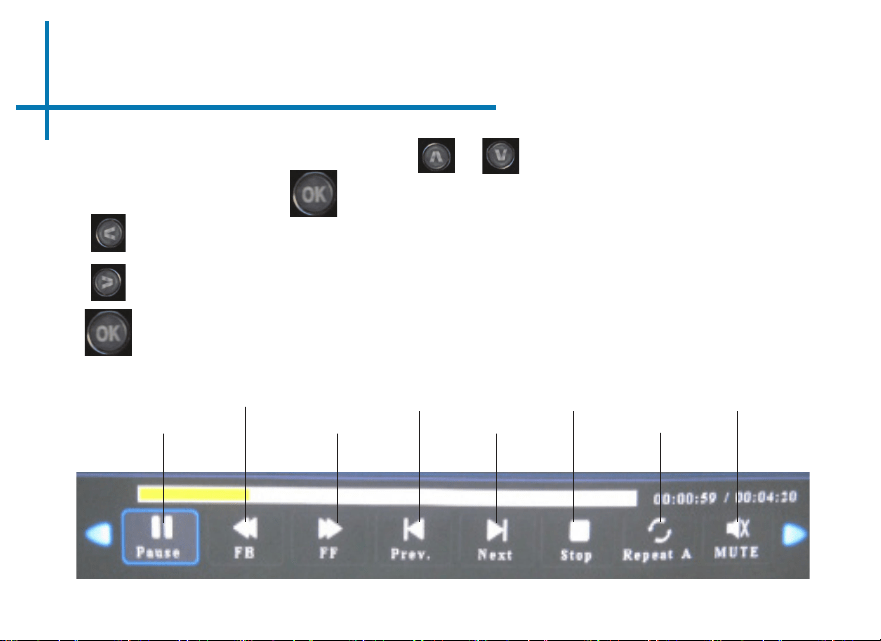

Viewing Videos
To adjust the volume simply press the or keys on the projector. For
more options, press the to reveal more options.
Video Playback FAQ
How do I loop a video?
1. Choose either USB or SD Card
for playback
2. Navigate the folders until you
reach the le you wish to play.
3. Highlight the le you want to
play, then conrm the selection.
4. Move selection on video player
menu to “repeat”, and conrm
the selection.
5. The video will now loop after
playback is nished.
How do I preview a video?
1. Choose the “video” option from the
main menu
2. Navigate using onboard buttons to the
le you wish to preview.
3. Highlight the le. *Do not select the
le, just highlight it.
4. Wait for 3-4 seconds.
5. A preview screen will pop up on the
lower right for the video.
23

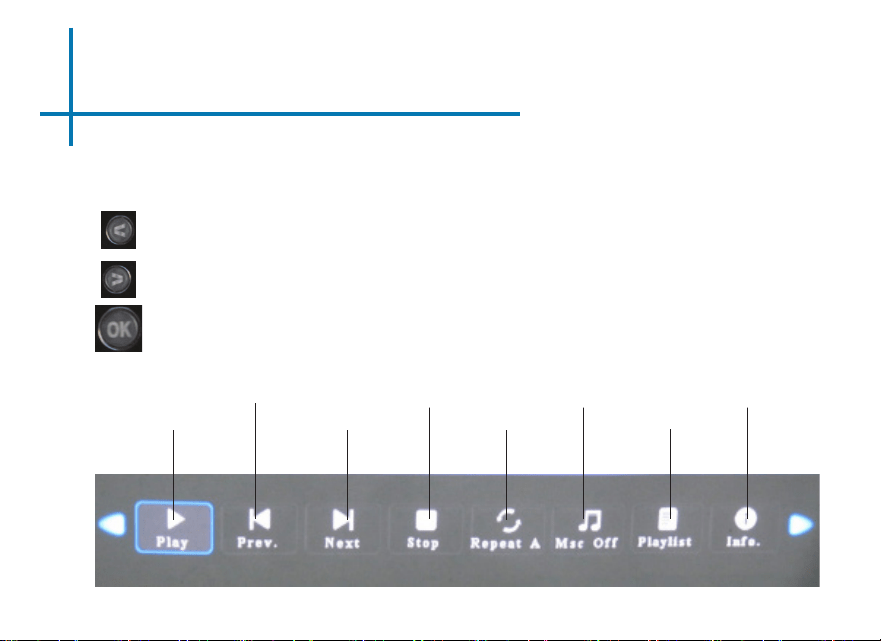

Photo Menu
Viewing Pictures
To use the photo controls, use the directional keys to highlight the option you wish
to choose.
Move selection left
Move selection right
Conrm selection
Start
Slideshow
Previous
Next Photo
Stop
Slideshow
Repeat
Stop
Music
Show
Playlist
Show
Info
• To open the photo player menu,
press “OK” on projector.
• To close the photo player menu,
hit “back” on projector.
24
Photo Slideshow FAQ
How do I play a slideshow?
1. Choose either USB or SD Card
for playback
2. Navigate to the folder that
contains the pictures you wish
to see in the slideshow
3. Conrm selection of the rst
picture.
4. Press “play” in the photo menu
5. Slideshow will not play.
6. NOTE: Selecting “repeat” will
loop slideshow.
How do I manually control the
slideshow?
1. After selecting the photo you wish to
be displayed, you can press “play” to
start the slideshow (as outlined in the
previous FAQ).
2. To manually control the slideshow,
you must stop the slideshow with the
“stop” button.
3. Controls on top of the P2Jr allow you
to manually ip through the pictures in
the current playlist.
25
26
Music Player Menu
Listening to Audio
To adjust the volume simply press the or keys on the projector. For
more options, press the to reveal more options.
Move selection left
Move selection right
Conrm selection
Play /
Pause
Rewind
Fastforward
Previous
Track
Next
Track
Stop
Playback
Repeat
Track
Mute
Sound
• To open the music menu, press
“OK” on projector.
• To close the music menu, hit
“back” on projector.
Music Playback FAQ
How do I loop a song?
1. Choose either USB or SD Card
for playback
2. Navigate the folders until you
reach the le you wish to play.
3. Highlight the le you want to
play, then conrm the selection.
4. Move selection on music player
menu to “repeat”, and conrm
the selection.
5. The song will now loop after
playback is nished.
How do I create a song playlist?
1. Insert your media device (either MicroSD
card or USB) into computer.
2. Make a new folder on media device
(folder name will be the name of the
playlist).
3. Transfer songs from computer to the new
folder, name accordingly.
4. Remove media device from computer
and insert into projector.
5. Navigate to Audio section, then choose
appropriate media device.
6. Navigate to your playlist folder.
7. Start at rst song.
8. Playback will follow each successive
song on the list.
*To create a special order for the list, add numerical
numbering to the beginning of each le.
27

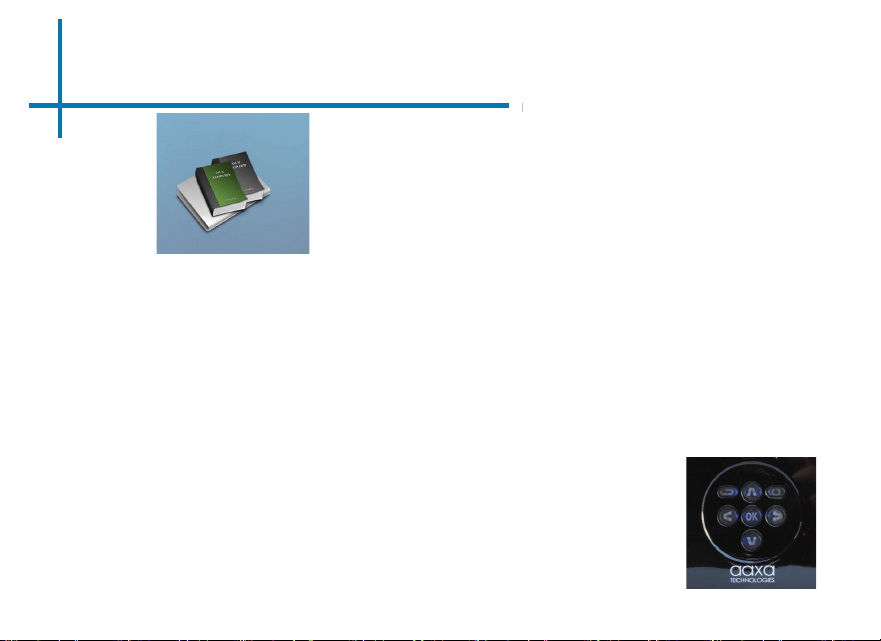

Text Viewer Menu
Opening a le:
• Choose “Open File” option
• Select device le is stored on
• Select le from list
Viewing text les
The P2jr Pico Projector allows you to view text les. Select the le you want to
view in the le menu for the particular storage device on which the le
is stored. You can press the left and right arrow buttons on the directional
pad to ip through the pages you have in the present folder.
*Review Specication section of this manual for supported Text formats.
Previewing Files:
• Press the directional keys to highlight the item of interest
• Wait 2-3 seconds and a preview of the song will show on the screen
The P2jr will show all folders and les you have on your USB or SD Drives.
Use the directional buttons to navigate through different folders or les.
28
Setup Menu
29
The Settings Menu can be accessed by selecting “Settings”on the main
Within the Setting Options, there are a few sets
of submenus including:
• Picture mode
Adjusts Contrast, Brightness, Color, Sharpness &
Tint
• Color Temperature
Adjusts Color ratio of red, green, and blue
• Aspect Ratio
Choose between 16:9, 4:3, Zoom and more
• PC setup
Additional options are available when connected to
PC via HDMI or VGA
• Backlight
Adjust low or high brightness modes. Higher
brightness increases fan noise.

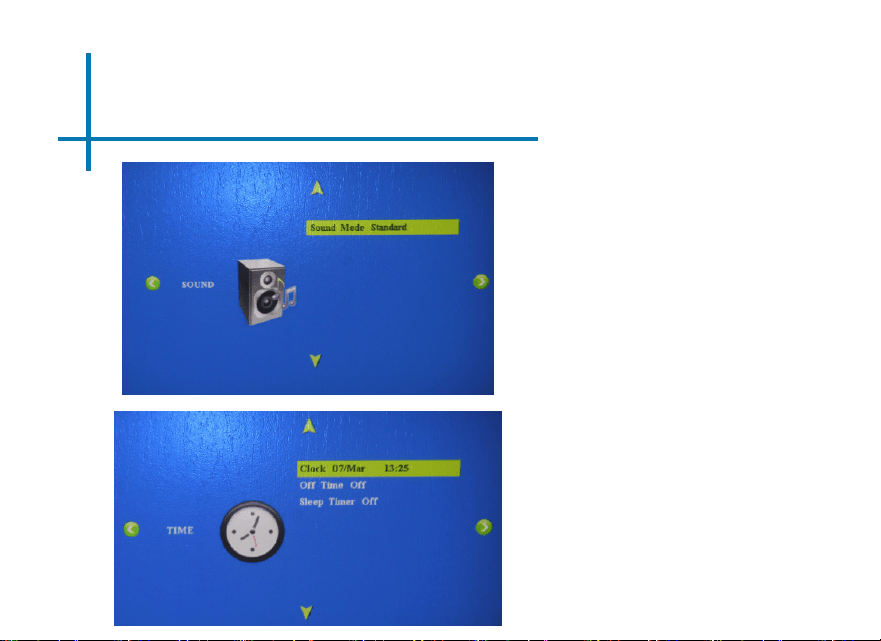

Setup Menu Cont.
Sound
• Sound Mode
Adjust Treble and Bass levels
Time
• Clock
Adjust current time
• Off timer
Adjust time when P2jr will turn off after
being idle
• Sleep timer
Set timer for P2 to automatically turn
off
30
Option
• OSD Language
Change Language to
English, French, Dutch, Spanish,
Portuguese or Chinese
• Restore Factory Default
Reset P2jr back to default settings
• Blending
Adjust the blending option
• OSD Duration
Adjust automatic timer to return to
main screen when idle.
Setup Menu Cont.
31
Technical Details
32
Chapter 4
IMAGE IS BLURRED
Possible Causes Solution
The Projector is not in focus Adjust the focus with the focus adjustment dial
until the image comes into focus
The Projector is offset from plane / angle of
operation
Move the projector so that it is both 180 degrees
and on an even plane with the screen.
No Sync, No Signal
Troubleshooting
1. Be sure to setup the computer to enable a video signal output. On
some laptops this is done by pressing and holding Function F5 key. If
using the P2jr as an external monitor on Windows based systems, this
can be done by selecting “extend my desktop to this monitor”.
2. Depending on the video driver different resolutions may need to be
selected for proper output.
Technical Details
33
THE PROJECTOR DOES NOT TURN ON
Possible Causes Solution
There is no power Check to ensure the power outlet or battery
source is good. Check the power adapter to
ensure a proper connection with the wall outlet
as well as the projector. Conrm that the unit is
charged and has enough power
The power button was not held long enough To power on the projector, the power button
needs to be depressed for a full 3 seconds. Try
holding the power button until the optical engine
turns on
NO PICTURE / FILE NOT SUPPORTED
Possible Causes Solution
The video source is not properly connected or
selected
Check the video source signal to ensure that it
is properly connected. Select the current input
source by choosing the input desired from the
main menu
Incorrect le extension / Video is encoded with
incorrect codec
Please refer to “Specications” page to see which
le types and codec are supported. Verify that
the le was encoded properly.
Troubleshooting
Specications
34
Brightness
Maximum Resolution
Contrast Ratio
Projection Lens:
Battery life:
Image Size:
Lamp:
Video in:
Audio Output:
MicroSD Card:
USB:
Dimensions:
Weight:
Supported File Formats:
55 Lumens
WXGA(1920x1080)
1000:1
Manual Focus
up to 120 minutes
10~60 inches
15,000 hour RGB Triple LEDs
Composite A/V
VGA(mini-VGA)
HDMI(mini-HDMI)
1.0 W stereo speaker
MicroSD Card Slot
(16 GB maximum)
USB (Memory Sticks)
(16 GB maximum)
4.2 x 2 9 x 0.82 inch
0.3 lbs
AVI, MPG, MP3, JPG, TXT
Please direct all customer service inquiries to:
AAXA Technologies, Inc.
1541 Parkway Loop Suite F
Tustin, CA 92780
(714) 957-1999
