1 EN
2018 - Honda France Manufacturing S.A.S. - Pôle 45 - Rue des Châtaigniers
45140 ORMES - FRANCE - All rights reserved
3RVK8730 HRX476C2
00X3R-VK8-7300 Printed in France
OWNER’S MANUAL
Original instructions
HRX476C
Pedestrian-controlled lawnmower
FOREWORD
You have just purchased a Honda pedestrian-controlled
lawnmower and we thank you for your confidence in us.
This manual has been written to familiarize you with your
lawnmower, to enable you to use it in the best possible conditions
and to carry out its maintenance.
Our aim is to make you benefit to the full from technological
advances, from new equipment and materials and from our
experience. This is why we regularly make improvements to our
models. Thus, the specifications and information contained in this
manual may be modified without prior notice and without obligation
to update it.
If you have a problem, or if you have any questions concerning the
lawnmower, contact your supplying dealer or authorized Honda
dealer.
Keep this manual handy so you can refer it at any time. If you sell
the lawnmower, be sure that the manual accompanies it.
We recommend that you read the guarantee policy to fully
understand your rights and responsibilities. The guarantee policy is
a separate document provided by your dealer.
No reproduction, even partial, may be made of this publication
without prior written authorisation.
SAFETY INSTRUCTIONS
For your own safety and operating comfort, it is highly
recommended that you read this manual in full.
Pay attention to these symbols and their meaning:
Indicates a high risk of severe personal injury or death if
instructions are not followed.
CAUTION:
• Indicates a possibility of personal injury or equipment damage if
instructions are not followed.
NOTE:
Source of useful information.
DESCRIPTION OF THE CODES USED IN THIS
MANUAL
The model of your machine is indicated on its "identification label",
by a series of letters and figures (see page 4).
CONTENTS
Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety stickers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Identification of machine . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
General description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Preparation and checks before use . . . . . . . . . . . . . . . . . . 5
Selecting the cutting mode (HYE, VKE, VYE types) . . . . . . 8
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . 9
Operating hints and tips . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Transport. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Useful information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Major Honda distributor addresses . . . . . . . . . . . . . . . . . . 21
“EC Declaration of Conformity” CONTENT OUTLINE . . . 22
HRX476C
H
Y
E
V
K
E
V
Y
E
Q
Y
E
J
Hydrostatic drive Selfpropelled . . . . . . . . . . . . . .
Self-propelled with variable speed transmission
. .
Self-propelled with gearbox and rear roller . . . . .
●
●●
●
Cutting-means brake. . . . . . . . . . . . . . . . . . . . . .
Rotostop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ●
●
●●
Write down your machine's serial number here
Write down your machine's model here
3RVK87300.book Page 1 Wednesday, August 8, 2018 11:26 AM
2 EN
SAFETY INSTRUCTIONS
For your own safety and operating comfort, it is highly
recommended that you read this manual in full.
Pay attention to these symbols and their meaning:
Indicates a high risk of severe personal injury or death if
instructions are not followed.
CAUTION:
• Indicates a possibility of personal injury or equipment damage if
instructions are not followed.
NOTE: Source of useful information.
This sign means that you must take care during
certain operations. Refer to the safety instructions
on the following pages, to the point(s) indicated in
the box.
TRAINING
A1. Read the instructions carefully. Be familiar with the controls and the proper use
before using the equipment. Know how to stop the engine rapidly.
A2. Use the lawnmower for the purpose it is intended for, that is mowing and collecting
grass. Any other use could be dangerous or damage the equipment.
A3. Never allow children or people unfamiliar with these instructions to use the
lawnmower. Local regulations may restrict the age of the operator.
A4. Never mow when people, especially children or pets are nearby.
Never use the machine in cases of fatigue or illness of the user, or after
consumption of medications, drugs, alcohol or dangerous substances which
might interfere with his ability regarding reflexes and concentration.
Never operate the machine if there is a risk of adverse weather such as lightning
or a storm, stop operation.
A5. Keep in mind that the owner or user is responsible for accidents or hazards
occurring to other people or their property.
A6. Never attempt to modify the mower. It can cause an accident as well as damage
to the mower. Tampering with the engine voids the EU type-approval of this
engine.
• Do not connect an extension to the muffler.
• Do not modify the intake system.
• Do not adjust the governor.
PREPARATION
B1. When using the machine, always wear safety shoes that are strong and non-slip
and long trousers. Do not use the machine with bare feet or wearing open shoes.
Avoid wearing chains, bracelets or baggy clothes with loose parts or with lacing
or neck ties. Long hair must be tied back. Always wear an anti-noise helmet.
B2. Thoroughly inspect the area where the equipment is to be used and remove all
objects which may be thrown by the machine (stones, branches, wires, bones,
etc...).
B3. WARNING - Petrol is highly flammable.
- Store fuel in containers specifically designed for this purpose.
- Refuel outdoors only, before starting the engine and do not smoke while
refuelling or handling fuel.
- Never remove the cap of the fuel tank or add petrol while the engine is running
or when the engine is hot.
- If petrol is spilled, do not attempt to start the engine but move the machine away
from the area of spillage and avoid creating any source of ignition until petrol
vapours are dissipated.
- Replace all fuel tanks and container caps securely.
- Before tipping the lawnmower to maintain the cutting means or drain oil, remove
fuel from tank.
B4. Replace faulty silencers.
B5. Before use, always visually inspect the machine, especially to see that the cutting
means, cutting-means bolts and cutting-means assembly are not worn or
damaged.
Replace worn or damaged cutting means and cutting-means bolts in sets to
preserve balance.
SAFETY
3RVK87300.book Page 2 Wednesday, August 8, 2018 11:26 AM
3 EN
OPERATION
C1. Do not operate the engine in a confined space where dangerous carbon monoxide
fumes can collect.
C2. Mow only in daylight or in good artificial light. Make sure to comply with legal
regulations which may vary from one region to another.
C3. If there is a risk of adverse weather such as lightning or a storm, stop operation.
C4. Avoid operating the equipment in wet grass, where possible.
C5. While mowing, always keep the safety distance to the cutting means, which is
provided by the handle length.
C6. Do not run. Do not let yourself be pulled by the lawnmower.
C7. Always be sure of your footing on slopes. Mow across the face of slopes, never
up and down.
C8. Keep in mind that the operator or user is responsible for any accidents or
unexpected events that may occur to other persons or their property. The user is
responsible for checking on possible risks due to the ground to be worked on, and
for taking all precautions necessary for ensuring his own safety and that of others,
in particular on sloping ground, rough, slippery or unstable terrain, or near holes,
ditches or banks.
C9. Do not mow slopes of more than 20° (36%).
C10. Use extreme caution when pulling the lawnmower towards you.
C11. Stop the cutting means if the lawnmower has to be tilted for transportation when
crossing surfaces other than grass, and when transporting the lawnmower to and
from the area to be mowed.
C12. Never operate the lawnmower with defective guards or cutting-means enclosures,
or without safety devices such as discharge cover and/ or grass catchers.
C13. Do not change the engine governor settings or overspeed the engine.
C14. Disengage all cutting-means control (models equipped with Rotostop) and drive
clutch (self-propelled models) before starting the engine.
C15. Start the engine carefully according to instructions and with feet well away from
the cutting means.
C16. Do not tilt the lawnmower when starting the engine.
Start the lawnmower on a level surface, free of high grass or obstacle.
C17. Keep hands and feet away from the rotating parts.
Do not start the engine when standing in front of the discharge opening.
C18. Never pick up or carry a lawnmower while the engine is running.
C19. Stop the engine and disconnect the spark plug cap in the following cases:
- Before any operation under the cutting-means enclosure or the discharge chute.
- Before checking, cleaning or working on the lawnmower.
- After striking a foreign object. Inspect the lawnmower for damage and make
repairs before restarting and operating the lawnmower again.
- If lawnmower starts to vibrate abnormally. Check immediately the cause of the
vibration and perform the necessary repair.
C20. Stop the engine in the following cases:
- Whenever you leave the lawnmower unattended.
- Before refuelling.
C21. Stop the cutting means (models equipped with Rotostop) or the engine in the
following cases:
- When installing or removing the grass catcher.
- Before adjusting the cutting height.
C22. Reduce the throttle setting during engine shut-down. Close the fuel shut-off valve
by turning the fuel shut-off valve.
C23. Using any attachments other than those recommended in this manual may cause
damage to your lawnmower, and such damage will not be covered by your
guarantee.
C24. CAUTION
The levels for noise and vibration indicated in this manual are the maximum
values for using the machine. The use of an unbalanced cutting means, an
excessive speed of movement and a lack of maintenance have a significant effect
on sound emissions and vibration. It is therefore necessary to take preventive
measures to eliminate all possible damage due to high noise levels, and stresses
due to vibrations; please ensure that the machine is well maintained, wear an
anti-noise helmet. Take breaks during the work.
MAINTENANCE AND STORAGE
D1. Keep all nuts, bolts and screws tight to be sure the equipment is in safe working
condition. Regular maintenance is an essential aid to user’s safety and retaining
a high level of performance.
D2. Never store the equipment with petrol in the tank inside a building when vapours
may reach an open flame, spark or high temperature source.
D3. Allow the engine to cool before storing in any enclosure.
D4. To reduce the fire hazard, keep the lawnmower, especially the engine and
silencer, the petrol storage area as well, free of grass, leaves, or excessive
grease.
Do not leave containers of grass cuttings in or near a building.
D5. If the fuel tank has to be drained, this should be done outdoors, with a cold engine.
D6. Check the grass catcher frequently for wear or deterioration.
D7. Do not use the machine with worn or damaged parts.
Parts must be replaced, not repaired. Replace worn or damaged parts with Honda
genuine parts.
Cutting means must always bear the mark Honda and the reference number.
Non equivalent quality parts may damage the machine and be prejudicial to your
safety.
D8. Wear thick gloves when removing or installing the cutting means or when cleaning
the cutting-means enclosure.
When tightening or loosening the cutting-means screws, use a wooden block to
prevent the cutting means from rotating.
D9. Always make sure the correct balance of the cutting means when sharpening.
3RVK87300.book Page 3 Wednesday, August 8, 2018 11:26 AM
4 EN

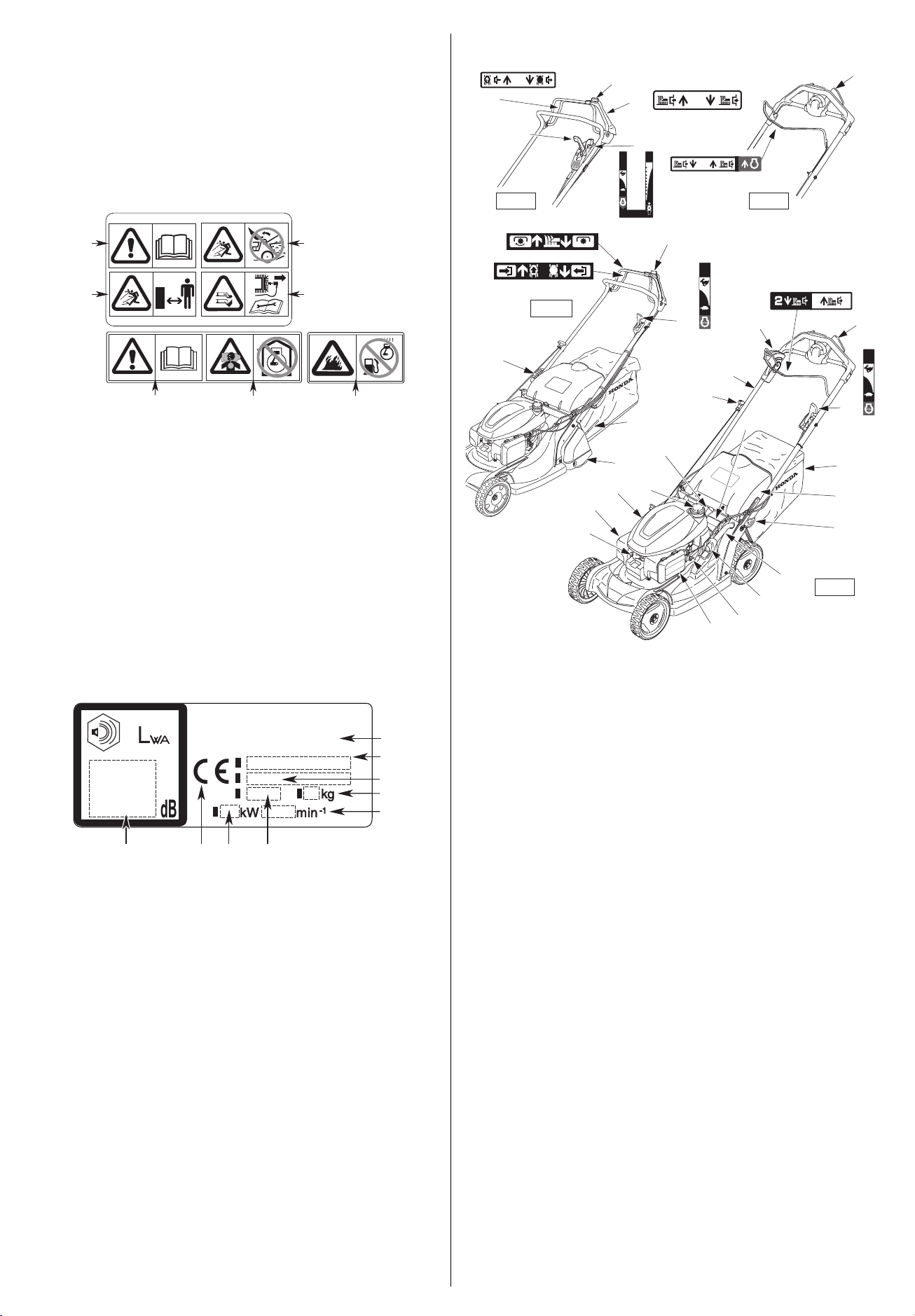

SAFETY STICKERS
Your lawnmower must be used with care. Therefore, decals have
been placed on the machine, to remind you pictorially of main
precautions to take during use. Their meaning is explained below.
These decals are considered as a part of the lawnmower. Should
one become detached or unreadable, contact your Honda dealer for
its replacement.
We also recommend that you read the safety advice carefully
(see page 2).
IDENTIFICATION OF MACHINE
GENERAL DESCRIPTION
EQUIPMENT IDENTIFICATION
[1] WARNING: Read the owner's manual before using the lawnmower.
[2] Risk of projections: Keep third persons away from the area during use.
[3] Risk of cuts. Rotating cutting means: Do not put hands or feet inside the
cutting-means enclosure. Disconnect the spark plug cap before performing
any operation of maintenance or repairs.
[4] Do not operate without either discharge cover or grass catcher in place.
[5] The engine emits toxic carbon monoxide. Do not run in an enclosed area.
[6] Petrol is highly flammable. Stop the engine before refuelling.
[7] Sound power level
[8] CE marking
[9] Nominal power in kilowatt
[10] Recommended engine speed in min
-1
(rpm)
[11] Mass in kilograms (with empty tanks)
[12] Year of manufacture
[13] Serial number
[14] Model - Type
[15] Name and adress of the manufacturer
[2]
[1] [4]
[3]
[1] [5]
[6]
[A]
[7]
[8] [9]
[11]
[10]
[13]
[14]
[15]
Honda France Manufacturing S.A.S.
Rue des Châtaigniers - Pôle 45
45140 Ormes - France
[12]
CONTROLS FUNCTIONS
[16] Handle
[17] Cutting-means control lever
(Rotostop) (*). . . . . . . . . . . . . . . . . Couple and stops the cutting means
[18] Lever for adjusting the
cutting height. . . . . . . . . . . . . . . . . Selects the desired cutting height
[19]
Folding knob / adjusting the handle
(*). . . Allows you to adjust the height of the
handle or to fold the handle
[20] Cutting-means control lever
unlocking knob (*) . . . . . . . . . . . . . Activates cutting-means control lever
[21] Shift lever (*) . . . . . . . . . . . . . . . . . Controls the maximum drive speed
[22] Drive clutch lever (*) . . . . . . . . . . .
Controls the transmission which
drives the rear wheels or the rear roller
[23] Cutting-means brake lever (*) . . . . Stops the cutting means rotation and
the engine / Authorises start-up
[24] Throttle lever (*) . . . . . . . . . . . . . . Controls the engine speed
[25] Fuel tank
[26] Air filter
[27] Spark plug
[28] Engine oil reservoir
[29]
Cutting height lever unlocking knob (*)
[30] Grass catcher . . . . . . . . . . . . . . . . Collects the cut grass
[31] Discharge cover . . . . . . . . . . . . . . Protects the projections
[32] Recoil . . . . . . . . . . . . . . . . . . . . . . Allows you to start the engine
[33] Muffler
[34] Fuel valve . . . . . . . . . . . . . . . . . . . Closes / opens the fuel circuit
[35] Variable mulching control (*). . . . . Controls the amount of grass ejected
[36] Select Drive control (*) . . . . . . . . .
Transmission control which drives the rear
wheels. Controls the maximum drive speed
[37] Lever for folding / adjusting the
handle (*). . . . . . . . . . . . . . . . . . . . Allows you to adjust the height of the
handle or to fold the handle
[38] Rear roller (*)
(*) For the models equipped
[24]
[30]
[31]
[19]
[18]
VYE
[34]
[26]
[29]
[27]
[33]
[28]
[25]
[35]
[16]
[32]
[A]
[17]
[36]
[20]
[36]
[23]
VKE
STOP
[17]
[22]
[21]
[24]
HYE
[20]
[38]
[18]
[37]
[17]
[22]
QYEJ
[24]
[20]
3RVK87300.book Page 4 Wednesday, August 8, 2018 11:26 AM
5 EN

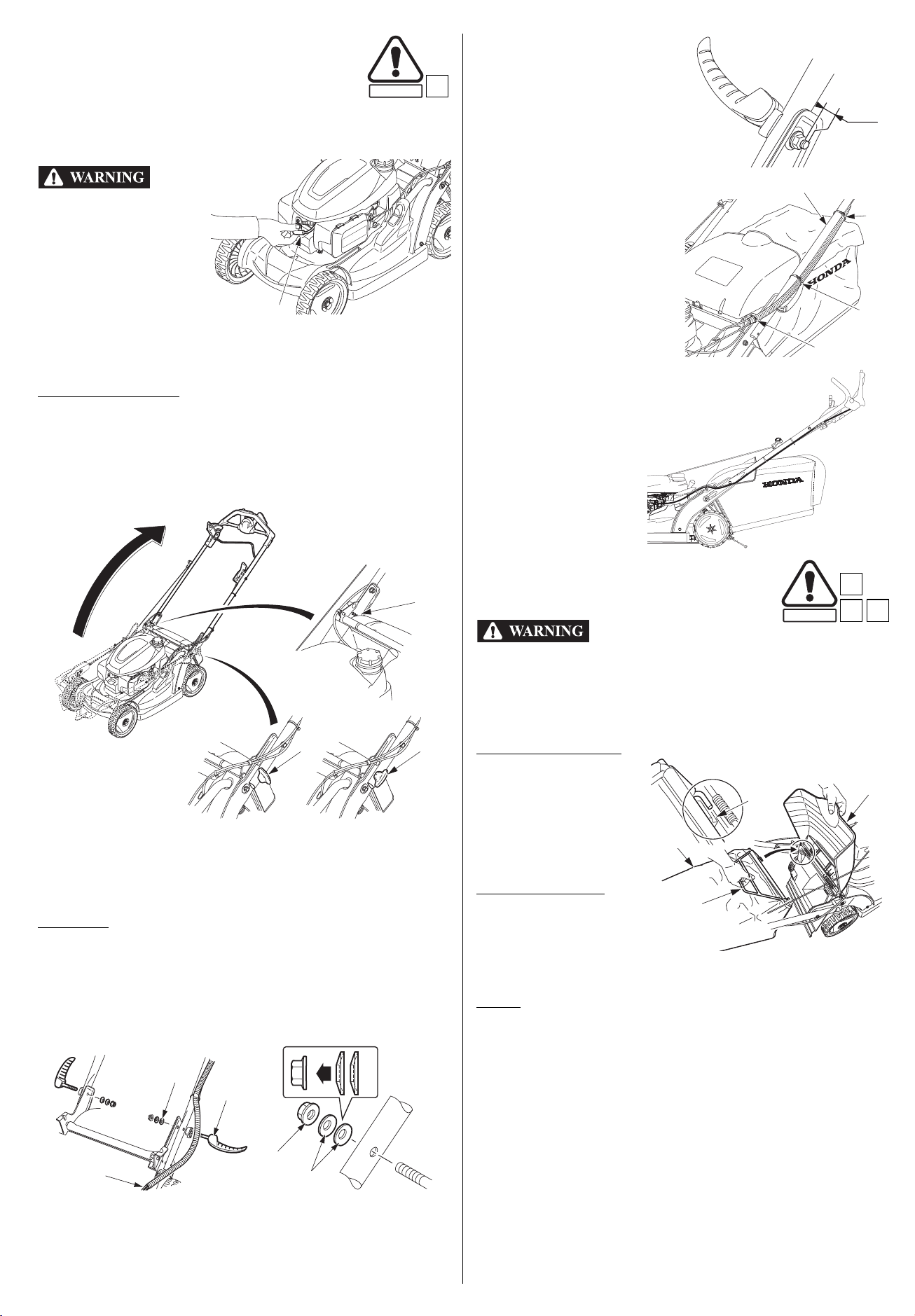

PREPARATION AND
CHECKS BEFORE USE
Before each use, look around and underneath the
engine for signs of oil or petrol leaks.
To carry out this series
of checks, place the
lawnmower on stable
and level ground with
engine stopped and
spark plug [1] cap
removed.
ASSEMBLY OF THE HANDLE
HYE, VKE, VYE types:
1. Turn the folding/handle adjustment knobs [2] a quarter turn to
unlocked position [3].
2. Unfold the handle so that the folding knob axes line up with the
top, intermediate or bottom holes [4], depending on the handle
height required.
3. Put the knobs back to locked position [5].
Ensure that the clamping rings for the cables on the handle are
positioned correctly.
QYEJ type:
Before mounting the handle, ensure that the cables [6] are
positioned outside the handle. Fit the components in the order
indicated. Take care to position the cables above the handle [7].
Note the direction of assembly of the spring washers [8], with the
convex side turned towards the nut [9].
While holding the handle [7] in
an open position, tighten the nut
[9] until the thread is 2 mm [10]
longer than the nut [9].
Choose the appropriate height
and tighten the handles to lock
the handle. If the effort to close
down the handles [7] seems too
important, untighten slightly the
nuts [9]. If the clamping of the
handle seems too weak, tighten
the nut [9].
Make sure that the cable
clamping rings [11] on the
handle [12] is correctly
positioned as shown.
To assemble the
grass catcher, please
refer to page 16.
CHECKING THE GRASS CATCHER
Before use, ensure that the grass catcher closing device is
correctly locked (discharge cover).
Even in normal use, the grass catcher tends to wear. Regularly
check that it is not frayed or torn. A worn out grass catcher
must be replaced. Replace a damaged grass catcher with
Honda Genuine parts.
Grass catcher removal:
1. Stop the engine.
2. Raise discharge
cover [13], grasp
handle [14] and
remove grass catcher
[15] while keeping it in
an upright position.
Grass catcher fitting:
1. Raise the discharge
cover and hook the
front of the grass
catcher on the
lawnmower’s attachment lugs [16].
NOTE:
• The lawnmower operates like a vacuum cleaner; it blows air into
the grass catcher sucking up the grass cuttings. Empty the grass
catcher before it is full to help emptying and minimizing the
dropping of grass cuttings. Bagging performance will diminish
after the grass catcher becomes about 90% full.
• Mulching is a natural fertilisation technique. The grass is no
longer collected in the grass catcher, but is finely ground and
deposited on the lawn. The grass cuttings chopped up in this way
decompose in the sun and form a natural humus which can
produce a quarter of the annual fertilisation requirement of your
lawn.
• In addition to its fertilising role, mulching protects the ground,
limits evaporation of water during hot periods and relieves you of
the task of collecting the grass.
SAFETY
B3
[1]
[3]
[5]
[2]
[2]
[4]
[6]
[7]
[8]
[8]
[9]
[7]
[11]
[12]
[11]
[11]
[10]
2 mm
SAFETY
D6C21
C12
[14]
[15]
[13]
[16]
3RVK87300.book Page 5 Wednesday, August 8, 2018 11:26 AM
6 EN

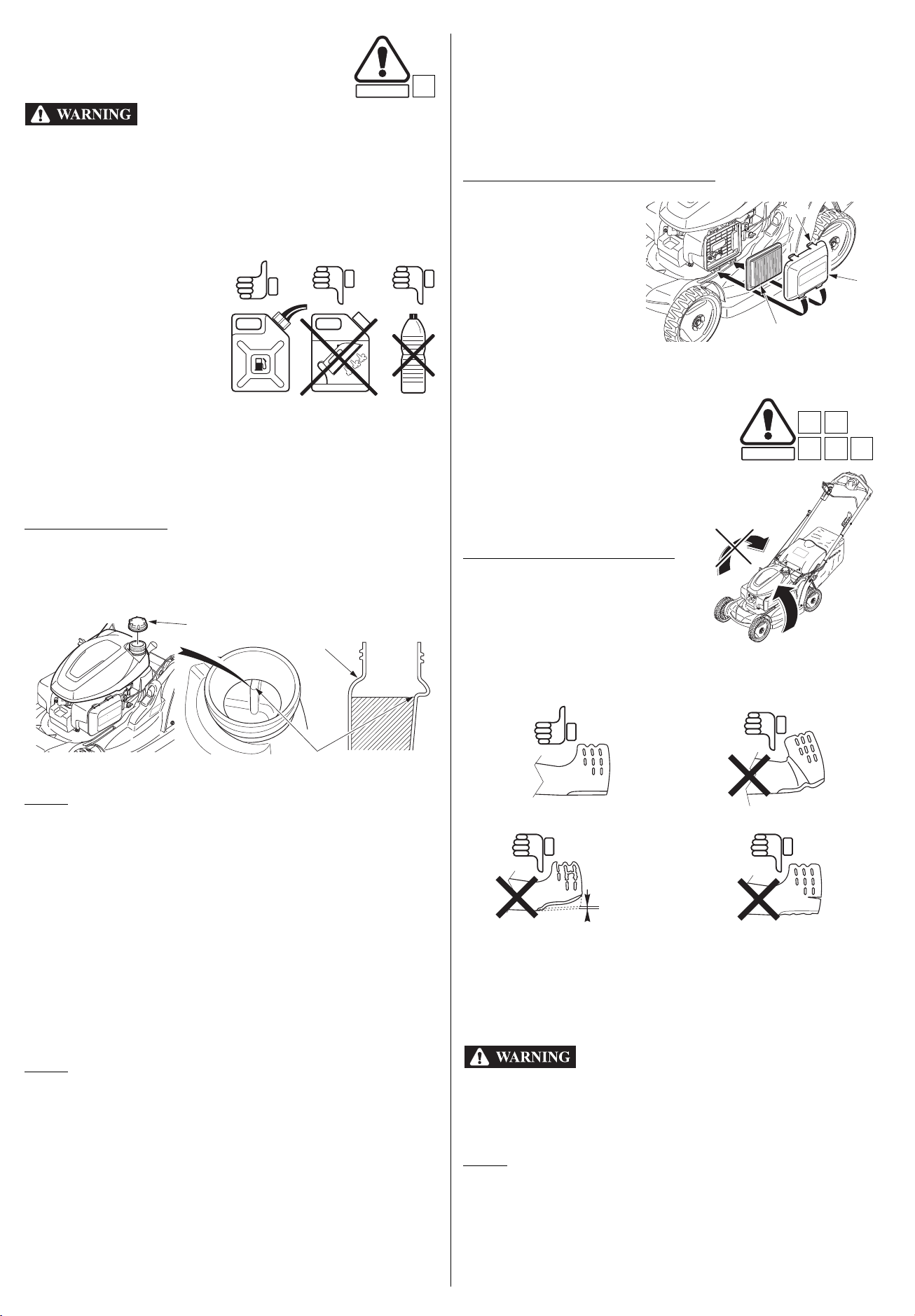

CHECKING FUEL LEVEL
Do not fill the fuel tank over the upper limit. When filling is
completed, ensure that the tank filler cap is screwed fully on.
Avoid getting fuel on the skin repeatedly or for long periods
and avoid breathing fuel vapours. Keep fuel away from
children.
CAUTION:
• Ensure that you use
containers or drums
specifically designed for
hydrocarbons [1].
• Never use petrol that is stale,
contaminated, or mixed with
oil.
• Only use unleaded petrol 95
or 98.
• Do not let dirt, clippings, etc.
get into the tank.
• Do not use dirty or contaminated fuel (water, dust, ...), or fuel
which is too old. The quality of unleaded petrol deteriorates with
time. Do not keep fuel for more than one month (see page 18).
To check the fuel level:
1. Remove filler cap [2] and check fuel level.
2. Fill tank if level is low. Add fuel to the upper limit [3] of the fuel
tank [4].
3. Screw filler cap [2] fully on after filling.
NOTE:
Fuel substitute products are not recommended. These may
damage fuel system components.
FUEL CONTAINING ALCOHOL
If you intend to use fuel with alcohol, ensure that its octane number is at
least as high as that recommended by Honda (95 octane). There are
2 types of fuel/alcohol mixtures: one contains ethanol and the other
methanol.
Fuel specification(s) necessary to maintain the performance of the
emissions control system: E10 fuel referenced in EU regulation.
Do not use gasohol that contains more than 10% ethanol.
Do not use petrol containing more than 5% methanol (methyl or
wood alcohol) and that does not also contain co-solvents and
corrosion inhibitors for methanol.
NOTE:
• Fuel system damage or engine performance problems resulting
from the use of petrol that contains more alcohol than
recommended is not covered under the warranty.
• Before buying petrol from an unfamiliar station, first determine if
the petrol contains alcohol, if it does, find out the type and
percentage of alcohol used.
If you notice any undesirable operating symptoms while using a
particular petrol. Switch to a petrol that you know contains less than
the recommended amount of alcohol.
CHECKING THE AIR CLEANER
CAUTION:
• Operating the engine without an air filter, with a damaged air filter,
or with an improperly installed air filter cover will allow dirt to enter
the engine, causing rapid engine wear.
To check the condition of the air cleaner:
1. Press the latch tabs [5]
on the top of the air
cleaner cover and
remove the cover [6].
2. Check the cleanliness
of filter element [7].
If the element is dirty,
follow the cleaning
procedure (see
"Maintenance" chapter
page 12).
3. Reinstall the filter [7] and air cleaner cover [6].
CHECKING CUTTING MEANS
CONDITION
CAUTION:
• Do not tilt the lawnmower with the
carburetor facing down; this will
make the lawnmower difficult to start
later, due to engine oil
contaminating the air cleaner.
To check cutting means condition:
1. Stop the engine.
2. Pull off the spark plug cap.
3. Tilt the lawnmower to the right so
the fuel cap is up [8].
• Check if the cutting means is
showing signs of wear. It is
necessary to replace the cutting means when the recesses
join together, or when a crack appears.
• Check that cutting-means bolts are tight (see "Maintenance"
chapter page 12).
• To replace or remove the cutting means, refer to the
procedure described in the "Maintenance" chapter page 12.
Never operate the lawnmower with a worn, damaged, split or
dented cutting means. Pieces of cutting means which breaks
off and is thrown outwards can cause serious personal
injuries.
NOTE:
Cutting means wear is increased when the lawnmower is
used on sandy soils. Inspect the cutting means more often when the
lawnmower is used in these conditions.
SAFETY
B3
[1]
[2]
[3]
[4]
[6]
[7]
[5]
SAFETY

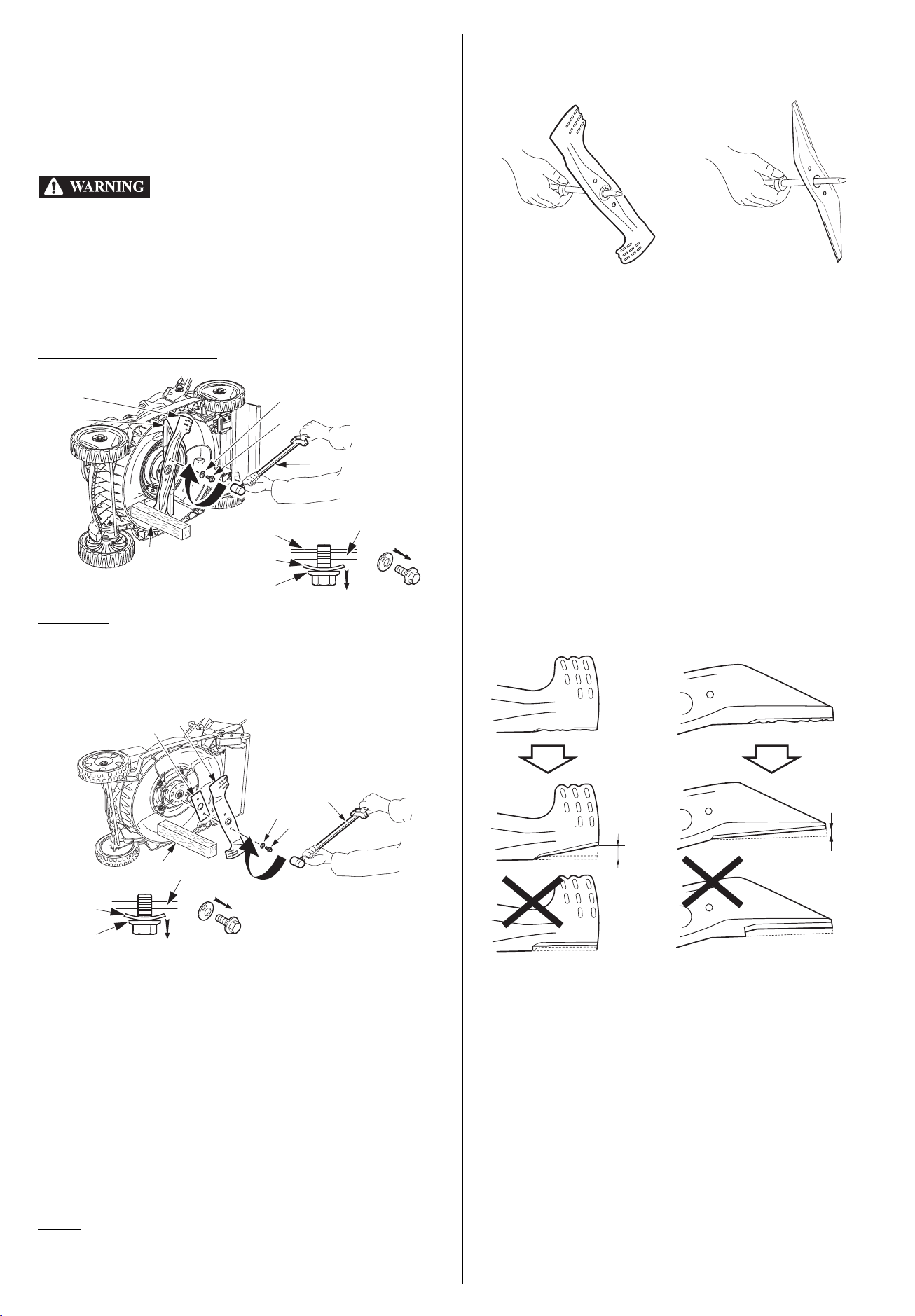

D8D1C19
B5B3
[8]
NORMAL BENT
EXCESSIVELY WORN
CRACKED
15 mm
Max.
3RVK87300.book Page 6 Wednesday, August 8, 2018 11:26 AM
7 EN

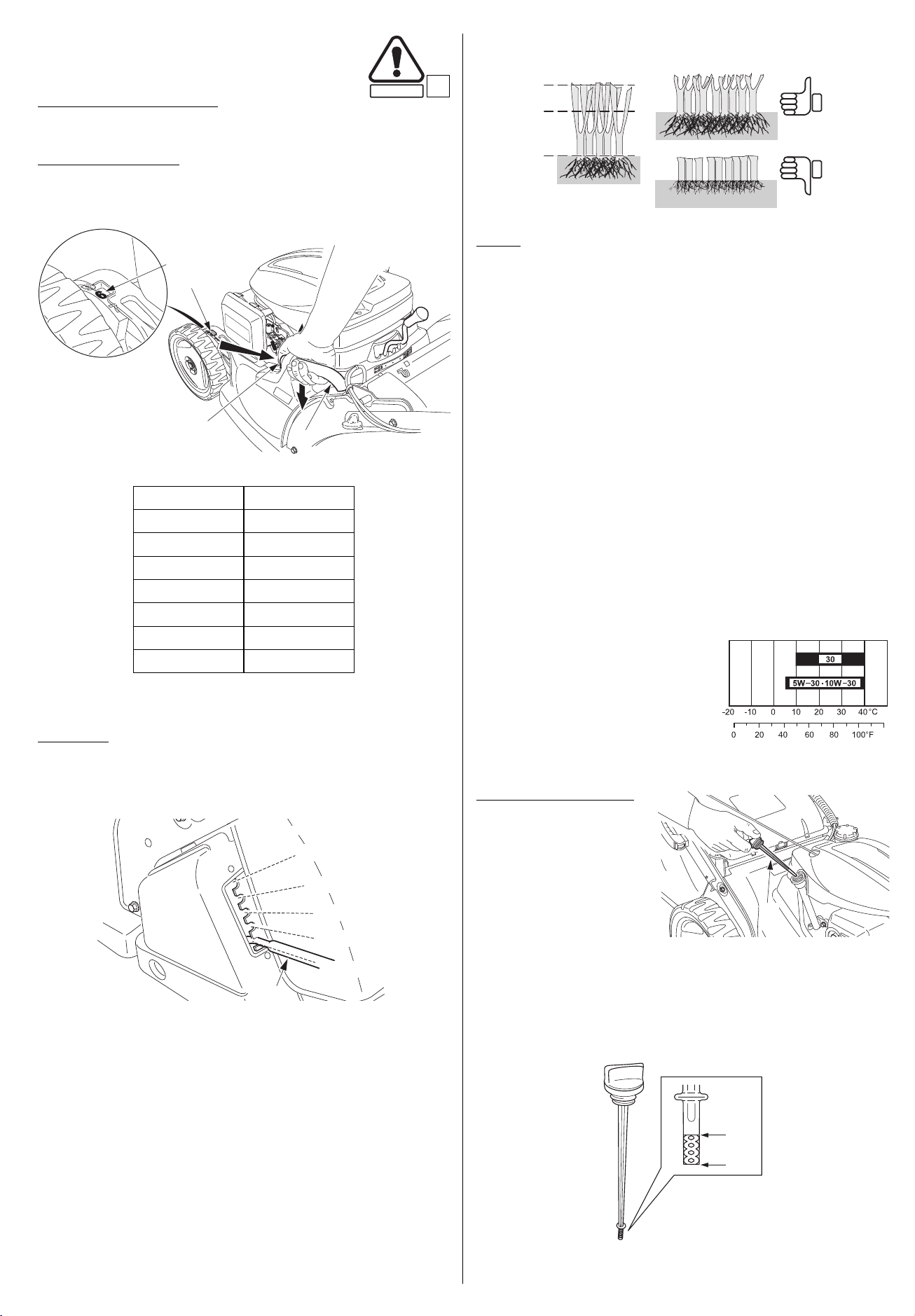

ADJUSTING CUTTING HEIGHT
To change the cutting height:
1. Stop the engine.
HYE, VKE, VYE types:
2. Keep the unlocking knob [1] pressed and raise or lower the
lawnmower with the adjustment handle [2]. A height indicator [3]
is near the front left wheel.
QYEJ type:
2. Pull the adjusting lever [4] towards the outside of the machine.
Turn the adjusting lever [4] left or right to raise or lower the
cutting height.
The cutting height settings are approximate values, the actual
height of the cut grass varies with the lawn and ground condition. To
choose the cutting height, check how the lawn looks after mowing a
small area and adjust the cutting height where necessary.
NOTE:
• Do not cut more than 1/3 of the initial height of the grass in one
passage as brown spots will appear. The cut will be cleaner and
this will limit the possibility of cutting means and chute blackage.
• If the lawn is too high, mow at the maximum permissible height of
the lawnmower. Mow the lawn again 2 or 3 days later.
• The depth of the roots is proportional to the height of the grass
cuttings: the shorter the cut, the shallower the roots.
• Choose a cutting height suited to the use of the lawn: leisure,
sport: 5 cm or more, ornamental: 1 to 3 cm.
• Only some species of lawn can endure short cuts. If a lawn is cut
too short, it is fragile and susceptible to dryness. Please ask the
advice of a specialist.
CHECKING ENGINE OIL LEVEL
CAUTION:
• The engine oil is an essential element which affects the
performance and lifetime of the engine.
• The engine may be seriously damaged if run with insufficient oil.
We recommend the use of Honda 4-stroke oil or an equivalent
quality engine oil which is highly detergent. Oil viscosity must be
appropriate for the average temperature in the zone where the
lawnmower is to be used.
Lubrication oil specifications
necessary to maintain the
performance of the emissions
control system: Honda genuine oil.
Types of oil [5] adapted to the
ambient temperature [6].
To check engine oil level:
1. Put the lawnmower on
flat, even ground.
2. Remove and wipe oil
filler cap/dipstick [7].
3. Replace the oil filler
cap/dipstick in the filler
neck but do not screw it
down.
4. Check the level of the oil left on the oil filler
cap/dipstick. If the level is near the low level
mark [8], add the recommended oil up to the
high level mark [9].
5. Screw oil filler cap/dipstick.
Positions Height (mm)
125
234
343
452
561
670
779
SAFETY
C21
[3]
[3]
[2]
[1]
[4]
19 mm
27 mm
36 mm
46 mm
58 mm
1/3 Max
[5]
[6]
[7]
[9]
[8]
3RVK87300.book Page 7 Wednesday, August 8, 2018 11:26 AM
8 EN

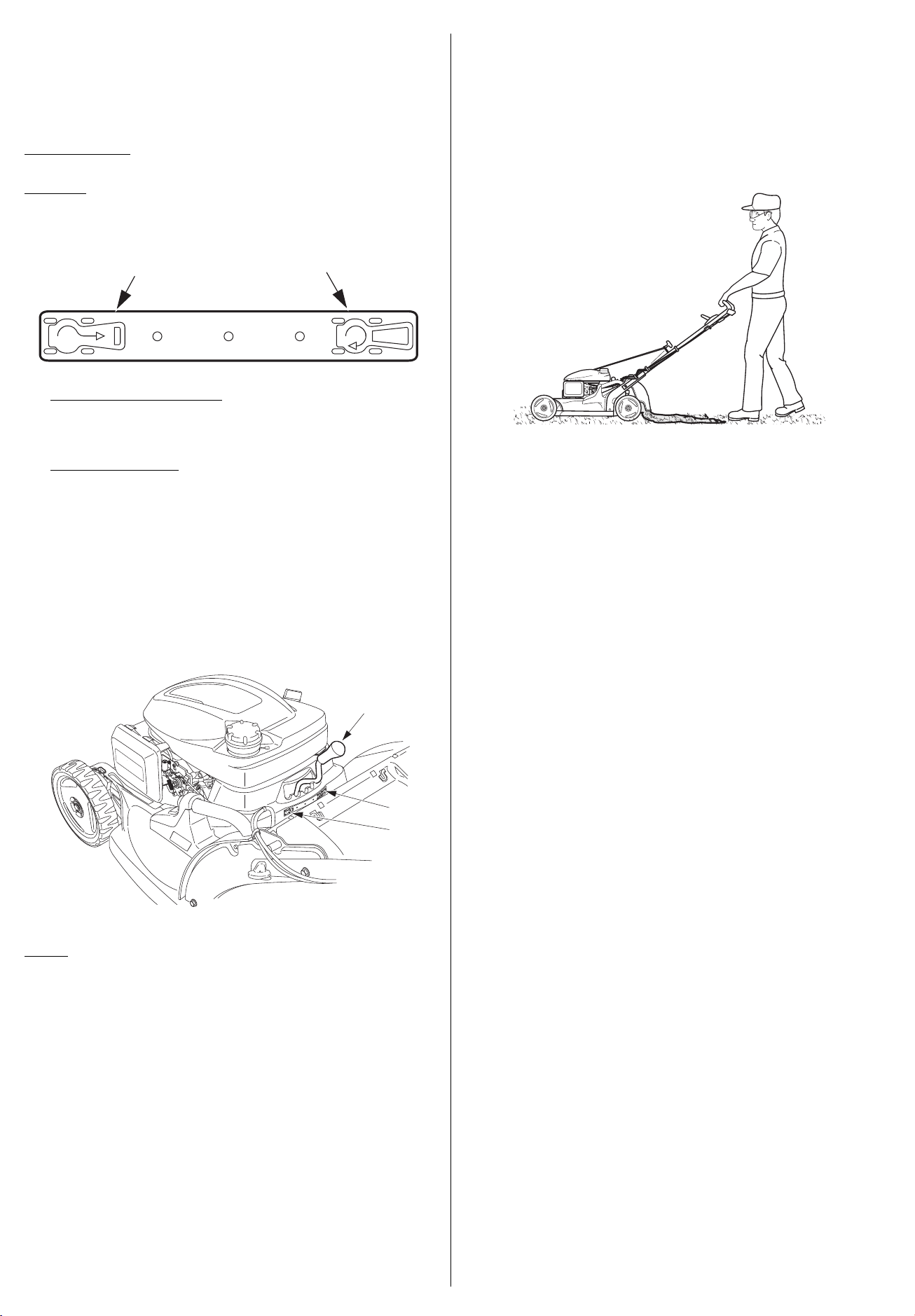

SELECTING THE CUTTING
MODE (HYE, VKE, VYE TYPES)
ADJUSTING THE VARIABLE MULCHING
CONTROL
HYE, VYE types:
1. Release the cutting-means control lever.
VKE type:
1. Release the cutting-means brake lever.
2. Turn the variable mulching control knob to one of the 5 positions
to obtain the required mulching and ejection rate.
- Grass collection position [1]
: all the grass cuttings are ejected
at the back of the lawnmower, the grass cuttings are not
mulched.
- Mulching position [2]
: the grass is no longer collected in the
grass catcher, but is finely cut and deposited on the lawn. The
grass cuttings chopped up in this way decompose and form a
natural compost which can produce a quarter of the annual
fertilisation requirement of your lawn.
3. To choose the position best adapted to your requirements, carry
out a test. Install the grass catcher and start to mow in collection
position [1]. Check the effect on the lawn. Turn the knob [3] one
notch to the right. Turning the knob turned towards Mulching
position [2] increases the quantity of grass ground and
deposited on the lawn. Turn the control knob [3] until you obtain
the required results.
NOTE:
• Mulching is a natural fertilisation technique. The grass is no
longer collected in the grass catcher, but is finely cut and
deposited on the lawn.
• In addition to its fertilising role, mulching protects the cut, limits
evaporation of water during hot periods and relieves you of the
task of collecting the grass.
REAR EJECTION
If you do not want to collect the cut grass, the lawnmower can be
used without the grass catcher. In this case, the grass ejected is
guided to the ground by the discharge cover. The quantity ejected
varies depending on the position of the variable mulching control
knob:
- maximal in position [1],
- zero in position [2].
[1]
[2]
[3]
[2]
[1]
3RVK87300.book Page 8 Wednesday, August 8, 2018 11:26 AM
9 EN

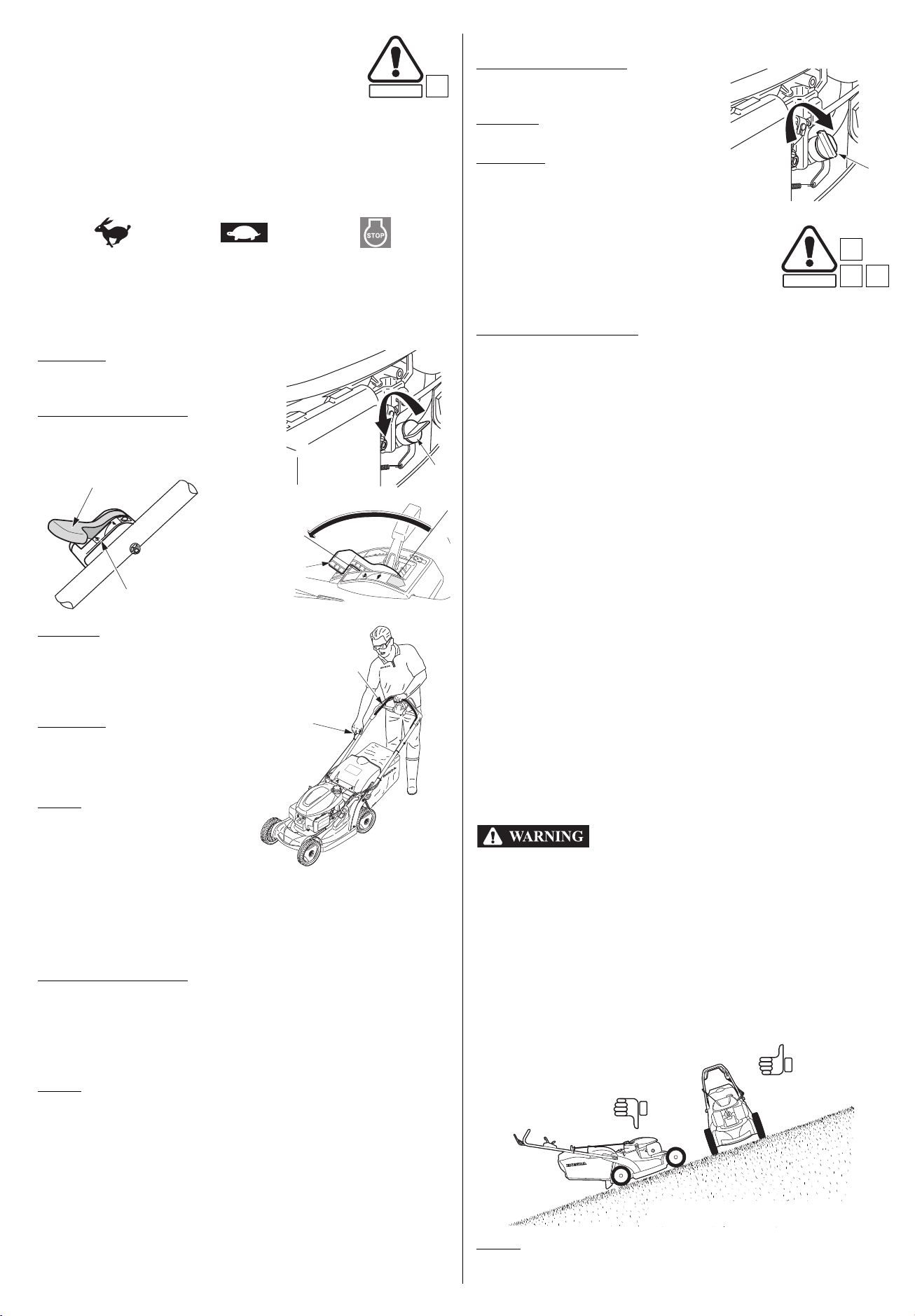

STARTING AND
STOPPING THE
ENGINE
STARTING THE ENGINE
CAUTION:
• Do not start the engine with the cutting-means control lever or the
drive clutch lever engaged.
All models:
1. Turn the fuel valve [1] to the ON
(open) position.
HYE, VYE, QYEJ types:
2. Place the throttle lever [2] in
"FAST" position [A].
VKE type:
3. Keep the cutting-means
brake lever [3] held firmly
against the handle when
starting the engine.
All models:
4. Pull the starter [4] slowly
until a resistance is felt;
then pull sharply.
NOTE:
• Do not let the starter spring
back suddenly on its own;
guide it back slowly.
• To adjust the engine speed
when the lawnmower is running, the throttle lever can be set
anywhere between the "FAST" position [A] and "SLOW"
position [B]. (HYE, VYE, QYEJ types)
However, the best results are obtained in the "FAST" position [A].
HYE, VYE, QYEJ types:
The engine may stall if the lever is in the "SLOW" position [B] when
the cutting-means control is engaged.
To facilitate starting, place the lawnmower on a flat surface where
the grass is not long.
NOTE:
To ensure easy restarting and maximum performance from
the Auto Choke System, start mowing as soon as the engine starts
and allow the engine to run for at least 3 minutes before stopping
the engine.
STOPPING THE ENGINE
HYE, VYE, QYEJ types:
1. Move the throttle lever to the
"STOP" position [C].
VKE type:
1. Release the cutting-means brake lever.
All models:
2. Turn the fuel valve [5] to the OFF
(close) position.
FLOODED ENGINE
If the engine still refuses to start after several
pulls on the starter, the engine may be flooded.
To clear a flooded engine:
1. Place the throttle lever in "STOP" position [C] (HYE, VYE, QYEJ
types).
2. Remove and dry the spark plug. For refitting the spark plug,
refer to "CHECKING THE SPARK PLUG" (see page 13).
3. Place the throttle lever in "FAST" position [A] and repeat the
operations previously mentioned under the heading
"STARTING THE ENGINE".
OPERATING HINTS AND TIPS
USING THE LAWNMOWER AT HIGH ALTITUDES
At high altitudes, the standard fuel/air mixture in the carburetor is much
too rich: this will reduce performance and increase fuel consumption.
It is possible to improve the high altitude performance by fitting the
carburetor with a smaller diameter jet and by adjusting the pilot
screw. If you use your lawnmower at an altitude of more than 1500
meters above sea level, we recommend that you have these
modifications made by your authorized Honda dealer.
Even with the appropriate modifications made to the carburetor,
engine power will be reduced by about 3.5% for every 300 meters
of altitude. However, the altitude will have a much greater effect on
power if these modifications are not carried out.
CAUTION:
• Running the lawnmower at an altitude less than that for which the
carburetor is adjusted may cause overheating and seriously
damage the engine, due to the gas/air mixture being far too weak.
Take special care when mowing on uneven or irregular ground.
The lawnmower may tip over and cutting means may throw out
objects which were hidden.
Keep the 4 wheels firmly on the ground.
Control the direction of the lawnmower using the handle and not by
exerting pressure on the cutting-means enclosure with your foot.
CAUTION:
• When mowing around an obstacle, be careful that the cutting means
does not hit it. Never push the lawnmower directly over an object.
• When mowing an uneven area, do not let yourself be pulled along by
the lawnmower. Hold the handle firmly and control its movements.
NOTE:
If the lawnmower speed becomes too slow when mowing on
a slope, move the shift lever (HYE type) slightly towards the "FAST"
position [A].
[A] [B] [C]
FAST
For restarting
a hot engine
and for mowing.
SLOW
Selects engine
idling speed.
STOP
Stops engine
(Rotostop models).
SAFETY
A1
[A]
[2]
[1]
ST
OP
SLOW
F
AST
[A]
[2]
[4]
[3]
[5]
SAFETY
C9C8
C7
[6]
[7]
[6] WRONG [7] RIGHT
3RVK87300.book Page 9 Wednesday, August 8, 2018 11:26 AM
10 EN
MOWING PROCEDURE
Read the safety instructions before starting to mow.
HYE type:
Always release the cutting-means control lever and the drive
clutch lever before starting the engine. Starting is more difficult
when the cutting means is engaged. If drive clutch is engaged,
the lawnmower will move when the engine is started.
1. Select the suitable forward
speed with the shift lever [1].
2. Engage the cutting means:
- Press the yellow button [2]
located on the top of the
cutting-means control lever
[3], and at the same time push
it quickly and hold it against
the handle.
3. Engage lawnmower forward
drive when the motor has picked
up speed:
- The drive clutch lever [4] acts
as a variable speed control
according to its squeezed
position. It makes the speed
vary between zero and the
maximal speed preset with the
shift lever. The maximum
speed can be reached when
both levers [3] and [4] are
pushed forward completely.
The greater the height of the
grass to be cut, the more it is
necessary to reduce the drive
speed of the machine. This
will prevent overloading the
engine and improve the
quality of the cut.
4. To stop the lawnmower moving forward:
- Release the drive clutch lever [4].
5. To stop the cutting means rotating:
- Release the cutting-means control lever [3].
NOTE:
It is possible to refrain from using the forward drive while
mowing in areas with a narrow surface (lanes, borders, etc.).
The drive clutch can be used to move the lawnmower without
engaging the cutting-means control.
CAUTION:
• Move the cutting-means control lever quickly from one end of its
travel to the other, so that the cutting means is always either fully
engaged or fully disengaged. This is to avoid stalling the engine
and increases the service life of the cutting-means control
mechanism.
VKE type:
1. With the engine running and
the cutting means rotating,
slowly push the Select Drive
control [5] to propel the mower
forward.
- Normal operation is with your
hand comfortably around the
handle bar and Select Drive
control. Push the Select
Drive control with your thumb
into the indentation for boost
operation (up a hill, or
through thick grass).
- You can reduce the ground
speed by partially releasing
the Select Drive control.
- Ground speed varies with
terrain, grass height, slope,
and grass catcher weight.
Moving the Select Drive
control knob [6] or varying
how far you push the Select
Drive control forward allows
you to maintain the desired
ground speed under
constantly changing mowing
conditions.
2. To adjusting the Select Drive control knob [6]:
- The Select Drive control knob allows you to adjust the
maximum ground speed when the Select Drive control is fully
engaged. Adjustment is from MIN to MAX.
With the Select Drive control fully engaged:
- MIN will propel the lawnmower at its slowest speed.
- MAX will propel the lawnmower at its fastest speed.
3. To stop the lawnmower moving forward:
- Release the Select Drive control [5].
4. To stop the cutting means rotating:
- Release the cutting-means brake lever [7].
NOTE:
Releasing the cutting-means brake lever stops the cutting
means rotating and stops the engine.
SAFETY
C9C8
C7
SAFETY
[1]
[3]
[4]
[2]
MIN
MAX
[7]
[6]
[5]
MIN
MAX
3RVK87300.book Page 10 Wednesday, August 8, 2018 11:26 AM
11 EN

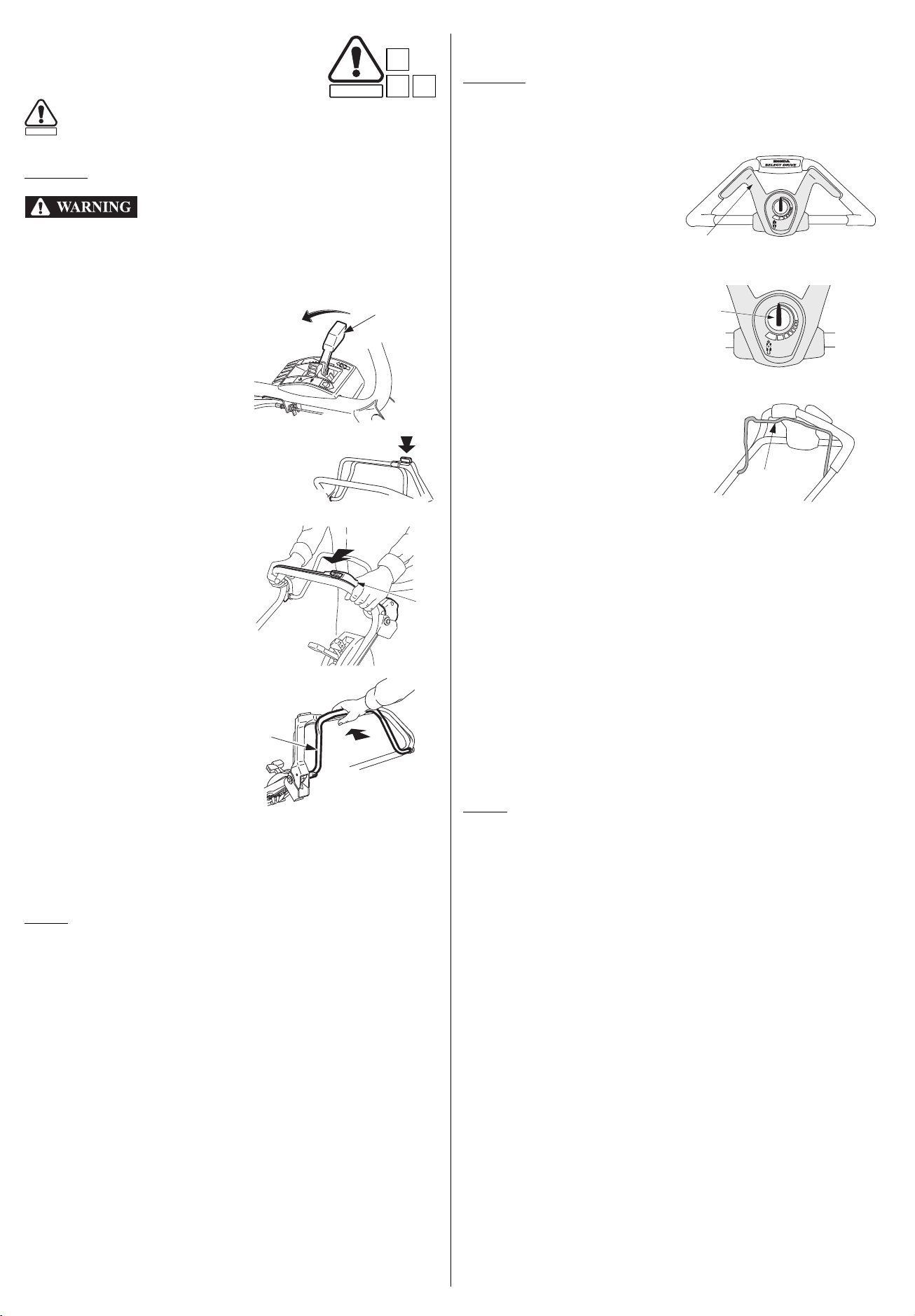

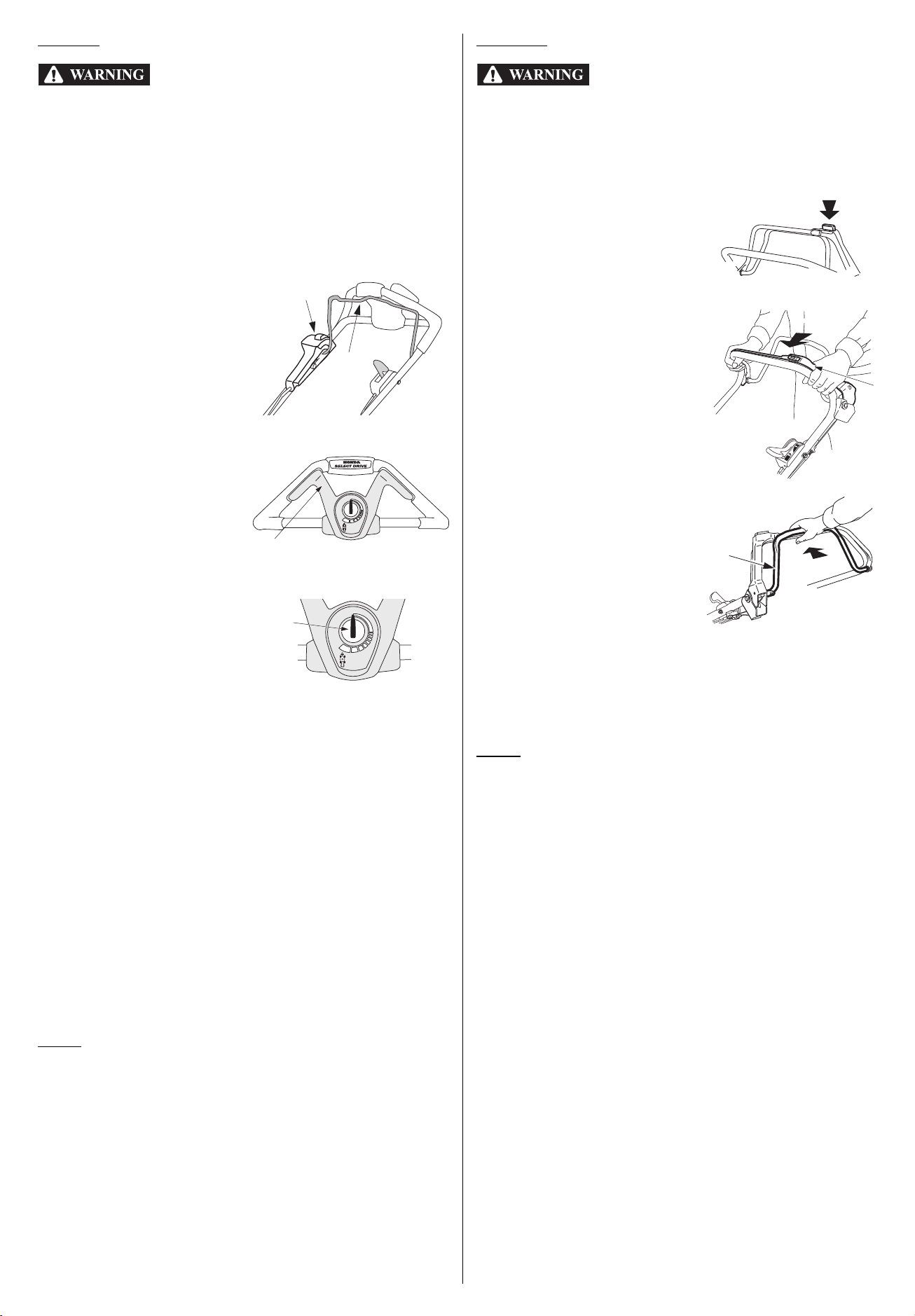

VYE type:
Always release the cutting-means control lever and the Select
Drive control before starting the engine. Starting is more
difficult when the cutting means is engaged. If the clutch is
engaged, the lawnmower will move when the engine is started.
1. Engage the cutting means:
- Press the unlocking knob
[1] and keep it pressed.
- Pull the cutting-means
control lever [2] towards
you.
- Release the unlocking knob
[1] when the cutting means
are engaged.
2. With the engine running and
the cutting means rotating,
slowly push the Select Drive
control [3] to propel the
mower forward.
- Normal operation is with
your hand comfortably
around the handle bar and
Select Drive control. Push
the Select Drive control with
your thumb into the
indentation for boost
operation (up a hill, or
through thick grass).
- You can reduce the ground
speed by partially releasing
the Select Drive control.
- Ground speed varies with
terrain, grass height, slope,
and grass catcher weight.
Moving the Select Drive
control knob [4] or varying
how far you push the Select
Drive control forward allows
you to maintain the desired
ground speed under
constantly changing
mowing conditions.
3. To adjusting the Select Drive control knob [4]:
- The Select Drive control knob allows you to adjust the
maximum ground speed when the Select Drive control is fully
engaged. Adjustment is from MIN to MAX.
With the Select Drive control fully engaged:
- MIN will propel the lawnmower at its slowest speed.
- MAX will propel the lawnmower at its fastest speed.
4. To stop the lawnmower moving forward:
- Release the Release the Select Drive control [3].
5. To stop the cutting means rotating:
- Release the cutting-means control lever [2].
NOTE:
It is possible to refrain from using the forward drive while
mowing in areas with a narrow surface (lanes, borders, etc.).
Likewise, the Select Drive control can be used to move the
lawnmower without engaging the cutting-means control.
CAUTION:
• Move the cutting-means control lever quickly from one end of its
travel to the other, so that the cutting means is always either fully
engaged or fully disengaged. This is to avoid stalling the engine
and increases the service life of the cutting-means control
mechanism.
QYEJ type:
Always release the cutting-means control lever and the drive
clutch lever before starting the engine. Starting is more difficult
when the cutting means is engaged. If the clutch is engaged,
the lawnmower will move when the engine is started.
1. Engage the cutting means:
- Press the yellow button [5]
located on the top of the
cutting-means control lever
[6], and at the same time push
lever quickly and hold it
against the handle.
2. Engage lawnmower forward
drive when the motor has picked
up speed:
- The drive clutch lever [7] acts
as a variable speed control
according to its squeezed
position. It makes the speed
vary between zero and the
maximal speed preset with
the shift lever. The maximum
speed can be reached when
both levers [6] and [7] are
pushed forward completely.
The greater the height of the
grass to be cut, the more it is
necessary to reduce the drive
speed of the machine. This
will prevent overloading the
engine and improve the
quality of the cut.
3. To stop the lawnmower moving forward:
- Release the drive clutch lever [7].
4. To stop the cutting means rotating:
- Release the cutting-means control lever [6].
NOTE:
It is possible to refrain from using the forward drive while
mowing in areas with a narrow surface (lanes, borders, etc.).
The drive clutch can be used to move the lawnmower without
engaging the cutting-means control.
CAUTION:
• Move the cutting-means control lever quickly from one end of its
travel to the other, so that the cutting means is always either fully
engaged or fully disengaged. This is to avoid stalling the engine
and increases the service life of the cutting-means control
mechanism.
MIN
MAX
[1]
[2]
[3]
[4]
MIN
MAX
[6]
[5]
[7]
3RVK87300.book Page 11 Wednesday, August 8, 2018 11:26 AM
12 EN

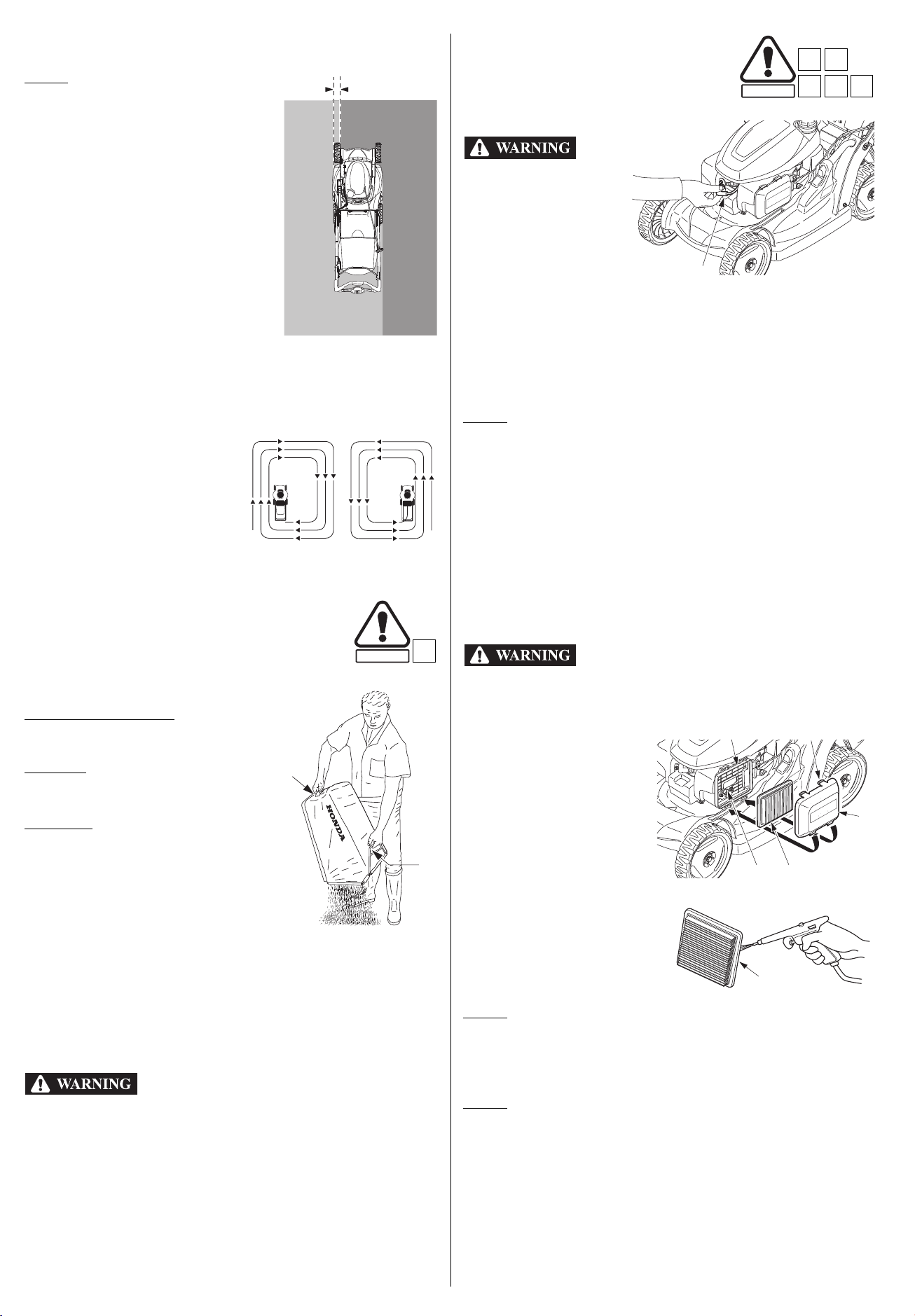

NOTE:
• Mowing frequency: once a week for a
lawn intended for leisure purposes,
twice a week for an ornamental lawn.
• If possible, mow the lawn in the
afternoon or evening before sprinkling,
as the grass must be dry. If dust levels
are too high, mow the lawn when the
grass is dry, but the ground is still
damp.
• Choose a cutting height adapted to the
terrain (see page 7).
• For a regular cut, you should overlap
the part that has already been cut by a
few centimetres [1], and increase this
overlap zone if the cutting height is
high.
• To achieve maximum efficiency, follow the suggested path.
• If your terrain does not have a regular shape or involves several
obstacles, divide it into internal parcels which you can mow in the
recommended direction.
[2] Catching: turn in a clockwise
direction to achieve the
maximum efficiency.
[3] Mulching (optional, page 19):
turn in an anti-clockwise
direction.

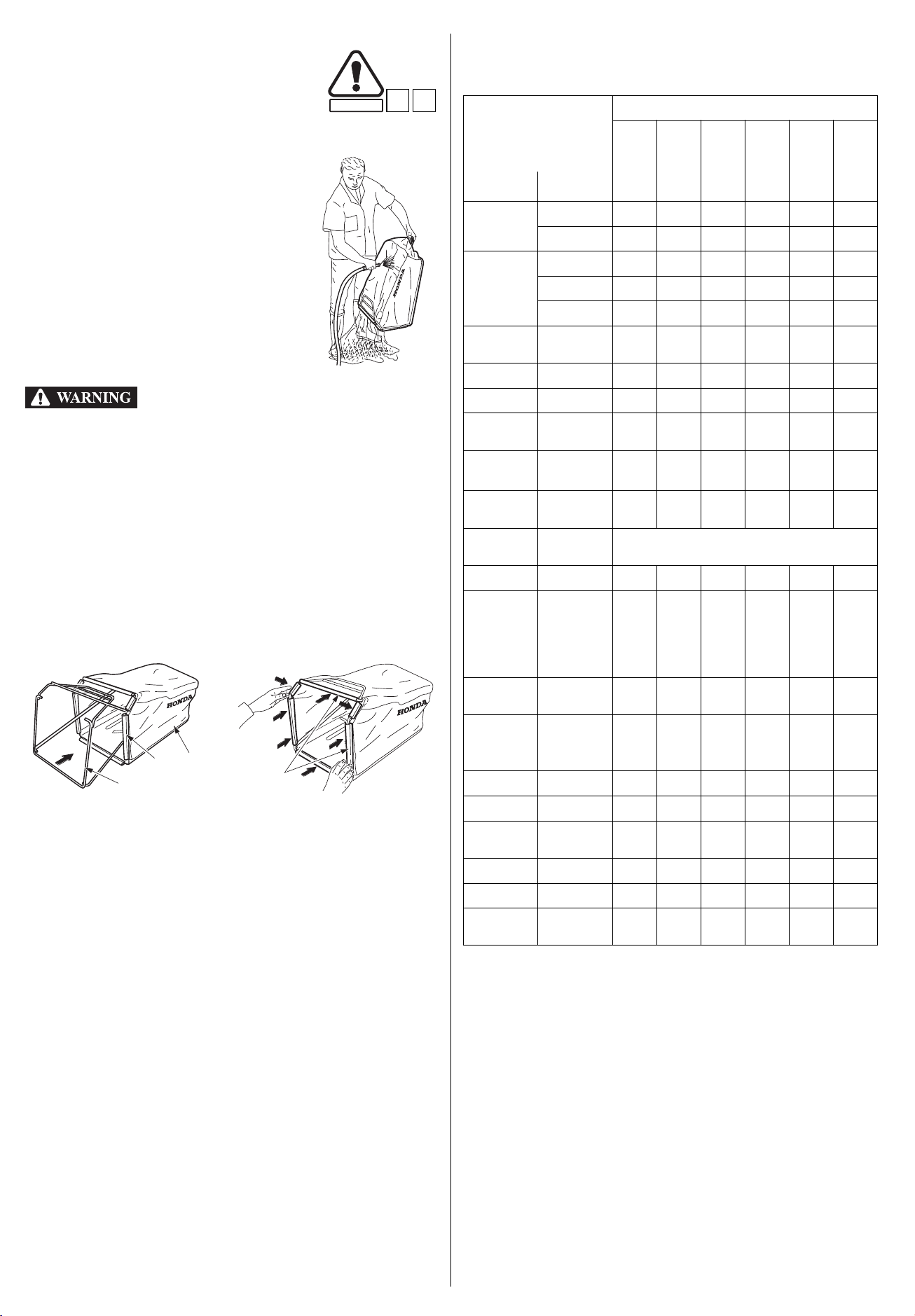

EMPTYING THE GRASS CATCHER
When the grass catcher becomes full, grass
collection is no longer efficient (the sound of the
lawnmower changes and the grass catcher is no
longer puffed up by the air from the cutting means).
HYE, VYE, QYEJ types:
1. Release the cutting-means control
lever.
VKE type:
1. Release the cutting-means brake
lever.
All models:
2. Remove the grass catcher
(see page 5).
3. Empty the grass catcher:
• Hold the grass catcher by the
metal handle [4].
• Grasp handle [5] and shake the
grass catcher to remove the grass.
CAUTION:
• To reduce the fire risk, never leave grass cuttings or leaves in the
grass catcher, or in or near buildings. Decomposing grass
cuttings causes a high temperature rise.
Before use, check that the grass catcher closing device is
correctly positioned (discharge cover).
MAINTENANCE
Regular maintenance helps to extend the
life of your lawnmower.
To avoid the lawnmower
starting accidentally,
pull off the spark plug
cap [6] before carrying
out maintenance work.
CAUTION:
• The engine and the muffler reach temperatures high enough to
cause burns and start fires if flammable materials are to be found
nearby.
• Allow the engine to cool down for 15 minutes before carrying out
maintenance operations.
NOTE:
To assure a longer lifetime and more efficient operation, the
underside of the lawnmower must be kept clean and free of grass
debris by cleaning with a brush and scraper. After use the
lawnmower must be cleaned thoroughly before being stored.
AIR CLEANER MAINTENANCE
A dirty air cleaner will reduce the flow of air to the carburetor. To
prevent the carburetor operating inefficiently, the air cleaner must
be regularly maintained.
Never clean the air cleaner element using petrol or flammable
solvents; this can cause a fire or an explosion.
1. Press the latch tabs [7] on
the top of the air cleaner
cover, and remove the
cover [9].
2. Inspect air filter [8] and
replace it if it is damaged.
3. Tap the filter several
times on a hard surface to
remove dirt or blow
compressed air (not
exceeding 2.1 kgf/cm
2
, 30
psi) through the filter from
the clean side that faces
the engine.
NOTE:
The filtering element [8] must be dry in order to work
correctly. Do not soak with oil.
4. Wipe dirt from the inside of the air cleaner cover [9] and air
cleaner case [10], using a moist rag.
NOTE:
Be careful to prevent dirt from entering the air duct [11] that
leads to the carburetor.
5. Reinstall the filter [8] and air cleaner cover [9].
[1]
[3]
[2]
SAFETY
C12
[5]
[4]
SAFETY
D8D7C19
C1B3
[6]
[9]
[8]
[8]
[11]
[10]
[7]
3RVK87300.book Page 12 Wednesday, August 8, 2018 11:26 AM
13 EN

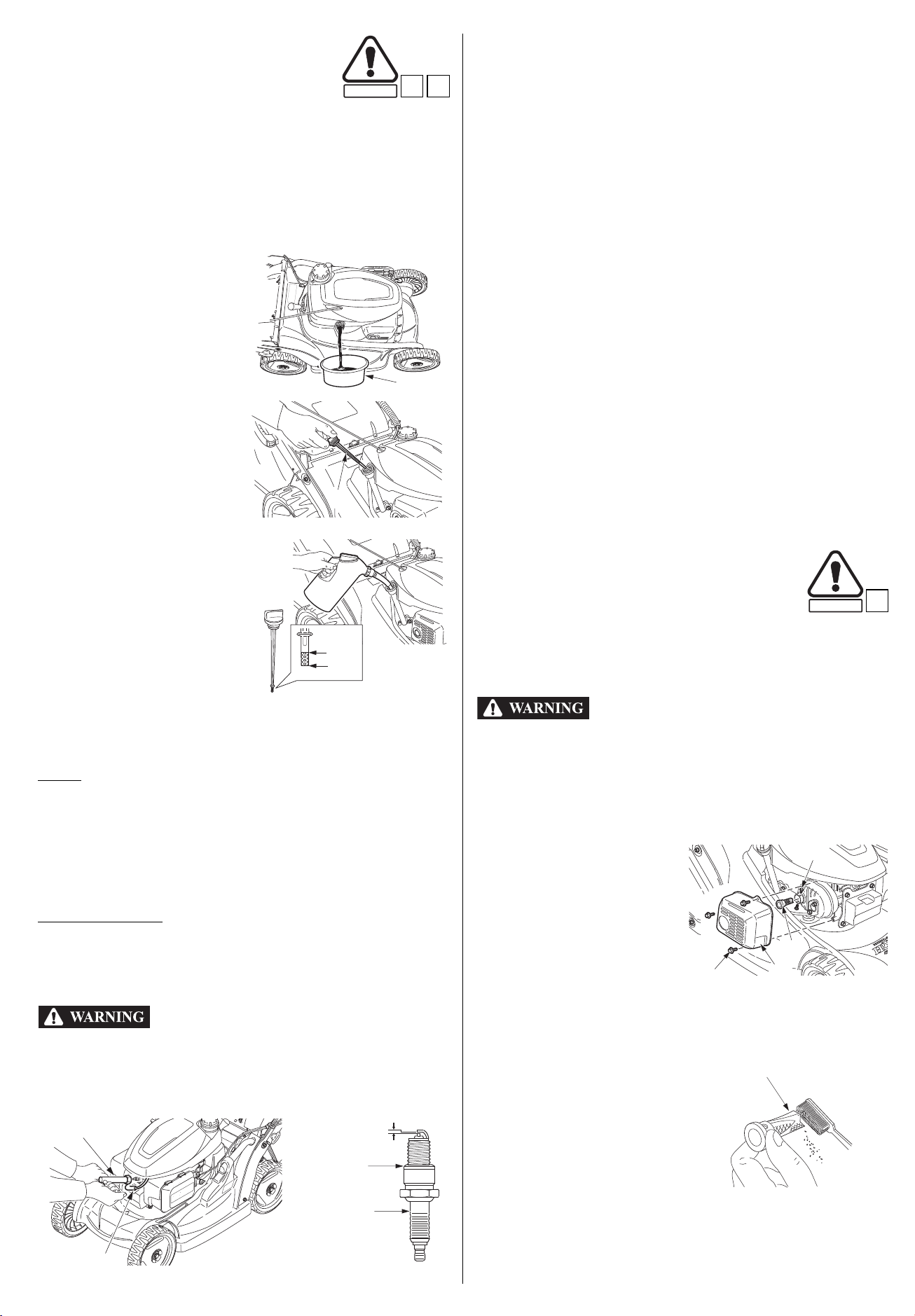

ENGINE OIL CHANGE
Drain the oil while the engine is still hot, so that
the oil drains quickly and completely.
CAUTION:
• Used engine oil can cause skin cancer if it remains in contact with
the skin for long periods.
Although this is highly unlikely unless you handle used oil every
day, we recommend that you wash your hands thoroughly with
soap and water each time you handle used engine oil.
1. Put the throttle lever in the
STOP position and turn the
fuel valve OFF. This will
reduce the possibility of fuel
leakage (see page 9).
2. Wipe the oil filler area clean,
and then remove the oil filler
cap/dipstick [1].
3. Place a suitable container [2]
next to the mower to catch
the used oil, and then tilt the
mower on its right side. The
used oil will drain through the
filler neck. Allow the oil to
drain completely.
4. Fill with the recommended oil
(see page 7). Do not overfill.
Engine oil capacity: 0.40ℓ
5. After changing the engine oil
and before starting the
engine, check the oil level
with the mower on a level
surface. If the oil level is
below the low level mark [3],
add oil to reach the high level
mark [4] on the dipstick.
6. Screw in the oil filler cap/dipstick securely.
NOTE:
The used engine oil must be disposed of in a manner which
respects the environment.
We recommend that you take it to a service station which will ensure
that it is recycled. Never dispose of used engine oil in dustbins or
pour it away on the ground, in the gutter or down the drains.
CHECKING THE SPARK PLUG
Recommended plug: NGK - BPR5ES
CAUTION:
• Use only recommended spark plug. Using spark plug with
inappropriate temperature ranges may damage the engine.
If the engine has just been run, do not touch the muffler and the
spark plug which will still be hot.
1. Pull off spark plug cap [5] and remove spark plug [6] using a plug
wrench [7].
2. Inspect the spark plug. Replace it if the electrodes are worn or if
the insulator is cracked or chipped. Clean the spark plug with a
wire brush if you are going to reuse it.
3. Measure the plug gap using a set of feeler gauges; the gap must
be between 0.7 and 0.8 mm. If adjustment is necessary,
carefully bend the side electrode.
4. Install the spark plug carefully, by hand, to avoid
cross-threading.
5. After the spark plug seats, tighten with a spark plug wrench to
compress the washer.
If reinstalling the old spark plug, tighten 1/8 to 1/4 turn after the
spark plug seats.
If installing a new spark plug, tighten 1/2 turn after the spark plug
seats to compress the washer [8].
6. Refit the spark plug cap.
CAUTION:
• A loose spark plug can overheat and damage the engine.
Overtightening the spark plug can damage the threads in the
cylinder head.
MAINTENANCE OF SPARK
ARRESTER
(In Europe and other countries where the machinery directive
2006/42/EC is enforced, this cleaning should be done by your
servicing dealer).
If the lawnmower has just been run, the silencer will still be very
hot. Allow it to cool down before carrying out this operation.
In some regions, it is prohibited to operate an engine without a
spark arrester.
1. Remove the 3 flange bolts [9]
from the muffler protector
[10] and remove the muffler
protector.
2. Remove the 2 tapping
screws [11] from the spark
arrester [12] and remove the
spark arrester from the
muffler.
3. Check the carbon deposits
around the exhaust port and
spark arrester. Clean if
necessary.
4. Replace the spark arrester if
there are any breaks or
tears.
5. Install the spark arrester [12]
and muffler protector [10] in
the reverse order of removal.
SAFETY
D8C19
[2]
[1]
[3]
[4]
[8]
[6]
[7]
[5]
0.7 - 0.8 mm
SAFETY
C19
[12]
[11]
[10]
[9]
[12]
3RVK87300.book Page 13 Wednesday, August 8, 2018 11:26 AM
14 EN

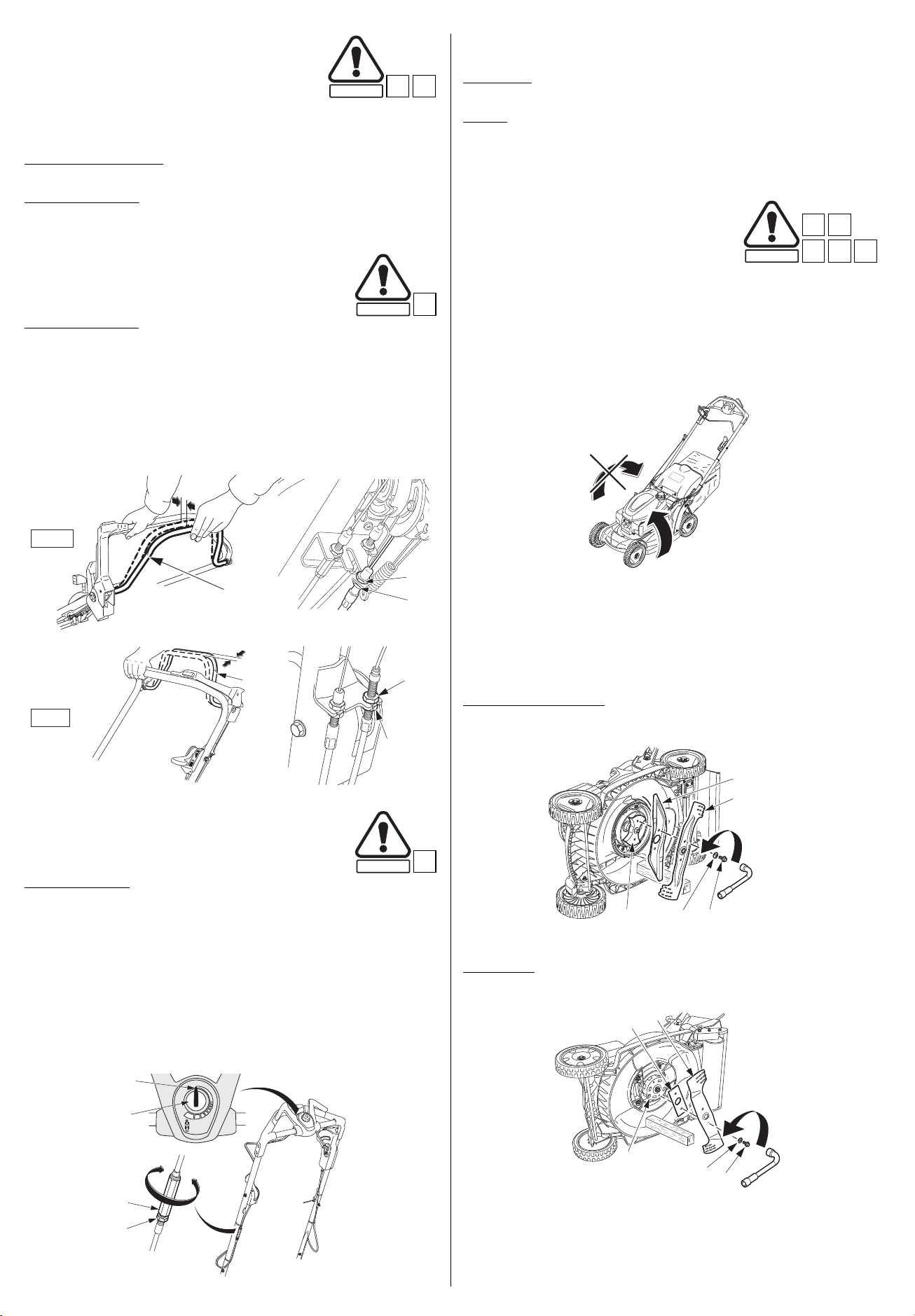

CARBURETOR ADJUSTMENT
CAUTION:
• It is recommended to ask your servicing dealer for adjustment.
Specified idle speed:
1 700 ± 150 min
-1
(rpm)
Operating speed: 2 800 min
-1
(rpm)
SHIFT CABLE ADJUSTMENT
HYE, QYEJ types:
Measure the free play [1] on the side of lever [2] as shown.
1. Place the gear stick in the fastest position and loosen the locknuts [3].
2. Relax or tighten the cable as necessary so that a free play of 1
to 5 mm is achieved.
3. Retighten the locknuts [3] and recheck the free play [1].
4. Start the engine in the open air and operate the clutch lever.
Check that the clutch engages and disengages correctly.
SELECT DRIVE CABLE ADJUSTMENT
VKE, VYE types:
Perform this procedure with the wheels on a level surface.
1. Move the Select Drive control knob [4] in MIN position [5].
2. Loosen the Select Drive clutch cable lock nut [6].
3. Start the engine.
4. Without engaging the Select Drive control, turn the Select Drive
clutch cable adjuster [7] in the "START" [A] direction until the
lawnmower just begins to move forward.
5. Turn the Select Drive clutch cable adjuster 1 ~ 2 turns in the
"STOP" [B] direction.
6. Tighten the Select Drive clutch cable lock nut.
All models:
NOTE: If the clutch does not engage correctly even when the cable
is correctly adjusted, the system may need to be repaired. Take the
lawnmower to an authorized dealer.
CUTTING MEANS FITTING AND
REMOVAL
CUTTING MEANS REMOVAL
1. Place the throttle lever in "STOP" position (Rotostop drive
models).
2. Turn the fuel valve to the OFF (close) position and disconnect
the spark plug cap from the spark plug.
3. Tilt the lawnmower so that the carburetor faces upwards [8].
4. Use a 14 mm socket wrench and remove the 2 cutting-means
bolts [9] and special washers [10] from the cutting-means holder
[11].
Use a wooden block to prevent the cutting means from turning
when removing the bolts.
HYE, VKE, VYE types:
5. Remove the upper [12] and lower cutting means [13].
QYEJ type:
5. Remove the cutting means [14] and spacer [15].
SAFETY
C13C1
+ 0
- 100
SAFETY
C17
[1]
[2]
[1]
[2]
HYE
[3]
[3]
QYEJ
[3]
[3]
SAFETY
C17
[B]
[A]
[7]
[6]
[5]
[4]
MIN
MAX
SAFETY
D9D8D7
C19B3
[8]
[11] [10] [9]
[12]
[13]
[15]
[14]
[11]
[10]
[9]
3RVK87300.book Page 14 Wednesday, August 8, 2018 11:26 AM
15 EN
CUTTING MEANS INSTALLATION
1. Clean dirt and grass from around the cutting-means mounting
area.
HYE, VKE, VYE types:
Operating this lawnmower with only one cutting means will
result in an improperly seated cutting means that can be
thrown from the lawnmower and seriously hurt or kill someone.
Always install both cutting means as a set.
2. Install both cutting means [3] and [4] using the 2 cutting-means
bolts [1] and special washers [2] as shown.
Cutting
-means bolt torque: 49 ~ 59 N·m
QYEJ type:
2. Fit the spacer [7] then the cutting means [8] using the 2 bolts [1]
and the special washers [2] as illustrated.
Cutting-means bolt torque:
54.0±4.9 N·m
Fit the special washers with their convex side, marked "OUT",
facing the bolts.
The cutting-means bolts are specially designed for this
application and must not.
3. Tighten the cutting-means bolts with a torque wrench [5].
Use a wooden block [6] to prevent the cutting means from
turning.
CAUTION:
• If you do not have a torque wrench, ask your authorized Honda
dealer to tighten the cutting-means bolts for you before you use
the lawnmower.
• If the cutting-means bolts are too tight or too slack, they may
break or unscrew.
NOTE:
Never tip the lawnmower so that the carburetor faces down;
this will make starting difficult.
CUTTING MEANS REPLACEMENT
CAUTION:
• Cutting-means balance is critical to proper lawnmower
performance. Replace any cutting means that is damaged or out
of balance.
• Use only genuine Honda replacement cutting means.
CUTTING MEANS SHARPENING
CAUTION:
• To avoid weakening the cutting means, causing it to become
unbalanced or getting a bad quality of cut, the cutting means
should be sharpened by competent personnel at your servicing
dealer.
1. Sharpen the cutting means cutting edges with a file. File the top
side only. Maintain the original bevel for a fine cutting edge. File
both ends evenly to maintain cutting-means balance.
2. After sharpening, test the cutting-means balance using a
screwdriver as shown above. If either side dips slightly below the
horizontal, file that side. Replace the cutting means if it dips
excessively.
[6]
[5]
[2]
[1]
[3]
[4]
"OUT"
"OUT"
[3]
[1]
[2]
[4]
[7]
[8]
"OUT"
"OUT"
[3]
[1]
[2]
[5]
[1]
[2]
[6]
15 mm
Max.
7 mm
Max.
3RVK87300.book Page 15 Wednesday, August 8, 2018 11:26 AM
16 EN
GRASS CATCHER CLEANING AND
REPLACEMENT
GRASS CATCHER FABRIC CLEANING
CAUTION:
• Washing with a high pressure water or
steam jet will damage the grass catcher
fabric.
• Blocked mesh will prevent the grass
from entering the grass catcher fabric.
• To clean the grass catcher fabric, we
recommend washing it using a water jet
directed from the outside to the inside of
the grass catcher fabric. The grass
catcher fabric must be completely dry
before being used again. If the grass
catcher fabric is damp, it will become
clogged very quickly.
Objects struck by the cutting means may be thrown through a
torn or damaged grass catcher.
Objects thrown out by the cutting means can cause serious
injuries. Always replace a torn or damaged grass catcher.
GRASS CATCHER FABRIC REPLACEMENT
The grass catcher fabric tends to wear even in normal conditions of
use. Regularly check that it is not frayed or torn. Replace a
damaged grass catcher fabric with Honda Genuine parts.
1. Detach the plastic edges [1] of the worn grass catcher fabric [3]
and remove the grass catcher's frame [2].
2. Insert the frame into the new grass catcher fabric and fit the
plastic edges [1] to the frame.
MAINTENANCE SCHEDULE
(1) Increase cleaning frequency when lawnmower is used in dusty areas.
(2) Maintenance of these points must be carried out by your servicing dealer.
(3) HYE, VYE, QYEJ types
(4) VKE type
(5) HYE, VKE, VYE types
(6) In Europe and other countries where the machinery directive 2006/42/EC is
enforced, this cleaning should be done by your servicing dealer.
(7) VKE, VYE types
(8) HYE, QYEJ types
SAFETY
D6C12
[2]
[1] [3]
[1]
Maintenance to be carried out at
the intervals indicated in months
or in operating hours which ever
occurs first.
Frequency
Each
use
First
month
or 5
hours
Every
3
months
or 25
hours
Every
6
months
or 50
hours
Every
year
or 100
hours
Once
every
150
running
hoursItem Intervention
Engine oil
Check o
Replace o o (1)
Air cleaner
Check o
Clean o (1)
Replace o (1)
Flywheel brake
shoe (4)
Check o (2)
Spark plug Check / Adjust o
Spark arrester Clean o (6)
Fuel tank and
filter
Check / Clean o (2)
Inside of top
cover
Clean o (2)
Valve
clearance
Check / Adjust o (2)
Fuel tube
Check (replace
as needed)
Every 2 years (2)
Grass catcher Clean o
Cutting-means
screw
tightness and
cutting
means
condition
Check o
ROTOSTOP
cable (3)
Check / Adjust o (2) o (2)
Cutting-means
brake
cable (4)
Check / Adjust o (2) o (2)
ROTOSTOP (3)
Check o (2) o (2)
Shift cable (8) Check / Adjust o o
Select drive
cable (7)
Check / Adjust o o
Throttle cable Check / Adjust o (2) o (2)
Drive belt (5) Check o (2)
Lawnmower
deck
Clean o
3RVK87300.book Page 16 Wednesday, August 8, 2018 11:26 AM
17 EN

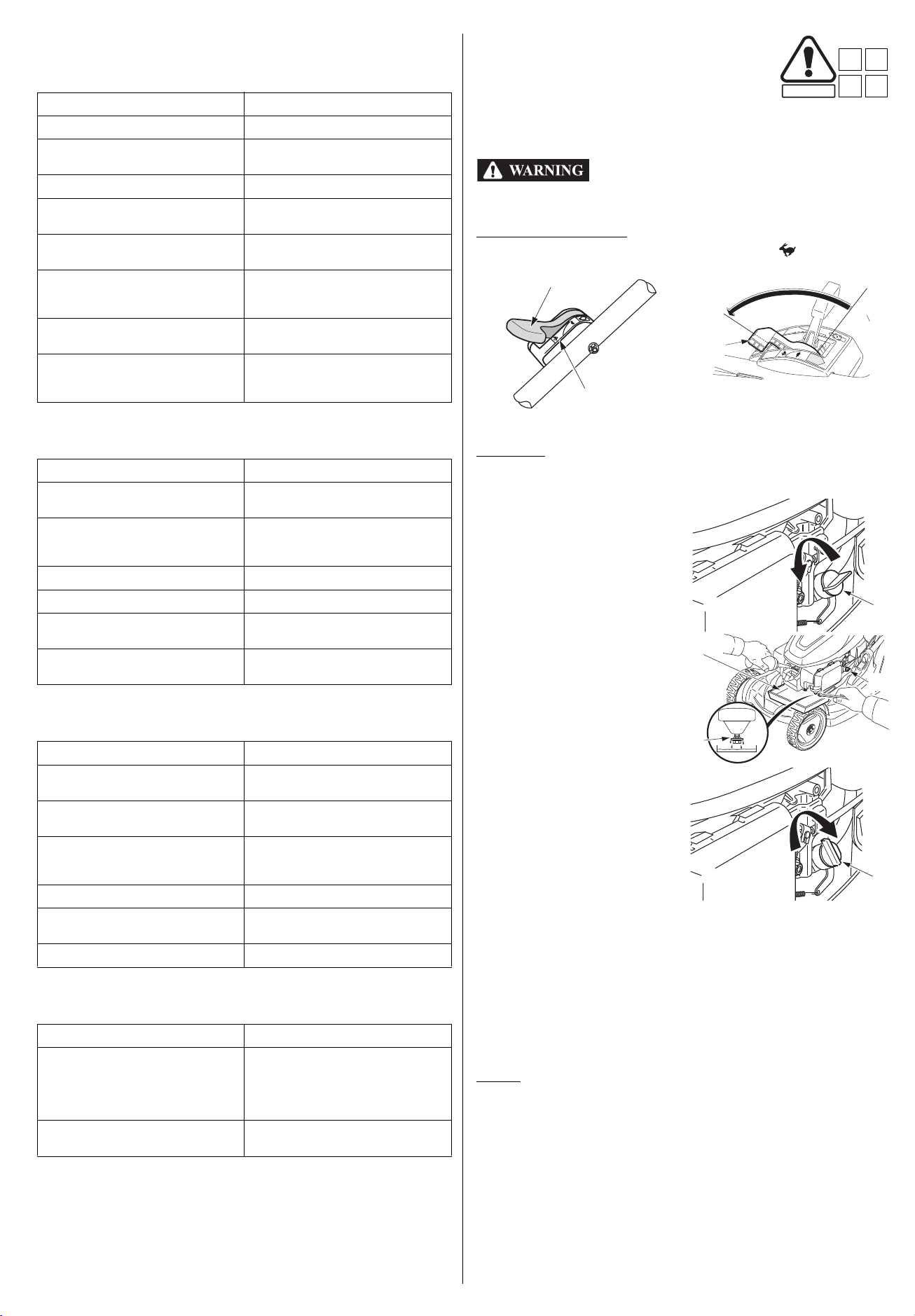

TROUBLESHOOTING
ENGINE WILL NOT START
LOSS OF POWER
MOWING AND BAGGING PROBLEMS
VIBRATIONS
STORAGE
PREPARATION FOR STORING
THE LAWNMOWER
Carry out the following operations to protect the lawnmower each
time it is to be stored for a period of more than 30 days.
Do not drain the fuel tank while the muffler is hot.
HYE, VYE, QYEJ types:
Place the throttle lever [3] in "FAST" position [A] .
All models:
1. Drain the fuel tank and the carburettor into a suitable
receptacle [1]:
a. Turn the fuel valve [2] to
the ON (open) position.
b. Loosen the carburetor
drain bolt [4] by turning 1
to 2 turns
counterclockwise
c. After all fuel has drained,
tighten the carburetor
drain bolt securely, turn
the fuel valve [2] to the
OFF (close) position.
2. Change the engine oil (see page 13).
3. Pull the starter slowly until a resistance is felt. This closes the
valves and protects them from dust and corrosion.
4. Coat all surfaces liable to rust with a thin film of oil. Cover the
lawnmower and store it on a flat surface in a dry, dust free place.
Do not use a plastic cover since this retains dampness.
NOTE:
If the lawnmower is to be stored for a period of more than 3
months, remove the spark plug and pour 5 to 10 cc of clean engine
oil into the cylinder; then pull the starter slowly 2 or 3 times to spread
the oil. Do not leave the lawnmower lying on its side over long
periods. This may cause difficult starting and gear oil leaks.
Possible cause Correction
Fuel valve OFF (closed). Turn the fuel valve ON (open) (page 9).
Throttle lever (equipped models) in the
wrong position.
Move the throttle lever to the "FAST"
position (page 9).
Out of fuel. Refuel (page 6).
Bad fuel; lawnmower stored without treating
the petrol, or refuelled with bad petrol.
Refuel with fresh petrol (page 6).
Spark plug faulty, fouled, or improperly
gapped.
Gap or replace the spark plug (page 13).
Spark plug wet with fuel (flooded engine).
Dry and reinstall the spark plug.
Start the engine, with the throttle lever in
"FAST" position (page 9).
Fuel tank vent blocked, carburettor clogged
or ignition faulty.
Maintenance of these points must be carried
out by a servicing dealer.
The cutting-means brake lever is not firmly
held against the handle (models fitted).
The cutting-means brake lever must be held
firmly against the handle for starting the
engine (page 9).
Possible cause Correction
Throttle lever (equipped models) not set to
"FAST".
Move the throttle lever to "FAST" (page 9).
Grass is too tall to cut.
Raise the cutting height (page 7), cut a
narrower swath, use a slower ground speed
(page 10), or cut more frequently.
Lawnmower deck is clogged. Clean out the lawnmower deck (page 14).
Air cleaner is clogged. Clean or replace the air cleaner (page 12).
Bad fuel; lawnmower stored without treating
the petrol, or refuelled with bad petrol.
Refuel with fresh petrol (page 6).
Fuel tank vent blocked, carburettor clogged
or ignition faulty.
Maintenance of these points must be carried
out by a servicing dealer.
Possible cause Correction
Engine speed is too slow to cut well.
Move the throttle lever (equipped models) to
the "FAST" position (page 9).
Lawnmower is moving too "FAST" for lawn
conditions.
Select a lower gear (equipped models) or
push more slowly.
Grass catcher overfilled or clogged.
Empty the grass catcher. Wash the grass
catcher if it is clogged with dirt (pages 12
and 16).
Lawnmower deck is clogged. Clean out the lawnmower deck (page 14).
Cutting means dull, worn, or damaged.
Sharpen or replace the cutting means if
necessary (page 15
).
Wrong cutting means installed. Install correct cutting means (page 15).
Possible cause Correction
Cutting means loose, bent, damaged, or
unbalanced by improper sharpening.
Tighten loose cutting-means bolts.
If cutting means are found to be bent or
damaged, take the lawnmower to an
authorized Honda servicing dealer for
inspection (page 15).
Mechanical damage, such as a bent
crankshaft.
Maintenance of these points must be carried
out by a servicing dealer.
SAFETY
D4D3
D2B3
S
T
OP
SLOW
F
AST
[A]
[3]
[A]
[3]
[2]
[1]
[2]
[4]
[2]
3RVK87300.book Page 17 Wednesday, August 8, 2018 11:26 AM
18 EN

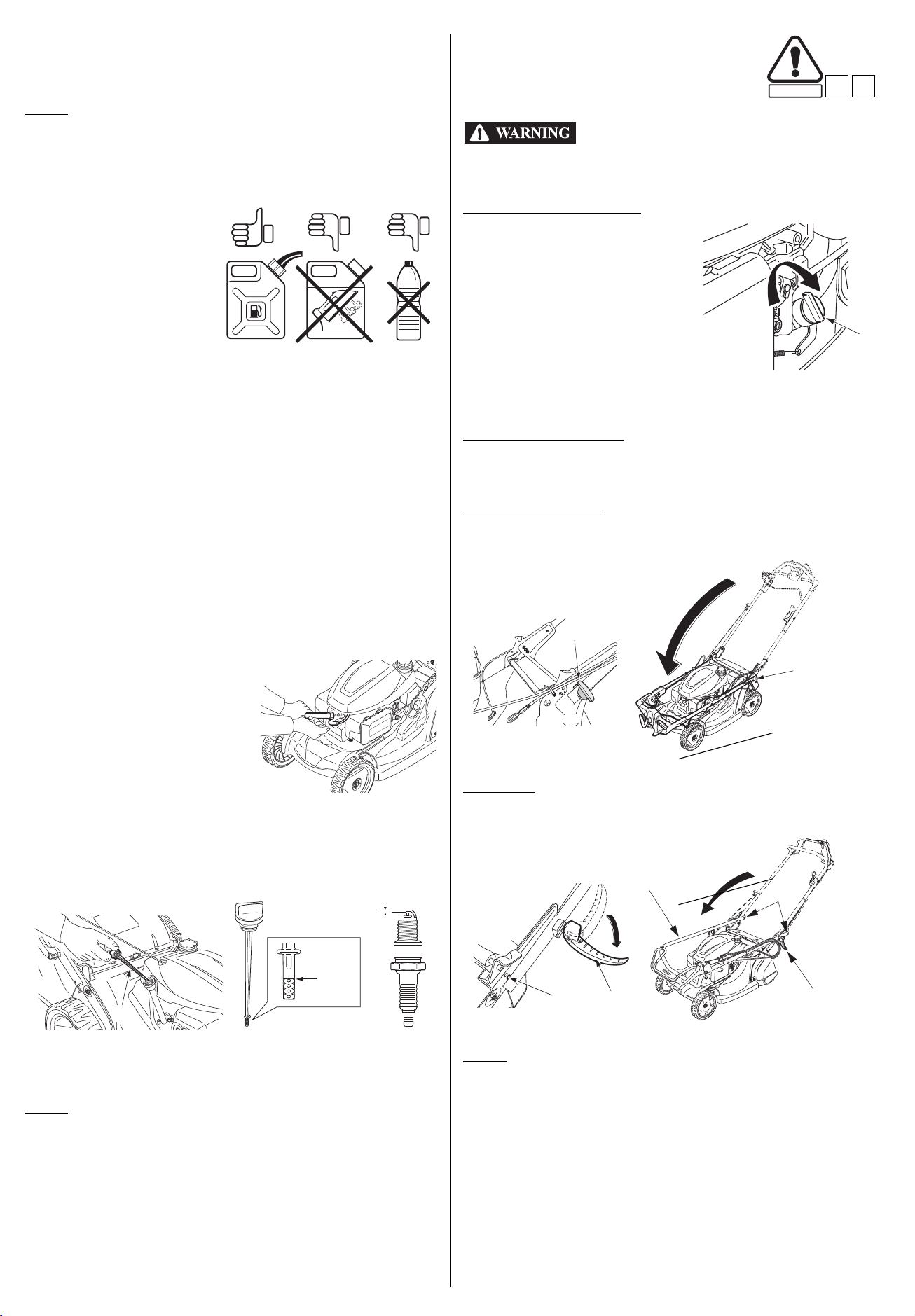

FUEL STORAGE
NOTE:
• Petrol will oxidize and deteriorate in storage.
Old petrol will cause hard starting, and it leaves gum deposits that
clog the fuel system. If the petrol in your engine deteriorates
during storage, you may need to have the carburetor and other
fuel system components serviced or replaced.
• Ensure that you use
containers or drums
specifically designed for
hydrocarbons [1]. This will
prevent polluting the fuel
through the dissolution of
the container walls, which
will lead to poor functioning
of the engine.
• Store the fuel in a dark
place, in a room at constant temperature (avoid garden sheds).
• The warranty does not cover a blocked carburetor or valves
jammed by old or polluted fuel.
• The quality of unleaded petrol deteriorate very quickly (2 to 3
weeks in some cases). Do not use fuel more than 1 month old.
Store the absolute minimum required for your monthly
consumption.
USING THE LAWNMOWER AFTER A STORAGE
PERIOD
1. Remove the spark plug [2],
check that it is clean and that the
electrode gap is correct. Pull the
starter several times.
2. We recommend that the spark plug be screwed down as far as
possible by hand until finger tight; then use a plug spanner to
tighten it by an extra 1/8 or 1/4 turn.
3. Check the level and condition of the engine oil [3].
4. Fill the fuel tank and start the engine.
NOTE:
If the cylinder has been coated with oil, the engine will
smoke on start-up. This is normal.
TRANSPORT
TRANSPORTING THE
LAWNMOWER
Do not tilt the lawnmower since this may cause fuel or oil
spillage; spilt fuel or even fuel vapours are a fire hazard.
To transport the lawnmower:
1. Place the throttle lever in "STOP"
position (except VKE type).
2. Pull off the spark plug cap.
3. Turn the fuel valve [4] to the OFF
(close) position.
To facilitate the operation:
1. Remove the grass catcher (see page 5).
HYE, VKE, VYE types:
2. Turn the folding/handle adjustment knobs [5] a quarter turn to
unlocked position [6] and fold back the handle [7].
QYEJ type:
2. Loosen the handle attachment knobs [8], pull out the adjustment
stops [9] and fold the handle [10].
NOTE:
• After folding the handle, check that the cables are not kinked,
twisted or stretched.
• Be careful and press lever against handle pipe during folding to
avoid touching the engine. (VKE, VYE types)
[1]
[2]
[3]
0.7 - 0.8 mm
Max
SAFETY
C18C11
[4]
[7]
[5]
[5]
[6]
[8]
[9]
[10]
[9]
[8]
3RVK87300.book Page 18 Wednesday, August 8, 2018 11:26 AM
19 EN

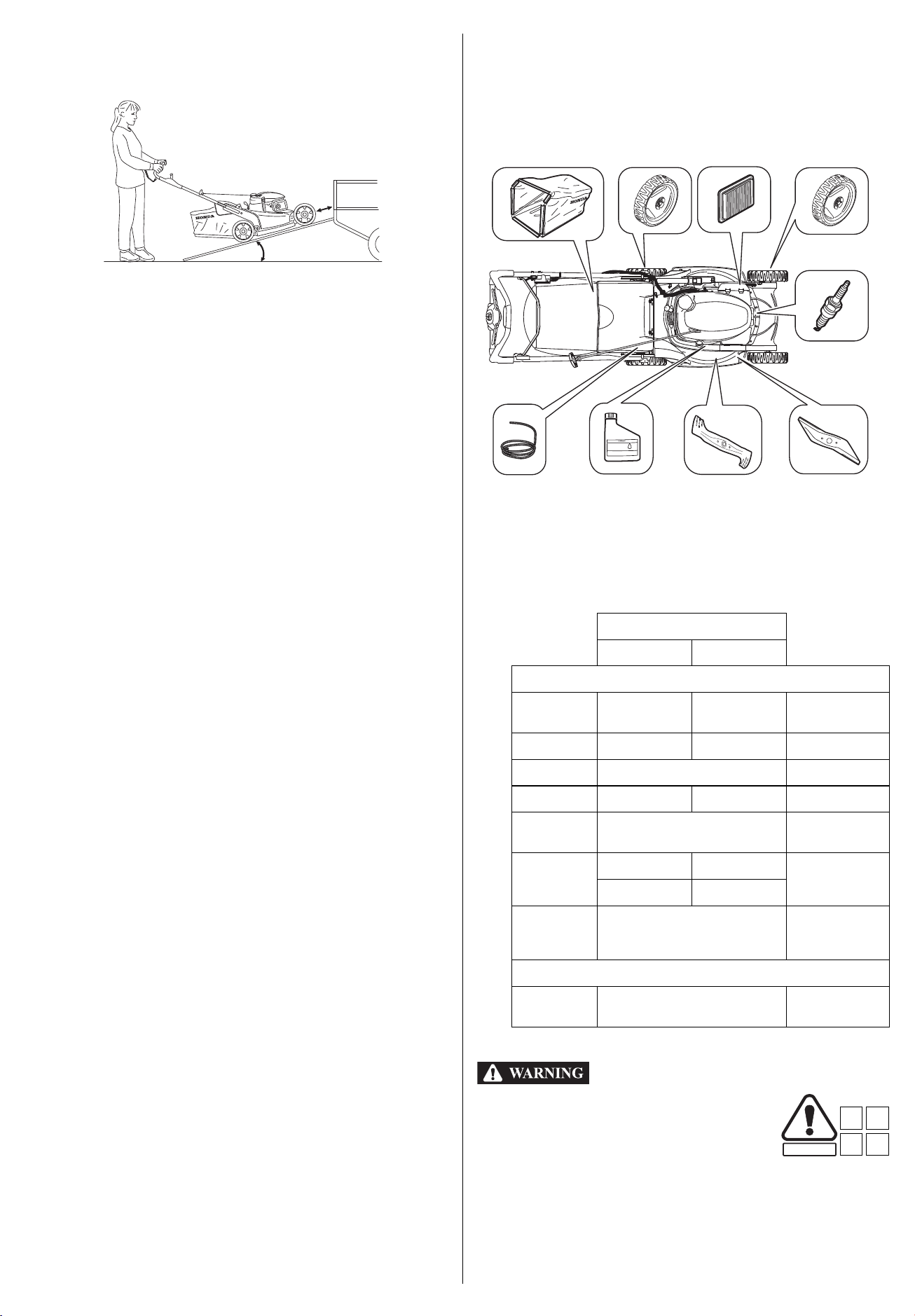

LOADING THE LAWNMOWER
CAUTION:
• To prevent losing control of or damaging the lawnmower, do not
use the drive system when going up or down a loading ramp.
• To prevent damaging the drive system, do not engage the clutch
when the lawnmower is rolling backwards.
• Transport the lawnmower in normal horizontal position with its
4 wheels flat on the vehicle platform.
• We recommend that you use a loading ramp or that you get
someone to help you load and unload the lawnmower.
• Adjust the loading ramp so that it is inclined at an angle of less
than 15° (26%).
• When transporting the lawnmower, immobilise it using straps and
place chocks under the wheels.
• The straps must not touch the following parts of the lawnmower:
throttle lever, cutting-means control lever, gas tank and all the
control cables.
USEFUL INFORMATION
FIND AN AUTHORIZED DEALER
Please refer to the European Internet site:
http://www.honda-eu.com
CURRENT PARTS, OPTIONAL ATTACHMENT AND
CONSUMABLES
To buy one of the original parts listed below, or any other part,
please contact an authorized Honda dealer.
For your safety, it is strictly prohibited to
install any other attachment than the ones
listed above and especially designed for
your lawnmowers' model and type.
15° (26%) max.
HRX476C
HYE, VKE, VYE QYEJ
Current parts
[1] Grass catcher 81320-VK8-J50 81320-VK8-003
Grass catcher only
(without frame)
[2] Rear wheel 42710-VK8-J50
[3] Air filter 17211-Z8B-901 Filter paper
[4] Front wheel 44710-VK8-J50 44700-VK8-D00
[5] Spark plug 98079-55846
NGK (brand):
BPR5ES (model)
[6]
Standard
cutting means
72511-VK8-J50 72511-VK8-000
Requires use of a
dynamometric key
[7] 72531-VK8-J50
[8]
Recoil starter
rope
28462-Z0L-V71
Ask your Honda
dealer to replace
these
Consumables
[9] Engine oil
08221-888-061HE
SAE 10W30, 0.6
Oil for 4-stroke
engines
[2]
[6][9]
[8]
[3]
[4]
[5]
[7]
[1]
SAFETY
D3C23
C5A2
3RVK87300.book Page 19 Wednesday, August 8, 2018 11:26 AM
20 EN
TECHNICAL SPECIFICATIONS
(Carbon dioxide (CO2) emissions*)
Please refer to "CO2 Information List" on www.honda-engines-eu.com/co2
* The CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the
engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
(*) The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine model
GCV170 and measured in accordance with SAE J1349 at 3 600 min
-1
(rpm) (Net Power). Mass production engines may vary from this
value. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the
operating speed of the engine in application, environmental conditions, maintenance, and other variables.
(**) Values for a machine equipped with a grass catcher, in a grass collector position.
MODEL HRX476C2
TYPES VKE VYE HYE QYEJ
GENERAL CHARACTERISTICS
Description code MBPF
Function Cutting of grass
Dimensions L x W x h mm 1 580 x 530 x 995 1 610 x 530 x 1 035 1 445 x 497 x 980
Dry weight kg 39 42 44 42
Track FR/RR mm 430 / 453 420 / 393
Cutting width mm 470
Cutting heights settings mm 7 positions (25 to 79 mm)
5 positions (19 to 58 mm)
Rear/Front wheel diameter mm 212 / 212 100 / 200
Grass catcher capacity
69 73
Sound pressure level at operator’s ears
(in accordance with EN ISO 5395-2) dB(A)
Measuring uncertainty dB(A)
Measured sound power level (in accordance
with directives 2000/14/EC, 2005/88/EC) dB(A)
Measuring uncertainty dB(A)
Sound power level guaranteed (in accordance
with directives 2000/14/EC, 2005/88/EC) dB(A)
Vibration test (in accordance with
EN ISO 5395-2)(**) m/s
2
Measuring uncertainty m/s
2
ENGINE
Model GCV170
Type Air-cooled overhead valve 4-stroke engine
Displacement cc 166
Bore x Stroke mm 60.0 x 59.0
Cooling Forced air
Lubrication Spray lubrication
Compression ratio 8.0 : 1
Net power (*) kW/min
-1
(rpm)
3.6 / 3 600
Nominal power kW/min
-1
(rpm)
3.1 / 2 800
Operating speed min
-1
(rpm)
2 800
Idle speed min
-1
(rpm)
1 700 ± 150
Ignition Transistorised magneto ignition
Spark plug NGK : BPR5ES
Electrode gap mm 0.7 to 0.8
Air cleaner Dry (paper) type
Recommended fuel Unleaded 95 or 98
Fuel tank capacity
0.95
Fuel consumption
/h
1.2
Running time on tank of fuel (*) h 0.8
Recommended oil SAE 5W-30, 10W-30
Engine oil capacity
0.40
TRANSMISSION
Type Variable speed Hydrostatic 1 Speed fix type
Engine to drive V-belt
Final transmission Gear Chain
Number of speeds Continuous variation Single speed
Forward speed m/s 0 ~ 1.4 1.0
Lubrication Oil bath and splash
Recommended oil SAE 10W30 API Grade SL / SJ Honda HST 15W40
Oil capacity cc 150 140 100
+ 0
- 100
3RVK87300.book Page 20 Wednesday, August 8, 2018 11:26 AM
21
Major Honda d istributor a ddresses
GREECE
Saracakis Brothers S.A.
71 Leoforos Athinon
10173 Athens
Tel.: +30 210 3497809
Fax: +30 210 3467329
http://www.honda.gr
concessionnaires Honda
Major Honda distributor addresses
Adresses des principaux
Adressen derwichtigsten Honda-Haupthändler
Elenco dei maggiori distributori Honda in Europa
Adressen van Honda-importeurs
Direcciones de los principales concesionarios Honda
AUSTRIA
Honda Motor Europe Ltd
Hondastraße 1
2351 Wiener Neudorf
Tel.: +43 (0)2236 690 0
Fax: +43 (0)2236 690 480
http://www.honda.at
BALTIC STATES
(Estonia/Latvia/
Lithuania)
NCG Import Baltics OU
Meistri 12
Haabersti District
13517 Tallinn
Harju County Estonia
Tel.: +372 651 7300
Fax: +372 651 7301
BELARUS
UAB JP Motors
Montazhnikov lane 4th, 5-16
Minsk 220019
Republic of Belarus
Tel.: +375172349999
Fax: +375172380404
BELGIUM
Honda Motor Europe Ltd
Doornveld 180-184
1731 Zellik
Tel.: +32 2620 10 00
Fax: +32 2620 10 01
http://www.honda.be
BULGARIA
Premium Motor Ltd
Andrey Lyapchev Blvd no 34
1797 Sofia
Bulgaria
Tel.: +3592 423 5879
Fax: +3592 423 5879
http://www.hondamotor.bg
CROATIA
Hongoldonia d.o.o.
Vukovarska ulica 432a
31000 Osijek, HR
Tel.: +38531320420
Fax: +38531320429
http://www.hongoldonia.hr
CROATIA
Fred Bobek d.o.o.
HONDA MARINE
3XW*DüHOH]DE
HR 22211 Vodice
Tel. 00385 22 444336
Fax. 00385 22 440500
CYPRUS
Demstar Automotive Ltd
Mihail Giorgalla 14
2409 Engomi
Nicosia
Cyprus
Tel.: +357 22 792 600
Fax: +357 22 430 313
CZECH REPUBLIC
BG Technik cs, a.s.
U Zavodiste 251/8
15900 Prague 5 - Velka
Chuchle
Tel.: +420 2 838 70 850
Fax: +420 2 667 111 45
http://www.honda-stroje.cz
DENMARK
TIMA A/S
Ryttermarken 10
DK-3520 Farum
Tel.: +45 36 34 25 50
Fax: +45 36 77 16 30
http://www.tima.dk
FINLAND
OY Brandt AB.
Tuupakantie 7B
01740 Vantaa
Tel.: +358 207757200
Fax: +358 9 878 5276
http://www.brandt.fi
FRANCE
Honda Motor Europe Ltd
Division Produit d’Equipement
Parc d’activités de Pariest,
Allée du 1er mai
Croissy Beaubourg BP46, 77312
Marne La Vallée Cedex 2
Tel.: 01 60 37 30 00
Fax: 01 60 37 30 86
http://www.honda.fr
GERMANY
Honda Deutschland
Niederlassung der Honda Motor
Europe Ltd.
Hanauer Landstraße 222-224
D-60314 Frankfurt
Tel.: 01805 20 20 90
Fax: +49 (0)69 83 20 20
http://www.honda.de
HUNGARY
MP Motor Co., Ltd.
Kamaraerdei ut 3.
2040 Budaors
Tel.: +36 23 444 971
Fax: +36 23 444 972
http://www.hondakisgepek.hu
IRELAND
Two Wheels ltd
M50 Business Park, Ballymount
Dublin 12
Tel.: +353 1 4381900
Fax: +353 1 4607851
http://www.hondaireland.ie
ISRAEL
Mayer's Cars and Trucks Co.Ltd. -
Honda Division
Shevach 5, Tel Aviv , 6777936
Israel
+972-3-6953162
ITALY
Honda Motore Europe Ltd
Via della Cecchignola, 13
00143 Roma
Tel.: +848 846 632
Fax: +39 065 4928 400
http://www.hondaitalia.com
MACEDONIA
Makpetrol A.D. Honda Centar
Bul.sv Kiril & Metodij br. 4
1000, Skopje
Republic of Macedonia
aleksandar.stanojlovic@
makpetrol.com.mk
MALTA
The Associated Motors
Company Ltd.
New Street in San Gwakkin Road
Mriehel Bypass, Mriehel QRM17
Tel.: +356 21 498 561
Fax: +356 21 480 150
NORWAY
Berema AS
P.O. Box 454 1401 Ski
Tel.: +47 64 86 05 00
Fax: +47 64 86 05 49
http://www.berema.no
NORWAY
KELLOX
Box 24, N-141
Trollåsveien 36, 1414
Trollåsen, Norway
Mobile: +47 47 80 90 00
Phone: +47 64 97 61 00
http://kellox.no/
POLAND
Aries Power Equipment
3XáDZVND
02-844 Warszawa
Tel.: +48 (22) 861 43 01
Fax: +48 (22) 861 43 02
http://www.ariespower.pl
http://www.mojahonda.pl
PORTUGAL
GROW Productos de Forca
Portugal
Rua Fontes Pereira de Melo, 16
Abrunheira, 2714-506 Sintra
Tel.: +351 211 303 000
Fax: +351 211 303 003
http://www.grow.com.pt
ROMANIA
Hit Power Motor Srl
7-15 Argonomici Boluevard
Building N3.2
Entrance A
Apt 8, Floor 2
Sector 1
015141 Bucharest
Tel.: +40 21 637 04 58
Fax: +40 21 637 04 78
http://www.honda.ro/
http://honda-eu.ro
SERBIA &
MONTENEGRO
ITH Trading Co Doo
Majke Jevrosime 26
1100 Beograd
Serbia
Tel.: +381 11 3240627
Fax: +381 11 3240627
http://www.hondasrbija.co.rs
SLOVAK REPUBLIC
Honda Motor Europe Ltd
6ORYHQVNRRUJDQL]DþQi]ORåND
Prievozská 6 821 09 Bratislava
Tel.: +421 2 32131111
Fax: +421 2 32131112
http://www.honda.sk
SLOVENIA
AS Domzale Moto Center D.O.O.
Blatnica 3A
1236 Trzin
Tel.: +386 1 562 3700
Fax: +386 1 562 3705
http://www.honda-as.com
SPAIN & all Provinces
Greens Power Products, S.L.
Poligono Industrial Congost –
Av Ramon Ciurans n°2
08530 La Garriga - Barcelona
Tel.: +34 93 860 50 25
Fax: +34 93 871 81 80
http://www.hondaencasa.com
SWEDEN
Honda Motor Europe Ltd filial
Sverige
Box 31002 - Långhusgatan 4
215 86 Malmö
Tel.: +46 (0)40 600 23 00
Fax: +46 (0)40 600 23 19
http://www.honda.se
SWITZERLAND
Honda Motor Europe Ltd., Slough
Succursale de Satigny/Genève
Rue de la Bergère 5
1242 Satigny
Tel.: +41 (0)22 989 05 00
Fax: +41 (0)22 989 06 60
http://www.honda.ch
TURKEY
Anadolu Motor Uretim Ve
Pazarlama As
Sekerpinar Mah
Albayrak Sok No 4
Cayirova 41420
Kocaeli
Tel.: +90 262 999 23 00
Fax: +90 262 658 94 17
http://www.anadolumotor.com.tr
UKRAINE
Dnipro Motor LLC
3, Bondarsky Alley,
Kyiv, 04073, Ukraine
Tel.: +380 44 537 25 76
Fax: +380 44 501 54 27
UNITED KINGDOM
Honda Motor Europe Ltd
Cain Road
Bracknell
Berkshire
RG12 1 HL
Tel.: +44 (0)845 200 8000
http://www.honda.co.uk
ROMANIA
Agrisorg
Sacadat 444/A
Bihor
Romania
417430
http://www.agrisorg.com
3RVK87300.book Page 21 Wednesday, August 8, 2018 11:26 AM
22
“EC Declaration of Conformity” CONTENT OUTLINE
3RVK87300.book Page 22 Wednesday, August 8, 2018 11:26 AM
23
3RVK87300.book Page 23 Wednesday, August 8, 2018 11:26 AM
3RVK87300.book Page 21 Wednesday, August 8, 2018 11:26 AM
