Honda HF1211 Lawn Mower User Manual

TABLE OF CONTENTS

1. SAFETY .......................................................................... 2

Regulations for using the machine safely

2. IDENTIFICATION OF THE MACHINE AND PARTS ...... 3

Explanations on how to identify the machine

and its main parts

3. UNPACKING AND ASSEMBLY ...................................... 4

Explanations on how to remove the packing

and on how to assemble sepa rated parts

4. COMMANDS AND CONTROL INSTRUMENTS ............. 6

Position and functions of all the controls

5. HOW TO USE THE MACHINE ....................................... 8

Provides indications for working efficiently and safely

5.1 Directions before starting .......................................... 8

5.2 Starting and moving ................................................. 9

5.3 Grass cutting .......................................................... 10

5.4 Cleaning and storage ............................................. 12

6. MAINTENANCE ............................................................ 13

All the information for maintaining the machine

in peak efficiency

7. ENVIRONMENTAL PROTECTION ............................... 19

It gives advice on machine use and respecting

the environment

8. TROUBLESHOOTING .................................................. 19

A help in quickly resolving any problems

9. ACCESSORIES ON REQUEST .................................... 20

A description of the accessories available

for particular types of work

10. SPECIFICATIONS ......................................................... 21

A summary of the main specifications

of your machine

MAJORS HONDA DISTRIBUTOR ADDRESSES ........... i

DECLARATION OF CONFORMITY ................................ ii

INTRODUCTION

Dear Customer,

We thank you for having purchased our riding mower and hope that it will fully

meet all your expectations.

This manual has been compiled in order that you may get to know your ma-

chine and to be able to use it safely and efficiently. Donʼt forget that the man-

ual forms an integral part of the machine so keep it handy so that it can be

consulted at any time, and pass it on to the purchaser if you resell the ma-

chine.

Your new machine has been designed and made in line with current regu-

lations, and is safe and reliable if used for cutting and collecting grass ob-

serving the indications given in this manual (proper usage). Using the ma-

chine in any other way or ignoring the instructions for safe usage,

maintenance or repair, is considered "incorrect usage" (Chap. 5) which will

invalidate the guarantee, and the manufacturer will decline all responsibility,

placing the blame with the user for damage or injury to himself or others in

such cases.

If you should find any slight differences between the description and your own

machine, bear in mind that, since there are continual improvements to the

product, information contained in this manual may be modified without prior

warning and without the obligation to update it, although the essential safety

and function characteristics will remain unaltered. In case of any doubts, do

not hesitate to contact your Dealer.

After-Sales Service

This manual gives all the necessary instructions for using the machine and

the basic maintenance that may be carried out by the user. For all informa-

tion not contained here, contact your Dealer.

1EN

Honda France Manufacturing S.A.S.

Pôle 45 - Rue des Châtaigniers - 45140 ORMES - FRANCE

OPERATORʼS MANUAL

ORIGINAL INSTRUCTION

HF1211

Lawn mower

ENGLISH

HOW TO READ THE MANUAL

This manual describes both mechanically and hydrostatically driven ma-

chines, as well as versions including equipment and accessories that may

not be available in your area.

The symbol highlights all differences in usage and is followed by the

indication of the type of drive or version to which it refers.

Some paragraphs in the manual contain information of particular importance

and these are highlighted at various levels of emphasis, and signify the fol-

lowing:

or These give details or further

information on what has already been said, and are aimed at preventing

damage to the machine or causing damage.

Non-observance will result in the risk of injury to

oneself or others.

Non-observance will result in the risk of serious in-

jury or death to oneself or others.

DANGER!

WARNING!

IMPORTANTNOTE

Note your machine

serial number here

1. SAFETY

GENERAL SAFETY REGULATIONS

Read carefully before using the machine.

A) TRAINING

1) Read the instructions carefully. Be familiar with the controls and the pro -

per use of the equipment. Learn how to stop the engine quickly.

2) Only use the machine for the purpose for which it was made, that is, the

cutting and collection of grass. Any use not specifically indicated in the

Operatorʼs Manual can be dangerous and result in damage to the machine,

and will also result in the annulling of the warranty and the manufacturer

declining all responsibility.

3) Never allow children or people unfamiliar with these instructions to use

the machine. Local regulations may restrict the age of the operator.

4) Never use the machine:

– when people, especially children, or pets are nearby.

– if the operator has taken medicine or substances that can affect his abi li -

ty to react and concentrate.

5) Keep in mind that the operator or user is responsible for accidents or haz-

ards occurring to other people or their property.

6) Do not carry passengers.

7) The operator of a machine must carefully follow the driving instructions,

particularly:

– the need for care and concentration when using machines;

– that control of a machine sliding on a slope will not be regained by the ap-

plication of the brake. The main reasons for loss of control are:

– insufficient wheel grip;

– being driven too fast;

– inadequate braking;

– the type of machine is unsuitable for its task;

– lack of awareness of the effect of ground conditions, especially slopes;

8) The machine is equipped with a series of safety microswitches and de-

vices which must never be removed, altered or tampered with. Removing

these devices invalidates the warranty and the manufacturer declines any re-

sponsability.

B) PREPARATION

1) While mowing, always wear substantial footwear and long trousers. Do

not operate the equipment when barefoot or wearing open sandals.

2) Thoroughly inspect the area where the equipment is to be used and re-

move all objects which may be thrown by the machine (stones, sticks, metal

wire, bones, etc.)

3) WARNING: DANGER! - Engine fuel is highly flammable:

– store fuel in containers specifically designed for this purpose;

– refuel using a funnel and outdoors only. Do not smoke while refuelling or

whenever handling the fuel;

– add fuel before starting the engine. Never remove the cap of the fuel tank

or add fuel while the engine is running or when the engine is hot;

– if fuel is spilled, do not attempt to start the engine but move the machine

away from the area of spillage and avoid creating any source of ignition

until the fuel has evaporated and the fumes dispersed;

– replace caps of all fuel tanks and containers securely.

4) Replace faulty silencers.

5) Before using, always carry out a visual inspection, particularly of the blade,

seeing that the screws and cutter assembly are not worn or da maged. Re-

place a worn or damaged blade and screws as a set to preserve balance.

6) Before mowing, attach the discharge opening guards (grass-catcher or

stone-guard).

C) OPERATION

1) Do not operate the engine in a confined space where dangerous carbon

monoxide fumes can collect.

2) Mow only in daylight or good artificial light.

3) Avoid operating the equipment in wet grass, where feasible.

4) Before starting the engine, disengage the blade, shift the gear lever

( mechanical drive models) or the speed change lever ( hydrostatic drive

models) into neutral and engage the parking brake.

5) Do not use on slopes of more than 10° (17%).

6) Remember there is no such thing as a “safe” slope. Travel on grass slopes

WARNING!

requires particular care. To guard against overturning:

– do not stop or start or change direction suddenly when on slopes, and keep

to a moderate speed;

– engage clutch slowly, always keep the machine in gear ( mechanical

drive models) or engage the speed change lever slowly both for forward

and reverse movement ( hydrostatic drive models), especially when

travelling downhill;

– reduce speed before taking a slope and during tight turns;

– stay alert for humps and hollows and other hidden hazards;

– never mow across the face of the slope.

7) Stop the blade rotating and put the cutting deck into the highest posi-

tion before crossing surfaces other than grass.

8) Never use the machine to cut grass if the guards are defective, or with-

out the stone-guard and/or grass-catcher in place.

9) Do not change the engine governor settings or overspeed the engine.

10) Before leaving the operatorʼs position:

– disengage the blade;

– change into neutral ( mechanical drive models) or make sure that the

speed change lever has returned to the neutral position ( hydrostatic

drive models) and engage the parking brake;

– stop the engine and remove the key.

11) Disengage the blade, stop the engine and remove key:

– before carrying out any work beneath the cutting deck or unclogging the

collector channel;

– before checking, cleaning or working on machine;

– after striking a foreign object. Inspect the machine for damage and make

repairs before restarting and operating the machine;

– if the machine starts to vibrate abnormally (immediately check and remove

the cause of the vibration).

12) Disengage the blade when transporting or not in use. Disengage the

blade and wait for it to stop before emptying the grass-catcher.

13) Stop the engine and disengage the blade:

– before refuelling;

– every time the grass-catcher is removed or replaced.

14) Reduce the throttle setting before stopping the engine and turn the fuel

off at the conclusion of mowing, following the instructions in the manual.

15) Do not put hands or feet near or under rotating parts. Keep clear of the

discharge opening at all times.

16) The usage of accessories different from those recommended by Honda

may cause damage to the machine that is not covered by the warranty.

D) MAINTENANCE AND STORAGE

1) Keep all nuts, bolts and screws tight to be sure the equipment is in safe

working condition. Regular maintenance is essential for safety and for main-

taining performance levels.

2) Never store the equipment with fuel in the tank inside a building where

fumes may reach a flame or a spark or a source of extreme heat.

3) Allow the engine to cool before storing in an enclosed space.

4) To reduce the fire hazard, keep the engine, exhaust silencer, battery com-

partment and fuel storage area free of grass, leaves, or excessive grease.

Always empty the grass-catcher and do not leave garden rubbish contai ners

inside a room.

5) Frequently check the stone-guard, the grass-catcher and the air intake grill

for wear and deterioration. Replace if damaged.

6) For reasons of safety, do not use equipment with worn or damaged

parts. Parts are to be replaced and not repaired. Use genuine spare parts

(the blade should always bear the symbol ). Parts which are not of an equi -

va lent quality can damage the equipment and may adversely affect your sa-

fety.

7) If the fuel tank has to be drained, this should be done outdoors and when

the engine is cool.

8) Wear strong work gloves when removing and reassembling the blade.

9) Check the bladeʼs balance after sharpening.

10) When the machine is to be parked, stored or left unattended, lower the

cutting deck.

11) The ignition key must never be left inserted in the machine, or where chil-

dren or persons not familiar to the machine may reach it. Before any main-

tenance or repair, remove the ignition key.

E) TRANSPORTING

1) If the machine is transported on a truck or trailer, lower the cutting deck,

engage the parking brake and fasten the machine securely with ropes, ca-

bles or chains to the hauling device.

2EN

2. IDENTIFICATION OF THE MACHINE

AND PARTS

IDENTIFICATION OF THE MACHINE

The plate located under

the driverʼs seat has the

es sential data and serial

number of each machine

(5).

This number must be quo -

ted when you require tech -

nical assistance or spa re

parts.

1. Acoustic power level according to directives

2000/14/EC, 2005/88/EC

2. Conformity mark according to directives

98/37/EC, 2006/42/EC, 2005/88/EC, 2004/108/EC

2a.

Russian Comformity Mark

3. Year of manufacture

4. Type of machine

5. Serial number

6. Weight in kgs

7. Name and address of Manufacturer

8. Engine nominal power

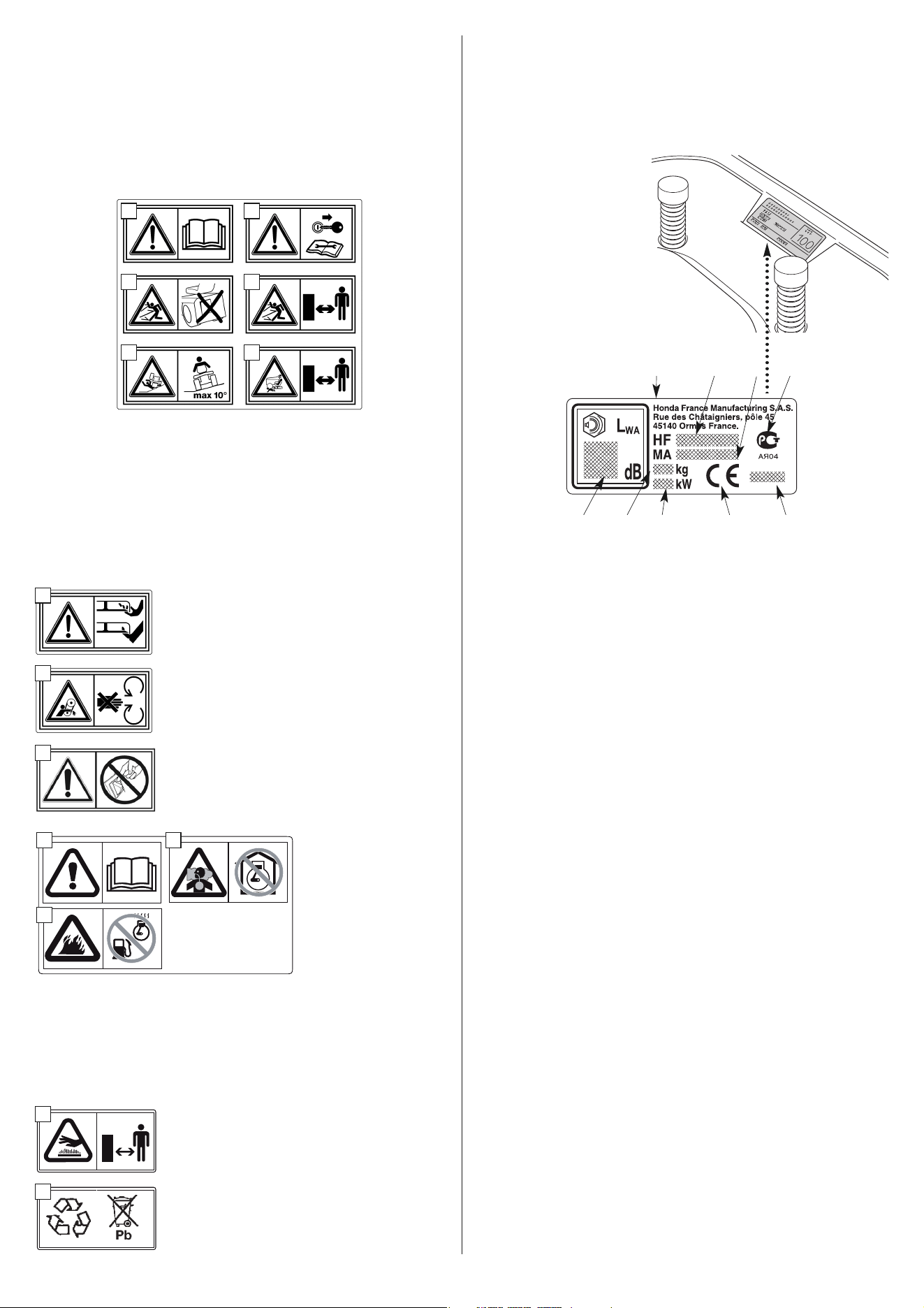

SAFETY DECALS

Your machine must be used with care. Therefore, decals have been

placed on the machine, to remind you pictorially of the main pre-

cautions to take during use. These decals are to be considered an

integral part of the machine.

If a decal should fall off or become illegible, contact your retailer to

replace it. Their meaning is explained below.

3EN

1 6 8 2 3

7 4 5 2a

1 = Warning: Read Operatorʼs Manual before operating this machine.

2 = Warning: Disconnect the ignition key and read the instructions before

carrying out any repair or maintenance work.

3 = Danger! Ejected objects: Do not operate without either stone-guard or

grass-catcher in place.

4 = Danger! Ejected objects: Keep bystanders away.

5 = Danger! Machine roll over: Do not use this machine on slopes greater

then 10°.

6 = Danger! Dismemberment: Make sure that children stay clear of the

machine all the time when engine is running.

7 = Risk of being cut. Blade in movement. Do

not insert hands or feet inside the blade

housing.

8 = Avoid injury from getting caught in belt:

Do not operate the machine without shields

in place. Stay clear of belts.

9 = Warning! Do not manipulate the microswitch

10 = Warning: Read the owner's manual before using the mower.

11 = Warning: The engine emits toxic carbon monoxide. Do not run in an

enclosed area.

12 = Warning! Petrol is highly flammable. Stop the engine before refueling.

13 = Warning: he muffler becomes very hot dur-

ing operation and remains hot for a while af-

ter stopping the engine.

14 = This is a recyclable product. It contains

lead. Do not discard it in the environment

and dispose of in compliance with the laws

in force.

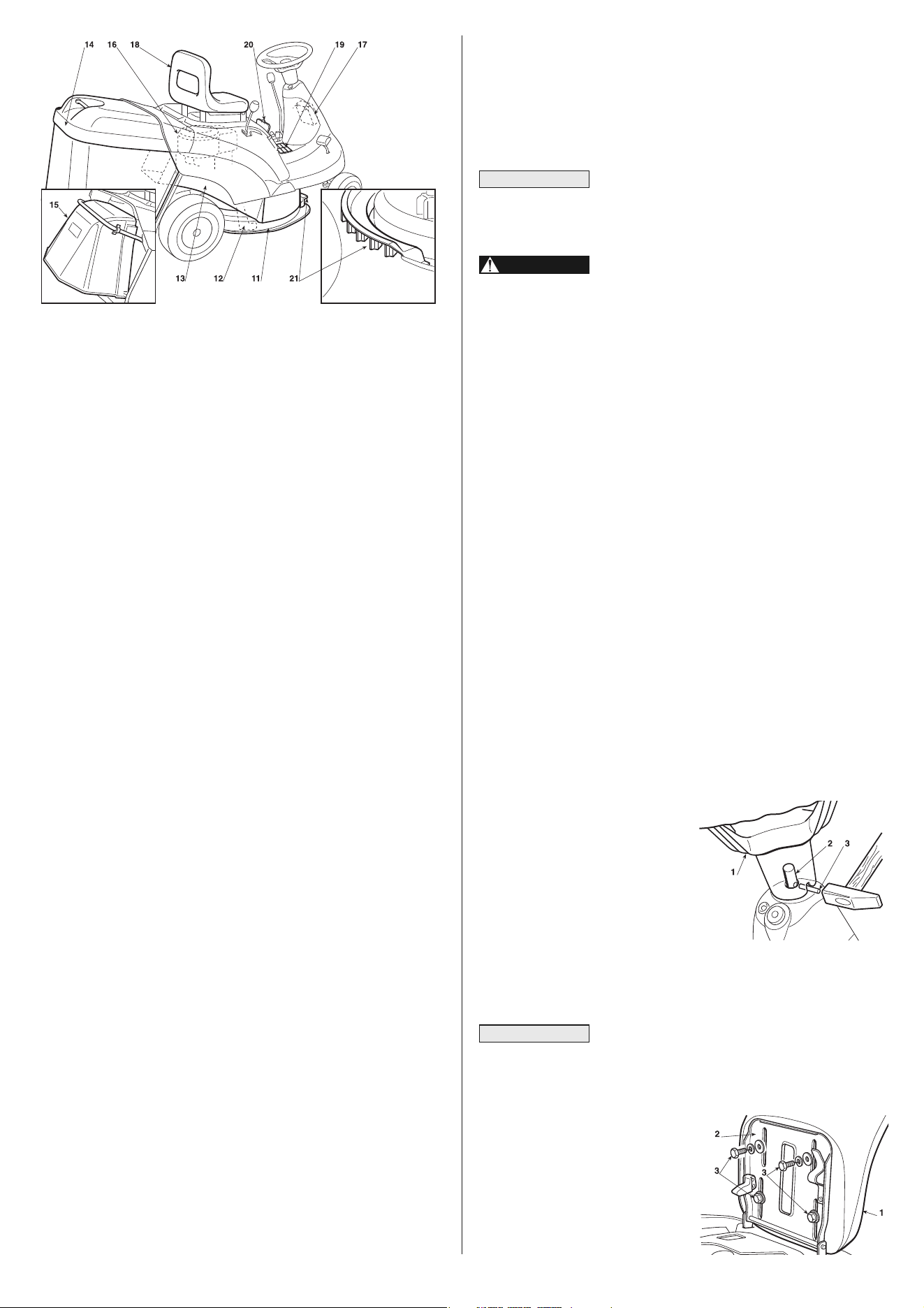

3. UNPACKING AND ASSEMBLY

For storage and transport reasons, some components of the ma-

chine are not directly installed in the factory, but have to be assem-

bled after their removal from the packing. Final assembly is carried

out by following these simple instructions.

For transport reasons the machine is supplied

without engine oil or fuel. Before starting up the engine, fill with oil

and fuel following the instructions given in the engine booklet.

Unpacking and completing the assembly

should be done on a flat and stable surface, with enough

space for machine handling and its packaging, always mak-

ing use of suitable equipment.

UNPACKING

When unpacking the machine, take care to gather all individual parts

and fittings, and do not damage the cutting deck when taking the ma-

chine off the base pallet.

The standard packing contents:

– the machine;

– steering wheel;

– seat;

– grass-catcher components;

– an envelope containing the instruction manual, documents and the

nuts and bolts with two starter keys, a pin for blocking the steer-

ing wheel and a spare 6.3 Ampere fuse.

Disposal of the packaging should be done in accordance with the lo-

cal regulations in force.

FITTING THE STEERING WHEEL

Put the machine on a flat surface

and straighten up the front wheels.

Fit the steering wheel (1) onto the

protruding shaft (2) with the spo -

kes directed towards the seat.

Line up the hole in the steering

whe el hub with the hole in the

shaft and insert the pin supplied

(3).

Push the pin in using a hammer, ensuring that it comes completely

through to the opposite side.

To avoid damaging the steering wheel with the

hammer, use an awl of the same size as the pin to push it in the

last part.

FITTING THE SEAT

Fit the seat (1) onto the plate (2)

using the screws (3).

WARNING!

NOTE

IMPORTANT

IDENTIFICATION OF MAIN COMPONENTS

Various main components can be seen on the machine, and these

have the following functions:

11. Cutting deck: this is the guard enclosing the rotating blade.

12. Blade: this is what cuts the grass. The wings at the ends help

convey the cut grass towards the collector channel.

13. Collector channel: this is the part connecting the cutting deck

to the grass-catcher.

14. Grass-catcher: as well as collecting the grass cuttings, this is

also a safety element in that it stops any objects drawn up by

the blade from being thrown outside of the machine.

15. Stone-guard or deflector: this can be fitted in place of the

grass-catcher and prevents objects drawn up by the blade from

being thrown outside of the machine.

16. Engine: this moves the blade and drives the wheels. It is fully

described in a specific booklet.

17. Battery: provides the energy for starting the engine. It is fully

described in a specific booklet.

18. Driver seat: this is where the machine operator sits. It has a

sensor for detecting the presence of the operator which is a

safety device.

19. Decals for regulations and safety: give reminders on the

main provisions for working safely, each of which is explained

in chapter 1.

20. Access hatch: gives easy access to the spark plug and the fix-

ing nut for the engine cover.

21. Air intake grill: helps air to flow inside the cutting deck and pre-

vents objects from being thrown out at the front.

4EN

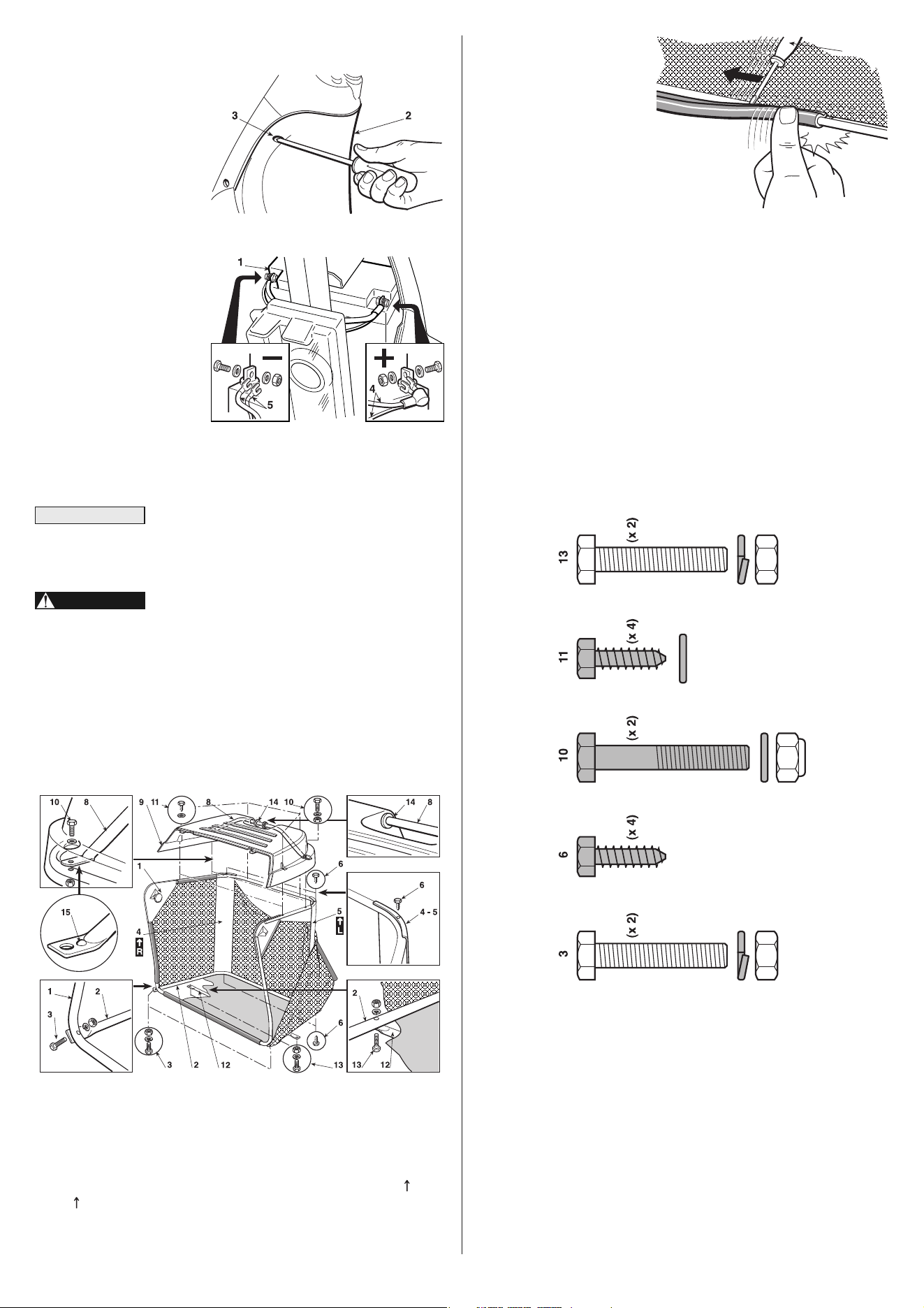

Insert this frame into the

canvas cover, ensuring that

it is correctly positioned

along the base perimeter.

Hook all the plastic profiles

to the frame tubes with the

help of a screwdriver (7).

Insert the handle (8) with the grommets (14) into the holes of the can-

vas (9) making sure that the end with the lump (15) is on the right.

Attach this to the frame using the screws (10), following the in di ca -

ted sequence, and complete the assembly scre wing the four front

and rear self-thread ing screws (11).

Position the grommets (14) in their respective holes in the canvas

(9).

Lastly, fit the stiffening bar (12) on the outside of the frame base,

keeping the flat part towards the canvas and using the nuts and

screws supplied (13) in the sequence indicated.

CONNECTING THE BATTERY

The battery (1) is situated

in a compartment under

the steering wheel and is

reached by removing the

plastic cover (2) held on by

two screws (3).

Connect the two red cables

(4) to the positive terminal

(+) and the two black ca-

bles (5) to the negative ter-

minal (–) using the supplied

screws and following the il-

lustra ted sequence.

Recharge the battery according to the manufacturer's instructions.

To prevent the safety device in the electronics

card from cutting in, never start the engine until the battery is fully

charged!

Follow the battery manufacturer's instruc-

tions regarding safe handling and disposal.

FITTING THE GRASS-CATCHER

First of all assemble the frame, joining the upper part (1), including

the opening, to the lower part (2), using the supplied nuts and

screws (3) and following the indicated sequence.

Position the angle supports (4) and (5), respecting the right (R ) and

left (L ) sides, and attach them to the frame using the four

self-tapping screws (6).

IMPORTANT

WARNING!

5EN

6EN

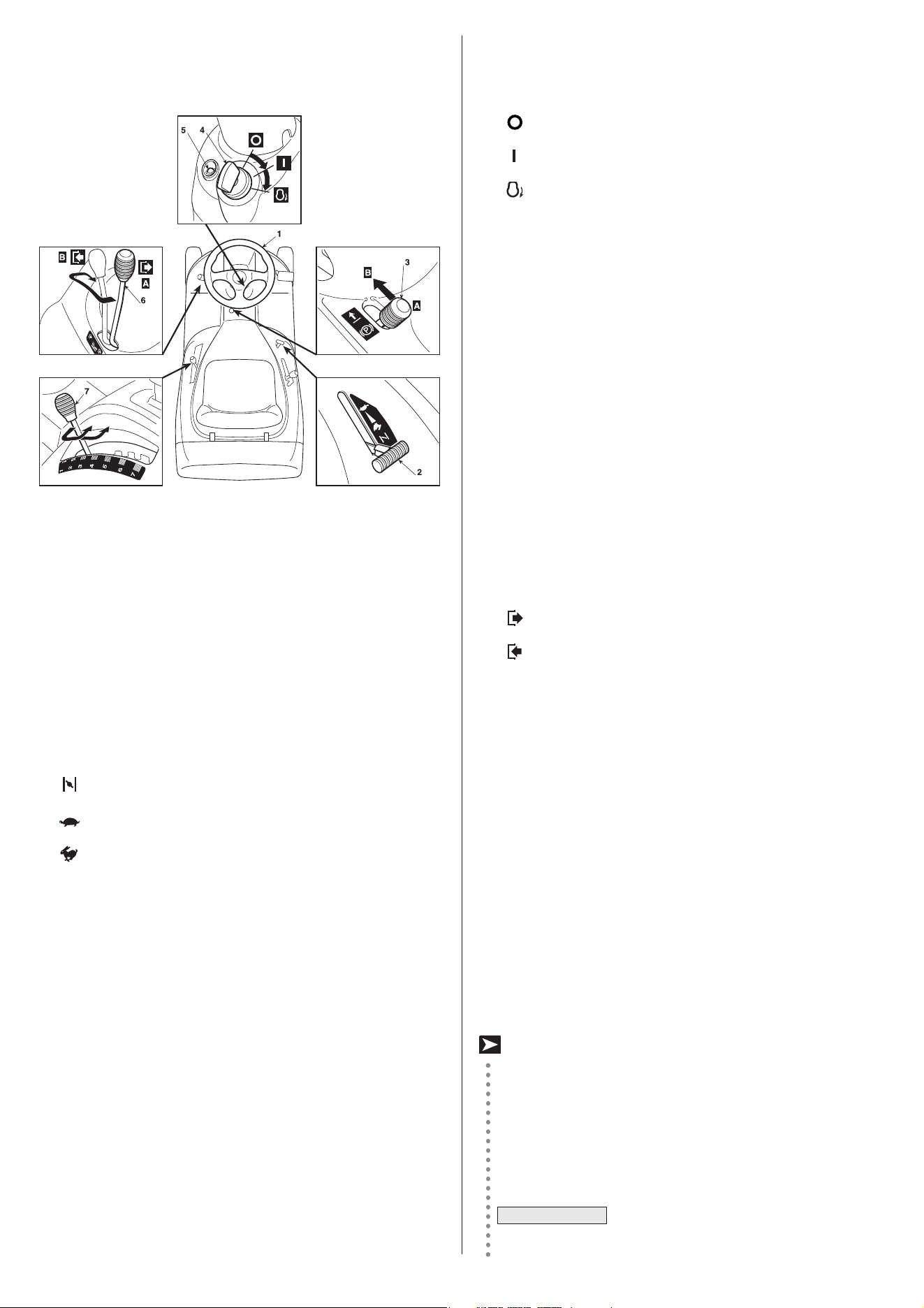

4. COMMANDS AND CONTROL

INSTRUMENTS

1. STEERING WHEEL

Turns the front wheels.

2. ACCELERATOR LEVER

Regulates the engine's r.p.m. The positions are indicated on a plate

showing the following symbols:

Position «CHOKE» for starting up

Position «SLOW» for minimum engine speed

Position «FAST» for maximum engine speed

When moving from one area to another, put the lever in a position

between «SLOW» and «FAST» When cutting, go to the «FAST» po-

sition.

3. PARKING BRAKE LEVER

This lever is to stop the machine from moving when it has been

parked, and must always be engaged before leaving the machine.

The brake is engaged by fully pressing the pedal (11 - 21) and mov-

ing the lever to position «A». When you take your foot off the pedal

it will be blocked by the lever in the down position.

To disengage the parking brake, press the pedal again so that the

lever returns to position «B».

4. KEY IGNITION SWITCH

This key operated control has three positions:

«OFF» means everything is switched off

«ON» activates all parts

«START» engages the starter motor. On being

released, the key will automatically

return to «ON» from this position.

5. PILOT LAMP AND SIGNAL

This light comes on when the key (4) is in the «ON» position and re-

mains constantly lit while the machine is operating.

When it starts flashing this means that the engine is being prevented

from starting (see 5.3).

The audible warning indicates that the grass-catcher is full (see 5.3).

6. BLADE ENGAGEMENT AND BRAKE LEVER

This lever has two positions, as shown on the label:

Position «A» = BLADE DISENGAGED

Position «B» = BLADE ENGAGED

If the blade is engaged when safety conditions have not been com-

plied with, the engine shuts down (see 5.3).

On disengaging the blade (Pos. «A»), a brake is simultaneously ac-

ti vated which stops it rotating in five seconds.

7. CUTTING HEIGHT ADJUSTING LEVER

There are seven positions for this lever, shown as «1» to «7» on the

label, which correspond to various heights of between 3 and 8 cm.

To go from one height to another, move the lever sideways and put

into one of the seven notches.

For mechanical drive models:

11. Clutch / brake pedal

This pedal has a double function - during the first part of its

travel it acts as a clutch, engaging and disengaging drive to the

wheels, and in the second part it acts as a brake on the rear

wheels.

When the machine is in movement, keep your

foot off the pedal.

NOTE

7EN

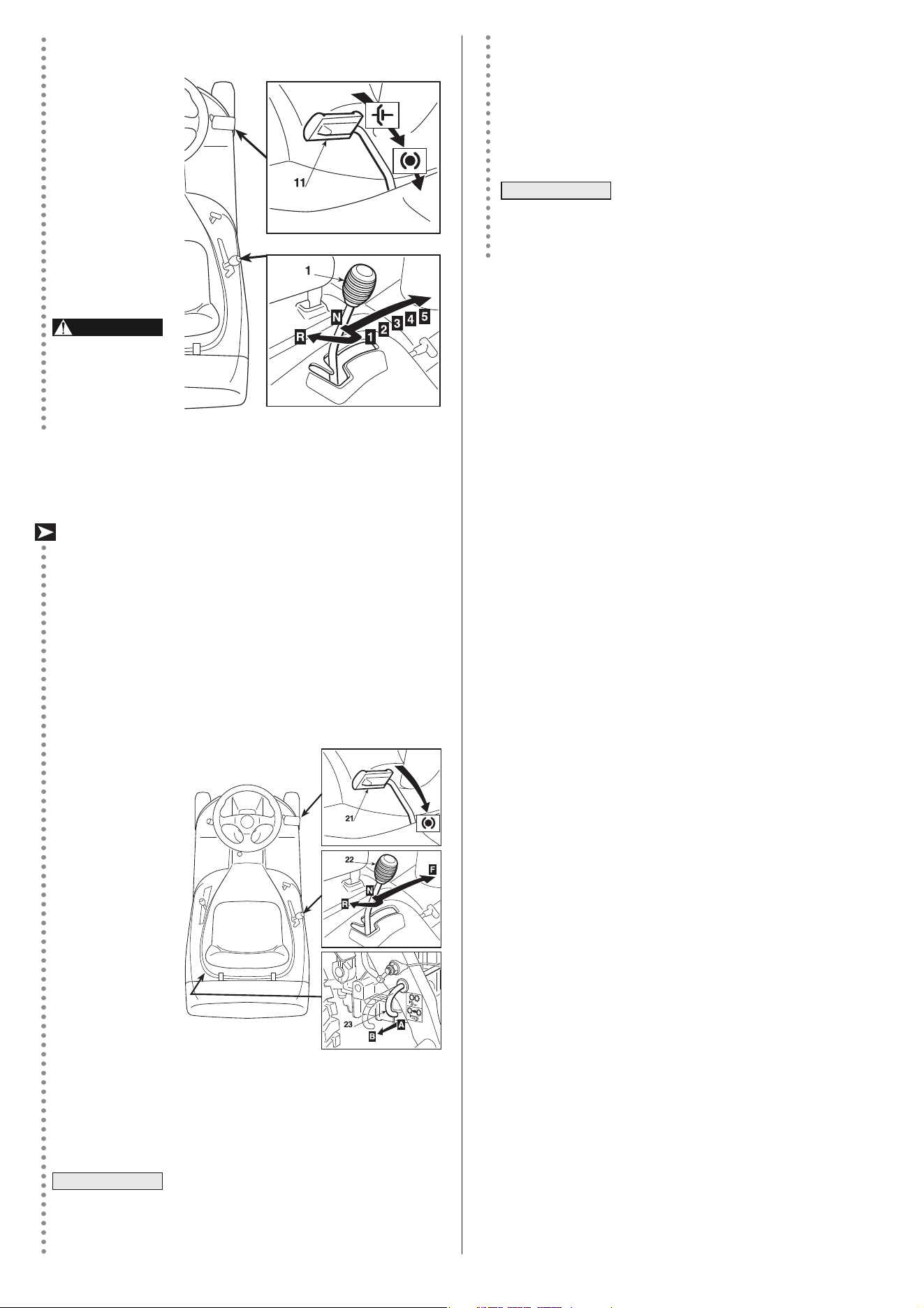

23. Lever to release the hydrostatic drive

Position «A» = Drive engaged: for all operating conditions,

when moving and during cutting;

Position «B» = Drive released: considerably reduces

the effort required for moving the machine

manually, when the engine is not running.

When the parking brake (3) is engaged the

speed change lever is locked in the «N» position and cannot

be moved until the parking brake and the pedal have been re-

leased.

IMPORTANT

12. Speed change lever

This lever has se -

ven positions for the

5 forward speeds,

the neutral position

«N», and reverse

«R». To go from

one speed to ano -

ther, press the

pedal (11) about

half way and move

the lever as per the

indications on the

label.

Reverse must

on ly be enga -

ged when the

ma chine is

stop ped.

For hydrostatic drive models:

21. Brake pedal

In hydrostatically driven models this pedal is solely for braking

and works on the rear wheels.

22. Speed change lever

This lever engages

drive to the wheels

and changes the

machineʼs forward

and reverse speed.

The machineʼs for-

ward speed gradu-

ally increases by

moving the lever to-

wards «F». Rever -

se is engaged by

mo ving the lever to

«R».

When the brake pe -

dal (21) is pres sed

the lever automatically returns to the «N»

(neutral) position.

It can also be mo ved there manually even without pressing the

brake.

When the parking brake (3) is engaged the

speed change lever is locked in the «N» position and cannot

be moved until the parking brake and the pedal have been re-

leased.

WARNING!

IMPORTANT

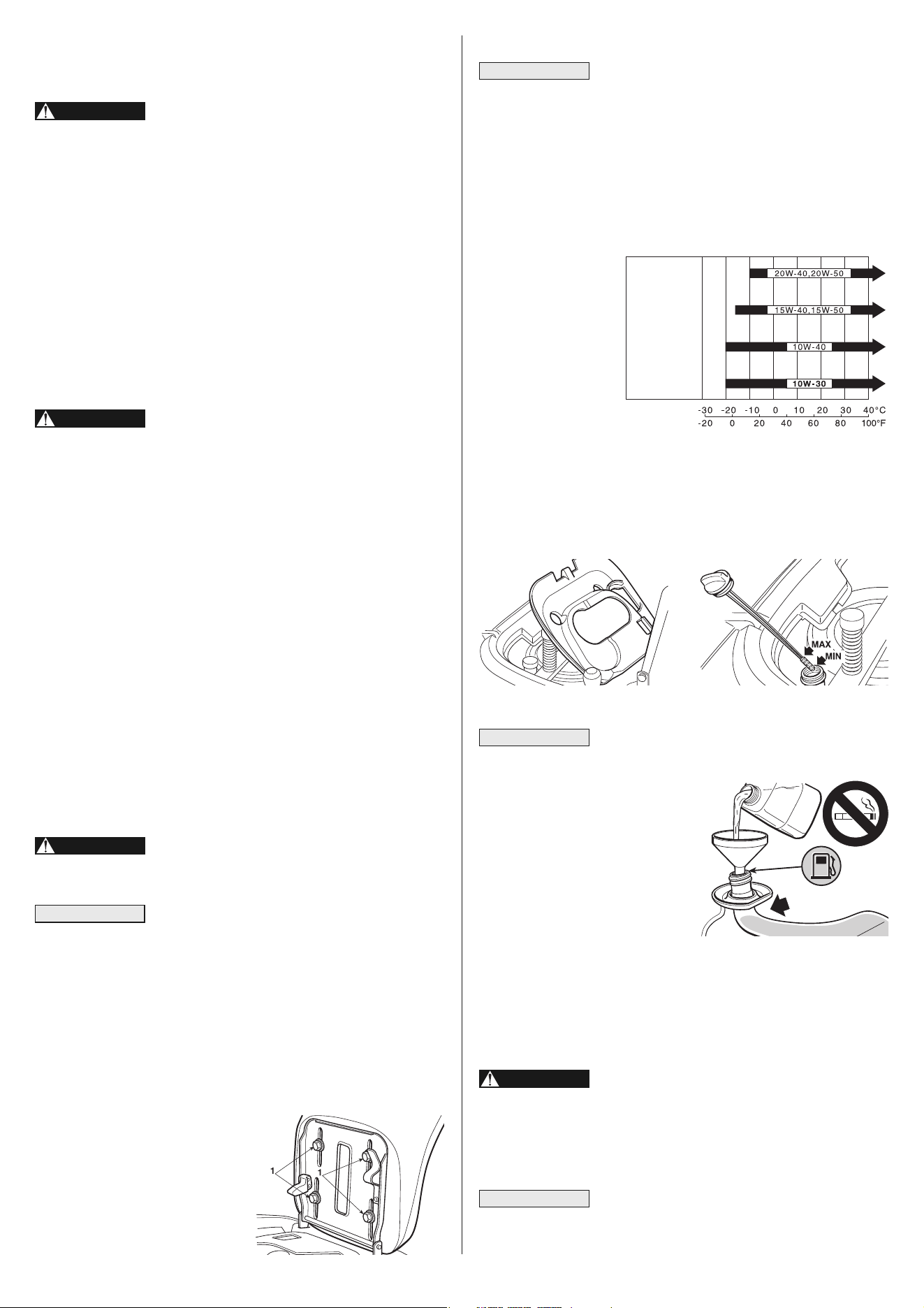

OIL LEVEL AND REFUELLING

Engine oil is a major factor affecting engine per-

formance and service life. Non-detergent oils and vegetable oils

are not recommended. Be sure to check the engine on a level sur-

face with the engine stopped.

Use Honda 4-stroke, or an equivalent high detergent, premium

quality motor oil certified to meet or exceed U.S. automobile manu-

facturerʼs requirements for service classification SG, SF.

Motor oils classified SG, SF will show this designation on the con-

tainer.

SAE 10W-30 is re -

com mended for ge-

ne ral, all temperature

u se. If single visco-

sity oil is used, select

the appropriate visco -

sity for the average

temperature in your

area.

To reach the oil level dipstick, lift up the seat and open the hatchway

beneath.

With engine stopped, check its oil level which must be between the

MIN and MAX marks on the dipstick when not screwed in. Do not

forget to screw down the dipstick when replacing it.

• Never use a gas-oil mixture.

• Only use unleaded petrol 95

or 98.

• Do not let dirt, clippings,etc.

get into the tank.

• Do not use dirty or contami-

nated fuel (water, durst, ...), or

fuel which is too old. The qua -

lity of unleaded petrol deterio-

rates with time. Do not keep

fuel for more than one month.

Refuel using a funnel, but be sure to not exceed the max level shown

in the figure.

The tank's capacity is about 3.6 litres.

Refuelling should be carried out in an open

or well ventilated area with engine stopped. Always remem-

ber that petrol fumes are inflammable. DO NOT TAKE

FLAMES TO THE TANK MOUTH TO VERIFY ITS CONTENTS

AND DO NOT SMOKE WHEN REFUELLING.

Do not drip petrol onto the plastic parts to avoid

ruining them. In the event of accidental leaks, rinse immediately

with water.

IMPORTANT

DANGER!

IMPORTANT

5. HOW TO USE

SAFETY RECOMMENDATIONS

The machine must only be used for the pur-

pose for which it was designed (cutting and collection of

grass).

Using the machine in any other way is considered "improper

use" which will invalidate the warranty, relieve the manufac-

turer from all liabilities, and the user will consequently be li-

able for all and any damage or injury to himself or others.

Examples of improper use may include, but are not limited to:

– transport people, children or animals on the machine or on

a trailer;

– tow or push loads;

– use of the machine for moving over unstable, slippery,

icy, stony, rough, marshy ground and puddles that do not

allow for evaluation of the consistency of the ground;

– use of the machine for leaf or debris collection;

– use of the blades on surfaces other than grass.

Do not tamper with or remove the safety de-

vices fitted to the machine. REMEMBER THAT THE USER IS

ALWAYS RESPONSIBLE FOR DAMAGE AND INJURIES TO

OTHERS.

Before using the machine:

– read the general safety regulations (

Chap. 1), paying parti -

cular attention to driving and cutting on slopes;

– carefully read the instructions for use, become familiar

with the controls and on how to quickly stop the blades and

engine.

– never put your hands or feet next to or beneath the rotat-

ing parts and always keep away from the discharge open-

ing.

Do not use the machine when in a precarious state of health

or under the effect of medicines or other substances that can

reduce your reflex actions and your ability to concentrate.

It is the user's responsibility to assess the potential risk of the

area where work is to be carried out, as well as to take all the

necessary steps to ensure his own safety and that of o thers,

particularly on slopes or rough, slippery and unstable ground.

Do not leave the machine stopped in high grass with the en-

gine running in order to avoid the risk of starting a fire.

This machine must not be used on slopes

greater than 10° (17%).

All the references relating to the positions of

controls are those described in chapter 4.

5.1 DIRECTIONS BEFORE STARTING

SEAT ADJUSTMENT

The seat is held by four screws

(1) which have to be loosened for

changing the position of the seat

which is done by sliding it along

the slots in the base.

When you have got in a comfor -

table position, fully tighten the four

screws.

IMPORTANT

WARNING!

DANGER!

8EN

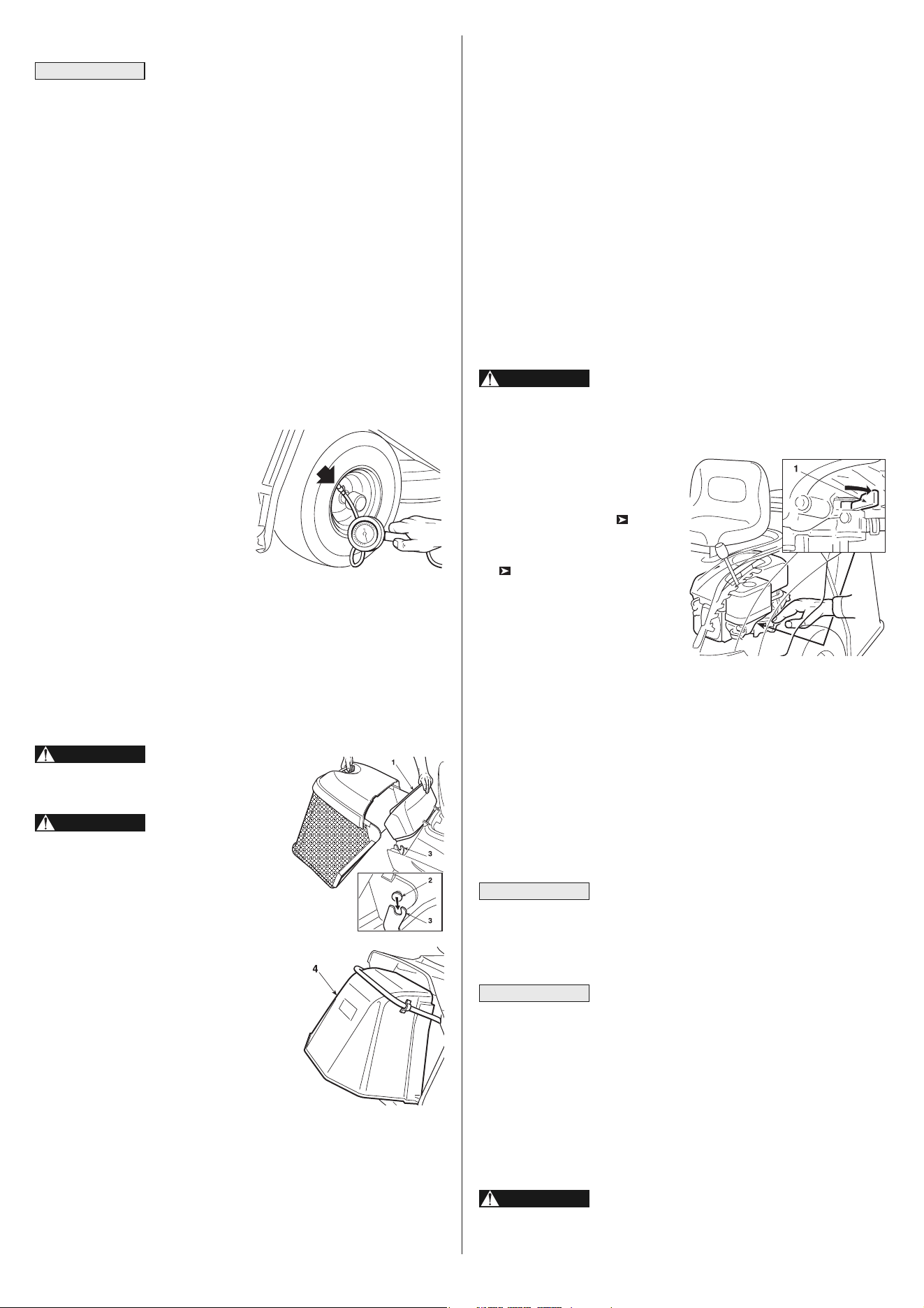

MAX

• Fuel containing alcohol

If you intend to use fuel with alcohol, ensure that

its octane number is at least as high as that recommended by

Honda (86). There are two types of fuel/alcohol mixtures: one con-

tains ethanol and the other methanol.

Do not use mixtures containing more than 10% ethanol, or fuel

containing methanol (methyl or wood alcohol), which do not con-

tain cosolvents, or corrosion inhibitors for methanol.

In the case of a mixture containing methanol with addition of co-

solvents and corrosion inhibitors, limit the proportion to 5% of

methanol.

The guarantee does not cover damage caused to the fuel system

or engine performance problems resulting from the use of fuel con-

taining alcohol. Honda does not give its approval to the use of fu-

els containing methyl alcohol since their suitability is not yet

proven.

TYRE PRESSURE

Having the correct tyre pressure is

essential for keeping the cutting

deck horizontal and thus achieving

uniform mowing.

Unscrew the valve protection cap

and connect the valves to a com-

pressed air line with a gauge.

Pressures are:

FRONT 1.5 bar

REAR 1.0 bar

FITTING THE PROTECTION AT THE EXIT

(GRASS-CATCHER OR STONE-GUARD)

Never use the ma-

chine without having fitted the exit

protection!

There is a micro-

switch which stops the engine or

prevents starting when the blade is

engaged if either the grass-catcher

or stone-guard is not in position. IT

IS VERY DANGEROUS TO TAM -

PER WITH OR LIMIT THE EF FEC -

TIVENESS OF THIS DE VICE!

Lift the removable cover (1) and hook on

the grass-catcher by inserting the two pi -

vots (2) into the slots on the two supports

(3).

If you want to work without using the grass-

catcher, a stone-guard kit (4) is available

on request which is fitted as shown in the

figure.

CHECKING THE SAFETY SYSTEMS

Every time before using, check that the safety systems are working

properly. To do so, simulate the various situations of usage shown

in the table on page 11, making sure that the correct result is a -

chieved for each situation.

IMPORTANT

WARNING!

9EN

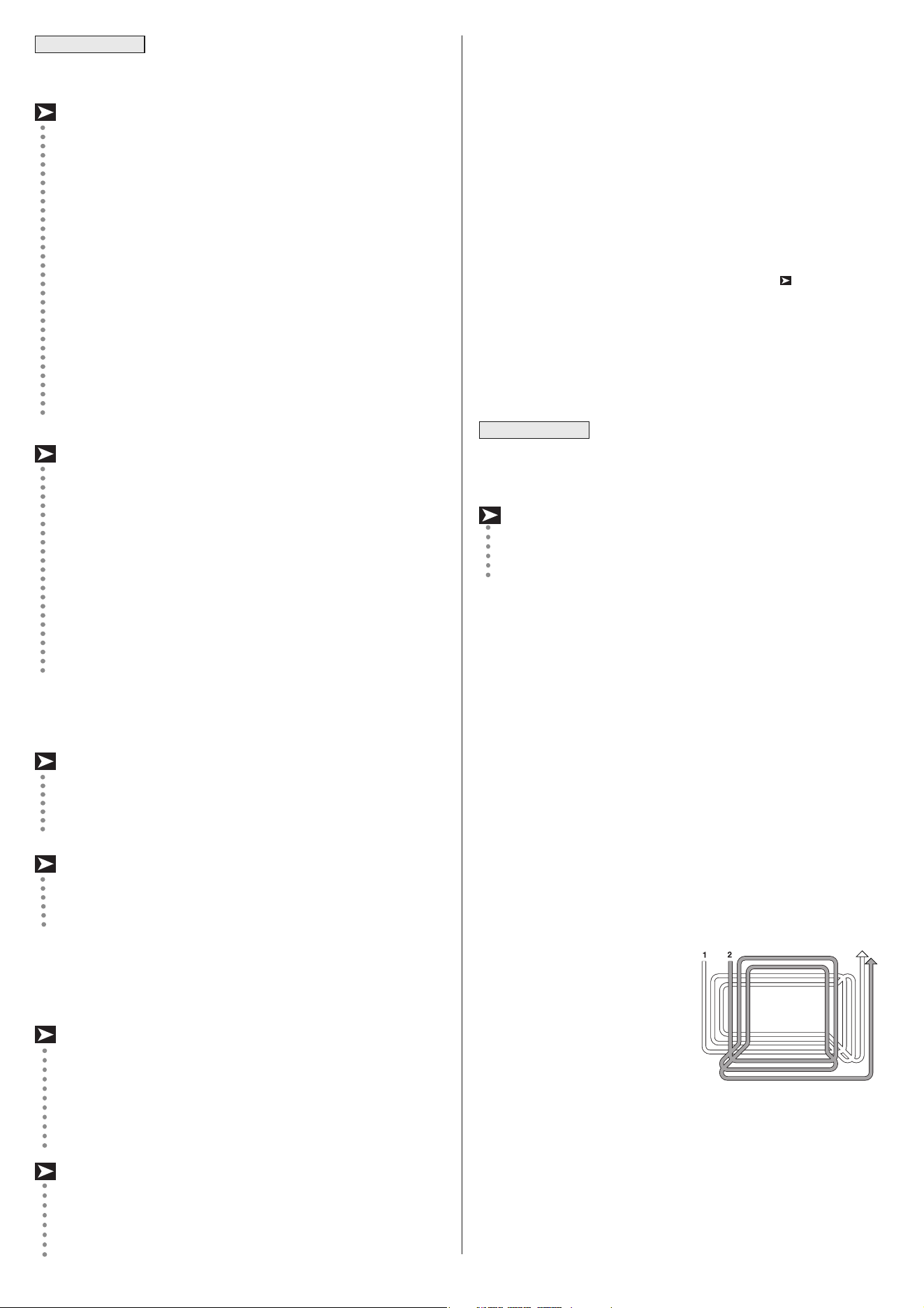

CHECKING THE BRAKING SYSTEM

Make sure that the machineʼs braking capacity is adequate for the

conditions of usage. Avoid starting the machine if you have doubts

on the brake efficiency. If necessary, adjust the brake and if you still

have doubts on its efficiency, consult your dealer.

BLADE CHECK

Check that the blade is sharpened properly and firmly fixed to the

hub. A badly sharpened blade pulls at the grass and causes the lawn

to turn yellow.

5.2 STARTING AND MOVING

STARTING

All starting operations have to be effected in

an open or well ventilated area! ALWAYS REMEMBER THAT

EXHAUST GASES ARE TOXIC!

Before starting the engine:

– open the fuel stop-cock (1),

which is reached through the

around the right back wheel;

– put the gear lever ( for me-

chanical drive models) or the

speed change lever pedal

( for hydrostatic drive mod-

els) into neutral («N»);

– on slopes, engage the park-

ing brake;

– put the blade engagement

lever into the disengage posi-

tion («A»).

Afterwards:

– put the accelerator lever to «CHOKE», as shown on the label, if

the engine is cold. If the engine is already warm, put the lever be-

tween «SLOW» and «FAST»;

– put in the key and turn to «ON» to make electrical contact, then

turn to «START» to start the engine. Release once the engine has

started.

When the engine is running, put the accelerator into the «SLOW»

position.

Should you have difficulties in starting do not

continue to use the starter motor for a long time as this can run

down the battery or flood the engine. Turn the key to the «OFF»

position, wait for a few seconds and then repeat the operation. If

the malfunction continues, refer to chapter «8» of this manual.

Always bear in mind that the safety devices pre-

vent the engine from starting when:

– the blade is engaged;

– the transmission is not in neutral («N»).

– the operator is absent with the parking brake disengaged.

While trying to start the engine in one of the above situations, the

pilot lamp will start blinking.

MOVING WITHOUT MOWING

The machine has not been approved for use

on public roads. It has to be used (as indicated by the high-

way code) in private areas closed to traffic.

WARNING!

DANGER!

IMPORTANT

NOTE

10EN

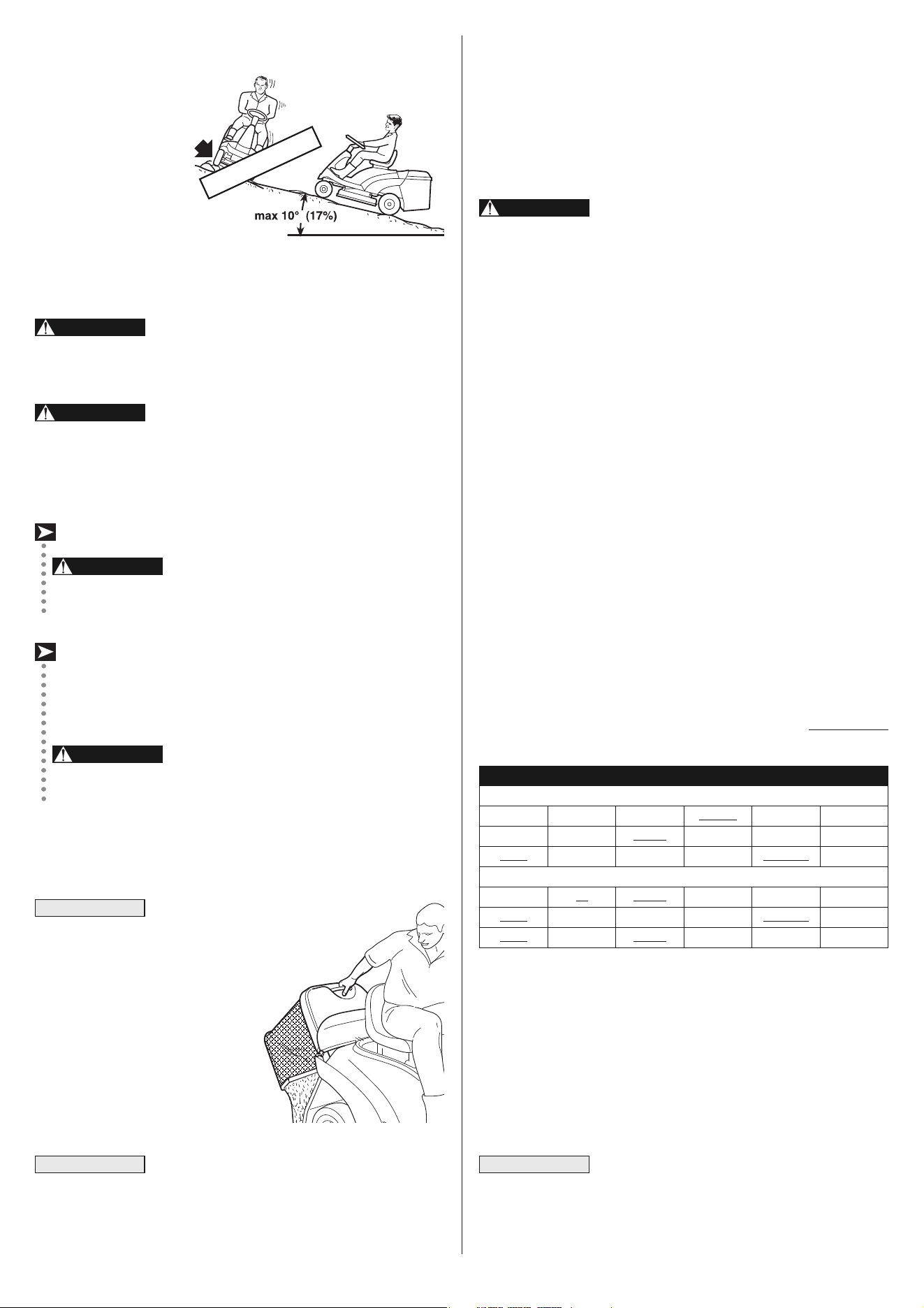

5.3 GRASS CUTTING

ENGAGING THE BLADE AND FORWARD MOVEMENT

When you have reached the area to be mowed,

– put the accelerator into the «FAST» position;

– engage the blade by putting the lever into position «B»;

– to begin moving, operate the speed regulation controls taking care

to release the pedal with caution as already described.

Engage the blade with the cutting deck in the highest position, and

then gradually lower to the height required. To achieve good col-

lection and even cutting of the grass, choose a forward speed to suit

the quantity of grass to be cut (height and density) and the lawn's

humidity, in line with the following indications ( for mechanical

drive models):

– High and dense grass - wet lawn 1

speed

– Average condition grass 2

- 3

speed

– Low grass - dry lawn 4

speed

The fifth gear is solely for moving from one area

to another on horizontal surfaces

For hydrostatic drive models

The speed has to be adapted to the condition of the grass in a

gradual and progressive way by moving the speed change lever.

A lower speed should always be selected if you note a reduction in

engine speed, since a forward speed that is too fast will not cut the

grass well.

Disengage the blade and put the cutting deck in the highest position

whenever you need to get past an obstacle.

CUTTING HEIGHT ADJUSTMENT

The height is adjusted by moving the lever with 7 height positions.

HOW TO OBTAIN A GOOD CUT

1. The lawn's appearance will be

best if you cut in alternate di-

rections, always at the same

height.

2. If the collector system blocks

up you should reduce the for-

ward speed as it could be too

high for the lawn conditions.

If this does not solve the prob-

lem, it is probably due to un-

sharpened cutting edges or the wings on the blade having be-

come deformed (see chapter 8).

3. If the grass is very tall it should be mowed twice - once at the

maximum cutting height, and perhaps reducing the cutting width,

followed by a second cut at the required height.

4. Be very careful when mowing near bushes or kerbs which could

alter the horizontal position of the cutting deck or damage its edge

or the blade.

NOTE

When moving the machine, the blade must be

disengaged and the cutting deck put at its highest position (posi-

tion «7»).

For mechanical drive models:

Put the accelerator control between the «SLOW» and «FAST»

positions, and the gear change lever in the 1st speed position.

Keep the pedal pressed down and disengage the parking brake.

Slowly release the pedal which will turn from «brake» to «clutch»,

thus operating the rear wheels.

The pedal has to be released gradually as a sudden engagement

may cause tipping up and loss of control of the vehicle.

The pedal must be moved in a progressive manner without he -

sitation in order to prevent the belt slipping too much and thus

overheating.

Gradually reach the desired operating speed using the accele rator

and gear lever. To change the gear speed the clutch must be used

pushing the pedal down half way.

For hydrostatic drive models:

Put the accelerator control between the «SLOW» and «FAST»

positions. Press the brake pedal to disengage the parking brake

and release the pedal.

Move the speed change lever in the «F» direction and go to the

required speed by using the lever and the accelerator.

The lever must be moved gradually as a sudden engagement of

drive to the wheels may cause tipping and loss of control of the

machine.

BRAKING

For mechanical drive models:

To brake, first reduce the speed on the accelerator to avoid over-

loading the brake assembly and then push the pedal down fully.

For hydrostatic drive models:

To brake, press the brake pedal which will simultaneously make

the speed change lever return to the «N» position.

REVERSE

For mechanical drive models:

The machine MUST be stopped before reverse can be engaged.

Push down the pedal until the machine stops and then insert re-

verse by moving the lever sideways and putting it into position

«R». Gradually release the pedal to engage the clutch and then

begin moving in reverse.

For hydrostatic drive models:

The machine MUST be stopped before reverse can be engaged.

When the machine is stopped, start the reverse movement by put-

ting the speed change lever in the «R» direction.

NOTE

11 EN

SLOPES

Complying with the slo -

pe limits already men-

tioned, lawns on a slope

have to mowed moving

up and down and never

across them, taking gre -

at care when changing

direction that the first

wheels do not hit obsta-

cles (such as stones,

branches, roots, etc.),

that may cause the machine to slide sideways, roll over or otherwise

cause loss of control.

REDUCE SPEED BEFORE ANY CHANGE OF

DIRECTION ON SLOPES and always engage the parking

brake before leaving the machine stopped and unattended.

Take care when beginning forward move-

ment on sloping ground to prevent the risk of tipping up. Re-

duce the forward speed before going on a slope, particularly

downhill.

For mechanical drive models:

Never ride the machine on slopes in neu-

tral gear or with the clutch out! Always engage a low gear

before leaving the machine stopped and unattended.

For hydrostatic drive models:

Move on slopes with the speed change lever in the lowest forward

speed to take advantage of the hydrostatic unit's braking effect.

Never use reverse for reducing speed go-

ing downhill. Control of the machine could be lost, par-

ticularly on slippery surfaces.

EMPTYING THE GRASS-CATCHER

This operation

can only be done with the blade

disengaged, otherwise the engine

stops.

When the grass-catcher is full an

audible warning is given. STOP

FORWARD MOVEMENT, in order

not to block the collector channel,

and disengage the blade which will

stop the audible signal.

Empty the grass-catcher by lifting it

using the handle.

At times the audible warning may be heard on

engaging the blade even when the grass-catcher has been emp-

tied. This is due to grass cuttings left on the sensor of the micro-

switch. To stop the signal, either remove the remaining grass or

disengage the blade and then immediately engage it again.

NOTE

WARNING!

DANGER!

EMPTYING THE COLLECTOR CHANNEL

Cutting very tall or wet grass, particularly at too high a speed, can

cause the collector channel to become blocked. Should this happen,

it will be necessary to:

– stop forward movement, disengage the blade and stop the engine;

– take off the grass-catcher or stone-guard;

– remove the accumulated cuttings going in through the exit of the

collector channel.

This must only be done when the engine is

stopped.

SUMMARY OF THE MAIN CONDITIONS

WHEREBY THE SAFETY DEVICES PERMIT OR STOP WORK

The safety devices work in two ways:

– by preventing the engine from starting if all the safety require-

ments have not been met;

– stopping the engine if even just one of the safety requirements is

lacking.

To start the engine it will be necessary that:

– the transmission is in “neutral”;

– the blade is not engaged;

– the operator is seated or the parking brake is engaged.

The engine stops when:

– the operator leaves his seat when the blades are engaged;

– the operator leaves his seat when the transmission is not in “neu-

tral”;

– the operator leaves his seat with the transmission in “neutral” but

without engaging the parking brake;

– the grass-catcher is lifted or the stone-guard is removed when the

blades are engaged

The table below shows various operating conditions, highlighting

why the safety device shuts down the engine.

CARD PROTECTION DEVICE

The electronic card has a self-resetting protector which breaks the

circuit if there is a fault in the electrical system. It results in the stop-

ping of the engine and is signalled by the pilot lamp turning off.

The circuit automatically resets after a few seconds but the cause

of the fault should be ascertained and dealt with to avoid re-activating

the protection device.

To avoid activating the protection device:

– do not reverse the cables on the battery terminals;

– do not use the machine without its battery or damage may be

caused to the charging regulator;

– be careful to not cause short-circuits.

IMPORTANT

WARNING!

OPERATOR GR.-CATCHER BLADES TRANSMISSION BRAKE ENGINE

A) WHEN STARTING (Key in «START» position)

Sitting

–/–

Disengaged 1… 5 F / R Engaged Does NOT start

Sitting

–/–

Engaged «N» Engaged Does NOT start

Absent

–/–

Disengaged «N» Disengaged Does NOT start

B) WHEN CUTTING (Key in «ON» position)

Sitting NO Engaged –/– Disengaged Stops

Absent YES Disengaged «N» Disengaged Stops

Absent YES Engaged –/– Engaged Stops

RIGHT!

WRONG!

12EN

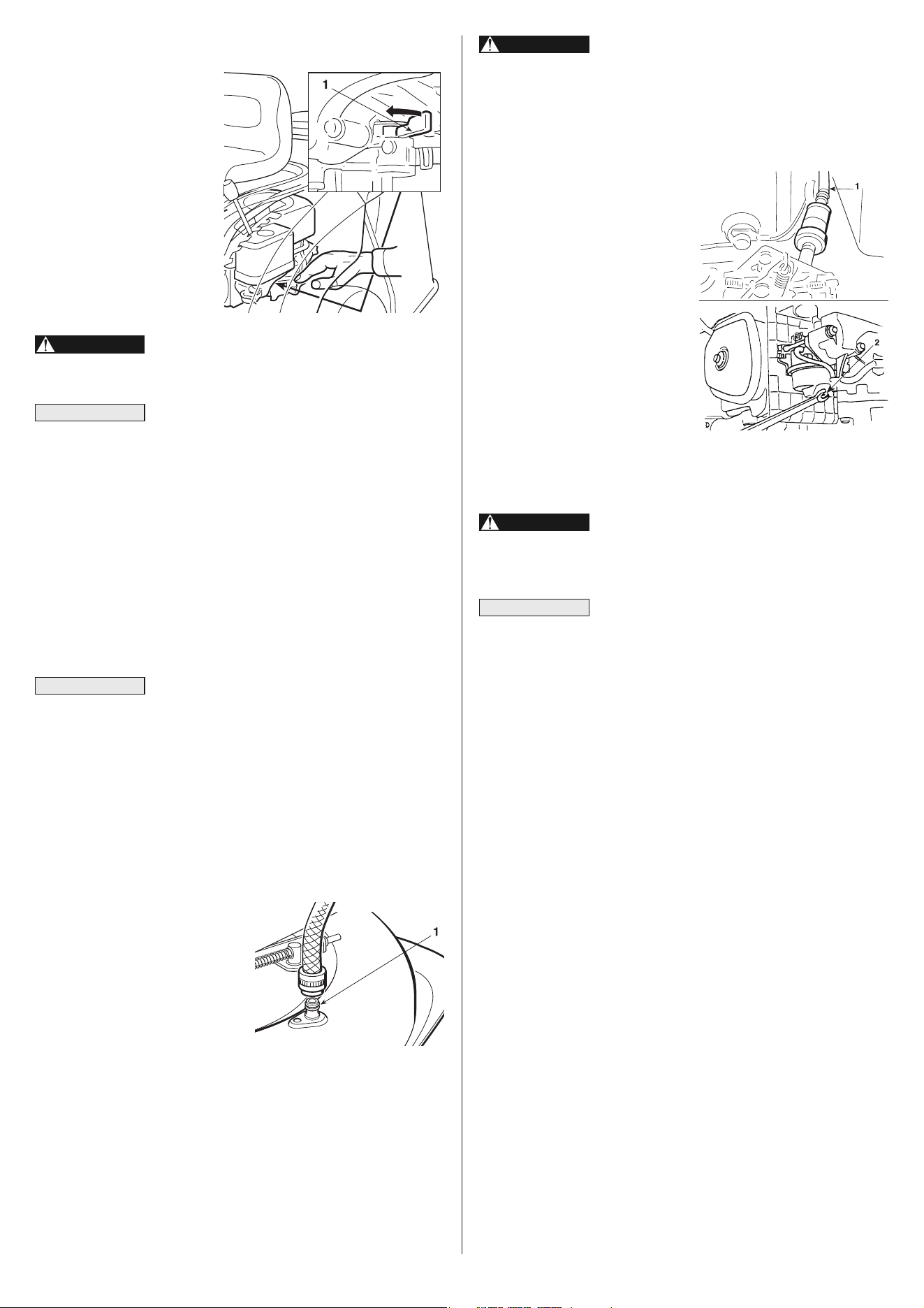

Carefully remove any dry grass cuttings

which may have been accumulated around the engine or si-

lencer to prevent them from catching fire the next time the

machine is used!

Before storing the unit for an extended period:

1. Be sure the storage area is free

of excessive humidity and dust.

2. Drain the fuel tank and carbure -

tor into a suitable gasoline con-

tainer.

– Remove the fuel tube (1) and

drain the fuel tank.

– Loosen the carburetor drain

screw (2) to drain the carbu-

retor.

– Retighten the drain screw (2),

connect the fuel tube (1) and

turn the fuel valve OFF.

3. Change the engine oil.

4. Remove the spark plug and pour about a tablespoon of clean en-

gine oil into the cylinder.

Engine fuel is highly flammable. Store fuel in

containers specifically designed for this purpose. Replace

caps of all fuel tanks and containers securely.

The battery must be kept in a cool and dry place.

Before a long storage period (more than 1 month), always charge

the battery. Recharge the battery before the next usage (chapter

6).

The next time the machine is used, check that there are no fuel leaks

from the tubes, fuel cock or carburettor.

WARNING!

DANGER!

IMPORTANT

END OF MOWING

When you have finished mo -

wing, disengage the blade

and ride the machine with the

cutting deck in the highest

position.

Stop the machine, engage

the parking brake and turn off

the engine by turning the ig-

nition key to «OFF».

When the engine is stopped,

close the fuel cock (1).

Always take out the ignition key if leaving the

machine unattended!

To keep the battery charged, do not leave the key

in the «ON» position when the engine is not running.

5.4 CLEANING AND STORAGE

CLEANING

After each mowing, clean the outside of the machine, empty the

grass-catcher and shake it to remove residual grass and earth.

Clean the plastic parts of the body with a damp sponge using wa-

ter and detergent, taking care not to wet the engine, the electrical

parts or the electronic card located under the dashboard.

Never use hose-nozzles or harsh detergents for

cleaning the body and engine!

WASHING THE INSIDE OF THE CUTTING DECK

The machine has to be put on firm ground with the stone-guard or

grass-catcher in position. Washing the inside of the cutting deck and

the collector channel is done by attaching a water hose to the con-

nector (1) and running water through for a few minutes, with:

– the operator seated;

– the engine running;

– the drive in neutral;

– the parking brake on;

– the blade engaged.

When washing, the cutting deck should be in the fully lowered po-

sition. Take off the grass-catcher, empty and rinse it, and then put it

in a position to assist quick drying.

STORAGE AND INACTIVITY FOR LONG PERIODS

If the machine is likely to be unused for a long period (more than 1

month). Lubricate all joints as directed in chapter 6.

WARNING!

IMPORTANT

13 EN

6. MAINTENANCE

Before cleaning, maintenance or repair work,

take out the ignition key and read the relevant instructions.

Wear suitable clothing and strong gloves.

Never get rid of used oil, fuel or other pollutants

in unauthorised places!

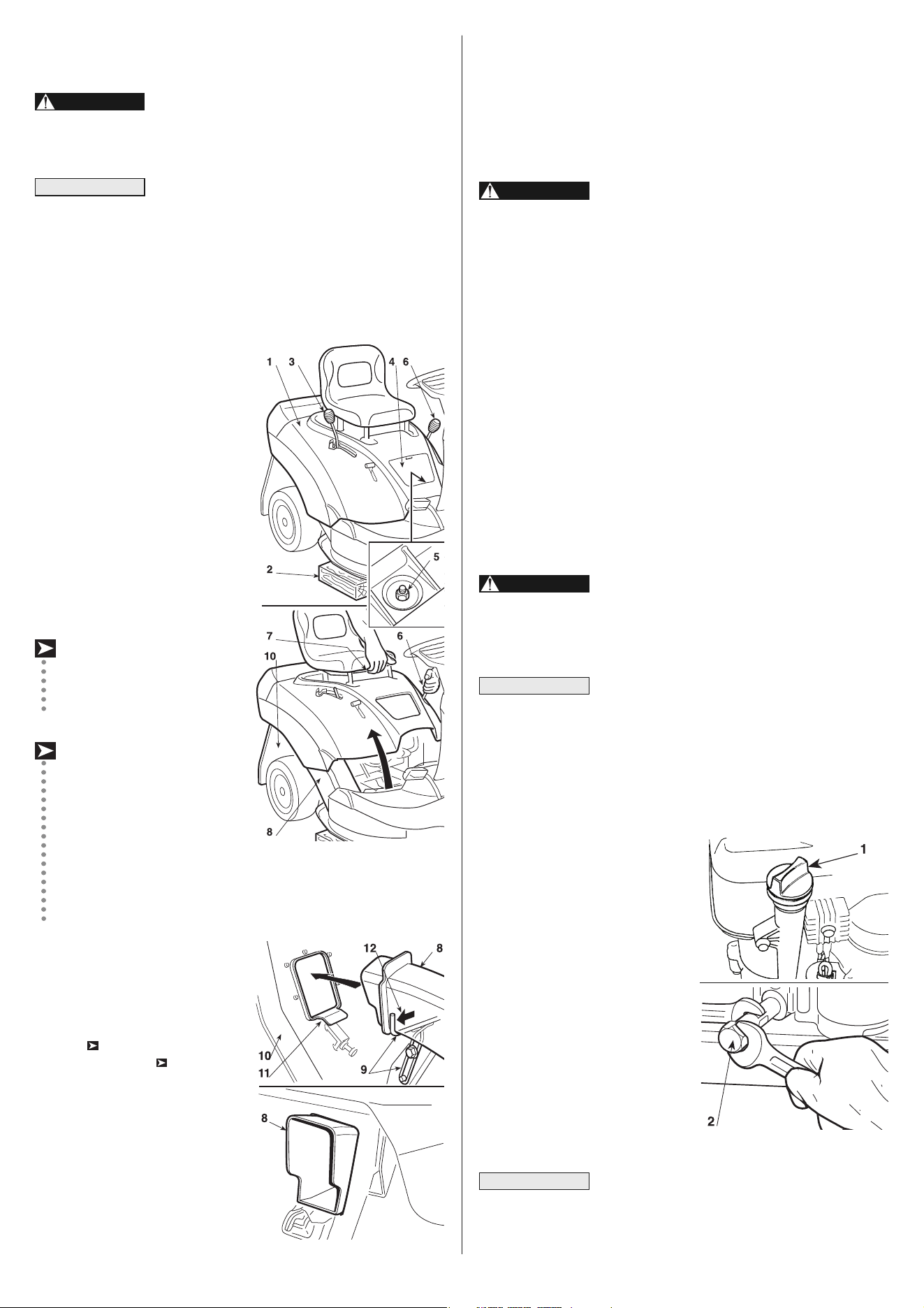

ACCESS TO MECHANICAL PARTS

Lift the engine cover (1) to access

the engine and mechanical parts

below it.

To do so:

– put the machine on level gro -

und, bring the cutting deck into

the highest position and put

blocks (2) of around 65 - 70 mm

beneath the edge to hold up the

deck during the following sta -

ges.

For mechanical

drive models:

– engage the parking brake;

For hydrostatic

drive models:

– put the drive release lever

into the «ENGAGED» posi-

tion (see chap. 4, n° 23),

since it is necessary for the

parking brake to be disen-

gaged to ensure that the

speed change lever has

enough movement;

– remove the grass-catcher or

sto ne-guard;

– unscrew the knob on the lever

(3) and put the lever into neutral

«N» ( mechanical drive mo -

dels), or in «R» ( hydrostatic

drive models);

– open the access hatch (4) and

unscrew the nut (5) with a 13

mm spanner;

– release the lever (6) so that the

deck rests on the blocks and

keep the lever moved sideways

so that it is not in any of the

notches. Hold the base of the

seat (7) and tip the cover back.

IMPORTANT

WARNING!

On closing:

– check that the collector channel (8) is properly fitted onto its sup-

port (9) and resting on the guide as shown by the arrow (12);

– put the lever (3) into the «R» position and lower the cover (1) to

the height of the levers (3) and (6);

– first put the lever (6) into its housing followed by lever (3). Lower

the cover in line with the fastening screw (5).

When the cover (1) has been lowered check

that the channel exit (8) is correctly lined up with the open-

ing in the rear plate (10) and that it is resting on the support

(11). The support (9) must never be removed or tampered

with. What above mentioned is very important. If grass cut-

tings get into the engine area, its performance can be seri-

ously impaired.

Then:

– fully tighten the fixing nut (5);

– put the lever (6) into the notch at position «7»;

– take the blocks (2) away, and reassemble the knob on the lever

(3) and the access hatch (4).

ENGINE

The purpose of the maintenance schedule and adjustment is to keep

the engine in the best operating condition. Inspect or service as

scheduled in the table below.

Shut off the engine before performing any

maintenance. If the engine must be run, make sure the area

is well ventilated. The exhaust contains poisonous carbon

monoxide gas; exposure can cause loss of consciousness

and may lead to death.

Use only genuine Honda parts or their equiva-

lent. The use of replacement parts which are not of equivalent

quality may damage the engine.

OIL CHANGE

Drain the oil while the engine is

still warm to assure rapid and com-

plete draining.

1. Remove the oil filler cap (1) and

drain plug (2) to drain the oil.

When refitting the plug (2),

carefully re-position the seal.

2. Refill with the recommended oil

(see page 18) and check the oil

level.

ENGINE OIL CAPACITY: 1.1 liters

Wash your hands with soap and

water after handling used oil.

Please dispose of used motor oil in a manner

that is compatible with the environment. We suggest you take it

in a sealed container to your local service station for reclamation.

Do not throw it in the trash, pour it on the ground, or down a drain.

NOTE

WARNING!

IMPORTANT

WARNING!

2. Visually inspect the spark plug.

Discard it if the insulator is

cracked or chipped. Clean the

spark plug with a wire brush if it

is to be reused.

3. Measure the plug gap with a

feeler gauge. Correct as ne-

ces sary by bending the side

electrode. The gap should be:

0.70 - 0.80 mm.

4. Check that the spark plug

washer is in good condition and

thread the spark plug in by

hand to prevent cross-thread-

ing.

5. When installing a new spark

plug, tighten 1/2 turn after the

spark plug seats to compress

the washer. When reinstalling a

used spark plug, tighten 1/8 1/4

turn after the spark plug seats

to compress the washer.

The spark plug

must be securely tightened. An improperly tightened spark plug

can become very hot and may damage the engine.

REAR AXLE

These are permanently lubricated with grease that does not need

changing.

BATTERY

To ensure long life to the battery it is essential to keep it carefully

maintained.

The machine battery must always be charged:

– before using the machine for the first time after purchase;

– before leaving the machine for a prolonged period of disuse;

– before starting up the machine after a prolonged period of disuse.

Carefully read and comply with the procedure for recharging de-

scribed in the booklet coming with the battery. If the procedure is not

followed or the battery is not charged, irreparable damage could be

caused to the elements inside the battery. A flat battery must be

recharged as soon as possible.

Recharging must be done by using the “CB01”

battery charger supplied wiith your machine. Other recharging sys-

tems can irreversibly damage the battery.

– follow the instructions given in the relative instruction booklet,

– follow the instructions given in the battery booklet.

The machine has a connector (1)

for recharging, to be connected to

the corresponding connector of the

special “CB01” maintenance bat-

tery-charger.

IMPORTANT

14EN

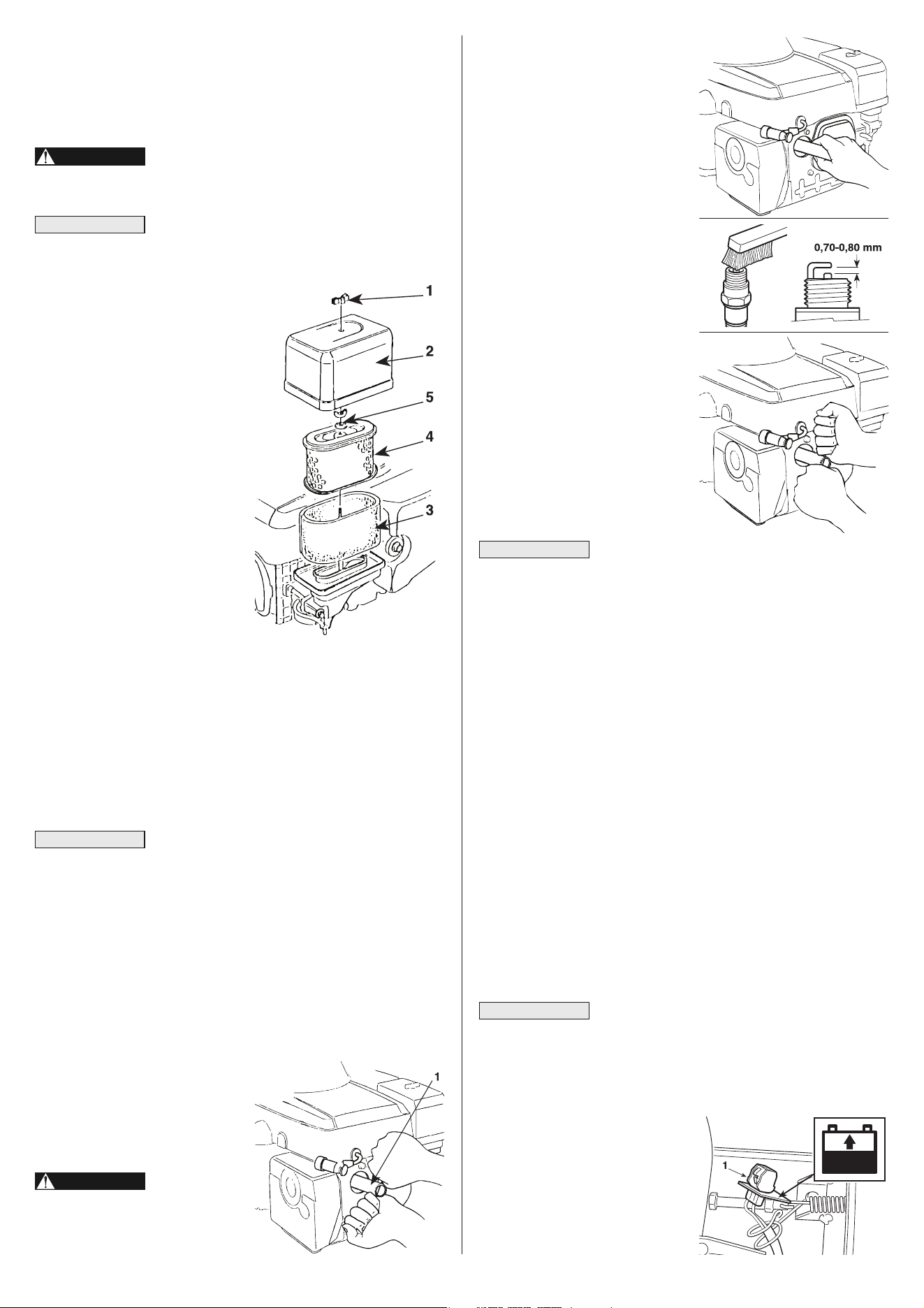

AIR CLEANER SERVICE

A dirty air cleaner will restrict air flow to the carburetor. To prevent

carburetor malfunction, service the air cleaner regularly. Service

more frequently when operating the engine in extremely dusty

areas.

Never use ga so line or low flash point sol-

vents for cleaning the air clea ner element. A fire or explosion

could result.

Never run the engine without the air cleaner.

Rapid engine wear will result.

1. Remove the wing nut (1) and

the air cleaner cover (2). Re-

move the elements and sepa-

rate them. Carefully check both

elements for holes or tears and

replace if damaged.

2. Foam element (3): Clean in

warm soapy water, rince and

allow to dry thoroughly. Or

clean in high flash-point solvent

and allow to dry. Dip the ele-

ment in clean engine oil and

squeeze out all the excess. The

engine will smoke during initial

start-up if too much oil is felt in

the foam.

3. Paper element (4): Tap the element lightly several times on a hard

surface to remove excess dirt, or blow compressed air through

the filter from the inside out. Never try to brush the dirt off; brush-

ing will force dirt into the fibers. Replace the paper element if it

is excessively dirty. Clean in warm, soapy water and rinse. Dry

using compressed air blown from the inside out, or shake the el-

ement and allow it to air dry thoroughly. (Or clean in high flash

point solvent, remove immediately, and allow to dry.).

Remember to reinstall the air cleaner grommet

(5), replace the grommet if necessary.

SPARK PLUG SERVICE

RECOMMENDED SPARK PLUG: BPR5ES (NGK)

To ensure proper engine operation, the spark plug must be properly

gapped and free of deposits.

1. Remove the spark plug cap

and use the proper size spark

plug wrench (1) to remove the

spark plug.

If the engine

has been running, the muffler

will be very hot. Be careful not

to touch the muffler.

WARNING!

NOTE

IMPORTANT

WARNING!

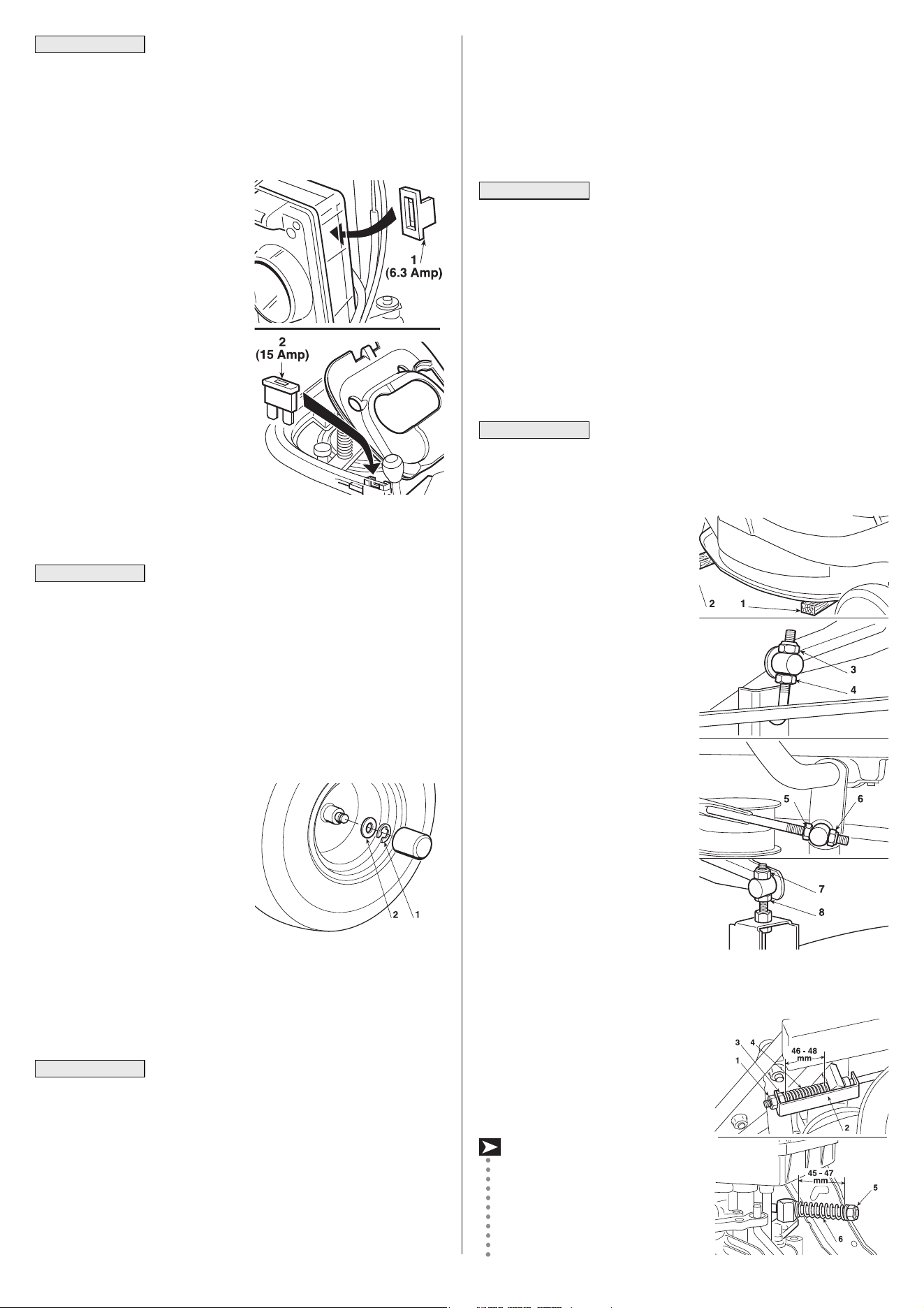

CHANGING BELTS

The motion from the engine to the rear axle and from the motor to

the blade is obtained by two “V” belts, whose duration largely de-

pends on how the machine is used.

Replacing belts is quite complicated because of dismantling and ad-

justments and must only be carried out by your Dealer.

Belts must always be replaced as soon as they

are seen to be worn! ALWAYS USE MANUFACTURERʼS GE -

NUINE SPARE BELTS!

CUTTING DECK ADJUSTMENT

The cutting deck should be properly adjusted to obtain a good cut.

Height adjustments to the cutting deck are made through three link-

ages. Such adjustments are to be made on a flat surface after ha -

ving ensured that the tyre pressures are correct.

For achieving good results from cutting, the front

part should always be 2 - 4 mm lower than the rear.

To adjust the cutting deck so that it is parallel with the ground:

– put one 26 mm block (1) under

the edge of the deck and one 32

mm block (2) under the rear

edge, then put the lifting lever

into the notch at position «1»;

– loosen the nuts (3 - 5 - 7) and

the locknuts (4 - 6 - 8) so that

the deck is resting firmly on the

blocks;

– turn the nut (3) until the right-

hand rear part of the deck starts

to rise, and then tighten the re -

lative locknut (4);

– screw down the nut (5) on the

rod until the right-hand front part

of the deck begins to rise, and

then tighten the relative locknut

(6);

– screw the nut (7) on the front left

support until the deck in that

area begins to rise, and then

tighten the nut (8).

If you are unable to get the cutting deck parallel, consult your

Dealer.

BRAKE ADJUSTMENT

The adjustment will need to be made

while the parking brake is engaged.

For mechanical

drive models:

Loosen the nut (1) which holds

on the bracket (2) and turn the

nut (3) until the length of the

NOTE

Do not connect any other device than the “CB01”

charger to this connector.

ELECTRICAL SYSTEM

The electronic card and the electrical system are protected by:

– a self-resetting device which

breaks the circuit when there is

a function fault, and is accom-

pa nied by an audible signal

which continues until the key is

re moved. When the problem

has been resolved the system

automatically resets after a few

seconds;

– a 6.3 A delayed fuse (1) for the

pro tection of the general and

power circuits of the system.

This must be replaced after hav-

ing eliminated the fault.

A 15 A fuse (2) is also provided for

protecting the recharge circuit.

When any of these devices are activated, the machine stops.

A blown fuse must always be replaced by one of

the same type and ampere rating, and never one of a different rat-

ing.

If you cannot find the cause of the protection device's activation, con-

sult your Dealer.

CHANGING WHEELS

Stop the machine on a flat surface

and put blocks under a load-bear-

ing part of the frame on the side

that the wheel is to be changed.

The wheels are held by a snap

ring (1) which can be taken off with

a screwdriver.

The rear wheels are directly cou-

pled to the axle shafts and fas-

tened by a key that forms part of

the wheel's hub.

Before re-fitting a wheel, smear some grease on the axle and care-

fully re-fit the snap ring and washer (2).

Should you substitute one or both rear wheels,

ensure that they are of the same diameter, and check that cutting

deck is horizontal to prevent an uneven cut.

CHANGING AND REPAIRING TYRES

Tyres are of the «Tubeless» type and therefore all puncture repairs

will have to be carried out by a tyre-repair expert in accordance with

the methods for this kind of tyres.

IMPORTANT

NOTE

IMPORTANT

15 EN

spring (4) is 46 - 48 mm inside the washers. When the adjustment

has been made, tighten the nut (1).

For hydrostatic drive models:

Turn the nut (5) until the length of the spring (6) is 45 - 47 mm in-

side the washers.

Do not screw to below these values to avoid

overloading the brake unit.

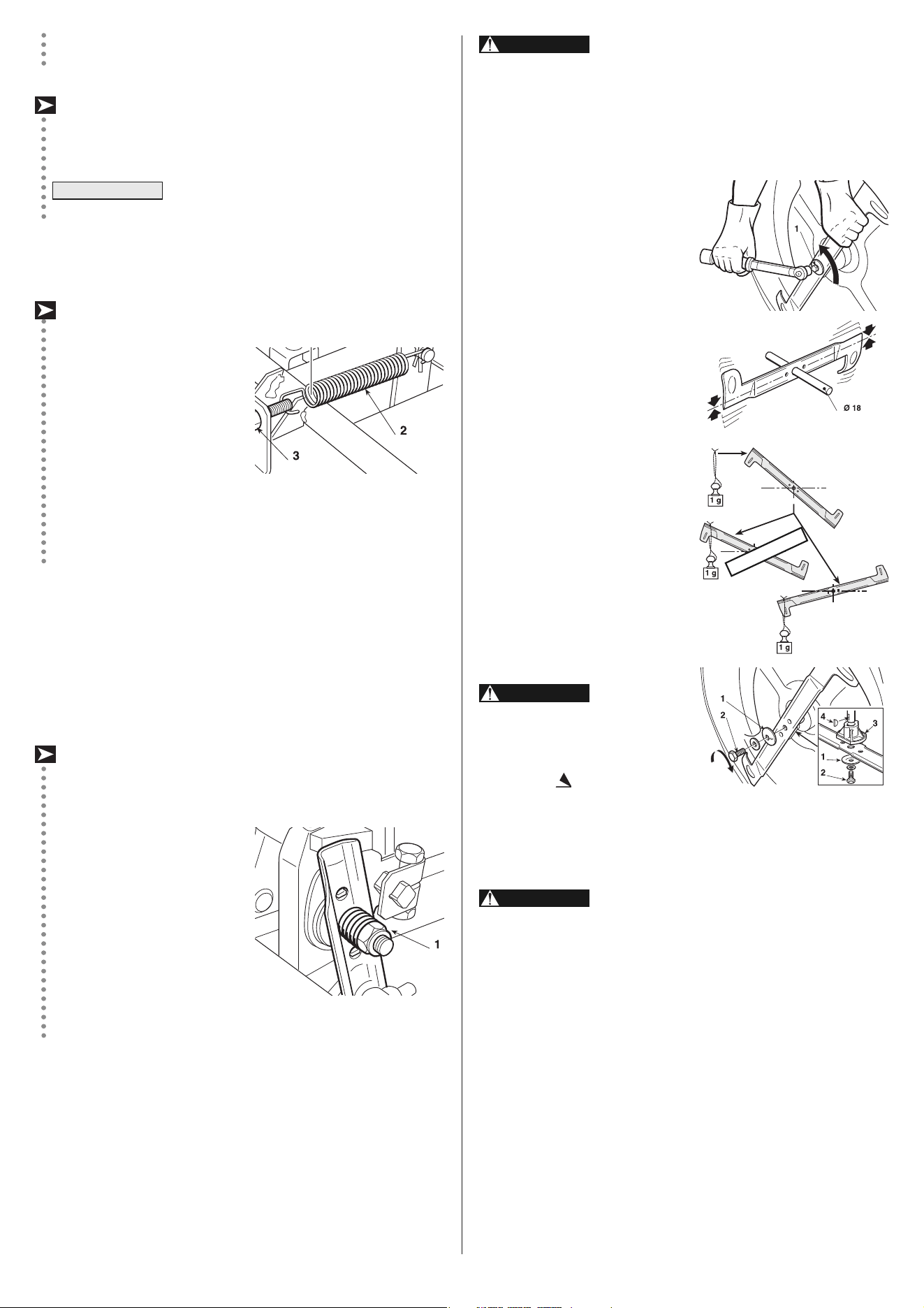

ADJUSTING DRIVE ENGAGEMENT

For mechanical drive models:

If you should notice that forward

drive power has dropped, you

can adjust the regulating screw

(1) which is accessible through

the hatchway beneath the seat.

Undoing the screw and then

lengthening the spring (2) will

increase the drive ability. The

best length for the spring is 86

mm measured from the outer ends of the spring. Once the ad-

justment has been made, tighten the locknuts (3). Excessive

spring tension may cause too sudden engagement of the clutch,

resulting in the machine tipping up.

ADJUSTMENT TO BLADE ENGAGEMENT AND BRAKE

If there seem to be problems in engaging the blade or the time for

stopping when it has been disengaged is over 5 seconds, ask your

Dealer for adjustment.

For hydrostatic drive models:

ADJUSTING THE SPEED CHANGE LEVER

The speed change lever has a

clutch device which keeps it in

the position selected during for-

ward movement and which re-

turns the lever to neutral when

brake is operated.

If the lever does not stay in po-

sition during working and has

difficulty in returning to neutral,

the adjuster nut (1) will need to

be registered to restore normal functioning.

SHARPENING THE BLADE

Check that the blade is sharpened properly and firmly fixed to the

bracket.

– A badly sharpened blade pulls at the grass and causes the lawn

to turn yellow.

– A loose blade causes unusual vibrations and can be dangerous.

IMPORTANT

All operations on the blade (dismantling,

sharpening, balancing, remoun ting and/or replacing) require

a certain familiarity and special tools. For safety reasons, go

to a specialized cen tre if you do not have the right tools or ex-

perience.

To remove the blade, hold it firmly

wearing strong gloves and undo

the central screw (1).

Sharpen the two cutting edges us-

ing a medium grade grinding

wheel and check the balance by

holding the blade up with a round

18 mm diameter bar inserted in

the central hole.

To ensure that it works properly

without unusual vibrations any im-

balance between the two parts of

the blade must be below one

gram.

This can be easily ascertained by

putting a one gram weight on the

lightest end of the blade. If it tends

to go below the balanced position

it means that the balance is cor-

rect, while if it stays up then the

other end will have to be made

lighter.

A damaged or

bent blade must always be

replaced; never try to repair

it! ALWAYS USE MANUFAC-

TU RER'S GENUINE SPARE

BLADES !

Only blades with the following codes must be used on this machine:

84109503/0

When re-fitting the blade, always follow the

indicated sequence, making sure that the bladeʼs wings are

facing towards the interior of the cutting deck and that the

concave part of the cup spring (1) is pressing against the

blade. Tighten the fixing screw (2) using a torque wrench set

to 45-50 Nm. If the shaft hub (3) came off when dismantling

the blade, make sure that the key (4) is firmly in its right po-

sition.

GUIDE TO SCHEDULED MAINTENANCE

This table is to help you maintain your machineʼs safety and per-

formance. It shows the main maintenance and lubrication work, in-

dicating the frequency with which it should be carried out.

To the right of each one there is a box where you can write the date

or after how many hours of operation the work was carried out.

WARNING!

16EN

WRONG!

RIGHT!

Contact your Dealer.

General lubrication should be carried out whenever the machine

is to be left unused for a long period.

Check each time used.

Operation to be performed also after the first 20 hours of opera-

tion.

Carry out maintenance of the air filter more frequently in the ca-

se of use on dusty ground.

Replace the paper element only.

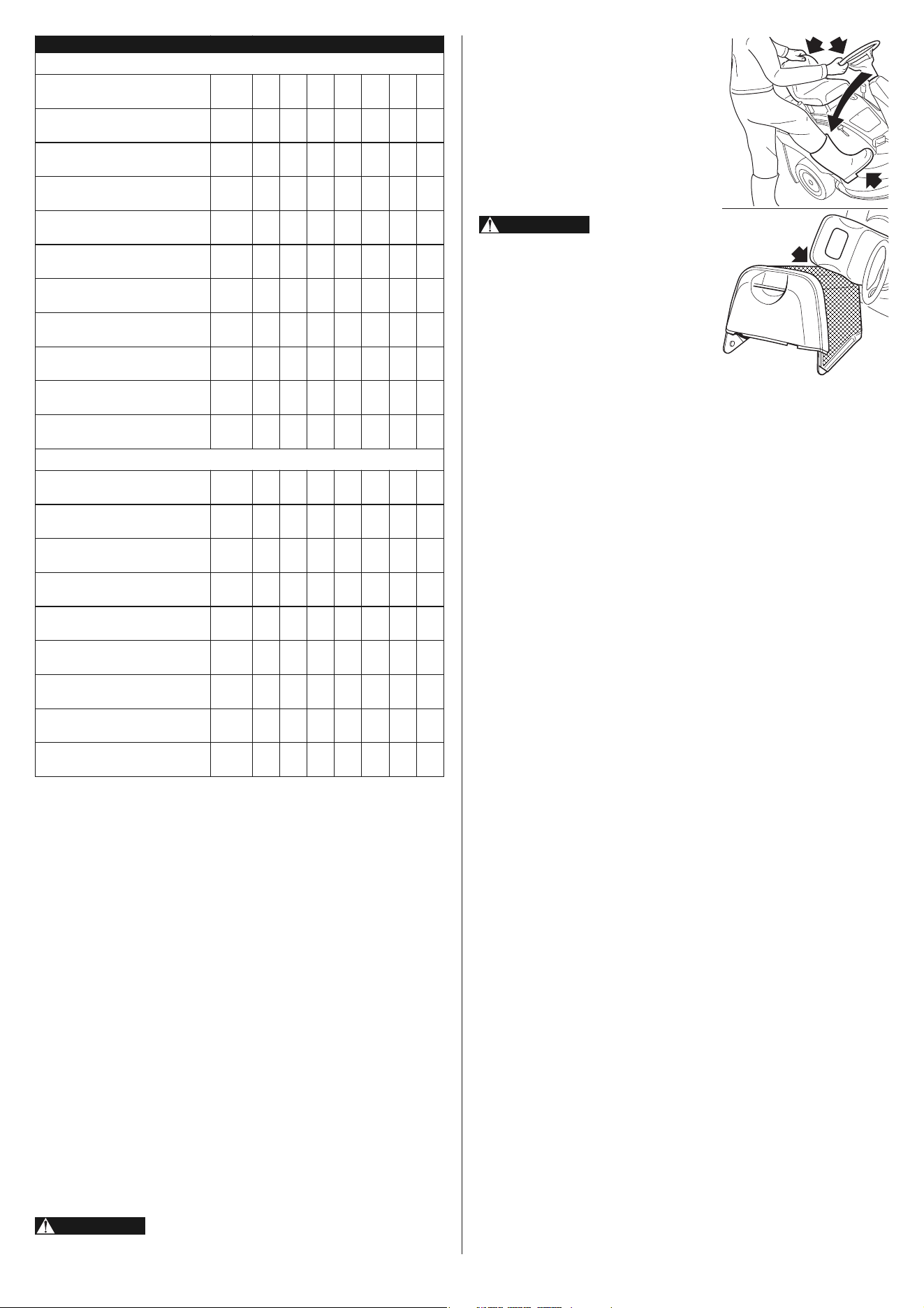

LAYING ON ITS SIDE

In order to easily reach beneath the machine, it can be turned onto

its side after having removed the grass-catcher and completely

emptied the fuel tank.

This operation is to be performed with the

as sistance of another person.

WARNING!

17 EN

WORK

HOURS

DATE OR N° OF HOURS

1. MACHINE

1.1 Check of tight fixing and

sharpness of blade

1.2 Blade replacement 100

1.3 Check of the

transmission belt

1.4 Transmission belt

replacement

–

1.5 Checking the

blade drive belt

1.6 Blade drive belt

replacement

–

1.7 Check and adjustment

of brake

1.8 Check and adjustment

of drive

1.9 Check blade

engagement and brake

1.10 Check of tight fixing

of all the elements

1.11 General lubrication

1) 2)

2. ENGINE

2.1 Check oil level

–

2.2 Engine oil change

100

2.3 Oil filter replacement

–

2.4 Check

and cleaning

of air filter

5) 6)

2.5 Air filter replacement

200

2.6 Check fuel filter

200

2.7 Fuel filter replacement

–

2.8 Check and cleaning

of spark plug points

100

2.9 Replacement of spark

plug

200

Having put the machine onto a firm

and flat surface, engage the parking

brake, put the cutting deck into posi-

tion «7», firmly grip the steering wheel

and the seat, and turn the machine

onto its right hand side so that it rests

on the grass-catcher (as shown), ta -

king care not to damage plastic parts.

Make sure that

the machine is stable before

starting any work and do not car -

ry out work that may cause it to

fall.

WARNING!

18EN

7. ENVIRONMENTAL PROTECTION

Environmental protection should be a priority of considerable im-

portance when using the machine, for the benefit of both social co-

existence and the environment in which we live.

– Try not to cause any disturbance to the surrounding area.

– Scrupulously comply with local regulations and provisions for the

disposal of waste materials after sawing.

– Scrupulously comply with local regulations and provisions for the

disposal of oils, petrol, damaged parts or any elements which

have a strong impact on the environment; this waste must not be

disposed of as normal waste, it must be separated and taken to

specified waste disposal centres where the material will be recy-

cled.

– At the time of decommissioning, do not pollute the environment

with the machine, hand it over to a disposal centre, in accordance

with the local laws in force.

19 EN

8. TROUBLESHOOTING

PROBLEM SITUATION LIKELY CAUSE SOLUTIONS

1. Pilot lamp off Key is in «ON»

position, engine

stopped

Electronic card in safety alert, due to:

– badly connected battery

– completely flat battery

or eroded battery plates

– battery terminals crossed

– fuse blown

– badly earthed

– electronic card wet

– earthed micro-switches

Put the key in the «OFF» position and look for the cause

of the problem:

– check connections

– recharge battery

– connect properly

– replace fuse (6.3 A - delayed)

– check connections

– dry by air

– check connections

2. Starter motor not

working

Key in «START»

position and pilot

lamp on

Key in «START»

position and pilot

lamp flashing

– insufficiently charged battery

– badly earthed

– you are not ready for starting

– recharge battery (if the problem continues,

consult your Dealer)

– check the 15 A fuse

(if the problem continues, consult your Dealer)

– check connections

– check that the blade is disengaged

(if the problem continues, check relevant micro-switch)

– put the gear ( mechanical) or the lever ( hydrostatic)

in neutral (N)

3. Engine does not

start

Key in «START»

position

– no fuel supply

– faulty ignition

– insufficiently charged battery

– check fuel level

– open fuel stop-cock

– check fuel filter

– check that spark plug cap are firmly fitted

– check that the electrodes is clean and have the correct

gap

– recharge battery

(if the problem continues, consult your Dealer)

4. Starting is difficult

or the engine runs

erratically

Key in «ON»,

engine running

– fuel fault – clean or replace the air filter

– flush out the float chamber

– empty fuel tank and refill with new fuel

– check and, if necessary, replace fuel filter

5. Weak engine

performance during

cutting

Key in «ON»,

engine running

– forward speed too high in relation

to cutting height

– reduce the forward speed and/or raise the cutting deck

6. Engine stops

when blade is

engaged

Key in «ON»,

engine running

– you are not ready to engage the blade – sit firmly on seat

(if problem continues, check micro-switch)

– check that grass-catcher or stone-guard are correctly

in position (if problem continues, check micro-switch)

7. Engine stops Key in «ON»,

engine running

Electronic card in safety alert, due to:

– earthed micro-switches

– flat battery

– overload caused by the charge

regulator

– badly connected battery (poor contact)

– engine badly earthed

Put the key in the «OFF» position and look for the cause

of the problem:

– check connections

– recharge battery

– contact your Dealer

– check battery connections

– check engine earth connection

20EN

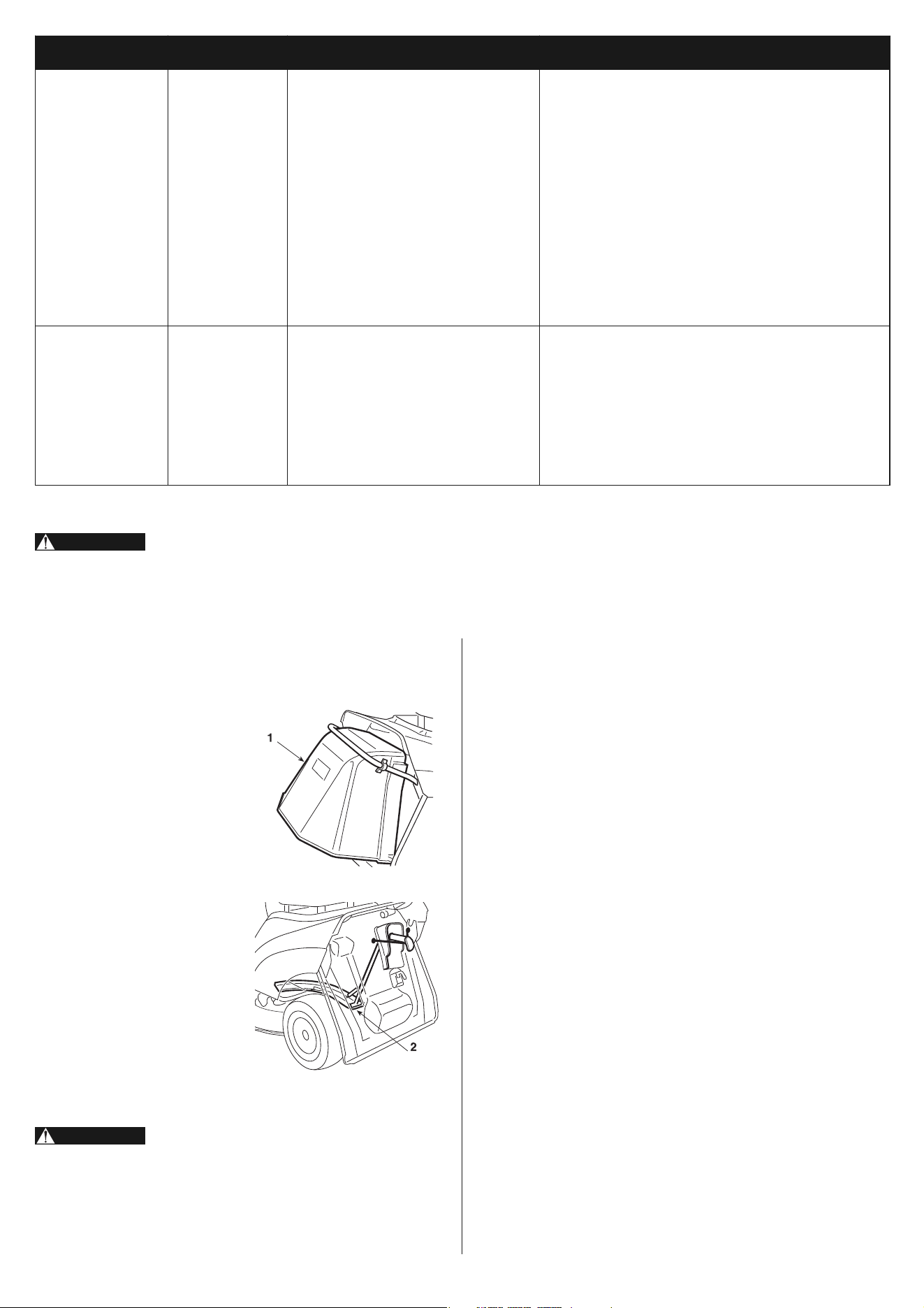

PROBLEM SITUATION LIKELY CAUSE SOLUTIONS

8. Uneven cut and

poor grass collection

Key in «ON»,

engine running

– cutting deck not parallel to the ground

– blade cutting badly

– forward speed too high compared

to height of grass

– collector channel is obstructed

– cutting deck full of grass

– check tyre pressures

– re-align the cutting deck to the ground

– check that the blade is fitted properly

– sharpen or replace the blade

– check the tension of the belt

– reduce forward speed and/or raise the cutting deck

– wait for grass to dry

– remove the grass-catcher and empty the collector channel

– clean the cutting deck

9. Unusual vibrations

while working

Key in «ON»,

engine running

– the blade is imbalanced

– blade loose

– fixing screws loose

– cutting deck is obstructed

– balance or replace the damaged blade

– check that the blade is firmly fitted

– check and tighten all the fixing screws of engine

and the machine

– remove the grass-catcher, empty the collector channel

and clean the inside of the cutting deck

If problems continue after having carried out these operations, contact your Dealer.

Do not take on complicated repair work if you don't have the necessary equipment and the technical know ledge.

The guarantee is automatically revoked and the manufacturer declines all responsibility for any repairs which are badly done.

WARNING!

9. ACCESSORIES ON REQUEST

1. STONE-GUARD KIT

For use in place of the grass-cat-

cher when the cuttings are not to

be collected.

2. KIT FOR “MULCHING”

It finely chops the grass cuttings

and leaves them on the lawn, in-

stead of collecting them in the

grass-catcher

For your safety it is strictly prohibited to fit

any other accessory other than those included in the above

list, they have been exclusively designed for the model and

type of machine you are using.

WARNING!

21 EN

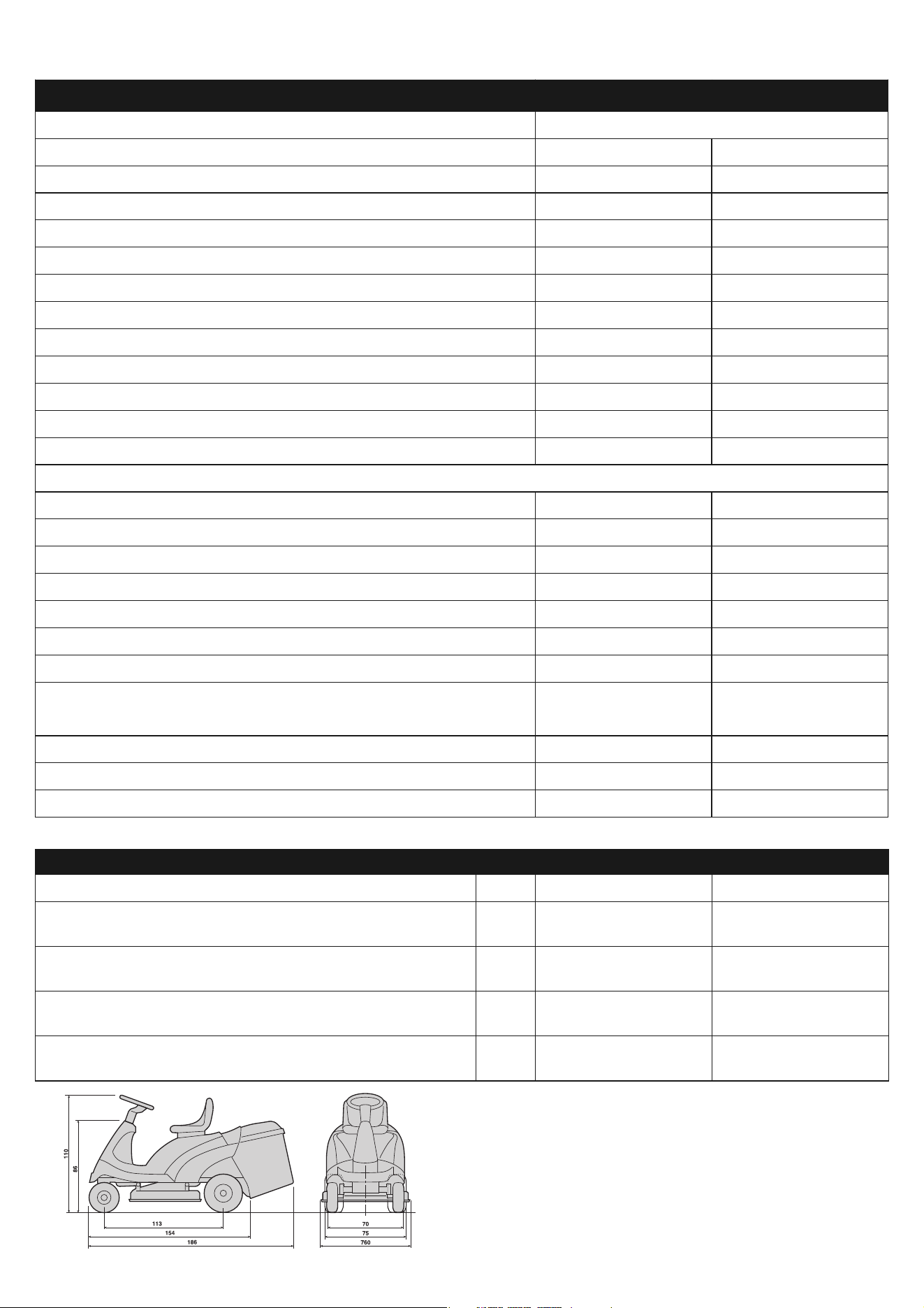

10. SPECIFICATIONS

MODELS HF1211 HF1211 H

Function Cutting of grass

Electrical system 12 V 12 V

Battery 20 Ah 20 Ah

Engine: HONDA type GXV 340 GXV 340

Operating engine speed 3100 r.p.m. 3100 r.p.m

Net Engine Power (*) 6.6 kW / 3600 6.6 kW / 3600

Nominal Engine Power 6.4 kW / 3100 6.4 kW / 3100

Front tires 11 x 4-4 11 x 4-4

Rear tires 15 x 6-6 15 x 6-6

Front tire pressure 1.5 bar 1.5 bar

Rear tire pressure 1.0 bar 1.0 bar

Fuel tank capacity 3.6 liters 3.6 liters

Weight 168 kg 177 kg

Speed

in Forward drive — from 0 to 8.0 km/h

in 1

1.6 km/h —

in 2

2.8 km/h —

in 3

4.2 km/h —

in 4

4.7 km/h —

in 5

7.0 km/h —

in Reverse 2.0 km/h from 0 to 3.7 km/h

Inside turning circle (minimum diameter of uncut area),

Left side

1.4 m 1.4 m

Cutting height from 3 to 8 cm from 3 to 8 cm

Cutting width 71 cm 71 cm

Grass-catcher capacity 170 liters 170 liters

(*) The power rating of the engine indicated in this document is the net po-

wer output tested on a production engine for the engine models GX 340 and

measured in accordance with SAE J1349 at 3600 r,p,m (Net Power) and at

2800 r,p,m (Net Torque). Mass production engines may vary from this value.

Actual power output for the engine installed in the final machine will vary de-

pending on numerous factors, including the operating speed of the engine

in application, environmental conditions, maintenance, and other variables.

Maximum noise and vibration levels

MODELS HF1211 HF1211 H

Guaranteed acoustic power level (2000/14/EC, 2005/88/EC)

dB(A) 100 100

Measured acoustic power level (2000/14/EC, 2005/88/EC)

Measuring uncertainty

dB(A)

99.0

0.4

99.0

0.4

Sound pressure level at the ear (EN836:1997 / AC:2006)

Measuring uncertainty

dB(A)

83.6

0.4

83.6

0.4

Real measured value of acceleration on steering wheel (EN836:1997 / AC:2006)

Measuring uncertainty

m/sec

2.6

0.4

2.6

0.4

Real measured value of acceleration on seat (EN 1032)

Measuring uncertainty

m/sec

0.4

0.2

0.4

0.2

Major Honda distributor addresses

Adresses des principaux concessionnaires Honda

Adressen derwichtigsten Honda-Haupthändler

Elenco dei maggiori distributori Honda in Europa

Adressen van Honda-importeurs

Direcciones de los principales concesionarios Honda

FRANCE

Honda Relations Clients

TSA 80627

Tel. 02 38 81 33 90

45146 St Jean de la Ruelle Cedex

Fax. 02 38 81 33 91

http://www.honda-fr.com

[email protected]

NORWAY

Berema AS

P.O. Box 454

1401 Ski

Tel. : +47 64 86 05 00

Fax : +47 64 86 05 49

http://www.berema.no

[email protected]

(Canary Islands)

SPAIN & LAS PALMAS

PROVINCE

Greens Power Products, S.L.

Avda. Ramon Ciurans, 2

08530 La Garriga - Barcelona

Tel. : +34 3 860 50 25

Fax : +34 3 871 81 80

http://www.hondaencasa.com

GERMANY

Honda Motor Europe (North) GmbH

Sprendlinger Landstraße 166

63069 Offenbach am Main

Tel. : +49 69 8309-0

Fax : +49 69 8320 20

http://www.honda.de

[email protected]

POLAND

Aries Power Equipment Sp. z o.o.

ul. Wroclawska 25

01-493 Warszawa

Tel. : +48 (22) 861 43 01

Fax : +48 (22) 861 43 02

http://www.ariespower.pl - www.mojahonda.pl

[email protected]

SWEDEN

Honda Nordic AB

Box 50583 - Västkustvägen 17

20215 Malmö

Tel. : +46 (0)40 600 23 00

Fax : +46 (0)40 600 23 19

http://www.honda.se

[email protected]

GREECE

General Automotive Co S.A.

71 Leoforos Athinon

10173 Athens

Tel. : +30 210 3497809

Fax : +30 210 3467329

http://www.honda.gr

[email protected]

PORTUGAL

Honda Portugal, S.A.

Rua Fontes Pereira de Melo 16

Abrunheira, 2714-506 Sintra

Tel. : +351 21 915 53 33

Fax : +351 21 915 23 54

http://www.honda.pt

[email protected]

SWITZERLAND

Honda Suisse S.A.

10, Route des Moulières

1214 Vernier - Genève

Tel. : +41 (0)22 939 09 09

Fax : +41 (0)22 939 09 97

http://www.honda.ch

HUNGARY

Motor.Pedo Co., Ltd.

Kamaraerdei út 3.

2040 Budaors

Tel. : +36 23 444 971

Fax : +36 23 444 972

http://www.hondakisgepek.hu

[email protected]

REPUBLIC OF BELARUS

Scanlink Ltd.

Kozlova Drive, 9

220037 Minsk

Tel. : +375 172 999090

Fax : +375 172 999900

http://www.hondapower.by

TENERIFE PROVINCE

(Canary Islands)

Automocion Canarias S.A

Carretera General del Sur, KM 8.8

38107 Santa Cruz de Tenerife

Tel. : 34 (922) 620 617

Fax : 34 (922) 618 042

http://www.aucasa.com

[email protected]

ICELAND

Bernhard ehf.

Vatnagardar 24-26

104 Reykdjavik

Tel. : +354 520 1100

Fax : +354 520 1101

http://www.honda.is

ROMANIA

Hit Power Motor Srl

Calea Giulesti N° 6-8 - Sector 6

060274 Bucuresti

Tel. : +40 21 637 04 58

Fax : +40 21 637 04 78

http://www.honda.ro

[email protected]

TURKEY

Anadolu Motor Uretim ve

Pazarlama AS

Esentepe mah. Anadolu

Cad. No: 5

Kartal 34870 Istanbul

Tel. : +90 216 389 59 60

Fax : +90 216 353 31 98

http://anadolumotor.com.tr

[email protected]

IRELAND

Two Wheels Ltd.

M50 Business Park, Ballymount

Dublin 12

Tel. : +353 1 4381900

Fax : +353 1 4607851

http://www.hondaireland.ie

[email protected]

RUSSIA

Honda Motor RUS LLC

21, MKAD 47 km., Leninsky district.

Moscow region, 142784 Russia

Tel. : +7 (495) 745 20 80

Fax : +7 (495) 745 20 81

http://www.honda.co.ru

[email protected]

UKRAINE

Honda Ukraine LLC

101 Volodymyrska Str. Build. 2

Kyiv 01033

Tel. : +380 44 390 14 14

Fax. : +380 44 390 14 10

htpp://www.honda.ua

[email protected]

ITALY

Honda Italia Industriale S.p.A.

Via della Cecchignola, 5/7

00143 Roma

Tel. : +848 846 632

Fax : +39 065 4928 400

http://www.hondaitalia.com

[email protected]

SERBIA & MONTENEGRO

Bazis Grupa d.o.o.

Grcica Milenka 39

11000 Belgrade

Tel. : +381 11 3820 295

Fax : +381 11 3820 296

http://www.hondasrbija.co.rs

UNITED KINGDOM

Honda (UK) Power Equipment

470 London Road

Slough - Berkshire, SL3 8QY

Tel. : +44 (0)845 200 8000

http://www.honda.co.uk

MALTA

The Associated Motors

Company Ltd.

New Street in San Gwakkin Road

Mriehel Bypass, Mriehel QRM17

Tel. : +356 21 498 561

Fax : +356 21 480 150

SLOVAK REPUBLIC

Honda Slovakia, spol. s r.o.

Prievozská 6 - 821 09 Bratislava

Tel. : +421 2 32131112

Fax : +421 2 32131111

http://www.honda.sk

NETHERLANDS

Honda Motor Europe (North)

Afd. Power Equipment-Capronilaan 1

1119 NN Schiphol-Rijk

Tel. : +31 20 7070000

Fax : +31 20 7070001

http://www.honda.nl

SLOVENIA

AS Domzale Moto Center D.O.O.

Blatnica 3A

1236 Trzin

Tel. : +386 1 562 22 42

Fax : +386 1 562 37 05

http://www.as-domzale-motoc.si

AUSTRIA

Honda Motor Europe (North)

Hondastraße 1

2351 Wiener Neudorf

Tel. : +43 (0)2236 690 0

Fax : +43 (0)2236 690 480

http://www.honda.at

BALTIC STATES

(Estonia / Latvia / Lithuania)

Honda Motor Europe Ltd.

Estonian Branch

Tulika 15/17

10613 Tallinn

Tel. : 372 6801 300

Fax : 372 6801 301

[email protected]

BELGIUM

Honda Motor Europe (North)

Doornveld 180-184

1731 Zellik

Tel. : 32 2620 10 00

Fax : 32 2620 10 01

http://www.honda.be

[email protected]

BULGARIA

Kirov Ltd.

49 Tsaritsa Yoana blvd

1324 Sofia

Tel. : +359 2 93 30 892

Fax : +359 2 93 30 814

http://www.kirov.net

[email protected]

CROATIA

Hongoldonia d.o.o.

Jelkovecka Cesta 5

10360 Sesvete – Zagreb

Tel. : +385 1 2002053

Fax : +385 1 2020754

http://www.hongoldonia.hr

[email protected]

CYPRUS

Alexander Dimitriou & Sons Ltd.

162 Yiannos Kranidiotis Avenue

2235 Latsia, Nicosia

Tel. : + 357 22 715 300

Fax : + 357 22 715 400

CZECH REPUBLIC

BG Technik cs, a.s.

U Zavodiste 251/8

15900 Prague 5 - Velka Chuchle

Tel. : +420 2 838 70 850

Fax : +420 2 667 111 45

http://www.honda-stroje.cz

DENMARK

Tima Products A/S

Tårnfalkevej 16

2650 Hvidovre

Tel. : +45 36 34 25 50

Fax : +45 36 77 16 30

http://www.tima.dk

FINLAND

OY Brandt AB.

Tuupakantie 7B

01740 Vantaa

Tel. : +358 207757200

Fax : +358 9 878 5276

http://www.brandt.fi

EC-Declaration of Conformity

1) The undersigned, Mr Takayoshi Fukai, representing the manufacturer,

herewith declares that the machinery described below complies with all

the relevant provisions of the Machinery Directive 2006/42/EC, 98/37/EC.

The machinery also complies with the provisions of the:

- Outdoor noise Directive: 2000/14/EC, 2005/88/EC

- EMC Directive: 2004/108/EC

2) Description of the machinery:

a) Generic denomination: Lawn mower

b) Function: Cutting of grass

c) Type: HF1211K2 (SE, SF) - HF1211K2 (HE, HF)

d) Serial number:

3) Outdoor noise Directive

a) Measured sound power: 99 dB(A)

b) Guaranteed sound power: 100 dB(A)

c) Noise parameter: L = 71 cm

d) Conformity assessment procedure: Annex VI

e) Notified body: TÜV RHEINLAND PRODUCT SAFETY GMBH

Am Grauen Stein - 51105 Köln

Germany

Déclaration CE de conformité

) Le soussigné, Mr Takayoshi Fukai, représentant du constructeur, déclare par la présente que

la machine décrite ci-dessous est conforme aux dispositions de la Directive Machine. Cette

machine répond également aux dispositions de :

- Directive relative aux émissions sonores dans l'environnement des matériels destinés

à être utilisés à l'extérieur des bâtiments :

- Directive relative à la compatibilité électromagnétique des équipements électriques

et électroniques :

2) Description de la machine

a) Dénomination générique : Tondeuse à gazon b) Fonction : Couper de l'herbe

c) Type : d) Numéro de série :

3) Directive relative aux émissions sonores dans l'environnement des matériels

destinés à être

utilisés à l'extérieur des bâtiments

a) Puissance acoustique mesurée b) Puissance acoustique garantie c) Paramètres de bruit:

Puissance nette installée d) Procédure d'évaluation de la conformité e) Organisme notifié.

4) Constructeur :

5) Représentant autorisé à valider la documentation technique :

6) Référence aux normes harmonisées :

7) Autres normes et spécifications techniques nationales :

Fait à : Date : Président : Signature :

EC - Prohlášení o shodƟ

1) Zástupce výrobce, Takayoshi Fukai svým podpisem potvrzuje, že daný výrobek splĖuje

požadavky SmƟrnice pro strojní zaĜízení Daný výrobek rovnƟž splĖuje požadavky následujících

SmƟrnic:

- Hluková smƟrnice:

- SmƟrnice pro elektromagnetickou kompatibilitu:

2) Popis zaĜízení:

a) Všeobecné oznaþení: Sekaþky na trávu b) Funkce: Sekání trávy

c) Typ: d) Výrobní císlo:

3) Hluková smƟrnice:

a) NamƟĜený akustický výkon - b) Garantovaný akustický výkon

c) Parametry: Nominální výkon - d) ZpĤsob stanovení shody - e) Notifikovaná osoba:

4) Výrobce:

5) Autorizovaná osoba povƟĜená schvalováním technické dokumentace:

6) Odkazy na harmonizované normy:

7) Ostatní použité národní normy a specifikace:

Podepsáno v: Datum: Prezident: Podpis:

EU Overenstemmelseerklæring

1) Undertegnede,Takayoshi Fukai, som repræsenterer producenten erklærer herved, at produktet

beskrevet nedenfor opfylder alle retningslinier i maskindirektivet. Produktet opfylder også

bestemmelserne i:

- Direktiv om støjemission fra maskiner til udedørs brug:

- EMC direktiv:

2) Beskrivelse af produktet:

a) Fællesbetegnelse: Plæneklipper b) Anvendelse: Græsklipning c) Type: d) Stelnummer:

3) Direktiv om støjemission fra maskiner til udedørs brug:

a) Målt støjniveau - b) Garanteret støjniveau - c) Støjparameter: installeret motoreffekt

d) Overenstemmelsens vurderingsprocedure - e) Bemyndiget organ

4) Producent:

5) Autoriseret repræsentant for udfærdigelsen af den tekniske dokumentation:

6) Reference til harminiserede standarder:

7) Andre nationale standarder eller specifikationer:

Sted: Dato: Formand: Underskrift:

EÜ Vastavusavaldus

1) Allakirjutanu,Takayoshi Fukai, kinnitab tootja volitatud esindajana, et alltoodud seadmed

vastavad kõikidele Tehniliste seadmete direktiivinõuetele. Lisaks selle vastavad seadmed

järgmiste direktiivide nõuetele:

- Müratase välitingimustes:

- EMC direktiiv:

2) Seadmete kirjeldus:

a) Üldnimetus: Muruniiduk b) Funktsiooon: Muru niitmine c) Tüüp: d) Seerianumber:

3) Müratase välitingimustes:

a) Mõõdetav helivõimsuse tase - b) Tegelik helivõimsuse tase - c) Müra mõjutavad tegurid: Toite

võimsus - d) Vastavushindamise menetlus - e) Teavitatud asutus

4) Tootja:

5) Volitatud esindaja, kes on kvalifitseeritud koostama tehnilist dokumentatsiooni:

6) Viide ühtlustatud standarditele:

7) Siseriiklikud seadusaktid:

Koht: Kuupäev: President: Allkiri:

EC - Ⱦɟɤɥɚɪɚɰɢɹ ɡɚ ɫɴɨɬɜɟɬɫɬɜɢɟ

1) Ⱦɨɥɭɩɨɞɩɢɫɚɥɢɹɬ ɫɟ Ƚ-ɧ Ʉɚɧɟɦɭɪɚ, ɩɪɟɞɫɬɚɜɥɹɜɚɳ ɩɪɨɢɡɜɨɞɢɬɟɥɹ, ɫ ɧɚɫɬɨɹɳɢɹ

ɞɨɤɭɦɟɧɬ ɞɟɤɥɚɪɢɪɚ ɱɟ ɦɚɲɢɧɚ ɨɩɢɫɚɧɚ ɩɨ-ɞɨɥɭ ɟ ɜ ɫɴɨɬɜɟɬɫɬɜɢɟ ɫ ɜɫɢɱɤɢ ɢɡɢɫɤɜɚɧɢɹ ɧɚ

ɞɢɪɟɤɬɢɜɢɬɟ ɡɚ ɦɚɲɢɧɢ ɢ ɫɴɨɪɴɠɟɧɢɹ - ɋɴɨɪɴɠɟɧɢɟɬɨ ɫɴɳɨ ɫɴɨɬɜɟɬɫɬɜɚ ɫ ɢɡɢɫɤɜɚɧɢɹɬɚ

ɧɚ:

- Ⱦɢɪɟɤɬɢɜɚ ɡɚ ɧɢɜɨɬɨ ɧɚ ɲɭɦɚ: - EMC ɞɢɪɟɤɬɢɜɚ:

2) Ɉɩɢɫɚɧɢɟ ɧɚ ɨɛɨɪɭɞɜɚɧɟɬɨ:

ɚ) Ɉɛɳɨ ɧɚɢɦɟɧɨɜɚɧɢɟ: ɤɨɫɚɱɤɚ ɛ) Ɏɭɧɤɰɢɹ: ɤɨɫɟɧɟ ɧɚ ɬɪɟɜɚ

ɜ) Ɍɢɩ: ɞ) ɋɟɪɢɟɧ ɧɨɦɟɪ:

3) ȼɴɧɲɟɧ ɲɭɦ

ɚ) ɢɡɦɟɪɟɧɚ ɫɢɥɚ ɧɚ ɡɜɭɤɚ - b) ɦɚɤɫɢɦɚɥɧɚ ɫɢɥɚ ɧɚ ɡɜɭɤɚ - c) ɩɚɪɚɦɟɬɪɢ ɧɚ ɲɭɦɚ;

ɧɟɬɧɚ ɢɧɫɬɚɥɢɪɚɧɚ ɦɨɳɧɨɫɬ - d) ɩɪɨɰɟɞɭɪɚ ɧɚ ɢɡɦɟɪɜɚɧɟɬɨ - e) ɢɡɦɟɪɟɧɨ ɧɚ ɤɭɩɟ

4) ɉɪɨɢɡɜɨɞɢɬɟɥ:

5) Ɉɬɨɪɢɡɢɪɚɧ ɩɪɟɞɫɬɚɜɢɬɟɥ, ɤɨɣɬɨ ɦɨɠɟ ɞɚ ɫɴɫɬɚɜɹ ɬɟɯɧɢɱɟɫɤɚɬɚ ɞɨɤɭɦɟɧɬɚɰɢɹ:

6) ɋɴɨɬɜɟɬɫɬɜɢɟ ɫ ɯɚɪɦɨɧɢɡɢɪɚɧɢ ɟɬɚɧɞɚɪɬɢ:

7) Ⱦɪɭɝɢ ɧɚɰɢɨɧɚɥɧɢ ɫɬɚɧɞɚɪɬɢ ɢ ɫɩɟɰɢɮɢɤɚɰɢɢ:

Ɇɹɫɬɨ ɧɚ ɢɡɝɨɬɜɹɧɟ: Ⱦɚɬɚ ɧɚ ɢɡɝɨɬɜɹɧɟ: Ɇɟɧɢɞɠɴɪ

ɩɨ ɤɚɱɟɫɬɜɨ: ɉɨɞɩɢɫ:

EG-Konformitätserklärung

1) Der Unterzeichner,Takayoshi Fukai der den Hersteller vertritt, erklärt hiermit dass die unten

genannte Maschine den Bestimmungen aller relevanten Maschinenrichtlinien entspricht. Die

Maschine entspricht ebenfalls den Vorschriften der:

- Outdoor Richtlinie:

- EMV Richtlinie:

2) Beschreibung der Maschine

a) Allgemeine Bezeichnung: Rasenmäher b) Funktion: Gras schneiden

c) Typ: d) Seriennummer:

3) Richtlinie zu Geräuschemissionen im Freien:

a) Gemessener Schallleistungspegel - b) Garantierter Schallleistungspegel - c) Geräusch

Vorgabe : Tatsächliche Leistung - d) Angewandtes Konformitätsbewertungsverfahren

e) Benannte Stelle

4) Hersteller:

5) Bevollmächtigter zur Erstellung der technischen Unterlagen:

6) Verweis auf harmonisierte Normen:

7) Andere herangezogene nationale Normen, Bestimmungen oder Vorschriften:

Ort: Datum: Präsident: Unterschrift:

Declaracion de conformidad CE.

1) El firmante, Takayoshi Fukai, en representación del fabricante, adjunto declara que la máquina

descrita más abajo cumple con todas los requisitos relevantes de la Directiva de Maquinaria.

La máquina también cumple con los requisitos de la:

- Directiva sobre Ruido exterior:

- Directiva EMC:

2) Descripción de la máquina:

a) Denominación genérica: Cortacésped b) Función: Cortar el césped

c) Tipo: d) Número serie:

3) Directiva Ruido Exterior:

a) Potencia medida sonido - b) Potencia sonido garantizada - c) Parámetros ruido:

Potencia neta instalada - d) Procedimiento valoración conformidad - e) Organismo

notificado.

4) Fabricante:

5) Representante autorizado para recopilar la Documentación Técnica:

6) Referencia de los estándar harmonizados:

7) Otros estándar nacionales o especificaciones:

Realizado en: Fecha: Presidente: Firma:

EU-vaatimustenmukaisuusvakuutus

1) Allekirjoittanut valmistajan edustaja Takayoshi Fukai vakuuttaa täten, että tuote on

kaikkien EU: n konedirektiivin vaatimusten mukainen. Tuote on lisäksi seuraavien

EU: n direktiivien vaatimusten mukainen:

- Meludirektiivi:

- Sähkömagneettista yhteensopivuutta koskeva direktiivi:

Tuotteen kuvaus:

a) Yleisarvomäärä: Ruohonleikkuri b) Toiminto: Ruohon leikkaus

c) Tyyppi: d) Sarjanumero:

Meludirektiivi:

a) Mitattu äänitehotaso - b) Taattu äänitehotaso - c) Meluparametrit: Asennettu nettoteho

d) Vaatimustenmukaisuuden arviointimenettely - e) Ilmoitettu laitos

4) Valmistaja:

5) Teknisen dokumentaation laatinut valmistajan edustaja:

6) Viittaus yhdenmukaistettuihin standardeihin:

7) Muut kansalliset standardit tai tekniset eritelmät:

Laadittu: Päivämäärä: Pääjohtaja: Allekirjoitus:

ȆȚıĲȠʌȠȚȘĲȚțȩ ıȣȝȝȩȡĳȦıȘȢ Ǽ.Ǽ.

1) ȅ ȣʌȠȖȡȐĳȦȞ,Takayoshi Fukai İțʌȡȠıȦʌȩȞĲĮȢ ĲȠȞ țĮĲĮıțİȣĮıĲȒ, įȚĮ ĲȠȣ ʌĮȡȩȞĲȠȢ

įȘȜȫȞİȚ ȩĲȚ ĲȠ ȝȘȤȐȞȘȝĮ ʌȠȣ ĮȞĮĳȑȡİĲĮȚ ʌȚȩ țȐĲȦ ȕȡȓıțİĲĮȚ ıİ İȞĮȡȝȩȞȚıȘ ȝİ ĲȚȢ ʌȡȠȕȜȑȥİȚȢ

ĲȦȞ ȠįȘȖȚȫȞ ĲȘȢ ǼǼ. ȉĮ ȝȘȤĮȞȒȝĮĲĮ ȕȡȓıțȠȞĲĮȚ ıİ İȞĮȡȝȩȞȚıȘ ȝİ ĲȚȢ ʌȡȠȕȜȑȥİȚȢ ĲȦȞ:

- ȅįȘȖȚȫȞ șȠȡȪȕȠȣ İȟȦĲİȡȚțȠȪ ȤȫȡȠȣ:

- ȅįȘȖȓĮȢ EMC:

ȆİȡȚȖȡĮĳȒ ȝȘȤĮȞȒȝĮĲȠȢ:

Į) īİȞȚțȒ ȠȞȠȝĮıȓĮ: ȋȜȠȠțȠʌĲȚțȒ ȝȘȤĮȞȒ ȕ) ȁİȚĲȠȣȡȖȓĮ: ȖȚĮ țȩȥȚȝȠ ȖȡĮıȚįȚȠȪ

Ȗ) ȉȪʌȠȢ: į) ǹȡȚșȝȩȢ ʌĮȡĮȖȦȖȒȢ:

3) ȅįȘȖȓĮ șȠȡȪȕȠȣ İȟȦĲİȡȚțȠȪ ȤȫȡȠȣ:

Į) ǿıȤȪȢ ȝİĲȡȘșȑȞĲȠȢ șȠȡȪȕȠȣ - ȕ) ǼȖȖȣȘȝȑȞȠ İʌȓʌİįȠ șȠȡȪȕȠȣ - Ȗ) ȆĮȡĮȝȑĲȡȠȚ șȠȡȪȕȠȣ:

ȚıȤȪȢ țȚȞȘĲȒȡĮ - į) ǻȚĮįȚțĮıȓĮ ĮȟȚȠȜȩȖȘıȘȢ ıȣȝȝȩȡĳȦıȘȢ - İ) ǵȞȠȝĮ țȠȚȞȠʌȠȚȘȝȑȞȠȣ

ȠȡȖĮȞȚıȝȠȪ

4) ȀĮĲĮıțİȣĮıĲȒȢ:

5) ǼȖȖİțȡȚȝȑȞȠȢ ĮȞĲȚʌȡȩıȦʌȠȢ ȚțĮȞȩȢ ȖȚȐ ıȪıĲĮıȘ ĲİȤȞȚțȠȪ ıȣȖȖȡȐȝȝĮĲȠȢ:

6) ǹȞĮĳȠȡȐ ıİ İȞĮȡȝȠȞȚıȝȑȞĮ ʌȡȩĲȣʌĮ:

7) ǹȞĮĳȠȡȐ ıİ ȐȜȜĮ İșȞȚțȐ ʌȡȩĲȣʌĮ Ȓ ʌȡȠįȚĮȖȡĮĳȑȢ:

įȠțȚȝȒ ȑȖȚȞİ: ǾȝİȡȠȝȘȞȓĮ: ȆȡȩİįȡȠȢ: ȊʌȠȖȡĮĳȒ:

EK-MegfelelĘségi nyilatkozat

1) Alulírott Takayoshi Fukai, mint a gyártó képviselĘje nyilatkozom, hogy az alábbi berendezés

mindenben megfelel a Gépekre irányuló rendelkezéseknek:

A berendezés megfelel a KülsĘ Hangkbocsátási és a EMC Direktíváknak

2) A gép leírása:

a) Általános megnevezés: FĦnyíró b) Funkció: FĦ levágása

c) Típus: d) Sorozatszám:

3) KülsĘ hangkibocsátási elĘírások:

a) Mért hangerĘ b) Garantált hangerĘ c) Zaj paraméter: Üzembehelyezett zajszint

d) Becslési eljárás megfelelĘsséghez e) Bejegyzett teszt

4) Gyártó:

5) MĦszaki dokumentáció összeállítására jogosult képviselĘ:

6) Hivatkozással a szabványokra:

7) Más belföldi elĘírások, megjegyzések:

Keltezés helye: Keltezés ideje: Elnök: Aláírás:

HF1211K2 SE, SF 2010001 to 2019999

HF1211K2 HE, HF 2010001 to 2019999

4) Manufacturer:

Honda France Manufacturing S.A.S..

Pôle 45 - Rue des Chataîgniers

45140 ORMES - FRANCE

5) Authorized Representative able to compile the technical

documentation

Reference to harmonized standards

EN 836 : 1997 / AC : 2006

EN ISO 14982 : 1998

7) Other national standards or specifications

Done at: Date: President: Signature:

ORMES 01 12 2009 Takayoshi Fukai

N/A

EK AtbilstƯbas deklarƗcija

) ZemƗk minƝtais Takayoshi Fukai, kƗ ražotƗja pƗrstƗvis ar šo apstiprina, ka atrunƗtƗ iekƗrta

pilnƯbƗ atbilst visiem standartiem, kas atrunƗti EC-DirektƯvƗ KƗ arƯ šƯ iekƗrta atbilst:

- TrokšƼa lƯmeƼa direktƯvai:

- EMC direktƯvai:

2) LekƗrtas apraksts:

a) VispƗrƝjais nosukums: ZƗles pƺƗvƝjs b) Funkcija: ZƗles pƺaušana

c) Tips: d) SƝrijas numurs:

3) TrokšƼa lƯmeƼa direktƯva:

a) NomƝrƯtƗ trokšƼa jauda - b) GarantƝtƗ trokšƼa jauda - c) TrokšƼa parametri: KopƝjƗ

uzstƗdƯtƗ jauda - d) AtbilstƯbas noteikšanas procedǌra - e) AtbildƯgƗ iestƗde

4) RažotƗjs:

5) AutorizƝtais pƗrstƗvis, kas ir kompetents apkopot tehnisko dokumentƗciju:

6) Atsaucoties uz saskaƼotajiem standartiem:

7) Citi valsts noteiktie standarti vai specifikƗcijas:

Vieta: Datums: Prezidents: Paraksts:

EU-Conformiteitsverklaring

) Ondergetekende, Takayoshi Fukai, vertegenwoordiger van de constructeur, verklaart hierbij

dat de hieronder beschreven machine in overeenstemming is met de bepalingen van de

Veiligheidsrichtlijn voor machines. De machine voldoet eveneens aan de bepalingen van de

richtlijnen voor geluidsemissie van materieel voor gebruik buitenshuis en elektromagnetisme

2) Beschrijving van de machine

a) Algemene benaming: Motorgazonmaaier b) Functie: Gras maaien

c) Type: d) Serienummer:

3) Geluidsemissie materieel voor gebruik buitenhuis:

a) Gemeten geluidsvermogen - b) Gegarandeerd geluidsvermogen -

c) Geluidsparameter: Gëinstalleerd vermogen -

d) Conformiteitsbeoordelingprocedure - e) In kennis gestelde instantie

4) Konstrukteur :

5) Vertegenwoordiger die gemachtigd is om de technische documentatie samen te stellen:

6) Verwijzing naar geharmoniseerde normen:

7) Andere nationale normen of technische specificaties:

Opgemaakt te: Datum: President: Handtening:

Declaração CE de conformidade

) O abaixo assinado, Takayoshi Fukai, representante do fabricante, declara que a maquinaria

abaixo descrita cumpre com todas as normas referentes á Directiva de Maquinaria. A

maquinaria também cumpre as directivas de:

- Directiva de ruído no exterior: - Directiva EMC:

2) Descrição da maquinaria

a) Denominação genérica: Corta-relvas b) Função: Corte de relva

c) Tipo: d) Número série:

3) Directiva de ruido no exterior

a) Potência de som medida - b) Potência de som garantida - c) Parâmetros de ruido:

d) Procedimento da avaliação da conformidade - e) Organismo notificado

4) Fabricante:

5) Representante autorizado e apto para confirmar a documentação técnica:

6) Referência aos padrões harmonizados:

7) Outras normas nacionais ou especificações:

Feito em: Data: Presidente: Assinatura:

Deklaracja zgodnoĞci wyrobu

) NiĪej podpisany, Takayoshi Fukai rezprezentujący producenta, deklaruje iĪ urządzenie

opisane poniĪej jest zgodne z wszystkimi zasadniczymi wymaganiami Dyrektywy

Maszynowej. Urządzenie spelnia dodatkowo wymagania:

- Dyrektywy Halasowej: - Dyrektywy EMC:

2) Opis urządzenia

a) Ogólne okreĞlenie: Kosiarka b) Funkcja: ĝcinanie trawy c) Typ: d) Numery seryjne:

3) Dyrektywa Halasowa

a) Zmierzony poziom mocy akustycznej - b) Gwarantowany poziom mocy akustycznej

c) Parametrycharakterystyczne: Zainstalowana moc netto

d) Zastosowana procedura oceny zgodnosci - e) Jednostka Notyfikowana

4) Producent:

5) UpowaĪniony Przedstawiciel posiadający dostĊp do dokumentacji technicznej:

6) Zastosowane normy zharmonizowane:

7) Pozostale normy i przepisy krajowe:

Miejsce: Data: Prezes: Podpis:

UE -Declaratie de Conformitate

)

Subsemnatul

Takayoshi Fukai,

reprezentand producatorul,declara prin prezenta ca

chipamentele mai descrise mai jos respecta toate prevederile relevante din Directiva privind

echipamentele Echipamentele respecta de-asemenea prevederile Directivei privind nivelul

de zgomot exterior si Directiva EMC:

Descrierea echipamentului:

Denumire generica: Cositoare gazon b) Domeniu de utilizare: Tunderea ierbii

c) Tip: d) Numar de serie:

Directiva privind zgomotul exterior:

Puterea sonora masurata: - b) Puterea sonora garantata: - c) Parametrii de zgomot

putere instalata neta - d) Procedura de evaluare a conformitatii: - e) Organismul notificat

Producator:

Reprezentantul Autorizat in masura sa intocmeasca documentatia tehnica:

Referinta la standardele armonizate:

Alte standarde nationale sau specificatii:

Emisa la:

Data:

Prezident:

Semnatura:

EG-deklaration för överensstämmande

)

Undertecknad,

Takayoshi Fukai,

representant för tillverkaren, försäkrar härmed att maskinerna

beskrivna nedan uppfyller alla relevanta stadgar i Maskin Direktivet eller Maskinerna uppfyller

också stadgarna för:

Utomhus bullerdirektiv: - EMC direktiv:

Maskinbeskrivning:

Allmän benämning: Gräsklippare b) Funktion: Gräsklippning c) Typ: d) Serie nummer:

Utomhus bullerdirektiv:

Uppmätt ljudeffekt - b) Garanterad ljudeffekt - c) Bullerparameter: Installerad nettoeffekt

Utvärderingsprocedur för överensstämmande - e) Anmälda organ

Tillverkare:

Auktoriserad representant som kan sammanställa den tekniska dokumentationen:

Referens till överensstämmande standarder:

Andra nationella standarder eller specifikationer:

Utfärdat vid: Datum:

Ordförande:

Underskrift:

Vyhlásenie o súlade s predpismi ES

) Dolupodpísaný pán Takayoshi Fukai zastupujúci výrobcu týmto vyhlasuje, že stroje

popísané nižšie vyhovujú všetkým relevantným predpisom smernice Stroje vyhovujú

predpisom: - EMC direktiva:

2) Popis strojov:

a) Druhové oznaþenie: Kosaþky na trávu b) Funkcia: Kosenie trávy c) Typ: d) Sériové þíslo:

3) Smernica emisií hluku vo voĐnom priestranstve:

a) Nameraný akustický tlak - b) Garantovaný akustický tlak - c) Parameter hluku: Nominálny

þistý výkon - d) Proces posudzovania zhody - e) Notifikovaný orgán

4) Výrobca:

5) Autorizovaný zástupca schopný predložiĢ technickú dokumentáciu:

6) Referencia k harmonizovaným štandardom:

7) ĆaĐšie národné štandardy alebo špecifikácie:

Miesto: Dátum: Predseda: Podpis:

ES-Izjava o skladnosti

) Spodaj podpisani, Takayoshi Fukai, ki predstavljam proizvajalca, izjavljam da so spodaj

navedene naprave v skladu z direktivo Naprave prav tako ustrezajo naslednjim direktivam:

- Direktiva o hrupnosti: - EMC direktiva:

2) Opis naprav:

a) Vrsta stroja: Vrtne kosilnica b) Funkcija: Košenje trave c) Tip: d) Serijska številka:

3) Direktiva o hrupnosti:

a) Izmerjena zvocna moþ - b) Garantirana zvoþna moþ - c) Parametri: Neto moþ

d) Postopek meritve - e) Testiranja opravil

4) Proizvajalec:

5) Pooblašþeni predstavnik, ki hrani tehniþno dokumentacijo:

6) Upoštevani harmonizirani standardi:

7) Ostali standardi:

Kraj: Dátum: Predsednik: Podpis:

EU samsvarserklæring

) Undertegnede, Takayoshi Fukai representerer produsenten og erklærer herved at produktet

beskrevet nedenfor er i samsvar med relevante forskrifter i Maskindirektivet. Produktet

samsvarer også med forskrifter vedr:

- Rammedirektiv for utendørs støy: - EMC direktiv

2) Produktbeskrivelse:

a) Felles benevnelse: Gressklipper b) Funksjon: Klippe gress c) Type: d) Serienummer:

3) Rammedirektiv om utendørs støy

a) Målt lydeffekt - b) Garantert lydeffekt - c) Støyparameter: Netto installert effekt

d) Valgt samsvarsprosedyre - e) Teknisk kontrollorgan

4) Produsent:

5) Autorisert representant/innehaver av teknisk dokumentasjon:

6) Referanse til harmoniserte standarder:

7) Øvrige nasjonale standarder eller spesifikasjoner:

Sted: Dato: Formann: Underskrift:

Honda France Manufacturing S.A.S.

Pôle 45 - Rue des Chataîgniers

45140 ORMES - FRANCE

Dichiarazione di conformità

) Il sottoscritto,Takayoshi Fukai in rappresentanza del costruttore, dichiara qui di seguito che la

macchina sotto descritta è conforme con tutte le condizioni pertinenti della Direttiva

Macchine. La macchina è anche conforme alle condizioni della:

- Direttiva sulle emissioni acustiche delle macchine destinate a funzionare all'aria aperta:

- Direttiva sulla compatibilità elettromagnetica:

2) Descrizione della macchina

a) Denominazione generica: Rasaerba b) Funzione: Taglio di erba

c) Tipo: d) Numero di serie:

3) Direttiva emissioni acustiche:

a) Livello di potenza sonora misurata - b) Livello di potenza sonora garantita

c) Parametri rumorosità: Potenza netta installata - d) Procedura di valutazione conformità

e) Organismo notificato

4) Costruttore:

5) Rappresentante Autorizzato idoneo a compilare la documentazione tecnica:

6) Riferimento agli standard armonizzati:

7) Altri standard o specifiche nazionali

Fatto a: Data: Presidente: Firma:

EB Atitikties Deklaracija.

) Žemiau pasirašes, p. Takayoshi Fukai atstovaujantis gamintoją, deklaruoja, kad Ƴranga

atitinka reikalavimus pagal direktyvą:

2) Mašinos aprašymas:

a) Bendras pavadinimas: Vejapjovơ b) Funkcija: Žolès pjovimas

c) Tipas: d) Serijinis numeris:

3) Triukšmo direktyva:

a) Išmatuotas riukšmo lygis - b) Garantuotas triukšmo lygis - c) Triukšmo parametrai:

Nominali instaliuota galia - d) Atitikties Ƴvertinimo procedǌra - e) Atstovas.

4) Gamintojas:

5) Ʋgaliotas atstovas turintis techninĊ dokumentaciją:

6) Nuoroda Ƴ harmonizuotus standartus:

7) Kiti nacionaliniai standartai ir specifikacijos:

Atlikta: Data: Prezidentas: Parašas:

iii

RCS ORLÉANS B 501 736 565 171505501/0

Honda HF1211 Lawn Mower

Product's Documents

User Manual

Specifications

Honda HF1211 Questions and Answers
