Table of contents
1 Safety ...........................................4
1.1 General information................... 4
1.2 Intended use.............................. 4
1.3 Restriction on user group.......... 4
1.4 Safe installation ......................... 5
1.5 Safe use .................................... 7
1.6 Safe cleaning and mainten-
ance........................................... 9
2 Preventing material damage ....11
3 Environmental protection and
saving energy............................11
3.1 Disposing of packaging .......... 11
3.2 Saving energy.......................... 11
3.3 Energy saving mode ............... 12
4 Installation and connection......12
4.1 Unpacking the appliance ........ 12
4.2 Contents of package ............... 12
4.3 Requirements for the install-
ation location ........................... 12
4.4 Water outlet hose .................... 13
4.5 Aligning the appliance............. 15
4.6 Connecting the appliance to
the electricity supply................ 15
5 Familiarising yourself with
your appliance...........................17
5.1 Appliance ................................ 17
5.2 Control panel........................... 18
6 Display .......................................19
7 Buttons ......................................21
8 Programmes ..............................22
8.1 Automatic programmes........... 22
8.2 Timed programmes ................. 24
9 Accessories...............................25
10 Laundry....................................26
10.1 Preparing the laundry............ 26
10.2 Care symbols on the care
labels ..................................... 26
11 Basic operation .......................26
11.1 Switching on the appliance ... 26
11.2 Setting a programme ............ 26
11.3 Opening the door .................. 27
11.4 Loading laundry..................... 27
11.5 Starting the programme ........ 27
11.6 Adding laundry ...................... 27
11.7 Cancelling the programme.... 27
11.8 Unloading the laundry ........... 27
11.9 Switching off the appliance ... 28
11.10 Fluff filter.............................. 28
11.11 Filter system on the base
unit....................................... 29
11.12 Condensation container ...... 31
12 Dryness level...........................32
12.1 Changing the dryness level... 32
12.2 Adjusting the dryness level ... 32
13 Childproof lock........................32
13.1 Activating the childproof
lock........................................ 32
13.2 Deactivating the childproof
lock........................................ 33
14 Basic settings..........................33
14.1 Overview of the basic set-
tings....................................... 33
14.2 Changing the basic set-
tings....................................... 33
en
3
15 Cleaning and servicing...........34
15.1 Base unit ............................... 34
15.2 Moisture sensor..................... 35
16 Troubleshooting......................37
17 Transportation, storage and
disposal ...................................41
17.1 Disposing of old appliance ... 41
18 Customer Service....................41
18.1 Product number (E-Nr.) and
production number (FD)........ 42
19 Consumption values...............43
20 Technical data .........................44
en Safety
4
1 Safety
Observe the following safety instructions.
1.1 General information
¡ Read this instruction manual carefully.
¡ Keep the instruction manual and the product information safe
for future reference or for the next owner.
¡ Do not connect the appliance if it has been damaged in transit.
1.2 Intended use
Only use this appliance:
¡ for drying and freshening up fabrics that are washed with water
and suitable for dryers.
¡ in private households and in enclosed spaces in a domestic en-
vironment.
¡ Up to an altitude of 4000 m above sea level.
1.3 Restriction on user group
This appliance may be used by children aged 8 or over and by
people who have reduced physical, sensory or mental abilities or
inadequate experience and/or knowledge, provided that they are
supervised or have been instructed on how to use the appliance
safely and have understood the resulting dangers.
Do not let children play with the appliance.
Cleaning and user maintenance must not be performed by chil-
dren unless they are being supervised.
Keep children under the age of 3 years and pets away from the
appliance.
Safety en
5
1.4 Safe installation
WARNING‒Risk of electric shock!
Incorrect installation is dangerous.
▶ Connect and operate the appliance only in accordance with the
specifications on the rating plate.
▶ Connect the appliance to a power supply with alternating cur-
rent only via a properly installed socket with earthing.
▶ The protective conductor system of the domestic electrical in-
stallation must be properly installed. The installation must have
a sufficiently large cross section.
▶ When using a residual current circuit breaker, only use a type
with the mark.
▶ Never equip the appliance with an external switching device,
e.g. a timer or remote control.
▶ Never connect the appliance to a circuit that is regularly
switched on and off by the energy supplier.
▶ When the appliance is installed, the mains plug of the power
cord must be freely accessible. If free access is not possible, an
isolating switch must be integrated into the permanent electrical
installation according to the installation regulations.
▶ When installing the appliance, check that the power cable is not
trapped or damaged.
If the insulation of the power cord is damaged, this is dangerous.
▶ Never let the power cord come into contact with hot appliance
parts or heat sources.
▶ Never let the power cord come into contact with sharp points or
edges.
▶ Never kink, crush or modify the power cord.
WARNING‒Risk of fire!
It is dangerous to use an extended power cord and non-approved
adapters.
▶ Do not use extension cables or multiple socket strips.
▶ Only use adapters and power cords approved by the manufac-
turer.
en Safety
6
▶ If the power cord is too short and a longer one is not available,
please contact an electrician to have the domestic installation
adapted.
WARNING‒Risk of injury!
The heavy weight of the appliance may result in injury when lifted.
▶ Do not lift the appliance on your own.
If this appliance is not correctly installed in a washer-dryer stack,
the installed appliance may fall.
▶ Only stack the dryer on a washing machine using the connec-
tion kit from the dryer manufacturer
→"Accessories", Page25. No other installation method is per-
mitted.
▶ Do not install the appliance in a washer-dryer stack if the dryer
manufacturer does not offer a suitable connection kit.
▶ Do not install appliances from different manufacturers and with
varying depths and widths in a washer-dryer stack.
▶ Do not install a washer-dryer stack on a platform; the appli-
ances may tip over.
WARNING‒Risk of suffocation!
Children may put packaging material over their heads or wrap
themselves up in it and suffocate.
▶ Keep packaging material away from children.
▶ Do not let children play with packaging material.
CAUTION‒Risk of injury!
The appliance may vibrate or move when in use.
▶ Place the appliance on a clean, even, solid surface.
▶ Align the appliance using the appliance feet and a spirit level.
If hoses and power cords have been laid incorrectly, this causes a
tripping hazard.
▶ Lay hoses and power cords in such a way that there is no risk
of tripping.
If the appliance is moved by holding onto protruding components,
such as the appliance door, the parts may break off.
▶ Do not move the appliance by holding onto protruding parts.
Safety en
7
CAUTION‒Risk of cutting!
Touching sharp edges on the appliance may lead to cuts.
▶ Do not touch the sharp edges on the appliance.
▶ Wear protective gloves when installing and transporting the ap-
pliance.
1.5 Safe use
WARNING‒Risk of electric shock!
If the appliance or the power cord is damaged, this is dangerous.
▶ Never operate a damaged appliance.
▶ Never pull on the power cord to unplug the appliance. Always
unplug the appliance at the mains.
▶ If the appliance or the power cord is damaged, immediately un-
plug the power cord or switch off the fuse in the fuse box.
▶ Call customer service. →Page41
An ingress of moisture can cause an electric shock.
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
▶ Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
WARNING‒Risk of harm to health!
Children can lock themselves in the appliance, thereby putting
their lives at risk.
▶ Do not install the appliance behind a door as this may obstruct
the appliance door or prevent it from opening.
▶ With redundant appliances, unplug the power cord. Then cut
through the cord and damage the lock on the appliance door
beyond repair so that the appliance door will no longer close.
WARNING‒Risk of suffocation!
Children may breathe in or swallow small parts, causing them to
suffocate.
▶ Keep small parts away from children.
▶ Do not let children play with small parts.
en Safety
8
WARNING‒Risk of explosion!
If there is coal dust or flour in the air around the appliance, this
may cause an explosion.
▶ Keep the area around the appliance clean during operation.
WARNING‒Risk of poisoning!
Condensation water from this appliance is not suitable for drinking
and may be contaminated with fluff.
▶ Do not drink or reuse the condensation water from the appli-
ance.
Detergents and care products may result in poisoning if con-
sumed.
▶ If accidentally swallowed, seek medical advice.
▶ Keep detergents and care products out of the reach of children.
WARNING‒Risk of fire!
The refrigerant R290 in this appliance is environmentally friendly
yet combustible and may ignite if it comes into contact with open
flames or ignition sources.
▶ Keep naked flames and ignition sources away from the appli-
ance.
WARNING‒Risk of explosion!
If there is any residual material left in the fluff filter, this may ignite
during the drying process.
▶ Clean the fluff filter regularly.
Highly flammable objects such as lighters or matches may ignite
during the drying process.
▶ Remove all highly flammable objects from any pockets in your
laundry before the drying process.
Unwashed laundry that has come into contact with solvents, oil,
wax, wax remover, paint, grease or stain remover may ignite when
drying is in progress.
▶ Do not place laundry in this appliance to be dried if the laundry
has not been washed first.
Safety en
9
▶ Rinse the laundry thoroughly with warm water and detergent be-
fore drying it in the machine.
▶ Do not use the appliance if industrial chemicals have been used
to clean the laundry beforehand.
WARNING‒Risk of fire!
If drying is interrupted early, the laundry is not cooled sufficiently
and may ignite.
▶ Do not interrupt the drying programme early.
▶ If drying is interrupted early, remove the laundry immediately
and spread it out.
CAUTION‒Risk of injury!
The covering plate may break if you stand on or climb onto the
appliance.
▶ Do not stand on or climb onto the appliance.
The appliance may tip over if you sit on or lean against the open
door.
▶ Do not sit on or lean against the appliance door.
▶ Do not place any objects on the appliance door.
Reaching into the drum while it is still turning may cause hand in-
juries.
▶ Wait for the drum to come to a complete stop before reaching
inside.
1.6 Safe cleaning and maintenance
WARNING‒Risk of electric shock!
Improper repairs are dangerous.
▶ Never make any technical modifications to the appliance or its
features.
▶ Repairs to the appliance should only be carried out by trained
specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
▶ If the power cord of this appliance is damaged, it must be re-
placed by the manufacturer, the manufacturer's Customer Ser-
vice or a similarly qualified person in order to prevent any risk.
en Safety
10
An ingress of moisture can cause an electric shock.
▶ Before cleaning, pull out the mains plug or switch off the fuse in
the fuse box.
▶ Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
WARNING‒Risk of injury!
The use of non-original spare parts and non-original accessories
is dangerous.
▶ Only use the manufacturer's original spare parts and original ac-
cessories.
WARNING‒Risk of poisoning!
Poisonous fumes may be given off if you use cleaning agents that
contain solvents.
▶ Do not use cleaning agents that contain solvents.
Preventing material damage en
11
2 Preventing material
damage
ATTENTION!
The functionality of the appliance
may be impaired if you use the
wrong quantity of fabric softener, de-
tergent, care product or cleaning
agent.
▶ Follow the dosage recommenda-
tions from the manufacturer.
Exceeding the maximum load capa-
city impairs the function of the appli-
ance.
▶ Observe the maximum load capa-
city for each programme and do
not exceed it.
→"Programmes", Page22
The function of the appliance may be
impaired if the appliance overheats.
▶ Keep the ventilation opening on
the appliance clear during opera-
tion.
▶ Make sure that the area is ad-
equately ventilated.
Light objects such as hair and fluff
may be sucked in from the ventilation
opening on the appliance during op-
eration and impair the function of the
appliance.
▶ Keep the area around the appli-
ance clean during operation.
▶ Keep light objects away from the
appliance.
If you operate the appliance without a
fluff guard (e.g. fluff filter, fluff col-
lector, filter mat, etc., depending on
appliance specifications), or if the
fluff guard is incomplete or defective,
this may result in damage to the ap-
pliance.
▶ Do not operate the appliance
without a fluff guard, or with a fluff
guard that is incomplete or defect-
ive.
Foam and foam rubber may deform
or melt during the drying process.
▶ Do not dry laundry that contains
foam or foam rubber.
Unsuitable cleaning products may
damage the surfaces of the appli-
ance.
▶ Do not use harsh or abrasive de-
tergents.
▶ Do not use cleaning products with
a high alcohol content.
▶ Do not use hard scouring pads or
cleaning sponges.
▶ Clean the appliance with nothing
but water and a soft, damp cloth.
▶ Remove all detergent residue,
spray residue or other residues im-
mediately if they come into contact
with the appliance.
3 Environmental protec-
tion and saving energy
3.1 Disposing of packaging
The packaging materials are environ-
mentally compatible and can be re-
cycled.
▶ Sort the individual components by
type and dispose of them separ-
ately.
3.2 Saving energy
If you follow these instructions, your
appliance will use less power.
¡ Operate the appliance in a well-
ventilated room and keep the vent-
ilation opening on the appliance
clear.
¡ Spin the laundry in the washing
machine before drying.
¡ For each drying process, use the
maximum load for the programs.
Programmes →Page22
en Installation and connection
12
¡ Do not exceed the programme's
maximum load capacity. Pro-
grammes →Page22
¡ After drying, clean the fluff filter.
→"Cleaning the fluff filter",
Page28
¡ Dry the filters in the filter system of
the base unit thoroughly after
cleaning.
→"Filter system on the base unit",
Page29
3.3 Energy saving mode
If you do not use the appliance for a
brief period, it automatically switches
to energy-saving mode. All displays
go out and Start/Reload flashes.
Energy-saving mode ends when you
use the appliance again.
4 Installation and con-
nection
4.1 Unpacking the appliance
ATTENTION!
Objects remaining in the drum that
are not designed for operation with
the appliance may cause material
damage and damage to the appli-
ance.
▶ Remove these objects, along with
all supplied accessories, from the
drum before starting the appliance.
1. Remove any packaging and pro-
tective covers completely from the
appliance.
→"Disposing of packaging",
Page11
2. Check the appliance for visible
damage.
3.
Open the door. →Page27
4. Remove any accessories from the
drum.
5. Close the door.
4.2 Contents of package
After unpacking all parts, check for
any damage in transit and complete-
ness of the delivery.
ATTENTION!
If the appliance is operated with in-
complete or defective accessories,
the appliance may not be able to op-
erate properly, or this may result in
material damage or damage to the
appliance.
▶ Do not operate the appliance with
incomplete or defective accessor-
ies.
▶ Replace the accessories in ques-
tion before operating the appli-
ance.
→"Accessories", Page25
The delivery consists of the following:
¡ Tumble dryer
¡ Accompanying documents
¡ Water outlet hose with connection
adapter, fixing material and elbow.
→"Water outlet hose", Page13
4.3 Requirements for the in-
stallation location
Observe the instructions for the in-
stallation location.
ATTENTION!
If the appliance is tilted at an angle
greater than 40°, residual water may
leak out of the appliance and cause
material damage.
▶ Tilt the appliance carefully.
▶ Transport the appliance in an up-
right position.
Installation and connection en
13
If residual water in the appliance
freezes, this may cause damage to
the appliance.
▶ Do not install or operate this appli-
ance anywhere that is liable to ex-
perience frost or outdoors.
If the appliance is operated immedi-
ately after transportation, the refriger-
ant contained in the appliance may
result in damage to the appliance.
▶ Immediately after transporting the
appliance, leave it to rest for two
hours before putting it into opera-
tion.
On the floor
Place the appliance on a clean, level
and firm surface.
Align the appliance. →Page15
In a washer-dryer stack
Only use the original connection set
from the dryer manufacturer when
setting up this appliance in a washer-
dryer stack.
¡ Connection kit →Page25
¡ Connection kit with pull-out work-
top →Page25
This appliance must only be stacked
on a washing machine from the
same manufacturer. The depth and
width of this appliance must corres-
pond with the dimensions of the
washing machine.
Do not place the washer-dryer stack
on a platform.
Against a wall
Do not trap the hoses and power
cord between the wall and the appli-
ance.
4.4 Water outlet hose
Condensation that forms in the appli-
ance as it dries the laundry is collec-
ted by default in the condensation
container. Use the water outlet hose
to drain away excess condensation
directly into the waste water system.
Note
¡ Operate this appliance using the
water outlet hose provided.
→Page13
If you connect the water outlet
hose, you do not have to regularly
empty the condensation container.
→"Emptying the condensation
container", Page31
Connecting the water outlet hose
If you do not want to regularly empty
the appliance's condensation con-
tainer, connect the water outlet hose.
en Installation and connection
14
ATTENTION!
When operating the appliance
without the condensation hose or wa-
ter outlet hose being connected
properly, liquid may leak out of the
connecting piece.
▶ Before operating the appliance,
connect the condensation hose or
water outlet hose properly to the
connecting piece.
Requirements
¡ The appliance and the accessory
have been unpacked. →Page12
¡ The appliance is installed at the in-
stallation location.

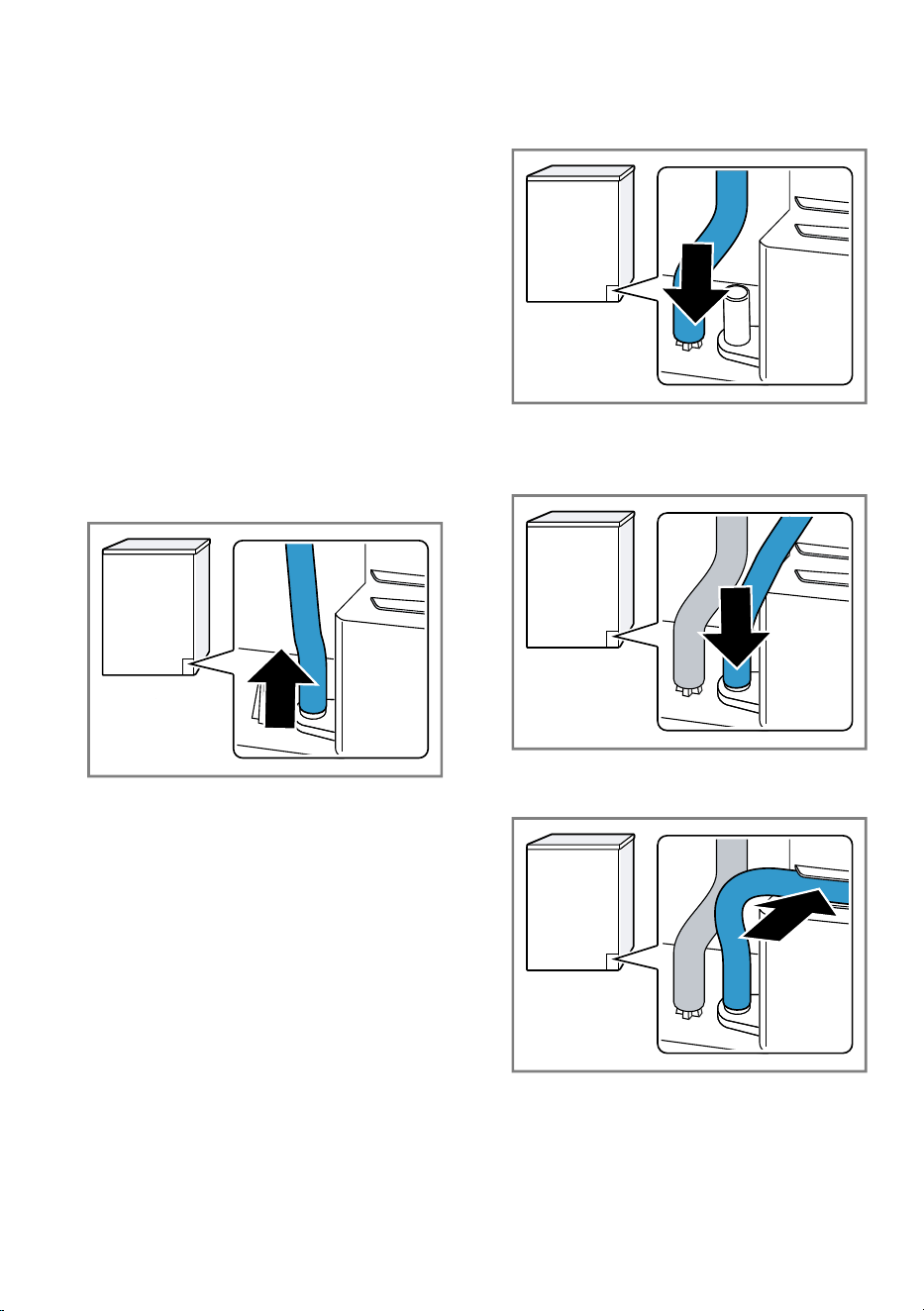

1. Pull out the condensation hose
from the connecting piece.
The condensation hose is connec-
ted to the connecting piece at the
factory.
Note:When removing the con-
densation hose, liquid may leak
out of the connecting piece.
2. Push the condensation hose into
the holder.
3. Push the water outlet hose as far
as it will go into the connecting
piece.
4. Insert the water outlet hose into the
hose guide.
Ensure that you do not bend the
water outlet hose.
5. Empty the condensation container.
→Page31
Installation and connection en
15
6. Insert the condensation container.
→Page32
7. Connect the appliance to the water
drain. →Page15
Tip:To collect condensation in the
condensation container again (e.g. if
you change where the appliance is
located), carry out these steps in re-
verse order.
Water outlet connection types
ATTENTION!
In the event of a blocked or covered
outlet, accumulated wastewater can
flow back into the appliance.
▶ Before operating the appliance, en-
sure that the wastewater drains
away quickly and eliminate any
blockages.

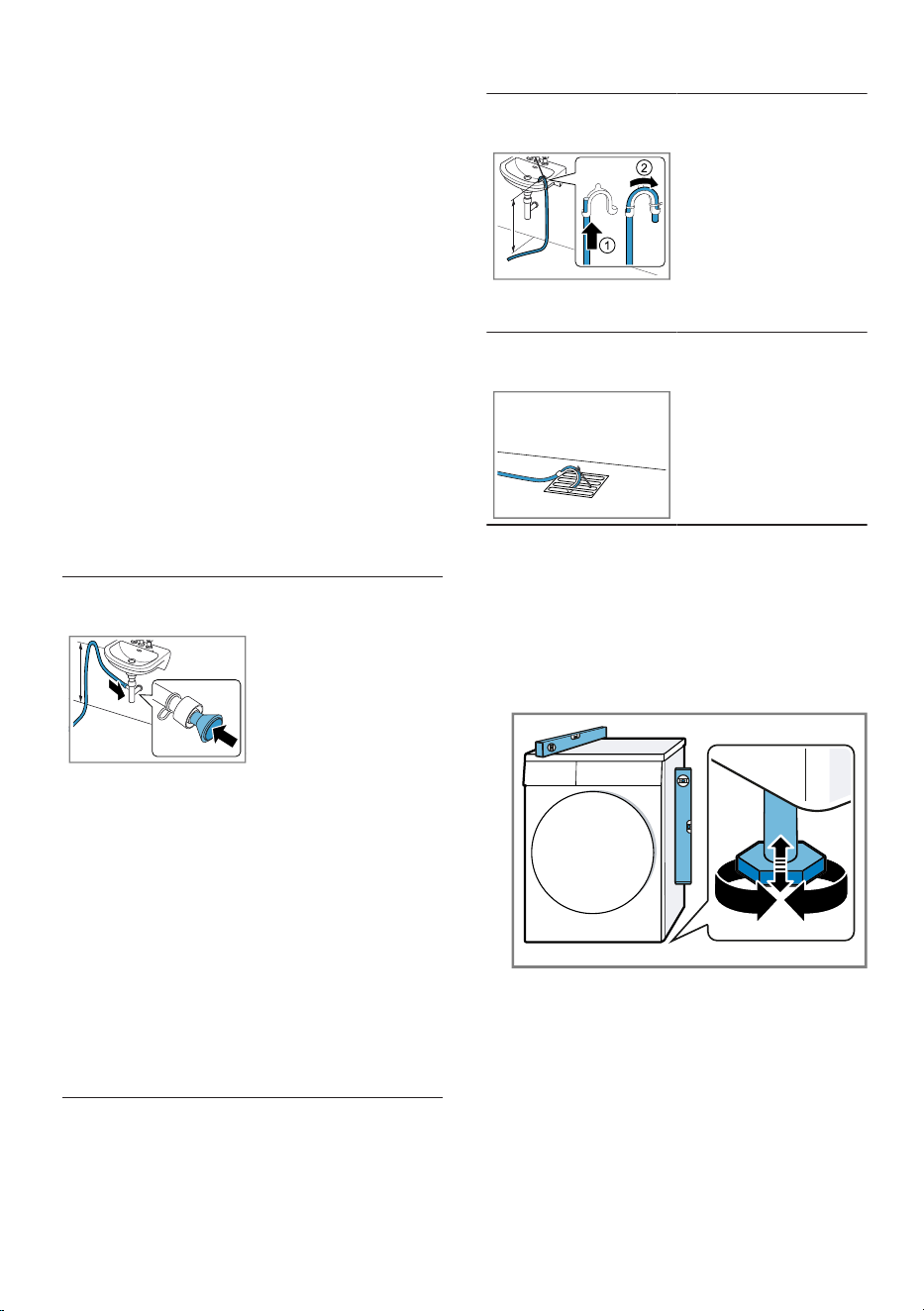

Drainage into a
siphon.
Secure the con-
nection point with
a (12-22 mm)
hose clamp.
Secure the water
outlet hose with
a hose guide at
a height of at
least 80 cm and
no more than
100 cm.
Note:You can
use the Y-distrib-
utor →Page25
to connect the
water outlet hose
of an additional
appliance, such
as a washing
machine, to the
same siphon out-
let.
Drainage into a
wash basin.
Push the water
outlet hose fully
through the el-
bow and secure
it using fixing ma-
terial.
Secure the elbow
at a height of no
more than 100
cm.
Drainage into a
gully.
Push the water
outlet hose fully
through the el-
bow and secure
it using fixing ma-
terial.
Secure the elbow
to the gully.
4.5 Aligning the appliance
In order to reduce vibrations and
noises, align the appliance correctly.
▶ To align the appliance, turn the ap-
pliance feet. Check that the appli-
ance is level using a spirit level.
All appliance feet must stand firmly
on the ground.
4.6 Connecting the appliance
to the electricity supply
1. Insert the mains plug of the appli-
ance's power cable in a socket
nearby.
Familiarising yourself with your appliance en
17
5 Familiarising yourself with your appliance
5.1 Appliance

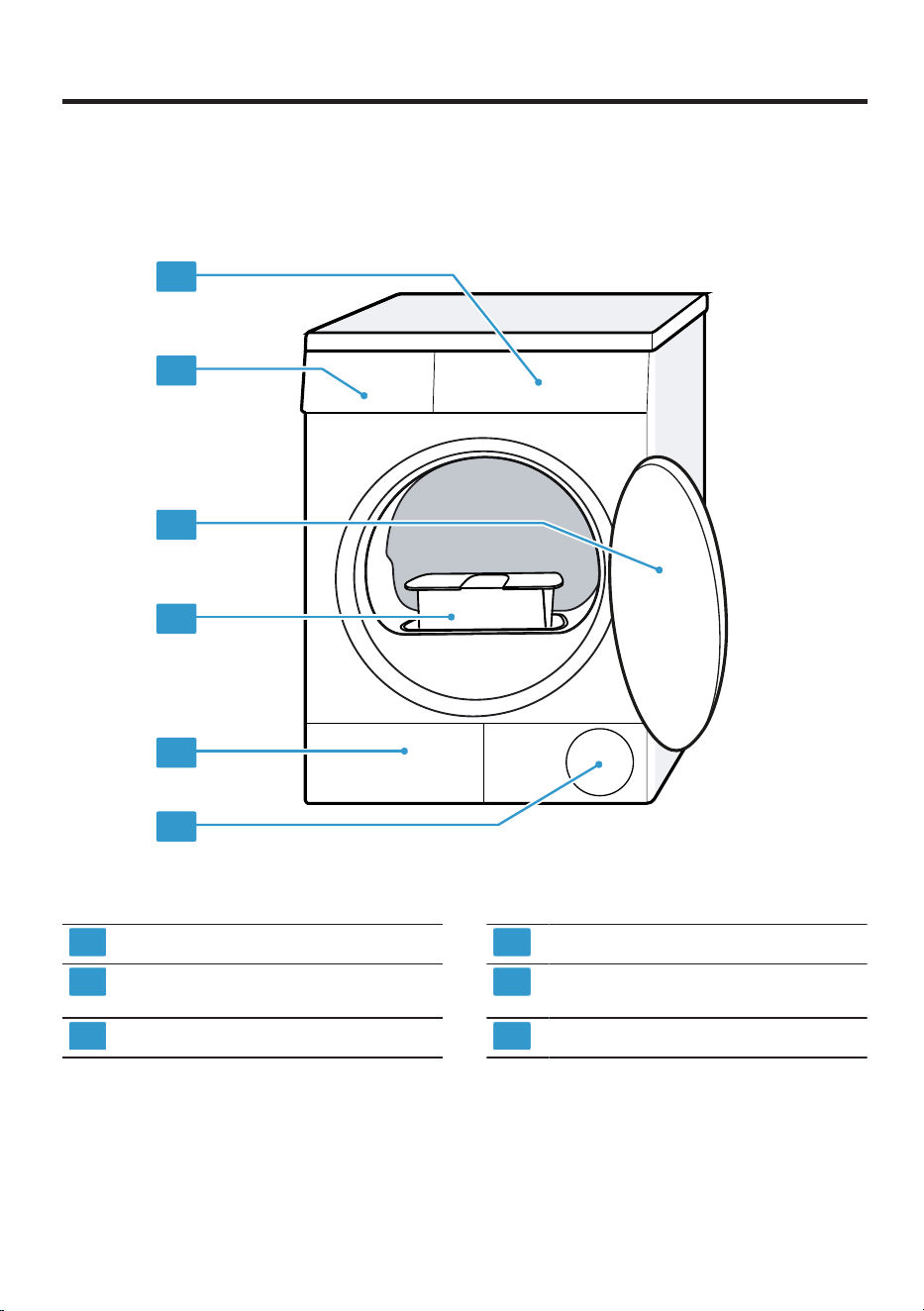

You can find an overview of the parts of your appliance here.
1
2
3
4
5
6
On certain models, specific details such as the colour and shape may differ
from those pictured.
1
Ventilation opening
2
Maintenance flap on the base
unit →Page34
3
Fluff filter →Page28
4
Door →Page27
5
Condensation container
→Page31
6
Control panel →Page18
Display en
19
6 Display
The display shows the current settings, options or relevant information.
Depending on the programme status, the display shows some information in
the area, e.g. .
Display Description
0:40
1
Expected programme duration or programme time re-
maining in hours and minutes.
1:25
The timed programme is set. →Page24
10h
1
Program end time
→"Buttons", Page22
¡ Lights up: The childproof lock is activated.
¡ Flashes: The childproof lock is activated and the appli-
ance has been operated.
→"Deactivating the childproof lock", Page33
Start, cancel or pause
¡ Lights up: The programme is running and can be can-
celled or paused.
¡ Flashes: The programme can be started or continued.
The adjusted dryness level is activated. →Page32
The crease-reduction function is activated.
→"Buttons", Page21
Gentle drying is activated for delicate fabrics. →Page21
Empty and insert the condensation container. →Page31
Clean the fluff filter →Page28.
Clean the filter system on the base unit. →Page29
1
Example
en Display
20
Display Description
Hot The cooling process cools the laundry independently of
the programme status for a few minutes while the drum is
rotating, in order to avoid damage to the laundry. The
cooling process can be cancelled by opening the door.
Note:Do not change the set programme.
Programme status: Drying
Programme status: Iron dry dryness level
Programme status: Cupboard Dry dryness level
Programme status: Crease-reduction function
-P- Programme status: Pause
End Programme status: Programme end
1
Example
Buttons en
21
7 Buttons
Below is an overview of the buttons and their setting options.
Button Selection Description
Start/Reload ¡ Start
¡ Cancel
¡ Pause
Start, cancel or pause
the programme.
3 sec. ¡ Activate
¡ Deactivate
Activate or deactivate the
childproof lock.
Disable the control panel
to prevent unwanted or
accidental operation.
If the childproof lock is
activated and the appli-
ance has been switched
off, the childproof lock
remains activated.
→"Childproof lock",
Page32
Drying Level ¡
¡
¡
Adjust the dryness level.
If the laundry feels too
damp after it has been
dried to a particular dry-
ness level, you can ad-
just the dryness level.
→"Adjusting the dryness
level", Page32
Reduced Ironing ¡ Activate
¡ Deactivate
Activate or deactivate the
crease-reduction func-
tion.
Once the programme
has ended, the drum
moves the laundry at
regular intervals for 120
minutes to prevent
creasing.
Low Heat ¡ Activate
¡ Deactivate
Activate or deactivate
gentle drying.
The temperature is re-
duced for delicate fab-
rics, e.g. polyacrylic or
elastane.
The programme duration
is extended.
en Programmes
22
Button Selection Description
Finish in Up to 24 hours Set the programme end
time.
The programme duration
is already included in the
set number of hours.
Once the programme
has started, the pro-
gramme duration is dis-
played.
Program Duration Multiple selection Set the programme dura-
tion for timed pro-
grammes.
→"Timed programmes",
Page24
8 Programmes
You can dry your fabrics using either
an automatic programme or a timed
programme.
Note:The laundry's care labels
provide you with additional informa-
tion about programme selection.
→"Care symbols on the care labels",
Page26
8.1 Automatic programmes
Automatic programmes are pro-
grammes in which humidity sensors
measure the residual moisture in the
laundry during the drying cycle. The
programme only ends once the set
dryness level is reached.
Each automatic programme has a
dryness level →Page32. The dry-
ness level defines how dry or damp
the laundry is after the programme
ends.
Tip:Select the dryness level accord-
ing to the type of fabric or the de-
sired drying result.
Programmes en
23
Programme Description Max. load
(kg)
Cottons Cupboard Dry
Plus
Dry hard-wearing, heat-resistant fabrics
made of cotton or linen.
The dryness level is defined in this pro-
gramme. →Page32
8.0
Cottons Cupboard
Dry
Dry hard-wearing, heat-resistant fabrics
made of cotton or linen.
The dryness level is defined in this pro-
gramme. →Page32
8.0
Cottons Iron Dry Dry hard-wearing, heat-resistant fabrics
made of cotton or linen.
The dryness level is defined in this pro-
gramme. →Page32
8.0
Easy Care Cupboard
Dry Plus
Dry items made of synthetic materials or
blended fabrics.
The dryness level is defined in this pro-
gramme. →Page32
3.5
Easy Care Cupboard
Dry
Dry items made of synthetic materials or
blended fabrics.
The dryness level is defined in this pro-
gramme. →Page32
3.5
Easy Care Iron Dry Dry items made of synthetic materials or
blended fabrics.
The dryness level is defined in this pro-
gramme. →Page32
3.5
Mixed Load Dry items made of cotton and synthetics. 3.0
Delicates Dry delicate underwear made of lace, Ly-
cra, satin or blended fabrics.
2.0
Sportswear Dry self-drying sportswear made of per-
formance fibres, microfibres and synthet-
ics.
1.5
Shirts Suitable for shirts and blouses made of
cotton, linen, synthetics or blended fab-
rics.
Note:For optimal drying results, dry a
maximum of 5 shirts or 5 blouses at the
same time.
Once the laundry is dry, iron it or hang it
up. The residual moisture is then distrib-
uted evenly.
1.5
Super Quick 40' Dry items made of synthetics and light
cotton.
1.0
en Programmes
24
Programme Description Max. load
(kg)
Towels Dry hard-wearing, heat-resistant towels
and dressing gowns made of cotton or
linen.
6.0
8.2 Timed programmes
Timed programmes are programmes with a defined or adjustable programme
duration. The programme ends once this time has elapsed, even if the laundry
is still not dry, for example. Timed programmes are suitable for drying individual
items of laundry or thin fabrics.
Programme Description Max. load
(kg)
Wool Finish Dry machine-washable items made of
wool or containing wool.
Note:The laundry becomes fluffier but not
dry.
Remove laundry once the programme has
ended and allow it to dry.
0.5
Timed Progr. Cold Fluff/loosen all fabric types except for
wool and silk.
This programme is suitable for fluffing dry
laundry only.
Also suitable for freshening up or airing
dry clothing that has hardly been worn.
3.0
Timed Progr. Warm Dry all types of fabric except for wool and
silk.
Suitable for pre-dried or slightly damp
laundry and for drying off multi-layered,
thick laundry.
3.0
Accessories en
25
9 Accessories
Use original accessories. These have
been made especially for your appli-
ance.
Tip:Some accessories are available
in other colours. Contact customer
service. →Page41
Use Order number
Connection kit To save space, stack the
appliance on a suitable
washing machine of the
same width and depth
and that is from the
same manufacturer.
WTZ20410
Connection kit with pull-
out worktop
To save space, stack the
appliance on a suitable
washing machine of the
same width and depth
and that is from the
same manufacturer.
The pull-out worktop
makes it easier to load
and unload the appli-
ance.
WTZ11400
Wool basket Dry or air individual
woollen items, sports
shoes and soft toys.
WMZ20600
Y-distributor Connect the water outlet
hose of an additional ap-
pliance to the same si-
phon outlet.
15000490
Filter mat Spare part to protect
against fluff for the base
unit's filter system.
12007650
Platform Install the appliance at a
raised height so that it
can be easily loaded and
unloaded.
WTZPW20D
en Laundry
26
10 Laundry
10.1 Preparing the laundry
ATTENTION!
Objects remaining in the laundry may
damage the laundry and the drum.
▶ Remove all items from any pock-
ets in your laundry before using
the appliance.
Note
The appliance and fabrics are
protected when you prepare your
laundry.
¡ Brush off sand and soil
¡ Sort the laundry according to col-
our and textiles and observe the
care labels
¡ Close all zips, hook and loop
fasteners, hooks and eyes
¡ Remove curtain fittings and lead
strips
¡ Load the laundry unfolded into the
drum
¡ Spin the laundry before drying
¡ Dry woollen items, sports shoes
and soft toys in the wool basket
10.2 Care symbols on the
care labels
Drying care symbols
Symbol Fabrics
Items made from cotton
and linen, e.g. towels,
bed linen, underwear
Items made from syn-
thetic, blended or delicate
fabrics, e.g. functional
garments, shirts
Symbol Fabrics
Do not tumble dry items
made from silk, nylon, air-
impermeable and rubber-
coated fabrics, synthetic
curtains
11 Basic operation
11.1 Switching on the appli-
ance
Requirement:The appliance has
been correctly installed and connec-
ted. →Page12
▶ Turn the programme selector to a
programme.
11.2 Setting a programme
1. Turn the programme selector and
set the required programme.
→"Programmes", Page22
2. If required, adjust the programme
settings.
→"Buttons", Page21
The programme settings are not
saved permanently for the pro-
gramme.
Basic operation en
27
11.3 Opening the door
1. Grip under the door handle and
pull on the door.
2. Open the door.
11.4 Loading laundry
Note:To prevent creasing, note the
maximum load for the programmes.
→"Programmes", Page22
Requirements
¡ The laundry is prepared and sor-
ted.
→"Laundry", Page26
¡ The drum is empty.
1.
Open the door. →Page27
2. Place the laundry in the drum.
3. Close the door.
Ensure that there is no laundry
trapped in the door.
11.5 Starting the programme
Requirements
¡ A programme is set. →Page26
¡ The door is closed.
▶ Press Start/Reload.
a The display shows the programme
duration or the programme end
time.
a After the programme has ended,
the display shows: "End".
Note:When "Hot" is shown on the
display, the appliance cools the laun-
dry.
When "Hot" goes out, the laundry has
cooled down.
11.6 Adding laundry
After the programme starts, you can
remove or add laundry at any time.
1. Press Start/Reload.
The cooling process starts auto-
matically after approximately 30
seconds and cools down the laun-
dry while the drum is rotating. If
you want to avoid or cancel the
cooling process, open the door.
→Page20
2.
Open the door. →Page27
3. Add or remove laundry.
4. Close the door.
5.
Start the programme. →Page27
11.7 Cancelling the pro-
gramme

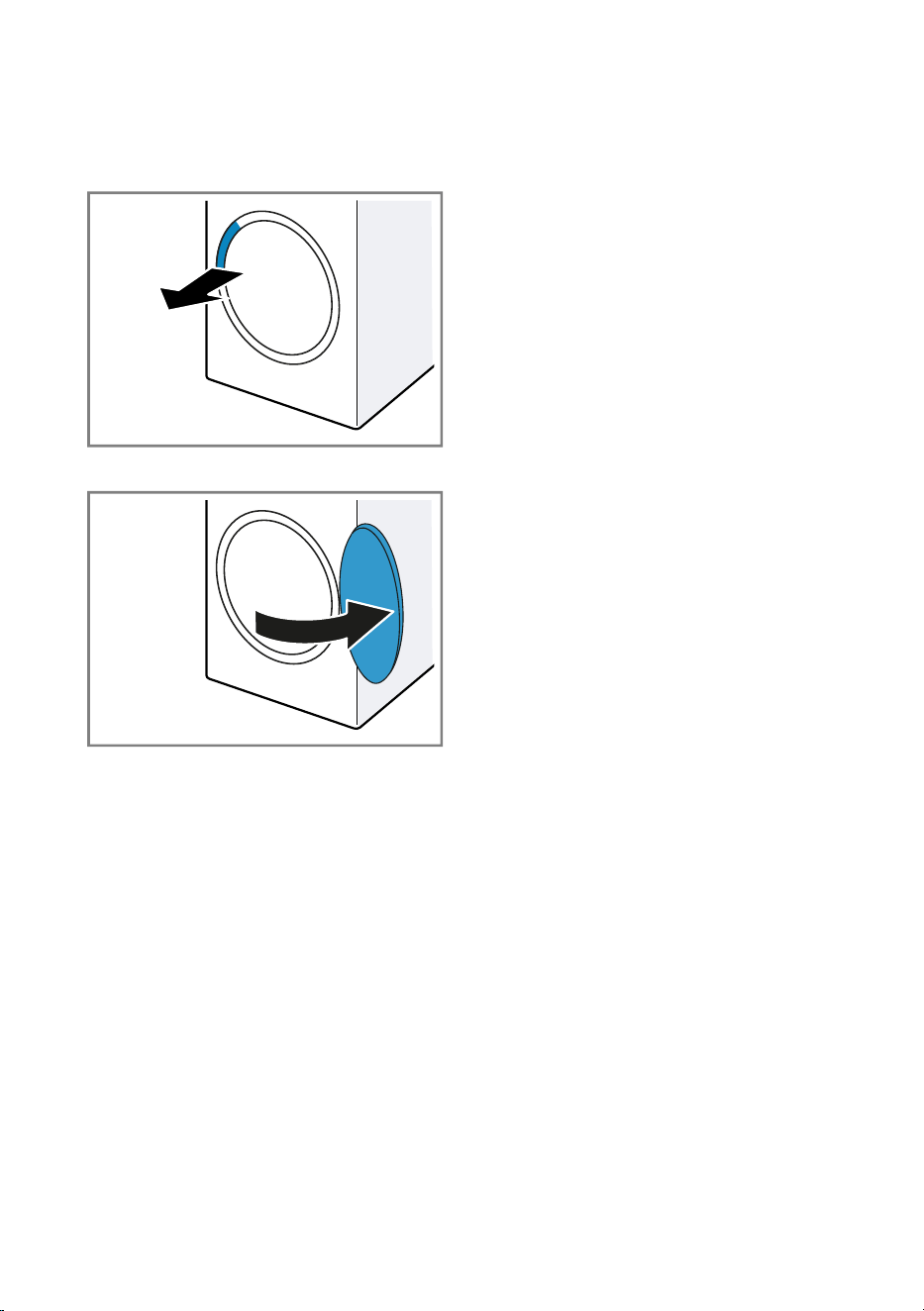

1. Press Start/Reload.
2.
Open the door. →Page27
3.
Remove the laundry. →Page27
11.8 Unloading the laundry
1.
Open the door. →Page27
2. Remove the laundry from the
drum.
en Basic operation
28
11.9 Switching off the appli-
ance
▶ Turn the programme selector to
Off.
11.10 Fluff filter
During drying, fluff from the laundry is
collected in the fluff filter. The fluff fil-
ter protects the appliance from fluff.
Cleaning the fluff filter
If the drying programme has finished
or the display shows a notification
while the appliance is in operation,
clean the fluff filter after the pro-
gramme end.
Note:If you do not clean the appli-
ance as described, the appliance's
functionality may be impaired.
Requirements
¡ The display shows the following
after drying: "End"
¡ or the display shows the following
during operation: .
1.
Open the door. →Page27
2. Remove the fluff from the inside of
the door.
3. Remove the two-part fluff filter one
part at a time.
4. Remove the fluff from the recess.
Ensure that no fluff falls into the air
channel.
5. Open the two fluff filters and re-
move the fluff .
Dispose of the fluff with the house-
hold waste in order to prevent the
water from being contaminated
with microplastics.
Basic operation en
29

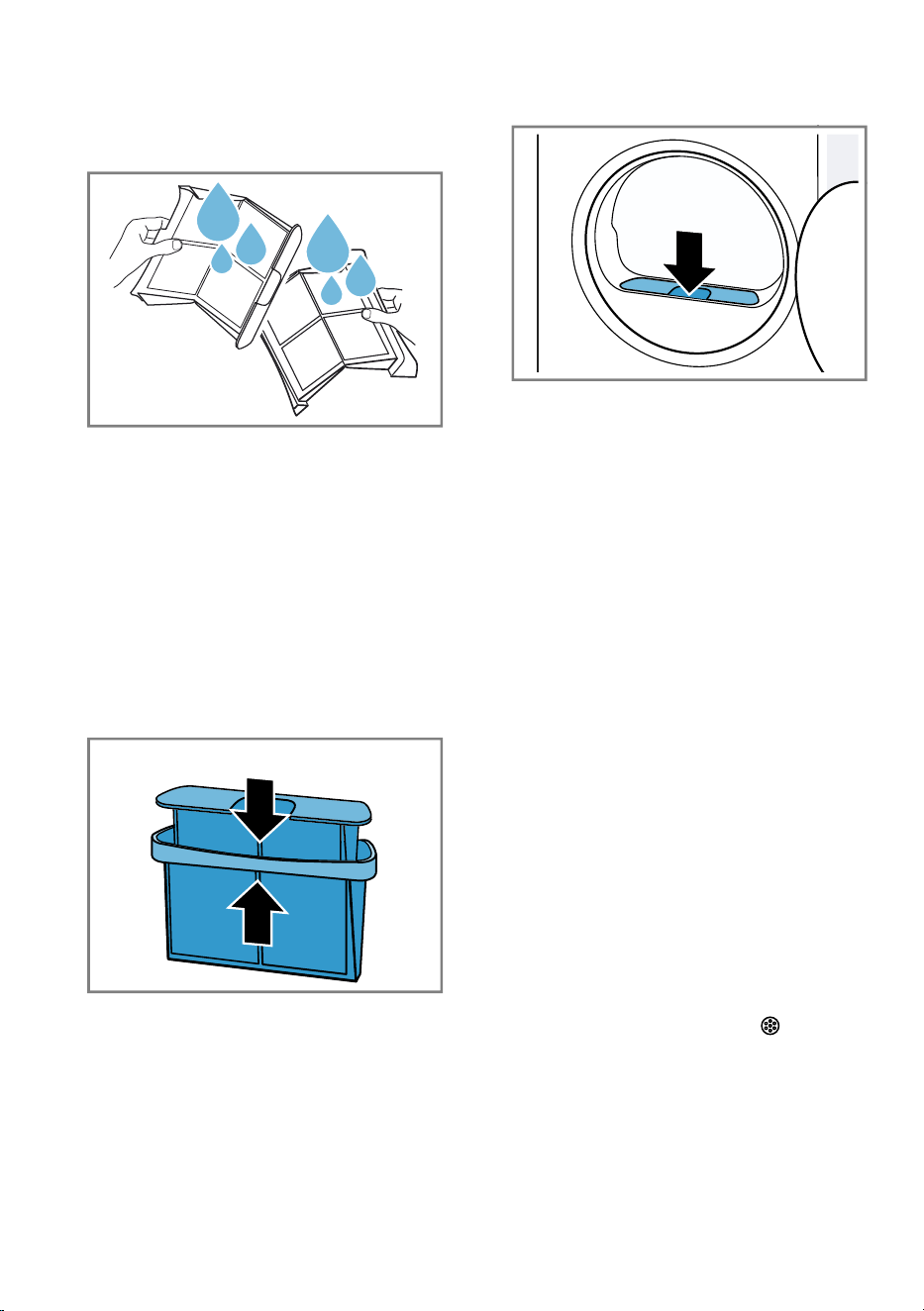

6. Clean the two fluff filters thoroughly
under warm, running water and
then dry them off.
Note:Collect the cleaning water in
a container, e.g. a bucket. After
cleaning, pour the contents of the
container through a filter, e.g. a
coffee filter.
Dispose of the coffee filter with the
household waste in order to pre-
vent the water from being contam-
inated with microplastics.
7. Close the two fluff filters and put
them together.
8. Insert the two-part fluff filter.
9. Close the door.
11.11 Filter system on the
base unit
During drying, fluff from the laundry is
collected in the base unit's filter sys-
tem. The filter system protects the ap-
pliance from fluff.
Cleaning the filter system on the
base unit
If the display shows a notification
while the appliance is in operation,
clean the base unit's filter system
after the programme end.
Notes
¡ You can clean the filter system
regularly even without the notifica-
tion being shown on the display.
It is not necessary to clean after
each drying cycle.
¡ If you do not clean the appliance
as described, the appliance's func-
tionality may be impaired.
Requirement:The display shows the
following during operation: .
1.
Clean the fluff filter →Page28.
2.
Open the base unit. →Page34
en Basic operation
30

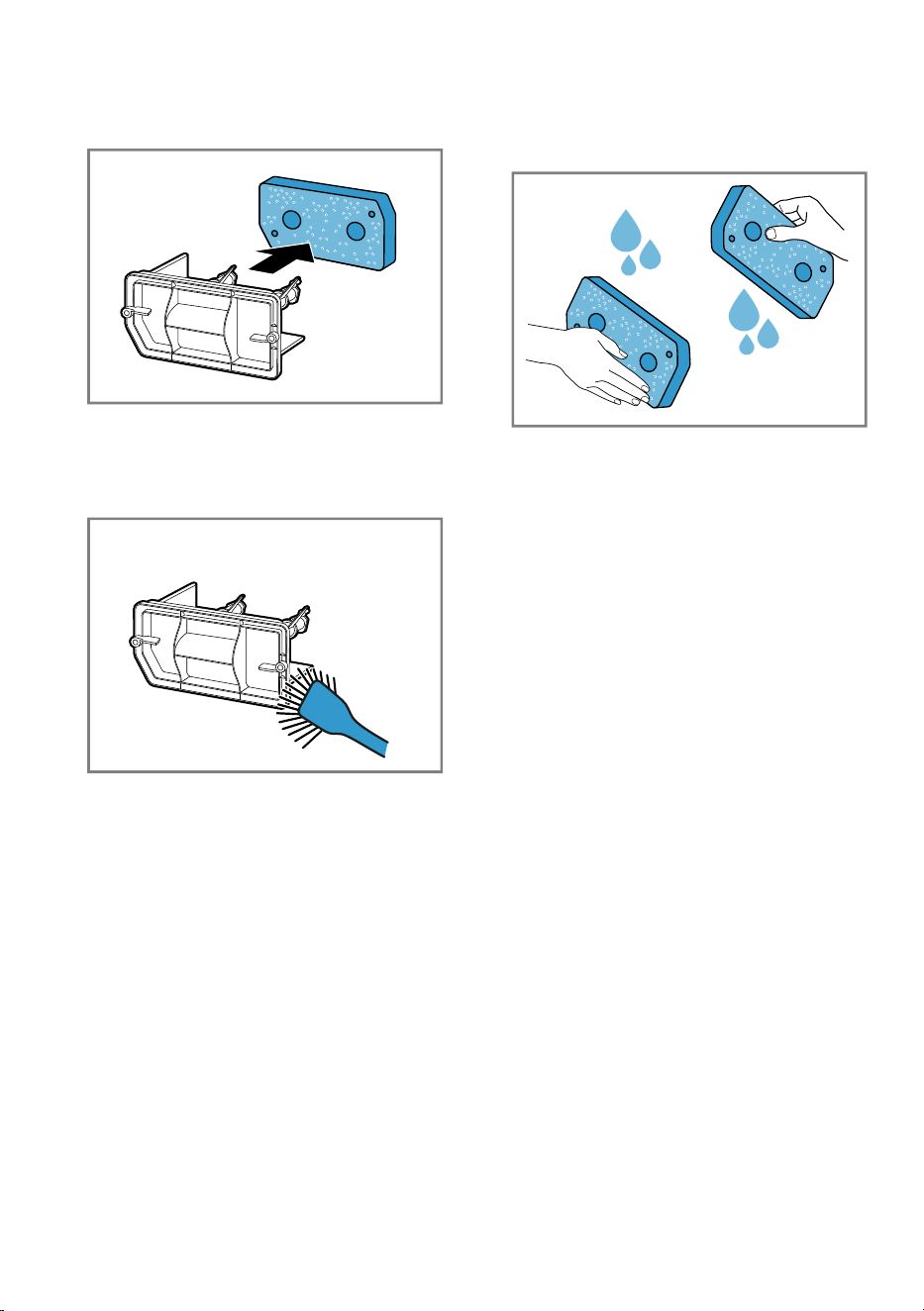

3. Carefully remove the filter mat from
the retainers.
Ensure that you do not deform or
damage the filter mat.
4. Use a soft brush to clean the heat
exchanger cover.
Make sure that you remove all dirt
from the seal.
5. Clean the filter mat thoroughly un-
der warm, running water and
squeeze it out by hand.
You can remove heavy soiling
carefully using a vacuum cleaner.
Do not clean the filter mat using
cleaning agents.
Note:Collect the cleaning water in
a container, e.g. a bucket. After
cleaning, pour the contents of the
container through a filter, e.g. a
coffee filter.
Dispose of the coffee filter with the
household waste in order to pre-
vent the water from being contam-
inated with microplastics.
Basic operation en
31

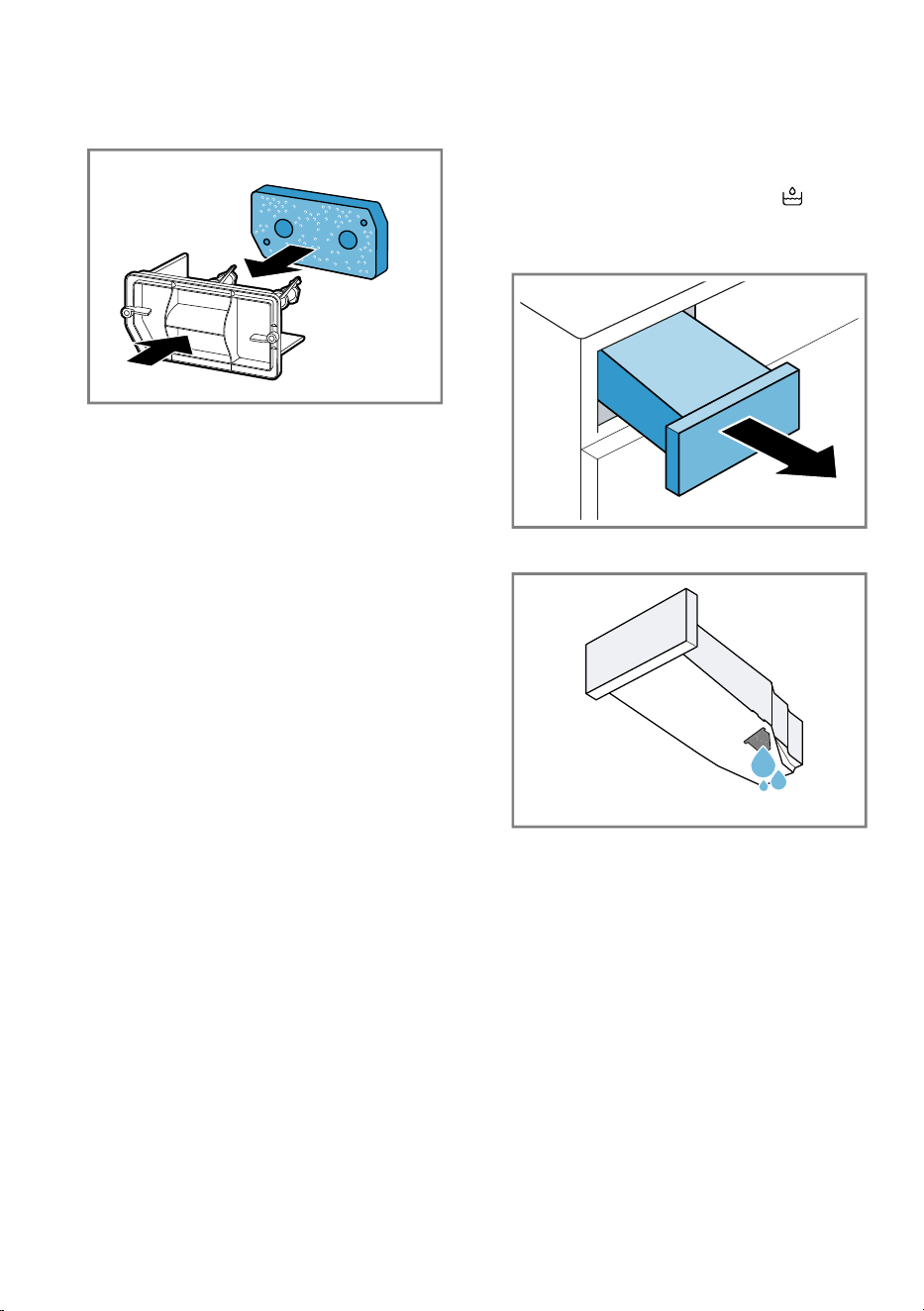

6. Push the filter mat onto the retain-
ers.
Ensure that the cleaned filter mat
is not deformed, damaged or in-
verted when you push it onto the
retainers.
Note:You can order the filter mat
→Page25 as a spare part from
customer service.
7.
Close the base unit. →Page35
11.12 Condensation con-
tainer
Condensation that forms in the appli-
ance as it dries the laundry is collec-
ted by default in the condensation
container.
Note:Operate this appliance using
the water outlet hose provided.
→Page13
If you connect the water outlet hose,
you do not have to regularly empty
the condensation container.
→"Emptying the condensation con-
tainer", Page31
Emptying the condensation
container
If the drying programme has finished
or the display shows a notification
that the drying programme is paused,
empty the condensation container.
Requirements
¡ The display shows the following
after drying: "End"
¡ or the display shows the following
while operation is paused: .
1. Pull out the condensation con-
tainer, keeping it level.
2. Empty the condensation container.
Make sure that you insert the con-
densation container before operat-
ing the appliance. →Page32
3. If the drying programme is paused,
start the programme. →Page27
en Dryness level
32
Inserting the condensation
container
▶ Push the condensation container
in as far as it will go.
12 Dryness level
Each automatic programme has a
specified dryness level. The dryness
level defines how dry or damp your
laundry is after the programme ends.
Programme Description
Cottons Cup-
board Dry
Plus
Easy Care
Cupboard
Dry Plus
For multi-layered,
thick laundry that
does not dry readily.
Cottons
Cupboard
Dry
Easy Care
Cupboard
Dry
For normal, single-
layered laundry.
Cottons Iron
Dry
Easy Care
Iron Dry
For normal, single-
layered laundry.
The laundry is still
slightly damp after
the programme
ends. To prevent
creasing after drying,
iron the laundry or
hang it up.
12.1 Changing the dryness
level
For some automatic programmes,
you can change the dryness level so
that your laundry will be drier or more
damp.
▶ Set an automatic programme with
the desired dryness level.
→Page22
12.2 Adjusting the dryness
level
If the laundry feels too damp after it
has been dried to a particular dry-
ness level, you can adjust the dry-
ness level.
1. Set an automatic programme with
the desired dryness level.
→Page22
2. Repeatedly press Drying Level
to adjust the dryness level from
(dry) to (driest).
13 Childproof lock
Secure your appliance against being
operated unintentionally using the
controls.
13.1 Activating the childproof
lock
▶ Press on both 3 sec. buttons
for approx. 3seconds.
a The display shows .
a The control elements are locked.
a The childproof lock remains active
even after the appliance has been
switched off and in the event of a
power cut.
Basic settings en
33
13.2 Deactivating the child-
proof lock
Requirement:To deactivate the
childproof lock, the appliance must
be switched on.
▶ Press on both 3 sec. buttons
for approx. three seconds.
So that the programme currently
running is not cancelled, the pro-
gramme selector must be set to
the initial programme.
a goes out on the display.
14 Basic settings
You can configure the basic settings
for your appliance to meet your
needs.
14.1 Overview of the basic
settings
1
2
3
4
Programme selector with programme
positions
1
No basic setting.
1
Example
2
Set the spin speed of the
washing machine:
600 (low) to 1800 (high)
1
The set value increases or de-
creases the duration of the
automatic programmes.
3
Set the volume of the signal
at the end of the programme:
0 (off) to 4 (very loud)
4
Set the volume of the signal
tone emitted when the but-
tons are pressed:
0 (off) to 4 (very loud)
1
Example
14.2 Changing the basic set-
tings
1. Set the programme selector to po-
sition 1. →Page33
2. Press Start/Reloadand, at the
same time, turn the programme
selector to position2.
a The display shows the current
value.
3. Use the programme selector to se-
lect the required basic setting.
→Page33
4. To change the value, press Finish
in / Program Duration.
5. To save the changes, switch off
the appliance.
en Cleaning and servicing
34
15 Cleaning and servi-
cing
To keep your appliance working effi-
ciently for a long time, it is important
to clean and maintain it carefully.
15.1 Base unit
The base unit is the accessible area
at the bottom of the appliance in
which you will find the heat ex-
changer.

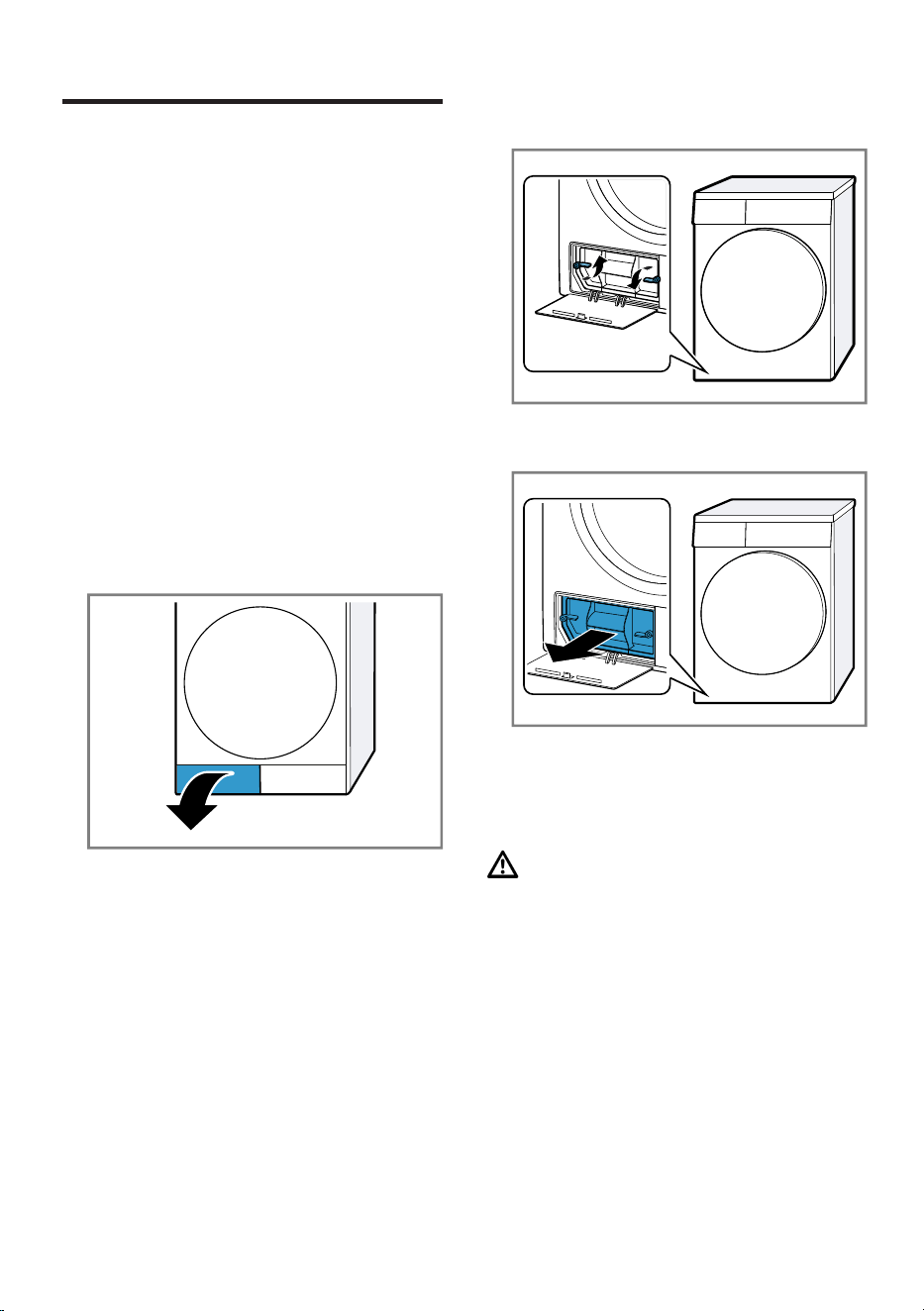

Opening the base unit
Requirements
¡ The appliance has cooled down
for 30 minutes.
¡ The appliance door is closed.
1. Open the maintenance flap.
If you place a cloth beneath the
maintenance flap, you can collect
the remaining water from the base
unit.
2. Open the lever for the heat ex-
changer cover.
3. Pull out the heat exchanger cover
by the handle.
Cleaning the base unit
You can remove any visible dirt in the
base unit.
CAUTION
Risk of cutting!
Touching sharp edges on the heat
exchanger may lead to cuts.
▶ Do not touch the fins on the heat
exchanger.

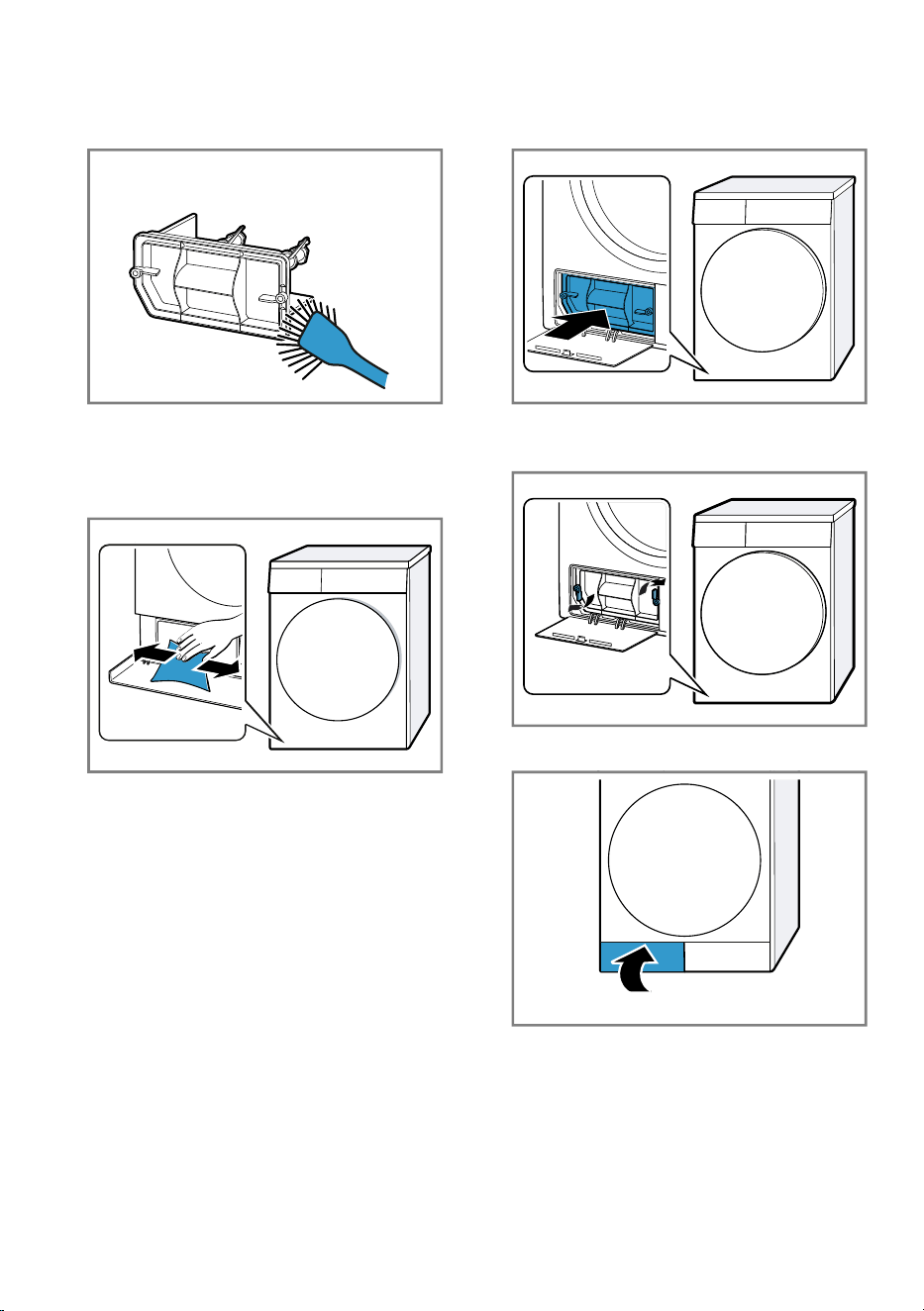

1.
Open the base unit. →Page34
Cleaning and servicing en
35
2. Use a soft brush to clean the heat
exchanger cover.
Make sure that you remove all dirt
from the seal.
3. Clean the opening with a soft,
damp cloth.
4.
Close the base unit. →Page35
Closing the base unit
Requirement:The base unit is open.
→"Opening the base unit", Page34
1. Insert the heat exchanger cover by
the handle.
2. Close the lever for the heat ex-
changer.
3. Close the maintenance flap.
15.2 Moisture sensor
The moisture sensor in this appliance
measures how damp the laundry is
during the drying cycle. The appli-
en Cleaning and servicing
36
ance changes the duration of the
automatic programme depending on
the residual moisture in the laundry.
Cleaning the moisture sensor
Over time, residue from limescale,
detergents and care products can
build up on the moisture sensor.
Clean the moisture sensor regularly.
ATTENTION!
Hard or rough objects may damage
the moisture sensor.
▶ Do not use hard or rough objects,
abrasive cleaning products or steel
wool for cleaning.
Note:If you do not clean the appli-
ance as described, the appliance's
functionality may be impaired.
1. Open the door.
2. Clean the moisture sensor with a
sponge.
Troubleshooting en
37
16 Troubleshooting
You can rectify minor faults on your appliance yourself. Read the troubleshoot-
ing information before contacting after-sales service. This will avoid unneces-
sary costs.
WARNING
Risk of electric shock!
Improper repairs are dangerous.
▶ Never make any technical modifications to the appliance or its features.
▶ Repairs to the appliance should only be carried out by trained specialist
staff.
▶ Only use genuine spare parts when repairing the appliance.
▶ If the power cord of this appliance is damaged, it must be replaced by the
manufacturer, the manufacturer's Customer Service or a similarly qualified
person in order to prevent any risk.
Fault Cause and troubleshooting
The display goes out
and Start/Reload
flashes.
Energy-saving mode is active
▶ Press Start/Reload.
"Hot" and the drum ro-
tates.
Not a fault. The cooling process is active.
No action required.
Note:Do not change the programme during the cool-
ing process. The cooling process takes up to 10
minutes.
and programme ter-
minated.
The condensation container is full.
▶
Empty the condensation container. →Page31
The water outlet hose is not connected correctly, or is
kinked or trapped.
▶ Check the installation of the water outlet hose.
→Page13
Water outlet hose is blocked.
▶ Rinse the water outlet hose with tap water.
A foreign object is in the base unit.
1.
Open the base unit. →Page34
2. Remove any foreign objects.
3.
Close the base unit. →Page35
/ E:69 Fluff filter is soiled.
▶
Clean the fluff filter. →Page28
Filter system on the base unit is dirty.
▶
Clean the filter system on the base unit. →Page29
en Troubleshooting
38
Fault Cause and troubleshooting
The programme does
not start.
Childproof lock is activated.
▶
Deactivate the childproof lock. →Page33
Finish in is activated.
▶
Check whether Finish in is activated. →Page22
The length of the pro-
gramme changes dur-
ing the drying cycle.
Not a fault. The programme sequence is optimised
electronically.
No action required.
The drying time is too
long.
Filter system on the base unit is dirty.
▶
Clean the filter system on the base unit. →Page29
Fluff filter is soiled.
▶
Clean the fluff filter. →Page28
The ambient temperature is lower than 15 °C or
higher than 30°C.
▶ Ensure that the ambient temperature is between 15
°C and 30 °C.
The air circulation at the appliance's installation loca-
tion is insufficient.
▶ Ventilate the appliance's installation location.
The appliance's ventilation opening is blocked.
▶ Ensure that the ventilation opening of the appliance
is kept clear.
Heat exchanger is soiled.
1.
Open the base unit. →Page34
2.
Clean the heat exchanger. →Page34
3.
Close the base unit. →Page35
Humming, whirring or
pumping noises.
Not a fault. The compressor, compressor ventilation or
condensation pump is active.
No action required.
The laundry is too
damp.
The selected programme is unsuitable for the type of
fabric.
▶ Set a time programme for subsequent drying.
→Page24
The load is too large.
▶ Observe the programme's maximum load capacity.
→Page22
After the end of the programme, warm laundry feels
damper than it actually is.
1. Remove the laundry from the drum as soon as the
drying programme has finished.
2. Spread the items of laundry for cooling.
Troubleshooting en
39
Fault Cause and troubleshooting
The laundry is too
damp.
The selected dryness level is unsuitable.
▶
Change the dryness level. →Page32
The dryness level is not adjusted.
▶
Adjust the dryness level. →Page32
The load is too small.
▶ Set a time programme for subsequent drying.
→Page24
The moisture sensor is dirty.
▶
Clean the moisture sensor. →Page36
The appliance has interrupted the drying process due
to the condensation container being full.
▶
Empty the condensation container. →Page31
Creasing. The selected programme is unsuitable for the type of
fabric.
▶
Set a suitable programme. →Page22
The load is unsuitable.
▶ Observe the programme's maximum load capacity.
→Page22
▶
Prepare the laundry. →Page26
The laundry lies in the drum for too long after drying.
1. Remove the laundry from the drum as soon as the
drying programme has finished.
2. Spread the items of laundry for cooling.
Easy Care fabrics have been dried for too long.
▶
Change or adjust the dryness level. →Page32
The crease-reduction function is not activated.
▶
Activate the crease-reduction function. →Page21
Water is leaking from
the appliance.
Appliance is not correctly aligned.
▶
Align the appliance. →Page15
The seal for the heat exchanger cover is dirty.
▶ Clean the seal for the heat exchanger cover.
→Page29
Water outlet hose is not connected correctly.
▶ Check the installation of the water outlet hose.
→Page13
The lever for the heat exchanger cover is not closed
correctly.
▶ Ensure that the lever for the heat exchanger cover
is closed correctly. →Page35
en Troubleshooting
40
Fault Cause and troubleshooting
Condensation collects
in the condensation
container despite the
water outlet hose be-
ing connected.
Not a fault. The remaining volume of condensation
may remain in the condensation container.
No action required.
Water outlet hose is not connected correctly.
▶ Check the installation of the water outlet hose.
→Page13
Transportation, storage and disposal en
41
17 Transportation, stor-
age and disposal
17.1 Disposing of old appli-
ance
Valuable raw materials can be re-
used by recycling.
WARNING
Risk of harm to health!
Children can lock themselves in the
appliance, thereby putting their lives
at risk.
▶ Do not install the appliance behind
a door as this may obstruct the ap-
pliance door or prevent it from
opening.
▶ With redundant appliances, unplug
the power cord. Then cut through
the cord and damage the lock on
the appliance door beyond repair
so that the appliance door will no
longer close.
WARNING
Risk of fire!
The refrigerant R290 used in this ap-
pliance is environmentally friendly. It
is however flammable and may ignite
if appliances are not disposed of
properly.
▶ Dispose of the appliance properly.
▶ Do not damage the tubing of the
refrigerant circuit.
1. Unplug the appliance from the
mains.
2. Cut through the power cord.
3. Dispose of the appliance in an en-
vironmentally friendly manner.
Information about current disposal
methods are available from your
specialist dealer or local authority.
This appliance is la-
belled in accordance
with European Directive
2012/19/EU concerning
used electrical and elec-
tronic appliances (waste
electrical and electronic
equipment - WEEE).
The guideline determ-
ines the framework for
the return and recycling
of used appliances as
applicable throughout
the EU.
18 Customer Service
Function-relevant genuine spare parts
according to the corresponding Eco-
design Order can be obtained from
Customer Service for a period of at
least 10 years from the date on
which your appliance was placed on
the market within the European Eco-
nomic Area.
Note:Under the terms of the manu-
facturer's warranty the use of Cus-
tomer Service is free of charge.
Detailed information about the war-
ranty period and the warranty condi-
tions in your country is available via
the QR code on the enclosed docu-
ment on service contacts and war-
ranty conditions, from our customer
service or on our website.
If you contact Customer Service, you
will require the product number (E-
Nr.) and the production number (FD)
of your appliance.
You can find the contact details for
our customer service via the QR
code on the enclosed document on
service contacts and warranty condi-
tions or on our website.
en Customer Service
42
18.1 Product number (E-Nr.)
and production number
(FD)
You can find the product number (E-
Nr.) and the production number (FD)
on the appliance's rating plate.
Depending on the model, the rating
plate is located:
¡ On the inside of the door.
¡ On the inside of the maintenance
flap.
¡ On the rear of the appliance.
Make a note of your appliance's de-
tails and the Customer Service tele-
phone number to find them again
quickly.
Consumption values en
43
19 Consumption values
The Cottons Cupboard Dry pro-
gramme (denoted by the arrow sym-
bol) is suitable for drying cotton laun-
dry with a normal dampness level,
and is the most efficient programme
for drying damp cotton laundry in
terms of combined energy consump-
tion. The consumption values for this
programme that are declared on the
energy label refer to a moisture con-
tent of the laundry of 60%.
The values specified for other pro-
grammes are indicative only and
were determined in accordance with
the applicable standard EN61121.
The actual values may deviate from
the indicated values depending on
the type of fabric, composition of
laundry to be dried, residual moisture
in the fabric, set degree of dryness,
amount of laundry being loaded, en-
vironmental conditions and the activ-
ation of additional functions.
The expected programme dura-
tion/"Ready in" time that is shown on
the appliance display when selecting
the programme is based on the spin
speed in the washing machine of
1000rpm when the appliance is de-
livered.
Programme Final
mois-
ture
level
(%)
Load
(kg)
Spin
speed
(rpm)
Initial
mois-
ture
level
(%)
Pro-
gramm
e dura-
tion
(h:min)
Energy
con-
sump-
tion
(kWh/
cycle)
Cottons Cupboard
Dry
0.0 8.0 1400 50 3:01 1.63
Cottons Cupboard
Dry
0.0 4.0 1400 50 1:56 1.00
Cottons Cupboard
Dry
0.0 8.0 1000 60 3:25 1.87
Cottons Cupboard
Dry
0.0 4.0 1000 60 2:10 1.14
Cottons Cupboard
Dry
0.0 8.0 800 70 3:50 2.11
Cottons Cupboard
Dry
0.0 4.0 800 70 2:25 1.28
Cottons Iron Dry 12.0 8.0 1400 50 2:16 1.21
Cottons Iron Dry 12.0 4.0 1400 50 1:23 0.70
Cottons Iron Dry 12.0 8.0 1000 60 2:40 1.45
Cottons Iron Dry 12.0 4.0 1000 60 1:37 0.84
Cottons Iron Dry 12.0 8.0 800 70 3:05 1.69
Cottons Iron Dry 12.0 4.0 800 70 1:52 0.98
en Technical data
44
Programme Final
mois-
ture
level
(%)
Load
(kg)
Spin
speed
(rpm)
Initial
mois-
ture
level
(%)
Pro-
gramm
e dura-
tion
(h:min)
Energy
con-
sump-
tion
(kWh/
cycle)
Easy Care Cupboard
Dry
2.0 3.5 800 40 1:12 0.60
Easy Care Cupboard
Dry
2.0 3.5 600 50 1:24 0.71
20 Technical data
Appliance height 84.2cm
Appliance width 59.8cm
Appliance depth 61.3cm
Appliance depth
with door closed
65.1cm
Appliance depth
with door open
108.3cm
Weight 46.6kg
Maximum load 8.0kg
Mains voltage 220-240V,
50Hz
Minimum in-
stallation protec-
tion
10A
Nominal power 600W
Power consump-
tion
¡ Off mode:
0.10 W
¡ Left-on mode:
0.50W
Ambient temper-
ature
¡ Minimum:
5°C
¡ Maximum:
35°C
Length of the
power cord
179.5cm
More information about your model
can be found online at https://
eprel.ec.europa.eu/qr/1970375
1
.
This web address is linked to the offi-
cial EU EPREL product database.
1
Only applies to countries in the European Economic Area
Thank you for buying a
Bosch Home Appliance!
Register your new device on MyBosch now and profit directly from:
• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
Looking for help?
You'll find it here.
Expert advice for your Bosch home appliances, help with problems
or a repair from Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service direct-
ory.
*9001939637*
9001939637 (050611)
en
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.bosch-home.com
A Bosch Company
Valid within Great Britain:
Imported to Great Britain by
BSH Home Appliances Ltd.
Grand Union House
Old Wolverton Road
Wolverton, Milton Keynes
MK12 5PT
United Kingdom
