OPERATOR’S MANUAL
Record product information to reference when ordering parts or
obtaining warranty coverage.
LPG PORTABLE GENERATOR
MODEL NUMBER
L03391
Rev Level:01
P/N:333745491 Rev:02
•
DO
NOT
RETURN
TO STORE!
-;_
CALL US FIRST
11-844-347-6261
~
~
FOR
QUESTIONS
OR SERVICE INFORMATION
c~
lntertek
5001841
SERIAL
NUMBER:
PURCHASE DATE:
Table of Contents
Introduction . . . . . . . . . . . .
Features and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Maintenance - Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Troubleshooting- Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

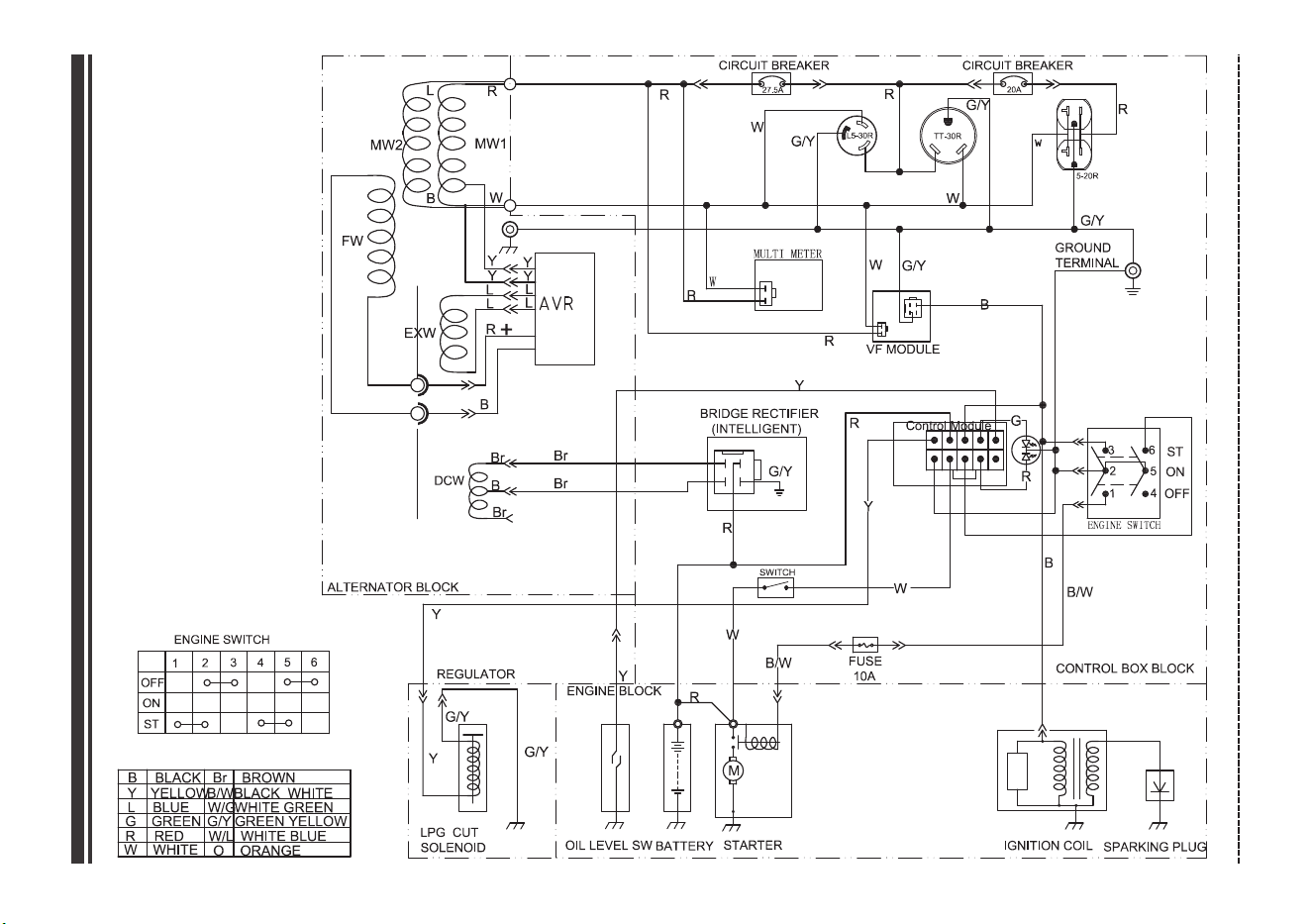

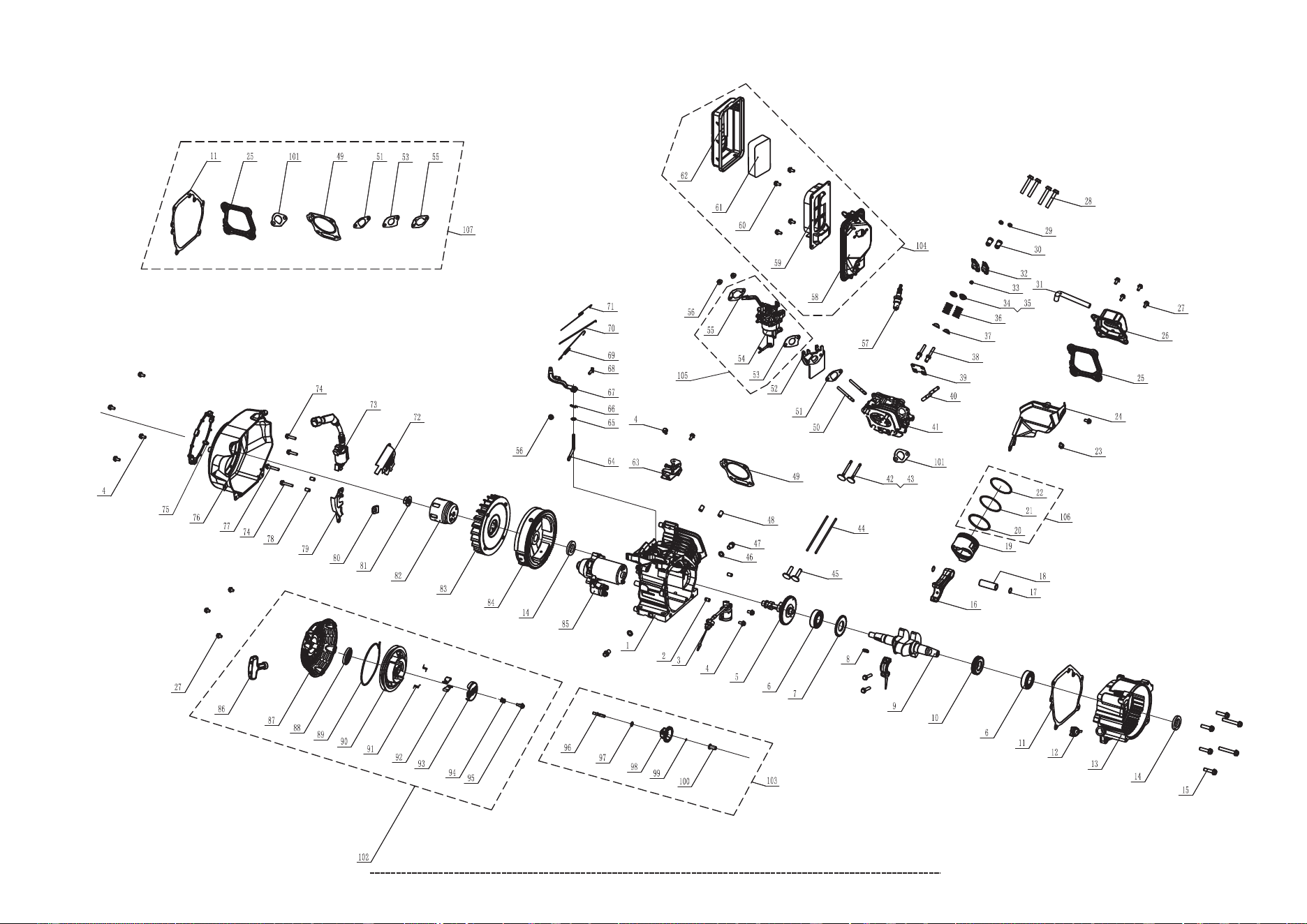

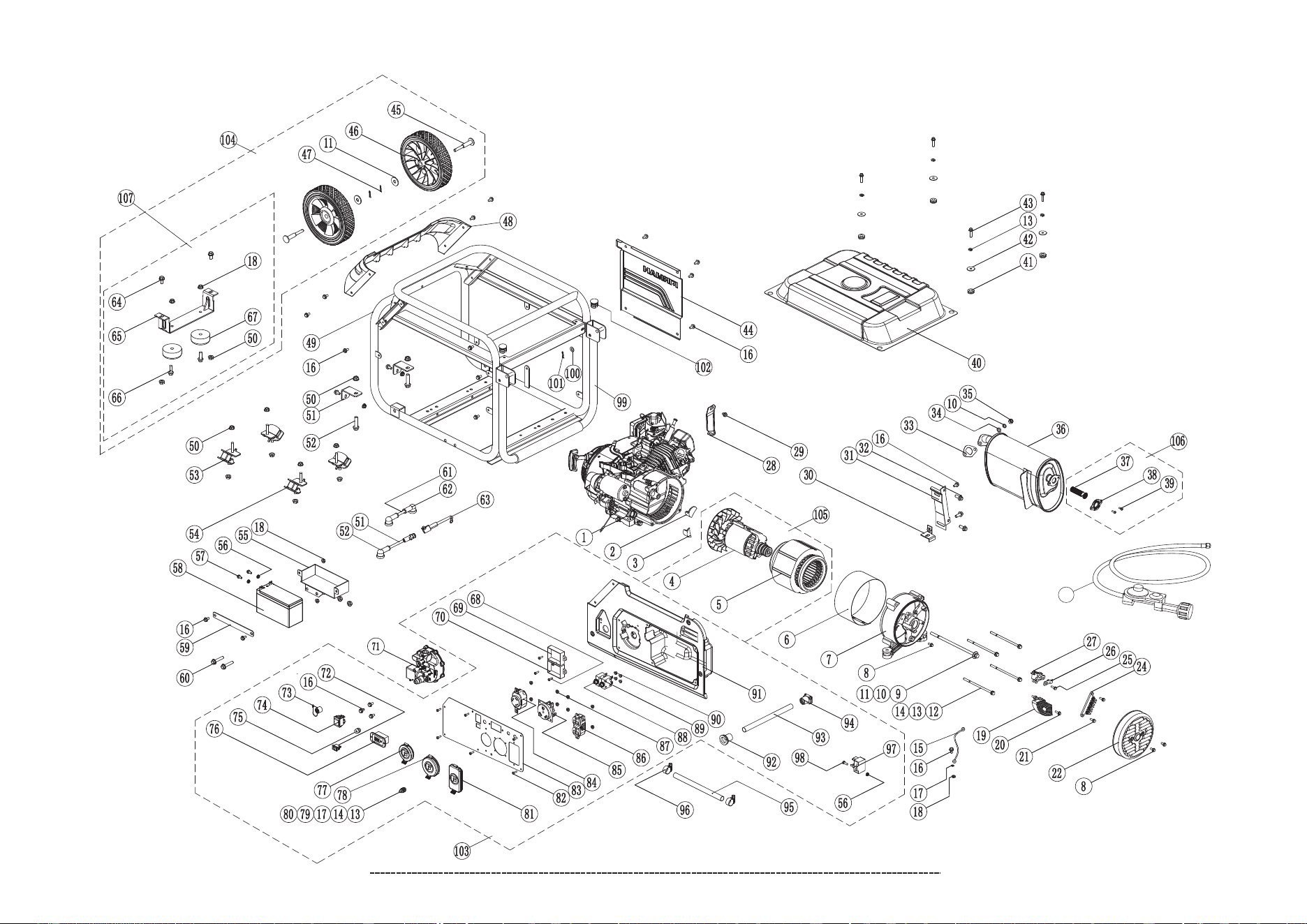

Parts Diagrams - Parts Lists - Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Service - Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
REGISTER YOUR PRODUCT
Register your FIRMAN generator online at www.firmanpowerequipment.com
INTRODUCTION
Thank you for purchasing a FIRMAN generator. You have selected a high-quality, precision engineered
generator set designed and tested to give you years of satisfactory service. This generator is designed
to run only on liquid petroleum gas (LPG). This generator is not intended to be run unattended or to
supply power to life safety support.
This manual contains safety information to make you aware of the hazards and risks associated
with generator products and how to avoid them. This generator is designed and intended only
for supplying electrical power for operating compatible electrical lighting, appliances, tools and
motor loads, and is not intended for any other purpose. It is important that you read and
understand these instructions thoroughly before attempting to start or operate this portable
generator. Save these original instructions for future reference.
All information in this publication is based on the latest production information available at the
time of approval for printing. The manufacturer reserves the right to change, alter or otherwise
improve the generator and this documentation at any time without prior notice.
INTRODUCTION
01
02
SIGNAL WORDS
DANGER WARNING CAUTION
Indicates a hazard
which, if not avoided,
will result in death or
serious injury.
Indicates a hazard
which, if not avoided,
could result in death
or serious injury.
Indicates a hazard
which, if not avoided,
could result in minor or
moderate injury.
Toxic Fumes- Engine exhaust contains carbon monoxide, a
poisonous gas that will kill you in minutes. You cannot smell
it or see it.
Fire- Fuel and its vapors are extremely flammable which could
cause burns or fire resulting in death or serious injury.Engine
exhaust could cause fire resulting in death or serious injury.
Hot Surface- Muffler could cause burns resulting in serious injury.
Generator could cause electrical shock resulting in death or serious
injury.
Safety Alert Symbol- Indicates a potential personal injury hazard.
Operator's Manual- Failure to follow warnings, instructions and
operator's manual could result in death or serious injury.
English Customer Service: 1-844-FIRMAN1
NOTICE
Indicates information
considered Important,
but not hazard-related.
INTRODUCTION
English Customer Service: 1-844-FIRMAN1
WARNING! This product can expose you to chemicals including LPG engine
exhaust, which is known to the State of California to cause cancer, and carbon
monoxide, which is known to the State of California to cause birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov.
This outdoor generator can be used to power outdoor items using extension cords.
NOTICE If you have questions about intended use, contact customer service. This portable
generator is designed to be used only with FIRMAN authorized parts.
FIRMAN
System Ground
There may be Federal or State regulations, local codes, or ordinances that apply to the intended
use of the generator. Consult a qualified electrician, electrical inspector, or the local agency
having jurisdiction. This generator is not intended to be used at a construction site or similar
activity as defined by NFPA 70-2020 (NEC) section 590.6.
Compliance Requirements
To Restore Power Using Extension Cords
03
INTRODUCTION
The generator neutral is floating, which means that the AC stator winding is isolated from the
grounding fastener and the AC receptacle ground pins. On a floating neutral generator the AC
receptacle ground pins are not functional. Electrical devices, such as a ground fault circuit
interrupter (GFCI), requiring a functioning AC receptacle ground pin will not operate.
120V
OUTLET
English Customer Service: 1-844-FIRMAN1
1. Only use grounded cords marked for outdoor use rated for your loads.
16
14
To provide power using
extension cords
Total
Amperage
Minimum Gauge, Outdoor Rated
Up to 50 FT (15m)
Up to 13A
Up to 15A
Up to 20A
Up to 30A
2. Follow cord safety instructions.
3. Install carbon monoxide alarm(s).
4. When operating portable generator with extension cords, make sure portable generator is located
in an open, outdoor area, at least 20 ft. (6 m) from occupied spaces with exhaust pointed away.
5. Extension cords running directly into your home, powering indoor items IS NOT RECOMMENDED.
Extension cords running directly into the home increase your risk of carbon monoxide
poisoning through any openings.
If an extension cord running directly into your home is used to power indoor items, the
operator recognizes that this increases the risk of CO poisoning to people inside the home
and assumes that risk.
•
•
DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that will kill
you in minutes. You cannot smell it, see it, or taste it. Even if you do not smell exhaust
fumes, you could still be exposed to carbon monoxide gas.
04
INTRODUCTION
~~v
•
-
•
•
English Customer Service: 1-844-FIRMAN1
*We are always working to improve our products. Therefore, the enclosed product may differ
slightly from the image on this page.
05
FEATURES AND CONTROLS
2- Air Filter
3- 208cc FIRMAN OHV Engine
4- Recoil Starter
5- 8.0" Flat Free Wheel
6- Oil Filler Cap
7- Battery
8-
9-
10-
Outlet Cover
Control Panel
Handle
11- LPG Hose Connector(Inlet)
12- Hose Holder
13- LPG Hose with Regulator
14- Data Decal/Serial Number
2
①
②
③
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
④
⑬
1- Choke Lever(behind air filter box)
⑭
English Customer Service: 1-844-FIRMAN1
06
FEATURES AND CONTROLS
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
English Customer Service: 1-844-FIRMAN1
07
FEATURES AND CONTROLS
①
②
③
④
⑤
⑥

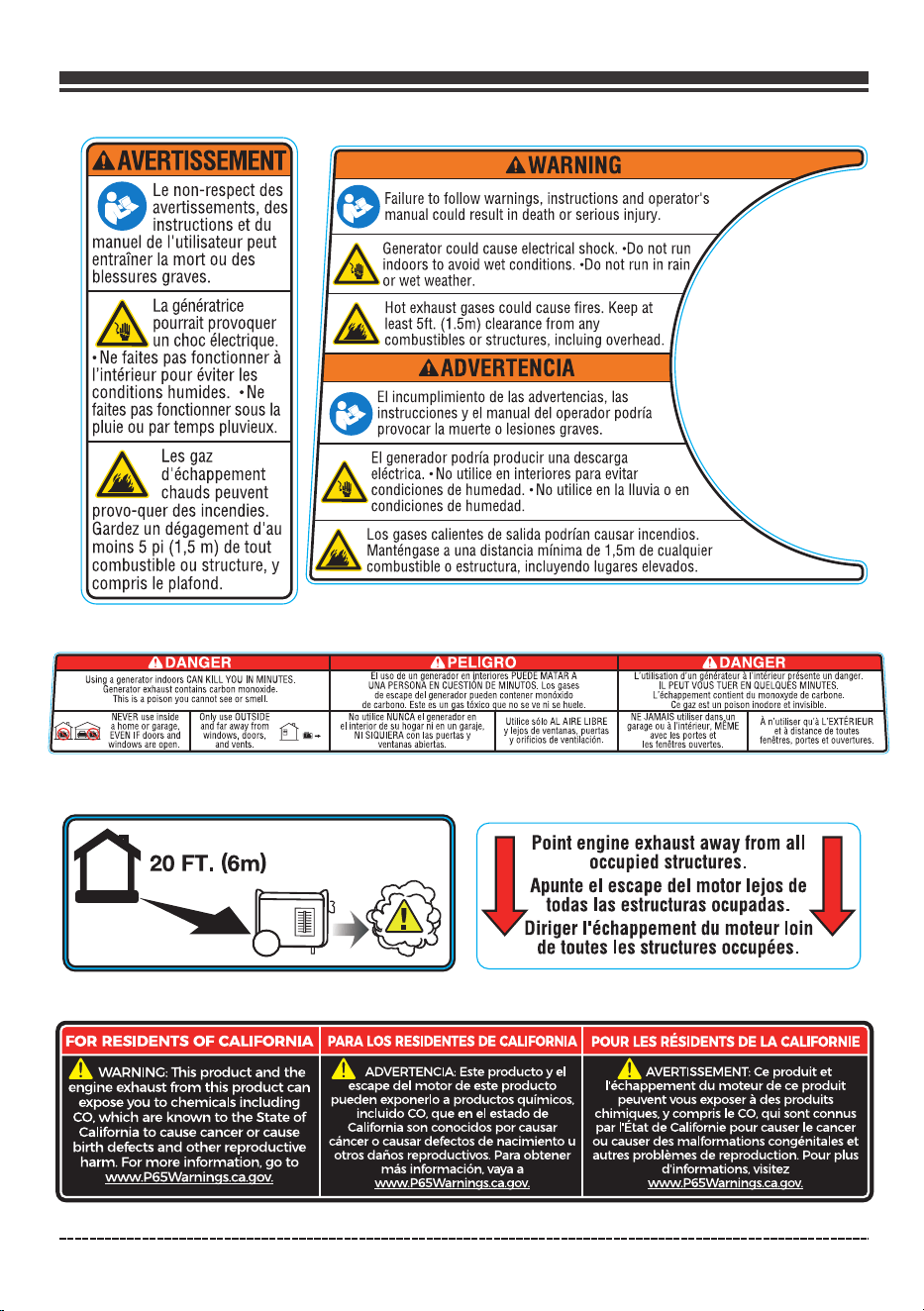

AAVERTISSEMENT
(D
Le
non-respect
des
avertissements,
des
instructions
et
du
manuel
de
l'utilisateur
peut
entraTner
la
mart
au
des
blessures
graves.
&
La
generatrice
pourrait
provoquer
un
choc
electrique.
•
Ne
faites
pas
fonctionner
a
l'interieur
pour
eviter
les
conditions
humides.
•
Ne
faites
pas
fonctionner
sous
la
pluie
ou
par
temps
pluvieux.
&.
Les
gaz
d'echappement
chauds
peuvent
provo-quer
des
incendies.
Gardez
un
degagement
d'au
mains
5
pi
(1,5
m)
de
tout
combustible
au
structure,
y
compris
le
plafond.
I t •
Usin~!ni:;;~~o;h~i~
0
c~n1~~ti;~b!~~~~!\~tES.
This
is
a
poison
you
cannot
see
or
smell.
AWARNING
"'
Failure
to
follow
warnings,
instructions
and
operator's
\.;,
manual
could
result
in
death
or
serious
injury.
&
Generator
could
cause
electrical
shock.
•Do
not
run
indoors
to
avoid
wet
conditions.
•Do
not
run
in
rain
or
wet
weather.
Hot
exhaust
gases
could
cause
fires.
Keep
at
least
5ft.
(1.5m)
clearance
from
any
combustibles
or
structures,
incluing
overhead.
AADVERTENCIA
El
incumplimiento
de
las
advertencias,
las
instrucciones
y
el
manual
del
operador
podria
provocar
la
muerte
o
lesiones
graves.
El
generador
podria
producir
una
descarga
A
electrica.
•
No
utilice
en
interiores
para
evitar
L!1
condiciones
de
humedad.
•
No
utilice
en
la
lluvia
o
en
condiciones
de
humedad.
Los
gases
calientes
de
salida
podrian
causar
incendios.
Mantengase
a
una
distancia
minima
de
1,5m
de
cualquier
combustible
o
estructura,
incluyendo
lugares
elevados.
I t •
Utl
IS~c'~~ul~8ui-m:~r
EN
~M~JU~S
ie1~5~~S-
anger.
L'eichappement
contient
du
monoxyde
de
carbone.
Ce
az
est
un
oison
inodore
et
invisible.
No
utilice
NUN
A
el
generador
en
Utilice
s61o
AL
AIRE
LIBRE
el
interior
de
su
hogar
ni
en
un
garaje,
y
lejos
de
ventanas,
puertas
NI
SIQ~~~:~a~o~~i~~g~_ertas
Y y
orificios
de
vent1laci6n.
g~~a~:~~~
l'~~U~f:u~~~li~]E
A
n'utiliser
qu'fl
L'EXTERIEUR
avec
les
portes
et
eta
distance
detoutes
les
fenetres
ouvertes.
fenetres,
portes
et
ouvertures.
Q20FT.(6m)
~
•[;]}
©
l
Point
engine
exhaust
away
from
all
l
occupied
structures.
Apunte
el
escape
del
motor
lejos
de
todas
las
estructuras
ocupadas.
Diriger
l'echappement
du
moteur
loin
de
toutes
les
structures
occupees.
FOR RESIDENTS OF CALIFORNIA
PARA
LOS
RESIDENTES
DE
CALIFORNIA
POUR
LES
RESIDENTS
DE
LA
CALIF0RNIE
A WARNING: This
product
and
the
A
ADVERTENCIA:
Este
producto y el A
AVERTISSEMENT:
Ce produit
et
engine
exhaust
from
this
product
can
escape del
motor
de
este producto
l'&happement
du
moteur
de
ce
produit
expose
you
to
chemicals
including
pueden exponerlo a productos quimicos. peuvent vous exposer a des produits
co.
which
are
known
to
the
State
of
incluido
CO,
queen
el estado
de
chimiques. y compris le
CO,
qui
sent connus
California
to
cause
cancer
or
cause
california son conocidos
par
causar par l'Etat de californie pour causer le cancer
birth
defects
and
other
reproductive
cancer o causar defectos de nacimiento u ou causer des malformations congE'nitales
et
harm.
For
more
information.
go
to
otros daiios reproductives.
Para
obtener autres problemes
de
reproduction. Pour plus
www.P65Warnin
ilil
s.ca
"l"il
.
av.
mas informaci6n.
vaya
a d'informations. visitez
www.P65Warnin
""
s.ca
""
.
av.
www.P65Warnin:r.i
s.ca
""
.
av.
English Customer Service: 1-844-FIRMAN1
08
FEATURES AND CONTROLS
⑦
⑧
⑨
⑩

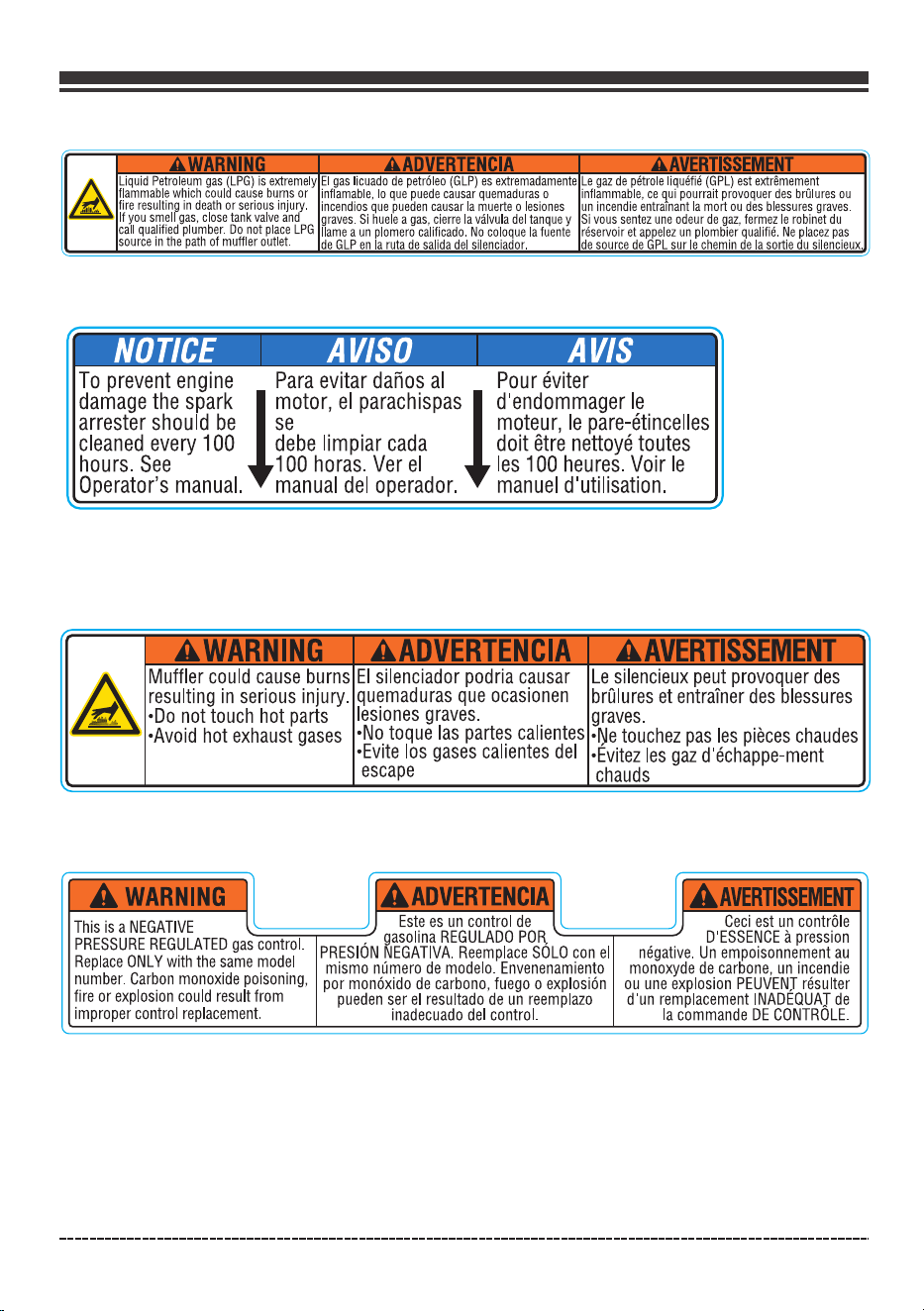

Liquid
Petroleum
gas
(LPG)
is
extremely
El
gas
licuado
de
petr61eo
(GLP)
es
extremadamente
Le
gaz
de
petrole
liquefie
(GPL)
est
extremement
flammable
which
could
cause
burns
or
inflarnable,
lo
que
puede
causar
quernaduras
o
inflammable,
ce
qui
pourrait
provoquer
des
brulures
ou
fire
resultinp
in
death
or
serious
injury.
incendios
que
pueden
causar
la
rnuerte
o
lesiones
un
incendie
entrainant
la
mort
ou
des
blessures
graves.
If
you
smel
gas,
close
tank
valve
and
graves.
Si
huele
a
gas,
cierre
la
valvula
del
tanque
y
Si
vous
sentez
une
odeur
de
gaz,
fermez
le
robinet
du
call
qua_l1f1ed
plumber.
Do
not
place
LPG
llame
a
un
plomero
calificado.
No
coloque
la
tuente
reservoir
et
appelez
un
plombier
qualifie.
Ne
placez
pas
source
1n
the
path
of
muffler
outlet.
de
GLP
en
la
ruta
de
salida
del
silenciador.
de
source
de
GPL
sur
le
chemin
de
la
sortie
du
silencieux.
NOTICE
AV/SO
AVIS
To
prevent
engine
Para
evitar
danos
al
Pour
eviter
damage
the
spark
!motor,
el
parachispas!
d'endommager
le
arrester
should
be
se
moteur,
le
pare-etincelles
cleaned
every
100
debe
limpiar
cada
doit
etre
nettoye
toutes
hours.
See
100
horas.
Ver
el
les
100
heures.
Vair
le
Operator's
manual.
manual
del
operador.
manuel
d'utilisation.
AWARNING
AADVERTENCIA
AAVERTISSEMENT
~
Muffler
could
cause
burns
El
silenciador
podria
causar
Le
silencieux
peut
provoquer
des
resulting
in
serious
injury.
quemaduras
que
ocasionen
brOlures
et
entrainer
des
blessures
•Do
not
touch
hot
parts
lesiones
graves.
graves.
·Avoid
hot
exhaust
gases
•No
toque
las
partes
calientes
•l')le
touchez
pas
les
pieces
chaudes
·Evite
las
gases
calientes
del
•Evitez
les
gaz
d'echappe-ment
escape
chauds
A
WARNING
t l
J
IAADVERTENCIAII
l
J
JA~~~
This
is
a
NEGATIVE
I J
Este
es
un
control
de
l
PRESSURE
REGULATED
gas
control.
,
~asolina
REGULADO
POR,
D'ESSENCE
a
pression
PRESION
EGATIVA.
Reemplace
SOLO
con
el
negative.
Un
empoisonnement
au
Replace
ONLY
with
the
same
model
mismo
nilmero
de
modelo.
Envenenamiento
monoxyde
de
carbone,
un
incendie
number.
Carbon
monoxide
poisoning,
par
mon6xido
de
carbono,
fuego
o
explosion
au
une
explosion
PEUVENJ
resulter
fire
or
explosion
could
result
from
pueden
ser
el
resultado
de
un
reemplazo
d'un
remplacement
INADEQUAJ
de
improper
control
replacement.
inadecuado
del
control.
la
commande
DE
CONTROLE.
English Customer Service: 1-844-FIRMAN1
NOTICE Total power drawn from all receptacles must not exceed the Data Decal rating.
Control Panel
2. Engine Start Switch – To start engine, press and hold the switch in the START (ll) position, the
engine will crank and attempt to start. When the engine starts, release the switch to the RUN (l) position.
3. 3-1 Data-Minder (Multi-Meter) – Push the SELECT button to show the Voltage, Hertz and running hours.
09
FEATURES AND CONTROLS
1. Battery Power Restore Switch
4. Circuit Breakers – The receptacles are protected by AC circuit protectors. If the generator is
overloaded or an external short circuit occurs, a circuit protector may trip. If tripping occurs,
disconnect all electrical loads and determine the cause before attempting to continue using the
generator. Reset any tripped circuit protectors.
If multiple receptacles are used at the same time, the total current must be kept with-in the
portable generator Data Decal rating.
5. 120V, 20A Duplex - NEMA 5-20R (Not GFCI protected)
A maximum of 20 Amps current may be drawn from this duplex receptacle.
6. 120V, 30A RV – NEMA TT-30R
A maximum of 27.5 Amps current may be drawn from this receptacle.
8.120V, 30A Twist Lock – NEMA L5-30R
7.Ground Terminal – Consult an electrician or authority having jurisdiction for local grounding
requirements.
9. Outlet Cover - Protects the receptacles from dust and debris.
10. LPG Hose Connector (Inlet: 3/8" Flare Male) – Used to connect LPG hose to generator.
11. Indicator Light When the indicator light
will turn RED for up to 4 minutes (before going off). Starting the engine successfully anytime
during the 4 minutes will turn the indicator light GREEN. See Indicator light-Battery Power
Saving Mode section for more information.
– the engine switch is turned to the “RUN” position,
3
4
5
6
7
8
9
10
2
1
11
A maximum of 27.5 Amps current may be drawn from this receptacle.
•
~
--
D
C
,
:·•.~-------=---
- - -
----=---
= - =
===========
English Customer Service: 1-844-FIRMAN1
OPERATION
1.Location
DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that could kill
you in minutes. You CANNOT smell it, see it, or taste it. Even if you do not smell exhaust
fumes, you could still be exposed to carbon monoxide gas.
•
•
•
Operate portable generator only outdoors, at least 20 ft.(6 m) from occupied spaces with exhaust
pointed away to reduce the risk of carbon monoxide accumulating.
Install battery-operated carbon monoxide alarms or plug-in carbon monoxide alarms with
battery back-up according to the manufacturer's instructions. Smoke alarms cannot detect
carbon monoxide gas.
Do not run this portable generator inside homes, garages, basements, crawlspaces, sheds, or
other partially-enclosed spaces even if using fans or opening doors and windows for ventilation.
Carbon monoxide can quickly build up in these spaces and can linger for hours, even after this
product has shut off.
•
If you start to feel sick, dizzy, weak or your home’s carbon monoxide alarm sounds, get to fresh air
right away. Call emergency services. You may have carbon monoxide poisoning.
Carbon Monoxide Alarm(s)
Install carbon monoxide alarms
inside your home. Without
working ca r b o n m o n oxide
alarms, you will not realize you
are getting sick and dying from
carbon monoxide poisoning.
Prevent Carbon Monoxide (CO) Poisoning
Use outdoors at least 20 ft. (6 m) from any home.
Point exhaust away from all homes and occupied spaces.
Install CO alarms inside your home.
20 ft. (6 m) min.
To better educate yourself about all carbon monoxide risks,
go to www.takeyourgeneratoroutside.com.
10
English Customer Service: 1-844-FIRMAN1
Reduce Risk of Fire
WARNING! Exhaust heat/gases could ignite combustibles, structures or damage fuel
tank causing a fire, resulting in death or serious injury.
Keep portable generator at least 5 ft. (1.5m) from any structure, trees or vegetation over 12
in. (30 cm) in height.
•
Select an outdoor site that is dry and protected from the weather. Do not move portable
generator indoors to protect it from the weather.
Do not locate the portable generator under a deck or other similar structure that may
confine heat and airflow.
•
•
5 ft.(1.5 m)
min.
5 ft.(1.5 m)
min.
20 ft.(6 m)min.
11
OPERATION
I ~\i I
~
~
\
..
'l
►
l ((ff_•• I
~
~·t
j '
'
\ .
,
'
,,,~
L.
English Customer Service: 1-844-FIRMAN1
2, Oil and LPG
Add Engine Oil
We recommend using FIRMAN SAE 10W-30 API SJ oil for best performance. Other high-quality
detergent oils (API SJ or higher) are acceptable. Do not use special additives. Ambient temperature
determines the proper oil viscosity for the engine. Use the chart to select the proper oil for the
outdoor temperature range expected.
NOTICE Do not attempt to crank or start the engine before it has been properly filled with the
recommended type and amount of oil. Damage due to operation with no oil will void your warranty.
Degrees Celsiusº(Outside)
Full Synthetic 5W-30
Degrees Fahrenheitº(Outside)
5W-30 10W-40
10W-30
1.Place generator on a flat, level surface.
2.Clean area around oil fill and remove yellow oil fill cap/dipstick.
3.Wipe dipstick clean.
(H)
DRAIN PLUG
(L)
H
L
12
OPERATION
-28.9 -17.8
-6.7
-
-
-
-20 0
20
4.4
15.6
26.7
37.8
48.9
40
60
-
-
-
80
100 120
~,RLIMIT
~12
LOWER
LIMIT
English Customer Service: 1-844-FIRMAN1
4. Using oil funnel, slowly pour contents of provided oil bottle into oil fill opening until oil reaches
upper limit "H" mark on the dipstick. Be careful not to overfill. Overfilling could cause engine
starting problems or engine damage.
5.Replace oil fill cap/dipstick and fully tighten.
6.Oil level should be checked prior to each use or at least every 8 hours of operation. Keep oil
level maintained.
The portable generator is equipped with a low oil shutdown. If the oil level drops below the
minimum required level, a sensor will activate an internal switch stopping the engine. If the
engine shuts off and the oil level is within specifications, check to see if generator is sitting at an
angle. Place portable generator on an even surface to correct this. If engine fails to start, the oil
level may not be high enough to deactivate the internal low oil level switch. Make sure the sump is
completely full of oil to the upper limit (H). Do not operate engine until oil level issue is corrected.
Contact FIRMAN customer service.
Low Oil Shutdown
13
OPERATION
Operation at High Altitude
At altitudes over 5,000 feet(1524 meters), engine power and generator output will be reduced
approximately 3.5% for every 1000 feet (305 m) of elevation above sea level. High altitude may
cause hard starting, increased fuel consumption and sparkplug fouling.
Operation at High Ambient conditions
Your Firman Power Equipment product is designed and rated for continuous operation at ambient
temperatures up to 104°F (40°C). The generator may be operated at temperatures ranging from
5°F(-15°C) to 122°F(50°C) for short periods. If the generator is exposed to temperatures outside
this range during storage, the generator should be brought back within this range before
operation. When operat ed above 77°F(25°C) there may be a decrease in power.
Maximum wattage and current are subject to and limited by such factors as ambient temperature,
altitude, engine conditions etc.
English Customer Service: 1-844-FIRMAN1
14
OPERATION
Connecting LPG Fuel
WARNING! Liquid Petroleum gas (LPG) is extremely flammable which could cause
burns or fire resulting in death or serious injury.

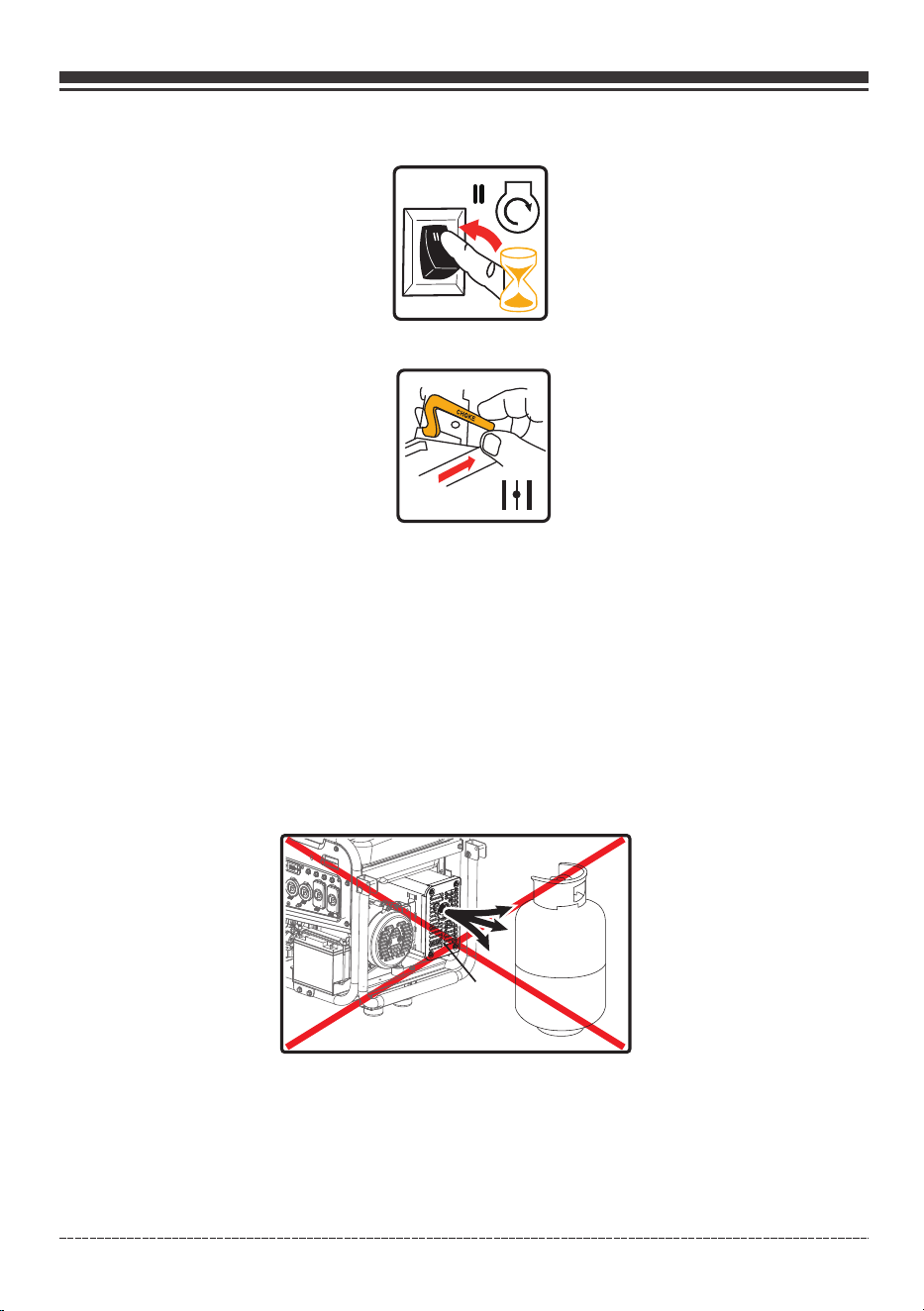

Do not place the LPG sources in the path of muffler outlet or near any ignition source.
Keep a fire extinguisher near the generator all the time.
Do not use or store LPG portable sources not in use near generator or in a building, garage
or enclosed area.
All LPG supply/ piping lines must be installed by a qualified plumber.
If you smell gas, close off all gas sources and contact a qualified plumber to inspect and
repair the LPG system.
Prior to each days first use spray a soapy water solution on LPG fuel connections to check
for leaks.
Never use a LPG cylinder or LPG connector hose that appears to be damaged.
Do not connect or disconnect the LPG source in an enclosed area.
LPG is heavier than air and can accumulate in confined / low spaces if there is a leak.
•
•
•
•
•
•
•
•
NOTICE If a fuel supply connection is necessary it must be installed in accordance with all local
codes or regulations, or in the absence of local codes or regulations, in accordance with the
National Fuel Gas Code (NFPA 54/ANSI Z223.1) and CSA B149.1 (Natural Gas and Propane
Installation Code), as applicable. If possible the fuel supply connection should be close to the
outdoor operating location, this will reduce the cost of the flexible fuel run. An approved flexible
fuel line must be installed between the generator LPG Hose Connector (Inlet) and the fuel supply
connection.In no case should this information be interpreted to conflict with any local, state, or
national code. If in doubt, always follow local codes.
LPG
•
Always keep the LPG cylinder in an upright position.
Use only DOT LPG cylinders in vapor service with type 1, right hand ACME threads. Verify the
re-qualification date on the cylinder has not expired.
All new cylinders must be purged of air and moisture prior to filling. The purging process
should be done by your propane gas supplier.
•
•
•
English Customer Service: 1-844-FIRMAN1
Attach the LPG regulator hose assembly (included) to the LPG hose connector (inlet) on the control
panel of the generator. Tighten the nut with a 19 mm or adjustable wrench. Remove the safety plug
or cap from the LPG cylinder valve. Attach the LPG regulator to the cylinder valve. Do not use a
wrench to tighten LPG cylinder nut. Tighten the nut by hand clockwise to a positive stop. Using a
wrench may damage LPG cylinder components.
15
OPERATION
Indicator light - Battery Power Saving Mode
This generator is equipped with an electronic module which consumes battery power. When the
engine switch is turned to the “RUN” position, the indicator light will turn RED for up to 4 minutes
(before going off). Starting the engine successfully anytime during the 4 minutes will turn the
indicator light GREEN. If portable generator is not started during this 4-minute period the portable
generator will switch to Battery Power Saving Mode to conserve battery life.
NOTICE Your portable generator is equipped with an internal battery charger that will properly
charge the battery only when the engine is running.
The generator cannot be started in Battery Power Saving Mode. Turn engine switch to the off
position and back to the RUN position to reset the RED indicator 4-minute electronic module.
English Customer Service: 1-844-FIRMAN1
3.Starting the Generator
1. Before starting the generator, check for loose or missing parts and for any damage which may
have occurred during shipment. Ensure spark plug, muffler, fuel cap, and air cleaner are all in place.
2. Move portable generator outdoors to safe operating location at least 20 ft.(6 m) from any occupied
spaces.
16
OPERATION
3. Connect the LPG hose with regulator to both LPG cylinder and portable generator LPG Hose
Connector (inlet).
LPG
4. Fully open the LPG cylinder knob.
5. Disconnect all electrical loads from the generator. Never start or stop the generator with
electrical devices plugged in.
6. Flip the engine switch to the "RUN"(l) position.
English Customer Service: 1-844-FIRMAN1
9. For recoil start only - PULL-TO-PRIME Pull the starter cord 1-2 times. Pull slowly until resistance
if felt and then pull rapidly.
1-2 Times
17
OPERATION
7. Flip the battery power restore switch to the “ " position for few seconds and then release.l
8. Move choke lever located on engine to “START” position. (For electric start move to step (12))
10.For recoil start only - Move the choke lever to the “RUN” position.
11. For recoil start only - PULL-TO-RUN Pull the starter cord slowly until resistance if felt and pull
rapidly to run the portable generator.
If the engine fails to start in 1-2 pulls with choke in the RUN position, move choke lever to START
position and repeat the PULL-TO-PRIME step (9).
English Customer Service: 1-844-FIRMAN1
12. For electric start only - Flip the engine switch to the START (ll) position for a few seconds and
then release.
13. For electric start only - Move the choke lever to the RUN position.
3 sec.
14. Allow portable generator to run at no load for a few minutes to stabilize before plugging in
any electrical devices.
NOTICE If engine starts but fails to run, or if portable generator shuts down during operation,
check oil level. See Low Oil Shutdown section for more information.
NOTICE Observing frost on LPG cylinder and regulator is common during operation and normally
is not an indication of a problem. In unusual situations this frost may eventually restrict the flow of
LPG gas to the generator resulting in deteriorating performance. In these rare situations it can be
helpful to:
18
OPERATION
•
Exchanging fuel cylinders to allow the first cylinder to warm up, repeating as necessary.
Placing the LPG cylinder at the end of the generator near the handle, where engine fan
air flows out from the generator. This air is slightly heated by air flowing over the engine.
Do not place the LPG cylinder in the path of the muffler exhaust outlet.
•
The LPG cylinder and components can be temporarily warmed by pouring warm water over
them.
•
Muffler
English Customer Service: 1-844-FIRMAN1
This portable generator has been pretested and adjusted to handle its full capacity. The voltage is
regulated using an automatic voltage regulator (AVR) . Readjusting the AVR will void warranty.
4. Connecting Electrical Loads
Damaged or overloaded extension cords could overheat, arc, and burn resulting death or
serious injury.
Use a ground fault circuit interrupter (GFCI) in any damp or highly conductive area, such as
metal decking.
Do not touch bare wires or receptacles.
WARNING! Generator voltage could cause electrical shock or burn
resulting in death or serious injury.
•
•
•
19
OPERATION
Do not use generator with electrical cords which are worn, frayed, bare or otherwise damaged.
Do not operate generator in the rain or wet weather.
Do not run indoors to avoid wet conditions.
Do not handle generator or electrical cords while standing in water, while barefoot, or while
hands or feet are wet.
•
•
•
•
1.Ensure circuit breaker on control panel is in the closed (on) position.
2. Start the generator with no electrical load attached.
3. Allow the engine to run for several minutes to stabilize.
4. Plug in and turn on the first item. It is best to attach the item with the largest load first.
5. Allow the engine to stabilize.
6. Plug in and turn on the next item.
7. Allow the engine to stabilize.
8. Repeat steps 5-6 for each additional item.
Surge Protection
There is a remote chance that voltage fluctuations may impair the proper functioning of some
sensitive electronic equipment. Electronic devices, including computers and many programmable
appliances may use components that are designed to operate within a narrow voltage range and
may be affected by the portable generator’s momentary voltage fluctuations. While there is no
way to prevent all voltage fluctuations, you can take steps to protect your sensitive electronic
equipment. Install a plug-in surge suppressor on the receptacles feeding your sensitive equipment.
Surge suppressors come in single or multi-outlet styles. They are designed to protect against short
duration voltage fluctuations.
English Customer Service: 1-844-FIRMAN1
3. Fully close the LPG cylinder knob .
20
OPERATION
If a cover is used, do not install until unit has cooled.
NOTICE Disconnect the LPG cylinder from the generator during transportation.
2. Flip the engine switch to the "OFF"(O) position.

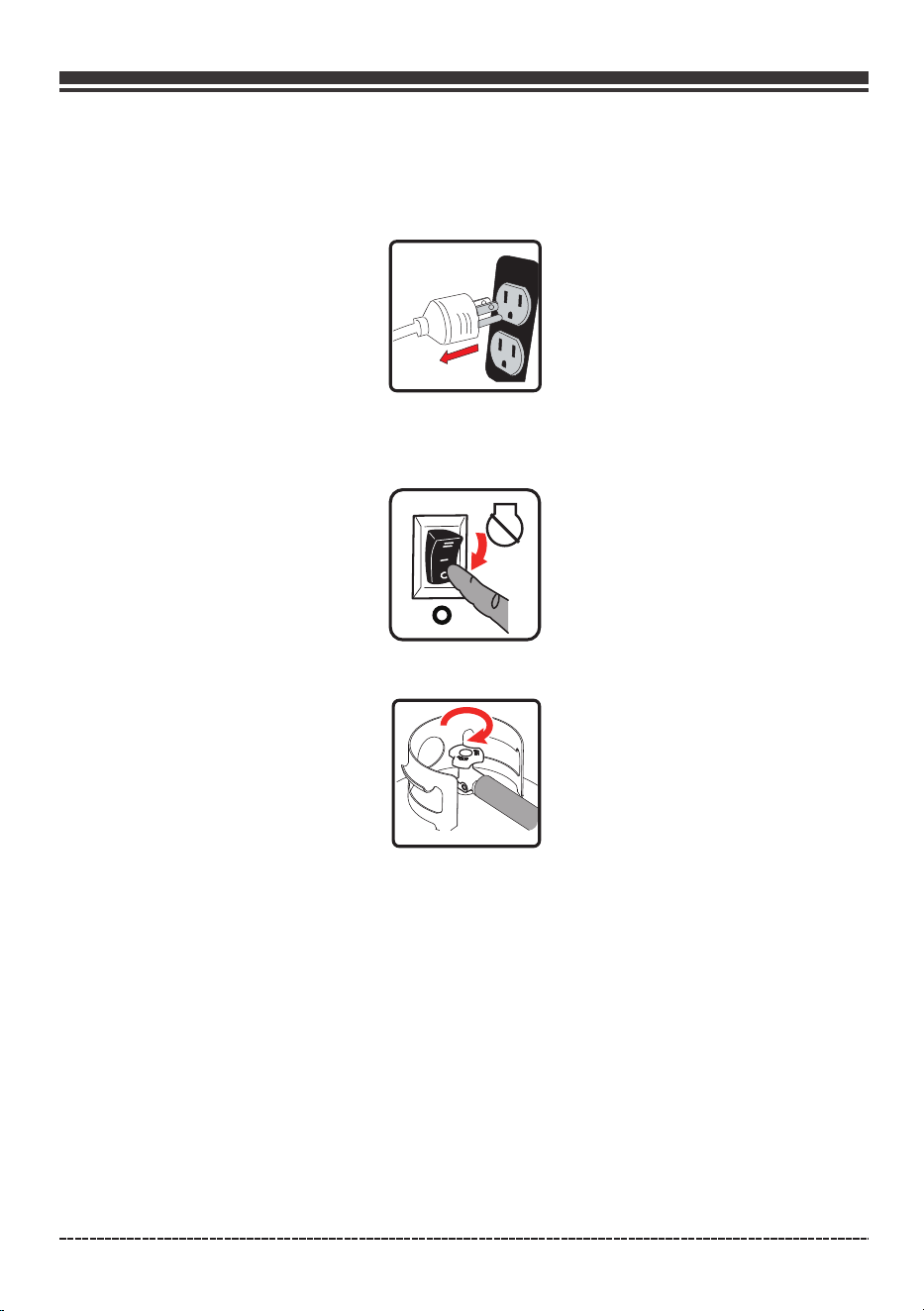

5. Stopping the generator
1. Turn off and remove all electrical loads.
Never stop the generator with electrical devices plugged in and turned on.
Never stop the engine by moving the choke to the start position.
Let the generator run at no-load for one minute to stabilize internal temperatures of the engine
and generator.
English Customer Service: 1-844-FIRMAN1
Maintenance - Storage
General Recommendations
Regular maintenance will improve the performance and extend the life of the generator. See any
authorized dealer for service.
The generator's warranty does not cover items that have been subjected to operator abuse or
negligence. To receive full value from the warranty, the operator must maintain the generator as
instructed in this manual.
Some adjustments will need to be made periodically to properly maintain your generator.
All service and adjustments should be made at least once each season. Follow the requirements
in the maintenanc shedule chart above.
NOTICE Once a year you should clean or replace the spark plug and replace the air filter. New
spark plugs and clean air filter assure proper fuel-air mixture and help your engine run at peak
performance and last longer.
To be performed by knowledgable/experienced owner or by authorized service center.
*
√
Check for damage and leaks.
Replace if necessary.
LPG Regulator
/Hose Assy.
MAINTENANCE SCHEDULE
ITEM NOTES
Daily(Before
operation)
Initial
25 hours
Every
50 hours
Every
100 hours
(or annual)
Fittings/
Fasteners
Spark Plug
Engine Oil
Air Filter
Exhaust
System
Engine
Check condition. Adjust gap
and clean. Replace if necessary.
Check oil level.
Clean, replace if necessary.
Check for leakage. Retighten or
replace gasket if necessary.
Check adjust valve clearance.
Clean combustion chamber.
Check. Replace if necessary.
√
√
√
√
√
√
√
√
√
Replace.
Check spark arrester screen.
Clean/Replace if necessary.
Every
250 hours
√
*
*
21
English Customer Service: 1-844-FIRMAN1
When Transporting Generator
Disconnect LPG fuel hose and securely stow away.
ENGINE MAINTENANCE
To prevent accidental starting, remove and ground spark plug wire before performing any service.
Change Engine Oil
Change engine oil every 100 hours. (for a new engine, change oil after 25 hours.)
If you are using your generator under extremely dirty or dusty conditions, or in extremely hot
weather change the oil more often.
CAUTION! Avoid prolonged or repeated skin contact with used motor oil. Used motor oil has been
shown to cause skin cancer in certain laboratory animals. Thoroughly wash exposed areas with
soap and water.
KEEP OUT OF REACH OF CHILDREN. DON’T POLLUTE. CONSERVE RESOURCES. RETURN USED OIL
TO COLLECTION CENTERS.
(a) On a level surface drain oil into a suitable container by removing the drain plug and the oil
filler cap while the engine is warm.
DRAIN PLUG
(b) Reinstall the drain plug and fill the engine with oil until it reaches the HIGH(H) level on the oil
filler dipstick.
(H)
DRAIN PLUG
(L)
NOTICE We recommend using FIRMAN SAE 10W-30 API SJ oil for best performance. Other high-
quality detergent oils (API SJ or higher) are acceptable. See Oil and LPG
22
Maintenance - Storage
OIL
FILLER
CAP
DIPSTICK
LOWER LIMIT
English Customer Service: 1-844-FIRMAN1
Air Filter Maintenance
(a) Carefully remove foam air filter element and wash it with liquid detergent and water only.
Squeeze dry in a clean cloth.
(b) Saturate foam air filter element with clean engine oil and squeeze in a clean cloth to remove
excess oil.
Spark Plug Maintenance
Changing the spark plug will help your engine start easier and run at peak performance.
(a) Remove the spark plug boot.
(b) Remove spark plug using provided wrench.
A
B
A- Spark plug
B- Spark plug boot
23
( ) Reinstall clean or new air filter element.c
Maintenance - Storage
AIR FILTER ELEMENT
CLIP
81
AIR
FILTER
ELEMENT
English Customer Service: 1-844-FIRMAN1
Muffler and Spark Arrester
•
•
WARNING! Contact with muffler area could cause burns resulting in serious injury.
Do not tough hot parts.
It is a violation of California Public Resource Code, Section 4442, to use or operate the engine
on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is
equipped with a spark arrester, as defined in Section 4442, maintained in effective working
order. Other states or federal jurisdictions may have similar laws, reference Federal
Regulation 36 CFR Part 261.52.
24
Maintenance - Storage
( c) Inspect spark plug for damage and clean with a wire brush before reinstalling. Replace if
damaged.
(d) Adjust the electrode gap to 0.028 - 0.031in. (0.7 - 0.8 mm).
(e) Seat spark plug in position and thread by hand to prevent cross threading.
(f) Tighten plug with provided wrench and put the spark plug boot back on spark plug.
Maintenance Valve Clearance
Intake: ( )
Exhaust: 0.004 – 0.006 in. (0.10 – 0.15 mm)
0.004 – 0.006 in. 0.10 – 0.15 mm
SPARK PLUG: FIRMAN P/N 330723001 or CHAMPION N9YC
0.020-0.024 in.
(0.5-0.6mm)
0.028-0.031 in.
(0.7-0.8mm)
SPARK PLUG: FIRMAN P/N 330723001
SPARK PLUG: CHAMPION N9YC
SIDE ELECTRODE
SEALING
WASHER
SIDE ELECTRODE
SEALING
WASHER
English Customer Service: 1-844-FIRMAN1
Inspect Muffler and Spark Arrester
1.Inspect the muffler for cracks, corrosion, or other damage.
2.Remove the screws securing the spark arrester in place and the remove it from muffler.
Spark arrester
screen
Flange
Screw
3. Carefully remove the carbon deposits from the spark arrester screen with a wire brush.
3. Replace the spark arrester if it is damaged. If replacement parts are required, make sure to use
only FIRMAN original equipment replacement parts.
4. Position the spark arrester in the muffler and attach with the screws.
NOTICE Failure to clean or replace spark arrester may result in decreased engine performance.
GENERATOR MAINTENANCE
Make certain that the portable generator is kept clean and dry.
Do not expose the unit to excessive dust, dirt, moisture or corrosive vapors.
Do not insert any objects through cooling slots.
Before each use inspect underneath the generator for signs of oil or fuel. Clean any accumulated
debris. Keep area around muffler free from any debris. Use a soft bristle brush to remove dirt or
caked on oil. Use a damp cloth to clean all exterior surfaces.
25
Run the generator at least 30 minutes every month.
Maintenance - Storage
.l
i
English Customer Service: 1-844-FIRMAN1
Battery Replacement
1. Remove the spark plug boot from spark plug.
2. Remove the nut and bolt from the negative(-) post first, then the positive(+) post.
3. Loosen and remove the flange bolts (A) on the battery holding bracket.
4. Remove the battery and recycle.
5. Install the new battery with the following specification:
12V sealed lead acid 7.5AH
LXWXH:5.95X2.55X3.82inch (151X65X97mm)
6. Connect the red positive (+) battery cable to the battery first.
7. Connect the black negative (-) battery cable to the battery second.
8. Cover the posts with boots provided.
9. Install the spark plug boot onto spark plug.
The battery powers the starter motor and control module. This portable generator is equipped
with an automatic battery charging circuit. The battery will receive charging voltage only when
the engine is running. The battery will maintain a proper charge if the portable generator is used
on a regular basis (about once every two weeks). If it is used less frequently, the battery should
be connected to a trickle charger (not included) or battery maintainer (not included) to keep the
battery properly charged. If the battery is not able to start the engine, it can be started manually .
If the battery voltage is extremely low, the charging circuit may not be able to re-charge the
battery. In this case, the battery must be connected to a standard automotive style battery
charger for re-charging before it can be used.
Battery Charging
26
Maintenance - Storage
A(M6X12)
B(M6)
English Customer Service: 1-844-FIRMAN1
Long Term Storage
When the generator set is being stored for more than one month, follow these instructions to avoid
engine problems:
Do not store fuel near any ignition sources.
WARNING! Fuel and its vapors are extremely flammable which could cause burns
or fire resulting in death or serious injury.
27
Maintenance - Storage
1. Run the generator at least 30 minutes every month.
4. Change oil with recommended grade oil.
5. Remove spark plug and pour about one teaspoon of engine oil through the spark plug hole, then pull
the recoil starter several times to distribute the oil for lubricating the cylinder. Reattach the spark plug.
Pull recoil slowly until resistance is felt. This will close the valves so moisture cannot enter engine
cylinder. Gently release recoil starter.
6. Cover the unit and store in a clean, dry place out of direct sunlight. NEVER USE WATER TO
CLEAN GENERATOR.
2. Turn engine switch to “OFF” position.
Fully close the LPG cylinder knob if it is open and disconnect LPG cylinder from the generator.
3. Allow the unit to cool entirely before cleaning and storage.
\7
Troubleshooting – Specifications
English Customer Service: 1-844-FIRMAN1
For all other issues, contact authorized dealer or FIRMAN customer service.
28
Problem Cause Correction
Engine is running, but no
AC output is available.
1. Circuit breaker is open.
2. Fault in generator.
3. Poor connection or defective cord
set.
4. Connected device is bad.
1. Reset circuit breaker.
2. Contact authorized service facility.
3. Check and repair.
4. Connect another device that is in
good condition.
Engine runs good at
no-load but “bogs down”
when loads are connected.
1. Short circuit in a connected load.
2. Engine speed is too slow.
3. Generator is overloaded.
4. Shorted generator circuit.
1. Disconnect shorted electrical load.
2. Contact authorized service facility.
3. See Don't Overload Generator
4. Contact authorized service facility.
Engine will not start; starts
and runs rough or shuts
down when running.
2. Low oil level.
3. Dirty air cleaner.
4. Spark plug wire not connected to
spark plug.
5. Bad spark plug.
2. Fill crankcase to proper level or
place generator on level surface.
3. Clean or replace air cleaner.
4. Connect wire to spark plug.
5. Replace spark plug.
Engine lacks power.
1. Load is too high.
2. Dirty air filter.
1. Don't Overload Generator
2. Replace air filter.
3. Clogged spark arrester.
3. Clean or replace spark arrester.
Engine shuts down when
running.
1. Out of LPG.
2. Dirty air cleaner.
3. Low oil level.
1. Replace LPG cylinder.
2. Clean or replace air cleaner.
3. Fill crankcase to proper level or
place generator on level surface.
6. Starting battery may have
insufficient charge.
6. Check battery output and charge
battery as necessary.
7. Out of LPG.
7. Replace LPG tank.
8. LPG cylinder knob is not open.
8. Fully open LPG cylinder knob.
1. The indicator light is OFF or
flashing red.
1. Must have solid red indicator light
to be able to start the engine.
9. Out of battery Power.
9. Charge or replace battery.
SPECIFICATIONS
English Customer Service: 1-844-FIRMAN1
29
Troubleshooting – Specifications
Model
Rated AC Voltage
Phase
Power Factor
Voltage Regulator
Alternator Type
Running Watts*
Starting Watts
Engine
Engine Type
Displacement
Low Oil Shutdown
Ignition System
Starting System
Fuel
Lubricating Oil Capacity
Air Cleaner
P.T.O. Shaft Rotation
120V
L03391
3300W
AVR
Single
1
Single Cylinder, 4-Stroke OHV Air Cooled
208cc
Breakless Ignition Type, Flywheel Magneto
LPG
20.3 oz(0.6L)
Counter Clockwise (Facing P.T.O.)
Brushed
Polyurethane Type
Yes
4100W
FIRMAN
Rated Fequency
60Hz
Oil Type
See “Add Engine Oil” Section
Recoil/Electric Start
AC Grounding System
Neutral Floating
*Generator certified in accordance with CSA (Canadian Standards Association) standard C22.2 No. 100-14,
Motors and Generators.
PARTS DIAGRAM AND PART LIST
L03391 PARTS DIAGRAM
English Customer Service: 1-844-FIRMAN1
30
109
English Customer Service: 1-844-FIRMAN1
31
208cc LPG ENGINE PARTS DIAGRAM
<::::a
c::::::::.
L03391 Portable Generator
English Customer Service: 1-844-FIRMAN1
32
Parts Diagrams - Parts Lists - Wiring Diagram
NO.
Part Number
Description
Qty.
FIRMAN 208cc LPG Engine
333463001
336713501
336713502
336713604
336713605
336713801
336713506
336713507
336713508
336713509
336713510
336713511
336713512
336713513
336713514
336713515
336713516
336713517
336713518
336713519
336713520
336713521
336713523
336713524
336713525
336713526
336713527
336713528
336713529
336713530
336713531
336713532
336713533
336713534
336713535
336713536
336713537
336713538
333713001
336713542
336713543
336713544
336713808
336713554
336713836
336713590
336713810
336713811
336713558
336713692
336713842
336713562
336713563
336713608
336713578
357713569
336713814
336713609
336713621
336713610
336713841
336713693
336713559
336713560
336713561
336713557
336713565
333453001
336713818
336713823
329713616
336713826
329713600
336713828
336713829
336713573
336713574
357713542
357713543
336713575
330713582
333713003
336713832
336713584
336713588
336713568
336713585
336713586
336713569
336713833
336713581
336713582
336713587
336713834
336713835
336713643
330713502
336713594
336713590
336713844
336713846
333453002
336413514
336413507
336413503
336413509
336713691
336713836
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
NO.
Part Number
Description
Qty.
1
1
1
1
1
1
1
3
1
3
3
4
10
6
1
22
2
6
1
2
2
1
1
2
1
1
1
4
1
1
3
1
2
2
1
1
1
2
1
4
4
4
1
2
2
2
1
1
12
1
1
2
2
1
3
2
1
1
2
1
1
1
2
1
2
2
4
1
1
1
1
1
1
1
1
1
1
1
2
1
6
1
1
1
1
8
1
1
4
1
1
1
1
1
1
1
1
2
2
2
2
1
1
1
1
1
1
1
Rubber Cap 2
Rubber Cap1
Rotor Assy
Stator Assy
Stator Cover
Generator End Cover
Flange Bolt M5×12
Flange Bolt M8×252
Lock Washer Ø8
Flat Washer Ø8
Flange Bolt M6×179
Lock Washer Ø6
Flat Washer Ø6
Ground Wire
Flange Bolt M6×12
External Star Washer Ø6
Nut M6
AVR
Flange Bolt M5×16
Bolt &washer Assemblies
Generator End Cover Cap
Terminal Block
Bolt &washer Assemblies
Carbon Brush Holder
Carbon Brush Assembly
Air Filter Bracket
Flange Bolt M6×8
Muffler Fixed Plate A (Small)
Muffler Fixed Plate B (Big)
Flange Bolt M8×20
Muffler Gasket
Flat Washer Ø8
Nut M8
Muffler Assembly
Arrester,Spark
Holder,Spark Arrester
Screw&washer Assy M5×14
Cover Assy.
Grommet, Fuel Tank
Washer Tank Buffer
Flange Bolt M6×20
Protector, Muff.
Axle Comp
Wheel
Pin, Shaft
Plastic Front Cover
Frame
Nut M8
Battery Cable(male 120mm)
Black Boot
Isolator 1
Isolator 2
Battery Holder
Nut M5
Screw&washer Assy M5×10
Battery
Battery Pressing Plate
Flange Bolt M8×40
Red Cable
Red Boot
Battery Cable(Female 180mm)
Flange Bolt M8×16
Support Leg
Flange Bolt M6×25
Rubber, Support
Screw M5×14
Control Module 1
Charger
Main Regulator Assy.
Battery Power Restore Switch
LPG Inlet Cover
Switch
Indicator Light
Multi Meter
Outlet Cover L5-30R
Outlet Cover TT-30R
Flange Bolt M6×22
Nut M6
Outlet Cover 5-20R
Screw&washer Assy M4×14
Control Panel
Receptacle L5-30R
Receptacle TT-30R
Receptacle 5-20R Duplex
Nut M4
Circuit Breaker 20A
Circuit Breaker 30A
Screw&washer Assy M4×8
Control Box
Grommet
Sleeve
Grommet
Liquefied Petroleum Gas Pipe
Clamp (ø8-ø14)×b8
VF Protection Module
Screw M5×20
Pin, Handle
Pin, Shaft
Pin, Shaft
The Hard
Control Panel Assy.
Wheel Kit
Rotor And Stator Set
Spark Arrestor Kit
Support Leg Assembly
Hose Holder
Regulator / Hose Assy.
English Customer Service: 1-844-FIRMAN1
33
Parts Diagrams - Parts Lists - Wiring Diagram
FIRMAN 208cc LPG Engine Parts List
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
NO.
Part Number
Description
Qty.
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
336723500
336723501
336723502
336723503
336723504
336723505
336723506
336723507
336723508
336723509
336723510
336723511
336723512
336723513
336723514
336723515
336723516
336723517
336723518
336723519
336723520
336723521
336723522
336723523
336723524
336723525
336723526
336723527
336723528
336723529
336723530
336723531
336723532
336723533
336723534
336723535
336723536
336723537
336723538
336723539
336723540
336723541
336723542
336723543
336723544
336723545
336723546
336723547
336723548
336723549
336723550
336723551
336723552
333713004
336723554
336723555
330723001
336723557
NO.
Part Number
Description
Qty.
336723558
336723559
336723560
336723561
336723562
336723563
336723564
336723565
336723566
336723567
336723568
336723569
336723570
336723572
336723573
336723574
336723575
336723608
336723609
336723610
336723620
336723612
336723580
336723581
336723582
336723613
336723614
336723584
336723585
336723586
336723587
336723588
336723589
336723590
336723591
336723592
336723593
336723594
336723595
336723596
336723597
336723598
336713532
336423500
336423501
336423509
336423510
336423504
336423511
1
2
1
8
1
2
1
1
1
1
1
1
1
2
6
1
2
1
1
1
1
1
2
1
1
1
7
4
2
2
1
2
1
1
1
2
2
2
1
2
1
1
1
2
2
2
2
2
1
2
1
1
1
1
1
3
1
1
1
4
1
1
1
1
1
1
1
1
1
1
1
1
1
3
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
2
2
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
Crankcase Comp.
Locating Pins
Oil Level Sensor
Flg. Bolt M6×12
Camshaft Comp
Bearing
Gear, Crankshaft
Woodruff Key
Crankshaft
Gear, Drive
Gskt., Crankcase Cover
Oil Dipstick Assy
Cover, Crankcase
Oil Seal
Flange Bolt M8×32
Conn, Rod Comp
Piston Pin Retainer Ring
Wrist Pin
Piston
Ring, Oil
Ring, Second Piston
Ring, First Piston
Flange Bolt M6×8
Air Guide Lower
Gasket, Valve Cover
Valve Cover Assy
Flange Bolt M6×15
Flange Bolt M8×55
Locknut
Adjusting Nut, Valve
Breather Tube
Valve Rocker
Rotator, Exhaust Valve
Retainer, Intake Valve
Retainer, Exhaust Valve
Spring, Valve
Oil Seal, Valve
Bolt,Rocker Arm
Guide Plate, Push Rod
Exhaust Valves Stud Bolt
Cylinder Head
Valve, Intake
Valve, Exhaust
Push Rod
Lifter, Valve
Washer, Drain Bolt
Bolt, Drain Plug
Locating Pins
Gasket, Cyl. Head
Air Intake Stud Bolt
Gskt., Insulator
Insulator, Carburetor
Gasket, Carburetor
Carburetor
Gasket, Air Cleaner
Nut M6
Spark Plug
Elbow, Air Cleaner
Clapboard
Mounting Bolt, Air Cleaner
Element, Air Cleaner
Cover, Air Cleaner
Control Assembly
Shaft, Governor Arm
Rocker Shim
Pin, Shaft
Arm, Governor
Bolt, Governor Arm
Spring, Governor
Rod, Governor
Spring, Throttle Return
Wind Deflectors
Ignition Coil
Flange Bolt M6×25
Protect Circle
Fan Cover Comp
Flange Bolt M6×29
Locating Pins
Air Guide, Right Side
Sheath, Wire
Locknut
Pulley, Starter
Cooling Fan
Flywheel Comp
Starter Motor Assembly
Grip, Starter
Case Comp.,Recoil Starter
Spring, Starter Return
Cord
Pulley, Recoil Starter
Spring,Patchet
Patchet,Starter
Pawl Guide
Clip Sprg.,pawl Guide
Screw,pawl Guide
Gov.,Gear Shaft
Inner Washer, Gear
Gear, Governor
Clip, Govorner Gear
Bushing, Govorner Gear
Auspuffdichtung
Recoil Starter Set
Governing Gear Set
Air Cleaner Set
Carburetor Set
Piston Rings Set
Gasket Set
English Customer Service: 1-844-FIRMAN1
34
Parts Diagrams - Parts Lists - Wiring Diagram
ENGINE
SWITCH
213141516
ST
, ·-
CIRCUIT
BREAKER
,--,(
-
0
TR
T(~
R
WI
W
IGM
Eiw
R
VF MODULE
R
□
cw
EBr
~
Br
Br
,---t----,..,_----+-W'
~ERNATOR
BLOgs_
__
y
w.
B
--7
R
GM
GROUND
TERMINAL
~Q
B/W
~------+--'
REGULATOR
.
-1
lltM
I
y
GM
I I
I I
LPG
CUT
FUSE
__
10A _
CONTROL BOX
BLOC~
[JJ1
~OLENOID
_
_I
OIL
LEVEL SW BATTERY STARTER
_IGNITION
COIL SPARKING
PL~
English Customer Service: 1-844-FIRMAN1
FIRMAN Three (3) Year Limited Warranty
Do Not Return the Unit to the Place of Purchase
Contact the FIRMAN Service Center and FIRMAN will troubleshoot any issue via phone or e-mail.
If the problem is not corrected by this method, FIRMAN will, at its option, authorize evaluation,
repair or replacement of the defective part or component at a FIRMAN Service Center. FIRMAN
will provide you with a case number for warranty service. Please keep it for future reference.
Repairs or replacements without prior authorization, or at an unauthorized repair facility, will
not be covered by this warranty.
Normal Wear
Your product needs periodic parts and service to perform well. This warranty does not cover
repair when normal use has exhausted the life of a part or the equipment as a whole.
FIRMAN warrants to the original purchaser that the mechanical and electrical components will be free of
defects in material and workmanship for a period of one(1) year(parts and labor) and three(3) years (parts
and technical support) from the original date of purchase 90 days [parts and labor] and 180 days [parts]
for commercial & industrial use. Transportation charges on product submitted for repair or replacement
under this warranty are the sole responsibility of the purchaser . This warranty only applies to the original
purchaser and is not transferable.
Repair/Replacement Warranty
Warranty Exclusions
This warranty does not cover the following repairs and equipment.
Warranty Qualifications
FIRMAN GENERATOR will register the warranty upon receipt of your Warranty Registration Card
and a copy of your sales receipt from one of FIRMAN’s retail locations as proof of purchase. Please
submit your warranty registration and your proof of purchase within ten(10) days of the date of
purchase.
35
HOW TO ORDER REPLACEMENT PARTS
Even quality-built equipment such as this electric generator may need occasional
replacement parts to maintain it in good condition over the years. To order replacement parts,
please give the following information:
Model No. Rev. Level and Serial No. found on the Data Decal.
Parts number or numbers as shown in the Parts List section.
A brief description of the trouble with the generator.
•
•
•
Service – Warranty
FOR SERVICE INFORMATION CONTACT FIRMAN PRODUCT SERVICE DEPARTMENT AT
1-844-347-6261or at www.firmanpowerequipment.com to obtain warranty service information
or to order replacement parts or accessories.
English Customer Service: 1-844-FIRMAN1
Limits of Implied Warranty and Consequential Damage
FIRMAN disclaims any obligation to cover any loss of time, use of this product, freight, or any
incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN
LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANT
ABLILITY OR FITNESS FOR A PARTICULAR PURPOSE.
A unit provided as an exchange will be subject to the warranty of the original unit. The length of
the warranty governing the exchanged unit will remain calculated by reference to the purchase
date of the original unit.
This warranty gives you certain legal rights which may change from state to state. Your state may
also have other rights you may be entitled to that are not listed within this warranty.
Contact Information
You may contact FIRMAN at:
Address
FIRMAN Power Equipment Inc.
Attn: Customer Service
8716 W. Ludlow Dr. Suite #6
www.firmanpowerequipment.com
Peoria, AZ 85381
We are FIRMAN POWER - And we are here for you.
36
Installation, Use and Maintenance
This warranty will not apply to parts and/or labor if your product is deemed to have been misused,
neglected, involved in an accident, abused, loaded beyond the generator's limits, modified,
installed improperly or connected incorrectly to any electrical component. Normal maintenance is
not covered by this warranty.
Other Exclusions
This warranty excludes:
– cosmetic defects such as paint, decals, etc.
– wear items
– accessory parts
– failures due to acts of God and other force majeure events beyond the manufacturer’s control
– problems caused by parts that are not original FIRMAN parts
– units used for prime power in place of existing utility power where utility is present or in place
of utility power where utility power service does not normally exist.
Service – Warranty
English Customer Service: 1-844-FIRMAN1
CALIFORNIA AND FEDERAL EXHAUST AND EVAPORATIVE EMISSIONS CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
FIRMAN POWER EQUIPMENT INC.
Emission Control System Warranty
The warranty period begins on the date the engine/equipment is delivered to an ultimate purchaser. FIRMAN warrants to the ultimate
purchaser and each subsequent purchaser that the engine is:
Designed, built, and equipped so as to conform with all applicable regulations adopted by the Air Resources Board and US EPA;
and Free from defects in materials and workmanship that cause the failure of a warranted part to be identical in all material
respects to the part as described in the engine manufacturers application for certification.
The warranty on emissions-related parts is as follows:
(1) Any warranted part that is not scheduled for replacement as required maintenance in the owner's manual supplied, is
warranted for the warranty period stated above. If any such part fails during the period of warranty coverage, the part will be
repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced under the warranty will be
warranted for the remaining warranty period.
(2) Any warranted part that is scheduled only for regular inspection in the owner's manual supplied, is warranted for the warranty
period stated above. Any such part repaired or replaced under warranty will be warranted for the remaining warranty period.
(3) Any warranted part that is scheduled for replacement as required maintenance in the owner's manual supplied, is warranted
for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled
replacement, the part will be repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced
under warranty will be warranted for the remainder of the period prior to the first scheduled replacement point for the part.
(4) Repair or replacement of any warranted part under the warranty must be performed at no charge to the owner at a warranty
station.
(5) Notwithstanding the provisions of Subsection (4) above, warranty services or repairs must be provided by FIRMAN that
are franchised to service the subject engines.
(6) The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective,
provided that such diagnostic work is performed at a warranty station.
(7) FIRMAN is liable for damages to other engine components proximately caused by a failure under warranty of any
warranted part.
MANUFACTURER'S WARRANTY COVERAGE:
The exhaust and evaporative emissions control system on your is warranted
for two years. If any emissions-related part on your small off-road engine and engine powered equipment is defective, the part will
be repaired or replaced by FIRMAN.
small off-road engine and engine powered equipment
The California Air Resources Board, US Environmental Protection Agency (“US EPA”) and FIRMAN POWER EQUIPMENT
INC.(FIRMAN) are pleased to explain the emissions control systems warranty on your 2020-2021 or later Small Off-Road
Engine (“SORE”) and engine powered equipment. In California, new equipment that use small off-road engines must be
designed, built and equipped to meet the State’s stringent anti-smog standards. FIRMAN must warrant the emissions control
systems on your SORE and engine powered equipment for the periods of time listed below provided there has been no abuse,
neglect or improper maintenance of your small off-road engine or equipment leading to the failure of the emissions control system.
Your emissions control system may include parts such as the carburetor or fuel-injection system, the ignition system, catalytic
converter, fuel tanks, fuel lines (for liquid fuel and fuel vapors), fuel caps, valves, canisters, filters, clamps and other associated
components. Also included may be hoses, belts, connectors, and other emission-related assemblies.
Where a warrantable condition exists, FIRMAN will repair your SORE and engine powered equipment at no cost to you
including diagnosis, parts and labor.
OWNER'S WARRANTY RESPONSIBILITIES:
As the owner, you are responsible for the performance of the required maintenance
listed in your operator's manual. FIRMAN recommends that you retain all receipts covering maintenance on your SORE and
engine powered equipment, but FIRMAN cannot deny warranty coverage solely for the lack of receipts or for your failure to
ensure the performance of all scheduled maintenance.
SORE and engine powered equipment
As the owner, you should however be aware that FIRMAN may deny you warranty
coverage if your small off-road engine or engine powered equipment or a part has failed due to abuse, neglect, or improper
maintenance or unapproved modifications.
SORE and engine powered equipment
You are responsible for presenting your to a FIRMAN distribution center
or service center as soon as the problem exists. The warranty repairs shall be completed in a reasonable amount of time,
not to exceed 30 days.
small off-road engine and engine powered equipment
If you have any questions regarding your warranty rights and responsibilities, you should contact FIRMAN at 1-844-347-6261.
FIRMAN Emission Control Defects Warranty Provisions
37
Service – Warranty
English Customer Service: 1-844-FIRMAN1
PARTS COVERED BY WARRANTY
Limitations
Listed below are the parts (if equipped) covered by the Federal and California Emission Control System Warranty.
This Emission Control System Warranty shall not cover any of the following:
(a) Consequential damages such as loss of time, inconvenience, loss of use of the engine or equipment, etc.
(b) Diagnosis and inspection fees that do not result in eligible warranty service being performed.
FIRMAN POWER EQUIPMENT INC.
www.firmanpowerequipment.com
(8) Throughout the emissions warranty period defined in Subsection (b)(2), FIRMAN will maintain a supply of warranted
parts sufficient to meet the expected demand for such parts.
(9) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without
charge to the owner. Such use will not reduce the warranty obligations of the manufacturer.
(10) Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non-exempted
add-on or modified parts by the ultimate purchaser will be grounds for disallowing a warranty claim.
The manufacturer will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified
part.
38
Service – Warranty
1. Ignition system including:
- Spark plug
- Ignition coil
2. Fuel metering system:
- Fuel regulator, carburetor and internal parts.
3. Catalytic muffler assembly including:
- Exhaust manifold
- Catalytic converter
- Muffler gasket
- Pulse valve
4. Air induction system including:
- Intake pipe/manifold
- Air cleaner
5. Crankcase breather assembly including:
- Breather connection tube
P/N:333745491 Rev:02
All rights reserved. Any reprinting or unauthorized use
without the written permission is expressly prohibited.
TM
FIRMAN POWER EQUIPMENT INC.
8716 W. LUDLOW DR. SUITE 6
PEORIA, AZ 85381
1-844-347-6261
WWW.FIRMANPOWEREQUIPMENT.COM
FOLLOW
US
ON
SOCIAL
USE
#EVERVCENERATORTELLSASTORV
FOR
YOUR
CHANCE
TO
WIN
FIRMAN
SWAC::.
Drl
