OPERATOR’S MANUAL
PORTABLE INVERTER GENERATOR
Record product information to reference when ordering parts or
obtaining warranty coverage.
MODEL
NUMBER
W06383
Rev Level:01
• .
DO
NOT
RETURN
TO
STORE!
CALL
US FIRST
-;_
844-347-6261
~
QUESTIONS
SERVICE INFORMATION
SERIAL NUMBER:
PURCHASE DATE:
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1a. This device may not cause harmful interference.
1b. This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
NOTE: The FIRMAN W06383 inverter generator has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Supplier’s Declaration of Conformity
47 CFR § 2.1077 Compliance Information
FIRMAN W06383 INVERTER GENERATOR
Firman Power Equipment
8644 W. Ludlow Dr.
Peoria, AZ 85381
Telephone: 1-844-347-6261
www.firmanpowerequipment.com
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to equipment not expressly approved by FIRMAN could void the user’s
authority to operate the equipment.
•
•
•
•
FCC/IC Compliance Statement
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Features, Controls And On -product Hazard Labels . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance - Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting- Specifications . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . .
Parts Diagrams - Parts Lists - Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service - Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REGISTER YOUR PRODUCT
INTRODUCTION
Thank you for purchasing a FIRMAN generator. You have selected a high-quality, precision engineered
generator set designed and tested to give you years of satisfactory service. This generator is designed
to run only on unleaded gasoline. This generator is not intended to be run unattended or to supply
power to life safety support.
This manual contains safety information to make you aware of the hazards and risks associated
with generator products and how to avoid them. This generator is designed and intended only
for supplying electrical power for operating compatible electrical lighting, appliances, tools and
motor loads, and is not intended for any other purpose. It is important that you read and
understand these instructions thoroughly before attempting to start or operate this inverter
generator. Save these original instructions for future reference.
All information in this publication is based on the latest production information available at the
time of approval for printing. The manufacturer reserves the right to change, alter or otherwise
improve the generator and this documentation at any time without prior notice.
INTRODUCTION
01
English Customer Service: 1-844-FIRMAN1
Register your product using the QR code provided or at
www.firmanpowerequipment.com .
01
05
12
26
33
35
42
02
SIGNAL WORDS
DANGER WARNING CAUTION
Indicates a hazard
which, if not avoided,
will result in death or
serious injury.
Indicates a hazard
which, if not avoided,
could result in death
or serious injury.
Indicates a hazard
which, if not avoided,
could result in minor or
moderate injury.
Toxic Fumes- Engine exhaust contains carbon monoxide, a
poisonous gas that will kill you in minutes. You cannot smell
it or see it.
Fire- Fuel and its vapors are extremely flammable which could
cause burns or fire resulting in death or serious injury.Engine
exhaust could cause fire resulting in death or serious injury.
Hot Surface- Muffler could cause burns resulting in serious injury.
Generator could cause electrical shock resulting in death or serious
injury.
Safety Alert Symbol- Indicates a potential personal injury hazard.
Operator's Manual- Failure to follow warnings, instructions and
operator's manual could result in death or serious injury.
English Customer Service: 1-844-FIRMAN1
NOTICE
Indicates information
considered Important,
but not hazard-related.
INTRODUCTION
English Customer Service: 1-844-FIRMAN1
WARNING! This product can expose you to chemicals including gasoline engine
exhaust, which is known to the State of California to cause cancer, and carbon
monoxide, which is known to the State of California to cause birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov.
This outdoor generator can be used to power outdoor items using extension cords .
NOTICE If you have questions about intended use, contact FIRMAN customer service. This inverter
generator is designed to be used only with FIRMAN authorized parts.
There may be Federal or State regulations, local codes, or ordinances that apply to the intended
use of the generator. Consult a qualified electrician, electrical inspector, or the local agency
having jurisdiction. This generator is not intended to be used at a construction site or similar
activity as defined by NFPA 70-2020 (NEC) section 590.6.
Compliance Requirements
To Restore Power Using Extension Cords
03
INTRODUCTION
The generator neutral is floating, which means that the AC stator winding is isolated from the
grounding fastener and the AC receptacle ground pins. On a floating neutral generator the AC
receptacle ground pins are not functional. Electrical devices, such as a ground fault circuit
interrupter (GFCI), requiring a functioning AC receptacle ground pin will not operate.
System Ground
120/240V
OUTLET
This outdoor generator can be used to power outdoor items using extension cords or to restore
home power using a transfer switch. A transfer switch is a separate device installed by a licensed
electrician that allows the portable generator to be cord connected, using either of the 120/240V
receptacles, directly into your home’s electrical system. Install a listed transfer switch as soon as
possible if this generator will be used to restore power to your home.
NOTICE If you have questions about intended use, contact FIRMAN customer service. This portable
generator is designed to be used only with FIRMAN authorized parts.
The generator has a system ground that connects the generator frame components to the ground
terminals on the AC output receptacles. The system ground is connected to the AC neutral wire.
The neutral is bonded to the generator frame.
System Ground
Connections to your home’s electrical system must use a listed* transfer switch installed by a
licensed electrician. The connection must isolate the generator power from the utility power and
comply with all applicable laws and electrical codes.
ToRestoreHomePowerUsingaListedTransferSwitch
Typical
120/240V
Outlet
Transfer
Switch
Typical Indoor Items
To Restore Power Using Extension Cords
120V
OUTLET
English Customer Service: 1-844-FIRMAN1
04
INTRODUCTION
1. Only use grounded cords marked for outdoor use rated for your loads.
16
14
To provide power using
extension cords
Total
Amperage
Minimum Gauge, Outdoor Rated
Up to 50 FT (15m)
Up to 13A
Up to 15A
Up to 20A
Up to 30A
*Certified by a Nationally Recognized Testing Laboratory that the product complies to appropriate
product safety test standards.
2. Follow cord safety instructions.
3. Install carbon monoxide alarm(s).
4. When operating portable generator with extension cords, make sure portable generator is located
downwind in an open, outdoor area, at least 20 ft. (6 m.) from occupied spaces with exhaust pointed
away.
5. Extension cords running directly into your home, powering indoor items IS NOT RECOMMENDED.
Extension cords running directly into the home increase your risk of carbon monoxide
poisoning through any openings.
If an extension cord running directly into your home is used to power indoor items, the
operator recognizes that this increases the risk of CO poisoning to people inside the home
and assumes that risk.
6. Install a listed *transfer switch as soon as possible if this or any generator will be used to restore
power to your home.
DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that will kill
you in minutes. You cannot smell it, see it, or taste it. Even if you do not smell exhaust
fumes, you could still be exposed to carbon monoxide gas.
•
•
l~I@@@
•
-
•
•
English Customer Service: 1-844-FIRMAN1
*We are always working to improve our products. Therefore, the enclosed product
may differ slightly from the image on this page.
05
⑨

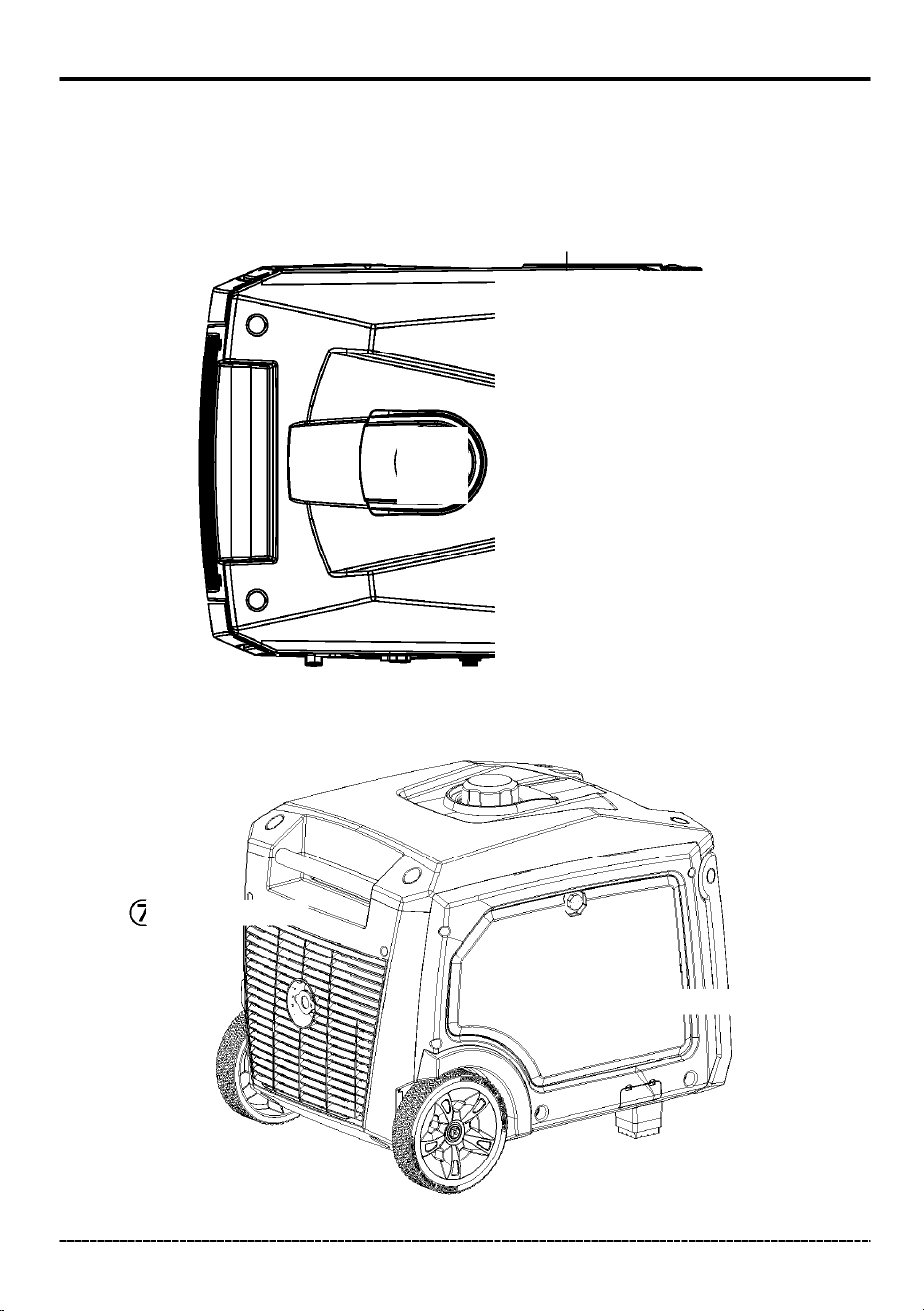

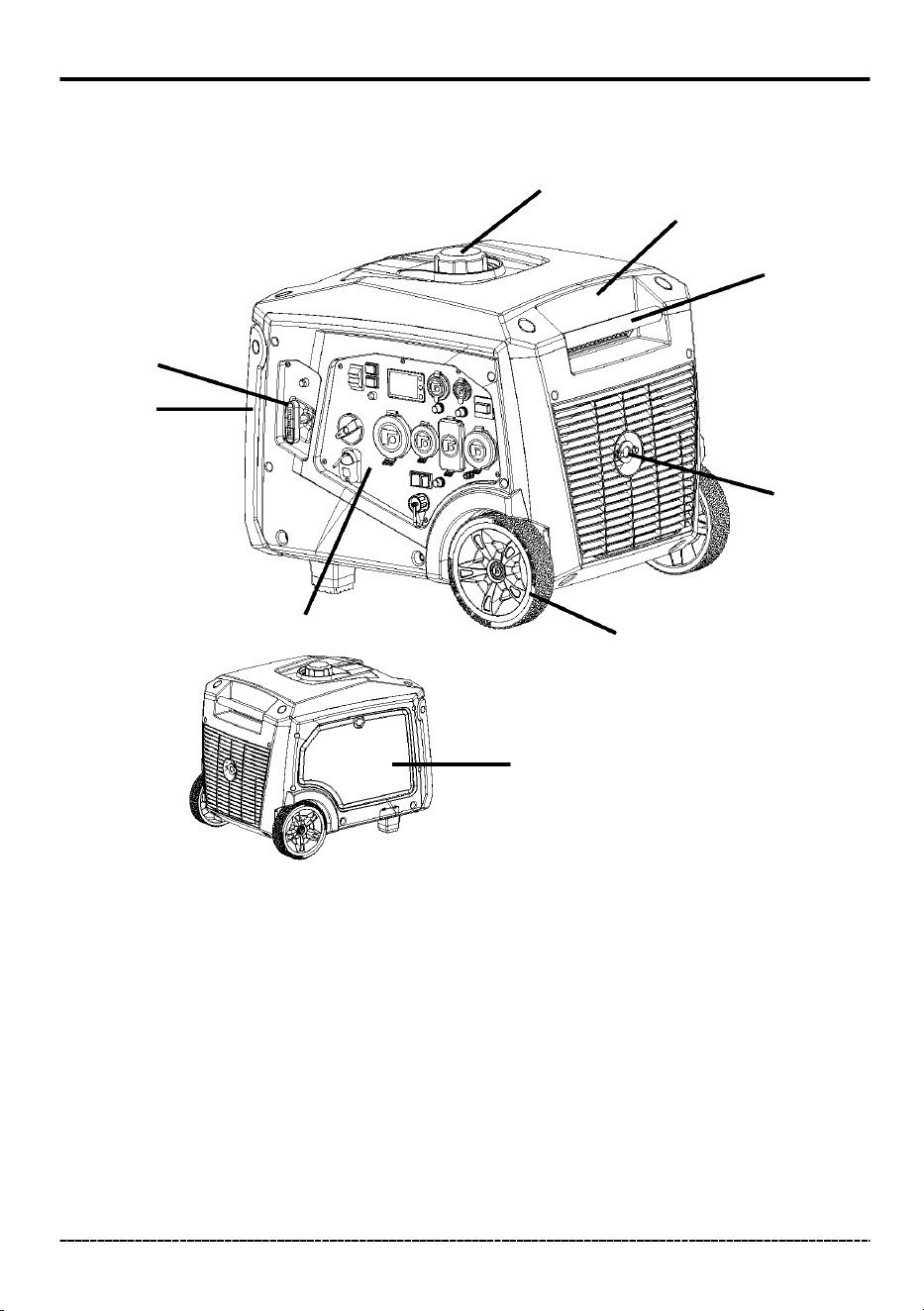

1- Fixed Carrying Handle
2- Fuel Cap
3- Recoil Starter
4- Never Flat Wheel

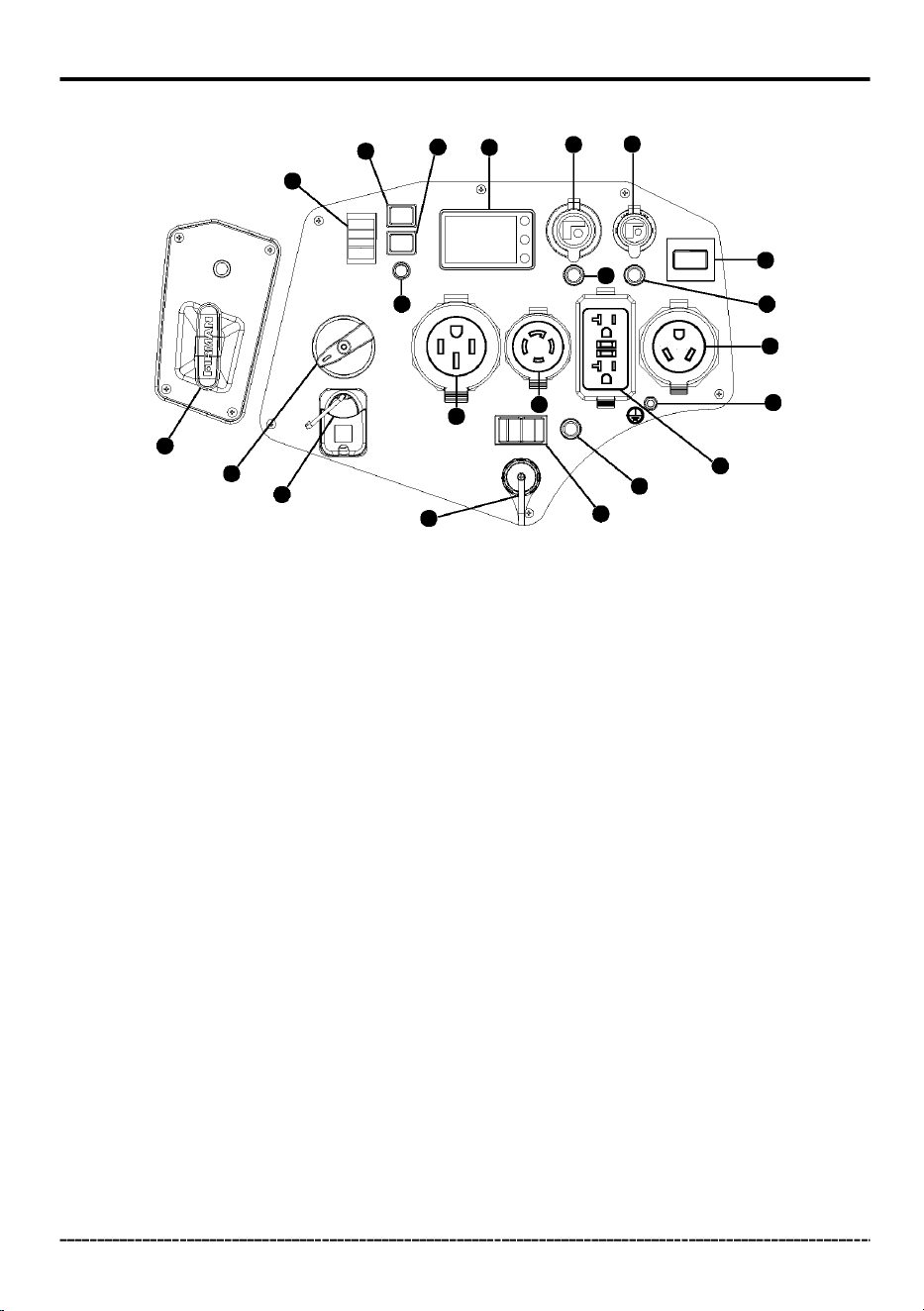

5- Control Panel
6- Muffler/Spark Arrester
7- Folding Handle
8- Maintenance Cover
9- Data Decal / Serial Number
②
③
④
⑤
⑥
⑦
⑧
①
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
English Customer Service: 1-844-FIRMAN1
06
⑦
⑤
⑥
LOCATION AND CONTENT OF ON-PRODUCT HAZARD LABELS
FREE WARNING LABEL REPLACEMENT
If hazard labels become illegible or are missing, contact FIRMAN customer service for a free
replacement.
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
①
②
③
④
English Customer Service: 1-844-FIRMAN1
07
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
Using
a
generator
indoors
CAN
KILL
YOU
IN
MINUTES.
Generator
exhaust
contains
carbon
monoxide.
This
is
a
poison
you
cannot
see
or
smell.
~
NEVER
use
inside
a
£r
Only
use
OUTSIDE
and
home
or
garage,
EVEN
IF
doors
and
illl.,.
far
away
from
windows,
windows
are
open.
doors,
and
vents.
A
DANGER
Uliliser
un
generaleur
a
l'inlerieur
PEUT
VOUS
TUER
EN
QUELQUES
MINUTES.
Les
gaz
d'echappemenl
du
generateur
conliennenl
du
monoxyde
de
carbone.
Ceci
est
un
poison
que
vous
ne
pouvez
ni
voir
ni
senlir.
NE
JAMAIS
uliliser
dans
un
garage
ou
ill
A
n'uliliser
qu'a
L'EXTERIEUR
el
a
l'inl6rieur,
MEME
avec
les
portes
et
les
distance
de
loules
feniilres,
portes
el
feni!tres
ouvertes.
ouvertures.
lilizar
un
generador
en
inleriores
PUEOE
PROVOCARLA
MUERTE
EN
CUESTI
N
OE
MINUTOS.
Los
gases
del
generador
conlienen
monoxido
de
carbono,
el
cual
es
una
suslancia
venenosa
ue
no
uede
verse
ni
olerse.
No
ulilice
NUNCA
el
generador
en
el
interior
Ulilice
solo
AL
AIRE
LIBRE
y
de
su
hogar
ni
enun
garaje,
NI
SIQUIERA
lejos
de
venlanas,
puertas
y
con
las
uertas
venlanas
abiertas.
orificios
de
venlilacion.
Fuel
level
indicator
lndicateur
de
niveau
de
carburant
lndicador
de
nivel
de
combustible
1
WARNING
&AVER118BIBIT
&ADVERTENCIA
Fuel
is
flammable
which
could
cause
burns
resulting
in
death
or
serious
injury.
•
Turn
engine
off
and
let
it
cool
at
least
2
minutes
before
refueling.
•
Do
not
fill
fuel
above
fuel
level
indicator.
•
Never
add
fuel
to
a
hot
or
running
generator.
Le
carbu
rant
est
inflammable,
ce
qui
peut
provoquer
des
brulures
entrainant
la
mort
ou,des
blessures
graves.
•
Eteindre
le
moteur
et
le
laisser
refroidir
au
mains
2
minutes
avant
le
remplissa9e.
•
Ne
pas
remplir
au-dela
de
l'indicateur
de
niveau
maximal
de
carburant.
•
Ne
jamais
ajouter
de
carburant
a
une
gemiratrice
chaude
ou
en
marche.
El
combustible
es
inflamable,
lo
que
podrfa
causar
quemaduras
resultantes
en
la
muerte
o
lesiones
graves.
•
Apague
el
motor
y
dejelo
enfriar
al
menos
2
minutes
antes
de
recargar
combustible.
•
No
Ilene
el
combustible
por
encima
del
indicador
de
nivel.
•
No
cargue
nunca
combustible
en
un
generador
caliente
o
en
funcionamiento.
@
AUTOMATIC
SHUTOFF
-YOU
MUST:
@:'..:'o~E"
~~am::~
DEPLACEZ
I.A
GENl;RATRICE
TRASLADE
EL
GENERADOR
A
. @
PORTABLE
A
L'EXTERIEUR,
UNA
ZONA
EXTERIOR
ABIERTA
A
"A\
•
DI\NS
LE
SENS
DU
VENT
AVEC
FAVOR
DEL
VIENTO
Y
ALEJE
EL
£.ll
L'ECHAPPEMENT
DIRIGE
LOIN
TUBO
DE
ESCAPE
DE
LAS
DE
LA
MAISON.
NE
P.Aa
FAIRE
VIVIENDAS.
NO
UJILICE
EL
-------=--------FONCTIONNER
LA
GENERATRICE
GENERADOR
EN
AREAS
MOVE
GENERATOR
TO
AN
OPEN
OUTDOOR
AREA
DANS
DES
ESPACES
CLOS
(PAR
CERRADAS
(POR
EJEMPLO,
NO
DOWNWIND,
POINT
EXHAUST
AWAY
FROM
EXEMPLE,
NI
DANS
LA
MAISON
EN
LA
CASA
O
EL
GARAJE).
HOMES.
DON'T
RUN
GENERATOR
IN
ENCLOSED
NLLE
GARAGE).
VENTILE
LAS
INSTALACIOIIIES
AREAS
(e.g.
NOT
IN
HOUSE
OR
GARAGE).
AIR
OUT
AERj'R
LES
LOCAUX
(OUVREZ
(ABRA
LAS
VENTANAS
Y
LAS
PREMISl:S
(OPEN
WINDOWS
AND
DOORS)
FENEJRES
ET
PORTES)
AVA~T,
PUERTAS)
ANTES
DE
VOLVER
A
BEFORE
REOCCUPYING
PROPERTY.
DE
REOCCUPER
LA
PROPRIETE.
OCUPAR
(A
PROPIEDAD.
+
~
~
~-,.._• ]
MOVE
TO
FRESH
AIR
ALLEZ
A
L'AIB
FRAIS
ET
OBTENEZ
UB[QUESE
EN
UN
LUGAR
DONDE
' .
'J'
~•
AND
GET
MEDICAL
DE
L'AIDE
M~DICALE
EN
CAS
DE
CORRA
AIBE
FRESCO
Y
BUSQUE
•
HELP
IF
SICK,
DIZZV
MALADIE,
D'ETOURDISSEMENT
AYUDA
MEDICA
SI
SE
SIENTE
OR
WEAK.
OU
DE
FAIBLESSE.
MAL,
MAREADO
O
DEBIL.
English Customer Service: 1-844-FIRMAN1
08
⑧
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
r • • r • • • •
Failure
to
follow
wamini:,s,
instructions
and
operator's
Le
non-respect
des
avarlissements,
dss
instructions
at
du
manual
da
l'op6raltlur
El
incumplimiento
da
las
adver!Bncias,
las
instruccionas
y
el
manual
wl
l
result
In
death
or
sarlous
Injury.
entralnara
la
mort
ou
des
blessuras
graves.
manual
del
operador
provocar4
la
muerts
o
leslones
graves.
Tampering
with
the
CO
ALERT
system
will
cause
GarbonMonOXidepoisoning.lnstanCartion
Monoxldealannslnsldahome.
Ganaratorcouldcausaalectr1calshock..Donotrun
indoorstoavoidwetcondilions
.•
Donotruninrain
or
wat
weather.
•
Transfer
switch
must
tie
usad
when
connactlngtoahome'salectr1calsystem.
£
Hot&Xhaustgasascouldcausafln1&.Keepatlaastsn
clearancefromanycombusliblesorstrui;tures,
lnclulngoverhead.
Toute
al~liltlon
du
syst!me
D'ALERTE
du
monoxyde
de
carbone
causera
un
empoiSonnamantau
monoxy(le
da
carbone.lnsblllaz
des
d6tecteurs
damonoxyda
decarbonell'lntdrleurdalamallon.
Lagt!llliratrlce
pourralt
provoquerun
choct!lectr1qua.
.Nafaitaspasfonctionnarll"intdrlaurpourlM!erlascondilionshumides.
eNefaitespasfonctionnersouslapluieoupartempspluvieux.
•
Un
commullltllur
de
transfer!
dolt
ilni
utllld
lore
du
raccordamantau
systtme
t!lactriqued'unamaison.
Lesgazd't!chappamantchaudspeuvantprovoquardeslncendles.Gardezau
moins
5
pi
de
~gagement
de
tout
comb-ustible
ou
de
toute
structure,
ycompris
au-dessus.
Laalteracl6ndelsl5emadealertlldeCOcausar.i
envenenamientopormon6xidodacarbono.lnstale
datactorasdeMon6xldodeGarbonodentrodesucasa.
Elganeradorpodrfaproduclrunada11cargaalklr1ca.
eNouliliceeninteriorasparaevil:arcondicionesdahumlldad
eNouliliDeenlalluviaoencondicionesdehumedad.
.Esnecasarlousarunlntarruptordetransferanclacuando
conectaalsislllmaaleclricodeunacasa.
Losgasascallentesdesalldapodrfancausarlncandlos.
Mdngase a
una
distancia
mfnima
de
1,Sm
de
cualquier
combustlbleoastructura,lncluyandolugarasalevados.
------
(J)
t)
NOTICE AVIS AV/SO
Operate,storeandtransportonfirm
level
surface
.•
Tilling
can
cause
fuel
splllage.
Fairelonctionner,entreposerettransportersurune
surfacelermeethorizontale.
•
L'inclinaison
peut
causerun
d6versementdecarburant.
Operar,
almacenarytransportaren
una
superficielirmey
nivelada
.•
Inclinarlo
puede
causarun
derramedecombustlble.
~6
322cc
Add
lubricant
to
full
mark
to
start.Engine
willnotstartorwillshutoffifsensor
detects
low
lubricant.
Pour
commencer,
ajouter
du
lubrifiant
Jusqu•a
la
marque.
Lemoteurnedemarrerapas ous'arr!tera
silecapteurdetecteunmanquedelubrifiant.
Anadalubricantehasti.lamarcadeilenopara
arrancar.
El
motornoarrancaoseapagasisensor
detectaelniveldelubricantedebaja.
1050ml/35.511.oz
NOTICE
AVIS
AV/SO
To
prevent
engine
Pour
eviter
d'endommager
Para
evitar
daiios
en
damage
the
spark
l
le
moteur,
le
pare-etincellesl
el
mo~or,
el
supresor
arrester
should
be
doit
etre
nettoye
toutes
les
~e
c~1spas
debe
cleaned
every
100
llmpIarse
cada
100
hours.
See
100
heures.
Consulter
le
horas.
Consulte
el
0
erator's
manual.
manuel
d'utilisation.
manual
del
o
erador.
Point
engine
exhaust
away
from
all
occupied
structures.
Pointer
l'echappement
du
moteur
loin
de
toutes
les
structures
occupees.
Mantenga
los
gases
de
escape
del
motor
,..
,.
lejos
de
instalaciones
ocupadas.
""'
"
AWARNING
Muffler
could
cause
burns
resulting
in
serious
injury.
£.
AAVERTISSEMENT
Le
silencieux
peut
causer
des
brOlures
et
des
blessures
graves.
AADVERTENCIA
El
silenciador
podria
causar
quemaduras
resullando
en
una
lesion
grave.
English Customer Service: 1-844-FIRMAN1
09
Control Panel
NOTICETotal power drawn from all receptacles must not exceed the data decal rating.
1. Engine Start Switch – To start engine, press and hold the switch in the START (ll) position, the
engine will crank and attempt to start. When the engine starts, release the switch to the RUN (l) position.
2. Economy Control Switch - The Economy Control switch can be activated in order to minimize
fuel consumption and noise while operating the unit during times of reduced electrical output,
allowing the engine speed to idle during periods of non-use. The engine speed returns to normal
when an electrical load is connected. When the economy switch is off, the engine runs at normal
speed continuously.
6
7
1
3
2
5
4
8
9
10
11
12
13
14
15
16
21
5. CO Alert Carbon Monoxide (CO) Shutdown Indicator Light — Indicates the engine shutdown due
to carbon monoxide accumulation around the generator or a CO Alert system fault occurred.
4. Intelligauge with LED Screen – The screen can show the Voltage, Hertz, Power , running hours, Fault
alarm, regular maintenance, low oil alarm and remaining running time .
3. Battery Power Restore Switch
6. USB-C Output/Input Port
Devices that charge through a USB-C port, such as a MacBook Pro, Android phone, or other devices
can be charged by the USB-C port(5V, 9V, 12V, 15V & 20V output 60W maximum.).
The battery can be charged through USB-C port. USB-C charging input supports 5V/3A input 15W
maximum.
7. DC 12V Output - 8.3 Amps of DC current may be drawn from this receptacle. Use this outlet to charge
12V automotive type batteries ONLY. See 12V DC outlet (Battery Charger) section.
8. 20A Circuit Breaker – The receptacles are protected by AC circuit protectors.
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
19
6
7
1
3
2
5
4
8
9
10
11
12
13
14
15
16
17
18
19
1
3
4
5
6
7
8
9
10
11
13
14
15
16
17
18
19
20
9. 30A Circuit Breaker – The receptacles are protected by AC circuit protectors. If the generator is
overloaded or an external short circuit occurs, a circuit protector may trip. If tripping occurs,
disconnect all electrical loads and determine the cause before attempting to continue using the
generator. Reset any tripped circuit protectors.
If multiple receptacles are used at the same time, the total current must be kept with-in the
portable generator data decal rating.
English Customer Service: 1-844-FIRMAN1
10
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
10.
DC Circuit Breaker –
The DC receptacles are protected by an DC circuit protector. If the DC
output is overloaded or an external short circuit occurs the circuit protector will trip.
11. 120V, 30A RV
– NEMA TT-30R
A maximum of 26.3 Amps current may be drawn from this receptacle.
12.
Ground Terminal
– Consult an electrician or authority having jurisdiction for local grounding
requirements.
13.
120V, 20A Duplex GFCI
(Ground Fault Circuit Interrupter)- NEMA 5-20R
A maximum of 20 Amps current may be drawn from this duplex receptacle.
14. 120/240V, 30A
– NEMA L14-30R
A maximum of 26.3 Amps current may be drawn from this receptacle.
15. 120/240V, 50A
– NEMA 14-50R
A maximum of 47.3 Amps current may be drawn from this receptacle (Parallel Operation).
16. 30A Circuit Breaker
– The receptacles are protected by AC circuit protectors.
17.
Voltage Selector Switch –
To select between 120 Volt or 240 Volt.When you select the 120 Volt,
only
120V
single
voltage
sockets
5-20R
and
TT-30R
have
outputs.
When
you
select
the
240
Volt,
only 240V dual-voltage sockets L14-30R and 14-50R have outputs.
18.
Parallel Operation Outlets -
These outlets are used
for connecting two FIRMAN inverter
generators for parallel operation. A FIRMAN parallel kit(optional equipment) is required for
parallel operation.
19. Remote Holder -
to hold remote control for easy access.
20. Fuel Valve Knob
21. Recoil Starter
English Customer Service: 1-844-FIRMAN1
11
Intelligauge Display Screen
Low oil level
Generator maintenance required
A
B
ECO mode (no load, low idle speed)
Voltage
Frequency
Power
Total run time
Remaining run time
CO Alert alarm
Display value
Remaining fuel
Restore output after generator overloaded and clear
maintenance icon flashing after the maintenance
When you need to change the remote control, you
can use this button to match with generator.
Change to show the Voltage, Hertz, Power ,
Running hours and remaining running time.
FEATURES, CONTROLS AND ON -PRODUCT HAZARD LABELS
Iii.=
___
:
IBBBBI
~
(:1
I]
~
~
)t
~
•
ECd
B
B
B
English Customer Service: 1-844-FIRMAN1
12
1. Location
DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that could kill
you in minutes. You CANNOT smell it, see it, or taste it. Even if you do not smell exhaust
fumes, you could still be exposed to carbon monoxide gas.
Carbon Monoxide Alarm(s)
Install carbon monoxide alarms inside your home. Without working
carbon monoxide alarms, you will not realize you are getting sick and
dying from carbon monoxide poisoning.
20 ft. (6 m) min.
To better educate yourself about all carbon monoxide risks,
go to www.takeyourgeneratoroutside.com.
OPERATION
Install battery-operated carbon monoxide alarms or plug-in carbon monoxide alarms with
battery back-up according to the manufacturer's instructions. Smoke alarms cannot detect
carbon monoxide gas.
Do not run this portable generator inside homes, garages, basements, crawlspaces, sheds, or
other partially-enclosed spaces even if using fans or opening doors and windows for ventilation.
Carbon monoxide can quickly build up in these spaces and can linger for hours, even after this
product has shut off.
If you start to feel sick, dizzy, weak or your home’s carbon monoxide alarm sounds, get to fresh air
right away. Call emergency services. You may have carbon monoxide poisoning.
Operate portable generator only outdoors and downwind at least 20 ft.(6 m) from occupied
spaces with exhaust pointed away to reduce the risk of carbon monoxide accumulating.
Prevent Carbon Monoxide (CO) Poisoning
Use outdoors and downwind at least 20 ft. (6 m) from any home.
Point exhaust away from all homes and occupied spaces.
Install CO alarms inside your home.
•
•
•
•
English Customer Service: 1-844-FIRMAN1
Reduce Risk of Fire
WARNING! Exhaust heat/gases could ignite combustibles, structures or damage fuel
tank causing a fire, resulting in death or serious injury.
Keep portable generator at least 5 ft. (1.5 m) from any structure, trees or vegetation over 12
in. (30 cm) in height.
•
Select an outdoor site that is dry and protected from the weather. Do not move portable
generator indoors to protect it from the weather.
Do not locate the portable generator under a deck or other similar structure that may
confine heat and airflow.
•
•
13
OPERATION
5 ft.(1.5 m)
min.
5 ft.(1.5 m)
min.
20 ft.(6 m) min.
I
~\c
j
-.\,
\
,,~
...
I "
,•
t
I '
~
\
•
,
'
,,,,~
-
English Customer Service: 1-844-FIRMAN1
2. Oil and Gasoline
Add Engine Oil
NOTICE Do not attempt to crank or start the engine before it has been properly filled with the
recommended type and amount of oil. Damage due to operation with no oil will void your warranty.

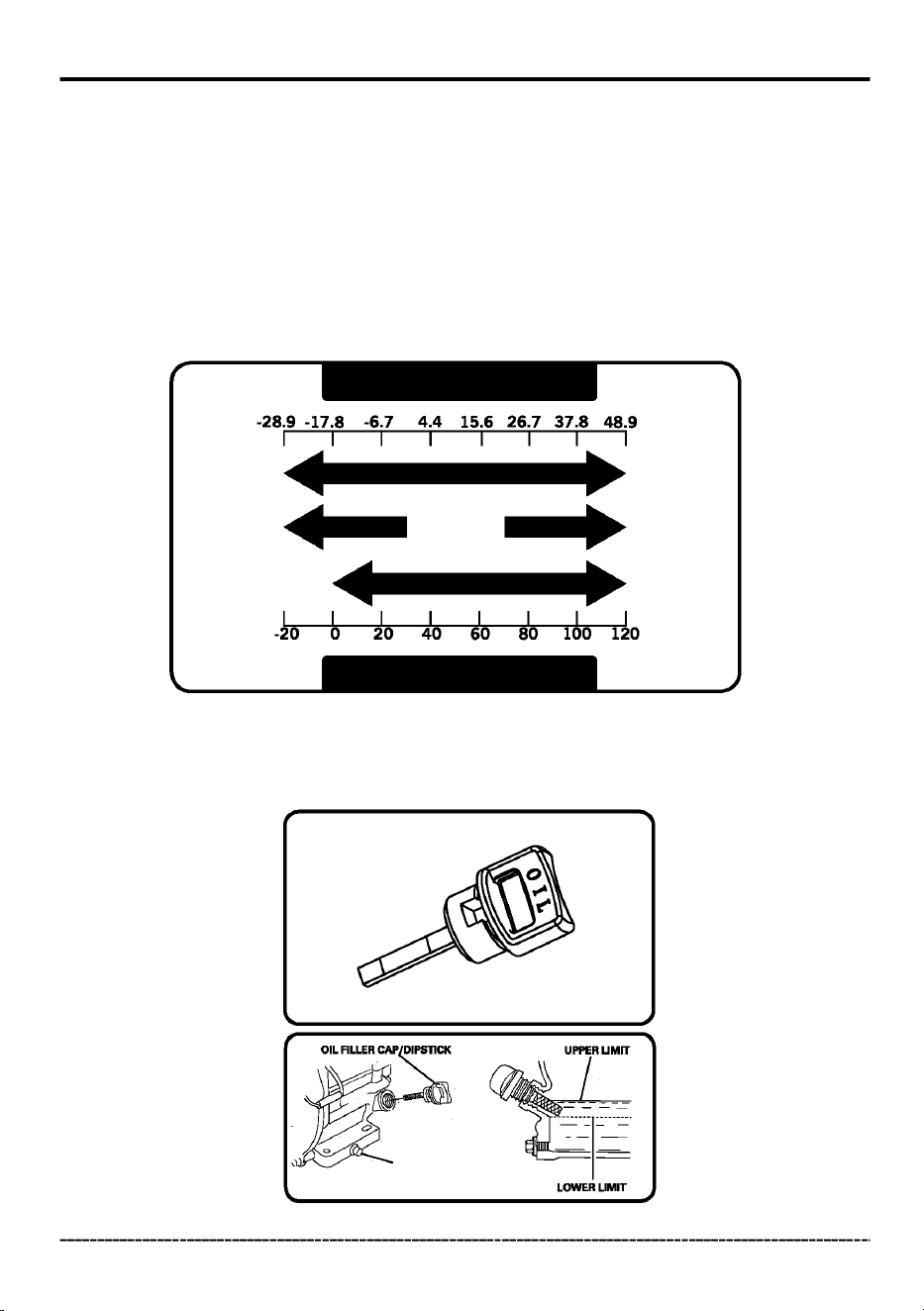

Degrees Celsiusº(Outside)
Full Synthetic 5W-30
Degrees Fahrenheitº(Outside)
5W-30 10W-40
10W-30
1.Place generator on a flat, level surface.
2.Loosen the cover screw and remove the maintenance cover.
3.Clean area around oil fill and remove yellow oil fill cap/dipstick.
4.Wipe dipstick clean.
14
OPERATION
(H)
DRAIN PLUG
(L)
H
L
We recommend using SAE 10W-30 API SJ or higher oil for best performance. Do not use special
additives. Ambient temperature determines the proper oil viscosity for the engine. Use the chart
to select the proper oil for the outdoor temperature range expected.
-28.9 -17.8 -6.7
4.4
15.6
26.7
37.8
48.9
I I I I I I I I
-
-
- -
- -
I I I I I I I I
-20 0
20
40
60
80
100
120
English Customer Service: 1-844-FIRMAN1
5. Using oil funnel, slowly pour contents of provided oil bottle into oil fill opening until oil reaches
upper limit "H" mark on the dipstick. Be careful not to overfill. Overfilling could cause engine
starting problems or engine damage.
6.Replace oil fill cap/dipstick and fully tighten.
7.Reinstall maintenance cover and tighten screws.
8.Oil level should be checked prior to each use or at least every 8 hours of operation. Keep oil
level maintained.
The portable generator is equipped with a low oil shutdown. If the oil level drops below the
minimum required level, a sensor will activate an internal switch stopping the engine. If the
engine shuts off and the oil level is within specifications, check to see if generator is sitting at an
angle. Place portable generator on an even surface to correct this. If engine fails to start, the oil
level may not be high enough to deactivate the internal low oil level switch. Make sure the sump is
completely full of oil to the upper limit (H). Do not operate engine until oil level issue is corrected.
Contact Firman customer service.
Low Oil Shutdown
Add Gasoline
WARNING! Fuel and its vapors are extremely flammable which could cause burns or fire
resulting in death or serious injury.
Turn generator engine OFF and let it cool at least 2 minutes before removing fuel cap.
Do Not refuel or move generator when engine is running.
Move generator outdoors prior to adding or draining fuel
Keep fuel away from any ignition sources.
Do not overfill tank, allow space for fuel expansion.
If any fuel spills, wait until it evaporates before starting engine
Check and replace fuel lines, tank, cap, and fittings prior to each use if any damage or leaks
are found.
•
•
•
•
•
•
•
Fuel must meet these requirements:
Clean, fresh, unleaded gasoline with a minimum of 87 octane.
For high altitude use, see Operation at High Altitude.
Gasoline with no more than 10% ethanol is acceptable.
•
•
•
E10
E15
15
OPERATION
English Customer Service: 1-844-FIRMAN1
NOTICE Do not mix oil in gasoline or modify engine to run on alternate fuels not described in this
manual. Use of unapproved fuels could damage engine and will not be covered under warranty.
1. Clean area around fuel fill cap, remove cap.
2. Slowly add unleaded fuel to fuel tank. Be careful not to fill above the RED fuel level indicator.
This allows adequate space for fuel expansion.
Red Line Indicator
3. Install fuel cap and let any spilled fuel evaporate before starting engine.
Operation at High Altitude
At altitudes over 5,000 feet (1524 meters), a minimum 85 octane gasoline is acceptable.
Engine power and generator output will be reduced approximately 3.5% for every 1000 feet (305 m)
of elevation above sea level. High altitude may cause hard starting, increased fuel consumption
and sparkplug fouling. To operate at high altitudes FIRMAN can provide a high altitude carburetor
main jet. The alternative main jet and installation instructions can be obtained by contacting
Customer Support.
NOTICE Operation using an alternative main jet at elevations lower than the recommended
minimum altitude can damage the engine. For operation at lower elevations, the standard main
jet supplied must be used. Operating the engine with the wrong main jet may increase exhaust
emissions, fuel consumption and reduce performance.
Altitude main jet 1
Altitude main jet 2
322cc
355717002
355717003
Altitude
3000-6000Feet
6000-8000Feet
Operation at High Ambient conditions
16
OPERATION
Your FIRMAN Power Equipment product is designed and rated for continuous operation at ambient
temperatures up to 104°F (40°C). The generator may be operated at temperatures ranging from
5°F(-15°C) to 122°F (50°C) for short periods. If the generator is exposed to temperatures outside
this range during storage, the generator should be brought back within this range before
operation. When operated above 77°F (25°C) there may be a decrease in power.
Maximum wattage and current are subject to and limited by such factors as ambient temperature,
altitude, engine conditions etc.
I I I
English Customer Service: 1-844-FIRMAN1
17
OPERATION
3. Starting the Generator
1. Before starting the generator, check for loose or missing parts and for any damage which may
have occurred during shipment. Ensure spark plug, muffler, fuel cap, and air cleaner are all in place.
2. Move portable generator outdoors to safe operating location downwind and at least 20 feet from
any occupied spaces.
3. Disconnect all electrical loads from the generator. Never start or stop the generator with
electrical devices plugged in.
5. Flip the engine switch to the “RUN"(l) position.
6. Push the battery power restore switch for about 3 seconds and then release.
4. Turn the fuel valve to the “ON”(l) position.
7. Push the choke button to the “CHOKE” position. You do not need to choke a warm engine.
(For remote start move to step (11))
English Customer Service: 1-844-FIRMAN1
18
OPERATION
8. For recoil start only-Pull the starter cord slowly until resistance is felt and then pull rapidly to
start engine.
12. Allow portable generator to run at no load for a few minutes to stabilize before plugging in
any electrical devices.
NOTICE If engine starts but fails to run, or if portable generator shuts down during operation,
check oil level. See Low Oil Shutdown section for more information.
9. For electric start only-Flip the engine switch to the START (ll) position for a few seconds and then release.
10. Do not over-choke. As soon as engine starts and warms up, press the choke button to return
to the run position.
11. For remote start only-Push and release the ''START'' button on the remote control. The
generator will turn over for 3 to 5 seconds and start.
START
I+
I
G5)
English Customer Service: 1-844-FIRMAN1
19
OPERATION
This portable generator has been pretested and adjusted to handle its full capacity.
4. Connecting Electrical Loads
The duplex receptacle is equipped with GFCI protection. The GFCI protects against electric shock
that may be caused if you become a path which electricity travels to reach earth. Even with a GFCI
you may feel a shock, but the GFCI cuts power quickly so an average person should not suffer any
injury. Manual test GFCI while generator is running to verify internal contacts will function
Push the test button. The reset button will pop out, which should cut power to outlet.
Press the reset button until it locks in the depressed position. If the GFCI does not reset as
described do not use the receptacles. Call FIRMAN customer service.
If GFCI trips while in use, reset and test the outlet. Electric cords laying on the ground with
worn insulation may trip the GFCI, only use cords in good condition.
RESET
TEST
TEST MONTHLY
FOLLOW DIRECTIONS
RESET BUTTON
Receptacle
Outlet
LED Indicator Light
TEST BUTTON
Outlet
In addition to the manual test / reset feature the GFCI receptacle tests itself periodically to
confirm the GFCI electronics are functional. The indicator light will be solid green when the
GFCI is powered from the generator and working correctly.
Self-test indications: If the indicator light is solid orange or flashing red a problem may exist.
Press the TEST button to trip the GFCI. If unable to reset, replace the GFCI.
SELF-TEST OPERATION
Damaged or overloaded extension cords could overheat, arc, and burn resulting death or
serious injury.
Use a ground fault circuit interrupter (GFCI) in any damp or highly conductive area, such as
metal decking.
Do not touch bare wires or receptacles.
WARNING! Generator voltage could cause electrical shock or burn
resulting in death or serious injury.
•
•
•
c:0
D
-----t-----Cl
0
D
0
English Customer Service: 1-844-FIRMAN1
Do not use generator with electrical cords which are worn, frayed, bare or otherwise damaged.
Do not operate generator in the rain or wet weather.
Do not run indoors to avoid wet conditions.
Do not handle generator or electrical cords while standing in water, while barefoot, or while
hands or feet are wet.
Use listed transfer switch to prevent backfeed by isolating generator from electric utility
workers.
1.Ensure circuit breaker on control panel is in the closed (on) position.
2. Start the generator with no electrical load attached.
3. Allow the engine to run for several minutes to stabilize.
4. Set voltage selector switch to either 120 Volt or 240 Volt position. When 120 volts is selected
only 120 volts is available. When 240 Volt position is selected only 120/240 volts is available.
5. Plug in and turn on the first item. It is best to attach the item with the largest load first.
6. Allow the engine to stabilize.
7. Plug in and turn on the next item.
8. Allow the engine to stabilize.
9. Repeat steps 6-7 for each additional item.
Surge Protection
There is a remote chance that voltage fluctuations may impair the proper functioning of some
sensitive electronic equipment. Electronic devices, including computers and many programmable
appliances may use components that are designed to operate within a narrow voltage range and
may be affected by the portable generator’s momentary voltage fluctuations. While there is no
way to prevent all voltage fluctuations, you can take steps to protect your sensitive electronic
equipment. Install a plug-in surge suppressor on the receptacles feeding your sensitive equipment.
Surge suppressors come in single or multi-outlet styles. They are designed to protect against short
duration voltage fluctuations.
20
OPERATION
•
•
•
•
•
240V
+---+
120V
English Customer Service: 1-844-FIRMAN1
21
OPERATION
CO Alert
Carbon Monoxide (CO) Shutdown System
CO Alert automatically shuts down the engine when harmful levels of carbon monoxide
accumulate around the generator or a CO Alert fault occurs. After shutdown, the CO Alert
indicator light will blink for at least five minutes per the chart below.
CO Alert DOES NOT replace carbon monoxide alarms.
Install battery-powered carbon monoxide alarm(s) in your home. Don’t run generator in enclosed
areas.
Color
Description
Red
Yellow
CO Alert fault occured*.
See FIRMAN authorized service dealer.
*Yellow light will blink for five seconds at the startup of generator to show CO ALERT is functioning
properly.
TM
Carbon monoxide accumulated around generator. Prior
to restart move generator to an open, outdoor area
downwind and at least 20 ft. (6 m) from occupied spaces
with exhaust pointed away. Air out premises (open
windows and doors) before reoccupying property.
Automatic shutoff is an indication generator was
improperly located.
If you start to feel sick, dizzy, weak, or your homes carbon
monoxide alarm sounds while using this product, get to
fresh air right away. Call emergency services. You may
have carbon monoxide poisoning.
•••••
••
••
English Customer Service: 1-844-FIRMAN1
22
OPERATION
Economy Control Switch
The Economy Control switch can be activated in order to minimize fuel consumption and noise
while operating the unit during times of reduced electrical output, allowing the engine speed to
idle during periods of non-use. The engine speed returns to normal when an electrical load is
connected. When the economy switch is off, the engine runs at normal speed continuously.
NOTICE:
For periods of high electrical load or momentary fluctuations, the Economy Control Switch should
be turned OFF.

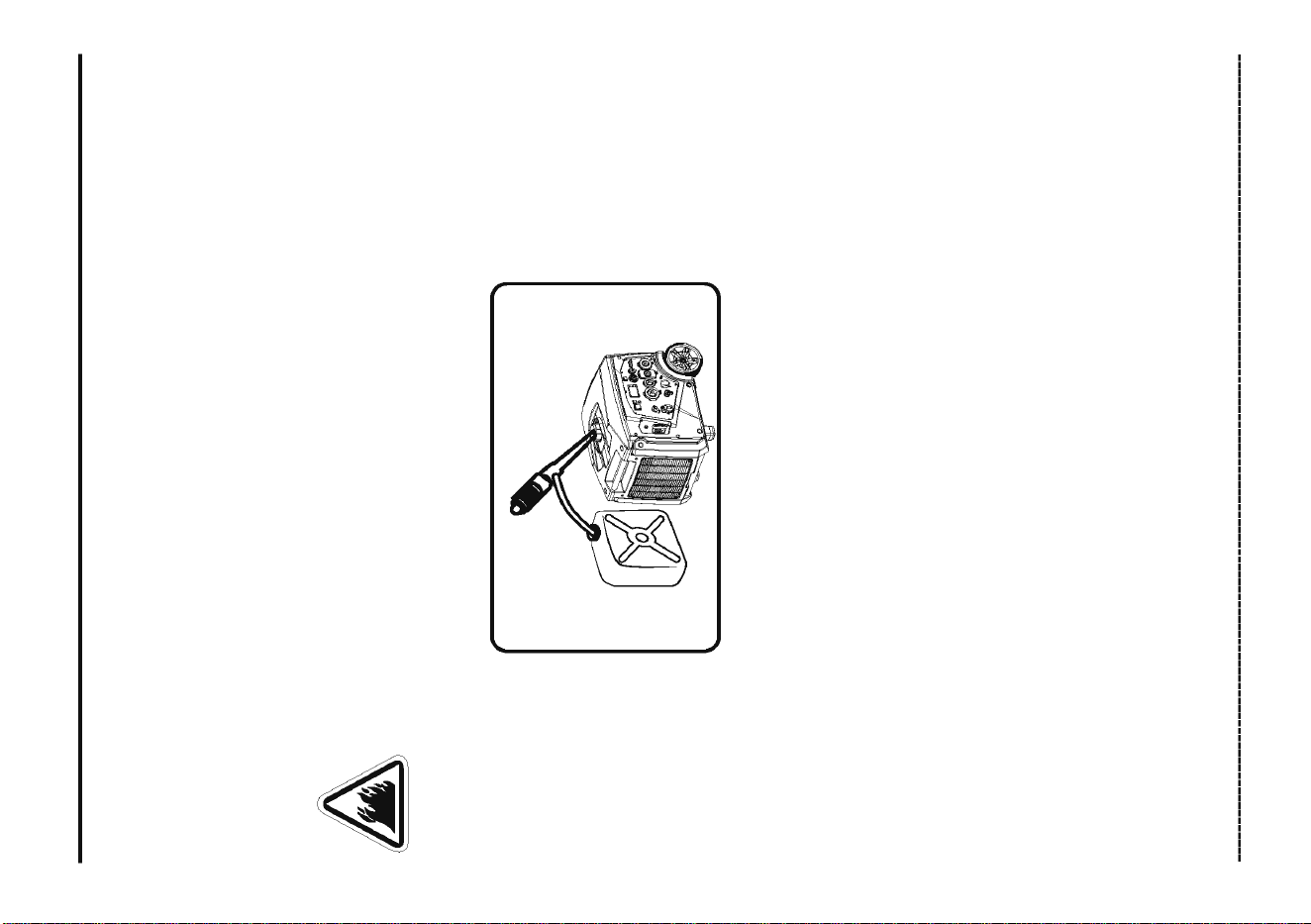

12V DC Outlet (Battery Charger)
The 12V DC outlet is ONLY to be used with the supplied 12V battery charging cable. The DC output
is unregulated and will damage other 12V DC products.
The amount of current flowing will depend on the charging voltage and battery's state of charge. As the
battery becomes more fully charged, the output current to the battery decreases and nearly becomes
constant. Taper chargers are intended to be used with the provision that they will be disconnected
from the battery after a maximum time on charge. Normally a period of 30 to 120 minutes is sufficient
to recharge a weak battery. The charge level of the battery should be checked periodically.
NOTICE
Storage batteries give off EXPLOSIVE hydrogen gas while charging. Do not allow smoking,
open flames, sparks, or spark producing equipment in the area while charging.
WARNING!
Battery electrolyte fluid is comprised of sulfuric acid that can be very dangerous and cause severe
burns. Do not allow this fluid to contact eyes, skin, clothing, etc. If contact or spillage does occur,
flush the area with water immediately.
Do not continue to charge a battery that becomes hot or is fully charged.
•
•
•
1. Before connecting the battery charging cable to a battery that is installed in a vehicle, disconnect
the vehicle battery ground cable from the negative (–) battery terminal.
2. Plug the battery charging cable into the DC receptacle of the generator.
3. Connect the red (+) battery charger lead to the red (+) battery terminal.
4. Connect the black (–) battery charger lead to the black (–) battery terminal.
5. Start the generator.
Do not start the vehicle while the battery charging Cable is connected and the generator is running.
It will not give the battery a boost of power. The Vehicle or the generator may be damaged. Charge
only vented wet lead acid batteries. Other types of batteries may burst, causing personal injury
or damage.
•
For use with 12V direct current outlet, always keep the ECO mode deactivated (OFF Position).
You can use the 12V direct current outlet and the 240V current at the same time, but keep the ECO
mode deactivated (OFF Position) at all times.
•
ECO
MODE
MODE
ECO
ECO
MODE
English Customer Service: 1-844-FIRMAN1
5. Stopping the generator
1. Turn off and remove all electrical loads.
Never stop the generator with electrical devices plugged in and turned on.
Never stop the engine by moving the choke to the start position.
Let the generator run at no-load for one minute to stabilize internal temperatures of the engine
and generator.
23
OPERATION
If a cover is used, do not install until unit has cooled.
3. Flip the engine switch to“OFF”(O) position.
2. For remote start only-Push and release the "STOP" button on the remote control. The generator
will be shut down.
STOP
4. Turn the fuel valve to the “OFF”(O) position.
English Customer Service: 1-844-FIRMAN1
Remote Control Programming
1. Flip the engine switch to the “RUN"(l) position.
2. Push the battery power restore switch for about 3 seconds and then release.
3. Press and hold the “MATCH” button on the display panel for 3 seconds until the remote control icon
lights up, then the remote control learning mode will be activated.
4. Press the STOP button on the remote control; at this point, the remote control icon will flash once.
Then press the START button on the remote control, and the remote control icon will flash once again.
STOP
START
5. Press and hold the MATCH button on the display panel for 3 seconds, then wait for the remote control
icon on the display panel to go out. This will exit the learning mode and complete the pairing process.
24
OPERATION
English Customer Service: 1-844-FIRMAN1
25
OPERATION
Low Oil Shutdown
If the engine oil drops below a preset level, an oil switch will stop the engine. Check oil level with
dipstick.
If
oil
level
is
between
the
LOW
and
HIGH
mark
on
dipstick:
1.DO
NOT
try
to
restart
the
engine.
2.Contact
an
Authorized
FIRMAN
Service
Dealer.
3.DO
NOT
operate
engine
until
oil
level
is
corrected.
If
oil
level
is
below
the
LOW
mark
on
dipstick:
1.Add
oil
to
bring
level
to
HIGH
mark.
2.Restart
engine
and
if
the
engine
stops
again
a
low
oil
condition
may
still
exist.
DO
NOT
try
to
restart
the
engine.
3.Contact
an
Authorized
FIRMAN
Service
Dealer.
4.DO
NOT
operate
engine
until
oil
level
is
corrected.
Do Not Overload Generator
Overloading a generator in excess of its rated wattage capacity can result in damage to the
generator and to connected electrical devices. To prolong the life of your generator and attached
devices, follow these steps to add electrical load:
1. Start the generator with no electrical load attached.
2. Allow the engine to run for several minutes to stabilize.
3. Plug in and turn on the first item. It is best to attach the item with the largest load first.
4. Allow the engine to stabilize.
5. Plug in and turn on the next item.
6. Allow the engine to stabilize.
7. Repeat steps 5-6 for each additional item.
Overload Operation
If
the
load
exceeds
6400W(approximately),
the
"P" light
will
turn
on
and
cut
power
to
the
receptacles
in
5
seconds.
If
the
load
exceeds
6500W(approximately),
the
light
will
turn
on
and
cut
power
to
the
receptacles
in
2
seconds.
NOTICE:
When the engine shuts down due to overload or runs out of fuel, the "P" light will stay on and glow red.
How to Correct
1.
Disconnect
any
electrical
devices,
and
then
stop
the
engine.
2. Reduce
the
total
wattage
of
connected
electrical
devices
until
it
is
within
the
generator’s
rated
output.
3.
Inspect
the
Air
Inlet
and
Control
Panel
for
any
blockage.
Remove
blockage
if
found.
4.
Restart
Engine.
Parallel Operation
Any
two
FIRMAN
240V
inverter
generators
with
parallel
ports,
including
two
FIRMAN
inverters
model
W06383
can
be
paralleled
to
increase
the
total
available
electrical
power
to
11340
Watts.
English Customer Service: 1-844-FIRMAN1
Maintenance - Storage
General Recommendations
Regular maintenance will improve the performance and extend the life of the generator. See any
authorized dealer for service.
The generator's warranty does not cover items that have been subjected to operator abuse or
negligence. To receive full value from the warranty, the operator must maintain the generator as
instructed in this manual.
Some adjustments will need to be made periodically to properly maintain your generator.
All service and adjustments should be made at least once each season. Follow the requirements
in the maintenanc shedule chart above.
NOTICE Once a year you should clean or replace the spark plug and replace the air filter. New
spark plug and clean air filter assure proper fuel-air mixture and help your engine run at peak
performance and last longer.
To be performed by knowledgable/experienced owner or by authorized service center.
*
26
MAINTENANCE SCHEDULE
ITEM NOTES
Daily(Before
operation)
Initial
25 hours
Every
50 hours
Every
100 hours
(or annual)
Fittings/
Fasteners
Spark Plug
Engine Oil
Air Filter
Fuel Line
Exhaust
System
Engine
Check condition. Adjust gap
and clean. Replace if necessary.
Check oil level.
Clean, replace if necessary.
Check for leakage. Retighten or
replace gasket if necessary.
Check adjust valve clearance.
Clean combustion chamber.
Check. Replace if necessary.
Check fuel hose for cracks or other
damage. Replace if necessary.
√
√
√
√
√
√
√
√
√
√
Replace.
Check spark arrester screen.
Clean/Replace if necessary.
Every
250 hours
√
*
*
Fuel
Clean fuel tank strainer.
Replace if necessary.
√
English Customer Service: 1-844-FIRMAN1
When Transporting Generator
Transport with fuel tank EMPTY or with fuel switch in OFF position.
Do not tip generator at an angle which causes fuel to spill.
ENGINE MAINTENANCE
To prevent accidental starting, remove and ground spark plug wire before performing any service.
Change Engine Oil
Change engine oil every 100 hours. (for a new engine, change oil after 25 hours.)
If you are using your generator under extremely dirty or dusty conditions, or in extremely hot
weather change the oil more often.
CAUTION! Avoid prolonged or repeated skin contact with used motor oil. Used motor oil has been
shown to cause skin cancer in certain laboratory animals. Thoroughly wash exposed areas with
soap and water.
KEEP OUT OF REACH OF CHILDREN. DON’T POLLUTE. CONSERVE RESOURCES. RETURN USED OIL
TO COLLECTION CENTERS.
27
Maintenance - Storage
(a) Loosen the cover screws and remove the maintenance cover.
(b) Pop up the plug from below yellow draining bolt.
(c) Remove yellow drain bolt.
(d) Tilt the generator on its side and allow the oil to drain completely.
(e) Replace yellow drain bolt.
(f) . DO NOT OVERFILL.Fill the engine with oil until it reaches the HIGH(H) level on the oil filler cap
NOTICE We recommend using SAE 10W-30 API SJ or higher oil for best performance. Do not use
special additives. See Oil and Gasoline
English Customer Service: 1-844-FIRMAN1

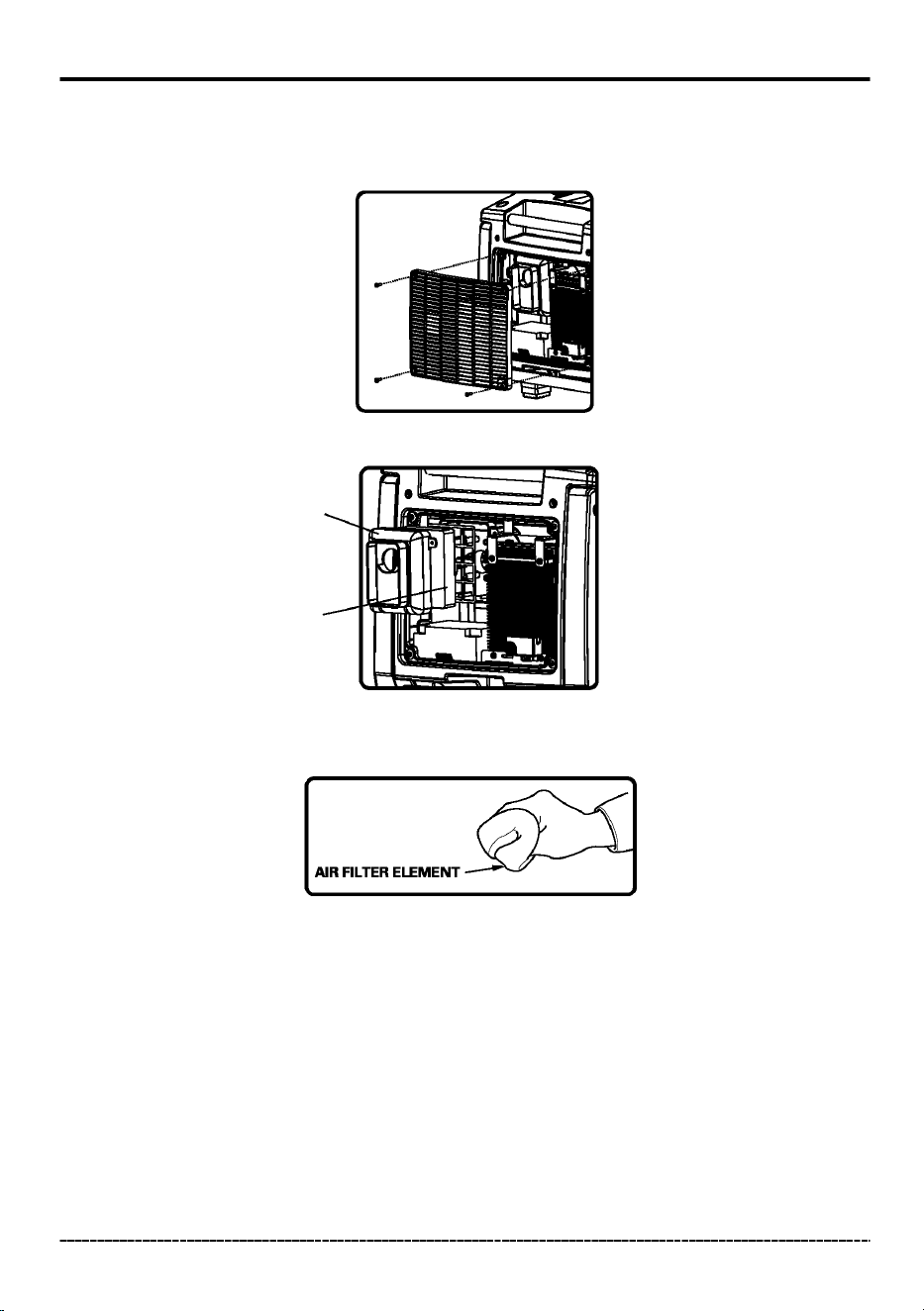

Air Filter Maintenance
(b) Carefully remove foam air filter element and wash it with liquid detergent and water only.
Squeeze dry in a clean cloth.
( c) Saturate foam air filter element with clean engine oil and squeeze in a clean cloth to remove
excess oil.
Spark Plug Maintenance
Changing the spark plug will help your engine start easier and run at peak performance.
(a) Remove the maintenance cover.
(b) Remove the spark plug boot.
(c) Remove spark plug using provided wrench.
28
(d) Reinstall clean or new air filter element.
Maintenance - Storage
(a) Remove the air cleaner cover and locate the air filter plastic cover.
Foam Element
Air Cleaner
(e) Reattach the air filter cover.
(f) Reinstall the air cleaner cover and tighten the cover screw securely.
AIR
FILTER
ELEMENT
English Customer Service: 1-844-FIRMAN1
Maintenance Valve Clearance
Intake: 0.004 – 0.006 in. (0.10 – 0.15 mm)
Exhaust: 0.006 – 0.008 in. (0.15 – 0.20 mm)
Muffler and Spark Arrester
•
•
WARNING! Contact with muffler area could cause burns resulting in serious injury.
Do not touch hot parts.
It is a violation of California Public Resource Code, Section 4442, to use or operate the engine
on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is
equipped with a spark arrester, as defined in Section 4442, maintained in effective working
order. Other states or federal jurisdictions may have similar laws, reference Federal
Regulation 36 CFR Part 261.52.
29
Maintenance - Storage
(d) Inspect spark plug for damage and clean with a wire brush before reinstalling. Replace if
damaged.
(e) Adjust the electrode gap to 0.024 - 0.031 in. ( 0.6 - 0.8 mm).
(f) Seat spark plug in position and thread by hand to prevent cross threading.
SPARK PLUG: F7TC or equivalent.
0.024-0.031in
(0.6-0.8mm)
(g) Tighten plug with provided wrench and put the spark plug boot back on spark plug. Do not overtighten.
SIDE
ELECTRODE
SEALING
WASHER
English Customer Service: 1-844-FIRMAN1

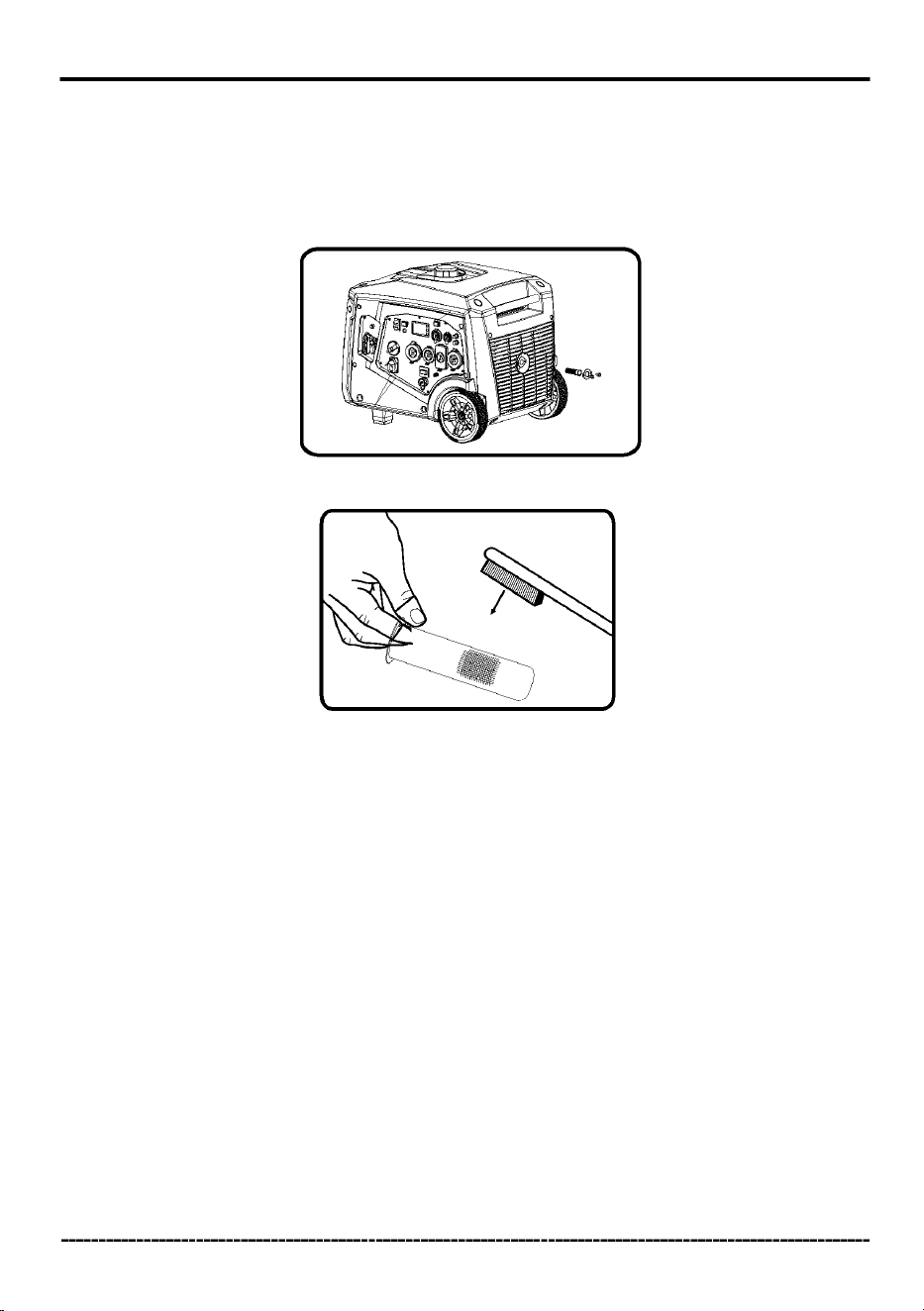

Inspect Muffler and Spark Arrester
1. Inspect the muffler for cracks, corrosion, or other damage.
2. Loosen the spark arrester clamp, remove the spark arrester cover, and remove the spark arrester
with a thin blade screwdriver .
3. Carefully remove the carbon deposits from the spark arrester screen with a wire brush.
4. Replace the spark arrester if it is damaged. If replacement parts are required, make sure to use
only FIRMAN original equipment replacement parts.
5. Position the spark arrester in the muffler and attach spark arrester cover with the screws.
NOTICE Failure to clean or replace spark arrester may result in decreased engine performance.
GENERATOR MAINTENANCE
Make certain that the portable generator is kept clean and dry.
Do not expose the unit to excessive dust, dirt, moisture or corrosive vapors.
Do not insert any objects through cooling slots.
Before each use inspect underneath the generator for signs of oil or fuel. Clean any accumulated
debris. Keep area around muffler free from any debris. Use a soft bristle brush to remove dirt or
caked on oil. Use a damp cloth to clean all exterior surfaces.
30
Run the generator at least 30 minutes every month.
Maintenance - Storage
English Customer Service: 1-844-FIRMAN1
31
Maintenance - Storage
Battery Replacement
1.Unscrew the air cleaner cover by provided screwdriver.
2. Release the battery retaining rubber belt.
3. Disconnect the black(-) cable from black(-) terminal on the battery.
Disconnect the red(+) cable from red(+) terminal on the battery.
Rubber Sheath
Battery
Positive(+)
Terminal
Negative(-)
Terminal
4. Remove the battery and recycle and dispose of properly.
5. Install the new battery with following specification:
12V lithium battery 1.6AH
LXWXH:4.21X2.2X3.34 in. (107X56X85mm)
6.Connect the red(+)battery cable to the positive terminal of battery first and then connect the black(-)
battery cable to the negative terminal of battery.
7. Reattach the air cleaner cover.
Red Cable
Black Cable
Battery Charging (USB-C )
The battery powers the starter motor and control module. This portable generator is equipped with
an automatic battery charging circuit. The battery will receive charging voltage only when the engine
is running. The battery will maintain a proper charge if the portable generator is used on a regular
basis (about once every two weeks). If it is used less frequently, the battery should be connected
to a trickle charger (not included) or battery maintainer (not included) to keep the battery properly
charged. If the battery is not able to start the engine, the battery must be connected to a type-C
style battery charger for re-charging before it can be used.
USB-C charging input supports 5V3A input 15W maximum.
Red Cable
Black Cable
\
\
English Customer Service: 1-844-FIRMAN1
It is important to prevent gum deposits from forming in essential fuel system components such
as the carburetor, fuel hoses or tank during storage. Ethanol-blended fuels (called gasohol, ethanol
or methanol) attract moisture, which leads to separation and formation of acids during storage.
Acidic gas can damage the fuel system of an engine while in storage.
Long Term Storage
When the generator set is being stored for more than one month, follow these instructions to avoid
engine problems:
Do not store fuel near any ignition sources.
When draining fuel move generator outdoors and use a commercially available non-conductive
vacuum siphon. Fuel must be drained into an approved container.
WARNING! Fuel and its vapors are extremely flammable which could cause burns
or fire resulting in death or serious injury.
1-Treat any stored fuel with fuel stabilizer.
2-When storing generator with gasoline in fuel tank, operate the engine for 5-10 minutes to
circulate treated fuel into fuel lines and carburetor before shutdown.
3- There is no need to drain gasoline from the generator fuel tank if fuel stabilizer is added.
4-FUEL STARVATION: If you elect to drain fuel tank move generator outdoors. Once fuel tank is
drained turn fuel valve to on position. Start and run the portable generator outdoors until engine
stops from lack of gasoline. This will drain remaining gasoline from tank, fuel lines, and carburetor.
5-Always turn fuel valve to OFF position prior to storage.
6-Allow the portable generator to cool before cleaning and storage.
7-Change oil .
8-Remove spark plug boot and spark plug. Pour about one teaspoon of engine oil through the
spark plug hole, then slowly pull the recoil starter several times to distribute the oil in the cylinder
Pull recoil slowly until resistance is felt. This will close the valves so no moisture enters the engine
cylinder. Reinstall the spark plug and attach the spark plug boot.
9-Cover the portable generator and store in a clean, dry place out of direct sunlight and away from
any ignition sources.
Any damage or hazards caused by using improper fuel, improperly stored fuel, and/or improperly
formulated stabilizers, are not covered by manufacturer's warranty.
Do not store gasoline from one season to another season.
32
Maintenance - Storage
r4J1
Troubleshooting – Specifications
English Customer Service: 1-844-FIRMAN1
33
For all other issues, contact authorized dealer or Firman customer service.
Engine shuts down and
yellow CO fault light blinking.
1. CO system fault
1. Contact authorized FIRMAN
service facility.
Problem Cause Correction
Engine is running, but no
AC output is available.
1. Circuit breaker is open.
2. Fault in generator.
3. Poor connection or defective cord
set.
4. Connected device is bad.
1. Reset circuit breaker.
2. Contact authorized service facility.
3. Check and repair.
4. Connect another device that is in
good condition.
Engine runs good at
no-load but “bogs down”
when loads are connected.
1. Short circuit in a connected load.
2. Engine speed is too slow.
3. Generator is overloaded.
4. Shorted generator circuit.
1. Disconnect shorted electrical load.
2. Contact authorized service facility.
3. See Don't Overload Generator
4. Contact authorized service facility.
Engine will not start; starts
and runs rough or shuts
down when running.
1. Engine switch set to OFF (O)
position.
2. Fuel shutoff lever is in OFF (O)
position.
3. Low oil level.
4. Dirty air cleaner.
5. Out of fuel.
6. Stale fuel.
7. Spark plug wire not connected to
spark plug.
8. Bad spark plug.
9. Water in fuel.
10. Flooded.
11. Excessively rich fuel mixture.
12. Intake valve stuck open or closed.
13. Engine has lost compression.
1. Set engine switch to ON (l)
position.
2. Move fuel shutoff lever to ON (l)
position.
3. Fill crankcase to proper level or
place generator on level surface.
4. Clean or replace air cleaner.
5. Fill fuel tank.
6. Drain fuel tank and carburetor; fill
with fresh fuel.
7. Connect wire to spark plug.
8. Replace spark plug.
9. Drain gas tank and carburetor; fill
with fresh fuel.
10. Wait 5 minutes and re-crank engine.
11. Contact authorized service facility.
12. Contact authorized service facility.
13. Contact authorized service facility.
Engine lacks power.
1. Load is too high.
2. Dirty air filter.
1. Don't Overload Generator
2. Replace air filter.
Engine“hunts”or falters.
1. Carburetor is running too rich or too lean.
1. Contact authorized service facility.
14. Clogged or dirty fuel filter.
5. Clean or replace fuel filter.
14. Clean or replace fuel filter.
3. Clogged or dirty fuel filter.
4. Clogged spark arrester.
3. Clean or replace fuel filter.
4. Clean or replace spark arrester.
2. Clogged or dirty fuel filter. 2. Clean or replace fuel filter.
Engine shuts down when
running.
1. Out of fuel.
2. Dirty air cleaner.
3. Low oil level.
1. Fill fuel tank.
2. Clean or replace air cleaner.
3. Fill crankcase to proper level or place.
generator on level surface.
5. Clogged or dirty fuel filter.
Troubleshooting
SPECIFICATIONS
Model
Rated AC Voltage
Phase
Power Factor
Voltage Regulator
Alternator Type
Running Watts*
Starting Watts
Engine
Engine Type
Displacement
Low Oil Shutdown
Ignition System
Starting System
Fuel
Capacity Fuel Tank
Lubricating Oil Capacity
Carburetor Type
Air Cleaner
P.T.O. Shaft Rotation
120/240V
W06383
Digital
Single
1
Single Cylinder, 4-Stroke OHV Air Cooled
322cc
Breakless Ignition Type, Flywheel Magneto
Unleaded Automotive Gasoline
5.3 U.S. Gallons (20L)
35.5 oz (1.05L)
Counter Clockwise (Facing P.T.O.)
Float
Magneto
Polyurethane Type
Yes
FIRMAN
Rated Fequency
60Hz
Oil Type
See “Add Engine Oil” Section
Recoil/Electric/Remote
English Customer Service: 1-844-FIRMAN1
AC Grounding System
Neutral Bonded to Frame
34
Troubleshooting – Specifications
Total Harmonic Distortion(THD)
<3%
Inductor
*Generator certified in accordance with CSA (Canadian Standards Association) standard C22.2No. 100-14,
Motors and Generators and complies with PGMA (Portable Generator Manufacturers’ Association) standard
ANSI/PGMA G300-2023, Safety and Performance of Portable Generators.
6300
7850
PARTS DIAGRAM AND PART LIST

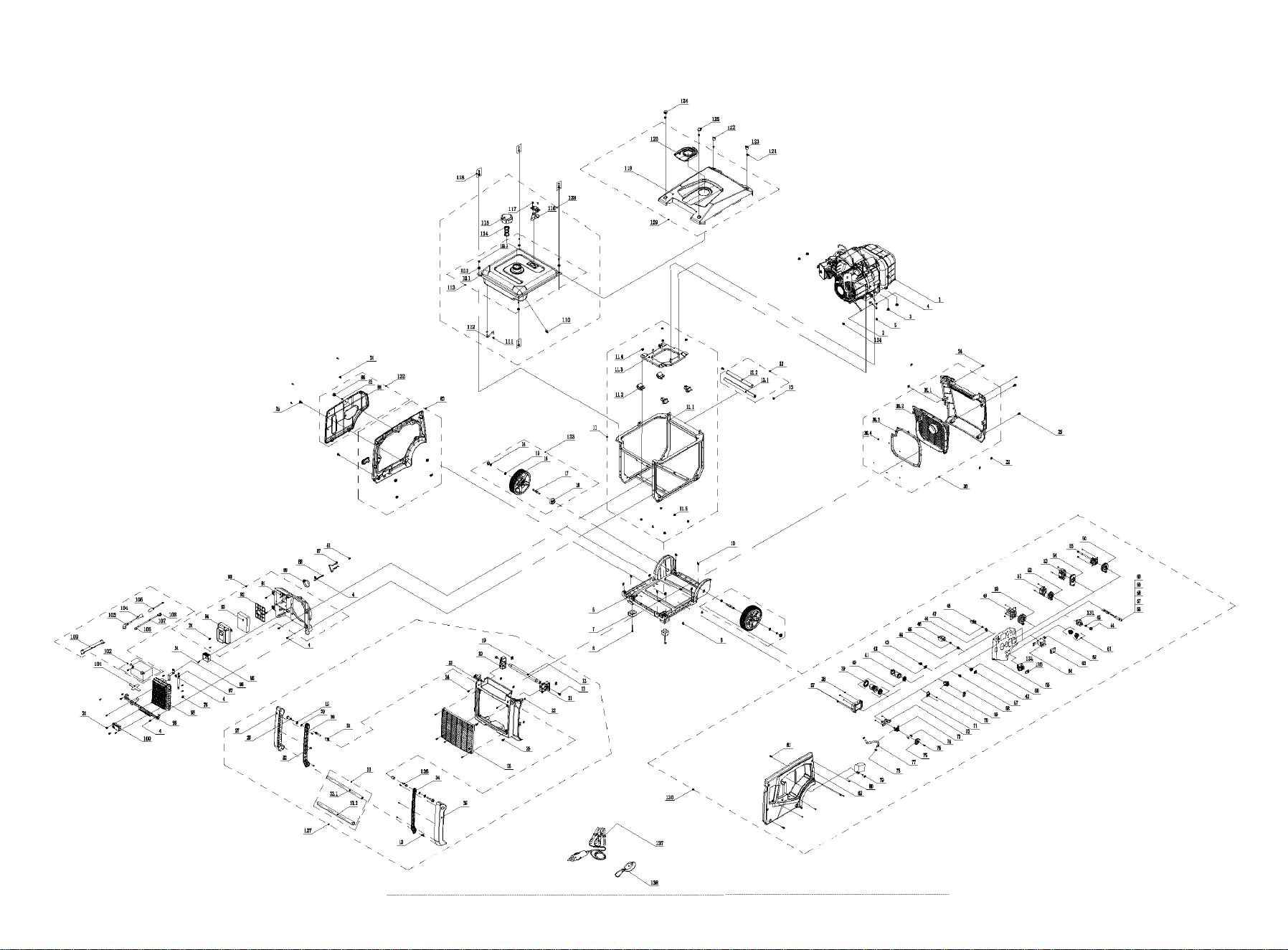

W06383 PARTS DIAGRAM
English Customer Service: 1-844-FIRMAN1
35
l
I
l_
I
)
<
"'
/
/
/
/
'-
'-
~
----
'-
/
/ /
8&.J
I
SI
~
I • .
.....-
l · .
,,, ,,,
_
~
/'-:_
/ ~
__,,
/ .
/ .
/ "
,,,,✓
~-
~
/ 0
J'
oiU,;
o· /
"°
II
/ 0
/ /
II
tl a U
/ .
'v"
Sl'3
~
/

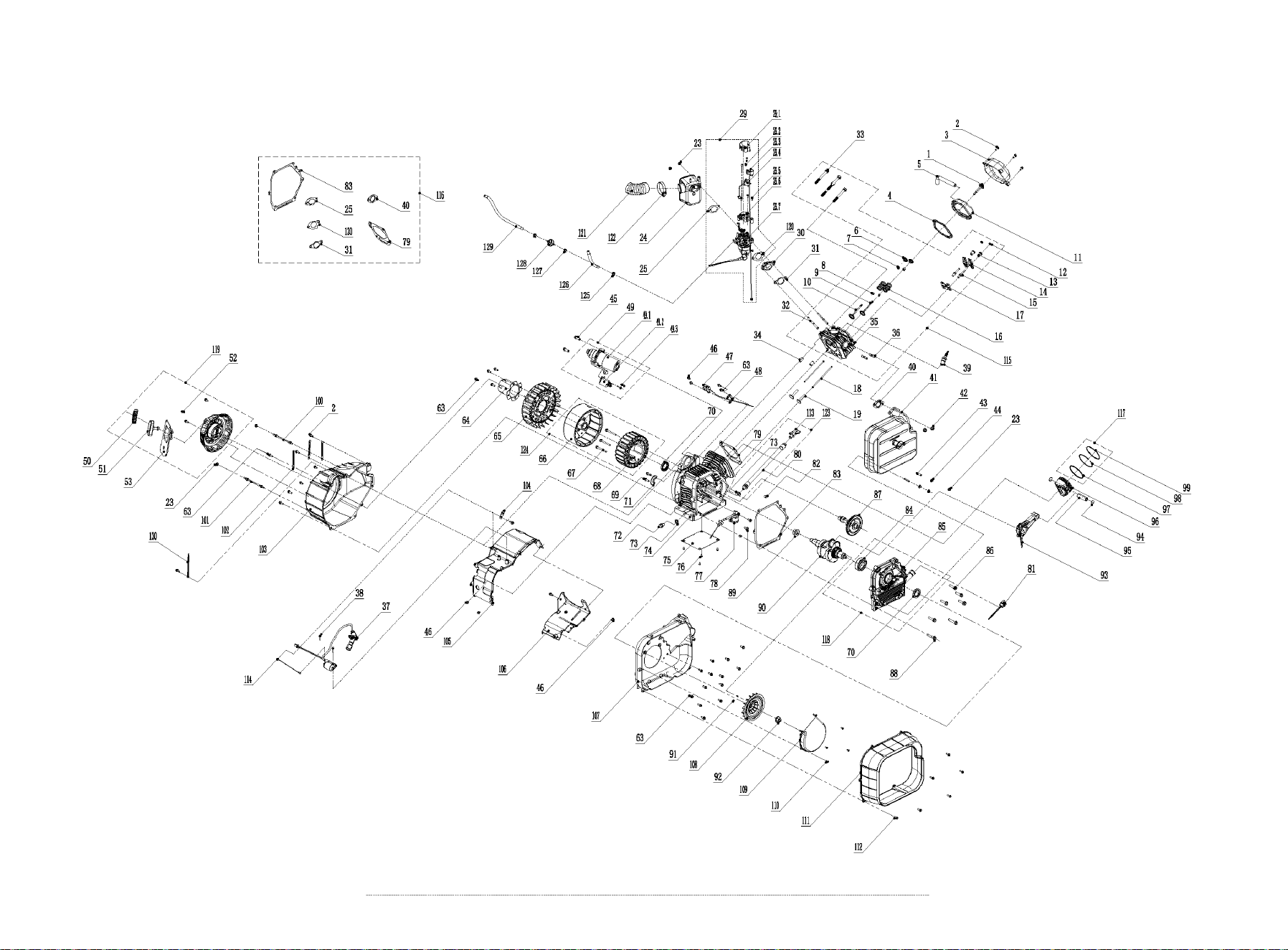

322cc ENGINE PARTS DIAGRAM
36
English Customer Service: 1-844-FIRMAN1
29
,-~----
1
I
83
!~
:
~
I
:
~
I
L
____
_
/
/,
/
'38 /
/
37
/ •
/
,'
//
46
105
/ /
/
111
/
100
/
Ill
PARTS DIAGRAMS - PARTS LISTS - WIRING DIAGRAM
37
English Customer Service: 1-844-FIRMAN1
W06383 Inverter Generator
NO.
Part
Number
Description Qty.
36.4 355718335 Spring, Leaf 7
37 355428304 Multi-Meter 1
38 336718324 Nut M4 22
39 355718325 Receptacle, USB-C 1
40 336713674 12V DC Receptacle Cover 1
41 317713565 Receptacle, 12V DC 1
42 316735503 Cover, Switch 2
43 330713629 Switch 1
44 336755005
Cover, 20A Push Button Breaker
3
45 336457020 Nut M11×1 2
46 336713585
Breaker, Push Button AC 20A
1
47 333728300 Circuit Breaker Nut 1
48 329753003
D.C 10A Breaker, Push Button
1
49 380713518 Receptacle, 14-50R 1
50 330713601
Receptacle Cover,
TT-30R/14-50R
2
51 336713601 Receptacle L14-30R 1
52 336713573
Receptacle Cover, L5-30R/L14-30R
1
53 357713588
Receptacle, 5-20R 120V 20A GFCI
1
54 357713541 Cover, 5-20R GFCI 1
55 336713584 Receptacle, TT-30R 1
56 357713542 Flange Bolt M6 × 22 1
57 380713515 Nut M6 2
58 336713512 Lock Washer Ø6 2
59 336713513 Lock Washer Ø6 2
60 336713516
External Teeth Lock Washer Ø6
1
61 355718324 Receptacle, Parallel 1
62 336713569
Screw & Washer Assy. M4 x 8
4
63 393725501 Circuit Breaker Cover 1
64 380713526
Breaker, 30A Double-Pole Circuit
1
65 355718323 Control Panel 1
66 317718305 Switch, ECO 1
67 336755002 CO Indicator Light 1
68 340725503 Switch Cover 1
69 399755662 Switch, Electric Start 1
70 336718369 Flange Bolt M4 x 14 2
71 330728301 Remote Holder 1
72 355718321 Stents, Fuel Valve 1
73 330713577 Fuel Valve 1
74 336718364
Screw M5×20
2
75 355728325 Fuel Valve Knob 1
76 336718383
Screw & Washer Assy. M4 x 14
8
77 355728324
Fuel Hose, Fuel Tank To Fuel Valve
1
78 330713508 Clip Ø10.5 x 8 2
79 336718364 Screw M5 x 20 1
80 355458302 Charging Module 1
81 355718330 Screw M6 x 12 2
82 355728323 Front Cover 1
83 355728310 Panel, Rear 1
NO.
Part
Number
Description Qty.
1
355468300
Engine Subassy. 1
2 355718300 Ground Wire 1
3 357713531 Nut M10 4
4 336718301 Flange Bolt M6×12 16
5 336713516
External Teeth Lock Washer Ø6
1
6 355728300 Base Assy. 1
7 355728301 Base Support 2
8 355718301 Flange Bolt M6×55 2
9 336718302 Flange Bolt M6x12 4
10 333717014 Nut M6 8
11 355418300 Frame 1
11.1 355418301 Frame 1
11.2 355428300 Isolator 4
11.3 355418302 Base Bracket 1
11.4 336718315 Nut M8 8
11.5 355718306 Bolt M5 2
12 355418303 Upper Handle Assy. 2
12.1 355718303 Upper Handle 2
12.2 355728302 Cover, Upper Handle 2
13 336713006 Flange Bolt M8×20 6
14 330713584 Retaing Ring Ø12 2
15 330713585 Washer Ø12 4
16 355728326 Wheel 2
17 355718328 Axle 2
18 355718424 Nut M10×1.25 2
19 336718338 Flange Bolt M6×12 4
20 355718316 Left Bracket, Handle 1
21 355718317 Right Bracket, Handle 1
22 317713524 Cage Nut M5 8
23 355728317 Left Panel Assy. 1
24 336713538
Screw & Washer Assy. M5×14
29
25 355718417 Bolt M6×20 8
26 355728315 Panel, Maintenance 1
27 355728313 Left Handle cover plate 1
28 355718311 Handle Bolt 2
29 355718312 Washer Ø23.4×Ø13.1×1 2
30 355723002 Left Handle Support 1
31 355728314 Bushing 2
32 355718318 Screw M5×14 6
33 355418305 Lower Handle Assy. 1
33.1 355718315 Lower Handle 1
33.2 355728316 Cover, Lower Handle 1
34 355723003 Right Handle Support 1
35 355728318 Right Handle Cover Plate 1
36 355428301 Right Cover Assy. 1
36.1 355428305 Cover,Right Side 1
36.
2
35
5728328 Right Cover, Mufer 1
36.
3
35
5728329 Rubber Seal Sleeve 1
PARTS DIAGRAMS - PARTS LISTS - WIRING DIAGRAM
38
English Customer Service: 1-844-FIRMAN1
NO.
Part
Number
Description Qty.
123 355728307 Plug, Rubber 1
124 355728308 Plug, Rubber 1
125 355728309 Plug, Rubber 1
126 355718425 Dowel Pin 2
127 355428313 Left Cover Assy. 1
128 355418327 Fuel Tank Insulation 1
129 355428318 Upper Cover Assy. 1
130 355418335 Control Panel Assy. 1
131 336713586 Circuit Breaker, 30A 1
132 355428315
Maintenance Window
1
133 355428316 Wheel Assy. 2
134 333457016 Switch, Choke 1
135 336713600 120V/240V Switch 1
136 340725503 Switch Cover 1
137 320755504 12V DC Charging Cable 1
138 336713642 Remote Control 1
NO.
Part
Number
Description Qty.
84 355728311 Insulation, Rear Panel 1
85 355718308
Washer, Maintenance Panel Bolt
1
86 355718307 Rear Cover Knob 1
87 355718329 Hose Clamp 1
88 317713577 Clip 1
89 355718320 Clamp 1
90 355728352
Air Filter Assy.
1
91 355728322 Cover, Left 1
92 355728321
Air Cleaner Element Supporter
1
93 355728320 Element, Air Cleaner 1
94 355728319 Case, Air Cleaner 1
95 355458303 DC Module 1
96 355718310 Clip, ECM Fastening 1
97 355718384 Ground Wire 1
98 355458304 Inverter 1
99 355718309 Bracket, ECM 1
100 355428303 CO Module 1
101 355728312 Pad, Battery 1
102 355458305 Battery, 1.6Ah 1
103 357713571 Black Battery Boot 1
104 336713692
Battery Cable, Negative, Male
1
105 355718416
Battery Cable, Negative, Female
1
106 357713570 Red Battery Boot 1
107 355718383 Red Cable, Battery Boot 1
108 336713611 Battery Boot 1
109 355728356 Fastener, Battery 1
110 360718306 Fuel Tank Fitting 1
111 317713553 Clamp Ø8 x 6 2
112 355728303 Hose 1
113 355418304 Fuel Tank Assy. 1
113.1 355418326 Fuel Tank 1
113.2 336713542 Grommet, Fuel Tank 4
113.3 357713600 Bushing 4
114 333427007 Fuel Filter, Wire Mesh 1
115 330713500 Fuel Tank Cap 1
116 355428302 Fuel Gauge Assy. 1
117 336417031
Screw M5 x 16
2
118 310715064 Bolt M6 x 20 4
119 355728305 Panel, Top 1
120 355728304
Fuel Guide Plate
1
121 355718306 Bolt M5 4
122 355728306 Plug, Rubber 1
PARTS DIAGRAMS - PARTS LISTS - WIRING DIAGRAM
39
English Customer Service: 1-844-FIRMAN1
NO.
Part
Number
Description Qty.
1 357723527 Bolt 1
2 336718338 Flange Bolt M6 x×12 8
3 355728331 OHV Cover Guard 1
4 357723525 Gasket, OHV 1
5 355728332 Hose, Breather 1
6 355718337 Retainer, Valve Spring 2
7 355728333 Oil Seal, Valve 2
8 355718338 Valve, Locking Clip 4
9 355718339 Valve, Exhaust 1
10 355718340 Valve, Intake 1
11 355728348
Cover, OHV
1
12 336723528 Nut, Valve Lock 2
13 336723529 Valve Adjusting Nut 2
14 355718411 Arm, Valve Rocker 2
15 355718395 Bolt, Rocker Arm 2
16 357723535 Spring, Valve 2
17 355728334 Guide Plate, Push Rod 1
18 355718341 Push Rod 2
19 355718342 Valve, Lifter 2
23 336723555 Nut M6 6
24 355728352 Air Filter Assy. 1
25 355728349 Gasket, Air Cleaner 1
29 355418331 Carburetor Set 1
29.1 355728335 Cover, Stepper Motor 1
29.2 330723590 Screw M3 ×6 4
29.3 355458306
Stepper Motor, Choke
1
29.4 336723603
Stepper Motor, Choke Valve
1
29.5 355718377 Screw M4×12 4
29.6 355728336 Bracket, Stepper Motor 1
29.7 355418306 Carburetor 1
30 355728337 Insulator, Carburetor 1
31 355718344 Gasket, Insulator 1
32 355718345 Stud Bolt(M6×M8×110) 2
33 355718346 Bolt 4
34 357723544 Dowel Pins Ø12 x 20 2
35 355418307 Cylinder Head 1
36 336723539
Exhaust Valve Stud Bolt M8×35
2
37 355458307 Ignition Coil 1
38 317713538 Bolt M5 x 20 2
39 330723001 Spark Plug, F7TC 1
40 393723013 Gasket, Mufer 1
FIRMAN 322cc Engine
NO.
Part
Number
Description Qty.
41 355418308 Mufer Assy. 1
42 336718318 Nut M8 2
43 330723555 Stud Bolt M6 x 32 2
44 355718413 Gasket, Mufer Bracket 2
45 355718392 Bolt M8 x 28 2
46 355718349 Bolt M6 x 8 5
47 355458308 Trigger Assy. 1
48 355718350 Bracket, Starter Solenoid 1
49 355458313 Starter Motor Assy. 1
49.1 355458317 Starter Motor 1
49.2 355458318
Starter Solenoid
1
49.3 355718423 Bolt M4×16 2
50 330723526 Recoil, Rope Handle 1
51 355428307 Handle, Recoil 1
52 355718351 Bolt M6×10 3
53 355728369 Guide, Rope 1
63 312715017 Bolt M6×16 24
64 355718355 Pulley, Starter 1
65 355728339 Cooling Fan 1
66 355458310 Rotor 1
67 336718384 Bolt M6 x 60 3
68 355458311 Stator 1
69 312715059 Bolt M6×20 2
70 355728341 Seal, oil 2
71 355728340 Guard,Harness 1
72 380717007 Oil Drain Bolt M12×1.25×15 1
73 357723502
Oil Drainbolt Washer 12×20×2
2
74 355718358 Crankcase 1
75 355718359 Shield, Crankcase Bottom 1
76 336713546 Screw M5×10 4
77 355728351 Sensor, Engine Oil 1
78 336723526 Flange Bolt M6×15 2
79 355718357 Gasket, Cylinder Head 1
80 355428308 Quick Oil Drain 1
81 355428309 Oil Dipstick 1
82 399715765 Position Pin Ø10×12 2
83 355718362 Crankcase Gasket 1
84 355718363 Radial Ball Bearing 6206 1
85 355718360 Crankcase Cover 1
86 357713584 Flange Bolt M8 x 35 5
87 355418310 Camshaft 1
88 336713593 Flange Bolt M8×45 2
PARTS DIAGRAMS - PARTS LISTS - WIRING DIAGRAM
40
English Customer Service: 1-844-FIRMAN1
NO.
Part
Number
Description Qty.
89 357723571 Nut M16 1
90 355418311 Crankshaft 1
91 355718364 Dowel Pin Ø4×8 2
92 317723505 Nut M12 1
93 355418312 Connecting Rod 1
94 399715726 Clip, Piston Pin 2
95 355718367 Piston Pin 1
96 355718368 Piston 1
97 355718369 Ring, Piston Oil 1
98 355718370 Second Ring, Piston 1
99 355718371
First Ring , Piston
1
100 355718365 Stud Bolt 1
101 355718372 Stud Bolt 1
102 317713577 Wire clip 3
103 355728342 Cover, Fan 1
104 355718373 Lifting Lugs 1
105 355728343 Guard, Upper 1
106 355728344 Guard, Lower 1
107 355728345 Guard, Mufer, Back 1
108 355728346 Exhaust Fan 1
109 355718374 Cover, Exhaust Fan 1
110 317713516
Screw & Washer Assy. M4×14
4
111 355728347 Guard, Mufer, Front 1
112 399715657 Flange Bolt M5×16 6
113 330723604
Bolt & Seal Ring, Drain
1
114 355718394 Ground Wire 1
115 355418332 Cylinder Head Assy. 1
116 355418321 Gasket Set 1
117 355418322 Piston Ring Set 1
118 355418323 Crankcase Cover Assy. 1
119 355418333 Recoil Assy. 1
120 355718343 Gasket, Carburetor 1
121 355728371 Air Duct 1
122 355718320 Clamp 1
123 355428317 Quick Oil Drain Assy. 1
124 355458319 Rotor and Stator Set 1
125 330713508 Clip Ø10.5×8 1
126 360728305 Hose, Fuel 1
127 360718305 Clamp 2
128 333727010 Fuel Filter 1
129 360728306 Hose, Fuel 1
NO.
Part
Number
Description Qty.
130 360728307 Nylon Cord 1
Parts Diagrams - Parts Lists - Wiring Diagram

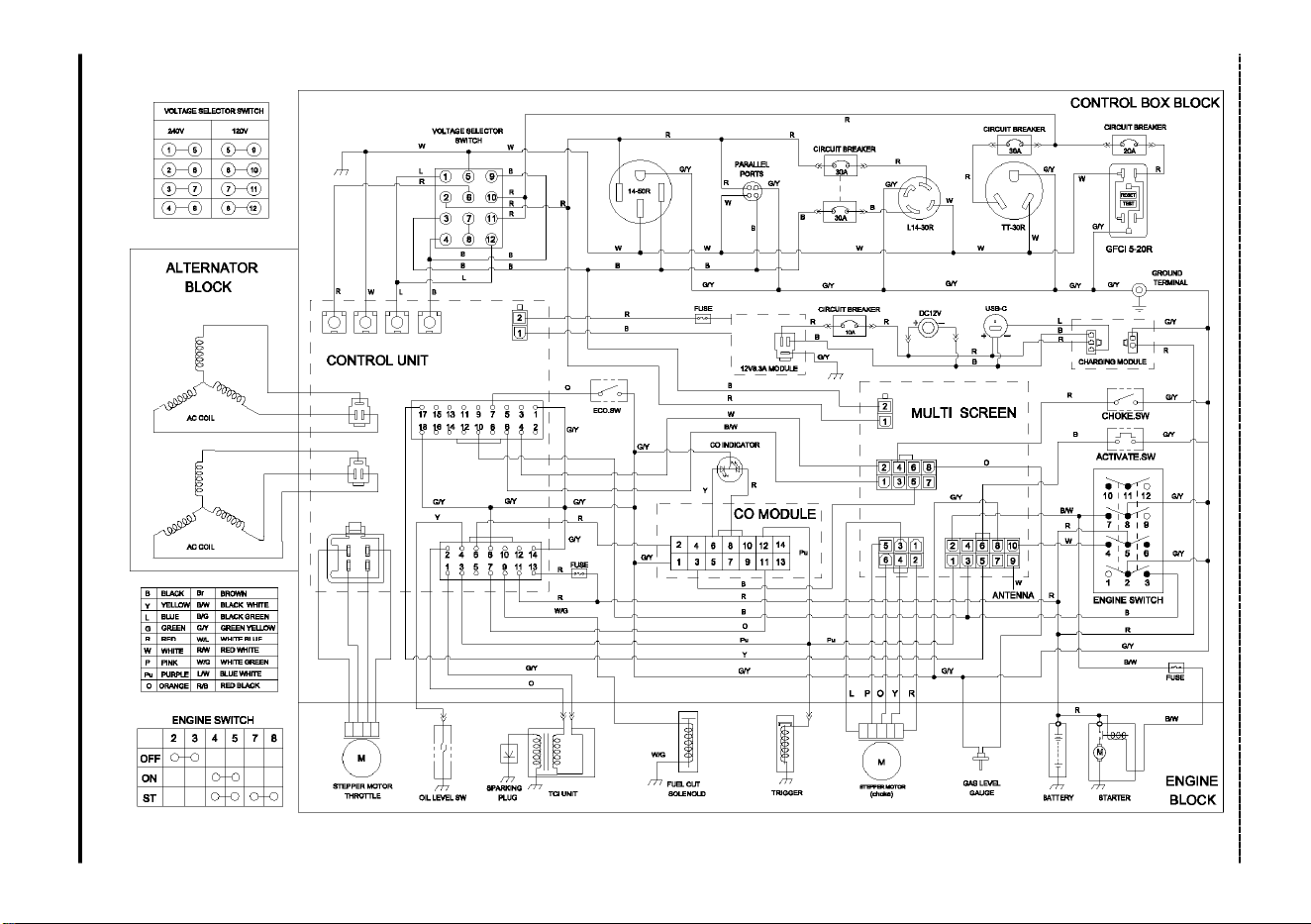

Wiring Diagram
English
41
Customer Service: 1-844-FIRMAN1
VOLTAGE
SELECTOR
SWITCH
-
""'
0---(s) (i)----(i)
(i)----(i)
0----@
@-(i)
0-@
0----(,)
©-@
ALTERNATOR
BLOCK
B I
BLACK
I
Br
I
BROWN
YELL.OWj
BIN
G I
:~N
I : I
=~~:w
0 I
ORANGE
I
RIB
I
RED
BLACK
ENGINE SWITCH
213141517
OFF
ON
ST
CONTROL UNIT
0
VOLTAGE
SELECTOR
sw,,c,
W
1Ju
OIL
LEVEL
f1W
PLUG
TCI UNIT
r
L
Pl
01
YI
R
0
(chDkll)
""'"""-
GAUOS
CONTROL BOX BLOCK
ENGINE
BLOCK
English Customer Service: 1-844-FIRMAN1
42
Service – Warranty
FIRMAN Three (3) Year Limited Warranty
Do Not Return the Unit to the Place of Purchase
Contact the FIRMAN Service Center and FIRMAN will troubleshoot any issue via phone or e-mail.
If the problem is not corrected by this method, FIRMAN will, at its option, authorize evaluation,
repair or replacement of the defective part or component at a FIRMAN Service Center. FIRMAN
will provide you with a case number for warranty service. Please keep it for future reference.
Repairs or replacements without prior authorization, or at an unauthorized repair facility, will
not be covered by this warranty.
Normal Wear
Your product needs periodic parts and service to perform well. This warranty does not cover
repair when normal use has exhausted the life of a part or the equipment as a whole.
FIRMAN warrants to the original purchaser that the mechanical and electrical components will be free of
defects in material and workmanship for a period of one(1) year(parts and labor) and three(3) years (parts
and technical support) from the original date of purchase 90 days [parts and labor] and 180 days [parts]
for commercial & industrial use. Transportation charges on product submitted for repair or replacement
under this warranty are the sole responsibility of the purchaser . This warranty only applies to the original
purchaser and is not transferable.
Repair/Replacement Warranty
Warranty Exclusions
This warranty does not cover the following repairs and equipment.
FOR SERVICE INFORMATION CONTACT FIRMAN PRODUCT SERVICE DEPARTMENT AT 1-844-347-6261
or at www.firmanpowerequipment.com to obtain warranty service information or to order
replacementparts or accessories.
HOW TO ORDER REPLACEMENT PARTS
Even quality-built equipment such as this electric generator may need occasional
replacement parts to maintain it in good condition over the years. To order replacement parts,
please give the following information:
Model No. Rev. Level and Serial No. found on the Data Decal.
Parts number or numbers as shown in the Parts List section.
A brief description of the trouble with the generator.
Warranty Qualifications
Register your product using the QR code provided or at www.firmanpowerequipment.com.
FIRMAN will also register the warranty upon receipt of your Warranty Registration Card and a
copy of your sales receipt from one of FIRMAN’s retail locations as proof of purchase. Please
submit your warranty registration and your proof of purchase within ten(10) days of the date of
purchase.
•
•
•
English Customer Service: 1-844-FIRMAN1
43
Service – Warranty
Limits of Implied Warranty and Consequential Damage
FIRMAN disclaims any obligation to cover any loss of time, use of this product, freight, or any
incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN
LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANT
ABLILITY OR FITNESS FOR A PARTICULAR PURPOSE.
A unit provided as an exchange will be subject to the warranty of the original unit. The length of
the warranty governing the exchanged unit will remain calculated by reference to the purchase
date of the original unit.
This warranty gives you certain legal rights which may change from state to state. Your state may
also have other rights you may be entitled to that are not listed within this warranty.
Contact Information
You may contact FIRMAN at:
Address
Firman Power Equipment Inc.
Attn: Customer Service
8644 W. Ludlow Dr.
Peoria, AZ 85381
www.firmanpowerequipment.com
We are FIRMAN POWER - And we are here for you.
Installation, Use and Maintenance
This warranty will not apply to parts and/or labor if your product is deemed to have been misused,
neglected, involved in an accident, abused, loaded beyond the generator's limits, modified,
installed improperly or connected incorrectly to any electrical component. Normal maintenance is
not covered by this warranty.
Other Exclusions
This warranty excludes:
– cosmetic defects such as paint, decals, etc.
– wear items
– accessory parts
– failures due to acts of God and other force majeure events beyond the manufacturer’s control
– problems caused by parts that are not original FIRMAN parts
– units used for prime power in place of existing utility power where utility is present or in place
of utility power where utility power service does not normally exist.
English Customer Service: 1-844-FIRMAN1
44
Service – Warranty
FIRMAN POWER EQUIPMENT INC.
Emission Control System Warranty
CALIFORNIA AND FEDERAL
EXHAUST AND EVAPORATIVE EMISSIONS CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The
California
Air
Resources
Board,
US
Environmental
Protection
Agency
(“US
EPA”)
and
FIRMAN
POWER
EQUIPMENT
INC.(FIRMAN)
are
pleased
to
explain
the
emissions
control
systems
warranty
on
your
2026-2027
or
later
Small
Off-Road
Engine
(“SORE”)
and
engine
powered
equipment.
In
California,
new
equipment
that
use
small
off-road
engines
must
be
designed,
built
and
equipped
to
meet
the
State’s
stringent
anti-smog
standards.
FIRMAN
must
warrant
the
emissions
control
systems
on
your
SORE
and
engine
powered
equipment
for
the
periods
of
time
listed
below
provided
there
has
been
no
abuse,
neglect or improper maintenance of your small off-road engine or equipment leading to the failure of the emissions control system.
Your
emissions
control
system
may
include
parts
such
as
the
carburetor
or
fuel-injection
system,
the
ignition
system,
catalytic
converter,
fuel
tanks,
fuel
lines
(for
liquid
fuel
and
fuel
vapors),
fuel
caps,
valves,
canisters,
filters,
clamps
and
other
associated
components.
Also
included
may
be
hoses,
belts,
connectors,
and
other
emission-related
assemblies.
Where
a
warrantable
condition
exists,
FIRMAN
will
repair
your
SORE
and
engine
powered
equipment
at
no
cost
to
you
including
diagnosis,
parts
and
labor.
MANUFACTURER'S WARRANTY COVERAGE:
The exhaust and evaporative emissions control system on your small off-road engine
and engine powered
equipment
is warranted
for two years. If any emissions-related part on your small off-road engine
and engine powered
equipment
is defective, the part will
be repaired or replaced by FIRMAN.
OWNER'S WARRANTY RESPONSIBILITIES:
As the SORE
and engine powered
equipment
owner, you are responsible for the performance of the required maintenance
listed in your operator's manual. FIRMAN recommends that you retain all receipts covering maintenance on your SORE
and
engine powered
equipment, but FIRMAN cannot deny warranty coverage solely for the lack of receipts or for your failure to
ensure the performance of all scheduled maintenance.
As the SORE
and engine powered
equipment
owner, you should however be aware that FIRMAN may deny you warranty
coverage if your small off-road engine
or engine powered
equipment
or a part has failed due to abuse, neglect, or improper
maintenance or unapproved modifications.
You are responsible for presenting your small off-road engine
and engine powered
equipment
to a FIRMAN distribution center
or service center as soon as the problem exists. The warranty repairs shall be completed in a reasonable amount of time,
not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact
FIRMAN at 1-844-347-6261.
FIRMAN Emission Control Defects Warranty Provisions
The
warranty
period
begins
on
the
date
the
engine/equipment
is
delivered
to
an
ultimate
purchaser.
FIRMAN
warrants
to
the
ultimate
purchaser
and
each
subsequent
purchaser
that
the
engine
is:
Designed, built, and equipped so as to conform with all applicable regulations adopted by the Air Resources Board and US EPA;
and Free from defects in materials and workmanship that cause the failure of a warranted part to be identical in all material
respects to the part as described in the engine manufacturers application for certification.
The warranty on emissions-related parts is as follows:
(1) Any warranted part that is not scheduled for replacement as required maintenance in the owner's manual supplied, is
warranted for the warranty period stated above. If any such part fails during the period of warranty coverage, the part will be
repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced under the warranty will be
warranted for the remaining warranty period.
(2) Any warranted part that is scheduled only for regular inspection in the owner's manual supplied, is warranted for the warranty
period stated above. Any such part repaired or replaced under warranty will be warranted for the remaining warranty period.
(3) Any warranted part that is scheduled for replacement as required maintenance in the owner's manual supplied, is warranted
for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled
replacement, the part will be repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced
under warranty will be warranted for the remainder of the period prior to the first scheduled replacement point for the part.
(4) Repair or replacement of any warranted part under the warranty must be performed at no charge to the owner at a warranty
station.
(5) Notwithstanding the provisions of Subsection (4) above, warranty services or repairs must be provided by FIRMAN that
are franchised to service the subject engines.
(6) The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective,
provided that such diagnostic work is performed at a warranty station.
(7) FIRMAN is liable for damages to other engine components proximately caused by a failure under warranty of any
warranted part.
English Customer Service: 1-844-FIRMAN1
PARTS COVERED BY WARRANTY
Limitations
Listed below are the parts (if equipped) covered by the Federal and California Emission Control System Warranty.
This Emission Control System Warranty shall not cover any of the following:
(a) Consequential damages such as loss of time, inconvenience, loss of use of the engine or equipment, etc.
(b) Diagnosis and inspection fees that do not result in eligible warranty service being performed.
1. Ignition system including:
- Spark plug
- Ignition coil
2. Fuel metering system:
- Fuel tank
- Fuel cap
- Fuel lines( for liquid fuel and fuel vapors) and
related fittings/clamps
- Fuel regulator, carburetor and internal parts.
3. Catalytic muffler assembly including:
- Exhaust manifold
- Catalytic converter
- Muffler gasket
-pulse valve
4. Air induction system including:
- Intake pipe/manifold
- Air cleaner
5. Crankcase breather assembly including:
- Breather connection tube
6. Fuel tank evaporative emission control system including:
- Purge valves
- Carbon canister
- Vapor hoses and fitting/clamps
FIRMAN POWER EQUIPMENT INC.
www.firmanpowerequipment.com
(8) Throughout the emissions warranty period defined in Subsection (b)(2), FIRMAN will maintain a supply of warranted
parts sufficient to meet the expected demand for such parts.
(9) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without
charge to the owner. Such use will not reduce the warranty obligations of the manufacturer.
(10) Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non-exempted
add-on or modified parts by the ultimate purchaser will be grounds for disallowing a warranty claim.
The manufacturer will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified
part.
45
Service – Warranty
FIRMAN POWER EQUIPMENT INC.
8644 W. LUDLOW DR.
PEORIA, AZ 85381
1-844-347-6261
WWW.FIRMANPOWEREQUIPMENT.COM
All rights reserved. Any reprinting or unauthorized use
without the written permission is expressly prohibited.
P/N:363748303
Rev:01
FOLLOW
US
ON
SOCIAL
MEDIA
USE
#EVERYCENERATORTELLSASTORY
FOR
YOUR
CHANCE
TO
WIN
FIRMAN
SWAC
l!11iD
■
