54-49-0281
SERVICE PARTS
BULLETIN NO.
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

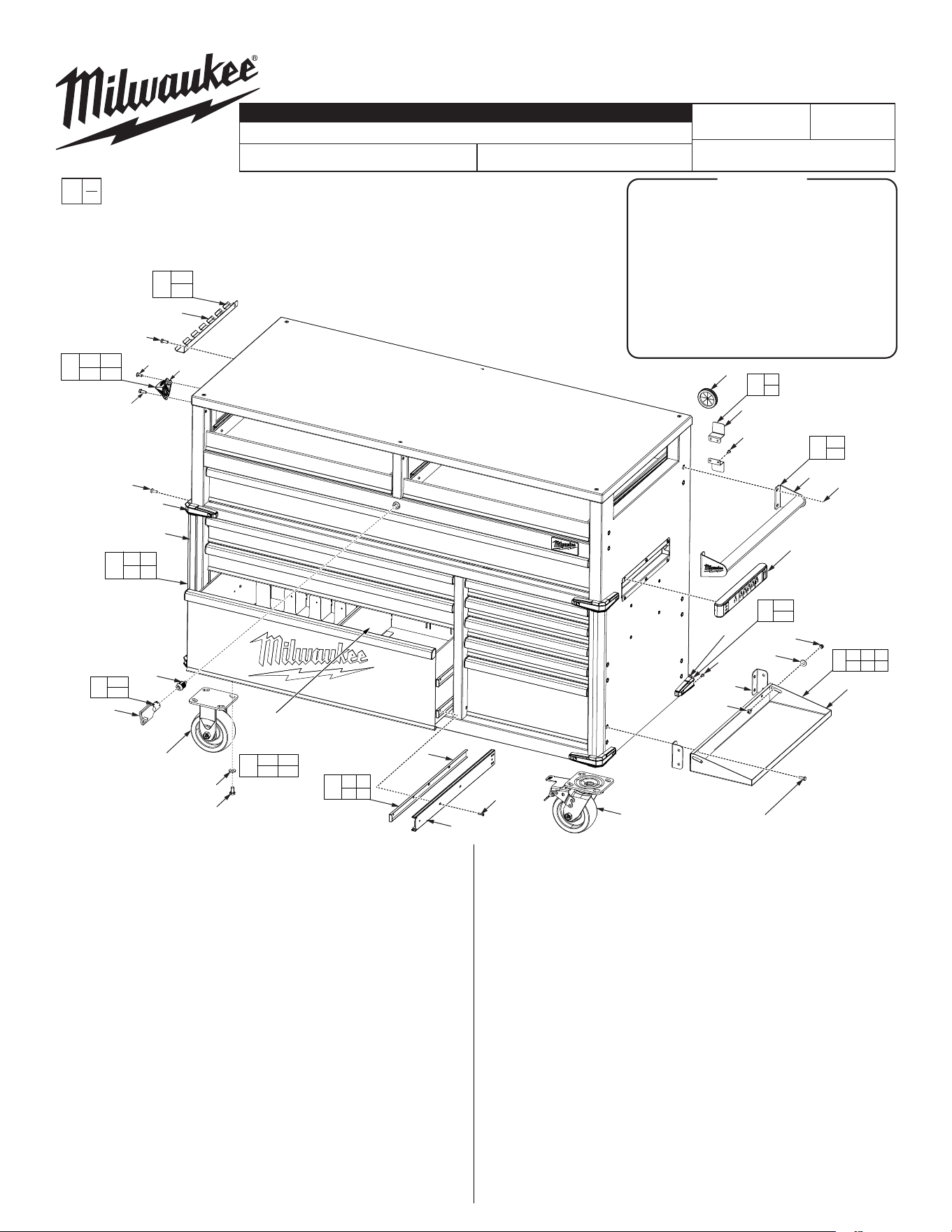

Drwg. 1
EXAMPLE:
Component Parts (Small #) Are In-
cluded When Ordering The Assembly
(Large #).
0
00
48-22-8553
52" HIGH CAPACITY MOBILE BENCH
June 2019
REVISED BULLETIN
WIRING INSTRUCTION
DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 22-90-0105 Cord Grommet (Set of 4) (1)
2 14-46-1645 Cord Storage Bracket Kit (1)
3 --------------- Cord Storage Bracket (2)
4 --------------- Screw M4 x 12L (4)
5 14-46-1648 Side Handle Kit (1)
5a --------------- Side Handle (1)
5b --------------- Bolt M6 x 16L (4)
6 14-46-1641 Power Strip (1)
7 14-46-1651 Folding Storage Shelf Kit (1)
7a --------------- Storage Shelf (1)
7b --------------- Bolt M6 x 8L (2)
7c --------------- Storage Shelf Bracket (2)
7d --------------- Washer (2)
7e --------------- Nut M6 (2)
7f --------------- Bolt M6 x 16L (4)
8 14-46-1642 Drawer Slide Kit (Set of 2) (1)
8a --------------- Inner Drawer Slide (2)
8b --------------- Outer Drawer Slide (2)
8c --------------- 5/32" Pop Rivet (16)
9 42-38-8533 Corner Bumper Kit (Set of 4) (1)
9a --------------- Corner Bumper/Extrusion Kit (Set of 2) (1)
9b --------------- Screw M4 x 16L (8)
9c --------------- Corner Bumper (4)
10 31-21-0110 Center Divider (1)
11 14-46-1245 Caster Kit (Set of 4) (1)
11a --------------- Swivel Caster w/ Brake (2)
11b --------------- Bolt M8 x 16L (16)
11c --------------- Washer M8 (16)
L01A
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
11d --------------- Rigid Caster (2)
12 14-46-1643 Key/Lock Kit (1)
12a --------------- Key (1)
12b --------------- Lock (1)
13 14-46-1625 Tool Storage Hanger Kit (1)
13a --------------- Bolt M6 x 16L (2)
13b --------------- Tool Storage Hanger (1)
14 58-95-0180 Drawer Liner Kit (Set of 11) (Not Shown) (1)
15 12-20-0109 Service Nameplate (Not Shown) (1)
16 48-22-8599 Bottle Opener Kit (1)
16a --------------- Bottle Opener (1)
16b --------------- Screw M6 x 16L (2)
16c --------------- Screw M6 x 20L (2)
17 12-25-1814 Electrical Label (Not Shown) (1)
18 42-38-0269 Rear Bumper Kit (Set of 2) (1)
18a --------------- Rear Bumper (2)
18b --------------- Screw M4 x 16L (4)
NOTE: See page 2
for drawer slide removal
and installation.
FIG. NOTES
15,17
A clean, dry surface is essential for proper performance for any
adhesive system. The area intended for application of any adhesive
label or nameplate must be prepared by cleaning with isopropyl
alcohol. The solvent is to be applied with a clean, lint free applicator
and the surface allowed to dry before applying the label or nameplate.
1(4x)
3(2x)
4(4x)
5b(
4x)
5b
5
5a
5a
6
2
3
4
7a
7b(2x)
7c(2x)
7d(2x)
7e(2x)
8c(16x)
9c(2x)
9b(8x)
9a(4x)
8a(2x)
8b(2x)
12b
12a
11b(16x)
11c(16x)
11d(2x)
10
9a
9c
9b
12
12a
12b
13a(2x)
13b
9
16
11a(2x)
18a(2x)
18b(4x)
7f(4x)
16b(2x)
16a
16c
16a
16c
16b
8
8a
8b
8c
11
11a 11b
11c 11d
13
13b
13a
7
7a
7d
7b
7e
7c
7f
18
18a
18b
l14-46-1657
Hardware Kit
4 --------------- Screw M4 x 12L (4)
5b --------------- Bolt M6 x 16L (4)
7b --------------- Bolt M6 x 8L (2)
7d --------------- Washer (2)
7e --------------- Nut M6 (2)
7f --------------- Bolt M6 x 16L (4)
9b --------------- Screw M4 x 16L (4)
11b --------------- Bolt M8 x 18L (16)
11c --------------- Washer M8 (16)
18b --------------- Screw M4 x 16L (4)
16b --------------- Screw M6 x 16L (2)
--- --------------- Charger Mounting
Screw M4 x 12L (4)

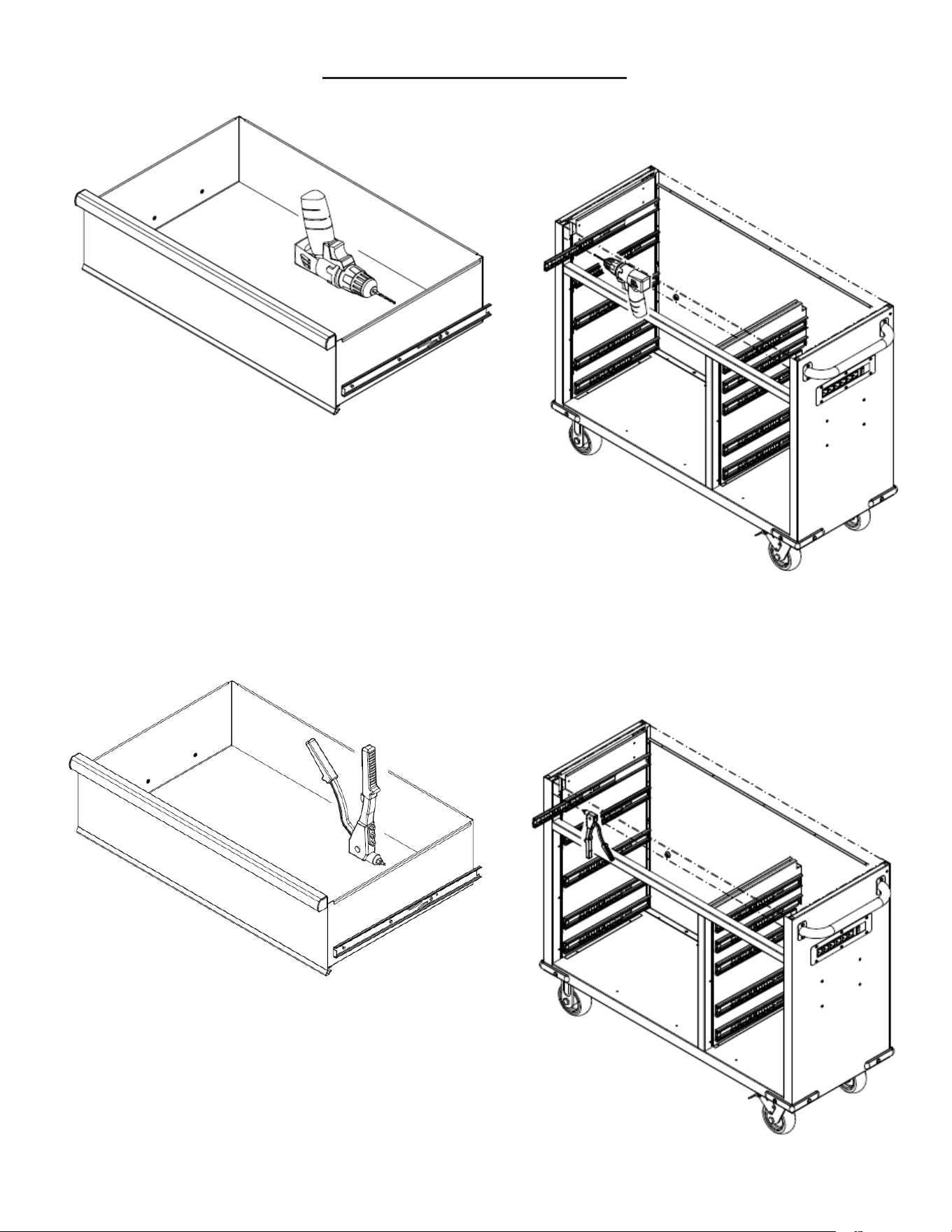

To remove drawer slide, remove rivets (15) from the inner
slide (13) and outer slide (14) by 5/32" drill bit.
Inner Slide
Outer Slide
To install drawer slide, place inner slide (13) into position and
insert rivets (15) by using a rivet gun. Repeat steps for outer
slide (14).
Outer Slide
Inner Slide
Cat. No. 48-22-8520 shown
