FDW18SAC-SS
CCD-0005579 | REV DATE: 10.14.2022
Thank you and congratulations for purchasing this Furrion® Dishwasher. Before placing your new appliance into
operation, please read these operating instructions carefully. This instruction manual contains important
information for safe use, installation and maintenance of the appliance.
P
lease keep this instruction manual in a safe place for future reference. This will ensure safe use and reduce the
risk of injury to persons. Pass it onto possible new owners of the appliance.
The manufacturer does not accept responsibility for any damages that may arise due to non-observation of
these instructions.
If you have any further questions regarding our products, please contact us at support@furrion.com
Welcome
REV DATE: 10.14.2022 | CCD-0005579
Dear Customer,
This manual contains sections of Safety Instructions,
Operating Instru ctions,Installation Instructions and
Troubleshooting Tips, etc.
The manufacturer, following a policy of constant
development and updating of the product, may
make modifications without giving prior notice.
Please carefully read this manual before using the
dishwasher to help you use and maintain the dishwasher
properly.
Keep
this manual
to
refer
to
at
a
later
date.
Pass it on to any subsequent owner of the appliance.
Review the section on Troubleshooting Tips to help
you to solve common problems by yourself .
If
you
can
not
resolv e
the
troubles
by
yourself
,
please
ask
for
the
help
of
professional
technicians.
Dishwasher Features.................................... ...2
Attention before or after loading the Dishwasher
Baskets..........................................................6

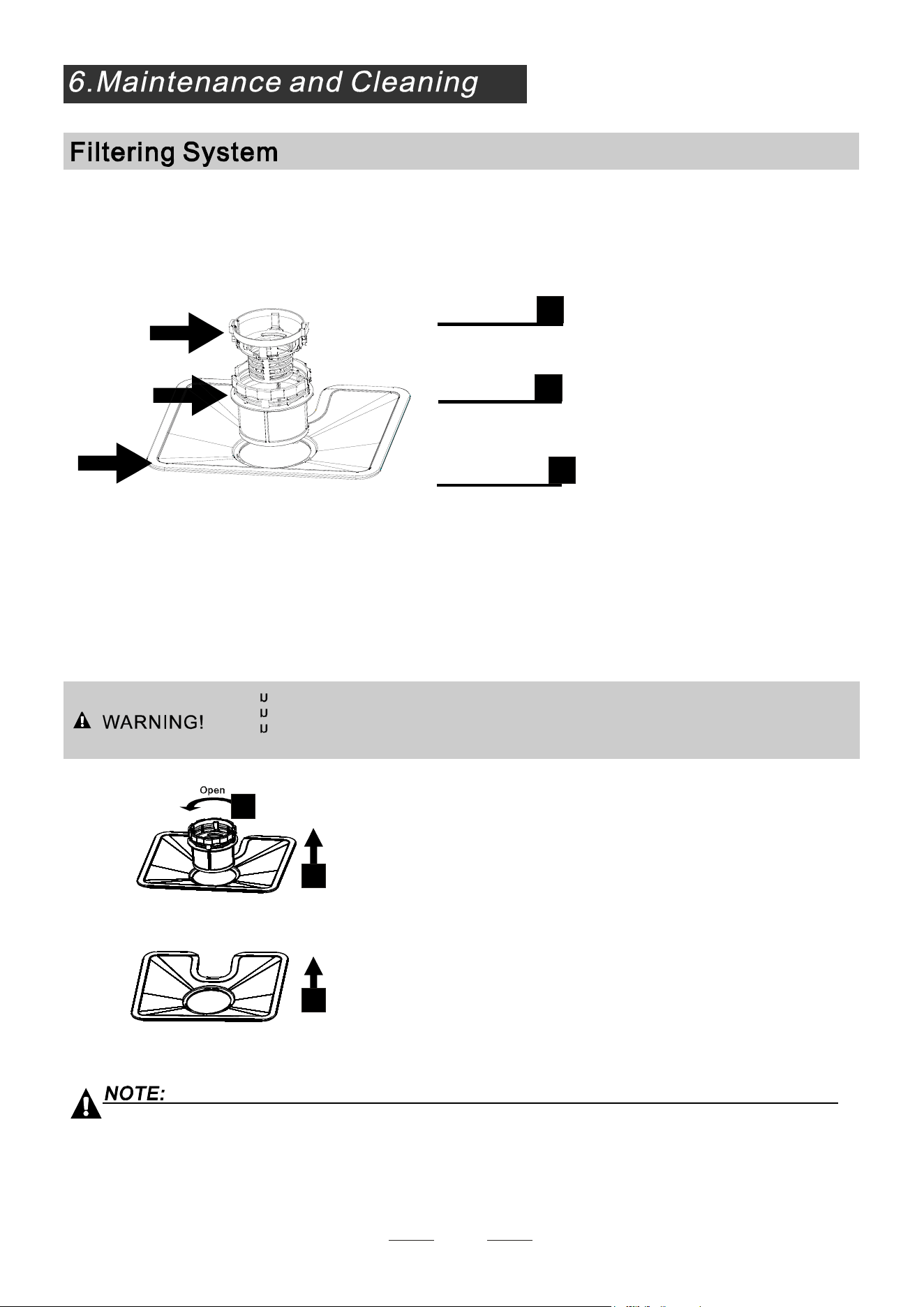

Filtering System.............................................11

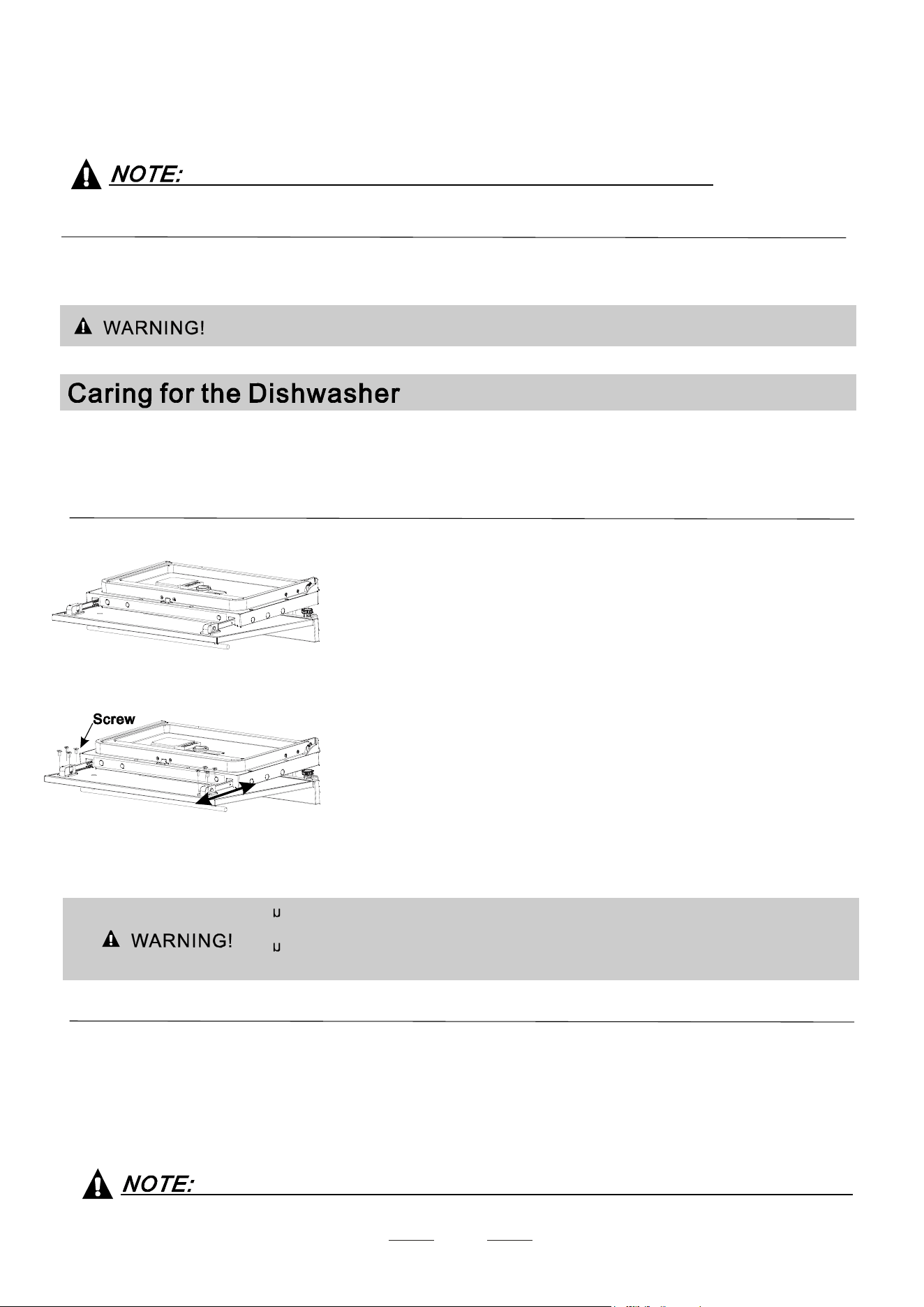

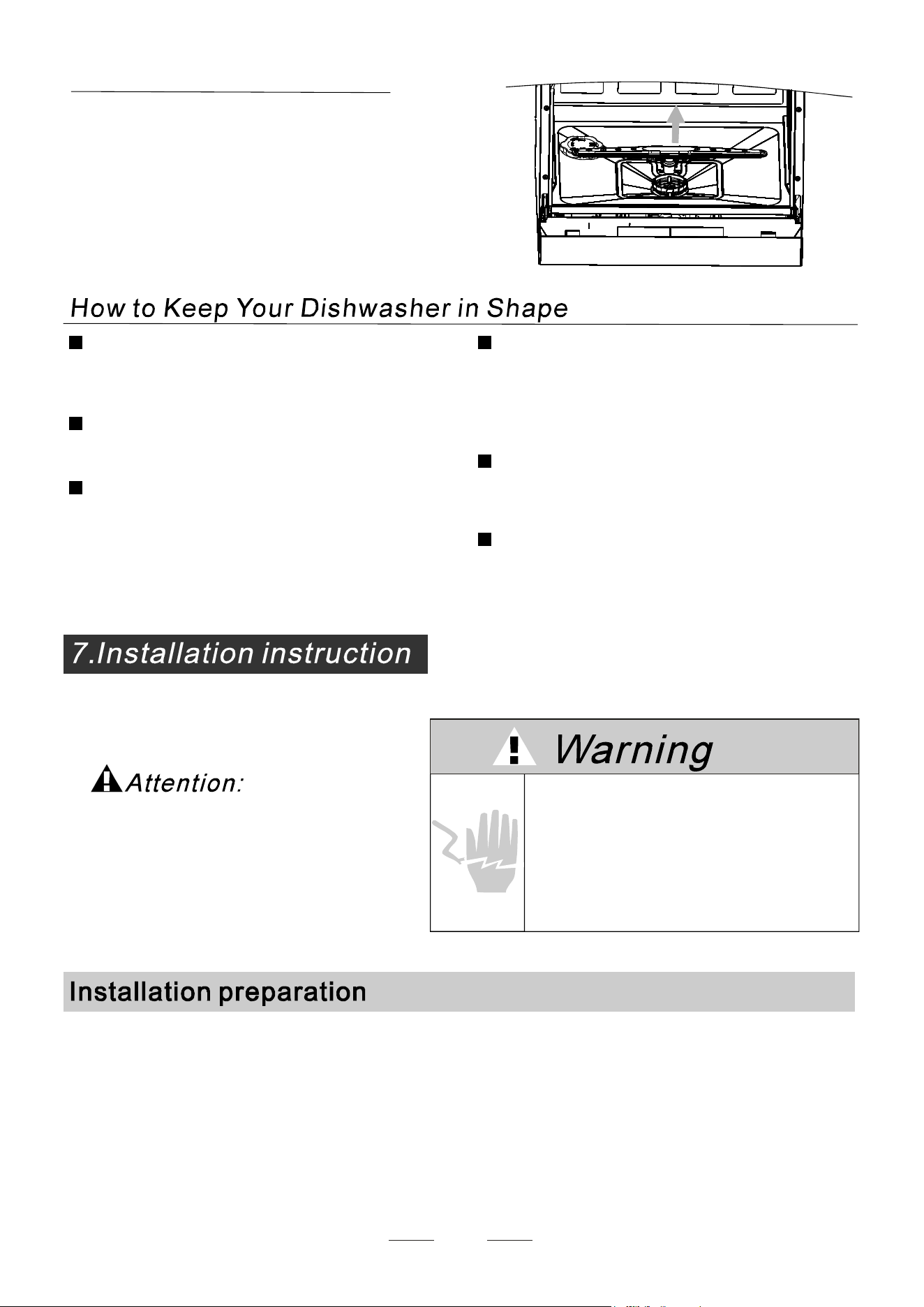

Caring for the Dishwasher..................... ..... 21.....
A Fill the Rinse Aid Dispenser.........................3.
B Function of Detergent .............................. 4,5.

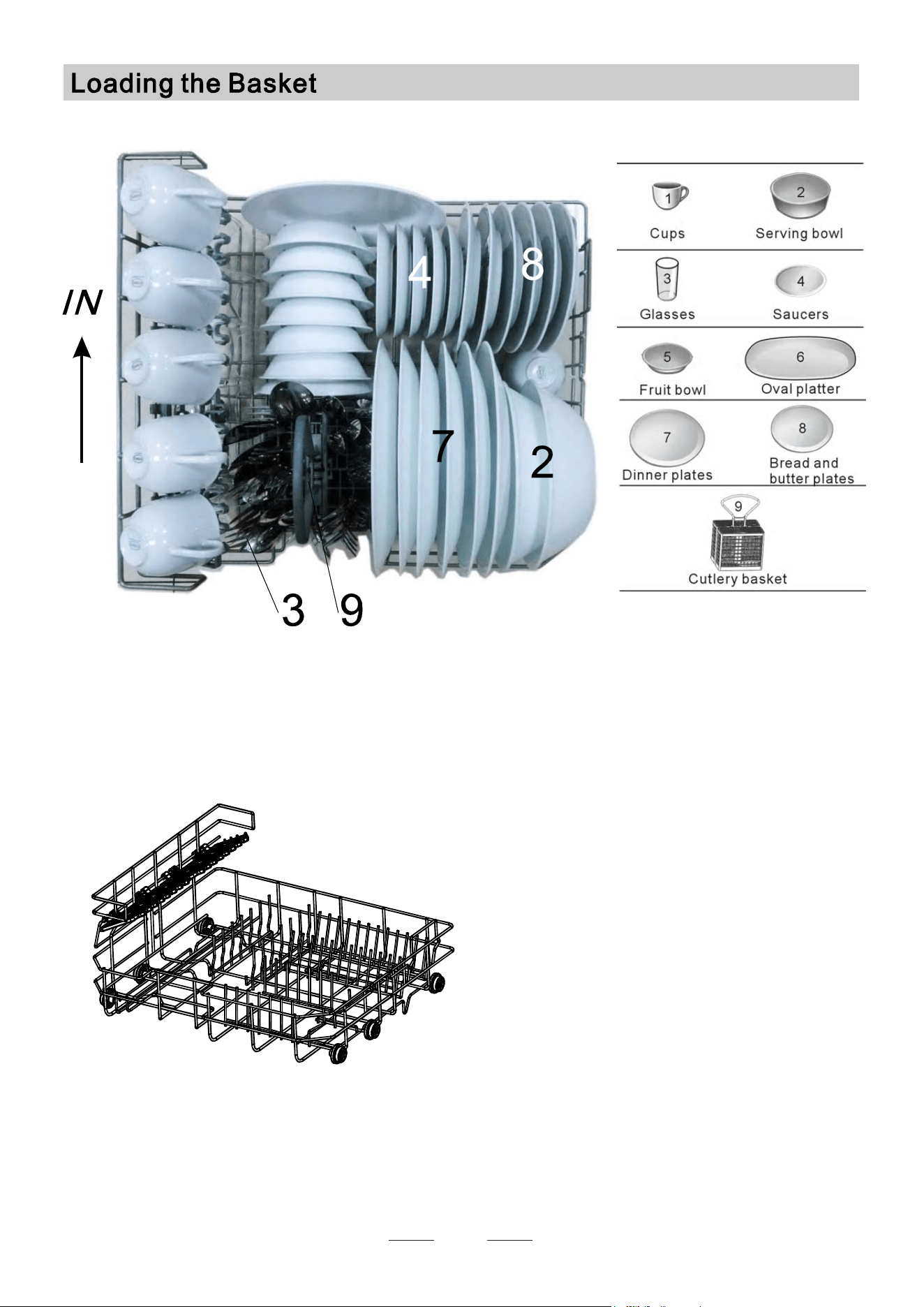

Loading the Basket...........................................7

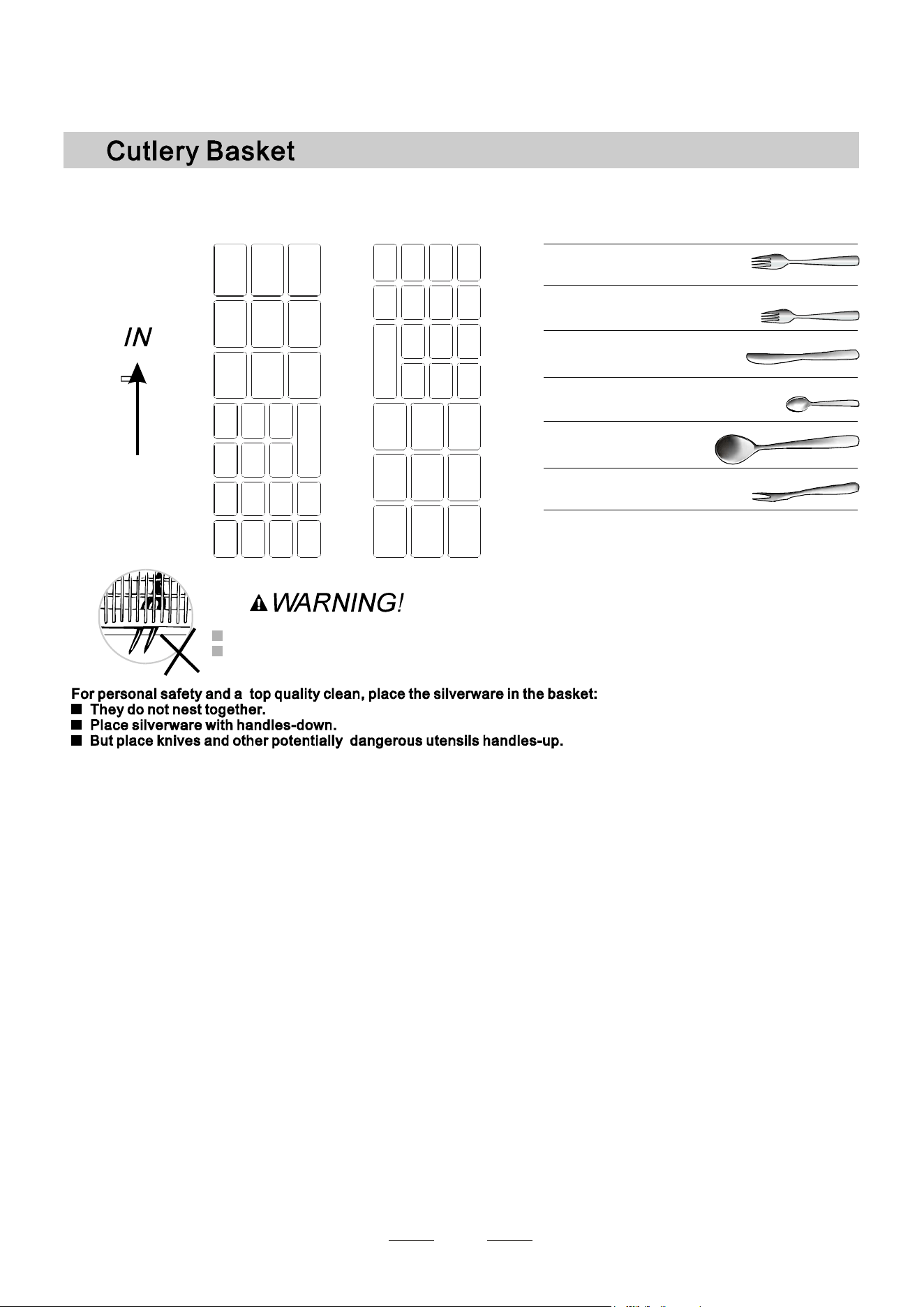

Cutlery Basket................................................8
Wash Cycle Table........................................... 9
Turning on the Appliance................... ............. 9
Change the Program.............................................10
At the End of the Wash Cycle ...........................10

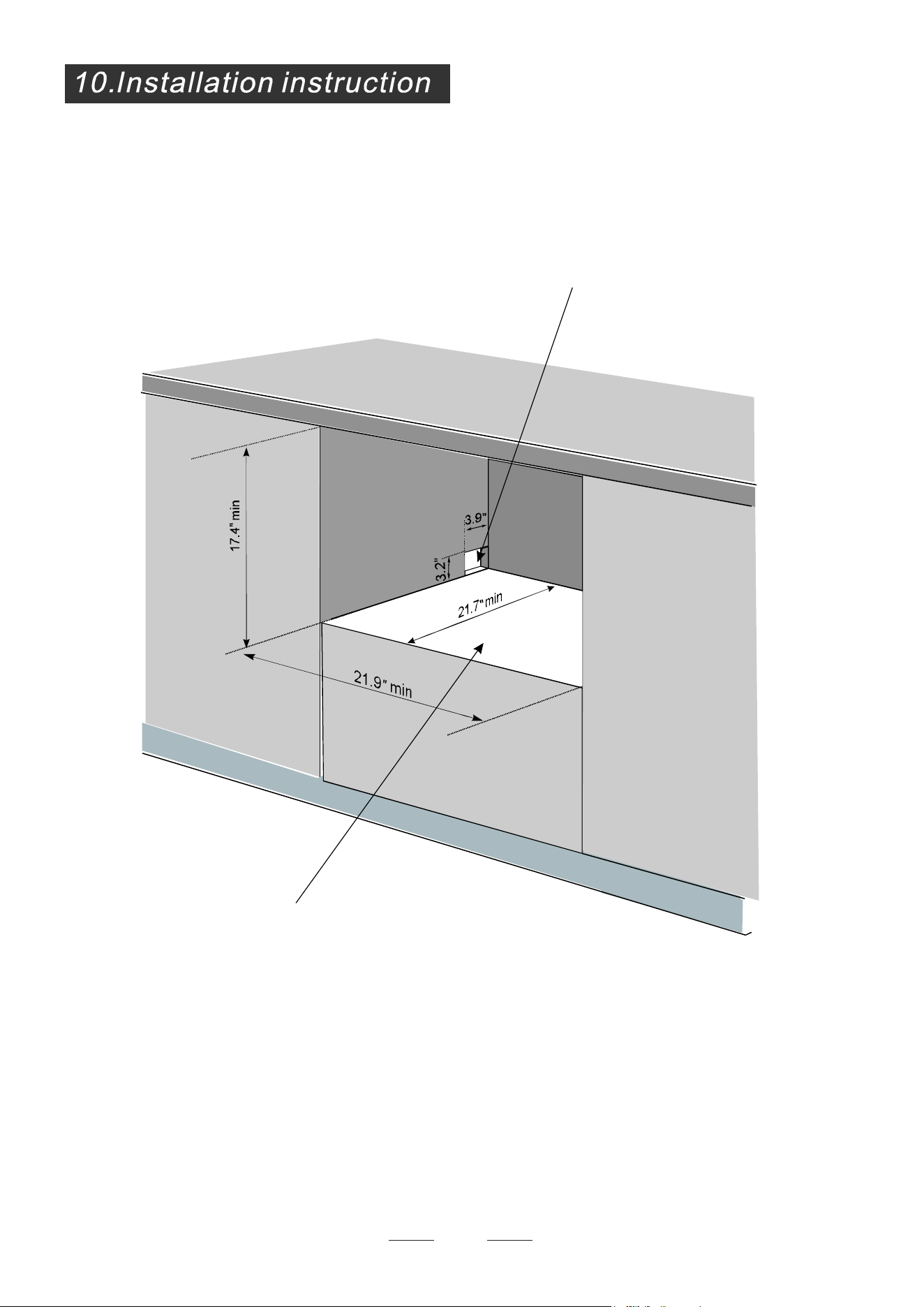

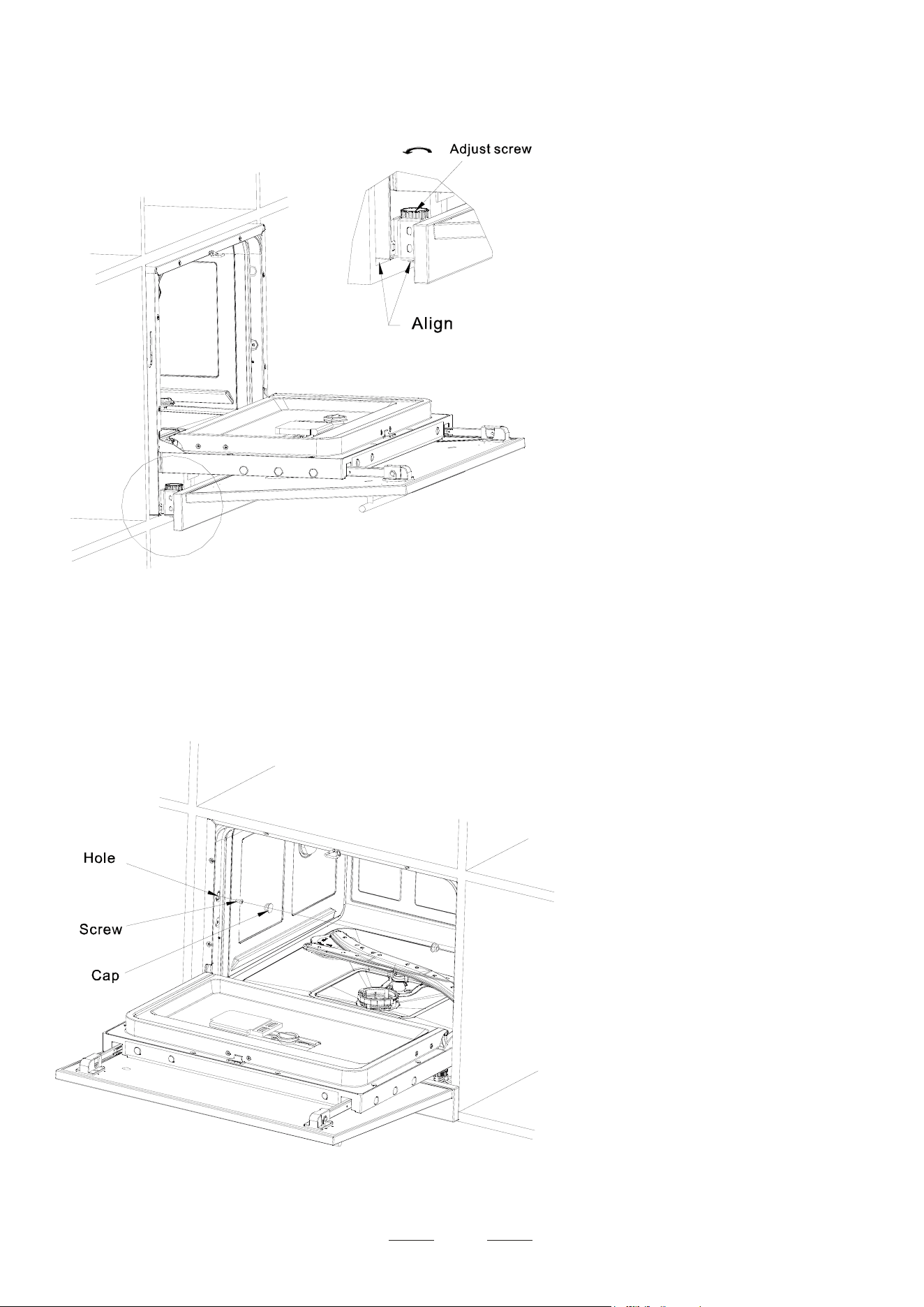

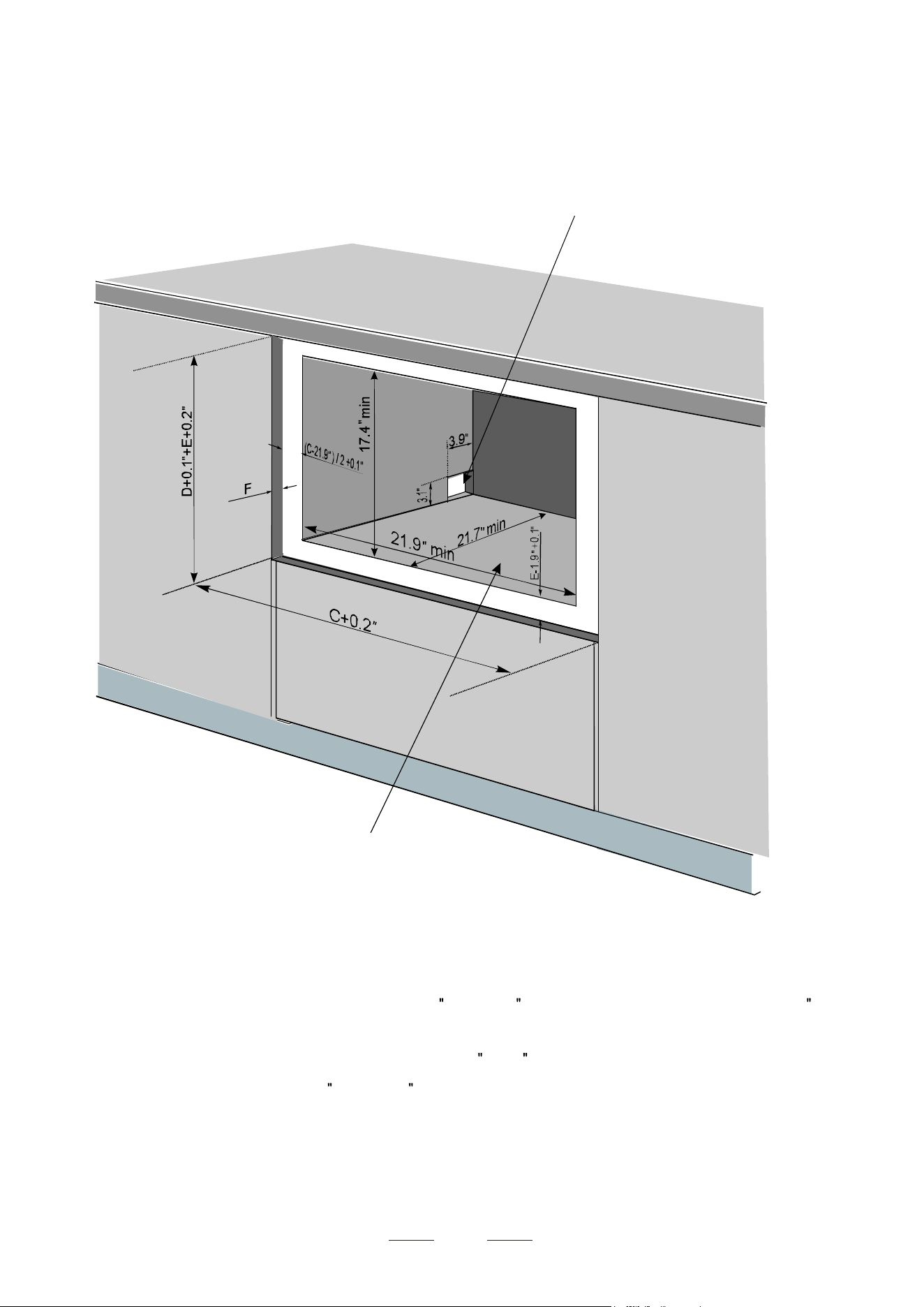

Positioning the Appliance................... ..........14..
Water Connection................................ . 51.........
About Power Connection.................... . 41...........

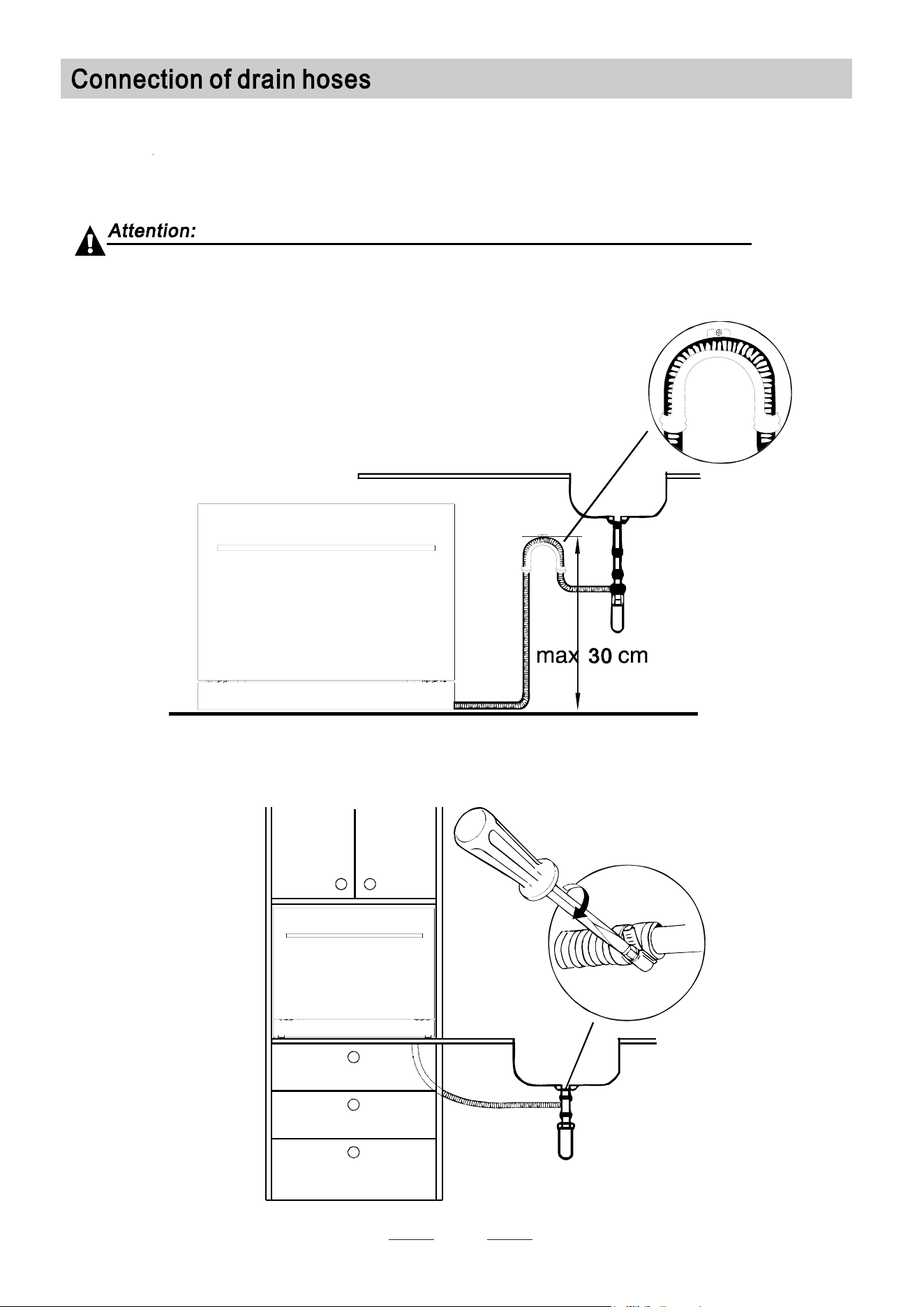

Connection of Drain Hoses..................... ........ 51
Start of dishwasher............................. .. ......16.. ..
Be fore calling for service........................... .... 71..
Error codes.................................... ..............18.
Control Panel...................................................2
This product is suitable for use in modular homes
and recreational vehicles.
Prior to using for the first time
CCD-0005579 | REV DATE: 10.14.2022
1
This appliance must be grounded. In the event of a
malfunction or breakdown, gro unding will reduce
the risk of electri c shock by providing a path of
least resistance of electric current. This applianc e
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accord ance with
all local codes and ordinances.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
n
ot so marked, check the manufacturer's
recommendations.
Us e on ly det ergent and rins e ad ditiv es
design ed for an aut oma tic d ishwasher.
Ne ver u se s oap, l aundr y de terg ent, or h and
wa shin g deter gent in you r d ishwash er. Keep
these produ cts ou t of t he re ach of chi ld ren.
During installation, the power supply must not
be excessiv ely or dangerously bent or flattened.
The door should not be left in the open position
since this could present a tripping hazards.
Do not tamper with controls.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not place any heavy objects or stand on the
door when it is open. The appliance could tip
forward.
When loading ite ms to be wash ed:
1) Load sharp items so that they are not likely
to damage the door seal;
2 Warning: Kni ves and other u te nsil s wi th
sh a rp p oin t s mu st be loaded i n t h e bask et
w it h their poi nts d own or p lace d in a
horizontal position.
)
When using your dishwasher, yo u s hould
preve nt pl astic items fro m comin g int o co ntact
with heating element.(This instruction is only
applica ble to m achines w ith a vi sual h eat in g
ele ment.)
I f the s upply co rd i s d amaged, it mus t be repl aced
by the m an ufact urer or its se rvic e ag ent or a
si mi larly qual ifi ed pe rson i n o rde r t o a void a
hazar d.
Pl ease d is pos e of pack ing mat erials pr oper ly.
U se the dishwasher only for its intended function.
Dishwasher det erge nts are st ro ngly alkal ine, they
can be e xtremel y da ngerous if sw allo wed.Av oid
contact with skin and eyes and keep children away
fro m the di shwa she r w hen t he door is op en.
Ch eck that the detergent re cept ib le is em pty
aft er compl etio n of th e wash cycle.
The app lian ce is to b e co nn ected to t he w at er
mains using new hose sets and that old hose-sets
should n ot be reu sed.
The maximum size of the dishes is 260mm.
The maximum permissible inlet water pressure is
1Mpa .
The minimum permissibleinlet water pressureis
0.04Mpa.
Children should be supervised to ensure that they do
not play with the appliance.
T his appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
o r instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwashe r, foll ow the p rec aut ions list ed below:
Improper connection of the equipment-gro unding
conductor can result in a risk of electric shock.
C heck with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided w ith the appliance; If it is not fit for
the outlet. Have a proper outlet installed by a
qualified electrician.
REV DATE: 10.14.2022 | CCD-0005579
2
before using it for the first time.
To get the best performance from your di shwas her, read all operating instructions

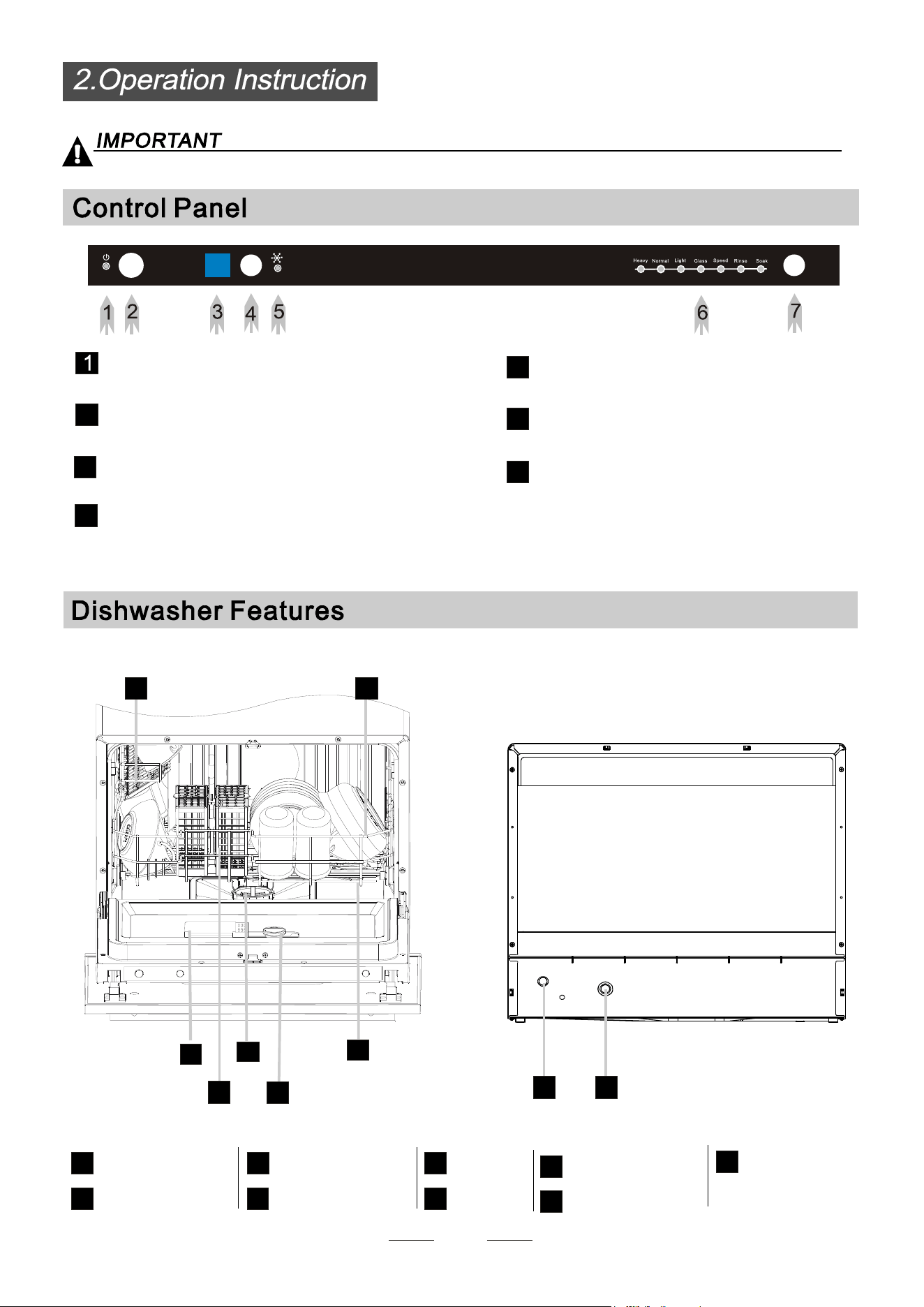

Front View
Bac k Vie w
D ete rg en t Dis pens er
CupShelf
Cutlery Basket
Filter Assembly
Rinse Aid Dispenser
Inlet Pipe Connector
Spray Arms
Basket
Drain Pipe Connector
1
5
6
7
8
9
3
2 4
2
1
5
3
6 7
8
4
5
2
4
6
7
Po wer indicator: To com e on when P owe r ON/OF F
button is press ed down .
ON/OF F But ton : To t ur n on/ off th e p owe r s upply.
Delayed St art B utto n: P ress this but ton t o se t the
delaye d ho urs f or wash ing. You can delay t he sta rt
of w as hi ng u p to 24 ho ur s. One pre ss on t hi s
button delays the start of washin gby one hour.
Pr ogr am i nd ica tor : whe n you s ele c t w as hi ng
program, the correspond light will display.
RinseAidWarningLight:Tobeonwhenthe
rinse aid di spen ser n eeds to be r efill ed .
Program button :To select washing program
when p ress the butt on.
3
De lay t ime dis p l ay : To d isp l a y bo oki n g t i me .
9
CCD-0005579 | REV DATE: 10.14.2022
3
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes. That can leave
spots and streaks. It also improves dryi ng by allowing water to sheet off the dish es. Your dishwasher is designed to
use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the
dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black.
The volume of the rins e aid container is about 110ml.
Rinse Aid Dispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
As the rinse aid diminishes, the size o f the black dot
on the rinse aid level indicator changes, as illustra ted below.
Full
3 / 4 full
1 / 2 full
1 / 4 full - Should refill to eliminate spotting
Empty
When to Refill the Rinse Aid Dispenser
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color
of the optical level indicator located ne xt to the cap. When the rinse-aid container is full, the whole
indicator will be dark .As the rinse-aid diminishes, the size of t he dark dot decreases. You should never let
the rinse aid get below 1 / 4 full.
" "
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dis penser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

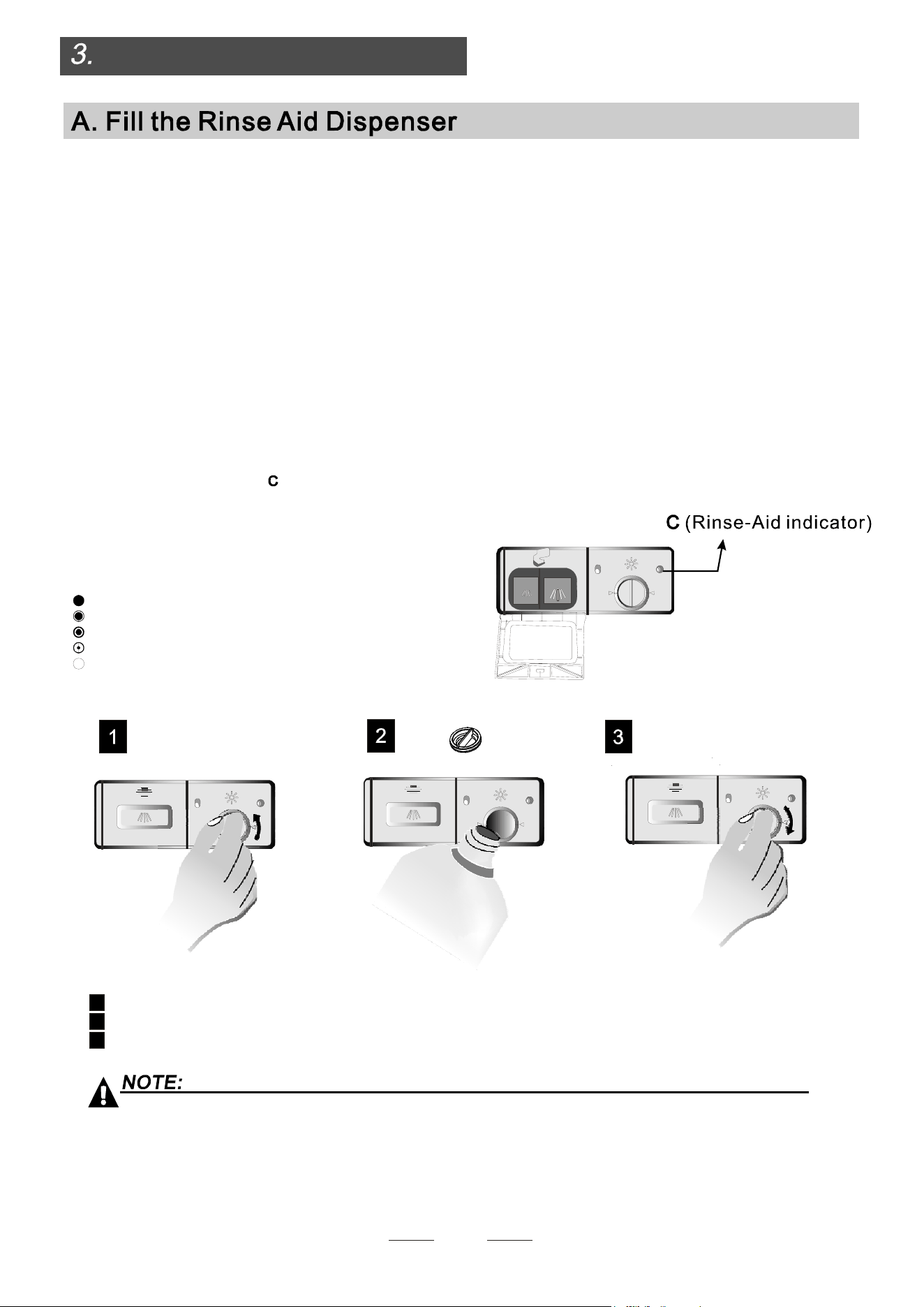

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
1
2
3
during the next wash.
Don't forget to replace the cap before you close dishwasher door.
Clean up any rinse aid split during filling with an absorbent cloth to avoid excessive foaming
Prior to using for the first time
REV DATE: 10.14.2022 | CCD-0005579
4
“
The use of normal w
”
ashing programs in conjunction with concentrated detergents
reduces pollution and is good for your dishes; these wash programs are specially matched to
the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason
“
normal wa
”
sh programs in which concentrated detergents are used can achieve the same
results that can otherwise only be achieved using "heavy" p
”
rogram.
Detergent Tablets
Detergent table ts of diffe rent brands disso lve at different speeds. For th is re ason some
detergent tablets cannot dissolve and develop their full cleaning power during short
programs. Therefore please use long programs when using detergent tablets, to
ensure the complete removal of detergent residuals.
conventional, alkaline detergents with caustic components
l ow a lkaline c onc ent rat ed d eter ge nts w ith nat ur a l e nzymes
Detergent tablets are only for the models with 3 in 1 function or 3 in 1 program.

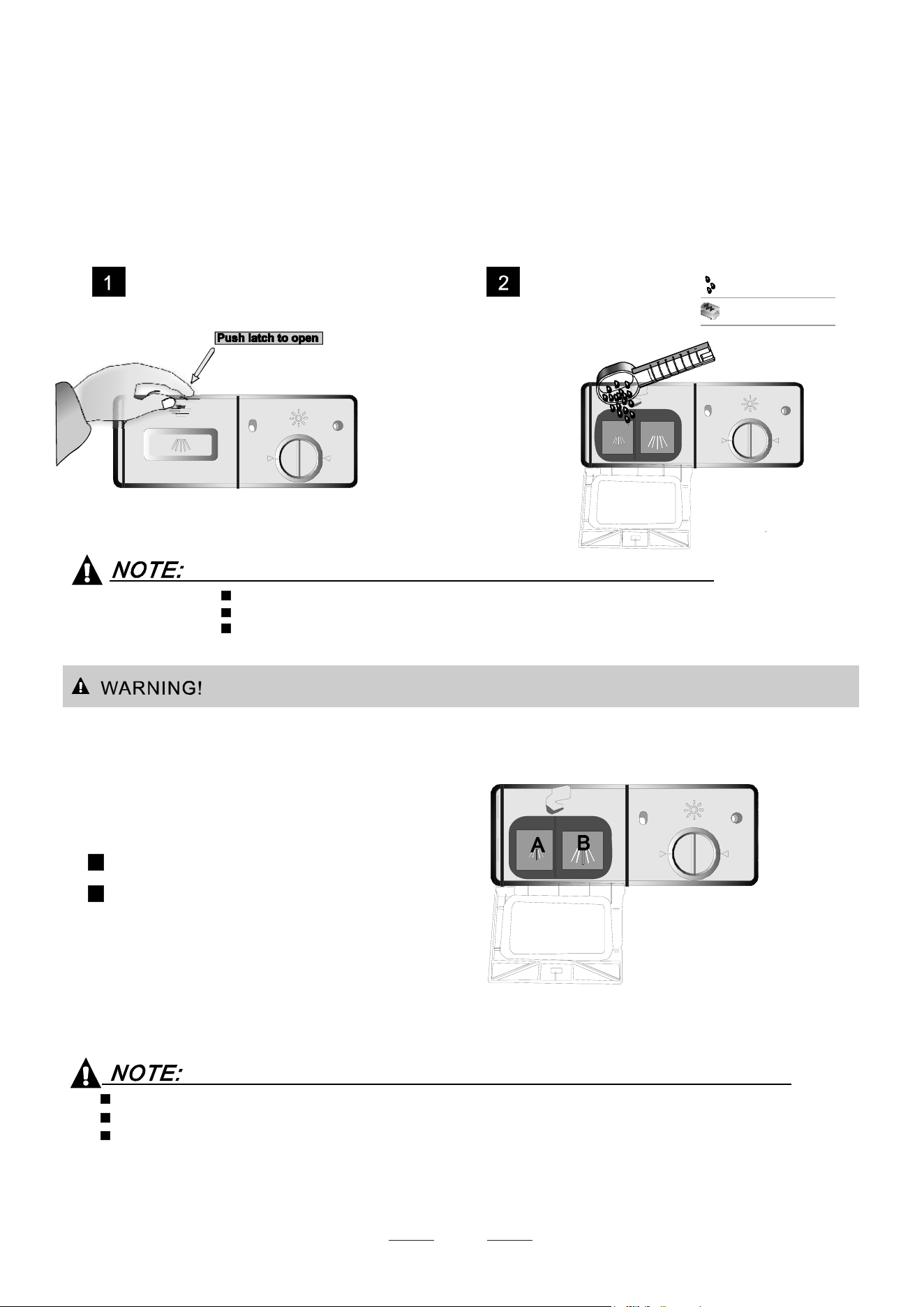

Proper Use of Detergent
Detergents with chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher.
Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.
Don't put powder detergent into the dispenser until you're ready to wash dishes.
Detergents
There are 3 sorts of detergents
1.With phosphate and with chlorine
2.With phosphate and without chlorine
3.Without phosphate and without chloride
Normally new pulverised detergent is without phosphate. The water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6
°
dH. If detergents without phosphate were used in case of hard water
often white spots appear at dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine only bleach a little. Strong and colored spots will not be
removed completely. In this case please choose a program with a higher temperature.
Concentrated Detergent
Based on their chemical composition, dishwashers can be split in two basic types:

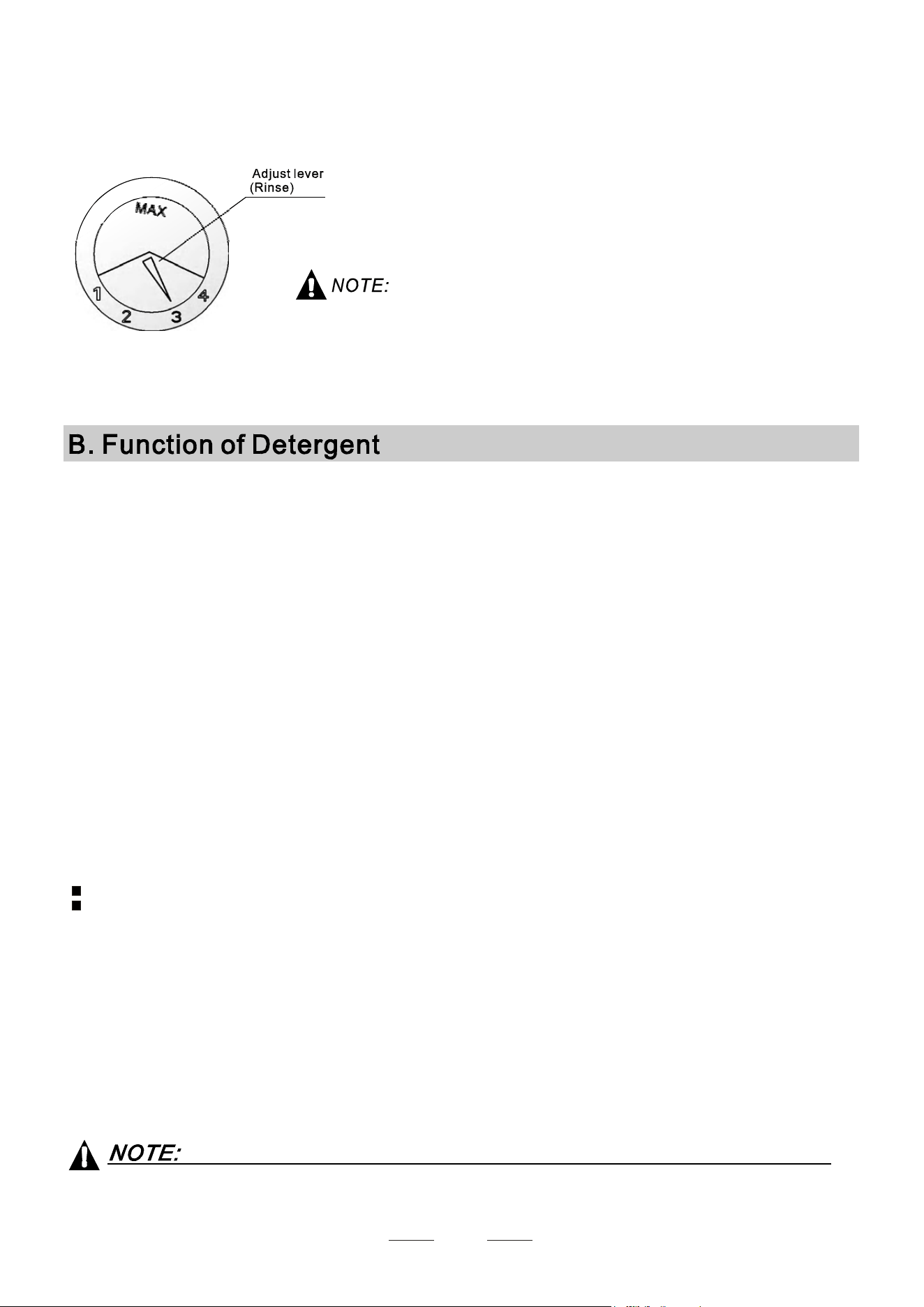

Adjusting Rinse Aid Dispenser
The r inse aid dis penser ha s fou r s et tings.T he re comme nded settin g is o n "3" .
If the d ish es sti ll ar e not dry ing p roper ly or ar e spot ted, a djust t he dia l to t he
nex t h igher nu mber on " 4".
Increase the dose if there are drops of water or limespots on the dishes after washing.
Reduce it if there are sticky whitish stains on your dishes o r a bluish film on glassware or
knife blades.
CCD-0005579 | REV DATE: 10.14.2022
Amount of Detergent to Use
The dispenser must be re filled before the start of each wash cycle following the instructions
provided in the Wash Cycle Table . Your dishwasher uses less dete rgent and rinse aid then
conventional dishwasher. Generally, only one tabl espoon of detergent is needed for
a normal wash load. Also, more heavily soiled items need more detergent. Always add the
detergent just be fore starting the dishwas her, otherwise it could get damp and will not
dissolve properly.
Detergent Dispenser
Always add the detergent just before starting each wash cycle.
Only use branded detergent aid for dishwasher.
If the lid is closed: press release button. The lid spring s open.
5
Detergent tablet
Detergent pow der
Fill the detergent dispenser with detergent.
The marking indicate s the dosing levels , as
illustrated on right:
The
place
can
load
15g
detergent.
The
place
can
load
25g
detergent
.
Please
observe
the
manufacturers
dosing
and
storage
r
ecommendations
as
stated
on
the
detergent
packaging.
Close
the
lid
and
press
until
it
locks
in
place.
If
the
dishes
are
heavily
soiled,
place
an
additional
detergent
do se
in
the
pre-wash
detergent
chamber.
This
detergent
will
take
effect
during
the
pre-wash
phas e.
A
B
Fill in detergent
You
will
find
information
about
the
amount
of
detergent
for
th e
single
program
on
the
last
page .
Please
be
aware,
tha t
according
to
the
soiling
level
and
the
specific
hardness
of
water
,
differences
are
possible.
Please
observe
the
manufacturer's
rec ommendations
on
the
de tergent
packaging.
Dishwasher detergent is corrosive! Take care to keep it out of reach of children.
REV DATE: 10.14.2022 | CCD-0005579
6
Some types of glasses c an become
dull aft er a large number of washes
Silver and aluminium parts have a
tendency to discolor during washing
Glazed patterns m ay fa de if machin e
wash ed freq u ent ly
Are not suitable
Cutlery with w ooden, horn china or
mother-of-pearl h andles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not
temperature resistant
Bonded cutlery items or dishes
Pewter or copper items
crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibers
Are of limited suitability
Consider buying utensils which are identified as dishwasher-proof.
Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further
information from detergent manufacturers.
For particular items, select a program with a low temperature.
To prevent damage, do not take glass and cutlery out of the dishwasher
immediately after the program has ended.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage to glasses,theymust not touch.
Loadlargeitemswhicharemostdifficulttocleanintothebasket.
Lo ng blad ed k nives sto red in a n upr igh t po sition are a p otenti al haza rd!
Lo ng and/ or s harp item s o f cut lery such as carving kniv es must be p ositione d
horizonta lly in the basket.
P lease do not ove rload yo ur di shwasher.
Load h oll ow it ems suc h as cup s, gl asses, p ans et c. With the opening dow nwards so t hat
w a t er c anno t c o ll ec t i n t he c onta in e r or a de ep base.
(For be st perfor mance o f the dishwa sher, f ol low t hese load ing gu idelines.
Feat ures and a ppea ran ce o f b as ke ts a nd c utl ery bas kets may var y from your m od el.)
Scrape off any large amount s o f leftover fo od. S often rem nants of burn t f oo d in pans
It is not necess ary to ri nse t he d ishes u nd er running water.
Pl ace ob jects in t he dish was her i n foll owi ng way :
1.Item s such as cups, gla sse s, po ts/pans, etc. a re face down.
2.Cu rve d i te ms, or t hos e w ith recesse s, s hould be loaded at a sl ant s o that water can r un off.
3.All utensils are stacked securely and can not tip over.
4.Al l utensils are placed in the way that the sp ray arm s can rotat ed free ly duri ng wash ing.
Very sm all it em s s hould not be w ashed in the dishwas he r as they c ould eas il y f all out o f th e basket.
CCD-0005579 | REV DATE: 10.14.2022
7
Positi on the dishe s an d co okw are so t hat t hey w ill not g et m oved by the sp ra y of water.
Plate racks
in Basket
The basket is f itted with plate racks which
can be stowed horizontal if requi red.
5
6
1
1
REV DATE: 10.14.2022 | CCD-0005579
8
Cutlery shoul d be pla ced in th e cutlery basket with handles at th e b ottom . If the rack has side bas kets , the spo on
should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal
posit ion at th e fro nt o f the upper b asket as shown.
Do no t let any item e xtend through bott om.
Alw ays load sharp u tensils w ith t he sharp point down!
325
2
6
5
2
3
3
4
4
4
1
1
Teaspoons
3
Dinner forks
1
Se r v i n g f or ks
6
Serving spoons
5
Kn i v e s
4
Sa l a d f o r ks
2
2
3
1
4
4
1
4
44
44
4
1
1
4
2
3
2
3
CCD-0005579 | REV DATE: 10.14.2022
9
Mean s: need to fill r inse into the Rinse-Aid Dispenser.
( )
*AHAM DW-1-2 005 : This program is the test cycle, the rinse-aid dis penser
setting is recommended to Position 3.
Starting a wash cycle ...
1. Draw out the basket(see the section entitled Lo ading th e Dishwas her );
2. Pour in the deterge nt (see th e section entitled Salt, Detergent and Rinse Aid );
3. Insert the plug into the socket. The power supply is 120V/60 Hz;
4. Make sure that the water supply is turned on to full pressure;
5. P
6.
”“
”“
ress the button t
Press the program button to select wash program y o u need
7.Close the door, the dishwash er will start.
Heavy->Normal->Light->Glass->Speed->Rinse->Soak
on/off o turn on th e power supply;
For normally soiled loads,
such as pots, plates,glasses
and lightly soiled pans.
standard daily cycle.
For lightly soiled loads,such
as plates,glasses,bowls and
lightly soiled pans.
For the heaviest soiled loads,
such as pots,pans,casserole
dishes and dishes that have
been sitting with dried food
on them for a while.
A shorter wash for lightly
soiled loads that do not
need drying.
For lightly soiled loads,
such as glasses, crystal and
fine china.
15g
85
75
100
45
70
0.35
0.29
0.40
0.22
0.27
12
12
14.5
12
9.7
Pre-wash
Pre-wash
Wash (55 )
Rinse
Rinse (65 )
Dryin g
℃
℃
Wash (50 )
Rinse (60 )
Drying
Pre-wash
Pre-wash
(50 )
Rinse
℃
℃
℃
Wash(50 )
Rinse
Rinse(60 )
Pre-wash
℃
℃
Drying
/
Pre-wash
Wash (50 )
Rinse
Pre-wash
Pre-wash
(50 )
Rinse(55 )
℃
℃
℃
Heavy
Pre-wash
( )
Wash (50 )
Pre-wash 50
Wash (55 )
Rinse
Rinse (65 )
Drying
℃
℃
℃
℃
Glass
Speed
15
g
Light
18g
13+13g
18g
(*AHAM DW- 1-2005 )
Normal
/
24
5
0.02
Pre-wash
Fo r th e dishes that
only need pre-wash.
/
10
2.50.01
Pre-wash
To rinse dishes that you
plan to wash later that day.
Soak
Rinse
REV DATE: 10.14.2022 | CCD-0005579
It is dangero us to open the do or when washing, because the hot water may scald you.
When the wo rking cycle has fi nished, the buzzer of dishwasher will sound 8 seconds, then stop. Turn off
the appliance usi ng the ON/OFF button, shut off the wa ter supply and open the door of the dishwashe r.
Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensi ls while they
are still hot and more susceptible to break age. They will also dry better.
Switch
Off
the
Dishwasher
In
the
digital
display
appears
0
(remaining
program
time),
only
in
this
case
the
program
has
ended.
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turn off the water tap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
will keep on working after 10 seconds.
If you open the door while washing, the machine will pause. Then you close the door , the ma chine
10
Premise: You can modify the washing program, When the dishwasher just
runs for a short time. Otherwise, the detergent may have already been
released, and the appliance may have already drained the wash water. If this
is the case, the detergent dispenser must be refilled (see the section entitled
" Loading the Detergent " ).
Open the door to pause during washing,press Program Button more than
three seconds the machine will be in stand by state ,then you can change
the program to the desired cycle setting
(see the section entitled " Starting a wash cycle. . ." ).
NOTE: If you open the doo r du
ring washing, the machine will pause. When you
close the door, the machine will keep on working after 10 seconds.
The program lights show the state of the dishwasher:
a) Al l program lights off---------------stand by
b) One of the program lights on----------pause
c) One of the program lights blinking----- run
A forgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms s
top working,you can open the door
completely.
2
3
Open the door a little to stop the washing.
1
4
CCD-0005579 | REV DATE: 10.14.2022
The fil ter prev ent larger re mna nt s of fo od o r ot her o bje cts f rom gett ing i nside the pump.
The fil ter syst em con sists of a coarse filte r, a f lat ( Mai n fi lt er)
an d a micro f ilter ( fi n e fi l ter ).
Food and soil particles trapped by thi s filter are pulverized by a
special jet on the sp ray a r m an d wa shed dow n t o d ra i n.
Main filter
1
Larger items, such as pieces of bone or glass, that could block
the drain are trap ped in t he c oars e f ilter. To re mo v e the i tems
caught b y the filter, g ently squeeze th etap on the top of th is
filter and lift out.
Coarse filter
3
This filte r ho lds s oil and f ood residue in t he su mp a rea and
preve nts it f ro m bei ng redepo sit on the dishes du ring wash cy cle.
Fine filter
2
2
3
1
Filter assembly
The filter efficiently
For best performance and results, the filter assembly must be regularly cleaned.
r em ove t he la rger fo od pa rti cles t rapp ing i n the filte r af ter e ach was h cy cle b y rin sin g the filte r and cu p un der
r unn ing w ate r. To remove t he filter assemb ly, p ul l on the cu p h andle in th e u pwa rd di rection.
re mo ves f ood par ticle s fro m th e wa sh w ate r, all owing it to be re-cyc lated dur ing th e c y cle .
For this reason, it is a good idea to
Nev er r un t h e dishwas he r wi t ho u t th e fi lters i n pl ac e.
T he di sh was her mus t ne ver be used wit ho ut th e f ilt er s.
Imp ro per replace ment of the f ilter may re duce the perform anc e level of the applia nce
and damage dishes and utensils.
to install the filter system.
Work from step1 to step 3, to remove the filter system; Work from Step 3 to Step 1,
11
Step
Rotate the Fine filter conterclockwise
Step2: lift it up;
１：
Step3 lift the Main filter up：
2
1
3
REV DATE: 10.14.2022 | CCD-0005579
12
The c ont rol p ane l can be clea ned by usi ng a l ig htly dam pen ed c loth and dry tho roughly.
The e xte rior u se a goo d a pplia nce polish w ax.
Never usesharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Protect Against Freezing
1.Cut off electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water
valve.
3.Drain water from the inlet pipe and water valve. (Use a pan to catch the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottom of the tub and use a sponge to soake up water in
sump.
please take fros t protection measures on dishwasher inwinter. E fter washing cyc les,
please o perate a s fo llow s
ach time a
：
- Inspect the filters for blockage every time the dishwasher has been used.
- By unscrewing the coarse filter. you can remove the filter system. Remove any food remnants
and clean the filters under running water.
Remarks:
Cleaning The Filter
Cleaning The Door
To clean the co arse f ilter a nd the f ine f ilter, use a c leaning b rus h. R eassemble t he fi lter par ts as show n in th e fi gures
in t he last page a nd rei nsert the entir e a ssembly in t he dishwashe r, p ositi oning in its seat and pressing dow nward .
The entire filter assembly should be cleaned once a week.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted and the performance of dishwasher could be debased.
To cle an the e dge around t he door ,glid e an d de co rati ve pan els,
you s hould us e on ly a soft warm, da mp clot h.
To avoid pene trat ion o f wa ter into t he d oor l ock and
electr ical components , do not u se a spray cleane r o f an y kin d.
Never u se a spr ay c leaner t o cle an t he door pan el as it m ay d amage the door loc k
and electrical components.
Ab rasive ag ent o r s ome pape r to we l sho uld not b e u sed b ec ause of th e r isk o f
scratching or leaving spots on the stainless steel surface.
I f your dishwa sher ca nnot work be cause of t he ice, please contact p rofe ssio nal service person s.

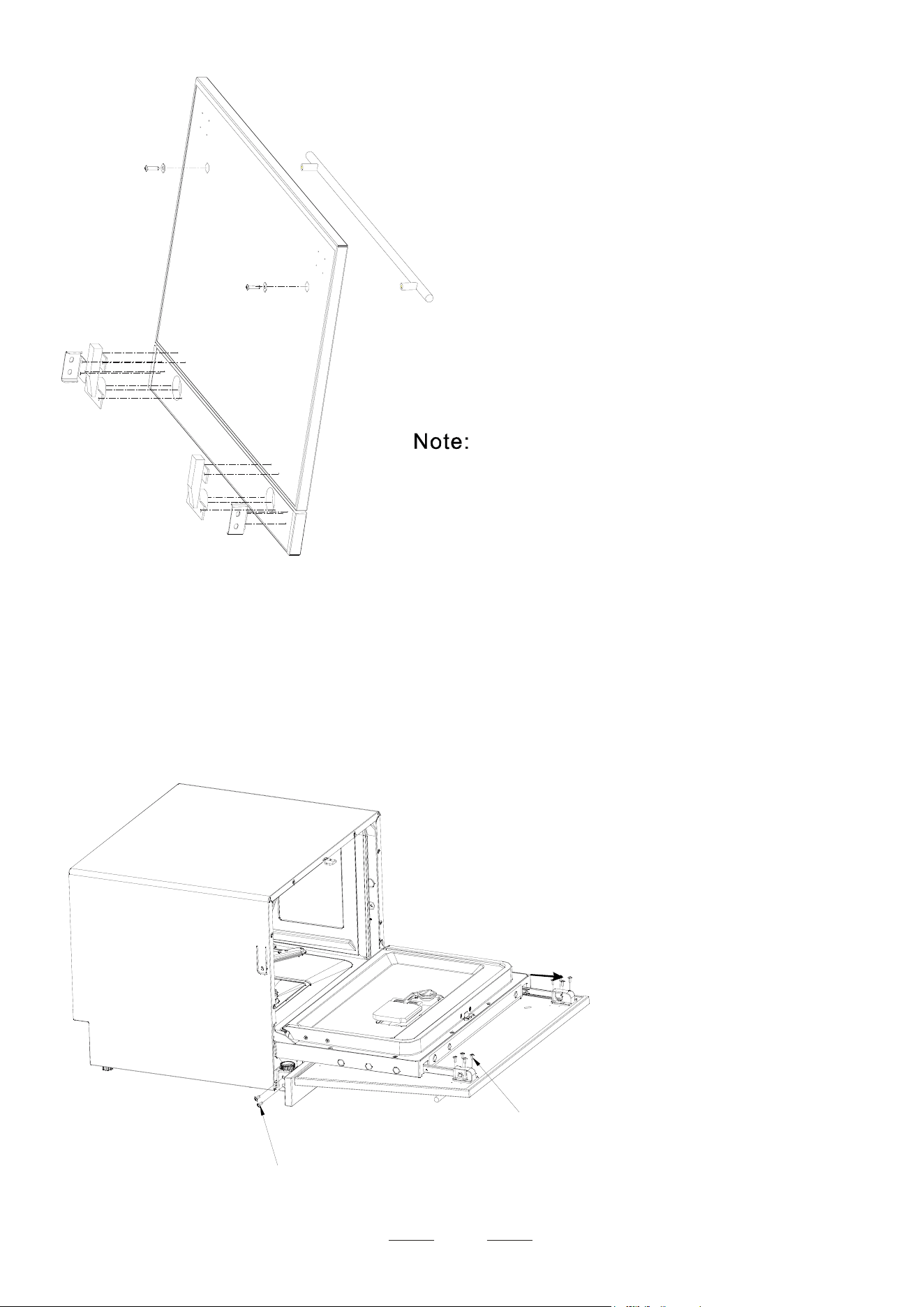

If you want to clean the i nner surface of decorative panels,
1) remove the 8 screws between the seat and decorative panels ;
2) then you can clean the surface, please use a damp and soft
cloth;
3) then, open the doors and siding to the graph state ,
pull out the slide, align screw holes into the eight screws removed,
please note that efforts to tighten the screws can not be too large,
so as not to bore failure.
CCD-0005579 | REV DATE: 10.14.2022
Aft er ever y wa sh, turn off t he w ater supp ly to the
applia nce and leave t he do or s lightly op en so th at
m oisture an d odor s are not trap ped inside.
Befo re cleaning or p erformi ng mainten ance, alw ays
remove the p lug fr om t he socket.
To clean the exterior and rubber parts of thedishwasher,
do not use solventsor abrasive cle aning products.
O nly use a c lo th w ith w arm soapy wate r.
To rem ov e sp ots o r s t ain s from the sur face of t h e
in teri or, us e a clo th dampe ned wit h wa ter with a litt l e
v inega r, o r a c lean ing pro duct mad e s pecifical ly fo r
dishwashers.
After Every Wash
Remove the Plug
No Solvents or Abrasive Cleaning
When it is not in n eed for a long time
It is recommend that you run a wa sh cycle with the
dishwasher empty and then remove the plug from t he
socket, turn off the wa ter supp ly and le ave the door of
the appliance slightly open. This will help the door seals
to last longer and prevent odors from forming within
the appliance.
Movi ng t
he Ap pliance
If the appliance must be moved, try to keep it in the
vertical posit ion. If absolutely necessary, it can be
positioned on its back .
Seals
One of the factors that cause od ors to form in the
dishwasher is food that remains trapped in the seals .
Periodic clea ning with a d amp sponge will prevent this
f r o m oc curr ing.
13
The installation of the pipes
and electrical equipments
should be done by professionals.
Electrical Shock Hazard
Disconnect electrical power before
installing dishwasher.
Failure to do so can result in death
or e lect rical shoc k.
The installation position of dishwasher should be near the existing inlet and drain
hoses and power cord.
One side of the cabinet sink should be chosen to facilitate the connection of drain
hoses of the dishwasher.
Cleaning the Spray Arms
The spray arms can be easily removed for periodic cleaning
of the noz zles , to prev ent p ossible c logging. Wa sh t hem
unde r running wat er a nd ca re fu lly r epla ce t hem i n th eir s eats ,
checking that their rotary movement is in no way impeded.
G ra sp t he mid dle of the spr ay a rm, pull i t up ward s to r em ove
it.Wash the arms under a jet of running water and return them
car e fully to th e i r se at. Af ter re as se mb l y, c h eck t hat t h e s pra y
arms turn freely. Otherwise , check that they ha ve been
insta l led c orre ctl y.
REV DATE: 10.14.2022 | CCD-0005579
Ensure the voltage and frequency of the power being corresponds to
those on the rating plate. Only insert the plug into an electrical socket which grounded
properly. If the electrical socket to which the appliance must be connected is not
appropriate for the plug , replace the socket, rather than using adapters or the like
as they could cause overheating and burns.
Plea se l ook at th e ra ting label t o know t he r ating v olta ge and c on nect t he d ishwasher to the app ropr iate pow er s upply.
Use the r equired fuse 1 0 amp , tim e d elay f use or c ircui t bre ak er rec omm ended and provide separate circuit servi ng
only th is applianc e.
This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of
electric shock by providing a path of least resistance for the electric current. This appliance is equipped with
a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is installed and grounded in accordance with all local standards and requirements.
For personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE GROUNDING
CONNECTION FROM THE POWER CORD.
14
for personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER A NY C I RCUMSTANCES, CUT OR REMOVE THE
FROM THE POWER CORD .
EAR THING
CONNECTION
r connection of the eq
Imprope uipment grounding conductor can result in the risk of an
electric shock.
Check with a qualified electrician or service representative if you are in doubt whether the
appliance is properly earthed.
Do not modify the plug provided with the appliance. If the plug does not fit properly to the
outlet, please have a qualified electrician to install a proper outlet.
and t he s ides, alo ng t he adjac ent cabi net s or w all. The dishwas her is eq uipped w ith water supply
Posit ion the appli anc e in t he d esir ed l ocat ion. T he back should r est against the w all behind i t,
and drain hoses that can be positioned to the right orthe left to facilitate proper installation.
CCD-0005579 | REV DATE: 10.14.2022
Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it
runintothesink,makingsuretoavoidbendingorcrimpingit.Usethespe ial
plastic support that comes with the appliance. The free end of the hose must be
at a height lower than 75cm and must not be immersed in water to avoid the back
flow of it.
c
15
The special plastic hose support must be solidly fastened to the wall to
prevent the drain hose from moving and allowing water to spill outside
the drain.
REV DATE: 10.14.2022 | CCD-0005579
16
Ho w to Drain E x c e s s Water From Hoses
If the si nk is 1 000 higher from the floor, the excess water in h oses cannot be drained di re ctly
into the sink. It will be necessa ry to drain e x cess water from hoses into a bowl or suitable
container that is held outsi de and lo wer than the sink.
Water Outlet
C on nect the water d rain hose . The drain hose must be cor r ect ly fitted to av oid w a t er leaks.
En sure that the water dr ain hose is not kinked or squashe d.
Exten sio n Hos e
If you need a drain hose extension, observe to use a similar drain hose.
It must be no longer than 4 mertes; otherwise the cleaning effect of the dishwasher could be
reduced.
The f
ollo wi ng thi ngs should be checked befo re starting the dishwasher.
1
The dishwasher is level and fixed properly
2
The inlet valve is open
3
There is no leakage at the connections of the conducts
4
The wires a re tightly connected
5
The po wer is switched on
6
T he inlet and drain hoses a re k notte d
7
All packing materials and printings shoul d be taken out f r om the dishwasher
The content of this manual is very helpful to the users.
After installation , please make sure to keep this manual.
CCD-0005579 | REV DATE: 10.14.2022
Fuse blown, or the
circuit breaker tripped.
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher
Spilled rinse-aid
Always wipe up rinse-aid spills immediately.
Hard water minerals
The affected items are
not corrosion resistant.
The lid of softer
is loose.
The sp ay arm is
knocking against
an item in a basket.
r
Item of crockery
are insecure
in the wash cabinet.
This may be caused
by on-site installation
or the cross-section of
the piping.
A program was not run
after dishwasher salt
was added. Traces of
salt have got into the
wash cycle.
To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves.
Never use any other cleaner than dishwasher
detergent for the risk of foaming or suds.
Always run the Quick wash program without
any crockery in the dishwasher and without
selecting the Turbo function (if present), after
adding dishwasher salt.
Check the lid .Ensure the fix is fine.
Interrupt the program, and rearrange the items
which are obstructing the spray arm.
Interrupt the program and rearrange
the items of crockery.
This has no influence on dishwasher function.
if in doubt, contact a suitably qualified plumber.
Detergent with
colourant was used.
Make sure that the detergent is the one without
colourant.
Improper detergent
Make sure the dishwasher is turned on and the door is
closed securely.
Close dishwasher making sure that door latches.
Make sure the power cord is properly plugged into the
wall socket.
Power supply is not
turned on.
Door of dishwasher
not properly closed.
Kink in drain hose
Filter clogged.
Kitchen sink clogged.
Check drain hose.
Check coarse the filter.
(see section titled )" Cleaning The Filter "
Check kitchen sink to make sure it is draining well.
If problem is kitchen sink not draining ,you may need
a plumber rather than a serviceman for dishwasher.
Use only the special dishwasher detergent to avoid
suds. If this occurs, open the dishwasher and let suds
evaporate. Add 1 gallon of cold water to the tub. Close
and latch the dishwasher, then Start the "s
oak" wash
cycle to drain out the water . Repeat if necessary.
17
Technical
problems
General
problems
Noise
from
REV DATE: 10.14.2022 | CCD-0005579
The dishes were not
loaded correctly .
See notes in " Loading the Dishwasher Baskets ".
Select a more intensive program.
See" Wash Cycl e Table ".
Use more detergent, or change your detergent.
Rearrange the items so that the sp ay can rotate freely.r
Clean and/or fit the filter combination correctly.
Clean the sp ay arm jets. See "Cleaning t he Spr ay
Arms".
r
Use less detergent if you have so ft water and select
a shortest cycle to wash the glassware and to get
them cle an.
Use a mild abrasive cleaner to eliminate those marks.
Re-loading the dishes properly.
Load the dishwasher as suggested in the directions.
Increase the amount of rinse-aid/Refill the rinse-aid
dispenser.
Do not empty your dishwasher immediately after
washing. Open the door slightly so that the steam can
escape. Begin unloading the dishwasher only once t
he dishes are barely warm to the touch. Empty the low
basket first. This prevents water form dropping off
dishes in the upper basket.
In short programs the washing temperature is lower.
This also lowers cleaning performance. Choose a
program with a long washing time.
Water drainage is more difficult with these items.
Cutlery or dishes of this type are not suitable for
washing in the dishwasher.
The program was
not powerful enough.
Not enough deter gent
was dispensed.
Item are blocking
the path of sp ay arms.r
The filter combination
inthebaseofwash
cabinet is not clean or
is not correctly fitted.
This may cause
the sp ay arm jet s
to get blocked.
r
Combination of soft
water and too much
detergent.
Aluminum utensils
have rubbed against
dishes.
Dishes block
detergent cups.
Improper loading
Too little rinse -aid
Dishes are remov ed
too soon.
Wrong program
selection
Using cutlery with
a low-quality coating
If overflow occurs, turn off the main water supply be fore calling a service .
If there is water in the base pan because of an overfill or small leak,
the water should be removed before restarting the dis hwasher.
18
Uns a ti s
-factory
was hin g
res u lt
Uns a ti s
-factory
dry i ng
res u lt
When some malfunctions occur, the appliance will display error codes to warn you:
Longer inlet tim e.
Faucets is not opened, or water inta ke is restricted,
or water pressure is too low.
Some element of dishwasher leaks .
Overflow.
REV DATE: 10.14.2022 | CCD-0005579
19

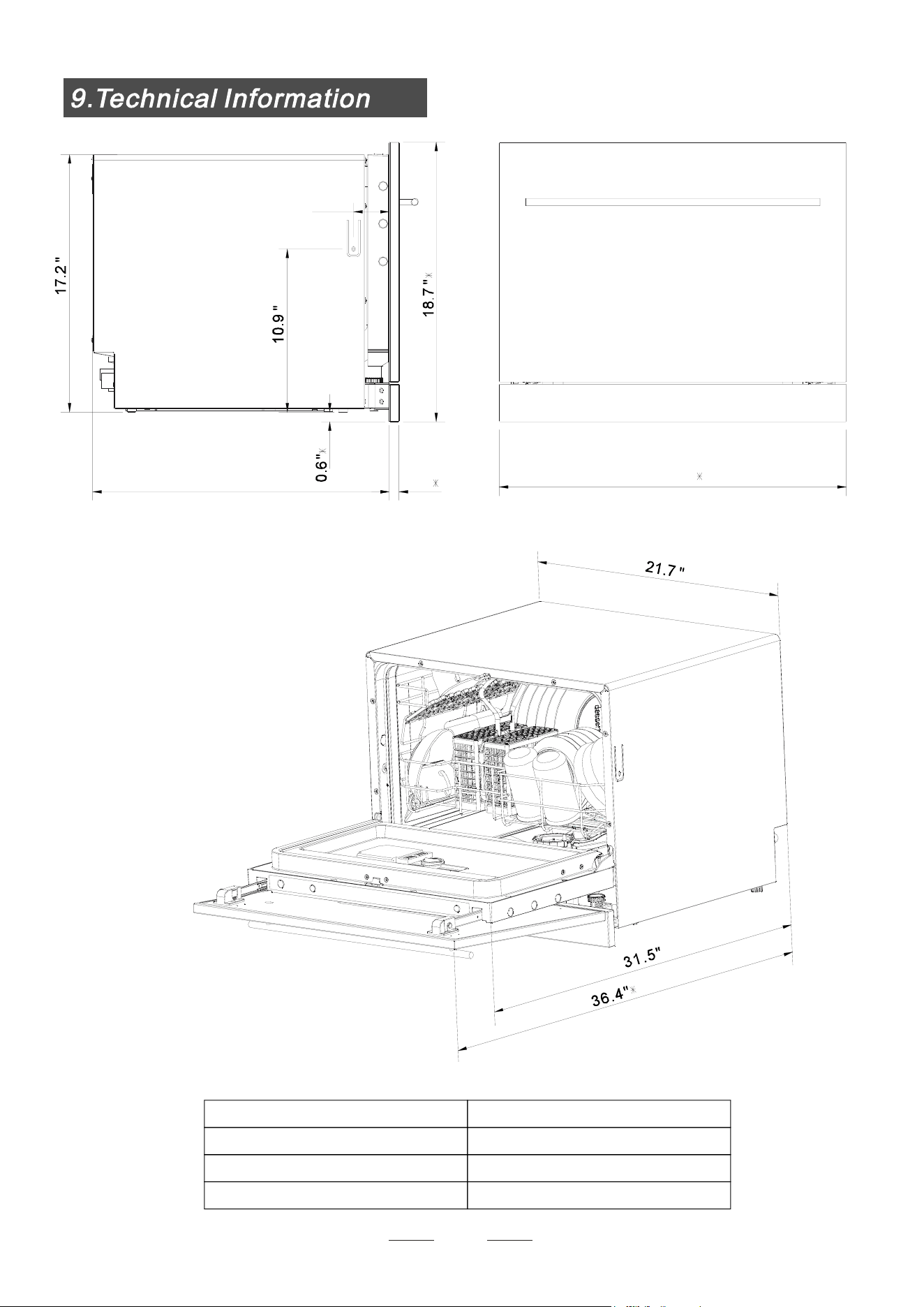

Capacity:
Power s upply:
Hot water connec tion
W pressure:ater
0.0 4- 1. 0M P a
Max 6 0℃
Seeratinglabel
6 place settings
The dimensions with * variable
according to actual situation
“”
2. 4"
19.7"
0.7
"
"23.2
CCD-0005579 | REV DATE: 10.14.2022
Step 1a:
If only the body into cab in ets, please make this map the size of th e cabinet hole.
Space of cabinet
Electrical, drain
and w ater supply
line entrances,
both sides
20
REV DATE: 10.14.2022 | CCD-0005579
St ep 1 b
If the entire decorative panel into the cabinet also,
the size of a should be equal to D +0.1 + E +0.2 ; size b should be equa l to C +0.2 ;
Me anwhile, the cabinet around the inward booster:
the bottom of the entir e plane for the E-1.9 +0.1 ;
both sides of the (C-21.9 ) / 2 +0.1 ;
C, D, E and F as the second step within the relevant size decor ative panels;
：
Space of cabinet
Electrical, drain
and water supply
line entrances,
both sides.
21
CCD-0005579 | REV DATE: 10.14.2022

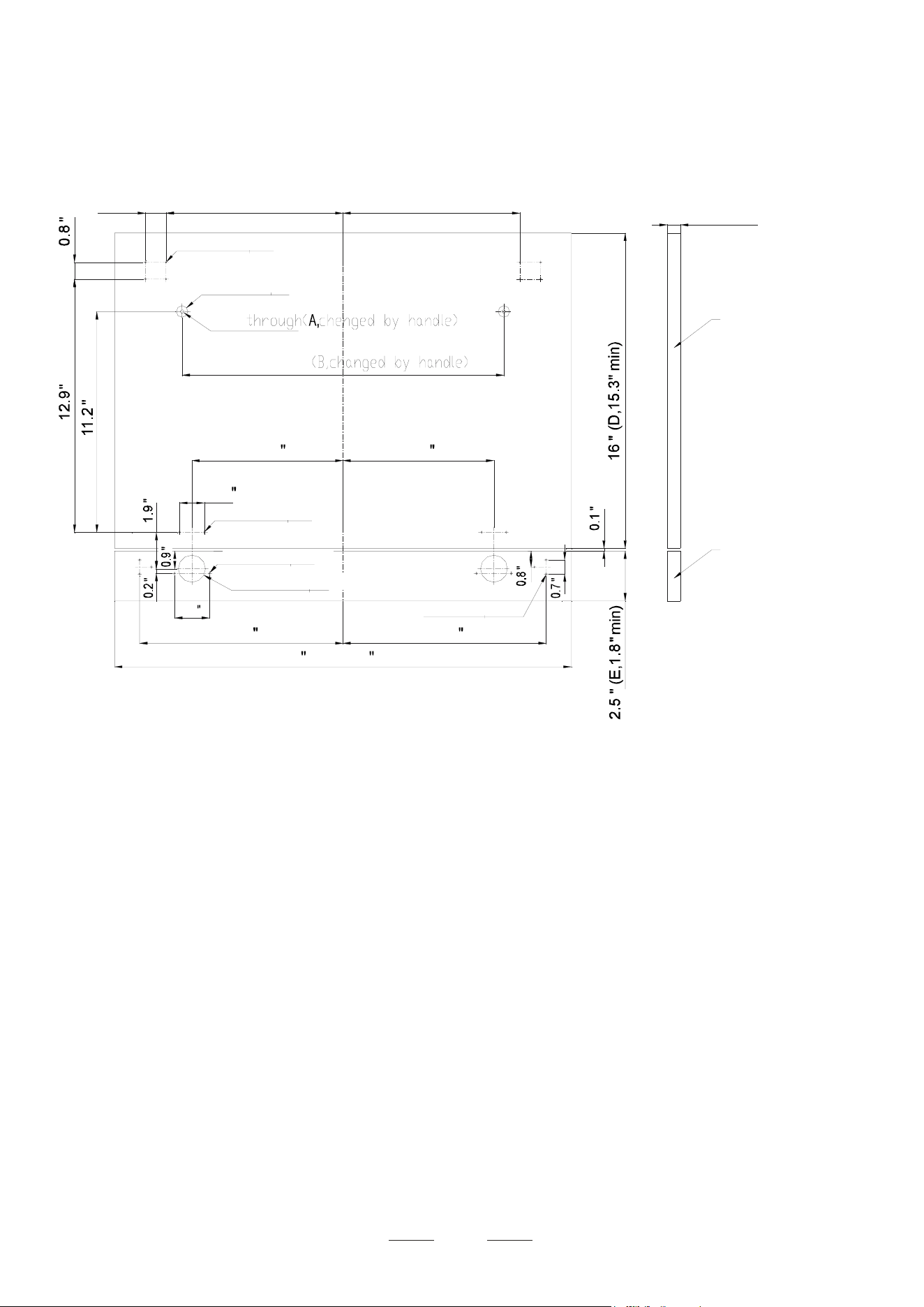

St ep 2
Weight of the decorative panel (up) should be
mi n 3Kg-ma x 4Kg.
Dim.Aand B could be alterable by handle,
Dim.C,D,E and F could be alterable by fact,
If you want to make the decorative panels size same as
the machine, please use the minimum size in brackets;
Dim.F should be in range 0.6~0.9 ,
besides the appliance assembling decorative panels.
:
If the m
：
fro nt of the
Note
′
achine has a decorative plate, skip this step.
decorative panel
(up)
decorative panel
(down)
22
1.0
"
9
"
9
"
0.6 ~0.9 (F)
""
16.3
"
8- 0.1 deep 0.5φ
""
2- 0.6 deep 0.2φ
""
2- 0.2φ
"
4- 0.1 deep 0.5φ
""
4- 0.1 deep 0.5φ
""
2- 1.4 deep 0.5φ
""
23.2 C,21.7 min（）
10.3
1.8
1.3
7.7 7.7
6- 0.1 deep 0.5φ
""
10.3
"
REV DATE: 10.14.2022 | CCD-0005579
Step 3:
Assemble the decorative panels.
If the machine has a decorative plate, skip this
step.
23
St ep 4:
Ass e mbl e the decorative door on the dishwasher,
as figur e. First in stall sidepiece screw between
base board and decorative panel (d own), in all 4;
then pull glide from out door groove ,case 8-screw
between decor ative panels and g lide .
Note:
If
the machine has a decorative plate, skip this
step
.
Screw ,i n all 4
Screw, in all 8
CCD-0005579 | REV DATE: 10.14.2022
24
Step 5:
Install the dishwasher in aperture,
but not all the way, as the figure
example shows, adjust screw, let
its bottom align aperture's base, then
push dishwasher in fully.
Step 6：
Take out cap, a hole is revealed,
using screwdriver install screw,
bothsides. Then recover the cap in
hole.
CCD-0005579 | REV DATE: 10.14.2022
IM-FHA00011 V2.0
The contents of this manual are proprietary and copyright protected by Lippert. Lippert prohibits the copying or
dissemination of portions of this manual unless prior written consent for an authorized Lippert representation
has been provided. Any unauthorized use shall void any applicable warranty. The information contained in this
manual is subject to change without notice and at the sole discretion of Lippert. Revised editions are available
for free download from lippert.com.
Please recycle all obsolete materials.
For all concerns or questions, please contact Lippert
CCD-
0005579 | REV DATE: 10.14.2022
