OPERATOR'S MANUAL
MODEL #13502
3,000 LB. ATV/UTV WINCH KIT
REV 20250401 Champion Power Equipment, Inc.
or visit championpowerequipment.com
READ AND SAVE THIS MANUAL. This manual contains important safety precautions which should be read
and understood before operating the product. Failure to do so could result in serious injury. This manual should
remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication,
but are subject to change without notice.
ACTIVATE YOUR WARRANTY
by registering your product:
championpowerequipment.com
SERIAL NO.
13502 - 3,000 LB. ATV/UTV WINCH KIT
TABLE OF CONTENTS
2
TABLE OF CONTENTS
Introduction
................................. 3
Safety Definitions .......................... 3
Important Safety Instructions ...........4
Operation Symbols .............................. 5
Controls and Features .....................6
Winch ......................................... 6
Assembly Parts ................................. 7
Assembly .................................... 8
Assembling the Winch ........................... 8
Mounting the Remote control ..................... 8

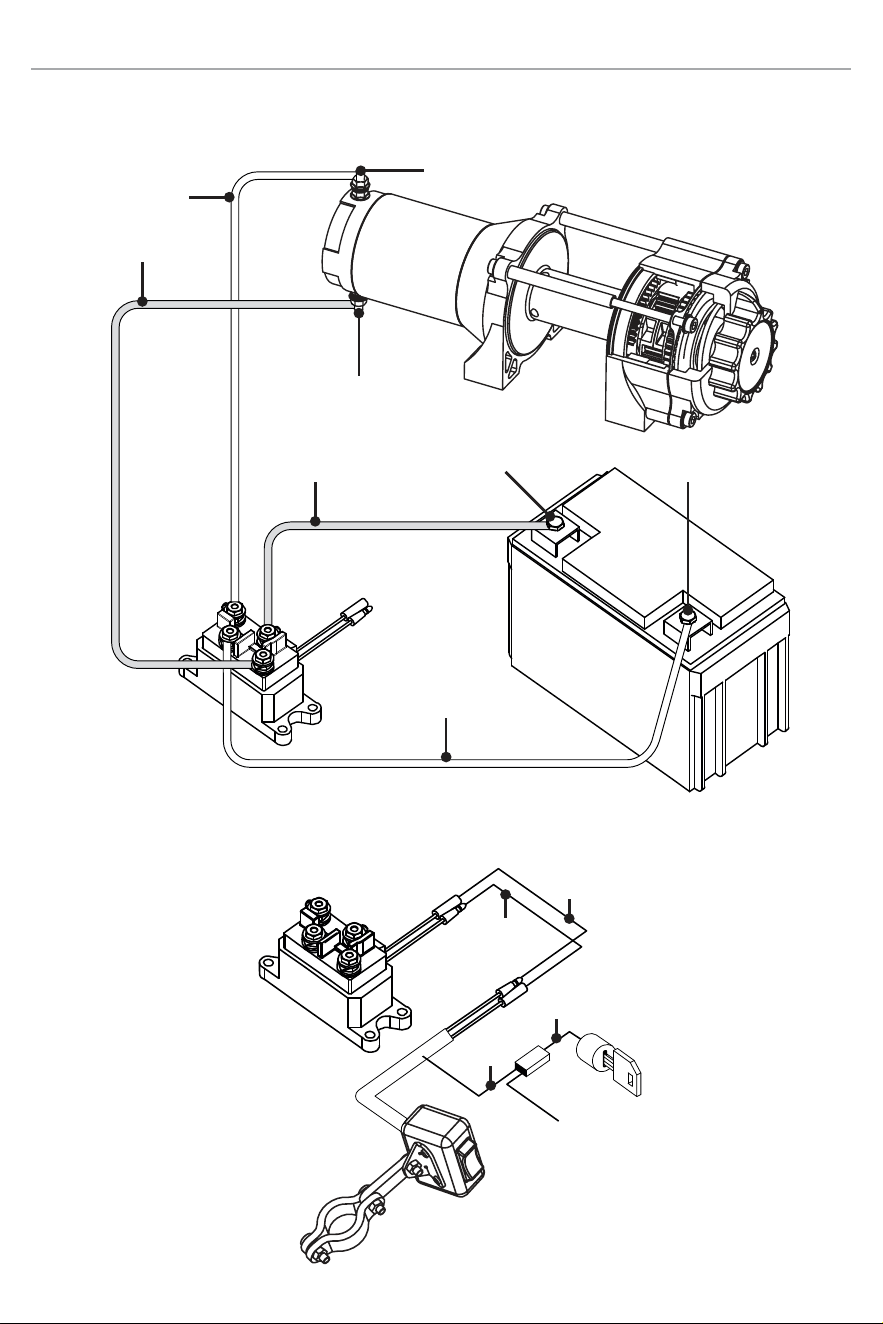

Winch Wiring ................................... 8
Wiring Diagram ................................ 10
Operation ...................................11
General Tips for Safe Operation .................. 11
Self Recovery ................................. 11
Winching Techniques A-Z ....................... 12
Maintenance .............................. 13
Lubrication .................................... 13
Steel Rope Replacement ........................ 13
Synthetic Rope Replacement (Optional) ........... 13
Synthetic Rope ................................ 13
Specifications ............................. 14
Performance Specifications ..................... 14
Troubleshooting .......................... 15
FOR PARTS BREAKDOWN
Search by model number at
championpowerequipment.com
13502 - 3,000 LB. ATV/UTV WINCH KIT
INTRODUCTION
3
INTRODUCTION
Congratulations on your purchase of a Champion Power
Equipment (CPE) product. CPE designs, builds, and
supports all of our products to strict specifications and
guidelines. With proper product knowledge, safe use, and
regular maintenance, this product should bring years of
satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the
time of publication, and we reserve the right to change,
alter and/or improve the product and this document at
any time without prior notice.
Since CPE highly values how our products are designed,
manufactured, operated and are serviced, and also highly
value your safety and the safety of others, we would
like you to take the time to review this product manual
and other product materials thoroughly and be fully
aware and knowledgeable of the assembly, operation,
dangers and maintenance of the product before use. Fully
familiarize yourself, and make sure others who plan on
operating the product fully familiarize themselves too,
with the proper safety and operation procedures before
each use. Please always exercise common sense and
always err on the side of caution when operating the
product to ensure no accident, property damage, or injury
occurs. We want you to continue to use and be satisfied
with your CPE product for years to come.
When contacting CPE about parts and/or service, you will
need to supply the complete model and serial numbers
of your product. Transcribe the information found on your
product’s nameplate label to the table below
CPE TECHNICAL SUPPORT TEAM
1-877-338-0999
MODEL NUMBER
13502
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your
attention to possible dangers. The safety symbols, and
their explanations, deserve your careful attention and
understanding. The safety warnings do not by themselves
eliminate any danger. The instructions or warnings they
give are not substitutes for proper accident prevention
measures.
DANGER
DANGER indicates a hazardous situation which,if not
avoided, will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE
NOTICE indicates information considered important,
but not hazard-related (e.g., messages relating to
property damage or physical injury).
13502 - 3,000 LB. ATV/UTV WINCH KIT
IMPORTANT SAFETY INSTRUCTIONS
4
IMPORTANT SAFETY
INSTRUCTIONS
WARNING
Cancer and Reproductive Harm –
www.P65Warnings.ca.gov
WARNING
Do not exceed the rated capacity.
DANGER
Do not use this winch for lifting or moving people or
animals.
DANGER
Keep yourself and others a safe distance to the side of
the rope when under tension.
DANGER
Never step over a rope or near a rope under load.
WARNING
The rope may break before the motor stalls.
For heavy loads at or near rated capacity, use a pulley
block/snatch block to reduce the load on the rope.
WARNING
Do not move the vehicle to pull a load (towing) on the
winch rope. This could result in rope breakage.
WARNING
Pull only on areas of the vehicle as specified by the
vehicle manufacturer.
WARNING
Do not use the winch to secure or hold a vehicle for a
long period of time. Do not use the winch to secure a
vehicle for transport.
WARNING
Disconnect the remote control and battery leads when
not in use.
WARNING
Avoid “shock loads” by using the control switch
intermittently to take up the slack in the rope. “Shock
loads” can far exceed the rate capacity for the wire
rope and drum.
Do not accelerate your vehicle while winching. Loss of
traction can cause a shock load on the cable.
WARNING
Batteries contain acid and produce explosive gases.
Keep sparks, flames and cigarettes away from
batteries at all times. Wear safety glasses and protect
the eyes at all times. Do not lean over the batteries
during operation.
WARNING
Do not use as a hoist. Do not use for overhead lifting.
WARNING
When re-spooling the rope, ensure that the rope
spools in the under-wind position with the rope
entering the drum from the bottom, not the top.
To re-spool correctly, and while wearing gloves, keep
a slight load on the rope while pushing the remote
button to draw in the rope. Walk toward the winch not
allowing the rope to slide through your hands. Do not
let your hands get within 12 in. of the winch while re-
spooling. Turn off the winch and repeat the procedure
until a few feet of rope are left. Disconnect the remote
control and finish spooling by rotating the drum by
hand with the clutch disengaged. Keep hands clear of
the fairlead and drum while the winch is under power .
CAUTION
Use gloves to protect hands when handling the rope.
Never let the rope slide through your hands.
13502 - 3,000 LB. ATV/UTV WINCH KIT
IMPORTANT SAFETY INSTRUCTIONS
5
CAUTION
Do not wrap the rope around any object and hook it
back onto itself.
CAUTION
Apply blocks to the wheels of the vehicle when on an
incline.
CAUTION
Duration of winching pulls should be kept as short as
possible.
If the motor becomes uncomfortably hot to the touch,
stop winching immediately and let it cool down for a
few minutes. Do not pull for more than one minute at
or near the rated load.
CAUTION
If the motor stalls, do not maintain power to the winch.
Electric winches are designed and made for
intermittent use and should not be used in constant
duty applications.
CAUTION
Never release the free-spool clutch when there is a
load on the winch.
CAUTION
Use hook strap when handling the hook for spooling or
unspooling the rope.
CAUTION
DO NOT mix old and new batteries
DO NOT mix alkaline, standard, or rechargeable
batteries.
Operation Symbols
Some of the following symbols may be used on this
product. Please study them and learn their meaning.
Proper interpretation of these symbols will allow you to
more safely operate the product.
Symbol Meaning
Turn the clutch to the “IN”
position to retract the rope.
Turn the clutch to the “OUT”
position to release the rope.
Positive battery terminal
Negative battery terminal
Positive winch terminal
Negative winch terminal
13502 - 3,000 LB. ATV/UTV WINCH KIT
CONTROLS AND FEATURES
6
CONTROLS AND FEATURES
Read this operator’s manual before operating your winch. Familiarize yourself with the location and function of the
controls and features. Save this manual for future reference.

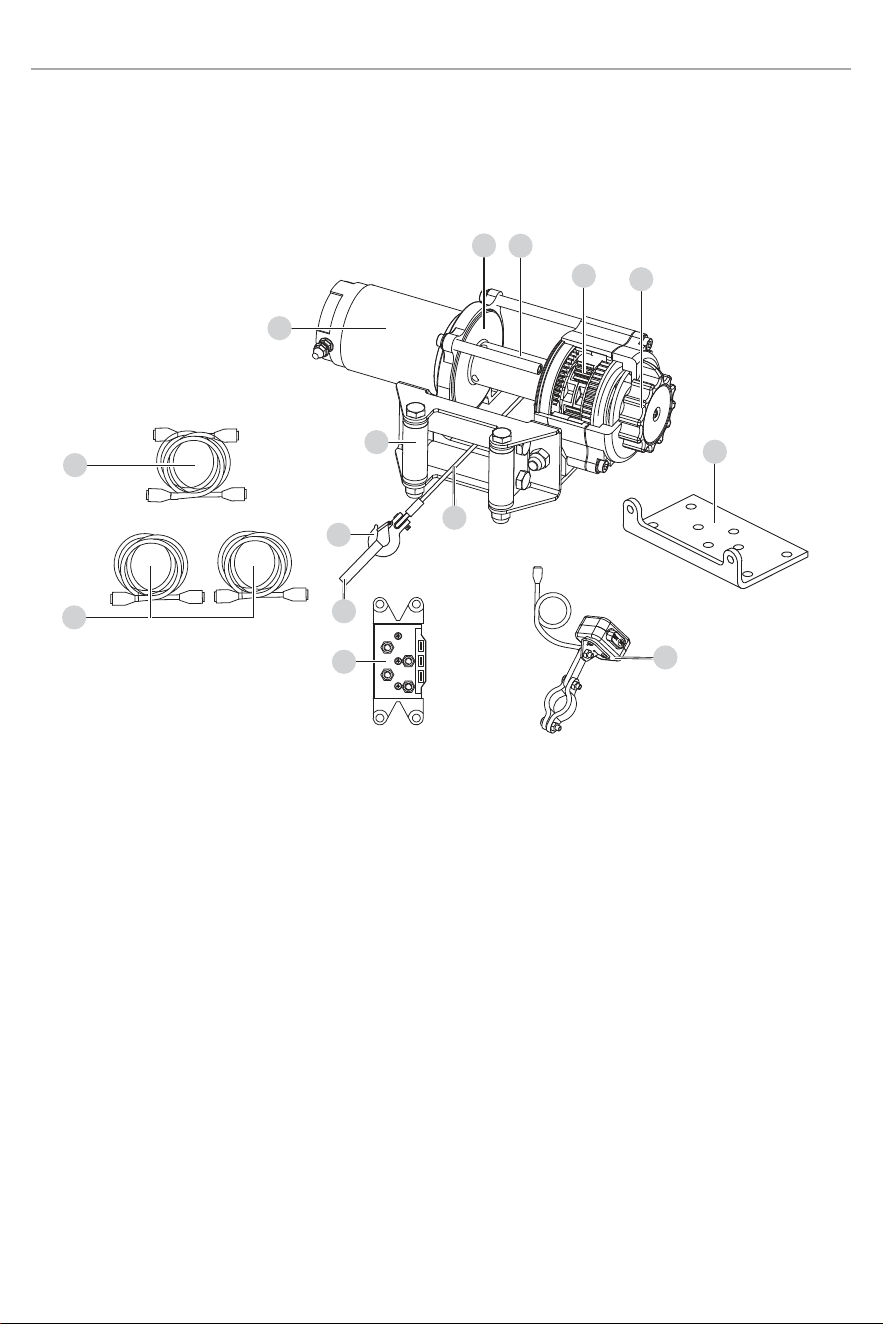

Winch
1. Motor – 1.3 HP 12V DC motor provides power to
the planetary gear mechanism.
2. Braking System – Braking action is automatically
applied to the winch drum when the winch motor is
stopped and there is a load on the wire rope.
3. Winch Drum – The winch drum is the cylinder on
which the wire rope is stored. It can feed or wind
the rope depending on the remote winch switch.
4. Planetary Gear System – The reduction gears
convert the winch motor power into extreme pulling
forces. This system allows high torque while
maintaining compact size and light weight.
5. Free spooling Clutch – The clutch allows the
operator to manually disengage “Out” the spooling
drum from the gear train, free spool. Engaging the
clutch “In” locks the winch into the gear system.
6. Mount Assembly – Flatbed mounting channel.
7. Roller Fairlead – When using the winch at an
angle the roller fairlead acts to guide the wire rope
onto the drum and minimizes damage to the wire
rope from abrasion on the winch mount or bumper.
8. Wire Rope – 3/16 in. x 45.9 ft. galvanized aircraft
cable designed specifically for load capacity of
3000 lb. (1361 kg).
9. Winch Connection Cables – Used to connect the
contactor to the winch motor.
10. Battery Connection Cables – Used to connect the
battery to the contactor.
11. Clevis Hook – Provides a means for connecting the
looped ends of cables to an anchor.
12. Strap – Used to assist cable feed.
10
1
3
2
4
5
7
8
6
14
11
13
12
9
13502 - 3,000 LB. ATV/UTV WINCH KIT
CONTROLS AND FEATURES
7
13. Contactor/solenoid – Power from the vehicle
battery flows through the weather sealed
contactor/solenoid switch before being directed to
the winch motor.
14. Rocker Switch – Rocker switch with handlebar
mount for powering the rope in or out of your winch
drum.
13502 - 3,000 LB. ATV/UTV WINCH KIT
CONTROLS AND FEATURES
8
Assembly Parts
Part Part Qty. Hardware Hardware Qty Tools Needed
Roller Fairlead 1
Bolt M10 × 20 2
2× 16mm wrench or socket
Washer Ø10 2
Lock washer Ø10 2
Lock nut M10 2
Winch body 1
Bolt M8 × 25 4
1× 13mm wrench or socketWasher Ø8 4
Lock washer Ø8 4
Clevis hook 1 Needle nose pliers
Yellow Strap 1
Mini-Rocker Switch 1
Contactor/Solenoid 1
Battery & Winch Cables 1
13502 - 3,000 LB. ATV/UTV WINCH KIT
ASSEMBLY
9

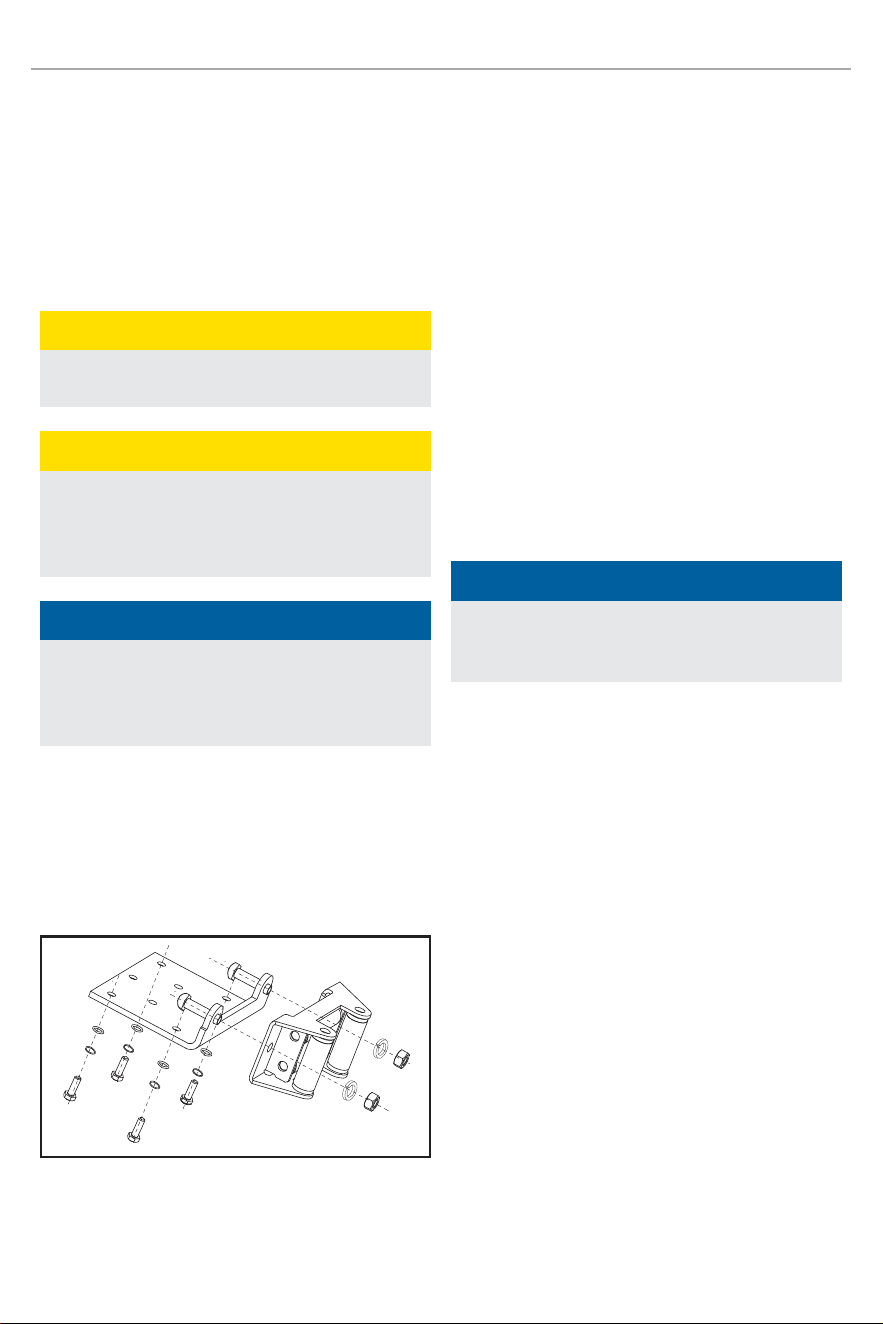

ASSEMBLY
Your CPE 3000 lb. (1361 kg) winch is designed with a
bolt pattern that is standard in this class of winch. Many
winch mounting kits are available that utilize this bolt
pattern for the most popular trucks and Sport Utility
Vehicles/UTV’s and ATV’s. If you cannot find a kit locally,
contact CPE and we will provide you with the name of a
dealer near you.
CAUTION
Mounting bolts must be SAE grade 5 or better and
torque to 34 ft. lb.
CAUTION
If utilizing a mounting plate, ensure that the three
major sections (motor, drum, and gear housing) are
properly aligned. Proper alignment of the winch will
allow for even distribution of the full rated load.
NOTICE
The type of vehicle to which the winch and mounting
plate will be applied, will dictate the type of mounting
kit that should be used (Speed Mount
TM
hitch adapter,
standard mounting plate, or specialty mounting kit).
Assembling the Winch
1. Insert M10x20 bolts through the mounting channel
holes and attach the roller fairlead to the mounting
channel with the M10 lock washers and M10 nuts
provided.
2. Turn the winch upside down. Place the mounting
channel on the winch, making sure the winch is
centered in the middle of it.
3. Thread the M8x25 bolts through the M8 flat and
lockers washers, and then thread through the
mounting channel. Tighten the bolts. DO NOT over
tighten.
4. Turn winch right side up. Disengage the clutch by
moving the Cam Ring to the “Out” position. Release
the wire rope and pull through the roller fairlead.
5. Attach the clevis hook to the cable, and then hand
strap to the clevis hook.
Contactor/solenoid Location
Find a location for the contactor/solenoid. It is
recommended that the contactor/solenoid be mounted
close to the battery in a clean, dry location. Make sure
the location chosen allows for sufficient clearance from
all metal components. Drill mounting holes if required.
Once a location is found, DO NOT install the unit until all
wiring is completed (see wiring section).
NOTICE
Terminals coming in contact with metal will cause a
direct short, possibly causing contactor/solenoid and/
or battery damage.
Installing the Rocker Switch
1. Decide which handlebar the rocker switch will be
mounted on. (The rocker switch is usually installed
on the left handlebar).
2. Use a piece of electrical tape (not provided) around
the handlebar to help prevent rotation of the mount.
3. Tighten the rocker switch in place. DO NOT over
tighten or tighten/clamp over any hoses or cables.
4. Once the rocker switch is mounted, the wires can
be routed back to where the contactor/solenoid is
located.
5. Make sure the handlebars have full range of motion
and then secure the rocker switch’s cable with the
supplied cable ties.
13502 - 3,000 LB. ATV/UTV WINCH KIT
ASSEMBLY
10
Winch Wiring
CAUTION
Never route electrical cables across any sharp edges,
through or near moving parts, or near parts that
become hot.
NOTICE
You may need to use a test light to locate a suitable
wire. The wire should only have power when the key is
in the ON position.
NOTICE
Depending on the location of the contactor/solenoid,
you may need to use the black and red cables in place
of the yellow and blue, and the yellow and blue in
place of the red and black. Just remember that this
also changes the diagram.
1. Connect the yellow and blue cables to the motor
terminals on the winch. (Yellow to the positive
(+) terminal of the motor. Blue to the negative (-)
terminal of the motor). Tighten the terminal nuts
on the motor. DO NOT over tighten. Route the other
ends to the contactor/solenoid location.
2. Connect the yellow and blue cables to the
contactor/solenoid (yellow to yellow and
blue to blue). DO NOT tighten nuts.
3. Connect the red and black cables to the contactor/
solenoid (red to red and black to black). DO NOT
tighten nuts. Route the other ends to the vehicle’s
battery.
4. Connect the red lead to the positive (+) terminal of
the vehicle’s 12 volt battery.
5. Connect the rocker switch to the contactor/solenoid
(black to black and green to green).
6. Splice the end of the red wire on the rocker switch,
to an ignition (keyed) controlled power source using
the supplied wire tap.
7. Once all wiring is connected to the contactor/
solenoid it can then be mounted using the supplied
M6 hardware.
8. Tighten the contactor/solenoid terminal nuts. DO
NOT over tighten.
9. Connect the black lead to the negative (–) terminal
of the vehicle’s 12 volt battery.
10. Place all terminal boots over terminals and secure
all cables with cable ties or electrical tape (not
included).
11. Check for proper drum rotation. Pull and turn the
clutch knob to the “OUT” position (free spooling).
Pull out some cable from the drum, and then turn
the clutch knob to the “IN” position to engage the
gears. Press the cable out button on the rocker
switch. If the drum is turning and releasing more
cable, then your connections are accurate. If the
drum is turning and collecting more cable then
reverse the leads on the motor. Repeat and check
rotation.
CAUTION
Battery cables should not be drawn taut. Leave some
slack for cable movement.

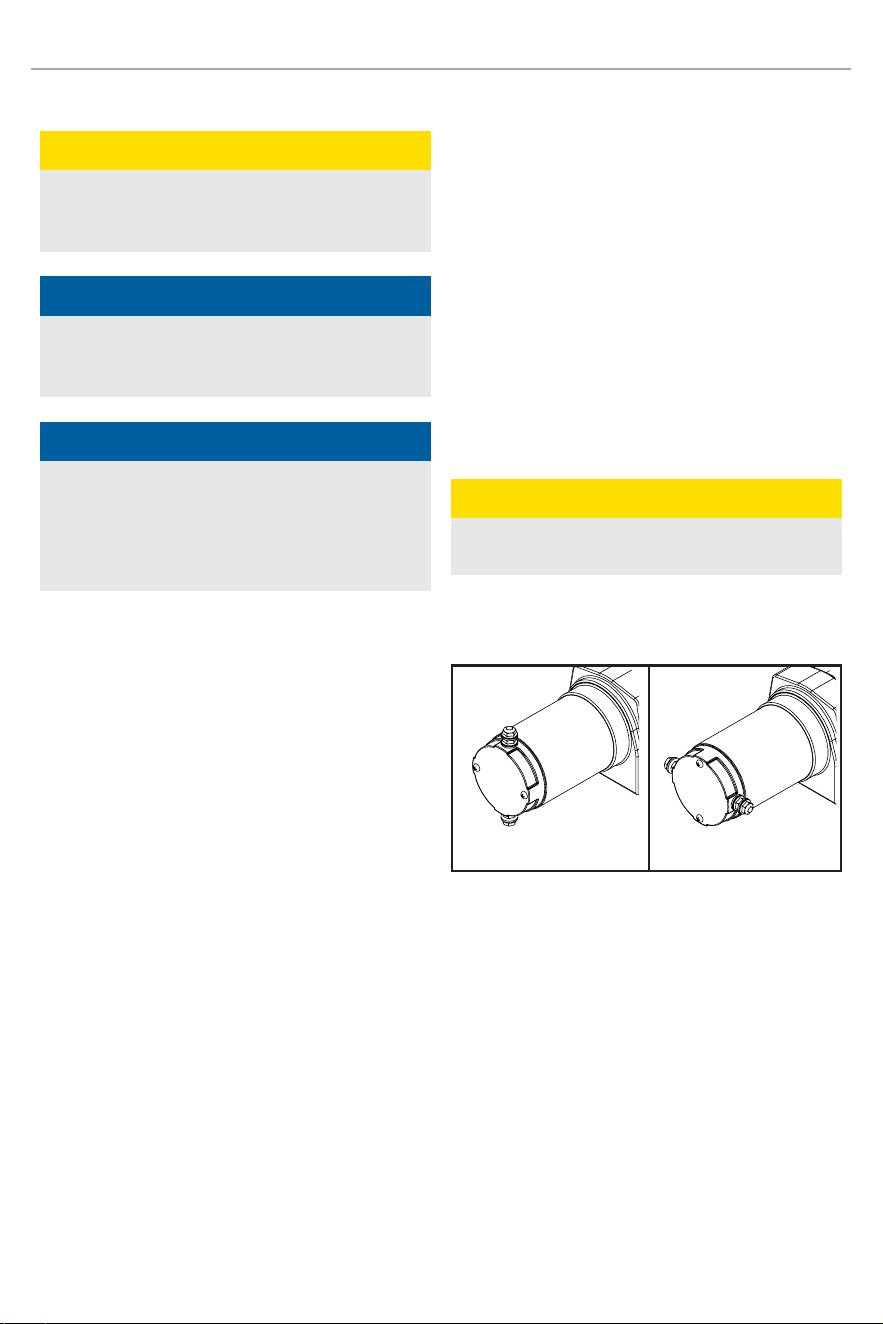

With some applications the motor leads may need to be
rotated to avoid interference with other components.
Leads default position Leads rotated 90º
Test Winch Operation
When testing the winch for correct connections and
operation.
1. Make sure there are no exposed terminals or
wiring.
2. Wiring to all components is correct.
3. All loose wires are secured.
4. Turn the vehicle ignition switch to the ON position,
but DO NOT start the vehicle.
5. Check the winch for proper operation using the
rocker switch. The wire rope should spool in and
out in the direction indicated on the switch.
13502 - 3,000 LB. ATV/UTV WINCH KIT
ASSEMBLY
11
Wiring Diagram
Switch Wiring Diagram
Green
Red
Ignition Wire
Black
Negative (–)
Positive (+)
Negative (–)
Blue
Positive (+)
Yellow
Red
Black
To Switch And
Remote Wiring
(See Below)
13502 - 3,000 LB. ATV/UTV WINCH KIT
OPERATION
12
OPERATION
General Tips for Safe Operation
Your winch is rated at a 3000 lb. (1361 kg) capacity in
first layer (max) when spooling the first rope layer on the
drum. Overloads can damage the winch, motor and/or
wire rope. For loads over 50% we recommend the use
of the pulley block/snatch block (included) to double the
wire rope line. This will aid in two ways:
– reduce the number or rope layers on the drum,
as well as,
– reduce the load on the wire rope by as much as
50%.
When doubling the line back to the vehicle, attach to the
tow hook, frame or other load bearing part. The vehicle
engine should be kept running during operation of the
winch to minimize battery drain and maximize power
and speed of the winch. If the winch is used for a
considerable time with the engine off the battery may be
drained and too weak to restart the engine.
Get to know your winch before you actually need to use
it. We recommend that you set up a few test runs to
familiarize yourself with rigging techniques, the sounds
your winch makes under various loads, the way the cable
spools on the drum, etc.
Inspect the wire rope and equipment before each use.
A frayed or damaged rope shall be replaced immediately.
Use only manufacturer’s identical replacement rope with
the exact specifications.
Inspect the winch installation and bolts to ensure that all
bolts are tight before each operation. Store the remote
control inside your vehicle in a place that it will not be
damaged.
Any winch that appears to be damaged in any way,
is found to be worn, or operates abnormally MUST
BE REMOVED FROM SERVICE UNTIL REPAIRED. It is
recommended that the necessary repairs be made by
a manufacturer’s authorized repair facility.
Pull only on areas of the vehicle as specified by the
vehicle manufacturer. Only attachments and/or adapters
supplied by the manufacturer are to be used.

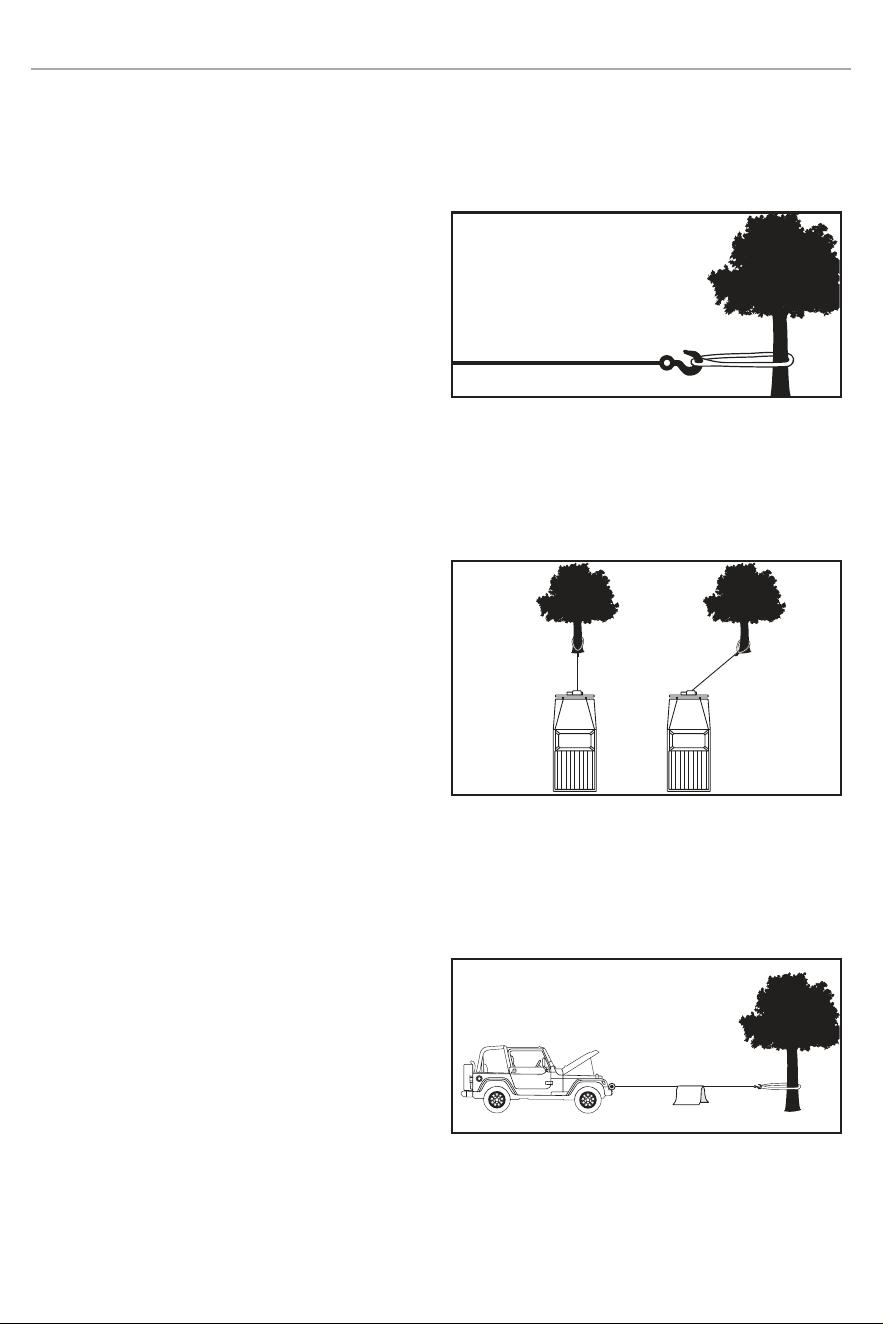

Self Recovery
Locate a suitable anchor such as a strong tree trunk or
boulder. Always use a sling (not included) as an anchor
point.
A roller fairlead (included) will help guide the wire rope
and to reduce binding on short side pulls. Do not winch
from an acute angle as the wire rope will pile up on one
side of the drum causing damage to wire rope and the
winch.
Correct Incorrect
Short pulls from an angle can be used to straighten the
vehicle. Long pulls should be done with the wire rope at
a 90° angle to the winch/vehicle. When pulling a heavy
load, place a blanket or jacket over the wire rope 5-6 ft.
(1.5-1.8 m) from the hook.
13502 - 3,000 LB. ATV/UTV WINCH KIT
OPERATION
13
In the event of a broken cable it will dampen the snap
back. For additional protection open the hood of the
vehicle. For pulls over 50%, we recommend the use of
the snatch block/pulley block to double line the wire rope.
Single Line Double Line
This reduces the load on the winch and the strain on the
rope by approximately 50%.
Winching Techniques A-Z
A. Take time to assess your situation and plan your pull.
B. Put on gloves to protect your hands.
C. Disengage the clutch to allow free-spooling and also
save battery power.
D. Attach the hook strap to the clevis hook.
E. Pull out the wire rope to your desired anchor point
using the hook strap.
F. Secure the clevis hook to the anchor point: Sling,
chain or snatch block. Do not attach the hook back
onto the wire rope.
G. Engage the clutch.
H. Connect the remote control to the winch. If you are
going to control the winch from inside your vehicle
then pass the remote through an open window to
avoid the wires being pinched in the door.
I. Start your engine to ensure power is being
replenished to the battery.
J. Power in the wire rope guiding the wire under
tension to draw up the slack in the wire. Once the
wire is under tension, stand clear. Never step over
the wire rope.
K. Double check your anchors and make sure all
connections are secure.
L. Inspect the wire rope. Make sure there are at least 5
wraps of wire rope around the winch drum.
M. Drape a blanket or jacket over the wire rope
approximately 5-6 ft. (1.5-1.8 m) from the hook.
Open the hood for added protection.
N. Clear the area. Make sure all spectators stand clear
and that no one is directly in front or behind the
vehicle or anchor point.
O. Begin winching. Be sure that the wire rope is
winding evenly and tightly around the drum.
The vehicle that is being winched can be slowly
driven to add assistance to the winching process.
Avoid shock loads; keep the wire rope under tension.
P. The vehicle to be winched should be placed in
neutral and the emergency brake released. Only
release the brake pedal when under full tension.
Avoid shock loads to the winch. This can damage the
winch, rope and vehicle.
Q. The winch is meant for intermittent use. Under full
load with a single line rig do not power in for more
than a minute without letting the motor cool down
for a few minutes and then resume the winching
operation.
R. The winching operation is complete once the vehicle
is on stable ground and is able to drive under its own
power.
S. Secure the vehicle. Be sure to set the brakes and
place the vehicle in park.
T. Release the tension on the wire rope. The winch
is not meant to hold the vehicle for long periods of
time.
U. Disconnect the wire rope from the anchor.
V. Rewind the wire rope. Make sure that any wire
already on the drum has spooled tightly and neatly.
If not, draw out the wire and re-spool from the point
where the rope is tight.
W. Keep your hands clear of the winch drum and
fairlead as the wire rope is being drawn in.
X. Secure the hook and hook strap.
Y. Disconnect the remote control and store in a clean,
dry place.
Z. Clean and inspect connections and mounting
hardware for next winching operation.
13502 - 3,000 LB. ATV/UTV WINCH KIT
MAINTENANCE
14
MAINTENANCE
The owner/operator is responsible for all periodic
maintenance.
Complete all scheduled maintenance in a timely manner.
Correct any issue before operating the winch.
WARNING
Never operate a damaged or defective winch.
WARNING
Improper maintenance will void your warranty.
NOTICE
For service or parts assistance, contact our help line
at 1-877-338-0999.
Lubrication
All moving parts within the electric winch have been
lubricated using high-temperature lithium grease at the
factory. No internal lubrication is required.
Steel Rope Replacement
It is recommended that any modifications be performed
by a manufacturer’s authorized repair facility, and that
only manufacturer-supplied parts be used.
1. Move the clutch to the “Out” position.
2. Extend wire rope to its full length. Note how the
existing rope is connected to the inside of the drum.
3. Remove old wire rope and attach new one.
4. Retract wire rope onto drum, being careful not to
allow kinking.
Synthetic Rope Replacement
(Optional)
It is recommended that any modifications be performed
by a manufacturer’s authorized repair facility, and that
only manufacturer-supplied parts be used.
1. Move the clutch to the “Out” position.
2. Extend synthetic rope to its full length. Note how
the existing rope is connected to the inside of the
drum.
3. Remove old synthetic rope and attach new one.
4. Retract synthetic rope onto drum being careful not
to allow kinking.
Synthetic Rope
Periodically rinse the synthetic rope with water to
remove any sand, dirt, mud, or debris that can become
embedded or build up in the rope during use. This will
help extend the life of the rope.
NOTICE
Inspect rope before and after each use. If rope
becomes frayed it must be replaced.
13502 - 3,000 LB. ATV/UTV WINCH KIT
SPECIFICATIONS
15
SPECIFICATIONS
Performance Specifications
Rated Pull
....................... 3000 lb. (1361 kg)
Gear Reduction Ratio ......................... 171:1
Motor..... Permanent magnet 1.3 HP/1.0 kW (DC 12V)
Drum Size ......... 1.5 in. × 3.2 in. (38 mm × 80 mm)
Rope Dimensions . 3/16 in. × 45.9 ft. (4.8 mm × 14 m)
Net Weight
......................... 21.2 lb. (9.6 kg)
Mounting Bolt Pattern ................. 4.9 in. × 3 in.
(12.4 cm × 7.6 cm)
Overall Dimensions ................................
12.7 in. (L) × 4.1 in. (W) × 4.2 in. (H)
32.2 cm × 10.3 cm × 10.7 cm
Line Speed and Motor Current (First Layer)
Line Pull
LB
0 1000 2000 3000
KG 0 454 907 1361
Line Speed (12V DC)
FPM 8.9 7.6 5.3 4.3
MPM 2.7 2.3 1.6 1.3
Max Current A 15 60 120 170
Run Time* Minutes 1 1 1 1
Cooling Time** Minutes 5 5 5 5
* If the motor becomes uncomfortably hot to the touch, stop winching immediately and let it cool down for 5 minutes. Do not pull for more than
one minute at or near the rated load.
* *Electric winches are designed and made for intermittent use and should not be used in constant duty applications.
Line Pull and Cable Capacity Per Layer
Line of Cable
1 2 3 4 5
Rated Line Pull
LB 3000 2450 2070 1793 1581
KG 1361 1112 940 814 718
Cable Capacity
FT 7.2 15.5 24.7 34.5 45.9
M 2.2 4.7 7.5 11.5 14
– Use double line and snatch block for pulling loads over 50%.
13502 - 3,000 LB. ATV/UTV WINCH KIT
TROUBLESHOOTING
16
TROUBLESHOOTING
Problem Cause Solution
Motor does not turn on.
Switch assembly not connected
properly.
Insert switch assembly all the way into the
connector.
Loose battery cable connections. Tighten nuts on all cable connections.
Contactor malfunctioning.
Tap contactor to loosen contacts. Apply 12
volts to coil terminals directly. A clicking
indicates proper activation.
Defective switch assembly. Replace switch assembly.
Defective motor.
Check for voltage at armature port with
switch pressed. If voltage is present,
replace motor.
Water has entered motor.
Allow to drain and dry. Run in short burst
with load until completely dry.
Motor runs but cable drum does
not turn.
Clutch (cam ring) not engaged.
Move cam ring to the “In” position.
If problem persists, a qualified technician
needs to check and repair.
Motor runs slowly or without
normal power.
Insufficient current or voltage.
The battery is weak, recharge. Run winch
with vehicle motor running (battery should
have a strong charge).
Loose or corroded battery cable
connections.
Clean, tighten, or replace.
Motor overheating. Winch running time too long. Allow winch to cool down periodically.
Motor runs in one direction only.
Defective or stuck contactor.
Tap contactor to loosen contacts.
Repair or replace contactor.
Defective switch assembly. Replace switch assembly.
For further technical support:
Technical Support Team
Toll Free 1-877-338-0999
support@championpowerequipment.com
WARRANTY*
CHAMPION POWER EQUIPMENT
2 YEAR LIMITED WARRANTY
Warranty Qualifications
To register your product for warranty and FREE lifetime
call center technical support please visit:
https://www.championpowerequipment.com/register
To complete registration you will need to include a copy
of the purchase receipt as proof of original purchase.
Proof of purchase is required for warranty service.
Please register within ten (10) days from date of
purchase.
Repair/Replacement Warranty
CPE warrants to the original purchaser that the
mechanical and electrical components will be free of
defects in material and workmanship for a period of
two years (parts and labor) from the original date of
purchase and 180 days (parts and labor) for commercial
and industrial use. Transportation charges on product
submitted for repair or replacement under this warranty
are the sole responsibility of the purchaser. This
warranty only applies to the original purchaser and is not
transferable.
Do Not Return The Unit To The Place
Of Purchase
Contact CPE’s Technical Service and CPE will
troubleshoot any issue via phone or e-mail. If the
problem is not corrected by this method, CPE may,
at its option, authorize other means of repair and/or
replacement.
Warranty Exclusions
This warranty does not cover the following repairs and
equipment:
Normal Wear
Products with mechanical and electrical components
need periodic parts and service to perform well. This
warranty does not cover repair when normal use has
exhausted the life of a part or the equipment as a whole.
Installation, Use and Maintenance
This warranty will not apply to parts and/or labor if the
product is deemed to have been misused, neglected,
involved in an accident, abused, loaded beyond the
product’s limits, modified, installed improperly or
connected incorrectly to any electrical component.
Normal maintenance is not covered by this warranty
and is not required to be performed at a facility or by a
person authorized by CPE.
Other Exclusions
This warranty excludes:
– Cosmetic defects such as paint, decals, etc.
– Wear items such as winch cable, etc.
– Accessory parts such as storage covers.
– Failures due to acts of God and other force majeure
events beyond the manufacturer’s control.
– Problems caused by parts that are not original
Champion Power Equipment parts.
Limits of Implied Warranty and
Consequential Damage
Champion Power Equipment disclaims any obligation to
cover any loss of time, use of this product, freight, or any
incidental or consequential claim by anyone from using
this product. THIS WARRANTY IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE.
A unit provided as an exchange will be subject to the
warranty of the original unit. The length of the warranty
governing the exchanged unit will remain calculated by
reference to the purchase date of the original unit.
This warranty gives you certain legal rights which may
change from state to state or province to province. Your
state or province may also have other rights you may be
entitled to that are not listed within this warranty.
Contact Information
Address
Champion Power Equipment, Inc.
6370 S Pioneer Way, Unit 101
Las Vegas, NV 89113 USA
www.championpowerequipment.com
Customer Service
Toll Free: 1-877-338-0999
info@championpowerequipment.com
Fax no.: 1-562-236-9429
Technical Service
Toll Free: 1-877-338-0999
tech@championpowerequipment.com
EMERGENCY 24 HOUR SUPPORT: 1-562-204-1188
