ENGLISH INTRODUCTION
Contents
1.0 Important Safety Information
2.0 Product Description
3.0 Flight Guide
4.0 Troubleshooting
6.0 Product Accessories
2
4
7
15
16
4
4
5
5
6
5.0 Contact Us
16
8.0 Warranty
19
7.0 Exploded View
17
7
9
10
11
14
1
EN
2.1 Specifications
2.2 Drone Diagram
2.3 Remote Control Diagram
2.4 Drone Battery Charging
2.5 Remote Control Use
3.1 Flight Preparation
3.2 Flight Control
3.3 Flight Mode
3.4 Smart Flight Feature
3.5 Product Feature
1. To protect the legitimate rights and interests of users, please be sure to read the contents of this
manual carefully before using this product.
2. When using this product, please be sure to strictly observe and perform the requirements, including
but not limited to the instructions and safety guidelines. For any personal injury, accident,
property loss, legal dispute, or any other adverse event causing a conflict of interest resulting from the
use of the product or any irresistible factors that violate the safety instructions, the user shall bear the
related responsibilities and losses. Syma will not take any responsibility.
3. Once you start using the product. You are deemed to have read, understood, recommended, and
accepted the terms and contents of the instructions (including disclaimers, safety instructions,
warning instructions, etc) included with this product.
4. In case you are having challenges with any aspect of the product, may it be operation or
maintenance, please get in touch with our customer service directly.
1.0 Important Safety Information
Safety Guidelines
Thank you for purchasing this SYMA product. To ensure that you operate the drone correctly and
conveniently, please read these instructions carefully before first use and store them safely for future
reference.
1. Please store the smaller-sized drone accessories in places that are out of reach of children.
2. For all first-time flights, the left joystick must be slowly pushed up in order to prevent the drone from
ascending too fast to avoid unnecessary collision and possible damage and injury.
3. When the flight is ended, first turn off the power of the remote control. Then turn off the power of the
drone.
4. Avoid placing the batteries in places with high temperatures and exposure to heat.
5. Take extra precautions to ensure that the drone is at a minimum distance of 15 feet from the pilot,
other people, and animals in order to prevent bodily injury during flight operations. A minimum
separation distance of 20 cm must be maintained between the user's body and the device under
normal use conditions.
6. Children under the age of 8 must be instructed in the correct and safe operation of the drone by an
adult.
7. Children must be under adult supervision when using this drone.
8. Non-rechargeable batteries are not to be recharged; Batteries are to be inserted with the correct
polarity; Different types of batteries or new and used batteries must not be mixed.
9. The supply terminals can not be short-circuited.
10. Discharge the battery to 40%-50% (On a full charge, fly for half of the total flight time) if it is not used
for 10 days or more, this can greatly extend the battery life.
2
EN
Repair and maintenance
1. Use a dry and soft cloth to clean the product.
2. Do not expose the product to extreme heat or direct sunlight.
3. Do not immerse the product in water as this may damage the electrical components.
4. Please check the blades, motors, and batteries regularly. In case of any damage is found, please stop
using it unless it is repaired or replaced.
11. Please keep a safe distance from the spinning propellers to avoid injury.
12. To ensure the electromagnetic environment requirement of the aviation radio (station), using
remote controls in the zone, which is in a radius of about 5000m zones from the circle center of the
airport runway, is forbidden. All users also should abide by the radio regulation set forth by the
government and regulatory agencies including the duration and area.
13. Only uses the recommended transformer for the model, and the transformer is not a toy. Check the
cord, plug, enclosure, and other parts of the transformer regularly. If any damages have been
discovered, please immediately stop using it, until it is completely repaired.
14. Never look steadily at the laser beam since the laser radiation can cause harm.
15. NOTE: Assemble the drone under adult supervision.
16. The pilot is responsible for the safe operation and safe distance from uninvolved persons and
property on the ground and from other airspace users and shall never fly the drone above crowds (> 12
persons).
17. The packing has to be kept since it contains important information.
18. It is strongly recommended to fly in areas without airflow. Do not fly in areas with an air
conditioner/electric fan or table lamp, or other electrical equipment that may be easily damaged.
19. Use only the supplied charging cable.
20. Chargers used with the drone should be examined regularly, such as the cord, plug, enclosures,
and other parts. In case of any damages are found, please stop using it unless it is repaired or replaced.
21. Do not touch the rotating rotor, avoid loose clothing or hair that could be caught in the rotor, and
do not fly near the face.
3
EN
2.0 Product Description
2.1 Specifications
Drone weight about 24g
Drone size 120x120x45 mm
Range 35m
Motor ø6
Battery capacity 3.7V 200mAh
Charging time about 40 minutes
Flight time about 7 minutes
Remote control
Operating frequency 2.4 GHz
Remote control battery 4 X1.5V"AAA"(Not included)
Package contents
Drone 1
Remote control 1
USB charging cable 1
Clockwise/counterclockwise propellers
Screwdriver
Instructions
2 (A/B)
1
1
Drone
Brand Name
Model/ITEM NO. X660
SYMA
4
EN

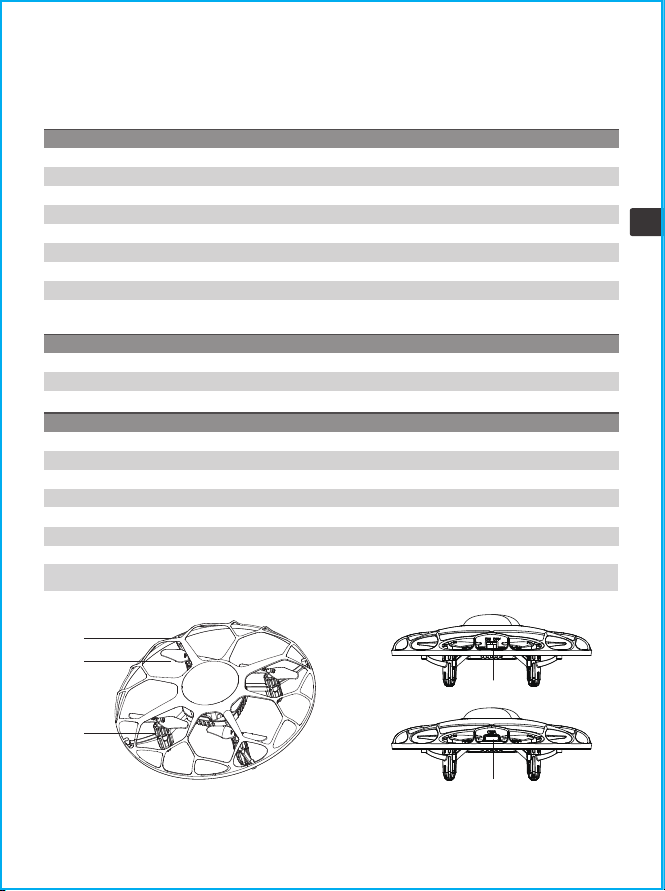

2.2 Drone Diagram
① Propeller protector ② Propeller ③ Motor ④ Power switch
⑤ USB Type-C Charging port
①
②
③
④
⑤
5
EN
* Charge the drone with the USB charging cable that came with the product.
* The battery will take longer to charge when you use an adapter with a smaller rated current.
Note:
!

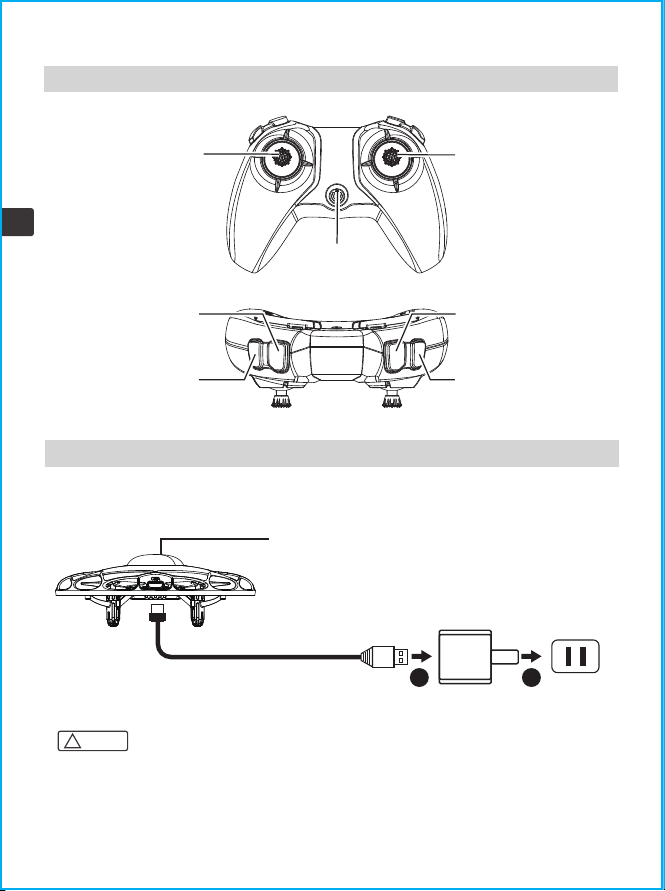

2.3 Remote Control Diagram
Power switch
Rotate button
Spin button
Flip button
One key take-off/landing
2.4 Drone Battery Charging
Left joystick(short
press to change the
light effects; press and
hold for trimming
adjustment and release
when finished; to clear
trimming settings,
press and hold
simultaneously with
the power button)
Right joystick(short
press to switch
between high and low
speed mode)
USB charging cable
USB
2 3
USB
Type-C
When charging: the red light is on
When fully charged: the red light is off
5V/1A adapter
（Not included)
6
EN
2.5 Remote Control Use

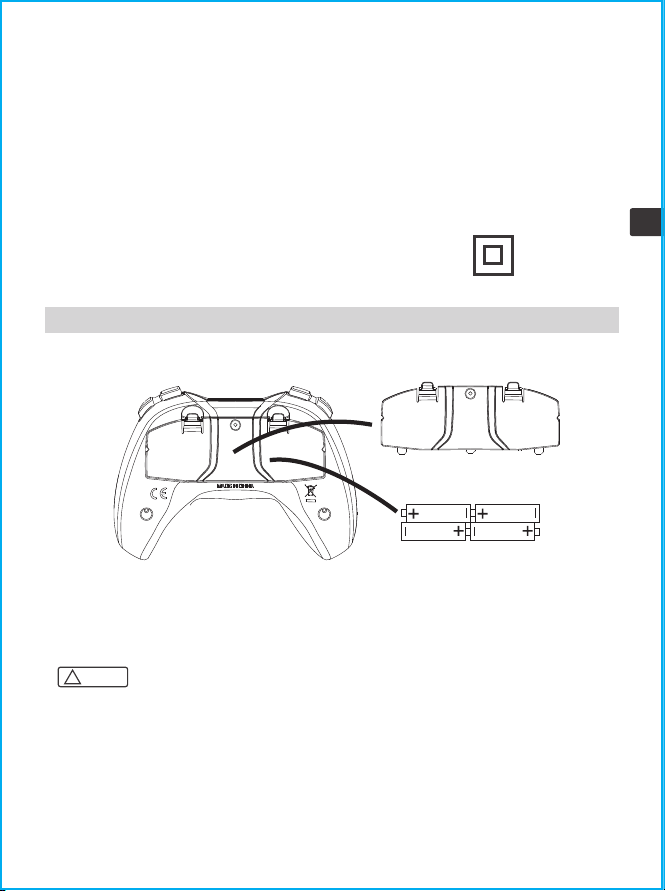

Remote control battery installation: Open the battery cover on the back of the remote control, and
install 4*AAA batteries correctly according to the electrode instructions of the battery box(battery
needs to be purchased separately)
1. When installing the battery, please make sure that the polarity of the battery matches the polarity of
the battery box. Batteries must not be installed with reversed polarity.
2. Please do not use new and old batteries together.
3. Please do not use different types of batteries together.
4. Do not use rechargeable batteries.
Important: Battery Charging Information
1. Rechargeable batteries should only be charged under adult supervision.
2. Caution: Risk of explosion if the battery is replaced with incorrect ones. Please dispose of the
batteries according to the instructions.
3. Don't use or place batteries near heat sources such as fires or heaters.
4.After flying, do not charge the battery immediately to avoid overheating and potential fire hazards.
Ensure that the battery cools down before charging.
5. Don't hit or drop the battery when charging to avoid an internal short circuit.
6. Only use the supplied charging cable for charging. If the battery is aging, please replace it with a new
battery in time.
7. After fully charged, please remove the adapter in time, otherwise the battery will be discharged and
recharged, which will shorten the battery life.
8. The toy is only to be connected to Class II equipment bearing the symbol:
Note:
!
4 x AAA Batteries
Battery Cover
7
EN
3.0 Flight Guide
3.1 Flight Preparation
Pairing the drone with the remote control
Level calibration
1. Turn on the power switch of
the remote control.
2. Push the power switch on the aircraft's body
to the "ON" position.
3. Push the left joystick (throttle) fully up and down. The indicators on the drone and remote will
change from flashing to solid, indicating that the drone is in flight-standby mode.
Place the drone on a level surface and move the left and right joysticks to the lower right corner for about
3 seconds. The indicator will flash rapidly and then stay constant,which indicates that the calibration
process is complete.
The drone cannot be calibrated if the inclination angle is greater than 10 degrees.
1. The drone will switch off automatically if its angle of inclination exceeds 90 degrees.
2. If the drone is flown out of range from the remote control, the drone indicator light will start to flash
and the drone will land automatically.
3. If the remote control loses power or turns off during flight, the drone will automatically initiate a
landing procedure and come to a stop. Once the remote control is turned back on, the user will regain
control of the drone.
Note:
!
8
EN

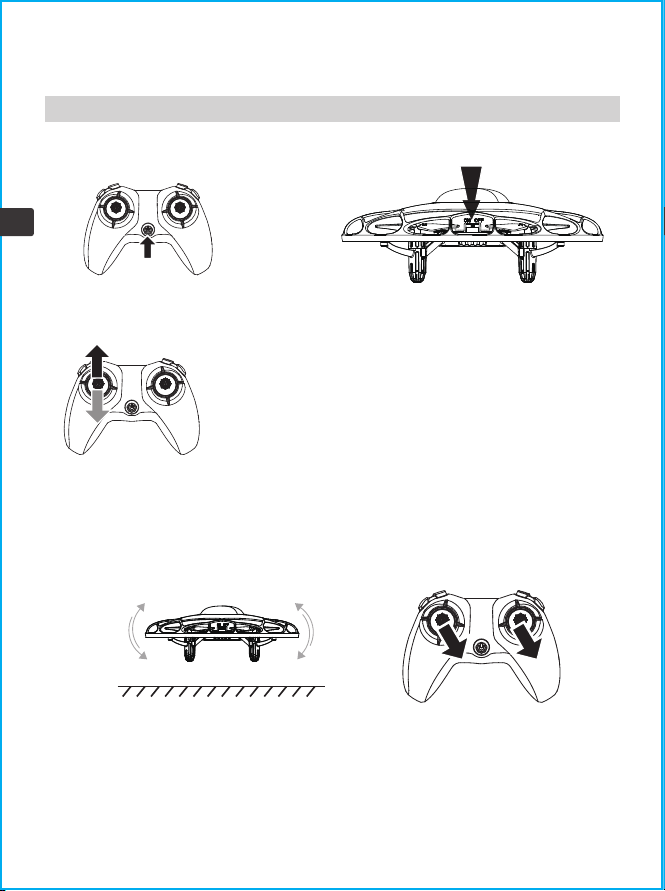

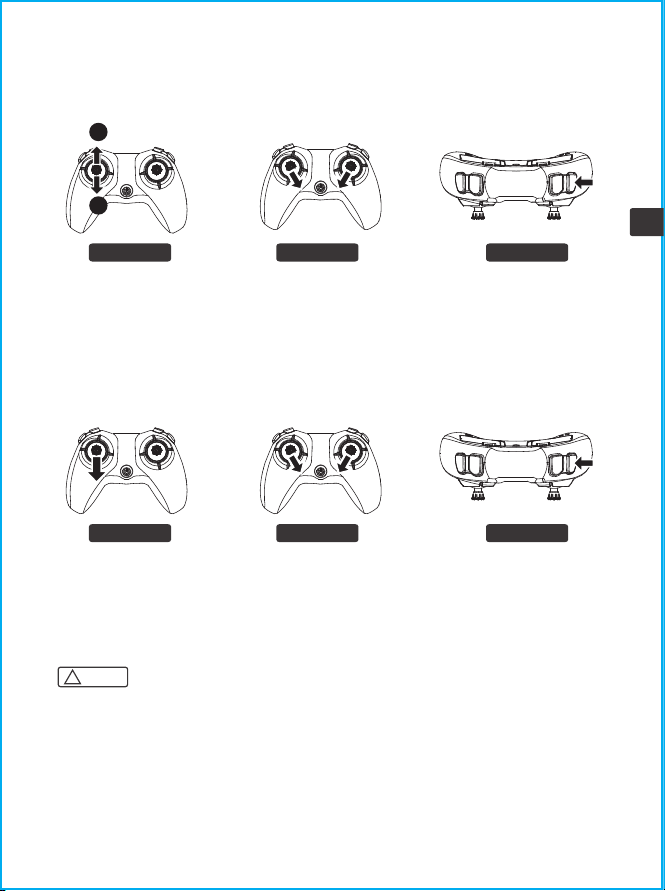

Pre-flight preparation
Shutdown pre-flight preparations
Method one Method two Method three
Push the left joystick fully up
and return to the center.
The propeller will begin to rotate.
Push the left and right joysticks
downward in a V shape for 2 seconds.
The propeller will begin to rotate.
Press the one key take-off/landing button.
The propeller will begin to rotate then the
drone will automatically take off and hover
at a fixed height.
2
1
Method one Method two Method three
Push the left joystick downward
for 2-3 seconds to stop the propellers.
Push the left and right joysticks
downward in a V shape for 2
seconds to stop the propellers.
Press the one key take-off/landing button.
The drone will slowly descend to the ground
and the propellers will stop spinning.
Ascend
Descend
Forward
Backward
rotate to
the left
rotate to
the right
9
EN

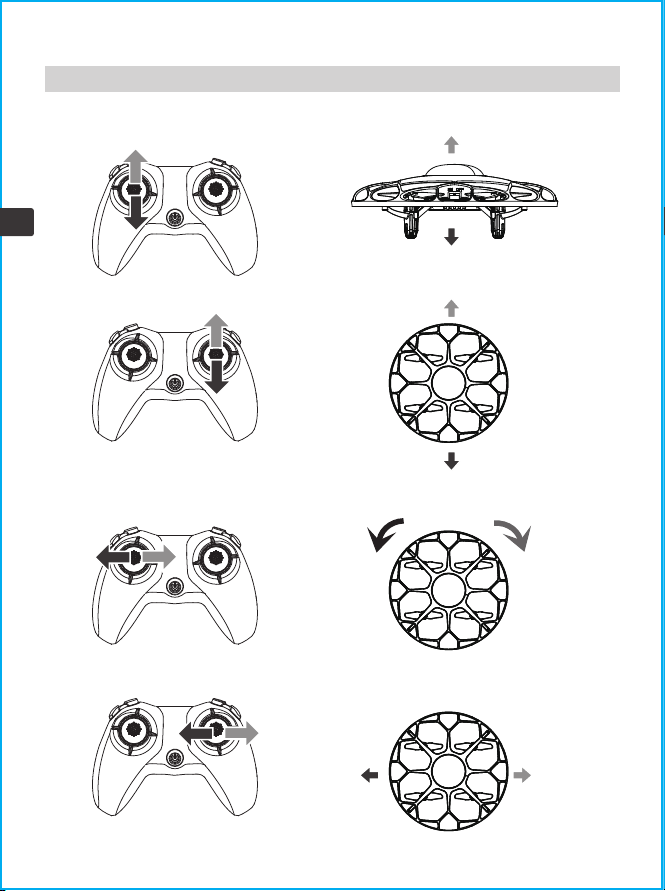

3.2 Flight Control
Rear
The end with the red light is the front.
Rear
The end with the red light is the front.
Fly to
the left
Fly to
the right
Rotate left
Rotate right
10
EN

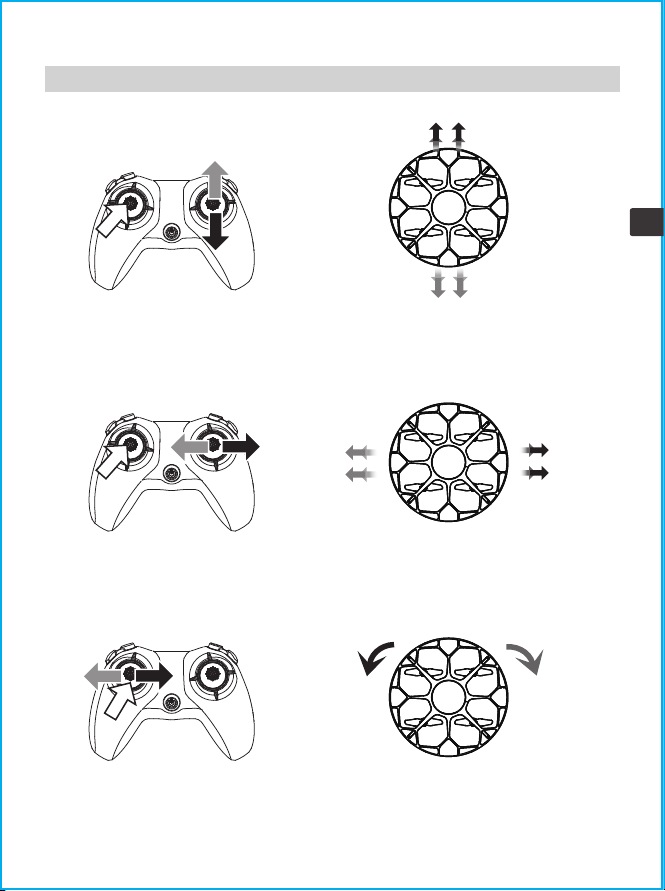

3.3 Flight Mode
Rear
Trimming
The end with the red light is the front.
Trimming forwards and backwards
Trimming left and right
Trimming left and right rotation
The end with the red light is the front.
The end with the red light is the front.
If the drone automatically moves forward/backward while hovering, during hovering you can adjust the
movement by holding down the left joystick and push the right joystick to the opposite direction
(backward/forward). Continue adjusting until the drone is stable, then release the fine-tuning button.
If the drone automatically fly to the left/right while hovering, during hovering you can hold down the
left joystick and push the right joystick to the right/left direction to adjust the drone's flight until it
stabilizes. Then you can release the trim button.
If the aircraft automatically rotate to the left/right while hovering, during hovering you can hold down
the left joystick and push the left joystick to the right/left direction to make adjustments. When the
drone is stable, you can release the trim button.
11
EN
3.4 Smart Flight Feature
High/low speed modes

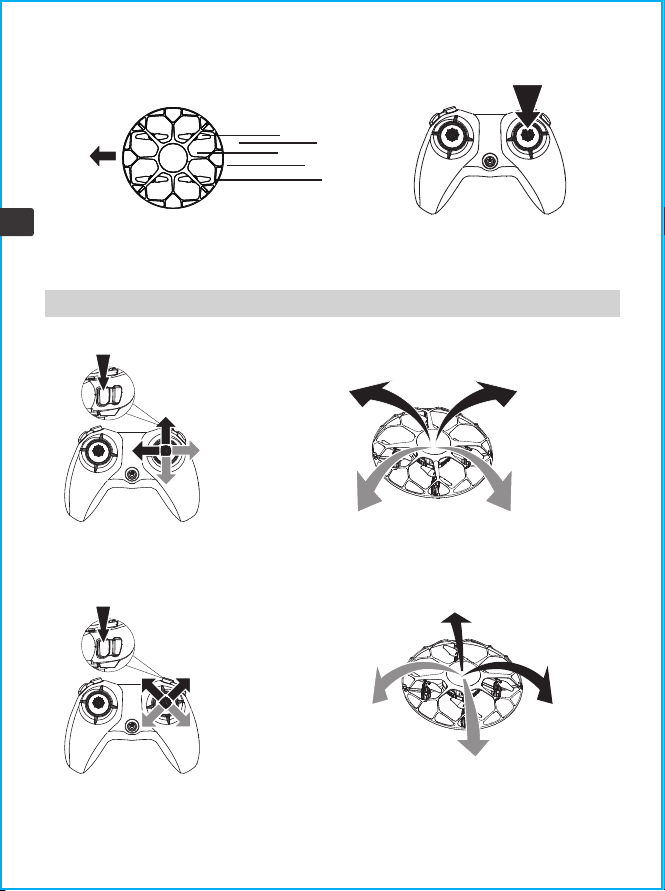

front/back or left/right rolling (The end with the red light is the front)
Diagonal rolling (The end with the red light is the front)
Short press the right joystick to switch between high speed mode and low speed mode.
1. The default mode upon powering on is slow speed mode.
2. The remote controller emits two "beeps" for high-speed mode and one "beep" for low-speed mode.
Hold the flip button on the remote control and push the right joystick forward/backward/left/right, the
aircraft will quickly roll over in the corresponding direction.
Short press the flip button on the remote control once and quickly hold it again and push the right joystick
to the upper left/upper right/lower left/lower right direction, the aircraft will quickly roll over in the
corresponding direction.
hold the Filp
button
press and hold the
Flip/Roll button
The end with the red light is the front
Flip to the left Flip forward
Flip backward Flip to the right
Front left
corner flip
Front right
corner flip
Back left
corner fli
Back right
corner fli
12
EN

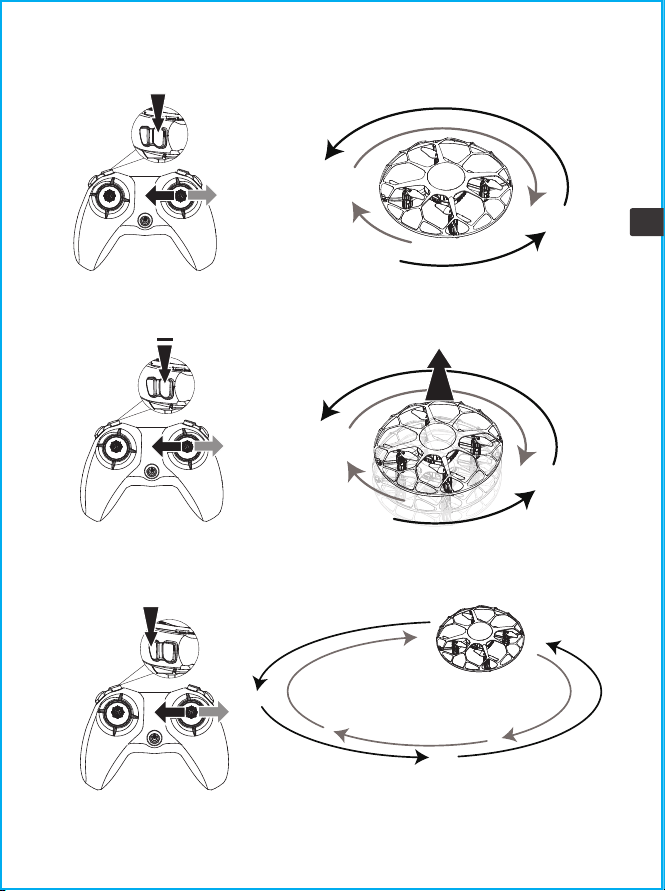

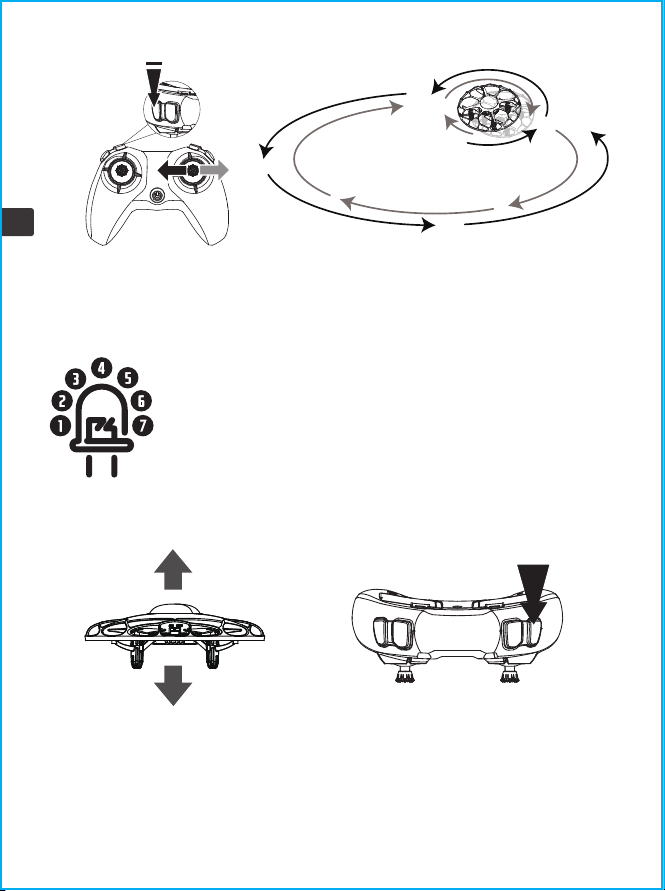

Spinning function (The end with the red light is the front)
Draw circle in the air (The end with the red light is the front)
Short press the spin button on the remote control once and quickly hold it again and push the right
joystick to the left/right, the aircraft will spin in the corresponding direction while ascending.
Hold the spin button on the remote control and push the right joystick to the left/right, the aircraft will
spin in the corresponding direction.
Hold the rotate button on the remote control，and push the right joystick to the left/right, the aircraft will
rotate around and draw a circle in the the air in the corresponding direction.
hold the
spin button
press and
hold the spin
button
hold the
rotate button
Right-handed spin
Left-handed spin
Turn right and go up
Turn left and go up
Rise at the same time
Rotate one turn
to the right
Rotate one turn
to the left
13
EN
Light controls
One key take-off/landing
1. When the drone is in standby mode, press the one key takeoff/landing button, the drone will
automatically take off and hover at a height of 1.5 meters.
2. When the drone is in flight, press the one key takeoff/landing button and the drone will automatically
land on the ground.
The start-up colourful lights default to a gradual change. Press the left joystick
or right joystick to the left or right during standby mode to change the color of
the light. Or press the left joystick while the aircraft is flying to change the color
of light. There are seven colors of light.
Short press the rotate button on the reomte once and quickly hold it again and push the right joystick to
the left/right, the aircraft will rotate around and draw a circle in the air while it's spinning.
press and
hold the rotate
button
Right
spinning
Left spinning
Rotate one turn to the right
Rotate one turn to the left
14
EN
3.5 Product Feature
Altitude hold
When releasing the left joystick (throttle) after controlling the drone to ascend/descend, the drone
will continue to hover at the current height.
When the two indicators on the rear of the drone start to flash, it means that the
power of the drone is low. At this time, please fly the drone back.
If the spinning propellers collide or get stuck, the aircraft circuit will activate
overcurrent protection.
Undervoltage protection
Overcurrent protection
15
EN
4.0 Troubleshooting
After the drone and
remote is powered
on, the drone fail to
take off. (indicator
light keep flashing
rapidly)
1. The drone and the remote control
are not bound with each other.
2. The drone enters low voltage
protection
Fly sideways
when hovering
1. There is no horizontal calibration
2. Disordered data of the
remote control
CauseProblem Solution
1. Correctly bind the frequency between
the drone and remote control. The
indicator light keeps on when there is a
successful frequency binding.
2.The battery voltage of the drone is low,
please fully charge the battery
Unstable fixed
height/movement
up and down
1. No horizontal calibration
2. Unstable air pressure in bad
weather conditions
3.Cluttered gyroscope data due to
violent collision
1. Perform horizontal calibration.Place
the drone on a level surface and move
the left and right joysticks to the lower
right corner for about 3 seconds. The
indicator will flash rapidly and then stay
constant,which indicatesthat the
calibration process is complete. ation is
successful.
2. Fine-tuning: press and hold the left
joystick of the remote control and
control the right joystick to move in the
opposite direction in which the aircraft
flies sideways until the aircraft is in a
stable state or used in a windless
environment
1. Perform horizontal calibration.Place
the drone on a level surface and move
the left and right joysticks to the lower
right corner for about 3 seconds. The
indicator will flash rapidly and then stay
constant,which indicatesthat the
calibration process is complete.
calibration is successful.
2. Try to avoid flying in bad weather and
use it in a windless environment indoors
3. Re-level calibration and operate
according to point 1
Motor not working Check the motor for foreign objects
(eg: hair, sand)
Regular inspection and cleaning
Regular inspection
and cleaning
1. Beyond the remote control distance
2. Low battery of the remote control
1. Within the controllable flight range
2. Replace the remote control battery
and install it with correct polarity.
Unable to bind
frequency
Check the battery of drone and
remote control
Charge drone , or replace the battery of
the remote control with the correct
installation
Violent vibration Check whether the the blades are
installed correctly or the the blades
are damaged
If the blade is deformed, replace it and
install a new blade correctly.
16
EN
5.0 Contact Us
Please do not hesitate to contact us if you need any further support.
+1 718-312-0558(US)
+44 (0)7723708421(UK)
+4933545519201(DE)
6.0 Product Accessories
For online support, please scan this
code with Facebook Messenger
USB Charging
Cable
Blade Motor Battery
Remote control

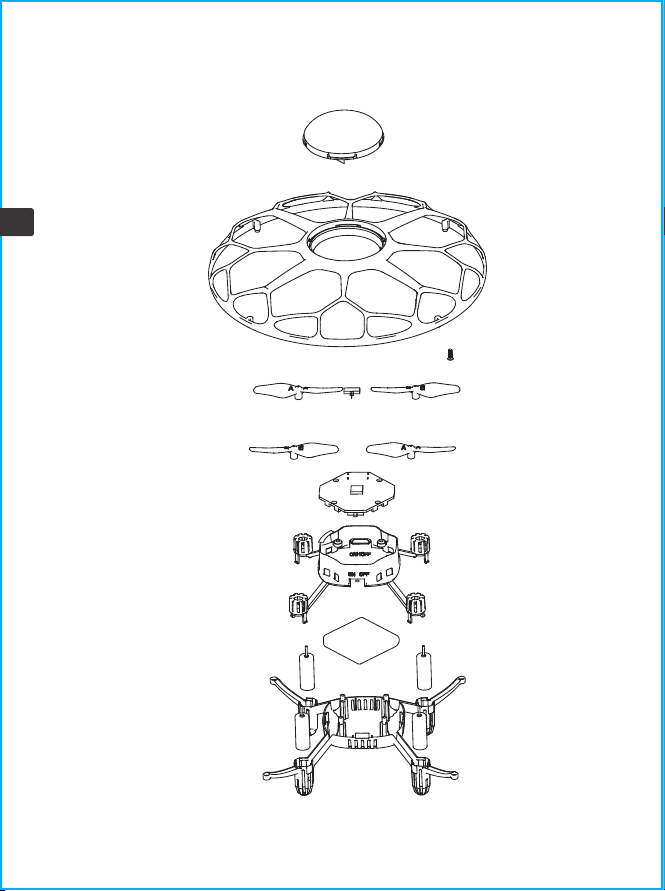

7.0 Exploded View
17
EN
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
FCC Notice.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference,and
2. This device must accept any interference received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●Consult the dealer or an experienced radio/TV technician for help.
"This device complies with FCC radiation exposure limits set forth for general population
(uncontrolled exposure). This device must not be collocated or operating in conjunction with
any other antenna or transmitter."
RF frequency band: 2408-2472MHz
Transmitter power: 10dBm
Product name: [Drone]
Decoration of Conformity Inserts: Hereby, GuangDong SYMA Model Aircraft Industrial Co., Ltd.
declares that the radio equipment type helicopter is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
http://www.symatoys.com/down/declaration-of-conformity.html
18
EN
WARRANTY:
LIMITED 2-YEAR WARRANTY AND FREE LIMITED REPLACEMENT PARTS FOR 2-YEARS
Symatoys.com.cn warrants to the original buyer only that its products will be free from
defects in material and workmanship for 2 years from the date upon which the product is
shipped, either directly from symatoys.com.cn or from an Authorized Re-seller’s location, to
the buyer.
The following condition's must to be eligible for warranty coverage:
1. During the warranty period product is used as intended by the manufacturer.
2. The Product has not been disassembled or modified.
3. The labels and serial numbers show no signs of tampering or altering.
4. Buyer has a warranty code obtained by registering their product online prior to making a
claim.
EXCEPTIONS: THE LIMITED WARRANTY SHALL NOT APPLY TO:
• Damage caused by normal wear and tear
• Accident, negligence, abuse, misuse, misapplication or willful damage by buyer (or its
agents), or acts of nature
• Crash or burning caused by non-manufacturing factors
• Damage caused by authorized modification or disassembly not authorized by the instruction
manual
• Damage. caused by incorrect use or operation
• Damage caused by mismatch or misuse of battery or charger
• Failure of the operator to follow the operating instruction or use outside the products
operating parameters
• Damage caused by operating the product in or around electromagnetic interference (i.e.,
radio transmitting tower, high-voltage wire, substation, etc.)
• Damage caused by operating the product where there may be interference caused by other
wireless devices
• Operating the product with load capacity in excess of the sale weight listed in the manual
• Operating the product with aged, damaged or unauthenticated third-party components
• Operating the product with a defective battery
WARRANTY
PROCEDURE: Any claims for breach of the foregoing limited warranty shall only be valid if
buyer makes such claim in writing within 2 year of the date of shipment of the product to
which the claim. To make a warranty claim, please email at: [email protected] with
your full name. address. phone number, order number. vehicle type. part type and purchase
date and product issue.
W
A
R
R
A
N
T
Y
W
A
R
R
A
N
T
Y
2 YEAR
19
EN
LIMITED REMEDY:
Symatoys.com.cn's sole liability, and buyer's sole remedy for any breach of the foregoing
warranty shall be at Symatoys.com.cn's option to exchange the product with a new product or
a refurbished product that is functionally equivalent to the original product, or issue a credit
or refund to the purchase price the product.
Any replaced products shall be warranted as set forth herein, provided that the period within
which buyer may make further claims shall be limited to the remainder of the original period.
for the applicable product or 2 years, whichever is longer (although the warranty period shall
be suspended during any period of replacement)
DISCLAIMER:
Haftungsausschluss:
THE WARRANTY AND REMEDIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES.
AND Symatyos.com.cn DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, NON-INFRINGEMENT AND ANY WARRANTIES ARISING OUT OF COURSE
OF DEALING, COURSE OF PERFORMANCE AND TRADE USAGE.
Symatoys.com.cn IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY
OTHER LEGAL THEORY. INCLUDING BUT NOT UMITED TO COSS OF USE; LOSS OF REVENUE;
LOSS OF ACTUAL ANTICIPATED PROFITS (INCLUDING LOSS OF PROFITS ON CONTRACTS);
LOSS OF THE USE OF MONEY, LOSS OF ANTICIPATED SAVINGS; LOSS OF BUSINESS COSS OF
OPPORTUNITY; LOSS OF GOODWILL, LOSS OF EPUTATION; LOSS OF DAMAGE TO COMPRO-
MISE OR CORRUPTION OF DATA; OR ANY INDIRECT OR CONSEQUENTIAL LOSS OR DAMAGE
HOWSOEVER CAUSED INCLUDING THE REPLACEMENT OF EQUIPMENT AND PROPERTY.
ANY COSTS OF RECOVERING OR REPRODUCING ANY DATA STORED IN OR USED WITH THE
PRODUCT OR ANY FAILURE TO MAINTAIN THE CONFIDENTIALITY OF INFORMATION STORED
THE PRODUCT.
Some states do not allow the exclusion or limitation of incidental or consequential damages.
so the above limitation or exclusion may not apply to you. In addition, some states do not
allow limitations on how long an implied warranty lasts. so the above limitation may not
apply to you.
FREE REPLACEMENT PARTS FOR 2 YEARS: Symatoys.com.cn shall also make available any
spare part needed for registered vehicles free of charge for 2 years from the date of purchase,
with the exception of batteries, motors, and transmitters. Shipping charges may apply Limit
one part type request per registered vehicle (e.g., registrants are entitled to one extra set of
batteries per registered vehicle}. To request spare parts. please email at:
[email protected] with your warranty code, vehicle name/model, current shipping
address, purchase date, and part type.
GET YOUR WARRANTY CODE AT symatoys.com.cn/pages/warranty-signup
HAVE YOUR ORDER NUMBER AND PRODUCT MODEL READY
20
EN
European Representative：
CET PRODUCT SERVICE LTD.
Osterholzallee 144
71636 Ludwigsburg Germany
Phone：+4971416432236
E-mail：[email protected]
British Representative：
CET PRODUCT SERVICE LTD.
Beacon House Stokenchurch Business Park,
Ibstone Rd, Stokenchurch
High Wycombe HP14 3FE UK
Tel： +447419325266
E-mail：[email protected]
United States Representative：
Duvin Trade Inc
5800 Wood Sorrel Dr，Littleton，Co, 80123，United States
Phone: 718-312-0558
E-mail: [email protected]
Manufacturer: GUANGDONG SYMA MODEL AIRCRAFT INDUSTRIAL CO., LTD
Address: NO.2 WEST XINGYE ROAD LAIMEI INDUSTRIAL AREA CHENG HAI , Shantou, China
Postal Code: 515800
The company has the right of final interpretation of this user manual.
+1 718-312-0558 +44(0)7723708421(UK) +49 335-4551-9201(DE)
[email protected](US) [email protected](EU)
https://www.symatoys.com.cn
21
EN
Made in china
REMOTE CONTROL DRONE
Take-off/landing
Flip stunts
6 Axis gyroscope
Flashing LED
lights
2.4 GHz frequency Hover function
