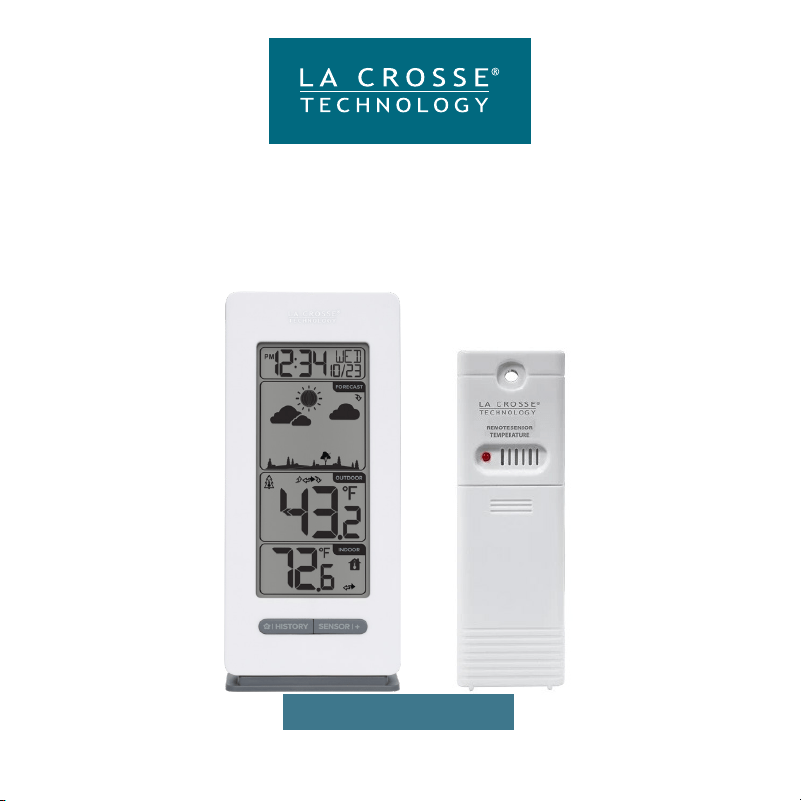

Setup Guide
Model: 308-1415FCT-NH
Wireless
Forecast Station
2
1. Insert 2-AA batteries into your Outdoor Sensor.
2. Insert 2-AA batteries into your Forecast Station.
3. Set Time and Date.
4. Once readings from the sensor appear on your station, mount the sensor
outside in a shaded location.
Watch our sensor mounting video: bit.ly/th_sensor_mounting
Power Up
Outdoor Sensor
TX141-Bv4
AA
AA
Forecast Station
308-1415FCT-NH
AA
AA
Settings Menu
1. Hold the button until the display
changes, to enter the Settings Menu.
2. Press and release the button to adjust
values. Hold to adjust quickly.
3. Press and release the button to
confirm values and move to the next setting or exit.
Settings Menu Order:
• Beep OFF/ON
• 12/24 Hour Format
• Hour
• Minutes
• Year
• Month
• Date
• Fahrenheit/Celsius
• Decimal ON/OFF
3
Temperature Records (High/Low)
Outdoor HI Outdoor LO Indoor HI Indoor LO
View Temperature Records
Press and release the button to toggle outdoor and indoor high
and low temperature records with time and date.
Viewing Order:
• Outdoor HI Temperature
• Outdoor LO Temperature
• Indoor HI Temperature
• Indoor LO Temperature
Reset Temperature Records
1. Press and release the button to view individual records.
2. While viewing a record, hold the to reset the individual
record.
4
Temperature Trend Arrow
Temperature Trend Arrow: Updates every 15 minutes.
The arrows will reflect a change in temperature (2ºF/1ºC) over the
past hour.
Temperature is rising Temperature is steady Temperature is falling
Forecast
The station uses changes in barometric pressure to predict your weather
to come. This is represented by the 6 forecast scenes below. The Forecast
Icons may not represent your current weather. They are a future prediction
of weather to come over the next 12 hours. Watch our Forecast Icon Video
for more details: bit.ly/forecast_vid.
FORECAST FORECAST FORECAST FORECAST FORECAST FORECAST
Sunny SnowT-StormsRainCloudsPartly Sunny
Pressure Trend Arrow
Pressure Trend Arrow: Updates every 15 minutes.
The arrows will reflect a change in pressure over the past three
hours.
Pressure is rising Pressure is steady Pressure is falling
Forecast Animation
When a sunny or clear forecast is predicted, you will see:
Animated Birds between 7:00am-6:59pm or Animated Stars from 7:00pm-6:59am.
Birds 7:00am to 6:59pm with sunny forecast.
FORECAST FORECAST FORECAST
Stars 7:00pm to 6:59am with clear nighttime forecast.
Animation ON/OFF
Press and release the button to turn the
animations on or off. With the animations off, all Birds
will show during the day, and all stars will show at
night during a clear forecast.
FORECAST
FORECAST
FORECAST FORECAST FORECAST FORECAST FORECAST FORECAST
One Two Three Four Five Six
One Two Three Animation OFF: All Birds and Stars show.
5
Seasonal Trees
The foliage scene in the forecast section changes seasonally. The dates
are pre-programmed.
Spring: Mar 20th to Jun 20th Winter: Dec 21st to Mar 19th Fall: Sep 21st to Dec 20thSummer: Jun 21st to Sep 20th
Sensor Mounting
For Accurate Temperature Measurements
• Insert a mounting screw through the hole at the top to
securely mount the sensor. It can also hang from the
back using a nail.
• Mount the sensor vertically in a protected well-shaded
area. Keeping it out of direct weather elements such
as sunlight, rain, snow, etc. will help avoid inaccurate
readings.
• For additional protection against weather elements, a
Sensor Weather Shield: bit.ly/weather-shield can be
purchased separately.
• The maximum wireless transmission range to the station
is up to 330ft (100m) in open air. This does not include
walls, floors, or other large obstructions.
• For online video instructions, visit:
bit.ly/th_sensor_mounting
Moon Phase
The moon phase is based on the Lunar Calendar and the year, month, and
date settings. Moon Phase will show from 7:00pm to 6:59am regardless of
the forecast.
Full Moon
New Moon
Small Waning
Crescent
Large Waxing
Gibbous
Large Waning
Crescent
Small Waxing
Gibbous
Last Quarter
First Quarter
Small Waning
Gibbous
Large Waxing
Crescent
Large Waning
Gibbous
Small Waxing
Crescent
6
7
Search for Sensors
Stay in Touch
Ask questions, watch set up videos, and provide feedback on our social media
outlets. Follow La Crosse Technology on Youtube, Facebook, Instagram, and
X (Twitter).
WARNING: This product can expose you to chemicals including acrylonitrile,
1, 3-butadiene, and styrene, which are known to the State of California to cause
cancer and birth defects or other reproductive harm. For more information go
to: www.P65Warnings.ca.gov
If you are seeing “NO” or dashes for the sensor readings, please try the
following steps:
1. Hold the
button to search for the sensor.
The Reception Indicator will begin to animate.
2. If after 3 minutes the sensor still isn’t connected, bring the sensor inside next
to the display and remove power from the sensor and station.
3. Press any button on the station 20 times and leave the parts sit for a few
moments with the power o.
4. Install a new set of alkaline batteries into the sensor, then power up your
station again.
5. If your sensor data is still not appearing after these steps, please contact our
support sta. For additional help visit: bit.ly/basic_restart
8
Thermometer (308-1415FCT-NH)
Temperature Range: 32ºF to 122ºF (0ºC to 50ºC)
Power: 2-AA, IEC, LR6 batteries (not included)
Battery Life: 24+ months
Dimensions: 2.68 in L x 1.91 in W x 6.15 in H (6.80 cm L x 4.86 cm W x 15.62 cm H)
Specifications
Outdoor Sensor (TX141-Bv4)
Temperature Range: -40°F to 140°F (-40°C to 60°C)
Transmission Range: Over 330 feet (100 meters)
in open air RF 433MHz
Update Interval: About every 51 seconds
Power: 2-AA, IEC, LR6 batteries (not included)
Battery Life: 24+ months with reputable batteries
(May Vary Based on Climate)
Dimensions: 1.58 in L x 0.83 in W x 5.08 in H
(3.99 cm L x 2.1 cm W x 12.99 cm H)
Designed in La Crosse, Wisconsin • Made in China • Printed in China • DC 060424
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
All rights reserved. This manual may not be reproduced in any form, even in part, or duplicated or processed using electronic,
mechanical or chemical process without the written permission of the publisher. This booklet may contain errors or misprints.
The information it contains is regularly checked and corrections are included in subsequent editions. We disclaim any
responsibility for any technical error or printing error, or their consequences.
All trademarks and patents are recognized.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized changes or modifications to this
equipment. Such changes or modifications could void the user authority to operate the equipment.
9
FCC Statement
Care & Maintenance
When batteries of dierent brand or type are used together, or new and old batteries are used together, some batteries may
be over-discharged due to a dierence of voltage or capacity. This can result in venting, leakage, and rupture and may cause
personal injury.
• Do not mix Alkaline, Lithium, standard, or rechargeable batteries.
• Always purchase the correct size and grade of battery most suitable for the intended use.
• Always replace the whole set of batteries at one time, taking care not to mix old and new ones, or batteries of dierent
types.
• Clean the battery contacts and also those of the device prior to battery installation.
• Ensure the batteries are installed correctly with regard to polarity (+ and -).
• Remove batteries from product during periods of non-use. Battery leakage can cause corrosion and damage to this
product.
• Remove used batteries promptly.
• For recycling and disposal of batteries, and to protect the environment, please check the internet or your local phone
directory for local recycling centers and/or follow local government regulations.
10
La Crosse Technology Ltd. provides a 1-year limited-time warranty on this product
relating to manufacturing defects in materials & workmanship. Per the Song-Beverly
Act, in the state of California, the warranty on this item becomes effective on the
date of delivery.
La Crosse Technology, Ltd, 2830 S. 26th St., La Crosse, WI 54601
For Full Warranty Details, Visit: www.lacrossetechnology.com/pages/warranty
Patents: www.lacrossetechnology.com/pages/patents
If you require additional assistance, get in touch with our friendly
customer support team based in La Crosse, WI.
Self Help: bit.ly/308-1415fct-nh_support
Online: bit.ly/contact_techsupport
Phone: 1.608.782.1610
Our knowledgable customer support team is available:
Mon-Fri 8am-6pm CST
We’re Here to Help
SCAN HERE
Additional Info
and Support
Warranty & Patents
DOUBLE YOUR WARRANTY
Scan the QR Code or visit: bit.ly/308-1415fct-nh_register
to register your product and double the standard 1-year
warranty for free by opting to receive occasional product
emails.
SCAN HERE
