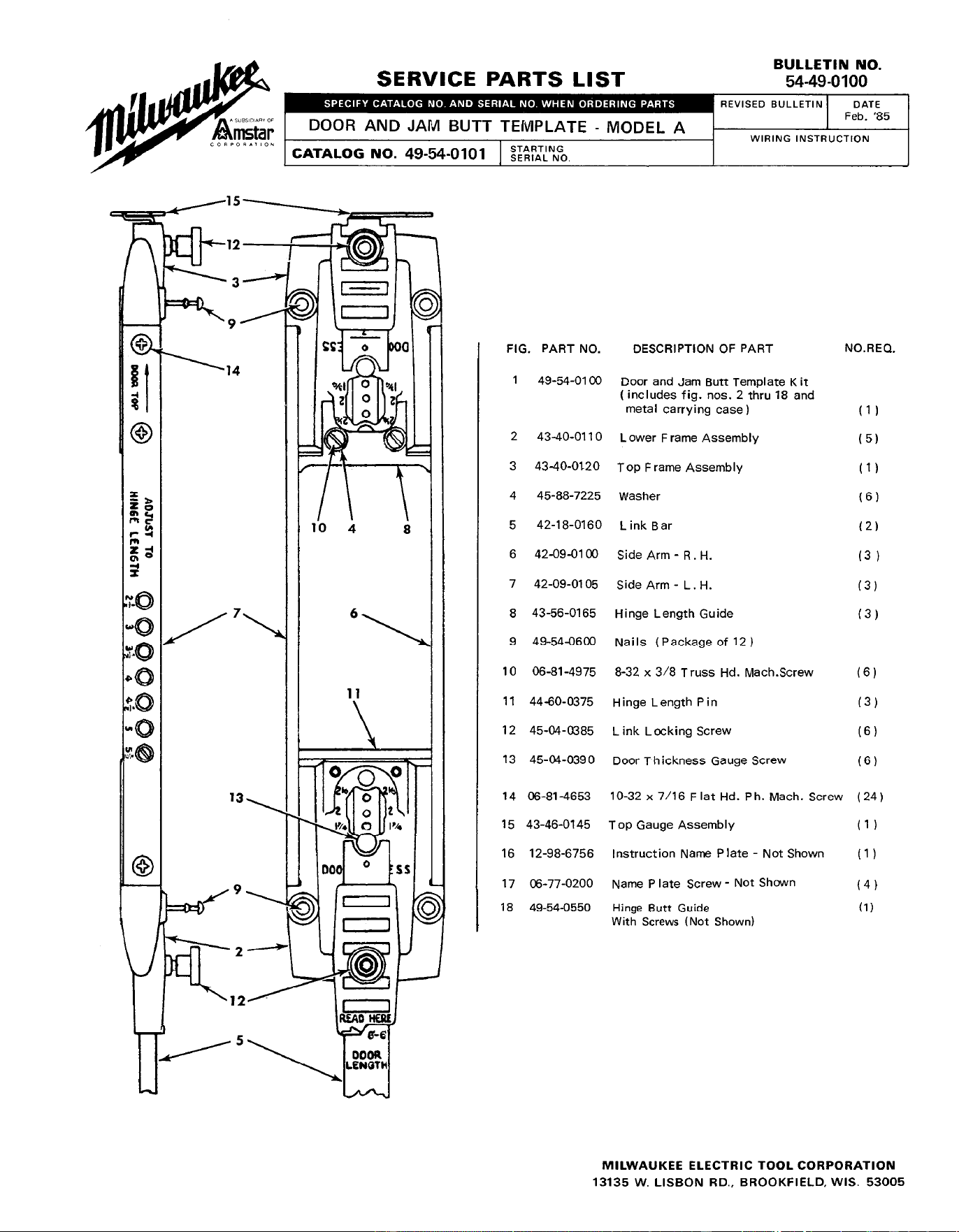

BULLETIN NO.
SERVICE PARTS LIST
54-49-0100
FIG. PART NO.
DESCRIPTION OF PART
NOREQ.
1
49-54-0100
Door and Jam Butt Template Kit
( includes fig. nos. 2 thru 18 and
metal carrying case )
2 43-40-0110
3 43-40-0120
4 45-88-7225
5 42-l 8-0160
6 42-09-0106
7 42-09-0105
8 43-56-0165
9 49-544600
10 06-81-4975
11 44-60-0375
I2 45-04-0385
13 45X4-039 0
14 06-81-4653
15 43-46-0145
16 12-98-6756
17 06-77-0200
1% 49-54-0550
Lower F rame Assembly
Top F rame Assembly
Washer
Link Bar
Side Arm - R. H.
Side Arm - L. H.
Hinge Length Guide
Nails (Package of 12 )
8-32 x 318 Truss Hd. Mach.Screw
Hinge Length Pin
Link Locking Screw
Door Thickness Gauge Screw
(1)
(5)
(1)
(6)
(2)
(3 1
(3)
(3)
(6)
(3)
(6)
(6)
IO-32 x 7116 F lat Hd. Ph. Mach. Screw
( 24 )
Top Gauge Assembly
(1)
Instruction Name Plate - Not Shown
(1)
Name P late Screw - Not Shown
(4)
Hinge Butt Guide
(1)
With Screws (Not Shown)
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WIS. 53005
