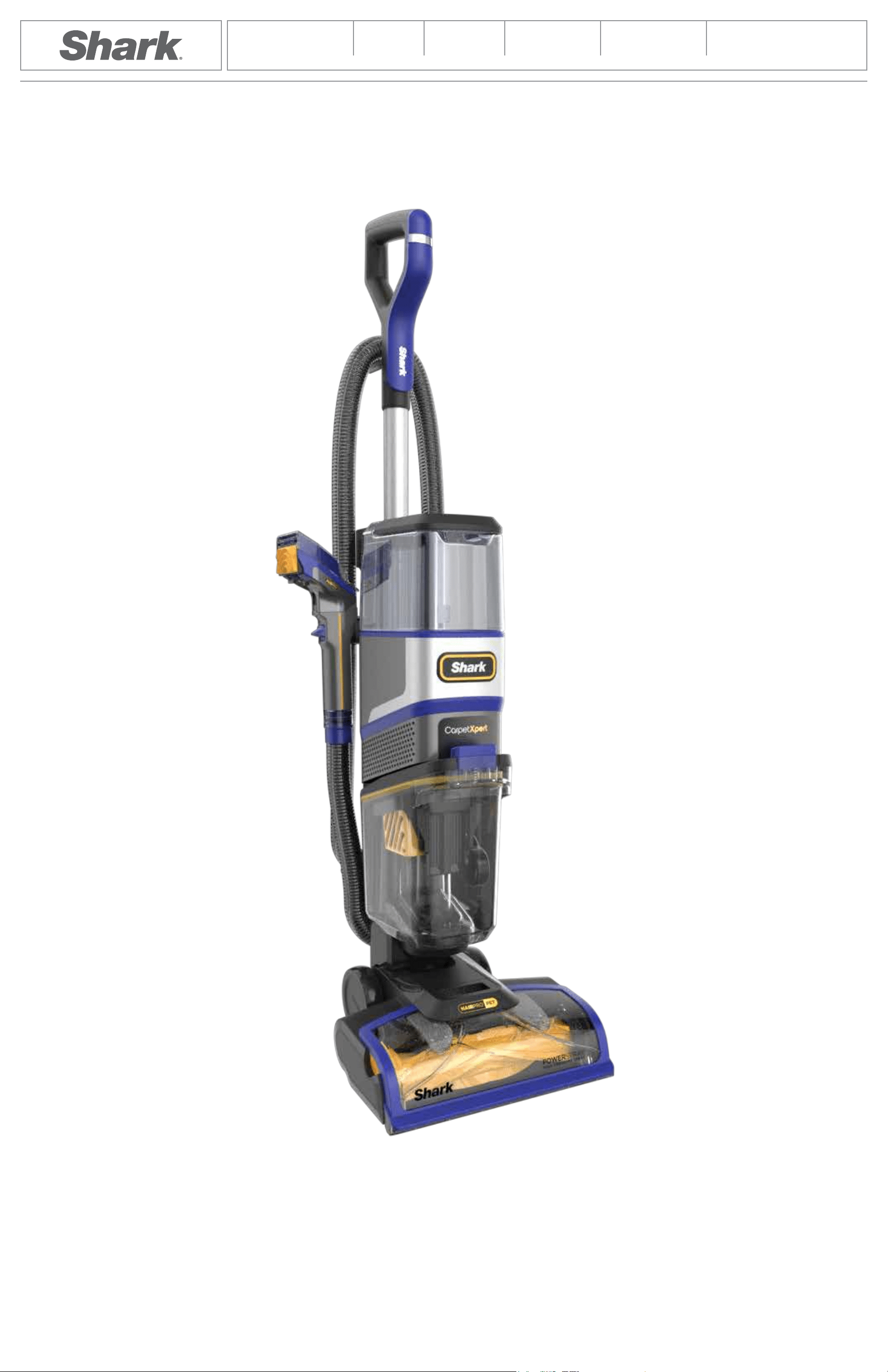

This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 1
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK
Date: Rev # Pages Changes
11-19-2024 00 ALL • Create ID Spec for EX251_EX250UK_MP
11-19-2024 01 ALL • Add EX251BRN SKU to spec
11-21-2024 02 2,7 • Update Nozzle Cover to fully water clear, remove gradient tint
12-06-2024 03 • Remove EX251_EX251BRN, create seperate spec for EX250UK with Hair Pro Pet branding
12-06-2024 04 6
28
• Correct Nozzle Cover
• Add POP Sticker to Nozzle Cover
12-18-2024 05 28
27
• Remove POP Sticker on Nozzle Cover
• Update Shark and sub-branding pad prints on nozzle cover to hot foil.
Revisions
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 2
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 3
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK

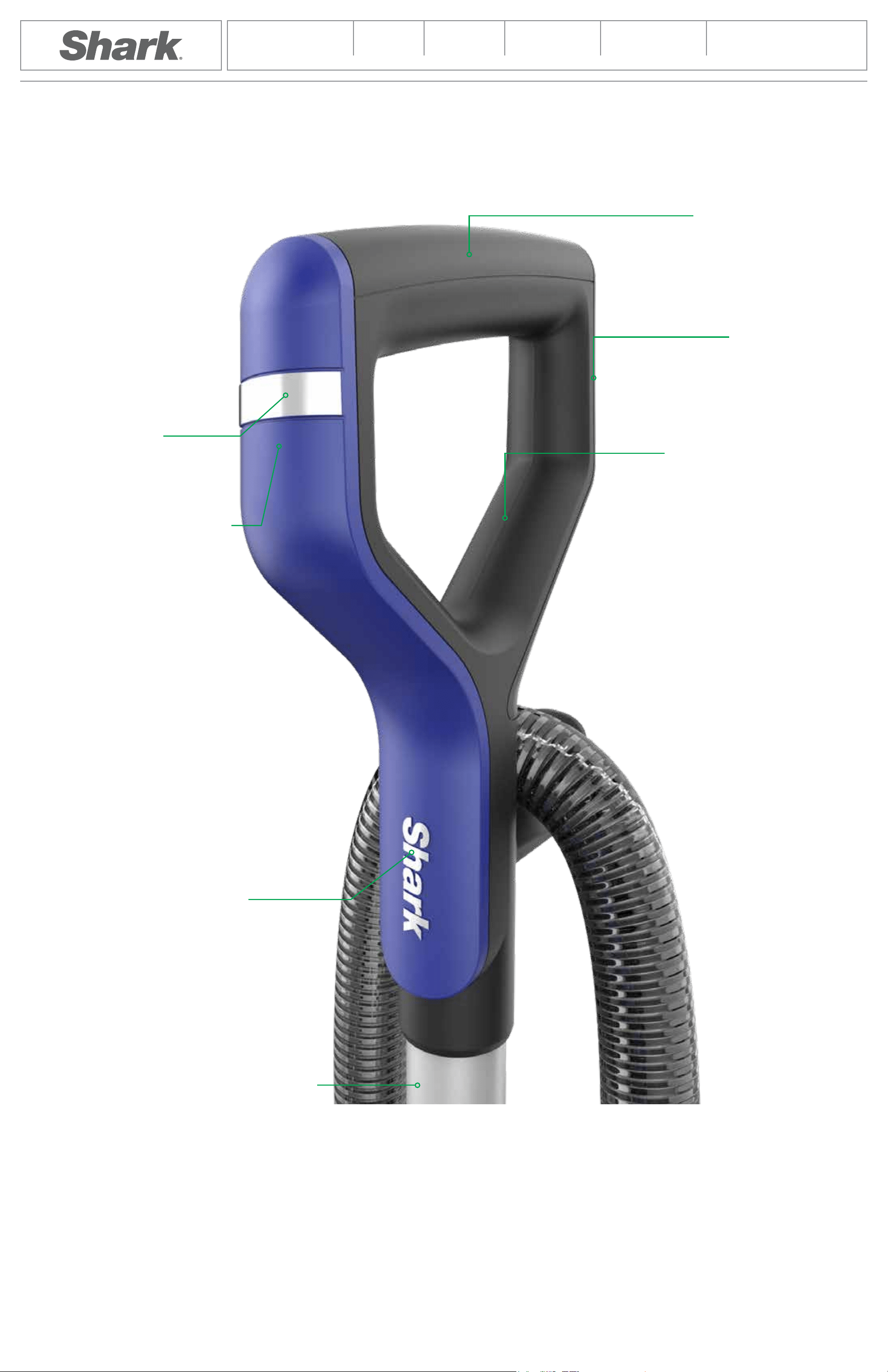

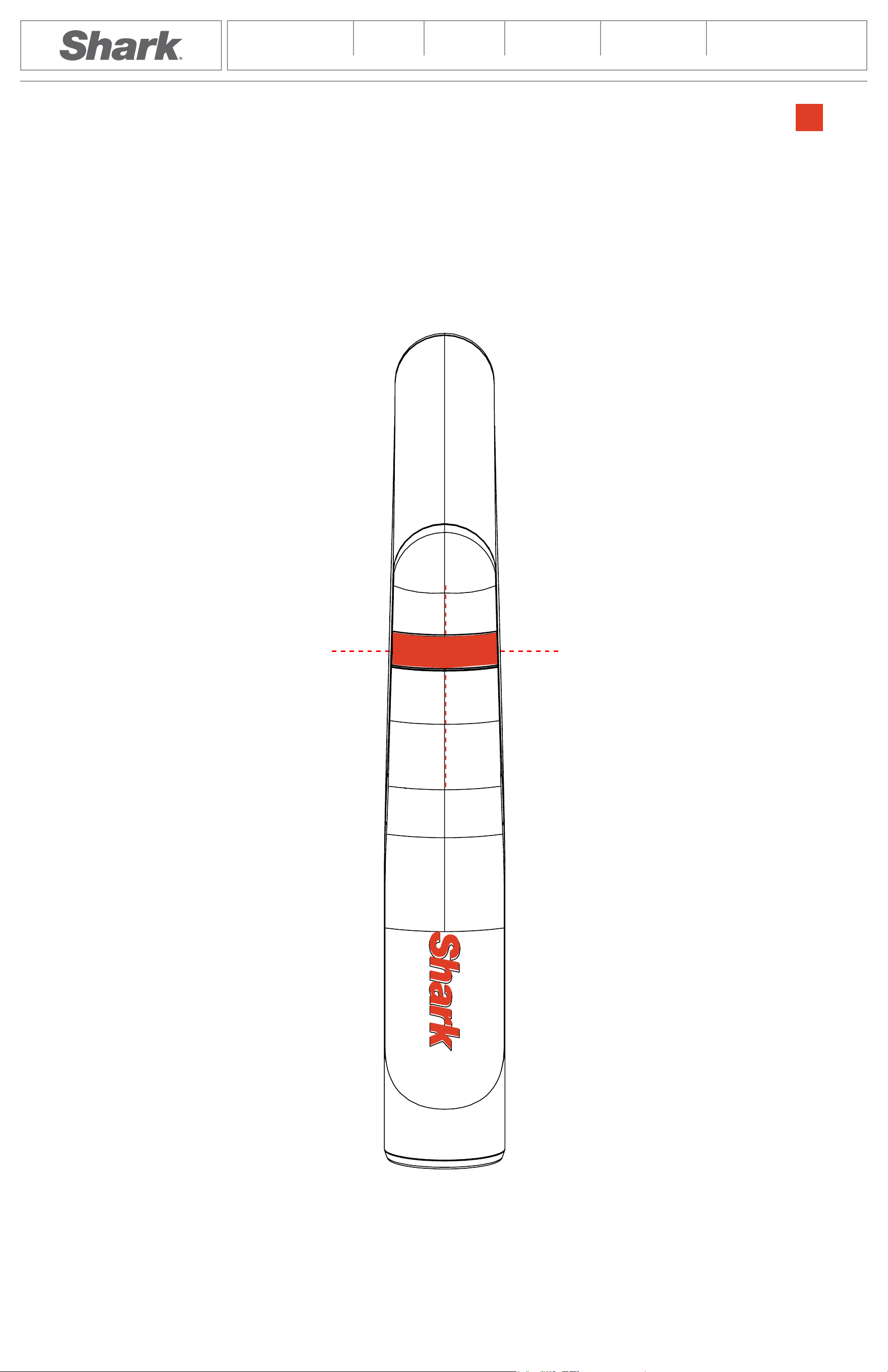

Handle
Main Handle molding
Charcoal Non-Met.
Molded, YS20002B
Wand Aluminum extrusion,
1J4
Andozied Wand
Shark Logo
PMS 877C
Pad Print
Handle Front Molding
Cobalt Metallic 0.03%
Molded, SPI A2
Top molding
Charcoal Non-Met.
Molded, YS20002B
Back molding
Charcoal Non-Met.
Molded, YS20002B
Handle Badge
PMS 877C
Pad Print
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 4
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK

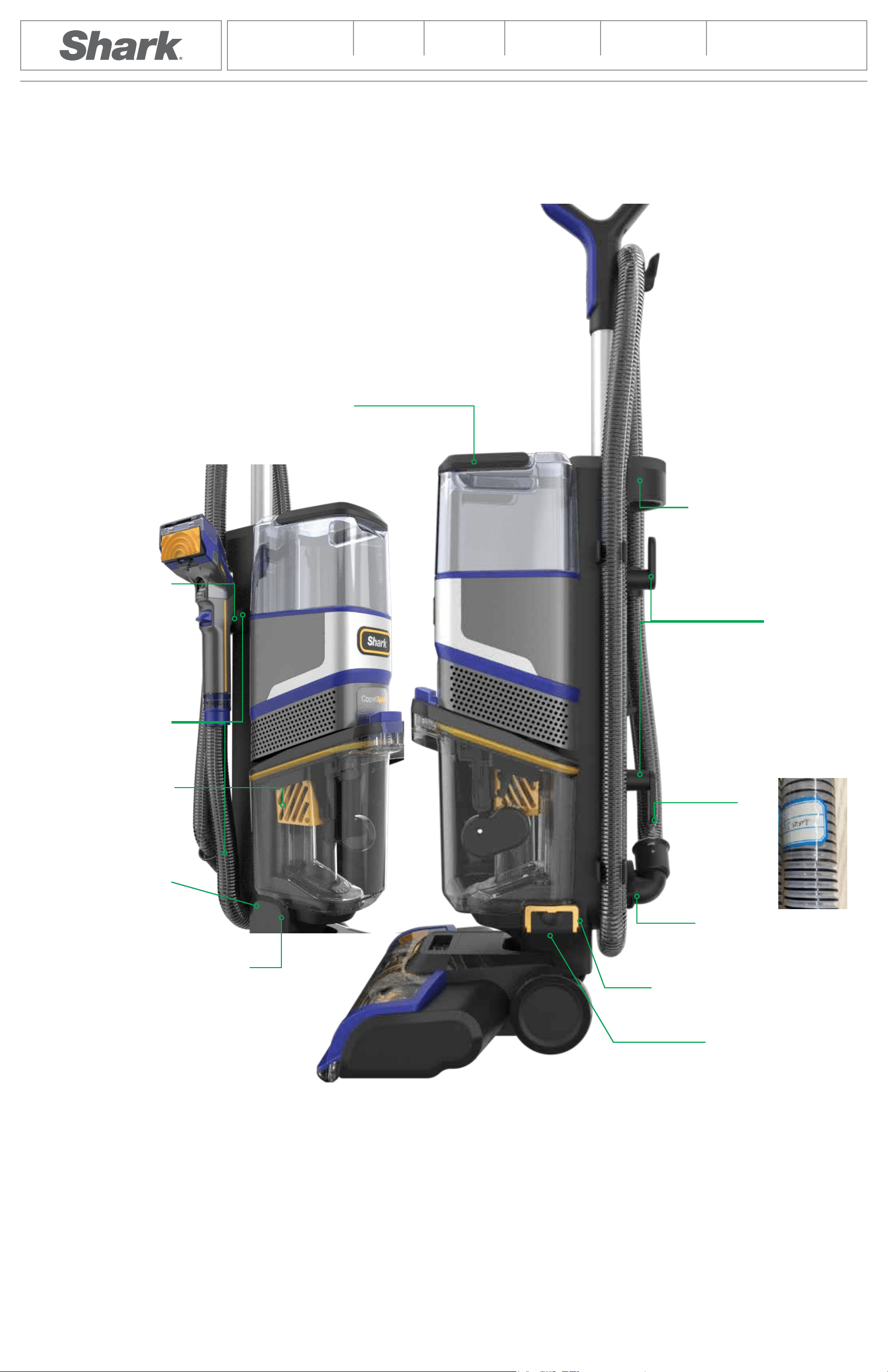

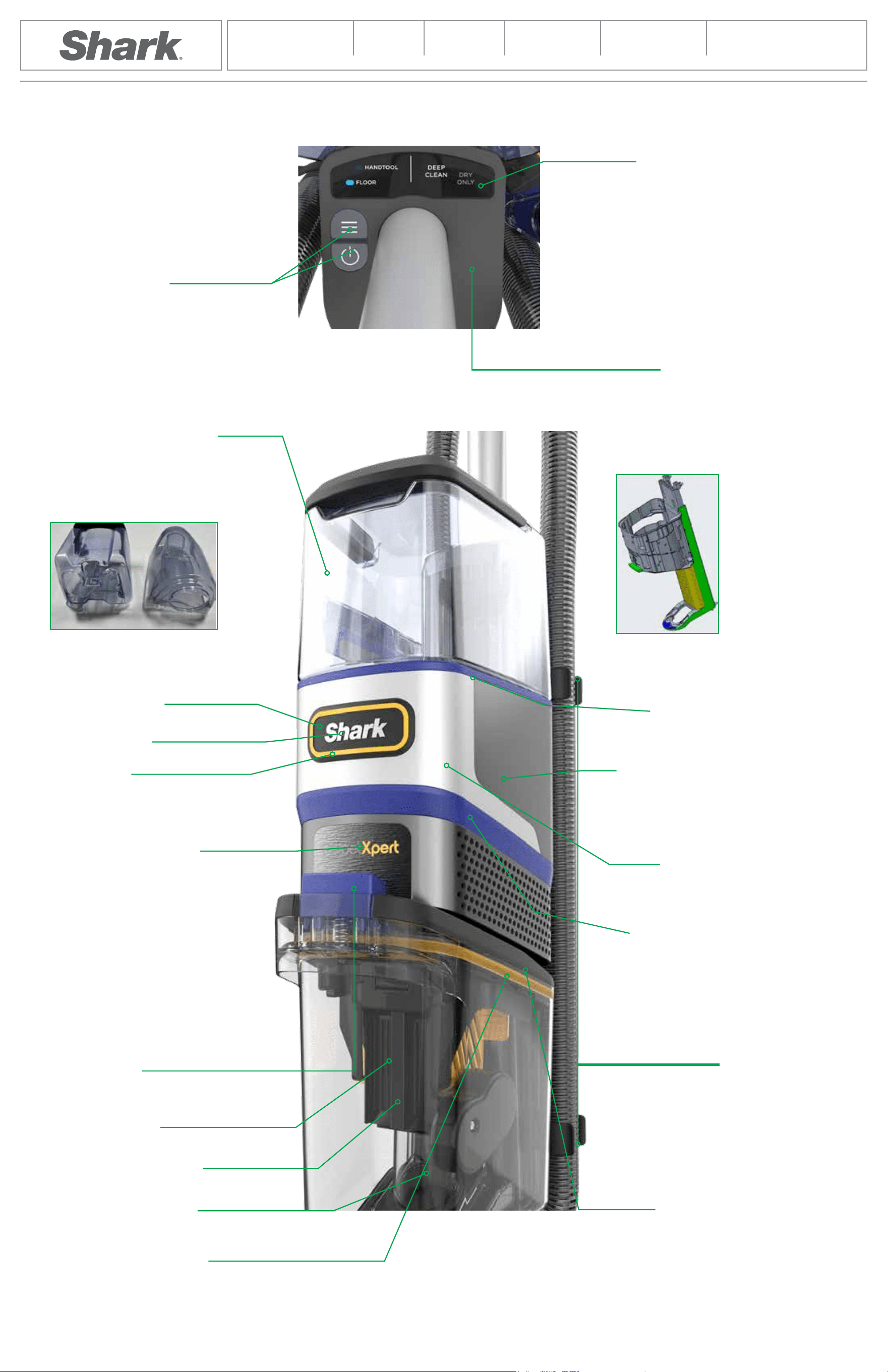

Body
UI Surface
Pantone Plastic Trasparent
T705-1-1
Chip Selector Book 2
Molded PC, SPI A2
Dirty Water
Tank Top
Charcoal_Non-Met.
Molded, YS20002B
Rear Spine Cap
Charcoal_Non-Met.
Molded, YS20002B
Dirty Water Tank
Water Clear
Dirty Water Tank CLAW
Charcoal_Non-Met.
Molded, SPI A2
Dirty Water Tank Float
Charcoal_Non-Met.
Molded, SPI A2
Dirty Water Tank Gasket
SCBR Yellow_PMS 143C
DWT Release
Cobalt Metallic 0.03%
Molded, YS20002B
Tank Badge
Charcoal Gray
Molded, YS20002B
Shark Logo
Silver Chrome Hot Foil
Pill-Trim
SCBR Yellow_PMS 143C
Pad Print
CWT Housing
Cobalt Metallic 0.03%
Molded, YS20002B
Main Body Housing
Toyota 1J7 Metallic 0.03%
Molded, SPI A2
Hose Clips
Charcoal_Non-Met.
Molded, YS20002B
Tank Badge Accent
Brushed Process Black
Satin Hot Foil
with Charcoal Gray &
SCBR Yellow_PMS 143C
Pad Print
Body Housing Accent
1J4 Metallic Painted Satin
on Molded, SPI A2
TPU Buttons
Cool Gray 11C
Molded, YS20002B
Icons
Process White Pad Print

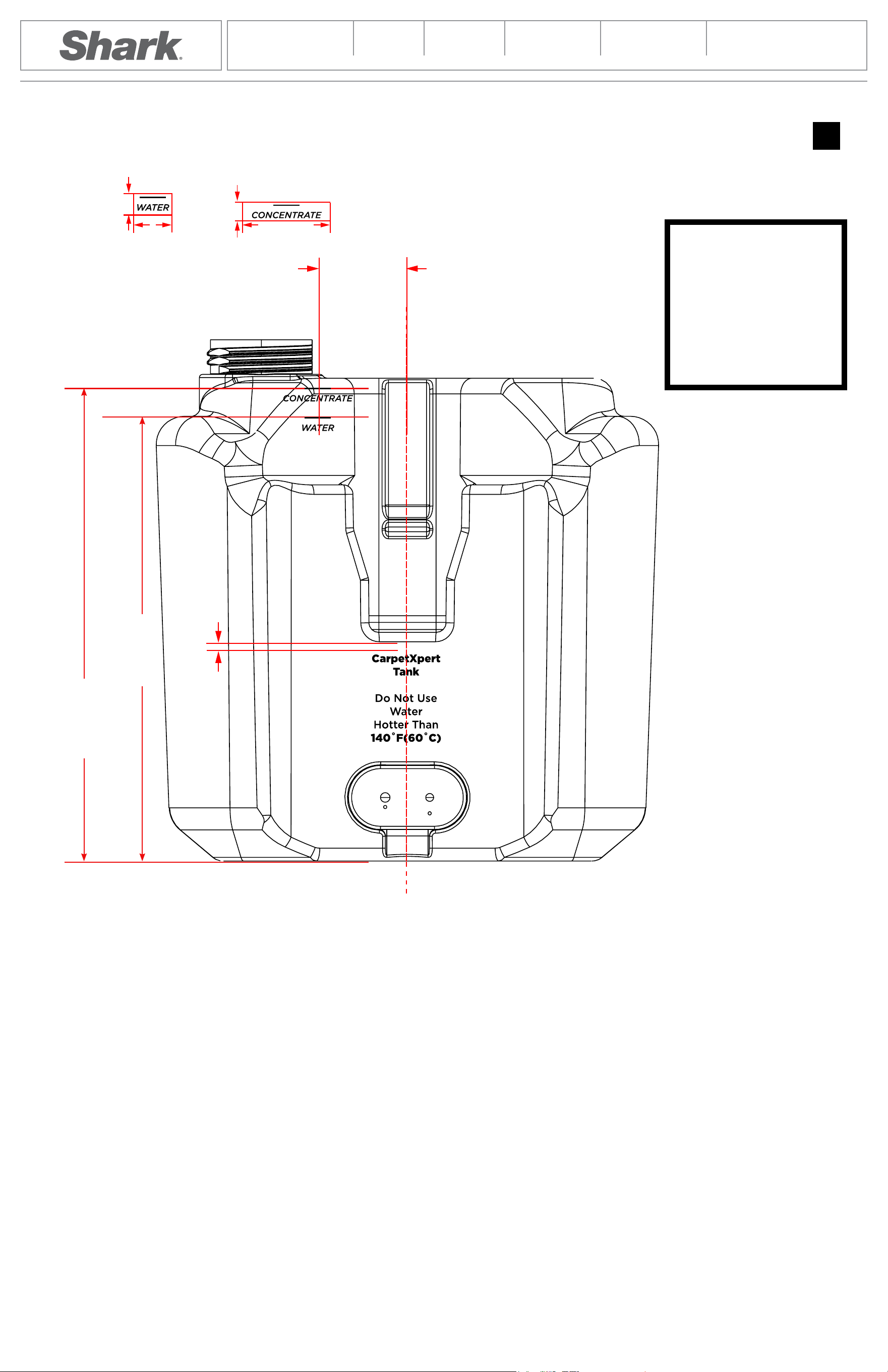

Clean Water tank
“Light Blue” Match
Blow Molded
Cap
See Page 9
“Light Blue” Match
Lower Housing
Cobalt Metallic 0.03%
Molded, YS20002B
Body Spine
Charcoal_Non-Met.
Molded
Green Highlighted
Molded, YS20002B
Yellow Highlighted
Molded, YS200046
Blue Highlighted
Molded, YS200018
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 5
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK
Rear Spine
Charcoal_Non-Met.
Molded, YS20002B
Cord Wraps
Charcoal_Non-Met.
Molded, YS20002B
Cord
Process Black
CWT Handle
Charcoal_Non-Met.
Molded, YS20002B
Hose Connector
Charcoal_Non-Met.
Molded, YS20002B
Hose Clips
Charcoal_Non-Met.
Molded, SPI A2
Gear Cover
Charcoal_Non-Met.
Molded, YS20002B
Gear Cover Mylar
Charcoal_Non-Met.
Mylar
Handtool Activator
Charcoal_Non-Met.
Molded, YS20018
COV Cover
Charcoal_Non-Met.
Molded, YS20002B
Change Over Valve Latch
SCBR Yellow_PMS 143C
Molded, YS20002B
BirdCage
SCBR Yellow_
PMS 143C
SPI A2
Hose
Clear Bi-Color
with 1.5mm Black
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 6
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK

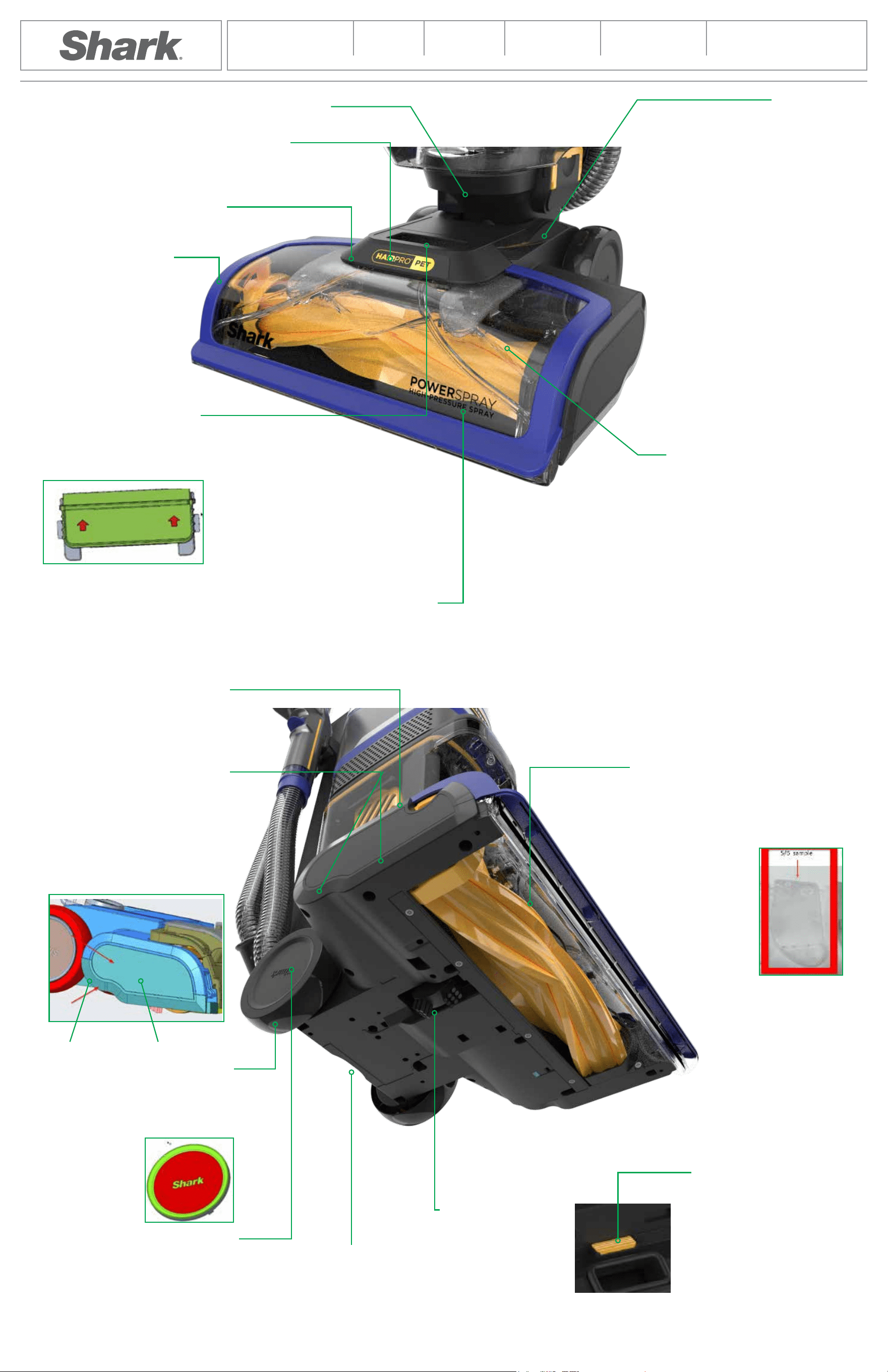

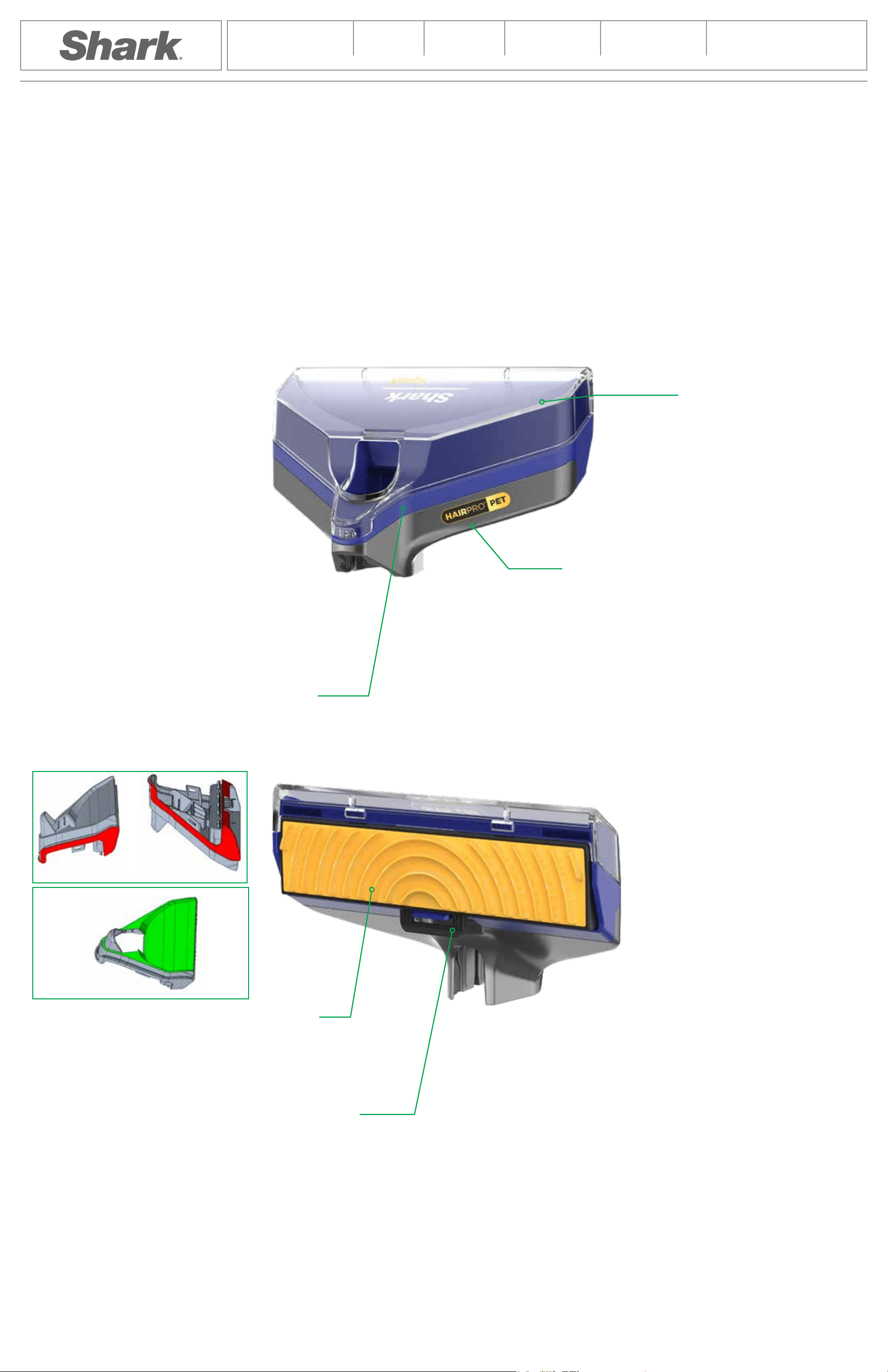

Nozzle Top
Charcoal_Non-Met.
Molded, YS20002B
Nozzle
Nozzle Bottom
Bristles
Process Black
Wheel Rim (X2)
Charcoal_Non-Met.
Molded,YS20002B
Wheel Inner (X2)
Charcoal Gray Non-Met.
Green Highlighted Area
_Molded, YS20002B
Red Highlighted Area _
Molded, SPI A2
Nozzle Bottom (L&R)
Charcoal_Non-Met.
Molded, YS20002B
Nozzle Bottom
Side (L&R)
Charcoal_Non-Met.
Molded, SPIA2
Nozzle Frame Top
Charcoal_Non-Met.
Molded, YS20002B
BrushRoll Door Release
Charcoal_Non-Met.
Green Highlighted Area _Molded, YS20002B
Red Highlighted Area _Molded, SPI A2
BrushRoll Door Interior
Charcoal_Non-Met.
Molded, YS20002B
Exterior Suction Channel
Water Clear
Pivot
Charcoal_Non-Met.
Molded, YS20002B
BrushRoll Door Trim
Cobalt Metallic 0.03%
Molded, YS20002B
Gear
Charcoal_Non-Met.
Molded, YS20002B
YS20002B
SPIA2
Air Duct Latch
SCBR Yellow_PMS 143C
Molded, YS20002B
BrushRoll Door Interior
Brushed Process Black Satin Hot Foil
with Charcoal Gray & SCBR Yellow_
PMS143C Pad Print
Interior Garage Door
Water Clear
Molded, SPI A2
Interior Garage Door Caps(L&R)
Clear(Refence latest Sample 5/6)
Molded, YS20011
Door Pivots
Aluminum
Transparent Nozzle Cover
Water Clear
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 7
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK

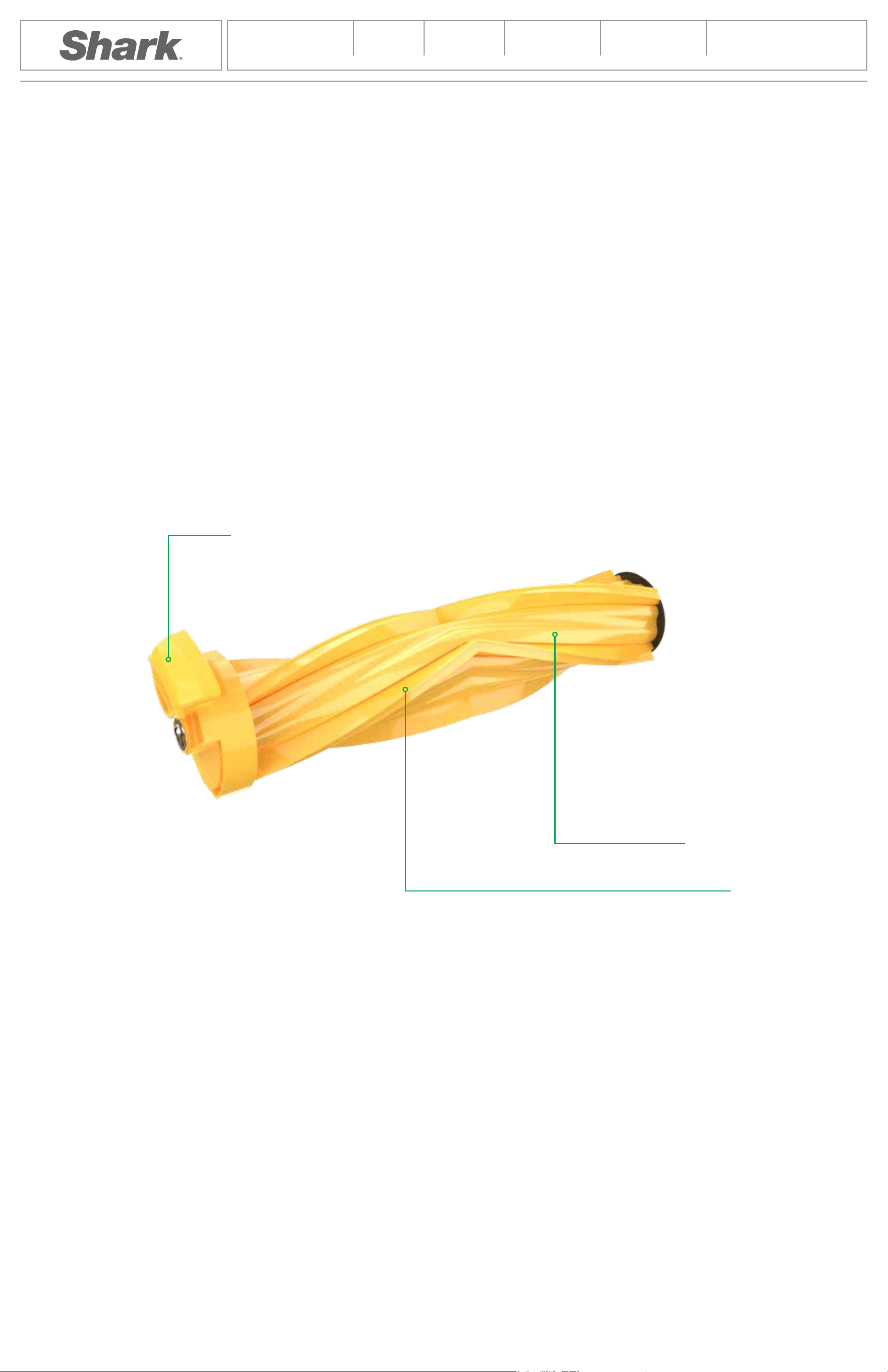

BrushRoll
Brushroll Core
SCBR Yellow_PMS 143C
Molded, SPI A2
Bristles
SCBR Yellow_PMS 143C
Flaps
SCBR Yellow_PMS 143C
BR Removal Tab
SCBR Yellow_PMS 143C
Molded, YS20002B
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 8
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK

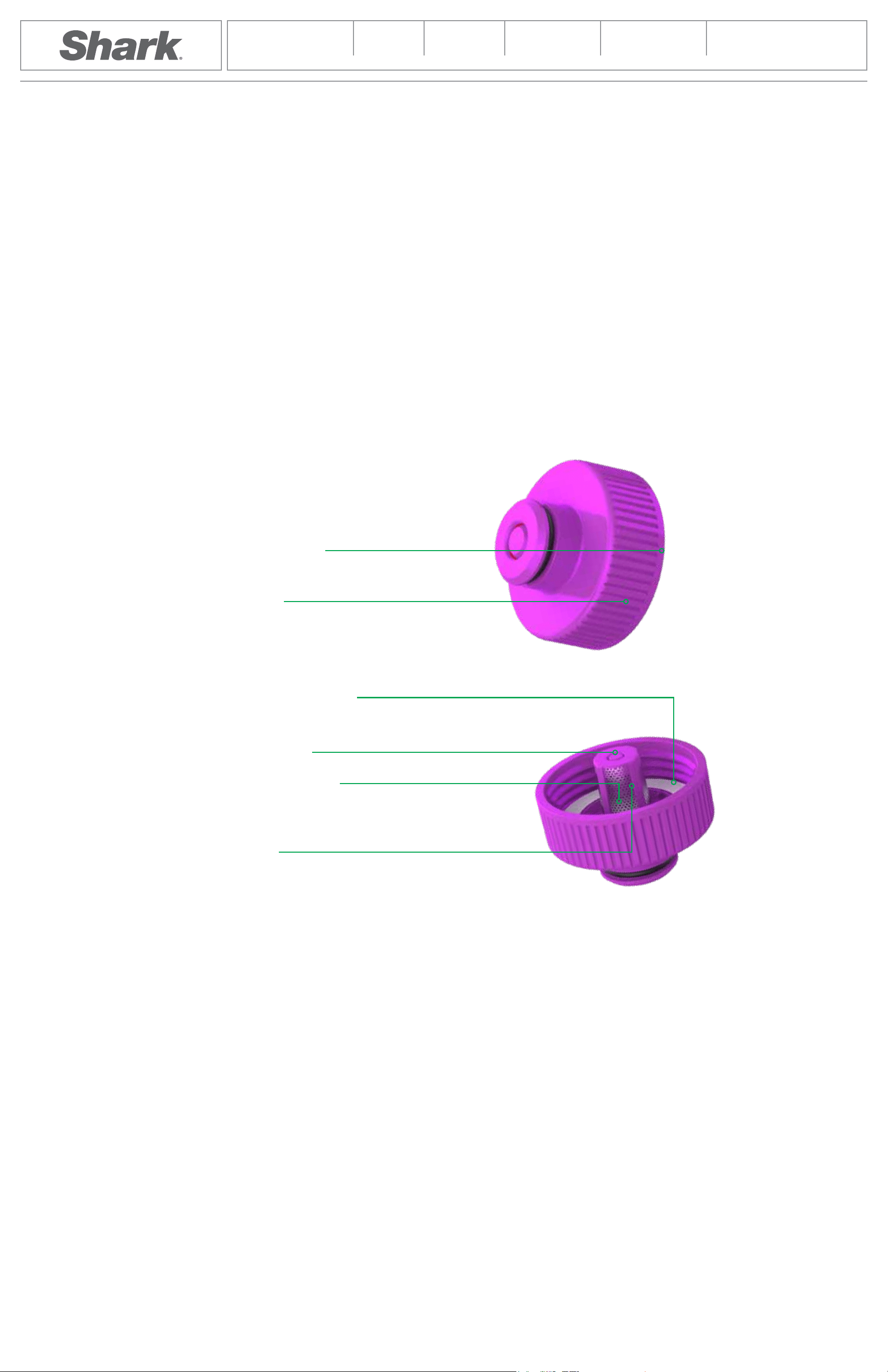

Filter Post
PMS 2592C
Molded, SPI A2
Water Tank Cap
PMS 2592C
Molded, YS20045C
Cap Seal
Silicone, Black
Cap Housing
Charcoal Gray-Non Met.
Molded, SPI A2
Filter
Silver
Inner Cap Washer
Silicone, White
CWT Cap
Cap Housing
PMS 2592C
Molded, SPI A2
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 9
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK

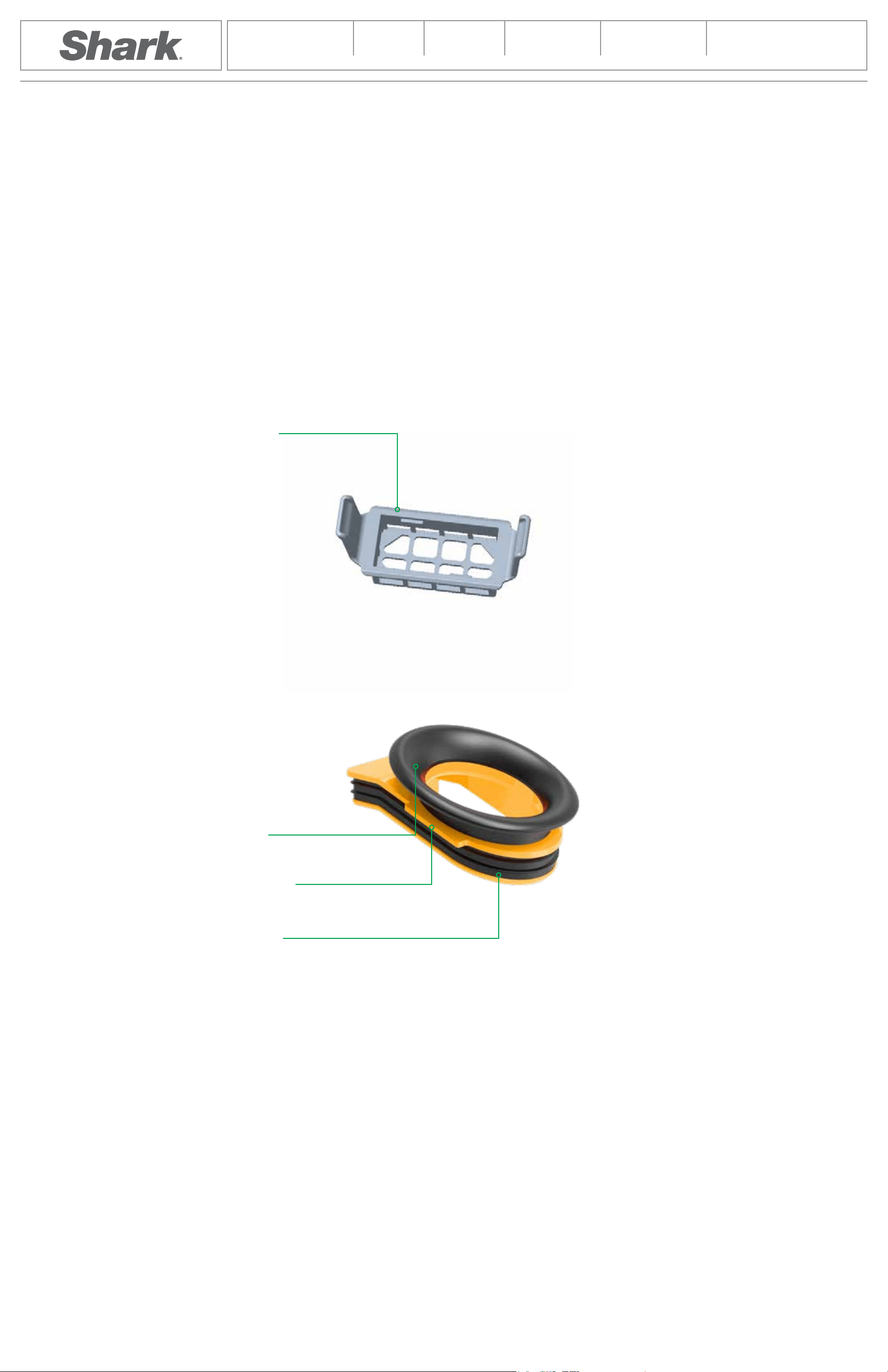

Seal
Process Black
Cap Housing
Charcoal Gray-Non Met.
Molded, SPI A2
Gasket
Process Black
Housing
SCBR Yellow_PMS 143C
Molded, SPI A2
DWT Filter and Bottom Gasket
Filter Housing
Pewter Gray Non-Met.
Molded, SPI A2
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 10
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK

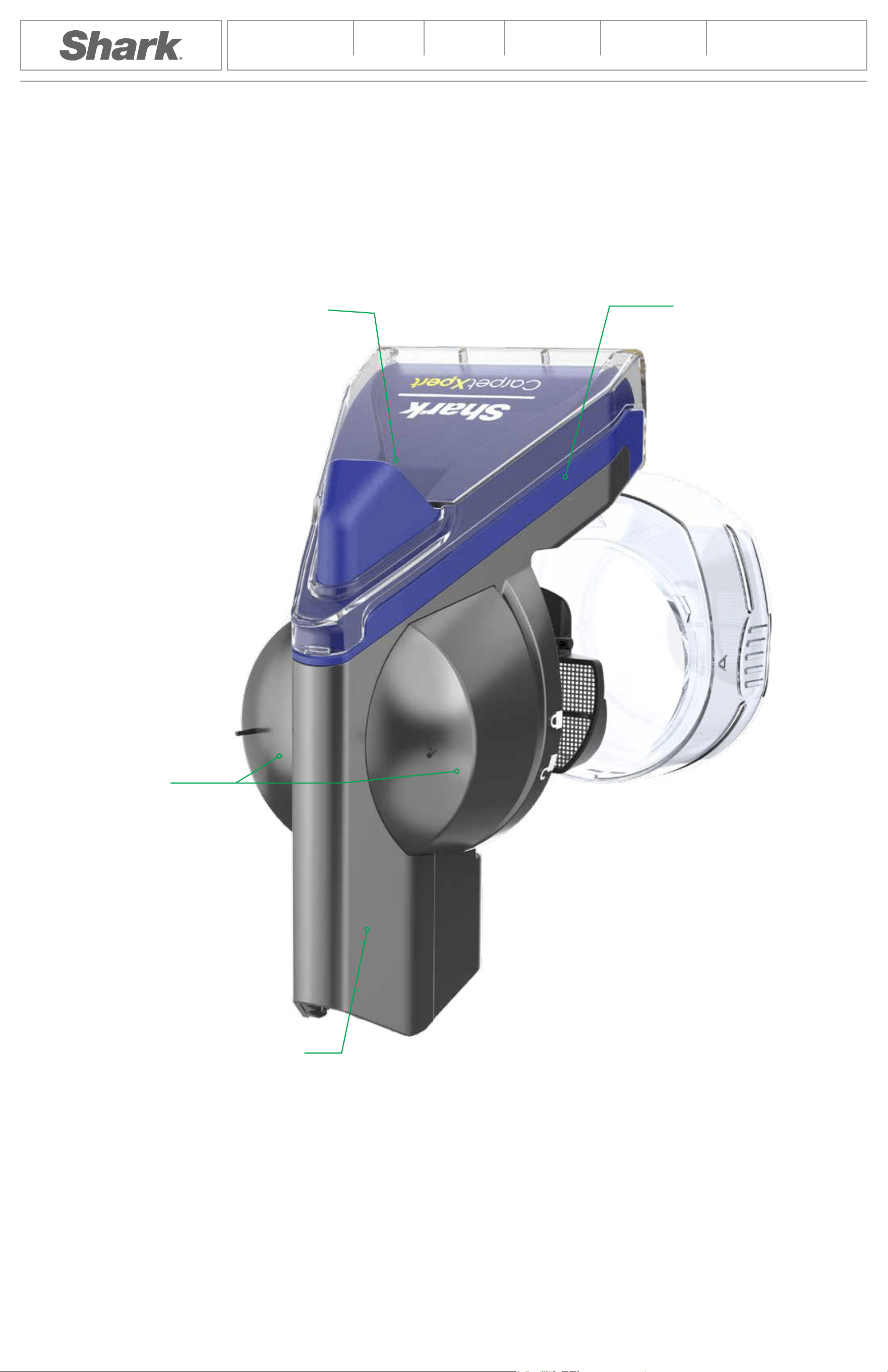

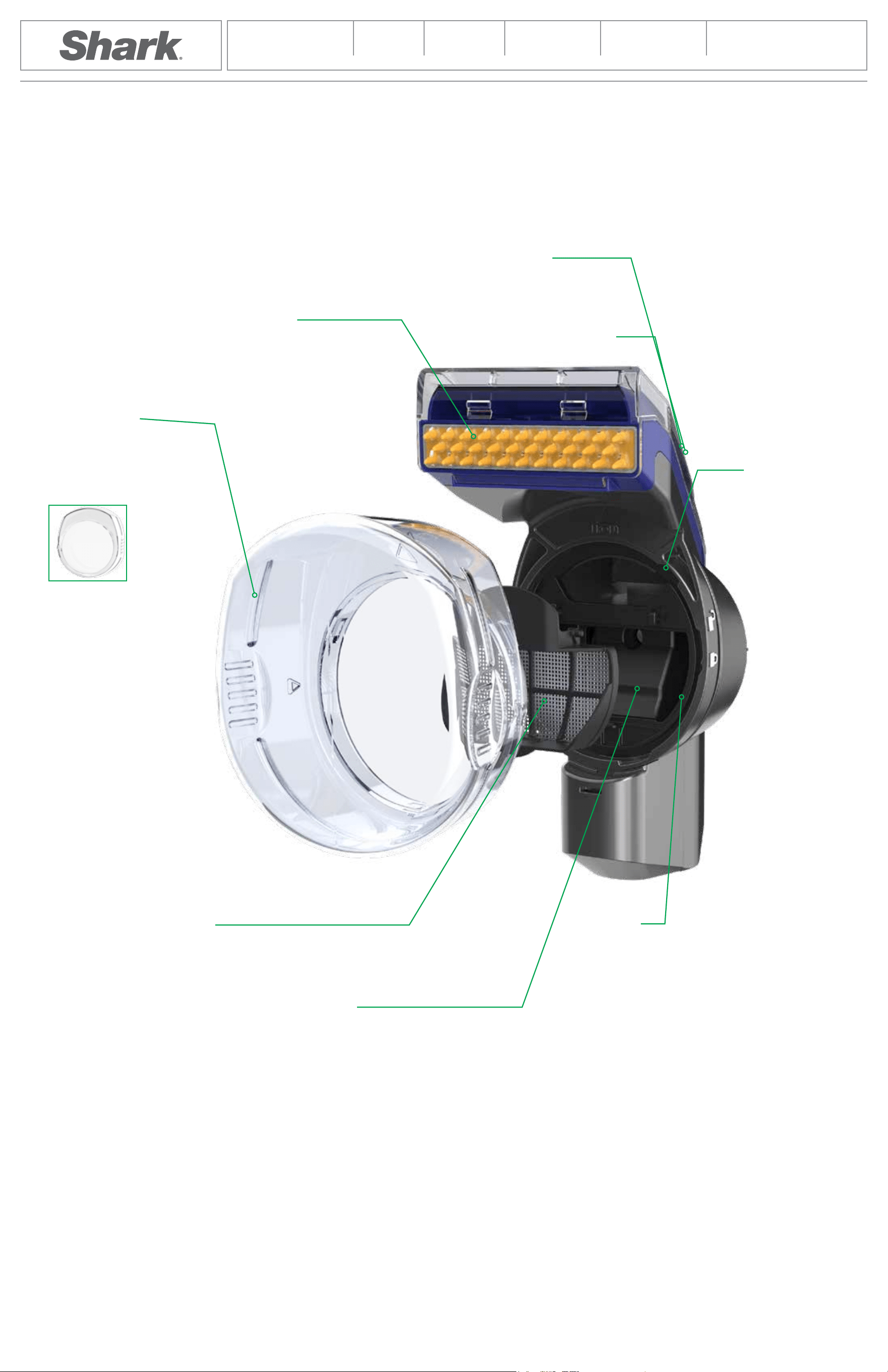

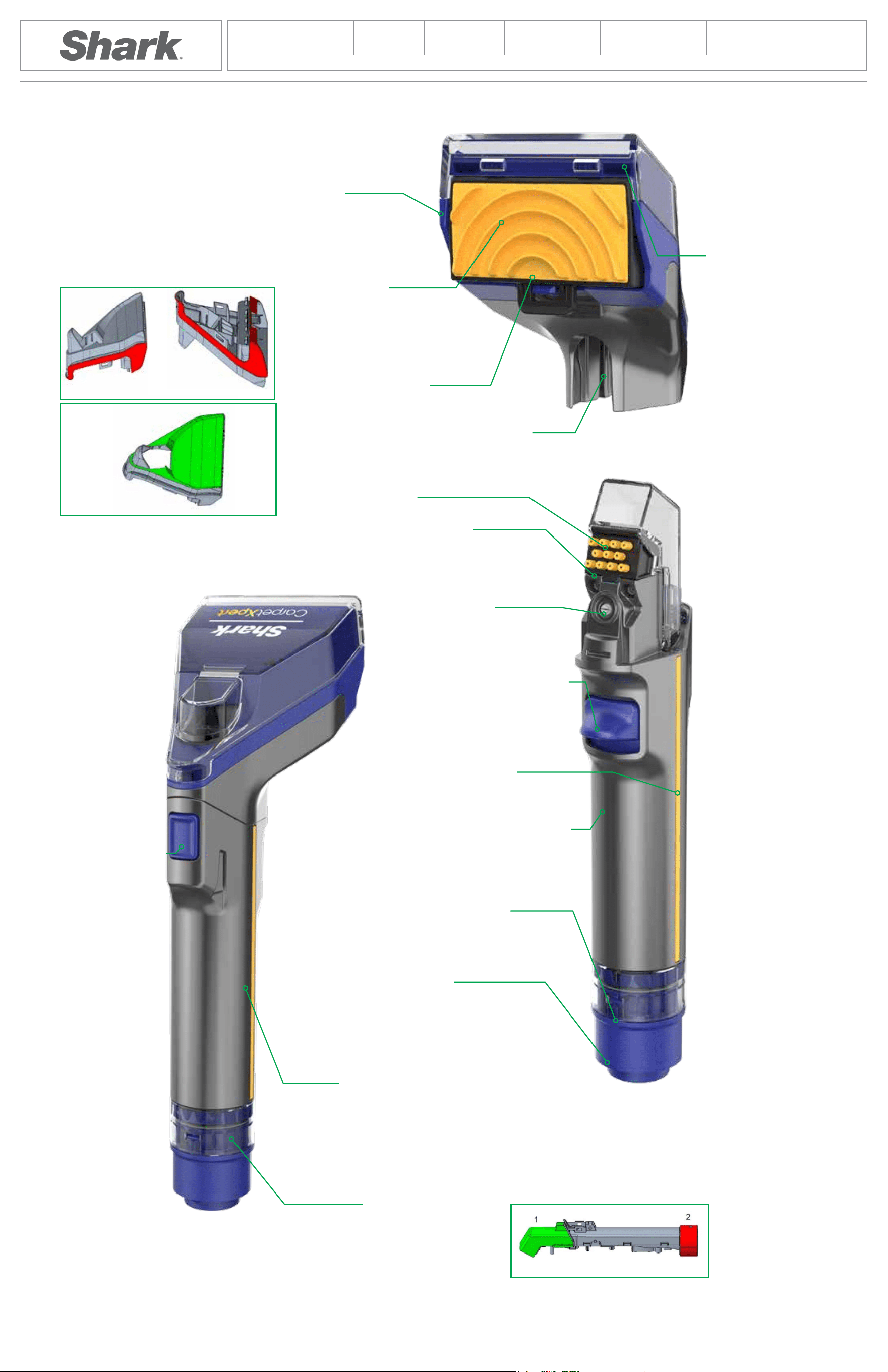

Rubber Side
SCBR Yellow_PMS 143C
Holder
Charcoal Gray
Molded, SPI B2
0.2mm Bristle Side
Charcoal Non-Met.
Brush Head Window
Water Clear
SPI A2
Brush Head Housing Top (Highlighted Red)
Cobalt Metallic 0.03%
Molded, YS20002B
Under Visor(Highlighted Green Area)
Molded, SPI A2
Brush Head Housing Bottom
Toyota 1J7 Metallic 0.03%
Molded, YS20002B
Button
Cobalt Metallic 0.03%
Molded, YS20002B
Hose Connect
Cobalt Metallic 0.03%
Molded, YS20002B
Hose Upper Connector
Cobalt Metallic 0.03%
Molded, YS20002B
Seal_Natural
Rear Handle Molding
Toyota 1J7 Metallic 0.03%
Molded, YS20002B
Front Handle Molding
Toyota 1J7 Metallic 0.03%
Molded, YS20002B
Button
Cobalt Metallic 0.03%
Molded, YS20002B
Bristles
SCBR Yellow_PMS 143C
Bristles Housing
Charcoal Non-Met.
Molded, YS20002B
Main Handle Molding
Water Clear
Green Area SPI A2
Red Area YS20011
Spray Tip
Natural
Hand Tool Accent
SCBR Yellow_PMS 143C
Molded, YS20002B
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 11
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK
7in Head Attachment7in Head Attachment
Rubber Side
SCBR Yellow_PMS 143C
Holder
Charcoal Gray
Molded, SPI B2
0.2mm Bristle Side
Charcoal Non-Met.
Brush Head Window
Water Clear
SPI A2
Shark
Brush Head Housing Top (Highlighted Red)
Cobalt Metallic 0.03%
Molded, YS20002B
Under Visor(Highlighted Green Area)
Molded, SPI A2
Brush Head Housing Bottom
Toyota 1J7 Metallic 0.03%
Molded, YS20002B
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 12
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK

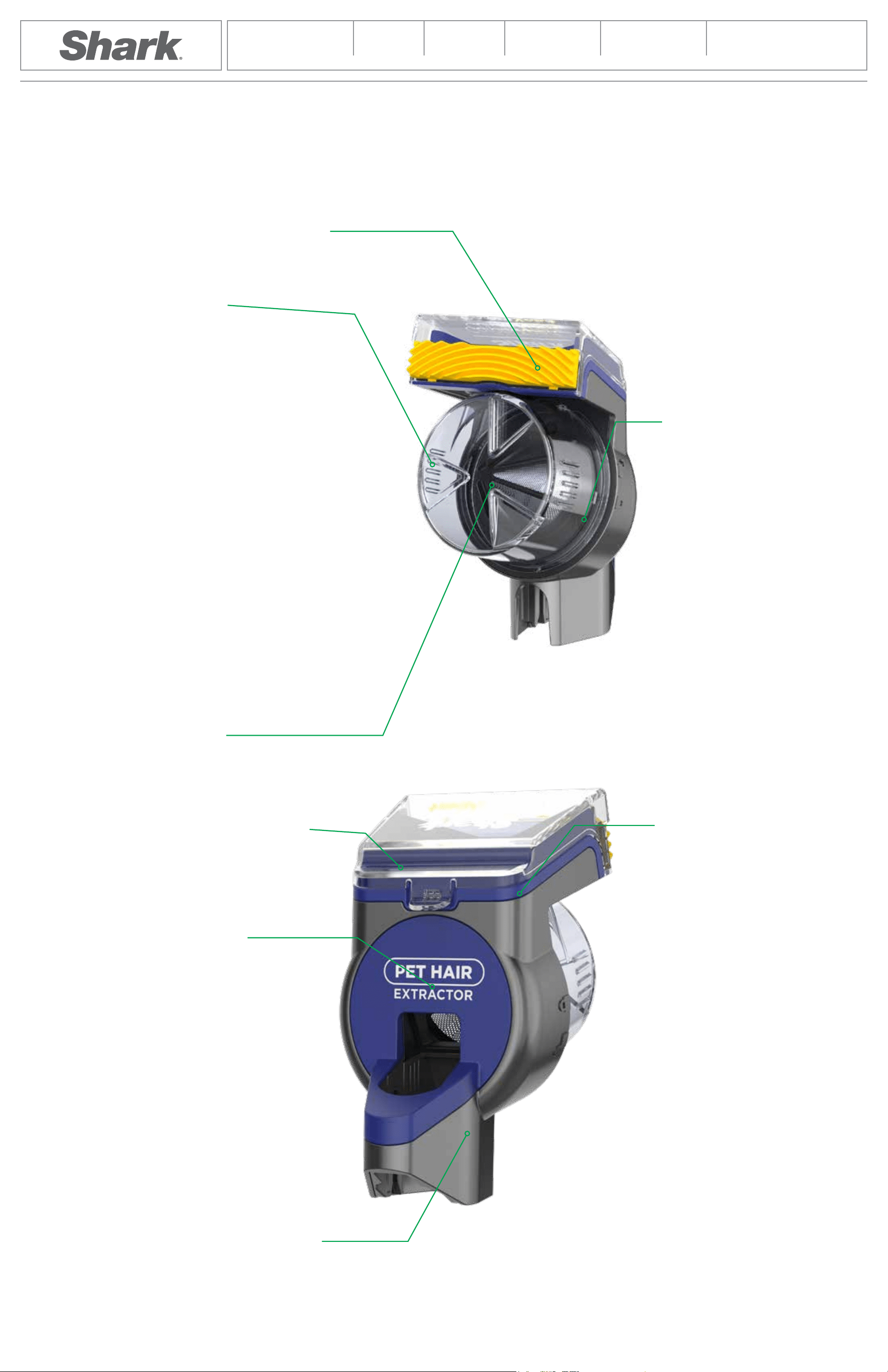

Pet Tool Attachment
Brush Head Window
Water Clear
SPI A2
Brush Head Housing
Top(Highlighted Red)
Cobalt Metallic 0.03%
Molded, YS20002B
Under Visor (Highlighted Green)
SPI A2
Brush Head Housing Bottom
Toyota 1J7 Metallic 0.03%
Molded, YS20002B
Valve Caps
Toyota 1J7 Metallic 0.03%
Molded, YS20002B
Valves
Process Black
Rubber
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 13
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK
Rubber Side
SCBR Yellow_PMS 143C
Holder
Charcoal Non-Met.
Molded, SPI B2
Filter Door
Charcoal Gray Non-Met.
Molded, SPI A2
Mesh
Natural Color
Interior Cover
Toyota 1J7 Metallic 0.03%
Molded, SPI A2
Screw
Process Black
Interior Seal
Process Black
Interior Seal
Process Black
Pet Tool Cup
“Light Blue” Match
SPI A2
Arrows
YS20002B
Tip Housing
Charcoal Gray
Molded, YS20002B
Spray Tip
Natural
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 14
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK
2in1 Tool Attachment
Pet Tool Cup
“Light Blue” Match
SPI A2
Arrows
YS20002B
Fur Fin
SCBR Yellow_PMS 143C
Interior Seal
Process Black
Filter Door
Charcoal Gray Non-Met.
Molded, SPI A2
Mesh
Natural Color
Main Housing
Toyota 1J7 Metallic 0.03%
Molded, YS20002B
Rear Backing
Cobalt Metallic 0.03%
Molded, YS20002B
Sub-Branding
Process White Pad Print
Brush Head Window
Water Clear
SPI A2
Brush Head Housing
Top(Highlighted Red)
Cobalt Metallic 0.03%
Molded, YS20002B
Under Visor (Highlighted Green)
SPI A2
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 15
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK
PMS 877C Silver
Pad Print
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 16
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:

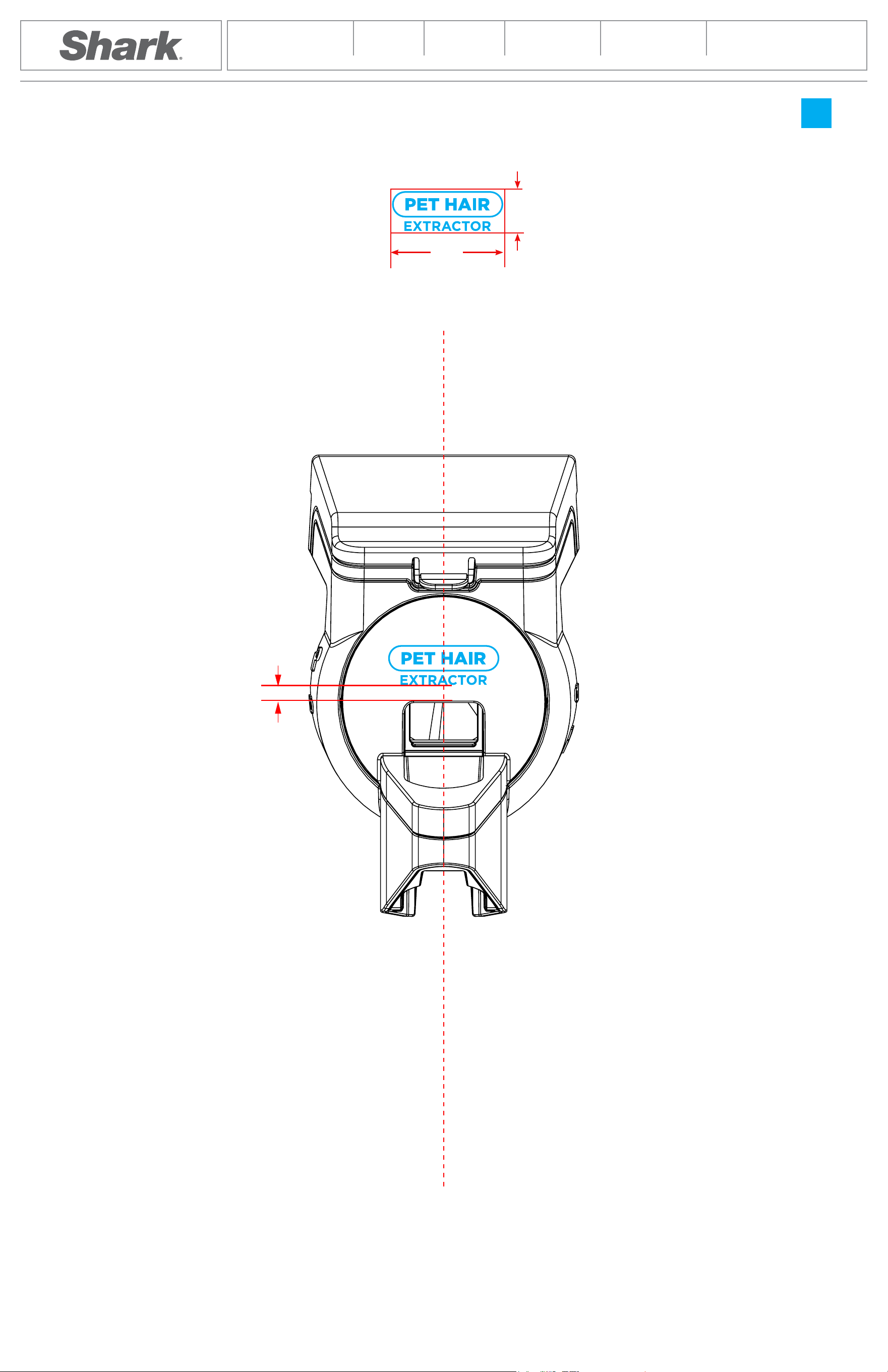

SKUS: EX250UK, XEX250UK

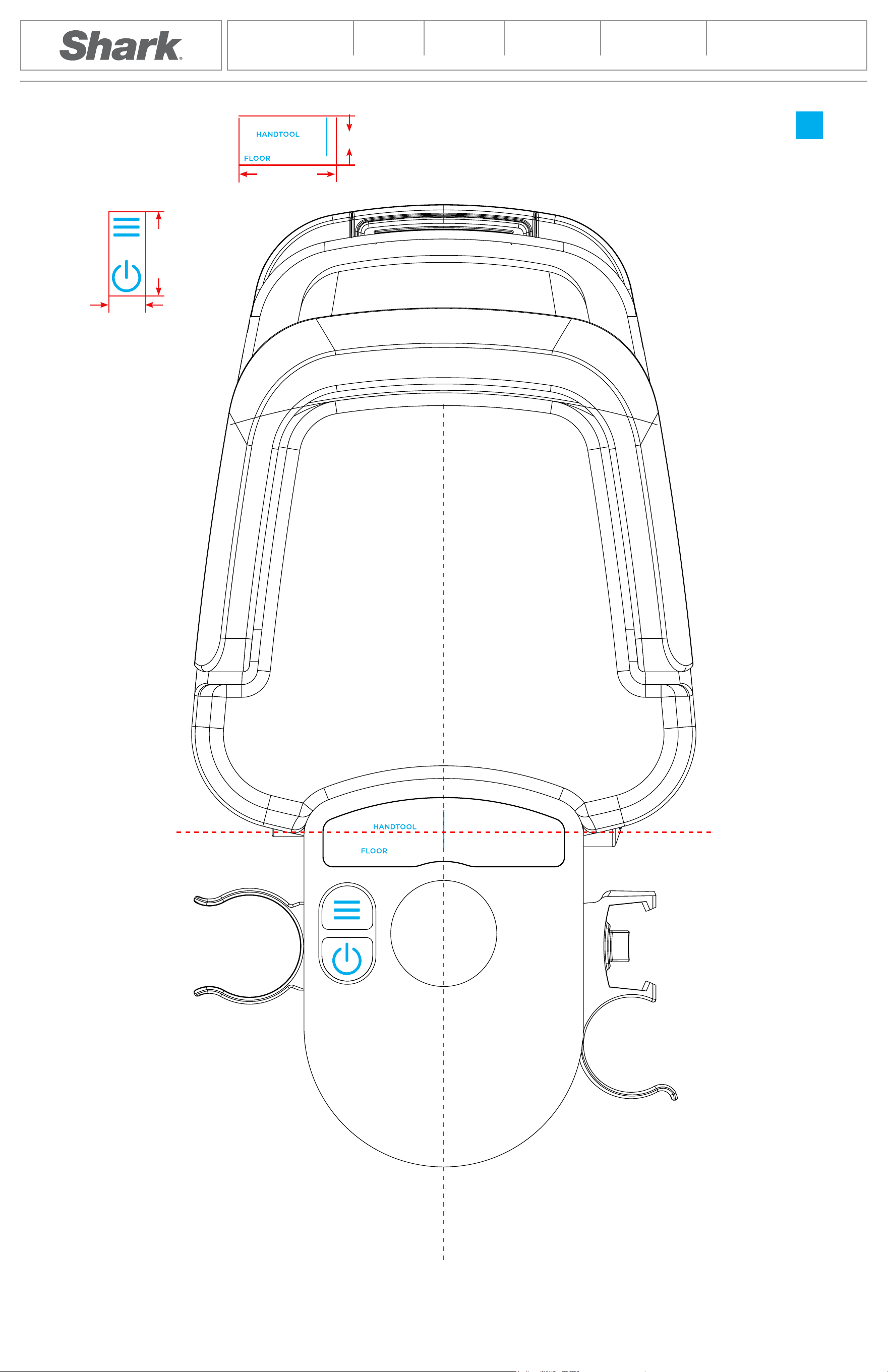

13.7mm
26mm
Process White Pad Print
23.4mm
9.2mm
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 17
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:

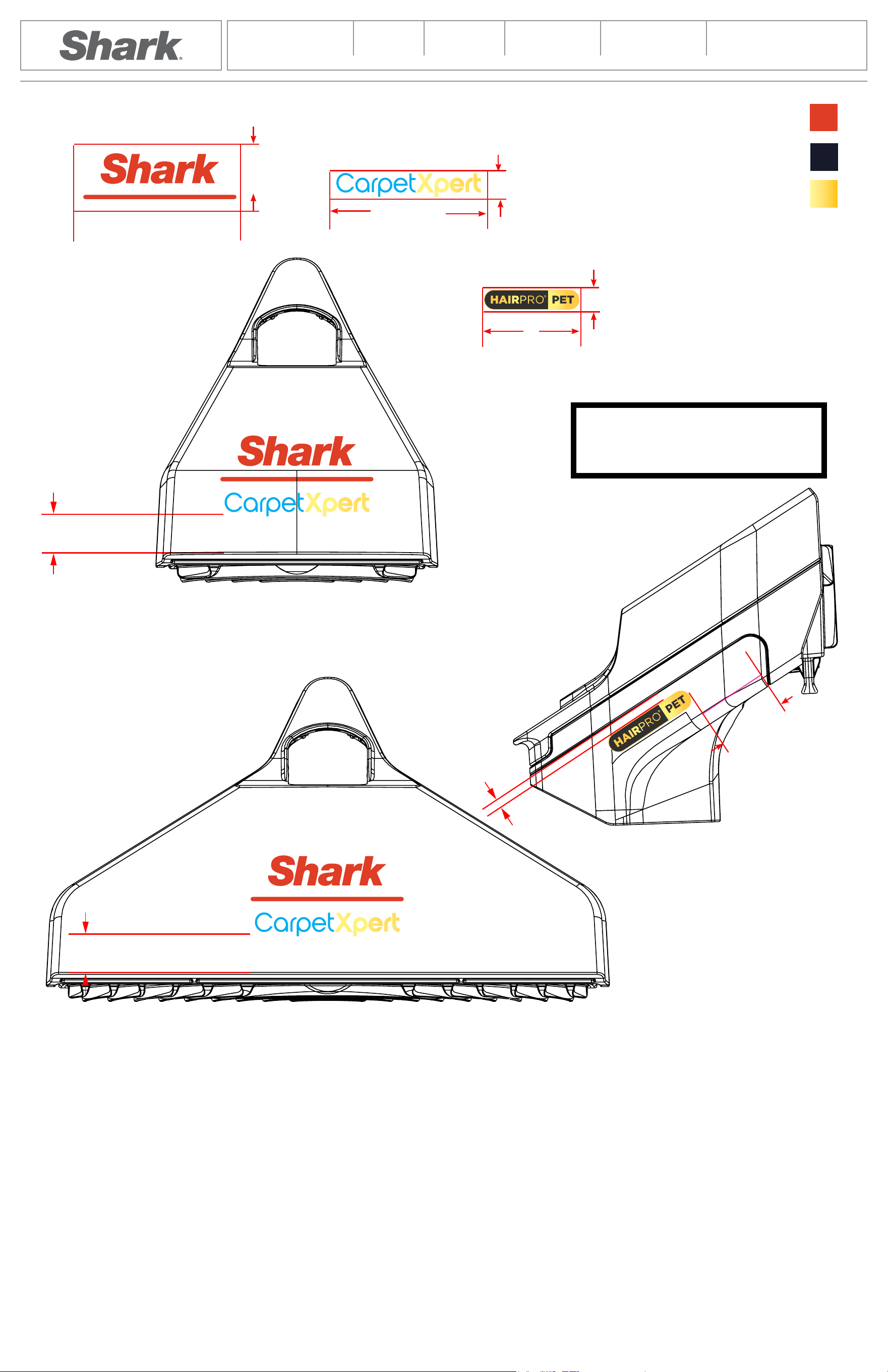

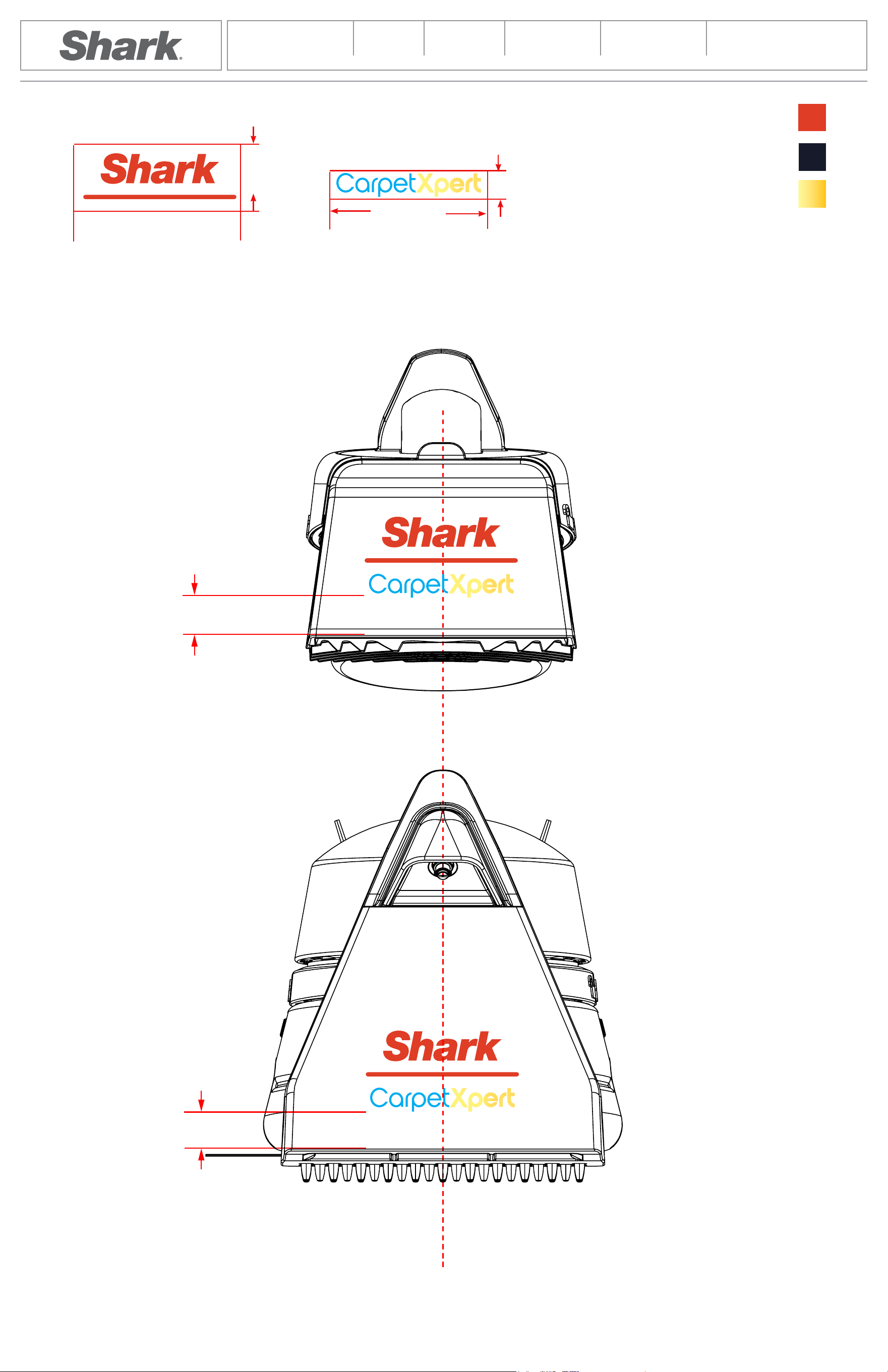

SKUS: EX250UK, XEX250UK
14.4mm
48.2 mm
12.5mm
12.5mm
For 3.5 & 7 inch
Heads
6.2mm
30mm
Charcoal Gray Pad Print
3mm
22mm
SCBR Yellow PMS 143C Pad Print
7.5mm
45.5mm
PMS 877C Silver
Pad Print
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 18
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK
14.4mm
48.2 mm
7.5mm
45.5mm
11mm
12.5mm
Charcoal Gray Pad Print
SCBR Yellow PMS 143C Pad Print
PMS 877C Silver
Pad Print
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 19
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:

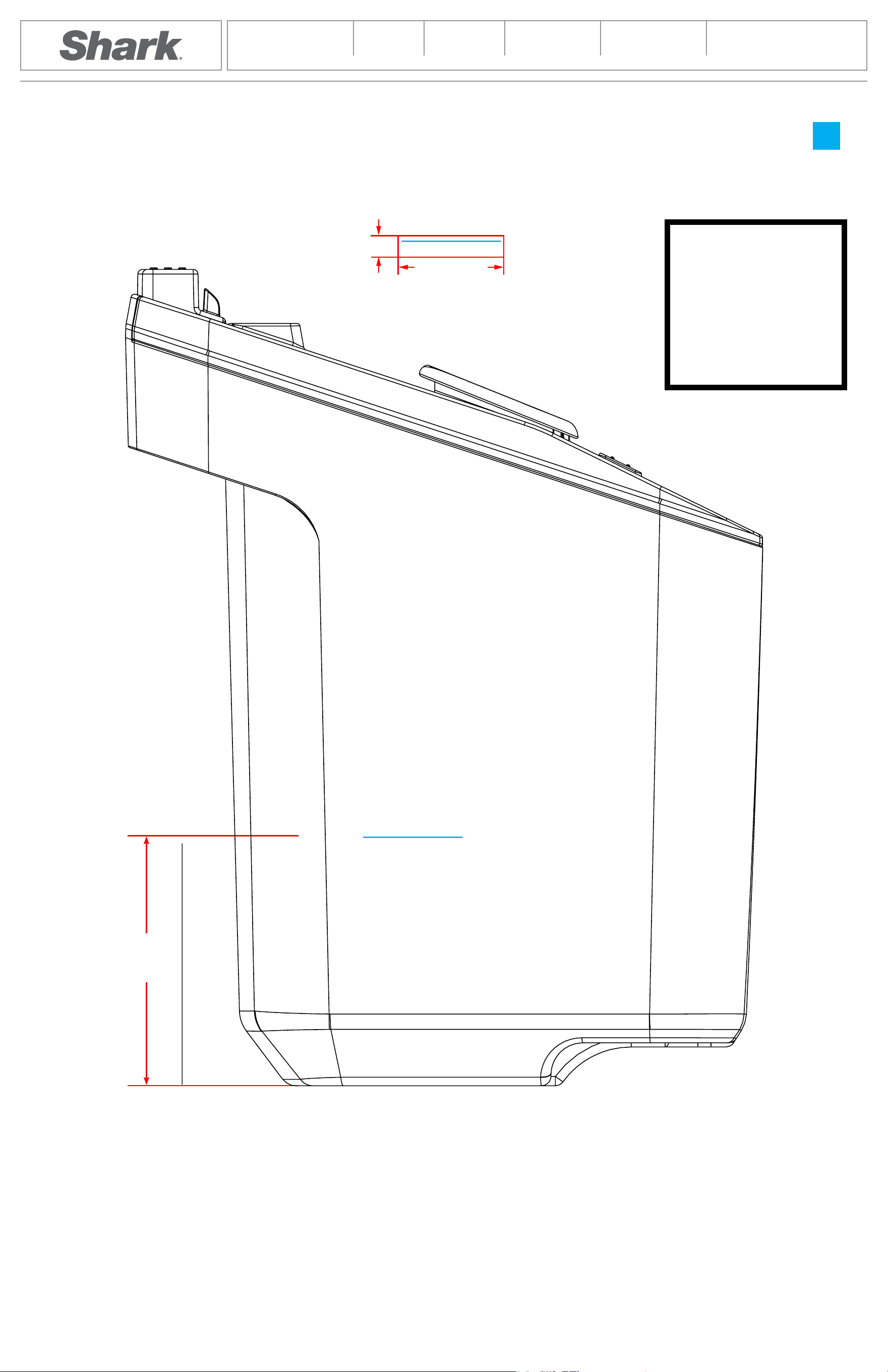

SKUS: EX250UK, XEX250UK
12.5mm
35mm
Process White Pad Print
5mm
This Pad Print will only be
used for US SKUs, UK SKU
won’t have this pad print.
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 20
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK

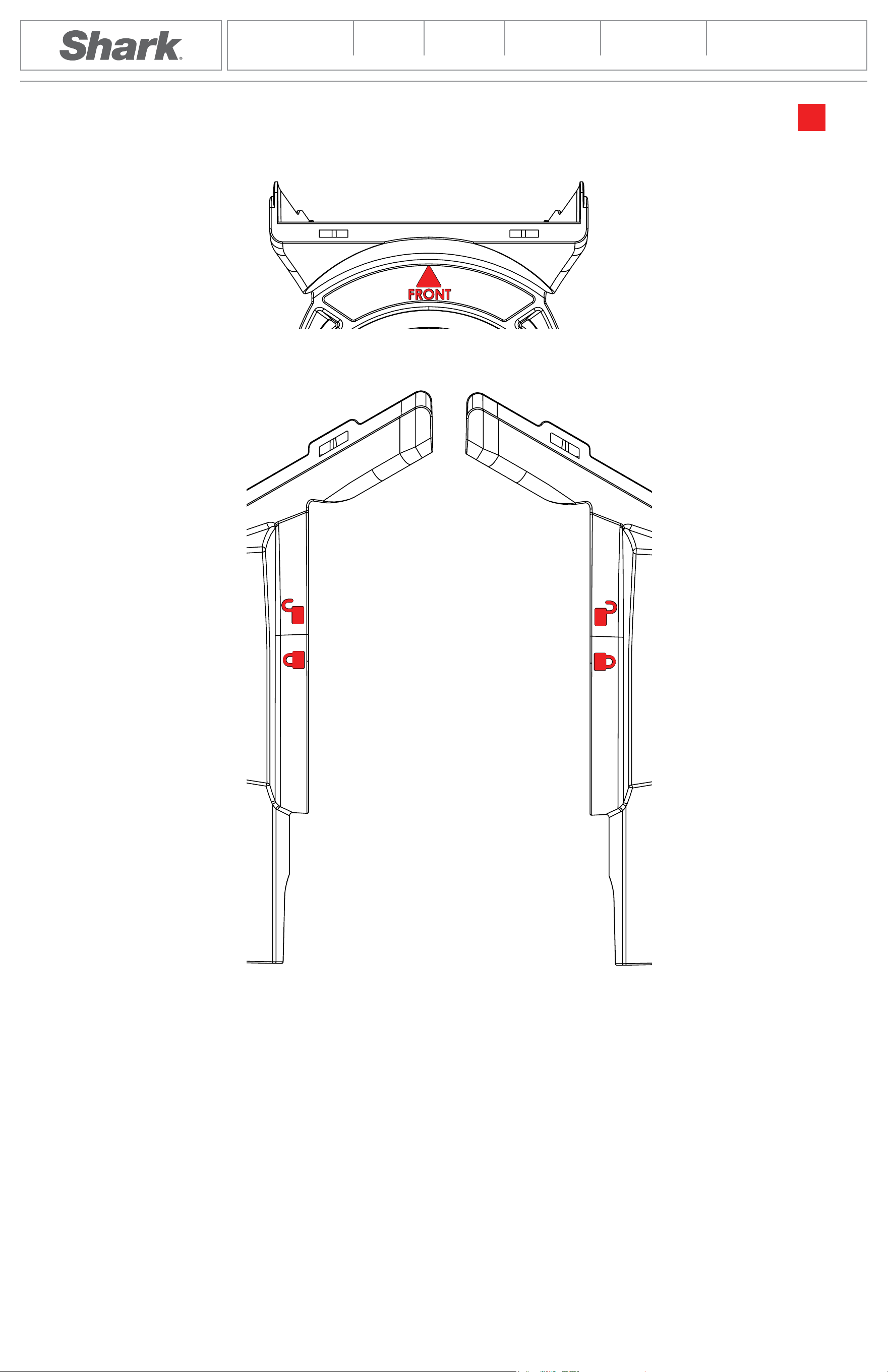

Embossed Surface_SPI A2
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 21
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK

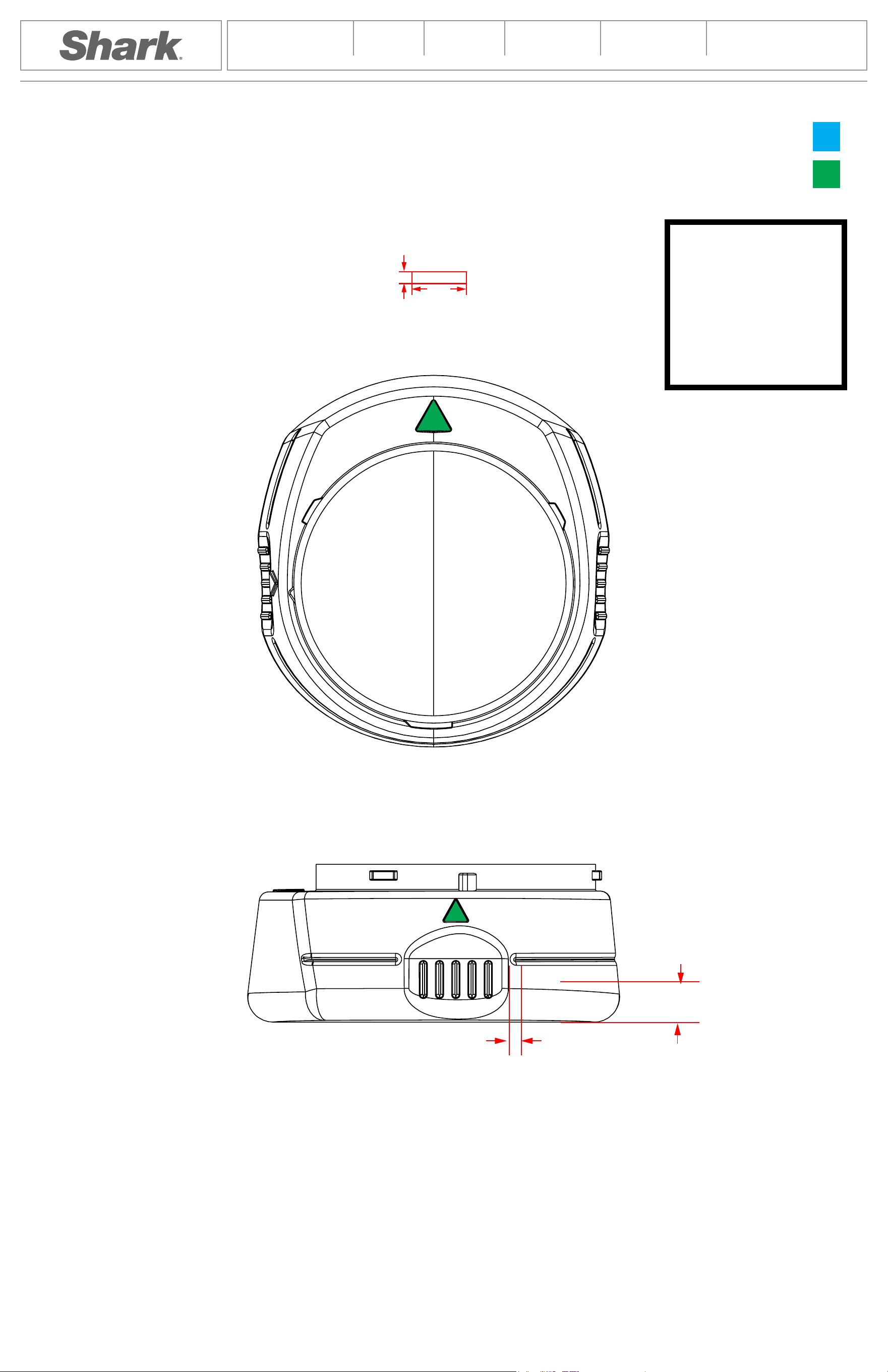

For Placement,
graphics
subject to
change
15.09mm
2.24mm
Process White Pad Print
Debossed Surface_YS20042B
MAX FILL
MAX FILL
14 mm
4 mm
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 22
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK
21.9.mm
10mm
4.34mm
4.34mm
For Placement,
graphics
subject to
change
Process Black Pad Print
3mm
149mm
140mm
25mm
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 23
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK

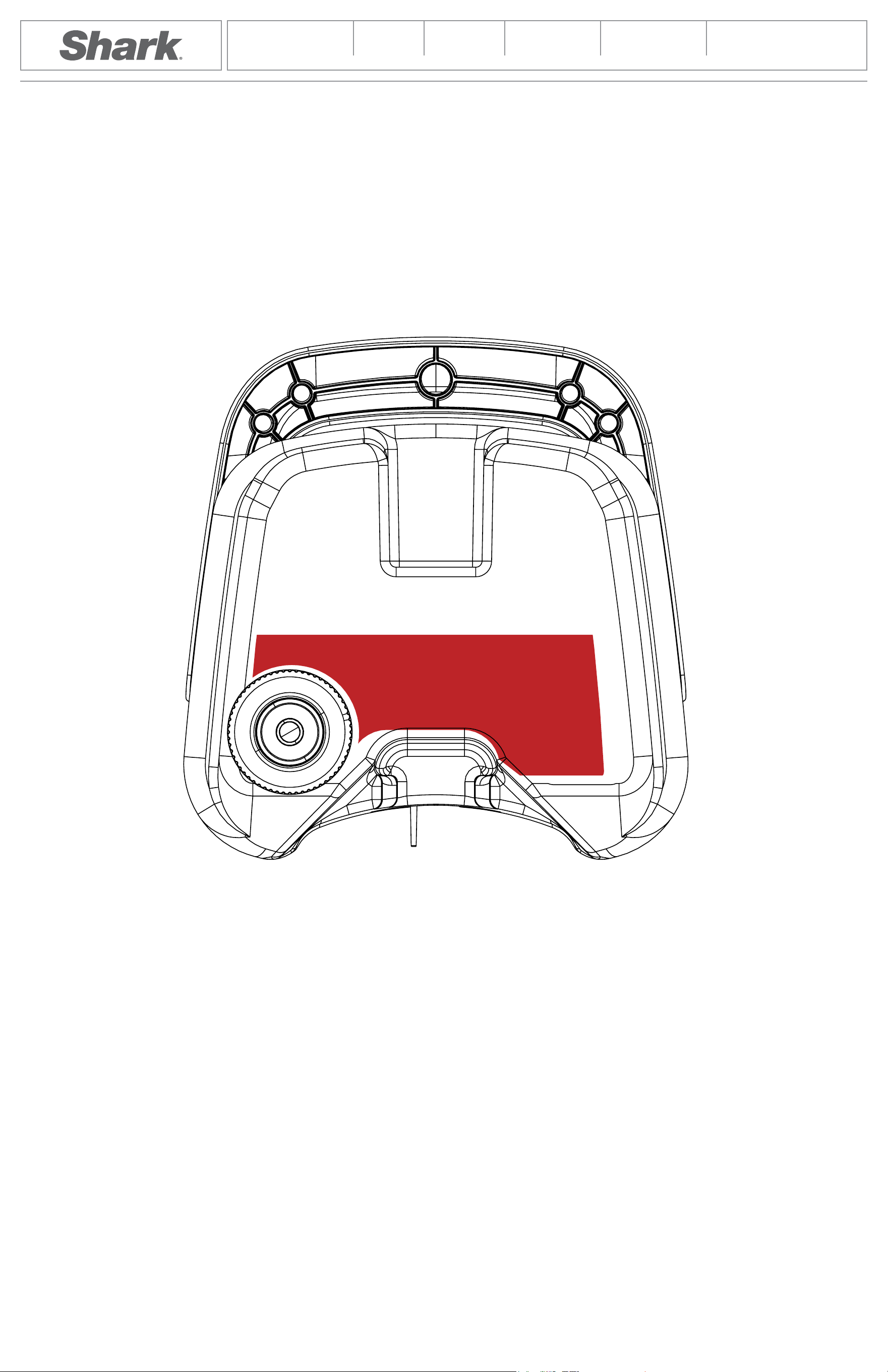

DO NOT
PUT THIS POP STICKER ON
DUMMY/DISPLAY UNITS
This will only be for
production units

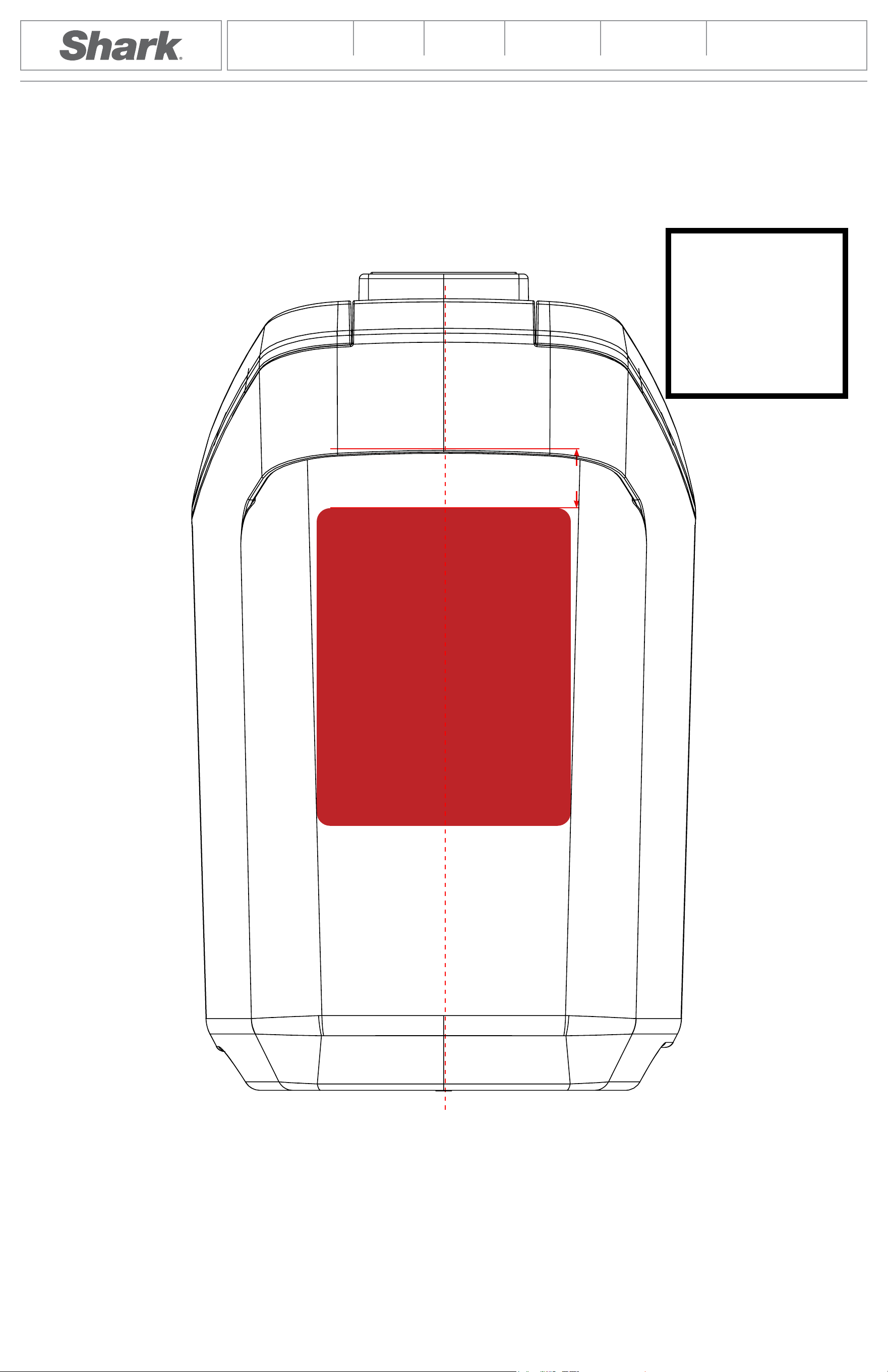

POP STICKER
FPO
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 24
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK

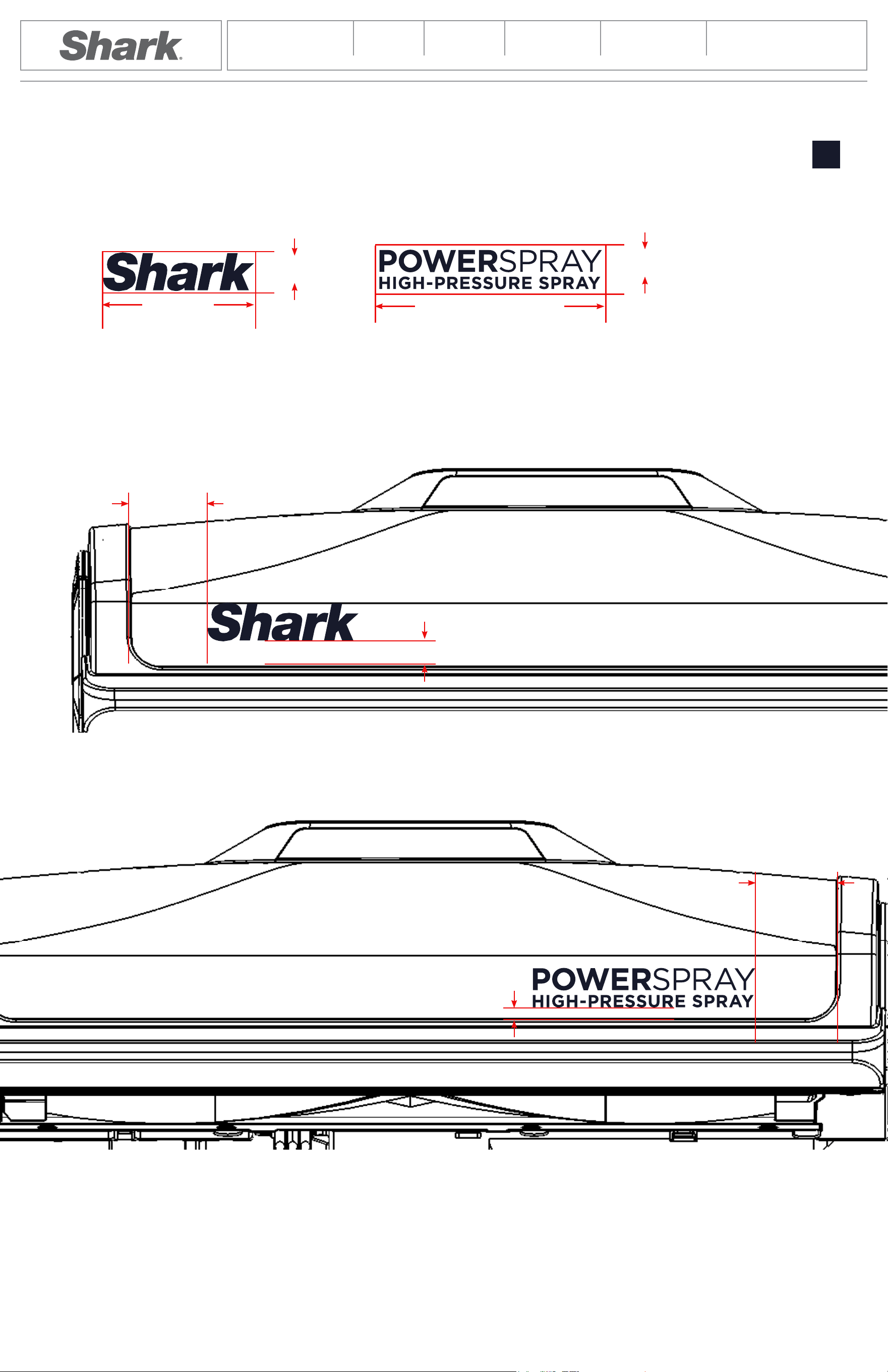

Process White Pad Print
PMS 877C Silver Chrome
Hot Foil
9.6mm
58 mm
45.5mm
74.2 mm
Brushed Process Black San Hot Foil
12.5mm
48 mm
30mm
75.2 mm
SCBR Yellow PMS 143C Pad Print
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 25
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X

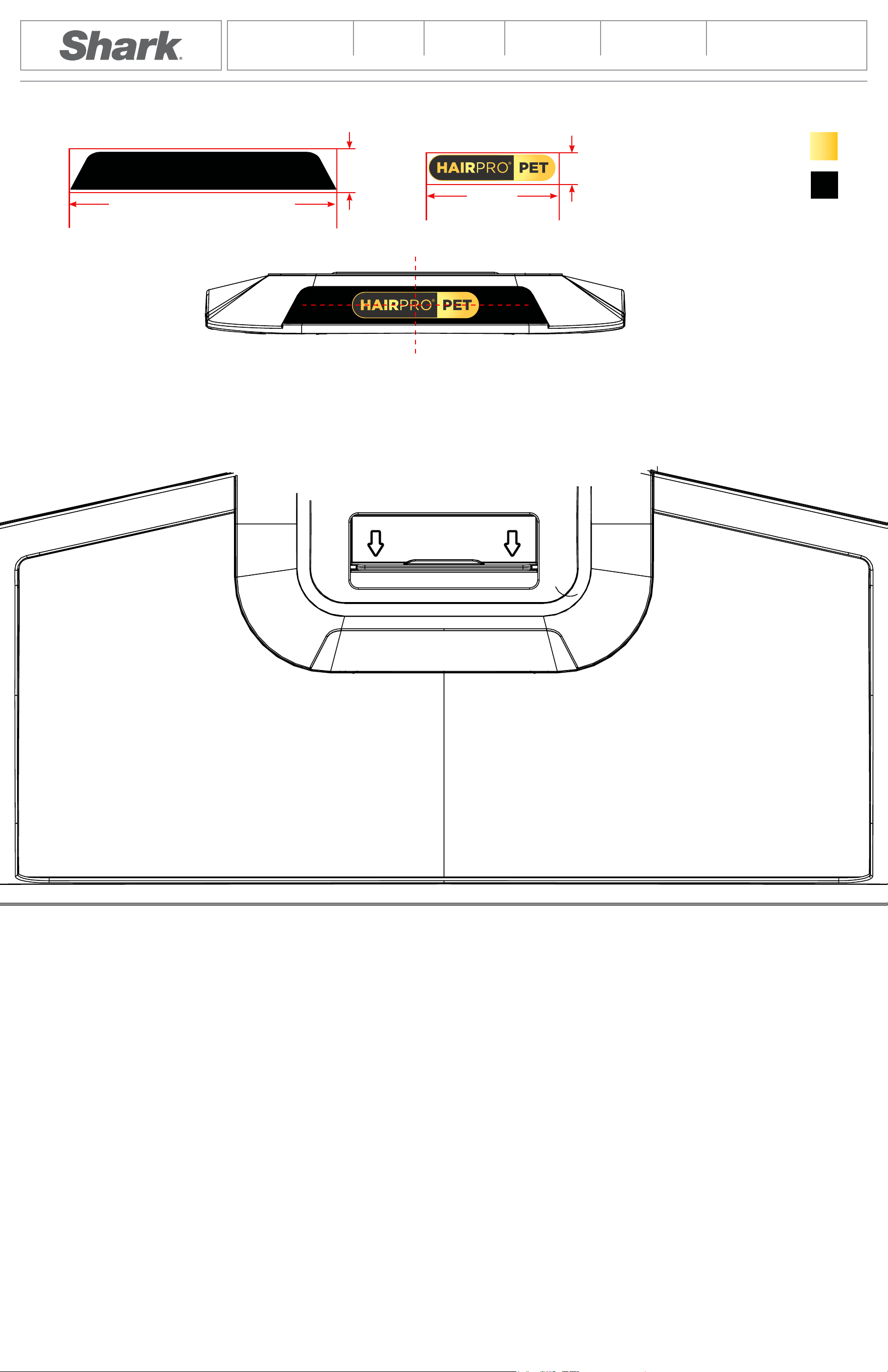

Project:
SKUS: EX250UK, XEX250UK
POP STICKER
FPO
20mm
For Placement,
graphics
subject to
change
POP FOR DISPLAYS ONLY
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 26
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK
79mm
MAX FILL
MA
X FILL
31.5mm
3.9mm
For Placement,
graphics
subject to
change
Process White Pad Print
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 27
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK

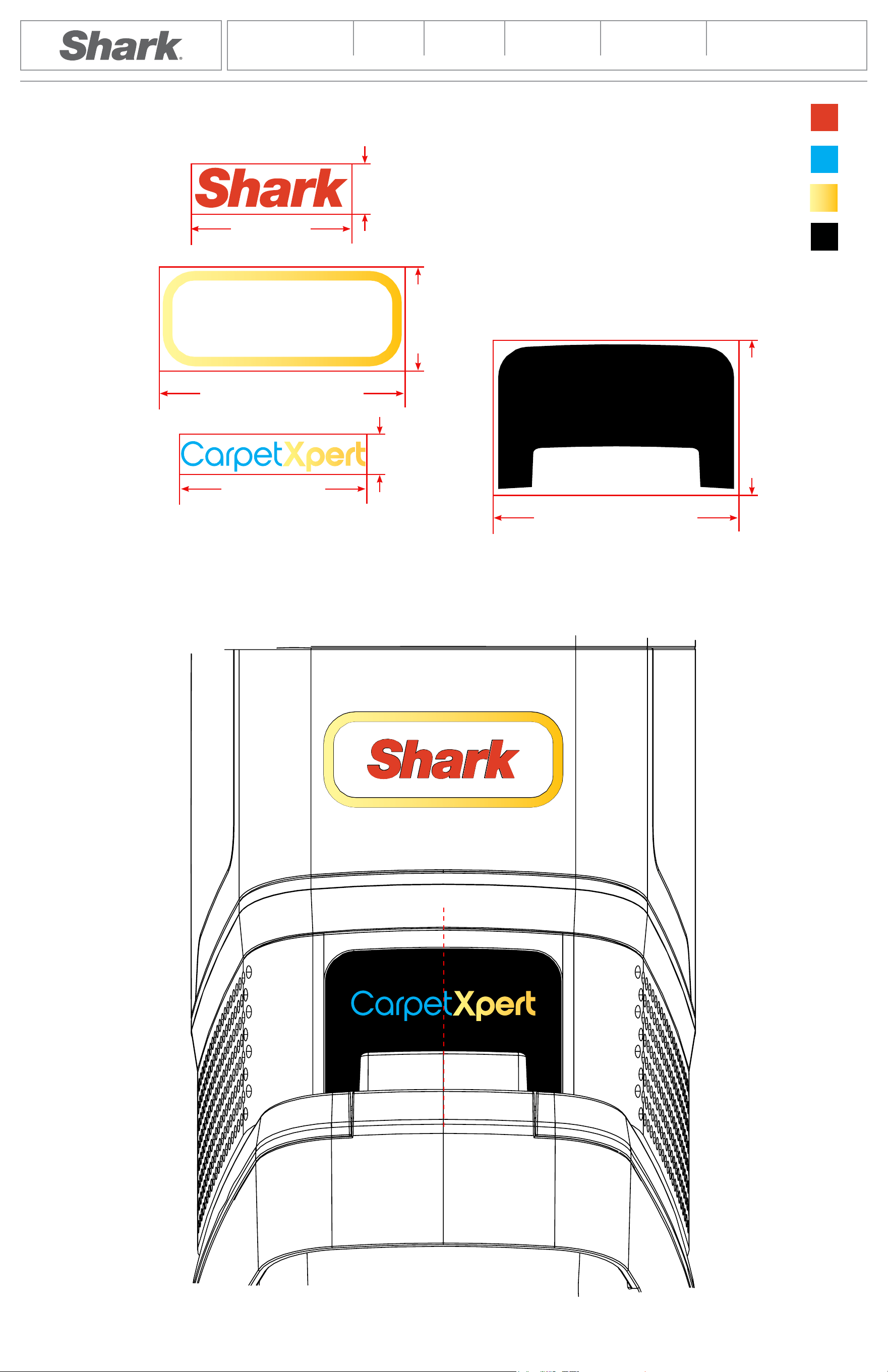

7mm
26mm
12.3mm
47.5 mm
12.4mm
70 mm
Charcoal Gray San Hot Foil
3.5mm
26mm
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 28
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK
8.3mm
40 mm
Brushed Process Black San Hot Foil
11.95mm
83.67 mm
SCBR Yellow PMS 143C Pad Print
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 29
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:
SKUS: EX250UK, XEX250UK

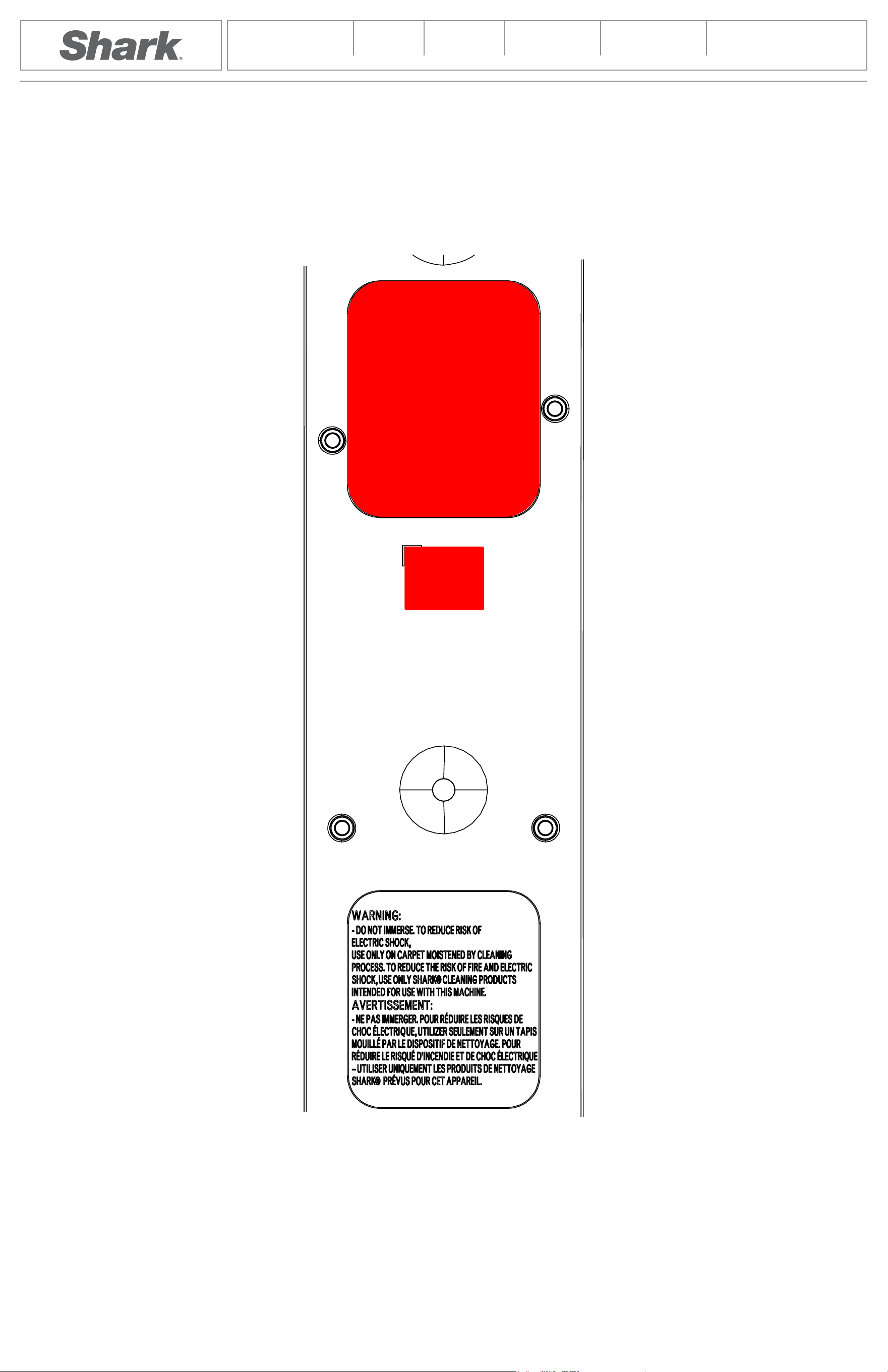

RATING LABEL
PLACEMENT
Warning Text 0.5 Posive Embossment
QR LABEL
PLACEMENT
*Align with embossed corner
This document is for the purpose of specifying color, texture, nish, and placement. For specication relating to nish performance or life testing, refer to the Product Specication. For SKU conguration and
quantities please refer to Product Information Sheet. Images shown in this document should not be used for color, refer only to call outs for color. Nothing is to be considered full Vscaleunless explicitly stated. For
all geometry refer only to C.A.D. les.
Page 30
Owner: Page Title:Date:
05 Justin V.
Revision #:
12-18-2024
Target Build:
MP
EXTRACTOR 2.0
EX25X
Project:

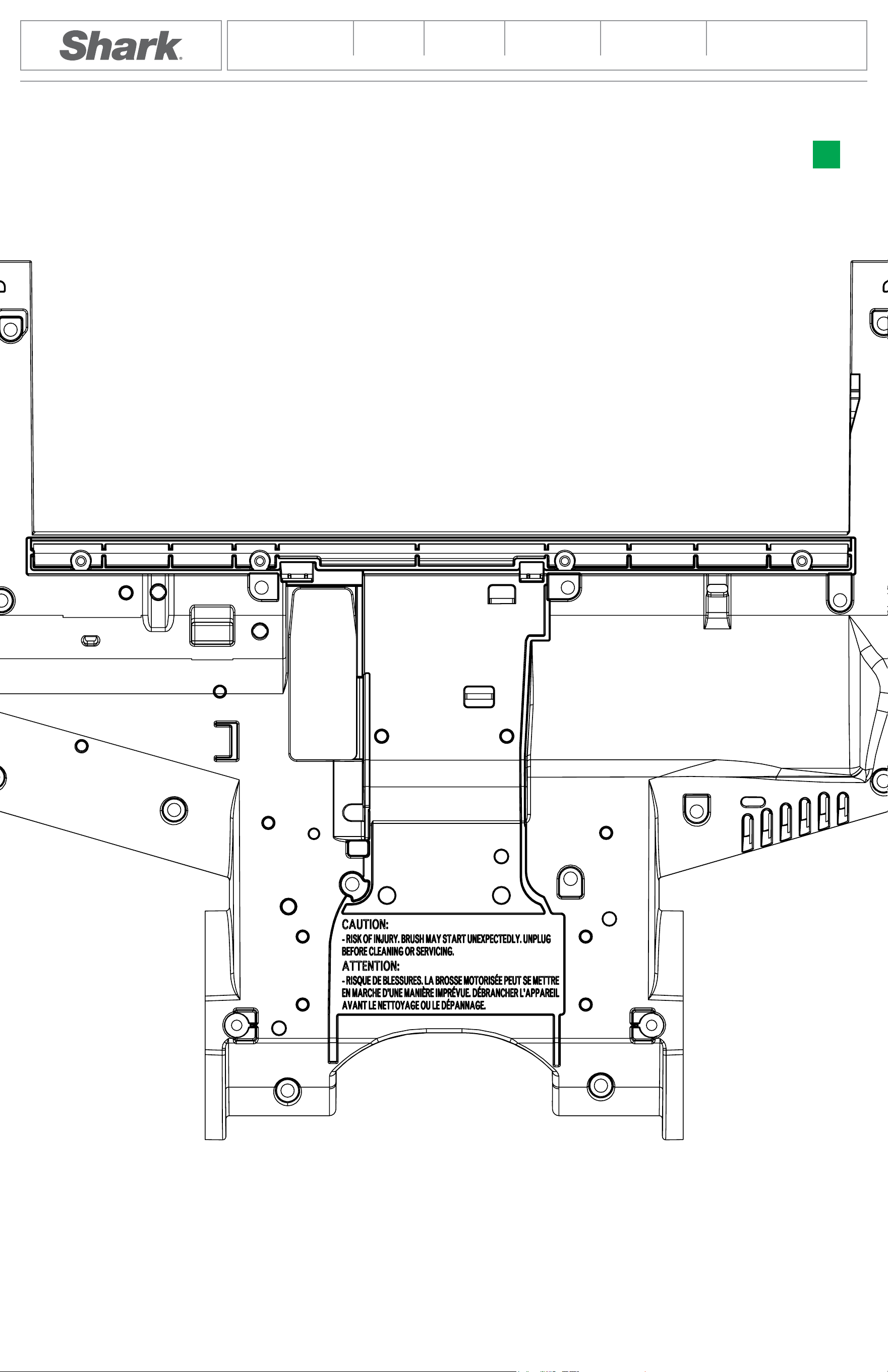

SKUS: EX250UK, XEX250UK
0.5 Posive Embossment
Cauon Text 0.5 Posive Embossment
