1500 LB. CAPACITY
ATV/MOTORCYCLE LIFT
item 60536
Weight Capacity 1,500 lb.
Maximum Height 16-3/4"
Minimum Height 5"
®
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 24e
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright
©
2013 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. 60536
SaFety OperatiOn MaintenanceaSSeMbly
SaFety OperatiOn MaintenanceSetUp
table of contents
Safety ......................................................... 2
Specifications ............................................. 3
Setup .......................................................... 3
Operating Instructions ................................ 8
Maintenance ............................................... 9
Troubleshooting ......................................... 10

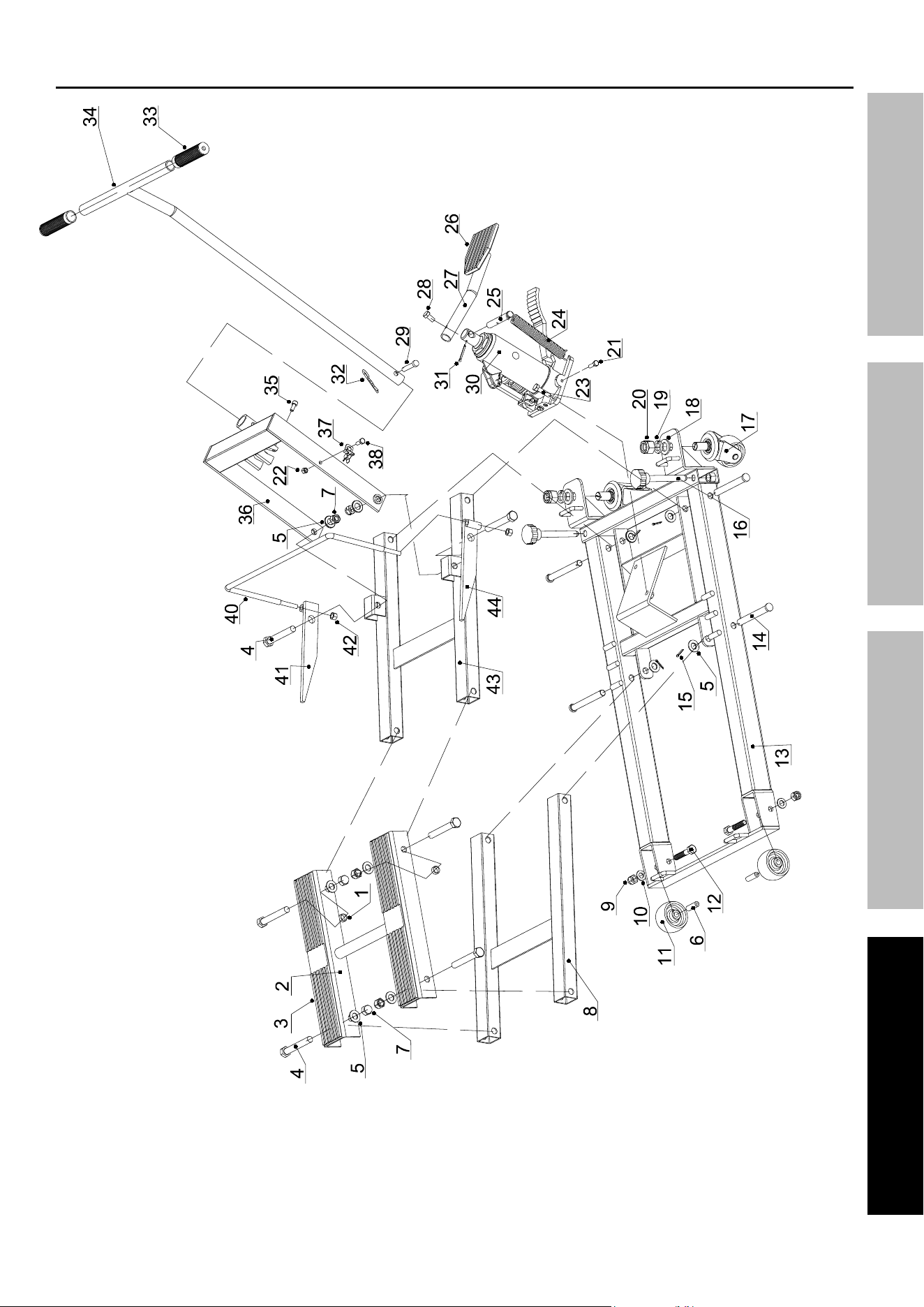

Parts Lists and Assembly Diagrams .......... 12
Warranty .................................................... 16
WarninG SyMbOlS anD DeFinitiOnS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
iMpOrtant SaFety inFOrMatiOn
1. Study, understand, and follow all instructions
before operating this device.
2. Do not exceed rated capacity.
3. Use only on a hard, level surface
capable of supporting the load.
4. Center load on lift platform.
5. Lift only those areas of the vehicle
specified by its manufacturer.
6. Immediately after lifting load, ensure lift
mechanical load-holding is engaged.
7. Before moving, lower the load to
the lowest possible point.
8. Secure load with appropriate restraint device.
9. Failure to heed these markings may result in
personal injury and/or property damage.
10. Use of this product is limited to lifting, lowering,
transporting, and storing, in the lowered
position, loads consisting of a single vehicle
whose lift points are compatible with the lift
platform. Incompatibility is evident when the
loaded vehicle wobbles, appears unstable, and/
or does not securely engage the lift platform.
11. Restraining an incompatible load will not make the
load secure and may cause unexpected loss of load.
12. Never work on, around, or under a load
that is not secured and stable.
13. Keep operator’s and bystander’s head, hands, and
feet away from lift arms when raising and lowering.
14. No alterations shall be made to this product.
15. Only attachments, restraints, or adapters
supplied by the manufacturer shall be used.
16. Keep clear of load while lifting and lowering.
17. Lower load slowly.
18. Do not use for aircraft purposes.
19. Inspect before every use; do not use
if parts are loose or damaged.
20. Do not move or dolly the vehicle while on the Lift.
21. Stay alert. Watch what you are doing, and use
common sense when operating a Lift. Do not use
Lift while tired or under the influence of drugs,
alcohol, or medication. A moment of inattention while
operating lifts may result in serious personal injury.
22. Never allow anyone to ride Lift when it is being raised,
lowered, or while holding an ATV or motorcycle.
23. Before use, read manufacturer’s instruction
manual for the ATV or motorcycle being lifted.
Page 3For technical questions, please call 1-888-866-5797.60536
SaFetyOperatiOnMaintenance aSSeMbly
SaFetyOperatiOnMaintenance SetUp
24. Store idle Lift out of reach of children and
other untrained persons. Lifts are dangerous
in the hands of untrained users.
25. Lift service must be performed only by qualified repair
personnel. Service or maintenance performed by
unqualified personnel could result in a risk of injury.
26. When servicing the Lift, use only identical
replacement parts - refer to attached, product-
specific parts lists and diagrams. Follow instructions
in the “Maintenance and Servicing” section of this
manual. Use of unauthorized parts or failure to follow
maintenance instructions may create a risk of injury.
27. Maintain labels and nameplates on the Lift. These
carry important information. If unreadable or missing,
contact Harbor Freight Tools for a replacement.
28. The warnings, precautions, and instructions
discussed in this manual cannot cover all
possible conditions and situations that may occur.
The operator must understand that common sense
and caution are factors, which cannot be built into
this product, but must be supplied by the operator.
SaVe tHeSe inStrUctiOnS.

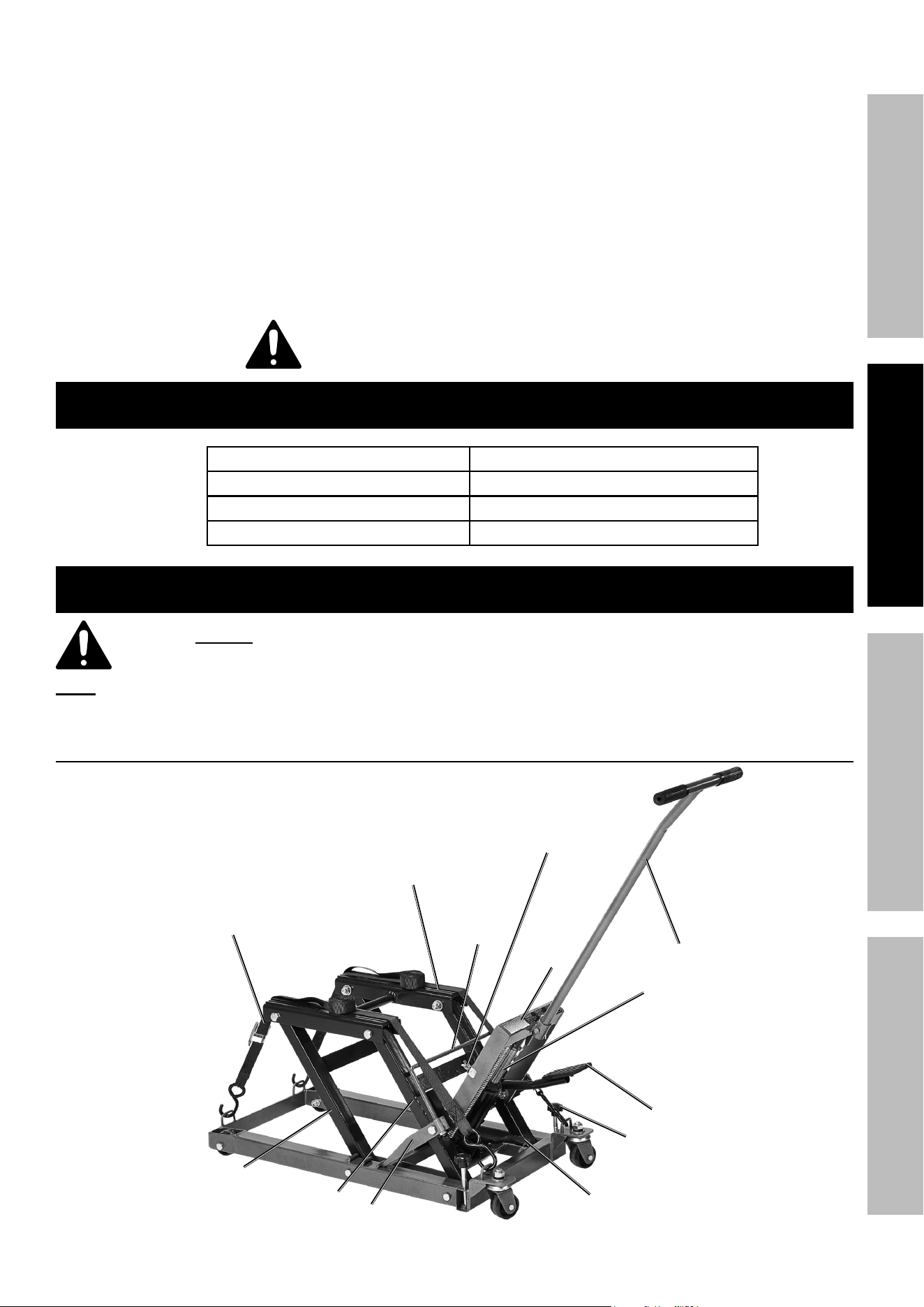

Specifications
Minimum Height 5″
Maximum Height 16-3/4″
Weight Capacity 1500 LB.
Overall Dimensions (without handle) 33-5/8″ L x 16-1/2″ W x 13-3/8″ H
Setup – before Use
read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
note: For additional information regarding the parts listed in the following pages,
refer to Parts Lists and Assembly Diagrams on page 12.
components
Handle
tie Down
Straps
lift Saddle
with rubber pads
bottle Jack
lifting
Frame
Foot pedal
release pedal
left Stop bar
Stop bar
connecting
rod
rear lift arm
Front lift arm
Stop bar
rod clamp
lock bolt
Page 4 For technical questions, please call 1-888-866-5797. 60536
SaFety OperatiOn MaintenanceaSSeMbly
SaFety OperatiOn MaintenanceSetUp

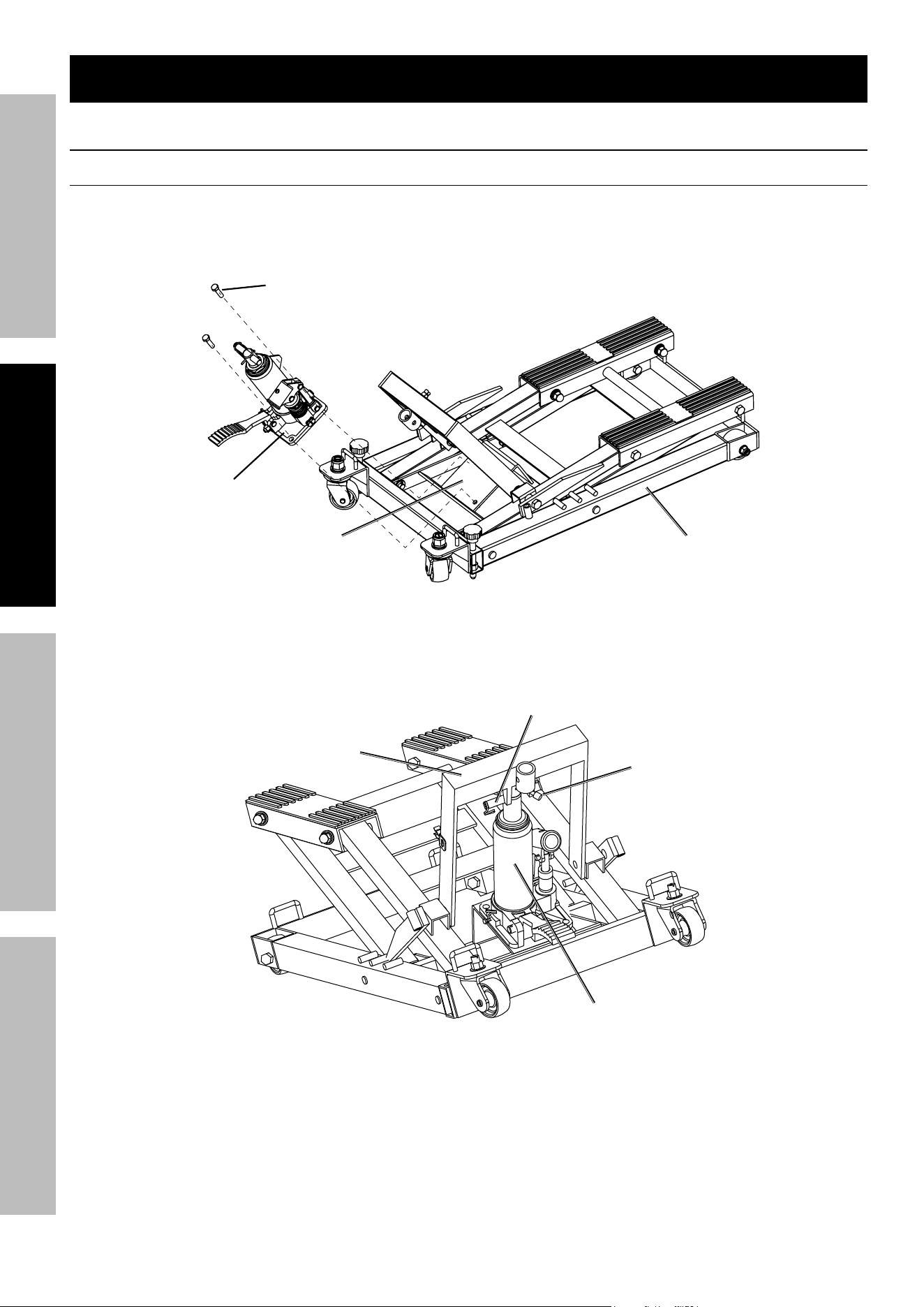

Setup – before Use (continued)
lift Set Up
Mounting the bottle Jack
1. Secure the Jack Assembly (30) to the
Jack Mounting Plate portion of the Bottom
Base (13) with two Bolts (23).
bolt (23)
bottom base (13)
bottle Jack (30)
Jack Mounting plate
2. Lift the Lifting Frame (36) onto the Jack’s ram
and place the Pin (25), on the upper end of
the Jack’s arm, into the bracket on the Lifting
Frame, securing it with the Bolt (35).
lifting Frame (36)
pin (25)
bolt (35)
bottle Jack (30)
Page 5For technical questions, please call 1-888-866-5797.60536
SaFetyOperatiOnMaintenance aSSeMbly
SaFetyOperatiOnMaintenance SetUp

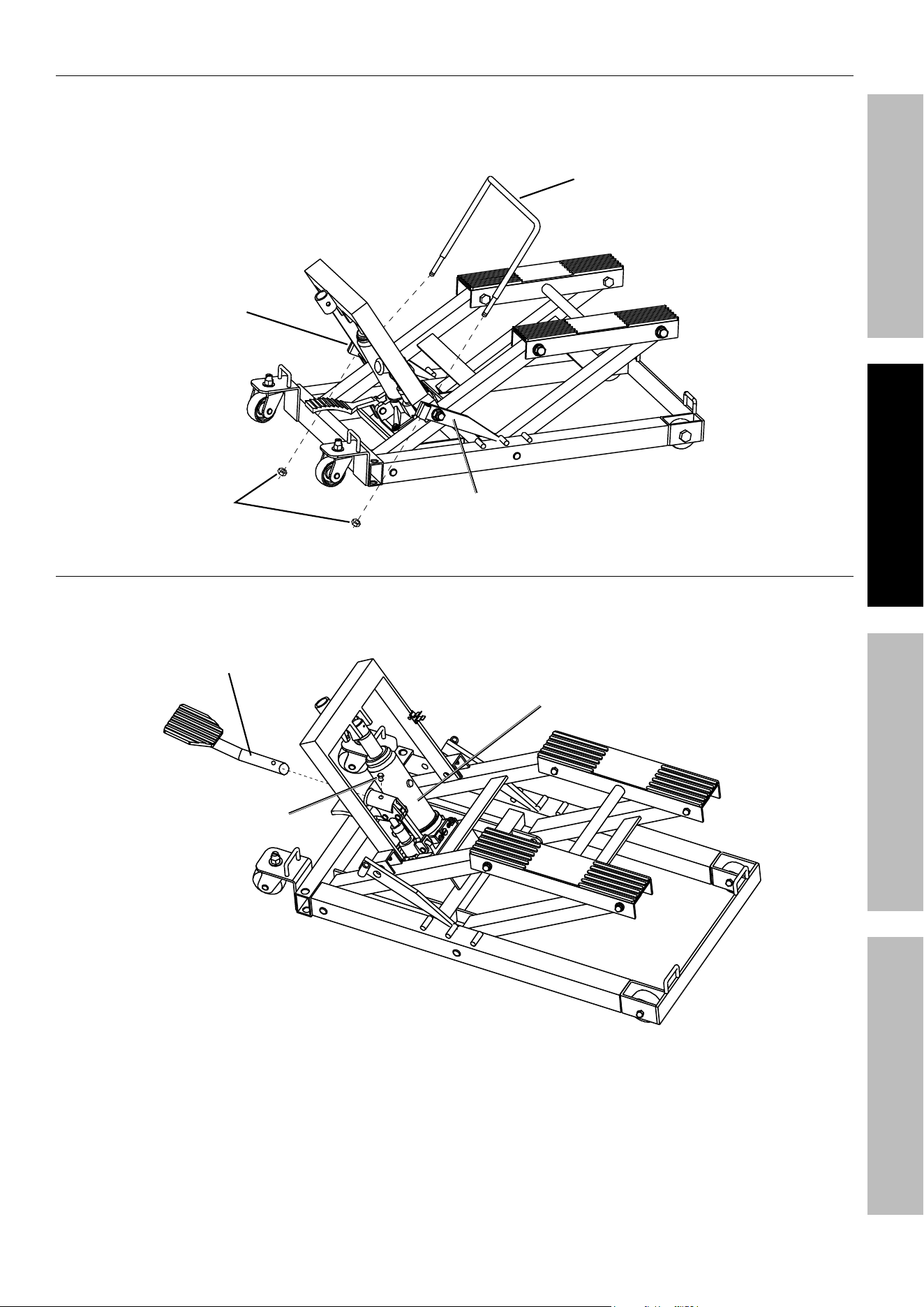

installing the Stop bar connecting rod
3. Insert the two ends of the Stop Bar
Connecting Rod (40) into the sleeves on
the Right and Left Stop Bars (41, 44).
4. Secure the Stop Bar Connecting Rod
in place with two Nuts (42).
nut (42)
right Stop bar (41)
left Stop bar (44)
Stop bar connecting rod (40)
installing the Foot pedal
5. Insert the Foot Pedal (27) into its
holder on the Bottle Jack (30).
6. Secure Foot Pedal in place using
the Foot Pedal Bolt (28).
bottle Jack (30)
Foot pedal bolt (28)
Foot pedal (27)
Page 6 For technical questions, please call 1-888-866-5797. 60536
SaFety OperatiOn MaintenanceaSSeMbly
SaFety OperatiOn MaintenanceSetUp
Setup – before Use (continued)

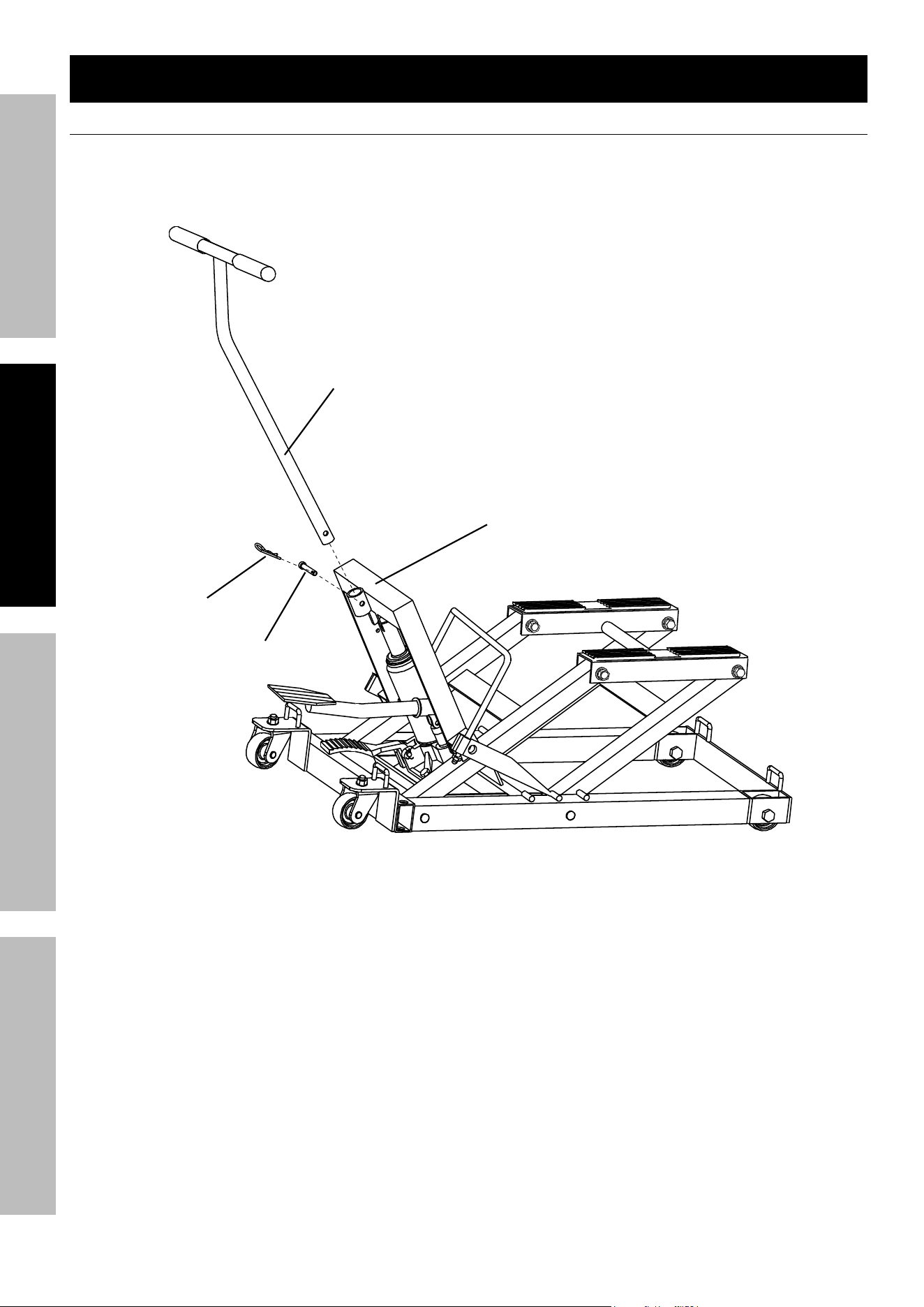

installing the Handle
1. Insert the end of the Handle (34) into the handle
socket on the top of the Lifting Frame (36).
2. Secure the Handle in place with the
Handle Pin (29) and Cotter Pin (32).
Handle pin (29)
lifting Frame (36)
Handle (34)
cotter pin (32)
Page 7For technical questions, please call 1-888-866-5797.60536
SaFetyOperatiOnMaintenance aSSeMbly
SaFetyOperatiOnMaintenance SetUp
bleeding
iMpOrtant! before first use, check for proper
hydraulic fluid level in the bottle Jack (30). then
thoroughly test the lift for proper operation
prior to its actual use. if the lift appears not
to be working properly, it may be necessary
to bleed its hydraulic system of excess air.
1. Remove the Fluid Fill Plug (39a) on
the side of the Bottle Jack (30).
2. Use one foot to step on and hold the
Release Pedal (13a) down.
3. While holding the Release Pedal down,
quickly pump the Foot Pedal (27) up and down
several times to purge air from the system.
4. Check the fluid fill hole and, if necessary, top
off the jack’s Fluid Reservoir (11a) with high
grade hydraulic fluid (sold separately).
5. Replace the Fluid Fill Plug.
6. Test the Lift several times for proper operation
before attempting to lift a load. if, after purging,
the lift still does not appear to be working
properly, do not use the lift until it has been
repaired by a qualified service technician.
adding Hydraulic Fluid
1. Remove the Fluid Fill Plug (39a) on
the side of the Bottle Jack (30).
2. Add high grade hydraulic fluid (sold separately)
into the fluid fill hole slowly until the fluid
just begins to run out of the hole.
3. Replace the Fluid Fill Plug.
®
Page 8 For technical questions, please call 1-888-866-5797. 60536
SaFety OperatiOn MaintenanceaSSeMbly
SaFety OperatiOn MaintenanceSetUp

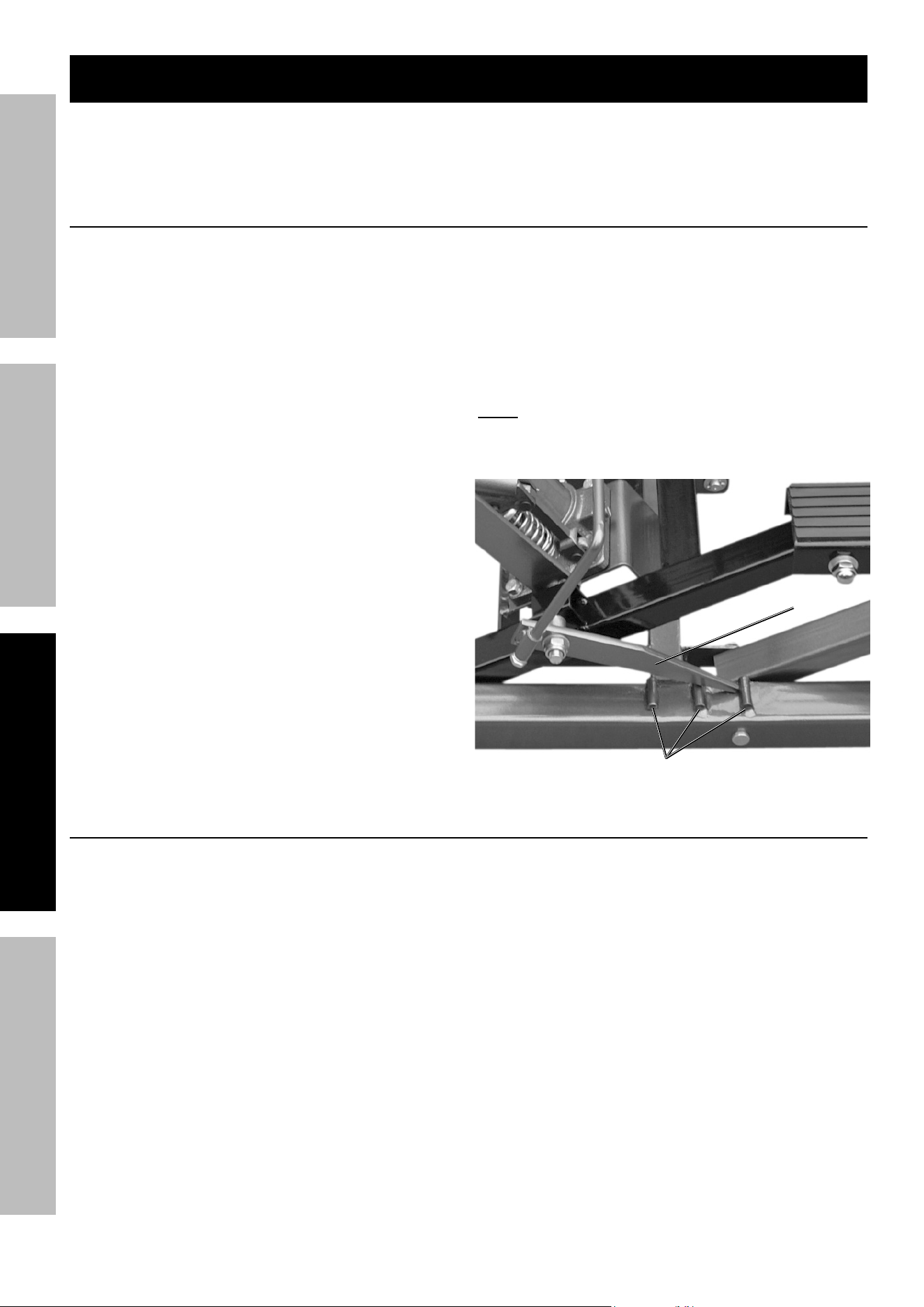

Operating instructions
tO preVent SeriOUS inJUry: Do not work on the lift, or leave it unattended if the
Stop bars (41, 44) are not in the locked position, or the lock bolts (16) are not engaged (lifting
the rear Wheels [17] off of the ground). Keep clear of lift arms (8, 43) during operation.
lifting
1. Lift the Stop Bar Connecting Rod (40) and
secure it to the Stop Bar Rod Clamp (37).
2. Use the Handle (34) to roll the Lift and position it
next to the load. Lower the Lift by depressing the
Release Pedal (13a). (See ATV or motorcycle
owner’s manual for recommended lifting points.)
3. Once positioned under the load, turn the
Lock Bolts (16) until they contact the ground
and lift the Rear Wheels (17) slightly off of
the ground to keep the Lift from rolling.
4. Use Tie-Down Strap(s) (39) to secure the load.
Repeatedly depress the Foot Pedal (27) slowly
to raise the Lift. When the Lift makes contact
with the load, make sure the load sits evenly
on the Lift Saddle (2) before raising the load. If
the load is not evenly distributed on the two
Rubber Pads (3) or not secured in place with
tie-down straps, it may fall from the Lift, resulting
in personal injury and property damage.
5. Continue to raise the Lift to the desired height.
Disengage the Stop Bar Connecting Rod from
the clamp. Lock the Lift at one of the three
locking positions on the Bottom Base (13)
with the Stop Bars (41, 44) and lower Lift
slightly to securely engage the Stop Bars. Not
engaging the Stop Bars may result in serious
injury or death, and damage the Lift.
note: Stop Bars fit behind the welded stops
on both sides of the Bottom Base.
Stop Bar (41)
Welded stops on Bottom Base (13)
lowering
1. Carefully remove all tools, parts, etc.
from under the Lift.
2. Depress the Foot Pedal (27) slowly to raise the
Lift enough to disengage the Stop Bars (41,
44). Lift up the Stop Bar Connecting Rod (40)
and secure it to the Stop Bar Rod Clamp (37).
3. Press the Release Pedal (13a) slowly and
gently lower the load. Never allow the load
to come down quickly or suddenly.
4. Once the load is on the ground, remove the tie-down
straps. When the Lift is clear of the load, turn the
Lock Bolts (16) until they are clear of the ground,
allowing the Rear Wheels (17) to firmly contact
the ground. Roll the Lift out from under the load.
5. Clean external surfaces of the Lift with
a clean, dry cloth. Store Lift in dry,
indoor area out of reach of children.
Page 9For technical questions, please call 1-888-866-5797.60536
SaFetyOperatiOnMaintenance aSSeMbly
SaFetyOperatiOnMaintenance SetUp
Maintenance and Servicing
procedures not specifically explained in this manual must be performed only by a
qualified technician.
tO preVent SeriOUS inJUry FrOM tOOl FailUre: Do not use damaged equipment.
if abnormal noise or vibration occurs, have the problem corrected before further use.
cleaning, Maintenance, and lubrication
1. beFOre eacH USe, inspect the general
condition of the Lift. Check for:
• broken, cracked, or bent parts
• loose or missing parts
• any other condition that may
affect its safe operation.
If a problem occurs, have the problem
corrected before further use.
Do not use damaged equipment.
2. Before each use, thoroughly test the Lift
for proper operation prior to its actual use.
If the Lift appears not to be working properly,
follow Bleeding instructions on page 7.
3. change the hydraulic fluid at least
once every three years:
a. With the Lift fully lowered, remove the Fluid Fill
Plug (39a) on the side of the Bottle Jack (30).
b. With assistance, place the Lift on its side to
allow the old hydraulic fluid to drain out of
the jack’s Fluid Reservoir (11a) completely,
and dispose of the old hydraulic fluid in
accordance with local regulations.
c. With the Lift upright, completely fill the jack’s
Fluid Reservoir with a high quality hydraulic
fluid (sold separately) until the fluid just
begins to run out of the fluid fill hole.
d. Reinstall the Fluid Fill Plug.
4. Wipe dry with a clean cloth. Store the Lift in
a safe, dry location out of reach of children
and other non-authorized people.
®
Page 10 For technical questions, please call 1-888-866-5797. 60536
SaFety OperatiOn MaintenanceaSSeMbly
SaFety OperatiOn MaintenanceSetUp
troubleshooting
tO preVent SeriOUS inJUry: Use caution when troubleshooting a malfunctioning lift.
Stay well clear of the supported load. completely resolve all problems before use.
if the solutions presented in the troubleshooting guide do not solve the problem, have a qualified technician
inspect and repair the lift before use. after the lift is repaired: test it carefully without a load by raising
it and lowering it fully, checking for proper operation, beFOre retUrninG tHe liFt tO OperatiOn.
DO nOt USe a DaMaGeD Or MalFUnctiOninG liFt!
pOSSible SyMptOMS
prObable SOlUtiOn
(Make certain that the lift is not supporting
a load while attempting a solution.)
Unit will
not lift at
its weight
capacity
Saddle
lowers
under
load
Pump
stroke
feels
spongy
Saddle
will not
lift all the
way
Handle
moves up
when jack
is under
load
Fluid
leaking
from filler
plug
X X
Check that Release Pedal is not
stuck and raises completely.
X X X
Valves may be blocked and may not close fully.
To flush the valves, with assistance:
1. Lower the Lifting Frame and
release the Release Pedal.
2. Manually lift the Lifting Frame several inches.
3. Press the Release Pedal and force
the Lifting Frame down quickly.
X X X
Jack may be low on fluid. Check the fluid level and
refill if needed.
Jack may require bleeding – see page 7.
X
Unit may have too much hydraulic fluid inside.
Check fluid level and adjust if needed.
Page 11For technical questions, please call 1-888-866-5797.60536
SaFetyOperatiOnMaintenance aSSeMbly
SaFetyOperatiOnMaintenance SetUp
pleaSe reaD tHe FOllOWinG careFUlly
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
record product’s Serial number Here:
note: If product has no serial number, record month and year of purchase instead.
note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175326775 when ordering parts.
Page 12 For technical questions, please call 1-888-866-5797. 60536
SaFety OperatiOn MaintenanceaSSeMbly
SaFety OperatiOn MaintenanceSetUp
parts lists and assembly Diagrams
Main parts list
part Description Qty
1 Nylon Ring 2
2 Lift Saddle 1
3 Rubber Pad 2
4 Bolt M12 x 90 6
5 Washer Ø12 10
6 Steel Sleeve 2
7 Nut M12 6
8 Front Lift Arm 1
9 Nut M8 2
10 Washer Ø8 2
11 Front Wheel 2
12 Bolt M8 x 60 2
13 Bottom Base 1
14 Pin 4
15 Cotter Pin 4
16 Lock Bolt Assembly 2
17 Rear Wheel 2
18 Washer Ø12 2
19 Spring Washer Ø12 2
20 Nut M12 2
21 Bolt M6 x 25 1
22 Nut M6 1
part Description Qty
23 Bolt M8 x 16 2
24 Spring 1
25 Pin 1
26 Rubber Pad 1
27 Foot Pedal 1
28 Foot Pedal Bolt M5 x 10 1
29 Handle Pin 1
30 Bottle Jack 1
31 Cotter Pin 1
32 Cotter Pin 1
33 Handle Sleeve 2
34 Handle 1
35 Bolt M5 x 16 1
36 Lifting Frame 1
37 Stop Bar Rod Clamp 1
38 Bolt M6 x 16 1
39 Tie Down Strap 2
40 Stop Bar Connecting Rod 1
41 Right Stop Bar 1
42 Nut M8 2
43 Rear Lift Arm 1
44 Left Stop Bar 1
®
Page 13For technical questions, please call 1-888-866-5797.60536
SaFetyOperatiOnMaintenance aSSeMbly
SaFetyOperatiOnMaintenance SetUp
Main assembly Diagram
Page 14 For technical questions, please call 1-888-866-5797. 60536
SaFety OperatiOn MaintenanceaSSeMbly
SaFety OperatiOn MaintenanceSetUp
part Description Qty
1a Ram Cap 1
2a Ram O-Ring 1
3a Top Sealing Gasket 1
4a Ram Assembly 1
5a Retaining Ring 1
6a Piston Head 1
7a Ram Gasket 1
8a O-Ring 1
9a Cylinder 1
10a Cylinder Sealing Gasket 1
11a Fluid Reservoir 1
12a Reservoir Sealing Gasket 1
13a Release Pedal 1
14a O-Ring 1
15a Release Valve Rod 1
16a Split Cotter Pin 2
17a Pin 1
18a Base 1
19a Ball 3
20a Ball 2
21a Screw 2
22a Pin 3
23a Ball 1
part Description Qty
24a Spring Plunger 2
25a Spring 1
26a Screw 1
27a O-Ring 1
28a Screw 1
29a Screw 1
30a Sealing Ring 1
31a Spring 1
32a Spring 1
33a Throttle Valve 1
34a Washer 1
35a Lower Spring Retainer 1
36a Spring 1
37a Pump Cylinder 1
38a Upper Spring Retainer 1
39a Fluid Fill Plug 1
40a O-Ring 1
41a Seal 1
42a Piston Rod 1
43a Split Cotter Pin 1
44a Link 1
45a Handle Socket 1
parts list a – bottle Jack (30)
®
When ordering replacement parts from
this list, the “a” suffix must be included
in order to get the correct part.
Page 15For technical questions, please call 1-888-866-5797.60536
SaFetyOperatiOnMaintenance aSSeMbly
SaFetyOperatiOnMaintenance SetUp
assembly Diagram a – bottle Jack (30)
11a
1a
2a
3a
4a
5a
6a
7a
8a
9a
10a
39a
13a
15a
17a
16a
18a
21a
20a
19a
19a
33a
32a
23a
24a
25a
26a
27a
28a
29a
30a
31a
24a
34a
35a
36a
37a
38a
44a
40a
41a
42a
45a
43a
22a
22a
16a
22a
16a
12a
14a
19a
26677 agoura road • calabasas, ca 91302 • 1-888-866-5797
limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
®
