ASSEMBLY MANUAL & PARTS LIST - MANUEL DE MONTAGE & LISTE DE PIECES
RETAIN FOR FUTURE REFERENCE - VEUILLEZ CONSERVER POUR REFERENCE ULTERIEURE
1-800-265-2150
50084-R70 REV D 04/21
CROWN 420 CROWN S 420
8652-54 8653-54
8652-57 8653-57
CROWN 440 CROWN S 440
8652-64 8653-64
8652-67 8653-67
CROWN 490 CROWN S 490
8652-84 8653-84
8652-87 8653-87

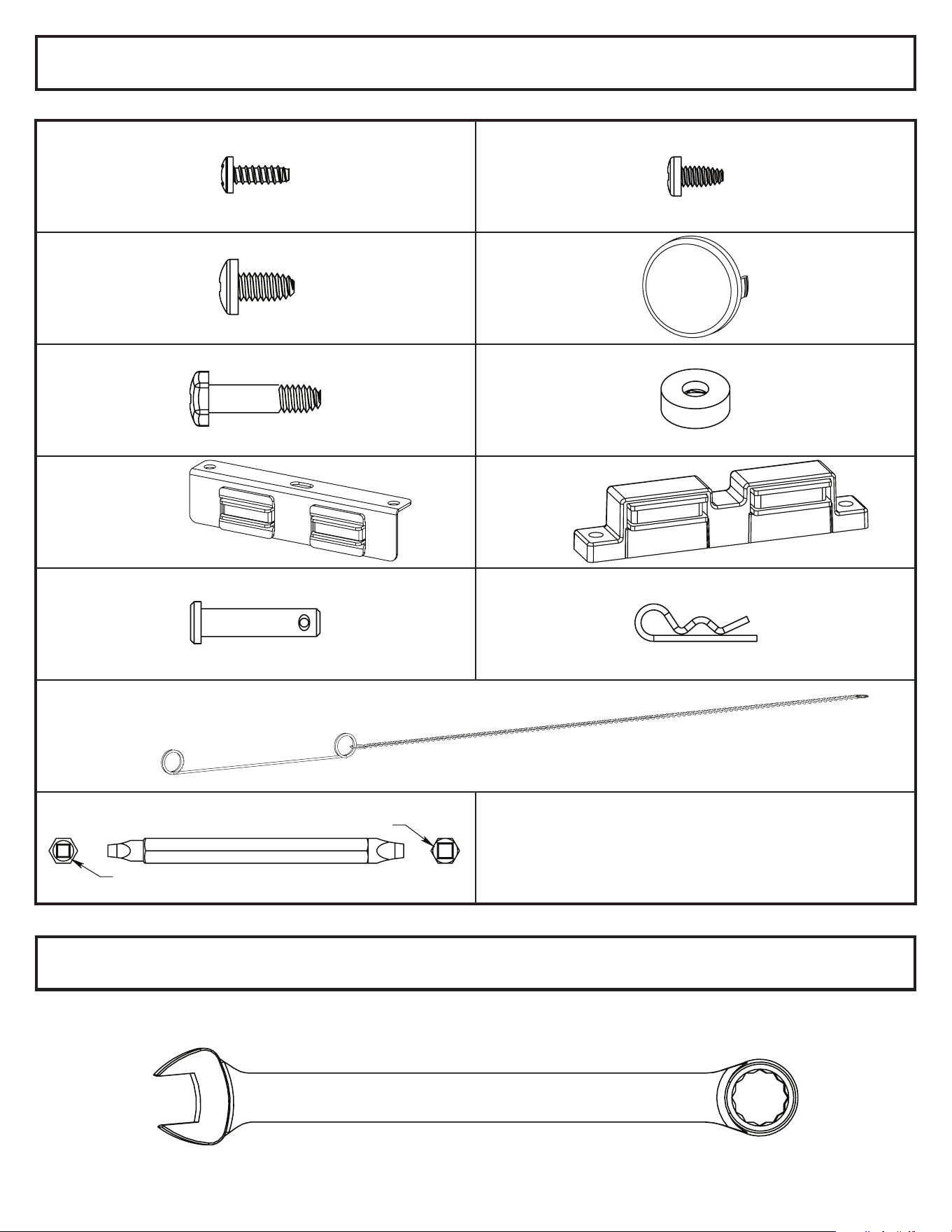

HARDWARE INCLUDED / MATERIAL INCLUS
TOOLS REQUIRED / OUTILS NECESSAIRES
S21124 (4) Y-29304 (2)
Y-12865 (22) 32001-151 (4)
Y-11551 (2) Y-12124 (2)
56039-211A (1) Y-12229 (1)
S21235 (2) S21233 (2)
20005-000 (1)
7/16 [11 mm]
#3 ROBERTSON
#2 ROBERTSON

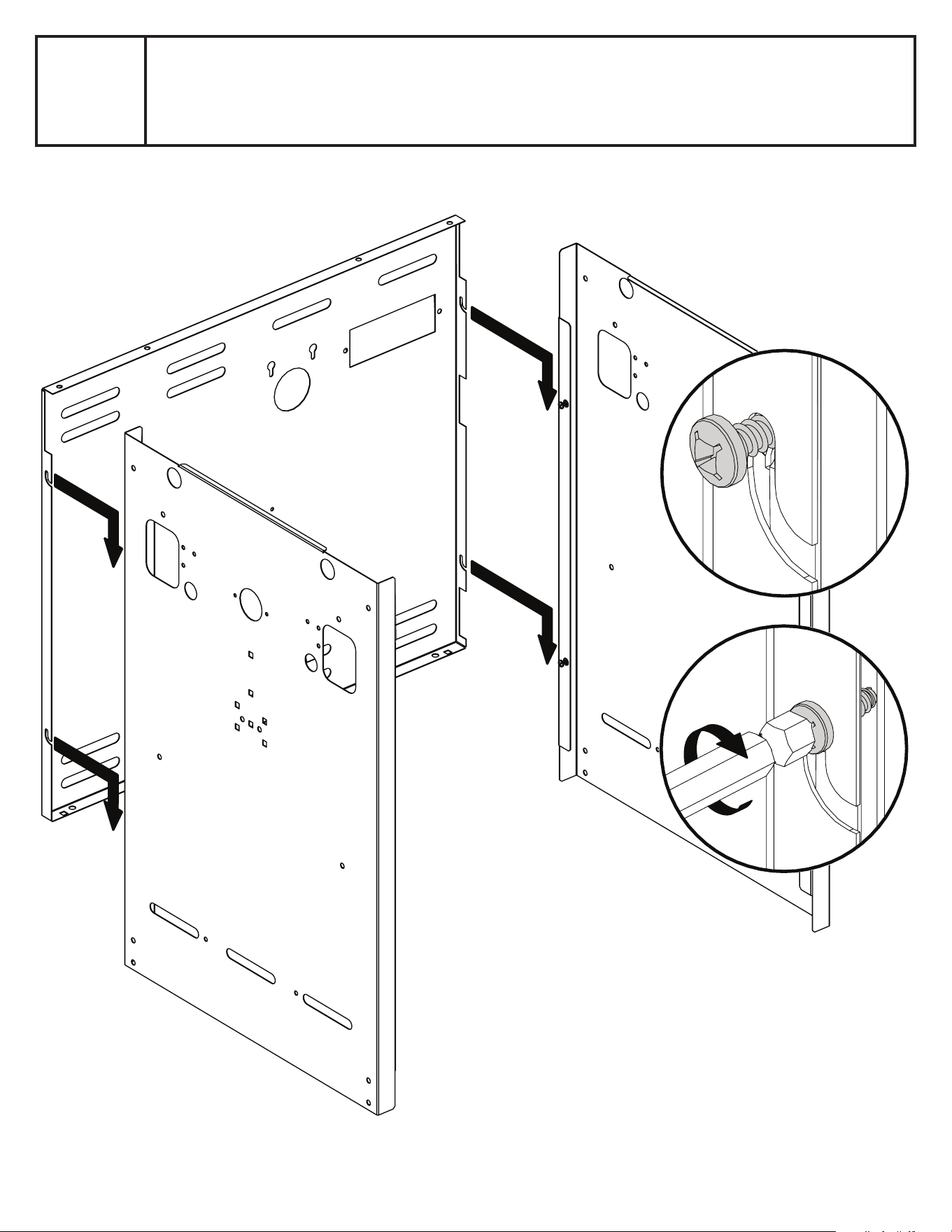

1

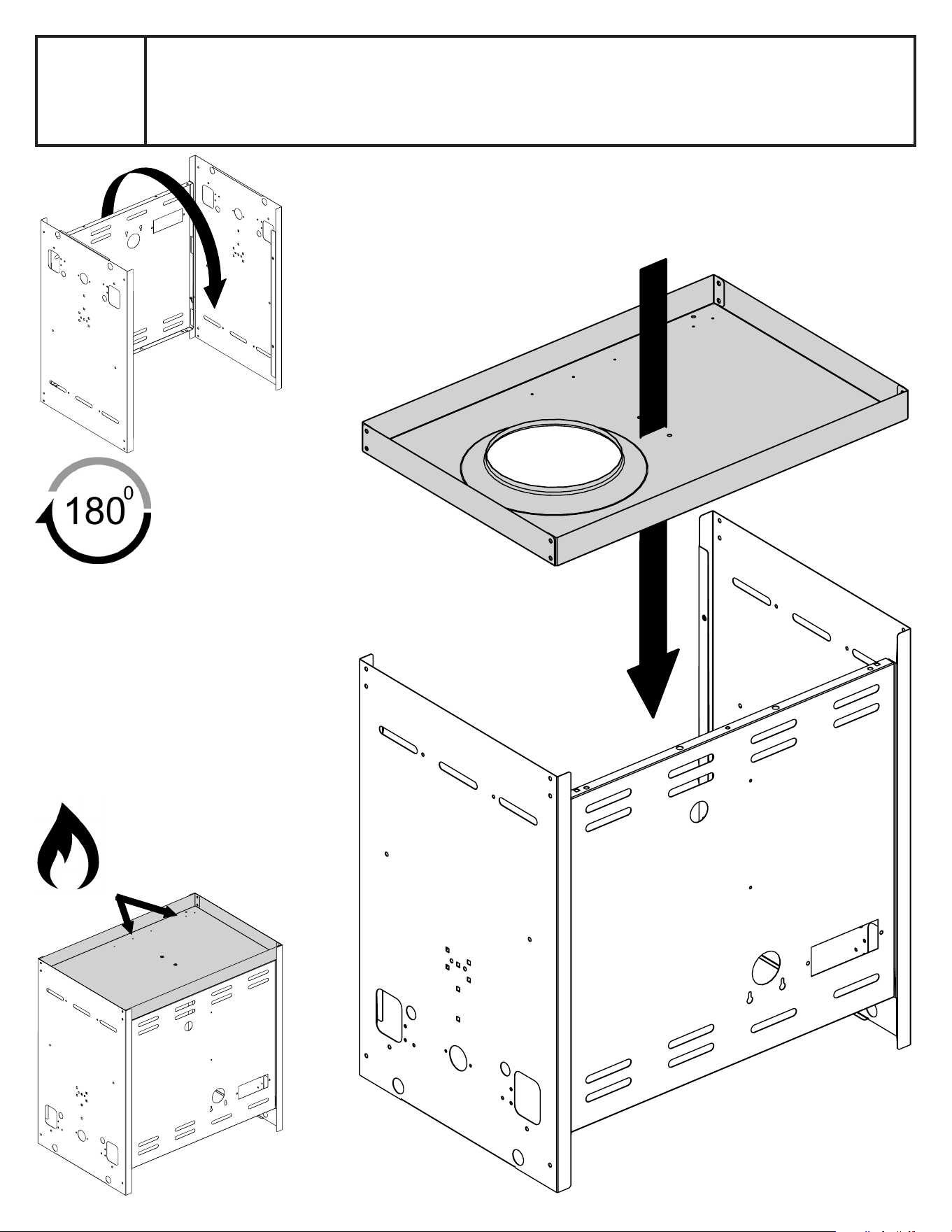

2
!

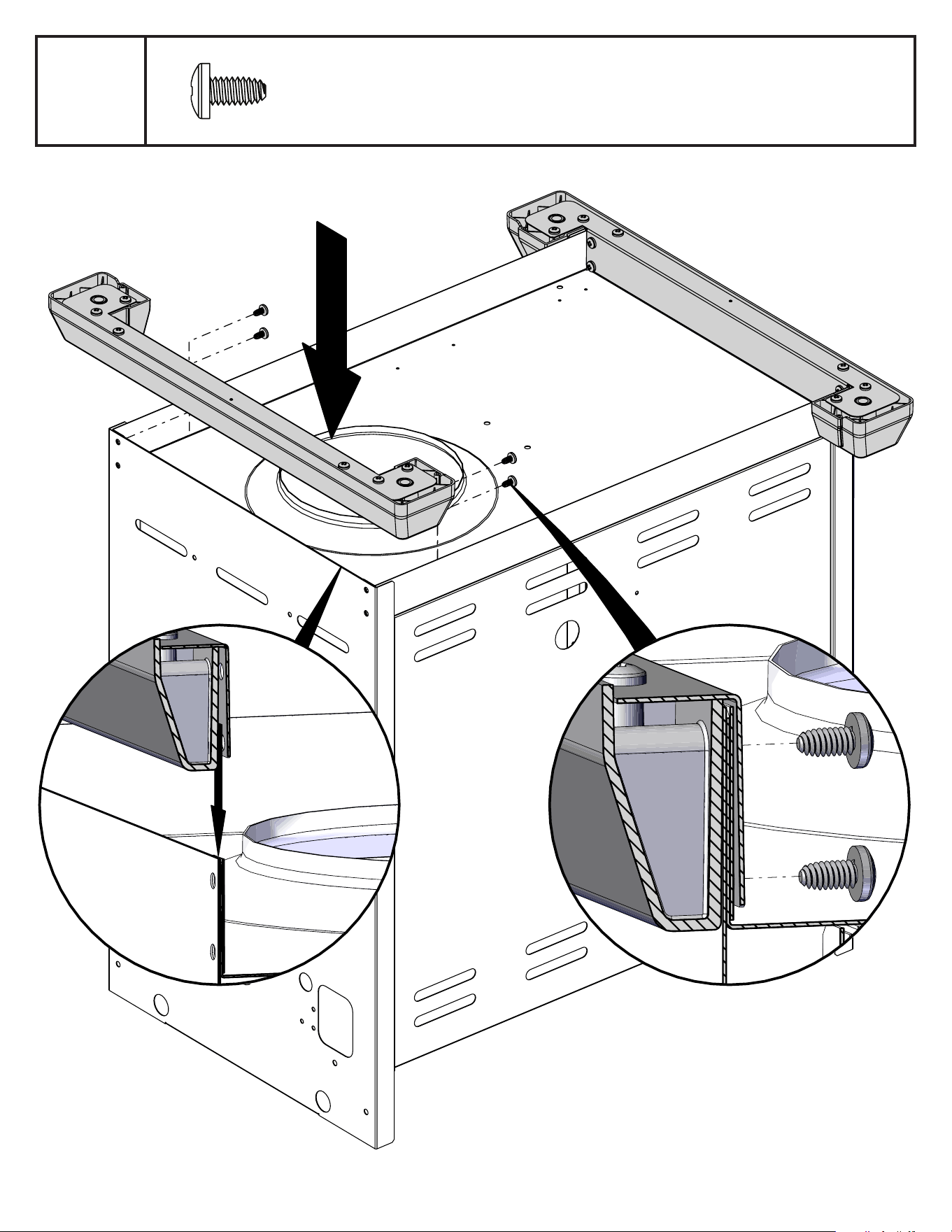

3
(8)

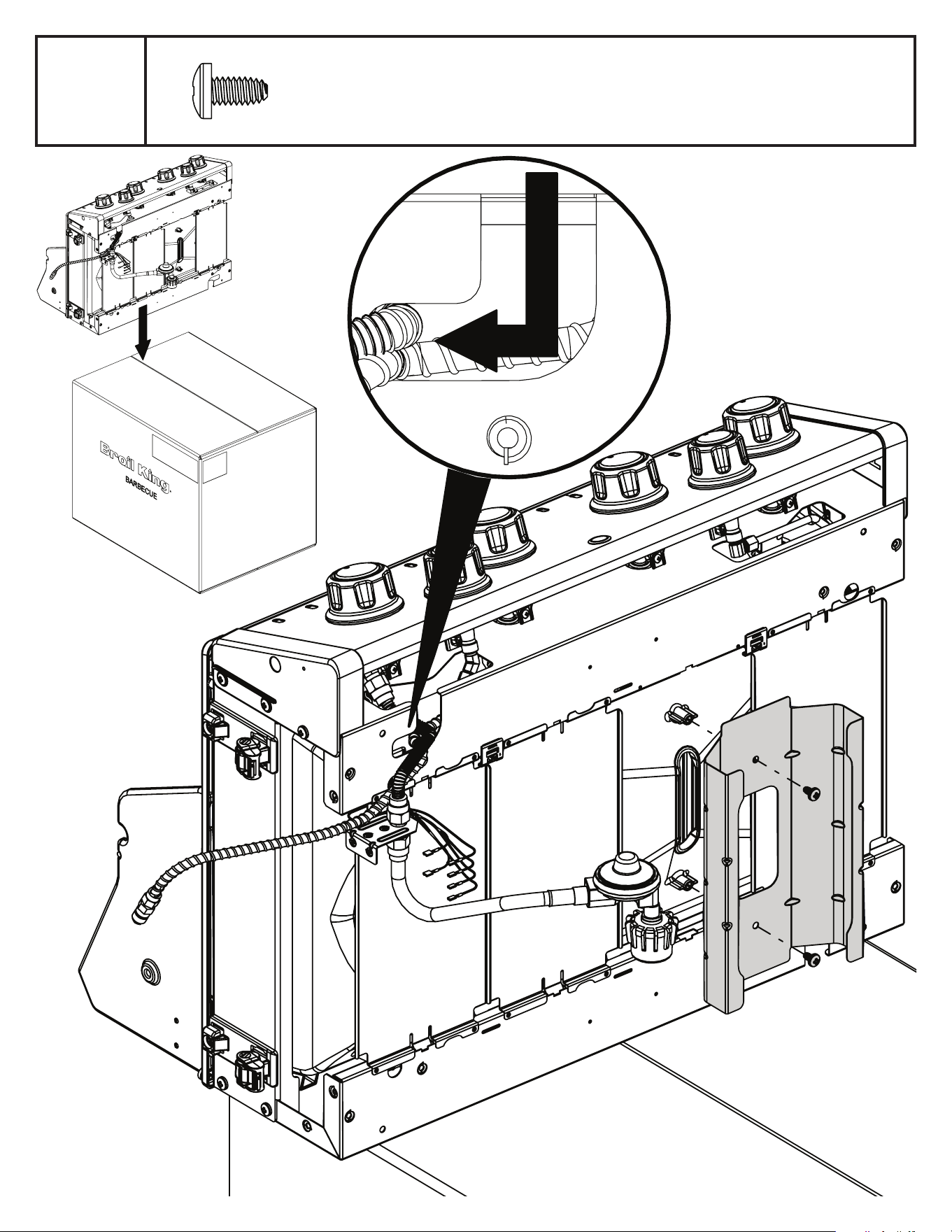

4
(2)

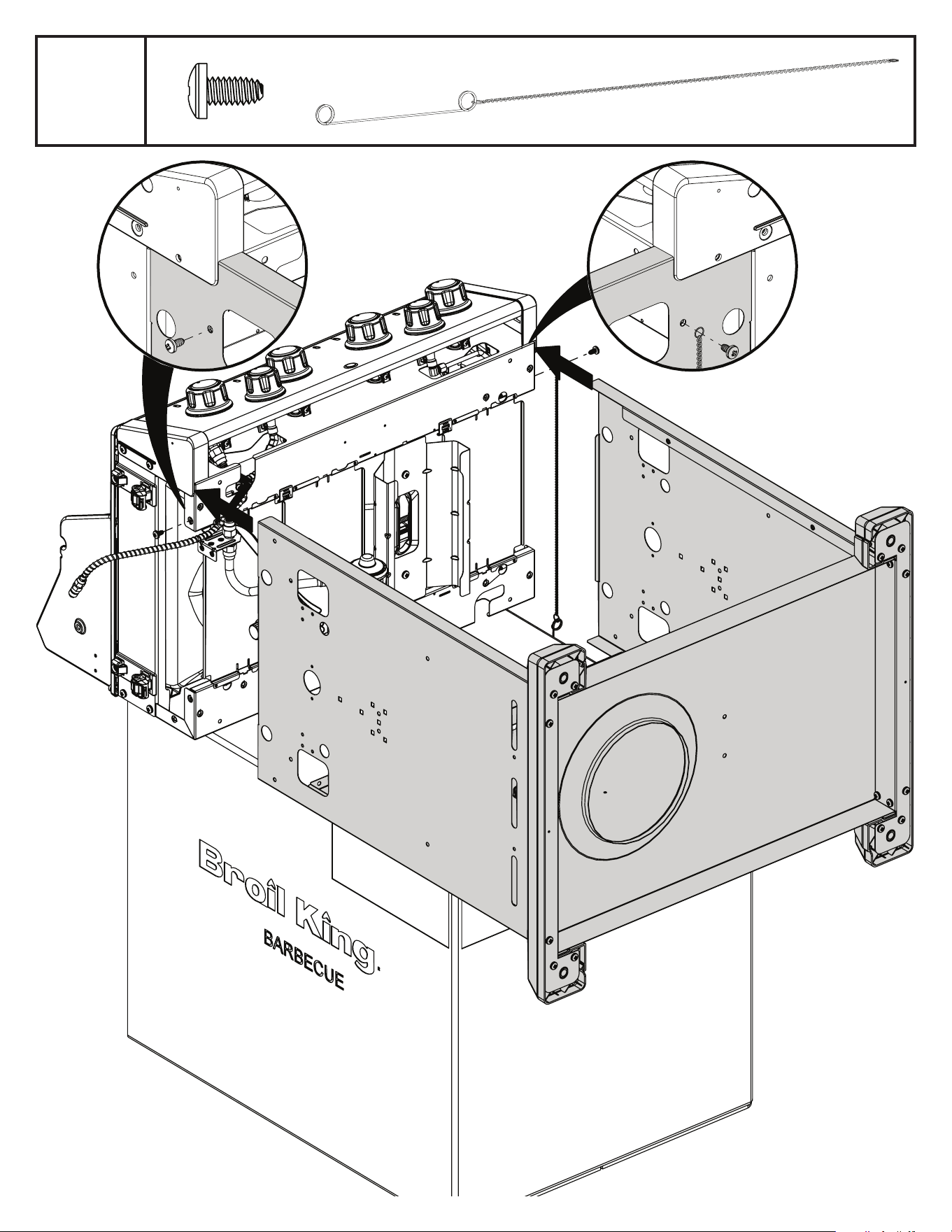

5
(2) (1)

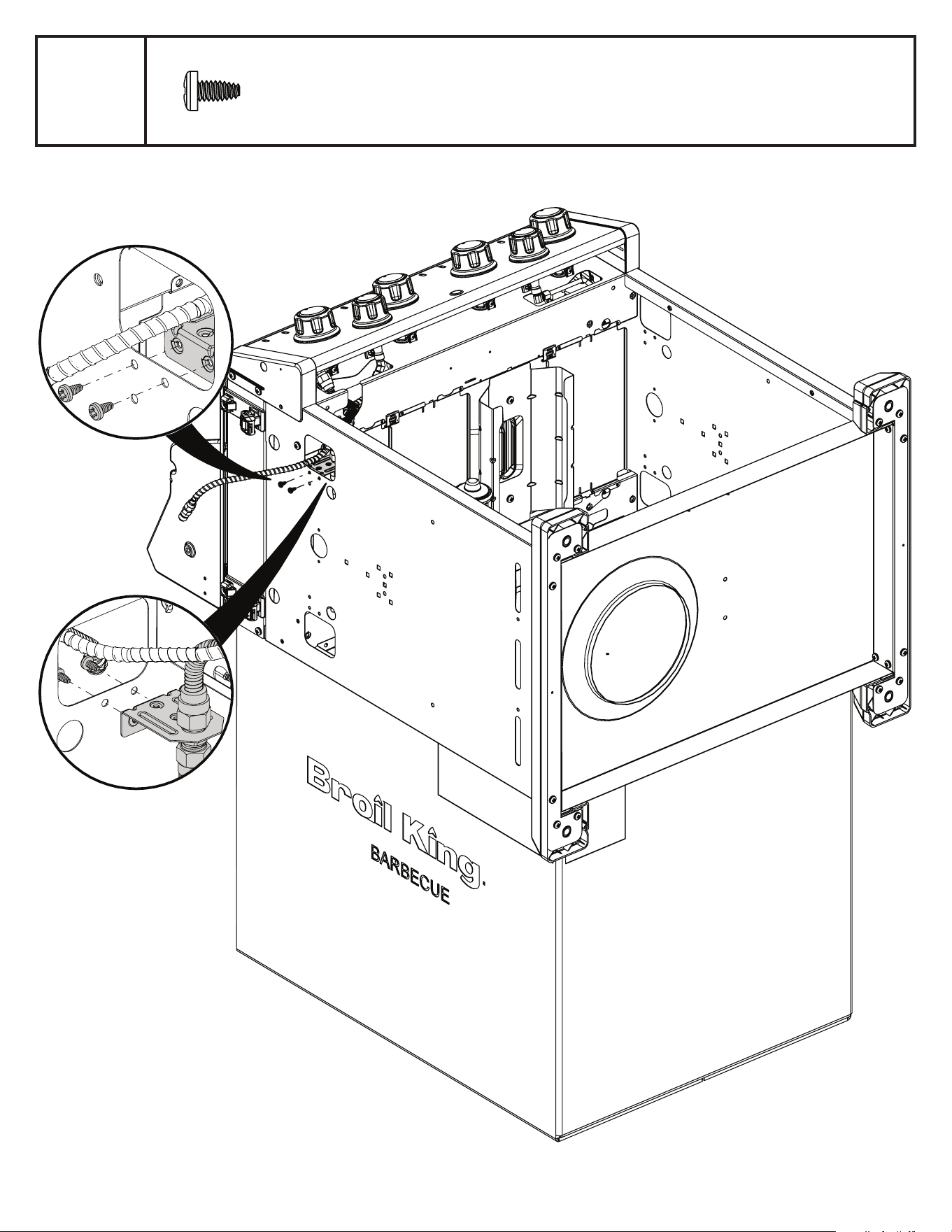

6
(2)

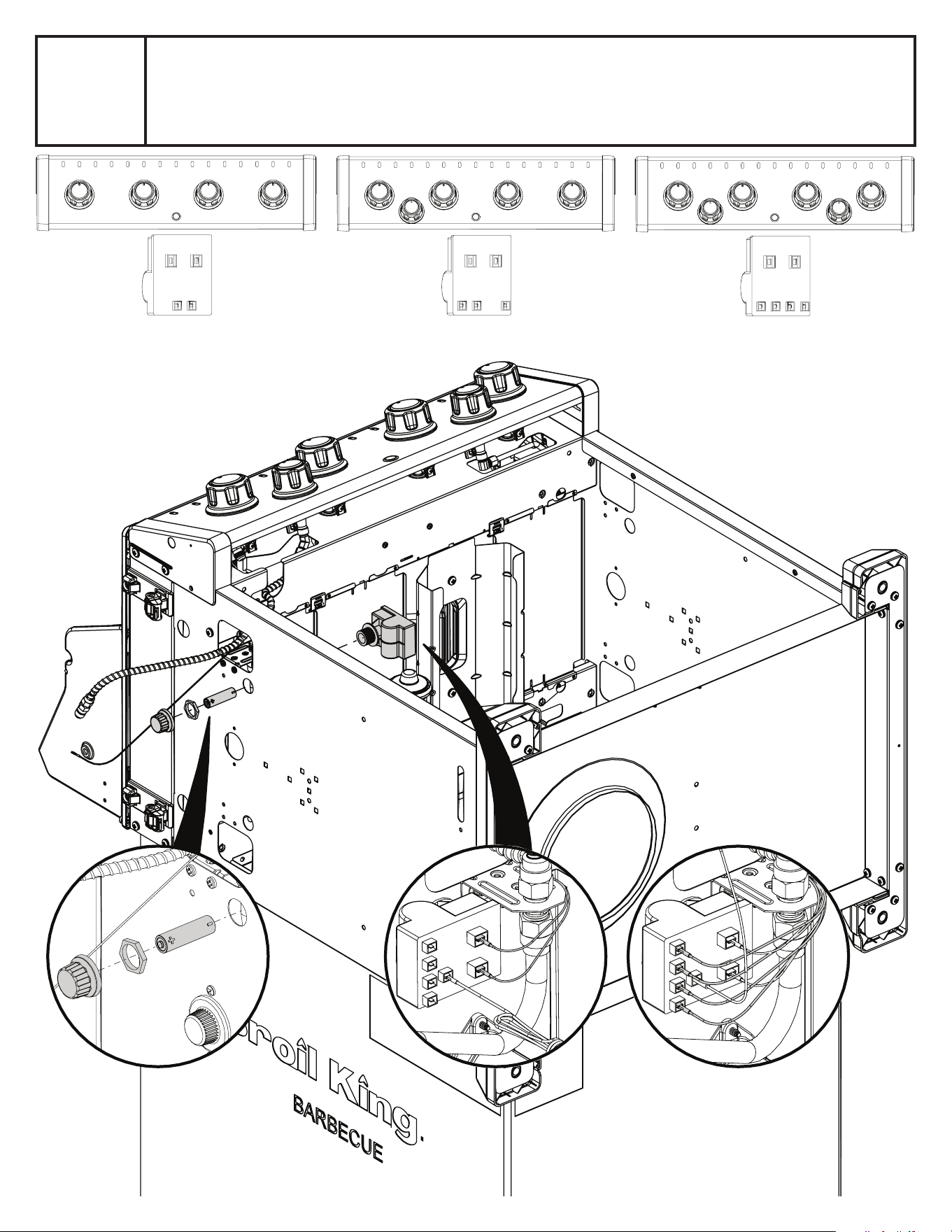

7

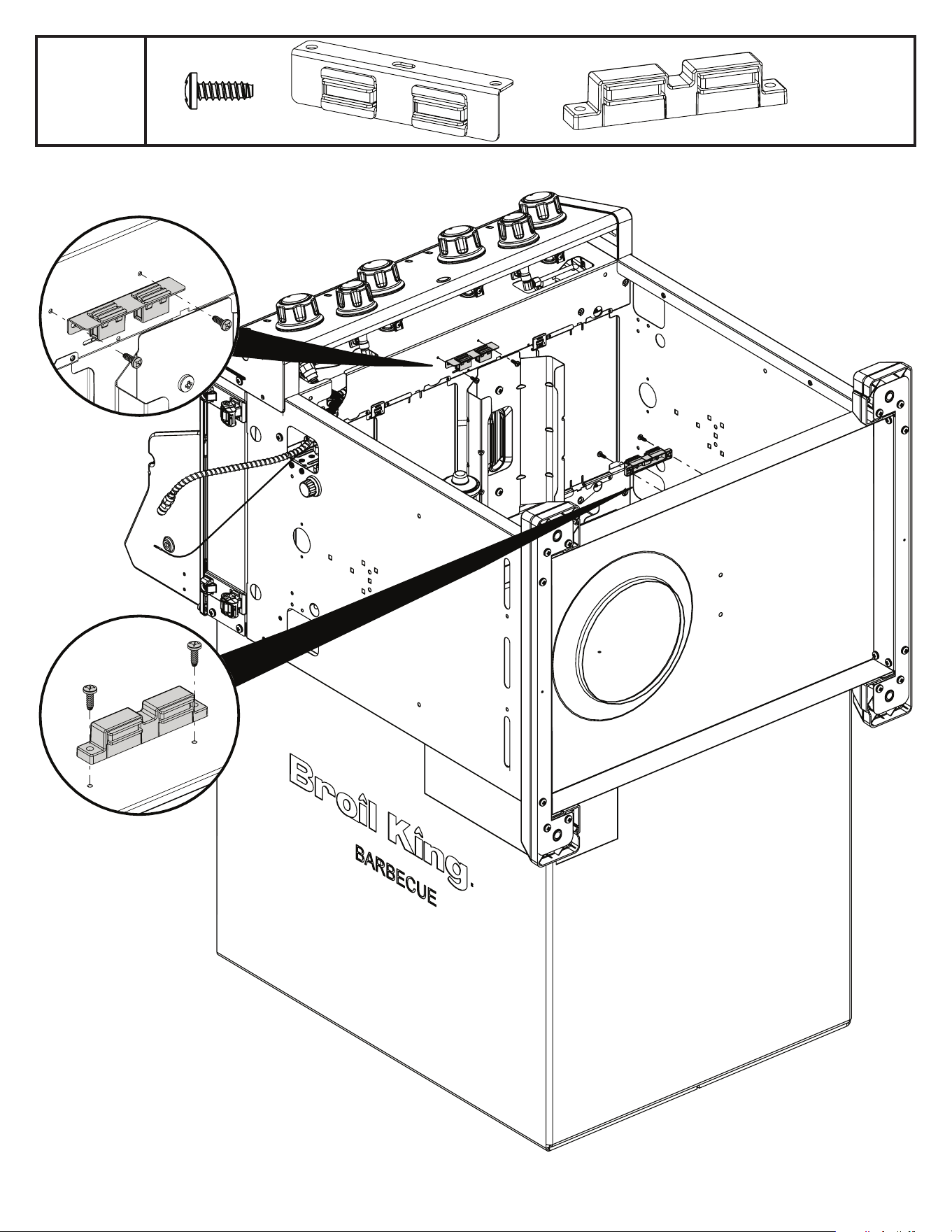

8
(4) (1) (1)

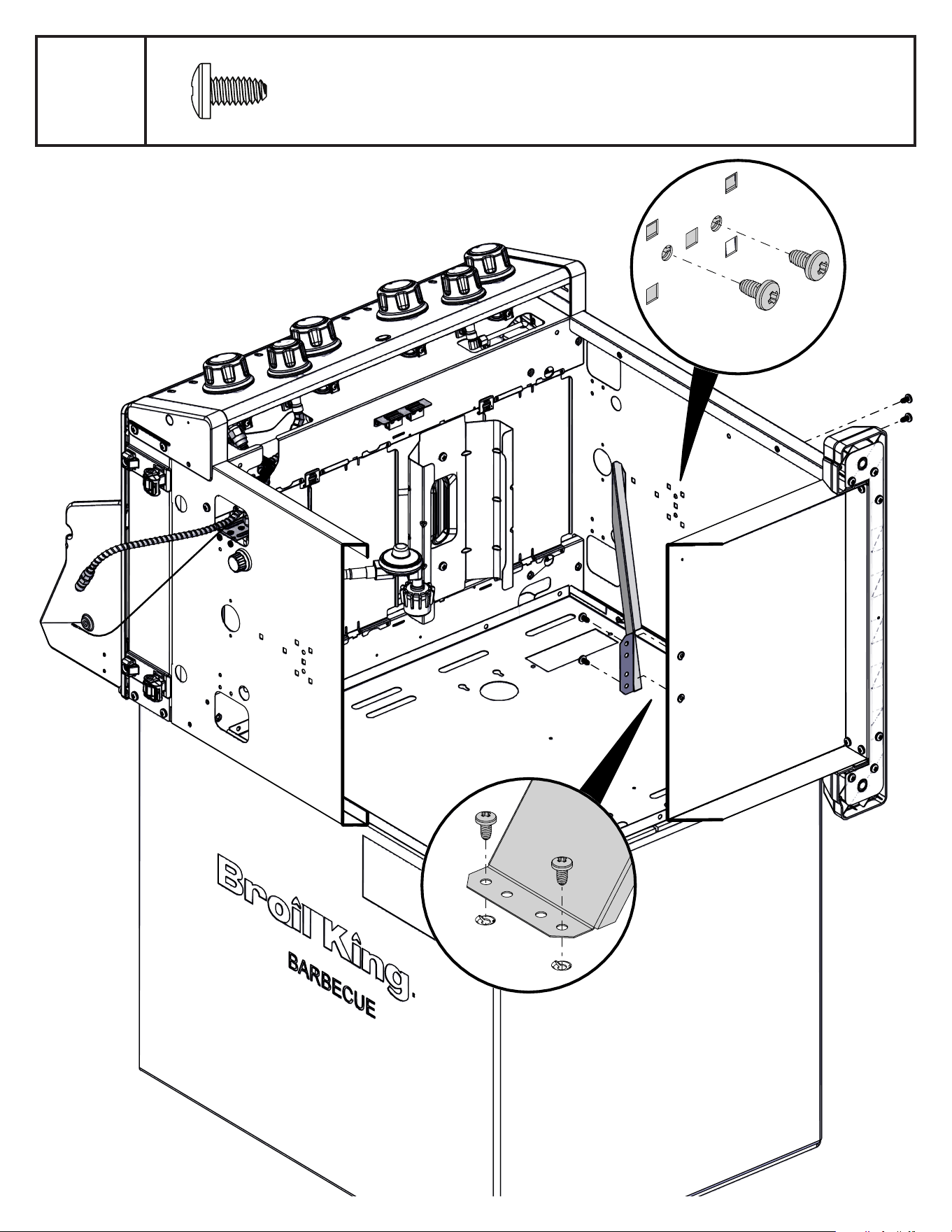

9
(4)

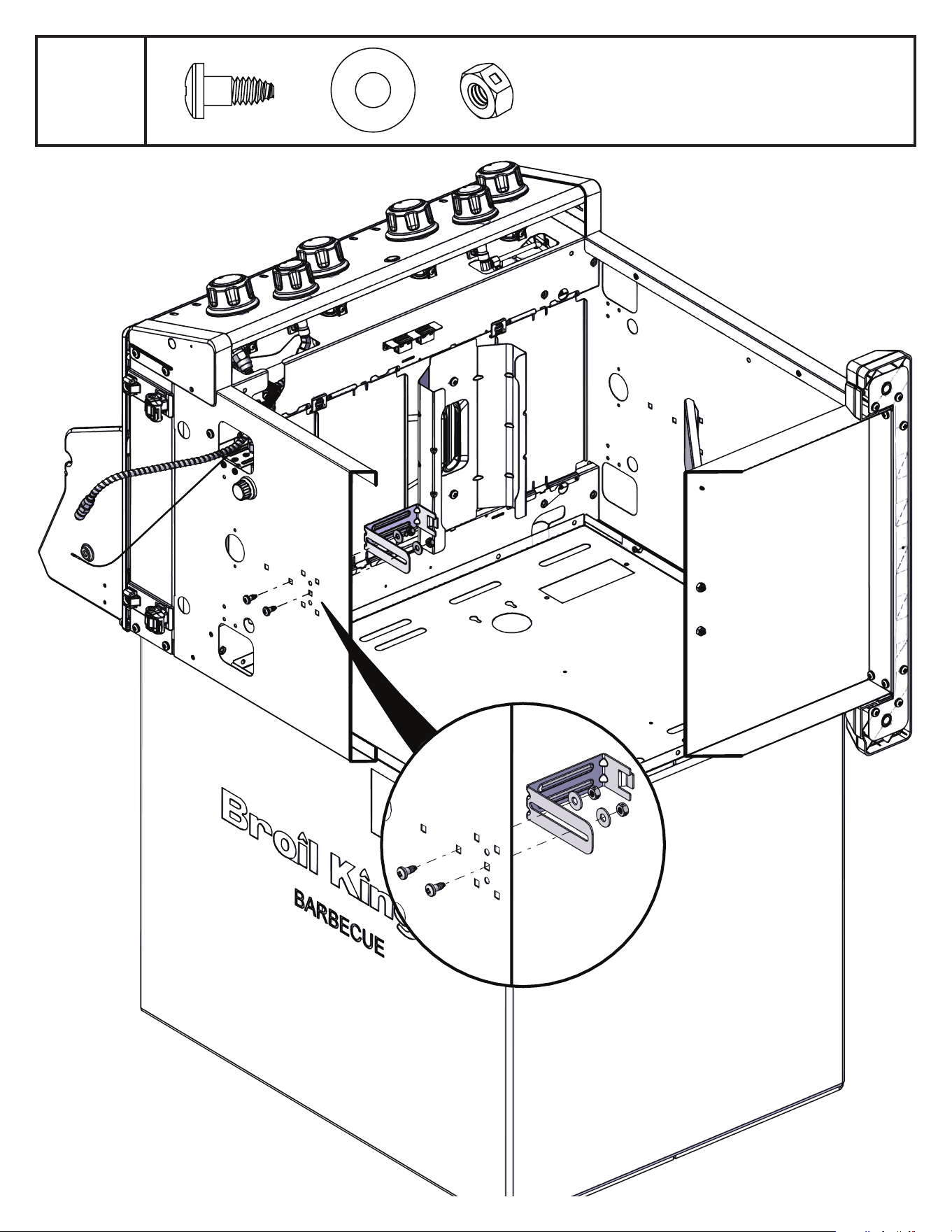

10
(2) (2) (2)

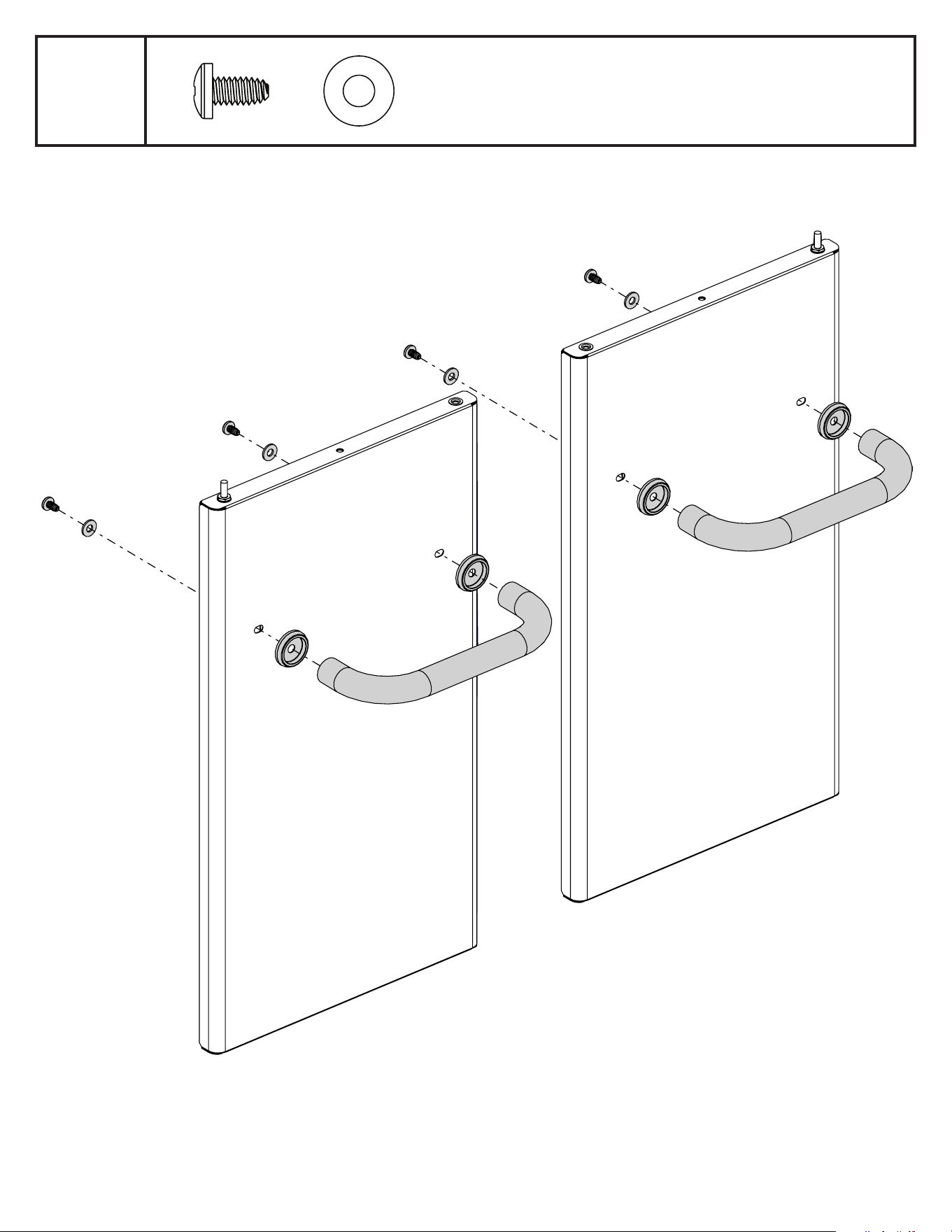

11
(4) (4)

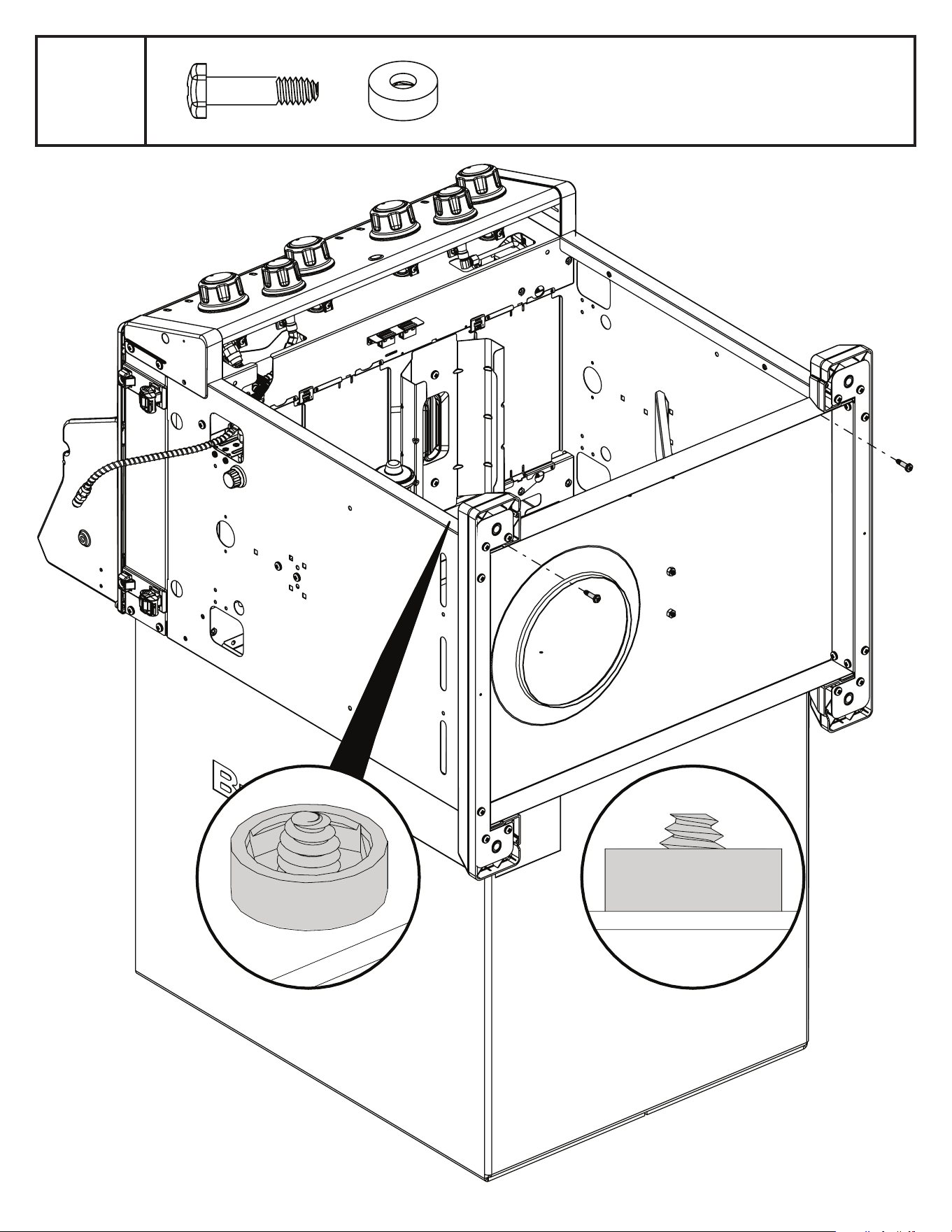

12
(2) (2)

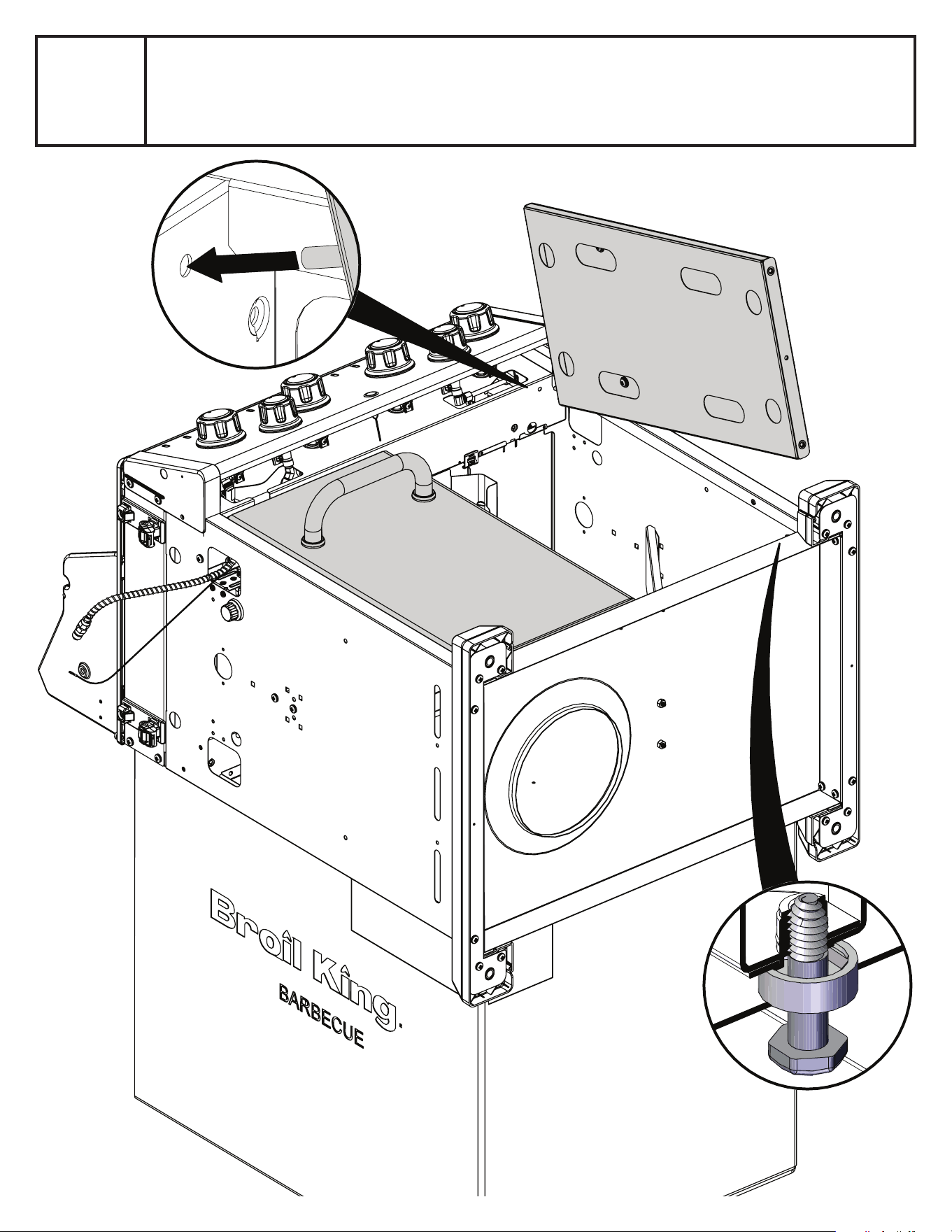

13

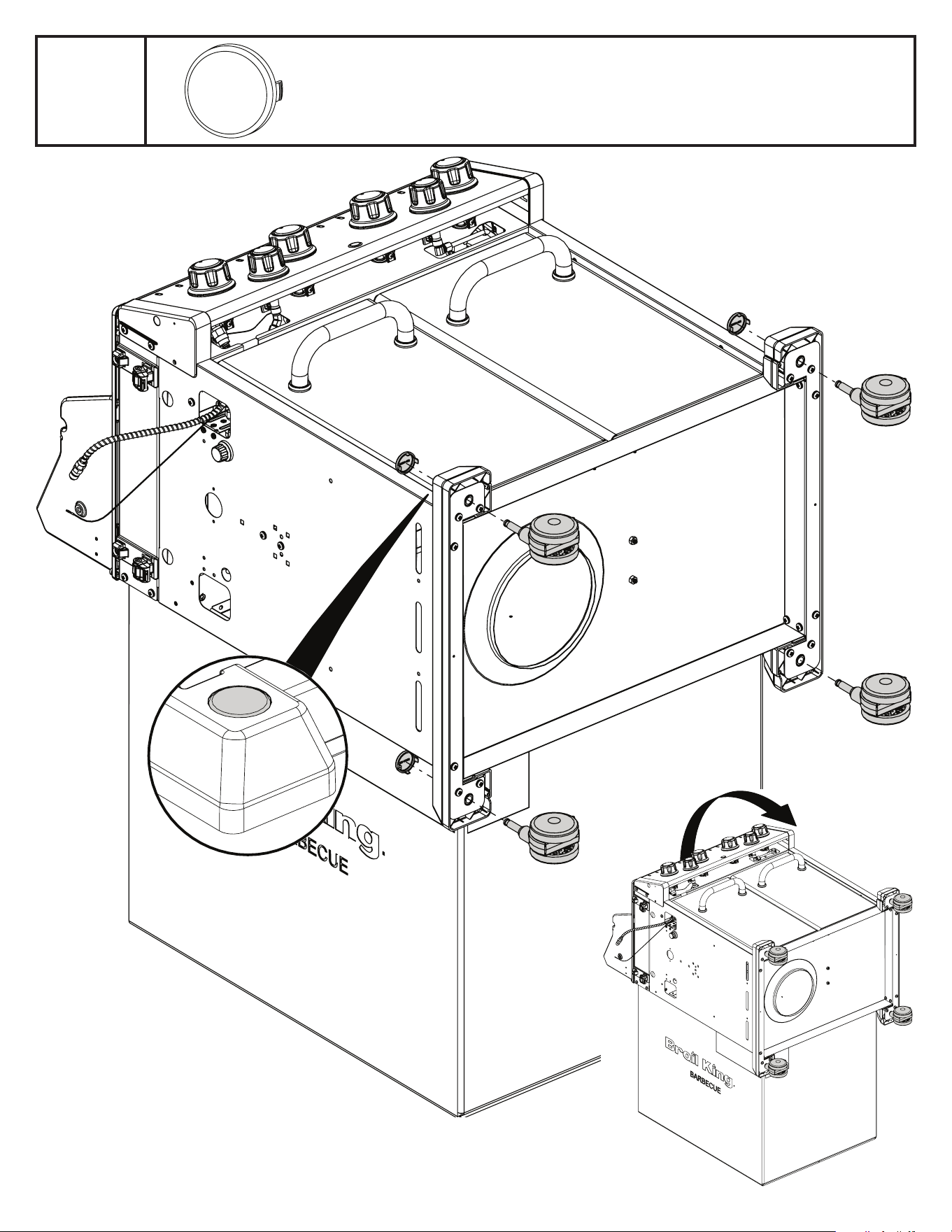

14
(4)

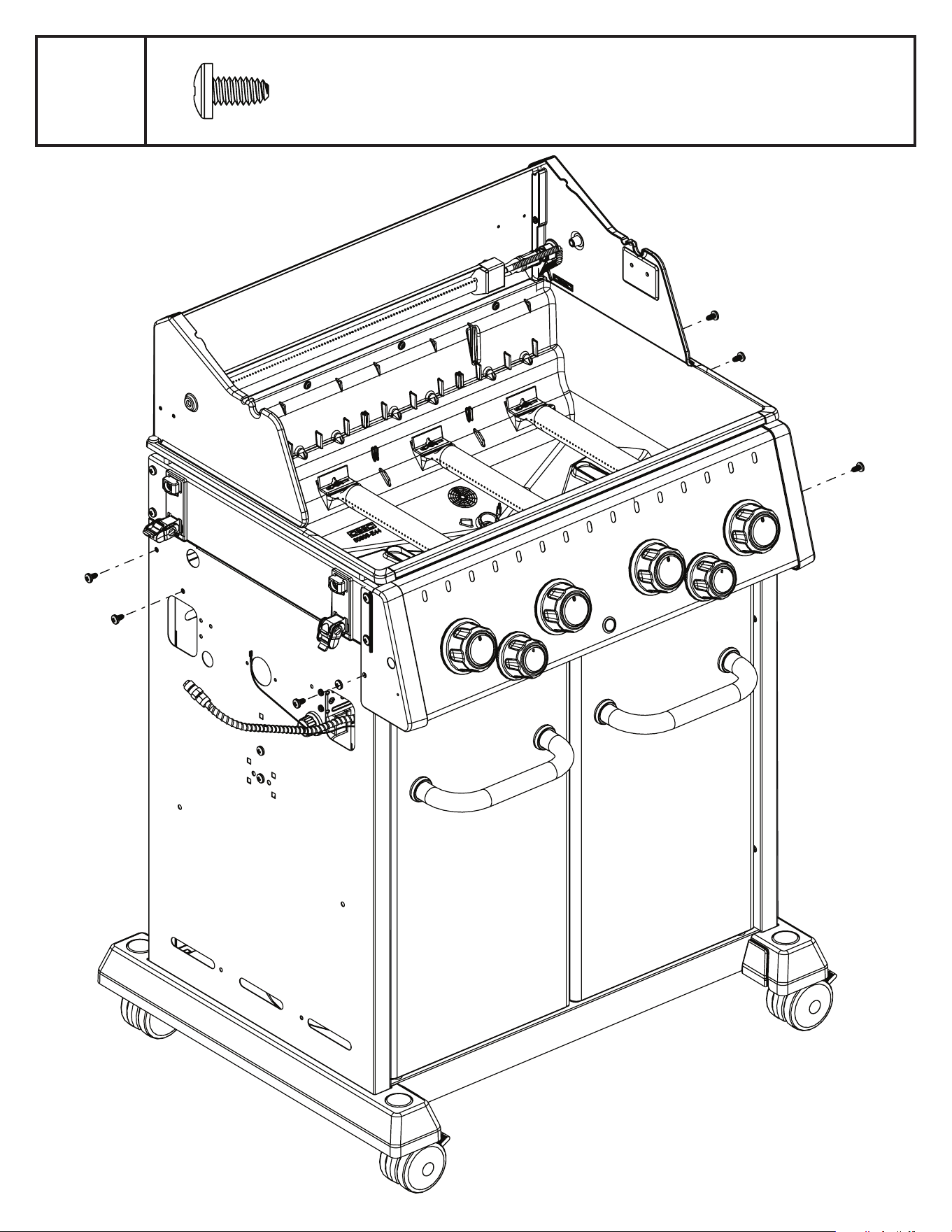

15
(6)

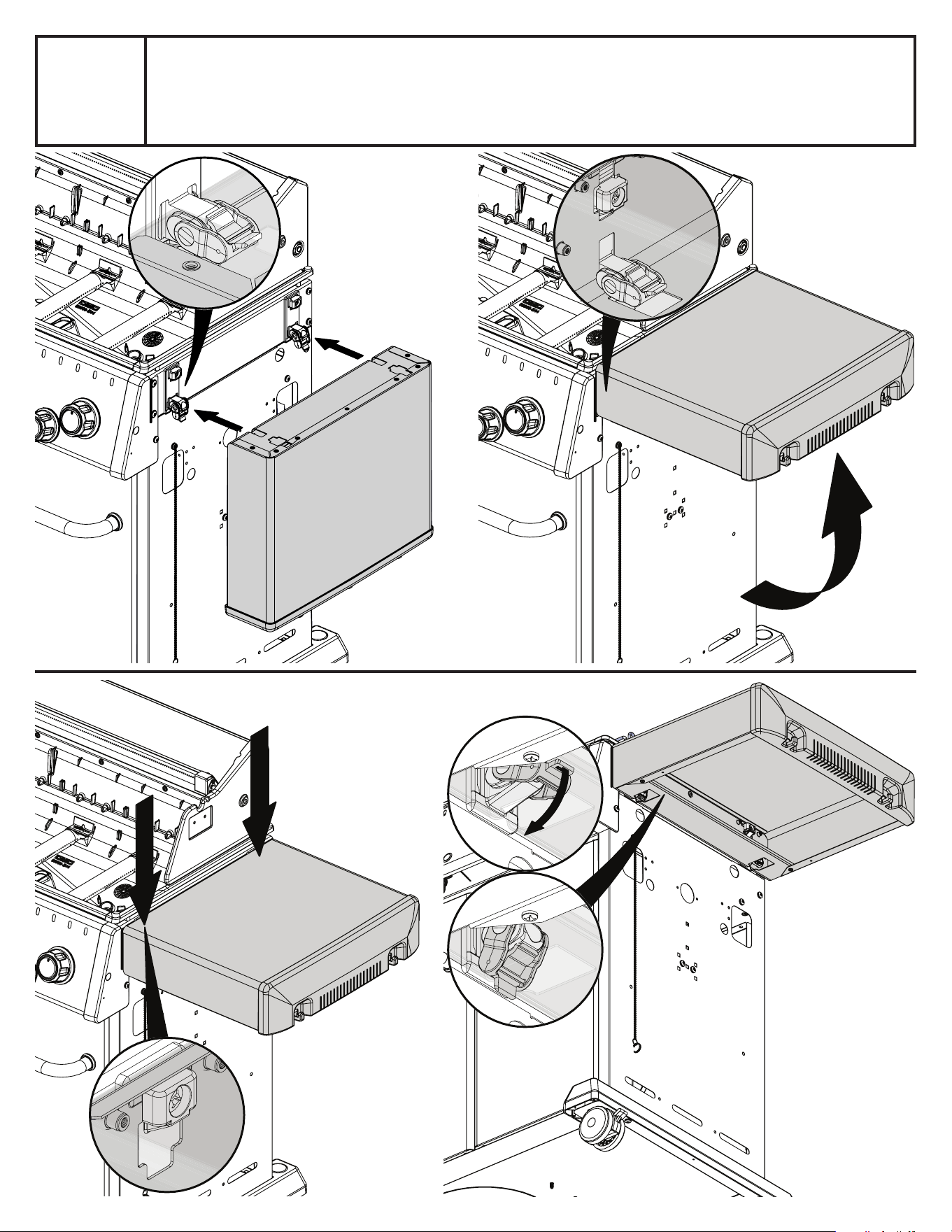

16

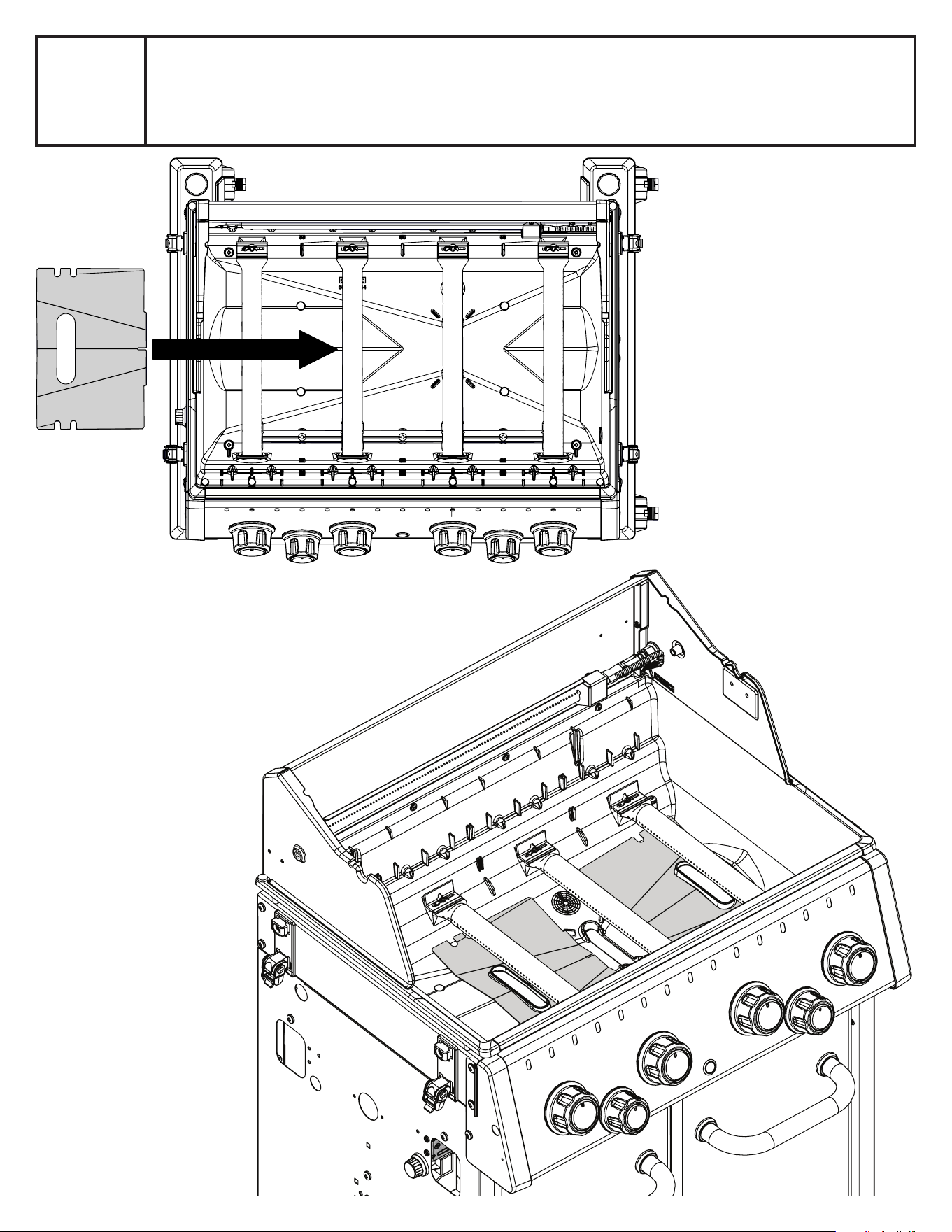

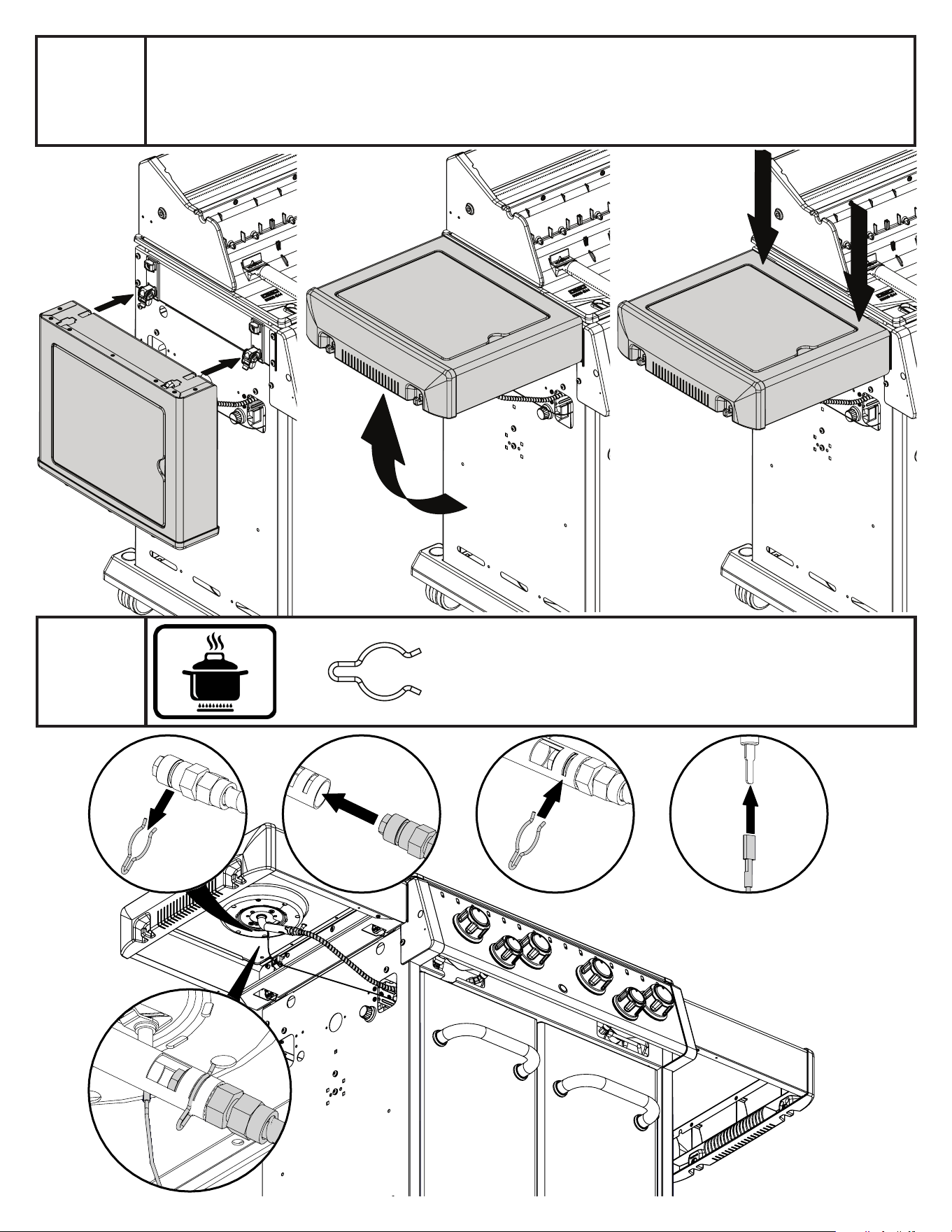

17
18
(1)

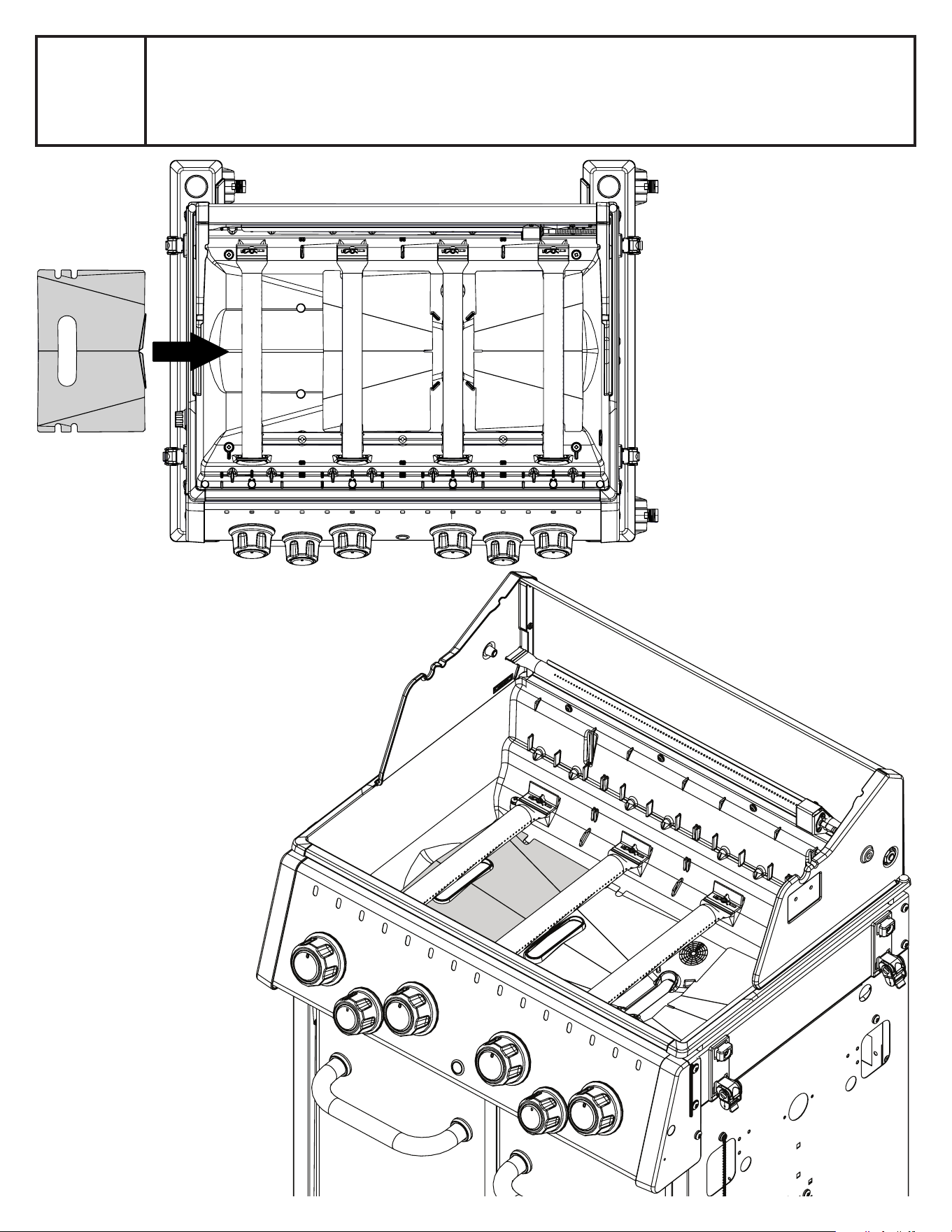

19
20

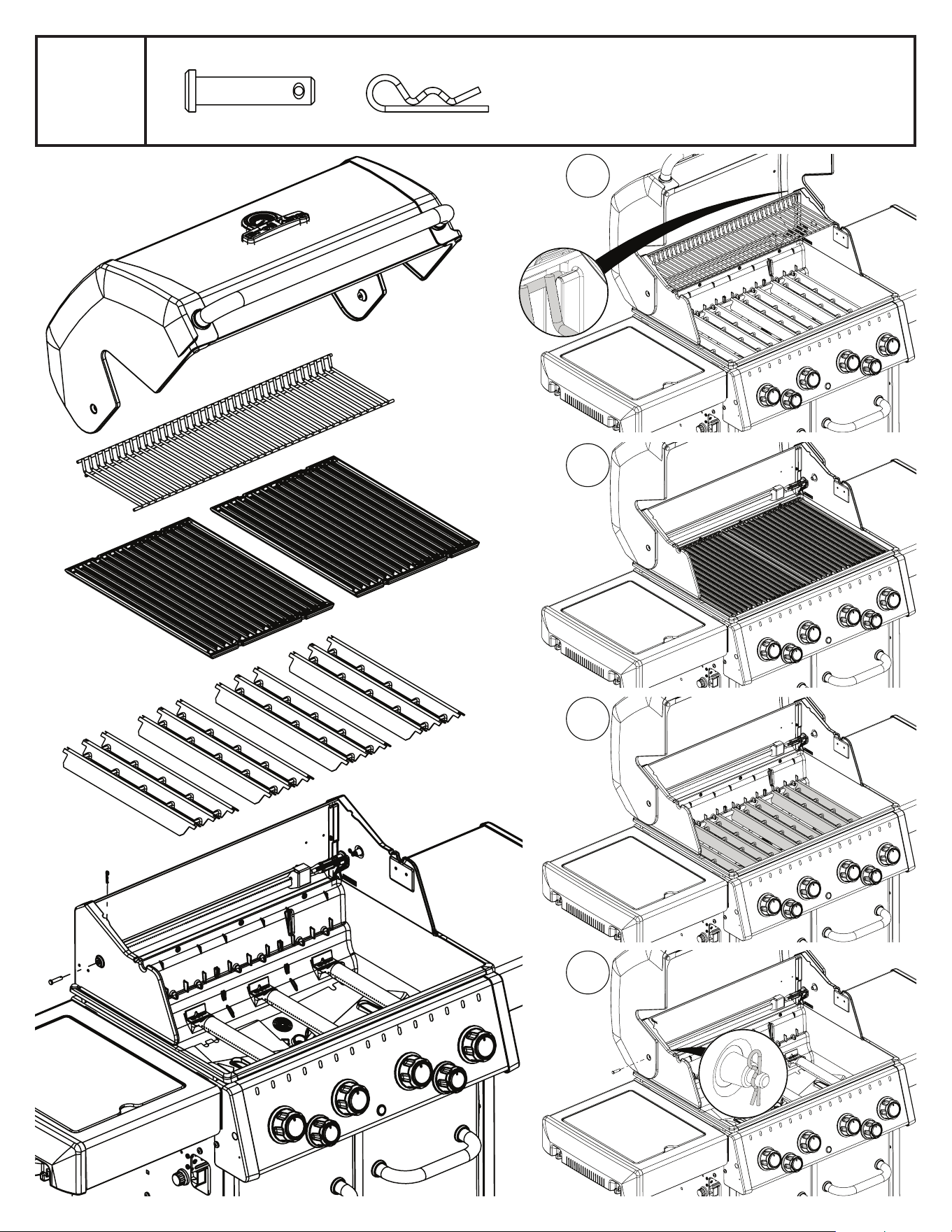

21
(2) (2)
1
2
3
4

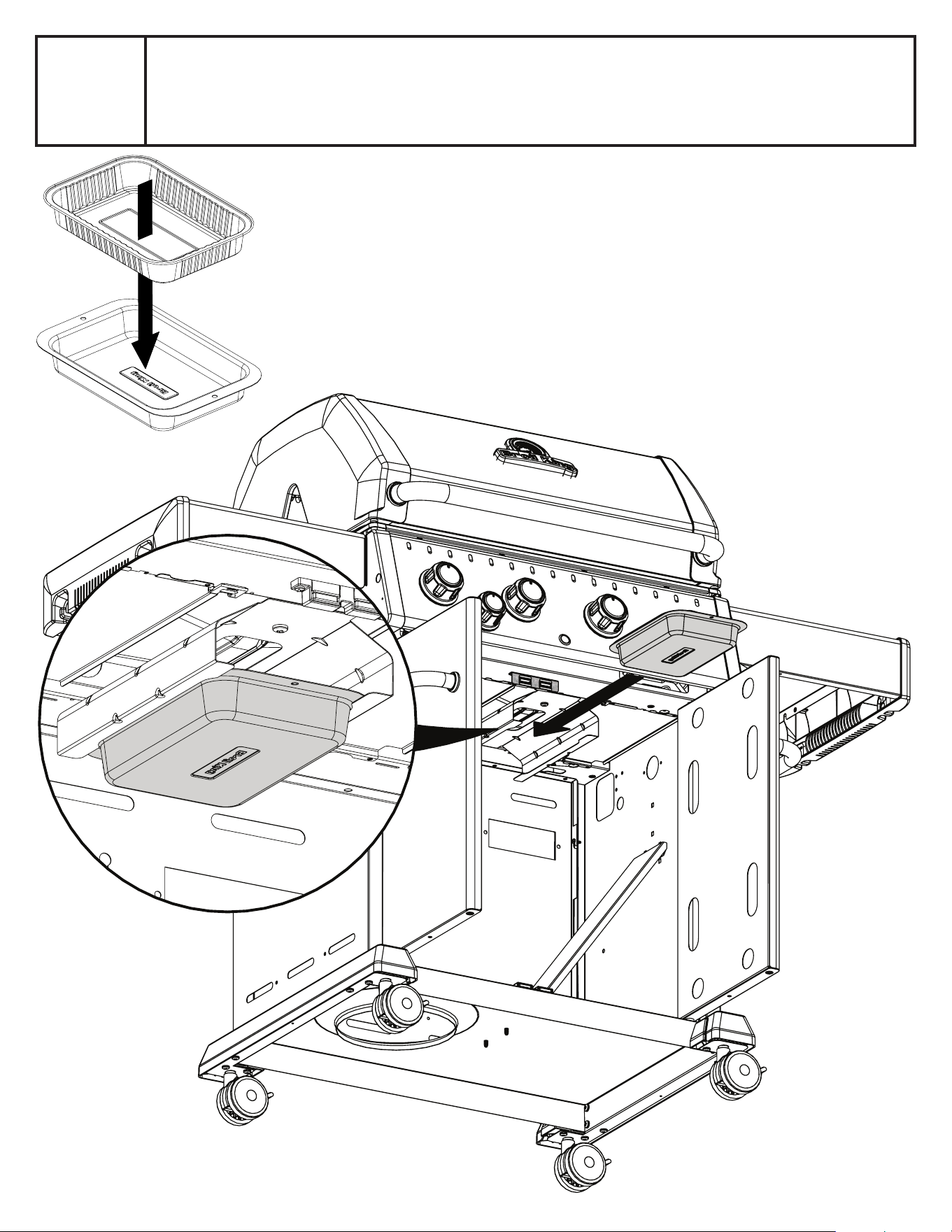

22

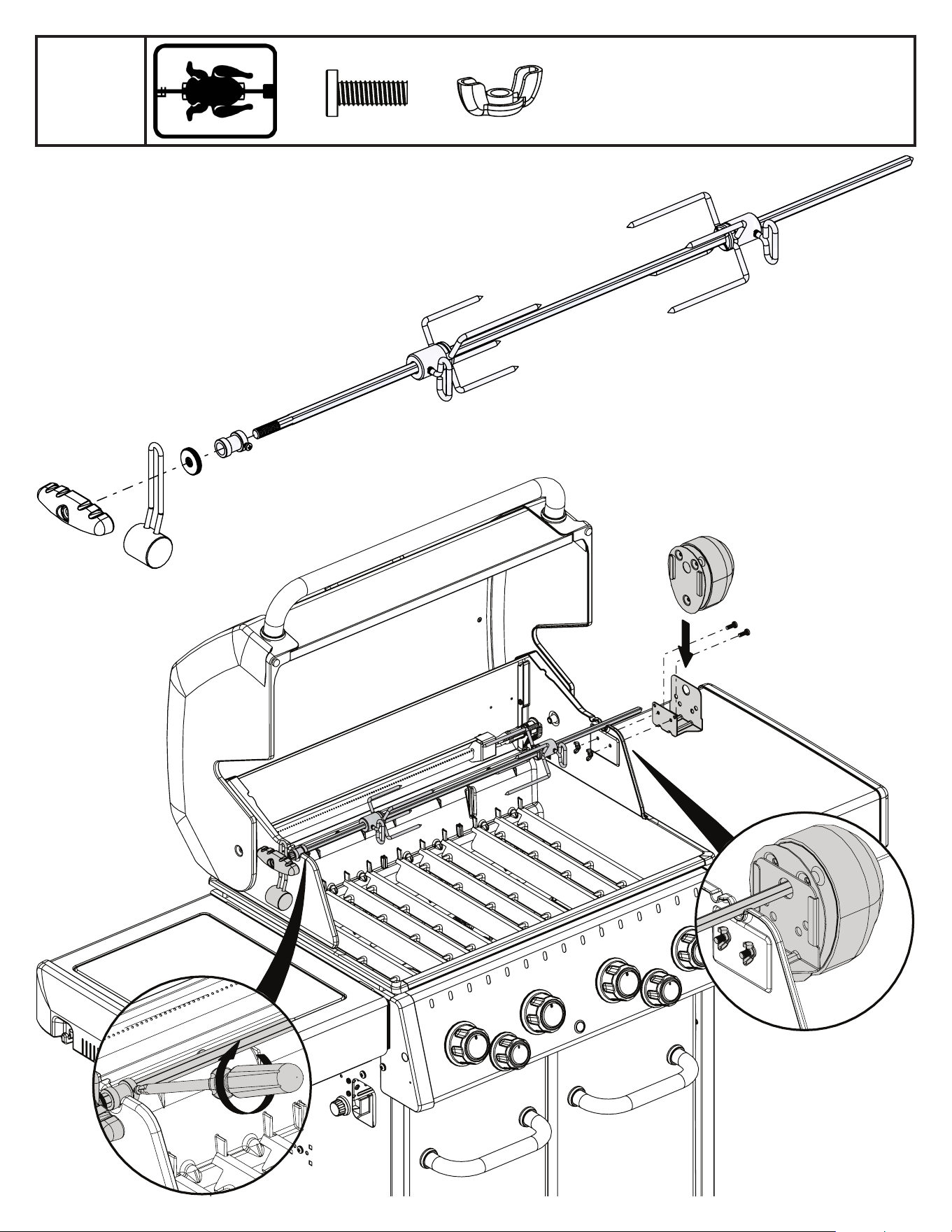

23
(2) (2)

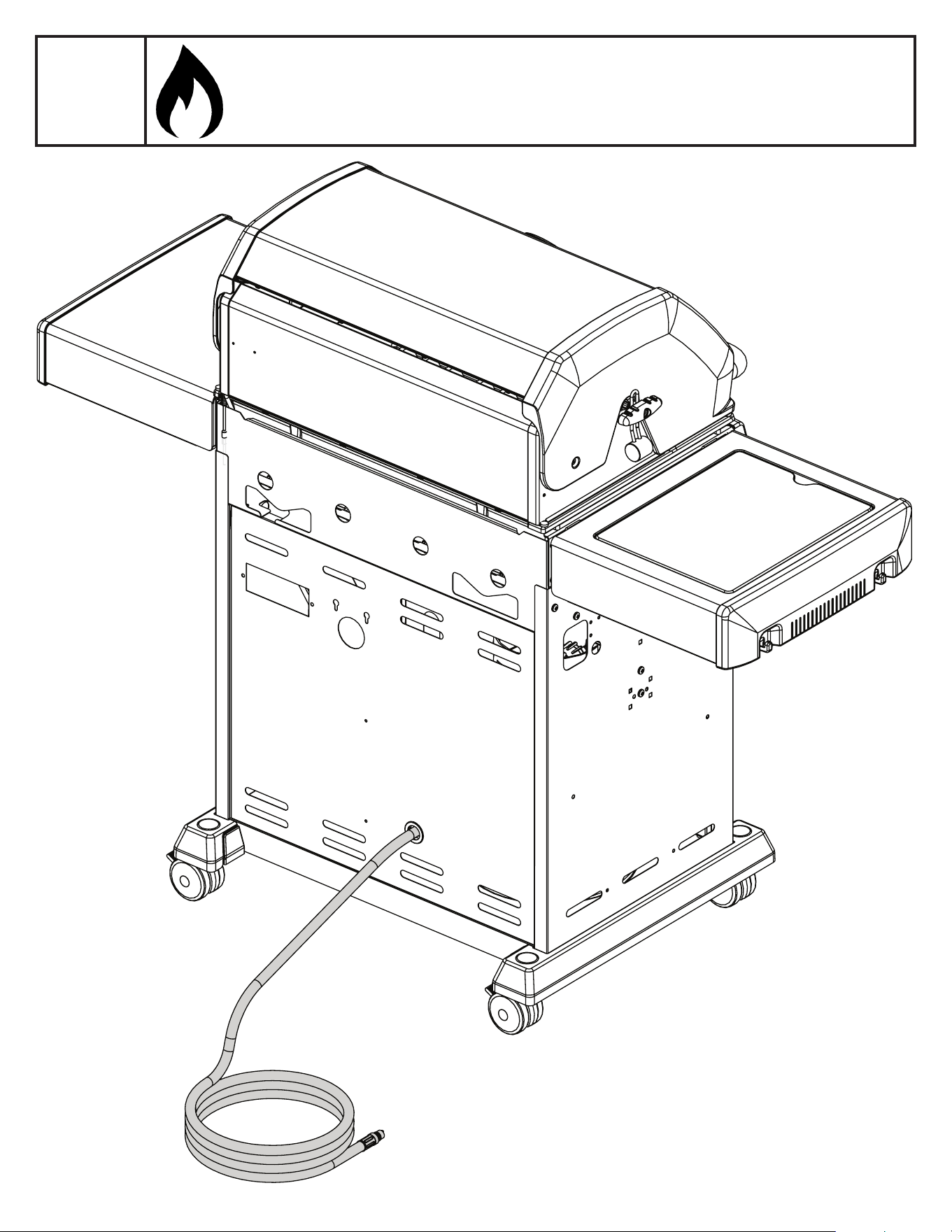

24

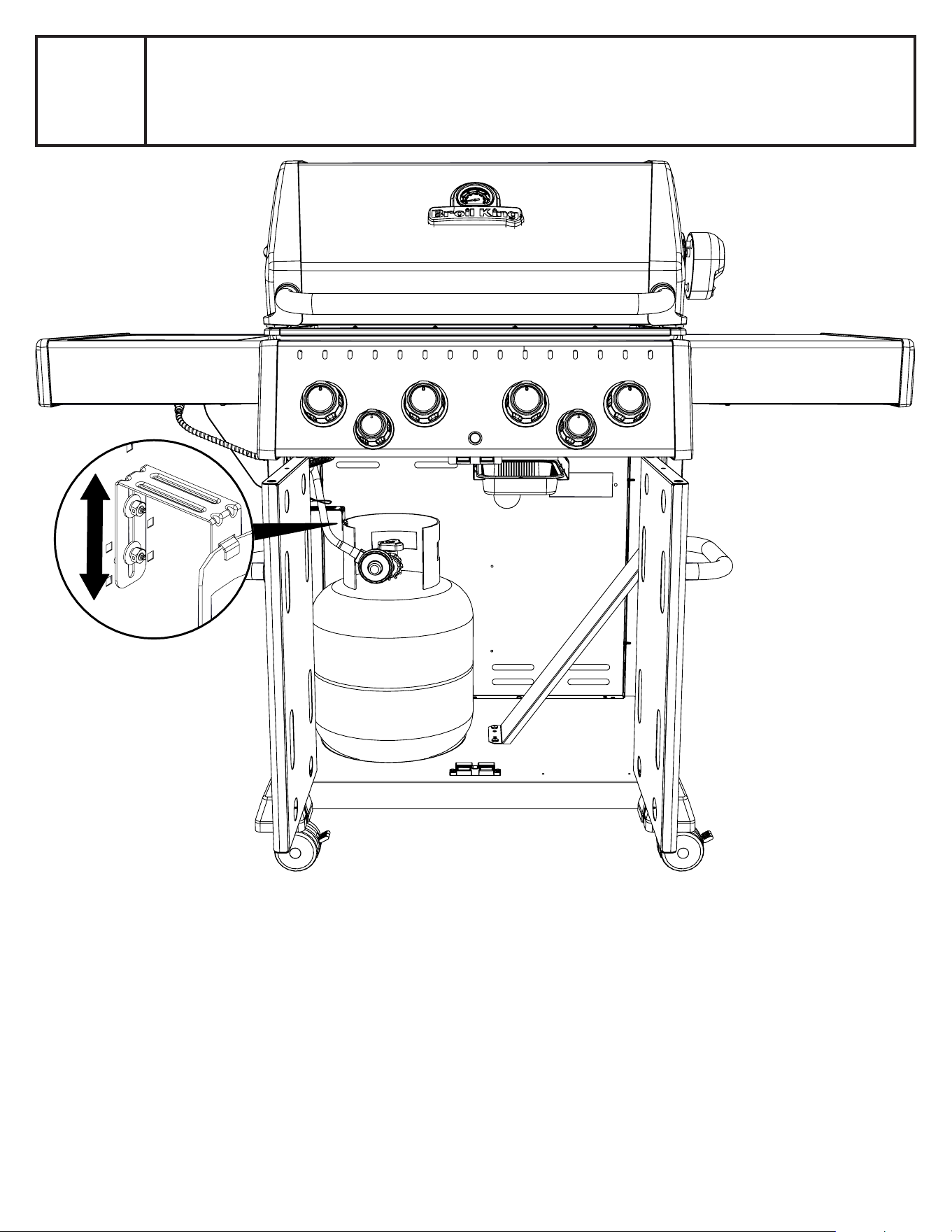

25

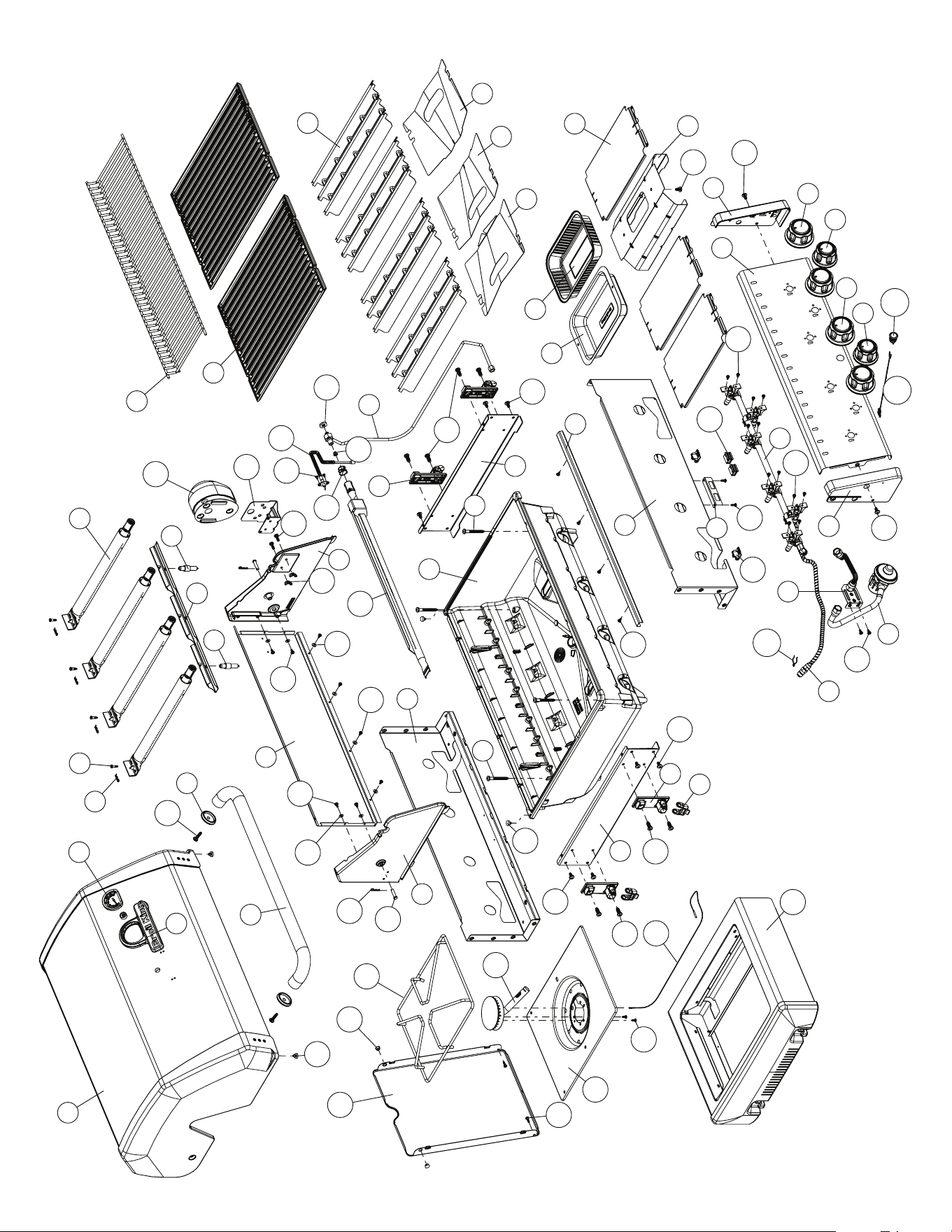

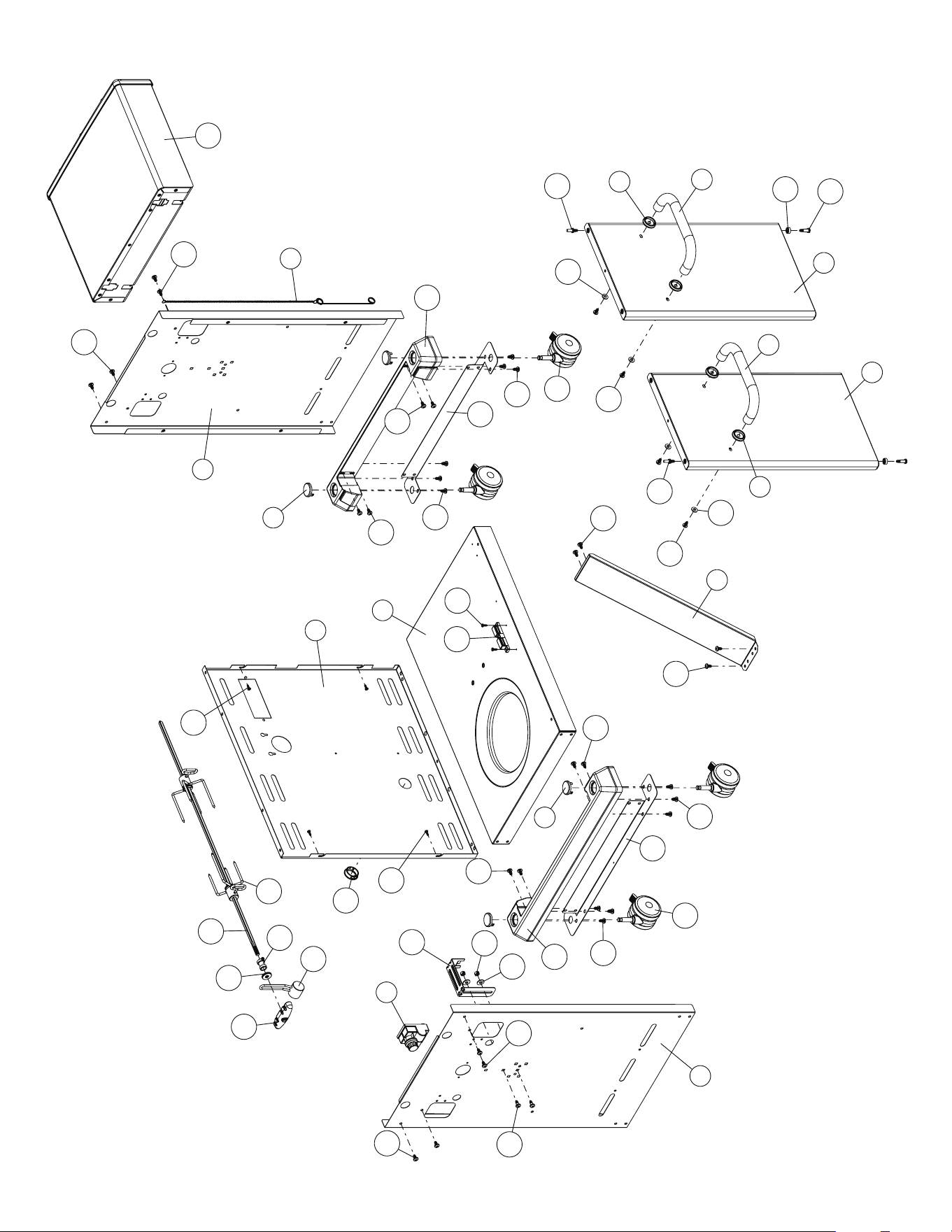

PARTS LIST / LISTE DES PIECES
KEY # ITEM # DESCRIPTION
DESCRIPTION 8652-54 8652-64
8652-84 8653-54 8653-64 8653-84
8652-57 8652-67 8652-87 8653-57 8653-67 8653-87
1 50909-E441
CASTING BOTTOM FOND DU FOYER 1
1 1 1 1 1
2 56005-801 LID ASSEMBLY LE COUVERCLE 1
1 1
● ● ●
56005-804 LID ASSEMBLY LE COUVERCLE
●
● ●
1 1 1
3 56104-831 FIRE BOX END CAP - LH PANNEAU - CÔTE GAUCHE 1 1 1
1 1 1
4 56104-811 FIRE BOX END CAP - RH PANNEAU - CÔTE DROITE 1 1 1 1
1 1
5 52049-042 HEAT SHIELD PROTECTION CONTRE LA CHALEUR 4 4 4
4 4 4
7 Y-11544S SCREW - BURNER VIS - BRÛLEUR 4 4 4 4 4 4
8 S21242 BURNER CLIP ATTACHE DE CHEVILLE 4 4 4
4 4 4
12 52315-151 HOOD PANEL PANNEAU DE LA CUVE 1 1 1 1
1 1
13 52035-914 FIRE BOX FRONT TRIM CROCHET DE RALLONGEMENT 1 1 1
1 1 1
18 52002-981 COOKING GRID GRILLE 2 2 2 2 2 2
20 52005-991 GRID - WARMING RACK GRILLE - MAINTIEN AU CHAUD 1 1 1
1 1 1
21 59805-014 CONTROL ASSEMBLY SOUPAPE 1
● ● ● ● ●
59805-017 CONTROL ASSEMBLY SOUPAPE
●
1
●
● ● ●
59805-034 CONTROL ASSEMBLY SOUPAPE
● ●
1
●
● ●
59805-037 CONTROL ASSEMBLY SOUPAPE
● ● ●
1
● ●
59805-074 CONTROL ASSEMBLY SOUPAPE
● ● ● ●
1
●
59805-077 CONTROL ASSEMBLY SOUPAPE
● ● ●
● ●
1
22 22025-904 COLLECTOR BOX RECIPIENT 1 1 1 1 1 1
24 10111-16A
CONNECTOR HOSE TUYAU 1 1 1 1 1 1
25 52929-104LP BURNER BRÛLEUR 1 / 0 1 / 0 1 / 0 1 / 0 1 / 0 1 / 0
52929-104NG BURNER BRÛLEUR 0 / 1 0 / 1 0 / 1
0 / 1 0 / 1 0 / 1
26 52002-298A CONTROL KNOB BOUTON DE CONTROLE 4 4 4 4 4 4
27 52001-298A
CONTROL KNOB BOUTON DE CONTROLE
●
1 2
●
1 2
28 52025-124CRO CONTROL COVER PANNEAU DE CONTROLE 1
● ●
1
● ●
52025-244CRO CONTROL COVER PANNEAU DE CONTROLE
●
1
● ●
1
●
52025-304CRO CONTROL COVER PANNEAU DE CONTROLE
● ●
1
● ●
1
31 52009-918 EDGE CAP - LH PAC DE BORD - CÔTE GAUCHE 1 1 1 1 1 1
32 52009-938 EDGE CAP - RH PAC DE BORD - CÔTE DROITE 1 1 1 1 1 1
34 S13473-091 HOSE-SIDE BURNER TUYAU DU BRULEUR LATERAL PL
●
1 / 0 1 / 0
●
1 / 0 1 / 0
S13473-132 HOSE-SIDE BURNER TUYAU DU BRULEUR LATERAL PL
●
0 / 1 0 / 1
●
0 / 1 0 / 1
34A Y-11230 COTTER PIN ATTACHE DE CHEVILLE
●
1 1
●
1 1
35 52039-101 SIDE BRACE CÔTÉ ENTRETOISE 2 2 2 2 2 2
36 52809-957 TUBE-REAR BURNER ASSY TUBE DE BRÛLEUR ARRIÈRE
● ●
1
● ●
1
37 53139-908 SHELF BRACKET SUPPORT SUPPORT DE TABLETTE LATÉRALE 4 4 4 4 4 4
38 Y-12620 SHELF LOCK CLIP AGRAFE SERRURE 4 4 4 4 4 4
39 52045-111 BRACE - FRONT / REAR SUPPORT 2 2 2 2 2 2
40 10114-16 HOSE & REGULATOR TUYAU ET REGULATEUR PL 1 / 0 1 / 0 1 / 0 1 / 0 1 / 0 1 / 0
10111-K45 HOSE NATURAL GAS TUYAU (GAZ NATUREL) 0 / 1 0 / 1 0 / 1 0 / 1 0 / 1 0 / 1
41 10342-E13 ELECTRODE ELECTRODE 1 1 1 1 1 1
42 10342-E22 ELECTRODE ELECTRODE 1 1 1 1 1 1
44 10342-42 ELECTRONIC IGNITOR ALLUMAGE ÉLECTRONIQUE 1
● ●
1
● ●
10342-43 ELECTRONIC IGNITOR ALLUMAGE ÉLECTRONIQUE
●
1
● ●
1
●
10342-44 ELECTRONIC IGNITOR ALLUMAGE ÉLECTRONIQUE
● ●
1
● ●
1
PARTS LIST / LISTE DES PIECES
KEY # ITEM # DESCRIPTION
DESCRIPTION 8652-54 8652-64
8652-84 8653-54 8653-64 8653-84
8652-57 8652-67 8652-87 8653-57 8653-67 8653-87
44A 25070-925
WIRE - IGNITOR FIL ÉLECTRIQUE - ALLUMAGE 1
1 1 1 1 1
44B 25070-91 BUTTON - IGNITOR BOUTON - ALLUMAGE 1
1 1 1 1 1
48 52004-007 DRIP PAN CUVETTE A GRAISSE 1 1 1
1 1 1
49 51009-007 GREASE PAN PLATEAU A GRAISSE 1 1 1
1 1 1
50 52059-101 GREASE RAIL SUPPORT DE PLATEAU A GRAISSE 1 1 1 1
1 1
51 52009-104 FLAV-R-WAVE ® FLAV-R-WAVE ® 4 4 4
4 4 4
52
52349-004 GREASE SHIELD PROTECTION CONTRE LA GRAISSE
1 1 1 1 1 1
53
52249-004
GREASE SHIELD PROTECTION CONTRE LA GRAISSE
2 2 2
2 2 2
56 24005-12A HANDLE POIGNÉE 1 1 1 1
1 1
58 24009-936 BEZEL MONTURE 2 2 2
2 2 2
59 10081-BK630 NAMEPLATE PLAQUE D’IDENTIFICATION 1 1 1 1 1 1
60 10571-6 HEAT INDICATOR INDICATEUR DE CHALEUR 1 1 1
1 1 1
65 20005-000 MATCH LIGHT - STICK ALLUMETTES 1 1 1 1 1 1
68 51275-111A DOOR PORTE 1 1 1
● ● ●
51275-114A DOOR PORTE
● ● ●
1 1 1
69 51275-131A
DOOR PORTE 1 1 1
● ● ●
51275-134A DOOR PORTE
● ● ●
1 1 1
70 21071-13
HANDLE POIGNÉE 2 2 2 2 2 2
71 21070-13 BEZEL MONTURE 4 4 4 4 4 4
78 56039-211
MAGNET BRACKET SUPPORT - CROCHET DE PORTE 1 1 1 1 1 1
80 51189-101 SIDE PANEL PANNEAU LATERALE 2 2 2 2 2 2
81 Y-11992
SCREW 1/4-20 x 2 1/4 VIS 1/4-20 x 2 1/4 4 4 4 4 4 4
83 51239-901 TANK PREVENTION BRACKET SUPPORT DU RESERVOIR 1 / 0 1 / 0 1 / 0 1 / 0 1 / 0 1 / 0
88 21305-921
PANEL - REAR PANNEAU - ARRIÈRE 1 1 1 1 1 1
90 51625-141 BASE TABLETTE INFERIEURE 1 / 0 1 / 0 1 / 0 1 / 0 1 / 0 1 / 0
51625-171 BASE TABLETTE INFERIEURE 0 / 1 0 / 1 0 / 1 0 / 1 0 / 1 0 / 1
99 32001-151 CASTOR BRACKET CAP CASQUETTE 4 4 4 4 4 4
100 51639-108 CASTOR BRACKET SUPPORT DE ROULLETTE 2 2 2 2 2 2
101 51039-101 CASTOR BRACKET SUPPORT SUPPORT 2 2 2 2 2 2
102 10892-286 CASTOR ROULETTES 4 4 4 4 4 4
103 21009-951 TANK BRACKET SUPPORT DU RESERVOIR 1 / 0 1 / 0 1 / 0 1 / 0 1 / 0 1 / 0
107 Y-12870 WASHER RONDELLE 8 8 8 8 8 8
113 10342-T14 SIDE BURNER ELECTRODE ELECTRODE 1 1 1 1 1 1
114 53109-111 SHELF - RIGHT PLANCHETTE LATERALE 1 1 1 1 1 1
115 53109-111 SHELF - LEFT PLANCHETTE LATERALE 1
● ●
1
● ●
53109-151 SHELF - SB - LEFT PLANCHETTE LATERALE
●
1 1
●
1 1
123 Y-12117 BUSHING DOUILLE
●
2 2
●
2 2
124 23000-271 SIDE BURNER BODY SUPPORT DE BRULEUR DE COTE
●
1 1
●
1 1
125 23000-251 SIDE BURNER COVER COUVERCLE LATÉRAL
●
1 1
●
1 1
126 10390-E10 SIDE BURNER BRULEUR DE COTE
●
1 1
●
1 1
127 Y-12871 SCREW M4 X 0.7 VIS M4 X 0.7
●
2 2
●
2 2
128 23009-951 GRID GRILLE
●
1 1
●
1 1
129 Y-11990 HEX NUT ÉCROU
● ●
1
● ●
1
130 27905-354 BURNER ROTISSERIE BRÛLEUR DE TOURNEBROCHE
● ●
1
● ●
1
PARTS LIST / LISTE DES PIECES
KEY # ITEM # DESCRIPTION
DESCRIPTION 8652-54 8652-64
8652-84 8653-54 8653-64 8653-84
8652-57 8652-67 8652-87 8653-57 8653-67 8653-87
131 10693-113
REAR BURNER-ORIFICE ORIFICE DU BRÛLEUR ARRIÈRE
● ●
1 / 0
● ●
1 / 0
10693-165 REAR BURNER-ORIFICE ORIFICE DU BRÛLEUR ARRIÈRE
● ●
0 / 1
● ●
0 / 1
133 S15271 HANDLE POIGNEE
●
●
1
● ●
1
134 S15270 BALANCER CONTREPOIS
● ●
1
● ●
1
135 S15299 WASHER RONDELLE
● ●
1
●
●
1
136 S15263 BUSHING COL
● ●
1
● ●
1
137 S15256 SPIT ROD BROCHETTE
● ●
1
●
●
1
138 S15287 4 PRONG FORKS FOURCHETTE A 4 FOURCHON
● ●
2
● ●
2
139 57039-901 ROTISSERIE BRACKET SUPPORT
● ●
1
● ●
1
140 S21125S
SCREW # 8 X 1/2
VIS #8 X 1/2 8 8 8 8 8 8
141 Y-11559 BOLT 1/4-20 X 1 BOULON 1/4-20 X 1 2 2 2 2 2 2
144 Y-12220 BUSHING DOUILLE
● ●
1
● ●
1
145 S21235 HINGE PIN GOUPILLE DE CHARNIÈRE 2 2 2 2 2 2
146 S21233 HITCH PIN CLIP ATTACHE DE CHEVILLE 2 2 2
2 2 2
147 Y-11231 LID BUMPER BUTOIR DU COUVERCLE 4 4 4 4 4 4
148 10240-20
DOOR PIN GOUPILLE DE LA PORTE 2 2 2 2 2 2
149 Y-11551 SHOULDER SCREW 1/4-20 X 1 GOUPILLE DE LA PORTE 2 2 2 2 2 2
150 Y-12124
DOOR PIN CAP CAP PORTE PIN 2 2 2 2 2 2
151 Y-12857 WASHER RONDELLE 4 4 4 4 4 4
152 Y-12229
MAGNET AIMANT 1 1 1 1 1 1
153 Y-12223 MAGNET - PUSH IN AIMANT 2 2 2 2 2 2
154 Y-12129
WIRE CLIP ATTACHE 2 2 2 2 2 2
155 S21124 SCREW #8 X 1/2 VIS #8 X 1/2 4 4 4 4 4 4
157 Y-12835
SCREW #6-32 X 1/4 VIS #6-32 X 1/5
● ●
2
● ●
2
158 Y-12646 SCREW SHOULDER #8 X 1/2 VIS SHOULDER #8 X 1/3
●
2 2
●
2 2
159 S21127S
SCREW # 8-32 X 7/16
VIS #8-32 X 7/16
8 10 12
8
10 12
160 Y-29304 SCREW #10-24 X 3/8 VIS #10-24 X 3/8 2 2 2 2 2 2
161 Y-12310 SCREW 1/4-20 X 3/4 VIS 1/4-20 X 3/4 8 8 8 8 8 8
163 S35094 SCREW #10-24 X 5/8 VIS #10-24 X 5/8 4 4 4 4 4 4
169 S21061 WING NUT ECROU PAPILLON
● ●
2
● ●
2
171 S15236 MOTOR MOTEUR
● ●
1
● ●
1
172 S15524 ELECTRODE ELECTRODE
● ●
1
● ●
1
173 S21362 SPRING RESSORT
● ●
1
● ●
1
174 S21255 WASHER RONDELLE 2 / 0 2 / 0 2 / 0 2 / 0 2 / 0 2 / 0
175 Y-11546 SCREW - 1/4:20 X 5/8 BOULON - 1/4:20 X 5/8 2 / 0 2 / 0 2 / 0 2 / 0 2 / 0 2 / 0
176 Y-11795 NUT 1/4-20 ECROU 1/4-20 2 / 0 2 / 0 2 / 0 2 / 0 2 / 0 2 / 0
180 S35095 SCREW #10-24 X 5/8 VIS #10-24 X 5/8 2 / 0 2 / 0 2 / 0 2 / 0 2 / 0 2 / 0
186 Y-12865 SCREW 1/4-20 X 3/4 VIS 1/4-20 X 3/4 48 / 44 48 / 44 48 / 44 48 / 44 48 / 44 48 / 44
