EP-C7000 User's Guide
3
Contents
EP-C7000 User's Guide............................................................................................................................. 13
Product Basics .......................................................................................................................................... 14
Installing or Using Optional Parts ....................................................................................................... 14

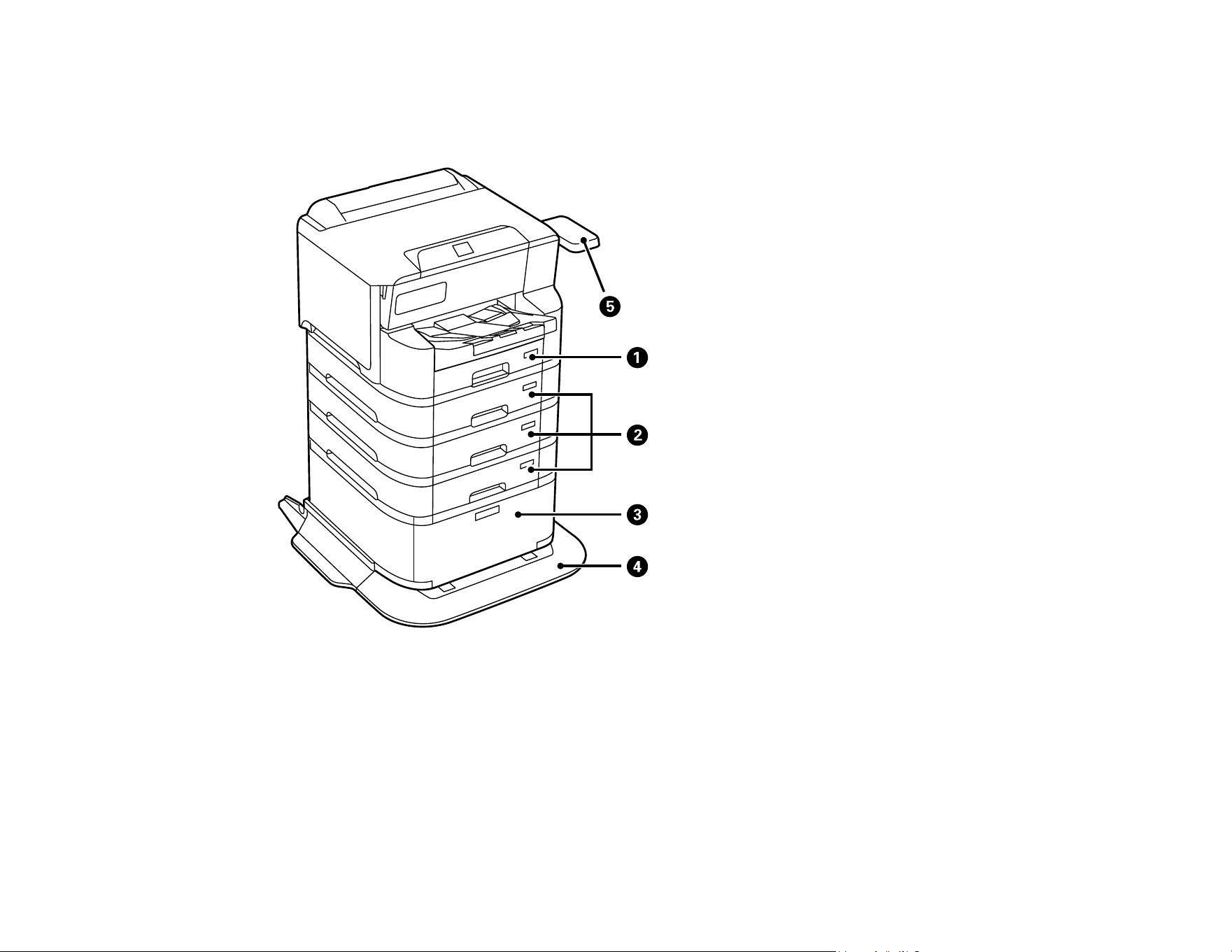

Optional Accessories and Replacement Parts .............................................................................. 14

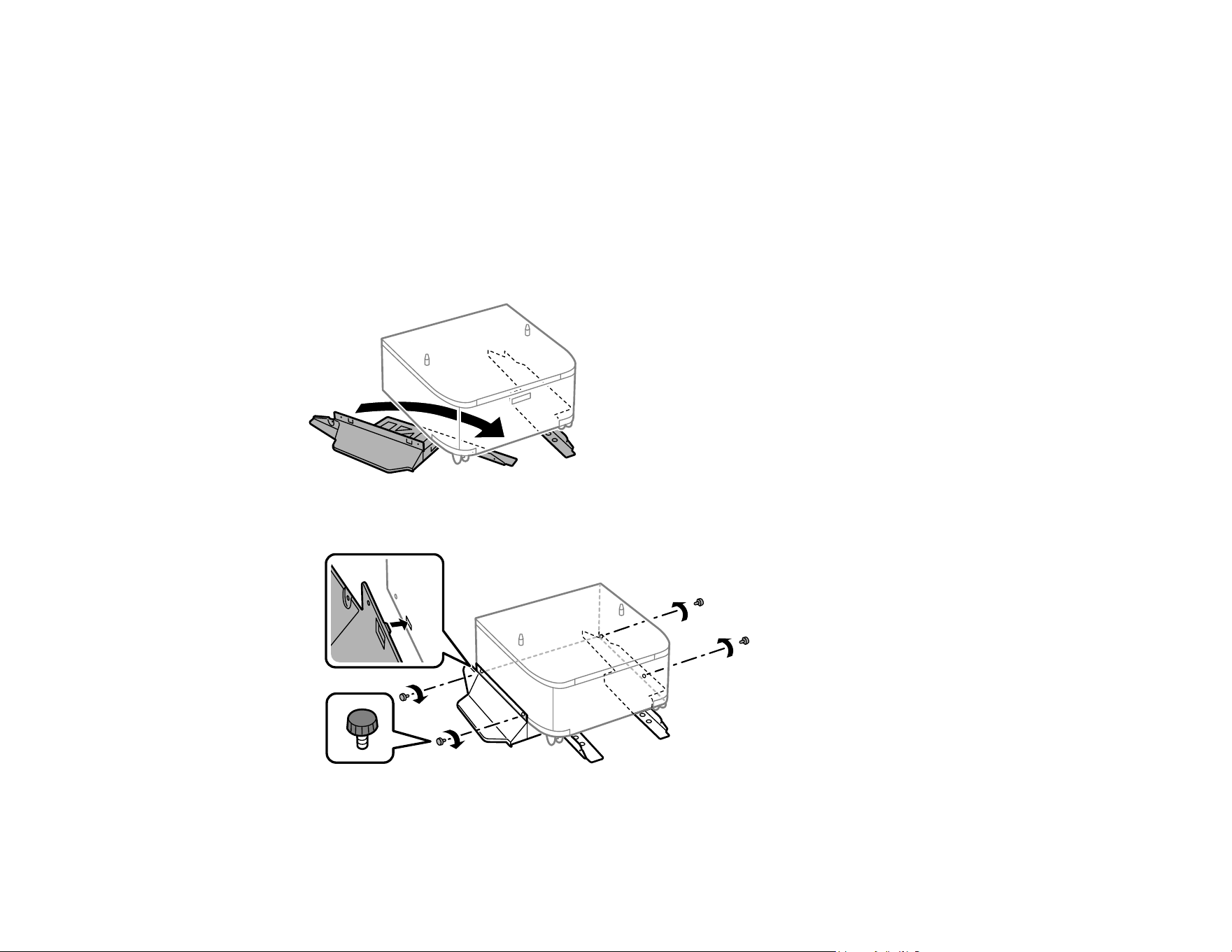

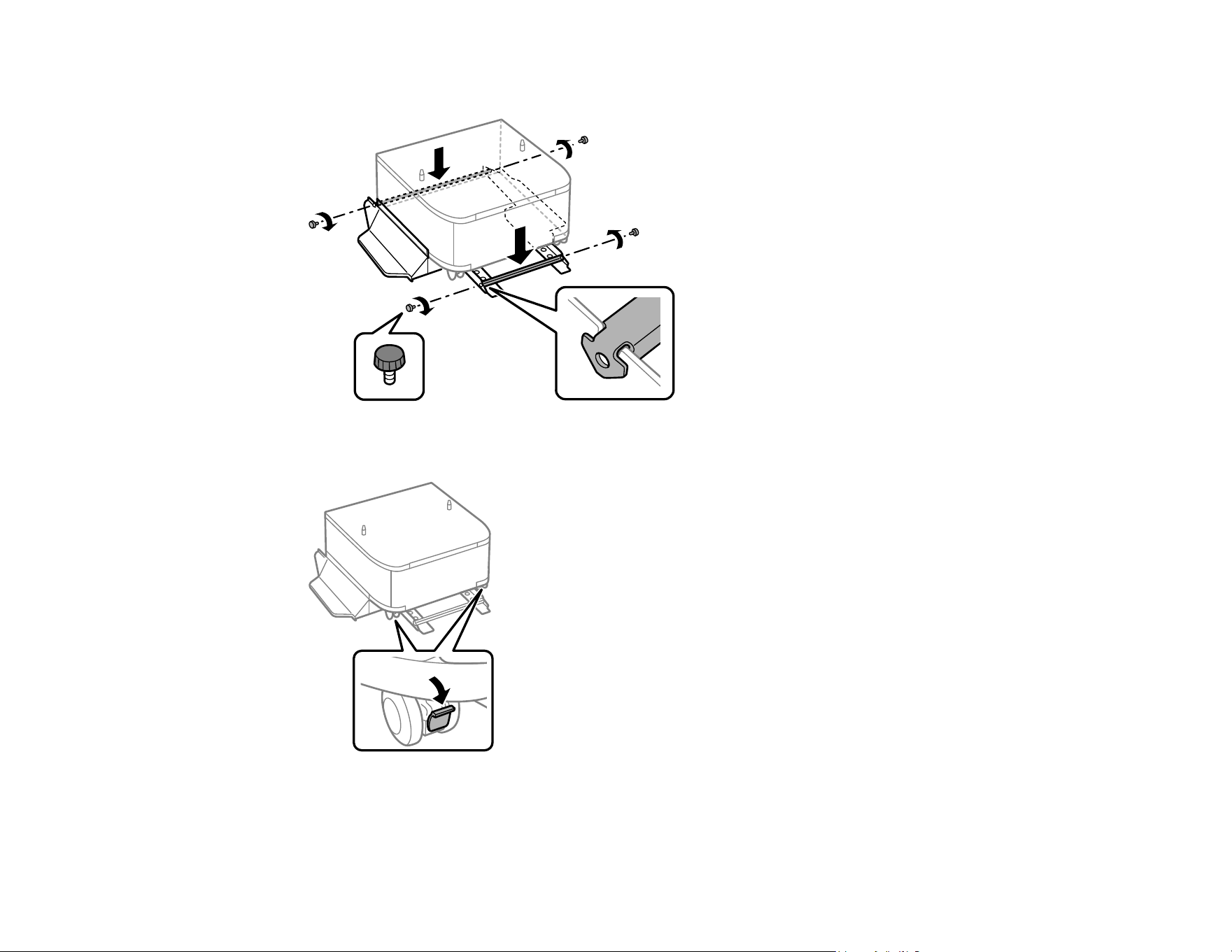

Installing the Optional Cabinet....................................................................................................... 15

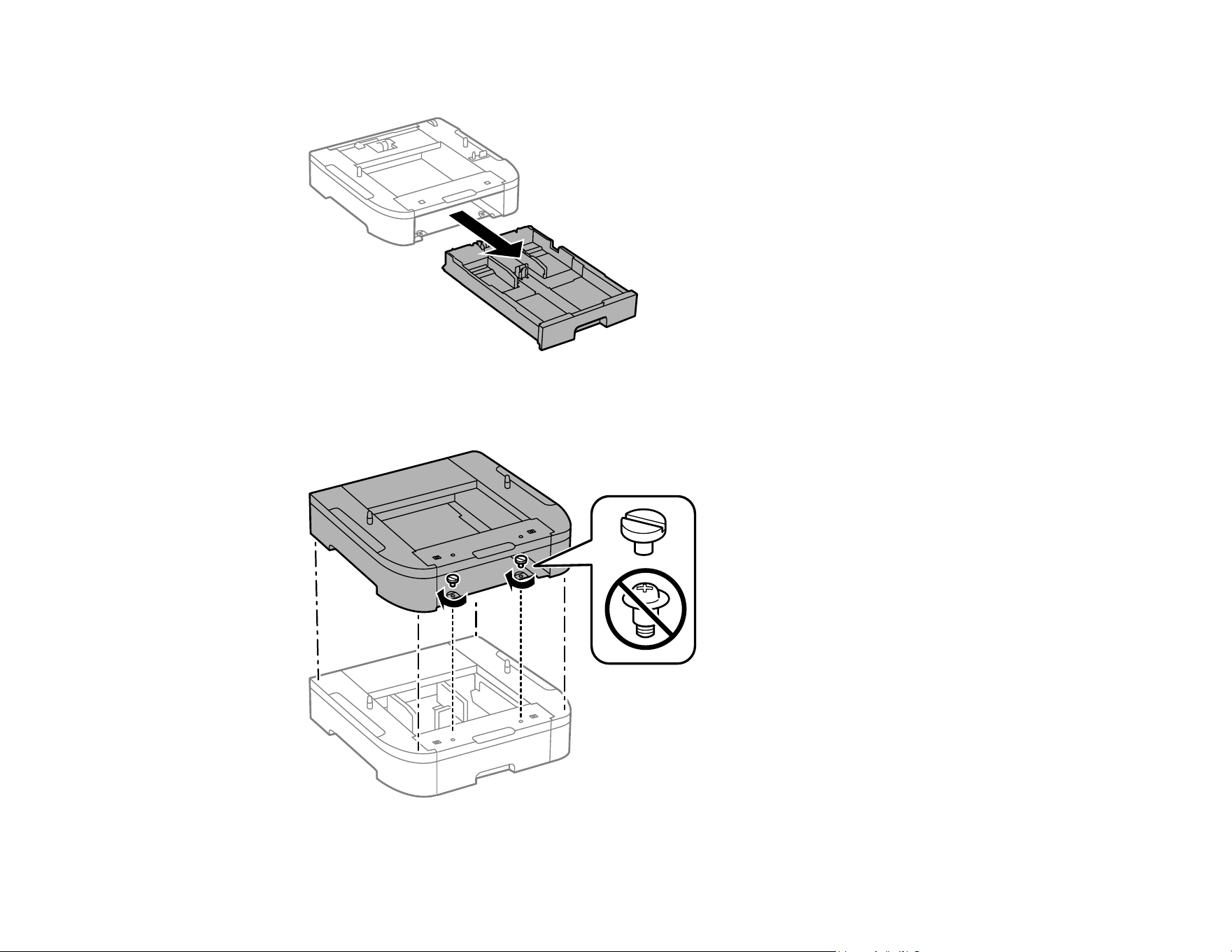

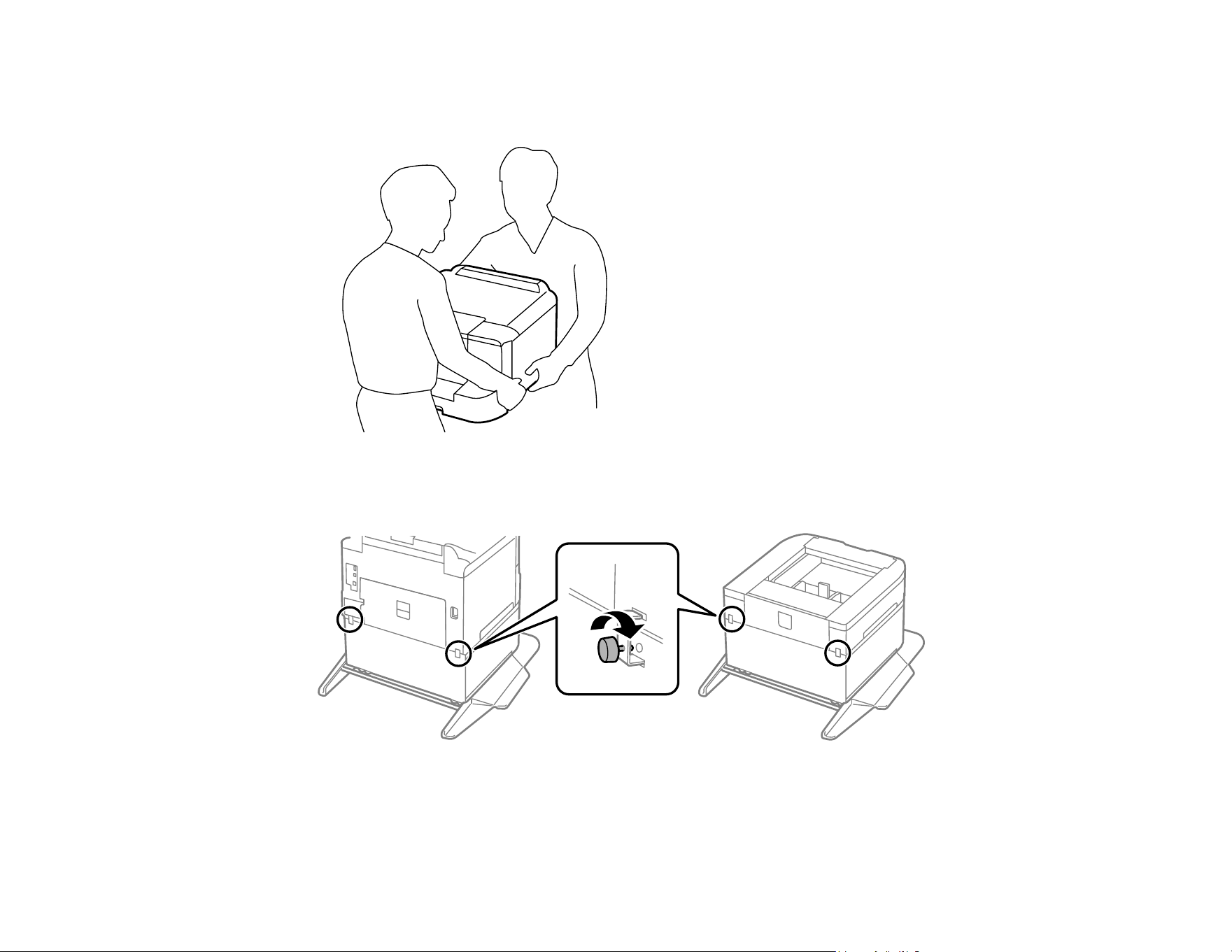

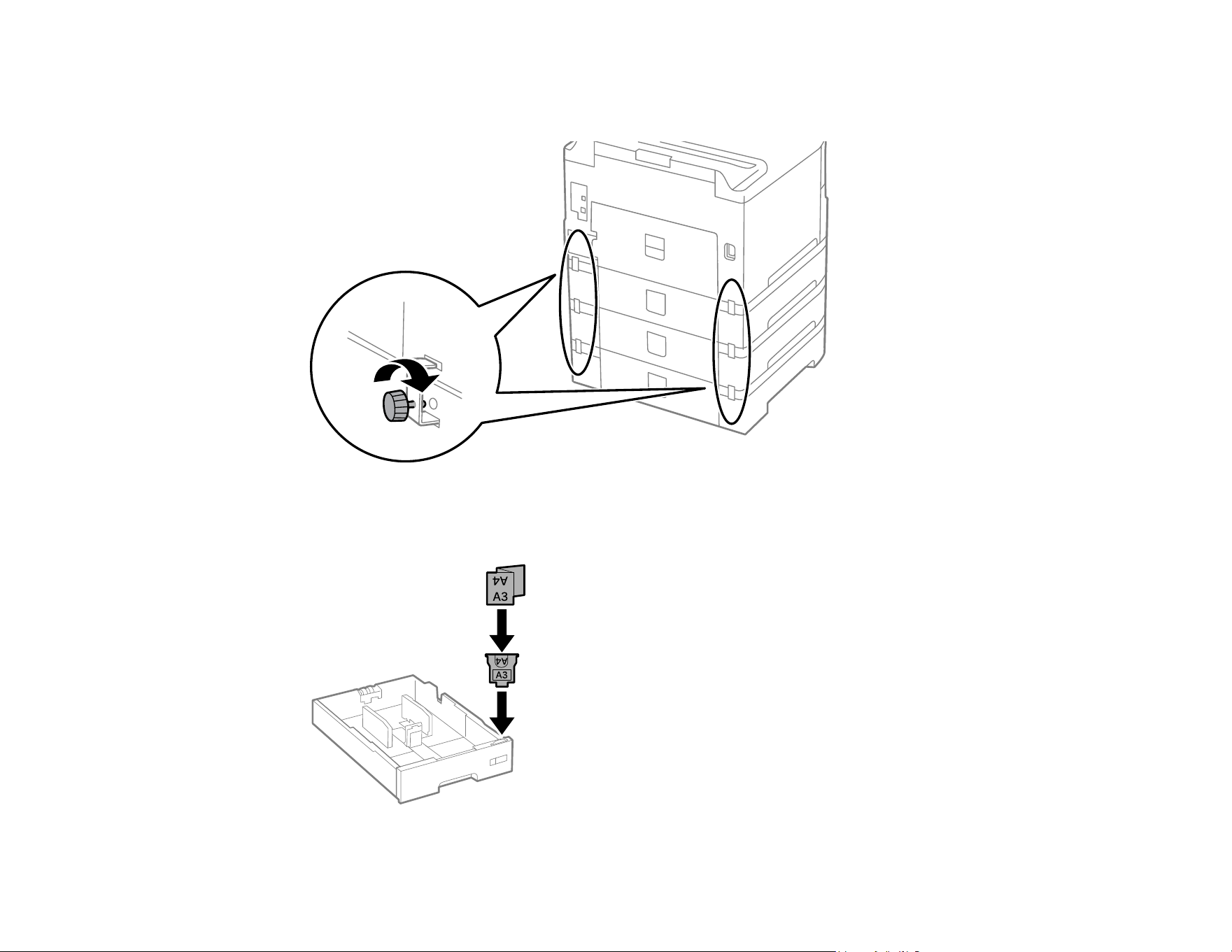

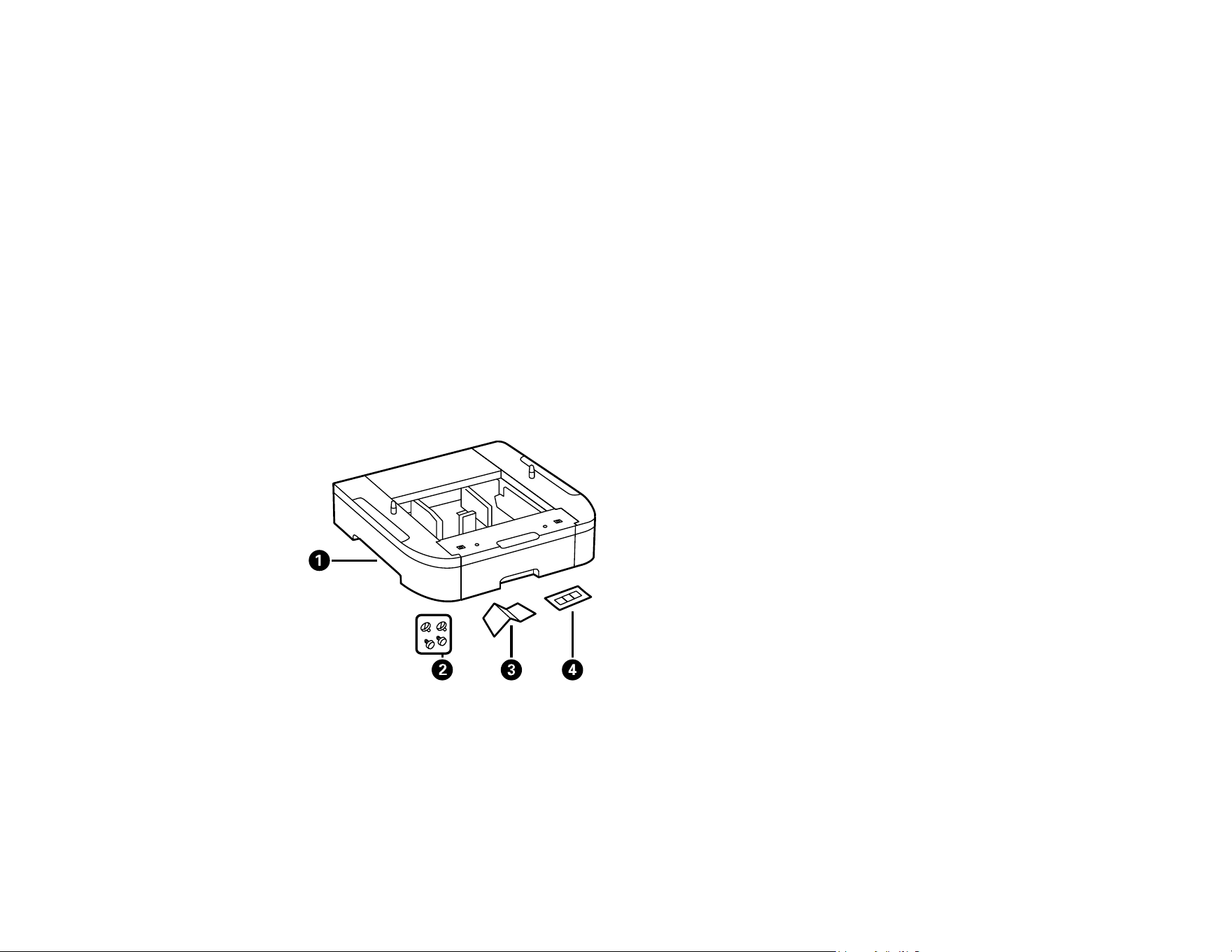

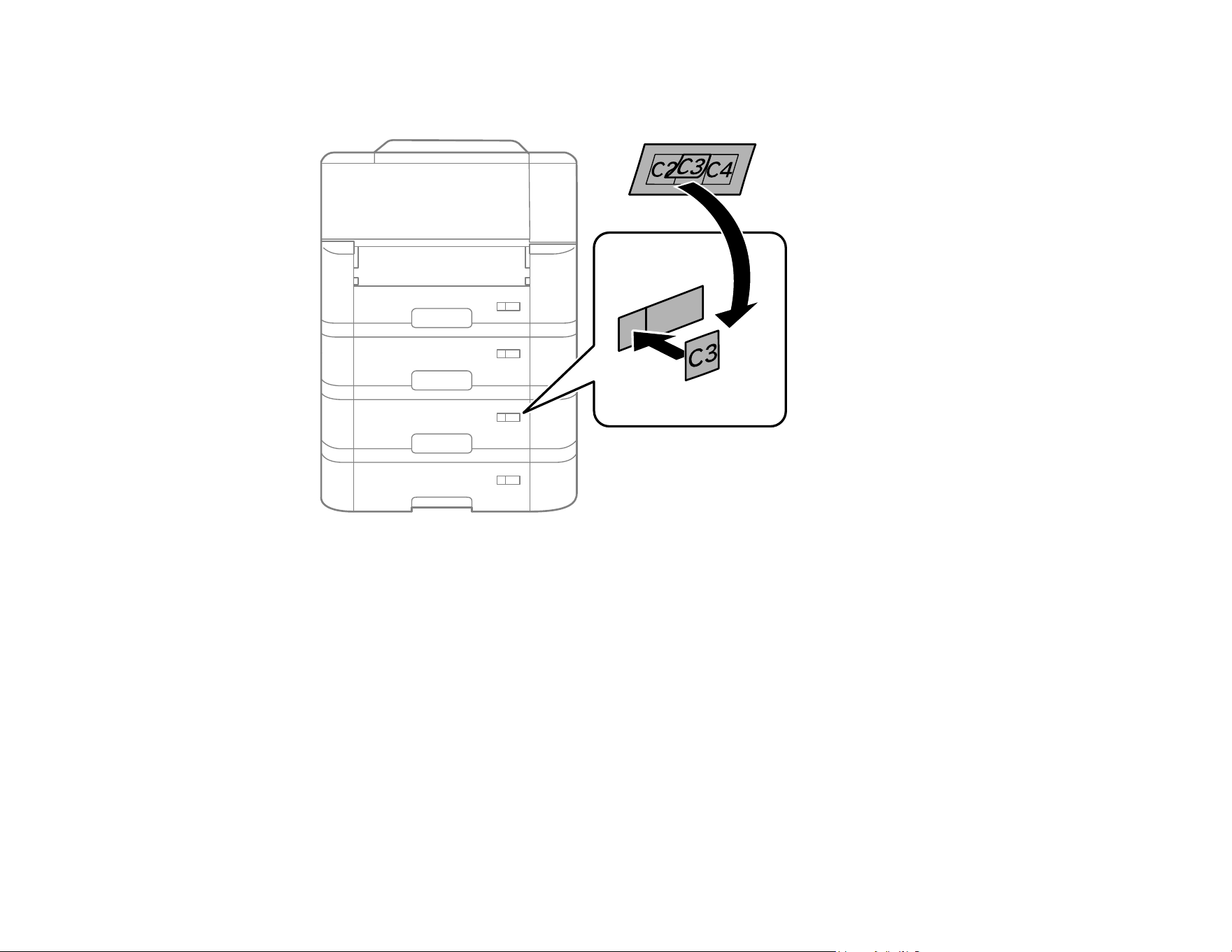

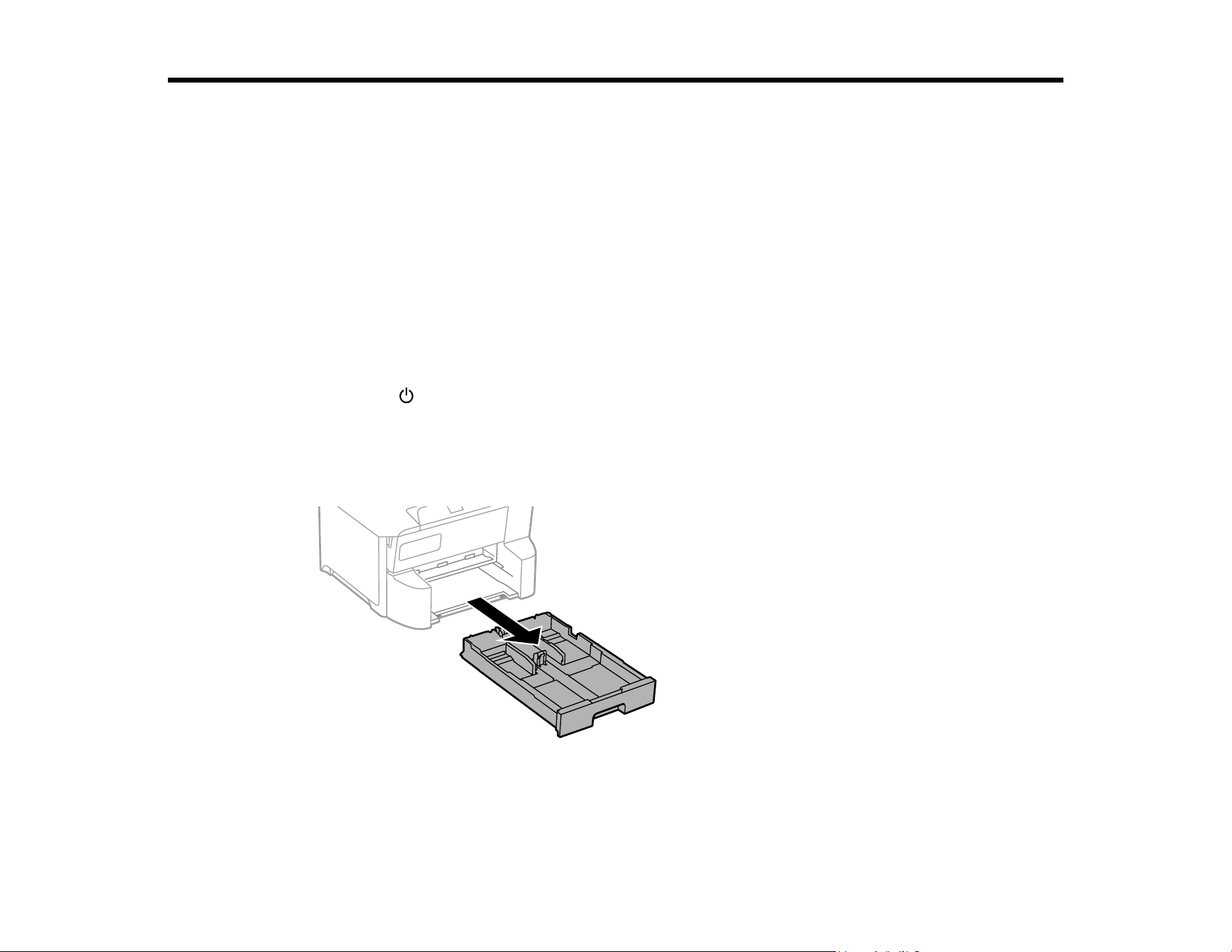

Installing the Optional Paper Cassette Units ................................................................................. 22

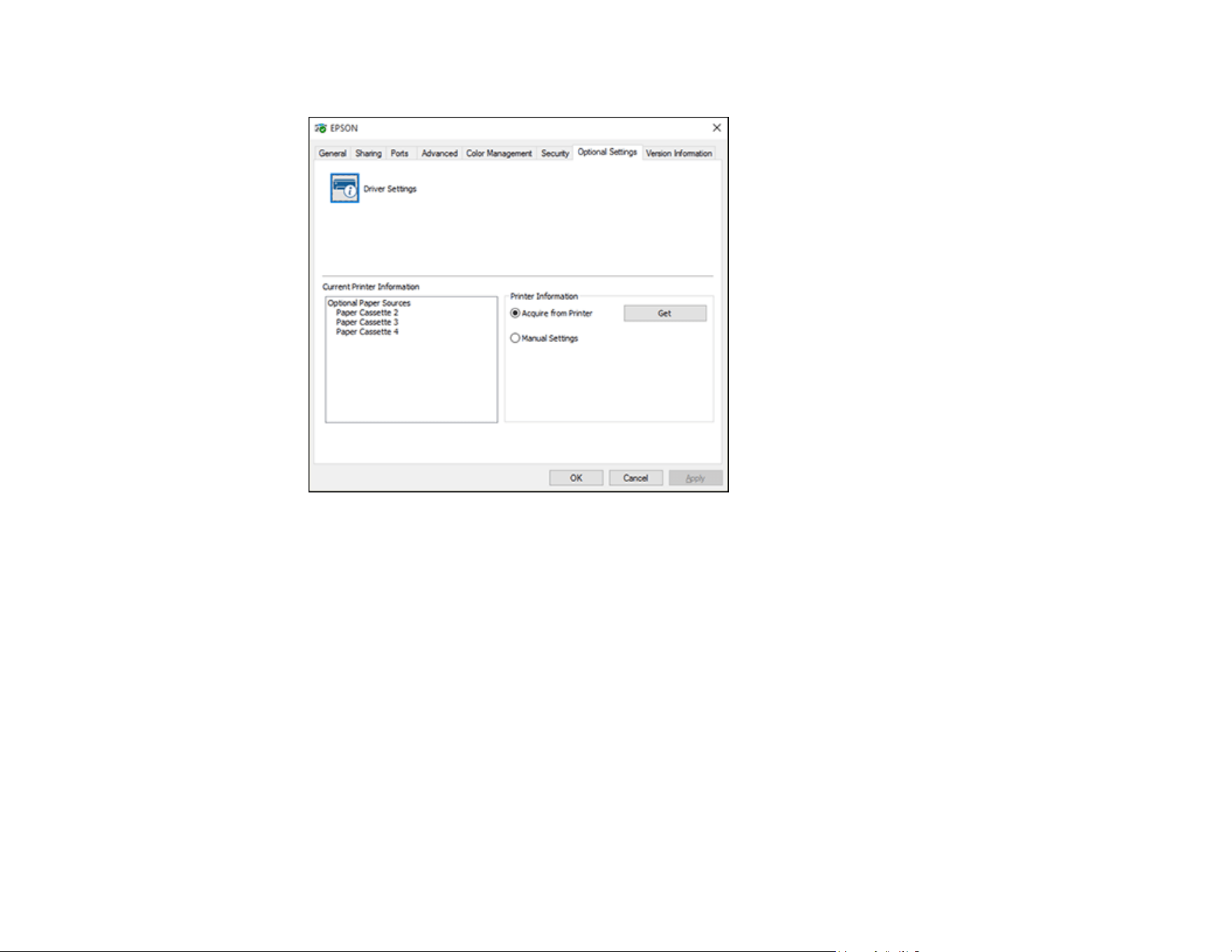

Enabling the Optional Paper Cassettes - Windows................................................................... 29
Enabling the Optional Paper Cassettes - PostScript Printer Software - Windows..................... 30

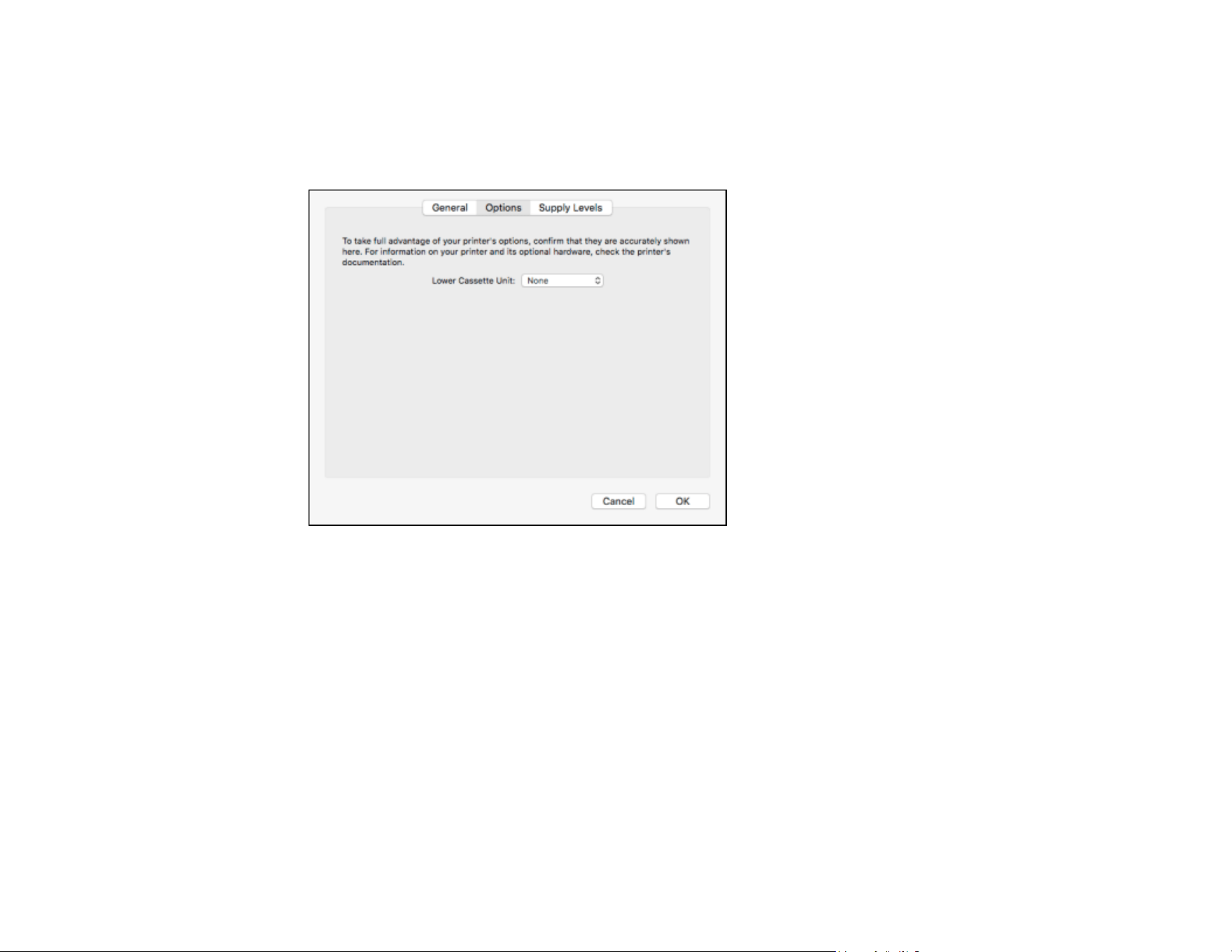

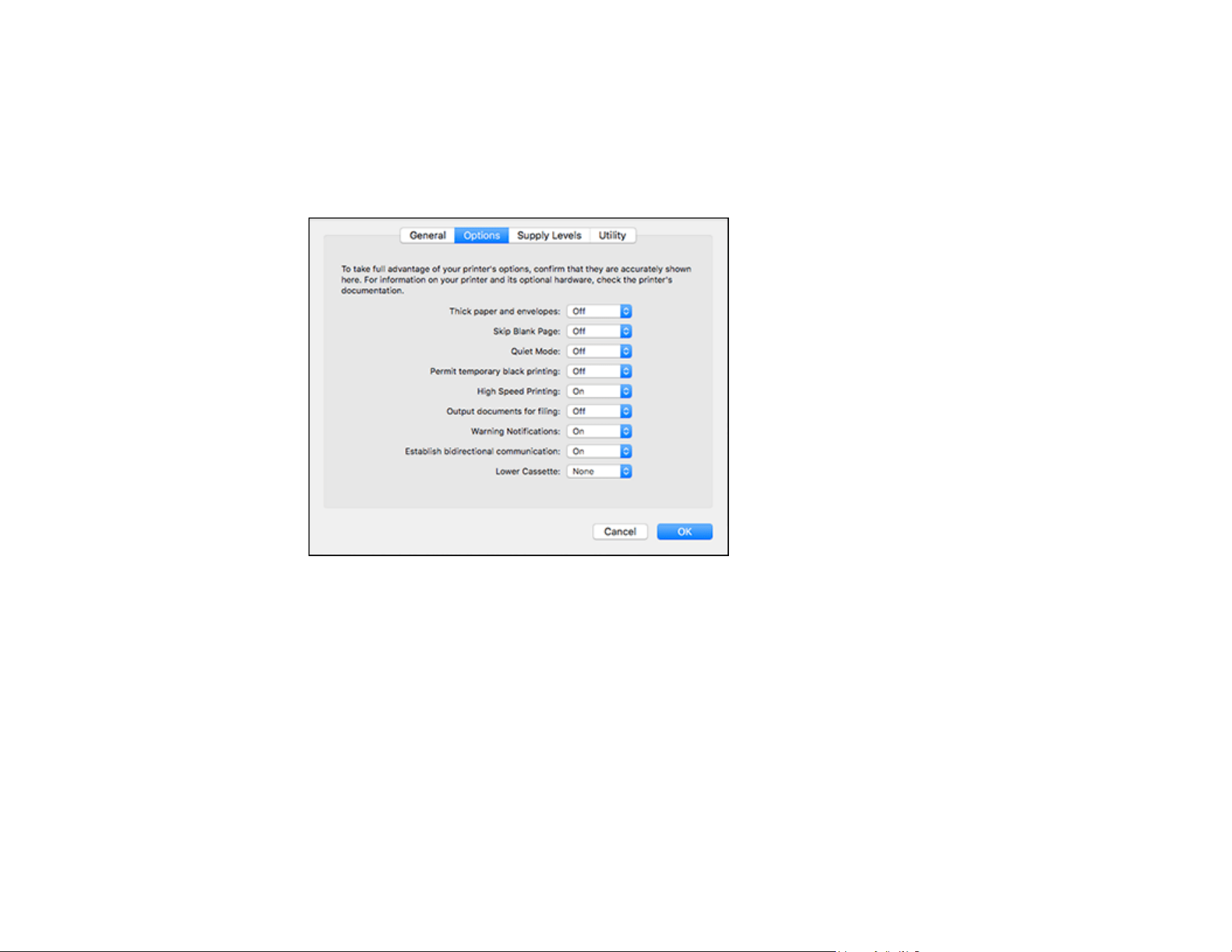

Enabling the Optional Paper Cassettes - Mac .......................................................................... 32
Enabling the Optional Paper Cassette - PostScript Printer Software - Mac .............................. 33

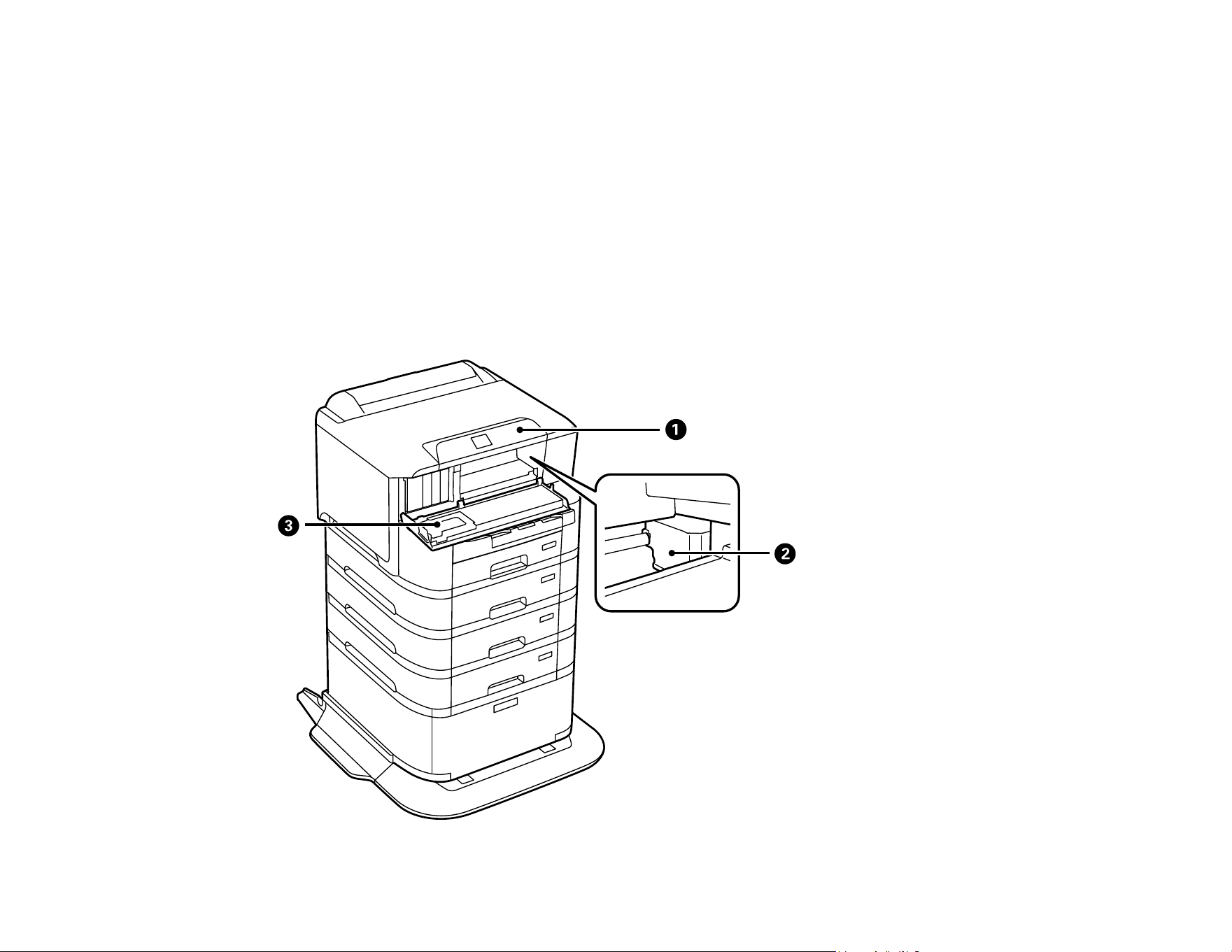

Product Parts Locations ..................................................................................................................... 34

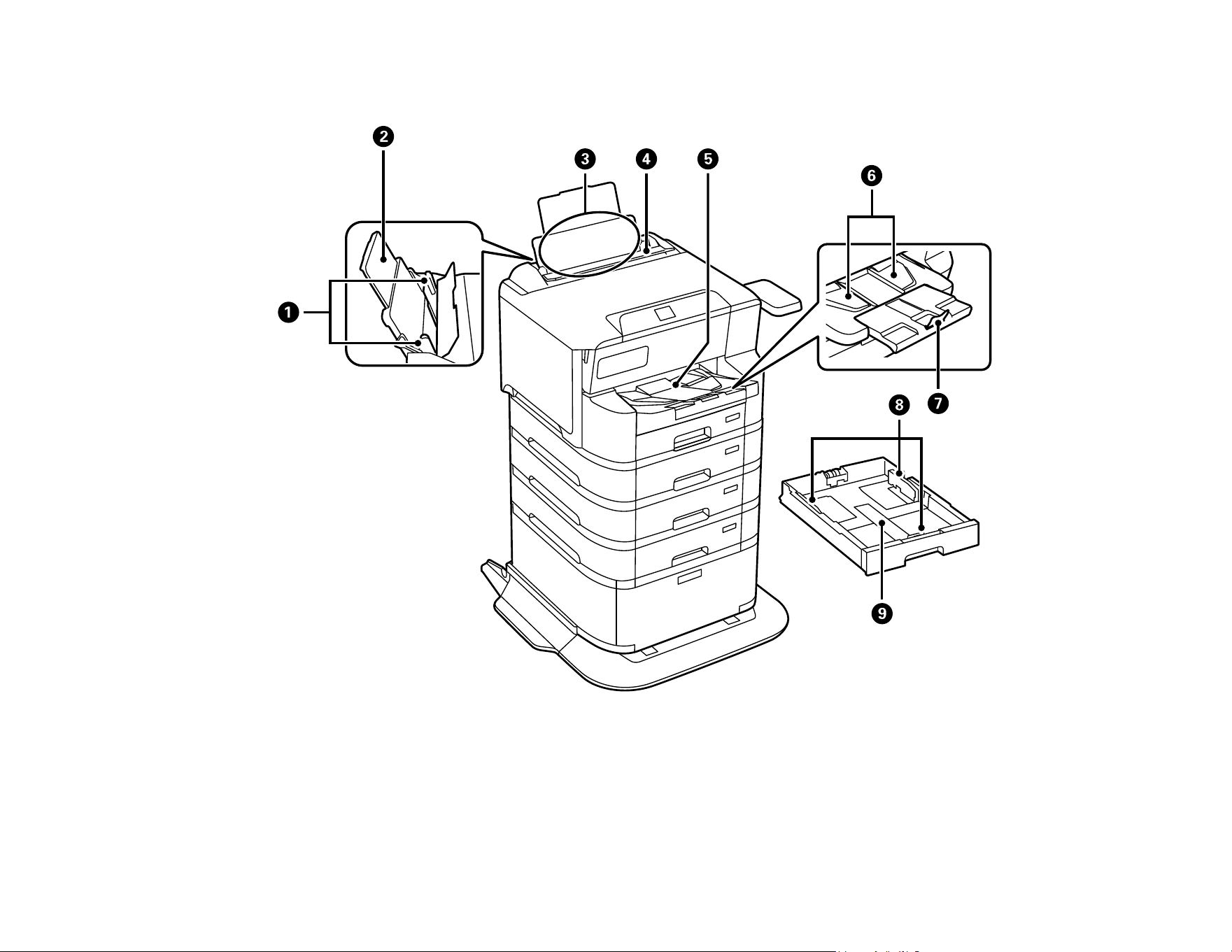

Product Parts - Front ..................................................................................................................... 35
Product Parts - Inside .................................................................................................................... 37
Product Parts - Back...................................................................................................................... 38
Using the Control Panel ..................................................................................................................... 39
Control Panel Buttons and Lights .................................................................................................. 39

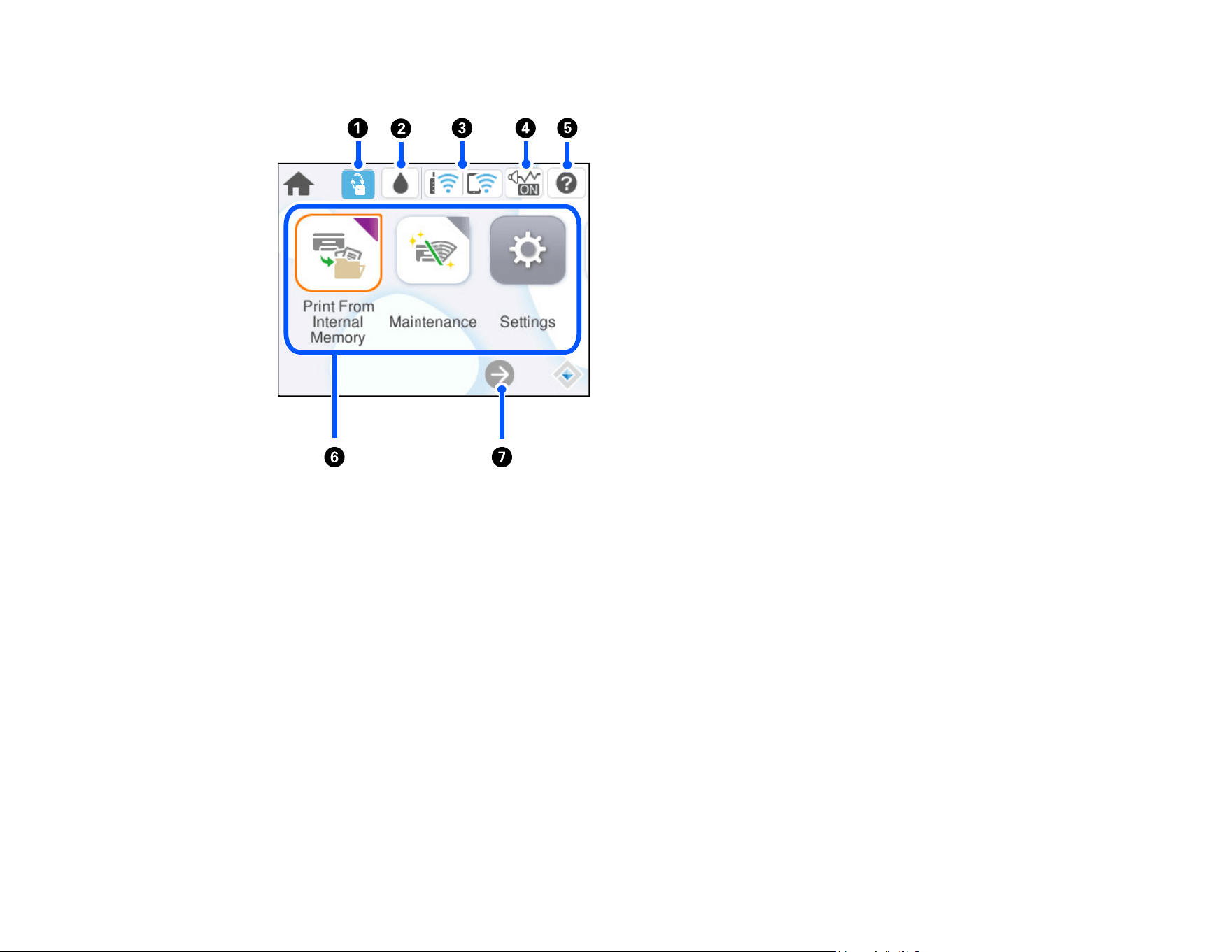

Guide to the Home Screen........................................................................................................ 41
Status Icon Information ............................................................................................................. 41
Changing LCD Screen Language.................................................................................................. 42
Selecting the Date and Time ......................................................................................................... 43
Setting a Password and Locking the Control Panel ....................................................................... 43

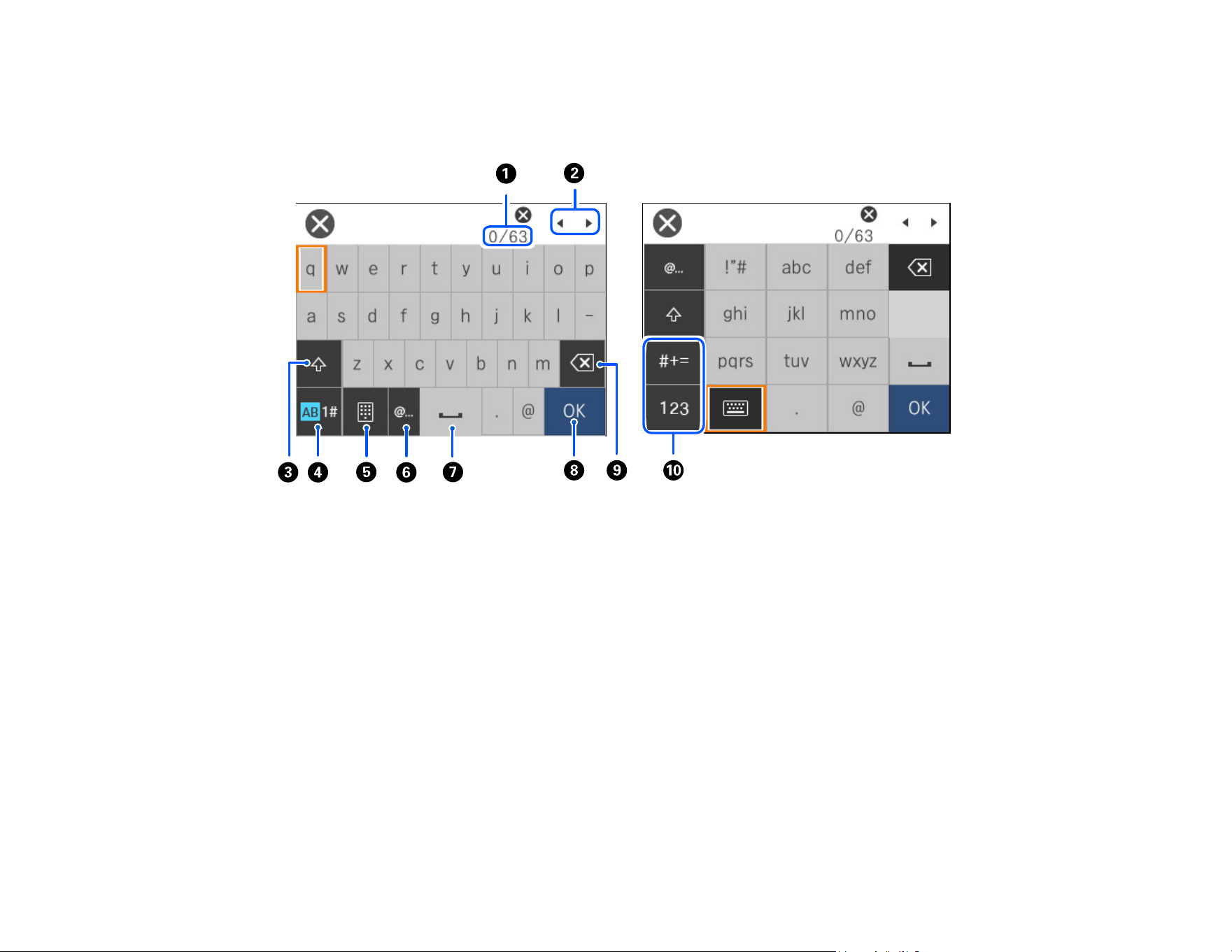

Entering Characters on the LCD Screen................................................................................... 45
Adjusting the Screen Brightness.................................................................................................... 46
Turning Off the Operation Time Out Setting .................................................................................. 46
Preventing PC Connection via USB .............................................................................................. 46
Power Off and Sleep Timers .............................................................................................................. 47
Changing the Sleep Timer Settings ............................................................................................... 47
Changing the Power Off Timer Settings ........................................................................................ 47
Epson Connect Solutions for Smartphones, Tablets, and More ......................................................... 47
Setting Up Epson Connect Services.............................................................................................. 48
4
Using Epson Email Print ............................................................................................................... 48
Using Epson Remote Print ........................................................................................................... 49
Using the Epson Smart Panel Mobile App.......................................................................................... 49
Using AirPrint .................................................................................................................................... 50
Using the Mopria Print Service .......................................................................................................... 51
Setting Up Printing on a Chromebook ................................................................................................ 51
Android Printing Using the Epson Print Enabler ................................................................................ 51
Voice-activated Printing ..................................................................................................................... 52
Wi-Fi or Wired Networking........................................................................................................................ 53
Network Security Recommendations ................................................................................................. 53

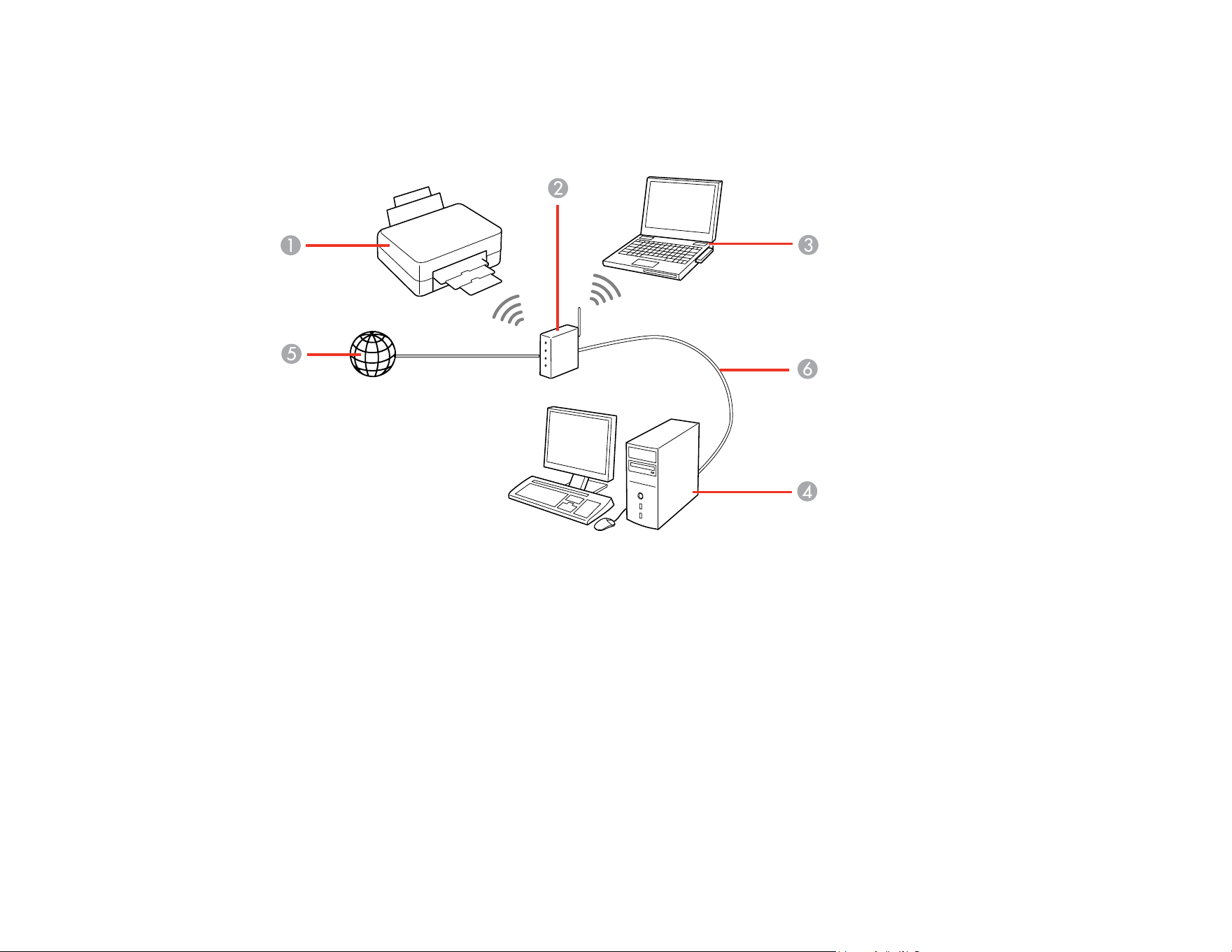

Wi-Fi Infrastructure Mode Setup......................................................................................................... 54
Selecting Wireless Network Settings from the Control Panel ........................................................ 55

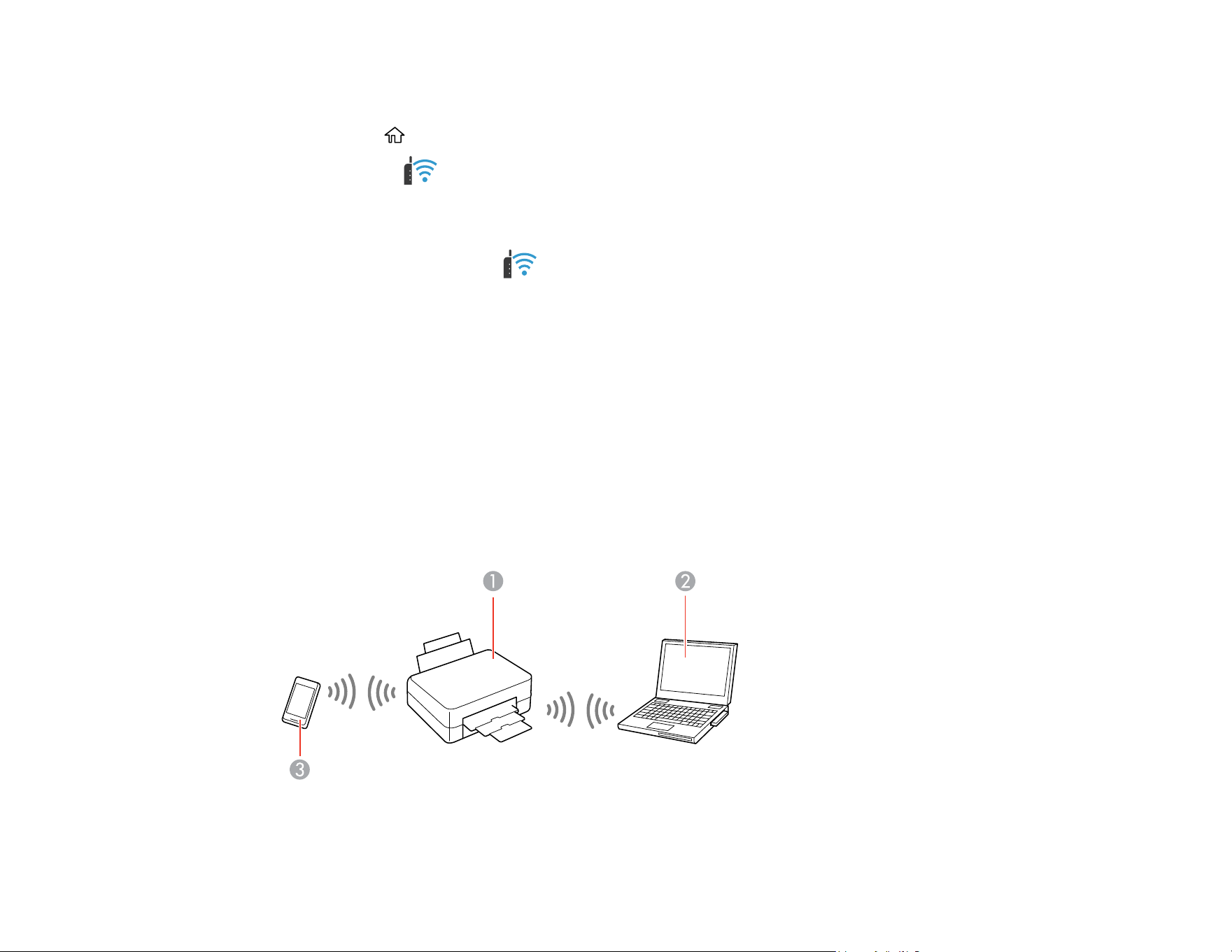

Wi-Fi Direct Mode Setup .................................................................................................................... 56
Enabling Wi-Fi Direct Mode........................................................................................................... 57
Wi-Fi Protected Setup (WPS)............................................................................................................. 58
Using WPS to Connect to a Network ............................................................................................. 58
Printing a Network Status Sheet......................................................................................................... 59
Changing or Updating Network Connections ..................................................................................... 59
Changing a USB Connection to a Wi-Fi Connection...................................................................... 59

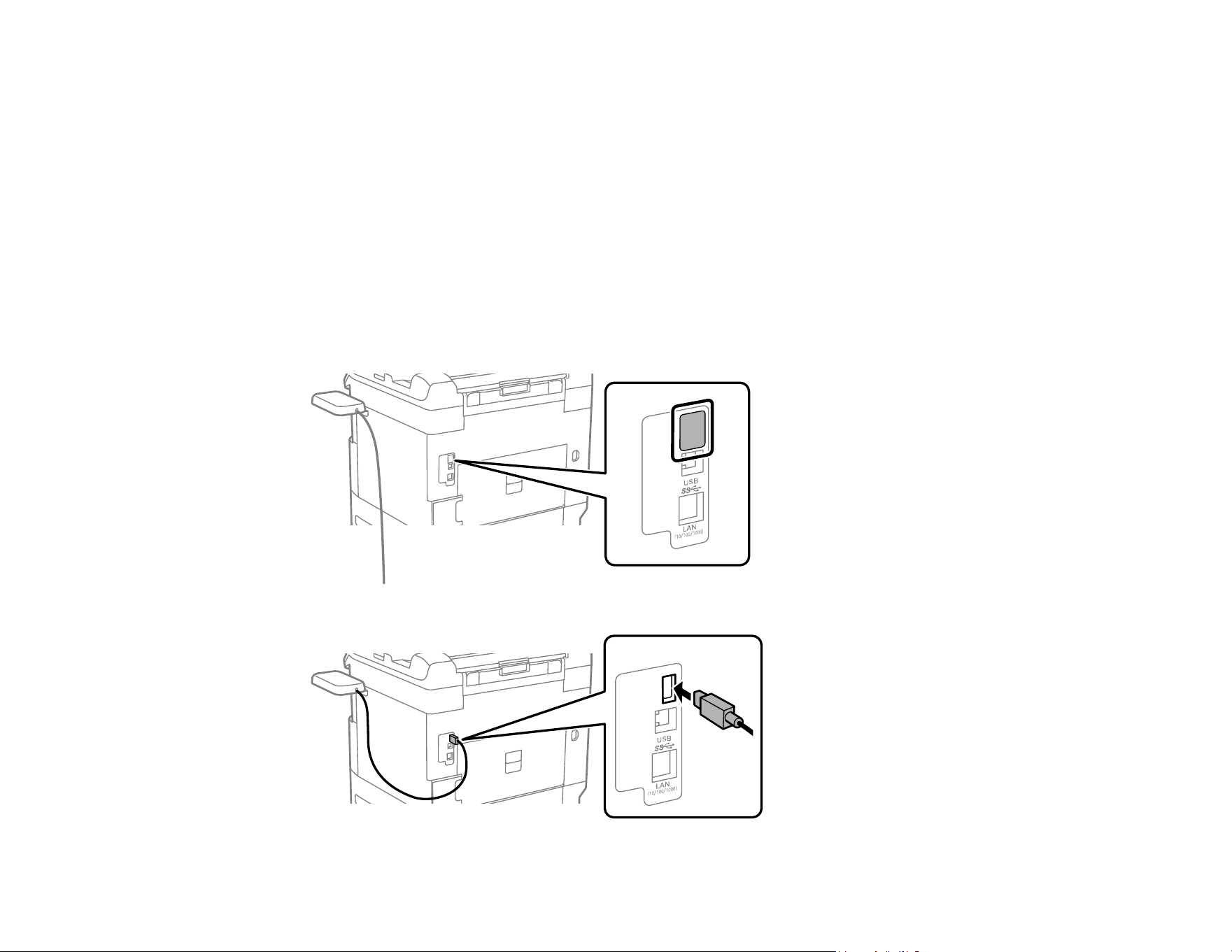

Changing a Wi-Fi Connection to a Wired Network Connection...................................................... 59
Connecting to a New Wi-Fi Router ................................................................................................ 60
Disabling Wi-Fi Features ............................................................................................................... 60
Enabling Epson Universal Print Driver (PCL) or PostScript Printing.................................................... 62

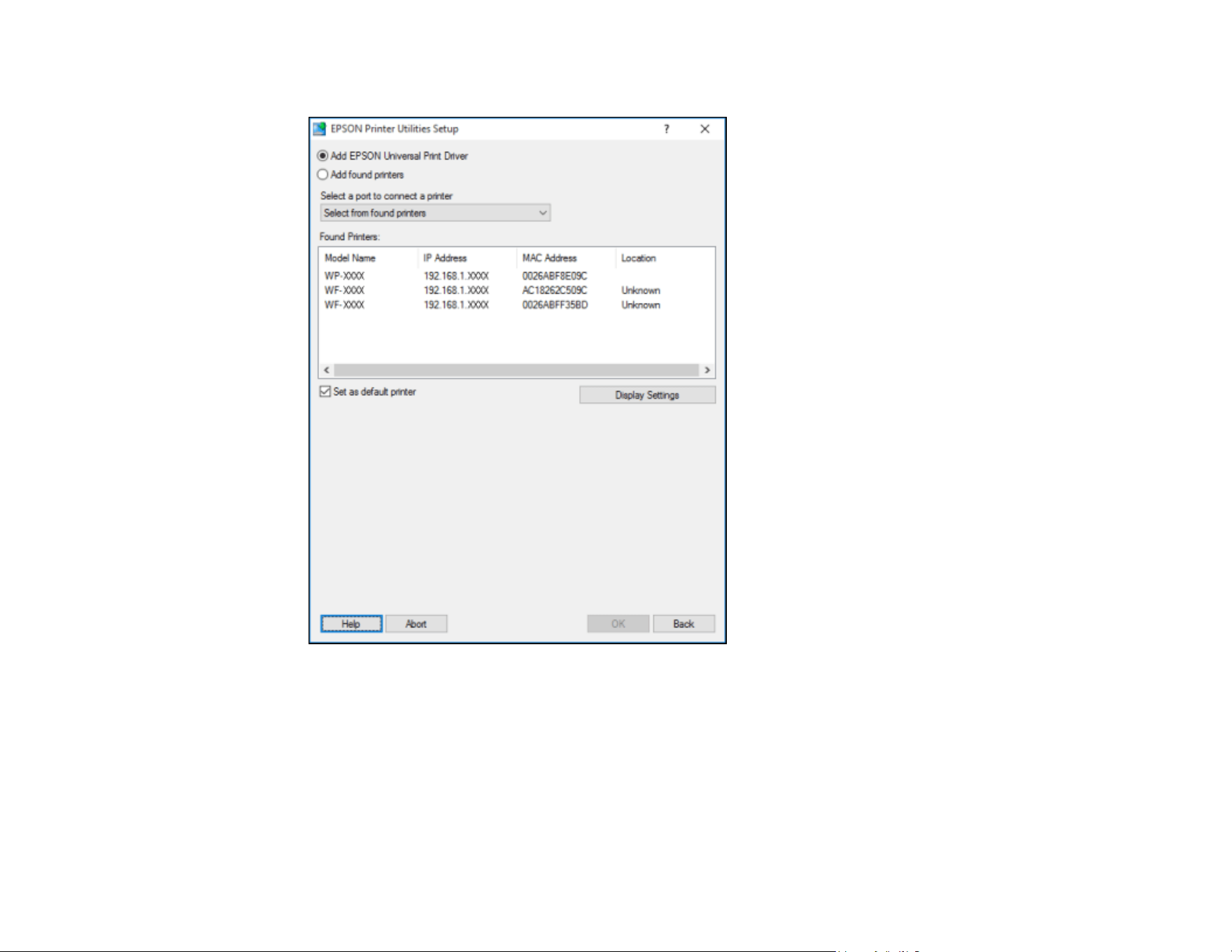

Installing the Epson Universal Print Driver - Windows ....................................................................... 62
Installing the PostScript (PS3) Printer Software - Windows ............................................................... 66
Installing the PostScript (PS3) Printer Software - Mac ....................................................................... 66
Selecting PDL (Page Description Language) Settings ....................................................................... 67
PDL Print Configuration Options.................................................................................................... 67
Selecting Printer Language and Interface Settings ............................................................................ 70
Printing Language and Interface Options ...................................................................................... 70
Printing a PCL or PS (PostScript) Font List ........................................................................................ 71
Loading Paper ........................................................................................................................................... 72

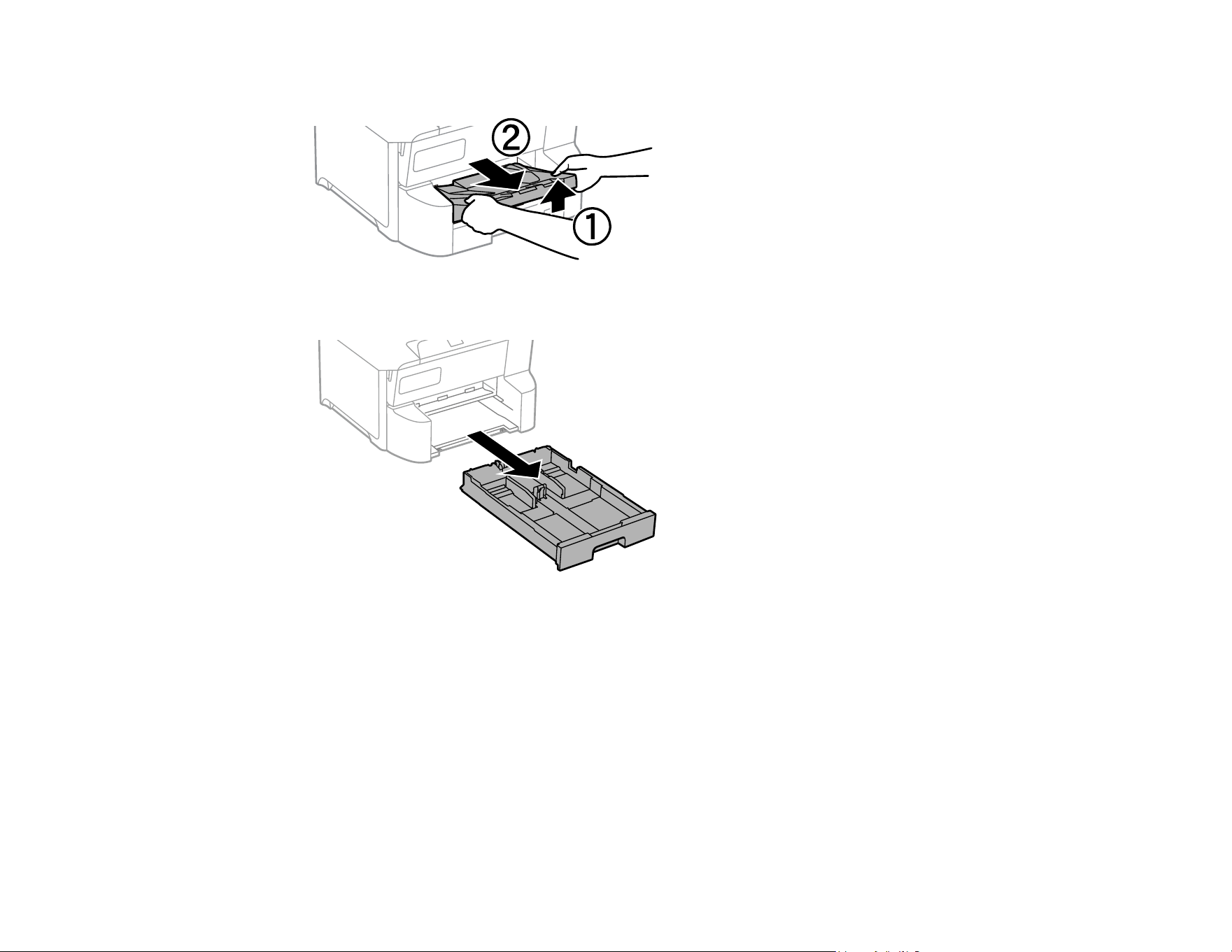

Loading Paper in the Cassette and Rear Paper Feed Slot ................................................................. 72
5
Paper Loading Capacity..................................................................................................................... 74
Double-sided Printing Paper Types.................................................................................................... 76
Compatible Epson Papers.................................................................................................................. 77
Paper or Media Type Settings - Printing Software.............................................................................. 80
Selecting the Paper Settings for Each Source - Control Panel ........................................................... 80
Paper Type Settings - Control Panel ............................................................................................. 81
Selecting Default Paper Settings - Administrator................................................................................ 82
Selecting the Default Printer Settings ............................................................................................ 82
Paper Source Settings Options................................................................................................. 83
Selecting the Universal Print Settings............................................................................................ 83
Universal Print Settings Options ............................................................................................... 84
Printing from a Computer ......................................................................................................................... 85
Printing with the Standard Epson Printer Software - Windows ........................................................... 85

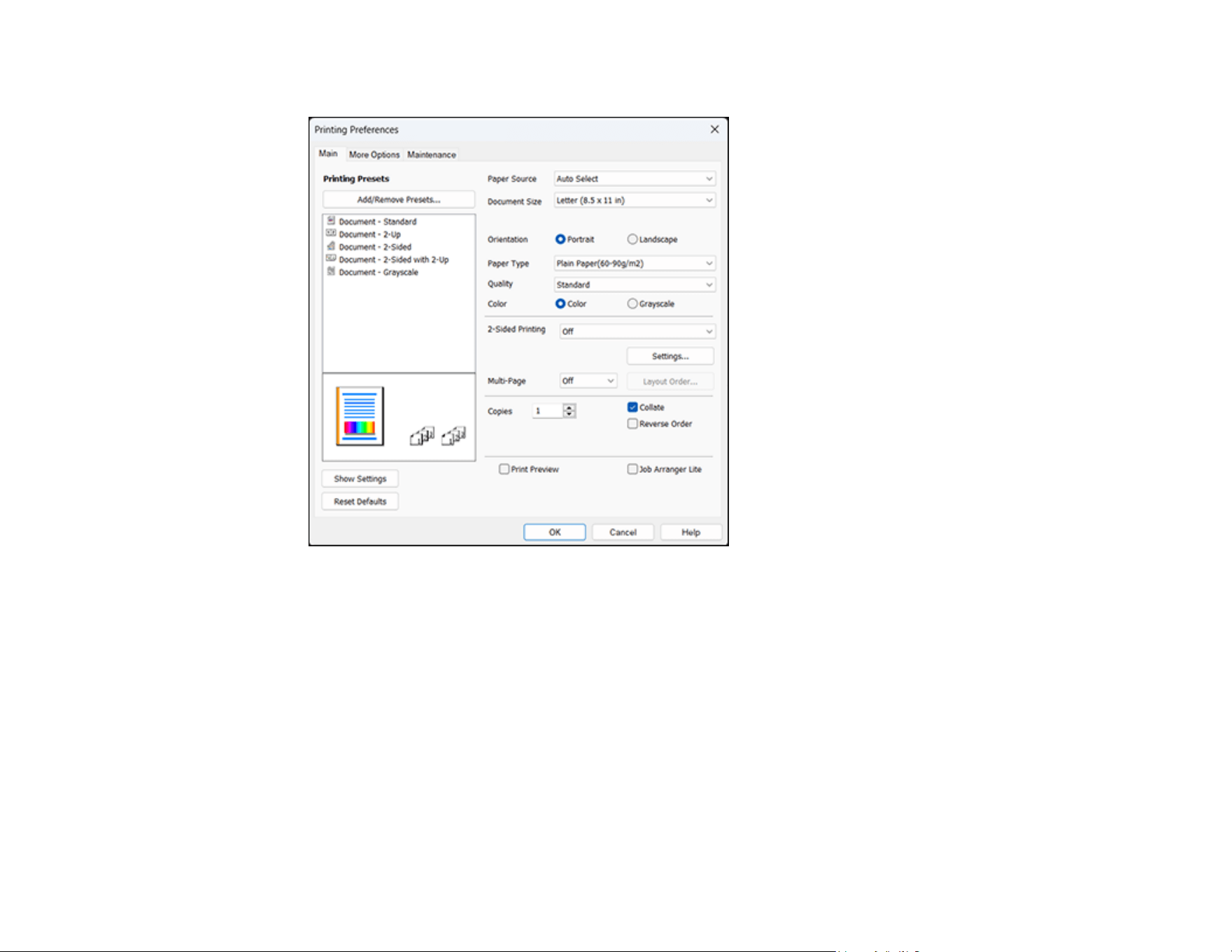

Selecting Basic Print Settings - Windows ...................................................................................... 86
Paper Source Options - Windows ............................................................................................. 88
Print Quality Options - Windows ............................................................................................... 89

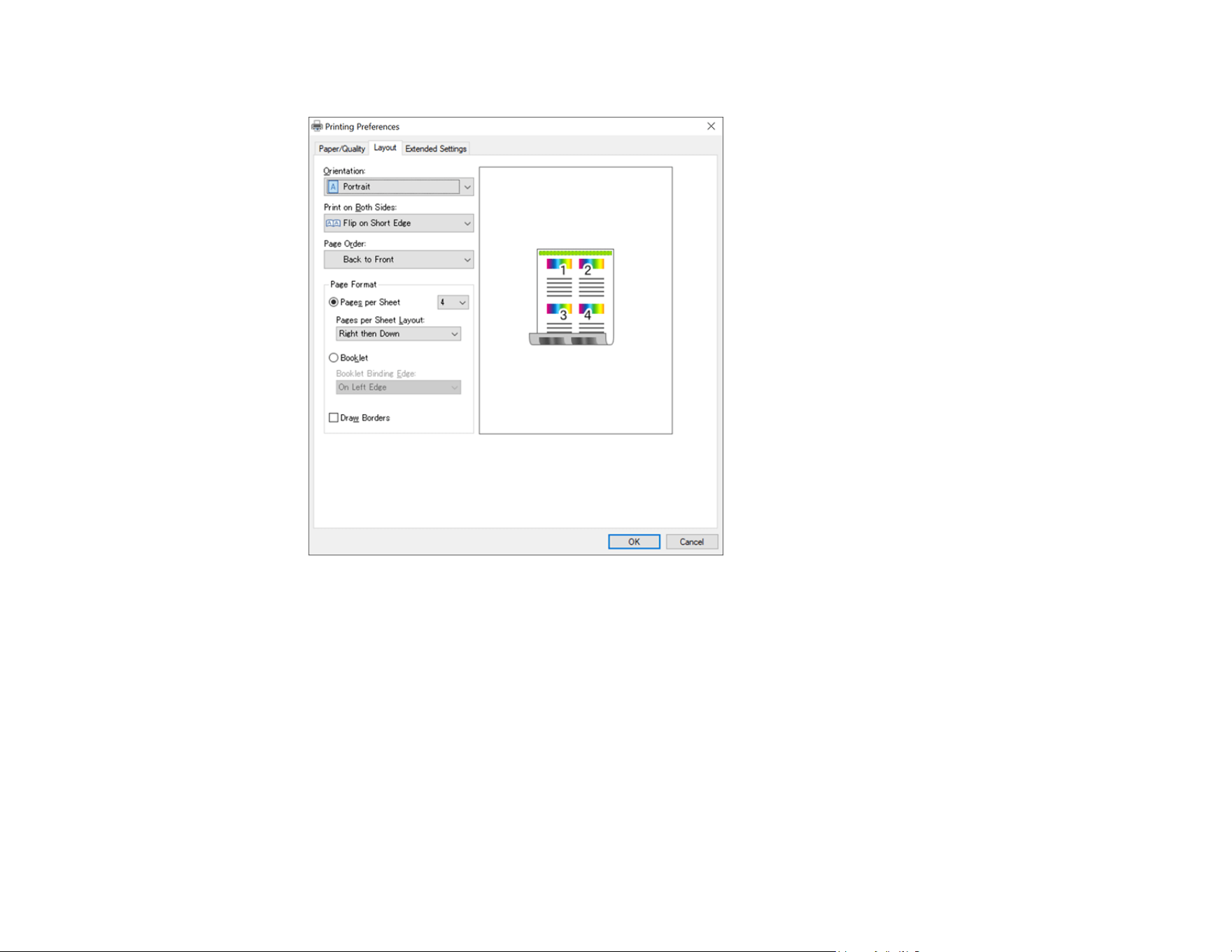

Multi-Page Printing Options - Windows..................................................................................... 89
Selecting Double-sided Printing Settings - Windows ..................................................................... 90
Double-sided Printing Options - Windows................................................................................. 92

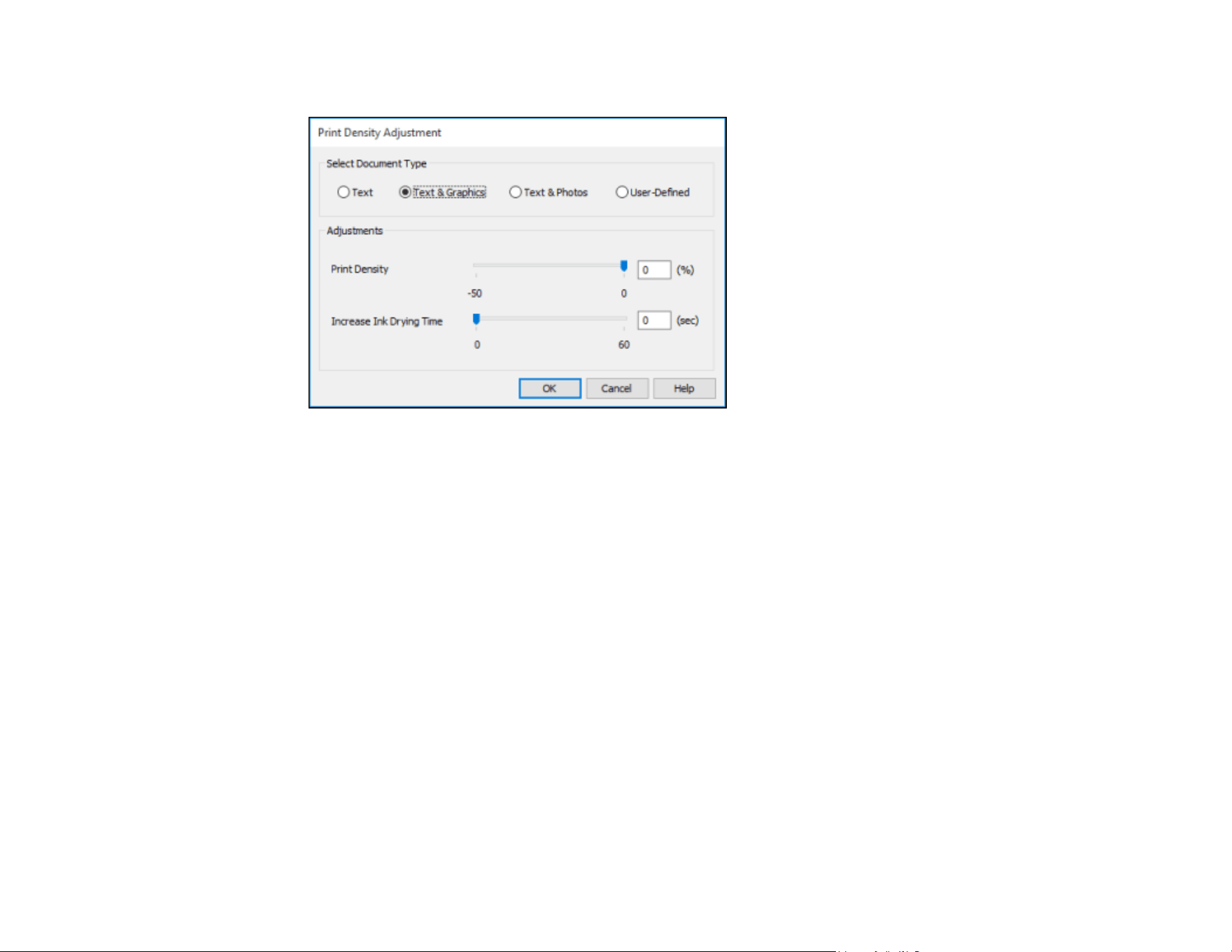

Print Density Adjustments - Windows ....................................................................................... 93
Selecting Additional Layout and Print Options - Windows ............................................................. 93

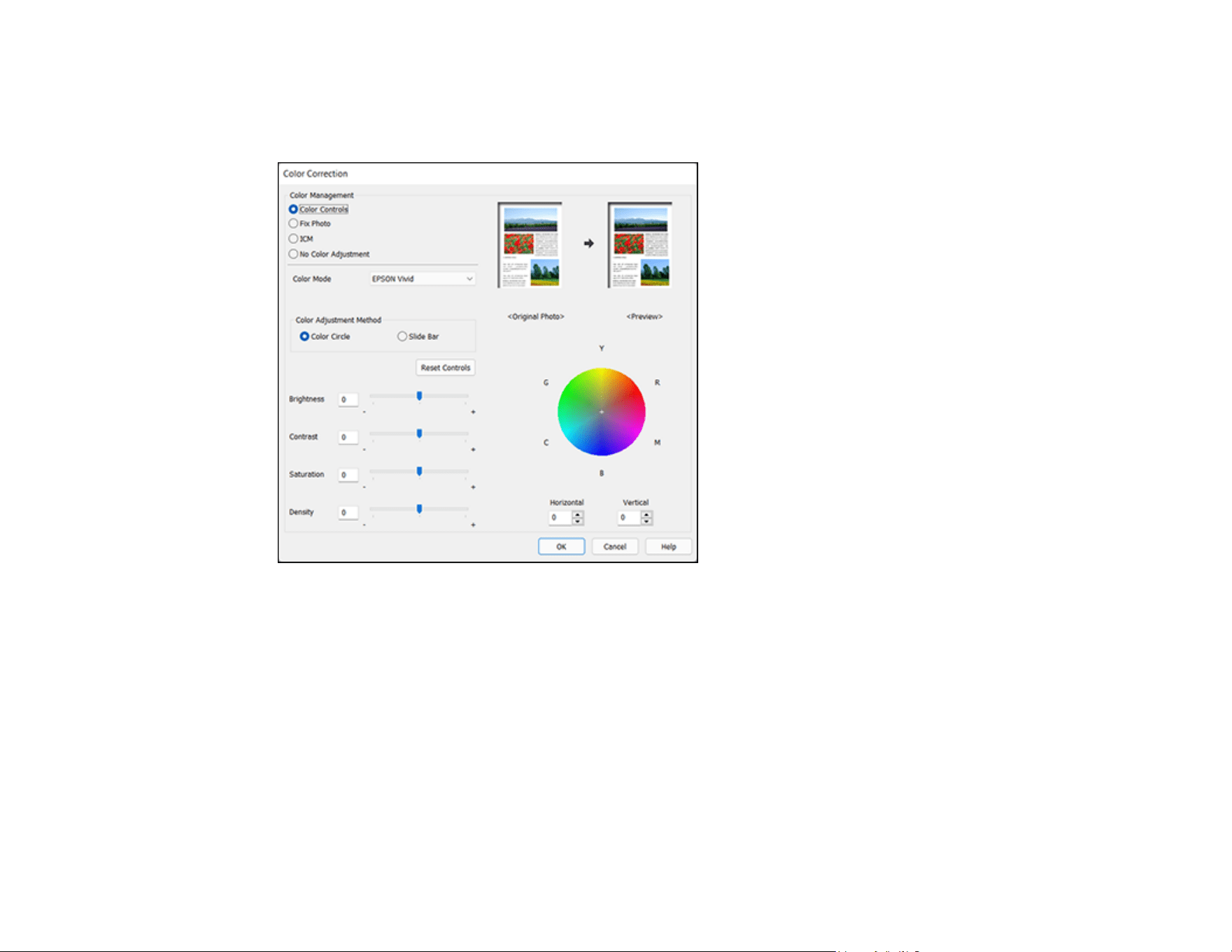

Custom Color Correction Options - Windows ........................................................................... 95
Image Options and Additional Settings - Windows.................................................................... 96
Header/Footer Settings - Windows ........................................................................................... 97

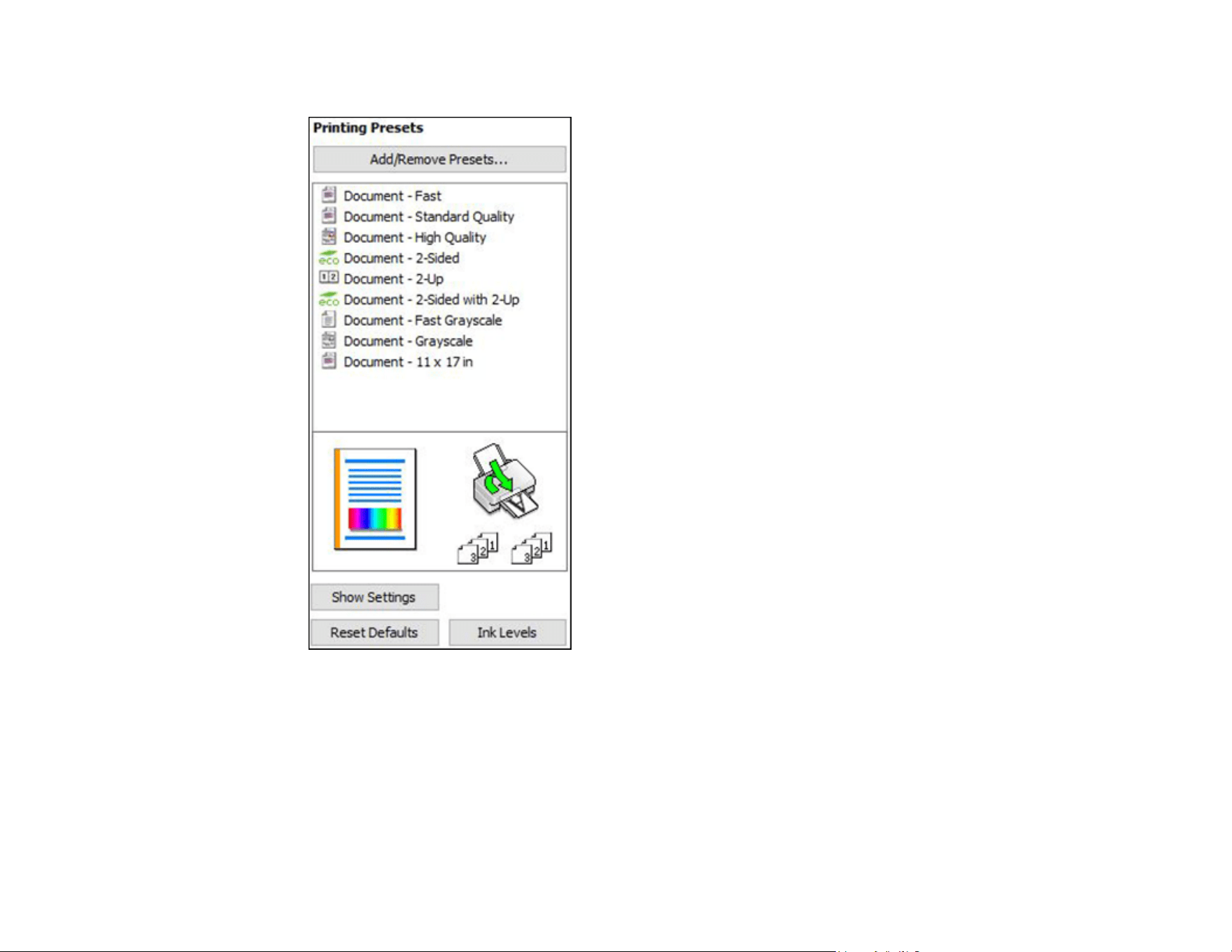

Selecting a Printing Preset - Windows........................................................................................... 99
Selecting Extended Settings - Windows ...................................................................................... 101
Extended Settings - Windows ................................................................................................. 102

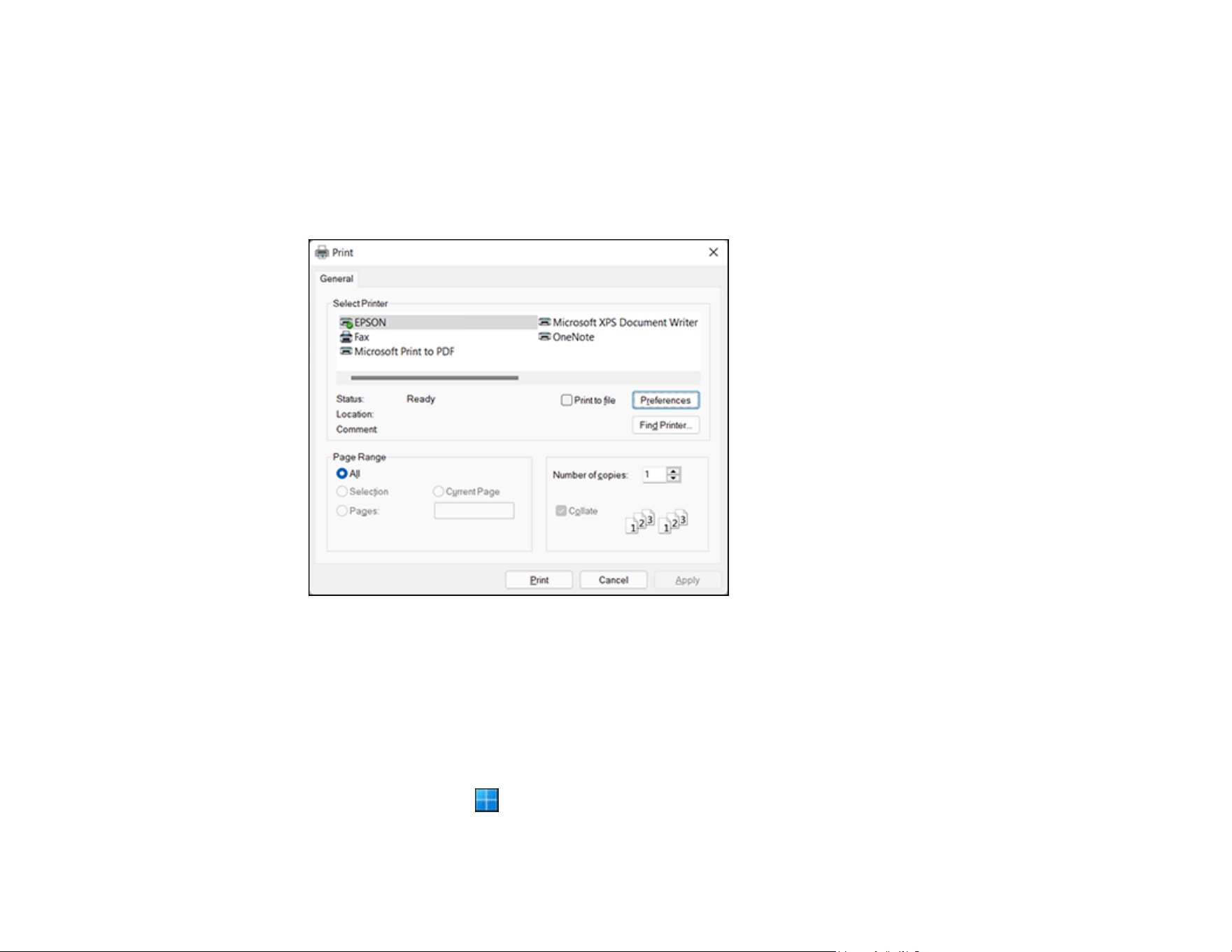

Printing Your Document or Photo - Windows............................................................................... 104

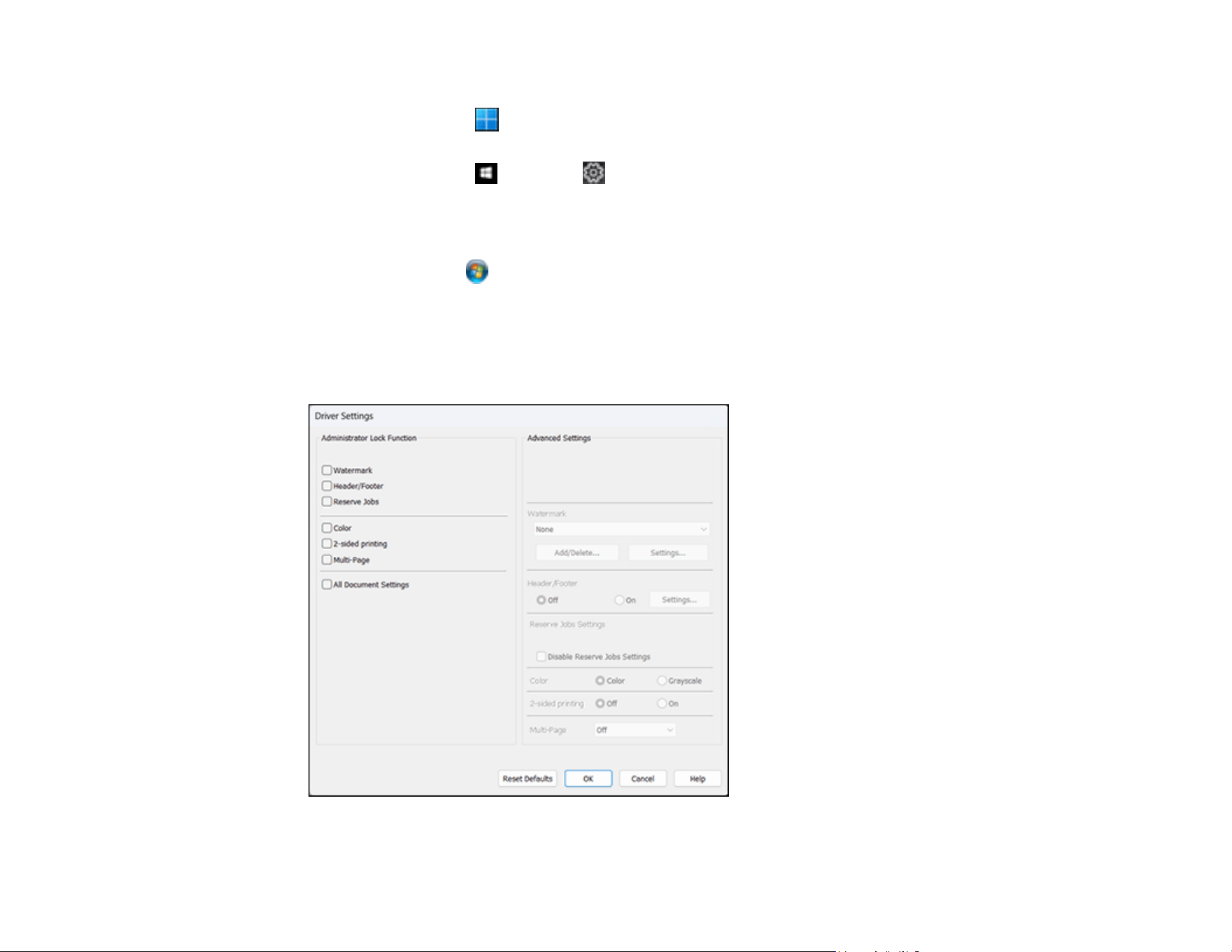

Locking Printer Settings - Windows ............................................................................................. 104
Locked Setting Options........................................................................................................... 106
Entering a User ID and Password for Printing ............................................................................. 107
Selecting Default Print Settings - Windows.................................................................................. 109
Changing the Language of the Printer Software Screens ....................................................... 110
6

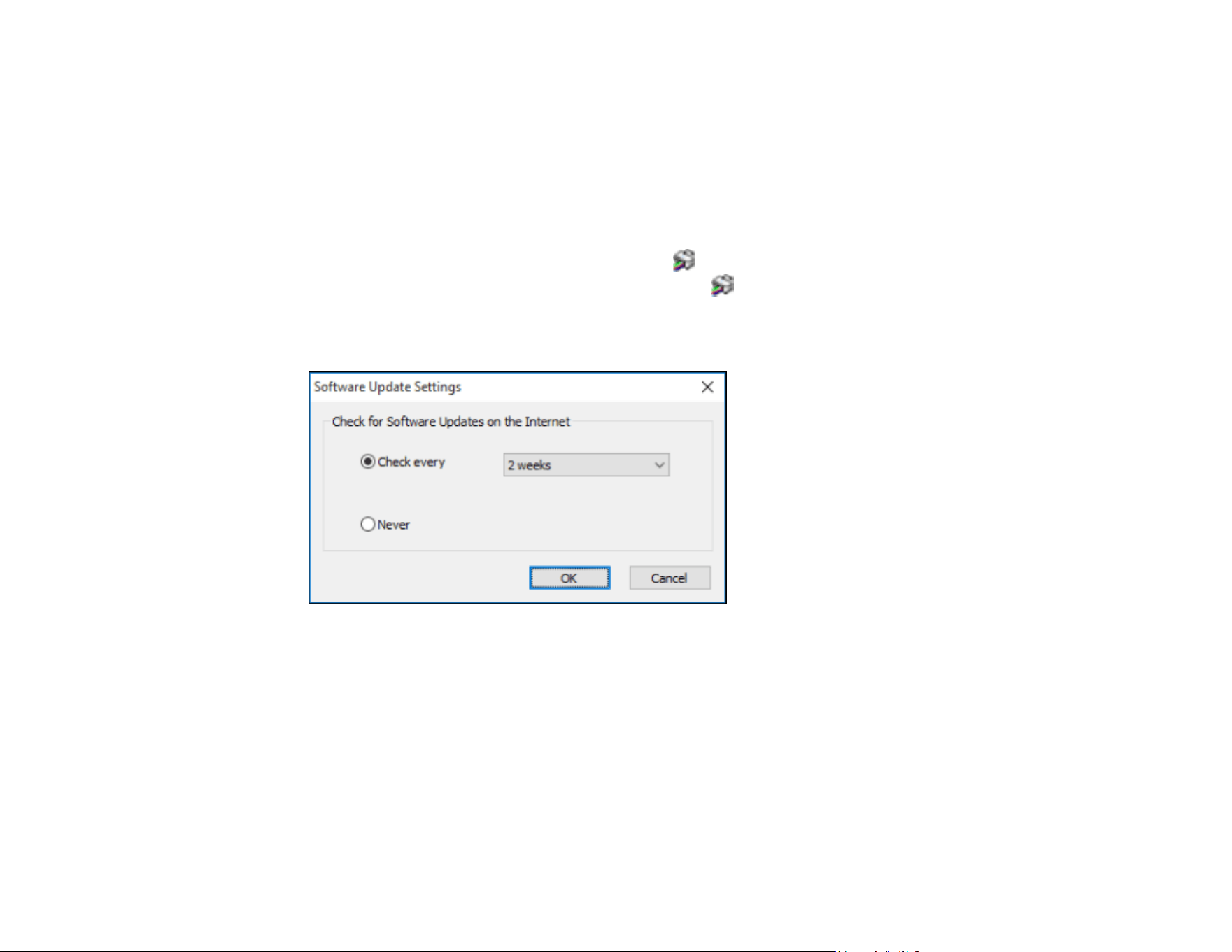

Changing Automatic Update Options .......................................................................................... 111
Printing with the Epson Standard Printer Software - Mac................................................................. 112

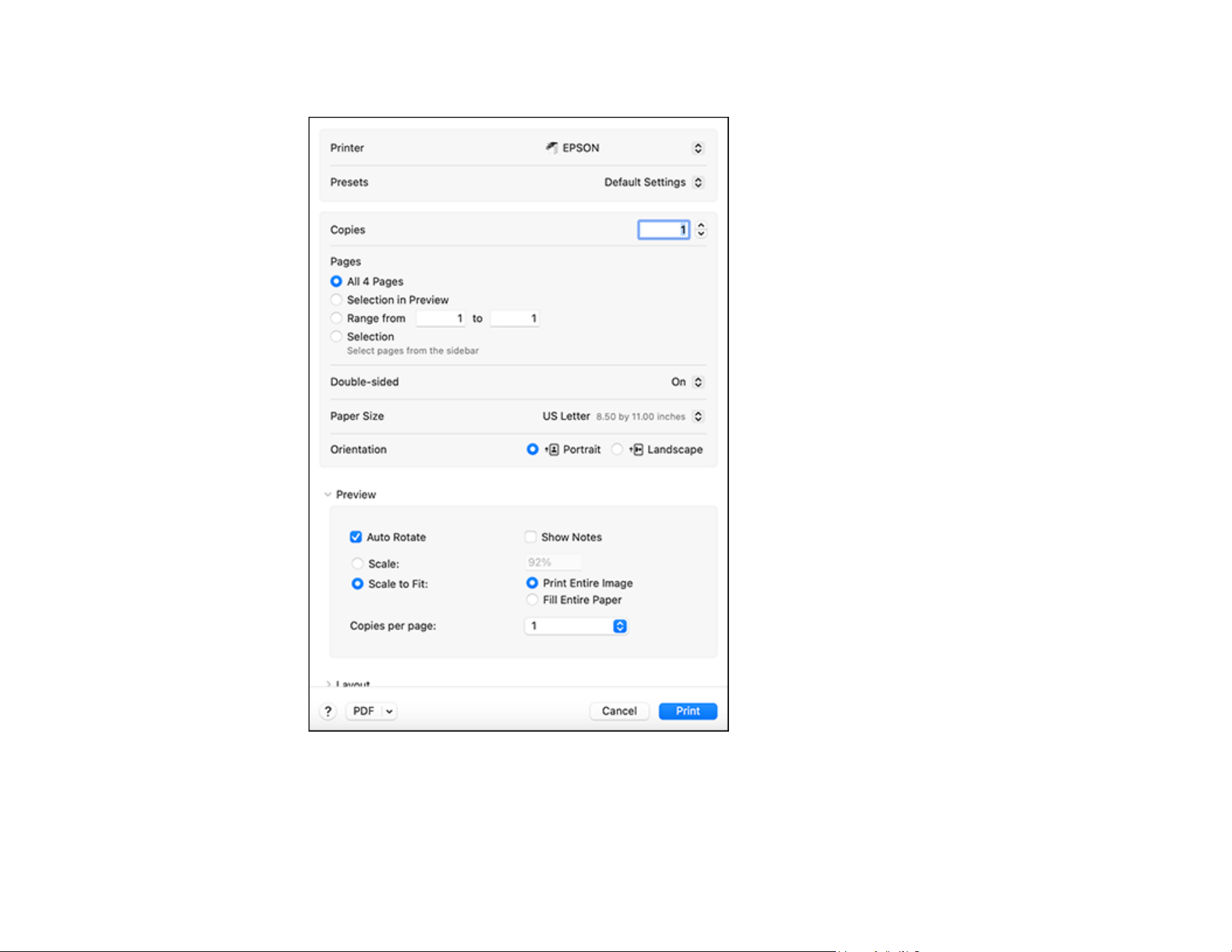

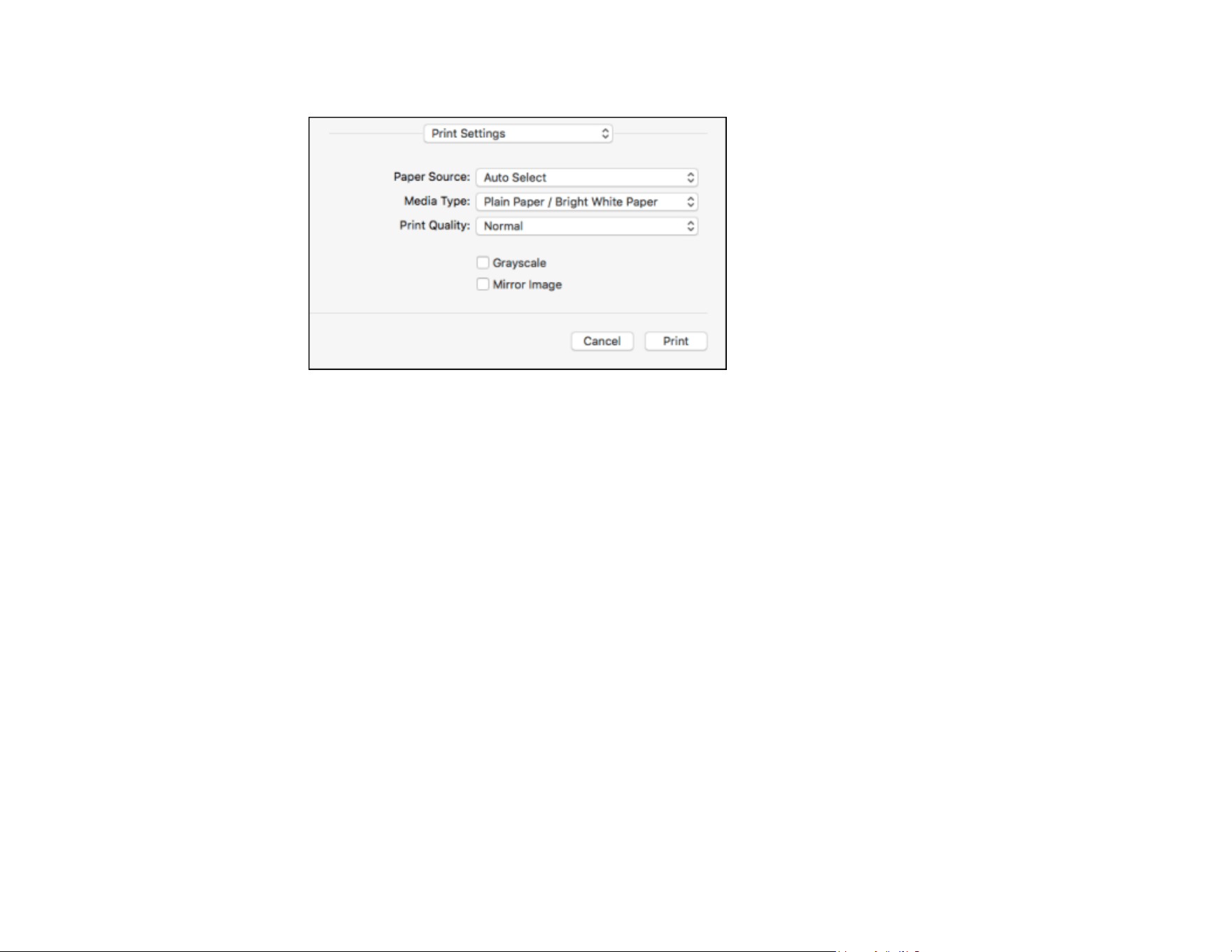

Selecting Basic Print Settings - Mac ........................................................................................... 112

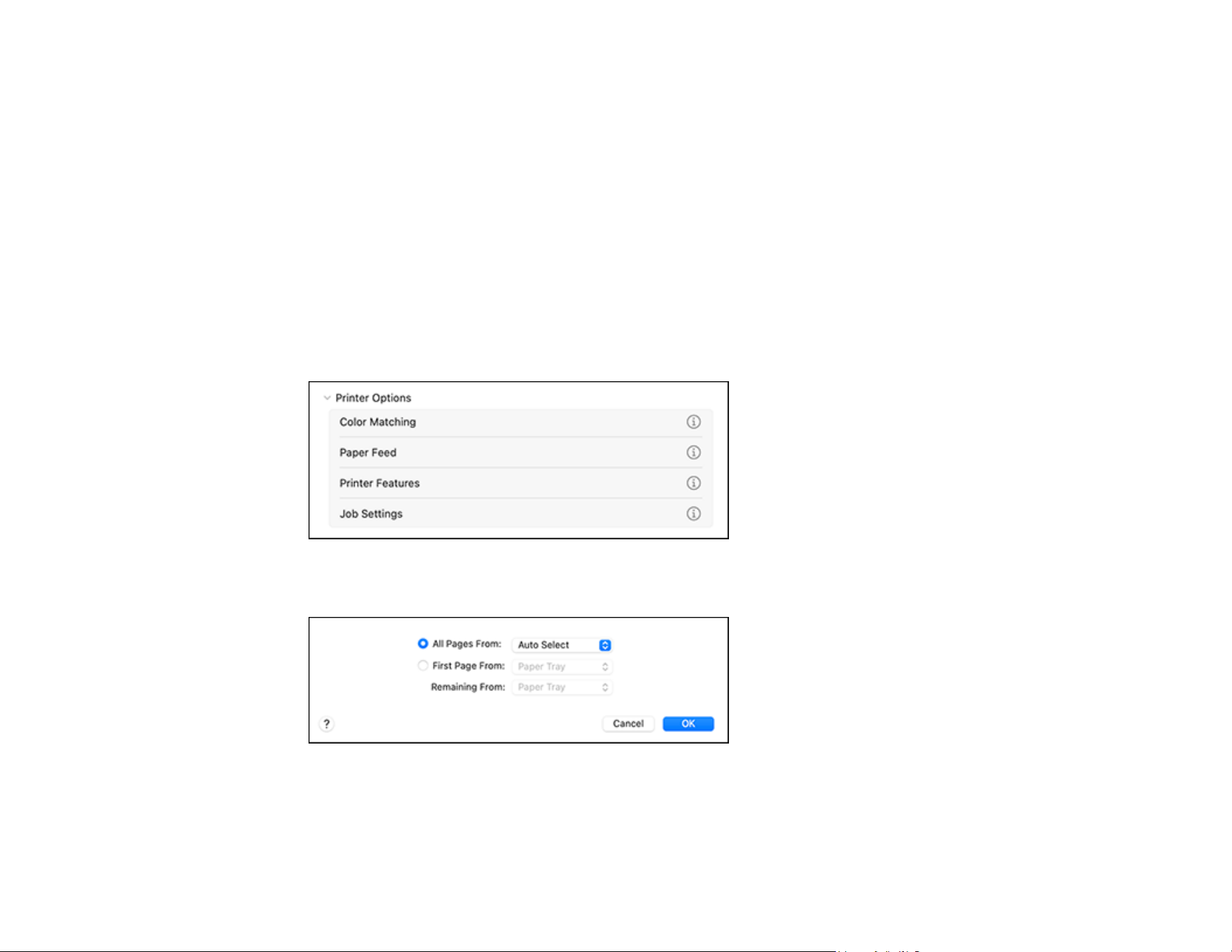

Paper Source Options - Mac................................................................................................... 115
Print Quality Options - Mac ..................................................................................................... 116
Print Options - Mac ................................................................................................................. 116

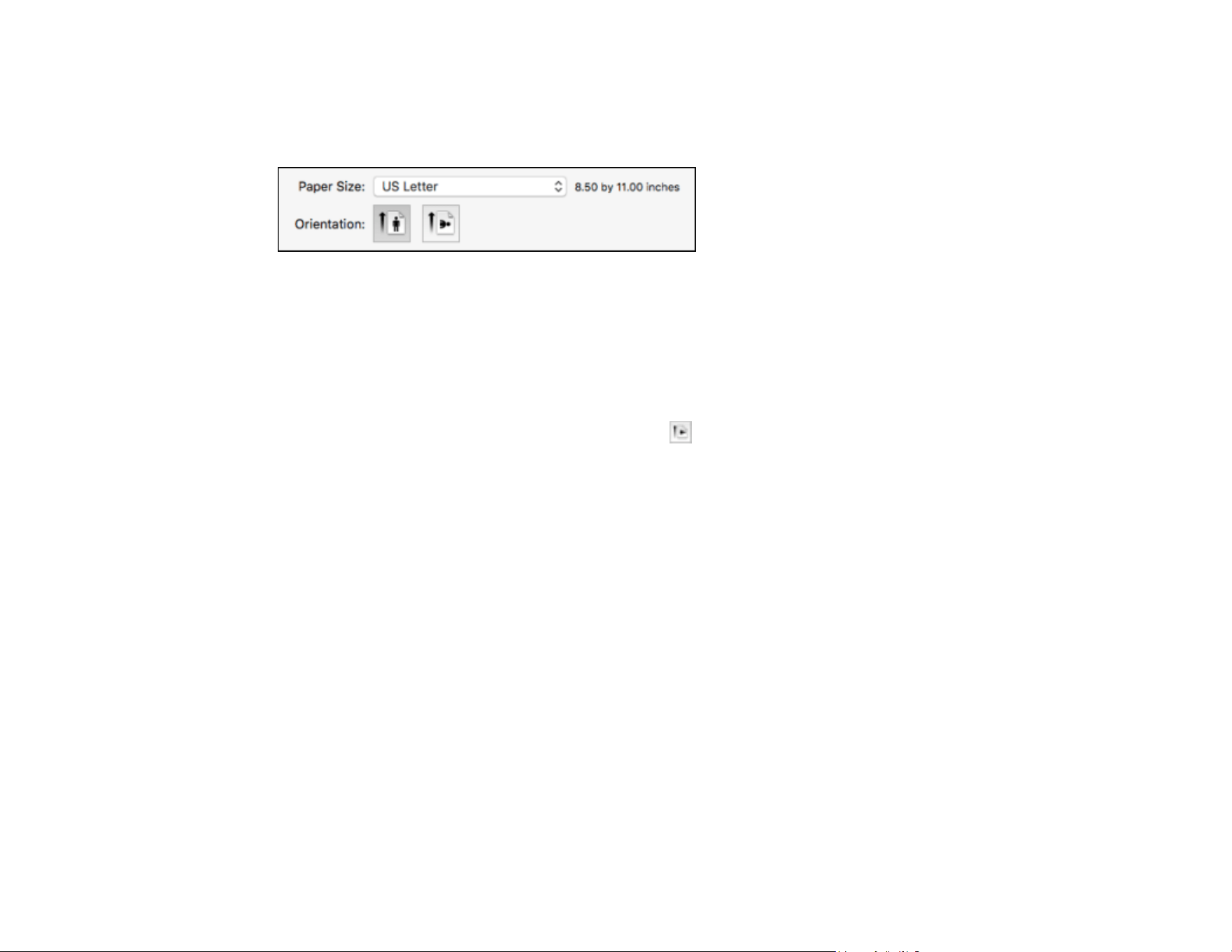

Selecting Page Setup Settings - Mac .......................................................................................... 117
Selecting Print Layout Options - Mac........................................................................................... 118
Selecting Double-sided Printing Settings - Mac........................................................................... 118

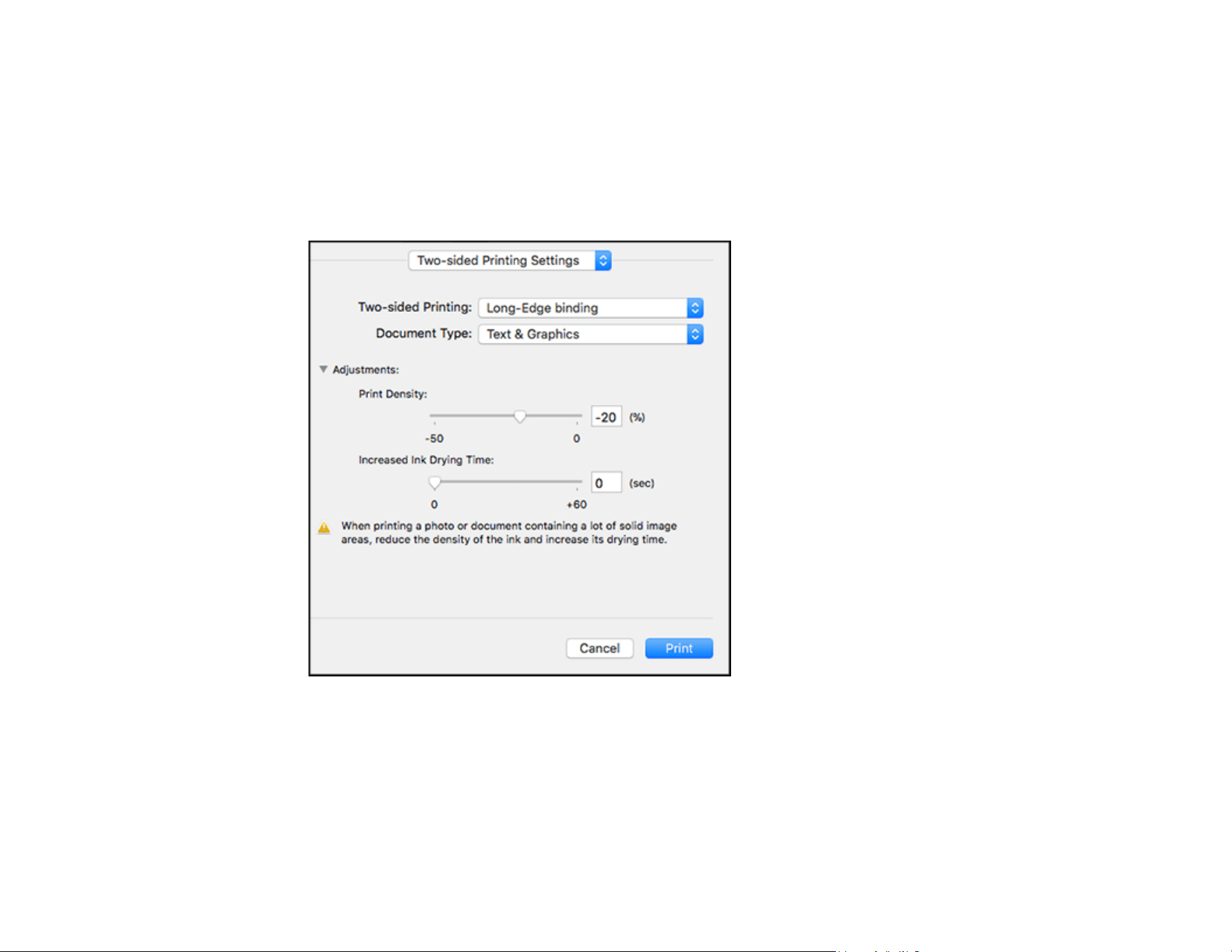

Double-sided Printing Options and Adjustments - Mac........................................................... 120
Managing Color - Mac ................................................................................................................ 120
Color Matching and Color Options - Mac ............................................................................... 121
Selecting Printing Preferences - Mac .......................................................................................... 122
Printing Preferences - Mac...................................................................................................... 123
Printing Your Document or Photo - Mac ...................................................................................... 124
Checking Print Status - Mac.................................................................................................... 125
Printing with the Epson Universal Print Driver - Windows................................................................. 125

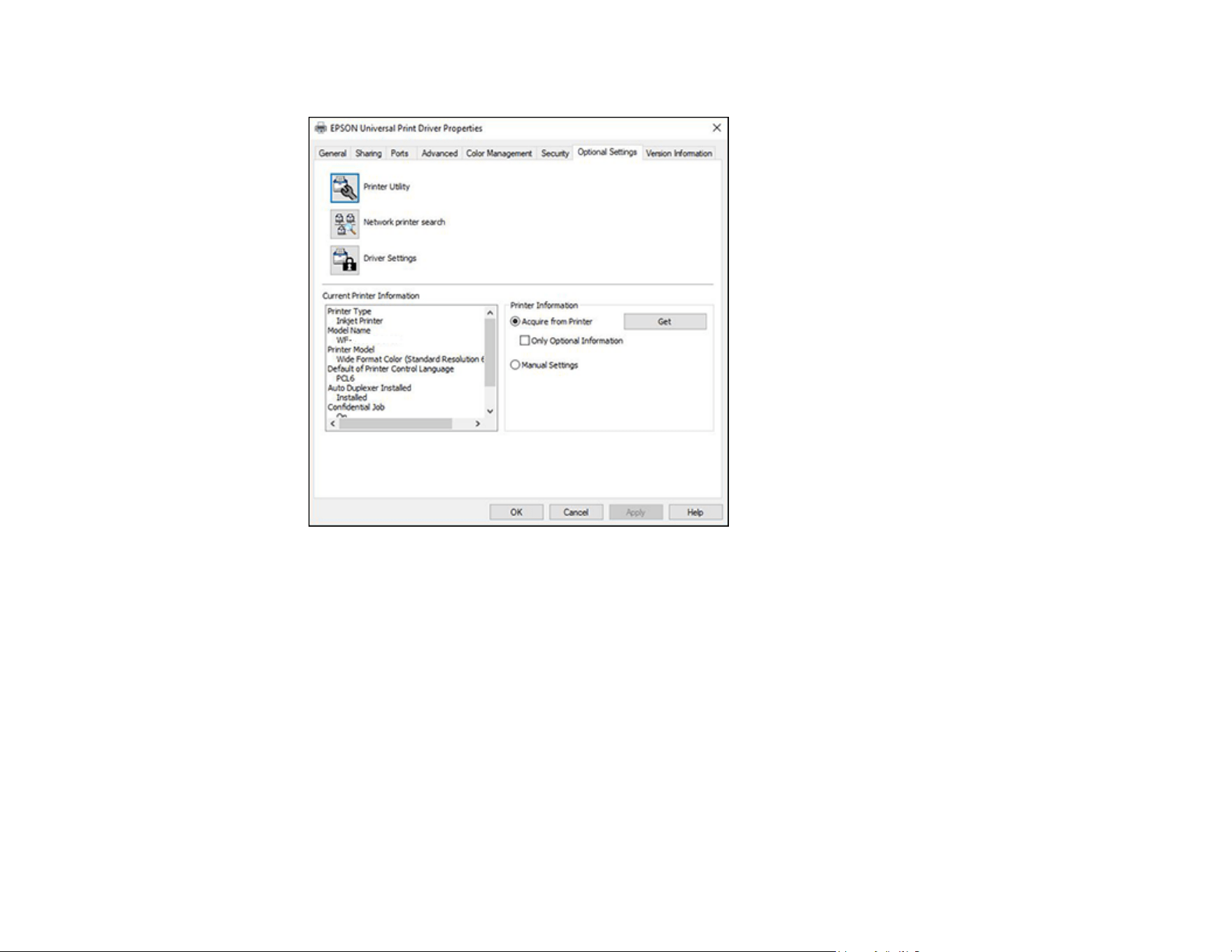

Synchronizing Printer Settings - Epson Universal Print Driver - Windows ................................... 126
Selecting Print Settings - Epson Universal Print Driver - Windows .............................................. 128
Selecting Default Print Settings - Epson Universal Print Driver - Windows.................................. 130
Locking Printer Settings - Epson Universal Print Driver - Windows ............................................. 131
Epson Universal Print Driver Locked Setting Options ............................................................. 133

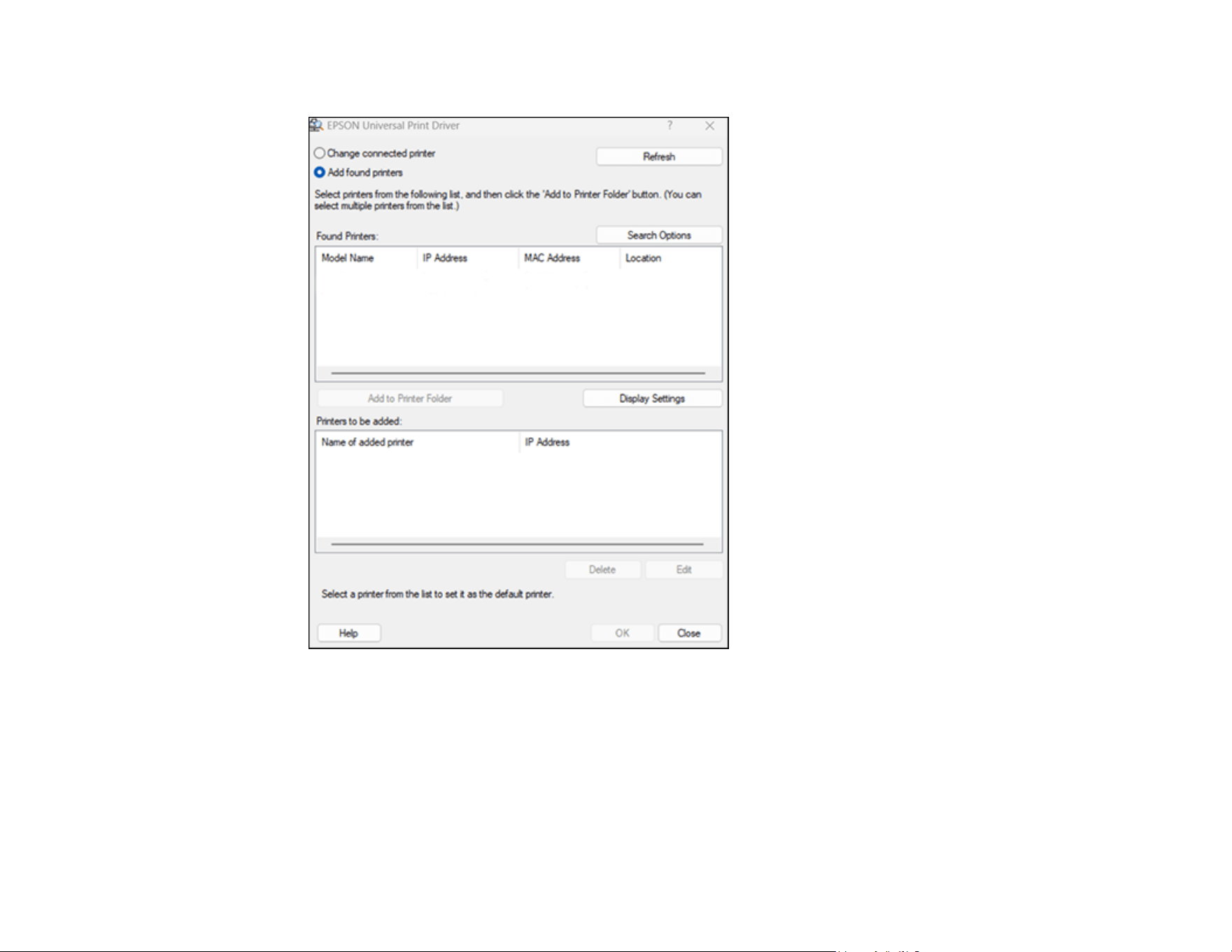

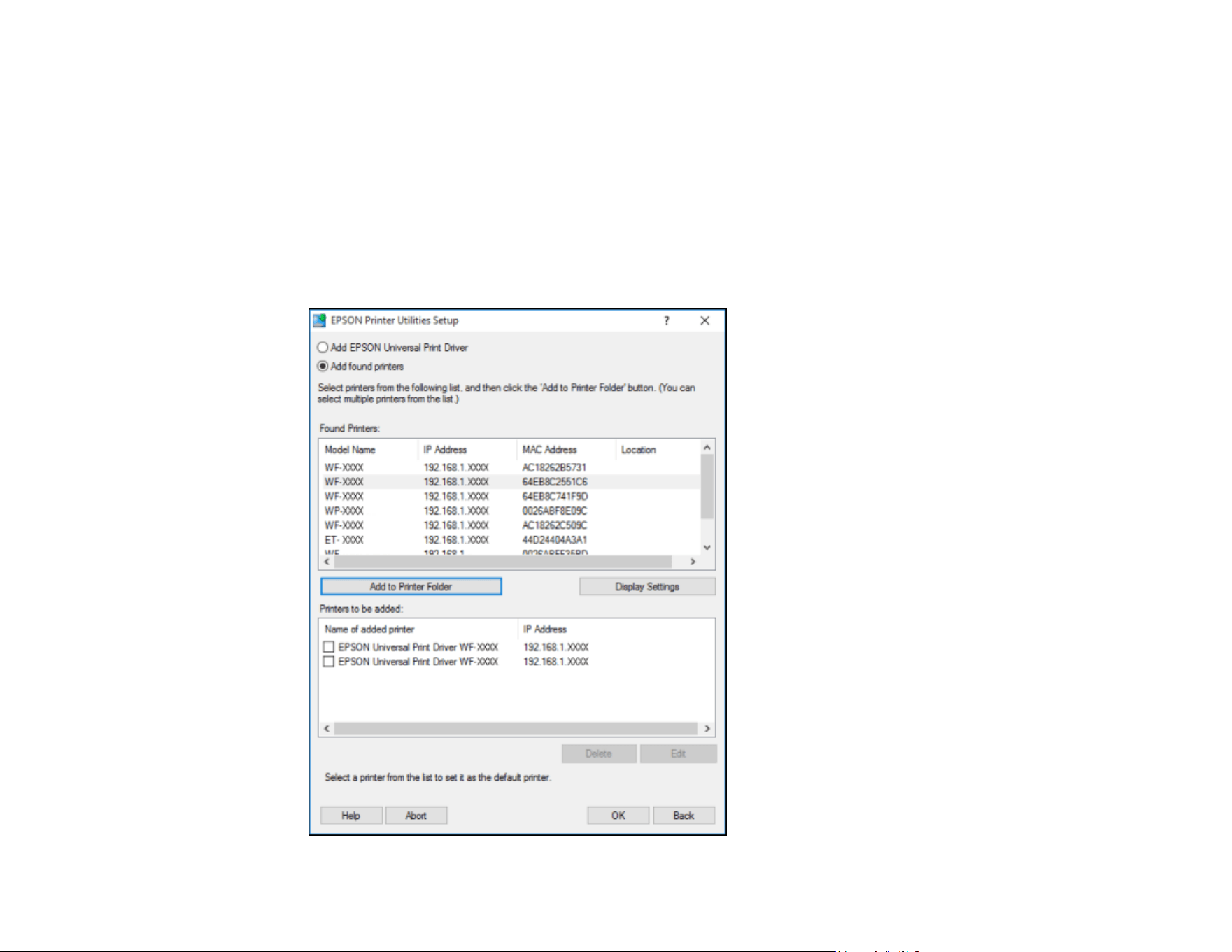

Adding Network Printers - Epson Universal Print Driver - Windows............................................. 134
Printing with the PostScript (PS3) Printer Software - Windows ........................................................ 137

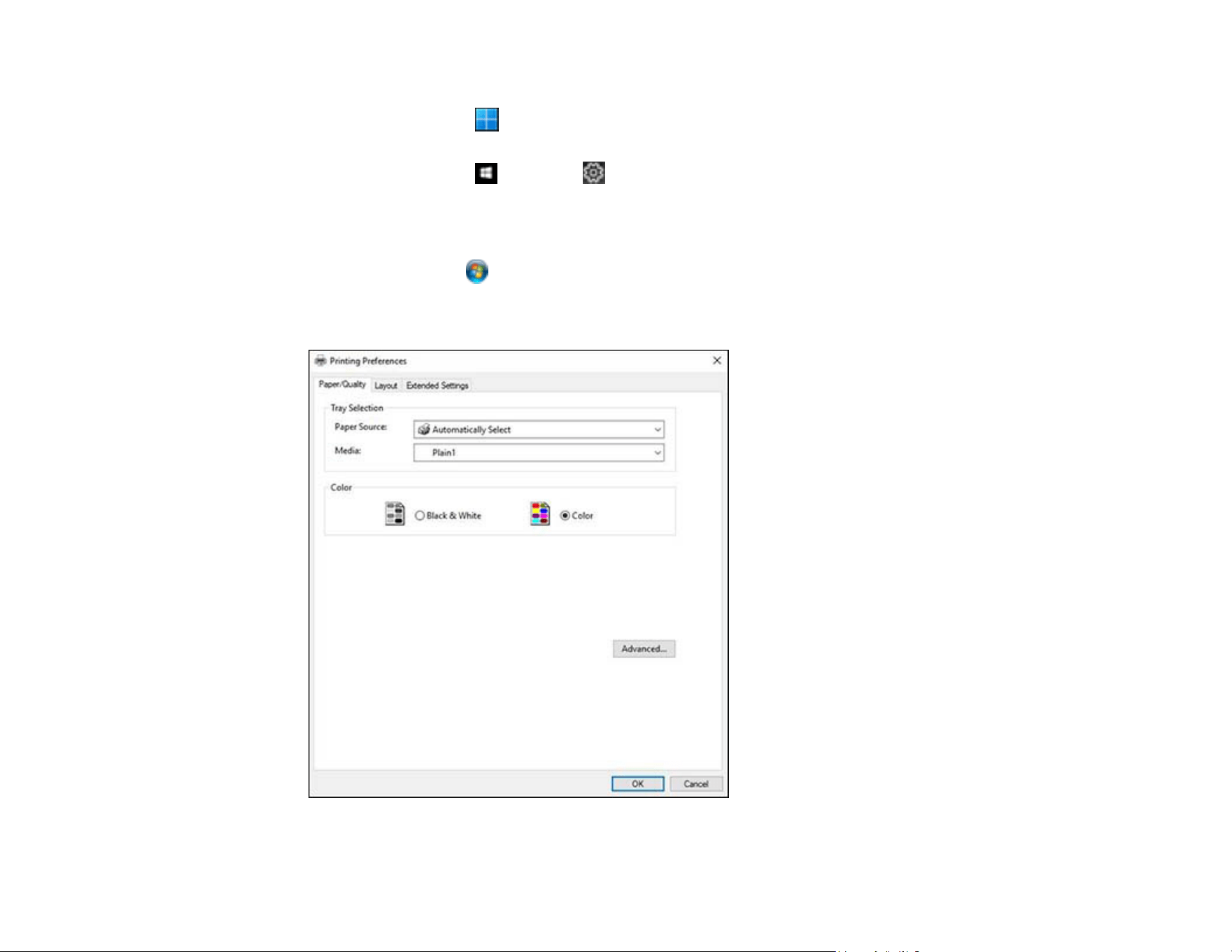

Selecting Print Settings - PostScript Printer Software - Windows ................................................ 137
Selecting Default Print Settings - PostScript Printer Software - Windows.................................... 139
Printing with the PostScript (PS3) Printer Software - Mac ................................................................ 141

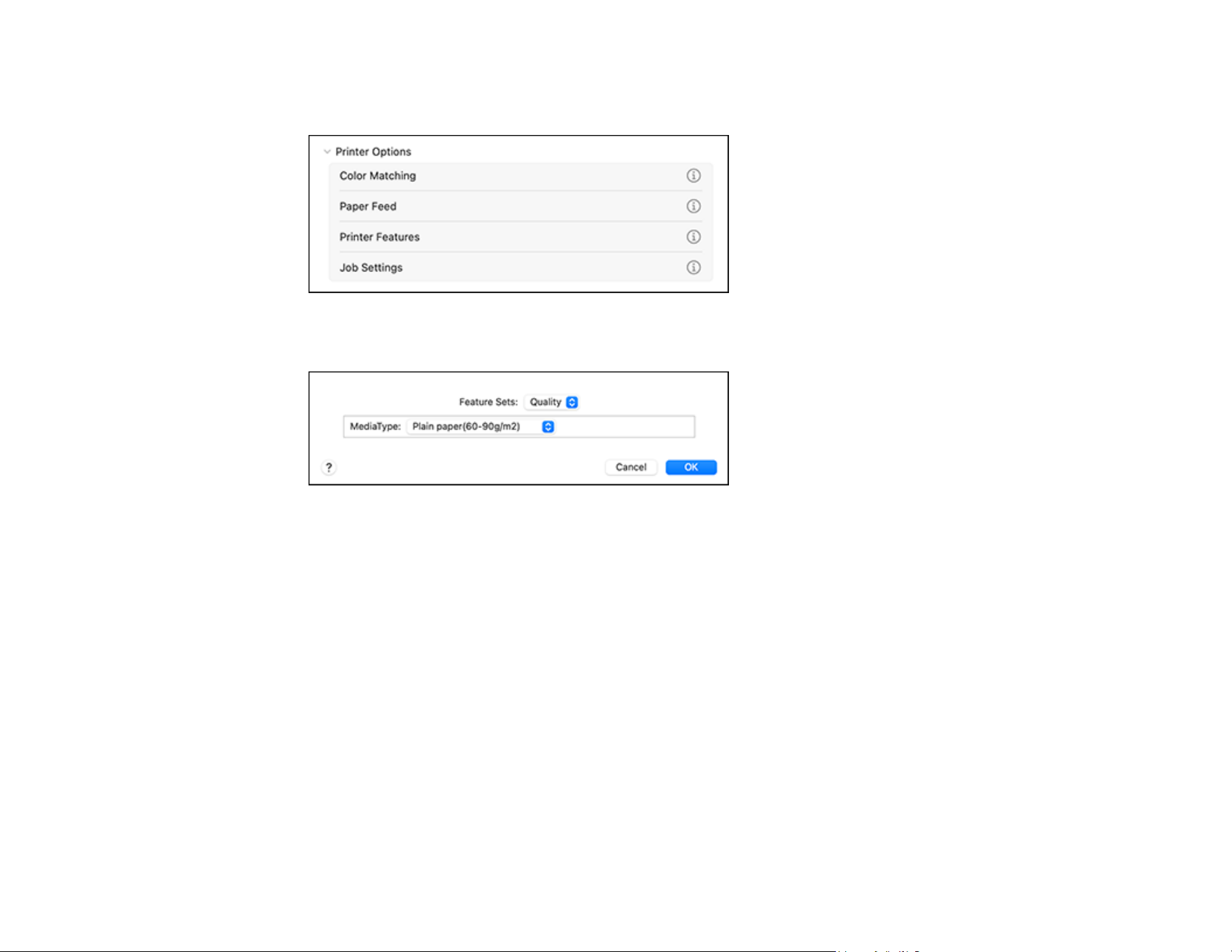

Selecting Basic Print Settings - PostScript Printer Software - Mac ............................................. 141
Printing from a Smartphone or Tablet............................................................................................... 146
Cancelling Printing Using a Product Button...................................................................................... 146
Replacing Ink Cartridges, Maintenance Boxes, and Cassette Rollers................................................ 147
Check Cartridge and Maintenance Box Status................................................................................. 147
Ink Safety Precautions................................................................................................................. 148
7
Checking Ink Status on the LCD Screen...................................................................................... 150
Checking Ink and Maintenance Box Status with Windows .......................................................... 150
Checking Cartridge and Maintenance Box Status - Mac ............................................................. 151
Purchase Epson Ink Cartridges and Maintenance Box .................................................................... 151
Ink Cartridge Part Numbers ......................................................................................................... 152
Removing and Installing Ink Cartridges............................................................................................ 152
Maintenance Box Replacement ....................................................................................................... 153

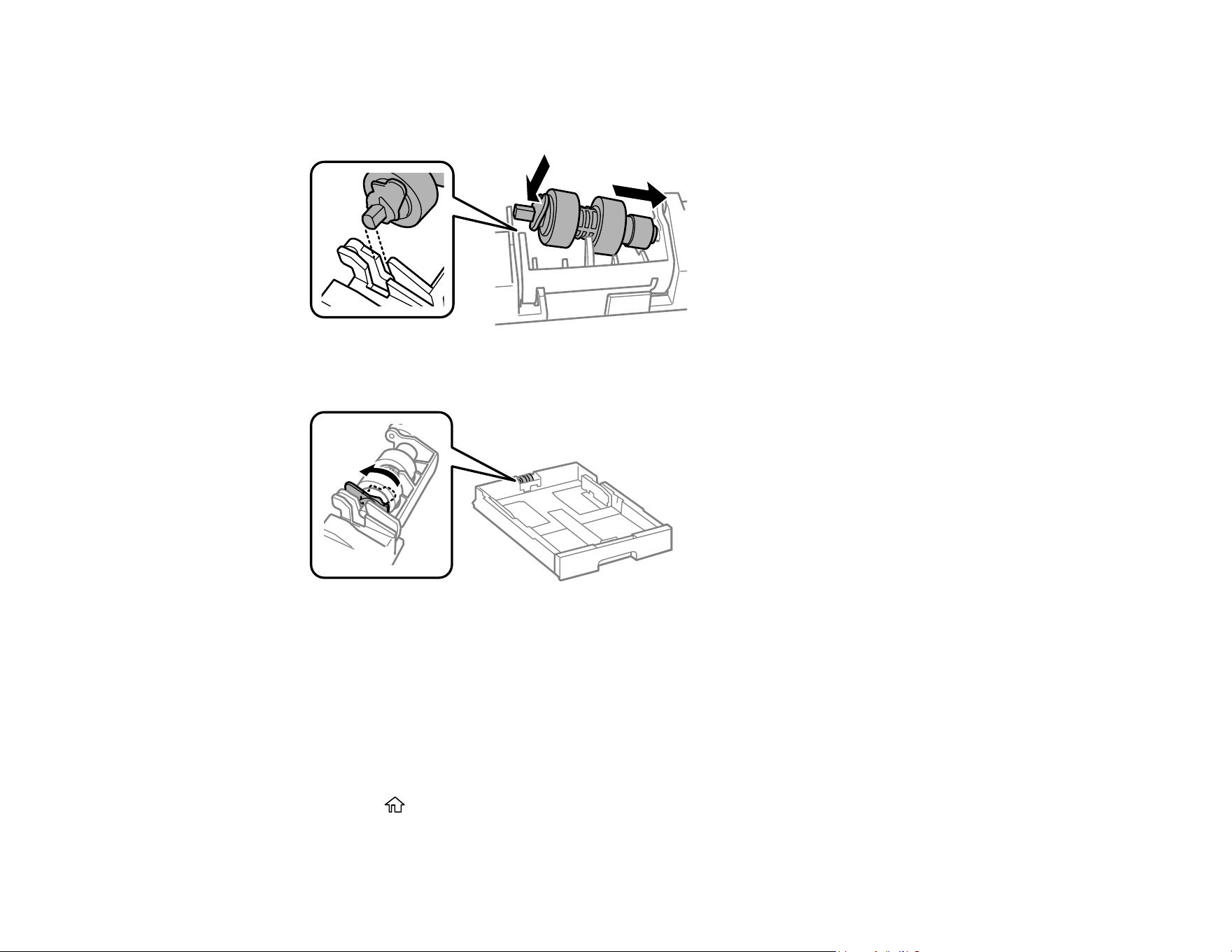

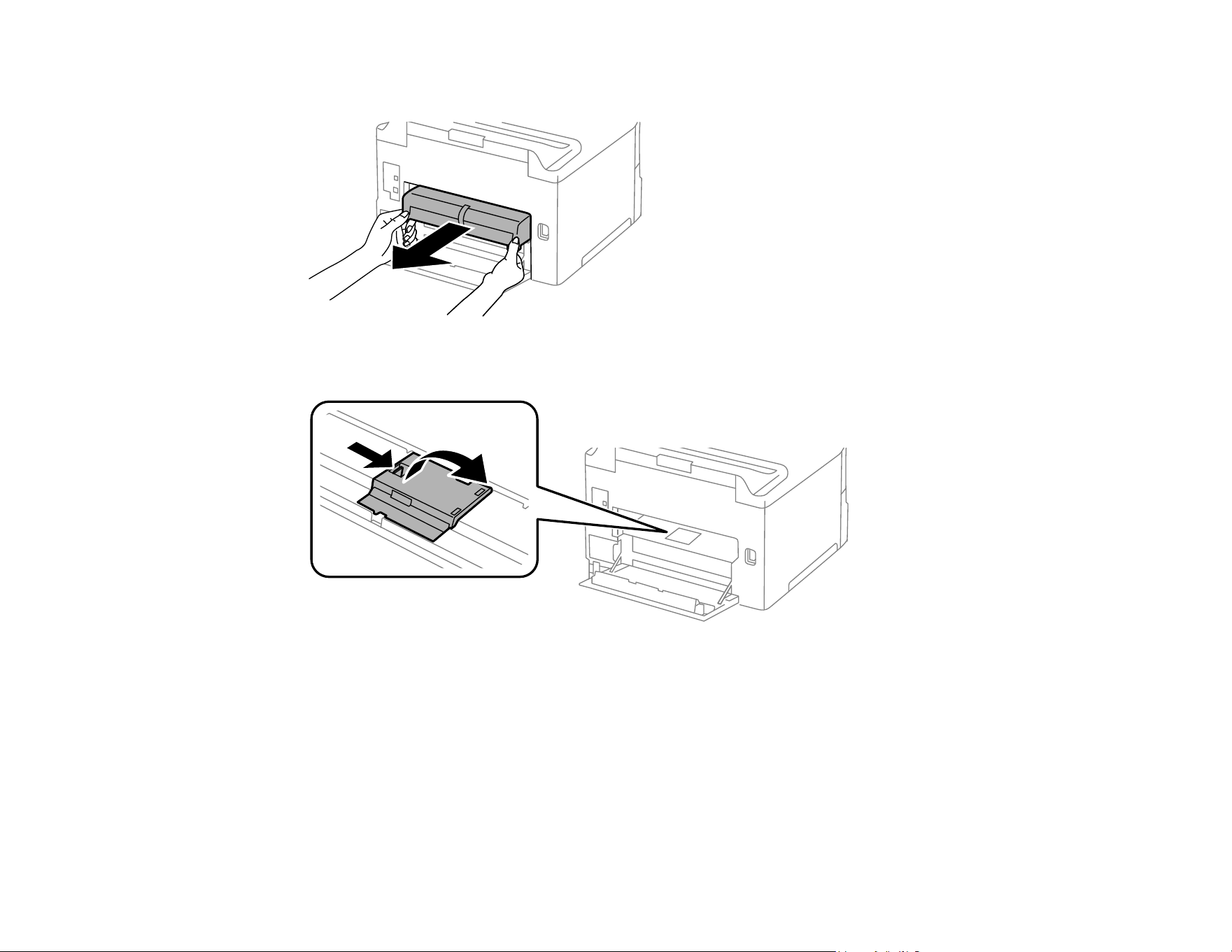

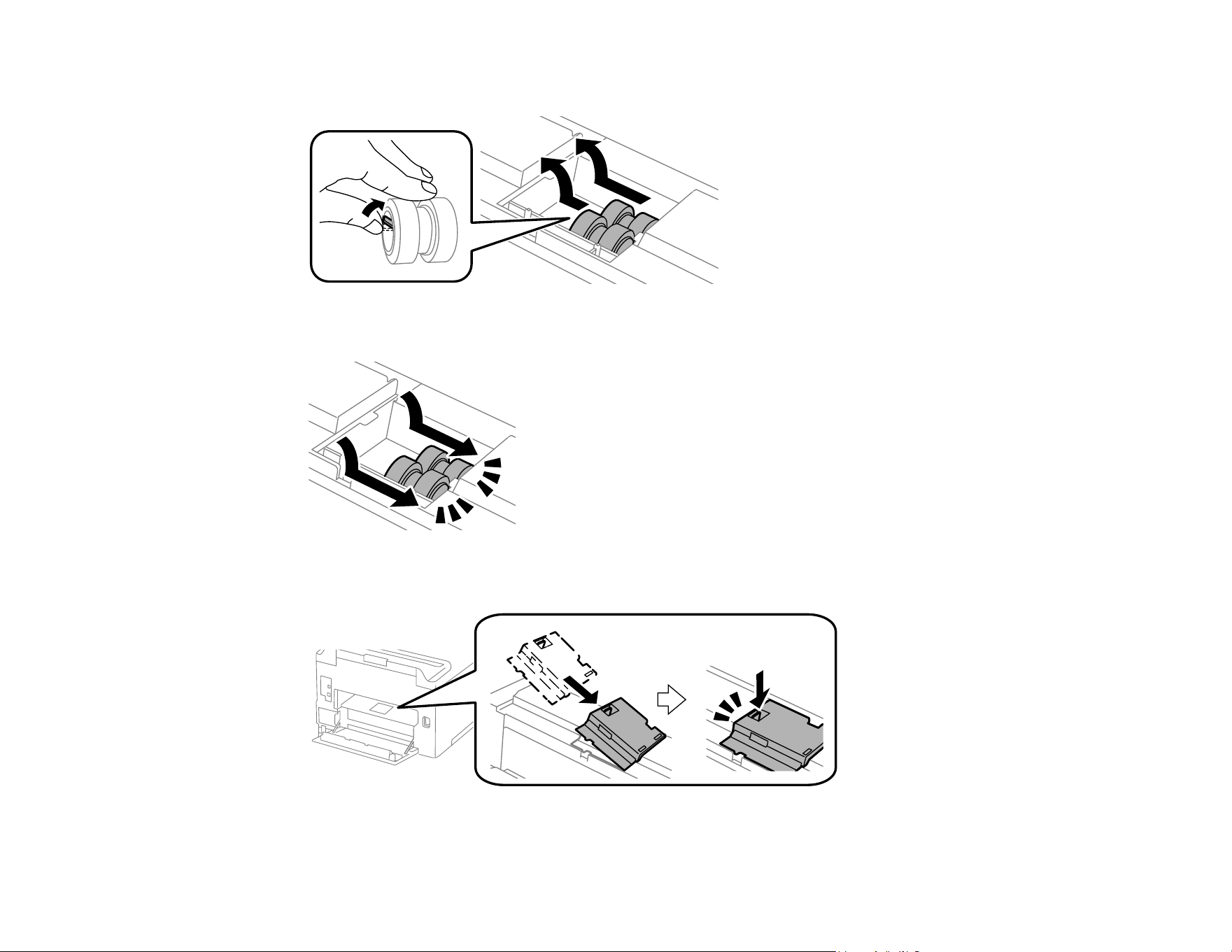

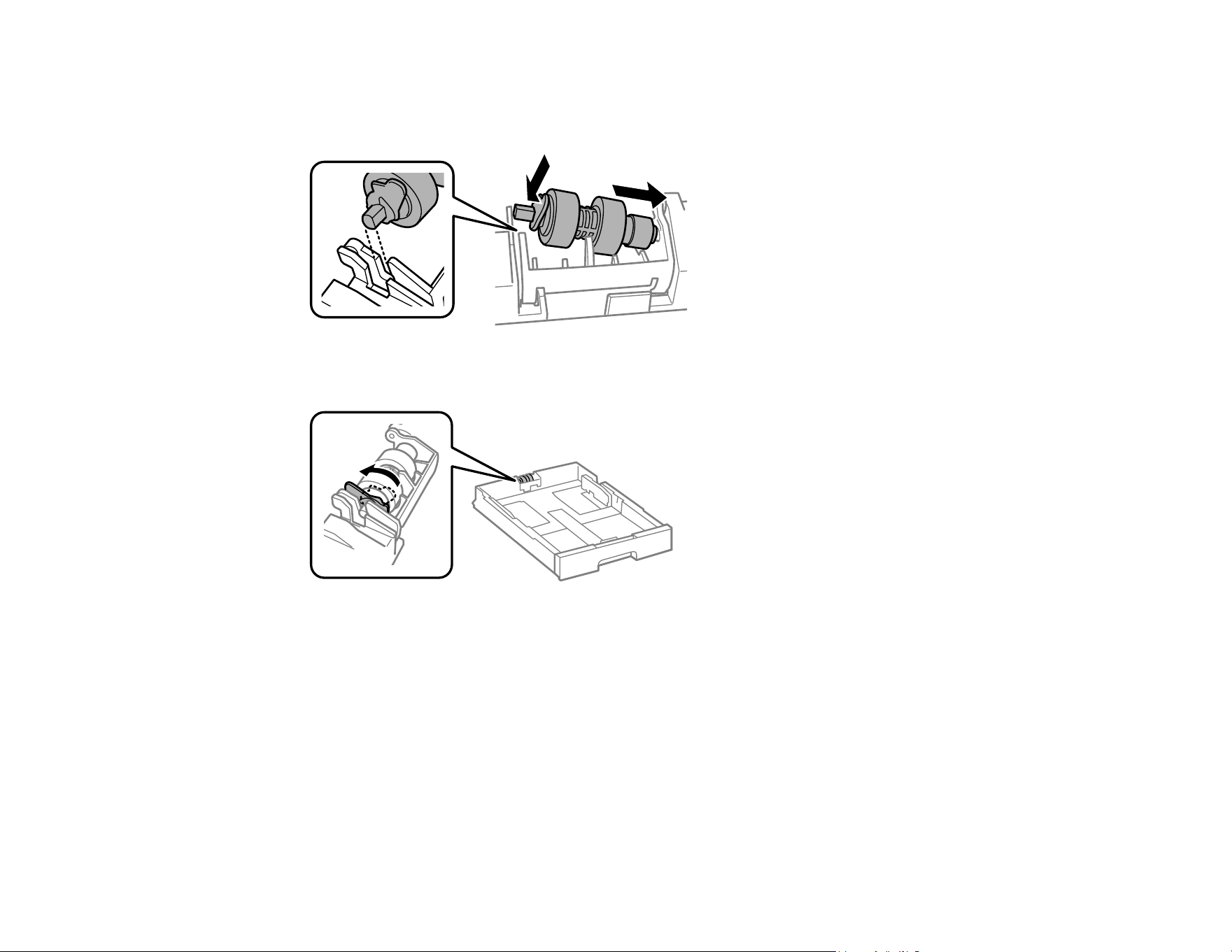

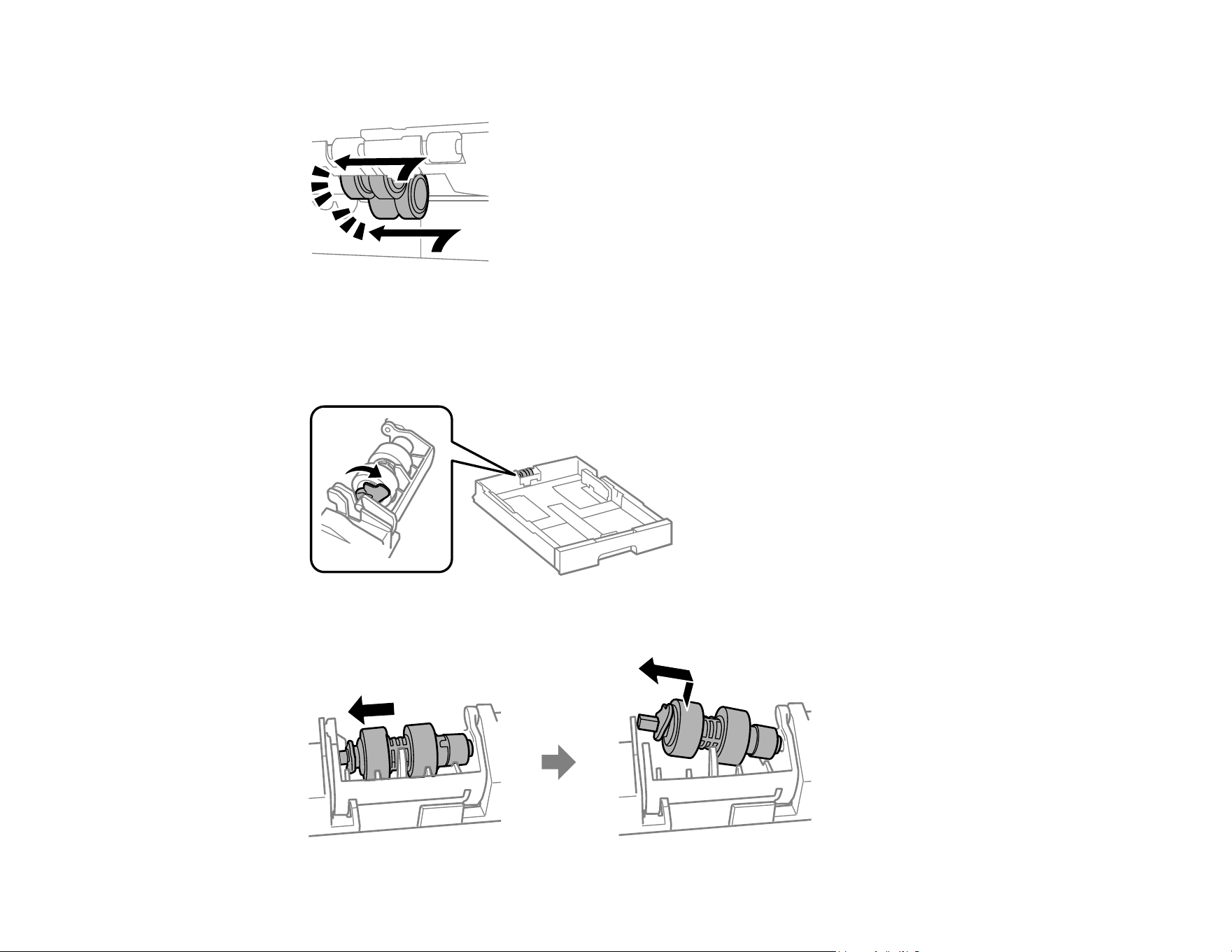

Replacing the Rollers for Paper Cassette 1...................................................................................... 154

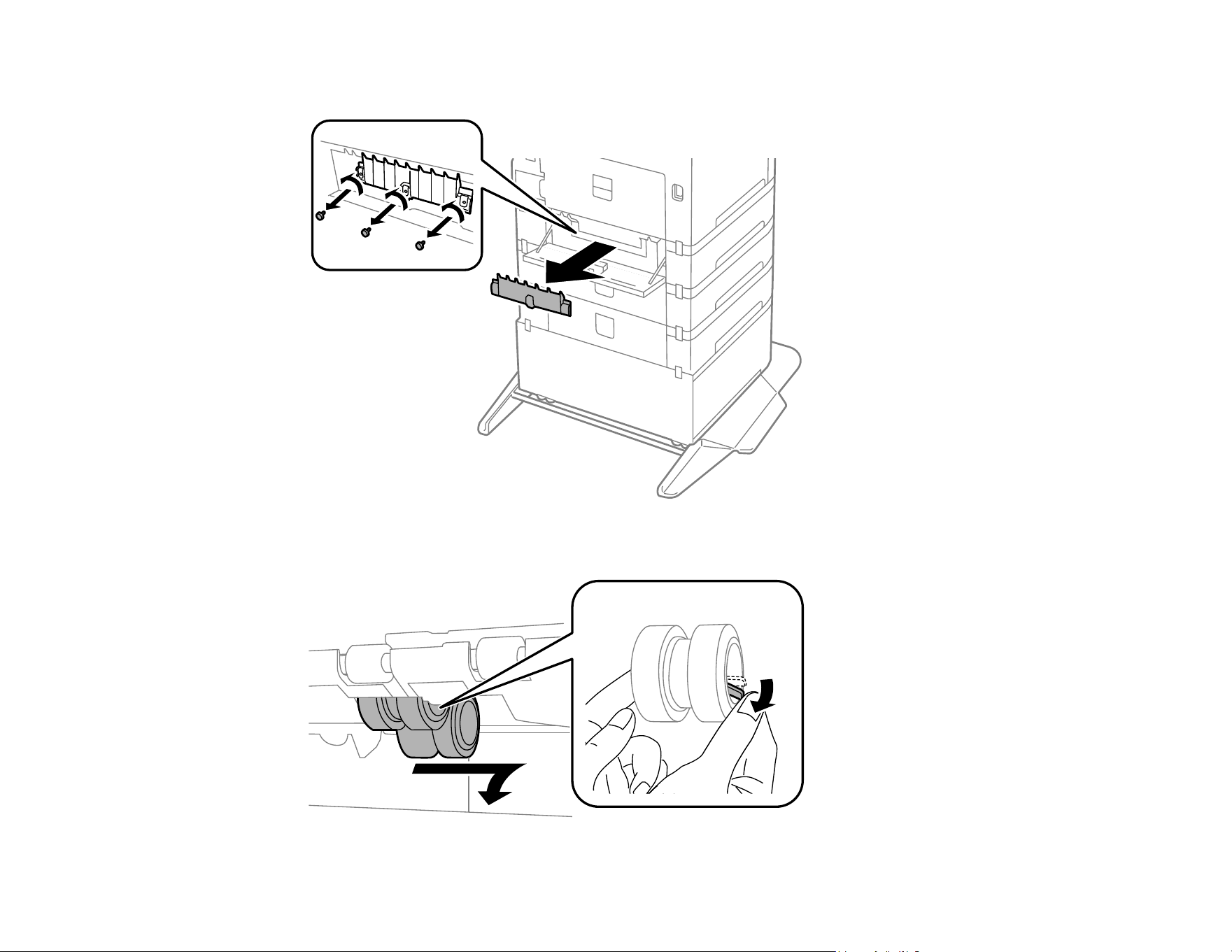

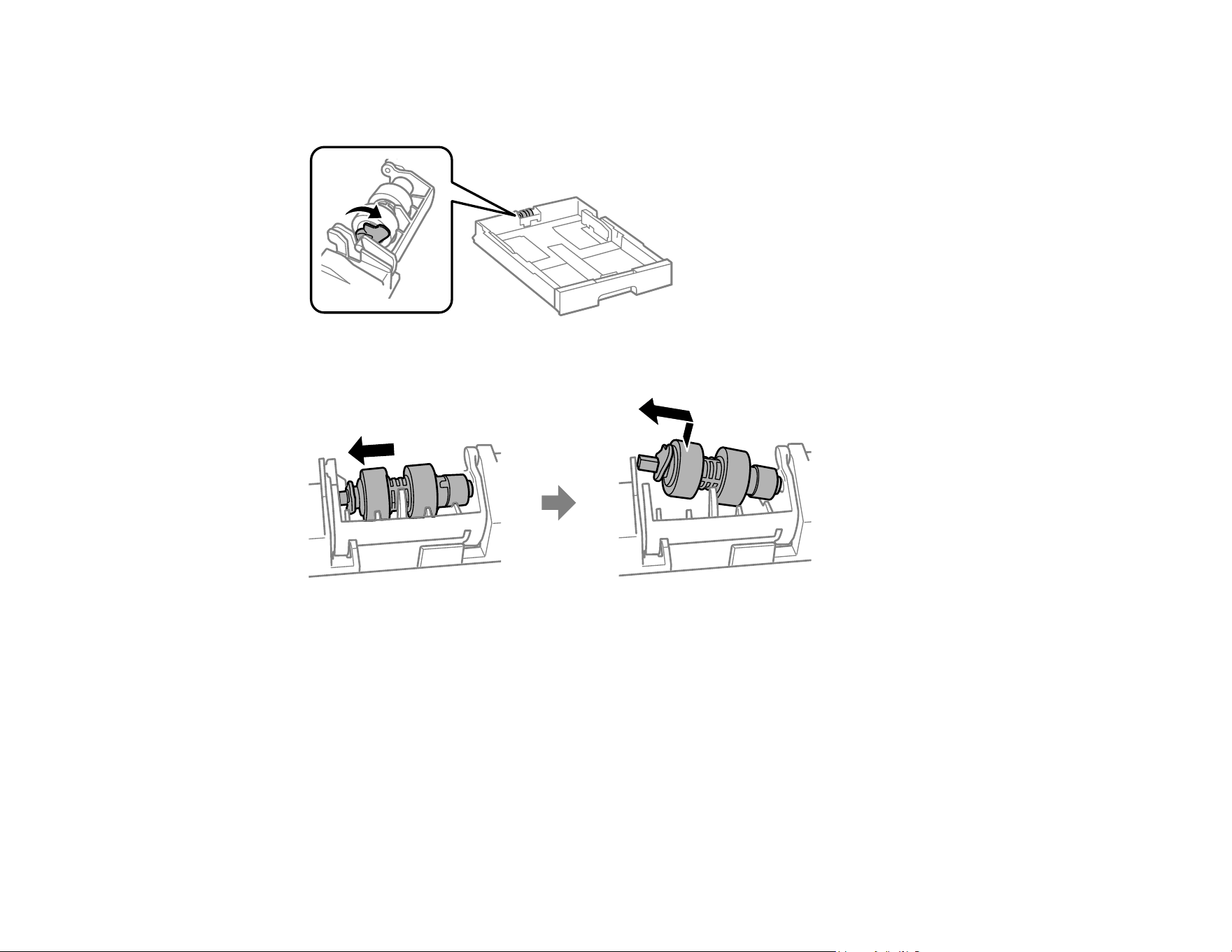

Replacing the Rollers for Paper Cassettes 2 to 4 ............................................................................. 159
Resetting the Roller Counter on the LCD Screen............................................................................. 164
Printing with Black Ink and Expended Color Cartridges ................................................................... 165
Printing with Expended Color Ink Cartridges - Control Panel....................................................... 165
Printing with Expended Color Cartridges - Windows ................................................................... 165
Printing with Expended Color Cartridges - Mac ........................................................................... 166
Conserving Low Black Ink with Windows ......................................................................................... 167
Adjusting Print Quality............................................................................................................................ 169
Print Quality Adjustment................................................................................................................... 169
Adjusting the Print Quality Using the Product Control Panel........................................................ 169
Adjusting the Quality for Each Paper Type .................................................................................. 171
Printhead Maintenance .................................................................................................................... 172
Print Head Nozzle Check............................................................................................................. 173
Checking the Nozzles Using the Product Control Panel ......................................................... 173

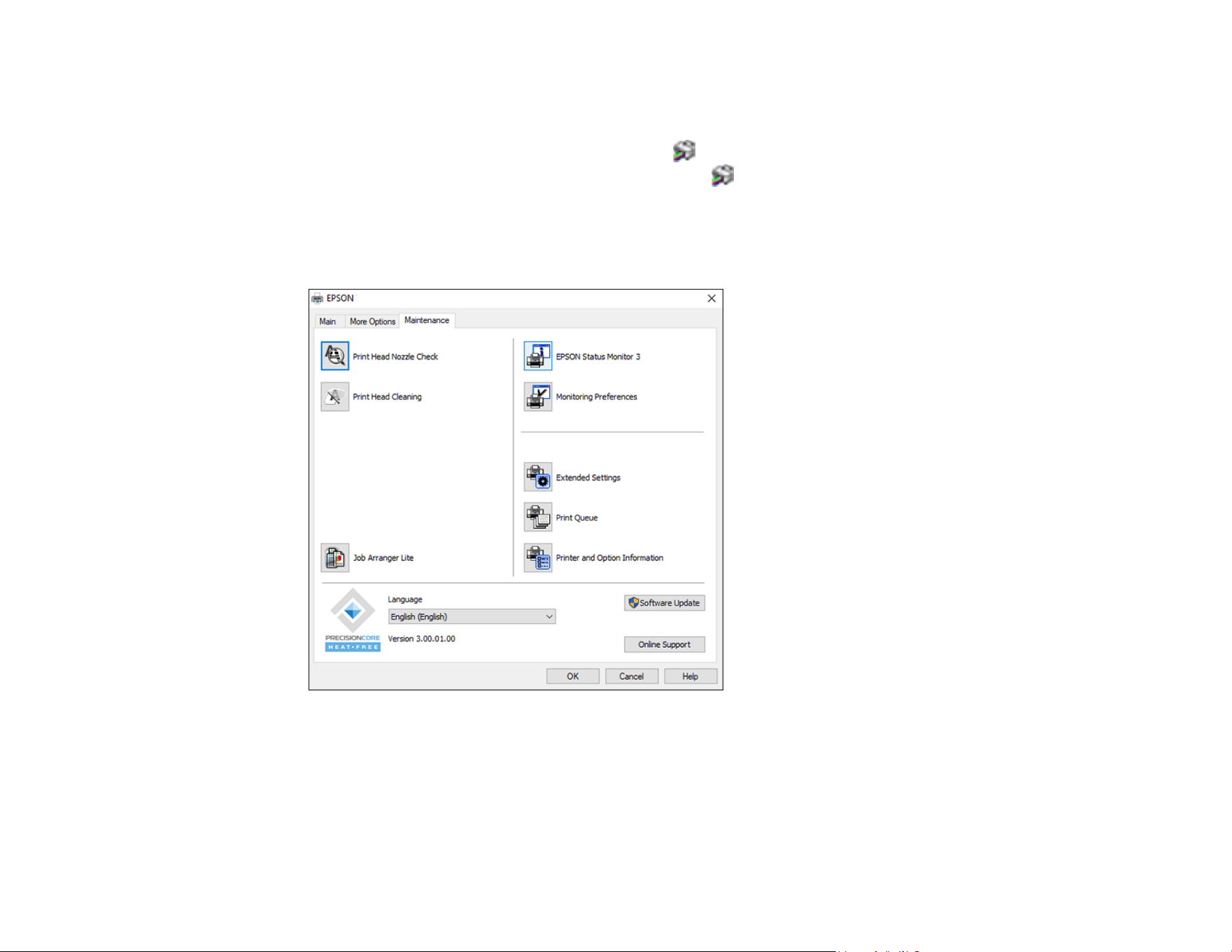

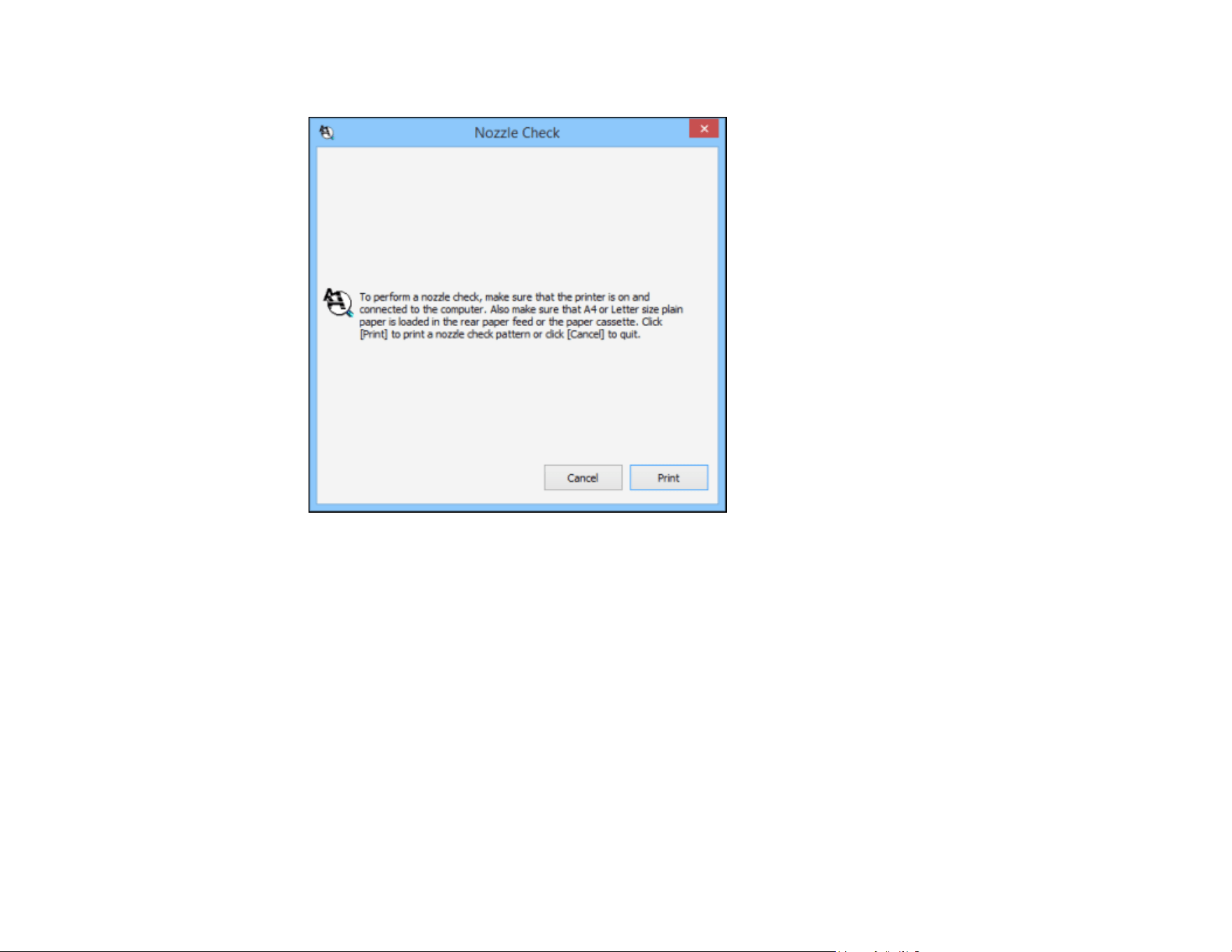

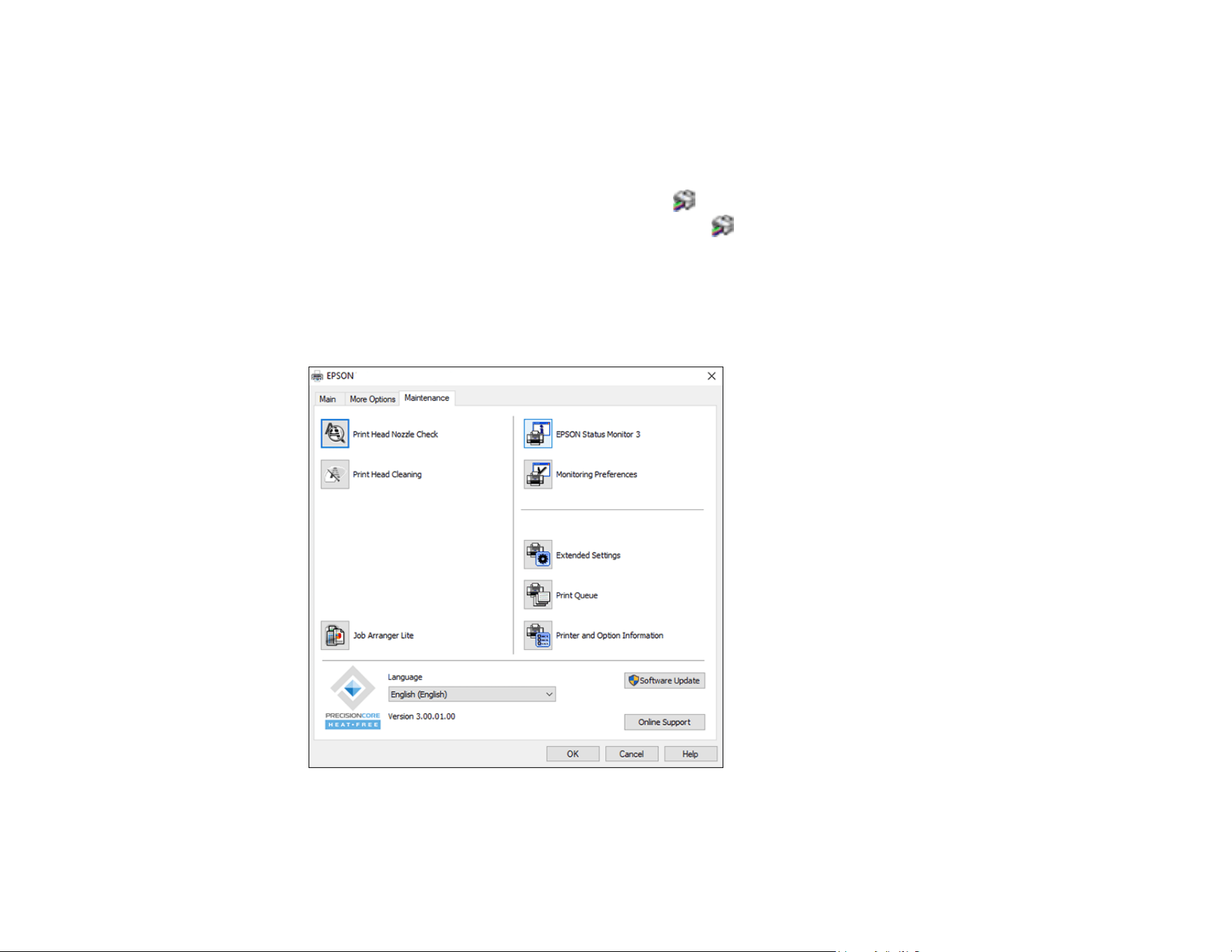

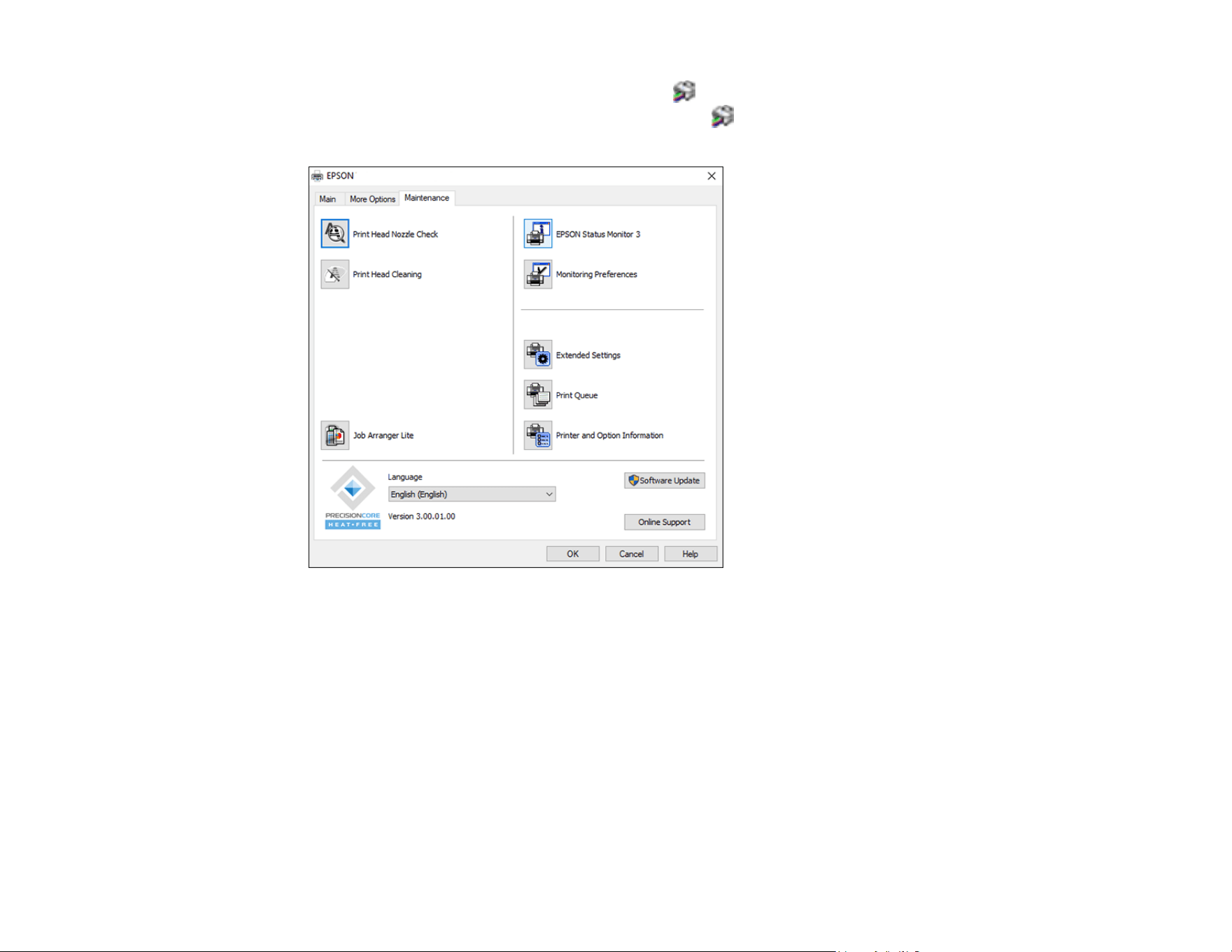

Checking the Nozzles Using a Computer Utility...................................................................... 174
Print Head Cleaning .................................................................................................................... 177
Cleaning the Print Head Using the Product Control Panel ...................................................... 177
Cleaning the Print Head Using a Computer Utility................................................................... 178
Print Head Alignment ....................................................................................................................... 180
Aligning the Print Head Using the Product Control Panel ............................................................ 181
Cleaning the Paper Guide ................................................................................................................ 181
Cleaning and Transporting the Product ................................................................................................ 183
Cleaning Your Product ..................................................................................................................... 183
Transporting Your Product ............................................................................................................... 184
8
Administering Your Product................................................................................................................... 187
Accessing the Web Config Utility...................................................................................................... 187
Changing the Administrator Password in Web Config...................................................................... 188
Configuring Product Settings............................................................................................................ 188
Checking Status Information ....................................................................................................... 189
Managing the Network Connection.............................................................................................. 189
Network Settings..................................................................................................................... 190
Setting Control Panel Options ..................................................................................................... 194
Sending Email Notifications......................................................................................................... 194
Adjusting Power Saving Settings................................................................................................. 195
Importing and Exporting Product Settings ................................................................................... 195
Exporting Settings Using Web Config ..................................................................................... 196
Importing Settings Using Web Config ..................................................................................... 196
Updating Firmware Using Web Config ........................................................................................ 197
Synchronizing the Date and Time with a Time Server ................................................................. 197
Clearing the Internal Memory ...................................................................................................... 198
Powering Off or Rebooting the Product Remotely ....................................................................... 198
Restoring Default Product Settings.............................................................................................. 198
Configuring Security Settings ........................................................................................................... 198
Connecting an Authentication Device.......................................................................................... 199
Restricting Features Available for Users ..................................................................................... 200
User Feature Restriction ......................................................................................................... 200
Configuring User Feature Restrictions .................................................................................... 200
Disabling the External Interface................................................................................................... 202
Setting Up Password Encryption ................................................................................................. 202
Working with Audit Logs .............................................................................................................. 202
Restricting PDL File Operations .................................................................................................. 203
Enabling Program Verification on Start Up .................................................................................. 203
Using Your Product on a Secure Network ........................................................................................ 203
Configuring Protocols and Services in Web Config ..................................................................... 204
Protocol Settings..................................................................................................................... 204
Configuring SSL/TLS Communication......................................................................................... 209
Configuring SSL/TLS Settings ................................................................................................ 209
9
Configuring a Server Certificate for the Product...................................................................... 209
Configuring IPsec/IP Filtering ...................................................................................................... 210
About IPsec/IP Filtering .......................................................................................................... 210
Configuring the Default IPsec/IP Filtering Policy..................................................................... 210
Configuring the Group IPsec/IP Filtering Policies ................................................................... 211
IPsec/IP Filtering Policy Settings ............................................................................................ 211
IPsec/IP Filtering Configuration Examples.............................................................................. 216
Configuring an IPsec/IP Filtering Certificate ........................................................................... 217
Connecting the Product to an IEEE 802.1X Network................................................................... 218
Configuring an IEEE 802.1X Network ..................................................................................... 218
IEEE 802.1X Network Settings ............................................................................................... 218
Configuring a Certificate for an IEEE 802.1X Network ............................................................ 220
IEEE 802.1X Network Status .................................................................................................. 220
Using a Digital Certificate ............................................................................................................ 221
About Digital Certification........................................................................................................ 221
Obtaining and Importing a CA-signed Certificate .................................................................... 222
CSR Setup Settings ................................................................................................................ 222
CSR Import Settings ............................................................................................................... 223
Deleting a CA-signed Certificate............................................................................................. 225
Updating a Self-signed Certificate........................................................................................... 225
Importing a CA Certificate....................................................................................................... 226
Deleting a CA Certificate......................................................................................................... 226
Setting Up Universal Print (Microsoft) .............................................................................................. 226
Using Epson Device Admin Configuration Software......................................................................... 227
Solving Problems .................................................................................................................................... 228
Viewing the Help Screen .................................................................................................................. 228
Product Status Messages ................................................................................................................ 228
Running a Product Check ................................................................................................................ 231
Resetting Control Panel Defaults ..................................................................................................... 232
Solving Setup Problems ................................................................................................................... 232
Product Does Not Turn On or Off................................................................................................. 233
Noise After Ink Installation........................................................................................................... 233
Software Installation Problems .................................................................................................... 233
10
Solving Network Problems ............................................................................................................... 234
Product Cannot Connect to a Wireless Router or Access Point .................................................. 234
Network Software Cannot Find Product on a Network................................................................. 235
Product Does Not Appear in Mac Printer Window ....................................................................... 236
Cannot Print Over a Network....................................................................................................... 237
Solving Paper Problems................................................................................................................... 239
Paper Feeding Problems............................................................................................................. 239
Paper Jams Inside the Product.................................................................................................... 240
Paper Ejection Problems ............................................................................................................. 241
Solving Problems Printing from a Computer..................................................................................... 241
Nothing Prints.............................................................................................................................. 241
Product Icon Does Not Appear in Windows Taskbar ................................................................... 242
Printing is Slow ............................................................................................................................ 243
Solving Page Layout and Content Problems.................................................................................... 245
Inverted Image............................................................................................................................. 245
Too Many Copies Print ................................................................................................................ 245
Blank Pages Print ........................................................................................................................ 246
Incorrect Margins on Printout....................................................................................................... 246
Incorrect Characters Print............................................................................................................ 247
Incorrect Image Size or Position.................................................................................................. 247
Slanted Printout........................................................................................................................... 247
Solving Print Quality Problems......................................................................................................... 248
White or Dark Lines in Printout .................................................................................................... 248
Blurry or Smeared Printout .......................................................................................................... 249
Faint Printout or Printout Has Gaps............................................................................................. 251
Grainy Printout............................................................................................................................. 251
Incorrect Colors .......................................................................................................................... 252
Uninstall Your Product Software....................................................................................................... 253
Uninstalling Printing Software - Windows .................................................................................... 254
Uninstalling Product Software - Mac............................................................................................ 255
Where to Get Help ........................................................................................................................... 255
Technical Specifications ........................................................................................................................ 257
Windows System Requirements ...................................................................................................... 257
11
Mac System Requirements .............................................................................................................. 258
Paper Specifications ........................................................................................................................ 259
Printable Area Specifications ........................................................................................................... 260
Ink Cartridge Specifications.............................................................................................................. 261
Dimension Specifications ................................................................................................................. 263
Electrical Specifications ................................................................................................................... 264
Environmental Specifications ........................................................................................................... 264
Interface Specifications .................................................................................................................... 264
Network Interface Specifications ...................................................................................................... 265
Safety and Approvals Specifications ................................................................................................ 266
PostScript Fonts............................................................................................................................... 267
PCL Fonts ........................................................................................................................................ 269
PCL Mode 5 Symbol Sets ................................................................................................................ 271
Notices ..................................................................................................................................................... 275
Important Safety Instructions............................................................................................................ 275
General Printer Safety Instructions.............................................................................................. 275
Ink Cartridge Safety Instructions.................................................................................................. 277
Wireless Connection Safety Instructions ..................................................................................... 278
LCD Screen Safety Instructions................................................................................................... 278
FCC Compliance Statement............................................................................................................. 279
Binding Arbitration and Class Waiver............................................................................................... 280
Trademarks...................................................................................................................................... 283
Copyright Notice............................................................................................................................... 283
A Note Concerning Responsible Use of Copyrighted Materials................................................... 284
Default Delay Times for Power Management for Epson Products ............................................... 284
Copyright Attribution.................................................................................................................... 284
13
EP-C7000 User's Guide
Welcome to the EP-C7000 User's Guide.
For a printable PDF copy of this guide, click here.
14
Product Basics
See these sections to learn about the basic features of your product.
Installing or Using Optional Parts
Product Parts Locations
Using the Control Panel
Power Off and Sleep Timers
Epson Connect Solutions for Smartphones, Tablets, and More
Using the Epson Smart Panel Mobile App
Using AirPrint
Using the Mopria Print Service
Setting Up Printing on a Chromebook
Android Printing Using the Epson Print Enabler
Voice-activated Printing
Installing or Using Optional Parts
Follow the instructions in this section to install or use optional parts.
Optional Accessories and Replacement Parts
Installing the Optional Cabinet
Installing the Optional Paper Cassette Units
Parent topic: Product Basics
Optional Accessories and Replacement Parts
You can purchase genuine Epson ink, maintenance boxes, and paper at epson.com (U.S. sales) or
epson.ca (Canadian sales). You can also purchase supplies from an Epson authorized reseller. To find
the nearest one, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in Canada.
Option or part Part number
Replacement maintenance box C12C938211
Optional paper cassette C12C937901
Optional cabinet C12C932891
Paper Feed Roller for Cassette A (C1) C12C938261
15
Option or part Part number
Paper Feed Roller for Cassette B (C2-C4) C12C938281
Authentication Device Table-P2 C12C939531
Parent topic: Installing or Using Optional Parts
Installing the Optional Cabinet
You can install the optional cabinet to provide mobility and extra storage space.
1. Turn off the product, and unplug the power cord and any connected cables.
Warning: To avoid electric shock, make sure you unplug the power cord.
2. Remove the cabinet from its packaging and remove any protective materials.
3. Make sure you have all the items shown here:
1 Optional cabinet
2 Side stands (×2)
3 Front reinforcing bar
16
4 Rear reinforcing bar
5 Front cover
6 Cabinet screws (×2)
7 Rear brackets (×2)
8 Bracket screws (x2)
9 Side stand and reinforcing bar screws (×8)
4. Place the stands between the cabinet's casters as shown.
5. Secure the stands to the cabinet with the included screws.
Caution: Make sure the stands are securely attached or the product may fall over.
17
6. Attach and secure the reinforcing bars to the stands with the included screws.
7. Place the cabinet on a flat surface and lock the front casters.
18
8. Attach the front cover to the stands.
9. Remove the output tray from the product.
19
10. Remove the paper cassette from the product.
Note: If you are installing the optional cabinet under the optional paper cassette unit, remove the
paper cassette from the optional cassette unit instead.
20
11. Lift up your product or optional cassette unit and gently lower it onto the cabinet with the corners
aligned. Secure the product or optional cassette unit to the cabinet with the included screws using a
screwdriver.
Note: Screws may be left over after installation.
21
Warning: To lift the product, have two or more people hold it as shown here. Lifting from other areas
may cause the product to fall or cause you to pinch your fingers when placing the product down.
12. Secure the back of the product or paper cassette unit to the cabinet using the included brackets and
screws.
13. Insert the paper cassette you removed and attach the output tray.
14. Connect the power cord and other connection cables, then plug in the product.
22
Parent topic: Installing or Using Optional Parts
Installing the Optional Paper Cassette Units
You can install up to three optional paper cassette units to provide more paper capacity. If you are using
the optional cabinet, install the cabinet under the bottom optional cassette unit first.
1. Turn off the product, and unplug the power cord and any connected cables.
Warning: To avoid electric shock, make sure you unplug the power cord.
2. Uninstall any optional cassette units already installed on the product.
Note: To uninstall optional cassette units, turn off the product, unplug the power cord, disconnect
any cables, and follow the rest of these instructions in reverse.
3. Remove the paper cassette unit from its packaging and remove any protective materials.
4. Make sure you have all the items shown here:
1 Optional cassette
2 Screws (×4)
3 Paper size label
4 Cassette number sticker
23
5. Remove the output tray from the product.
6. Remove the paper cassette from the product.
24
7. Remove the paper cassette from the optional paper cassette unit.
8. Stack all optional paper cassette units on top of each other and secure them to each other with the
included screws.
25
9. Lift up your product and gently lower it onto the paper cassette unit with the corners aligned. Secure
the product to the paper cassette unit with the included screws using a screwdriver.
Note: Screws may be left over after installation.
26
Warning: To lift the product, have two people hold it as shown here. Lifting from other areas may
cause the product to fall or cause you to pinch your fingers when placing the product down.
27
10. Secure the back of the paper cassette units to each other and to the product using the included
brackets and screws.
11. Insert a label into the holder indicating the paper size to be loaded in each of the paper cassettes.
28
12. Insert the paper cassette and place the correct sticker on the cassette unit to indicate the cassette
number.
13. Attach the output tray.
14. Connect the power cord and other connection cables, then plug in the product.
15. Turn on the product.
16. Pull out and reinsert the paper cassettes in the optional paper cassette units and confirm that each
cassette unit number is displayed on the screen.
17. Enable the optional paper cassette units in the printer software.
Enabling the Optional Paper Cassettes - Windows
Enabling the Optional Paper Cassettes - PostScript Printer Software - Windows
Enabling the Optional Paper Cassettes - Mac
Enabling the Optional Paper Cassette - PostScript Printer Software - Mac
Parent topic: Installing or Using Optional Parts
29
Enabling the Optional Paper Cassettes - Windows
You need to enable the optional paper cassette units before you can use them with the printer software.
Note: Log on to your computer as an administrator.
1. Do one of the following:
• Windows 11: Click , search for Settings and select it. Select Bluetooth & devices > Printers
& scanners. Select your product name, then select Printer properties.
• Windows 10: Click and select (Settings) > Devices > Printers & scanners. Select your
product name and select Manage > Printer properties.
• Windows 8.x: Navigate to the Apps screen and select Control Panel > Hardware and Sound >
Devices and Printers. Right-click your product name and select Printer properties.
• Windows 7: Click and select Devices and Printers. Right-click your printer name and select
Printer properties.
• Windows Vista: Click and select Control Panel. Click Printer under Hardware and Sound,
then right-click your printer name and select Properties.
2. Click the Optional Settings tab.
30
You see a window like this:
3. Make sure Acquire from Printer is selected and click Get.
The optional paper sources are listed in the Current Printer Information section.
4. Click OK.
The optional paper cassettes are now enabled.
Parent topic: Installing the Optional Paper Cassette Units
Related tasks
Enabling the Optional Paper Cassettes - PostScript Printer Software - Windows
Enabling the Optional Paper Cassettes - PostScript Printer Software - Windows
If you installed optional paper cassette units, you need to enable the optional cassette units before you
can use them with the PS3 printer software.
Note: Log on to your computer as an administrator.
31
1. Do one of the following:
• Windows 11: Click , search for Settings and select it. Select Bluetooth & devices > Printers
& scanners. Select your product name, then select Printer properties.
• Windows 10: Click and select (Settings) > Devices > Printers & scanners . Select your
product name and select Manage > Printer properties.
• Windows 8.x: Navigate to the Apps screen and select Control Panel > Hardware and Sound >
Devices and Printers. Right-click your product name and select Printer properties.
• Windows 7: Click and select Devices and Printers. Right-click your product name and select
Printer Properties.
• Windows Vista: Click and select Control Panel. Click Printer under Hardware and Sound,
then right-click your product name, and select Properties.
2. Click the Device Settings tab.
32
You see a window like this:
3. Select the number of optional cassettes installed as the Lower Cassette Unit setting.
4. Click OK.
The optional paper cassettes are now enabled.
Parent topic: Installing the Optional Paper Cassette Units
Enabling the Optional Paper Cassettes - Mac
You need to enable the optional paper cassette units before you can use them with the printer software.
Note: If you are using the PostScript (PS3) printer software, see the link below to enable the optional
cassette units.
33
1. In the Apple menu or the Dock, select System Preferences or System Settings.
2. Select Print & Fax, Print & Scan, or Printers & Scanners, select your product, and select Options
& Supplies.
3. Select Driver or Options.
You see a screen like this:
4. Select the number of cassette units installed as the Lower Cassette setting.
5. Click OK.
The optional paper cassettes are now enabled.
Parent topic: Installing the Optional Paper Cassette Units
Related tasks
Enabling the Optional Paper Cassette - PostScript Printer Software - Mac
Enabling the Optional Paper Cassette - PostScript Printer Software - Mac
If you installed the optional paper cassette unit, you need to enable it before you can use it with the PS3
printer software.
1. In the Apple menu or the Dock, select System Preferences.
34
2. Select Print & Fax, Print & Scan, or Printers & Scanners, select your product, and select Options
& Supplies.
3. Select Driver or Options.
You see a screen like this:
4. Select the optional cassette installed as the Lower Cassette Unit setting.
5. Click OK.
The optional paper cassette is now enabled.
Parent topic: Installing the Optional Paper Cassette Units
Product Parts Locations
See these sections to identify the parts on your product.
Product Parts - Front
Product Parts - Inside
Product Parts - Back
Parent topic: Product Basics
35
Product Parts - Front
Certain parts are labeled with a letter and number code. If you encounter any paper jams or errors, you
can use these codes to locate and correct the problem.
1 Paper cassette 1 (C1)
2 Optional cassettes 2, 3, and 4 (C2, C3, and C4)
3 Optional cabinet
4 Optional cabinet front cover
36
5 Authentication Device Table-P2 (Optional)
1 Rear paper feed edge guides
2 Paper support and extension
3 Rear paper feed slot (B)
4 Feeder guard
37
5 Output tray
6 Output tray guide
7 Output tray stopper
8 Paper cassette edge guides
9 Paper cassette
Parent topic: Product Parts Locations
Product Parts - Inside
Certain parts are labeled with a letter and number code. If you encounter any paper jams or errors, use
these codes to locate and correct the problem.
39
2 AC inlet
3 Rear cover 1 (D1)
4 Optional cassette rear covers (E)
5 Service USB port for future use (do not remove sticker)
6 USB port
7 LAN port
Parent topic: Product Parts Locations
Using the Control Panel
See these sections to learn about the control panel and select control panel settings.
Control Panel Buttons and Lights
Changing LCD Screen Language
Selecting the Date and Time
Setting a Password and Locking the Control Panel
Adjusting the Screen Brightness
Turning Off the Operation Time Out Setting
Preventing PC Connection via USB
Parent topic: Product Basics
Control Panel Buttons and Lights
40
1
The power button and light
2
The home button
3 Displays menus and messages
4 The Error light
5 The Data light
6
The Paper Setting button
7 The Back button
8 The arrow buttons and the OK button
9
The reset button
10
The Stop button
Guide to the Home Screen
Status Icon Information
Parent topic: Using the Control Panel
41
Guide to the Home Screen
1 Indicates when a firmware update is available
2 Displays ink and maintenance box status
3 Indicates network status and accesses network settings
4 Indicates whether Quiet Mode is enabled
5 Displays usage instructions and troubleshooting solutions
6 Displays the menu options
7 Scrolls the screen to the right
Parent topic: Control Panel Buttons and Lights
Status Icon Information
Your product displays status icons on the LCD screen for certain product status conditions.
42
Icons Description
Indicates a firmware update is available
Ink and maintenance box status; select the icon to view the ink and maintenance box
levels
Displays the network connection status; select the icon to set up or change your network
connection
• Not connected to a wired (Ethernet) network
• Connected to a wired (Ethernet) network
• Searching for an SSID or experiencing a wireless network connection issue
• Connected to a wireless network; the number of bars indicates the connection's
signal strength
• Wi-Fi Direct is not enabled
• Wi-Fi Direct is enabled
The Quiet Mode setting is enabled or disabled. Select the icon to change the setting.
Depending on the selected paper type and print quality, when this feature is enabled noise
is reduced during printing but print speed is slower.
Scrolls the screen to the right.
Displays the Help screen
Parent topic: Control Panel Buttons and Lights
Changing LCD Screen Language
You can change the language used on the LCD screen.
Note: This setting can be locked by an administrator. If you cannot access or change this setting,
contact your administrator for assistance.
43
1. Press the home button, if necessary.
2. Select Settings > General Settings > Basic Settings > Language.
3. Use the arrow buttons to select a language and press the OK button.
Parent topic: Using the Control Panel
Selecting the Date and Time
Select the current date, time, and daylight saving phase in your area, and choose your preferred date
and time format.
1. Press the home button, if necessary.
2. Select Settings > General Settings > Basic Settings > Date/Time Settings.
3. Select Daylight Saving Time, then select the setting that applies to your area:
• Winter: it is winter or your region does not use Daylight Saving Time (DST)
• Summer: it is spring or summer and your region uses Daylight Saving Time (DST)
Note: If your region uses Daylight Saving Time (DST), you must change this setting to match the
season. When you change from Winter to Summer, your product automatically sets its clock ahead
one hour. When you change from Summer to Winter, it sets its clock back one hour.
4. On the Date/Time Settings screen, select Date/Time.
5. Select the date format you want to use.
6. Use the arrow keys and the OK button to enter the current date.
7. Select the time format you want to use.
8. Use the arrow keys and the OK button to enter the current time.
9. On the Date/Time Settings screen, select Time Difference.
10. Use the arrow keys and the OK button to enter the time difference between your time zone and UTC
(Coordinated Universal Time).
Parent topic: Using the Control Panel
Setting a Password and Locking the Control Panel
You can set an administrator password to lock the following settings and prevent them from being
changed:
• Certain Basic Settings and Printer Settings
44
• System Administration Settings
• Network Settings
• Web Service Settings
1. Press the home button, if necessary.
2. Select Settings > General Settings > System Administration > Security Settings > Admin
Settings > Admin Password > Register.
3. Use the displayed keyboard to enter a password, then select OK and press the OK button.
4. Enter your password again to confirm, then select OK and press the OK button.
5. Select Lock Setting and select On.
When the control panel is locked, you must enter the password to access any of the locked settings.
Note: If you forget your password, contact Epson for assistance.
Entering Characters on the LCD Screen
Parent topic: Using the Control Panel
45
Entering Characters on the LCD Screen
Follow these guidelines, using the control panel buttons to enter characters for passwords and other
settings.
1 Displays the character count
2 Moves the cursor left or right
3 Switches between uppercase and lowercase characters, numbers, and symbols
4 Switches between characters, number, and symbols
5 Changes the keyboard layout
6 Displays a list of common domain names to choose from
7 Enters a space
8 Select when you are finished
9 Deletes the previous character
10 Switches between characters, numbers, and symbols
Parent topic: Setting a Password and Locking the Control Panel
46
Adjusting the Screen Brightness
You can adjust the brightness of the LCD screen.
1. Press the home button, if necessary.
2. Select Settings > General Settings > Basic Settings > LCD Brightness.
3. Press the left or right arrow buttons to decrease or increase the brightness.
4. Press the up arrow button to select OK.
5. Press the OK button to exit.
Parent topic: Using the Control Panel
Turning Off the Operation Time Out Setting
The Operation Time Out setting causes the LCD screen to return to the Home screen after a few minutes
of inactivity. This feature is enabled by default, but you can turn it off.
Note: This setting can be locked by an administrator. If you cannot access this setting, contact your
administrator for assistance.
1. Press the home button, if necessary.
2. Select Settings > General Settings > Basic Settings > Operation Time Out.
3. Select Off and press the OK button.
Parent topic: Using the Control Panel
Preventing PC Connection via USB
You can disable access to your product from a USB-connected computer. This restricts non-network
access to the product.
Note: This setting can be locked by an administrator. If you cannot access this setting, contact your
administrator for assistance.
1. Press the home button, if necessary.
2. Select Settings > General Settings > Printer Settings > PC Connection via USB.
3. Select Disable and press the OK button.
Parent topic: Using the Control Panel
47
Power Off and Sleep Timers
The product enters sleep mode or turns off automatically if it is not used for a period of time. You can
adjust the time period before power management begins, but increasing the time reduces the product's
energy efficiency.
Changing the Sleep Timer Settings
Changing the Power Off Timer Settings
Parent topic: Product Basics
Changing the Sleep Timer Settings
You can adjust the time period before your product enters sleep mode and turns off the LCD screen.
1. Press the home button, if necessary.
2. Select Settings > General Settings > Basic Settings > Sleep Timer.
3. Select the number field and press the OK button.
4. Use the arrow and OK buttons to select a time period from 1 to 240 minutes.
5. Select OK then press the OK button.
Parent topic: Power Off and Sleep Timers
Changing the Power Off Timer Settings
You can have the product turn off automatically if it is not used for a specified period of time.
1. Press the home button, if necessary.
2. Press the right arrow button to select Settings > General Settings > Basic Settings > Power Off
Timer.
3. Press the up and down arrow buttons to select a time period between 30minutes and 12h (12
hours), and press the OK button.
Parent topic: Power Off and Sleep Timers
Epson Connect Solutions for Smartphones, Tablets, and More
Use your smartphone, tablet, or computer to print documents, photos, emails, and web pages from your
home, office, or even across the globe.
Note: If you are using your Epson product with the Windows 10 S operating system, you cannot use the
software described in this section. You also cannot download and install any Epson product software
48
from the Epson website for use with Windows 10 S; you must obtain software only from the Windows
Store.
Setting Up Epson Connect Services
Using Epson Email Print
Using Epson Remote Print
Parent topic: Product Basics
Setting Up Epson Connect Services
If you did not activate your product's email address for use with Epson Connect when you set up your
product, you can activate it using the product control panel.
1. Press the home button, if necessary.
2. Select Settings > General Settings > Web Service Settings > Epson Connect Services.
3. Press the OK button to select Register.
4. Follow the instructions on the screen to activate your product's email address.
Parent topic: Epson Connect Solutions for Smartphones, Tablets, and More
Using Epson Email Print
With Epson Email Print, you can print from any device that can send email, such as your smartphone,
tablet, or laptop. Just activate your product's unique email address. When you want to print, attach a
PDF, Microsoft Office document, or photo to an email and send it to your product. Both the email and the
attachments will print automatically.
1. Connect your product to your network. See the link below.
2. If you did not already set up Email Print when you installed your product software, see the link below
to use your product control panel to activate your unique email address. Or visit epson.com/connect
(U.S.) or epson.ca/connect (Canada) to learn more about Email Print, create your Epson Connect
account, and register your product to the Epson Connect service.
3. Now you are ready to send and print emails to your product's Email Print address.
Note: Go to epsonconnect.com and log into your Epson Connect account to personalize your product's
email, adjust print settings, and set up other Epson Connect services.
Parent topic: Epson Connect Solutions for Smartphones, Tablets, and More
49
Related topics
Wi-Fi or Wired Networking
Using Epson Remote Print
With Epson Remote Print software, you can print from your laptop or desktop computer to an Epson
Email-enabled product anywhere in the world.
1. Connect your Epson product to your wireless network. See the link below.
2. If you did not already set up an Epson Connect account when you installed your product software,
visit epsonconnect.com to create your account and register your product to the Epson Connect
service.
Note: Make a note of your product's email address.
3. Visit epsonconnect.com to learn more about Remote Print and how to download the Remote Print
Driver software.
4. Download and install the Remote Print software.
5. Enter the email address and optional access key of your Epson product during Remote Print setup.
6. Now you are ready to print remotely. Select the print command in your laptop or desktop computer
application and choose the Remote Print option for your Epson product.
Parent topic: Epson Connect Solutions for Smartphones, Tablets, and More
Related topics
Wi-Fi or Wired Networking
Using the Epson Smart Panel Mobile App
Use this free Apple and Android app to set up and control your Epson product. Epson Smart Panel also
lets you check product status.
Note: App features may vary depending on your Epson product.
1. Visit epson.com/connect (U.S.) or epson.ca/connect (Canada) to learn more about Epson Smart
Panel and check the compatibility of your mobile device.
2. Download Epson Smart Panel from the Apple App Store or Google Play.
50
3. Do one of the following:
• If your Epson product is already connected to a wireless network, connect your mobile device to
the same network. Then open Epson Smart Panel and select your Epson product, if necessary.
• If your Epson product is not connected to a wireless network, connect your mobile device to the
network you want to use, then open Epson Smart Panel and follow the instructions to set up your
Epson product.
Now you are ready to control your Epson product with your mobile device.
Parent topic: Product Basics
Using AirPrint
AirPrint enables instant wireless printing from iPhone, iPad, iPod touch, and Mac without the need to
install drivers or download software.
Note: If you disabled paper configuration messages on your product control panel, you cannot use
AirPrint. See the link below to enable the messages, if necessary.
1. Load paper in your product.
2. Set up your product for wireless printing. See the link below.
3. Connect your Apple device to the same wireless network that your product is using.
4. Print from your device to your product.
Note: For details, see the AirPrint page on the Apple website.
Parent topic: Product Basics
Related topics
Wi-Fi or Wired Networking
Selecting Default Paper Settings - Administrator
51
Using the Mopria Print Service
Mopria Print Service enables printing to Mopria certified printers and multifunction printers from many
manufacturers. Mobile printing from your Android phone or tablet may be accomplished using the Mopria
Print Service app in the Google Play Store.
Note: For details and support on the Mopria Print Service, visit https://mopria.org.
Parent topic: Product Basics
Related topics
Wi-Fi or Wired Networking
Setting Up Printing on a Chromebook
Your Epson printer supports native printing on Chromebook, allowing you to print from a Chromebook
without drivers or cables.
For directions on setting up your printer, visit Setting Up Your Epson Printer on Your Chromebook (U.S.)
or Setting Up Your Epson Printer on Your Chromebook (Canada).
Parent topic: Product Basics
Android Printing Using the Epson Print Enabler
You can wirelessly print your documents, emails, photos, and web pages right from your Android phone
or tablet. With a few taps, your Android device will discover your nearby Epson product and print.
Note: Operations may differ depending on the device.
1. Connect your Epson product to your wireless network. See the link below.
52
2. On your Android device, download the Epson Print Enabler plug-in from Google Play.
3. Go to Settings on your Android device, select Printing, and enable the Epson plug-in, if necessary.
4. Connect your Android device to the same wireless network as your product.
5. Now you are ready to print. From an Android application such as Chrome or Gmail, tap the menu
icon and print whatever is on the screen.
Note: If you do not see your product, tap All Printers and select your product.
Parent topic: Product Basics
Related topics
Wi-Fi or Wired Networking
Voice-activated Printing
Take advantage of voice-activated, hands-free printing from your Epson product with Alexa. You can ask
your product to print photos, calendars, recipes, photo props, and more. Click here for more information.
1. Connect your product to your network. See the link below.
2. Set up your product's email address for use with Epson Connect. See the link below to activate it
from the product control panel.
3. Click here for instructions on how to set up your product and voice assistant to use the voice-
activated printing feature.
Now you are ready to print with your voice and your Epson product.
Parent topic: Product Basics
53
Wi-Fi or Wired Networking
See these sections to use your product on a Wi-Fi or wired network.
Network Security Recommendations
Wi-Fi Infrastructure Mode Setup
Wi-Fi Direct Mode Setup
Wi-Fi Protected Setup (WPS)
Printing a Network Status Sheet
Changing or Updating Network Connections
Network Security Recommendations
To help deter unauthorized access to your product over a network, you should protect your network
environment using appropriate security measures.
Security measures such as these can help deter threats such as loss of user data, use of telephone and
fax lines, and other intrusions:
• Enable security on your wireless LAN
Enable the appropriate security on the wireless LAN you plan to use with your product. Network
security such as a network password can deter interception of traffic over the wireless LAN. Your
router may already have a default password enabled by your Internet service provider (ISP). See your
ISP and router documentation for instructions on how to change the default password and better
secure your network.
• Connect your product only to a network protected by a firewall
Connecting your product directly to the Internet may leave it vulnerable to security threats. Instead,
connect it to a router or other network connection protected by a firewall. Your router may already
have a firewall set up by your Internet service provider; check with your ISP for confirmation. For best
results, set up and use a private IP address for your network connection.
• Change the default administrator password on your product
If your product has the option to set an administrator password, change the default administrator
password to deter access by unauthorized users to personal data stored on your product, such as IDs,
passwords, and contact lists.
Parent topic: Wi-Fi or Wired Networking
54
Wi-Fi Infrastructure Mode Setup
You can set up your product to communicate with your computer using a wireless router or access point.
The wireless router or access point can be connected to your computer over a wireless or wired network.
1 Epson product
2 Wireless router or access point
3 Computer with a wireless interface
4 Computer
5 Internet
6 Ethernet cable (used only for wired connection to the wireless router or access point)
Selecting Wireless Network Settings from the Control Panel
Parent topic: Wi-Fi or Wired Networking
55
Selecting Wireless Network Settings from the Control Panel
You can select or change wireless network settings using your product control panel.
To install your product on a wireless network, install the necessary software by downloading it from the
Epson website. The installer program guides you through network setup.
Note: Breakdown or repair of this product may cause loss of network data and settings. Epson is not
responsible for backing up or recovering data and settings during or after the warranty period. We
recommend that you make your own backup or print out your network data and settings.
1. Press the home button, if necessary.
2. Select Wi-Fi > Router.
3. Select Start Setup, Change Settings, or Change to Wi-Fi Connection, depending on your current
connection settings.
4. Select Wi-Fi Setup Wizard.
5. Select the name of your wireless network or select Enter Manually to enter the name manually. Use
the displayed keypad to enter your network name.
6. Select the Enter Password field and enter your wireless password using the displayed keypad.
Note: The network name and password are case sensitive. Be sure to correctly enter uppercase and
lowercase letters, and numeric or special characters.
• To move the cursor, select the left or right arrows.
• To change the case of letters, select .
• To delete the previous character, select .
• To enter numbers and symbols, select .
• To change the keypad layout, select .
• To enter a space, select .
7. Select OK when you finish entering your password.
8. Confirm the displayed network settings and select Start Setup to save them.
56
9. If you want to print a network settings report, select Print Check Report. (Otherwise, select
Dismiss.)
10. Press the home button to exit.
You see the icon on the LCD screen and should be able to connect to your product directly
from your computer or device, and then print. If you are printing from a computer, make sure you
installed the network software from the Epson website.
Note: If you don't see the icon, you may have selected the wrong network name or entered the
password incorrectly. Repeat these steps to try again.
Parent topic: Wi-Fi Infrastructure Mode Setup
Related references
Status Icon Information
Related tasks
Entering Characters on the LCD Screen
Wi-Fi Direct Mode Setup
You can set up your product to communicate directly with your computer or another device without
requiring a wireless router or access point. In Wi-Fi Direct Mode, the product itself acts as a network
access point for up to 8 devices.
57
1 Epson product
2 Computer with a wireless interface
3 Other wireless device
Note: The product normally uses W52 (36ch) as the channel when connecting to Wi-Fi Direct (Simple
AP). Since the channel for wireless LAN (Wi-Fi) connection is selected automatically, the channel used
may differ when used at the same time as a Wi-Fi Direct connection. Sending data to the printer may be
delayed if the channels are different. If it does not interfere with use, connect to the SSID in the 2.4 GHz
band. In the 2.4 GHz frequency band, the channels used will match.
When setting the wireless LAN to 5 GHz, we recommend disabling Wi-Fi Direct.
Enabling Wi-Fi Direct Mode
Parent topic: Wi-Fi or Wired Networking
Enabling Wi-Fi Direct Mode
You can enable Wi-Fi Direct mode to allow direct communication between your product and computer or
other devices without a wireless router or access point.
1. Press the home button, if necessary.
2. Select Wi-Fi > Wi-Fi Direct > Start Setup > Start Setup again.
3. Use your computer or wireless device to select the Wi-Fi network name (SSID) displayed on the
LCD screen, then enter the password shown.
4. Press the home button to exit.
You see the icon on the LCD screen and should be able to connect to your product directly
from your computer or device, and then print. If you are printing from a computer, make sure you
installed the network software from the Epson website.
Note: If you don't see the icon on the LCD screen, you may have selected the wrong network
name or entered the password incorrectly. Repeat these steps to try again.
Parent topic: Wi-Fi Direct Mode Setup
Related references
Status Icon Information
58
Related tasks
Entering Characters on the LCD Screen
Wi-Fi Protected Setup (WPS)
If your network uses a WPS-enabled wireless router or access point, you can quickly connect your
product to the network using Wi-Fi Protected Setup (WPS).
Note: To check if your router is WPS-enabled, look for a button labeled WPS on your router or access
point. If there is no hardware button, there may be a virtual WPS button in the device's software. Check
your network product documentation for details.
Using WPS to Connect to a Network
Parent topic: Wi-Fi or Wired Networking
Using WPS to Connect to a Network
If you have a WPS-enabled wireless router or access point, you can use Wi-Fi Protected Setup (WPS) to
connect your product to the network.
1. Press the home button, if necessary.
2. Select Wi-Fi > Router.
3. Select Start Setup, Change Settings, or Change to Wi-Fi connection, depending on your current
connection settings.
4. Select Push Button Setup (WPS).
5. Follow the instructions on the LCD screen to complete WPS setup.
6. Press the home button to exit.
You see the icon on the LCD screen and should be able to connect to your product directly
from your computer or device, and then print. If you are printing from a computer, make sure you
installed the network software as described on the Start Here sheet.
Note: If you don't see the icon, repeat these steps to try again.
Parent topic: Wi-Fi Protected Setup (WPS)
59
Printing a Network Status Sheet
You can print a network status sheet to help you determine the causes of any problems you may have
using your product on a network.
1. Press the home button, if necessary.
2. Select Settings > General Settings > Network Settings > Network Status > Print Status Sheet >
Print.
3. Press the OK button.
Examine the settings shown on the network status sheet to diagnose any problems you have.
Parent topic: Wi-Fi or Wired Networking
Changing or Updating Network Connections
See these sections to change or update how your product connects to a network.
Changing a USB Connection to a Wi-Fi Connection
Changing a Wi-Fi Connection to a Wired Network Connection
Connecting to a New Wi-Fi Router
Disabling Wi-Fi Features
Parent topic: Wi-Fi or Wired Networking
Changing a USB Connection to a Wi-Fi Connection
If you have already connected your product to your computer using a USB connection, you can change
to a Wi-Fi connection.
1. Disconnect the USB cable from your product.
2. Uninstall your product software.
3. Download and install your product software from the Epson website.
Parent topic: Changing or Updating Network Connections
Changing a Wi-Fi Connection to a Wired Network Connection
If you have already connected your product to your computer wirelessly, you can change to a wired
network connection if necessary.
1. Disable your product's Wi-Fi features.
2. Connect one end of an Ethernet network cable to the product's LAN port.
60
3. Connect the other end to any available LAN port on your router or access point.
4. Uninstall your product software.
5. Download and install your product software from the Epson website.
6. Follow the on-screen instructions to install the software.
7. When you see the Select Your Connection screen, select Wired network connection.
8. If you see a Select Setup Option screen, select Set up printer for the first time.
9. Continue following the rest of the on-screen instructions.
Parent topic: Changing or Updating Network Connections
Related tasks
Disabling Wi-Fi Features
Connecting to a New Wi-Fi Router
If you change the wireless router you have been using on your network, you need to update your
product's Wi-Fi connection to the new router.
Note: If you switch to a 5 GHz wireless router, set the router to operate in dual band (2.4 GHz and
5 GHz) mode. If your router uses a single network name (SSID) for both the 2.4 GHz and 5 GHz band,
give each band its own network name (SSID) instead, such as Home Network 2.4 GHz and Home
Network 5 GHz. See your router documentation for instructions.
1. Do one of the following:
• Windows: Uninstall your product software.
• Mac: Go to the next step.
2. Download and install your product software from the Epson website.
Parent topic: Changing or Updating Network Connections
Related concepts
Uninstall Your Product Software
Disabling Wi-Fi Features
You may need to disable your product's Wi-Fi features if you change your network connection type or
need to solve a problem with your network connection.
61
Note: Before disabling Wi-Fi features, make a note of your product's SSID (network name) and
password, and any network settings selected for the Epson Connect services you may use.
1. Press the home button, if necessary.
2. Select Wi-Fi > Router > Change Settings > Others > Disable Wi-Fi > Start Setup to disable Wi-Fi.
Parent topic: Changing or Updating Network Connections
62
Enabling Epson Universal Print Driver (PCL) or PostScript
Printing
Before enabling Epson Universal Print Driver (PCL) or PostScript printing on your product, make sure
you have installed the software from the Epson website.
To download the Epson Universal Print Driver or PostScript drivers, visit epson.com/support (U.S.),
epson.ca/support (Canada), or latin.epson.com/support (Latin America) and select your product.
Installing the Epson Universal Print Driver - Windows
Installing the PostScript (PS3) Printer Software - Windows
Installing the PostScript (PS3) Printer Software - Mac
Selecting PDL (Page Description Language) Settings
Selecting Printer Language and Interface Settings
Printing a PCL or PS (PostScript) Font List
Installing the Epson Universal Print Driver - Windows
The Epson Universal Print Driver supports multiple printer languages, such as PCL and ESC/P-R, and
can be installed on a Windows computer.
Note: Make sure your product is turned on and connected to the same network as your computer before
installing the printer software. Depending on your model, not all printer languages may be supported.
1. To download the EPSON Universal Print Driver file, visit epson.com/support (U.S) or
epson.ca/support (Canada) and select your product.
2. After downloading the installer file, double-click the downloaded file to install the software.
63
3. Follow the on-screen instructions until you see this screen:
4. Select Yes: Network connection and click OK.
Note: Select the Set Default of Printer Control Language to PCL6 checkbox if you want to set the
default printer language to PCL6. Leave this option deselected to set the printer language to ESC/P-
R. (You can change this setting later as needed.)
64
After the software finishes searching for products, you see a screen like this:
5. Do one of the following:
• If you are installing one product, make sure Add EPSON Universal Print Driver is selected and
continue with the next step.
• If you are installing more than one product, select Add found printers and go to step 9.
Note: You can customize and filter your product search results by clicking Display Settings.
65
6. Open the Select a port to connect a printer menu and select an existing printer port, if necessary.
Otherwise, skip this option to create a new port automatically.
7. Select the product you want to install from the Found Printers list.
Note: Deselect the Set as default printer checkbox if you do not want the product to be set as your
default printer.
8. Click OK, then skip the remaining steps.
9. If you are installing more than one product, select the products from the Found Printers list and click
Add to Printer Folder.
66
The selected products appear in the lower section of the screen.
10. Select the checkbox next to the product you want to make your default printer, if necessary.
11. Click OK.
Parent topic: Enabling Epson Universal Print Driver (PCL) or PostScript Printing
Installing the PostScript (PS3) Printer Software - Windows
If you did not install the standard Epson printer software or Epson Universal Print Driver, you need to
install the PostScript (PS3) printer software before you can adjust the print settings and print to your
network printer.
Note: Make sure your product is turned on and connected to the same network as your computer before
installing the printer software.
1. To download the Drivers and Utilities Combo Package - PS3 PostScript file, visit
epson.com/support (U.S.), epson.ca/support (Canada), or latin.epson.com/support (Latin America)
and select your product.
2. After downloading the installer file, double-click the downloaded file to install the software.
3. Click OK.
4. Click Accept.
5. Click Install.
6. Click Next and follow the on-screen instructions.
Parent topic: Enabling Epson Universal Print Driver (PCL) or PostScript Printing
Installing the PostScript (PS3) Printer Software - Mac
If you did not install the standard Epson printer software, you need to install the PostScript (PS3) printer
software before you can adjust the print settings and print to your network printer.
Note: Make sure your product is turned on and connected to the same network as your computer before
installing the printer software.
1. To download the Drivers and Utilities Combo Package - PS3 PostScript file, visit
epson.com/support (U.S) or epson.ca/support (Canada) and select your product.
2. After downloading the installer file, double-click the downloaded file to install the software.
67
3. Double-click EPSON.
4. Click Continue on the next two screens.
5. Click Agree.
6. Click Install or Continue.
7. If necessary, enter the administrator password.
8. Click Start and follow the on-screen instructions.
Parent topic: Enabling Epson Universal Print Driver (PCL) or PostScript Printing
Selecting PDL (Page Description Language) Settings
You can select settings for PCL and PostScript printing using the control panel on the product.
Note: These settings can be locked by an administrator. If you cannot access these settings, contact
your administrator for assistance.
1. Press the home button, if necessary.
2. Select Settings > General Settings > Printer Settings > PDL Print Configuration.
3. Select one of the options shown above, then select the PDL print configuration options you want to
use.
4. When you are finished, press the home button to exit.
PDL Print Configuration Options
Parent topic: Enabling Epson Universal Print Driver (PCL) or PostScript Printing
PDL Print Configuration Options
Select the PDL Print Configuration options you want to use for PCL or PostScript printing.
PDL Print Configuration
option
Available
settings
Description
Common Settings
Paper Size Various sizes Sets the default paper size for PCL or PostScript
printing
Paper Type Various paper
types
Sets the default paper type for PCL or PostScript
printing
68
PDL Print Configuration
option
Available
settings
Description
Orientation Portrait Sets the default orientation for PCL or PostScript
printing
Landscape
Quality Draft Sets the quality for PCL or PostScript printing
Standard
Best
Ink Save Mode On/Off Saves ink by reducing print density
Print Order Last Page on
Top
Starts printing from the first page of a file
First Page on
Top
Starts printing from the last page of a file
Number of Copies 1 to 999 Selects the number of copies to print
Binding Margin Left Edge Specifies the binding edge for double-sided documents
Top Edge
Auto Paper Ejection On/Off Ejects paper automatically when printing is stopped
during a print job
2-Sided Printing On/Off Selects duplex printing
PCL Menu
Font Source Resident Uses a font preinstalled on the printer
Download Uses a font you have downloaded
Font Number 1 to 111 Selects the default font number for the default font
source
Pitch 0.44 to 99.99 cpi Selects the default font pitch if the font is scalable and
fixed-pitch (availability depends on font source and
number settings)
Height 4.00 to 999.75 pt Selects the default font height if the font is scalable and
proportional (availability depends on font source and
number settings)
69
PDL Print Configuration
option
Available
settings
Description
Symbol Set Various Selects the default symbol set. If the selected font is not
available for the selected symbol set, the font source
and number are replaced with IBM-US (the default
setting).
Form 5 to 128 lines Sets the number of lines for the selected paper size and
orientation. Changes the line spacing (VMI) stored in
the printer. Later changes in page size or orientation
cause changes in the Form value based on the stored
VMI.
CR Function CR Selects the carriage return and line feed commands
when printing with a driver from a specific operating
system
CR+LF
LF Function LF
CR+LF
Paper Source Assign 4 Makes the paper source select command compatible
with HP LaserJet 4
4K Makes the paper source select command compatible
with HP LaserJet 4000, 5000, and 8000
5S Makes the paper source select command compatible
with HP LaserJet 5S
PS3 Menu
Error Sheet On/Off Prints a sheet showing the status when errors occur
during PostScript or PDF printing
Coloration Color Selects the color mode for PostScript printing
Mono
Binary On/Off Enable when printing files that contain binary images
(available when the product is connected to the
network). Allows you to print binary images even if the
driver is set to ASCII.
PDF Page Size Various sizes Selects the paper size when printing a PDF file. If Auto
is selected, the paper size is determined based on the
size of the first page.
70
Parent topic: Selecting PDL (Page Description Language) Settings
Selecting Printer Language and Interface Settings
You can select printer language and interface settings using the control panel on the product.
Note: These settings can be locked by an administrator. If you cannot access these settings, contact
your administrator for assistance.
1. Press the home button, if necessary.
2. Select Settings > General Settings > Printer Settings.
3. To change interface settings, scroll down and select the interface options for your connection type.
4. To select printer language settings, select Printing Language, then select the printing language
options for your connection type.
5. When you are finished, press the home button to return to the Home screen.
Printing Language and Interface Options
Parent topic: Enabling Epson Universal Print Driver (PCL) or PostScript Printing
Printing Language and Interface Options
Select the printing language and interface options you want to use.
Option Available
settings
Description
PC Connection via USB Enable Select whether to allow USB communication with the
product
Disable
USB I/F Timeout Setting 0.5 to 300
seconds
Specify the length of time before ending USB
communication from a computer using the PCL or
PostScript driver. This setting is necessary to avoid
endless USB communication.
Printing Language Auto Select the language for the USB or network interface
PCL
PS3
PDF
71
Parent topic: Selecting Printer Language and Interface Settings
Printing a PCL or PS (PostScript) Font List
You can print a PCL or PS3 (PostScript) font list to confirm the current font information.
1. Press the home button, if necessary.
2. Select Settings.
3. Scroll down and select Printer Status/Print.
4. Select Print Status Sheet.
5. Select PS Font List or PCL Font List.
6. Select Print to print the font list.
Parent topic: Enabling Epson Universal Print Driver (PCL) or PostScript Printing
72
Loading Paper
Before you print, load paper for the type of printing you will do.
Loading Paper in the Cassette and Rear Paper Feed Slot
Paper Loading Capacity
Double-sided Printing Paper Types
Compatible Epson Papers
Paper or Media Type Settings - Printing Software
Selecting the Paper Settings for Each Source - Control Panel
Selecting Default Paper Settings - Administrator
Loading Paper in the Cassette and Rear Paper Feed Slot
You can load paper up to Letter (8.5 × 11 inches [216 × 279 mm]) or A4 (8.3 × 11.7 inches
[210 × 297 mm]) in the standard and optional paper cassettes. The paper tray can accommodate user-
defined paper sizes from 2.2 × 5.0 inches (55 × 127 mm) to 12.95 × 47.2 inches (329 × 1200 mm) for
single-sided printing.
You can view instructions on how to load paper in the cassettes or paper tray on the control panel.
Note: If the optional paper cassette units are installed, do not remove more than one cassette at a time.
1. Select the icon on the LCD screen.
2. Select How To > Load paper.
3. Select one of the options.
4. Select How To.
5. Select the icon to scroll through the paper loading instructions.
Caution: Slowly open and close the paper cassettes. Do not let the paper's edge slide across your
skin because the edge of the paper may cut you.
73
6. If necessary, select Close and then select the Paper Setting button and select the size and type
of paper you loaded on the LCD screen.
Note: If the Paper Size Auto Detect setting is enabled, your product will automatically detect the
size of the paper you loaded. To select a user-defined paper size, disable the Paper Size Auto
Detect setting.
Always follow these paper loading guidelines:
• Load only the recommended number of sheets.
• Fan and align the edges of the paper or envelopes before loading.
• Load letterhead or pre-printed paper top edge first.
• Do not load paper above the arrow mark inside the edge guides.
• Insert and remove paper cassettes slowly.
• Check the paper package for any additional loading instructions.
Caution: Do not use the following papers; they may cause paper jams, smears on the printout, or
damage to the printer.
• Papers that are wavy or damp
• Papers that have not dried after printing on one side
• Papers that are wadded or curled
• Papers that are torn, cut, or folded
• Papers that are too thick or thin
• Preprinted papers printed by other inkjet printers, thermal transfer printers, page printers, or copiers
• Papers that are perforated
• Papers that have stickers
• Papers held together with tape, staples, or paper clips
• Envelopes with adhesive surfaces or windows
Note: Store paper flat in its packaging or a plastic bag to avoid absorbing moisture. Store paper in a
location with low humidity and away from direct sunlight. Do not store paper vertically and do not get the
paper wet.
74
Parent topic: Loading Paper
Related references
Paper Specifications
Paper Loading Capacity
Paper Loading Capacity
Paper Cassettes
The table below shows the paper cassette capacity for paper in the following sizes unless noted
otherwise:
• Letter (8.5 × 11 inches [216 × 279 mm]), Executive (7.25 × 10.5 inches [184 × 267 mm]), 8.5 × 13
inches (216 × 330 mm), Legal (8.5 × 14 inches [216 × 356 mm]), 11 × 17 inches (279 × 432 mm)
• A5 (5.8 × 8.2 inches [148 × 210 mm]), A4 (8.3 × 11.7 inches [210 × 297 mm]), A3 (11.7 × 16.5 inches
[297 × 420 mm])
• B5 (7.2 × 10.1 inches [182 × 257 mm]), B4 (13.9 × 9.84 inches [353 × 250 mm])
• Oficio 9 (8.46 × 12.4 inches [215 × 315 mm]), Mexico-Oficio (8.5 × 13.4 inches [216 × 340 mm])
• A6 (4.1 × 5.8 inches [105 × 148 mm]), B6 (5 × 7.2 inches [128 × 182 mm]), Half Letter (5.5 × 8.5
inches [140 × 216 mm]), 13 × 19 inches (330 × 483 mm) (for C1 only)
• User-defined (3.9 × 5.8 inches to 11.7 × 17.0 inches [100 × 148 mm to 297 × 431.8 mm]) (for C1 only)
• User-defined (5.8 × 8.3 inches to 11.7 × 17.0 inches [148 × 210 mm to 297 × 431.8 mm]) (for C2-C4
only)
Paper type Loading capacity
Plain paper
Pre-printed paper
Letterhead paper
Colored paper
Recycled paper
High quality plain paper
Thin paper (14 to 16 lb [52 to
59 g/m
2
])
Up to the line indicated by the triangle symbol on the edge guide:
• 250 sheets (for C1 only)
• 500 sheets (for C2-C4 only)
75
Paper type Loading capacity
Epson Bright White Premium
Paper
Epson Bright White Pro Paper
Epson Multipurpose Plus
Paper
Letter (8.5 × 11 inches [216 × 279 mm]):
• 250 sheets (for C1 only)
• 500 sheets (for C2-C4 only)
Paper Tray
The table below shows the paper tray capacity for paper in the following sizes unless noted otherwise.
Note: For paper longer than 17 inches (431.9 mm), load one sheet at a time.
• Letter (8.5 × 11 inches [216 × 279 mm]), Executive (7.25 × 10.5 inches [184 × 267 mm]), Half Letter
(5.5 × 8.5 inches [140 × 216 mm]), Legal (8.5 × 14 inches [216 × 356 mm]), 11 × 17 inches
(279 × 432 mm)
• A6 (4.1 × 5.8 inches [105 × 148 mm]), A5 (5.8 × 8.2 inches [148 × 210 mm]), A4 (8.3 × 11.7 inches
[210 × 297 mm]), A3 (11.7 × 16.5 inches [297 × 420 mm])
• B6 (5 × 7.2 inches [128 × 182 mm]), B5 (7.2 × 10.1 inches [182 × 257 mm]), B4 (13.9 × 9.84 inches
[353 × 250 mm])
• Oficio 9 (8.46 × 12.4 inches [215 × 315 mm]), Mexico-Oficio (8.5 × 13.4 inches [216 × 340 mm])
• 8.5 × 13 inches (216 × 330 mm)
• User-defined (3.9 × 5.8 inches to 11.7 × 17.0 inches [100 × 148 mm to 297 × 431.8 mm])
• User-defined (5.8 × 8.3 inches to 11.7 × 17.0 inches [148 × 210 mm to 297 × 431.8 mm])
• User-defined (2.2 × 5.0 inches to 12.95 × 47.2 inches [55 × 127 mm to 329 × 1200 mm])
76
Paper type Loading capacity
Plain paper
Pre-printed paper
Letterhead paper
Colored paper
Recycled paper
Thin paper (14 to 16 lb [52 to
59 g/m
2
])
Up to the line indicated by the triangle symbol on the edge guide (100
sheets)
Epson Bright White Premium
Paper
Epson Bright White Pro Paper
Epson Multipurpose Plus
Paper
85 sheets:
Letter (8.5 × 11 inches [216 × 279 mm])
Envelopes 10
Parent topic: Loading Paper
Related references
Paper Specifications
Double-sided Printing Paper Types
You can print double-sided on the following papers:
• Plain paper
• Pre-printed paper
• Letterhead paper
• Colored paper
• Recycled paper
• High quality plain paper
• Thick paper 25 to 68 lb (91 to 256 g/m
2
)
• Epson Bright White Premium Paper
• Epson Bright White Pro Paper
77
• Epson Multipurpose Plus Paper
Note: You can print double-sided on any supported sizes except the following:
• 13 × 19 inches (330 × 483 mm)
• Half Letter (5.5 × 8.5 inches [140 × 216 mm])
• A6 (4.1 × 5.8 inches [105 × 148 mm])
• B6 (5 × 7.2 inches [128 × 182 mm])
To print double-sided with a user-defined size, the dimensions of the paper must have a width between
5.8 and 8.27 inches (148 to 210 mm) and a length between 11.7 and 17.0 inches (297 to 431.8 mm).
Parent topic: Loading Paper
Related tasks
Selecting Double-sided Printing Settings - Windows
Selecting Double-sided Printing Settings - Mac
Compatible Epson Papers
You can purchase genuine Epson ink, maintenance boxes, and paper at epson.com (U.S. sales),
epson.ca (Canadian sales), or latin.epson.com (Latin American sales). You can also purchase supplies
from an Epson authorized reseller. To find the nearest one, call 800-GO-EPSON (800-463-7766) in the
U.S. or 800-807-7766 in Canada.
Note: Paper/media availability varies by country.
Paper Type Size Part number Sheet count
Epson Bright White Pro Paper Letter (8.5 × 11 inches
[216 × 279 mm])
S041586 500
78
Paper Type Size Part number Sheet count
Epson Presentation Paper Matte Legal (8.5 × 14 inches
[216 × 356 mm])
S041067 100
Letter (8.5 × 11 inches
[216 × 279 mm])
S041062 100
A3 (11.7 × 16.5 inches
[297 × 420 mm])
S041069-L 100
11 × 17 inches
(279 × 432 mm)
S041070 100
Epson Premium Presentation
Paper Matte
8 × 10 inches (203 × 254 mm) S041467 50
Letter (8.5 × 11 inches
[216 × 279 mm])
S041257
S042180
50
100
13 × 19 inches
(330 × 483 mm)
S041263 50
A3 (11.7 × 16.5 inches
[297 × 420 mm])
S041260 50
Epson Photo Paper Glossy 4 × 6 inches (102 × 152 mm) S041809
S042038
50
100
Letter (8.5 × 11 inches
[216 × 279 mm])
S041141
S041649
S041271
20
50
100
A4 (8.3 × 11.7 inches
[210 × 297 mm])
S041140 20
11 × 17 inches
(279 × 432 mm)
S041156 20
13 × 19 inches
(330 × 483 mm)
S041143 20
79
Paper Type Size Part number Sheet count
Epson Premium Photo Paper
Glossy
4 × 6 inches (102 × 152 mm) S041727 100
5 × 7 inches (127 × 178 mm) S041464 20
8 × 10 inches (203 × 254 mm) S041465 20
Letter (8.5 × 11 inches
[216 × 279 mm])
S042183
S041667
25
50
11 × 17 inches
(279 × 432 mm)
S041290 20
A3 (11.7 × 16.5 inches
[297 × 420 mm])
S041288 20
13 × 19 inches
(330 × 483 mm)
S041289 20
Epson Ultra Premium Photo Paper
Glossy
4 × 6 inches (102 × 152 mm) S042181
S042174
60
100
5 × 7 inches (127 × 178 mm) S041945 20
8 × 10 inches (203 × 254 mm) S041946 20
Letter (8.5 × 11 inches
[216 × 279 mm])
S042182
S042175
25
50
Epson Premium Photo Paper
Semi-gloss
4 × 6 inches (102 × 152 mm) S041982 40
Letter (8.5 × 11 inches
[216 × 279 mm])
S041331 20
13 × 19 inches
(330 × 483 mm)
S041327 20
Parent topic: Loading Paper
80
Paper or Media Type Settings - Printing Software
For this paper Select this Paper Type or Media Type setting
Plain paper
Epson Bright White Premium Paper
Epson Bright White Pro Paper
Epson Multipurpose Plus Paper
Plain Paper / Bright White Paper
Letterhead paper Letterhead
Recycled paper Recycled
Colored paper Color
Pre-printed paper Preprinted
High-quality plain paper High Quality Plain Paper
Envelopes Envelope
Epson Ultra Premium Photo Paper Glossy Ultra Premium Photo Paper Glossy
Epson Premium Photo Paper Glossy Premium Photo Paper Glossy
Epson Photo Paper Glossy Photo Paper Glossy
Epson Premium Photo Paper Semi-gloss Premium Photo Paper Semi-Gloss
Epson Presentation Paper Matte
Epson Premium Presentation Paper Matte
Premium Presentation Paper Matte
Thick paper (25 to 40 lb [91 to 150 g/m
2
]) Card Stock 1
Thick paper (41 to 53 lb [151 to 200 g/m
2
]) Card Stock 2
Thick paper (54 to 68 lb [201 to 256 g/m
2
]) Card Stock 3
Parent topic: Loading Paper
Selecting the Paper Settings for Each Source - Control Panel
You can change the default paper size and paper type for each source using the control panel on the
product.
1. Press the Paper Setting button.
81
2. Select the paper source you want to select settings for, based on the letter labeling the source on
your product.
3. Select Paper Size.
4. Select the paper size you loaded.
5. Select Paper Type.
6. Select the paper type for the paper you loaded.
7. Select the back arrow to select another paper source or press the home button to exit.
Paper Type Settings - Control Panel
Parent topic: Loading Paper
Paper Type Settings - Control Panel
Select a Paper Type setting that matches the paper you loaded.
Paper type loaded Paper Type setting
Plain paper
Epson Bright White Premium Paper
Epson Bright White Pro Paper
Epson Multipurpose Plus Paper
Plain Paper
Letterhead paper Letterhead
Recycled paper Recycled
Colored paper Color
Pre-printed paper Preprinted
High-quality plain paper High Quality Plain Paper
Envelopes Envelope
Epson Ultra Premium Photo Paper Glossy Ultra Glossy
Epson Premium Photo Paper Glossy Prem. Glossy
Epson Photo Paper Glossy Glossy
Epson Premium Photo Paper Semi-gloss Prem. Semi-Gloss
82
Paper type loaded Paper Type setting
Epson Presentation Paper Matte
Epson Premium Presentation Paper Matte
Prem. Matte
Thick paper up to 25 to 40 lb (91 to 150 g/m
2
) Card Stock 1
Thick paper up to 41 to 53 lb (151 to 200 g/m
2
) Card Stock 2
Thick paper up to 54 to 68 lb (201 to 256 g/m
2
) Card Stock 3
Parent topic: Selecting the Paper Settings for Each Source - Control Panel
Selecting Default Paper Settings - Administrator
As an administrator, you can adjust default paper settings that apply to all print jobs sent to the product.
Note: These settings can be locked by an administrator. If you cannot access these settings, contact
your administrator for assistance.
Selecting the Default Printer Settings
Selecting the Universal Print Settings
Parent topic: Loading Paper
Selecting the Default Printer Settings
You can change default printer settings using the control panel on the product.
Note: These settings can be locked by an administrator. If you cannot access these settings, contact
your administrator for assistance.
1. Press the home button, if necessary.
2. Select Settings.
3. Select General Settings.
4. Select Printer Settings.
5. Select one of these options for the Auto Error Solver setting:
• Turn on this setting to display a warning and print single-sided when a 2-sided printing error
occurs, or to print only what the printer could process when a full memory error occurs.
83
• Turn off this setting to display an error message and stop printing if an error occurs.
6. Select Paper Source Settings.
7. Select the Paper Source Settings options you want to use.
8. When you are finished, press the home button to exit.
Paper Source Settings Options
Parent topic: Selecting Default Paper Settings - Administrator
Paper Source Settings Options
Select the paper source options you want to use for your print jobs.
Paper Source
Settings option
Available settings Description
Paper Setting Various Select the paper size and type for each paper source
A4/Letter Auto
Switching
On Select On to switch the selected paper size to match the
loaded paper (Letter or A4) if the wrong size is selected
Off
Auto Select
Settings
Available paper
sources
Select On for any of these settings to automatically print on
paper from any source containing paper that matches your
paper settings
Note: More than one paper source needs to be set to On.
Error Notice Paper Size Notice Select On for either of these settings to display an error
message when the selected paper type or size does not
match the loaded paper
Paper Type Notice
Paper Setup
Auto Display
On Select On to automatically display a menu that lets you
select the paper size and type when you load paper in the
product
Off
User-Defined
Paper Size List
Various Enter a user-defined paper size setting
Parent topic: Selecting the Default Printer Settings
Selecting the Universal Print Settings
You can change the default universal print settings using the control panel on the product.
84
Note: These settings can be locked by an administrator. If you cannot access these settings, contact
your administrator for assistance.
1. Press the home button, if necessary.
2. Select Settings > General Settings > Printer Settings > Universal Print Settings.
3. Adjust the settings as necessary.
4. When you are finished, press the home button to exit.
Universal Print Settings Options
Parent topic: Selecting Default Paper Settings - Administrator
Universal Print Settings Options
Select the universal print setting options you want to use for your print jobs.
Universal Print
Settings option
Available settings Description
Top Offset — Adjust the top or left margin
Left Offset
Top Offset in
Back
— Adjust the top or left margin of the back page when printing
double-sided
Left Offset in
Back
Check Paper
Width
On Select On to check the paper width before printing. This
prevents printing beyond the edges of the paper when the
paper size settings are incorrect, but may reduce the
printing speed.
Off
Skip Blank Page On Select On to skip printing of blank pages automatically
Off
Color Correction On Select On to adjust settings such as brightness, contrast,
saturation, and more
Off
Parent topic: Selecting the Universal Print Settings
85
Printing from a Computer
Before printing from your computer, make sure you have set up your product and installed its software
from the Epson website.
Note: If you have an Internet connection, it is a good idea to check for updates to your product software
on Epson's support website. If you see a Software Update screen, select Enable automatic checking
and click OK. The update scans your system to see if you have the latest product software. Follow the
on-screen instructions.
Printing with the Standard Epson Printer Software - Windows
Printing with the Epson Standard Printer Software - Mac
Printing with the Epson Universal Print Driver - Windows
Printing with the PostScript (PS3) Printer Software - Windows
Printing with the PostScript (PS3) Printer Software - Mac
Printing from a Smartphone or Tablet
Cancelling Printing Using a Product Button
Printing with the Standard Epson Printer Software - Windows
You can print with the standard Epson printer software using any Windows printing program, as
described in these sections.
Note: If you are using your Epson product with the Windows 10 S operating system, you cannot use the
software described in this section. You also cannot download and install any Epson product software
from the Epson website for use with Windows 10 S; you must obtain software only from the Windows
Store.
Selecting Basic Print Settings - Windows
Selecting Double-sided Printing Settings - Windows
Selecting Additional Layout and Print Options - Windows
Selecting a Printing Preset - Windows
Selecting Extended Settings - Windows
Printing Your Document or Photo - Windows
Locking Printer Settings - Windows
Entering a User ID and Password for Printing
86
Selecting Default Print Settings - Windows
Changing Automatic Update Options
Parent topic: Printing from a Computer
Selecting Basic Print Settings - Windows
Select the basic settings for the document or photo you want to print.
1. Open a photo or document for printing.
2. Select the print command in your application.
Note: You may need to select a print icon on your screen, the Print option in the File menu, or
another command. See your application's help utility for details.
3. If necessary, select your product name as the printer you want to use.
Note: You may also need to select More settings, Properties, or Preferences to view your print
settings.
87
You see the Main tab of your printer settings window:
4. For the Paper Source setting, select where you loaded the paper you want to print on. Select Auto
Select to automatically select the paper source in the paper setting menu on the product.
88
5. Select the size of your document or photo as the Document Size setting.
6. Select the orientation of your document.
Note: If you are printing an envelope, select Landscape.
7. Select the type of paper you loaded as the Paper Type setting. Select Auto Select (plain paper) to
automatically use the paper type selected on the product control panel.
Note: The setting may not exactly match the name of your paper. Check the paper type settings list
for details.
8. Select the Quality setting that matches the print quality you want to use.
9. Select a Color option:
• To print a color document or photo, select the Color setting.
• To print text and graphics in black or shades of gray, select the Black/Grayscale setting.
10. To print on both sides of the paper, select a 2-Sided Printing option and click Settings to select
printing options.
11. To print multiple pages on one sheet of paper, or print one image on multiple sheets of paper, select
one of the Multi-Page options and click Layout Order to select the printing options.
12. To print multiple copies and arrange their print order, select the Copies, Reverse Order, and
Collate options.
13. To preview your job before printing, select the Print Preview checkbox.
Paper Source Options - Windows
Print Quality Options - Windows
Multi-Page Printing Options - Windows
Parent topic: Printing with the Standard Epson Printer Software - Windows
Paper Source Options - Windows
You can select any of the available options in the Paper Source menu to print on the paper loaded in that
source.
Note: Paper Cassette 2 through Paper Cassette 4 are available only if you have installed the optional
cassettes.
89
Auto Select
Automatically selects the paper source based on the selected paper size.
Paper Cassette 1
Selects the paper in cassette 1 as the paper source.
Paper Cassette 2
Selects the paper in cassette 2 as the paper source.
Paper Cassette 3
Selects the paper in cassette 3 as the paper source.
Paper Cassette 4
Selects the paper in cassette 4 as the paper source.
Rear Paper Feed Slot
Selects the paper in the rear feed slot as the paper source.
Parent topic: Selecting Basic Print Settings - Windows
Print Quality Options - Windows
You can select any of the available Quality options to fine-tune the quality of your print. Some settings
may be unavailable, depending on the paper type and border setting you have chosen.
Standard
For everyday text and image printing.
High
For photos and graphics with high print quality.
More Settings
Opens a window that lets you choose among levels of speed and quality.
Parent topic: Selecting Basic Print Settings - Windows
Multi-Page Printing Options - Windows
You can select any of the available options in the Multi-Page menu to set up your multi-page print job.
2-Up, 4-Up, 6-Up, 8-Up, 9-Up, and 16-Up
Prints several pages on one sheet of paper. Click the Layout Order button to select page layout and
border options.
2×1 Poster, 2×2 Poster, 3×3 Poster, 4×4 Poster
Prints one image on multiple sheets of paper to create a larger poster. Click the Settings button to
select image layout and guideline options.
Parent topic: Selecting Basic Print Settings - Windows
90
Selecting Double-sided Printing Settings - Windows
You can print on both sides of the paper by selecting one of the 2-Sided Printing options on the Main tab.
Note: Some options may be pre-selected or unavailable, depending on other settings you have chosen
or if you are accessing the product over a network.
1. Select one of the following options for 2-Sided Printing:
• Auto (Long-edge binding) to print your double-sided print job by automatically flipping the paper
on the long edge.
• Auto (Short-edge binding) to print your double-sided print job by automatically flipping the paper
on the short edge.
2. Click the Settings button.
91
You see a window like this:
3. Select the double-sided printing options you want to use.
4. Click OK to return to the Main tab.
5. Click the Print Density button.
92
You see this window:
6. Select the type of document you are printing as the Document Type setting. The software
automatically sets the Adjustments options for that document type.
7. Click OK to return to the Main tab.
8. Print a test copy of your double-sided document to test the selected settings.
9. Follow any instructions displayed on the screen during printing.
Double-sided Printing Options - Windows
Print Density Adjustments - Windows
Parent topic: Printing with the Standard Epson Printer Software - Windows
Related references
Double-sided Printing Paper Types
Related tasks
Selecting Basic Print Settings - Windows
Double-sided Printing Options - Windows
You can select any of the available options on the Binding Settings window to set up your double-sided
print job.
93
Binding Edge Options
Select a setting that orients double-sided print binding in the desired direction.
Binding Margin Options
Select options that define a wider margin to allow for binding.
Start Page
Selects whether printing starts on the front or back page.
Create Folded Booklet Options
Select the Booklet checkbox and a binding option to print double-sided pages as a booklet.
Parent topic: Selecting Double-sided Printing Settings - Windows
Print Density Adjustments - Windows
You can select any of the available options on the Print Density Adjustment window to adjust the print
quality of your double-sided print job.
Print Density
Sets the level of ink coverage for double-sided printing.
Increase Ink Drying Time
Sets the amount of time required for drying ink after printing on one side of the paper before printing
the other side in double-sided printing to prevent ink smearing.
Parent topic: Selecting Double-sided Printing Settings - Windows
Selecting Additional Layout and Print Options - Windows
You can select a variety of additional layout and printing options for your document or photo on the More
Options tab.
1. To change the size of your printed document or photo, select the Reduce/Enlarge Document
checkbox and select one of these sizing options:
• Select the Fit to Page option to size your image to fit the paper you loaded. Select the size of your
document or photo as the Document Size setting, and the size of your paper as the Output Paper
setting. If you want to center your image on the paper, select the Center option.
• Select the Zoom to option to reduce or enlarge your document or photo by a specific percentage.
Select the percentage in the % menu.
2. Select one of the following Color Correction options:
• Select Automatic to automatically adjust the sharpness, brightness, contrast, and color saturation
for your image.
94
• Select Custom and click the Advanced button to manually adjust the color correction settings or
turn off color management in your printer software.
• Select Image Options to access additional settings for improving printed images.
Note: You can also select Color Universal Print settings.
3. To add the following features, click the Watermark Features button:
• Anti-Copy Pattern: adds a watermark that only appears when your printout is copied
Note: This setting is not available for all types of printing. Click the Add/Delete button to create
your own pattern, and click the Settings button to customize the pattern.
• Watermark: adds a visible watermark to your printout
Note: Click the Add/Delete button to create your own watermark, and click the Settings button to
customize the watermark.
• Header/Footer: adds information such as the date and time to the top or bottom of your printout
Note: Click the Settings button to customize the text and location of the header or footer.
4. To add a password to your print job, select the Confidential Job checkbox, then enter a password.
Confidential jobs are stored in the product's memory without being printed. To print the job, enter the
password for the confidential job on the product's control panel.
Note: Confidential print jobs are cleared from the product's memory after printing.
5. Select any of the Additional Settings options to customize your print.
Custom Color Correction Options - Windows
Image Options and Additional Settings - Windows
Header/Footer Settings - Windows
Parent topic: Printing with the Standard Epson Printer Software - Windows
Related tasks
Printing Your Document or Photo - Windows
95
Custom Color Correction Options - Windows
You can select any of the available options in the Color Correction window to customize the image colors
for your print job.
Color Controls
Lets you select a Color Mode setting, individual settings for Brightness, Contrast, Saturation, and
Density, and individual color tones. Depending on the selected color mode, you can also adjust the
midtone density using the Gamma setting.
Fix Photo
Improves the color, contrast, and sharpness of flawed photos.
Note: Fix Photo uses a sophisticated face recognition technology to optimize photos that include
faces. For this to work, both eyes and the nose must be visible in the subject's face. If your photo
includes a face with an intentional color cast, such as a statue, you may want to turn off Fix Photo to
retain the special color effects.
96
ICM
Lets you manage color using installed color printing profiles.
No Color Adjustment
Turns off color management in your printer software so you can manage color using only your
application software.
Parent topic: Selecting Additional Layout and Print Options - Windows
Image Options and Additional Settings - Windows
You can select any of the Image Options and Additional Settings to customize your print. Some options
may be pre-selected or unavailable, depending on other settings you have chosen.
Image Options
Emphasize Text
Adjusts the weight of printed text to increase readability.
Emphasize Thin Lines
Adjusts the weight of printed lines to increase visibility.
Edge Smoothing
Smooths jagged edges in low-resolution images such as screen captures or images from the Web.
Fix Red-Eye
Reduces or removes red-eye in photos.
Print Text in Black
Prints colored text in black.
For Color Text
Prints colored text on a background pattern or underlined.
For Color Graphs and Images
Prints colored graphics and images with overlay patterns.
For Color Text, Graphs, and Images
Prints colored text, graphics, and images with overlay patterns.
Enhancement Options
Specifies Color Universal Print enhancement settings for text, graphics, and images.
Additional Settings Options
Rotate 180º
Prints the image rotated 180º from its original orientation.
97
Bidirectional Printing
Prints in both directions (right-to-left and left-to-right), speeding up printing, but may reduce print
quality.
Mirror Image
Flips the printed image left to right.
Quiet Mode
Lessens noise during printing but may decrease print speed.
Parent topic: Selecting Additional Layout and Print Options - Windows
Header/Footer Settings - Windows
You can select any of the Header/Footer Settings options to add headers or footers when you print. The
items are available to print at the top or bottom of your pages, in either the left, right, or center of the
page.
98
Note: These settings are not saved with your document.
You can select to print the following information:
• User Name
• Computer Name
• Date
• Date/Time
• Document Name
• Collate Number
99
• Page Number
Note: To specify the first page number, select Page Number from the position you want to print in the
header or footer, then select the number in Starting number.
• Text
You can also adjust the text settings for the printed information.
Note: The user name, computer name, date, and time come from the Windows Control Panel on your
computer.
Parent topic: Selecting Additional Layout and Print Options - Windows
Selecting a Printing Preset - Windows
For quick access to common groups of print settings, you can select a printing preset on the Main or
More Options tab.
Note: You can create your own preset by clicking the Add/Remove Presets button.
1. Click the Main or More Options tab.
100
You see the available Printing Presets on the left:
2. Place your cursor over one of the Printing Presets to view its list of settings.
3. Click on a preset to change its settings or delete it, or use any of the available options on the screen
to control your printing presets.
4. To choose a preset for printing, select it.
5. Click OK.
Parent topic: Printing with the Standard Epson Printer Software - Windows
101
Selecting Extended Settings - Windows
You can select additional settings that apply to all the print jobs you send to your product.
1. Access the Windows Desktop and right-click the icon for your product in the right side of the
Windows taskbar, or click the up arrow and right-click .
2. Select Printer Settings.
3. Click the Maintenance tab.
You see the maintenance options:
4. Click the Extended Settings button.
102
You see this window:
5. Select any of the extended settings to customize your print.
6. Click OK to close the Extended Settings window.
7. Click OK to close the printer software window.
Extended Settings - Windows
Parent topic: Printing with the Standard Epson Printer Software - Windows
Extended Settings - Windows
You can select these settings on the Extended Settings window.
Enable EPSON Status Monitor 3
Enables product monitoring for ink and paper supplies and other issues.
Check Paper Width Before Printing
Prevents printing beyond the edges of the paper if the paper size setting is incorrect; may reduce print
speed.
Thick Paper and Envelopes
Prevents ink from smearing when you print on envelopes or other thick paper.
Short Grain Paper
Prevents ink from smearing when you print on envelopes or other thick paper, and the Thick Paper
setting does not help.
103
Separator Page
Before each document, prints a separator page containing the title, user, date, and time.
Always Spool RAW Datatype
Increases print speed and may solve other printing problems.
Page Rendering Mode
Increases print speed when printing is extremely slow or the print head stops during printing.
Print as Bitmap
Increases print speed when printing is extremely slow or the print head stops during printing, and
other settings do not help.
Skip Blank Page
Ensures that your product does not print pages that contain no text or images.
Change Standard Resolution
Reduces the resolution of print data to correct printing problems.
Refine screening pattern
Prints graphics with a finer screening pattern.
Allow Applications to Perform ICM Color Matching
Allows applications to perform ICM color matching.
Always Use the Driver's Paper Source Setting
Prints using the paper source setting in the printer driver, rather than the setting in your application.
Output 1 page documents facedown in 2-Sided mode
Outputs single-sided pages in a 2-sided print job facedown instead of faceup.
Output documents for filing
Outputs all landscape, portrait, 1-sided, and 2-sided documents in the same orientation for easier
filing.
Barcode mode
Reduces bleeding when printing barcodes on plain paper, letterhead paper, recycled paper,
preprinted paper, envelopes, and thick paper.
Always Use the Driver's Color Setting
Prioritizes color settings from the printer driver software.
Reduce Print Data Size
Increases print data compression to improve print speed. Not recommended when printing fine
patterns.
Print a document with both single-sided and double-sided pages
Prints an entire document that contains both single- and double-sided pages.
104
Parent topic: Selecting Extended Settings - Windows
Printing Your Document or Photo - Windows
Once you have selected your print settings, you are ready to save your settings and print.
1. Click OK to save your settings.
You see your application's Print window, such as this one:
2. Click OK or Print to start printing.
Parent topic: Printing with the Standard Epson Printer Software - Windows
Locking Printer Settings - Windows
Windows administrators can lock access to some printer settings to prevent unauthorized changes.
1. Do one of the following:
• Windows 11: Click , search for Settings and select it. Select Bluetooth & devices > Printers
& scanners. Select your product name and select Printer properties.
105
• Windows 10: Click and select (Settings) > Devices > Printers & scanners. Select your
product name and select Manage > Printer properties.
• Windows 8.x: Navigate to the Apps screen and select Control Panel > Hardware and Sound >
Devices and Printers. Right-click your product and select Printer properties.
• Windows 7: Click and select Devices and Printers. Right-click your product and select
Printer properties.
2. Click the Optional Settings tab.
Note: You can prevent access to the Optional Settings tab by changing the user or group
permissions in the Security tab.
3. Click Driver Settings.
You see a window like this:
4. Select the checkbox for each setting you want to lock. To lock all print settings, select All Document
Settings.
106
5. Under Advanced Settings, select the setting option you want to use for each locked setting.
6. Click OK.
Locked Setting Options
Parent topic: Printing with the Standard Epson Printer Software - Windows
Locked Setting Options
Select the options you want to use for any locked print settings.
Setting Options Description
Anti-Copy
Pattern
Various data items Lets you select the data to use for the pattern or prohibit anti-
copy patterns
Add/Delete Lets you add or delete a customized anti-copy pattern
Settings Lets you select the arrangement, size, and other settings for
the custom anti-copy pattern
Watermark Various text
watermarks
Lets you select the text for the watermark or prohibit
watermarks
Add/Delete Lets you add or delete a customized text or image-based
watermark
Settings Lets you select the size, position, and other watermark
settings
Header/Footer Off Prohibits headers or footers
On Allows headers and footers
Settings Lets you select the text and position for printing headers and
footers
Color Color Allows color printing
Grayscale Allows printing in black or shades of gray only
2-sided printing Off Allows printing on one side of the paper only
On Allows printing on both sides of the paper
107
Setting Options Description
Multi-Page Off Prohibits multi-page settings
2-Up Allows printing of 2 pages on one sheet of paper
4-Up Allows printing of 4 pages on one sheet of paper
6-Up Allows printing of 6 pages on one sheet of paper
8-Up Allows printing of 8 pages on one sheet of paper
9-Up Allows printing of 9 pages on one sheet of paper
16-Up Allows printing of 16 pages on one sheet of paper
Parent topic: Locking Printer Settings - Windows
Entering a User ID and Password for Printing
If you enabled Access Control on the product, you must enter a user ID and password in the printer
driver to be able to print.
Note: If you do not know the user ID or password, contact your administrator for assistance.
108
1. Access the Windows Desktop and right-click the icon for your product in the right side of the
Windows taskbar, or click the up arrow and right-click . Select Printer Settings and click the
Maintenance tab.
2. Click the Printer and Option Information button.
3. Select the Save Access Control settings checkbox.
4. Click the Settings button.
5. Enter your user name and password.
6. Click OK.
Parent topic: Printing with the Standard Epson Printer Software - Windows
109
Selecting Default Print Settings - Windows
When you change your print settings in a program, the changes apply only while you are printing in that
program session. If you want to change the print settings you use in all your Windows programs, you can
select new default print settings.
1. Access the Windows Desktop and right-click the icon for your product in the right side of the
Windows taskbar, or click the up arrow and right-click .
2. Select Printer Settings.
You see a printer settings window like this:
3. Select the print settings you want to use as defaults in all your Windows programs.
4. Click OK.
These settings are now the defaults selected for printing. You can still change them as needed for
printing in any program session.
110
Changing the Language of the Printer Software Screens
Parent topic: Printing with the Standard Epson Printer Software - Windows
Changing the Language of the Printer Software Screens
You can change the language used on the Windows printer software screens.
1. Access the Windows Desktop and right-click the icon for your product in the right side of the
Windows taskbar, or click the up arrow and right-click .
2. Select Printer Settings.
You see the printer settings window.
3. Click the Maintenance tab.
You see the maintenance options:
4. Select the language you want to use as the Language setting.
111
5. Click OK to close the printer software window.
The printer software screens appear in the language you selected the next time you access them.
Parent topic: Selecting Default Print Settings - Windows
Changing Automatic Update Options
Your printer software for Windows automatically checks for updates to the product software. You can
change how often the software checks for updates or disable this feature.
1. Access the Windows Desktop and right-click the icon for your product in the right side of the
Windows taskbar, or click the up arrow and right-click .
2. Select Software Update Settings.
You see a window like this:
3. Do one of the following:
• To change how often the software checks for updates, select a setting in the Check every menu.
• To disable the automatic update feature, select the Never option.
4. Click OK to exit.
Note: If you choose to disable the automatic update feature, you can check for updates manually.
Parent topic: Printing with the Standard Epson Printer Software - Windows
112
Printing with the Epson Standard Printer Software - Mac
You can print with your product using any Mac printing program, as described in these sections.
Note: If you have an Internet connection, it is a good idea to check for updates to your product software
on Epson's support website.
Selecting Basic Print Settings - Mac
Selecting Page Setup Settings - Mac
Selecting Print Layout Options - Mac
Selecting Double-sided Printing Settings - Mac
Managing Color - Mac
Selecting Printing Preferences - Mac
Printing Your Document or Photo - Mac
Parent topic: Printing from a Computer
Related references
Paper or Media Type Settings - Printing Software
Related tasks
Selecting Page Setup Settings - Mac
Selecting Basic Print Settings - Mac
Select the basic settings for the document or photo you want to print.
1. Open a photo or document for printing.
2. Select the print command in your application.
Note: You may need to select a print icon on your screen, the Print option in the File menu, or
another command. See your application's help utility for details.
3. Select your product as the Printer setting.
113
4. If necessary, click the arrow next to the Printer setting or the Show Details button to expand the
print window.
You see the expanded printer settings window for your product:
Note: The print window may look different, depending on the Mac OS version and the application
you are using.
114
5. Select the Copies and Pages settings as necessary.
Note: If you do not see these settings in the print window, check for them in your application before
printing.
6. Select the page setup options: Paper Size and Orientation.
Note: If you do not see these settings in the print window, check for them in your application before
printing. They may be accessible by selecting Page Setup from the File menu.
7. Select any application-specific settings that appear on the screen, such as those shown in the image
above for the Preview application.
8. Select Print Settings or Printer Features from the pop-up menu.
115
You see these settings:
9. Select the Paper Source you wish to print from.
10. Select the type of paper you loaded as the Media Type setting.
Note: The setting may not exactly match the name of your paper. Check the paper type settings list
for details.
11. Select the Print Quality setting you want to use.
12. Select any of the available print options.
Paper Source Options - Mac
Print Quality Options - Mac
Print Options - Mac
Parent topic: Printing with the Epson Standard Printer Software - Mac
Paper Source Options - Mac
You can select any of the available options in the Paper Source menu to print on the paper loaded in that
source.
Auto Select
Automatically selects the paper source based on the selected paper size.
Cassette 1
Selects the paper in cassette 1 as the paper source.
116
Cassette 2
Selects the paper in cassette 2 as the paper source.
Cassette 3
Selects the paper in cassette 3 as the paper source.
Cassette 4
Selects the paper in cassette 4 as the paper source.
Rear Paper Feed Slot
Selects the paper in the rear feed slot as the paper source.
Parent topic: Selecting Basic Print Settings - Mac
Print Quality Options - Mac
You can select any of the available Print Quality options to fine-tune the quality of your print. Some
settings may be unavailable, depending on the paper type setting you have chosen.
Draft
For draft printing on plain paper.
Normal
For everyday text and image printing.
Fine
For text and graphics with good quality and print speed.
Best Quality
For the best print quality, but the slowest print speed.
Parent topic: Selecting Basic Print Settings - Mac
Print Options - Mac
You can select any of the print options to customize your print. Some options may be unavailable,
depending on other settings you have chosen.
Grayscale
Prints text and graphics in black or shades of gray.
Mirror Image
Lets you flip the printed image horizontally.
Parent topic: Selecting Basic Print Settings - Mac
117
Selecting Page Setup Settings - Mac
Depending on your application, you may be able to select the paper size and orientation settings from
the print window.
Note: If you do not see these settings in the print window, check for them in your application before
printing. They may be accessible by selecting Page Setup from the File menu.
1. Select the size of the paper you loaded as the Paper Size setting.
2. Select the orientation of your document or photo as shown in the print window.
Note: If you are printing an envelope, select the icon or Landscape setting.
Note: You can reduce or enlarge the size of the printed image by selecting Paper Handling from the
pop-up menu and selecting a scaling option.
Parent topic: Printing with the Epson Standard Printer Software - Mac
118
Selecting Print Layout Options - Mac
You can select a variety of layout options for your document or photo by selecting Layout from the pop-
up menu on the print window.
• To print multiple pages on one sheet of paper, select the number of pages in the Pages per Sheet
pop-up menu. To arrange the print order of the pages, select a Layout Direction setting.
• To print borders around each page on the sheet, select a line setting from the Border pop-up menu.
• To print on both sides of each page, select a setting from the Two-Sided pop-up menu.
• To invert or flip the printed image, select the Reverse page orientation or Flip horizontally settings.
Parent topic: Printing with the Epson Standard Printer Software - Mac
Selecting Double-sided Printing Settings - Mac
You can print on both sides of the paper by selecting Two-sided Printing Settings from the pop-up
menu on the print window.
Note: For macOS 13 and later, select Printer Options then select Two-sided Printing Settings.
119
Note: Some options may be pre-selected or unavailable, depending on other settings you have chosen
or if you are accessing the product over a network. This screen may be different, depending on the Mac
OS version you are using.
1. Select one of the Two-sided Printing options.
2. Select the type of document you are printing as the Document Type setting. The software
automatically sets the Adjustments options for that document type.
3. If necessary, customize the Adjustments settings as instructed on the screen.
4. Print a test copy of your double-sided document to test the selected settings.
5. Follow any instructions displayed on the screen during printing.
Double-sided Printing Options and Adjustments - Mac
Parent topic: Printing with the Epson Standard Printer Software - Mac
120
Related references
Double-sided Printing Paper Types
Double-sided Printing Options and Adjustments - Mac
You can select any of the available options in the Two-sided Printing Settings pop-up menu to set up
your double-sided print job.
Long-Edge binding
Orients double-sided printed pages to be bound on the long edge of the paper.
Short-Edge binding
Orients double-sided printed pages to be bound on the short edge of the paper.
Print Density
Sets the level of ink coverage for double-sided printing.
Increased Ink Drying Time
Sets the amount of time required for drying ink after printing on one side of the paper before printing
the other side in double-sided printing.
Parent topic: Selecting Double-sided Printing Settings - Mac
Managing Color - Mac
You can adjust the Color Matching and Color Options settings to fine-tune the colors in your printout or
turn off color management in your printer software.
1. Select Color Matching from the pop-up menu in the print window.
Note: For macOS 13 and later, select Printer Options then select Color Matching.
2. Select one of the available options.
121
3. Select Color Options from the pop-up menu in the print window.
Note: For macOS 13 and later, select Printer Options then select Color Options.
Note: The available settings on the Color Options menu depend on the option you selected on the
Color Matching menu.
4. Select one of the available options.
Color Matching and Color Options - Mac
Parent topic: Printing with the Epson Standard Printer Software - Mac
Color Matching and Color Options - Mac
You can select these settings on the Color Matching and Color Options menus.
Color Matching Settings
EPSON Color Controls
Lets you manage color using controls in your printer driver or turn off color management.
ColorSync
Prints using standard color profiles for your product and paper to help match image colors. You can
customize the conversion method and filter settings on the ColorSync pop-up menu in the print
window.
Color Options Settings
Manual Settings
Lets you select manual color adjustments. Click the arrow next to Advanced Settings and select
settings for Brightness, Contrast, Saturation, and individual color tones. You can also select a color
Mode setting for printing photos and graphics and the Fix Red-Eye setting to reduce or remove red-
eye in photos. Depending on the selected color mode, you can also adjust the midtone density using
the Gamma setting.
122
Fix Photo
Improves the color, contrast, and sharpness of flawed photos. Click the arrow next to Advanced
Settings and select the Fix Red-Eye setting to reduce or remove red-eye in photos.
Note: Fix Photo uses a sophisticated face recognition technology to optimize photos that include
faces. For this to work, both eyes and the nose must be visible in the subject's face. If your photo
includes a face with an intentional color cast, such as a statue, you may want to turn off Fix Photo to
retain the special color effects.
Off (No Color Adjustment)
Turns off color management in your printer software so you can manage color using only your
application software.
Note: An ICC profile is required if color management is turned off.
Parent topic: Managing Color - Mac
Selecting Printing Preferences - Mac
You can select printing preferences that apply to all the print jobs you send to your product.
1. In the Apple menu or the Dock, select System Preferences or System Settings.
2. Select Print & Fax, Print & Scan, or Printers & Scanners, select your product, and select Options
& Supplies.
3. Select Driver or Options.
123
You see a screen like this:
Note: The available settings and appearance of the options window may be different than those
covered here, depending on the Mac OS version and the application you are using.
4. Select any of the available printing preferences.
5. Click OK.
Printing Preferences - Mac
Parent topic: Printing with the Epson Standard Printer Software - Mac
Printing Preferences - Mac
You can select these settings on the Options or Driver tab.
Thick Paper and Envelopes
Prevents ink from smearing when you print on envelopes or other thick paper.
Skip Blank Page
Ensures that your product does not print pages that contain no text or images.
Quiet Mode
Lessens noise during printing but may decrease print speed.
Permit temporary black printing
Allows you to print using black ink when color ink is expended.
124
Bidirectional printing
Prints in both directions (right-to-left and left-to-right), speeding up printing, but may reduce print
quality.
Output documents for filing
Outputs all landscape, portrait, 1-sided, and 2-sided documents in the same orientation for easier
filing.
Warning Notifications
Lets you choose whether or not to receive warning notifications from the printer software for various
operating conditions.
Establish bidirectional communication
Allows the product to communicate with the computer. Do not change the default setting unless you
experience issues when using a shared printing pool.
Reduce Print Data Size
Increases print data compression to improve print speed. Not recommended when printing fine
patterns.
Lower Cassette
Specifies whether the optional cassette is present.
Parent topic: Selecting Printing Preferences - Mac
Printing Your Document or Photo - Mac
Once you have selected your print settings, you are ready to print.
Click Print at the bottom of the print window.
125
Checking Print Status - Mac
Parent topic: Printing with the Epson Standard Printer Software - Mac
Checking Print Status - Mac
During printing, you can view the progress of your print job, control printing, and check ink status.
1. Click the printer icon when it appears in the Dock.
You see the print status window:
2. Select the following options as necessary for your Mac OS version:
• To cancel printing, click the print job and click or Delete.
• To pause a print job, click the print job and click or Hold. To resume a print job, click the
paused print job and click or Resume.
• To pause printing for all queued print jobs, click Pause or Pause Printer.
• To display other printer information, click Settings or Supply Levels.
Parent topic: Printing Your Document or Photo - Mac
Printing with the Epson Universal Print Driver - Windows
You can print with the Epson Universal Print Driver using any Windows printing program, as described in
these sections.
Synchronizing Printer Settings - Epson Universal Print Driver - Windows
Selecting Print Settings - Epson Universal Print Driver - Windows
Selecting Default Print Settings - Epson Universal Print Driver - Windows
126
Locking Printer Settings - Epson Universal Print Driver - Windows
Adding Network Printers - Epson Universal Print Driver - Windows
Parent topic: Printing from a Computer
Synchronizing Printer Settings - Epson Universal Print Driver - Windows
You may need to synchronize the printer driver with the product if the printer driver does not detect the
correct information or settings from the product.
Note: You must sync the printer driver before you can use any optional equipment installed on the
product.
1. Do one of the following:
• Windows 11: Click and select Settings > Bluetooth & devices > Printers & scanners.
Select EPSON Universal Print Driver and select Printer properties.
• Windows 10: Click and select (Settings) > Devices > Printers & scanners. Select
EPSON Universal Print Driver and select Manage > Printer properties.
• Windows 8.x: Navigate to the Apps screen and select Control Panel > Hardware and Sound >
Devices and Printers. Right-click EPSON Universal Print Driver and select Printer properties.
• Windows 7: Click and select Devices and Printers. Right-click EPSON Universal Print
Driver and select Printer properties.
2. Click the Optional Settings tab.
127
You see a window like this:
3. Make sure Acquire from Printer is selected and click Get.
Note: Select the Only Optional Information checkbox if you only want to enable any optional
equipment installed on the product.
The product's settings and other information appears in the Current Printer Information area.
4. Click OK.
Parent topic: Printing with the Epson Universal Print Driver - Windows
Related tasks
Enabling the Optional Paper Cassettes - Windows
128
Selecting Print Settings - Epson Universal Print Driver - Windows
Select the basic settings for the document or photo you want to print.
Note: The names of settings on the universal print driver screens may vary slightly, depending on the
version of the print driver you have installed.
1. Open a photo or document for printing.
2. Select the print command in your application.
Note: You may need to select a print icon on your screen, the Print option in the File menu, or
another command. See your application's help utility for details.
3. If necessary, select EPSON Universal Print Driver as the printer you want to use.
Note: You may also need to select Properties or Preferences to view your print settings.
129
You see the Main tab of a printer settings window like this:
Note: For more information about a setting, right-click it and select Help.
4. For the Paper Source setting, select where you loaded the paper you want to print on.
5. Select the size of the paper you loaded as the Document Size setting.
Note: You can also select the User-Defined setting to create a custom paper size.
6. Select the orientation of your document.
Note: If you are printing an envelope, select Landscape.
130
7. Select the type of paper you loaded as the Paper Type setting.
Note: The setting may not exactly match the name of your paper. Check the paper type settings list
for details.
8. Select any of the available print options.
9. To select a variety of additional layout and printing options for your document or photo, select the
More Options tab and select the printing options you want.
10. To select maintenance and other optional settings, select the Maintenance tab and select the
options you want.
Parent topic: Printing with the Epson Universal Print Driver - Windows
Selecting Default Print Settings - Epson Universal Print Driver - Windows
When you change your print settings in a program, the changes apply only while you are printing in that
program session. If you want to change the print settings you use in all your Windows programs, you can
select new default print settings.
1. Do one of the following:
• Windows 11: Click and select Settings > Bluetooth & devices > Printers & scanners.
Select EPSON Universal Print Driver and select Printing preferences.
• Windows 10: Click and select (Settings) > Devices > Printers & scanners. Select
EPSON Universal Print Driver and select Manage > Printing Preferences.
• Windows 8.x: Navigate to the Apps screen and select Control Panel > Hardware and Sound >
Devices and Printers. Right-click EPSON Universal Print Driver and select Print Preferences.
• Windows 7: Click and select Devices and Printers. Right-click EPSON Universal Print
Driver and select Printing Preferences.
131
You see a printer settings window like this:
Note: For more information about a setting, right-click it and select Help.
2. Select the print settings you want to use as defaults in all your Windows programs.
3. Click OK.
These settings are now the defaults selected for printing. You can still change them as needed for
printing in any program session.
Parent topic: Printing with the Epson Universal Print Driver - Windows
Locking Printer Settings - Epson Universal Print Driver - Windows
Administrators can lock some printer settings to prevent unauthorized changes.
132
1. Do one of the following:
• Windows 11: Click and select Settings > Bluetooth & devices > Printers & scanners.
Select EPSON Universal Print Driver and select Printer properties.
• Windows 10: Click and select (Settings) > Devices > Printers & scanners. Select
EPSON Universal Print Driver and select Manage > Printer properties.
• Windows 8.x: Navigate to the Apps screen and select Control Panel > Hardware and Sound >
Devices and Printers. Right-click EPSON Universal Print Driver and select Printer properties.
• Windows 7: Click and select Devices and Printers. Right-click EPSON Universal Print
Driver and select Printer properties.
2. Click the Optional Settings tab.
3. Click Driver Settings.
You see this window:
133
4. Select the checkbox for the settings you want to lock. To lock all print settings, select All Document
Settings.
5. Under Advanced Settings, select the setting option you want to use for each locked setting.
6. Click OK.
Epson Universal Print Driver Locked Setting Options
Parent topic: Printing with the Epson Universal Print Driver - Windows
Epson Universal Print Driver Locked Setting Options
Select the options you want to use for any locked print settings.
Setting Options Description
Watermark Various text
watermarks
Lets you select the text for the watermark or prohibit
watermarks
Add/Delete Lets you add or delete a customized text or image-based
watermark
Settings Lets you select the size, position, and other watermark
settings
Header/Footer Off Prohibits headers or footers
On Allows headers and footers
Settings Lets you select the text and position for printing headers and
footers
Color Color Allows color printing
Grayscale Allows printing in black or shades of gray only
2-sided printing Off Allows printing on only one side of the paper
On Allows printing on both sides of the paper
134
Setting Options Description
Multi-Page Off Prohibits multi-page settings
2-Up Allows printing of 2 pages on one sheet of paper
4-Up Allows printing of 4 pages on one sheet of paper
6-Up Allows printing of 6 pages on one sheet of paper
8-Up Allows printing of 8 pages on one sheet of paper
9-Up Allows printing of 9 pages on one sheet of paper
16-Up Allows printing of 16 pages on one sheet of paper
Parent topic: Locking Printer Settings - Epson Universal Print Driver - Windows
Adding Network Printers - Epson Universal Print Driver - Windows
You can use the Epson Universal Print Driver to find and add network printers.
1. Do one of the following:
• Windows 11: Click and select Settings > Bluetooth & devices > Printers & scanners.
Select EPSON Universal Print Driver and select Printer properties.
• Windows 10: Click and select (Settings) > Devices > Printers & scanners. Select
EPSON Universal Print Driver and select Manage > Printer properties.
• Windows 8.x: Navigate to the Apps screen and select Control Panel > Hardware and Sound >
Devices and Printers. Right-click EPSON Universal Print Driver and select Printer properties.
• Windows 7: Click and select Devices and Printers. Right-click EPSON Universal Print
Driver and select Printer properties.
2. Click the Optional Settings tab.
135
You see this window:
3. Click Network printer search.
4. When you see the search results, select Add found printers.
136
You see a screen like this:
5. Select the printer or printers you want to add.
6. Click Add to Printer Folder.
The selected printer or printers appear in the lower section of the screen.
7. Select the checkbox next to the product you want to make your default printer, if necessary.
8. Click OK.
Parent topic: Printing with the Epson Universal Print Driver - Windows
137
Printing with the PostScript (PS3) Printer Software - Windows
You can print with the PostScript (PS3) printer software using any Windows printing program, as
described in these sections.
Note: The PostScript printer software supports products that are connected via Ethernet. If your product
is connected via USB, you will need to install the standard Epson printer software. To download the
standard Epson printer software, visit epson.com/support (U.S.), epson.ca/support (Canada), or
latin.epson.com/support (Latin America) and select your product.
Selecting Print Settings - PostScript Printer Software - Windows
Selecting Default Print Settings - PostScript Printer Software - Windows
Parent topic: Printing from a Computer
Selecting Print Settings - PostScript Printer Software - Windows
Select the basic settings for the document or photo you want to print.
1. Open a photo or document for printing.
2. Select the print command in your application.
Note: You may need to select a print icon on your screen, the Print option in the File menu, or
another command. See your application's help utility for details.
3. If necessary, select your product name as the printer you want to use, and then click the
Preferences or Properties button, depending on the application.
138
You see the Paper/Quality tab of your printer settings window:
4. Select the Paper Source that matches where you loaded the paper you want to print on.
5. Select Plain as the Media setting.
6. Select one of the following as the Color setting:
• To print text and graphics in black only, select the Black & White setting.
• To print a color document or photo, select the Color setting.
7. To select additional PostScript layout and printing options, select Advanced and select additional
settings as necessary.
8. Select the Layout tab.
139
You see a screen like this:
9. Select any settings as necessary.
10. If you have set up Access Control or want to print a confidential job, select Extended Settings to
enable printing by entering a user name and password , or print a confidential job by entering the
necessary information.
Parent topic: Printing with the PostScript (PS3) Printer Software - Windows
Selecting Default Print Settings - PostScript Printer Software - Windows
When you change your print settings in a program, the changes apply only while you are printing in that
program session. If you want to change the print settings you use in all your Windows programs, you can
select new default print settings.
140
1. Do one of the following:
• Windows 11: Click , search for Settings and select it. Select Bluetooth & devices > Printers
& scanners. Select your product name and select Printer properties.
• Windows 10: Click and select (Settings) > Devices > Printers & scanners. Select your
product name and select Manage > Printing preferences.
• Windows 8.x: Navigate to the Apps screen and select Control Panel > Hardware and Sound >
Devices and Printers. Right-click your product name and select Print Preferences.
• Windows 7: Click and select Devices and Printers. Right-click your product name and select
Printing Preferences.
You see a printer settings window like this:
141
2. Select the print settings you want to use as defaults in all your Windows programs.
3. Click OK.
These settings are now the defaults selected for printing. You can still change them as needed for
printing in any program session.
Parent topic: Printing with the PostScript (PS3) Printer Software - Windows
Printing with the PostScript (PS3) Printer Software - Mac
You can print with the PostScript (PS3) printer software using any Mac printing program, as described in
these sections.
Note: The PostScript printer software supports products that are connected via Ethernet. If your product
is connected via USB, you will need to install the standard Epson printer software. To download the
standard Epson printer software, visit epson.com/support (U.S.), epson.ca/support (Canada), or
latin.epson.com/support (Latin America) and select your product.
Selecting Basic Print Settings - PostScript Printer Software - Mac
Parent topic: Printing from a Computer
Selecting Basic Print Settings - PostScript Printer Software - Mac
Select the basic settings for the document or photo you want to print.
The PostScript printer software supports plain paper printing on these paper and envelope sizes:
• A4 (8.3 × 11.7 inches [210 × 297 mm])
• Letter (8.5 × 11 inches [216 × 279 mm])
• No. 10 (4.1 × 9.5 inches [105 × 241 mm])
• A5 (5.8 × 8.2 inches [148 × 210 mm])
• B5 (7.2 × 10.1 inches [182 × 257 mm])
• A6 (4.1 × 5.8 inches [105 × 148 mm])
• B6 (5 × 7.2 inches [128 × 182 mm])
• Executive (7.25 × 10.5 inches [184 × 267 mm])
• Legal (8.5 × 14 inches [216 × 356 mm])
• 8.5 × 13 inches (216 × 330 mm)
• A3 (11.7 × 16.5 inches [297 × 420 mm])
142
• 13 × 19 inches (330 × 483 mm)
• 11 × 17 inches (279 × 432 mm)
• B4 (13.9 × 9.84 inches [353 × 250 mm])
• Envelope C6 (4.49 × 6.38 inches [114 × 162 mm])
• Envelope DL (4.33 × 8.66 inches [110 × 220 mm])
1. Open a photo or document for printing.
2. Select the print command in your application.
Note: You may need to select a print icon on your screen, the Print option in the File menu, or
another command. See your application's help utility for details.
3. Select your product as the Printer setting.
4. If necessary, click the arrow next to the Printer setting or the Show Details button to expand the
print window.
143
You see the expanded printer settings window for your product:
Note: The print window may look different, depending on the Mac OS version and the application
you are using.
144
5. Select the Two-Sided, or Double-sided, Copies, and Pages settings as necessary.
Note: If you do not see these settings in the print window, check for them in your application before
printing.
6. Select the page setup options: Paper Size and Orientation.
Note: If you do not see these settings in the print window, check for them in your application before
printing. They may be accessible by selecting Page Setup from the File menu.
7. Select any application-specific settings that appear on the screen, such as those shown in the image
above for the Preview application.
8. Select Paper Feed from the Printer Options menu or select Paper Feed from the pop-up menu in
the print window.
You see these settings:
9. Select All Pages From or First Page From and select the paper source you want to print from.
145
10. Select Printer Features from the Printer Options menu or select Printer Features from the pop-up
menu in the print window.
You see these settings:
11. Select a MediaType setting.
12. Select one of the following Print Quality options:
• For fast printing with reduced quality, select Fast.
• For printing text and graphics with good quality and print speed, select Fine.
• For the best printing with reduced speed, select Maximum.
13. Select Color from the Feature Sets pop-up menu.
You see these settings:
14. Select a Color Mode option:
• To print a color document or photo, select the Color setting.
• To print text and graphics in black only, select the Monochrome setting.
15. Select any of the following from the pop-up menu as necessary:
• Select Layout to adjust a variety of layout options for your document or photo.
146
• Select Paper Handling to adjust the size of the image as you print it.
• Select Color Matching to fine-tune the colors in your printout. For monochrome printers, this
adjusts the tone and brightness of your printout.
Parent topic: Printing with the PostScript (PS3) Printer Software - Mac
Printing from a Smartphone or Tablet
You can print from a smartphone or tablet running iOS or Android using the Epson Smart Panel app.
Note: Your device must be connected to the same wireless network as your Epson product, and Epson
Smart Panel must be configured for use with your product.
1. Download the Epson Smart Panel app from your device's app store or from Epson's website.
2. Open the Epson Smart Panel app and select a print menu on the home screen.
3. Follow the on-screen instructions to begin printing.
Parent topic: Printing from a Computer
Cancelling Printing Using a Product Button
If you need to cancel printing, press the Stop button.
Parent topic: Printing from a Computer
147
Replacing Ink Cartridges, Maintenance Boxes, and Cassette
Rollers
When ink is expended, or the maintenance box and cassette rollers are at the end of their service life,
you need to replace them. The maintenance box stores ink that gets flushed from the system during print
head cleaning.
Note: Please dispose of your used Epson branded ink cartridges and maintenance boxes responsibly
and in accordance with local requirements. If you would like to return your used ink cartridges and
maintenance boxes to Epson for proper disposal, please go to epson.com/recycle for more information.
Check Cartridge and Maintenance Box Status
Purchase Epson Ink Cartridges and Maintenance Box
Removing and Installing Ink Cartridges
Maintenance Box Replacement
Replacing the Rollers for Paper Cassette 1
Replacing the Rollers for Paper Cassettes 2 to 4
Resetting the Roller Counter on the LCD Screen
Printing with Black Ink and Expended Color Cartridges
Conserving Low Black Ink with Windows
Check Cartridge and Maintenance Box Status
Your product and its software will let you know when an ink cartridge is low or expended, or when the
maintenance box needs to be replaced.
Note: When using the Epson Universal Print Driver or PostScript (PS3) printer software with the product,
you can check ink cartridge and maintenance box status by using the printer buttons or the utilities
included with the standard Epson printer software. To download the standard Epson printer software,
visit epson.com/support (U.S.), epson.ca/support (Canada), or latin.epson.com/support (Latin America)
and select your product.
Ink Safety Precautions
Checking Ink Status on the LCD Screen
Checking Ink and Maintenance Box Status with Windows
Checking Cartridge and Maintenance Box Status - Mac
148
Parent topic: Replacing Ink Cartridges, Maintenance Boxes, and Cassette Rollers
Ink Safety Precautions
• Keep ink cartridges and maintenance box out of the reach of children and do not drink the ink.
• Keep the ink cartridges and maintenance box out of direct sunlight.
• Store ink cartridges in a cool, dark place; do not store the ink cartridges or maintenance box in high or
freezing temperatures.
• Be careful when you handle used ink cartridges; there may be ink remaining around the ink supply
port. If ink gets on your skin, wash it off with soap and water. If it gets in your eyes, flush them
immediately with water. If you experience discomfort or vision problems after flushing your eyes, see a
doctor immediately. If ink gets in your mouth, see a doctor immediately.
• Do not dismantle an ink cartridge. This could damage the print head.
• Do not disassemble or modify the ink cartridge or maintenance box; otherwise ink may get into your
eyes or on your skin or you may not be able to print normally.
• Do not shake cartridges too vigorously; this can cause them to leak.
• Do not drop or knock ink cartridges or the maintenance box against hard objects; this can cause
leakage.
• Do not remove or tear the label on the cartridge; this can cause leakage.
• Use an ink cartridge before the date printed on its package or within six months of opening the
package, whichever is earlier.
• After bringing an ink cartridge inside from a cold storage site, allow it to warm up at room temperature
for at least three hours before using it.
• Do not open the ink cartridge package until you are ready to install it in the printer. The cartridge is
vacuum packed to maintain its reliability. Leaving a cartridge unpacked for a long time before using it
may prevent normal operation.
• Do not break the hooks on the side of the cartridge when removing it from the packaging.
• Do not shake cartridges after opening their packages; this can cause them to leak.
• Do not remove the transparent seal from the bottom of the cartridge. This may cause the cartridge to
become unusable.
• Do not touch the green IC chip on the side of the cartridge. This may prevent normal operation.
• Make sure to install all ink cartridges. The printer only works when all ink cartridges are properly
installed.
149
• Do not turn off the product during ink charging. If ink charging is incomplete, you may not be able to
print.
• If you remove an ink cartridge for later use, protect the ink supply area from dirt and dust and store it in
the same environment as the product. Note that there is a valve in the ink supply port, making covers
or plugs unnecessary, but care is needed to prevent the ink from staining items that the cartridge
touches. Do not touch the ink cartridge ink supply port or surrounding area.
• Install a new ink cartridge immediately after removing an expended one. Leaving cartridges
uninstalled can dry out the print head and may prevent the product from printing.
• Do not turn off the printer during cartridge replacement. Otherwise, ink remaining in the print head
nozzles will dry out and you may not be able to print.
• Do not put your hands inside the product or touch any cartridges during printing.
• Removed ink cartridges may have ink around the ink supply port, so be careful not to get any ink on
the surrounding area when removing the cartridges.
• Do not remove and reinstall an ink cartridge except when necessary. Ink may get on the surrounding
area if a cartridge is repeatedly removed and reinstalled.
• Even if some ink cartridges are dented due to the vacuum packing process, the quality and quantity of
ink are guaranteed, and they can be used safely. Do not open the ink cartridge package until you are
ready to replace an old cartridge.
• The specifications and appearance of the ink cartridge may be modified for improvement without prior
notice.
Ink Consumption
• This printer uses ink cartridges equipped with a green chip that monitors information such as the
amount of remaining ink for each cartridge. This means that even if the cartridge is removed from the
printer before it is expended, you can still use the cartridge after reinserting it back into the printer.
However, when reinserting a cartridge, some ink may be consumed to guarantee printer performance.
• To ensure you receive premium print quality and to help protect your print head, a variable ink safety
reserve remains in the cartridge when your printer indicates that it is time to replace the cartridge.
Quoted ink yields do not include this reserve.
• Quoted yields may vary depending on the images that you are printing, the paper type that you are
using, the frequency of your prints and environmental conditions such as temperature.
• Do not use the cartridges that came with the printer for the replacement. The ink in the ink cartridges
supplied with your printer is partly used during initial setup. In order to produce high quality printouts,
the print head in your printer needs to be fully charged with ink. This process consumes a quantity of
ink and, therefore, these cartridges may print fewer pages compared to subsequent ink cartridges.
150
• To maintain optimum print head performance, some ink is consumed from all ink cartridges during
maintenance operations. Ink may also be consumed when you replace an ink cartridge or turn the
printer on.
• When printing in monochrome or grayscale, color inks may be used instead of black ink depending on
the paper type or print quality settings you are using. This is because a mixture of color inks is used to
create black.
Parent topic: Check Cartridge and Maintenance Box Status
Checking Ink Status on the LCD Screen
When one of your ink cartridges is low or expended, you see a message on the LCD screen.
You can also check the status of the ink cartridges and maintenance box from the product control panel.
1. Press the home button, if necessary.
2. Select the icon.
Note: The displayed ink and maintenance box levels are approximate.
Parent topic: Check Cartridge and Maintenance Box Status
Related concepts
Maintenance Box Replacement
Related tasks
Removing and Installing Ink Cartridges
Checking Ink and Maintenance Box Status with Windows
You can check your ink cartridge or maintenance box status at any time using a utility on your Windows
computer.
Note: You can continue printing while the low ink message is displayed. Replace the ink when required.
1. To check your status, do one of the following:
• Windows 11: Click , search for Settings and select it. Select Bluetooth & devices > Printers
& scanners. Select your product name and select Printer preferences.
• Windows 10: Click and select (Settings) > Devices > Printers & scanners. Select your
product name and select Manage > Printer preferences.
151
• Windows 8.x: Navigate to the Apps screen and select Control Panel > Hardware and Sound >
Devices and Printers. Right-click your product and select Printer preferences.
2. Select the Maintenance tab and select EPSON Status Monitor 3.
3. Replace or reinstall the ink cartridge or maintenance box as indicated on the screen. Select Details
if necessary.
Note: If any ink cartridge installed in the product is broken, incompatible with the product model, or
improperly installed, Epson Status Monitor will not display an accurate ink status.
Parent topic: Check Cartridge and Maintenance Box Status
Checking Cartridge and Maintenance Box Status - Mac
You can check your ink cartridge or maintenance box status at any time using a utility on your Mac.
Note: You can continue printing while the low ink message is displayed. Replace the ink when required.
1. In the Apple menu or the Dock, select System Preferences or System Settings. Select Print &
Fax, Print & Scan, or Printers & Scanners, select your product, and select Options & Supplies.
Select Utility and select Open Printer Utility.
2. Select EPSON Status Monitor.
3. Do the following as necessary:
• You can update the ink cartridge and maintenance box status by clicking Update.
• Replace or reinstall the maintenance box or any ink cartridge as indicated on the screen.
Note: If any ink cartridge installed in the product is broken, incompatible with the product model, or
improperly installed, Epson Status Monitor will not display an accurate cartridge status.
Parent topic: Check Cartridge and Maintenance Box Status
Purchase Epson Ink Cartridges and Maintenance Box
You can purchase genuine Epson ink, maintenance boxes, and paper at epson.com (U.S. sales),
epson.ca (Canadian sales), or latin.epson.com (Latin American sales). You can also purchase supplies
from an Epson authorized reseller. To find the nearest one, call 800-GO-EPSON (800-463-7766) in the
U.S. or 800-807-7766 in Canada.
152
Note: Your printer is designed to work only with genuine Epson-brand ink cartridges. Other brands of ink
cartridges and ink supplies are not compatible and, even if described as compatible, may not function
properly or at all. Epson periodically provides firmware updates to address issues of security,
performance, minor bug fixes and ensure the printer functions as designed. These updates may affect
the functionality of third-party ink. Non-Epson branded or altered Epson cartridges that functioned prior
to a firmware update may not continue to function.
The included initial cartridges are designed for reliable printer setup and cannot be used as replacement
cartridges or resold. After setup, the remaining ink is available for printing. Yields are based on ISO
24711 in default mode, printing continuously. Yields vary due to print images, settings, and
temperatures. Printing infrequently or primarily with one color reduces yields. All cartridges must be
installed with ink for printing and printer maintenance. For print quality, some ink remains in replaced
cartridges.
Ink Cartridge Part Numbers
Parent topic: Replacing Ink Cartridges, Maintenance Boxes, and Cassette Rollers
Ink Cartridge Part Numbers
Use these part numbers when you order or purchase new ink cartridges.
Maintenance box part number: T6714
Ink color Part number
Standard-capacity High-capacity Extra High-capacity
Black T13S1 T13U1 T13V1
Cyan T13S2 T13U2 T13V2
Magenta T13S3 T13U3 T13V3
Yellow T13S4 T13U4 T13V4
Parent topic: Purchase Epson Ink Cartridges and Maintenance Box
Removing and Installing Ink Cartridges
If an ink cartridge is low or expended, a message appears on your product's LCD screen. Note which ink
cartridge needs to be replaced. Select How To and follow the steps on the LCD screen to remove and
install the ink cartridges.
153
Make sure you have the replacement ink cartridge(s) handy before you begin. You must install new
cartridges immediately after removing the old ones.
Caution: Leave your old cartridges in the printer until you are ready to replace them to prevent the print
head nozzles from drying out. Do not open ink cartridge packages until you are ready to install the ink.
Cartridges are vacuum packed to maintain reliability.
Note: Do not touch the green IC chip on the side of the cartridge. This may prevent normal operation.
Caution: If you remove an ink cartridge for later use, protect the ink supply area from dirt and dust and
store it in the same environment as the printer. The valve in the ink supply port is designed to contain
any excess ink, but do not touch the ink supply port or surrounding area. Always store ink cartridges with
the label facing up; do not store cartridges upside-down.
Parent topic: Replacing Ink Cartridges, Maintenance Boxes, and Cassette Rollers
Related concepts
Purchase Epson Ink Cartridges and Maintenance Box
Maintenance Box Replacement
The maintenance box stores surplus ink that gets collected during printing or print head cleaning. When
you see a message on the LCD screen, follow the on-screen instructions to replace the maintenance
box.
Note the following precautions when replacing the maintenance box:
• Do not touch the green chip on the side of the maintenance box.
• Do not remove the film on the top of the box or ink may leak.
• Do not tilt the maintenance box after removing it or ink may leak.
• Keep the maintenance box out of direct sunlight.
• Do not remove the maintenance box during printing or ink may leak.
Caution: Do not reuse a maintenance box that has been removed and left uninstalled for a long period.
Keep the maintenance box away from direct sunlight.
Note: The maintenance box is a user-replaceable part and is not covered by the product warranty.
Parent topic: Replacing Ink Cartridges, Maintenance Boxes, and Cassette Rollers
154
Related concepts
Purchase Epson Ink Cartridges and Maintenance Box
Replacing the Rollers for Paper Cassette 1
When the rollers in paper cassette 1 need to be replaced, you see a message on the LCD screen. There
are three rollers for paper cassette 1: two on the back of the product and one on the cassette.
Note: Check that the arrows on the rollers point clockwise before installing them in paper cassette 1.
There are different rollers for paper cassette 1 and the other paper cassettes.
1. Turn off the product.
2. Wait for the power light to turn off, then unplug the power cord.
3. Remove the replacement rollers from their package.
Caution: If there is any dirt or dust on the rollers, clean them with a soft, moist cloth. Using a dry
cloth can damage the surface of the roller.
155
4. Pull out paper cassette 1.
5. Open rear cover 1 (D1).
156
6. Pull out rear cover 2 (D2).
7. Remove the roller cover inside the product.
157
8. Pull up the roller tabs and slide the rollers to the left to remove them.
9. Insert the replacement rollers and slide them to the right until they click into place.
10. Replace the roller cover as shown and press it down until it clicks into place.
11. Insert rear cover 2 (D2).
158
12. Close the rear cover 1 (D1).
13. On paper cassette 1, pull up on the lever as shown to release the roller.
14. Slide the roller towards the lever and lift it out of the cassette.
159
15. Insert the pointed end of the replacement roller's shaft into the hole in the cassette and gently slide
the roller into the slot with the flat side of the shaft facing toward the front of the cassette.
16. Press down on the lever as shown to lock the roller in place.
17. Insert the paper cassette all the way into the product.
Reset the maintenance roller counter for paper cassette 1 to keep track of roller usage.
Parent topic: Replacing Ink Cartridges, Maintenance Boxes, and Cassette Rollers
Replacing the Rollers for Paper Cassettes 2 to 4
When the rollers in paper cassettes 2 to 4 need to be replaced, you see a message on the LCD screen.
There are three rollers for each paper cassette: two on the back of the product and one on the cassette.
160
Note: Check that the arrows on the rollers point counterclockwise before installing them in paper
cassettes 2 to 4. There are different rollers for paper cassette 1 and the other paper cassettes.
1. Turn off the product.
2. Wait for the power light to turn off, then unplug the power cord.
3. Remove the replacement rollers from their package.
Caution: If there is any dirt or dust on the rollers, clean them with a soft, moist cloth. Using a dry
cloth can damage the surface of the roller.
4. Pull out the paper cassette.
161
5. Open the rear cover (E) that matches with the paper cassette you removed.
162
6. Use a screwdriver to remove the three screws on the inner cover and remove the cover.
7. Pull down the roller tabs and slide the rollers to the right to remove them.
163
8. Insert the replacement rollers and slide them to the left until they click into place.
9. Use a screwdriver to secure the inner cover to the printer with the three screws you removed.
10. Close the rear cover (E).
11. On the paper cassette you removed, pull up on the lever as shown to release the roller.
12. Slide the roller towards the lever and lift it out of the cassette.
164
13. Insert the pointed end of the replacement roller's shaft into the hole in the cassette and gently slide
the roller into the slot with the flat side of the shaft facing toward the front of the cassette.
14. Press down on the lever as shown to lock the roller in place.
15. Insert the paper cassette all the way into the product.
Reset the maintenance roller counter for the paper cassette to keep track of roller usage.
Parent topic: Replacing Ink Cartridges, Maintenance Boxes, and Cassette Rollers
Resetting the Roller Counter on the LCD Screen
You must reset the roller counter after replacing the cassette rollers to clear the roller replacement
message and to keep track of roller usage correctly.
1. Press the home button, if necessary.
2. Select Settings > Maintenance > Pickup roller information > Reset Counter.
165
3. Select the paper cassette in which you replaced the rollers.
4. Select Yes.
5. Select Yes again to confirm the reset.
6. If you want to feed a sheet of paper to check the roller installation, select Yes. (Otherwise, select
No.)
7. Press the home button to exit.
Parent topic: Replacing Ink Cartridges, Maintenance Boxes, and Cassette Rollers
Printing with Black Ink and Expended Color Cartridges
When a color ink cartridge is expended, you can temporarily continue printing from your computer using
black ink. Replace the expended color cartridge as soon as possible for future printing.
Printing with Expended Color Ink Cartridges - Control Panel
Printing with Expended Color Cartridges - Windows
Printing with Expended Color Cartridges - Mac
Parent topic: Replacing Ink Cartridges, Maintenance Boxes, and Cassette Rollers
Printing with Expended Color Ink Cartridges - Control Panel
If printing stops, you can cancel your print job and select settings to temporarily print with only black ink
on plain paper or on an envelope.
1. When a message is displayed prompting you to replace the ink supply units, press the Proceed
button.
2. If you see a message telling you that you can temporarily print with only black ink, click the Proceed
button.
3. If you want to print in monochrome, select No, remind me later. The ongoing job is canceled, and
you can print on plain paper with margins around the edges.
Parent topic: Printing with Black Ink and Expended Color Cartridges
Printing with Expended Color Cartridges - Windows
If you see a message during printing telling you that you can temporarily print in black ink with an
expended color cartridge, you can cancel your print job and select settings to print on plain paper or on
an envelope.
166
Note: If you are using your Epson product with the Windows 10 S operating system, you cannot use the
software described in this section. You also cannot download and install any Epson product software
from the Epson website for use with Windows 10 S; you must obtain software only from the Windows
Store.
Note: To use this feature, Epson Status Monitor must be enabled.
1. Click Cancel or Cancel Print to cancel your print job.
Note: If the message screen appears on another computer on a network, you may need to cancel
the print job using the product control panel.
2. Load plain paper or an envelope in your product.
3. Access the print settings in your print application.
4. Click the Main tab.
5. Select Plain Paper/Bright White Paper or Envelope as the paper type setting.
6. Select the Black/Grayscale checkbox.
7. Click OK.
8. Print your document.
Epson Status Monitor 3 displays a print message.
9. Click Print in Black to print your document.
Parent topic: Printing with Black Ink and Expended Color Cartridges
Printing with Expended Color Cartridges - Mac
If printing stops, you can cancel your print job and select settings to temporarily print with only black ink
on plain paper or on an envelope.
The following paper types support printing with expended color cartridges:
• Plain paper
• Pre-printed paper
• Letterhead
• Color paper
• Recycled paper
167
• High-quality plain paper
• Thick paper
• Envelopes
1. Click the printer icon in the Dock.
2. If you see a message telling you that you can temporarily print with only black ink, click the Delete or
button to cancel your print job. If you see an error message, click OK.
Note: If the message screen appears on another computer on a network, you may need to cancel
the print job using the product control panel.
3. In the Apple menu or the Dock, select System Preferences or System Settings.
4. Select Print & Fax, Print & Scan, or Printers & Scanners, select your product, and select Options
& Supplies.
5. Select Driver or Options.
6. Select On as the Permit temporary black printing setting.
7. Click OK.
8. Close the utility window.
9. Load a paper type compatible with temporary black printing in your product.
10. Select Print Settings from the pop-up menu.
11. Select a non-borderless paper size as the Paper Size setting.
12. Select a paper type that supports Permit temporary black printing as the media type setting.
13. Select the Grayscale option as the color setting.
14. Click Print to print your document.
Parent topic: Printing with Black Ink and Expended Color Cartridges
Conserving Low Black Ink with Windows
The following window appears when black ink runs low and there is more color ink.
Note: The window appears only when you have selected Plain Paper/Bright White Paper as the paper
type setting, and depends on other selected print settings. To use this feature, Epson Status Monitor
must be enabled.
168
• Click Yes to use a mixture of color inks to create black, or No to continue using the remaining black ink
for the document you are printing.
• Click Disable this feature to continue using the remaining black ink.
Note: If you disable this feature, it remains disabled until you install a new black ink cartridge.
Parent topic: Replacing Ink Cartridges, Maintenance Boxes, and Cassette Rollers
169
Adjusting Print Quality
If your print quality declines, you may need to run a utility to clean or align the printhead.
Note: If you are using your Epson product with the Windows 10 S operating system, you cannot use the
software described in this section. You also cannot download and install any Epson product software
from the Epson website for use with Windows 10 S; you must obtain software only from the Windows
Store.
If running these utilities does not solve the problem, you may need to replace the ink cartridges.
Print Quality Adjustment
Printhead Maintenance
Print Head Alignment
Cleaning the Paper Guide
Print Quality Adjustment
If your printouts become grainy or blurry, you notice misalignment of vertical lines, or you see dark or
light horizontal bands, you may need to adjust the print quality.
Note: Banding may also occur if your print head nozzles need cleaning.
Adjusting the Print Quality Using the Product Control Panel
Adjusting the Quality for Each Paper Type
Parent topic: Adjusting Print Quality
Adjusting the Print Quality Using the Product Control Panel
You can adjust the print quality using the control panel on your product.
1. Make sure there are no errors on the LCD screen.
2. Load a few sheets of plain paper in the product.
3. Press the home button, if necessary.
4. Select Maintenance > Print Quality Adjustment.
170
5. Follow the on-screen instructions to print an alignment sheet.
Note: Do not cancel printing while you are printing head alignment patterns.
6. Check the printed patterns on the alignment sheet and select the following on the LCD screen:
• For patterns 1 and 2, select the number representing the pattern with the least misaligned vertical
line.
• For patterns 3 and 4, select the number representing the pattern with the least amount of
separation or overlap.
7. Select Done.
Parent topic: Print Quality Adjustment
Related topics
Loading Paper
171
Adjusting the Quality for Each Paper Type
If you still notice dark or light bands in your printouts after adjusting the print quality, you can adjust the
quality for each paper type.
1. Make sure there are no errors on the LCD screen.
2. Load the paper type you want to the adjust the quality for into the printer.
3. Press the home button, if necessary.
4. Select Maintenance > Print Quality Adjustment per Paper.
5. Select one of the following options:
• Print Pattern to adjust the paper type for your printer
• Enter Set Value to enter paper type alignment information for use on multiple printers of the same
model
6. Select the paper type you loaded into the printer.
7. If you printed a pattern, check the printed patterns on the alignment sheet and select the following on
the LCD screen:
• For patterns 1 and 2, select the number representing the pattern with the least misaligned vertical
line.
172
• For patterns 3 and 4, select the number representing the pattern with the least amount of
separation or overlap.
8. Select Done.
Parent topic: Print Quality Adjustment
Related topics
Loading Paper
Printhead Maintenance
If your printouts become too light, or you see dark or light bands across them, you may need to clean the
printhead nozzles. Cleaning uses ink, so clean the nozzles only if print quality declines.
You can check for clogged nozzles before you clean them so you don’t clean them unnecessarily.
Note: You cannot clean the print head if an ink cartridge is expended, and may not be able to clean it
when a cartridge is low. You must replace the cartridge first.
Print Head Nozzle Check
Print Head Cleaning
Parent topic: Adjusting Print Quality
Related topics
Replacing Ink Cartridges, Maintenance Boxes, and Cassette Rollers
173
Print Head Nozzle Check
You can print a nozzle check pattern to check for clogged nozzles.
Checking the Nozzles Using the Product Control Panel
Checking the Nozzles Using a Computer Utility
Parent topic: Printhead Maintenance
Checking the Nozzles Using the Product Control Panel
You can check the print head nozzles using the control panel on your product.
1. Make sure there are no errors on the LCD screen.
2. Load a few sheets of plain paper in the product.
3. Press the home button, if necessary.
4. Select Maintenance > Print Head Nozzle Check > Print.
The nozzle pattern prints.
5. Check the printed pattern to see if there are gaps in the lines.
Print head is clean
Print head needs cleaning
174
6. Do one of the following:
• If there are no gaps, select .
• If there are gaps or the pattern is faint, select and continue.
7. Follow the instructions on the screen to clean the print head, check the nozzles, and repeat the
process as necessary.
Caution: Never turn off the product or open the front cover during a cleaning cycle or you may not
be able to print.
If you don’t see any improvement after cleaning the print head up to 4 times, turn the product off using
the power button and wait at least 6 hours. Then run a nozzle check and try cleaning the print head
again, if necessary. If quality still does not improve, contact Epson support.
Parent topic: Print Head Nozzle Check
Related concepts
Print Head Cleaning
Related topics
Loading Paper
Checking the Nozzles Using a Computer Utility
You can check the print head nozzles using a utility on your Windows or Mac computer.
1. Load a few sheets of plain paper in the product.
2. Do one of the following:
• Windows: Access the Windows Desktop and right-click the icon for your product in the right
side of the Windows taskbar, or click the up arrow and right-click .
• Mac: In the Apple menu or the Dock, select System Preferences or System Settings. Select
Print & Fax, Print & Scan, or Printers & Scanners, select your product, and select Options &
Supplies. Select Utility and select Open Printer Utility.
3. Select Nozzle Check or Print Head Nozzle Check.
175
You see a window like this:
4. Click Print.
176
5. Check the printed pattern to see if there are gaps in the lines.
Print head is clean
Print head needs cleaning
6. Do one of the following:
• If there are no gaps, click Finish.
• If there are gaps or the pattern is faint, clean the print head.
If you don’t see any improvement after cleaning the print head up to 4 times, turn the product off using
the power button and wait at least 6 hours. Then run a nozzle check and try cleaning the print head
again, if necessary. If quality still does not improve, contact Epson support.
Parent topic: Print Head Nozzle Check
Related concepts
Print Head Cleaning
Related topics
Loading Paper
177
Print Head Cleaning
If print quality has declined and the nozzle check pattern indicates clogged nozzles, you can clean the
print head.
Note: You cannot clean the print head if an ink cartridge is expended, and may not be able to clean it
when a cartridge is low. You must replace the cartridge first.
Cleaning the Print Head Using the Product Control Panel
Cleaning the Print Head Using a Computer Utility
Parent topic: Printhead Maintenance
Related tasks
Removing and Installing Ink Cartridges
Cleaning the Print Head Using the Product Control Panel
You can clean the print head using the control panel on your product.
1. Make sure there are no errors on the LCD screen.
2. Load a few sheets of plain paper in the product.
3. Press the home button, if necessary.
4. Select Maintenance > Print Head Cleaning > Start to clean the print head.
When the cleaning cycle is finished, you see a message on the screen.
Caution: Never turn off the product or open the front cover during a cleaning cycle or you may not
be able to print.
5. Follow the on-screen instructions to load to print a nozzle check pattern and confirm that the print
head is clean.
178
6. Check the printed pattern to see if there are gaps in the lines.
Print head is clean
Print head needs cleaning
If you don’t see any improvement after cleaning the print head up to 4 times, turn the product off using
the power button and wait at least 6 hours. Then run a nozzle check and try cleaning the print head
again, if necessary. If quality still does not improve, contact Epson support.
Parent topic: Print Head Cleaning
Related topics
Loading Paper
Cleaning the Print Head Using a Computer Utility
You can clean the print head using a utility on your Windows or Mac computer.
1. Make sure there are no errors on the LCD screen.
2. Load a few sheets of plain paper in the product.
179
3. Do one of the following:
• Windows: Access the Windows Desktop and right-click the icon for your product in the right
side of the Windows taskbar, or click the up arrow and right-click .
• Mac: In the Apple menu or the Dock, select System Preferences or System Settings. Select
Print & Fax, Print & Scan, or Printers & Scanners, select your product, and select Options &
Supplies. Select Utility and select Open Printer Utility.
4. Select Head Cleaning or Print Head Cleaning.
You see a window like this:
5. Click Start to begin the cleaning cycle.
The power light flashes throughout the cleaning cycle and stays on when the cleaning cycle is
finished.
180
Caution: Never turn off the product or open the front cover during a cleaning cycle or you may not
be able to print.
6. When the cleaning cycle is finished, you can check to see if the nozzles are clean; click Print Nozzle
Check Pattern and click Print.
7. Check the printed pattern to see if there are gaps in the lines.
Print head is clean
Print head needs cleaning
• If there are no gaps, click Finish.
• If there are gaps or the pattern is faint, click Clean to clean the print head again.
If you don’t see any improvement after cleaning the print head up to 4 times, turn off the product and wait
at least 6 hours. Then check the print head nozzles and try cleaning the print head again, if necessary. If
quality still does not improve, contact Epson.
Parent topic: Print Head Cleaning
Related topics
Loading Paper
Print Head Alignment
If your printouts become grainy or blurry or you notice misalignment of vertical lines, you may need to
align the print head.
Note: Banding may also occur if your print head nozzles need cleaning.
Aligning the Print Head Using the Product Control Panel
Parent topic: Adjusting Print Quality
181
Aligning the Print Head Using the Product Control Panel
You can align the print head using the control panel on your product.
1. Make sure there are no errors on the LCD screen.
2. Load a few sheets of plain paper in the product.
3. Press the home button, if necessary.
4. Select Maintenance > Ruled Line Alignment.
5. Follow the on-screen instructions to print an alignment sheet.
Note: Do not cancel printing while you are printing head alignment patterns.
6. Check the printed patterns on the alignment sheet and select the number representing the pattern
with the least misaligned vertical line on the LCD screen:
7. Select Done.
Parent topic: Print Head Alignment
Related topics
Loading Paper
Cleaning the Paper Guide
If you see ink on the back of a printout, you can clean the paper guide roller to remove any excess ink. If
paper does not feed correctly from the rear paper feed slot, you can use a cleaning sheet to clean the
rollers.
1. If printouts are smeared or scuffed, load plain paper in the paper source that you want to clean in this
size: A4 (8.3 × 11.7 inches [210 × 297 mm]).
182
2. Press the home button, if necessary.
3. Select Maintenance > Paper Guide Cleaning.
4. Select the paper source you want to clean and select Start.
5. Do one of the following:
• If the paper came out clean, select Finish.
• If the paper did not come out clean, select Run to clean the paper guide again. Repeat these
steps as necessary until the paper comes out clean. If you are using a cleaning sheet, repeat
these steps up to 3 times.
Note: If the paper is still smeared or scuffed, repeat these steps to clean the other paper sources.
Parent topic: Adjusting Print Quality
Related topics
Loading Paper
183
Cleaning and Transporting the Product
If your product gets dirty or you need to move it some distance, follow the instructions in these sections.
Cleaning Your Product
Transporting Your Product
Cleaning Your Product
To keep your product working at its best, you should clean it several times a year.
Caution: Do not use a hard brush, alcohol, or paint thinner to clean the product or you may damage it.
Do not use oil or other lubricants inside the product or let water get inside it.
1. Turn off the product.
2. Wait for the power light to turn off, then unplug the power cord.
3. Disconnect any connected cables.
4. Remove all the paper from the product.
5. Pull out the paper cassette.
184
6. Use a soft, moist cloth to clean the cassette roller.
Caution: Using a dry cloth can damage the surface of the roller.
7. Insert the paper cassette all the way into the printer.
8. Repeat steps 5 through 7 for any additional paper cassettes.
9. Clean the outer case and control panel with a soft, dry cloth. Do not use liquid or chemical cleansers.
Parent topic: Cleaning and Transporting the Product
Transporting Your Product
If you need to store your product or transport it a long distance, prepare it for transportation as described
here.
185
Caution: During transportation and storage, follow these guidelines:
• Because the product is heavy, two or more people should lift and carry it using the hand position
shown:
• Avoid tilting the product, positioning it vertically, or turning it upside down; otherwise ink may leak.
• Leave the ink cartridges installed. Removing the cartridges can dry out the print head and may prevent
the product from printing.
• Leave the maintenance box installed; otherwise ink may leak.
Note: Before storing your product for a long period, replace low, expended, or expired ink to help
prevent the print head from drying out. Store your product in a cool, dry place.
1. Turn off the product.
2. Wait for the power light to turn off, then unplug the power cord.
3. Remove all the paper from the product.
4. Disconnect any connected cables.
186
5. Close the rear paper support and remove the output tray.
Note: Do not place the output tray on top of the product. The output tray can fall while the product is
being moved and you can be injured.
6. Remove the optional cabinet and paper cassettes (if they are installed) before lifting the product.
Note: If the optional cabinet is installed, you can use the casters on the cabinet to roll the product
instead of lifting it. Remove the cabinet stands and unlock the casters before moving the product. Do
not roll the product over uneven or rough surfaces to avoid harsh impacts to the product.
7. Place the product in its original packing materials, if possible, or use equivalent materials with
cushioning around the product. Make sure the box adequately protects the product control panel.
Parent topic: Cleaning and Transporting the Product
Related concepts
Print Head Cleaning
Print Quality Adjustment
Related tasks
Removing and Installing Ink Cartridges
187
Administering Your Product
Follow the instructions in these sections to configure your product's administrator settings using the Web
Config software.
Note: Before you can configure system administration settings, you must connect the product to a
network.
Accessing the Web Config Utility
Changing the Administrator Password in Web Config
Configuring Product Settings
Configuring Security Settings
Using Your Product on a Secure Network
Setting Up Universal Print (Microsoft)
Using Epson Device Admin Configuration Software
Accessing the Web Config Utility
You can select your product's network settings and confirm its operating status using a web browser.
You do this by accessing your product's built-in Web Config utility from a computer or other device that is
connected to the same network as your product.
Note: You can also access the Web Config utility from the product information area in the Epson Smart
Panel app.
1. Print a network status sheet.
2. Locate the IP address for your product that is listed on the network status sheet.
3. On a computer or other device connected to the same network as your product, open a web
browser.
4. Enter your product's IP address into the address bar.
Note: The printer uses a self-signed certificate when accessing HTTPS. This may cause a warning
message when you access Web Config. This does not indicate a problem and can be ignored.
188
5. Select Log In and enter the administrator password. The administrator password is required to
access the full capabilities of the Web Config utility. The default password is the product's serial
number. Check the label on your product to locate the serial number.
You see the available Web Config utility options.
Parent topic: Administering Your Product
Changing the Administrator Password in Web Config
You can change the administrator password using your product's control panel, Web Config, or Epson
Device Admin. You use the same administrator password in all cases.
Note: If you forget your administrator password, contact Epson for support.
1. Access Web Config as an administrator and select the Product Security tab.
2. Select Change Administrator Password.
3. Enter a user name, if necessary.
4. Enter the current password, then enter and confirm the new password in the fields provided.
Note: The default password is the product's serial number. Check the label on the back of
the product to locate the serial number. The default user name is blank.
5. Click OK.
Note: To restore the administrator password to the default value, select Restore Default Settings on
the Change Administrator Password screen.
Parent topic: Administering Your Product
Configuring Product Settings
Follow the instructions in these sections to configure your product's control panel settings using the Web
Config software.
Checking Status Information
Managing the Network Connection
Setting Control Panel Options
Sending Email Notifications
189
Adjusting Power Saving Settings
Importing and Exporting Product Settings
Updating Firmware Using Web Config
Synchronizing the Date and Time with a Time Server
Clearing the Internal Memory
Powering Off or Rebooting the Product Remotely
Restoring Default Product Settings
Parent topic: Administering Your Product
Checking Status Information
You can check information about the printer using the Web Config interface.
Note: Depending on the features of your product, not all of the options below may be available. Some
options are not available unless you are logged in to the Web Config interface.
1. Enter the IP address of the printer to access Web Config and log in as an administrator, if necessary.
2. Select the Status tab and choose one of the following options:
• Select Product Status to view information such as ink level and maintenance box status.
• Select Network Status to view network information such as the IP address and network
connection status.
• Select Usage Status to view information about the number of prints and historical information
about the product.
• Select Hardware Status to view information about the product functions.
• Select Panel Snapshot to view a image of the current LCD screen.
Parent topic: Configuring Product Settings
Managing the Network Connection
You can check or update the network information for your product using the Web Config interface.
1. Enter the IP address of the product in a web browser and log in as an administrator.
2. Select the Network tab, then select Basic.
3. Check or update the settings as necessary.
4. Select Next to see a summary of the network settings.
190
5. Select OK to accept the changes.
Note: The network connection will be temporarily interrupted to enable the new settings.
6. Select the other network options as necessary:
• Wi-Fi: Displays the current wireless network connection information. Select Setup to run the
wireless setup again or Disable Wi-Fi to turn off Wi-Fi.
• Wired LAN: Displays the current settings for the wired connection. Change the settings as
necessary and then select Next to view the changes. Confirm the information and select OK to
apply the changes.
• Wi-Fi Direct: Displays the current settings for the Wi-Fi Direct network. Adjust the settings as
necessary and select Next to view the changes. Confirm the information and select OK to apply
the changes.
Network Settings
Parent topic: Configuring Product Settings
Network Settings
The following network settings are available under the Network tab in the Web Config interface.
Basic
Setting Description
Device Name Displays the Device Name. You can enter a new name to
change the name of the device.
Location Displays a user-entered location for the printer
Obtain IP Address Sets the IP Address; if set to Manual, enter the information in
the appropriate fields
Set using BOOTP Enables IP addressing using BOOTP
Set using Automatic Private IP
Addressing (APIPA)
Enables IP addressing using APIPA
IP Address Displays the IP address. If you are manually entering the IP
address, enter it in the format xxx.xxx.xxx.xxx (where xxx is a
number between 0 and 255). Make sure the address is
unique and does not conflict with any other device on your
network.
191
Setting Description
Subnet Mask Displays the subnet mask. If you are manually entering the
subnet mask, enter it in the format xxx.xxx.xxx.xxx (where
xxx is a number between 0 and 255).
Default Gateway Displays the default gateway address. If you are manually
setting the default gateway, enter it in the format
xxx.xxx.xxx.xxx (where xxx is a number between 0 and 255).
DNS Server Setting Selects the DNS server setting. If the Obtain IP Address
setting is set to Manual, this setting is also set to Manual.
Primary DNS Server Enter the address of the primary DNS server in the format
xxx.xxx.xxx.xxx (where xxx is a number between 0 and 255).
Secondary DNS Server Enter the address of the secondary DNS server in the format
xxx.xxx.xxx.xxx (where xxx is a number between 0 and 255).
DNS Host Name Setting Sets the DNS Host Name selection method.
DNS Host Name Displays the current DNS Host Name.
DNS Domain Name Setting Sets the DNS Domain Name selection method
DNS Domain Name Specifies the DNS domain name. The name must conform to
the following format:
• Enter between 2 and 249 characters using only the
characters "A-Z", "a-z", "0-9", hyphen "-", and a period "."
• The first character cannot be a "0-9", hyphen "-", or a
period "."
• The last character cannot be a hyphen "-" or a period "."
• Each label in the domain name must be between 1 and 63
characters and separated by a period.
• The total number of characters in the host and domain
name must not exceed 251.
Register the network interface
address to DNS
Allows you to register the host and domain names through a
DHCP server that supports Dynamic DNS
Proxy Server Setting Enables the use of a proxy server
Proxy Server Specifies the name of the proxy server in either IPv4 or
FQDN format
192
Setting Description
Proxy Server Port Number Specifies the port number for the proxy server (between 1
and 65535)
Proxy Server User Name Specifies the user name for the proxy server (0-255 ASCII
characters [0x20-0x7E])
Proxy Server Password Specifies the password for the proxy server (0-255 ASCII
characters [0x20-0x7E])
IPv6 Setting Enables the use of IPv6 addressing
IPv6 Privacy Extension Enables the use of private IPv6 addresses
IPv6 DHCP Server Setting Enables the use of a IPv6 DHCP server
IPv6 Address Specifies the IPv6 address. The address must conform to the
following format:
• xxxx: xxxx: xxxx: xxxx: xxxx: xxxx: xxxx: xxxx / prefix
• xxxx is a hexadecimal number from 1 to 4 digits, and the
prefix is a decimal number from 1 to 128.
• If there are consecutive blocks where xxxx is all zeros, it
can be omitted as ::. (Only one block can be omitted.)
IPv6 Address Default Gateway Specifies the IPv6 address of the default gateway. The
address must conform to the following format:
• xxxx: xxxx: xxxx: xxxx: xxxx: xxxx: xxxx: xxxx
• xxxx is a hexadecimal number from 1 to 4 digits
• If there are consecutive blocks where xxxx is all zeros, it
can be omitted as ::. (Only one block can be omitted.)
IPv6 Link-Local Address Displays the valid IPv6 Link-Local Address
IPv6 Stateful Address Displays the valid IPv6 Stateful Address
IPv6 Stateless Address 1 Displays the valid IPv6 Stateless Address 1
IPv6 Stateless Address 2 Displays the valid IPv6 Stateless Address 2
IPv6 Stateless Address 3 Displays the valid IPv6 Stateless Address 3
193
Setting Description
IPv6 Primary DNS Server Specifies the address for the IPv6 primary DNS server. The
address must conform to the following format:
• xxxx: xxxx: xxxx: xxxx: xxxx: xxxx: xxxx: xxxx
• xxxx is a hexadecimal number from 1 to 4 digits
• If there are consecutive blocks where xxxx is all zeros, it
can be omitted as ::. (Only one block can be omitted)
IPv6 Secondary DNS Server Specifies the address for the IPv6 secondary DNS server.
The address must conform to the following format:
• xxxx: xxxx: xxxx: xxxx: xxxx: xxxx: xxxx: xxxx
• xxxx is a hexadecimal number from 1 to 4 digits
• If there are consecutive blocks where xxxx is all zeros, it
can be omitted as ::. (Only one block can be omitted.)
IEEE802.11k/v Enables the use of IEEE802.11k/v network environments
IEEE802.11r Enables the use of IEEE802.11r network environments
Wired LAN
Setting Description
Link Speed and Duplex Selects the communication mode for the wired connection
IEEE 802.3az Enables the use of IEEE 802.3az network environments
Wi-Fi Direct
Setting Description
Wi-Fi Direct Enables the product's Wi-Fi Direct network
SSID You can change part of the SSID for the product.
Password Specifies the password for the Wi-Fi Direct network.
Note: Changing the password will disconnect any devices
currently connected to the network.
194
Setting Description
Frequency Range Selects the frequency range used by the Wi-Fi Direct
network.
IP Address Specifies the IP address for the Wi-Fi Direct network. If set to
Manual, enter the IP address in the provided fields.
Parent topic: Managing the Network Connection
Setting Control Panel Options
You can configure the behavior of the product control panel using the Web Config interface or the menus
on the control panel.
1. Enter the IP address of the product in a web browser and log into Web Config as an administrator.
2. Select Device Management > Control Panel and set the following items as necessary:
• Language: Sets the display language
• Panel Lock: Requires an administrator login to access some menu settings on the control panel.
The administrator password must be set to enable this feature.
• Operation Timeout: Cancels operations and automatically logs out users after a selected time
period. You can select a time period between 10 seconds and 240 minutes.
Parent topic: Configuring Product Settings
Sending Email Notifications
You can set up email notifications that will be sent when an event occurs on the product. You can
register up to five destinations.
Note: You must have configured a mail server before setting up notifications.
1. Enter the IP address of the product in a web browser and log into Web Config as an administrator.
2. Select the Device Management tab, then select Email Notification.
3. Set the contents of the email subject line by selecting items from the drop-down menus.
Note: You cannot select the same item in both menus. If the Location setting is longer than 32 bytes,
it will be truncated in the Subject line.
195
4. Enter up to five email addresses to receive the notification emails, and select the language of the
notification email.
5. In the Notification Settings area, select one or more email addresses to receive a notification for
each event.
6. Click OK to apply the settings.
Note: To clear the email notification settings, select Restore Default Settings. This clears all email
notification settings, not just the changes made in the current session.
Parent topic: Configuring Product Settings
Adjusting Power Saving Settings
The product can automatically enter sleep mode or turn off after it has not been used for a while. You
can set the delay before the product enters sleep mode or turns off.
1. Log in to the Web Config interface as an administrator.
2. Select the Device Management tab, then select the Power Saving setting.
3. Set Sleep Timer to the number of minutes before the product enters a low-power mode.
4. Select Power Off Timer to set the amount to time of inactivity before the product turns off.
Note: If you are using a printer with the fax feature enabled, select None.
5. Click OK.
Note: You can also configure the power saving settings using the control panel by selecting Settings >
General Settings > Basic Settings and selecting the feature you want to change.
Parent topic: Configuring Product Settings
Importing and Exporting Product Settings
Follow the instructions in these sections to import and export your product's settings using the Web
Config software.
Exporting Settings Using Web Config
Importing Settings Using Web Config
Parent topic: Configuring Product Settings
196
Exporting Settings Using Web Config
You can export your product's settings and optionally encrypt the settings file with a password.
1. Log in to the Web Config interface as an administrator.
2. Select the Device Management tab, then select Export under Export and Import Setting Value.
3. Select the settings you want to export.
Note: If you select a parent category, the child categories are also selected. By default, items that
are unique on the network, such as IP address, cannot be selected. If you want to export these
items, select Enable to select the individual settings of device. It is recommended that you
export only unique items when replacing a product on the network, otherwise you may encounter
conflicts on the network.
4. Enter an encryption password, if desired.
5. Click Export and save the file.
Parent topic: Importing and Exporting Product Settings
Importing Settings Using Web Config
You can import settings to your product that you have exported previously. If encryption was used when
the settings were exported, obtain the necessary password before you import.
Note: When importing values that include individual information such as a printer name or IP address,
make sure the same IP address does not already exist on the same network.
1. Log in to the Web Config interface as an administrator.
2. Select the Device Management tab, then select Import under Export and Import Setting Value.
3. Click Browse and select the exported settings file.
4. If necessary, enter the decryption password.
5. Click Next.
6. Select the settings to import and click Next.
7. Click OK.
The selected settings are imported to the product.
Parent topic: Importing and Exporting Product Settings
197
Updating Firmware Using Web Config
If your product is connected to the Internet, you can update the product firmware using Web Config.
1. Log in to the Web Config interface as an administrator.
2. Select Device Management > Firmware Update.
3. Click Start to check for the latest firmware.
4. If there is a firmware update, click Start to begin the update.
Note: Make sure the product is not in use and clear any errors on the LCD screen before starting the
update. You can also schedule a firmware update by selecting Automatic Firmware Update from
the menu.
Parent topic: Configuring Product Settings
Synchronizing the Date and Time with a Time Server
You can synchronize the product with an NTP time server to set the date and time on the product.
Note: If you are using a CA certificate or Kerberos authentication, it is recommended to use a time
server to set the date and time.
1. Log in to the Web Config interface as an administrator.
2. Select the Device Management tab, then select the Date and Time > Time Server setting.
3. Set Use Time Server to Use.
4. Enter the time server address in Time Server Address. You can use the IPv4, IPv6, or FQDN
format for the address. You are limited to 252 characters.
Note: If you do not specify the address, leave it blank.
5. Enter an update interval (up to 10080 minutes) in Update Interval (min).
6. Click OK to update the settings.
Note: You can see the time server connection status next to Time Server Status.
Parent topic: Configuring Product Settings
198
Clearing the Internal Memory
You can delete the contents of the product's internal memory, such as password-protected print jobs and
downloaded PCL fonts and macros using the Web Config interface. You cannot select individual items to
delete.
1. Log in to the Web Config interface as an administrator.
2. Select the Device Management tab, then select the Clear Internal Memory Data setting.
3. Select Delete and confirm your selection.
Parent topic: Configuring Product Settings
Powering Off or Rebooting the Product Remotely
You can power off or reboot the product using the Web Config interface.
1. Log in to the Web Config interface as an administrator.
2. Select the Device Management tab, then select the Power setting.
3. Select a power option from the drop down menu and select Execute.
Note: After turning off the product, you cannot access Web Config until the product is turned on again.
Parent topic: Configuring Product Settings
Restoring Default Product Settings
You can reset the product to the default settings using the Web Config interface.
1. Log in to the Web Config interface as an administrator.
2. Select the Device Management tab, then select the Restore Default Settings setting.
3. Select an option from the drop-down list. You can either restore network settings or all data and
settings.
4. Select Execute and confirm your selection to restore the product settings.
Parent topic: Configuring Product Settings
Configuring Security Settings
Follow the instructions in these sections to configure internal security features for your product using the
Web Config software.
Connecting an Authentication Device
199
Restricting Features Available for Users
Disabling the External Interface
Setting Up Password Encryption
Working with Audit Logs
Restricting PDL File Operations
Enabling Program Verification on Start Up
Parent topic: Administering Your Product
Connecting an Authentication Device
You can connect an authentication device such as an IC card reader using a USB cable, and check the
functionality of the reader using the Web Config interface.
1. Remove the sticker covering the service port on the rear of the product.
2. Connect the card reader’s USB cable to the service port on the product.
200
3. Access Web Config and log in using the administrator name and password.
Note: You can also check the card reader status on the product control panel by selecting Settings
> Authentication Device Status.
4. Select Device Management > Card Reader.
5. Set the card reader parameters as necessary.
6. Select Check to verify the connection status of the authentication device.
Note: To confirm that the authentication device can recognize an authentication card, hold the card
over the reader while you select Check.
7. Click Next.
8. Click OK to confirm the settings.
Parent topic: Configuring Security Settings
Restricting Features Available for Users
Follow the instructions in these sections to restrict users from using certain product features and create
an administrator password to lock the restrictions using the Web Config software.
User Feature Restriction
Configuring User Feature Restrictions
Parent topic: Configuring Security Settings
User Feature Restriction
You can restrict available product features for individual users, with different features available to each
user. This requires users to log into the product control panel with their user name and password before
they can use control panel features.
With Windows, you can also restrict printing from the product software. This requires users to log into the
printing software, and allows the software to authenticate the users before printing proceeds. For
instructions on setting up software restrictions, see the help utility in the printing or scanning software.
Parent topic: Restricting Features Available for Users
Configuring User Feature Restrictions
You can create up to 10 user accounts and restrict access to control panel features separately for each
one.
201
Note: If you are using an authentication system, it uses the number one user account. If you create other
user accounts, use the number two to number 10 user accounts.
1. Access Web Config as an administrator and select the Product Security tab.
2. Select the Enables Access Control checkbox.
3. If you have configured the product for an LDAP server, you can deselect the Allows printing and
scanning without authentication information from a computer checkbox to prevent the product
from receiving jobs sent from these sources:
• The default operating system driver
• A PCL or PostScript printer driver
• Web services such as Epson Connect
• Smartphones and other mobile devices
4. Click OK.
5. Select User Settings.
6. Click Add.
7. Enter a name for a user in the User Name field following the guidelines on the screen. Use ASCII
(0x20-0x7E) characters.
8. Enter a password for the user in the Password field following the guidelines on the screen.
Note: If you need to reset a password, leave the password field blank.
9. Select the checkbox for each function you want the user to be able to perform, and deselect the
checkbox for each function you want to restrict access to.
10. Click Apply.
Note: When you edit a completed user account, you see a Delete option. Click it to delete a user, if
necessary.
Note: You can import and export a list of user features using EpsonNet Config. See the help utility in the
software for instructions.
Parent topic: Restricting Features Available for Users
202
Disabling the External Interface
You can restrict the ability to connect from a computer using a USB connection or accessing a
connected USB device or memory card.
Note: Depending on your product features, not all of the options listed below may be available.
1. Access Web Config as an administrator and select Product Security > External Interface.
2. Select PC Connection via USB and do one of the following:
• Select Disable to prevent a computer from connecting to the product over a USB connection.
• Select Enable to allow a computer to connect to the product over a USB connection.
3. Click OK to save your setting.
Parent topic: Configuring Security Settings
Setting Up Password Encryption
You can set up password encryption to protect confidential information stored in the product.
1. Log in to the Web Config interface as an administrator.
2. Select the Product Security tab and select Password Encryption.
3. Select On and select OK.
A message appears about restarting the product. Select OK.
4. Turn the product off and then on again to apply the password encryption setting.
Note: The product may take longer than usual to turn on. This is normal.
Parent topic: Configuring Security Settings
Working with Audit Logs
You can enable the Audit Log feature or export audit log data using the Web Config interface. Audit logs
can be used to track security issues or identify improper usage.
1. Log in to the Web Config interface as an administrator.
2. Select the Product Security tab, then select the Audit Log setting.
3. Select ON and then click OK to enable the audit log feature.
4. Select Export to export the audit log data to a CSV file, or select Delete to delete all audit logs.
203
Parent topic: Configuring Security Settings
Restricting PDL File Operations
You can protect files from unauthorized PDL operations using the Web Config interface.
1. Log in to the Web Config interface as an administrator.
2. Select the Product Security tab, then select the File Operations from PDL setting.
3. Select Allowed or Not Allowed to enable or disable PDL file operations and select OK to apply your
setting.
Parent topic: Configuring Security Settings
Enabling Program Verification on Start Up
Your product automatically checks whether unauthorized third parties have tampered with the program
when the product starts up. If it detects that the product has been rewritten with invalid firmware, it will
stop and update the firmware.
If you enable Do not start if tampering is detected, the printer will display an error and stop booting. It
is not recommended to enable the Do not start if tampering is detected setting as the default setting.
1. Log in to the Web Config interface as an administrator.
2. Select the Product Security tab, then select Program Verification on Start Up.
3. Enable the Do not start if tampering is detected setting.
Parent topic: Configuring Security Settings
Using Your Product on a Secure Network
Follow the instructions in these sections to configure security features for your product on the network
using the Web Config software.
Configuring Protocols and Services in Web Config
Configuring SSL/TLS Communication
Configuring IPsec/IP Filtering
Connecting the Product to an IEEE 802.1X Network
Using a Digital Certificate
Parent topic: Administering Your Product
204
Configuring Protocols and Services in Web Config
You can enable or disable protocols using Web Config.
1. Access Web Config as an administrator, select Network Security, and select Protocol.
2. Select or deselect the checkbox next to the service name to enable or disable a protocol.
3. Configure any other available protocol settings.
4. Click Next.
5. Click OK.
6. Select and configure services and protocol settings as necessary.
After the protocols restart, the changes are applied.
Protocol Settings
Parent topic: Using Your Product on a Secure Network
Protocol Settings
Protocols
Name Description
Bonjour Bonjour is used to search for devices and AirPrint
iBeacon Enable the iBeacon setting to search for the product from
iBeacon-enabled devices
SLP SLP is used for network searching in EpsonNet Config
WSD Add WSD devices or print from the WSD port
LLTD Displays the product on the Windows network map
LLMNR Use name resolution without NetBIOS even if you cannot use
DNS
LPR Print from to the LPR port
RAW(Port9100) Print from the RAW port (Port 9100)
RAW(Custom Port) Print from the RAW port (custom port)
IPP Print over the Internet, including AirPrint
FTP Print over FTP
205
Name Description
SNMPv1/v2c Remotely set up and monitor your product
SNMPv3 Remotely set up and monitor your product with the SNMPv3
protocol
Bonjour Settings
Setting Options/Description
Use Bonjour Search for or use devices through Bonjour (you cannot use
AirPrint if disabled)
Bonjour Name Displays the Bonjour name
Bonjour Service Name Displays the Bonjour service name
Location Displays the Bonjour location name
Top Priority Protocol Selects the protocol that is the top priority for Bonjour printing
Wide-Area Bonjour Enables the Wide-Area Bonjour protocol; register all products
on the DNS server to locate them over the segment
iBeacon Settings
Setting Options/Description
Enable iBeacon Transmission Enable the iBeacon transmission function
SLP Settings
Setting Options/Description
Enable SLP Enable the SLP function to use network searching in
EpsonNet Config
206
WSD Settings
Setting Options/Description
Enable WSD Enable adding devices using WSD, and printing from the WSD
port
Note: If you do not want this product to search for devices,
disable this setting and disable the Enable IPP setting.
Printing Timeout (sec) Enter the communication timeout value for WSD printing
between 3 and 3,600 seconds
Device Name Displays the WSD device name
Location Displays the WSD location name
LLTD Settings
Setting Options/Description
Enable LLTD Enable LLTD to display the product in the Windows network
map
Device Name Displays the LLTD device name
LLMNR Settings
Setting Options/Description
Enable LLMNR Enable LLMNR to use name resolution without NetBIOS, even
if you cannot use DNS
LPR Settings
Setting Options/Description
Allow LPR Port Printing Allow printing from the LPR port
Printing Timeout (sec) Enter the timeout value for LPR printing between 0 and 3,600
seconds
207
RAW (Port9100) Settings
Setting Options/Description
Allow RAW (Port9100) Printing Allow printing from the RAW port (Port 9100)
Printing Timeout (sec) Enter the timeout value for RAW port (Port 9100) printing
between 0 and 3,600 seconds
RAW (Custom Port) Settings
Setting Options/Description
Allow RAW (Custom Port) Printing Allow printing from the RAW port (custom port)
Port Number Enter the port number for RAW printing between 1024 and
65535 (except 9100, 1865, and 2968)
Printing Timeout (sec) Enter the timeout value for RAW port (custom port) printing
between 0 and 3,600 seconds
IPP Settings
Setting Options/Description
Enable IPP Enable IPP communication for products that support IPP are
displayed (you cannot use AirPrint if disabled)
Allow Non-secure Communication Allow the printer to communicate without any security
measures (IPP)
Communication Timeout (sec) Enter the timeout value for IPP printing between 0 and 3,600
seconds
Require PIN Code when using IPP
printing
Select whether or not to require a PIN code when using IPP
printing. If you select Yes, IPP print jobs without PIN codes
are not saved in the product.
URL(Network) Displays IPP URLs (http and https) when the product is
connected using wired LAN or Wi-Fi (the URL is a combined
value of the product’s IP address, Port number, and IPP
printer name)
208
Setting Options/Description
URL(Wi-Fi Direct) Displays IPP URLs (http and https) when the product is
connected using Wi-Fi Direct (the URL is a combined value of
the product’s IP address, Port number, and IPP printer name)
Printer Name Displays the IPP printer name
Location Displays the IPP location
FTP Settings
Setting Options/Description
Enable FTP Server Enable FTP printing for products that support FTP printing
Communication Timeout (sec) Enter the timeout value for FTP communication between 0
and 3,600 seconds
SNMPv1/v2c Settings
Setting Options/Description
Enable SNMPv1/v2c Enable SNMPv1/v2c for products that support SNMPv3
Access Authority Set the access authority when SNMPv1/v2c is enabled to
Read Only or Read/Write
Community Name (Read Only) Enter 0 to 32 ASCII characters
Community Name (Read/Write) Enter 0 to 32 ASCII characters
SNMPv3 Settings
Setting Options/Description
Enable SNMPv3 Enable SNMPv3 for products that support SNMPv3
User Name Enter 1 to 32 characters
Authentication Settings Select an algorithm and set a password for authentication
Encryption Settings Select an algorithm and set a password for encryption
Context Name Enter 1 to 32 characters in Unicode (UTF-8)
209
Parent topic: Configuring Protocols and Services in Web Config
Configuring SSL/TLS Communication
Follow the instructions in these sections to configure SSL/TLS communication using Web Config.
Configuring SSL/TLS Settings
Configuring a Server Certificate for the Product
Parent topic: Using Your Product on a Secure Network
Configuring SSL/TLS Settings
If your product supports HTTPS, you can configure SSL/TLS to encrypt communications with your
product.
1. Log in to the Web Config interface as an administrator.
2. Select SSL/TLS > Basic.
3. Select one of the options for the Encryption Strength setting.
4. Select Enable or Disable for the Redirect HTTP to HTTPS setting as necessary.
5. If necessary, enable a TLS version.
6. Click Next.
You see a confirmation message.
7. Click OK.
Parent topic: Configuring SSL/TLS Communication
Configuring a Server Certificate for the Product
You can configure a server certificate for your product.
1. Access Web Config as an administrator and select the Network Security tab.
2. Under SSL/TLS, select Certificate.
3. Select one of the following options:
• CA-signed Certificate: Select Import if you have obtained a CA-signed certificate. Choose the
file to import and click OK.
• Self-signed Certificate: Select Update if you have not obtained a CA (Certificate Authority)-
signed certificate and want the product to generate a self-signed certificate.
4. Click Next.
You see a confirmation message.
210
5. Click OK.
Parent topic: Configuring SSL/TLS Communication
Configuring IPsec/IP Filtering
Follow the instructions in these sections to configure IPsec/IP traffic filtering using Web Config.
About IPsec/IP Filtering
Configuring the Default IPsec/IP Filtering Policy
Configuring the Group IPsec/IP Filtering Policies
IPsec/IP Filtering Policy Settings
IPsec/IP Filtering Configuration Examples
Configuring an IPsec/IP Filtering Certificate
Parent topic: Using Your Product on a Secure Network
About IPsec/IP Filtering
You can filter traffic to the product over the network based on IP address, service, and port by
configuring a default policy that applies to every user or group connecting to the product. For control of
individual users or user groups, you can configure group policies.
Note: IPsec is supported only by computers running Windows Vista or later, or Windows Server 2008 or
later.
Parent topic: Configuring IPsec/IP Filtering
Configuring the Default IPsec/IP Filtering Policy
You can configure the default policy for IPsec/IP traffic filtering using Web Config.
1. Access Web Config as an administrator and select the Network Security tab.
2. Under IPsec/IP Filtering, select Basic.
3. Select Enable to enable IPsec/IP filtering.
4. Select the filtering options you want to use for the default policy.
5. Click Next.
You see a confirmation message.
6. Click OK.
Parent topic: Configuring IPsec/IP Filtering
211
Configuring the Group IPsec/IP Filtering Policies
You can configure group policies for IPsec/IP traffic filtering using Web Config.
1. Access Web Config as an administrator and select the Network Security tab.
2. Under IPsec/IP Filtering, select Basic.
3. Click a tab number for the policy number you want to configure.
4. Select the Enable this Group Policy checkbox.
5. Select the filtering options you want to use for this group policy.
6. Click Next.
You see a confirmation message.
7. Click OK.
8. If you want to configure additional group policies, click the next tab number and repeat the
configuration steps as necessary.
Parent topic: Configuring IPsec/IP Filtering
IPsec/IP Filtering Policy Settings
Default Policy Settings
Setting Options/Description
Access Control Permit Access to permit IP packets to pass through
Refuse Access to prevent IP packets from passing
through
IPsec to permit IPsec packets to pass through
IKE Version Select the version of the Internet Key Exchange (IKE)
protocol that matches your network environment
Authentication Method Select an authentication method, or select Certificate if
you have imported a CA-signed certificate
Pre-Shared Key If necessary, enter a pre-shared key between 1 and 127
characters long
Confirm Pre-Shared Key Confirm the pre-shared key you entered
ID Type If you selected IKEv2 as the IKE Version setting, select
the ID type from the list.
212
Setting Options/Description
ID If you selected IKEv2 as the IKE Version setting, enter
the necessary ID information
Encapsulation If you selected IPsec as the Access Control option,
select one of these encapsulation modes:
Transport Mode: if you are using the product on the
same LAN; IP packets of layer 4 or later are encrypted
Tunnel Mode: if you are using the product on an Internet-
capable network, such as IPsec-VPN; the header and
data of IP packets are encrypted
Remote Gateway(Tunnel Mode) If you selected Tunnel Mode as the Encapsulation
option, enter a gateway address between 1 and 39
characters long
Security Protocol If you selected IPsec as the Access Control option,
select one of these security protocols:
ESP: to ensure the integrity of authentication and data,
and encrypt data
AH: to ensure the integrity of authentication and data; if
data encryption is prohibited, you can use IPsec
Algorithm Settings Select the encryption algorithm settings for the security
protocol you selected
Group Policy Settings
Setting Options/Description
Access Control Permit Access to permit IP packets to pass through
Refuse Access to prevent IP packets from passing
through
IPsec to permit IPsec packets to pass through
213
Setting Options/Description
Local Address(Printer) Select an IPv4 or IPv6 address that matches your network
environment; if the IP address is assigned automatically,
select Use auto-obtained IPv4 address
Note: If an IPv6 address is automatically assigned, the
connection may be unavailable. Configure a static IP
address.
Remote Address(Host) Enter the device's IP address (between 0 and 43
characters long) to control access, or leave blank to
control all addresses; if the IP address is assigned
automatically, such as by DHCP, the connection may be
unavailable, so configure a static address instead
Method of Choosing Port Select the method you want to used for specifying ports
Service Name If you selected Service Name as the Method of
Choosing Port option, select a service name option here;
see the next table for more information
Transport Protocol If you selected Port Number as the Method of Choosing
Port option, select one of these encapsulation modes:
Any Protocol
TCP
UDP
ICMPv4
See the Group Policy Guidelines table for more
information.
Local Port If you selected Port Number as the Method of Choosing
Port option, and TCP or UDP for the Transport Protocol
option, enter the port numbers that control receiving
packets (up to 10 ports), separated by commas, for
example 20,80,119,5220; leave this setting blank to
control all ports; see the next table for more information
214
Setting Options/Description
Remote Port If you selected Port Number as the Method of Choosing
Port option, and TCP or UDP for the Transport Protocol
option, enter the port numbers that control sending
packets (up to 10 ports), separated by commas, for
example 25,80,143,5220; leave this setting blank to
control all ports; see the next table for more information
IKE Version Select IKEv1 or IKEv2 depending on the device that the
product is connected to
Authentication Method If you selected IPsec as the Access Control option,
select an authentication method here
Pre-Shared Key If you selected Pre-Shared Key as the Authentication
Method option, enter a pre-shared key between 1 and
127 characters long here and in the Confirm Pre-Shared
Key field
ID Type If you selected IKEv2 as the IKE Version setting, select
the ID type from the list
ID If you selected IKEv2 as the IKE Version setting, enter
the necessary ID information
Encapsulation If you selected IPsec as the Access Control option,
select one of these encapsulation modes:
Transport Mode: if you are using the product on the
same LAN; IP packets of layer 4 or later are encrypted
Tunnel Mode: if you are using the product on an Internet-
capable network, such as IPsec-VPN; the header and
data of IP packets are encrypted
Remote Gateway(Tunnel Mode) If you selected Tunnel Mode as the Encapsulation
option, enter a gateway address between 1 and 39
characters long
215
Setting Options/Description
Security Protocol If you selected IPsec as the Access Control option,
select one of these security protocols:
ESP: to ensure the integrity of authentication and data,
and encrypt data
AH: to ensure the integrity of authentication and data; if
data encryption is prohibited, you can use IPsec
Algorithm Settings Select the encryption algorithm settings for the security
protocol you selected
Combinations of Local Address (Printer) and Remote Address (Host) on Group Policy
Setting of Remote
Address (Host)
Setting of Local Address (Printer)
IPv4 IPv6
*2
Any addresses
*3
IPv4
*1
Yes — Yes
IPv6
*1 *2
— Yes Yes
Blank Yes Yes Yes
*1
: If you selected IPsec as the Access Control option, you cannot specify a prefix length
*2
: If you selected IPsec as the Access Control option, you can select a link-local address (fe80::), but
the group policy will be disabled.
*3
: You cannot use IPv6 link-local addresses.
Group Policy Guidelines
Service name Protocol type Local/Remote port
number
Controls these operations
Any — — All services
ENPC UDP 3289/Any port Searching for a product from
applications such as printer or
scanner drivers, or EpsonNet Config
216
Service name Protocol type Local/Remote port
number
Controls these operations
SNMP UDP 161/Any port Acquiring and configuring MIB from
applications such as printer or
scanner drivers, or EpsonNet Config
LPR TCP 515/Any port Forwarding LPR data
RAW (Port9100) TCP 9100/any port Forwarding RAW data
IPP/IPPS TCP 631/Any port Forwarding AirPrint data (IPP/IPPS
printing)
WSD TCP Any port/5357 Controlling WSD
WS-Discovery UDP 3702/Any port Searching for a product from WSD
FTP Data (Local) TCP 20/Any port Forwarding FTP printing data to FTP
server
FTP Control (Local) TCP 21/Any port Controlling FTP printing to FTP
server
HTTP (Local) TCP 80/Any port Forwarding Web Config and WSD
data to a HTTP or HTTPS server
HTTPS (Local) TCP 443/Any port
HTTP (Remote) TCP Any port/80 Communicating with Epson Connect,
firmware update, and root certificate
update on a HTTP or HTTPS client
HTTPS (Remote) TCP Any port/443
Parent topic: Configuring IPsec/IP Filtering
IPsec/IP Filtering Configuration Examples
You can configure IPsec and IP filtering in a variety of ways, as shown in the examples here.
Receiving IPsec Packets Only
Use this example only for configuring a default policy.
• IPsec/IP Filtering: Enable
• Access Control: IPsec
• Authentication Method: Pre-Shared Key
• Pre-Shared Key: Enter a key up to 127 characters long
217
Receiving Printing Data and Printer Settings
Use this example to allow communication of printing data and printer settings from specified services.
Default policy:
• IPsec/IP Filtering: Enable
• Access Control: Refuse Access
Group policy:
• Access Control: Permit Access
• Remote Address(Host): Client IP address
• Method of Choosing Port: Service Name
• Service Name: Select ENPC, SNMP, HTTP (Local), HTTPS (Local), and RAW (Port9100)
Receiving Access from Only a Specified Address for Product Access
In these examples, the client will be able to access and configure the product in any policy configuration.
Default policy:
• IPsec/IP Filtering: Enable
• Access Control: Refuse Access
Group policy:
• Access Control: Permit Access
• Remote Address (Host): Administrator's client IP address
Parent topic: Configuring IPsec/IP Filtering
Configuring an IPsec/IP Filtering Certificate
You can configure a certificate for IPsec/IP traffic filtering using Web Config.
1. Access Web Config as an administrator and select the Network Security tab.
2. Under IPsec/IP Filtering, select Client Certificate.
3. Click Import to add a new client certificate and enter any necessary settings.
4. Click OK.
Parent topic: Configuring IPsec/IP Filtering
218
Connecting the Product to an IEEE 802.1X Network
Follow the instructions in these sections to connect the product to an IEEE 802.1X network using Web
Config.
Configuring an IEEE 802.1X Network
IEEE 802.1X Network Settings
Configuring a Certificate for an IEEE 802.1X Network
IEEE 802.1X Network Status
Parent topic: Using Your Product on a Secure Network
Configuring an IEEE 802.1X Network
If your product supports IEEE 802.1X, you can use it on a network with authentication provided by a
RADIUS server with a hub as an authenticator using Web Config.
Note: TLS version 1.3 does not support this function.
1. Access Web Config as an administrator and select the Network Security tab.
2. Under IEEE802.1X, select Basic.
3. Select Enable as the IEEE802.1X (Wired LAN) setting.
4. To use the product on a Wi-Fi network, enable your product's Wi-Fi settings.
The status of the connection is shown as the IEEE802.1X (Wi-Fi) setting.
Note: You can share the network settings for Ethernet and Wi-Fi networking.
5. Select the IEEE 802.1X setting options you want to use.
6. Click Next.
You see a confirmation message.
7. Click OK.
Parent topic: Connecting the Product to an IEEE 802.1X Network
IEEE 802.1X Network Settings
You can configure these IEEE 802.1X network settings in Web Config.
219
Setting Options/Description
IEEE802.1X (Wired LAN) Enable or disable settings (IEEE802.1X > Basic)
IEEE802.1X (Wi-Fi) Displays the IEEE802.1X (Wi-Fi) connection status
Connection Method Displays the current network connection method
EAP Type Select one of these authentication methods for connections
between the product and a RADIUS server:
EAP-TLS or PEAP-TLS: You must obtain and import a CA-
signed certificate
PEAP/MSCHAPv2 or EAP-TTLS: You must configure a
password
User ID Enter an ID between 1 and 128 ASCII characters for
authentication on a RADIUS server
Password Enter a password between 1 and 128 ASCII characters for
authentication of the product. If you are using Windows as a
RADIUS server, enter up to 127 ASCII characters.
Confirm Password Enter the authentication password again
Server ID Enter a server ID between 1 and 128 ASCII characters for
authentication on a specified RADIUS server; server ID is
verified in the subject/subjectAltName field of a server
certificate sent from the RADIUS server
Certificate Validation Select a valid certificate regardless of the authentication
method; import the certificate using the CA Certificate option
Anonymous Name If you selected EAP-TTLS, PEAP-TLS or PEAP/MSCHAPv2
as the Authentication Method setting, you can configure an
anonymous name between 1 and 128 ASCII characters
instead of a user ID for phase 1 of a PEAP authentication
Encryption Strength Select one of the following encryption strengths:
High for AES256/3DES
Middle for AES256/3DES/AES128/RC4
Parent topic: Connecting the Product to an IEEE 802.1X Network
220
Configuring a Certificate for an IEEE 802.1X Network
If your product supports IEEE 802.1X, you can configure a certificate for the network using Web Config.
1. Access Web Config as an administrator and select the Network Security tab.
2. Under IEEE802.1X, select Client Certificate.
3. Click Import to add a new client certificate.
Note: If you have already imported a certificate published by a Certification Authority, you can copy
the certificate and use it in IEEE802.1X. To copy, select Copy From, select the certificate, and then
click Copy.
4. Click OK.
Parent topic: Connecting the Product to an IEEE 802.1X Network
IEEE 802.1X Network Status
You can check the status of the IEEE 802.1X network settings by printing a status sheet from your
product.
The network status sheet displays the information in this table for IEEE 802.1X networks.
Status ID Status description
Disable IEEE 802.1X is disabled
EAP Success IEEE 802.1X authentication is confirmed and the network connection is
available
Authenticating IEEE 802.1X authentication in progress
Config Error Authentication failed because the user ID was not set
Client Certificate Error Authentication failed because the client certificate is out of date
Timeout Error Authentication failed because there is no answer from the RADIUS server
and/or authenticator
User ID Error Authentication failed because the product's user ID and/or certificate
protocol is incorrect
Server ID Error Authentication failed because the server ID on the server certificate and
the server's ID do not match
Server Certificate Error Authentication failed because the server certificate is out of date or the
chain of the server certificate is incorrect
221
Status ID Status description
CA Certificate Error Authentication failed because the CA certificate is incorrect, not imported,
or out of date
EAP Failure Authentication failed because the client certificate is incorrect (EAP-TLS
or PEAP-TLS), or the user ID or password is incorrect (PEAP/MSCHAPv2
or EAP-TTLS)
Parent topic: Connecting the Product to an IEEE 802.1X Network
Using a Digital Certificate
Follow the instructions in these sections to configure and use digital certificates using Web Config.
About Digital Certification
Obtaining and Importing a CA-signed Certificate
CSR Setup Settings
CSR Import Settings
Deleting a CA-signed Certificate
Updating a Self-signed Certificate
Importing a CA Certificate
Deleting a CA Certificate
Parent topic: Using Your Product on a Secure Network
About Digital Certification
You can configure the following digital certificates for your network using Web Config:
CA-signed Certificate
You can ensure secure communications using a CA-signed certificate for each security feature. The
certificates must be signed by and obtained from a CA (Certificate Authority).
CA Certificate
A CA certificate indicates that a third party has verified the identity of a server. You need to obtain a
CA certificate for server authentication from a CA that issues it.
Self-signed Certificate
A self-signed certificate is issued and signed by the product itself. You can use the certificate for only
SSL/TLS communication, however security is unreliable and you may see a security alert in the
browser during use.
Parent topic: Using a Digital Certificate
222
Obtaining and Importing a CA-signed Certificate
You can obtain a CA-signed certificate by creating a CSR (Certificate Signing Request) using Web
Config and submitting it to a certificate authority. The CSR created in Web Config is in PEM/DER format.
You can import one CSR created from Web Config at a time.
1. Access Web Config as an administrator and select Network Security.
2. Select one of the available network security options and select a certificate option.
3. In the CSR section, select Generate.
4. Select the CSR setting options you want to use.
5. Click OK.
You see a completion message.
6. Select Network Security, select your network security option, and select Certificate again.
7. In the CSR section, click the Download option that matches the format specified by your certificate
authority to download the CSR.
Caution: Do not generate another CSR or you may not be able to import a CA-signed certificate.
8. Submit the CSR to the certificate authority following the format guidelines provided by that authority.
9. Save the issued CA-signed certificate to a computer connected to the product.
Before proceeding, make sure the time and date settings are correct on your product.
10. Select Network Security, select your network security option, and select Certificate or Client
Certificate as necessary.
11. In the CA Certificate section, click Import.
12. Select the format of the certificate as the Server Certificate setting.
13. Select the certificate import settings as necessary for the format and the source from which you
obtained it.
14. Click OK.
You see a confirmation message.
15. Click Confirm to verify the certificate information.
Parent topic: Using a Digital Certificate
CSR Setup Settings
You can select these settings when setting up a CSR in Web Config.
223
Note: The available key length and abbreviations vary by certificate authority, so follow the rules of that
authority when entering information in the CSR.
Setting Options/Description
Key Length Select a key length for the CSR
Common Name Enter a name or static IP address from 1 to 128
characters long; for example, Reception printer
or https://10.152.12.225 (you can enter up to five
IPv4 addresses, IPv6 addresses, host names, or
FQDNs by separating them with commas)
Organization, Organizational Unit, Locality,
State/Province
Enter information in each field as necessary, from
0 to 64 characters long in ASCII; separate any
multiple names with commas
Country Enter a two-digit country code number as specified
by the ISO-3166 standard
Sender's Email Address Enter the sender's email address for the mail
server setting(enter the same email address as the
Sender's Email Address in Network > Email
Server > Basic)
Parent topic: Using a Digital Certificate
CSR Import Settings
You can configure these settings when importing a CSR in Web Config.
Note: The import setting requirements vary by certificate format and how you obtained the certificate.
Certificate format Setting descriptions
PEM/DER format obtained from Web Config Private Key: Do not configure because the
product contains a private key
Password: Do not configure
CA Certificate 1/CA Certificate 2: Optional
224
Certificate format Setting descriptions
PEM/DER format obtained from a computer Private Key: Configure a private key
Password: Do not configure
CA Certificate 1/CA Certificate 2: Optional
PKCS#12 format obtained from a computer Private Key: Do not configure
Password: Optional
CA Certificate 1/CA Certificate 2: Do not
configure
CA-signed Certificate Import Settings
Setting Description
Server Certificate or Client Certificate Select the certificate format.
For an SSL/TLS connection, the Server Certificate
is displayed.
For an IPsec/IP Filtering, IEEE802.1x, or S/MIME
connection, the Client Certificate is displayed.
Note: Depending on your product, not all
connection types may be available.
Private Key If you obtain a certificate of the PEM/DER format
by using a CSR created from a computer, specify a
private key file that matches the certificate.
Password If the file format is Certificate with Private Key
(PKCS#12), enter the password for encrypting the
private key that is set when you obtain the
certificate.
CA Certificate 1 If your certificate’s format is Certificate
(PEM/DER), import a certificate from a certificate
authority that issues a CA-signed Certificate to be
used as the server certificate. Specify a file if
necessary.
225
Setting Description
CA Certificate 2 If your certificate’s format is Certificate
(PEM/DER), import a certificate from the same
certificate authority that issued CA Certificate 1.
Specify a file if necessary.
Parent topic: Using a Digital Certificate
Deleting a CA-signed Certificate
You can delete an imported CA-signed certificate with Web Config when the certificate expires or if you
have no more need for an encrypted connection.
Note: If you obtained a CA-signed certificate from Web Config, you cannot import a deleted certificate;
you must obtain and import a new certificate.
1. Access Web Config as an administrator and select Network Security.
2. Select one of the following network security options and corresponding certificate:
• SSL/TLS and select Certificate
• IPsec/IP Filtering and select Client Certificate
• IEEE802.1X and select Client Certificate
3. Click Delete.
You see a completion message.
4. Click OK.
Parent topic: Using a Digital Certificate
Updating a Self-signed Certificate
If your product supports the HTTPS server feature, you can update a self-signed certificate using Web
Config.
1. Access Web Config as an administrator and select Network Security.
2. Click Update.
3. Enter an identifier for your product from 1 to 128 characters long in the Common Name field.
4. Select a validity period for the certificate as the Certificate Validity (year) setting.
5. Click Next.
226
You see a completion message.
6. Click OK.
7. Click Confirm to verify the certificate information.
Parent topic: Using a Digital Certificate
Importing a CA Certificate
You can import a CA certificate using Web Config.
1. Access Web Config as an administrator and select Network Security.
2. Select CA Certificate.
3. Select Import.
4. Select the CA certificate you want to import.
5. Click OK.
When you see the CA Certificate page and the imported certificate is displayed, the import is finished.
Parent topic: Using a Digital Certificate
Deleting a CA Certificate
You can delete an imported CA certificate with Web Config when the certificate expires or if you have no
more need for an encrypted connection.
1. Access Web Config as an administrator and select Network Security .
2. Select CA Certificate.
3. Locate the certificate you want to remove and click the Delete button next to it.
4. Click OK to confirm the deletion.
5. Click Reboot Network, and then check that the deleted CA Certificate is not listed on the updated
screen.
Parent topic: Using a Digital Certificate
Setting Up Universal Print (Microsoft)
You can set up your product for use with Universal Print if you are using Microsoft 365 and Azure Active
Directory.
Note: This feature is supported on Windows 10 2004 (20H1) or later. Visit the Microsoft website for more
information.
227
1. Access Web Config as an administrator and select the Network tab.
2. Select Universal Print.
3. Select Register.
4. Follow the on-screen instructions to register your product.
If Web Config shows Registered as the registration status, then setup is complete.
Parent topic: Administering Your Product
Using Epson Device Admin Configuration Software
With Windows, you can discover and monitor remote devices, and configure network settings in a batch
operation. See the Epson Device Admin help for instructions.
To install Epson Device Admin, download the software from the support page at epson.com/support
(U.S.) or epson.ca/support (Canada) and follow the on-screen instructions.
Parent topic: Administering Your Product
228
Solving Problems
Check these sections for solutions to problems you may have using your product.
Viewing the Help Screen
Product Status Messages
Running a Product Check
Resetting Control Panel Defaults
Solving Setup Problems
Solving Network Problems
Solving Paper Problems
Solving Problems Printing from a Computer
Solving Page Layout and Content Problems
Solving Print Quality Problems
Uninstall Your Product Software
Where to Get Help
Viewing the Help Screen
You can view troubleshooting or how-to topics on the LCD screen at any time.
1. Select the help icon.
2. Select a Troubleshooting or How To option to view instructional images or animations.
Parent topic: Solving Problems
Product Status Messages
You can often diagnose problems with your product by checking the messages and status icons on its
LCD screen.
Note: If the screen is dark, press the screen to wake the product from sleep mode.
229
LCD screen message Condition/solution
Printer error. For details, see your
documentation.
Turn the product off and then back on again. If the error persists,
check for and remove any jammed paper or protective materials
from the product. If the error still persists, contact Epson for
support.
If you see any of the following error codes, make sure you have
not exceeded the loading capacity for any paper source:
• 000181
• 000184
• 000201
• 000204
• 000221
• 000224
Printer error. Contact Epson Support.
Non-printing features are available.
The product may be damaged, but non-printing features are still
available. Contact Epson for support.
Paper out in XX. Load paper. Paper
Size: XX/Paper Type: XX
Load the size and type of paper in the paper source indicated.
Too many paper cassette units are
installed. Turn the power off and
uninstall. For details, see your
documentation.
You can install up to three optional paper cassette units.
Remove any extra units.
Unsupported Paper Cassette Units
have been installed. Turn the power
off and uninstall. For details, see
your documentation.
Unsupported optional paper cassette units are installed.
Remove the unsupported units.
Cannot print because XX is out of
order. You can print from another
cassette.
Turn the product off and then back on again. Reinsert the
indicated paper cassette. If the error persists, contact Epson for
support.
The pickup roller in XX is nearing the
end of its service life.
The maintenance rollers need to be replaced periodically for
optimal performance. (Paper may not feed correctly from the
paper cassette or rear paper feed when a maintenance roller is
near the end of its service life.)
230
LCD screen message Condition/solution
The pickup roller in XX has reached
the end of its service life. Replace the
pickup roller, and then perform a
counter reset.
Replace the maintenance rollers and reset the maintenance
roller counter for the paper cassette for which you replaced the
maintenance rollers.
The pickup roller in XX has reached
the end of its service life.
Contact Epson for support.
You need to replace Ink Cartridge(s). Replace the indicated ink cartridges.
The time for maintenance is
approaching. Contact Epson
Support.
Do not attempt to perform maintenance on your own. Contact
Epson for support.
This printer may need a service to
maintain good print quality. Contact
Epson Support.
Do not attempt to perform maintenance on your own. Contact
Epson for support.
Paper Setup Auto Display is set to
Off. Some features may not be
available. For details, see your
documentation.
AirPrint is not available when the Paper Setup Auto Display
setting is disabled. Set the Paper Setup Auto Display setting to
On.
The combination of the IP address
and the subnet mask is invalid. See
your documentation for more details.
There is a problem with the network connection to your product.
Set up your product on the network again.
To use cloud services, update the
root certificate from the Epson Web
Config utility.
Access the Web Config utility and update the cloud service root
certificate.
Check that the printer driver is
installed on the computer and that
the port settings for the printer are
correct.
Make sure the printer port is correctly configured. In Windows,
make sure the port is set to a USBXXX setting for a USB
connection or EpsonNet Print Port for a network connection.
Check that the printer driver is
installed on the computer and that
the USB port settings for the printer
are correct.
231
LCD screen message Condition/solution
Recovery mode
Update Firmware
An error has occurred during firmware updating. Connect your
product using a USB cable and try downloading the Firmware
Update from the Epson support site. If you still need help,
contact Epson for support.
Parent topic: Solving Problems
Related references
Where to Get Help
Related tasks
Removing and Installing Ink Cartridges
Accessing the Web Config Utility
Related topics
Wi-Fi or Wired Networking
Running a Product Check
Running a product check helps you determine if your product is operating properly.
1. Disconnect any interface cables connected to your product.
2. Load plain paper in the paper cassette.
3. Press the home button, if necessary.
4. Select Maintenance > Print Head Nozzle Check > Print.
The nozzle pattern prints.
5. Do one of the following, depending on the results of the product check:
• If the page prints and the nozzle check pattern is complete, the product is operating properly. Any
operation problem you may have could be caused by your computer, cable, software, or selected
settings. Check the other solutions in this guide or try uninstalling and reinstalling your printer
software.
• If the page prints but the nozzle check pattern has gaps, clean the print head.
• If the page does not print, the product may have a problem. Check the other solutions in this
manual. If they do not work, contact Epson.
Parent topic: Solving Problems
232
Related concepts
Print Head Cleaning
Print Quality Adjustment
Uninstall Your Product Software
Related references
Where to Get Help
Resetting Control Panel Defaults
If you have a problem with settings on the product control panel, you can reset them to their factory
defaults. You can choose which settings to reset or reset them all.
Note: This setting can be locked by an administrator. If you cannot access or change this setting,
contact your administrator for assistance.
1. Press the home button, if necessary.
2. Select Settings > General Settings > System Administration.
3. Enter the administrator password, if necessary.
4. Scroll down and select Restore Default Settings.
5. Select one of these options:
• Network Settings: Resets all network settings
• All Except Network Settings: Resets all settings except for network settings
• All Settings: Resets all control panel settings
You see a confirmation screen.
6. Select Yes to reset the selected settings. (Select No if you want to cancel the operation.)
Parent topic: Solving Problems
Solving Setup Problems
Check these sections if you have problems while setting up your product.
Product Does Not Turn On or Off
Noise After Ink Installation
Software Installation Problems
233
Parent topic: Solving Problems
Product Does Not Turn On or Off
If you cannot turn the product on or off, try these solutions:
• If you cannot turn on your product, make sure the power cord is securely connected and hold down
the power button a little longer.
• If you cannot turn off your product, hold down the power button a little longer. If you still cannot turn off
your product, unplug the power cord, plug the power cord back in, then turn your product on and off
again using the power button.
Parent topic: Solving Setup Problems
Noise After Ink Installation
If you hear noises from your product after installing ink, check the following:
• The first time you install ink, the product must charge its print head. Wait until charging finishes before
you turn off the product, or it may charge improperly and use excess ink the next time you turn it on.
• If the product's print head stops moving or making noise, and the charging process has not finished
after approximately 5 minutes, turn off your product. Turn it back on and check to see if charging is still
in progress. If it is still in progress, contact Epson for help.
Parent topic: Solving Setup Problems
Software Installation Problems
If you have problems while installing your product software, try these solutions:
• Make sure your product is turned on and any necessary cables are securely connected at both ends. If
you still have problems installing software, disconnect the cable and carefully follow the instructions on
the Start Here sheet. Also make sure your system meets the requirements for your operating system.
• Close any other programs, including screen savers and virus protection software, and install your
product software again.
• In Windows, make sure your product is selected as the default printer and the correct port is shown in
the printer properties.
• If you see any error message or your software does not install correctly in Windows, you may not have
software installation privileges. Contact your system administrator.
• If you are printing over a network, make sure your product is set up properly on the network.
Parent topic: Solving Setup Problems
234
Related references
Windows System Requirements
Mac System Requirements
Solving Network Problems
Check these solutions if you have problems setting up or using your product on a network.
Note: Breakdown or repair of this product may cause loss of network data and settings. Epson is not
responsible for backing up or recovering data and settings during or after the warranty period. We
recommend that you make your own backup or print out your network data and settings.
Product Cannot Connect to a Wireless Router or Access Point
Network Software Cannot Find Product on a Network
Product Does Not Appear in Mac Printer Window
Cannot Print Over a Network
Parent topic: Solving Problems
Product Cannot Connect to a Wireless Router or Access Point
If your product has trouble finding or connecting to a wireless router or access point, try these solutions:
• If you are connecting the product via Wi-Fi Protected Setup (WPS) and the Wi-Fi icon on your
product's LCD screen is not lit or does not appear, make sure you select one of the WPS options from
the product control panel within 2 minutes of pressing the WPS button on your router.
• Verify that your router or access point is operating correctly by connecting to it from your computer or
another device.
• You may need to disable the firewall and any anti-virus software on your wireless router or access
point.
• Try restarting your router following the instructions in your router documentation.
Note: If you are reading these instructions online, you will lose your Internet connection when you
restart your router.
• Check to see if access restrictions, such as MAC address filtering, are set on the router or access
point. If access restrictions are set, add your product's MAC address to your router's address list. To
obtain your product's MAC address, print a network status sheet. Then follow the instructions in your
router or access point documentation to add the address to the list.
235
• If your router or access point does not broadcast its network name (SSID), follow the instructions that
came with your product to enter your wireless network name manually.
• If your router or access point has security enabled, determine the kind of security it is using and any
required password or passphrase for connection. Then make sure to enter the exact WEP key or WPA
passphrase correctly.
• Check if your computer is restricting the available wireless channels. If so, verify that your wireless
access point is using one of the usable channels and change to a usable channel, if necessary.
• If you are using a Wi-Fi Direct connection that suddenly disconnects, the Wi-Fi Direct password on
your device may have been changed. If necessary, delete the existing DIRECT-xxxxxxxx connection
settings from your device and enter a new password. See your device documentation for instructions.
• If you connected your product to a Windows computer using Wi-Fi Direct and it automatically selected
Access Point Mode, you may have trouble accessing a low-priority Internet connection. Check the
network connection or adapter settings in the Windows Control Panel and set the Internet metric
setting to 100 for your version of the Internet Protocol.
Parent topic: Solving Network Problems
Related concepts
Wi-Fi Direct Mode Setup
Related tasks
Selecting Wireless Network Settings from the Control Panel
Printing a Network Status Sheet
Related topics
Wi-Fi or Wired Networking
Network Software Cannot Find Product on a Network
If EpsonNet Setup cannot find your product on a network, try these solutions:
• Make sure your product is turned on and connected to your network. Verify the connection using your
product control panel.
• Check if your network name (SSID) contains non-ASCII characters. Your product cannot display non-
ASCII characters.
• Make sure your product is not connected to a guest network.
• If necessary, reinstall your product software and try running EpsonNet Setup again:
1. Reset your product's network settings to their factory defaults.
2. Windows only: Uninstall your product software.
236
3. Restart your router following the instructions in your router documentation.
Note: If you are reading these instructions online, you will lose your Internet connection when you
restart your router, so note the next step before restarting it.
4. Download your product software from the Epson website using the instructions on the Start Here
sheet.
• If you have replaced your router, reinstall your product software to connect to the new router.
Note: If you are using a 5 GHz wireless router, set the router to operate in dual band (2.4 GHz and
5 GHz) mode. If your router uses a single network name (SSID) for both the 2.4 GHz and 5 GHz band,
give each band its own network name (SSID) instead, such as Home Network 2.4 GHz and Home
Network 5 GHz. See your router documentation or contact your internet service provider for
instructions.
• Check to see if your wireless router or access point has an enabled Privacy Separator function that is
preventing detection of your device over the network. See your router or access point documentation
for instructions on disabling the Privacy Separator function.
• Try accessing any website from your computer or smart device to make sure that your device's
network settings are correct. If you cannot access any website, there is a problem on the computer or
smart device. Check the network connection of the computer or smart device. See the documentation
provided with the computer or smart device for details.
Parent topic: Solving Network Problems
Related concepts
Uninstall Your Product Software
Related topics
Wi-Fi or Wired Networking
Product Does Not Appear in Mac Printer Window
If your product does not appear in the Mac printer window, try these solutions:
• Turn your product off, wait 30 seconds, then turn it back on again.
• If you are connecting the product via Wi-Fi Protected Setup (WPS) and the Wi-Fi icon on your
product's LCD screen is not lit, make sure you select one of the WPS options from the product control
panel within 2 minutes of pressing the WPS button on your router.
237
• If you are connecting the product wirelessly via EpsonNet Setup and you do not see the Wi-Fi antenna
icon with connection bars on your LCD screen, make sure your product software was installed
correctly. If necessary, reinstall your software.
Note: If you are using a 5 GHz wireless router, set the router to operate in dual band (2.4 GHz and
5 GHz) mode. If your router uses a single network name (SSID) for both the 2.4 GHz and 5 GHz band,
give each band its own network name (SSID) instead, such as Home Network 2.4 GHz and Home
Network 5 GHz. See your router documentation or contact your internet service provider for instructions.
Parent topic: Solving Network Problems
Related concepts
Uninstall Your Product Software
Cannot Print Over a Network
If you cannot print over a network, try these solutions:
• Make sure that your product is turned on.
• Make sure you install your product's network software as described in your product documentation.
• Print a network status sheet and verify that the network settings are correct. If the network status is
Disconnected, check any cable connections and turn your product off and then on again.
• If you are using TCP/IP, make sure the product's IP address is set correctly for your network. If your
network does not assign IP addresses using DHCP, set the IP address manually.
• Make sure your computer and product are both using the same wireless network.
• If network printing is slow, print a network status sheet and check the signal strength. If it is poor, place
your product closer to your router or access point. Avoid placing your product near a microwave oven,
cordless phone, or large metal object, such as a filing cabinet.
Note: If you are using a 5 GHz wireless router, set the router to operate in dual band (2.4 GHz and
5 GHz) mode. If your router uses a single network name (SSID) for both the 2.4 GHz and 5 GHz band,
give each band its own network name (SSID) instead, such as Home Network 2.4 GHz and Home
Network 5 GHz. See your router documentation or contact your internet service provider for
instructions.
• Try restarting your router following the instructions in your router documentation.
Note: If you are reading these instructions online, you will lose your Internet connection when you
restart your router.
238
• Check if there are any paused print jobs.
• Make sure your printer is selected as the default printer.
• Check if the selected printer port is correct.
• Check to see if your wireless router or access point has an enabled Privacy Separator function that is
preventing printing from a device over the network. See your router or access point documentation for
instructions on disabling the Privacy Separator function.
• If you are connecting the product via Wi-Fi Protected Setup (WPS) and the Wi-Fi icon on your
product's LCD screen is not lit, make sure you select one of the WPS options from the product control
panel within 2 minutes of pressing the WPS button on your router.
• Check your wired LAN router or access point to see if the LED for the port to which your product is
connected is on or flashing. If the link LED is off, try the following:
• Make sure the Ethernet cable is securely connected to your product and to your router, access
point, switch, or hub.
• Try connecting your product to a different port or a different router, access point, switch, or hub.
• Try connecting with a different Ethernet cable.
• Try printing to your product from another computer on the network.
Note: If you are using a 5 GHz wireless router, set the router to operate in dual band (2.4 GHz and
5 GHz) mode. If your router uses a single network name (SSID) for both the 2.4 GHz and 5 GHz band,
give each band its own network name (SSID) instead, such as Home Network 2.4 GHz and Home
Network 5 GHz. See your router documentation or contact your internet service provider for
instructions.
• If you are connecting the product via EpsonNet Setup and the Wi-Fi icon does not appear lit on the
LCD screen, make sure your product software was installed correctly. If necessary, reinstall your
software.
Parent topic: Solving Network Problems
Related concepts
Uninstall Your Product Software
Related tasks
Printing a Network Status Sheet
Related topics
Wi-Fi or Wired Networking
239
Solving Paper Problems
Check these sections if you have problems using paper with your product.
Paper Feeding Problems
Paper Jams Inside the Product
Paper Ejection Problems
Parent topic: Solving Problems
Paper Feeding Problems
If you have problems feeding paper, try these solutions:
• If paper does not feed for printing, remove it from the rear feed slot or cassette. Reload it, then adjust
the edge guides. Make sure the paper stack is not above the arrow mark on the edge guides inside the
cassette or rear feed slot.
• Place the product on a flat surface and operate it in the recommended environmental conditions.
• Be sure to insert the paper cassette all the way into your product.
• If multiple pages feed at once, remove the paper, fan the edges to separate the sheets, and reload it.
• Do not load more than the recommended number of sheets. For plain paper, do not load paper above
the arrow mark on the edge guides.
• Make sure your paper meets the specifications for your product.
• If paper jams when you print on both sides of the paper, try loading fewer sheets.
• Run the paper guide cleaning utility to clean the paper path.
• If paper does not feed correctly after replacing the maintenance rollers, make sure you installed the
maintenance rollers correctly.
• If you installed an optional paper cassette unit, be sure to enable the cassette unit in the printing
software.
• If your product pauses during printing, make sure the front cover is closed.
• The maintenance rollers may be at the end of their service life. Check the maintenance roller status
and replace them if necessary.
• Do not use short-grain paper with a width less than .413 inches (105 mm).
• For best results, follow these guidelines:
• Use new, smooth, high-quality paper that is not curled, creased, old, too thin, or too thick.
240
• Load paper in the cassette printable side down.
• Do not load binder paper with holes in the cassette.
• Follow any special loading instructions that came with the paper.
• Use long-grain paper. If you are not sure what type of paper you are using, check the paper
packaging or contact the manufacturer to confirm the paper specifications.
Parent topic: Solving Paper Problems
Related references
Paper Jams Inside the Product
Paper Specifications
Paper Loading Capacity
Related tasks
Cleaning the Paper Guide
Related topics
Loading Paper
Paper Jams Inside the Product
If you see a message that paper has jammed in the product, follow the on-screen instructions to locate
and remove the jammed paper.
Take the following precautions when removing jammed paper from the product:
• Remove the jammed paper carefully. Using too much force may damage the product.
• Unless specifically instructed, avoid tilting the product, placing it on its side, or turning it upside down,
as ink may spill.
Warning: Never touch the buttons on the control panel while your hand is inside the product. If the
product starts operating, it may cause an injury. Do not touch any protruding parts inside the product.
Parent topic: Solving Paper Problems
Related topics
Loading Paper
241
Paper Ejection Problems
If you have problems with paper ejecting properly, try these solutions:
• If paper does not eject fully, you may have set the wrong paper size. Cancel printing to eject the paper.
Select the correct paper size when you reprint.
• If paper is wrinkled when it ejects, it may be damp or too thin. Load new paper and be sure to select
the correct paper type setting when you reprint.
Parent topic: Solving Paper Problems
Related references
Paper or Media Type Settings - Printing Software
Related tasks
Cancelling Printing Using a Product Button
Related topics
Loading Paper
Solving Problems Printing from a Computer
Check these sections if you have problems while printing from your computer.
Note: For problems while printing with the Epson Universal Print Driver or PostScript (PS3) printer
software, see the sections covering that software in this manual.
Nothing Prints
Product Icon Does Not Appear in Windows Taskbar
Printing is Slow
Parent topic: Solving Problems
Nothing Prints
If you have sent a print job and nothing prints, try these solutions:
• Make sure your product is turned on and connected to your computer.
• Make sure any interface cables are connected securely at both ends.
• If you connected your product to a USB hub, make sure it is a first-tier hub. If it still does not print,
connect your product directly to your computer instead of the hub.
• Make sure the printer status is not offline or pending.
242
• Run a product check to see if a test page prints. If the test page prints, check to see if your product
software is installed correctly.
• Make sure your system meets the requirements for your operating system. If you are printing a high-
resolution image, you may need more than the minimum requirements. Print the image at a lower
resolution or if necessary, increase your system's memory.
• In Windows, make sure your product is selected as the default printer and the printer port setting
matches the printer connection port.
• In Windows, delete all jobs from the Windows Spooler. Click Print Queue on the Maintenance tab in
the printer settings window, and cancel any stalled print jobs.
• On a Mac, make sure the printer is added to the printer list and the printer is not paused.
• Make sure your product is selected as the printer in your printing program.
• You can try to clear the problem by updating the product software to the latest version. If the problem
persists, try uninstalling and reinstalling the printer driver.
Parent topic: Solving Problems Printing from a Computer
Related tasks
Running a Product Check
Entering a User ID and Password for Printing
Using AirPrint
Product Icon Does Not Appear in Windows Taskbar
If you do not see your product icon in the Windows taskbar, first try restarting your computer. If that does
not work, try this solution:
1. Do one of the following:
• Windows 11: Click , search for Settings and select it. Select Bluetooth & devices > Printers
& scanners. Select your product name and select Printing preferences.
• Windows 10: Click and select (Settings) > Devices > Printers & scanners. Select your
product name and select Manage > Printing preferences.
• Windows 8.x: Navigate to the Apps screen and select Control Panel > Hardware and Sound >
Devices and Printers. Right-click your product name, select Printing Preferences, and select
your product name again if necessary.
• Windows 7: Click and select Devices and Printers. Right-click your product name, select
Printing Preferences, and select your product name again if necessary.
243
2. Click the Maintenance tab.
3. Click the Extended Settings button.
4. Select Enable EPSON Status Monitor 3 and click OK.
5. Click the Monitoring Preferences button.
6. Click the checkbox for the option that adds the shortcut icon to the taskbar.
7. Click OK to close the open program windows.
Parent topic: Solving Problems Printing from a Computer
Printing is Slow
If printing becomes slow, try these solutions:
• Make sure your system meets the requirements for your operating system. If you are printing a high-
resolution image, you may need more than the minimum requirements. If necessary, increase your
system's memory.
• If you are using Windows 7, close the Devices and Printers window before you print.
• Make sure Quiet Mode is turned off.
• Clear space on your hard drive or run a defragmentation utility to free up existing space.
• Close any programs you are not using when you print.
• If your product is connected to a USB hub, connect it directly to your computer instead.
• If printing becomes slower after printing continuously for a long time, the product may have
automatically slowed down to protect the print mechanism from overheating or becoming damaged.
Let the product rest with the power on for 30 minutes, then try printing again.
• If you are printing over a wireless network, factors such as interference, network traffic, or weak signal
strength may affect your printing speed.
Note: If you are using a 5 GHz wireless router, set the router to operate in dual band (2.4 GHz and
5 GHz) mode. If your router uses a single network name (SSID) for both the 2.4 GHz and 5 GHz band,
give each band its own network name (SSID) instead, such as Home Network 2.4 GHz and Home
Network 5 GHz. See your router documentation or contact your internet service provider for
instructions.
• If using the PostScript printer driver, set the Print Quality setting to Fast.
244
For the fastest printing, select the following settings in your product software:
• Make sure the paper type setting matches the type of paper you loaded.
• Turn on any high speed settings in your product software.
• Select a lower print quality setting.
• Make sure the ink drying time has not been increased for double-sided printing.
• Windows: Click the Maintenance or Utility tab, select Extended Settings or Speed and Progress,
and select the following settings:
• Always Spool RAW Datatype
• Page Rendering Mode
• Print as Bitmap
• Windows: Select Printing preferences, click the More Options tab, and make sure the
Bidirectional printing setting is enabled.
• Mac: Select System Preferences or System Settings, select Printers & Scanners, and select your
product. Select Options & Supplies, select Options (or Driver), and enable the Bidirectional
printing setting.
If printing is still slow and you are using Windows 7 or Windows Vista, try the following:
1. Click and select Computer or My Computer. Double-click the C: drive and open these folders:
ProgramData > EPSON > PRINTER.
Note: If you do not see the ProgramData folder, open the Organize menu and select Folder and
search options. In the window that appears, click the View tab, select Show hidden files, folders,
and drives in the Advanced settings list, and click OK.
2. Right-click the EPAUDF01.AUD file and select Delete.
3. Restart your computer and try printing again.
Parent topic: Solving Problems Printing from a Computer
Related references
Windows System Requirements
Mac System Requirements
Paper or Media Type Settings - Printing Software
Related tasks
Selecting Basic Print Settings - Windows
245
Selecting Basic Print Settings - Mac
Selecting Extended Settings - Windows
Solving Page Layout and Content Problems
Check these sections if you have problems with the layout or content of your printed pages.
Inverted Image
Too Many Copies Print
Blank Pages Print
Incorrect Margins on Printout
Incorrect Characters Print
Incorrect Image Size or Position
Slanted Printout
Parent topic: Solving Problems
Inverted Image
If your printed image is inverted unexpectedly, try these solutions:
• Turn off any mirror or inversion settings in your printing application.
• Turn off the Mirror Image, Flip horizontally, or Reverse page orientation settings in your printer
software. (This option has different names, depending on your operating system version.)
Parent topic: Solving Page Layout and Content Problems
Related tasks
Selecting Basic Print Settings - Mac
Selecting Additional Layout and Print Options - Windows
Too Many Copies Print
Make sure that the Copies setting in your printing program or printer software is not set for multiple
copies.
Parent topic: Solving Page Layout and Content Problems
Related tasks
Selecting Basic Print Settings - Windows
Selecting Basic Print Settings - Mac
246
Blank Pages Print
If blank pages print unexpectedly, try these solutions:
• Make sure you selected the correct paper size settings in your printing program and printer software.
• If a blank page exists in a document you are printing and you want to skip printing it, select the Skip
Blank Page setting in your printer software, if available.
• Run a print head nozzle check to see if any of the nozzles are clogged. Then clean the print head, if
necessary.
• Make sure your product is selected as the printer in your printing program.
Parent topic: Solving Page Layout and Content Problems
Related concepts
Print Head Cleaning
Print Head Nozzle Check
Related tasks
Selecting Basic Print Settings - Windows
Selecting Basic Print Settings - Mac
Selecting Extended Settings - Windows
Selecting Printing Preferences - Mac
Incorrect Margins on Printout
If your printed page has incorrect margins, try these solutions:
• Make sure you selected the correct paper size settings in your printing program and printer software.
• Make sure you selected the correct margins for your paper size in your printing program.
• Make sure your paper is positioned correctly for feeding into the product.
You can use the preview option in your printer software to check your margins before you print.
Parent topic: Solving Page Layout and Content Problems
Related tasks
Selecting Basic Print Settings - Windows
Selecting Basic Print Settings - Mac
Related topics
Loading Paper
247
Incorrect Characters Print
If incorrect characters appear in your prints, try these solutions before reprinting:
• Make sure any cables are securely connected at both ends.
• In Windows, delete all jobs from the Windows Spooler. Click Print Queue on the Maintenance tab in
the printer settings window, and cancel any stalled print jobs.
• If your product is connected to a USB hub, connect it directly to your computer instead.
• If your computer entered sleep mode the last time you printed, the next print job after your computer
exits sleep mode may contain garbled characters. Print your document again.
Parent topic: Solving Page Layout and Content Problems
Incorrect Image Size or Position
If your printed image is the wrong size or in the wrong position, try these solutions:
• Make sure you selected the correct paper size and layout settings in your printing program and printer
software.
• Make sure you selected the correct paper size on the control panel.
• Make sure your paper is positioned correctly for feeding into the printer.
• Slide the edge guides against the edges of the paper.
• Make sure you selected the correct margins for your paper size in your printing program.
• Be sure to select the appropriate original size setting for your original in the copy settings.
You can use the preview option in your printer software to check your margins before you print.
Parent topic: Solving Page Layout and Content Problems
Related tasks
Selecting Additional Layout and Print Options - Windows
Cleaning Your Product
Selecting Page Setup Settings - Mac
Selecting Basic Print Settings - Windows
Selecting Basic Print Settings - Mac
Slanted Printout
If your printouts are slanted, try these solutions:
• Slide the edge guides against the edges of the paper.
248
• Select a higher print quality setting in your printer software.
• Turn off any high speed settings in your product software.
• Align the print head.
• Adjust the print quality.
• Make sure the product is not printing while tilted or at an angle.
Parent topic: Solving Page Layout and Content Problems
Related tasks
Selecting Basic Print Settings - Windows
Selecting Basic Print Settings - Mac
Related topics
Loading Paper
Solving Print Quality Problems
Check these sections if your printouts have problems with print quality, but your image looks fine on your
computer screen.
White or Dark Lines in Printout
Blurry or Smeared Printout
Faint Printout or Printout Has Gaps
Grainy Printout
Incorrect Colors
Parent topic: Solving Problems
White or Dark Lines in Printout
If you notice white or dark lines in your prints (also called banding), try these solutions before you reprint:
• Run a nozzle check to see if any of the print head nozzles are clogged. Then clean the print head, if
necessary.
• Make sure the paper type setting matches the type of paper you loaded.
• Make sure you loaded the printable side of the paper correctly for your product.
• Turn off any high speed settings in your product software.
• Align the print head. If print quality does not improve after aligning the print head, disable the
bidirectional (high speed) setting.
249
• Adjust the print quality in the product software.
• If you continue to see horizontal bands or streaks in your printouts after cleaning the print head and
adjusting the print quality, make print quality adjustments for each paper type.
• You may need to replace the ink cartridges.
Parent topic: Solving Print Quality Problems
Related concepts
Print Head Nozzle Check
Print Head Cleaning
Print Quality Adjustment
Related references
Paper or Media Type Settings - Printing Software
Related tasks
Selecting Additional Layout and Print Options - Windows
Selecting Printing Preferences - Mac
Related topics
Loading Paper
Replacing Ink Cartridges, Maintenance Boxes, and Cassette Rollers
Blurry or Smeared Printout
If your printouts are blurry or smeared, try these solutions:
• Make sure your paper is not damp, curled, old, or loaded incorrectly in your product.
• Slide the edge guides to the edges of the paper.
• Use a support sheet with special paper, or load special paper one sheet at a time.
• Make sure your paper meets the specifications for your product.
• Use Epson papers to ensure proper saturation and absorption of genuine Epson inks.
• Do not load more than the recommended number of sheets. For plain paper, do not load above the
line indicated by the triangle symbol on the edge guide.
• Make sure the paper type setting in your product software matches the type of paper you loaded.
• Make sure you loaded the printable side of the paper correctly for your product.
250
• If you are printing on thick paper or envelopes, turn on the Thick Paper setting from the control panel
or select Thick Paper and Envelopes in the Extended Settings of the printer software. (Turning this
setting on will decrease print speed.)
• In Windows, if the paper is still smeared after selecting the Thick Paper and Envelopes setting,
select the Short Grain Paper setting in the Extended Settings of the printer software.
• Remove each sheet from the output tray as it is printed.
• Avoid handling printouts on glossy paper right after printing to allow the ink to set.
• Turn off any high speed settings in your product software.
• If you print on both sides of a sheet of paper, smudges may appear on the reverse side of heavily
saturated or dark images. If one side of a sheet will contain a lighter image or text, print that side first.
Make sure the ink has dried before reloading the paper to print on the other side. Adjust the density
and/or ink drying time settings.
• Run a nozzle check to see if any of the print head nozzles are clogged. Then clean the print head, if
necessary.
• Align the print head. If print quality does not improve, disable the bidirectional setting.
• Adjust the print quality in the product software.
• Clean the paper path.
Note: Your product will not operate properly while tilted at an angle. Place it on a flat, stable surface that
extends beyond the base of the product in all directions.
Parent topic: Solving Print Quality Problems
Related concepts
Print Head Cleaning
Print Quality Adjustment
Related references
Double-sided Printing Options - Windows
Paper Specifications
Compatible Epson Papers
Related tasks
Selecting Basic Print Settings - Windows
Selecting Additional Layout and Print Options - Windows
251
Faint Printout or Printout Has Gaps
If your printouts are faint or have gaps, try these solutions:
• Run a nozzle check to see if any of the print head nozzles are clogged. Then clean the print head, if
necessary.
• The ink cartridge(s) may be old or low on ink, and you may need to replace them.
• Make sure the paper type setting matches the type of paper you loaded.
• Make sure your paper is not damp, curled, old, or loaded incorrectly in your product.
• Align the print head.
• Adjust the print quality in the product software.
Parent topic: Solving Print Quality Problems
Related concepts
Print Head Nozzle Check
Print Head Cleaning
Print Quality Adjustment
Related references
Paper or Media Type Settings - Printing Software
Related tasks
Selecting Basic Print Settings - Windows
Selecting Basic Print Settings - Mac
Cleaning the Paper Guide
Related topics
Loading Paper
Replacing Ink Cartridges, Maintenance Boxes, and Cassette Rollers
Grainy Printout
If your printouts are grainy, try these solutions:
• Make sure you loaded the printable side of the paper correctly for your product.
• Select a higher print quality setting and turn off any high speed settings in your product software.
• Run a nozzle check to see if any of the print head nozzles are clogged. Then clean the print head, if
necessary.
252
• Align the print head.
• Adjust the print quality in the product software.
• You may need to increase the image resolution or print a smaller size; see your software
documentation.
Note: Images from the Internet may be low resolution and not result in a high quality printout.
• If you enlarged the image size in an image-editing program, you need to increase the image resolution
setting to retain a high image quality. Increase the image resolution by the same amount you increase
the image size. For example, if the image resolution is 300 dpi (dots per inch) and you will double the
image size for printing, change the resolution setting to 600 dpi.
Note: Higher resolution settings result in larger file sizes, which take longer to process and print.
Consider the limitations of your computer system when selecting a resolution, and select the lowest
possible resolution that produces acceptable quality to keep file sizes manageable.
Parent topic: Solving Print Quality Problems
Related concepts
Print Head Nozzle Check
Print Head Alignment
Print Quality Adjustment
Print Head Cleaning
Related tasks
Selecting Basic Print Settings - Windows
Selecting Additional Layout and Print Options - Windows
Selecting Basic Print Settings - Mac
Selecting Printing Preferences - Mac
Related topics
Loading Paper
Incorrect Colors
If your printouts have incorrect colors, try these solutions:
• Make sure the paper type setting matches the paper you loaded.
• Make sure the Black/Grayscale or Grayscale setting is not selected in your printer software.
253
• Run a nozzle check to see if any of the print head nozzles are clogged. Then clean the print head, if
necessary.
• The ink cartridges may be old or low on ink, and you may need to replace them.
• After you print, the colors in your printout need time to set as the ink dries. During this time, the colors
may look different than you expect. To speed up drying time, do not stack your printouts on top of each
other.
• Your printed colors can never exactly match your on-screen colors. However, you can use a color
management system to get as close as possible. Try using the color management options in your
printer software.
• Select Custom as the Color Correction setting on the More Options tab of the printer software, then
click Advanced. Try changing the Scene Correction setting to something other than Automatic. If
changing that setting does not work, change the Color Management setting to any color correction
method other than PhotoEnhance.
• If you are using the Windows PostScript printer software, try adjusting the Color Mode setting on the
Advanced tab of the printer software.
• For best results, use genuine Epson paper.
Parent topic: Solving Print Quality Problems
Related concepts
Print Head Cleaning
Print Head Nozzle Check
Related references
Compatible Epson Papers
Related tasks
Selecting Basic Print Settings - Windows
Selecting Additional Layout and Print Options - Windows
Selecting Basic Print Settings - Mac
Managing Color - Mac
Uninstall Your Product Software
If you have a problem that requires you to uninstall and re-install your software, follow the instructions for
your operating system.
Uninstalling Printing Software - Windows
Uninstalling Product Software - Mac
254
Parent topic: Solving Problems
Uninstalling Printing Software - Windows
You can uninstall and then re-install your printer software to solve certain problems.
1. Turn off the product.
2. Disconnect any interface cables.
3. Do one of the following:
• Windows 11: Click , then search for Settings and select it. Select Apps or System > Apps &
features. Then select the program you want to uninstall and select Uninstall.
• Windows 10: Click and select (Settings) > Apps > Apps & features. Select the program
you want to uninstall and select Uninstall.
• Windows 8.x: Navigate to the Apps screen and select Control Panel > Programs > Programs
and Features. Select the uninstall option for your Epson product, then select Uninstall/Change.
Note: If you see a User Account Control window, click Yes or Continue.
In the next window, select your product, if necessary, and click OK. Then follow any on-screen
instructions.
• Windows (other versions): Click or Start, and select All Programs or Programs. Select
Epson, select your product, then click EPSON Printer Software Uninstall.
Note: If you see a User Account Control window, click Yes or Continue.
In the next window, select your product, if necessary, and click OK. Then follow any on-screen
instructions.
4. Restart your computer, then re-install your software.
Note: If you find that re-installing your product software does not solve a problem, contact Epson.
Parent topic: Uninstall Your Product Software
255
Uninstalling Product Software - Mac
In most cases, you do not need to uninstall your product software before re-installing it. However, you
can download the Uninstaller utility from the Epson support website to uninstall your product software as
described here.
Note: If you find that re-installing your product software does not solve a problem, contact Epson.
1. To download the Uninstaller utility, visit epson.com/support (U.S.) or epson.ca/support (Canada) and
select your product.
2. Click Downloads.
3. Select your operating system, click Utilities, locate the Uninstaller utility, and click Download.
4. Run the file you downloaded.
5. Double-click the Uninstaller icon.
6. In the Epson Uninstaller screen, select the checkbox for each software program you want to
uninstall.
7. Click Uninstall.
8. Follow the on-screen instructions to uninstall the software.
9. Reinstall your product software.
Note: If you uninstall the printer driver and your product name remains in the Print & Fax, Print & Scan,
or Printers & Scanners window, select your product name and click the – (remove) icon to remove it.
Parent topic: Uninstall Your Product Software
Where to Get Help
If you need to contact Epson for technical support services, use the following support options.
Internet Support
Visit Epson's support website at epson.com/support (U.S.) or epson.ca/support (Canada) and select
your product for solutions to common problems. You can download drivers and documentation, get
FAQs and troubleshooting advice, or e-mail Epson with your questions.
256
Speak to a Support Representative
Before you call Epson for support, please have the following information ready:
• Product name
• Product serial number (located on a label on the product)
• Proof of purchase (such as a store receipt) and date of purchase
• Computer configuration
• Description of the problem
Then call:
• U.S.: (562) 276-7202, 7 a.m. to 4 p.m., Pacific Time, Monday through Friday
• Canada: (905) 709-2567, 7 a.m. to 4 p.m., Pacific Time, Monday through Friday
Days and hours of support are subject to change without notice. Toll or long distance charges may
apply.
Purchase Supplies and Accessories
You can purchase genuine Epson ink and paper at epson.com (U.S. sales) or epson.ca (Canadian
sales). You can also purchase supplies from an Epson authorized reseller. To find the nearest one, call
800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in Canada.
Parent topic: Solving Problems
257
Technical Specifications
These sections list the technical specifications for your product.
Note: Epson offers a recycling program for end of life Epson products. Please go to this site (U.S.) or
this site (Canada) for information on how to return your Epson products for proper disposal.
Windows System Requirements
Mac System Requirements
Paper Specifications
Printable Area Specifications
Ink Cartridge Specifications
Dimension Specifications
Electrical Specifications
Environmental Specifications
Interface Specifications
Network Interface Specifications
Safety and Approvals Specifications
PostScript Fonts
PCL Fonts
PCL Mode 5 Symbol Sets
Windows System Requirements
To use your product and its software, your computer should use one of these Microsoft operating
systems:
• Windows 11
• Windows 10
• Windows 8.x
• Windows 7
• Windows Server 2022
• Windows Server 2019
• Windows Server 2016
258
• Windows Server 2012 R2
• Windows Server 2012
• Windows Server 2008 R2
• Windows Server 2008
Note: For the latest product software available for your operating system, visit the Epson support site at
epson.com/support (U.S.) or epson.ca/support (Canada), select your product, and select Downloads.
Parent topic: Technical Specifications
Mac System Requirements
To use your product and its software, your Mac should use one of these operating systems:
• macOS 14.x
• macOS 13.x
• macOS 12.x
• macOS 11.x
• macOS 10.15.x
• macOS 10.14.x
• macOS 10.13.x
• macOS 10.12.x
• OS X 10.11.x
• OS X 10.10.x
• OS X 10.9.5.x
Note: For the latest product software available for your operating system, visit the Epson support site at
epson.com/support (U.S.) or epson.ca/support (Canada), select your product, and select Downloads.
Parent topic: Technical Specifications
259
Paper Specifications
Note: Since the quality of any particular brand or type of paper may be changed by the manufacturer at
any time, Epson cannot guarantee the quality of any non-Epson brand or type of paper. Always test a
sample of paper stock before purchasing large quantities or printing large jobs.
Single-sheets
Size A6 (4.1 × 5.8 inches [105 × 148 mm])
A5 (5.8 × 8.2 inches [148 × 210 mm])
A4 (8.3 × 11.7 inches [210 × 297 mm])
A3 (11.7 × 16.5 inches [297 × 420 mm])
13 × 19 inches (330 × 483 mm)
B6 (5 × 7.2 inches [128 × 182 mm])
B5 (7.2 × 10.1 inches [182 × 257 mm])
B4 (13.9 × 9.84 inches [353 × 250 mm])
Half Letter (5.5 × 8.5 inches [140 × 216 mm])
Executive (7.25 × 10.5 inches [184 × 267 mm])
Oficio 9 (8.46 × 12.4 inches [215 × 315 mm])
Letter (8.5 × 11 inches [216 × 279 mm])
8.5 × 13 inches (216 × 330 mm)
Mexico-Oficio (8.5 × 13.4 inches [216 × 340 mm])
Legal (8.5 × 14 inches [216 × 356 mm])
11 × 17 inches (279 × 432 mm)
Paper types Plain paper and paper distributed by Epson
Weight Plain paper: 17 lb (64 g/m
2
) to 24 lb (90 g/m
2
)
Thick paper: 25 lb (91 g/m
2
) to 68 lb (256 g/m
2
)
260
Envelopes
Size No. 10 (4.1 × 9.5 inches [105 × 241 mm])
DL (8.66 × 4.33 inches [110 × 220 mm])
C6 (4.5 × 6.4 inches [114 × 162 mm])
Paper types Plain bond paper
Weight 20 lb (75 g/m
2
) to 27 lb (100 g/m
2
)
Parent topic: Technical Specifications
Related references
Paper Loading Capacity
Printable Area Specifications
Single sheets
1 Top/bottom/right/left: 0.12 inch (3 mm) minimum
2 Reduced print quality area/top: 1.81 inches (46 mm) minimum
3 Reduced print quality area/bottom: 2.00 inches (51 mm) minimum
261
Envelopes
1 Left/right: 0.12 inch (3 mm) minimum
Top/bottom margins: 0.12 inch (3 mm) minimum
3 Reduced print quality area/left: 0.71 inches (18 mm) minimum
4 Reduced print quality area/right: 1.81 inches (46 mm) minimum
Parent topic: Technical Specifications
Ink Cartridge Specifications
Note: Your printer is designed to work only with genuine Epson-brand ink cartridges. Other brands of ink
cartridges and ink supplies are not compatible and, even if described as compatible, may not function
properly or at all. Epson periodically provides firmware updates to address issues of security,
performance, minor bug fixes and ensure the printer functions as designed. These updates may affect
the functionality of third-party ink. Non-Epson branded or altered Epson cartridges that functioned prior
to a firmware update may not continue to function.
The included initial cartridges are designed for reliable printer setup and cannot be used as replacement
cartridges or resold. After setup, the remaining ink is available for printing. Yields are based on ISO
24711 in default mode, printing continuously. Yields vary due to print images, settings, and
temperatures. Printing infrequently or primarily with one color reduces yields. All cartridges must be
installed with ink for printing and printer maintenance. For print quality, some ink remains in replaced
cartridges.
262
Color Black, Cyan, Magenta, Yellow
Cartridge life Opened package: 6 months
Unopened package: do not use if the date on the package has
expired
Temperature Storage: –4 to 104 °F (–20 to 40 °C)
1 month at 104 °F (40 °C)
Ink freezes at –9.4 °F (–23 °C)
1
Ink thaws and is usable after 3 hours at 77 °F (25 °C)
1
Depending on the color, ink may partially freeze at 0 °C or lower. Can store for one month at 104 °F (40
°C)
Note: For best printing results, use up a cartridge within 6 months of opening the package.
Parent topic: Technical Specifications
Related references
Ink Cartridge Part Numbers
263
Dimension Specifications
Height Storage: 15.2 inches (386 mm)
Stored with one optional paper cassette installed: 20.2 inches (513
mm)
Stored with two optional paper cassettes installed: 25.2 inches (641
mm)
Stored with three optional paper cassettes and cabinet installed:
41.5 inches (1055 mm)
Printing: 22.5 inches (571 mm)
Printing with one optional paper cassette installed: 27.5 inches (698
mm)
Printing with two optional paper cassettes installed: 27.5 inches (826
mm)
Printing with three optional paper cassettes and cabinet installed:
48.8 inches (1240 mm)
Width Storage: 24.1 inches (613 mm)
Printing: 24.1 inches (613 mm)
With three optional paper cassettes and cabinet installed: 30.4
inches (772 mm)
Depth Storage: 25.6 inches (650 mm)
Stored with three optional paper cassettes and cabinet installed:
31.4 inches (797 mm)
Printing: 33.9 inches (862 mm)
Printing with three optional paper cassettes and cabinet installed:
34.2 inches (869 mm)
Weight
(without ink cartridges or power
cord)
78.0 lb (35.4 kg)
With one optional paper cassette installed: 103.8 lb (47.1 kg)
With two optional paper cassettes installed: 129.7 lb (58.7 kg)
With three optional paper cassettes and cabinet installed: 208.1 lb
(94.4 kg)
264
Parent topic: Technical Specifications
Electrical Specifications
Power supply rating AC 100 to 240 V
Rated frequency range 50 to 60 Hz
Rated current 1.6 to 0.8 A
Power consumption (with USB
Connection)
1
Printing: Approximately 37 W (ISO/IEC24712)
Ready mode: Approximately 8.5 W
Sleep mode: Approximately 0.8 W
Power off mode: Approximately 0.1 W
1
When four optional paper cassettes (C1 to C4) are installed
Parent topic: Technical Specifications
Environmental Specifications
Temperature Operating: 50 to 95 °F (10 to 35 °C)
Storage (before initial ink charging): –4 to 104 °F (–20 to 40 °C)
1
Storage (after initial ink charging): 5 to 104 °F (–15 to 40 °C)
1
1 month at 104 °F (40 °C)
Humidity
(without condensation)
Operating: 20 to 80% RH
Storage: 5 to 85% RH
1
Can store for one month at 104 °F (40 °C)
Parent topic: Technical Specifications
Interface Specifications
Interface type SuperSpeed USB
Parent topic: Technical Specifications
265
Network Interface Specifications
Wi-Fi
Standards IEEE 802.11 b/g/n
1
/ac
Frequency ranges IEEE802.11b/g/n: 2.4 GHz
IEEE802.11a/n/ac: 5.0 GHz
Channels Wi-Fi
2.4 GHz: 1/2/3/4/5/6/7/8/9/10/11/12/13
5.0 GHz: W52 (36/40/44/48), W53 (52/56/60/64), W56
(100/104/108/112/116/120/124/128/132/136/140), W58
(149/153/157/161/165)
Wi-Fi Direct
2.4 GHz: 1/2/3/4/5/6/7/8/9/10/11/12/13
5.0 GHz: W52 (36/40/44/48), W58 (149/153/157/161/165)
Connection modes Infrastructure mode
Wi-Fi Direct (Simple AP)
2
; not supported for IEEE 802.11b
Security protocols
Wi-Fi Direct only supports
WPA2-PSK (AES)
WEP (64/128bit), WPA2-PSK (AES), WPA3-SAE (AES),
WPA2/WPA3-Enterprise
(Complies with WPA2 standards with support for WPA/WPA2
Personal)
1
Only available for the HT20
2
Infrastructure and Wi-Fi Direct modes or an Ethernet connection can be used simultaneously
Ethernet
Standards IEEE802.3i (10BASE-T)
1
IEEE802.3u (100BASE-TX)
1
IEEE802.3ab (1000BASE-T)
1
IEEE802.3az (Energy Efficient Ethernet); the connected device
should be IEEE802.3az compliant
266
Communication mode Auto, 10Mbps Full duplex, 10Mbps Half duplex, 100Mbps Full
duplex, 100Mbps Half duplex
Connector RJ-45
1
Use a category 5e or higher STP (Shielded twisted pair) cable to prevent risk of radio interference
Network Functions and IPv4/IPv6
Network Printing EpsonNet Print (Windows): IPv4
Standard TCP/IP (Windows): IPv4, IPv6
WSD Printing (Windows): IPv4, IPv6
Bonjour Printing (Mac OS): IPv4, IPv6
IPP Printing (Windows, Mac OS): IPv4, IPv6
FTP Printing: IPv4, IPv6
Epson Connect (Email Print, Remote Print): IPv4
AirPrint (iOS 5 or later, Mac OS)
1
: IPv4, IPv6
1
OS X Mavericks (10.9.5) or later
Security
IEEE802.1X; requires the connected device to comply with IEEE802.1x
IPsec/IP Filtering
SSL/TLS; either HTTPS Server/Client or IPPS
TLS Version; 1.3, 1.2, 1.1 (disabled by default), or 1.0 (disabled by default)
SMTPS (STARTTLS, SSL/TLS)
SNMPv3
Parent topic: Technical Specifications
Safety and Approvals Specifications
United States Safety: UL62368-1
EMC: FCC Part 15 Subpart B Class B
267
Canada Safety: CAN/CSA C22.2 No. 62368-1
EMC: CAN ICES-3 (B)/NMB-3 (B)
This equipment contains the following wireless module:
• Manufacturer: Seiko Epson Corporation.
• Type: J26H005
This product conforms to Part 15 of FCC Rules and RSS-210 of the IC Rules. Epson cannot accept
responsibility for any failure to satisfy the protection requirements resulting from a non-recommended
modification of the product. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation of the device.
To prevent radio interference to the licensed service, this device is intended to be operated indoors and
away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed
outdoors is subject to licensing.
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment
and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102
of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated so that
the radiator is kept at least 7.9 inches (20 cm) or more away from a person's body (excluding extremities:
hands, wrists, feet and ankles).
Parent topic: Technical Specifications
PostScript Fonts
Font name Family HP equivalent
Nimbus Mono Medium, Bold, Italic, Bold Italic Courier
Letter Gothic Medium, Bold, Italic, Letter Gothic
Nimbus Mono PS Regular, Bold, Oblique, Bold
Oblique
CourierPS
Nimbus Roman No4 Medium, Bold, Italic, Bold Italic CG Times
URW Classico Medium, Bold, Italic, Bold Italic CG Omega
URW Coronet — Coronet
URW Clarendon Condensed — Clarendon Condensed
268
Font name Family HP equivalent
URW Classic Sans Medium, Bold, Italic, Bold Italic Univers
URW Classic Sans
Condensed
Medium, Bold, Italic, Bold Italic Univers Condensed
Antique Olive Medium, Bold, Italic Antique Olive
Garamond Antiqua, Halbfett, Kursiv, Kursiv
Halbfett
Garamond
Mauritius — Marigold
Algiers Medium, Extra Bold Albertus
Nimbus Sans No2 Medium, Bold, Italic, Bold Italic Arial
Nimbus Roman No9 Medium, Bold, Italic, Bold Italic Times New Roman
Nimbus Sans Medium, Bold, Oblique, Bold
Oblique
Helvetica
Nimbus Sans Narrow Medium, Bold, Oblique, Bold
Oblique
Helvetica Narrow
Palladio Roman, Bold, Italic, Bold Italic Palatino
URW Gothic Book, Demi, Book Oblique, Demi
Oblique
ITC Avant Garde
URW Bookman Light, Demi, Light Italic, Demi
Italic
ITC Bookman
URW Century Schoolbook Roman, Bold, Italic, Bold Italic New Century Schoolbook
Nimbus Roman Medium, Bold, Italic, Bold Italic Times
URW Chancery Medium Italic — ITC Zapf Chancery Italic
Symbol — Symbol
URW Dingbats — Wingdings
Dingbats — ITC Zapf Dingbats
Standard Symbol — SymbolPS
Parent topic: Technical Specifications
269
PCL Fonts
Scalable Fonts
Font name Family HP equivalent Symbol set
Nimbus Mono Medium, Bold, Italic, Bold
Italic
Courier 1
Letter Gothic Medium, Bold, Italic, Letter Gothic 1
Nimbus Mono PS Regular, Bold, Oblique,
Bold Oblique
CourierPS 3
Nimbus Roman No4 Medium, Bold, Italic, Bold
Italic
CG Times 2
URW Classico Medium, Bold, Italic, Bold
Italic
CG Omega 3
URW Coronet — Coronet 3
URW Clarendon
Condensed
— Clarendon Condensed 3
URW Classic Sans Medium, Bold, Italic, Bold
Italic
Univers 2
URW Classic Sans
Condensed
Medium, Bold, Italic, Bold
Italic
Univers Condensed 3
Antique Olive Medium, Bold, Italic Antique Olive 3
Garamond Antiqua, Halbfett, Kursiv,
Kursiv Halbfett
Garamond 3
Mauritius — Marigold 3
Algiers Medium, Extra Bold Albertus 3
NimbusSansNo2 Medium, Bold, Italic, Bold
Italic
Arial 3
Nimbus Roman No9 Medium, Bold, Italic, Bold
Italic
Times New 3
Nimbus Sans Medium, Bold, Oblique,
Bold Oblique
Helvetica 3
270
Font name Family HP equivalent Symbol set
Nimbus Sans Narrow Medium, Bold, Oblique,
Bold Oblique
Helvetica Narrow 3
Palladio Roman, Bold, Italic, Bold
Italic
Palatino 3
URW Gothic Book, Demi, Book
Oblique, Demi Oblique
ITC Avant Garde Gothic 3
URW Bookman Light, Demi, Light Italic,
Demi Italic
ITC Bookman 3
URW Century
Schoolbook
Roman, Bold, Italic, Bold
Italic
New Century Schoolbook 3
Nimbus Roman Medium, Bold, Italic, Bold
Italic
Times 3
URW Chancery
Medium Italic
— ITC Zapf Chancery Italic 3
Symbol — Symbol 4
URW DingBats — Wingdings 5
Dingbats — ITC Zapf Dingbats 6
Standard Symbol — SymbolPS 4
URW David Medium, Bold HP David 7
URW Narkis Medium, Bold HP Narkis 7
URW Miryam Medium, Bold, Italic HP Miryam 7
URW Koufi Medium, Bold Koufi 8
URW Naskh Medium, Bold Naskh 8
URW Ryadh Medium, Bold Ryadh 8
Bitmap Font
Line Printer, Symbol set 9
271
OCR/Barcode Bitmap Font (PCL5 Mode Only)
Font name Family Symbol set
OCR A — 10
OCR B — 11
Code 39 9.37cpi, 4.68cpi 12
EAN/UPC Medium, Bold 13
Note: Depending on the print density, or quality and color of the paper, the OCR/Barcode Bitmap fonts
may not be readable. Print a sample and check for readability before printing large quantities.
Parent topic: Technical Specifications
PCL Mode 5 Symbol Sets
Your product can access a variety of symbol sets. Many of these symbol sets differ only in the
international characters specific to each language.
Note: Since most software handles fonts and symbols automatically, you may never need to adjust your
product settings. However, if you write your own product control programs, or if you use older software
that cannot control fonts, refer to these tables for details on the symbol sets.
When you consider which font to use, also consider which symbol set to combine with the font.
Symbol set name Attribute Font classification
Norweg1 0D 1, 2, 3
Roman Extension 0E 9
Italian 0I 1, 2, 3
EMC94-1 0N 1, 2, 3, 9
Swedis2 0S 1, 2, 3
ANSI ASCII 0U 1, 2, 3, 7, 8
UK 1E 1, 2, 3
French2 1F 1, 2, 3
272
Symbol set name Attribute Font classification
German 1G 1, 2, 3
Legal 1U 1, 2, 3, 9
8859-2 ISO 2N 1, 2, 3, 9
Spanish 2S 1, 2, 3
ISO 8859/4 Latin 4 4N 1, 2, 3
Roman-9 4U 1, 2, 3
PsMath 5M 1, 2, 3, 7, 8
8859-9 ISO 5N 1, 2, 3, 9
WiTurkish 5T 1, 2, 3
MSPublishin 6J 1, 2, 3
VeMath 6M 1, 2, 3
8859-10ISO 6N 1, 2, 3, 9
DeskTop 7J 1, 2, 3
Math-8 8M 1, 2, 3, 7, 8
Roman-8 8U 1, 2, 3, 9
WiE.Europe 9E 1, 2, 3
Pc1004 9J 1, 2, 3
8859-15ISO 9N 1, 2, 3, 9
PcTk437 9T 1, 2, 3
Windows 9U 1, 2, 3
PsText 10J 1, 2, 3
IBM-US 10U 1, 2, 3, 9
IBM-DN 11U 1, 2, 3, 9
McText 12J 1, 2, 3
PcMultiling 12U 1, 2, 3, 9
VeInternati 13J 1, 2, 3
273
Symbol set name Attribute Font classification
PcEur858 13U 1, 2, 3
VeUS 14J 1, 2, 3
PiFont 15U 1, 2, 3
PcE.Europe 17U 1, 2, 3
Unicode 3.0 18N 1, 2, 3, 7, 8
WiBALT 19L 1, 2, 3
WiAnsi 19U 1, 2, 3
PcBlt775 26U 1, 2, 3
Pc866Cyr 3R 1, 2
Greek8 8G 1, 2
WinGrk 9G 1, 2
WinCyr 9R 1, 2
Pc851Grk 10G 1, 2
ISOCyr 10N 1, 2, 9
Pc8Grk 12G 1, 2
ISOGrk 12N 1, 2
Pc866Ukr 14R 1, 2
Hebrew7 0H 1, 7
8859-8 ISO 7H 1, 7
Hebrew8 8H 1, 7
Pc862Heb 15H 1, 7
PC-862, Hebrew 15Q 1, 7
Arabic8 8V 8
HPWARA 9V 8
Pc864Ara 10V 8
Symbol 19M 4
275
Notices
Check these sections for important notices about your product.
Note: Epson offers a recycling program for end of life Epson products. Please go to this site (U.S.) or
this site (Canada) for information on how to return your Epson products for proper disposal.
Important Safety Instructions
FCC Compliance Statement
Binding Arbitration and Class Waiver
Trademarks
Copyright Notice
Important Safety Instructions
Before using your Epson product, read and follow these safety instructions.
General Printer Safety Instructions
Ink Cartridge Safety Instructions
Wireless Connection Safety Instructions
LCD Screen Safety Instructions
Parent topic: Notices
General Printer Safety Instructions
• Be sure to follow all warnings and instructions marked on the printer.
• Use only the type of power source indicated on the printer's label.
• Use only the power cord that comes with the printer. Use of another cord may cause fires or shock. Do
not use the cord with any other equipment.
• Make sure the AC power cord meets the relevant local safety standard.
• Place the printer near a wall outlet where the plug can be easily unplugged.
• Avoid plugging the printer into an outlet on the same circuit as a photo copier or air control system that
regularly switches on and off, or on an outlet controlled by a wall switch or timer.
• Do not let the power cord become damaged or frayed.
276
• If you use an extension cord with the printer, make sure the total ampere rating of the devices plugged
into the extension cord does not exceed the cord's ampere rating. Also, make sure the total ampere
rating of all devices plugged into the wall outlet does not exceed the wall outlet's ampere rating.
• Always turn off the printer using the power button, and wait until the power light stops flashing before
unplugging the printer or cutting off power to the electrical outlet.
• Place the printer on a flat, stable surface that extends beyond its base in all directions. It will not
operate properly if it is tilted or at an angle.
• Keep your product at least 8.7 inches (22 cm) away from cardiac pacemakers to prevent your
product's radio waves from affecting the operation of the pacemaker.
• Leave enough space in front of the printer for the paper to be fully ejected.
• Avoid locations that are subject to rapid changes in heat or humidity, shocks or vibrations, or dust.
• Do not place the printer near a radiator or heating vent or in direct sunlight.
• Leave enough room around the printer for sufficient ventilation. Do not block or cover openings in the
case or insert objects through the slots.
• The power-supply cords should be placed to avoid abrasions, cuts, fraying, crimping, and kinking. Do
not place objects on top of the power-supply cords and do not allow the power-supply cords to be
stepped on or run over. Be particularly careful to keep all the power-supply cords straight at the ends.
• Keep the printer away from potential sources of electromagnetic interference, such as loudspeakers or
the base units of cordless telephones.
• Do not place or store the printer outdoors, near excessive dirt or dust, water, heat sources, or in
locations subject to shocks, vibrations, high temperature or humidity.
• When connecting the printer to a computer or other device with a cable, ensure the correct orientation
of the connectors. Each connector has only one correct orientation. Inserting a connector in the wrong
orientation may damage both devices connected by the cable.
• Do not insert objects through the slots on the printer.
• Do not put your hand inside the printer while it is printing.
• Do not touch the flat white cable inside the printer.
• Do not move the print head by hand; this may damage the printer.
• Do not spill liquid on the printer and do not handle the printer with wet hands.
• Do not use aerosol products that contain flammable gases inside or around the printer. Doing so may
cause fire.
• Except as specifically explained in your documentation, do not attempt to service the printer yourself.
277
• Unplug the printer and refer servicing to qualified service personnel under the following conditions: if
the power cord or plug is damaged; if liquid has entered the product; if the product has been dropped
or the case damaged; if the product does not operate normally or exhibits a distinct change in
performance. Adjust only those controls that are covered by the operating instructions.
• If damage occurs to the plug, replace the cord set or consult a qualified electrician. If there are fuses in
the plug, make sure you replace them with fuses of the correct size and rating.
• Never disassemble, modify, or attempt to repair the power cord, plug, printer, or options by yourself,
except as specifically explained in the printer's manuals.
• Unplug the power cord from the electrical outlet if you are not going to use the printer for an extended
period.
• Before transporting the printer, make sure that the print head is in the home (far right) position and the
ink cartridges are in place.
• When storing or transporting the printer, do not tilt it, stand it on its side, or turn it upside down;
otherwise, ink may leak.
Parent topic: Important Safety Instructions
Ink Cartridge Safety Instructions
• Keep ink cartridges and maintenance box out of the reach of children and do not drink the ink.
• Be careful when you handle used ink cartridges; there may be ink remaining around the ink supply
port. If ink gets on your skin, wash it off with soap and water. If it gets in your eyes, flush them
immediately with water. If you experience discomfort or vision problems after flushing your eyes, see a
doctor immediately. If ink gets in your mouth, see a doctor immediately.
• Do not put your hand inside the product or touch any cartridges during printing.
• Do not turn off the product during ink charging. If ink charging is incomplete, you may not be able to
print.
• Install a new ink cartridge immediately after removing an expended one. Leaving cartridges
uninstalled can dry out the print head and may prevent the product from printing.
• Do not remove or tear the label on the cartridge; this can cause leakage.
• Do not drop or knock ink cartridges against hard objects; this can cause leakage.
• Do not remove the transparent seal from the bottom of the cartridge. This may cause the cartridge to
become unusable.
• Do not disassemble or modify the ink cartridge; you may not be able to print normally.
• Do not break the hooks on the side of the cartridge when removing it from the packaging.
278
• Do not touch the green IC chip on the side of the cartridge. This may prevent normal operation.
• Do not shake cartridges too vigorously; this can cause them to leak.
• If you remove an ink cartridge for later use, protect the ink supply area from dirt and dust and store it in
the same environment as the product. Note that there is a valve in the ink supply port, making covers
or plugs unnecessary, but care is needed to prevent the ink from staining items that the cartridge
touches. Do not touch the ink cartridge ink supply port or surrounding area.
• Use an ink cartridge before the date printed on its package or within six months of opening the
package, whichever is earlier.
• Do not dismantle an ink cartridge. This could damage the print head.
• Keep the ink cartridges out of direct sunlight.
• Store ink cartridges in a cool, dark place; do not store the ink cartridges in high or freezing
temperatures.
• Make sure to install all ink cartridges. The printer only works when all ink cartridges are properly
installed.
• After bringing an ink cartridge inside from a cold storage site, allow it to warm up at room temperature
for at least three hours before using it.
Parent topic: Important Safety Instructions
Wireless Connection Safety Instructions
Radio waves from this product may adversely affect the operation of medical equipment or automatically
controlled devices, such as pacemakers, automatic doors or fire alarms. When using this product near
such devices or inside a medical facility, follow the directions from authorized staff members at the
facility, and follow all posted warnings and directions on the device to avoid causing an accident.
Do not connect this product to the internet directly. Connect it to a network protected by a router or
firewall.
Parent topic: Important Safety Instructions
LCD Screen Safety Instructions
• Use only a dry, soft cloth to clean the LCD screen. Do not use liquid or chemical cleansers.
• If the LCD screen is damaged, contact Epson. If the liquid crystal solution gets on your hands, wash
them thoroughly with soap and water. If the liquid crystal solution gets into your eyes, flush them
immediately with water. If discomfort or vision problems remain after a thorough flushing, see a doctor
immediately. If liquid enters your mouth, see a doctor immediately.
• Do not press too hard on the LCD screen or subject it to heavy impacts.
279
• If the LCD screen chips or cracks, do not touch or attempt to remove the broken pieces; contact Epson
for support.
• The LCD screen may contain a few small bright or dark spots, and may display uneven brightness.
These are normal and do not indicate that the screen is damaged in any way.
Parent topic: Important Safety Instructions
FCC Compliance Statement
For United States Users
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING
The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC
Certification or Declaration of this device and may cause interference levels which exceed the limits
established by the FCC for this equipment. It is the responsibility of the user to obtain and use a shielded
equipment interface cable with this device. If this equipment has more than one interface connector, do
not leave cables connected to unused interfaces. Changes or modifications not expressly approved by
the party responsible for compliance could void the user’s authority to operate this equipment.
For Canadian Users
CAN ICES-3(B)/NMB-3(B)
Parent topic: Notices
280
Binding Arbitration and Class Waiver
1. DISPUTES, BINDING INDIVIDUAL ARBITRATION, AND WAIVER OF CLASS ACTIONS AND
CLASS ARBITRATIONS
1.1 Disputes. The terms of this Section 1 shall apply to all Disputes between you and Epson. The term
"Dispute" is meant to have the broadest meaning permissible under law and includes any dispute, claim,
controversy or action between you and Epson arising out of or relating to this Agreement, Epson
branded products (hardware and including any related software), or other transaction involving you and
Epson, whether in contract, warranty, misrepresentation, fraud, tort, intentional tort, statute, regulation,
ordinance, or any other legal or equitable basis. "DISPUTE" DOES NOT INCLUDE IP CLAIMS, or more
specifically, a claim or cause of action for (a) trademark infringement or dilution, (b) patent infringement,
(c) copyright infringement or misuse, or (d) trade secret misappropriation (an "IP Claim"). You and Epson
also agree, notwithstanding Section 1.6,that a court, not an arbitrator, may decide if a claim or cause of
action is for an IP Claim.
1.2 Binding Arbitration. You and Epson agree that all Disputes shall be resolved by binding arbitration
according to this Agreement. ARBITRATION MEANS THAT YOU WAIVE YOUR RIGHT TO A JUDGE
OR JURY IN A COURT PROCEEDING AND YOUR GROUNDS FOR APPEAL ARE LIMITED.
Pursuant to this Agreement, binding arbitration shall be administered by JAMS, a nationally recognized
arbitration authority, pursuant to its code of procedures then in effect for consumer related disputes, but
excluding any rules that permit joinder or class actions in arbitration (for more detail on procedure, see
Section 1.6 below). You and Epson understand and agree that (a) the Federal Arbitration Act (9 U.S.C.
§1, et seq.) governs the interpretation and enforcement of this Section 1, (b) this Agreement
memorializes a transaction in interstate commerce, and (c) this Section 1 shall survive termination of this
Agreement.
1.3 Pre-Arbitration Steps and Notice. Before submitting a claim for arbitration, you and Epson agree to
try, for sixty (60) days, to resolve any Dispute informally. If Epson and you do not reach an agreement to
resolve the Dispute within the sixty (60) days), you or Epson may commence an arbitration. Notice to
Epson must be addressed to: Epson America, Inc., ATTN: Legal Department, 3131 Katella Ave., Los
Alamitos, CA 90720 (the "Epson Address"). The Dispute Notice to you will be sent to the most recent
address Epson has in its records for you. For this reason, it is important to notify us if your address
changes by emailing us at [email protected] or writing us at the Epson Address above. Notice of
the Dispute shall include the sender's name, address and contact information, the facts giving rise to the
Dispute, and the relief requested (the "Dispute Notice"). Following receipt of the Dispute Notice, Epson
and you agree to act in good faith to resolve the Dispute before commencing arbitration.
1.4 Small Claims Court. Notwithstanding the foregoing, you may bring an individual action in the small
claims court of your state or municipality if the action is within that court's jurisdiction and is pending only
in that court.
281
1.5 WAIVER OF CLASS ACTIONS AND CLASS ARBITRATIONS. YOU AND EPSON AGREE THAT
EACH PARTY MAY BRING DISPUTES AGAINST THE OTHER PARTY ONLY IN AN INDIVIDUAL
CAPACITY, AND NOT AS A PLAINTIFF OR CLASS MEMBER IN ANY CLASS OR
REPRESENTATIVE PROCEEDING, INCLUDING WITHOUT LIMITATION FEDERAL OR STATE
CLASS ACTIONS, OR CLASS ARBITRATIONS. CLASS ACTION LAWSUITS, CLASS-WIDE
ARBITRATIONS, PRIVATE ATTORNEY-GENERAL ACTIONS, AND ANY OTHER PROCEEDING
WHERE SOMEONE ACTS IN A REPRESENTATIVE CAPACITY ARE NOT ALLOWED.
ACCORDINGLY, UNDER THE ARBITRATION PROCEDURES OUTLINED IN THIS SECTION, AN
ARBITRATOR SHALL NOT COMBINE OR CONSOLIDATE MORE THAN ONE PARTY'S CLAIMS
WITHOUT THE WRITTEN CONSENT OF ALL AFFECTED PARTIES TO AN ARBITRATION
PROCEEDING.
1.6 Arbitration Procedure. If you or Epson commences arbitration, the arbitration shall be governed by
the rules of JAMS that are in effect when the arbitration is filed, excluding any rules that permit arbitration
on a class or representative basis (the "JAMS Rules"), available at http://www.jamsadr.com or by calling
1-800-352-5267, and under the rules set forth in this Agreement. All Disputes shall be resolved by a
single neutral arbitrator, and both parties shall have a reasonable opportunity to participate in the
selection of the arbitrator. The arbitrator is bound by the terms of this Agreement. The arbitrator, and not
any federal, state or local court or agency, shall have exclusive authority to resolve all disputes arising
out of or relating to the interpretation, applicability, enforceability or formation of this Agreement,
including any claim that all or any part of this Agreement is void or voidable. Notwithstanding this broad
delegation of authority to the arbitrator, a court may determine the limited question of whether a claim or
cause of action is for an IP Claim, which is excluded from the definition of "Disputes" in Section 1.1
above. The arbitrator shall be empowered to grant whatever relief would be available in a court under
law or in equity. The arbitrator may award you the same damages as a court could, and may award
declaratory or injunctive relief only in favor of the individual party seeking relief and only to the extent
necessary to provide relief warranted by that party's individual claim. In some instances, the costs of
arbitration can exceed the costs of litigation and the right to discovery may be more limited in arbitration
than in court. The arbitrator's award is binding and may be entered as a judgment in any court of
competent jurisdiction.
You may choose to engage in arbitration hearings by telephone. Arbitration hearings not conducted by
telephone shall take place in a location reasonably accessible from your primary residence, or in Orange
County, California, at your option.
a) Initiation of Arbitration Proceeding. If either you or Epson decides to arbitrate a Dispute, both parties
agree to the following procedure:
(i) Write a Demand for Arbitration. The demand must include a description of the Dispute and the amount
of damages sought to be recovered. You can find a copy of a Demand for Arbitration at
http://www.jamsadr.com ("Demand for Arbitration").
(ii) Send three copies of the Demand for Arbitration, plus the appropriate filing fee, to: JAMS, 500 North
State College Blvd., Suite 600 Orange, CA 92868, U.S.A.
282
(iii) Send one copy of the Demand for Arbitration to the other party (same address as the Dispute
Notice), or as otherwise agreed by the parties.
b) Hearing Format. During the arbitration, the amount of any settlement offer made shall not be disclosed
to the arbitrator until after the arbitrator determines the amount, if any, to which you or Epson is entitled.
The discovery or exchange of non-privileged information relevant to the Dispute may be allowed during
the arbitration.
c) Arbitration Fees. Epson shall pay, or (if applicable) reimburse you for, all JAMS filings and arbitrator
fees for any arbitration commenced (by you or Epson) pursuant to provisions of this Agreement.
d) Award in Your Favor. For Disputes in which you or Epson seeks $75,000 or less in damages exclusive
of attorney's fees and costs, if the arbitrator's decision results in an award to you in an amount greater
than Epson's last written offer, if any, to settle the Dispute, Epson will: (i) pay you $1,000 or the amount
of the award, whichever is greater; (ii) pay you twice the amount of your reasonable attorney's fees, if
any; and (iii) reimburse you for any expenses (including expert witness fees and costs) that your attorney
reasonably accrues for investigating, preparing, and pursuing the Dispute in arbitration. Except as
agreed upon by you and Epson in writing, the arbitrator shall determine the amount of fees, costs, and
expenses to be paid by Epson pursuant to this Section 1.6d).
e) Attorney's Fees. Epson will not seek its attorney's fees and expenses for any arbitration commenced
involving a Dispute under this Agreement. Your right to attorney's fees and expenses under Section
1.6d) above does not limit your rights to attorney's fees and expenses under applicable law;
notwithstanding the foregoing, the arbitrator may not award duplicative awards of attorney's fees and
expenses.
1.7 Opt-out. You may elect to opt-out (exclude yourself) from the final, binding, individual
arbitration procedure and waiver of class and representative proceedings specified in this
Agreement by sending a written letter to the Epson Address within thirty (30) days of your assent
to this Agreement (including without limitation the purchase, download, installation of the
Software or other applicable use of Epson Hardware, products and services) that specifies (i)
your name, (ii) your mailing address, and (iii) your request to be excluded from the final, binding
individual arbitration procedure and waiver of class and representative proceedings specified in
this Section 1. In the event that you opt-out consistent with the procedure set forth above, all
other terms shall continue to apply, including the requirement to provide notice prior to litigation.
1.8 Amendments to Section 1. Notwithstanding any provision in this Agreement to the contrary, you
and Epson agree that if Epson makes any future amendments to the dispute resolution procedure and
class action waiver provisions (other than a change to Epson's address) in this Agreement, Epson will
obtain your affirmative assent to the applicable amendment. If you do not affirmatively assent to the
applicable amendment, you are agreeing that you will arbitrate any Dispute between the parties in
accordance with the language of this Section 1 (or resolve disputes as provided for in Section 1.7, if you
timely elected to opt-out when you first assented to this Agreement).
283
1.9 Severability. If any provision in this Section 1 is found to be unenforceable, that provision shall be
severed with the remainder of this Agreement remaining in full force and effect. The foregoing shall not
apply to the prohibition against class or representative actions as provided in Section 1.5. This
means that if Section 1.5 is found to be unenforceable, the entire Section 1 (but only Section 1)
shall be null and void.
Parent topic: Notices
Trademarks
EPSON
®
is a registered trademark, the EPSON logo is a registered logomark, Epson Connect
TM
and
Epson Remote Print
TM
are trademarks of Seiko Epson Corporation.
Apple, App Store, AirPrint, iPad, iPhone, iPod touch, Mac, macOS, OS X, and the AirPrint logo are
trademarks of Apple Inc., registered in the U.S. and other countries.
Use of the Works with Apple badge means that an accessory has been designed to work specifically
with the technology identified in the badge and has been certified by the developer to meet Apple
performance standards.
The Mopria
TM
wordmark and the Mopria
TM
Logo are registered and/or unregistered trademarks of
Mopria Alliance, Inc. in the United States and other countries. Unauthorized use is strictly prohibited.
Android, Chromebook, and Google are registered trademarks and Gmail, Google Drive, and Google
Play are trademarks of Google LLC.
Microsoft is a trademark of the Microsoft group of companies.
Wi-Fi Direct
®
is a registered trademark of Wi-Fi Alliance
®
.
General Notice: Other product names used herein are for identification purposes only and may be
trademarks of their respective owners. Epson disclaims any and all rights in those marks.
Parent topic: Notices
Copyright Notice
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without the prior written permission of Seiko Epson Corporation. The information contained herein is
designed only for use with this Epson product. Epson is not responsible for any use of this information as
applied to other products.
284
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third
parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of:
accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this
product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation's operating and
maintenance instructions.
Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any
options or any consumable products other than those designated as Original Epson Products or Epson
Approved Products by Seiko Epson Corporation.
Seiko Epson Corporation shall not be held liable for any damage resulting from electromagnetic
interference that occurs from the use of any interface cables other than those designated as Epson
approved Products by Seiko Epson Corporation.
This information is subject to change without notice.
A Note Concerning Responsible Use of Copyrighted Materials
Default Delay Times for Power Management for Epson Products
Copyright Attribution
Parent topic: Notices
A Note Concerning Responsible Use of Copyrighted Materials
Epson encourages each user to be responsible and respectful of the copyright laws when using any
Epson product. While some countries' laws permit limited copying or reuse of copyrighted material in
certain circumstances, those circumstances may not be as broad as some people assume. Contact your
legal advisor for any questions regarding copyright law.
Parent topic: Copyright Notice
Default Delay Times for Power Management for Epson Products
This product will enter sleep mode after a period of nonuse. This is to ensure that the product meets
Energy Star standards of energy efficiency. More energy savings can be achieved by setting the time to
sleep to a shorter interval.
Parent topic: Copyright Notice
Copyright Attribution
© 2028 Epson America, Inc.
8/25
CPD-64779R2
