2 in 1 Pet Grooming Kit
User Manual
Model: DTJ-002
Any problems you have, please feel free to contact
us via email: [email protected]
ON-D105
Each Pa Name
Detachable
standard blade
2 speed button
Battery indicator light
Charging port
Narrow blade
Cleaning brush Oil bottle Charging cable

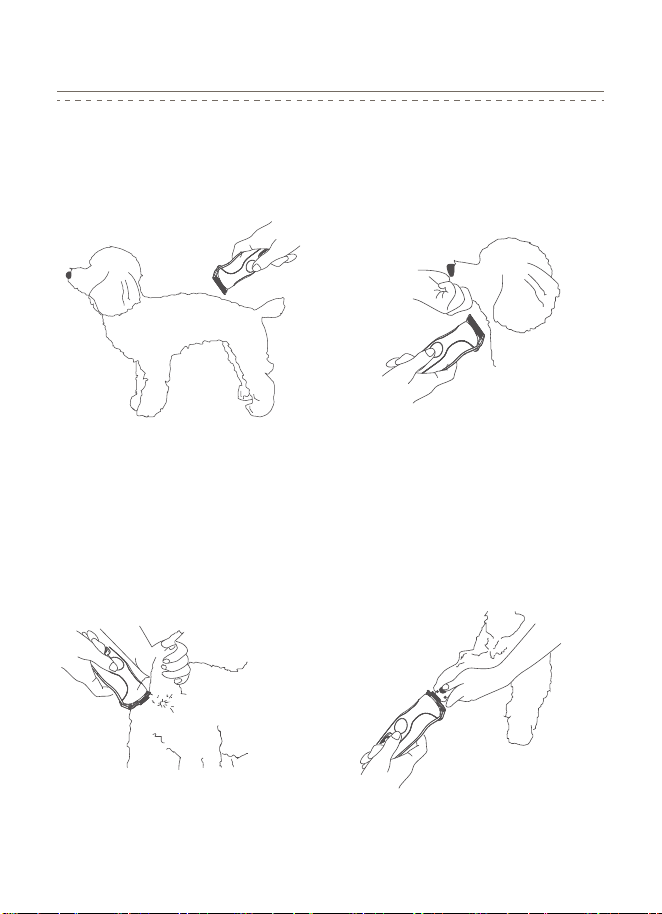

Widely Usage
The standard blade is perfect for shaving the pet's back, legs,
and Neck. Suitable for all breeds of pets.
The paw trimmers works great for trimming small areas such as
paws, eyes, ears, and butt.
2500mAh High-peormance Li-ion Batte
Charging Guide
2 in 1 Pet
Grooming
Clippers
Motor
Operating voltage: 3.7V
Battery type: 2500mAh
Charge time: 3h
Operating time: 4h
USB connect with adapter 5V 1A
Power: 9.5W
Battery
Charge
1. Insert the USB cable into the tail of the clipper
2. 5V/USB connection with the adapter
Warm Tips:
When the remaining 5% power, the charging indicator light
flashes red;
When charging, the corresponding green power light
flashes, and when the corresponding power level is reached,
the green light is always on;
After the charging is completed, the red light goes out and
the green power indicator lights are all on.
Guide Comb Length Selection
6 kinds of length guide guards (3mm、6mm、10mm、13mm、
16mm、19mm) to control the length of hair.
3mm 6mm 10mm 13mm 16mm 19mm
1.Determine the need hair length
2.Select the appropriate guide guards
(Notes the comb should not be loose or easy to fall off after being
butted)
3.Guide guards installations
Like the picture, hold both sides and push when butting the
button positions.
4.Guide guards Dismantle
Remove the butted positions with hands on both sides and then
remove the guards.

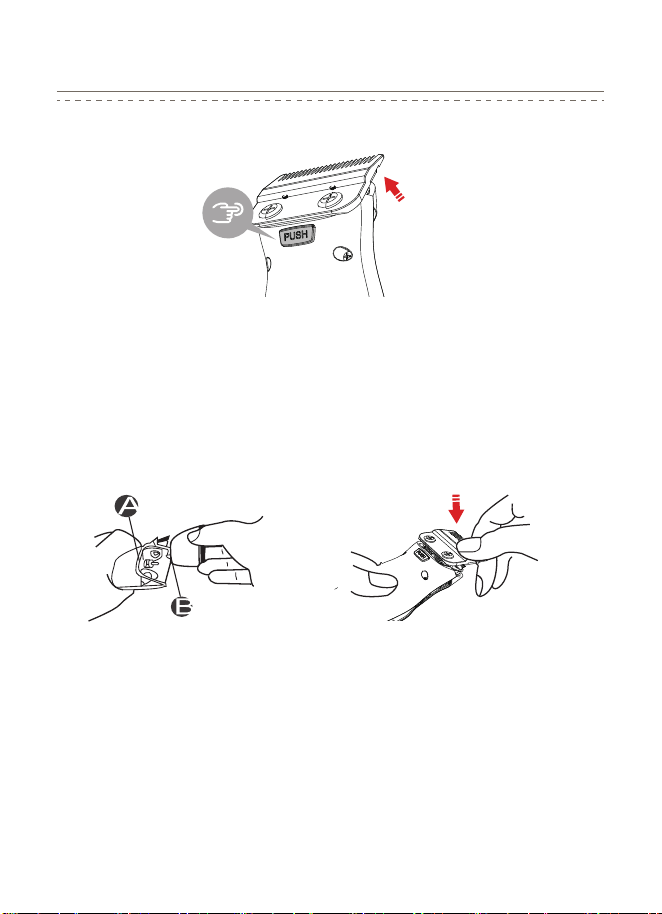

Blade Removal & Installation
Step 1:Firmly press the push button on the back of the dog clipper
Step 2: Remove the blade easily
1. Direct the blade (B) at the hair clipper’s slot (A) and plug in
2. Press the blade firmly
3. When you hear a click, the installation is complete
Blade Removal
Blade Installation

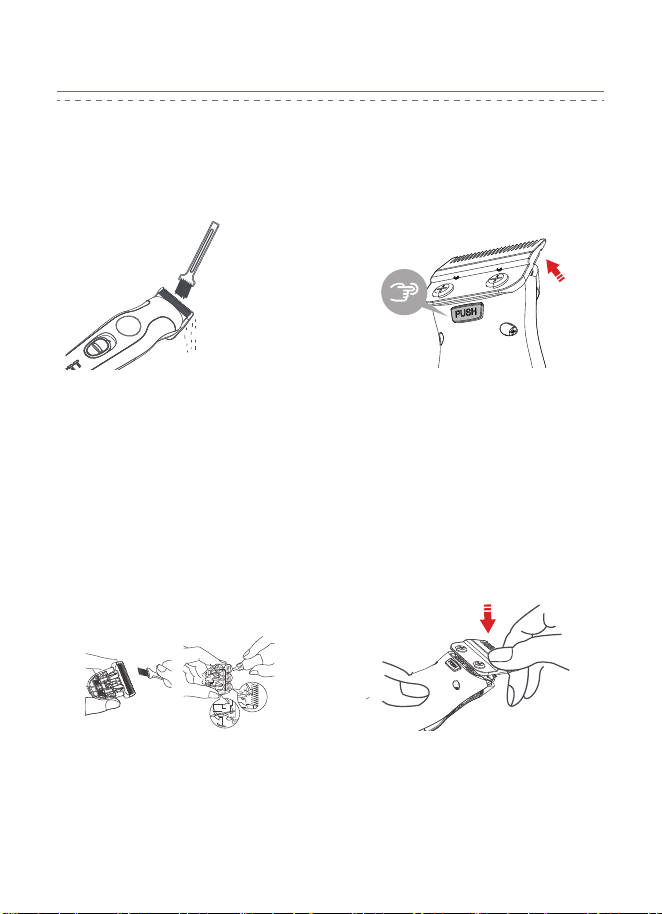

Cleaning & Precautions
How to Clean
1. Clear up the blade with a
cleaning brush.
2. The blade can be removed
for cleaning.
4.Install the blade back3.Before or after use, maintain
the blade by dripping some oil
on the point places like the
picture. (oil included)

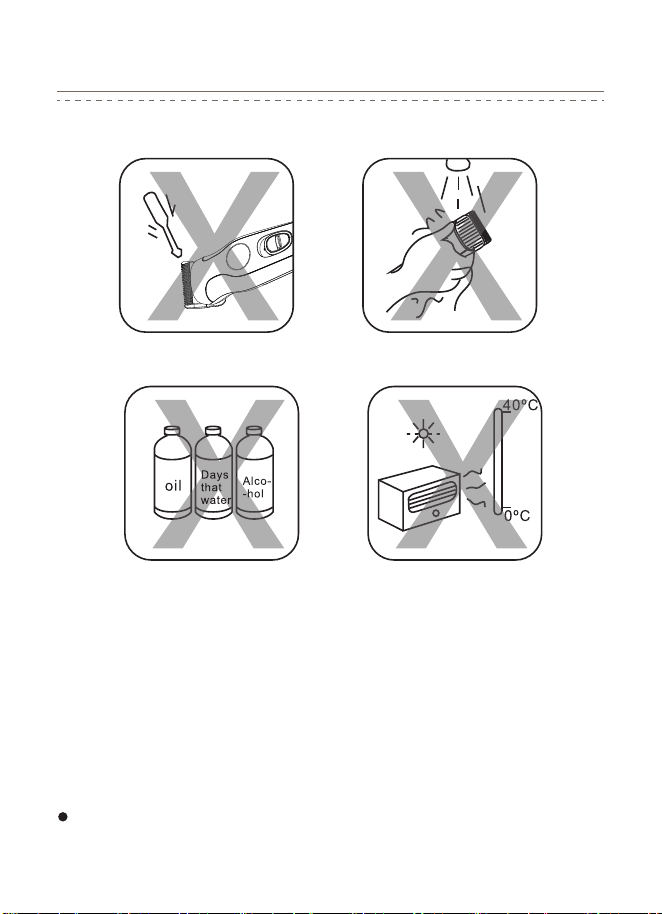

Cleaning & Precautions
The appliance may become hot during use or charging,
which is normal.
1. Please do not disassemble the product.
2. The hair clipper can not be washed. Please keep it away from wet
conditions.
3. The product can only be cleaned with a cloth with little water or a
mild soap solution.
4. Do not charge the product in an environment above 104°F or
below 32°F.
Lifetime Warranty
Lifetime Warranty & Lifetime Customer Support
Warranty coverage applies to the original owner and product only
and is non-transferable.
How to lnitiate a Warranty Claim
If you need a warranty claim on your oneisall device, please get in
touch with our customer service team by email:
Please let us know your model name/number, date of purchase,
order number, product questions, and requirements.
