STINGER 0136252 CN100B Cap Nailer 1-in 15-Degree Pneumatic Coil Corded Roofing Nailer

Product's Documents

Below are documents related to this product, you can read online or download:
Main documentSpecificationQuestions and answersRelateds Products
0136252 photo

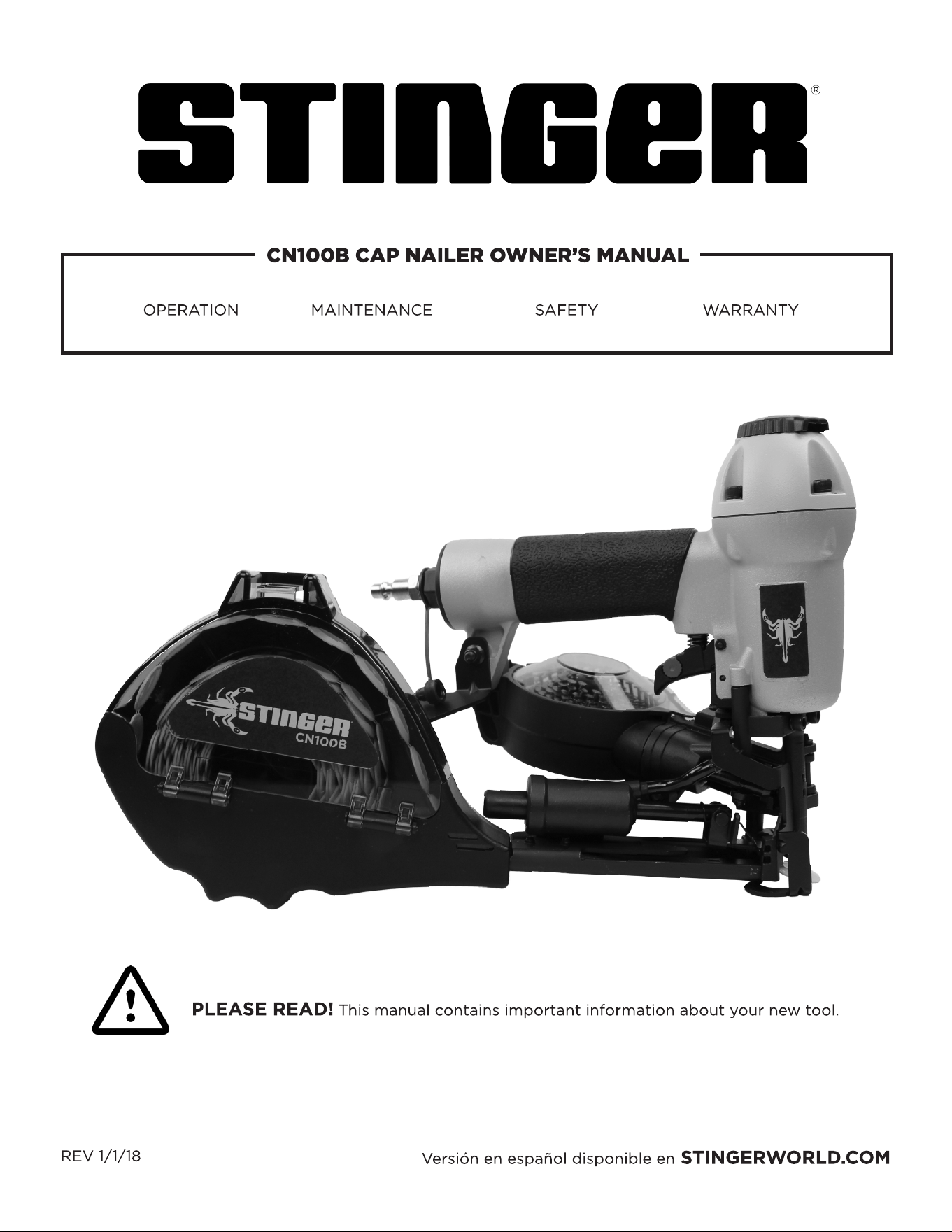

Operating Manual

This is the main product document for model 0136252.

The file format is pdf, 16 pages, you can download this manual here .

background
background
background
background
background
background
background
background
background
background
background
101 DEFLECTOR 0138500
102 BOLTASSY 0138501
103 CAP 0138502
104 O-RING 0138503
105 SEAL 0138504
106 COMPRESSIONSPRING 0138505
107 POPPETVALVE 0138506
108 O-RING 0138507
109 O-RING 0138508
110 GASKET 0138509
111 O-RING 0138510
112 PISTONDRIVER 138598
113 O-RING 0138512
114 CYLINDER 0138513
115 CYLINDERRING 0138514
116 BUMPER 0138515
117 BELTHOOK 0138517 Error - overlap
201 SEAL 0138518
202 TRIGGERVALVEHEAD 0138519
203 SPRING 0138520
204 PLUNGER 0138521
205 O-RING 0138522
205A O-RING 0138523
206 O-RING 0138524
207 TRIGGERVALVEGUIDE 0138525
208 WASHER 0138526
209 SPRINGPIN 0138527
210 TRIGGERPIVOTPIN 0138528
211 SPRING 0138529
212 TRIGGERUNIT 0138530
301 GUNBODYUNIT 138599
302 O-RING 0138532
303 ENDCAP 0138533
304 DUSTYCOVER 0138534
305 AIRPLUG 0138535
401 BOLTASSY 0138536
402 NOSEPIECE 138600
403 O-RING 138601
404 DOORSHAFTPIN 138602
405 PURETAINER 138603
406 HEX.SOC.HD.BOLT 138604
407 FIXEDPIN 138605
408 O-RING 138606
409 FEEDFINGER 138607
410 NAILSTOP 138608
411 STOPPERFINGERSPRING 138609
412 SPRINGPIN 138610
413 DOOR 138611
414 LATCHSPRING 138612
415 DOORLATCH 138613
416 HEX.SOC.HD.BOLT 138614
417 O-RING 138615
418 FEEDPISTON 138616
background
419 POSITIONINGSHEET 138617
420 HEX.SOC.HD.BOLT 0138557
421 STOPPERFINGERSPRING 138618
422 O-RING 138619
423 SPRINGACOMPERESSION 138620
424 FEEDBUMPER 138621
425 FEEDPISTONCAP 138622
426 LOCKNUT 138623
427 MAGAZINECASE 138624
428 MAGAZINECOVER 138625
429 MAGAZINESHAFTPIN 138626
430 HEX.SOC.HD.BOLT 138627
431 TRACK 0138566
432 HEX.SOC.HD.BOLT 0138567
433 HALFROUNDHD.HEX.BOLT 0138568
434 HOLDDOWNSPRING 0138569
435 PUSHING 0138570
436 PINFEEDPISTON 0138571
437 O-RING 0138572
438 SPRING 0138573
439 FEEDINGTRACK 0138574
440 INLET 138628
441 BARBFITTING 0138576
442 O-RING 0138577
443 FEEDPISTON 0138578
444 O-RING 0138579
445 SPRINGFEED 0138580
446 FEEDBUMPER 0138581
447 FEEDPISTONCAP 0138582
448 C-RING 0138583
449 MAG.COVERLEFT 0138584
450 TAPBOLT 0138585
451 LOCKNUT 0138586
452 MAG.COVERRIGHT 0138587
453 DOOR 0138588
454 TRIGGERPIVOTPIN 0138589
455 SAFETYAUNIT 138629
456 ADJUSTAXIE 0138591
457 SAFETYB 0138592
458 RING 0138593
459 SPRING 0138594
460 SAFETYGUIDE 0138595
461 BOLTCAP 138630
462 FLATWASHER 138631
463 SPACERRING 138632

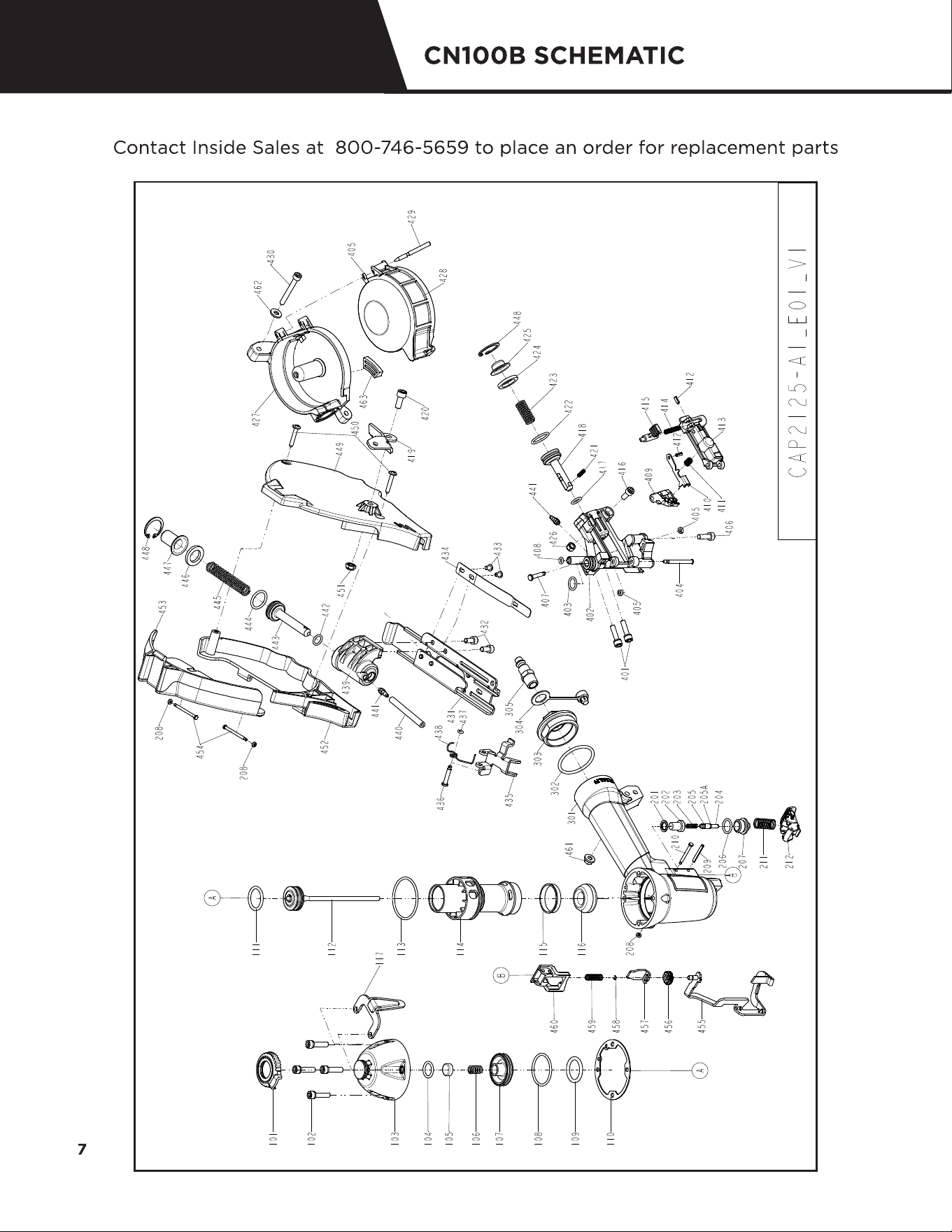

CN100B
ITEM PARTSNAME NNItem
background
background
background
background
NATIONAL
NAIL

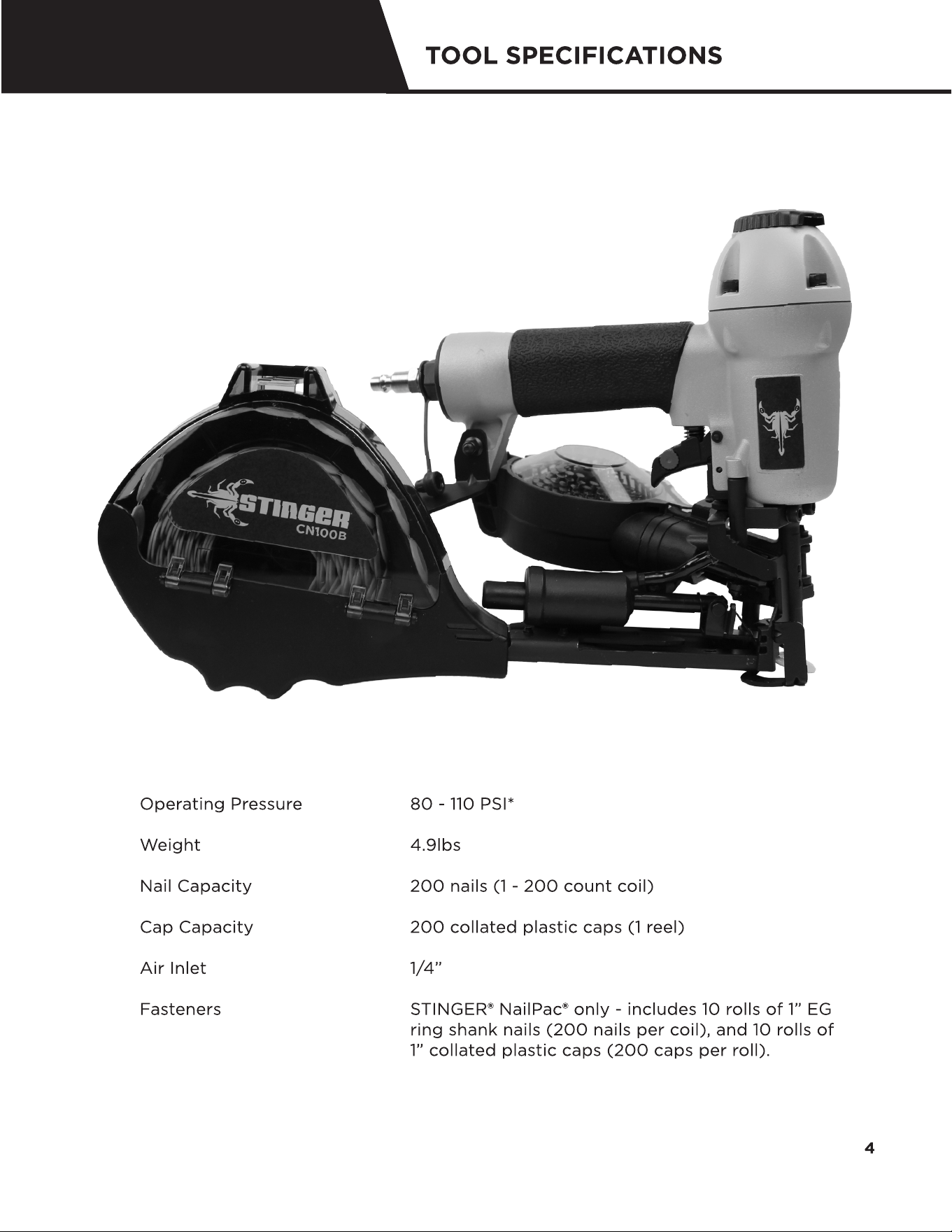

Specifications

Indexed Terms: Nailer
