COIL ROOFING NAILER 120 PSI
ITEM# 44431
OWNER'S MANUAL AND SAFETY INSTRUCTIONS

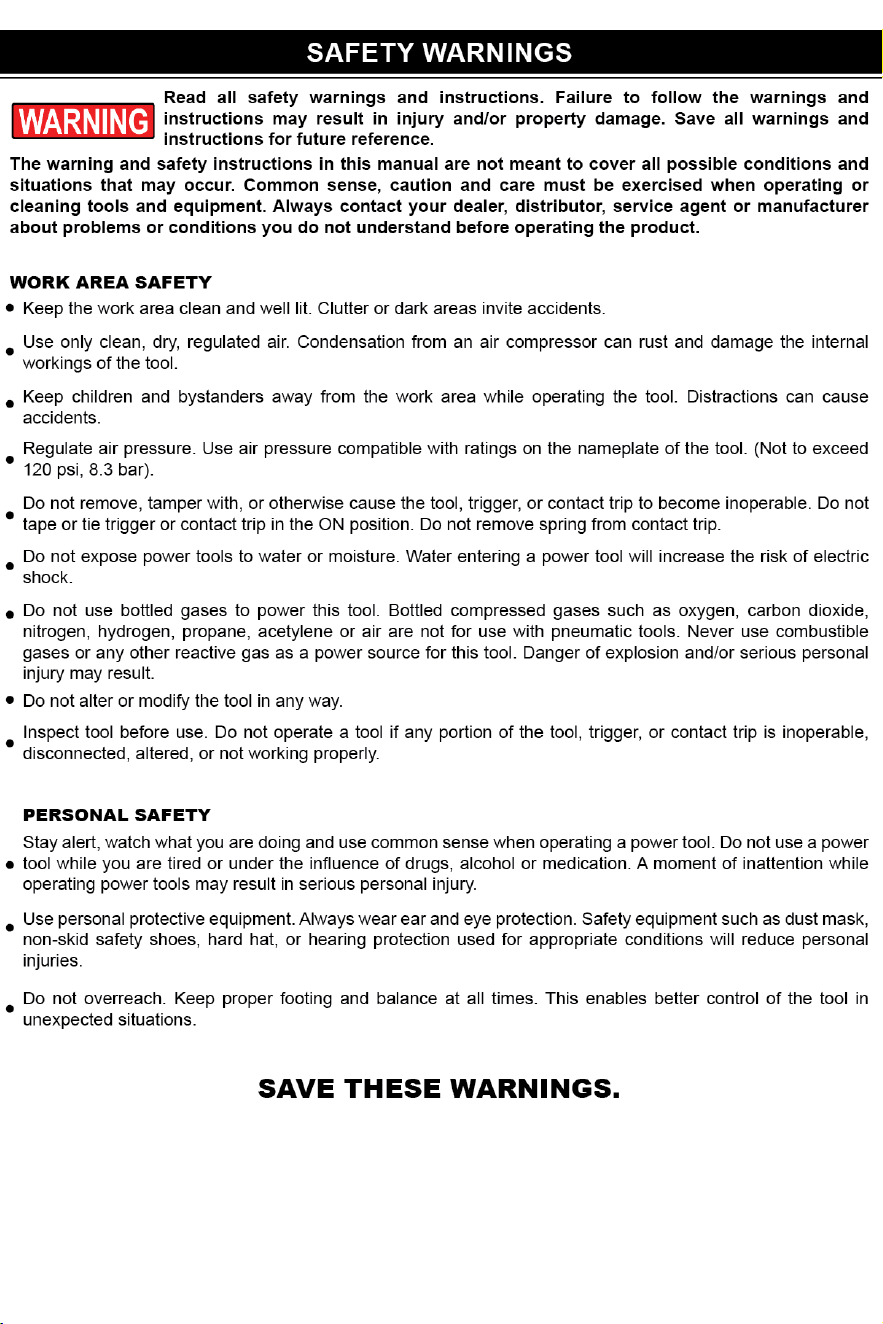

SAVE THIS MANUAL. KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS. ASSEMBLY.
OPERATION. INSPECON. MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT'S
SERIAL NUMBER ON THE BACK OF THE MANUAL, OR THE MONTH AND YEAR OF PURCHASE IF
PRODUCT HAS NO SERIAL NUMBER
FOR QUESTIONS, PLEASE CALL CUSTOMER SERVICE: 909.628.0880
TECHNICAL DATA
- Weight (without fasteners): 6lbs
- Air inlet size: 1/4"
- Activation mode: Contact actuation
- Vibration in the handle: 0.71m/s
2
,k=2
- Max. allowable pressure: 8.3 bar
- Recommended allowable pressure range: 5 to 7.5 bar
- A weighted sound pressure level: 95.5dB(A), k=3dB(A)
- Sound power level: 108.5dB(A) , k=3dB(A)
- Max Lpc: 126.4dB
- Recommended lubricant: White mineral oil 16#
FASTENER
Fastener size: Dia.2.5-3.05mm; Nail length: 19,22,32,38,45mm; Magazine capacity: 120pcs.
ACCESSORIES
- Hexagon Key
- Goggles
- Lubricant
- Operating instructions
DESCRIPTION / FEATURES
- Use 15 degree 19mm(3/4") to 45mm(1-3/4") wire collated roofing nails.
- Steel contact safety with dual carbide inserts for less wear.
- Soft grip for comfort and control.
- Delivers the power to consistently drive nails in the toughest applications.
- Big loading capacity magazine will fasten a full bundle of shingles without reloading.

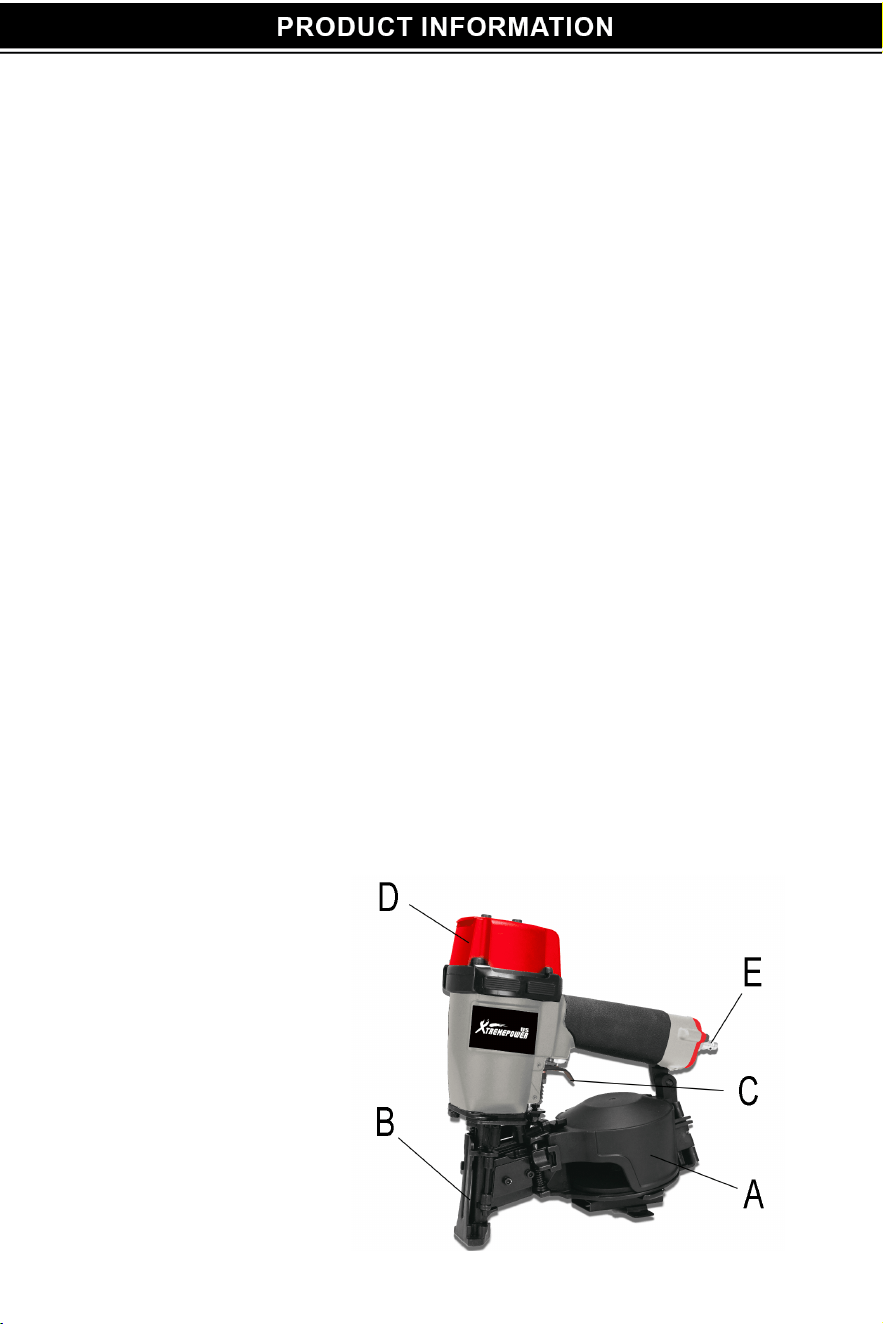

LOCATION OF PARTS
A.Magazine
B. Safety yoke
C. Trigger
D. Exhaust Vent
E. Air Quick Coupler
INSTRUCTIONS
This standard requires that:
• Only those fasteners which are specified in the operating instructions (see TECHNICAL
DATA) shall be used in fastener driving tools. The fastener driving tool and the fasteners specified in
the operating instructions are to be considered as one unit safety system.
• Quick action couplings shall be used for connection to the compressed air system and the non-
sealable nipple must be fitted at the tool in such a way that no compressed air remains in the tool
after disconnection.
• Oxygen or combustible gases shall not be used as an energy source for compressed air operated
fastener driving tools;
• Fastener driving tools shall only be connected to an air-supply where the maximum allowable
pressure of the tool cannot be exceeded by more than 10%;in the case of higher pressure, a pressure
reducing valve which includes a downstream safety valve shall be built into the compressed air
supply.
• only spare parts specified by the manufacturer or his authorized representative shall be used in the
repair of fastener driving tools;
• repairs shall be carried out only by the manufacturers authorized agents or by other experts, having
due regard to the information given in the operating instructions.
• stands for mounting the fastener driving tools to a support, for example to a work table, shall
be designed and constructed by the stand manufacturer in such a way that the fastener driving tools
can be safely fixed for the intended use, thus for example avoiding damage, distortion, displacement.
Special fields of application for the fastener driving tool may require the observance of additional
provisions and regulations.
• Only the main energy and lubricants listed in the operating instructions may be used:
• Fastener driving tools marked with an inverted equilateral triangle standing on one point may only
be used with an effective safety yoke;
• For the maintenance of fastener driving tools, only spare parts specified by the manufacturer or his
authorized representative shall be used;
• Repairs shall be carried out only by agents authorized by the manufacturer or by other specialists,
having due regard to the information given in the operating instructions;
NOTE: Specialists are those who as a result by professional training or experience, have
sufficient expertise in the field of fastener driving tools and sufficient familiarity with relevant
governmental industrial protection provisions, accident prevention regulations, directives and
generally recognized technical regulations to be able to assess the safe working condition of
fastener driving tools.
NOISE EMISSION
The characteristic noise values for the fastener driving tool have been determined in accordance with
EN12549: 1999 and EN ISO4871"Acoustics-Noise test code for fastener driving tools-Engineering
method"(see Technical Data).
These values are tool-related characteristic values and do not represent the noise development at
the point of use. Noise development at the point of use will for example depend on the working
environment, the work piece, the work piece support and the number of driving operations, etc.
Depending in the conditions at the workplace and the form of the workplace, individual noise
attenuation measures may need to be carried out, such as placing work pieces on sound-damping
supports, preventing work piece vibration oy means of clamping or covering, adjusting to the minimum
air pressure required for the operation involved, etc.
It is necessary to wear hearing protection equipment.
INFORMATION ON MECHANICAL IMPACT (VIBRATION)
The characteristic vibration values for the fastener driving tool have been determined in accordance
with ISO 8662-11:1999 and EN 12096 - Measurement of vibration in hand-held power tools - Part
11 :Fastener driving tools(see Technical Data).This value is a tool-related characteristic value and
does not represent the influence to the hand-arm-system when using the tool. An influence to the
hand-ami-system when using the tool will for example depend on the gripping force, the contact
pressure force, the working direction, the adjustment of energy supply, the workplace, the
work piece support.
SAFETY OF THE FASTENER DRIVING TOOL
• Check prior to each operation that the safety and triggering mechanism is functioning properly and
that all nuts and bolts are right.
• Do not carry out any alterations to the fastener driving tool without the manufactures authorization.
• Do not disassemble or make inoperative any parts of the fastener driving tool such as the safety
yoke.
• Do not perform any "emergency repairs" without proper tools and equipment.
• The fastener driving tool should be serviced properly and at regular intervals in accordance with the
Manufacturer's instructions.
• Avoid weakening or damaging the too, for example by:punching or engraving;modification not
authorized by the manufacturer; guiding against templates made of hard material such as steel; use the
equipment as a hammer; applying excessive force of any kind.
SAFETY AT WORK
Never point any operational fastener driving tool at yourself or at any other person
or animals. Hold the fastener driving tool during the work operation in such a way
that no injuries can be caused to the head or to the body in the event of possible
recoil consequent upon a disruption in the energy supply or hard areas within the
workplace.

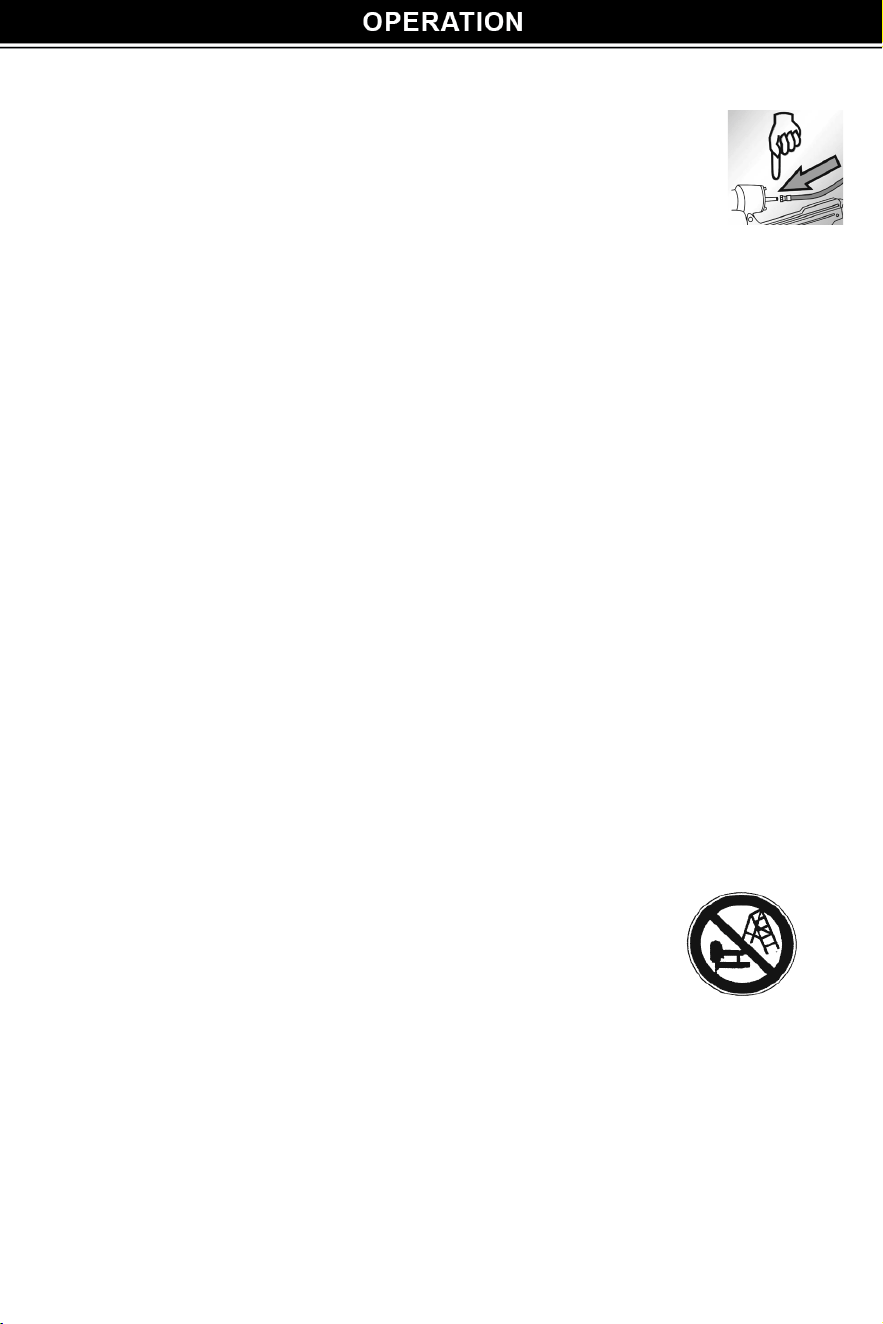

Never actuate the fastener driving tool into free space. This will avoid any hazard
caused by free flying f asteners and e xcessive strain of t he tool. T he tool shall be
disconnected from the compressed air system for the purpose of transportation,
especially where ladders are used or where an unusual physical posture is adopted
whilst moving(see Fig 3). Carry the fastener driving tool at the workplace using only
the handle, and never with the trigger actuated. Take conditions at the workplace
into account. Fasteners can penetrate thin work pieces or slip off comers and edges
of workplaces, and thus put people at risk. For personal safety, use
protective equipment such ad hearing and eye protection.
IMPORTANT: DO NOT direct the adjustable vent hole to the operator or other person
or animals during the use.
TRIGGERING DEVICES
Fastener driving tools are operated by actuating the trigger using finger pressure. In addition, fastener
driving tool is fitted with a safety yoke which enables the driving operation to be carried out only after
the muzzle of the tool is pressed against a work piece, These tool are marked with an inverted
triangle behind the serial number and are not permitted for use without an effective safety yoke.
ACTUATING SYSTEMS
Depending on their purpose, fastener driving tool is fitted with single sequential actuating system and
contact actuation system. You could switch to one nail figure to choose single sequential actuation,
and switch to two nail figure to choose contact actuator. Fastener driving tools with a safety yoke.
- Single sequential actuation: An actuating system in which the trigger and the safety yoke have to
be activated so the only one single driving operation is actuated via the trigger after the muzzle of
the tool has been applied to the driving location, Thereafter further driving operations can only be
performed after the trigger has been returned to the non driving position whilst the safety yoke remains
depressed.
- Contact actuation (restricted version):An actuating system in which the trigger and the safety yoke
have to be actuated for each driving operation, with the order of actuation not being specified .For
repeated driving operations, it is sufficient if either the trigger remains activated and the safety yoke is
activated thereafter, or vice versa.
Fastener driving tools equipped with contact actuation must be marked with the symbol" Do not use
on scaffoldings, ladders' (see Fig.4) and shall not be used for specific application for example:
- when changing one driving location to another involves the use of scaffoldings, stairs, ladders, or
ladder alike constructions, e.g. roof laths;
-
closing boxes or crates;
-
fitting transportation safety systems e.g. on vehicles and wagons.
Colors:
Red on white ground
fastener driving tools and ladder black
COMPRESSED AIR SYSTEM
NOTE: When compressed air is generated by compressors, the natural moisture in the air
condenses and collects as condensed water In pressure vessels and pipelines. This condensate must
be removed by water separators. These water separators must be checked on a daily basis and if
necessary drained, since corrosion can otherwise develop in the compressed air system and in the
fastener driving tool, which serves to accelerate wear.
The compressor plant shall be adequately dimensioned in terms of pressure output and performance
(volumetric flow) for the consumption which is to be expected. Line sections which are too small in
relation to the length of the line (pipes and hoses), as well as overloading the compressor, will result in
pressure drops. Permanently laid compressed air pipelines should have an internal diameter of at least
19 mm and a corresponding large diameter where relatively long pipelines or multiple users are
involved. Compressed air pipelines should be laid so as to form a gradient (highest point in the direction
to the compressor).Easily accessible water separators should be installed at the lowest points.
Junctions for users should be joined to the pipelines from above, Connecting points for fastener driving
tools should be fitted with a compressed air servicing unit(filter/water separator/oiler)directly at the
junction point. OIiers must be checked on a daily basis and If necessary topped up with the
recommended grade of oil (see TECHNICAL DATA). Where hose lengths of over 10 m are used.,
the oil supply for the fastener driving tool cannot be guaranteed, We therefore recommend that 2to
5drops (depending on the loading of the fastener driving tool)of the recommended oil (see
TECHNICAL DATA) should be added via the air inlet of the tool, or an oiler attached directly to lhe

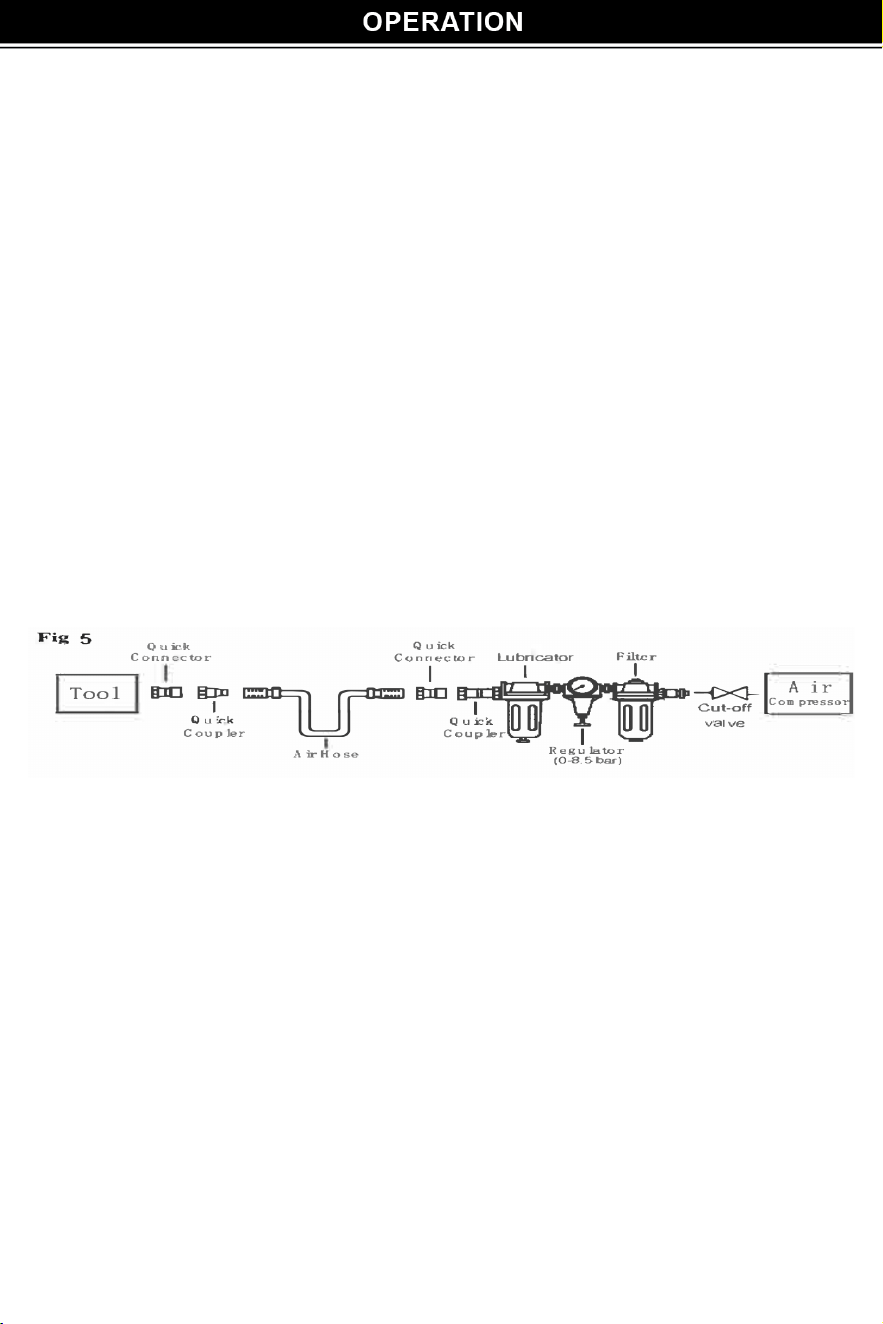

fastener driving tool. (See fig 5)
PREPARING A TOOL FOR FIRST TIME OPERATION
Please Read and observe these Operating Instruction before using the tool. Basic safety measures
should always be strictly followed to protect against damage to the equipment and personal injury to
the user or other people working in the vicinity of operation.
CONNECTION TO THE COMPRESSED AIR SYSTEM
Ensure that the pressure supplied by the compressed air system does not exceed the maximum
allowable pressure of the fastener driving tool. Set the air pressure initially to the lower value of the
recommended allowable pressure (see TECHNICAL DATA).
Empty the magazine to prevent a fastener from being ejected at the next stage of work in the event
that internal parts of the fastener driving tool are not in the starting positior following maintenance and
repair work or transportation.
Connect the fastener driving tool to the compressed air supply using suitable pressure hose equipped
with quick-action connectors.
Check for proper functioning by applying the muzzle of the fastener driving tool to a piece of wood or
wooden material and actuating the trigger once or twice.
FILLING THE MAGAZINE
Only those fasteners specified under TECHNICAL DATA (see 1.1) may be used
When filling the magazine, hold the tool so that the muzzle is not pointing towards the operator or any
other person or animals.
HANDLING THE TOOL
Pay attention to 2-Special Reference of these operating instructions.
Having checked that the fastener driving tool is functioning correctly, apply the tool to a work piece
and actuate the trigger.
Check whether the fastener has been driven into the work piece in accordance with the requirements
- if the fastener is protruding, increase the air pressure in increments of 0.5 bar, checking the result
after each new adjustment;
- if the fastener is driven into an excessive depth reduce the air pressure I increments of 0.5 bar until
the result is satisfactory. You should endeavor in any event to work with the lowest possible air
pressure. This will give you three significant advantages;
1. energy will be saved,
2. less noise will be produced,
3. a reduction in fastener driving tool wear will be achieved.
Avoid triggering the fastener driving tool if the magazine is empty. Any defective or improper1y
functioning fastener driving tool must immediately be disconnected from the compressed air supply
and passed to a specialist for inspection. In the event of longer breaks in work or at the end of the
working shift, disconnect the tool from the compressed air supply and it is recommended lo empty the
magazine. The compressed air connectors of the fastener driving tool and the hoses should be
protected against contamination. the ingress of coarse dust chips, sand etc, will result in leaks and
damage to the fastener driving tool and the couplings.
MAINTENANCE
Disconnect the tool from the compressor before adjusting, clearing jams, servicing &maintenance,
relocating and during non operation. Regular lubrication, if your tool without using the in-liner
automatic oilier, place 2 or 6 drops of pneumatic tool oil into the air inlet before each work day or after
2 hours of continuous use depending in the characteristic of workpiece or type of fasteners.
Air-operated tools must be inspected periodically, and worn or broken parts must be replaced to keep
the tool operating safely and efficiently. Check and change all worn or damaged O-ring, Seals, etc.
Tight all the screws and caps in case personal injury. This should be done by an expert.
Make regular inspection for free movement of trigger, Spring and safety mechanism to assure safe
system is complete and functional: no loose and missing parts, no building or stocking parts.
Keep magazine and nose of tool clean and free of any dirt lint or abrasive particles.
When temperatures are below freezing, tools should be kept warm by any convenient, safe method.
TROUBLESHOOTING (See table 1)
The following form lists the common operating system with problem and solutions. Please read the
form carefully and follow it. If any of the following symptoms appears during your operating, stop
using the tool immediately, or serious personal injury could result. Only a qualified persons or an
authorized service center can perform repairs or replacement of tool.
Disconnect tool from air supply before attempting repair or adjustment. When replacing O-rings or
Cylinder, lubricate with air tool oil before assembly.
SYMPTOM PROBLEM SOLUTIONS
Air leak near top
of tool or in trigger
area
1. O-ring in trigger valve is
damaged.
2. Trigger valve head are damage.
3. Trigger valve stem, seal or O-ring
are damaged.
1. Check and replace O-ring.
2. Check and replace.
3. Check and replace trigger valve
stem, seal or O-ring
Air leak near bottom
of tool.
1. Loose screws.
2. Worn or damaged O-rings or
bumper.
1. Tighten screws.
2. Check and replace O-rings or
bumper.
Air leak between
body and cylinder
cap.
1. Loose screws.
2. Worn or damaged O-rings or
seals.
1. Tighten screws.
2. Check and replace O-rings or
bumper.
Blade driving
fastener too deep.
1. Worn bumper.
2. Air pressure is too high.
1. Replace bumper.
2. Adjust the air pressure.
Tool does not
operate well: can
not drive fastener or
operate sluggishly.
1. Inadequate air supply.
2. Inadequate lubrication.
3. Worn or damaged O-rings or
seals.
4. Exhaust port in cylinder head is
blocked.
1. Verify adequate air supply. Place
2 or 6 drops of oil into air inlet.
2. Check and replace O-rings or
seal.
3. Replace damaged internal parts.
Tool skips fasteners.
1. Worn bumper or damaged spring.
2. Dirt in front plate.
3. Dirt or damage prevents fasteners
from moving freely in magazine.
4. Worn or dry O-ring on piston or
lack of Lubrication.
5. Cylinder covers seal leaking.
1. Repalce bumper or pusher
spring.
2. Clean drive channel on front
plate.
3. Magazine needs to be cleaned.
4. O-ring needs to be replaced.
And lubricate.
5. Replace Sealing washer.
Tool jams.
1. Incorrect or damaged fasteners.
2. Damaged or worn driver guide.
3. Magazine or nose screw loose.
4. Magazine is dirty.
1. Change and use correct
fastener.
2. Check and replace the driver.
3. Tighten the magazine.
4. Clean the magazine.
