CAR SIDE AWNING USER MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
1
Model: ATSA27025
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
PET STROLLER
2
SPECIFICATIONS
Model
ATSA27025
Product Size
270°×8.2ft
Color
Biege
WARNING
1. Do not attempt to set up the Awning in serious windy conditions.
2. All guy ropes must be properly attached to the Awning and pegged to the
ground at all times.
3. Keep all flame and heat sources away from the Awning materials. Under
no circumstance should any naked flame sources, fuel burning devices or
heating devices be used under or near.
4. Keep a fire extinguisher or water bucket nearby.
NOTICE
1. Clean with cold water and a soft brush-do not use soap or detergent.
2. Do not expose to petrol, oil or solvents.
3. Avoid creases and seams when rolling up the Awning.
3
COMPONENTS
270° VEHICLE AWNING X1
PVC BAG X1
MOUNTING KIT SPECIFICATION
1
Galvanized Steel Ground PEG X5
6
SS304 M8X55MM Bolt X6
2
Powder Coated Steel L-bracket X3
7
SS304 M8 Nylock Nut X12
3
Powder Coated Steel Backing Plate
X3
8
Wrench X2
4
Camping Rope X5
9
Carry Bag X1
5
SS304 M8X20MM Bolt X6
4

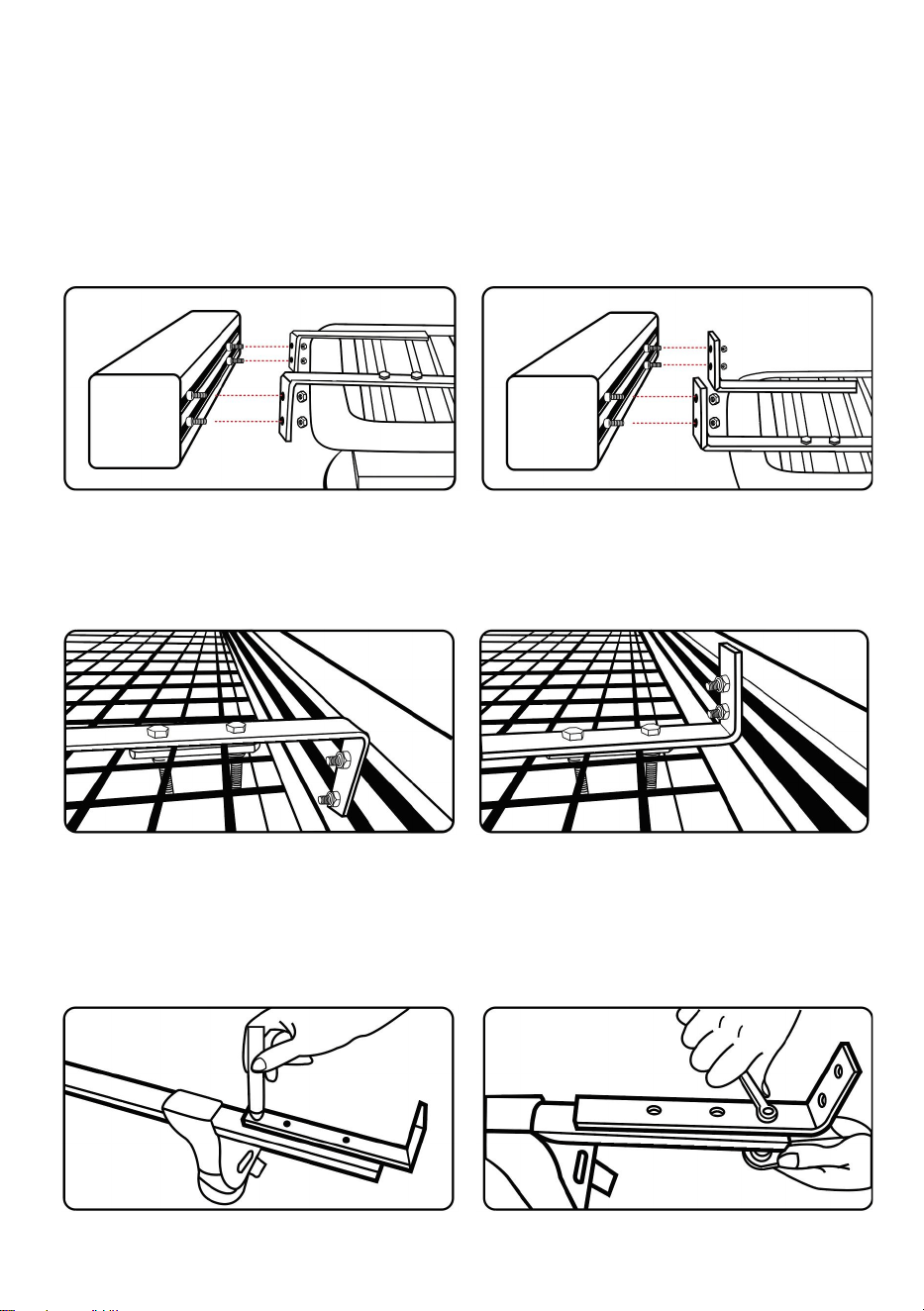

INSTALLATION
●

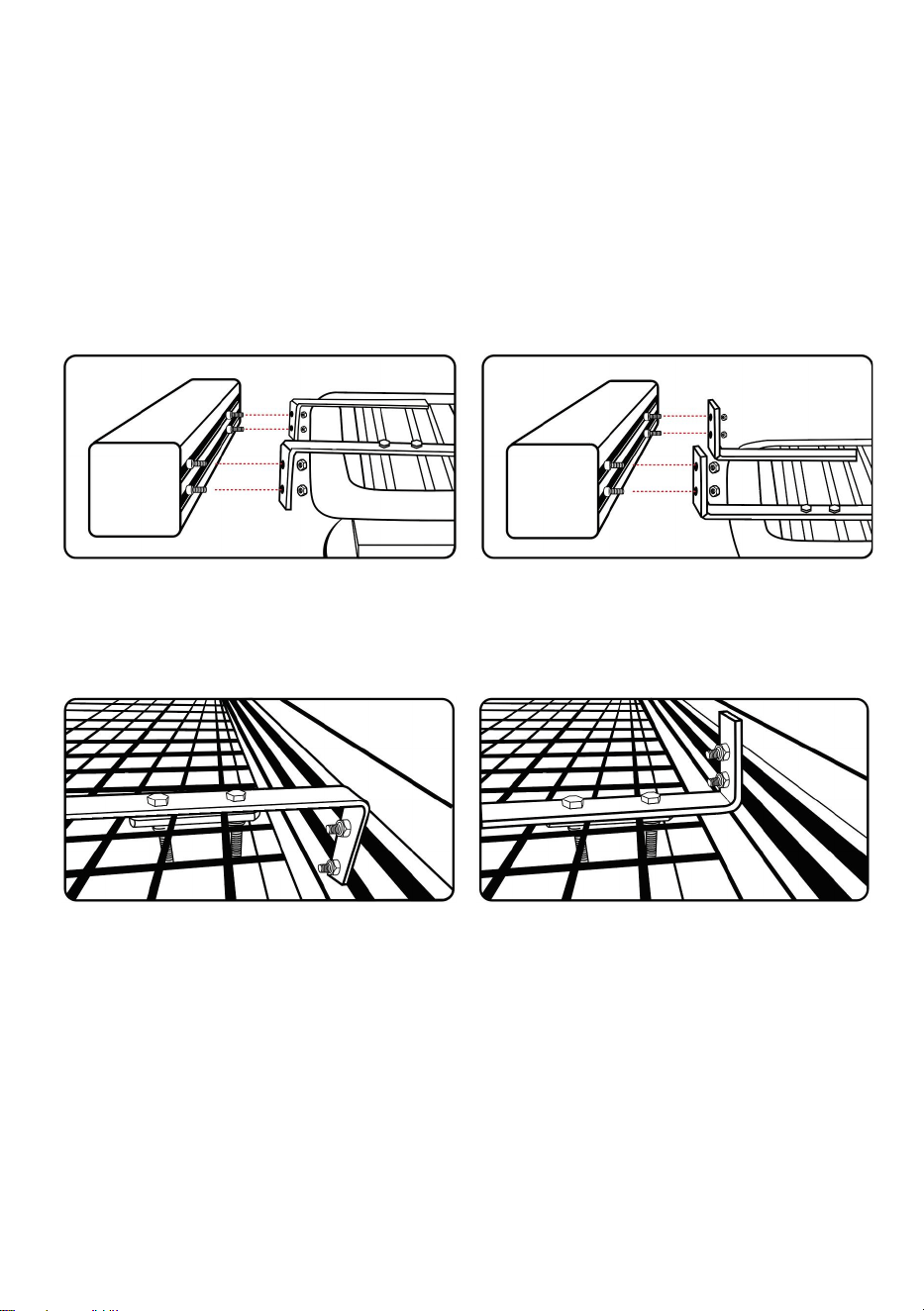

FOR ROOFTOP RACK
NOTE: You can choose option A or option B to install according to your requirement.

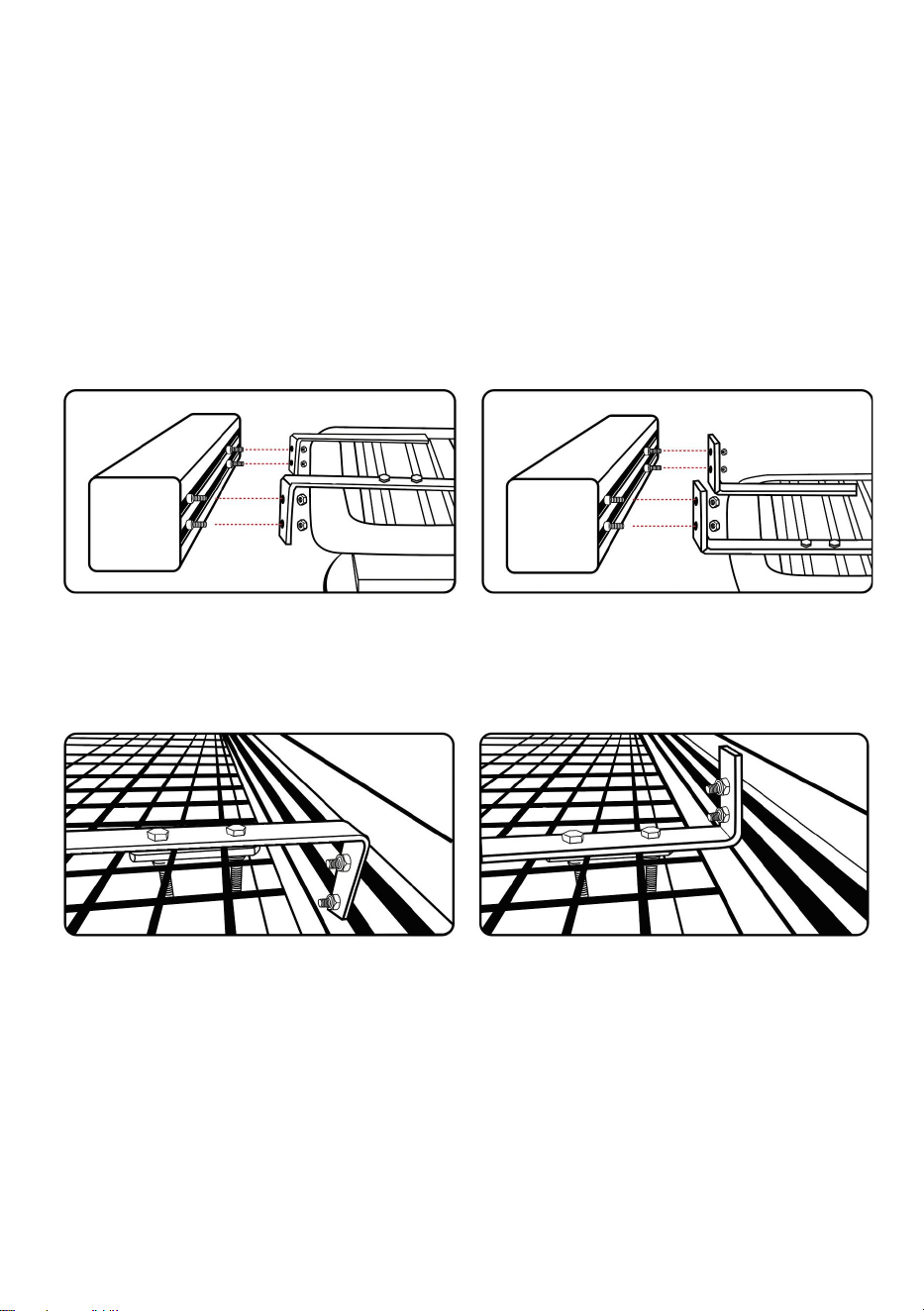

OPTION A
OPTION B
●

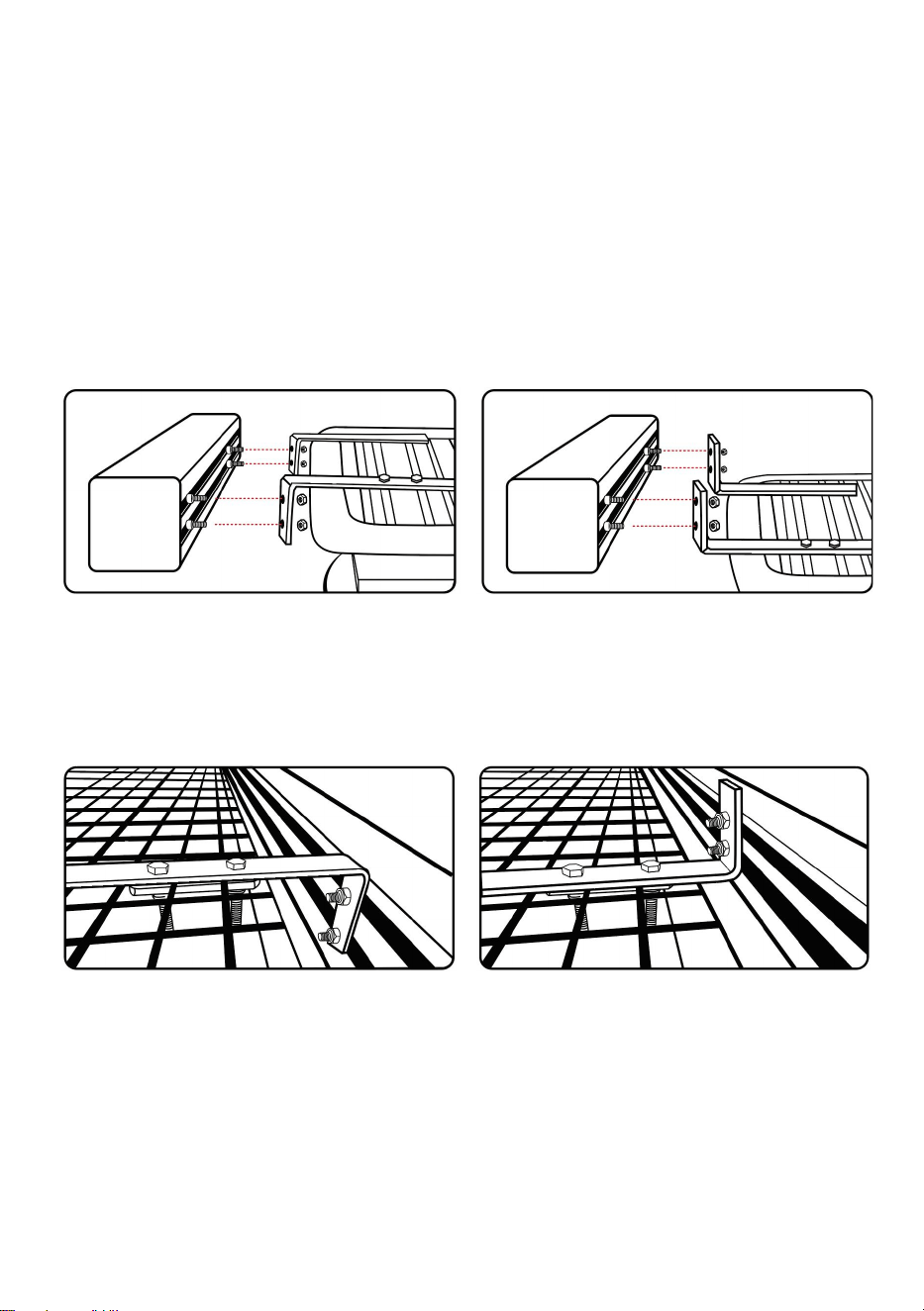

FOR ROOFTOP BASKET
NOTE: You can choose option A or option B to install according to your requirement.
OPTION A
OPTION B
●

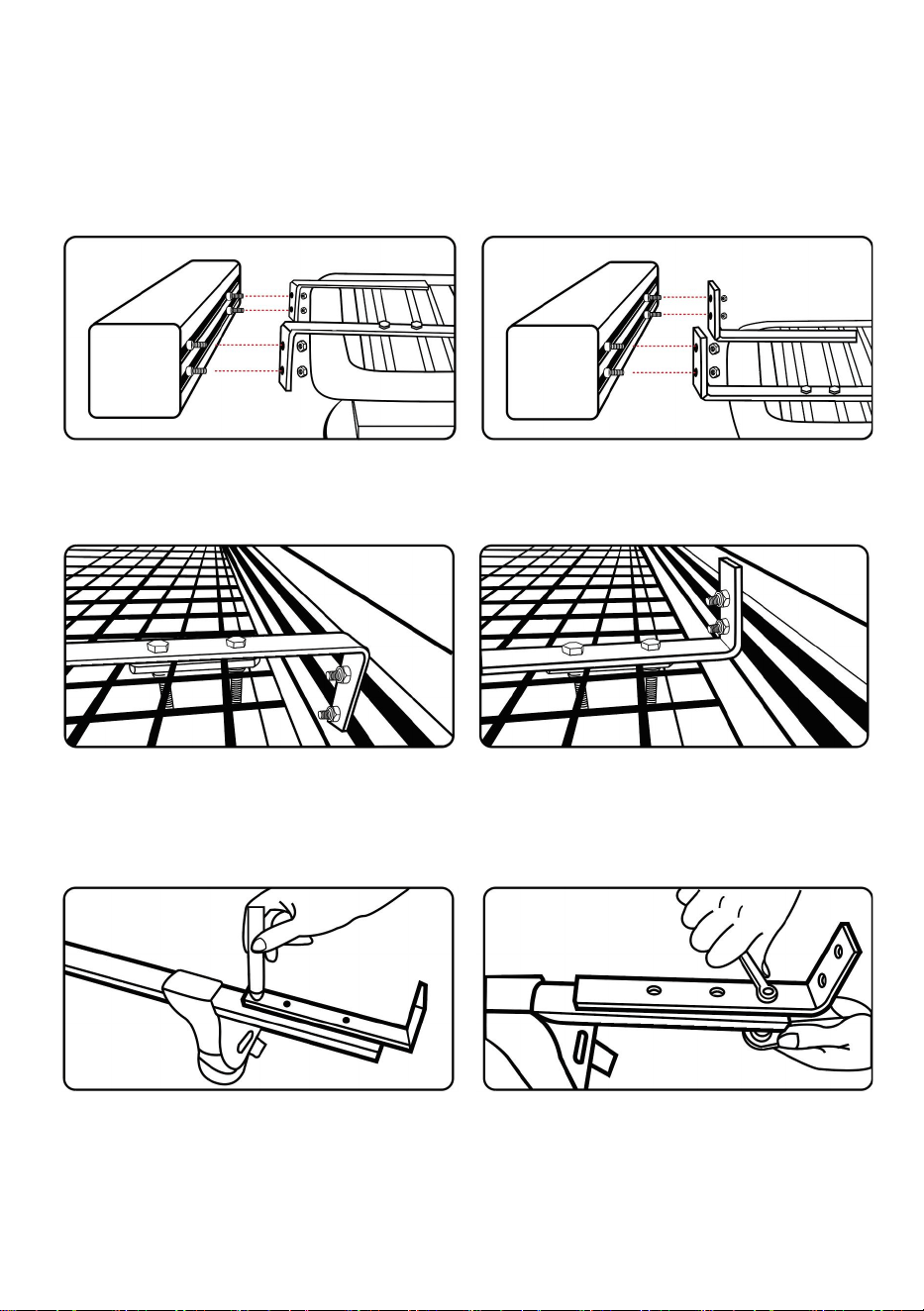

FOR CROSS BAR (DRILLING MIGHT BE NEEDED)
NOTE: If there are no holes in the cross bar, it is necessary to drill the holes before installing
the bracket.

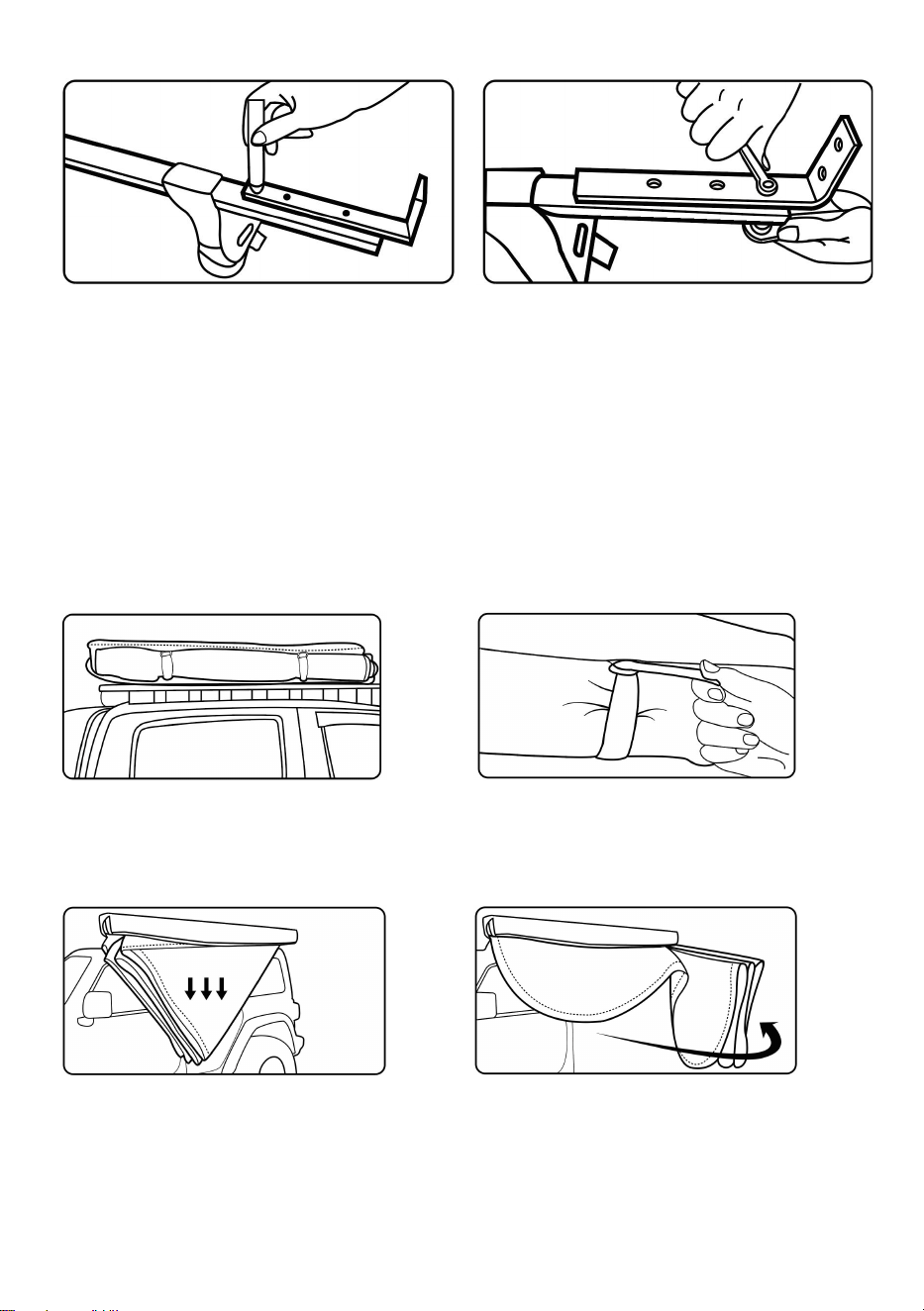

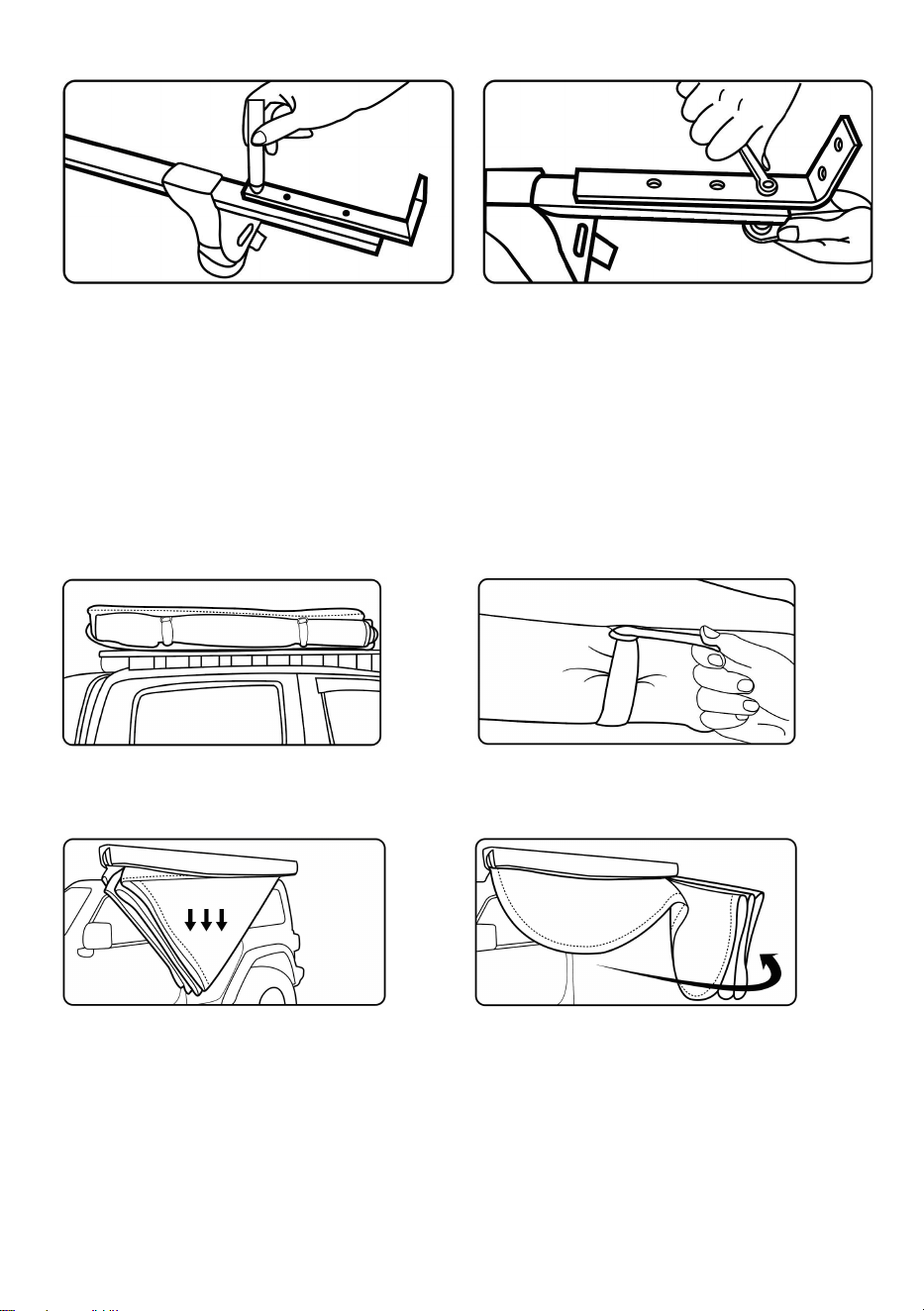

STEP 1：Cross bar drilling
STEP 2：Bracket installing
Note: Partial DIY might needed due to different fittings of rooftop rack models. Not all
provided parts are necessary to be used for installation, some of them are backups for
different models.
5
SETUP

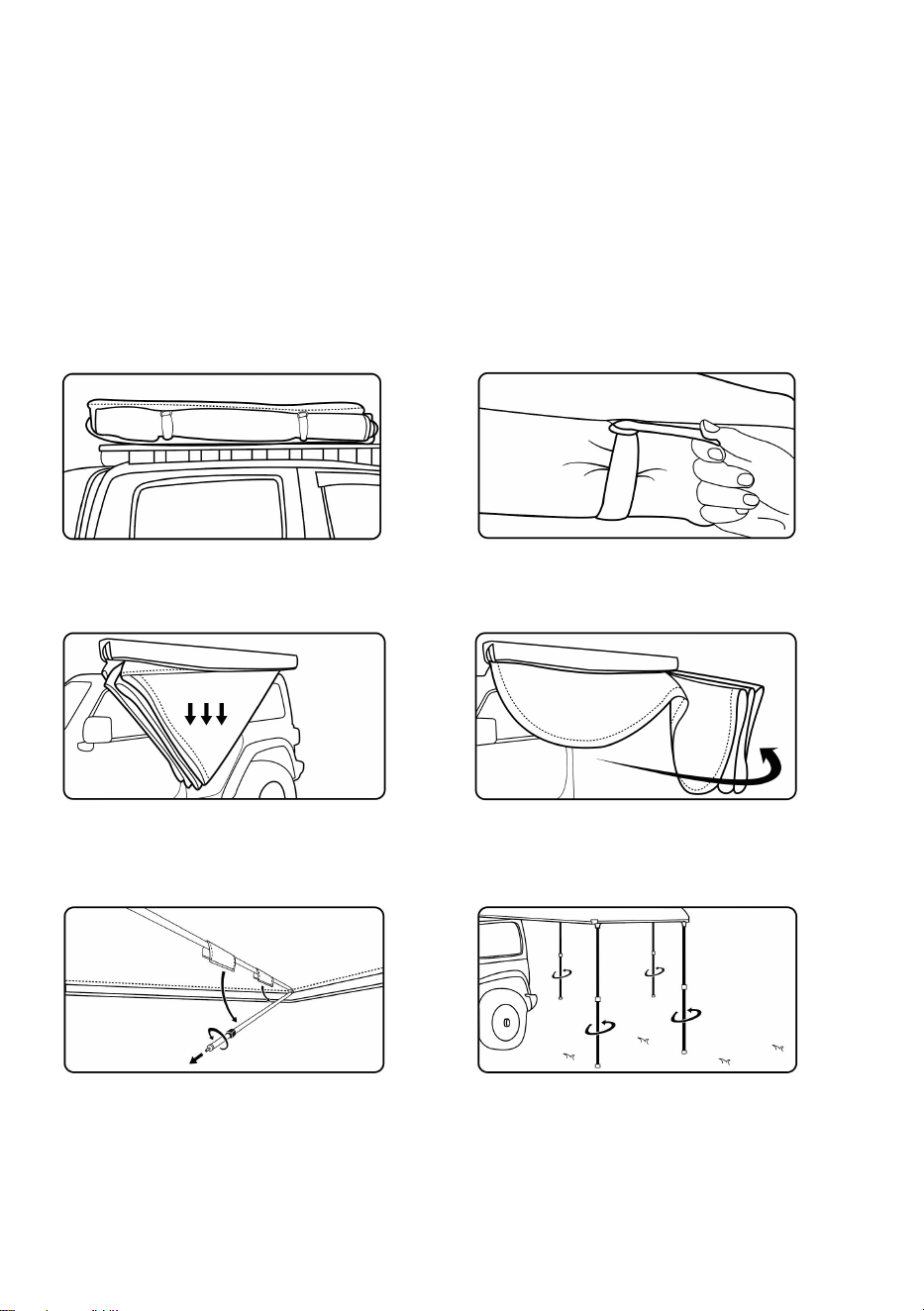

STEP1
STEP2
Unzip the PVC Protective Bag
Unhook the straps
STEP3
STEP4
Roll down
Unfold it to the vehicle rear
STEP5
STEP6
Unpack the hook & loop fasteners and
pull down the pole,spin the lower part of
the pole to extend.
Rotate the lower part of the poles to
adjust standing height
STEP7
STEP8
Tie camping ropes through joint holes
Set ground pegs and tension all ropes
6
STEP9
Finish set up and enjoy!
Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd.Suite 250, 9166 Anaheim Place, Rancho
Cucamonga, CA 91730
Made In China
REP
EC
SHUNSHUN GmbH
Römeräcker 9 Z2021,76351
Linkenheim-Hochstetten,Germany
REP
UK
Pooledas Group Ltd
Unit 5 Albert Edward House, The Pavilions
Preston, United Kingdom
