3973-20
M18™ 120' Mid-Sti Pipeline Inspection Reel
Aug. 2024
54-07-2945
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
P87A
MILWAUKEE TOOL l www.milwaukeetool.com
13135 W. Lisbon Road, Brookeld, WI 53005

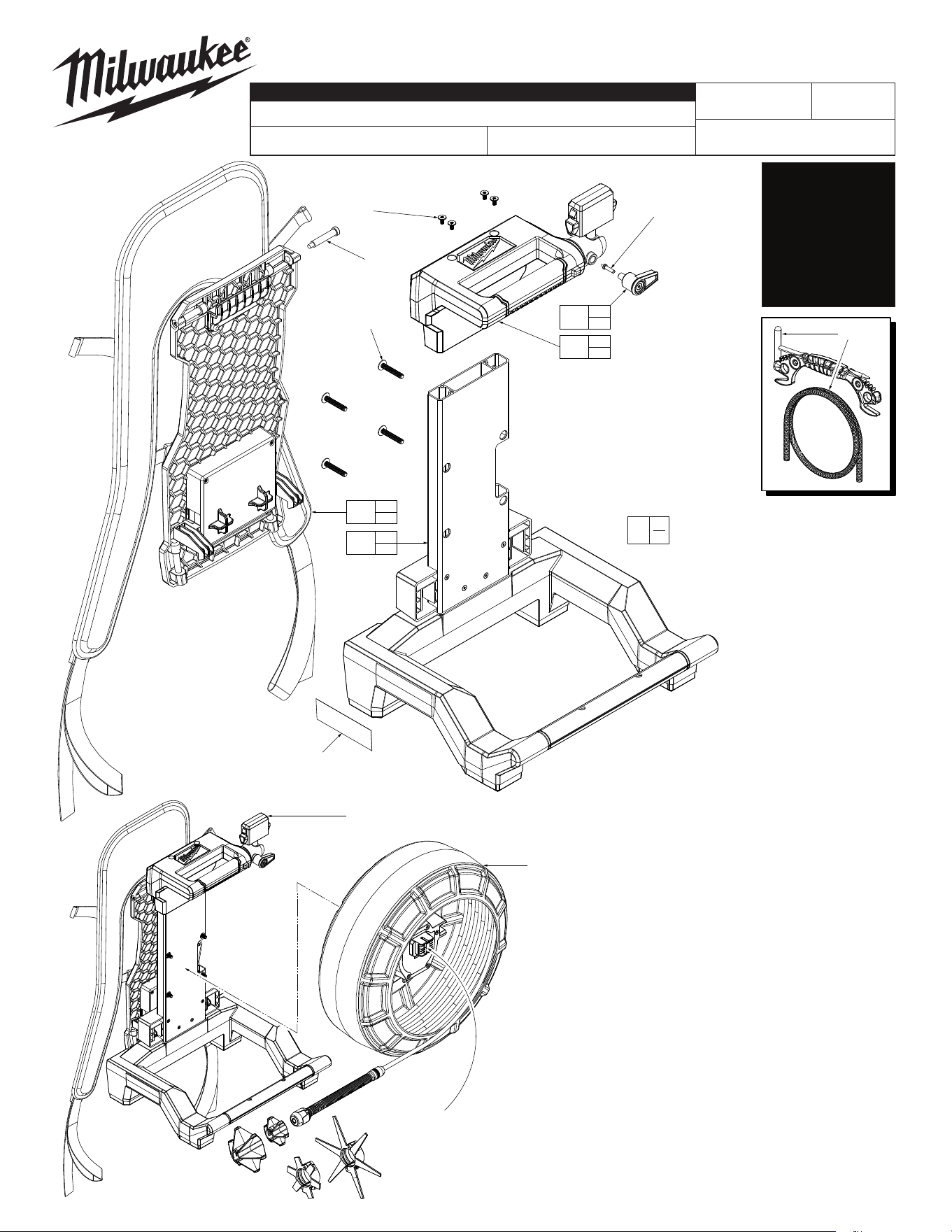

Drwg. 1
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 45-56-0021 Backpack Strap (1)
2 05-89-0545 M4 x 6mm T-20 Shoulder Screw (4)
3 05-88-0008 M5 x 45mm Cap Hd. T-25 Mach. Scr. (4)
18 05-84-0893 M6 x 35mm BTN Flg. Hd. Hex Screw (4)
38 05-78-2204 Mount Screw Wedge (1)
109 12-20-0279 Service Nameplate (1)
200 31-44-0248 Small Handle Service Kit (1)
202 28-06-0018 Small Reel Base Service Kit (1)
208 28-10-0120 Reel Monitor Clamp Knob Service Kit (1)
212 23-94-0052 Ground Wire Stake Service Kit
(1)
214 43-11-0024 Small Reel Backpack Service Assy. (1)
For Smart Hub
2970-20:
Refer to Service
Bulletin 54-07-2900
For Monitor
2971-20:
Refer to Service
Bulletin 54-07-2905
212
2
(4x)
3
(4x)
18
(4x)
109
2
208
200
38
38
208
18
109
202
3
214
Monitor Attaches Here
Smart Hub Attaches Here

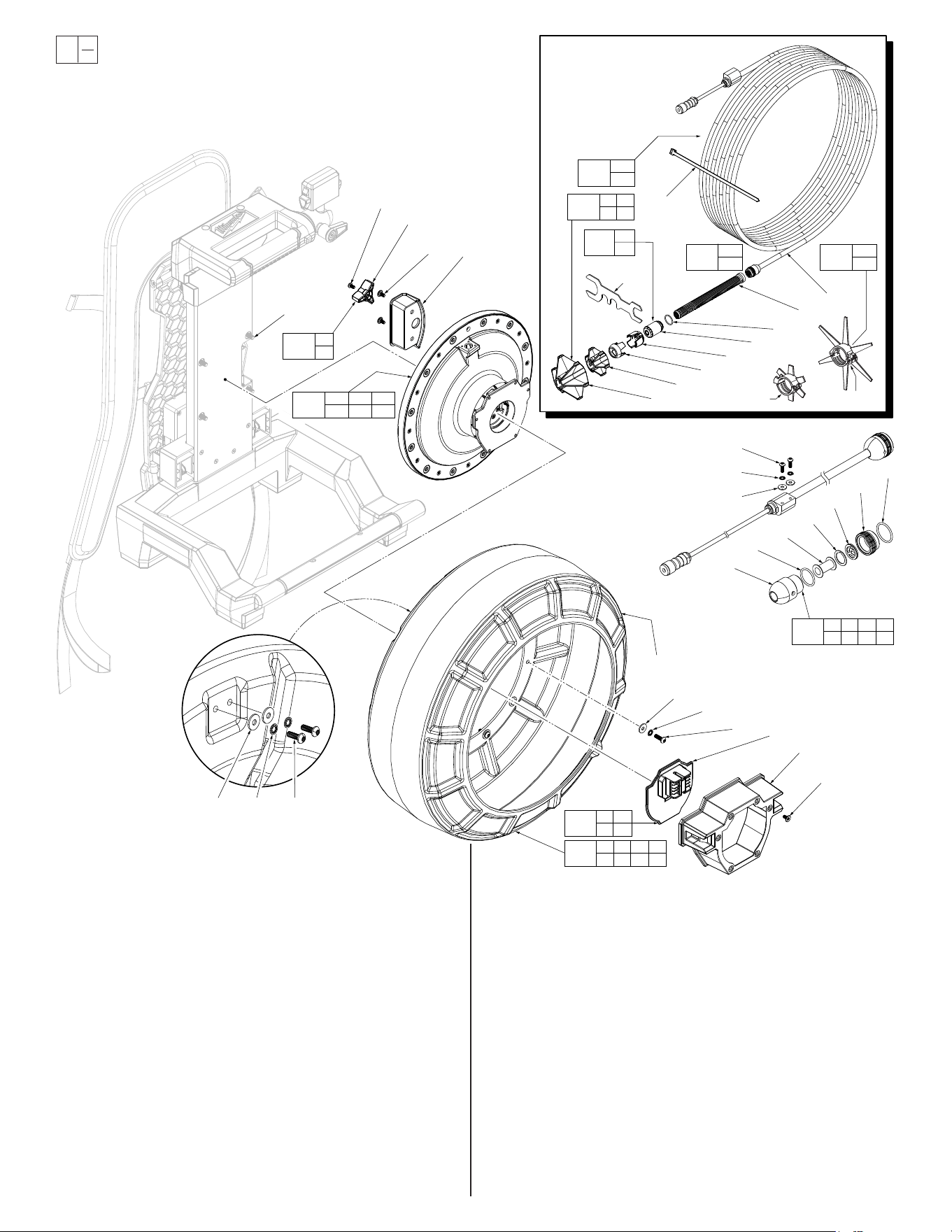

See page two for service parts breakdown regarding
the Small Reel Drum/Camera Cable System
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
2 05-89-0545 M4 x 6mm T-20 Shoulder Screw (8)
5a 34-40-0221 O-Ring (1)
5b --------------- Spring Body (1)
5c --------------- Circuit Board (1)
5d --------------- Foam (1)
5e --------------- Coil (1)
5f --------------- O-Ring (1)
5g --------------- Housing (1)
18 05-84-0893 M6 x 35mm BTN Flg. Hd. Hex Screw (4)
44 --------------- Hub Mount Skirt (1)
45 --------------- Hub Mount Garn Base (1)
51 05-83-0008 M4 x 12mm Pan Hd. T-20 Screw (2)
53 --------------- Drum-Small (1)
54 06-97-3703 M4 Flat Washer (2)
55 06-97-3704 M4 Internal Tooth Lock Washer (2)
57 05-83-0006 M5 x 16mm Pan Hd. T-25 Screw (12)
58 06-97-3702 M5 Internal Tooth Lock Washer (12)
59 06-97-3700 M5 Flat Washer (12)
85 --------------- Brake Cover (1)
86 --------------- Brake Knob (1)
87 05-83-0009 M4 x 8mm Pan Hd. T-20 Screw (1)
90 --------------- Cable Camera 120' (1)
91 --------------- Quick Change Spring Attachment (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
92 --------------- D25 Camera (1)
93 --------------- D25 Rear Sleeve (1)
94 --------------- D25 Front Sleeve (1)
95 23-78-0115 7.5" Cable Tie (3)
96 28-52-0012 Camera Head Wrench (1)
98 --------------- D25 Skid for 3" Pipe (1)
99 --------------- D25 Skid for 6" Pipe (1)
110 34-40-0224 O-Ring (1)
118 --------------- D25 Small Star Skid (1)
120 --------------- D25 Large Star Skid (1)
204 43-48-0021 D25 Skid and Sleeve Service Kit (1)
205 43-11-0026 Small Reel Counter Service Kit (1)
206 31-50-0071 Small Reel Hub Mount Service Kit (1)
207 31-50-6152 Small Drum Service Kit (1)
209 14-47-0043 Brake Knob Service Kit (1)
210 14-46-0765 120' Cable Camera/Drum Service Kit (1)
211 48-53-3973 D25 HDR Camera Service Kit (1)
215 14-46-0775 D25 Retermination Service Kit (1)
217 40-50-0271 Quick Change Spring Attachment Assy. (1)
218 42-96-0023 D25 Star Skid Service Kit (1)
95
(3x)
96
99
98
94
93
92
91
90
53
59
(12x)
58
(12x)
57
(12x)
45
44
2
(6x)
87
86
2
(2x)
85
18
(4x)
54
(2x)
55
(2x)
51
(2x)
51 53 54 55
57 58 59 95
207
2 44
45
206
2 18 85
206 209
205
86
87
209
93 94
98 99
204
92
96
211
90
207
210
5a 5b 5c 5d
5e 5f 5g
215
5a
5b
5c
5d
5e
5f
5g
51(2x)
55(2x)
54(2x)
110
91
110
217
118 120
118
120
218
