CC6363
USER’S
GUIDE
Cautions
CAUTION: To prevent electric shock, match wide blade of plug to
wide slot, fully insert.
ATTENTION: Pour éviter les chocs électriques, introduire la lame
la plus large de la fiche dans la borne correspondante de la prise et
pousser jusqu au fond.
To reduce risk of injury, charge only rechargeable batteries recom-
mended by the manufacturer for this camcorder. Other types of
batteries may burst causing damage and personal injury.
FCC Regulations state that unauthorized changes or modifications to
this equipment may void the user’s authority to operate it.
Product Registration
Please fill out the product registration card and return it immediately.
Returning this card allows us to contact you if needed.
Keep your sales receipt for proof of purchase to obtain warranty parts
and service and attach it here. Record the serial number and model
numbers located on the bottom of the camcorder.
WARNING: To reduce the risk of fire or shock hazard, do not expose
camcorder or AC adapter/charger to rain or moisture.
Important Safety Information
Be sure to read all the safety information before you begin to use this product.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
This symbol indicates “dangerous voltage”
inside the product that presents a risk of electric
shock or personal injury.
This symbol indicates important instructions
accompanying the product.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER
(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
Model No: _______________________________
Serial No: _______________________________
Purchase Date: _______________________________
Purchased From: _______________________________
CAUTION
ATTENTION
i
CC6363
1
We want to make sure you enjoy your new camcorder. If you have any
questions, call:
Camcorder Exchange Warranty...........800-283-6503 (pages 75-76 )
Customer Service...................................800-336-1900 (page 74)
Accessories............................................. 800-338-0376 (pages 61-66)
Assistance
Table of Contents
First-Time Operation .................. 3
Assistance ..................................... 3
Power Your Camcorder............. 12
Adapter/Charger.............................. 12
Rechargeable Battery ...................... 13

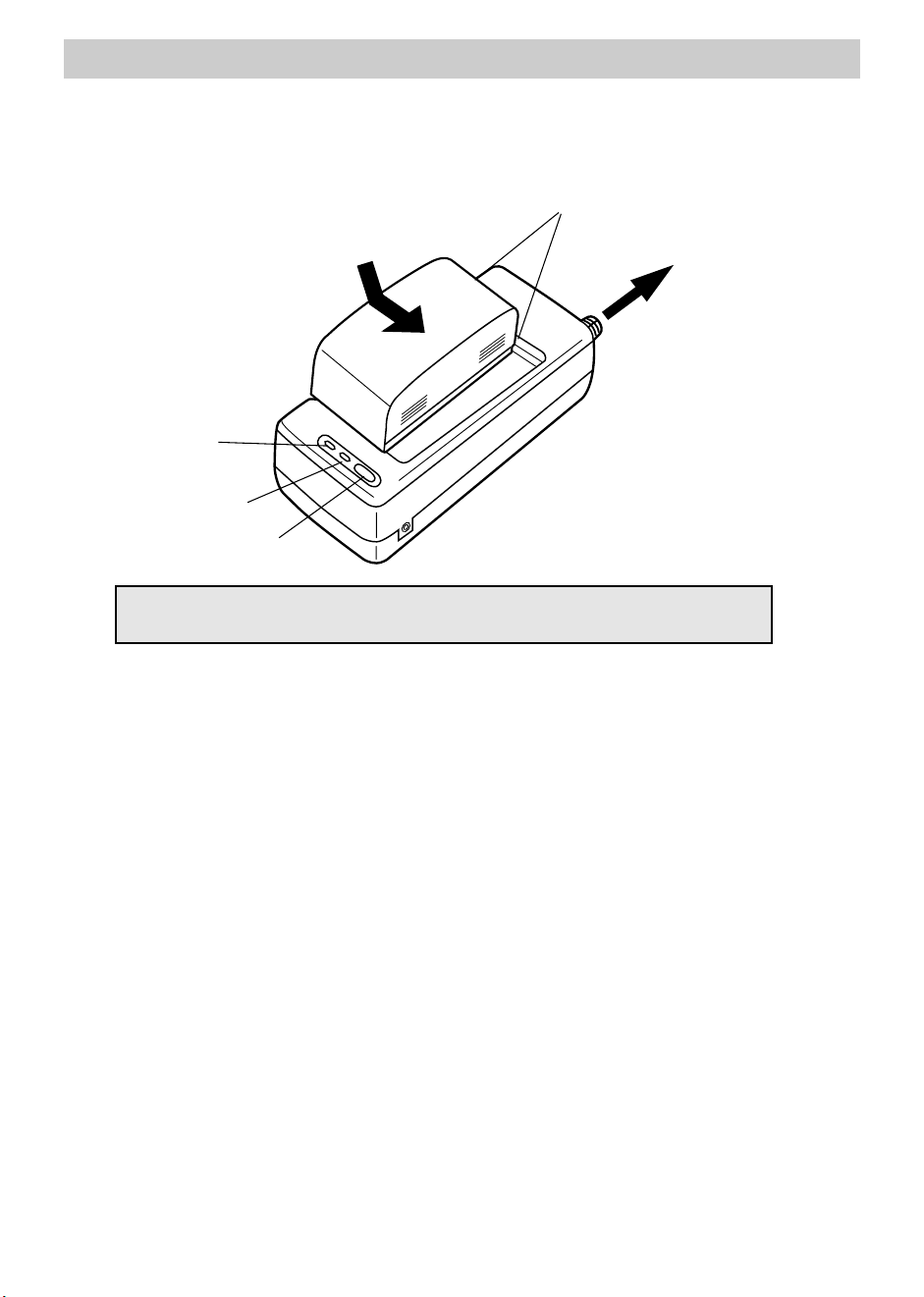

Charge the Battery ...................... 14
Battery Level Indicator............... 15
Battery Care and Storage ............ 15

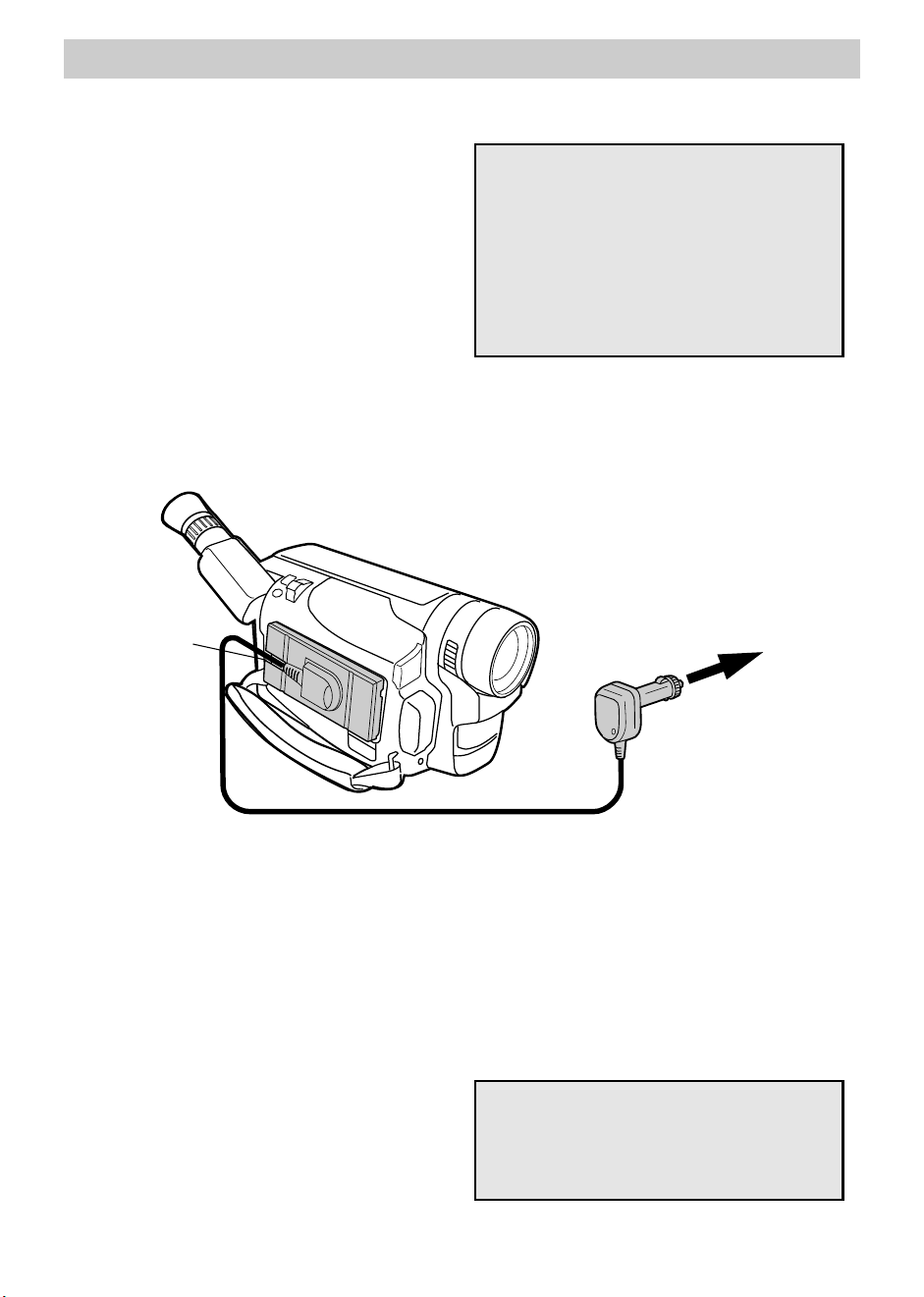

Optional Car Cord Adapter ............. 16
Date and Time Display ............. 17

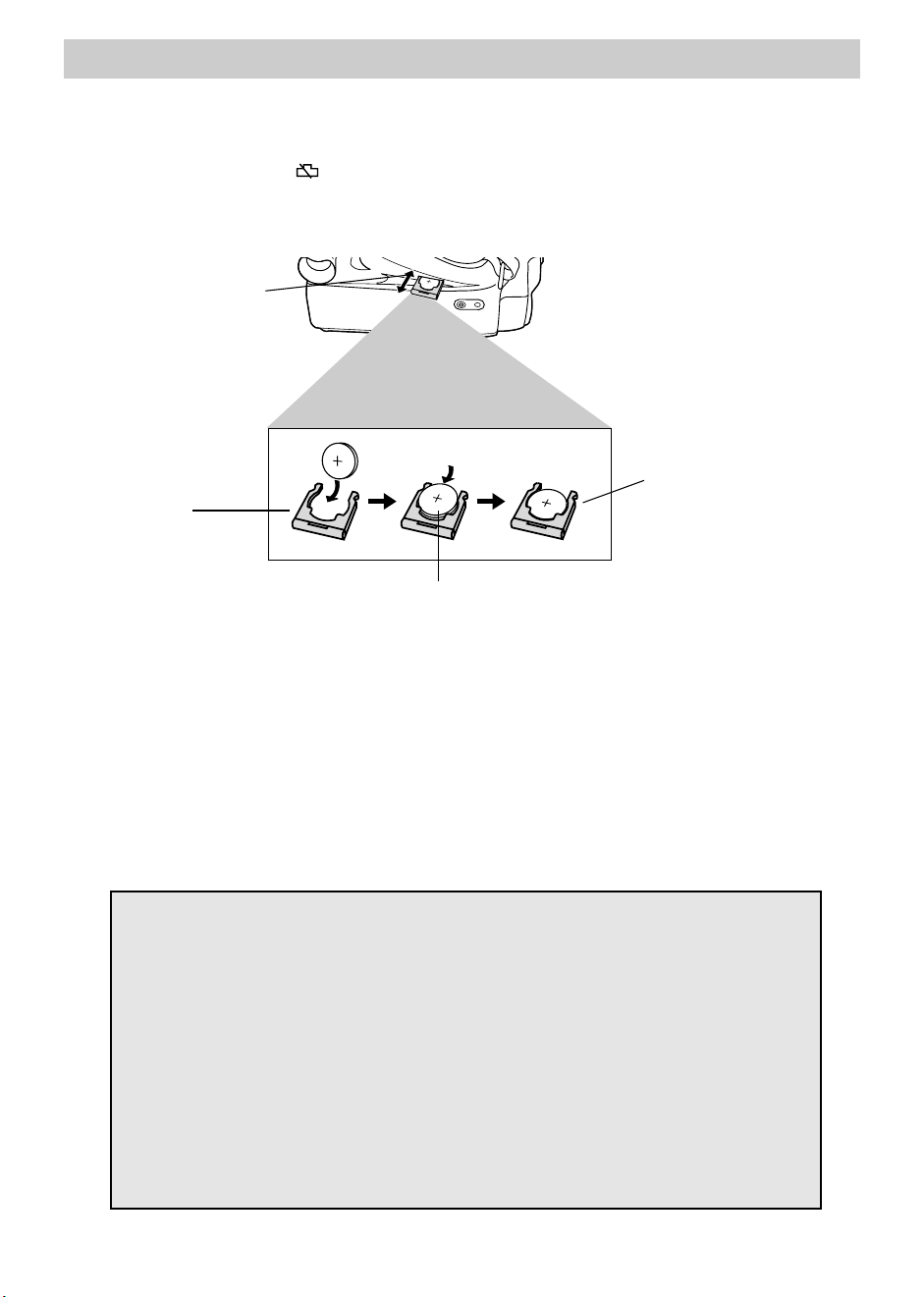

Install the Clock Lithium Cell ........ 17
Set the Date and Time ..................... 18
Record AUTO DATE, Date, Time, and
Title Displays ............................... 20
Videocassettes............................. 22
Erase Protection – Safety Tab .... 22
Recording and Playback
Speeds and Times .................... 22
Insert and Remove Cassettes ...... 23
Cassette Care and Storage .......... 23
Recording ................................... 24
Time-Remaining Display ................ 24
Select a Tape Length .................. 24

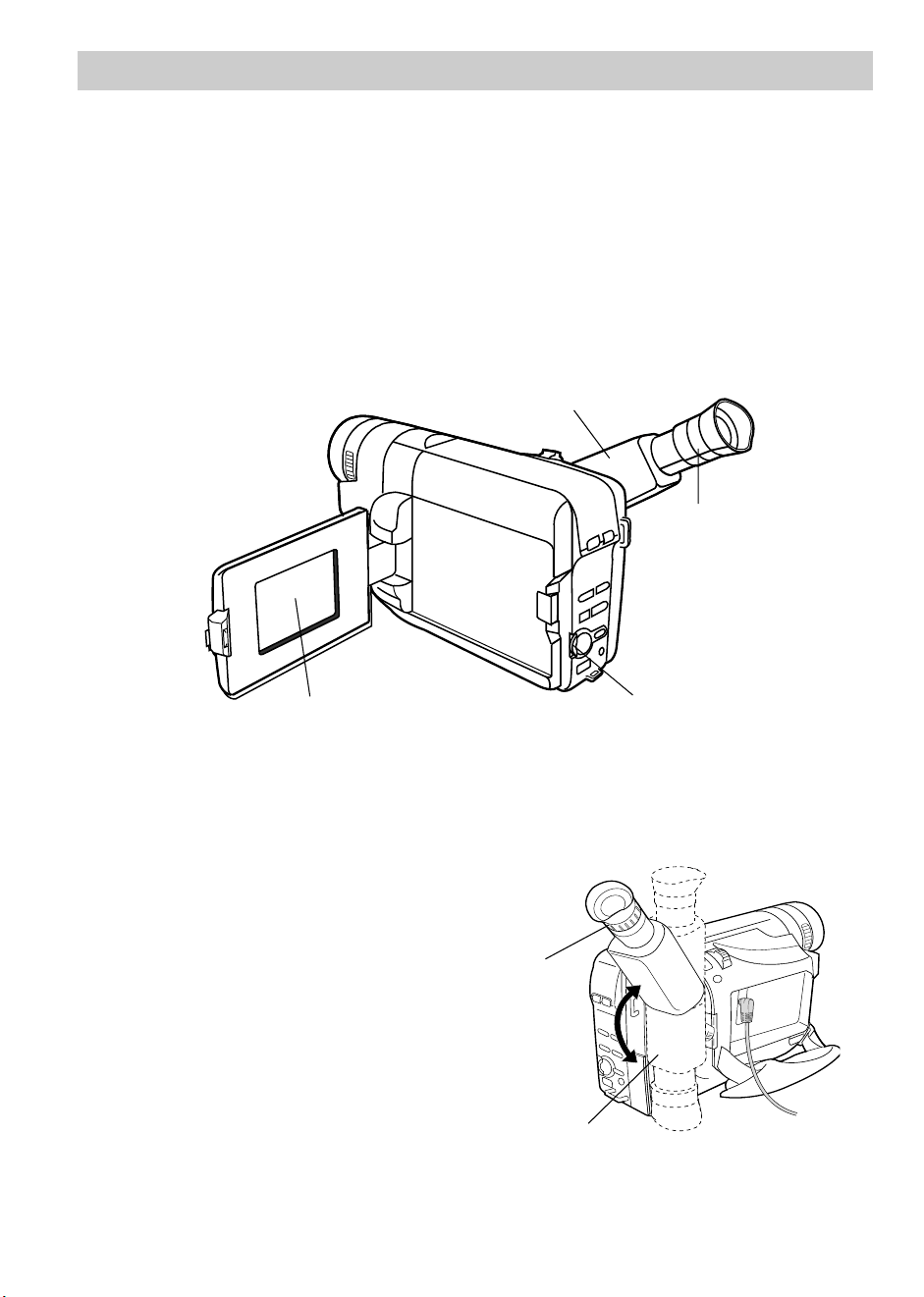

Use the LCD Monitor or Viewfinder
to See What You Record .............. 26
Use the LCD Monitor ................. 26
Use the Viewfinder ..................... 27
LCD Monitor and Viewfinder
Displays ........................................ 28
AutoShot™ Mode ........................... 32
Five-Second Record Feature ........... 33
Quick Review Feature .................... 33
Camera Edit Feature ....................... 33
Flying Erase Head ........................... 33
MENU/DISPLAY Button ................. 33
Zooming .......................................... 34
Use the Zoom Lever (W and T) . 34
Digital Zooming ......................... 34
Tele Macro Zooming .................. 35
Focusing .......................................... 36
Auto Focus ................................. 36
Manual Focus ............................. 37
2
Table of Contents
White Balance ................................. 38
Auto White Balance ................... 38
Manual White Balance ............... 38
Exposure Control ............................ 40
Manual Exposure ........................ 40
Auto Exposure ............................ 40
Steady Pix™ Feature ...................... 41

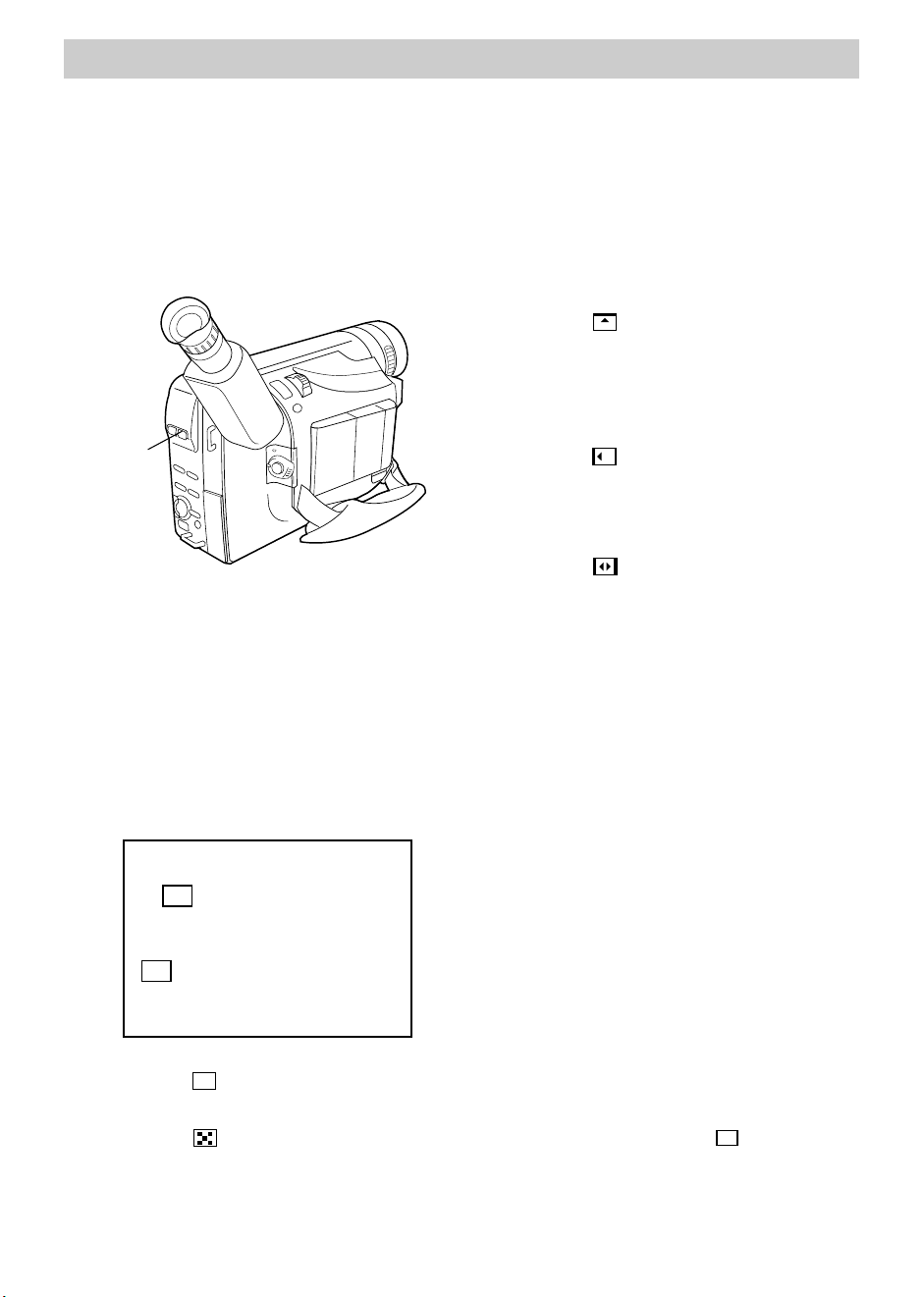

Fade or Wipe In or Out ................... 42

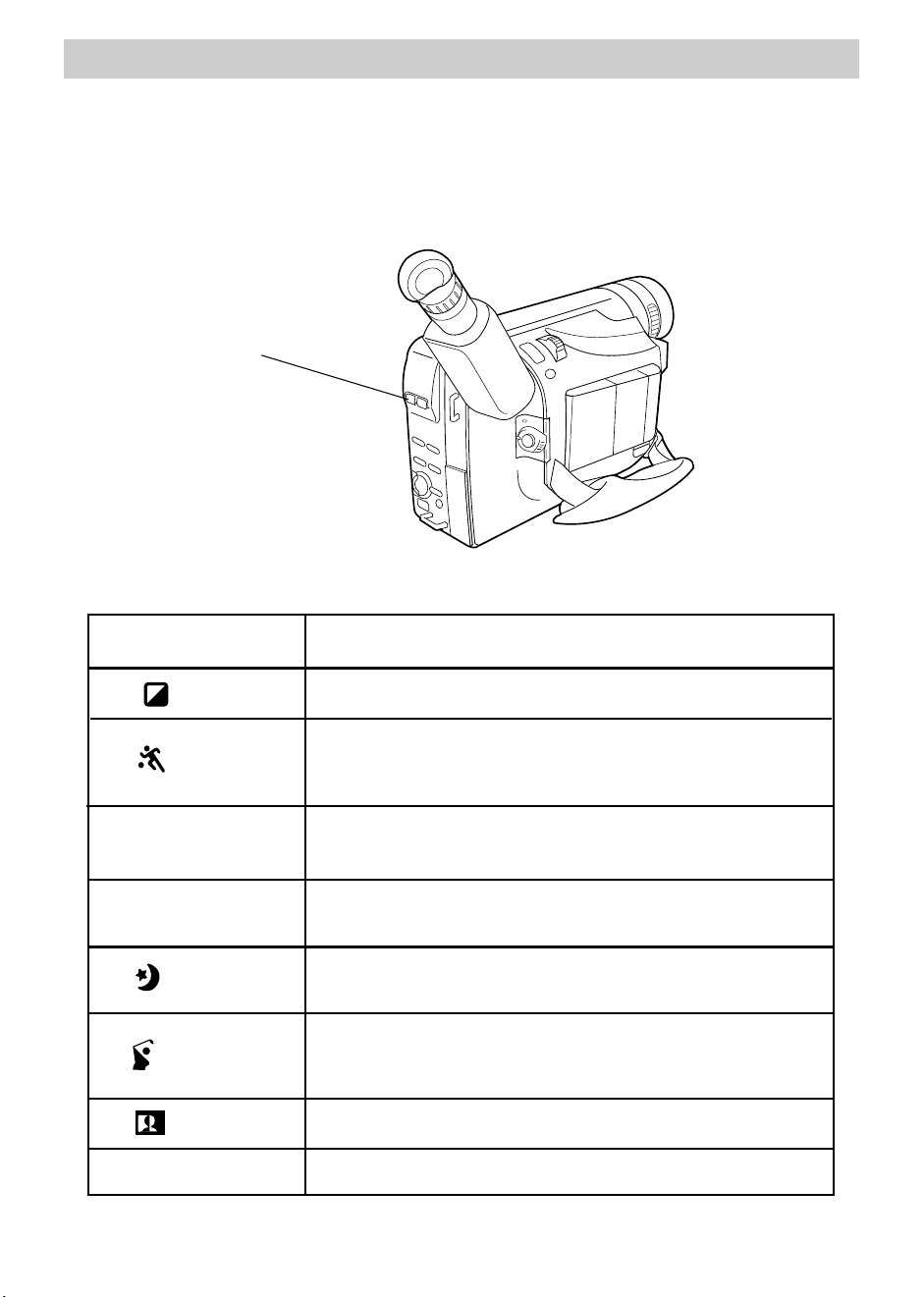

P. (Program) AE Button .................. 44

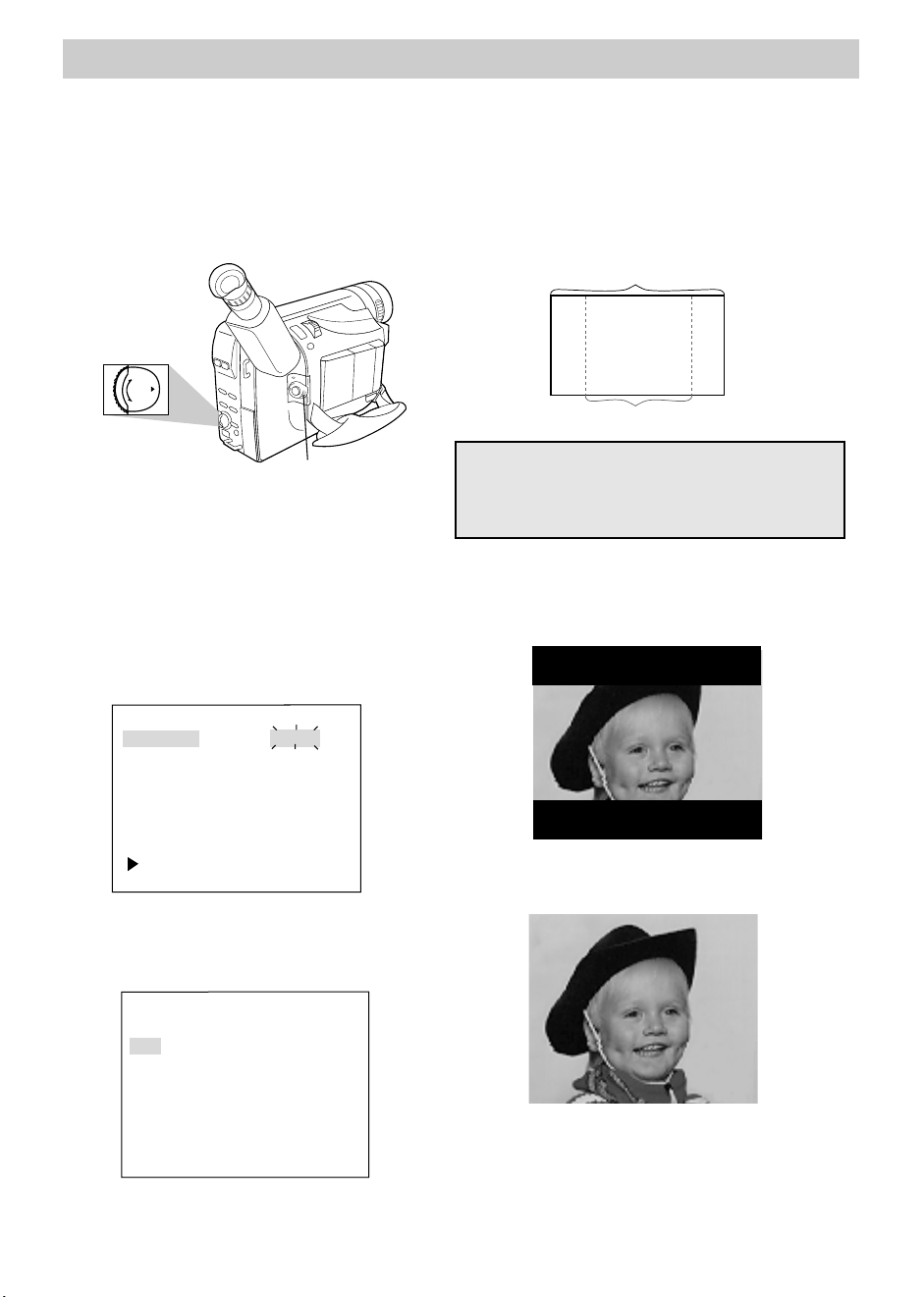

16X9 Mode ..................................... 45
Preset Titles ..................................... 46
Select a Language for the Title ... 46
Record a Preset Title .................. 47
Animation Recording ...................... 48
Time-Lapse Recording .................... 50
Demo Mode .................................... 52
Attach the Shoulder Strap ............... 53

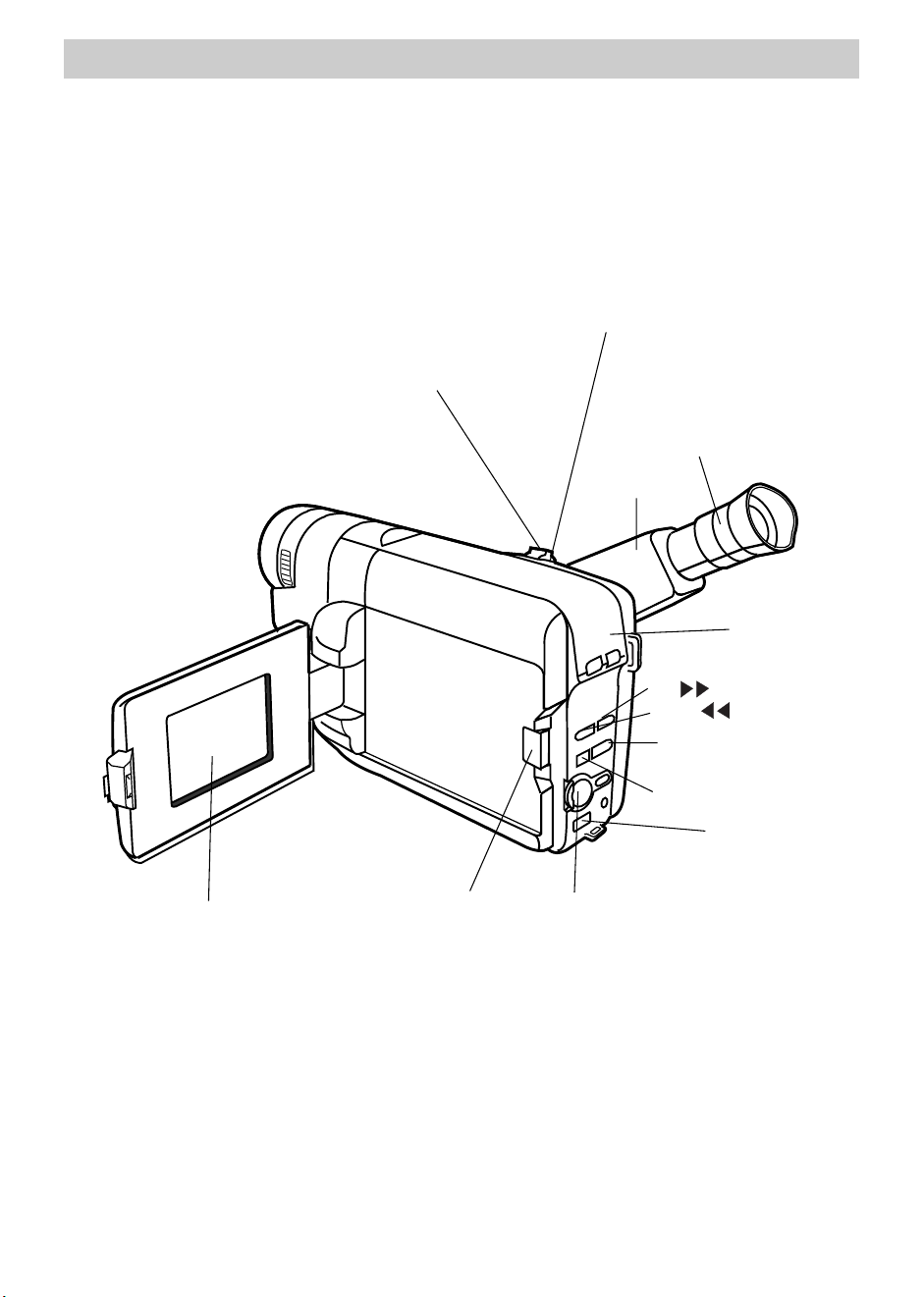

Playback ..................................... 54
Use the LCD Monitor or
Viewfinder for Playback .............. 54
To Play Back a Tape ................... 55
Playback Features .......................... 56
Position the Tape ........................ 56
Visual Search .............................. 56
Stop-Action Pause ...................... 56
Time Counter .............................. 57
Tracking ...................................... 57
TBC (Time Base Corrector) ....... 57
Playback on TV (or VCR) with
Audio/Video Inputs ...................... 58
Recording Tips ........................... 60
Traveling Tips ............................ 60

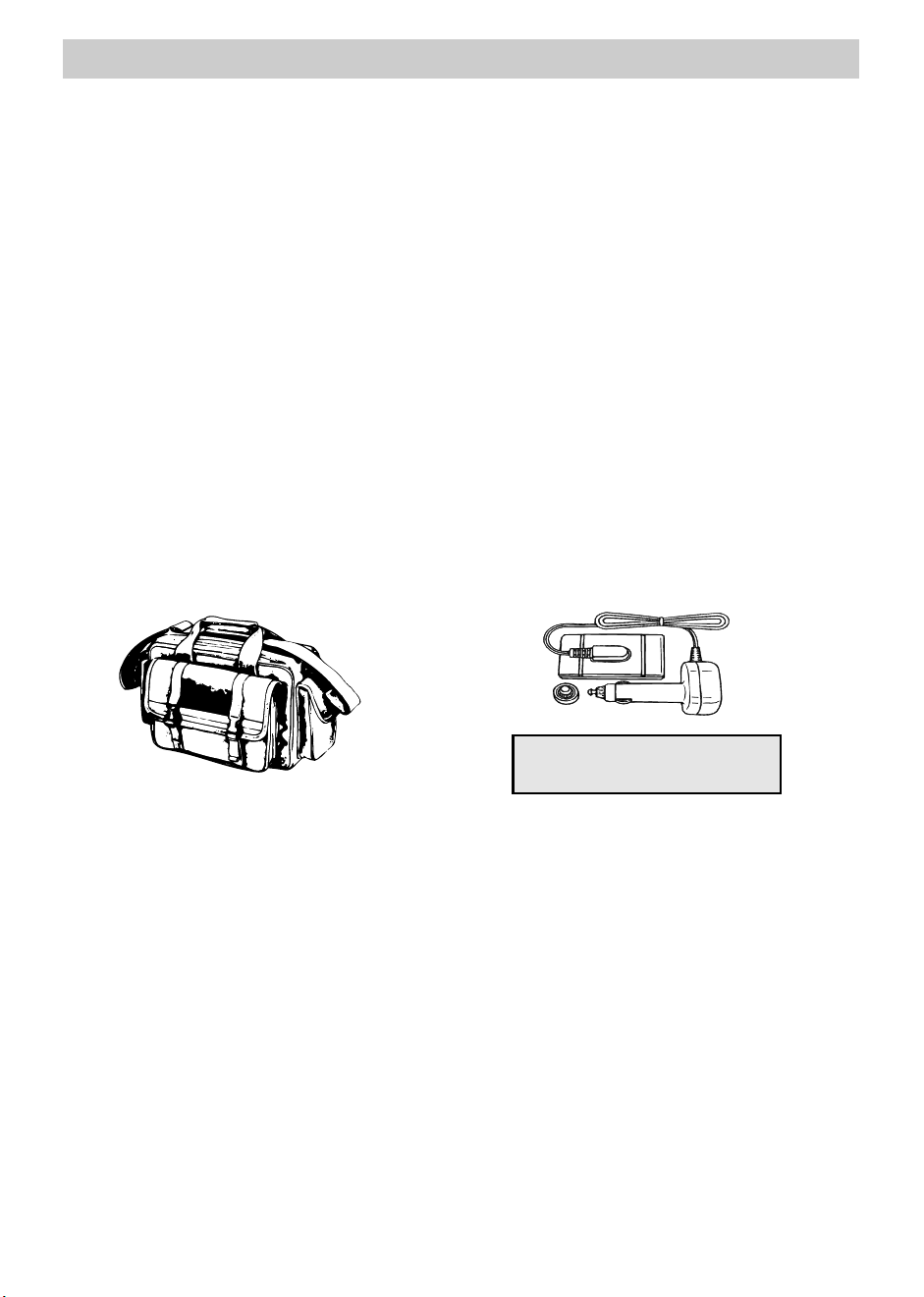

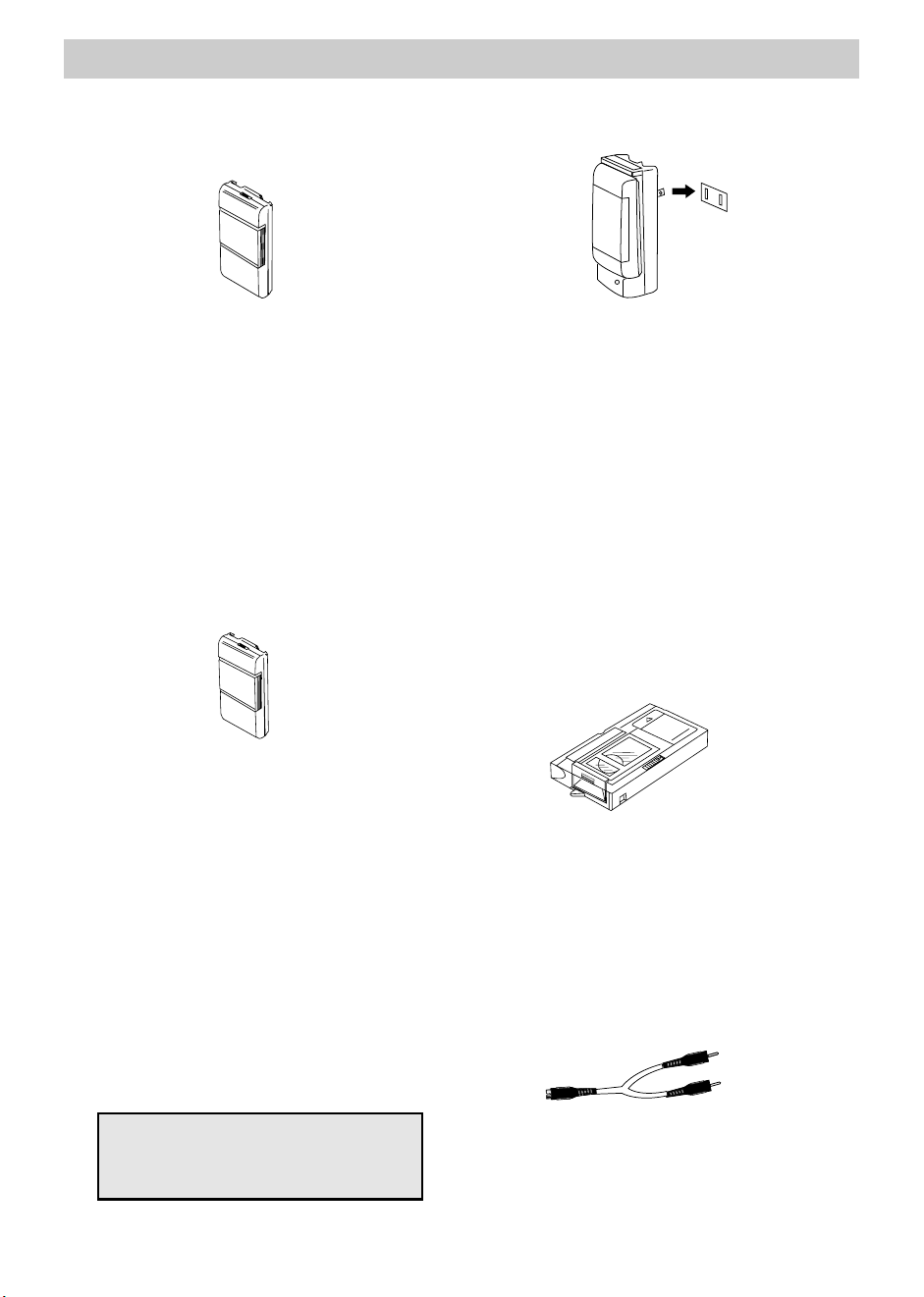

Optional Accessories .................. 61

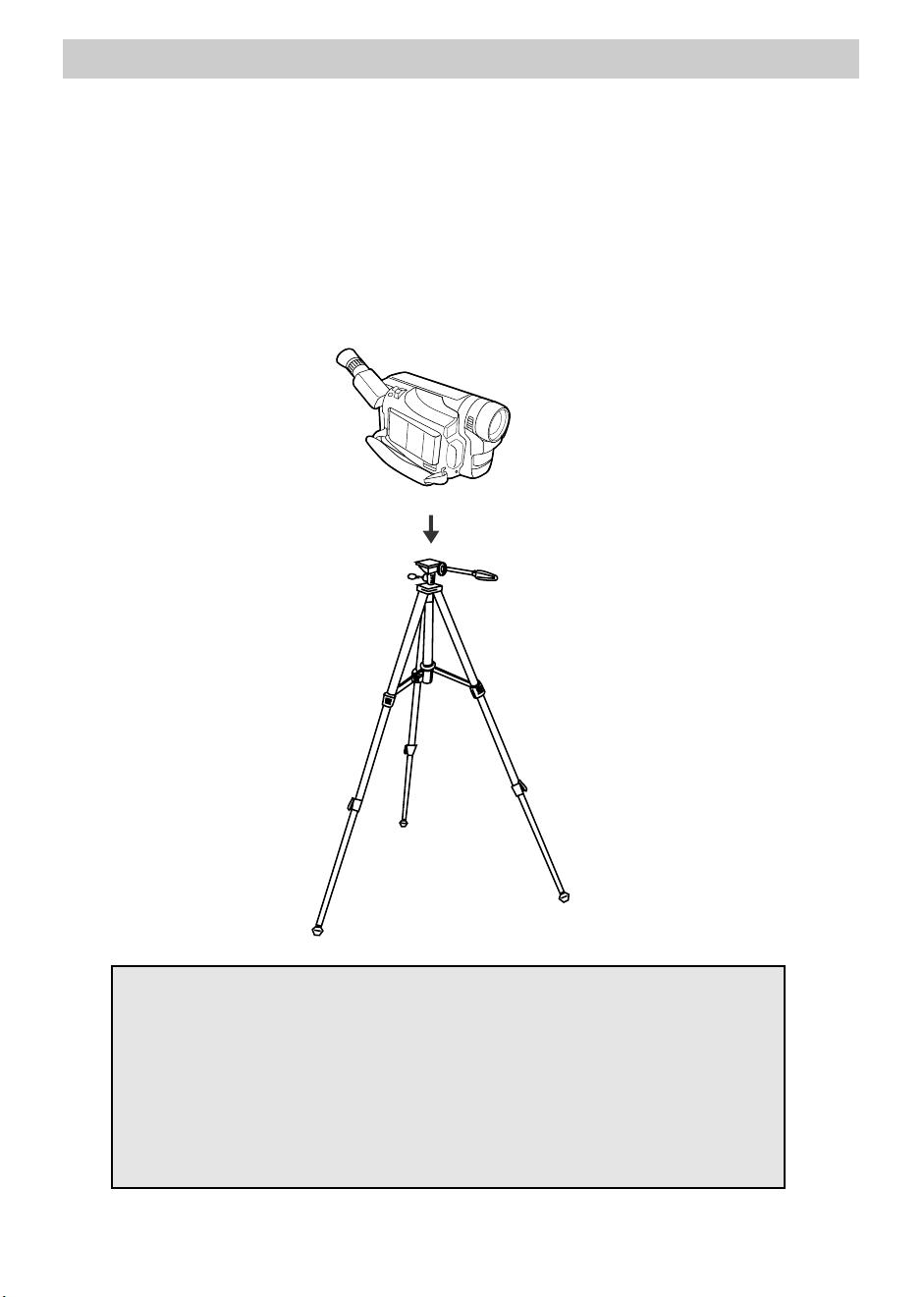

Using the Optional AC088
Tripod ........................................ 63
Order Form for Camcorder Model
CC6363 .................................... 65
Trouble Checks .......................... 67
Specifications.............................. 71
Clean the Camcorder ...................... 72
Clean the Camcorder’s Lens ........... 72
Clean the Camcorder’s LCD
Monitor......................................... 72
Clean the Camcorder’s
Viewfinder .................................... 72
Proper Care and Storage ................. 73
Things to Avoid ............................... 73
Customer Assistance and
Service ...................................... 74
Limited Warranty ...................... 75
Index ........................................... 77
Information to User ................... 81
First-Time Operation
3
Assistance
1. Unpack the camcorder and accessories.
• Save the packing materials and box in case you ever need to ship or store your
camcorder.

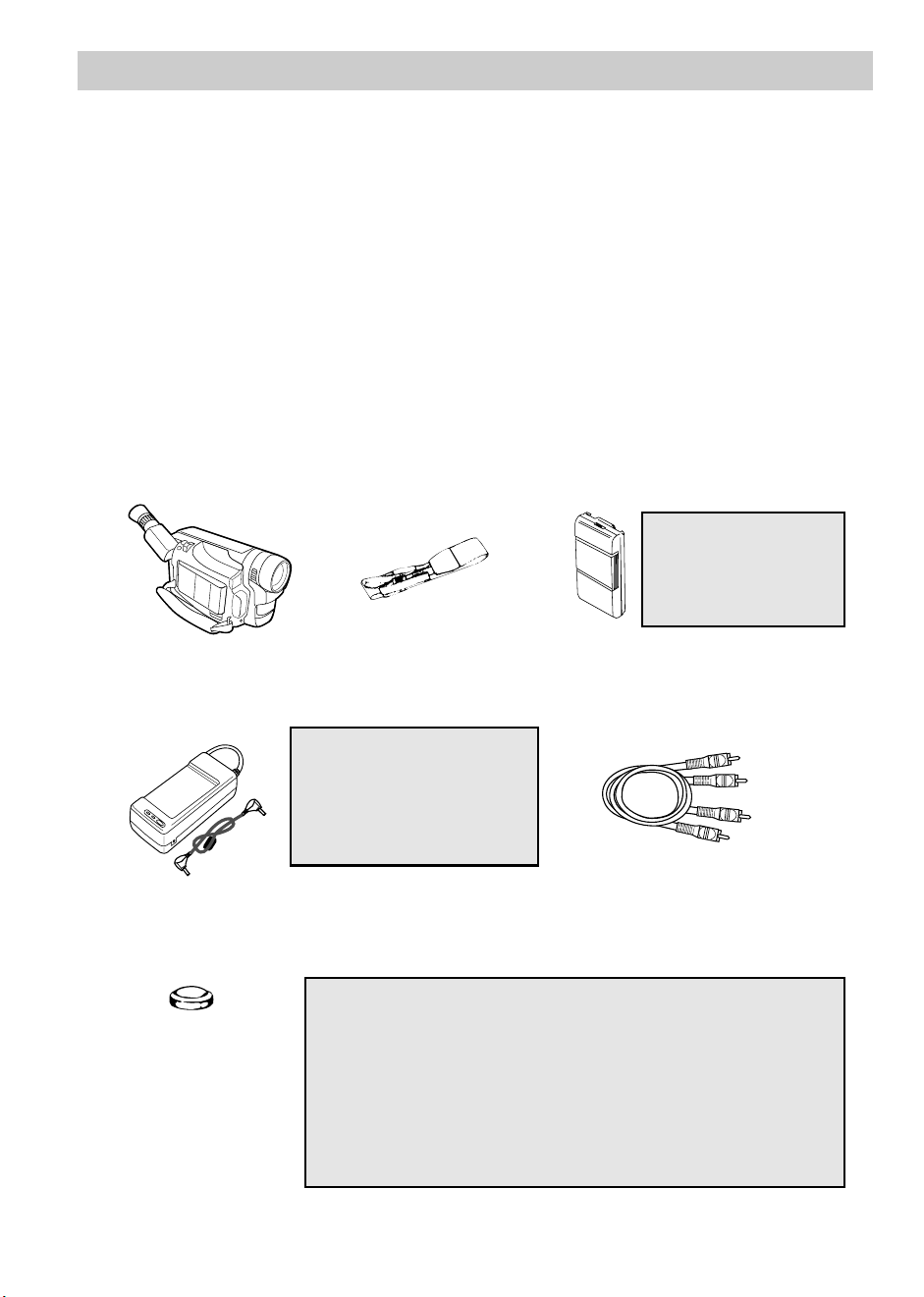

• The items shown below are packed with your camcorder. If any are missing or
appear damaged, contact your dealer immediately.
This section describes the steps necessary to set up your camcorder to record. Refer to
the other sections for detailed operation and feature options.
Assistance
The toll-free numbers are available to help you with any problem you may encounter.
Camcorder Exchange Warranty...............800-283-6503
Customer Service................................... 800-336-1900
Accessories............................................. 800-338-0376
Caution: Do not use this
adapter/charger for any
purpose other than charging
the FB1260, or BB99L battery
pack or supplying power to the
camcorder.
Model CC6363
Rechargeable Nickel Cadmium Battery
Part No FB1260
Audio/Video Cable
Part No. VH83
AC Adapter/Charger -- Part No. 242740
and DC Cable -- Part No. 244268
CAUTIONS: Lithium cell must be disposed of properly. Never handle
punctured or leaking cell. May cause burns or personal injury.
Keep out of the hands of children. Can cause death or injury if swallowed.
If swallowed, consult a physician immediately for emergency treatment.
The lithium cell used in this device may explode resulting in a fire or
chemical burn if mistreated. Do not recharge, disassemble, heat above
212°F (100°C), or incinerate.
Never use metallic tweezers to hold the cell, and never short circuit the +
and – sides of the cell.
Clock Cell
3-Volt Micro Lithium
Cell – such as CR2025 –
available from most local
drug stores and camera
shops. Use of other cells
present a risk of fire or
explosion.
WARNING: NICKEL
CADMIUM BATTERY
MUST BE RECYCLED
OR DISPOSED OF
PROPERLY.
Shoulder Strap
Part No. ACS091
(Continued on next page)
First-Time Operation
4
First-Time Operation

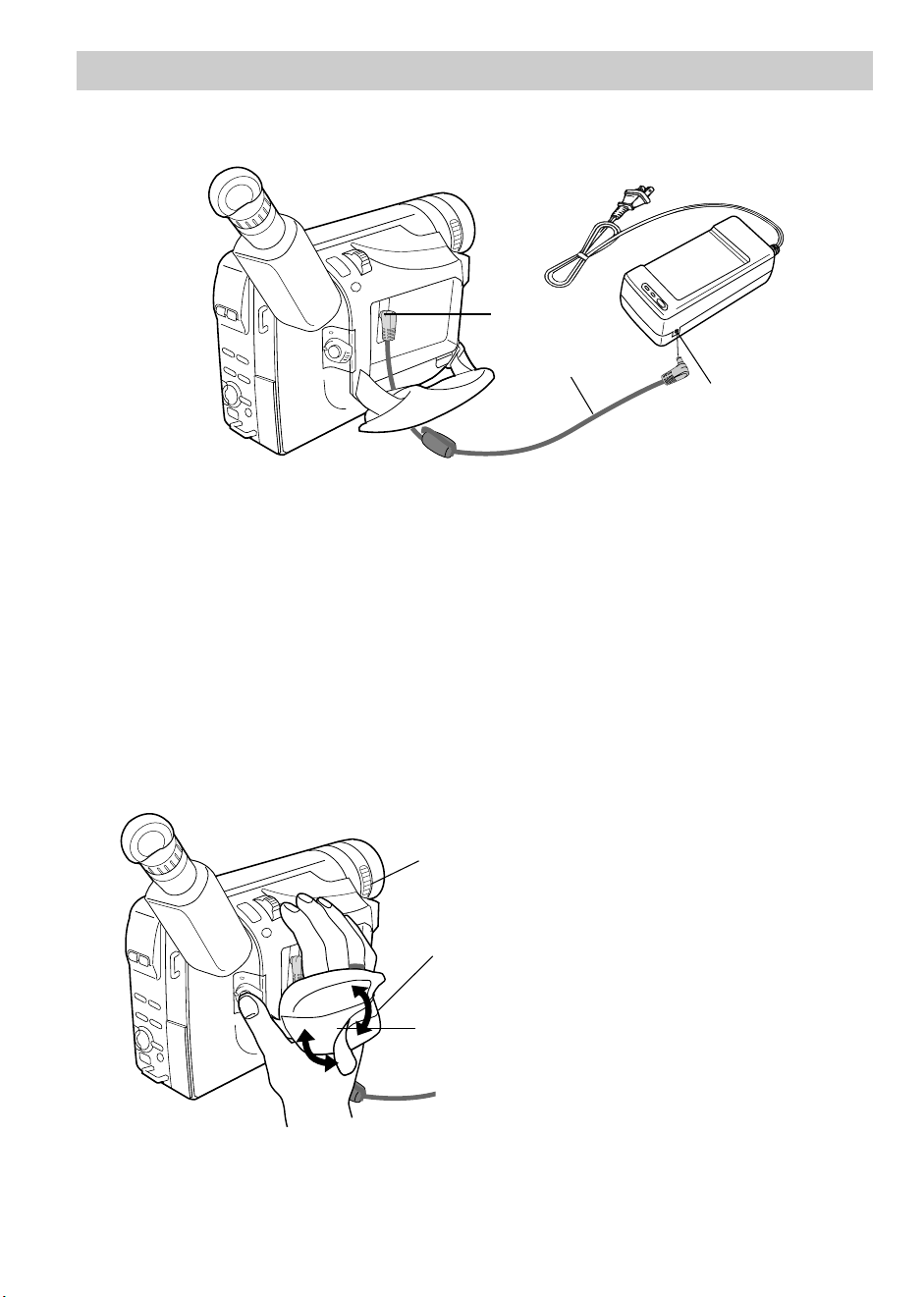

3. Adjust the handstrap to fit your hand.
LENS
COVER
Control
Handstrap
Handstrap Velcro
Strip (Under Flap)

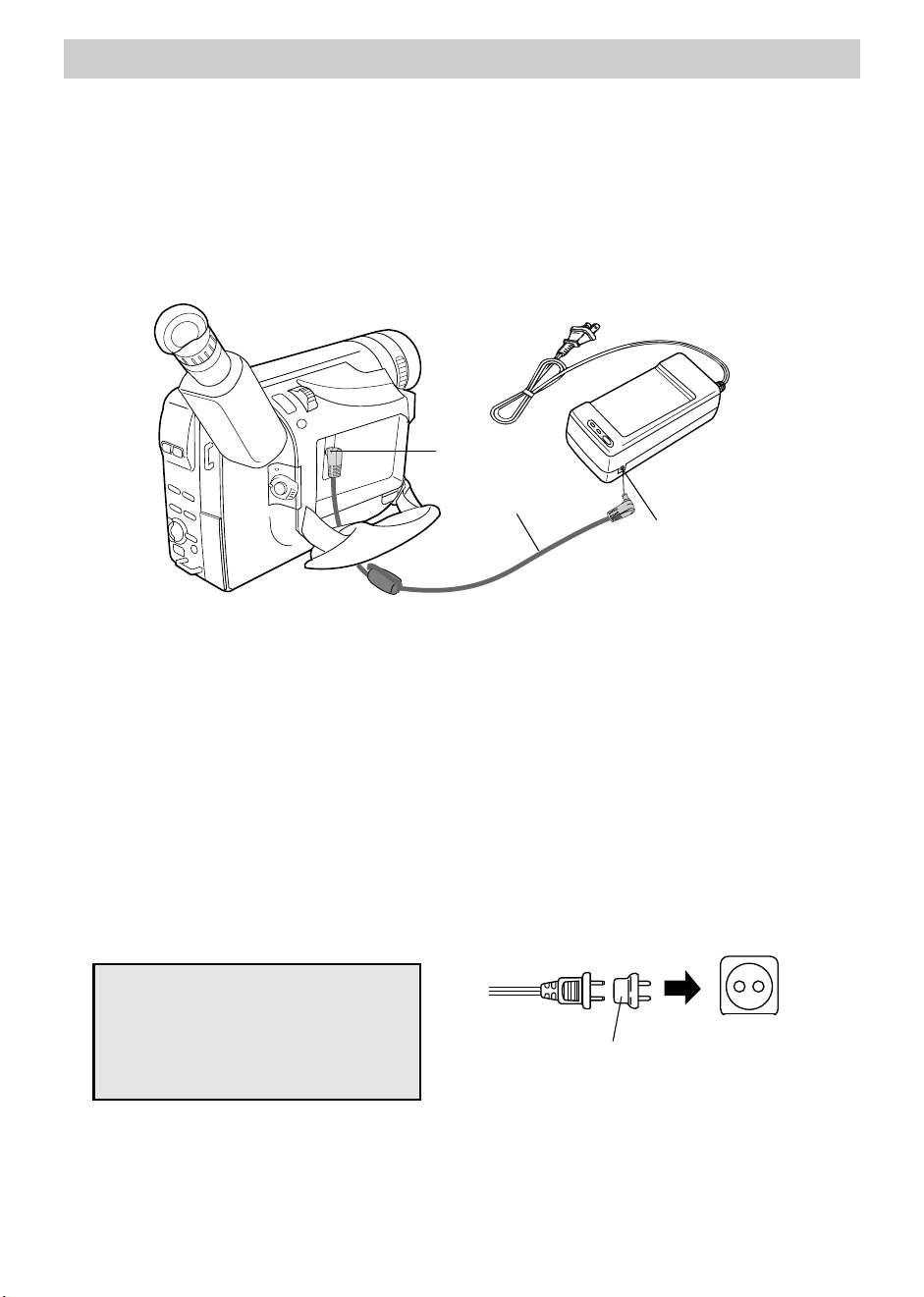

2. Attach the adapter/charger.
DC In Jack
DC Cable
Adapter/
Charger
To AC 100-240,
50/60 Hz
• Connect the other end of the DC
cable to the DC in jack on the
camcorder as shown above.
• Plug the adapter/charger’s plug
into an operating outlet.
Since the battery must be charged
before it can be used the first time,
attach the adapter/charger to the
camcorder.
• Connect one end of the DC cable
to the DC OUT jack on the
adapter/charger.
• Lift the flap on the
handstrap and separate
the velcro strip.
• Insert your hand, adjust
the strap to fit snugly,
refasten the strap, and
close the flap.
4. Rotate LENS COVER control to open lens cover.
DC OUT
Jack
First-Time Operation
5
(Continued on next page)
5. Set POWER (CAMERA MAN/CAMERA AUTO/OFF/VCR)
switch to CAMERA AUTO.
POWER Switch and
Indicator
• The power indicator lights.
• The position of this switch tells
the camcorder whether you want
to record (CAMERA MAN or
CAMERA AUTO), turn the power
off (OFF), or play back tapes
(VCR).
• CAMERA AUTO places the
camcorder in the AutoShot™
mode. In the AutoShot™ mode,
the focus, exposure, and white
balance are automatically
controlled by the camcorder.
Many of the special effects do not
operate in this mode. Details on
page 32.
• CAMERA MAN allows you to
control many of the special
features of the camcorder.
• The camcorder automatically
turns off if it remains in record-
pause for five minutes. Set the
POWER switch to OFF and then
back to CAMERA.
6
First-Time Operation

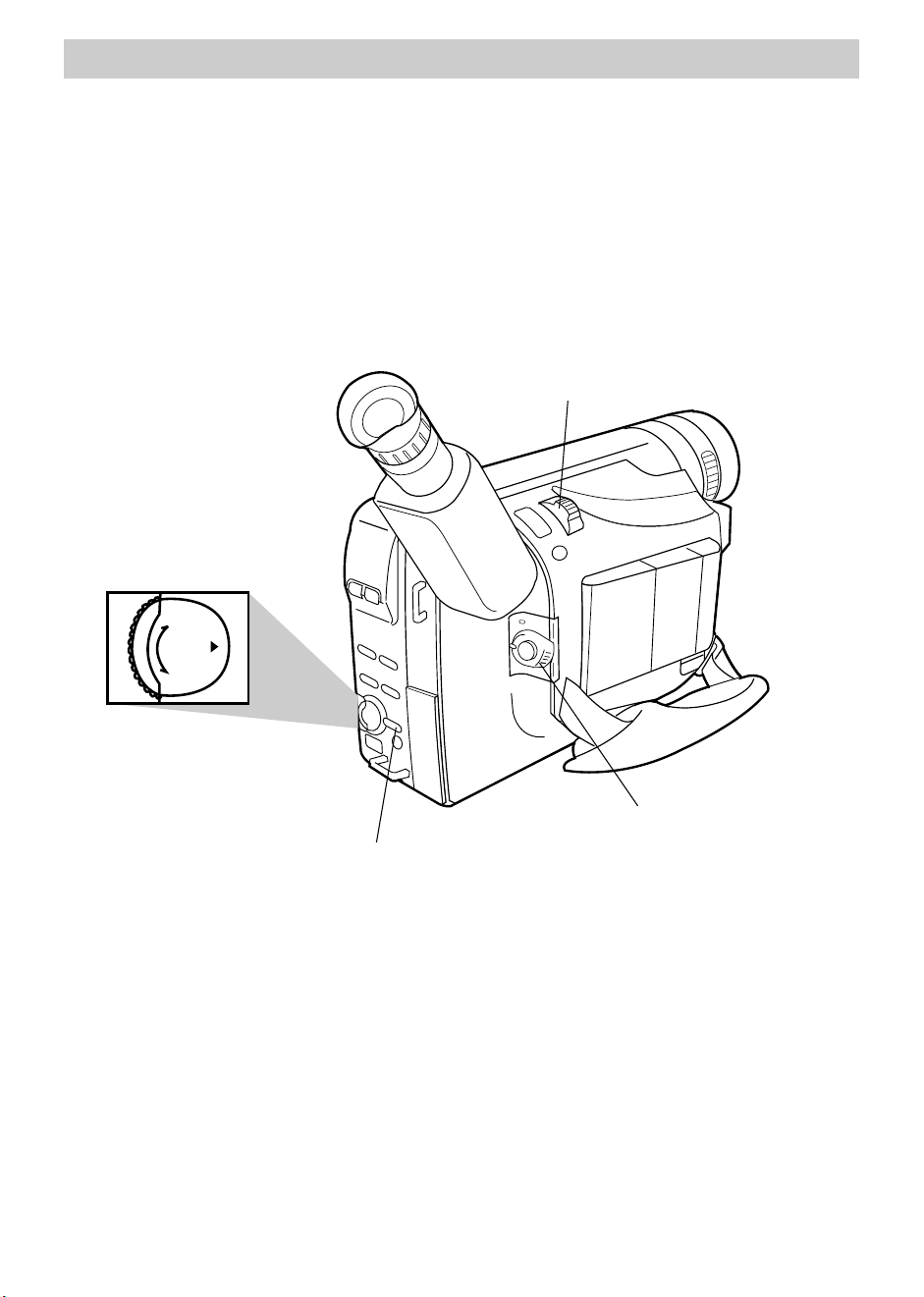

7. Select a recording speed.

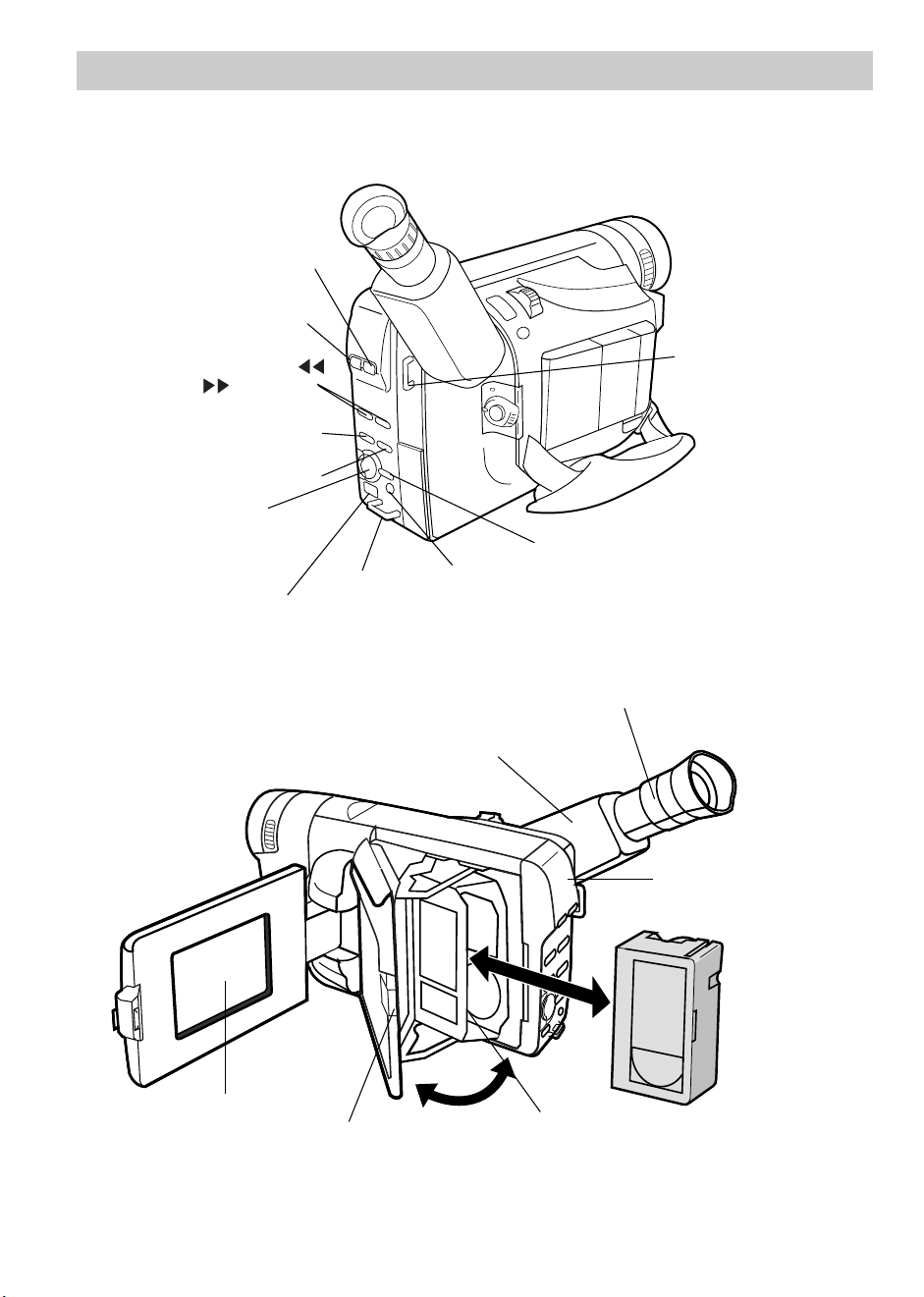

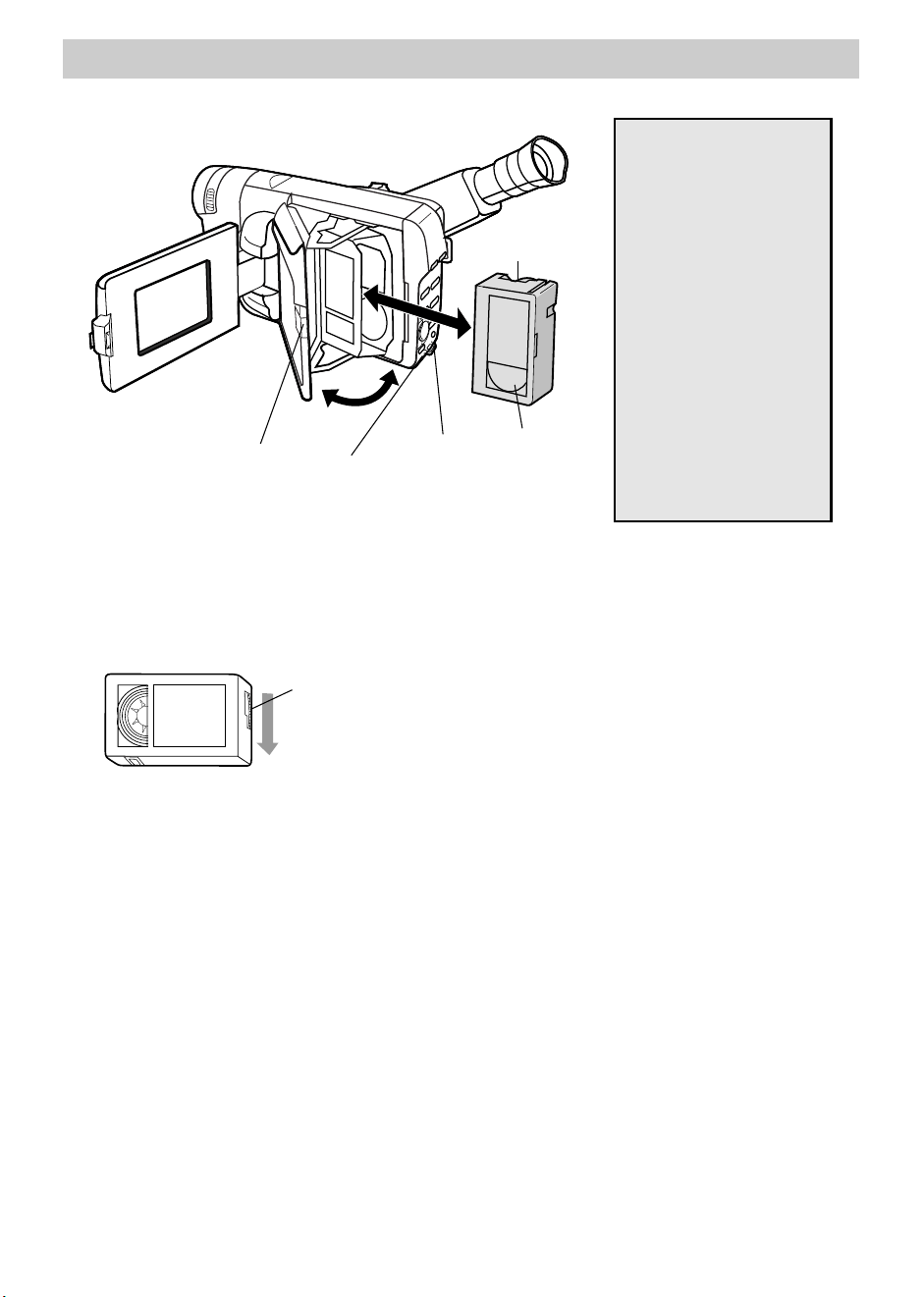

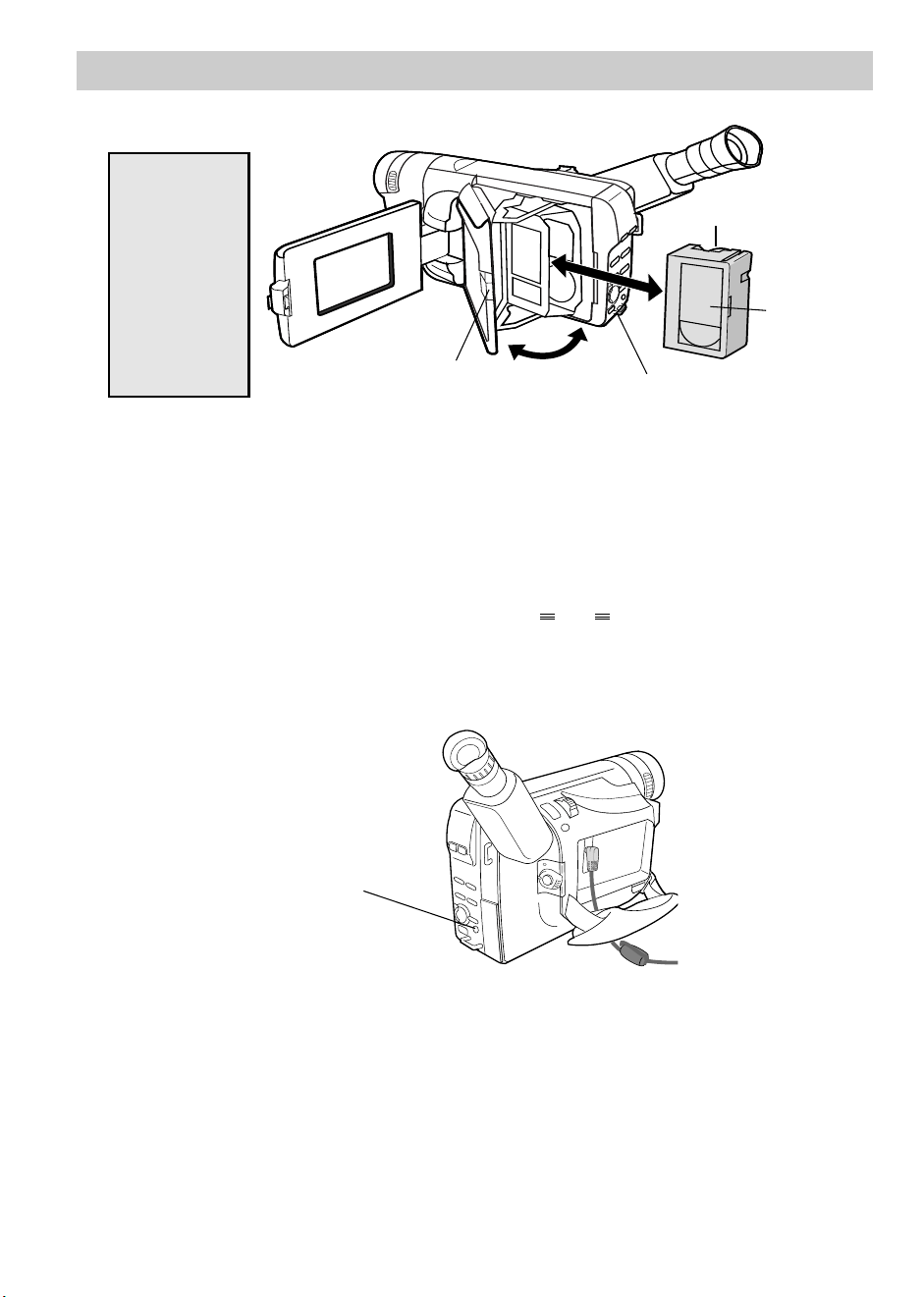

6. Insert a tape.
• Open the LCD monitor at least 60˚
before opening the cassette holder.
• Slide the EJECT switch.
The cassette holder opens
automatically.
• Turn the tape wheel on the cassette
to remove any slack from the tape.
Select SP or SLP recording speed.
Press and hold the SP/SLP button to
select a recording speed. The tape
speed you select (SP or SLP) appears
in the viewfinder or on the LCD
monitor.
• SP – Standard play provides the
best picture, but the shortest
recording time (20 minutes with a
TC-20 tape).
• SLP – Extended play provides
three times the recording time as
SP (60 minutes with a TC-20
tape). SLP has slightly more
picture noise in normal playback.
• Insert the cassette with the tape
wheel facing up and the tape
window facing out.
• Press on the area shown above
until the cassette holder locks
into place.
•
PAUSE
appears when a
recordable tape is inserted in the
camcorder and the camcorder
enters record-pause mode.
Press Here to Close
Cassette Compartment
Tape Wheel
Tape
Window
EJECT Switch
SP/SLP
Button
WARNING:
Never try to
open the door
by prying as
you could
damage the
camcorder.
First-Time Operation
7
Eyepiece
Focus
Control
180
°
18 0
°
Use the LCD Monitor
• Make sure the monitor is open
at least 60˚. The viewfinder
turns off.
• You can tilt the monitor 180˚ up or
90˚ down for convenient viewing.
• Rotate the menu PUSH dial to
adjust the brightness of the image
in the monitor.
Use the Viewfinder
• Close the monitor. If the monitor
is open more than 60˚, the
viewfinder turns off.
• Adjust the viewfinder for a
comfortable viewing position.
8. Use the Monitor or Viewfinder to See What You Record
You can see what you record on the color LCD monitor or in the viewfinder. When
the LCD monitor is open more than 60˚, the viewfinder is automatically turned off.
When you close the LCD monitor, the viewfinder is automatically turned on.
To enable both you and the person you’re recording to see what’s being recorded,
you can rotate the LCD monitor completely around 105˚ so the front of the monitor
faces the person you’re recording. The viewfinder turns on automatically when
you turn the LCD monitor all the way around so it faces forward.
Electronic
Viewfinder
Menu PUSH Dial
(Also Bright Control)
LCD Monitor
• Turn the eyepiece focus control to
adjust the focus of the viewfinder
for your vision.
Electronic
Viewfinder
Eyepiece
Focus
Control
(Continued on next page)
8
First-Time Operation
PUSH
–
+

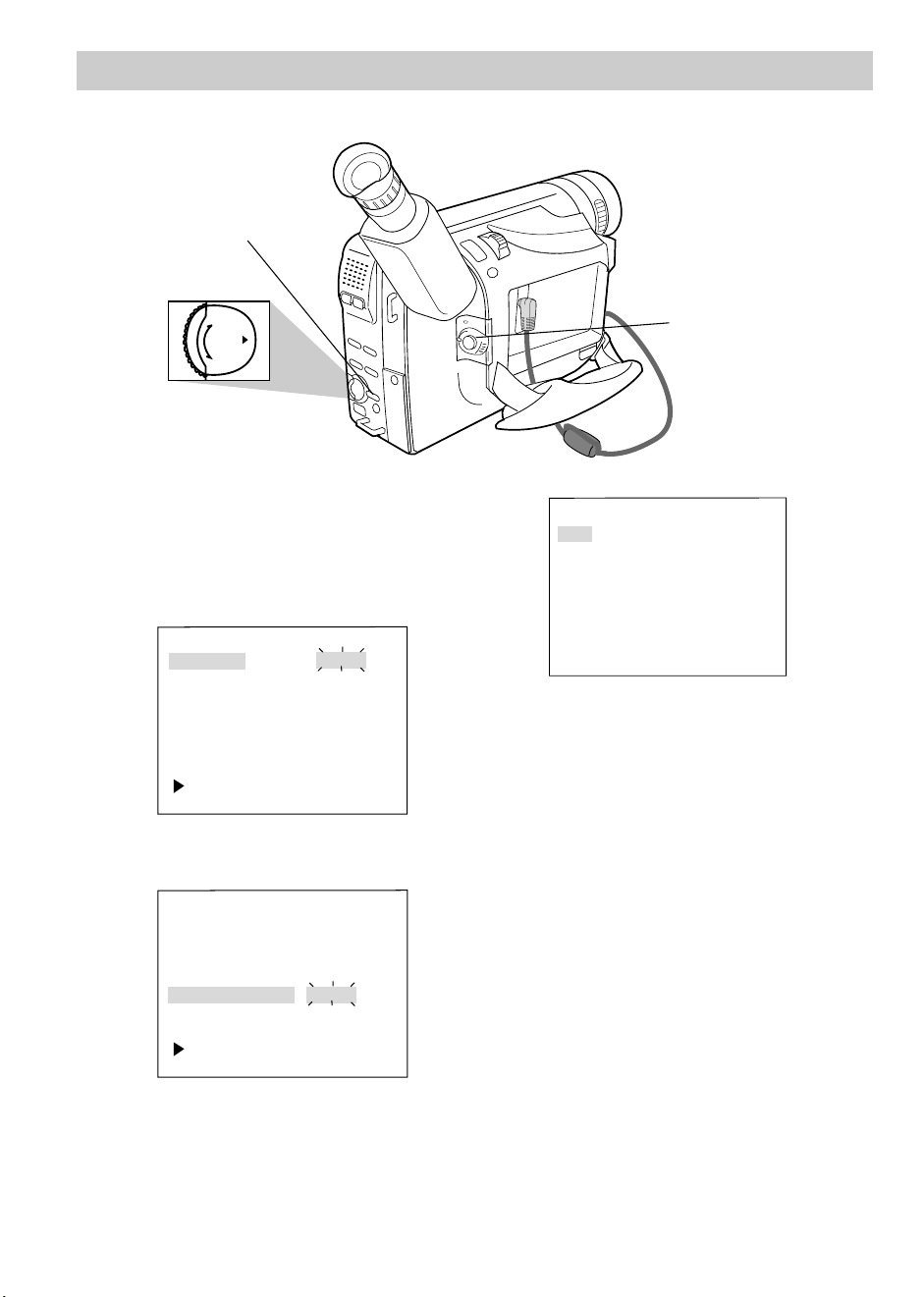

9. Select a tape length.
T20
T30
T35
T40
EXIT
TAPE LENGTH

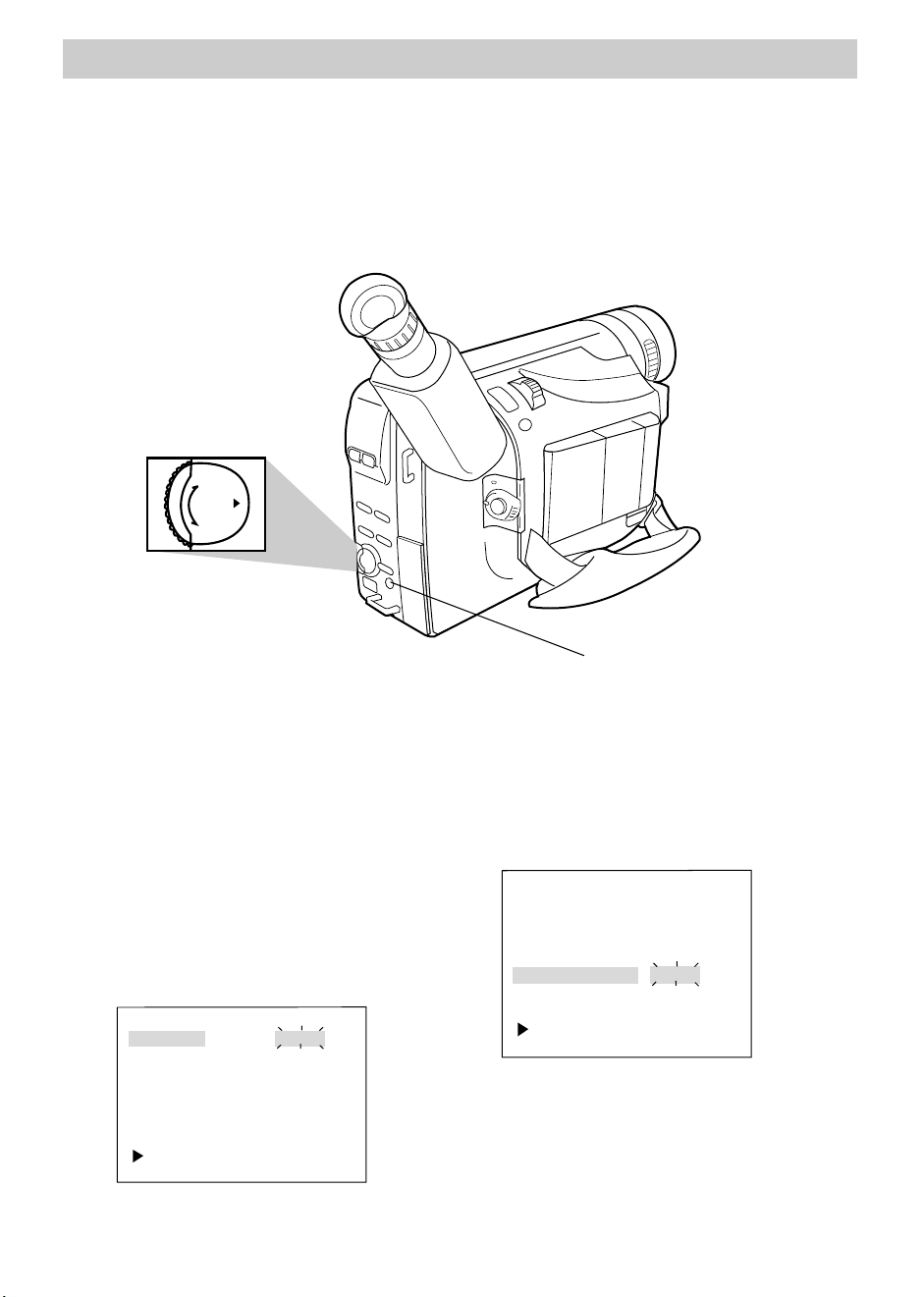

5. Rotate the menu PUSH dial to
highlight the type of tape you are
using.
POWER Switch and
Indicator
MENU/DISPLAY
Button
Menu PUSH Dial
(Rotate or Push In)
1. Set the POWER switch
to CAMERA MAN.
2. Press the PUSH dial in to display
the menu in the viewfinder or on
the LCD monitor.
FOCUS
EXPOSURE
M. W. B.
16 X 9
TAPE LENGTH
TITLE
DATE/TIME DISP.
RETURN
AUTO
AUTO
AUTO
OFF
T30

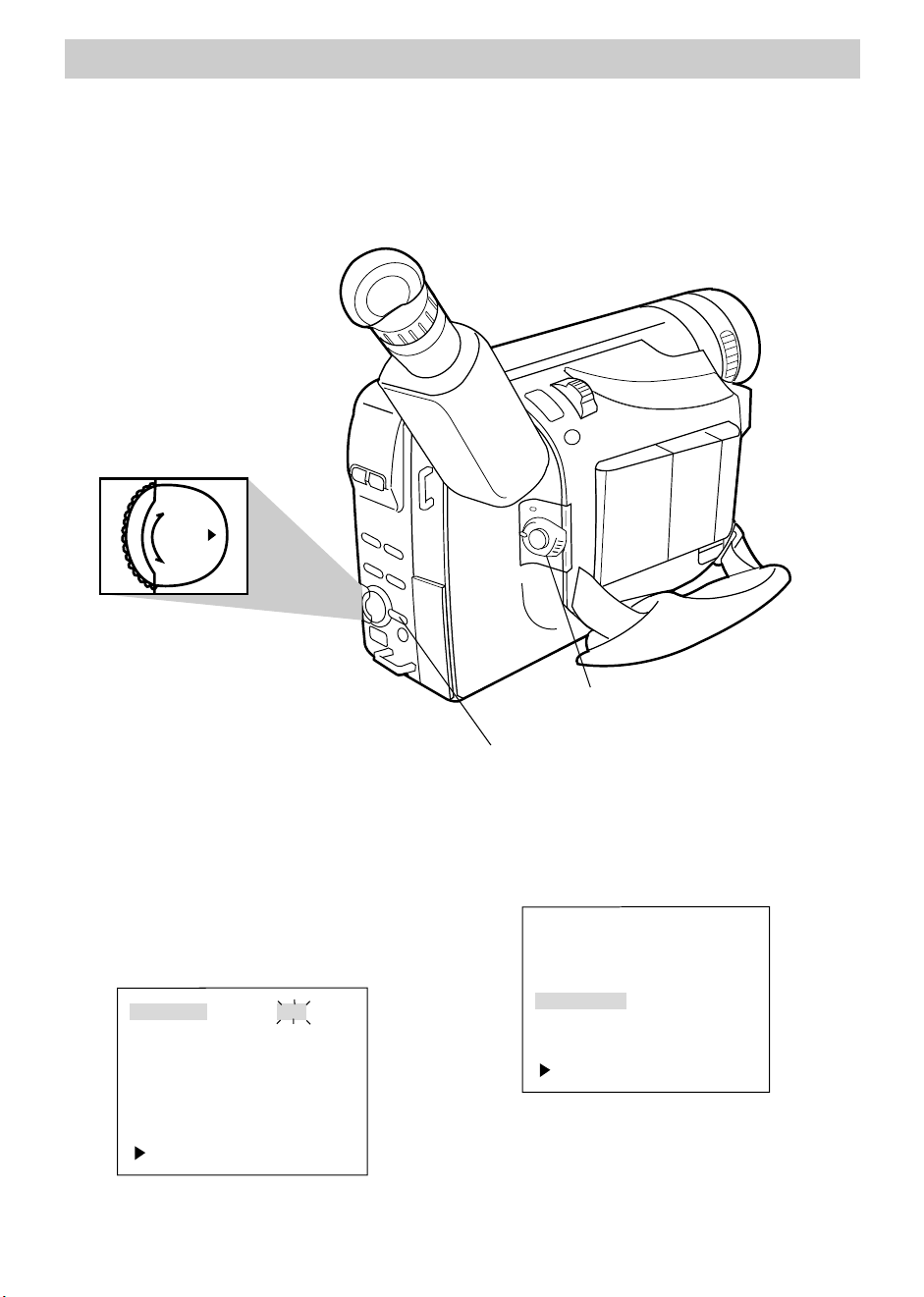

3. Rotate the menu PUSH dial to
highlight TAPE LENGTH.
FOCUS
EXPOSURE
M. W. B.
16 X 9
TAPE LENGTH
TITLE
DATE/TIME DISP.
RETURN
AUTO
AUTO
AUTO
OFF
T30
4. Press the PUSH dial in to display
the TAPE LENGTH menu in the
viewfinder or on the LCD monitor.
• Select T20 for a tape with 20
minutes or less recording time
in SP.
• Select T30 for a tape with 30
minutes recording time in SP.
• Select T35 for a tape with 35
minutes recording time in SP.
• Select T40 for a tape with 40
minutes recording time in SP.
6. Press the menu PUSH dial twice
to select the tape length and
remove the menus.
• Details are on pages 24-25.
First-Time Operation
9

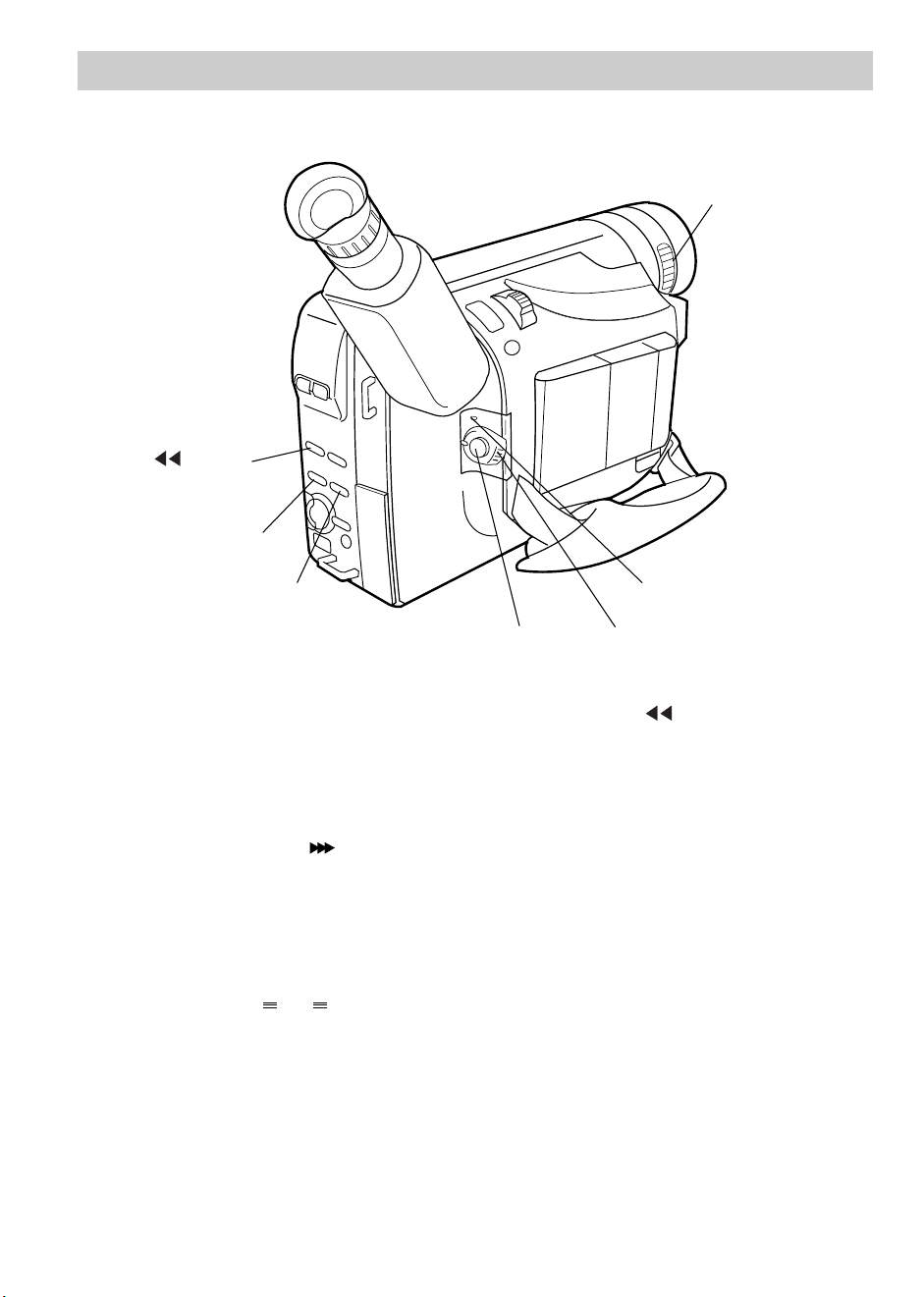

REW Button
POWER Switch
Thumb
Trigger
Power Indicator
STOP Button
PLAY/PAUSE Button
10. Start and stop recording.
• Place the POWER switch in
CAMERA AUTO.
• Press and release the thumb trigger
to start recording.
REC
appears in
the viewfinder or on the LCD
monitor.
• Press and release the thumb trigger
again to stop recording. The
camcorder is now in the record-
pause mode.
PAUSE
appears in
the viewfinder or on the LCD
monitor.
11. Play back what you have
recorded.
• Set the POWER switch to VCR.
• Press REW to rewind the tape.
• Press PLAY/PAUSE to play back
the tape.
• Press STOP when you are finished
playing back the tape.
• Details on LCD monitor and
viewfinder playback are on
pages 56-57.
12. Set the POWER switch to
OFF to turn off the
camcorder.
The power indicator turns off.
13. Close the LCD monitor and
lens cover.
LENS
COVER
Control
(Continued on next page)
10
First-Time Operation

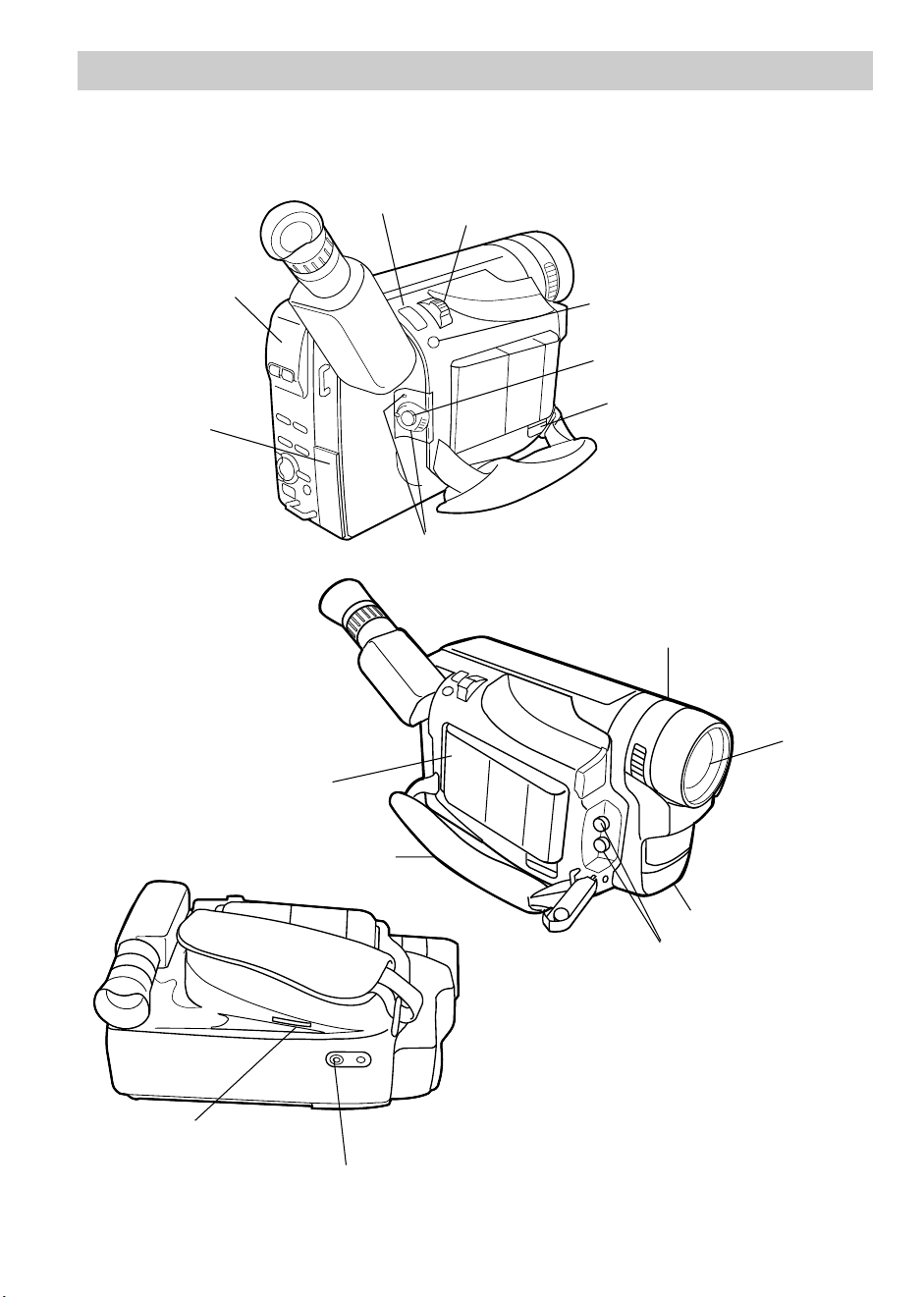

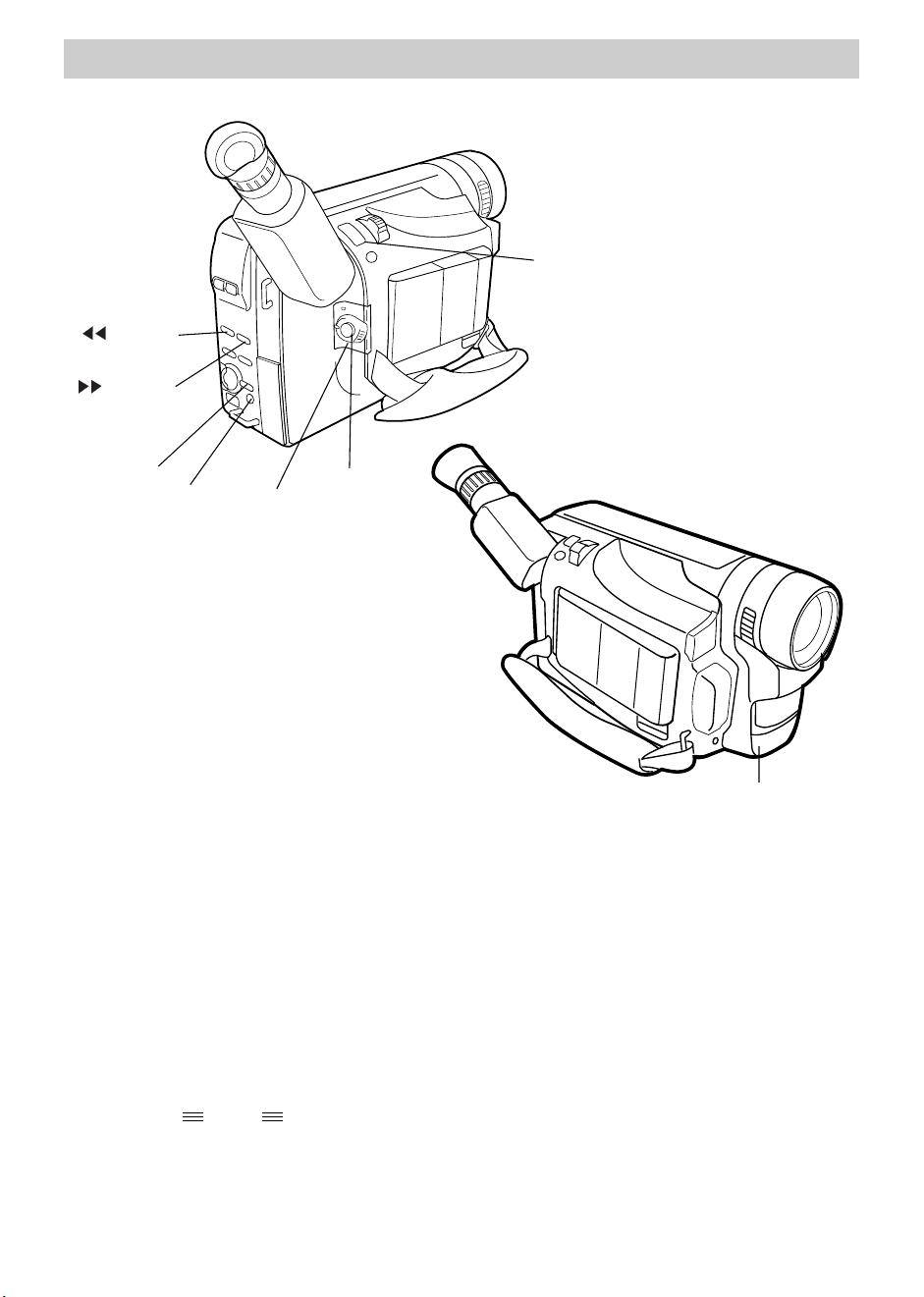

14. Review camcorder operating controls.
Shoulder Strap
Attachment Ring
Shoulder
Strap
Attachment
Ring
Menu PUSH Dial
(Also Bright Control)
STOP Button
PLAY/PAUSE Button
SEARCH R and F
Buttons (Also REW
and FF Buttons)
EJECT Switch
MENU/DISPLAY Button
P. (Program)
AE Button
FADES
Button
SP/SLP Button
(Also COUNTER R/M Button)
Press Here to
Close Cassette
Door
Eyepiece Focus Control
Viewfinder
Cassette
Compartment
LCD Monitor
Speaker
First-Time Operation
11
14. Review camcorder’s operating controls. (Continued)
Microphone
Lens
Handstrap
Attach Adapter/Charger’s
DC Cord (DC In Jack
Located Under Battery) or
Rechargeable Battery Here
Thumb Trigger
A (Audio) and V (Video) Jacks
(Behind Small Cover)
LENS
COVER
Control
5SEC. REC
Button
Zoom Lever (Also VOL. +/– Control)
STEADY PIX
Button
POWER Switch
and Indicator
Service Port
(Located Under
Cover) This
connector is for
use by qualified
service personnel
only.
BATTERY
RELEASE
Lever
Clock Cell Battery
Compartment
Threaded Tripod
Mount Hole
Speaker for
Playback
12
Power the Camcorder
Power Your Camcorder
Adapter/Charger
The adapter/charger attaches to the camcorder and lets you power your camcorder
directly from standard household power. The adapter/charger operates on 100-240
volts, 50/60 Hz, so it can be used virtually anywhere in the world to power the
camcorder or recharge the battery.

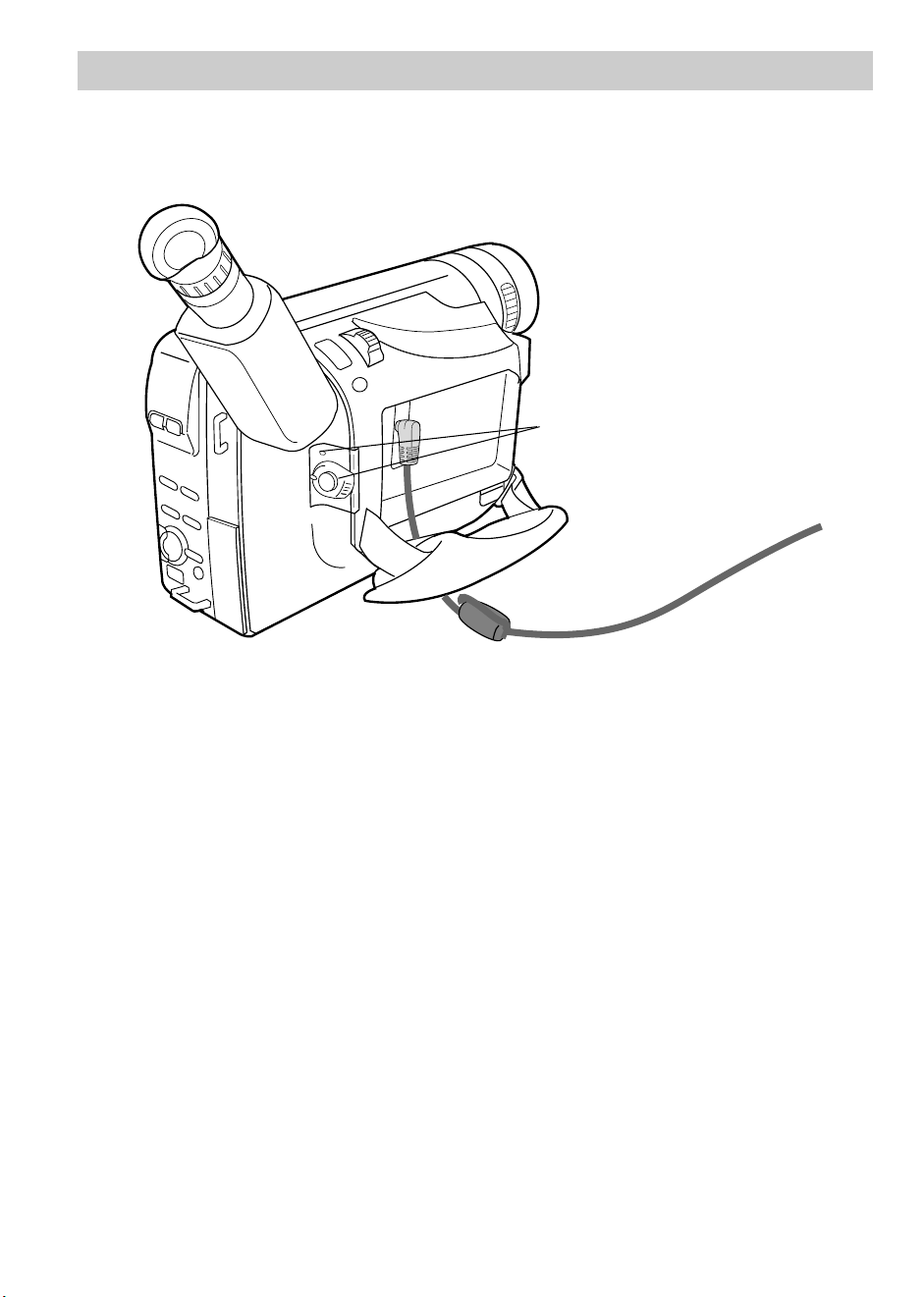

Attach Adapter/Charger
1. Connect one end of the DC cable to
the DC OUT jack on the adapter/
charger.
2. Connect the other end of the DC cable
to the DC in jack on the camcorder as
shown above.
3. Plug the adapter/charger’s plug into
the nearest AC outlet (100-240V,
50/60Hz).
CAUTION: Do not use this adapter/
charger for any other purpose other
than charging the FB1260 or BB99L
battery pack or supplying power to the
camcorder.
Remove Adapter/Charger
1. Unplug the adapter/charger from the
wall outlet.
2. Remove the DC cable from the
adapter/charger and camcorder.
Using an Optional Plug Adapter
An optional plug adapter might be
required in some countries.
AC 100-240V
Optional AC
Plug Adapter
1. Plug the adapter/charger’s plug into
the AC plug adapter.
2. Plug the AC plug adapter into the AC
outlet.
DC In Jack
DC Cable
Adapter/
Charger
To AC 100-240,
50/60 Hz
DC OUT
Jack
Power the Camcorder
13
Rechargeable Battery
The battery must be charged as described on the next page before it can be used the
first time. Initial charging takes approximately 70 minutes. When fully charged, the
battery supplies approximately 80-90 minutes of operating time – depending on how
much you use the monitor, zoom, and pause. Conserve battery power by turning the
camcorder off during recording breaks.
Note: Use the small marker switch on the top of the battery to help remind yourself to charge
the battery. It has no other purpose.

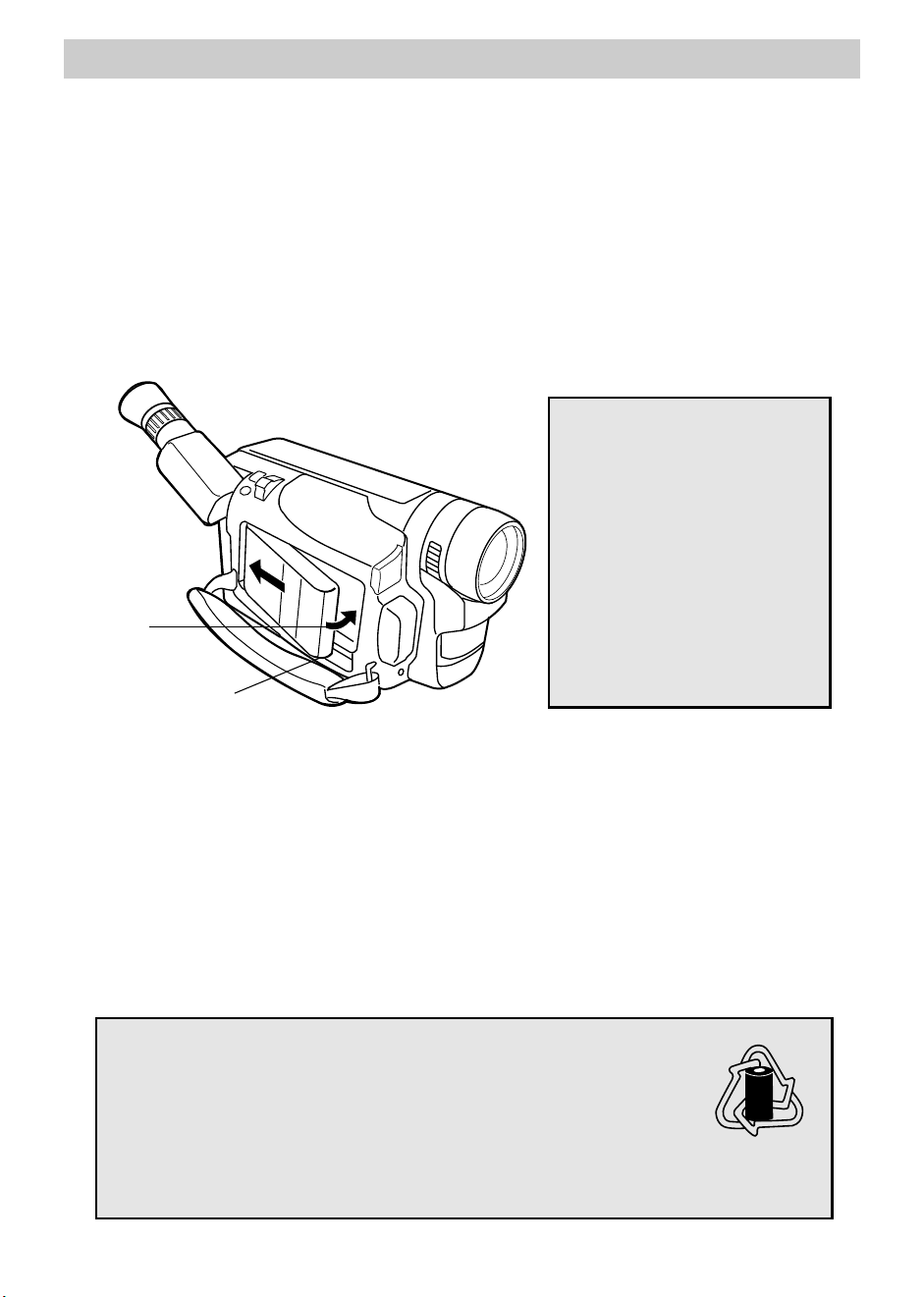

Attach the Charged Battery
If the DC cable is attached to the
camcorder, remove it before attaching
the battery. Also, install the lithium
clock cell before attaching the battery.
Details are on page 17.
1. Hook the battery to the side of the
camcorder as shown above.
Battery Safety Precautions
Do not short the battery’s
terminals.
Do not attempt to disassemble or
modify the battery. There are no
user-serviceable parts inside.
Use the battery only with
specified adapter/chargers and
camcorders.
Throwing the battery into a fire
or exposing it to excessive heat –
over 149˚F (65˚C) could be
hazardous.
BATTERY
RELEASE Lever
2. Press the battery down until it locks
into place.
3. Set the POWER switch to CAMERA.
The power indicator lights.
Remove the Battery
Slide and hold the BATTERY RELEASE
lever down while removing the battery.
Marker
Switch
RBRC
RBRC
Ni-Cd
ATTENTION: The EPA certified RBRC
®
Battery Recycling Seal on the nickel-
cadmium (Ni-Cd) battery indicates Thomson Consumer Electronics is voluntarily
participating in an industry program to collect and recycle these batteries at the end
of their useful life, when taken out of service in the United States or Canada. The
RBRC
®
program provides a convenient alternative to placing used Ni-Cd batteries
into the trash or the municipal waste stream, which may be illegal in your area.
Please call 1-800-8-BATTERY
™
for information on Ni-Cd battery recycling and disposal
bans/restrictions in your area. Thomson Consumer Electronics’ involvement in this program is part
of our commitment to preserving our environment and conserving our natural resources.
14
Power the Camcorder
Caution: When a battery is attached to the adapter/charger, do not turn them
upside down. The battery may fall off and be damaged or cause injury.
Charge the Battery
If the DC cable is attached to the DC OUT
jack on the adapter/charger, remove it.
1. Align reference mark on battery with
mark on adapter/charger.
2. Hold the battery flush against the
adapter/charger and slide it in the
direction of the arrow.
3. Plug adapter/charger into nearest AC
outlet (100-240V, 50/60Hz).
4. If the battery is properly connected,
the CHG indicator flashes.
Note: If you try to charge a battery that
has not been charged for a long period of
time, it may take a few minutes for the
CHG indicator to flash.
5. After the battery is charged, the CHG
indicator stops flashing and lights.
6. Remove the charged battery by
sliding it off the adapter/charger.
7. Attach the charged battery to the
camcorder.
Use the REFRESH Button
The battery provides increased
operation time if you “refresh” it after
five chargings. The refresh feature
“refreshes” the battery by completely
discharging it.
1. Attach battery to adapter/charger.
2. Press REFRESH. The REFRESH
indicator lights and the battery
begins discharging.
3. When discharging is completed, the
REFRESH indicator turns off, and
the CHG indicator flashes. The
battery now charges.
Reference
Marks
To AC Wall
Outlet 100-
240 Volts,
50/60 Hz.
CHG
(Charge)
Indicator
Adapter/Charger
REFRESH
Button
REFRESH
Indicator
Use the Battery to Power Your Camcorder (Continued)
Hold Battery Flush
and Slide
Power the Camcorder
15
Use the Battery to Power Your Camcorder (Continued)
4. After the battery is charged, the CHG
(charge) indicator stops flashing and
lights.
5. Remove the battery from the adapter/
charger.
Battery Level Indicator
The battery level indicator appears in the
viewfinder or on the LCD monitor and
shows you the amount of power in the
rechargeable battery.
Battery Care and Storage
• Recharging takes approximately 70
minutes for the battery depending on
its condition.
• Refreshing takes approximately 3-1/2
hours for the battery depending on its
condition.
• After repeated charging and use,
operation time gradually decreases.
When operation time is too short to be
useful, it is time to replace the battery.
• If the battery discharging must be
stopped in the middle, remove the
battery from the adapter/charger before
unplugging it from the AC outlet.
• If the battery pack becomes too hot,
remove it from the charger and let it
cool down.
• Let a hot battery cool down before
attaching it to the AC adapter/charger.
• When appears, the battery is
fully charged.
• As the power is used and
appear.
• When the battery power is almost
gone, flashes in the viewfinder
or on the LCD monitor. The
camcorder turns off automatically after
a few seconds. Set the POWER switch
to OFF to turn off the camcorder
before replacing the battery.
The battery level indicator is not recorded
on the tape.
16
Power the Camcorder
Optional Car Cord Adapter
The optional DCC08 car cord shown on
page 61 allows you to power your
camcorder from the cigarette lighter
socket of a car, truck, or RV. It converts
12-volts to a 6-volt output.
Note: Consult the installation and operating
instructions enclosed with the DCC08 for
complete operating instructions.
Use the DCC08 Car Cord Adapter
1. Set the POWER switch to OFF to turn
off the camcorder. The power
indicator on the camcorder turns off.
2. If the battery or DC cable is attached
to the camcorder, remove it.
3. Hold the bottom of the power
connector flush against the camcorder,
and press the connector down until it
locks into place as shown above.
4. Take the vehicle’s cigarette lighter out
of the socket.
5. Insert the car cord’s cigarette lighter
plug into the vehicle’s cigarette lighter
socket. The power indicator on the
car cord adapter lights.
6. Set the POWER switch to CAMERA to
turn on the camcorder. The power
indicator on the camcorder lights.
Cautions: The DCC08 is designed to
be used only with vehicles having
negative ground electrical systems.
Use only car cord adapter DCC08 with
this camcorder. Use of any other car
cord adapter might damage the
camcorder and void your warranty.
Caution: Make sure the camcorder’s
power is turned off before removing
the car cord’s plug from the cigarette
lighter socket.
To Cigarette
Lighter Socket
Power
Connector
Optional DCC08 Car
Cord Adapter
17
Date and Time Display
Install the Clock Lithium Cell
The clock cell indicator flashes for a few seconds in the viewfinder or on the
LCD monitor when you turn on the camcorder if the cell is not installed or needs
replacing.
1. Make sure camcorder is turned off,
and remove any power supply
attached to the camcorder.
2. Pull the clock cell holder out of the
clock cell compartment.
3. Insert the clock cell with the “+”
terminal facing out, and press it in.
Cautions: Lithium cell battery. Replace only with 3-volt lithium cell – such
as CR2025. Use of other cell presents a risk of fire or explosion. Must be
disposed of properly. Never handle punctured or leaking cell. May cause
burns or personal injury.
Keep out of the hands of children. Can cause death or injury if swallowed.
If swallowed, consult a physician immediately for emergency treatment.
The lithium cell used in this device may explode resulting in a fire or chemical
burn if mistreated. Do not recharge, disassemble, heat above 212˚F (100˚C), or
incinerate.
Never use metallic tweezers to hold the cell, and never short the + and – sides
of the cell.
4. Place the clock cell holder into the
clock cell compartment. Be sure to
insert the holder fully into the
compartment.
To Remove Lithium Cell
To remove battery, insert a pointed
nonmetallic object between battery and
clock cell holder and lift.
Clock Cell
Compartment
Clock Cell
(+ Side Facing Out)
Insert Object Here
to Remove Cell
Clock Cell
Holder
Date and Time Display
18
Date and Time Display
Set the Date and Time
You must set the correct date and time before you can display and record it
on your tapes. The clock cell must be installed as shown on the previous
page before you can set the date.
1. Set the POWER switch to CAMERA
MAN.
2. Press the MENU/DISPLAY button to
display the menu in the viewfinder or
on the LCD monitor.
D. ZOOM
TELE MACRO
REC TIME
INT. TIME
DATE/TIME
TITLE LANG.
DEMO MODE
RETURN
ON
OFF
OFF
OFF
ENGLISH
OFF
3. Rotate the menu PUSH dial to
highlight DATE/TIME.
D. ZOOM
TELE MACRO
REC TIME
INT. TIME
DATE/TIME
TITLE LANG.
DEMO MODE
RETURN
ON
OFF
OFF
OFF
ENGLISH
OFF
4. Press the menu PUSH dial in to
display the DATE/TIME menu.
PUSH
—
+
Menu PUSH Dial
(Rotate or Press In)
MENU/DISPLAY
Button
POWER Switch in
CAMERA MAN
19
Date and Time Display
YEAR
MONTH
DAY
TIME
EXIT
2000
JAN
1
DATE/TIME
AM 12:00
5. Rotate the menu PUSH dial to
highlight YEAR. Press the menu
PUSH dial in. When the year starts
flashing, rotate the menu PUSH dial to
select the year. When the correct year
appears, press the menu PUSH dial in
to set the year.
6. Repeat step 5 to set the MONTH and
DAY.
7. Rotate the menu PUSH dial to
highlight TIME.
YEAR
MONTH
DAY
TIME
EXIT
2000
NOV
18
DATE/TIME
PM 11:00
8. Press the menu PUSH dial in. When
the hour starts flashing, rotate the
menu PUSH dial to set the hour
including AM or PM.
9. Press the menu PUSH dial in. When
the hour stops flashing and the
minutes start flashing, rotate the menu
PUSH dial to set the minutes.
10. Press the menu PUSH dial in. When
none of the settings are flashing, rotate
the menu PUSH dial to highlight
EXIT.
YEAR
MONTH
DAY
TIME
EXIT
2000
NOV
18
DATE/TIME
AM 8:00
11. Press the menu PUSH dial in twice to
remove the menus.
Notes: If you decide to return the date and
time to the previous settings while the DATE/
TIME menu is displayed, rotate the menu
PUSH dial to highlight EXIT, and press.
Press the menu PUSH dial twice to remove
the menus.
To display and record the date and/or time, see
the following pages.
Set the Date and Time (Continued)
20
Date and Time Display
Record AUTO DATE, Date, Time, and Title Displays
You must install the clock cell and set the date and time (as shown on the previous
pages) before the you can select and record the correct date and time.
1. Attach a power supply and set
POWER switch to CAMERA MAN.
The power indicator lights.
Note: AUTO DATE is selected when the
POWER switch is set to CAMERA AUTO.
2. Press the menu PUSH dial in to
display the menu in the viewfinder or
on the LCD monitor.
FOCUS
EXPOSURE
M. W. B.
16 X 9
TAPE LENGTH
TITLE
DATE/TIME DISP.
RETURN
AUTO
AUTO
AUTO
OFF
T30
3. Rotate the menu PUSH dial to
highlight DATE/TIME DISP.
Select AUTO DATE, Date, Time, or Date and Time to Record on Your Tape
FOCUS
EXPOSURE
M. W. B.
16 X 9
TAPE LENGTH
TITLE
DATE/TIME DISP.
RETURN
AUTO
AUTO
AUTO
OFF
T30
4. Press the menu PUSH dial in to
display the DATE/TIME DISP. menu.
AUTO DATE
DATE
TIME
DATE/TIME
OFF
EXIT
DATE/TIME DISP.
PUSH
—
+
Menu PUSH Dial
(Rotate or Press In)
POWER Switch in
CAMERA MAN
21
Date and Time Display
5. Rotate the menu PUSH dial to
highlight the date/time display you
want to record.
• AUTO DATE: The date is auto-
matically recorded for approxi-
mately five seconds and then AUTO
DATE is displayed whenever:
• The date is set or changed.
• This display mode is selected.
• The tape is changed or the tape
compartment opened.
• This display is selected when-
ever the POWER switch is set to
CAMERA AUTO.
• DATE Display: The date is
displayed and recorded.
• TIME: The time is displayed and
recorded.
• DATE/TIME Display: The
date and time are displayed
and recorded.
• OFF: No display is displayed or
recorded.
6. Press the menu PUSH dial in to select
the date/time display you want to
record.
7. Press the menu PUSH dial in to
remove the menu.
8. Press the thumb trigger to begin
recording.
Record AUTO DATE, Date, Time, and Title Displays (Continued)
LCD Monitor or Viewfinder Displays
Select the Display on the DATE/TIME DISP. Menu
TIME Display
AUTO DATE Display
DATE/TIME Display
DATE Display
AUTO DATE
NOV 18.00
AM 10:25:00
OFF: No Display
NOV 18.00 AM 10:25:00
22
Videocassettes
Recording Time
Cassette SP SLP
TC-20 20 Min. 60 Min.
TC-30 30 Min. 90 Min.
TC-35 35 Min. 105 Min.
TC-40 40 Min. 120 Min.
Make sure you select good quality tapes for your camcorder. Use of poor quality tapes
or tapes that have been damaged or mishandled can contaminate the video heads,
resulting in a snowy picture or no picture at all during playback. Because there is no
control over the type of tape purchased or rented by consumers, head cleaning is not
covered under warranty. It is considered normal maintenance.
Erase Protection – Safety Tab
You can use your videocassettes over and over again. To erase a previous recording,
just record over it.
Recording and Playback Speeds and Times
The camcorder records and plays back in standard speed (SP) or extended play
(SLP). Select the recording speed by pressing and holding the SP/SLP button.
The selected speed is displayed on the LCD monitor or in the viewfinder. Listed
below are the maximum SP and SLP recording times for popular VHS-C
cassettes.
• SP – Standard play provides the
best picture (less picture noise),
but the shortest recording time
(20 minutes with a TC-20 tape).
• SLP – Extended play provides
three times the recording time as
SP (60 minutes with a TC-20 tape).
SLP has slightly more picture
noise than SP in normal playback.
This might not be noticeable.
Safety
Tab
A. Remove B. Cover hole
with vinyl tape or
slide tab to REC ON to
record over tape.
safety tab or
slide tab to
REC OFF.
Videocassettes
23
Videocassettes
Cassette Care and Storage
• When you are finished with a cassette,
rewind it, remove it from the
camcorder, and label it.
• Store cassettes vertically in their
protective cases at normal room
temperatures. Do not leave your
camcorder or cassettes in a car or
outdoors for an extended period.
Excessive heat or cold might damage
your cassettes.
• Keep the cassette away from strong
magnetic fields such as electric motors
and other devices.
• Keep dust from entering the cassette
compartment. All dust is abrasive and
causes excessive wear on the tape and
the camcorder’s recording or playback
heads.
• Do not use cassettes with damaged or
spliced tape.
• Do not use a cassette if it has been
damaged or exposed to moisture. The
tape might jam and/or damage your
camcorder.
Before inserting a cassette, turn the tape
wheel on the side of the cassette in the
direction shown to remove any slack in
the tape.
1. Open the LCD monitor at least 60˚
before opening the cassette holder.
2. Slide EJECT. The cassette holder
opens automatically.
3. Insert the cassette with the tape wheel
facing up and tape window facing out.
4. Press on the area shown above until
the cassette holder locks into place.
Tape Wheel
CAUTIONS
Insert the cassette
only one way with the
tape wheel facing up
and the tape window
facing out. The
cassette should slide
easily into the holder.
Do not force the
cassette.
Never try to open the
door by prying as you
could damage the
camcorder.
Insert and Remove Cassettes
Tape
Wheel
Tape
Window
EJECT
Button
SP/SLP
Button
Push Here to
Close Cassette
Compartment
24
Recording
Recording
PUSH
—
+
Time-Remaining Display
The approximate time remaining on the tape in the camcorder for the tape
speed you select is displayed. You must set the correct tape length in the
TAPE LENGTH feature of the menu before the camcorder can correctly
calculate time remaining.

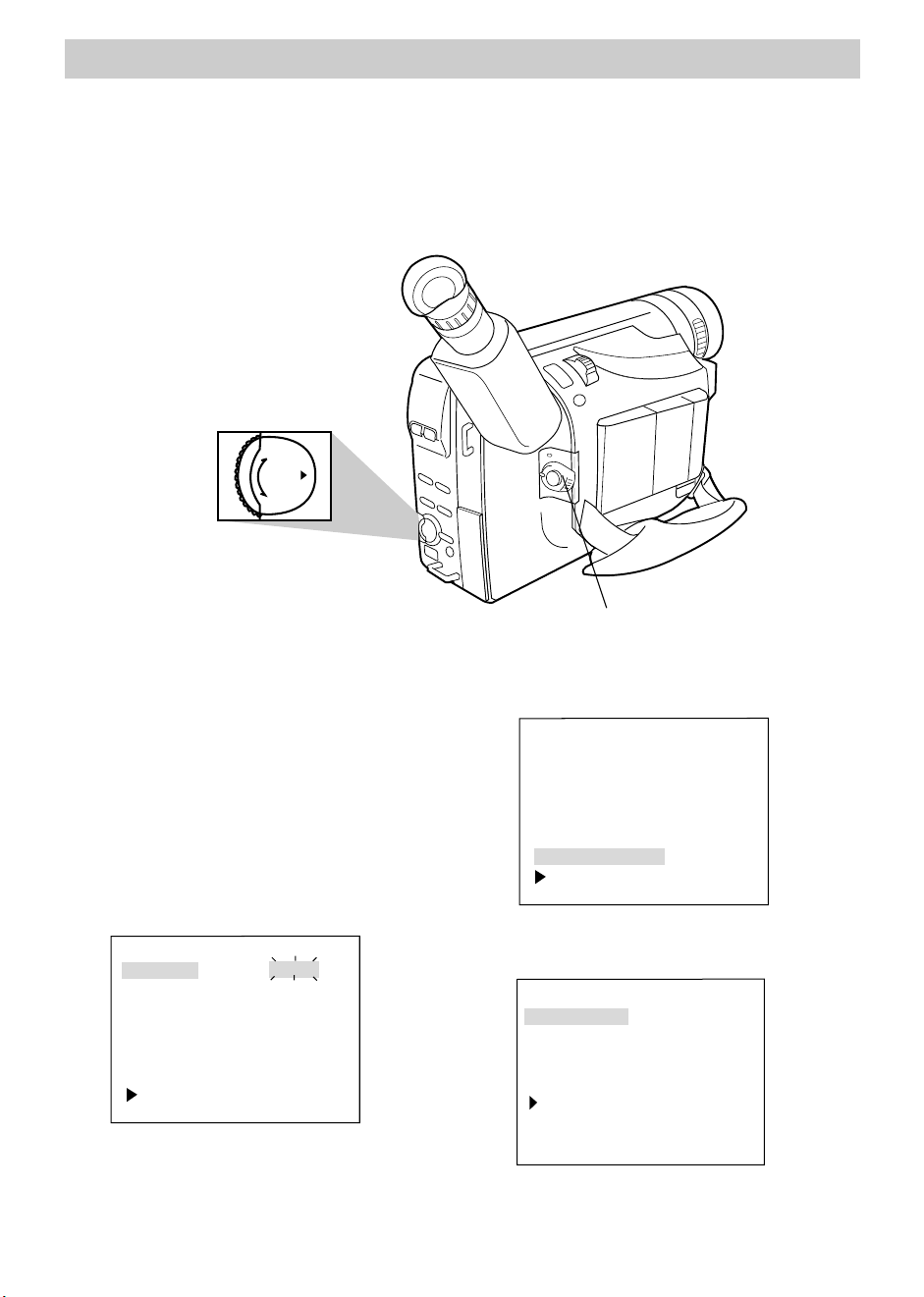

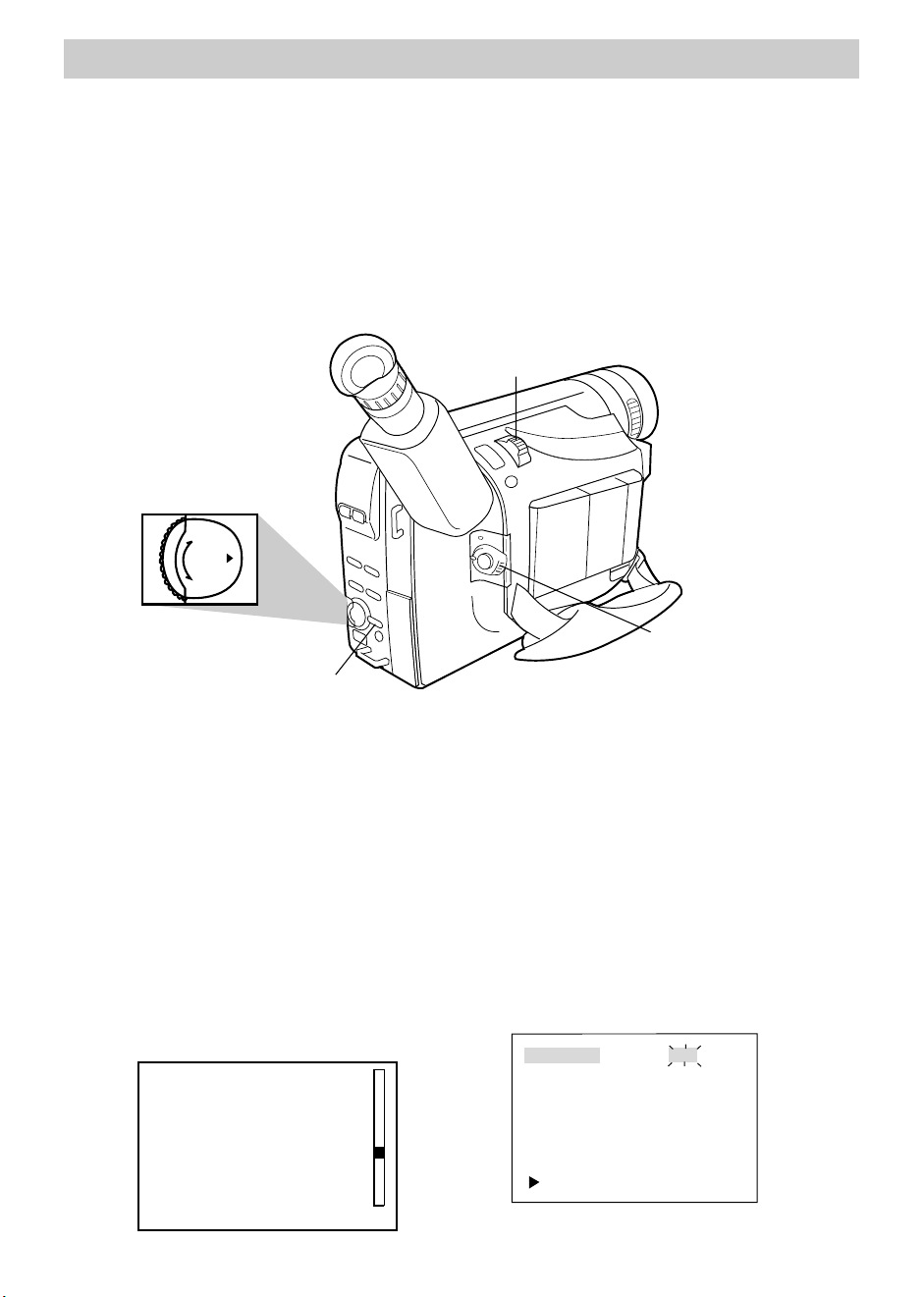

Select a Tape Length
1. Set the POWER switch to CAMERA
MAN.
2. Press and hold the SP/SLP button to
select a tape speed.
3. Press the PUSH dial in to display the
menu in the viewfinder or on the LCD
monitor.
FOCUS
EXPOSURE
M. W. B.
16 X 9
TAPE LENGTH
TITLE
DATE/TIME DISP.
RETURN
AUTO
AUTO
AUTO
OFF
T30
SP/SLP Button
Menu PUSH Dial
(Rotate or Press In)
4. Rotate the menu PUSH dial to
highlight TAPE LENGTH.
FOCUS
EXPOSURE
M. W. B.
16 X 9
TAPE LENGTH
TITLE
DATE/TIME DISP.
RETURN
AUTO
AUTO
AUTO
OFF
T30
5. Press the menu PUSH dial in to
display the TAPE LENGTH menu.
25
Recording
T30
--MIN
SP
--MIN
29MIN
3MIN
2MIN
(Flashing)
1MIN
(Flashing)
0MIN
(Flashing)
TAPE END
(Calculating)
Time-Remaining Display (Continued)
Time-Remaining Display
in Viewfinder
or on LCD Monitor
Tape Length
Indicator
Tape Speed
Indicator
T20
T30
T35
T40
EXIT
TAPE LENGTH
6. Rotate the menu PUSH dial to
highlight the type of tape you are
using.
• Select T20 for a tape with 20
minutes or less recording time
in SP.
• Select T30 for a tape with 30
minutes recording time in SP.
• Select T35 for a tape with 35
minutes recording time in SP.
• Select T40 for a tape with 40
minutes recording time in SP.
7. Press the menu PUSH dial in twice to
select the tape length and remove the
menus.
26
Recording

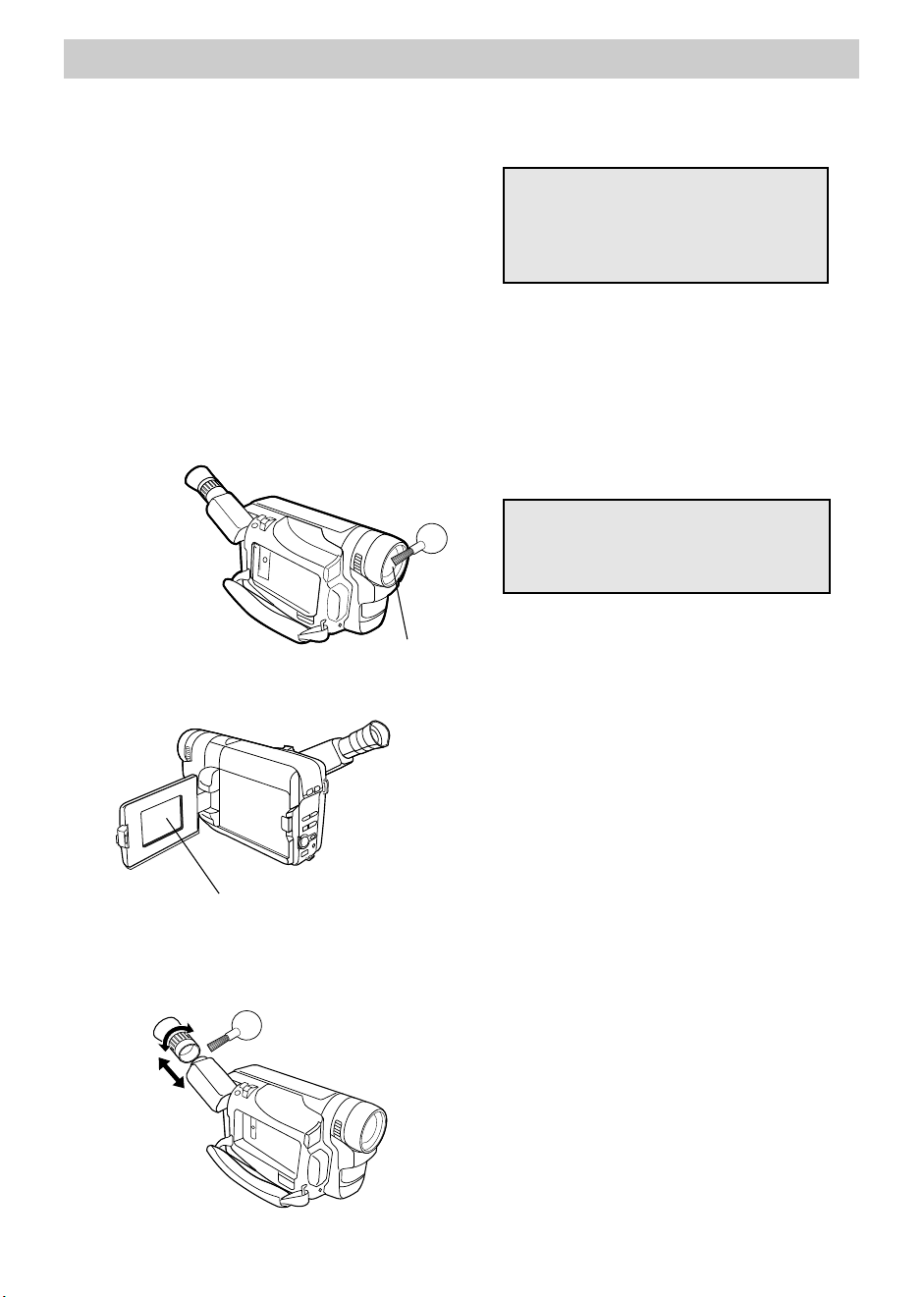

Use the LCD Monitor or Viewfinder to See What You Record
You can see what you are recording on the LCD monitor or in the viewfinder. When
the LCD monitor is open more than 60˚, the viewfinder turns off. When you close the
LCD monitor, the viewfinder turns on. To enable both you and the person you’re
recording to see what’s being recorded, rotate the LCD monitor completely around
105˚ so the front of the monitor faces the person you’re recording. The viewfinder
turns on automatically when you turn the monitor all the way around.

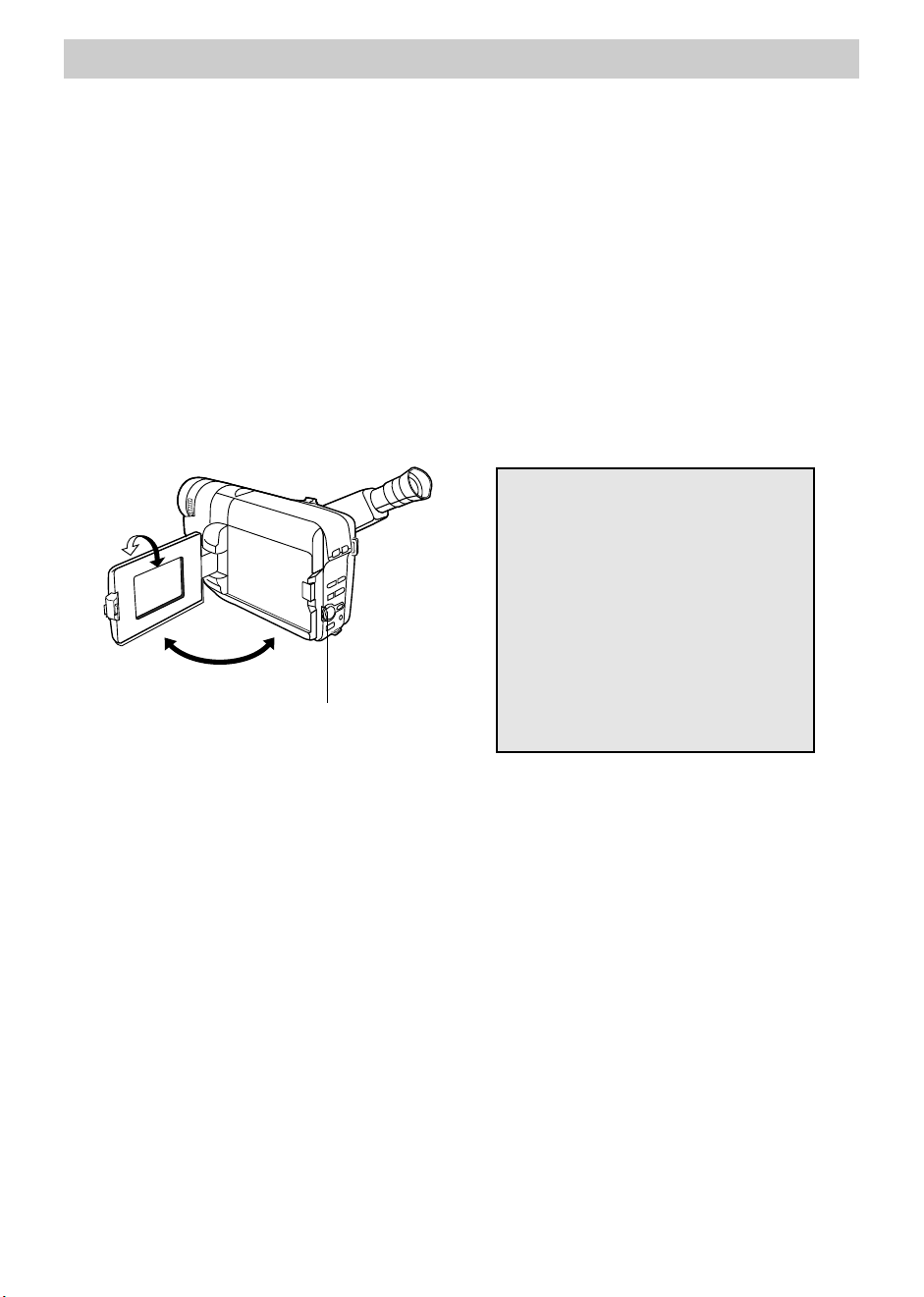

Use the LCD Monitor
The camcorder’s LCD monitor is a miniature color monitor that displays
the picture seen by the camcorder when recording or playing back a tape.
1. Open the LCD monitor.
Make sure the monitor is open at
least 60˚. The viewfinder turns off.
2. You can tilt the monitor up 180˚ or
down 90˚ for convenient viewing.
• Tilt the monitor down to record
from a high angle, such as over a
crowd.
• Tilt the monitor up to record from
a low angle, such as when you are
kneeling.
3. Adjust the brightness of the image by
turning the bright control (menu
PUSH dial). This does not affect the
brightness of the recording you are
making.
• Turn the dial toward + to brighten
the image.
• Turn the dial toward – to darken the
image.
4. When you are finished, close the
monitor and lock it into place.
Notes: When recording on a bright sunny day,
the LCD monitor might be hard to see. Use
the viewfinder.
The LCD monitor is manufactured using high-
precision technology. However, there may be
some tiny black dots and/or bright dots (red,
blue, or green in color) that appear on the
screen. These points are a normal result of the
manufacturing process. These dots won’t
appear on the video you are recording. Over
99.99% are operational for effective use.
180°
90°
Cautions: Do not force the
monitor to rotate completely
around. This damages the
monitor and/or the camcorder.
When carrying the camcorder
with the shoulder strap, close the
monitor to prevent possible
damage to the monitor from
bumping against your body as
you move.
Menu PUSH Dial
(Also Bright Control)
27
Recording
180
°
18 0
°
Eyepiece Focus Control
Viewfinder
Cautions
Do not force the viewfinder
to rotate completely
around. This will damage
the viewfinder and/or the
camcorder.
When carrying the cam-
corder with the shoulder
strap, put the viewfinder
down to help prevent
possible damage to the
viewfinder from bumping
against your body as you
move.
Use the LCD Monitor or Viewfinder to See What You Record
(Continued)
Use the Viewfinder
The camcorder’s viewfinder is a miniature monitor that displays the picture seen
by the camcorder when recording. When the LCD monitor is open more than
60˚, the viewfinder turns off.

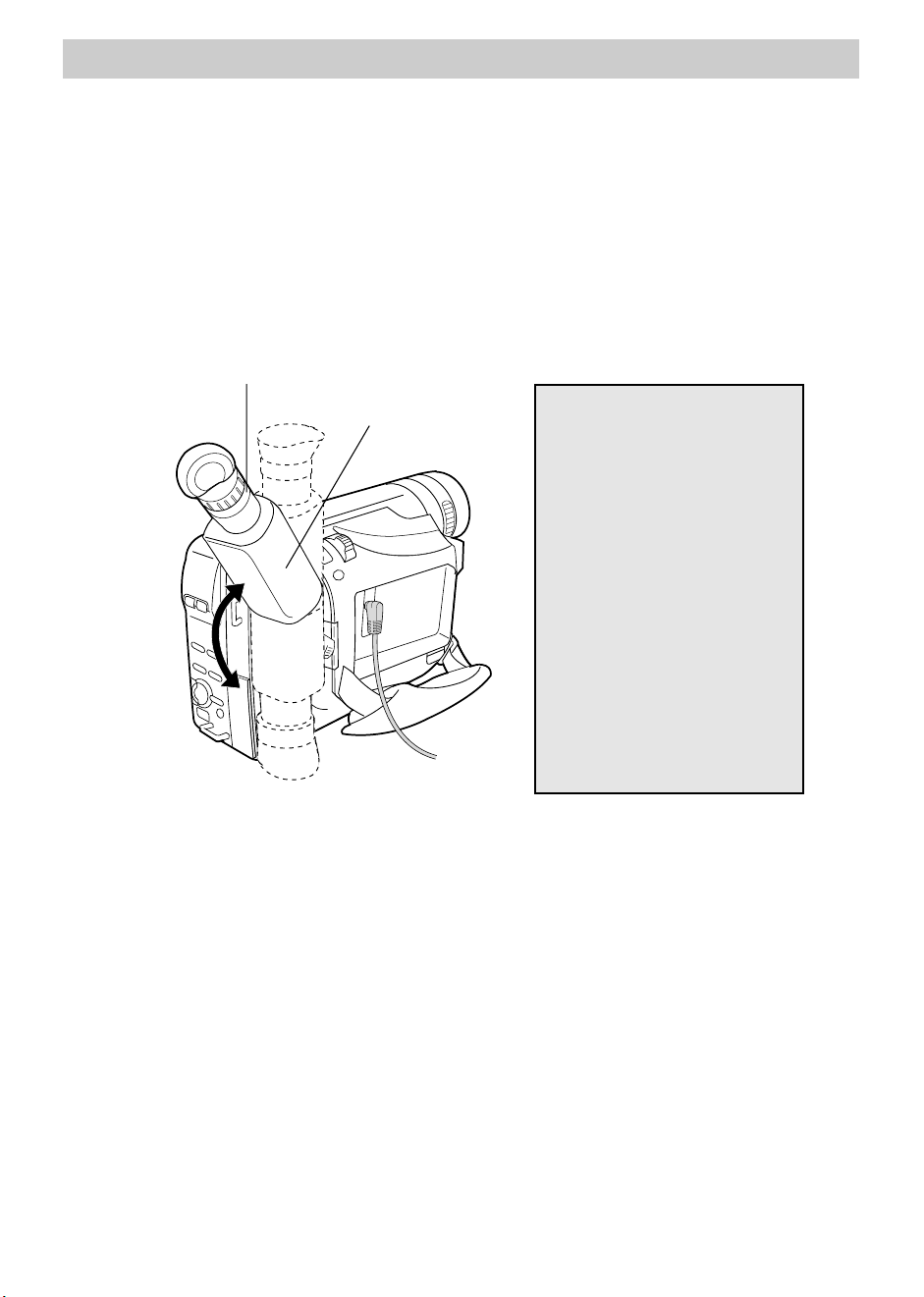

Adjust Viewfinder for Convenient
Viewing
For convenient viewing, rotate the
viewfinder up or down.
Eyepiece Focus Control
The eyepiece focus control lets you set
the focus of the viewfinder for your
vision. If you wear eyeglasses, you
probably can operate the camcorder
without them.
It is easiest to set the correct focus by
focusing on one of the viewfinder’s on-
screen displays. Look through the
viewfinder and adjust the eyepiece focus
control for your vision.
The eyepiece focus control does not
affect the focus of the picture actually
recorded by the camcorder.
28
Recording
LCD Monitor and Viewfinder Displays
Several displays appear on the LCD monitor or in the viewfinder to aid in the
operation of the camcorder. You can press and hold the MENU/DISPLAY button for
more than one second to remove or display the battery level indicator, tape-length
indicator, and tape-remaining display.
REC
PAUSE
SEPIA
NOV 18.00 PM 8:30:03
HAPPY BIRTHDAY
MWB
AT
4X
Battery Level Indicator ( )
• This indicator shows the amount of
power left in the rechargeable battery.
• This indicator flashes when the battery
is almost empty.
Cassette Warning
• The indicator flashes when the
POWER switch is set to CAMERA and
there is no cassette in the camcorder.
• The indicator flashes when the
POWER switch is set to CAMERA and
the safety tab is set to REC OFF or
removed from the cassette.
AUTO DATE, Date, Time, or Date and
Time
Display the DATE/TIME DISP. menu to
display AUTO DATE, Date, Time, or the
Date and Time
• These displays are recorded when
they are displayed. If you do not
want to record one of them, select
OFF in the menu.
• Details are on pages 20-21.
P. (Program) AE Button Special Effect
Indicators
• SEPIA
This indicator appears when you
select SEPIA to give your record-
ings a brown-tone like old photo-
graphs.
29
Recording
LCD Monitor and Viewfinder Displays (Continued)
• SPORTS
This indicator appears when you select
SPORTS to record fast-moving
action, such as sporting events.
• SD:SHADOW
This indicator appears when you select
SD:SHADOW to darken the picture
and reduce glare.
• HZ: HAZE
This indicator appears when you select
HZ:HAZE to soften the picture and
give it a misty white effect.
• TWILIGHT
This indicator appears when you select
TWILIGHT to record scenes at
twilight, fireworks, etc.
• 2 S 1/2000
This indicator appears when you select
1/2000 to record faster-moving action
than the SPORTS mode.
• NEGA POSI
This indicator appears when you select
NEGA POSI to reverse the colors and
create a negative image.
• Details are on page 44.
Preset Titles
• The preset title selected in the TITLE
menu appears here. It will be recorded
on the tape when it appears.
• Details are on pages 46-47.
M. W. B. (Manual White Balance
Indicators)
The indicator for the manual white
balance selected in the MWB menu
appears here.
• appears when you select
:FINE to record outdoors on a
sunny day.
• appears when you select
:CLOUD to record outdoors on a
cloudy day.
• appears when you select
:HALOGEN to record using
halogen or tungsten lighting.
• MWB appears when you select MWB
to adjust the color temperatures.
• Details are on pages 38-39.
Status Displays
• The
REC
indicator appears when the
camcorder is recording.
• The
PAUSE
indicator appears
during record-pause.
• appears when the camcorder plays
back a tape.
• appears during play-pause.
• appears during fast forward and
flashes during forward search.
• appears during rewind and flashes
during reverse search.
(AT or MT) Tracking Indicator
•AT appears during automatic tracking.
• MT appears during manual tracking.
Zoom Indicator (4X
)
The zoom indicators appear here when
you use the zoom lever.
30
Recording
BRIGHT (or VOLUME) Indicator
• The BRIGHT indicator appears when
you adjust the brightness of the
monitor with the bright control (also
menu PUSH dial).
• During playback, the VOLUME
indicator appears when you adjust the
volume of the speaker with the VOL
control (also zoom lever).
Exposure Indicators (+03)
This indicator appears when you are
adjusting brightness manually using the
EXPOSURE menu. Make sure the
POWER switch is set to CAMERA MAN.
• Details are on pages 40-41.
Fade and Wipe Indicators (
B
K
FADER)
Press the FADES button to display the
indicator for the fade or wipe you want
to select.
•
B
K
FADER for black fade.
• MOSAIC for mosaic fade.
LCD Monitor and Viewfinder Displays (Continued)
FADER
BRIGHT – - - - - - - - - - - - - - - - - +
5MIN
LENS COVER
TAPE END
+03
M 0:00:00
T
30
15
S
1
S
B
K
B
K
EFFECT
TBC SP
• SCROLL for scroll wipe.
• SLIDE for slide wipe.
• DOOR for door wipe.
• CW: CORNER for corner wipe.
• WW: WINDOW for window wipe.
• Details are on pages 42-43.
Focus Indicators ( )
These indicators appear when you are
adjusting focus manually using the
FOCUS menu. Make sure the POWER
switch is set to CAMERA MAN.
• The focus indicators ( ) flash
when the auto-focus system cannot
operate properly.
• appear when you have
selected MENU in the FOCUS menu.
• and flash while you adjust
manual focus and and flash
when you cannot adjust the focus
any farther.
• Details are on pages 36-37.
31
Recording
LCD Monitor and Viewfinder Displays (Continued)
Lithium Cell ( )
• This indicator appears for a few
seconds when you turn on the cam-
corder and the clock cell is missing or
needs to be replaced.
• Details are on page 17.
Animation, Time-Lapse, and Five-
Second Recording Indicators ( 15S
and 5S )
• 5S appears when you press the
5SEC. REC button for five-second
recording. Details are on page 33.
• The interval time selected for time-
lapse recording ( 15S, 30S, 1MIN,
or 5MIN) appears here. Details are on
pages 50-51.
• The recording time selected for
animation or time-lapse recording
( 1/4S, 1/2S, 1S, or 5S)
appears here. Details are on pages
48-50 and 50-51.
Steady Pix™ Indicator ( )
• Press the STEADY PIX button to turn
the Steady Pix feature on or off.
• The Steady Pix indicator ( ) appears
when the Steady Pix feature is on.
• Details are on page 41.
Tape Length (T30)
The tape length (T20, T30, T35, or T40)
selected in the TAPE LENGTH menu
appears here.
• Details are on pages 24-25.
Tape Speed Indicators (SP or SLP)
The tape speed selected with the SP/SLP
button appears here.
• Details are on page 22.
TBC (Time Base Corrector)
• During playback, press and hold the
STEADY PIX button to turn TBC on or
off. TBC appears when the time base
corrector is turned on. Details are on
page 57.
Time Counter (M0:00:00)
• The time counter appears during
playback. It is not recorded.
• An “M” appears in front of the time
counter when memory-stop is on.
• Details are on page 57.
Time-Remaining Display (5MIN)
The approximate time remaining on the
tape is automatically displayed. The
correct tape length must be set in the
TAPE LENGTH menu.
• Details are on pages 24-25.
Warnings and Information
• CONDENSATION OPERATION
PAUSED PLEASE WAIT appears when
excessive moisture has entered the
camcorder. Place the camcorder in a
warm, dry area until this indicator
disappears.
• LENS COVER briefly flashes to
remind you to open the lens cover.
LENS COVER might flash when the
camcorder is used in dark areas -- even
if the lens cover is open.
• TAPE END appears when the end of
the tape is reached during recording or
a cassette is inserted with its tape
already at the end.
• TAPE HEAD IS DIRTY HEAD
CLEANING REQUIRED USE
CLEANING CASSETTE when tape
head is dirty.
32
Recording
POWER
Switch
SEARCH F
Button
AutoShot™ Mode
The POWER switch lets you select
automatic or manual control of several
features.
To Turn on the AutoShot™ Mode
1. Set the POWER switch to CAMERA
AUTO. The power indicator lights
and the camcorder enters record-
pause.
PAUSE
appears in the
viewfinder and on the LCD monitor.
2. Press the thumb trigger to start
recording.
• The camcorder automatically
controls focus, exposure, and white
balance.
• The MENU/DISPLAY button and
menu PUSH dial will not operate.
• AUTO DATE is selected for the
date and time display.
To Turn Off the AutoShot™ Mode
1. Set the POWER switch to CAMERA
MAN.
SEARCH R
Button
5SEC. REC Button
Thumb
Trigger
SP/SLP
Button
MENU/
DISPLAY
Button
Microphone
33
Recording
Camera Edit Feature
The camera edit feature allows you to
position the tape when the camcorder is in
record-pause. Set POWER switch to
CAMERA AUTO or CAMERA MAN.
• Press and hold SEARCH R
to visually search the recorded tape
in reverse.
• Press and hold SEARCH F
to visually search forward on the
recorded tape.
Release the button to return the cam-
corder to record-pause at that point on
the tape. Press the thumb trigger to start
recording at this point.
Flying Erase Head
A separate erase head is mounted on
the spinning headwheel (hence the term
“flying”). This allows you to make clean
edits without the “glitches” or “rainbow
noise” that might occur at the beginning
or the end of recordings.
MENU/DISPLAY Button
Press and hold the MENU/DISPLAY
button for more than one second to
remove or display the battery level
indicator, tape-length indicator, and tape-
remaining display in the viewfinder or on
the LCD monitor.
Five-Second Record Feature
The five-second record feature allows you
to record for five seconds providing short
scene transitions.
1. Set POWER switch to CAMERA AUTO
or CAMERA MAN.
2. Make sure the SP/SLP button is set to
SP. Press and hold to change.
3. Press 5SEC. REC to display 5S in
the viewfinder or on the LCD monitor.
4. Press the thumb trigger to start
recording. The camcorder records for
five seconds and enters record-pause.
To Turn Off the Five-Second Record
Mode
1. Press the 5SEC. REC button to
remove 5S from the viewfinder or
LCD monitor.
Quick Review Feature
Press and release SEARCH R when
the camcorder is in record-pause to
review the last few seconds of a record-
ing. The POWER switch must be set to
CAMERA AUTO or CAMERA MAN.
The camcorder plays back the last few
seconds of the recording, returns the tape
to its previous position, and returns to
record-pause.
34
Recording
PUSH
—
+
Zooming
You can zoom in and out for close ups or wide-angle shots just by moving the
zoom lever on the camcorder. The camcorder automatically focuses when you
zoom at most distances. Digital zooming allows you to zoom up to 200 times.
To record a close-up of a small subject closer than three feet, turn on the TELE
MACRO feature in the menu. You can record at a distance of approximately 23
inches.
Use the Zoom Lever (W and T)
1. To zoom in or out (up to 16 times),
rotate the zoom lever.
• To move the lens in the telephoto
(close-up) direction, rotate the
zoom lever toward T.
• To move the lens in the wide angle
direction, rotate the zoom lever
toward W.
• The zoom level indicator appears in
the viewfinder or on the LCD
monitor during zooming.
Digital Zooming
Digital zooming makes zooming
possible from 16X (the optical zoom
limit) to a maximum of 200X.
1. Set the POWER switch to CAMERA
MAN.
2. Press MENU/DISPLAY to display the
menu in the viewfinder or on the
LCD monitor. Rotate the menu
PUSH dial to highlight D. ZOOM.
D. ZOOM
TELE MACRO
REC TIME
INT. TIME
DATE/TIME
TITLE LANG.
DEMO MODE
RETURN
ON
OFF
OFF
OFF
ENGLISH
OFF
Zoom Lever
(T and W)
Menu PUSH Dial
(Rotate or Press In)
MENU/DISPLAY Button
POWER Switch in
CAMERA MAN
4X
35
Recording
• Select ON to turn digital zooming
on.
• Select OFF to turn D. ZOOM off.
5. Press the menu PUSH dial twice to
turn digital zooming on or off and
remove the menus from the
viewfinder or LCD monitor.
Notes: As the zoom level increases, the
picture gradually becomes less sharp.
Digital zooming is recommended mainly for
special effects.
Zooming (Continued)
Tele Macro Zooming
1. Set the POWER switch to CAMERA
MAN.
2. Press MENU/DISPLAY to display the
menu in the viewfinder or on the LCD
monitor. Rotate the menu PUSH dial
to highlight TELE MACRO.
D. ZOOM
TELE MACRO
REC TIME
INT. TIME
DATE/TIME
TITLE LANG.
DEMO MODE
RETURN
ON
OFF
OFF
OFF
ENGLISH
OFF
3. Press the menu PUSH dial in to
display the TELE MACRO menu.
OFF
ON
EXIT
TELE MACRO
4. Rotate the menu PUSH dial to
highlight ON or OFF and press the
dial in.
• Select ON if you want to record a
small subject within approximately
24 inches.
• Select OFF for normal zooming.
5. Press the menu PUSH dial twice to
turn tele macro zooming on or off and
remove the menus.
3. Press the menu PUSH dial in to
display the D. ZOOM menu.
ON
OFF
EXIT
D. ZOOM
4. Rotate the menu PUSH dial to
highlight OFF or ON.
36

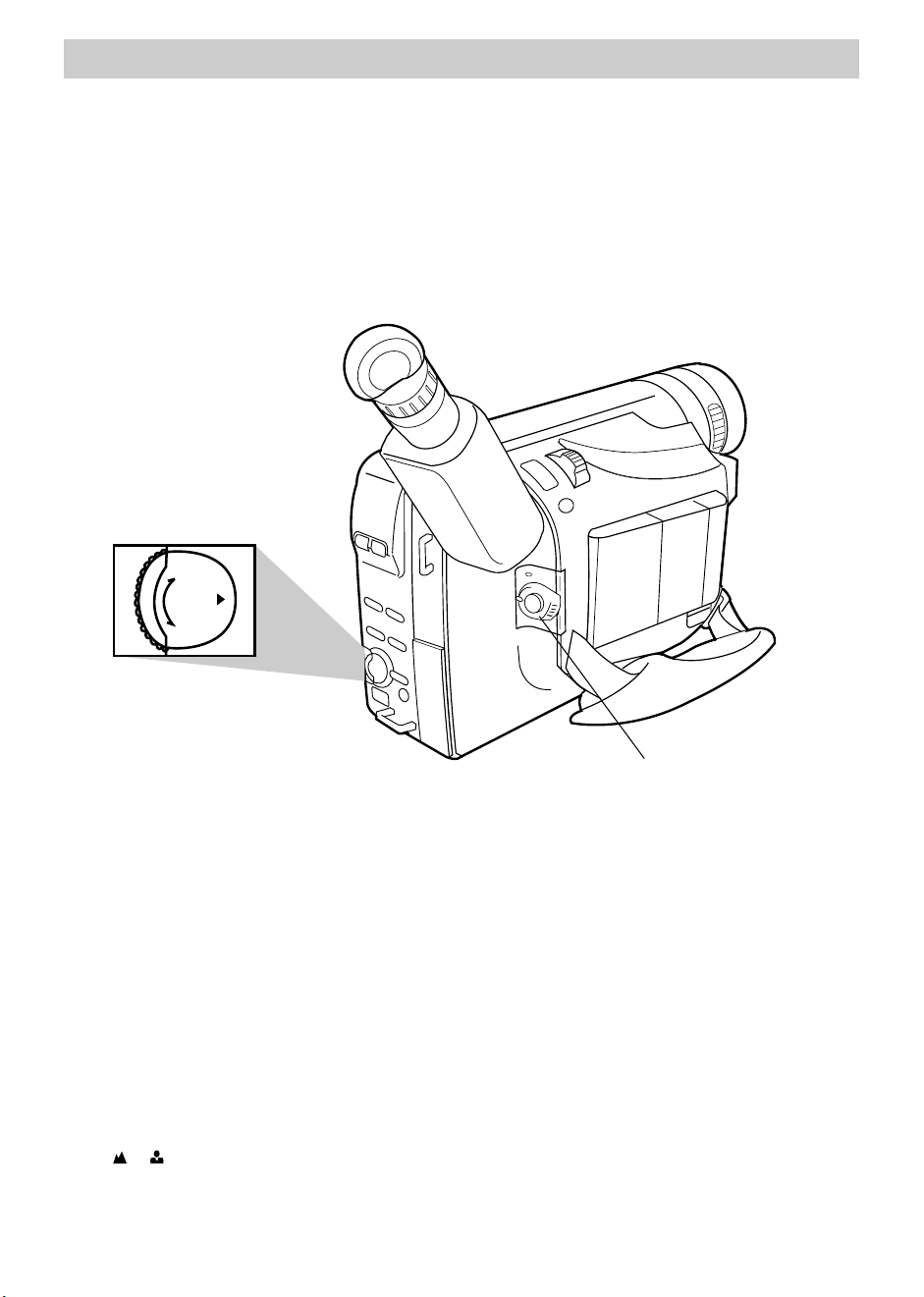

Recording
PUSH
—
+
Focusing
The camcorder adjusts focus automatically under normal conditions.
You might need to focus manually under certain conditions.
Auto Focus
During auto focus the camcorder
focuses on the object located in the
center area of the viewfinder.
• Set the POWER switch to CAMERA
AUTO to turn on the auto focus
feature. No focus indicator appears
in the viewfinder or on the LCD
monitor.
Notes: The low-contrast indicator
( ) in the viewfinder or LCD
Menu PUSH Dial
(Rotate or Press In)
POWER Switch in
CAMERA MAN
monitor indicates the auto-focus system might
not operate correctly due to low
illumination, low or no contrast, repeated
patterns, or two subjects at different
distances overlapping.
Use tele macro zooming when
recording a subject close to the
lens or the camcorder may
zoom out to focus.
The lens must be clean for the camcorder to
focus accurately.
37
Recording
Focusing (Continued)
Manual Focus
You might need to focus manually under
certain conditions.
1. Set the POWER switch to CAMERA
MAN.
2. Rotate the zoom lever to T to zoom in
on the subject and center the subject
in the viewfinder or on the LCD
monitor.
3. Press the menu PUSH dial in to
display the menu in the viewfinder or
on the LCD monitor. FOCUS is
highlighted.
FOCUS
EXPOSURE
M. W. B.
16 X 9
TAPE LENGTH
TITLE
DATE/TIME DISP.
RETURN
AUTO
AUTO
AUTO
OFF
T30
4. Press the menu PUSH dial in to
display the FOCUS menu.
AUTO
MANU
EXIT
FOCUS
5. Rotate the menu PUSH dial to
highlight MANU and press the dial in.
appears in the viewfinder or
on the LCD monitor. The focus is
locked at this point.
6. Adjust the focus for a subject nearer or
farther away.
• Rotate the menu PUSH dial up to
focus on a subject farther away.
flashes while you are adjusting the
focus and flashes when you
cannot adjust the focus any more.
• Rotate the menu PUSH dial down to
focus on a subject nearer.
flashes while you are adjusting the
focus and flashes when you
cannot adjust the focus any more.
7. Press the menu PUSH dial twice to
remove the menus.
Note: To return to auto focus, select
AUTO in the FOCUS menu or set the
POWER switch to CAMERA AUTO.
Conditions Requiring Manual Focus
• When recording a subject through a
window or when scene is affected by
sunbeams or light reflecting off water.
• When recording a subject having a
close foreground and a background that
is far away.
• When recording in low-light situations.
• When recording two subjects at
different distances that overlap in the
same scene.
• When recording a subject with no
contrast (such as a clear blue sky).
• When the subject is not in the center of
the scene.
• When recording a scene with fast
motions, like a tennis swing.
38
Recording
White Balance
Making colors look natural is what white balance is all about. This is achieved by
adjusting the way the camcorder “sees” and records the light source in the scene
you record. Your camcorder is equipped with automatic white balance.
You might want to adjust white balance manually under certain conditions, such as
recording an object with various shades of the same color or when recording a
predominantly red or brown object outdoors.
Auto White Balance
During auto white balance, the camcorder
adjusts the white balance.
• Set the POWER switch to CAMERA
AUTO to turn on the automatic white
balance feature. No indicator appears
in the viewfinder or on the LCD
monitor.
Manual White Balance
1. Set the POWER switch to CAMERA
MAN.
2. Press the menu PUSH dial in to
display the menu in the viewfinder or
on the LCD monitor. FOCUS is
highlighted.
PUSH
—
+
Zoom Lever
(T and W)
Menu PUSH Dial
(Rotate or Press In)
MENU/DISPLAY Button
POWER Switch in
CAMERA MAN
39
Recording
FOCUS
EXPOSURE
M. W. B.
16 X 9
TAPE LENGTH
TITLE
DATE/TIME DISP.
RETURN
AUTO
AUTO
AUTO
OFF
T30
3. Rotate the menu PUSH dial to
highlight M. W. B. and press the dial
in to display the M.W.B. menu.
AUTO
:FINE
:CLOUD
:HALOGEN
MWB
EXIT
M.W.B.
4. Rotate the menu PUSH dial to
highlight the white balance you want
to use.
• No indicator appears when you
select AUTO white balance.
• Select :FINE when recording
outdoors on a sunny day.
• Select :CLOUD when record-
ing outdoors on a cloudy day.
• Select :HALOGEN when
recording using halogen or tungsten
lighting.
• Select MWB when shooting
subjects with different color
temperatures and adjust the white
balance as follows:
AUTO
:FINE
:CLOUD
:HALOGEN
MWB
EXIT
M.W.B.
Note: Connecting your camcorder to a
color TV monitor may be helpful when
making white balance adjustments.
A.Point camcorder at a white, flat
object such as a piece of white
paper.
B. While MWB is highlighted, press
and hold the menu PUSH dial
until MWB starts flashing.
The MWB indicator flashes
while the camcorder is adjusting
white balance and stops flashing
when it is ready to record.
Note: To change the tint for special
recording, substitute colored paper for
white. The white balance is
adjusted based on the color.
Red paper – deeper green
Blue paper – orange
Yellow paper – deeper purple
5. Press the menu PUSH dial to remove
the menus.
Note: To return to auto white balance,
select AUTO in the M.W.B. menu or set the
POWER switch to CAMERA AUTO.
White Balance (Continued)
40
Recording

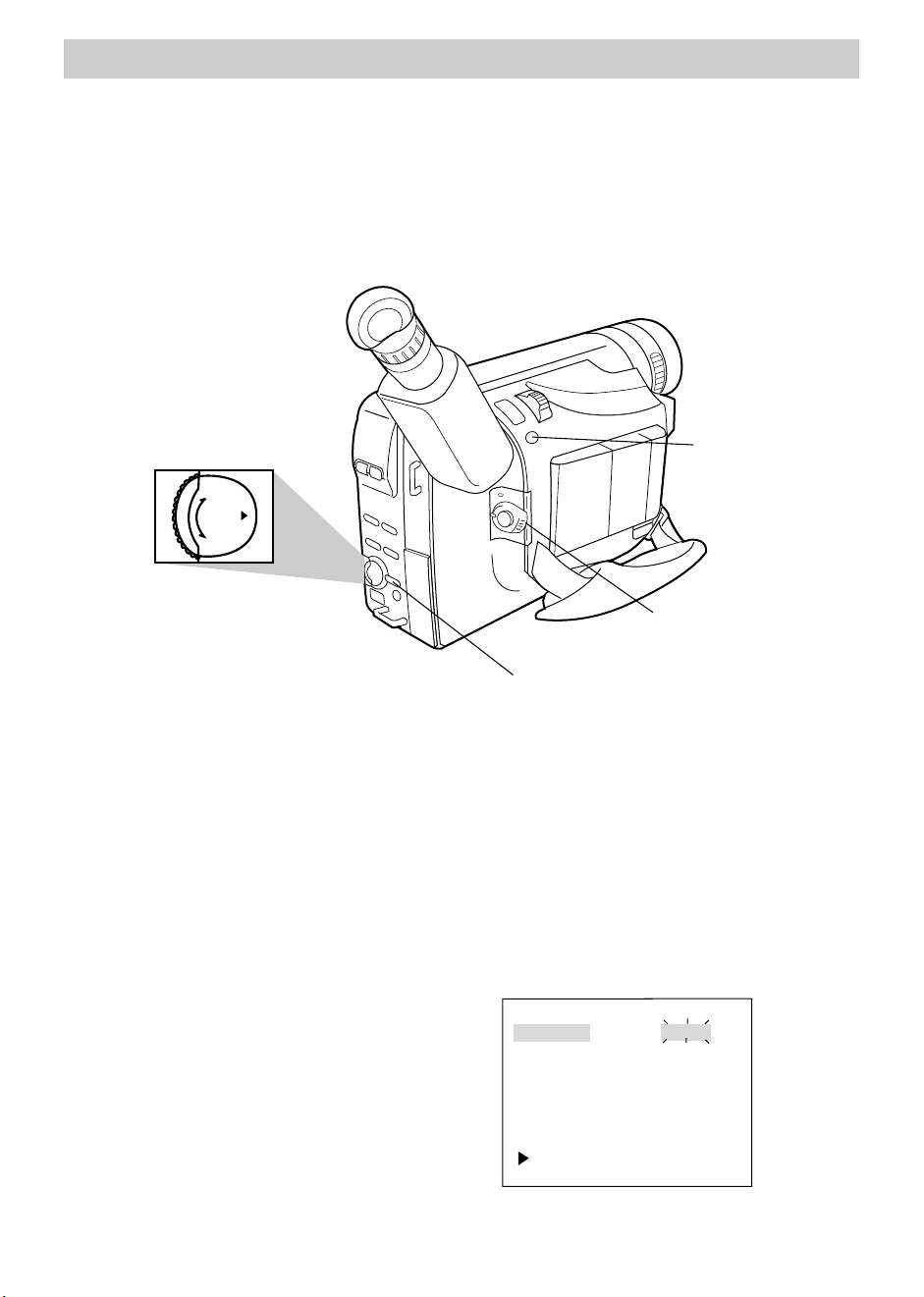

Exposure Control
The camcorder controls the iris for you when the POWER switch is set to
CAMERA AUTO. The camcorder adjusts brightness automatically under
normal conditions. You might need to adjust brightness manually when
the background is too bright or too dark in comparison with the subject.
Manual Exposure
You may need to adjust exposure
manually under certain conditions, such
as those listed on the next page.
Auto Exposure
The camcorder adjusts the iris for
the best possible picture during
auto exposure.
• Set the POWER switch to CAMERA
AUTO to turn on the automatic
exposure feature. No indicator
appears in the viewfinder or on the
LCD monitor.
1. Set the POWER switch to CAMERA
MAN.
2. Press the menu PUSH dial in to
display the menu in the viewfinder or
on the LCD monitor. FOCUS is
highlighted.
FOCUS
EXPOSURE
M. W. B.
16 X 9
TAPE LENGTH
TITLE
DATE/TIME DISP.
RETURN
AUTO
AUTO
AUTO
OFF
T30
PUSH
—
+
Menu PUSH Dial
(Rotate or Press In)
MENU/DISPLAY Button
POWER Switch in
CAMERA MAN
STEADY PIX
Button
41
Recording
Exposure Control (Continued)
3.
Rotate the menu PUSH dial to highlight
EXPOSURE, and press the dial in to
display the EXPOSURE menu.
AUTO
MANU
EXIT
EXPOSURE
4. Rotate the menu PUSH dial to
highlight MANU (manual) and press
the dial in. The exposure indicator
(00) appears.
5. Adjust the exposure for a dark or
bright subject. The exposure you
select appears.
• To brighten the image, rotate the
menu PUSH dial up. You can
adjust the exposure to +06.
• To darken the image, rotate the
menu PUSH dial down. You can
adjust the exposure to – 06.
6. Press the menu PUSH dial in twice to
select an exposure and remove the
menus.
Note: To return to auto exposure, select
AUTO in the EXPOSURE menu or set the
POWER switch to CAMERA AUTO.
Conditions Requiring Manual Exposure
• When recording with a bright back-
ground or reverse lighting.
• When recording with a very dark
background or very bright subject.
• When recording a reflective natural
background — such as a beach or
when skiing.
Steady Pix™ Feature
The Steady Pix feature corrects slight
shaking of images during some recording
modes.
• While zooming in on a distant subject.
• When recording an approaching small
subject.
• When recording while walking or
riding in a vehicle.
• When recording through a vehicle’s
window.
To Use the Steady Pix™ Feature
• Press the STEADY PIX button to turn
the Steady Pix feature on. The Steady
Pix indicator ( ) appears in the
viewfinder or on the LCD monitor.
• Press the STEADY PIX button to turn
the Steady Pix feature off. The Steady
Pix indicator ( ) disappears.
Notes: Turn the Steady Pix feature off when
using a tripod.
There is a small change in the picture size
when using the Steady Pix feature.
Accurate stabilization may not be possible if
hand shake is excessive or when shooting the
following:
• Subjects with vertical or horizontal stripes.
• Dark or dim subjects.
• Subjects with excessive backlighting.
• Scenes with movement in various directions.
• Scenes with low-contrast backgrounds.
42
Recording
FADES
Button
Fade or Wipe In or Out
You can add a professional touch to your recordings when you fade or wipe
in and out of scenes. The picture gradually appears or disappears. The
speed of the fade or wipe is controlled by the camcorder.
To Fade or Wipe In or Out
1. Set the POWER switch to CAMERA
MAN.
2. Repeatedly press the FADES button.
The indicator for the fade or wipe you
select will appear.
• Select SCROLL wipe to have
the scene wipe in with a black
screen from the bottom to the top
or wipe out from the top to the
bottom.
• Select SLIDE wipe in with a
new image from right to left or
wipe out with a black screen
moving from left to right.
• Select DOOR wipe to have the
scene wipe in with a black screen
moving from the center out to the
sides or wipe out moving from the
sides into the center.
• Select CW:CORNER to wipe in
from the upper right corner to
lower left corner or wipe out from
the lower left corner to the upper
right corner.
• Select WW:WINDOW to have the
next scene wipe in from the center
to the corners covering the previous
scene.
• Select OFF if you do not want to
fade or wipe in or out.
3. Press the thumb trigger to start or stop
recording. The camcorder fades in or
out of the scene.
Notes: The screen becomes slightly reddish if
fade is used with the sepia feature.
If the haze feature is selected,
B
K
FADER
fades in and out from a white screen.
B
K
FADER
B
K
• Select
B
K
FADER to fade in and
out to/from a black screen.
• Select MOSAIC to fade in and
out to/from a mosaic effect.
43
Recording
Fade or Wipe In
1. Press the thumb trigger to pause
recording.
2. Repeatedly press FADES to select the
fade or wipe you want to use.
Note: The last fade or wipe used appears
the first time you press FADES.
3. Press the thumb trigger to start
recording. The picture and sound
gradually appear in place of the blank
screen.
Fade or Wipe Out
1. During recording, repeatedly press
FADES to select a fade or wipe.
Note: The last fade or wipe used appears
the first time you press FADES.
2. Press FADES to stop recording. The
picture and sound gradually disappear.
LCD Monitor or Viewfinder Displays
Mosaic Fade
Black Fade
Normal Picture (No Fade)
B
K
FADER
Repeatedly Press the FADES Button
Slide Wipe
MOSAIC
Fade or Wipe In or Out (Continued)
Scroll Wipe
SCROLL
DOOR
Window Wipe
WW:WINDOW
SLIDE
Door Wipe
Corner Wipe
CW:CORNER
44
Recording
P. (Program) AE Button
The P. (Program) AE button lets you select one of several different effects. Press
the button to select the effect you want. The name and indicator for the effect
appears briefly and then the indicator remains.
Picture is recorded in sepia (brownish red) and offers the
vintage look of old movies.
Use to capture fast-moving action with less blurring. Use
when playing back a recording on a VCR featuring special
effects, such as pause or slow motion.
Use to counter effects of glare and darken the picture with a
black mist.
Use to soften the image and give the picture a misty white
effect.
Use for twilight scenery, fireworks, etc. to make them look
more natural and dramatic.
Sets shutter speed to 1/2000. Use to record faster moving
action than sports mode with less blurring. Use when
playing back a recording on a VCR featuring special effects,
such as pause or slow motion.
Use to reverse the color (create a negative image).
Use to turn off all special effects.
SPORTS
2 S 1/2000
OFF
NEGA POSI
SD:SHADOW
HZ:HAZE
SEPIA
Indicator and Name Uses
P. (Program) AE
Button
TWILIGHT
45
Recording
4. Rotate the menu PUSH dial to
highlight OFF or ON.
• Select ON to record 16X9.
• Select OFF to turn off 16X9.
5. Press the menu PUSH dial in twice to
turn 16X9 on or off and remove the
menus.
New 16x9 TV Screen
Standard Shape TV Screen
1. Set the POWER switch to CAMERA
MAN.
2. Press the menu PUSH dial in to
display the menu in the viewfinder or
on the LCD monitor. FOCUS is
highlighted.
FOCUS
EXPOSURE
M. W. B.
16 X 9
TAPE LENGTH
TITLE
DATE/TIME DISP.
RETURN
AUTO
AUTO
AUTO
OFF
T30
3. Rotate the menu PUSH dial down to
highlight 16X9 and press it in to
display the 16X9 menu.
OFF
ON
EXIT
16X9
Caution: Do not use this mode unless you
have a compatible 16 X 9 TV. When played on
a regular TV, black bars appear in the picture.
16X9 Mode
The camcorder has a wide recording mode that lets you make recordings compatible
with the 16X9 format. When 16X9 is activated, the camcorder records black bars at
the top and bottom of the picture to produce the wide-screen effect. This is also
known as “letterbox” recording.
PUSH
—
+
Menu PUSH
Dial
(Rotate or
Press In)
POWER Switch in
CAMERA MAN

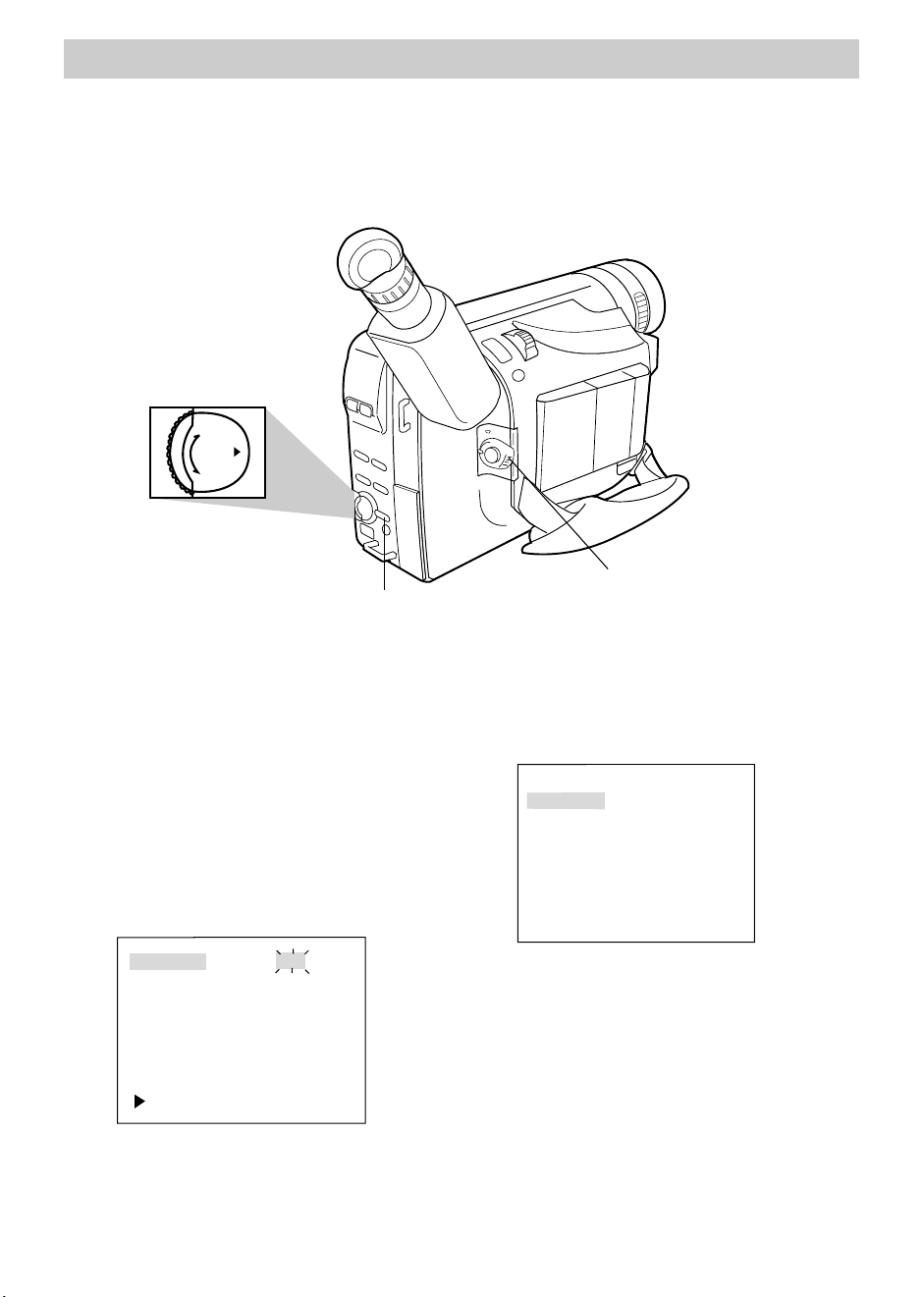

Recording
46
Preset Titles
The title feature lets you choose one of eight preset titles. You can also choose
the language for your titles.
Select a Language for the Title
You can select English, French, or
Spanish to record your preset titles.
1. Set the POWER switch to CAMERA
MAN.
2. Press the MENU/DISPLAY button to
display the menu in the viewfinder or
on the LCD monitor. D. ZOOM is
highlighted.
D. ZOOM
TELE MACRO
REC TIME
INT. TIME
DATE/TIME
TITLE LANG.
DEMO MODE
RETURN
ON
OFF
OFF
OFF
ENGLISH
OFF
3. Rotate the menu PUSH dial down to
highlight TITLE LANG. and press the
menu PUSH dial in to display the
TITLE LANG. menu.
ENGLISH
FRENCH
SPANISH
EXIT
TITLE LANG.
4. Rotate the menu PUSH dial to
highlight the language you want to use
to record the preset title,
5. Press the menu PUSH dial twice to
select the language and remove the
menus.
PUSH
—
+
Menu PUSH Dial
(Rotate or Press In)
MENU/DISPLAY Button
POWER Switch in
CAMERA MAN
47
Recording
Record a Preset Title
1. Set the POWER switch to CAMERA
MAN.
2. Press the menu PUSH dial in to
display the menu in the viewfinder or
on the LCD monitor. FOCUS is
highlighted.
FOCUS
EXPOSURE
M. W. B.
16 X 9
TAPE LENGTH
TITLE
DATE/TIME DISP.
RETURN
AUTO
AUTO
AUTO
OFF
T30
3. Rotate the menu PUSH dial down to
highlight TITLE.
FOCUS
EXPOSURE
M. W. B.
16 X 9
TAPE LENGTH
TITLE
DATE/TIME DISP.
RETURN
AUTO
AUTO
AUTO
OFF
T30
4. Press the menu PUSH dial in to
display the TITLE menu.
OFF
HAPPY BIRTHDAY
HAPPY HOLIDAYS
CONGRATULATIONS
OUR FAMILY
SOMEONE SPECIAL
VACATION
SUPER STAR
FIRST
EXIT
TITLE
5. Rotate the menu PUSH dial down to
highlight the title you want to record,
and press the dial twice to select the
title and remove the menus.
6. Start recording. The title you
selected is superimposed and
recorded on your tape.
To Stop Recording the Title
1. Set the POWER switch to CAMERA
MAN.
2. Press the menu PUSH dial in to
display the menu in the viewfinder or
on the LCD monitor. FOCUS is
highlighted.
3. Rotate the menu PUSH dial down to
highlight TITLE and press the dial in
to display the TITLE menu.
4. Rotate the menu PUSH dial down to
highlight OFF and press the dial in
twice to turn off the title and remove
the menus.
Preset Titles (Continued)
Recording
48

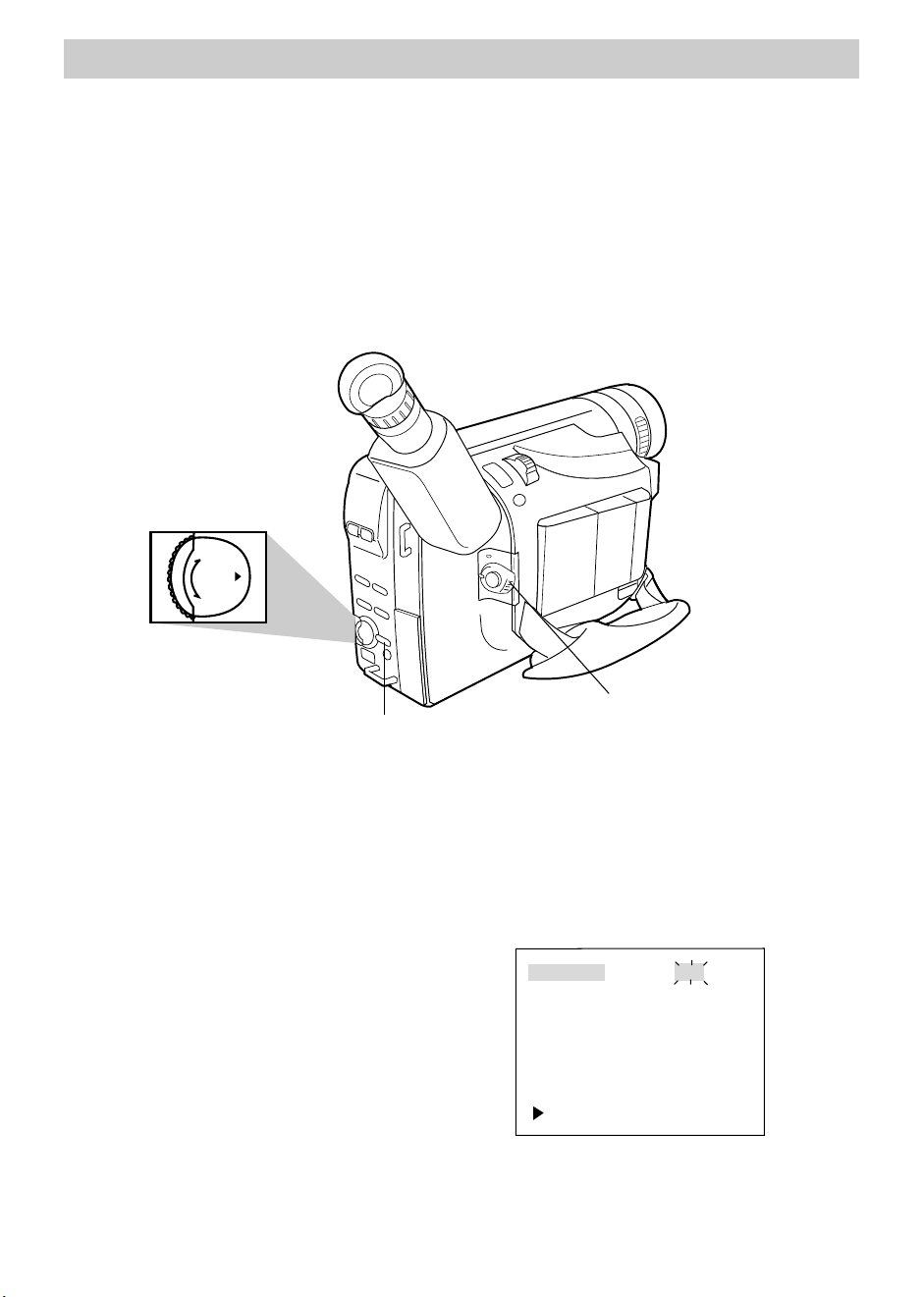

To Record Using Animation
1. Set the POWER switch to CAMERA
MAN.
2. Press and hold SP/SLP to select SP.
SP appears in the viewfinder or on
the LCD monitor.
3. Press the MENU/DISPLAY button to
display the menu in the viewfinder or
on the LCD monitor. D. ZOOM is
highlighted.
Animation Recording
You can produce an illusion of movement for an otherwise stationary scene
or object by shooting a series of pictures of slightly different poses (such as
cartooning).
D. ZOOM
TELE MACRO
REC TIME
INT. TIME
DATE/TIME
TITLE LANG.
DEMO MODE
RETURN
ON
OFF
OFF
OFF
ENGLISH
OFF
PUSH
—
+
Menu PUSH Dial
(Rotate or Press In)
MENU/DISPLAY Button
POWER Switch in
CAMERA MAN
49
Recording
Animation Recording (Continued)
4. Rotate the menu PUSH dial down to
highlight REC TIME and press the
dial in to display the REC TIME
menu.
OFF
1/4 S
1/2 S
1 S
5 S
EXIT
REC TIME
5. Rotate the menu PUSH dial to
highlight the amount of time you want
the camcorder to record.
• Select 1/4S to record for 1/4
second.
• Select 1/2S to record for 1/2
second.
• Select 1S to record for one second.
• Select 5S to record for five seconds.
• Select OFF if you do not want to
record for a selected amount of
time.
6. Press the menu PUSH dial twice to
exit the menu.
7. and the amount of recording time
appear in the viewfinder or on the
LCD monitor.
5S
8. Press the thumb trigger to start
recording.
Note: The recording stops automatically
after the selected period of recording time.
You might want to take two to five shots of
the subject in the same position.
9. Move the subject and repeat step 8 for
the desired number of shots.
Note: Fade does not operate during animation
or time-lapse recording.
To Stop Animation Recording
Set the REC TIME in the menu to OFF.
Recording
50

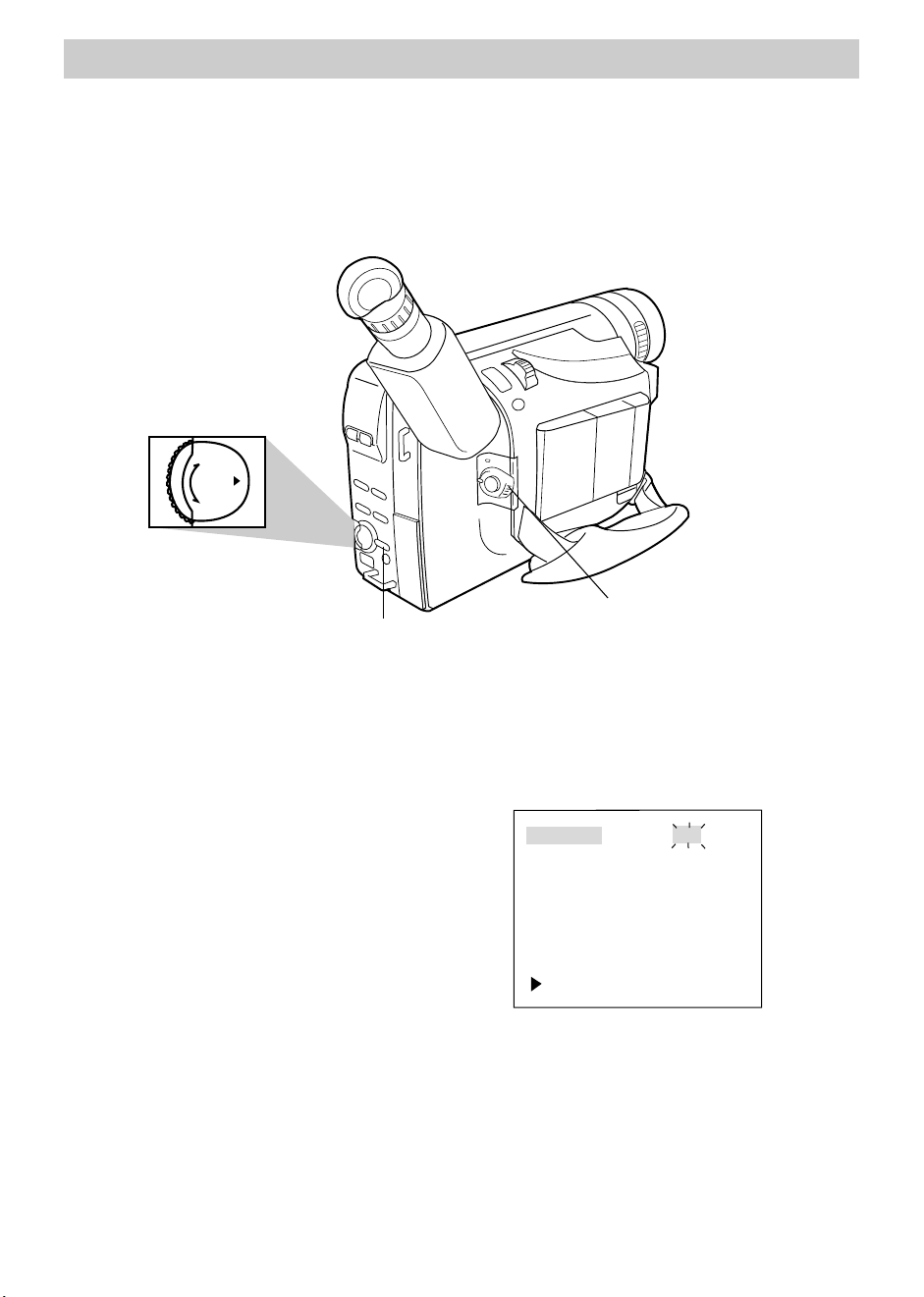

To Record Using Time Lapse
1. Set the POWER switch to CAMERA
MAN.
2. Press and hold SP/SLP to select SP.
SP appears in the viewfinder or on the
LCD monitor.
3. Press the MENU/DISPLAY button to
display the menu in the viewfinder or
on the LCD monitor. D. ZOOM is
highlighted.
Time-Lapse Recording
You can make automatic recordings at preset time intervals. The recording
shows subtle changes (such as shifts in cloud formations or plant growth)
when it remains focused on an object.
D. ZOOM
TELE MACRO
REC TIME
INT. TIME
DATE/TIME
TITLE LANG.
DEMO MODE
RETURN
ON
OFF
OFF
OFF
ENGLISH
OFF
4. Rotate the menu PUSH dial to
highlight REC TIME and press it in to
display the REC TIME menu.
PUSH
—
+
Menu PUSH Dial
(Rotate or Press In)
MENU/DISPLAY Button
POWER Switch in
CAMERA MAN
51
Recording
OFF
1/4 S
1/2 S
1 S
5 S
EXIT
REC TIME
5. Rotate the menu PUSH dial to
highlight the amount of time you
want the camcorder to record.
• Select 1/4S to record for 1/4
second.
• Select 1/2S to record for 1/2
second.
• Select 1S to record for one
second.
• Select 5S to record for five
seconds.
6. Press the menu PUSH dial in to select
a recording time and return to the
menu.
7. Rotate the menu PUSH dial to
highlight INT. TIME and press it in to
display the INT. TIME menu.
Note: You cannot select an INT. TIME if
no REC TIME is selected.
OFF
15 S
30 S
1 MIN
5 MIN
EXIT
INT. TIME
8. Rotate the menu PUSH dial down to
highlight the desired time between
recordings (15S, 30S, 1 MIN, or
5 MIN).
• Select 15S to delay the recording
for 15 seconds.
• Select 30S to delay the recording
for 30 seconds.
• Select 1 MIN to delay the recording
for one minute.
• Select 5 MIN to delay the recording
for five minutes.
• Select OFF if you do not want the
camcorder to delay recording.
9. Press the menu PUSH dial twice to
select a time and exit the menus.
and the amount of recording time
and and the amount of interval
time between recordings appear in
the viewfinder or on the LCD
monitor.
15S
5S
10. Press the thumb trigger to start
recording.
Note: The camcorder starts and stops
recording the selected amount of time.
Note: Fade does not operate during animation
or time-lapse recording.
To Stop Time-Lapse Recording
Set the REC TIME and INT. TIME in the
menus to OFF.
Time-Lapse Recording (Continued)
Recording
52
PUSH
—
+

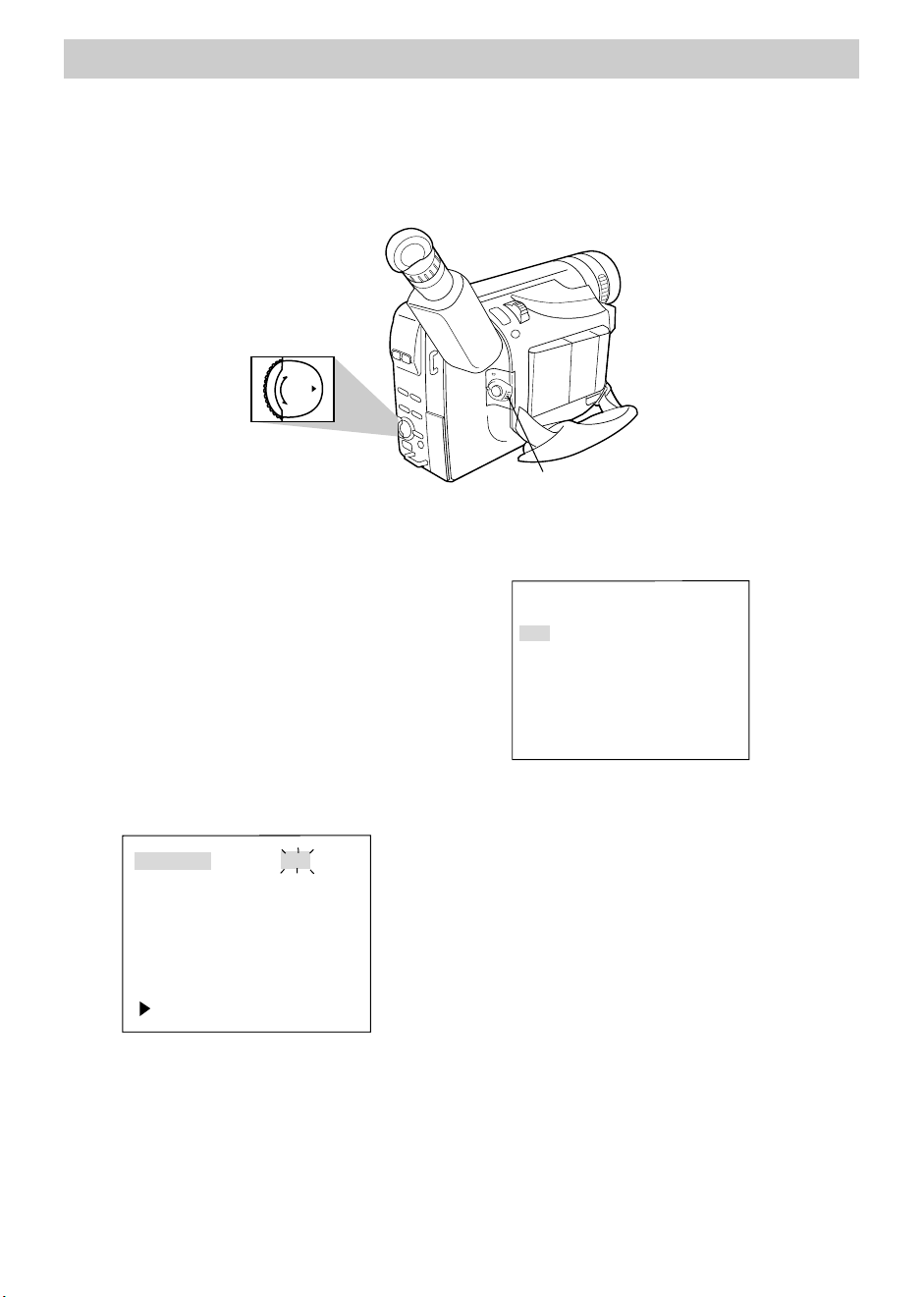

To Turn the Demo Mode On
1. Set the POWER switch to CAMERA
MAN.
2. If a cassette is inserted, remove the
safety tab or set it to REC OFF.
3. Press the MENU/DISPLAY button to
display the menu in the viewfinder or
on the LCD monitor. D. ZOOM is
highlighted.
D. ZOOM
TELE MACRO
REC TIME
INT. TIME
DATE/TIME
TITLE LANG.
DEMO MODE
RETURN
ON
OFF
OFF
OFF
ENGLISH
OFF
4. Rotate the menu PUSH dial down to
highlight DEMO MODE and press it
in to display the DEMO menu.
Demo Mode
You can turn on the DEMO mode in the MENU to have a demonstration of some
of the camcorder’s features.
OFF
ON
EXIT
DEMO
5. Rotate the MENU dial to highlight
OFF or ON. Press the PUSH dial
twice to select ON or OFF and
remove the menus.
• Select ON if you want the cam-
corder to demonstrate some of the
recording features.
Note: Zoom is the only feature that
operates during the demo mode.
• Select OFF if you do not want a
demonstration.
To Turn the Demo Mode Off
Turn off the camcorder.
Menu PUSH Dial
(Rotate or Press In)
POWER Switch in
CAMERA MAN
53
Recording

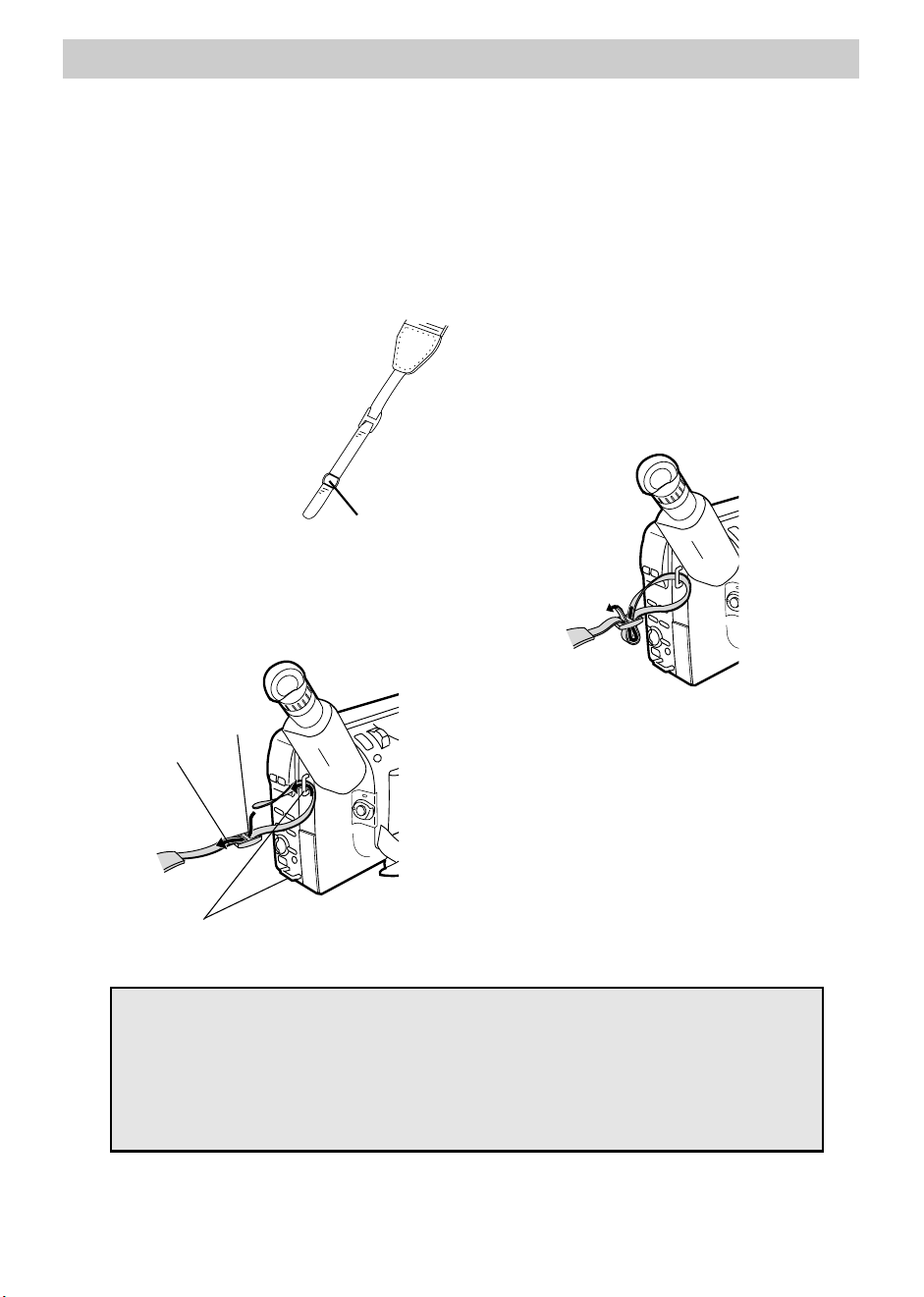

Attach the Shoulder Strap
The camcorder’s shoulder strap is designed to let you carry the camcorder from your
shoulder and – when you are ready to shoot – bring the camcorder to shooting position
in one quick movement.
Keeper
To Attach the Shoulder Strap
1. If the strap keeper is over a
double section of the strap,
slide the strap keeper off
the end of the strap.
Replace the keeper on
the strap between the
buckle and the end
of the strap as
shown.
2. Loop the end of the strap over the top
of the shoulder strap attachment ring.
Buckle
Keeper
Attachment
Rings
Cautions: When carrying the camcorder with the shoulder strap, you may
find it convenient to close the LCD monitor and rotate the viewfinder down.
This helps prevent possible damage to the monitor or viewfinder from bump-
ing against your body as you move. Make sure the shoulder strap is firmly
attached before using it to carry the camcorder.
3. Thread the end of the strap back
through the keeper and buckle
making sure it is threaded under the
outer strap. Make sure the strap is
not twisted.
4. Attach the other end of the strap to the
other shoulder strap attachment ring.
5. Adjust the shoulder strap to the
desired length.
6. Slide both keepers up snugly against
the shoulder strap attachment rings to
prevent the strap from slipping.
54
Playback
EJECT
Switch
STOP Button
VOL (Volume) Control
(Also Zoom Lever)
Viewfinder
Eyepiece Focus
Control
PLAY/PAUSE
Button
Use the LCD Monitor or Viewfinder for Playback
You can view tapes in the LCD monitor or the viewfinder. You can
hear the sound from the tapes on the built-in speaker.
FF Button
REW
Button
Menu PUSH Dial
(Also Bright Control)
Speaker
Press here to
close.
LCD Monitor
TBC Button
(Also STEADY PIX Button)
Playback
55
Playback
Use the LCD Monitor or Viewfinder for Playback (Continued)
To Play Back a Tape
1. Attach a power supply.
Attach the adapter/charger, charged
battery, or optional car cord.
2. Insert a tape.
• Open the LCD monitor. Open the
monitor at least 60˚ before opening
the cassette compartment.
• Slide EJECT switch to the left to
open the cassette compartment.
• Turn the tape wheel on the cassette
to remove any slack from the tape.
• Insert the cassette with the tape
wheel facing up and the tape
window facing out.
• Press on the area shown to lock the
cassette compartment closed.
3. Set the POWER switch to VCR.
The power indicator lights.
4. Use the LCD monitor or viewfinder
to see what you are playing back.
Use the LCD Monitor
• Make sure the monitor is open 60˚.
The viewfinder turns off.
• Rotate the monitor to a comfortable
viewing position (180˚up and
around or 90˚ down).
• Adjust the brightness of the image
by turning the Bright control (also
menu PUSH dial).
• Adjust the speaker volume with the
VOL (volume) control (also zoom
lever).
Use the Viewfinder
• Make sure the monitor is closed
and locked. The viewfinder
turns on.
• Adjust the viewfinder for a
comfortable viewing position.
• Turn the eyepiece focus control to
adjust the focus of the viewfinder
for your vision.
5. Press the PLAY/PAUSE button to
begin playback.
• The indicator appears in the
viewfinder or on the LCD monitor
during playback.
• Turn on TBC (Time Base Correc-
tor) if picture needs stabilizing.
TBC indicator appears in
viewfinder or on LCD monitor.
• If necessary, adjust tracking.
• During playback, use the playback
features on the following pages.
6. Press the STOP button when you
are finished.
56
Playback
Caution: Pause is designed for momentary
interruptions and should not be used for an
extended period of time. If the camcorder
remains in pause for more than five minutes,
it enters the stop mode and turns off to
prevent excessive tape wear.

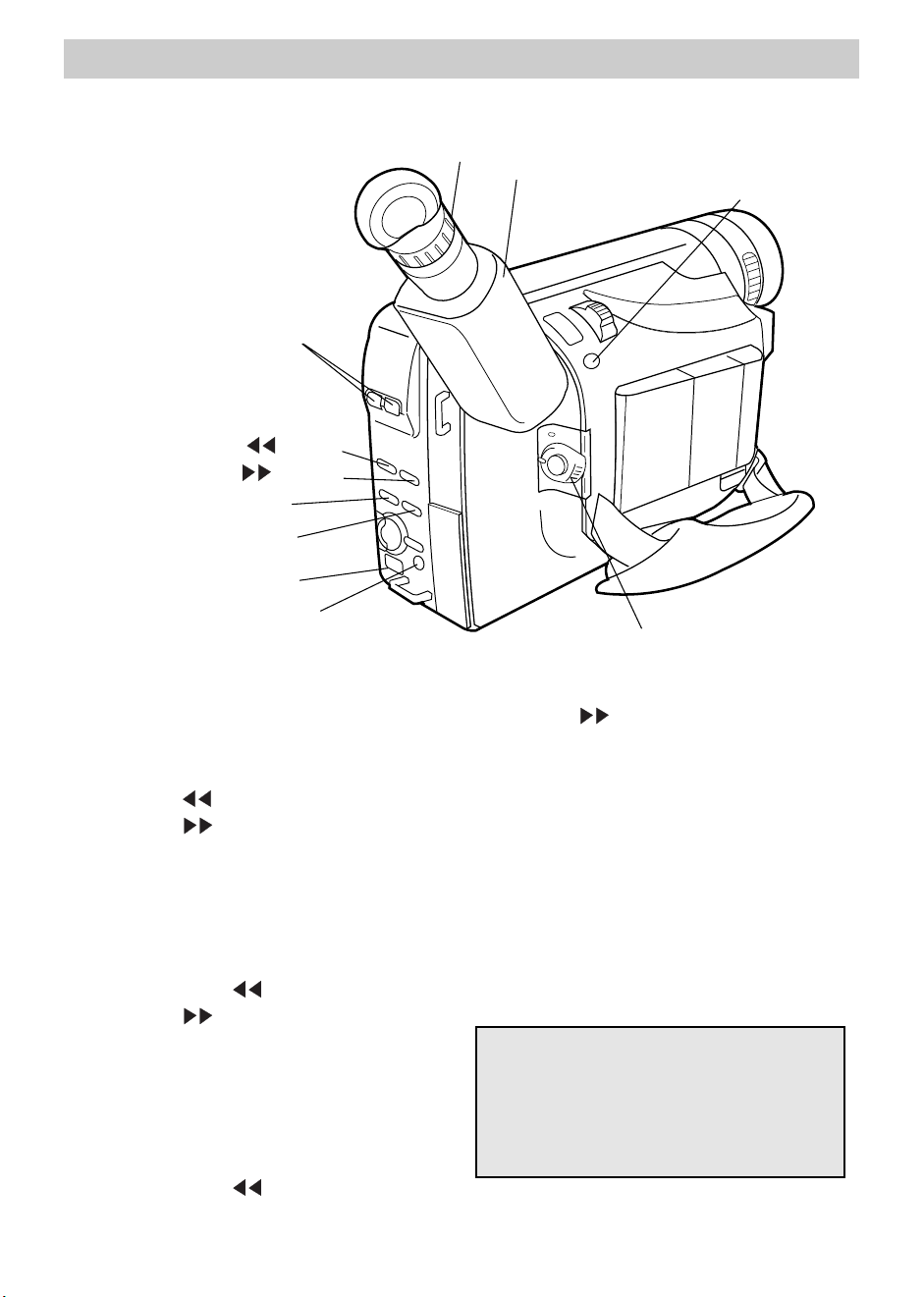

Playback Features
Position the Tape
Set POWER switch to VCR and
press STOP.
• Press and quickly release the REW
(rewind) button or FF (fast
forward) button to rewind or fast-
forward the tape.
• Press STOP to stop the tape.
Visual Search
• During playback, press and release
REW (rewind) button or FF (fast
forward) button if you want to
search the tape visually in forward or
reverse.
• Press PLAY/PAUSE to return to normal
playback.
• For brief searching, press and hold
REW (rewind) button or FF (fast
forward) button for more than two
seconds. Release the button to return to
normal playback.
Stop-Action Pause
• During playback, press PLAY/PAUSE
to “stop the action” and view one
frame of the tape.
• Press PLAY/PAUSE to return to normal
playback.
P.AE and FADES Buttons
(Also Tracking Buttons)
EJECT Switch
STOP Button
Viewfinder
Eyepiece Focus Control
PLAY/PAUSE Button
FF (Fast Forward) Button
POWER Switch
in VCR
COUNTER R/M Button
REW (Rewind) Button
TBC Button
(Also STEADY PIX Button)
57
Playback
Time Counter
The time-counter display shows the
actual time elapsed when playing back a
segment of tape. The memory-stop
feature helps locate a certain point on the
tape. Turn memory stop on to stop the
tape automatically during rewind or fast
forward when the time counter reaches
M 0:00:00.
To Use the Memory-Stop Feature
1. Locate the place on the tape you want
to return to, set the POWER switch to
VCR, and press COUNTER R/M for
more than two seconds to reset the
counter to 0:00:00.
2. Press COUNTER R/M for less than
one second to turn the time counter’s
memory-stop feature on or off. When
memory stop is on, an M appears
before the time counter.
Playback Features (Continued)
3. Continue to play the tape. When you
want to return to the place you
marked, press the STOP button.
4. Press REW . The tape rewinds to
the time counter reading of
M 0:00:00.
M 0:00:00
Tracking
During playback, streaks may appear in
the playback picture. Press both tracking
buttons (P.AE and FADES buttons) to
activate manual tracking. Press either
Press both tracking buttons again to turn
automatic tracking back on. AT flashes in
the viewfinder for a few seconds and then
disappears.
Note: The tracking buttons may have no effect
on tapes recorded on other camcorders or VCRs.
TBC (Time Base Corrector)
During playback, TBC reduces jitter from
fluctuating video signals even on old
tapes. If picture appears distorted, try
turning TBC off.
Press and hold the STEADY PIX button for
at least one second to turn TBC off or on.
It may take a few seconds before TBC
actually starts working.
The TBC indicator appears in the
viewfinder or on the LCD monitor when
TBC is turned on and disappears when
TBC is turned off.
button again until the streaks disappear.
MT appears during manual tracking.
MT
TBC
Notes: TBC does not operate during visual
search or stop-action pause. The picture may
be distorted when normal playback resumes
after visual search or stop-action pause.
The picture may be distorted if TBC is turned
on or off at the edit in/out points.
58
Playback

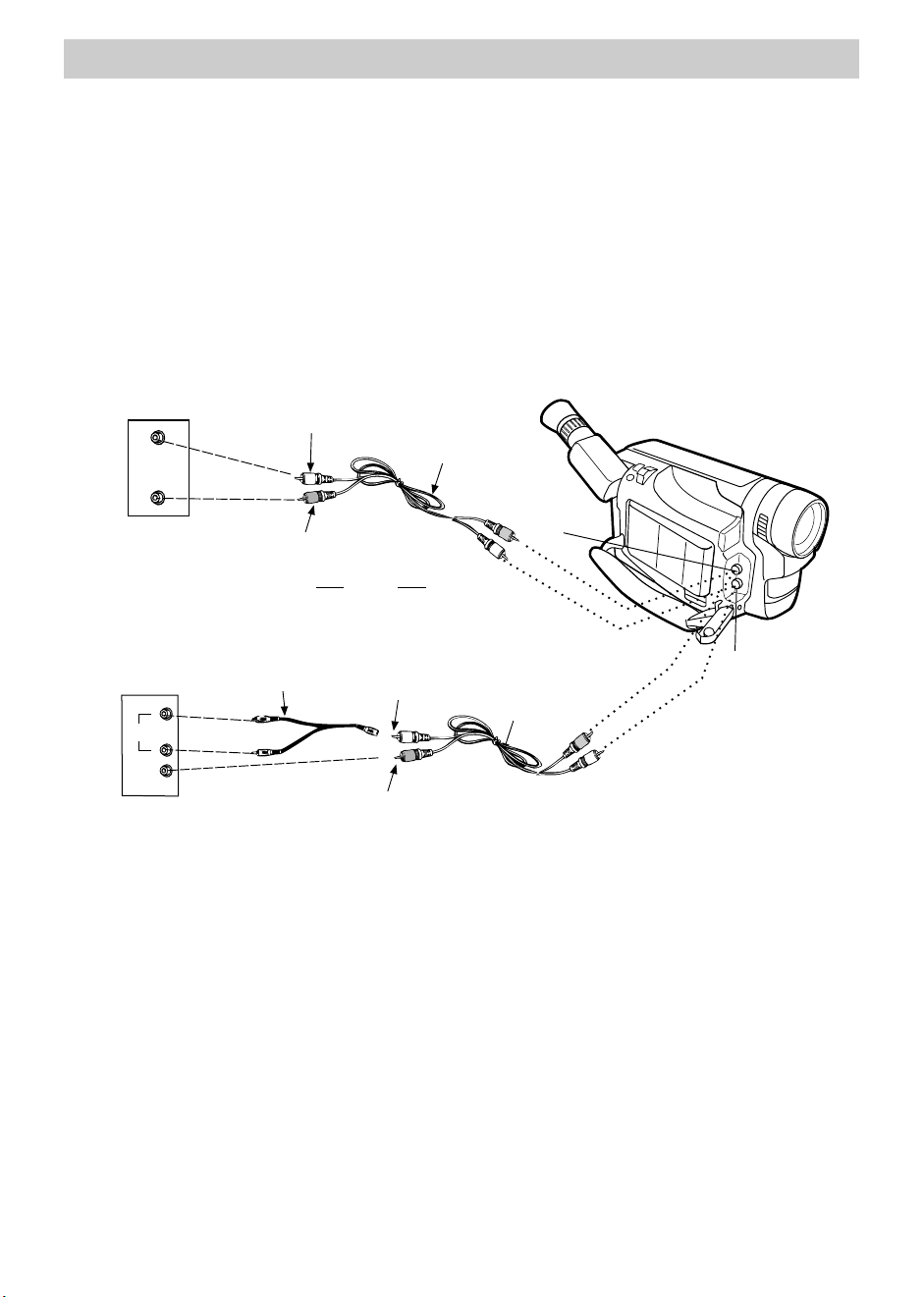

Playback on TV (or VCR) with Audio/Video Inputs
To connect your camcorder to a TV monitor (or VCR) with audio/video inputs, use the
audio/video cable that came packed with your camcorder. If your TV is already
connected to a VCR, attach the camcorder to the VCR and watch what the camcorder is
recording or playing on the TV.
Installation
1. Attach the white plug on one end of
the audio/video cable to the AUDIO
IN jack on the TV (or VCR).
If your TV (or VCR) has stereo AUDIO IN
jacks, attach the plug to the one labeled
MONO. If one is not labeled MONO, you
need a Y-adapter, such as AH25, shown on
page 62 to hear both channels.
2. Attach the yellow plug to the VIDEO
IN jack on the TV (or VCR).
3. Attach the white plug on the other end
of the audio/video cable to the
A (audio) jack (located under the
small cover) on the side of the
camcorder.
4. Attach the yellow plug to the yellow
V (video) jack on the camcorder.
AUDIO
IN
VIDEO
IN
Back of
Mono VCR or
TV Monitor
White
Audio Plug
Yellow Video Plug
Audio/Video
Output Cable
(Included)
AUDIO
IN
VIDEO
IN
L
R
Y-Adapter
(Optional)
OR
V
(Video)
Jack
Back of
Stereo VCR or
TV Monitor
White
Audio
Plug
Yellow Video Plug
Audio/Video
Output Cable
(Included)
A (Audio) Jack
59
Playback
Viewing What the Camcorder is Seeing (or Recording)
Playback Operation and How to Copy Tapes on the VCR
1. A. Camcorder connected directly to
TV: Turn on the TV and tune it to
the video input channel.
B. Camcorder connected to VCR that
is already connected to TV: Turn
on VCR and place it in the “line”
or “camera mode”. (If your VCR
does not have a “line” or “camera
mode”, consult the VCR owner’s
manual.) Operate the TV as you
normally do to see the signal
coming from the VCR.
2. Set the POWER switch to VCR to
turn on the camcorder. The power
indicator lights.
3. Press PLAY/PAUSE.
Caution: The unauthorized recording
of copyrighted material may infringe
the rights of others.
• During playback, use the playback
features on pages 56-57.
4. To copy what the camcorder is
playing, place a blank cassette in the
VCR, and press the VCR’s RECORD
button.
Note: Make sure the memory-stop feature
is turned off (press COUNTER R/M) or the
camcorder enters play-pause when the
counter reaches M 0:00:00.
5. Press STOP when you are finished.
1. A. Camcorder connected directly to
TV: Turn on the TV, and tune it to
the video input channel.
B. Camcorder connected to VCR that
is already connected to TV: Turn
on VCR and place it in the “line”
or “camera mode”. (If your VCR
does not have a “line” or “camera
mode”, consult the VCR owner’s
manual.) Operate the TV as you
normally do to see the signal
coming from the VCR.
2. Set the POWER switch to CAMERA.
Note: Turn the TV’s volume down to
prevent a high-pitched squeal caused by
feedback.
3. Press the thumb trigger to begin
recording. You can watch what the
camcorder is seeing (or recording) on
the TV screen.
Playback on TV (or VCR) with Audio/Video Inputs (Continued)
60
Recording and Traveling Tips
Traveling Tips
• Write down your camcorder’s serial
number and keep it separate from the
camcorder when traveling. If your
camcorder is lost or stolen, you will be
able to identify it.
• Use extra care to avoid damage to your
camcorder and accessories when
operating them at a beach or pool.
Spray, sand, and dust should be
avoided. If your lens has been exposed
to the elements, clean it only with
proper lens cleaning supplies.
• Make sure you have any plug adapters
that you might need before taking your
camcorder to other countries. Consult
your dealer for advice.
• Carry your camcorder in a carrying
case when traveling. See the next page
for a case designed especially for this
camcorder. An ordinary suitcase or
carry bag does not offer the protection
your camcorder needs. Treat your
camcorder as carry-on luggage to
protect it from rough handling.
Traveling Tips
Recording Tips
• Try to make sure indoor scenes are
well-lit. This improves picture quality
and color reproduction.
• Do not move the camcorder rapidly
from side-to-side while recording.
A steady, gradual “pan” avoids
blurring and “jitter”.
• Use the viewfinder or LCD monitor
to make sure the camcorder is level
while recording so that your scene
isn’t “tilted.”
• Do not bump or tap the camcorder’s
microphone while recording because
this sound will be recorded.
• Include close-ups of individuals
when taping family outings or
group functions.
• Fading in and out of scenes makes your
videos appear more professional.
• Learn to use the special production
effects available with your camcorder
to add variety to your recordings.
• Be aware of video and audio back-
grounds. Background details barely
noticed while you are taping may show
up as visual “clutter” on your record-
ing. Background noises (especially TV
sets, radios, household appliances,
traffic sounds, etc.) might detract from
the sound you want to record.
• Avoid long “still” shots of landmarks
and scenic attractions. Recordings are
more interesting if they include people
and details. “Local color” gives travel
videos lasting appeal. Consider
recording a familiar or landmark scene
from an unfamiliar vantage point.
61
Optional Accessories
Optional Accessories
We invite you to take a look at some great ideas for sparking creativity and adding to
the fun of using your compact VHS camcorder. The following pages have a selection
of accessories to help make your memorable moments look and sound even better.
These accessories are designed to make the process of recording and watching your
videos more enjoyable.
To order accessories, contact your local Dealer.
If a dealer is not nearby, all accessories are available through toll-free ordering or by
using the order form on page 65.
Do not use any other car cord
with this camcorder.
AC201A Soft Carrying Case
Custom compact soft case designed
especially to provide protection and
utility for your compact VHS camcorder
and most accessories. Rugged fabric
lined with soft non-abrasive material and
generous padding. Has three outside
pockets with storage for lens filters,
adapters, batteries, and tapes.
DCC08 Car Cord Adapter
This car cord adapter enables you to
operate your camcorder from your car,
truck, or RV by plugging the car cord
directly into the vehicle’s cigarette lighter
socket. The DCC08 is designed
specifically to convert power from a
12-volt battery to a 6-volt output.
62
Optional Accessories
244270 Cassette Adapter
The camcorder records in standard
VHS format. The cassette adapter
allows you to play your smaller VHS-C
cassettes in a VCR just like standard-
size VHS cassettes.
AH25 Y-Adapter
This Y-adapter allows you to connect your
camcorder’s mono audio cable to a stereo
TV or VCR.
All specifications and descriptions
of accessories are subject to change
without notice.
FB1260 Rechargeable Battery
This rechargeable, 1-hour, nickel-cadmium
battery is designed specifically for long
life. The FB1260 can be recharged with
the AC adapter/charger that came with
your camcorder.
The CPS91 battery charger plugs directly
into an AC outlet and charges the FB1260
and BB99L camcorder batteries.
Because the CPS91 operates on 100-240
Volts, 50/60 Hz, it can be used virtually
anywhere in the world. A plug adapter
might be required in some countries.
Charging takes approximately seven
hours for the FB1260 (1-hour battery),
and 13 hours for the BB99L (2-hour
battery).
CHARGE
CPS91 AC Battery Charger
BB99L Rechargeable Battery
This rechargeable 2-hour, nickel metal
hydride battery is designed specifically
for long life. The FB1260 is a 1-hour
nickel cadmium battery. The BB99L
powers your camcorder approximately
twice as long as the FB1260 (depending
on how much you use zoom and pause).
The BB99L can be recharged with the AC
adapter/charger that came with your
camcorder.
63
Optional Accessories
Cautions: Before using a tripod, make sure it is stable enough to hold the
camcorder without falling over. Do not transport the camcorder attached to
the tripod.
When attaching your camcorder to a tripod, be careful not to force the tripod
screw into the camcorder’s tripod mounting hole.
The tripod screw should not protrude into the camcorder more than approxi-
mately three-eighth (3/8) inch. Forcing the screw could damage the
mounting hole on the bottom of the camcorder.
Mounting the camcorder on a tripod, such as AC088, keeps the camcorder steady and
produces excellent video results.
This tripod’s fluid-effect head provides smooth camera pan and tilt. The quick-release
mount makes it easy to attach or remove the camcorder. The grooved, tubular 3-section
leg design folds down to 26" when not in use. Rubber feet allow for sure footing.
Using the Optional AC088 Tripod
64
Accessory Order Form
To order accessories, contact your local Dealer.
If a dealer is not nearby, you can also follow the directions below to order by
telephone or direct-by-mail.
United States and Canada Orders
To place your order by phone, have your Visa, MasterCard, or Discover card ready
and call the toll-free number listed below.
Use this number only to place an order for accessory items listed on
this order form.
1-800-338-0376
To place your order by mail, detach and mail the completed order form with credit
card information, money order, or check in U.S. currency (made payable to
Thomson Consumer Electronics, Inc.) to the following address:
Video Accessories
PO Box 8419
Ronks, PA 17573
65
Accessory Order Form
Order Form for Camcorder Model CC6363
Description Part No. Price Qty. Total
Super Lightweight Tripod AC088 $ 49.95
Soft Camcorder Case AC201A $ 34.95
Shoulder Strap ACS091 $ 12.95
Y-Adapter AH25 $ 2.95
Rechargeable Battery (Extended) BB99L $ 77.60
AC Battery Charger CPS91 $ 59.95
Car Cord Adapter DCC08 $ 89.95
Rechargeable Battery (Standard) FB1260 $ 49.95
Audio/Video Cable VH83 $ 5.95
DC Cable 244268 $ 28.60
and
AC Adapter/Charger 242740 $ 91.25
Cassette Adapter VGA115 $ 49.95
Prices are subject to change without notice.
Total Merchandise ........................................................................................... $_________
Sales Tax .......................................................................................................... $_________
We are required by law to collect the appropriate
sales tax for each individual state, county, and
locality to which the merchandise is being sent.
Shipping and Handling .................................................................................... $
5.00
Total Amount Enclosed ................................................................................. $_________
Use VISA, MasterCard, or Discover.
Money order or check must be in U.S.
currency only. No COD or cash.
Detach HereU
✂
Please complete other side also
66
Accessory Order Form
®
rr
s
TM
Charge your order on your VISA,MasterCard,
or Discover Card by filling in below
USE YOUR CREDIT CARD
IMPORTANT: Copy complete account number from your VISA card
IMPORTANT: Copy complete account number from your MasterCard
Expiration date:
Expiration date:
Copy Number above your name on MasterCard
AUTHORIZED SIGNATURE
Prices are subject to change without notice.
Please make sure that both sides of this form have been filled out completely.
• Allow 4 weeks for delivery.
• All accessories are subject to availability.
IMPORTANT:
Copy complete account number from your Discover Card
Expiration date:
Print or type your name and
address clearly.
A complete and correct order will
save you days of waiting.
Name:
Street:
Apt:
City:
State:
Zip:
Detach HereU
✂
67
Trouble Checks
Trouble Checks
Troubles sometimes are caused by simple “faults” that you can easily correct without
the help of a service technician by first checking a few basic remedies.
Before you call or take your camcorder to an Authorized RCA Camcorder Service
Center, look below for the type of trouble you are experiencing. Then perform the
simple checks and adjustments listed for that trouble.
If service should be necessary, the warranty information lists what your warranty
covers and explains how to get service.
No power
Won’t record or
playback
Won’t playback
Won’t record
No picture
Camcorder turns
itself off
Trouble Checks and Adjustments
• Set the POWER switch to CAMERA or VCR to turn on
the camcorder. The power indicator lights.
• If using battery, it might need to be recharged.
• If using AC adapter/charger, make sure it is plugged
into a working outlet.
• If using AC adapter/charger, make sure it is plugged
into a working outlet.
• If CONDENSATION OPERATION PAUSED PLEASE
WAIT flashes on the monitor or in the viewfinder, there is
moisture in the camcorder. Wait until the warning no
longer appears before operating the camcorder.
• Make sure POWER switch is set to correct position for
desired operation.
• There might not be a cassette in the camcorder.
• Try ejecting and reinserting the cassette.
• The cassette tape might be broken, try another cassette.
• You might have reached the end of the cassette, try
rewinding it.
• POWER switch must be set to VCR position.
• Safety tab removed or closed. (See page 22.)
• POWER switch must be set to CAMERA.
• Open lens cover.
• Set POWER switch to OFF and then to CAMERA or
VCR to turn back on. If camcorder is left in record-
pause or play-pause for several minutes, it turns off to
prevent tape wear.
Trouble Checks
68
Trouble Checks and Adjustments
Tape stops during
rewind or fast
forward
Camcorder remains in
pause mode
Dew indicator flashes
in viewfinder
Poor auto-focus
operation
Viewfinder displays
are out of focus
Picture is too dark or
subject too dark
Sound is too low or
distorted
Picture recorded with
special effect
Colors do not look
natural on recording
Title recorded on tape
• Time-counter memory might be on. Whenever an “M”
appears with the time-counter display, the camcorder
stops rewinding (or fast forwarding) when counter reads
M 0:00:00. Press REW or FF again to continue
rewinding or fast forwarding, or press COUNTER R/M
to turn off the memory-stop feature.
• Press PLAY/PAUSE to return to normal playback.
• If CONDENSATION OPERATION PAUSED PLEASE
WAIT flashes on the monitor or in the viewfinder, there is
moisture in the camcorder. Wait until the warning no
longer appears before operating the camcorder.
• Subject is dark or behind glass. Auto-focus may not
work under these conditions. Place POWER switch in
CAMERA MAN and focus manually. See pages 36-37.
• Subject not in center of viewfinder (or monitor) or two
subjects are at different distances. Place POWER switch
in CAMERA MAN and focus manually. See pages 36-37.
• Lens is smudged and image appears unfocused.
• Eyepiece focus control is misadjusted.
• For best results, only use higher shutter speeds outdoors.
Press P. AE button to select SPORTS or 1/2000.
See page 44.
• Place POWER switch in CAMERA MAN and adjust the
exposure manually. See pages 40-41.
• Subject was too far from camcorder.
• Place POWER switch in CAMERA AUTO.
• Try adjusting white balance. See pages 38-39.
• Title is recorded when it appears in viewfinder or on the
LCD monitor. Remove the title. See pages 46-47.
69
Trouble Checks
Date and/or time are
recorded on tape
Date and/or time are
incorrect
Cannot set REC or
INT. TIME for
animation or time-
lapse recording
Cannot record at
beginning of tape
using animation or
time-lapse recording
Vertical white lines
appear when shoot-
ing bright object
Error number (E01,
E02, etc.) appears in
viewfinder
Streaks in picture
during playback or
play-pause
Bright, crystal-
shaped spots appear
in viewfinder or on
LCD monitor
• Displays are recorded on tape whenever they appear
in the viewfinder or LCD monitor. Remove them
when recording. See pages 20-21.
• When AUTO DATE is selected (POWER switch in
CAMERA AUTO), date display is automatically
recorded when you begin recording or change the
cassette. See pages 20-21.
• Clock lithium cell battery might need replacing.
See page 17.
• Date or time might need to be set. See pages 18-19.
• Make sure there is a tape in the camcorder.
• Check tape speed setting. Tape speed must be set
to SP for time-lapse or animation recording.
• Make sure POWER switch is not set to CAMERA
AUTO to display the menu. See pages 48-51.
• Record for at least five seconds at beginning of tape
to start tape running smoothly.
• Use fade-in feature before starting to record at
beginning of tape.
• This might occur when the background extremely
contrasts with the subject.
• Try disconnecting power source. Wait ten seconds
and then connect power source again. If error
number does not disappear from viewfinder or LCD
monitor, consult your Authorized RCA Camcorder
Service Center.
• Adjust tracking with P.AE and FADES buttons. See
page 57.
• Sunlight is directly entering the lens.
Trouble Checks and Adjustments
Trouble Checks
70
Trouble Checks and Adjustments
• Black spots or bright spots of light (red, green, or blue)
might appear on the LCD monitor. These spots are not
recorded on the tape and are not due to a defect in the unit.
• The light used to illuminate the LCD monitor causes it to
be hot. Close the LCD monitor and turn off the camcorder
to let it cool down.
• If battery has not been used for some time, completely
drain the battery’s power and recharge it.
• Battery run times are measured when the camcorder is
recording continuously. You can check your battery by first
fully charging it and then aiming the camcorder at a clock
and recording the picture of the clock. When the recording
stops, play the last recorded section and note the clock
time. A one-hour battery should give you about 60 minutes
of recording time. In practical use, you might not be able
to record for the full time because the camera uses battery
power when it is waiting between recordings (record-
pause) and zooming.
Colored bright spots
appear on LCD
monitor
Back of LCD
monitor is hot
Rechargeable
battery runs down
sooner than
expected
71
Specifications
General
Power requirement: 6VDC
Power consumption:
Viewfinder on: 4.2 watts
LCD monitor on: 4.6 watts
LCD monitor and Viewfinder on:
5.1 watts
Weight: 1.9 lbs. (860g)
Dimensions – Including Viewfinder:
3-5/16" (W) x 4-11/16" (H) x 7-13/16" (D)
99 (W) x 119 (H) x 198 (D) mm
Video Recorder Section
Format: VHS-C
Record/playback system:
Four video record/playback heads
One flying erase head
Video signal: EIA standard
NTSC color
Viewfinder
0.5" B/W electronic viewfinder
LCD Monitor
2.5" diagonally measured
LCD/TFT active matrix system
Camera Section
Image sensor: 1/4" CCD imager
Lens: F1.6, f=3.9 to 62.4mm
16:1 power zoom lens
200:1 digital zoom
Filter diameter: 40.5 mm
Tripod Mount
One 1/4" x 20 threaded hole
AC Adapter/Charger
Power requirement: 100-240 V, 50/60 Hz.
Power consumption: 23 watts
Weight: .71 lbs. (300g)
Dimensions:
5-9/16"(W) x 1-11/16"(H) x 2-11/16"(D)
140 (W) x 42 (H) x 68 (D) mm
Service Port
3.5 mm, 4 pole, mini-head jack
Specifications
Care and Maintenance
72
Clean the Camcorder
To clean the camcorder’s exterior, remove
any power source connected to the
camcorder and gently wipe it with a clean
soft cloth.
Caution: Use of strong cleaning
products, such as those containing
alcohol or benzine, might damage
the camcorder.
Caution: Do not touch the lens
with your fingers. The oil from
your skin might damage the lens.
Clean the Camcorder’s Lens
To clean the camcorder’s lens, blow it with a blower brush and gently
wipe the lens with cleaning tissue and commercially prepared cleaning
solution designed for use on camera lens. Improper cleaning might
scratch the lens.
Clean the Camcorder’s Viewfinder
You can remove the viewfinder eyepiece for cleaning.
Lens
1. Turn the eyepiece counterclockwise
and pull it out.
2. Remove dust using a blower brush.
3. Reattach the eyepiece by aligning the
reference marks, and then turn the
eyepiece clockwise until it clicks.
Clean the Camcorder’s LCD Monitor
To clean the camcorder’s LCD
monitor, use a clean, soft cloth to
carefully wipe the monitor. Improper
cleaning might scratch the monitor.
LCD
Monitor
73
Care and Maintenance
Proper Care and Storage
• Keep dust and grit from entering the
camcorder’s cassette door. Dust and
grit are abrasive and cause excessive
wear to both the camcorder’s
recording/playback heads and
cassettes.
• Always close the lens cover when the
camcorder is not in use.
• Before handling your camcorder, make
sure your hands and face are free from
any chemical products such as suntan
lotion, as it might damage the finish.
• The camcorder might be damaged by
improper storage or handling. Do not
subject the camcorder to swinging,
shaking, or dropping.
• Do not store the camcorder in
temperatures below -22˚F (-30˚C) or
above 149˚F (65˚C).
• When the camcorder is not in use,
always remove the cassette and AC
adapter/charger or battery.
• Retain the original carton for future
storage or shipping purposes.
Things to Avoid
• Do not attempt to disassemble your
camcorder. There are no user-
serviceable parts inside.
• Avoid operating your camcorder
immediately after moving it from a
cold location to a warm location. Give
the camcorder 1-1/2 to 2 hours to reach
a stable temperature before inserting a
cassette. When the camcorder is
moved from cold to warm,
condensation might cause the tape to
stick to the headwheel and damage the
headwheel or tape.
• Do not aim your camcorder at the sun
or other bright objects.
• Do not leave your camcorder in direct
sunlight for extended periods of time.
The resulting heat buildup might
permanently damage the camcorder’s
internal parts.
• Do not operate the camcorder in
extremely humid environments.
• Do not operate the camcorder near the
ocean as salt water or salt water spray
might damage the internal parts of the
camcorder.
• Do not operate the camcorder for
extended periods in temperatures
below 40˚F (4˚C) or above 95˚F
(35˚C).
• Do not expose the camcorder or
adapter/charger to rain or moisture.
If any component becomes wet, turn
off the power and take the unit to an
Authorized RCA Camcorder
Service Center.
• Do not use an adapter/charger or
batteries other than the ones specified
for the camcorder. Use of the wrong
accessories might cause damage to the
camcorder.
Customer Assistance and Service
74
You can reach Thomson at the
following number:
800-283-6503
(Toll free inside U.S.A.)
Our toll-free Camcorder number
operates from 8 a.m. to 5 p.m., CST
Monday – Friday
for U.S. customers only
Thomson provides a toll-free telephone
number to help you with any problems you
may encounter with your camcorder. Many
can be diagnosed over the phone, and if
necessary, repair or replacement will be
arranged. Please have your camcorder model/
serial number and date of purchase ready
when you call. If your unit is out of warranty,
we will quote the cost of a repair or
replacement unit to you.
Returning equipment to Thomson for repair or exchange
If we are unable to resolve your problem over
the phone, we will gladly service your unit or
exchange it for a new or refurbished
camcorder. Refer to the limited warranty on
the reverse side to learn about your specific
rights and responsibilities.
Always consult Thomson and get a Service
Request number before returning anything!
Obtain a Service Request (SR) number from
the telephone representative before returning
your equipment to avoid delays, accounting
errors, or even loss of your unit.
The Thomson representative who authorized
the return of your equipment will give you an
SR number over the phone. They will also
provide you with instructions on where and
how to return your Camcorder. Write the
number in large, clear characters on the
outside of the box. To avoid confusion and
misunderstandings, shipments without an SR
number clearly visible on the outside of the
box will be returned to you at your expense.
Include a brief note describing the problem
and any conversations about the problem you
have had with Thomson personnel.
Include your name, address and model/serial
number of your Camcorder. These numbers
are located on the bottom of your unit.
If your Camcorder is within the warranty
period, please provide a copy of the bill of sale
to verify purchase date. Use the original box
and packing material to protect the equipment
from damage in shipment.
For your protection, insure all shipments for
full replacement value and use a reliable
shipper. Thomson assumes no responsibility
for warranty shipments from the customer to
the factory if not shipped in the manner
prescribed by Thomson.
Important information to customers who ship defective equipment to
Thomson Consumer Electronics
Customer Assistance and Service
75
Limited Warranty
Limited Warranty
What your warranty covers:
• Any defect in materials or workmanship.
For how long after your purchase:
• 90 days for labor charges.
• One year for parts.
The warranty period for rental units begins
with the first rental or 45 days from date of
shipment to the rental firm, whichever
comes first.
What we will do:
During the initial 90 days
• Exchange your camcorder with a new or
refurbished unit, or repair your camcorder.
The option will be ours. There will be no
cost to you.
After the 90 days and within one year
• Exchange your camcorder with a new or
refurbished unit, or repair your camcorder.
The option will be ours. Parts will be
provided at no charge, but you will be
responsible for the cost of labor required
for the repair.
How you get service:
• Call 1-800-283-6503 and have your unit’s
date of purchase and model/serial number
ready. The model/serial number
information is on the bottom of your
camcorder.
• A representative will troubleshoot your
problem over the phone. If the
representative determines that you should
receive a replacement unit, you will be
provided with a Service Request (SR)
number and the location of a nearby
exchange point if one exists. No returns
will be accepted without the SR number.
To receive a replacement Camcorder before
you return yours:
Option I
1. Provide your Discover, MasterCard, or
Visa account number and expiration date
to our phone representative. This is for
security purposes. If we receive your unit,
excluding all accessories, within 14 days
from the date you were provided the SR
number, only items not covered by
warranty will be charged to your account.
IF YOUR UNIT IS NOT RECEIVED
WITHIN 14 DAYS, THE SUGGESTED
RETAIL VALUE OF THE
CAMCORDER WILL BE CHARGED
TO YOUR CREDIT CARD. This
amount, less $10.00 handling, will be
credited if the unit is subsequently
received.
2. We will send you a replacement unit.
3. Ship the unit back to us, excluding all
accessories, using the replacement unit’s
carton. Shipping instructions will be
included in the carton along with your SR
number which will allow you to easily
ship the unit back to us. Make sure you
insure your shipment in case of damage
or loss. Include with the shipment:
• Evidence of purchase date, such as a
bill of sale to verify your unit’s
warranty eligibility.
• A brief note describing your
camcorder’s problem.
• Your name, address and phone number.
Return transportation, storage, handling, and
insurance costs are your sole responsibility.
We accept no liability in case of damage or loss.
Option II
1. We will send a replacement unit to the
exchange point.
2. The exchange location will notify you of
its arrival.
3. Take your unit, excluding all accessories,
and your evidence of purchase date, such
as a bill of sale, to the exchange location
and you will be provided the new or
refurbished unit.
4. If the repairs were covered by your
warranty, you will not be billed.
Limited Warranty
76
To receive a replacement unit after we have
received your unit:
1.
Write the SR number on the outside of
the carton used to return the unit.
Make sure you insure your shipment in
case of damage or loss.
2. Carefully pack the unit, excluding all
accessories, using the original box and
packing material if possible.
3. Include with the shipment:
• Evidence of purchase date, such as a
bill of sale, to verify your unit’s
warranty eligibility.
• A brief note describing your
camcorder’s problem.
• Your name, address and phone number.
Return transportation, storage, handling, and
insurance costs are your sole responsibility.
We accept no liability in case of damage or
loss.
4. The representative will advise the address
to mail a cashier’s check or money order
for payment if there are any out of
warranty labor or parts charges and you
elect not to use your credit card.
5. Upon receipt of your product, a new or
refurbished unit will be shipped to you.
To have your Camcorder repaired by an
Authorized RCA Camcorder Service
Center:
• Check with your dealer or call 1-800-336-
1900 for the Authorized RCA Camcorder
Service Center nearest you.
• Take your unit to the Authorized RCA
Camcorder Service Center of your choice.
• Show the Authorized RCA Camcorder
Service Center representative evidence of
purchase date, such as a bill of sale.
• Pick up your camcorder when repairs are
complete.
What your warranty
does not cover:
• Adjustment of customer controls.
• Damage from misuse or neglect.
• A unit that has been modified or
incorporated into other products or is used
for institutional or other commercial
purposes.
• Batteries for remote control and clock.
• Cleaning of video/audio heads.
• Camcorders purchased or serviced outside
the U.S.A.
• Return transportation, storage and handling
costs of your unit, including insurance for
loss or damage.
• Acts of God, such as but not limited to
lightning damage.
Product Registration:
• Please complete and mail the Product
Registration Card packed with your
camcorder. It will make it easier to contact
you should it ever be necessary. The return
of the card is not required for warranty
coverage.
How State Law relates to warranty:
• This warranty gives you specific legal
rights and you also may have other rights
that vary from state to state.
If you purchased your camcorder outside
the United States:
• This warranty does not apply. Contact your
dealer for warranty information.
Service calls that do not involve
defective materials or workmanship are
not covered by this warranty. Costs of
such calls are the sole responsibility of
the purchaser.
77
Index
Index
16X9 recording 45
5SEC. REC button 11, 31, 33
A
Accessories
included 3
optional 61
order form 65
Adapter/charger
charging battery 14
using 4, 12
Animation indicator 49
Animation recording 48
Assistance 1, 3
Assistance, customer 74
Attach shoulder strap, 53
Audio/video cable 3, 58
Audio/video jacks 11, 58
AUTO DATE display 20, 21
Auto date feature 32
Auto exposure 40
Auto focus 36
Auto white balance 38
AutoShot™ feature 5, 32
B
Battery
attaching and removing 13
care and storage 15
charging 14
refreshing 14
Battery level indicator 15, 28, 33
BATTERY RELEASE lever 11, 13
Bright control 26, 55
C
Camcorder, cleaning 72
Camcorder controls 10
Camera edit feature 33
Car cord adapter 16
Care and maintenance
cleaning the camcorder viewfinder 72
cleaning the LCD monitor 72
proper care and storage 73
things to avoid 73
Care and storage
battery 15
camcorder 73
cassette 23
Cassette
care and storage 23
compartment 10
door 10
inserting and removing 23
tape wheel 23
warning 28
Cautions inside front cover
Checks and adjustments 67
Cleaning the camcorder’s lens 72
Cleaning the LCD monitor 72
Clock cell battery compartment 11, 17
Clock cell indicator 17, 31
Copy tapes 59
COUNTER R/M button 57, 59
Customer assistance and service 74
D
Date and time display
recording 20
setting 18
DATE/TIME DISP. menu 20
DATE/TIME menu 35, 37, 46, 51
DC cable 12, 13, 14, 16
DC in jack 4, 11, 12
Demo mode 52
DEMO MODE menu 52
Design specifications 71
Dew warning 30
Digital zooming 34
Displays in LCD monitor and viewfinder
28, 29, 30, 31
Displays, status 29
Index
78
E
EJECT button 6, 10, 23, 55
Erase protection 22
Exposure control 40, 41
Exposure indicators 30, 41
Eyepiece focus control 7, 10, 27
F
Fade and wipe indicators 30, 42
Fade/wipe feature 42, 43
FADES button 57
Fast forward indicator 29
FF button 10, 56
First recording 9
First time operation 3
Five-second recording 33
Five-second recording indicator 31, 33
Flying erase head 33
Focus indicators 30, 37
Focusing 36, 37
H
Handstrap 4
I
Indicators
animation 49
AUTO DATE display 28
battery level 15
cassette warning 28
clock cell 17, 31
date and time 28
exposure 30, 41
fade and wipe 30, 42
five-second recording 31, 33
focus 30, 37
interval time 51
LENS COVER 31
manual white balance 29
P. (program) AE 28, 44
record time 49, 51
REFRESH 14
special effects 28
Steady Pix 31, 41
TAPE END 31
tape length 31
tape speed 31
tape-remaining 31
time counter 31
time display 28
time-lapse 51
title display 28
tracking 29
white balance 39
zoom level 29, 34
Information to user 81
Inserting and removing cassettes 23
Interval time indicators 51
L
LCD monitor 6, 7, 9, 10, 23, 26, 55
displays 28
playback 54
turn displays on or off 33
use to record 7, 26, 27
Lens 11
Lens cover 9
LENS COVER control 4
LENS COVER indicator 31
Letterbox recording 45
Lithium cell indicator 17, 31
Lithium cell, inserting and removing 17
Low-contrast indicator 36
M
M.W.B. menu 39, 41
Manual exposure 40
Manual focus 37
Manual white balance 38
Manual white balance indicators 29
Memory stop 57
Menu 8, 20
79
Index
Menu PUSH dial
8, 10, 18, 19, 20, 21, 24, 25, 26,
32, 35, 37, 38, 40, 45, 46, 47, 49,
51, 52
MENU/DISPLAY button
8, 10, 18, 28, 32, 33, 34, 35, 46, 48,
50, 52
Microphone 11, 32
O
Operating controls 11
Optional accessories 61
Optional plug adapter 12
Order form, accessories 65
P
P. (program) AE button 10, 28, 44, 57
P. (program) AE indicators 28, 44
Pause indicator 6, 9, 29
Pause, stop-action 56
Play indicator 29
PLAY/PAUSE button 9, 10, 55, 56, 59
Playback
first 9
LCD monitor 54
on TV (or VCR) with audio/video inputs 58
viewfinder 54
Playback features
memory-stop 57
position the tape 56
stop-action pause 56
time counter 57
tracking 57
visual searching 56
Playback on TV (or VCR) with audio/video in
jacks 58
Playback speeds 22
Plug adapter, optional 12
Power indicator 5, 9, 11, 16, 32
POWER switch
5, 8, 9, 11, 13, 15, 16, 18, 20, 21,
24, 28, 30, 32, 33, 34, 35, 36, 37, 38,
40, 42, 45, 46, 47, 48, 50, 52, 55, 56,
57, 59
Powering your camcorder
using adapter/charger 12
using optional car cord adapter 16
using rechargeable battery 13
Preset titles 46
Problem solving 67
Product registration inside front cover
PUSH button 6, 10, 23, 55
Q
Quick review feature 33
R
RBRC seal 13
REC TIME menu 49
Record date and time display 20
Record time indicators 49
Recording
time-lapse 50, 51
Recording, first 9
Recording indicator 9, 29
Recording speeds 6, 22
Recording tips 60
REFRESH button 14
REFRESH indicator 14
Registration inside front cover
REW button 9, 10, 56, 57
Rewind indicator 29
S
Safety information inside front cover
Safety precautions, battery 13
Safety tab 22
SEARCH buttons 10, 33
Search indicators 29
Service port 11
Shoulder strap, attach 53
Shoulder strap attachment rings 10, 53
Shutter speed indicator 44
SLP tape speed 6, 22
Solving problems 67
SP tape speed 6, 22
Index
80
SP/SLP button 10, 22, 24, 31, 33, 48, 50
Special effect indicators 28
Specifications 71
Speeds, recording and playback 22
Sports feature 44
Status displays 29
STEADY PIX button 11, 31, 41
Steady Pix feature 41
Steady Pix indicator 31
STOP button 9, 10, 55, 56, 57, 59
Stop-action pause 56
T
Tape copying 59
TAPE END indicator 31
Tape, inserting 6
Tape length indicators 31, 33
TAPE LENGTH menu 24, 31
Tape length, set 24
Tape speed indicators 31
Tape wheel 6
Tape-remaining display 33
TELE MACRO menu 35
Tele macro zooming 35
Things to avoid 73
Thumb trigger 11, 21, 32, 33, 49, 51, 59
Time counter 57
Time-lapse indicator 51
Time-lapse recording 50, 51
Time-remaining display 24, 25, 31
Tips
recording 60
travel 60
TITLE LANG. menu 46
TITLE menu 29, 47
Tracking 55
Tracking buttons 57
Tracking indicators 29, 57
Travel tips 60
Tripod mount hole 11
Tripod, using 63
Trouble checks 67
TWILIGHT indicator 29
U
Unpack camcorder and accessories 3
V
Videocassettes 22
Viewfinder 7, 10, 27, 55
adjust for viewing 27
displays 28, 29, 30, 31
displays (turning on and off) 33
eyepiece focus control 27
playback 54
use to record 7, 26
Visual searching 56
VOL control 55
W
White balance feature 38
White balance indicators 39
Wipe/fade feature 42
Z
Zoom buttons 37
Zoom level indicator 29, 34
Zoom lever 11, 29, 34
Zooming 34
digital 34
tele macro 35
Information to User
This equipment has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Alterations or modifications carried out without appropriate authorization may
invalidate the user’s FCC right to operate the equipment.
This Class B digital apparatus complies with the Canadian ICES-003.
Cet appareil numérique de la Classe B est conforme a la norme NMB-003 du Canada.
10330 N Meridian Street
Indianapolis, IN 46290
©
2000 Thomson Consumer Electronics, Inc.
Trademark(s)
®
Registered
Marca(s) Registrada(s)
Printed in Japan
TOCOM 15562920
Part No. LYT0594-001A
