12" MEASURING WHEEL
Feb. 2017
54-49-0015
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
DATE
CATALOG NO. 48-22-5012
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. Lisbon Road, Brookîżeld, WI 53005

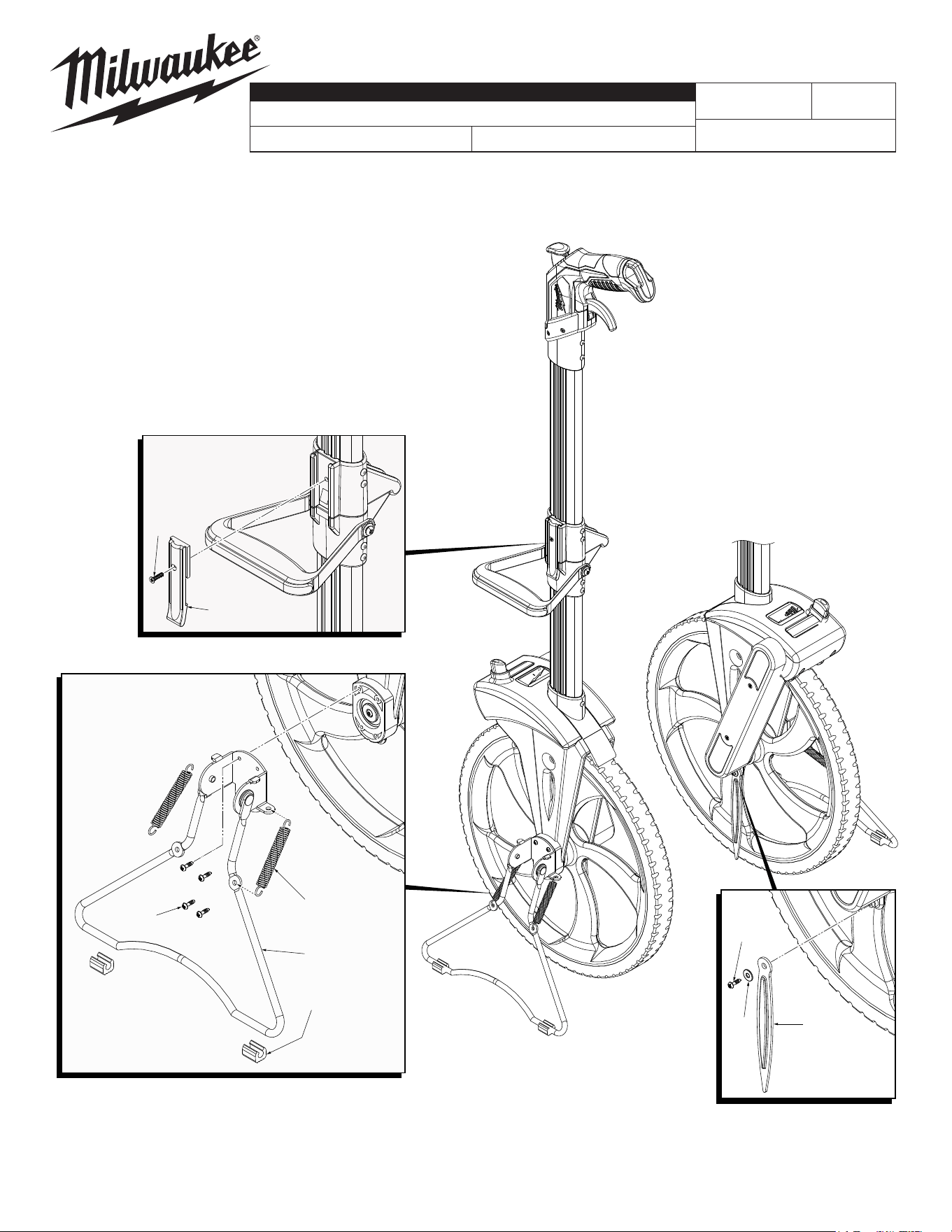

Drwg. 1
44-20-5012 LOCK TAB SERVICE KIT
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
34 --------------- Lock Tab (1)
60 --------------- KA3 x 13mm Flat Hd. Phillips Screw (1)
14-74-5012 KICK STAND SERVICE KIT
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
14 --------------- PA3 x 10mm Pan Hd. Phillips Screw (4)
21 --------------- Rubber Pad (2)
22 --------------- Spring (2)
23 --------------- Kick Stand Assembly (1)
43-82-5012 ZERO INDICATOR SERVICE KIT
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
14 --------------- PA3 x 10mm Pan Hd. Phillips Screw (1)
15 --------------- Washer (1)
16 --------------- Needle (1)
44-20-5012
Lock Tab Service Kit
60
34
14-74-5012
Kick Stand Service Kit
22(2x)
23
21(2x)
14(4x)
43-82-5012
Zero Indicator Service Kit
Opposite side of
Measuring Wheel
14
15 16
