IMPORTANT INSTRUCTION
INSTALLATION
IMPORTANT INSTRUCTION
TECHNICAL DETAILS
KNOW YOUR INDUCTION COOKING
BEFORE USING YOUR NEW COOKTOP
HEAT SETTINGS
CLEANING AND MAINTENANCE
HINTS AND TIPS
TROUBLESHOOTING
WARRANTY CLAIM PROCEDURE
ENVIRONMENT FRIENDLY DISPOL
FCCSTATEMENT
USING YOUR COOKTOP
COOKING GUIDELINES
1
IMPORTANT INSTRUCTION
PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE
APPLIANCE.
1. Proper Installation – Be sure your appliance is properly installed and
grounded by a qualified technician.
2. Never Use Your Appliance for Warming or Heating the Room.
3. Do Not Leave Children Alone – Children should not be left alone or
unattended in area where appliance is in use. They should never be allowed
to sit or stand on any part of the appliance.
4. Wear Proper Apparel – Loose-fitting or hanging garments should never be
worn while using the appliance.
5. User Servicing – Do not repair or replace any part of the appliance unless
specifically recommended in the manual. All other servicing should be
referred to a qualified technician.
6. Storage in or on Appliance – Flammable materials should not be stored in an
oven or near surface units.
7. Do Not Use Water on Grease Fires – Smother fire or flame or use dry chemical
or foam-type extinguisher.
8. Use Only Dry Potholders – Moist or damp potholders on hot surfaces may
result in burns from steam. Do not let potholder touch hot heating elements.
Do not use a towel or other bulky cloth.
9. Use Proper Pan Size – This appliance is equipped with one or more surface
units of different size. Select utensils having flat bottoms large enough to
cover the surface unit heating element. The use of undersized utensils will
expose a portion of the heating element to direct contact and may result in
ignition of clothing. Proper relationship of utensil to burner will also improve
efficiency.
10. Never Leave Surface Units Unattended at High Heat Settings – Boilover
causes smoking and greasy spillovers that may ignite.
11. Make Sure Reflector Pans or Drip Bowls Are in Place – Absence of these pans
or bowls during cooking may subject wiring or components underneath to
damage.
2
12. Protective Liners – Do not use aluminum foil to line surface unit drip bowls or
oven bottoms, except as suggested in the manual. Improper installation of
these liners may result in a risk of electric shock, or fire.
13. Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent
Surface Units – To reduce the risk of burns, ignition of flammable materials,
and spillage due to unintentional contact with the utensil, the handle of a
utensil should be positioned so that it is turned inward, and does not extend
over adjacent surface units.
14. Do Not Cook on Broken Cook-Top – If cook-top should break, cleaning
solutions and spillovers may penetrate the broken cook-top and create a risk
of electric shock. Contact a qualified technician immediately.
15. Clean Cook-Top With Caution – If a wet sponge or cloth is used to wipe spills
on a hot cooking area, be careful to avoid steam burn. Some cleaners can
produce noxious fumes if applied to a hot surface.
16. Do not place metallic objects such as knives, forks, spoons and lids on the
cooktop surface since they can get hot.
17. CAUTION: Do not store items of interest to children in
cabinets above a range or on the backguard of a range – children
climbing on the range to reach items could be seriously injured.
19. CAUTION – Light (Error Code) signals a component failure.
Disconnect power supply and call qualified serviceman. Have
appliance repaired by a qualified serviceman before using.
18. DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS – Surface units may
be hot even though they are dark in color. Areas near surface units may
become hot enough to cause burns. During and after use, do not touch, or let
clothing or other flammable materials contact surface units or areas near
units until they have had sufficient time to cool. Among these areas are
(identification of areas – for example, the cook-top and surfaces facing the
cook-top).
20. Read these instructions carefully before installing or using this appliance.
21. No combustible material or products should be placed on this appliance at
any time.
22. Please make this information available to the person responsible for
installing the appliance as it could reduce your installation costs.
23. In order to avoid a hazard, this appliance must be installed according to these
instructions for installation.
24. This appliance is to be properly installed and earthed only by a suitably
qualified person.
25. This appliance should be connected to a circuit which incorporates an
isolating switch providing full disconnection from the power supply.
26. WARNING: Use only cooktop guards designed by the
manufacturer of the cooking appliance or indicated by the
manufacturer of the appliance in the instructions for use as
suitable or cooktop guards incorporated in the appliance.
27. The use of inappropriate guards can cause accidents.
28. Failure to install the appliance correctly could invalidate any warranty or
liability claims.
29. Regarding the details of installation, thanks to refer to the section
<Installation>.
30. Connect only to a 3-wire, 240-volt power supply; the neutral conductor is not
required for the operation of the appliance. The potential at the power supply
electrical connections shall be 150-volts-to-ground or less.
Electrical Shock Hazard
•Do not cook on a broken or cracked cooktop. If the cooktop surface is break
or crack, switch the appliance off immediately at the mains power supply
(wall switch) and contact a qualified technician.
•Switch the cooktop off at the wall before cleaning or maintenance.
•Failure to follow this advice may result in electrical shock or death.
Health Hazard
•This appliance complies with electromagnetic safety standards.
3
Hot Surface Hazard
•During use, accessible parts of this appliance will become hot enough to
cause burns.
•Do not let your body, clothing or any item other than suitable cookware
contact the ceramic glass until the surface is cool.
•Metallic objects such as knives, forks, spoons and lids should not be placed
on the cooktop surface since they can get hot.
•Children less than 8 years of age shall be kept away unless continuously
supervised.
•Handles of saucepans may be hot to touch. Check saucepan handles do not
overhang other cooking zones that are on. Keep handles out of reach of
children.
•Failure to follow this advice could result in burns and scalds.
Cut Hazard
•The razor-sharp blade of a cooktop scraper is exposed when the safety cover
is retracted. Use with extreme care and always store safely and out of reach
of children.
•Failure to use caution could result in injury or cuts.
Safety instructions
•Never leave the appliance unattended when in use. Boilover causes smoking
and greasy spillovers that may ignite.
•Never use your appliance as a work or storage surface.
•Never leave any objects or utensils on the appliance.
•Never use your appliance for warming or heating the room.
•After use, always turn off the cooking zones and the cooktop as described in
this manual (i.e. by using the touch controls).
•Do not allow children to play with the appliance or sit, stand, or climb on it.
•Do not store items of interest to children in cabinets above the appliance.
Children climbing on the cooktop could be seriously injured.
•Do not leave children alone or unattended in the area where the appliance is
in use.
•Children or persons with a disability which limits their ability to use the
appliance should have a responsible and competent person to instruct them
in its use. The instructor should be satisfied that they can use the appliance
without danger to themselves or their surroundings.
4
•Do not repair or replace any part of the appliance unless specifically
recommended in the manual. All other servicing should be done by a
qualified technician.
•Do not use a steam cleaner to clean your cooktop.
•Do not place or drop heavy objects on your cooktop.
•Do not stand on your cooktop.
•Do not use pans with jagged edges or drag pans across the glass surface as
this can scratch the glass.
•Do not use scourers or any other harsh abrasive cleaning agents to clean your
cooktop, as these can scratch the ceramic glass.
•If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
•This appliance is intended to be used in a domestic household environment
only! Commercial use of any kind is not covered under the manufacturer's
warranty!
•Care should be taken to avoid touching heating elements.
•Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
• WARNING: The appliance and its accessible parts become
hot during use.
• WARNING: Unattended cooking on a cooktop with fat or oil
can be dangerous and may result in fire. NEVER try to extinguish
a fire with water, but switch off the appliance and then cover
flame e.g. with a lid or a fire blanket.
• WARNING: Danger of fire: do not store items on the
cooking surfaces.
• WARNING: If the surface is cracked, switch off the appliance
to avoid the possibility of electric shock, for cooktop surfaces of
glass-ceramic or similar material which protect live parts.
5
INSTALLATION
6
•A steam cleaner is not to be used.
•The appliance is not intended to be operated by means of an external timer
or separate remote-control system.

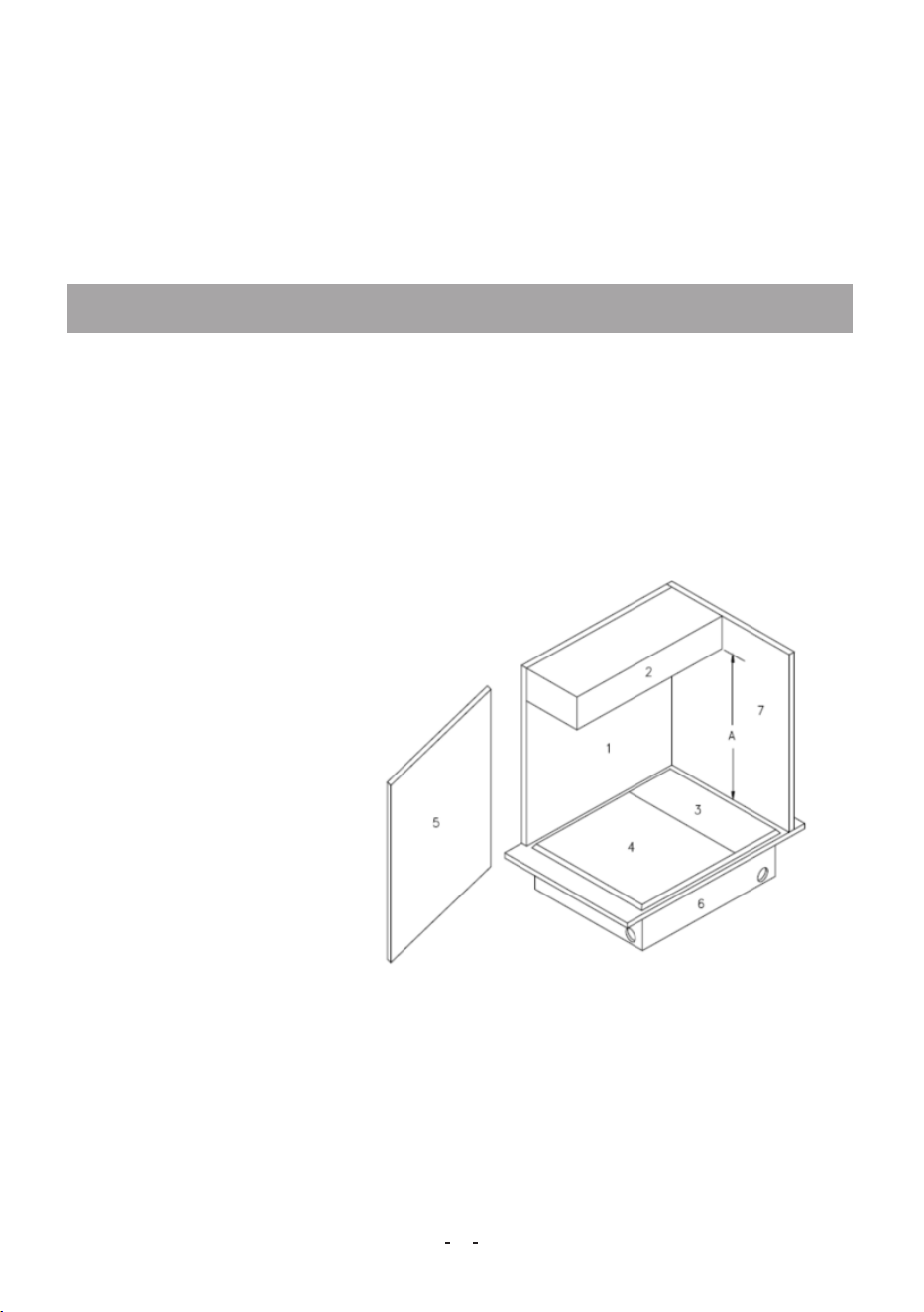

1.building back wall
2.Top building cabinet
3.Control panel
4.Cooking surface
5.Building side wall
6.Base
7.Building side wall
A = 30 inches minimum clearance between the top of the cooking surface and
the bottom of an unprotected wood or metal cabinet; or A = 24 inches minimum
when bottom of wood or metal cabinet is protected by not less than 1/4-inch-thick
flame-retardant millboard covered with not less than No. 28 MSG sheet steel,
0.015-inch-thick stainless steel, 0.024-inch-thick aluminum, or 0.020-inch-thick
copper.
31. SAVE THESE INSTRUCTIONS
Warning: To eliminate the risk of burns or fire by reaching over
heated surface units, cabinet storage space located above the
surface units should be avoided. If cabinet storage is to be provided,
the risk can be reduced by installing a range hood that projects
horizontally a minimum of 5 inches beyond the bottom of the
cabinets.

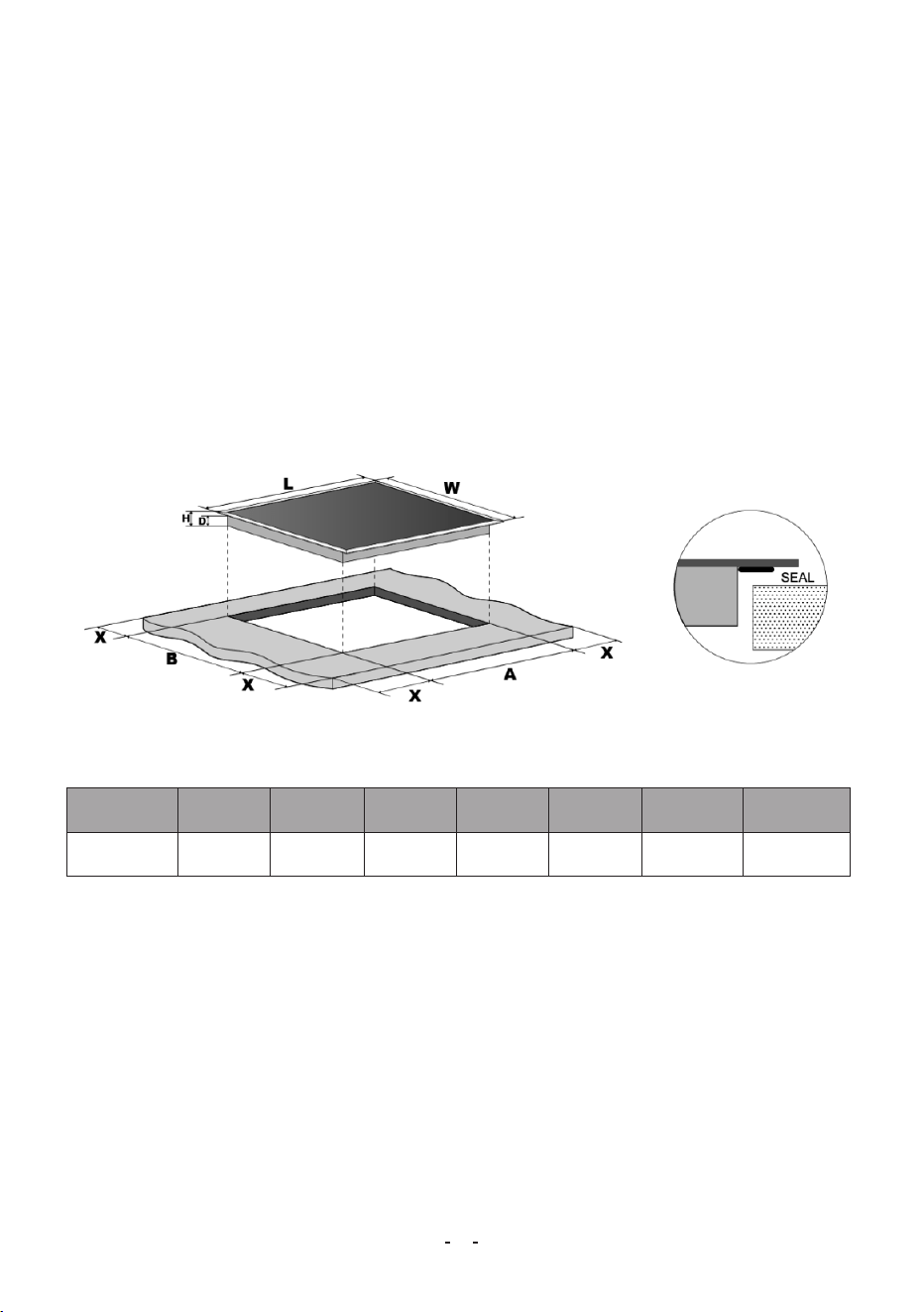

Minimum spacings drawings (Generally requirement):
•Cut out the work surface according to the sizes shown in the drawing.
•For the purpose of installation and use, a minimum of 1.97in space shall be
preserved around the hole.
•Be sure the thickness of the work surface is at least 1.18in. Please select
heat-resistant work surface material to avoid larger deformation caused by the
heat radiation from the hotplate. As shown below: The work surface material
must use the impregnated wood or other insulation material.

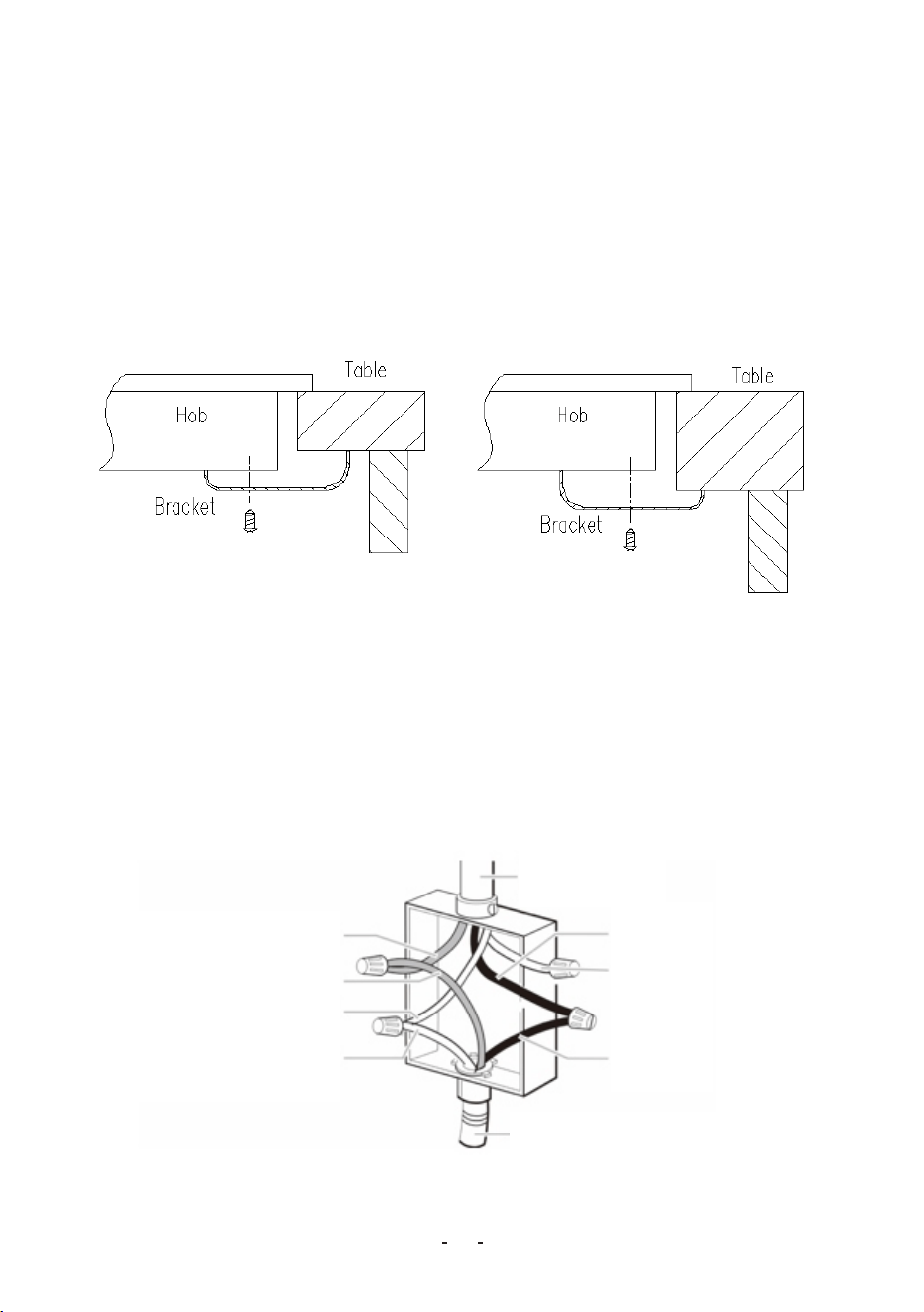

•Ensure the table supporting the surface unit on the metal frame edge, see
below right drawing.
Under any circumstances, make sure the cooktop is well ventilated and the air
inlet and outlet are not blocked. Ensure the cooktop is in good work state.
As shown below.
Note: The safety distance between the hotplate and the cupboard
above the hotplate should be at least 30 inches (760mm).
IC8901 29.92 20.47 2.28 2.13 28.74 19.29 1.97mini
L(in) W(in) H(in) D(in) A(in) B(in) X(in)
SELECTION OF INSTALLATION EQUIPMENT
7
30 1.97 mini 0.79 mini Air intake Air exit 0.20in
A(in) B(in) C(in) D E
•The work surface is square and level, and no structural members interfere with
space requirements.
•The work surface is made of a heat-resistant material.
•If the cooktop is installed above an oven, the oven has a built-in cooling fan.
•The installation will comply with all clearance requirements and applicable
standards and regulations.
•A suitable isolating switch providing full disconnection from the mains power
supply is incorporated in the permanent wiring, mounted and positioned to
comply with the local wiring rules and regulations.
•The isolating switch must be of an approved type and provide a 0.12in air gap
contact separation in all poles (or in all active [phase] conductors if the local
wiring rules allow for this variation of the requirements).
•The isolating switch will be easily accessible to the customer with the cooktop
installed.
•You consult local building authorities and by-laws if in doubt regarding installation.
•You use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the
wall surfaces surrounding the cooktop.
Before you install the cooktop, make sure that
8
•The power supply cable is not accessible through cupboard doors or drawers.
•There is adequate flow of air from outside the cabinetry to the base of the
cooktop.
•If the cooktop is installed above a drawer or cupboard space, a thermal
protection barrier is installed below the base of the cooktop.
•The isolating switch is easily accessible by the customer.
•The unit should be placed on a stable, smooth surface (use the packaging). Do
not apply force onto the controls protruding from the cooktop.

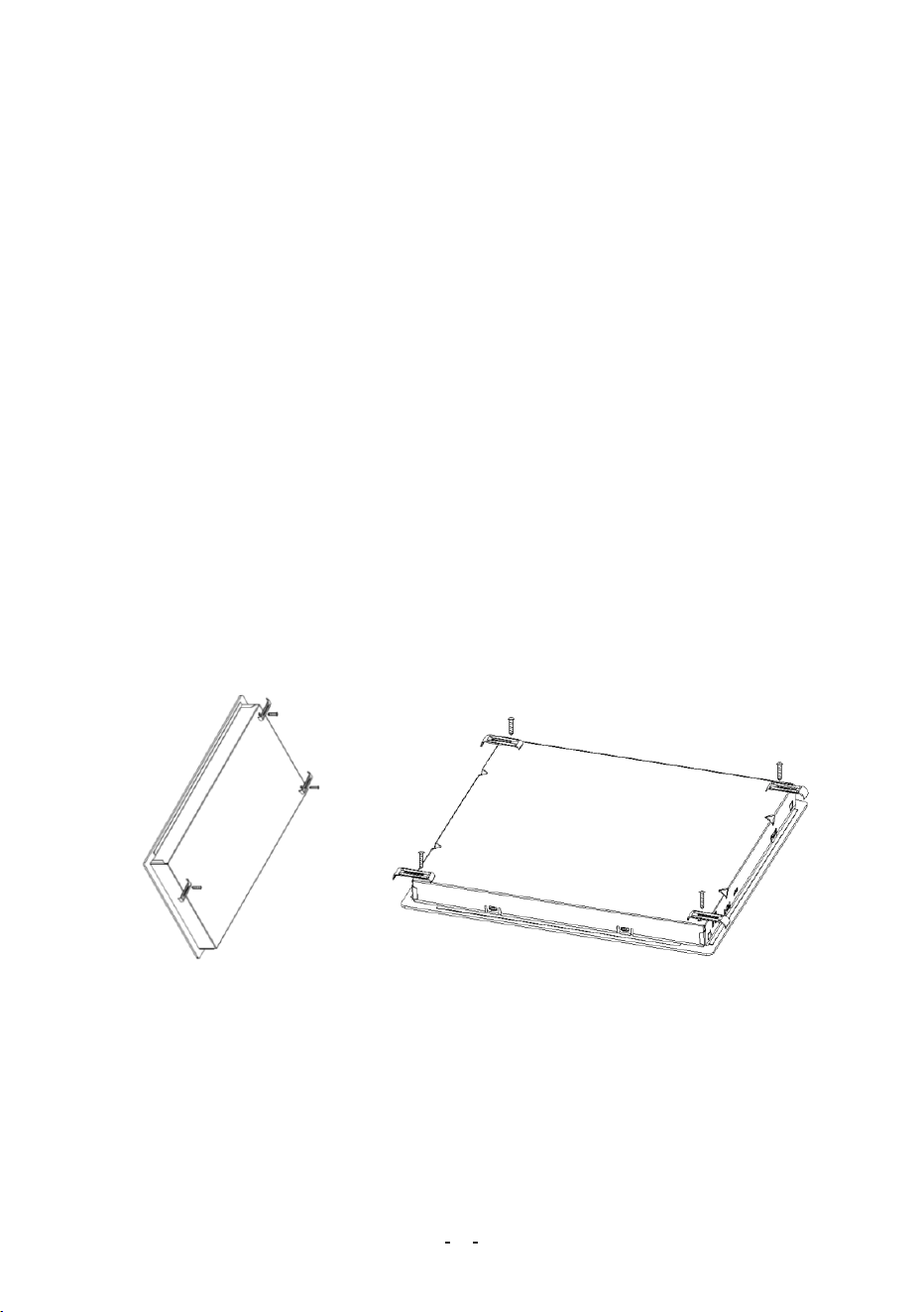

•Fix the cooktop on the work surface by screw four brackets on the bottom of
cooktop (see picture) after installation.
•Adjust the bracket position to suit for different work surface’s thickness.
•The cooktop must be installed by qualified personnel or technicians. We have
professionals at your service. Please never conduct the operation by yourself.
•The cooktop shall not be mounted to cooling equipment, dishwashers and
rotary dryers.
The unit should be placed on a stable, smooth surface (use the packaging). Do
not apply force onto the controls protruding from the cooktop.
When you have installed the cooktop, make sure that
Locating the fixing brackets
Cautions
Before locating the fixing brackets
9
10
•The cooktop shall be installed such that better heat radiation can be ensured to
enhance its reliability.
•The wall and induced heating zone above the work surface shall withstand heat.
•To avoid any damage, the sandwich layer and adhesive must be resistant to heat.
•A steam cleaner is not to be used.
•This ceramic can be connected only to a supply with system impedance no more
than 0.427 ohm. In case necessary, please consult your supply authority for
system impedance information.

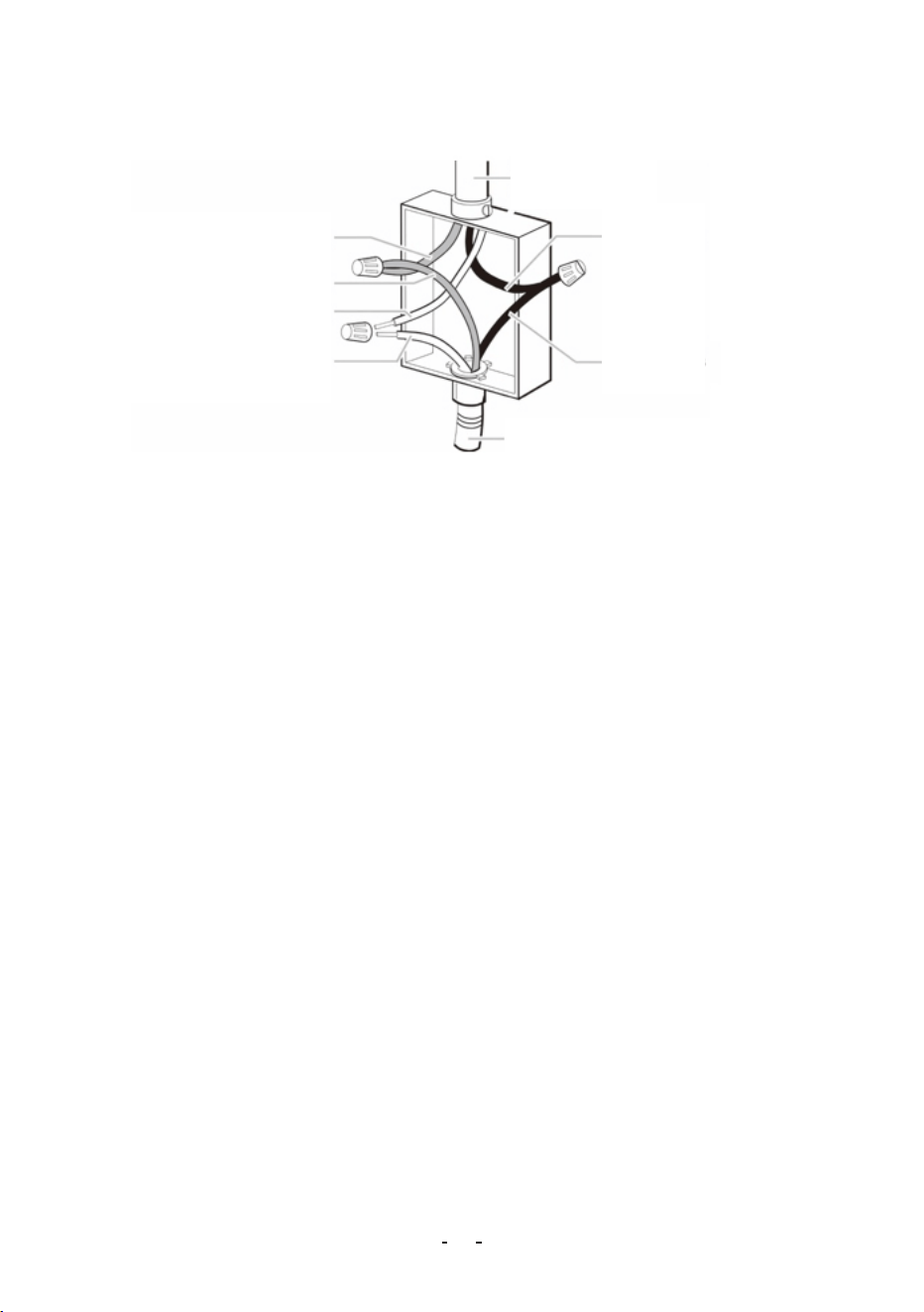

CONNECTING THE COOKTOP TO
THE MAIN POWER SUPPLY
The power supply should be connected in compliance with the relevant standard,
or a single-pole circuit breaker. The method of connection is shown as below.
For 4-wire cable from home power supply
Red wires
Red wires
Green ground wires
Yellow/Green ground wires
Cable from home
power supply
Black wires
Black wires
3-wire cable from cooktop
White wires
For 3-wire cable from home power supply
If the cable is damaged or needs replacing, this should be done by an after-sales
technician using the proper tools, so as to avoid any accidents.
•If the appliance is being connected directly to the mains supply, an omnipolar
circuit breaker must be installed with a minimum gap of 0.12in between the
contacts.
•The installer must ensure that the correct electrical connection has been made
and that it complies with safety regulations.
•The cable must not be bent or compressed.
•The cable must be checked regularly and only replaced by a proper qualified
person.
Red wires
Red wires
Green ground wires
Yellow/Green ground wires
Cable from home
power supply
Black wires
Black wires
3-wire cable from cooktop
11
IMPORTANT INSTRUCTION

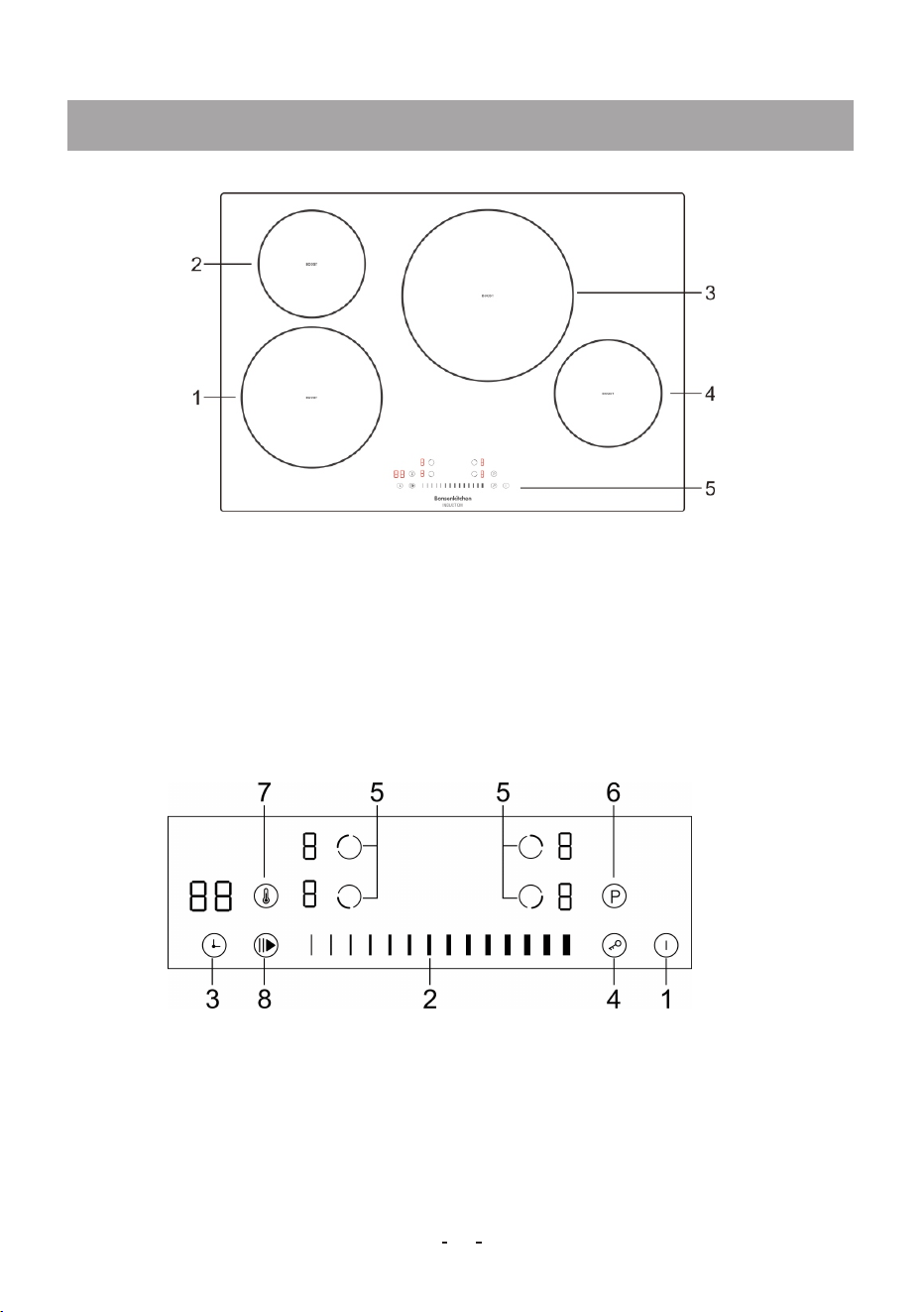

Top View
The Control Panel
1. max. 1800/2100W zone
2. max. 1200/1500W zone
3. max. 2300/3000W zone
4. max. 1200/1500W zone
5. Control panel
1. ON/OFF switch 5. Select heating zone
2. Select power level 6. Boost control
3. Setting the timer 7. Keep warm
4. Child lock 8. Pause
12
TECHNICAL DETAILS
A Word on Induction Cooking
KNOW YOUR INDUCTION COOKING
Weight and Dimensions are approximate. Because we continually strive to
improve our products. We may change specifications and designs without prior
notice.
The ceramic/induction cooktop can meet different kinds of cuisine demands
because of resistance wire heating, micro-computerized control and multi-power
selection, really the optimal choice for modern families.
The cooktop centers on customers and adopts personalized design. The cooktop
has safe and reliable performances, making your life comfortable and enabling
to fully enjoy the pleasure from life.
Induction cooking is a safe, advanced, efficient, and economical cooking
technology. It works by electromagnetic vibrations generating heat directly in the
pan, rather than indirectly through heating the glass surface. The glass becomes
hot only because the pan eventually warms it up.
Induction Cooktop
Cooking Zones
Supply Voltage
Installed Electric Power
Product SizeD×W×H(in)
Building-in DimensionsA×B (in)
IC8901
4 Zones
240V~ 60Hz
7200W
29.92 x 20.47 x 2.28
28.74 x 19.29
13

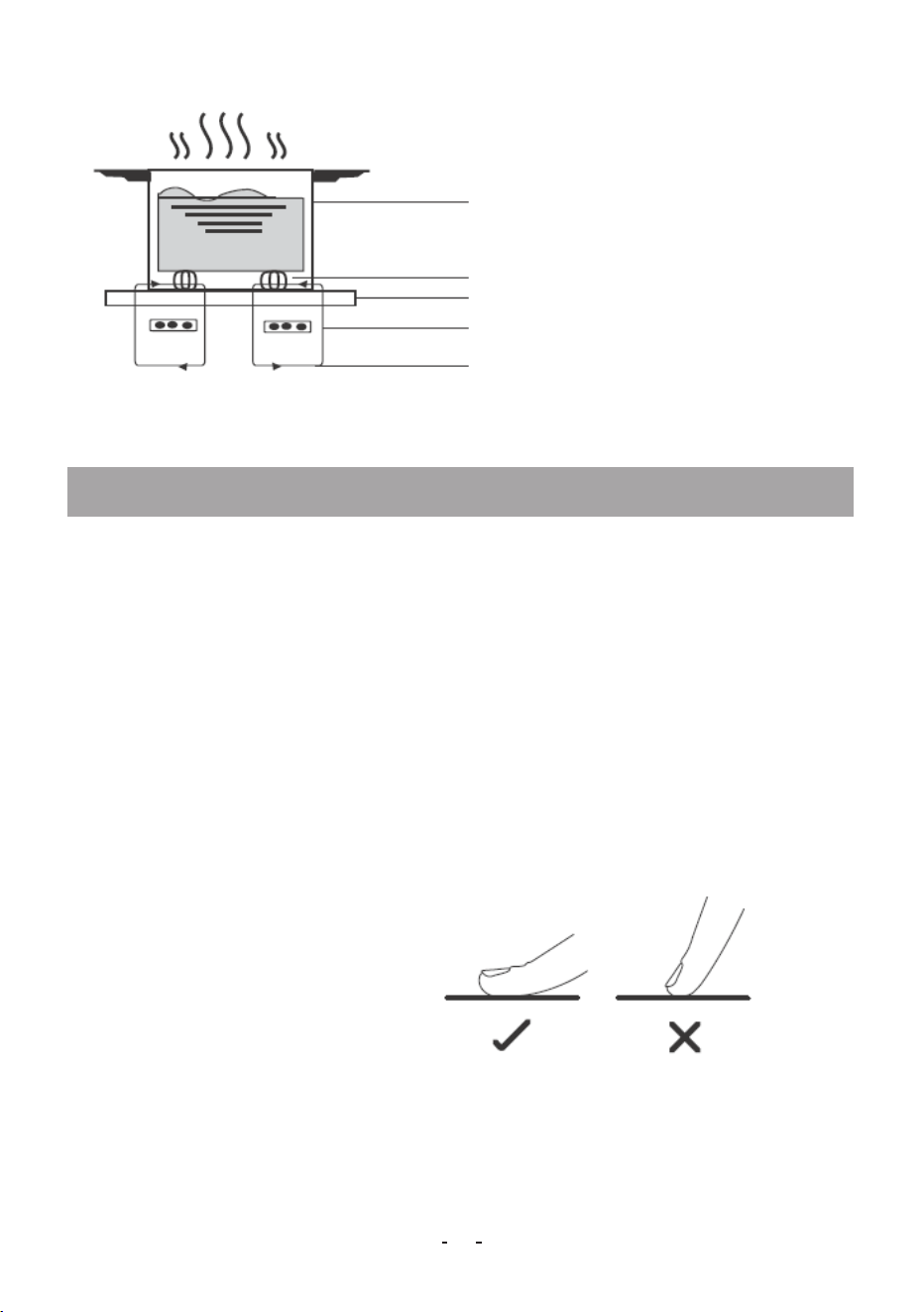

iron pot
magnetic circuit
ceramic glass plate
induction coil
induced currents
BEFORE USING YOUR NEW COOKTOP
USING THE TOUCH CONTROLS
•Read this guide, taking special note of the ‘Safety Warnings’ section.
•Remove any protective film that may still be on your ceramic cooktop.
•Remove any protective film that may still be on your Induction cooktop.
•The controls respond to touch, so you don’t need to apply any pressure.
•Use the ball of your finger, not its tip.
•You will hear a beep each time a touch is registered.
•Make sure the controls are always clean, dry, and that there is no object (e.g. a
utensil or a cloth) covering them. Even a thin film of water may make the
controls difficult to operate.
14
CHOOSING THE RIGHT COOKWARE

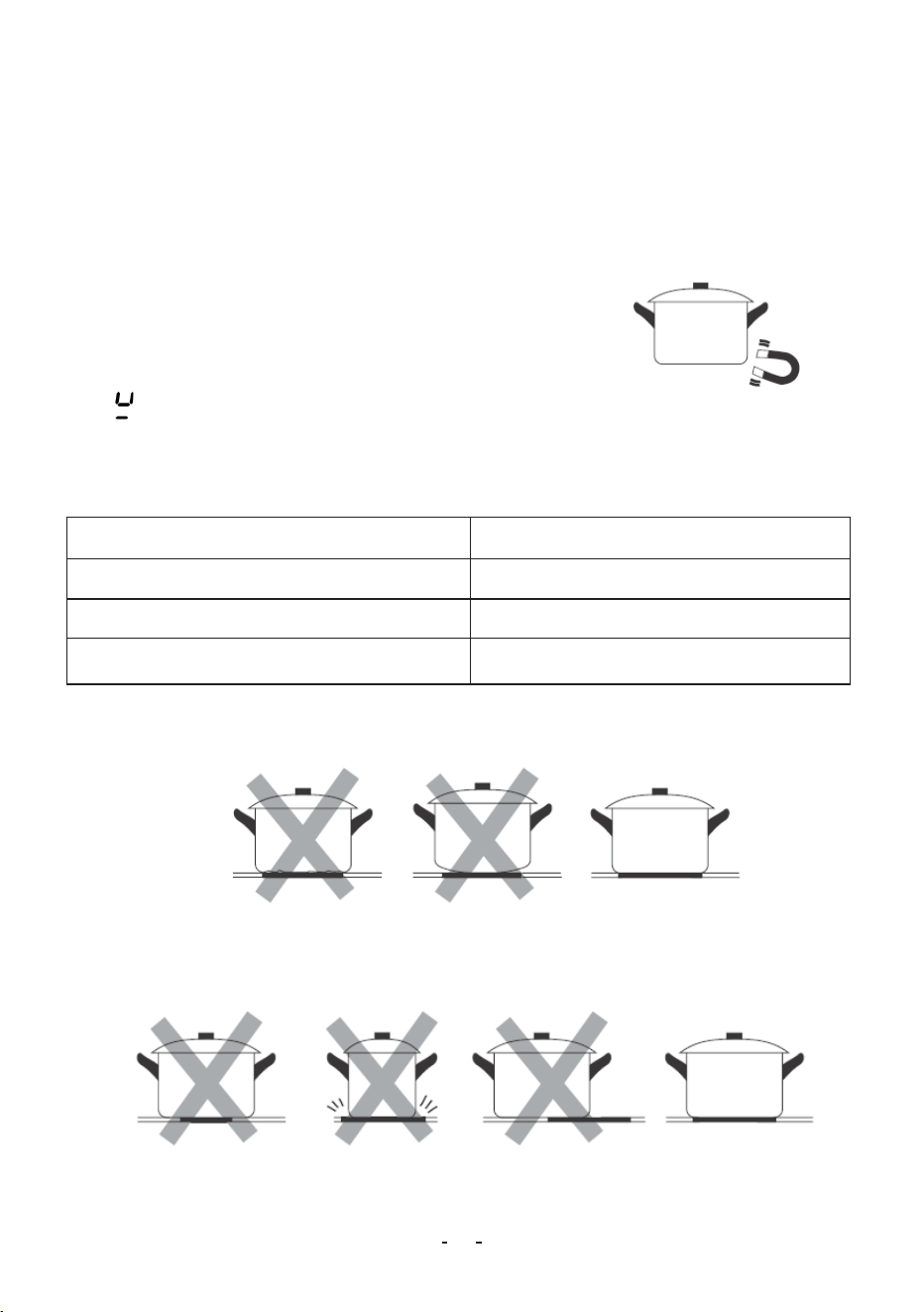

•Only use cookware with a base suitable for induction cooking. Look for the
induction symbol on the packaging or on the bottom of the pan.
•You can check whether your cookware is suitable by carrying out a magnet test.
Move a magnet towards the base of the pan. If it is attracted, the pan is suitable
for induction.
•If you do not have a magnet:
1.Put some water in the pan you want to check.
2.Follow the steps under ‘To start cooking’.
3.If does not flash in the display and the water is heating, the pan is suitable.
•Cookware made by the following materials is not suitable: pure stainless steel,
aluminum or copper without a magnetic base, glass, wood, porcelain, ceramic,
and earthenware.
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and is
the same size as the cooking zone. Always centre your pan on the cooking zone.
Size of burner (in)
6.30
7.09
8.27
The minimum cookware (diameter /in)
4.72
5.51
6.30
15

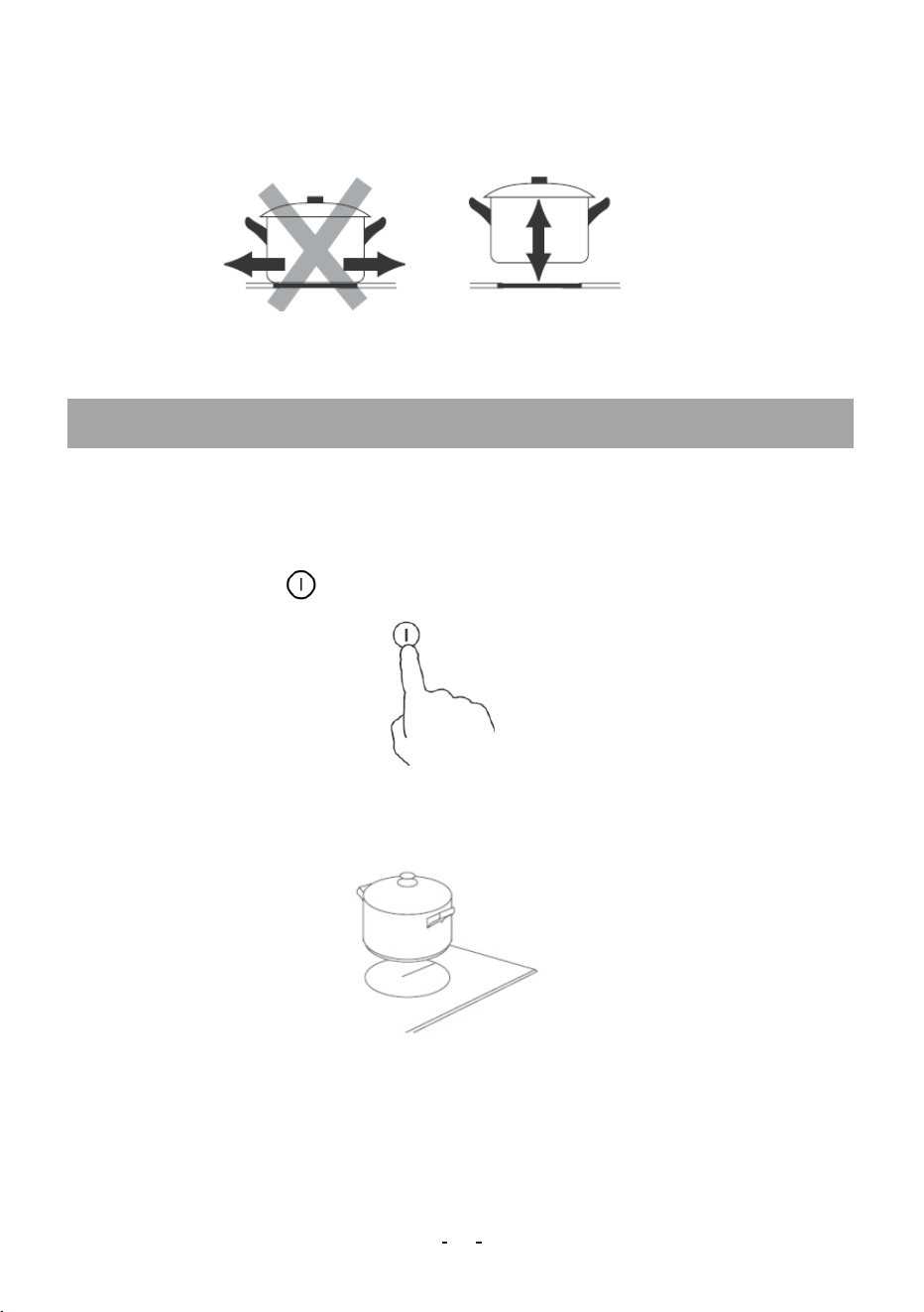

Always lift pans off the ceramic cooktop – do not slide, or they may scratch the
glass.
USING YOUR COOKTOP
•After power on, the buzzer beeps once, all the indicators light up for 1 second
then go out, indicating that the cooktop has entered the state of standby mode.
1.Touch the ON/OFF switch. all the indicators show “–”.
2.Place a suitable pan on the cooking zone that you wish to use. Make sure the
bottom of the pan and the surface of the cooking zone is clean and dry.
3.Touching the heating zone selection control, and an indicator next to the key
will flash.
To start cooking
16
1.Touching the heating zone selection that you wish to switch off.
2.Turn the cooking zone off by scrolling down to “0” or touching the “slider”.
Make sure the display shows“0”.
3.Turn the whole cooktop off by touching the ON/OFF control.
4.Beware of hot surfaces “H” will show which means cooking zone is too hot to
touch. It will disappear when the surface has cooled down to a safe
temperature. It can also be used as an energy saving function if you want to
heat further pans, use the hotplate that is still hot.
When you have finished cooking

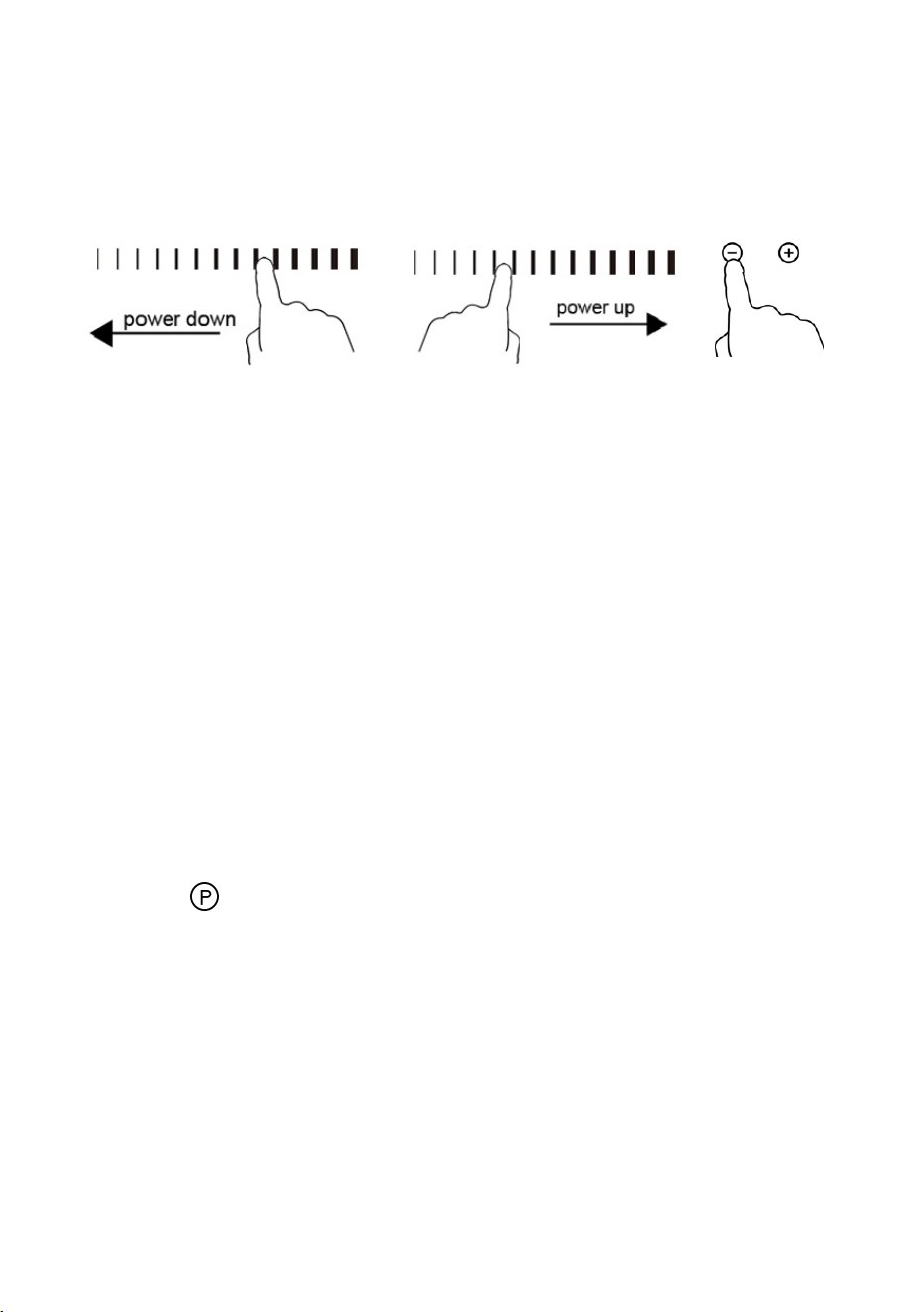

4.Select a heat setting by touching the “-” , “+” or touching the “slider” control.
•If you don’t choose a heat setting within 1 minute, the Induction cooktop will
automatically switch off. You will need to start again at step 1.
•You can modify the heat setting at any time during cooking.
USING BOOST FUNCTION
1. Select the zone with boost function (front left zone).
2. Touching until power level indication shows “P”.
Activate the boost function
1. Select the zone with boost function (front left zone).
2. Touching the "minus" key or touching the “slider” to cancel the Boost function,
and select the level you want to set.
• Boost function can only last for 5 minutes, after that the zone will go to level 9
automatically.
Cancel Boost function
USING THE KEEP WARM FUNCTION
USING THE PAUSE FUNCTION
1. Select the zone with the keep warm function.
2. Touching the keep warm control, the zone indication shows “ | ”
1. Select the pause control, the hearting zones stop working, All the zone
indication show“||”.
2. Touching the pause control one more time, all the hearting zones will
revert to its original setting.
•The function is available the one or more hearting zones is working.
•If you don’t cancel the stop working mode within 30 minutes, the induction
cooktop will automatically switch off.
1.Select the zone with the keep warm function.
2. a: Touching “slider” to cancel the keep warm function, then the cooking zone
will revert to the level you select.
b: Touching the function control such as boost, then the cooking zone will
revert to you select.
Activate the Keep Warm function
Cancel Keep Warm function
17
LOCKING THE CONTROLS
•You can lock the controls to prevent unintended use (for example children
accidentally turning the cooking zones on).
•When the controls are locked, all the controls except the ON/OFF control are
disabled.
RESIDUAL HEAT WARNING
AUTO SHUTDOWN
1. Touch the keylock control . The timer indicator will show “Lo”.
1.Make sure the cooktop is turned on.
2.Touch and hold the keylock control for 3 seconds.
3.You can now start using your cooktop.
When the cooktop has been operating for some time, there will be some residual
heat. The letter “H” appears to warn you to keep away from it.
Safety feature of the cooktop is auto shut down. This occurs whenever you forget
to switch off a cooking zone. The default shutdown times are shown in the table
below:
To lock the controls
To unlock the controls
NOTE: When the cooktop is in lock mode, all the controls are
disabling except the ON/OFF, you can always turn the cooktop off
with the ON/OFF control in an emergency, but you shall unlock the
cooktop first in the next operation.
Power level 1 2 3 4 5 6 7 8 9
Default working timer (hour) 8 8 8 4 4 4 2 2 2
18
USING THE TIMER
You can use the timer in two different ways:
•You can use it as a minute minder. In this case, the timer will not turn any
cooking zone off when the set time is up.
•You can use it as cut-off timer to turn one or more cooking zones off after time
is up.
- You can set the timer up to 99 minutes.
1.Make sure the cooktop is turned on. And zone slection key is not activated
(zone indication ‘-‘is not blinking).
Note: You can set minute minder before or after cooking zone
power setting finished.
1.Touching the heating zone selection control that you want to set the timer for.
2.Touch timer control, the “00” will show in the timer display. and the “0” fiashes.
3.Set the time by touching the”-“”+” or “slider” control
4.Touch timer control again, the “0” will flash.
5.Set the time by touching the “-” “ +” or “slider” control (e.g.9), now the timer
you set is 95 minutes.
2. Touch timer key, “00” will show in the timer display and “0” will blink.
3. Set the time by touching the “-” “ +”or touching the “slider” control of the timer
(e.g. 5)
4. Touch timer control again, then “0” will flash.
5. Set the time by touching the “-” “+” or touching the “slider”, now the timer you
set is 95 minutes.
6. When the time is set, it will begin to count down immediately. The display will
show the remaining time.
7. Buzzer will bips for 30 seconds and the timer indicator shows “- - ” when the
setting time finished.
Using the Timer as a Minute Minder
Using the timer to switch off one or more cooking zones
19
6.When the time is set, it will begin to count down immediately. The display will
show the remaining time.
Note: There will be a red dot in the right bottom corner of power
level indication which indicating that zone is selected.
7.When cooking timer expires, the corresponding cooking zone will be switched
off automatically.
Note: Other cooking zones will keep operating if they are turned
on previously.
Note: Touch the heating zone selection control, the corresponding
timer will be shown in the timer indicator.
1. When you set timer for several cooking zones, red dots of the relevant cooking
zones are indicated. The timer display shows the min. timer. The dot of the
corresponding zone blinks.
2.Once the countdown timer expires, the corresponding zone will switch off. Then
it will show the new min. timer and the dot of corresponding zone will flash.
(set to 15 minutes)
(set to 45 minutes)
If the timer is set on more than one zone:
20
1. Touching the heating zone selection control that you want to cancel the timer.
2. Touching the timer control, the indicator will flash.
3. Touch the “-” control or slider control to set the timer to “00”, the timer is
cancelled.
•When food comes to the boil, reduce the power setting.
•Using a lid will reduce cooking times and save energy by retaining the heat.
•Minimise the amount of liquid or fat to reduce cooking times.
•Start cooking on a high setting and reduce the setting when the food has
heated through.
•Simmering occurs below boiling point, at around 85˚C, when bubbles are just
rising occasionally to the surface of the cooking liquid. It is the key to delicious
soups and tender stews because the flavours develop without overcooking the
food. You should also cook egg-based and flourthickened sauces below boiling
point.
•Some tasks, including cooking rice by the absorption method, may require a
setting higher than the lowest setting to ensure the food is cooked properly in
the time recommended.
To cook juicy flavoursome steaks:
1.Stand the meat at room temperature for about 20 minutes before cooking.
2.Heat up a heavy-based frying pan.
3.Brush both sides of the steak with oil. Drizzle a small amount of oil into the
hot pan and then lower the meat onto the hot pan.
Cancelled the timer
Cooking Tips
Simmering, cooking rice
Searing steak
COOKING GUIDELINES
Take care when frying as the oil and fat heat up very quickly, particularly if you’re
using Boost. At extremely high temperatures oil and fat will ignite spontaneously
and this presents a serious fire risk.
21
4. Turn the steak only once during cooking. The exact cooking time will depend
on the thickness of the steak and how cooked you want it. Times may vary
from about 2 – 8 minutes per side. Press the steak to gauge how cooked it
is – the firmer it feels the more ‘well done’ it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax
and become tender before serving.
1. Choose a ceramic compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If
cooking large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meats first, put it inside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone
to a lower setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.
For stir-frying
HEAT SETTINGS
• delicate warming for small amounts of food
• melting chocolate, butter, and foods that burn quickly
• gentle simmering
• slow warming
• reheating
• rapid simmering
• cooking rice
• pancakes
1 - 2
3 - 4
5 - 6
6 - 8
9
Suitability
Heat setting
• sauting
• cooking pasta
• stir-frying
• searing
• bringing soup to the boil
• boiling water
22
CLEANING AND MAINTENANCE
Everyday soiling on
glass (fingerprints,
marks, stains left by
food or non-sugary
spillovers on the
glass)
Spillovers on the
touch controls
Boilovers, melts,
andhot sugary
spills onthe glass
1. Switch the power to the cooktop off.
2. Apply a cooktop cleaner while the
glass is still warm (but not hot!)
3. Rinse and wipe dry with a clean
cloth or paper towel.
4. Switch the power to the cooktop
back on.
1. Switch the power to the cooktop off.
2. Soak up the spill
3. Wipe the touch control area with a
clean damp sponge or cloth.
4. Wipe the area completely drywith
a paper towel.
5. Switch the power to the cooktop
back on.
Remove these immediately with a fish
slice, palette knife or razor blade
scraper suitable for ceramic glass
cooktops, but beware of hot cooking
zone surfaces:
1. Switch the power to the cooktop off
at the wall.
2. Hold the blade or utensil at a 30°
angle and scrape the soiling or spill
to a cool area of the cooktop.
3. Clean the soiling or spill up with a
dish cloth or paper towel.
4. Follow steps 2 to 4 for ‘Everyday
soiling on glass’ above.
• When the power to the cooktop is
switched off, there will be no ‘hot
surface’ indication but the cooking
zone may still be hot! Take extreme
care.
• Heavy-duty scourers, some nylon
scourers and harsh/abrasive
cleaning agents may scratch the
glass. Always read the label to check
if your cleaner or scourer is suitable.
• Never leave cleaning residue on the
cooktop: the glass may become
stained.
• The cooktop may beep and turn
itself off, and the touch controls
may not function while there is
liquid on them. Make sure you wipe
the touch control area dry before
turning the cooktop back on.
• Remove stains left by melts and
sugary food or spillovers as soon
as possible. If left to cool on the
glass, they may be difficult to
remove or even permanently
damage the glass surface.
• Cut hazard: when the safety cover
is retracted, the blade in a scraper
is razor-sharp. Use with extreme
care and always store safely and
out of reach of children.
Important!
How?
What?
23
HINTS AND TIPS
The cooktop cannot
Be turned on.
The touch controls are
difficult to operate.
Some pans make
crackling or clicking
noises.
The touch controls are
unresponsive.
The glass is being
scratched.
The induction cooktop
makes a low humming
noise when used on a
high heat setting.
Fan noise coming from
the induction cooktop.
No power.
There may be a slight film of
water over the controls or you
may be using the tip of your
finger when touching the
controls.
This may be caused by the
construction of your cookware
(layers of different metals
vibrating differently).
The controls are locked.
Rough-edged cookware.
Unsuitable, abrasive scourer or
cleaning products being used.
This is caused by the technology
of induction cooking.
A cooling fan built into your
induction cooktop has come on
toprevent the electronics from
overheating. It may continue to
run even after you’ve turned the
induction cooktop off.
Make sure the cooktop is connected
to the power supply and that it is
switched on.
Check whether there is a power
outage in your home or area. If you’ve
checked everything and the problem
persists, call a qualified technician.
Make sure the touch control area is
dry and use the ball of your finger
when touching the controls.
This is normal for cookware and
does not indicate a fault.
Unlock the controls. See section
‘Using your ceramic cooktop’ for
instructions.
Use cookware with flat and smooth
bases. See ‘Choosing the right
cookware’.See ‘Care and cleaning’.
This is normal, but the noise should
quieten down or disappear completely
when you decrease the heat setting.
This is normal and needs no action.
Do not switch the power to the
induction cooktop off at the wall
while the fan is running.
What to do
Possible causes
Problem
24
Pans do not become
hot and appears in
the display.
The induction cooktop
or a cooking zone has
turned itself off
unexpectedly, a tone
sounds and an error
code is displayed
(typically alternating
with one or two digits
in the cooking timer
display).
The induction cooktop cannot
detect the pan because it is not
suitable for induction cooking.
The induction cooktop cannot
detect the pan because it is too
small for the cooking zone or
not properly centered on it.
Technical fault.
Use cookware suitable for induction
cooking. See section ‘Choosing the
right cookware’.
Centre the pan and make sure that
its base matches the size of the
cooking zone.
Please note down the error letters
and numbers, switchthe power to the
induction cooktop off at the wall, and
contact a qualified technician.
TROUBLESHOOTING
If an abnormality comes up, the induction cooktop will enter the protective state
automatically and display corresponding protective codes:
The above are the judgment and inspection of common failures.
Please do not disassemble the unit by yourself to avoid any dangers and
damages to the induction cooktop.
Temperature sensor failure. Please contact the supplier.
E4/E5
E7/E8
E2/E3
E6/E9
Temperature sensor of the
IGBT failure.
Abnormal supply voltage.
Bad induction cooktop heat
radiation.
Please contact the supplier.
Please inspect whether power supply
is normal. Power on after the power
supply is normal.
Please restart after the induction
cooktop cools down.
What to do
Possible causes
Problem
25
WARRANTY CLAIM PROCEDURE
This product must not be disposed together with the domestic waste. This product
has to be disposed at an authorized place for recycling of electrical and electronic
appliances. By collecting and recycling waste, you help save natural resources, and
make sure the product is disposed in an environmental friendly and health way.
ENVIRONMENT FRIENDLY DISPOL
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (S/N: 12345) available as proof
of purchase.
You will find the item number as a sticker on the rear or bottom of the appliance.
If malfunctions or other defects occur, please contact our customer service listed
either by telephone or by email.
If you request any further assistance, please contact us:
Customer service: 1-888-965-8032
support@bonsenkitchen.com
26
FCCSTATEMENT
Thisdevicecomplieswithpar
t1 oftheFCCR
ules.Operationissubjecttothe
followingtwoconditions:
(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemust
acceptanyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.Changesormodifificationsnotexpresslyapprovedbythe
partyresponsibleforcompliancecouldvoidtheuser'sauthoritytooperatethe
equipment.
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsNOTE:
foraClassBdigitaldevice,pursuanttopar
t1 oftheFCCR
ules.Theselimitsare
designedtoprovidereasonableprotectionagainstharmfulinterferenceina
residentialinstallation.Thisequipmentgenerates,usesandcanradiateradio
frequencyenergyand,ifnotinstalledandusedinaccordancewiththe
instructions,maycauseharmfulinterferencetoradiocommunications.
However,thereisnoguaranteethatinterferencewillnotoccurinaparticular
installation.Ifthisequipmentdoescauseharmfulinterferencetoradioor
televisionreception,whichcanbedeterminedbyturningtheequipmentoffand
on,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreof
thefollowingmeasures:
— Reorientorrelocatethereceivingantenna.
— Increasetheseparationbetweentheequipmentandreceiver.
— Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhich
thereceiverisconnected.
— Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
27
8
8
Register your product at www.bonsenkitchen.com
to get more perks!
: 5805C Peachtree Corners East
Norcross, GA, 30092
: 1-888-965-8032
Follow us @bonsenkitchen
Bonsen Electronics Inc.
